Kinetochore-independent chromosome segregation driven by lateral microtubule bundles

  1. Christina C Muscat
  2. Keila M Torre-Santiago
  3. Michael V Tran
  4. James A Powers
  5. Sarah M Wignall Is a corresponding author
  1. Northwestern University, United States
  2. Indiana University, United States
Research Article
Cited
15
Views
3,098
Comments
0
Cite as: eLife 2015;4:e06462 doi: 10.7554/eLife.06462

Abstract

During cell division, chromosomes attach to spindle microtubules at sites called kinetochores, and force generated at the kinetochore-microtubule interface is the main driver of chromosome movement. Surprisingly, kinetochores are not required for chromosome segregation on acentrosomal spindles in Caenorhabditis elegans oocytes, but the mechanism driving chromosomes apart in their absence is not understood. In this study, we show that lateral microtubule–chromosome associations established during prometaphase remain intact during anaphase to facilitate separation, defining a novel form of kinetochore-independent segregation. Chromosome dynamics during congression and segregation are controlled by opposing forces; plus-end directed forces are mediated by a protein complex that forms a ring around the chromosome center and dynein on chromosome arms provides a minus-end force. At anaphase onset, ring removal shifts the balance between these forces, triggering poleward movement along lateral microtubule bundles. This represents an elegant strategy for controlling chromosomal movements during cell division distinct from the canonical kinetochore-driven mechanism.

https://doi.org/10.7554/eLife.06462.001

eLife digest

An animal's genetic material is packaged into structures called chromosomes. Most animals have two sets of chromosomes: one from each parent. Sperm and egg cells must contain half the number of chromosomes compared to other cells in the body, so that when they fuse, the resulting embryo receives a full complement of chromosomes.

Egg and sperm cells are made via a type of cell division called meiosis. In meiosis, the genetic material of a cell is copied once but then the cell divides twice. Therefore, at the end of the two divisions, the resulting sperm or egg cells contain half the number of chromosomes as the original cell. During cell division, the genetic material is separated by a structure called the spindle apparatus.

The spindle is made of protein filaments called microtubules. At each end of the spindle, there is a cluster of microtubule ends, known as a ‘pole’. The other ends of the microtubules extend out towards the center of the spindle, where they overlap with the microtubules from the opposite pole. The chromosomes line up in the center of the spindle and then the chromosomes are separated, with half moving to one spindle pole, and half to the other. In most forms of cell division, the microtubules attach to the chromosomes via sites called kinetochores. However, it was recently discovered that kinetochores are not required to separate chromosomes to make egg cells in the worm C. elegans, suggesting that these chromosomes associate with the spindle in a different way.

Muscat, Torre-Santiago et al. have now used high-resolution imaging to look at this chromosome separation process in more detail and to figure out how the chromosomes separate when C. elegans forms egg cells. The experiments revealed that the chromosomes move within the spindle along parallel microtubule bundles, much like trains moving along a track. The chromosomes are moved into position at the center of the spindle by a ring-shaped group (or ‘complex’) of proteins that forms around the center of each chromosome. The protein complex comes off the chromosomes as they separate, and a motor protein called dynein walks along the microtubules to pull the separated chromosomes to the poles.

Muscat, Torre-Santiago et al.'s findings thus show that meiosis in C. elegans during the production of egg cells works in a very different way to other types of cell division. In the future, it will be important to understand how dynein and the ring-shaped complex are regulated, as this may shed light on what causes mistakes in the separation of genetic material during meiosis, which can lead to infertility, miscarriages, and birth defects in humans and other animals.

https://doi.org/10.7554/eLife.06462.002

Introduction

To facilitate partitioning of the genome during cell division, dynamic spindle microtubules capture chromosomes at sites called kinetochores, forming end-on attachments. These attachments are extremely important, as they allow chromosomes to harness the forces generated by microtubule dynamics to drive movements crucial for proper segregation (Rago and Cheeseman, 2013; Cheerambathur and Desai, 2014; Cheeseman, 2014). During prometaphase, chromosomes use these forces to align at the center of the spindle in a process called congression and subsequently in anaphase, kinetochores couple separating chromosomes to depolymerizing microtubules, powering segregation (Walczak and Heald, 2008; Kops et al., 2010). Despite this fundamental role for the kinetochore in modulating chromosome dynamics, a recent study reported the surprising discovery that kinetochores are not required for chromosome segregation in Caenorhabditis elegans female reproductive cells (oocytes); the authors found that kinetochore components are removed from chromosomes during anaphase, and when they perturbed kinetochore assembly, chromosomes still segregated relatively normally (Dumont et al., 2010). The mechanisms driving chromosomes apart in C. elegans oocytes are not understood but are important to uncover, as they are a departure from the canonical kinetochore-driven mode of segregation and therefore represent a new strategy for controlling chromosome dynamics during cell division.

The divisions of oocytes differ from other cell types in two major respects. First, reproductive cells undergo a single round of DNA replication followed by two meiotic divisions where homologous chromosomes (in Meiosis I) and then sister chromatids (in Meiosis II) segregate away from one another, generating haploid gametes. Second, oocytes of most species lack centrosomes, which in other cells duplicate and then nucleate and organize microtubules, forming the two spindle poles (Manandhar et al., 2005). Therefore, microtubules are not nucleated from pre-defined poles in oocytes and instead are sorted and organized into a bipolar structure around the chromosomes (Dumont and Desai, 2012). This difference influences the way chromosomes initially associate with spindle microtubules and the mechanism by which they achieve metaphase alignment. Work in mouse oocytes has demonstrated that homologous chromosome pairs (bivalents) lack end-on kinetochore-microtubule interactions during prometaphase (Brunet et al., 1999), and stable attachments are not achieved until they have already congressed to the metaphase plate (Kitajima et al., 2011). Similarly, we previously found that C. elegans oocytes utilize a unique congression mechanism. C. elegans chromosomes are holocentric, so kinetochore proteins form cup-like structures around the ends of bivalents (in Meiosis I) and sister chromatid pairs (in Meiosis II) (Monen et al., 2005) (Figure 1A, orange). However, we found that microtubule density is low at chromosome ends in prometaphase and instead lateral microtubule bundles run along the sides of chromosomes (Figure 1A, green). We also found that the microtubule motor KLP-19 forms a ring around the center of each bivalent (in Meiosis I) and at the sister chromatid interface (in Meiosis II) (Figure 1A, red) and provides a plus-end directed force on the chromosomes. Therefore, chromosome movement on the C. elegans acentrosomal spindle during congression is mediated by movement of chromosomes along laterally associated microtubule bundles, facilitated by plus-end directed forces operating on the chromosomes (Wignall and Villeneuve, 2009). The discovery that chromosome segregation in these cells does not require kinetochores (Dumont et al., 2010) raised the possibility that lateral microtubule associations might also drive chromosome separation, which would represent a new strategy for segregation.

Poles broaden but remain intact during anaphase, creating open channels.

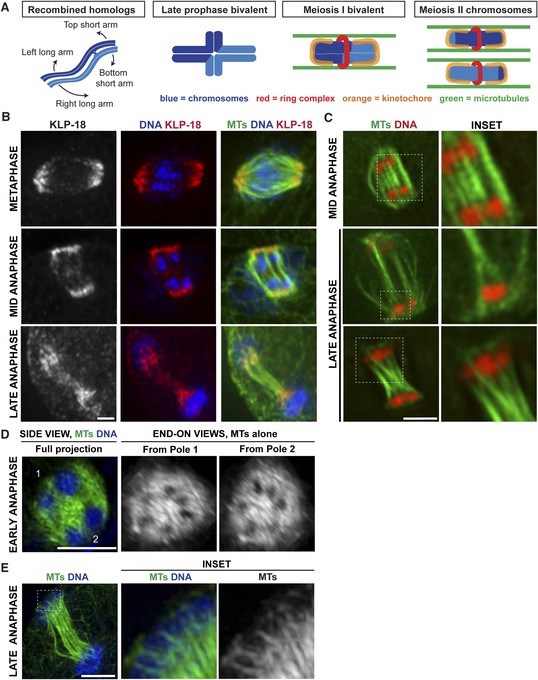

(A) Chromosome organization during C. elegans meiosis. Homologous chromosomes (blue) undergo recombination to link them together and then reorganize to form a cruciform bivalent with long and short arms. This structure condenses further and a holocentric cup-like kinetochore (orange) forms around the bivalent ends and a complex of proteins (red) forms a ring around the center. Following homolog separation, the two resulting chromosomes each form a similar structure, with kinetochores cupping the chromosome ends and a ring around the sister chromatid interface. Bundles of microtubules (green) associate laterally with chromosomes during both meiotic divisions. (B) Oocyte spindles stained for tubulin (green), DNA (blue), and spindle pole marker KLP-18 (red). KLP-18 is at focused poles in metaphase (top) and remains as poles broaden in mid-anaphase (middle). Chromosomes move past the poles in late anaphase (bottom). (C) Live imaging of worms expressing mCherry-histone (red) and GFP-tubulin (green). Full projections of entire spindles are shown on the left and partial projections of insets chosen to highlight particular features of spindle organization are on the right. Lateral bundles associate with and extend beyond segregating chromosomes in mid-anaphase (top row) and maintain association with chromosomes as they move past the poles (bottom). (D) Super-resolution image of an early anaphase oocyte spindle stained for DNA (blue) and tubulin (green). End-on views show a rotated 3D rendering and highlight the six open channels between segregating chromosomes. (E) Super-resolution image of a late anaphase oocyte spindle stained for DNA (blue) and tubulin (green) showing microtubule bundles splitting around the chromosomes as they reach microtubule ends. Bars = 2.5 μm.

https://doi.org/10.7554/eLife.06462.003

Here, we use super-resolution microscopy to reveal that chromosomes remain associated with lateral microtubule bundles during anaphase on C. elegans acentrosomal spindles, and we define a mechanism that facilitates segregation in the context of this organization. We find that a balance of forces mediates chromosome dynamics during congression and segregation, where plus-end directed forces originating in the rings are countered by progressive accumulation of minus-end directed forces on the chromosomes. Removal of the ring at the metaphase to anaphase transition then shifts this balance, triggering poleward movement. Therefore, we have defined a novel mode of chromosome segregation in oocyte meiosis, facilitated by opposing chromosomal forces driving movement along lateral microtubule bundles.

Results

Microtubules in the oocyte spindle reorganize in anaphase to create channels that are open from pole to pole

When chromosome separation in C. elegans oocytes was demonstrated to be kinetochore-independent, a model was proposed that spindle poles disassemble at anaphase onset and a new microtubule array polymerizes between segregating chromosomes to push them apart; an outward-pushing force generated by these microtubules on the inside surfaces of chromosomes was suggested to be the primary candidate for driving separation (Dumont et al., 2010). To test this model, we used high-resolution imaging to visualize a component of acentrosomal spindle poles as the spindle reorganized during anaphase (Figure 1B). Consistent with previous studies, we found that a number of events occur concomitantly at the metaphase to anaphase transition: (1) the spindle rotates until it is perpendicular to the cortex, (2) the spindle shrinks dramatically, and (3) the poles broaden. Then, as anaphase progresses, the spindle elongates again (Albertson and Thomson, 1993; Yang et al., 2003; McNally and McNally, 2005; McNally et al., 2006). However, the spindle pole marker KLP-18 remained associated with microtubules throughout anaphase progression despite these morphological changes; the chromosomes moved towards the KLP-18-marked poles and then moved past them in late anaphase (Figure 1B). This finding is consistent with earlier work showing that another pole marker, ASPM-1, also remains at poles during anaphase (van der Voet et al., 2009; McNally and McNally, 2011) and with previous lower resolution imaging of KLP-18 localization (Segbert et al., 2003). Therefore, spindle poles broaden but remain intact during anaphase, suggesting that the metaphase microtubule array is reorganized but does not disassemble.

Since we previously showed that lateral microtubule bundles run alongside chromosomes during congression (Wignall and Villeneuve, 2009) (Figure 1A), we wanted to determine whether these lateral contacts were present during anaphase, potentially to facilitate segregation. High-resolution live imaging of oocytes expressing GFP-tubulin and mCherry-histone (to mark microtubules and chromosomes, respectively) revealed parallel bundles of microtubules running alongside and extending beyond pairs of separating chromosomes during early- and mid-anaphase (Figure 1C). In partial projections (focused on particular sets of separating chromosomes), bundles of microtubules could be observed on both sides of the chromosomes, with a lower density of microtubules in between the separating pair (Figure 1C, top inset), suggesting that chromosomes may move through ‘channels’ as they segregate. To better visualize this organization, we used super-resolution imaging to obtain a stack of images through the entire spindle, then made a 3D rendering and rotated the image to achieve end-on views from each pole. This imaging revealed six regions of low-microtubule density in the anaphase spindle, representing the six sets of separating homologous chromosomes in C. elegans; this organization was clear in both early- (Figure 1D, Video 1) and mid-anaphase (Figure 2A, Videos 2–5). Therefore, each separating chromosome pair sits within its own channel in the microtubule array, and each of these channels is open from pole to pole. In late anaphase, chromosomes are found at the extreme ends of the microtubules at the spindle poles and the microtubule bundles in the center of the spindle converge, closing the channels (Figure 1C,E). However, even at this stage, lateral microtubule bundles maintain contact with the chromosomes, splitting around them at the poles (Figure 1C,E, insets). Taken together, these results reveal that chromosomes associate with lateral bundles of microtubules during anaphase and are inconsistent with a model in which a new array of microtubules polymerized between separating chromosomes provides a pushing force on their inside surfaces to drive separation.

Video 1
Super-resolution imaging revealing six open channels in the early anaphase spindle.

Super-resolution image of a fixed oocyte spindle stained for tubulin. Video is a rotation of a 3D volume rendering generated using Softworx software (Applied Precision).

https://doi.org/10.7554/eLife.06462.004
Figure 2 with 1 supplement see all

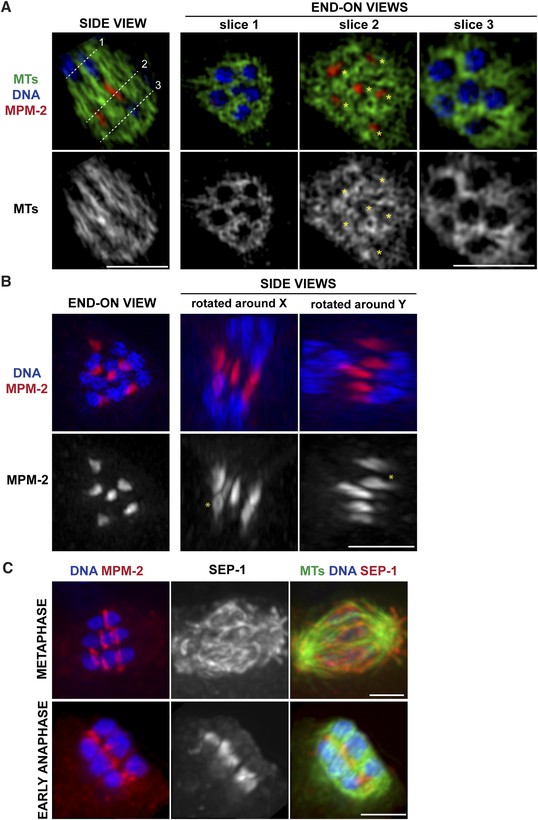

Ring structures are located within the microtubule channels during anaphase.

(A, B) Super-resolution imaging of an anaphase oocyte spindle stained for DNA (blue), tubulin (green), and ring marker MPM-2 (red). (A) The first column shows a single z-slice highlighting an open channel containing a separating chromosome pair with a flattened ring in between. Columns 2, 3, and 4 are end-on views (each a single z-slice, depicting the region denoted by the corresponding dotted line on the first image), showing the chromosomes and disassembling rings within microtubule channels. (B) Rings dissociate from the chromosomes; although most of the structures appear flattened, partial rings can still be observed (‘asterisks’). (C) Oocyte spindles stained for DNA (blue), ring marker MPM-2 (red in left column), SEP-1/separase (middle column, red in right column), and tubulin (green). SEP-1 localizes to cup-like structures and filaments within the spindle during metaphase, consistent with kinetochore localization (top row). In anaphase (bottom row), SEP-1 localizes to the rings. Bars = 2.5 μm.

https://doi.org/10.7554/eLife.06462.005
Video 2
Super-resolution view of spindle organization in mid-anaphase.

Super-resolution image of a fixed oocyte spindle stained for DNA (blue), tubulin (green), and ring marker MPM-2 (red). Video shows a 3D volume rendering, generated using Imaris software (Bitplane) and the Orthogonal Slice View function is used to show individual slice views within the spindle. Individual components blink in and out to highlight particular features of spindle organization; specifically that each pair of separating chromosomes is located within an open microtubule channel, with a disassembling ring structure in between.

https://doi.org/10.7554/eLife.06462.007
Video 3
Super-resolution view of spindle organization in mid-anaphase.

Super-resolution image of a fixed oocyte spindle stained for DNA (blue), tubulin (green), and ring marker MPM-2 (red). This is the same video as Video 2, but without individual components blinking in and out.

https://doi.org/10.7554/eLife.06462.008
Video 4
Super-resolution view of spindle organization in mid-anaphase.

Super-resolution image of a fixed oocyte spindle stained for DNA (blue) and tubulin (green). This is the same sequence as Video 3, but with only DNA and tubulin displayed.

https://doi.org/10.7554/eLife.06462.009
Video 5
Super-resolution view of spindle organization in mid-anaphase.

Super-resolution image of a fixed oocyte spindle stained for tubulin (green) and ring marker MPM-2 (red). This is the same sequence as Video 3, but with only tubulin and the rings displayed.

https://doi.org/10.7554/eLife.06462.010

Rings dissociate from chromosomes in anaphase and are found in the microtubule channels

We previously found that a set of proteins forms a ring around the mid-region of each chromosome pair during congression (Figure 1A); this ring includes the kinesin motor KLP-19 and the chromosome passenger complex (CPC), which contains the kinase AIR-2/Aurora B (Wignall and Villeneuve, 2009). While AIR-2/Aurora B colocalizes with microtubules in anaphase (Schumacher et al., 1998; Speliotes et al., 2000; Romano et al., 2003), KLP-19 and a few other ring components stay as rings and then elongate into bar-shaped structures between separating chromosomes (Dumont et al., 2010). We used super-resolution imaging to further assess the morphology of these structures and to examine their organization in relation to the microtubule channels. First, we found that the MPM-2 antibody (raised against mitotic phospho-proteins [Davis et al., 1983]), which had been previously shown to stain the mid-region of meiotic bivalents (Kitagawa and Rose, 1999), marked the ring structures in both metaphase and anaphase (Figure 2A–C). During anaphase, the MPM-2-marked rings completely dissociated from chromosomes and remained in the center of the spindle (Figure 2B). In mid-anaphase, these structures appeared elongated but retained a ring-like appearance (Figure 2B, asterisk), suggesting that the rings flatten as anaphase progresses, forming the bar-shaped structures previously described (Dumont et al., 2010). Importantly, these structures were located within the six microtubule channels; each open channel contained a pair of separating chromosomes with a disassembling ring between them (Figure 2A, Videos 2–5). In late anaphase, at the stage where microtubule bundles in the central spindle converge (Figure 1C), MPM-2 staining was diffuse and other ring components were also not discernable as distinct structures, suggesting that the rings had disassembled (Figure 2—figure supplement 1).

To determine the timing of ring release from chromosomes, we next co-stained with MPM-2 and an antibody against separase (SEP-1), a protease that cleaves a subunit of the cohesin complex to release sister chromatid cohesion and allow homologous chromosome separation (Siomos et al., 2001; Kudo et al., 2006). We found that when the rings were associated with chromosomes in metaphase, SEP-1 localized to cup-like structures surrounding bivalents and to filamentous structures found within the spindle (Figure 2C), a pattern also exhibited by meiotic kinetochore components (Monen et al., 2005), consistent with an earlier study (Bembenek et al., 2007). However, during anaphase, SEP-1 localized to the ring structures; this dramatic relocalization correlated with anaphase onset, as SEP-1 was found on the rings in early anaphase, when the spindle had rotated but chromosomes had barely separated (Figure 2C). Therefore, separase likely redistributes to the mid-region of meiotic chromosomes at anaphase onset to cleave cohesin and then remains associated with the ring structures during anaphase, suggesting that ring removal from chromosomes is coordinated with cohesion release.

Chromosomes move towards microtubule minus ends during monopolar anaphase

Given the organization of the anaphase spindle and the finding that kinetochores are not required for chromosome segregation (Dumont et al., 2010), we hypothesized that segregation could be mediated by minus-end directed movement of chromosomes along lateral microtubule bundles. To examine this idea, we first assessed chromosome behavior during anaphase after inducing monopolar spindle formation; we previously showed that microtubule bundles make lateral contacts with chromosomes in both bipolar and monopolar spindles (Wignall and Villeneuve, 2009), enabling us to compare chromosome behavior in these two contexts. Assessing monopolar anaphase is particularly interesting because the organization of microtubules in these spindles (with minus ends in the center and plus ends out) makes them ideal for dissecting the contributions of plus- and minus-end-directed forces. In this case, if minus-end-directed movement drives segregation we would expect to observe movement of separated chromosomes towards the central pole. Live imaging of monopolar spindle dynamics demonstrated that in Meiosis I the six bivalents move away from the central pole, oscillate, and then coordinately move inwards to the pole (Figure 3A, Video 6); in most cases, polar body extrusion failed so all chromosomes were retained in the cell. This behavior was then repeated in Meiosis II, with the 12 separated chromosomes moving out as the monopolar spindle forms, oscillating, and then moving back in (Figure 3B, Video 7). Poleward movement of chromosomes in monopolar spindles has been previously described and was interpreted to represent capture of chromosomes by microtubules followed by a congression-like process that drew them to the center (Connolly et al., 2014). However, we found that separase colocalizes with ring components when the chromosomes are located near the central pole (Figure 3C), demonstrating that this configuration represents anaphase and not congression.

Figure 3 with 1 supplement see all

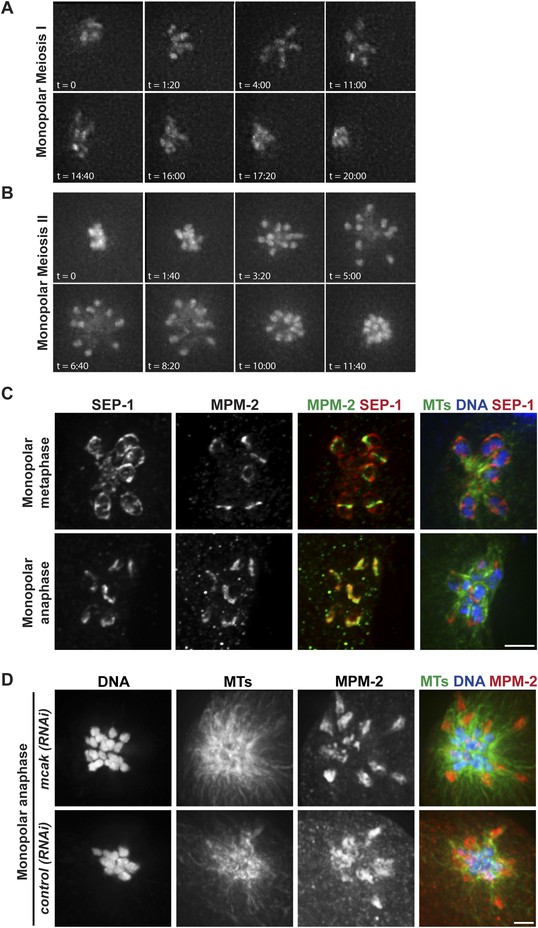

Chromosomes move towards microtubule minus ends during monopolar anaphase.

(A, B) Montages of time-lapse imaging of a strain expressing GFP-histone; GFP-tubulin following klp-18 (RNAi) to generate monopolar spindles during Meiosis I (A) and II (B). Chromosomes move away from the pole during monopolar spindle formation and then coordinately move polewards during anaphase. (C) klp-18 (RNAi) monopolar oocyte spindles stained for DNA (blue), SEP-1 (red), ring marker MPM-2 (green in third column), and tubulin (green in fourth column). When chromosomes are away from the pole in metaphase, SEP-1 localizes to kinetochores and then moves to the ring structures in anaphase. (D) klp-18 (RNAi) monopolar oocyte spindles stained for tubulin (green), DNA (blue), and ring marker MPM-2 (red). In the top row, MCAK/KLP-7 was also depleted, creating a larger spindle. When separated chromosomes move to the pole in monopolar anaphase, the rings stay out. Bars = 2.5 μm.

https://doi.org/10.7554/eLife.06462.011
Video 6
Dynamics of monopolar Meiosis I.

Time-lapse imaging of a strain expressing GFP-histone; GFP-tubulin following klp-18 (RNAi) to generate monopolar spindles. In monopolar Meiosis I, the 6 bivalents move away from the central pole, oscillate, and then coordinately move inwards to the pole. Frames were acquired every 10 s and displayed at 5 frames per second.

https://doi.org/10.7554/eLife.06462.013
Video 7
Dynamics of monopolar Meiosis II.

Time-lapse imaging of a strain expressing GFP-histone; GFP-tubulin following klp-18 (RNAi) to generate monopolar spindles. In monopolar Meiosis II, the 12 separated chromosomes move away from the central pole, oscillate, and then coordinately move inwards to the pole. Frame acquisition same as Video 6.

https://doi.org/10.7554/eLife.06462.014

Though our results are consistent with the idea that separated chromosomes display minus-end directed movement on monopolar spindles, because the anaphase spindle shrinks (Albertson and Thomson, 1993; Yang et al., 2003; McNally and McNally, 2005; McNally et al., 2006) another possibility is that chromosomes move towards the central pole as a result of the microtubules shortening and the chromosomes moving inwards passively. To investigate this possibility, we induced monopolar spindle formation in a strain that had also been depleted of the microtubule depolymerizing kinesin MCAK/KLP-7, as we found that MCAK depletion increased spindle size in both metaphase (Figure 3—figure supplement 1) and anaphase (Figure 3D). Following MCAK depletion, monopolar spindles remained large in anaphase, but chromosomes still moved in (Figure 3D, top row), indicating that spindle shrinkage and microtubule depolymerization is not responsible for the inward movement. Importantly, we found that while chromosomes move inwards in monopolar anaphase, the ring structures could be observed out towards the periphery of the monopolar spindle, where the plus ends are located. We obtained the same result without MCAK depletion; although these monopolar spindles were smaller due to spindle shortening, the ring structures could still be found near the microtubule plus ends when the chromosomes were found at the central pole (Figure 3C,D). Therefore, similar to bipolar anaphase, where the rings are left behind in the center of the spindle, in monopolar anaphase they are also removed from chromosomes and remain near the plus ends, presumably where the chromosomes were located when anaphase was induced.

Minus-end directed forces act on oocyte chromosomes prior to anaphase

Our data so far are consistent with the idea that during anaphase in oocyte spindles, minus-end directed forces drive chromosome movement through open microtubule channels to spindle poles. This would represent a switch in the dominant force operating on chromosomes since during congression, plus-end directed forces (including KLP-19 in the ring [Wignall and Villeneuve, 2009]) promote movement to the metaphase plate. To better understand how this switch occurs, we next wanted to determine whether minus-end forces only act on chromosomes in anaphase, or whether they also act on chromosomes during congression, counterbalancing the plus-end forces. Therefore, we imaged monopolar spindles that had been arrested in metaphase using a temperature-sensitive mutant in the anaphase promoting complex (APC) (emb-27ts); following shift to the restrictive temperature, oocytes continue to be ovulated, but then arrest at metaphase I (Golden et al., 2000). Therefore, fixed imaging yields a mixture of oocytes that have been arrested for varying amounts of time. Intriguingly, we observed multiple phenotypes in our experiments, potentially reflecting differences in the length of APC arrest. First, a significant fraction of structures (48/119) looked indistinguishable from unarrested prometaphase/metaphase monopolar spindles, with bivalents located away from the central pole and a ring around the center of each (Figure 4A, top). In these monopolar spindles, chromosomes tended to be oriented such that the long axis of the bivalent was parallel to the direction of the microtubule bundles, as they are found in unarrested monopolar spindles (Wignall and Villeneuve, 2009). However, we also observed many monopolar spindles (42/119) where the rings appeared dramatically stretched in the direction of the microtubule plus ends (Figure 4A). Some rings appeared to be stretching off the bivalents on both sides (arrows), while others were predominantly stretched off one side (arrowheads); in the latter case, the bivalents were sometimes turned 90° from their usual orientation. These observations are consistent with the interpretation that under metaphase arrest, a plus-end directed force acts on the rings, causing them to stretch, and a counterbalancing minus-end force is exerted on the chromosome, resisting the stretching force; when the ring predominantly stretches off of one side of the bivalent, this tug-of-war can cause the bivalents to rotate. As further evidence that minus-end-directed forces act on chromosomes under metaphase arrest, we also observed structures that had chromosomes at the center of the microtubule aster similar to normal monopolar anaphase (29/119); in most of these cases, the rings had come off the chromosomes and were located near the microtubule plus ends, though in a minority of cases the rings were dramatically stretched but still on the chromosomes. Inward chromosome movement was not the result of premature release from the metaphase arrest, as the kinetochore component KNL-3 still localized around the bivalents in these structures (Figure 4B) (despite the fact that kinetochore components are normally removed in anaphase [Monen et al., 2005]), and two-cup like kinetochores could be observed on each bivalent, confirming that the homologous chromosomes had not separated and the cells had not initiated anaphase. Moreover, the rings often appeared broken (forming fragments of varying sizes, Figure 4A, asterisks), suggesting that they had been aberrantly removed from bivalents without the release of cohesion. Taken together, these results indicate that minus end forces act on chromosomes prior to anaphase induction. The fact that we observe a mixed population of structures suggests that these forces accumulate under metaphase arrest, causing the rings to stretch and then ultimately be removed from the chromosomes as these increasing forces drive chromosomal movement to minus ends.

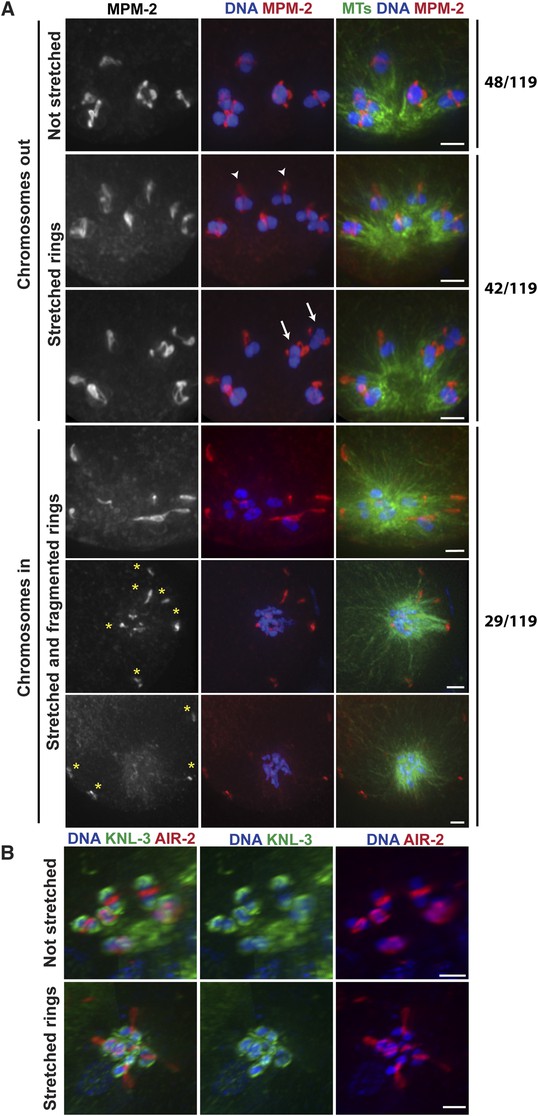

Chromosomes are subjected to minus-end directed forces prior to anaphase.

(A) Monopolar oocyte spindles arrested at Metaphase I stained for DNA (blue), tubulin (green), and ring marker MPM-2 (red). Top row shows intact rings. Rows 2 and 3 show examples of rings stretching, but still near chromosomes (‘arrowheads’ show rings predominantly coming off one side of the bivalent, ‘arrows’ show rings off both sides). Bottom three rows show examples of chromosomes at the pole and ring fragments (‘asterisks’) at microtubule plus ends or off the spindle. (B) Monopolar oocyte spindles arrested at Metaphase I stained for DNA (blue), kinetochore protein KNL-3 (green), and ring component AIR-2 (red). The kinetochore remains intact in spindles with stretched rings, indicating that the cells have not initiated anaphase. Bars = 2 μm.

https://doi.org/10.7554/eLife.06462.015

Dynein contributes to chromosome segregation on oocyte spindles

Next, we wanted to identify factors that contribute to the minus-end force operating on chromosomes. As dynein is an important minus-end-directed motor that plays diverse roles during mitosis and meiosis (Raaijmakers and Medema, 2014), we set out to determine whether it could also help drive chromosome movement on acentrosomal spindles. Previously, dynein has been shown to localize diffusely to the oocyte spindle during prometaphase and metaphase and then further concentrate at poles as the spindle rotates in preparation for anaphase (Ellefson and McNally, 2009; van der Voet et al., 2009). We confirmed this localization pattern, but we also detected a population of dynein that cupped meiotic chromosomes. This chromosomal pool of dynein was difficult to distinguish on prometaphase and metaphase bipolar spindles, potentially due to the fact that dynein localized all over the spindle as well, which could obscure a faint chromosomal pool. However, chromosomal localization was more clearly visible on monopolar spindles. Since chromosomes are spread out in these structures, the spindle pool of dynein was more separated from the chromosomal pool, allowing visualization of dynein cupping the bivalent ends (Figure 5A). On these chromosomes, dynein was often seen asymmetrically localized, with stronger staining on the end of the bivalent pointing outwards towards the microtubule plus ends (asterisks), raising the possibility that dynein may preferentially load from this direction. However in many cases, dynein could be observed on both faces of the chromosomes (arrowheads), suggesting either that dynein loading is not always asymmetric, or that asymmetrically loaded dynein can ultimately spread to the entire chromosomal surface. In anaphase, we observed dynein at the poleward surfaces of separating chromosomes, again cupping the chromosomal surface (Figure 5B), but undetectable on the inside surfaces (in the region where chromosomes would have been previously associated before release of cohesion). These findings are in line with previous work that reported that dynein moves from spindle poles towards the outside surfaces of chromosomes in anaphase (Dumont et al., 2010). Therefore, dynein localizes to meiotic chromosomes both prior to and during anaphase, placing it in a location where it could provide a minus-end directed force during congression and segregation.

Figure 5 with 1 supplement see all

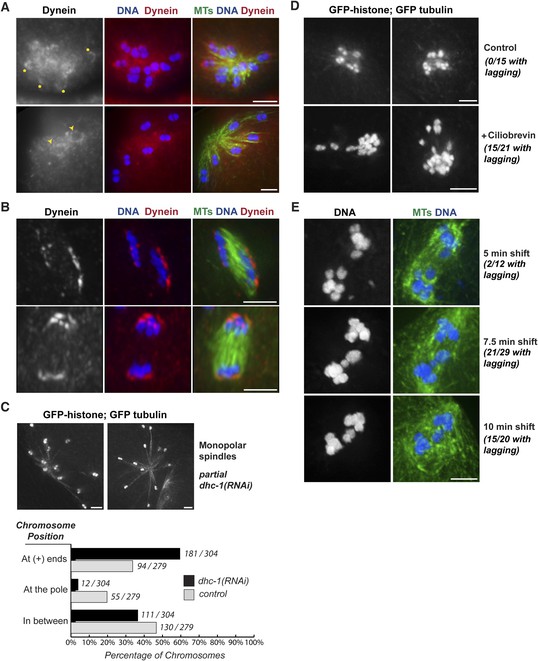

Dynein contributes to chromosome segregation on oocyte spindles.

(A) Monopolar oocyte spindles stained for tubulin (green), DNA (blue), and DHC-1/dynein (red). The tubulin and DNA channels were deconvolved, but the dynein channel was not, to show a faint pool of dynein surrounding chromosomes. Dynein cups chromosomes, sometimes found enriched on the side facing away from the pole (‘asterisks’) and sometimes around the entire chromosome (‘arrowheads’); partial projections are shown to highlight particular chromosomes. (B) Dynein localization on anaphase spindles with the same colors as (A), except the dynein channel was deconvolved. Dynein localizes adjacent to the outside surface of separating chromosomes. (C) Images of monopolar spindles in a strain expressing GFP-histone; GFP-tubulin following partial dynein RNAi. Spindles are larger with chromosomes often located at the extreme ends microtubules; graph depicts chromosome positions on monopolar spindles in dhc-1 (RNAi) (black bars) compared to control (gray bars). (D) Images of monopolar anaphase spindles in a strain expressing GFP-histone; GFP-tubulin with no treatment (top row) or following incubation with 5 μM ciliobrevin for 20 min (bottom row). Following dynein inhibition, lagging chromosomes were observed in a significant fraction of spindles (15/21). (E) Images of bipolar anaphase spindles following dynein inhibition; DNA is shown in blue and microtubules in green. The dynein temperature-sensitive mutant dhc-1(ct76ts) was shifted to the restrictive temperature for 5 (top), 7.5 (middle), or 10 min (bottom); spindles with lagging chromosomes were observed under all three conditions. Bars = 2.5 μm.

https://doi.org/10.7554/eLife.06462.016

To test whether dynein functionally contributes to chromosome movements, we used multiple inhibition strategies and then assessed the effects on chromosome positioning and segregation. These experiments were complicated by the fact that full dynein inhibition (either by strong dhc-1 RNAi or high concentrations of the dynein inhibitor ciliobrevin [Firestone et al., 2012]) resulted in spindle defects (Figure 5—figure supplement 1). Therefore, we used partial or conditional dynein inhibition, first finding conditions where spindle morphology looked normal and then assessing chromosome behavior on those spindles.

To determine if dynein provides a minus-end directed force on chromosomes, we first assessed whether partial dynein depletion altered chromosome position on monopolar spindles. During normal monopolar spindle formation, chromosomes move out away from the pole and oscillate (Figure 3A,B, Videos 6, 7); in fixed images, we found that 34% of chromosomes were found near the plus ends of microtubules, reflecting this dynamic positioning (Figure 5C, gray bars). However, significantly more chromosomes (60%) were found in this location following dynein depletion (Figure 5C, black bars), suggesting that dynein generates a minus-end directed force on chromosomes that affects their positioning. Consistent with this finding, we also observed lagging chromosomes on anaphase monopolar spindles following partial dynein inhibition. While chromosomes usually move coordinately to the pole in monopolar anaphase (Figure 3A,B), a significant fraction of spindles had some chromosomes towards microtubule plus ends upon treatment with low concentrations of ciliobrevin (Figure 5D; 15/21 monopolar anaphases), suggesting that dynein provides a minus-end directed force during anaphase as well as during congression.

Next, we assessed the effects of dynein inhibition on chromosome segregation on bipolar spindles. To reduce the possibility that lagging chromosomes were the result of altered spindle morphology, we took advantage of a temperature-sensitive mutant (dhc-1(ct76)). A previous study reported that dynein is inactivated within a few minutes in this mutant and used short temperature shifts show that dynein plays a role in mitotic chromosome congression, independent of any effects on the spindle (Schmidt et al., 2005). Therefore, we used the same strategy, shifting worms to the restrictive temperature for short periods and then assessing chromosome segregation. Following brief dynein inactivation using this strategy, we observed a significant fraction of anaphase spindles that had lagging chromosomes (2/12 after a 5 min shift, 15/20 after a 7.5 min shift, and 15/21 after a 10 min shift), supporting a role for dynein in chromosome segregation (Figure 5E).

Chromosomes lacking rings display defects in congression and segregation

Integrating our findings, our data support the model that there are opposing forces acting on oocyte chromosomes during congression and segregation, with plus-end directed forces originating in the rings countered by accumulating minus-end forces. To further test this idea, we assessed the behavior of chromosomes lacking rings by analyzing mutants where particular sets of homologous chromosomes are unable to pair (him-8(me4) and zim-2(tm574), where the X chromosome (Phillips et al., 2005) and chromosome V (Phillips and Dernburg, 2006) are affected, respectively), resulting in five bivalents and two unpaired chromosomes (univalents). These univalents were not recognized by antibodies against MPM-2 or the CPC component AIR-2/Aurora B, indicating that they do not form ring structures (Figure 6A, asterisks), and consequently each spindle had only five rings. However, the univalents were able to load kinetochore components, as BUB-1, which localizes to both the kinetochore and the ring (Monen et al., 2005; Dumont et al., 2010), coated their outer surfaces (Figure 6A).

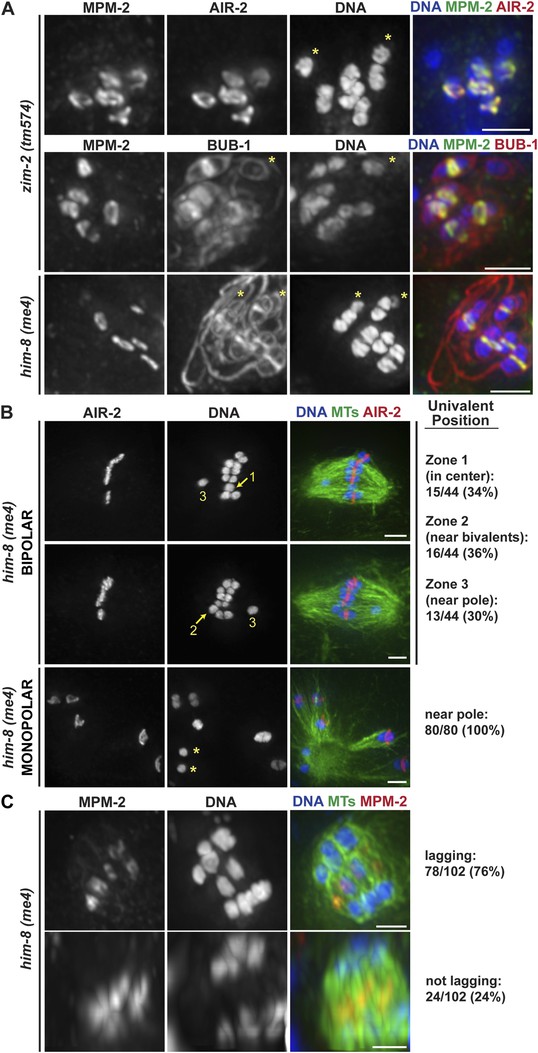

Univalents lacking rings exhibit congression and segregation errors.

(A) Oocytes from him-8(me4) and zim-2(tm574) worms stained for DNA (blue), AIR-2 or BUB-1 (red), and MPM-2 (green); each of these strains has two univalents (‘asterisks’). Rings are not detected on univalents, but kinetochore staining is present (BUB-1; bottom two rows). (B) Metaphase-arrested him-8(me4) bipolar and monopolar spindles, stained for DNA (blue), AIR-2 (red), and tubulin (green). During congression, univalents are randomly positioned on the bipolar spindle (top two rows), but were located near the pole on every monopolar spindle we observed (bottom). For quantification of bipolar spindles, univalents were scored as being at the center of the metaphase plate (zone 1), partially overlapping with the bivalents (zone 2), or not overlapping (zone 3). Examples of each category are indicated on the images. (C) him-8(me4) anaphase spindles stained for DNA (blue), MPM-2 (red), and tubulin (green). During segregation, univalents are either found near other segregating chromosomes (bottom) or lag behind in the center (top). Bars = 2.5 μm.

https://doi.org/10.7554/eLife.06462.018

Importantly, we found that univalents lacked a plus-end directed force, since in monopolar spindles both univalents were located near the pole in every spindle we quantified (40/40 spindles; 80/80 univalents) (Figure 6B, bottom panel). Moreover, we found that univalents exhibited congression defects on bipolar spindles. This phenotype was especially apparent following metaphase arrest, as most bivalents are aligned in those conditions, allowing us to more clearly quantify univalent position with relation to the metaphase plate (Figure 6B). For quantification, we assessed whether the univalent was found in the middle region of the spindle where the bivalents were located (Zone 1), close to but not completely overlapping with the bivalents (Zone 2), or in the regions closer to the poles (Zone 3). Univalents were fairly evenly distributed between these three categories, consistent with the univalents being positioned at random on bipolar spindles.

Next, we assessed the behavior of univalents during anaphase. First, we found that univalents remained as intact units during anaphase and did not release cohesion between sister chromatids. This observation is consistent with our finding that separase relocalizes to the rings at the metaphase to anaphase transition (Figure 2C); since univalents lack ring components (Figure 6A), separase is likely not targeted to them, preventing cohesion release. Most often, we found that these intact univalents lagged during anaphase (Figure 6C, top row; 76%). However, 24% of univalents did not lag and instead appeared to segregate with the rest of the chromosomes (Figure 6C, bottom row). These findings are consistent with the interpretation that the position of the univalent when anaphase is triggered determines its behavior during segregation. Univalents that were located close to a pole prior to segregation (zone 3) likely remain close to that same pole during anaphase; minus-end forces could properly act on that univalent and therefore it would appear to segregate with the rest of the chromosomes. However, a univalent located close to the chromosomes (zones 1 and 2) would become trapped in the center, as it would be caught between overlapping bundles of microtubules, with minus-end forces acting on both sides of the univalent pulling it in opposite directions. Therefore, the behavior of univalents during congression and segregation supports a model in which a balance between opposing plus- and minus-end directed forces dictate chromosome position on the acentrosomal spindle and would represent a case in which the plus-end force is eliminated.

Discussion

A new model for chromosome segregation on acentrosomal spindles

Taken together, our data support a model in which chromosome segregation on the C. elegans acentrosomal spindle is driven by minus-end directed movement along lateral microtubule bundles (Figure 7A), revealing a new kinetochore-independent strategy for partitioning chromosomes. The spindle reorganizes at the metaphase to anaphase transition to enable this mode of segregation, by broadening the spindle poles and thereby creating channels that are open from pole to pole. Chromosomes move through these channels until they are located at the tips of the microtubules at the minus ends, at which point the channels close and the spindle disassembles. Coupling spindle pole broadening to anaphase onset could potentially serve a dual purpose in regulating chromosome dynamics in the context of our model. First, pole broadening would be important in anaphase, as it would serve to open a path for chromosomes to move all the way to the microtubule minus ends. Moreover, we speculate that having the poles more focused in prometaphase could serve the opposite purpose; since chromosomes move along lateral microtubule bundles during congression as well, having the poles ‘closed’ at that stage could bias chromosomal movement towards the metaphase plate.

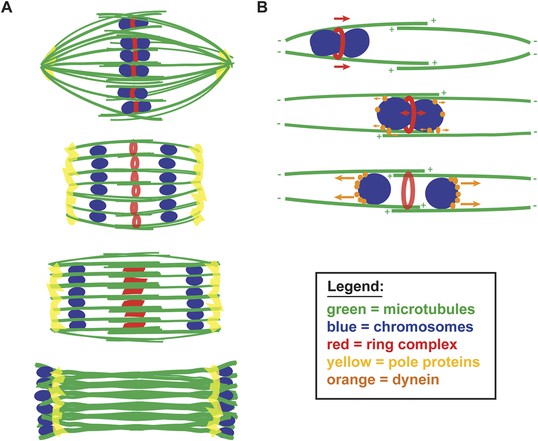

A balance of forces controls chromosome movement on the acentrosomal spindle.

(A) Model depicting microtubules (green), chromosomes (blue), rings (red), and spindle pole proteins (yellow). During metaphase, poles are focused and chromosomes are aligned between overlapping microtubule bundles. During anaphase, poles broaden creating open channels and separated chromosomes move along lateral bundles until they are past the poles; at this stage, the channels close. In anaphase, rings are removed from chromosomes and then flatten and disassemble. (B) Model depicting microtubules (green), chromosomes (blue), rings (red), and dynein (orange). During congression, KLP-19 and potentially other ring components provide a plus-end directed force (‘red arrows’), moving the chromosome toward the metaphase plate; during this time dynein begins to accumulate on chromosomes, resulting in weak minus-end forces (‘small orange arrows’). At metaphase, the plus- and minus-end directed forces are each balanced as the chromosome associates with microtubules in an overlap zone. Ring removal at the metaphase to anaphase transition shifts this balance, triggering poleward movement. In anaphase, more dynein has accumulated on chromosomes, resulting in stronger minus-end forces (‘large orange arrows’).

https://doi.org/10.7554/eLife.06462.019

We further propose that chromosome movement on acentrosomal spindles is mediated through a balance of plus- and minus-end directed forces operating on chromosomes (Figure 7B). During congression, the ring provides a plus-end directed force that promotes movement to the metaphase plate and during the same period minus-end directed forces begin to accumulate on chromosomes. As chromosomes then align at the metaphase plate, the plus- and minus-end directed forces would each be balanced, since at that stage the chromosomes are positioned within microtubule bundles of overlapping polarity, with both plus- and minus-ends on each side. Since our data support the idea that minus-end forces increase as metaphase progresses, we infer that these forces are likely weak early in congression (allowing plus-end forces to be dominant) and then accumulate in preparation for anaphase. Once anaphase is triggered, ring removal alters the balance of forces, enabling minus-end forces to propel separated chromosomes to the poles. Importantly, our proposed mechanism would directly couple key essential events at the metaphase to anaphase transition, as cleavage of cohesin by separase would also facilitate ring removal from chromosomes, thereby also removing a plus-end directed force. Consequently, the outcome would be coordinated poleward movement, driving chromosome segregation.

A previous study proposed a different model for kinetochore-independent segregation, where the metaphase spindle disassembles from the poles and then a new microtubule array assembles between separating chromosomes, stimulated by ring component CLASP (CLS-2). In this model, a force provided by polymerizing microtubules pushing against the inside surface of separating chromosomes is the primary candidate driving segregation (Dumont et al., 2010). Our findings are not consistent with key features of this model, since spindle poles do not appear to disassemble and polymerization of a new microtubule array coupled to the inside surfaces of separating chromosomes would be predicted to close the microtubule channels that we observe. Moreover, the previous model also does not account for the behavior of chromosomes during monopolar anaphase, where separated chromosomes do not move apart, pushed from the center, but instead move together to the same pole, leaving the ring behind. However, the major length changes that occur in the C. elegans oocyte spindle (with it shrinking and then elongating as anaphase progresses) make it likely that spindle elongation also contributes to segregation, potentially driven by CLASP-dependent microtubule polymerization as this previous study proposed. This process may be analogous to Anaphase B in mitotically dividing cells (where spindle pole separation drives sets of separating chromosomes further apart [Walczak and Heald, 2008]) but it would have to occur within the context of the unique spindle organization that we have now defined, with lateral microtubule bundles extending alongside separating chromosome pairs. However, even if spindle elongation contributes to segregation, our studies have now revealed another mechanism that operates in parallel, with forces operating on the chromosomes themselves driving poleward movement. This segregation mechanism could be viewed as analogous to Anaphase A, but it would be mechanistically distinct from what occurs in mitotically dividing cells, as the chromosome to pole movement that we have described does not require kinetochores and is instead mediated by motor-driven movement along lateral microtubule bundles.

Our work raises a number of intriguing questions that remain to be addressed. First, our current data do not completely explain how chromosomes escape the zone of overlapping microtubules in the center of the spindle to ensure that they move to the correct poles. Although dynein is asymmetrically localized on separating chromosomes (as we do not detect it on the inside surface), it is still possible that some motors could associate with microtubule bundles oriented towards the incorrect pole (Figure 7B). Therefore, we speculate that an additional mechanism may exist to give the separating chromosomes an initial push apart; this mechanism could involve a morphological change in the ring structure as it is removed (a constriction or elongation), a small amount of CLASP-dependent microtubule polymerization, or a currently undiscovered mechanism. It is also possible that the rings could simply serve as physical barriers between separating chromosomes, blocking the center of the channel and therefore preventing chromosomes from moving in the wrong direction, giving motors associated with properly oriented microtubule bundles an advantage. Another related question that remains to be addressed is the polarity of microtubules within the bundles and the exact length of the overlap zone, which would rely on careful analysis by electron microscopy. We favor the idea that microtubules within the laterally associated bundles are organized primarily, if not completely, with the polarity depicted in Figure 7, as bundles organized with a defined polarity would best explain the opposing forces we observe acting on rings and chromosomes on monopolar spindles, and the phenotype of dynein depletion on these spindles (where chromosomes are then positioned closer to the outside of the aster). However, our studies do not rule out the possibility that the spindle may also contain non-bundle associated microtubules of mixed polarity that could affect chromosome behavior.

A role for dynein in chromosome dynamics on the acentrosomal spindle

Our studies have also revealed a role for dynein in mediating chromosome dynamics on the acentrosomal spindle. First, we found that dynein exhibits chromosomal localization. In prometaphase and metaphase bipolar spindles, chromosomal dynein is faint and often difficult to distinguish above the spindle-localized pool, suggesting that there is only a small amount of the motor on the chromosomes. However, anaphase localization is more clearly apparent, supporting the idea that dynein accumulates on chromosomes in preparation for driving anaphase movements. Pre-anaphase chromosomal dynein localization can be more clearly visualized on monopolar spindles, where the motor is often seen more concentrated on the end of the chromosome facing away from the pole. We speculate that this asymmetric pattern could reflect the mechanism by which dynein loads onto the chromosomes, for example, if it walks towards the chromosomal surface from the microtubule plus ends. This loading mechanism could possibly facilitate accumulation of the motor on the outer surfaces of chromosomes prior to anaphase, since when chromosomes are at the metaphase plate with overlapping plus ends nearby, dynein loading via this mechanism might be especially efficient, allowing the motor to accumulate on chromosomes in preparation for anaphase initiation.

We also observed chromosome segregation defects following dynein inhibition, with lagging chromosomes in a significant fraction of both monopolar and bipolar anaphase spindles. However, these phenotypes were not completely penetrant, as some chromosomes did exhibit poleward movement in each of these cases. One possibility is that this movement is due to residual dynein activity; since dynein also plays a role in spindle assembly, we had to use partial inactivation or a fast-acting temperature-sensitive mutant and each of these strategies could potentially leave a significant pool of active dynein. A second possibility is that there are additional factors contributing to the minus-end force operating on chromosomes (for example, poleward flux or other minus-end directed motors). This second possibility could also apply to the plus-end directed force; we previously demonstrated that the kinesin motor KLP-19 in the ring provides a polar ejection force using our monopolar spindle assay (Wignall and Villeneuve, 2009), but it is possible that other factors operate in parallel to promote congression. However, even if there are multiple components of either the plus- or minus-end directed forces acting on chromosomes, the mechanism that we propose for segregation, with a hand-off between these forces, could still operate as proposed (Figure 7B).

Another interesting observation that emerged from our studies is that partial dynein inhibition results in especially large monopolar spindles (Figure 5C, the spindles shown are approximately 50% larger than normal monopolar spindles), suggesting that dynein also regulates spindle length. A full understanding of this phenotype will require further experimentation, though our observation is consistent with work in other systems, where dynein depletion has also been reported to cause larger spindles (Gaetz and Kapoor, 2004; Morales-Mulia and Scholey, 2005). However, relevant to this study, larger monopolar spindles were particularly useful in assessing the contribution of opposing forces on the chromosomes; with longer microtubules, the positioning of chromosomes at the extreme plus ends was particularly clear, providing support for the idea of a minus-end directed force provided by dynein acting on the chromosomes.

A conserved role for lateral microtubule–chromosome associations in mediating chromosome dynamics

In conclusion, our work defines a new mechanism of kinetochore-independent chromosome segregation and highlights a role for lateral microtubule–chromosome associations in driving chromosome movements. Notably, lateral interactions have been previously described in mitotically dividing cells and have been shown to play a role in chromosome congression. For example, kinetochores associate laterally with microtubules before forming end-on attachments (Tanaka, 2012), a class of kinesins on chromosome arms promotes congression (Vanneste et al., 2011), and chromosomes can congress under experimental conditions where kinetochore-fiber formation is inhibited (Cai et al., 2009). However, our work now demonstrates that these associations can be the primary drivers of chromosome movement in an unperturbed system, and that in addition to congression, they can also provide the force to power chromosome segregation.

Interestingly, our findings also have parallels with previous work on the mammalian oocyte spindle. First, it has been shown that acentrosomal spindles in mouse oocytes don't have end-on kinetochore microtubule-attachments prior to achieving metaphase alignment (Brunet et al., 1999), and fluorescence imaging of prometaphase is suggestive of the presence of lateral microtubule bundles surrounding the chromosomes (with a lower density of microtubules at the ends) (Schuh and Ellenberg, 2007). While kinetochore-microtubule attachments are established after metaphase alignment (Brunet et al., 1999; Kitajima et al., 2011) and have been demonstrated during anaphase (FitzHarris, 2012), there is also evidence for kinetochore-independent mechanisms. An intriguing study reported that DNA-coated beads injected into mouse oocytes formed acentrosomal spindles and that when anaphase was induced, these beads exhibited dynein-dependent poleward movements (Deng et al., 2009). Therefore, we suggest that the mechanism that we describe could also operate in mammalian oocytes during anaphase. Although the primary driver of chromosome-to-pole movement in these cells may be the canonical kinetochore-driven mechanism, lateral microtubule associations established to promote congression could remain intact in anaphase, and dynein localized on the chromosomes could provide a force to help move chromosomes along these microtubules towards minus ends. Therefore, by studying anaphase in C. elegans oocytes, we have revealed a new mechanism driving chromosome segregation on acentrosomal spindles that may be widely applicable to understanding chromosome behavior during oocyte meiosis.

Materials and methods

Strains

‘Wild type’ refers to N2 (Bristol) worms, and ‘control’ refers to RNAi vector control, temperature-sensitive strains grown at the permissive temperature, or worms not treated with inhibitor. A chart showing all strains used is shown in the Supplementary material (Supplementary file 1).

RNAi

From a feeding library (Fraser et al., 2000; Kamath et al., 2003), individual RNAi clones were picked and grown overnight at 37°C in LB with 100 μg/ml ampicillin. Saturated cultures were spun down, plated on NGM (nematode growth media) plates supplemented with 100 μg/ml ampicillin and 1 mM IPTG (isopropyl-β-d-thiogalactopyranoside), and dried overnight. L1 worms (synchronized by bleaching gravid adults and hatching overnight without food) were then plated on RNAi plates and grown to adulthood at 15° for 5 days. For partial dhc-1(RNAi), worms were grown until the L4 stage on regular NGM/OP50 plates and then transferred to the RNAi plate 24–48 hr before imaging.

Metaphase arrest and dynein inhibition

Metaphase arrest was achieved by either RNAi-mediated depletion of emb-30 or by shifting emb-27(g48) worms to 25°C for 4–5 hr. Dynein was inhibited by dhc-1 partial RNAi (described above), by shifting dhc-1(ct76) worms to 26°C for 5–15 min, or by soaking worms for 20 min in 5 μM ciliobrevin (HPI-4, Sigma, St. Louis, MO).

Immunofluorescence and antibodies

Immunofluorescence was performed as previously described (Oegema et al., 2001), with slides fixed in methanol for 40–45 min. The following antibodies were used: rabbit anti-AIR-2 (1:500; gift from Jill Schumacher), rabbit anti-BUB-1 (1:2800; gift from A Desai), rabbit anti- DHC-1 (1:100, gift from P Gönczy), rabbit anti-GFP (1:500; AbCam, Cambridge, UK), mouse anti-GFP (1:500; AbCam), rabbit anti-KLP-18 (1:10,000, gift of O Bossinger), rabbit anti-KNL-3 (1:3800; gift from A Desai), mouse anti-MPM-2 (1:500; AbCam and Millipore, Billerica, MA), rabbit anti-SEP-1 (1:200; gift from A Golden), mouse anti-α-tubulin-FITC (1:500; Sigma). Alexa-flour-conjugated secondary antibodies (Invitrogen, Carlsbad, CA) were used at 1:500.

Microscopy

For most imaging, a Deltavision deconvolution microscope with a 100× objective was used (Applied Precision, part of GE Healthcare, Piscataway, NJ). This microscope is housed in the Northwestern Biological Imaging Facility supported by the NU Office for Research. Image stacks were obtained at 0.2 μm z-steps for fixed samples and deconvolved using SoftWoRx (Applied Precision). For images denoted as super-resolution, a Deltavision OMX 3D-SIM with an Olympus (Shinjuku, Tokyo, Japan) 100× UPlanSApo 1.4 NA objective was used (Applied Precision), located in the Light Microscopy Imaging Center (Indiana University). Images were captured at 0.125 μm z-steps and processed using SoftWoRx (Applied Precision) and IMARIS 3D imaging software (Bitplane, Zurich, Switzerland). Control and RNAi worms were processed in parallel, and image exposure times were kept constant within each experiment.

Time-lapse imaging

For live imaging, GFP- or mCherry-expressing worms were picked into a solution of tricaine (2%) and tetramisole (0.4%), and incubated for 40 min. Worms were then pipetted onto a 3% agar pad, covered with a coverslip, and imaged immediately. Image stacks were obtained at 1 μm z-steps at 10-s intervals using 2 × 2 binning, and then deconvolved. Video images are full projections of data stacks encompassing the entire meiotic spindle.

Image analysis and quantification (for specific figures)

Figure 4

In Imaris ‘Surpass’ view, 3D images were rotated to allow assessment of bivalent location on the monopolar spindle. In addition, ring morphology and position relative to the bivalent was assessed, using the volume rotations. In 10 ‘chromosome in’ images and 7 ‘chromosome out’ images, we saw no ring stain. We attribute this to lack of antibody staining, so these were not included in the numbers presented in the figure. In 3 images we observed ‘bivalents in’ with unstretched rings stretched on the bivalent, we classify this as spindle formation/early prometaphase on the monopolar spindle.

Figure 6

To assess the position of univalents relative to the bivalents, each 3D image was rotated in ‘Surpass’ view to allow for a view showing aligned bivalents (using midbivalent ring location as a guide). If a univalent was aligned with the midbivalent ring, it was categorized as ‘zone 1’. If a univalent was partially in the plane of the bivalents but not completely overlapping, it was categorized as ‘zone 2’. If it was outside the plane of the bivalent, it was categorized as ‘zone 3’. For anaphase assessment, ‘lagging’ univalent refers to a univalent positioned closer to the midzone of the anaphase spindle than the segregating chromosomes.

Videos 2–5

A super-resolution 3D image was visualized in the animation window. Rotation positions were specified as frames within the video. Orthogonal Slice view was used to look at individual slice views through the 3D spindle and specified as frames within the animation. The animation was then recorded in Imaris using a Quicktime format.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    The kinetochore
    1. IM Cheeseman
    (2014)
    Cold Spring Harbor Perspectives in Biology 6:a015826.
    https://doi.org/10.1101/cshperspect.a015826
  7. 7
  8. 8
    Monoclonal antibodies to mitotic cells
    1. FM Davis
    2. TY Tsao
    3. SK Fowler
    4. PN Rao
    (1983)
    Proceedings of the National Academy of Sciences of USA 80:2926–2930.
    https://doi.org/10.1073/pnas.80.10.2926
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48

Decision letter

  1. Anthony A Hyman
    Reviewing Editor; Max Planck Institute of Molecular Cell Biology and Genetics, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Kinetochore-independent chromosome segregation driven by lateral microtubule bundles” for consideration at eLife. Your article has been favorably evaluated by Tony Hunter (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing Editor and the other reviewers discussed their comments before we reached this decision. As you can see, all reviewers are positive and require only changes in writing and some interpretation.

The only experimental point that seems important to us is the following from Reviewer 3. We think quantifying the fluorescence would help with the interpretation of your results, and encourage you to do so.

The authors state that “chromosomes associate with lateral bundles of microtubules during anaphase” and that this is “inconsistent with a model in which a new array of microtubules polymerizes between separating chromosomes”. This is initially based on the observation that open “channels” exist in the MT spindle network between separating chromosomes in early-late anaphase. However, a pushing force could still come from polymerizing MTs within the lateral MT bundles. Furthermore, the fact that chromosomes move beyond the pole region at the end of anaphase suggests that a pushing force from within the midzone is involved. A simple quantification of MT levels (total fluorescence of the entire spindle) during different stages of meiosis would help address the issue of whether more MTs are generated during anaphase. This would help to verify the authors' claims that the spindle does not disassemble and reassemble MTs, rather, it reorganizes existing MTs during the transition from metaphase to anaphase.

Reviewer #1:

Canonical chromosome segregation is dependent on the kinetochore, complex of structural and regulatory proteins that are normally required for attachments between centromeres on chromosomes and the ends of microtubules. Despite their importance for normal mitotic chromosome segregation in most organsims, kinetochores are not required for chromosome segregation in acentrosomal spindles in C. elegans oocytes. The mechanism of this segregation is not clear. Muscat el al. shed light on this mechanism using conventional and super-resolution microscopy. During chromosome congression, a ring of proteins including the motor klp-19 and the chromosomal passenger complex is present around the mid-region of each chromsomome pair. At anaphase, the microtubule array reorganizes to create channels where chromosomes pass through, while the rings around the mid-region are lost. The authors present a model where chromosome congression is dependent on a balance of opposing plus end and minus end directed forces. At anaphase, klp-19 and potentially other plus end directed motors are lost, favoring minus end directed movement of chromosomes through the channels. Minus end directed movement is dependent dynein.

This is an interesting study that provides a different mechanism of kinetochore-independent segregation to that proposed in a previous study (Dumont et al., 2002) where anaphase separation of chromosomes was proposed to occur via assembly of a new microtubule array that would push chromosomes apart. The channels that the authors observe in this study make this scenario less likely, and instead support a different model where chromosomes move along a reorganized parallel microtubule array by means of lateral associations.

The experiments are well designed, the imaging is of high quality, and the conclusions are well supported. I recommend publication and have only a couple of minor suggestions, both pertaining to the “balance of forces” model presented in Figure 7.

1) I'm confused why KLP-19 is not included in the model, while dynein is. Though it is part of the “ring” complex, it would be helpful if this were shown, or at least mentioned in the figure legend.

2) A color coded legend would make the model much easier to interpret.

Reviewer #2:

In this paper the authors have analyzed acentrosomal chromosome segregation in C. elegans female meiosis. The authors present evidence that partitioning of sister chromosomes/chromatids is driven by opposing forces: 1. plus-end directed forces as exerted by a ring-shaped protein complex around the chromosomes, and 2. minus-end directed forces as caused by the action of dynein. The authors have presented a model in which removal of the central ring is accompanied with an opening of the spindle poles. Both the spindle pole opening and the removal of the ring-shaped complex are supposed to trigger poleward movement of chromosomes/chromatids along bundles of microtubules.

The authors have presented clear data towards understanding the largely unknown field of female meiosis in C. elegans. In accord with previous observations, the authors have presented clear evidence that the segregation process in female meiosis is kinetochore-independent.

From the data presented, however, it is not clear how the meiotic spindle in C. elegans is organized. Although not within the scope of this light microcopy study, I would like the authors to comment on the following issues related to spindle architecture:

1) The presented model is based on the idea that chromosomes/chromatids move laterally along microtubule bundles. What about the polarity of the microtubules in the system? Isn't it a requirement of the model that all microtubules are oriented in a way that the minus ends of the microtubules are facing towards the acentrosomal poles?

2) The model does also imply that the number of microtubules from metaphase to early anaphase is not changing? The authors have presented a model in which an elongation of the microtubules is the major aspect of spindle elongation. This is in contrast to the Dumont model of a regrowth of microtubules between the segregating chromosomes/chromatids. Are the Dumont and Muscat models mutually exclusive?

It is clear that light microscopy cannot fully answer such important spindle-related questions and it is certainly beyond the scope of this manuscript to do additional EM experiments. Despite the lack of ultrastructural information in this manuscript, however, this is a valuable contribution to the current discussion on C. elegans meiosis. In general, I recommend publication of the manuscript in eLife. However, I would like the authors to comment on the questions raised, before this manuscript can be finally accepted.

Reviewer #3:

In 2010, the Desai lab showed that kinetochores were not required for the segregation of chromosomes during female meiosis in C. elegans, but that CLASP-dependent MT polymerization was required. In their model, MT polymerization between separated chromosomes provides a pushing force for chromosome segregation. In the submitted article, Muscat et al. present a new model for chromosome segregation in female meiosis. Using high-resolution imaging, they show that MTs are not present directly between the separating chromosomes in early anaphase. Instead, lateral microtubule bundles contact the sides of chromosomes throughout the various stages of the meiotic cell division cycle. The authors experimentally determine that MT motor KLP-19 provides a plus-end directed activity for chromatid congression, and dynein provides an opposing minus-end force that is utilized for anaphase chromosome movement along the same MT bundles. The data presented is solid and the model is supported by most of the observations. I have a few concerns and suggestions, but overall, this work provides a reasonable model for chromosome segregation in acentrosomal spindles, and warrants publication in eLife.

Suggested experiments/presentation of data:

1) The authors state that “chromosomes associate with lateral bundles of microtubules during anaphase” and that this is “inconsistent with a model in which a new array of microtubules polymerizes between separating chromosomes”. This is initially based on the observation that open “channels” exist in the MT spindle network between separating chromosomes in early-late anaphase. However, a pushing force could still come from polymerizing MTs within the lateral MT bundles. Furthermore, the fact that chromosomes move beyond the pole region at the end of anaphase suggests that a pushing force from within the midzone is involved. A simple quantification of MT levels (total fluorescence of the entire spindle) during different stages of meiosis would help address the issue of whether more MTs are generated during anaphase. This would help to verify the authors' claims that the spindle does not disassemble and reassemble MTs, rather, it reorganizes existing MTs during the transition from metaphase to anaphase.

Other points:

1) It looks like MTs do not form bundles in the monopolar spindles. If bundles do not form, is it fair to compare the movement of chromosomes in this system to a bipolar array?

2) In Figure 3, it is difficult to determine whether the chromosomes are moving along the sides of microtubules in these panels (and the supplemental movie) or whether they are moving in conjunction with MT depolymerization. Could MT depolymerization be the main driver of minus-end movement?

3) Some aspects of the model are unclear. Muscat et al. suggest that MT polymerization is not required for chromosome segregation, so how do the authors reconcile data from the Desai lab that showed that loss of CLASP abolished segregation? Could polymerization along the lateral bundles contribute to the segregation, or do the authors think that CLASP is doing something other than promoting MT polymerization?

The authors suggest that, during congression, the plus-end forces are active but that the minus-end forces start to accumulate (Discussion, second paragraph). But in the next sentence, it is the overlapping bundles of MTs with mixed polarity that causes the movement of chromosomes to stop in the middle of the spindle.

First, how can the congression work if dynein is also present? Figure 7 suggests that plus-end forces are active during congression, so is dynein accumulating but not active until after congression? What is a “weak” minus-end force, and what changes to make it stronger?

Second, it is not obvious how the chromosomes escape the overlapping MT zone as depicted in the last two panels of Figure 7B (ring removal alone cannot explain it, unless the overlapping MT zone becomes extremely small). Is it possible that something else (e.g. CLASP-dependent MT polymerization?) is required to push the chromosomes beyond the region of mixed MT-polarity, to allow the minus-end forces to take over? Or could CLASP simply provide many “loose”, non-spindle-pole MTs that reduce the opposing plus-end resistance simply by competition? Or is it that MT plus-end directed forces acting between anti-parallel MTs within the bundles eventually shrinks the overlap region to the size depicted in the cartoon? Please provide some suggestion(s) for how this transition might occur.

https://doi.org/10.7554/eLife.06462.021

Author response

Reviewer #1:

1) I'm confused why KLP-19 is not included in the model, while dynein is. Though it is part of the “ring” complex, it would be helpful if this were shown, or at least mentioned in the figure legend.

We originally did not label KLP-19 in our diagram because we did not want to give the incorrect impression that the ring was comprised only of KLP-19 or that we had evidence that KLP-19 is the only plus-end directed force acting on chromosomes. However, we have taken the reviewer’s helpful suggestion and have now updated the figure legend to include mention of KLP-19, which avoids this problem.

2) A color coded legend would make the model much easier to interpret.

We have now added a legend.

Reviewer #2:

From the data presented, however, it is not clear how the meiotic spindle in C. elegans is organized. Although not within the scope of this light microcopy study, I would like the authors to comment on the following issues related to spindle architecture:

1) The presented model is based on the idea that chromosomes/chromatids move laterally along microtubule bundles. What about the polarity of the microtubules in the system? Isn't it a requirement of the model that all microtubules are oriented in a way that the minus ends of the microtubules are facing towards the acentrosomal poles?

We do not have direct evidence by EM that microtubules within the bundles are organized in the way we depict, and we have now acknowledged this point and brought up the issue of microtubule polarity in the Discussion. As the reviewer suggests, we favor the idea that microtubules in the laterally-associated bundles are organized primarily (if not completely) with the polarity depicted in Figure 7; there may also be non-bundle associated microtubules of mixed polarity within the spindle as well, but our model focuses only on bundle-associated microtubules. Although our experiments don’t definitively show the polarity of microtubules within the bundles, we think that this interpretation is most consistent with our data. In monopolar spindles (where it is easier to distinguish between poleward and anti-poleward forces because there is no zone where bundles from opposing poles overlap), rings consistently stretch in one direction during metaphase arrest and chromosomes are subjected to an opposite force (Figure 4A). The simplest explanation for this behavior is that microtubules within the bundles are all oriented the same way; if microtubules were of mixed polarity, we would predict that the rings would not display such consistent behavior (always stretching in the same direction). Since we have identified a plus-end directed force (KLP-19) in the ring, and dynein inhibition causes chromosomes to be found further from the central pole, our data are most consistent with an organization in which the minus ends are in the center of the aster and the plus ends extend outwards. In the bipolar spindle, this would mean that the minus ends are focused at the two poles. Although we think that performing a detailed analysis of anaphase spindle morphology by EM is a worthy thing to do and is an important test of our model, we agree with the reviewer’s later comment that it is beyond the scope of this study.

2) The model does also imply that the number of microtubules from metaphase to early anaphase is not changing? The authors have presented a model in which an elongation of the microtubules is the major aspect of spindle elongation. This is in contrast to the Dumont model of a regrowth of microtubules between the segregating chromosomes/chromatids. Are the Dumont and Muscat models mutually exclusive?

Some aspects of our model and the Dumont model are mutually exclusive and some are not; we have now added a section to the Discussion discussing the previous model in more detail to try to clarify these points. One discrepancy relates to the idea presented in the Dumont model that the metaphase spindle disassembles from the poles so that a new microtubule array can form between separating chromosomes; this is not consistent with our observations that microtubules extend alongside or beyond chromosomes throughout anaphase and that pole proteins also remain associated with spindles, suggesting that the poles don’t disassemble. Another major difference relates to the proposed force separating chromosomes in the two models. Dumont, et al. suggest that the most likely candidate for the force driving chromosome segregation is microtubule polymerization between the separating chromosomes; microtubules coupled to the inside surfaces of separating chromosomes would serve to push them apart. This idea is not consistent with our observation of open channels within the spindles (new polymerization associated with the inside surfaces of chromosomes would serve to close the channels). Therefore, some aspects of the two models are mutually exclusive. However, the idea put forward by Dumont, et al. that microtubule polymerization contributes to segregation is certainly possible and we think quite likely; the spindle elongates significantly during anaphase and we favor the idea that microtubule polymerization contributes to this process. Our data do not directly address the mechanisms promoting spindle elongation or whether microtubule polymerization is required for segregation, as our assays are designed to focus on the forces acting on the chromosomes themselves. Therefore, we do not know whether microtubule number within the spindle changes from metaphase to anaphase and then subsequently throughout anaphase progression. We expect that future studies addressing this issue will result in a more complete understanding of how these two aspects of anaphase spindle behavior (chromosome to pole movement along lateral bundles, reported here, and spindle elongation) together facilitate segregation.

Reviewer #3:

Suggested experiments/presentation of data:

1) The authors state that “chromosomes associate with lateral bundles of microtubules during anaphase” and that this is “inconsistent with a model in which a new array of microtubules polymerizes between separating chromosomes”. This is initially based on the observation that open “channels” exist in the MT spindle network between separating chromosomes in early-late anaphase. However, a pushing force could still come from polymerizing MTs within the lateral MT bundles. Furthermore, the fact that chromosomes move beyond the pole region at the end of anaphase suggests that a pushing force from within the midzone is involved. A simple quantification of MT levels (total fluorescence of the entire spindle) during different stages of meiosis would help address the issue of whether more MTs are generated during anaphase. This would help to verify the authors' claims that the spindle does not disassemble and reassemble MTs, rather, it reorganizes existing MTs during the transition from metaphase to anaphase.

We did not intend to give the impression that we think that microtubule polymerization does not contribute to segregation on bipolar spindles; our experiments neither support nor rule out this idea. As discussed above in response to reviewer 2, the idea that microtubule polymerization may contribute to chromosome separation during the process of spindle elongation is entirely compatible with our model (e.g., by elongation of the microtubule bundles), and microtubule polymerization in this context could be promoted by CLASP, as Dumont et al. suggest. We had tried to account for this possibility in the original manuscript with the sentence: “However, the major length changes that occur in the C. elegans oocyte spindle (with it shrinking and then elongating as anaphase progresses) make it likely that spindle elongation also contributes to segregation, potentially driven by microtubule polymerization as this previous study proposed.”

However, we have now tried to more clearly articulate this point, with an expanded discussion of the differences between the two models and which features are compatible/incompatible, which will hopefully prevent further confusion. We have also revised the quoted sentence to read “…are inconsistent with a model in which a new array of microtubules polymerized between separating chromosomes provides a pushing force on their inside surfaces to drive separation”, to be more precise about the feature of the previous model that is most incompatible with our data.

In addition to these changes to the text, we also took the reviewer’s suggestion and attempted to quantify our fluorescence images, to see if we could find evidence to either support or disprove the idea of microtubule polymerization occurring during anaphase. We did a number of new imaging experiments, where we fixed large numbers of embryos and collected as many anaphase images as we could per experiment, using uniform parameters (e.g., exposure, image size, images from an individual experiment taken on the same day, etc.). We then processed each undeconvolved image using the analysis software Imaris v 8.0.2. We used the Surfaces module to calculate the size of the surface representing the spindle, keeping parameters applied to each image the same, and we then recorded the sum intensity of tubulin fluorescence from each surface. For each image we also calculated chromosome distance by generating a surface model for each cluster of separating chromosomes, allowing the software to call the center of each surface, and measuring the distance between the two center points. Using this strategy, we obtained the following intensity values for a set of anaphase spindles from one of our experiments, arranged from shortest chromosome distance (i.e., early anaphase) to largest (late anaphase):

CHROMOSOME DISTANCE (UM)

SUM INTENSITY

2.005.9E+07
2.016.7E+07
2.358.2E+06
2.614.7E+07
2.626.5E+07
3.105.4E+07
3.244.5E+07
3.306.1E+06
3.313.5E+06
3.412.9E+07
3.596.5E+07
3.999.3E+06
3.995.9E+06
4.169.0E+06
4.501.9E+06
5.082.4E+07
5.942.1E+07

From this data, we did not see a consistent trend that would allow us to argue either for or against microtubule polymerization occurring during anaphase. We think that the variations we observe are more likely the result of experimental variation (e.g., fixation differences that lead to differences in the efficiency of staining) rather than reflecting actual changes in microtubule number. We tried extensively to optimize this procedure, imaging both metaphase (not shown) and anaphase spindles, but we saw a similar level of variation in each experiment. We also used a number of different parameters in Imaris to calculate spindle volume, in case that was the source of variability, and we also performed a set of calculations where we manually set a region of interest around each spindle by eye, to rule out the possibility that the program was not accurately calculating spindle volume. However, we observed a similar level of variation no matter what method we used. We therefore think that definitively answering this question will not be possible using fixed imaging, and would be better determined by high resolution live imaging, where timepoints within the same spindle can be compared. Because we have not yet optimized live imaging conditions at a resolution that would be sufficient to accurately calculate microtubule density in the entire spindle volume, and also because neither outcome of this experiment would negatively impact our model (as our model focuses more on the forces acting on chromosomes and not on the molecular mechanisms that mediate spindle reorganization) we request that this experiment be viewed as the subject of future investigation, beyond the scope of this study.

Other points:

1) It looks like MTs do not form bundles in the monopolar spindles. If bundles do not form, is it fair to compare the movement of chromosomes in this system to a bipolar array?

In a previous study, we demonstrated that microtubules in monopolar spindles do form bundles that form lateral associations with bivalents, just as they do in bipolar spindles. This data is reported in Wignall and Villeneuve (2009), Nature Cell Biology. Bundles are shown in Figures 2A and 2D (monopolar spindles) and Figures 2B and 2C (bipolar). These bundles are apparent in images that are partial projections of z-stacks immediately surrounding individual bivalents; in full projections other microtubules in the spindle often obscure the bundles (which is the case in most of our images in the current manuscript). Therefore, although we did not present our images in a way that highlights this particular feature of monopolar spindle organization, we think that the presence of lateral bundles surrounding bivalents in both monopolar and bipolar spindles makes it possible to compare the movement of chromosomes in these two contexts. To make this point more clear to readers, we have added a sentence to the text and cited our previous work.

2) In Figure 3, it is difficult to determine whether the chromosomes are moving along the sides of microtubules in these panels (and the supplemental movie) or whether they are moving in conjunction with MT depolymerization. Could MT depolymerization be the main driver of minus-end movement?

We were also concerned about this possibility. However, we think that two lines of evidence support the interpretation that microtubule depolymerization is not the main driver of poleward movement. First, spindles are much larger following MCAK depletion (with clear microtubules extending beyond the chromosomes in anaphase) and separated chromosomes still move to the center of the monopolar spindle (Figure 3D). Second, during metaphase arrest we observe a significant number of monopolar spindles where chromosomes exhibit anaphase-like poleward movement after ring removal (Figure 4A). However, these monopolar spindles remain large since they are still in metaphase, making it unlikely that spindle shrinkage and microtubule depolymerization drives these poleward movements.

3) Some aspects of the model are unclear. Muscat et al. suggest that MT polymerization is not required for chromosome segregation, so how do the authors reconcile data from the Desai lab that showed that loss of CLASP abolished segregation? Could polymerization along the lateral bundles contribute to the segregation, or do the authors think that CLASP is doing something other than promoting MT polymerization?

This issue is addressed in response to major point #1, above.

The authors suggest that, during congression, the plus-end forces are active but that the minus-end forces start to accumulate (Discussion, second paragraph). But in the next sentence, it is the overlapping bundles of MTs with mixed polarity that causes the movement of chromosomes to stop in the middle of the spindle.

First, how can the congression work if dynein is also present? Figure 7 suggests that plus-end forces are active during congression, so is dynein accumulating but not active until after congression? What is a “weak” minus-end force, and what changes to make it stronger?

We have expanded our description of our dynein data in the manuscript to clarify these questions. We have done extensive imaging of dynein during meiosis using a variety of reagents/antibodies, and our results are consistent with the idea that dynein is present at low levels on chromosomes during prometaphase/metaphase; we can see faint dynein cupping chromosomes but it is usually difficult to distinguish from spindle-localized dynein. The images we show of dynein localization on monopolar spindles (Figure 5A) are clearer (probably because the chromosomes are no longer located in a dense zone of overlapping microtubules that would obscure the chromosomal pool), but the staining is still faint and the images we show are not deconvolved, which was necessary to preserve the signal. However, it is much easier to visualize chromosomal dynein in anaphase, even in deconvolved images (Figure 5B), suggesting that the amount of dynein on the chromosomes increases prior to or during anaphase. We therefore suggest that the amount of dynein on the chromosomes contributes to the strength of the force. Early in congression the minus-end force would be weaker and the plus-end forces would be dominant, but then dynein would accumulate to help drive segregation. This idea is now more clearly articulated in the text and depicted in Figure 7B.

Second, it is not obvious how the chromosomes escape the overlapping MT zone as depicted in the last two panels of Figure 7B (ring removal alone cannot explain it, unless the overlapping MT zone becomes extremely small). Is it possible that something else (e.g. CLASP-dependent MT polymerization?) is required to push the chromosomes beyond the region of mixed MT-polarity, to allow the minus-end forces to take over? Or could CLASP simply provide many “loose”, non-spindle-pole MTs that reduce the opposing plus-end resistance simply by competition? Or is it that MT plus-end directed forces acting between anti-parallel MTs within the bundles eventually shrinks the overlap region to the size depicted in the cartoon? Please provide some suggestion(s) for how this transition might occur.

We have now added a paragraph to the Discussion to address this issue and propose a number of suggestions.

https://doi.org/10.7554/eLife.06462.022

Article and author information

Author details

  1. Christina C Muscat

    Department of Molecular Biosciences, Northwestern University, Evanston, United States
    Contribution
    CCM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Keila M Torre-Santiago
    Competing interests
    The authors declare that no competing interests exist.
  2. Keila M Torre-Santiago

    Department of Molecular Biosciences, Northwestern University, Evanston, United States
    Contribution
    KMT-S, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Christina C Muscat
    Competing interests
    The authors declare that no competing interests exist.
  3. Michael V Tran

    Department of Molecular Biosciences, Northwestern University, Evanston, United States
    Contribution
    MVT, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. James A Powers

    Light Microscopy Imaging Center, Indiana University, Bloomington, United States
    Contribution
    JAP, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Sarah M Wignall

    Department of Molecular Biosciences, Northwestern University, Evanston, United States
    Contribution
    SMW, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    s-wignall@northwestern.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

March of Dimes Foundation (Basil O'Connor Starter Scholar Award)

  • Sarah M Wignall

Damon Runyon Cancer Research Foundation (Runyon-Rachleff Innovation Award)

  • Sarah M Wignall

V Foundation for Cancer Research (V Scholar Award)

  • Sarah M Wignall

Chicago Community Trust (Chicago Biomedical Consortium Recruitment Award)

  • Sarah M Wignall

American Cancer Society (Internal Research Grant ACS-IRG 93-037-18)

  • Sarah M Wignall

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Wignall lab for support and discussions, Richard Carthew, Amanda Davis, Rebecca Heald, Carissa Heath, Timothy Mullen, and Ian Wolff for critical reading of the manuscript and Olaf Bossinger, Bruce Bowerman, Arshad Desai, Andy Golden, Pierre Gönczy, Frank McNally, Jill Schumacher, and Susan Strome for reagents. Additionally, some strains were provided by the CGC, which is funded by the NIH Office of Research Infrastructure Programs (P40 OD010440). This work was supported by the Chicago Biomedical Consortium with support from the Searle Funds at The Chicago Community Trust, by an American Cancer Society Internal Research Grant (ACS-IRG 93-037-18), by a Basil O'Connor Award from the March of Dimes, by a V Scholar Award from the V Foundation for Cancer Research, and by a Damon Runyon-Rachleff Innovation Award (all to SMW).

Reviewing Editor

  1. Anthony A Hyman, Reviewing Editor, Max Planck Institute of Molecular Cell Biology and Genetics, Germany

Publication history

  1. Received: January 13, 2015
  2. Accepted: May 28, 2015
  3. Accepted Manuscript published: May 30, 2015 (version 1)
  4. Version of Record published: June 26, 2015 (version 2)

Copyright

© 2015, Muscat et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,098
    Page views
  • 873
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Developmental Biology and Stem Cells
    Qixuan Wang et al.
    Research Article Updated
