FAK/PYK2 promotes the Wnt/β-catenin pathway and intestinal tumorigenesis by phosphorylating GSK3β

  1. Chenxi Gao
  2. Guangming Chen
  3. Shih-Fan Kuan
  4. Dennis Han Zhang
  5. David D Schlaepfer
  6. Jing Hu  Is a corresponding author
  1. University of Pittsburgh School of Medicine, United States
  2. University of Pittsburgh Cancer Institute, United States
  3. Dietrich School of Arts and Sciences, United States
  4. University of California, San Diego, United States
Research Article
  • Cited 60
  • Views 3,454
  • Annotations
Cite this article as: eLife 2015;4:e10072 doi: 10.7554/eLife.10072

Abstract

Aberrant activation of Wnt/β-catenin signaling plays an unequivocal role in colorectal cancer, but identification of effective Wnt inhibitors for use in cancer remains a tremendous challenge. New insights into the regulation of this pathway could reveal new therapeutic point of intervention, therefore are greatly needed. Here we report a novel FAK/PYK2/GSK3βY216/β-catenin regulation axis: FAK and PYK2, elevated in adenomas in APCmin/+ mice and in human colorectal cancer tissues, functioned redundantly to promote the Wnt/β-catenin pathway by phosphorylating GSK3βY216 to reinforce pathway output—β-catenin accumulation and intestinal tumorigenesis. We previously showed that Wnt-induced β-catenin accumulation requires Wnt-induced GSK3β/β-TrCP interaction; the current study revealed that phosphorylation of GSK3βY216 was a molecular determinant of GSK3β recruitment of β-TrCP. Pharmacological inhibition of FAK/PYK2 suppressed adenoma formation in APCmin/+ mice accompanied with reduced intestinal levels of phospho-GSK3βY216 and β-catenin, indicating that FAK/PYK2/GSK3βY216 axis is critical for the activation of Wnt/β-catenin signaling in APC driven intestinal tumorigenesis.

https://doi.org/10.7554/eLife.10072.001

eLife digest

The cells in our body communicate with each other to coordinate many essential processes, including cell division and the formation of tissues and organs. The Wnt signaling pathway is crucial for cell communication across all animal species, but activating this pathway at the wrong time can cause cancer to develop. As part of the investigation into treatments for colon and other intestinal cancers, researchers have tried to identify drugs that inhibit Wnt signaling. This search would be easier if we understood more about how the Wnt signaling pathway is controlled.

When the protein GSK3 is active, it can switch the Wnt signaling pathway ‘off’, and inactivating GSK3 can turn the Wnt signaling pathway ‘on’. Enzymes known as kinases can inactivate GKS3 by adding a phosphate group to it, in a process known as phosphorylation. It was unknown which kinases phosphorylate GSK3, and whether this affects how cancerous tumors develop in the colon.

Gao, Chen et al. analyzed cells taken from human and mice and observed that two kinases called PYK2 and FAK phosphorylate one form of GSK3, known as GSK3β. Furthermore, both kinases are required to inactivate GSK3β completely, and so turn on the Wnt signaling pathway.

During the early stages of colon cancer, cells first develop into polyps, which subsequently become cancerous. Gao, Chen et al. treated mice that had genetic mutations that made them susceptible to colon cancer with a chemical compound that inhibits both FAK and PYK2. These mice grew fewer polyps than untreated mice, and the polyps that did grow tended to be smaller.

Tissue samples taken from humans in the early stages of colon cancer—as the polyps progress towards becoming cancerous—had high levels of FAK, PYK2 and phosphorylated GSK3β. Overall, this suggests that drugs that simultaneously inhibit FAK and PYK2 may be an effective treatment for colon cancer, although further studies will be needed to confirm this.

https://doi.org/10.7554/eLife.10072.002

Introduction

Aberrant activation of the canonical Wnt (Wnt/β-catenin) pathway is crucial for many cancer types, especially those of the gastrointestinal tract: genetic alterations in Wnt signaling occur in 93% of human CRCs, among which inactivation of tumor suppressor adenomatous polyposis coli (APC) (85%) and activating mutations of proto-oncogene β-catenin (5%) (Cancer Genome Atlas Network, 2012) are mutually exclusive (Sparks et al., 1998). The loss of functional APC results in less efficient GSK3 (two isoforms in mammals, GSK3α and GSK3β)-mediated phosphorylation of β-catenin, leading to reduced degradation of β-catenin, thus mimicking Wnt stimulation. Although APC mutation is believed to activate Wnt signaling constitutively, histopathological studies show that only about 50% colon carcinoma cells display homogeneous nuclear β-catenin staining (Chung et al., 2001), a surrogate for Wnt signaling activity, indicating that APC mutation alone is not sufficient to cause persistent or full activation of the Wnt pathway in CRC cells, therefore Wnt signaling is regulatable in APC-mutated CRCs. But how Wnt signaling is regulated in intestinal tumorigenesis remains largely undefined.

A key feature of the Wnt/β-catenin pathway is the tight control of the abundance of transcription co-activator β-catenin by the β-catenin destruction complex, consisting of GSK3, casein kinase 1 (CK1), APC, scaffold protein Axin and β-catenin. In Wnt-off state, the cytosolic level of β-catenin is kept low by its continuous degradation: β-catenin is phosphorylated by GSK3 on serine 33 and 37 and threonine 41, phosphorylation then triggers β-catenin recruitment of ubiquitin E3 β-TrCP (β-transducin repeats-containing proteins), causing its ubiquitination and proteasomal degradation (Wu and Pan, 2010). In Wnt-on state, Wnt ligand forms a complex with the cell-surface receptor Frizzled and low-density lipoprotein receptor-related protein (LRP) 5/6 (Wu and Pan, 2010), and initiates a series of molecular events ultimately causing stabilization of β-catenin by suppressing phosphorylation of β-catenin (Hernandez et al., 2012; Kim et al., 2013) as well as β-TrCP-mediated ubiquitination and proteasomal degradation of β-catenin (Li et al., 2012). Newly synthesized β-catenin then accumulates and enters the nucleus to interact with transcription factors TCF (T-cell factor)/LEF (lymphoid enhancing factor) to activate transcription of the Wnt target genes (Li et al., 2012).

How GSK3 is modulated and fine-tuned by Wnt to achieve β-catenin stabilization remains a fundamental question in the field of Wnt signaling, with many puzzles and contradictions. We previously found that Wnt simulation induces monoubiquitination of GSK3β by β-TrCP, which is required for Wnt-induced inhibition of β-catenin recruitment of β-TrCP and subsequent stabilization of β-catenin (Gao et al., 2014). This study addressed important questions left unanswered: What are the molecular determinants of GSK3β recruitment of β-TrCP? β-TrCP is the substrate recruitment module of the SCFβ-TrCP ubiquitin ligase supercomplex, recruitment of β-TrCP to its substrate, for example β-catenin, generally requires substrate phosphorylation (Cardozo and Pagano, 2004). If this is also true in GSK3β's case, what is the involved phosphorylation site(s)? What are the kinases responsible for catalyzing the phosphorylation? Is this phosphorylation involved in intestinal tumorigenesis? Our results indicate that phosphorylation of GSK3βY216 by FAK and PYK2 is a molecular determinant of GSK3β recruitment of β-TrCP, and is required for the activation of the Wnt/β-catenin pathway and crucial for Wnt-driven intestinal tumorigenesis.

Results

GSK3β phosphorylation at Y216 is required for GSK3β interaction with β-TrCP and subsequent ubiquitination

β-TrCP binds to its substrates through phosphorylated residues in conserved degradation motifs (DpSGxxpS) (Cardozo and Pagano, 2004), but tyrosine phosphorylation of substrate is also a recruiter for β-TrCP (Sahasrabuddhe et al., 2015). GSK3β is known to be phosphorylated at serine 9, threonine 43, tyrosine 216 and threonine 390 (Gao et al., 2014). To determine which of these sites is involved in GSK3β recruitment of β-TrCP, we generated single point mutations at these residues and compared the interactions between the mutants and β-TrCP. We found that mutation of S9 to alanine (A) moderately inhibited GSK3β/β-TrCP interaction, whereas mutation of T43 and T390 to alanine had no impact on GSK3β affinity for β-TrCP (Figure 1A). In contrast, mutation of Y216 to phenylalanine (F) almost completely abrogated GSK3β binding to β-TrCP. Mimicking GSK3βY216 phosphorylation by mutation Y216 to glutamic acid (E) restored the interaction, suggesting that it was phosphorylation that determines the recruitment of β-TrCP to GSK3β.

β-TrCP-mediated GSK3β ubiquitination requires GSK3βY216 phosphorylation.

(A) The whole cells lysates from HEK293T cells transfected with empty vector or constructs expressing HA-tagged GSK3β or its phosphorylation mutants were used for immunoprecipitation (IP) and immunoblotting (IB) analysis with indicated antibodies. (B) Ubiquitination of HA-GSK3β was evaluated by IP with anti-FLAG using whole cell lysates derived from HEK293T cells transfected with indicated constructs followed by IB analysis with anti-HA. (C) In vitro synthesized wild type (WT) and mutant HA-GSK3β proteins were immunoprecipitated with anti-HA affinity gel. Left panel: in vitro ubiquitination assay was performed by incubating immunoprecipitated HA-GSK3β with E1, E2, Ub and SCFβ-TrCP1 in the presence of ATP at 37°C for 2 hr. The reaction mixtures were analyzed by IB. Right panel: the immunoprecipitated HA-GSK3β was incubated with ATP at 37°C for 2 hr before subjecting to IB using antibody recognizing phosphorylated GSK3βY216. (D) HEK293T cells were treated with Wnt3a-conditioned medium (CM) for the indicated time before harvesting for IB analysis. (E) HEK293T cells were transfected with indicated plasmids and treated with control-CM or Wnt3a-CM for 6 hr. Ubiquitination of HA-GSK3β WT and Y216F mutant protein were evaluated by IP with anti-FLAG followed by IB with anti-HA. (F) HEK293T cells were transfected with constructs expressing HA-GSK3β or its mutant. 24 hr post-transfection, the cells were harvested for IP with anti-HA followed by IB with anti-Axin1. (G) Upper panel: HA-tagged GSK3β or its mutants were ectopically expressed in HEK293T cells and immunoprecipitated with anti-HA. The precipitated proteins were incubated with purified CK1 and β-catenin in the presence of ATP at 37°C for 1 hr. Kinase activity was evaluated by IB with antibody recognizing phosphorylation of β-cateninS33/S37/T41 catalyzed by GSK3β. Lower panel: the whole cell lysates from WT MEFs, GSK3β knockout (KO) and GSK3α knockdown (KD) MEFs reconstituted with empty vector or indicated HA-GSK3β mutants were used for IB. Antibody recognizing both GSK3α and GSK3β was used for detecting endogenous GSK3 and HA-tagged GSK3β. This antibody recognized HA-GSK3βY216F but not HA-GSK3βY216E mutant protein.

https://doi.org/10.7554/eLife.10072.003

Consistent with β-TrCP's role in GSK3β monoubiquitination (Gao et al., 2014), mutation of GSK3β Y216 to phenylalanine substantially reduced GSK3β ubiquitination in HEK293T cells (Figure 1B) and in an in vitro reconstituted system (Figure 1C, left panel). In the presence of SCFβ-TrCP1 ubiquitin E3 ligase complex, WT GSK3β and its phosphorylation mimicking mutant Y216E, but not Y216F mutant, were ubiquitinated. Of note, in vitro synthesized GSK3β through Rabbit Reticulocyte Lysate Translation Systems were weakly phosphorylated at Y216 and incubation with ATP further enhances GSK3βY216 phosphorylation through GSK3β autophosphorylation (Cole et al., 2004) (Figure 1C, right panel), which explains why in vitro ubiquitination of WT GSK3β was possible if GSK3β monoubiquitination requires Y216 phosphorylation. Although Wnt3a treatment did not alter p-GSK3βY216 level in HEK293T cell (Figure 1D) (GSK3αY279 corresponds to GSK3βY216, the antibody recognizing p-GSK3βY216 also recognizes p-GSK3αY279), the loss of GSK3βY216 phosphorylation greatly impaired both basal and Wnt3a-induced GSK3β monoubiquitination (Figure 1E).

Prior studies indicate that phosphorylation of GSK3βY216 may or may not affect GSK3β kinase activity and GSK3β/Axin interaction (Hughes et al., 1993; Zhang et al., 2001; Dajani et al., 2003; Buescher and Phiel, 2010). The current study showed that GSK3βY216F mutant protein interacted with Axin1 as strongly as WT GSK3β in HEK293T cells (Figure 1F). Same as GSK3β ubiquitination mutant GSK3βKKKK15/27/32/36RRRR (lysines 15/27/32/36 to arginines mutant, labeled as S4 in the figure), GSK3βY216F and GSK3βY216E phosphorylated β-catenin as efficiently as WT GSK3β in vitro (Figure 1G, upper panel) and in cells (Figure 1G, lower panel). Together, these results imply that phosphorylation status on Y216 neither affects GSK3β binding affinity for Axin1 nor changes GSK3β kinase activity towards β-catenin phosphorylation.

Phosphorylation of GSK3βY216 is required for the activation of Wnt/β-catenin signaling

We next validated the role of GSK3βY216 in Wnt/β-catenin signaling in GSK3β knockout (KO) MEFs (mouse embryonic fibroblasts). GSK3α and GSK3β are functionally redundant in Wnt signaling (Doble et al., 2007), to avoid compensation from GSK3α, we generated GSK3β KO/GSK3α KD MEF cell line. Loss of both GSK3α/β increased the basal level of β-catenin (Figure 2A, comparing lanes 1 and 5), presumably due to the lack of GSK3-mediated phosphorylation of β-cateninS33/S37/T41 (Doble et al., 2007). Reconstitution of the GSK3β KO/GSK3α KD MEFs with WT HA-GSK3β reduced the basal level of β-catenin to the level comparable to WT MEFs (Figure 2A, comparing lanes 1, 5 and 7), likely due to the restoration of GSK3-mediated phosphorylation of β-catenin. Reconstitution these MEFs with WT HA-GSK3β and its phosphorylation mimetic mutant (HA-GSK3βY216E), but not GSK3βY216F mutant, also restored Wnt-induced accumulation of β-catenin, thus validating the positive role of GSK3βY216 phosphorylation in Wnt signaling. The fact that GSK3βKKKK15/27/32/36RRRR/Y216E mutant failed to restore Wnt-induced β-catenin stabilization (Figure 2A, lanes 13 and 14) functionally confirmed that Y216 phosphorylation occurs prior to ubiquitination. We have found that Wnt-induced long-term β-catenin stabilization is mediated by GSK3β monoubiquitination through suppressing β-catenin recruitment of β-TrCP (Gao et al., 2014). In line with this, the co-IP results showed that upon Wnt3a stimulation, β-TrCP recruitment to β-catenin and ubiquitination of the phosphorylated β-cateninS33/S37/T41 (Figure 2B, left panel) were substantially increased in GSK3β KO/GSK3α KD MEFs reconstituted with HA-GSK3βY216F, whereas reconstitution with Y216 phosphorylation mimetic mutant (HA-GSK3βY216E) exerted the opposite effect. The results from the reciprocal IP assay confirmed more β-TrCP-bound p-β-cateninS33/S37/T41 in HA-GSK3βY216F cells (Figure 2B, right panel). Together, these data suggested that phosphorylation of GSK3βY216 is required for the activation of the Wnt/β-catenin signaling by suppressing phosphorylated β-cateninS33/S37/T41 recruitment of β-TrCP.

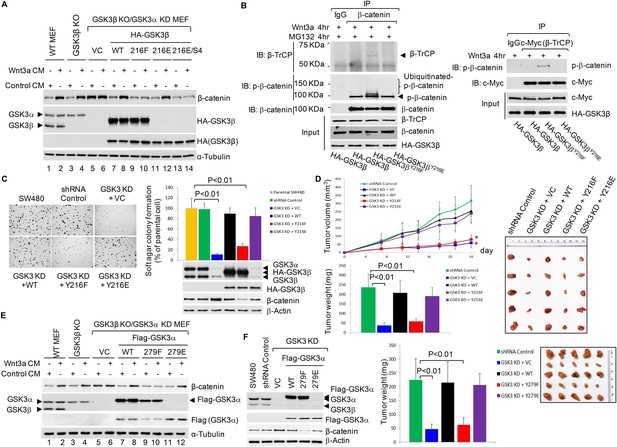

Activation of Wnt/β-Catenin signaling requires GSK3βY216 phosphorylation.

(A) IB analysis using whole cell lysates from indicated MEFs treated with control-CM or Wnt3a-CM for 6 hr. Anti-GSK3 was used to detect endogenous GSK3 and HA-GSK3β. This antibody recognized HA-GSK3βY216F but not HA-GSK3βY216E or GSK3βY216E/S4 mutant proteins. (B) The GSK3β KO/GSK3α KD MEFs were transfected with vectors expressing indicated proteins, treated with Wnt3a-CM and proteasome inhibitor MG132 (10 µM) for 4 hr as indicated, and then harvested for IP and IB analyses using indicated antibodies. (C) Left panel, SW480 cells and GSK3α/β KD SW480 cell lines expressing vector control, shRNA-resistant WT HA-GSK3β or its mutants were used for soft agar assays. Pictures were taken 16 days after plating at 40×. Right panel, quantification of soft agar assays. Data are presented as mean ±SD. Expressions of GSK3α/β (endogenous or mutants) and β-catenin were evaluated by IB at the time of plating. (D) Upper left panel, SW480 cell lines used in (C) were injected into both flanks of nude mice (5 mice in each cell group). Tumor sizes were measured at indicated time points. Tumor volumes were calculated and plotted. * denotes a statistically significant difference (p < 0.01) comparing with shRNA control group. Bottom left panel, tumor weighs from different groups at the end of the experiment. Values are means ±SD (n = 10). Right panel, representative tumors from different groups. (E) IB analysis using whole cell lysates from indicated MEFs treated with control-CM or Wnt3a-CM for 6 hr. Anti-GSK3 was used to detect endogenous GSK3 and Flag-GSK3α. This antibody recognized Flag-GSK3αY279F but not Flag-GSK3αY279E mutant protein. (F) Left panel: IB characterization of the SW480 cell lines. Middle panel: indicated SW480 cell lines were injected into both flanks of nude mice (5 mice in each cell group). Tumors from different groups were weighed at the end of the experiment. Values are means ±SD (n = 10). * denotes a statistically significant difference (p < 0.01) comparing with shRNA control group. Right panel, representative tumors from different groups.

https://doi.org/10.7554/eLife.10072.004

CRC cell lines including SW480 (APC-deficient, WT β-catenin) are Wnt autocrine cell lines (Bafico et al., 2004). In SW480 cells, KD of both GSK3α and GSK3β greatly inhibited cell growth in soft agar (Figure 2C) and in nude mice (Figure 2D). Reconstitution of the cells with WT HA-GSK3β or HA-GSK3βY216E but not HA-GSK3βY216F restored cell growth in vitro and in vivo, implying that phosphorylation of GSK3βY216 is functionally important in CRC cells.

GSK3αY279 corresponds to GSK3βY216. Given the redundant role of GSK3α and GSK3β in Wnt signaling (Doble et al., 2007), we next examined whether phosphorylated GSK3αY279 and GSK3βY216 also function redundantly in Wnt signaling and in CRC cells. The results showed that reconstitution of the GSK3β KO/GSK3α KD MEFs with WT Flag-GSK3α or Flag-GSK3αY279E, but not GSK3αY279F mutant restored Wnt-induced accumulation of β-catenin (Figure 2E). In GSK3α/β KD SW480 cells, reconstitution with WT Flag-GSK3α or Flag-GSK3αY279E but not Flag-GSK3αY279F restored in vivo tumor growth in a cell line xenograft assay (Figure 2F). Together, these data indicated that GSK3αY279 and GSK3βY216 function redundantly in the Wnt/β-catenin pathway and in CRC cells.

FAK/PYK2 phosphorylate GSK3βY216

To identify the kinases responsible for GSK3βY216 phosphorylation, we performed a pilot screening experiment using various kinase inhibitors. In line with a prior report that GSK3βY216 can be phosphorylated by PYK2 (Sayas et al., 2006), we found that treatment of HEK293T cells with PF-562271, a dual inhibitor of FAK/PYK2, inhibited GSK3βY216 and GSK3αY279 phosphorylation in the presence and absence of Wnt3a (Figure 3A). FAK and PYK2 are closely related non-receptor tyrosine kinases, participating in diverse signaling pathways and control a number of cellular processes (Mitra et al., 2005; Schaller, 2010). Unlike ubiquitously expressed FAK, PYK2 has a more restricted tissue expression and is highly enriched in the brain and hematopoietic cells (Avraham et al., 2000). Our IB results (Figure 3B) showed that while HEK293T and HT-29 cells predominantly expressed FAK, SW480 cells primarily expressed PYK2. Both FAK and PYK2 were expressed in DLD-1 cells. In HEK293T cells, KD of FAK abrogated GSK3αY279 and GSK3βY216 phosphorylation and Wnt-induced β-catenin accumulation (Figure 3C). In CRC cells predominantly expressing either FAK (HT-29 cells) or PYK2 (SW480 cells), KD of FAK or PYK2 alone was sufficient to reduce the levels of phosphorylated GSK3αY279 and GSK3βY216 and total β-catenin (Figure 3D,E). However, in DLD-1 cells expressing FAK and PYK2, simultaneous KD of both kinases were required to inhibit GSK3Y279/Y216 phosphorylation and to reduce the level of β-catenin (Figure 3F), strongly suggesting that FAK and PYK2 function redundantly to phosphorylate GSK3Y279/Y216 to promote Wnt/β-catenin signaling. To further confirm that GSK3 is a phosphorylation substrate of FAK/PYK2, we examined whether FAK/PYK2 binds to GSK3β and FAK/PYK2's ability to phosphorylate GSK3βY216 in vitro. In line with prior findings that GSK3β interacts with FAK and PYK2 in vivo (Huang et al., 2002; Sayas et al., 2006), our co-IP results showed that GSK3β interacted with PYK2 in SW480 cells and with FAK in HT-29 cells (Figure 3G). However, whether they bind directly or indirectly is not known. The result of in vitro kinase assay confirmed that FAK and PYK2 were able to directly phosphorylate GSK3βY216 in vitro (Figure 3H). Together, these results reveal that FAK and PYK2 mediate GSK3Y279/Y216 phosphorylation in CRC cells.

Phosphorylation of GSK3βY216 by FAK/PYK2.

(A) HEK293T cells were pre-treated with or without PF-562271 (4 µM) for 4 hr followed by incubation with control-CM or Wnt3a-CM containing PF-562271 (4 µM) for additional 4 hr as indicated. The whole cell lysates were subjected for IB with indicated antibodies. (B) FAK and PYK2 expressions were evaluated by IB analysis. (C) Parental, FAK KD and shRNA control HEK293T cells were treated with control-CM or Wnt3a-CM for 4 hr before harvesting for IB analysis using indicated antibodies. (DF) FAK KD, PYK2 KD or FAK/PYK2 KD cell lines and shRNA control cell lines were generated using lentiviral-based shRNA targeting FAK or PYK2 or control shRNA. The whole cell lysates were used to evaluate the levels of p-GSK3βY216 and β-catenin by IB with indicated antibodies. (G) GSK3β in SW480 and HT29 cells was immunoprecipitated with anti-GSK3β followed by IB with anti-PYK2 and anti-FAK, respectively. Normal IgG was used as IP control. (H) In vitro synthesized HA-GSK3β was immunoprecipitated with anti-HA. Beads-bound HA-GSK3β was then incubated with purified FAK or PYK2 recombined protein (or kinase buffer as a negative control) in the presence of ATP at 37°C for 2 hr. The reaction mixtures were subjected to IB analysis using indicated antibodies.

https://doi.org/10.7554/eLife.10072.005

FAK/PYK2 kinase activity mediates FAK/PYK2 regulation of the Wnt/β-catenin pathway

The above results identified GSK3β as a new substrate of FAK kinase. FAK has kinase-dependent and kinase-independent scaffolding activities (Cance et al., 2013). If FAK/PYk2 regulates Wnt/β-catenin through their kinase activity by phosphorylating GSK3βY216, there should be differences in the time courses of FAK/PYK2 inhibitor-mediated suppression of FAK/PYK2 kinase activity, GSK3βY216 phosphorylation and β-catenin. The results confirmed that treatment with PF-562271 caused sequential inhibition of PYK2 kinase activity represented as phosphorylated PYK2Y402 (Park et al., 2004), GSK3βY216 phosphorylation and β-catenin (Figure 4A). To ultimately validate that it is the kinase activity that mediates FAK/PYK2 regulation of Wnt/β-catenin signaling, we examined GSK3βY216 phosphorylation-dependent activation of Wnt/β-catenin signaling in FAK kinase-deficient MEFs (FAKR454/R454 knockin MEFs). A knock-in point mutation of lysine 454 to arginine within the catalytic domain inactivates FAK kinases activity (Lim et al., 2010) (Figure 4B, represented by abolished phosphorylation of FAKY397) but leaves FAK's scaffolding activity intact (Lim et al., 2008). Consistent with our finding that FAK and PYK2 function redundantly in phosphorylating GSK3, despite of suppressed FAK activity in FAKR454/R454 MEFs, KD of PYK2 was required to inhibit GSK3βY216 phosphorylation. shRNA KD of PYK2 also abrogated Wnt3a-induced β-catenin accumulation; whereas overexpression of GSKβY216E restored Wnt3a-indcued β-catenin stabilization in the FAKR454/R454/PYK2 KD MEFs (Figure 4C), implying that FAK/PYK2 stabilize β-catenin through phosphorylating GSKβY216. We further found that β-TrCP recruitment to and ubiquitination of the phosphorylated β-cateninS33/S37/T41 were greatly increased in FAKR454/R454/PYK2 KD MEFs, ectopic expression of GSKβY216E exerted the opposite effect (Figure 4D). Together, these results indicated that FAK/PYK2 stabilizes β-catenin through FAK/PYK2 kinase-mediated phosphorylation of GSKβY216. In line with the observation that elevated p-GSK3βY216 was significantly higher in 5FU treatment-resistant CRC patients than in 5FU-responsive patients (Grassilli et al., 2013), we also found that overexpression of GSKβY216E substantially prevented PF-562271 treatment-mediated inhibition of cell proliferation in SW480 cells (Figure 4E).

FAK/PYK2 promotes the Wnt/β-catenin pathway through phosphorylating GSK3βY216.

(A) Time courses of PF-562271 treatment-induced inhibition of phosphorylation of PYK2, GSK3β and β-catenin in SW480 cells. The whole cell lysates were used for the IB analysis using indicated antibodies. (B) The whole cell lysates from indicated cells were used for IB analysis. (C) The WT MEFs, FAKR454/R454/PYK2 KD MEFs transfected with empty vector or vector expressing indicated GSK3β mutants were treated with Wnt-3a CM or control-CM for 6 hr before harvesting for IB analysis. (D) The WT MEFs and FAKR454/R454/PYK2 KD MEFs transfected with empty vector or vector expressing HA-GSK3βY216E were treated with Wnt3a-CM and proteasome inhibitor MG132 for 4 hr and then harvested for IP and IB analyses. KI/KD: FAKR454/R454/PYK2 KD MEFs expressing empty vector. KI/KD/Y216E: FAKR454/R454/PYK2 KD MEFs expressing HA-GSK3βY216E. (E) Parental SW480 cells and SW480 cell lines expressing vector control, HA-GSK3β or its mutants were treated with 2 µM PF-562271 for 4 days. Cell viability was determined by CCK-8 assay, using SW480 parental cell treated with DMSO as control. Data are presented as mean ±SD. * denotes a statistically significant difference (p < 0.01) between PF-562271-treated parental SW480 cells and cells overexpressing HA-GSK3βY216E. (F) Upper left panel: indicated HT-29 cell lines were injected into both flanks of nude mice (5 mice in each cell group). Animals were treated with either vehicle (5% Gelucire) or PF-562271 (33 mg/kg in vehicle) as indicated by oral gavage twice daily for 3 weeks. Tumor sizes were measured at indicated time points. Tumor volumes were calculated and plotted. * denotes a statistically significant difference (p < 0.01) comparing with vehicle-treated group. Upper right panel, tumor weighs from different groups at the end of the experiment. Values are means ±SD (n = 10). Bottom panel, representative tumors from different groups.

https://doi.org/10.7554/eLife.10072.006

FAK can directly phosphorylate β-catenin at tyrosine 142 (Chen et al., 2012). We next examined whether PF-562271 treatment inhibits tumor growth when Y142 in β-catenin is mutated. The results from xenograft experiments showed that although overexpression of β-cateninY142E partially jeopardized the anti-tumor effect of PF562271, PF562271 treatment significantly inhibited in vivo growth of SW480 cells ectopically expressing Flag-β-cateninY142E (Figure 4F). While this result further proved the importance of FAK/PYK2-mediated GSK3 phosphorylation, it also suggested that phosphorylation of β-cateninY142 plays a role in FAK-targeted therapy for CRC.

Inhibition of FAK/PYK2 suppresses intestinal phosphorylation of GSK3βY216 and adenoma formation in APCmin/+ mice

Intestine-specific deletion of FAK almost completely suppressed intestinal adenoma formation in APC-mutant mouse model for colorectal cancer (Ashton et al., 2010), proving that FAK is required for the oncogenicity of APC mutation in intestinal tumorigenesis. But the underlying mechanisms remain unclear. To determine whether FAK is involved in APC-driven tumorigenesis through its catalytic activity, we examined the anti-tumorigenic effects of dual FAK/PYK2 kinase inhibitor PF-562271 in APCmin/+ mice, a genetic model predisposed to the formation of intestinal adenomas due to aberrant activation of the Wnt/β-catenin signaling. We found that PF-562271 treatment significantly inhibited both polyp formation (number) and polyp expansion (size) (Figure 5A,B). The results of IB confirmed that loss of functional APC upregulated intestinal expression of c-Myc (β-catenin target gene) and FAK (c-Myc target) (Figure 5C, left panel). PF-562271 treatment inhibited intestinal FAK kinase activity, evidenced by reduced level of p-FAKY397 (Avraham et al., 2000), and remarkably reduced β-catenin level, accompanied by reduced expressions of c-Myc and FAK, consistent with the notion that FAK functions as both ‘effector’ and ‘regulator’ of β-catenin. In line with the previous report (Carothers et al., 2006), we also found that intestinal PYK2 expression was substantially increased in tumors of APCmin/+ mice (Figure 5C, right panel), PF-562271 treatment abrogated the induction (Figure 5C, left panel).

Inhibition of FAK/PYK2 kinase activity suppresses adenoma formation in APCmin/+ mice.

(A) Representative staining results of ileum (distal) segments from APCmin/+ mice treated with vehicle or PF-562271 were shown. (B) Adenoma formation on entire small intestine was quantitatively assessed in APCmin/+ mice treated with vehicle (n = 5) or PF-562271 (n = 5). Data was presented as mean ±S.D. (C) Left panel: tissue lysates extracted from the scraped intestinal mucosa from indicated mice were used for IB analysis. Each lane represented a single mouse. Right panel: tissue lysates extracted from C57 control mouse, APCmin/+ mouse and polyps were used for IB. (D) Tissue lysates used in (C, left panel) were immunoprecipitated with anti-GSK3β. The beads-bound immunoprecipitates were resolved by SDS-PAGE and probed with indicated antibodies.

https://doi.org/10.7554/eLife.10072.007

When assessing intestinal GSK3βY216 phosphorylation by IB, we detected multiple bands at high molecular weight that might represent phosphorylated GSK3αY279 and/or phosphorylated GSK3βY216 with other types of modifications, possibly ubiquitination. Unable to discriminate these possibilities by straight western blotting analysis, we chose to immunoprecipitate intestinal GSK3β using anti-GSK3β and then resolved the immunoprecipitates on SDS-PAGE gels, followed by IB analysis with anti-ubiquitin antibody and antibody recognizing phosphorylated GSK3βY216. In contrast to that endogenous ubiquitinated GSK3β in non-Wnt-treated resting cells was barely detectable in cell culture (Gao et al., 2014), to our surprise, substantial amount of the ubiquitinated intestinal GSK3β was readily detected in both C57BL/6J mice and APCmin/+ mice with much higher levels observed in APCmin/+ mice (Figure 5D). This finding highlights the importance of studying the role of posttranslational modifications in relevant biological contexts. The intestinal level of p-GSK3βY216 was also much higher in APCmin/+ mice than in control mice, whereas PF-562271 treatment greatly suppressed GSK3βY216 phosphorylation and GSK3β ubiquitination. Overall, these results strongly support that FAK/PYK2 kinase contributes to APC-driven intestinal tumorigenesis through phosphorylating GSK3βY216 to promote Wnt/β-catenin signaling.

Positive correlation between the levels of FAK, PYK2, GSK3β, p-GSK3βY216 and β-catenin in human colorectal cancer tissues

Most colorectal carcinomas develop from adenomas via adenoma-carcinoma-sequence driven by the accumulation of genetic and epigenetic mutations (Fearon and Vogelstein, 1990); Our results (Figure 5) imply that FAK/PYK2/GSK3βY216/β-catenin regulation axis is an early participant and driving force for intestinal tumorigenesis in APCmin/+ mice. If this is also true in the development of human CRC, dysregulation of FAK/PYK2 expression, GSK3βY216 phosphorylation and β-catenin accumulation should occur at the adenoma stage of the adenoma–carcinoma-sequence. In a proof-of-concept experiment, we analyzed serial sections of colon specimen from the same tissue block. We found that the IHC staining intensities of FAK, PYK2, GSK3β, p-GSK3α/βY279/Y216 and β-catenin were increased during the course of the normal-adenoma–carcinoma progression (Figure 6A), demonstrating that induction of FAK/PYK2 expression, GSK3α/βY279/Y216 phosphorylation and β-catenin accumulation did occur at the early stage (the adenoma stage) of colon cancer development. The positive correlation between these elevated expressions also suggested that these inductions were related events.

FAK, PYK2, p-GSK3βY216 and β-catenin positively correlate in human colorectal cancer tissues.

(A) Hematoxylin and eosin (H&E) and immunohistochemical staining of the colorectal adenoma, carcinoma and adjacent normal tissues from a single patient. (B) 34 tumor samples on tissue microarray were immunohistochemical stained and scored. Score distribution and average score of each antibody staining were summarized. (C) Scoring differences between tumor and matched normal tissues from twenty-six patients. * Denotes p-GSK3βY216, FAK or PYK2 scores in different directions. _ highlights the numbers of patients whose TMA scores of p-GSK3βY216, FAK or PYK2, and β-catenin move in the same direction. (D) Hematoxylin and eosin (H&E) and immunohistochemical staining of colorectal carcinoma and adjacent normal tissues from a familial adenomatous polyposis patient. (E) Schematic diagram of the FKA/PYK2/p-GSK3βY216/β-catenin axis and its role in intestinal tumorigenesis.

https://doi.org/10.7554/eLife.10072.008

To determine whether the positive correlations between the levels of FAK, PYK2, p-GSK3α/βY279/Y216 and β-catenin are commonly seen in human CRC tissues, we performed IHC for these markers on CRC tissue microarray containing 34 cases of colorectal adenocarcinoma with 26 matched and 8 unmatched adjacent normal tissues. The results showed that the levels of FAK, PYK2, GSK3β, p-GSK3α/βY279/Y216 and β-catenin were all significantly elevated in tumor tissues, with more than 1 score point difference between normal and tumor tissue on average (Figure 6B). In the vast majority of samples, FAK/p-GSK3α/βY279/Y216/β-catenin (19 of 26 samples) and PYK2/p-GSK3α/βY279/Y216/β-catenin (18 out of 26 samples) were regulated in the same way, supporting that they are related events in the development of colonic cancer (Figure 6C). To definitively link the upregulation of FAK/PYK2/p-GSK3α/βY279/Y216/β-catenin axis in human CRC to the loss of functional APC, we analyzed serial sections of colon specimens from a patient with FAP, an inherited colorectal cancer syndrome caused by germline mutation of APC. The levels of FAK/PYK2, p-GSK3α/βY279/Y216 and β-catenin were all found substantially elevated in colon carcinomas (Figure 6D), thus providing proof-of-concept evidence linking these molecular changes to the loss of functional APC in CRC patients.

Discussion

The current study has revealed a novel FAK/PYK2/GSK3βY216/β-catenin regulatory circuit in intestinal tumorigenesis. Our findings indicate that: loss of functional APC induces the expression of FAK and PYK2, elevated FAK/PYK2 phosphorylates GSK3βY216 to stabilize β-catenin, which initiates and supports intestinal tumorigenesis (Figure 6E). Phosphorylation of GSK3βY216 was discovered about two decades ago (Hughes et al., 1993), but until now, its role in Wnt/β-catenin signaling remains mysterious. Our results has uncovered a previously unrealized role of GSK3βY216 phosphorylation: it triggers GSK3β recruitment of β-TrCP and subsequent GSK3β monoubiquitination by β-TrCP, an event required for Wnt-induced inhibition of β-catenin degradation, thus identifying phosphorylation of GSK3βY216 as an ‘activator’ of the Wnt/β-catenin pathway.

Phosphorylation of GSK3βY216 has been shown to be required for GSK3β's full kinase activity measured by in vitro phosphorylation of c-jun (Hughes et al., 1993); however, mutation of Y216 did not impair GSK3β's ability to phosphorylate Tau (Buescher and Phiel, 2010). The reason for the discrepancy is not clear, but it might be explained by the fact that different substrates were used in these studies. The current study indicates that phosphorylation of GSK3βY216 per se does not affect GSK3β activity towards β-catenin, thus ruling out the possibility that GSK3βY216 regulates the Wnt/β-catenin pathway through modulating GSK3β kinase activity.

GSK3 is emerging as a prominent drug target for the treatment of various disorders including cancer and currently more than 50 GSK3 kinase inhibitors have been developed (McCubrey et al., 2014). The kinase activity per se of GSK3 plays a dual role in Wnt signaling: GSK3 phosphorylation of Wnt coreceptor LRP6 on its PPPSP motifs is required for the activation of the pathway (positive role), whereas phosphorylation of β-catenin by GSK3 triggers its degradation (negative role) (Wu and Pan, 2010). The kinase-mediated double role feature makes targeting GSK3 catalytic activity potentially problematic since it suppresses GSK3-mediated degradation of β-catenin, thus activating Wnt signaling therefore being potentially oncogenic. Indeed, 60 days of lithium treatment resulted in overall modest but significant increase in the tumor size in APCmin/+ mice (Gould et al., 2003), implying that GSK3 kinase inhibitor does pose an oncogenic risk, at least in the context of Wnt-driven carcinogenesis. The current study suggests a novel way of GSK3 inhibition: targeting GSK3α/βY279/Y216 phosphorylation, which opens a new avenue for the design and development of GSK3 inhibitors.

FAK plays a pivotal role in angiogenesis, tumor cell invasion and metastasis (Sulzmaier et al., 2014). FAK is also required for tumor initiation: organ-specific deletion of FAK suppresses mammary tumorigenesis (Luo et al., 2009; Pylayeva et al., 2009), intestinal tumorigenesis (Ashton et al., 2010), skin tumor formation (McLean et al., 2004) and hepatocarcinogenesis (Shang et al., 2015), suggesting that inhibition of FAK may present a promising strategy for treating these diseases. FAK has kinase-dependent and kinase-independent scaffolding functions (Cance et al., 2013); whether and how these two activities contribute to FAK's role in a particular type of cancer remains largely unexplored. In c-Met/β-catenin-driven hepatocarcinogenesis, FAK kinase activity was not required for β-catenin-induced Cyclin D1 expression (Shang et al., 2014). However, pharmacologic inhibition of FAK kinase activity suppressed KRAS-driven lung adenocarcinomas (Konstantinidou et al., 2013), suggesting an involvement of FAK kinase activity in KRAS-driven lung cancer. This study indicates that FAK contributes APC-driven intestinal tumorigenesis through its kinase activity. Currently several FAK inhibitors are undergoing clinical trials and the first phase I trial has been very promising. A clinical challenge that lies ahead is to identify tumor types and patient subgroups that are most responsive to FAK inhibitors. To this end, the current study has identified a potentially responsive tumor type—colorectal cancer—and potentially responsive patient subpopulations—CRC patients with APC mutations.

FAK is known to regulate β-catenin dynamics by directly phosphorylating β-cateninY142 (Chen et al., 2012). Phosphorylation of β-cateninY142 acts as a switch from the adhesive to the transcriptional role of β-catenin (Piedra et al., 2003); as a result, FAK facilitates vascular endothelial cadherin-β-catenin dissociation and endothelial cells junctional breakdown (Chen et al., 2012). This study has revealed a new role of FAK in the regulation of β-catenin: stabilizing β-catenin by phosphorylating GSK3α/βY279/Y216. FAK regulates mammary stem cell and intestinal tissue regeneration (Luo et al., 2009; Ashton et al., 2010; Sulzmaier et al., 2014); given the importance of Wnt/β-catenin pathway in stem cell, our study could provide a potential mechanistic explanation how FAK is involved in stem cell and tissue regeneration.

PYK2 is closely related to FAK in sequence and structure with 48% amino acid identity, and they function redundantly and non-redundantly in a function and context-dependent manner (Schaller, 2010). Despite its low expression in normal human intestines (Avraham et al., 1995), we and others find that intestinal PYK2 is elevated in adenomas in APCmin/+ mice and in CRC patient tissues (Carothers et al., 2006). The current study clearly show that by phosphorylating GSK3α/βY279/Y216, FAK and PYK2 function redundantly in the regulation of Wnt/β-catenin signaling in CRC cells, raising the possibility that FAK and PYK2 could also function redundantly in Wnt-driven intestinal tumorigenesis. However, if so, why was intestine-specific deletion of FAK alone sufficient to cause complete abrogation of adenoma formation in APC-mutant mice (Ashton et al., 2010)? Why did PYK2 not compensate for the loss of FAK in intestinal tumorigenesis? A prior study (Carothers et al., 2006) and our data (Figure 5C, right panel) showed that drastic PYK2 elevation occurred in tumors in APCmin/+ mice, indicating that PYK2 is upregulated during the process of intestinal tumorigenesis. FAK induction, although further enhanced in tumors, however, is triggered by APC mutation—the initiating event for tumorigenesis in the APC-mutant mice, through activated Wnt pathway target c-Myc (Ashton et al., 2010); therefore FAK induction by APC mutation should occur earlier than PYK2 elevation. If so, it explains why inhibition of FAK by intestinal deletion of FAK was sufficient to suppress tumor development, it also explains why PF562271 treatment inhibited PYK2 elevation in APCmin/+ mice (Figure 5C, left panel). Nevertheless, regardless of the exact mechanisms mediating in vivo PYK2 regulation during intestinal tumorigenesis, elevated PYK2 in tumors further enhances Wnt-dependent tumorigenesis through phosphorylating GSK3 to promote the Wnt pathway—a positive feedback loop that reinforces the tumor development process.

Tumors undergoing targeted therapy often relapse due to the utilization of autonomous parallel-redundant signaling. The current study indicates that both FAK and PYK2 are elevated in already established colon tumors in CRC patients and that effective inhibition of the Wnt/β-catenin pathway in CRC cells expressing FAK and PYK2 will only be achieved by simultaneously targeting both kinases; we believe these results provide a solid mechanistic justification for clinical use of FAK/PYK2 dual inhibitor instead of FAK-specific inhibitor for better clinical outcomes in CRC patients.

Materials and methods

Statistical analysis

Request a detailed protocol

Data are presented as mean ±SD. The difference between two groups was evaluated using Student's t-test (two tailed). p values less than 0.05 were considered statistically significant.

Additional methods

Detailed information for DNA constructs, shRNA, antibodies and reagents, and detailed methods for cell culture, immunoprecipitation (IP), immunoblotting (IB), transfection, lentivirus and retrovirus production and infection, in vitro kinase assay, ubiquitination assay, soft agar assay, cell proliferation assay, and animal experiments are provided below.

Cell lines and cell culture

Request a detailed protocol

All cells were cultured in a 37°C humidified incubator containing 5% CO2. HEK293T, SW480, and MEF cells were grown in DMEM. DLD-1 cells and HT-29 cells were cultured using RPMI-1640 medium and MoCoy's 5a medium, respectively. All cells were supplemented with 5% fetal bovine serum, 100 units/ml penicillin and 100 μg/ml streptomycin. Wnt3a-producing L cells and control L cells were obtained from ATCC and used for generating Wnt3a-conditioned medium (CM) and control-CM according to ATCC's instruction. GSK3α+/+ and GSK3β−/− MEFs were generously provided by James Woodgett (Ontario Cancer Institute, Canada). FAKR454/R454 knockin MEFs were described previously (Lim et al., 2010).

Plasmids

The expression plasmids of HA-GSK3β, GSK3α, FLAG-β-catenin and Myc-TrCP were obtained from Addgene (Cambridge, MA). Coding sequence for GSK3α was amplified and cloned into pcDNA3-FLAG to genetrate plasmid expressing FLAG-tagged GSK3α. Plasmids expressing ubiquitin- HA-GSK3β fusion protein and GSK3β ubiquitination mutant were previously described (Gao et al., 2014). GSK3β, GSK3α and β-catenin phosphorylation mutants were generated by PCR-directed mutagenesis. All the constructs are sequenced to verify the desired mutations. Lentiviral-based shRNA plasmids for targeting mouse GSK3α, human FAK and human PYK2 were purchased from Sigma (St Louis, MO). To construct lentiviral-based vectors for human FAK or mouse PYK2 knockdown (KD), primers containing the sequence of shRNA oligonucleotides for FAK (sense: 5′-GCCCAGGTTTACTGAACTTAA-3′) or PYK2 (sense: 5′-GAAGTAGTTCTTAACCGCAT-3′) was annealed and ligated into pLKO.1-blasticidin which was obtained from Addgene. Lentiviral-based vector targeting human GSK3 (GSK3α/3β) was constructed by ligating annealed primers (5′-GAACCGAGAGCTCCAGATC-3′) into pLKO.1-puromycin (Addgene). Coding sequences for HA-tagged GSK3β, FLAG-tagged GSK3α and FLAG-tagged β-catenin in pcDNA3 were used as templates for cloning of these genes into pMX-IRES-BSR retroviral vector. shRNA-resistance was achieved by introducing synonymous mutations in the shRNA targeting sequence of plasmids using PCR-directed mutagenesis.

In vitro ubiquitination assay

Request a detailed protocol

Wild type (WT) HA-GSK3β and HA-GSK3βY216 mutant proteins were synthesized using the TNT T7 quick-coupled transcription/translation kit (Promega, Madison, WI). To purify in vitro translated HA-GSK3β proteins, 5 μl out of 25 μl of the translation product were used for IP with EZview Red anti-HA affinity gel (Sigma). The immunoprecipitates were subjected to in vitro ubiquitination assay. The assay was carried out in 1× ubiquitination assay buffer (25 mM Tris-Cl at PH 7.5, 5 mM MgCl2, 100 mM NaCl, 2 mM ATP, 1 mM dithiothreitol) at a final volume of 20 µl containing: 130 ng E1 (Boston Biochem, Cambridge, MA), 230 ng E2 UbcH5b (Boston Biochem), 300 ng SCFβTrCP1 complex consisting of Rbx1, Cul1, Skp1 and β-TrCP1 (Millipore, Billerica, MA), 3 µg FLAG-Ubiquitin (Boston Biochem) and purified HA-GSK3β or its mutants. The reaction mixture was incubated at 37°C for 2 hr, and then subjected to SDS-PAGE followed by IB with anti-GSK3β antibody.

In vitro kinase assay

Request a detailed protocol

The in vitro kinase assay to assess kinase activity of GSK3β and its mutants towards β-catenin was performed as previously described (Gao et al., 2014). To validate FAK/PYK2 as kinases phosphorylating GSK3β at Y216, recombinant FAK and PYK2 and in vitro translated HA-GSK3β were used in in vitro kinase assay. Briefly, in vitro translations were carried out using the rabbit reticulocyte Lysate TNT Coupled Transcription/Translation System (Promega) according to the protocol provided. Five out of 25 µl in vitro translated HA-GSK3β was diluted with lysis buffer and incubated with EZview Red anti-HA affinity gel (Sigma) at 4°C for 1 hr. The bead-bound immunoprecipitates were washed with lysis buffer containing 20 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1 mM EDTA, 1% NP40 and 10% Glycerol for three times followed by a final kinase buffer wash, then incubated with 20 ng full length recombinant FAK (SignalChem, Canada) or PYK2 (Enzo, Farmingdale, NY), 2 mM ATP, kinase buffer (Cell Signaling, Danvers, MA) in a total volume of 15 µl at 37°C for 2 hrs. The reaction product was subjected to SDS-PAGE followed by IB with antibody recognizing p-GSK3βY216.

IB, antibodies and reagents

Request a detailed protocol

Whole cell lysates were prepared in M-PER buffer (Thermo, Waltham, MA), resolved by SDS-PAGE and blotted with indicated antibodies. The following antibodies were used in this study: Anti-HA, anti-FLAG, anti-phospho-β-catenin (Ser33/37/Thr41), anti-β-catenin, anti-GSK3α, anti-β-TrCP, anti-α-Tubulin, anti-GSK3β, anti-FAK, anti-phospho-FAK (Tyr397), anti-PYK2 and anti-phospho-PYK2 (Tyr402) (Cell Signaling); anti-FLAG M2 (Sigma); anti-ubiquitin and anti-β-catenin (BD Bioscience, San Jose, CA); anti-GSK3, anti-c-Myc, anti-PYK2, anti-β-TrCP, anti-phospho-GSK3β (Tyr216) and anti-β-Actin (Santa Cruz Biotechnology, Dallas, TX); anti-phospho-GSK3 (Tyr279/Tyr216) (Millipore). Anti-GSK3β for IP was purchased from Abcam (Cambridge, MA) and Bethyl Laboratories (Montgomery, TX). SuperSignal West Pico Chemiluminescent Substrate and SuperSignal Western Blot Enhancer (Thermo) were used to enhance western signal when needed. PF-562271 was purchase from MedKoo Biosciences (Chapel Hill, NC) and Selleck Chemicals (Houston, TX). Gelucire is a gift from Gattefosse (Paramus, NJ). MG-132 was obtained from Sigma.

IP

Request a detailed protocol

Briefly, cells were lysed with M-PER buffer or RIPA buffer (Thermo) supplemented with protease inhibitor and 20 mM N-ethylmaleimide (NEM) (Sigma). The whole cell lysates were pre-cleared with Protein G-sepharose beads at 4°C for 30 min. The cleared lysates were incubated with indicated antibody together with Protein G-sepharose beads or EZview Red anti-HA or anti-FLAG M2 affinity gel (Sigma) at 4°C for 4 hr. The immunoprecipitates were washed three times with lysis buffer containing 20 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1 mM EDTA, 1% NP40 and 10% Glycerol, and subjected to SDS-PAGE followed by IB with indicated antibodies. Input corresponded to 5% of the total lysates used for the IPs and was verified by IB.

Transient transfection, lentivirus production and infection

Request a detailed protocol

Plasmid transient transfections were performed using PolyJet In Vitro DNA Transfection Reagent (SignaGen, Rockville, MD) according to the manufacturer's instruction. Lentiviruses encoding the shRNA against target genes were produced in HEK293T cells by transfection of the lentiviral vector expressing shRNA against target gene with the third generation packaging systems (Addgene). The media containing viral particles were filtered through syringe filters and subsequently used to infect target cells. Cell lines stably expressing shRNA were established by selection. To generate FAK/PYK2 double KD cell line, DLD-1 cells were first infected with lentivirus particles encoding the shRNA against PYK2. PYK2 KD DLD-1 cell line was established by puromycin selection and used for second round infection with lentivirus particles encoding the FAK shRNA. Double KD cell line was obtained by puromycin and blasticidin selection. For retrovirus infection, the retroviral vectors expressing shRNA-resistant GSK3β or its mutants were transiently transfected into a potent retrovirus packaging cell line named platinum-A (Plat-A). 48 hr post transfection infectious retrovirus were collected and used to infect SW480 cells. The stable cell lines were established by blasticidin selection and used for cell proliferation assays. The cell lines overexpressing GSK3 shRNA-resistant GSK3β or its mutants were subjected to GSK3 KD by lentivirus-mediated RNA silencing. The resulting cell lines were used for anchorage-independent growth assays and xenograft experiments. The same strategy was used to generate SW480 cells expressing shRNA-resistant GSK3α or its mutants with endogenous GSK3 knocked down for xenograft experiments. HT-29 cells stably expressing FLAG-β-cateninY142E were also generated by retrovirus-mediated gene transfer.

Anchorage-independent growth assay

Request a detailed protocol

The SW480 cells were trypsinized and suspended in DMEM containing 0.4% low melting point (LMP) agarose (Promega). 2 ml of the above medium containing 3 × 104 cells was plated over the 3 ml bottom agar containing 0.8% LMP agarose in a 60 mm dish. Two independent experiments were performed in triplicates. The dishes were incubated at 37°C with medium replenished every 3 days until colony formed. The colonies were stained with 0.01% crystal violet solution. Pictures of representative field were taken under stereo microscope (Olympus SZX10).

Cell proliferation assays

Request a detailed protocol

SW480 parental cells or cells overexpressing HA-tagged GSK3β or its phosphorylation mutants were used for cell proliferation assays. These cells were seeded into 96-well plates at a density of 5 × 103. 24 hr later, the medium was replaced by fresh medium containing 2 µm FAK/PYK2 inhibitor PF-562271. The cell viability was measured by CCK-8 kit (Sigma) according to manufacturer's protocol every day for 4 days. Three independent experiments were performed in triplicates.

Animal experiments

Request a detailed protocol

All animal procedures were carried out according to protocols approved by the Institutional Animal Care and Use Committee at the University of Pittsburgh. Mice were fed a standard diet (Purina LabDiet, diet ID 5P75). For intestinal tumorigenesis experiments, age-matched female APCmin/+ mice on C57BL/6J background and C57BL/6J female mice (control mice) were obtained from the Jackson Laboratories. At 11 weeks of age, the APCmin/+ were randomized into two groups, receiving either vehicle (5% Gelucire) (n = 8) or PF-562271 (33 mg/kg in vehicle) (n = 8) by oral gavage twice daily for 5 weeks. After the mice were euthanized, the entire small intestinal tracts were carefully dissected, rinsed with ice-cold saline, opened longitudinally on ice. For polyp count experiments (n = 5 for vehicle- or PF-562271-treated group), the excised mice small intestine segments were fixed flat in 10% formalin for 48 hr. The fixed intestine was stained with 0.2% methylene blue (Sigma) for 2 min and then destained in 75% ethanol to reduce background staining. Polyp number and polyp size were counted under a dissecting microscope. For the collection of mice intestine tissue (n = 3 for vehicle- or PF-562271-treated group, n = 2 for control C57BL/6J group), the mucosal layer of intestine (only freshly isolated intestines, not those already used for polyp counting) was harvested by gentle scraping with a glass slide and all procedures were performed on ice. After harvesting, the tissues were collected into tubes and immediately placed on dry ice. The tissue samples were kept a liquid nitrogen tank before processing for western blotting or IP analysis. For these analyses, the tissues were lysed on ice in RIPA buffer (Thermo) supplemented with phosphatase inhibitor (Thermo), protease inhibitor (Thermo) and 20 mM NEM (Sigma). For the indicated experiments, individual polyps in 5-month-old female APCmin/+ mice were isolated for tumor tissue lysates.

For xenograft experiments, 5 × 106 SW480 or HT-29 cells as indicated were injected subcutaneously into both flanks of 4- to 5-week-old athymic nude mice (Charles River), 5 mice in each group. The mice were housed in a sterile environment. Tumor size was determined by caliper measurements twice a week. The tumor volume was calculated using the formula: V = ½ × a × b (Sparks et al., 1998), where a and b denoted the largest and smallest tumor axis, respectively. Mice were euthanized 24 days after implantation; tumors were excised, weighed and photographed. To test the efficacy of FAK/PYK2 inhibitor in xenograft model, 1 week of tumor injection, animals were treated with either vehicle (5% Gelucire) or PF-562271 (33 mg/kg in vehicle) by oral gavage twice daily for 3 weeks. Mice were euthanized 28 days after implantation.

Immunohistochemistry

Request a detailed protocol

Formalin-fixed and paraffin-embedded tissue microarrays of human colonic cancer tissue microarray containing 34 cases of colorectal adenocarcinoma and 26 matched and 8 unmatched adjacent normal tissues were purchased from US Biomax Inc. The de-identified human colon tissue samples from a sporadic-colon-cancer patient and a familial adenomatous polyposis (FAP) patient, archived at the University Of Pittsburgh School Of Medicine, Department of Pathology, were obtained in compliance with a University of Pittsburgh Cancer Institute (UPCI) tissue banking protocol (UPCI 97-130). The immunohistochemical analysis was performed in compliance with the UPCI Institutional Review Board protocol, UPCI 08-026. Immunohistochemistry (IHC) was performed on 4-micron formalin-fixed paraffin-embedded tissue from either tissue microarray or colon cancer resection. Briefly, 4 µm paraffin sections were deparaffinized in xylene solutions and rehydrated in graded alcohol solutions followed by washes in distilled water. Antigen retrieval was performed in the pressure cooker for 15 min in 20 mmole/l Tris-EDTA buffer (pH 9.0). The sections were allowed to cool to room temperature and then incubated overnight in a humidified chamber at room temperature with indicated antibodies. After washing with PBS, the sections were incubated for 1 hr at room temperature with HRP-labeled polymer anti-mouse or anti-rabbit second antibody (DAKO Envision+ system, Carpinteria, CA), depending on the host which individual antibody was prepared. Color visualization was performed with liquid DAB chromogen in imidazole-HCI buffer (pH 7.5) containing hydrogen peroxide until the brown color fully developed. The sections were counterstained with hematoxylin and coverslippped with permanent mounting media. The intensity of TMA staining was score as 0 (negative), 1+ (weak), 2+ (moderate) and 3+ (strong). The following antibodies were used for immunohistochemical staining: anti-FAK (Millipore, Cat# 05-537, 1:100 dilution), anti-PYK2 (Bioworld, Cat# BS1420, 1:50 dilution), anti-GSK3β (Cell Signaling, Cat# 9315, 1:100 dilution), anti-phosphor-GSK3β (Tyr216) (Gene Tex, Cat# GTX38564, 1:100 dilution) and anti-β-catenin (Zymed, Cat# 18-0226, 1:200 dilution).

References

  1. 1
  2. 2
    Identification and characterization of a novel related adhesion focal tyrosine kinase (RAFTK) from megakaryocytes and brain
    1. S Avraham
    2. R London
    3. Y Fu
    4. S Ota
    5. D Hiregowdara
    6. J Li
    7. S Jiang
    8. LM Pasztor
    9. RA White
    10. JE Groopman
    (1995)
    The Journal of Biological Chemistry 270:27742–27751.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Tissue microarray analysis of beta-catenin in colorectal cancer shows nuclear phospho-beta-catenin is associated with a better prognosis
    1. GG Chung
    2. E Provost
    3. EP Kielhorn
    4. LA Charette
    5. BL Smith
    6. DL Rimm
    (2001)
    Clinical Cancer Research 7:4013–4020.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Effects of a glycogen synthase kinase-3 inhibitor, lithium, in adenomatous polyposis coli mutant mice
    1. TD Gould
    2. NA Gray
    3. HK Manji
    (2003)
    Pharmacological Research 48:49–53.
  19. 19
  20. 20
  21. 21
  22. 22
    Modulation of the glycogen synthase kinase-3 family by tyrosine phosphorylation
    1. K Hughes
    2. E Nikolakaki
    3. SE Plyte
    4. NF Totty
    5. JR Woodgett
    (1993)
    The EMBO Journal 12:803–808.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
    Mutational analysis of the APC/beta-catenin/Tcf pathway in colorectal cancer
    1. AB Sparks
    2. PJ Morin
    3. B Vogelstein
    4. KW Kinzler
    (1998)
    Cancer Research 58:1130–1134.
  40. 40
  41. 41
  42. 42

Decision letter

  1. Jonathan A Cooper
    Reviewing Editor; Fred Hutchinson Cancer Research Center, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The previous decision letter after peer review is shown below.]

Thank you for choosing to send your work entitled “FAK/PYK2 Promotes the Wnt/β-catenin Pathway and Intestinal Tumorigenesis by Phosphorylating GSK3B” for consideration at eLife. Your full submission has been evaluated by Tony Hunter (Senior Editor) and two reviewers, one of whom is a member of our Board of Reviewing Editors. The decision was reached after discussions between the reviewers.

One reviewer had detailed comments that would be difficult to address in a timely way, and without which the significance of the work is unclear. The other reviewer had a general comment that the work is preliminary without more in vivo experiments. Based on our discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

Reviewer #1:

This paper provides a potential molecular mechanism for the observation that colorectal cancers (CRCs) frequently have high levels of FAK/PYK2 and increased nuclear β-catenin, and that FAK deletion suppresses adenomas in a mutant APC mouse model. This is potentially a second mechanism for FAK to promote β-catenin accumulation (in addition to the phosphorylation of β-catenin by FAK).

In a previous paper, the authors showed that Wnt stimulates monoubiquitination of GSK3 and this monoubiquitination reduces phospho-β-catenin presentation to β-TrCP, thereby stabilizing β-catenin. Here they find that phosphorylation of GSK3βY216 stimulates monoubiquitination and binding of β-TrCP. The 216F mutant shows that lack of pY216 and/or lack of ubiquitin increases β-catenin turnover in presence or absence of Wnt, causing low β-catenin levels. The 216E mutant is constitutive. They show that FAK and PYK2 can phosphorylate Y216 (normally thought of as an autophosphorylation site), and knockdown of FAK reduces β-catenin level. FAK inhibitor (PF) inhibits tumor formation when GSK3 is wildtype, but only partly inhibits GSK3βY216E mutant tumors. However, the authors do not distinguish effects of pY216 from effects of ubiquitin by use of their KKKK mutant used in their JBC paper. Therefore, the observations could be due to reduced GSK3 auto or trans phosphorylation rather than ubiquitin. It is also remarkable that the low stoichiometry of ubiquitination has a measurable effect, because the non-ubiquitinated molecules should remain active. However, the results would be understandable if the subset of GSK3 that is ubiquitinated is in the destruction complex. Another surprising finding is that GSK3βY216 is not needed to stimulate β-catenin degradation by β-TrCP, which is presumably requires phosphorylation of β-catenin by GSK3 – but they didn't measure phospho-β-catenin with the 216F mutant.

From the significance point of view, the authors introduce the paper by saying that 85% of CRCs have mutant APC yet only 50% have increased nuclear β-catenin, implying that APC mutation is not sufficient to up-regulate nuclear β-catenin. Their paper provides data in support of a mechanism in which increased FAK/PYK2 activity in CRCs leads to increased GSK3βY216, increases GSK3 ubiquitination, inhibits β-catenin turnover by bTrCP, and raises nuclear β-catenin levels. This predicts that nuclear β-catenin would be detected in CRCs that lack APC mutations, rather than the converse. It isn't clear how many human CRCs have increased nuclear β-catenin but lack APC mutations. Putting that aside, the tumor growth studies with 216F mutant GSK3 support the importance of this site, and the cancer studies with the PF inhibitor and the pathology supports the importance of FAK/PYK2 in CRC. However, the inhibition of tumors by PF does not exclude GSK3-independent effects of FAK.

1) The KKKK mutant should be used to confirm that nuclear β-catenin is increased regardless of FAK and PYK2 activity.

2) KKKK mutation of Y216E mutant should suppress activation.

3) Phospho-β-cateninS33/37 should be measured with GSK3 YF, YE and KKKK mutants to confirm the inference that pY216 is not needed for phosphorylation of β-catenin.

4) The mechanism would be much better supported if the authors could show an effect of GSK3βY216 or ubiquitination on the ability of β-TrCP to interact with phospho-β-catenin.

5) Does the PF inhibitor inhibit tumors in which the primary FAK phosphorylation site in β-catenin is mutated?

Reviewer #2:

The authors report a FAK/PYK2/GSK3βY216/β-catenin signaling axis, through which FAK and PYK2 converge on GSK3βY216 and GSK3αY279, with phosphorylated GSK3βY216 recruiting β-TrCP, which monoubituitinates GSK3β, blocking Wnt-induced degradation of β-catenin. All experiments were done in cell lines only, and a single FAK/PYK dual inhibitor was tested (although experiments were done in genetic and knockdown systems to verify signaling).

While experiments shown were convincing, the authors raise two issues not further addressed experimentally. First was that the dual FAK/PYK2 inhibitor also blocked GSK3αY279, suggesting functional redundancy that was not further elucidated experimentally.

Second, the authors suggest but do not test, that FAK was upstream of PYK2 in vivo but not in vitro. Although the authors claim that use of a dual PYK2/FAK inhibitor might be superior to monospecific inhibitors to block emergent resistance in patients, the relevance of their in vitro experiments to an in vivo setting remain an open question not addressed in experiments presented. In the absence of in vivo validation, the conclusions drawn remain fairly preliminary.

https://doi.org/10.7554/eLife.10072.009

Author response

[Editors’ note: the author responses to the previous round of peer review follow.]

We have made every effort to address the critiques thoroughly in this revision; the results of our additional experiments lend further support for our conclusion. Our response to the reviewers’ specific comments and changes made during the revision are detailed below.

Reviewer #1:

1) The KKKK mutant should be used to confirm that nuclear β-catenin is increased regardless of FAK and PYK2 activity.

As suggested, we now included results from the experiments using the KKKK15/27/32/36 RRRR mutant (S4) and the S4-ubiquitin fusion mutant (Ub-S4, mimicking ubiquitinated form of S4 mutant). As shown in Figure 4C (lanes 7-10), in R454/PYK2 KD MEFs with deficient FAK and PYK2 activity, ectopic expression of Ub-S4 mutant protein, but not S4, restored Wnt-induced β-catenin, confirming the role of GSK3β ubiquitination in the activation of Wnt signaling.

2) KKKK mutation of Y216E mutant should suppress activation.

As predicted by the reviewer, our new data (Figure 2A, lanes 13 and 14) showed that reconstitution of GSK3β KO/GSK3α KD MEFs with GSK3βY216E/S4 mutant (Y216 phosphorylation mimetic lacking ubiquitination) inhibited Wnt-induced β-catenin accumulation.

Together, our new results (Figure 4C, lanes 7-10; and Figure 2A lanes 13 and 14) confirmed that it is phosphorylation-dependent ubiquitination that mediates β-catenin stabilization upon Wnt stimulation.

3) Phospho-β-cateninS33/37 should be measured with GSK3 YF, YE and KKKK mutants to confirm the inference that pY216 is not needed for phosphorylation of β-catenin.

As suggested, we have now included new results showing that mutation of GSK3β tyrosine 216 (to either phenylalanine or glutamic acid) or lysines 15/27/32/36 to arginines did not affect GSK3β activity towards β-catenin phosphorylation at serine S33 and 37 in vitro (Figure 1G, upper panel) and in cells (Figure 1G, lower panel).

4) The mechanism would be much better supported if the authors could show an effect of GSK3βY216 or ubiquitination on the ability of β-TrCP to interact with p-β-catenin.

We conducted new experiments to address this issue. The new results (Figure 2B, right panel) showed that upon Wnt3 stimulation, β-TrCP-bound p-β-cateninS33/S37/T41 was substantially more in GSK3β KO/GSK3α KD MEFs reconstituted with HA-GSK3βY216F than in MEFs reconstituted with WT HA-GSK3β or HA-GSK3βY216E, implying that phosphorylation status of GSK3βY216 impacts phosphorylated β-cateninS33/S37/T41 recruitment of β-TrCP.

5) Does the PF inhibitor inhibit tumors in which the primary FAK phosphorylation site in β-catenin is mutated?

We have conducted a cell line xenograft study to address this important question, and the answer is yes. Our new data (Figure 4F) showed that although overexpression of β-cateninY142E partially jeopardized the anti-tumor effect of PF562271, PF562271 treatment significantly inhibited in vivo growth of SW480 cells ectopically expressing Flag-β-cateninY142E. While this result further proved the importance of FAK/PYK2-mediated GSK3 phosphorylation, it also suggested that phosphorylation of β-cateninY142E plays a role in FAK-targeted therapy for CRC.

Reviewer #2:

[…] While experiments shown were convincing, the authors raise two issues not further addressed experimentally. First was that the dual FAK/PYK2 inhibitor also blocked GSK3αY279, suggesting functional redundancy that was not further elucidated experimentally.

We have performed new experiments to address the role of GSK3αY279; (1) in the activation of Wnt/β-catenin pathway and (2) in vivo growth of SW480 cells. Our new results showed that Wnt-induced β-catenin accumulation was inhibited in GSK3β KO/GSK3α KD MEFs reconstituted with GSK3αY279F but not with GSK3αY279E (Figure 2E, comparing lanes 9-10 with 11-12), hence validating the role of GSK3αY279 phosphorylation in the activation of Wnt signaling. Our new data also showed that in GSK3α/β KD SW480 cells, reconstitution of the cells with WT HA-GSK3α or HA-GSK3αY279E but not HA-GSK3αY279F restored cell growth in a xenograft assay (Figure 2F), implying the functional importance of GSK3αY279 phosphorylation in CRC cells.

Second, the authors suggest but do not test, that FAK was upstream of PYK2 in vivo but not in vitro. Although the authors claim that use of a dual PYK2/FAK inhibitor might be superior to monospecific inhibitors to block emergent resistance in patients, the relevance of their in vitro experiments to an in vivo setting remain an open question, not addressed in experiments presented. In the absence of in vivo validation, the conclusions drawn remain fairly preliminary.

We thank the reviewer for raising this important issue. The fact that PYK2 activity towards GSK3 phosphorylation was intact in FAKR454/R454 knockin MEFs (Figure 4B) indeed excluded FAK as direct upstream of PYK2 activity in vitro. We also recognized that it was not an accurate statement that “PYK2 and FAK function redundantly in intestinal tumorigenesis.” In the revised manuscript, we propose a new scenario to explain why intestine-specific deletion of FAK alone was sufficient to block tumor development in APC mutated mice.

A prior study (Carothers et al., 2006) and our new data (Figure 5C, right panel) showed that drastic elevation of PYK2 occurred in tumors in APCmin/+ mice, indicating that PYK2 is upregulated during the process of intestinal tumorigenesis. FAK induction, although further enhanced in tumors, however, is triggered by APC mutation – the initiating event for tumorigenesis in the APC-mutant mice, through activated Wnt pathway target c-Myc (Ashton et al., 2010). Therefore FAK induction by APC mutation should occur earlier than PYK2 elevation. If so, it explains why inhibition of FAK by intestinal deletion of FAK was sufficient to suppress tumor development. It also explains why PF562271 treatment inhibited PYK2 elevation in APCmin/+ mice (Figure 5C, left panel). By phosphorylating GSK3 to promote the Wnt pathway, elevated PYK2 in tumors further enhances Wnt-dependent tumorigenesis – a positive feedback loop that reinforces the tumor development process (as suggested in Carothers et al., 2006). In the revised manuscript, corresponding changes have been made to the Discussion.

Regardless of the exact mechanisms mediating in vivo PYK2 regulation during intestinal tumorigenesis, both FAK and PYK2 are elevated in already established colon tumors in CRC patients (Figure 6). The current study indicates that effective inhibition of the Wnt/β-catenin pathway in CRC cells expressing FAK and PYK2 will only be achieved by simultaneously targeting both kinases, which provides a solid mechanistic justification for clinical use of FAK/PYK2 dual inhibitor instead of FAK-specific inhibitor for better clinical outcomes in CRC patients.

https://doi.org/10.7554/eLife.10072.010

Article and author information

Author details

  1. Chenxi Gao

    1. Department of Pharmacology and Chemical Biology, University of Pittsburgh School of Medicine, Pittsburgh, United States
    2. University of Pittsburgh Cancer Institute, Pittsburgh, United States
    Contribution
    CG, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Guangming Chen
    Competing interests
    The authors declare that no competing interests exist.
  2. Guangming Chen

    1. Department of Pharmacology and Chemical Biology, University of Pittsburgh School of Medicine, Pittsburgh, United States
    2. University of Pittsburgh Cancer Institute, Pittsburgh, United States
    Contribution
    GC, Conception and design, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Chenxi Gao
    Competing interests
    The authors declare that no competing interests exist.
  3. Shih-Fan Kuan

    Department of Pathology, University of Pittsburgh School of Medicine, Pittsburgh, United States
    Contribution
    S-FK, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Dennis Han Zhang

    Dietrich School of Arts and Sciences, Pittsburgh, United States
    Contribution
    DHZ, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  5. David D Schlaepfer

    Department of Reproductive Medicine, Moores Cancer Center, University of California, San Diego, San Diego, United States
    Contribution
    DDS, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Jing Hu

    1. Department of Pharmacology and Chemical Biology, University of Pittsburgh School of Medicine, Pittsburgh, United States
    2. University of Pittsburgh Cancer Institute, Pittsburgh, United States
    Contribution
    JH, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    huj3@upmc.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Cancer Institute (NCI) (CA166197; CA175202)

  • Jing Hu

National Cancer Institute (NCI) (CA102310)

  • David D Schlaepfer

The funder had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#14013138) of the University of Pittsburgh.

Reviewing Editor

  1. Jonathan A Cooper, Fred Hutchinson Cancer Research Center, United States

Publication history

  1. Received: July 14, 2015
  2. Accepted: August 11, 2015
  3. Accepted Manuscript published: August 14, 2015 (version 1)
  4. Version of Record published: September 3, 2015 (version 2)

Copyright

© 2015, Gao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,454
    Page views
  • 794
    Downloads
  • 60
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Yasmin ElMaghloob et al.
    Research Article

    The ADP-ribosylation factor-like 3 (ARL3) is a ciliopathy G-protein which regulates the ciliary trafficking of several lipid-modified proteins. ARL3 is activated by its guanine exchange factor (GEF) ARL13B via an unresolved mechanism. BART is described as an ARL3 effector which has also been implicated in ciliopathies, although the role of its ARL3 interaction is unknown. Here we show that, at physiological GTP:GDP levels, human ARL3GDP is weakly activated by ARL13B. However, BART interacts with nucleotide-free ARL3 and, in concert with ARL13B, efficiently activates ARL3. In addition, BART binds ARL3GTP and inhibits GTP dissociation, thereby stabilising the active G-protein; the binding of ARL3 effectors then releases BART. Finally, using live cell imaging, we show that BART accesses the primary cilium and colocalises with ARL13B. We propose a model wherein BART functions as a bona fide co-GEF for ARL3 and maintains the active ARL3GTP, until it is recycled by ARL3 effectors.

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Manickam Gurusaran, Owen Richard Davies
    Research Article Updated

    The Linker of Nucleoskeleton and Cytoskeleton (LINC) complex mechanically couples cytoskeletal and nuclear components across the nuclear envelope to fulfil a myriad of cellular functions, including nuclear shape and positioning, hearing, and meiotic chromosome movements. The canonical model is that 3:3 interactions between SUN and KASH proteins underlie the nucleocytoskeletal linkages provided by the LINC complex. Here, we provide crystallographic and biophysical evidence that SUN-KASH is a constitutive 6:6 complex in which two constituent 3:3 complexes interact head-to-head. A common SUN-KASH topology is achieved through structurally diverse 6:6 interaction mechanisms by distinct KASH proteins, including zinc-coordination by Nesprin-4. The SUN-KASH 6:6 interface provides a molecular mechanism for the establishment of integrative and distributive connections between 3:3 structures within a branched LINC complex network. In this model, SUN-KASH 6:6 complexes act as nodes for force distribution and integration between adjacent SUN and KASH molecules, enabling the coordinated transduction of large forces across the nuclear envelope.
