The Drosophila HNF4 nuclear receptor promotes glucose-stimulated insulin secretion and mitochondrial function in adults

  1. William E Barry
  2. Carl S Thummel Is a corresponding author
  1. University of Utah School of Medicine, United States
Research Article
Cited
6
Views
1,792
Comments
0
Cite as: eLife 2016;5:e11183 doi: 10.7554/eLife.11183

Abstract

Although mutations in HNF4A were identified as the cause of Maturity Onset Diabetes of the Young 1 (MODY1) two decades ago, the mechanisms by which this nuclear receptor regulates glucose homeostasis remain unclear. Here we report that loss of Drosophila HNF4 recapitulates hallmark symptoms of MODY1, including adult-onset hyperglycemia, glucose intolerance and impaired glucose-stimulated insulin secretion (GSIS). These defects are linked to a role for dHNF4 in promoting mitochondrial function as well as the expression of Hex-C, a homolog of the MODY2 gene Glucokinase. dHNF4 is required in the fat body and insulin-producing cells to maintain glucose homeostasis by supporting a developmental switch toward oxidative phosphorylation and GSIS at the transition to adulthood. These findings establish an animal model for MODY1 and define a developmental reprogramming of metabolism to support the energetic needs of the mature animal.

https://doi.org/10.7554/eLife.11183.001

eLife digest

Diabetes is a complex disease that is caused by a combination of factors, including the person’s habits and environment, as well as their genetic make-up. However, there are some rare forms of diabetes that are caused simply by mutations in single genes and are directly inherited. For example, it has been known for twenty years that a type of diabetes called “Maturity Onset Diabetes of the Young type 1” (or MODY1 for short) occurs when a gene called HNF4 is mutated or deleted. The symptoms of MODY1 usually appear during early adulthood and include abnormally high levels of sugar in the blood, as well as the pancreas not being able to release the hormone insulin properly in response to these sugars.

Previous studies in mice have tried to understand how losing the HNF4 gene leads to MODY1. However, these mouse models did not fully recreate the symptoms of this disorder and the precise role of HNF4 in preventing diabetes remains unclear. Barry and Thummel have now used the fruit fly, because it is a model organism with simple genetics, to help shed light on this question. Furthermore, flies and mammals use many of the same pathways to control metabolism, making the fly a good model for the disease in humans.

Barry and Thummel deleted the HNF4 gene in fruit flies and observed that the flies had all the symptoms that are typical in people with MODY1. These symptoms included high sugar levels and decreased production of insulin-like hormones. The experiments also showed that HNF4 normally supports the proper expression of another gene called Hex-C; this gene encodes a protein that senses how much sugar is available and helps to keep the amount of sugar circulating the body within normal levels. Barry and Thummel went on to discover that the HNF4 gene is required for the expression of some genes in structures called mitochondria, which provide most of the energy used by animal cells. Lastly, the HNF4 gene became more active as the flies matured, and appeared to help the metabolism of a developing fruit fly transition towards that of an adult.

Together these findings show that HNF4 protects against MODY1 by influencing several components of sugar metabolism in fruit flies. In the future, more studies are needed to understand how exactly HNF4 acts in mitochondria and to explore if similar results are seen in mammals.

https://doi.org/10.7554/eLife.11183.002

Introduction

The global rise in the prevalence of diabetes has prompted increased efforts to advance our understanding of metabolic systems and how they become disrupted in the diseased state. Although genetics and environment have a significant impact on diabetes susceptibility, severity, and care, the causal factors are often complex and unclear. Several cases of familial diabetes have been identified, however, that show clear patterns of heritability due to monogenic disease alleles, highlighting these genes as critical factors for glycemic control. To date, mutations in 13 genes have been shown to cause autosomal dominant inheritance of Maturity Onset Diabetes of the Young (MODY1-13), representing the most common forms of monogenic diabetes. MODY patients typically present with hyperglycemia and impaired glucose-stimulated insulin secretion (GSIS) by young adulthood, while having normal body weight and lacking β-cell autoimmunity (Fajans and Bell, 2011). Consistent with this, several genes associated with MODY have well-characterized functions in glucose homeostasis, including the glycolytic enzyme Glucokinase (GCK/MODY2), and Insulin (INS/MODY10). Mechanistic insight into the anti-diabetic roles of other MODY genes, however, remains limited.

The genetic basis for the first MODY subtype was reported two decades ago, identifying loss-of-function mutations in Hepatocyte Nuclear Factor 4A (HNF4A) as responsible for MODY1 (Yamagata et al., 1996). HNF4A is a member of the nuclear receptor superfamily of ligand-regulated transcription factors, which play important roles in the regulation of growth, development, and metabolic homeostasis. Studies in mice demonstrated a critical requirement for Hnf4A in early development, with null mutants dying during embryogenesis due to defects in gastrulation (Chen et al., 1994). Heterozygotes, however, show no apparent phenotypes. As a result, tissue-specific genetic studies were used to investigate the functions of Hnf4A in key tissues where it is expressed, including the liver, kidney, intestine, and pancreatic β-cells. Two groups generated adult mice deficient for Hnf4A in β-cells with the goal of modeling MODY1 (Gupta et al., 2005; Miura et al., 2006). Although both studies reported impaired glucose tolerance in Hnf4A deficient mice, along with defects in GSIS, neither study observed sustained hypoinsulinemic hyperglycemia – the defining symptom that brings MODY1 patients to the clinic. As a result, we still have a limited understanding of the mechanisms by which Hnf4A maintains carbohydrate homeostasis and the molecular basis for MODY1.

Studies in Drosophila have revealed a high degree of conservation with major pathways that regulate cellular metabolism and systemic physiology in humans (Diop and Bodmer, 2015; Owusu-Ansah and Perrimon, 2014; Padmanabha and Baker, 2014; Teleman et al., 2012). This includes a central role for the insulin-signaling pathway in maintaining proper levels of circulating sugars through nutrient-responsive secretion of Drosophila insulin-like peptides (DILPs) from neuroendocrine cells in the fly brain (Nassel et al., 2015). Destruction of these insulin-producing cells (IPCs) results in elevated levels of circulating sugars, analogous to type 1 diabetes (Rulifson et al., 2002). In addition, nutrient-sensing mechanisms for insulin release are conserved in adult Drosophila, including roles for the Glut1 glucose transporter, mitochondrial metabolism, and ATP-sensitive potassium channels in the IPCs, which respond to the anti-diabetic sulfonylurea drug glibenclamide (Fridell et al., 2009; Kreneisz et al., 2010; Park et al., 2014). Consistent with these similarities, an increasing number of studies in Drosophila have proven relevant to mammalian insulin signaling and metabolic homeostasis, highlighting the potential to provide insight into human metabolic disorders such as diabetes (Alfa et al., 2015; Owusu-Ansah and Perrimon, 2014; Park et al., 2014; Ugrankar et al., 2015; Xu et al., 2012).

Here we describe our functional studies of Drosophila HNF4 (dHNF4) with the goal of defining its roles in maintaining carbohydrate homeostasis. dHNF4 is a close ortholog of human HNF4A, with 89% amino acid identity in the DNA-binding domain and 61% identity in the ligand-binding domain. The spatial expression patterns of the fly and mammalian receptors are also conserved through evolution, raising the possibility that they share regulatory activities (Palanker et al., 2009). In support of this, our previous studies of dHNF4 mutant larvae demonstrated a critical role in fatty acid catabolism, leading to defects in lipid homeostasis that are similar to those caused by liver-specific HNF4A deficiency in mammals (Palanker et al., 2009). Here we report the first functional study of dHNF4 mutants at the adult stage of development. Our studies show that adult dHNF4 mutants display the hallmark symptoms of MODY1, including hyperglycemia, glucose intolerance and impaired GSIS. Metabolomic analysis of dHNF4 mutants revealed coordinated changes in metabolites that are indicative of diabetes, along with an unexpected effect on mitochondrial activity. This was further evident in our RNA-seq and ChIP-seq studies, which indicate that dHNF4 is required for the proper transcription of both nuclear and mitochondrial genes involved in oxidative phosphorylation (OXPHOS). A homolog of mammalian GCK, Hex-C, is also under-expressed in mutants. dHNF4 appears to act through these pathways to promote GSIS in the IPCs and glucose clearance by the fat body. In addition, we show that dHNF4 expression increases dramatically at the onset of adulthood, along with its downstream transcriptional programs. These studies suggest that dHNF4 triggers a developmental transition that establishes the metabolic state of the adult fly, promoting GSIS and OXPHOS to support the energetic needs of the mature animal.

Results

dHNF4 mutants are sugar intolerant and display hallmarks of diabetes

All genetic studies used a transheterozygous combination of dHNF4 null alleles (dHNF4Δ17/dHNF4Δ33) and genetically-matched controls that were transheterozygous for precise excisions of the EP2449 and KG08976 P-elements, as described previously (Palanker et al., 2009). Consistent with this earlier study, dHNF4 null mutants die as young adults, with most mutants failing to emerge properly from the pupal case when raised under standard lab conditions (Figure 1A) (Palanker et al., 2009). While testing for potential dietary effects on dHNF4 mutant viability, we discovered that sugar levels have a dramatic influence on their survival. When reared on either standard cornmeal food or a medium containing 15% sugar (2:1 glucose to sucrose, 8% yeast), less than 30% of mutant animals survive though eclosion, and the rest die primarily during the first day of adulthood (Figure 1A,B). In contrast, a five-fold reduction in dietary sugar content is sufficient to rescue most dHNF4 mutants through eclosion and allow them to survive as adults for several weeks (Figure 1B,C). Sugar intolerance persists through adulthood, indicating that dHNF4 plays a critical role in carbohydrate metabolism at this stage (Figure 1C). Notably, this dietary response is specific to alterations in carbohydrate levels, as calorically matched changes in dietary protein did not affect mutant viability (Figure 1—figure supplement 1).

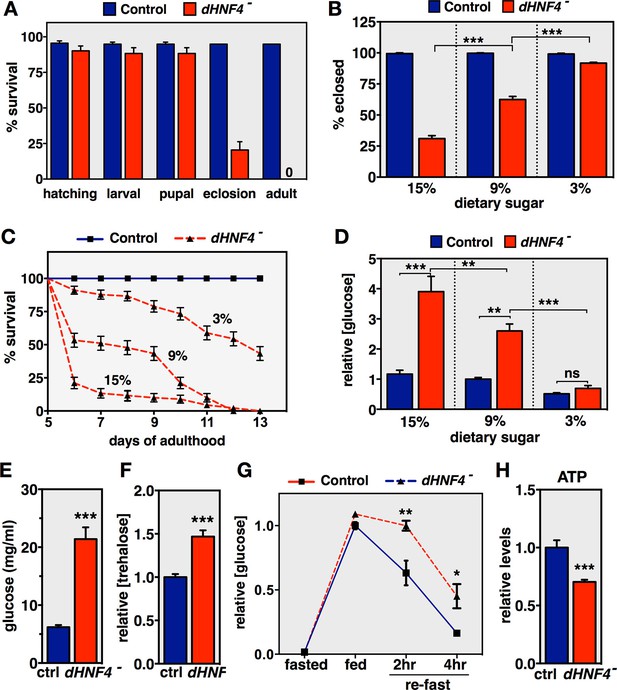

Figure 1 with 2 supplements see all
dHNF4 mutants are sugar intolerant and display hallmarks of diabetes.

(A) Percent survival of genetically-matched controls and dHNF4 mutants at each stage of development when raised on standard media. Adult viability represents survival past the first day of adulthood. (B) Percent of control and dHNF4 mutants that successfully eclose when reared on the 15%, 9%, or 3% sugar diet. (C) Controls and dHNF4 mutants were reared on the 3% sugar diet until 5 days of adulthood, transferred to the indicated diet, and scored for survival. (D) Free glucose levels measured from whole animal lysates of controls and dHNF4 mutants raised on the 3% sugar diet and transferred to the indicated diet for three days. (E) Circulating free glucose levels were measured from hemolymph extracted from control and dHNF4 mutant adults raised on the 3% sugar diet and transferred to the 15% sugar diet for 1 day prior to analysis. (F) Trehalose levels measured from whole animal lysates of controls and dHNF4 mutants raised on the 3% sugar diet and transferred to the 15% sugar diet for three days. (G) Oral-glucose tolerance test performed on adults raised on the 3% sugar diet, fasted overnight, fed on 15% glucose media for 1 hr, and then re-fasted for either 2 or 4 hr. Data represents relative free glucose levels from whole animal homogenates. (H) Relative ATP levels in control and dHNF4 mutant adults raised on the 3% sugar diet and transferred to sugar-only medium (10% sucrose) for 1 day prior to analysis. Data is plotted as the mean ± SEM. ***p≤0.001, **p≤0.01, *p≤0.05.

https://doi.org/10.7554/eLife.11183.003

To examine the effects of sugar consumption on the metabolic state of dHNF4 mutants, major metabolites were measured in adult males raised on the low 3% sugar diet and transferred to the 3%, 9% or 15% sugar diet for three days. Although dHNF4 mutants display elevated levels of triglycerides, similar to our observations in mutant larvae, these levels are not affected by the different sugar diets (Figure 1—figure supplement 2A). Similarly, while dHNF4 mutants have reduced glycogen stores and a modest decrease in total protein, the severity of these phenotypes does not correlate with the improved viability due to decreasing dietary sugar (Figure 1—figure supplement 2B,C). In contrast, the abundance of free glucose is greatly elevated in dHNF4 mutants on the 15% sugar diet, but is progressively reduced in mutants exposed to decreasing amounts of dietary sugar, similar to the response of diabetics to a low carbohydrate diet (Figure 1D). As expected, the accumulation of free glucose in dHNF4 mutants represents increased levels in circulation and is accompanied by elevated levels of the glucose disaccharide trehalose (Figure 1E,F). Taken together, these results demonstrate that Drosophila HNF4 is required for proper glycemic control.

To assess whether the hyperglycemia in dHNF4 mutants arises due to impaired glucose clearance, adult flies were subjected to an oral glucose tolerance test. Control and mutant animals were reared on the low sugar diet, fasted overnight, transferred to a glucose diet for one hour, and then re-fasted for 2 or 4 hr. Although dHNF4 mutants display a normal postprandial spike in free glucose levels after feeding, glucose clearance is significantly impaired in mutant animals at both 2 and 4 hr, indicating glucose intolerance (Figure 1G). Taken together, these data demonstrate that dHNF4 mutant adults display hallmarks of diabetes and may provide an animal model of MODY1.

dHNF4 mutants display defects in glycolysis and mitochondrial metabolism

Small-molecule gas chromatography/mass spectrometry (GC/MS) metabolomic analysis was used to further characterize the metabolic state of dHNF4 mutants fed a 3% or 15% sugar diet (Figure 2). This study confirmed and extended our observations of their diabetic phenotype and revealed underlying defects in glucose homeostasis that are independent of dietary sugar content. Consistent with hyperglycemia, dHNF4 mutants accumulate glycolytic metabolites on both diets. These include elevated glucose-6-phosphate, dihydroxyacetone phosphate (DHAP), and serine, which is produced from 3-phosphoglycerate, although the increased DHAP was only observed on the 15% sugar diet (Figure 2). Several other glucose-derived metabolites are aberrantly increased in dHNF4 mutants, including sorbitol and fructose, which are intermediates in the polyol pathway (Figure 2 and Figure 2—figure supplement 1). This pathway provides an alternate route for cellular glucose uptake under conditions of sustained hyperglycemia. As a result, these metabolites can accumulate to high levels in diabetics and correlate with neuropathy and nephropathy (Gabbay, 1975). dHNF4 mutants also display increased levels of inosine, adenine, xanthine, hypoxanthine, and uric acid, which are purine metabolites that are associated with increased diabetes risk and diabetic nephropathy (Figure 2) (Johnson et al., 2013). Taken together, these findings reveal additional similarities between the dHNF4 mutant phenotype and the metabolic complications of diabetes in humans. Finally, in addition to elevated carbohydrates, we observed increased levels of pyruvate and lactate accompanied by decreased levels of ATP, suggesting a potential defect in mitochondrial respiration (Figure 1H, 2).

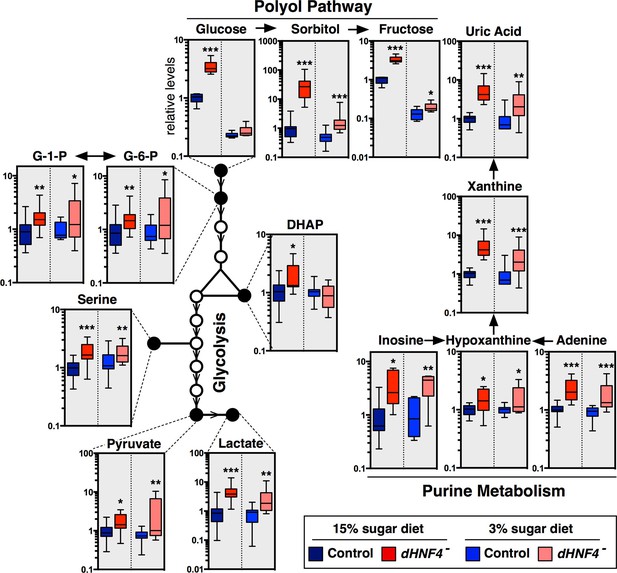

Figure 2 with 1 supplement see all
dHNF4 mutants display defects in glycolysis and mitochondrial metabolism.

GC/MS metabolomic profiling of controls and dHNF4 mutants raised to adulthood on the 3% sugar diet, transferred to the indicated diet for 3 days, and subjected to analysis. Data were obtained from three independent experiments consisting of 5–6 biological replicates per condition and values were normalized to control levels on the 15% sugar diet. Box plots are presented on a log scale, with the box representing the lower and upper quartiles, the horizontal line representing the median, and the error bars representing the minimum and maximum data points. ***p≤0.001, **p≤0.01, *p≤0.05.

https://doi.org/10.7554/eLife.11183.006

To further assess mitochondrial metabolism, dHNF4 mutant adults were maintained on 10% sucrose medium for three days and analyzed for TCA cycle intermediates using GC/MS metabolomics. This approach was aimed at restricting the ability of dietary amino acids to replenish TCA cycle intermediates by anapleurosis to provide more robust detection of underlying defects in this pathway. Interestingly, dHNF4 mutants display specific alterations in these metabolites, with increased abundance of citrate, aconitate, isocitrate, fumarate and malate, along with decreased levels of alpha-ketoglutarate and succinate, suggesting a specific block in TCA cycle progression (Figure 3—figure supplement 1). Taken together, these metabolite changes suggest that mitochondrial function is impaired in dHNF4 mutants, providing a possible primary cause for their glucose intolerance.

dHNF4 regulates nuclear and mitochondrial gene expression

As a first step toward identifying transcriptional targets of dHNF4 that mediate its effects on glucose homeostasis, we performed RNA-seq profiling in control and mutant adults. A total of 1370 genes are differentially expressed in dHNF4 mutants (≥1.5-fold change, 1% FDR), with just over half of these genes showing reduced abundance (726 down, 644 up) (Supplementary file 1). Gene ontology analysis revealed that the majority of the down-regulated genes correspond to metabolic functions, with the most significant category corresponding to oxidoreductases (Supplementary file 2). In contrast, the up-regulated genes largely correspond to the innate immune response, reflecting a possible inflammatory response in dHNF4 mutants (Supplementary file 2). Interestingly, most of the transcripts encoded by the mitochondrial genome (mtDNA) are expressed at greatly reduced levels in mutant animals (Supplementary file 1). In Drosophila, as in humans, the mitochondrial genome contains 13 protein-coding genes, all of which encode critical components of the electron transport chain (ETC) that contribute to oxidative phosphorylation (OXPHOS). Further analysis of these transcripts by northern blot hybridization confirmed their reduced expression in dHNF4 mutants, corresponding to mtDNA genes involved in Complex I (mt:ND1, mt:ND2, mt:ND4, mt:ND5), Complex IV (mt:Cox1, mt:Cox2, mt:Cox3) and Complex V/ATP synthase (mt:ATPase6, mt:ATPase8), along with reduced levels of the mitochondrial large ribosomal RNA (mt:lrRNA) (Figure 3A, Supplementary file 1). Importantly, not all mtDNA genes are misregulated, as the expression of mt:Cyt-b is consistently unaltered in mutants (Figure 3A). In addition, the copy number of mtDNA is unaffected in dHNF4 mutants, suggesting that mitochondrial abundance is normal in these animals (Figure 3—figure supplement 2A).

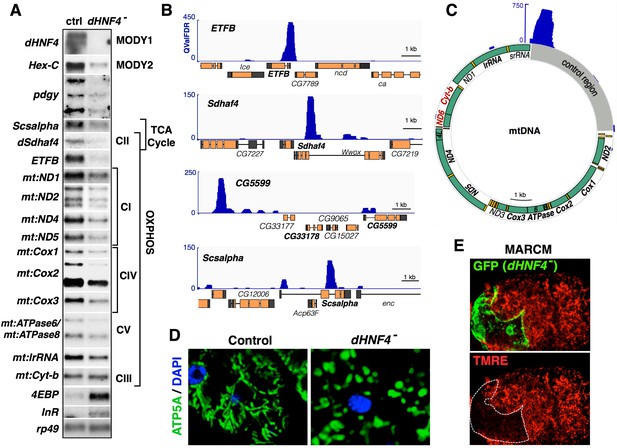

Figure 3 with 3 supplements see all
dHNF4 regulates nuclear and mitochondrial gene expression.

(A) Validation of RNA-seq data by northern blot using total RNA extracted from control and dHNF4 mutant adults. Affected transcripts include those involved in glucose homeostasis (Hex-C, pdgy), the electron transport chain (Sdhaf4, mt:ND1, mt:ND2, mt:ND4, mt:ND5, mt:CoxI, mt:Cox2, mt:Cox3, mt:ATPase6/8, mt:Cyt-b and mt:lrRNA), the TCA cycle (Scsalpha, dSdhaf4), and insulin signaling (4EBP, InR). rp49 is included as a control for loading and transfer. Mitochondrial-encoded transcripts are indicated by the prefix 'mt'. Depicted results were consistent across multiple experiments. (B–C) ChIP-seq analysis performed on adult flies for endogenous dHNF4 genomic binding shows direct association with both nuclear (B) and mitochondrial-encoded (C) genes involved in OXPHOS. Data tracks display q value FDR (QValFDR) significance values (y-axis) compared to input control, where QValFDR 50 corresponds to P=10–5 and 100 corresponds to P=10–10. Gene names in bold represent those expressed at reduced levels in dHNF4 mutants by RNA-seq and/or northern blot analysis. Gene names in red (ND6, Cyt-B) denote the mtDNA-encoded transcriptional unit confirmed to show no change in dHNF4 mutants. (D) Whole-mount immunostaining of adult fat body tissue for ATP5A (green) to detect mitochondria and DAPI (blue) to mark nuclei, showing fragmented mitochondrial morphology in dHNF4 mutants. (E) Analysis of dHNF4 mutant MARCM clones (GFP+) shows reduced mitochondrial membrane potential by TMRE staining of live fat body tissue from adult flies maintained on the 15% sugar diet.

https://doi.org/10.7554/eLife.11183.008

Several nuclear-encoded OXPHOS genes also require dHNF4 for their maximal expression, including genes that encode the alpha and beta subunits of the electron transfer flavoprotein (ETFA and ETFB), ETF-ubiquinone oxidoreductase (ETF-QO), and the Complex II (succinate dehydrogenase, SDH) assembly factor dSdhaf4 (Figure 3A, Supplementary file 1). Similar to flies lacking dSdhaf4, dHNF4 mutants display reduced steady-state levels of SDH complex as assayed by western blot (Figure 3—figure supplement 1) (Van Vranken et al., 2014). These observations are thus consistent with impaired mitochondrial SDH function, and suggest that dSdhaf4 is a critical functional target of dHNF4. Additional genes involved in the TCA cycle are misexpressed in dHNF4 mutants, including Succinyl-CoA synthetase alpha (Scsalpha), CG5599 (which encodes a protein with homology to the E2 subunit of the α-ketoglutarate dehydrogenase complex (α-KGDHC) as well as the E2 subunit of the branched-chain alpha-ketoacid dehydrogenase complex), CG1544 (which encodes a homolog of α-KGDHC E1), as well as Isocitrate dehydrogenase (IDH, NADP+-dependent) (Figure 3A, Supplementary file 1). These changes in gene expression are consistent with the observed changes in the levels of TCA cycle intermediates in dHNF4 mutants, suggesting that they are functionally relevant to the mutant metabolic phenotype (Figure 3—figure supplement 1).

Notably, dHNF4 mutants also have decreased expression of the GCK homolog Hexokinase-C (Hex-C) (Figure 3A). GCK is a tissue-specific glycolytic enzyme that is required for glucose sensing by pancreatic β-cells and glucose clearance by the liver. These activities, combined with the association of GCK mutations with MODY2, make Hex-C a candidate for mediating the effects of dHNF4 on carbohydrate metabolism. The glucose transporter CG1213 is also down-regulated in dHNF4 mutants, along with phosphoglucomutase (pgm), which is involved in glycogen metabolism, and transaldolase and CG17333, which are involved in the pentose phosphate shunt. Additionally, the gluconeogenesis genes Pyruvate carboxylase (CG1514) and Phosphoenolpyruvate carboxykinase (Pepck, CG17725) show reduced expression in mutant animals, similar to their dependence on Hnf4A for expression in the mammalian liver (Supplementary file 1) (Chavalit et al., 2013; Yoon et al., 2001). Finally, dHNF4 mutants display transcriptional signatures of reduced insulin signaling, including up-regulation of the dFOXO-target genes 4EBP and InR (Figure 3A, Supplementary file 1). Taken together, these findings indicate an important role for dHNF4 in mitochondrial OXPHOS and glucose metabolism, and suggest that it acts through multiple pathways to maintain glycemic control.

Chromatin immunoprecipitation followed by high-throughput sequencing (ChIP-seq) was performed to identify direct transcriptional targets of the receptor. Through this analysis, forty-seven genes were identified as high confidence targets by fitting the criteria of showing proximal dHNF4 binding along with reduced transcript abundance in mutant animals (≥1.5 fold change, 1% FDR) (Figure 3—figure supplement 3, Supplementary file 3). These include nuclear-encoded OXPHOS genes such as ETFB, ETF-QO, dSdhaf4, and genes that encode TCA cycle factors Scsalpha and CG5599 (Figure 3B). We also observed abundant and specific binding of dHNF4 within the control region of the mitochondrial genome (Figure 3C and Supplementary file 3). Taken together with our other results, these data suggest that dHNF4 is required to maintain normal mitochondrial function. Consistent with this, mitochondrial morphology is severely fragmented in mutant animals, and MARCM clonal analysis in the adult fat body shows reduced mitochondrial membrane potential in dHNF4 mutant cells (Figure 3D,E and Figure 3—figure supplement 2B,C). In contrast, we were unable to detect changes in reactive oxygen species (ROS) in dHNF4 mutant clones by DHE staining (Figure 3—figure supplement 2D). This might be due to the decreased levels of ROS-generating ETC complexes in dHNF4 mutants, along with no detectable effect on the transcripts that encode ROS-scavenging enzymes, such as catalase and SOD (Supplementary file 1). Taken together, these data support the model that dHNF4 regulates both nuclear and mitochondrial gene expression to promote OXPHOS and maintain mitochondrial integrity.

dHNF4 acts through multiple tissues and pathways to control glucose homeostasis

Tissue-specific RNAi was used to disrupt dHNF4 expression in the IPCs, fat body, and intestine to examine the contributions of dHNF4 in these tissues to systemic glucose homeostasis. This revealed a requirement in both the IPCs and fat body for glucose homeostasis, consistent with the well-established roles of these tissues in insulin signaling and the regulation of circulating sugar levels (Figure 4A, Figure 4—figure supplement 1B). Our initial functional analysis of dHNF4 target genes supports these tissue-specific activities and provides insights into the molecular mechanisms of dHNF4 action. Tissue-specific inactivation of Hex-C by RNAi demonstrates that it is required in the fat body, but not the IPCs, to maintain normal levels of circulating glucose (Figure 4B,C). This is consistent with the important role of mammalian GCK for glucose clearance by the liver as well as its association with MODY2 (Postic et al., 1999). In contrast, both fat body and IPC-specific RNAi for the direct target of dHNF4, CG5599, significantly impaired glucose homeostasis (Figure 4B,C). This indicates that CG5599 is required in each of these tissues for glycemic control, similar to dHNF4, suggesting that it is a key downstream target of the receptor. Although technical limitations prevent us from performing tissue-specific RNAi studies of mitochondrial-encoded transcripts, disruption of ETC Complex I by targeting a critical assembly factor, CIA30 (Complex I intermediate-associated protein 30 kDa) (Cho et al., 2012) in either the IPCs or fat body produced elevated levels of free glucose (Figure 4B,C). Fat body-specific RNAi for dHNF4, CIA30, or CG5599 resulted in fragmented mitochondrial morphology, consistent with previous reports of CIA30 loss of function and the onset of mitochondrial dysfunction (Figure 4D) (Cho et al., 2012). In contrast, RNAi for Hex-C had no detectable effect on mitochondrial morphology (Figure 4D).

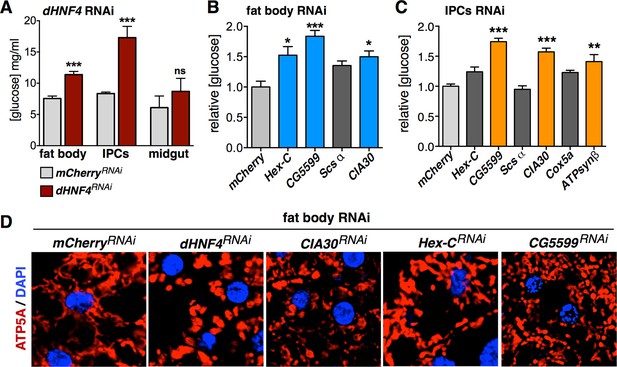

Figure 4 with 3 supplements see all
dHNF4 acts through multiple tissues and pathways to control glucose homeostasis.

(A) Circulating glucose levels in adult males expressing tissue-specific RNAi against mCherry (TRiP 35785, grey bars) or dHNF4 (TRiP 29375, dark red bars) in the fat body (r4-GAL4), IPCs (dilp2-GAL4), or midgut (mex-GAL4). (B–C) Relative free glucose levels in adult males on the 15% sugar diet expressing fat body (r4-GAL4, B) or IPC (dilp2-GAL4, C)-specific RNAi compared to mCherry RNAi controls (light grey bars). RNAi lines directed against Hex-C, CG5599, Scsα, CIA30, Cox5a, and ATPsynβ were obtained from the TRiP RNAi collection. Blue and orange bars depict significant changes in glucose levels. Dark grey bars are not significant. Data represents the mean ± SEM. ***p≤0.001, **p≤0.01, *p≤0.05. (D) Confocal imaging of mitochondrial morphology (marked by ATP5A immunostaining, red) in the adult fat body from animals expressing fat-body specific RNAi (r4-GAL4). The extended network of mitochondria seen in controls is disrupted and appears more punctate upon RNAi for dHNF4, CIA30, or CG5599, indicative of mitochondrial fragmentation. No effect is seen upon RNAi for Hex-C.

https://doi.org/10.7554/eLife.11183.012

While RNAi for Complex V (ATPsynβ RNAi) in the fat body caused lethality prior to eclosion, IPC-specific RNAi produced viable adults that appeared normal but displayed significant hyperglycemia (Figure 4C). In contrast, disruption of ETC Complex IV in the IPCs (Cox5a RNAi) failed to produce hyperglycemia, while RNAi in the fat body caused lethality prior to adulthood, similar to ATPsynβ. This premature lethality was accompanied by severe developmental delay and more than 50% of the animals dying prior to puparium formation when raised on the 15% sugar diet. Interestingly, we discovered that these animals are sugar intolerant, similar to dHNF4 mutants, such that rearing them on the 3% sugar diet allowed for 100% survival to puparium formation while also alleviating the developmental delay (Figure 4—figure supplement 2). Although adult viability was not achievable through dietary intervention, these findings demonstrate that ETC function in the fat body is important for sugar tolerance during development, similar to the requirement for dHNF4. Taken together, these data reveal important roles for dHNF4 in both the IPCs and fat body to maintain glucose homeostasis, likely in part by promoting Hex-C expression in the fat body for glucose clearance and supporting mitochondrial function and OXPHOS in both the IPCs and fat body.

dHNF4 is required for glucose-stimulated DILP2 secretion

The requirement for dHNF4 function in the IPCs for systemic glucose homeostasis fits with the important roles for Hnf4A in mouse pancreatic β-cells as well as the contribution of β-cell physiology to the onset of MODY1. Accordingly, we examined if dHNF4 mutants display defects in GSIS. We used an experimental approach developed for this purpose in Drosophila larvae, assaying for the steady-state levels of DILP2 peptide in the IPCs using a fasting/refeeding paradigm (Geminard et al., 2009). As expected, DILP2 accumulates in the IPCs of fasted control animals and is effectively released into circulation in response to glucose feeding (Figure 5A,B). In contrast, while DILP2 accumulates normally in fasted dHNF4 mutants, it fails to respond to dietary glucose stimulation, despite these animals having normal IPC number and morphology (Figure 5A,B). Peripheral insulin signaling is also reduced in dHNF4 mutants relative to controls, consistent with their reduced GSIS (Figure 5C). This defect in GSIS is due to a tissue-specific requirement for dHNF4 in the IPCs since IPC-specific RNAi for dHNF4 resulted in impaired DILP2 secretion into the hemolymph, along with reduced peripheral insulin signaling (Figure 5D,E and Figure 5—figure supplement 1) (Park et al., 2014). Taken together, these data demonstrate that impaired GSIS plays a central role in the diabetic phenotype of dHNF4 mutants.

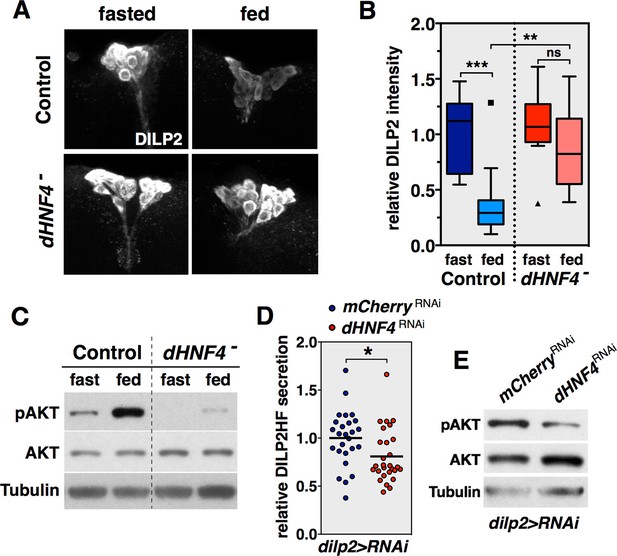

Figure 5 with 1 supplement see all
dHNF4 is required for glucose-stimulated DILP2 secretion by the insulin-producing cells.

(A) Whole-mount staining for DILP2 peptide in brains dissected from adult control and dHNF4 mutants that were either fasted overnight or re-fed glucose for two hours. (B) Quantification of relative DILP2 fluorescent intensity in the IPCs of fasted and glucose-fed controls and dHNF4 mutants. Data is plotted as a Tukey boxplot with outliers denoted as individual data points (n= 11 ± 3 brains per-condition). Results were consistent between three independent experiments. (C) Western blot analysis to detect phosphorylated AKT (pAKT), total AKT, and Tubulin in extracts from controls and dHNF4 mutants that were either fasted overnight or re-fed glucose for two hours. (D) Levels of circulating HA-FLAG-tagged DILP2 (DILP2HF) were assayed in animals with IPC-specific RNAi (TRiP) against either mCherry as a control (blue) or dHNF4 (red) using the dilp2-GAL4 driver (dilp2>RNAi). Data is combined from five independent experiments, each containing 5–6 biological replicates per genotype. The horizontal lines depict the mean value. (E) Western blot analysis to detect phosphorylated AKT (pAKT), total AKT, and Tubulin in extracts from ad libitum fed adult males with IPC-specific RNAi against either mCherry as a control or dHNF4 using the dilp2-GAL4 driver (dilp2>RNAi). ***p≤0.001, **p≤0.01, *p≤0.05.

https://doi.org/10.7554/eLife.11183.016

dHNF4 is required to establish the metabolic state of adult Drosophila

As we reported in our prior study of dHNF4, the receptor is not expressed in the larval IPCs (Figure 6A) (Palanker et al., 2009). It is, however, expressed in the IPCs of the adult fly, consistent with its central roles at this stage in GSIS, insulin signaling, and glucose homeostasis (Figure 6B). Interestingly, this cell-type specific switch in dHNF4 expression correlates with a developmental change in IPC physiology. Unlike mammalian β-cells, larval IPCs fail to secrete DILPs in response to dietary glucose (Geminard et al., 2009). Adult IPCs, however, display calcium influx, membrane depolarization, and DILP2 secretion in response to glucose, analogous to β-cells (Alfa et al., 2015; Fridell et al., 2009; Kreneisz et al., 2010; Park et al., 2014). Along with the temporal induction of dHNF4 expression in adult IPCs, these results suggest that there is a developmental switch in the response to glucose at the onset of adulthood. Consistent with this, glucose feeding activates insulin signaling in adult flies, but not in larvae (Figure 6C). This correlates with a ~ten-fold increase in the basal circulating levels of glucose in adults compared to larvae, which first becomes apparent during the final stages of pupal development (Figure 6D) (Tennessen et al., 2014a). Moreover, dHNF4 mutants maintain euglycemia on a normal diet during larval and early pupal stages, but display hyperglycemia just prior to eclosion (Figure 6D). Taken together, these observations point to a switch in IPC physiology and glucose homeostasis as Drosophila transition into maturity.

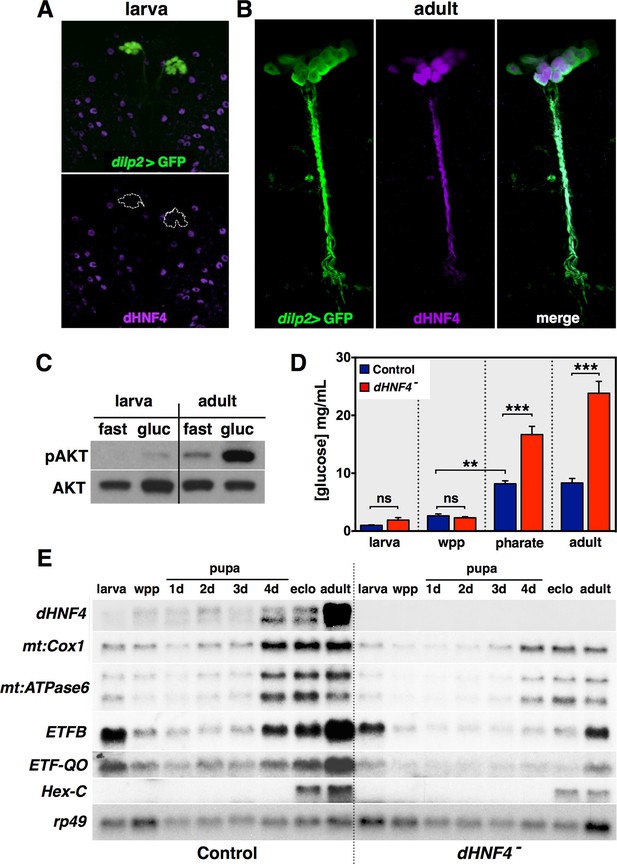

dHNF4 supports a developmental transition toward GSIS and OXPHOS in adult Drosophila.

(A–B) Whole-mount immunostaining of larval (A) or adult (B) brains to detect dHNF4 protein (magenta) or GFP, which marks the IPCs (dilp2>GFP, green). (C) Western blot analysis to detect phosphorylated AKT (pAKT) and total AKT in extracts from w1118 third-instar larvae or mature adults that were fasted overnight and re-fed 10% glucose for two hours. (D) Relative levels of free glucose in controls and dHNF4 mutants staged as either feeding third-instar larvae (larva), white prepupae (wpp), pharate adults (~4 day-old pupae), or mature adults. Data is plotted as the mean ± SEM. ***p≤0.001, **p≤0.01, *p≤0.05. (E) Northern blot analysis of RNA extracted from feeding third-instar larvae (larva), white prepupae (wpp), pupae at one-day intervals, mid-eclosion (eclo), and mature adults. rp49 is included as a control for loading and transfer.

https://doi.org/10.7554/eLife.11183.018

The induction of dHNF4 in the adult IPCs and the adult onset of hyperglycemia in dHNF4 mutants raise the interesting possibility that this receptor may play a role in coordinating the metabolic switch toward GSIS and OXPHOS at this stage. Indeed, northern blot analysis of RNA samples isolated from staged wild-type larvae, pupae, and young adults, demonstrate that dHNF4 expression increases dramatically at the onset of adulthood (Figure 6E). Moreover, this temporal pattern of expression is accompanied by increased expression of both nuclear and mitochondrial-encoded dHNF4 target genes that contribute to OXPHOS as well as Hex-C. The expression of these target genes is also reduced in staged dHNF4 mutants, consistent with our earlier findings that their maximal expression depends on receptor function (Figure 6E). Taken together, our results support the model that dHNF4 contributes to a metabolic switch in glucose homeostasis at the onset of adulthood that promotes GSIS and OXPHOS to meet the energy demands of the adult fly.

Discussion

The association of MODY subtypes with mutations in specific genes provides a framework for understanding the monogenic heritability of this disorder as well as the roles of the corresponding pathways in systemic glucose homeostasis. In this paper, we investigate the long-known association between HNF4A mutations and MODY1 by characterizing a whole-animal mutant that recapitulates the key symptoms associated with this disorder. We show that Drosophila HNF4 is required for both GSIS and glucose clearance in adults, acting in distinct tissues and multiple pathways to maintain glucose homeostasis. We also provide evidence that dHNF4 promotes mitochondrial OXPHOS by regulating nuclear and mitochondrial gene expression. Finally, we show that the expression of dHNF4 and its target genes is dramatically induced at the onset of adulthood, contributing to a developmental switch toward GSIS and oxidative metabolism at this stage in development. These results provide insights into the molecular basis of MODY1, expand our understanding of the close coupling between development and metabolism, and establish the adult stage of Drosophila as an accurate context for genetic studies of GSIS, glucose clearance, and diabetes.

dHNF4 acts through multiple pathways to regulate glucose homeostasis

Drosophila HNF4 mutants display late-onset hyperglycemia accompanied by sensitivity to dietary carbohydrates, glucose intolerance, and defects in GSIS – hallmarks of MODY1. These defects arise from roles for dHNF4 in multiple tissues, including a requirement in the IPCs for GSIS and a role in the fat body for glucose clearance. The regulation of GSIS by dHNF4 is consistent with the long-known central contribution of pancreatic β-cells to the pathophysiology of MODY1 (Fajans and Bell, 2011). Similarly, several MODY-associated genes, including GCK, HNF1A and HNF1B, are important for maintaining normal hepatic function. These distinct tissue-specific contributions to glycemic control may explain why single-tissue Hnf4A mutants in mice do not fully recapitulate MODY1 phenotypes and predict that a combined deficiency for the receptor in both the liver and pancreatic β-cells of adults would produce a more accurate model of this disorder.

We used metabolomics, RNA-seq, and ChIP-seq to provide initial insights into the molecular mechanisms by which dHNF4 exerts its effects on systemic metabolism. These studies revealed several downstream pathways, each of which is associated with maintaining homeostasis and, when disrupted, can contribute to diabetes. These include genes identified in our previous study of dHNF4 in larvae that act in lipid metabolism and fatty acid β-oxidation, analogous to the role of Hnf4A in the mouse liver to maintain normal levels of stored and circulating lipids (Hayhurst et al., 2001; Palanker et al., 2009). Extensive studies have linked defects in lipid metabolism with impaired β-cell function and peripheral glucose uptake and clearance, suggesting that these pathways contribute to the diabetic phenotypes of dHNF4 mutants (Prentki et al., 2013; Qatanani and Lazar, 2007). An example of this is pudgy, which is expressed at reduced levels in dHNF4 mutants and encodes an acyl-CoA synthetase that is required for fatty acid oxidation (Figure 3A) (Xu et al., 2012). Interestingly, pudgy mutants have elevated triglycerides, reduced glycogen, and increased circulating sugars, similar to dHNF4 mutants, suggesting that this gene is a critical downstream target of the receptor. It is important to note, however, that our metabolomic, RNA-seq, and ChIP-seq studies were conducted on extracts from whole animals rather than individual tissues. As a result, some of our findings may reflect compensatory responses between tissues, and some tissue-specific changes in gene expression or metabolite levels may not be detected by our approach. Further studies using samples from dissected tissues would likely provide a more complete understanding of the mechanisms by which dHNF4 maintains systemic physiology.

Notably, the Drosophila GCK homolog encoded by Hex-C is expressed at reduced levels in dHNF4 mutants (Figure 3A). The central role of GCK in glucose sensing by pancreatic β-cells as well as glucose clearance by the liver places it as an important regulator of systemic glycemic control. Our functional data supports these associations by showing that Hex-C is required in the fat body for proper circulating glucose levels, analogous to the role of GCK in mammalian liver (Figure 4B) (Postic et al., 1999). Unlike mice lacking GCK in the β-cells, however, we do not see an effect on glucose homeostasis when Hex-C is targeted by RNAi in the IPCs. This is possibly due to the presence of a second GCK homolog in Drosophila, Hex-A, which could act alone or redundantly with Hex-C to mediate glucose sensing by the IPCs. In mammals, GCK expression is differentially regulated between hepatocytes and β-cells through the use of two distinct promoters, and studies in rats have demonstrated a direct role for HNF4A in promoting GCK expression in the liver (Roth et al., 2002). Our findings suggest that this relationship has been conserved through evolution. In addition, the association between GCK mutations and MODY2 raise the interesting possibility that defects in liver GCK activity may contribute to the pathophysiology of both MODY1 and MODY2.

Interestingly, gene ontology analysis indicates that the up-regulated genes in dHNF4 mutants correspond to the innate immune response pathways in Drosophila (Supplementary file 2). This response parallels that seen in mice lacking Hnf4A function in enterocytes, which display intestinal inflammation accompanied by increased sensitivity to DSS-induced colitis and increased permeability of the intestinal epithelium, similar to humans with inflammatory bowel disease (Ahn et al., 2008; Babeu and Boudreau, 2014; Cattin et al., 2009). Disruption of Hnf4A expression in Caco-2 cells using shRNA resulted in changes in the expression of genes that act in oxidative stress responses, detoxification pathways, and inflammatory responses, similar to the effect we see in dHNF4 mutants (Marcil et al., 2010). Moreover, mutations in human HNF4A are associated with chronic intestinal inflammation, irritable bowel disease, ulcerative colitis, and Crohn’s disease, suggesting that these functions are conserved through evolution (UK IBD Genetics Consortium et al., 2009; Marcil et al., 2012; van Sommeren et al., 2011). Taken together, these results support the hypothesis that dHNF4 plays an important role in suppressing an inflammatory response in the intestine. Future studies are required to test this hypothesis in Drosophila. In addition, further work is required to better define the regulatory functions of HNF4 that are shared between Drosophila and mammals. Although our work described here suggests that key activities for this receptor have been conserved in flies and mammals, corresponding to the roles of HNF4 in the IPCs (β-cells) for GSIS, fat body (liver) for lipid metabolism and glucose clearance, and intestine to suppress inflammation, there are likely to be divergent roles as well. One example of this is the embryonic lethality of Hnf4A mutant mice, which is clearly distinct from the early adult lethality reported here for dHNF4 mutants. Further studies are required to dissect the degree to which the regulatory functions of this receptor have been conserved through evolution.

It is also important to note that mammalian Hnf4A plays a role in hepatocyte differentiation and proliferation in addition to its roles in metabolism (Bonzo et al., 2012; Li et al., 2000). This raises the possibility that early developmental roles for dHNF4 could impact the phenotypes we report here in adults. Indeed, all of our studies involve zygotic dHNF4 null mutants that lack function throughout development. In an effort to address this possibility and distinguish developmental from adult-specific functions, we are constructing a conditional dHNF4 mutant allele using CRISPR/Cas9 technology. Future studies using this mutation should allow us to conduct a detailed phenotypic analysis of this receptor at different stages of Drosophila development.

It is also interesting to speculate that our functional studies of dHNF4 uncover more widespread roles for MODY-associated genes in glycemic control, in addition to the link with MODY2 described above. HNF1A and HNF1B, which are associated with MODY3 and MODY5, respectively, act together with HNF4A in an autoregulatory circuit in an overlapping set of tissues, with HNF4A proposed to be the most upstream regulator of this circuit (Boj et al., 2001; Nagaki and Moriwaki, 2008). The observation that Drosophila do not have identifiable homologs for HNF1A and HNF1B raises the interesting possibility that dHNF4 alone replaces this autoregulatory circuit in more primitive organisms. The related phenotype of these disorders is further emphasized by cases of MODY3 that are caused by mutation of an HNF4A binding site within the HNF1A promoter (Gragnoli et al., 1997). Consistent with this link, MODY1, MODY3 and MODY5 display similar features of disease complication and progression, and studies of HNF1A and HNF4A in INS-1 cells have implicated roles for these transcription factors in promoting mitochondrial metabolism in β-cells (Wang et al., 2002). In line with this, mitochondrial diabetes is clearly age progressive, as are MODY1, 3, and 5, but not MODY2, which represents a more mild form of this disorder. Furthermore, the severity and progression of MODY3 is significantly enhanced when patients carry an additional mutation in either HNF4A or mtDNA (Forlani et al., 2010). Overall, these observations are consistent with the well-established multifactorial nature of diabetes, with multiple distinct metabolic insults contributing to disease onset.

dHNF4 regulates nuclear and mitochondrial gene expression

Our RNA-seq analysis supports a role for dHNF4 in coordinating mitochondrial and nuclear gene expression (Supplementary file 1 and Figure 3A). This is represented by the reduced expression of transcripts encoded by the mitochondrial genome, along with effects on nuclear-encoded genes that act in mitochondria. In addition, ChIP-seq revealed that several of the nuclear-encoded genes are direct targets of the receptor. Mitochondrial defects have well-established links to diabetes-onset, with mutations in mtDNA causing maternally-inherited diabetes and mitochondrial OXPHOS playing a central role in both GSIS and peripheral glucose clearance (Sivitz and Yorek, 2010). Consistent with this, our functional studies indicate that dHNF4 is required to maintain normal mitochondrial function and that defects in this process contribute to the diabetic phenotypes in dHNF4 mutants.

It is important to note that the number of direct targets for dHNF4 in the nucleus is difficult to predict with our current dataset. A relatively low signal-to-noise ratio in our ChIP-seq experiment allowed us to identify only 37 nuclear-encoded genes as high confidence targets by fitting the criteria of proximal dHNF4 binding along with reduced expression in dHNF4 mutants (Figure 3B and Supplementary file 3). Future ChIP-seq studies will allow us to expand this dataset to gain a more comprehensive understanding of the scope of the dHNF4 regulatory circuit and may also reveal tissue-restricted targets that are more difficult to detect. Nonetheless, almost all of the genes identified as direct targets for dHNF4 regulation correspond to genes involved in mitochondrial metabolism, including the TCA cycle, OXPHOS, and lipid catabolism, demonstrating that this receptor has a direct impact on these critical downstream pathways that influence glucose homeostasis (Figure 3—figure supplement 3, Supplementary file 3).

dHNF4 is required for mitochondrial function

An unexpected and significant discovery in our studies is that dHNF4 is required for mitochondrial gene expression and function. Several lines of evidence support the model that dHNF4 exerts this effect through direct regulation of mitochondrial transcription, although a number of additional experiments are required to draw firm conclusions on this regulatory connection. First, most of the 13 protein-coding genes in mtDNA are underexpressed in dHNF4 mutants (Figure 3A, Supplementary file 1). Our lab and others have conducted RNA-seq studies of Drosophila nuclear transcription factor mutants and, to our knowledge, similar effects on mitochondrial gene expression have not been reported previously. Second, dHNF4 protein is abundantly bound to the control region of the mitochondrial genome, representing the fifth strongest enrichment peak in our ChIP-seq dataset (Figure 3C). Although the promoters in Drosophila mtDNA have not yet been identified, the site bound by dHNF4 corresponds to a predicted promoter region for Drosophila mitochondrial transcription and coincides with the location of the major divergent promoters in human mtDNA (Garesse and Kaguni, 2005; Roberti et al., 2006). It is unlikely that the abundance of mtDNA relative to nuclear DNA had an effect on our ChIP-seq peak calling because the MACS2 platform used for our analysis accounts for local differences in read depth across the genome (including the abundance of mtDNA). In addition, although the D-loop in mtDNA has been proposed to contribute to possible false-positive ChIP-seq peaks in mammalian studies (Marinov et al., 2014), the D-loop structure is not present in Drosophila mtDNA (Rubenstein et al., 1977). Nonetheless, additional experiments are required before we can conclude that this apparent binding is of regulatory significance for mitochondrial function. Third, the effects on mitochondrial gene expression do not appear to be due to reduced mitochondrial number in dHNF4 mutants (Figure 3—figure supplement 2A). This is consistent with the normal expression of mt:Cyt-b in dHNF4 mutants (Figure 3A), which has a predicted upstream promoter that drives expression of the mt:Cyt-b and mt:ND6 operon (although we could not detect mt:ND6 RNA in our northern blot studies) (Berthier et al., 1986; Roberti et al., 2006). Fourth, immunostaining for dHNF4 shows cytoplasmic protein that overlaps with the mitochondrial marker ATP5A, in addition to its expected nuclear localization (Figure 3—figure supplement 2B). Some of the cytoplasmic staining, however, clearly fails to overlap with the mitochondrial marker, making it difficult to draw firm conclusions from this experiment. Multiple efforts to expand on this question biochemically with subcellular fractionation studies have been complicated by abundant background proteins that co-migrate with the receptor in mitochondrial extracts. We are currently developing new reagents to detect the relatively low levels of endogenous dHNF4 protein in mitochondria, including use of the CRISPR/Cas9 system for the addition of specific epitope tags to the endogenous dHNF4 locus. Finally, we observe multiple hallmarks of mitochondrial dysfunction, including elevated pyruvate and lactate, specific alterations in TCA cycle metabolites, reduced mitochondrial membrane potential, reduced levels of ATP, and fragmented mitochondrial morphology. These phenotypes are consistent with the reduced expression of key genes involved in mitochondrial OXPHOS (Figure 3A and Supplementary file 1), and studies showing that decreased mitochondrial membrane potential and ATP production are commonly associated with mitochondrial fragmentation (Mishra and Chan, 2014; Toyama et al., 2016).

Although unexpected, our proposal that dHNF4 may directly regulate mitochondrial gene expression is not unprecedented. A number of nuclear transcription factors have been localized to mitochondria, including ATFS-1, MEF2D, CREB, p53, STAT3, along with several nuclear receptors, including the estrogen receptor, glucocorticoid receptor, and the p43 isoform of the thyroid hormone receptor (Leigh-Brown et al., 2010; Nargund et al., 2015; Szczepanek et al., 2012). The significance of these observations, however, remains largely unclear, with few studies demonstrating regulatory functions within mitochondria. In addition, these factors lack a canonical mitochondrial localization signal at their amino-terminus, leaving it unclear how they achieve their subcellular distribution (Marinov et al., 2014). In contrast, one of the five mRNA isoforms encoded by dHNF4, dHNF4-B, encodes a predicted mitochondrial localization signal in its 5’-specific exon, providing a molecular mechanism to explain the targeting of this nuclear receptor to this organelle. Efforts are currently underway to conduct a detailed functional analysis of dHNF4-B by using the CRISPR/Cas9 system to delete its unique 5’ exon, as well as establishing transgenic lines that express a tagged version of dHNF4-B under UAS control. Future studies using these reagents, along with our dHNF4 mutants, should allow us to dissect the nuclear and mitochondrial functions of this nuclear receptor and their respective contributions to systemic physiology.

Finally, it is interesting to speculate whether the role for dHNF4 in mitochondria is conserved in mammals. A few papers have described the regulation of nuclear-encoded mitochondrial genes by HNF4A (Rodriguez et al., 1998; Wang et al., 2000). In addition, several studies have detected cytoplasmic Hnf4A by immunohistochemistry in tissue sections, including in postnatal pancreatic islets (Miura et al., 2006; Nammo et al., 2008) and hepatocytes (Bell and Michalopoulos, 2006; Soutoglou et al., 2000; Sun et al., 2007; Yanger et al., 2013). Moreover, the regulation of nuclear/cytoplasmic shuttling of HNF4A has been studied in cultured cells (Soutoglou et al., 2000). The evolutionary conservation of the physiological functions of HNF4A, from flies to mammals, combined with these prior studies, argue that more effort should be directed at defining the subcellular distribution of HNF4A protein and its potential roles within mitochondria. Taken together with our studies in Drosophila, this work could provide new directions for understanding HNF4 function and MODY1.

dHNF4 contributes to an adult switch in metabolic state

Physiological studies by George Newport in 1836 noted that holometabolous insects reduce their respiration during metamorphosis leading to a characteristic “U-shaped curve” in oxygen consumption (Needham, 1929; Newport, 1836). Subsequent classical experiments in Lepidoptera, Bombyx, Rhodnius and Calliphora showed that this reduction in mitochondrial respiration during metamorphosis and dramatic rise in early adults is seen in multiple insect species, including Drosophila (Bodine, 1925; Merkey et al., 2011). Consistent with this, the activity of oxidative enzyme systems and the levels of ATP also follow a “U-shaped curve” during development as the animal transitions from a non-feeding pupa to a motile and reproductively active adult fly (Agrell, 1953). Although first described over 150 years ago, the regulation of this developmental increase in mitochondrial activity has remained undefined. Here we show that this temporal switch is dependent, at least in part, on the dHNF4 nuclear receptor. The levels of dHNF4 expression increase dramatically at the onset of adulthood, accompanied by the expression of downstream genes that act in glucose homeostasis and mitochondrial OXPHOS (Figure 6E). This coordinate transcriptional switch is reduced in dHNF4 mutants, indicating that the receptor plays a key role in this transition. Importantly, the timing of this program correlates with the onset of dHNF4 mutant phenotypes in young adults, including sugar-dependent lethality, hyperglycemia, and defects in GSIS, indicating that the upregulation of dHNF4 expression in adults is of functional significance. It should also be noted, however, that dHNF4 target genes are still induced at the onset of adulthood in dHNF4 mutants, albeit at lower levels, indicating that other regulators contribute to this switch in metabolic state (Figure 6E). Nonetheless, the timing of the induction of dHNF4 and its target genes in early adults, and its role in promoting OXPHOS, suggest that this receptor contributes to the end of the “U-shaped curve” and directs a systemic transcriptional switch that establishes an optimized metabolic state to support the energetic demands of adult life.

Interestingly, a similar metabolic transition towards OXPHOS was recently described in Drosophila neuroblast differentiation, mediated by another nuclear receptor, EcR (Homem et al., 2014). Although this occurs during early stages of pupal development, prior to the dHNF4-mediated transition at the onset of adulthood, the genes involved in this switch show a high degree of overlap with dHNF4 target genes that act in mitochondria, including ETFB, components of Complex IV, pyruvate carboxylase, and members of the α-ketoglutarate dehydrogenase complex. This raises the possibility that dHNF4 may contribute to this change in neuroblast metabolic state and play a more general role in supporting tissue differentiation by promoting OXPHOS.

To our knowledge, only one other developmentally coordinated switch in systemic metabolic state has been reported in Drosophila and, intriguingly, it is also regulated by a nuclear receptor. Drosophila Estrogen-Related Receptor (dERR) acts in mid-embryogenesis to directly induce genes that function in biosynthetic pathways related to the Warburg effect, by which cancer cells use glucose to support rapid proliferation (Tennessen et al., 2011; Tennessen et al., 2014b). This switch toward aerobic glycolysis favors lactate production and flux through biosynthetic pathways over mitochondrial OXPHOS, supporting the ~200-fold increase in mass that occurs during larval development. Taken together with our work on dHNF4, these studies define a role for nuclear receptors in directing temporal switches in metabolic state that meet the changing physiological needs of different stages in development. Further studies should allow us to better define these regulatory pathways as well as determine how broadly nuclear receptors exert this role in coupling developmental progression with systemic metabolism.

Although little is known about the links between development and metabolism, it is likely that coordinated switches in metabolic state are not unique to Drosophila, but rather occur in all higher organisms in order to meet the distinct metabolic needs of an animal as it progresses through its life cycle. Indeed, a developmental switch towards OXPHOS in coordination with the cessation of growth and differentiation appears to be a conserved feature of animal development. Moreover, as has been shown for cardiac hypertrophy, a failure to coordinate metabolic state with developmental context can have an important influence on human disease (Lehman and Kelly, 2002).

Adult Drosophila as a context for genetic studies of GSIS and diabete

In addition to promoting a transition toward systemic oxidative metabolism in adult flies, dHNF4 also contributes to a switch in IPC physiology that supports GSIS. dHNF4 is not expressed in larval IPCs, but is specifically induced in these cells at adulthood (Figure 6A,B). Similarly, the fly homologs of the mammalian ATP-sensitive potassium channel subunits, Sur1 and Kir6, which link OXPHOS and ATP production to GSIS, are not expressed in the larval IPCs but are expressed during the adult stage (Fridell et al., 2009; Kim and Rulifson, 2004). They also appear to be active at this stage as cultured IPCs from adult flies undergo calcium influx and membrane depolarization upon exposure to glucose or the anti-diabetic sulfonylurea drug glibenclamide (Kreneisz et al., 2010). In addition, reduction of the mitochondrial membrane potential in adult IPCs by ectopic expression of an uncoupling protein is sufficient to reduce IPC calcium influx, elevate whole-animal glucose levels, and reduce peripheral insulin signaling (Fridell et al., 2009). This switch in IPC physiology is paralleled by a change in the nutritional signals that trigger DILP release. Amino acids, and not glucose, stimulate DILP2 secretion by larval IPCs (Geminard et al., 2009). Rather, glucose is sensed by the corpora cardiaca in larvae, a distinct organ that secretes adipokinetic hormone, which acts like glucagon to maintain carbohydrate homeostasis during larval stages (Kim and Rulifson, 2004; Lee and Park, 2004). Interestingly, this can have an indirect effect on the larval IPCs, triggering DILP3 secretion in response to dietary carbohydrates (Kim and Neufeld, 2015). Adult IPCs, however, are responsive to glucose for DILP2 release (Park et al., 2014) (Figure 5A,D). In addition, dHNF4 mutants on a normal diet maintain euglycemia during larval and early pupal stages, but display hyperglycemia at the onset of adulthood, paralleling their lethal phase on a normal diet (Figure 6D). Taken together, these observations support the model that the IPCs change their physiological state during the larval-to-adult transition and that dHNF4 contributes to this transition toward GSIS. The observation that glucose is a major circulating sugar in adults, but not larvae, combined with its ability to stimulate DILP2 secretion from adult IPCs, establishes this stage as an experimental context for genetic studies of glucose homeostasis, GSIS, and diabetes. Functional characterization of these pathways in adult Drosophila will allow us to harness the power of model organism genetics to better understand the regulation of glucose homeostasis and the factors that contribute to diabetes.

Materials and methods

Drosophila strains and media

All genetic studies used a transheterozygous combination of dHNF4 null alleles (dHNF4Δ17/dHNF4Δ33) and genetically-matched controls that were transheterozygous for precise excisions of the EP2449 and KG08976 P-elements, as described previously (Palanker et al., 2009). Sugar diets were made using 8% yeast, 1% agar, 0.05% MgSO4, 0.05% CaCl2, and either 3%, 9% or 15% dietary sugar (2:1 ratio of glucose to sucrose, percentages represent weight/final food volume. 10 ml/L tegosept and 6 ml/L propionic acid were added just prior to pouring). Fasting was achieved by using 1% agar as a medium. For adult studies, 8–10 day old males were selected for all studies unless otherwise indicated.

GAL4/UAS lines for tissue-specific RNAi studies

The following GAL4 driver lines were used for tissue-specific expression experiments: Fat body: r4-GAL4 (Lee and Park, 2004), midgut: mex-GAL4 (Phillips and Thomas, 2006), IPCs: yw; UAS-Dicer2; dilp21 dilp2HF dilp2-GAL4 (Park et al., 2014). RNAi lines used in this study include: UAS-dHNF4RNAi (TRiP 29375 used in Figure 4A, Figure 4—figure supplement 1A, Figure 5D,E; VDRC 12692 used in Figure 4—figure supplement 1A–B, Figure 5—figure supplement 1), UAS-mCherryRNAi (TRiP 35785), UAS-Cox5aRNAi (TRiP 27548), UAS-CIA30RNAi (TRiP 55660), UAS-ATPsynβRNAi (TRiP 28056), UAS-Scs-αRNAi (TRiP 51807), UAS-CG5599RNAi (TRiP 32876), and UAS-HexCRNAi (TRiP 57404 used in Figure 4B–D, and VDRC 35337 and VDRC 35338 used in Figure 4—figure supplement 3).

Lifespan studies

The dHNF4 mutant lethal phase was assessed by raising 50–60 newly hatched first instar larvae in vials of standard laboratory media at 25˚C and scoring for survival through embryonic hatching, wandering third instar, puparium formation, eclosion, and survival through the first day of adulthood (Figure 1A). Eclosion rates were scored in a similar manner for dHNF4 mutants and genetically matched controls raised on the 3%, 9% or 15% sugar diets. For adult survival studies on different diets (Figure 1C), 50–60 newly hatched first instar larvae were placed in vials with the 3% sugar diet and raised until five days of adulthood. These mature adults were then transferred to fresh vials of 3%, 9%, or 15% dietary sugar with approximately 25 males and 25 females per vial at 25˚C and scored daily for lethality. Flies were transferred to fresh vials every 2–3 days. At least three replicate vials were analyzed per condition and each experiment was repeated at least three times with similar results.

Developmental staging

For the developmental time course northern blot, we collected 0–12 hr feeding third instar larvae, pupae at 24, 48 or 72 hr after puparium formation, stage P12 males (newly formed pharate adult with visible sex combs) for 4 day pupae, and males at mid-eclosion from the pupal case (to ensure that all dHNF4 mutants were alive) (n=15 animals per sample). Animals collected for developmental RNA and glycemia measurements (Figure 6D–E) were raised on the 15% sugar diet, except for the adults, which were reared on the 3% sugar diet and transferred to the 15% sugar diet after eclosion.

Metabolic assays

Glycogen, trehalose, and free glucose levels were determined using the Hexokinase (HK) and/or Glucose Oxidase (GO) assay kits (Sigma GAHK20, GAGO20) as previously described, with approximately six biological replicates (n=5 animals per sample) assayed per condition (Tennessen et al., 2014a). Total protein levels were determined in parallel by Bradford assay to control for potential variations in sample homogenization and/or animal size. Hemolymph glucose measurements were determined by centrifuging 60–100 adult males in a prepared zymogen barrier column (Zymo Research Corporation C1006) at 9000 g for 5 min at 4˚C, as described (Park et al., 2014). The hemolymph flow-though was diluted 1:100 in 1xPBS prior to heat treatment, followed by analysis using the HK assay kit.

ATP assay

Mature adult males were placed on 10% sucrose + 1% agar overnight prior to analysis. Six biological replicates per genotype (n=5 males per sample) were analyzed for ATP levels by using a luminescence assay kit (Molecular Probes ATP kit; A22066, ) as described (Tennessen et al., 2014a).

GC/MS Metabolomic analysis

Animals were raised on the 3% sugar diet until five days of adulthood and transferred to a fresh vial with either the 3% or 15% sugar diet for three days prior to collection. Twenty adult males per sample were snap-frozen in liquid nitrogen and prepared for analysis by gas chromatography-mass spectrometry (GC/MS) as described (Tennessen et al., 2014a). Data is presented from three independent experiments, each consisting of 5–6 biological replicates per condition. Sample preparation and GC/MS analysis were performed by the Metabolomics Core Research Facility at the University of Utah School of Medicine.

Immunostaining

Tissues were dissected in cold 1xPBS, fixed in 4% paraformaldehyde for 20-30 min at room temperature, and washed once quickly followed by three washes for 20 min each in PBS, 0.2% Triton-X100. Samples were blocked using 5% normal goat serum for 1–2 hr at room temperature and incubated with primary antibodies for a minimum of 24 hr at 4˚C, washed, and incubated with secondary antibody at 4˚C for 24 hr. Images were acquired using an Olympus FV1000 confocal microscope and analyzed by Volocity software to generate Z-stack projections and overlay images. The following antibodies were used for immunofluorescence studies: rat anti-dHNF4 (Palanker et al., 2009), rat anti-DILP2 (a gift from P. Leopold), rabbit anti-GFP (Molecular Probes A-6455), chicken anti-GFP (Abcam 13970), and mouse anti-ATP5A (Abcam 14748).

Quantification of DILP2 fluorescence

Dissected brains stained for DILP2 peptide were mounted in SlowFade® Gold (Life Technologies) and imaged using an Olympus FV1000 confocal microscope and 60X water-immersion objective. Scan settings were fixed to be identical for all captured images, with Z-stack limits set to encompass the entire depth of DILP2 fluorescence for each brain. Maximum projection Z-stacks were analyzed using Volocity software to calculate mean pixel intensity of DILP2 fluorescence within the IPCs (selected by ROI tool) for each set of IPCs analyzed.

Northern blot analysis

Total RNA was extracted from groups of 10–20 animals using TriPure isolation reagent (Roche). RNA was fractionated by 1% formaldehyde gel electrophoresis at a constant voltage (70V) for ~3.5 hr prior to transfer to a nylon membrane overnight. After transfer, RNA was UV cross-linked to the membrane and placed in hybridization buffer (5 mls formamide, 2 mls 10x PIPES buffer, pH 6.5, 2 mls ddH20, 1 ml 10% SDS, 100 μl sheared herring sperm ssDNA) for two hours at 42˚C prior to the addition of radiolabeled probe. Probes were generated by Klenow-mediated random primer amplification of purified template DNA corresponding to approximately 100–500 bp of the transcript of interest, allowing incorporation of 32P radiolabeled-nucleotide (dCTP, PerkinElmer). Probes were incubated with membranes overnight, and the hybridized membranes were washed and exposed to X-ray film at -80˚C using two intensifying screens.

RNA-seq

dHNF4 mutants and genetically-matched controls were reared on the 3% sugar diet for five days of adulthood and transferred to the 15% sugar diet for 3 days prior to extracting total RNA. Eight biological replicates per genotype (n=20 males per sample) were collected using TriPure isolation reagent (Roche). Pairs of biological replicates were pooled to obtain four biological replicates for further purification using an RNeasy kit (QIAGEN). RNA quality was subsequently analyzed using an Agilent Bioanalyzer RNA 6000. PolyA-selected RNAs from each biological replicate were then assembled into barcoded libraries and pooled into a single-flow cell lane for Illumina HighSeq2000 50-cycle single-read sequencing, which produced ≥21.9 million reads per sample. Standard replicate RNA-seq analysis was performed using USeq and DESeq analysis packages with alignment to the Drosophila melanogaster dm3 genome assembly. Transcripts meeting a cutoff of ≥1.5 fold difference in mRNA abundance and FDR ≤1% were considered as differentially expressed genes. RNA quality control, library preparation, sequencing, and data analysis were performed at the University of Utah High Throughput Genomics and Bioinformatics Core Facilities. Although mt:Cyt-b and mt:ND6 are included among the down-regulated genes in our RNA-Seq dataset (Supplementary file 1), these represent false positives as demonstrated by subsequent repeated northern blot hybridization studies for mt:Cyt-b (Figure 3A). We are also unable to detect mt:ND6 mRNA in either mutant or control flies, consistent with a previous report (Berthier et al., 1986).

ChIP-seq

Chromatin isolation and immunoprecipitation were performed as described (Schwartz et al., 2003). w1118 flies were reared on standard cornmeal-based lab medium and 1–1.5 g of mature adults were homogenized in ice-cold buffer A (0.3 M sucrose, 2 mM MgOAc, 3 mM CaCl2, 10 mM Tris-Cl [pH 8], 0.3% Triton X-100, 0.5 mM dithiothreitol, 1 Roche protease inhibitor tablet per 10 ml) for 1.5 min using a Brinkmann Homogenizer Polytron PT 10/35. The homogenate was filtered through a layer of 100 μm-pore nylon mesh into a pre-chilled glass-Teflon homogenizer, stroked on ice 35 times using a B pestle, and filtered through two layers of 40-μm-pore nylon mesh prior to adding one volume of warm cross-linking buffer (0.1 M NaCl, 1 mM EDTA, 0.5 mM EGTA, 50 mM Tris [pH 8], pre-warmed to 40°C) to bring the sample to room temperature for crosslinking (0.3% formaldehyde for 3 min). 2.5 M glycine was added to a final concentration of 125 mM to stop the crosslinking after 3 min. The mixture was pelleted for resuspension into 10 ml of RIPA buffer (140 mM NaCl, 10 mM Tris-Cl [pH 8.0], 1 mM EDTA, 1% Triton, 0.3% SDS, 0.1% sodium deoxycholate, and Roche protease inhibitor cocktail) for sonication. The sonicated material was centrifuged at 20,000 g, and the supernatant was distributed into 500 μl aliquots that were snap frozen in liquid nitrogen. To each aliquot, 1 ml of cold RIPA buffer (without SDS) was added prior to removing 150 μl for an input control, and then 5 µl of polyclonal affinity-purified anti-dHNF4 antibody was added to each sample for immunoprecipitation overnight at 4˚C (Palanker et al., 2009). 50 μl of prepared Protein G Dynabeads (Life Technologies) were added to each sample and incubated for 4 hr at 4˚C prior to wash and elution using a magnetic stand. Washes were performed for 3 min each at 4˚C with 1 ml of the following ice-cold solutions: three times in low salt wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris-Cl [pH 8.0], 150 mM NaCl), one time in high salt wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris-Cl [pH 8.0], 500 mM NaCl), once in LiCl wash buffer (0.25 M LiCl, 1% NP-40, 1% deoxycholate, 1 mM EDTA, 10 mM Tris-Cl [pH 8.0]), and twice with Tris-EDTA. Protein-DNA complexes were eluted in 1.5 ml DNA-low bind tubes (Eppendorf) using two 15-minute washes with 250 μl elution buffer (1% SDS, 0.1 M NaHCO3). NaCl was added to a final concentration of 0.2 M to reverse the crosslinks of IP and input control samples, followed by an overnight incubation at 65°C. dHNF4-bound DNA was purified by using PCR-purification columns (Qiagen), and pooled to acquire four replicates of dHNF4-IP chromatin and input controls. Barcoded libraries for dHNF4-IP and input control samples were generated by the University of Utah High Throughput Genomics core facility and sequenced in a single lane Illumina HiSeq 50-cycle single-read sequencing. Data analysis was performed by the Bioinformatics Core at the University of Utah School of Medicine using USeq ScanSeqs (FDR80) as well as Model-based Analysis for ChIP-seq 2.0 (MACS2) (Zhang et al., 2008) with an FDR cutoff of 1% (FDR20), identifying 68 enrichment regions. Nearest neighboring genes were compiled using USeq FindNeighboringGenes and UCSC dm3 EnsGenes gene tables and were compared to our RNA-seq dataset to identify proximal genes that are also misexpressed in dHNF4 mutants, highlighting these as direct targets of dHNF4.

Immunoblotting

Samples were homogenized in Laemmli sample buffer with protease and phosphatase inhibitor cocktails, resolved by SDS-PAGE (10% acrylamide), transferred to PVDF membrane overnight at 4˚C, and blocked with 5% BSA prior to immunoblotting. Antibodies used for western blots include rabbit anti-pAKT (Cell Signaling #4054), rabbit anti-AKT (Cell Signaling #4691), mouse anti-SDHA (Abcam 137756), rabbit anti-SDHB (a generous gift from D. Winge, generated against yeast SDH2/SDHB), mouse anti-ATP5A (Abcam 14748), and mouse anti-βTubulin (Chemicon MAB380).

DILP2HF ELISA for measuring circulating DILP2

Transgenic lines expressing HA-FLAG tagged DILP2 (DILP2-HF) peptide were used for ELISA assays, essentially as described (Park et al., 2014). The indicated UAS-RNAi line or w1118 controls (Figure 5D and Figure 5—figure supplement 1) were crossed to yw; UAS-Dcr2; dilp21 DILP2HF dilp2-GAL4 flies. Adult male progeny were either fed ad libitum (Figure 5—figure supplement 1) or fasted overnight and then re-fed the 15% sugar diet for 45 min prior to analysis (Figure 5D). The posterior end of the abdomen was removed using micro-dissection scissors and placed in 60 µl of PBS, using 10 males per biological replicate. Tubes were vortexed for 20 min, after which 50 μl of supernatant was collected in a fresh tube. Samples were homogenized in 600 μl of PBS, 1% Triton X-100. HA-FLAG peptide standards from 0, 20, 40 80, 160, 320 and 640 pg/ml were generated for a linear standard curve. 50 μl of circulating DILP2HF, total DILP2HF, or peptide standards were added to 50 μl of anti-HA-peroxidase (5 ng/ml, Roche 3F10) in PBS (with or without 1% Triton X-100) and then pipetted into a 96-well ELISA plate (Thermo Scientific MaxiSorp Immulon 4 HBX, Cat# 3855) coated with mouse anti-FLAG antibody (Sigma F1804, M2 monoclonal). Samples were incubated at 4˚C overnight and washed 6 times with PBS, 0.2% Tween-20. 100 μl of 1-Step Ultra TMB ELISA Substrate (Thermo Scientific 34029) was added to the plate and incubated at room temperature for 30 min. 100 μl of 2M sulfuric acid was added to stop the reaction and the absorbance was measured immediately at 450 nm. Circulating DILP2HF (pg/fly) versus total remaining peptide was calculated to determine the percent secretion relative to controls (n≥4 biological replicates per condition).

Clonal analysis

Virgin female flies (yw,hsFLP,UAS-GFP; tub-GAL80,FRT40A;tub-GAL4) were crossed to w;HNF4∆33/CyO twi>GFP males for MARCM analysis. Flies were reared on the 3% sugar diet and heat treated at 37°C for one hour as pharate adults, and again as newly-eclosed adults. Adults were maintained on the 15% sugar diet for 8–10 days prior to analysis.

Tetramethylrhodamine ethyl ester (TMRE) staining

Adult flies were dissected in room temperature Schneider’s medium (ThermoFisher 21720024) with microdissection scissors to separate the abdomen from the thorax. The intestine was removed and the abdominal cavity was cut open to allow maximal contact of fat body with the TMRE solution (ThermoFisher T669). Dissected abdomens were placed in freshly-prepared solution of 20 nM TMRE in Schneider’s medium and incubated in the dark for 5–7 min. Samples were then washed briefly twice in Schneider’s medium, mounted on glass slides in fresh Schneider’s medium, and immediately imaged on an Olympus FV1000 confocal microscope with a 60x water objective.

Dihydroethidium (DHE) staining

DHE staining was performed as previously described (Owusu-Ansah and Banerjee, 2009). Briefly, adult abdomens were dissected as described for TMRE staining, but instead placed in freshly prepared 30 μM DHE (ThermoFisher D11347) in Schneider’s medium and incubated in the dark for 5–7 min. Samples were washed rapidly three times with Schneider’s medium, followed by fixation in 4% formaldehyde in 1xPBS for seven minutes. Samples were then washed twice in 1xPBS, mounted in SlowFade Gold (ThermoFisher S36936), and imaged on an Olympus FV1000 confocal microscope with a 20X objective.

Statistics

GraphPad PRISM 6 software was used to plot data and perform statistical analysis. Pairwise comparison P values were calculated using a two-tailed Student’s t-test, multiple comparison P values were calculated using one-way ANOVA with Šídák multiple test correction (except Figure 4B,C which included Dunnett’s correction). Error bars are ± 1xSEM unless otherwise noted. Box plots display the full range of data (error bars), the 25–75th quartiles (box), and the median (midline).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
    Mammalian hepatocyte differentiation requires the transcription factor Hnf-4alpha
    1. J Li
    2. G Ning
    3. SA Duncan
    (2000)
    Genes & Development 14:464–474.
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    On the respiration of insects
    1. G Newport
    (1836)
    Philosophical Transactions of the Royal Society of London 126:529–566.
    https://doi.org/10.1098/rstl.1836.0026
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80

Decision letter

  1. Utpal Banerjee
    Reviewing Editor; University of California, Los Angeles, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Drosophila HNF4 promotes glucose-stimulated insulin secretion and increased mitochondrial function in adults" for consideration by eLife. Your article has been favorably evaluated by K VijayRaghavan (Senior editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Summary

In this manuscript the authors study the role of HNF in Drosophila glucose homeostasis. In humans, mutations in HNF4A cause an early onset form of diabetes. The authors make the insightful observation that mutations in HNF4 result in early adult death just after eclosion. This phenotype is rescued if the adults are fed on 3% sugar diet instead of the regular diet, which contains about 15% sugars in it. Thus, reduced carbohydrate intake increases viability of HNF4 mutants suggesting that it might function in the regulation of sugar homeostasis. Further analysis suggests indeed that HNF4 mutants have increased levels of free glucose and trehalose in adults and have impaired glucose tolerance and reduced levels of ATP (60-70% of the normal). The authors then use MS to determine the levels of different intermediates in glycolysis and mitochondrial metabolism and find that many of the intermediates of glycolysis and the associated pathways that function in the biosynthesis of other metabolites show a significant increase when HNF4 mutants are fed on 15% sugar diet but not when they are reared on 3% sugar diet. Consistent with these observations the authors show that loss of HNF4 causes mitochondrial fragmentation. Based on these observations that authors conclude that HNF4 functions in the metabolic reprogramming from the larval to the adult mode during development consistent with the lethality of HNF4 mutants.

Interestingly, mutant flies survive longer on a low sugar diet. Using global analyses such as metabolomics, RNA-seq and ChIP-seq the authors find that glycolysis and mitochondrial function are altered in mutant flies. Surprisingly, the RNA-seq and ChIP-seq data point to the possibility that HNF acts in the mitochondria to increase mtDNA transcription. The authors then use tissue specific knock-downs to show that glucose homeostasis is most perturbed when HNF is knocked down in the IPCs and fat body. Indeed, knock-down of HNF in the IPCs reduces DILP2 in circulation. The authors then explore the possibility that HNF triggers a developmentally regulated metabolic switch towards GSIS and OXPHOS at the onset of adulthood.

The authors use a range of technologies to establish links between development, metabolic regulation and glucose homeostasis. A number of novel findings are reported. The most notable (but also potentially confusing, see below) is the finding that HNF might regulate mtDNA transcription. If so, this would alter our understanding of how mitochondrial transcription is regulated, and offer insights into how mtDNA transcription might be altered in diseases, such as diabetes. Unfortunately, the experiments that this novel claim is based on are not conclusive.

The following is a list of major concerns that the reviewers have expressed and would like addressed.

Essential revisions:

1) A major, most exciting, finding of the paper is that dHNF4 might directly regulate mtDNA transcription. If so, this will change much about how we think mtDNA transcription is regulated. While the authors provide some evidence for this (for example ChIP-seq data), further experiments should be conducted to solidify this finding. In particular, it would be nice if the authors provide further evidence that dHNF4 is indeed targeted to mitochondria and present within the mitochondrial matrix where mtDNA resides. This could be achieved by subcellular fractionation of tissues or cells to show that dHNF4 first associates with the mitochondrial fraction and then further sub-fractionation to determine where within mitochondria it is. Along the same lines, are there any sequences in dHNF4 specifically required to target it to mitochondria? Does it possess a canonical N-terminal mitochondrial targeting sequence? If so, what are the phenotypic consequences of preventing mitochondrial targeting?

The key evidence that dHNF binds to mtDNA is the ChIP-seq data. It is unclear how to interpret this mtDNA Chiq-seq data for a couple of reasons:

A) The presumably high copy number of mtDNA in the sample (perhaps 1000X in excess of nuclear).

B) The low signal to noise ratio in the nuclear binding sites. Presumably, most ChIP-seq experiments will detect mtDNA as a background signal. This will usually be discarded, because of the excess signal at specific nuclear DNA binding sites. In this study, in which the signal to noise ratio in nuclear genes is quite low, any background signal caused by the mtDNA might seem more important. A nice control would have been to perform the ChIP-seq in the mutant flies. The mtDNA signal should be much reduced in the mutants (assuming the mtDNA copy number is the same in mutant flies).

2) The second piece of evidence supportive of HNF4 being present in the mitochondria is an IF experiment, which uses the same antibody as the ChIP-seq study. Given the novelty of the finding, it would have been useful to see independent validation of mitochondrial localization using an alternative antibody or a genetic construct. In summary, whilst it is plausible that HNF is directly binding to mtDNA and regulating mtDNA transcription, further evidence, using a method that doesn't require the antibody used in this study, would make the claim more compelling. Given the interest in such a finding, further independent evidence of direct mtDNA binding would be necessary.

3) As a related issue, the argument that loss of dHNF4 specifically impairs mitochondrial metabolism needs further clarification. Loss of dHNF4 could also or instead, cause a reduction in mitochondrial number and mass. To what degree can the consequences of dHNF4 depletion be attributed to a reduction of mitochondrial number or mass as opposed to specific TCA cycle and OXPHOS impairment? Does loss of dHNF4 reduce mitochondrial number, mass or mtDNA copy number?

Similarly, the mitochondrial organization is significantly impaired upon loss of HNF4 functions. Do the authors also see an increase in the expression of enzymes such as Drp1 in the RNA-seq? And does the knockdown of DRP1 function result in the rescue of the phenotype? Do ROS levels increase in mutant HNF4 tissue and does scavenging of ROS suppress the phenotype?

Related to this issue, the authors should determine if the integrity of the cells that normally express it is compromised in any way such as an incorrect specification/physiology in the absence of HNF4, and please provide a more complete justification for why they think that the cells show a "mitochondrial fragmentation" phenotype.

For the RNA-seq data, a systematic enrichment analysis (GO term/KEGG pathway) needs to be carried out on all differentially expressed genes in order to support claims regarding specificity of pathways regulated by dHNF4. In the current version of the manuscript, the authors seem to have cherry-picked genes (the expression of which is often only mildly affected, e.g. Figure 3A) to claim that dHNF4 regulates genes involved in processes such as OXPHOS.

Many of the above questions are arising, and are important to address, because the central issue has not been convincingly addressed: How does HNF4 regulate mitochondrial gene expression?

4) One potential caveat with the RNA-seq and ChIP-seq experiments is that they have been carried out in whole flies. dHNF4 is expressed in multiple tissues, and both its functions and targets may be tissue-specific. This is something that will not be captured by whole-fly approaches, and may in fact prevent identification of some targets. For example, the contribution of the IPCs to total fly chromatin or RNA is likely to be negligible.

While it is understandable that whole adult flies are used for technical reasons, presumably, each of the tissues in question will respond differently to the loss of HNF function, with different metabolic consequences, so it is unclear how to relate these global analyses of a heterogeneous tissue extract to pathology in a particular tissue (e.g. the IPCs). For example, the metabolomics data shows that HNF deletion increases glucose-derived metabolites, but the RNA-seq data suggests that glycolytic genes are down-regulated. These data are not incorrect, since the experiments and analysis were done with care and competence, but such analyses are easier to interpret if using a homogeneous extract. The ambiguities introduced by a mixture of tissues with mixed metabolic profiles make it difficult to appreciate the importance of the genomic analyses.

The Reviewing Editor does not feel that this issue can be fully solved in a reasonable period of time. So perhaps some initial experiments that address aspects of this issue, and attending to this issue in the Discussion, as a caveat will suffice.

5) All the mutants characterized in this study involve constitutive dHNF4 loss or downregulation throughout development – either from all tissues or a subset thereof. Consequently, the adult phenotypes described in this manuscript could be adaptive and result from the metabolic alterations caused by dHNF4 loss during larval life (Palanker et al. 2009). The abundance of genes involved in stress and immunity in the RNA-seq dataset is consistent with this idea. The authors should knockdown dHNF4 specifically in the adult (e.g. in tubGal4, tubGal80ts>dHNF4-RNAi flies) and test whether some of the key phenotypes (glucose intolerance, hyperglycemia and GSIS) are still apparent. Related to this, the specificity of the Ilp2-Gal4 used in this study (Kim et al. 2014) has not been investigated/described in larvae. Why did the authors not use the Ilp2-3-Gal4 generated in the Partridge lab, which is confined to late larva/adult IPCS? This would avoid targeting non-IPC dHNF4 expression throughout development.

Also, a related important but minor issue is that often a single RNAi construct is used, the authors are well aware of the possible pitfalls, and they need to be avoided. Additionally, all UAS and Gal4 lines need to be fully defined.

6) The authors argue that dHNF4 is required in the fat body and insulin-producing cells of adults to maintain glucose homeostasis by supporting a developmental switch toward OXPHOS and GSIS at the transition to adulthood. Since all experiments in this paper were performed by removing dHNF4 early in development far before the onset of adulthood, it remains a possibility that the phenotypes observed are a consequence of an earlier requirement for dHNF4 during development. To show that dHNF4 is really required in adulthood we would like the authors to remove dHNF4 at the onset of adulthood in the whole organism, fat body and IPCs to assess whether the flies become diabetic and whether survival is affected. As the muscle is also a major contributor to glucose clearance the requirement of dHNF4 in muscles should be assessed as well.

7) Based on RNAi to knock-down of specific OXPHOS complexes in the IPC and fat body the authors conclude that there are differential requirements for different ETC complexes in glucose homeostasis. This requires functional validation e.g. on the rate of oxygen consumption. The authors demonstrate that Cox5a knock-down does not increase glucose, but CIA30 knock-down does. It is more likely that each complex has differential control of flux in specific tissues or flux through the ETC has differential sensitivity to knock-down of specific complexes, rather than suggesting that there is a greater requirement for CI or CV than CIV per se.

8) The authors' previous study was consistent with dHNF4 as a nutrient sensor, whereas this manuscript suggests it functions as a developmental switch that converts a cell to a fate that supports responsiveness to glucose. Are dHNF4 expression, activity and/or subcellular localization nutritionally regulated in adult flies? The very low number of ChIP-seq could be explained low dHNF4 activity if a 3% sugar diet was used. RNA-seq experiments used 15% sugar. The diets used for every experiment also need to be clearly stated, and the data analyzed accordingly.

https://doi.org/10.7554/eLife.11183.028

Author response

Essential revisions:

1) A major, most exciting, finding of the paper is that dHNF4 might directly regulate mtDNA transcription. If so, this will change much about how we think mtDNA transcription is regulated. While the authors provide some evidence for this (for example ChIP-seq data), further experiments should be conducted to solidify this finding. In particular, it would be nice if the authors provide further evidence that dHNF4 is indeed targeted to mitochondria and present within the mitochondrial matrix where mtDNA resides. This could be achieved by subcellular fractionation of tissues or cells to show that dHNF4 first associates with the mitochondrial fraction and then further sub-fractionation to determine where within mitochondria it is. Along the same lines, are there any sequences in dHNF4 specifically required to target it to mitochondria? Does it possess a canonical N-terminal mitochondrial targeting sequence? If so, what are the phenotypic consequences of preventing mitochondrial targeting?

We agree with the reviewers that the discovery that dHNF4 may directly regulate mitochondrial gene expression and function is an exciting part of our paper. The evidence in support of this model includes (1) reduced expression of most of the 13 protein-coding mitochondrial genes in dHNF4 mutants. (2) Localization of dHNF4 protein to the predicted mtDNA promoter region by ChIP-seq, (3) no apparent change in mitochondrial DNA number (which we now show in Figure 3E) and no effect on mitochondrial mt:Cyt-b transcription, which is predicted to be expressed from an independent mtDNA promoter, (4) localization of dHNF4 protein to both nuclei and mitochondria in antibody stains, and (5) indicators of mitochondrial dysfunction, including metabolomic data, reduced ATP levels, and mitochondrial fragmentation. We also now include new data showing that our antibody localization of dHNF4 to mitochondria is specific by showing that this staining is absent in dHNF4 mutant tissue (Figure 3—figure supplement 2A). In addition, we show that the staining for mitochondrial dHNF4 is punctate, resembling that reported for mtDNA stains within mitochondria (Figure 3D). We also show that mitochondrial membrane potential is significantly reduced in dHNF4 mutants (Figure 3—figure supplement 2C), consistent with the reduced ATP levels and fragmentation phenotype (Figure 1H, and Figure 3—figure supplement 2A).

The reviewers ask if dHNF4 has a canonical N-terminal mitochondrial targeting sequence. This is an important question and, indeed, dHNF4 does encode such a protein. We have surveyed the protein isoforms encoded by all 18 canonical nuclear receptors in Drosophila and have found only two that carry a N-terminal mitochondrial targeting signal (MTS) predicted by both MITOPROT and TargetP protein localization programs. Importantly, one of these is dHNF4-B, one of the five protein isoforms encoded by the dHNF4 locus (as we now depict in Figure 3—figure supplement 3). We are using CRISPR/Cas9 to specifically delete the 5’ exon that is unique to dHNF4-B, leaving the remaining four isoforms intact. We are also establishing a transgenic line that expresses a tagged dHNF4-B protein under UAS control. Both of these constructs are currently being injected into embryos. We are also engineering an N-terminal protein tag into the dHNF4-B-specific coding sequences to facilitate its detection, along with lines that will carry a protein tag at the C-terminus of the dHNF4 protein shared by all five isoforms. Our plans are to pursue a complete analysis of these new lines, along with our existing dHNF4 mutant, to dissect the relative contributions of nuclear and mitochondrial function to dHNF4 mutant phenotypes. In addition, we have initiated collaborative efforts with colleagues at the University of Utah to determine if the mitochondrial localization and function of HNF4 is conserved through evolution from flies to mammals. Taken together, these studies represent a major direction for our future research. An NIH R01 grant to support this project recently received a good score and is being resubmitted. More relevant to this paper, these detailed studies of potential functions for dHNF4 in mitochondria extend beyond what we hope to communicate in this paper, which represents a much broader initial phenotypic characterization of the adult functions for dHNF4 in Drosophila.

We fully agree with the reviewers that mitochondrial fractionation is important to both confirm our model and determine the location of dHNF4 within mitochondria. Indeed, we were doing these experiments while the paper was out for review and have continued our efforts over the past few months. So far, we have conducted six attempts using control animals compared to dHNF4 mutants as well as a genomic rescue transgene for dHNF4 tagged with GFP and FLAG epitope tags. These efforts, however, have been plagued by a high background of non-specific bands in mitochondrial fractions by western blot that obscure any potential signal from dHNF4. Surprisingly, these non-specific bands are seen in the highly purified mitochondrial fractions (as determined by the fractionation of specific marker proteins) but not in isolated nuclei. We have conducted these studies with a variety of different antibodies including affinity-purified guinea pig anti-dHNF4 (unpublished from our lab), affinity-purified rat anti-dHNF4 (Palankeret al., 2009), chicken anti-GFP (Abcam 13970), and mouse anti-FLAG monoclonal (Sigma F3165). We also attempted pre-absorbing the antibodies using purified mitochondria, but this was not sufficient to fully eliminate interference from non-specific bands. Our need for additional approaches to detect dHNF4 protein has been a major motivating factor for developing the new reagents described above that tag all dHNF4 protein isoforms as well as the dHNF4-B isoform. We now include in our paper a discussion of the importance of conducting mitochondrial fractionation studies in the future (subsection “dHNF4 appears to directly regulate mitochondrial gene expression and function”, third paragraph).

The focus of the reviewers on requesting additional evidence for the mitochondrial functions of dHNF4 is our fault, due to a vague discussion of this topic throughout the paper. At no point in our paper did we enumerate the evidence for and against a direct role for dHNF4 in mitochondria, as well as the key experiments that are needed to conclusively prove this model. These include a full functional analysis of the dHNF4-B isoform and its contributions to dHNF4 mutant phenotypes. We now include this information in a new section of our Discussion that is focused on mitochondria, along with our conclusion that, although our data strongly support the model that dHNF4 directly regulates mitochondrial gene expression, they do not prove it. We now present this as a working model. We have revised all parts of the text that previously referred to “direct regulation of mitochondrial gene expression” to be clear that we cannot make this conclusion based on the evidence presented. We also now state that substantial future studies will be needed to provide conclusive evidence in support of our model. We invite the reviewers to read this modified section of the Discussion (“dHNF4 appears to directly regulate mitochondrial gene expression and function”).

Finally, we want to point out that, although the reviewers are focused on the mitochondrial functions for dHNF4, this is only one of three major findings in our paper. Importantly, this study provides the first accurate animal model for MODY1 and thus the first insights into the molecular mechanisms that underlie this disorder. In addition, we show that the induction of dHNF4 in early adults provides a regulatory mechanism to explain the classic “U-shaped curve” of mitochondrial oxygen consumption in holometabolous insects – consisting of high respiration rates in larvae, low levels during metamorphosis, and a dramatic increase at the onset of adulthood. Our data supports the model that dHNF4 contributes to establishing the metabolic state of the adult fly by supporting both GSIS and mitochondrial activity. This coupling of developmental progression with metabolic state is a critical regulatory connection that is poorly understood in all animals. In addition, our paper defines a developmental shift in systemic glucose homeostasis and provides new evidence to explain why adult IPCs secrete DILP2 in response to glucose, unlike those of larvae. Finally, it is important to note that this is the first paper to report functional studies of dHNF4 in adults. We agree that many experiments can and should be done – particularly regarding its roles in mitochondria – and it is our intention to conduct these experiments over the coming years. We have rewritten major portions of the manuscript to be sure that these points are made clear to the reader. We have also added 7 new figures to the revised manuscript, significantly expanding the scope of our study.

The key evidence that dHNF binds to mtDNA is the ChIP-seq data. It is unclear how to interpret this mtDNA Chiq-seq data for a couple of reasons:

A) The presumably high copy number of mtDNA in the sample (perhaps 1000X in excess of nuclear).

B) The low signal to noise ratio in the nuclear binding sites. Presumably, most ChIP-seq experiments will detect mtDNA as a background signal. This will usually be discarded, because of the excess signal at specific nuclear DNA binding sites. In this study, in which the signal to noise ratio in nuclear genes is quite low, any background signal caused by the mtDNA might seem more important. A nice control would have been to perform the ChIP-seq in the mutant flies. The mtDNA signal should be much reduced in the mutants (assuming the mtDNA copy number is the same in mutant flies). The reviewers are correct that the abundance of mtDNA can complicate ChIP-seq peak calling for the mitochondrial genome. Indeed, we were aware of this and thus our analysis of the ChIP-seq data was performed using the MACS2 platform, which addresses this potential artifact by accounting for local differences in read depth across the genome (including the increased abundance of mtDNA relative to nuclear DNA). This program performs peak calling by calculating dynamic Poisson distribution parameters (local lambda values) and thus adjusts for biases due to local differences in abundance compared to the rest of the genome. In effect, this results in peak calling relative to protein binding levels within adjacent flanking sequences of DNA. As a result, we detect specific dHNF4 enrichment that is restricted to a portion of the mtDNA control region and, importantly, this enrichment is not observed in the input control. Although the triple-stranded structure of the D-loop in the control region of mammalian mtDNA has been proposed to contribute to possible false-positive ChIP-seq peaks in mammalian datasets (Marinov et al., 2014), the D-loop structure is not present in Drosophila mtDNA (Rubensteinet al., 1977). Furthermore, the peak for dHNF4 on mtDNA represents the 5th strongest enrichment peak in our ChIP-seq dataset out of 68 total. This suggests that its significance is not overemphasized due to low signal, as the high-confidence direct targets for dHNF4 identified from this analysis show robust enrichment for proximal dHNF4 binding. In addition, only select mtDNA genes are underexpressed in dHNF4 mutants while mtDNA copy number is unaffected, suggesting a specific regulatory defect in mitochondrial gene expression. Finally, in two other ChIP-seq studies performed in our lab for other nuclear receptors in adult flies using the same protocol, we have not observed such localized enrichment to this predicted mtDNA promoter region. As a result, we feel that specific binding of dHNF4 to mtDNA is a reasonable conclusion from our studies. We have added the information cited above to our Discussion in an effort to address this important concern for readers (subsection “dHNF4 appears to directly regulate mitochondrial gene expression and function”).

Although we agree that it would be ideal to perform a ChIP-seq study in dHNF4 mutant flies as the reviewers request, this is an expensive experiment to conduct as a control for the specificity of dHNF4 binding to mtDNA. Indeed, we know of no comparable control studies in the literature. In addition, the low viability of dHNF4 mutants makes it difficult to get the large quantities of fresh material we need for this experiment (gram quantities of flies). We have attempted to design PCR primers to perform focused ChIP on mtDNA, followed by qPCR, but the sequences within and proximal to the region of dHNF4 binding lack suitable annealing sites due to AT-rich content.

2) The second piece of evidence supportive of HNF4 being present in the mitochondria is an IF experiment, which uses the same antibody as the ChIP-seq study. Given the novelty of the finding, it would have been useful to see independent validation of mitochondrial localization using an alternative antibody or a genetic construct. In summary, whilst it is plausible that HNF is directly binding to mtDNA and regulating mtDNA transcription, further evidence, using a method that doesn't require the antibody used in this study, would make the claim more compelling. Given the interest in such a finding, further independent evidence of direct mtDNA binding would be necessary. We fully agree with the reviewers that additional evidence is needed to support our detection of dHNF4 in mitochondria by IF. Accordingly, we now include antibody stains of adult fat body from both controls and dHNF4 mutants, conducted in parallel and imaged under identical conditions. This data, included as Figure 3—figure supplement 2A, shows that the mitochondrial signal for dHNF4 is absent in mutants. We hope that this new data convincingly demonstrates the specificity of our antibody for immunofluorescent studies.

In addition, we agree that our IF studies would benefit from using a second independent antibody to detect dHNF4. Unfortunately, however, no such reagent exists. In our original work, we raised antibodies against a 317 amino acid region shared by all dHNF4 protein isoforms, using both rats and guinea pigs. Both rodent antibodies were affinity-purified, and both detect similar patterns of cytoplasmic dHNF4 protein. The rat antibody, however, has a significantly higher signal to noise ratio as determined by stains of mutant tissue. We use this antibody for all our published work. In an effort to address the reviewers concerns, we obtained the GFP+FLAG-tagged dHNF4 BAC transgenic line from Bloomington (stock 38649). However, efforts to detect either GFP or FLAG tags using several antibodies (chicken anti-GFP Abcam 13970, rabbit anti-GFP MBL 598, rabbit anti-FLAG Σ F7425) resulted in significant background signal in the cytoplasm from cells lacking this transgene. As stated above, we are currently developing multiple tagged lines with the express purpose of addressing this important issue raised by the reviewers as part of our future studies.

3) As a related issue, the argument that loss of dHNF4 specifically impairs mitochondrial metabolism needs further clarification. Loss of dHNF4 could also or instead, cause a reduction in mitochondrial number and mass. To what degree can the consequences of dHNF4 depletion be attributed to a reduction of mitochondrial number or mass as opposed to specific TCA cycle and OXPHOS impairment? Does loss of dHNF4 reduce mitochondrial number, mass or mtDNA copy number? This is an important question. We agree that this is a critical experiment, which is now included as Figure 3E. This data shows that there is no significant effect on mitochondrial number as reflected by the ratio of mtDNA:nuclear DNA, the conventional measurement for mitochondrial number. Furthermore, we performed additional metabolomics analysis by GC/MS under conditions where amino acids are restricted from the diet (sucrose fed for 3 days) to limit their ability to replenish TCA cycle intermediates through anapleurotic reactions, providing a more robust approach for identifying changes in TCA cycle intermediates. These studies demonstrate specific defects in the TCA cycle that correlate with the changes in TCA cycle gene expression observed in dHNF4 mutants. This new data is presented as Figure 3—figure supplement 1 and discussed in the second paragraph of the subsection “dHNF4 mutants display defects in glycolysis and mitochondrial metabolism”. We also show reduced levels of Complex II by western blot, consistent with the reduced expression of the critical Complex II assembly factor gene dSdhaf4 in dHNF4 mutants (Figure 3—figure supplement 2B). Together, these data indicate that dHNF4 mutants exhibit specific defects in mitochondrial metabolism and gene expression that cannot be explained by an overall reduction in mitochondrial number.

Similarly, the mitochondrial organization is significantly impaired upon loss of HNF4 functions. Do the authors also see an increase in the expression of enzymes such as Drp1 in the RNA-seq? And does the knockdown of DRP1 function result in the rescue of the phenotype? Do ROS levels increase in mutant HNF4 tissue and does scavenging of ROS suppress the phenotype? These are excellent questions that begin to address the causes of mitochondrial fragmentation that we observe in dHNF4 mutants. We have scanned our list of dHNF4-regulated genes (Supplementary file 1) for Drp1 (CG3210), as requested, as well as Opa1 (CG8479), Mfn1/2 (CG3869), Fis1 (CG17510), and Fzo (CG4568). None of these regulators of mitochondrial dynamics, however, are affected by the dHNF4 mutation. Rather than being a direct response to the misregulation of a dHNF4 target gene, however, the mitochondrial fragmentation that we observe in dHNF4 mutants is more likely due to their overall defects in mitochondrial activity. This association is well established in the literature, as we now discuss in the subsections “dHNF4 acts through multiple tissues and pathways to control glucose homeostasis “and “dHNF4 appears to directly regulate mitochondrial gene expression and function”. Consistent with this, disruption of the electron transport chain via RNAi knockdown of the Complex I assembly factor, CIA30, or knockdown of CG5599 (a direct target of dHNF4 that encodes a protein with homology to the E2 subunit of α-ketoglutarate dehydrogenase), in the fat body results in mitochondrial fragmentation and hyperglycemia, similar to loss of dHNF4. This data is now included in Figure 4D. In addition, we now include a clonal analysis experiment, depicted in Figure 3—figure supplement 2C, which shows reduced TMRE staining in clonal patches of dHNF4 mutant cells adjacent to wild-type cells – indicative of reduced mitochondrial membrane potential. This result is consistent with the reduced ATP levels that we detect in dHNF4 mutants and provides a mechanism that can explain the mitochondrial fragmentation, as we now include in the Discussion (in the aforementioned subsection). We have also assayed for changes in ROS as requested by the reviewers. This is shown in Figure 3—figure supplement 2D. We do not, however, see a significant change in ROS by this assay, in either the intestine or fat body. This is consistent with our inability to rescue dHNF4 mutant phenotypes by feeding the animals N-acetyl-cysteine, which provides effective antioxidant activity in Drosophila. One possible explanation for this is that the ETC complexes that produce ROS are expressed at reduced levels in dHNF4 mutants, while the ROS-scavenging enzymes, such as catalase and SOD, remain unaffected in these animals. We now comment on this in the paper (subsection “dHNF4 regulates nuclear and mitochondrial gene expression”, last paragraph).

Related to this issue, the authors should determine if the integrity of the cells that normally express it is compromised in any way such as an incorrect specification/physiology in the absence of HNF4, and please provide a more complete justification for why they think that the cells show a "mitochondrial fragmentation" phenotype. We see no changes in the size or morphology of any cells or tissues we have examined in dHNF4 mutants, with a particular focus on the IPCs (which are central to MODY in humans). The mitochondrial fragmentation that we see in dHNF4 mutants or upon dHNF4 RNAi, depicted in Figure 4D and Figure 3—figure supplement 2A, is one of our most penetrant phenotypes, and this is a common response to mitochondrial dysfunction that has been widely observed and studied. Consistent with this, we now show that fat body-specific RNAi for the dHNF4 target gene, CG5599, which encodes a protein with homology to α-ketoglutarate dehydrogenase, or disruption of the ETC by RNAi against CIA30, results in mitochondrial fragmentation that resembles that seen in dHNF4 mutant tissue (Figure 4D). In addition, we show that mitochondrial morphology is normal upon Hex-C RNAi indicating that fragmentation is not a nonspecific effect or a secondary response to hyperglycemia. We comment on this fragmentation in the context of the reduced mitochondrial membrane potential and ATP levels in the mutants, and cite appropriate references in the Discussion (subsections “dHNF4 acts through multiple tissues and pathways to control glucose homeostasis “and “dHNF4 appears to directly regulate mitochondrial gene expression and function”).

For the RNA-seq data, a systematic enrichment analysis (GO term/KEGG pathway) needs to be carried out on all differentially expressed genes in order to support claims regarding specificity of pathways regulated by dHNF4. In the current version of the manuscript, the authors seem to have cherry-picked genes (the expression of which is often only mildly affected, e.g. Figure 3A) to claim that dHNF4 regulates genes involved in processes such as OXPHOS. We thank the reviewers for this suggestion. We now include a GO analysis in Supplementary file 2. This lists the top 500 up- and down-regulated genes in our RNA-seq analysis of dHNF4 mutants. For the down-regulated genes, the top category is oxidoreductase, which includes many mitochondrial proteins that are involved in redox reactions (p=3.1e-41). The next most significant categories primarily represent genes involved in metabolism, with “electron carrier activity” as number 4. For the up-regulated genes, all of the top categories are involved in antibacterial and innate immune responses. We now comment on this analysis in the subsections “dHNF4 regulates nuclear and mitochondrial gene expression“, first paragraph, and “dHNF4 acts through multiple pathways to regulate glucose homeostasis”, fourth paragraph.

Many of the above questions are arising, and are important to address, because the central issue has not been convincingly addressed: How does HNF4 regulate mitochondrial gene expression? As outlined in our response to comment #1, we fully agree that significant further studies are needed to definitively demonstrate that dHNF4 directly regulates mitochondrial gene expression and function. We wish to emphasize, however, that our current paper is not intended to focus on this topic. Rather, it represents the first phenotypic study of dHNF4 mutant adults and a functional analysis of the roles for dHNF4 in maintaining carbohydrate homeostasis. In addition to providing compelling evidence for a direct mitochondrial function for dHNF4, our paper provides the first animal model for MODY1, 20 years after the discovery of this genetic association in humans. Our paper also establishes an important role for dHNF4 in contributing to a developmental switch in metabolic state and provides a molecular basis to understand the U-shaped curve of mitochondrial activity. We hope that the reviewers will agree that this work, taken together, is worthy of publication in eLife.

4) One potential caveat with the RNA-seq and ChIP-seq experiments is that they have been carried out in whole flies. dHNF4 is expressed in multiple tissues, and both its functions and targets may be tissue-specific. This is something that will not be captured by whole-fly approaches, and may in fact prevent identification of some targets. For example, the contribution of the IPCs to total fly chromatin or RNA is likely to be negligible.

While it is understandable that whole adult flies are used for technical reasons, presumably, each of the tissues in question will respond differently to the loss of HNF function, with different metabolic consequences, so it is unclear how to relate these global analyses of a heterogeneous tissue extract to pathology in a particular tissue (e.g. the IPCs). For example, the metabolomics data shows that HNF deletion increases glucose-derived metabolites, but the RNA-seq data suggests that glycolytic genes are down-regulated. These data are not incorrect, since the experiments and analysis were done with care and competence, but such analyses are easier to interpret if using a homogeneous extract. The ambiguities introduced by a mixture of tissues with mixed metabolic profiles make it difficult to appreciate the importance of the genomic analyses. The Reviewing Editor does not feel that this issue can be fully solved in a reasonable period of time. So perhaps some initial experiments that address aspects of this issue, and attending to this issue in the Discussion, as a caveat will suffice. The reviewers make the important point that different tissues can respond in different ways to a loss-of-function mutation. Tissue-specific RNA-seq, ChIP-seq, and GC/MS metabolomic analysis would address this issue, but they require significant technical effort and financial resources. Rather, we have chosen to address this topic through tissue-specific functional studies of select target genes for dHNF4, as depicted in Figures 4 and 5. To address this important topic, we now discuss the caveats involved in interpreting whole-animal genomewide and metabolomic studies in the Discussion, subsection “dHNF4 acts through multiple pathways to regulate glucose homeostasis”, second paragraph.

5) All the mutants characterized in this study involve constitutive dHNF4 loss or downregulation throughout development – either from all tissues or a subset thereof. Consequently, the adult phenotypes described in this manuscript could be adaptive and result from the metabolic alterations caused by dHNF4 loss during larval life (Palanker et al. 2009). The abundance of genes involved in stress and immunity in the RNA-seq dataset is consistent with this idea. The authors should knockdown dHNF4 specifically in the adult (e.g. in tubGal4, tubGal80ts>dHNF4-RNAi flies) and test whether some of the key phenotypes (glucose intolerance, hyperglycemia and GSIS) are still apparent.

We agree that it is important to selectively remove dHNF4 function from adults and then conduct a complete phenotypic analysis to determine how the resulting phenotypes compare to those of the germline mutant used in our paper. Accordingly, we established the recommended tubGal80ts>dHNF4-RNAi stock and tested this extensively in adults. Unfortunately, however, we could not obtain a sufficient reduction in dHNF4 expression to result in reproducible phenotypes. As an alternative approach, we have used CRISPR/Cas9 to engineer two FRT sites into introns in the endogenous dHNF4 locus in an effort to generate a conditional allele that lacks all dHNF4 functions. We believe that this is a better way to conduct this experiment, allowing us to selectively eliminate dHNF4 function in a temporally and spatially regulated manner. We have successfully used this approach to conduct adult-specific functional studies of another nuclear receptor, dERR, in our lab. We thus feel confident that this approach will allow us to perform a comprehensive adult-specific functional analysis in the future. To address this concern of the reviewers, we now discuss this topic in the Discussion (fifth paragraph of the subsection “dHNF4 acts through multiple pathways to regulate glucose homeostasis”), pointing out that developmental functions for dHNF4 could contribute to the phenotypes we observe.

Related to this, the specificity of the Ilp2-Gal4 used in this study (Kim et al. 2014) has not been investigated/described in larvae. Why did the authors not use the Ilp2-3-Gal4 generated in the Partridge lab, which is confined to late larva/adult IPCS? This would avoid targeting non-IPC dHNF4 expression throughout development. We agree with the reviewers that restricting RNAi against dHNF4 to the adult IPCs would be ideal to avoid non-specific effects from such constructs being expressed during larval development. The dilp2-GAL4 line we use is recombined into a complex genetic background developed by Seung Kim’s lab to allow for picomolar detection of circulating DILP2 peptide (DILP2HF) upon targeted RNAi in these cells. For details, see our Materials and methods and the paper from the Kim lab (Park et al., 2014). We wanted to ensure that all of our functional studies could be related to the critical phenotype of glucose-stimulated DILP secretion, given that this is a hallmark for MODY1. We thus used this same dilp2-GAL4 driver for all functional studies in our paper. Importantly, this line has been validated to drive expression specifically in adult IPCs (Park et al., 2014). In addition, this line includes a UAS-Dcr transgene in the background, which we have found is critical for efficient knockdown in IPCs. Finally, it is important to note that dHNF4 is not detectable in the IPCs during larval stages (Palanker et al., 2009) (Figure 6A), and we express mCherry RNAi for all our studies to control for potential non-specific effects of RNAi in cells lacking an endogenous (or expressed) target mRNA during development.

The reviewers ask about a Ilp2-3-GAL4 line generated by the Partridge lab. To our knowledge, however, this line does not exist. Perhaps the reviewers are referring to the Ilp2-GAL4 line generated by the Hafen lab (Ilp215-3-GAL4), which has been misattributed to the Partridge lab in at least one previous publication. The Ilp215-3-GAL4 driver, however, has been reported to initiate expression during the late L3 and thus would not provide the desired adult-specific expression (Ikeya et al., 2002). In addition, there is no data to support this temporal induction since, to our knowledge, a systematic time course study of Ilp215-3-GAL4 expression has not been published.

Also, a related important but minor issue is that often a single RNAi construct is used, the authors are well aware of the possible pitfalls, and they need to be avoided. Additionally, all UAS and Gal4 lines need to be fully defined. We thank the reviewers for this suggestion and fully acknowledge the limitations of RNAi, especially when only a single RNAi line is available. We have used multiple RNAi lines whenever possible, in particular for our most critical results, focusing on hyperglycemia and the defects in GSIS. We use two separate lines for dHNF4 RNAi and examine the effects on glucose levels and DILP2 secretion (Figures 4A, D, Figure 4—figure supplement 1A, B, Figure 5D, E, and Figure 5—figure supplement 1). We also now include data showing our use of three separate lines for Hex-C RNAi (Figures 4B-D, Figure 4—figure supplement 3). These data all show similar increases in glucose levels in the Hex-C RNAi animals. Additionally, strain-specific identification information for all UAS and GAL4 lines is included in both the Materials and methods section (subsection “GAL4/UAS lines for tissue-specific RNAi studies”) and within the relevant figure legends.

6) The authors argue that dHNF4 is required in the fat body and insulin-producing cells of adults to maintain glucose homeostasis by supporting a developmental switch toward OXPHOS and GSIS at the transition to adulthood. Since all experiments in this paper were performed by removing dHNF4 early in development far before the onset of adulthood, it remains a possibility that the phenotypes observed are a consequence of an earlier requirement for dHNF4 during development. To show that dHNF4 is really required in adulthood we would like the authors to remove dHNF4 at the onset of adulthood in the whole organism, fat body and IPCs to assess whether the flies become diabetic and whether survival is affected. As the muscle is also a major contributor to glucose clearance the requirement of dHNF4 in muscles should be assessed as well. Please see the first section of #5 above for our response to this request to perform adult-specific loss-of-function studies to complement our studies using germline dHNF4 null mutants.

7) Based on RNAi to knock-down of specific OXPHOS complexes in the IPC and fat body the authors conclude that there are differential requirements for different ETC complexes in glucose homeostasis. This requires functional validation e.g. on the rate of oxygen consumption. The authors demonstrate that Cox5a knock-down does not increase glucose, but CIA30 knock-down does. It is more likely that each complex has differential control of flux in specific tissues or flux through the ETC has differential sensitivity to knock-down of specific complexes, rather than suggesting that there is a greater requirement for CI or CV than CIV per se. We thank the reviewers for raising this point. We have removed this speculation from the text since we cannot be sure of the effect of each RNAi knockdown on ETC activity, as the reviewers point out.

8) The authors' previous study was consistent with dHNF4 as a nutrient sensor, whereas this manuscript suggests it functions as a developmental switch that converts a cell to a fate that supports responsiveness to glucose. Are dHNF4 expression, activity and/or subcellular localization nutritionally regulated in adult flies? The very low number of ChIP-seq could be explained low dHNF4 activity if a 3% sugar diet was used. RNA-seq experiments used 15% sugar. The diets used for every experiment also need to be clearly stated, and the data analyzed accordingly.

The reviewers raise the interesting and important possibility that dHNF4 expression, activity and/or subcellular localization might be regulated by nutrition in Drosophila. Needless to say, we wondered the same thing and have conducted a number of nutritional studies, with a particular focus on changes in the subcellular localization of dHNF4. We could not, however, detect any reproducible differences. The levels of dHNF4 mRNA are also unaffected by fasting and starvation, as demonstrated by both larval and adult microarray studies done in our lab, and several studies done by other labs. With regard to the diet used for the ChIP-seq study, we used a normal sugar diet since this experiment was conducted using wild-type (more accurately, w[1118]) Drosophila adults. We now clearly state the diets for each experiment in the legends and within the Materials and methods section.

https://doi.org/10.7554/eLife.11183.029

Article and author information

Author details

  1. William E Barry

    Department of Human Genetics, University of Utah School of Medicine, Salt Lake City, United States
    Contribution
    WEB, Conceived and designed the study, Acquired the data, Analyzed and interpreted the data, Drafted and revised the paper
    Competing interests
    The authors declare that no competing interests exist.
  2. Carl S Thummel

    Department of Human Genetics, University of Utah School of Medicine, Salt Lake City, United States
    Contribution
    CST, Conceived and designed the study, Assisted with data analysis and interpretation, Revised the paper
    For correspondence
    carl.thummel@genetics.utah.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-8112-4643

Funding

National Institutes of Health (DK075607)

  • Carl S Thummel

National Institutes of Health (5T32 HD07491)

  • William E Barry

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank J Tennessen for his contributions to the early stages of this project and for valuable discussions, P Leopold for DILP2 antibodies, S Park and S Kim for DILP2 ELISA stocks and reagents, C Doane for his contributions to the glucose tolerance test, J Evans for technical assistance, D Winge for the anti-SDHB antibodies, the University of Utah Metabolomics, Cell Imaging, High-Throughput Sequencing and Bioinformatics cores, the Bloomington Stock Center, VDRC and TRiP for stocks and reagents, and FlyBase for informatics support. This research was supported by the NIH (DK075607) and a NIH Developmental Biology Training Grant to WB (5T32 HD07491).

Reviewing Editor

  1. Utpal Banerjee, Reviewing Editor, University of California, Los Angeles, United States

Publication history

  1. Received: August 27, 2015
  2. Accepted: April 12, 2016
  3. Version of Record published: May 17, 2016 (version 1)

Copyright

© 2016, Barry et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,792
    Page views
  • 443
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading
