For intracellular pathogens, residence in a vacuole provides a shelter against cytosolic host defense to the cost of limited access to nutrients. The human pathogen Chlamydia trachomatis grows in a glycogen-rich vacuole. How this large polymer accumulates there is unknown. We reveal that host glycogen stores shift to the vacuole through two pathways: bulk uptake from the cytoplasmic pool, and de novo synthesis. We provide evidence that bacterial glycogen metabolism enzymes are secreted into the vacuole lumen through type 3 secretion. Our data bring strong support to the following scenario: bacteria co-opt the host transporter SLC35D2 to import UDP-glucose into the vacuole, where it serves as substrate for de novo glycogen synthesis, through a remarkable adaptation of the bacterial glycogen synthase. Based on these findings we propose that parasitophorous vacuoles not only offer protection but also provide a microorganism-controlled metabolically active compartment essential for redirecting host resources to the pathogens.https://doi.org/10.7554/eLife.12552.001
Chlamydia trachomatis is the most common sexually transmitted bacteria that causes disease. Infections often do not produce any obvious symptoms, but can lead to infertility or other severe problems if left untreated. This microbe is also the leading cause of blindness by an infectious agent.The bacteria grow in the human body by infecting host cells. Inside these cells, the bacteria are found inside compartments known as inclusions, which protect them from the host’s defense responses and enable them to create a comfortable environment for themselves. However, this comes at a cost because the bacteria lose immediate access to the nutrients in the rest of the host cell. Thus, C.trachomatis has developed ways to import these nutrients into inclusions, and, more generally, to take the control of its interactions with the host cell.
The inclusions built up by C. trachomatis contain a high amount of glycogen, a carbohydrate that generally acts as an energy storage molecule. Although this observation was made many decades ago, the molecular mechanism by which such a large molecule accumulates in the inclusion has not been clarified. Gehre et al. have now used a variety of cell biology techniques to address this question.
The experiments show that there are two different pathways through which glycogen accumulates within the inclusion. Some glycogen is transported in bulk from the interior of the host cell into the inclusion. However, the bacteria also make new glycogen in the inclusion from a building block molecule called UDP-glucose. To do this, the bacteria recruit a host transport molecule to the membrane that surrounds the inclusion. This transport molecule brings UDP-glucose into the inclusion, where an enzyme called glycogen synthase – which is released by the bacteria – uses the UDP-glucose to make glycogen. The C. trachomatis glycogen synthase is unusual because most other bacteria can only make glycogen from another type of glucose.
By using both pathways, C. trachomatis is able to trap most of the glycogen stores of the infected cell within the inclusion so that they are inaccessible to the host but ready for the bacteria to use. Previous work has shown that C. trachomatis is much better at accumulating glycogen than other Chlamydia bacteria are. Therefore, a future challenge will be to find out exactly how this helps C. trachomatis survive inside human cells.https://doi.org/10.7554/eLife.12552.002
Many microorganisms develop inside eukaryotic cells, either free in the cytosol or enclosed in a vacuole (Creasey and Isberg, 2014; Fredlund and Enninga, 2014). Each microorganism adapts its intracellular metabolism to the nutrient supply of the host (Abu Kwaik, 2015; Eisenreich et al., 2010). One recognized advantage of a vacuole is that it provides a shelter against cytosolic host defense (Kumar and Valdivia, 2009), to the cost of limited access to cytosolic nutrients. Acquisition of nutrients through this barrier is a crucial feature of host-microbe interaction.
Chlamydiae are Gram-negative obligate intracellular bacteria found as symbionts and pathogens in a wide range of eukaryotes, including protists, invertebrates and vertebrates (Horn, 2008). The developmental cycle of Chlamydiae involves two morphologically distinct forms. Infectious particles, called elementary bodies (EBs), are small and adapted to extracellular survival. After invasion of the host cell, they establish a parasitophorous vacuole called an inclusion, and convert within the first hours into larger organisms with higher metabolic activity, called reticulate bodies (RBs). RBs replicate several times within the inclusion, until they differentiate back into EBs, in a non synchronous manner (AbdelRahman and Belland, 2005). The human adapted strain C. trachomatis is the leading cause of infectious blindness (Taylor et al., 2014) as well as of sexually transmitted infections caused by bacteria. Infections of the urogenital mucosae often stay asymptomatic causing irreparable damage leading to ectopic pregnancies or tubal factor infertility (Brunham and Rey-Ladino, 2005).
C. trachomatis displays a genome reduced to around one million base pairs and therefore highly relies on the host with regard to several essential metabolic pathways, such as nucleotide or amino acid biosynthesis (Stephens et al., 1998). Lipid droplets and peroxisomes have been observed in the inclusion lumen, indicating that this compartment is able to engulf large particles to meet bacterial needs (Boncompain et al., 2014; Kumar et al., 2006). C. trachomatis, and the closely related mouse and hamster pathogen C. muridarum, are unique amongst Chlamydiae for their ability to accumulate glucose (Glc) under the form of glycogen in the inclusion lumen (Gordon and Quan, 1965). Glc deprivation leads to a complete loss of infectivity (Harper et al., 2000; Iliffe-Lee and McClarty, 2000). The C. trachomatis genome encodes for all the enzymes necessary for a functional glycogenesis and glycogenolysis (Stephens et al., 1998) (Figure 1A). Although they do not accumulate glycogen in the inclusion, other Chlamydia species also have a complete set of those enzymes, a surprising observation given that this pathway is absent in most intracellular bacteria (Henrissat et al., 2002). Intriguingly, pathogenic Chlamydiae lack a hexokinase, the enzyme phosphorylating Glc, and therefore rely on the import of phosphorylated sugars for glycolysis or glycogenesis. During bacterial glycogenesis, Glc-1-phosphate (Glc1P) serves as a substrate for the enzyme ADP-Glc pyrophosphorylase (GlgC) giving rise to ADP-Glc, which in turn is the building block for a linear chain of α1,4-linked Glc molecules. Branching of chains through α1,6-glucosidic bond is introduced by the branching enzyme GlgB, giving rise to glycogen. The glycogen phosphorylase GlgP, the debranching enzyme GlgX and the amylomaltase MalQ are involved in the degradation of the glycogen particle to Glc1P (Colleoni et al., 1999; Seibold and Eikmanns, 2007; Wilson et al., 2010). Finally, the very large majority of circulating C. trachomatis strains contain a 7.5 kb plasmid. Loss of this plasmid is associated with decreased GlgA expression and impaired glycogen accumulation (Carlson et al., 2008).
It is widely believed that the abundance of polysaccharides in the inclusion reflects the accumulation of glycogen in the bacteria themselves. While luminal, extrabacterial, glycogen has been observed (Chiappino et al., 1995), its origin has not been investigated. Here we show that luminal glycogen is in fact derived from bulk import of host glycogen and also de novo intraluminal synthesis, through the action of secreted bacterial enzymes. We reconstruct Glc metabolism in infected cells and demonstrate the ability for a microbe to convert its vacuole lumen into a compartment for regulated metabolic activity.
To determine whether glycogen accumulated in the host cytosol, in the inclusion, or both, we labeled polysaccharides using periodic-acid-Schiff (PAS) staining at different times of infection. Large glycogen particles were detected in most non-infected cells (Figure 1—figure supplement 1). Twenty-four hours post infection (hpi), glycogen was still detected in the cytoplasm of some of the infected cells, and the inclusions only showed weak PAS staining. However, 48 hpi no glycogen particle was detected in the cytoplasm of infected cells, while inclusions heavily stained with PAS, indicating that the global increase in glycogen content is accompanied by a shift in its original cytosolic localization, in favor of the bacterial inclusion. We used transmission electron microscopy (TEM) to determine more precisely its subcellular localization and detected the polysaccharide in two locations: in the inclusion lumen, and within EBs (Figure 1B). Intraluminal glycogen deposits are physically larger than in the cytoplasm (Figure 1—figure supplement 2). We did not observe glycogen in RBs, in contrast to an earlier report (Chiappino et al., 1995). In that publication, the presence of glycogen in the inclusion lumen was interpreted as the result of glycogen release from lysed bacteria. Considering the abundance of glycogen in the inclusion lumen relative to its amount in bacteria we considered this hypothesis unlikely. We tested it by depriving the cells of Glc for 48 hr before infecting them. Under these conditions, the inclusions contained no glycogen 24 hpi (Figure 1C). Restoring Glc availability for 4 hr was sufficient to trigger the accumulation of glycogen in the inclusion lumen, but not in the bacteria (Figure 1D). This experiment demonstrates that glycogen in the inclusion lumen does not result from the release of bacterial stores. The kinetics of glycogen appearance in the inclusion was carefully examined next by TEM. Luminal glycogen first appeared between 16 and 20 hpi (Figure 1—figure supplement 3), and was abundant 24 hpi. Thus, luminal glycogen deposit took place at a time when RBs largely predominate over EBs. This observation suggests that, while glycogen accumulation in the inclusion is most obvious at later stages of infection, when EBs accumulate, the process is initiated by RBs.
Our conclusion raised an obvious question: how could a large polymer appear in the inclusion lumen? Two mechanisms are conceivable: bulk translocation of host glycogen, or transport of monomeric substrates (such as nucleotide-sugars or hexose phosphates) across the inclusion membrane for de novo luminal polymerization. Gys1, the host glycogen synthase, produces linear chains of Glc and is tightly bound to glycogen (Luck, 1961; Stapleton et al., 2010). Gys1 staining with specific antibodies gave a patchy pattern in the cytoplasm, as expected since it mirrors the distribution of glycogen. In addition, we observed that the enzyme accumulated within the inclusion lumen. Staining was specific since it disappeared when Gys1 expression was knocked down using siRNA prior to infection (Figure 2A). Observation of cytoplasmic markers in the inclusion can result from post-fixation artifact (Kokes and Valdivia, 2015). When we deprived the cells of Glc for two days before infection, and thus decreased cytoplasmic glycogen, Gys1 staining in the inclusion lumen was considerably reduced, while remaining abundant in the cytoplasm. This observation shows that Gys1 appearance in the inclusion lumen requires the presence of host glycogen, and is likely not the result of a post-fixation artifact. (Figure 2—figure supplement1). Altogether these data favored the scenario of bulk import of host glycogen and glycogen-bound Gys1 into the inclusion. TEM observations also came in support of this scenario, since we could observe one or more glycogen-filled vesicular structures in the inclusion lumen of about 20% of the glycogen-positive inclusions we examined (Figure 2B). Since in some cases several membranes were observed around luminal glycogen, we hypothesized that cytoplasmic glycogen might be entrapped by an autophagy-dependent process in the host cytoplasm, before delivery to the inclusion lumen. To test this hypothesis we used an Atg5-/- mutant mouse embryonic fibroblast (MEF) cell line, which is deficient in autophagy (Kuma et al., 2004). Inclusions of Atg5-/- MEFs still harboured glycogen, Gys1 and glycogen-filled vesicles, demonstrating that the pathway of bulk host glycogen uptake is independent of autophagy (Figure 2—figure supplement 2).
If bulk glycogen import is the only mechanism at work, depleting host glycogen stores should dramatically reduce intraluminal glycogen content. Cells were transfected with siRNA against Gys1 two days before infection. Silencing was efficient (Figure 2C) and there was little glycogen left in the host cytoplasm at the time of infection (Figure 2D, top). However, knocking down Gys1 expression did not abolish glycogen accumulation in the inclusions (Figure 2D, bottom). We measured the pixel intensity of the PAS staining in inclusions 48 hpi, and used inclusion staining of cells infected in the absence of Glc to determine the background level, which we subtracted. Inclusions of cells treated with siRNA against Gys1 contained 82% (s.e.m. 4.9) of the glycogen measured in cells treated with control siRNA. This experiment strongly suggested that bulk import of host glycogen was at least partially responsible for intraluminal glycogen accumulation. However, it did not appear to be the main contributor and indicated that de novo glycogen synthesis in the inclusion lumen also took place.
Synthesis of glycogen, and possibly its degradation into Glc monomers amenable to bacterial uptake, implies that glycogen synthesis and degradation enzymes are present in the inclusion lumen. While Gys1 import in the inclusion lumen might contribute, it cannot account for the glycogen accumulation observed in Gys1 depleted cells. We measured the expression profile of several proteins involved in glucose metabolism, together with control genes. For most proteins, RNA levels increased between 8 and 24 hpi, mirroring the known increase in bacterial metabolic activity in this time window (Figure 3—figure supplement 1). glgA stood out, as its transcription was delayed until 16 hpi. glgA expression thus correlates very well with the timing of glycogen appearance in the inclusion lumen, between 16 and 20 hpi, implicating that the enzyme might be involved in luminal glycogen synthesis. Indeed, secretion of GlgA into the inclusion lumen, as well as into the host cytoplasm, has recently been demonstrated (Lu et al., 2013). In addition, a GlgB mutant strain shows massive precipitation of glycogen in the inclusion (Nguyen and Valdivia, 2012), due to accumulation of unbranched glycogen, implicating that GlgB normally functions in the inclusion lumen. These data strongly support the hypothesis that bacterial enzymes are at the origin of glycogen synthesis in the inclusion lumen. To determine if bacterial enzymes also take over glycogen depolymerization we obtained a specific antibody against the chlamydial debranching enzyme GlgX. We controlled the specificity of the staining by western blot and by immunofluorescence (Figure 3—figure supplement 2). In cells infected for 24 hpi or 48 hpi, GlgX was found in the inclusion lumen, with mostly no overlap with bacteria, demonstrating secretion within the inclusion lumen (Figure 3A). Interestingly, GlgX was also detected on the inclusion membrane 24 hpi, but not 48 hpi (Figure 3A and Figure 3—figure supplement 3). Altogether, these data show that bacterial enzymes for glycogen synthesis and depolymerisation are present in the inclusion lumen, where they likely control glycogen polymerization/depolymerization.

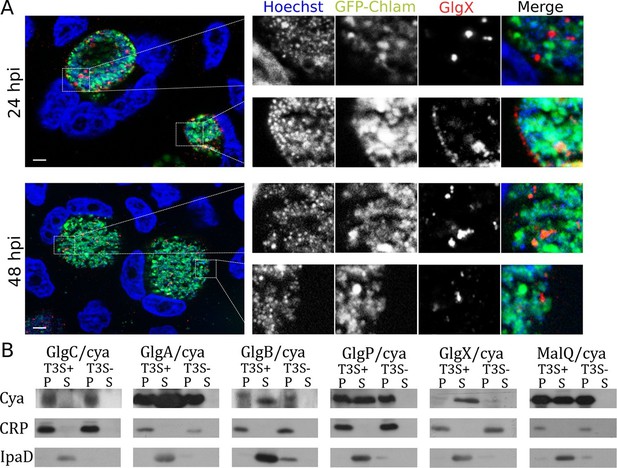

How are these bacterial enzymes transported to the inclusion lumen? None of them contain a signal peptide for transit to the periplasm and further transport by the type 2 or 5 secretion pathway (SignalP 4.1). Since type 3 secretion is the prominent pathway for protein secretion in Chlamydia (Betts et al., 2009) we looked for the presence of a type 3 secretion (T3S) signal (Galan et al., 2014) in the amino terminal domain of all glycogen metabolism enzymes. The N-termini of the proteins of interest were fused to a reporter (calmodulin-dependent adenylate cyclase of Bordetella pertussis Cya), and the secretion of the resulting chimera was evaluated in Shigella flexneri, in an assay previously validated (Subtil et al., 2005; Subtil et al., 2001). Five out of the six chimera tested, GlgA/Cya, GlgB/Cya, GlgX/Cya, GlgP/Cya and MalQ/Cya, were secreted in the supernatant of cultures when transformed in a S. flexneri mutant with constitutive T3S (ipaB strain), and not when transformed in a mutant deficient for T3S (mxiD strain). The endogenous T3S substrate of S. flexneri, IpaD, was also secreted only in the ipaB background (positive control), while cAMP receptor protein (CRP), a non-secreted protein, was found exclusively in the bacterial pellet, excluding the possibility of non-specific leakage into the supernatant. The sixth chimera tested, GlgC/Cya, was not detected in the culture supernatant, suggesting that GlgC, which converts Glc1P into ADP-Glc, is not a substrate of T3S (Figure 3B).
Collectively, these data strongly support the second scenario we proposed: chlamydial enzymes for glycogen metabolism are secreted by a T3S dependent mechanism into the inclusion lumen, and account for the glycogen accumulation observed even in the absence of host glycogen.

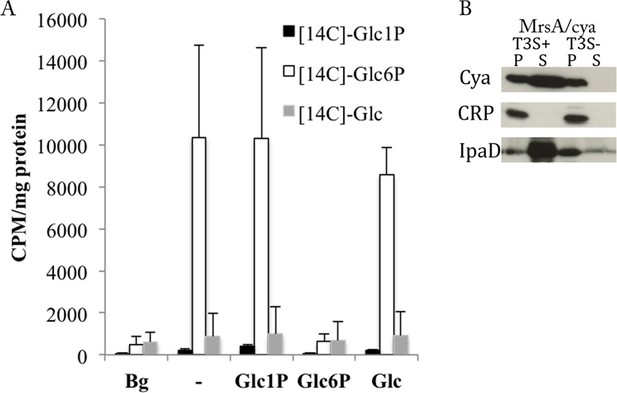

Secretion of the chlamydial glycogen degradation enzymes, GlgX, GlgP and MalQ, is consistent with a decrease in luminal glycogen content observed at late infection stages (Gordon and Quan, 1965), likely to feed EBs monomeric sugars (Omsland et al., 2012). We investigated what form of Glc the bacteria are able to take up by incubating purified EBs with radioactively labeled [C14]-Glc, [C14]-Glc1P or [C14]-Glc6P, in absence or presence of a 50-fold excess of non-radioactive Glc, Glc1P or Glc6P. Only [C14]-Glc6P was taken up by bacteria, and only Glc6P could compete it out (Figure 4A), demonstrating that the uptake was saturable, as expected for a transporter. There is only one annotated hexose phosphate transporter in C. trachomatis (UhpC), which is likely responsible for Glc6P uptake, as the homologous protein in C. pneumoniae showed such activity (Schwoppe et al., 2002). Therefore there is a discrepancy between the glycogen degradation product, Glc1P, and the substrate of import into the bacteria, Glc6P. To solve this conundrum we hypothesized that Glc1P might be converted into Glc6P in the inclusion lumen. C. trachomatis encodes for a phosphoglucomutase (MrsA), an enzyme allowing the interconversion between Glc1P and Glc6P. Using the heterologous test of secretion we found that C. trachomatis MrsA contains a functional T3S signal (Figure 4B). This suggests that Glc1P might be converted into Glc6P by MrsA inside the inclusion lumen, followed by uptake through UhpC.
Our data strongly support the hypothesis that chlamydial glycogen synthase (GlgA) initiates de novo glycogen synthesis in the inclusion lumen. This raises the question of its substrate specificity. A sharp distinction between prokaryote and eukaryote glycogen synthases is that, almost without exception, bacterial glycogen synthases function on ADP-Glc while eukaryotic glycogen synthases use UDP-Glc as substrate. We reasoned that GlgA secretion into the host cytoplasm, which contains no ADP-Glc, might point to an unusual substrate specificity for this enzyme. Transfection of cells with flag-tagged chlamydial GlgA led to massive glycogen accumulation, proving that indeed C. trachomatis GlgA is functional on UDP-Glc (Figure 5A). Interestingly, when transfected cells were subsequently infected, an increase in glycogen accumulation in the inclusion lumen was observed, and Flag-GlgA was detected in the bacterial compartment (Figure 5—figure supplement 1). High intraluminal glycogen content upon ectopic GlgA expression was also observed when cells were infected with a strain devoid of the natural plasmid of C. trachomatis (Figure 5—figure supplement 1), and Flag-GlgA was observed in the inclusion lumen also in that case (not shown). Plasmid-loss is associated with decreased GlgA expression and impaired glycogen accumulation (Carlson et al., 2008). In non-transfected cells the polysaccharide was still detected in EBs of the plasmid-less strain and, to a highly reduced level, in the inclusion lumen (Figure 5—figure supplement 2). Glycogen recovery upon GlgA transfection indicates that the low level of expression of GlgA in the plasmid-less strain accounts for the defect in glycogen storage. It is quite remarkable that a protein expressed by the host can compensate for a bacterial deficiency.

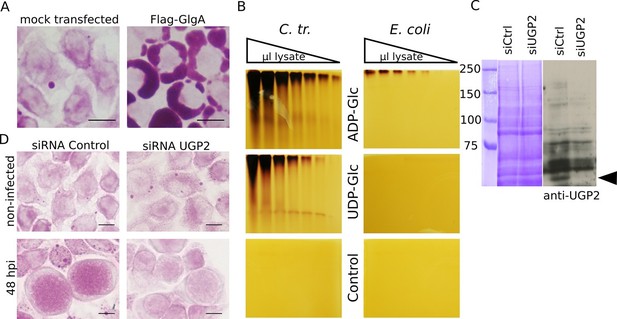

A zymogram analysis was performed to further compare chlamydial GlgA activity towards either UDP-Glc or ADP-Glc. Briefly, serial dilutions of lysates of E. coli lacking their endogenous glgA and transformed with either E. coli glgA or C. trachomatis glgA were separated on non-denaturing polyacrylamide gels that contained rabbit glycogen. The gels were subsequently incubated in buffer containing either UDP-Glc or ADP-Glc, and glycogen production was visualized by iodine staining. While E. coli GlgA showed activity exclusively upon incubation with ADP-Glc, as expected, the chlamydial GlgA showed activity with both substrates (Figure 5B).

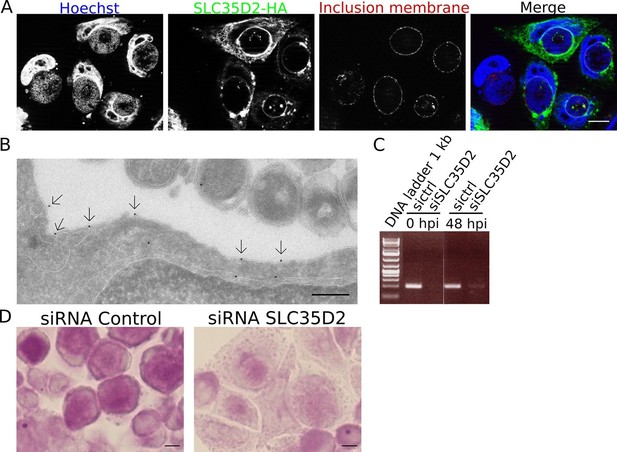

We next asked which Glc derivative might be translocated across the inclusion membrane for de novo glycogen synthesis. UDP-Glc stood as the best candidate: it is a substrate for GlgA, and its import would relieve the bacteria from the cost of nucleotide-sugar synthesis. In addition, GlgC (converting Glc1P into ADP-Glc) was the only glycogen metabolism enzyme that failed the Shigella T3S test, suggesting that this enzyme may not be present within the inclusion lumen. To test the requirement for UDP-Glc for luminal glycogen synthesis we silenced the expression of the host UDP-Glc pyrophosphorylase UGP2 (UGP2 catalyzes the conversion of Glc1P into UDP-Glc) by siRNA for two days before infection. We measured the pixel intensity of the PAS staining in inclusions as described above. Glycogen accumulation within the inclusion lumen decreased to 57% (s.e.m. = 5.8) in cells treated with a siRNA against UGP2 compared to cells treated with control siRNA (Figure 5C,D). These data strongly argue for UDP-Glc being the substrate for sugar import into the inclusion. Note that while UGP2 silencing also impacted host glycogen stores, as expected, it did so to a lesser extent than Gys1 silencing (Figure 2D). Thus the greater impact of UGP2 silencing on luminal glycogen stores cannot be explained by its indirect effect on bulk glycogen import. Instead it very likely reflects the requirement for UDP-Glc for de novo luminal glycogen synthesis.
We have demonstrated that de novo glycogen synthesis takes place in the inclusion lumen, initiated by chlamydial glycogen synthase GlgA, using UDP-Glc as substrate. This implies that UDP-Glc is translocated from the host cytoplasm into the inclusion lumen. Among the large family of annotated human sugar transporters, only SLC35D2 was experimentally shown to be able to transport UDP-Glc (Suda et al., 2004). In cells infected with C. trachomatis, a construct of the transporter bearing a C-terminal HA-tag was enriched around the inclusion (Figure 6A). By TEM, we detected the presence of the transporter on the inclusion membrane (Figure 6B). Staining was specific since we observed 0.96 gold particles per μm of inclusion membrane examined, against 0.12 gold particles per μm in non-transfected cells. The ability for SLC35D2 to reach the inclusion membrane indicates that it might play a role in UDP-Glc import. To test this hypothesis we silenced SLC35D2 expression using siRNA prior to infection. In these conditions, glycogen accumulation in the inclusion decreased to 43% (s.e.m. = 1.7) (Figure 6C,D), thus to a level similar to that when UGP2 had been silenced (Figure 5C,D). These data strongly suggest that C. trachomatis co-opts the host nucleotide-sugar transporter to favor UDP-Glc import into the inclusion lumen. Finally we wondered if by simultaneously impairing bulk glycogen import and UDP-Glc translocation we could further decrease luminal glycogen content. We depleted Gys1 and SLC35D2 for 48 hr before infecting the cells, and applied PAS staining 48 hr after infection. Additional Gys1 depletion did not decrease luminal glycogen content further than what SLC35D2 depletion did, confirming that in C. trachomatis infected cells bulk import of cytoplasmic glycogen plays only a minor part in intraluminal glycogen accumulation (Figure 6—figure supplement 1A). We measured the consequences on progeny 30 hpi to minimize the effect of SLC35D2 depletion on cell viability that we observed in some experiments. Decrease in progeny was never more than two-fold, indicating that even when both Gys1 and SLC35D2 were depleted simultaneously, there was no severe impact on bacterial development (Figure 6—figure supplement 1B).
With the long-term goal of understanding the requirements for glycogen metabolism enzymes in a mouse model of infection we screened a mutant library of Chlamydia muridarum for strains with defects in glycogen accumulation. Most of the mutants obtained have a mutation in one of the enzymes for glycogen metabolism (Giebel et al, in preparation). We selected two clones, P2B10 and P3B4, which carry mutations in conserved residues of GlgA (H131Y for P2B10 and G386E for P3B4), suggesting that they may have a strong, if not complete, loss of function (Figure 7—figure supplement 1). Glycogen accumulation in P2B10 and P3B4 inclusions 48 hpi was reduced to 40 and 51% respectively of its level in the parental strain (Figure 7A). Impact on infectivity was assessed by collecting the bacteria 48 hpi, and re-infecting fresh HeLa cells. Progeny was reduced 7-fold and 3-fold in P2B10 and P3B4 respectively, demonstrating that a defect in GlgA results in an impaired infectivity in vitro (Figure 7B). However, it is impossible to discriminate if the deficiency is related to the defect in luminal storage of glycogen, or in glycogen synthesis in the bacteria, or both. We hypothesized that import of host Gys1 may partially compensate for the deficiency in secreted GlgA. In that case, depletion of Gys1 might affect luminal glycogen stores, and possibly decrease infectivity even further. In the parental strain, depletion of Gys1 reduced glycogen accumulation by 29%, similar to C. trachomatis reduction (Figure 7A). In the mutants, depletion of Gys1 also decreased glycogen accumulation, demonstrating that part of the residual glycogen observed in the mutants is due to bulk glycogen import. The fact that glycogen stores were not fully depleted suggests that the mutants we selected show reduced GlgA activity rather than complete loss of function. Interestingly, decreasing luminal glycogen further by silencing Gys1 expression content did not have a higher impact on the progeny of the mutants than it had on the parental strain, rather less so (Figure 7B). In particular, Gys1 depletion did not decrease progeny of the P2B10 mutant. This observation suggests that in this mutant, the defect in progeny is mostly due to a deficiency in bacterial glycogen synthesis rather than in luminal glycogen storage.
Altogether, these experiments confirm that glycogen accumulation in the inclusion lumen results from the activity of both host and bacterial glycogen synthases, the latter making the largest contribution. In addition, they demonstrate that impaired GlgA activity has a significant impact on bacterial infectivity.
This work shows that two independent processes contribute to glycogen accumulation in the C. trachomatis inclusion lumen: bulk uptake from the host cytoplasm and de novo synthesis (Figure 8). It is a unique example of a bacterium utilizing the compartmentalization of eukaryotic cells, to the extent that energy stores are radically shifted toward the bacterium and made inaccessible to the host.
Intraluminal glycogen accumulation had previously been thought to be due to bacterial lysis and to the release of chlamydial glycogen into the surrounding environment (Chiappino et al., 1995). In the present work we observed that glycogen appears first in the inclusion lumen and only later in EBs. Thus, bacterial lysis is not the source of luminal glycogen.
We identified two mechanisms by which glycogen accumulates in the inclusion lumen. First, the host enzyme Gys1, which is known to bind to glycogen (Roach et al., 2012), is translocated into the vacuole, arguing for uptake of host glycogen in bulk. The observation of glycogen-filled vesicles in the inclusion lumen also strongly argues for this scenario. Finally, depleting cytoplasmic glycogen by silencing Gys1 partially reduced luminal glycogen content in C. trachomatis and C. muridarum. Translocation of cytoplasmic glycogen confirms the ability for the inclusion to take up large particles from the host cytoplasm, already illustrated with the uptake of lipid droplets and peroxisomes (Boncompain et al., 2014; Kumar et al., 2006). This likely occurs through invagination of the inclusion membrane, but the underlying mechanisms remains to be investigated. While multi-layered glycogen-filled vesicles were observed, they still occurred in Atg5 deficient cells, implicating that they do not originate from an Atg5-dependent autophagic process.
The observation that depletion of host glycogen (through silencing of the host glycogen synthase Gys1) reduces luminal glycogen stores by no more than 20% demonstrates that bulk uptake is a minor pathway for glycogen accumulation in the inclusion lumen. It remains to be determined if this bulk import through a vesicular mechanism is glycogen-specific, or a general pathway used for the acquisition of a wide range of host components. We identified the second, and main, mechanism for luminal glycogen accumulation as de novo synthesis, through the action of chlamydial enzymes. Using a heterologous secretion assay, we have identified T3S signals in all but one (GlgC) glycogen metabolism enzymes of C. trachomatis. We had previously demonstrated the robustness of this assay, with an estimated 5% of false positives (Subtil et al., 2005). Secretion of GlgA in the inclusion lumen and in the host cytoplasm was reported recently (Lu et al., 2013). GlgA mutants of C. muridarum accumulated less glycogen in the inclusion lumen than their parental strain, demonstrating further that GlgA was indeed present and active in the inclusion lumen. Evidence for the secretion of the branching enzyme GlgB was brought by the observation that a GlgB mutant strain shows precipitation of unbranched glycogen in the inclusion (Nguyen and Valdivia, 2012). Finally in this paper, we show the secretion of GlgX using specific antibodies. Secretion of GlgX, and of other enzymes involved in glycogen metabolism (except GlgA), was not detected by an earlier study using mouse antisera (Lu et al., 2013). This study focused primarily on the detection of bacterial proteins in the host cytoplasm. Detection of the intraluminal pool, not overlapping with bacteria, might have been hindered by the signal coming from the pool of intra-bacterial enzymes. Finally, GlgX localizes not only to the inclusion lumen, but seems to be enriched at the inclusion membrane at 24 hpi. Interestingly, GlgP localization at the inclusion membrane was also reported (Saka et al., 2011), indicating that the two enzymes might work in concert, degrading host glycogen in the vicinity of the inclusion membrane. Thus, altogether these data indicate that C. trachomatis uses T3S to transform the lumen of the inclusion into a glycogen storage compartment.
So far, T3S is mostly described as a mechanism for protein translocation across a eukaryotic membrane, either the plasma membrane or the membrane of a parasitophorous vacuole (Galan et al., 2014). The ability for chlamydial glycogen enzymes to reach the inclusion lumen is intriguing. Loose membrane-like structures can frequently be seen in the inclusion lumen, and might trigger the secretion of some effectors into the inclusion lumen, especially from bacteria not in contact with the inclusion membrane. Also, it has been demonstrated, in Yersinia pseudotuberculosis, that T3S substrates can translocate first on the surface of the bacteria, without previous membrane contact (Akopyan et al., 2011). Alternatively, it may be that glycogen enzymes are first translocated into the cytoplasm, and transported back to the inclusion lumen directly or indirectly associated to glycogen, like Gys1. Clearly, more work is needed to understand how T3S is regulated in Chlamydia, and what determines substrate translocation across the inclusion membrane.
Our transcription analysis, in agreement with published data (Belland et al., 2003), indicates that glgA transcription most likely controls the onset of glycogen synthesis, as its initiation coincides with the onset of intraluminal glycogen accumulation (between 16 and 20 hpi). For all the other glycogen enzymes, transcription correlated with the known increase in bacterial metabolic activity between 8 and 24 hpi. The only other exception is glgB, which is one of the few early genes. It is not clear at this stage why the protein is made long before GlgA is present, when GlgA lies upstream of GlgB in the glycogen synthesis pathway. glgB is not in an operon, and its promoter region lies within a coding sequence, limiting the possibility of mutations in this region (Albrecht et al., 2011). Early expression of glgB might thus be a remnant of a different regulation of expression of the glycogen metabolism enzymes during the evolution of Chlamydiales.

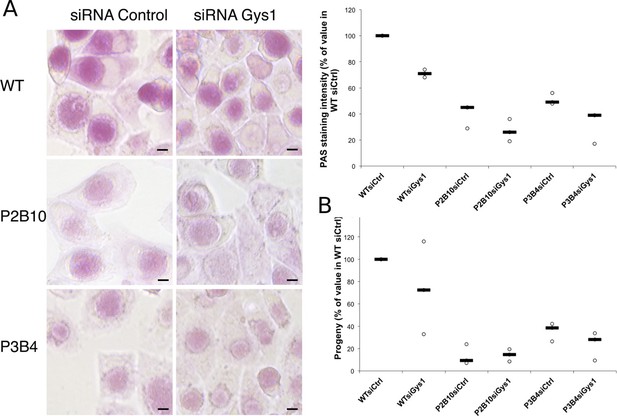

To test the need for bacterial glycogen synthase activity in vitro we obtained two independent mutants in conserved residues of GlgA. Because of the mutagenesis strategy used, the mutants carried additional mutations (the library has an average of 16 mutations/genome). However, their similar phenotypes in respect to glycogen storage and infectivity strongly support the hypothesis that those are due to the GlgA mutation and not to additional genetic defects. These mutants demonstrated that defects in GlgA activity result in a loss of infectivity in vitro. We have not yet been able to obtain a stable strain knocked-out for glgA expression, but this might be due to technical difficulties rather than essentiality of the gene, and the question as to whether glycogen synthesis is required for chlamydial development remains open.
The very few C. trachomatis isolates that do not have the plasmid accumulate only minor amounts of glycogen compared to the wild-type strain, and GlgA expression is strongly reduced in these strains (Carlson et al., 2008). When we ectopically expressed Flag-GlgA in cells infected with either the wild-type or the plasmid-less strain, we observed increased intraluminal glycogen accumulation for both strains. These data show that different levels of GlgA expression between the two strains account for their difference in terms of glycogen accumulation. When Flag-GlgA import into the inclusion took place, likely together with bulk glycogen uptake, the low level of endogenous GlgA in the plasmid-less inclusions was complemented, allowing for high glycogen accumulation. Presumably, in the plasmid-less strain, bulk import of host glycogen occurs normally, but remains below detection. The fact that this strain has no infectivity defect in vitro (Carlson et al., 2008) indicates that high luminal glycogen accumulation is not needed for chlamydial growth in vitro. Still, the observation that Gys1 depletion decreased progeny by about 30% in the wild-type C. muridarum strain suggests that bacterial development is somewhat sensitive to the amount of glycogen in the inclusion lumen, maybe at early times of infection, before glgA is highly expressed and glycogen accumulation peaks. Alternatively, disruption of the glycogen storage capacity in the host might have indirect effects on nutrient balance, and account for the small decrease in infectivity.
In vitro polymerization assays using E. coli expressing C. trachomatis GlgA, as well as transfection experiments in a eukaryotic background where only UDP-Glc is available, proved that C. trachomatis GlgA can use UDP-Glc as substrate. This was unexpected, because eubacterial glycogen synthases normally use ADP-Glc. Consistent with this finding, we observed a strong decrease in intraluminal glycogen accumulation when we knocked down the human enzyme responsible for the generation of UDP-Glc (UGP2). Decrease of host glycogen levels (and thus the reduction in the bulk import pathway) could not account for this result, as the Gys1 knockdown was a lot more efficient in depleting glycogen in the host cytoplasm than the UGP2 knockdown. This experiment points to UDP-Glc as being the substrate imported into the inclusion lumen. If, as we had initially hypothesized, Glc6P or Glc1P were that substrate, a UGP2 knockdown should not produce any difference in intraluminal glycogen accumulation because both Glc6P and Glc1P would remain available, as they lie upstream of UDP-Glc generation. Energetically speaking, it is beneficial to import UDP-Glc rather than Glc6P or Glc1P, as it relieves the bacteria from the costly reaction of transferring a nucleotide to the sugar molecule. It also fits perfectly with the absence of a T3S signal in GlgC, suggesting that this enzyme, which makes ADP-Glc out of Glc1P, remains restricted to the bacteria and only serves bacterial glycogen production. Secretion of GlgC into the inclusion lumen would be superfluous, with GlgA being able to produce unbranched glycogen out of UDP-Glc.
The identification of UDP-Glc as the sugar imported into the inclusion lumen was further comforted by our observation that knocking down the UDP-Glc transporter SLC35D2 led to a significant reduction of intraluminal glycogen staining. In addition, we observed that SLC35D2-HA accumulates at the periphery of the inclusion. Our data thus strongly indicate that SLC35D2 is at least partially responsible for the import of UDP-Glc. The fact that the reduction was only partial, and slightly less pronounced than after UGP2 silencing, might be due to residual SLC35D2 expression. In addition, other Golgi- or ER-based transporters from the SLC35-family of nucleotide-sugar transporters might transport UDP-Glc and be recruited to the inclusion membrane, accounting for the residual glycogen accumulation in the SLC35D2 knockdown.
We demonstrated that de novo glycogen synthesis takes place in the inclusion lumen, triggered by the presence of GlgA and GlgB. Glycogen storage in the inclusion lumen would only be of benefit for the bacteria if they were subsequently degraded into monomers amenable to bacterial uptake. The early observation that glycogen decreases at very late infection times, is consistent with a late consumption of the stores (Gordon and Quan, 1965). Similarly to the glycogen synthesizing enzymes, the degrading enzymes GlgP, GlgX and MalQ possess T3S signals, and we demonstrated GlgX secretion using specific antibodies. We therefore hypothesize that these enzymes are active in the inclusion lumen, and generate free Glc1P. We could clearly demonstrate that Chlamydiae are not able to take up Glc nor Glc1P, but exclusively Glc6P. This is in agreement with data obtained on the homologous protein in C. pneumoniae, which transports Glc6P and not Glc1P (Schwoppe et al., 2002). This apparent contradiction can be explained by the fact that the chlamydial phosphoglucomutase MrsA (interconverting Glc1P and Glc6P) also possesses a T3S signal, and is thus most likely secreted. We have attempted to demonstrate MrsA secretion using newly developed tools to transform C. trachomatis (Wang et al., 2011). The C-terminal tagged MrsA was not expressed in transformed bacteria, neither with the endogenous promoter nor with a tetracyclin-inducible promoter (not shown). Thus, while we propose that intraluminal glycogen is degraded into Glc1P and is converted to Glc6P in the inclusion lumen, the involvement of bacterial MrsA in this conversion remains to be confirmed.

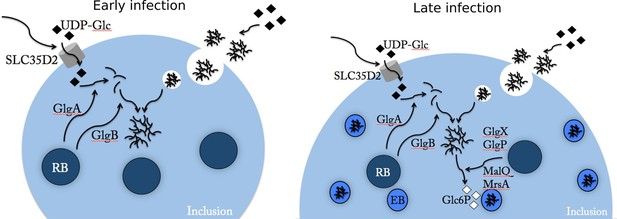

Altogether, our work reveals the origin of glycogen in the inclusion lumen and brings to light the complexity of the Glc flux in C. trachomatis infected cells (Figure 8, see legend for details). At a first glance, this complexity seems counter intuitive: why not import Glc6P directly from the host cell cytoplasm into the inclusion lumen and then directly into the bacteria? UDP-Glc import is initiated very early on, at a time when most bacteria are RBs, which, importantly, use ATP as an energy source, while EBs use Glc6P (Omsland et al., 2012). Uptake of Glc6P, before EBs appear, would dangerously increase the osmotic pressure in the inclusion. Stocking Glc in the shape of the osmotically inert glycogen brings an elegant solution. Why do C. trachomatis, amongst all the Chlamydia species, accumulate these high amounts of glycogen within their parasitophorous vacuole? Clearly, as discussed earlier, glycogen accumulation is not necessary for growth in vitro. Plasmid-less strains, that do not accumulate glycogen, were highly attenuated in a genital model of mouse infection and in ocular infection of non-human primates (Carlson et al., 2008; Russell et al., 2011). To date it is not known whether the lack of glycogen accumulation plays a role in this reduction in infectivity, or other traits associated with the absence of plasmid. Surprisingly, it was recently shown that the plasmid-less strain induced similar level of infection and pathologies as the wild-type strain in a model of genital infection in non-human primates (Qu et al., 2015). Thus, while, the ability for virtually all C. trachomatis clinical isolates to accumulate glycogen speaks for a selective advantage of doing so, we can only speculate on what this advantage might be. Many bacterial strains of the microflora of the female genital tract metabolize Glc as carbon source. Whether Glc can become limiting, especially during bacterial vaginosis, where the risk of becoming infected with C. trachomatis is elevated, is not known. It is an attractive hypothesis to explain why the ability for C. trachomatis to store Glc could come to an advantage in such specific conditions, which the macaque model would not reveal. One independent advantage of re-routing the host energy stores towards the inclusion lumen is that it might overall 'weaken' the host cell in its fight against the intruder. Indeed, many autonomous host cell defense mechanism rely on processes that require energy (including host protein synthesis or phosphorylation cascades) and that might be compromised in cells enduring sustained hijacking of its energy stores.
This work demonstrates that a microbe can deplete the host from its energy stores, making them available only to themselves. We propose that such sequestration of host molecular complexes, or even organelles, inside the parasitophorous vacuole, could be broadly used by other intracellular parasites, to ensure nutrient access and/or to disrupt defensive signalling pathways.
HeLa cells (ATCC), wild-type and Atg5-/- mouse embryonic fibroblasts (MEF) (generous gift from N. Mizushima, Tokyo Medical and Dental University) were cultured in Dulbecco's modified Eagle's medium with Glutamax (DMEM, Invitrogen, Carlsbad, CA), supplemented with 10% (v/v) fetal bovine serum (FBS). Cells were routinely checked for absence of mycoplasma contamination by PCR. For experiments with medium containing different Glc concentrations, DMEM without Glc (DMEM, Invitrogen) was used and complemented with 5 mM sodium pyruvate (Sigma-Aldrich), 10% fetal bovine serum (FBS) and the indicated Glc concentration (Merck). C. trachomatis LGV serovar L2 strain 434 (ATCC), the plasmid-less strain LGV L2 25667R (Bowie, 1990) or GFP-expressing L2 (L2IncDGFP) (Vromman et al., 2014) were purified on density gradients as previously described (Scidmore, 2005). Chlamydia muridarum was a kind gift from Dr H Caldwell (Rocky Mountain Laboratories, NIAID, Hamilton, MT). McCoy mouse fibroblast cells (ATCC), and Vero monkey kidney cells (ATCC) were maintained and propagated as detailed in (Rajaram et al., 2015). The GlgB mutant was kindly provided by Dr R Valdivia (Nguyen and Valdivia, 2012). The ipaB and mxiD strains are derivates of M90T, the virulent wild-type strain of Shigella flexneri, in which the respective genes (ipaB and mxiD) have been inactivated (Allaoui et al., 1993). The Escherichia coli strain DH5α was used for cloning purposes and plasmid amplification. Both S. flexneri and E. coli strains were grown in Luria-Bertani medium with ampicillin at 0.1 mg/ml.
HeLa cells were grown in wells, infected with C. trachomatis LGV serovar L2 strain 434 at an MOI of 0.1 and carefully trypsinized at the indicated time points. The cells were then washed with PBS once and fixed with 0.1 M cacodylate and 2.5% glutaraldehyde at room temperature for at least 30 min. PATAg staining was performed as described elsewhere (Thiéry, 1967). Briefly, thin sections were incubated in 1% periodic acid for 25 min and then washed several times in water, followed by an incubation step in 0.2% thiocarbohydrazide in 20% acetic acid for 45 min. Several washing steps in a graded acetic acid series to water were carried out and the thin sections were stained with 1% silver proteinate for 30 min. Samples were observed within a week after preparation. Images were obtained using a Tecnai T12 transmission electron microscope (FEI) at 100 kV and captured using an Eagle CCD camera (FEI).
Transfected HeLa cells were fixed for 15 min at room temperature in 8% paraformaldehyde (PFA)/0.2% glutaraldehyde in PHEM buffer (60 mM Pipes, 25 mM Hepes, 10 mM EGTA and 2 mM MgCl2, pH 7.2). Cells were carefully scraped off, centrifuged and fixation was allowed to continue for 45 min at room temperature with fresh fixative buffer before storage at 4°C. Then cells were subsequently washed three times with PHEM buffer and embedded in 12% gelatine in PHEM buffer at 37°C. Samples were centrifuged for 2 min at 20000 g and gelatine was solidified on ice for 20 min. Cubes (1 mm3) were excised and impregnated overnight with 2.3 M sucrose at 4°C (Tokuyasu, 1973). Ultrathin sections (50–60 nm) were cut with a cryoultramicrotome (UC6/FC6; Leica Microsystems, Vienna, Austria). Those sections were collected with 0.575 M sucrose/0.05% (w/v) methylcellulose in PHEM buffer and dipped on to formvar/carbon-coated Ni grids. Immunolabelling was performed with mounted sections which were washed three times for 15 min with 25 mM NH4Cl in PBS. The sections were blocked in 5% milk powder in PBS and subsequently incubated with a rat anti–HA antibody (clone 3F10 Roche Diagnostics) diluted at 1/50 in PBS-milk powder 5% for 30 min. The labelled sections were washed 6 times for 3 min in PBS-milk powder 0.5% and incubated for 30 min with a rabbit anti-rat IgG (Dako Denmark A/S, Glostrup, Denmark) diluted 1/200 in PBS-milk powder 0.5%. Sections were washed 6 times for 3 min with PBS milk-powder 0.5% and then incubated for 30 min with Protein-A gold-10 nm, diluted at 1/50 in PBS/0.5% BSA. The sections were then rinsed briefly 3 times and then 7 times for 3 min with PBS. The labelled sections were fixed for 5 min in PBS/1% glutaraldehyde and subsequently washed 8 times with distilled water. The sections were then washed twice with 0.4% aqueous uranyl acetate/1.8% (w/v) methylcellulose on ice and the incubation was continued with fresh solutions for 5 min on ice. Sections were observed under a Tecnai T12 transmission electron microscope (FEI company) at 120 kV. Images were taken with an Eagle CCD camera.
HeLa cells grown on coverslips were infected with C. trachomatis LGV serovar L2 strain 434 with an MOI < 1 (unless specified differently) at 37°C and fixed in 4% PFA in PBS for 30 min at room temperature (except when staining with anti-CT813 was intended, which required fixation in 2% PFA). Cells were blocked and permeabilized in 0.05% saponin and 0.1% bovine serum albumin (BSA) in PBS for 10 min before being subjected to antibody staining. The antibody against inclusion protein CT813 was kindly provided by Dr. G. Zhong (San Antonio, Texas). Polyclonal anti-Cap1 antibodies were obtained by immunization of New Zealand white rabbits with purified recombinant Cap1 deleted of its last 167 amino acids and fused to a N-terminal His tag (Agro-Bio). The polyclonal anti-GlgX antibody was equally purchased from Agro-Bio, and was directed against two peptides (KHNEENGEYNRDGTSANC and HEDFDWEGDTPLHLPKEC). To investigate its specificity anti-GlgX was preabsorbed with either the two GlgX peptides or control peptides. For this, 1 µg/ml antibody was incubated with 20 µg/ml of peptides for 15 min at room temperature prior to immunostaining of cells. The monoclonal rat anti-HA antibody was purchased from Roche Diagnostics. Goat secondary antibodies were conjugated to Alexa488 (Molecular Probes), or to Cy3 or Cy5 (Amersham Biosciences). For periodic-acid-Schiff (PAS) stain cells grown on coverslips were fixed in 4% PFA/PBS for 30 min at room temperature and staining was performed as described (Schaart et al., 2004). Briefly, cells were incubated in 1% periodic acid (Sigma) for 5 min. Thereafter coverslips were put in tap water for 1 min, quickly rinsed in mQ-H20 and then applied to Schiff reagent (Sigma) for 15 min at room temperature. Afterwards the coverslips were rinsed again in mQ-H20, incubated in tap water for 10 min followed by an incubation step in PBS for 5 min. Periodic acid oxidizes the vicinal diols in sugars such as glycogen to aldehydes, which now in turn react with the Schiff reagent to give a purple/magenta colour. Images were acquired on an Axio observer Z1 microscope equipped with an ApoTome module (Zeiss, Germany) and a 63× Apochromat lens unless specified. Images were taken with a Coolsnap HQ camera (Photometrics, Tucson, AZ) using the software Axiovision.
Gradient purified Chlamydia EBs were incubated in an axenic medium (5 mM KH2PO4, 10 mM Na2HPO4, 109.6 mM K-gluconate, 8 mM KCl, 1 mM MgCl2) (Omsland et al., 2012) supplemented with 0.2 mM α-D-[14C(U)]-Glc 1-Phosphate, α-D-[14C(U)]-Glc 6-Phosphate or D-[14C(U)]-Glc (Perkin Elmer) (0.1 µCi per sample). In some samples 10 mM of the indicated cold monosaccharide was added in a competition assay. After two hours of incubation at 37°C the bacteria were pelleted (15000 g for 5 min) and washed twice in 50 mM K2HPO4/KH2PO4, 100 mM KCl and 150 mM NaCl. Radioactivity associated to the bacterial pellet and to the supernatant was measured by a scintillation counter.
Genomic DNA from C. trachomatis LGV serovar L2 strain 434 was prepared from bacteria using the RapidPrep Micro Genomic DNA isolation kit (Amersham Pharmacia Biotech). The first 20 to 30 codons of different chlamydial genes including about 20 nucleotides upstream from the translation start sites were amplified by PCR using primers listed in Supplementary file 1 and cloned into the pUC19cya vector as described (Subtil et al., 2001). attB-containing primers (Supplementary file 1, Gateway, Life technologies) were used to amplify and clone the C. trachomatis L2 glgA gene into a destination vector derived from the mammalian expression vector pCiNeo, providing an amino-terminal 3xflag tag, and into pDEST15 (Gateway).
siRNA transfections were performed with Lipofectamine RNAiMAX (Life technologies) according to the manufacturer's protocol. A mixture of 2 to 4 siRNA sequences (Supplementary file 2), with a final concentration of 10 nM each, was used and transfection was done twice, 48 hr and 4 hr prior to infection. siRNA efficiency was determined by immunoblot or RT-PCR (see respective sections for more detail).
Cells were transfected with plasmid DNA 24 hr after seeding using jetPRIME transfection kit (Polyplus transfection) according to the manufacturer's protocol. The constructs used were Flag-GlgA and SLC35D2-HA (pMKIT-neo-hRel8-cHA, kindly provided by Nobuhiro Ishida, Chiba Institute of Science, Japan) (Ishida et al., 2005).
Cells were treated with the indicated siRNA 48 hr and 4 hr prior to infection, which was performed at an MOI < 0.3. Thirty or 48 hpi the cells were washed in PBS, detached and lysed with 1 mm glass beads. Fresh HeLa cells were inoculated with serial dilutions of the cell lysates and 24 hr later flow cytometry was used to determine the infection rate as described elsewhere (Vromman et al., 2014). Briefly, cells were washed with PBS and gently trypsinized. After a washing step in PBS cells were fixed in PFA 2% in PBS and bacteria were stained using FITC-coupled anti-Chlamydia antibody (Fitzgerald clone 502 #61R-1012). Infection rates were measured using a Gallios flow cytometer (Beckton Coulter).
The cell image analysis software CellProfiler was used to quantify glycogen content in inclusions stained with PAS. Around 50 inclusions were manually encircled, and their size and total staining intensity was determined. PAS staining not linked to the presence of glycogen was estimated by doing the same procedure on inclusions in cells grown in the absence of Glc. The averaged value obtained was considered background value and was substracted. Glycogen content of inclusions of cells treated with control siRNA was considered 100%.
Total RNA was isolated from 5 x 105 HeLa cells infected with C. trachomatis LGV serovar L2 after 1, 3, 8, 16, 24 hr or 40 hr of infection (MOI of 10 for 1, 3, 8 hr and MOI of 0.1 for 16, 24, 40 hr) with the RNeasy Mini Kit with DNase treatment (Qiagen) according to the manufacturer's protocol. RNA concentrations were determined by NanoDrop and the samples normalized to an equal RNA content. Reverse transcription (RT) was performed with SuperScript III Reverse Transcriptase (Life Technologies) and quantitative PCR (qPCR) undertaken with LightCycler 480 system using LightCycler 480 SYBR Green Master I (Roche). In parallel, genomic DNA (gDNA) of each time point was purified with the DNeasy Blood and Tissue Kit (Qiagen), and the amount of bacteria in the samples determined by qPCR using chlamydial primers. This was done to normalize the cDNA of the different samples. Primers are listed in Supplementary file 3, their specificity was ensured through the analysis of melting curves.
For the evaluation of siRNA SLC35D2 efficiency the steps until reverse transcription were the same, but the PCR was run with PrimeStar (Clontech). Equal volumes were loaded on agarose gels and bands were revealed using UV-light visualizing ethidium bromide.
Cell pellets were lysed with a lysis buffer (8 M urea, 30 mM Tris, 150 mM NaCl, 1% v/v sodium dodecyl-sulfate) and proteins were subjected to sodium dodecyl-sulfate poly-acrylamide gel electrophoresis (SDS-PAGE) and transferred to a polyvinylidene difluoride (PVDF) membrane, which was blocked with 1× PBS containing 5% milk and 0.01% Tween-20. The membranes were then immunoblotted with primary antibodies diluted in 1 x PBS and 0.01% Tween-20. Primary antibodies used in the secretion assay were mouse anti-cya, rabbit anti-CRP and rabbit anti-IpaD and were generously given by Drs N Guiso, A Ullmann and C Parsot, respectively (Institut Pasteur, Paris). Other antibodies used were rabbit anti-Gys1 (Millipore #04–357), rabbit anti-UGP2 (GeneTex #GTX107967), mouse anti-Flag M2 (Sigma-Aldrich), goat anti-mouse IgG coupled to horseradish peroxidase (HRP) and goat anti-rabbit IgG-HRP (GE Healthcare). Blots were developed using the Western Lightning Chemiluminescence Reagent (GE Healthcare).
Glycogen synthase genes (glgA) were amplified from genomic DNA of Escherichia coli K12 and Chlamydia trachomatis D/UW-3/CX and cloned into the expression vector pGEX (GE Healthcare) and pDEST15, respectively.
Precultures of wild-type and transformed E. coli were grown overnight in LB medium at 37°C, then transferred to fresh LB medium and grown until the optical density (OD) 600 nm reached 0.6. Cultures were subsequently induced overnight with 0.5 mM of IPTG.
Cells were harvested by centrifugation and disrupted by a French press at 1250 psi. The lysate was centrifuged at 16,000 g for 15 min at 4°C. Soluble proteins (such as GlgA) were found in the supernatant. Glycogen synthase activity was detected by zymogram analysis. The proteins in the supernatant were separated by non-denaturing polyacrylamide gel electrophoresis (PAGE) containing 0.6% rabbit glycogen (Sigma-Aldrich). After electrophoresis, gels were incubated overnight at room temperature in glycogen synthase buffer (66 mM glycyl-glycine, 66 mM (NH4)2SO4, 8 mM MgCl2, 6 mM 2-mercaptoethanol, and 1.2 mM ADP-Glc or UDP-Glc). Glycogen synthase activity was then visualized as dark activity band after iodine staining.
Analysis of secreted proteins was performed as described elsewhere (Ball et al., 2013; Subtil et al., 2001). Briefly, 1 ml of a 30°C overnight culture of Shigella flexneri ipaB or mxiD transformed with different Cya chimeras was inoculated in 30 ml of LB broth with 0.1 mg/ml ampicillin and incubated at 37°C for 4 hr. Bacteria were then harvested by centrifugation and the supernatant was filtered through a Millipore filter (0.2 μm). To precipitate the proteins 1/10 (v/v) of trichloroacetic acid was added to the supernatant and the precipitate as well as the bacterial pellet resuspended in sample buffer for analysis by SDS-PAGE and immunoblot.
C. muridarum was mutagenized by treating infected Vero cells with 15 mg/ml ethyl methanesulfonate (EMS) for 1 hr, starting 16 hpi, resulting in an average of 16 mutations/genome with a range of 5–26 mutations/genome (Rajaram et al., 2015). Mutagenized Chlamydia EBs were harvested at 26 hpi in sucrose phosphate glutamic acid buffer (SPG) using 3 mm glass beads, and aliquots were stored at -80°C. Mutant libraries were constructed as described previously (Rajaram et al., 2015). Briefly, mutagenized C. muridarum isolates were plaque-cloned in McCoy cells and plaques were picked 10 days post infection. Isolated plaques were expanded in McCoy cells by infecting monolayers in 96-well plates with 30 µl of plaque lysates by centrifugation (1600 g for 1 hr at room temperature) and rocking (30 min at 37°C). The library plates were stored at -80°C in SPG.
Five µl of C. muridarum mutant isolates from the mutant library were used to infect fresh McCoy cell monolayers by centrifugation and rocking. At 28 hpi monolayers were fixed with 100% methanol for 10 min. Glycogen was assayed by staining with a 5% iodine solution (5% w/v iodine (Sigma), 5% w/v potassium iodide (Sigma), in a 50/50 solution of water and 100% ethanol) for 10 min, followed by staining with a 2.5% iodine solution (2.5% w/v iodine, 2.5% w/v potassium iodide, in a 50/50 solution of water and 100% ethanol) for 10 min. The iodine solution was removed and 100 µl PBS was added to each well. Plates were imaged using an EVOS® FL Auto cell imaging microscope. Glycogen deficient mutants were examined for mutations in known glycogen biosynthesis genes by Sanger sequencing or by whole genome sequencing as previously described (Rajaram et al., 2015). P2B10 carried a C393T mutation in glgA, and P3B4 carried a G1157A mutation in the same gene.
Nutrition-based evolution of intracellular pathogensEnvironmental Microbiology Reports 7:2–3.https://doi.org/10.1111/1758-2229.12236
Translocation of surface-localized effectors in type III secretionProceedings of the National Academy of Sciences of the United States of America 108:1639–1644.https://doi.org/10.1073/pnas.1013888108
Genomic transcriptional profiling of the developmental cycle of Chlamydia trachomatisProceedings of the National Academy of Sciences of the United States of America 100:8478–8483.https://doi.org/10.1073/pnas.1331135100
Effector protein modulation of host cells: examples in the Chlamydia spp. arsenalCurrent Opinion in Microbiology 12:81–87.https://doi.org/10.1016/j.mib.2008.11.009
Chlamydial Infections: Proceedings of the Seventh International Symposium on Human Chlamydial Infections, Harrison Hot Springs, British Columbia, Canada, 24-19 June 1990Cambridge: Cambridge University Press.
Immunology of Chlamydia infection: implications for a Chlamydia trachomatis vaccineNature Reviews. Immunology 5:149–161.https://doi.org/10.1038/nri1551
Cytochemical localization of glycogen in Chlamydia trachomatis inclusionsJournal of Bacteriology 177:5358–5363.
Maintenance of vacuole integrity by bacterial pathogensCurrent Opinion in Microbiology 17:46–52.https://doi.org/10.1016/j.mib.2013.11.005
Carbon metabolism of intracellular bacterial pathogens and possible links to virulenceNature Reviews Microbiology 8:401–412.https://doi.org/10.1038/nrmicro2351
Cytoplasmic access by intracellular bacterial pathogensTrends in Microbiology 22:128–137.https://doi.org/10.1016/j.tim.2014.01.003
Bacterial type III secretion systems: specialized nanomachines for protein delivery into target cellsAnnual Review of Microbiology 68:415–438.https://doi.org/10.1146/annurev-micro-092412-155725
Occurrence of glycogen in inclusions of the Psittacosis-Lymphogranuloma Venereum-Trachoma agentsThe Journal of Infectious Diseases 115:186–196.https://doi.org/10.1093/infdis/115.2.186
Chlamydiae as symbionts in eukaryotesAnnual Review of Microbiology 62:113–131.https://doi.org/10.1146/annurev.micro.62.081307.162818
Regulation of carbon metabolism in Chlamydia trachomatisMolecular Microbiology 38:20–30.https://doi.org/10.1046/j.1365-2958.2000.02102.x
The obligate intracellular pathogen Chlamydia trachomatis targets host lipid dropletsCurrent Biology : CB 16:1646–1651.https://doi.org/10.1016/j.cub.2006.06.060
Glycogen synthesis from uridine diphosphate glucose. the distribution of the enzyme in liver cell fractionsThe Journal of Biophysical and Biochemical Cytology 10:195–209.
Virulence determinants in the obligate intracellular pathogen Chlamydia trachomatis revealed by forward genetic approachesProceedings of the National Academy of Sciences of the United States of America 109:1263–1268.https://doi.org/10.1073/pnas.1117884109
Developmental stage-specific metabolic and transcriptional activity of Chlamydia trachomatis in an axenic mediumProceedings of the National Academy of Sciences of the United States of America 109:19781–19785.https://doi.org/10.1073/pnas.1212831109
Mutational Analysis of the Chlamydia muridarum Plasticity ZoneInfection and Immunity 83:2870–2881.https://doi.org/10.1128/IAI.00106-15
Glycogen and its metabolism: some new developments and old themesThe Biochemical Journal 441:763–787.https://doi.org/10.1042/BJ20111416
Infectivity acts as in vivo selection for maintenance of the chlamydial cryptic plasmidInfection and Immunity 79:98–107.https://doi.org/10.1128/IAI.01105-10
A modified PAS stain combined with immunofluorescence for quantitative analyses of glycogen in muscle sectionsHistochemistry and Cell Biology 122:161–169.https://doi.org/10.1007/s00418-004-0690-0
Cultivation and laboratory maintenance of Chlamydia trachomatisCurrent Protocols in Microbiology, 10.1002/9780471729259.mc11a01s00.
Molecular cloning and characterization of a human multisubstrate specific nucleotide-sugar transporter homologous to Drosophila fringe connectionThe Journal of Biological Chemistry 279:26469–26474.https://doi.org/10.1074/jbc.M311353200
Mise en évidence des polysaccharides sur coupes fines en microscopie électroniqueJournal of Microscopy 6:978–1018.
A technique for ultracryotomy of cell suspensions and tissuesThe Journal of Cell Biology 57:551–565.
Regulation of glycogen metabolism in yeast and bacteriaFEMS Microbiology Reviews 34:952–985.https://doi.org/10.1111/j.1574-6976.2010.00220.x
Dominique Soldati-FavreReviewing Editor; University of Geneva, Switzerland
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your work entitled "Sequestration of host metabolism by an intracellular pathogen" for consideration by eLife. Your article has been favorably evaluated by three reviewers, including Rey Carabero and Dominique Soldati-Favre, who is a member of our Board of Reviewing Editors. The evaluation was overseen by Richard Losick as the Senior Editor.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
In this manuscript, the authors investigate how Chlamydia trachomatis ensures the establishment of a glycogen-rich vacuole by sequestering host cell metabolites and providing the necessary enzymes. They determined two parallel sources, which are differentiated by the timing of their requirement relative to the infectious cycle. At early stages of development, bulk import predominates, whilst later in infection with increasing differentiation to elementary bodies, de novo glycogen synthesis mediated by bacterial enzymes takes over. By defining the source the sugar species utilized – the translocation of the relevant enzymes by type III secretion – the report makes a significant contribution to chlamydial biology, and possibly pathogenesis in regards to nutritional immunity.
The present study is important as it highlights several unique and unappreciated phenomena:
1) Transport of a host biosynthetic enzyme into the inclusion.
2) de novo synthesis of glycogen in the inclusion through the secretion of bacterial biosynthetic enzymes.
3) Adaptation of a bacterial enzyme (GlgA) to use host-derived substrates (UDP glucose) for the synthesis of glycogen.
4) Recruitment of a host UDP glucose transporter to the inclusion and evidence that this transport activity is required for glycogen synthesis in the vacuole.
If glycogen is an important source of glucose6P, which the authors assume is being generated by the bacterial MrsA from glucose1P, then one would expect a phenotype for the resulting EBs. As it stands the study does not make full use of available technologies to move beyond correlation to causation, which are now feasible in Chlamydia. Mutants defective in glg genes are available – or can be generated readily by group II mediated retro-insertion (e.g. Targetron) to formally test the role of glycogen in Chlamydia growth and infectivity and glucose6p acquisition by EBs.https://doi.org/10.7554/eLife.12552.026
Essential revisions: If glycogen is an important source of glucose6P, which the authors assume is being generated by the bacterial MrsA from glucose1P, then one would expect a phenotype for the resulting EBs. As it stands the study does not make full use of available technologies to move beyond correlation to causation, which are now feasible in Chlamydia. Mutants defective in glg genes are available – or can be generated readily by group II mediated retro-insertion (e.g. Targetron) to formally test the role of glycogen in Chlamydia growth and infectivity and glucose6p acquisition by EBs.
The suggestion to use available technologies to generate mutants on some of the key enzymes of glycogen metabolism, and use those to “formally test the role of glycogen in Chlamydia growth and infectivity and glucose6p acquisition by EBs”, is at first thought quite attractive. However, obtaining such mutants is still notoriously laborious and could take several months, well in excess of the couple of months required for the revision procedure.
Nevertheless, we agree with the reviewers that by using mutants we could ask whether a defect in bacterial glycogen synthase activity has any effect on infectivity. To respond as fast as possible to the reviewers’ concerns, we established a collaboration with David Nelson (Indiana, USA) who had obtained GlgA mutants in C. muridarum (unpublished). The two GlgA mutants we tested accumulated less glycogen in the inclusion lumen than their parental strain, bringing further evidence that GlgA was indeed active in the inclusion lumen. The mutants also showed a defect in infectivity in vitro(3 and 7-fold respectively), bringing the finale evidence that the capacity for Chlamydia to metabolise glucose into glycogen is important for the completion of their developmental cycle.
In addition, we addressed the effect of Gys1 depletion on C. muridarum, and on the GlgA mutants. For a comparison, these experiments were done in parallel with C. trachomatis infections, and thereby we obtained sufficient data for C. trachomatis to detect a small but significant 20% decrease in luminal glycogen stores when Gys 1 was depleted (and 30% decrease in C. muridarum). This result brings further support to the “bulk” import pathway and the manuscript has been slightly modified accordingly (in the initial submission our dataset was too small to make the 20% decrease significant).
All the results obtained with the GlgA mutants were included at the end of the Results section, and are shown in a novel Figure 7. The question as to whether GlgA is absolutely required for bacterial development, and the effect of the glgA mutations in an in vivo model of infection, will be addressed in a separate report (Giebel et al. in preparation).
We acknowledge the interest of investigating mutants affecting those enzymes that are part glycogen of metabolism per se (glgA, glgB, glgP, glgX, malQ, glgP) and have responded to the suggestion by investigating defects in the genes encoding the major player of our story: GlgA. However, it is not clear to us what could be concluded from looking at a mutant in the phosphoglucomutase activity (MrsA). Indeed, phosphoglucomutase activity is implicated in all biochemical steps that require Glc1P, since Chlamydiaceae lack a hexokinase and only import Glc6P. This will include synthesis of intrabacterial glycogen (G1P is the substrate of GlgC, MrsA activity in the bacteria is needed to make bacterial glycogen out of imported G6P, independently of its potential role in the inclusion lumen). It might also include synthesis of chlamydial lipooligosaccharide. Indeed, phosphoglucomutase activity is needed for LPS synthesis in a bacterial symbiont of plants (Lepeck Molecular Plant Microbe Interactions 2002 15 368). If this holds true in Chlamydia, we can expect a very strong phenotype on progeny since LPS is required for RB to EB conversion (Nguyen PNAS 2011). Thus, pleiotropic effects of mrsA disruption would likely preclude testing our hypothesis that MrsA is involved in G1P to G6P conversion in the lumen of the inclusion. Although we agree that sophisticated schemes of complementation of a putative MrsA mutant could be attempted to test our hypothesis, we believe that obtaining mutants, and testing complementation experiments, need to be left to a follow-up study.https://doi.org/10.7554/eLife.12552.027
