Nucleosomes impede Cas9 access to DNA in vivo and in vitro

  1. Max A Horlbeck
  2. Lea B Witkowsky
  3. Benjamin Guglielmi
  4. Joseph M Replogle
  5. Luke A Gilbert
  6. Jacqueline E Villalta
  7. Sharon E Torigoe
  8. Robert Tjian Is a corresponding author
  9. Jonathan S Weissman Is a corresponding author
  1. University of California, San Francisco, United States
  2. Howard Hughes Medical Institute, University of California, San Francisco, United States
  3. Howard Hughes Medical Institute, University of California, Berkeley, United States
  4. University of California, Berkeley, United States
Short Report
Cited
31
Views
8,087
Comments
0
Cite as: eLife 2016;5:e12677 doi: 10.7554/eLife.12677

Abstract

The prokaryotic CRISPR (clustered regularly interspaced palindromic repeats)-associated protein, Cas9, has been widely adopted as a tool for editing, imaging, and regulating eukaryotic genomes. However, our understanding of how to select single-guide RNAs (sgRNAs) that mediate efficient Cas9 activity is incomplete, as we lack insight into how chromatin impacts Cas9 targeting. To address this gap, we analyzed large-scale genetic screens performed in human cell lines using either nuclease-active or nuclease-dead Cas9 (dCas9). We observed that highly active sgRNAs for Cas9 and dCas9 were found almost exclusively in regions of low nucleosome occupancy. In vitro experiments demonstrated that nucleosomes in fact directly impede Cas9 binding and cleavage, while chromatin remodeling can restore Cas9 access. Our results reveal a critical role of eukaryotic chromatin in dictating the targeting specificity of this transplanted bacterial enzyme, and provide rules for selecting Cas9 target sites distinct from and complementary to those based on sequence properties.

https://doi.org/10.7554/eLife.12677.001

eLife digest

Many bacteria have a type of immune system known as CRISPR that can target and cut foreign DNA to protect it against viruses. Recently, the CRISPR system was adapted to allow scientists to easily manipulate the genome of humans and many other organisms. However, unlike the loosely organized DNA found in bacteria, the DNA that makes up the human genome is tightly packed and wrapped around complexes of proteins to form structures called nucleosomes. It was not clear whether the CRISPR system was able to effectively target the stretches of DNA in a nucleosome.

In 2013, researchers developed a modified version of CRISPR, known as CRISPR interference, to block gene activity and in 2014 used it to systematically repress many of the genes in the human genome. Now, Horlbeck, Witkowsky et al. – who include several of the researchers from the 2014 work – have analyzed existing data for a specific type of human cell grown in the laboratory and found that CRISPR interference activity was strongest in certain areas around the start of each gene. However, CRISPR interference was much weaker in other areas of genes that coincided well with stretches of DNA that are known to often be bound by nucleosomes. Nucleosomes also appeared to block CRISPR editing, although the effects were less pronounced.

Horlbeck, Witkowsky et al. then directly tested whether nucleosomes could prevent the CRISPR system from binding or modifying the DNA. When the individual components were mixed in test tubes, the CRISPR system could readily target “naked” DNA. However, it could not access nucleosome-bound DNA, unless an enzyme that can move nucleosomes along the DNA in the human genome was also added to the mix. These findings suggest one way that CRISPR can manipulate much of the human genome despite the widespread presence of nucleosomes. Future work will now aim to develop computational methods that take the positions of nucleosomes into account when picking DNA sites to target with CRISPR.

https://doi.org/10.7554/eLife.12677.002

Introduction

CRISPR (clustered regularly interspaced palindromic repeats) prokaryotic adaptive immune systems have yielded transformative tools for manipulating eukaryotic genomes. Most notably, the CRISPR-associated Cas9 protein from Streptococcus pyogenes, together with a single chimeric guide RNA (sgRNA), provides a programmable endonuclease that has revolutionized our ability to edit genomes (Doudna and Charpentier, 2014). Cas9 has been further modified to a nuclease-dead form (dCas9) to provide a programmable DNA-binding protein that can be fused to effector domains, making it possible to turn on or off targeted genes, mark specific genomic loci with fluorescent proteins, or alter epigenetic marks (Doudna and Charpentier, 2014; Qi et al., 2013; Gilbert et al., 2013; Maeder et al., 2013; Chen et al., 2013; Ma et al., 2015; Hilton et al., 2015; Kearns et al., 2015). A central challenge in implementing these tools is identifying effective and specific sgRNAs. While much of the effort to define relevant rules has focused on the sequence of the target site and sgRNA (Chari et al., 2015; Doench et al., 2014; Wang et al., 2014; Xu et al., 2015), these only partially predict Cas9 activity and suggest that additional determinants likely exist.

Chromatin structure may represent a key parameter governing Cas9 efficacy in eukaryotic cells. CRISPR evolved in archea and bacteria (Makarova et al., 2015) and is likely not optimized to explore and modify large, chromatin-bound eukaryotic genomes, a hypothesis supported by several studies that point to a correlation between rates of DNA binding and cleavage in regions of open chromatin as measured by DNase I hypersensitivity (Chari et al., 2015; Singh et al., 2015; Wu et al., 2014). Additionally, recent single-molecule imaging studies have shown that dCas9 explores euchromatin more frequently than it does heterochromatin (Knight et al., 2015).

We hypothesized that nucleosomes, the basic unit of chromatin structure, are an important impediment to Cas9 recognition. Here, we addressed this hypothesis in vivo by leveraging large datasets collected from over 30 sgRNA tiling and genome-scale genetic screens (Gilbert et al., 2014). We found that regions of high nucleosome occupancy in vivo, as determined by MNase-seq (micrococcal nuclease sequencing) (Johnson et al., 2006; Valouev et al., 2011), were strongly depleted of highly active sgRNAs for CRISPR interference (CRISPRi) (Gilbert et al., 2013; 2014) and nuclease-active Cas9. We complemented these results with in vitro experiments demonstrating that formation of a nucleosome provides a direct and profound block to dCas9 binding and Cas9 cleavage. Despite this strong barrier to Cas9 activity, we found that addition of a chromatin remodeling enzyme to chromatinized DNA in vitro can restore Cas9 access to nucleosomal DNA, highlighting one route by which CRISPR may still be able to modify chromatin in vivo. Our results reveal a fundamental aspect of the mechanism by which this transplanted bacterial enzyme interacts with eukaryotic chromatin, and provide a new dimension for selecting highly active sgRNAs.

Results

CRISPRi activity is periodic and out-of-phase with nucleosome positioning

In order to study the features of chromatin that affect CRISPRi activity, we integrated data from whole-genome screens testing for a wide range of phenotypes performed with a previously described CRISPRi library targeting each gene with ~10 sgRNAs (Gilbert et al., 2014). We selected 30 screens performed in the cell line K562 expressing dCas9-KRAB (ML, BA, BB, CYP, MK, YC, JF, and JN, personal communication) and set a threshold for high-confidence hit genes, which allowed us to assess the relative strength of phenotypes for the sgRNAs targeting these genes. Specifically, we analyzed 18,380 sgRNAs targeting 1539 genes, and generated 'activity scores' by normalizing sgRNA phenotypes to the average of the 3 sgRNAs with the strongest phenotypes for each gene (Figure 1A and Supplementary file 1). To assess how CRISPRi activity varies with respect to the transcription start site (TSS), we plotted the average sgRNA activity score as a function of distance to the FANTOM-annotated TSS (Forrest et al., 2014) (Figure 1B). This analysis revealed a robust, periodic pattern of activity, with peaks at ~190 bp intervals relative to the TSS. This periodicity was highly reminiscent of patterns previously described for nucleosomes (Jiang and Pugh, 2009). Indeed, analysis of K562 MNase-seq data from the ENCODE consortium (Valouev et al., 2011; ENCODE Project Consortium, 2012) revealed that the average nucleosome signal was strongly anti-correlated with CRISPRi activity (Figure 1B), suggesting that high nucleosome occupancy leads to low CRISPRi activity.

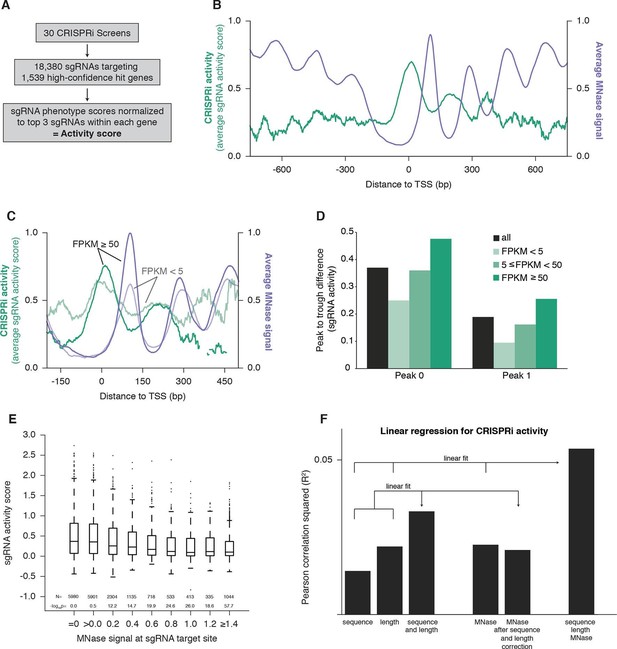

CRISPRi activity anti-correlates with nucleosome occupancy.

(A) Workflow for generating CRISPRi activity scores from pooled genetic screens. The resulting values are distributed around 0 for inactive sgRNAs and around 1 for highly active sgRNAs. (B) Average CRISPRi activity and MNase-seq signal relative to the TSS. Green line represents average CRISPRi activity score of all sgRNAs within a 50 bp window around each position. Purple line represents the K562 MNase-seq signal at each position averaged across all genes analyzed. (C) Average CRISPRi activity and MNase-seq signal for genes grouped by expression value. Genes were grouped into lower expression (light lines; N=240), higher expression (heavy lines; N=368), and medium expression (omitted for clarity; N=930), and analyzed as in (B). Expression values were obtained as fragments per kilobase million (FPKM) from ENCODE K562 RNA-seq data. Average activity at positions with fewer than 10 sgRNAs within the 50bp window was not calculated. (D) Quantification of the amplitude of periodic CRISPRi activity. Peak and trough coordinates were obtained by calculating the local maxima and minima of the activity traces from analyses in (B) and (C). Peak 0 was defined as the local maximum closest to the TSS, peak 1 was defined as the next maximum downstream of peak 0, and troughs were defined as the minima immediately downstream of the respective peaks. (E) CRISPRi activity and target site nucleosome occupancy for individual sgRNAs. Target site nucleosome occupancy was calculated from the average MNase-seq signal at all genomic coordinates across the length of the sgRNA protospacer and the protospacer adjacent motif (PAM). sgRNAs were then binned by the target site nucleosome occupancy, displayed as box-and-whisker plots, and labeled according to the minimum value within the bin except where indicated. P-values were calculated by a two-tailed Mann-Whitney test comparing each bin to the =0.0 bin. (F) Linear regression for CRISPRi activity. The squared Pearson correlation was calculated for the sgRNA activity scores compared to the indicated individual parameters (bars 1, 2, and 4) or linear fits of multiple parameters (bars 3 and 6). sgRNA activity scores were corrected for sequence and length features (bar 5) by subtracting the linear fit of those two features.

https://doi.org/10.7554/eLife.12677.003

To further explore this inverse relationship between CRISPRi activity and nucleosome organization, we exploited the previous observation that nucleosome phasing is more pronounced in highly expressed genes (Valouev et al., 2011). We grouped genes by their expression in K562 (ENCODE Project Consortium, 2012; Djebali et al., 2012) and analyzed CRISPRi activity and nucleosome occupancy within each group. In support of a connection, we found that peak to trough amplitudes of both features were larger for highly expressed genes (Figures 1C,D).

We also analyzed the MNase signal at each sgRNA target site to determine whether nucleosome occupancy could explain variation in CRISPRi activity between individual sgRNAs (Figure 1E). Consistent with the hypothesis that nucleosomes exclude dCas9, almost all of the highly active sgRNAs targeted sites with low MNase-seq signal. However, not all sgRNAs targeting sites with low nucleosome occupancy were highly active, matching previous findings that sgRNA and target DNA sequence features also influence efficiency of the CRISPR system (Chari et al., 2015; Doench et al., 2014; Wang et al., 2014; Xu et al., 2015). To exclude the possibility that differences in sequence features alone between nucleosome-bound and -free regions could explain the periodicity of CRISPRi activity (rather than the presence of nucleosomes per se), we performed linear regression using MNase signal, sgRNA length (Xu et al., 2015; Gilbert et al., 2014), and a validated sgRNA sequence scoring algorithm (Doench et al., 2014). We found that each parameter individually correlated with sgRNA activity (p<10-58 for each; Figure 1F). Importantly, correction for sequence and length features had minimal impact on the ability of the MNase signal to predict CRISPRi activity (p<10-85 after correction). Indeed, a linear fit of all three features provided a still stronger correlation (p<10-221; Figure 1F, far right column), suggesting that incorporating nucleosome occupancy in future sgRNA design algorithms could significantly improve predictive value. We have recently developed a comprehensive algorithm for predicting highly active CRISPRi sgRNAs that, by accounting for nucleosome occupancy, higher order sequence features, and non-linear relationships in these parameters, shows even greater correlation with this dataset that was already enriched for active sgRNAs using our original CRISPRi library design principles (Gilbert et al., 2014) (cross-validation R2=0.32; Horlbeck et al., manuscript in preparation).

Nuclease-active Cas9 activity anti-correlates with nucleosome occupancy

In order to generate a dataset for evaluating the effect of nucleosome positioning on nuclease-active Cas9 in K562 cells, we took advantage of our previously described library densely tiling sgRNAs in 10kb windows around the TSS of 49 genes known to modulate susceptibility to the toxin ricin (Gilbert et al., 2014; Bassik et al., 2013) and tested Cas9-expressing cells for resistance or sensitivity to ricin (Supplementary file 2). We observed phenotypes consistent with the expected knockdown phenotype primarily in coding sequences (CDS) but also in some promoter regions, consistent with recent results showing that modifications introduced by Cas9 can disrupt cis-regulatory regions (Canver et al., 2015). Analysis of CDS-targeting sgRNAs revealed that strong phenotypes were found predominantly in regions of low MNase-seq signal (Figure 2A), although this relationship was less pronounced than for CRISPRi. This may be due to decreased phasing of nucleosomes within the gene body (Jiang and Pugh, 2009). When we analyzed all sgRNAs in the library, thus incorporating information from cis-regulatory regions where nucleosomes are well phased, we found the effect of nucleosome position to be even stronger (Figure 2—figure supplement 1). Although nucleosome occupancy was predictive of CRISPR activity independent of sgRNA sequence features, a much stronger correlation was obtained when all features were considered (Figure 2B). Therefore, nucleosome organization likely represents an important feature for CRISPR sgRNA design and should be considered a key contributing factor in interpreting future tiling mutagenesis experiments of coding and non-coding regions.

Figure 2 with 1 supplement see all

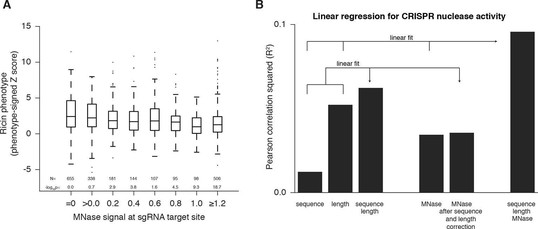

Cas9 nuclease activity anti-correlates with nucleosome occupancy.

(A) Cas9 nuclease phenotypes and target site nucleosome occupancy for individual sgRNAs targeting CDS regions. Ricin susceptibility phenotypes for each sgRNA are expressed as a Z score and are positive if the phenotype matches the expected knockdown phenotype. Target site nucleosome occupancy was calculated as in Figure 1E. sgRNAs were then binned by the target site nucleosome occupancy, displayed as box-and-whisker plots, and labeled according to the minimum value within the bin except where indicated. P-values were calculated by a two-tailed Mann-Whitney test comparing each bin to the =0.0 bin. (B) Linear regression for Cas9 nuclease phenotypes. The squared Pearson correlation was calculated for the sgRNA activity scores compared to the indicated individual parameters (bars 1, 2, and 4) or linear fits of multiple parameters (bars 3 and 6). sgRNA activity scores were corrected for sequence and length features (bar 5) by subtracting the linear fit of those two features.

https://doi.org/10.7554/eLife.12677.004

Nucleosomes are sufficient to fully block cleavage by Cas9 in vitro

Our in vivo experiments reveal a strong anti-correlation between Cas9-mediated downstream phenotypic outputs and nucleosome positioning, but do not directly report on the ability of Cas9 to access nucleosomal DNA. Factors other than Cas9 access could contribute to the observed correlation in our data. For example, (d)Cas9 may bind or cut equally well in nucleosome-bound and un-bound regions, but may exert the observed modulation of gene expression through interference with transcriptional pausing, splicing, regulatory looping, or binding of important regulatory factors, processes which also correlate with nucleosome organization (Jonkers and Lis, 2015; Denisov et al., 1997; Naftelberg et al., 2015; Segal and Widom, 2009; Tilgner and Guigó, 2010; Thurman et al., 2012; Hsieh et al., 2015).

To determine whether (d)Cas9 activity is indeed directly affected by the presence of nucleosomes, we turned to a purified in vitro reconstituted system. Mouse histones were recombinantly expressed, purified, and assembled into a nucleosome using 147bp of the Widom 601 positioning sequence (Figures 3A,B) (Lowary and Widom, 1998). Conveniently, the 601 sequence contains numerous NGG protospacer adjacent motifs (PAMs) required for Cas9 recognition, spanning the full length of the DNA at different helical positions, allowing us to test the effects of position and solvent accesibility within the nucleosome (Figure 3C). We first tested the ability of Cas9 to cleave nucleosomal DNA. We pre-loaded purified Cas9 (histidine tagged and HaloTagged) with in vitro transcribed sgRNA, then introduced either naked 601 DNA or that same DNA assembled into a nucleosome (Figures 3A,D and Figure 3—figure supplement 1A). Fluorescent labeling of the DNA allowed us to visualize the cleavage products on a denaturing Urea-PAGE gel. In agreement with our in vivo data, the nucleosome protected its DNA from cleavage by Cas9, and complete protection from cleavage was observed to be independent of target position within the nucleosome (Figures 3E,F and Figure 3—figure supplement 1B,C). While our manuscript was under review, a study by Hinz and colleagues reported a similar in vitro finding that Cas9 nuclease activity is inhibited within the nucleosome but not at adjacent linker sequences (Hinz et al., 2015). Additionally, previous single-molecule and biochemical studies have established that nucleosomal DNA undergoes transient unwrapping or breathing at the entry and exit sites, creating a gradient of accessibility along the nucleosome (Li and Widom, 2004; Li et al., 2005; Luger and Hansen, 2005; Choy and Lee, 2012; Tomschik et al., 2009; Polach and Widom, 1995). This property is often credited for the observed position-dependent binding patterns of many transcription factors and DNA-binding proteins. Interestingly, our data suggests that the cleavage activity of Cas9 in vitro is not detectably influenced by this effect, although less stable nucleosomes than the Widom 601 nucleosome or target sites closer to the nucleosome edge may exhibit more breathing and thus more accessibility than those tested here.

Figure 3 with 1 supplement see all

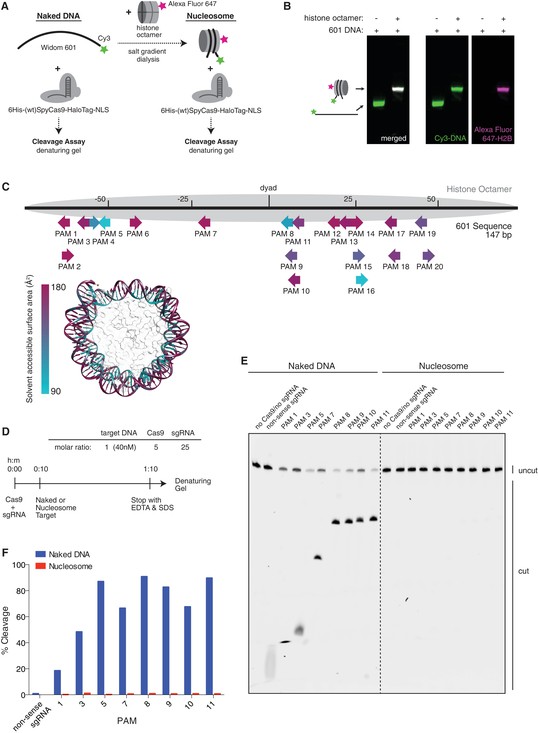

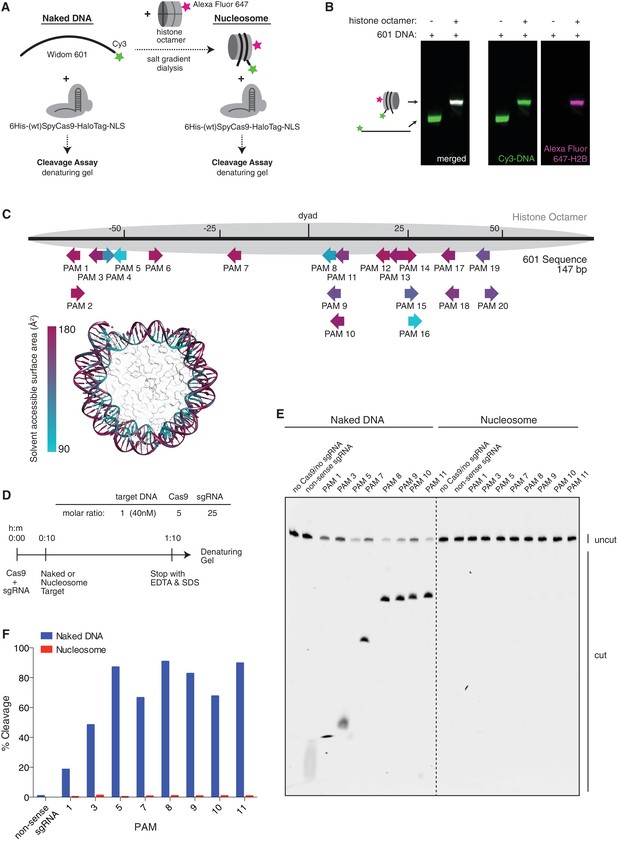

Cas9 nuclease activity is blocked by the presence of a nucleosome in vitro.

(A) Schematic of the experimental setup for in vitro cleavage assays. Mononucleosomes were assembled by salt gradient dialysis of purified mouse histone octamer with the minimal nucleosome positioning sequence, Widom 601 (147 bp). Prior to assembly, DNA was 5’-end-labeled with Cy3 and histone H2B was fluorescently labeled using an introduced cysteine (T115C) coupled to Alexa Fluor 647. Purified His-tagged and HaloTagged Cas9 pre-loaded with in vitro transcribed sgRNAs were added to naked DNA or assembled nucleosomes, and DNA cleavage products were visualized using a denaturing gel imaged for Cy3-DNA fluorescence. See also Figure 3—figure supplement 1A. (B) Confirmation that fully occupied, well-positioned nucleosomes were assembled. After assembly using salt gradient dialysis, the produced nucleosomes were visualized using a native PAGE gel imaged in the Cy3 and Alexa Fluor 647 channels. Full incorporation of the free DNA into a nucleosome occupying a single position on the DNA is indicated by the presence of a single-shifted band containing all of the detectable Cy3-DNA and Alexa Fluor 647-H2B signal. (C) Available PAMs and solvent accessibility of the 601 nucleosome positioning sequence. (Above) A schematic of the 601 sequence. The location of the histone octamer when assembled into a nucleosome is indicated by the gray oval. The location of PAMs within the double-stranded sequence are indicated with arrows spanning the 3 bp of the PAM, pointing in the 5’ to 3’ orientation of the NGG motif. The arrows are colored according to solvent accessibility at the center of the PAM as calculated from the crystal structure of the 601 nucleosome (PDBID 3LZ0, Vasudevan et al., 2010). (Below) Crystal structure of the 601 nucleosome. For clarity, the surface area of the histones in the crystal structure has been made transparent. The DNA in the crystal structure is colored according to solvent accessibility using the same color scale as the PAMs above. Residues colored teal are less accessible, while residues colored fuchsia are more accessible by solvent. (D) Experimental conditions and timeline for cleavage assays. (E) Denaturing PAGE gel showing the results of a cleavage assay targeting the indicated PAMs. Cleavage reactions containing naked DNA were loaded on the left half of the gel, while reactions containing nucleosomes were loaded on the right. The DNA was imaged via a Cy3 fluorophore attached to the 5’ end of the sgRNA-complimentary strand. A negative control was conducted with an sgRNA that had no sequence complementarity to the 601 sequence used (non-sense guide). See also Figure 3—figure supplement 1B,C for additional controls. (F) Quantification of the gel in (D). For each lane, percent cleavage was determined by calculating the percent of the total band signal corresponding to cleaved DNA.

https://doi.org/10.7554/eLife.12677.006

Cas9 is unable to bind nucleosomal DNA in vitro

Cleavage of DNA by Cas9 has been described as a stepwise process (Wu et al., 2014; Knight et al., 2015; Sternberg et al., 2014) in which Cas9 must first scan for PAMs, unzip the DNA duplex, and fully pair the guide RNA and target DNA prior to cleavage. While our in vitro data show that full pairing and cleavage is prevented by the presence of a nucleosome, we wondered if binding without cleavage, especially at the more accessible ends of the nucleosome, might still occur. Additionally, the first step in binding, PAM recognition, may be governed by helical location within the nucleosome as well as its proximity to the more dynamic ends. Histones make contacts with the DNA at every helical turn, thus a PAM may fall on the outside of the nucleosome, exposing it to solvent, or on the inside at the DNA-histone interface. To test the influence of target location within the nucleosome on Cas9 binding, we used an electrophoretic mobility shift assay to monitor binding of dCas9 to Cy3 end-labeled 601 DNA (Figures 4A,B), either free or assembled into a nucleosome containing Alexa Fluor 647-labeled histone H2B (Figure 4—figure supplement 1A). Consistent with our cleavage results, binding by dCas9 was abolished by the presence of the nucleosome, regardless of the targeted dCas9 binding site (Figure 4C–E and Figure 4—figure supplement 2A,B).

Figure 4 with 3 supplements see all

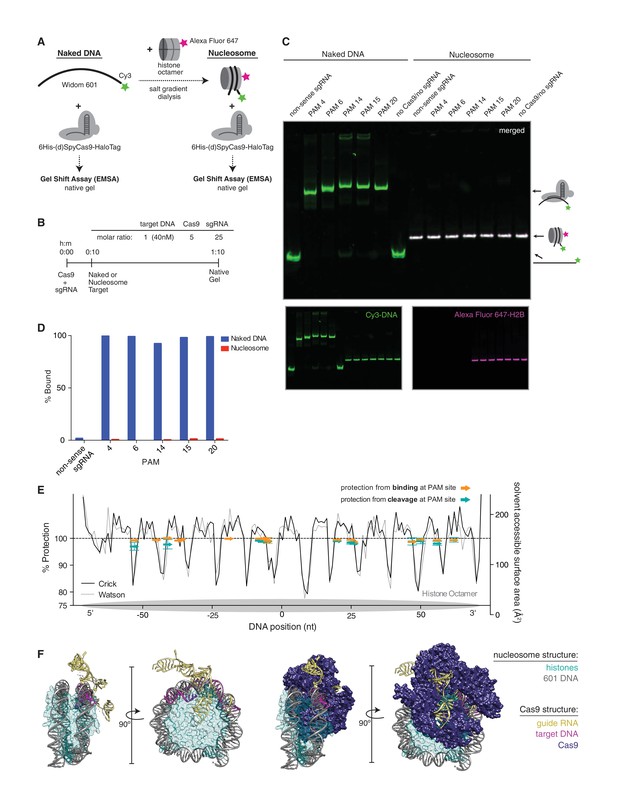

dCas9 is unable to bind nucleosomal DNA in vitro.

(A) Schematic of the experimental setup for in vitro binding assays. Either naked DNA or assembled nucleosomes were incubated with catalytically dead Cas9 (dCas9, histidine tagged and HaloTagged), and binding was assessed by an electrophoretic mobility shift assay (EMSA). (B) Experimental conditions and timeline for binding assays. (C) A native PAGE gel showing the results of an EMSA in which dCas9 was targeted to the indicated PAMs on either naked or nucleosomal DNA. Gels were scanned for fluorescence from Cy3 on the DNA (green) and Alexa Fluor 647 on histone H2B (magenta). The two color channels were merged to identify the location of intact nucleosomes (white). See also Figure 4—figure supplement 1 and 3 for reagent preparation and experimental conditions, and Figure 4—figure supplement 2 for comparison with wtCas9 binding. (D) Quantification of the gel in (C). Percent bound was determined by calculating the percent of the total band signal in each lane corresponding to Cas9-bound target as determined by a shift in mobility within the gel. (E) Summary of binding and cleavage results for each PAM tested. The ability of Cas9 to bind or cleave nucleosomal DNA at a targeted PAM is displayed as percent protection by the nucleosome, and was calculated by taking the ratio of binding or cleavage on nucleosomal DNA to that on naked DNA. While only the largest error bars are visible, replicates were performed for 15 of the 30 data points and are displayed with error bars showing standard deviation from the mean. The DNA positions plotted correspond to the three nucleotides of the targeted PAM. In order to compare percent protection from binding and cleavage with solvent accessibility, the PAMs are overlaid with a plot of the solvent accessible surface area for each strand (Watson or Crick) of DNA in the 601 nucleosome structure. The percent protection at each PAM, as well as the solvent accessibility were plotted so that the 5’ end of each DNA strand begins at the left of the graph, where position 0 indicates the dyad. (F) Structural assessment of the ability of Cas9 to bind nucleosomal DNA. Superposition of the Cas9-guideRNA-DNA crystal structure (PDBID 4UN3, Anders et al., 2014) onto the 601 nucleosome crystal structure (PDBID 3LZ0, Vasudevan et al., 2010) was achieved by alignment of the DNA path in both structures. (Left) To better view the alignment of the Cas9 target DNA with the nucleosomal DNA, the Cas9 protein density has been removed. (Right) After alignment of the DNA, inclusion of the Cas9 protein density reveals extensive steric clashes with the histones. Histone surface area was made partially transparent to better reveal the overlapping densities with Cas9.

https://doi.org/10.7554/eLife.12677.008

To better understand how a nucleosome might impede Cas9 binding, we aligned the available crystal structures of DNA-bound Cas9 and the structure of the 601 nucleosome (Vasudevan et al., 2010, PDB ID 3LZ0; Anders et al., 2014, PDB ID 4UN3). We superimposed the target DNA in the Cas9 crystal structure with the DNA in the nucleosome structure at a site where the two DNA paths gave the best fit. The resulting combined structure reveals that the Cas9 protein poses significant steric clashes with the histones (Figure 4F). Given the extent of overlapping densities in the two structures, it seems unlikely that the histones and Cas9 could co-occupy the same piece of DNA. Additionally, it may be important to note that unlike other DNA binders such as transcription factors, binding by Cas9 constitutes melting of target DNA, which may pose an additional barrier to binding on a nucleosome. This hypothesis leaves two possible outcomes of targeting Cas9 to nucleosomal DNA: either Cas9 is capable of displacing histones in order to engage nucleosomal DNA, or it is excluded altogether. Our data support the latter conclusion.

The chromatin remodeling enzyme yChd1 can restore access to nucleosomal DNA in vitro

The nucleosome landscape in eukaryotic chromatin is dictated by both intrinsic DNA sequence preferences as well as extrinsic factors such as chromatin remodeling enzymes (Jiang and Pugh, 2009; Flaus and Owen-Hughes, 2011; Hargreaves and Crabtree, 2011). In order to model how these dynamics affect Cas9 access to nucleosomal DNA in vitro, we turned to a chromatinized plasmid system. We dialyzed plasmid DNA containing a single 601 nucleosome positioning sequence with a sub-saturating quantity of purified histone octamers, and confirmed the quality of the resulting chromatin assemblies by MNase digestion (Figures 5A,B). We tested whether a nucleosome was positioned at the 601 sequence using restriction enzyme accessibility mapping, and found that sites within the 601 sequence were protected from digestion while sites immediately adjacent were not, suggesting precise positioning of a high occupancy nucleosome (Figure 5C). To recapitulate the effects of chromatin remodeling in vitro, we used a purified, truncated form of the Snf2-like chromatin remodeling enzyme Chd1 from Saccharomyces cerevisiae (yChd1), which had previously been shown to mediate nucleosome sliding in an ATP-dependent manner without additional co-factors (Patel et al., 2011; 2013). To confirm yChd1 activity on our chromatinized plasmid, we used the frequent cutter, HaeIII, to digest the chromatin in the presence or absence of the remodeler. Upon addition of yChd1, we observed a shift toward lower molecular weight bands, indicative of dimished protection at HaeIII sites while still maintaining an overall chromatinized state (Figure 5D).

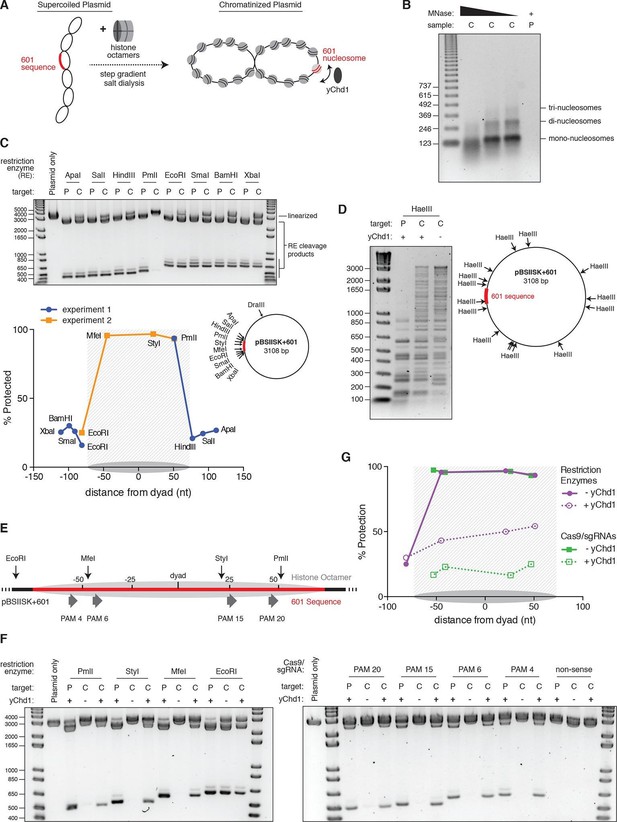

Nucleosomes within chromatinized DNA can block cleavage by Cas9, but a chromatin remodeling factor can restore Cas9 access.

(A) Schematic of the experimental setup. Supercoiled plasmid containing the 601 sequence inserted into a pBlueScript II SK (+) backbone (pBSIISK+601) was chromatinized by step gradient salt dialysis in the presence of histone octamer. Purified yeast Chd1 (yChd1) remodeling factor was used to test the effect of ATP-dependent remodeling factors on Cas9 access to nucleosomal DNA. (B) Quality assessment of the chromatinized plasmid used in this study. Titrated amounts of Micrococcal Nuclease (MNase) were incubated with the chromatinized plasmid, and the resulting pattern of protection by assembled nucleosomes was visualized on a 1.3% agarose gel post-stained with ethidium bromide (EtBr). As a control, the supercoiled plasmid was also incubated with the lowest concentration of MNase. (C) A restriction enzyme accessibility assay (REAA) was used to assess the occupancy and position of the nucleosome assembled at the 601 sequence within the chromatinized plasmid. A panel of unique restriction enzyme sites spanning the 601 sequence were incubated with either the supercoiled plasmid, or the chromatinized plasmid. Cleavage was stopped, and protein was removed by incubation with proteinase K followed by Phenol:Chloroform:Isoamyl alcohol extraction and ethanol precipitation. (Top) The resulting DNA was then linearized using DraIII, and the level of cleavage by the restriction enzyme panel was visualized on a 1% agarose gel post-stained with EtBr. The label 'P' represents supercoiled plasmid, while 'C' represents chromatinized plasmid. (Bottom right) The location of the restriction sites used are indicated on a diagram of the plasmid. (Bottom left) After quantification of the gel, the percent protection from cleavage experienced in the chromatinized plasmid was plotted versus the location of the cleavage sites on the top strand of the 601 sequence. Experiment 1 refers to the REAA experiment shown in the gel above, while experiment 2 refers to the REAA experiment without remodeler shown in Figure 5F. The grey shading indicates the borders of the 601 sequence, and the grey oval represents the corresponding nucleosome. (D) REAA experiment using the frequent cutter, HaeIII, to assess the remodeling activity around the chromatinized plasmid by the purified yChd1 chromatin remodeler. The resulting banding patterns were visualized on a 1.5% agarose gel post-stained with EtBr. Low molecular weight fragments indicate a high degree of HaeIII accessibility, while higher weight bands indicate protection from digestion. (E) Diagram showing the location of the restriction enzyme cleavage sites and the PAMs targeted by Cas9/sgRNA in the experiment shown in (F) and (G). (F) An accessibility assay was performed essentially as in C using either restriction enzymes or Cas9/sgRNAs in the presence or absence of the remodeler yChd1. The level of cleavage by the restriction enzyme panel (left) or Cas9/sgRNAs (right) was visualized on a 1.3% agarose gel post-stained with EtBr. A negative control was conducted with an sgRNA that had no sequence complementarity to the plasmid used (non-sense guide). The concentration of yChd1 used was the same as in panel (D) (G) Quantification of the gels shown in F. Percent protection from cleavage of the chromatinized plasmid in the presence or absence of the chromatin remodeler was calculated relative to the percent cleavage in the corresponding supercoiled plasmid control, and plotted at the location of the restriction enzyme cleavage sites or the center of the PAMs with respect to the 601 dyad.

https://doi.org/10.7554/eLife.12677.012

We next sought to test whether yChd1 could affect Cas9’s ability to access nucleosomal DNA. Before addition of the remodeler to our chromatinized plasmid, we found that sites within the 601 nucleosome were strongly protected from cleavage by Cas9, consistent with our mononucleosome results (Figure 5E-G, PAM sites without remodeler). However, when the 601 nucleosome was remodeled by yChd1, as indicated by a loss of protection from restriction enzyme cleavage (approaching protection levels similar to those in the linker region), Cas9 cleavage efficiency was restored to around 80% of the corresponding naked plasmid control (Figures 5E–G). Notably, the percent protection at the EcoRI site adjacent to the positioned nucleosome did not decrease upon addition of yChd1, demonstrating that the decrease in protection along the 601 sequence was mediated by the nucleosome displacement activity of yChd1 rather than by a non-specific effect on cleavage efficiency. While our data with the chromatinized plasmid system confirm our findings that a well-positioned nucleosome provides a profound block to Cas9 cleavage, our further finding that chromatin remodeling restores access to nucleosomal DNA provides one potential mechanism by which Cas9 may efficiently modify broad portions of eukaryotic genomes. This plasmid model could be further exploited to assay the activity of Cas9 at nucleosome-free and boundary sites, and thus derive biophysical parameters governing Cas9-chromatin interactions.

Discussion

Despite its swift success as a repurposed tool for gene editing, imaging, and transcription modulation, the ability of the prokaryotic CRISPR/Cas9 system to effectively navigate eukaryotic chromatin has remained poorly understood. Here, we show that the nucleosome, the basic unit of chromatin, poses a strong barrier to Cas9, both in vitro and in vivo. By masking ~147 bp of DNA, the nucleosome effectively reduces the size of the eukaryotic genome available to Cas9. Previous studies using ChIP-seq to assay Cas9 binding have shown that off-target binding at PAM plus seed sequences more frequently occurs in regions of open chromatin (Wu et al., 2014; O'Geen et al., 2015). Our data expand upon these findings to show that the discrete pattern of nucleosome organization is able to modulate the efficiency of Cas9 binding and cleavage at on-target sites. The practical implications of these observations are underscored by our finding that accounting for nucleosome occupancy offers a significant improvement in predictive power for sgRNA design.

While our data show that nucleosomes strongly protect their DNA from Cas9 binding and cleavage in vitro, their organization in cells is not static. Transient displacement of nucleosomes occurs during replication, remodeling, and transcription. By adding the chromatin remodeling enzyme yChd1 to nucleosomes in vitro, we demonstrate that this displacement can in fact restore Cas9 access to DNA. However, despite brief exposure of nucleosomal DNA during remodeling and various other cellular processes, we still observe a clear anti-correlation between Cas9 activity and nucleosome occupancy in vivo, suggesting that the barrier to Cas9 target recognition exists even in a cellular environment. Indeed, the balance between nucleosome disruption, turnover, and repositioning in the cell leads to the average level of occupancy and positioning at each site observed by MNase-seq (Valouev et al., 2011; Jiang and Pugh, 2009). Thus, our data suggest that it is likely the overall effect of this average nucleosome positioning that leads to the observed anti-correlation with Cas9/sgRNA activity.

Additionally, it is important to note that there is likely a fundamental difference between applications that use dCas9 versus nuclease-active Cas9. Knock-down of transcription by CRISPRi likely requires persistent binding by dCas9 to continually block transcription, and would be largely ineffective during S-phase when transcription is globally shut down. In contrast, to make a genomic edit, Cas9 must succeed in cleaving DNA only once, and could potentially take advantage of nucleosome turnover during replication. The role these differences play in the dependence of Cas9 on nucleosome position is still not clear. We expect, however, that nucleosome position and occupancy will be of particular concern to applications that use the nuclease-dead Cas9 and require sustained binding. Future investigations into the role of cell cycle and nucleosome disruption may provide an additional piece to our understanding of the mechanism of Cas9 in eukaryotic cells. Furthermore, nucleosome organization represents only one aspect of eukaryotic chromatin, and thus, our results contribute a first step in understanding and exploiting how chromatin affects Cas9 activity to enable more sophisticated and precise rules for targeting Cas9.

Materials and methods

Analysis of CRISPRi sgRNA activity

The K562 dCas9-KRAB-BFP cell line was obtained from (Gilbert et al., 2014) and had been constructed from K562 cells obtained from ATCC. The resulting cell line tested negative for mycoplasma (MycoAlert Kit, Lonza, Basel, Switzerland) in regular screenings, and cytogenetic profiling by array comparative genomic hybridization (not shown) closely matched previous characterizations of the K562 cell line (Naumann et al., 2001). Data from 30 published (Gilbert et al., 2014) and unpublished screens (ML, BA, BB, CYP, MK, YC, JF, and JN, personal communication), conducted using the CRISPRi sgRNA library described in Gilbert et al., (2014) in K562 cells constitutively expressing dCas9-KRAB-BFP, were processed through a standardized pipeline adapted from Bassik et al. (2013), and Kampmann et al. (2013). Briefly, sgRNA phenotypes were calculated as the log2 enrichment of sequencing read counts between two conditions (e.g. initial and final timepoints for growth screens, untreated and treated for drug/toxin screens) and normalized to cell doubling differences where appropriate. Most screens were conducted in duplicate, and sgRNA phenotypes from the duplicates were averaged. To determine hit genes, each gene was given an effect size (average of strongest 3 sgRNA phenotypes by absolute value) and a confidence value (Mann-Whitney p-value of all ~10 sgRNAs compared to negative controls), and hits were selected using a score that integrates effect size and statistical confidence (| effect Z score * log10 p-value | ≧ 20 in any screen). For genes with multiple TSS, each TSS was analyzed separately and the gene was assigned the highest score. Finally, sgRNA phenotypes were extracted for hit genes from the screen in which the gene scored as a hit and normalized to the average of the strongest 3 phenotypes to generate the 'sgRNA activity score'.

sgRNA positions were defined as the genomic coordinate of the 3’ G of the NGG PAM (all genomic coordinates referenced in this text are from hg19). TSS positions were determined from the FANTOM5 project annotation (Riken) (http://fantom.gsc.riken.jp/5/datafiles/phase1.3/extra/TSS_classifier/TSS_human.bed.gz; accessed March 2, 2015), using the downstream genomic coordinate of the corresponding 'p1@gene' BED file entry. All local averages were calculated in 50 bp windows centered around the indicated point. As sgRNA lengths including the PAM were ~24 bp and position was calculated relative to PAM, a window size of 50 bp captures all sgRNAs that directly neighbor the center point at either the 3’ or 5’ end. In order to quantify amplitude, the local averages were first smoothed using a low-pass Butterworth filter (N = 4, Wn = 0.03; SciPy signal processing module) and then peaks and troughs were calculated by determining the local maxima and minima, respectively. As described for Figure 1D, Peak 0 was defined as the local maximum closest to the TSS, peak 1 was defined as the next maximum downstream of peak 0, and troughs were defined as the minima immediately downstream of the respective peaks.

MNase-seq data analysis

K562 MNase-seq data was obtained from the ENCODE consortium as processed continuous signal data (BigWig file format; accession number ENCFF000VNN, Michael Snyder lab, Stanford University). sgRNA target site signal was calculated as the average signal at all positions between the 5’ end of the sgRNA and the 3’ end of the PAM.

RNA-seq data analysis

K562 RNA-seq data were obtained from the ENCODE consortium as transcript quantifications (accession number ENCFF485YKK, Thomas Gingeras lab, Cold Spring Harbor Laboratories). Genes were assigned expression levels in units of FPKM according to their highest-expressed transcript.

Linear regression

Sequence score was calculated by passing the specified 30 bp target site for each sgRNA to the on_target_score_calculator.py script provided by Doench and colleagues (accessed October 9, 2015) (Doench et al., 2014). This sequence score, MNase signal as calculated above, and sgRNA length (base pairs in protospacer and PAM) were each compared to sgRNA activity scores by Pearson correlation. Linear fits of the specified parameters were computed using multidimensional linear regression (Sci-kit learn linear_model package), and correction of the activity scores for sequence and length features was performed by subtracting the predicted scores based on the combined fit.

Ricin tiling screen

Screens for ricin susceptibility were performed essentially as previously described (Gilbert et al., 2014). Briefly, K562 cells constitutively expressing Cas9-BFP from an SFFV (spleen focus-forming virus) promoter were transduced with our previously described pooled sgRNA tiling library packaged into lentivirus for a multiplicity of infection below 1. Duplicate screens were infected and subsequently treated independently. Infected cells were allowed to recover for 2 days, then selected with 0.75 μg/mL puromycin (Tocris) for 2 days, and finally allowed to recover from puromycin treatment for 2 days. Cells were then cultured for 19 days and were either treated with three pulses of 0.5 ng/mL ricin administered for 24 hr and followed by re-suspension in fresh media, or passaged untreated. Genomic DNA was harvested from the endpoint untreated and treated samples and processed for high-throughput Illumina sequencing as previously described (Gilbert et al., 2014). Screens were conducted at a minimum library coverage of 1000 cells per sgRNA, and sequenced to a median depth of ~500 reads per sgRNA. Phenotypes were calculated as log2 enrichments of read counts between untreated and treated conditions, normalized to cell doubling differences, and averaged between duplicates. Phenotype-signed Z scores were calculated by dividing all scores by the standard deviation of negative control phenotypes and then multiplying phenotypes by -1 for sgRNAs targeting genes shown to produce sensitizing phenotypes upon knockdown (Bassik et al., 2013) such that positive values represent 'expected' phenotypes.

Protein purification

Mouse histones H2B(T115C) and H4 were recombinantly expressed in BL21(DE3)pLysS cells from expression plasmids gifted by Dr. Karolin Luger. Expression and purification of mH4 was conducted as previously described by the Luger lab (Dyer et al., 2004; Luger et al., 1999), while mH2B(T115C) was expressed and purified as described by the Cairns lab (Wittmeyer et al., 2004) with the following exception: after purification, histones were dialyzed against multiple changes of double distilled water and 1 mM β-mercaptoethanol (BME) before lyophilizing for storage. Purified recombinant mouse (Mus Musculus) histones H2A and H3 were gifts from Dr. Karolin Luger.

The labeling mutant, mH2B(T115C) was fluorescently labeled with ~five-fold molar excess Alexa Fluor 647 C2 maleimide dye (Thermo Fisher Scientific, Waltham, MA, USA) as follows. 2 mg of lyophilized mH2B(T115C) was dissolved at 2 mg/mL in labeling buffer (7 M GuHCl, 50 mM Tris-HCl pH 7.5, 1 mM TCEP) and nutated at room temperature for 30 min. 1 mg of the dye was then dissolved in 50 µl of anhydrous DMF under Argon gas, and approximately half of the dye solution was slowly mixed with the dissolved mH2B(T115C) in the dark at room temperature to begin the labeling reaction. After nutating the reaction for 1 hr, the rest of the dissolved dye was slowly added, and the reaction was moved to 4°C overnight in the dark. In the morning, the reaction was quenched by adding over hundred-fold molar excess of BME.

Histone octamers were refolded and purified as previously described (Dyer et al., 2004). Specifically, 110 nmoles each mH3 and mH4 were refolded with 130 nmoles each mH2A and mH2B(T115C). The resulting octamer was concentrated using a 10,000 MWCO Spin-X UF concentrator (Corning, Tewksbury, MA), then purified on a Superdex 200 HR (10/30) column (GE Life Sciences, Pittsburgh, PA) using an Akta Explorer FPLC (GE Life Sciences, Pittsburgh, PA) at 0.2 mL/min. Selected fractions were concentrated, flash frozen, and stored at -80°C until use.

A new purification scheme was conceived to achieve exceptionally high purity (d/wt)Cas9 (Figure 4—figure supplement 3). Nuclease active S. pyogenes 6His-Cas9-HaloTag-NLS (HaloTag is a registered trademark of Promega, Madison, WI) was recombinantly expressed and purified from BL21(DE3)pLysS-Rosetta cells (Novagen/EMD Millipore, Darmstadt, Germany) using the expression plasmid pET302-6His-wtCas9-Halo-NLS, while the nuclease dead S. pyogenes 6His-dCas9(D10A,H840A)-HaloTag was recombinantly expressed and purified from BL21(DE3)pLysS cells using the expression plasmid pET302-6His-dCas9-Halo (Knight et al., 2015). Bacterial cultures were grown in Terrific Broth II (MP Biomedicals, Santa Ana, CA) at 37°C until an OD600 reached 0.4. Cultures were then transferred to an ice bath for ~15 min until an OD600 reached 0.5, at which point expression was induced with 0.2mM IPTG, and the cultures were moved to an 18°C shaker for 16 hr. Cells were harvested at 3000xg for 20 min, then resuspended in lysis buffer (500 mM NaCl, 50 mM Hepes pH 7.6, 5% glycerol, 1% Triton X-100, 10 mM imidazole, 1 mM benzamadine, 2.3 µg/mL aprotinin, 0.5 mM PMSF, and 1 tablet per 50 mL of Protease Inhibitor Cocktail (Roche, Basel, Switzerland). Cells were lysed using sonication on ice at 50% duty cycle, power 8, 30 seconds on, 1 minute off (Misonix/ Qsonica, LLC, Newtown, CT). The lysed cells were then ultracentrifuged at 4°, 40K rpms, for 40 min to remove cell debris. The supernatant was then allowed to bind to Ni-NTA agarose resin (Qiagen, Hilden, Germany) by nutating at 4°C for 30 min. The resin containing bound (d/wt)Cas9 was poured into a mini column (Bio-Rad, Hercules, CA) and washed with 10 column volumes (CV) of lysis buffer, and 5 CVs of 20 mM Imidazole buffer (same as lysis buffer but with 20 mM imidazole). Elution of the (d/wt)Cas9 was achieved using 250 mM Imidazole buffer (same as lysis buffer but with 250 mM imidazole), and fractions were checked on an SDS-PAGE gel. Chosen fractions were pooled and diluted to a starting NaCl concentration of 200 mM using Buffer A (0 M NaCl, 50 mM Hepes pH 7.6, 5% glycerol, 1 mM DTT, 0.5 mM PMSF). A 5 mL HiTrap Q-HP (GE Life Sciences, Pittsburgh, PA) and a 5 mL HiTrap SP-HP (GE Life Sciences, Pittsburgh, PA) column were attached in tandem (Q first in line) and equilibrated on an Akta FPLC at 10% Buffer B (same as Buffer A except with 2 M NaCl). The pooled (d/wt)Cas9 was filtered, then loaded onto the tandem columns at 2 mL/min. The columns were washed with 10% Buffer B until A280 and A260 returned to baseline, at which point the Q column was removed and (d/wt)Cas9 was eluted from the SP column using a gradient from 10% to 50% Buffer B over 10 CVs. Fractions were chosen using SDS-PAGE, pooled, and dialyzed into storage buffer (200 mM NaCl, 50 mM Hepes pH 7.6, 5% glycerol, 1 mM DTT) (Figure 4—figure supplement 3). Aliquots were flash frozen in liquid nitrogen and stored at -80°C.

Target DNA purification

To make the fluorescent DNA used in this study, the 601 DNA sequence was amplified by PCR from plasmid pBSIISK+601 (parent 601 sequence plasmid gifted by K Luger) with the primers listed below. Two different PCR products were produced; one labeling the Watson strand of the 601 sequence with a 5’ Cy3 dye (IDT, Coralville, IA), and the other labeling the Crick strand. Large-scale (~2 mL) PCR reactions using in-house produced Pfu DNA polymerase were ethanol precipitated before loading onto a 20cm x 20cm 12% native TBE-PAGE gel for DNA purification. The PCR product was cut out of the gel, and the gel slice was crushed and soaked in 0.3 M sodium acetate pH 5.2 with multiple buffer changes. The pooled extract was ethanol precipitated, resuspended in 10 mM Tris-HCl pH 7.5, 10 mM NaCl, and stored at -20º until use.

Watson primer pair

LW021: 5’- /5Cy3/ATCGGATGTATATATCTGACACGTGC -3’

LW022: 5’- ATCTGAGAATCCGGTGCCG -3’

Crick primer pair

LW025: 5’- /5Cy3/ATCTGAGAATCCGGTGCCGAG -3’

LW030: 5’- ATCGGATGTATATATCTGACACGTGC -3’

sgRNA production for in vitro experiments

sgRNA was produced by T7 transcription of a short DNA oligo template. To create this template, two oligos, one containing the T7 promoter and DNA target sequence, and the other encoding the invariable scaffolding of the sgRNA, were annealed and filled in using a single PCR cycle. The DNA template was ethanol precipitated, then transcribed using the T7 Quick High Yield RNA Synthesis Kit (New England Biolabs, Ipswich, MA) according to vendor instructions. The resulting sgRNAs were purified via 6% Urea-PAGE gel. The correct band was cut out and crushed and soaked in 0.3M sodium acetate pH 5.2. After ethanol precipitation, and resuspension in RNase-free water, aliquots were stored at -80°C until use. SgRNAs targeting the 601 sequence included 20 bp of complimentarity 5’ to the targeted PAM, with the exception of PAM 4, which has room for only 19 bp of complimentarity. SgRNAs were used against PAMs 1, 3–15, and 17–20. PAM 2 did not have a long enough target sequence available within the 601. The non-sense guides used in this study contained the target sequences 5'-ACATGTTGATTTCCTGAAA-3' or 5'-GATTTCACCTCTCAGCGCAT-3'.

Template oligonucleotides

5’-TTAATACGACTCACTATAGNNNNNNNNNNNNNNNNNNNNGTTTTAGAGCTAGAAATAGC -3’

5’-AAAAAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCTCTAAAAC -3’

Nucleosome assembly

Nucleosomes were assembled by salt gradient dialysis as previously described (Dyer et al., 2004) using 50 µL home-made dialysis buttons and ~1 µM DNA. The Watson and the Crick labeled 601 DNA were assembled into separate nucleosomes. The best DNA:octamer molar ratio for optimal nucleosome assembly was selected by titrating octamer. The most homogenous assembly as judged by 6% Native TBE-PAGE gel was chosen for future assays.

Cleavage and binding assays

Cleavage and binding assays in Figures 3,4 and their corresponding supplements were both conducted in the same manner, exchanging dCas9 for wtCas9 during binding reactions. First, the complete ribonucleoprotein complex was formed by incubating five-fold molar excess of the chosen sgRNA with (d/wt)Cas9 at 37°C for 10 min. Next, the DNA substrate (either naked DNA or nucleosome) was added to 40 nM (five-fold less than Cas9), and the reactions were returned to 37º for an hour. Reaction buffer contained 20 mM Hepes pH 7.5, 100 mM NaCl, 5 mM MgCl2, 1 mM EDTA, and 2.5 mg/mL insulin (Roche, Basel, Switzerland). Importantly, we found that including a nonspecific protein such as insulin prevents the nucleosomes from falling apart and getting lost to surfaces during binding and cleavage assays (Figure 4—figure supplement 1B). Additionally, inclusion of insulin reduces nonspecific protein-protein interactions and aggregation. Binding reactions also contained 14.6% sucrose to allow direct loading onto a native gel. At 1 hr, binding reactions were loaded onto a pre-run 6% native TBE-PAGE gel at 4°C, while cleavage reactions were stopped using a 5X stop buffer (250 mM EDTA, 2% SDS), and prepared to load onto a 10% Urea-PAGE gel by adding 2X loading buffer (95% formamide, 20% DMSO, 5 mM EDTA, 0.025% Orange G) and heating to 95°C for 5 min before snap cooling on ice. Binding and cleavage reactions were repeated at least twice each for most of the PAMs targeted. Gels were imaged using a PharosFX Plus (Bio-Rad, Hercules, CA) and quantified using Image Lab (Bio-Rad, Hercules, CA). For binding and cleavage reactions, gels were scanned in the Cy3 fluorescence channel, while Alexa Fluor 647 fluorescence was also imaged for binding reactions. For cleavage reactions, labeling of either the Watson or Crick strand was chosen such that the fluorophore was always attached to the strand complimentary to the sgRNA used.

Structure alignment and solvent accessibility

Molecular graphics and analyses were produced using the UCSF Chimera package (supported by NIGMS P41-GM103311) (Pettersen et al., 2004). The crystal structures for the 601 nucleosome (Vasudevan et al., 2010, PDBID 3LZ0) and the Cas9-sgRNA-DNA ternary complex (Anders et al., 2014, PDBID 4UN3) were superimposed by aligning the DNA path in both structures using MatchMaker and manual manipulation. The solvent accessible surface area of the DNA in the 601 nucleosome structure was computed using residue areaSAS.

Reconstitution of nucleosomes on a plasmid (chromatin assemblies)

Supercoiled plasmid was produced using a Qiagen Maxi prep kit (Hilden, Germany). Histone octamers were prepared from purified histones as described above. DNA and histone octamer were mixed at a weight ratio of 1:0.8 (DNA to octamer) at a concentration of 0.4 µg/µL of DNA in 1X TE with 2 M NaCl. 50 µL homemade dialysis buttons were used to dialyse the solution by a step-wise gradient in 500 mL at room temperature. The gradient was as follows; 1.5 hr in 1 M NaCl in TE, 2 hr in 0.8 M NaCl in TE, 1.5 hr in 0.6 M NaCl in TE, and 2 hr in 0.05 M NaCl in TE. The resulting chromatin was stored at 4°C until use.

Micrococcal nuclease digestion assays of chromatin assembly reactions

MNase assays were performed essentially as in Torigoe et al. (2013) and Alexiadis (2002). MNase (Sigma-Aldrich, St. Louis) was resuspended at 200 units/mL in water and then disluted at 1:100, 1:500, or 1:1000 in a solution of 1X MNase reaction buffer (50 mM Tris-HCl pH7.9 and 5 mM CaCl2 dihydrate), 0.1 mg/mL insulin, and 10% glycerol. Chromatinized plasmid assemblies in 1X MNase buffer were added to each MNase dilution. As a control, an equal amount of unchromatinized super-coiled plasmid was added to the lowest MNase dilution. Each reaction was incubated for 11 min at room temperature, then stopped in a solution with final concentrations of 20 mM EGTA, 200 mM NaCl, 1% SDS, 20 mg/mL GlycoBlue (Thermo Fisher Scientific, Waltham, MA), and 13.4 mg/mL Proteinase K (Roche, Basel, Switzerland) and incubated at 37°C for 30 min. Reactions wer Phenol/Chloroform/Isoamyl Alcohol extracted, ethanol precipitated, and run on a 1.3% agarose gel in 0.5X TBE. 3 μg of the 123 bp DNA ladder (Thermo Fisher Scientific, Waltham, MA) was used as a size standard.

Restriction enzyme accessibility assays

Either chromatin assemblies or super-coiled plasmid with equivalent amounts of DNA were added to restriction enzyme master mixes for final concentrations of 1X CutSmart buffer (New England Biolabs, Ipswich, MA), 6 ng/μL DNA, and 0.4 U/μL of the indicated restriction enzyme (New England Biolabs). Reactions were incubated for 1 hr at NEB recommended temperatures. Reactions were stopped in final concentrations of 15 mM EDTA, 0.75% SDS, 150 mM NaCl, and 15 mg/mL Proteinase K and incubated at 37°C for 30 min. DNA was extracted with Phenol:Chloroform:Isoamyl Alcohol and ethanol precipitated, then resuspended in 1X CutSmart buffer and linearized by digesting with 1 U/μL DraIII-HF (New England Biolabs) at 37°C for 1 hr. The full reactions were run on an agarose gel and quantified as above.

Chromatin remodeling assays

Chromatin remodeling assays were performed simmilar to Torigoe et al. (2013) and Alexiadis (2002). Reactions contained 40 mM NaCl, 0.1 mg/mL BSA, 25 mM Tris-Acetate pH 7.5, 10 mM Mg-Acetate, 1 mM DTT, 1.2 mM ATP, and 6 ng/μL chromatinized or supercoiled plasmid. For restriction enzyme accessibility, the indicated restriction enzyme was added at 0.5 U/µL. For Cas9 accessiblity, Cas9/sgRNA ribonucleoproteins assembled as described above were added at 15.62 nM. A truncated version of the chromatin remodeling enzyme yChd1 was used spanning amino acids 118–1274, also referred to as yChd1ΔNC (gift of Dr. Ashok Patel and Dr. Gregory Bowman), and was added to the indicated reactions at a 0.2 μM final concentration. Reactions were incubated at 27°C for 1 hr, then processed as with the restriction enzyme accessibility assay above.

References

  1. 1
  2. 2
  3. 3
  4. 4
    BCL11A enhancer dissection by Cas9-mediated in situ saturating mutagenesis
    1. MC Canver
    2. EC Smith
    3. F Sher
    4. L Pinello
    5. NE Sanjana
    6. O Shalem
    7. DD Chen
    8. PG Schupp
    9. DS Vinjamur
    10. SP Garcia
    11. S Luc
    12. R Kurita
    13. Y Nakamura
    14. Y Fujiwara
    15. T Maeda
    16. GC Yuan
    17. F Zhang
    18. SH Orkin
    19. DE Bauer
    (2015)
    Nature, 527, 10.1038/nature15521.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    A promoter-level mammalian expression atlas
    1. AR Forrest
    2. H Kawaji
    3. M Rehli
    4. JK Baillie
    5. MJ de Hoon
    6. V Haberle
    7. T Lassmann
    8. IV Kulakovskiy
    9. M Lizio
    10. M Itoh
    11. R Andersson
    12. CJ Mungall
    13. TF Meehan
    14. S Schmeier
    15. N Bertin
    16. M Jørgensen
    17. E Dimont
    18. E Arner
    19. C Schmidl
    20. U Schaefer
    21. YA Medvedeva
    22. C Plessy
    23. M Vitezic
    24. J Severin
    25. C Semple
    26. Y Ishizu
    27. RS Young
    28. M Francescatto
    29. I Alam
    30. D Albanese
    31. GM Altschuler
    32. T Arakawa
    33. JA Archer
    34. P Arner
    35. M Babina
    36. S Rennie
    37. PJ Balwierz
    38. AG Beckhouse
    39. S Pradhan-Bhatt
    40. JA Blake
    41. A Blumenthal
    42. B Bodega
    43. A Bonetti
    44. J Briggs
    45. F Brombacher
    46. AM Burroughs
    47. A Califano
    48. CV Cannistraci
    49. D Carbajo
    50. Y Chen
    51. M Chierici
    52. Y Ciani
    53. HC Clevers
    54. E Dalla
    55. CA Davis
    56. M Detmar
    57. AD Diehl
    58. T Dohi
    59. F Drabløs
    60. AS Edge
    61. M Edinger
    62. K Ekwall
    63. M Endoh
    64. H Enomoto
    65. M Fagiolini
    66. L Fairbairn
    67. H Fang
    68. MC Farach-Carson
    69. GJ Faulkner
    70. AV Favorov
    71. ME Fisher
    72. MC Frith
    73. R Fujita
    74. S Fukuda
    75. C Furlanello
    76. M Furino
    77. J Furusawa
    78. TB Geijtenbeek
    79. AP Gibson
    80. T Gingeras
    81. D Goldowitz
    82. J Gough
    83. S Guhl
    84. R Guler
    85. S Gustincich
    86. TJ Ha
    87. M Hamaguchi
    88. M Hara
    89. M Harbers
    90. J Harshbarger
    91. A Hasegawa
    92. Y Hasegawa
    93. T Hashimoto
    94. M Herlyn
    95. KJ Hitchens
    96. SJ Ho Sui
    97. OM Hofmann
    98. I Hoof
    99. F Hori
    100. L Huminiecki
    101. K Iida
    102. T Ikawa
    103. BR Jankovic
    104. H Jia
    105. A Joshi
    106. G Jurman
    107. B Kaczkowski
    108. C Kai
    109. K Kaida
    110. A Kaiho
    111. K Kajiyama
    112. M Kanamori-Katayama
    113. AS Kasianov
    114. T Kasukawa
    115. S Katayama
    116. S Kato
    117. S Kawaguchi
    118. H Kawamoto
    119. YI Kawamura
    120. T Kawashima
    121. JS Kempfle
    122. TJ Kenna
    123. J Kere
    124. LM Khachigian
    125. T Kitamura
    126. SP Klinken
    127. AJ Knox
    128. M Kojima
    129. S Kojima
    130. N Kondo
    131. H Koseki
    132. S Koyasu
    133. S Krampitz
    134. A Kubosaki
    135. AT Kwon
    136. JF Laros
    137. W Lee
    138. A Lennartsson
    139. K Li
    140. B Lilje
    141. L Lipovich
    142. A Mackay-Sim
    143. R Manabe
    144. JC Mar
    145. B Marchand
    146. A Mathelier
    147. N Mejhert
    148. A Meynert
    149. Y Mizuno
    150. DA de Lima Morais
    151. H Morikawa
    152. M Morimoto
    153. K Moro
    154. E Motakis
    155. H Motohashi
    156. CL Mummery
    157. M Murata
    158. S Nagao-Sato
    159. Y Nakachi
    160. F Nakahara
    161. T Nakamura
    162. Y Nakamura
    163. K Nakazato
    164. E van Nimwegen
    165. N Ninomiya
    166. H Nishiyori
    167. S Noma
    168. S Noma
    169. T Noazaki
    170. S Ogishima
    171. N Ohkura
    172. H Ohimiya
    173. H Ohno
    174. M Ohshima
    175. M Okada-Hatakeyama
    176. Y Okazaki
    177. V Orlando
    178. DA Ovchinnikov
    179. A Pain
    180. R Passier
    181. M Patrikakis
    182. H Persson
    183. S Piazza
    184. JG Prendergast
    185. OJ Rackham
    186. JA Ramilowski
    187. M Rashid
    188. T Ravasi
    189. P Rizzu
    190. M Roncador
    191. S Roy
    192. MB Rye
    193. E Saijyo
    194. A Sajantila
    195. A Saka
    196. S Sakaguchi
    197. M Sakai
    198. H Sato
    199. S Savvi
    200. A Saxena
    201. C Schneider
    202. EA Schultes
    203. GG Schulze-Tanzil
    204. A Schwegmann
    205. T Sengstag
    206. G Sheng
    207. H Shimoji
    208. Y Shimoni
    209. JW Shin
    210. C Simon
    211. D Sugiyama
    212. T Sugiyama
    213. M Suzuki
    214. N Suzuki
    215. RK Swoboda
    216. PA 't Hoen
    217. M Tagami
    218. N Takahashi
    219. J Takai
    220. H Tanaka
    221. H Tatsukawa
    222. Z Tatum
    223. M Thompson
    224. H Toyodo
    225. T Toyoda
    226. E Valen
    227. M van de Wetering
    228. LM van den Berg
    229. R Verado
    230. D Vijayan
    231. IE Vorontsov
    232. WW Wasserman
    233. S Watanabe
    234. CA Wells
    235. LN Winteringham
    236. E Wolvetang
    237. EJ Wood
    238. Y Yamaguchi
    239. M Yamamoto
    240. M Yoneda
    241. Y Yonekura
    242. S Yoshida
    243. SE Zabierowski
    244. PG Zhang
    245. X Zhao
    246. S Zucchelli
    247. KM Summers
    248. H Suzuki
    249. CO Daub
    250. J Kawai
    251. P Heutink
    252. W Hide
    253. TC Freeman
    254. B Lenhard
    255. VB Bajic
    256. MS Taylor
    257. VJ Makeev
    258. A Sandelin
    259. DA Hume
    260. P Carninci
    261. Y Hayashizaki
    262. FANTOM Consortium and the RIKEN PMI and CLST (DGT)
    (2014)
    Nature 507:462–470.
    https://doi.org/10.1038/nature13182
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Nucleosomes facilitate their own invasion
    1. G Li
    2. J Widom
    (2004)
    Nature Structural & Molecular Biology 11:763–769.
    https://doi.org/10.1038/nsmb801
  30. 30
  31. 31
  32. 32
  33. 33
    Multicolor CRISPR labeling of chromosomal loci in human cells
    1. H Ma
    2. A Naseri
    3. P Reyes-Gutierrez
    4. SA Wolfe
    5. S Zhang
    6. T Pederson
    (2015)
    Proceedings of the National Academy of Sciences of the United States of America 112:3002–3007.
    https://doi.org/10.1073/pnas.1420024112
  34. 34
  35. 35
    An updated evolutionary classification of CRISPR-Cas systems
    1. KS Makarova
    2. YI Wolf
    3. OS Alkhnbashi
    4. F Costa
    5. SA Shah
    6. SJ Saunders
    7. R Barrangou
    8. SJ Brouns
    9. E Charpentier
    10. DH Haft
    11. P Horvath
    12. S Moineau
    13. FJ Mojica
    14. RM Terns
    15. MP Terns
    16. MF White
    17. AF Yakunin
    18. RA Garrett
    19. J van der Oost
    20. R Backofen
    21. EV Koonin
    (2015)
    Nature Reviews. Microbiology, 13, 10.1038/nrmicro3569.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    ATP-dependent chromatin assembly is functionally distinct from chromatin remodeling
    1. SE Torigoe
    2. A Patel
    3. MT Khuong
    4. GD Bowman
    5. JT Kadonaga
    (2013)
    eLife, 2, 10.7554/eLife.00863.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56

Decision letter

  1. Karen Adelman
    Reviewing Editor; National Institute of Environmental Health Sciences, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Nucleosomes Impede Cas9 Access to DNA in vivo and in vitro" for consideration by eLife. Your article has been favorably evaluated by Jessica Tyler (Senior editor) and two reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript by Horlbeck, Witkowsky et al. deals with the effects of nucleosomes within eukaryotic genomes on the binding and activity of prokaryotic Cas9 proteins. Given the widespread usage of Cas9 and catalytically inactive dCas9 proteins to modulate metazoan gene expression, it is very important to understand how histone occupancy impinges on targeting of the Cas9 module. Previous studies have suggested that nucleosomes may block accessibility of sgRNAs and Cas9, but these involved limited numbers of sgRNAs and resulted in only in the generalization that Cas9 seems to best target regions that are, for example, DNaseI accessible.

This work tackles the topic head on, analyzing thousands of sgRNAs and MNase data in vivo, coupled with careful biochemical assays. The authors show unequivocally that the organization of DNA in a nucleosome impedes access of Cas9, irrespective of the orientation of the PAMs. The in vitro experiments are technically sound and support the conclusions. Additional strengths of this work include: 1) the very nice anti-correlation between nucleosome occupancy and sgRNA activity shown in Figures 1B; 2) Figure 1C, where increased nucleosome phasing is shown to increase the positional dependence on activity of sgRNAs.

This finding is important, the data is clean and the manuscript well written.

However, the work does have several weaknesses that should be addressed prior to publication, as noted below.

Essential revisions:

1) The data suggesting that nucleosomes completely block both binding and cleavage would be extremely interesting if it were better documented. In particular, the authors should investigate how longer DNA sequences behave when assembled into nucleosomes, or to test short nucleosomal arrays.

For example, can the system 'invade' the nucleosome when the PAM is located right outside of the edge of the 147 bp that are protected?

As the data stands, Figures 3 and 4 lack a good positive control. It is important to show that a region of DNA outside the nucleosome can be bound and cleaved by Cas9 in this assay, to confirm that things are working as anticipated.

We recommend that the authors perform a few experiments with a longer DNA fragment containing the Widom 601 element (i.e. ~200 bp or so) or other sequence, and target a non-nucleosomal portion of this DNA with a sgRNA-Cas9.

Additionally, the 601 sequence is a bit atypical in its stability and 'rigidity', and this should be acknowledged.

2) Moreover, based on what is shown in the current manuscript, I am not sure one can conclude that 'breathing' on the edges of the nucleosome has no effect on sgRNA-Cas9 binding or activity. There are no sgRNAs targeting the far edge of the nucleosome, and the 2-3 that target the near edge are very poor at binding and cleaving naked DNA (PAM 1, 3, 4). If one were to calculate the 'effect of nucleosomes' as the ratio of binding or cleavage on naked DNA/ nucleosomal DNA, the PAM sequences on the edge would show smaller differences than those in the middle, which is not what the authors conclude. If the authors can't find a way to further probe the DNA farther away from the dyad, they should probably be cautious about what they conclude from this data.

3) In Figures 1E and 2A the difference in sgRNA activity score is only significant for MNase signals between 0 and 0.75, with little or the opposite trend appearing as nucleosome occupancy becomes higher than 0.75. This raises a number of questions and makes me wish the authors had looked more closely at the sgRNAs that fall in regions with MNase signal between 0 and 0.75.

Is a trend apparent within the range of 0 and 0.75? This finding would be much more compelling if one could see a trend of decreasing activity across several intervals of MNase signal.

Or does the data indicate that a region needs an MNase signal near zero to be targeted well? This would important to note if true.

What are the numbers of sgRNAs in each bin? The figure or legend would benefit from a better designation of what N= for each group.

4) Figure 1F makes the point that thinking about nucleosome occupancy improves one's ability to predict the effectiveness of a given sgRNA. However, the Pearson R2 values reported here are still very low, indicating that even when considering sequence, length and MNase signal, one still has very little idea of whether an sgRNA will work. Can the authors comment on why they think our predictive power is still so poor? Are there other components (histone modifications nearby, gene activity level) that the authors might comment on, or investigate that could also be of use in defining a 'good' sgRNA?

https://doi.org/10.7554/eLife.12677.021

Author response

Essential revisions: 1) The data suggesting that nucleosomes completely block both binding and cleavage would be extremely interesting if it were better documented. In particular, the authors should investigate how longer DNA sequences behave when assembled into nucleosomes, or to test short nucleosomal arrays.

For example, can the system 'invade' the nucleosome when the PAM is located right outside of the edge of the 147 bp that are protected?

Our intent in conducting the in vitro experiments was to determine whether nucleosomes were sufficient to block the access of Cas9 to DNA and thereby explain the in vivo results of Figures 1 and 2. While identifying the precise boundary between protected and accessible DNA is an interesting question, we feel this is outside the scope of this project, and will depend strongly on the sequence and environment of the nucleosome in question. In addition, the in vivo measurement of nucleosome position through MNase-seq captures the average nucleosome occupancy at a given site rather than reporting on fixed mononucleosomes, and this average occupancy is likely to explain our observation of differential Cas9 accessibility in vivo. We have revised the Discussion to clarify this point (second paragraph).

As the data stands, Figures 3 and 4 lack a good positive control. It is important to show that a region of DNA outside the nucleosome can be bound and cleaved by Cas9 in this assay, to confirm that things are working as anticipated.

Because the 601 sequence used in Figures 3 and 4 assembles a minimal mono-nucleosome, there is no DNA outside the positioning sequence available to target. The naked DNA experiments provide some control for this concern as they show that indeed, Cas9 is working as anticipated, as it, controls for the sequence dependence of Cas9 cleavage. However, we believe that our new data provides a more complete control to address the reviewers’ concern. We show that in the context of a chromatinized plasmid (Figure 5), we observe near-absolute protection of DNA along the 601 sequence, fully consistent with our previous in vitro results using a minimal mono-nucleosome. To modulate the accessibility of the DNA within the 601 nucleosome, we introduce a remodeler, yChd1. We observe that chromatin remodeling restores the accessibility of DNA to Cas9 at the same underlying sequences previously observed to be fully protected from cleavage. This result shows that the observed protection is due to nucleosome positioning and not another aspect of the experimental set-up (e.g., the buffer conditions).

We recommend that the authors perform a few experiments with a longer DNA fragment containing the Widom 601 element (i.e. ~200 bp or so) or other sequence, and target a non-nucleosomal portion of this DNA with a sgRNA-Cas9.

As above, we feel this concern can be addressed by our chromatinized plasmid and remodeling experiment but we now indicate in the text that this would be a valuable future direction (Results, last sentence).

Additionally, the 601 sequence is a bit atypical in its stability and 'rigidity', and this should be acknowledged.

We appreciate this point and now address it in the text (subsection “Nucleosomes are sufficient to fully block cleavage by Cas9 in vitro”, second paragraph).

2) Moreover, based on what is shown in the current manuscript, I am not sure one can conclude that 'breathing' on the edges of the nucleosome has no effect on sgRNA-Cas9 binding or activity. There are no sgRNAs targeting the far edge of the nucleosome, and the 2-3 that target the near edge are very poor at binding and cleaving naked DNA (PAM 1, 3, 4). If one were to calculate the 'effect of nucleosomes' as the ratio of binding or cleavage on naked DNA/ nucleosomal DNA, the PAM sequences on the edge would show smaller differences than those in the middle, which is not what the authors conclude. If the authors can't find a way to further probe the DNA farther away from the dyad, they should probably be cautious about what they conclude from this data.

This point is well taken. In targeting sites near the edge of the nucleosome, we were limited by the availability of PAMs with a corresponding 20bp target site in the 601 sequence. We have accordingly adjusted our conclusions in the manuscript (subsection “Nucleosomes are sufficient to fully block cleavage by Cas9 in vitro”, second paragraph). Nevertheless, we do express the ratiometric effect of nucleosomes as “% Protection” in Figure 4D (now revised for clarity), and observe that all sgRNAs show greater than 95% protection regardless of their position relative to the dyad.

3) In Figures 1E and 2A the difference in sgRNA activity score is only significant for MNase signals between 0 and 0.75, with little or the opposite trend appearing as nucleosome occupancy becomes higher than 0.75. This raises a number of questions and makes me wish the authors had looked more closely at the sgRNAs that fall in regions with MNase signal between 0 and 0.75.

Is a trend apparent within the range of 0 and 0.75? This finding would be much more compelling if one could see a trend of decreasing activity across several intervals of MNase signal.

Or does the data indicate that a region needs an MNase signal near zero to be targeted well? This would important to note if true.

What are the numbers of sgRNAs in each bin? The figure or legend would benefit from a better designation of what N= for each group.

We thank the reviewers for these suggestions. We have adjusted the boxplot bins in Figures 1E, 2A, and Figure 2—figure supplement 1 to better demonstrate the relationship between MNase signal and sgRNA activity. In all three cases, we do in fact observe a decreasing trend in activity between the 0 and 0.8 bins. As before, this decrease is most pronounced in the upper quartiles of the sgRNA activity distribution, consistent with our hypothesis that low nucleosome occupancy enables efficient targeting by CRISPR but is not the sole factor in determining efficiency. We have also added N values for each bin directly to the plot, along with Mann-Whitney p-values comparing each bin to the lowest MNase signal bin.

4) Figure 1F makes the point that thinking about nucleosome occupancy improves one's ability to predict the effectiveness of a given sgRNA. However, the Pearson R2 values reported here are still very low, indicating that even when considering sequence, length and MNase signal, one still has very little idea of whether an sgRNA will work. Can the authors comment on why they think our predictive power is still so poor? Are there other components (histone modifications nearby, gene activity level) that the authors might comment on, or investigate that could also be of use in defining a 'good' sgRNA?

In conducting the analysis displayed in Figures 1F and 2B, we used simple linear regression to test whether the observed relationship between nucleosome positioning and sgRNA activity was orthogonal to sequence features, and indeed found that each of these provided modest predictive power that was independent of the other variables. As these results are derived from screens using our CRISPRi v1 library, all sgRNAs are already pre-selected for several features – most notably distance to the TSS – which are strongly predictive of activity and in effect bias towards nucleosome free regions.

We have since used the CRISPRi sgRNA activity data generated for this study as training data for a comprehensive machine learning approach. The resulting sgRNA scoring model achieved a Pearson R2 of ~0.32, sufficient to call highly active sgRNAs with a Receiver Operating Characteristic area under the curve (ROC-AUC) value of 0.81. Again, this result is super-imposed on our v1 library design rules; application of the scoring model to our ricin gene tiling dataset, which was not subjected to the v1 rules, achieved an ROC-AUC of 0.91. This approach differs from the linear regression shown here by accounting for non-linear relationships (e.g. MNase values as displayed in Figure 1E are not strictly linear) and by incorporating several other features (e.g. higher order sequence features, sgRNA secondary structure). However, we believe the development, characterization, and validation of this sgRNA activity model which led to the construction and testing of a v2 CRISPRi library, is beyond the scope of this study but have added references to this work in the revised manuscript (subsection “CRISPRi activity is periodic and out-of-phase with nucleosome positioning”, last paragraph).
