The ‘de novo’ DNA methyltransferase Dnmt3b compensates the Dnmt1-deficient intestinal epithelium

  1. Ellen N Elliott
  2. Karyn L Sheaffer
  3. Klaus H Kaestner  Is a corresponding author
  1. University of Pennsylvania, United States
Research Article
  • Cited 38
  • Views 2,515
  • Annotations
Cite this article as: eLife 2016;5:e12975 doi: 10.7554/eLife.12975

Abstract

Dnmt1 is critical for immediate postnatal intestinal development, but is not required for the survival of the adult intestinal epithelium, the only rapidly dividing somatic tissue for which this has been shown. Acute Dnmt1 deletion elicits dramatic hypomethylation and genomic instability. Recovery of DNA methylation state and intestinal health is dependent on the de novo methyltransferase Dnmt3b. Ablation of both Dnmt1 and Dnmt3b in the intestinal epithelium is lethal, while deletion of either Dnmt1 or Dnmt3b has no effect on survival. These results demonstrate that Dnmt1 and Dnmt3b cooperate to maintain DNA methylation and genomic integrity in the intestinal epithelium.

https://doi.org/10.7554/eLife.12975.001

eLife digest

Genes in a cell can be switched on or off at different times depending on the cell’s requirements. Small chemical groups can be attached to the gene’s DNA, which dictates whether it is activated or inactivated. For example, methyl groups can be attached to DNA by enzymes known as DNA methytransferases in a process called DNA methylation.

In mammals, the pattern of DNA methylation changes in a highly regulated manner as the embryo develops. Mice that lack enzymes called DNA methytransferase 1 or DNA methytransferase 3b (shortened to Dnmt1 or Dnmt3b) die before they are born. It is also widely believed that Dnmt1 is needed to preserve DNA methylation patterns in dividing cells, and this enzyme is often called a ‘maintenance’ methyltransferase because it maintains the DNA methylation pattern in newly formed cells.

Epithelial cells that form an animal’s intestine are constantly being produced from dividing cells found in folds of the intestine called crypts. These cells are among the most rapidly dividing cells in animals, and are replaced every three to five days throughout adult life. Recently in 2015, researchers deleted the gene for Dnmt1 in intestinal cells in adult mice. This caused a reduction in DNA methylation and led to abnormal gene activation. However, the crypt cells were still able to form new cells to renew the intestine.

Elliott, Sheaffer and Kaestner – who were all involved in the previous study – have now explored why intestinal cells in adult mice can survive without Dnmt1. First, the experiments showed that the mutant mice recovered their normal levels DNA methylation within two months of the gene deletion. Further analysis uncovered that this recovery was due to the fact that Dnmt3b became activated in Dnmt1-lacking cells, and then re-methylated the DNA. Deleting the genes for both Dnmt1 and Dnmt3b led to loss of DNA methylation and many of the adult mice died prematurely.

Previously, it was thought that Dnmt3b only acted to establish new DNA methylation patterns, but these latest findings suggest that this enzyme can act a ‘maintenance’ methyltransferase as well. Together the findings also reveal that Dnmt1 and Dnmt3b cooperate to maintain methylation in the epithelial cells in the intestines of adult mice. Further work could next investigate if this is also the case for other tissues in the body.

https://doi.org/10.7554/eLife.12975.002

Introduction

DNA methylation patterns are established by DNA methyltransferase enzymes (Dnmts), for which two categories have been defined based on in vitro assays. The ‘de novo methyltransferases, Dnmt3a and Dnm3b, establish novel patterns of DNA methylation, and prefer to bind unmethylated DNA in vitro (Okano et al., 1998). The ‘maintenance’ methyltransferase, Dnmt1, has a high affinity for hemi-methylated DNA in vitro, and preserves DNA methylation in replicating cells (Bestor, 1992; Leonhardt et al., 1992). Dnmts are crucial for embryonic development in mice, as mice null for Dnmt1 or Dnmt3b arrest at mid-gestation, and Dnmt3a null mice die in the first few weeks of life (Li et al., 1992; Okano et al., 1999). Although DNA methylation is not necessary for murine embryonic stem (ES) cell growth, the differentiation of Dnmt1-hypomorphic and Dnmt3a; Dnmt3b-mutant ES cells is severely impaired (Chen et al., 2003; Jackson et al., 2004; Lei et al., 1996; Tsumura et al., 2006). These results indicate an important role for DNA methylation and Dnmts in directing cell differentiation processes.

One of the primary consequences of hypomethylation is increased DNA damage and genomic instability. Global hypomethylation in mice results in chromosome duplications and invasive T-cell lymphomas at four months of age (Gaudet et al., 2003), and in mouse ES cells, loss of Dnmt1 also causes global hypomethylation and increased mutation rates (Chen et al., 1998). In the HCT116 colorectal cancer cell line, ablation of the catalytically active DNMT1 results in cell cycle arrest and apoptosis due to increased chromosomal instability (Chen et al., 2007; Spada et al., 2007). In mouse embryonic fibroblasts, ablation of either Dnmt1 (Jackson-Grusby et al., 2001) or Dnmt3b (Dodge et al., 2005) causes gradual hypomethylation, deregulated gene expression, and cell death. Dnmt1 and DNA methylation are also required for viability in most proliferating somatic cell populations, including human skin cells (Sen et al., 2010), mouse embryonic fibroblasts (Jackson-Grusby et al., 2001), and neuronal (Fan et al., 2001) and pancreatic (Georgia et al., 2013) progenitor cells.

Interestingly, Dnmt1 is not required for adult intestinal stem cell survival (Sheaffer et al., 2014). The mature intestinal epithelium is a single cell layer lining the lumen of the intestine, structured into finger-like protrusions, designated ‘villi’, and invaginations into the underlying mesenchymal tissue, termed ‘crypts.’ Intestinal stem cells are located in the crypt and respond to multiple signaling pathways that control proliferation and differentiation (Elliott and Kaestner, 2015). Stem cells give rise to rapidly dividing transit-amplifying cells, which move in ordered cohorts up the crypt-villus axis. As cells migrate out the crypt, they differentiate into one of several distinct cell lineages, a process that is largely dependent on levels of Notch signaling. Loss of Dnmt1 in the adult mouse intestinal epithelium causes hypomethylation of regulatory regions associated with several intestinal stem cell genes, resulting in inappropriate gene expression during differentiation, and expansion of the crypt zone (Sheaffer et al., 2014). In contrast, ablation of Dnmt1 during intestinal crypt development causes hypomethylation, DNA damage, and apoptosis of epithelial cells, resulting in increased perinatal lethality (Elliott et al., 2015). Previous studies did not investigate the requirement for Dnmt1 in maintaining global DNA methylation or preserving genomic stability in the mature intestine. Thus, the mechanism behind preservation of the Dnmt1-mutant adult intestinal epithelium, the only rapidly dividing somatic tissue known to survive without Dnmt1, is not known.

To determine the mechanism underlying Dnmt1 mutant intestinal survival, we employed tissue-specific, inducible mouse models and analyzed the effects immediately after Dnmt1 deletion in the adult intestinal epithelium. Ablation of Dnmt1 caused an acute phenotype characterized by weight loss, global DNA hypomethylation, genome instability, and apoptosis. Strikingly, animals returned to baseline DNA methylation levels within two months of Dnmt1 deletion, indicating recovery by a de novo methyltransferase. We demonstrate that the de novo methyltransferase Dnmt3b is upregulated following loss of Dnmt1, and essential for epithelial survival in the Dnmt1 mutant intestine. Our results implicate a role for DNA methylation, maintained by both Dnmt1 and Dnmt3b, in protecting genomic stability in intestinal epithelial homeostasis. These data are the first to show that Dnmt3b can function in maintenance DNA methylation in vivo.

Results

Dnmt1 ablation results causes weight loss, hypomethylation, and genomic instability

To determine the primary effects of Dnmt1 deletion in the adult intestinal epithelium, we employed an inducible, intestinal epithelial-specific gene ablation model. The Dnmt1loxP/loxP;Villin-CreERT2 mice (Dnmt1 mutants) and their Dnmt1loxP/loxP siblings (controls) were tamoxifen-treated at four weeks of age to induce Cre recombinase activity (El Marjou et al., 2004; Jackson-Grusby et al., 2001). Although Dnmt1 mutants lost a significant amount of weight in the two weeks following Cre induction, mice recovered by day 17 post-tamoxifen treatment, and survived at rates identical to controls (Figure 1A–B). To elucidate the mechanism underlying acute weight loss, we isolated Dnmt1 mutant and control intestines one week following tamoxifen treatment.

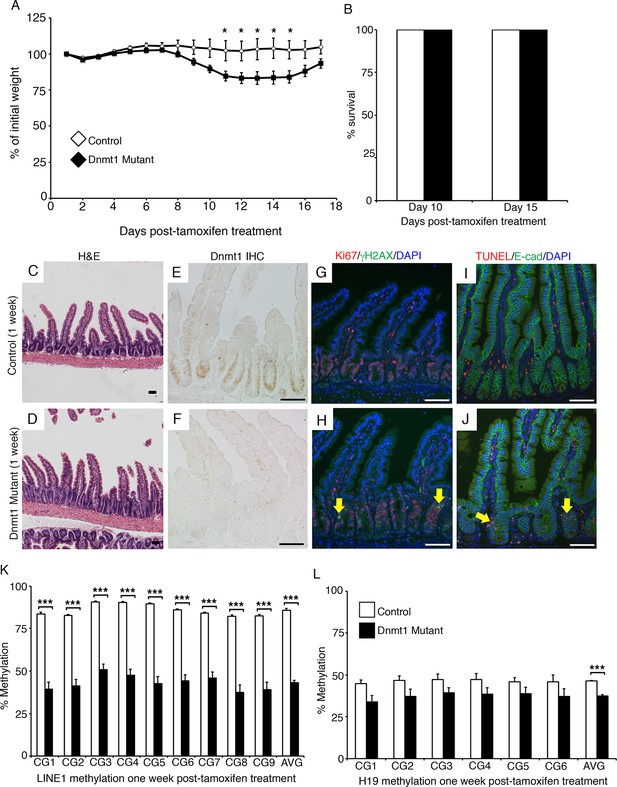

Dnmt1 ablation results in genomic instability and apoptosis one week following tamoxifen treatment.

(A, B) Dnmt1loxP/loxP(control, n=5) and Dnmt1loxP/loxP;Villin-CreERT2 (Dnmt1 mutant, n=9) mice were tamoxifen treated at four weeks of age, and weighed every day over a 17-day period. Dnmt1 mutants lost a significant amount of weight by day 11, but recovered to near-starting weight by day 16. *p<0.05, Student’s t-test. (B) All Dnmt1 mutants survive the 17-day time-course described in (A), similar to controls. (C–D) Hematoxylin and Eosin staining of control and Dnmt1 mutant intestines. One week post-ablation, Dnmt1 mutants exhibit loss of crypt integrity, vacuolization of the epithelium, and an increase in crypt fission (D) compared to controls (C). (E–F) Immunohistochemistry confirms loss of Dnmt1 protein in mutants one week following tamoxifen treatment (F) relative to control intestine (E). (G-H) Immunofluorescent staining for Ki67 (red), which marks proliferating cells, and γH2AX (green), which marks DNA double-strand breaks as a marker of chromosomal instability. One week following Dnmt1 ablation, mutant crypts display increased levels of γH2AX foci (H, yellow arrows) relative to controls (G). Dnmt1 mutants also display slightly enlarged crypts (Ki67 in H versus G), as described previously (Sheaffer et al., 2014). (I–J) Immunofluorescent TUNEL staining (red), which marks apoptotic nuclei, and E-cadherin (green), to outline the intestinal epithelium. One week after tamoxifen treatment, Dnmt1 mutants display increased crypt cell apoptosis (J, yellow arrows) compared to controls (I). (K–L) Crypts were isolated from paraffin-embedded tissue by laser capture microdissection, and the methylation levels of LINE1 loci and the imprinting control region of H19 were determined by targeted bisulfite sequencing. One week after tamoxifen treatment, methylation of LINE1 (K) and H19 (L) are significantly decreased in Dnmt1 mutants compared to controls (n=4 per genotype). ***p<0.001, *p<0.05, Student’s t-test. For data and p values, refer to Figure 1—source data 1. Error bars represent S.E.M. Scale bars are 50 μm. For all staining, n=3 biological replicates.

https://doi.org/10.7554/eLife.12975.003
Figure 1—source data 1

Contains mouse weight/survival data in Figure 1A–B, targeted bisulfite sequencing data in Figure 1K–L.

https://doi.org/10.7554/eLife.12975.004

One-week post-tamoxifen treatment, Dnmt1 mutants exhibited multiple abnormalities in intestinal epithelial morphology, with partial loss of epithelial integrity and a high frequency of crypt fission (Figure 1C–D). Dnmt1 loss was confirmed on the protein level by immunohistochemistry (Figure 1E–F), and the Dnmt1 mutant epithelium displayed a slight expansion of the proliferative crypt zone (Figure 1G–H), as reported previously (Sheaffer et al., 2014). However, Dnmt1 mutant epithelia also exhibited regions that lacked crypts and/or villi, juxtaposed with hyperplastic crypts that replaced damaged tissue (Figure 1D). Since Dnmt1 ablation results in increased double stranded breaks and apoptosis in the neonatal intestine (Elliott and Kaestner, 2015), we investigated if the Dnmt1 deficient adult intestine also displayed altered genomic stability. As a general marker of chromosomal instability, we stained for γH2AX, which labels DNA double strand break foci, and is an indicator of the DNA damage response. We observed an increase in γH2AX foci in the crypts of Dnmt1 mutants compared to controls, which displayed minimal DNA double strand breaks (Figure 1G–H). We also performed TUNEL staining to identify apoptotic nuclei, and found that the Dnmt1 mutant intestine exhibited increased crypt cell apoptosis relative to the control intestinal epithelium, which did not contain any apoptotic nuclei (Figure 1I–J).

To determine global DNA methylation levels, we isolated mutant and control intestinal crypt epithelium by laser capture microdissection, and performed targeted bisulfite-sequencing of the repetitive LINE1 loci. LINE1 retrotransposons account for approximately 20% of the mouse genome (Waterston et al., 2002), and are a representative of genome-wide DNA methylation levels (Lane et al., 2003; Yang et al., 2004). The LINE1 repeats were significantly demethylated in Dnmt1 mutant crypts, with methylation reduced to approximately 50% of controls at each CpG analyzed (Figure 1K). We also performed bisulfite sequencing of the H19 imprinting control region to analyze maintenance methylation, and found that the region was slightly demethylated relative to controls, although this difference was only significant when comparing the methylation of the entire sequenced region (Figure 1L). Overall, these results suggest a phenotype in which loss of Dnmt1 results in hypomethylation of LINE1 repeats and the H19 imprinting control region, increased DNA damage, and apoptosis.

Dnmt1-deficient intestinal epithelium recovers within two months of tamoxifen treatment

Interestingly, Dnmt1loxP/loxP;Villin-CreERT2 mutant mice survive at rates comparable to controls (Figure 1B), indicating that Dnmt1 is not required for continued intestinal maintenance in the adult mouse. To determine the long-term effects of Dnmt1 ablation, we harvested Dnmt1 mutant and sibling control intestines two months following tamoxifen injection. We confirmed that Dnmt1 deletion had been maintained in mutant epithelia (Figure 2C–D), but found that Dnmt1 mutant intestinal epithelial morphology (Figure 1A–B) and proliferation (Figure 1E–F) were comparable to controls. In addition, levels of DNA damage and apoptosis, as indicated by γH2AX and TUNEL staining, respectively, were similar to control mice (Figure 2E–H). We isolated crypt cells from two-month Dnmt1 mutants and controls by laser-capture microdissection, and performed targeted bisulfite sequencing for LINE1 and H19, as described above. LINE1 methylation levels remained significantly decreased compared to controls (Figure 2I), but demethylation was not as severe compared to Dnmt1 mutants at one-week post-tamoxifen treatment (compare Figure 2I to 1K). Strikingly, methylation at the H19 imprinting control region had been fully restored (Figure 2J). These results implicate a mechanism that compensates for loss of Dnmt1 and leads to recovery of intestinal epithelial DNA methylation and genomic integrity.

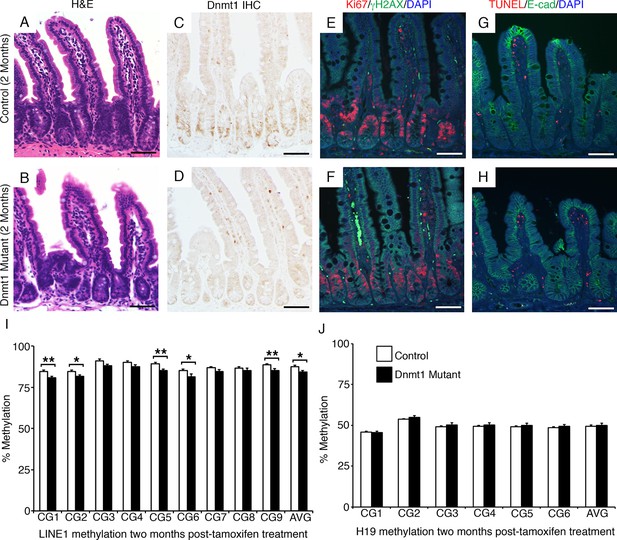

The Dnmt1 mutant intestinal epithelium recovers with time.

Dnmt1loxP/loxP(control) and Dnmt1loxP/loxP;Villin-CreERT2 (Dnmt1 mutant) mice were tamoxifen treated at four weeks of age, and intestines were harvested two months later for immunostaining and DNA methylation analysis. (A–B) Hematoxylin and eosin staining revealed that two months following tamoxifen treatment, the Dnmt1 deficient epithelium appears similar to controls (B versus A). (C–D) Epithelial Dnmt1 deletion is maintained in Dnmt1 mutants two months after tamoxifen injections (D versus C). (E–F) Immunofluorescent staining for Ki67 (red), which marks proliferating cells, and γH2AX (green), which marks DNA double-strand breaks as a marker of chromosomal instability. By two months post-Dnmt1 deletion, the mutant epithelium has returned to baseline levels of DNA damage (F versus E control). (G–H) TUNEL staining (red), which marks apoptotic nuclei, and immunostaining for E-cadherin (green), to outline the intestinal epithelium. Two months following tamoxifen injection, Dnmt1 mutants appear similar to controls and display no apoptosis in the epithelium (H versus G, respectively). (I,J) Crypts were isolated from paraffin-embedded tissue by laser capture microdissection, and the methylation levels of LINE1 loci and the imprinting control region of H19 were determined by targeted bisulfite sequencing. Two months following tamoxifen injection, Dnmt1 mutants have mostly regained methylation at both the LINE1 (E) and H19 (F) loci, and are comparable to controls (n=5–6 per genotype). However, the slight demethylation across the entire LINE1 loci is significantly decreased compared to controls. For data and p values per CpG, refer to Figure 2—source data 1. Error bars represent S.E.M. Scale bars are 50 μm. For all staining, n=3 biological replicates.

https://doi.org/10.7554/eLife.12975.005
Figure 2—source data 1

Contains targeted bisulfite sequencing data presented in Figure 2I–J.

https://doi.org/10.7554/eLife.12975.006

The de novo methyltransferase Dnm3b, but not Dnmt3a, is upregulated following Dnmt1 deletion

We surmised that the de novo methyltransferases might compensate for loss of Dnmt1, and performed qRT-PCR and immunofluorescent staining for both Dnmt3a and Dnmt3b in mutant and control intestines harvested one week following tamoxifen treatment. We confirmed loss of Dnmt1 mRNA in mutant crypts by qRT-PCR, but observed no changes in Dnmt3a transcript or protein expression (Figure 3A–C). In addition, simultaneous loss of both Dnmt1 and Dnmt3a did not alter or exaggerate the Dnmt1 mutant phenotype, or result in decreased viability (Figure 3—figure supplement 1). Dnmt1loxP/loxP;Dnmt3aloxP/loxP;Villin-CreERT2 mice (Dnmt1;Dnmt3a mutants) displayed acute changes in cell death, and LINE1 and H19 methylation, identical to those seen in Dnmt1 mutants (Figure 3—figure supplements 1G-H and 2A–B). Furthermore, Dnmt1;Dnmt3a mutants do not exhibit increased γH2AX foci compared to single Dnmt1 deficient mice (Figure 3—figure supplement 1E–F). Combined with its unchanged protein and mRNA expression, we concluded that Dnmt3a is not required for the recovery of Dnmt1 mutant epithelia.

Figure 3 with 2 supplements see all

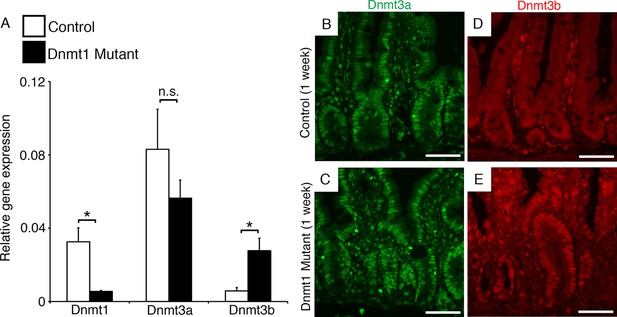

Dnmt3b is upregulated following Dnmt1 ablation.

Dnmt1loxP/loxP(control) and Dnmt1loxP/loxP;Villin-CreERT2 (Dnmt1 mutant) intestines were harvested one week following tamoxifen treatment for gene expression and immunostaining analysis. (A) qRT-PCR comparing the relative gene expression levels of Dnmt1, Dnmt3a, and Dnmt3b in the jejunum of tamoxifen-treated controls and Dnmt1 mutants (n=3–4 per genotype). Compared to controls, Dnmt1 mutants express significantly lower levels of Dnmt1, while Dnmt3b expression is significantly increased. Gene expression was calculated relative to the geometric mean of TBP and β-actin. p<0.01, Student’s t-test. For data and p-values, refer to Figure 3—source data 1. (B–C) Controls (B) and Dnmt1 mutants (C) display similar levels of Dnmt3a protein (green). (D–E) Dnmt1 mutants (E) display elevated Dnmt3b protein in intestinal crypts, compared to controls (E). Error bars represent S.E.M. Scale bars are 50 μm. For all staining, n=3 biological replicates.

https://doi.org/10.7554/eLife.12975.007
Figure 3—source data 1

Contains qPCR data and analysis shown in Figure 3A.

https://doi.org/10.7554/eLife.12975.008
Figure 3—source data 2

Contains targeted bisulfite sequencing data presented in Figure 3—figure supplement 2.

https://doi.org/10.7554/eLife.12975.009

In contrast, Dnmt3b mRNA expression was significantly increased in the Dnmt1 mutant crypts compared to control crypt cells (Figure 3A). In agreement with our qRT-PCR data, we discovered an increase in Dnmt3b protein levels in the mutant intestinal epithelium while expression levels in the lamina propria were unchanged (Figure 3D–E), suggesting that Dnmt3b is upregulated within one week of Dnmt1 ablation. Overall, these data suggest a mechanism in which Dnmt3b is activated to counteract the loss of Dnmt1 in the intestinal epithelium. We next aimed to test this proposed compensation mechanism using mouse genetics.

Dnmt3b is required for survival of intestinal epithelial-specific Dnmt1 mutant mice

To directly test the requirement for Dnmt3b in maintaining DNA methylation in the Dnmt1 mutant intestinal epithelium, we bred the Dnmt3bloxP/loxPallele onto the mutant genotype (Lin et al., 2006), producing Dnmt1loxP/loxP;Dnmt3bloxP/loxP;Villin-CreERT2, along with Dnmt1loxP/loxP;Dnmt3bloxP/loxP siblings as controls. To assess the overall requirement for Dnmt3b in Dnmt1 mutant survival, we injected tamoxifen into groups of Dnmt1loxP/loxP;Dnmt3bloxP/loxP;Villin-Cre-ERT2 mutants (Dnmt1;Dnmt3b mutants) and littermate controls at four weeks of age, and weighed mice each day following CreERT2 induction. 60% of Dnmt1;Dnmt3b mutant mice (n=10) became severely morbid within two weeks following tamoxifen administration and had to be euthanized (Figure 4A–C). Dnmt1;Dnmt3b mutants lost significantly more weight compared to Dnmt1 mutants, which contributed to the increased lethality observed in double mutant mice (Figure 4B–C). In contrast, 94% of Dnmt1 mutant mice (n=16) survived to 17 days following tamoxifen injection, confirming that loss of Dnmt1 alone is non-lethal in the mature intestinal epithelium (Figure 4A). Dnmt1;Dnmt3b mutant mice that survived contained intestinal epithelium positive for Dnmt3b (Figure 4—figure supplement 1A–B) resulting from inefficient Cre-mediated gene ablation followed by expansion of “escaper” crypts, consistent with our hypothesis that Dnmt3b is required to preserve epithelial integrity in the absence of Dnmt1.

Figure 4 with 1 supplement see all

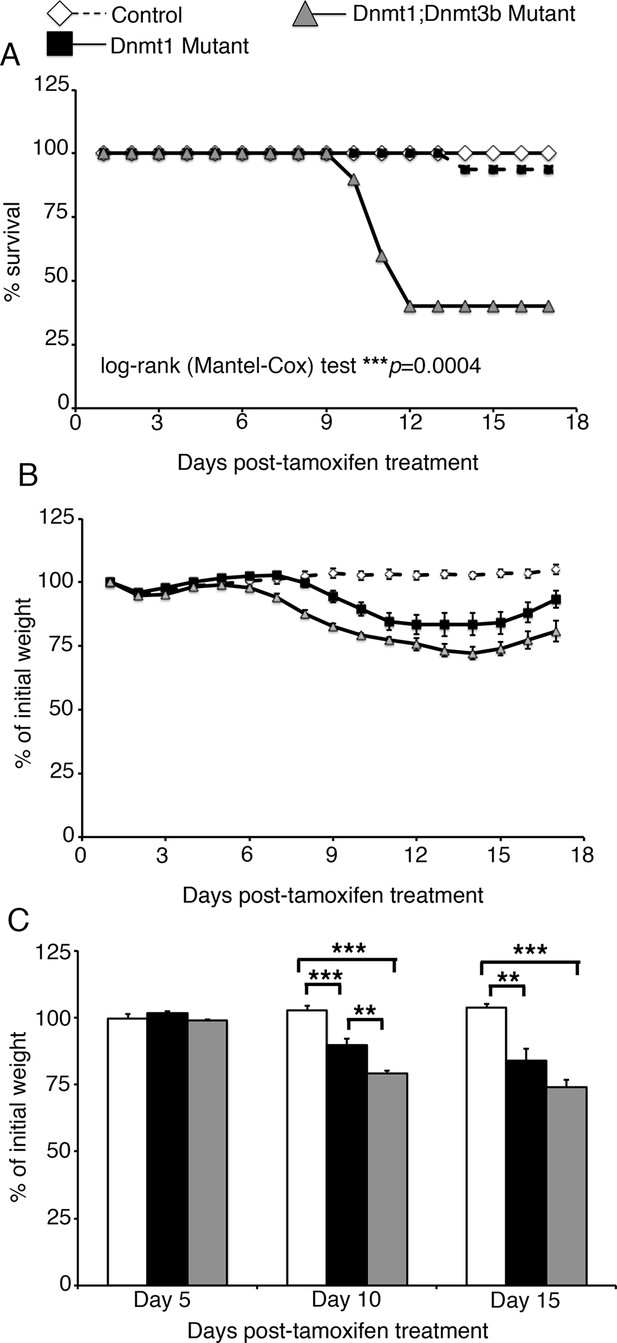

Loss of both Dnmt1 and Dnmt3b in the intestinal epithelium results in decreased survival.

(A) Percent survival of Dnmt1loxP/loxP;Dnmt3bloxP/loxP(control, n=8), Dnmt1loxP/loxP;Villin-CreERT2 (Dnmt1 mutant, n=16), and Dnmt1loxP/loxP;Dnmt3bloxP/loxP;Villin-CreERT2(Dnmt1;Dnmt3b mutant, n=10). All mice were tamoxifen treated at four weeks of age, and followed 17 days to record weight and survival. Significantly fewer Dnmt1;Dnmt3b mutants survive, compared to both controls and Dnmt1-deficient mice. ***p<0.001, Log-rank test. (B) Percent of initial weight each day following tamoxifen treatment in (A). Gradual weight loss is observed in both Dnmt1 mutants (white diamonds) and Dnmt1;Dnmt3b mutants (grey triangles). (C) Statistical comparison of weight loss between controls, Dnmt1 mutants, and Dnmt1;Dnmt3b mutants. At day 10 post-tamoxifen treatment, both mutant groups have lost a significant amount of weight relative to controls. Dnmt3b;Dnmt1 mutants have also lost significantly more weight relative to Dnmt1 mutants. At day 15, both mutant genotypes weigh significantly less than controls. **p<0.01, ***p<0.001, one-way ANOVA. For all data and p-values, refer to Figure 4—source data 1.

https://doi.org/10.7554/eLife.12975.012
Figure 4—source data 1

Contains mouse weight and survival data analysis in Figure 4.

https://doi.org/10.7554/eLife.12975.013

Next, we isolated small intestines from Dnmt1;Dnmt3b mutants and sibling controls one week after tamoxifen administration for DNA methylation and immunostaining analysis. We employed laser-capture microdissection to isolate one-week Dnmt1;Dnmt3b mutant and control crypt cells for DNA methylation analysis. As expected, Dnmt1;Dnmt3b mutants were significantly demethylated at the LINE1 loci compared to controls (Figure 5A). Although the Dnmt1;Dnmt3b mutants displayed decreased methylation levels relative to Dnmt1 mutants, this difference was not statistically significant across the entire region (Figure 5A). The H19 imprinting control region was slightly demethylated in compared Dnmt1;Dnmt3b mutants to controls, but was only significant when comparing the entire sequenced region (Figure 5—figure supplement 1).

Figure 5 with 3 supplements see all

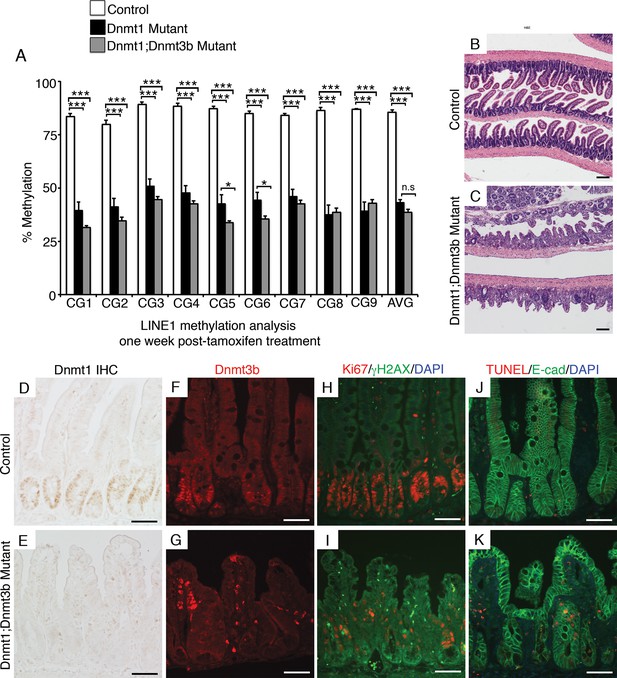

Simultaneous loss of Dnmt1 and Dnmt3b results in acute genomic instability, increased apoptosis, and genome demethylation.

(A) Dnmt1loxP/loxP;Dnmt3bloxP/loxP(control), Dnmt1loxP/loxP;Villin-CreERT2 (Dnmt1 mutants) and Dnmt1loxP/loxP;Dnmt3bloxP/loxP;Villin-CreERT2 (Dnmt1;Dnmt3b mutant) intestines were harvested one week following tamoxifen treatment for DNA methylation analysis. Crypts were isolated from paraffin-embedded tissue by laser capture microdissection, and the methylation levels of LINE1 loci were determined by targeted bisulfite sequencing. LINE1 methylation is significantly decreased in both Dnmt1 and Dnmt1;Dnmt3b mutants compared (n=4–6 per genotype). Error bars are S.E.M. **p<0.01, one-way ANOVA. For data and p-values per CpG, refer to Figure 5—source data 1. (B–C) Hematoxylin and eosin staining of Dnmt1;Dnmt3b mutants (C) compared to controls (B). Double mutants display severe crypt and villus loss compared to controls. (D-G) Immunostaining confirms Dnmt1 and Dnmt3b protein loss in the Dnmt1;Dnmt3b mutant intestinal epithelium (E,G) compared to control (D,F). (H,I) Immunofluorescent staining for Ki67 (red), which marks proliferating cells, and γH2AX (green), which marks DNA double-strand break loci as a marker of genome instability. One week following tamoxifen injection, Dnmt1;Dnmt3b mutants (I) display decreased proliferation and increased DNA damage compared to controls (H). (J,K) Immunofluorescent TUNEL staining (red), which marks apoptotic nuclei, and E-cadherin (green), to outline the intestinal epithelium. One week after tamoxifen treatment, Dnmt1;Dnmt3b mutants (K) display increased crypt cell apoptosis relative to controls (J). All scale bars are 50 μm. For all staining, n=3 biological replicates.

https://doi.org/10.7554/eLife.12975.015
Figure 5—source data 1

Contains targeted bisulfite sequencing data shown in Figure 5A.

https://doi.org/10.7554/eLife.12975.016
Figure 5—source data 2

Contains targeted bisulfite sequencing data presented in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.12975.017
Figure 5—source data 3

Contains targeted bisulfite sequencing data shown in Figure 5—figure supplement 3.

https://doi.org/10.7554/eLife.12975.018

Histological examination revealed a grossly abnormal epithelium in Dnmt1;Dnmt3b mutantmice, with many areas lacking villi and/or crypts completely (Figure 5B–C). We performed immunohistochemistry for Dnmt1 and Dnmt3b to confirm loss of both proteins in the majority of the epithelium (Figure 5D–G). Differentiation in the double mutant intestine was largely unaffected, and exhibited normal distribution of goblet cells, Paneth cells, and enterocytes (data not shown). Unlike the situation in Dnmt1 mutants, many crypts in double Dnmt1;Dnmt3b mutants were completely Ki67-negative, and harbored extensive DNA damage as indicated by γH2AX foci (Figure 5H–I). TUNEL staining revealed increased crypt cell apoptosis in Dnmt1;Dnmt3b mutants compared to sibling controls (Figure 5J–K). Overall, the Dnmt1;Dnmt3b double mutants displayed increased phenotypic severity compared to Dnmt1 single mutants, characterized by hypomethylation, DNA damage, and cell death.

To confirm that Dnmt3b ablation alone does not replicate the Dnmt1;Dnmt3b double mutant phenotype, we also analyzed the intestine of Dnmt1loxP/+;Dnmt3bloxP/loxP;Villin-CreERT2 (Dnmt3b mutant) mice. Dnmt3b deletion was confirmed by immunoflourescent staining, and we proceeded to further histological analysis (Figure 5—figure supplement 2). Loss of Dnmt3b had no affect on intestinal crypt-villus architecture (Figure 5—figure supplement 2A–B), and immunostaining for cell proliferation, DNA damage, and apoptosis was similar to controls (Figure 5—figure supplement 2E–H). Furthermore, methylation of both the LINE1 repetitive loci and the H19 imprinting control region in Dnmt3b mutant crypt cells was equivalent to controls (Figure 5—figure supplement 3A–B). These results demonstrate that Dnmt3b alone is not required for intestinal homeostasis.

Discussion

DNA methylation has been linked to genomic instability in multiple contexts, in both cell lines and in disease. Dnmt1 hypomorphic mice exhibit increased chromosomal duplications and rearrangements, and develop invasive T-cell lymphomas at approximately four months of age (Gaudet et al., 2003). It is important to note that these effects are not restricted to Dnmt1 deficiency. Loss of Dnmt3b also induces hypomethylation and chromosomal instability in mouse embryonic fibroblasts (Dodge et al., 2005), suggesting that both Dnmt1 and Dnmt3b are crucial for maintaining DNA methylation and preserving genome integrity.

In some cases, de novo methyltransferases are essential for methylation of certain elements or enhancers, and cannot be compensated for by Dnmt1. For example, hematopoietic stem cells (HSCs) require Dnmt3a for normal self-renewal and differentiation processes (Challen et al., 2012). Loss of Dnmt3a in HSCs causes demethylation at essential stem cell genes, inducing hyper-proliferation and reducing differentiation rates (Challen et al., 2012). Dnmt3b also contributes to silencing of germline genes in somatic cells (Velasco et al., 2010), and maintenance methylation in ES cells (Chen et al., 2003; Liang et al., 2002). Our work adds to this body of evidence that implicates a crucial role for DNA methylation in maintaining genome stability. Given that methylation of LINE elements is significantly reduced, it is tempting to speculate that reactivation of retrotransposition might be a contributing factor to genome instability.

Aberrant DNA methylation and genome instability correlate in a number of gastrointestinal pathologies, including inflammatory bowl disease (IBD) and colitis-associated cancer (Hartnett and Egan, 2012). The phenotype presented in our Dnmt1;Dnmt3b double mutant mice is reminiscent of mouse models of IBD, in which altered epithelial barrier function leads to increased immune cell recruitment and chronic inflammation in the gastrointestinal tract (Wirtz and Neurath, 2007). Indeed, a recent study in zebrafish demonstrated that loss of DNA methylation at the tumor necrosis factor alpha (tnf-a) promoter prompted increased tnf-a expression in the gut epithelium, leading to elevated apoptosis, barrier dysfunction, and immune cell localization (Marjoram et al., 2015). In a chemically induced mouse model of IBD, inhibition of DNA methylation aggravated the inflammatory response, suggesting DNA methylation acts to protect against inflammation and IBD (Kominsky et al., 2011). Our data support the hypothesis that DNA methylation supports intestinal epithelial homeostasis and helps to maintain crypt architecture.

Current dogma holds that deletion of Dnmt1 is lethal in all dividing somatic cells (Liao et al., 2015); conversely, we find that the rapidly dividing intestinal epithelium can survive without Dnmt1. Following acute loss of Dnmt1, Dnmt3b expression is induced, and methylation of repetitive elements is restored. However, if Dnmt3b is ablated concurrently with Dnmt1, restoration of DNA methylation is prevented, resulting in massive DNA damage, and cell death. It is important to note that our data does not provide direct evidence for methyltransferase activity of Dnmt3b at hemimethylated CpG sites, which are targeted by Dnmt1. Indeed, it is also possible that Dnmt3b is compensating for the loss of Dnmt1 via repeated cycles of de novo methylation, in which Dnmt3b remethylates regions that are demethylated following Dnmt1 deletion after each cycle of DNA replication.

Interestingly, we find that Dnmt3a cannot compensate adequately for the loss of both Dnmt1 and Dnmt3b, nor is Dnmt3a required in the absence of Dnmt1. Indeed, we see that the pressure to maintain Dnmt1 and/or Dnmt3b expression is so high that Dnmt3b+ escaper cells proliferate in excess to recover the intestinal epithelium in a small subset of mutants (Figure 4—figure supplement 1). Although the basal levels of Dnmt3a mRNA in the control intestinal epithelium are much higher than those of Dnmt3b or Dnmt1 (Figure 3A), Dnmt3a does not appear to be necessary to maintain intestinal homeostasis or DNA methylation patterns. This may be due to a number of factors, such as differing abilities of the methyltransferases to interact with cofactors and epigenetic complexes. Both Dnmt1 and Dnmt3b interact with the polycomb group repression complexes (PRC1 and PRC2), and regulate distinct sites in colorectal cancer development (Jin et al., 2009). Furthermore, different methyltransferases are required in distinct ways in certain tissue and cell types. For example, in the hematopoietic system, loss of Dnmt3a leads to elevated proliferation rates and cancer development, while loss of Dnmt3b has little to no effect on hematopoietic stem cell function (Challen et al., 2012; 2014).

In conclusion, we show that Dnmt1 and Dnmt3b cooperate to maintain methylation in the adult mouse intestinal epithelium. Loss of Dnmt1 results in short-term hypomethylation, genomic instability, and apoptosis, followed by recovery over time. Dnmt3b is upregulated in response to deletion of Dnmt1 in the adult intestine, and is required to recover DNA methylation and epithelial integrity. These results provide the first example of a rapidly dividing somatic tissue that can survive in the absence of Dnmt1, and suggest that the strict division of the Dnmt enzymes into ‘de novo’ and ‘maintenance’ methyltransferases might not fully represent the situation in vivo.

Materials and methods

Mice

Dnmt1loxP/loxP and Dnmt3bloxP/loxP mice were provided by Rudolf Jaenisch (Jackson-Grusby et al., 2001; Lin et al., 2006). Dnmt3aloxP/loxP mice were provided by En Li (Kaneda et al., 2004), and Villin-CreERT2 mice were received from Sylvie Robine (El Marjou et al., 2004). For Dnmt1 and Dnmt3b deletion experiments, Cre-recombination was induced by three daily intraperitoneal injections of 1.6 mg tamoxifen (Sigma-Aldrich, St. Louis, MO) in an ethanol/sunflower oil mixture. In all experiments, littermate controls without the Villin-CreERT2 transgene were also tamoxifen treated. All procedures involving mice were conducted in accordance with approved Institutional Animal Care and Use Committee protocols.

Histology

Request a detailed protocol

Tissues were isolated and fixed using 4% paraformaldehyde in PBS and then embedded in paraffin. Antigen retrieval was performed using the 2100 Antigen-Retriever in Buffer A (Electron Microscopy Sciences, Hatfield, PA) and standard immunostaining procedures were performed for Dnmt1 (Santa Cruz), Dnmt3a (Santa Cruz Biotechnology, Dallas, TX), Dnmt3b (Imgenex, San Diego, CA), E-Cadherin (BD Biosciences, San Jose, CA), Ki67 (BD Biosciences), and γH2AX (Cell Signaling Technology, Berverly, MA). TUNEL staining was performed using TUNEL Label and Enzyme (Roche, Indianapolis, IN) and AlexaFluor 555-aha-dUTP (Molecular Probes, Eugene, OR). All microscopy was performed on a Nikon Eclipse 80i (Tokyo, Japan). For all immunofluorescence and immunohistochemistry staining, n=3 biological replicates per genotype, per timepoint.

Laser capture microdissection

Request a detailed protocol

Crypt cell DNA was collected using a Leica LMD7000 Laser Microdissection microscope (Wetzlar, Germany) and the Arcturus PicoPure DNA isolation kit (Applied Biosystems, Carlsbad, CA).

qRT-PCR

Request a detailed protocol

Intestines were gently scraped to remove villi, and treated with EDTA to isolate crypt cells. RNA was extracted using the Trizol RNA isolation protocol (Invitrogen, Carlsbad, CA), followed by RNA cleanup using the RNeasy Mini Kit (Qiagen, Hilden, Germany). mRNA expression was determined using quantitative RT-PCR, as described previously (Gupta et al., 2007). The SYBR green qPCR master mix (Agilent, Santa Clara, CA) was used in all qPCR reactions, and the fold change was calculated relative to the geometric mean of Tbp and β-Actin, using the △CT method. The method of normalizing to the geometric mean of a set of reference genes has been described previously (Vandesompele et al., 2002). Primer sets can be found in Table 1.

Table 1

qRT-PCR primer sequences.

https://doi.org/10.7554/eLife.12975.022
GeneForward 5'-3'Reverse 5'-3'
Beta-actinGAAGTGTGACGTTGACATCCGGTCAGCAATGCCTGGGTACAT
TBPCCCCTTGTACCCTTCACCAATGAAGCTGCGGTACAATTCCAG
Dnmt1CTTCACCTAGTTCCGTGGCTACCCTCTTCCGACTCTTCCTT
Dnmt3aGCACCAGGGAAAGATCATGTCAATGGAGAGGTCATTGCAG
Dnmt3bGGATGTTCGAGAATGTTGTGGGTGAGCAGCAGACACCTTGA

Targeted bisulfite sequencing

Request a detailed protocol

100 ng of mouse genomic DNA was bisulfite converted using the Epitect bisulfite kit (Qiagen). Template DNA was amplified using KAPA HIFI Uracel+ (KAPA Biosystems, Wilmington, MA) with primers directed to the LINE1 and H19 regions (Table 2). Sequencing libraries were prepared and analyzed using the BiSPCR2 strategy, described previously (Bernstein et al., 2015).

Table 2

Bisulfite sequencing primer sets.

https://doi.org/10.7554/eLife.12975.023
GeneSequence (5'-3')
H19 PCR#1 ForwardACACTCTTTCCCTACACGACGCTCTTCCGATCTGTTTGTTGAATTAGTTGTGGGGTTTATA
H19 PCR#1 ReverseGTGACTGGAGTTCAGACGTGTGCTCTTCCGATCTTAAAAAAAAAAACTCAATCAATTACAATCC
LINE1 PCR#1 ForwardACACTCTTTCCCTACACGACGCTCTTCCGATCTGTTAGAGAATTTGATAGTTTTTGGAATAGG
LINE1 PCR#1 ReverseGTGACTGGAGTTCAGACGTGTGCTCTTCCGATCTCCAAAACAAAACCTTTCTCAAACACTATAT
Unique Barcode PCR#2 ForwardAATGATACGGCGACCACCGAGATCTACACTCTTTCCCTACACGAC
Unique Barcode PCR#2 ReverseCAAGCAGAAGACGGCATACGAGATCGTGATGTGACTGGAGTTCAGACGTGT
  1. Red text, Illumina adapter sequence; blue text, Unique Illumina Sequencing Barcodes, 1–48.

Statistical analysis

Request a detailed protocol

Where indicated, GraphPad Prism 6 (La Jolla, CA) was employed to calculate log-rank test and ANOVA statistics.
