The Arabidopsis transcription factor ABIG1 relays ABA signaled growth inhibition and drought induced senescence

  1. Tie Liu
  2. Adam D Longhurst
  3. Franklin Talavera-Rauh
  4. Samuel A Hokin
  5. M Kathryn Barton  Is a corresponding author
  1. Carnegie Institution for Science, United States
Research Article
  • Cited 12
  • Views 2,234
  • Annotations
Cite this article as: eLife 2016;5:e13768 doi: 10.7554/eLife.13768

Abstract

Drought inhibits plant growth and can also induce premature senescence. Here we identify a transcription factor, ABA INSENSITIVE GROWTH 1 (ABIG1) required for abscisic acid (ABA) mediated growth inhibition, but not for stomatal closure. ABIG1 mRNA levels are increased both in response to drought and in response to ABA treatment. When treated with ABA, abig1 mutants remain greener and produce more leaves than comparable wild-type plants. When challenged with drought, abig1 mutants have fewer yellow, senesced leaves than wild-type. Induction of ABIG1 transcription mimics ABA treatment and regulates a set of genes implicated in stress responses. We propose a model in which drought acts through ABA to increase ABIG1 transcription which in turn restricts new shoot growth and promotes leaf senescence. The results have implications for plant breeding: the existence of a mutant that is both ABA resistant and drought resistant points to new strategies for isolating drought resistant genetic varieties.

https://doi.org/10.7554/eLife.13768.001

Introduction

One way for plants to withstand drought is to slow, or stop, new growth thereby conserving resources until better times return (Dolferus, 2014). Growth arrest coincides with predictable dry periods during the life cycle – such as in seed development or seasonal bud dormancy. Growth arrest or reduction can also occur in response to sporadic drought (e.g. Marc and Palmer, 1976; Verelst et al., 2013) More extreme than growth arrest is a response in which parts of the plant are sacrificed, as for instance in drought induced leaf senescence, allowing the plant to recover nutrients and to reduce the water cost of maintaining the leaf (Munné-Bosch et al., 2004).

Among plant hormones, abscisic acid (ABA) is the best known for its ability to allow plants to withstand drought. In response to desiccation, levels of the ABA biosynthetic enzyme AtNCED3 in the vascular parenchyma increase in Arabidopsis (Endo et al., 2008). This causes an increase in ABA which causes plants to close stomatal apertures, thus reducing water loss (Schroeder et al., 2001). Increases in ABA concentration during seed development impose maturation and dormancy on seeds (Finkelstein, 2013). ABA acts by binding to PYR-like co-receptors and bringing them together with PP2C family phosphatases (Cutler et al., 2010). This frees downstream SNRK2 kinases from repression by the PP2C phosphatase, allowing the kinase to modify protein targets at the plasma membrane - to alter turgor in guard cells - or to modify a set of transcription factors - to promote maturation and dormancy in the developing seed.

The role of ABA in controlling vegetative growth is less clear. Exogenously applied ABA slows growth of roots and shoots: it promotes dormancy in axillary buds (Shimizu-Sato and Mori, 2001), inhibits formation and growth of leaves (Marc and Palmer, 1976; Verelst et al., 2013) and inhibits root growth (DeSmet et al., 2003). ABA also can promote drought induced leaf senescence (Munné-Bosch and Alegre, 2004). Paradoxically, ABA appears to be required for growth as well. This conclusion is based on the observation that biosynthetic mutants with reduced levels of ABA are smaller than wild type plants (Barrero et al., 2005). Supplementation with ABA restores growth of plants grown under well watered conditions indicating the growth defect is not a secondary consequence of water loss. Taken at face value, these observations indicate that ABA promotes growth as well as inhibits it.

In this paper, we describe a transcription factor that is required for inhibition of growth in response to ABA. We propose that this factor does not act on the canonical ABA events of stomatal closure and seed dormancy but rather in a branch through which environmental stresses act through ABA to restrict growth.

Results

A tenet of systems biology is that agents inhabiting the same node of a regulatory network share a biological function. REVOLUTA (REV) and KANADI1 (KAN1), opposing regulators of leaf polarity and meristem formation, also oppositely control components of the ABA signaling pathway (Reinhart et al., 2013). A connection between the ad/abaxial developmental and ABA signaling networks had not been predicted based on mutant phenotypes, and the biological relevance of the connection is not understood. Nevertheless, since ABA signaling genes are prominent among the small set of ORK genes (genes oppositely regulated by the REV and KAN transcription factors (Reinhart et al., 2013; Figure 1A), we reasoned that other genes oppositely regulated by them may also play a role in ABA signaling in the plant.

Figure 1 with 1 supplement see all

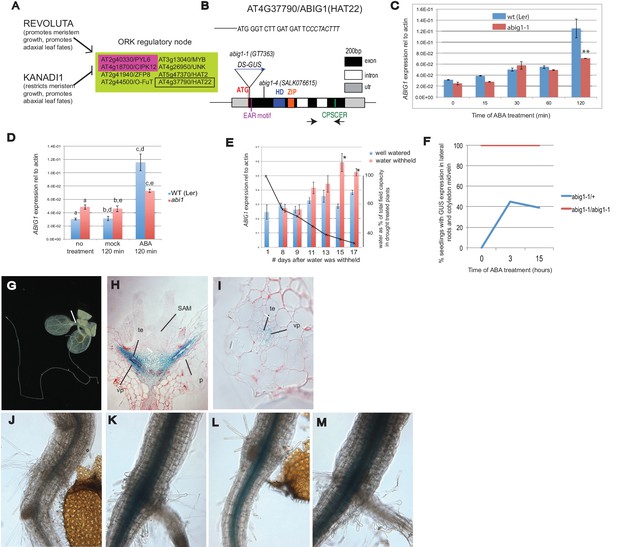

Control of Arabidopsis Abscisic Acid Insensitive Growth 1 (ABIG1/HAT22) expression.

(A) Set of eight ORK genes (OPPOSITELY REGULATED BY REVOLUTA AND KANADI). (B) Structure of the ABIG1 gene. HD - DNA binding homeodomain, ZIP-leucine zipper responsible for homodimerization, EAR – domain responsible for interaction with TOPLESS family co-repressors, CPSCER – conserved domain of unknown function. Arrows - position of PCR primers for ABIG1 Q-RTPCR in panels C-E. Position of gene trap insertion is shown. The sequence above indicates junction between ABIG1 gene and DS insertion (italics). (C) ABIG1 mRNA in wild type and abig1-1 homozygous mutant plants in response to ABA treatment (whole plants grown in liquid media). **p<0.01. (D) ABIG1 mRNA in wild type and abscisic acid insensitive (abi1-1) mutant plants in response to ABA treatment (whole plants grown in liquid media). Letters indicate pairs showing significant differences (p<0.05; t-test). (E) ABIG1 mRNA in response to drought treatment. Water was withheld from rosette stage plants beginning on day one. RNA is from stems and leaves of plants grown in soil. Asterisk indicates time points where watered and unwatered plants differ significantly (p<0.05; t test). (In all cases, bars indicate ± s.e.m. for three biological replicates. The data in each graph are from independent experiments.) (F). Increase in extent of GUS expression in abig-1/+ plants treated with ABA. (G) GUS expression from GT7363 genetrap in abig1-1/ + plant. White line points to area of expression at basal petiole and subtending the shoot apex. (H) Longitudinal thin section through abig1-1/+ seedling showing GUS expression along vascular strands. SAM – shoot apical meristem and associated young leaf primordia; vp – vascular parenchyma; te – tracheary elements; p – petiole. (I) Cross section through a leaf petiole of an abig1-1/+ seedling showing GUS expression in vascular parenchyma cells associated with tracheary elements of xylem. (J) GUS stained hypocotyl/root junction of abig1-1/+ seedling. (K) GUS stained hypocotyl/root junction of abig1-1/+ seedling treated with ABA for three hours. (L) GUS stained hypocotyl/root junction of abig1-1/abig1-1 seedling. (M) GUS stained hypocotyl/root junction of abig1-1/abig1-1 seedling treated with ABA for three hours.

https://doi.org/10.7554/eLife.13768.002

The set of eight ORK genes (OPPOSITELY REGULATED BY REVOLUTA AND KANADI) includes two genes involved in ABA signaling: PYL6 and CIPK12. PYL6 encodes a member of the family of ABA receptors (Park et al., 2009). CIPK12 encodes a member of a family of SNRK3 kinases that play a role in the ABA regulatory pathway (Qin et al., 2008; Lumba et al., 2014). Except forZFP8, which plays a role in trichome development (Gan et al., 2007), the function of the other five genes at this regulatory node is unknown.

HOMEOBOX FROM ARABIDOPSIS THALIANA 22 (AT4G37790/ HAT22, Figure 1B) was chosen for study because it shows rapid and robust opposite regulation by REV and KAN1, because it is highly conserved among land plants and because its function in the plant is largely unknown. HAT22 is one of 10 Class II HOMEODOMAIN-LEUCINE ZIPPER (HD-ZIPII) genes (Ciarbelli et al., 2008). We propose to rename this gene ABA INSENSITIVE GROWTH 1 (ABIG1) to better reflect its function in the plant (see below).

Expression of ABIG1/HAT22 mRNA increases with ABA and drought

ABIG1 mRNA levels increase in liquid grown seedlings treated with ABA (Figure 1C and D). ABIG1 mRNA levels did not increase in homozygous abig1-1 mutants treated with ABA (Figure 1C), presumably because the inserted DS element causes transcript termination early in the ABIG1 transcript. The increase in ABIG1 mRNA is reduced in ABA treated abi1 mutant seedlings defective for the ABI1 PP2C protein phosphatase, a co-receptor for ABA (p (treatment by genotype) = 0.0033, 2 way ANOVA; Figure 1D). Thus, ABA stimulation of ABIG1 mRNA increase utilizes, at least in part, the core ABA signaling pathway.

Drought increases ABA levels. If ABIG1 responds to endogenous ABA, we would expect ABIG1 mRNA levels to increase in plants from which water has been withheld. Indeed, ABIG1 mRNA levels increase with decreasing soil moisture (Figure 1E). The response of ABIG1 expression to drought has also been noted by Su et al. (2013) who found ABIG1/HAT22 mRNA up-regulated in flowers in response to drought.

The abig1-1/ GT7363 line carries an engineered DS transposable element inserted into the sixth codon of the ABIG1 coding sequence (Figure 1B). This DS element carries a beta-GLUCURONIDASE (GUS) gene (Springer et al., 2000) that is expressed as part of the disrupted ABIG1 transcript. In abig1-1/+ plants, GUS is expressed in cells surrounding the vascular strand with highest levels in the petioles, the hypocotyl and subtending the shoot apical meristem and youngest leaf primordia (Figure 1G–I). Cross sections show GUS expression in the petiole to be highest in the vascular parenchyma associated with the tracheary elements of the xylem. It is noteworthy that xylem is adaxial to the phloem. This may explain the observed regulation of ABIG1 transcription by the REVOLUTA and KANADI regulators of ad/abaxial leaf polarity.

Consistent with the Q-RTPCR measurements above, the transfer of heterozygous abig1/+ plants to solid media containing 5 microMolar ABA resulted in an increase in the intensity and extent of GUS expression (Figure 1F,K). Expression extended radially in the hypocotyl and further up the cotyledon midvein. These patterns of expression are consistent with observations showing exogenously added ABA traveling upward from the root toward the shoot (Waadt et al., 2014). The location of ABIG1/HAT22 mRNA expression in the vascular parenchyma is also consistent with the location of increased ABA biosynthetic enzymes in response to drought (Endo et al., 2008).

HD-ZIPII proteins are known to bind to their own promoters and negatively regulate their own transcription (Ciarbelli et al., 2008; Turchi et al., 2013). Indeed, homozygous abig1-1 plants show higher and more expanded GUS expression than heterozygotes (compare Figure 1J to Figure 1L). ABA treatment did not increase the already high levels of reporter expression seen in abig1-1 homozygotes. (Figure 1L,M). This suggests that ABA acts indirectly to increase ABIG1 levels by interfering with the negative autoregulatory action of the ABIG1 protein. This is an attractive hypothesis given the absence of ABREs (ABA Response elements) in the 1000 bp upstream of ABIG1.

abig1/hat22 mutants display normal stomatal closure and germination responses

abig1-1 mutant seeds and plants do not behave the same as canonical ABA resistant mutants. In contrast to canonical ABA insensitive (abi) mutants (Koorneef et al., 1984; Finkelstein, 1994), abig1-1 mutants were similar to wild type seeds in their inability to germinate in the presence of ABA, a potent germination inhibitor (Figure 2A). Another characteristic of ABA signaling defective mutants is a failure of stomatal closure in response to ABA application. ABA applied to the epidermis of wild-type and abig1-1 mutant leaves caused similar decreases in stomatal apertures (Figure 2B).

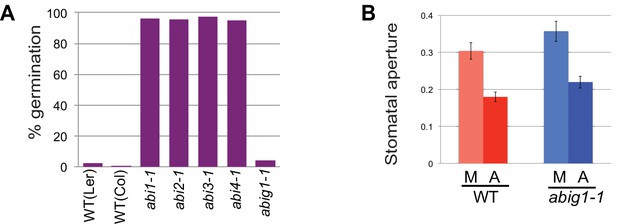

Stomatal closure and germination of abig1-1 mutant seedlings in response to exogenous ABA.

(A) Germination of wild type (wt) and mutant seeds on MS medium with 5 microMolar ABA. Germination of abi1-1, abi2-1, abi3-1 and abi4-1 mutants is ABA resistant while germination of wild type and abig1-1 seedlings is ABA sensitive. (B) Stomatal closure induced by ABA (A) or mock (M) treatment is similar in wild type and abig1-1 mutant plants.

https://doi.org/10.7554/eLife.13768.004

abig1/hat22 mutants are resistant to ABA mediated growth inhibition of shoot tissues

To determine if ABIG1 affects responses to ABA after germination, we transferred seedlings at seven days from standard MS medium to MS medium supplemented with ABA. Under this treatment regimen ABA inhibited growth and caused leaf yellowing in wild type seedlings (Figure 3). ABA caused fewer leaves to develop at the shoot apex, and caused leaves to have shorter petioles and smaller leaf blades. abig1-1 mutants showed less response to ABA than wild type for leaf but not root growth: abig1 mutants differed in their response to ABA with regard to leaf number (p(genotype by [ABA]) <0.0001) and petiole length (p(genotype by [ABA]) <0.02) but not root length (p(genotype by [ABA]) = 0.285) as determined using a 2 way ANOVA analysis. We conclude that the wild type ABIG1 function is required for ABA-mediated inhibition of leaf production and petiole growth. These experiments were repeated with a second loss of function allele, abig1-4, and similar results were obtained (Figure 1—figure supplement 1; Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

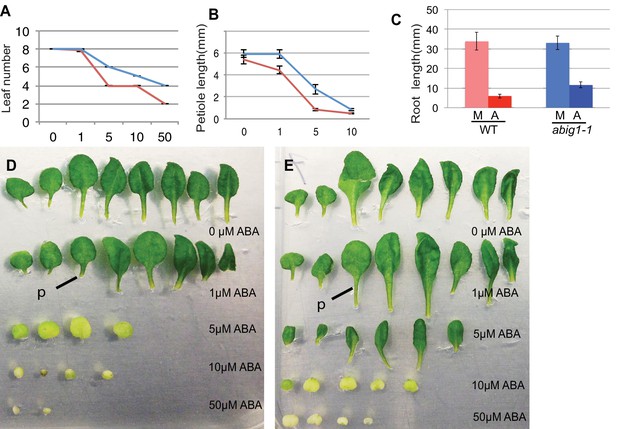

Vegetative growth of abig1-1 mutant seedlings in response to exogenous ABA.

One week old wt and abig1-1 mutant plants were transferred to the ABA containing medium of varying concentration (x axis is in microMolar). Leaf number (A), petiole length of leaf three (B) and primary root length (C) were measured after 14 days on ABA. Red – wild type Ler; blue – abig1-1. Representative wild type (D) and abig1 plants (E) grown on increasing concentration of ABA. Each row of leaves is from a single plant with the first formed leaf to the left. p = petiole of leaf three.

https://doi.org/10.7554/eLife.13768.005

Overexpression of ABIG1/HAT22 mimics ABA application

Induced overexpression of ABIG1 (achieved by placing the ABIG1 cDNA under the control of an estradiol inducible XVE transcription factor [Zuo et al., 2000]) mimicked application of ABA to wild type plants. Leaves developed with small blades and short petioles, leaves were yellow, and fewer leaves were made (Figure 4). Thus, increased ABIG1 mRNA levels are sufficient to cause growth inhibition and leaf yellowing. We note that this is consistent with results by Köllmer et al. (2011) who found a modest increase in leaf senescence when ABIG1 (HAT22) was expressed under control of the 35S promoter. The more severe yellowing and seedling arrest phenotype seen in our experiments may be because the conditional nature of the estradiol induced promoter makes it possible for us to recover transgenic plants with high expression levels.

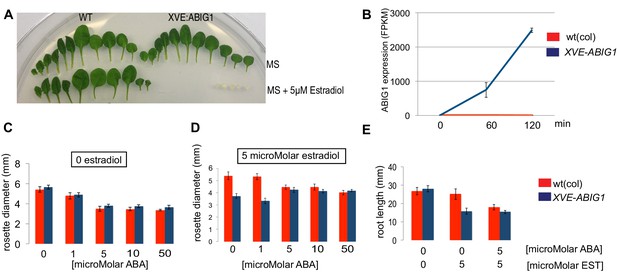

Induced overexpression of ABIG1 mimics ABA treatment.

(A) Wild type plants (left) grown on standard MS plates (upper row) and on plates containing 5 microMolar estradiol (lower row). Each row is a series of leaves taken from a single rosette (first made leaves are to the left). XVE: ABIG1 plants (right) grown on standard MS plates (upper row) and on plates containing 5 microMolar estradiol (lower row). (B). ABIG1 mRNA levels following estrogen induction of XVE:ABIG1. (C) Rosette diameter in wild type (red) and XVE: ABIG1 plants (blue) treated with increasing concentrations of ABA. (D) Rosette diameter in wild type and XVE: ABIG1 plants treated with 5 microMolar estradiol and with increasing concentrations of ABA. (E) Length of the primary root in wild type and XVE:ABIG1 plants treated with 5 microMolar estradiol and with 5 microMolar ABA.

https://doi.org/10.7554/eLife.13768.007

In summary, examination of loss and gain of function mutants in ABIG1 support the hypothesis that this transcription factor contributes to ABA induced growth inhibition and leaf yellowing in the plant, and is sufficient to mimic the effect of exogenous ABA on growth inhibition and leaf yellowing. Such behavior is consistent with a model in which ABA inhibits growth of the shoot by causing increased levels of ABIG1 expression. Addition of increasing concentrations of ABA to estradiol treated XVE:ABIG1 plants did not make the phenotype more extreme than when estradiol alone was added (Figure 4C–E). This supports a model in which the major role for ABA in regulating plant growth is through its role in promoting the ABIG1 transcript accumulation.

ABIG1/HAT22 mutants show less leaf yellowing in response to drought

The finding that ABIG1 mRNA levels increase in response to both ABA and drought and that ABIG1 is necessary for ABA mediated growth inhibition and leaf yellowing suggested that ABIG1 might play a role in response to drought. To test this, plants were grown two per pot with one wild type and one mutant in each pot. At 34 days post-germination, just prior to bolting, the pots were split into two groups. The first group was well watered for the duration of the experiment while water was withheld from the second group. Under well-watered conditions, abig1-1 mutants had a lower percentage of yellow, senesced leaves than wild-type (Figure 5). For one experimental replicate, the amount of chlorophyll present in leaves was measured (Figure 5G). It was found to decrease significantly more in the wild type than in the mutant.

Figure 5 with 3 supplements see all

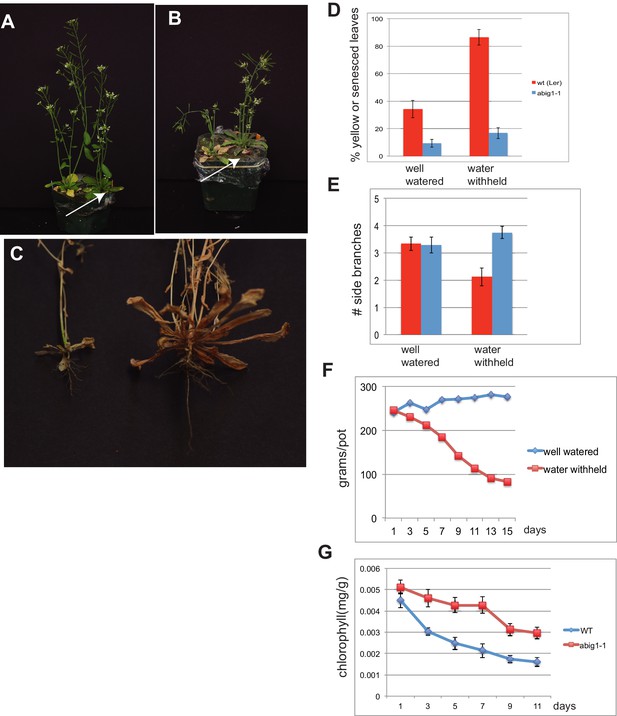

abig1-1 mutants are resistant to drought.

(A) Well watered plants. Wild-type Ler (left) and abig1-1 (right) plants grown in a shared pot. (B) Plants from which water was withheld for 17 days. Wild-type (left) and abig1-1 (right) plants grown in a shared pot. Note yellow, senesced rosette leaves and drooping of wild type plant. (C) Root systems of wild type (left) and abig1-1 (right) plants from which water was withheld. Plants were harvested at the end of their lifecycle at which point both genotypes are fully senesced. (D) Percentage of leaves that had turned yellow after 17 days of withheld water. Total leaves averaged 9 for wild-type and 10 for mutant plants. (E) Number of branches formed in plants from which water was withheld. A branch was scored as present if longer than 1 cm. (F) Rate of water loss from pots during the water withholding period. (G) Chlorophyll content of leaves number 3–8 in drought treated wt and abig1-1 mutant plants over the course of the experiment. This experiment (10 pairs of mutant and Ler wild-type) is a replicate of the experiment shown in AE (16 pairs of mutant and Ler wild-type).

https://doi.org/10.7554/eLife.13768.008

After 17 days of withholding water, this difference became significantly more pronounced with the percent yellow or senesced leaves more than doubling in the wild type but only increasing modestly in the homozygous abig1-1 mutant (p(treatment × genotype) = 0.0008; Figure 5B,D). Under water withheld conditions, wild type plants made fewer side branches than under well watered conditions while abig1 mutants continued to produce the same number of side branches (p(treatment × genotype) = 0.0114; Figure 5E). The wild type plants were unable to remain upright while the mutant plants remained erect (Figure 5B ; 100% erect mutant plants (n = 9) vs 37.5% erect wild type plants (n = 9) in one experiment with similar results in 3 additional replicated experiments). Wild type plants also showed less extensive root systems than the abig1-1 mutants (Figure 5C). This experiment was repeated multiple (greater than three) times with similar results.

Similar results were obtained with the abig1-4 allele except that the abig1-4 mutants made the same number of side branches as wild type under dry conditions (Figure 5—figure supplement 1). Since both the Ds insertion in abig1-1 and the T-DNA insertion in abig1-4 disrupt the gene close to its 5 prime end, this phenotypic difference is unlikely due to a difference in allele strength but rather to differences in genetic background. In support of this, the phenotype of the abig1-1 mutation is similar to that of abig1-4 when it is outcrossed to wild type Columbia, the background which abig1-4 is in (Figure 5—figure supplement 3). We conclude that the ABIG1 transcription factor accelerates leaf senescence and acts to prevent the plant from remaining erect under dry conditions. This result was unexpected since ABA resistant mutants isolated in the past have been associated with drought sensitivity rather than drought resistance (see e.g. Wang et al., 2009).

Genes regulated by ABIG1 are enriched for stress related genes including ABA and ethylene response loci

To determine what genes the ABIG1 transcription factor controls, we treated XVE:ABIG1 plants and wild-type plants with 5 microMolar estradiol for 0, 60 and 120 min. Plants were flash frozen at each time point and RNA was isolated and subjected to RNA-seq. This treatment resulted in robust up-regulation of ABIG1 mRNA (Figure 4B; Supplementary file 1).

Using the CUFFDIFF application (Trapnell et al., 2013) we first identified genes differentially expressed after estradiol treatment (p adjusted <0.01; |FC|>1.5 (log base 2)). We then removed any genes that showed a (time of treatment by genotype) interaction p value greater than 0.05 (Two way-ANOVA). This limits the set to genes that respond differently in wild-type vs. XVE:ABIG1. We also removed genes for which one or more time points resulted in a 'no test' call by CUFFDIFF. The final list includes 18 up-regulated mRNAs (Figure 6A and Supplementary file 1) and 14 down-regulated mRNAs (Figure 6B and Supplementary file 1).

Figure 6 with 1 supplement see all

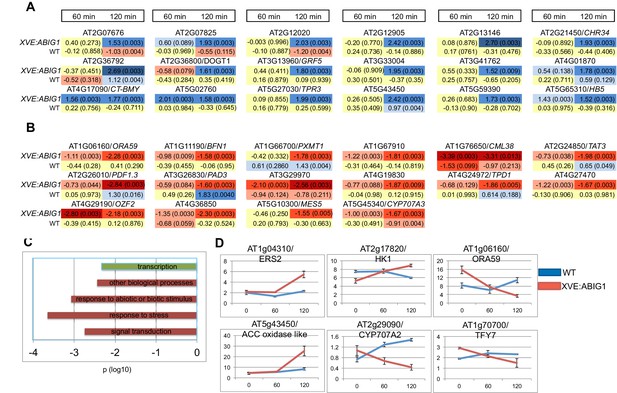

Genes regulated in response to ABIG1 induction by estradiol.

(A) Genes up-regulated in response to ABIG1 induction by estradiol. (B) Genes down-regulated in response to ABIG1 induction by estradiol. Fold change relative to time 0 is given in log base 2. Darker blue indicates increased fold change. Darker red indicates decreased fold change. The number in parenthesis is p value adjusted for multiple hypothesis testing. Time is given in minutes following estradiol addition. (C) Enrichment in gene ontology terms for genes up-regulated (green) and down-regulated (red) by induction of ABIG1 with estradiol. X axis indicates the level of significance (log 10 p) for each set of terms. (D) Expression of ethylene (left), ABA (middle) and jasmonate (right) pathway genes in response to ABIG1 induction with estrogen.

https://doi.org/10.7554/eLife.13768.012

Down-regulated, but not up-regulated, genes, showed statistically significant over-representation for Gene Ontology (GO) terms associated with response to stress, response to abiotic or biotic stimulus, and signal transduction (Figure 6C). The interaction of the EAR domain of ABIG1 with the TOPLESS co-repressor (Causier et al., 2012; T. Liu and M.K.Barton, unpublished), and the demonstrated ability of HD-ZIPII factors to repress their own transcription (Ohgishi et al., 2001Ciarbelli et al., 2008) are evidence that ABIG1 acts a repressor. Direct targets of ABIG1 are therefore expected to fall among the genes down-regulated by ABIG1 induction.

The promoters (500 bp upstream of the ATG) of the down regulated genes are enriched for bHLH, MADS and a homeodomain transcription factor binding sites (p=1.6E-4, p=1.5E-2 and p=1.9E-2 respectively; P-Scan (Zambelli et al., 2009)). The strong representation of additional types of transcription factor binding sites, especially bHLH binding sites, within the down-regulated genes points to combinatorial regulation of these loci by ABIG1 and as yet unspecified bHLH proteins.

Promoters for up-regulated genes were enriched for bZIP transcription factor binding sites (p = 4.1E-3).

Notable among the regulated genes are: CYP707A3 which encodes an enzyme that catabolizes ABA (Umezawa et al., 2006); GRF5 which regulates leaf senescence and chloroplast number (Vercruyssen et al., 2015); BFN1, a gene encoding a nuclease involved in leaf and stem senescence (Farage-Barhom [remove (Farage-Barhorn] (Farage-Barhom et al., 2011); ATHB5, a gene implicated in drought resistance (Johannesson et al., 2003)and TOPLESS RELATED 3 (TPR3), a member of the TOPLESS co-repressor gene family and a likely partner of the ABIG1 transcription factor (Causier et al., 2012; Long et al., 2006).

Because several plant hormones influence ABA sensitivity and drought tolerance we queried the dataset with gene lists for genes involved in biosynthesis and/or signaling for the plant hormones abscisic acid, ethylene, jasmonate and cytokinin. These hormones were chosen because they have been implicated in promoting (ABA, jasmonate and ethylene) or preventing (cytokinin) senescence (Kim et al., 2015; Pré et al., 2008; Buchanan-Wollaston, 1996). We also included a set of genes associated with chlorophyll degradation. Six genes passed this filter (Supplementary file 1; Figure 6D). In addition to the ABA catabolic enzyme gene, CYP707A2, induction of ABIG1 also regulates At2g17820/HK1, a gene encoding a receptor that mediates ABA, drought and salt stress responses (Wollbach et al., 2008) and the gene encoding the ethylene receptor ERS2. Finally, two transcription factor genes in the jasmonate pathway, ORA59 and TIFY7 were down-regulated in this experiment. The identities of these regulated genes support a model in which ABIG1 promotes drought-induced senescence in part by changing the amount of ABA in the plant while also altering the sensitivity of the cell to ABA, ethylene and jasmonate. While all of these changes occur rapidly (within hours) after the induction of ABIG1 mRNA synthesis, the effects may nonetheless be indirect since these hormone pathways are known to cross-regulate one another. It is therefore unclear which of these genes are primary, direct targets of ABIG1 binding and which are secondary, indirect targets.

SAG113/HAI1/AT5g59220 encodes a PP2C phosphatase homologous to those in the core ABA signaling pathway. Its transcription is increased rapidly both in response to senescence and in response to ABA (Zhang and Gan, 2012). As such, it is a good candidate for regulation by ABIG1. However, the transcript corresponding to this locus did not show regulation by induced ABIG1 in the above experiment (Figure 6). We also did not observe a requirement for ABIG1 in ABA mediated up-regulation of SAG113/HAI1 (Figure 5— figure supplement 2). In addition, ABIG1 transcript induction did not alter levels of AtNAP (AT1G69490; Zhang and Gan, 2012) , a known positive regulator of SAG113/HAI1 through which ABA is thought to act. Thus, ABA up-regulation of SAG113/HAI1likely occurs through a parallel pathway. Such a parallel pathway may be primarily responsible for up-regulation of rapidly regulated targets while ABIG may be primarily involved in regulation of down-regulated genes

Alterations in cytokinin metabolism, particularly increases in cytokinin activity, are associated with both drought tolerance and with inhibition of senescence (Peleg et al., 2011; Kuppu et al., 2013). While we found no evidence for altered transcription of cytokinin pathway genes in response to transiently induced ABIG1 transcription (above), we did find that abig1-1 mutant seedlings have higher steady state levels of mRNA from the CYP735A2/At1G67110 cytokinin biosynthetic gene (Figure 6 —figure supplement 1). This change in steady state values is likely an indirect effect of reduced ABIG1 action since no change in CYP735A2 levels were observed within the first two hours of ABIG1 induction. Interestingly, while the levels of CYP735A2 remained steady in wild type in response to exogenous ABA, elevated CYP735A2 mRNA levels decreased in the abig1 mutant in response to exogenous ABA (Figure 6—figure supplement 1). Thus, not only do some ABA responses remain intact in abig1 mutants, the physiological and developmental context of the abig1 mutant also results in novel responses to ABA.

Discussion

Evidence that HAT22/ABIG1 is part of an ABA signaling pathway

In this paper, we present six lines of evidence that ABIG1/HAT22 plays a part in ABA signaling in the regulation of plant growth: 1/ ABIG1/HAT22 has similar regulation patterns to two other known ABA signaling genes, PYL6 and CIPK12; 2/ Expression of ABIG1/HAT22 increases in response to exogenous ABA and drought; 3/ This response is dependent on ABI1 function; 4/ Induction of the ABIG1/HAT22 transcription factor mimics the application of exogenous ABA; 5/ Loss of function mutations in ABIG1/HAT22 cause resistance to ABA mediated growth inhibition and to drought induced leaf yellowing; 6/ Induction of ABIG1/HAT22 regulates CYP707A3, a gene encoding an enzyme that mediates ABA breakdown. A role for ABIG1/HAT22 in mediating ABA signaled growth inhibition and leaf senescence does not necessarily mean that this effect is direct nor that the pathway does not involve additional plant growth hormones. Ethylene, in particular, has been tightly linked to ABA signaling. Abscisic acid was first discovered for, and is in fact named for, its ability to promote organ abscission, a process known to be regulated by ethylene (Patterson and Bleecker, 2004). More recent examples of links between ABA signaling and ethylene signaling include: Two ethylene receptors, ETR1 and ETR2, regulate the sensitivity of germination to ABA (Wilson et al., 2014); Absicisic acid biosynthetic enzymes are required for ethylene signaling in the inhibition of rice root growth (Ma et al., 2014); A screen for ABA insensitive mutants in Arabidopsis root growth resulted in the recovery of mutations in the ethylene signaling pathway as well as in the auxin signaling pathway (Thole et al., 2014). The link between ABA signaling and ethylene signaling appears to be ancient as the central signaling kinase of the ethylene signaling pathway, CTR1, mediates both ABA and ethylene signaling in the moss Physcomitrellum (Yasumura et al., 2015).

The finding that induction of ABIG1/HAT22 alters levels of mRNAs for genes encoding components of the ethylene, ABA and jasmonate pathways (all pathways that have been shown to promote senescence) as well as the senescence regulating transcription factor GRF5 suggests that ABIG1 promotes leaf yellowing and senescence by invoking multiple pathways.

How can the action of ABA as a growth inhibitor in response to drought be reconciled with the reduced growth observed in ABA biosynthesis mutants? This is especially puzzling since reduced growth in both circumstances - exogenous addition of ABA and reduced ABA due to a mutation in a biosynthetic mutation - have been shown to be mediated in part through the ethylene pathway (e.g. Sharp and Noble, 2002; Thole et al., 2014) It is possible that ABA has varying effects at different doses. But it is also possible that the phenotypes caused by loss of function mutations in ABA biosynthesis genes are misleading. For one thing, the phenotypes of these mutants reflect the cumulative effect of secondary, tertiary and higher order consequences of ABA deficiency throughout the history of the plant. For another, loss of function in a step of a biosynthetic pathway may cause accumulation of precursors and/or increased flow through side branches of the biosynthetic pathway. The latter appears to be the case for an earlier step in the ABA biosynthetic pathway (Avendaño-Vázqueza, 2014) and for some mutants in the auxin biosynthesis pathway (Brumos et al., 2014). Thus, the phenotypes of hormone biosynthetic mutants are more correctly considered as reflecting the cumulative (over development) consequence of missing or reduced enzyme activity rather than reflecting solely the reduction in the levels of the particular hormone in question. As such, the phenotype of biosynthetic mutants may not accurately reflect the role of environmentally induced hormone production in an otherwise normal plant.

The role of Class II HD-ZIP proteins in the plant

Class II HD-ZIP proteins are transcription factors that have been shown to regulate shoot growth and development (Turchi et al., 2013; Park et al., 2013; Rice et al., 2014). They include a DNA binding homeodomain and a leucine zipper dimerization domain. Class II HD-ZIP proteins bind to a palindromic sequence as dimers and in several cases have been shown to repress their own transcription (Ohgishi et al., 2001Ciarbelli et al., 2008). Several members of this family, including the ABIG1/HAT22 protein include an EAR like domain which can interact with TOPLESS family co-repressors to mediate transcriptional inhibition.

Many of the genes within the HD-ZIPII family of genes, like ABIG1/HAT22, are regulated by one or both REVOLUTA and KANADI transcription factors (Reinhart et al., 2013; Huang et al., 2014; Brandt et al., 2012). Three of these, ATHB4, ATHB2 and HAT3 are required for normal leaf development and blade growth (Turchi et al., 2013). The expression of two of them, ATHB4 and HAT3, is most prominent in the adaxial leaf domain where REVOLUTA is active and KANADI is excluded. Whether they are involved in the establishment of organ polarity or whether they are the executors of growth control in response to ad/abaxial cues in the leaf is unclear.

The localization of ABIG1/HAT22 expression primarily to the vascular parenchyma associated with the tracheary elements - the adaxial portion of the vascular strand - may rely on regulation by REVOLUTA (positive) and KANADI (negative) thus explaining the regulation by these developmental regulators.

In addition to regulation by developmental factors, mRNA levels for several of the class II HD-ZIP genes are also regulated by environmental and hormonal inputs, including ABA, auxin and red/far red light with the exact response to stimulus dependent on the particular Class II HD-ZIP gene in question (Ciarbelli et al., 2008). It seems likely that a general role for HD-ZIPII proteins is to link environmental and tissue specific signals to growth control.

Two of the ten Class II HD-ZIP genes in Arabidopsis are the distantly related alpha type Class II HD-ZIP genes ATHB17 and ATHB18. Like ABIG1/HAT22, ATHB17 mRNA is also increased by ABA and by salt and drought stress (Park et al., 2013). Also like ABIG1/HAT22, ATHB17 activity inhibits growth and athb17 mutant seedlings are resistant to ABA mediated growth inhibition. However, unlike the case for ABIG1/HAT22, athb17 loss of function mutant seedlings were more drought resistant and ATHB17 overexpressors were more drought sensitive. Another difference between ABIG1/HAT22 and ATHB17 is that Hymus et al. (2013) found that ATHB17 overexpressing plants led to greener, more chloroplast dense cells while we find that overexpressing ABIG1/HAT22 causes leaves to be yellow and less green. Thus, these distantly related class II HD-ZIPs may share some functions (growth control, regulation by drought) with ABIG1/HAT22 but differ in others (leaf yellowing versus greening).

Regulation of plant growth through manipulation of class II HD-ZIP factors may lead to crop plants with improved growth characteristics. Recently, transgenic maize lines overexpressing a truncated form of the Arabidopsis ATHB17 gene, a type alpha class II HD-ZIP gene, lacking a presumed transcriptional repression domain and presumed to act as a dominant negative (Rice et al., 2014), have been permitted for crop use by USDA (Monsanto Petition (14-213-01p) for Determination of Non-regulated Status for Increased Ear Biomass MON 874Ø3 Maize.) This is one of a very few GMO traits approved for crop use. In this application, the ATHB17 overexpressing plants are described as having greater ear biomass. This is presumed to result from inhibition of other class II HDZIP proteins by the truncated ATHB17 protein, thus preventing them from inhibiting growth.

Another way to improve growth of crop plants, in particular in response to drought stress conditions, may be to generate simple loss of function mutations in drought regulated class II HD-ZIP genes such as ABIG1 and thereby reduce growth inhibition in response to environmental stress. Such an approach does not require the introduction of a transgene and may therefore be acceptable to a broader range of consumers.

Proposed pathway

We propose that drought acts through ABIG1 to inhibit growth and to accelerate senescence. Drought has been shown to increase levels of the ABA biosynthetic enzyme, NCED9, in the parenchyma cells surrounding the xylem (Endo et al. 2008). We propose that increased ABA in the vascular parenchyma acts through the ABI1 ABA co-receptor to increase ABIG1 mRNA levels. Increased levels of ABIG1 transcription factor in turn regulate a suite of genes, through direct or indirect action, that includes those shown in Figure 6. These targets, many of which are previously implicated in stress response and hormone signaling, in turn trigger reduction of growth at shoot apices and hasten leaf yellowing and evocation of the senescence pathway in leaves.

The action of ABA to increase ABIG1 mRNA levels need not be direct – in fact we did not find any ABRE elements upstream of the ABIG1 gene. Nevertheless, Q-RTPCR analysis shows that regulation occurs within hours of ABA application and gene trap analysis shows that ABIG1 expression is strengthened and expanded in the vasculature in response to ABA. Thus, there is potential for a close temporal and spatial linkage of increased ABA and increased ABIG1 mRNA levels. Our experiments also show that increased ABIG1 levels have profound consequences on the plant, resulting in growth inhibition and leaf yellowing. While it is possible for ABA to formally act through ABIG1 in a manner that does not require up-regulation of the ABIG1 transcript, the experimental observations point to ABA up-regulation of ABIG1 transcript, through an as yet and possible indirect pathway, as a simple mechanism through which ABIG1 action is modulated by ABA. Furthermore, the finding that ABIG1 can down-regulate a gene encoding an ABA catabolic enzyme suggests that ABA can act to increase its own levels via a positive feedback loop that includes ABIG1/HAT22.

An unexpected finding of this work is the discovery of mutations, i.e. loss of function abig1 mutations, that are resistant to ABA and also resistant to drought. To date ABA resistance has been correlated with drought sensitivity presumably due to the inability of stomata to close in mutants compromised in ABA signaling (e.g. Wang et al., 2009; Park et al., 2013). The normal germination and stomatal closure in abig1-1 mutants indicates that the branches of the ABA regulatory pathways controlling these processes are intact in the abig1-1 mutant. We propose that ABIG1 participates in a parallel path in which ABA regulates growth and the decision to undergo senescence (Figure 7). We note that an increase in ABA levels precedes an increase in ABIG1/HAT22 levels in maturing and senescing leaves as found in transcriptome inventories of developing Arabidopsis leaves (Breeze et al., 2011).

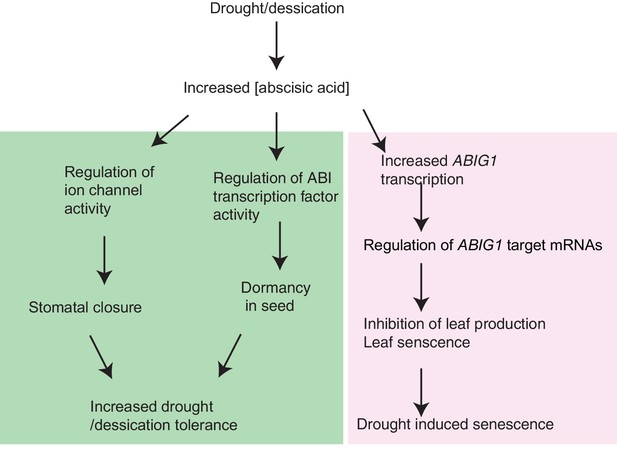

Model for ABIG1 action in the plant.

ABA concentration increases following drought. ABIG1 mRNA increases in response and, in a pathway that is distinct from the pathways controlling germination and stomatal closure, causes a reduction in growth and triggers early senescence. In the absence of ABIG1, plant growth is less affected by drought and leaf senescence is less likely to be triggered by drought.

https://doi.org/10.7554/eLife.13768.014

In crop plants such as sorghum and rice, drought conditions often induce premature senescence. Varieties that resist this induced senescence are referred to as possessing a 'stay green' phenotype (Thomas and Ougham, 2014). Stay green traits from wild relatives have been incorporated into a variety of crop plants to breed drought resistant varieties. The abig1-1 mutant behaves like a stay green mutant in its ability to remain green and to maintain an upright shoot under drought conditions. Screens for additional mutants resistant to ABA during plant growth, as opposed to screens for resistance at the germination stage, should be a productive means of selecting novel mutants with stay green phenotypes that can be used to inform breeding of new drought resistant plant varieties.

Materials and methods

Plant growth

Soil grown plants were grown in 4 inch pots in ProMix PGX soil mix. Osmocote slow release fertilizer was added to flats as directed by manufacturer. Greenhouses were kept between 20 and 25 degrees C and plants were supplemented with artificial light to achieve 16 hr day length.

Plants grown in sterile media were grown under cool white fluorescent lamps (24 hr light). Sterile medium consisted of 4.3 grams MS Medium and 0.5 g MES buffer per liter and was adjusted to pH 6.5 with 1 M KOH. For solid media, 8 grams phytagar was added per liter. If sucrose was added to the medium, it was added to 0.1% (10 grams per liter).

For experiments in which plants were scored for their ability to grow on ABA containing medium, seedlings were germinated on MS medium (no sucrose) and allowed to grow for 5 days after which they were transferred to MS medium (no sucrose) to which ABA was added to varying concentrations. Phenotypic characterization was carried out two weeks after transfer.

Morphological characterization

For measurement of morphological characters, plants were photographed and NIH Image J with plugin program LeafJ (Maloof, 2013) was used to measure petioles (leaf three), root length and rosette diameter. At least twelve plants were used for each data point.

Germination assay

For germination assays, seeds were surface sterilized and plated on solid medium containing 5 microMolar ABA (no sucrose) or mock solution. Seeds were stratified at 4°C for two days in the dark before placing plates in the growth chamber (24 hr cool white fluorescent light, 22° C). Seven days later, the fraction of seeds that had germinated was determined under the dissecting microscope. At least 70 seeds were tested per genotype and condition.

Stomatal closure assay

To measure stomatal closure in response to exogenous ABA, the procedure from Tseng and Briggs (2010) was followed. Leaf five (counting the first formed leaf as leaf number 1) was removed from 35-day-old wild type (Ler) and abig1-1 mutant plants grown in soil under well-watered conditions at 22°C. Strips of epidermis near the midvein were taken from the abaxial side (underside) of leaves using tweezers. The peels were floated on MES-KCl solution (10 mM MES, 50 mM KCl, pH 6.2) under fluorescent lights for 2 hr at 22°C. At that point, half of the samples were treated with MES-KCl-ABA (final concentration of ABA was 5μM) while the other half were treated with MES-KCl-Mock. After two additional hours under lights at 22°C, the leaf strips were immediately dipped into 95% ethanol and mounted onto slides for photography. Images were taken using a compound microscope equipped with Nomarski optics and a 20X objective. The width and length of the stomatal aperture of 30–40 guard cells per sample were measured using Fiji software. Three biological replicates were used for each data point.

Genetic stocks

Seeds of abig1-1 (GT7363, Landsberg erecta background) were obtained from the Cold Spring Harbor Genetrap collection (Springer, 2000). Seeds of abig1-4 (SALK_076615, Colombia background) were ordered from the ABRC seed stock center. The line was backcrossed to wild-type plants. F2 plants homozygous for abig1-1 were isolated in the F2 using PCR to identify the DS insertion. PCR primers used for genotyping are listed in Supplementary file 1. The abi1-1, abi2-1 and abi3-1 mutations were in the Ler background while abi4-1 was in the Colombia background (Koorneef et al., 1984; Finkelstein, 1994).

Plasmid construction and plant transformation

The coding sequence of ABIG1 (At4g37790) cloned into pENTR223 was obtained from the ABRC in the clone GC105403. The ABIG1 coding sequence was recombined into the pMDC7 vector to generate a construct in which the ABIG1 coding sequence was placed under the control of a promoter responsive to the XVE estradiol-inducible transcriptional activator (Zuo et al., 2000). This plasmid, named pTL1, was transformed into Agrobacterium strain GV3101 and transformed into wild type Col-0 plants using the floral dip method (Clough and Bent, 1998). Drug resistant, transformed plants were selected and then screened for their ability to overexpress ABIG1 when treated with estradiol.

Histological analysis

GUS staining was visualized in thin sections of abig1-1/+ plants using a protocol modified from Donnelly et al. (1999). A leaf piece from individual plants was used to genotype plants at the ABIG1-1 locus using PCR with allele specific primers (Supplementary file 1). Heterozygous abig1-1/+ seedlings were prefixed in 90% acetone on ice for 20 min before rinsing in GUS buffer containing 3 mM ferricyanide and 75 μg/ml X-Gluc. Samples in GUS buffer were placed under gentle vacuum with lids off for 8 hr at room temperature and then washed in 70% ethanol four times for 15 min each time. For thin sectioning, after GUS staining, plants were fixed in GAP fixative buffer (3% glutaraldehyde in 25 mM phosphate buffer with 1.6% paraformaldehyde) overnight. The samples were postfixed in 0.5% ruthenium tetroxide in 25 mM phosphate buffer for an hour. The plants were rinsed in water 3 times and dehydrated in an ethanol gradient (15%, 30%, 40%, 50%, 60%, 70%, 85%, 95%, 100%; 10 min for each step) and 100% acetone before exchanging the ethanol into a Spur’s resin/acetone gradient solution (1:3, 1:1, 3:1) and then incubated overnight. The plants were transferred and embedded in molds containing 20 ul of prepolymerized embedding medium and then cured at 55°C for 72 hr. The specimen blocks were trimmed and sectioned with glass knives using a Leica MS 5 microtome. The sections were stained in 0.01% aqueous safranin for 15 s and washed twice with DI water then mounted in Cytoseal mounting medium before photographing.

RNA sequencing and data analysis

Wild-type Col-0 and XVE:ABIG1 seeds (50 per flask) were surface sterilized, cold treated at 4°C for 48 hr and added to 100 mls of Murashige and Skoog liquid medium with 1% sucrose (pH 6.5) in a 250 ml ehrlenmeyer flask. Flasks were shaken gently at 20°C in constant light for 10 days. At 10 days, β-estradiol was added to 5 microMolar and plants were returned to the shaker. Plants were harvested after 0, 60, and 120 min of treatment. Plants were blotted and flash frozen in liquid nitrogen. Each time point and genotype was replicated three times except the 120 min time point for XVE:ABIG1 which was replicated twice. Total RNA was isolated using the Macherey-Nagel NucleoSpin RNA isolation kit according to the manufacturer (Clontech). Total RNA was tested using an Agilent Bioanalyzer. Samples with RIN (RNA integrity number) over 8 were subjected to Illumina sequencing.

Oligo-dT primed libraries were made from the resulting total RNA and sequenced by Otogenetics (Norcross, Georgia) using Illumina technology. Fragment counts were normalized via the median of the geometric means of fragment counts across all libraries, as described in Anders and Huber (2010). The Cuffdiff program was run on the normalized data to identify expression differences between time 0 and the 60 and 120 min time points (Trapnell et al., 2013). P-values were adjusted for multiple hypothesis testing using the Benjamini-Hochberg method (Benjamini and hochberg, 1995).

Data are stored on the Gene Expression Omnibus server (Series GSE70100).

Real-time PCR

RNA was extracted using RNeasy kits from Qiagen. First-strand cDNA was made from 2 micrograms of RNA using the Tetro cDNA synthesis kit and samples were DNase treated according to manufacturer`s instructions (Bioline). cDNA was diluted 1 to 5 into RNAse free water to a total of 100 μl and 2 μl of the diluted cDNA was used to perform qRT-PCR. PCR was done using gene-specific primers (Supplementary file 1) in technical triplicates on a LightCycler 480 system using the Sensifast SYBR Master mix (Bioline). The ratio of experimental target mRNA to an actin control for each sample was calculated by Applied Biosystems software. An average and standard error of the mean for the three biological replicates and standard deviation were calculated in Excel.

Drought treatment

Plants were grown in soil in film-covered pots with two holes in the film for plants. One wild type and one abig1-1 mutant plant were grown per pot. Each experiment was initiated with 18 pots containing equal amounts of soil. If any of the plants didn`t germinate well, the entire pot was discarded. Water was withheld from half the pots beginning on day 35. The water content of the pots was monitored by weighing the pots every other day for two weeks beginning with day 0 – the first day with no water. The number of yellow leaves and branches were recorded after 17 days of withheld water. This experiment was repeated three times for abig1-1 and twice for abig1–4.

The chlorophyll content was measured, with minor modifications, according to the method of Hensel et al. 1993. Chlorophyll measurement was examined every other day for 12 days beginning with day 1 (first day of withholding water). Each data point represents the average of 10 individual plants (abig1-1/Ler). Samples were taken and pooled from the leaf tip region from leaf 3–8. Samples used for total chlorophyll measurements were ground in liquid nitrogen and then suspended in 1 mL of 80% acetone and quantified photometrically in Tecan Safire plate reader and calculated using the method of Arnon (1949).

Experimental repeats, replicates and statistical analysis

For gene expression experiments (RNA seq and qRTPCR) three biological replicates were included for each data point. A biological replicate is a flask of 50 seedlings treated independently. For qRTPCR three to four technical replicates were done. For RNA seq, no technical replicates were done. Graphs show averages plus SEMs for the biological replicates.

Sample sizes (i.e. number of biological replicates) of three were chosen for gene expression experiments to allow for a measure of intersample variability while still holding costs down.

For experiments in which plant phenotypes were scored, experiments were repeated three times (e.g. stomatal closure assay, seed germination assays, vegetative growth response to ABA, overexpression of ABIG1, drought response of abig1-1mutants). Sample sizes (i.e. number of plants scored) were chosen based on our ability to grow and process a reasonable number of plants. Data were compared using a 2-way ANOVA test or a t-test as indicated in the text for the relevant experiment.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Guard cell signal transduction
    1. JI Schroeder
    2. GJ Allen
    3. V Hugouvieux
    4. JM Kwak
    5. D Waner
    (2001)
    Annual Review of Plant Physiology and Plant Molecular Biology 52:627–658.
    https://doi.org/10.1146/annurev.arplant.52.1.627
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    The stay-green trait
    1. H Thomas
    2. H Ougham
    (2014)
    Journal of Experimental Botany 65:3889–3900.
    https://doi.org/10.1093/jxb/eru037
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65

Decision letter

  1. Richard Amasino
    Reviewing Editor; University of Wisconsin, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The Arabidopsis transcription factor ABIG1 relays ABA signaled growth inhibition and drought induced senescence" for consideration by eLife. Your article has been favorably evaluated by Detlef Weigel as the Senior editor and two reviewers, including Rick Amasino who is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The insensitivity of the abig mutant to ABA-mediated growth inhibition and senescence, but not to other classic ABA effects on seed germination, guard cell closure, and inhibition of primary root growth is an interesting finding. Your work indicates that ABIG1 appears to define a branch of the ABA pathway that regulates growth and leaf senescence. That the phenotype of inducible overexpression is "opposite" to that of the mutant lends support to the role of ABIG in ABA-mediated growth inhibition and senescence, although a minor point is that the "opposite phenotype" is a "sickly" plant, and overexpression of many proteins might cause this.

Essential revisions:

1) One issue is the extent to which ABIG is in fact regulated by the core ABA response pathway. There is not a strong effect of abi1 or ABA. Of course ABIG could be an important component of a branch of the ABA pathway that regulates growth and leaf senescence even if it is not itself regulated strongly at the level of mRNA abundance by the ABA pathway. This issue could be more clearly defined in the paper.

2) The leaf senescence phenotype could be presented more rigorously. For example, in the section "ABIG1/HAT22 mutants show less leaf yellowing in response to drought" there is only a visual assessment of leaf yellowing. A visual assessment is subjective, and also the degree of leaf senescence based upon visual observation can be obscured by differences in anthocyanin accumulation. This is particularly important to consider in the descriptions of leaf senescence in whole plants. A paper by Hensel et al. (Plant Cell. 1993. 5:553-64) provides an example of a simple assay of chlorophyll content as a more quantitative measure of leaf senescence. Also, for Figure 5D (percentage of leaves that had turned yellow) there is no mention of the number of plants or leaves analyzed in the figure legend or in Methods. For the lodging phenotype it is noted that "mutant plants remained erect." Although it is not necessary to create another figure for this, perhaps a bit more could be said in the text about the range of this phenotype.

3) As noted above, the yellowing, wilting, and growth phenotypes indicate there is a specific branch in the ABA response pathway that regulates these things, but the molecular characterization by transcriptomics is not very specific. A great deal has been published about senescence and its associated molecular events. For example, many senescence-induced genes are ABA-regulated at the transcriptional level quite quickly after ABA application (before yellowing occurs). Are the abig1 mutants defective in ABA-mediated regulation of such senescence-associated transcripts? We recognize that the transcriptomics using the inducible XVE construct addresses this issue to some extent, but more specifically evaluating the role of ABIG1 in expression of genes known to be involved of ABA-controlled responses would better define this branch of the pathway. For example, SAG113 is an ABA/senescence regulated PP2C (a.k.a. HAI1 (highly aba induced 1) and some NAC transcription factors are reported to be induced during and involved in ABA signaling during senescence.

4) The authors note that selectively blocking ABA-mediated senescence might be an efficient route to improved stress tolerance and promote a desirable stay-green phenotype. The authors should discuss this idea in the context of cytokinin as well, because the same phenotypic outcome has been engineered by using increasing cytokinin content under drought (e.g., see work from Blumwald and colleagues).

Reviewer #1:

The authors conclusion that "ABIG1 function is required for ABA-mediated inhibition of leaf production and petiole growth" appears to be well substantiated by results – for example, in Figure 3, the difference in the 5 μm ABA effect in wt versus the abig1 mutant is quite striking. In Figure 4, the inducible overexpression phenotype is quite striking as well, although I suspect that many proteins if sufficiently overexpressed will "muck things up" and result in a striking phenotype.

The weakest part of the paper is the section entitled "ABIG1/HAT22 mutants show less leaf yellowing in response to drought." Yellowing is a very subjective thing and the degree of leaf senescence based upon visual observation can be obscured by differences in anthocyanin accumulation (i.e., impaired anthocyanin accumulation can be mistaken for more rapid senescence). For Figure 5D (percentage of leaves that had turned yellow) there is no mention of the number of plants or leaves analyzed in the figure legend or in Methods.

Also in this section are other phenotypes like "mutant plants remained erect." One trusts that this is highly reproducible, but that ought to be discussed.

In the Discussion, the Monsanto stuff is not "tied in" well to the theme of the paper. "In this application, the ATHB17 overexpressing plants are described as having greater ear biomass. This is presumed to result from inhibition of other class II HDZIP proteins by the truncated ATHB17 protein."

Reviewer #2:

Liu et al. report on the characterization of ABIG1 and its role in ABA-mediated senescence and growth inhibition. ABIG1 was identified as a transcript that is oppositely regulated by Kanadi and Revoluta, a class of genes the authors have previously defined as ORKs. The link between ABIG1 and ABA was made because ORKs are enriched in genes involved in ABA responses. ABIG1 has previously been described as the homeodomain-containing gene HAT22. Prior data has shown that HAT22's mRNA levels are regulated by water stress, and that phenotype is recapitulated in this work and attributed, at least in part, to regulation by the core ABA-response pathway.

In comparison to previously reported mutants that affect ABA signaling, the novelty reported in this paper is that abig1 mutants are less sensitive to ABA-mediated growth inhibition and senescence than wild type, but do not display defects in other classic ABA responses such as seed germination, guard cell closure and inhibition of primary root growth. Thus, abig1 appears to define a branch of the ABA pathway that regulates growth and leaf senescence, two under studied but important components of ABA action. Over-expression of ABIG1 using a XVE-inducible form yields expected phenotypes that are opposite to those observed in the loss-of-function mutant alleles. Using a water deprivation experiment the authors make the observation that abig1 loss-of-function mutants are more drought tolerant, as suggested by increased shoot and root growth, reduced leaf senescence, and reduced lodging. This observation suggests that selectively blocking ABA-mediated senescence might be an efficient route to improved stress tolerance and inter-related stay-green phenotypes. The authors should probably discuss this idea in the context of cytokinin as well, because the same phenotypic outcome has been engineered by using increasing cytokinin content under drought (i.e. see work from Blumwald and colleagues).

The most critical point of the work is that it implies a new branch in the ABA response pathway that regulates both senescence and growth, but the molecular characterization of both these processes is quite cursory. A great deal has been written about senescence and its associated molecular events, but all we can say from the work presented is that the leaves in the abig1 mutants don't yellow as much. For example, many senescence-induced genes are ABA-regulated at the transcriptional level quite quickly after ABA application and before yellowing occurs. Are the abig1 mutants defective in ABA-mediated regulation of senescence-associated transcripts? I recognize that the inducible XVE constructs go somewhat towards addressing this issue, but a clearer delineation of the necessity for ABIG1 in mediating a subset of ABA-controlled responses would add to the work substantially. The direct link between ABA and ABIG1 hinges on an increase in ABIG1 transcript levels that is only partially affected by the abi1-1 mutation. How direct is the regulation?

Overall, I believe this is a potentially important and pioneering paper, but it would benefit from greater depth in its physiological analyses and by building a stronger case for a direct molecular link between components of the ABA signaling network and ABIG1.

https://doi.org/10.7554/eLife.13768.018

Author response

Essential revisions:

1) One issue is the extent to which ABIG is in fact regulated by the core ABA response pathway. There is not a strong effect of abi1 or ABA. Of course ABIG could be an important component of a branch of the ABA pathway that regulates growth and leaf senescence even if it is not itself regulated strongly at the level of mRNA abundance by the ABA pathway. This issue could be more clearly defined in the paper.

The reviewers point out that the changes in ABIG1 mRNA levels in response to ABA are relatively small and that, while ABIG could still act downstream of ABA, the alteration in transcript levels in response to ABA may not be critical.

We agree and have addressed this criticism by including a paragraph in the Discussion (subsection “Proposed pathway”) that presents our argument for why transcriptional up-regulation of ABIG1/HAT22 (albeit likely indirect) is the simplest mechanism of interaction between ABA and ABIG1 for the model. We’ve also rearranged the section on abig1/+ enhancer trap expression in hypocotyls in response to ABA which shows more clearly the increase in strength and extent of expression in response to ABA.

2) The leaf senescence phenotype could be presented more rigorously. For example, in the section "ABIG1/HAT22 mutants show less leaf yellowing in response to drought" there is only a visual assessment of leaf yellowing. A visual assessment is subjective, and also the degree of leaf senescence based upon visual observation can be obscured by differences in anthocyanin accumulation. This is particularly important to consider in the descriptions of leaf senescence in whole plants. A paper by Hensel et al. (Plant Cell. 1993. 5:553-64) provides an example of a simple assay of chlorophyll content as a more quantitative measure of leaf senescence. Also, for Figure 5D (percentage of leaves that had turned yellow) there is no mention of the number of plants or leaves analyzed in the figure legend or in Methods. For the lodging phenotype it is noted that "mutant plants remained erect." Although it is not necessary to create another figure for this, perhaps a bit more could be said in the text about the range of this phenotype.

The reviewers feel that the senescence phenotype could be presented more rigorously. We have used the method by Hensel et al., suggested by the reviewers to measure chlorophyll levels in wild type and in abig1 mutant plants in response to drought. This experiment required us to set up a replicate of the drought experiment and has taken the bulk of the time in preparing this revision. The new data are in Figure 5G and largely parallel what we have seen before. We have also added numbers of plants and leaves used in the study.

3) As noted above, the yellowing, wilting, and growth phenotypes indicate there is a specific branch in the ABA response pathway that regulates these things, but the molecular characterization by transcriptomics is not very specific. A great deal has been published about senescence and its associated molecular events. For example, many senescence-induced genes are ABA-regulated at the transcriptional level quite quickly after ABA application (before yellowing occurs). Are the abig1 mutants defective in ABA-mediated regulation of such senescence-associated transcripts? We recognize that the transcriptomics using the inducible XVE construct addresses this issue to some extent, but more specifically evaluating the role of ABIG1 in expression of genes known to be involved of ABA-controlled responses would better define this branch of the pathway. For example, SAG113 is an ABA/senescence regulated PP2C (a.k.a. HAI1 (highly aba induced 1) and some NAC transcription factors are reported to be induced during and involved in ABA signaling during senescence.

We have tested the SAG113/HAI1 gene for upregulation by ABA in the abig1 mutant. Upregulation occurs similar to wild type (Figure 5—figure supplement 2) indicating that for this senescence upregulated gene, ABIG1 function is dispensable. Given the likely role of ABIG1 as a transcriptional repressor, it is possible that most ABA/senescence upregulated genes are activated through a parallel pathway.

4) The authors note that selectively blocking ABA-mediated senescence might be an efficient route to improved stress tolerance and promote a desirable stay-green phenotype. The authors should discuss this idea in the context of cytokinin as well, because the same phenotypic outcome has been engineered by using increasing cytokinin content under drought (e.g., see work from Blumwald and colleagues).

The reviewers have asked us to discuss cytokinin and its role in drought resistance. We do this and reference papers by Blumwald and coworkers. We also include qRTPCR data showing that steady state levels of a cytokinin biosynthetic enzyme are increased in the mutant (Figure 6—figure supplement 1). These data are discussed in the text.

Reviewer #1:

The authors conclusion that "ABIG1 function is required for ABA-mediated inhibition of leaf production and petiole growth" appears to be well substantiated by results – for example, in Figure 3, the difference in the 5 μm ABA effect in wt versus the abig1 mutant is quite striking. In Figure 4, the inducible overexpression phenotype is quite striking as well, although I suspect that many proteins if sufficiently overexpressed will "muck things up" and result in a striking phenotype.

It is true that the overexpression of proteins to high levels may well “muck things up” in ways that are rather non-specific. That said, overexpression of Class I (A. Himmelbach et al., 2002, EMBO J. 21:3029), Class III (multiple observations by Barton and colleagues) and Class IV HD-ZIP (Ohashi et al., 2002, Plant Journal 29: 359.) and even more distantly related families of class II HD-ZIP (Park et al., 2013) proteins do not result in the yellowing stunted growth phenotype so this is at least a unique response to overexpression within the HD-ZIP clade of transcription factors.

The weakest part of the paper is the section entitled "ABIG1/HAT22 mutants show less leaf yellowing in response to drought." Yellowing is a very subjective thing and the degree of leaf senescence based upon visual observation can be obscured by differences in anthocyanin accumulation (i.e., impaired anthocyanin accumulation can be mistaken for more rapid senescence). For Figure 5D (percentage of leaves that had turned yellow) there is no mention of the number of plants or leaves analyzed in the figure legend or in Methods.

Measurement of chlorophyll in wt and mutant in response to drought is addressed above in Point 2.

Also in this section are other phenotypes like "mutant plants remained erect." One trusts that this is highly reproducible, but that ought to be discussed.

Failure of plants to remain erect was unique to the wt plants in these experiments. We recorded numbers for one replicate experiment and these are included in the text.

In the Discussion, the Monsanto stuff is not "tied in" well to the theme of the paper. "In this application, the ATHB17 overexpressing plants are described as having greater ear biomass. This is presumed to result from inhibition of other class II HDZIP proteins by the truncated ATHB17 protein."

The section on ATHB17 was altered to indicate the observed role in growth control of members of this gene family and to indicate the potential parallels between loss of function ABIG1 mutants and dominant negative ATHB17 transgenes in allowing extra growth. A reference to published work on the truncated ATHB17 line in maize was added as well as work on the response of the distantly related ATHB17 gene and associated mutants to ABA and stress.

Reviewer #2:

Liu et al. report on the characterization of ABIG1 and its role in ABA-mediated senescence and growth inhibition. ABIG1 was identified as a transcript that is oppositely regulated by Kanadi and Revoluta, a class of genes the authors have previously defined as ORKs. The link between ABIG1 and ABA was made because ORKs are enriched in genes involved in ABA responses. ABIG1 has previously been described as the homeodomain-containing gene HAT22. Prior data has shown that HAT22's mRNA levels are regulated by water stress, and that phenotype is recapitulated in this work and attributed, at least in part, to regulation by the core ABA-response pathway.

In comparison to previously reported mutants that affect ABA signaling, the novelty reported in this paper is that abig1 mutants are less sensitive to ABA-mediated growth inhibition and senescence than wild type, but do not display defects in other classic ABA responses such as seed germination, guard cell closure and inhibition of primary root growth. Thus, abig1 appears to define a branch of the ABA pathway that regulates growth and leaf senescence, two under studied but important components of ABA action. Over-expression of ABIG1 using a XVE-inducible form yields expected phenotypes that are opposite to those observed in the loss-of-function mutant alleles. Using a water deprivation experiment the authors make the observation that abig1 loss-of-function mutants are more drought tolerant, as suggested by increased shoot and root growth, reduced leaf senescence, and reduced lodging. This observation suggests that selectively blocking ABA-mediated senescence might be an efficient route to improved stress tolerance and inter-related stay-green phenotypes. The authors should probably discuss this idea in the context of cytokinin as well, because the same phenotypic outcome has been engineered by using increasing cytokinin content under drought (i.e. see work from Blumwald and colleagues).

See point 4 above for addition of experiments and text addressing the potential role of cytokinin in drought resistance in abig1 mutant plants.

The most critical point of the work is that it implies a new branch in the ABA response pathway that regulates both senescence and growth, but the molecular characterization of both these processes is quite cursory. A great deal has been written about senescence and its associated molecular events, but all we can say from the work presented is that the leaves in the abig1 mutants don't yellow as much. For example, many senescence-induced genes are ABA-regulated at the transcriptional level quite quickly after ABA application and before yellowing occurs. Are the abig1 mutants defective in ABA-mediated regulation of senescence-associated transcripts?

See point 3 above for addition of experiments and text addressing the role of ABIG1 in regulating senescence associated transcripts.

I recognize that the inducible XVE constructs go somewhat towards addressing this issue, but a clearer delineation of the necessity for ABIG1 in mediating a subset of ABA-controlled responses would add to the work substantially. The direct link between ABA and ABIG1 hinges on an increase in ABIG1 transcript levels that is only partially affected by the abi1-1 mutation. How direct is the regulation?

Overall, I believe this is a potentially important and pioneering paper, but it would benefit from greater depth in its physiological analyses and by building a stronger case for a direct molecular link between components of the ABA signaling network and ABIG1.

See point 1 above for discussion of direct vs. indirect regulation of ABIG1 transcription by ABA.

https://doi.org/10.7554/eLife.13768.019

Article and author information

Author details

  1. Tie Liu

    Department of Plant Biology, Carnegie Institution for Science, Stanford, United States
    Contribution
    TL, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Adam D Longhurst

    Department of Plant Biology, Carnegie Institution for Science, Stanford, United States
    Contribution
    ADL, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Franklin Talavera-Rauh

    Department of Plant Biology, Carnegie Institution for Science, Stanford, United States
    Contribution
    FT-R, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Samuel A Hokin

    Department of Plant Biology, Carnegie Institution for Science, Stanford, United States
    Contribution
    SAH, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. M Kathryn Barton

    Department of Plant Biology, Carnegie Institution for Science, Stanford, United States
    Contribution
    MKB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    kbarton@CarnegieScience.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5516-1835

Funding

National Science Foundation (#0929413)

  • M Kathryn Barton

Carnegie Institution for Science (Endowment)

  • M Kathryn Barton

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Cold Spring Harbor Laboratories for the gift of the GT7363 line. We thank Matthew Evans and Virginia Walbot for critical evaluation of the manuscript. Data are stored on the Gene Expression Omnibus server (Series GSE70100). The work in this manuscript was supported by Grant #0929413 from the National Science Foundation to MKB.

Reviewing Editor

  1. Richard Amasino, University of Wisconsin, United States

Publication history

  1. Received: December 13, 2015
  2. Accepted: August 31, 2016
  3. Version of Record published: October 4, 2016 (version 1)
  4. Version of Record updated: October 4, 2016 (version 2)

Copyright

© 2016, Liu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,234
    Page views
  • 567
    Downloads
  • 12
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Piyal Taru Das Gupta, Maithreyi Narasimha
    Research Article
    1. Developmental Biology
    2. Physics of Living Systems
    Andrew K Lawton et al.
    Research Article
