Interactions between respiratory oscillators in adult rats

  1. Robert TR Huckstepp
  2. Lauren E Henderson
  3. Kathryn P Cardoza
  4. Jack L Feldman Is a corresponding author
  1. University of California, Los Angeles, United States
Research Article
Cited
5
Views
918
Comments
0
Cite as: eLife 2016;5:e14203 doi: 10.7554/eLife.14203

Abstract

Breathing in mammals is hypothesized to result from the interaction of two distinct oscillators: the preBötzinger Complex (preBötC) driving inspiration and the lateral parafacial region (pFL) driving active expiration. To understand the interactions between these oscillators, we independently altered their excitability in spontaneously breathing vagotomized urethane-anesthetized adult rats. Hyperpolarizing preBötC neurons decreased inspiratory activity and initiated active expiration, ultimately progressing to apnea, i.e., cessation of both inspiration and active expiration. Depolarizing pFL neurons produced active expiration at rest, but not when inspiratory activity was suppressed by hyperpolarizing preBötC neurons. We conclude that in anesthetized adult rats active expiration is driven by the pFL but requires an additional form of network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive. The organization of this coupled oscillator system, which is essential for life, may have implications for other neural networks that contain multiple rhythm/pattern generators.

https://doi.org/10.7554/eLife.14203.001

eLife digest

Mammals breathe air into and out of their lungs to absorb oxygen into the body and to remove carbon dioxide. The rhythm of breathing is most likely controlled by two groups of neurons in a part of the brain called the brain stem. One group called the preBötzinger Complex drives breathing in (inspiration), and normally, breathing out (expiration) occurs when the muscles responsible for inspiration relax. The other group of neurons – known as the lateral parafacial region – controls extra muscles that allow us to increase our breathing when we need to, such as during exercise.

Huckstepp et al. set out to determine how these two groups of neurons interact with one another in anesthetized rats to produce a reliable and efficient pattern of breathing. The experiments provide further evidence that inspiration is mainly driven by the preBötzinger Complex. Whilst activity from the lateral parafacial region is needed to cause the rats to breathe out more forcefully than normal, a second low level of activity from another source is also required. This source could either be the preBötzinger Complex, or some unknown neurons that change their activity in response to the levels of oxygen and carbon dioxide in the blood or fluid of the brain.

Further investigation is required to identify how these interactions go awry in diseases that affect breathing, such as sleep apneas.

https://doi.org/10.7554/eLife.14203.002

Introduction

Coupled oscillator neural networks driving behavior are widespread, e.g., for swimming (Grillner, 2003), and locomotion (Goulding, 2009; Talpalar et al., 2013). Amongst complex and vital behaviors in mammals, breathing, an exceptionally reliable and continuous behavior throughout postnatal life, is one that we may be closest to understanding (Feldman and Kam, 2015). Not only do we know the location of the neural microcircuits that generate respiratory rhythm, but we also have direct, accurate and reliable behavioral measures of the output, i.e., breathing. We hypothesize that the respiratory rhythm central pattern generator (CPG) in mammals is comprised of two oscillators (Feldman et al., 2013): inspiratory rhythm originates in the preBötzinger Complex (preBötC) in the ventrolateral medulla (Smith et al., 1991) and active expiratory rhythm originates in the rostral medulla ventrolaterally adjacent to the facial nucleus (parafacial lateral region; pFL) (Pagliardini et al., 2011; Huckstepp et al., 2015).

Two parafacial regions that potentially overlap and whose anatomical descriptions are incomplete and ambiguous, the retrotrapezoid nucleus (RTN) and parafacial respiratory group/embryonic parafacial (pFRG/e-PF), contain overlapping subpopulations neurons that express the neurokinin-1 receptor (NK1R), the homeobox gene Phox2b, and the glutamate transporter 2 (VGlut2) (Nattie and Li, 2002; Mulkey et al., 2004; Onimaru et al., 2008; Thoby-Brisson et al., 2009; Ramanantsoa et al., 2011). Previously, we used unbiased descriptors to partition the ventral and lateral parafacial regions, designating them as parafacial lateral (pFL) and parafacial ventral (pFV). These parafacial regions are chemosensitive (Mulkey et al., 2004; Onimaru et al., 2008; Marina et al., 2010; Onimaru et al., 2012), but can be functionally separated by: i) their contribution to active expiration, with the pFV providing drive to expiration (Huckstepp et al., 2015; Silva et al., 2016) and the pFL containing a presumptive expiratory rhythm generator (Pagliardini et al., 2011; Huckstepp et al., 2015), and; ii) the presence of neurons with respiratory rhythmic behavior in pFL (or presumptively equivalent areas) (Onimaru and Homma, 2003; Thoby-Brisson et al., 2009; Pagliardini et al., 2011).

In mammals at rest, during wakefulness and sleep, when active breathing movements are primarily inspiratory, generation of the underlying rhythm appears driven by the preBötC. As metabolic demand increases, e.g., during exercise, the pFL appears to turn on to produce active expiration. Thus, while breathing is a unified act of inspiratory and expiratory airflow, we postulate this behavior results from the coordinated interaction of two anatomically and functionally distinct oscillators (Mellen et al., 2003; Janczewski and Feldman, 2006; Pagliardini et al., 2011; Huckstepp et al., 2015). To understand the generation and control of respiration we need to determine how these two oscillators interact. For example, in adult rats the preBötC can generate inspiratory rhythm while the pFL is quiescent (Pagliardini et al., 2011; Huckstepp et al., 2015). Is the converse true?

To investigate their independent and interactive functions, we used a pharmacogenetic approach to selectively inhibit the preBötC and/or activate the normally quiescent pFL. We bilaterally transfected the preBötC with the Gi/o-coupled allatostatin receptors (AlstR), which when activated by allatostatin (Alst) silences transfected preBötC neurons (Tan et al., 2008). In the same rats, we bilaterally transfected the pFL with the Gq-coupled HM3D DREADD receptor (HM3DR) that when activated by clozapine-N-oxide (CNO) depolarizes (Armbruster et al., 2007) transfected pFL neurons. We slowed respiration in a controlled manner by titrating the dose of Alst applied to the AlstR-transfected preBötC, allowing us to examine the dynamics of this presumptive coupled oscillator system as we shifted the balance of activity from the preBötC to the pFL. Depressing preBötC activity resulted in quantal slowing of breathing, similar to slowing of breathing following opiate depression of preBötC activity in vitro and in juvenile rats (Mellen et al., 2003; Janczewski and Feldman, 2006). As preBötC activity waned, burstlets appeared on inspiratory muscle electromyograms (EMGs) and in airflow, consistent with our postulate that burstlets, not bursts, in the preBötC are rhythmogenic (Kam et al., 2013). In complementary experiments, we applied CNO to the HM3DR transfected pFL to activate this normally quiescent oscillator. We confirmed that pFL activation initiates active expiration (Pagliardini et al., 2011; Huckstepp et al., 2015). By combining these protocols, i.e., silencing the preBötC while simultaneously driving the pFL, we removed some confounding factors from these initial experiments. Importantly, we found that active expiration could not be induced when preBötC inspiratory driven motor activity was suppressed and chemosensory drive was absent, indicating that in adult rats active expiration is driven by the pFL but requires an additional source of network excitation such as ongoing preBötC activity or chemosensory drive. The organization of this coupled oscillator system may have implications for other neural networks that contain multiple central pattern generators.

Results

Viral targeting of the preBötC and pFL

We made two pairs of viral injections in each adult rat, i.e., bilateral injections into the preBötC (Figure 1A,B) and into the pFL (Figure 1C,D). In histological sections the preBötC is defined as the neurokinin-1 receptor (NK1R) dense area ventral to the semi-compact nucleus ambiguous (Figure 1A,B) and the pFL is defined as the area ventral to the lateral edge of the facial nucleus, juxtaposed to the spinal trigeminal tract (Figure 1C,D) (Huckstepp et al., 2015). In representative 40 µm sections: from preBötC injection sites, 161 ± 42, representing 82 ± 6%, neurons expressed GFP (n=3); from pFL injection sites, 112 ± 31, representing 81 ± 3%, neurons expressed mCitrine (n=3). Transfection sites ranged from ~350–600 µm in diameter. As the responses to Alst and CNO did not differ between the largest and smallest injections sites, the effects of receptor activation were due to silencing or driving of the preBötC and pFL respectively and not to spread of virus to neighboring regions. We found no labeling of neurons in regions of the medulla other than within the injection sites (data not shown). In particular, we found no fluorescent reporters, i.e., eGFP or mCitrine, in the Bötzinger complex (BötC; Figure 1E,F).

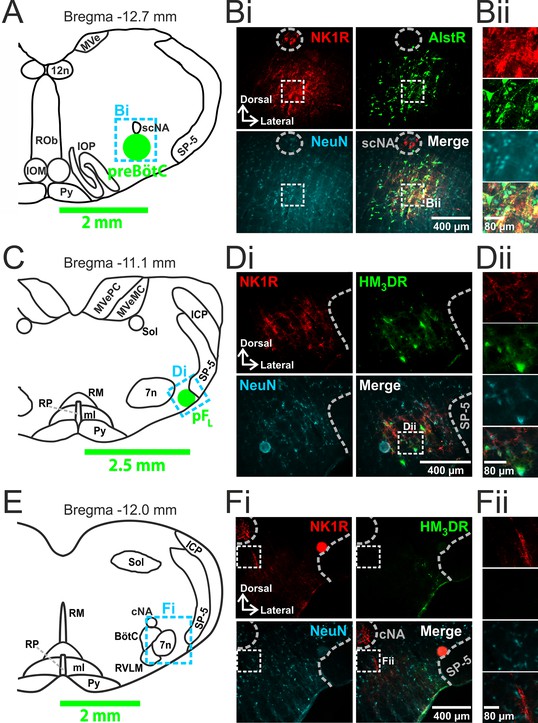

Transfection of neurons in preBötC and pFL.

(A) Localization of preBötC viral injections. Transverse view of medulla at Bregma -12.7 mm, green circle shows location of AlstR-GFP expressing neurons. Dashed blue box indicates location of immunocytochemistry shown in Bi. (B) Histological analysis of preBötC. (Bi) preBötC injection site: neurons identified by NeuN staining (blue) transfected with AlstR expressing GFP (green), co-localized with NK1R (red). (Bii) Expanded from Bi (dashed white boxes). (C) Localization of pFL viral injections. Transverse view of medulla at Bregma -11.1 mm, green circle shows location of HM3DR-mCitrine expressing neurons. Dashed blue box indicates location of immunocytochemistry shown in Di. (D) Histological analysis of pFL. (Di) pFL injection site: neurons identified by NeuN staining (blue) transfected with HM3D receptor (HM3DR) expressing mCitrine (green), co-localized with NK1R (red). (Dii) Expanded micrographs from merged figures in Di (dashed white boxes): NeuN (blue), mCitrine (Green), and NK1R (red). (E) Histological analysis of medulla at the level of the Bötzinger Complex (BötC). Transverse view of medulla at Bregma -12.0 mm. Dashed blue box indicates location of immunocytochemistry shown in Fi. (Fi) No transfected neurons were found in the BötC: neurons identified by NeuN staining (blue) transfected with AlstR or HM3DR co-expressing GFP (green), colocalized with NK1R (red). (Fii) Expanded from Fi (dashed white boxes). cNA – compact nucleus ambiguous, scNA – semi-compact nucleus ambiguous, SP-5 – spinal trigeminal tract, 12n – hypoglossal nucleus, 7n – facial nucleus, Py – pyramidal tract, MeV – medial vestibular nucleus, MeVMC – medial vestibular nucleus: magnocellular part, MeVPC - medial vestibular nucleus: parvocellular part, SOL – nucleus of the solitary tract, ROb – raphe obscurus, RP – raphe pallidus, RM – raphe magnus, ml – medial lemniscus, RVLM – rostral ventrolateral medulla, IOM - inferior olive, medial nucleus, IOP - inferior olive principle nucleus, ICP - inferior cerebellar peduncle (restiform body).

https://doi.org/10.7554/eLife.14203.003

Silencing the preBötC initially slowed breathing frequency (f) and induced active expiration, but eventually resulted in apnea

Hyperpolarizing preBötC AlstR-transfected neurons reduced f, ultimately progressing to apnea (Tan et al., 2008). In anesthetized adult rats at rest transfected with AlstR in the preBötC (n=8; Figure 2), Alst injected bilaterally into the preBötC initially decreased f (42 iqr 20 to 22 iqr 11 s; p=0.008), increased TI (0.4 iqr 0.1 to 0.5 iqr 0.2 s; p=0.04) and TE (1.0 iqr 0.7 to 3.2 iqr 1.0 s; p=0.008), decreased VT (4.6 iqr 0.7 to 2.4 iqr 0.8 mL; p=0.008) and ∫DiaEMG (25 iqr 13 to 15 iqr 4 arbitrary units (a.u.); p=0.8), and did not alter ∫GGEMG (8.6 iqr 9.8 to 11.1 iqr 13.7 a.u.; p=0.008). When rats became mildly hypercapnic (ETCO2 increased from 39.7 iqr 5.4 to 43.4 iqr 10.6 mm Hg; p=0.008), they exhibited expiratory-modulated ∫AbdEMG (0.3 iqr 0.2 to 9.7 iqr 9.3 a.u., e,g., Figure 2Aii, Bii), the signature of active expiration (Pagliardini et al., 2011). After inspiratory activity ceased (10.4 iqr 2.7 mins post Alst injection) and rats became severely hypercapnic (ETCO2 57.8 iqr 22.3 mm Hg), ∫AbdEMG briefly became tonic (17 iqr 5 s.; Figure 2Aiii, Biii) before becoming silent, i.e., no activity.

Hyperpolarizing preBötC neurons reduced ventilation and induced active expiration, but eventually resulted in apnea.

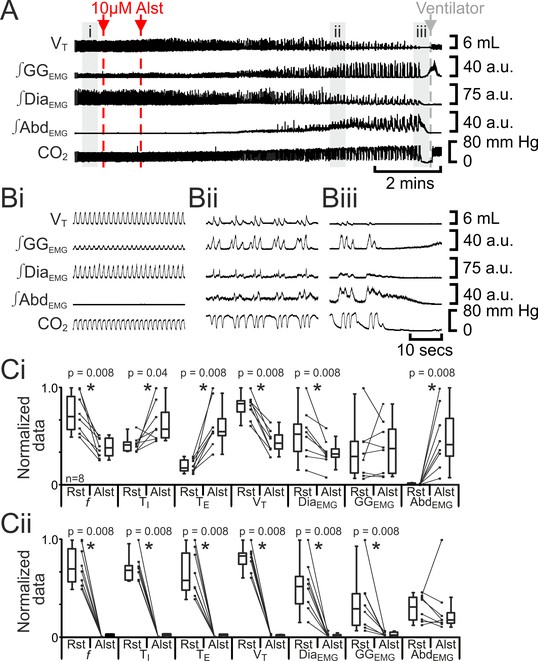

(A) Effect of Alst application to left preBötC (unilateral, first red arrow and dashed line) then right preBötC (bilateral, second red arrow and dashed line); gray arrow and dashed line mark onset of mechanical ventilation. (B) Expanded traces from A, indicated by shaded epochs (i-iii): (Bi) Activity at rest. (Bii) and (Biii) Activity following bilateral Alst injection. (C) Comparison between ventilation in rats at rest (Rst) and following Alst: (Ci) before Alst had taken full effect (≈Bii). (Cii) After Alst had taken full effect (≈Biii). Lines connect data from individual experiments, box and whisker plots show combined data. Data are normalized to highest parameter, i.e., f, TI, TE, VT, ∫GGEMG, ∫DiaEMG, or ∫AbdEMG, value regardless of whether it belonged to control or Alst group. f – frequency, TI – inspiratory period TE, – expiratory period, VT – tidal volume, ∫GGEMG – integrated genioglossus electromyogram, ∫DiaEMG – integrated diaphragm electromyogram, ∫AbdEMG – integrated abdominal electromyogram.

https://doi.org/10.7554/eLife.14203.004

The decrease in f was not continuous (n=8; Figures 2Bii, 3A–C), but instead quantal (Mellen et al., 2003). In a representative example (Figure 3C), kernel density plot estimations determined the optimal bandwidth, i.e., bin size, to be 0.44 s and revealed a multimodal distribution with 3 peaks: control respiratory periods were ~2.1 s, and after Alst injections into the preBötC, respiratory periods increased by quantal multiples of this baseline, i.e., 4.2 and 6.3 s (Figure 3Ci). During longer periods, low amplitude activity, which was not present during eupnea, appeared at times when normal breaths were expected (n=8; Figure 3A,B red arrows). This low amplitude DiaEMG and airflow activity are postulated to represent the inspiratory motor outflow manifestation of preBötC burstlets (Kam et al., 2013), i.e., low levels of rhythmogenic neural population activity in the preBötC that under normal conditions occur in the absence of motor output, being transmitted to motoneuron pools (see Figure 7A in Kam et al., 2013). Ultimately, inspiratory activity ceased, i.e., no phasic ∫DiaEMG or ∫GGEMG, and expiratory-related ∫AbdEMG, i.e., active expiration, terminated, resulting in apnea (n=8; Figure 2; p=0.008 for all variables).

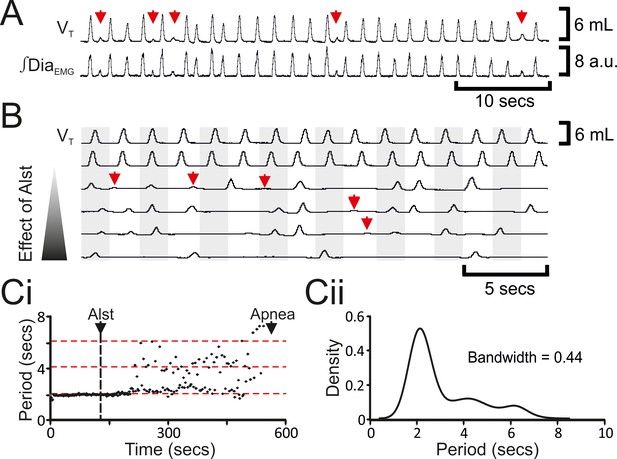

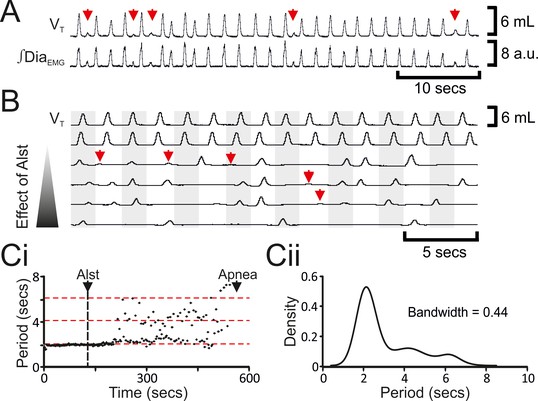

Hyperpolarizing preBötC neurons leads to quantal slowing of breathing and burstlet-like activity in ∫DiaEMG.

(A) Burstlet-like activity in airflow and ∫DiaEMG traces (red arrows). (B) Traces at different time points (top to bottom ranging from -5 to +10 min) after Alst infusion showing burstlet-like activity. (C) Quantal slowing of breathing. (Ci) Raster plot of respiratory period before and after Alst. (Cii) Kernel density estimations determined the optimal bandwidth, i.e., bin size, of 0.44 s, revealing a multimodal distribution with respiratory periods at quantal intervals of ~2.1 s.

https://doi.org/10.7554/eLife.14203.005

We tested for nonspecific effects of Alst injections in non-transfected rats (n=8; Figure 4). Injection of Alst into the preBötC did not alter f (47 iqr 12 to 54 iqr 12 s; p=0.1), TI (0.3 iqr 0.0 to 0.3 iqr 0.0 s; p=0.1), TE (1.0 iqr 0.3 to 0.8 iqr 0.3 s; p=0.3), VT (4.7 iqr 1.3 to 4.7 iqr 1.3 mL; p=0.3), ∫DiaEMG (34 iqr 13 to 34 iqr 14 a.u.; p=0.5), ∫GGEMG (14 iqr 11 to 13 iqr 10 a.u.; p=0.8), nor induce expiratory-related ∫AbdEMG (0.3 iqr 0.1 to 0.3 iqr 0.1 a.u.; p=0.3). As there were no effects of Alst in the absence of AlstRs, the cessation of inspiratory activity and termination of expiratory-related ∫AbdEMG following injections of Alst into the preBötC of transfected rats resulted from inactivation of AlstR-transfected preBötC neurons.

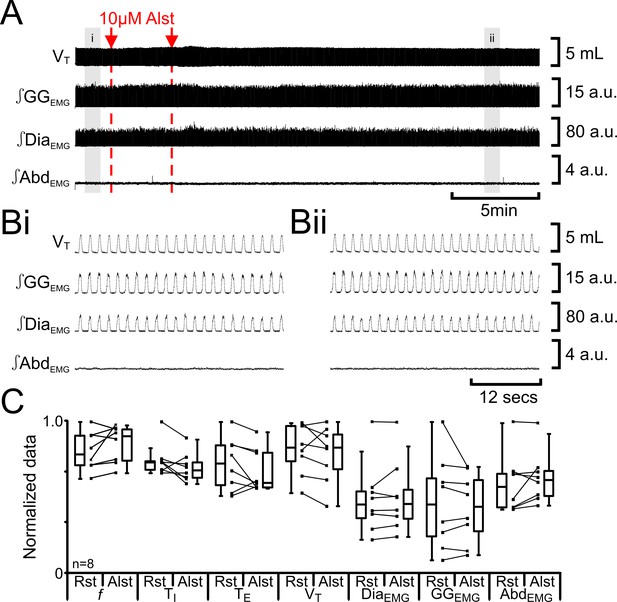

Alst in absence of AlstRs does not affect breathing.

(A) Effect of Alst application to left preBötC (unilateral, first red arrow and dashed line) then right preBötC (bilateral, second red arrow and dashed line). (B) Expanded traces from A, indicated by shaded epochs (i–ii): (Bi) Activity at rest. (Bii) Activity following bilateral Alst injection. (C) Comparison between ventilation in rats at rest (Rst) and following Alst. Lines connect data from individual experiments, box and whisker plots show combined data. Data are normalized to highest parameter, i.e., f, TI, TE, VT, ∫GGEMG, ∫DiaEMG, or ∫AbdEMG, value regardless of whether it belonged to control or Alst group. Abbreviations defined in Figure 2.

https://doi.org/10.7554/eLife.14203.006

Activation of the pFL leads to active expiration

As we previously found nonspecific effects of CNO at a concentration of 100 µM (Huckstepp et al., 2015), we tested for nonspecific effects of 90 µM CNO in non-transfected rats (n=8; Figure 5). 90 µM CNO did not alter f (54 iqr 11 to 53 iqr 9 s; p=0.6), TI (0.3 iqr 0.0 to 0.3 iqr 0.0 s; p=0.2), TE (0.8 iqr 0.3 to 0.8 iqr 0.2 s; p=0.6), VT (4.6 iqr 1.5 to 4.7 iqr 1.6 mL; p=0.5), DiaEMG (33 iqr 13 to 34 iqr 14 a.u.; p=1.0), GGEMG (13 iqr 12 to 13 iqr 13 a.u.; p=0.1), nor induce expiratory-related ∫AbdEMG (0.3 iqr 0.1 to 0.3 iqr 0.1 a.u.; p=0.3). There were no effects of 90 µM CNO in the absence of HM3DRs.

CNO in absence of HM3DRs does not affect respiration.

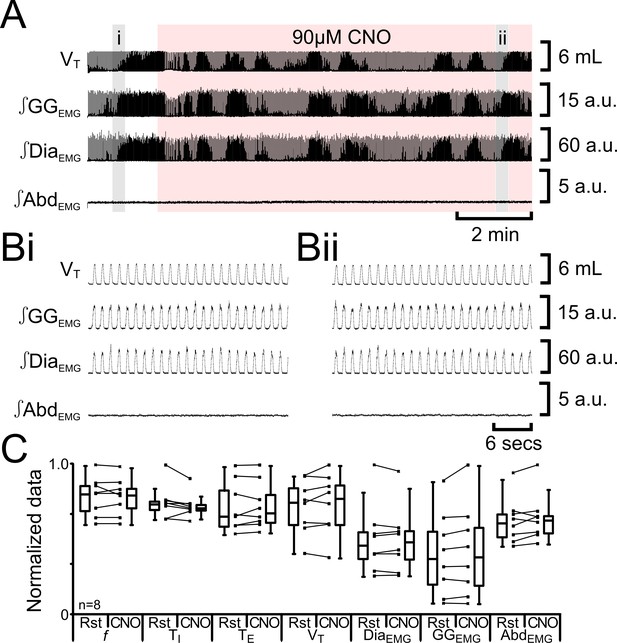

(A) Effect of CNO applied to ventral surface (pink shaded area). (B) Expanded traces from A, indicated by shaded epochs (i-–ii): (Bi) Activity at rest. (Bii) Activity in presence of CNO. (C) Comparison between ventilation in rats at rest and in presence of CNO. Lines connect data from individual experiments, box and whisker plots show combined data. Data are normalized to highest value for that parameter, i.e., f, TI, TE, VT, ∫GGEMG, ∫DiaEMG, or ∫AbdEMG regardless of whether it belonged to control or CNO group. Abbreviations defined in Figure 2.

https://doi.org/10.7554/eLife.14203.007

We predicted that depolarizing pFL neurons would elicit active expiration, similar to the effect of their disinhibition or optogenetic photoactivation (Pagliardini et al., 2011). In anesthetized adult rats at rest transfected with HM3DRs in the pFL (n=8; Figure 6), CNO (90 µM) increased f (37 iqr 12 to 42 iqr 7 s; p=0.04), did not alter TI (0.3 iqr 0.1 to 0.3 iqr 0.1 s; p=0.8) decreased TE (1.3 iqr 0.6 to 1.1 iqr 0.3 s; p=0.02), increased VT (3.9 iqr 1.3 to 4.2 iqr 1.3 mL; p=0.02), ∫DiaEMG (25 iqr 12 to 27 iqr 12 a.u.; p=0.02), and ∫GGEMG (7.6 iqr 6.6 to 8.4 iqr 5.6 a.u.; p=0.04), and induced expiratory-related ∫AbdEMG (0.3 iqr 0.2 to 3.0 iqr 4.0 a.u.; p=0.02). Thus depolarizing pFL neurons altered respiration in a similar manner to optogenetic photoactivation (Pagliardini et al., 2011) for all measured variables common to both studies. We conclude that depolarization of HM3DR-transfected pFL neurons resulted in active expiration.

Depolarizing pFL neurons elicits active expiration.

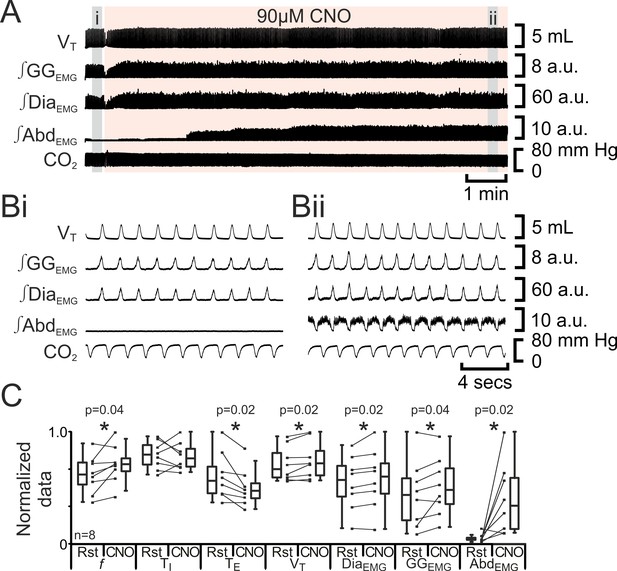

(A) Effect of CNO applied to ventral surface (pink shaded area). (B) Expanded traces from A, indicated by grey shaded epochs (i-ii): (Bi) Activity at rest. (Bii) Activity in presence of CNO. (C) Comparison between ventilation in rats at rest and in presence of CNO. Lines connect data from individual experiments, box and whisker plots show combined data. Data are normalized to highest value for that parameter, i.e., f, TI, TE, VT, ∫GGEMG, ∫DiaEMG, or ∫AbdEMG regardless of whether it belonged to control or CNO group. Abbreviations defined in Figure 2.

https://doi.org/10.7554/eLife.14203.008

Silencing the preBötC during active expiration leads to apnea

The preBötC can generate inspiratory rhythm while the pFL is quiescent (Pagliardini et al., 2011). Can the pFL generate a respiratory rhythm when the preBötC is quiescent? If active expiration is independent of inspiratory activity, then active expiration driven by activation of HM3DRs in pFL should persist after cessation of inspiratory activity resulting from injection of Alst in the preBötC. In anesthetized adult rats with an active expiratory breathing pattern induced by CNO, injection of Alst into the preBötC led to a significant decrease in respiratory activity (n=8; p=0.008 for all variables; Figure 7), ultimately resulting in apnea, with no rhythmicity in VT, ∫DiaEMG, ∫GGEMG, and ∫AbdEMG. After rhythmic inspiratory activity ceased, ∫AbdEMG continued tonically for a short duration (15 iqr 12 s; Figure 7A,Bii) before disappearing, which was not different from the duration of tonic ∫AbdEMG following the onset of apnea in the absence of CNO (Figure 2Biii; p=0.7). When inspiratory activity stopped, rats were severely hypercapnic (ETCO2 64.6 iqr 14.5 mm Hg; Figure 7Bii), this was not different from the hypercapnia at the onset of apnea in the absence of CNO (ETCO2 57.8 iqr 22.3 mm Hg; p=0.8). Rats were mechanically ventilated to restore CO2 and O2 levels to within the normal range (Figure 7). To assess the state of the respiratory CPG the mechanical ventilator was intermittently turned off. Shortly after allatostatin injections into the preBötC, no respiratory activity was seen following cessation of mechanical ventilation, and rats were placed back on the ventilator. As the time from allatostatin injection in the preBötC increased, removal from the ventilator led to brief periods of spontaneous breathing. When spontaneous breathing occurred, the return of inspiratory activity always preceded the return of expiratory abdominal activity; active expiration did not return until VT reached 3.2 iqr 1.7 mL, ∫DiaEMG reached 13.1 iqr 8.2 a.u., and ∫GGEMG reached 5.2 iqr 4.2 a.u. (n=8; Figure 8). That is, at low levels of reinitiated inspiratory activity there was no active expiration, which appeared only after inspiratory activity reached a higher value. If rats were able to spontaneously breathe without ventilation, they were allowed to do so. However, most early periods of spontaneous breathing deteriorated, and when rats became apneic again they were re-ventilated; in 5 of 6 rats spontaneous breathing occurred during ventilation, and in the remaining rat, spontaneous breathing following removal from the ventilator was sustained. When spontaneous breathing occurred during ventilation the return of inspiratory activity always preceded the return of expiratory abdominal activity. Therefore, following silencing of the preBötC with Alst in the presence of CNO to drive the pFL, at no time during the re-initiation of spontaneous breathing, either with or without mechanical ventilation, did active expiration occur in the absence of inspiratory activity and chemosensory drive.

Hyperpolarizing preBötC neurons leads to apnea, and loss of active expiration even with activation of pFL.

(A) Integrated traces from a single experiment showing effect of Alst injection to left preBötC (unilateral, first red arrow and dashed line) then right preBötC (bilateral, second red arrow and dashed line), in presence of CNO (pink shaded area); gray arrow and dashed line mark onset of mechanical ventilation. (B) Expanded traces from A indicated by shaded epochs: (Bi) In presence of CNO only. (Bii) Following Alst in presence of CNO. (C) Comparison between ventilation in rats in presence of CNO and following Alst in presence of CNO. Lines connect data from individual experiments, box and whisker plots show combined data. Data are normalized to highest value for that parameter, i.e., ∫GGEMG, ∫DiaEMG, or ∫AbdEMG regardless of whether it belonged to CNO or CNO with Alst group. Abbreviations defined in Figure 2.

https://doi.org/10.7554/eLife.14203.009
Following apnea, in presence of CNO, active expiration only returns after inspiratory activity returns.

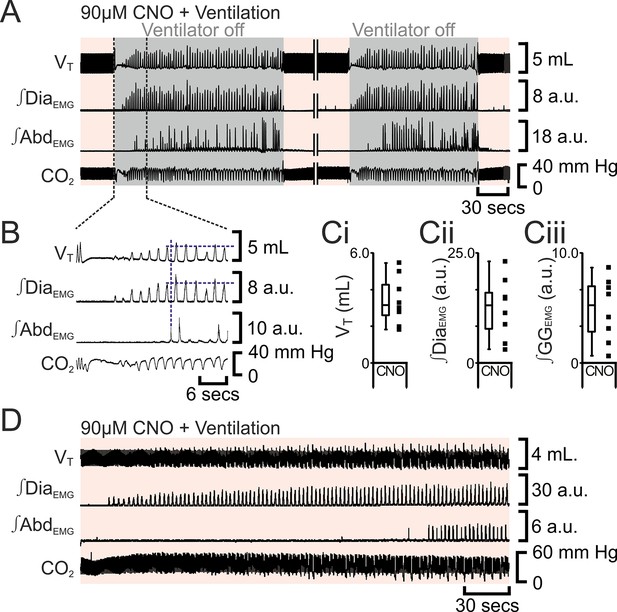

(A) Integrated traces from one experiment showing effect of removing rat from ventilator (dark grey shaded area), in presence of CNO (pink shaded area), following induction of apnea by microinjection of Alst into the preBötC of preBötC-AlstR transfected rats. Intervening period between the two traces, whilst ventilation was ongoing and continuous, has been removed (double break), so traces can be expanded. (B) Expanded traces from A (indicated by black dashed lines), showing how measurements were taken for inspiratory parameters when active expiration returned. (C) Inspiratory parameters when active expiration returned. Dots represent individual experiments, box and whisker plots show combined data. (Ci) Tidal volume (VT) (Cii) ∫DiaEMG, (Ciii) ∫GGEMG. (D) Integrated traces from one experiment showing the return of inspiratory and expiratory activity during mechanical ventilation, in presence of CNO (pink shaded area), following induction of apnea by microinjection of Alst into the preBötC of preBötC-AlstR transfected rats. Abbreviations defined in Figure 2.

https://doi.org/10.7554/eLife.14203.010

Technical consideration

Our experimental design required long lasting activation of receptors at 4 separate loci, i.e., preBötC bilaterally and pFL bilaterally. Optogenetics can have millisecond resolution, making them a valuable tool for studying breathing on a breath by breath basis, e.g., (Pagliardini et al., 2011). However opsins can rapidly (>seconds) desensitize and their activation requires placement of optic fibers to illuminate each transfected area, a particularly challenging problem for four regions in the brainstem. Therefore, we chose a pharmacogenetic approach to excite the pFL by activation of HM3DRs and inhibit the preBötC by activation of AlstRs. This way we were able to switch neurons in these regions on or off over a period of minutes by application of CNO to the ventral surface of the medulla, and careful titration of the dose and infusion rate of Alst injected into the preBötC.

We note AAV2/5 can retrogradely transfect of some types of afferent neurons, e.g., injections of AAV2/5 into the entorhinal cortex retrogradely labels a subset of dentate gyrus neurons, but not the dense afferent projections from other nuclei (Aschauer et al., 2013). We assert that our results are unlikely to be confounded by retrograde transfection of distant neurons: i) Other than the injection site, we found no labeling of medullary neurons following transfection of the pFL with AAV2/5 viruses that coexpress mCitrine with a DREADD receptor, in this (Figure 1E,F) or our previous (Huckstepp et al., 2015) study; ii) CNO was applied directly to the ventral medullary surface, and the effective concentration for receptor activation would be limited to the first few hundred microns beneath the ventral surface, and; iii) we find essentially the same effects of activation of neurons in the pFL as optogenetic photoactivation of the same neurons transfected with lentivirus (Pagliardini et al., 2011), which is not retrogradely transported.

Here we discuss the output of the preBötC and pFL, which ultimately form the final output of the respiratory network. Though we do not refer to other nuclei, we do not rule out their contribution to the control of respiration; for example following silencing of the preBötC, the increase in chemosensory drive to the respiratory oscillators, may come from increased drive from other respiratory-related nuclei, such as the pontine nuclei, i.e., locus coreleus, parabrachial nucleus, and the Kolliker Fuse nucleus, the ventral respiratory group or other medullary nuclei, i.e., RTN/pFV, medullary raphe, nucleus tractus solitarii, or even astrocytes. In addition, due to the necessity to perform injections into the medulla, we were unable to record directly from the preBötC or pFL. Therefore, the activity of the preBötC and pFL, was assessed by motor output recorded from respiratory muscles, which may not always reflect the activity of these oscillators, as they may have subthreshold activity, e.g., (Kam et al., 2013).

Discussion

Many rhythmic behaviors are driven by neural networks that (presumably) contain coupled oscillators (Grillner, 2003; Goulding, 2009). Here, we examined the coupled oscillator microcircuit that controls breathing, a motor behavior that is presently unique insofar as the locations of its oscillators, i.e., preBötC and pFL, are known (Smith et al., 1991; Pagliardini et al., 2011; Feldman et al., 2013; Feldman and Kam, 2015; Huckstepp et al., 2015). In rats, while the function of the preBötC as the critical site for generation of inspiratory rhythm is consistent across all relevant developmental stages, from the third trimester in utero through adulthood, and state, e.g., sleep-wake, rest-exercise (Smith et al., 1991; Janczewski and Feldman, 2006; Tan et al., 2008; Kam et al., 2013), the presumptive function of the pFL and its coupling with the preBötC appears to change developmentally and with state (Figure 9) (Onimaru and Homma, 2003; Iizuka and Fregosi, 2007; Oku et al., 2007; Onimaru et al., 2008; Thoby-Brisson et al., 2009; Pagliardini et al., 2011; Huckstepp et al., 2015). To understand the context in which we interpret our data, we first summarize this disparate literature with reference to Figure 9.

Developmental and state-dependent changes in coupling between pFL and preBötC.

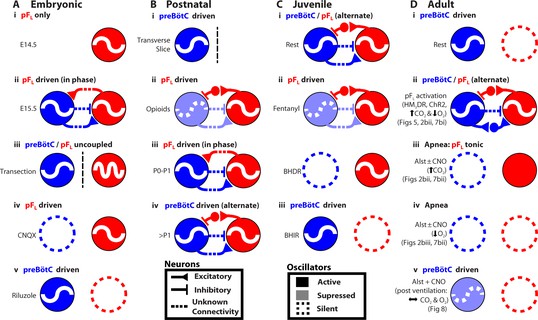

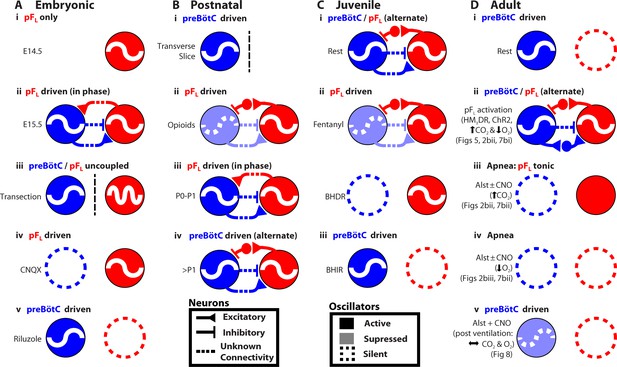

Functional connections of undetermined connectivity are indicated as broken lines. As pFL neurons are excitatory (Onimaru et al., 2008; Thoby-Brisson et al., 2009) and lack inhibitory markers (Ellenberger, 1999; Tanaka et al., 2003), inhibitory connections from pFL to preBötC are indirect (see Figure 7 in Huckstepp et al., 2015). (A) Embryonic stage (all data in vitro). (Ai) pFL (red circle) oscillates at embryonic day 14.5 (E14.5). (Aii) preBötC (blue circle) oscillates at embryonic day 15.5 (E15.5) and couples to the pFL, where it excites and inhibits different groups of pFL neurons. (Aiii) preBötC and pFL can oscillate independently of each other following a transverse section caudal to facial nucleus. (Aiv) pFL can oscillate in the absence of preBötC following bath application of a glutamatergic antagonist (CNQX). (Av) preBötC can oscillate in the absence of the pFL following bath application of a sodium channel blocker (riluzole) (Thoby-Brisson et al., 2009). (B) Postnatal stage. (Bi) In late fetal (Thoby-Brisson et al., 2005; Bouvier et al., 2008) and postnatal rats (Smith et al., 1991), the preBötC can oscillate in the absence of the pFL in transverse slices, and (Bii) the pFL can oscillate independently following suppression of preBötC rhythm by bath application of opioid agonists (Takeda et al., 2001; Janczewski et al., 2002). Biii) Immediately following birth, respiratory rhythm is driven by pFL (Onimaru and Homma, 2003; Oku et al., 2007). (Biv) Shortly after birth (>1 day), the breathing CPG becomes driven by the preBötC (Oku et al., 2007). (C) Juvenile stage. (Ci) Expiration and inspiration alternate and are reciprocally coupled. (Cii) PreBötC and pFL are differentially affected by fentanyl, which shifts breathing to an expiratory-dominant pattern. (Cii + iii) preBötC and pFL can be independently suppressed by activation of Breuer-Hering deflation reflex (BHDR; Cii) or inflation reflex (BHIR; Ciii) (Janczewski and Feldman, 2006). (D) Adult Stage: (Di) breathing is inspiratory driven by preBötC while pFL activity is normally suppressed at rest (also see Pagliardini et al., 2011 and Huckstepp et al., 2015); (Dii) activation of HM4DR transfected pFL neurons by CNO (see Figure 6) or optogenetic activation (Pagliardini et al., 2011), or suppression of AlstR transfected preBötC neurons with Alst (see Figure 2, 7) can induce active expiration; (Dii) as preBötC neurons project to the pFV but do not appear to project to the pFL (Tan et al., 2010), excitatory drive from the preBötC to the pFL is most likely through an intermediate excitatory relay, such as the pFV. (Diii) Depression of inspiration by Alst, in presence or absence of CNO, leads to tonic expiratory activity during hypercapnia (see Figures 2, 7) or (Div) apnea during hypoxia (see Figures 2, 7). (Dv) As breathing returns, abdominal activity remains absent until inspiratory activity is near normal levels (see Figure 8), implicating an indirect involvement of preBötC excitatory neurons in expiration either through its excitatory projections throughout breathing CPG (Tan et al., 2010), including pFV that contributes to expiratory activity (Huckstepp et al., 2015), or through mechanosensory feedback that can provides expiratory drive (Remmers, 1973; Davies and Roumy, 1986; Janczewski and Feldman, 2006).

https://doi.org/10.7554/eLife.14203.011

From third trimester in utero to adulthood, NK1R-expressing neurons lying under the lateral edge of the facial nucleus and extending laterally out to the spinal trigeminal tract have respiratory-rhythmic burst activity (Onimaru et al., 2008; Thoby-Brisson et al., 2009; Pagliardini et al., 2011; Huckstepp et al., 2015). In E14.5 mice, these neurons are designated as comprising the embryonic parafacial nucleus (e-pF) (Thoby-Brisson et al., 2009); in postnatal rats, these neurons are designated as comprising the parafacial respiratory group (pFRG) (Onimaru and Homma, 2003), and; in the adult rat, these neurons are designated as comprising the pFL (Pagliardini et al., 2011; Huckstepp et al., 2015). While 3 distinctly different groups of NK1R neurons expressing respiratory-rhythmic bursting could exist in sequence within this homologous anatomical location at distinctly different developmental time points, the most parsimonious interpretation is of one population of neurons studied at different developmental time points; we postulate that this is the case. For the balance of the DISCUSSION, we will refer to this location as the pFL.

NK1R-expressing neurons in the ventral respiratory column (including the parafacial region) are almost exclusively glutamatergic (Guyenet et al., 2002). In embryonic and postnatal rodents, the pFL is comprised of glutamatergic NK1R-expressing neurons (Onimaru et al., 2008; Thoby-Brisson et al., 2009). In the adult rodent, the presumptive pFL expiratory oscillator is comprised (mostly) of NK1R-expressing neurons (Figure 1D, see also Huckstepp et al., 2015). Since the pFL and pFV do not appear to contain any inhibitory neurons (Ellenberger, 1999; Stornetta and Guyenet, 1999; Tanaka et al., 2003; Fortuna et al., 2008; Abbott et al., 2009), we conclude that any resultant inhibitory action associated with their activity occurs through an intermediate relay of inhibitory neurons, perhaps located in the preBötC (Morgado-Valle et al., 2010) or BötC (Schreihofer et al., 1999).

In E14.5 mice, the pFL is rhythmic before the preBötC appears to form (Figure 9Ai; see also Thoby-Brisson et al., 2009). At E15.5, the preBötC forms (Thoby-Brisson et al., 2005) and it becomes rhythmically coupled to the pFL (Thoby-Brisson et al., 2009). At this time: i) the preBötC and pFL can oscillate independently following a transverse section caudal to facial nucleus (Figure 9Aiii); ii) the pFL can oscillate in the absence of preBötC rhythm following bath application of the glutamatergic antagonist CNQX (Figure 9Aiv), and; iii) the preBötC can oscillate in the absence of the pFL following administration of the sodium channel blocker riluzole (Figure 9Av) (Thoby-Brisson et al., 2009). Thus embryonically, the preBötC and pFL are independent, coupled oscillators, and rhythmic output of the network is a convolution of the faster rhythm of the pFL and the slower rhythm of the preBötC (Thoby-Brisson et al., 2009); the pFL (Thoby-Brisson et al., 2009) provides excitatory drive to the preBötC, while bursting in the preBötC, comprised of inhibitory (Rahman et al., 2015) and excitatory neuronal activity (Gray et al., 2010), inhibits and excites pFL neurons (Thoby-Brisson et al., 2009). Whether the projections between the preBötC and pFL are direct or indirect (Figure 9Aii) is yet to be determined (Thoby-Brisson et al., 2009).

In postnatal rats, respiratory rhythm appears similar to the embryo; the glutamatergic pFL provides excitatory drive to the preBötC (Onimaru and Homma, 2003; Onimaru et al., 2012), while bursting of the preBötC, comprised of inhibitory (Morgado-Valle et al., 2010) and excitatory neurons (Gray et al., 2010), inhibits and excites different subsets of pFL neurons (Takeda et al., 2001; Onimaru et al., 2007). At this time: i) the preBötC can oscillate in transverse slices, i.e., in the absence of the pFL (Figure 9Bi) (Smith et al., 1991) and; ii) the pFL can oscillate following suppression of preBötC rhythm by bath application of opioid agonists (Figure 9Bii) (Takeda et al., 2001; Janczewski et al., 2002). Thus postnatally, the preBötC and pFL are also independent, coupled oscillators. Immediately following birth, respiratory rhythm appears driven by the pFL (Figure 9Biii) (Onimaru and Homma, 2003; Oku et al., 2007), perhaps to protect against the opioid surge in the fetal brain during birth (Janczewski et al., 2002) that would act to suppress preBötC activity (Takeda et al., 2001). Shortly after birth (~P2-P4), the breathing central pattern generator (CPG) matures, and becomes driven by the preBötC (Oku et al., 2007; Mckay et al., 2009; Kennedy, 2015) (Figure 9Biv), and remains so throughout life.

In juvenile rats, the preBötC and pFL are reciprocally coupled (9Ci) but are still differentially affected by fentanyl, which shifts breathing to an expiratory-dominant pattern (9Cii) (Janczewski and Feldman, 2006). Also, the preBötC and pFL can be independently suppressed by the Breuer-Hering deflation reflex (BHDR; 9Cii) or inflation reflex (BHIR; 9Ciii) (Janczewski and Feldman, 2006).

Here, we used a novel pharmacogenetic strategy to investigate how the preBötC and pFL interact to produce the appropriate breathing pattern in adult spontaneously breathing vagotomized rats (Figure 9D). The preBötC is the dominant oscillator, active at rest to drive inspiratory movements (Figure 9Di, see also Pagliardini et al., 2011 and Huckstepp et al., 2015). The pFL is the subsidiary conditional oscillator, quiescent at rest (Figure 9Di); in the presence of concurrent, or reduced, preBötC activity (Figure 2), and appropriate inputs, such as an increase in expiratory drive through activation of exogenous receptors (Figure 6, see also Pagliardini et al., 2011) or altered blood gases (Huckstepp et al., 2015), the pFL drives active expiration (Figure 9Dii). In the absence of preBötC activity, chemosensory drive increases network excitability and drives active expiration, though abdominal activity is tonic due to a lack of phasic inhibition from the preBötC (Figure 9Diii). However, the pFL appears incapable of independently driving respiratory movements in the adult rat when preBötC activity is silenced by exogenous receptors (Figures 2, 7, 9Div) or when preBötC activity is low and blood gases are normal (Figures 8, 9Dv). As preBötC neurons project to the pFV but do not appear to project to the pFL (Tan et al., 2010), excitatory drive from the preBötC to the pFL is most likely through an intermediate excitatory relay, such as the pFV (Figure 9Dii).

Silencing the preBötC leads to quantal slowing of breathing and transmission of burstlets to motoneuron pools

Hyperpolarizing preBötC neurons initially decreased f, VT, and ∫DiaEMG (Figures 2, 3, see also Tan et al., 2008). Breathing slowed in a quantal manner (Mellen et al., 2003) with missed inspiratory bursts, rather than through a gradual increase in period (Figures 2Bii, 3A–C). Concurrently, as drive within the preBötC diminished and chemosensory drive increased, presumptive burstlets in the preBötC (Kam et al., 2013) appeared to be transmitted to motor pools, leading to low level inspiratory motor activity, i.e., ∫DiaEMG and ∫GGEMG, resulting in minimal inspiratory airflow (Figure 3A–B). Here, lowered drive in the preBötC from activation of the allatostatin receptor creates burstlets in the preBötC; under normal conditions these burstlet signals are not strong enough to drive motor activity. However, increased excitability in the premotor and motor network caused by increased chemosensory drive (from decreased ventilation) causes these normally subthreshold events to become suprathreshold, and thus these burstlets are transmitted to the motor output. During quantal slowing of breathing, inspiratory activity on the DiaEMG and GGEMG was interspersed with AbdEMG activity (Figures 2A-B, 7A–B). Interestingly, even when expiratory activity was at its highest, low level preBötC activity, as seen as burstlets on the DiaEMG and GGEMG was still able to inhibit AbdEMG activity (Figure 7Bii). These observations are consistent with our hypothesis that burstlets originate in the preBötC and, under atypical conditions can be transmitted to motoneuron pools to be seen as small events in muscle EMGs (Kam et al., 2013).

Silencing the preBötC leads first to active expiration then to apnea

Following hyperpolarization of preBötC neurons by activation of AlstRs, active expiration appeared (Figures 2, 3, 9Dii). Hypoxia and hypercapnia can themselves induce active expiration (Iizuka and Fregosi, 2007; Huckstepp et al., 2015), whether changes in blood gases are sensed by pFL neurons, or by neurons driving the pFL, remains to be determined. In either case, active expiration could have been due to increased hypoxic and/or hypercapnic drive to the pFL as inspiratory movements waned (Figures 2A–B, 7A–B, 9Dii). Alternatively, active expiration could be due to disinhibition of a conditional expiratory oscillator resulting from a loss of (presumptive) inhibitory preBötC drive (Kuwana et al., 2006; Morgado-Valle et al., 2010) to the pFL (Figure 9Dii). Subsequently, when inspiratory motor outflow disappeared and hypercapnia and hypoxia inexorably increased, active expiration ceased (Figures 2, 9Div, see also Tan et al., 2008), perhaps due to the inhibitory effect of severe hypoxia on expiratory motor output (Sears et al., 1982; Fregosi et al., 1987). At normal blood gas levels, active expiration may be seen in the absence of inspiratory motor activity resulting from lung inflation, e.g., in juvenile rat (Janczewski and Feldman, 2006) (Figure 9C). Nonetheless, from the data presented here in the adult rat, we conclude a necessary role of preBötC excitatory drive in generating active expiration in normal breathing (discussed further below).

Activating the pFL can induce active expiration but not during to apnea

Depolarizing pFL neurons by activation of HM3DRs (Figure 6) changes breathing in a manner similar to their disinhibition or optogenetic photostimulation (Pagliardini et al., 2011). In the presence of inspiratory motor output, depolarizing pFL neurons led to substantial active expiration, but when inspiration ceased so did active expiration (Figures 7, 9Div). Tupal et al observed the absence of expiratory rhythm in perinatal mice lacking Dbx1 neurons and concluded that Dbx1-derived parafacial neurons are an essential component of an expiratory oscillator (Tupal et al., 2014). Our data suggests an alternative interpretation, that suppressing preBötC neuron activity, either acutely as done here or perhaps genetically via Dbx1 deletion, is sufficient to prevent active expiration, without any need to invoke explicit perturbations of the pFL.

Loss of inhibitory output from the preBötC leads to a loss of phasic expiratory activity

As rats went from eupnea to apnea following suppression of preBötC activity, and after initiation of active expiration, ∫AbdEMG transitioned from phasic to tonic: ∫AbdEMG oscillated with a normal antiphase relationship to inspiration when preBötC drive and hypercapnia were moderate, but became tonic during apnea accompanied by severe hypercapnia (Figures 2A–B, 7A–B, 9Diii). Similarly, in anesthetized cats as ventilation moves in the opposite direction from hypocapnic apnea to eupnea with a resultant increase in CO2, expiratory motor activity transitions from tonic to phasic (Sears et al., 1982). We suggest, like Sears et al, that near the transition from eupnea to apnea, expiratory activity is phasic due to periodic inhibition of tonic activity during inspiration, and becomes tonic once the phasic inspiratory inhibition is lost (Figures 2Bii–iii, 7Bii, 9Diii). We suggest the loss of phasic inhibition is the result of silencing of inhibitory preBötC inspiratory neurons by Alst (Kuwana et al., 2006; Morgado-Valle et al., 2010), implying a significant role for inhibitory preBötC neurons in shaping expiratory output.

Respiratory network activity is a requirement for active expiration

Interestingly, tonic ∫ABDEMG activity was not seen during the transition from apnea to eupnea (Figures 8Aii, 9Dv) in contrast to its presence during the reverse transition from eupnea to apnea (Figures 7Bii, 9Diii). Following apnea during ventilation to maintain blood gases, when pFL neurons were excited by activation of HM3DRs there were three phases to the re-initiation of breathing. Initially, soon after silencing the preBötC, no inspiratory or expiratory activity was seen, even in the absence of mechanical ventilation. Next, presumably as the effect of Alst on preBötC neurons was waning, no inspiratory or expiratory activity was seen during ventilation, but spontaneous breathing was present upon removal from the ventilator. Here, spontaneous breathing was likely due to increased chemosensory drive to the preBötC overcoming the waning hyperpolarizing effect of the Alst on preBötC neurons. Ultimately, as spontaneous breathing continued and chemosensory drive diminished, rats would once again become apneic and require mechanical ventilation (Figure 8A–C). During this phase, upon removal from the ventilator, ∫AbdEMG did not return until inspiratory motor, and presumably preBötC, activity reached a threshold level (Figure 8A–C). Finally, spontaneous breathing occurred during ventilation, once the effect of Alst on preBötC neurons had worn off (Figure 8D). During this phase, inspiratory activity on the GGEMG and DiaEMG always returned before AbdEMG (Figure 8D). At no time during mechanical ventilation, or during the periods where rats were briefly removed from the ventilator, did active expiration occur in the absence of inspiration. As blood gases were normal (Figure 8), the loss of expiratory activity is unlikely to be due to excessive hypoxia or hypercapnia. Thus there appears to be a minimum level of respiratory network excitability required for active expiration. In the absence of preBötC activity, this network excitability may be provided by chemosensory drive, accounting for the ∫AbdEMG activity seen shortly before the onset of apnea. However following recovery from apnea the increase in network excitability is provided by the preBötC either directly through its extensive excitatory projections throughout the respiratory network (Tan et al., 2010), e.g., the pFV that can modulate expiratory activity (Marina et al., 2010; Huckstepp et al., 2015), or indirectly when VT became large enough to induce mechanosensory feedback (that can provide expiratory drive, e.g., Remmers, 1973; Davies and Roumy, 1986; Janczewski and Feldman, 2006).

Summary

We have developed a new strategy using complementary pharmacogenetics for studying coupled oscillator systems. By independently altering the excitability of two anatomically and functionally separate respiratory oscillators, we have uncovered a fundamental interaction and further delineated their role within the breathing CPG. We conclude that though respiration results from the interaction of two distinct oscillators, the preBötC (inspiration) and the pFL (expiration) are not organized as symmetrical half centers. Instead in the adult rat, the preBötC is the dominant oscillator and the pFL is the subsidiary conditional oscillator that is normally suppressed at rest; whereas the preBötC can drive breathing alone, the pFL is unable to drive breathing (including active expiration) in the absence of an additional form of network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive when changes in blood gases are below the threshold where hypoxia is sufficient to inhibit abdominal muscle recruitment. This hierarchy is established by the sensitivity of the system to each oscillator, even when preBötC drive is low, it is able to drive inspiratory bursts and inhibit expiration, whereas even when pFL drive is high, it requires a certain amount of network excitability from other sources to drive expiratory activity. This asymmetrical organization may be relevant to other neural networks that contain hierarchically organized coupled oscillators for pattern generation, such as may underlie the asymmetrical acts of flexion and extension in locomotion (Grillner, 2003; Talpalar et al., 2013). The interactions of the preBötC and pFL change with development and maturation (Figure 9), and with state, represent another layer of complexity in understanding the neural control of breathing.

Materials and methods

Viral design and handling

Two different viruses were used: AAV-2/5 hSyn-HA-hM3D(Gq)-IRES-mCitrine (6 × 1012 vp/ml; HM3DR; UNC Gene Therapy Vector Core, Chapel Hill, NC), and; AAV-DJ synapsin-allatostatin receptor-GFP (Huckstepp et al., 2015) (5.8 × 1013 vp/ml; AlstR; SALK institute GT3 Core, La Jolla, CA). The viruses were stored at -80°C. For injection, viruses were held at 4°C and loaded into pipettes.

Viral transfection (Figure 1)

All protocols were approved by the UCLA Chancellor’s Animal Research Committee. Male Sprague-Dawley rats (350–450 g) were anesthetized by intraperitoneal ketamine (100 mg/kg; Clipper Distribution Co, St Joseph, MO), xylazine (10 mg/kg; Lloyd Inc, Shenandoah, IA), and atropine (1 mg/kg; Westward Pharmaceutical Co, Eatontown, NJ), supplemented with isofluorane (0.5–2%; Piramal Healthcare Ltd, India) as required. Rats were placed prone in a stereotaxic apparatus (Kopf Instruments, St, Tujunga, CA), with the head positioned with Bregma 5 mm below Lambda, on a heating pad to maintain body temperature at 37 ± 0.5°C. The dorsal medullary surface was exposed and pipettes placed stereotaxically into the preBötC or pFL. Coordinates were (lateral, rostral, ventral from obex in mm): preBötC; (2.0, 0.9, 2.8), and pFL; (2.5, 1.8, 3.5). Viral solutions were pressure injected (100–150 nL) with a Picospritzer II (General Valve Corp, Fairfield, NJ) controlled by a pulse generator. Pipettes were left in place for 3–5 min to prevent solution backflow up the pipette track. We injected AlstR-expressing AAV in preBötC and HM3DR-expressing AAV in pFL. Postoperatively, rats received buprenorphine (0.1 mg/kg; Reckitt Benckiser, UK) intraperitoneally and meloxicam (2 mg/kg; Norbrook Inc, UK) subcutaneously, and antibiotics (10 days; TMS: Hi-Tech Pharmacal, Amityville, NY) and meloxicam (4 days; 0.05 mg/mL) in their drinking water. Rats were allowed 3–6 weeks for recovery and viral expression, with food and water ad libitum.

Ventral approach

Anesthesia was induced with isofluorane and maintained with urethane (1.2–1.7 g/kg; Sigma, St Louis, MO) in sterile saline via a femoral catheter. Rats were placed supine in a stereotaxic apparatus on a heating pad to maintain body temperature at 37 ± 0.5°C. The trachea was cannulated, and respiratory flow was monitored via a flow head (GM Instruments, UK). A capnograph (Type 340: Harvard Apparatus, Holliston, MA) was connected to the tracheal tube to monitor expired CO2, as a proxy of blood gases homeostasis. Paired electromyographic (EMG) wires (Cooner Wire Co, Chatsworth, CA) were inserted into genioglossal (GG), diaphragmatic (Dia), and oblique abdominal muscles (Abd). Anterior neck muscles were removed, a basiooccipital craniotomy exposed the ventral medullary surface, and the dura was resected. A bilateral vagotomy was performed to remove confounding factors such as feedback from lung stretch receptors that can drive abdominal activity (Janczewski and Feldman, 2006), after which exposed tissue around the neck and mylohyoid muscle were covered with dental putty (Reprosil; Dentsply Caulk, Milford, DE) to prevent drying. As micturition is inhibited under anesthesia, rats bladders were expressed preceding and during the experiment to remove any risk of autonomic dysreflexia from bladder distension; to maintain fluid balance rats were given an IP injection of saline every time the bladder was expressed. Rats were left for 30 min for breathing to stabilize. At rest, spontaneous breathing consisted of alternating active inspiration and passive expiration. From a ventral approach allatostatin (Alst; 10 μM; ~100-200 nL; Antagene Inc, Sunnyvale, CA) in sterile saline was injected bilaterally into the preBötC to hyperpolarize neurons transfected by AlstRs. Coordinates were (lateral from the basilar artery, caudal from the rostral hypoglossal nerve rootlet, dorsal from the ventral surface in mm): preBötC; (2.0, 0.6, 0.7). Small adjustments were made to avoid puncturing blood vessels. Rats were ventilated for the duration of ensuing apnea. After breathing stabilized, clozapine-N-oxide (CNO; 90 µM; Santa Cruz Biotechnology, Dallas, TX) in sterile saline was applied to the ventral medullary surface to depolarize pFL neurons transfected with HM3DRs. Once breathing stabilized, rats received a second set of bilateral injections of Alst. Though rats were ventilated with room air for the duration of ensuing apnea, they were intermittently removed from the ventilator to assess spontaneous breathing, and drives to inspiration and expiration. Ventilation depths and speed were chosen to match end-tidal CO2 to that when the rat was spontaneously breathing room air. Once rats were spontaneously breathing and no longer required ventilation, CNO was removed from the ventral surface of the medulla and the medulla was washed in PBS. All 8 rats underwent the entire procedure, i.e., there were 8 biological replicates, and were only exposed to each condition once, i.e., there were no technical replicates. In age-matched rats not transfected with AlstR- or HM3DR-expressing AAVs, we injected Alst into the preBötC or applied CNO to the medullary surface to see if these protocols produced non-specific effects All 8 rats underwent the entire procedure, i.e., there were 8 biological replicates, and were only exposed to each condition once, i.e., there were no technical replicates.

Localization of transfected neurons

Rats were sacrificed by overdose of urethane and transcardially perfused with saline followed by cold (4°C) paraformaldehyde (PFA; 4%). The medulla was harvested and postfixed in 4% PFA overnight at 4°C, then cryoprotected in sucrose (30%) in standard PBS (1–3 days at 4°C). PBS contained (mM): NaCl 137, KCl 2.7, Na2HPO4 10, KH2PO4 1.8, pH 7.4. Brainstems were transversely sectioned at 40 μm. Free-floating sections were incubated overnight in PBS containing 0.1% Triton X-100 (PBT) and 1° antibodies (1:500): mouse anti-NeuN (EMD Millipore, Billerica, MA), rabbit anti-neurokinin 1 receptor (NK1R: EMD Millipore), and chicken anti-green fluorescent protein (GFP: Aves lab, Tigard, OR). The tissue was washed in PBS, 6 times for 5 min and then incubated separately for 2–4 hr in a PBT containing 2° antibodies (1:250): Donkey anti-mouse AlexFluor 647, donkey anti-rabbit rhodamine red, donkey anti-chicken AlexFluor 488 (Jackson ImmunoResearch Laboratories Inc, West Grove, PA). The tissue was washed in PBS, 6 times for 5 min. Slices were mounted onto polylysine-coated slides, dehydrated overnight at 22°C, and coverslipped using Cytoseal 60 (Electron Microscopy Sciences, Hatfield, PA). Slides were analyzed using a fluorescent microscope with AxioVision acquisition software (AxioCam2, Zeiss, Germany).

Data analysis and statistics

Sample sizes were calculated using Gpower 3 v3.1.9.2 (http://www.ats.ucla.edu/stat/gpower/); using a ‘means: Wilcoxon signed-rank test (matched pairs)’ test, with a desired power of 90%, at a 5% significance level, and an effect size of 1.15 (calculated from the initial effect of Alst on respiratory frequency). Data were only included from animals where the preBötC and pFL were successfully targeted bilaterally, and no data were excluded from these animals. All statistical analysis was performed in Igor Pro (WaveMetrics, Lake Oswego, OR).

EMG signals and airflow measurements were collected using preamplifiers (P5; Grass technologies, Rockland, MA) connected to a Powerlab AD board (ADInstruments, Australia) in a computer running LabChart software (ADInstruments), and were sampled at 400 Hz/channel. High pass filtered (>0.1 Hz) flow head measurements were used to calculate: tidal volume (VT, peak amplitude of the integrated airflow signal during inspiration, converted to mL by comparison to calibration with a 3 mL syringe), inspiratory duration (TI, beginning of inspiration until peak VT), expiratory duration (TE, peak VT to the beginning of the next inspiration), and f (1/[TI+TE]). EMG data, expressed in arbitrary units (A.U.), were integrated (τ=0.05 s; ∫DiaEMG, ∫GGEMG, and ∫AbdEMG) and peak amplitude of each signal was computed for each cycle. To obtain control values, all parameters except end-tidal CO2 (ETCO2), were averaged over 20 consecutive cycles preceding each experimental manipulation (X¯control). After Alst, measurements were taken at 2 time points: i) 20 cycles were averaged where only partial effects were seen, and; ii) 20 points were averaged following apnea. After CNO, 20 cycles were averaged after breathing had stabilized. After Alst in the presence of CNO, 20 points were averaged following apnea. In the presence or absence of CNO, capnograph peaks were averaged for 10 cycles preceding Alst, and for 5–10 cycles preceding apnea. Following removal from ventilation, the amplitude of the inspiratory bursts and ∫DiaEMG and ∫GGEMG activity immediately preceding the first ∫AbdEMG burst (Figure 8, blue lines dashed lines) were recorded to calculate inspiratory parameters at which active expiration returned.

For each rat we obtained X¯control, and the average of 20 cycles during the stimulus (X¯stimulus). X¯control values and their associated X¯stimulus values for each parameter in each rat were combined into a single data set. To facilitate graphical comparisons data were normalized to the highest value in the data set regardless of whether it belonged to X¯control or X¯stimulus group (C in Figure 2, 47). Therefore the highest value in the data set, whether it be X¯control or X¯stimulus, was 1.0; except for measurements of VT, ∫DiaEMG, and ∫GGEMG following ventilation, which are displayed as absolute values. Recorded data were not normally distributed, and were therefore analyzed using non-parametric statistical test, and reported as median and interquartile range (IQR). Statistical tests performed in Igor Pro (WaveMetrics), are 2-sided Wilcoxon signed-rank tests with a significance level of p≤0.05. Data are displayed as box and whisker plots for comparison of groups, and as line graphs for individual experiments. Kernel density estimations (Parzen, 1962; Epanechnikov, 1969), were used to determine the distribution of respiratory periods. After calculating the optimal bandwidth, i.e., bin size (Park and Marron, 1990; Sheather and Jones, 1991), the data was smoothed (Cao et al., 1994) and plotted. The modality of kernel density plots, were used to assess baseline respiratory periods and whether breathing slowed by quantal integers of that baseline. Bandwidth selection, data smoothing, and kernel density plots were performed in Microsoft excel (Microsoft Corporation, Redmond, WA) using an add-in written by the royal society of chemistry (http://www.rsc.org/Membership/Networking/InterestGroups/Analytical/AMC/Software/kerneldensities.asp).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    A role of pulmonary rapidly adapting receptors in control of breathing
    1. A Davies
    2. M Roumy
    (1986)
    The Australian Journal of Experimental Biology and Medical Science 64:67–78.
    https://doi.org/10.1038/icb.1986.8
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Hypoxia inhibits abdominal expiratory nerve activity
    1. RF Fregosi
    2. SL Knuth
    3. DK Ward
    4. D Bartlett
    (1987)
    Journal of Applied Physiology 63:211–220.
  13. 13
  14. 14
  15. 15
  16. 16
    Neurokinin-1 receptor-expressing cells of the ventral respiratory group are functionally heterogeneous and predominantly glutamatergic
    1. PG Guyenet
    2. CP Sevigny
    3. MC Weston
    4. RL Stornetta
    (2002)
    Journal of Neuroscience 22:3806–3816.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    An investigation of the effects of fentanyl on respiratory control
    1. A Kennedy
    (2015)
    An investigation of the effects of fentanyl on respiratory control, College of Medical Veterinary and Life Sciences - Institute of Neuroscience and Psychology, University of Glasgow, http://theses.gla.ac.uk/5998/.
  23. 23
  24. 24
  25. 25
    Susceptibility of postnatal breathing pattern evolution to riluzole
    1. LC Mckay
    2. C Vias
    3. V Mezieres
    4. G Fortin
    5. J Champagnat
    (2009)
    39th Annual Meeting of the Society for Neuroscience.
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    A novel functional neuron group for respiratory rhythm generation in the ventral medulla
    1. H Onimaru
    2. I Homma
    (2003)
    The Journal of Neuroscience 23:1478–1486.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
    A reliable data-based bandwidth selection method for kernel density estimation
    1. SJ Sheather
    2. MC Jones
    (1991)
    Journal of the Royal Statistical Society: Series B 53:683–690.
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Atoh1-dependent rhombic lip neurons are required for temporal delay between independent respiratory oscillators in embryonic mice
    1. S Tupal
    2. WH Huang
    3. MC Picardo
    4. GY Ling
    5. CA Del Negro
    6. HY Zoghbi
    7. PA Gray
    8. W-H Huang
    9. G-Y Ling
    10. RL Calabrese
    (2014)
    eLife, 3, 10.7554/eLife.02265.

Decision letter

  1. Jan-Marino Ramirez
    Reviewing Editor; Seattle Children's Research Institute and University of Washington, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Interactions between respiratory oscillators in adult rats" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

We recognize that this study describes the novel observation that active expiration turns tonic if the preBötzinger complex is experimentally silenced. The reviewers congratulate you and your co-authors for the cutting-edge approaches that allowed you to independently lesion the preBötzinger complex and pFRG region. Based on these manipulations, you and your co- authors conclude that active expiration (and the oscillator in the pFRG) requires rhythmic inhibition from the preBötC to generate expiration in the adult. Since this is not the case in juvenile animals, you proposed that there must be a developmental change in the role of the pFRG in breathing.

The decision to reject is based on the reviewers' major concern that these experiments do not suffice to justify your major conclusion. In all cases silencing the preBötzinger complex is associated with an apnea while the animal is not ventilated. Under these conditions it cannot be avoided that the animal will become hypoxic. Thus, it is not clear whether the cessation of inspiration and expiration is due to the cessation of the preBötzinger complex or the hypoxic conditions associated with the apnea. It is well-known that hypoxic conditions will lead to the cessation of inspiration and expiration. It is also well known that adults are more sensitive to hypoxia than juveniles/neonates.

Thus, the reviewers demand an additional set of new experiments. To justify your conclusion it is critical to silence the preBötC while ventilating the animal, show stable oxygenation in the absence of preBötC activity, and then demonstrate whether under these physiologically stable conditions active expiration can be induced, persists or disappears when inspiration ceases neuronally. These experiments will not be feasible within the allowed two months, hence we will not be able to consider your paper. For further details, please see the individual reviews.

Reviewer #1:

This study is an extension of a discovery that was made ten years ago (J.Physiol. 2006) indicating that two rhythm generators underlie the control of breathing: the preBötC for Inspiration, and the pFRG (first discovered by Onimaru) responsible for expiration ("active expiration"). The study does not contribute any new insights to this well-known concept, since this concept has been demonstrated not only in juveniles (the original 2006 study), but also in adults (J. Neuroscience, same lead author).

The only new discovery is based on the observation that active expiration turns tonic if the preBötzinger complex is lesioned/silenced. This observation leads the authors to conclude that active expiration (and the oscillator in the pFRG) requires rhythmic inhibition from the preBötC to generate expiration in the adult. The authors conclude, that there must be a developmental change in the role of the pFRG in breathing.

However, based on the experiments submitted here, this conclusion is not justified.

In all cases when apnea is induced by lesioning/silencing the preBötzinger complex the animal is not ventilated. This means, the animal will be exposed to severe hypoxia, which could (and will) indirectly induce the apnea and cessation of inspiration and expiration. This is a well-known phenomenon, and not at all surprising.

Thus, in order to arrive at the conclusion that the authors propose in this study, they need to add new experiments i.e. block or silence the preBötC while ventilating the animal show stable oxygenation and induce active expiration and then see whether under these physiologically stable conditions active expiration persists or disappears when inspiration ceases. Given that this is the major conclusion on which this paper rests, this experiment is absolutely essential.

Another major issue is the interpretation of the quantal slowing. First, it would be interesting to relate this to expiration, as has been done in prior studies. Secondly, the interpretation/speculation that the quantal slowing is explained by the presence of burstlets is not based on any experiment. These burstlets as far as I understand the original publication are "subthreshold" oscillations within the respiratory rhythm generator – without burst generation. If this is the case, how would the authors explain the transmission of these subthreshold oscillations to the motor output?

Reviewer #2:

I congratulate the investigators on a well-conducted study and a well-written manuscript that provides a significant advancement in understanding of mechanisms of respiratory rhythm generation. I am not requesting any specific changes in the manuscript prior to publication. However, I have a few suggestions for the authors to consider for additions to the discussion.

First, rostral pontine nuclei provide an important contribution to the control of breathing. What are the authors' speculations regarding this contribution to the two oscillators shown herein?

Second, what are the authors' thoughts on interactions between these two respiratory oscillators during normal physiological conditions particularly under conditions of NREM and REM sleep?

Third, this study shows the effects of acute, brief alterations in activity of the two oscillators. What happens when either one of the oscillators is altered on a long term or chronic basis? Studies by J. Wenninger et al., K. Krause et al., and S. Neumueller et al. seem to indicate that there is plasticity within the respiratory rhythm generation system.

Reviewer #3:

Authors investigated the interaction between two coupled oscillators in the lower brainstem of anesthetized adult rats. This is an important issue in neuroscience. The experimental design is straightforward and results are clear. However, I found some problems in the interpretation of results.

General comments:

The most important findings seemed to be that active expiration could not be induced when preBötC inspiratory driven activity was suppressed, based on results in Figures 7 and 8. Indeed, Figure 7 (and also Figure 2) shows that cessation of rhythmic inspiratory activity after Alst injection in preBötC was followed by disappearance of Abd activity. Consequently, authors concluded that in adult rats active expiration is driven by the pFL but requires ongoing preBötC activity. My concern is that these results may be due to transient unphysiological condition like extremely high CO2 (and low O2) of blood gases. To avoid such unphysiological situation, therefore, experiments should be done under following conditions to verify their hypothesis; using ventilator, CO2 level should be kept in suitable values to induce Abd activity in the presence (or absence) of CNO, then injection of Alst to preBötC should be performed to stop Dia activity and to examine Abd activity.

In Figure 3, they showed quantal inhibition of Dia activity. This result is very important, although they did not discuss much about this result. If possible, authors should also show Abd activity (or GG activity) together with Dia activity during quantal slowing. Analysis of such data may be useful to discuss interaction of two oscillators. The quantal inhibition of respiratory rhythm is known in newborn (and maybe juvenile) animal. Can this phenomenon in the present study be explained in similar mechanisms of interaction between two coupled oscillators like newborn rodent? It would be also helpful for further understanding of coupled oscillator to discuss whether there are any other examples of such quantal inhibition in adult animal.

Related to above questions, activity of two oscillators was assessed by motor neuron outputs in the present study. Central activity of oscillators may not always appear in motor output; i.e. motor output may be not equivalent to central activity to determine CPG property.

Specific comments:

Discussion section, "Shortly after birth (>1 day), the breathing central pattern generator (CPG) is driven by the preBötC (Oku et al., 2007) (Figure 9Biv), and…”: This part is questionable. This optical recording paper seemed to show no direct evidence for postnatal change of the CPG and there is no electrophysiological study to support this idea. More accurate explanation is needed.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Interactions between respiratory oscillators in adult rats" for further consideration at eLife. Your revised article has been favorably evaluated by a Senior editor and two reviewers, one of whom is a member of our Board of Reviewing Editors.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewer #1:

This is a revision of a previously submitted manuscript. The authors have done a great job in addressing the reviewers’ comments. I have no further comments. But I think it is a solid contribution to the field, and the findings are novel and of general interest. The finding that the pFRG oscillator requires input from the preBötC is surprising which makes this paper very interesting.

Reviewer #2:

I know there were concerns previously that the absence of expiratory activity during prolonged silencing of the preBötC could be due to the effect of hypoxia on expiratory muscle activity. However the discussion in subsection “Respiratory network activity is a requirement for active expiration” seems to counter this concern. That is as the effect of hyperpolarizing effect of Alst on preBötC neurons progressively diminished, the rats were ventilated but upon removal from the ventilator, Abd activity did not return until presumably preBötC activity reached a threshold level. Dia and GG activity always returned before Abd activity. When the rats were ventilated to maintain normal blood gases, there was no Abd activity when the rats were briefly removed from the ventilator; thus, it does not seem that hypoxia could be causing the depressed Abd activity. Accordingly, I accept their point that a minimal amount of preBötC activity seems to be necessary drive the expiratory oscillator.

On the other hand, I am concerned by the conclusion as stated in the Abstract that "in anesthetized adult rats, active expiration is driven by the pFL but requires an additional form of network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive". If increased chemosensory drive can drive the pFL oscillator, then why doesn't the eventual severe hypercapnia during apnea produced by silencing the preBötC activate expiratory muscle activity? Am I missing something?

https://doi.org/10.7554/eLife.14203.012

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

We recognize that this study describes the novel observation that active expiration turns tonic if the preBötzinger complex is experimentally silenced. The reviewers congratulate you and your co-authors for the cutting-edge approaches that allowed you to independently lesion the preBötzinger complex and pFRG region. Based on these manipulations, you and your co- authors conclude that active expiration (and the oscillator in the pFRG) requires rhythmic inhibition from the preBötC to generate expiration in the adult. Since this is not the case in juvenile animals, you proposed that there must be a developmental change in the role of the pFRG in breathing.

The decision to reject is based on the reviewers' major concern that these experiments do not suffice to justify your major conclusion. In all cases silencing the preBötzinger complex is associated with an apnea while the animal is not ventilated. Under these conditions it cannot be avoided that the animal will become hypoxic. Thus, it is not clear whether the cessation of inspiration and expiration is due to the cessation of the preBötzinger complex or the hypoxic conditions associated with the apnea. It is well-known that hypoxic conditions will lead to the cessation of inspiration and expiration. It is also well known that adults are more sensitive to hypoxia than juveniles/neonates.

Thus, the reviewers demand an additional set of new experiments. To justify your conclusion it is critical to silence the preBötC while ventilating the animal, show stable oxygenation in the absence of preBötC activity, and then demonstrate whether under these physiologically stable conditions active expiration can be induced, persists or disappears when inspiration ceases neuronally. These experiments will not be feasible within the allowed two months, hence we will not be able to consider your paper. For further details, please see the individual reviews.

Please accept the resubmission our manuscript for eLife. In light of the reviewers comments we have performed additional analysis of the data to support our findings.

We have provided an addition panel to Figure 8 from rats we ventilated in the presence of CNO (Pink shading) where end-tidal CO2 was maintained at normal resting levels (~45 mmHg). This panel shows that active expiration could occur during ventilation, and that no expiratory activity was seen until inspiratory activity returned during ventilation.

Furthermore, upon revising the manuscript we realized that certain statements made within the text could have been made clearer; for example that in the absence of preBӧtC activity, active expiration can occur in the presence of increased chemosensory drive. We recognize that as authors we must accept the blame when readers, including reviewers, miss key points. We have rewritten the manuscript to make this and other points even more explicit.

Reviewer #1:

This study is an extension of a discovery that was made ten years ago (J.Physiol. 2006) indicating that two rhythm generators underlie the control of breathing: the preBötC for Inspiration, and the pFRG (first discovered by Onimaru) responsible for expiration ("active expiration"). The study does not contribute any new insights to this well-known concept, since this concept has been demonstrated not only in juveniles (the original 2006 study), but also in adults (J. Neuroscience, same lead author).

We appreciate the reviewer’s statement that our proposal that there are separate inspiratory and expiratory oscillators is a “well-known” concept, but there is much work to be done to show how these oscillators interact, and there are still those not convinced of this. We are unaware of any paper (ours or anyone else’s) that looks at active expiration after silencing the preBötC, or how inspiratory and expiratory oscillators interact to pattern breathing in the adult rat. Thus this study does indeed contribute several key new insights to this “well-known” concept.

The only new discovery is based on the observation that active expiration turns tonic if the preBötzinger complex is lesioned/silenced. This observation leads the authors to conclude that active expiration (and the oscillator in the pFRG) requires rhythmic inhibition from the preBötC to generate expiration in the adult. The authors conclude, that there must be a developmental change in the role of the pFRG in breathing.

This reviewer’s surmise of our conclusion is not what we intended to convey; our fault for not making our conclusion sufficiently transparent. We did not say that active expiration requires inhibitory input; rather we said that the phasic pattern of expiration requires inhibition from the preBötC. This is based on the observation that when the preBötC stops firing (including preBötC inhibitory neurons) then the expiratory rhythm transforms from phasic to tonic; this is an idea first proposed by Sears and colleagues. We stated in the Discussion section “We suggest, like Sears et al., that near the transition from eupnea to apnea, expiratory activity is phasic due to periodic inhibition of tonic activity during inspiration, and becomes tonic once the phasic inspiratory inhibition is lost (Figures 2Bii-iii, 7Bii, 9Diii). We suggest the loss of phasic inhibition is the result of silencing of inhibitory preBötC inspiratory neurons by Alst (Kuwana et al., 2006; Morgado-Valle et al., 2010), implying a significant role for inhibitory preBötC neurons in shaping expiratory output.”

Moreover, we actually postulated that silencing of inhibitory neurons in the preBӧtC may actually increase expiratory activity, through disinhibition of the pFL. As we stated “Alternatively, active expiration could be due to disinhibition of a conditional expiratory oscillator resulting from a loss of (presumptive) inhibitory preBötC drive (Kuwana et al., 2006; Morgado-Valle et al., 2010) to the pFL (Figure 9Dii).”

However, based on the experiments submitted here, this conclusion is not justified.

In all cases when apnea is induced by lesioning/silencing the preBötzinger complex the animal is not ventilated. This means, the animal will be exposed to severe hypoxia, which could (and will) indirectly induce the apnea and cessation of inspiration and expiration. This is a well-known phenomenon, and not at all surprising.

We explicitly acknowledged the inhibitory effect of hypoxia, and its role in the cessation of on expiratory activity. As we stated in the Discussion section “when inspiratory motor outflow disappeared and hypercapnia and hypoxia inexorably increased, active expiration ceased (Figures 2, 9Div, see also Tan et al., 2008), perhaps due to the inhibitory effect of severe hypoxia on expiratory motor output (Sears et al., 1982; Fregosi et al., 1987)”.

In fact, it is most likely the hypercapnia and hypoxia during hypopnea that allows tonic activity of abdominal muscles to continue after inspiratory activity ceases. As seen in Figure 2, where there is expiratory activity without activation of HM3DRs in the pFL, and stated in the Discussion section “In either case, active expiration could have been due to increased hypoxic and/or hypercapnic drive to the pFL as inspiratory movements waned”

Thus, in order to arrive at the conclusion that the authors propose in this study, they need to add new experiments. I.e. block or silence the preBötC while ventilating the animal show stable oxygenation and induce active expiration and then see whether under these physiologically stable conditions active expiration persists or disappears when inspiration ceases. Given that this is the major conclusion on which this paper rests, this experiment is absolutely essential.

Even though we acknowledge the role of hypoxia on the cessation of expiratory activity, a careful examination of the data and a conservative interpretation leads to the parsimonious conclusion that hypoxia per se could NOT have participated in the absence of expiration activity during ventilation, or the delay in expiratory activity following removal from the ventilator. Rats were ventilated on average for ~18 min following the onset apnea after which removal from the ventilator led to the onset of inspiratory activity (Figure 8A,B). Thus, rats were normoxic for ~18 min during which time the pFL was being excited by the activation of HM3DRs and the preBötC was inhibited by activation of AlstRs and presumably silent; during this time, no abdominal activity was seen. That expiratory activity returned within 30 secs of being removed from the ventilator (Figure 8A, B) means that the HM3DRs were still driving the pFL, and the pFL was still capable of driving abdominal activity. The lack of abdominal activity during ventilation was not the result of mechanical actions of the ventilator, as expiratory activity was apparent during ventilation towards the end of the experiment (see Figure 8D). Therefore, the most parsimonious explanation for the lack of abdominal activity during ventilation when inspiratory motor activity is absent is that expiratory drive from the pFL alone is insufficient to drive expiration and requires an additional source of network excitation, such as inspiratory activity or chemosensory drive.

We have added a new panel in Figure 8, panel D, to show that expiration returns after inspiratory activity, and that abdominal activity can still occur during ventilation. We have also expanded the Results, Discussion and Summary to make this clearer.

Results section”: “Rats were mechanically ventilated to restore CO2 and O2 levels to within the normal range (Figure 7). […] Therefore, following silencing of the preBötC with Alst in the presence of CNO to drive the pFL at no time during the re-initiation of spontaneous breathing, either with or without mechanical ventilation, did active expiration occur in the absence of inspiratory activity and chemosensory drive.”

Discussion section: “Following apnea during ventilation to maintain blood gases, when pFLneurons were excited by activation of HM3DRs there were three phases to the re-initiation of breathing. […] As blood gases were normal (Figure 8), the loss of expiratory activity is unlikely to be due to excessive hypoxia or hypercapnia.”

Summary: “the pFL is unable to drive breathing (including active expiration) in the absence of an additional form of network excitation, i.e., preBötC activity or chemosensory drive. This hierarchy is established by the sensitivity of the system to each oscillator, even when preBӧtC drive is low, it is able to drive inspiratory bursts and inhibit expiration, whereas even when pFL drive is high, it requires a certain amount of network excitability from other sources to drive expiratory activity.”

It was in fact essential to the conclusions of this paper that rats were allowed to become moderately hypercapnic and moderately hypoxic during the hypopnea leading up to the apnea, as this allowed us to see that in the absence of inspiratory activity, abdominal activity could persist if network excitability was increased by chemosensory drive, if only for a short period until it was inhibited by severe hypoxia. Furthermore, following apnea rats were immediately placed on the ventilator to remove hypoxic inhibition of expiratory activity, which showed that in conditions with no preBötC activity and no hypercapnic drive in normoxic conditions there was no expiratory activity. The experimental design allowed us to assess expiratory activity under the following conditions.

pFL activity

preBӧtC activity

Hypercapnia

Hypoxia

Abdominal activity

No

Yes

No

No

Absent

Yes (driven by CO2)

Low

Moderate

Moderate

Phasic

Yes (driven by CO2)

Absent

Moderate

Moderate

Tonic

No (inhibited by hypoxia)

Absent

High

High

Absent

No

Absent

No

No

Absent

Yes (driven by HM3DR)

Yes

No

No

Phasic

Yes (driven by HM3DR and CO2)

Low

Moderate

Moderate

Phasic

Yes (driven by HM3DR and CO2)

Absent

Moderate

Moderate

Tonic

Yes (driven by HM3DR, but inhibited by hypoxia)

Absent

High

High

Absent

Yes (driven by HM3DR)

Absent

No

No

Absent

We have also expanded the Methods section to make our protocol clearer. “Though rats were ventilated with room air for the duration of ensuing apnea, they were intermittently removed from the ventilator to assess spontaneous breathing, and drives to inspiration and expiration. […] Once rats were spontaneously breathing and no longer required ventilation, CNO was removed from the ventral surface of the medulla and the medulla was washed in PBS.”

Another major issue is the interpretation of the quantal slowing. First, it would be interesting to relate this to expiration, as has been done in prior studies. Secondly, the interpretation/speculation that the quantal slowing is explained by the presence of burstlets is not based on any experiment. These burstlets as far as I understand the original publication are "subthreshold" oscillations within the respiratory rhythm generator – without burst generation. If this is the case, how would the authors explain the transmission of these subthreshold oscillations to the motor output?

In our original burstlet paper (Kam et al. 2013), burstlets are by definition subthreshold events. However, as made clear in Kam et al. 2013 paper (Figure 7 and the associated text), burstlets can be transmitted to motor output if specific conditions are met; namely lowered excitability in preBötC with increased drive to respiratory motor pools. We believe that these conditions are met in our experiments: lowered drive in the preBötC resulting from activation of the allatostatin receptor depresses bursting while burstlets may continue in the preBötC. Under normal conditions burstlets are not strong enough to drive activity in motor pools. However, increased excitability in the motor pools caused by increased chemosensory drive (from decreased ventilation) causes these normally subthreshold events to become suprathreshold and thus these burstlets are transmitted to the motor pool. As we stated in the Results section, This low amplitude DiaEMG and airflow activity are postulated to represent the inspiratory motor outflow, i.e., EMG, manifestation of preBötC burstlets (Kam et al., 2013), i.e., low levels of rhythmogenic neural population activity in the preBötC that under normal conditions occur in the absence of motor output, being transmitted to motoneuron pools (see Figure 7A in Kam et al., 2013).”

We have also expanded the Discussion to make this clearer. “Here, lowered drive in the preBötC from activation of the allatostatin receptor creates burstlets in the preBötC; under normal conditions these burstlet signals are not strong enough to drive motor activity. […] Interestingly, even when expiratory activity was at its highest, low level preBötC activity, as seen as burstlets on the DiaEMG and GGEMG was still able to inhibit AbdEMG activity (Figure 7Bii).”

Reviewer #2:

I congratulate the investigators on a well-conducted study and a well-written manuscript that provides a significant advancement in understanding of mechanisms of respiratory rhythm generation. I am not requesting any specific changes in the manuscript prior to publication. However, I have a few suggestions for the authors to consider for additions to the discussion.

First, rostral pontine nuclei provide an important contribution to the control of breathing. What are the authors' speculations regarding this contribution to the two oscillators shown herein?

Second, what are the authors' thoughts on interactions between these two respiratory oscillators during normal physiological conditions particularly under conditions of NREM and REM sleep?

Third, this study shows the effects of acute, brief alterations in activity of the two oscillators. What happens when either one of the oscillators is altered on a long term or chronic basis? Studies by J. Wenninger et al., K. Krause et al., and S. Neumueller et al. seem to indicate that there is plasticity within the respiratory rhythm generation system.

We are delighted that this reviewer enjoyed our manuscript. Although no specific changes were requested, we did consider the reviewer’s suggestions in the revised manuscript.

Though the contribution of respiratory-related areas to network output is beyond the remits of this study, we do not in any way rule it out. In fact some of the chemosensory drive seen during moderate hypercapnia and hypoxia likely comes from sources outside of the preBötC and pFL. So as not to break up the flow of the discussion we have added a section to the technical considerations section to discuss this possibility. Results section “Here we discuss the output of the preBötC and pFL, which ultimately form the final output of the respiratory network. […]Therefore, the activity of the preBötC and pFL, was assessed by motor output recorded from respiratory muscles, which may not always reflect the activity of these oscillators, as they may have subthreshold activity, e.g., Kam et al., 2013.”

In adult rats, there is no expiratory activity seen during sleep under normal physiological conditions, so we expect the interaction between the oscillators to be the same during sleep as they are during quiet wakefulness. To make this clear we have slightly expanded the line in the Introduction section to read: “In mammals at rest, during wakefulness and sleep, when active breathing movements are primarily inspiratory, generation of the underlying rhythm appears driven by the preBötC”.

The effect of chronic lesioning of the respiratory oscillators and network compensation for these changes is complicated. The Neumueller et al. 2011 paper, shows that destruction of the preBӧtC can be compensated for if the lesion occurs incrementally over time, however the Tupal et al. 2014 paper shows that loss of DBX1 neurons from birth cannot be compensated for. To properly address this subject would take considerable discussion in the manuscript, thus to keep our discussion concise we have not covered this subject in this paper.

Reviewer #3:

Authors investigated the interaction between two coupled oscillators in the lower brainstem of anesthetized adult rats. This is an important issue in neuroscience. The experimental design is straightforward and results are clear. However, I found some problems in the interpretation of results.

General comments:

The most important findings seemed to be that active expiration could not be induced when preBötC inspiratory driven activity was suppressed, based on results in Figures 7 and 8. Indeed, Figure 7 (and also Figure 2) shows that cessation of rhythmic inspiratory activity after Alst injection in preBötC was followed by disappearance of Abd activity. Consequently, authors concluded that in adult rats active expiration is driven by the pFL but requires ongoing preBötC activity.

This is partly correct, we do conclude that preBӧtC is a requirement for rats who are normoxic and normocapnic, hence the return of inspiratory activity always precedes the return of expiratory activity following apnea and ventilation. However, we conclude that expiratory activity can occur in the absence of inspiration if chemosensory drive is high, hence the appearance of tonic abdominal activity following the cessation of inspiratory activity. We concluded that expiratory activity requires a certain level of network activity from another source, either inspiratory activity or chemosensory drive. As we stated “Thus there appears to be a minimum level of respiratory network excitability required for active expiration. […] However following recovery from apnea the increase in network excitability is provided by the preBötC either directly through its extensive excitatory projections throughout the respiratory network (Tan et al., 2010), e.g., the pFV that can modulate to expiratory activity (Marina et al., 2010; Huckstepp et al., 2015), or indirectly when VT became large enough to induce mechanosensory feedback (that can provide expiratory drive (Remmers, 1973; Davies and Roumy, 1986; Janczewski and Feldman, 2006))”

We have also expanded the Abstract, Introduction, Discussion and Summary to make this clearer.

Introduction: “We conclude that in anesthetized adult rats active expiration is driven by the pFL but requires an additional form of network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive.”

Introduction: “Importantly, we found that active expiration could not be induced when preBötC inspiratory driven motor activity was suppressed and chemosensory drive was absent, indicating that in adult rats active expiration is driven by the pFL but requires an additional source of network excitation such as ongoing preBötC activity or chemosensory drive.”

Discussion section: “The pFL is the subsidiary conditional oscillator, quiescent at rest (Figure 9Di); in the presence of concurrent, or reduced, preBötC activity (Figure 2), and appropriate inputs, such as an increase in expiratory drive through activation of exogenous receptors (Figure 6, see also Pagliardini et al., 2011) or altered blood gases (Huckstepp et al., 2015), the pFL drives active expiration (Figure 9Dii). In the absence of preBötC activity, chemosensory drive increases network excitability and drives active expiration, though abdominal activity is tonic due to a lack of phasic inhibition from the preBötC (Figure 9Diii).”

Summary: “the pFL is unable to drive breathing (including active expiration) in the absence of an additional form of network excitation, i.e., preBötC activity or chemosensory drive. This hierarchy is established by the sensitivity of the system to each oscillator, even when preBӧtC drive is low, it is able to drive inspiratory bursts and inhibit expiration, whereas even when pFL drive is high, it requires a certain amount of network excitability from other sources to drive expiratory activity.”

My concern is that these results may be due to transient unphysiological condition like extremely high CO2 (and low O2) of blood gases. To avoid such unphysiological situation, therefore, experiments should be done under following conditions to verify their hypothesis; using ventilator, CO2 level should be kept in suitable values to induce Abd activity in the presence (or absence) of CNO, then injection of Alst to preBötC should be performed to stop Dia activity and to examine Abd activity.

For CO2 levels to be kept in suitable values to induce Abd activity in the absence of CNO, the rat would have to be chronically hypercapnic. In that situation, we would expect abdominal activity to continue, as chemosensory drive can drive abdominal activity in the absence of inspiratory activity, see previous answer. As discussed above, our experimental design allowed us to test the interactions of the preBötC and pFL under an array of conditions. See table above.

In Figure 3, they showed quantal inhibition of Dia activity. This result is very important, although they did not discuss much about this result. If possible, authors should also show Abd activity (or GG activity) together with Dia activity during quantal slowing. Analysis of such data may be useful to discuss interaction of two oscillators. The quantal inhibition of respiratory rhythm is known in newborn (and maybe juvenile) animal. Can this phenomenon in the present study be explained in similar mechanisms of interaction between two coupled oscillators like newborn rodent? It would be also helpful for further understanding of coupled oscillator to discuss whether there are any other examples of such quantal inhibition in adult animal?

The effect of quantal slowing on ABD and GG in conjunction with Dia can be seen in Figure 2B and 7Bii, and so was not included in Figure 3, which shows burstlet activity and how quantal slowing was calculated. We have added the following sentence to expand on this in the Discussion, “During quantal slowing of breathing, inspiratory activity on the DiaEMG and GGEMG was interspersed with AbdEMG activity (Figures 2A-B, 7A-B). Interestingly, even when expiratory activity was at its highest, low level preBötC activity, as seen as burstlets on the DiaEMG and GGEMG was still able to inhibit AbdEMG activity (Figure 7Bii).”

Related to above questions, activity of two oscillators was assessed by motor neuron outputs in the present study. Central activity of oscillators may not always appear in motor output; i.e. motor output may be not equivalent to central activity to determine CPG property.

We agree that motor output may not always reflect oscillator activity, as described in our burstlet paper (Kam et al., 2013). We added the following statement to the technical considerations section to make this clear. “In addition, due to the necessity to perform injections into the medulla, we were unable to record directly from the preBötC or pFL. Therefore, the activity of the preBötC and pFL, was assessed by motor output recorded from respiratory muscles, which may not always reflect the activity of these oscillators, as they may have subthreshold activity, e.g., Kam et al., 2013.”

Specific comments:

Discussion section, "Shortly after birth (>1 day), the breathing central pattern generator (CPG) is driven by the preBötC (Oku et al., 2007) (Figure 9Biv), and…”: This part is questionable. This optical recording paper seemed to show no direct evidence for postnatal change of the CPG and there is no electrophysiological study to support this idea. More accurate explanation is needed.

We have added two new references, which provide evidence of the maturation of respiratory system from an ePF/pFRG lead network to a preBӧtC lead network.

Discussion section: “Shortly after birth (~P2-P4), the breathing central pattern generator (CPG) matures, and becomes driven by the preBötC (Oku et al., 2007; Mckay et al., 2009; Kennedy, 2015) (Figure 9Biv), and remains so throughout life.”

[Editors' note: the author responses to the re-review follow.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewer #1:

This is a revision of a previously submitted manuscript. The authors have done a great job in addressing the reviewers comments. I have no further comments. But I think it is a solid contribution to the field, and the findings are novel and of general interest. The finding that the pFRG oscillator requires input from the preBötC is surprising which makes this paper very interesting.

We thank the reviewer for his/her kind comments.

Reviewer #2:

I know there were concerns previously that the absence of expiratory activity during prolonged silencing of the preBötC could be due to the effect of hypoxia on expiratory muscle activity. However the discussion in subsection “Respiratory network activity is a requirement for active expiration” seems to counter this concern. That is as the effect of hyperpolarizing effect of Alst on preBötC neurons progressively diminished, the rats were ventilated but upon removal from the ventilator, Abd activity did not return until presumably preBötC activity reached a threshold level. Dia and GG activity always returned before Abd activity. When the rats were ventilated to maintain normal blood gases, there was no Abd activity when the rats were briefly removed from the ventilator; thus, it does not seem that hypoxia could be causing the depressed Abd activity. Accordingly, I accept their point that a minimal amount of preBötC activity seems to be necessary drive the expiratory oscillator.

We are pleased that our revisions to the manuscript have made this point clearer.

On the other hand, I am concerned by the conclusion as stated in the Abstract that "in anesthetized adult rats, active expiration is driven by the pFL but requires an additional form of network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive". If increased chemosensory drive can drive the pFL oscillator, then why doesn't the eventual severe hypercapnia during apnea produced by silencing the preBötC activate expiratory muscle activity? Am I missing something?

We previously showed that both hypercapnia and hypoxia, when moderate and brief, lead to expiratory-related abdominal activity (Huckstepp et al., J Neurosci, 2016). In the paper under review, we conclude that the moderate hypercapnia and hypoxia following cessation of inspiratory activity is responsible for the tonic abdominal muscle activity at the beginning of apnea. As stated in the Discussion section “In either case, active expiration could have been due to increased hypoxic and/or hypercapnic drive to the pFL as inspiratory movements waned”. This underlies our statement in the Summary that additional network excitation from increased chemosensory drive can lead to abdominal activity in the absence of preBötC activity.

We acknowledge that severe hypoxia profoundly inhibits abdominal muscle recruitment (Fregosi et al., J Appl Physiol, 1987), suggesting that the cessation of abdominal activity during apnea is due to severe hypoxia resulting from the prolongation of the apnea. We state: “when inspiratory motor outflow disappeared and hypercapnia and hypoxia inexorably increased, active expiration ceased (Figures 2, 9Div, see also Tan et al., 2008), perhaps due to the inhibitory effect of severe hypoxia on expiratory motor output (Sears et al., 1982; Fregosi et al., 1987)”.

Nonetheless, we maintain that a detailed examination of the data leads to the parsimonious conclusion that hypoxia does NOT underlie the absence of expiratory activity during ventilation (that assures proper gas exchange and avoids hypoxia and hypercapnia), or the delay in the onset of expiratory activity following removal from the ventilator (see the reviewer’s previous comment and section “Respiratory network activity is a requirement for active expiration for discussion”).

In our Summary and Abstract we state that an additional form of network excitation is required for active expiration in anesthetized adult rats, as even when driving the pFL by activation of the HM3D receptor, abdominal activity does not occur in the absence of another source of network excitation. We conclude that the additional network excitation necessary for recruitment of abdominal muscles can come from: 1) ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output, as abdominal activity is not seen in the absence of inspiratory motor output when chemosensory drive is low or absent, or 2) increased chemosensory drive, as tonic abdominal activity is seen immediately after the cessation of inspiratory activity, when drive from the preBötC is low or absent but chemosensory drive is moderate.

We have redacted the Summary to make this point clearer: “the pFLis unable to drive breathing (including active expiration) in the absence of additional network excitation, i.e., ongoing rhythmic preBötC activity sufficient to drive inspiratory motor output or increased chemosensory drive when changes in blood gases are below the threshold where hypoxia is sufficient to inhibit abdominal muscle recruitment.”

https://doi.org/10.7554/eLife.14203.013

Article and author information

Author details

  1. Robert TR Huckstepp

    1. Department of Neurobiology, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    RTRH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-4410-3397
  2. Lauren E Henderson

    1. Department of Neurobiology, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    LEH, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Kathryn P Cardoza

    1. Department of Neurobiology, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    KPC, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Jack L Feldman

    1. Department of Neurobiology, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    JLF, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    1. feldman@g.ucla.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-3692-9412

Funding

National Institutes of Health (NIH HL 70029)

  • Jack L Feldman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All protocols (IACUC protocol #1994-159-73) were approved by the UCLA Chancellor's Animal Research Committee. Recovery surgery was performed under Ketamine/xylazine anesthesia and accompanied bybuprenorphine and meloxicam analgesia, non-recovery surgery was performed under urethane anesthesia, and every effort was made to minimize suffering.

Reviewing Editor

  1. Jan-Marino Ramirez, Reviewing Editor, Seattle Children's Research Institute and University of Washington, United States

Publication history

  1. Received: January 5, 2016
  2. Accepted: April 27, 2016
  3. Version of Record published: June 14, 2016 (version 1)
  4. Version of Record updated: July 29, 2016 (version 2)

Copyright

© 2016, Huckstepp et al

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 918
    Page views
  • 256
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry
    2. Biophysics and Structural Biology
    Irene Beusch et al.
    Research Article
