A mitofusin-dependent docking ring complex triggers mitochondrial fusion in vitro

  1. Tobias Brandt
  2. Laetitia Cavellini
  3. Werner Kühlbrandt  Is a corresponding author
  4. Mickaël M Cohen  Is a corresponding author
  1. Max Planck Institute of Biophysics, Germany
  2. Sorbonne Universités, France
Research Article
  • Cited 19
  • Views 2,377
  • Annotations
Cite as: eLife 2016;5:e14618 doi: 10.7554/eLife.14618

Abstract

Fusion of mitochondrial outer membranes is crucial for proper organelle function and involves large GTPases called mitofusins. The discrete steps that allow mitochondria to attach to one another and merge their outer membranes are unknown. By combining an in vitro mitochondrial fusion assay with electron cryo-tomography (cryo-ET), we visualize the junction between attached mitochondria isolated from Saccharomyces cerevisiae and observe complexes that mediate this attachment. We find that cycles of GTP hydrolysis induce progressive formation of a docking ring structure around extended areas of contact. Further GTP hydrolysis triggers local outer membrane fusion at the periphery of the contact region. These findings unravel key features of mitofusin-dependent fusion of outer membranes and constitute an important advance in our understanding of how mitochondria connect and merge.

https://doi.org/10.7554/eLife.14618.001

eLife digest

Yeast and other eukaryotic cells contain distinct compartments that have specific roles. For example, compartments called mitochondria – which are surrounded by two layers of membrane – provide the energy needed for many cell processes. The organization of the network of mitochondria in a cell has a large effect on their capacity to provide energy. Mitochondria can fuse together to make larger compartments or divide to make smaller ones. Defects in fusion or division of mitochondria can reduce the amount of energy that is provided, which, in humans and animals can lead to diseases that affect various organs, especially those in the nervous system.

When two mitochondria fuse they must first attach to each other and then merge their outer membranes. Proteins called mitofusins are known to be involved in these processes, but the molecular details of how they take place were not clear.

Brandt, Cavellini et al. investigated how mitochondria isolated from budding yeast cells attach to each other. The experiments found that two mitochondria first become loosely attached by mitofusins. These proteins then promote a tighter attachment in which the outer membranes of the two mitochondria come into contact over a larger area. This contact area is determined by a linear arrangement of proteins referred to as the docking ring. Brandt, Cavellini et al. further observed that local fusion between the outer membranes takes place at the edge of the contact area in the path of the docking ring.

Future research will need to address how mitochondria attach to each other in living cells and how the process is regulated.

https://doi.org/10.7554/eLife.14618.002

Introduction

Membrane fusion underlies fundamental biological processes such as fertilization, virus entry into host cells or intracellular protein trafficking. Protein and lipid trafficking mainly involves SNAREs (Soluble N-ethyl maleimide sensitive factor Attachment protein Receptors) that are expressed on all intracellular compartments undergoing fusion except peroxisomes and mitochondria (Cai et al., 2007; Escobar-Henriques and Anton, 2013).

Mitochondria constitute a remarkably dynamic network with an organization and ultra-structure that is regulated by fusion and fission of mitochondrial outer and inner membranes (Labbé et al., 2014; Westermann, 2010). Fusion and fission are crucial for all mitochondrial functions including oxidative phosphorylation, calcium signalling, apoptosis and lipid metabolism. Defects in mitochondrial fusion and fission are associated with numerous pathologies and severe neurodegenerative diseases (Dorn, 2013; Liesa et al., 2009).

Mitochondrial fusion and fission both depend on large GTPases of the Dynamin-Related Protein (DRP) family (Labbé et al., 2014; Low and Löwe, 2010). To promote fission, soluble DRPs assemble into spirals around membrane compartments. GTP hydrolysis causes the spirals to constrict, reducing the diameter of the compartments, ultimately followed by their separation (Bui and Shaw, 2013). In contrast to fission, the role of DRPs in lipid bilayer fusion remains poorly understood. Among the three families of transmembrane DRPs implicated in fusion, Mitofusins and OPA1 mediate fusion of the mitochondrial outer and inner membranes, respectively, whereas atlastins promote homotypic fusion of ER tubules (McNew et al., 2013). GTP binding and hydrolysis participate in trans auto-oligomerization of atlastins and OPA1 through their respective GTPase domains (Rujiviphat et al., 2012; Klemm et al., 2011; Byrnes et al., 2013; DeVay et al., 2009; Meglei and McQuibban, 2009; Moss et al., 2011; Saini et al., 2014). The resulting homotypic tethering of ER and mitochondrial inner membranes is accompanied by conformational rearrangements of the DRPs that are thought to trigger subsequent fusion of lipid bilayers. Based on structural insights gained from BDLP (Bacterial Dynamin-Like Protein) (Low and Löwe, 2006; Low et al., 2009), a close relative of the yeast mitofusin Fzo1, mitofusins may promote outer membrane tethering and fusion through similar processes of oligomerization and conformational rearrangement (Cohen et al., 2011; Escobar-Henriques and Anton, 2013).

As seen with spirals formed during membrane scission, DRPs are characterized by their ability to assemble into higher-order macromolecular structures (Ingerman et al., 2005; Low et al., 2009; Mears and Hinshaw, 2008). Whether DRPs participate in the formation of such structures during membrane attachment and fusion is unknown. In particular, the precise orchestration of events from the initial attachment of membranes to their ultimate fusion and the requirement for GTP binding and hydrolysis during these steps is elusive. By combining the power of an in vitro mitochondrial fusion assay with cryo-electron tomography (cryo-ET), we undertook to visualize the junction between mitochondria, resulting in an unprecedented dissection of the outer membrane fusion process.

Results

Cryo-ET reveals distinct populations of attached mitochondria

The in vitro mitochondrial fusion assay (Figure 1A) allows us to distinguish between discrete steps of the mitochondrial fusion process (i.e. attachment, fusion of outer membranes and fusion of inner membranes) (Hoppins et al., 2009; Meeusen et al., 2006, 2004). Purified mitochondria from wild-type yeast cells were brought into contact by centrifugation and were incubated at 4°C for 10 min to promote mitofusin-dependent attachment (Meeusen et al., 2004). Subsequent incubation for 45 min at 25°C allows fusion of outer membranes but not inner membranes (Figure 1A; top) unless energy is regenerated (Meeusen et al., 2004). Consistent with this, fusion reactions recurrently yielded 6 to 8% intermediates with fused outer membranes (Figure 1B). Prolonged incubation of centrifuged mitochondria at 4°C (Figure 1A; bottom) decreases fusion of outer membranes but stabilizes attached intermediates (Cohen et al., 2011) with approximately 25% of mitochondria in close contact (Figure 1C). We reasoned that with an imaging technique of sufficient resolution, it should be possible to visualize the contact sites and detect complexes that mediate mitochondrial attachment.

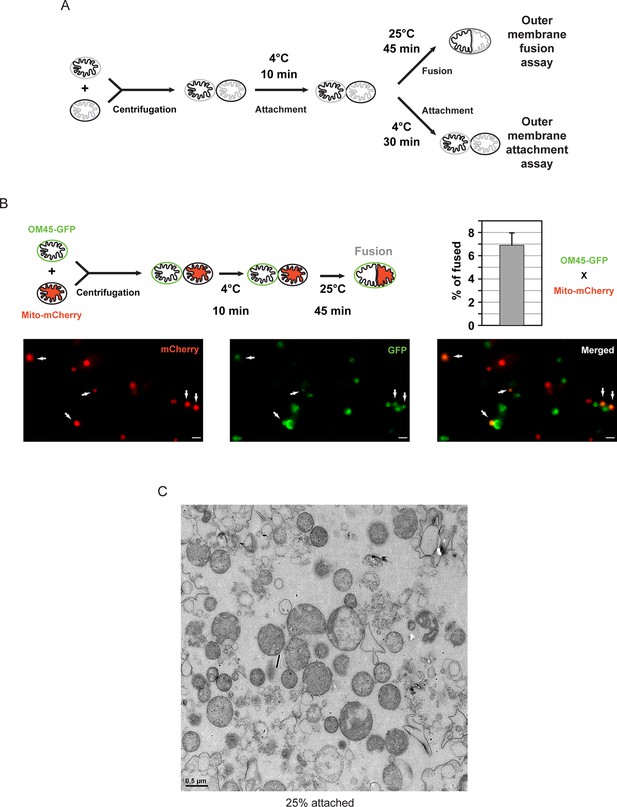

In vitro outer membrane fusion and attachment assays.

(A) Purified mitochondria are brought into contact by centrifugation. A 10 min incubation on ice promotes mitofusin-dependent attachment, which is essential for subsequent fusion of outer membranes at room temperature (top). Prolonged incubation on ice prevents fusion of outer membranes but stabilizes attached intermediates (bottom). Upon incubation at 25°C, fusion of inner membranes does not occur unless energy is regenerated. (B) Top: Fusion reactions were performed by mixing mitochondria isolated from cells expressing either the outer membrane protein OM45 tagged with GFP (OM45-GFP) or the mitochondrial matrix targeted mCherry (Mito-mCherry). Bottom: Fluorescence microscopy of a fusion reaction. Co-localization of GFP and mCherry indicate intermediates with fused outer membranes (white arrows), scale bars 1 μm. Top right: Fusion efficiency. Error bar represents the s.d. from three independent experiments. (C) Representative transmission electron micrograph of in vitro attachment reactions with mitochondria isolated from wild-type cells.

https://doi.org/10.7554/eLife.14618.003

Cryo-ET revealed two main populations of attached mitochondria, characterized by morphologically distinct contacts between outer membranes. 79% of the contact areas were organized as regions where opposing outer membranes approached one another to a distance ds of 1–3 nm (Figure 2A, green bracket; Figure 2—figure supplement 1A), without observable density between the membranes. The contact areas displayed an average surface of 22,600 ± 3100 nm² with flattened outer membranes, prompting us to term this state ‘docked’ intermediates (Figure 2A). At the edges of the contact areas, where the distance dl between outer membranes reached 6–9 nm (Figure 2A, blue brackets; Figure 2—figure supplement 1B), we detected defined protein densities between the two outer membranes (Figure 2A; yellow arrows). Tomographic reconstruction (Figure 2—figure supplement 1C) and 3D rendered volumes (Figure 2B) of mitochondria revealed that contact areas are delimited by a dense ring-like structure, termed the docking ring (Video 1).

Figure 2 with 1 supplement see all

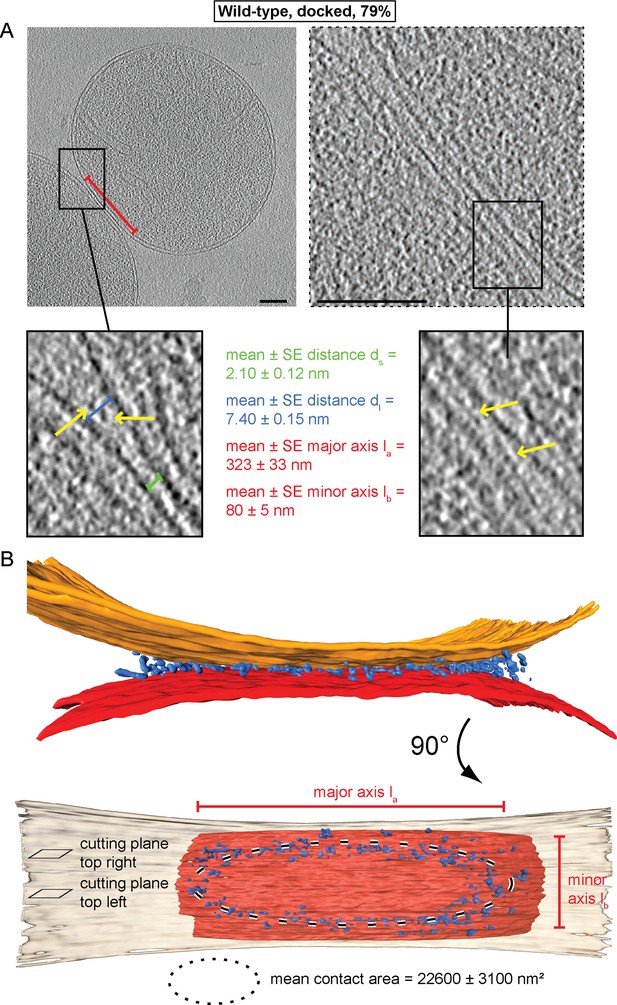

Cryo-ET of docked intermediates (79% of sampled wild-type mitochondria, see Table 1).

(A) Slices and zooms through tomographic volumes at different z-heights (section planes indicated in B) through the center (left) or edge (right) of a contact area defined by its major axis, la (red bracket), and the perpendicular minor axis lb (see B); scale bars 100 nm. Dense protein complexes (yellow arrows) are visible at a distance of 6–9 nm from the outer membrane (dl, blue bracket) but not in the center of the contact area (1–3 nm, green bracket, ds). Sections through the edge of a contact area (right) reveal interstitial densities between the outer membranes. (B) 3D rendering of outer membranes (red and orange) of two closely apposed mitochondria and protein densities around the contacts area (blue; the same color scheme is used in all figures).

https://doi.org/10.7554/eLife.14618.004
Video 1
3D rendering of docked mitochondria as shown in Figure 2.

Outer membranes in red and orange, distinct density in blue.

https://doi.org/10.7554/eLife.14618.006

Contact areas of the remaining 21% of attached mitochondria were smaller (6900 ± 1700 nm²) with an average distance of 6.7 ± 0.5 nm between outer membranes (Figure 3). In contrast to docked intermediates, there were clear densities between the apposed outer membranes over the complete contact area (Figure 3A; Figure 3—figure supplement 1). Frequently, this density appeared to consist of more or less regular repeats of globular protein units (Figure 3B; red arrows). These units, with an average spacing of 4.6 ± 0.7 nm (n = 13), occasionally extended two protrusions toward each membrane (Figure 3B; inserted zoom). We refer to these attached mitochondria as tethered intermediates, as they appeared to be tethered by proteins.

Figure 3 with 1 supplement see all

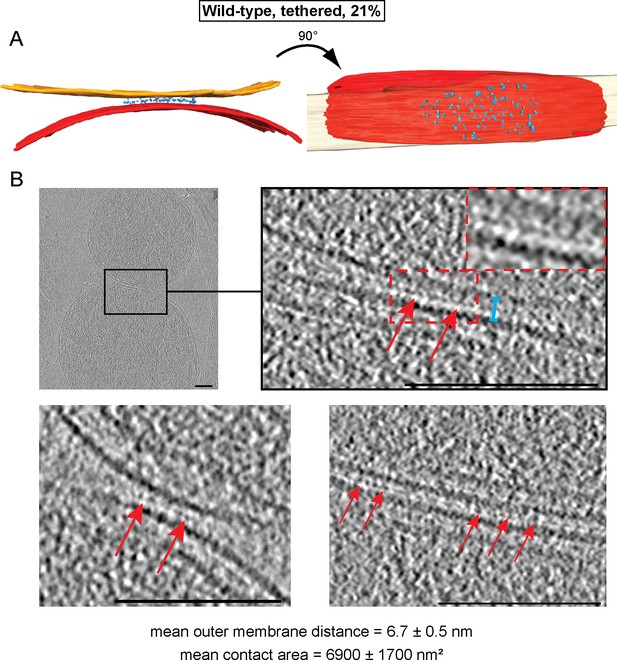

Cryo-ET analysis of tethered intermediates (21% of sampled wild-type mitochondria, see Table 1).

(A) 3D rendering of two closely apposed mitochondria shown in B, top row and Figure 3—figure supplement 1. (B) Slices and zooms (indicated by black and red dashed boxes) through tomographic volumes; scale bars 100 nm. Blue bracket: outer membrane distance; red arrows, interstitial density.

https://doi.org/10.7554/eLife.14618.007

GTP hydrolysis is required for formation of docking rings

The ring of densities (docked intermediates, Figure 2B) and the regular repeat of globular protein densities (tethered intermediates, Figure 3) indicate that protein complexes may be responsible for promoting mitochondrial attachment. As the homotypic attachment of outer membranes and their subsequent fusion depends on the GTPase activity of mitofusins (Cohen et al., 2011; Koshiba et al., 2004), we assessed the impact of GTP hydrolysis on the formation of the tethered and docked intermediates. Cryo-ET of in vitro attachment reactions treated with a non-hydrolysable GTP analog (GMP-PNP) revealed two distinct populations of attached mitochondria with different distances between their outer membranes (Figure 4).

Figure 4 with 1 supplement see all

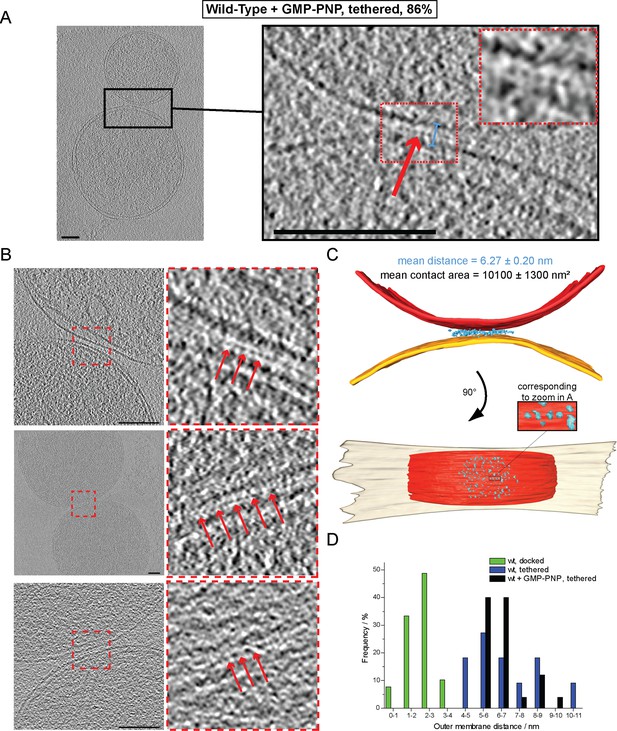

Cryo-ET of mitochondrial attachment intermediates upon GMP-PNP treatment (Tethered, 86%, see Table 1).

(A-B) Example slices and zooms (black and red dashed boxes) through tomographic volumes; scale bars 100 nm; blue bracket: distance between outer membranes; red arrows: regularly spaced interstitial protein densities. Note the repeat distance of 4.3 nm. (C) 3D rendering of two closely apposed mitochondria shown in A. The zoomed densities correspond to the regularly spaced interstitial protein densities zoomed in A. (D) Histogram of distances between outer membranes for all major populations of attached intermediates.

https://doi.org/10.7554/eLife.14618.009

In contrast to non-treated samples, only 14% of mitochondria formed contacts reminiscent of docked intermediates and with significantly smaller contact areas (Table 1). In the remaining 86% of attached mitochondria, the outer membranes were 6.3 ± 0.2 nm apart (Figure 4A, blue bracket). Densities were observed between apposed membranes with frequent repeats of 3–4 nm globular structures with, occasionally, two protrusions extending towards each membrane (Figure 4A, inserted zoom and Figure 4B, red arrows). These densities and their regular spacing (4.3 ± 0.6 nm; n = 24) were strikingly similar to those seen in wild-type tethered intermediates (Figure 3B). Moreover, among the attached intermediates we identified (Table 1), this sub-population observed upon treatment with GMP-PNP displayed features that were essentially identical to the tethered intermediates seen in wild-type conditions both in terms of morphology (Figure 4C; Figure 4—figure supplement 1A; Video 2) and statistics (Figure 4D; Figure 4—figure supplement 1B–D).

Table 1

Characteristics of mitochondrial attachment intermediates identified in this study. Abbreviations: o.e. overexpression, i.a. inter alia.

https://doi.org/10.7554/eLife.14618.011
Condition (n)Contact type (n)%Densities organizationDistance ± SE / nmContact area ± SE / nm²
Wild-Type (52)Docked (41)79Docking ring2.1 ± 0.122600 ± 3100
Tethered (11)21Interstitial/Few6.7 ± 0.56900 ± 1700
Wild-Type + GMP-PNP (22)Tethered (19)86Interstitial/Few6.3 ± 0.210100 ± 1300
Other (3)14i.a. Docking ring2.6 ± 0.311600 ± 3900
Fzo1 O.E. (19)Abortive (14)74Interstitial/Numerous8.8 ± 0.45000 ± 900
Other (5)26Docking ring2.5 ± 0.44200 ± 1200
Video 2
3D rendering of tethered mitochondria upon addition of GMP-PNP as shown in Figure 4.

Outer membranes in red and orange, distinct density in blue.

https://doi.org/10.7554/eLife.14618.012

These observations suggest that inhibition of GTP hydrolysis induces the accumulation of tethered mitochondria at the expense of docked intermediates (21% tethered intermediates in wild-type conditions against 86% upon GMP-PNP treatment).

GTP hydrolysis mediates the transition from globular protein repeats to docking rings

To find out if inhibition of GTP hydrolysis blocks formation of the docking ring at an early stage of the mitochondrial attachment process, we introduced GMP-PNP at distinct time points of the in vitro fusion reaction and analyzed the ratios of tethered and docked intermediates by cryo-ET (Figure 5A). Docked intermediates were predominantly found when GMP-PNP was added 10, 20 or 40 min after centrifugation (Figure 5B, blue squares), indicating that the ring had been already formed and that it was not dissolved by GMP-PNP. In contrast, addition of GMP-PNP prior to or immediately after centrifugation resulted in strong accumulation of tethered intermediates (Figure 5B, red circles), while docked intermediates were suppressed. Strikingly, addition of GMP-PNP two minutes after centrifugation resulted in equal proportions of tethered and docked intermediates (Figure 5B).

Figure 5 with 1 supplement see all

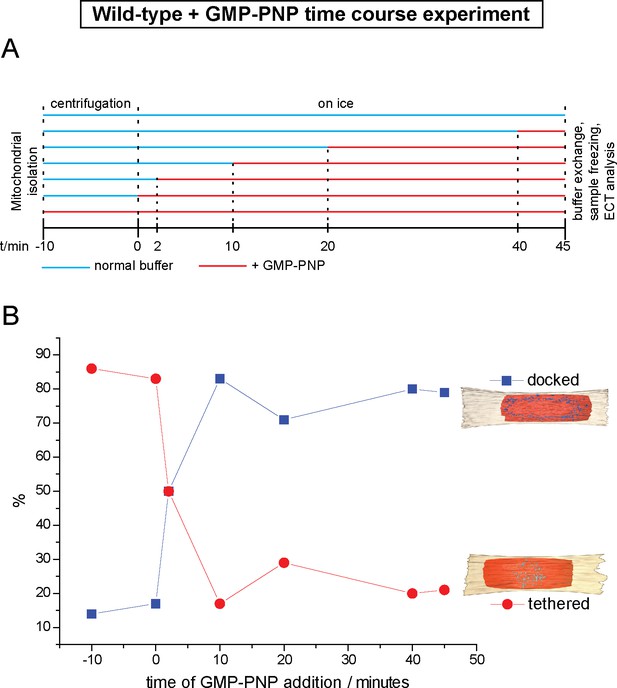

Cryo-ET time course experiment of attached mitochondria treated with GMP-PNP.

(A) GMP-PNP was added at the time points indicated (dashed black lines). (B) Proportion of docked and tethered intermediates observed before and after GMP-PNP addition. Time t = 0 indicates the start of the incubation period on ice.

https://doi.org/10.7554/eLife.14618.013

These observations demonstrate not only that tethering precedes docking, but also that transition from one state to the other is controlled by GTP hydrolysis. Consequently, the tethered intermediate with its repeating globular protein densities represents an early stage of the mitochondrial outer membrane fusion process. GTP hydrolysis then allows this stage to evolve towards the docked state with the docking ring.

Consistent with this, a discrete category of intermediates was detected among the mixed population of tethered and docked intermediates when GMP-PNP was added two minutes after centrifugation. This category was characterized by apposed membrane regions sandwiching protein densities identical to those in tethered intermediates and regions reminiscent of docked contact areas where outer membranes approached to within less than 3 nm (Figure 5—figure supplement 1 and Video 3). This hybrid category of attached mitochondria probably represents a transition state from mitochondrial tethering towards mitochondrial docking.

Video 3
3D Rendering of tethered intermediate upon addition of GMP-PNP after two minutes, as shown in Figure 5—figure supplement 1.

Outer membranes in red and orange, distinct density in blue.

https://doi.org/10.7554/eLife.14618.015

A final GTP hydrolysis step triggers the transition from docking to fusion

Of all attached mitochondria, docked intermediates would be the most suitable for outer membrane fusion. The large contact surface and close approach of outer membranes would poise them for fusion. The proportion of docked intermediates increases when outer membrane fusion can proceed but decreases when fusion is inhibited, as we showed by inhibiting GTP hydrolysis.

The question of how docking promotes the formation of intermediates with fused outer membranes (Figure 6—figure supplement 1) was nonetheless puzzling. Fusion may occur anywhere within the contact area devoid of visible densities because this area corresponds to regions where membrane contact is closest. Alternatively, the docking ring might trigger fusion over the whole rim of the contact area, similar to the 'vertex ring' that assembles at the edge of docked vacuoles (Wang et al., 2002; Wickner, 2010). This ring, composed of SNAREs, small GTPases, tethering factors and lipid microdomains, promotes membrane fusion at the periphery of contact regions between vacuoles, generating a lumenal vesicle that degrades in the fused organelle. In the context of mitochondrial fusion, such an intralumenal outer membrane vesicle would block the subsequent attachment of inner membranes. Indeed, we did not find fused outer membrane intermediates of this kind.

However, close inspection of large populations of attached intermediates (from 87 high magnification micrographs) by Transmission Electron Microscopy (TEM) of stained plastic sections revealed a sub-category of mitochondria in close contact, presumably in the docked configuration, in which the outer membranes were fused near the rim of the contact region (Figure 6—figure supplement 2A and B). While the switch from docking to fusion is bound to be a rapid, transient process and cryo-ET can only sample specimen volumes of the order of 10–7 nanoliters, we succeeded in capturing such a docked intermediate. The tomographic volume shows that the outer membranes of two mitochondria were locally fused to form a toroid, 40 nm pore on one side of the contact area (Figure 6A). The toroid pore formed in the path of the docking ring (Figure 6B and Video 4). Densities in the vicinity of the fusion pore were sparse, suggesting that in this region the docking ring structure was in the process of disassembly (Figure 6B). These observations provide a proof of principle that the docked intermediates are competent for effective outer membrane fusion, raising the question of which molecular events trigger the transition from docking to outer membrane fusion.

Figure 6 with 2 supplements see all

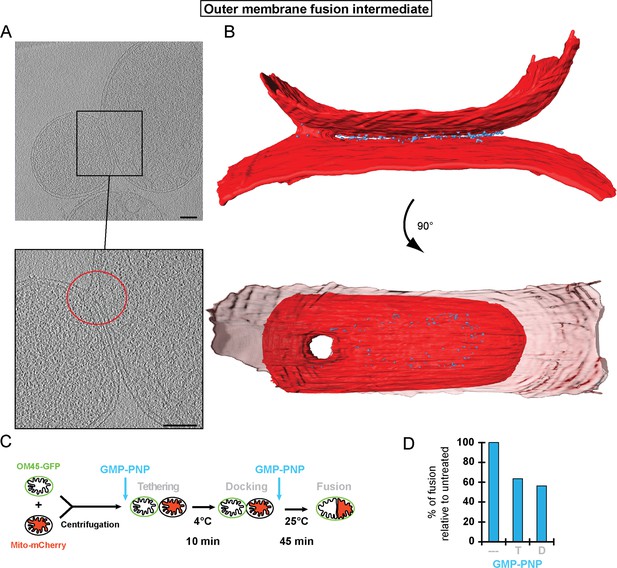

Stages of outer membrane fusion.

(A and B) Cryo-ET of docked mitochondria with partially fused outer membrane. (A) Slices through tomographic volume; scale bars 100 nm. The red circle highlights the region of outer membrane fusion. (B) 3D rendering. Two mitochondria are joined by one continuous outer membrane (red). The inter-membrane spaces are connected by a toroid pore of 40 nm diameter. (C and D) Fluorescence microscopy of in vitro outer membrane fusion. GMP-PNP was added at the beginning (tethering, T) or at the end (docking, D) of the 10 min incubation period.

https://doi.org/10.7554/eLife.14618.016
Video 4
3D rendering of partially fused mitochondria as shown in Figure 6.

Outer membranes in red, distinct density in blue.

https://doi.org/10.7554/eLife.14618.019

To this end, we compared the effect of GMP-PNP on in vitro fusion efficiency either before tethering (i.e. after centrifugation; see Figure 5B) or after docking (i.e. after 10 min incubation on ice; see Figure 5B) (Figure 6C; see Figure 1B). Strikingly, the extent of outer membrane fusion impairment was similar (40 to 50%), irrespective of whether GMP-PNP was added at the beginning or at the end of the 10 min incubation period (Figure 6D). This indicates that it is not important whether the mitochondria were tethered or docked. Hence, GTP hydrolysis is not only required for the transition from tethering to docking but also for the transition from docking to fusion.

Fzo1 overexpression inhibits mitochondrial docking

To further evaluate the functional relationship between mitofusins, mitochondrial docking and mitochondrial fusion, we took advantage of the fact that both the absence or the accumulation of mitofusins inhibits mitochondrial fusion in vivo (Cohen et al., 2011; Escobar-Henriques et al., 2006; Koshiba et al., 2004). Consistent with this, absence or 50-fold overexpression of Fzo1 (Figure 7A; fzo1△ and FZO1 o.e.) totally abolished respiratory growth at 30°C (Figure 7B).

Figure 7 with 2 supplements see all

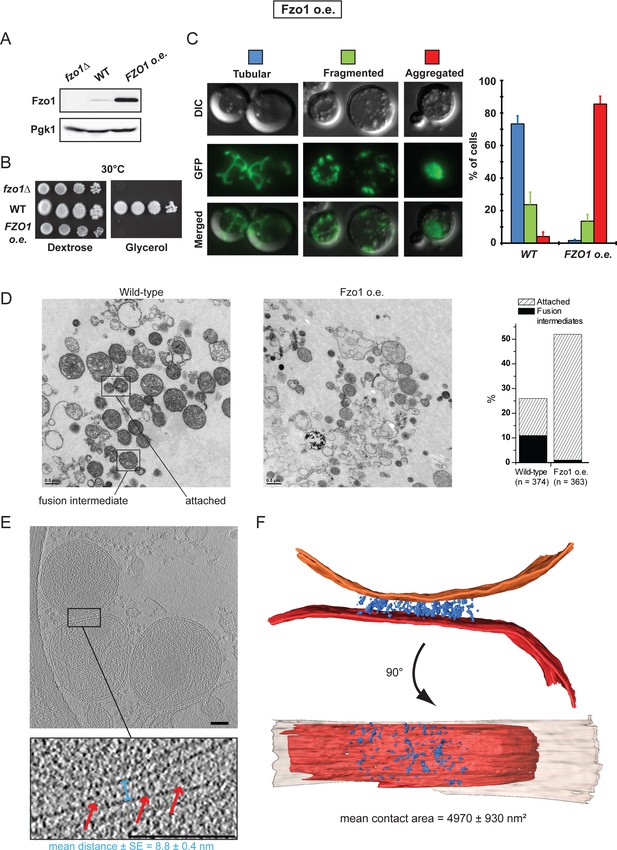

Overexpression of Fzo1.

(A) Total protein extracts of fzo1Δ cells transformed with an empty vector (fzo1Δ), pRS314-FZO1 (WT) or pRS414-TEF-FZO1 (FZO1 o.e.) were analyzed by anti-Fzo1 and anti-Pgk1 immunoblotting. Fzo1 is overexpressed about 50 fold in FZO1 o.e. as compared to WT conditions. (B) Serial dilutions of cells from A grown in the presence of glucose or glycerol as the sole carbon source at 30°C. Lack or overexpression of Fzo1 both abolishes respiration and, therefore, growth on glycerol, consistent with inhibition of mitochondrial fusion. (C) Mitochondrial morphology in WT and FZO1 o.e. cells. Left: Representative morphologies. Right: Percentage of WT and FZO1 o.e. cells with indicated mitochondrial morphologies. Error bars represent the s.d. from three independent experiments. (D) Left: TEM analysis of in vitro outer membrane fusion reactions performed with mitochondria isolated from wild-type cells or cells overexpressing Fzo1. Note that mitochondria from Fzo1 o.e. cells are smaller than from wild-type cells. Right: Effect of Fzo1 overexpression on outer membrane fusion and attachment in vitro. (E) Slices through tomographic volume of mitochondrial attached intermediates upon Fzo1 overexpression (abortive, 74%, see Table 1); outer membrane distance (blue bracket) and densities between outer membranes (red arrows) are indicated. (F) 3D rendering of two closely apposed mitochondria shown in E.

https://doi.org/10.7554/eLife.14618.020

In the absence of Fzo1, cryo-ET analysis revealed small mitochondria well separated from each other but mitochondrial attachment was not detected (Figure 7—figure supplement 1A), which is consistent with the essential function of mitofusins in mitochondrial anchoring (Cohen et al., 2011; Koshiba et al., 2004). On the other hand, the fusion defect caused by the overexpression of Fzo1 may result from the accumulation of Fzo1 molecules on outer membranes and an imbalance with other proteins implicated in mitochondrial fusion, such as Ugo1 and Mgm1 (Figure 7—figure supplement 1B). Notably, Fzo1 overexpression also induces a specific phenotype of mitochondrial aggregation (Figure 7C) in which mitochondrial puncta aggregate in one region of the cell cortex (Figure 7—figure supplement 1C). This phenotype suggests that, as well as inhibiting fusion, overexpression of Fzo1 may also promote the attachment of mitochondria to each other.

To verify this, in vitro fusion assays were performed using mitochondria isolated from cells overexpressing Fzo1. As expected, in vitro outer membrane fusion was strongly inhibited but mitochondrial attachment was significantly increased, with 50% of mitochondria attached to others (Figure 7D and Figure 7—figure supplement 1D). Consistent with their compromised fusing ability, mitochondria from Fzo1-overexpressing cells were significantly smaller than controls. Further analysis indicated that Fzo1 overexpression induced a two-fold increase in mitochondrial attachment both before and after centrifugation (Figure 7—figure supplement 1E–F). Thus, mitochondria purified from Fzo1-overexpressing cells retained an increased attachment capacity, indicating that the in vivo aggregation phenotype (Figure 7C) is caused, at least in part, by perturbations that are intrinsic to outer membranes.

To better characterize these perturbations, attached mitochondria were analyzed by cryo-ET. While intermediates with a docking ring were formed (Figure 7—figure supplement 2A–C), they were observed less frequently (26%) and the average contact surface was significantly smaller compared to docking intermediates observed under wild-type conditions (Table 1). In the remaining attached intermediates (74%), the surface of apposition was also reduced (4970 ± 930 nm²), with outer membranes on average 8.8 ± 0.4 nm apart (Figure 7E; blue bracket; Figure 7—figure supplement 2D–E). Importantly, numerous densities accumulated in regions of closest contact between mitochondria (Figure 7F), but the densities were disorganized and did not form globular protein repeats (Figure 7E–F). These attached mitochondria, which were clearly distinct from tethered intermediates observed under wild-type conditions, likely correspond to artefactual and abortive fusion intermediates.

These results indicate that while normal levels of Fzo1 are required for the formation of bona fide docking rings, overexpression of the mitofusin induces the formation of protein aggregates that perturb the regulated sequence of events required to reach productive mitochondrial docking.

Fzo1 enrichment at mitochondrial contact sites

Densities detected at the junctions of tethered and docked mitochondria correspond to protein complexes responsible for promoting productive attachment of outer membranes prior to their fusion. Several protein factors either within or extrinsic to the mitochondrial outer membrane may assemble into such complexes (Coonrod et al., 2007; Hoppins et al., 2009; Sesaki and Jensen, 2001; 2004). Notably, the units with a defined central density and protrusions extending towards each lipid bilayer bridged the apposed outer membranes (Figure 8A). These units were stabilized in the presence of GMP-PNP (Figure 4) and their arrangement may reflect the self-association in trans of a factor extruding from outer membranes (Figure 8B). These features thus point to a transmembrane GTPase specialized in connecting outer membranes, raising the possibility that the observed units are indeed trans-oligomers of Fzo1 molecules.

Figure 8 with 1 supplement see all

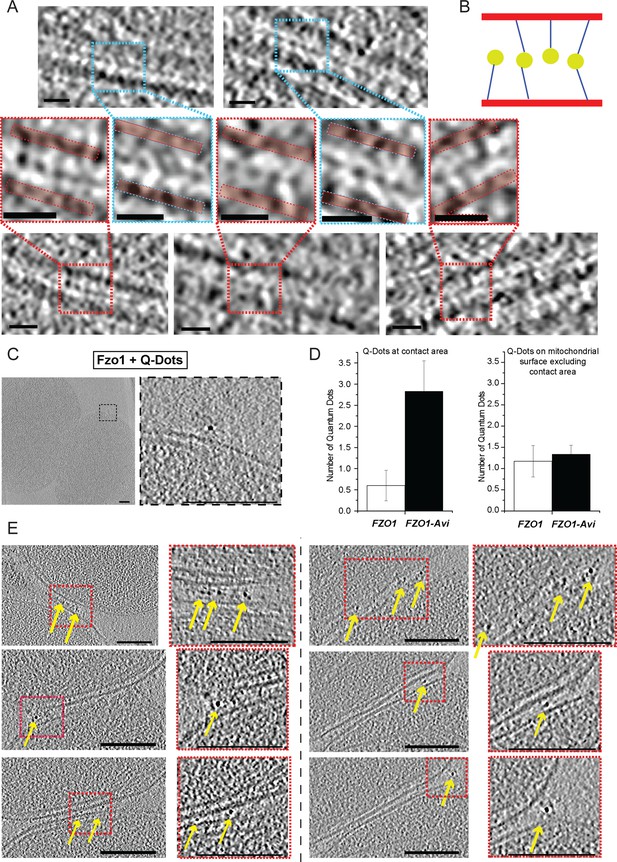

Fzo1 enrichment at mitochondrial junctions.

(A) Cryo-ET of tethered mitochondria. Slices through tomographic volumes and zooms on contact regions (red and blue boxes); Outer membranes on zooms are delimited by red bars; scale bars 10 nm. (B) Scheme representing the central density (yellow circle) and extensions (blue lines) to outer membranes (red bars) for densities detected at the junction of tethered intermediates. (C–E) Q-Dot labelling of FZO1 and FZO1-AVI mitochondria. (C) Control with non-labelled Fzo1. Tomographic slice and zoom with Q-Dots on the outer membrane. (D) Q-Dots per contact area (left) or on mitochondrial surface excluding the contact area (right) for FZO1 (white) and FZO1-Avi (black). (E) Slices through tomographic volumes of Fzo1-Avi mitochondria labelled with Q-Dots (yellow arrows). Zooms are indicated by dashed red boxes. Scale bars 100 nm.

https://doi.org/10.7554/eLife.14618.023

The presence and active involvement of mitofusins in mitochondrial tethering and docking is not only consistent with the established function of these DRPs in attachment and fusion of outer membranes (Cohen et al., 2011; Hermann et al., 1998; Ishihara et al., 2004; Koshiba et al., 2004; Legros et al., 2002; Shutt et al., 2012) but also with their documented accumulation at mitochondrial junctions (Hoppins et al., 2009). To validate Fzo1 as a potential component of the densities found at mitochondrial contact sites, we thus devised an in situ protein labeling strategy for cryo-ET. Recent experiments to label mitochondria for cryo-ET with a purified, biotin-labelled protein import substrate conjugated with streptavidin-coated Quantum Dots have been successful (Gold et al., 2014). To biotinylate mitofusin molecules in situ, Fzo1 was C-terminally fused to the Avi tag, a 15 amino-acid peptide that is recognized and can undergo specific biotinylation by the E. coli biotin ligase BirA (Beckett et al., 1999; van Werven and Timmers, 2006). Mitochondria isolated from wild-type (FZO1) or FZO1-Avi cells were biotinylated in vitro with recombinant BirA before processing for outer membrane attachment assays, followed by incubation with streptavidin-coupled Q-Dots to label the Fzo1-Avi construct (Figure 8—figure supplement 1). While Q-Dots were rarely found on the surface of tagged or untagged mitochondria (Figure 8C and D, right graph), they were enriched at the junction of attached FZO1-Avi mitochondria as compared to attached FZO1 mitochondria (Figure 8D, left graph). Moreover, Q-Dots, and therefore the FZO1-Avi constructs, were located either at the periphery of docked contact sites or between tethered contact sites (Figure 8E). These data confirm the accumulation of mitofusins at mitochondrial contact sites and corroborate the likely contribution of Fzo1 to densities found at junctions of tethered and docked intermediates.

Discussion

Prior to this study, the initial steps of mitochondrial outer membrane fusion were known to involve mitofusins and to depend on GTP-binding and hydrolysis (Cohen et al., 2011; Escobar-Henriques and Anton, 2013; Ishihara et al., 2004; Koshiba et al., 2004; Shutt et al., 2012). Combining an in vitro mitochondrial attachment assay with cryo-ET, we were able to dissect this process into several distinct steps. Our experiments on the inhibition of GTP hydrolysis allow us to temporally position each intermediate observed and thus provide the basis for a refined and comprehensive model of mitochondrial outer membrane fusion (Figure 9).

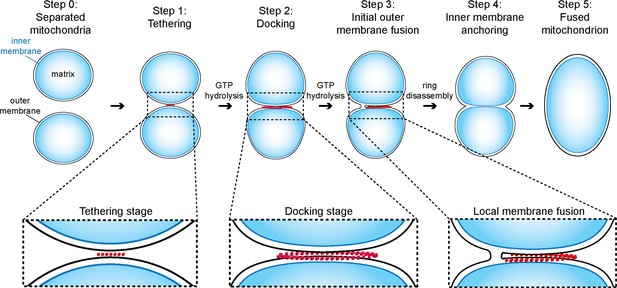

Model of outer membrane tethering, docking and fusion.

Mitochondria (blue) are tethered or docked by protein complexes (red).

https://doi.org/10.7554/eLife.14618.025

Mitochondrial outer membrane attachment and fusion

Initially outer membranes of two attached mitochondria are tethered by globular protein repeats and membranes approach to within 6 nm (Figure 9, step 1). These tethered intermediates are seen in wild-type conditions (Figure 3) and accumulate upon addition of GMP-PNP (Figure 4). Subsequently, GTP hydrolysis allows the fusion process to evolve progressively towards mitochondrial docking (Figure 5), as evidenced by the hybrid intermediates observed upon addition of GMP-PNP two minutes after initiation of tethering (Figure 5—figure supplement 1). Consistent with this, GTP hydrolysis by trans-complexes of atlastins precedes vesicle fusion and is essential to promote tethering of proteoliposomes (Liu et al., 2015; Saini et al., 2014).

The docked intermediates are characterized by a docking ring of protein density that surrounds extended areas with outer membranes separated by less than 3 nm and devoid of visible densities (Figure 9, step 2). The capture of docked intermediates with partly fused outer membranes, the location of the fusion pore in the path of the docking ring undergoing disassembly and the inhibition of fusion upon treatment of docked mitochondria with GMP-PNP, demonstrates that docking is the stage that precedes merging of outer membranes (Figure 6). We do not exclude that small protein complexes, which are not visible by cryo-ET, might reside between outer membranes and participate in the fusion process. However, our observations do suggest that the docking ring of protein densities is the driving force for subsequent bilayer merging. We thus propose that the fusion of bilayers is initiated by further GTP hydrolysis in the path of the docking ring where the outer membrane curvature is most pronounced (Figure 9, step 3). This step may trigger the disassembly of the docking ring. Tethering (Figure 9, step 4) and fusion of the inner membrane (Figure 9, step 5) mediated by OPA1/Mgm1 then completes the mitochondrial fusion process.

Mitofusins are involved in tethering, docking and fusion of outer membranes

Taking into account the essential role of mitofusins in mitochondrial attachment and fusion (Hermann et al., 1998; Koshiba et al., 2004), we obtained several lines of evidence that Fzo1 contributes to the formation of the macromolecular assemblies we discovered at mitochondrial junctions.

Overexpression of Fzo1 inhibited mitochondrial docking and fusion but stimulated the formation of artefactual tethering intermediates that are characterized by an accumulation of protein aggregates at mitochondrial junctions (Figure 7). This result demonstrates once more that absence of docking correlates with deficient mitochondrial fusion and implies that normal levels of mitofusins are required for the formation of the docking rings. It is also important to realize that increased levels of mitofusins correlate with the accumulation of protein densities at mitochondrial junctions. However, whether these aggregates correspond to abortive mitofusin oligomers remains speculative.

GMP-PNP that may bind to mitofusins and inhibit their GTPase activity (Amiott et al., 2009; Ishihara et al., 2004), induced the accumulation of tethered intermediates and prevented progression towards the docked stage (Figure 4). Moreover, Fzo1 enrichment at mitochondrial contact sites was confirmed by Q-dot labeling (Figure 8). To our knowledge, no other GTPase has been shown to be involved in outer membrane fusion. In this context, our observations converge to propose that Fzo1 is at least a component of globular protein repeats and docking rings, possibly together with other, as yet unknown factors.

In fact, the units composed of a central density with protrusions extending toward each outer membrane suggest that they may be Fzo1 trans-oligomers (Figure 8A). So far, the only structural insight into mitofusins derives from the HR2 domain of Mfn1 that has been proposed to tether outer membranes at a distance of 16 nm (Koshiba et al., 2004). This would exceed the 6 nm membrane spacing we measured in tethered intermediates. The overall morphology of the HR2 dimer can hardly account for the distinctive shape of the protein units we observed. However, the structure of the bacterial Fzo1 homolog BDLP in the open conformation (Low and Löwe, 2006; Low et al., 2009) and the established trans-interaction of atlastins through their GTPase domain (Klemm et al., 2011; Byrnes et al., 2013; Liu et al., 2015; Saini et al., 2014) allow us to propose an alternative model. Similar to BDLP, mitofusins bound to GMP-PNP or GTP may adopt an open conformation that, in analogy to atlastins, would promote trans-oligomerization of Fzo1 molecules through their GTPase domain. Conformational changes of the mitofusin oligomers upon GTP hydrolysis would pull the outer membranes closer together. This model is not only consistent with the shape of the protein units we visualized but also with the essential requirement of GTP hydrolysis for transition from mitochondrial tethering to mitochondrial docking we unraveled in this study. Hence, the structure of mitofusins with or without bound GTP will be instrumental to evaluate this model.

In vivo vs in vitro mitochondrial outer membrane fusion

An absolute prerequisite for mitochondrial fusion in vivo is that the tips of mitochondrial tubules come close enough to promote attachment between outer membranes. In yeast cells, this requires the participation of actin filaments (Simon et al., 1995; Smith et al., 1995). In the in vitro fusion system, the essential role of the cytoskeleton is replaced by centrifugation to bring mitochondria into close enough contact for fusion to proceed (Meeusen et al., 2004). However, centrifugation is not sufficient, and an incubation of at least 10 min on ice, previously suggested to promote Fzo1 association in trans, has been shown to be essential for in vitro fusion (Meeusen et al., 2004).

Our results reveal that incubation on ice promotes the transition from tethering to docking, which is an active process that requires several rounds of GTP hydrolysis to progressively bring opposing outer membranes closer over an extended surface area but is not sufficient for their effective fusion. The observation that fusion starts at the edge of the docking ring and also depends on GTP hydrolysis suggests that the transition from tethering to docking brings membranes closer over an extended area. This would induce a locally increased curvature of the lipid bilayer, which may be critical. An ultimate cycle of GTP hydrolysis in this region of local membrane curvature would therefore lead to fusion instead of bringing membranes closer together. Notably, micrographs taken from gastric mucosa of a mole, featured in Chapter 7 of Don W. Fawcett’s 'The Cell', present a series of three pairs of mitochondria proposed to represent successive stages of mitochondrial fission (Fawcett, 1981). The middle stage intermediate from this series and the fusion events identified in our study actually appear strikingly similar. This not only suggests that the sequence of events shown in this chapter might in fact correspond to successive stages of fusion but also that our model of outer membrane fusion may apply in vivo with mitochondria from mammalian cells.

Whereas in vitro local membrane deformation would be promoted exclusively by successive cycles of GTP hydrolysis after mitochondria become tethered through centrifugation, in vivo the transition from tethering to docking would also involve the action of the cytoskeleton. In the cell, the process of mitochondrial fusion as indicated by our in vitro studies would thus be regulated by cytoskeletal factors.

Regulation of mitochondrial fusion in vivo also involves post-translational modification of mitofusins (Anton et al., 2011; Cohen et al., 2008; Shutt et al., 2012). In yeast, the efficient fusion of outer membranes requires Fzo1 ubiquitylation by the Mdm30 ubiquitin ligase and subsequent degradation by the proteasome (Cohen et al., 2008). While its precise function is yet to be fully characterized, this regulation was previously shown to take place at the stage of mitochondrial attachment (Cohen et al., 2011). It is therefore conceivable that the UPS-dependent regulation of Fzo1 participates in regulating proper assembly of docking rings, which is consistent with the observation that high levels of Fzo1 inhibit mitochondrial docking (Figure 7). At this stage, we cannot exclude that ubiquitylation and degradation of Fzo1 regulates the transition from docking to effective fusion of outer membranes. Further investigations will be required to answer the fascinating question of how mitochondrial fusion is regulated.

Conclusion

Our work provides a detailed dissection of the outer mitochondrial membrane fusion process in vitro and highlights the crucial involvement of Fzo1 in this system. Similar mechanisms involving atlastins or OPA1/Mgm1 are likely to be active in the fusion of ER and mitochondrial inner membranes, respectively. Future challenges include deciphering the precise composition of the complexes mediating outer membrane fusion, and dissecting the processes regulating their formation and function.

Materials and methods

Yeast strains, plasmids and growth conditions

The S. cerevisiae strains and plasmids are listed in Supplementary file 1. Standard methods were used for growth, transformation and genetic manipulation of S. cerevisiae. Complete media and minimal synthetic media [Difco yeast nitrogen base (Voigt Global Distribution Inc; Lawrence, KS), and drop-out solution] supplemented with 2% dextrose (YPD and SD) or 2% glycerol (YPG and SG) were prepared as described (Sherman et al., 1986).

Mitochondrial enriched preparations

Mitochondrial fractions for in vitro attachment and fusion were prepared as previously described (Ingerman et al., 2007). Cells were cultured to stationary phase in dextrose medium and then shifted to glycerol medium (or fresh dextrose medium for cells affected in respiration) to grow to a final OD 0.8–1.0. Cell walls were disrupted by incubation at 30°C with 100 mM Tris-HCl pH 9.4 and 50 mM β-mercaptoethanol for 20 min and subsequently with 1.2 M sorbitol plus zymolyase (Zymo Research; Irvine, CA) for 30 min. The resulting spheroplasts were lysed in cold NMIB (0.6 M sorbitol, 5 mM MgCl2, 50 mM KCl, 100 mM KOAc, 20 mM Hepes pH 7.4) by douncing. After centrifugation at 4°C of the lysate at 3000 x g for 5 min, the supernatant was further centrifuged at 10170 x g, 4°C for 10 min to yield a pellet enriched in mitochondria. Protein concentration in mitochondria-enriched fractions was determined by Bradford assay (Bio-Rad Protein Assay; Bio-Rad Laboratories GmbH, Germany).

In vitro mitochondrial attachment/fusion assays

Homotypic and heterotypic attachment/fusion reactions were respectively carried out with 0.5 mg of type 1 mitochondria or by mixing 0.25 mg of type 1 mitochondria with 0.25 mg of type 2 mitochondria. Mitochondria were then brought in vicinity by centrifugation at 10170 x g, 4°C for 10 min. Pellets were left on ice for 10 min before the supernatant was replaced by Stage 1 buffer (20 mM Pipes–KOH pH 6.8, 150 mM KOAc, 5 mM Mg(OAc)2, 0.6 M sorbitol). Mitochondria were then left on ice for 30 min in attachment assays or incubated at 25°C for 45 min in outer membrane fusion assays. Resulting attachment and fusion reactions were subsequently processed for TEM, cryo-ET or fluorescence microscopy analysis.

Miscellaneous variations during in vitro mitochondrial attachment/fusion reactions

Depending on experiments, discrete variations in attachment/fusion reactions described above were used. To assess the effect of GMP-PNP on attachment of wild-type mitochondria (Figure 4), GMP-PNP (1.5 mM, Sigma-Aldrich; St Louis, MO) was added during mixing of mitochondria (prior centrifugation) and was kept at constant concentration during the whole attachment reactions (including in Stage 1 buffer). In contrast, 6 mM GMP-PNP were added where indicated in time course experiments (Figure 5). Similarly, 12 mM GMP-PNP were added at tethering or docking stages in outer membrane fusion reactions shown in Figure 6C. To evaluate effects of Fzo1 overexpression on attachment and fusion, in vitro assays were performed with mitochondria-enriched fractions prepared from wild-type (MCY553) or Fzo1-overexpressing cells (MCY1222) grown in dextrose medium.

Transmission electron microscopy

For analysis of attachment and outer membrane fusion intermediates by TEM, the fusion reactions were mixed with 20 volumes of fixative solution (3% paraformaldehyde, 1.5% glutaraldehyde, 2.5% sucrose, 100 mM sodium cacodylate, pH 7.4) for 20 hr and subsequently washed twice with 100 mM sodium cacodylate, pH 7.4. To improve contrast, samples were post-fixed with 1% osmium tetroxide, 100 mM sodium cacodylate, pH 7.4, for 1 hr, after which samples were washed in distilled water. Then samples were embedded in 4% agar and washed with 50 mM acetate buffer pH 5.2 before they were stained with 1% uranyl acetate overnight (12 h) at 4°C. For plastic embedding, the samples were dehydrated in an ethanol gradient series (1 × 20 min 30%, 2 × 20 min 50%, 2×30 min 70%, 2 × 30 min 90%, 1 × 60 min 100% ethanol) followed by a switch to 1,2 propylenoxid (3 x 20 min 100%) and subsequently infiltrated using the Low Viscosity Premix Kit-Medium (Agar Scientific, England; 2 × 20 min 30%, 2 × 30 min 50%, 2 × 30 min 75%, overnight 100%, 2 × 2 h 100%). Polymerization was carried out at 65°C for 16 h. Thin sections (60–70 nm) were prepared with an Ultracut S microtome (Reichert, Germany), collected on 100 mesh copper grids coated with Pioloform FN 65 (Wacker Polymer Systems GmbH, Germany) and were double stained with 2% uranyl acetate for 2 min and lead citrate for 1 min. Sections were inspected with a transmission electron microscope (EM 208S; FEI, Germany) at 80 kV equipped with 2 x 2 k CCD camera (Gatan, Inc; Pleasanton, CA). Ratios of attached and fused mitochondria were obtained by dividing the number of mitochondria in physical contact or those with fused outer membranes over the total number of mitochondria (n > 300). The fused intermediates shown in Figure 6—figure supplement 1 and 2 were obtained from the analysis of 87 high magnification micrographs containing one pair of attached or fused intermediates each.

Electron cryo-tomography

For cryo-ET, mitochondria were washed twice with 320 mM trehalose, 20 mM Tris pH 7.3, 1 mM EGTA. Samples were mixed 1:1 with fiducial gold markers (6 or 10 nm gold particles conjugated to protein A, Aurion, Netherlands) and immediately plunge-frozen in liquid ethane on Quantifoil holey carbon grids (Quantifoil Micro Tools, Germany). Single tilt series (typically ± 60°, step size 1.5–2.0°) were collected at 300 kV with an FEI Polara or FEI Titan Krios electron microscope equipped with a post-column Quantum energy filter and a K2 Summit direct electron detector (Gatan) at 6 µm underfocus. Magnifications were chosen to give an object pixel size of 3.5 Å or 3.3 Å, respectively. The total electron dose per tilt series was 90–120 e-/Ų. If dose fractionation was used, frames were aligned using the IMOD software package (Kremer et al., 1996). Tilt series were aligned to gold fiducial markers, binned 2-fold and tomograms were reconstructed by back-projection with IMOD. A final filtering step applying non-linear anisotropic diffusion (Frangakis and Hegerl, 2001) was performed to increase contrast. Tomograms were manually segmented with the program Amira (FEI).

Analysis of cryo-ET data

Distances in tomographic data were analyzed using IMOD. The following parameters were measured for each contact: the radii r of mitochondria perpendicular and parallel to the contact area, the major axis la and the minor axis lb of the contact area assuming elliptical geometry and the distance between the outer membranes d. The contact area A was calculated assuming it to be elliptical, A = (πlalb)/4. The normalized contact area ratio R was calculated, taking the radius r of the smaller of the two involved mitochondria into account, R = la/(2r).

Analysis of in vitro mitochondrial fusion reactions by fluorescence microscopy

For fluorescence microscopy analysis, the fusion reactions were fixed with two volumes of 8% formaldehyde in phosphate-buffered saline (PBS). Aliquots were immobilized on microscope slides by mixing 1:1 with 2% low melting point agarose (Sigma-Aldrich) in NMIB. The ratios of fused mitochondria were obtained by dividing the number of GFP and mCherry signals co-localizing with each other over the total number of OM45-GFP (obtained from strain #779) and mito-mCherry (obtained from strain #980) mitochondria (n > 1000). The levels of fused mitochondria were then determined by subtracting the ratios obtained for fusion reactions stopped at the mixing step (at the beginning of the reaction) from those obtained from reactions stopped at t = 45 min (at the end of the reaction).

Protein extracts and immunoblotting

Cells grown in SD medium were collected during the exponential growth phase (OD600 = 0.5–1). Total protein extracts were prepared by the NaOH/trichloroacetic acid (TCA) lysis technique (Volland et al., 1994). Proteins were separated by SDS-PAGE 8% and transferred to nitrocellulose membranes (AmershamTM HybondTM-ECL; GE Healthcare, UK). Primary antibodies for immunoblotting were mouse anti-Pgk1 (clone 22C5D8; Abcam, UK), rabbit anti-Fzo1 (Covalab, France), anti-Ugo1 (Covalab), anti-Mgm1 (kind gift from Andreas Reichert) and mouse anti-Por1 (clone 16G9E6BC4; Abcam). Primary antibodies were detected by secondary anti-mouse or anti-rabbit antibodies conjugated to horseradish peroxidase (HRP, Sigma-Aldrich), followed by incubation with the Clarity Western ECL kit (Bio-Rad). Immunoblotting images were acquired with a Gel DocTM XR + (Bio-Rad) and processed with the Image Lab 3.0.1 software (Bio-Rad).

Spot assays

Cultures grown overnight in SD medium were pelleted, resuspended at OD600 = 1, and serially diluted (1:10) five times in water. Three microliters of the dilutions were spotted on SD and SG plates and grown for 3 days (dextrose) or 5 days (glycerol) at 30°C.

Mitochondrial network morphology

Mitochondrial morphology was analyzed in cells expressing mito-GFP from the p426-TEF-mitoGFP plasmid (MC244). Strains were grown in dextrose medium to mid-log phase and fixed with 3.7% formaldehyde. Morphology phenotypes were assessed in at least 100 cells. Data reported are the mean and standard deviation (SD, error bars) of three independent experiments.

Fluorescence microscopy

Fluorescence microscopy was carried out with a Zeiss Axio Observer Z1 microscope (Carl Zeiss Microscopy GmbH, Germany). For in vitro fusion assays a 100X oil immersion objective and the following filter sets were used: 10 Alexa Fluor 489 (Excitation BP 450–490, Beam Splitter FT 510, Emission BP 515–565) for GFP, mCherry (Excitation BP 542–582, Beam Splitter FT 593, Emission BP 604–679) for mCherry. Images were acquired with an SCMOS ORCA FLASH 4.0 charge-coupled device camera (Hamamatsu Photonics K.K., Japan) and the Zen 2012 Package Acquisition/Analyse software before processing with ImageJ. Mitochondrial morphology was analyzed with a 63X oil immersion objective and an FITC filter (Filter set 44, Excitation BP 475/40, Beam Splitter FT 500, Emission BP 530/50) for GFP. Cell contours were visualized with Nomarski optics. Images were acquired with an ORCA-R2 CCD camera (Hamamatsu) and processed with ImageJ.

Quantum dot labelling

Specific labelling of mitofusins on attached mitochondria was achieved using Quantum Dots coupled to streptavidin (QDot 525ITK streptavidin; Life Technologies; Carlsbad, CA), which required specific biotinylation of Fzo1. For this purpose, the FZO1 ORF placed under control of its own promoter, was fused at its 3’-end in tandem with a sequence encoding for the Avi tag, a 15 amino-acid peptide that can be recognized and undergo specific biotinylation by the E. coli biotin ligase BirA (Beckett et al., 1999; van Werven and Timmers, 2006). The resulting pFZO1-AVI plasmid (MC369) was introduced in fzo1△ cells using a plasmid shuffling strategy to yield the FZO1-AVI yeast strain (MCY1155) that expresses Fzo1-Avi as the sole source of mitofusin in the cell. After verifying that Fzo1-Avi is competent for mitochondrial fusion in vivo, mitochondria were purified to promote biotinylation of Fzo1-Avi in vitro. Briefly, 0.5 mg of total mitochondrial enriched fractions prepared from FZO1 (MCY1154) or FZO1-Avi (MCY1155) cells were incubated at 25°C for 60 min with 10 µg BirA and 1X biotin in biomix A + B buffer (Biotinylation kit purchased from GeneCopoeia Inc; Rockville, MD) before processing for attachment assays. Following 30 min incubation on ice in Stage 1 buffer, attachment reactions were incubated for 60 min at 4°C with 50 nM streptavidin-coupled QDs before processing for cryo-ET analysis.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Mitochondrial dynamics in heart disease
    1. GW Dorn
    (2013)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1833:233–241.
    https://doi.org/10.1016/j.bbamcr.2012.03.008
  14. 14
  15. 15
  16. 16
    The Cell
    1. DW Fawcett
    (1981)
    Philadelphia: W B Saunders Co.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Methods in Yeast Genetics
    1. F Sherman
    2. G Fink
    3. J Hicks
    (1986)
    Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Endocytosis and degradation of the yeast uracil permease under adverse conditions
    1. C Volland
    2. D Urban-Grimal
    3. G Géraud
    4. R Haguenauer-Tsapis
    (1994)
    The Journal of Biological Chemistry 269:9833–9841.
  48. 48
  49. 49
  50. 50

Decision letter

  1. Nikolaus Pfanner
    Reviewing Editor; University of Freiburg, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A mitofusin-dependent docking ring complex triggers mitochondrial fusion" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of who is a member of our Board of Reviewing Editors and the evaluation has been overseen by Randy Schekman as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, Brandt et al. analyzed structural steps involved in the fusion of the mitochondrial outer membrane by applying electron cryo-tomography to an in vitro mitochondrial fusion assay. The authors centrifuged the mitochondria to attach to each other at 4°C and stimulated fusion by increasing the temperature to 25°C. After centrifugation, the authors observed two types of mitochondrial contacts. The first type of contact, with a relatively short distance of 1-3 nm, includes a regular pattern of globular proteins or protein complexes at the periphery of the contact sites (termed docking ring) based on three-dimensional reconstitution. The second type of contact does not exhibit a docking ring, and globular protein patterns are observed uniformly over the contact surface. The formation of these contact sites requires Fzo1, an outer membrane GTPase that is essential for mitochondrial fusion. Incubation of mitochondria in the presence of GMP-PNP decreased the first type of contact site with a docking ring and increased the second type of contacts, suggesting that GTP hydrolysis is necessary for the formation of contacts with a docking ring from less-organized contacts. To test whether the docking ring contains Fzo1, the authors examined the localization of Fzo1 using the Avi tag and quantum dots and noted that Fzo1 was enriched at the junctions. The authors additionally suggest that fusion initiates at the periphery of contact sites where the docking ring is located (based on one image that they were able to capture). The model in which Fzo1 forms a ring-like pattern at membrane contacts using GTP hydrolysis is interesting. Since structural intermediates of mitochondrial fusion are largely unknown, this study potentially provides new insight into the mechanisms of mitochondrial fusion. However, at the same time, the findings are still preliminary.

Essential revisions:

1) The manuscript presents an interesting model. The formation of a large ring is different from what has been expected. The reviewers appreciate the high technical challenges posed by this problem and the novelty of the approach, but at the same time are skeptical about the model. The main point seems to be that localized tethering is followed by spreading of the contacts to a larger area with Fzo1 moving out to the edges. It is not easy to understand how this sequence of events promotes fusion. The reviewers worry that the spreading could be an artefact of the system; in vitro fusion is slow and relatively inefficient in comparison with fusion in living cells, and thus the single fusion event caught by cryo-EM could be abnormal. Can it be excluded that the large rings may just happen when mitochondria are squished together enough in vitro. It is not clear if this may happen in vivo.

In Figure 6, the authors seem to conclude that the site of fusion is adjacent to the docking ring on the basis of one image. The reviewers strongly feel that the single fusion event observed is not enough. Additional images and quantification will be required.

For instance, would lowering the temperature slow down the rate of fusion pore opening and help to obtain more images of this intermediate? In order to capture further fusion intermediates the authors may also consider the possibility of treating docked mitochondria with a crosslinker. As outer membrane fusion is accompanied by a quick disassembly of trans-associated Fzo1 molecules, crosslinked molecules are probably more difficult to disassemble so that local fusion pores might be retained and fusion might not proceed further.

2) In Figure 7, the authors suggest that the overexpression of Fzo1 increases mitochondrial attachment in vitro. However, it is unclear whether these mitochondria are already attached before the assay was performed because Fzo1-overexpressing cells possess aggregated mitochondria. What is the frequency of attached Fzo1-overexpressing mitochondria without centrifugation?

As the authors say, fragmentation caused by overexpression of Fzo1 could result from stalling of the fusion intermediates, because there is too much Fzo1 on the surface. This problem could, however, also result from an imbalance with other proteins, such as Ugo1 or Mgm1, impeding progression through the different stages of fusion.

3) In Figure 8, only limited images are shown in terms of the localization of quantum dots used to localize Fzo1. Based on these images, it is difficult to determine if Fzo1 is truly enriched at the contact sites. Quantification is also critical to support the conclusion. In addition, the localization of other outer-membrane proteins should be included as negative controls.

4) The title should include that the findings are based on an in vitro assay.

The Discussion should also point out the potential limitations due to the in vitro system used.

5) According to the style of eLife, the Abstract should mention the biological system used.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A mitofusin-dependent docking ring complex triggers mitochondrial fusion in vitro" for further consideration by eLife. Your revised article has been favorably evaluated by Randy Schekman (Senior editor) and three reviewers, one of who, Nikolaus Pfanner, is a member of our Board of Reviewing Editors.

While the manuscript is much improved, we include the comments of the three reviewers. You will see that reviewers 2 and 3 suggest two small points. Please include the information about the number of images examined (reviewer 2). You may also consider mentioning the speculation about the presumed sequence of fission events (last paragraph of the comment of reviewer 3).

Reviewer #1:

The authors have addressed the points raised by a substantial amount of additional data and by modification of the text. The main conclusions are now sufficiently supported by the results presented, leading to a very interesting view on mitochondrial fusion.

Reviewer #2:

The manuscript has been much improved and is ready for publication.

The authors evaluated many images to capture fusion intermediates, but did not state the number of images examined. Doing so may help readers appreciate the technical challenge that had to be overcome in this study and give them a sense of the transience of this particular stage.

Reviewer #3:

Brandt et al. included new data to allay concerns raised in the previous reviews. First they show two more instances of fusion using TEM. Second they looked at mitochondrial aggregation when isolated from cells that overexpress fzo1. They detected aggregation even before further incubations. Third, they looked at ugo1 and mgm1 levels in the cells that overexpress fzo1. The levels of ugo1 did not follow those of fzo1, while mgm1 was shifted towards the short form, suggesting that there is an imbalance in the fusion machinery. Lastly, the authors further quantified fzo1 localization with quantum dots.

These are mostly incremental improvements, but I am reassured that fusion along the rims occurs more often, because it was seen two more times with conventional EM. It is still not possible to do statistics on this, and fusion somewhere along the edge of the contact site could result from squishing the mitochondria together, but it does become more believable and it even starts to resemble a reversal of the presumed sequence of fission events in Fawcett's 'The cell' (see Figure 233, Chapter 7). Maybe those earlier images show mitochondrial fusion instead of fission.

https://doi.org/10.7554/eLife.14618.027

Author response

Essential revisions:

1) The manuscript presents an interesting model. The formation of a large ring is different from what has been expected. The reviewers appreciate the high technical challenges posed by this problem and the novelty of the approach, but at the same time are skeptical about the model. The main point seems to be that localized tethering is followed by spreading of the contacts to a larger area with Fzo1 moving out to the edges. It is not easy to understand how this sequence of events promotes fusion. The reviewers worry that the spreading could be an artefact of the system; in vitro fusion is slow and relatively inefficient in comparison with fusion in living cells, and thus the single fusion event caught by cryo-EM could be abnormal. Can it be excluded that the large rings may just happen when mitochondria are squished together enough in vitro. It is not clear if this may happen in vivo.

The in vitro mitochondrial fusion assay was set up by the Nunnari group and allowed demonstrating that outer and inner membrane fusion are distinct events (Meeusen et al., 2004). This distinction was manifest by the observation of outer membrane-fused intermediates in which two unfused cristae systems are surrounded by a single outer membrane. By blocking fusion of inner membranes, the occurrence of such outer membrane-fused intermediates was subsequently demonstrated in vivo (Chan DC et al., Mol Biol Cell, 2009), confirming that in vivo and in vitro fusion processes are similar.

The major difference between both systems is that, in vivo, mitochondria are brought into proximity by the cytoskeleton. In vitro, this essential step is achieved by centrifugation. However, bringing mitochondria into proximity by centrifugation is not sufficient to promote fusion in vitro. An additional 10 minute pre-incubation on ice was shown to be required (Meeusen et al., 2004).

Our high-resolution analysis of attachment intermediates reveals the existence of tethered and docked mitochondria and describes the differences between these two states. Most importantly, it establishes that the incubation on ice enables the transition from tethering to docking and demonstrates the essential requirement of GTP hydrolysis, which proves that it is an active process. An important conclusion of the study is that absence of docking systematically correlates with a lower incidence of outer membrane-fused intermediates, and therefore with an inhibition outer membrane fusion. Moreover, mitochondria in the docked configuration are the only intermediates with which we were able to capture fusion events (1 in cryoEM and 2 new events in TEM; see below). Taken together, these observations indicate clearly that docked mitochondria are the initial state in the formation of outer membrane-fused intermediates in vitro. Visualization of docking in vivo merits further investigation, but this clearly goes well beyond the scope of our study. In the revised manuscript, we extended the Discussion to emphasize the main differences between in vivo and in vitro mitochondrial fusion (see point 4 below).

In Figure 6, the authors seem to conclude that the site of fusion is adjacent to the docking ring on the basis of one image. The reviewers strongly feel that the single fusion event observed is not enough. Additional images and quantification will be required.

For instance, would lowering the temperature slow down the rate of fusion pore opening and help to obtain more images of this intermediate? In order to capture further fusion intermediates the authors may also consider the possibility of treating docked mitochondria with a crosslinker. As outer membrane fusion is accompanied by a quick disassembly of trans-associated Fzo1 molecules, crosslinked molecules are probably more difficult to disassemble so that local fusion pores might be retained and fusion might not proceed further.

We agree that the visualization of additional fused intermediates such as that captured by cryo-EM is desirable. It has to be realized though that the visualization of such inherently rare events by electron cryo-tomography, which samples volumes of a few billionths of a nanoliter at a time, is extremely difficult. We were fortunate to capture one fusion intermediate after incubation of docked intermediates at 4°C and extensive screening. By lowering the temperature we slowed down the rate of fusion pore opening as much as possible, but even so found only one single event. In addition, fusion is, even at 4°C, highly transient, which reduces the capturing probability further. Lowering the temperature to 0°C is unlikely to help, and temperatures below 0°C are obviously excluded in aqueous solution. It might be possible to visualize fusion events by live imaging and fluorescence microscopy, but this would be at much lower resolution and an entirely different study.

While at first sight the suggestion to treat docked mitochondria with crosslinking agents may seem reasonable, it could be (rightly) criticized for producing artefacts, as it carries a high risk of capturing aberrant and non-productive events instead of bona-fide docking and fusion intermediates. Moreover, to monitor such experiments by cryo-tomography would be extremely tedious and time-consuming. We conclude that in the context of our present study, crosslinking is not a good approach.

To produce more images of fusion intermediates and to satisfy the reviewer and editor, we resorted to EM analysis of thin sections of mitochondria that were fixed and stained after inducing fusion in vitro. In this way, it is possible to sample large populations of attached mitochondria, some of which will have undergone fusion of their outer membranes. While this is still a rare event, we were indeed able to image two more fusion events in this way, in addition to the fusion intermediate captured by cryo-EM. In both cases, the outer membranes are fused near the outer rim of the contact region. These two intermediates are now shown as Figure 6—figure supplement 2A and B in the revised manuscript. Note that our new EM analysis did not indicate any fusion intermediates other than mitochondria with two cristae surrounded by a single outer membrane, as shown in new Figure 6—figure supplement 1. This fully supports our model and indicates that docking results in fusion, which commences near the edge of the contact area, which precedes the apposition and merging of inner membranes occurs. These new results are presented in a paragraph in the revised manuscript.

2). In Figure 7, the authors suggest that the overexpression of Fzo1 increases mitochondrial attachment in vitro. However, it is unclear whether these mitochondria are already attached before the assay was performed because Fzo1-overexpressing cells possess aggregated mitochondria. What is the frequency of attached Fzo1-overexpressing mitochondria without centrifugation?

This is a good point. To check it, we used fluorescence microscopy to analyze the ratio of attached mitochondria from cells overexpressing Fzo1 as compared to wild-type. This was done before centrifugation, after centrifugation and after 10 minutes incubation on ice (New Figure 7 —figure supplement 1E and F). The results indicate that mitochondria from Fzo1-ovexpressing cells are not only more attached before centrifugation but are also more competent for de novo attachment in vitro (as evidenced by the difference of attachment before and after centrifugation).

As the authors say, fragmentation caused by overexpression of Fzo1 could result from stalling of the fusion intermediates, because there is too much Fzo1 on the surface. This problem could, however, also result from an imbalance with other proteins, such as Ugo1 or Mgm1, impeding progression through the different stages of fusion.

In the manuscript, we analyze mitochondrial attachment upon Fzo1 overexpression and conclude that it “induces the formation of protein aggregates that perturb the regulated sequence of events required to reach productive mitochondrial docking.” We did not intend to discuss the molecular details that might explain the fusion deficiency.

We nonetheless fully agree with the reviewers that the fusion defect may be caused by the aggregation of Fzo1 molecules on outer membranes, an imbalance with other proteins such as Ugo1 and Mgm1, or possibly both. This then led us to test the levels of Ugo1 and Mgm1 in whole-cell extracts prepared from wild-type or Fzo1-overexpressing cells with anti-Ugo1 and anti-Mgm1 antibodies (New Figure 7 —figure supplement 1B). Interestingly, while Ugo1 levels did not vary, which is consistent with a possible imbalance, the ratio between long and short forms of Mgm1 was slightly shifted toward the short form in cells overexpressing Fzo1. This may contribute to the changes in cristae morphology upon Fzo1 overexpression as seen in the electron micrographs shown in Figure 7—figure supplement 1D.

3). In Figure 8, only limited images are shown in terms of the localization of quantum dots used to localize Fzo1. Based on these images, it is difficult to determine if Fzo1 is truly enriched at the contact sites. Quantification is also critical to support the conclusion. In addition, the localization of other outer-membrane proteins should be included as negative controls.

This comment is well taken. It is however important to remember that the enrichment of Fzo1 at mitochondrial contact sites has already been shown by immuno-labelling of TEM sections (Hoppins et al., J Cell Biol 2009). In our study we nevertheless took the challenge of devising a specific method for Fzo1 labelling on cryo-tomograms, partly to confirm this finding, but mainly to demonstrate that mitofusins accumulate in contact regions, where we discovered the docking rings and regular repeats of globular densities. We must also emphasize that in situ Q-dot labelling of endogenous proteins in cryo-tomograms has to our knowledge never been published before. The reviewers and editors should be aware that our approach thus represents a technical breakthrough and is very much more challenging than a routine labelling technique such as to immuno-staining of thin plastic sections.

We thank the reviewers for inviting us to show more images of Fzo1 labelling and to quantify our observations, to corroborate our conclusions. The requested changes have been made in the new panels C, D and E of Figure 8. The quantification demonstrates that while Q-Dots were rarely found on the surface of tagged or untagged mitochondria (Figure 8C and D, right graph), they were enriched threefold at the junction of attached FZO1-Avi mitochondria as compared to attached FZO1 mitochondria (Figure 8D, left graph). This indicates both that Fzo1 labeling was specific (although weak) and that this specific labeling occurred preferentially in regions where Fzo1 accumulates as shown by Hoppins et al. These observations thus confirm that in our tomograms Fzo1 is enriched at mitochondrial contact sites, which is in line with the involvement of this mitofusin in the assembly of docking rings and regular repeats of globular densities.

In light of these results, the necessity to localize other outer-membrane proteins becomes questionable for several reasons. First, the experiment we devised is already controlled for non-specific labelling. Second, it is unlikely that specific labelling for another outer-membrane protein could be achieved unless this factor gets enriched at particular regions of the mitochondrial surface. Third, localizing another protein would require yet another setup to tag the protein, label it with Q-dots and localize it by Cryo-EM, which, taken together, would place an unreasonably heavy burden on us that would take many months.

4) The title should include that the findings are based on an in vitro assay.

The Discussion should also point out the potential limitations due to the in vitro system used.

The words “in vitro” have been added to the title and the Discussion has been extended to explain and rationalize the main differences between in vivo and in vitro fusion of outer membranes.

5) According to the style of eLife, the Abstract should mention the biological system used.

The Abstract has been edited to emphasize that the in vitro attachment and fusion assays were performed with mitochondria isolated from Saccharomyces cerevisiae cells.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

We include the comments of the three reviewers. You will see that reviewers 2 and 3 suggest two small points. Please include the information about the number of images examined (reviewer 2). You may also consider to mention the speculation about the presumed sequence of fission events (last paragraph of the comment of reviewer 3).

The requested changes have been made as follows: the number of micrographs examined has been added in the Results section and in the Materials and methods; a paragraph that relates to the presumed fission events has been added in the Discussion. We would like to sincerely thank the reviewers and editors for their comments.
