MutSα maintains the mismatch repair capability by inhibiting PCNA unloading

  1. Yoshitaka Kawasoe
  2. Toshiki Tsurimoto
  3. Takuro Nakagawa
  4. Hisao Masukata
  5. Tatsuro S Takahashi  Is a corresponding author
  1. Osaka University, Japan
  2. Kyushu University, Japan
Research Article
  • Cited 12
  • Views 1,633
  • Annotations
Cite this article as: eLife 2016;5:e15155 doi: 10.7554/eLife.15155

Abstract

Eukaryotic mismatch repair (MMR) utilizes single-strand breaks as signals to target the strand to be repaired. DNA-bound PCNA is also presumed to direct MMR. The MMR capability must be limited to a post-replicative temporal window during which the signals are available. However, both identity of the signal(s) involved in the retention of this temporal window and the mechanism that maintains the MMR capability after DNA synthesis remain unclear. Using Xenopus egg extracts, we discovered a mechanism that ensures long-term retention of the MMR capability. We show that DNA-bound PCNA induces strand-specific MMR in the absence of strand discontinuities. Strikingly, MutSα inhibited PCNA unloading through its PCNA-interacting motif, thereby extending significantly the temporal window permissive to strand-specific MMR. Our data identify DNA-bound PCNA as the signal that enables strand discrimination after the disappearance of strand discontinuities, and uncover a novel role of MutSα in the retention of the post-replicative MMR capability.

https://doi.org/10.7554/eLife.15155.001

eLife digest

To pass on genetic information from one generation to the next, the DNA in a cell must be precisely copied. DNA is made of two strands and genetic information is encoded by sequences of molecules called bases in the strands. The bases from one strand form pairs with complementary bases on the other strand. However, errors in the copying process result in unmatched pairs of bases. Such errors are corrected by a repair system called mismatch repair.

When DNA is copied, the two strands are separated and used as templates to make new complementary strands. This means that errors only arise on the new strands. Mismatch repair must therefore target the new strands to maintain the original information encoded by the template DNA. The repair needs to happen before the copying process is complete because the template strands and the new strands become indistinguishable afterwards. However, it is not clear how the two processes communicate with each other.

Previous studies have identified a ring-shaped molecule called the replication clamp – which is essential for the copying process – as a prime candidate for the molecule responsible for this communication. This molecule binds to the DNA to promote the copying process, and afterwards it is removed from the DNA by other molecules. Furthermore, a group of proteins called the MutSα complex, which recognizes unmatched bases in DNA molecules, physically interacts with the replication clamp.

Kawasoe et al. used eggs from African clawed frogs to study how the replication clamp connects the copying process and mismatch repair in more detail. The experiments show that when the replication clamp is bound to the DNA, it is able to direct mismatch repair to a specific DNA strand. When MutSα recognizes unmatched bases, it prevents the replication clamp from being removed from the DNA. By doing so, MutSα prevents the information about the new DNA strand from being lost until mismatch repair has taken place.

These findings reveal new interactions between DNA copying and the correction of errors by mismatch repair. The next steps will be to understand how MutSα is able to keep the replication clamp on the DNA and to clarify its role in protecting DNA from gaining mutations.

https://doi.org/10.7554/eLife.15155.002

Introduction

The evolutionarily conserved mismatch repair (MMR) system corrects replication errors post-replicatively to prevent their being fixed as mutations in the next round of complementary DNA synthesis (Iyer et al., 2006; Jiricny, 2013; Kunkel and Erie, 2015). Since erroneously inserted nucleotides are present on newly synthesized DNA strands, identification of the newly synthesized strand is a critical step in MMR. By rectifying replication errors, MMR increases the replication fidelity by ~2 orders of magnitude in yeast (Lujan et al., 2014). In humans, genetic or epigenetic inactivation of MMR genes elevates the risk of tumorigenesis in both hereditary and sporadic manners (Jiricny, 2013).

In Escherichia coli, MMR distinguishes the parental and daughter strands mainly by using adenine methylation on GATC sites (Lahue et al., 1989; Iyer et al., 2006). Mismatches are recognized by the mismatch sensor MutS homodimer. MutS and the MutL homodimer then activate the latent nicking-endonuclease MutH, which cleaves the unmethylated strand at the hemi-methylated GATC sequences. MMR is possible from the time of hemi-methylated GATC generation by DNA synthesis until full methylation of the GATC sites. Maintaining this temporal window is critical for efficient MMR, because over-expression of the Dam methylase, by which full-methylation of the GATC sites is accelerated, significantly elevates the mutation frequency (Herman and Modrich, 1981; Marinus et al., 1984). The E. coli MMR system can also correct replication errors through a methylation-independent mechanism, where strand discontinuities can substitute for GATC methylation both in vivo and in vitro (Laengle-Rouault et al., 1986; Lahue et al., 1987; 1989).

Eukaryotic MMR is directed by strand discontinuities such as nicks or gaps in vitro (Holmes et al., 1990; Thomas et al., 1991). Two MutS heterodimers, MutSα (Msh2-Msh6) and MutSβ (Msh2-Msh3) recognize replication errors; MutSα has a biased preference for base-base mismatches and small insertion/deletion loops (IDLs), while MutSβ preferentially recognizes large IDLs (Iyer et al., 2006; Jiricny, 2013; Kunkel and Erie, 2015). After mismatch binding, MutSα/β are converted into closed ‘clamp-like’ forms, by which they can translocate along DNA. They then recruit the latent nicking-endonuclease MutLα (Mlh1-Pms2 in vertebrates and Mlh1-Pms1 in yeast) to initiate the removal of the error-carrying DNA strand. Two other eukaryotic MutL homologs, MutLβ (Mlh1-Pms1 in vertebrates and Mlh1-Mlh2 in yeast) and MutLγ (Mlh1-Mlh3) are suggested to play minor roles in somatic MMR (Jiricny, 2013; Campbell et al., 2014). Successful reconstitutions of eukaryotic MMR have shown that MutSα, or MutSβ, and MutLα, the Proliferating Cell Nuclear Antigen (PCNA) sliding clamp, the clamp loader Replication Factor C (RFC), the Exo1 exonuclease, and the DNA synthesis components promote MMR when a strand discontinuity is present (Genschel and Modrich, 2003; Dzantiev et al., 2004; Constantin et al., 2005; Zhang et al., 2005). A strand discontinuity, which can occur on either 5’- or 3’-side of the mismatch, activates MutLα through a MutSα- and PCNA-dependent mechanism to induce successive rounds of nicking on the error-carrying strand (Kadyrov et al., 2006; 2007; Pluciennik et al., 2010). Single-strand DNA termini such as 5’-ends of the Okazaki fragments serve as entry points for Exo1 and strand discrimination signals in vivo as well (Pavlov et al., 2003; Nick McElhinny et al., 2010; Liberti et al., 2013; Lujan et al., 2014; Liu et al., 2015). Recent studies have revealed that ribonucleotides embedded by replicative DNA polymerases serve as strand signals for MMR in vitro and contribute to a sub-fraction of leading strand MMR in vivo, after converted into single-strand gaps through RNaseH2-dependent ribonucleotide excision repair (Ghodgaonkar et al., 2013; Lujan et al., 2013).

PCNA has also been presumed to be the strand discrimination marker in eukaryotes (Umar et al., 1996; Chen et al., 1999; Pavlov et al., 2003; Dzantiev et al., 2004; Kadyrov et al., 2006; Pluciennik et al., 2010; Hombauer et al., 2011b; Peña-Diaz and Jiricny, 2012; Georgescu et al., 2015; Kunkel and Erie, 2015). PCNA is a ring-shaped homo-trimer that supports various DNA transactions including DNA replication and repair (Georgescu et al., 2015). PCNA is loaded onto DNA from the template-primer junction by RFC, and likely unloaded by an RFC-like complex containing Elg1 after the completion of DNA synthesis (Kubota et al., 2013; 2015). Since its DNA binding is asymmetric with respect to polarities of the parental and daughter strands, DNA-bound PCNA can hold information for the newly synthesized strand (Bowman et al., 2004; Georgescu et al., 2015). PCNA plays an essential role in an early MMR step that precedes degradation of the error-carrying strand (Umar et al., 1996). PCNA loaded from a strand discontinuity induces strand-specific, mismatch- and MutSα-dependent activation of the MutLα endonuclease (Kadyrov et al., 2006; 2007; Pluciennik et al., 2010). When PCNA is loaded onto closed circular DNA without defined orientation, it induces unbiased nicking on both DNA strands (Pluciennik et al., 2010; 2013). These findings have led to a proposal that orientation of DNA-bound PCNA is a critical determinant for the nicking specificity of MutLα.

In addition to its proposed role in strand discrimination, PCNA is also involved in multiple steps of MMR. Numbers of PCNA mutants in yeast exhibit mutator phenotypes that are epistatic to MMR mutations (Johnson et al., 1996; Umar et al., 1996; Chen et al., 1999; Amin et al., 2001; Lau et al., 2002; Goellner et al., 2014). It interacts with MutSα/β through their PCNA-interacting peptide (PIP) motifs, which reside at the N-termini of Msh6 and Msh3 (Clark et al., 2000; Flores-Rozas et al., 2000; Kleczkowska et al., 2001). In both cases, the PIP motifs and the mispair binding domains are connected through long linkers, which are predicted to be disordered in yeast (Shell et al., 2007). Mutants of the PIP motifs in Msh6 and Msh3 show substantial but not complete reduction of the MMR activity, indicating that the PIP motif plays an important, yet assistive, non-essential role in MMR (Clark et al., 2000; Flores-Rozas et al., 2000). The PIP motif has been proposed to tether MutSα to the replication fork to assist its mismatch recognition (Kleczkowska et al., 2001; Hombauer et al., 2011a; Haye and Gammie, 2015). A recent study has shown that this motif in MutSα is important for a late MMR step(s) involving degradation of the error-carrying strand, especially by the Exo1-independent mechanism (Goellner et al., 2014). These findings suggest that PCNA coordinates multiple reactions in MMR, yet the exact role of PCNA in MMR is still not clearly defined.

An important remaining question in eukaryotic MMR is how (and how long) the strand discrimination signals are retained after DNA synthesis. It has been shown in yeast that MutSα must be present during S-phase to suppress mutations (Hombauer et al., 2011b). Therefore, the generation and retention of the strand signals for MMR should be intimately coupled with DNA replication. Since PCNA transiently remains on DNA after the completion of DNA synthesis, DNA-bound PCNA could mediate the coupling of MMR with DNA replication. However, because experimental evidence that DNA-bound PCNA induces strand-specific MMR in the absence of strand discontinuities is currently lacking, it is still uncertain whether PCNA by itself can mediate the coupling of MMR with DNA replication. In addition, how functional interaction between the MMR system and DNA-bound PCNA, which should be unloaded from DNA shortly after the completion of DNA synthesis, is ensured remains highly unclear.

Here, we demonstrate that MutSα and PCNA play a critical role in maintenance of the MMR capability after DNA synthesis. We show that nucleoplasmic extract (NPE) of Xenopus eggs efficiently induces gap-directed, strand-specific MMR, whose capability remains even after sealing of the gap. We further show that DNA-bound PCNA induces strand-specific MMR in the absence of strand discontinuities. Strikingly, we found that MutSα attenuates unloading of PCNA and retains the MMR capability largely through its PIP motif. Our data thus identify PCNA as the eukaryotic strand discrimination molecule that retains the MMR capability after DNA synthesis, and delineate a critical role of MutSα in maintenance of the temporal window for eukaryotic MMR.

Results

Nucleoplasmic extract of Xenopus eggs efficiently promotes both gap-directed MMR and gap-filling DNA synthesis

The nucleoplasmic extract (NPE), a highly concentrated nuclear protein extract of Xenopus eggs, has been used as a powerful in vitro model system for DNA repair reactions coupled with DNA synthesis (Walter et al., 1998; Räschle et al., 2008; Olivera Harris et al., 2015). We exploited its extremely high capacity for DNA synthesis to study MMR. A plasmid carrying an A:C mismatch, which is a preferred MMR substrate in crude Xenopus egg extracts (Varlet et al., 1990), and a 15-nucleotide (nt) single-strand gap was constructed (Figure 1A). This plasmid was synthesized in vitro by second strand DNA synthesis after annealing of a primer carrying a 'C'-mismatch on single-stranded phagemid DNA corresponding to the 'A'-strand. Since NPE contains a high concentration of Geminin, a specific inhibitor for assembly of pre-replicative complexes, no DNA replication initiates when DNA is incubated directly in NPE, while DNA synthesis from existing 3’-termini is active (Walter et al., 1998). NPE corrected the A:C mismatch by selectively editing the base on the gap-carrying strand (Figure 1B–E, see 'mock'), more efficiently than conventional crude Xenopus egg extracts (Figure 1—figure supplement 1). As seen previously (Olivera Harris et al., 2015), a gap could be placed on either 5’ or 3’ of the mismatch, and repair DNA synthesis occurred preferentially within a fragment containing the shorter path between the gap and the mismatch (Figure 1—figure supplement 2), indicating that NPE supports bidirectional MMR. Depletion of the Msh2-containing (MutSα/β) (Figure 1B–C and Figure 1—figure supplement 3) or Mlh1-containing complexes (MutLα/β/γ) (Figure 1D–E and Figure 1—figure supplement 3) abolished the repair reaction. Unlike other systems, a nick did not efficiently induce MMR (Figure 1—figure supplement 4). These results demonstrate that NPE efficiently recapitulates gap-directed, bi-directional MMR that is dependent on both MutSα/β and MutLα/β/γ. Some background repair observed in the absence of a gap could be due to either spontaneous base damages, which elicit base excision repair that in turn direct MMR (Repmann et al., 2015), or strand breaks that have occurred during handling of the substrate.

Figure 1 with 6 supplements see all

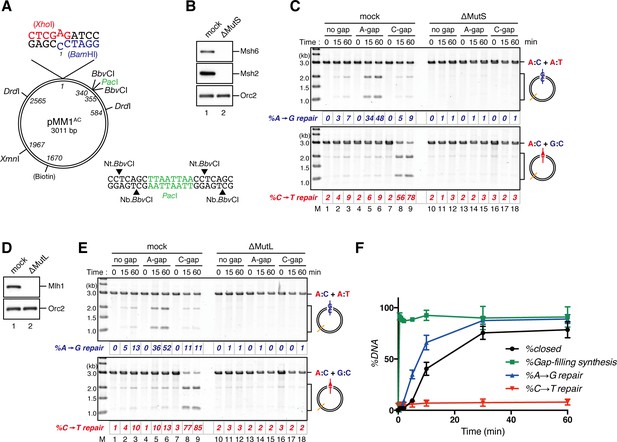

NPE promotes gap-directed MMR with efficient DNA synthesis at the gap site.

(A) DNA substrates used in this study. The 3011-base pair plasmid DNA carries an A:C mispair (pMM1AC), or an A:T base-pair (pMM1AT) at position 1. Sequences surrounding an A:C mispair are designed so that the A:T or G:C repair product forms an XhoI or BamHI cleavage site, respectively. Two BbvCI nicking restriction enzyme sites were used to introduce a 15-nt single-strand gap. A PacI site was placed within the gap. If needed, a biotin-dT modification was introduced at position 1670. (B) NPE was depleted using pre-immune antibodies (lane 1) or a mixture of Msh2 and Msh6 antibodies (lane 2). Immunoblots of the NPE samples (0.05 μl each) are shown. Orc2 served as a loading control. (C) Covalently closed (lanes 1–3 and 10–12), A-strand-gap (3’ to the mismatch)-carrying (lanes 4–6 and 13–15) or C-strand-gap (5’ to the mismatch)-carrying pMM1AC (lanes 7–9 and 16–18) were incubated in NPE described in (B), and sampled at the indicated times. DNA was purified and digested with XmnI and either BamHI (upper, A to G repair) or XhoI (lower, C to T repair). %repair was calculated based on the percentage of XhoI or BamHI sensitive DNA molecules. (D) NPE was depleted using pre-immune antibodies (lane 1) or Mlh1 antibodies (lane 2). Immunoblots of the NPE samples (0.05 μl each) are shown. (E) The MMR reaction in NPE described in (D). DNA was digested with XmnI and either BamHI (upper, A to G repair) or XhoI (lower, C to T repair). (F) Percentages of DNA synthesis at the gap, estimated by PacI sensitivity (%Gap-filling synthesis), A to G repair (%A→G repair), C to T repair (%C→T repair) and closed circular molecules (%closed; Figure 1—figure supplement 5), calculated from two independent experiments including the one described in Figure 1—figure supplement 6, were plotted onto a graph. To calculate the %Gap-filling synthesis, DNA was digested with XmnI and PacI. The mean values were connected by lines. Error bars: ± 1 standard deviation (SD).

https://doi.org/10.7554/eLife.15155.003

On a substrate that has no mismatch, a single-strand gap was sealed within 2 min in NPE, resulting in quick accumulation of closed circular plasmids (Figure 1—figure supplement 5). To understand the temporal relationship between gap filling and gap-directed MMR, we compared the kinetics of DNA synthesis at the gap site and repair of the mismatch simultaneously on the same substrate. As shown in Figure 1F, DNA synthesis at the gap site (estimated by digestion with PacI placed within the gap) was mostly completed within 30 s. However, this DNA synthesis did not covalently close the mismatch-carrying plasmid, suggesting that new strand breaks are introduced on the DNA (Figure 1F and Figure 1—figure supplement 6). The A to G MMR gradually progressed until ~30 min, and shortly after the mismatch correction, closed circular molecules were accumulated. These observations suggest that, in this gap-directed MMR model, efficient DNA synthesis at the gap site precedes mismatch correction involving degradation of the error-carrying strand. As suggested previously (Varlet et al., 1996), the 3’-terminus is likely used as a signal for MMR, rather than the initiation point of extensive strand removal.

A gap-derived strand memory directs MMR even after gap filling

If the 3’-terminus generates a signal for strand discrimination, does the signal remain after the sealing of the gap, or is the 3’-terminus essential to initiate MMR? To answer this question, we set up a stepwise incubation assay that separates gap filling and mismatch recognition. We first incubated the MMR substrates in a MutSα/β-depleted (MutS-depleted) NPE, in which the gap should be filled and ligated without mismatch recognition, and then supplied MutSα/β by addition of fresh NPE (Figure 2A). In the MutS-depleted NPE, more than 80% of gap-carrying plasmids were converted into the closed-circular form within 1.5 min (Figure 2B, lane 9). However, ~40% of A to G MMR was still observed upon addition of fresh NPE at 2 min, at a time when at most, only ~14% strand discontinuities remained (Figure 2B, lane 10 and Figure 2C, lane 14). From 0.5 to 2 min, the MMR efficiency consistently exceeded the amounts of remaining strand discontinuities. These data suggest that the strand information derived from a gap is 'memorized' on DNA to induce subsequent MMR.

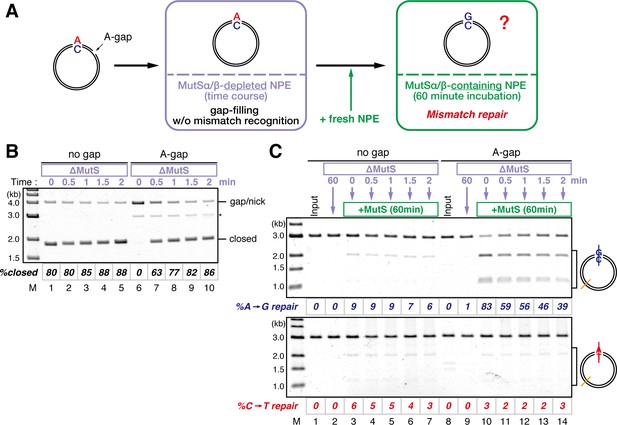

Strand memory derived from a gap directs MMR after the completion of gap filling.

(A) Schematic diagram of the stepwise incubation assay. pMM1AC carrying a 15-nt gap was incubated in a MutS-depleted NPE to fill the gap without recognizing the mismatch. Subsequently, fresh NPE was added to an aliquot of the reaction to initiate MMR by supplying MutSα/β. After 60 min incubation, DNA was purified and the direction and the efficiency of repair were examined. (B) Kinetics of the gap-filling reaction in MutS-depleted NPE. Covalently closed (lanes 1–5) or A-strand-gap-carrying pMM1AC (lanes 6–10) was incubated in MutS-depleted NPE and sampled at the indicated times. (*) indicates linear DNA produced by contaminating endonuclease activity in Nt.BbvCI. These linear molecules were excluded from the calculation of %closed. (C) Strand-specific MMR reaction after supplying MutSα/β. Aliquots were sampled at the indicated times, mixed with fresh NPE, and incubated for an additional 60 min. No repair was observed when the second NPE was omitted (lanes 2 and 9).

https://doi.org/10.7554/eLife.15155.010

Directional loading of PCNA bypasses requirement of a gap for strand-specific MMR in NPE

The gap-filling reaction in Xenopus egg extracts was PCNA-dependent (Figure 3—figure supplement 1). Therefore, at least one PCNA trimer must be involved in every gap filling, and it could retain the strand information after gap filling. If PCNA stores strand information for MMR, PCNA loaded on DNA in a specific orientation should direct MMR in NPE even in the absence of strand discontinuities. To test this idea, we established an in vitro PCNA-loading reaction using purified human RFC (hRFC) and PCNA (hPCNA), which can substitute for Xenopus PCNA (xPCNA) in the MMR reaction (Figure 3—figure supplement 2). A mismatch plasmid carrying an A-strand nick was bound to Sepharose beads through a site-specific biotin modification (see Figure 1A). hPCNA was loaded onto the immobilized plasmids in a nick-dependent, and therefore orientation-specific manner. The nick left on the DNA was sealed with the T4 DNA ligase. The hPCNA-DNA complex was then washed with 1 M KCl to remove hRFC, T4 ligase, and loosely associated hPCNA (Figure 3A).

Figure 3 with 2 supplements see all

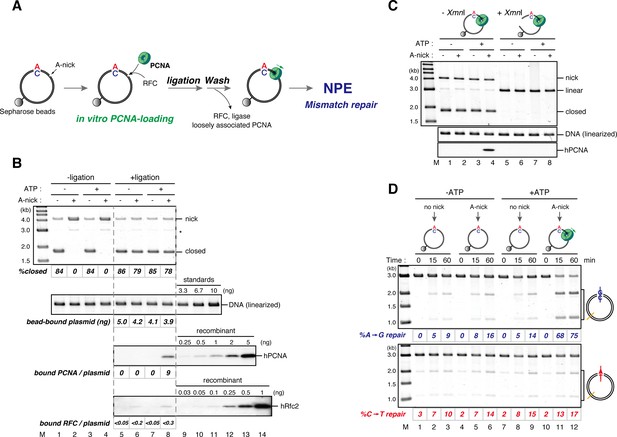

DNA-bound PCNA bypasses the requirement of a gap for strand-specific MMR in NPE.

(A) Schematic diagram of the assay. Singly biotinylated pMM2AC (a pMM1 derivative carrying only one BbvCI site) carrying a nick was bound to Sepharose beads and incubated with recombinant hPCNA and hRFC. The nick was then ligated, and the complex was washed with a buffer containing 1 M KCl. The hPCNA-DNA complex was incubated in NPE to test whether MMR occurs. (B) In vitro PCNA-loading reaction. Untreated DNA (top), linearized DNA (middle, by XmnI), and quantitative immunoblottings for hPCNA and hRfc2 (bottom) of samples from the in vitro PCNA-loading assay using covalently closed, and A-strand-nick-carrying pMM2AC are presented. (*) indicates linear DNA, which was excluded from the calculation of %closed. (C) The hPCNA-DNA complexes described in (B) were split into two portions to test whether PCNA encircles DNA (C) and whether MMR occurs upon incubation in NPE (D). The one portion was treated with either control buffer, or buffer containing XmnI whose cleavage site is located 1382 bp away from the PCNA entry point. DNA from the reaction (top), linearized DNA (middle, by XmnI), and a hPCNA immunoblot (bottom) are shown. Since nick-carrying molecules were accumulated during incubation, the level of closed-circular molecules was lower than the original substrates shown in (B). (D) The other potion of the hPCNA-DNA complexes described in (B) was incubated in NPE. The MMR efficiencies were calculated as described in Figure 1C.

https://doi.org/10.7554/eLife.15155.011

Using fluorescent-based quantitative western blotting, we estimated that 4–10 hPCNA trimers reproducibly loaded on the DNA in a nick- and ATP-dependent manner (Figure 3B; see also Figure 4). Ligation of the nick was ~80% efficient. The DNA-bound hPCNA topologically encircled DNA with free-sliding ability, because linearization of DNA resulted in dissociation of essentially all hPCNA (Figure 3C). As PCNA was loaded from the A-strand nick in this case, A to G MMR was predicted. When the hPCNA-DNA complex was transferred into NPE, ~75% of the A bases were specifically repaired into G bases (Figure 3D). Such a high repair efficiency could not be explained by the remaining nicks, which could contribute to at most 20% of MMR.

Figure 4 with 2 supplements see all

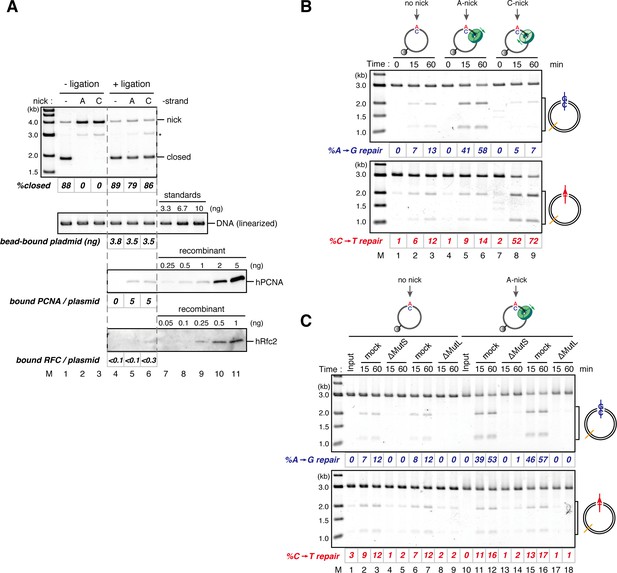

The orientation of PCNA loading determines strand specificity of MMR in NPE.

(A) In vitro PCNA-loading reaction with pMM2AC carrying no nick, an A-strand nick or a C-strand nick. Untreated DNA (top), linearized DNA (middle, by XmnI), and quantitative immunoblots (bottom) are presented. (B) The hPCNA-DNA complexes described in (A) were incubated in NPE. (C) The hPCNA-DNA complexes (Figure 4—figure supplement 2) were incubated in mock-treated, MutS-depleted or MutL-depleted NPE described in Figure 4—figure supplement 2.

https://doi.org/10.7554/eLife.15155.014

If PCNA directs strand-specific MMR, PCNA loaded onto DNA in the opposite orientation should invert the strand to be repaired. Critically, the hPCNA-DNA complex prepared with A-nick DNA directed ~60% of A to G MMR, and the complex prepared with C-nick DNA directed ~70% of C to T MMR in NPE (Figure 4A and B). When either PCNA or RFC was omitted from the reaction, most of the strand-specific repair was inhibited (Figure 4—figure supplement 1). The PCNA-directed MMR reaction was dependent on both MutSα/β and MutLα/β/γ (Figure 4C and Figure 4—figure supplement 2). These results indicate that directional loading of hPCNA is sufficient to induce strand-specific MMR in the absence of strand discontinuities in NPE.

The MutS complexes inhibit Rfc3-dependent PCNA unloading

The above results suggest that DNA synthesis at the gap site leaves PCNA on DNA as the strand memory, which can be subsequently used for MMR. Consistent with this idea, a significant portion of nick ligation was independent of PCNA, explaining why a nick did not induce MMR as efficiently as a gap in NPE (Figure 3—figure supplement 1). In the absence of MutSα/β, the strand information was gradually lost after the disappearance of strand discontinuities (Figure 2), suggesting that PCNA is unloaded from DNA within this time window. To examine PCNA dissociation in NPE, we loaded hPCNA on DNA, incubated it in NPE, and quantified the remaining hPCNA using an hPCNA specific monoclonal antibody that does not cross-react with xPCNA (Figure 5—figure supplement 1). This method distinguishes retention of hPCNA from sticking of xPCNA. In the mock-treated NPE, hPCNA was quickly dissociated from a homoduplex DNA within a few minutes, while dissociation was attenuated in the NPE depleted of xRfc3, indicating that PCNA is removed from DNA mostly through an active unloading process requiring the Rfc3-containing complex(es) (Figure 5). Due to the unavailability of appropriate antibodies, the specific Rfc3-containing complex responsible for PCNA unloading could not be identified.

Figure 5 with 1 supplement see all

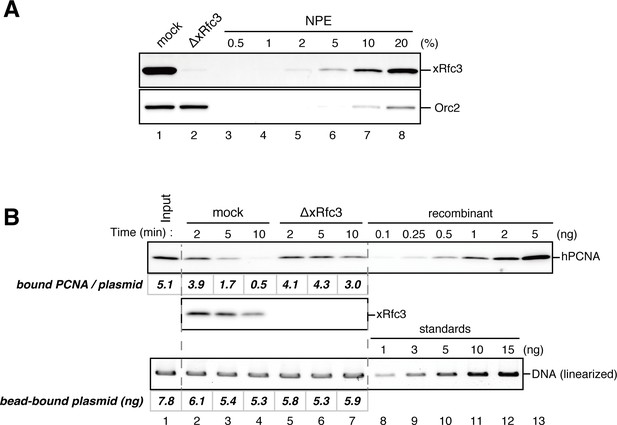

Rfc3 is required for the unloading of PCNA from closed-circular DNA.

(A) Depletion efficiency of xRfc3 from NPE. The depletion efficiency was estimated to be >98%. (B) hPCNA loaded onto immobilized pMM2AT (carrying no mismatch) was incubated in NPE described in (A). The efficiency of nick ligation in the PCNA loading reaction was estimated to be ~89%.

https://doi.org/10.7554/eLife.15155.017

Amount of DNA-bound PCNA should correlate with the MMR capability. In addition, since DNA-bound MutSα/β can interact with PCNA (Flores-Rozas et al., 2000; Bowers et al., 2001; Lau and Kolodner, 2003; Iyer et al., 2008), MutSα/β might affect dynamics of PCNA retention. We therefore examined hPCNA retention and the MMR capability in the presence or absence of MutSα/β (Figure 6A). In the MutS-depleted NPE, hPCNA was again quickly unloaded from mismatch-carrying DNA (Figure 6B and Figure 6—figure supplement 1). Concurrent with PCNA unloading, the PCNA-directed MMR capability rapidly dropped, leaving only ~10% of repairable molecules at 5 min (Figure 6C, lane 5). In contrast, in the MutL-depleted NPE (containing endogenous MutSα/β but deficient for MMR), even at 30 min, more than one hPCNA trimer on an average still remained on DNA, and ~20% of mismatches were still repairable (Figure 6C, lane 14). The difference in PCNA retention and the kinetics of repair was not due to remaining nicks on the DNA, because neither MutS- nor MutL-depletion significantly affected the level of nick-carrying molecules (Figure 6—figure supplement 2, see also Figure 7). These results suggest that mismatch-bound MutS complexes interfere with unloading of PCNA to retain strand information for MMR.

Figure 6 with 2 supplements see all

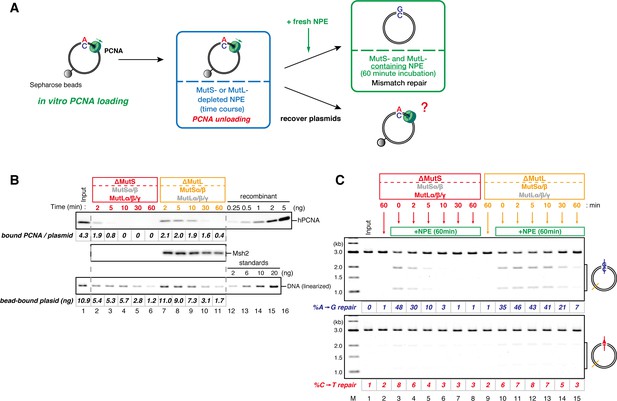

The MutS complexes inhibit Rfc3-dependent PCNA unloading in NPE.

(A) Schematic diagram of the stepwise incubation assay. After the in vitro PCNA-loading reaction, hPCNA-DNA complexes were incubated in either MutS- or MutL-depleted NPE. The samples were split into two portions, fresh NPE was added to one portion to measure MMR, and DNA-bound proteins were recovered from the other portion to quantify hPCNA. (B) hPCNA loaded onto immobilized pMM2AC carrying an A-strand nick was incubated in NPE depleted of either MutSα/β or MutLα/β/γ. The efficiency of nick ligation in the PCNA loading reaction was estimated to be ~72%. The amounts of DNA-bound hPCNA are shown. See Figure 6—figure supplement 1 for the depletion efficiencies (MutS: >98%, MutL: >98%). (C) Kinetics of the PCNA-directed MMR capability in the presence or absence of MutSα/β. Aliquots were sampled from the reaction described in (B) and mixed with fresh NPE.

https://doi.org/10.7554/eLife.15155.019
Figure 7 with 1 supplement see all

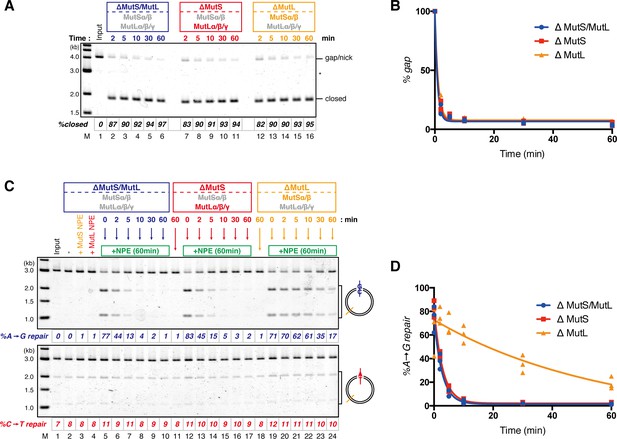

The MutS complexes retain strand memory derived from a gap in NPE.

(A) The gap-filling reaction of A-strand-gap-carrying pMM1AC in NPE described in Figure 7—figure supplement 1. (B) The efficiencies of the gap-filling reaction were calculated from three independent experiments including the one described in (A) and plotted on a graph. The lines represent one-phase decay fitting of the data. See Table 1 for the fitting parameters. (C) Strand-specific MMR reaction after supplying fresh NPE. (D) The efficiencies of MMR were calculated and presented as described in (B).

https://doi.org/10.7554/eLife.15155.022

The MutS complexes retain strand memory derived from a gap

To test whether MutSα/β also maintain the MMR capability derived from a gap, we repeated the stepwise incubation experiments presented in Figure 2, but used MutL-depleted NPE as the first NPE this time. At least 80% of the gaps were filled in all conditions at 2 min (Figure 7A and B, and Figure 7—figure supplement 1). In either MutS-depleted or MutS/MutL-depleted NPE, more than 40% of mismatches were still repairable upon addition of fresh NPE at 2 min, confirming the ~2 min strand memory seen in Figure 2 (Figure 7C and D). Strikingly, in the MutL-depleted NPE, >60% of mismatches were repairable at 10 min, and ~35% were still repairable even at 30 min. Using one-phase exponential decay fitting, which could explain most data with reasonable quality (R2 > 0.8), we estimated the half-life of the strand memory in the absence of MutSα/β to be approximately 2 min, and to be approximately 40 min in the presence of MutSα/β (Table 1). These results strongly suggest that the MutSα/β-dependent mechanism maintains the strand information by inhibiting unloading of PCNA that is loaded during DNA synthesis at the gap site.

Table 1

Fitting parameters for the gap-derived strand memory experiment.

https://doi.org/10.7554/eLife.15155.024
%gap [95% Confidence Interval]%A→G repair [95% Confidence Interval]
t1/2 (min)%gap at 0 minR2t1/2 (min)%repair at 0 minR2
ΔMutS/MutL0.60 [0.51−0.73]100 [96.7−103.3]0.991.87 [1.52−2.45]74.8 [68.6−80.7]0.97
ΔMutS0.68 [0.58−0.81]100 [96.4−103.5]0.992.00 [1.76−2.31]82.8 [79.0−86.6]0.99
ΔMutL0.75 [0.66−0.88]100 [96.5−103.5]0.9939.6 [12.3− +∞]72.8 [63.6−81.9]0.80
  1. Parameters for the one-phase exponential decay fitting of the data described in Figure 7B and D are presented. %gap: percentage of remaining gaps (100 - %closed), t1/2: half-life, R2: coefficient of determination. n = 3. Curve fitting was carried out using the GraphPad Prism 6 software (GraphPad Software, CA, USA)

The PIP motif in MutSα is required for efficient retention of strand information and PCNA

To address whether the PIP motif located at the N-terminus of Msh6 is required for retention of DNA-loaded PCNA and strand information, we purified recombinant xMutSα harboring alanine substitutions in the PIP motif (xMutSαPIP; Figure 8A and B). In good agreement with previous reports (Kleczkowska et al., 2001; Iyer et al., 2008; Bowen et al., 2013), when no stepwise incubation was involved, the gap-directed MMR on the 3.0 kb substrate was largely restored by xMutSαPIP in MutS-depleted NPE (Figure 8—figure supplement 1), indicating that in this experimental setup the PIP function is not important for MMR. Mismatch binding of xMutSαPIP was not significantly compromised (Figure 8—figure supplement 1). However, xMutSαPIP was almost inert for PCNA retention. We repeated the PCNA-unloading assay using MutS/MutL-depleted NPE supplemented with xMutSαWT or xMutSαPIP (Figure 8C). Although xMutSαWT attenuated PCNA unloading, xMutSαPIP did not exhibit detectable retention of PCNA on mismatched DNA, compared to the buffer control (Figure 8D). In the gap-derived strand memory assay, xMutSαWT restored retention of strand memory in the MutS/MutL-depleted NPE without affecting the gap-filling reaction (t1/2 = 25.5 min; Figure 9, Figure 9—figure supplement 1, and Table 2). In contrast, only modest restoration of the retention of strand information was seen with xMutSαPIP (t1/2 = 12.5 min). These results indicate that the PIP motif is required for inhibition of PCNA unloading and largely responsible for strand memory retention, yet a PIP-independent mechanism also contributes to the retention of strand information derived from a gap.

Figure 8 with 1 supplement see all

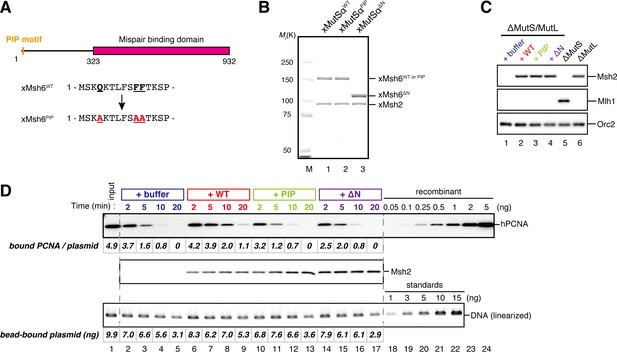

The PIP-motif of xMutSα is important for retention of PCNA.

(A) The primary structure of Msh6 and the mutation sites in the PIP motif are presented. (B) 1 μg each of purified xMutSα complexes were separated by SDS-PAGE and stained with Coomassie brilliant blue R-250. (C) NPE was depleted of both MutS and MutL (lanes 1–4), MutS (lane 5), or MutL (lane 6) and supplemented with either control buffer, 630 nM of xMutSαWT, xMutSαPIP, or xMutSαΔN. Immunoblots of each NPE are shown. (D) hPCNA loaded onto immobilized pMM2AC carrying an A-strand nick was incubated in NPE described in (C). The efficiency of nick ligation in the PCNA loading reaction was estimated to be ~75%.

https://doi.org/10.7554/eLife.15155.025

In yeast, the N-terminal region (NTR) of Msh6 not only carries a canonical PIP motif but also contains some cryptic PCNA binding sites (Shell et al., 2007). To examine whether the NTR of Msh6 is responsible for the weak retention of strand memory, we purified xMutSα lacking the entire NTR of Msh6 (Δ1–323; xMutSαΔN). As with xMutSαPIP, xMutSαΔN did not show significant defects in gap-directed MMR and in mismatch binding (Figure 8—figure supplement 1), and was essentially deficient in PCNA retention (Figure 8C and D). Interestingly, the xMutSαΔN complex partially restored the strand memory reaction, with an estimated half-life of 12.3 min, although it did not affect the kinetics of the sealing of the gap in the first NPE (Figure 9 and Table 2). We concluded that the retention of strand memory is mediated largely by the PIP motif in MutSα, and there is a partial strand memory retention that is independent of the NTR of Msh6.

Figure 9 with 1 supplement see all

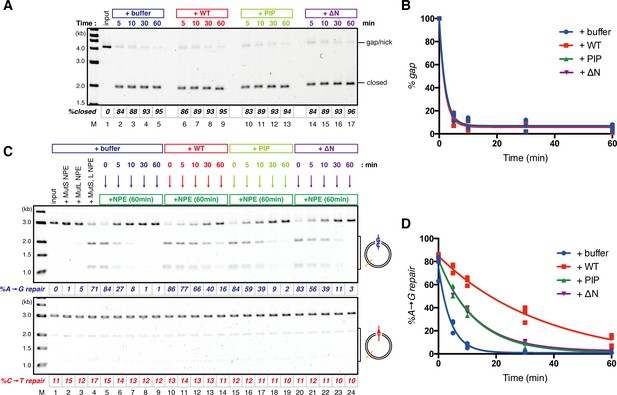

The PIP-motif of xMutSα is important for retention of the MMR capability derived from a gap.

(A) Kinetics of the gap-filling reaction in MutS/MutL-depleted NPE containing 630 nM of xMutSαWT, xMutSαPIP, or xMutSαΔN. (B) The efficiencies of the gap-filling reaction were calculated from three independent experiments including the one shown in (A) and plotted onto a graph. Lines: one-phase decay fitting. See Table 2 for the fitting parameters. (C) Kinetics of MMR after supplying fresh NPE to the reaction described in (A). Addition of neither MutS-depleted nor MutL-depleted NPE alone, but both restored MMR in MutS/MutL-depleted NPE (lanes 2–4), showing both MutSα/β and MutLα/β/γ were functionally depleted. (D) The efficiencies of MMR were calculated and presented as described in (B).

https://doi.org/10.7554/eLife.15155.027
Table 2

Fitting parameters for the gap-derived strand memory experiment with MutSα mutants

https://doi.org/10.7554/eLife.15155.029
%gap [95% Confidence Interval]%A→G repair [95% Confidence Interval]
t1/2 (min)%gap at 0 minR2t1/2 (min)%repair at 0 minR2
+buffer1.44 [0.51−0.73]100 [95.2−104.7]0.992.94 [2.32−3.98]75.7 [69.2−82.2]0.97
+xMutSαWT1.35 [0.58−0.81]100 [95.1−104.9]0.9925.5 [17.6−46.1]84.8 [80.5−89.2]0.98
+xMutSαPIP1.48 [1.18−2.00]100 [95.4−104.6]0.9912.5 [10.9−14.7]81.9 [78.5−85.4]0.99
+xMutSαΔN1.43 [1.14−1.93]100 [95.6−104.4]0.9912.3 [11.3−13.6]81.9 [79.8−84.0]1.00
  1. Parameters for the one-phase exponential decay fitting of the data described in Figure 9B and D are presented. %gap: percentage of remaining gaps (100 - %closed), t1/2: half-life, R2: coefficient of determination. n = 3.

Discussion

Identification of the newly synthesized DNA strand is vital to post-replicative mismatch repair. Since DNA replication generates identical copies of parental DNA, the strand discrimination reaction in MMR necessarily requires direct or indirect interplay with the replication complex (Wagner and Meselson, 1976). Because of the asymmetric nature of its binding to DNA, its critical roles in an early step of MMR and in the activation of MutLα, PCNA is presumed to be the mediator of the interplay between the replication complex and MMR (Umar et al., 1996; Chen et al., 1999; Pavlov et al., 2003; Dzantiev et al., 2004; Kadyrov et al., 2006; Pluciennik et al., 2010; Hombauer et al., 2011b; Peña-Diaz and Jiricny, 2012; Georgescu et al., 2015; Kunkel and Erie, 2015). In this study, we provided experimental evidence that DNA-loaded PCNA indeed directs strand-specific MMR in the absence of strand discontinuities. We further discovered that MutSα inhibits PCNA unloading using its PIP motif on the N-terminus of Msh6, and that this reaction significantly extends the temporal window during which MMR is possible. Our results thus uncovered a novel mechanism in which interplay between PCNA and MutSα maintains the post-replicative temporal window for MMR.

NPE has been extensively used as a physiological model system that recapitulates various DNA repair reactions coupled with DNA synthesis (Räschle et al., 2008; Olivera Harris et al., 2015). As seen in other systems, we observed efficient bidirectional MMR in NPE (frequently >80% efficient). Curiously, we noticed some difference between NPE and other systems. Both in reconstitution systems and in human cell extracts, 5’-nick directed MMR can occur in the absence of MutLα, whereas 3’-nick directed MMR depends on MutLα (Drummond et al., 1996; Genschel and Modrich, 2003; Dzantiev et al., 2004; Constantin et al., 2005; Bowen et al., 2013). In contrast, not only 3’-gap directed but also 5’-gap directed MMR was dependent on MutL complexes in NPE (Figure 1B–E). Although this could possibly reflect difference in the 5’ to 3’ strand excision mechanism between species, we assume that the difference largely come from highly efficient DNA synthesis and ligation in NPE; quick sealing of a gap would necessitate MutLα-dependent incision for MMR even when a gap was placed on the 5’-side of the mismatch. Interestingly, DNA synthesis at the 3’-gap clearly precedes MMR (Figure 1F), indicating that strand degradation does not progressively occur from the 3’-terminus of the gap. PCNA molecules loaded at the 3’ terminus, perhaps more than one trimer, could be used by both MMR and DNA polymerases without significantly interfering with each other (see below). Consistently, a nick is suggested to function as a strand signal rather than an entry point for exonucleases in crude extracts of Xenopus eggs (Varlet et al., 1996).

Our stepwise incubation experiments demonstrated that MMR is possible even after the complete sealing of the gap (Figure 2). Three lines of evidence indicate that the molecule responsible for memorizing strand information is PCNA. First, directional loading of PCNA efficiently bypassed the need for strand discontinuities in strand-specific MMR (Figure 3 and 4). Second, the amount of DNA-bound PCNA correlated with the MMR capability (Figure 6). Third, MutSα maintained the MMR capability derived from a gap largely through the PIP motif (Figure 9). The fact that PCNA was essential for the gap-filling reaction in NPE also supports this conclusion, because at least one PCNA trimer must be involved in DNA synthesis at the gap. It is unlikely that RFC determines the strand specificity of MMR in our experiments, because amounts of RFC remained on DNA were insufficient to explain the efficiency of MMR. Based on the above evidence, we suggest that PCNA would function as the strand discrimination signal for MMR after the disappearance of local strand discontinuities during DNA replication. A series of seminal studies from the Modrich lab has led to the model in which DNA-bound PCNA activates the MutLα nicking endonuclease to initiate strand specific MMR (Kadyrov et al., 2006; 2007; Pluciennik et al., 2010; 2013). Our data are consistent with this prevailing model, since 1) DNA-bound PCNA induced strand-specific MMR in NPE, and 2) PCNA-directed MMR in NPE was completely dependent on the MutL complexes. As gap-directed MMR in NPE was bidirectional and preferentially degrades the DNA strand through the shortest path from the gap to the mismatch, we assume that the PCNA-directed MMR would function in the same manner. If so, the strand excision complex presumably built upon a specific face of PCNA would catalyze strand degradation in either direction depending on the relative orientation toward a mismatch. How this can be achieved is an important next question, and the system established here will be a useful tool to investigate this mechanism. However, since our plasmid substrates carry multiple PCNA molecules with free sliding ability, we currently do not exclude a possibility that PCNA-directed MMR catalyzes only a specific direction of strand excision, and PCNA molecules localized on a specific side toward a mismatch are preferentially used for MMR.

Unexpectedly, the 'strand memory' experiments revealed that MutSα/β significantly extend the duration of strand memory. Our data clearly indicate that this retention involves inhibition of PCNA unloading. A recent study showed that DNA polymerase δ captures DNA-bound PCNA which is otherwise quickly unloaded by the clamp-unloading activity of RFC (Hedglin et al., 2013). It would be possible that MutSα inhibits PCNA unloading in a similar manner; binding of the PIP motif onto PCNA may physically prevent the engagement of PCNA with RFC. Since in vivo PCNA unloading during S-phase largely depends on the Elg1-containing RFC-like complex (Elg1-RLC) both in humans and in yeast (Kubota et al., 2013; Lee et al., 2013; Shiomi and Nishitani, 2013; Kubota et al., 2015), the PIP-motif in MutSα may also limit the access of Elg1-RLC to DNA-bound PCNA. Detailed understanding of the molecular mechanism of this inhibition of PCNA unloading must await reconstitution of this reaction in vitro.

Interestingly, the PIP motif and the mispair-binding domain are connected by a long (~300 a.a.) linker that is predicted to be disordered in yeast (Shell et al., 2007). Although a significant portion of this linker in human MutSα seems to adopt a globular conformation (Iyer et al., 2008), MutSα might be able to retain PCNA that is located far from MutSα using this long 'PIP-arm', possibly even over nucleosomes. In this scenario, strand removal would initiate when MutLα reaches to PCNA that is retained by the PIP-arm of MutSα. This could be accomplished either by sliding of MutSα-MutLα complexes along the DNA contour, or through loading of multiple MutLα molecules on DNA (Hombauer et al., 2011a; Qiu et al., 2015). Interaction between PCNA that is retained by MutSα and MutLα may invoke a specific strand degradation pathway, because a recent study in yeast has suggested that recruitment or retention of PCNA by MutSα around mismatches activates a specific strand removal pathway that is independent of Exo1 (Goellner et al., 2014). As seen for MutSα, we predict that MutSβ may inhibit PCNA unloading as well, since the NTR of yeast Msh6 and Msh3 are inter-exchangeable without significant deleterious effects (Shell et al., 2007). However, because NTRs of MutSα and MutSβ likely possess different characteristics such as the PWWP domain found only in vertebrate Msh6 (Clark et al., 2007; Laguri et al., 2008Iyer et al., 2010; Li et al., 2013), this point will need rigorous investigation.

To our surprise, xMutSαPIP and xMutSαΔN retained partial strand memory. A possibility would be that, although our PCNA unloading experiment failed to detect attenuation of PCNA unloading with these mutants (Figure 8D), they might have the ability to maintain DNA-bound PCNA that is below our detection limit. Considering the fact that we quantified PCNA after several washing steps, our quantification almost certainly underestimated the number of PCNA molecules on DNA. Alternatively, PCNA and/or a gap could induce structural alteration of MutSα (and possibly other chromatin binding factors), to maintain the strand information. How MutSα retains strand memory independently of the NTR will be an interesting question for future studies.

From the data presented in this work, we propose a model wherein two different modes of strand memory contribute to MMR (Figure 10). After the completion of local DNA synthesis, e.g. after ligation of Okazaki fragments, PCNA remains on DNA for a certain period until unloaded by an Rfc3-containing complex(es) (t1/2 = ~2 min in NPE; Figure 10, [2]). The MMR system utilizes such PCNA as strand memory. However, if PCNA is not available closely adjacent to mismatches, MutSα (and possibly MutSβ also) retains available PCNA with its long 'PIP-arm', to maintain strand memory for subsequent MMR (Figure 10, [3]). This mode of memory survives for >30 min in NPE, and perhaps even longer in cells. In addition to the PIP-dependent tethering of MutSα/β to the replication fork (Kleczkowska et al., 2001; Hombauer et al., 2011a; Haye and Gammie, 2015), we suggest that the PIP motif would contribute to the replication fidelity through this mode of strand memory. Yeast studies have shown that the PIP motif has an assistive but not essential role in MMR (Clark et al., 2000; Flores-Rozas et al., 2000). The PIP-deficient MutSα complexes were proficient in repairing a mismatch in our in vitro MMR system (Figure 8—figure supplement 1), and similar observations were already reported both in human cell extracts and in a yeast in vitro reconstitution system (Kleczkowska et al., 2001; Iyer et al., 2008; Bowen et al., 2013). Therefore, a simple MMR reaction involving a mismatch and a closely-placed strand-discrimination signal, either PCNA or a strand discontinuity, would not require retention of PCNA by MutSα. However, when a stepwise incubation, which mimics transient arrest of the MMR reaction, was involved, the PIP motif became important for MMR (Figure 9). We speculate that inhibition of PCNA unloading is needed for MMR only under specific situations, e.g. when a strand-discrimination signal is buried within chromatin. In such difficult-to-repair situations, successful MMR may rely on the maintenance of the strand signals by MutSα. Since the leading strand seems to have less PCNA than the lagging strand (Yu et al., 2014), such situations could happen more frequently in the leading strand, in which MMR is less efficient than in the lagging strand (Pavlov et al., 2003Lujan et al., 2014). An interesting possibility worth testing in the future would be that MutSα may take over PCNA from other factors such as DNA polymerases. Hijacking PCNA from polymerases may not be overly deleterious to DNA synthesis, because new PCNA loading at the 3’-terminus would quickly restore the PCNA-polymerase complex. Similar hijacking might occur on other PCNA interactors such as CAF-1 and FEN-1, both of which are reported to show complex interplay with MutSα (Kadyrova et al., 2011; Schöpf et al., 2012; Kadyrova et al., 2015; Liu et al., 2015). On the leading strand that has less PCNA, such competition could be important for effective MMR.

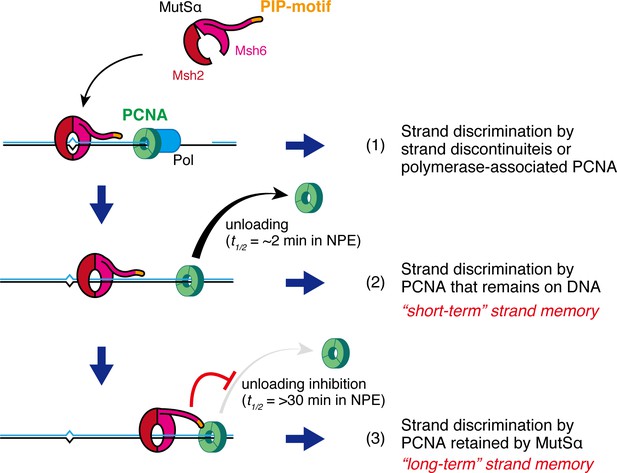

Two modes of strand memory maintain the MMR capability.

Three mechanisms, including two 'strand-memory' mechanisms, may ensure eukaryotic MMR. (1) During ongoing DNA synthesis, strand discontinuities or polymerase-associated PCNA are directly used for strand discrimination. (2) After sealing of local strand discontinuities, PCNA that remains on DNA provides strand information until they are unloaded (t1/2 = ~2 min in NPE; 'short-term' strand memory). (3) MutSα inhibits PCNA unloading to maintain the strand discrimination capability, largely through the PIP-motif on the NTR of Msh6 (t1/2 = >30 min in NPE; 'long-term' strand memory). Black and blue lines represent the template and the newly synthesized DNA strands, respectively.

https://doi.org/10.7554/eLife.15155.030

Much of our understanding of MMR has come from bacterial studies including E. coli, whose MMR utilizes adenine methylation as the strand discrimination signal. Although E. coli MMR seems to function with strand discontinuities occurring at the replication fork, GATC methylation plays a critical role in maintaining the temporal window permissive to MMR. Strand discontinuities are clearly strand discrimination signals in eukaryotic MMR in vitro (Holmes et al., 1990; Thomas et al., 1991). There is also concrete evidence that single-strand DNA termini such as 5’-ends of the Okazaki fragments or strand breaks generated by ribonucleotide excision repair contribute to MMR in vivo(Pavlov et al., 2003; Nick McElhinny et al., 2010; Ghodgaonkar et al., 2013; Liberti et al., 2013; Lujan et al., 2013; 2014; Liu et al., 2015). We suggest that, in addition to such DNA termini, two modes of strand memory, somewhat resembling short-term and long-term memories in neuroscience, would operate as functional parallels of GATC methylation in E. coli. Analogous reactions could operate in bacteria and archaea lacking the methyl-dependent MMR (Pillon et al., 2015), and it would be interesting to study dynamics of the replication clamp in such organisms. Further investigation of the regulation of PCNA dynamics by MMR both in NPE and in vivo will lead to a more detailed understanding of complex interplay between the MMR system and the replication complex.

Materials and methods

Preparation of the MMR substrates

In vitro synthesis of mismatch-carrying plasmids was performed essentially as described previously (Higashi et al., 2012). A 5’-phosphorylated oligonucleotide (5’-CAGTAACATGGATCXCGAGATGCAGTACGGTCACC-3’; for homo-duplex, X=T, and for A:C mismatch, X=C) was annealed to single-stranded DNA prepared by using the M13KO7 phage. To introduce a site-specific biotin modification, an additional oligonucleotide carrying a site-specific biotin-dT modification (5’-CGCCTTGATCGT[Biotin-dT]GGGAACCGGAGCTGAATGAAGC-3’) was also added. Second-strand DNA synthesis was performed by using T7 DNA polymerase (New England Biolabs, MA, USA) and T4 DNA ligase (Nippongene, Tokyo, Japan). The mismatch-carrying DNA was treated with XhoI (Takara Bio, Kusatsu, Japan) to digest DNA whose mismatch base was edited by T7 DNA polymerase. The covalently closed products were purified with the Cesium Chloride density gradient ultracentrifugation. A site-specific gap was introduced as follows. In vitro synthesized pMM1 was doubly nicked with Nt.BbvCI (for A-strand gap) or Nb.BbvCI (for C-strand gap) at 37°C for 1 hr, purified, and incubated at 70°C for 20 min to dissociate the 15-nt fragment flanked by two BbvCI sites from parental DNA. The DNA was then immediately loaded on a Microspin S-400HR Column (GE Healthcare, Little Chalfont, UK) to remove the 15-nt fragment. A site-specific nick was introduced by treating in vitro synthesized pMM2 with Nt.BbvCI (for A-strand nick) or Nb.BbvCI (for C-strand nick) at 37°C for 1 hr. Singly biotinylated plasmid DNA was bound to Sepharose beads as described previously (Higashi et al., 2012). All restriction enzymes were purchased from New England Biolabs unless otherwise indicated.

In vitro PCNA-loading assay

Immobilized DNA (100 ng bound to 1 μl of Streptavidin-biotin-Sepharose beads) was incubated in 2 vol of mHBS (10 mM Hepes-NaOH pH 7.5, 0.05% Tween-20, 10 mM MgCl2, 200 μM EDTA, 150 mM NaCl), containing 50 mM phosphocreatine, 25 μg/ml creatine phosphokinase, 2 mM ATP, 400 μM DTT, 145 ng/μl hPCNA, and 2.2 ng/μl hRFC at 32°C for 10 min. All reagents were purchased from Sigma Aldrich (MO, USA) unless otherwise indicated. The hPCNA-DNA complexes were then washed thrice with mHBS. 1 vol of the DNA beads was then incubated in 4 vol of ligation buffer (66 mM Tris-HCl pH 7.4, 6.6 mM MgCl2, 10 mM DTT, 1 mM ATP) containing 25 units/μl T4 DNA Ligase at 16°C for 90 min. This was followed by washing thrice with mHBS, once with Egg lysis buffer (ELB; 10 mM Hepes-KOH pH 7.7, 2.5 mM MgCl2, 50 mM KCl) containing 1 M KCl, and then once with ELB. To linearize DNA after PCNA loading, the hPCNA-DNA complexes were treated with either control buffer or buffer containing XmnI and washed thrice with mHBS. To recover DNA from NPE, the hPCNA-DNA complexes were washed once with ELB containing 0.2% Triton X-100 and once with ELB.

MMR and gap-filling assays in NPE

NPE was supplemented with 2 mM adenosine-triphosphate (ATP), 20 mM phosphocreatine, and 5 μg/ml creatine phosphokinase, pre-incubated at 22°C for 5 min, followed by addition of DNA substrates (20 ng/μl). A typical MMR reaction consists of 17.4 μl of NPE, 0.2 μl of 200 mM ATP, 0.4 μl of 1 M phosphocreatine, 0.02 μl of 5 mg/ml creatine phosphokinase, and 2 μl of DNA substrate (200 ng/μl in 10 mM Tris-HCl pH 7.4, 1 mM EDTA). To monitor DNA synthesis, reaction mixtures were supplemented with 2 μCi of α-[32P]-dCTP (PerkinElmer Japan, Tokyo, Japan) before addition of the MMR substrates. For the stepwise incubation experiments, an equal volume of fresh NPE was added to the reaction mixture. The samples were incubated at 22°C, and aliquots of samples (1.5 ~ 3 μl for most experiments) were stopped by addition of 100 μl of 1% SDS in 20 mM EDTA. DNA was purified by treatment with 50 μg/ml Proteinase K, extracted with Phenol/Chloroform, precipitated with ethanol, and dissolved in 10 mM Tris-HCl pH 7.4, 1 mM EDTA containing 10 μg/ml RNase at 2.5 ng/μl. To analyze the MMR efficiency (%repair), DNA synthesis (%Gap-filling synthesis) and the incorporation of radioactivity during MMR, 12 ng each of DNA was digested with following restriction enzymes: XmnI, BamHI-HF, XhoI, PacI or DrdI. After agarose gel electrophoresis, DNA was stained with SYBR Gold nucleic acid stain (Life technologies, CA, USA), and scanned with Typhoon FLA9000 (GE Healthcare). Signal intensities were quantified using ImageQuant TL software (GE Healthcare). To analyze the gap-filling efficiency (%closed), ethidium bromide containing agarose gel electrophoresis was performed to separate covalently closed DNA from gap/nick-carrying open-form DNA. The gel was stained with SYBR Gold nucleic acid stain, and then scanned by Typhoon FLA9000 using SYBR Gold specific setting (473 nm excitation laser and 510 nm Long pass filter). Calculation of %closed DNA is described in Figure 1—figure supplement 5. To moniter DNA synthesis, DNA was separated by agarose gel, stained with SYBR Gold, photographed, vacuum-dried on filter paper, contacted on a phosphor imaging plate (Fujifilm, Tokyo, Japan), and the 32P signals were scanned by Typhoon FLA9000. All agarose gel electrophoresis was performed with 0.8% agarose gel and 0.5× Tris-borate-EDTA buffer.

Quantification of DNA-bound hPCNA and hRFC

DNA samples were linearized by XmnI and separated using agarose gel electrophoresis, and quantified using known amounts of linear DNA as standards. Proteins recovered with the DNA-beads were separated by SDS-PAGE alongside with recombinant protein standards and probed with either hPCNA or hRfc2 antibodies. The number of hPCNA and hRFC on each plasmid (bound PCNA [RFC] / plasmid) were calculated by dividing the protein amounts from quantitative immunoblotting by bead-bound plasmid amounts calculated from linearized DNA. If 10 ng (5.2 × 10–15 mol) DNA is loaded, 1 ng hPCNA (Mr = 8.61 × 104 as a trimer, 1.2 × 10–14 mol) and hRFC (Mr = 2.87 × 105 as a complex, 3.5 × 10–15 mol) correspond to binding of approximately 2.3 and 0.7 molecules per plasmid, respectively.

Xenopus egg extracts

Preparation of HSS and NPE was carried out as described previously (Walter et al., 1998; Lebofsky et al., 2009). In all experiments, plasmid DNA was incubated at 20 ng/μl concentration.

Cloning and plasmids

The human Proliferating Cell Nuclear Antigen (PCNA) gene was amplified from pT7-PCNA (Fukuda et al., 1995) by PCR using primers 5’-GGAACATATGTTCGAGGCGCGCCTGGTCC-3’ and 5’-GGAAGGATCCCTAAGATCCTTCTTCATCCTCG-3’, digested with NdeI and BamHI, and cloned into pET21a (Merck Millipore, MA, USA), resulting in pET21a-hPCNA. The Xenopus laevis pcna gene was amplified from a Xenopus egg cDNA library (a kind gift from Vladimir Joukov) by PCR using primers 5’-GGAACATATGTTTGAGGCTCGCTTGGTGC-3’ and 5’-GGAAGGATCCTTAAGAAGCTTCTTCATCTTCAATCTTGG-3’, digested with NdeI and BamHI, and cloned into pET21a, resulting in pET21a-xPCNA. The Xenopus laevis msh2 gene was amplified from the Xenopus egg cDNA library by two-step PCR using primers 5’-AAAGCAGGCTCCACCATGGCTGTGCAGCCCAAAGAGAAGTTG-3’ and 5’-ACAAGAAAGCTGGGTCTCCTGCAGGCAATCCCGTTTTGGTTCTGG-3’, and then primers 5’-GGGGACAAGTTTGTACAAAAAAGCAGGCTCCAC-3’ and 5’-GGGGACCACTTTGTACAAGAAAGCTGGGTC-3’, and cloned into pDONR201 (Life technologies) using the Gateway BP reaction, resulting in pDONR-xMSH2. Cloning of Xenopus laevis msh6 gene was performed as follows. A BLAST search using the human Msh6 protein sequence identified a Xenopus laevis EST clone, TC357542. Based on this sequence, the full-length msh6 cDNA was amplified from Xenopus egg cDNA by two-step PCR using primers 5’-AAAGCAGGCTCCACTCATATGTCTAAGCAAAAAACCCTCTTCAGCTTCTTCACC-3’ and 5’-ACAAGAAAGCTGGGTTGGTACCTTGGAGCAACTTCAGCCGCTTGTGG-3’, and then primers 5’-GGGGACAAGTTTGTACAAAAAAGCAGGCTCCAC-3’ and 5’-GGGGACCACTTTGTACAAGAAAGCTGGGTC-3’, and cloned into pDONR201 using the Gateway BP reaction, resulting in pDONR-xMSH6. A FLAG tag was added to the C-terminus of xMsh6 by two-step PCR using primers 5’-AAACATATGTCTAAGCAAAAAACCCTCTTCAGC-3’ and 5’-GTCGTCCTTGTAGTCGGTACCGCCTTGGAGCAACTTCAGCCGC-3’, and then primers 5’-AAACATATGTCTAAGCAAAAAACCCTCTTCAGC-3’ and 5’-GGAACCTGCAGGTTACTTGTCATCGTCGTCCTTGTAGTCGG-3’, digested with NdeI and Sse8387I, and cloned into pDE1a, a derivative of the pDONR201 vector, resulting in pDE1a-xMSH6-FLAG. The xMsh6 PCNA-interacting peptide (PIP) motif mutant (xMsh6PIP) was constructed by two-step PCR using pDE1a-xMSH6-FLAG as the template and primers 5’-AAAACCCTCTTCAGCGCGGCGACCAAGTCTCCCCCTGTTTCC-3’ and 5’-CCGTCCCCTCCTTGACTGTACTG-3’, and then primers 5’-AAACATATGTCTAAGGCGAAAACCCTCTTCAGC-3’ and 5’-CCGTCCCCTCCTTGACTGTACTG-3’, digested with NdeI and XhoI, and cloned into pDE1a-xMSH6-FLAG, resulting in pDE1a-xMSH6PIP-FLAG. The xMsh6 N-terminal deletion mutant (xMsh6ΔN) was constructed by PCR using pDE1a-xMSH6-FLAG as the template and primers 5’-GGAACATATGTCTGCCCCTGAGTCATTTGAATCACAGGC-3’ and 5’-CCATGCGCCGACTTGTCTTGGC-3’, digested with NdeI and XmnI, and cloned into pDE1a-xMSH6-FLAG, resulting in pDE1a-xMSH6ΔN-FLAG. The Xenopus laevis mlh1 gene was amplified from Xenopus egg cDNA by PCR using primers 5’-AAAGCAGGCTCCACCATGGCGGGAGTTATTCGGCGGCTGG-3’ and 5’-ACAAGAAAGCTGGGTCTCCTGCAGGGCACCTTTCAAACACTTTATATAAGTCGGG-3’, then primers 5’-GGGGACAAGTTTGTACAAAAAAGCAGGCTCCAC-3’ and 5’-GGGGACCACTTTGTACAAGAAAGCTGGGTC-3’, and cloned into pDONR201 using the Gateway BP reaction, resulting in pDONR-xMLH1. All sequences were confirmed after each PCR step.

Baculoviruses for expression of xMsh2, xMsh6WT-FLAG, xMsh6PIP-FLAG and xMsh6ΔN-FLAG were constructed by transferring xMSH2, xMSH6-FLAG, xMSH6PIP-FLAG and xMSH6ΔN-FLAG genes into BaculoDirect C-term Linear DNA (Life technologies) using the Gateway LR reaction.

Construction of pMM0, pMM1 and pMM2 was performed as follows: A synthetic linker prepared by annealing of 5’-phosphorylated oligonucleotides 5’-GAATTCAAGCTTAGTCTGTTCCATGTCATGCAAGATATCTTCAGTC-3’, 5’-ACTGGGTGACCGTACTGCATCTCGAGATCCATGTTACTGCGTCAGT-3’, 5’-CGCTAACAGTCACGAACTGCTGCAGGAATTCGTAC-3’,

5’-GAATTCCTGCAGCAGTTCGTGACTGTTAGCGACTGACGCAGTAACA-3’, 5’-TGGATCTCGAGATGCAGTACGGTCACCCAGTGACTGAAGATATCTT-3’, and 5’-GCATGACATGGAACAGACTAAGCTTGAATTCAGCT-3’, was inserted between the KpnI and SacI sites in pBluescriptII KS(-) (Stratagene, CA, USA), resulting in pMM0. A synthetic linker carrying two BbvCI sites prepared by the annealing of 5’-phosphorylated oligonucleotides 5’-GCTCCTCAGCTTAATTAACCTCAGC-3’ and 5’-AGCGCTGAGGTTAATTAAGCTGAGG-3’ was inserted into the BspQI site in pMM0, resulting in pMM1. A synthetic linker carrying one BbvCI site prepared by annealing of 5’-phosphorylated oligonucleotides 5’-GCTCCTCAGCATATGCCTCGC-3’ and 5’-AGCGCGAGGCATATGCTGAGG-3’ was inserted into the BspQI site in pMM0, resulting in pMM2.

Protein expression and purification

Purification of hPCNA was carried out essentially as described previously (Fukuda et al., 1995), with minor modifications. Protein expression was induced in the Escherichia coli BL21(DE3) strain transformed with pET21a-hPCNA by addition of 0.1 mM Isopropyl β-D-1-thiogalactopyranoside (IPTG) to media for 20 hr at 20°C. hPCNA was purified using DEAE Sepharose Fast Flow, HiTrap Q-HP, Hi Load 16/60 Superdex 200 prep grade, and then MonoQ 5/50 GL (GE Healthcare) in this order. Recombinant xPCNA was expressed and purified using essentially the same method as hPCNA. Purification of the hRfc1-5 complex has been described previously (Ohta et al., 2002; Shiomi et al., 2004).

Purification of xMutSα was performed as follows: Recombinant proteins were expressed by co-infecting Sf9 insect cells with xMsh2 and xMsh6WT-FLAG, xMsh6PIP-FLAG or xMsh6ΔN-FLAG baculoviruses at 28°C in Sf-900 II SFM medium (Life Technologies) supplemented with 2% (v/v) fetal bovine serum (FBS). Cells were harvested, washed with Phosphate Buffered Saline (PBS) and frozen in liquid nitrogen. Cells were suspended in buffer S (25 mM Tris-HCl pH 7.4, 250 mM NaCl, 5 mM 2-mercaptoethanol, 1 mM EDTA, 2 mM phenylmethylsulfonyl fluoride [PMSF], 1 mM benzamidine and 1x cOmplete, EDTA-free [Roche life science, Penzberg, Germany]), and the lysates were centrifuged at 81,800 ×g (30,000 rpm) for 30 min in a Beckman 50.2Ti rotor (Beckman Coulter, CA, USA). Cleared lysates were passed through a DEAE Sepharose Fast Flow column, and then a FLAG-M2 agarose column (Sigma Aldrich). The xMsh2-xMsh6-FLAG complexes were eluted from the FLAG-M2 resin using 50 μg/ml FLAG-peptide (Sigma Aldrich) in buffer S. The peak fractions were pooled and three-fold diluted with buffer A (25 mM Tris-HCl pH 7.4, 5% glycerol, 5 mM 2-mercaptoethanol, 1 mM EDTA and 0.1x cOmplete, EDTA-free), loaded on a MonoQ 5/50 GL column, and bound proteins were eluted with a 0–1 M NaCl linear gradient in buffer A. Peak fractions were loaded on a Hi Load 16/60 Superdex 200 prep grade column and eluted with buffer A containing 0.1 M NaCl. Fractions whose molecular weight correspond to ~2.5 × 105 (xMsh2: Mr = 1.04 × 105, xMsh6-FLAG: Mr = 1.50 × 105) were pooled, concentrated using Amicon Ultra (Merck Millipore), and frozen with liquid nitrogen as small aliquots.

Immunological methods

Rabbit xMsh2 antiserum was raised against N-terminally His-tagged and C-terminally Strep-II-tagged full-length Xenopus Msh2 expressed in E. coli. Rabbit xMsh6 antiserum was raised against peptide NH2-CNGSPEGLALHKRLKLLQ-COOH, corresponding to residues 1324–1340 of Xenopus Msh6. Rabbit xMlh1 antiserum was raised against N-terminally His-tagged, full-length Xenopus Mlh1 expressed in E. coli. Rabbit xPCNA antiserum was raised against full-length Xenopus PCNA expressed in E. coli. Rabbit xRfc3 antiserum was raised against peptide NH2-CKKFMEDGLEAMMF-COOH, corresponding to residues 344–356 of Xenopus Rfc3. All antibodies except for xMlh1 and xPCNA were affinity purified using corresponding antigens. Rabbit xOrc2 antiserum was a kind gift from Johannes Walter (Vashee et al., 2003). hPCNA antibodies (MBL International Corporation, Nagoya, Japan, #MH-12-3) and hRfc2 antibodies (Abcam, Cambridge, UK, #ab3615) are commercially available. For immunoblotting, xMsh2, xMsh6, xMlh1, xOrc2, xPCNA and xRfc3 antibodies were used at 1:10,000 dilutions, hPCNA antibodies were used at a 1:2000 dilution, and hRfc2 antibodies was used at a 1:4000 dilution. HRP-conjugated Goat Rabbit IgG (H+L) antibodies (Jackson ImmunoResearch, PA, USA, #111-035-003), Goat Mouse IgG (H+L) antibodies (#115-035-146) or Donkey Goat IgG (H+L) antibodies (#705-035-003) were used at a 1:10,000 dilution as the secondary antibody for all immunoblottings except for quantitative immunoblottings for hPCNA, for which the same antibodies conjugated with Alexa Fluor 647 was used. To evaluate the depletion efficiency, 0.125 μl of NPE was loaded on SDS-PAGE, unless otherwise indicated.

For xMsh2/xMsh6 double depletion from NPE, 2 μg of Msh2 IgG, 0.5 μg of Msh6 IgG, and 2.9 μl of Msh6 serum were bound to 1 μl of the recombinant protein A-Sepharose ('PAS', GE Healthcare). For xMlh1 depletion, 3 vol of xMlh1 serum was bound to 1 vol of PAS. For xMsh2/xMsh6 and xMlh1 triple depletion, 2 μl of PAS bound 4 μg of Msh2 IgG, 1 μg of Msh6 IgG, and 5.8 μl of Msh6 serum was combined with 1 μl of PAS bound 3 μl of xMlh1 serum. For xRfc3 depletion from NPE, 5 μg of xRfc3 IgG was bound to 1 μl of PAS. To deplete NPE except for the depletion of xMsh2/xMsh6 and xMlh1 triple depletion, 0.2 vol of antibody-coupled PAS beads were incubated in 1 vol of extracts at 4°C for 1 hr, and the procedure was repeated once in all depletion experiments except for the depletion of xMsh2/xMsh6 or xRfc3 from NPE, for which the procedure was repeated twice. For xMsh2/xMsh6 and xMlh1 triple depletion from NPE, 0.3 vol of antibody-coupled PAS beads were incubated in 1 vol of extracts at 4°C for 1 hr, and the procedure was repeated twice. For xPCNA depletion from HSS, 3 vol of xPCNA serum was bound to 1 vol of PAS. A total of 0.2 vol of antibody-coupled PAS beads was incubated in 1 vol of HSS at 4°C for 1 hr, and the procedure was repeated thrice. In most cases, we depleted 40 ~ 60 μl of extracts for an experiment.

Surface plasmon resonance

Affinity of the xMutSα complexes to DNA was analyzed using BIACORE 3000 (GE Healthcare) (Lee and Alani, 2006; Shell et al., 2007). A 42 bp biotin-conjugated oligo DNA 5’-GGGTGACCGTACTGCATCTCGAGATCCATGTTACTGCGTCAG-3’-[Biotin] was coupled to a Sensor Chip SA (GE Healthcare) until the SPR signal reached to ~100 response units. The sequence around the mismatch on pMM1AC was used to design the DNA substrate. A complementary oligonucleotide carrying a mismatch base 5’-CTGACGCAGTAACATGGATCCCGAGATGCAGTACGGTCACCC-3’ was then flowed in on the Sensor tip to obtain double stranded DNA substrates carrying an A:C mismatch. Various concentrations of xMutSαWT, xMutSαPIP and xMutSαΔN complexes were flowed over the sensor chip for 3 min at 20 μl/min in running buffer (20 mM Hepes-NaOH pH 7.5, 100 mM NaCl, 1 mM DTT and 0.005% Tween-20) to analyze the association step, followed by running buffer containing no protein to monitor the dissociation step for 3 min. The signal from an empty flow cell was used for reference subtraction for all experiments. The chip surface was regenerated with 3 M NaCl for 1 min. Dissociation constants (KD) were calculated using the BIAevaluation software v4.1.

Accession numbers

The GenBank accession numbers for sequences of Xenopus msh2, msh6 and mlh1 mRNA reported in this paper are LC075519, LC075520, and LC075521, respectively.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    Escherichia coli K-12 clones that overproduce dam methylase are hypermutable
    1. GE Herman
    2. P Modrich
    (1981)
    Journal of Bacteriology 145:644–646.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Postreplicative mismatch repair
    1. J Jiricny
    (2013)
    Cold Spring Harbor Perspectives in Biology 5:a012633.
    https://doi.org/10.1101/cshperspect.a012633
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    GATC sequence and mismatch repair in Escherichia coli
    1. F Laengle-Rouault
    2. G Maenhaut-Michel
    3. M Radman
    (1986)
    The EMBO Journal 5:2009–2013.
  39. 39
  40. 40
  41. 41
    Requirement for d(GATC) sequences in Escherichia coli mutHLS mismatch correction
    1. RS Lahue
    2. SS Su
    3. P Modrich
    (1987)
    Proceedings of the National Academy of Sciences of the United States of America 84:1482–1486.
    https://doi.org/10.1073/pnas.84.6.1482
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
    MutL traps MutS at a DNA mismatch
    1. R Qiu
    2. M Sakato
    3. EJ Sacho
    4. H Wilkins
    5. X Zhang
    6. P Modrich
    7. MM Hingorani
    8. DA Erie
    9. KR Weninger
    (2015)
    Proceedings of the National Academy of Sciences of the United States of America 112:10914–10919.
    https://doi.org/10.1073/pnas.1505655112
  63. 63
  64. 64
  65. 65
    Interplay between mismatch repair and chromatin assembly
    1. B Schöpf
    2. S Bregenhorn
    3. JP Quivy
    4. FA Kadyrov
    5. G Almouzni
    6. J Jiricny
    (2012)
    Proceedings of the National Academy of Sciences of the United States of America 109:1895–1900.
    https://doi.org/10.1073/pnas.1106696109
  66. 66
  67. 67
  68. 68
  69. 69
    Heteroduplex repair in extracts of human HeLa cells
    1. DC Thomas
    2. JD Roberts
    3. TA Kunkel
    (1991)
    The Journal of Biological Chemistry 266:3744–3751.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
    Repair tracts in mismatched DNA heteroduplexes
    1. R Wagner
    2. M Meselson
    (1976)
    Proceedings of the National Academy of Sciences of the United States of America 73:4135–4139.
    https://doi.org/10.1073/pnas.73.11.4135
  75. 75
  76. 76
  77. 77

Decision letter

  1. Johannes Walter
    Reviewing Editor; Harvard Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "MutSα maintains the mismatch repair capability by inhibiting PCNA unloading" for consideration by eLife. Your article has been favorably evaluated by John Kuriyan (Senior editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The manuscript describes a series of experiments that analyze the strand-directed mismatch repair reaction in Xenopus egg extracts. This is an interesting and important work that advances our understanding of eukaryotic mismatch repair. However, the following important technical and conceptual issues need to be satisfactorily addressed before the paper can be considered for publication.

Major issues:

1) PIP-deficient MutS protein is proficient in MMR. Based on the authors' assumption, MutSα without the PIP box-containing N-termini should be defective in capturing strand discrimination signal from PCNA. Unfortunately, the mutant MutSα is as active as WT MutSα in repair of heteroduplexes bound by PCNA.

2) PCNA polarity and nick-mismatch orientation. Previous studies using a circular heteroduplex have established that regardless of nick orientation (i.e., 5' or 3') to the mismatch, MMR always occurs along the shorter distance between these two sites. If MutS protein interacts with PCNA through the front face of PCNA, MutSα and other MMR proteins recruited by MutSα to A-gap and C-gap substrates should be lined up in different polarities/orientations, which would suggest that repair in one substrate occurs along the shorter spin and the other in longer spin. These assumptions are not consistent with what is known.

3) Interaction between PCNA and MutSα. Although MutS protein has been shown to be able to slide along the DNA, increasing evidence (both in vivo and in vitro) suggests that MutS protein does not travel once it binds to a mismatch. The authors suggest that the stand signal carried by PCNA is transmitted to MutSα when the latter interacts with PCNA through its PIP box. Given that the mismatch is ~300 bp away from the gap site, where PCNA is located, it is impossible for MutS protein to reach PCNA. How could this interaction occur?

4) The authors showed that the presence of PCNA in closed circular heteroduplex is essential for strand-specific repair, and that the DNA bound PCNA could be unloaded within ~5 min. What is the mechanism by which PCNA is released from a closed circular DNA molecule?

Other specific issues:

1) The deletion of the PIP motif of MSH6, which the authors have identified as a major determinant involved in the inhibition of PCNA unloading by MutSalpha, decreased the in vivo mismatch repair activity of yeast MutSalpha in MSH3-deficient cells by ~5-20% (Table 1 in Clark et al. (2000) JBC, 275, 36498). Thus, it appears that the inhibition of PCNA unloading by MutSalpha is not essential for MMR. Some discussion of this fact would be helpful.

2) In the Abstract, the authors state that "Our data identify PCNA as the signal that enables strand discrimination after the completion of DNA synthesis…". I think they should write something like "Our data identify loaded PCNA as the signal that enables strand discrimination after the strand discontinuity is removed…".

3) The description of the MMR and gap-filling assays and immunological methods in Materials and methods and figure legends is too vague and lacks many critical experimental details including the final volumes and ionic strength of the reaction mixtures and the amounts of the extracts present in the reaction mixtures. The lack of this information complicates understanding the results. Please provide the relevant information.

4) It is not clear why the authors do not see the nick-directed MMR in the NPE. In fact, the data shown in panel B of Figure 4—figure supplement 1 suggest that MMR is directed, though not very efficiently, to the covalently closed strand. This is somewhat confusing. Did the authors study whether the rates of ligation of the nicked and gapped DNA substrates differ from each other? Some experimental data would be helpful to explain the failure to see the nick-directed MMR.

5) Figure 3C: it appears that the fractions of the nicked form in the ligated DNA samples analyzed in lanes 1-4 of C panel are significantly higher than those in panel B (lanes 5-8). It appears that at least 35% of DNA in lane 4 of panel C is nicked. Please provide the percentages of the closed form present in the samples analyzed in the panel C lanes. Also indicate the percentage of the closed form for each of the substrates used in the reactions in D.

6) Inspection of the repair data in panel B of Figure 4—figure supplement 1 suggests that in several cases the band intensities do not correspond well to the indicated repair values. Please provide the averages and S.D. for the experiments in this panel.

In some control reactions (panel B of Figure 4—figure supplement 1) the level of C-to-T repair on the continuous strand is about 25% and about 50% higher than that on the nicked strand. How do the authors explain this result? Is this the strand that was synthesized in vitro?

7) MMR reactions observed in the NPE display poor strand discrimination. It is evident that the discontinuous strand is repaired only 5-10 times better than the continuous strand. Such weak strand discrimination would cause many mutations in vivo, but in vivo data indicate that the strand discrimination is very efficient. Please discuss potential reasons of the limited strand discrimination in the analyzed reactions.

8) Did the authors verify in Figure 6B and C that MutS depletion did not somehow affect the rate of closed circular plasmid accumulation?

9) In Figure 1D, it would be helpful to indicate which samples were digested with XhoI, which with BamHI. Also, the difference between panels 1D and E is not apparent.

10) There is a major discrepancy in the kinetics of% closed plasmid accumulation between Figure 1—figure supplement 4 (slow) and Figure 1—figure supplement 3 (fast) (and Figure 2B, also fast). Which is correct? It seems that the slow kinetics of closed circular formation (black graph in 1F) is therefore not representative.

11) "Unlike homoduplex plasmids, the gap-filling DNA synthesis did not covalently close the mismatch-carrying plasmid, suggesting that new strand breaks are introduced on the DNA." This sentence is unclear. Do the authors mean that the mismatch plasmid was not fully converted to supercoiled, based on the ~20% fraction of gapped/nicked molecules remaining in Figure 1—figure supplement 3B? Overall, this paragraph is difficult to follow.

12) "Although it has not been clear whether the MMR system can correct replication errors after the completion of local DNA synthesis except the ribonucleotide-directed mechanism, since PCNA remains on DNA after the completion of DNA synthesis until unloaded by the PCNA unloader complex, DNA-bound PCNA could mediate the coupling of MMR with DNA replication by generating a post-replicative temporal window permissive to MMR." This sentence is too long and poorly constructed.

13) "In the absence of MutSα/β, the strand information was retained for 1-2 min after disappearance of strand discontinuities (Figure 2)" This is an odd description of the data in Figure 2. It would be better to say: "In the absence of MutSα/β, the strand information was gradually lost after the disappearance of strand discontinuities…".

https://doi.org/10.7554/eLife.15155.031

Author response

Major issues:

1) PIP-deficient MutS protein is proficient in MMR. Based on the authors' assumption, MutSα without the PIP box-containing N-termini should be defective in capturing strand discrimination signal from PCNA. Unfortunately, the mutant MutSα is as active as WT MutSα in repair of heteroduplexes bound by PCNA.

As the reviewers pointed out, we did not see strong reduction of the MMR activity by the deletion of the PIP-containing N-terminus of MutSα (Figure 8—figure supplement 1). We think that there are two important implications from this fact.

In this paper, we have shown that (1) DNA-bound PCNA can induce strand specific MMR in NPE, and that (2) the PIP-containing N-terminus of MutSα inhibits unloading of PCNA to maintain the strand information derived from DNA-bound PCNA. On the one hand, the PIP motif in MutSα should be in principle dispensable for MMR. Previous genetic studies in yeast have shown that the PIP motif is important but not essential for MMR. Three previous studies (Kleczkowska et al., Genes Dev, 2001, Iyer et al., J Biol Chem, 2008, and Bowen et al., Proc Nat Acad Sci, 2013) have already shown that PIP-deficient MutSα can promote MMR either in human cell extracts or in a reconstituted system. Although Kleczkowska et al. have seen a partial reduction in the MMR efficiency with PIP deletion, other two studies agree that PIP-deficient MutSα is essentially as active as the wild-type protein for in vitro MMR that uses plasmid substrates. A series of seminal studies from the Modrich lab has shown that it is MutLα that initiates strand removal during MMR. This point is related to Major issue 2, and discussed there in detail (Discussion, third paragraph). Both in vivo data and in vitro analyses indicate that the PIP motif in MutSα is not essential for activation of MutLα.

On the other hand, since inhibition of PCNA unloading would indirectly assist strand discrimination through the retention of the strand signal, PIP-defective MutSα should have somewhat reduced activity in repair of mismatches. As mentioned already, although not essential, the PIP motif has an important role in MMR, since its deletion shows substantial increment of spontaneous mutation rates in yeast cells. The discrepancy between the in vivo observation and in vitro experiments suggest that (1) the PIP-dependent inhibition of PCNA unloading is important under specific situations that occur in vivo, and (2) plasmid-based in vitro MMR systems may not recapitulate such situations. Interestingly, once stepwise incubation, which mimics transient arrest of the MMR reaction, was involved, the PIP motif became important for the MMR efficiency in an in vitro assay (Figure 9). Therefore, it would be reasonable to speculate that the PIP motif becomes important for MMR under a certain “difficult-to-repair” situation, e.g. when PCNA is buried in chromatin. We now included relevant discussion in the revised text (Discussion, seventh paragraph). We feel that addition of above arguments made the paper significantly richer, and appreciate the reviewers’ suggestion.

2) PCNA polarity and nick-mismatch orientation. Previous studies using a circular heteroduplex have established that regardless of nick orientation (i.e., 5' or 3') to the mismatch, MMR always occurs along the shorter distance between these two sites. If MutS protein interacts with PCNA through the front face of PCNA, MutSα and other MMR proteins recruited by MutSα to A-gap and C-gap substrates should be lined up in different polarities/orientations, which would suggest that repair in one substrate occurs along the shorter spin and the other in longer spin. These assumptions are not consistent with what is known.

In the original manuscript, we have not traced DNA synthesis during MMR, and therefore it has not been clear whether NPE supports bidirectional strand excision. In response to the reviewers’ criticism, we have carried out this experiment. The result showed that, as widely acknowledged, repair DNA synthesis occurs preferentially along the shorter path between a gap and a mismatch, regardless of relative orientation between them (new Figure 1—figure supplement 2). The data confirmed that NPE promotes truly bidirectional MMR with the capability of both 5’ to 3’ and 3’ to 5’ strand excision (Results, first paragraph).

As mentioned in Major issue 1, biochemical reconstitution studies from the Modrich lab (Kadyrov et al., Cell, 2006, Kadyrov et al., J Biol Chem, 2007, Pluciennik et al., Proc Natl Acad Sci, 2010, Pluciennik et al., Proc Natl Acad Sci, 2013) have shown that MutLα is the key enzyme to initiate and promote strand excision. Since both gap-directed and PCNA-directed MMR was dependent on the MutL complexes, we assume that, as widely accepted, bidirectional strand excision seen in NPE is initiated by MutLα. As the reviewers pointed out, either or both of MutSα and MutLα should be lined up toward a specific face of PCNA, and it is interesting to understand how this complex degrades the DNA strand in either direction depending on the relative orientation toward a mismatch. Although clarification of this mechanism will require extensive future work such as single-molecule tracing of the MMR machinery and will be beyond the scope of this paper, discussion on this point would be important for interpretation of the data presented in this study. We now included relevant discussion in the revised manuscript (Discussion, third paragraph).

In addition, previous in vitro studies have shown that the 5’ to 3’ and 3’ to 5’ strand excision reactions employ a slightly different set of proteins, suggesting mechanistic difference between two modes of strand excision; the former does not require MutLα, while the latter requires it. We observed that both 5’-gap-directed and 3’-gap-directed MMR reactions were dependent on the MutL complexes in NPE (Figure 1). We thought that this finding is also related to the issue discussed above, and we included discussion on this point as well (Discussion, second paragraph).

3) Interaction between PCNA and MutSα. Although MutS protein has been shown to be able to slide along the DNA, increasing evidence (both in vivo and in vitro) suggests that MutS protein does not travel once it binds to a mismatch. The authors suggest that the stand signal carried by PCNA is transmitted to MutSα when the latter interacts with PCNA through its PIP box. Given that the mismatch is ~300 bp away from the gap site, where PCNA is located, it is impossible for MutS protein to reach PCNA. How could this interaction occur?

Since the PIP motif is not essential for MMR, it will not be essential for transmission of the strand information from PCNA to the MMR system. However, we suggested in this paper that MutSα may capture DNA-bound PCNA possibly from a remote place through the PIP-motif. In this case, the mismatch-bound MutSα (and likely MutLα also) and PCNA that is present at a different place would eventually need to interact with each other to initiate MMR. As the reviewers have commented, there is evidence that the MutS/MutL complexes binding to a mismatch do not slide away from the mismatch, and multiple MutL complexes may be responsible for communication between mismatch-bound MMR complexes and nearby PCNA molecules. We apologize for the lack of mention on this point in the original manuscript. We now included discussion on potential mechanisms of how MutSα (and MutLα) and a PCNA molecule that is captured by MutSα can communicate with each other to initiate MMR (Discussion, fifth paragraph). We appreciate the reviewers’ helpful suggestion on this point.

4) The authors showed that the presence of PCNA in closed circular heteroduplex is essential for strand-specific repair, and that the DNA bound PCNA could be unloaded within ~5 min. What is the mechanism by which PCNA is released from a closed circular DNA molecule?

Since we used a closed circular DNA substrate for our assay, PCNA unloading should involve the opening of the PCNA ring, a reaction that is catalyzed by the PCNA loader/unloader complex(es). Indeed, we showed that depletion of Rfc3, a common subunit of all four RFC-like complexes, significantly slows down the unloading reaction in NPE. It has been known that canonical RFC can catalyze both loading and unloading of PCNA. In addition, the Elg1-containing RFC like complex is largely responsible for PCNA unloading from post-replicative DNA during S phase. Therefore, we speculate that either or both of them would be involved in the unloading of PCNA from circular DNA substrates in NPE. Unavailability of specific antibodies against Xenopus Rfc1 or Elg1 prevented us to distinguish which one is primarily responsible for PCNA unloading. However, the identity of the relevant unloader does not affect our conclusion that MutSα prevents the unloading of PCNA. In the original manuscript, we just briefly mentioned that PCNA unloading is dependent on an unloading complex(es) containing Rfc3. In response to the reviewers’ point, we now included discussion on possible factors and mechanism of PCNA unloading and speculation on the mechanism of the inhibition of PCNA unloading by MutSα (Discussion, fourth paragraph), which we feel significantly improved the paper.

Other specific issues:

1) The deletion of the PIP motif of MSH6, which the authors have identified as a major determinant involved in the inhibition of PCNA unloading by MutSalpha, decreased the in vivo mismatch repair activity of yeast MutSalpha in MSH3-deficient cells by ~5-20% (Table 1 in Clark et al. (2000) JBC, 275, 36498). Thus, it appears that the inhibition of PCNA unloading by MutSalpha is not essential for MMR. Some discussion of this fact would be helpful.

We thank the reviewers for the helpful suggestion. As discussed in Major issue 1, we predict that the PIP motif may be needed for MMR under a certain “difficult-to-repair” situation, e.g. when PCNA is buried in chromatin. We included relevant discussion in the revised manuscript (Discussion, seventh paragraph).

2) In the Abstract, the authors state that "Our data identify PCNA as the signal that enables strand discrimination after the completion of DNA synthesis…". I think they should write something like "Our data identify loaded PCNA as the signal that enables strand discrimination after the strand discontinuity is removed…".

We appreciate the reviewers’ correction. The sentence in the Abstract was changed as follows: “Our data identify DNA-bound PCNA as the signal that enables strand discrimination after disappearance of strand discontinuities, and uncover a novel role of MutSα in the retention of the post-replicative MMR capability.”

3) The description of the MMR and gap-filling assays and immunological methods in Materials and methods and figure legends is too vague and lacks many critical experimental details including the final volumes and ionic strength of the reaction mixtures and the amounts of the extracts present in the reaction mixtures. The lack of this information complicates understanding the results. Please provide the relevant information.

Unlike other in vitro systems that use cell extracts, Xenopus egg extracts are prepared essentially devoid of additional buffers, and usually used as is, without addition of any buffers or salts. However, we realized that, in the original version of Materials and methods, this was not very clear for readers, and also we didn’t mention the volumes of the reactions. We now included relevant information in Materials and methods and figure legends. Also we added more information regarding the immunodepletion procedure to describe better what we have carried out. We apologize for the lack of the relevant information in the original manuscript.

4) It is not clear why the authors do not see the nick-directed MMR in the NPE. In fact, the data shown in panel B of Figure 4—figure supplement 1 suggest that MMR is directed, though not very efficiently, to the covalently closed strand. This is somewhat confusing. Did the authors study whether the rates of ligation of the nicked and gapped DNA substrates differ from each other? Some experimental data would be helpful to explain the failure to see the nick-directed MMR.

A nick can induce some strand specific MMR but not as efficiently as a gap, and we originally stated “Unlike other systems, a nick did not efficiently induce MMR, possibly because nick ligation is very quick in NPE”. Upon the reviewers’ suggestion, we now showed a direct comparison between nick- and gap-directed MMR (new Figure 1—figure supplement 4) and performed a follow-up experiment, in which we found that ligation of a nick is only partially dependent on PCNA (new Figure 3—figure supplement 1, panels E and F). Since sealing of a gap is completely dependent on PCNA, this new data provides an explanation as to why nicks do not induce strand-specific MMR as efficiently as gaps. We now included these new data, and modified relevant descriptions accordingly (subsection “The MutS complexes inhibit Rfc3-dependent PCNA unloading”, first paragraph).

5) Figure 3C: it appears that the fractions of the nicked form in the ligated DNA samples analyzed in lanes 1-4 of C panel are significantly higher than those in panel B (lanes 5-8). It appears that at least 35% of DNA in lane 4 of panel C is nicked. Please provide the percentages of the closed form present in the samples analyzed in the panel C lanes. Also indicate the percentage of the closed form for each of the substrates used in the reactions in D.

In the experiment shown in Figure 3B–D, we split the samples shown in (B) into two portions. One portion (C) was incubated in the presence or absence of XmnI for 60 min to see if PCNA slides off from DNA by linearization of the plasmid, and the other portion (D) was immediately incubated in NPE to see if MMR occurs. The nicked form plasmids seen in (C), lanes 1-4, was therefore accumulated during incubation in a buffer for 60 min. The percentages of the closed form for substrates used in (D) are exactly those shown in (B). We apologize for this confusion, and modified the legend for Figure 3 to make this point clear. The percentages of the closed circular molecules for lanes 1-4 are 63, 60, 62, and 59%, respectively. Since we considered that the percentages of the closed form in (C) are not relevant for interpretation of the results, we did not put these values in panel (C) in the revised manuscript.

6) Inspection of the repair data in panel B of Figure 4—figure supplement 1 suggests that in several cases the band intensities do not correspond well to the indicated repair values. Please provide the averages and S.D. for the experiments in this panel.

We repeated the quantification of the data in panel (B) of Figure 4—figure supplement 1, and confirmed that the values presented in the figure are correct. We are ready to provide the original tiff image and/or the raw quantification data upon reviewers’ request. To provide the averages and standard deviation for the experiment, we now also included a graph of the quantification data from three independent experiments with standard deviation (Figure 4—figure supplement 1, panel C).

In some control reactions (panel B of Figure 4—figure supplement 1) the level of C-to-T repair on the continuous strand is about 25% and about 50% higher than that on the nicked strand. How do the authors explain this result? Is this the strand that was synthesized in vitro?

We have made the substrates by in vitro synthesis of the second strand using single-stranded phagemid DNA as the templates (corresponding to the “A”-strand). Therefore, the observed C-to-T repair occurred on the strand synthesized in vitro. It is not clear why the level of repair on the continuous strand was higher than that on the nicked strand. However, as shown in the new Figure 4—figure supplement 1, panel C, this tendency was not statistically significant. Perhaps more mechanical or chemical DNA damages have occurred on the substrate in this particular experiment for some reasons.

Since the substrates were synthesized in vitro, it is likely that the bases in free nucleotides used as substrates for in vitro DNA synthesis and/or on single-stranded DNA templates contain small amount of spontaneous damages (e.g. oxidization of bases). Such damages can elicit base-excision repair (BER), which in turn trigger MMR by providing strand breaks (Repmann et al., J Biol Chem, 2015). We predict that such BER may be part of the reason why we see some background repair of mismatches. In some substrates, the background repair showed slight strand bias as pointed out by the reviewers, and this may be because a specific strand contained more damages, although we don’t have evidence for this point. We now included short description of DNA preparation, and relevant arguments in the revised text (Results, first paragraph).

7) MMR reactions observed in the NPE display poor strand discrimination. It is evident that the discontinuous strand is repaired only 5-10 times better than the continuous strand. Such weak strand discrimination would cause many mutations in vivo, but in vivo data indicate that the strand discrimination is very efficient. Please discuss potential reasons of the limited strand discrimination in the analyzed reactions.

We agree that the strand bias of MMR seen in NPE was not strong enough to explain the in vivo MMR efficiency. Since gap-directed repair of mismatch is reasonably efficient as an in vitro reaction and sometimes reaches to 80% (e.g. Figure 1E), the major reason for this somewhat modest strand bias is relatively high non-specific repair of mismatches. As discussed in the response to specific point 6, we speculate that such non-specific repair could be due to background BER or physical damages on the DNA substrate. As stated there, we included the relevant argument in the revised text (Results, first paragraph).

8) Did the authors verify in Figure 6B and C that MutS depletion did not somehow affect the rate of closed circular plasmid accumulation?

Although we did not examine whether depletion of MutS or MutL affects the rate of closed plasmid accumulation in this particular experiment shown in Figure 6B and C, Figure 7A shows that these depletions do not significantly affect either the rate of gap filling or the level of the closed circular molecules. In addition, we have repeated the experiment shown in Figure 6B to test accumulation of closed circular molecules in MutS- or MutL-depleted NPE (new Figure 6—figure supplement 2). The results show that neither of depletion conditions largely affects the rate of closed circular plasmid accumulation, and importantly, nicks were not accumulated in MutL-depleted NPE in which we observed longer retention of the MMR capability. Therefore, it is unlikely that difference in the accumulation of closed circular molecules has affected the MMR capability after incubation in MutS- or MutL-depleted NPE.

9) In Figure 1D, it would be helpful to indicate which samples were digested with XhoI, which with BamHI. Also, the difference between panels 1D and E is not apparent.

We thank the reviewers for their helpful suggestion. We now included the information of the restriction enzyme in the legend of Figure 1. For panels 1D and 1E, we changed the order of the panels in a way such that MMR in MutS-depleted NPE (former 1D) immediately follows the western blot (1B), and MMR in MutL-depleted NPE (1E) does so as well.

10) There is a major discrepancy in the kinetics of% closed plasmid accumulation between Figure 1—figure supplement 4 (slow) and Figure 1—figure supplement 3 (fast) (and Figure 2B, also fast). Which is correct? It seems that the slow kinetics of closed circular formation (black graph in 1F) is therefore not representative.

Both data are actually correct. Figure 1—figure supplement 3 shows the kinetics of sealing of a gap in the absence of a mismatch, and Figure 1—figure supplement 4 is the same experiment but in the presence of a mismatch. We agree that the difference was not explicit in the original manuscript, and apologize for this confusion. We now revised the description of the results to make this point clear (Results, second paragraph). In Figure 2B, the plasmid substrate was incubated in MutS-depleted NPE. Therefore, although the substrate contained a mismatch, it behaved as if there was no mismatch present on the DNA.

11) "Unlike homoduplex plasmids, the gap-filling DNA synthesis did not covalently close the mismatch-carrying plasmid, suggesting that new strand breaks are introduced on the DNA." This sentence is unclear. Do the authors mean that the mismatch plasmid was not fully converted to supercoiled, based on the ~20% fraction of gapped/nicked molecules remaining in Figure 1—figure supplement 3B? Overall, this paragraph is difficult to follow.

This point is related to specific point 10. We apologize for the ambiguous description of the experiments, and revised the text in order to make it clear that we have carried out two independent experiments with a substrate carrying no mismatch and that carrying a mismatch (Results, second paragraph).

12) "Although it has not been clear whether the MMR system can correct replication errors after the completion of local DNA synthesis except the ribonucleotide-directed mechanism, since PCNA remains on DNA after the completion of DNA synthesis until unloaded by the PCNA unloader complex, DNA-bound PCNA could mediate the coupling of MMR with DNA replication by generating a post-replicative temporal window permissive to MMR." This sentence is too long and poorly constructed.

We thank the reviewers’ criticism. To state only essential points, the sentence was simplified as follows. “Since PCNA transiently remains on DNA after the completion of DNA synthesis, DNA-bound PCNA could mediate the coupling of MMR with DNA replication.”

13) "In the absence of MutSα/β, the strand information was retained for 1-2 min after disappearance of strand discontinuities (Figure 2)" This is an odd description of the data in Figure 2. It would be better to say: "In the absence of MutSα/β, the strand information was gradually lost after the disappearance of strand discontinuities…".

The reviewers are correct. We changed the expression accordingly (subsection “The MutS complexes inhibit Rfc3-dependent PCNA unloading”, first paragraph).

https://doi.org/10.7554/eLife.15155.032

Article and author information

Author details

  1. Yoshitaka Kawasoe

    Graduate School of Science, Osaka University, Toyonaka, Japan
    Contribution
    YK, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0925-2004
  2. Toshiki Tsurimoto

    Department of Biology, Faculty of Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    TT, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7597-2216
  3. Takuro Nakagawa

    Graduate School of Science, Osaka University, Toyonaka, Japan
    Contribution
    TN, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3455-8224
  4. Hisao Masukata

    Graduate School of Science, Osaka University, Toyonaka, Japan
    Contribution
    HM, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Tatsuro S Takahashi

    Graduate School of Science, Osaka University, Toyonaka, Japan
    Contribution
    TST, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    tatsuro_takahashi@bio.sci.osaka-u.ac.jp
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1947-7680

Funding

Japan Society for the Promotion of Science (13J01924)

  • Yoshitaka Kawasoe

Ministry of Education, Culture, Sports, Science, and Technology (26114711)

  • Takuro Nakagawa

Ministry of Education, Culture, Sports, Science, and Technology (23131507)

  • Tatsuro S Takahashi

Inamori Foundation

  • Tatsuro S Takahashi

Uehara Memorial Foundation

  • Tatsuro S Takahashi

Naito Foundation

  • Tatsuro S Takahashi

Ministry of Education, Culture, Sports, Science, and Technology (23657114)

  • Tatsuro S Takahashi

Ministry of Education, Culture, Sports, Science, and Technology (25131712)

  • Tatsuro S Takahashi

Ministry of Education, Culture, Sports, Science, and Technology (25711022)

  • Tatsuro S Takahashi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Akira Yasui for critical reading of the manuscript, Vladimir Joukov for a Xenopus cDNA library, Johannes Walter and Shou Waga for antibodies, Kanae Taki for assistance in the cloning of the xMSH6 gene, Chikako Tokumura for assistance in production of recombinant proteins, and Haruhiko Takisawa, Yumiko Kubota and Satoru Mimura for discussion and help with frog maintenance.

Ethics

Animal experimentation: Animal handling and maintenance were performed according to protocols approved by the Osaka University Institutional Animal Care and Use Committee (Permit Number: DOURI-27-02-0).

Reviewing Editor

  1. Johannes Walter, Harvard Medical School, United States

Publication history

  1. Received: February 10, 2016
  2. Accepted: May 26, 2016
  3. Version of Record published: July 12, 2016 (version 1)

Copyright

© 2016, Kawasoe et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,633
    Page views
  • 349
    Downloads
  • 12
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Hannes Mutschler et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    Sebastian Kwiatkowski et al.
    Research Article
