Structure of the active form of human origin recognition complex and its ATPase motor module

  1. Ante Tocilj
  2. Kin Fan On
  3. Zuanning Yuan
  4. Jingchuan Sun
  5. Elad Elkayam
  6. Huilin Li
  7. Bruce Stillman  Is a corresponding author
  8. Leemor Joshua-Tor  Is a corresponding author
  1. Cold Spring Harbor, United States
  2. Howard Hughes Medical Institute, Cold Spring Harbor, United States
  3. Brookhaven National Laboratory, United States
  4. Stony Brook University, United States
https://doi.org/10.7554/eLife.20818
Share this article
Cite this article
  1. Ante Tocilj
  2. Kin Fan On
  3. Zuanning Yuan
  4. Jingchuan Sun
  5. Elad Elkayam
  6. Huilin Li
  7. Bruce Stillman
  8. Leemor Joshua-Tor
(2017)
Structure of the active form of human origin recognition complex and its ATPase motor module
eLife 6:e20818.
https://doi.org/10.7554/eLife.20818
  2. Download BibTeX
  3. Download .RIS

Abstract

Binding of the Origin Recognition Complex (ORC) to origins of replication marks the first step in the initiation of replication of the genome in all eukaryotic cells. Here, we report the structure of the active form of human ORC determined by X-ray crystallography and cryo-electron microscopy. The complex is composed of an ORC1/4/5 motor module lobe in an organization reminiscent of the DNA polymerase clamp loader complexes. A second lobe contains the ORC2/3 subunits. The complex is organized as a double-layered shallow corkscrew, with the AAA+ and AAA+-like domains forming one layer, and the winged-helix domains (WHDs) forming a top layer. CDC6 fits easily between ORC1 and ORC2, completing the ring and the DNA-binding channel, forming an additional ATP hydrolysis site. Analysis of the ATPase activity of the complex provides a basis for understanding ORC activity as well as molecular defects observed in Meier-Gorlin Syndrome mutations.

https://doi.org/10.7554/eLife.20818.001

Introduction

The first step in genome replication, the binding of the Origin Recognition Complex (ORC) at origins of DNA replication, triggers a series of highly coordinated steps leading to the assembly of pre-replicative complexes (pre-RCs) in a process that involves CDC6 binding to ORC (Bell and Labib, 2016). ORC and CDC6 then function as an ATP-dependent assembler that first recruits a ring-shaped MCM2-7 hexamer with bound Cdt1 to DNA, and then loads a second MCM2-7 hexamer in a head-to-head orientation, whereby this double hexamer is topologically linked to double-stranded DNA (reviewed in [O'Donnell et al., 2013; Siddiqui et al., 2013; Bell and Labib, 2016]). These MCM2-7 double hexamers mark the location of potential origins of DNA replication that can be activated during S phase to replicate the genome.

In Saccharomyces cerevisiae, the pre-RC includes the two head-to-head associated Mcm2-7 hexamers with each hexamer destined to become a part of the Cdc45-Mcm2-7-GINS (CMG) helicase at each replication fork during S phase (Abid Ali and Costa, 2016). Regulated assembly and disassembly of the pre-RC ensures that the genome replicates only once during each cell division cycle (O'Donnell et al., 2013; Siddiqui et al., 2013). In budding yeasts, ORC is a stable complex consisting of five AAA+ (ATPases Associated with diverse cellular Activities) related subunits and another subunit, Orc6. Orc1, Orc4 and Orc5 are bona-fide members of a large class of AAA+ proteins that contain the characteristic Walker-A and Walker-B motifs, but the only active ATPase in S. cerevisiae ORC is the Orc1 subunit with its adjacent Orc4 subunit that contributes an activating arginine finger and other residues required for ORC function in vivo (Loo et al., 1995; Klemm et al., 1997; Bowers et al., 2004). Mutations in the Walker-A motif of S. cerevisiae Orc4 and Orc5 are not essential for cell proliferation (Loo et al., 1995). Moreover, Orc2 and Orc3 were predicted to contain an AAA+ fold, but these subunits do not have the residues that are important for ATP hydrolysis and thus are predicted to be ‘AAA+ like’ (Bell et al., 1993; Foss and Rine, 1993; Micklem et al., 1993).

The yeast ORC binds to origin DNA throughout the cell division cycle, even during mitotic exit. During G1 phase, it recruits the Orc1-related initiator protein Cdc6, another AAA+ ATPase, to the origin DNA, creating an extended footprint over the entire origin (Diffley et al., 1994; Liang et al., 1995; Speck et al., 2005). In contrast, in human cells, ORC binding to chromosomes is dynamic, with the first step being the binding of ORC1 to mitotic chromosomes and the subsequent assembly of ORC onto chromatin during the next G1 phase (Okuno et al., 2001; Siddiqui and Stillman, 2007; Wu et al., 2014; Kara et al., 2015; Abid Ali and Costa, 2016). During entry into S phase, the human ORC1 subunit is degraded (reviewed in [DePamphilis 2003]).

A detailed molecular understanding of the ORC-CDC6 ATPase loading machine and its motor function is essential to decipher how it works to initiate replication. Several low-resolution structures of ORC from Drosophila melanogaster (Clarey et al., 2006; Bleichert et al., 2013) and Saccharomyces cerevisiae (Speck et al., 2005; Sun et al., 2012) are available, but they show different architectures. Recently, a high-resolution crystal structure of the Drosophila melanogaster ORC (DmORC) was reported (Bleichert et al., 2015). This structure contains truncated versions of ORC1, ORC2, and ORC3, full-length ORC4 and ORC5, and a small fragment of ORC6. The overall shape of the crystal structure matches the shape observed in the low-resolution EM structures of this complex. The DmORC was captured in a state that is inactive for ATP hydrolysis by ORC1, the most critical ATPase subunit. This is because the interface between ORC1 and ORC4 and thus the ATP-binding site is disrupted, even though one of the crystal forms reported bound nucleotide. This state of the complex would have to undergo a substantial conformational transition in order to become functionally active for ATP hydrolysis, as noted by the authors.

Here, we report the structure of human ORC in a functionally active, ATP-hydrolysis ready state, providing insight into ATP-dependent protein loading as well as DNA and CDC6 binding. We also examine the effect of heretofore uncharacterized Meier-Gorlin Syndrome mutations on its molecular function. Meier-Gorlin Syndrome is a primordial dwarfism, microcephalic disorder caused by mutations in genes encoding pre-replicative complex proteins, including ORC1, ORC4, ORC6 and CDC6 (Bicknell et al., 2011a, 2011b; Guernsey et al., 2011; de Munnik et al., 2012b).

To facilitate structural studies of HsORC, we separated the particle into two lobes, one consisting of an N-terminally truncated ORC1, full-length ORC4 and a C-terminally truncated ORC5 (see Materials and methods, Figure 1—figure supplement 1). The other lobe consists of N-terminally truncated ORC2 and full-length ORC3. Both subcomplexes yielded crystals, with the ORC1/4/5 motor module diffracting well to 3.4 Å, and the ORC2/3 subcomplex to 6 Å (Tables 1 and 2). Since ORC1/4/5 is comprised of the active ATPase subunits, the inclusion of ATP was critical to maintain its integrity during purification and crystallization. We hereafter refer to the ORC1/4/5 subcomplex as the HsORC motor module. In contrast, HsORC2/3 is composed of AAA+-like subunits, but with no predicted ATPase activity. The two subcomplexes were modeled into a 20 Å cryo-electron microscopy (cryoEM) 3D-reconstruction map to obtain a structural model for the HsORC1-5 complex.

Table 1

Data collection and refinement statistics for HsORC motor module*.

https://doi.org/10.7554/eLife.20818.002
Data collection
Wavelength (Å)0.9793
Resolution range (Å)19.88–3.39 (3.52–3.39)
Space groupP21
Unit cell (Å,°)120.89 81.14 151.95 90 97.25 90
Total reflections148448 (14543)
Unique reflections39700 (3849 )
Multiplicity3.7 (3.8)
Completeness (%)0.97 (0.96)
Mean I/s(I)8.75 (1.19)
Wilson B-factor (Å2)104.85
R-merge0.1385 (1.406)
R-measure0.1619 (1.641)
CC1/20.997 (0.524)
CC*0.999 (0.829)
Refinement
Resolution range (Å)19.88–3.39 (3.52–3.39)
Reflections used in refinement39700 (3849)
Reflections used for R-free1963 (198)
R-work0.2421 (0.3745)
R-free0.2811 (0.4015)
CC(work)0.959 (0.662)
CC(free)0.923 (0.591)
Number of non-hydrogen atoms15870
Macromolecules15678
Ligands192
Protein residues1947
RMSD bonds (Å)0.004
RMSD angles (°)0.72
Ramachandran favored (%)95
Ramachandran allowed (%)4.6
Ramachandran outliers (%)0
Rotamer outliers (%)0.57
Clashscore3.59
Average B-factor (Å2)127.05
Macromolecules127.23
Ligands112.92
Number of TLS groups31

  1. *Values in parentheses are for the highest resolution shell.

Table 2

Data collection and refinement statistics for HsORC2/3*.

https://doi.org/10.7554/eLife.20818.003
Data collection
Wavelength (Å)0.9793
Resolution range (Å)20.07–6.00 (6.21–6.00)
Space groupP21
Unit cell (Å,°)87.26 114.96 316.46 90 90.72 90
Total reflections52200 (8302)
Unique reflections15430 (2286)
Multiplicity3.4 (3.6)
Completeness (%)95.0 (99.1)
Mean I/s(I)5.7 (1.0)
Wilson B-factor (Å2)316
R-merge0.183 (>1)
R-measure0.24 (>1)
CC1/20.991 (0.422)
Refinement
Resolution range (Å)20.07–6.00 (6.45–6.00)
Reflections used in refinement15179 (1498)
Reflections used for R-free753 (1498)
R-work0.3180 (0.3804)
R-free0.3685 (0.4019)
Number of non-hydrogen atoms24148
Protein residues2944
RMSD bonds (Å)0.013
RMSD angles (°)1.30
Ramachandran favored (%)87
Ramachandran allowed (%)12
Ramachandran outliers (%)0.8

  1. *Values in parentheses are for the highest resolution shell.

The structure of HsORC reveals a remarkable similarity between two very different ATPases: the replication initiator ORC-CDC6 ATPase and the replication fork DNA polymerase clamp loader (Kelch et al., 2011). Both ATPases function at different times during genome replication but load ring-shaped proteins onto double-stranded DNA so that the ring-shaped proteins become topologically linked to the DNA double helix.

Results and discussion

The HsORC motor module

The structure of the HsORC motor module was solved by molecular replacement using the DmORC4, DmORC5-AAA+ domain and DmORC1-WHD of the DmORC complex (Bleichert et al., 2015) as a search model. The overall architecture of the HsORC motor module resembles a cashew nut (Figure 1a). Each ORC subunit is comprised of three domains – the RecA-fold, the α-helical lid and the α-helical winged-helix domain (WHD), although the WHD domain was truncated in ORC5. The RecA-fold domain and the lid together constitute the well-known AAA+ domain. The three RecA domains form a semicircle with ATP nucleotides wedged between them in a classic AAA+ oligomerization arrangement (see below). The RecA and lid domains of ORC1 contact the RecA domain of ORC4 as if cupping that domain between the two. The same is true for the RecA and lid domains of ORC4 cupping the RecA domain of ORC5. Remarkably, the three ORC subunits have the exact same organization of the three domains with respect to each other and can be readily superimposed (Figure 1b). The domains arrange themselves into a right-handed helical architecture with a ~52° rotation and 2 Å rise (58° rotation with a 2.05 Å rise from the AAA+ of ORC1 to ORC4; and 46° rotation with a 2.3 Å rise from the AAA+ of ORC4 to ORC5).

Figure 1 with 2 supplements see all
Download asset Open asset

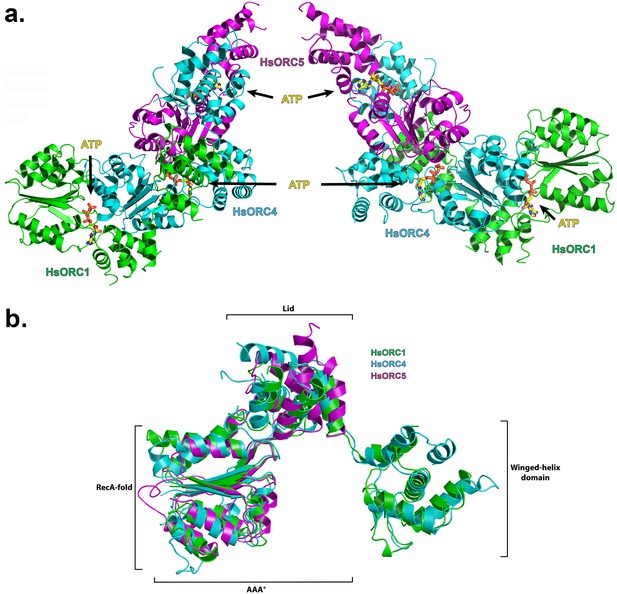

Structure of the motor module of HsORC.

(a) Ribbon diagram of the motor module resembling a cashew nut, with ORC1 in green, ORC4 in cyan and ORC5 in purple. The three ATP molecules nestled between the domains are shown in stick representation. The RecA-fold domains or ORC4 and ORC5 are cupped between the RecA-fold and lid domains of ORC1 and ORC4, respectively. The WHDs of ORC1 and ORC4 are positioned above the RecA-fold domains of ORC4 and ORC5, respectively. (b) Superposition of ORC1, ORC4 and ORC5, showing an identical organization between the domains of each ORC subunit.

https://doi.org/10.7554/eLife.20818.004

The ATPase motor module of HsORC is very reminiscent of the DNA polymerase clamp loader complexes such as Replication Factor C (RFC) in eukaryotes, the bacterial γ-complex, and the T4 bacteriophage Gene44 clamp loader (Figure 2). Both the architecture of the subunits and the organization of the domains with respect to each other are remarkably similar, although HsORC is somewhat shallower. The rotations between subunits for several clamp loaders range between 56° and 74° with rises in the range of 2.8 to 8.0 Å, excluding a couple of outliers that appear to be in an inactive conformation. The clamp loaders are ATPases that perform a single ATPase cycle to pry open a closed DNA polymerase clamp ring in order to load it onto the double helix of DNA (Kelch et al., 2012; Hedglin et al., 2013), in contrast to the continuously hydrolyzing AAA+ helicases (Enemark and Joshua-Tor, 2008). In the case of HsORC, there is also a single ATPase event, either for loading of the double hexamer of MCM2-7 or for resetting the system (Frigola et al., 2013).

Figure 2
Download asset Open asset

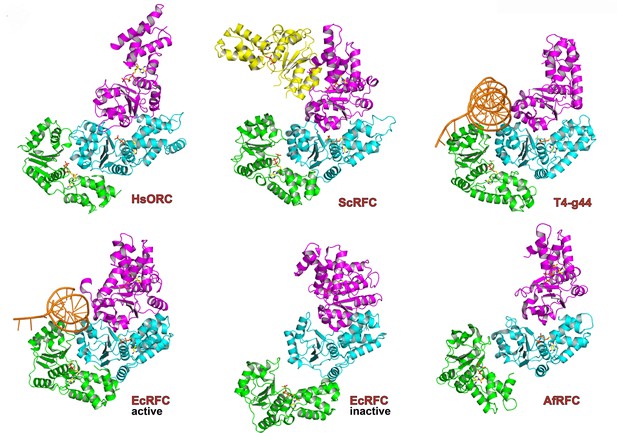

Similarity of the HsORC motor module with DNA polymerase clamp loader complexes.

Top row: HsORC1/4/5 (this work); yeast RFC-B, -C, -D, -E subunits with nucleotide from the RFC clamp loader bound to the PCNA clamp (Bowman et al., 2004) (1SXJ); gp44 subunits with nucleotide from the T4 bacteriophage clamp loader bound to an open clamp and DNA (Kelch et al., 2011) (1U60). Bottom row: γ subunits with nucleotide from the E. coli clamp loader bound to DNA (Simonetta et al., 2009) (3GLF); γ subunits from the inactive E. coli clamp loader (Kazmirski et al., 2004) (1XXH); small subunits bound to ADPNP from the Archaeoglobus fulgidus RFC complex (Seybert et al., 2006) (2CHQ). All proteins were aligned based on the subunit depicted in cyan (ORC4 in the case of HsORC).

https://doi.org/10.7554/eLife.20818.007

The HsORC motor module crystallized with ATP, and the nucleotides can be clearly seen in difference electron-density maps between the subunit interface of ORC1/ORC4 and between the interface ORC4/ORC5, as well as on the surface of ORC5 (Figure 1—figure supplement 2). Despite the ATPase function of the HsORC motor module, the electron density indicates that ATP hydrolysis had not occurred. We note that the crystals appeared in less than a day and reproducibly disappeared after an additional day if not promptly harvested and frozen. The conformation and placement of the three nucleotides is also quite similar, apart from a rotation of the adenine base with respect to the sugar (the angle of the glycosidic bond) and the absence of an additional subunit that would complete the binding site for ATP in ORC5 (see below).

The nucleotide-binding sites

As mentioned earlier, ATP hydrolysis by ORC is required for replication in vivo. The nucleotide-binding sites are characteristic of AAA+ ATPases of this family (Enemark and Joshua-Tor, 2008; Hauk and Berger, 2016). For the nucleotides at the subunit interfaces: Walker-A (P-loop) and Walker-B motifs from the RecA domain of one subunit line one side of the ATP nucleotide and three basic residues line the other side (Figure 3a,b). The first basic residue, the ‘trigger’, is the sensor-2 residue. Specifically, it is ORC1-R720 for the first (ORC1-ORC4) interface and ORC4-R277 for the second (ORC4-ORC5) interface. The trigger emanates from the lid domain of the subunit that contributes the Walker-A and -B residues to the binding site and is most similar to the F1-ATPase arginine finger (Kagawa et al., 2004). The trigger is what differentiates an ATP-bound and ATP-hydrolyzing configuration. The precise positioning of this residue appears to regulate the reactivity of the site, with the ATP-hydrolyzing configuration stabilizing the hydrolysis transition state (Kagawa et al., 2004). In ATPases that function continuously, such as helicases, the trigger usually resides on the neighboring subunit to the one harboring the Walker-A and -B motifs, whereas in ATPases such as ORC, and the clamp loader RFC, where there is probably a single hydrolysis event, the trigger resides on the same subunit (Enemark and Joshua-Tor, 2008). Factors that interact with the lid domain may have a profound effect on the positioning of the lid domain and therefore the trigger and consequently on the activation of ORC ATPase activity. Interestingly, the ORC1 trigger residue is mutated in a Meier-Gorlin Syndrome (MGS) patient (ORC1-R720Q) who also carries a mutation (ORC1-R105Q) in the amino-terminus that disrupts ORC1’s Cyclin E-CDK2 inhibitory activity and histone H4K20me2 binding (Hossain and Stillman, 2012; Kuo et al., 2012). MGS patients with ORC1 mutations display the most severe phenotype of short stature and microcephaly (de Munnik et al., 2012a).

Figure 3 with 2 supplements see all
Download asset Open asset

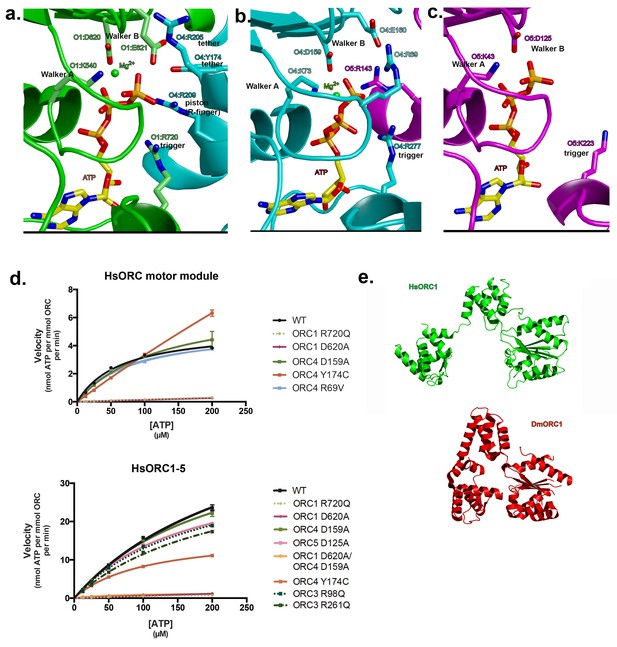

Motor module ATPase.

(a) ATP-binding site at the ORC1/4 interface. (b) ATP-binding site at the ORC4/5 interface. (c) ATP-binding site of ORC5. ORC1 is shown in green, ORC4 in cyan and ORC5 in purple. ATP and key residues discussed in the text are shown in stick representation. (d) Michaelis-Menten curves for ATPase activity of the motor module (top), HsORC1-5 (bottom), for the wild type and several mutants from experiments performed in triplicate. (e) Different domain organization of HsORC1 (green) compared with the more compact DmORC1 (red).

https://doi.org/10.7554/eLife.20818.008

The second basic residue opposite the P-loop is commonly referred to as the R-finger in the AAA+ family and functions as the ‘piston’, since it moves in and out of the site based on the presence of the γ-phosphate of the nucleotide (Enemark and Joshua-Tor, 2008). It is ORC4-R209 at the first interface and ORC5-R143 at the second interface. The third basic residue, the ‘tether’, forms contacts between the R-finger side of the interface to the Walker-A, -B side. ORC4-R205 performs this function at the first interface as it contacts the Walker-B residue E621 as well as D623 of ORC1. However, a second tether is formed by ORC4-Y174, which interacts with ORC1-E621 as well. ORC4-Y174 is also mutated in three MGS patients (ORC4-Y174C) and is conserved in all ORC4 subunits from yeast to mammals. We suggest that in addition to the well-known R-finger, this tyrosine plays a critical role in sensing the nucleotide state at this critical interface. Indeed, a tyrosine exists at a comparable position in ORC1 (ORC1-Y634) that is highly conserved, but a proline occupies that position in ORC5 (ORC5-P139). We predict that ORC1-Y634 interacts with the CDC6 Walker-B motif (CDC6-E285) in a similar fashion (see below). At the second P-loop interface between ORC4 and ORC5, we identify ORC5-R104 as the tether as it forms a salt bridge with ORC4-E113.

One distinct feature of the Walker-A motif (P-loop) in ORC4 is the presence of an arginine, R69, in the center of the loop (Figure 3b). It is completely conserved in mammals, avian, fish and anthropods. It forms a salt bridge with ORC4-E160 of the Walker-B motif. It is also present in the tau subunit of the E. coli clamp loader. In tau, this arginine contacts a main-chain carbonyl on a loop of the lid domain (Simonetta et al., 2009).

The adenine base is tucked between the RecA domain and the lid of the same subunit, with three hydrophobic residues from the lid forming a greasy side for the base to dock on. Specific H-bonds with the adenine base occur with ORC1 between a tyrosine (Y681) to N6, and a glutamate (E502) to N3. In ORC4, N6 is contacted by a main-chain carbonyl (F38). A main-chain carbonyl is also contacting N6 in ORC5, in addition to H-bonds from R226 to N3 and the hydroxyl of Y182 to N7 (Figure 3—figure supplement 1).

The third nucleotide binds to Walker-A and -B motifs on ORC5 (Figure 3c), although the Walker-B motif is somewhat different (DKAE, rather than DELD (ORC1) or DEFD (ORC4)). The residue that occupies the same position as the ‘trigger’ emanating from the lid domain is a lysine – K223. The missing elements needed for ATP hydrolysis, in particular the arginine finger and the tether, would normally be contributed by a neighboring subunit. In the context of the full complex, the RecA fold of ORC3 would occupy the neighboring subunit position (see below), and would be the subunit that would contribute the two other basic residues - the arginine finger (piston) and the tether. The position of the arginine finger on the RecA fold in HsORC1, HsORC4 and HsORC5 is invariable. However, the equivalent residue on the RecA fold of ORC3 is not an arginine but a leucine (HsORC3-L270). There are arginines on either side, however (HsORC3-R98 and HsORC3-R261), that could serve in this capacity for the nucleotide at the HsORC5-HsORC3 interface, if they are positioned properly in the full complex (see below).

ORC ATPase levels are altered in Meier-Gorlin syndrome mutants

To test whether the isolated HsORC motor module can hydrolyze ATP, we removed residual ATP by size exclusion chromatography (SEC) and performed ATPase assays on eluted fractions with radiolabeled ATP. The motor module displayed robust ATPase activity, which was independent of DNA binding (Figure 3d). To test which of the ATPase sites were functional in the motor module, we mutated several key residues (Figure 3d, Figure 3—figure supplement 2). Disrupting the ORC1 Walker-B motif (ORC1 D620A) effectively abolished ATPase activity, while mutation of the ORC4 Walker-B motif (ORC4 D159A) had little effect. A double mutant of the Walker-B motif of both ORC1 and ORC4 also abolished activity. We therefore conclude that in the context of the motor module, only the ORC1/4 interface is a functional ATPase. This is in agreement with previous studies in budding yeast where ORC has a single ATPase consisting of ScOrc1 activated by an ScOrc4 R-finger (Bowers et al., 2004). The unusual R69 in the Walker-A motif of ORC4 was mutated to test whether its interaction with the Walker-B motif is functional. However, a mutation to valine resulted in similar activity to wild type. Interestingly, the two MGS mutations discussed earlier resulted in very different behaviors with respect to modulation of ATPase activity. ORC1-R720Q abolished ATPase activity of the motor module, and this mutation exists in a single heterozygous individual with a wild-type allele, whereas the ORC4-Y174C mutation in the ORC4 tether, which disrupts its hydrogen bond to an ORC1 Walker-B side chain (ORC1-E621), renders the motor module hyperactive for ATPase activity. Together, these data suggest that properly regulated ATPase levels of HsORC are critical for tissue homeostasis in vivo. The more complete wild-type HsORC particle (containing ORC1-5) has a more robust ATPase activity, as do the ORC4 and ORC5 Walker-B mutated versions. However, the ORC1 Walker-B mutant, the ORC1 Walker-B / ORC4 Walker-B double mutant, as well as the ORC1 MGS mutation R720Q all show very little activity, similar to the situation in the motor module alone (Figure 3d, Figure 3—figure supplement 2). The ORC4 MGS mutant Y174C has reduced activity (at about 50% of wild type) in the context of ORC1-5. Thus, the hyperactivity of this mutant observed in the context of the motor module alone suggests that binding of ORC2-ORC3 modulates the ATPase activity of the ORC motor. It should be noted that the ORC4-Y174C mutation exists either as a homozygous mutation in one individual or a heterozygous combined with a null mutation in two individuals (de Munnik et al., 2012b).

HsORC1 exists in an active conformation

The architecture of ORC4 and ORC5 is very similar to the architecture of their homologs in the structure of the Drosophila melanogaster ORC (DmORC) (Bleichert et al., 2015) with a root-mean-square deviation (rmsd) over 389 Cα’s of 1.15 Å between the two. However, the architecture and placement of ORC1 is very different. In DmORC, this subunit adopts an unusual conformation, as noted by the authors, whereby the RecA-fold and lid domains, comprising the entire AAA+ domain, are swung out to a different side of the complex, packing against DmORC2, so that it disrupts the ATP-binding site and would therefore be inactive (Figure 3e). The functional significance of the DmORC structure is not known. In contrast, the human ORC is active as an ATPase and the RecA-fold and lid domains of HsORC1 form a classic ATPase site as described above, rotated almost 80° from the position in DmORC. The WHDs of HsORC1 and DmORC1, on the other hand, are positioned in an almost identical manner.

HsORC1-5 forms a double-layered shallow corkscrew

To examine the functional significance of HsORC1 movement, we employed both negative stain and cryo-electron microscopy (cryoEM) to obtain the structure of a more complete HsORC particle. The purified HsORC1-5 described here is a fairly unstable complex, consistent with the dynamic assembly and disassembly of HsORC in vivo. It was purified with ATP and is active for ATP hydrolysis. As a consequence, only a small percentage of the particles viewed by cryoEM were similar to the low-resolution EM structures of S. cerevisiae and the HsORC1-5 obtained from negative stain EM (see Materials and methods). Thus, we reasoned that using this subset of particles in order to obtain a low-resolution structure into which we could fit the crystal structures of the subcomplexes (ORC1/4/5 and ORC2/3) was warranted. Cryo-EM data were collected on a Gatan K2 summit direct electron detector in a Titan Krios electron microscope operating at 300 kV, resulting in a ~20 Å resolution 3D density map (Figure 4a) (Figure 4—figure supplement 2–7). We docked the crystal structure of the HsORC motor module into the EM map, which had an excellent fit. Residual density in the EM map near HsORC1 could be explained by the presence of the 14 kDa Sumo tag on the N-terminus of the truncated HsORC1 construct used for the EM experiment. Although our crystals of the HsORC2/3 complex diffracted only to 6.0 Å, with four complexes in the asymmetric unit, we were able to obtain phases by molecular replacement using the DmORC subunits (Bleichert et al., 2015) (Table 2). The resulting electron-density map was clear enough to show a significant movement of helices in ORC3 compared to the DmORC structure (Figure 4—figure supplement 1). In addition, the position of the WHD of ORC2 would result in significant clashes for two of the four ORC2 copies present in the crystal. This indicated to us that the structures were suitable for docking into the HsORC cryoEM reconstruction. A separate structure of the WHD of HsORC2 is available (PDB code: 5C8H) and a model for the WHD of ORC5 was built based on DmORC followed by energy minimization. These models were docked into the HsORC cryoEM map and subjected to refinement by keeping the motor module ORC1/4/5, the RecA fold of ORC2 and the complete ORC3, the WHD of ORC5 and the WHD of ORC2 as four discrete rigid bodies (Figure 4b) (Video 1).

Figure 4 with 8 supplements see all
Download asset Open asset

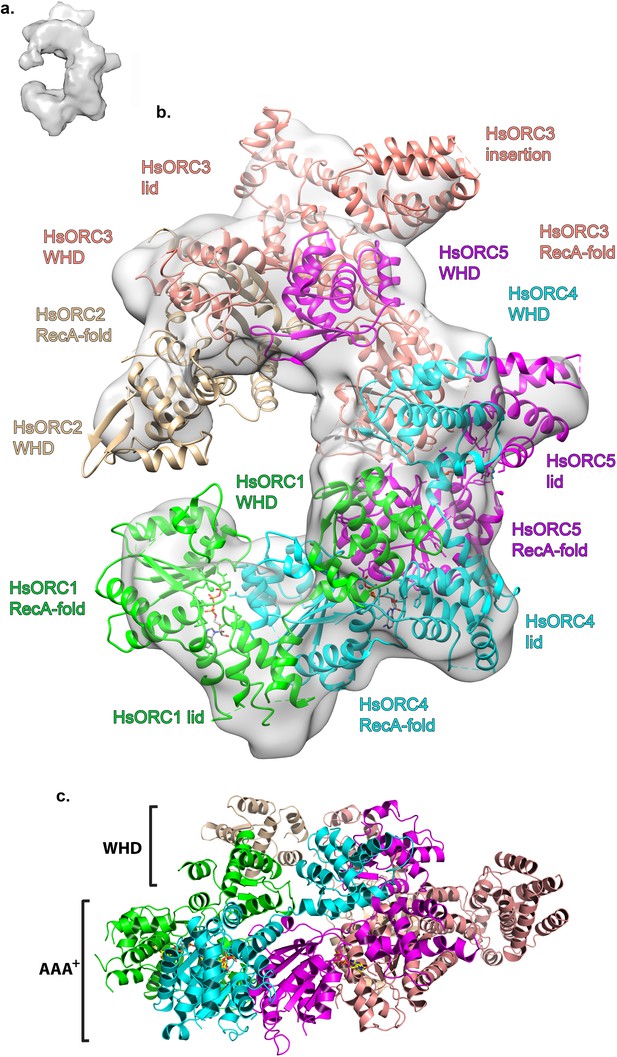

Structure of HsORC.

(a) Cryo-EM density of HsORC1-5, back view. Note that the top and bottom are flipped compared with the maps shown in the supplementary Figures. (b) Ribbon diagram of HsORC modeled into cryo-EM density. The ORC motor module is colored as in Figure 1. ORC2 is shown in wheat and ORC3 is shown in salmon. ATP is shown in stick. (c) Side view with the WHD layer on top and the AAA+ layer on the bottom. The ORC3 insertion can be seen extending from the particle on the right.

https://doi.org/10.7554/eLife.20818.011
Video 1
Download asset
Ribbon diagram of HsORC modeled into cryo-EM density.

ORC1 is shown in green, ORC4 in cyan, ORC5 in purple, ORC2 in wheat and ORC3 in salmon. ATP is shown in stick.

https://doi.org/10.7554/eLife.20818.020

HsORC has the appearance of a right-handed corkscrew composed of the AAA+ and WHD of all the subunits, and a ‘decorative’ handle made of the large helical domain of ORC3 (Figure 4b,c). We did not include the small, non-AAA+ ORC6 subunit in this analysis because HsORC1-5 assembly is independent of ORC6 (Vashee et al., 2001; Siddiqui and Stillman, 2007). The RecA and RecA-like folds of the subunits (ORC 1, 4, 5, 3 and 2) form one layer of the corkscrew, with a little gap between the RecA-like domains of ORC3 and ORC2. The WHDs form a second layer with each domain sitting atop the RecA domain of the neighboring subunit. The structure of HsORC has an open ring architecture with a ~35 Å central channel, in contrast to the closed and more restricted central channel of ~15 Å observed in DmORC (Bleichert et al., 2015). This larger opening can now easily accommodate a DNA double helix. Apart from the similarity between ORC4 and ORC5 discussed above, the WHD of HsORC5 is also positioned similarly as in DmORC, and HsORC3 is similar in position and arrangement as in the fly counterpart as is the RecA-like fold of HsORC2. However, in addition to the drastic reorientation of HsORC1 in comparison with DmORC (Figure 5a), the position of the WHD of HsORC2 is also clearly very different between the two complexes. In HsORC, it is moved out and up from the central groove and is not interacting with HsORC1, as it would in DmORC if the AAA+ domain of DmORC1 was moved to a similar position as in HsORC (Video 2). The consequence of this repositioning is that it opens up the central groove in HsORC considerably (see below) (Figure 5b) (Video 2). The RecA-like fold of ORC3 is now positioned near the AAA+ domain of ORC5, which is bound by a nucleotide. ORC3 does not have the characteristic side chains positioned at the ATP site to promote hydrolysis. However, even though there is no arginine positioned on the RecA fold in an equivalent position as it is in HsORC1, HsORC4 or HsORC5’s arginine fingers (or pistons), there is an arginine (R98) that could be interacting with the nucleotide bound to ORC5. An ORC5 Walker-B aspartate (D125) as well as ORC3-R98 were mutated in the context of HsORC1-5, and both are only slightly reduced for ATPase activity compared with wild-type activity (Figure 3d). This indicates that the ORC5-ORC3 interface does not significantly contribute to the observed ATPase activity of the HsORC1-5 complex.

Figure 5
Download asset Open asset

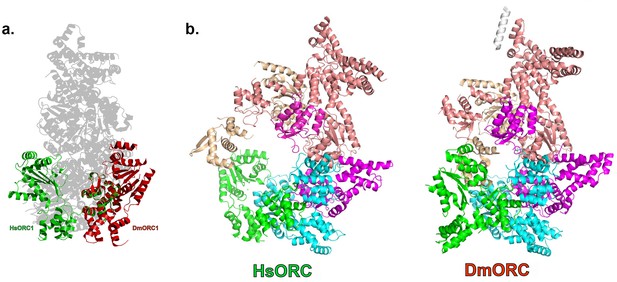

HsORC is in an active conformation.

(a) Different positions of HsORC1 and DmORC1 in the context of the bigger particle. HsORC1 is shown in green, DmORC1 is shown in red and the rest of the HsORC complex is shown in grey. (b) The subunit organization in HsORC results in a more open architecture compared with DmORC.

https://doi.org/10.7554/eLife.20818.021
Video 2
Download asset
A morphing of the structure of DmORC into HsORC.

HsORC1 moves to form an active ATP interface with HsORC4. HsORC2 moves out and up from the more ‘collapsed’ placement in DmORC.

https://doi.org/10.7554/eLife.20818.022

The missing puzzle piece – HsCDC6 can complete the ring

HsCDC6 binds to the core of HsORC as a second step in the assembly of the pre-RC (Wu et al., 2014). It is also an AAA+ ATPase with 29% sequence identity to ORC1, and in budding yeast, it is an active ATPase (Randell et al., 2006; Speck and Stillman, 2007). Both yeast and human ORC1 and CDC6 interact with each other (Speck et al., 2005; Speck and Stillman, 2007; Hossain and Stillman, 2016). We posit that CDC6 binds ORC1 with the same type of repeat arrangement as ORC1, ORC4 and ORC5 bind each other. We therefore built a homology model of CDC6 based on our structure of ORC1 and placed it with respect to ORC1 in the same relative arrangement as ORC1 is to ORC4 along with a putative ATP nucleotide between the two subunits in the same manner (Figure 6a,b, Figure 6—figure supplement 1). CDC6 fits within the HsORC model as if it were the missing piece in a puzzle. It completes the ring structure with its RecA domain between those of ORC1 and ORC2 on one layer and its WHD between those of ORC1 and ORC2 on the WHD layer. The ATP-binding site that is formed has all the characteristic residues in the proper positions. The CDC6 lid residue R388 is in the equivalent position as ORC1-R720 to act as the trigger. The helix of ORC1 that includes residues 661–674 is disordered in our structure, but by homology to ORC4, they would contain the R-finger as R666 and the tether as R670 in the proper position. Furthermore, the ORC1-Y634 discussed above points directly to the CDC6 Walker-B motif, specifically to CDC6-E285.

Figure 6 with 2 supplements see all
Download asset Open asset

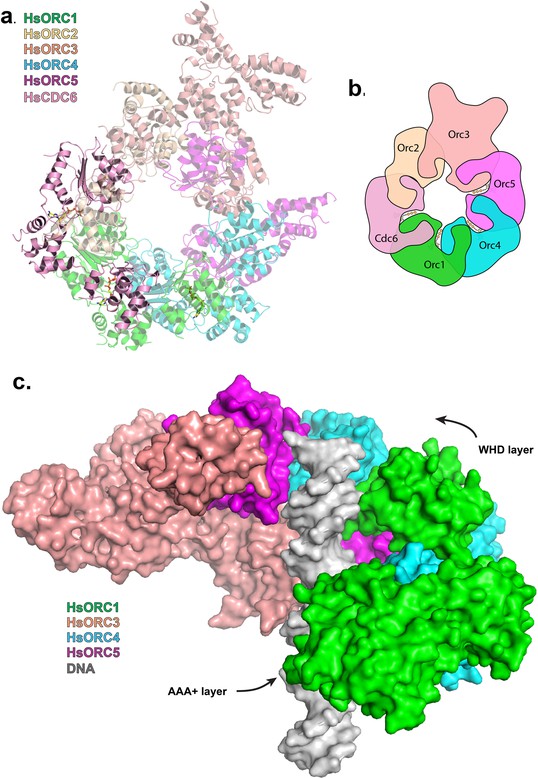

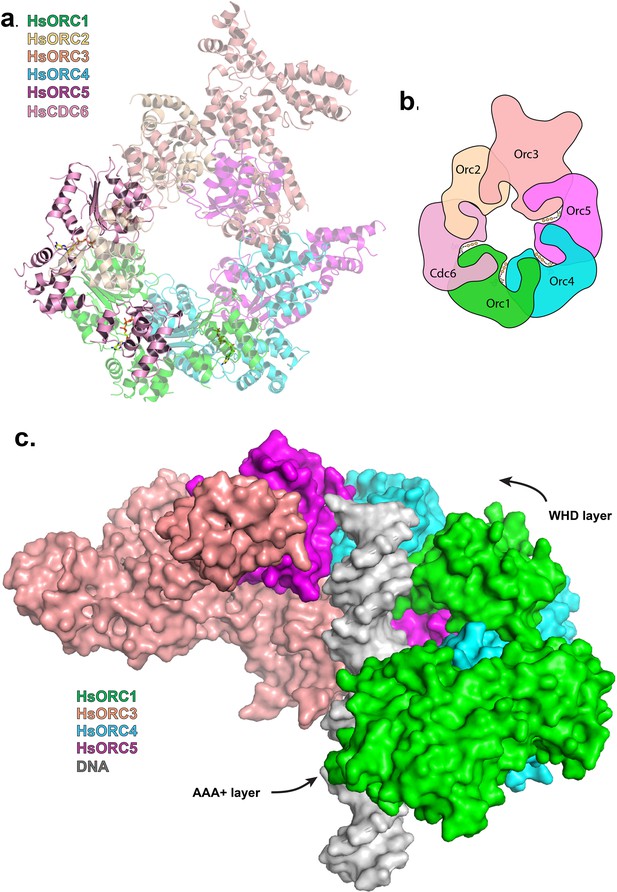

Modeled interaction of HsORC with CDC6 and DNA.

(a) Model of HsORC-CDC6 with CDC6 in pink. HsORC1-5 subunits are shown in a transparent rendering. (b) Cartoon depiction of HsORC-CDC6 showing the organization of the particle with the smaller WHDs forming one layer on top of the bigger AAA+ layer on the bottom. It also clearly illustrates the WHD from one subunit sitting on top of the RecA-fold domain of the neighboring subunit. (c) Model of HsORC with DNA. ORC2 and CDC6 were removed for clarity.

https://doi.org/10.7554/eLife.20818.023

The DNA-binding site of HsORC

With the remarkable structural homology of the motor module to the clamp loaders in mind, we used the T4 bacteriophage clamp loader (T4-gp44) structure bound to an open clamp and a partially single-stranded, partially double-stranded primer template DNA (Kelch et al., 2011) to model the position of a double-stranded DNA bound to HsORC. This is one of the few structures of clamp loaders with DNA bound and was close in the relative orientations of the subunits to that of HsORC. We superimposed chains B, C and D of gp44 onto HsORC1/4/5. We used the resulting position of the DNA bound to gp44 and superimposed a longer canonical B-form, double-stranded DNA. The three RecA-folds of the AAA+ domains in ORC1, ORC4 and ORC5 wrap beautifully around the DNA double helix, tracking the minor groove of DNA and in the context of HsORC1-5, so does the RecA-like domain of ORC3 (Figure 6c, Figure 6—figure supplement 2). The WHDs contact the DNA seemingly through the major groove. The channel is wider than a snug fit to the DNA all around, although we expect (Sun et al., 2013) it to be in closer proximity to the active ATPase motor module elements.

ATP hydrolysis and establishing the preRC

In the yeast system, ORC-Cdc6 loads the first Mcm2-7 hexamer, and the incoming Mcm3 C-terminus stimulates the ORC-Cdc6 ATPase activity (Frigola et al., 2013). In the absence of ATP hydrolysis, ORC-Cdc6 recruits the first Mcm2-7 hexamer that is bound to Cdt1, but the hexamer bound to the double-stranded DNA is not salt resistant (Sun et al., 2013; Duzdevich et al., 2015). Thus, ATPase activity is required for loading the Mcm2-7 hexamer onto DNA, resulting in a salt-resistant complex. Cdc6 is then released followed by the release of Cdt1 (Ticau et al., 2015). Another Cdc6 subunit is then involved in the recruitment of a second Cdt1-bound Mcm2-7 hexamer. ATP hydrolysis is linked to the removal of the second Cdc6 and the subsequent removal of Cdt1 and ORC from the origin (Ticau et al., 2015). Analogous to the clamp loader ATPases, we suggest that ATP hydrolysis by ORC-CDC6 would push down on the first MCM2-7 hexamer to trigger the Cdt1 release and allow recruitment of the second MCM2-7 – Cdt1 complex.

Concluding remarks

Although the structure of HsORC is substantially different from the known DmORC structure, it is very similar to the cryoEM structure of ORC from Saccharomyces cerevisiae (ScORC) observed in the context of the ORC-Cdc6-Cdt1-Mcm2-7 (OCCM) complex (Sun et al., 2014; Yuan, Riera, Bai, Sun, Nandi, Spanos, Chen, Barbon, Rappsilber, Stillman, Speck, and Li, personal communication). The structure of the yeast ORC-CDC6 complex determined by cryoEM is also similar to the structure we determined for human ORC and the model for human ORC-CDC6. Both HsORC and ScORC are in an active, ATPase state ready to function as a molecular motor, whereas the DmORC is in an inactive state that may be used for storage of these particles in the egg (Bleichert et al., 2015). The similarity of the human and yeast protein-loading machines is remarkable despite the fact that they interact with DNA in fundamentally different ways and that the yeast protein is stable during the cell division cycle, whereas the human complex is dynamically assembled and disassembled. Both are also highly similar to the DNA polymerase clamp-loading ATPases, showing that ATP-driven molecular machines that load ring-shaped proteins onto DNA have been re-purposed for multiple stages of DNA replication.

Materials and methods

Protein preparation

Request a detailed protocol

Condon optimized human origin recognition complex (HsORC) synthetic genes [NP_004144.2 HsORC subunit 1 (HsORC1), NP_006181.1 HsORC subunit 2 (HsORC2), NP_862820.1 HsORC subunit 3 (HsORC3), NP_859525.1 HsORC subunit 4 (HsORC4), NP_002544.1 HsORC subunit 5 (HsORC5)] were cloned into MultiBac baculovirus expression system (Bieniossek et al., 2008).

A series of truncations was designed to facilitate purification and monodispersity of human ORC. Trimming included an N-terminal truncation of ORC1 that removed the BAH domain, previously known to be rather flexible, and an N-terminal truncation of ORC2. ORC6 was also not included in the final complex used for our structural and biochemical analysis (Figure 1—figure supplement 1).

An initial 3D reconstruction of a truncated HsORC (ORC1-5) particle from single-particle negative-stain electron microscopy (EM) showed the particle to have a bilobal architecture. In addition, using a shorter construct of ORC5, we obtained an ORC subcomplex consisting of ORC1, ORC4 and ORC5. We therefore decided to separate the particle into the two lobes for crystallographic studies, one consisting of the N-terminally truncated ORC1, full-length ORC4 and a C-terminal truncation of ORC5. The other lobe consists of an N-terminally truncated ORC2 and full-length ORC3.

For recombinant expression of the heteropentameric HsORC1-5 gene-coding sequences were cloned into the pFL vector (pH promoter HsORC1 residues 471–861), pUCDM vector (pH promoter HsORC4 residues 1–436 (full-length), p10 promoter HsORC3 residues 1–712 (full-length) and pSPL vector (pH promoter HsORC2 residues 1–577 (full-length), p10 promoter HsORC5 residues 1–435 (full-length)). The Strep-Sumo-tagged ORC1 version of the complex was used for EM studies.

The motor module subcomplex (HsORC1/4/5) was cloned into pFL vector (pH promoter HsORC1 residues 471–861), pSPL vector (pH promoter HsORC4 residues 1–436 (full-length), p10 promoter HsORC5 residues 1–284). Finally, the expression cassette for the complex of HsORC2 and HsORC3 (HsORC2/3) was cloned into pFL vector (pH promoter HsORC2 residues 231–577) and pUCDM vector [p10 promoter HsORC3 residues 1–712 (full-length)].

A two-Strep-SumoStar (TSS) tag (based on the One-Strep-SumoStar [OSS] tag [Schalch et al., 2011]) was added at the N-terminus of HsORC1 to facilitate affinity purification of HsORC1-5 and HsORC1/4/5, while in the HsORC2/3 case the TSS tag was N terminally fused in frame with HsORC2.

Sf9 insect cells were infected with baculovirus in Hyclone CCM3 media (GE Healthcare Life Sciences, Pittsburgh, PA) for 48 hr.

For selenomethionine protein expression, 1 l of High-five cells at density of 2*106/ml were diluted at 1:2 ratio using ESF921 methionine-deficient media (Expression systems, Davis, CA) 2 days prior to baculovirus infection. The cells were diluted again the following day using the same media and were allowed to grow for an additional day until reaching density of 2*106/ml (total of 4 l). The cells were then infected with 30 ml virus per liter of High-five cells. After 4 hr, the cells were centrifuged for 5 min at 800 g and washed in 100% methionine-deficient media, centrifuged again and resuspended in methionine-deficient media. After 1 hr, Selenomethionine (Sigma-Aldrich, St. Louis, MO) was added to a final concentration of 198 mg/l. The cells were harvested 48 hr later.

All purification steps were performed at 4°C. Cell pellets were thawed on ice and resuspended in lysis buffer (50 mM HEPES-NaOH (pH 7.5), 200 mM KCl, 5 mM dithiothreitol (DTT), 5 mM adenosine triphosphate (ATP), 10 mM monopotassium glutamate (KGlu)). Following sonication, the lysate was centrifuged for 60 min at 100,000 g and the supernatant was loaded onto 5 ml of StrepTactin Superflow resin (IBA, Goettingen, Germany). The beads were washed and recombinant HsORC1-5 complex was eluted with lysis buffer, which contained 25 mM desthiobiotin. The protein complex was then further loaded onto a HS20 cation-exchange column (POROS, ThermoFisher Scientific, Waltham, MA). The column was washed with buffer A (50 mM HEPES-NaOH (pH 7.5), 100 mM KCl, 5 mM DTT, 5 mM ATP, 10 mM KGlu), and eluted with a 30 min, 0.5 ml/min gradient of buffer B (50 mM HEPES-NaOH (pH 7.5), 1M KCl, 5 mM DTT, 5 mM ATP, 10 mM KGlu). Peak fractions eluting at ~350 mM KCl were concentrated and loaded onto a Superdex 200 Increase 10/300 GL size exclusion column (GE Healthcare Life Sciences, Pittsburgh, PA) equilibrated with buffer A.

Recombinant HsORC1/4/5 complex was purified similarly to HsORC1-5, with the following differences: the TSS tag was cleaved with Sumo* protease at 4°C on the StrepTactin Superflow resin (IBA, Goettingen, Germany). The elution fraction was diluted twofold into buffer A and loaded onto a HQ20 anion-exchange column (POROS, ThermoFisher Scientific, Waltham, MA). A major peak containing all three subunits eluting at ∼0.2 M KCl was pooled and was loaded onto a size exclusion Superdex 200 Increase 10/300 GL column (GE Healthcare Life Sciences, Pittsburgh, PA) equilibrated with buffer A. In both cases, ATP (5 mM) was added to all buffers throughout the purification procedure in order to maintain complex integrity; however, Mg2+ was excluded to avoid ATP hydrolysis. The cleavage efficiency and purity was verified by SDS-PAGE.

The HsORC2/3 complex was purified in two steps by StrepTactin affinity chromatography, cleaved on the beads with Sumo* protease at 4°C and followed by size exclusion chromatography using a Superdex 200 Increase 10/300 GL column (GE Healthcare Life Sciences, Pittsburgh, PA) equilibrated with buffer A. The integrity of the HsORC2/3 complex was not affected in the presence or absence of ATP.

Protein crystallization and data collection

Request a detailed protocol

Crystals of the HsORC1/4/5 motor module were obtained by hanging-drop vapor diffusion by mixing HsORC1/4/5 at 10 mg/ml with an equal volume of a buffer of 22% ethylene glycol and 8% propylene glycol. Crystals appeared overnight at 17°C, were harvested quickly without additional cyroprotectant, and flash frozen by plunging into liquid nitrogen. We should note that crystals disappear within 30 hr if not harvested, possibly due to slow ATP hydrolysis in the crystals.

X-ray diffraction data were collected to 3.4 Å resolution at beamline ID19 at the Argonne National Laboratory (APS). Diffraction data were indexed, integrated and scaled using XDS (Kabsch, 1993) and aP_scale (Vonrhein et al., 2011), respectively, via the AUTOPROC (Vonrhein et al., 2011). The structure of HsORC1/4/5 was determined by molecular replacement with PHASER (McCoy et al., 2007) using Drosophila ORC (DmORC) PDB entry 4XGC (DmORC1 residues A820-A919, DmORC4 residues D5-D457 and DmORC5 residues E1-E182) (Bleichert et al., 2015) as search model. It crystallized with two independent complexes in the asymmetric unit. Initial MR phases were further improved by twofold averaging, solvent flattening and automated model rebuilding as implemented in PHENIX (mr_rosetta) (Terwilliger et al., 2012), resulting in a partially refined model that was completed with manual correction using COOT (Emsley et al., 2010). The anomalous differences for the SeMet peak data confirmed the sequence register and accuracy of the model. The geometry of the refined model was further improved using PHENIX (rosetta.refine) (DiMaio et al., 2013) and the inclusion of riding hydrogens. The six ATP molecules were modeled into the σA-weighted Fo-Fc difference electron-density map (Figure 1—figure supplement 2) toward the end of protein refinement. The final model was refined to an Rwork/Rfree of 0.242/0.281 by using two-fold noncrystallographic symmetry restraints, TLS and isotropic B-factor refinement as implemented in PHENIX (Adams et al., 2010). It contains two HsORC1/4/5 particles in the asymmetric unit, six ATP molecules and four Mg2+ ions. The final model was validated with MolProbity (Davis et al., 2007), with no Ramachandran outliers (Table 1).

The two complexes are very similar with a RMSD of 0.53 Å on Cα’s. The copy of the motor module represented by chain A (HsORC1), chain D (HsORC4) and chain E (HsORC5) had somewhat better electron density and was used for all structural analysis described in the manuscript.

Crystals of HsORC2/3 were obtained by hanging-drop vapor diffusion after mixing protein at 10 mg/ml with an equal volume of 9.5% PEG20000, 50 mM tri-Sodium-citrate, 60 mM Citric Acid. These crystals typically grew overnight as thin plates, with the thinnest dimension rarely exceeding 0.01 mm. They belong to monoclinic space group P21 with four HsORC2/3 particles in the asymmetric unit and diffracted to 6 Å resolution. The crystals were found to possess pseudo merohedral twinning as well as translational non-crystallographic symmetry.

Nonetheless, a molecular replacement solution was obtained using a homology model for HsORC2 and HsORC3 built from the Drosophila ORC2 and ORC3 structures (PDB ID: 4XGC chains B residues 326 to 508 and C residues 46 to 721) by Sculptor and that was further energy minimized in Rosetta. The correct molecular replacement solution was obtained using PHASER-MR with four HsORC2/3 molecules placed in asymmetric unit by taking into account translational NCS. Domain adjustments against a four-fold NCS averaged Phaser 2Fo-Fc sigma weighted map were done by iterative application of the PHENIX model_morph procedure.

The model was subsequently refined against pseudo-merohedrally twinned data to a resolution of 6 Å as implemented in PHENIX. The twinning operator (h,-k, -l) and a twin fraction of 0.35 together with NCS, Ramachandran and secondary structure restraints. The refinement procedure produced a clear electron-density map to a resolution of about 6 Å, which showed α-helical features but had insufficient resolution for side-chain rebuilding (Figure 4—figure supplement 1) (Table 2). The WHD of ORC2 could not be unequivocally placed in this electron-density map. From packing considerations, it could assume the same position as in the fly complex only in two of the complexes, but this would cause significant clashes in the other two molecules. Although we do not consider this to be a well-refined crystal structure of the HsORC2/3 subcomplex, we do consider this to be a good docking model for the cryoEM structure (see below).

Cryo-electron microscopy

Sample preparation and data collection

Request a detailed protocol

HsORC1-5 was diluted to ~0.6 mg/ml in 0.5 mM ATPγS and 20 mM magnesium acetate buffer. Negative-stain electron microscopy was used to confirm the sample homogeneity and to determine an initial 3D reconstruction at ~20 Å by using a low-pass filtered (55 Å) ScORC EM map as the starting model (Figure 4—figure supplement 2 and 3). For cryoEM grid preparation, we applied 2.5 μl of HsORC1-5 at a final concentration of 0.6 mg/ml to a glow-discharged C-flat 1.2/1/3 holey carbon grid, incubated for 10 s at 6°C and 90% humidity, blotted for 3.5 s, and then plunged the grid into liquid ethane using an FEI Vitrobot IV (Hillsboro, OR). The grids were loaded into an FEI Titian Krios electron microscope operated at a high tension of 300 kV and images were collected semi-automatically with SerialEM (Mastronarde, 2005) under low-dose mode at a magnification of ×29,000 and a pixel size of 1.01 Å, with an under-focus range of 1.5 to 3.5 μm. A Gatan (Pleasanton, CA) K2 summit direct electron detector was used under super-resolution mode for image recording. The dose rate was 10 electrons per pixel per second with 5 s total exposure time. The total dose was divided into a 25-frame movie with a 0.2 s exposure per frame.

Image processing and 3D reconstruction

Request a detailed protocol

2765 raw movie micrographs were collected (Figure 4—figure supplement 4). The movie frames were first aligned and superimposed using the Motioncorr program (Li et al., 2013). Contrast transfer function parameters of each aligned micrograph were calculated using the program CTFFIND4 (Rohou and Grigorieff, 2015). All remaining steps, including semiautomatic particle picking, 2D classification, 3D classification, 3D refinement, and density map post-processing were performed using Relion-1.4 (Scheres, 2015). Many particles appeared to be disassociated HsORC1/4/5 and HsORC2/3 subcomplexes. Guided by several published homologous ORC structures from yeast and Drosophila, we were able to manually select intact particles. We manually picked ~3000 particles in different views to generate initial 2D averages, which were used as templates for subsequent automatic particle selection (Figure 4—figure supplement 4). Automatic particle selection was then performed for the entire data set. 532,782 particles were initially selected. The particles were then carefully examined and ‘bad’ particles were removed. 2D classifications of all remaining particles were performed (Figure 4—figure supplement 4c) and particles in unrecognizable or partial classes by visual inspection were removed. Particles were then sorted by similarity to the 2D references; the 10% of particles with the lowest z-scores were deleted from the particle pool. A total of 100,543 particles were used for 3D classification (Figure 4—figure supplement 5). We derived six 3D models from the dataset and found only one model suitable for further refinement; the other five models were distorted or partial structures and those particles were discarded, leading to a dataset size of 10,357 particles. This selection was aided by significant prior knowledge of the general shape and size of the ORC structure. Because of the small dataset size and somewhat uneven angular distribution, we took a conservative approach and binned the particle images by a factor of 4, leading to a final sampling of 4.04 Å per pixel. The binned dataset was used for further 3D refinement, resulting in the described 3D-density map. The resolution of the map was estimated to be 18 Å by the so-called gold standard Fourier shell correlation, at a correlation cutoff of 0.143. However, the FSC curve started to drop off at a resolution as low as 30 Å, likely due to uneven angular distribution (Figure 4—figure supplement 6), suggesting that the map may only contain reliable information up to ~20 Å resolution (Figure 4—figure supplement 7). The 3D-density maps were corrected for the detector modulation transfer function and sharpened by applying a negative B-factor of −479 Å2. Additional statistics are shown in Table 3. The final 3D map was used rigid body docking of the HsORC1/4/5 and HsORC2/3 structures.

Table 3

Cryo-EM data collection and refinement statistics of HsORC1-5.

https://doi.org/10.7554/eLife.20818.026

Data Collection

EM equipment

FEI Titan Krios

Voltage (kV)

300

Detector

Gatan K2

Pixel size (Å)

1.01

Electron dose (e-/Å2)

50

Defocus range (µm)

−1.5 ~ −3.5

Reconstruction

Software

RELION 1.4

Number of final particles

Resolution (Å)

10,357

20

Map sharpening B-factor (Å2)

−479

Model building

Request a detailed protocol

The HsORC motor module was easily docked into the EM reconstruction density map with Chimera (Pettersen et al., 2004). The HsORC2/3 model without the HsORC2 WHD was then docked into the map, followed by a homology model of the WHD of HsORC5 built using the fly homolog. A blob of density emanating from the RecA-fold domain of ORC2 was a clear indication for the positioning of the WHD of HsORC2, using the available structure (PDB code 5C8H). Refinement was done by keeping the motor module ORC1/4/5, the RecA fold of ORC2, the complete ORC3, the WHD of ORC5 and the WHD of ORC2 as discrete rigid bodies. Flexible fitting resulted in reorientation of ORC subunits without biological justification, and therefore not used.

ORC ATPase assays

Request a detailed protocol

Reactions (20 μl) were typically carried out in buffer containing 50 mM Hepes-NaOH (pH 7.5), 200 mM KCl, 5 mM MgCl2, 5 mM DTT, 50 μM cold ATP, 5 μCi [γ -32P] ATP (PerkinElmer, Waltham, MA) and 10 μM HsORC1/4/5 or HsORC1-5 complex as indicated (unless stated otherwise). Reactions were incubated at 37°C for 30 min and quenched with 2 μl of 500 mM EDTA (pH 8.0). 2 μl of each reaction was then spotted on a PEI-cellulose TLC plate (Selecto Scientific, Suwanee, GA), developed using 0.8 M LiCl and 0.8 M acetic acid as solvent, and quantified on a Phosphorimager (GE Healthcare Life Sciences, Pittsburgh, PA). For kinetic analyses, 10 μM HsORC was incubated with a titration of total ATP concentrations (cold and radioactive) of 12.5–200 μM in the aforementioned buffer. Reaction rate remained linear at least for 30 min (data not shown), and the ATP hydrolysis rate was used as the initial velocity for kinetic analyses. Initial velocity was plotted against total ATP concentrations for Michaelis-Menten equation fitting (GraphPad Prism, La Jolla, CA).

Figures were generated by using PyMol (The PyMOL Molecular Graphics System, Version 1.8 Schrödinger, Cambridge, MA).

Accession codes

Request a detailed protocol

Coordinates and structure factors for HsORC1/4/5 (PDB ID 5UJ7) and HsORC2/3 (PDB ID 5UJ8) have been deposited to the Protein Data Bank. Note that HsORC2/3 is at low resolution, but suitable as a docking model for the cryoEM 3D map. The cryoEM-density map (EMD-8541) has been deposited to the Electron Microscopy Data Bank, and the coordinates for the docked HsORC1-5 model has been deposited to the Protein Data Bank (PDB ID 5UJM).

Data availability

The following data sets were generated

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica Section D Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Foss M
    2. Rine J
    (1993)
    Molecular definition of the PAS1-1 mutation which affects silencing in Saccharomyces cerevisiae
    Genetics 135:931–935.

Decision letter

  1. John Kuriyan
    Reviewing Editor; Howard Hughes Medical Institute, University of California, Berkeley, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Structure of the active form of human Origin Recognition Complex and its ATPase motor module" for consideration by eLife. Your article has been reviewed by John Kuriyan as the Senior and Reviewing Editor, three peer reviewers, and another Reviewing Editor with expertise in electron cryomicroscopy. As you will see below, the review has identified certain important issues that need to be addressed before the paper can be considered further.

Review:

This manuscript from Joshua-Tor and colleagues reports structural studies of the Origin Recognition Complex, combining crystal structures and cryoEM. The structure of active ORC has been sought for a long time.

Specifically, in this manuscript, Joshua-Tor and coworkers report the ~3.4 Å resolution crystal structure of the motor module of human origin recognition complex (HsORC), which consists of ORC1, ORC4 and ORC5 subunits, and ATPase-activity analysis of the three-subunit motor module containing disease-related mutations. To complement and confirm the crystal structure, the authors also report a cryo-EM structure of the five-subunit HsORC1-5 with the sixth subunit CDC6 missing. This follows work from the Berger lab published in Nature last year of the (almost) complete structure of the Drosophila Orc. The Berger structure was of the inactive (nucleotide free) state of the complex and it also lacked the N-terminal regions of Orc1, Orc2 and Orc3 and the Orc6 TFIIB region. Similar deletions were used for these human ORC sub complexes in the present work (N-terminal deletions of Orc1 and Orc2 plus C-terminal deletion of Orc5). Orc6 is omitted entirely. Although the Berger crystal structure contained a more complete ORC complex from Drosophila (DmORC1-5), that structure represents a repressed state with Orc1 adopting an inactive domain arrangement. In contrast, the crystal structure of HsORC1/4/5 in the present work contains three ATPs bound at inter-subunit interfaces as expected, and the motor module is in an active form and similar to the structures of the clamp loader RFC from yeast, E. coli and T4 phage. The low resolution EM structure confirms the subunit arrangement revealed by the crystal structure and includes the two missing subunits ORC2 and ORC3. The ATPase activity assay and characterization of disease mutations further strengthen the structural results.

The reviewers recognize that the results reported here are exciting and lead to new hypotheses for ORC function/mechanism. Thus, in principle, the scope of this work makes it suitable for publication in eLife. Nevertheless, the reviewers have identified two sets of serious issues with the paper. One issue can, presumably, be dealt with through revision, but the other, concerning the cryoEM data, will require extensive reanalysis of data, or acquisition of new data. The reviewers and the editors feel that the EM analysis is essential to the conclusions of the paper, but that it will have to be significantly improved, augmented and validated before this work can be considered for publication in eLife. The reviewers also note that for the EM to support the conclusions of the paper, a resolution of 10 Å is not necessary. A reliable reconstruction at lower resolution, say 20 Å, would be fine, provided that it is indeed reliable and validated.

It is unclear to the reviewers whether the work needed to improve and validate the EM analysis is feasible in the normal two-month time frame within which we seek revisions. If it is possible to resubmit this paper within a two-month window, then we would be pleased to consider a revised version. If not, the authors may wish to dedicate more time to fixing the essential aspects of the EM analysis and either submit a new paper to eLife, or submit the work elsewhere. Please let us know how you plan to proceed.

Essential issues to fix regarding the electron microscopy:

The reviewers are concerned that there is something seriously wrong with the EM analysis, as the reconstructions represented in the figures do not square with the statistics. The only figure shown for the cryoEM structure is Figure 3 which is patently not at 9.9 Å resolution – it appears to be more like 20 Å, at best. At 10 Å resolution hints of α-helices should be visible in the density. It is also puzzling that the 2D classes in the Figure 3 supplement show detail that would be consistent with a 10 Å structure. How do these 2D classes relate to the final model? How many particles are averaged here and are these the from the final 10,000? There needs to be considerably more information to assess this and the model they present especially with respect to the Berger model of the inactive form of the complex.

From the discussion in Methods it seems they started with 530,000 particles then discarded 80% of those. The remaining 100,000 particles were divided into 6 classes and they then chose a class with just 10,000 particles, which can't even have been the largest class. This means the cryoEM structure actually represents less than 2% of the primary particles. Consequently, there is little confidence as to what this subset might represent. If it were representative of a selected subset that were, for example, a different conformation, it would still require considerable care and biochemical backup to validate this selection. A concern is that the majority of the particles may be "distressed" particles that are missing subunits, etc. The image shown in the supplementary would support this view as there seems to be many small particles that are probably partial complexes. Under such conditions, one needs to take great care (and have significant justification) in selecting out such a small subset for detailed analysis without describing what the other particles might represent.

The reviewers recognize that it can be justifiable under some circumstances to use only 10k out of 100k particles, but the micrograph in Figure 3—figure supplement 1 Figure looks quite messy. If this is a 'representative' one, then the auto-picking could have picked up a lot of bad (clung together?) particles and only a small subset would be suitable for 3D reconstruction. Is this what happened? Have the authors considered the implications of this carefully?

The 2D classes do look more detailed, but apart from two very similar views of the complex, only some classes which show what looks like partial-complexes are shown. Perhaps the angular distribution is very uneven and no sound 3D map could actually be calculated? An angular distribution plot would answer that question.

The Fourier Shell Correlation (FSC) curve (Figure 3—figure supplement 1C) is problematic. FSC curves of good cryoEM maps hover around 0.8 to 1 for most of the resolution range and then dip steeply near the resolution limit. This raises concerns regarding overfitting noise. The Methods do not mention anything about map validation. A stringent test would be to randomize all phases above 20 or 30 Å and then see if they come back during refinement. This will almost certainly show that the actual resolution is somewhere between 20 and 30 Å.

To summarize our position on the EM analysis:

There is a significant concern that the complex was either partially degraded (most likely) or that there were significant impurities in the preparation that gave rise to the mix of particle sizes. Given this, the cryoEM reconstruction needs to be carefully validated, and presented at an appropriate resolution. In reporting on their data after reanalysis, the authors should pay attention to the following points:

1) The authors should provide a display of all 2D classes, not just the best ones. The same is true for the 3D classes – all six should be shown.

2) The authors mention an initial study using negative stain. These data should be shown, including the 3D reconstruction they obtained from these data. Furthermore, they should explain how they obtained this first 3D reconstruction. Finally, was this 3D reconstruction used to initiate processing of the cryo-EM data using Relion? If not, which initial reference did they use?

3) The authors should show examples of the initial 3000 particles picked manually and the 2D class averages obtained from them that were used as templates for subsequent automatic picking. It is quite possible that this initial picking step biased the rest of the picking to favor particular views and exclude other views of the complex.

4) The authors should also explain what they think is "wrong" with the majority of particles that they call "bad".

5) The authors should show a random sampling of particles from the 10,000 particles that were used for the final 3D reconstruction, together with matching projections to show that the alignments were plausible and the 3D reconstruction is consistent with these particles.

6) In the present manuscript, the presentation of the cryo-EM structure of HsORC1-5 in Figure 3A indicates poor fitting of the ORC2 model to the density map, and there is no EM density map superimposed onto the structure in the orthogonal view shown in Figure 3B. The authors need to describe how good or bad the fit is, once the EM reconstruction is validated.

Essential revisions concerning other aspects of the paper:

The reviewers are concerned that the paper does not place this work properly in the context of the previous paper from Berger on the structure of the Drosophila ORC complex. The Introduction should begin by providing the context, outlining what is known previously at a structural level. The authors do not discuss how their structure relates to MCM loading mechanism in sufficient detail. The architectural similarities to the sliding clamp loader are noted and would naturally lead to some hypotheses for how ORC loads MCM. However, the authors don't present possible mechanisms that their structure naturally points to.

More specifically, references to the Berger structure are scant and it seems the authors describe aspects of the structure that are the same or at least very similar, which should be acknowledged. The first concession that there is any similarity is in the subsection “HsORC1 exists in an active conformation”, when they only mention the Berger work to say the architecture of the complex is similar but the conformation is different, although they provide no figure for the comparison to be assessed. In fact, the Berger coordinates were used for molecular replacement, although the methods do not say whether they were used as a single unit in each case (Orc1, 4, 5 and Orc2, 3) or the subunits were found separately. We presume the latter, since the paper suggests the conformations are different although the only comparison of the structures is of one subunit in the panel in Figure 2E. The cursory nature of the references to the Berger paper is inappropriate, when it is evident that the similarity is in fact significant.

The important difference is that the present work has crystal structures (of sub-complexes) that contain bound nucleotides. However, it is well established in these AAA systems that it is essential to have details of the strain induced around rings or spirals when nucleotides are bound, as this creates conformational changes that drive the biochemical processes. Clamp loading is one pertinent example since they draw several comparisons with that system. The explanation for now nucleotide binding induces the conformational changes observed is not well explained, and should merit additional discussion.

To summarize this aspect of the essential revisions, the paper would be substantially improved by explaining the system better to the general reader, and discussing the new findings in the context of the earlier structural results on the ORC complex, rather than (mainly) independently of them.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Structure of the active form of human Origin Recognition Complex and its ATPase motor module" for further consideration at eLife. Your article has been favorably evaluated by John Kuriyan (Senior and Reviewing Editor) and four reviewers, one of whom, Niko Grigorieff, is a member of our Board of Reviewing Editors with expertise in cryoEM.

We retain our opinion that your paper presents an important set of results. Nevertheless, based on a discussion between the reviewers and the editors, we have concluded that the paper is not yet at a stage where we are prepared to accept it at eLife. Although we usually do not go beyond one round of review, there are two issues, one major and one less critical, that cause us to return the manuscript for further revision. The major issue, as before, concerns the integrity of the electron microscopy analysis. The other issue concerns the quality of the narrative in the manuscript and the illustrations, and should be easily fixed with some attention to clarity and detail. As a reminder, eLife has no page limits, allowing authors to expand at will and to the extent they deem appropriate.

Electron Microscopy:

The authors were able to clarify/answer a few points raised in the original review:

  • They now show more than six 2D class averages, although they still do not show all the class averages they obtained. Neither do they say how many they obtained.

  • They also show more of the original data, including data from their negative-stain study and from the initial 3000 particles and resulting 2D class averages that they used as templates for particle picking.

  • They also show all six 3D classes obtained from the 100k particles selected based on the 2D classification.

  • They included an angular plot showing the determined orientations for the final 10k particles. This plot is interesting because it suggests that the problem of preferred orientation was not as severe as one might expect from the 2D class averages (which show only a few views). This means that there is a discrepancy between the plot and the 2D class averages.

  • The authors also concede that the cryo data suggests that the complex was falling apart, leading to significant heterogeneity.

  • The original claim of 10 Å resolution was toned down to ~14 Å. This is going in the right direction but maybe 20 Å might be even more appropriate.

Some of the original problems remain, including the strange-looking FSC curve, the substantial heterogeneity of the selected particles, and the extremely small percentage (2%) of data that ended up in the final reconstruction. The negative-stain data actually look quite reasonable, and we wonder if the 3D reconstruction they obtained from them would have been of better quality than the cryo-EM structure. It seems that the main problem is that the complex is falling apart during the freezing process (as seen also with many other complexes). This would explain the heterogeneity, the fact that only 2% of the particles can be merged into a 3D structure and that many particles are misaligned and thus give rise to the decent-looking angular distribution even though the 2D class averages show only a few recognizable views. The likely remaining heterogeneity and misalignment in the final 10k particles may also explain why the FSC looks so unusual. If some of the broken pieces of the complex can still be aligned to the relevant parts of the whole complex, they may still contribute some signal in the final reconstruction.

Conclusion: We believe that the cryo-EM work, as presented, has flaws and is of low quality. However, given the negative-stain structure and assuming that there is some truth in the cryo-EM structure at ~20 Å resolution, the data, processed appropriately to lower resolution, might be sufficient for what the authors want to show: activation of ORC results in an enlarged cavity for DNA and that there is a gap in the AAA ring that can be filled by ORC6.

Alternatively, given that the negative-stain reconstruction is actually quite good compared to the cryo-EM reconstruction, the authors may wish to include that either in the main analysis or it in the deposition of structures in the database.

The revised manuscript should include in the main text a discussion of the EM issues (e.g., those highlighted above) and the approaches taken to include a reliable interpretation in the final analysis. The discussion should be such that an interested reader is left with a good sense as to the extent to which the reconstruction should be trusted. It is essential that the reviewers are reassured on these points.

Manuscript text and figures:

We feel that the manuscript, as written and illustrated, falls short of presenting the work in a way that properly reflects the importance of the results. The current manuscript risks losing the attention of readers who are not well versed in the topic.

Please consider the following points seriously in preparing a revised version:

1) The Introduction is striking for its brevity, and it fails to set the stage for the general reader to appreciate the results. It consists of two paragraphs. The first is a very long run-on paragraph in which many concepts are elided. The second paragraph describes the crystal structures, but provides no introduction to the EM analysis. The Introduction should be rewritten with an eye to clarity and also to maximizing appreciation of the results.

2) The figures could be improved substantially. The views of the structures could be augmented by showing an alternative orientation in which the nucleotide coordination is emphasized rather than the overall assembly architecture. The labeling of the figures is sparse, causing the reader to strain to understand all the components. We have no set limits – take the space that you feel is appropriate to illustrate your results to best effect.

3) In comparing the structure obtained here to other structures, it is very difficult to judge changes in inter-subunit orientation. For example, in Figure 1, there is no superposition of ORC with RFC to show that the inter-subunit orientations are preserved. Likewise, one cannot readily tell that the inter-subunit orientations are preserved within ORC itself.

4) The revised manuscript mentions the crystal structure of DmORC in the Introduction, but categorically labels it as "inactive" without giving any explanation as to how "inactive" is defined or describing what the structure includes. (We appreciate what you mean, but we fear that the general reader would not.) Following a too brief discussion of the DmORC structure, the authors state that "we report the structure of human ORC in a functionally active state". But their crystal structure is of a three-subunit sub-complex and not the six-subunit human ORC. The "activity" refers to only ATP hydrolysis by the sub-complex and not initiation of DNA replication. Some explanatory text could tie this all together and present the new work in the best light.

Additional important points:

1) In the second paragraph of the subsection “The nucleotide binding sites”, the authors discuss ORC5-R104 as the tether, but it is not shown in any figure.

2) In the subsection “The nucleotide binding sites”, the entire fourth paragraph describes specific interactions between ORC proteins and ATP. However, none of these interactions are shown in figures, supplemental or otherwise. What is this analysis indicating for the reader? Why is this paragraph so important for the paper?

3) In the last paragraph of the subsection “The nucleotide binding sites”. Unclear whether the authors are referring to the R-finger or tether. To expand on this point, in the discussion of the "trigger" it would be helpful if it were explained what this means, and why the arginine presented across the subunit interface is not referred to as the trigger.

4) In the subsection “ORC ATPase levels are altered in Meier-Gorlin Syndrome mutants”, the authors argue that the ORC4-Y174C variant is hyperactive in the context of the motor module. However, this hyperactivity is invoked as a result of a single data point at high ATP concentration. How robust is this observation? This is confusing because this variant seems to have the opposite effect in the context of the ORC1-5 complex, and for the motor module the variant causes lower ATP hydrolysis at low [ATP].

5) The authors use the clamp loader structure to model DNA into the complex structure. How was this superposition performed? This point is important because superpositions onto different subunits (ORC or clamp loader) would result in slightly different orientations of DNA. Why did the authors choose this particular superposition?

6) In the last paragraph of the subsection “The DNA-binding site of HsORC”, the authors' structural analysis predicts a footprint of ~20bp. However, the yeast ORC complex has a footprint measured to be 88bp. To explain this discrepancy the authors propose a model in which the ORC complex greatly elongates upon ATP hydrolysis to extend its footprint from 20bp to 88bp. While an extension after ATP hydrolysis is feasible (and likely given the precedent of other AAA+/DNA complexes), it seems highly unlikely that the footprint of one complex is extended by over 4-fold. This would require that each subunit would protect ~15 bp, instead of the more typical 2-4bp seen in other AAA+ machines. This explanation seems so far-fetched as to be unreasonable. Please explain.

https://doi.org/10.7554/eLife.20818.035

Author response

Essential issues to fix regarding the electron microscopy:

The reviewers are concerned that there is something seriously wrong with the EM analysis, as the reconstructions represented in the figures do not square with the statistics. The only figure shown for the cryoEM structure is Figure 3 which is patently not at 9.9 Å resolution – it appears to be more like 20 Å, at best. At 10 Å resolution hints of α-helices should be visible in the density. It is also puzzling that the 2D classes in the Figure 3 supplement show detail that would be consistent with a 10 Å structure. How do these 2D classes relate to the final model? How many particles are averaged here and are these the from the final 10,000? There needs to be considerably more information to assess this and the model they present especially with respect to the Berger model of the inactive form of the complex.

We regret not providing sufficient supplemental materials in our original submission. We also recognize that the EM map was rendered at a very low threshold in the original Figure 3, which has probably led to many if not most of the concerns. We have now included the requested information in the revised manuscript.

From the discussion in Methods it seems they started with 530,000 particles then discarded 80% of those. The remaining 100,000 particles were divided into 6 classes and they then chose a class with just 10,000 particles, which can't even have been the largest class. This means the cryoEM structure actually represents less than 2% of the primary particles. Consequently, there is little confidence as to what this subset might represent. If it were representative of a selected subset that were, for example, a different conformation, it would still require considerable care and biochemical backup to validate this selection. A concern is that the majority of the particles may be "distressed" particles that are missing subunits, etc. The image shown in the supplementary would support this view as there seems to be many small particles that are probably partial complexes. Under such conditions, one needs to take great care (and have significant justification) in selecting out such a small subset for detailed analysis without describing what the other particles might represent.

We agree that the raw micrographs, 2D and 3D class images all point to the fact that the sample may be “distressed” – there were many broken sub complexes, likely ORC145 and ORC23, and there was some ice contamination. Ideally, we would have liked to continue to optimize our samples and collect new datasets. However, despite these shortcomings, we are still confident in the 3D map because of the quality of the 2D class averages and the fact that several homolog ORC structures – Drosophila and yeast – have been described in the literature, which helped with selecting the right 2D and 3D classes. As the reviewer rightly noted that our goal here is not to obtain a high-resolution structure, rather, we are only trying to obtain a basic shape for docking of the two large subcomplexes of ORC1/4/5 and ORC2/3.

The reviewers recognize that it can be justifiable under some circumstances to use only 10k out of 100k particles, but the micrograph in Figure 3—figure supplement 1 looks quite messy. If this is a 'representative' one, then the auto-picking could have picked up a lot of bad (clung together?) particles and only a small subset would be suitable for 3D reconstruction. Is this what happened? Have the authors considered the implications of this carefully?

We agree with the reviewer. We understand that selecting a small percentage of particles can be risky for a new structure without any prior structural knowledge. But in our case, we were guided by the published structures of the highly conserved yeast and Drosophila ORC complexes.

The 2D classes do look more detailed, but apart from two very similar views of the complex, only some classes which show what looks like partial-complexes are shown. Perhaps the angular distribution is very uneven and no sound 3D map could actually be calculated? An angular distribution plot would answer that question.

ORC is largely a planar structure. It looks large in side views, but rather small in top and edge-on views. The smaller views that we have included are not from broken complexes but in fact belong to the intact complex. We have provided the angular distribution plot in our revision. The distribution is not even, and there are clearly some preferred orientations, as is the case for many published cryo-EM structures. But the angular distribution was sufficient to produce a medium resolution map. We agree that the resolution would have been better if the angular distribution was more even.

The Fourier Shell Correlation (FSC) curve (Figure 3—figure supplement 1C) is problematic. FSC curves of good cryoEM maps hover around 0.8 to 1 for most of the resolution range and then dip steeply near the resolution limit. This raises concerns regarding overfitting noise. The Methods do not mention anything about map validation. A stringent test would be to randomize all phases above 20 or 30 Å and then see if they come back during refinement. This will almost certainly show that the actual resolution is somewhere between 20 and 30 Å.

We think the fact that the FSC value starts to drop so early (at ~ 1/30 Å) is due to the uneven angular distribution. Although the curve does not dip below the 0.143 threshold until 1/10 Å, there is very little information in the 3D map in the range of 1/10 – 1/14 Å range. In the revised figure, we have added a 0.5 threshold to indicate that the real information content may only reach to around 1/14 Å. This is also noted in the revised Methods and we changed the resolution reported in the main text and Table. Furthermore, we used a lower-pass filtered map (14 Å) for rigid body docking of our crystal structures.

To summarize our position on the EM analysis:

There is a significant concern that the complex was either partially degraded (most likely) or that there were significant impurities in the preparation that gave rise to the mix of particle sizes. Given this, the cryoEM reconstruction needs to be carefully validated, and presented at an appropriate resolution. In reporting on their data after reanalysis, the authors should pay attention to the following points:

1) The authors should provide a display of all 2D classes, not just the best ones. The same is true for the 3D classes – all six should be shown.

In revision, all reference-free class averages that were used to select/include raw particles are displayed. Six 3D classes are also included in Figure 3—figure supplement 5.

2) The authors mention an initial study using negative stain. These data should be shown, including the 3D reconstruction they obtained from these data. Furthermore, they should explain how they obtained this first 3D reconstruction. Finally, was this 3D reconstruction used to initiate processing of the cryo-EM data using Relion? If not, which initial reference did they use?

A representative negative stain raw image, 2D classes, and 3D map are included as new supplemental figures – Figure 3—figure supplements 2 and 3. We have explained in the revised methods section that we used a low-pass filtered (55 Å) yeast EM map as the starting model to arrive at the negative stain human ORC1-5 map, as hORC1-5 in 2D averages resemble that of the yeast ORC.

3) The authors should show examples of the initial 3000 particles picked manually and the 2D class averages obtained from them that were used as templates for subsequent automatic picking. It is quite possible that this initial picking step biased the rest of the picking to favor particular views and exclude other views of the complex.

We have included all 2D classes that were used to include raw particles. The smaller size in some classes are not broken particles, they are tilted or ‘near-top’ views.

4) The authors should also explain what they think is "wrong" with the majority of particles that they call "bad".

As shown in Figure 3—figure supplements 4 and 5, the “bad” particles were excluded at two stages – they either belonged to 2D class averages that are featureless blobs, or to the 3D classes that appear to be broken structures or don’t look like the ORC structure. Such selection was made possible by the existing structural knowledge of the well-conserved yeast and Drosophila ORC.

5) The authors should show a random sampling of particles from the 10,000 particles that were used for the final 3D reconstruction, together with matching projections to show that the alignments were plausible and the 3D reconstruction is consistent with these particles.

The truncated ORC particle is comparatively small at about ~ 200 kDa. The enlarged raw particles have little visually recognizable features for comparison with averaged images or re-projections, and therefore, are not shown. Nevertheless, two raw cryo-EM micrographs are included in the supplemental figures.

6) In the present manuscript, the presentation of the cryo-EM structure of HsORC1-5 in Figure 3A indicates poor fitting of the ORC2 model to the density map, and there is no EM density map superimposed onto the structure in the orthogonal view shown in Figure 3B. The authors need to describe how good or bad the fit is, once the EM reconstruction is validated.

An orthogonal view is presented as a supplementary figure (Figure 3—figure supplement 8) as well as a movie with a full rotation. We did not feel the resolution of the EM map warrants flexible fitting. However, we have a high degree of confidence in the crystal structures, especially that of ORC1/4/5. ORC1/4/5 fits well as a single rigid body into the density.

As mentioned in the text, we used ORC2/3 as a second rigid body, along with the homology model of HsORC5-WHD, using a similar interface to that in Drosophila, and finally docked the ORC2-WHD.

Essential revisions concerning other aspects of the paper:

The reviewers are concerned that the paper does not place this work properly in the context of the previous paper from Berger on the structure of the Drosophila ORC complex. The Introduction should begin by providing the context, outlining what is known previously at a structural level.

We now refer to the structure of Drosophila ORC, as well as the low resolution EM structures early in the Introduction of the manuscript.

The authors do not discuss how their structure relates to MCM loading mechanism in sufficient detail. The architectural similarities to the sliding clamp loader are noted and would naturally lead to some hypotheses for how ORC loads MCM. However, the authors don't present possible mechanisms that their structure naturally points to.

Although it is not known exactly how ORC and CDC6 cooperate to load a circular MCM2-7 hexamer onto double stranded DNA, we now discuss at the end of the Discussion section some ideas about this process based on the current structure and known biochemistry using the yeast system.

More specifically, references to the Berger structure are scant and it seems the authors describe aspects of the structure that are the same or at least very similar, which should be acknowledged. The first concession that there is any similarity is in the subsection “HsORC1 exists in an active conformation”, when they only mention the Berger work to say the architecture of the complex is similar but the conformation is different, although they provide no figure for the comparison to be assessed.

A comparison between the structures certainly exists already in the original manuscript. A specific paragraph regarding the differences between ORC1 in human and fly is included. In addition, a comparison between ORC1 from human and fly are illustrated in Figure 2E and it’s positioning in the complex in Figure 3C in the main text. Two of the four figures in the main text include a comparison with the fly structure. In addition, we included an animation illustrating a morphing between the two structures as supplementary information, for the reader to assess the comparison more closely.

However, in the revised manuscript, we refer to the fly ORC in the introduction. We added the use of portions of DmORC as a search model for structure determination in the opening of the section describing the structure of the HsORC motor module in the main text in addition to the Methods section where it was already described in more detail. The use of the DmORC structure for HsORC2-ORC3 is already described in the main text of the original submission.

We now also add an additional figure of a side-by-side comparison of the two ORC complexes (Figure 4B).

In fact, the Berger coordinates were used for molecular replacement, although the methods do not say whether they were used as a single unit in each case (Orc1, 4, 5 and Orc2, 3) or the subunits were found separately. We presume the latter, since the paper suggests the conformations are different although the only comparison of the structures is of one subunit in the panel in Figure 2E. The cursory nature of the references to the Berger paper is inappropriate, when it is evident that the similarity is in fact significant.

We are surprised by this comment since in the original manuscript the exact residue numbers for the MR search model was provided (see second paragraph of Protein Crystallization and Data Collection section for ORC1/4/5 and in the fifth paragraph of the same section for ORC2/3). Nevertheless, as stated above, we added a clear statement regarding the use of the fly structure in the main text in the opening sentence of the description of the structure of the motor module, and a statement regarding the use of this structure in the section describing ORC2/3 was already present. A statement regarding the similarity between ORC4 and ORC5 of the two complexes was also already present in the original manuscript. However, now we have also added an RMSD between the ORC4-ORC5 subunits in fly vs. human, to underscore the similarity. As also stated above, we added a figure with a side-by-side comparison of the more complete complexes.

The important difference is that the present work has crystal structures (of sub-complexes) that contain bound nucleotides.

It would have been nice and straightforward if the presence of nucleotides had been sufficient to explain the difference in the states between the two structures. However, the Berger paper refers to another structure, which includes ATPγS that has a similar conformation to the structure devoid of nucleotides, thus a similar inactive conformation. They even show electron density maps for the nucleotides, albeit with somewhat weak density.

However, it is well established in these AAA systems that it is essential to have details of the strain induced around rings or spirals when nucleotides are bound, as this creates conformational changes that drive the biochemical processes. Clamp loading is one pertinent example since they draw several comparisons with that system. The explanation for now nucleotide binding induces the conformational changes observed is not well explained, and should merit additional discussion.

We agree that AAA+ proteins change conformation in response to nucleotide hydrolysis, but in the case of ORC-CDC6, exactly how this happens in still not resolved, even in the better characterized yeast system. The high-resolution structure provided here will be a valuable guide to designing further tests of the ATPase activity. In this regard, the Meier-Gorlin mutation in ORC1 described here will be a valuable reagent.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

[…] Conclusion: We believe that the cryo-EM work, as presented, has flaws and is of low quality. However, given the negative-stain structure and assuming that there is some truth in the cryo-EM structure at ~20 Å resolution, the data, processed appropriately to lower resolution, might be sufficient for what the authors want to show: activation of ORC results in an enlarged cavity for DNA and that there is a gap in the AAA ring that can be filled by ORC6.

Alternatively, given that the negative-stain reconstruction is actually quite good compared to the cryo-EM reconstruction, the authors may wish to include that either in the main analysis or it in the deposition of structures in the database.

The revised manuscript should include in the main text a discussion of the EM issues (e.g., those highlighted above) and the approaches taken to include a reliable interpretation in the final analysis. The discussion should be such that an interested reader is left with a good sense as to the extent to which the reconstruction should be trusted. It is essential that the reviewers are reassured on these points.

We thank the reviewer for the suggestions. In the revised text, we note: “The purified HsORC1-5 described here is a fairly unstable complex, consistent with the dynamic assembly and disassembly of HsORC in vivo. […] Thus, we reasoned that using this subset of particles in order to obtain a low-resolution structure into which we could fit the crystal structures of the subcomplexes (ORC1/4/5 and ORC2/3) was warranted.”

We agree with the reviewer that the negative stain map looks quite good, because the particle appeared stable and had good contrast in negative stain. But the 3D map is slightly distorted, probably due to the flattening effect by the staining procedure or binding on the carbon film, such that the map does not fit well with the crystal structure in the ORC2/ORC3 region. However, the cryo-EM, derived using the staining map as a starting model, fits much better to the crystal structures. We therefore present both negative stain and cryo-EM maps in the manuscript.

To address the reviewer’s concern on the very small percentage of the particles included in the final dataset, we have 4x binned the particles to limit the information used in particle alignment. Refinement of the binned dataset resulted in a 3D map with an estimated resolution of 18 Å. We further explained in the text that the FSC curve dips well before 18Å, so the map may only contain reliable information up to ~ 20 Å. And we listed the resolution in Table 2 as 20 Å rather than 18 Å.

We believe that this resolution is satisfactory for what we wanted to achieve here – obtain a suitable map into which we could fit the independently obtained crystal structures. As can be seen, the crystal structures fit extremely well into the EM map. We believe that the EM data is satisfactory for this very unstable complex.

Manuscript text and figures:

We feel that the manuscript, as written and illustrated, falls short of presenting the work in a way that properly reflects the importance of the results. The current manuscript risks losing the attention of readers who are not well versed in the topic.

Please consider the following points seriously in preparing a revised version:

1) The Introduction is striking for its brevity, and it fails to set the stage for the general reader to appreciate the results. It consists of two paragraphs. The first is a very long run-on paragraph in which many concepts are elided. The second paragraph describes the crystal structures, but provides no introduction to the EM analysis. The Introduction should be rewritten with an eye to clarity and also to maximizing appreciation of the results.

We have revised the Introduction extensively and highlighted the importance of this work in light of what is known in the field. We discuss the previous work in more detail and provide clearer explanations regarding the activity/inactivity issue. We have also highlighted in the new Introduction the surprising structural similarity between ORC-CDC6 and the RFC-like DNA polymerase clamp loaders, and now refer to the EM analysis.

2) The figures could be improved substantially. The views of the structures could be augmented by showing an alternative orientation in which the nucleotide coordination is emphasized rather than the overall assembly architecture. The labeling of the figures is sparse, causing the reader to strain to understand all the components. We have no set limits – take the space that you feel is appropriate to illustrate your results to best effect.

Figures with new views were added in the main text and as supplementary figures. Labels were also added:

Figure 1: new view and labels added.

Figure 1 was also split so that the old Figure 1C is now Figure 2.

Figure 3 (old Figure 2): expanded view for Figure 3B; new labels on Figure 3A, B, C.

New Figure 4 (old Figure 3): and added new labels.

New Figure 3—figure supplement 1.

New Figure 4—figure supplements 5, 6, 7 and 8 (and added new labels).

3) In comparing the structure obtained here to other structures, it is very difficult to judge changes in inter-subunit orientation. For example, in Figure 1, there is no superposition of ORC with RFC to show that the inter-subunit orientations are preserved. Likewise, one cannot readily tell that the inter-subunit orientations are preserved within ORC itself.

It would be very difficult to show a superposition with the clamp loaders because of their multi-subunit nature. We think that the side-by-side figure depicts the similarities quite nicely. We think that the similarities are fairly obvious. We also don’t mean to imply that they superimpose perfectly. This is not the case even within the RFC family. For example, the relative orientation between the subunits within the RFC family range between 56° and 74° in rotation and 2.8 to 8.0 Å in rise, excluding a couple of clamp loaders that are in a non-active conformation, which deviate even more significantly.

Therefore, the differences between these rotations within ORC are smaller than the range between clamp loaders. We added the precise numbers for ORC, the ranges for RFC and that ORC is on the shallow side. We also noted in the figure legend that the alignment was based on the subunit depicted in cyan (ORC4 in our case).

4) The revised manuscript mentions the crystal structure of DmORC in the Introduction, but categorically labels it as "inactive" without giving any explanation as to how "inactive" is defined or describing what the structure includes. (We appreciate what you mean, but we fear that the general reader would not.) Following a too brief discussion of the DmORC structure, the authors state that "we report the structure of human ORC in a functionally active state". But their crystal structure is of a three-subunit sub-complex and not the six-subunit human ORC. The "activity" refers to only ATP hydrolysis by the sub-complex and not initiation of DNA replication. Some explanatory text could tie this all together and present the new work in the best light.

We expanded the Introduction and discussion regarding ATP hydrolysis by ORC, the importance of the different ATP sites and clarified what we mean by “active” and “inactive”. We also expanded the discussion on the structure of DmORC, so that our contribution is better appreciated in light of the known structure. The structure is not just the active, three-subunit motor domain, but we describe the structure of the 5-subunit complex and measure ATPase activity of the entire 5-subunit complex.

Additional important points:

1) In the second paragraph of the subsection “The nucleotide binding sites”, the authors discuss ORC5-R104 as the tether, but it is not shown in any figure.

We added a supplementary figure showing this interaction.

2) In the subsection “The nucleotide binding sites”, the entire fourth paragraph describes specific interactions between ORC proteins and ATP. However, none of these interactions are shown in figures, supplemental or otherwise. What is this analysis indicating for the reader? Why is this paragraph so important for the paper?

Since we are describing the ATP binding sites, we included the contact with the base for completeness. We have added supplementary figures to this revision to illustrate these contacts.

3) In the last paragraph of the subsection “The nucleotide binding sites”. Unclear whether the authors are referring to the R-finger or tether. To expand on this point, in the discussion of the "trigger" it would be helpful if it were explained what this means, and why the arginine presented across the subunit interface is not referred to as the trigger.

There has been a bit of confusion over the years regarding how the three basic residues opposite the Walker A and Walker B are named. There is usually an R-finger, but this is different in different ATPases – most notably the R-finger of the F1 ATPase refers to the first arginine, whereas in some of the helicases the R-finger is the middle one. However, it appears that their position is linked more appropriately to their role in ATP hydrolysis in these types of molecular machines than the names they were initially given. We therefore tried to sort this out a few years ago, so as to be able to be more explicit when referring to these residues across the different types of these multi-subunit ATPases. We named these basic residues according to their role. This was published a few years ago in a review we wrote. However, since this is not widely used yet, we did explain what we meant by “trigger” etc. in the subsection “The nucleotide binding sites”, nevertheless, more was added for additional clarification. We also added labels in Figure 2. In the case of basic residues on ORC3 for the ORC5-ORC3 interface, we clarified what we are referring to in the text.

4) In the subsection “ORC ATPase levels are altered in Meier-Gorlin Syndrome mutants”, the authors argue that the ORC4-Y174C variant is hyperactive in the context of the motor module. However, this hyperactivity is invoked as a result of a single data point at high ATP concentration. How robust is this observation? This is confusing because this variant seems to have the opposite effect in the context of the ORC1-5 complex, and for the motor module the variant causes lower ATP hydrolysis at low [ATP].

The observation is indeed robust and was therefore included. As seen in the figure, the error bar is very small and this result is reproducible with different protein preparations. We noted already in the text that the effect is different in the context of ORC1-5. It appears that ORC2/3 have the effect of keeping the complex in check.

5) The authors use the clamp loader structure to model DNA into the complex structure. How was this superposition performed? This point is important because superpositions onto different subunits (ORC or clamp loader) would result in slightly different orientations of DNA. Why did the authors choose this particular superposition?

We elaborated on the exact way this was performed in the main text, as well as the reasoning behind our choice of T4-gp44.

6) In the last paragraph of the subsection “The DNA-binding site of HsORC”, the authors' structural analysis predicts a footprint of ~20bp. However, the yeast ORC complex has a footprint measured to be 88bp. To explain this discrepancy the authors propose a model in which the ORC complex greatly elongates upon ATP hydrolysis to extend its footprint from 20bp to 88bp. While an extension after ATP hydrolysis is feasible (and likely given the precedent of other AAA+/DNA complexes), it seems highly unlikely that the footprint of one complex is extended by over 4-fold. This would require that each subunit would protect ~15 bp, instead of the more typical 2-4bp seen in other AAA+ machines. This explanation seems so far-fetched as to be unreasonable. Please explain.

We agree with the reviewers and changed the discussion regarding the possible role for ATP hydrolysis by ORC. This is now described in a new subsection.

https://doi.org/10.7554/eLife.20818.036

Article and author information

Author details

  1. Ante Tocilj

    1. W. M. Keck Structural Biology Laboratory, Cold Spring Harbor, New York, United States
    2. Howard Hughes Medical Institute, Cold Spring Harbor, New York, United States
    3. Cold Spring Harbor Laboratory, Cold Spring Harbor, New York, United States
    Contribution
    AT, Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    The authors declare that no competing interests exist.

  2. Kin Fan On

    1. W. M. Keck Structural Biology Laboratory, Cold Spring Harbor, New York, United States
    2. Howard Hughes Medical Institute, Cold Spring Harbor, New York, United States
    3. Cold Spring Harbor Laboratory, Cold Spring Harbor, New York, United States
    Contribution
    KFO, Conceptualization, Data curation, Formal analysis, Validation, Visualization, Methodology, Writing—original draft
    Competing interests
    The authors declare that no competing interests exist.

  3. Zuanning Yuan

    1. Biology Department, Brookhaven National Laboratory, New York, United States
    2. Department of Biochemistry and Cell Biology, Stony Brook University, Stony Brook, United States
    Contribution
    ZY, Data curation, Formal analysis, Validation, Visualization
    Competing interests
    The authors declare that no competing interests exist.

  4. Jingchuan Sun

    Biology Department, Brookhaven National Laboratory, New York, United States
    Present address
    Van Andel Research Institute, Grand Rapids, United States
    Contribution
    JS, Data curation, Formal analysis, Validation, Visualization, Methodology
    Competing interests
    The authors declare that no competing interests exist.

  5. Elad Elkayam

    1. W. M. Keck Structural Biology Laboratory, Cold Spring Harbor, New York, United States
    2. Howard Hughes Medical Institute, Cold Spring Harbor, New York, United States
    3. Cold Spring Harbor Laboratory, Cold Spring Harbor, New York, United States
    Contribution
    EE, Data curation, Formal analysis
    Competing interests
    The authors declare that no competing interests exist.

  6. Huilin Li

    1. Biology Department, Brookhaven National Laboratory, New York, United States
    2. Department of Biochemistry and Cell Biology, Stony Brook University, Stony Brook, United States
    Present address
    Van Andel Research Institute, Grand Rapids, United States
    Contribution
    HL, Conceptualization, Data curation, Formal analysis, Supervision, Validation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.

  7. Bruce Stillman

    Cold Spring Harbor Laboratory, Cold Spring Harbor, New York, United States
    Contribution
    BS, Conceptualization, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    stillman@cshl.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9453-4091

  8. Leemor Joshua-Tor

    1. W. M. Keck Structural Biology Laboratory, Cold Spring Harbor, New York, United States
    2. Howard Hughes Medical Institute, Cold Spring Harbor, New York, United States
    3. Cold Spring Harbor Laboratory, Cold Spring Harbor, New York, United States
    Contribution
    LJ, Conceptualization, Data curation, Supervision, Funding acquisition, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    leemor@cshl.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8185-8049

Funding

National Institute of General Medical Sciences (R01-GM111742)

  • Huilin Li

National Cancer Institute (P01-CA13016)

  • Bruce Stillman

Howard Hughes Medical Institute

  • Leemor Joshua-Tor

National Institute of General Medical Sciences (R01-GM45436)

  • Bruce Stillman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Joshua-Tor laboratory for helpful comments and suggestions. We thank Jonathan Ipsaro for his artistry in producing Figure 6b. We thank Stephen Ginell and Boguslaw Nocek (SBC) and Raj Rajashankar, David Neau and Jonathan Schuermann (NE-CAT) at the Advanced Light Source, Argonne National Laboratory. We thank Zhiheng Yu, Chuan Hong and Rick Huang at Janelia Research Campus of HHMI for assistance with cryoEM data collection. We thank the CSHL Mass Spectrometry Shared Resource which is supported by Cancer Center Support Grant 5P30CA045508. This work was supported by NIH grants R01-GM111742 (to HL),R01-GM45436 and P01-CA13016 (to BS), the Robertson Research Fund of Cold Spring Harbor Laboratory and the Cold Spring Harbor Laboratory Women in Science Award (to LJ). LJ is an investigator of the Howard Hughes Medical Institute.

Reviewing Editor

  1. John Kuriyan, Howard Hughes Medical Institute, University of California, Berkeley, United States

Version history

  1. Received: August 22, 2016
  2. Accepted: January 15, 2017
  3. Accepted Manuscript published: January 23, 2017 (version 1)
  4. Accepted Manuscript updated: January 24, 2017 (version 2)
  5. Version of Record published: February 3, 2017 (version 3)

Copyright

© 2017, Tocilj et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,028
    Page views
  • 879
    Downloads
  • 36
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Ante Tocilj
  2. Kin Fan On
  3. Zuanning Yuan
  4. Jingchuan Sun
  5. Elad Elkayam
  6. Huilin Li
  7. Bruce Stillman
  8. Leemor Joshua-Tor
(2017)
Structure of the active form of human origin recognition complex and its ATPase motor module
eLife 6:e20818.
https://doi.org/10.7554/eLife.20818

Categories and tags

Research organism

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics

    The neuronal calcium sensor NCS-1 regulates the phosphorylation state and activity of the Ga chaperone and GEF Ric-8A

    Daniel Muñoz-Reyes, Levi J McClelland ... Maria Jose Sanchez-Barrena
    Research Article

    The Neuronal Calcium Sensor 1, an EF-hand Ca2+ binding protein, and Ric-8A coregulate synapse number and probability of neurotransmitter release. Recently, the structures of Ric-8A bound to Ga have revealed how Ric-8A phosphorylation promotes Ga recognition and activity as a chaperone and guanine nucleotide exchange factor. However, the molecular mechanism by which NCS-1 regulates Ric-8A activity and its interaction with Ga subunits is not well understood. Given the interest in the NCS-1/Ric-8A complex as a therapeutic target in nervous system disorders, it is necessary to shed light on this molecular mechanism of action at atomic level. We have reconstituted NCS-1/Ric-8A complexes to conduct a multimodal approach and determine the sequence of Ca2+ signals and phosphorylation events that promote the interaction of Ric-8A with Ga. Our data show that the binding of NCS-1 and Ga to Ric-8A are mutually exclusive. Importantly, NCS-1 induces a structural rearrangement in Ric-8A that traps the protein in a conformational state that is inaccessible to Casein Kinase II-mediated phosphorylation, demonstrating one aspect of its negative regulation of Ric-8A-mediated G-protein signaling. Functional experiments indicate a loss of Ric-8A GEF activity towards Ga when complexed with NCS-1, and restoration of nucleotide exchange activity upon increasing Ca2+ concentration. Finally, the high-resolution crystallographic data reported here define the NCS-1/Ric-8A interface and will allow the development of therapeutic synapse function regulators with improved activity and selectivity.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics

    Baited reconstruction with 2D template matching for high-resolution structure determination in vitro and in vivo without template bias

    Bronwyn A Lucas, Benjamin A Himes, Nikolaus Grigorieff
    Research Advance

    Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.

    1. Plant Biology
    2. Structural Biology and Molecular Biophysics

    Vicia faba SV channel VfTPC1 is a hyperexcitable variant of plant vacuole Two Pore Channels

    Jinping Lu, Ingo Dreyer ... Rainer Hedrich
    Research Article

    To fire action-potential-like electrical signals, the vacuole membrane requires the two-pore channel TPC1, formerly called SV channel. The TPC1/SV channel functions as a depolarization-stimulated, non-selective cation channel that is inhibited by luminal Ca2+. In our search for species-dependent functional TPC1 channel variants with different luminal Ca2+ sensitivity, we found in total three acidic residues present in Ca2+ sensor sites 2 and 3 of the Ca2+-sensitive AtTPC1 channel from Arabidopsis thaliana that were neutral in its Vicia faba ortholog and also in those of many other Fabaceae. When expressed in the Arabidopsis AtTPC1-loss-of-function background, wild-type VfTPC1 was hypersensitive to vacuole depolarization and only weakly sensitive to blocking luminal Ca2+. When AtTPC1 was mutated for these VfTPC1-homologous polymorphic residues, two neutral substitutions in Ca2+ sensor site 3 alone were already sufficient for the Arabidopsis At-VfTPC1 channel mutant to gain VfTPC1-like voltage and luminal Ca2+ sensitivity that together rendered vacuoles hyperexcitable. Thus, natural TPC1 channel variants exist in plant families which may fine-tune vacuole excitability and adapt it to environmental settings of the particular ecological niche.
