The angiopoietin-like protein ANGPTL4 catalyzes unfolding of the hydrolase domain in lipoprotein lipase and the endothelial membrane protein GPIHBP1 counteracts this unfolding

  1. Simon Mysling
  2. Kristian Kølby Kristensen
  3. Mikael Larsson
  4. Oleg Kovrov
  5. André Bensadouen
  6. Thomas JD Jørgensen
  7. Gunilla Olivecrona
  8. Stephen G Young
  9. Michael Ploug  Is a corresponding author
  1. Rigshospitalet, Denmark
  2. University of Copenhagen, Denmark
  3. University of Southern Denmark, Denmark
  4. University of California, Los Angeles, United States
  5. Umeå University, Sweden
  6. Cornell University, United States
Research Advance
  • Cited 26
  • Views 900
  • Annotations
Cite this article as: eLife 2016;5:e20958 doi: 10.7554/eLife.20958

Abstract

Lipoprotein lipase (LPL) undergoes spontaneous inactivation via global unfolding and this unfolding is prevented by GPIHBP1 (Mysling et al., 2016). We now show: (1) that ANGPTL4 inactivates LPL by catalyzing the unfolding of its hydrolase domain; (2) that binding to GPIHBP1 renders LPL largely refractory to this inhibition; and (3) that both the LU domain and the intrinsically disordered acidic domain of GPIHBP1 are required for this protective effect. Genetic studies have found that a common polymorphic variant in ANGPTL4 results in lower plasma triglyceride levels. We now report: (1) that this ANGPTL4 variant is less efficient in catalyzing the unfolding of LPL; and (2) that its Glu-to-Lys substitution destabilizes its N-terminal α-helix. Our work elucidates the molecular basis for regulation of LPL activity by ANGPTL4, highlights the physiological relevance of the inherent instability of LPL, and sheds light on the molecular defects in a clinically relevant variant of ANGPTL4.

https://doi.org/10.7554/eLife.20958.001

Introduction

The intravascular hydrolysis of triglycerides in triglyceride-rich lipoproteins (TRLs) by lipoprotein lipase (LPL) is an efficient mechanism for delivering lipid nutrients to vital tissues (e.g., heart, skeletal muscle, adipose tissue). LPL is secreted into the interstitial spaces by myocytes and adipocytes but is then shuttled to the capillary lumen by an endothelial transporter, glycosylphosphatidylinositol-anchored high density lipoprotein–binding protein 1 (GPIHBP1) (Fong et al., 2016). This endothelial cell LPL transporter is also required for the margination of TRLs along capillaries (Goulbourne et al., 2014). Disruption of LPL transport by either genetic ablation of GPIHBP1 in mice (Beigneux et al., 2007) or by loss-of-function missense mutations in humans leads to sustained elevations in plasma triglyceride levels—a condition known as familial chylomicronemia (Ariza et al., 2016; Beigneux et al., 2015, 2009b; Olivecrona et al., 2010; Plengpanich et al., 2014).

Appropriate distribution of lipid nutrients to tissues is, however, not only controlled by the availability of LPL and GPIHBP1, but is also tightly regulated by endogenous protein inhibitors of LPL activity (angiopoietin-like (ANGPTL) proteins 3, 4, and 8). Reciprocal regulation of ANGPTL4 expression in brown and white adipocytes with prolonged cold exposure results in high LPL activity in brown adipocytes and ensures the delivery of lipid nutrients for adaptive thermogenesis (Dijk et al., 2015). In the fed state, this balance is reversed, resulting in high LPL activity in white adipose tissue and allowing replenishment of lipid stores in white adipose tissue. The relevance of these inhibitors to LPL-mediated TRL processing in vivo is illustrated by lower plasma triglyceride levels with pharmacological inhibition or genetic ablation of ANGPTL3 or ANGPTL4 (Desai et al., 2007; Gusarova et al., 2015; Köster et al., 2005). Additional evidence for their physiological importance are provided by genome-wide association studies (GWAS), which showed that a polymorphic variant of ANGPTL4, E40K (E15K in the mature protein) is associated with mild hypotriglyceridemia and reduced risk of coronary artery disease (Dewey et al., 2016; Helgadottir et al., 2016; Stitziel et al., 2016). Throughout this paper, we will use amino acid numbering starting at the amino terminus of the mature proteins.

Although genetic and physiologic evidence emphasizes the importance of ANGPTL-mediated regulation of LPL-activity, our understanding of the biochemical and structural basis for this inhibitory activity remains incomplete. An early report suggested that the N-terminal coiled-coil domain of ANGPTL4 catalyzed the conversion of LPL homodimers to inactive LPL monomers (Sukonina et al., 2006). However, this conclusion has been challenged by a report suggesting that ANGPTL4 inhibits LPL by a reversible and noncompetitive mechanism (Lafferty et al., 2013). Thus far, this controversy is unsettled.

In the current study, we take advantage of hydrogen–deuterium exchange mass spectrometry (HDX-MS) to probe the structural changes in LPL that accompany both spontaneous decay of LPL activity and ANGPTL-mediated inhibition of LPL activity. Our data show that ANGPTL4 does in fact catalyze the irreversible inactivation of LPL and does so by promoting unfolding of LPL´s hydrolase domain. Notably, we also document that the polymorphic variant ANGPTL4E15K has a lower capacity to inhibit LPL activity and lower capacity to catalyze the unfolding of LPL´s hydrolase domain, compared with wild-type ANGPTL4. This reduced activity is associated with destabilization and cooperative unfolding of the N-terminal α-helix in ANGPTL4, a region of ANGPTL4 that had previously been implicated in LPL inhibition (Lee et al., 2009; Yau et al., 2009).

Results

Spontaneous unfolding of LPL is catalyzed by ANGPTL4

We previously showed that LPL irreversibly loses catalytic activity by undergoing a time- and temperature-dependent global unfolding of its serine hydrolase domain (Mysling et al., 2016). In contrast, the C-terminal lipid-binding domain of LPL remains stably folded. Since LPL activity in vivo is regulated in an organ-specific manner by ANGPTL 3, 4, and 8 (Dijk et al., 2015; Dijk and Kersten, 2016; Wang et al., 2015, 2013a), we speculated that these proteins might catalyze the unfolding of LPL´s hydrolase domain. To explore this possibility, we incubated 10 µM bovine LPL, either alone or in the presence of 1 µM purified ANGPTL41–159, at 25°C in 8.8 mM Na2HPO4, 0.7 mM HCOOH, and 150 mM NaCl, pH 6.9. The time-dependent unfolding of LPL´s hydrolase domain was probed by changes in hydrogen–deuterium exchange profiles with short (10 s) exposures to D2O. Deuterium exchange was quenched by lowering the pH, and the deuterium uptake into different regions of LPL was assessed by on-line pepsin digestion and mass spectrometry (Mysling et al., 2016). This approach provides an imprint of regional changes in protein stability within LPL under variable conditions. Mass spectrometry revealed that 10 µM LPL undergoes a slow spontaneous transition into an unfolded state during the selected incubation time interval (0–30 min), with 29% of the LPL being unfolded after 30 min at 25°C (Figure 1). The amount of LPL unfolding was quantified by the gradual progression towards a bimodal signature in the isotope envelope for the ‘diagnostic’ peptic peptide 131–165 from LPL´s hydrolase domain – Figure 1A (Mysling et al., 2016). Quantitative assessment of this distribution reveals that 7.0 ± 0.7% of LPL was in the unfolded state after 5 min. Adding 1 µM ANGPTL41–159 to 10 µM LPL greatly accelerated the rate of LPL unfolding, with 60.3 ± 2.3% of the LPL being unfolded after 5 min (Figure 1B). Even though the amount of ANGPTL41–159 added was substoichiometric relative to LPL (a molar ratio of 1:10), ANGPTL4 was responsible for unfolding >50% of LPL molecules in 5 min. This noticeable amount of LPL unfolding by substoichiometric amounts of ANGPTL4 constitutes a strong argument in favor of the catalytic nature of ANGPTL4-mediated LPL inactivation (Sukonina et al., 2006). Because the kinetic profiles for LPL unfolding with 1 µM ANGPTL41–159 suggested that substrate depletion occurred (Figure 1D), we also tested the ability of lower amounts of ANGPTL4 (0.5 µM, 0.25 µM) to unfold LPL. Those studies provided clear evidence for a dose-dependent inactivation of LPL by ANGPTL4 (Figure 1D). The lowest ANGPTL4 concentration tested resulted in 74 ± 6% LPL unfolding after 30 min compared to a spontaneous unfolding of 28.6 ± 1.3% in the buffer lacking ANGPTL4. Even though ANGPTL41–159 was present at a molar ratio of 1:40 (relative to LPL), it nevertheless resulted in the unfolding of 50% of LPL molecules. From early time point measurements, where substrate depletion was negligible, we estimate that the unfolding efficacy of our ANGPTL41–159 preparation was 1.6 ± 0.2 molecules of LPL per ANGPTL4 molecule per min at 25°C (Figure 1—figure supplement 1). When identical incubations of LPL and ANGPTL4 were analyzed for lipolytic activity with [3H]triolein, we found a similar time- and dose-dependent inhibition of LPL catalytic activity by ANGPTL41–159 (Figure 1—figure supplement 2).

Figure 1 with 4 supplements see all

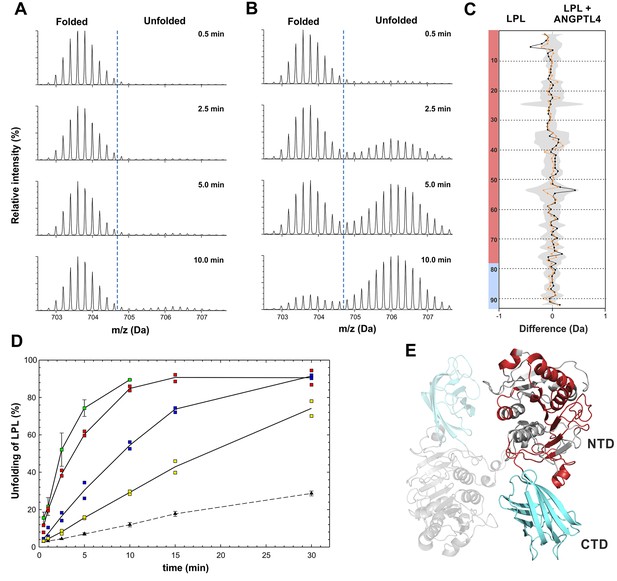

Kinetics of spontaneous and ANGPTL4-mediated unfolding of LPL´s serine hydrolase domain.

Unfolding of the hydrolase domain in LPL is revealed by the bimodality in the isotope envelopes for the peptide 131–165, which contains two residues from LPL´s catalytic triad (Ser134 and Asp158). Time-resolved isotope signatures of this diagnostic peptide are shown for 10 µM LPL incubated alone (panel A) or in the presence of 1 µM ANGPTL41–159 (panel B). The butterfly plot in panel C compares the spontaneous and ANGPTL4-catalyzed unfolding of LPL at conditions where 10–15% (orange curve) or 15–20% (black curve) bimodality for peptide 131–165 is observed. The deuterium uptakes were calculated from the average mass of the bimodal isotope envelopes. The shaded gray area corresponds to the largest standard deviation in the data sets recorded for each peptide (triplicates). Transparent red and cyan colors on the left assign these peptides to LPL´s N-terminal hydrolase domain (NTD) or its C-terminal lipid-binding domain (CTD), respectively. The identities of the 92 peptic LPL peptides are found elsewhere (Mysling et al., 2016). Panel D shows the time-dependent unfolding of 10 µM LPL either alone (▲) or in the presence of ANGPTL41–159 (□) at 2, 1, 0.5, and 0.25 µM, as indicated by green, red, blue, and yellow coloring, respectively. This value is calculated as the ratio between the bimodal isotope envelopes of the folded and unfolded proteins. Panel E shows a homology model of LPL with the proposed head-to-tail homodimer formation indicated by the semitransparent LPL subunit (Kobayashi et al., 2002; Wang et al., 2013b). The red color highlights the regions in LPL showing bimodality of isotope envelopes (i.e., unfolding) by HDX-MS.

https://doi.org/10.7554/eLife.20958.002

To compare the conformational changes associated with spontaneous and ANGPTL4-catalyzed inactivation of LPL, we examined the deuterium uptake values for all 92 peptic peptides recovered from LPL. To standardize the alignment of these data, we selected conditions that led to uniform and relatively low levels of bimodality in the ‘diagnostic’ peptide 131–165. By compiling all data recorded for spontaneous and ANGPTL4-catalyzed unfolding, we generated two bins of data with 10–15% or 15–20% bimodality in the isotope envelopes for peptide 131–165. In comparing the deuterium uptake across all LPL peptides, we observed no differences in the pattern of deuterium uptake into LPL molecules undergoing spontaneous or ANGPTL4-catalyzed unfolding (Figure 1C). Of note, all peptides showing bimodality were confined to the serine hydrolase domain of LPL (Figure 1E); none were in the C-terminal lipid-binding domain. Based on these data, we conclude that different means of LPL inactivation are mirrored by similar conformational endpoints whether they occur spontaneously or are catalyzed by ANGPTL4.

Several reports show that ANGPTL4 is prone to various degrees of oligomerization via intermolecular disulfide bonds involving Cys51 and Cys55 in ANGPTL4´s N-terminal coiled-coil domain (Ge et al., 2004a, 2004b; Yin et al., 2009). Our ANGPTL41–159 preparation also contained disulfide-linked oligomers, although they were predominantly in the form of dimers and comprised no more than 10% of the protein preparation (Figure 1—figure supplement 3A). In monomeric ANGPTL4, we find that Cys51 and Cys55 are connected by an intramolecular disulfide bond, as demonstrated by masses of 3440.64 and 3442.64 Da for peptides corresponding to residues 45–77 in ANGPTL41–159 before and after reduction with tris-(2-carboxyethyl) phosphine (TCEP) (Figure 1—figure supplement 3B and C). To exclude the possibility that a minor fraction of disulfide-linked ANGPTL4 oligomers are responsible for all of ANGPTL4´s catalytic unfolding activity, we reduced and alkylated the disulfide-bonds in ANGPTL4 and then compared the LPL unfolding capacity with ANGPTL4 harboring intact disulfide bonds. As shown in Figure 1—figure supplement 3D, the catalytic activity of 1 µM ANGPTL41–159 was similar regardless of the integrity of the disulfide bond. In conclusion, a covalent oligomer of ANGPTL41–159 is not essential for its catalytic LPL-unfolding activity in vitro. Nevertheless, we cannot formally exclude the possibility that a non-covalent assembly of ANGPTL41–159 oligomers participates in LPL unfolding.

GPIHBP1 binding mitigates the ANGPTL4-catalyzed inactivation of LPL

The proper expression of GPIHBP1 is critical for shuttling LPL to the capillary lumen, where margination and lipolytic processing of TRLs occurs (Beigneux et al., 2009a; Davies et al., 2010; Fong et al., 2016; Goulbourne et al., 2014). Recently, we uncovered a new functionality of GPIHBP1—stabilizing LPL activity by limiting the spontaneous unfolding rate of LPL´s hydrolase domain (Mysling et al., 2016). These findings prompted us to ask whether the binding of GPIHBP1 to LPL would also protect LPL from ANGPTL4-catalyzed unfolding. To explore this possibility, we first incubated 10 µM LPL alone or with 30 µM GPIHBP1 for 2 min at 25°C; we then added 2 µM ANGPTL41–159 and incubated the mixture for 10 min. In the absence of GPIHBP1, we observed 87 ± 2% unfolding of LPL versus only 8 ± 2% unfolding in the presence of GPIHBP11–131 (Figure 2A). Comparable results were obtained with spontaneous unfolding of LPL (Figure 2B). Both the LU domain and the acidic domain of GPIHBP1 (Figure 2C) were required for protecting LPL against ANGPTL4; neither 30 µM GPIHBP134–131 nor 30 µM GPIHBP11–33 substantially inhibited ANGPTL4-catalyzed unfolding of LPL (79 ± 7% and 69 ± 12% unfolding, respectively). A slightly different scenario emerged for spontaneous unfolding of LPL; the acidic domain of GPIHBP1 (GPIHBP11–33) was nearly as effective as full-length GPIHBP11–131 in protecting LPL from unfolding (Figure 2B). To analyze this difference in more detail, we tested the potency of a mixture of two GPIHBP1 domains (30 µM GPIHBP11–33and 30 µM GPIHBP134–131) on spontaneous and ANGPTL4-catalyzed LPL unfolding. The GPIHBP11–33/GPIHBP134–131 mixture was less effective than full-length GPIHBP1 in protecting LPL from ANGPTL4-mediated unfolding (Figure 2A). In conclusion, it would appear that GPIHBP1´s acidic domain needs to be tethered to the LU domain to achieve GPIHBP1´s full protective effect against ANGPTL4-catalyzed LPL unfolding (Figure 2A). A covalent association of the two GPIHBP1 domains is less important for reducing the spontaneous unfolding of LPL (Figure 2B). In these studies, we also analyzed catalytic activity of LPL. The protection provided by the different GPIHBP1 proteins against ANGPTL4-mediated LPL unfolding was accompanied by preserved LPL catalytic activity towards [3H]triolein substrate hydrolysis (Figure 2A).

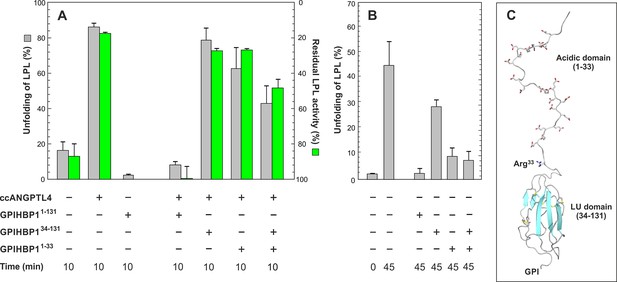

GPIHBP1 binding counteracts ANGPTL4-catalyzed unfolding of LPL.

Panel A shows the degree of unfolding of 10 µM LPL incubated for 10 min at 25°C with 2 µM ANGPTL41–159 alone or in the presence of 30 µM GPIHBP11–131, 30 µM GPIHBP134–131, 30 µM GPIHBP11–33, or a mixture of 30 µM GPIHBP134–131 and 30 µM GPIHBP11–33 (gray bars). The loss in lipolytic LPL activity on samples treated identically is shown by green bars. These activity data were normalized relative to the initial LPL activity assuming a spontaneous decay of 15% during the experiment. Panel B shows the degree of spontaneous unfolding of 10 µM LPL before and after a 45 min incubation at 25°C either alone or in the presence of 10 µM GPIHBP1 in the same combinations used in panel A. The relative unfolding of LPL is calculated from the bimodal distribution of the isotope envelopes for peptide 131–165. Panel C shows a molecular model for GPIHBP1 depicting the intrinsically disordered acidic domain (GPIHBP11–33) and the ordered LU domain (GPIHBP134–131). The acidic residues in the N-terminal domain are highlighted by sticks as is the Arg33, which is exposed and prone to proteolysis (Mysling et al., 2016). The attachment site for the membrane anchor is indicated (GPI).

https://doi.org/10.7554/eLife.20958.007

To further interrogate the mode of action of ANGPTL4-catalyzed LPL inhibition, we added 300 nM intact GPIHBP1 [12-fold above the KD for the GPIHBP1•LPL interaction (Mysling et al., 2016)] to LPL (15 nM) that had been partially inactivated—either by incubating the enzyme at 21°C (spontaneous inactivation) or by incubating the enzyme with 7.5 nM ANGPTL4 (catalyzed inactivation). As shown in Figure 3, adding GPIHBP1 to the partially inactivated LPL protected the remaining LPL from inactivation, but neither the spontaneously inactivated LPL nor the ANGPTL4-inactivated LPL was resurrected by GPIHBP1. These findings align with the HDX-MS data (Figure 1C) showing that both the spontaneous and ANGPTL4-mediated LPL inactivation pathways result in very similar (if not identical) conformational changes in LPL. Our studies further substantiates that ANGPTL4 catalyzes LPL unfolding/inactivation in an irreversible manner rather than acting as a noncompetitive and reversible inhibitor as previously suggested (Lafferty et al., 2013). If ANGPTL4-mediated inactivation of LPL were to be reversible, we would have expected to find reactivation of LPL during the incubation with GPIHBP1.

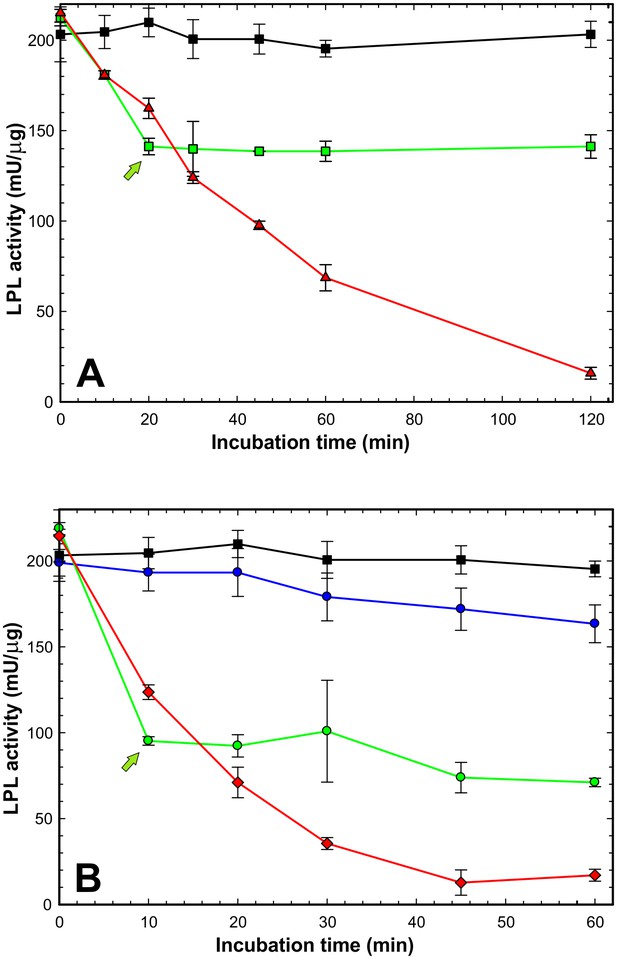

GPIHBP1 cannot reverse loss of LPL activity after spontaneous or ANGPTL4-catalyzed inactivation.

Panel A shows time-dependent loss of LPL catalytic activity after incubating LPL at 21°C alone or in the presence of GPIHBP1. The progressive loss in catalytic activity of LPL (15 nM) during the incubation is shown by red triangles; the protection provided by a pre-incubation with GPIHBP11–131 (300 nM) is shown by black squares. Adding GPIHBP11–131 (300 nM) to LPL that was incubated alone for 20 min (green arrow) prevented any further loss of LPL (green squares). Panel B shows inactivation of LPL catalytic activity by 7.5 nM ANGPTL41–159 (red diamonds). The inhibition of LPL activity by ANGPTL4 was markedly reduced by the presence of 300 nM GPIHBP11–131 (blue circles); however, a small amount of ANGPTL4-mediated inhibition probably still persisted during the incubation with GPIHBP1, given that LPL catalytic activity was greater when LPL was incubated with GPIHBP1 in the absence of ANGPTL41–159 (black squares). When 300 nM GPIHBP11–131 was added to LPL 10 min after the initiation of ANGPTL4-mediated LPL inactivation (green arrow), there was no further loss of LPL activity (green circles). However, the loss of LPL activity that had occurred during the first 10 min of incubation was not reversed (i.e. there was no resurrection of ANGPTL4-inactivated LPL). LPL activity measurements were performed in triplicated; data shown ± SD.

https://doi.org/10.7554/eLife.20958.008

Unfolding properties of ANGPTLE15K

Genetic studies have revealed that a polymorphic variant in ANGPTL4 (ANGPTL4E15K, with a ~3% prevalence in Caucasians) is associated with lower plasma triglyceride levels and reduced risk of coronary artery disease (Dewey et al., 2016; Helgadottir et al., 2016; Stitziel et al., 2016). We expressed and purified the coiled-coil domain of ANGPTL4E15K. The kinetic profile of LPL unfolding with ANGPTL4E15K was more complex and included a time-dependent decline in LPL-unfolding activity (using conditions in which substrate depletion was not rate-limiting) (Figure 4A). We were able to take advantage of the linear phases of the progress curves for LPL unfolding to estimate the unfolding efficacy of ANGPTL41–159/E15K. The ANGPTL4 variant resulted in the unfolding of 0.6 ± 0.1 molecules LPL per ANGPTL4 molecule per min (Figure 4B and C), which is only 40% of the activity of wild-type ANGPTL4 (Figure 4C). We obtained consistent results when measuring LPL activity; the LPL incubated with ANGPTL41–159/E15K retained 40–50% more catalytic activity than LPL incubated with wild-type ANGPTL4 (Figure 4D). The LPL unfolding curves (Figure 4A and B) suggested that ANGPTL41–159/E15K lost activity more rapidly than wild-type ANGPTL4 during the LPL incubation.

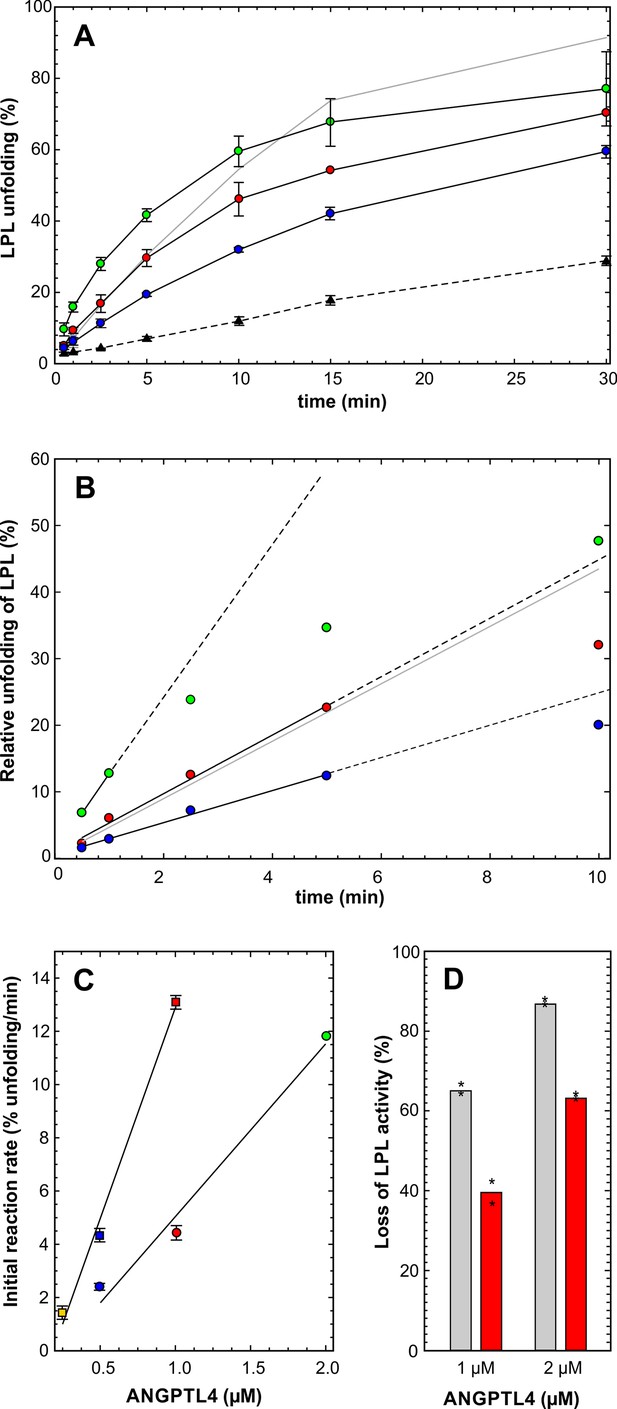

Impact of ANGPTL4E15K on LPL unfolding.

Panel A shows the time-dependent unfolding of 10 µM LPL in the presence of 2, 1, and 0.5 µM ANGPTL41–159/E15K, highlighted by black solid lines and the green, red and blue circles, respectively. For comparison the unfolding mediated by 0.5 µM ANGPTL41–159/wt is shown by the gray solid line. The hatched line represents spontaneous LPL unfolding. The corresponding data are shown in panel B after subtraction of spontaneous unfolding. The solid black lines show the data used to estimate the unfolding rates and their hatched extension illustrates nonlinearity at longer incubation times. The unfolding rates of ANGPTL41–159/E15K (circles) and ANGPTL41–159/wt (squares) are represented by the slopes of the lines in panel C. The difference in the inhibitory efficacies between ANGPTL41–159/wt (gray bars) and ANGPTL41–159/E15K (red bars) on LPL-mediated hydrolysis of [3H]triolein is shown in panel D (asterisks represent the individual measuring points).

https://doi.org/10.7554/eLife.20958.009

Protein dynamics of ANGPTL4

Given the differences in the kinetics of LPL-unfolding catalyzed by ANGPTL4wt and ANGPTL4E15K, we embarked on determining the intrinsic protein dynamics of the two ANGPTL proteins with HDX-MS. We incubated 3 µM ANGPTL41–159 in 10 mM Na2HPO4, 150 mM NaCl (pH 7.1) containing 70% (v/v) D2O for 10, 100, or 1000 s at 25°C. We recovered 41 peptides from ANGPTL41–159 after on-line pepsin digestion (corresponding to 95.6% sequence coverage) (Figure 5—figure supplement 1A and B). As illustrated by the heat maps for deuterium uptake, wild-type ANGPTL41–159 contains two regions that are less dynamic (residues 19–43 and 85–111). Both sequences are predicted by PSIPRED to form α-helices (Figure 5A). Of the two α-helices, the N-terminal α-helix of ANGPTL4 is less stable (i.e., has a greater deuterium uptake). The isotope envelopes reveal that the deuterium uptake in this particular region occurs via mixed EX1 and EX2 kinetics signifying some degree of cooperative unfolding (Weis et al., 2006).

A comparison of the kinetics for deuterium uptake into ANGPTL41–159/E15K and ANGPTL41–159/wt revealed a conspicuous difference: peptides covering residues 19–43 exchanged more rapidly in ANGPTL41–159/E15K (Figure 5A and C). The increased deuterium incorporation occurs predominantly via faster EX1 kinetics reflecting an increased propensity for cooperative unfolding of that region. Given that this region coincides with the predicted N-terminal α-helix in ANGPTL4, it is conceivable that the Glu-to-Lys substitution in the E15K variant compromises protein stability by reducing the α-helix propensity of the adjacent C-terminal sequence. Our findings are likely biological relevant, providing a plausible molecular explanation for the impaired LPL inactivation and lower plasma triglyceride levels in carriers of the E15K polymorphism.

Figure 5 with 1 supplement see all

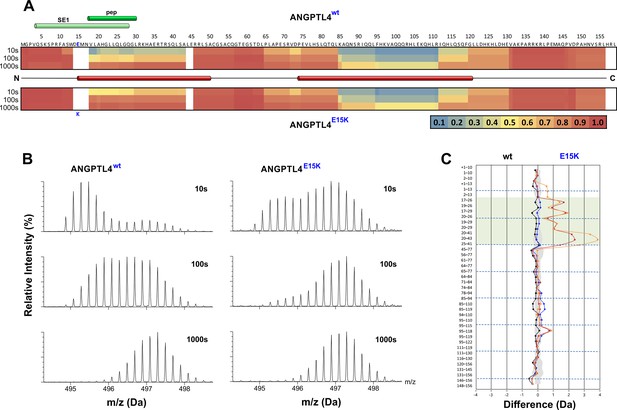

Protein dynamics of wild-type ANGPTL4 and ANGPTL4 containing the E15K polymorphism.

Purified ANGPTL41–159 preparations (wt and E15K) were diluted to 10 µM with D2O-phosphate buffer at pH 7.1, and hydrogen–deuterium exchange was monitored for 10, 100, and 1000 s at 25°C. Panel A provides a heat map of the deuterium uptake values (relative to a fully exchanged control) for peptic peptides from wt and E15K ANGPTL41–159 as assessed by HDX-MS. The relative deuterium uptake values for these peptides are plotted on the primary protein sequence [ranging from blue (no deuterium uptake) to red (full deuterium uptake)]. The position of the specific epitope 1 (SE1) defined by the neutralizing mAb 14D12 is shown by the light green cylinder (Desai et al., 2007; Lee et al., 2009), and the sequence representing an active synthetic peptide is shown by the dark green cylinder (Yau et al., 2009). The secondary structure of ANGPTL4 wt was predicted by PSIPRED (Jones, 1999) and the positions of the two α-helices are shown by red cylinders. The position of E15K polymorphism is shown by the blue letter. Panel B shows the isotope envelopes recorded for peptide 20–41 of ANGPTL4 wt and E15K; it shows progressive deuterium uptake as a function of labeling time. Panel C visualizes the differences in the dynamics of wt and E15K ANGPTL41–159 with a butterfly plot, showing differential deuterium uptake for the two proteins recorded after 10 s (orange), 100 s (red), and 1000 s (blue). The differential uptake for the full-deuterium exchange controls is shown for comparison (black). Peptides including residues 18–30 are highlighted by the transparent green box. The shaded gray area corresponds to the largest standard deviation in the data sets recorded for each peptide (triplicates). In panel A, note that the primary sequence starts with a methionine for the bacterial expression, but this is not included in the peptide numbering. In panel C, the presence of the methionine in a peptic peptide is denoted as +1.

https://doi.org/10.7554/eLife.20958.010

Unfolding catalyzed by intact ANGPTL3

Sequence alignments of the different ANGPTL proteins implicated in triglyceride metabolism (ANGPTL3, ANGPTL4, ANGPTL8) reveal strong sequence conservation in the N-terminal region that is destabilized in ANGPTL4E15K (Figure 6A). Interestingly, this region constitutes a part of the epitopes on ANGPTL3 or ANGPTL4 for monoclonal antibodies that mitigate LPL inactivation in vivo (Lee et al., 2009). In view of these observations, we tested whether purified ANGPTL3 might also serve as a catalyst for LPL unfolding. We found that ANGPTL3 also accelerates the unfolding of the catalytic triad peptide leading to inactivation of LPL, but at reduced efficacy compared with equimolar amounts of ANGPTL4 (Figure 6B and C). The ANGPTL3-catalyzed inactivation of LPL is abrogated by GPIHBP1 (Figure 6C).

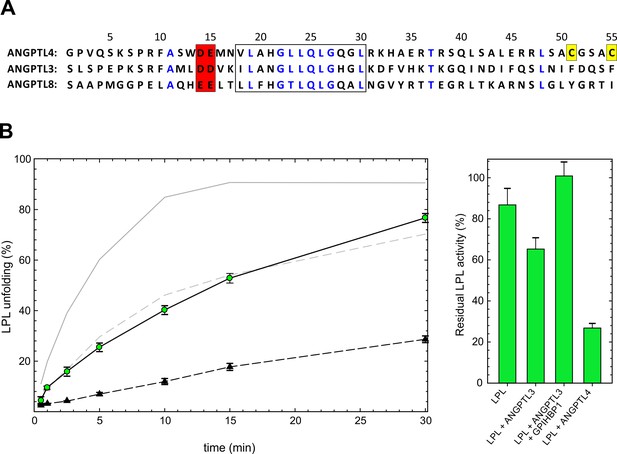

ANGPTL3-catalyzed unfolding of LPL.

Panel A shows a sequence alignment of the first 55 residues of fully processed human ANGPTL3, ANGPTL4, and ANGPTL8. Identical sequences are highlighted by blue letters. The filled red box highlights the two-residue acidic motif at the start of the N-terminal α-helix, followed by a conserved α-helical region (open box). The two cysteine residues unique to ANGPTL4 are shown in yellow boxes. Panel B shows the time-dependent unfolding of 10 µM LPL by 1 µM ANGPTL3 (green circles) as defined by the appearance of bimodality in the isotope envelopes for peptide 131–165. For comparison the unfolding of LPL by 1 µM ANGPTL41–159 is shown as solid (wild-type) and hatched (E15K) gray lines. Spontaneous unfolding is shown by black triangles. Panel C shows the residual lipolytic activity of 10 µM LPL incubated for 10 min alone or in the presence of 1 µM ANGPTL3, 1 µM ANGPTL3 and 30 µM GPIHBP1, or 1 µM ANGPTL41–159.

https://doi.org/10.7554/eLife.20958.012

Discussion

The intravascular hydrolysis of triglycerides by LPL is the central event in plasma lipoprotein metabolism, providing fatty acids that are used as fuel in striated muscle and brown adipose tissue or stored in the form of triglycerides in white adipose tissue. Normally, LPL activity is tightly regulated, facilitating the delivery of lipid nutrients according to the metabolic demand of tissues and the physiologic state of the organism (e.g., fasting, cold exposure, exercise). One of the most important mechanisms for regulating LPL activity relies on temporal and spatial repression by the inhibitors ANGPTL3, ANGPTL4, and ANGPTL8. The physiological importance of these inhibitors has come into focus as a result of genome-wide association studies and pharmacological and genetic studies in animal models (Desai et al., 2007; Dewey et al., 2016; Gusarova et al., 2015; Helgadottir et al., 2016; Wang et al., 2013a). However, uncertainty has persisted regarding the molecular mechanism(s) by which these inhibitors modulate LPL activity.

In the current study, we used HDX-MS analyses to study the inhibition of LPL by ANGPTL4. Our studies showed that ANGPTL4 induces a dose- and time-dependent unfolding of LPL´s hydrolase domain, and that these structural changes are accompanied by a parallel reduction in LPL’s capacity to hydrolyze a lipid emulsion containing [3H]triolein. Importantly, the unfolding of LPL´s hydrolase domain occurred with substoichiometric amounts of ANGPTL4. Combined, our data infer that ANGPTL4 acts by accelerating the spontaneous unfolding of LPL (Mysling et al., 2016). Our data are closely aligned with and extend the notion that ANGPTL4 acts as an ‘unfolding molecular chaperone’ (Sukonina et al., 2006). They are however not compatible with the view that ANGPTL4 act as a reversible and non-competitive inhibitor of LPL activity (Lafferty et al., 2013). The studies that led to the latter model involved incubating LPL in the presence of 1–5 mM deoxycholate (DOC), an anionic detergent that is known to bind to and stabilize LPL activity (Bengtsson and Olivecrona, 1979). When we replicated those experiments in the absence of DOC, we found a time-dependent inactivation of LPL activity consistent with an irreversible mechanism (Figure 1—figure supplement 4). We suspect that DOC changes the intrinsic dynamics of LPL’s hydrolase domain, preventing it from visiting unstable conformations. In the absence of DOC, ANGPTL4 may bind transiently to LPL, stabilize a folding intermediate that ‘guides’ LPL towards irreversible unfolding, and ultimately cause permanent LPL inactivation. Whether this intermediate is an integrated part of the LPL homodimer or it represents a dissociated monomer is currently unclear. Importantly, our model for ANGPTL-catalyzed unfolding of LPL involves an ATP-independent mechanism unlike those generally employed by intracellular unfoldases (Prakash and Matouschek, 2004). Nevertheless, our model is not completely unprecedented as it bears some resemblance to the oligomerization of α1-antitrypsin that is catalyzed by a monoclonal antibody raised against its pathogenic (E342K) Z-variant (Irving et al., 2015).

Several studies have shown that ANGPTL4 undergoes a variable degree of oligomerization at or close to the cell surface via the formation of intermolecular disulfide bonds between Cys51 and Cys55 in different coiled-coil domains—and that the covalent oligomerization is biologically significant (Ge et al., 2004a, 2004b; Makoveichuk et al., 2012; Yin et al., 2009). In the current study, we show that the redox states of Cys51 and Cys55 do not influence ANGPTL4-mediated catalysis of LPL unfolding. Consistent with our findings, an independent study showed that the LPL inhibitory potential of ANGPTL4 in vitro was not altered when Cys51 and Cys55 were changed to serine (Shan et al., 2009). The ability of ANGPTL4—lacking disulfide bonds in the coiled-coil domain—to inactivate LPL is consistent with recent studies showing that ANGPTL4 can inactivate LPL intracellularly and reduce its secretion from cells (Dijk et al., 2016). In this compartment ANGPTL4 does not form covalent oligomers (Makoveichuk et al., 2012). Rather than being important for the catalytic properties of ANGPTL4, the covalent oligomerization could serve to increase its biological stability and ensure a proper extracellular partitioning of the coiled-coil domain of ANGPTL4 in vivo (Yin et al., 2009).

LPL-mediated hydrolysis of triglycerides occurs predominantly at discrete foci along the capillary bed where lipoproteins are sequestered by LPL•GPIHBP1 complexes on the endothelial cell membrane (Fong et al., 2016; Goulbourne et al., 2014). Given that the majority of LPL in the capillaries is bound to GPIHBP1, as judged with immunohistochemistry, it becomes pertinent to evaluate the inhibitory property of ANGPTL4 in that context. In an earlier study (Sonnenburg et al., 2009), soluble GPIHBP1, but not heparin, protected LPL`s esterase activity from ANGPTL4-catalyzed inactivation. In our current study, we also found that GPIHBP1 protected LPL´s catalytic activity, and this protection was achieved by blocking ANGPTL4-catalyzed unfolding of LPL´s hydrolase domain (Figure 2). Noteworthy, full-length GPIHBP1 was required for robust protection of LPL from ANGPTL4; a mixture of GPIHBP1`s LU and acidic domains provided only a modest protection. In view of those observations, we propose a molecular model in which the LU domain of GPIHBP1 secures a tight binding to the carboxyl-terminal domain of LPL. This assembly allows an optimal positioning of GPIHBP1`s intrinsically disordered acidic domain close to the unstable catalytic domain of LPL protecting it from ANGPTL4-catalyzed unfolding.

One implication of our findings is that only GPIHBP1-bound LPL would be protected from ANGPTL4 in vivo. We predict that this selectivity is relevant for regulating lipid metabolism in several different compartments.

First, in the secretory pathway of adipocytes, where GPIHBP1 is absent, we suspect that LPL would be more susceptible to ANGPTL4-mediated unfolding. Accordingly, recent studies of LPL production by mouse primary adipocytes and white adipose tissue explants indicate that ANGPTL4 interacts with LPL in the trans-Golgi network, targeting it for lysosomal degradation (Dijk et al., 2016). The endoplasmic reticulum has an efficient quality control system that targets thermodynamically unstable proteins for disposal via ERAD (Ellgaard and Helenius, 2003). Emerging evidence suggests that an equivalent quality control system may also exist in the trans-Golgi network. In Saccharomyces cerevisiae, the trafficking receptor Vps10p serves as a protein-folding sensor diverting misfolded proteins to vacuolar disposal (Hong et al., 1996). One of the Vps10p domain–containing homologs in mammals, the sorting receptor SorLA, is known for its role in the intracellular trafficking of amyloid precursor proteins and for its association with neurodegenerative diseases (Andersen et al., 2016). Interestingly, SorLA is also expressed by adipocytes and myocytes and targets newly synthesized LPL for degradation in lysosomes (Klinger et al., 2011). One possibility—which obviously needs experimental testing—is that ANGPTL4-catalyzed unfolding of LPL in the trans-Golgi network primes an anterograde sorting of SorLA-LPL complexes towards the endolysosomal degradation pathway. Such a mechanism might account for the increased LPL secretion from Angptl4-/- adipocytes compared to wild-type adipocytes (Dijk et al., 2016). In keeping with the latter idea, we speculate that human adipocytes that express ANGPTL4 E15K polymorphism would secrete elevated levels of LPL.

Second, freshly secreted LPL—loosely associated with heparan-sulfate proteoglycans (HSPG) in the interstitial spaces—would also be prone to inhibition by ANGPTL4 (Olivecrona, 2016). It has been suggested that this compartment represents the primary target site for ANGPTL4-catalyzed inactivation of LPL (Nilsson et al., 2012). In this setting, translocation of LPL from the HSPG-bound reservoir to a GPIHBP1-bound state at the basolateral surface of endothelial cells would alleviate the inhibitor repression exerted by ANGPTL4. We propose that inhibition of LPL within the interstitial spaces by locally produced ANGPTL4 is important for regulating the amount of active LPL that actually reaches the surface of capillaries, thereby serving to match the efficiency of intravascular lipolysis to the metabolic requirements of nearby parenchymal cells.

Finally, we propose that the resistance of GPIHBP1-bound LPL to ANGPTL4- and ANGPTL3-mediated inhibition serves to focus catalytically active LPL at the luminal surface of capillary endothelial cells. It is interesting, that human population studies have not uncovered a correlation between plasma ANGPTL4 levels and triglyceride concentrations (Robciuc et al., 2010; Smart-Halajko et al., 2010) implying that the regulation of LPL activity in this compartment is far more convoluted. The low-to-moderate concentrations of circulating ANGPTL4 and ANGPTL3 in the blood are obviously insufficient to inhibit LPL in the presence of triglyceride-rich lipoproteins (Nilsson et al., 2012). With that said, it is important to acknowledge that elevated plasma levels of ANGPTL4 protein achieved by transgenic overexpression or systemic administration clearly breached this protective barrier as these mice have increased plasma triglyceride levels and vastly reduced post-heparin LPL activity levels (Köster et al., 2005; Lichtenstein et al., 2007; Nilsson et al., 2012). Similarly, the protection yielded by GPIHBP1-binding may also not be completely impregnable. With concentrations predicted to saturate LPL with GPIHBP1 (Figure 2A and Figure 3B), we did observe a minor increase in LPL unfolding/inactivation in the presence of large amounts of ANGPTL4 in vitro. Intravascular lipolysis is thus a highly tunable biological process where the net activity is critically dependent on a complex interplay between local concentrations of cognate activators and inhibitors and their partitioning between different compartments. Using selective inhibitor repression to focalize a given biological activity is not uncommon; for example, during fibrinolysis plasmin-bound to its substrate (polymerized fibrin) escapes inhibition by α2-antiplasmin (Lijnen, 2001).

Genome-wide association studies have shown that the common polymorphic variant ANGPTL4E15K (often denoted E40K) is linked to mild hypotriglyceridemia and reduced risk of coronary artery disease (Dewey et al., 2016; Helgadottir et al., 2016; Stitziel et al., 2016; Yin et al., 2009). While the impact of ANGPTL4E15K on lipid metabolism in humans is clear, the structure–function relationship(s) responsible for its reduced biological activity have been unclear. Our studies combined with previously published studies, suggest that the Glu-to-Lys replacement in ANGPTL4 affects two properties. First, the E15K polymorphism reduces the ability of ANGPTL4 to inhibit LPL in vitro—to the degree that ANGPTL4E15K functions no better than ANGPTL3 (Shan et al., 2009). With HDX-MS, we found that ANGPTL4E15K and ANGPTL3 catalyze LPL unfolding to a similar degree (Figure 6). Second, although the E15K polymorphism has no impact on protein synthesis, secretion, oligomerization, or secretion, it still limits extracellular accumulation of the coiled-coil domain of ANGPTL4 in cultured cell systems as well as in adenovirus-transfected mice (Yin et al., 2009). It has been hypothesized that the effects of the E15K polymorphism on plasma triglyceride levels relate to a short half-life of the ANGPTL4E15K oligomer (Yin et al., 2009). In the current study, we provide evidence supporting that idea—by showing that the Glu-to-Lys substitution in ANGPTL4 causes protein destabilization via cooperative unfolding of the first α-helix in ANGPTL4´s coiled-coil domain (Figure 6). Negative charges at the N-terminus of α-helices generally stabilize coiled-coil domains via electrostatic interactions with the α-helix dipole moment (Johnson et al., 2014; Kohn et al., 1997). Accordingly, the charge-reversal in ANGPTL4E15K would be expected to lead to protein destabilization—in agreement with our HDX-MS data (Figure 5). We suspect that this mechanism is a contributing factor to the lower half-life of ANGPTL4E15K.

By HDX-MS, we found that ANGPTL3 catalyzed the inactivation of LPL, although markedly less efficient compared with ANGPTL4 (Figure 6). GPIHBP1-binding also protected LPL from inactivation by ANGPTL3, suggesting that the mechanism that we proposed for ANGPTL4-mediated LPL inactivation also applies to ANGPTL3. Of note, ANGPTL3, ANGPTL4, and ANGPTL8 all share a two-residue acidic motif in their first α-helix along with a highly conserved GLLQGLG motif (Figure 6A). Intervention studies with mAbs recognizing this region in ANGPTL3 and ANGPTL4 reduce plasma triglyceride levels in animal models, emphasizing the functional importance of this region (Desai et al., 2007; Gusarova et al., 2015). In light of these observations, we suspect that the function of other ANGPTL proteins would be sensitive to missense mutations that introduce charge reversals and compromise conformational stability. Thus far, however, mutations comparable to the E15K substitution in ANGPTL4 have not been reported in ANGPTL3 or ANGPTL8.

Materials and methods

Purified proteins and reagents

Request a detailed protocol

A recombinant secreted version of human GPIHBP1 was produced in Drosophila S2-cells (Invitrogen, CA) as a fusion protein with domain 3 (D3) of human uPAR (Gårdsvoll et al., 2007). For practical reasons, the recombinant GPIHBP1 was mutated within its N-terminal disordered region (Arg38→Gly); that amino acid substitution provides a higher purification yield without altering LPL-binding properties (Mysling et al., 2016). Bovine LPL was purified from fresh bovine milk by heparin-Sepharose, hydroxyapatite, and Superdex HR200 size-exclusion chromatography (Cheng et al., 1985). The coiled-coil domain of wild-type human ANGPTL4 (ANGPTLwt) and ANGPTL4E15K (residues 1–159 with an N-terminal methionine and a C-terminal 6×His-tag) was produced in E. coli BL21 (DE3) with a pet29a vector (Robal et al., 2012). Full-length ANGPTL3 produced in HEK293 cells was purchased from ProSpec (Ness-Ziona, Israel). A synthetic peptide corresponding to residues 1–33 of human GPIHBP1 was obtained at a purity of >95% from TAG-Copenhagen A/S (Copenhagen, Denmark).

For HDX-MS experiments, purified ANGPTL41–159 preparations were dialyzed for 18 hr at 4°C against 10 mM formic acid (pH 4.1) using 2000 MWCO Slide-A-Lyzer dialysis cassettes (Thermo Scientific). Protein concentrations were determined by absorbance at 280 nm.

ANGPTL4-mediated unfolding of LPL assessed by pulse-labeling HDX-MS

Request a detailed protocol

To determine the rates of spontaneous and ANGPTL4-catalyzed LPL unfolding, we incubated LPL alone or in the presence of ANGPTL4. In brief, 10 µM bovine LPL was incubated in 8.8 mM Na2HPO4, 0.7 mM HCOOH, 150 mM NaCl (pH 6.9) at 25°C with 300 RPM mixing, either alone or in the presence of different amounts of ANGPTL41–159/wt (2 µM, 1 µM, 0.5 µM, 0.25 µM) or ANGPTL41–159/E15K (2 µM, 1 µM, 0.5 µM). Identical volumes were added to ensure identical buffer compositions with different concentrations of ANGPTL4. Solutions were incubated for 0.5, 2.5, 5, 10, 15, or 30 min. The folding status of LPL was probed by adding D2O-buffer (10 mM Na2HPO4, 150 mM NaCl, pD 7.4) to 70% (v/v) D2O and allowing hydrogen–deuterium exchange to occur for 10 s before quenching the exchange reaction by adding 1 vol ice-cold quench buffer (100 mM Na2HPO4, 0.8 M tris-(2-carboxyethyl) phosphine (TCEP), 2 M urea in H2O, pH 2.5). Quenched samples were incubated on ice for 2 min to reduce disulfide bonds and were subsequently snap-frozen in liquid N2 and stored at –80°C until analysis by MS. Labeling of all individual time points was replicated 2 to 4 times. The degree of unfolding of LPL’s hydrolase domain was estimated by quantifying the bimodal isotope distribution for the ‘diagnostic’ peptic peptide 131–165, which contains two residues of LPL´s catalytic triad. This was accomplished by fitting the bimodal isotope envelope to two Gaussian distributions and comparing the areas of the resultant fits.

Alkylation of cysteines in ANGPTL4wt

Request a detailed protocol

To reduce disulfide bonds and alkylate the free thiols in ANGPTL41–159, the pH was adjusted to 6.5 by adding 3 volumes of 100 mM Bis-Tris, pH 6.5. After adding TCEP (10 mM final concentration), the reduction of disulfide bonds proceeded for 1 hr at room temperature. Subsequently, thiols were alkylated by adding 0.1 vol of 0.5 M iodoacetamide followed by a 4 hr incubation in the dark at room temperature. Alkylated samples were dialyzed overnight in 10 mM formic acid (pH 4.1) to adjust the pH and remove excess TCEP and iodoacetamide.

Impact of GPIHBP1 on ANGPTL4-catalyzed LPL-unfolding

Request a detailed protocol

To study the effect of purified GPIHBP1 on the unfolding of LPL by ANGPTL41–159, we first formed LPL•GPIHBP1 complexes by incubating 11 µM LPL with 33 µM GPIHBP11–131, 33 µM GPIHBP134–131, 33 µM GPIHBP11–33, or a mixture of 33 µM GPIHBP134–131 and 33 µM GPIHBP11–33 for 2 min at 25°C. LPL (11 µM) without ligands was incubated in parallel. Unfolding was initiated by adding 10% (v/v) 20 µM ANGPTL41–159 and allowing unfolding to proceed for 10 min in 10 mM Na2HPO4, 0.1 mM HCOOH, and 150 mM NaCl (pH 7.1) at 25°C. Similar data were recorded for spontaneous unfolding of 10 µM LPL, except that GPIHBP1 concentrations were reduced to 10 µM and the incubation time was increased to 45 min. Unfolding of LPL´s hydrolase domain was assessed with pulse-labeling in 70% D2O for 10 s, followed by quenching and reduction on ice for 2 min. Labeling of each sample was replicated between 3 and 6 times.

Determination of lipase activity

Request a detailed protocol

Before measuring lipase activity with Intralipid containing [3H]triolein, we took care to replicate the conditions used for the HDX-MS experiments (i.e., 10 µM LPL at 25°C, identical amounts of ANGPTL4 and GPIHBP1, and identical buffer conditions). The ANGPTL4-induced unfolding of LPL was quenched by 10-fold dilution in ice-cold 20 mM Tris (pH 8.5) containing 5 mM deoxycholic acid (DOC) and 0.1 mM sodium dodecyl sulfate (SDS) (DOC/SDS buffer). Lipase activities were determined by adding 5 µl of LPL (diluted 100-fold in DOC/ SDS buffer) to 195 µl of incubation mixtures containing Intralipid with incorporated [3H]triolein and with heat-inactivated rat serum as a source of the activator apolipoprotein C-II (Larsson et al., 2013).

In some experiments, the protective effects of GPIHBP1 on lipase activity, were assessed in 96 well plates where 60 µl of 15 nM LPL in PBS buffer (pH 7.4) containing 0.01% (v/v) of Trition-X100 were pre-incubated in the presence or absence of 7.5 nM ANGPTL4 and 300 nM GPIHBP1 at 21°C and shaking at 600 rpm. To determine lipase activity at a given pre-incubation time, 90 µl incubation mixture containing Intralipid and human serum (as a source of apolipoprotein C-II) were added and the incubation was continued for 25 min at room temperature. After terminating the reaction by adding Triton X-100 to a final concentration of 2.5% (v/v), the amount of lipase-generated, non-esterified fatty acids (NEFA) were quantified using a NEFA-HR(2) assay according to the manufacturer’s protocol (Wako Diagnostics). Measurements were performed in triplicates.

Protein dynamics of ANGPTL4 measured by HDX-MS

Request a detailed protocol

Labeling with deuterium was initiated by 3.3-fold dilutions of 10 µM ANGPTL41–159/wt or ANGPTL41–159/E15K (in 10 mM Na2HPO4, 150 mM NaCl) into the equivalent deuterated buffer (pD 7.4), yielding the following exchange conditions: 70% (v/v) D2O, pH 7.1 (as measured with identical solutions prepared from protiated reagents). Solvent exchange was allowed to proceed for 10, 100 or 1000 s at 25°C with 300 RPM mixing. At the indicated time intervals, the exchange reaction was quenched with 1 vol ice-cold quench buffer and protein disulfides reduced for 2 min on ice. On-line digestion with pepsin yielded 41 peptides shared by ANGPTL4wt and ANGPTL4E15K, providing 96% sequence coverage. Full deuteration controls were prepared by allowing LPL samples to exchange in the same buffer for 48 or 72 hr at 37°C. No additional deuterium uptake could be observed after 48 hr.

MS analysis of HDX-labeled samples

Request a detailed protocol

Deuterium incorporations into proteins was determined after on-line pepsin digestion of the samples with an HDX-modified reversed-phased chromatographic system coupled to a Synapt G2 electrospray ionization mass spectrometer (Waters, Milford, MA) (Mysling et al., 2016).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Binding of deoxycholate to lipoprotein lipase
    1. G Bengtsson
    2. T Olivecrona
    (1979)
    Biochimica et Biophysica Acta (BBA) - Lipids and Lipid Metabolism 575:471–474.
    https://doi.org/10.1016/0005-2760(79)90118-8
  8. 8
    Purification and characterization of human lipoprotein lipase and hepatic triglyceride lipase. Reactivity with monoclonal antibodies to hepatic triglyceride lipase
    1. CF Cheng
    2. A Bensadoun
    3. T Bersot
    4. JS Hsu
    5. KH Melford
    (1985)
    The Journal of biological chemistry 260:10720–10727.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Coding variation in ANGPTL4, LPL, and SVEP1 and the risk of coronary disease
    1. NO Stitziel
    2. KE Stirrups
    3. NG Masca
    4. J Erdmann
    5. PG Ferrario
    6. IR König
    7. PE Weeke
    8. TR Webb
    9. PL Auer
    10. UM Schick
    11. Y Lu
    12. H Zhang
    13. MP Dube
    14. A Goel
    15. M Farrall
    16. GM Peloso
    17. HH Won
    18. R Do
    19. E van Iperen
    20. S Kanoni
    21. J Kruppa
    22. A Mahajan
    23. RA Scott
    24. C Willenberg
    25. PS Braund
    26. JC van Capelleveen
    27. AS Doney
    28. LA Donnelly
    29. R Asselta
    30. PA Merlini
    31. S Duga
    32. N Marziliano
    33. JC Denny
    34. CM Shaffer
    35. NE El-Mokhtari
    36. A Franke
    37. O Gottesman
    38. S Heilmann
    39. C Hengstenberg
    40. P Hoffman
    41. OL Holmen
    42. K Hveem
    43. JH Jansson
    44. KH Jöckel
    45. T Kessler
    46. J Kriebel
    47. KL Laugwitz
    48. E Marouli
    49. N Martinelli
    50. MI McCarthy
    51. NR Van Zuydam
    52. C Meisinger
    53. T Esko
    54. E Mihailov
    55. SA Escher
    56. M Alvar
    57. S Moebus
    58. AD Morris
    59. M Müller-Nurasyid
    60. M Nikpay
    61. O Olivieri
    62. LP Lemieux Perreault
    63. A AlQarawi
    64. NR Robertson
    65. KO Akinsanya
    66. DF Reilly
    67. TF Vogt
    68. W Yin
    69. FW Asselbergs
    70. C Kooperberg
    71. RD Jackson
    72. E Stahl
    73. K Strauch
    74. TV Varga
    75. M Waldenberger
    76. L Zeng
    77. AT Kraja
    78. C Liu
    79. GB Ehret
    80. C Newton-Cheh
    81. DI Chasman
    82. R Chowdhury
    83. M Ferrario
    84. I Ford
    85. JW Jukema
    86. F Kee
    87. K Kuulasmaa
    88. BG Nordestgaard
    89. M Perola
    90. D Saleheen
    91. N Sattar
    92. P Surendran
    93. D Tregouet
    94. R Young
    95. JM Howson
    96. AS Butterworth
    97. J Danesh
    98. D Ardissino
    99. EP Bottinger
    100. R Erbel
    101. PW Franks
    102. D Girelli
    103. AS Hall
    104. GK Hovingh
    105. A Kastrati
    106. W Lieb
    107. T Meitinger
    108. WE Kraus
    109. SH Shah
    110. R McPherson
    111. M Orho-Melander
    112. O Melander
    113. A Metspalu
    114. CN Palmer
    115. A Peters
    116. D Rader
    117. MP Reilly
    118. RJ Loos
    119. AP Reiner
    120. DM Roden
    121. JC Tardif
    122. JR Thompson
    123. NJ Wareham
    124. H Watkins
    125. CJ Willer
    126. S Kathiresan
    127. P Deloukas
    128. NJ Samani
    129. H Schunkert
    130. Myocardial Infarction Genetics and CARDIoGRAM Exome Consortia Investigators
    (2016)
    The New England journal of medicine 374:1134–1144.
    https://doi.org/10.1056/NEJMoa1507652
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55

Decision letter

  1. Christopher K Glass
    Reviewing Editor; University of California, San Diego, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "ANGPTL4 catalyzes unfolding of the hydrolase domain in lipoprotein lipase and that unfolding is counteracted by GPIHBP1" for consideration by eLife. Your article has been favorably evaluated by Harry Dietz (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Tobias C Walther (Reviewer #2); Joseph Witztum (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Mysling et al. reports an extension of their recent work in eLife on the regulation of structure and function of LPL. They again use MS analysis of hydrogen-deuterium exchange to follow time-dependent changes in LPL structure and correlate these changes with assays of lipase activity. They demonstrate that sub-stoichiometric amounts of ANGPTL4 accelerate unfolding of the serine hydrolase domain, but not lipid binding domain of LPL, and correspondingly reduce its enzymatic activity. The human ANGPTL4 E15K variant that is associated with reduced triglyceride levels is less active in catalyzing LPL unfolding. ANGPTL3 also catalyzes unfolding of the LPL serine hydrolase domain, but is less active than ANGPTL4. The effects of ANGPTL4 on LPL unfolding and catalytic activity are counteracted by the endothelial cell transporter, GPIHBP1. Collectively, these results provide a biochemical explanation for the restriction of LPL activity to the right place and an explanation for reduced activity of the ANGPTL4 variant. Overall there was a high degree of enthusiasm for the manuscript from the three reviewers, but there is one issue that needs to be addressed experimentally and several other points requiring further discussion.

Essential Revisions:

1) The authors describe an experimental system in which LPL unfolding is irreversible. However, there is data from Saskia Nehr's group that ANGPTL4 inhibits LPL in a reversible fashion. The studies are not directly comparable, but it certainly raises the issue as to whether irreversibility of LPL unfolding in these studies is a specific feature of the experimental conditions used. This question should be further addressed experimentally.

2) Since GPIHBP1 binding to LPL stabilizes it and presumably protects it from inactivation by ANGPTL4 and ANGPTL3 – why then when heparin is given and LPL is released into the fluid phase plasma is it not totally inactivated by the combinations of ANGPTL3 and 4? Would it not be as in Figure 1 in solution and away from GPIHBP1? And how does for example, apoC-III, fit in here? This seems a major paradox. Does the heparin somehow change the LPL into a dimer that is then resistant to the ANGPTL proteins? Or is it all a matter of balance (stoichiometry) and numbers of molecules activating/inhibiting etc.? These questions should be discussed.

3) It was recently demonstrated that ANGPTL4 mediated intracellular degradation of LPL in adipocytes. Do the authors think this is related? E.g. Could ANGPTL4 mediated unfolding lead to a degradation pathway? Would the described mutant therefore lead to enhanced adipose tissue release of functional LPL in the affected individual? These questions should be discussed.

4) In vivo, LPL bound to GPIHBP1 interacts with a very large TRL and in the context of that binding, there is also bound apoC-II in the mix, and the different ANGPTL3/4/8 not to mention apoC-III. Can the authors discuss how they envision the described mechanism to play out in the context of LPL mediated hydrolysis of TG in a TRL?

https://doi.org/10.7554/eLife.20958.014

Author response

[…] Essential Revisions:

1) The authors describe an experimental system in which LPL unfolding is irreversible. However, there is data from Saskia Nehr's group that ANGPTL4 inhibits LPL in a reversible fashion. The studies are not directly comparable, but it certainly raises the issue as to whether irreversibility of LPL unfolding in these studies is a specific feature of the experimental conditions used. This question should be further addressed experimentally.

We are very happy for this opportunity to further elaborate on this topic as the apparent inconsistency in the literature as mentioned by the reviewer has persisted for several years. We actually consider our data on the sub-stoichiometric inhibition of LPL with ANGPTL4 presented in the original manuscript as a very strong argument in favor of the catalytic inhibition of LPL via an irreversible unfolding mechanism, during which each event leaves LPL permanently inactivated enabling the subsequent release of ANGPTL4, which can engage in the next unfolding event. Nonetheless, it is also true that the conditions defined by the HDX-MS conditions are unique in the sense that they use relatively high concentrations of LPL (10 µM). To interrogate the irreversibility of the LPL inhibition by ANGPTL4 with more traditionally used conditions, we therefore repeated the founding experiment leading Lafferty et al. 2013 to conclude that ANGPTL4 acts via a reversible non-competitive mechanism. We also discuss why we think they might have been misled by these experiments. These data are now included in the manuscript as Figure 1—figure supplement 4 and is referred to in the Discussion section, second paragraph. In brief; we were able to partially reproduce their inhibition data with ANGPTL4 inhibition recorded at 4°C in the presence of 1 mM DOC. However, if we omit DOC – a well-known LPL stabilizing anionic-detergent – from the reaction mixture, we observe an efficient time-dependent inhibition of LPL by sub-stoichiometric amounts of ANGPTL4 even at 4°C – in agreement with an irreversible inactivation mechanism.

Further inspired by the reviewer comments and our new protection data with GPIHBP1, we decided to design an additional experiment addressing this important question using more physiological relevant agents. This new information is now added to the manuscript as Figure 3 and discussed in the Results section:

“To further interrogate the mode of action of ANGPTL4-catalyzed LPL inhibition, we added 300 nM intact GPIHBP1 [12-fold above the KD for the GPIHBP1•LPL interaction (Mysling et al., 2016)] to LPL (15 nM) that had been partially inactivated – either by incubating the enzyme at 21°C (spontaneous inactivation) or by incubating the enzyme with 7.5 nM ANGPTL4 (catalyzed inactivation). […] If ANGPTL4-mediated inactivation of LPL were to be reversible, we would have expected to find reactivation of LPL during the incubation with GPIHBP1.”

2) Since GPIHBP1 binding to LPL stabilizes it and presumably protects it from inactivation by ANGPTL4 and ANGPTL3 – why then when heparin is given and LPL is released into the fluid phase plasma is it not totally inactivated by the combinations of ANGPTL3 and 4? Would it not be as in Figure 1 in solution and away from GPIHBP1? And how does for example, apoC-III, fit in here? This seems a major paradox. Does the heparin somehow change the LPL into a dimer that is then resistant to the ANGPTL proteins? Or is it all a matter of balance (stoichiometry) and numbers of molecules activating/inhibiting etc.? These questions should be discussed.

This is a highly relevant objection and opens the discussion of the highly convoluted regulation of lipid metabolism in vivo. In the hindsight, we did perhaps in the Discussion focus too narrowly on the impact of the GPIHBP1 – ANGPTL4-axis on LPL regulation as this was at the epicenter of what was addressed experimentally in the manuscript. What we originally emphasized was the importance and impact of this interaction in focusing the assembly of a functional lipolysis platform on the capillary endothelial surface – rather than addressing what occurs in the blood circulation. This is self-evidently a reductionist point-of-view as one compartment cannot be evaluated without the other. We have therefore added this element to the Discussion:

“Finally, we propose that the resistance of GPIHBP1-bound LPL to ANGPTL4- and ANGPTL3-mediated inhibition serves to focus catalytically active LPL at the luminal surface of capillary endothelial cells. […] With concentrations predicted to saturate LPL with GPIHBP1, we did observe a minor increase in LPL unfolding/inactivation in the presence of large amounts of ANGPTL4 in vitro(Figure 2A and Figure 3B).”

3) It was recently demonstrated that ANGPTL4 mediated intracellular degradation of LPL in adipocytes. Do the authors think this is related? E.g. Could ANGPTL4 mediated unfolding lead to a degradation pathway? Would the described mutant therefore lead to enhanced adipose tissue release of functional LPL in the affected individual? These questions should be discussed.

The recent data from Sander Kerstens laboratory on a possible role of ANGPTL4 in intracellular degradation of LPL is indeed interesting and we realized that we have not discussed the potential association of the ANGPTL4-catalysed unfolding of LPL to this report in sufficient detail. We have therefore expanded this section considerably and included some possible links to lysosomal degradation:

“First, in the secretory pathway of adipocytes, where GPIHBP1 is absent, we suspect that LPL would be more susceptible to ANGPTL4-mediated unfolding. […] Such a mechanism might account for the increased LPL secretion from Angptl4-/- adipocytes compared to wild-type adipocytes (Dijk et al., 2016). In keeping with the latter idea, we speculate that human adipocytes that express ANGPTL4 E15K polymorphism would secrete elevated levels of LPL.”

4) In vivo, LPL bound to GPIHBP1 interacts with a very large TRL and in the context of that binding, there is also bound apoC-II in the mix, and the different ANGPTL3/4/8 not to mention apoC-III. Can the authors discuss how they envision the described mechanism to play out in the context of LPL mediated hydrolysis of TG in a TRL?

Once again this is a very relevant, important and highly complex question. However, we consider it almost impossible to provide a reasonable answer – without oversimplifying the subject – as the microenvironment entailing the marginated TRL on the capillary endothelial surface is highly complex. The physiochemical properties of this interface depends on so many variables – biochemical as well as biological – that it is a daunting task even to define which of the reactions rates are limiting. To mention a few complications: the surface-bound nature of most reactants confounds a reasonable calculation of their active concentrations; the change in size and surface tension of the TRL during lipolysis needs to be taken into account; the membrane dynamics and clustering of GPIHBP1 in lipid rafts are likely to influence the number of recruited LPL-GPIHBP1 complexes to the TRLs; and even the sheer force exerted by the blood flow on the marginated TRL is likely a contributing factor. We would therefore prefer not to enter a detailed description of the regulation of this interesting and highly complex lipolysis platform as we run the risk of presenting a model flawed by too many assumptions and too little actual data. In the revised manuscript, we have tried to emphasize this complexity by stating:

“Intravascular lipolysis is thus a highly tunable biological process where the net activity is critically dependent on a complex interplay between local concentrations of cognate activators and inhibitors and their partitioning between different compartments.”

https://doi.org/10.7554/eLife.20958.015

Article and author information

Author details

  1. Simon Mysling

    1. Finsen Laboratory, Rigshospitalet, Copenhagen, Denmark
    2. Biotech Research and Innovation Centre, University of Copenhagen, Copenhagen, Denmark
    3. Department of Biochemistry and Molecular Biology, University of Southern Denmark, Odense, Denmark
    Contribution
    SM, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  2. Kristian Kølby Kristensen

    1. Finsen Laboratory, Rigshospitalet, Copenhagen, Denmark
    2. Biotech Research and Innovation Centre, University of Copenhagen, Copenhagen, Denmark
    Contribution
    KKK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  3. Mikael Larsson

    Department of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    ML, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    ML: shareholder in Lipigon Pharmaceuticals AB
  4. Oleg Kovrov

    Department of Medical Biosciences, Umeå University, Umeå, Sweden
    Contribution
    OK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  5. André Bensadouen

    Division of Nutritional Science, Cornell University, Ithaca, United States
    Contribution
    AB, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  6. Thomas JD Jørgensen

    Department of Biochemistry and Molecular Biology, University of Southern Denmark, Odense, Denmark
    Contribution
    TJDJ, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  7. Gunilla Olivecrona

    Department of Medical Biosciences, Umeå University, Umeå, Sweden
    Contribution
    GO, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    GO: shareholder and board member in Lipigon Pharmaceuticals AB
  8. Stephen G Young

    1. Department of Medicine, University of California, Los Angeles, Los Angeles, United States
    2. Department of Human Genetics, University of California, Los Angeles, Los Angeles, United States
    Contribution
    SGY, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    SGY: Reviewing editor, eLife
  9. Michael Ploug

    1. Finsen Laboratory, Rigshospitalet, Copenhagen, Denmark
    2. Biotech Research and Innovation Centre, University of Copenhagen, Copenhagen, Denmark
    Contribution
    MP, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    m-ploug@finsenlab.dk
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2215-4265

Funding

Leducq Transatlantic Network (12CVD04)

  • Stephen G Young
  • Michael Ploug

National Institutes of Health (HL090553)

  • Stephen G Young

National Institutes of Health (HL087228)

  • Stephen G Young

Rigshospitalet (123)

  • Kristian Kølby Kristensen

Swedish Research Council for Medicine and Health (2015-02942)

  • Gunilla Olivecrona

Swedish Heart and Lung Foundation (20130684)

  • Gunilla Olivecrona

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We acknowledge Gry Ellis Rasmussen and Seungwon Jung for expert technical assistance and John Post for artwork. *This work was supported by a Leducq Transatlantic Network grant (12CVD04), NIH grants HL090553 and HL087228, Rigshospitalets Forskningsudvalg (KKK), the Swedish Research Council for Medicine and Health (2015–02942), the Swedish Heart and Lung Foundation (20130684) and the Wenner-Gren Foundations. GO and ML are shareholders in Lipigon Pharmaceuticals AB where GO serves as a board member. The other authors have no financial interests to declare.

Reviewing Editor

  1. Christopher K Glass, University of California, San Diego, United States

Publication history

  1. Received: August 25, 2016
  2. Accepted: November 14, 2016
  3. Version of Record published: December 8, 2016 (version 1)

Copyright

© 2016, Mysling et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 900
    Page views
  • 225
    Downloads
  • 26
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, PubMed Central, Crossref.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Plant Biology
    2. Structural Biology and Molecular Biophysics
    Juan Carlos De la Concepcion et al.
    Research Advance
    1. Structural Biology and Molecular Biophysics
    Jie Li et al.
    Research Article
