Interface between 40S exit channel protein uS7/Rps5 and eIF2α modulates start codon recognition in vivo

  1. Jyothsna Visweswaraiah
  2. Alan G Hinnebusch  Is a corresponding author
  1. Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, United States
https://doi.org/10.7554/eLife.22572
Share this article
Cite this article
  1. Jyothsna Visweswaraiah
  2. Alan G Hinnebusch
(2017)
Interface between 40S exit channel protein uS7/Rps5 and eIF2α modulates start codon recognition in vivo
eLife 6:e22572.
https://doi.org/10.7554/eLife.22572
  2. Download BibTeX
  3. Download .RIS

Abstract

The eukaryotic pre-initiation complex (PIC) bearing the eIF2·GTP·Met-tRNAiMet ternary complex (TC) scans the mRNA for an AUG codon in favorable context. AUG recognition evokes rearrangement of the PIC from an open, scanning to a closed, arrested conformation. Cryo-EM reconstructions of yeast PICs suggest remodeling of the interface between 40S protein Rps5/uS7 and eIF2α between open and closed states; however, its importance was unknown. uS7 substitutions disrupting eIF2α contacts favored in the open complex increase initiation at suboptimal sites, and uS7-S223D stabilizes TC binding to PICs reconstituted with a UUG start codon, indicating inappropriate rearrangement to the closed state. Conversely, uS7-D215 substitutions, perturbing uS7-eIF2α interaction in the closed state, confer the opposite phenotypes of hyperaccuracy and (for D215L) accelerated TC dissociation from reconstituted PICs. Thus, remodeling of the uS7/eIF2α interface appears to stabilize first the open, and then the closed state of the PIC to promote accurate AUG selection in vivo.

https://doi.org/10.7554/eLife.22572.001

Introduction

Accurate identification of the translation initiation codon is critical to ensure synthesis of the correct cellular proteins. In eukaryotic cells this process generally occurs by a scanning mechanism, wherein the small (40S) ribosomal subunit first recruits Met-tRNAi in a ternary complex (TC) with eIF2-GTP in a reaction stimulated by eIFs 1, 1A, and 3. The resulting 43S pre-initiation complex (PIC) attaches to the mRNA 5’ end and scans the 5’UTR for an AUG with favorable surrounding sequence, particularly at the −3 and +4 positions, to identify the correct start codon and assemble a 48S PIC. In the scanning PIC, Met-tRNAi is not tightly bound to the peptidyl (P) site of the 40S subunit, and this relatively unstable ‘POUT’ state is thought to facilitate sampling of successive triplets entering the P site for complementarity to the anticodon of Met-tRNAi. The GTP bound to eIF2 in the TC can be hydrolyzed, dependent on GTPase activating protein eIF5, but Pi release is blocked by eIF1, which also impedes full accommodation of Met-tRNAi in the P site. Start codon recognition triggers dissociation of eIF1 from the 40S subunit, which gates Pi release from eIF2-GDP·Pi and permits highly stable binding of Met-tRNAi in the ‘PIN’ state. Interaction of the eIF1A NTT with the codon:anticodon duplex helps to stabilize the closed, PIN state (Figure 1). Subsequent dissociation of eIF2-GDP and other eIFs from the 48S PIC enables eIF5B-catalyzed subunit joining and formation of an 80S initiation complex with Met-tRNAi base-paired to AUG in the P site (reviewed in Hinnebusch (2014)).

Figure 1
Download asset Open asset

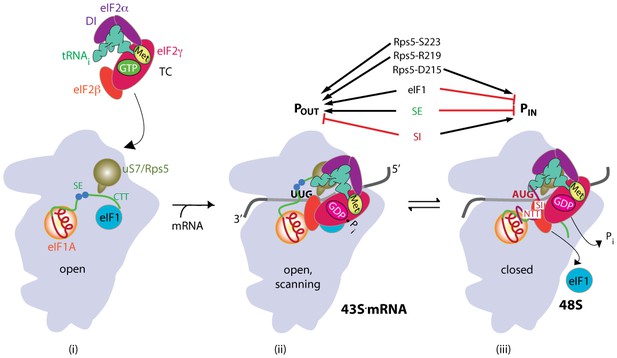

Model describing conformational rearrangements of the PIC during scanning and start codon recognition.

(i) eIF1 and the scanning enhancers (SEs) in the CTT of eIF1A stabilize an open conformation of the 40S subunit to which TC rapidly binds. uS7 is located in the mRNA exit channel of the 40S; (ii) The 43S PIC in the open conformation scans the mRNA for the start codon with Met-tRNAi bound in the POUT state and uS7 interacting with eIF2α-D1. eIF2 can hydrolyze GTP to GDP•Pi, but release of Pi is blocked. (iii) On AUG recognition, Met-tRNAi moves from the POUT to PIN state, clashing with eIF1 and the CTT of eIF1A, provoking displacement of the eIF1A CTT from the P site, dissociation of eIF1 from the 40S subunit, and Pi release from eIF2. The NTT of eIF1A, harboring scanning inhibitor (SI) elements, adopts a defined conformation and interacts with the codon:anticodon helix. The eIF2α-D1/uS7 interface is remodeled. (Above) Arrows summarize that eIF1 and the eIF1A SE elements promote POUT and impede transition to PIN state, whereas the scanning inhibitor (SI) element in the NTT of eIF1A stabilizes the PIN state. Results presented below indicate that uS7/Rps5 residue D215 promotes the closed conformation, whereas R219 and S223 enhance the open state (Adapted from Hinnebusch, 2014).

https://doi.org/10.7554/eLife.22572.002

A recent cryo-EM structure of a reconstituted partial yeast 48S PIC (py48S) with Met-tRNAi bound in the PIN state revealed extensive interactions between Met-tRNAi and all three domains of the α-subunit of eIF2 within the TC. The eIF2α occupies the exit (E) decoding site, adjacent to the P site, with eIF2α domain-1 mimicking the anticodon stem-loop (ASL) of an E site-bound tRNA and contacting the −2 and −3 ‘context’ nucleotides in mRNA just upstream of the AUG codon (Figure 2A–B). eIF2α-D1 also interacts with the C-terminal helix of 40S ribosomal protein uS7 (Rps5 in yeast), whose β-hairpin projects into the mRNA exit channel and additionally interacts with the −3 mRNA nucleotide (Hussain et al., 2014) (Figure 2A–C). Proximity of eIF2α-D1 and the uS7 hairpin with the −3 nucleotide was also observed in structures of partial mammalian 43S (Hashem et al., 2013) and 48S PICs (Lomakin and Steitz, 2013) and detected in cross-linking analyses of reconstituted mammalian PICs (Pisarev et al., 2006; Sharifulin et al., 2013); and there is biochemical evidence that recognition of the AUG context nucleotides requires eIF2α (Pisarev et al., 2006).

Figure 2
Download asset Open asset

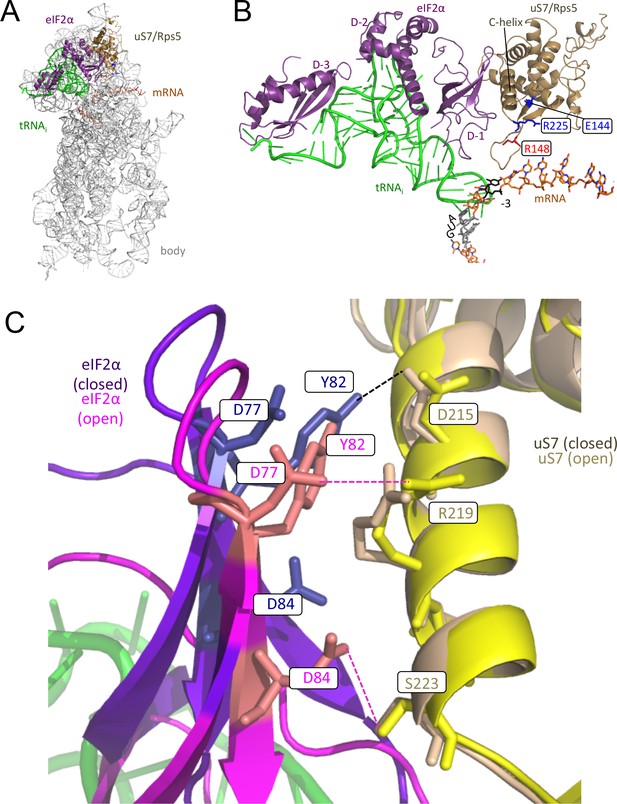

Alteration of the interface between eIF2α-D1 and C-terminal helix of uS7 in the open versus closed conformations of the py48S PIC.

(A, B) Depiction of the py48S PIC (PDB 3J81) showing uS7/Rps5 (gold), mRNA (orange), Met-tRNAi (green), eIF2α (purple). For clarity, other ribosomal proteins, eIF2β, eIF2γ, eIF1, eIF1A and putative eIF5 densities are not shown. uS7 residues previously implicated in promoting AUG recognition (Visweswaraiah et al., 2015) are shown in blue or red with stick side-chains. (C) Overlay of py48S-open (PDB 3JAQ) and py48S-closed (PDB 3JAP) revealing remodeling of the interface between eIF2α-D1 (purple or dark blue-closed complex; magenta or orange-open complex) and C-terminal helix of uS7 (beige-closed, yellow-open). Residues making contacts that appear to be favored in the open or closed state are shown with stick side-chains, using dotted lines to indicate the favored interactions.

https://doi.org/10.7554/eLife.22572.003

Mutations have been identified in yeast initiation factors, including eIF1, eIF5, and the three subunits of eIF2, that reduce initiation accuracy and increase utilization of near-cognate triplets, particularly UUG, in place of AUG as start codons, conferring the Sui- (Suppressor of initiation codon) phenotype (Donahue, 2000). Previously, we showed that substitutions of several residues in the β-hairpin of uS7 suppress the elevated UUG initiation conferred by Sui- variants of eIF2β (SUI3–2) or eIF5 (SUI5), displaying the Ssu- (Suppressor of Sui-) phenotype. Consistent with this, one such Ssu- substitution in the hairpin loop (R148E, Figure 2B) was found to destabilize TC binding to reconstituted 48S PICs containing a UUG start codon in the mRNA. Substitutions of Glu-144 in β-strand 1 of the hairpin, or the nearby residue Arg-225 at the C-terminus of uS7 (Figure 2B), also reduced recognition of the AUG codon of eIF1 (SUI1) mRNA, present in poor context, and increased the probability that scanning PICs bypass, or ‘leaky scan’ past, the AUG codon of upstream open reading frame 1 (uORF1) in GCN4 mRNA. The Glu-144 substitution (E144R) also dramatically destabilized TC binding to PICs reconstituted with an AUG or UUG start codon in mRNA, with a stronger effect for UUG (Visweswaraiah et al., 2015). Together, these findings implicated Arg-225 and amino acids in the uS7 β-hairpin, particularly Glu-144, in stabilizing the PIN conformation of the PIC, and revealed a requirement for these residues in preventing selection of near-cognate (UUG) or AUG start codons in poor context in vivo (Visweswaraiah et al., 2015).

The uS7 substitutions with the greatest effects on start codon recognition are located in the upper portion of the β-hairpin (E144R) or at the very C-terminus (R225K), distant from the context nucleotides in mRNA; whereas substitutions of residues in the loop of the β-hairpin, including R148E, which contacts the mRNA directly (Figure 2B), had relatively weaker phenotypes (Visweswaraiah et al., 2015). Thus, it was unclear what molecular interactions in the PIC are perturbed by the E144R and R225K substitutions. Interestingly, both E144 and R225 interact with other uS7 residues located in the C-terminal helix, which in turn interacts extensively with eIF2α-D1 (Hussain et al., 2014) (Figure 2B). As eIF2α-D1 also interacts with the anticodon stem-loop of tRNAi (Figure 2B), we considered that the strong defects in start codon recognition conferred by E144R and R225K might result from an altered orientation of the uS7 C-terminal helix that perturbs its interaction with eIF2α-D1 in a way that indirectly destabilizes TC binding in the PIN state (Visweswaraiah et al., 2015). Because it was unknown whether the interface between eIF2α-D1 and the uS7 C-terminal helix is important for start codon recognition, we set out here to determine whether uS7 substitutions predicted to perturb this interface would alter the accuracy of start codon recognition in vivo.

Recent cryo-EM analysis has revealed a partial yeast PIC exhibiting a more open configuration of the mRNA binding cleft and P site (py48S-open) compared to both the previous py48S structure (Hussain et al., 2014) and a similar complex also containing eIF3 (py48S-closed) (Llácer et al., 2015). The py48S-open complex exhibits an upward movement of the 40S head from the body that both widens the mRNA binding cleft and opens the entry channel latch, and evokes a widened P site lacking interactions between Met-tRNAi and the 40S body found in py48S-closed. These features of py48S-open seem well-suited to the scanning of successive triplets entering the P site for complementarity to Met-tRNAi with TC anchored in a relatively unstable conformation (Llácer et al., 2015). During the transition from py48S-open to py48S-closed, eIF2α-D1 rotates slightly to avoid a clash with the 40S body, which alters the interface between eIF2α-D1 and the C-terminal helix of uS7. Certain contacts appear to be enhanced in the open conformation (Figure 2C; D77-R219 and D84-S223) and thus might be expected to promote continued scanning through UUG or ‘poor-context’ AUG codons and thereby increase initiation accuracy. A third contact (Figure 2C; Y82-D215) is favored in the closed conformation and might have the opposite function of enabling recognition of suboptimal initiation sites by promoting the highly stable PIN conformation of TC binding to the closed complex. Thus, to examine the importance of the eIF2α-D1/uS7 interface in start codon recognition, we chose to perturb these predicted contacts that appear to be favored in one PIC conformation or the other and determine their effects on initiation at poor initiation codons in vivo and the stability of TC binding to reconstituted PICs in vitro. Our results support the physiological importance of the differential contacts between uS7 and eIF2α-D1 in the py48S-open and py48S-closed structures in modulating the transition to the PIN conformation by the scanning PIC and, hence, the accuracy of start codon selection.

Results

Substitutions of uS7 Asp-215 increase discrimination against suboptimal initiation codons in vivo

The cryo-EM structure of the py48S complex reveals two sites of interaction between eIF2α-D1 and uS7: (i) loops in eIF2α-D1 and the uS7 β-hairpin, both in proximity to the −3 nucleotide in mRNA; and (ii) the C-terminal helix of uS7 and residues in the β-barrel structure of eIF2α-D1 (Figure 2A–B). Comparison of the py48S-open and –closed structures (Llácer et al., 2015) suggests that interactions of uS7 residues R219 and S223 with eIF2α D77 and D84, respectively, are more favored in the open conformation, whereas uS7 D215 interaction with eIF2α Y82 is more favored in the closed state (Figure 2C). Thus, disrupting these interactions might alter the fidelity of start codon selection in different ways. In particular, disrupting the uS7-D215/eIF2α-Y82 contact favored in the closed state (Figure 3A) might increase discrimination against near-cognate UUG or poor-context AUG codons by shifting the system to the open/POUT conformation conducive to scanning (Figure 1). To test this hypothesis, we introduced Leu, Ala or Phe substitutions of uS7 D215 by mutagenesis of an RPS5 allele under its own promoter on a low-copy plasmid, and examined the phenotypes in a yeast strain harboring wild-type (WT) chromosomal RPS5 under a galactose-inducible promoter (PGAL1-RPS5+). Despite strong sequence conservation of uS7 D215 in diverse eukaryotes (Visweswaraiah et al., 2015), none of the mutations substantially reduced the ability of plasmid-borne RPS5 to rescue WT cell growth following a shift to glucose medium to repress PGAL1-RPS5 expression (Figure 3B, Glu).

Figure 3
Download asset Open asset

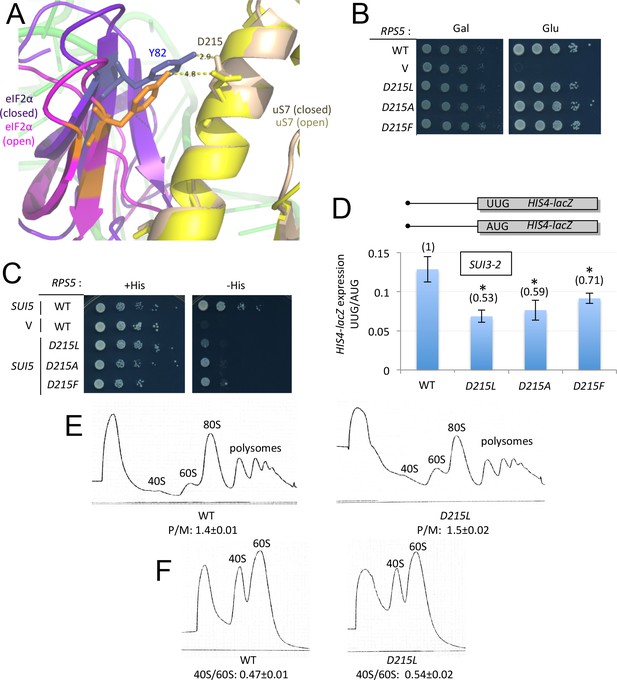

uS7-D215 substitutions increase discrimination against UUG start codons in vivo.

(A) Overlay of py48S-open and py48S-closed as in Figure 2C, showing that uS7-D215/eIF2α-Y82 interaction is favored in the closed complex (dark blue/beige sticks). (B) 10-fold serial dilutions of transformants of pGAL1-RPS5 his4–301 strain (JVY07) with the indicated plasmid-borne RPS5 alleles, or empty vector (V) were spotted on SCGal-Leu (Gal) or SC-Leu (Glu) and incubated at 30°C for 2–3 days. (C) 10-fold serial dilutions of JVY07 transformants with the indicated RPS5 alleles and SUI5 plasmid p4281, or empty vector (V) were spotted on SD+Ura+His (+His) or SD+Ura (−His) and incubated at 30°C for 3d and 5d, respectively. (D) JVY07 transformants with the indicated RPS5 alleles, SUI3–2 plasmid p4280, and HIS4-lacZ reporters with AUG or UUG start codons (plasmids p367 and p391, respectively) were cultured in SD+His at 30°C to an A600 of ~1 and β-galactosidase specific activities were measured in WCEs in units of nanomoles of o-nitrophenyl-β-D-galactopyranoside (ONPG) cleaved per min per mg of total protein. Ratios of mean expression of the UUG and AUG reporters calculated from four biological and two technical replicates are plotted with error bars (indicating S.E.M.s). *p<0.05 (E) WT and JVY76 (rps5-D215L) were cultured in SC-Leu at 30°C to A600 of ~1, and cycloheximide was added prior to harvesting. WCEs were separated by sucrose density gradient centrifugation and scanned at 254 nm to yield the tracings shown. Mean polysome/monosome ratios (and S.E.M.s) from three biological replicates are indicated. (F) Similar to (E) but cultures were not treated with cycloheximide and lysed in buffers without MgCl2 to allow separation of dissociated 40S and 60S ribosomal subunits. Mean 40S/60S ratios (and S.E.M.s) from three biological replicates are indicated.

https://doi.org/10.7554/eLife.22572.004
Figure 3—source data 1

Effects of Rps5-D215 substitutions on HIS4-lacZ UUG:AUG expression ratios and polysome:monosome ratios.

https://doi.org/10.7554/eLife.22572.005

To determine whether the D215 substitutions increase discrimination against non-AUG codons, we asked whether they suppress the elevated initiation at the UUG start codon of mutant his4–301 mRNA, which lacks an AUG start codon, conferred by a dominant Sui- mutation (SUI5) in the gene encoding eIF5 (TIF5). As expected (Huang et al., 1997), SUI5 overcomes the histidine auxotrophy conferred by his4–301 in the RPS5+strain (Figure 3C, -His, rows 1–2); and, importantly, this His+/Sui- phenotype is diminished by all three D215 substitutions (Figure 3C, -His, rows 3–5). The D215L allele also suppresses the slow-growth phenotype conferred by SUI5 on histidine-supplemented (+His) medium (Figure 3C, +His, rows 1 and 3), a known attribute of eIF1 Ssu- mutations described previously (Martin-Marcos et al., 2011). The D215 substitutions also mitigate the elevated expression of a HIS4-lacZ reporter containing a UUG start codon, relative to a matched AUG reporter, conferred by a dominant Sui- mutation in the eIF2β gene (SUI3–2; Huang et al., 1997) (Figure 3D), thus confirming their Ssu- phenotypes. These results suggest that replacing the acidic side chain of D215 with the hydrophobic side chains of Ala, Leu, or Phe perturbs the uS7/eIF2α-D1 interface in a way that impedes inappropriate transition to the closed/PIN state at UUG start codons conferred by Sui- variants of eIF5 or eIF2β.

As D215L appears to have the strongest Ssu- phenotype among the alleles tested, we examined its effect on 40S subunit biogenesis or stability, and bulk translation in vivo. Consistent with its WT growth, the D215L mutant showed no reduction in the ratio of polysomes to 80S monosomes (P/M ratio) versus WT, suggesting a nearly WT rate of bulk protein synthesis (Figure 3E). D215L cells also display a nearly WT ratio of total 40S to 60S subunits, measured under conditions that dissociate 80S ribosomes into free subunits (Figure 3F), indicating little or no effect of D215L on 40S biogenesis or stability. Thus, the enhanced initiation accuracy conferred by D215L appears to reflect an increased propensity of the mutant 43S PIC to bypass a near-cognate start codon during scanning rather than a reduction in 40S abundance.

In addition to reducing initiation from near-cognate UUG codons, certain Ssu- mutations in eIF1 and eIF1A reduce initiation from AUG codons in poor context. As such, they exacerbate the effects of the native, suboptimal context of the AUG codon of SUI1 mRNA and decrease expression of the encoded eIF1 protein (Martin-Marcos et al., 2011). All three D215 Ssu- substitutions similarly reduced eIF1 expression (Figure 4A) and, consistently, reduced expression of a SUI1-lacZ reporter bearing the native, suboptimal context at the nucleotides preceding the AUG codon (−3CGU−1), while modestly increasing expression of a modified SUI1opt-lacZ reporter with optimized context (−3AAA−1) (Figure 4B). As expected, expression of the SUI1opt-lacZ reporter is 2-fold higher than that of SUI1-lacZ in RPS5+cells (Martin-Marcos et al., 2011), whereas the SUI1opt-lacZ/SUI-lacZ expression ratio is elevated to between 3- and 4-fold in the D215 mutants (Figure 4B). Thus, the D215 substitutions exacerbate the effect of suboptimal context and decrease AUG recognition on native SUI1 mRNA. The reduction in eIF1 abundance implies that the D215 substitutions overcome the autoregulation of eIF1 expression, wherein low eIF1 levels suppress poor context at the SUI1 AUG codon to restore eIF1 abundance (Ivanov et al., 2010; Martin-Marcos et al., 2011). Hence, these substitutions confer a pronounced defect in recognition of the SUI1 AUG codon that prevails even at low cellular concentrations of eIF1 that favor recognition of this suboptimal initiation site.

Figure 4 with 1 supplement see all
Download asset Open asset

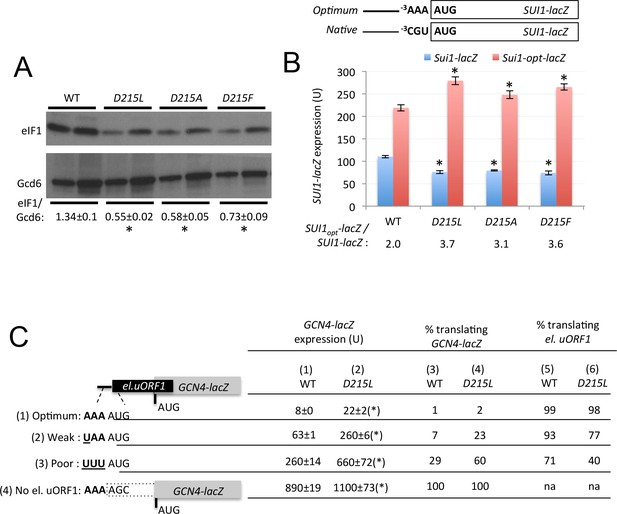

uS7 substitution D215L discriminates against AUG start codons in poor context.

(A) WCEs of strains from Figure 3B subjected to Western analysis using antibodies against eIF1 or Gcd6 (as loading control). Two amounts of each extract differing by a factor of two were loaded in successive lanes. Signal intensities from four biological replicates were quantified and mean eIF1/Gcd6 ratios are listed below the blot with S.E.Ms. *p<0.05 (B) Strains from Figure 3B also harboring SUI1-lacZ (pPMB24) or SUI1-opt-lacZ (pPMB25) reporters, containing native or optimum context at positions −1 to −3, were assayed for β-galactosidase activities as in Figure 3D. Mean expression levels and S.E.M.s from four biological and two technical replicates are plotted, and ratio of mean expression levels of SUI1-lacZ reporters with optimized context to native context are listed below the histogram. *p<0.05 (C) β-galactosidase activities measured in WCEs of WT and uS7-D215L transformants harboring the el.uORF1 GCN4-lacZ reporters pC3502, pC4466, or pC3503 containing, respectively, the depicted optimum, weak, or poor context of uAUG-1; or the uORF-less GCN4-lacZ reporter pC3505 with mutated uAUG-1. Mean expression values with S.E.M.s were determined from three biological and two technical replicates and listed in columns 1 and 2. Cols. 3–4 gives the percentage of ribosomes translating the GCN4-lacZ ORF in the different constructs, calculated as a percentage of the GCN4-lacZ activity observed for the ‘no el. uORF1’ construct measured for the relevant construct shown in cols. 1–2. Cols. 5–6 gives the percentage of ribosomes translating el.uORF, calculated as 100% minus the percentage translating the GCN4-lacZ ORF shown in cols. 3–4. (*), p<0.05.

https://doi.org/10.7554/eLife.22572.006
Figure 4—source data 1

Source data for Figure 4 and Figure 4—figure supplement 1.

Effects of Rps5-D215 substitutions on eIF1 expression, SUI1opt-lacZ: SUI1nat-lacZ expression ratios, and Rps5-D215L, -R225K, or -E144R on leaky scanning of el.uORF1 in GCN4-lacZ reporters.

https://doi.org/10.7554/eLife.22572.007

We asked next whether the D215L Ssu- substitution can decrease recognition of the AUG codon of an upstream ORF (uORF) by assaying a GCN4-lacZ reporter harboring a modified version of uORF1, elongated to overlap the GCN4 ORF (el.uORF1), as the sole uORF in the mRNA leader. With the native, optimum context of the uORF1 AUG (−3AAA−1), virtually all scanning ribosomes translate el.uORF1 and subsequent reinitiation at the GCN4-lacZ ORF is nearly non-existent, such that GCN4-lacZ translation of this reporter is very low (Grant et al., 1994) (Figure 4C, col. 1, row 1). In agreement with previous work (Visweswaraiah et al., 2015), replacing optimum context with the weaker context −3UAA−1 at uAUG-1 increases leaky scanning of el.uORF1 and elevates GCN4-lacZ expression ~8 fold; an even greater ~30 fold increase in GCN4-lacZ expression is conferred by the extremely poor context −3UUU−1; and elimination of uAUG-1 increases GCN4-lacZ expression by ~100 fold (Figure 4C, col. 1, rows 1–4). Based on these results, the percentages of scanning ribosomes that either translate el.uORF1 or leaky-scan uAUG-1 and translate GCN4-lacZ instead can be calculated (Figure 4C, cols. 3 and 5), revealing that about 99%, 93%, and 71% of scanning ribosomes recognize uAUG-1 in optimum, weak, or poor context, respectively, in WT cells (Figure 4C col. 5, rows 1–3). Note that while leaky-scanning to GCN4-lacZ increases by ~30 fold on replacing optimum with poor context, this entails only a ~30% reduction in el.uORF1 translation (Figure 4C, col. 5), as virtually no leaky-scanning (1%) occurs at uAUG-1 in optimum context (Figure 4C, col. 3).

The uS7 D215L substitution increases leaky scanning of el.uORF1 and elevates GCN4-lacZ expression between ~2.5 and 4-fold for the different reporters containing uAUG-1, while having relatively little effect on the uORF-less reporter (Figure 4C, col. 1 vs 2 and col. 3 vs. 4, rows 1–4). Comparing the percentages of scanning ribosomes that initiate at uAUG-1 in D215L and WT cells, as calculated above, reveals that D215L reduces initiation at uAUG-1 by ~17% and~41% for weak and poor contexts, respectively, but only by ~1% for optimum context (Figure 4C, cf. cols. 5 and 6). Thus, D215L preferentially discriminates against uAUG-1 in weak or poor context, in accordance with its relatively greater effect on initiation at the SUI1-lacZ AUG in native, poor context (Figure 4B).

Previously, we showed that Ssu- substitutions E144R and R225K in the β-hairpin loop of uS7 exhibit the same phenotypes described above for D215L, reducing initiation at the native SUI1 AUG codon and increasing leaky scanning of GCN4 uAUG-1 in optimum, weak, or poor context (Visweswaraiah et al., 2015). To determine whether E144R/R225K preferentially discriminate against uAUG-1 in poor context, we calculated their effects on the fraction of scanning ribosomes that initiate at el.uORF1 for each context of uAUG-1 in the manner shown in Figure 4C for D215L. As shown in Figure 4—figure supplement 1 , R225K and E144R both resemble D215L in preferentially decreasing el.uORF1 translation for weak and poor context versus optimum context. In fact, E144R essentially eliminates recognition of uAUG-1 in poor context, while reducing it only slightly for optimum context (Figure 4 Fig. sup., cf. cols. 7 and 9). These findings support the possibility that uS7 R225K/E144R confer hyperaccurcy phenotypes by indirectly perturbing the uS7/eIF2α-I interface in the manner altered directly by the D215 substitutions.

Ssu- uS7 substitution D215L destabilizes the PIN conformation of the 48S PIC in vitro

The multiple defects in start codon recognition conferred by rps5-D215L suggest that it destabilizes the PIN state of the 48S PIC. We tested this hypothesis by analyzing the effects of the uS7 D215L substitution on TC binding to the 40S subunit in the yeast reconstituted translation system. We began by measuring the affinity of WT TC, assembled with [35S]-Met-tRNAi, for 40S subunits harboring mutant or WT uS7 in the presence of saturating eIF1, eIF1A and a model unstructured mRNA containing an AUG start codon (mRNA(AUG)), using native gel electrophoresis to separate 40S-bound and unbound fractions of labeled TC. The 40S subunits were purified from rps5Δ::kanMX deletion strains harboring either plasmid-borne rps5-D215L or RPS5+as the only source of uS7. The reconstituted 40S∙eIF1∙eIF1A∙mRNA∙TC complexes will be referred to as partial 43S∙mRNA complexes owing to the absence of eIF3 and eIF5, which are dispensable for PIC assembly using these model mRNAs (Algire et al., 2002). Reactions conducted with increasing concentrations of 40S subunits revealed that the partial 43S∙mRNA(AUG) complexes containing D215L or WT 40S subunits have Kd values of ≤1 nM (Figure 5A and D). While this assay is not sensitive enough to detect decreases in TC affinity unless they exceed two-orders of magnitude (Kolitz et al., 2009), the results indicate that stable partial 43S∙mRNA(AUG) complexes can be assembled with D215L mutant 40S subunits. In the absence of mRNA, the affinities for TC were also similar between partial 43S PICs assembled with mutant or WT 40S subunits (Figure 5B and D).

Figure 5
Download asset Open asset
uS7 substitution D215L destabilizes PIN in vitro preferentially at UUG start codons.

(A, B) Determination of Kd values for TC with [35S]-Met-tRNAi binding to 40S·eIF1·eIF1A complexes assembled with WT or D215L mutant 40S subunits and either mRNA (AUG) (A) or without mRNA (B). (C) Analysis of TC dissociation kinetics from 43S·mRNA complexes assembled with WT or D215L mutant 40S subunits and mRNA(AUG) or mRNA(UUG), conducted using the eIF2β-S264Y Sui- variant of eIF2. Representative curves selected from three independent experiments are shown. (D, E) Kd and koff values with S.E.M.s from three independent experiments determined in (A–C). (*), p<0.05.

https://doi.org/10.7554/eLife.22572.009
Figure 5—source data 1

Effects of Rps5-D215L on TC affinity for partial 43S and 43S·mRNA complexes, and rate of TC dissociation from partial 43S·mRNA complexes reconstituted with the eIF2β-S264Y variant of eIF2.

https://doi.org/10.7554/eLife.22572.010

We next determined the rate constants for TC dissociation from 43S·mRNA complexes using mRNAs harboring AUG or UUG start codons. To measure the TC off-rate (koff), partial 43S∙mRNA complexes were formed as above using TC assembled with [35S]-Met-tRNAi, and the amount of [35S]-Met-tRNAi remaining in the slowly-migrating PIC was measured at different times after adding a chase of excess unlabeled TC. To mimic the situation in vivo where D215L suppressed the Sui- phenotype of SUI3–2 (Figure 3D), we measured the koff using eIF2 harboring the eIF2β substitution (S264Y) encoded by SUI3–2. Consistent with our previous results (Martin-Marcos et al., 2014), in reactions with WT 40S subunits, TC dissociates from AUG complexes very little over the time course of the experiment, yielding a rate constant of only 0.06 h−1 (Figure 5C; summarized in Figure 5E). TC dissociation from WT PICs assembled on an otherwise identical mRNA containing a UUG start codon is also relatively slow (koff = 0.10 h−1), owing to the stabilization of complexes at UUG codons conferred by the SUI3–2 mutation in eIF2β (Figure 5C and E). Importantly, the TC dissociation rates for partial 43S∙mRNA complexes assembled with D215L 40S subunits was increased ~3 fold for mRNA(AUG) and ~8 fold for mRNA(UUG) compared to the koff values of the corresponding WT complexes (Figure 5C and E). These findings provide biochemical evidence that D215L destabilizes PIN at both AUG and UUG start codons with a relatively stronger effect on the near-cognate triplet, overriding the opposing effect of SUI3–2 of enhancing the stability of the UUG complex. These in vitro findings are in accordance with the in vivo effects of D215L of reducing recognition of the SUI1 AUG and GCN4 uAUG-1 start codons, and suppressing the elevated UUG:AUG initiation ratio on his4–301 mRNA conferred by SUI3–2.

Substitutions of uS7 residues Arg-219 and Ser-223 decrease discrimination against suboptimal initiation codons in vivo

As noted above, comparing the structures of py48S-open and -closed (Llácer et al., 2015) suggests that interactions of uS7 residues R219 and S223 with eIF2α-D1 residues D77 and D84, respectively, are both favored in the open complex (Figure 2C and 6A), such that disrupting these interactions might decrease discrimination against near-cognate UUG or poor-context AUG start codons by enhancing transition to the closed/PIN conformation required for start codon selection (Figure 1). Supporting this hypothesis, Ala and Asp substitutions of R219 conferred strong increases in the UUG:AUG initiation ratio of HIS4-lacZ mRNA (Figure 6B), indicating Sui- phenotypes. The R219D mutation also conferred weak growth on –His medium, despite producing slow-growth (Slg-) on +His medium (Figure 6C, row 5), indicating elevated initiation at the UUG start codon of his4–301 mRNA. The His+ phenotype of R219D was exacerbated by overexpressing eIF5 from a high-copy TIF5 plasmid, which also conferred a His+/Sui- phenotype in R219A cells (Figure 6C, cf. hcTIF5 and vector (V) rows). It is known that eIF5 overexpression intensifies UUG initiation in Sui- mutants by promoting eIF1 dissociation and TC binding in the PIN state (Nanda et al., 2009). The R219H substitution, by contrast, confers only a modest increase in UUG:AUG initiation (Figure 6B) and does not display a His+ phenotype even with eIF5 overexpression (Figure 6C, rows 7–8).

Figure 6 with 1 supplement see all
Download asset Open asset

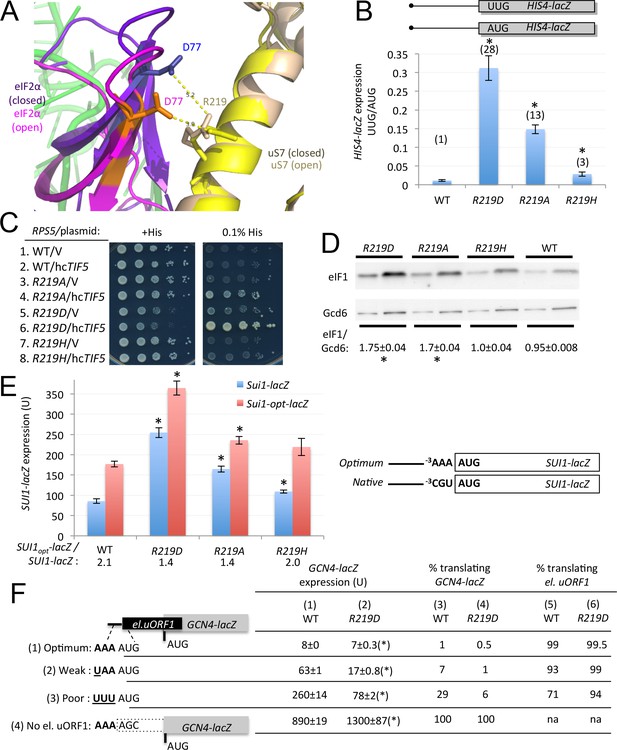

uS7 substitution R219D increases initiation at UUG codons and AUG codons in poor context.

(A) Overlay of py48S-open and py48S-closed showing uS7-R219/eIF2α-D77 interaction favored in the open complex (orange/yellow sticks). (B) Ratio of expression of HIS4-lacZ reporters with AUG or UUG start codons in transformants of JVY07 determined as in Figure 3D. Mean ratios and S.E.M.s calculated from four biological and two technical replicates. *p<0.05 (C) 10-fold serial dilutions of JVY07 transformants harboring the indicated RPS5 alleles and high-copy TIF5 plasmid p4438 or empty vector (V) spotted on SD+His+Ura (+His) or SD+Ura+0.0003 mM His (0.1% of usual His supplement; -His) and incubated at 30°C for 3d. (D) WCEs of three biological replicate strains from (B) subjected to Western analysis of eIF1 expression, as in Figure 4A. *p<0.05 (E) Expression of SUI1-lacZ or SUI1-opt-lacZ reporters in transformants of strains from (B), determined as in Figure 4B. Mean expression levels and S.E.M.s were calculated from four biological and two technical replicates. *p<0.05 (F) Expression of el.uORF1 GCN4-lacZ reporters in transformants of the WT or rps5-219D strains from (B), analyzed as in Figure 4C. (*), p<0.05.

https://doi.org/10.7554/eLife.22572.011
Figure 6—source data 1

Source data for Figure 6 and Figure 6—figure supplement 1.

Effects of Rps5-R219 substitutions on HIS4-lacZ UUG:AUG expression ratios, eIF1 expression, SUI1opt-lacZ: SUI1nat-lacZ expression ratios, leaky scanning of el.uORF1 in GCN4-lacZ reporters, and polysome:monosome ratios.

https://doi.org/10.7554/eLife.22572.012

Similar to Sui- mutations in eIF1, eIF1A, and eIF2β (Martin-Marcos et al., 2011), the uS7 R219D and R219A substitutions reduce discrimination against the native, poor context of the SUI1 AUG codon and evoke increased eIF1 expression (Figure 6D). Consistently, they also confer increased expression of the SUI1-lacZ reporter with native, poor context. They also increase expression of SUI1opt-lacZ (with optimal context), but to a lesser degree, and thereby diminish the SUI1opt-lacZ/ SUI1-lacZ expression ratio (Figure 6E). In accordance with its lack of Sui- phenotype, the R219H mutation has little or no effect on eIF1 expression (Figure 6D) or the SUI1opt-lacZ/ SUI1-lacZ expression ratio (Figure 6E). Assaying expression of the el.uORF1-GCN4-lacZ reporters revealed that R219D confers decreased leaky scanning of uAUG-1 and attendant reduced translation of the downstream GCN4-lacZ ORF (Figure 6F, cf. cols. 1–2). Calculating the fraction of scanning ribosomes that translate el.uORF1 indicates a substantial increase in recognition of uAUG-1 in poor context, a smaller increase with uAUG-1 in weak context, and a negligible change with uAUG-1 in optimal context (Figure 6F, cf. columns 5–6). Thus, it appears that eliminating the basic side-chain of Arg-219 (R219A) or substituting it with an acidic side-chain (R219D) confers moderate or severe disruptions, respectively, of the uS7/eIF2α-D1 interface to facilitate inappropriate transition to the closed/PIN state at both UUG codons and AUGs in poor-context. The relatively stronger phenotype of the Asp substitution of R219 might reflect electrostatic repulsion with D77 in eIF2α-D1 (Figure 6A). The Slg- phenotype of rps5-R219D (Figure 6C, +His, row 5) is associated with diminished polysome assembly, indicated by a reduced P/M ratio (Figure 6—figure supplement 1A); which does not arise from a reduction in 40S subunit abundance (Figure 6—figure supplement 1B).

Interaction of uS7 Ser-223 with eIF2α-D1 residue Asp-84 also appears to be favored in the open complex (Figure 7A). Similar to our findings for the R219D/A substitutions, replacing Ser-223 with Ala, Arg, Asp, or Phe, evokes increased UUG initiation, with S223D conferring the greatest increase in the UUG:AUG HIS4-lacZ initiation ratio (Figure 7D). Consistently, S223D also suppresses the His- phenotype of his4–301 despite a strong Slg- defect on +His medium (Figure 7B). Furthermore, S223D was the only substitution of Ser-223 that both increased eIF1 expression (Figure 7C) and decreased the SUI1opt-lacZ/ SUI1-lacZ expression ratio (Figure 7E), signifying reduced discrimination against the native (poor) context of the SUI1 AUG codon. However, we found that S223D did not significantly increase recognition of uAUG-1 of el.uORF1 in poor or weak context to reduce expression of the corresponding el.uORF1-GCN4-lacZ reporters, indicating a narrower effect of reducing discrimination against poor context than observed for the R219D substitution (Figure 6D–F).

Figure 7
Download asset Open asset

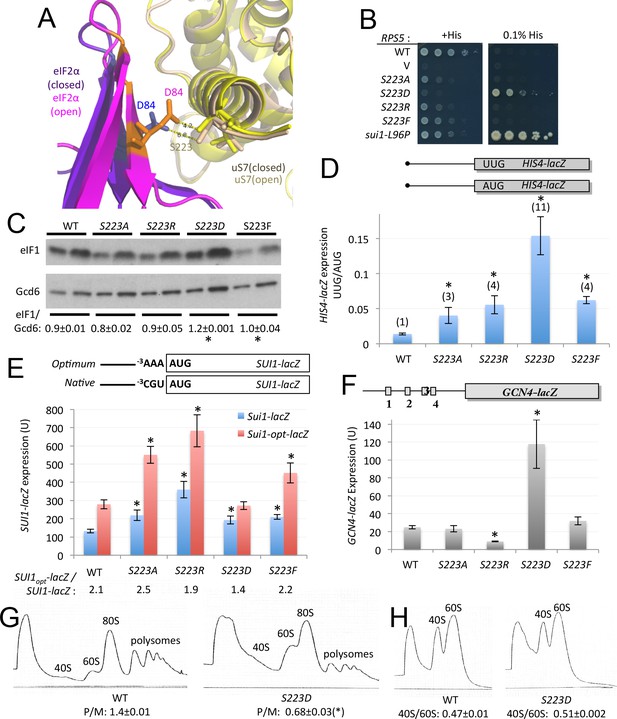

uS7 S223 substitutions decrease initiation fidelity in vivo.

(A) Overlay of py48S-open and py48S-closed complexes showing uS7-S223/eIF2α-D84 interaction favored in the open complex (orange/yellow sticks). (B) Dilutions of JVY07 transformed with the indicated RPS5 alleles and sui1-L96P strain H4564 spotted on SD+His+Ura+Trp (+His) or SD+Ura+Trp+0.0003 mM His (-His) and incubated at 30°C for 3 and 5 d, respectively. (C) WCEs of three biological replicate strains from (B) subjected to Western analysis of eIF1 expression as in Figure 4A. *p<0.05 (D) Ratio of expression of HIS4-lacZ reporters with AUG or UUG start codons in transformants of strains from (B), determined as described in Figure 3D. Mean ratios and S.E.M.s calculated from four biological and two technical replicates. *p<0.05 (E) Expression of SUI1-lacZ or SUI1-opt-lacZ reporters in transformants of strains from (B), determined as in Figure 4B. Mean expression levels and S.E.M.s calculated from four biological and two technical replicates. *p<0.05 (F) Expression of WT GCN4-lacZ in transformants of strains from (B), determined as in Figure 3D, with mean expression levels and S.E.M.s calculated from four biological and two technical replicates. *p<0.05 (G–H) Polysome to monosome ratios (G) and 40S/60S ratios (H) in WT and rps5-S223D strains from (B), determined as in Figure 3E–F with mean ratios and S.E.M.s calculated from three biological replicates. (*), p<0.05.

https://doi.org/10.7554/eLife.22572.014
Figure 7—source data 1

Effects of Rps5-S223 substitutions on eIF1 expression, HIS4-lacZ UUG:AUG expression ratios, SUI1opt-lacZ: SUI1nat-lacZ expression ratios, GCN4-lacZ expression, and polysome:monosome ratios.

https://doi.org/10.7554/eLife.22572.015

In accordance with its strong Slg- phenotype, S223D confers a marked reduction in polysomes (Figure 7G) without appreciably altering 40S subunit abundance (Figure 7H), indicating a defect in bulk translation initiation. Numerous Sui- mutations affecting eIF1 (Cheung et al., 2007; Nanda et al., 2009; Martin-Marcos et al., 2013), eIF1A (Fekete et al., 2005; Saini et al., 2010), and tRNAiMet were shown to reduce the rate of TC loading on 40S PICs, presumably by destabilizing the POUT conformation of TC binding, conferring constitutive derepression of GCN4 mRNA (the Gcd- phenotype). A slower rate of TC recruitment allows 40S subunits that have translated uORF1 and resumed scanning to bypass the start codons of inhibitory uORFs 2–4 before rebinding TC, and then reinitiate further downstream at the GCN4 AUG codon instead. Interestingly, S223D also produces a strong Gcd- phenotype, depressing GCN4-lacZ expression by ~5 fold (Figure 7F). Thus, it appears that introducing an acidic side chain at the position of S223 perturbs the uS7/eIF2α-D1 interface in the open complex to destabilize the POUT mode of TC binding and confer the Gcd- phenotype, facilitate inappropriate transition to the closed/PIN state at UUG codons or the SUI1 AUG codon, and produce a general reduction in the rate of translation initiation. The fact that the Asp substitution produces a much stronger phenotype than the other three substitutions of S223 might arise from the introduction of electrostatic repulsion with Asp-84 in eIF2α-D1 (Figure 7A).

Sui - uS7 substitution S223D promotes the PIN conformation of the 48S PIC in vitro

Because the S223D substitution confers the strongest Sui- and Gcd- phenotypes among the uS7 substitutions that appear to specifically disrupt the open/POUT conformation of the PIC, we purified mutant 40S subunits harboring this uS7 variant and measured the affinity and rate constants for TC binding in vitro. The S223D substitution had no significant effect on the Kd values for TC binding to partial 43S∙mRNA(AUG) complexes, or partial 43S complexes lacking mRNA, but appeared to reduce the end-point for TC binding to 43S complexes lacking mRNA (Figure 8A–B). As this failure to achieve a WT end-point at saturating concentrations of 40S subunits likely indicates dissociation of PICs during gel electrophoresis (Kapp et al., 2006; Kolitz et al., 2009), the results indicate destabilization of the POUT mode of TC binding to partial 43S complexes containing uS7-S223D.

Figure 8
Download asset Open asset

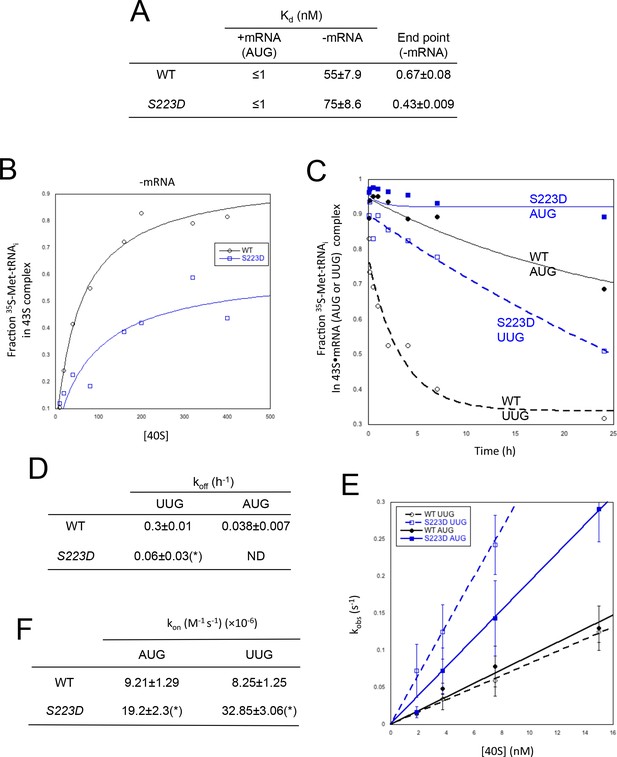

uS7 substitution S223D promotes PIN at UUG codons.

(A–B) Mean Kd and end-point values with S.E.M.s for binding of TC assembled with [35S]-Met-tRNAi to 40S·eIF1·eIF1A complexes reconstituted with WT or Rps5-S223D mutant 40S subunits and either mRNA (AUG) or without mRNA, determined from three independent experiments. A representative experiment is shown in (B). (C–D) Analysis of TC dissociation kinetics for 43S·mRNA complexes assembled with WT or Rps5-S223D mutant 40S subunits and either mRNA(AUG) or mRNA(UUG). A representative curve selected from three independent experiments is shown in (C), and mean koff values with S.E.M.s are given in (D). (*), p<0.05 (E–F) Determination of kon values for TC binding to 40S·eIF1·eIF1A complexes from plots of observed rate constants (kobs) vs 40S concentration for WT or Rps5-S223D mutant 40S subunits and mRNA(AUG or UUG) shown in (E) with S.E.M.s of kobs values for at least three independent experiments at each 40S concentration. Mean kon values with S.E.M.s calculated from three independent experiments are given in (F). (*), p<0.05.

https://doi.org/10.7554/eLife.22572.016
Figure 8—source data 1

Effects of Rps5-S223D on TC affinity for partial 43S and 43S·mRNA complexes, and rates of TC association and dissociation from partial 43S·mRNA complexes.

https://doi.org/10.7554/eLife.22572.017

Interestingly, measuring the rate of TC dissociation from partial 43S·mRNA complexes revealed that S223D reduces the rate of TC dissociation from complexes harboring AUG or UUG start codons, essentially eliminating measurable dissociation from the AUG complex and decreasing the koff for the UUG complex by ~5 fold compared to the WT value (Figure 8C–D). We also measured rates of TC binding to these complexes (kon) by mixing labeled TC [35S]-Met-tRNAi with different concentrations of 40S subunits and saturating eIF1, eIF1A and mRNA(AUG) or mRNA(UUG), removing aliquots at different time points and terminating reactions with excess unlabeled TC. The amount of labeled TC incorporated into PICs as a function of time yields the pseudo-first-order rate constant (kobs) for each 40S concentration, and the slope of the plot of kobs versus 40S concentration yields the second-order rate constant (kon) (Kolitz et al., 2009). As shown in Figure 8E–F, S223D increased the kon values for AUG and UUG PICs by ~2 fold and 4-fold, respectively. As the rate constant measured in these experiments is thought to be a composite of the rate of initial binding of TC to the PIC in the POUT state followed by transition from POUT to PIN (Kolitz et al., 2009), the increase in kon conferred by S223D could indicate acceleration of one or both steps. However, considering that S223D confers a Gcd- phenotype in vivo (Figure 7D), signifying a reduced rate of TC loading to 40S subunits (Hinnebusch, 2011), and also appears to destabilize the POUT state of TC binding to 43S complexes lacking mRNA (end-point defect in Figure 8A–B), it seems probable that the increased kon results from accelerating the transition from the POUT to PIN states of TC binding to the PIC. This interpretation is supported by our finding that kon is increased more substantially for UUG versus AUG complexes (Figure 8F), whereas the initial loading of TC on the PIC should be independent of the start codon (Kolitz et al., 2009). In fact, the actual acceleration of POUT to PIN conversion conferred by S223D is likely to be substantially greater than the 2–to 4-fold increases in measured kon values, as this effect would be offset by the decreased rates of TC binding in the POUT state predicted by the Gcd- phenotype of S223D in vivo. Thus, taken together, the results in Figure 8 provide biochemical evidence that S223D enhances conversion from the POUT state to the highly stable PIN conformation at both AUG and UUG start codons, in accordance with the effects of this mutation in vivo of increasing recognition of the poor-context SUI1 AUG codon and elevating near-cognate UUG initiation on his4–301 mRNA during ribosomal scanning.

Discussion

We previously implicated the β-hairpin of uS7 in achieving efficient and accurate start codon recognition (Visweswaraiah et al., 2015), but the molecular interactions involved in these functions were unclear. Here, using a combination of genetics and biochemistry, we obtained strong evidence that uS7 influences start codon recognition through direct interactions with domain 1 of eIF2α. Structural analyses of reconstituted yeast PICs revealed that eIF2α-D1 interacts with both the anticodon stem of tRNAi, mRNA residues immediately upstream of the AUG codon, and the C-terminal helix of uS7, and suggested that the uS7/eIF2α-D1 interface is remodeled during the transition from the open conformation, thought to be conducive to scanning, to the closed state required for start codon recognition (Llácer et al., 2015). We made targeted substitutions of uS7 residues whose contacts with specific amino acids in eIF2α-D1 appear to be favored in the open or closed conformation and thus might contribute differentially to the stabilities of these two states. As such, altering these contacts should have opposing effects on the probability of switching from the open, scanning conformation to the closed state at suboptimal start codons, including near-cognate UUG triplets and AUGs in poor surrounding context. Fulfilling these predictions would not only implicate the uS7/eIF2α-D1 interface in modulating start codon recognition, but also provide evidence that the different PIC conformations revealed by the structural studies represent physiological intermediates of the initiation pathway.

In accordance with the predictions based on the PIC structures (Llácer et al., 2015), we found that substitutions perturbing the uS7-D215/eIF2α-Y82 interaction favored in the closed state reduce initiation at UUG codons in cells harboring Sui- mutations in eIF2β or eIF5 (that aberrantly elevate UUG initiation), and also decrease recognition of AUGs in poor context in otherwise WT cells, including the native, suboptimal start codon of the eIF1 gene (SUI1), and uAUG-1 of GCN4 uORF1 when it resides in weak or poor context. The potent uS7 substitution D215L was shown to destabilize the PIN state of TC binding to the PIC in vitro, using the SUI3–2 variant of eIF2β to assemble TC, increasing the dissociation rate of TC (koff) with a relatively stronger effect at UUG versus AUG start codons. These findings suggest that the uS7-D215/eIF2α-Y82 contact preferentially stabilizes the PIN state (Figure 1), and that perturbing this interaction disproportionately discriminates against suboptimal initiation sites whose PIN conformations are inherently less stable and thus hyperdependent on the uS7/eIF2α interface present in the closed conformation for their efficient utilization in cells. The D215L substitution resembles the E144R substitution in the uS7 β-hairpin loop in increasing discrimination against poor initiation codons and preferentially destabilizing the PIN state at UUG codons (Visweswaraiah et al., 2015), supporting the notion that altering the β-hairpin loop confers hyperaccurate initiation by indirectly perturbing the uS7/eIF2α-I interface in the closed PIC.

Remarkably, uS7 substitutions altering two other contacts that seem to be favored in the open conformation, uS7-R219/eIF2α-D77 and uS7-S223/eIF2α-D84, had the opposite effects on the system, compared to uS7-D215L, of enhancing utilization of a UUG start codon, the suboptimal SUI1 AUG codon, and (at least for R219A/D substitutions) GCN4 uAUG-1 in weak or poor context. Moreover, the potent uS7 substitution S223D also had the opposite effect in vitro of stabilizing the PIN state of TC binding to the 48S PIC, decreasing koff at UUG codons. Interestingly, uS7-S223D also accelerates formation of the closed/PIN complex, thus increasing kon; and the relatively stronger increase in kon observed for the UUG versus AUG complex suggests that the POUT to PIN transition, rather than initial loading of TC to PIC, is accelerated by S223D. In fact, based on the Gcd- phenotype conferred by S223D in vivo, the initial loading of TC in the POUT configuration appears to be impaired by S223D. Together, these results suggest that uS7-S223D enhances the transition from the relatively less stable POUT conformation to the more stable PIN state of TC binding by destabilizing the POUT conformation, which decreases the rate of TC recruitment during reinitiation events on GCN4 mRNA (to evoke the Gcd- phenotype) and also enhances selection of suboptimal initiation codons during scanning, including the native eIF1 start codon, GCN4 uAUG-1 in poor context, and UUG start codons (the Sui- phenotype).

The dual Sui-/Gcd- phenotypes of rps5-S223D have been observed for numerous mutations affecting various eIFs (Hinnebusch, 2011), including substitutions in eIF1 that weaken its binding to the 40S subunit (Martin-Marcos et al., 2013). Because eIF1 accelerates TC loading in the POUT state but physically impedes the POUT to PIN transition by clashing with tRNAi in the PIN conformation (Passmore et al., 2007; Rabl et al., 2011; Hussain et al., 2014), the reduced 40S association of these eIF1 variants reduces the rate of TC binding (Gcd- phenotype) and simultaneously enhances rearrangement to PIN at UUG codons (Sui- phenotype) (Martin-Marcos et al., 2013). In the case of rps5-S223D, both the Gcd- and Sui- phenotypes likely result from weakening direct interaction of uS7 with eIF2α-D1 in the TC specifically in the POUT state, which both delays TC loading and increases the probability of POUT to PIN transition. Unlike S223D, we found that the strong Sui- allele rps5-R219D does not confer a Gcd- phenotype (Figure 6—figure supplement 1C), which might indicate that the uS7-R219/eIF2α-D77 interaction in the open conformation is relatively more important for impeding the POUT to PIN transition than for accelerating TC loading in the POUT state.

In summary, our results provide strong evidence that the interface between the C-terminal helix of uS7 and eIF2α-D1 participates in recruitment of TC in the POUT conformation and modulates the transition between the open and closed conformations of the PIC during the scanning process to establish the wild-type level of discrimination against near-cognate UUG triplets and AUG codons in poor context as initiation sites. The opposing consequences on initiation accuracy in vivo and the rates of TC dissociation from reconstituted partial PICs in vitro conferred by the uS7 substitutions D215L and S223D provides evidence that the distinct conformations of the uS7/eIF2α-D1 interface seen in the py48S-open and py48S-closed structures described by Llácer et al. (2015), which are differentially perturbed by these two uS7 substitutions, are physiologically relevant to the mechanism of scanning and accurate start codon selection.

Materials and methods

Plasmids and yeast strains

Request a detailed protocol

Yeast strains used in this study are listed in Table 1. Derivatives of JVY07 harboring low copy (lc) LEU2 plasmids containing RPS5+ (pJV09) or mutant RPS5 alleles (pJV67-pJV84 listed in Table 2) were generated by transformation to yield strains JVY31-JVY94, respectively, listed in Table 1. Haploid strains JVY98 and JVY99 harboring rps5-D215L and rps5-S223D, respectively as the only source of uS7 were generated by plasmid shuffling as described previously (Visweswaraiah et al., 2015).

Table 1

Yeast strains employed in this study.

https://doi.org/10.7554/eLife.22572.018

Strain

Genotype

Source or reference

H4564

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) sui1Δ::hisG pPMB03 (sc LEU2 sui1-L96P)

(Martin-Marcos et al., 2011)

JVY07

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5

(Visweswaraiah et al., 2015)

JVY31

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 RPS5)

(Visweswaraiah et al., 2015)

JVY76

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-D215L)

This study

JVY77

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-D215A)

This study

JVY78

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-D215F)

This study

JVY85

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-R219D)

This study

JVY86

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-R219A)

This study

JVY87

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-R219H)

This study

JVY91

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-S223A)

(Visweswaraiah et al., 2015)

JVY92

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-S223D)

This study

JVY93

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-S223R)

This study

JVY94

MATa ura3–52 trp1Δ−63 leu2–3,112 his4-301(ACG) kanMX6:PGAL1-RPS5 pJV09 (lc LEU2 rps5-S223F)

This study

JVY11

MATα ura3-∆0 leu2-∆0 his3∆−1 lys2-∆0 MET15 rps5∆::kanMX pJV38 (lc URA3 RPS5)

(Visweswaraiah et al., 2015)

JVY15

MATα ura3-∆0 leu2-∆0 his3∆−1 lys2-∆0 MET15 rps5∆::kanMX pJV13 (lc LEU2 RPS5)

(Visweswaraiah et al., 2015)

JVY98

MATα ura3-∆0 leu2-∆0 his3∆−1 lys2-∆0 MET15 rps5∆::kanMX pJV09 (lc LEU2 rps5-D215L)

This study

JVY99

MATα ura3-∆0 leu2-∆0 his3∆−1 lys2-∆0 MET15 rps5∆::kanMX pJV35 (lc LEU2 rps5-S223D)

This study

Table 2

Plasmids employed in this study.

https://doi.org/10.7554/eLife.22572.019

Plasmid

Description*

Source or reference

pJV09

lc LEU2 RPS5 with BglII site engineered in pJV01

(Visweswaraiah et al., 2015)

pJV38

lc URA3 RPS5 with BglII site engineered in pRS316

(Visweswaraiah et al., 2015)

pJV67

lc LEU2 rps5-D215L

This study

pJV68

lc LEU2 rps5-D215A

This study

pJV69

lc LEU2 rps5-D215F

This study

pJV76

lc LEU2 rps5-R219D

This study

pJV77

lc LEU2 rps5-R219A

This study

pJV78

lc LEU2 rps5-R219H

This study

pJV33

lc LEU2 rps5-S223A

(Visweswaraiah et al., 2015)

pJV82

lc LEU2 rps5-S223R

This study

pJV83

lc LEU2 rps5-S223D

This study

pJV84

lc LEU2 rps5-S223F

This study

p367

sc URA3 HIS4(ATG)-lacZ

(Donahue and Cigan, 1988)

p391

sc URA3 HIS4(TTG)-lacZ

(Donahue and Cigan, 1988)

p180

sc URA3 GCN4-lacZ in YCp50

(Hinnebusch, 1985)

p4280/YCpSUI3-S264Y-W

sc TRP1 SUI3-S264Y in YCplac22

(Valásek et al., 2004)

p4281/YCpTIF5-G31R-W

sc TRP1 TIF5-G31R in YCplac22

(Valásek et al., 2004)

p4438/YEplacTIF5-W

hc TRP1 TIF5 in YEplac112

Christie Fekete

pPMB24

sc URA3 SUI1-lacZ

(Martin-Marcos et al., 2011)

pPMB25

sc URA3 SUI1-opt-lacZ

(Martin-Marcos et al., 2011)

pC3502

sc URA3 −3AAA−1 el.uORF1 GCN4-lacZ in YCp50

(Visweswaraiah et al., 2015)

pC4466

sc URA3 −3UAA−1 el.uORF1 GCN4-lacZ in YCp50

(Visweswaraiah et al., 2015)

pC3503

sc URA3 −3UUU−1 el.uORF1 GCN4-lacZ in YCp50

(Visweswaraiah et al., 2015)

pC3505

sc URA3 el.uORF1-less GCN4-lacZ in YCp50

(Visweswaraiah et al., 2015)

  1. *lc, low copy number; sc, single copy; hc, high copy.

Plasmids used in this study are listed in Table 2. RPS5 fragments were amplified by fusion PCR to introduce the desired site-directed mutations, using pJV09 as template DNA. The mutagenized fragments were digested with BglII and NdeI and inserted between the same two restriction sites in pJV09, to produce pJV67-pJV84. All constructs were verified by DNA sequencing of 1 kb from the inserted BglII site beyond the NdeI restriction site, covering the entire RPS5 ORF.

Plate assays

Request a detailed protocol

Saturated overnight cultures were subject to ten-fold serial dilutions, and 5 μl of each dilution was transferred to plates. If necessary, galactose was used as sole carbon source instead of glucose to induce the expression of genes under the galactose-inducible promoter. The plates were incubated at 30°C until colonies were visible. The assays were conducted on two biological replicates (independent transformants) and representative plates from one replicate are presented.

Biochemical analyses of yeast cells

Request a detailed protocol

Assays of β-galactosidase activity in whole-cell extracts (WCEs) were performed as described previously (Moehle and Hinnebusch, 1991). All β-galactosidase activity assays were performed with two technical replicates using the same extracts. To determine the UUG to AUG initiation ratio, matched HIS4-lacZ reporters with UUG or AUG as start codon were used. The sequence context of the start codon for both AUG and UUG HIS4-lacZ reporters is: 5’-AUA(AUG/UUG)G-3’. Four biological replicates (independent transformants) with two technical replicates were employed for all UUG to AUG ratio measurements, and the S.E.M.s for the ratios were calculated as (X/Y) (√[(SEx/x)2+(SEy/y)2], where X, SEx, and x are the mean, standard error of the mean, and highest values for the UUG reporter, respectively; and Y, SEy, and y are the corresponding values for the AUG reporter). For Western analysis, WCEs from three biological replicates (independent cultures) were prepared by trichloroacetic acid extraction as described (Reid and Schatz, 1982), and immunoblot analysis was conducted as described previously (Martin-Marcos et al., 2011) with antibodies against eIF1 (Valásek et al., 2004) or Gcd6 (Bushman et al., 1993). Enhanced chemiluminescence (Amersham, Pittsburgh, PA) was used to visualize immune complexes, and signal intensities were quantified by densitometry using NIH ImageJ software.

Polysome and ribosomal subunit profiling

Request a detailed protocol

For polysome analysis, yeast strains were grown in SC-Leu at 30°C to A600, ∼1. Cycloheximide was added (50 µg/ml) 5 min prior to harvesting, and WCE was prepared in breaking buffer (20 mM Tris-HCl, pH 7.5, 50 mM KCl, 10 mM MgCl2, 1 mM dithiothreitol, 5 mM NaF, 1 mM phenylmethylsulfonyl fluoride, 1 Complete EDTA-free Protease Inhibitor Tablet (Roche. Indianapolis, IN)/50 mL buffer). 15 A260 units of WCE from at least three biological replicates were separated by velocity sedimentation on a 4.5% to 45% sucrose gradient by centrifugation at 39,000 rpm for 3 hr in an SW41Ti rotor (Beckman Coulter, Indianapolis, IN). Gradient fractions were scanned at 254 nm to visualize ribosomal species. For analysis of total 40S to 60S subunit ratios, yeast strains were grown in SC-Leu at 30°C to A600, ∼1 and harvested without cycloheximide treatment. WCE was prepared in breaking buffer lacking MgCl2 (20 mM Tris HCl, pH 7.5, 50 mM NaCl, 1 mM dithiothreitol, 1 mM phenylmethylsulfonyl fluoride, 200 ug/ml heparin, 1 Complete EDTA-free Protease Inhibitor Tablet (Roche)/50 mL buffer). 15 A260 units of WCE from three biological replicates (independent cultures) were separated by velocity sedimentation as described for polysome profiling.

Biochemical analysis in the reconstituted yeast translation system

Request a detailed protocol

Initiation factors eIF1A and eIF1 were expressed in E. coli and purified using the IMPACT system (New England Biolabls, Ipswich, MA), and His6-tagged eIF2 was overexpressed in yeast and purified as described (Acker et al., 2007). WT and mutant 40S subunits were purified from yeast as described previously (Acker et al., 2007). Model mRNAs with the sequences 5’-GGAA[UC]7UAUG[CU]10C-3’ and 5’-GGAA[UC]7UUUG[CU]10C-3’ were purchased from Thermo Scientific. Yeast tRNAiMetwas synthesized from a hammerhead fusion template using T7 RNA polymerase and charged with [35S]-methionine or unlabeled methionine as previously described (Acker et al., 2007). Kd values of TC (assembled with [35S]-Met-tRNAi) and 40S∙eIF1∙eIF1A∙mRNA PICs, and rate constants of TC association/dissociation for the same PICs, were determined by gel shift assays as described previously (Kolitz et al., 2009) with the minor modifications described in (Visweswaraiah et al., 2015).

Statistical analysis

Request a detailed protocol

Unpaired student’s t-test was performed to compare wild type and mutant mean values and the change was considered significant if the two-tailed P value was < 0.05.

References

  5. Book
    1. Donahue T
    (2000)
    Genetic approaches to translation initiation in Saccharomyces cerevisiae
    In: Sonenberg N, Hershey JWB, Mathews MB, editors. Translational Control of Gene Expression. Cold Spring Harbor: Cold Spring Harbor Laboratory Press. pp. 487–502.
    1. Reid GA
    2. Schatz G
    (1982)
    Import of proteins into mitochondria. yeast cells grown in the presence of carbonyl cyanide m-chlorophenylhydrazone accumulate massive amounts of some mitochondrial precursor polypeptides
    The Journal of Biological Chemistry 257:13056–13061.

Article and author information

Author details

  1. Jyothsna Visweswaraiah

    Laboratory of Gene Regulation and Development, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    JV, Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.

  2. Alan G Hinnebusch

    Laboratory of Gene Regulation and Development, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    AGH, Conceptualization, Formal analysis, Supervision, Writing—original draft, Writing—review and editing
    For correspondence
    ahinnebusch@nih.gov
    Competing interests
    AGH: Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1627-8395

Funding

National Institutes of Health (Intramural Program HD001004)

  • Alan G Hinnebusch

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Fan Zhang for assistance in performing certain experiments. We thank Laura Marler and Anil Thakur for valuable discussions, Thomas Dever, Jon Lorsch and members of their laboratories and our own for helpful advice. This work was supported in part by the Intramural Program of the National Institutes of Health.

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 881
    views
  • 241
    downloads
  • 11
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Jyothsna Visweswaraiah
  2. Alan G Hinnebusch
(2017)
Interface between 40S exit channel protein uS7/Rps5 and eIF2α modulates start codon recognition in vivo
eLife 6:e22572.
https://doi.org/10.7554/eLife.22572

Share this article

https://doi.org/10.7554/eLife.22572

Categories and tags

Research organism

Further reading

    1. Biochemistry and Chemical Biology

    Disordered proteins interact with the chemical environment to tune their protective function during drying

    Shraddha KC, Kenny H Nguyen ... Thomas C Boothby
    Research Article

    The conformational ensemble and function of intrinsically disordered proteins (IDPs) are sensitive to their solution environment. The inherent malleability of disordered proteins, combined with the exposure of their residues, accounts for this sensitivity. One context in which IDPs play important roles that are concomitant with massive changes to the intracellular environment is during desiccation (extreme drying). The ability of organisms to survive desiccation has long been linked to the accumulation of high levels of cosolutes such as trehalose or sucrose as well as the enrichment of IDPs, such as late embryogenesis abundant (LEA) proteins or cytoplasmic abundant heat-soluble (CAHS) proteins. Despite knowing that IDPs play important roles and are co-enriched alongside endogenous, species-specific cosolutes during desiccation, little is known mechanistically about how IDP-cosolute interactions influence desiccation tolerance. Here, we test the notion that the protective function of desiccation-related IDPs is enhanced through conformational changes induced by endogenous cosolutes. We find that desiccation-related IDPs derived from four different organisms spanning two LEA protein families and the CAHS protein family synergize best with endogenous cosolutes during drying to promote desiccation protection. Yet the structural parameters of protective IDPs do not correlate with synergy for either CAHS or LEA proteins. We further demonstrate that for CAHS, but not LEA proteins, synergy is related to self-assembly and the formation of a gel. Our results suggest that functional synergy between IDPs and endogenous cosolutes is a convergent desiccation protection strategy seen among different IDP families and organisms, yet the mechanisms underlying this synergy differ between IDP families.

    1. Biochemistry and Chemical Biology
    2. Stem Cells and Regenerative Medicine

    Proteomic and functional comparison between human induced and embryonic stem cells

    Alejandro J Brenes, Eva Griesser ... Angus I Lamond
    Research Article

    Human induced pluripotent stem cells (hiPSCs) have great potential to be used as alternatives to embryonic stem cells (hESCs) in regenerative medicine and disease modelling. In this study, we characterise the proteomes of multiple hiPSC and hESC lines derived from independent donors and find that while they express a near-identical set of proteins, they show consistent quantitative differences in the abundance of a subset of proteins. hiPSCs have increased total protein content, while maintaining a comparable cell cycle profile to hESCs, with increased abundance of cytoplasmic and mitochondrial proteins required to sustain high growth rates, including nutrient transporters and metabolic proteins. Prominent changes detected in proteins involved in mitochondrial metabolism correlated with enhanced mitochondrial potential, shown using high-resolution respirometry. hiPSCs also produced higher levels of secreted proteins, including growth factors and proteins involved in the inhibition of the immune system. The data indicate that reprogramming of fibroblasts to hiPSCs produces important differences in cytoplasmic and mitochondrial proteins compared to hESCs, with consequences affecting growth and metabolism. This study improves our understanding of the molecular differences between hiPSCs and hESCs, with implications for potential risks and benefits for their use in future disease modelling and therapeutic applications.

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics

    Isobaric crosslinking mass spectrometry technology for studying conformational and structural changes in proteins and complexes

    Jie Luo, Jeff Ranish
    Tools and Resources

    Dynamic conformational and structural changes in proteins and protein complexes play a central and ubiquitous role in the regulation of protein function, yet it is very challenging to study these changes, especially for large protein complexes, under physiological conditions. Here, we introduce a novel isobaric crosslinker, Qlinker, for studying conformational and structural changes in proteins and protein complexes using quantitative crosslinking mass spectrometry. Qlinkers are small and simple, amine-reactive molecules with an optimal extended distance of ~10 Å, which use MS2 reporter ions for relative quantification of Qlinker-modified peptides derived from different samples. We synthesized the 2-plex Q2linker and showed that the Q2linker can provide quantitative crosslinking data that pinpoints key conformational and structural changes in biosensors, binary and ternary complexes composed of the general transcription factors TBP, TFIIA, and TFIIB, and RNA polymerase II complexes.
