Freezing suppression by oxytocin in central amygdala allows alternate defensive behaviours and mother-pup interactions

  1. Elizabeth Rickenbacher
  2. Rosemarie E Perry
  3. Regina M Sullivan
  4. Marta A Moita  Is a corresponding author
  1. Champalimaud Neuroscience Programme, Portugal
  2. New York University School of Medicine, United States
  3. Nathan Kline Institute for Psychiatric Research, United States
Research Article
  • Cited 7
  • Views 2,440
  • Annotations
Cite as: eLife 2017;6:e24080 doi: 10.7554/eLife.24080

Abstract

When animals and their offspring are threatened, parents switch from self-defense to offspring protection. How self-defense is suppressed remains elusive. We postulated that suppression of the self-defense response, freezing, is gated via oxytocin acting in the centro-lateral amygdala (CeL). We found that rat dams conditioned to fear an odor, froze when tested alone, whereas if pups were present, they remained in close contact with them or targeted the threat. Furthermore, blocking oxytocin signaling in the CeL prevented the suppression of maternal freezing. Finally, pups exposed to the odor in the presence of the conditioned dam later froze when re-exposed alone. However, if oxytocin signaling in the dam had been blocked, pups failed to learn. This study provides a functional role for the well-described action of oxytocin in the central amygdala, and demonstrates that self-defense suppression allows for active pup protection and mother-pup interactions crucial for pup threat learning.

https://doi.org/10.7554/eLife.24080.001

eLife digest

Animals have many mechanisms to avoid or defend themselves against deadly encounters with predators. However, adult animals frequently put themselves at risk while protecting their more vulnerable offspring from attacks. For example, a killdeerbird with young will fake a broken wing and lead a predator away from its nest. This helps ensure that the parent’s genes live on and contribute to the survival of their species. To do this, the parent must override his or her own defense mechanisms and protect the young instead of themselves.

Little is known about the exact mechanisms that allow animals to suppress their own defense mechanisms while protecting their young. Freezing is one tactic that animals will use when they are unable to escape a predator. Previously, studies have shown that the hormone oxytocin, which is produced in the brain, suppresses freezing behavior. Oxytocin plays an important role in birth and breastfeeding, but it is also known to strengthen the bond between individuals, in particular between mother and child. Until now, it was not known whether this hormone also blocks self-defense behaviors in animals protecting their offspring.

Now, Rickenbacher et al. show that oxytocin does indeed block freezing behavior, enabling mother rats to protect their offspring in the face of a threatening smell. In the experiments, mother rats were taught to fear the scent of peppermint. Without their young, these rats would freeze whenever they smelled peppermint. Yet, when mother rats with their pups were exposed to the scent, they did not freeze. Instead, they tried to defend their young. Blocking oxytocin in a part of the mothers’ brains called the amygdala, however, caused them to freeze in response to the scent of peppermint, even in the presence of their pups.

The experiments show that oxytocin helps mother rats suppress their self-defense mechanisms and is necessary for the mothers to protect their young. Rickenbacher et al. also showed that pups of oxytocin-treated mothers did not learn to freeze in response to the threat. But pups of untreated mothers who defended them, learned to freeze when they were exposed to the scent of peppermint. A next step will be to record neurons that produce oxytocin to better understand how the presence of the pups stimulate its production in their mothers. In addition, it is still unclear how pups learn from their mothers to freeze in response to a threat. One possibility is that the mother produces a molecule that signals danger. Identifying this molecule would be the next step.

https://doi.org/10.7554/eLife.24080.002

Introduction

There are several examples in the wild of active defense responses by parents to threats that constitute a danger not only to the offspring but also themselves (Byrkjedal, 1989; Pavel and Bureš, 2001Long, 1993). Rather than engaging in the self-defense behavior of hiding or fleeing, the parents might hide the young and/or attack a predator. Parental defense is wide spread across taxa, including fish (Carlisle, 1985), reptiles (Greene et al., 2006), birds (Ghalambor and Martin, 2001) and mammals (Blank et al., 2015), strongly suggesting that it has been selected multiple times. Despite its clear adaptive value, little is known about the neural mechanisms by which parents flexibly change from self-defense to offspring defense. To address this issue we used the laboratory rat, for which a great deal is known regarding the neural circuits underlying defense behaviors. Evidence that rat dams suppress their own defense responses when threatened in the presence of pups is scarce (Pinel et al., 1990; Sukikara et al., 2010). However, it is well described that the social environment modulates defensive behavior, such as freezing in adult rats (Kikusui et al., 2006; Kiyokawa et al., 2004 Knapska et al., 2010) and that rat dams will attack an adult male that poses a danger to the pups but not themselves, whereas virgin females do not (Bosch, 2013; Giovenardi et al., 2000; Knapska et al., 2010; Mayer and Rosenblatt, 1987).

Oxytocin (OT), a highly conserved neuropeptide, has been implicated in a number of maternal behaviors including nursing, pup retrieval and maternal aggression (Carter, 2014; Insel et al., 1998; Pedersen et al., 1992) involving brain regions such as the medial preoptic area, anteroventral periventricular nucleus of the hypothalamus, auditory cortex and lateral septum among others (Bosch et al., 2004; Leng et al., 2008; Marlin et al., 2015; de Almeida et al., 2014; Scott et al., 2015). In addition, oxytocin suppresses freezing, a conserved defense response to inescapable threats (Bale et al., 2001; Huber et al., 2005; Knobloch et al., 2012; Veenema and Neumann, 2008; Viviani et al., 2011; Windle et al., 1997; Zoicas et al., 2014). In rodents, oxytocinergic neurons from the peri-ventricular hypothalamus (PVN) project to the centro-lateral nucleus of the amygdala (CeL) (Knobloch et al., 2012), a brain region that regulates conditioned threat responses (Fanselow and Wassum, 2015Haubensak et al., 2010Ciocchi et al., 2010; Wilensky et al., 2006; Li et al., 2013; Ciocchi et al., 2010). In this amygdaloid sub-nucleus the release of oxytocin excites CeL-off cells thereby inhibiting freezing to a learned threat (Bosch and Neumann, 2012; Huber et al., 2005; Knobloch et al., 2012; Viviani et al., 2010). Although the mechanism by which oxytocin regulates freezing is characterized in great detail, the natural circumstances under which animals rely on it remains untested.

We hypothesized that oxytocin in the CeL is required for the suppression of freezing in mothers, thereby permitting active protection of their offspring when both mothers and pups are threatened. To test our hypothesis, we established a paradigm to assess the modulation of maternal defensive responses by the presence of their pups. Thereafter, we used targeted injections of an oxytocin antagonist (OTA) to the CeL, and tested the role of this neuropeptide in the modulation of maternal defense. Our findings highlight a functional role for oxytocin in the central amygdala, by indicating that oxytocin in the CeL suppresses maternal freezing allowing active pup protection in the face of threat, and maternal transmission of fear to the pups present during the threat. Furthermore, our findings provide novel evidence for the modulation of active maternal defense responses, based on the age of pups present during threat.

Results

Regulation of dams’ defensive behavior by the presence of pups

We conditioned mothers to freeze to a peppermint odor by pairing it with footshocks, and then exposed them to the conditioned odor either alone or in the presence of their pups. Rat dams were first habituated to the test chamber with their pups and the next day placed in the conditioning chamber alone, wherein they received three odor-shock pairings. On the third day, defensive behaviors of the dams in response to the conditioned odor was tested. Testing consisted of exposure of dams, either alone or with their pups, to three presentations of the conditioned odor in the test chamber, (see Figure 1a). From birth until weaning, many changes take place in mothers and pups. These include decreases in nursing and maternal aggression, as well as increases in the mobility of the pups (pups initially do not leave the nest and closer to weaning leave the nest frequently), and feeding behavior (pups initially are fully dependent on the mother’s milk and close to weaning eat regular food chow while still nursing) (Bolles and Woods, 1964; Caughey et al., 2011; Lonstein and Gammie, 2002; de Almeida et al., 2014). We therefore tested mothers at two postpartum (PP) stages (early, PP4-6 vs. late, PP19-21).

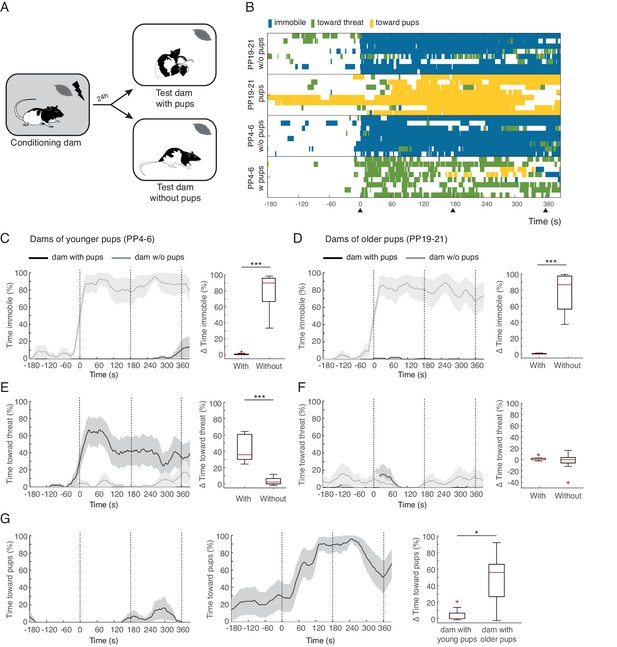

Rat dams suppress freezing when in the presence of their pups.

(A) Schematic of the experimental design. (B) Raster plot showing behaviors of dams during test to the conditioned odor. Each row corresponds to one dam. Dams are sorted by treatment, PP19-21 dams with (n = 8) and without pups (n = 8), PP4-6 dams with (n = 8) and without them (n = 8). Colors correspond to the behaviors exhibited. Black triangles indicate time of odor presentations. (C) and (D) Immobility of dams with and without pups for PP4-6 dams and PP19-21 dams, respectively. Line graph shows timecourse of immobility (average ± SEM). Vertical dashed lines indicate presentation of conditioned odor. Box plot shows change in immobility upon odor presentation (immobility after first odor – baseline). (E) and (F) same as C and D for responses targeted to the threat. G Same as C-F showing time spent in contact with the pups. Box plot here compares behavior of PP4-6 dams to PP19-21 dams. * denotes p<0.05 and ***, p<0.001.

https://doi.org/10.7554/eLife.24080.003
Video 1
Video clip taken during the test session, when conditioned dams were re-exposed to conditioned odor with and without pups (PP4-6 and PP19-21).

Video clip starts at the time of first odor delivery.

https://doi.org/10.7554/eLife.24080.004

Conditioned dams from both age groups froze when exposed to the conditioned peppermint odor alone (immobility levels increased during exposure to the odor for both age groups: PP4-6 from 6.1 ± 3.2% during baseline to 85.7 ± 6% post odor exposure; PP19-20 from 3.5 ± 2.4% during baseline to 80.6 ± 9.3% post odor exposure, See Figure 1 and Video 1). Conditioned dams exposed to the peppermint odor in the presence of their pups behaved very differently, showing very little freezing behavior (PP4-6 baseline freezing 0% and freezing during odor exposure 0.7 ± 0.5%; PP19-20 baseline freezing 0.1 ± 0.1% and freezing during odor exposure 0.4 ± 0.2%, Figure 1). When comparing the increase in freezing upon odor exposure across dams tested alone versus tested with their offspring we found a significant difference (PP4-6, n(w)=8 and n(wo)=8, U = 0.0, p=0.000; PP19-21, n(w)=8 and n(wo)=8, U = 0.0, p=0.000; Figure 1C and D top panels).

When tested in the presence of their pups, PP4-6 dams spent much of their time pushing the bedding towards the tube that delivered the threatening peppermint odor. This behavior may correspond to defensive burying reported elsewhere (Blanchard et al., 2005; De Boer and Koolhaas, 2003; Poling et al., 1981). PP4-6 dams also showed increased locomotion suggestive of exploration of the nesting area. We categorized these behaviors as responses directed towards the threat: PP4-6 from 2.6 ± 1.2% during baseline to 45.2 ± 6% post odor exposure (Figure 1E and Video 1). Dams with the older pups showed very few displays of defense behaviors towards the threat: PP19-21 from 2.2 ± 1% during baseline to 3.6 ± 1.7% post odor exposure (Figure 1F). When comparing the increase in behaviors targeted towards the threat across dams tested alone versus tested with their offspring we found a significant difference only for dams of younger pups (PP4-6, n(w)=8 and n(wo)=8, U = 0.0, p=0.000 and PP19-21, n(w)=8 and n(wo)=8, U = 27.5, p=0.645; Figure 1E and F). In contrast, dams of older pups spent most of their time in close contact with the pups, either nursing or grooming them. We quantified the time spent in contact with the pups (towards pups category), and found that these dams increase the amount of time spent with their pups upon exposure to the conditioned threat (from 23.1 ± 14.3% during baseline to 72.1 ± 5.7% post odor exposure, see Figure 1 and Video 1). In contrast, dams with the younger pups did not increase the amount of time spent in contact with them (from 0.2 ± 0.2% during baseline to 4.3 ± 3% post odor exposure, See Figure 1G). Comparing the increase in time spent with the pups upon exposure to the peppermint odor reveals a significant difference between mothers of young and older pups (n(w)=8 and n(wo)=8, U = 10.0, p=0.02, Figure 1G).

These findings clearly demonstrate that dams suppress freezing when in the presence of their pups. In addition, dams of younger and older pups behaved quite differently. Whereas the PP4-6 dams spent most of the time directing their behavior towards the threat, the PP19-21 dams spent most of the time in close contact with the pups. This difference could be due to differences in maternal experience and/or distinct internal states of the dams. Indeed, maternal aggression, the amount of time spent nursing, and circulating hormonal levels in the dams, including those of oxytocin, are quite distinct across these stages of pup development (Bosch and Neumann, 2012; Bosch, 2013; Cramer et al., 1990; Higuchi et al., 1985; Thiels et al., 1990). In addition, the behavior of the pups is different, younger pups do not move away from the nest, whereas older pups have a behavioral repertoire associated with impending independent living that includes increased time outside the nest, eating solid food, relying less on nursing and expression of some defensive behaviors, including freezing (Thiels et al., 1990).

Role of maternal PP stage and age of pups in determining maternal defense response

To assess whether it is the postpartum stage of the dams or the age of the pups that determines maternal defense behavior, we tested PP4-6 dams with older pups (postnatal days, PN19-23) and vice versa (PP19-23 dams with PN4-6 pups). In this case, the behavioral/physiological postpartum stage of the dam does not correspond to the behavioral/physiological age of the pups during testing. The behavior of PP4-6 dams tested in the presence of older pups (PN19-23), remained unaltered, i.e. as before they spent most of the time directing their behavior towards the threat (comparison of time sent directing behavior towards threat during the matched age test with mismatched age test: n=10, Z= −0.561, p=0.575; same comparison for behaviors towards pups: Z= −0.533, p=0.594; Figure 2B), suggesting that the behavior of the dams is mostly determined by the maternal stage. Conversely, PP19-21 dams, when tested with younger pups, changed their behavior such that they now targeted their response more towards the threat, decreasing the time spent with the pups (comparison of behavior during the matched age test with mismatched age test; behaviors towards threat: n=12, Z= −2.845, p=0.004, behaviors towards pups: Z= −2.824, p=0.005; Figure 2C), suggesting that in this case, the behavior of the dams was mostly determined by the behavior of the pups. This is in accordance with previous findings showing that maternal aggression is initially determined by the internal state of the mother but progressively becomes more dependent on the presence of the pups (Caughey et al., 2011; de Almeida et al., 2014).

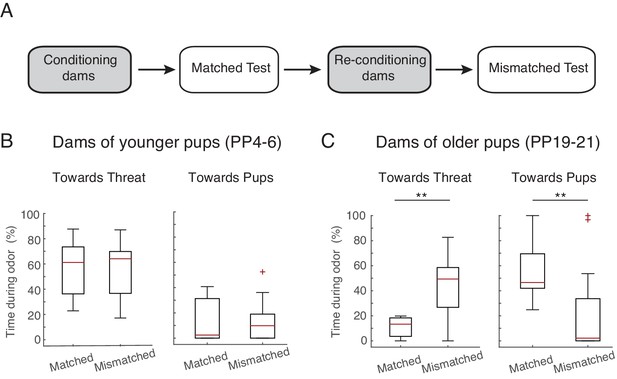

Maternal response is dependent on stage.

(A) Schematic of experimental design. Rat dams (PP4-6, n=10, PP19-21, n=12) were first exposed with their own pups (ex. PP4-6 pups), reconditioned, and then re-exposed to the threat in the presence of age mismatched pups (PP19-21 pups). (B) Box plots show time PP4-6 dams spent (after 1 st odor) behaving towards the threat (left) or pups (right) when in the presence of their own (matched, PP4-6 pups) and in the presence of PP19-21 pups (mismatched). (C) Same as in B for PP19-21 dams. ** denotes p<0.01.

https://doi.org/10.7554/eLife.24080.005

Role of endogenous oxytocin within the CeL

Next, we tested our hypothesis that activation of OT-receptors in CeL suppresses freezing, permitting expression of maternal defensive behaviors. To this end, we implanted dams bilaterally with injection cannulas into central amygdala (although we did not specifically target CeL, only this region of central amygdala expresses OT-receptors, [Huber et al., 2005]). After recovery from surgery, implanted dams were conditioned as before. However, in this experiment, 15 min before the test, conditioned dams received micro-infusions of either an oxytocin antagonist (OTA-dams), or PBS vehicle. In addition, we tested intact dams alongside both PBS and OTA-dams, to assess whether the infusion procedure itself did not disrupt the behavior of dams. As no differences were found between PBS and intact dams, henceforth we report the pooled data from the two groups (CONT-Dams; see Materials and methods section). Exposure to the conditioned odor was performed in the test chamber in the presence of pups. We first tested PP4-6 dams with PN4-6 pups and found that OTA-dams (n=8), but not CONT-dams (PBS infused n=6, intact n=4), displayed increased levels of freezing during odor exposure (OTA-dams from 5.2 ± 3.0% during baseline to 60 ± 8.2% post odor exposure; CONT-dams from 0% during baseline to 0.1 ± 0.1% post odor exposure; Mann-Whitney-U test comparing change in freezing by OTA and CONT-dams: n(CONT)=10 and n(OTA)=8, U = 0.0, p=0.000; Figure 3). Concomitantly, OTA infusion into CeL abolished behaviors targeting the threat or the pups (Mann-Whitney-U test comparing change in behaviors towards threat displayed by OTA and CONT-dams: n(CONT)=10 and n(OTA)=8, U=0.0, p=0.000; Mann-Whitney-U test comparing change in behaviors towards pups displayed by OTA and CONT-dams: n(CONT)=10 and n(OTA)=8, U=16.0, p=0.034; Figure 3).

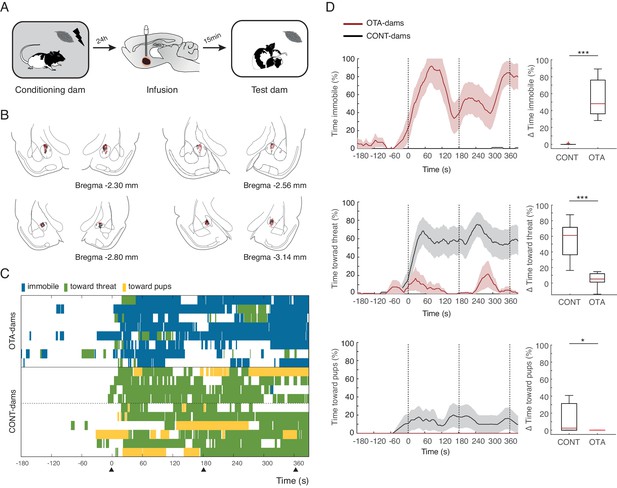

Freezing suppression by oxytocin in central amygdala in PP4-6 dams allows alternate maternal defensive behaviors and mother-pup interactions during threat.

(A) Schematic of experimental design. (B) Schematic of coronal sections (adapted from Paxino and Watson’s atlas) with empty black and red circles corresponding to CONT and OTA cannula placements, respectively. (C) Raster plot showing behaviors of PP4-6 dams during test to the conditioned odor. Each row corresponds to one dam. Dams are sorted by treatment; OXT antagonist (n = 8) or CONT (n = 10; four intact dams, above dashed line, and 6 PBS-dams, bellow dashed line). Colors correspond to behaviors exhibited. Black triangles indicate time of odor presentations. (D) Line graph shows timecourse of immobility (top), responses toward threat (middle) and toward pup (bottom) exhibited by either the OTA or CONT PP4-6 dams (average and ± SEM). Vertical dashed lines indicate presentation of conditioned odor. Box plots show change in these behaviors displayed by OTA and CONT dams upon odor exposure. * denotes p<0.05 and ***, p<0.001.

https://doi.org/10.7554/eLife.24080.006

Next, we tested PP19-21 dams with PN19-21 pups and again found that OTA-dams (n=7), but not CONT-dams (again data from PBS, n=7 and intact dams n=10 was pooled), displayed increased levels of freezing during odor exposure (OTA-dams from 0.4 ± 0.4% during baseline to 63.4 ± 5.7% post odor exposure; CONT-dams from 0% during baseline to 0% post odor exposure; Mann-Whitney-U test comparing change in freezing by OTA and CONT dams: n(CONT)=17 and n(OTA)=7, U=0.0, p=0.000; Figure 4). PP19-21 dams receiving OTA injections failed to increase the time spent with the pups upon odor exposure (Mann-Whitney-U test comparing change in behaviors towards pups displayed by OTA and CONT dams: n(CONT)=17 and n(OTA)=7, U = 6.0, p=0.000; Figure 4) and as CONT-dams did not target their actions towards the threat either (Mann-Whitney-U test comparing change in behaviors towards threat displayed by OTA and CONT dams: n(CONT)=17 and n(OTA)=7, U = 56.0, p=0.852; Figure 4). These results suggest that in the presence of a threat, oxytocin in the CeL suppresses freezing, allowing for the expression of pup defense. Even though a previous study disrupting oxytocin signaling in the central amygdala had no effect on maternal behaviors (Lubin et al., 2003), being other brain areas such as the medial preoptic area and the bed nucleus of the stria terminalis crucially implicated in maternal care (Numan, 2006; Tsuneoka et al., 2013), it is possible that in our experiments, oxytocin in the CeL contributes to normal mother-pup interactions. We addressed this issue by testing the behavior of unconditioned dams towards pups during exposure to the peppermint odor (in this case neutral). We tested PP19-20 dams, as these dams when conditioned spend most of the time during exposure to the conditioned odor in close contact with the pups. In this experiment, dams were habituated to the peppermint odor without shock such that the odor would not be perceived as a threat. As described above, dams were again infused with either OTA or PBS 15 min prior to the test. We found no difference in the amount of time dams spent with the pups in either group (Mann-Whitney-U test comparing change in behaviors towards pups displayed by OTA and CONT dams: n(CONT)=8 and n(OTA)=10, U=29.5, p=0.360), indicating that blocking oxytocin in the CeL only affects mother-pup interactions if a threat is present.

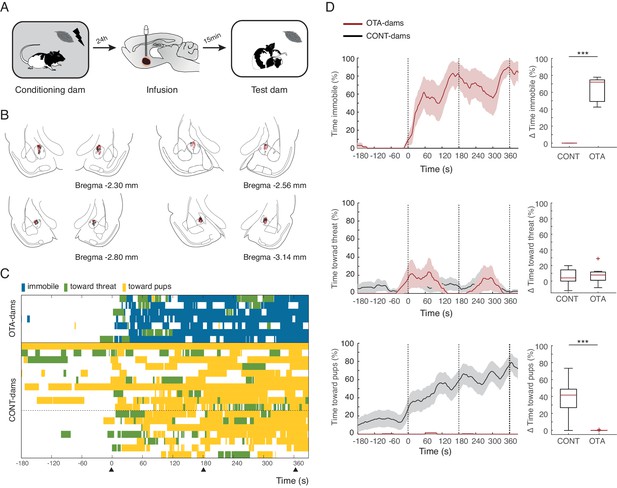

Freezing suppression by oxytocin in central amygdala in PP19-21 dams allows alternate maternal defensive behaviors and mother-pup interactions during threat.

(A) Schematic of experimental design. (B) Schematic of coronal sections (adapted from Paxino and Watson’s atlas) with empty black and red circles corresponding to PBS and OTA cannula placements, respectively. (C) Raster plot showing behaviors of PP19-21 dams during test to the conditioned odor. Each row corresponds to one dam. Dams are sorted by treatment; OXT antagonist (n = 7) or CONT (n = 17; 10 intact dams, above dashed line, and 10 PBS-dams, below dashed line; more dams belong to the control group because a subset was used for the transmission of fear from mother to pup experiment (Figure 5)). Colors correspond to behaviors exhibited. Black triangles indicate time of odor presentations. (D) Line graph shows timecourse of immobility (top), responses toward threat (middle) and toward pup (bottom) exhibited by PP19-21 dam that received OTA injections or CONT dams (average and ± SEM). Vertical dashed lines indicate presentation of conditioned odor. Box plots show change in these behaviors displayed by OTA and CONT dams upon odor exposure. *** denotes p<0.001.

https://doi.org/10.7554/eLife.24080.007

Learning from mothers about threat

It has previously been shown that young rodents learn to regulate their defensive behaviors through their mothers (Magrath et al., 2006; Mateo and Holmes, 1997; Wiedenmayer, 2009). Rat pups learn to avoid an odor to which they were exposed in the presence of a mother that was conditioned to respond to that odor as a threat (using a similar paradigm as the one reported here) (Chang and Debiec, 2016; Debiec and Sullivan, 2014). Therefore, we asked whether affecting normal maternal defensive behavior during exposure to the threat, by blocking oxytocin signaling in CeL of dams, could also affect learning about the threat by the pups. To address this issue, we tested the pups that were exposed to the peppermint odor at PN19-20 with conditioned dams that received OTA injections (therefore froze most of the time) or CONT dams (which maintained close contact with the pups). Importantly, we tested PP19-20 dams with PN19-20 pups, as learning to avoid an odor from the mother was tested with pups at slightly older age (PN6-7) then our young pup group (PN4-6) and rat pups do not learn amygdala-dependent defense behaviors in response to a self-experienced threat, such as shock, before PN10 (Barr et al., 2009; Moriceau et al., 2010; Sullivan et al., 2000; Wiedenmayer and Barr, 1998). Testing of these pups was performed 2–3 days after exposure to the peppermint odor with the conditioned dams, using a standard CS cue test. Specifically, pups were individually tested in a large glass beaker where the peppermint odor was delivered. Freezing was quantified as a measure of learning. We found that only the pups of the conditioned CONT-dams learned to freeze to the peppermint odor (pups of OTA-dams from 1.4 ± 0.3% during baseline to 3.2 ± 0.8% post odor exposure; pups of CONT-dams from 7.4 ± 1.7% during baseline to 20.2 ± 2.8% post odor exposure; Mann-Whitney-U test comparing change in freezing by pups of OTA and CONT dams: n(CONT)=21 and n(OTA)=18, U=52.5, p=0.000; Figure 5). Given the variance in the levels of freezing displayed by pups of CONT-dams, we investigated whether these were more similar within than between litters and found similar variance within and between litters (data not shown). Since OTA-dams spent most of the time freezing, whereas control dams spent more time with the pups during odor exposure, our finding suggests that close proximity between mother and pups may be required for pups to show normal learning about the threat. This is consistent with a previous study showing that a chemical cue might underlie maternal mediated threat learning by pups (Debiec and Sullivan, 2014). This chemical cue might constitute a short-range signal that in our testing conditions, due to the air extraction system, requires close proximity between the source, the mother, and receiver, the pup. It is worth noting that our testing conditions may more closely reflect the natural, open-air conditions, existent in the wild.

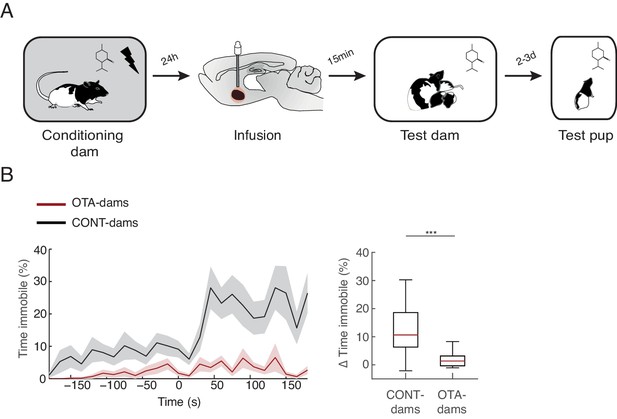

Transmission of fear from mother to pup.

(A) Schematic of the experimental design. PP19-21 pups were re-exposed to the odor alone 2–3 days after exposure with rat dam. (B) Line graph shows timecourse of immobility (average ± SEM) displayed by pups (from CONT-dams, n=21, nine from intact and 12 from vehicle infused dams; from OTA-dams, n=18) during the test to the conditioned odor. Vertical dashed lines indicate presentation of conditioned odor. Box plot shows change in immobility upon odor presentation (immobility after first odor – baseline). *** denotes p<0.001.

https://doi.org/10.7554/eLife.24080.008

Discussion

In summary, the present findings provide clear evidence that rat dams modulate their defenses by the presence of offspring. When exposed to the inescapable threat alone, rat dams freeze robustly, but no freezing is observed when the pups are present. Instead, rat dams with young pups, unable to move from the nest, display defensive responses geared towards the threat actively protecting the pups. Conversely, rat dams with older and mobile pups, display increased contact with them. One possibility is that increased contact with the pups, which keeps them in close proximity, constitutes a form of defense by preventing the pups from approaching the threat. The modulation of maternal defense by pup age may be mediated by maternal and/or offspring changes. Indeed, testing mothers at a stage mismatched with that of the pups age (PP4-6 dams with PN19-21 pups and vice versa) revealed that both the age of the pups, possibly through differences in the pups behavior (Fleming et al., 1999), and maternal PP stage, which could be caused by differences in hormonal state and/or maternal experience (Bosch and Neumann, 2008; Rosenblatt, 1967), determine maternal defensive behavior. Furthermore, we found that maternal defense is initially determined by maternal stage progressively becoming more dependent on the pups, a similar pattern to that observed for maternal aggression (Caughey et al., 2011; de Almeida et al., 2014). Further experiments are required to parse out the mediating factors of pup age on maternal defense behaviors. Previous studies have shown social buffering of anxiety and fear in rodents (Burkett et al., 2016; Hennessy et al., 2009; Kikusui et al., 2006; Waldherr and Neumann, 2007). Particularly relevant are the studies showing that male and female adult rats freeze less to a conditioned cue when in the presence of other male rats (Ishii et al., 2016; Kiyokawa et al., 2004, Kiyokawa et al., 2007). Hence, the decrease in freezing by mother rats reported here is unlikely to be specific to the presence of offspring. Whether a mechanism for self-defense suppression has evolved in the context of parental defense, which was then co-opted for other forms of social interactions, or the other way around is difficult to assert. Still, this mechanism allows pup protection. Indeed, in our study we show that mother rats do not stay indifferent to the threat, but rather actively direct their behavior towards the threat or the pups.

The present studies also show that oxytocin in the central amygdala underlies the suppression of maternal freezing required for active defense of pups. Specifically, we found that rat dams injected with the oxytocin antagonist, OTA, in the CeL failed to suppress freezing, displaying robust levels of this behavior despite the presence of their pups. The central amygdala has been proposed to act as switch from freezing to other defense responses (Gozzi et al., 2010). In addition, a series of elegant studies describe in detail the mechanisms that could constitute such a switch, focusing on the ability of OT to specifically suppress freezing, without affecting other outputs of the medial sub-nucleus of central amygdala (Knobloch et al., 2012; Viviani et al., 2011). The present findings show that this switch is required for rat dams to defend their pups when both dams and pups are threatened, revealing a natural circumstance for OT’s modulation of CeA function. Maternal defense of pups has been widely studied using the male intruder paradigm. In this paradigm, rat dams actively defend their pups from male intruders that pose a threat to the pups but not the mothers. Oxytocin is released upon the introduction of the male acting on several brain areas thereby modulating maternal aggression (Bosch, 2013). Manipulating OT in the central amygdala during maternal aggression has yielded mixed results. Antagonizing OT with OTA microinjection into CeA was shown to increase maternal aggression (Lubin et al., 2003). However, in rat dams selectively bread for high anxiety, OTA infusion into the CeA has the opposite effect, i.e. it reduces maternal aggression (Bosch et al., 2005). Together with the present report, these findings raise the possibility that oxytocin in central amygdala comes online when the mothers perceive a threat to themselves. Oxytocin in this nucleus would not necessarily drive maternal defensive behavior, but rather work as a gate, inhibiting self-defensive behaviors such as freezing and allowing expression of maternal defenses such as aggression towards the threat.

Lastly, the present study also provides evidence that self-defense suppression by rat dams allows for mother-pup interactions that are crucial for pups to learn about threats, since pups that were exposed to the odor with OTA-injected dams failed to learn to freeze to it. Consistent with previous studies showing maternal influence on the behavior of the pups (Perry et al., 2016; Sullivan and Perry, 2015), including learning about threats (Debiec and Sullivan, 2014), we found a maternal influence on future defensive behavior of pups. Importantly, in this study, by manipulating oxytocin signaling in the central amygdala of the mothers, we show that the type of defensive response displayed by the mother determines whether fear of the odor is transmitted to the pups. We hypothesize that pup learning is mediated by exposure to short-range chemical cues from the mother, such as alarm odor, which requires close proximity between the mother and pups for exposure (Chang and Debiec, 2016; Debiec and Sullivan, 2014). In addition, these findings suggest that pups are not learning to freeze to the threat through behavior copying. It remains to be established whether learning by pups relies on associative learning mechanisms, leading to learned responses rather specific to the cue, or on non-associative mechanisms, leading to a more generalized response.

In conclusion, our findings reveal a mechanism that suppresses self-defense responses allowing mothers to protect their offspring, while providing novel insights into the mechanisms by which pups learn to respond to threats from their mothers. In addition, we believe our paradigm constitutes a great tool for elucidating the neural mechanism of maternal behavior, as it relies on the described mechanism of action of oxytocin released by PVN projection neurons into the central amygdala, grounding the search for relevant inputs and outputs to this circuit.

Materials and methods

Animals

All behavioral experiments were performed in accordance with NIH guidelines and approved by the Nathan Kline Institute’s Institutional Care and Use Committee (Protocol: AP2015-522). Primiparous dams (Long-Evans) were born and bred at the Nathan Kline Institute in Orangeburg, NY. Before use in our behavioral experiments, females were pair-housed in a temperature (20°C) and light controlled (12:12 hr light-dark cycle) colony with ad libitum food and water in the main laboratory holding room. Breeding occurred in a separate holding room, two females to one male. Females remained with the males for two weeks, after which they were separated and given an individual home-cage until gestation. Dams were carefully monitored, and upon gestation, litters were culled to 12 pups, six females and six males. At the time of the experiments, pups were in one of two age groups, PN4-6 or PN19-21.

Behavioral assay

Maternal defense experiment

Day 1: Habituation

The behavioral assay was conducted at a different location from the vivarium. Dams and their pups were transported, via route one of two routes, to the behavioral room location in their home cages covered with special cage covers to minimize anxiety. Dams and her pups were then placed into behavior observation tanks, and habituated to the behavior room for 15 min. These tanks consisted of a glass rectangle box with a removable lid and 5 cm of shavings (identical to home-cage), enough for nest building and general comfort.

Day 2: Fear conditioning

Dams and their pups were again transported to the behavior room, via the second route. Alone, dams were conditioned to fear an odor (peppermint, McCormick). A single trial consisted of one 30 s exposure to the peppermint odor (2 L/min flow rate at a concentration of 1:10 peppermint vapor; olfactometer controlled by ChronTrol, ChronTrol Corporation, San Diego, California), which co-terminated with a single 0.7 mA, 0.5 s shock. After three odor-shock pairings (ITI: 5 min, 1 min, 7 min), dams remained in the conditioning boxes for ten seconds, at which point they were removed and re-introduced to the home cage and pups. The home cages were then covered and transported back to the vivarium. Fear conditioning sessions were conducted in the dark, and recorded with high-definition infra-red cameras.

Day 3: Odor test

24 hr after fear conditioning, dams and their pups were transported to the behavior rooms via route one. Dams, either in the presence or absence of six pups, were placed into the behavior observation tank. After 5 min, the peppermint odor was delivered into the behavior observation tank (procedure for odor delivery as described above). After three 30 s odor presentations, (ITI: 5 min (baseline), 3 min, 3 min), dams and pups were re-introduced to the home cage, covered and returned to the vivarium. The odor tests were conducted in the light and recorded with high-definition web cameras from two perspectives.

Matched and mismatched pup experiment

For this experiment, we used a subset of the dams which served as controls for our study on the role of OT in the suppression of maternal freezing (Figures 3 and 4); intact dams (PP4-6, n=4 and PP19-21, n=5) and PBS-dams (PP4-6, n=6 and PP19-21, n=7). These dams underwent the same experiment protocol in the maternal defense experiment. The matched and mismatched pup experiment protocol proceeded as follows: 24 hr after the odor test (last session of behavioral assay described above), rat dams underwent a re-conditioning session where they received a single, co-terminating, odor and shock delivery (ITI: 5 min). Upon home cage re-entry, rat dams were given a new litter of non-matched pups (i.e. PP4-6 dams were given PN19-21 pups, and PP19-21 dams were given PN4-6 pups). The next day, rat dams were re-exposed to the odor in the behavior chamber with the mismatched litter. Pups used in the matched and mismatched experiment were not used in the maternal transmission of fear experiment. It should be noted that surrogacy is a standard practice in the Sullivan lab, to which neither rat dams nor pups display abnormal behaviors. We examined the maternal behavior in the home cage of both PP4-6 and PP19-21 dams with both matched and mismatched pups, which when compared were indistinguishable.

Maternal transmission of fear experiment

PN19-21 pups exposed to the odor in the presence of dams were weaned between PN21-22 and housed together in groups of 6 in new home cages. At PP23-25, the pups were transported in their (covered) home cages to a novel behavior room. Pups were individually habituated to a glass container (25 × 22 cm). After fifteen minutes, the pups were re-introduced to the home cage, covered, and transported back to the vivarium. 24 hr later, the pups were placed back into the behavior assay. After 3 min, a single presentation of the peppermint odor was delivered into the container (delivery procedure as described above). Pups remained in the container for three minutes, after which they were removed and taken back to the vivarium.

Surgery protocol

Dams were anaesthetized with isoflurane throughout the surgical procedure. Buprenorphine, an analgesic, was injected subcutaneously at the beginning of surgery (0.02 mg/kg). Dams were then placed into a stereotaxic instrument, heads secured with non-puncture ear bars, and sheared. Head position was adjusted so that bregma and lambda were in the same horizontal plane. In aseptic conditions, the skull was prepared and skull screws (Plastics One) were set in place. Using stereotaxic coordinates (derived from Paxinos and Watson, 2007) bilateral craniotomies were performed above the CeM using the following coordinates: 2.2 mm posterior, +/-4.3 mm lateral, and −7.8 mm ventral. The dura matter was then retracted, and guide cannulae (7.5 mm below pedestal) were lowered until 1 mm above the CeM. The cannulae were fixed to the skull with dental acrylic, and secured via the skull screws. Dummy cannulae (1 mm projection) were inserted bilaterally to prevent clogging. Following surgery, dams were kept warm and under observation until recovery from anesthesia and then re-introduced into their home cage and their pups.

Infusion protocol

Infusions took place on experimental day 3, fifteen minutes before the odor test session. Dams were infused with either 1.0 µg/1 µl of oxytocin receptor antagonist d(CH2)[Tyr(Me)2, Thr4, Orn8, des-Gly-NH29]-vasotocin (OTA) or 0.01M phosphate- buffered 0.9% saline (PBS). The injection cannulae were filled with mineral oil and connected to a 1 μl syringe (Hamilton). They were then loaded with OTA or PBS through backfilling. Rats received either an infusion of PBS or OTA (amygdala 0.3 μl) at a rate of 0.25 μl/min using an infusion pump (Harvard Apparatus). The OTA or PBS was simultaneously infused bilaterally into the CeM, after which the dummy cannulae were immediately re-inserted. For the experiment where we tested habituated, rather than conditioned, dam infusions of OTA or PBS were performed as described above.

Behavior and data analysis

Behaviors displayed by dams were grouped into three categories that together encompassed most behaviors observed: immobility, ‘towards the threat’, and ‘towards pups’. Immobility included freezing and lack of locomotor activity. Dam freezing and immobility behaviors were scored blindly and independently in real time, and then again using Freezescan, CleverSys, Reston, Virginia, United States. Freezing was used as the index of conditioned fear. An episode of freezing was defined as a period in which there was total immobility except for the respiratory-related movement. The behaviors classified as ‘towards threat’ included pushing of the bedding both towards and at the odor ports, investigative rearing, exploration of the odor ports and digging. Behaviors classified as ‘towards pup’ included nursing, grooming, and active time spent with pups. The scoring of maternal behaviors was conducted using a custom Java applet, described in (Cain and LeDoux, 2007), which time stamps the beginning and end of keystroke depression relative to the session start; different keys were used for each behavior, which allowed for scoring of multiple behaviors simultaneously. The final behavioral values are the mean of multiple blind and independent scorings.

Statistics

All statistical analyses were conducted using MATLAB and Statistics Toolbox Release 2014b, The MathWorks, Inc., Natick, Massachusetts, United States. The normality and homogeneity of variance of the data were tested, and the appropriate statistical analyses were used as required. Depending on the comparison, a non-parametric (either a Mann-Whitney U or a Wilcoxon Signed-Rank) test was performed.

Box plots were used to represent the data and corresponding statistical values. For these plots we used behavioral scores taken during the 180 s following the first odor delivery normalized by a baseline period of the same length (values from the 180 s time period before the first odor delivery were used). Hence, the first two minutes of baseline were not used for quantification of the behavioral scores (normalized score = behavior after odor – baseline behavior). For Figure 2, rather than using scores normalized to the baseline, which reflect change in behavior triggered by odor delivery, we used absolute values from the time period after the first odor delivery, as our goal was to compare the behavior during odor exposure of dams with matched and non-matched pups (similar results were obtained when using normalized behavioral scores). The central red line indicates the median value. The bottom and top box edges are 25% and 75% percentiles. The whiskers extend to the most extreme data points, not considered outliers. Outliers (greater than q3 + 1.5 × (q3 – q1) or less than q1 – 1.5 × (q3 – q1). q1 and q3 are the 25th and 75th percentiles of the sample data, respectively) are represented individually using the plus (+) symbol.

To quantify changes in behavior of dams over the time course of the experiment we used 1 s time bins. For the raster plots we used 1 s time bins, such that the if a dam transitioned from one behavior to the next, in the middle of a time bin, the time bin would take up the identity of the behavior that lasted longer within that second. To plot the percent time spent in a particular behavior over the course of the test session we computed a running average using 40 s time bins with a sliding window of 1 s. Freezing behavior of pups, along the time course of testing, was scored in 15 s bins, hence no smoothing was required to plot percent time spent freezing.

Sample sizes used in these experiments (7 to 10 animals) were consistent with those typically used in fear conditioning experiments, and the experience with fear conditioning paradigms of the Moita lab. In addition, two pilot studies with a sample size of 6 rats, testing the behavior of intact dams alone or with their pups and implanted dams infused with vehicle or OTA revealed that this sample size was sufficient to demonstrate significant differences between groups. For all experiments performed, a small number of subjects of each experimental group was tested in tandem, such that to achieve the final sample size each experiment was replicated three times. For the infusion experiments, we ran two control groups, an intact group and a vehicle infusion group. Since no statistical differences were found in the behaviors displayed before and after odor exposure between these groups, data from these was pooled (Mann-Whitney-U tests comparing immobility, behaviors towards threat and towards pups by vehicle and intact PP4-6 and PP19-21 dams before and after odor presentation, all showed significance values corresponding to p>0.3). For the infusion experiment of PP19-21 dams we used more intact dams (n=10), since a subset of these was used for testing learning by the pups (data not shown).

Histology

After the conclusion of the experimental protocol, dams were deeply anesthetized using isoflurane. Dams were then decapitated and brains immediately frozen using liquid nitrogen. Brains were then stored separately at −80°C until cut on a cryostat into 40 μm thick coronal sections covering the entire extent of the CeA. Sections were analyzed and photographed confirming that cannulae placement was in specified location (see Figures 3 and 4). The behavioral data for rats with either one or both cannulae outside of the target area were excluded.

References

  1. 1
    CNS region-specific oxytocin receptor expression: importance in regulation of anxiety and sex behavior
    1. TL Bale
    2. AM Davis
    3. AP Auger
    4. DM Dorsa
    5. MM McCarthy
    (2001)
    Journal of Neuroscience 21:2546–2552.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Nest defense behavior of lesser golden-plovers
    1. I Byrkjedal
    (1989)
    Wilson Bulletin 101:579–590.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Social buffering: relief from stress and anxiety
    1. T Kikusui
    2. JT Winslow
    3. Y Mori
    (2006)
    Philosophical Transactions of the Royal Society B: Biological Sciences 361:2215–2228.
    https://doi.org/10.1098/rstb.2006.1941
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Bivocal distraction nest-site display in the red squirrel, Tamiasciurus hudsonicus, with comments on outlier nesting and nesting behavior
    1. CA Long
    (1993)
    Canadian Field-Naturalist 107:104–106.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Defensive burying, nest relocation, and pup transport in lactating female rats
    1. JP Pinel
    2. DM Petrovic
    3. CH Jones
    (1990)
    The Quarterly Journal of Experimental Psychology. B, Comparative and Physiological Psychology 42:401–411.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71

Decision letter

  1. Peggy Mason
    Reviewing Editor; University of Chicago, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Freezing Suppression by Oxytocin in Central Amygdala Allows Alternate Defensive Behaviors and Mother-Pup Interactions" for consideration by eLife. Your article has been favorably evaluated by four reviewers, one of whom, Peggy Mason (Senior Editor), is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: Josh Neunuebel (Reviewer #4).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is an exciting piece of work that shows modulation of fear immobility by the presence of pups. The phenomenon is robust with dams showing freezing in the absence of pups, orientation toward the conditioned fear stimulus or toward the pups in the presence of young and old pups, respectively. The age-dependent pup effect is dependent on mom's stage initially and then on pup's stage. Injection of an OXT-R antagonist into Ce-Amygdala blocks the pups' modulation of mom's fear response, so that the moms freeze now even with the pups around. Finally, the pups learn to fear the odor not from the moms' freezing but from the moms' modulated reaction (not freezing).

Essential revisions:

There are detailed reviews below that are there to help you prepare your revision. The changes that must be addressed are:

Better justify that the modulated behavior is pup protection or soften the conclusions;

Change language to acknowledge that OXT-R involvement is tested for NOT OXT release;

Calculation of the% : what are the bin sizes?

Are the responses really starting before the stimulus at t=0? The lines between pre and post are steep and straight and give this impression. if there is a break in data collection to introduce the stimulus, please illustrate this. In any case, please clarify;

Figure 2 does not match the text;

Neutral stimulus for mom to pup transmission experiment is needed to rule out overall increase in anxiety/fear or tone down discussion;

Improve or omit videos.

Reviewer #1:

This is an exciting piece of work that shows modulation of fear immobility by the presence of pups. The phenomenon is robust with dams showing freezing in the absence of pups, orientation toward the conditioned fear stimulus or toward the pups in the presence of young and old pups, respectively. The age-dependent pup effect is dependent on mom's stage initially and then on pup's stage (see below for a concern with the reporting of this result). Injection of an OXT-R antagonist into Ce-Amygdala blocks the pups' modulation of mom's fear response, so that the moms freeze now even with the pups around. Finally, the pups learn to fear the odor not from the moms' freezing but from the moms' modulated reaction (not freezing). The discussion of this latter result should be augmented a bit to mention the lack of pup copying of mom's behavior.

Figure 2 does not match the text. As the text reads dams of young pups (matched) orient toward the threat when tested with young pups and yet Figure 2B has them orienting toward the pups. And in 2C, it appears that the dams of older pups (matched) orient toward the threat when the text says that they orient toward the pups. Please explain.

Subsection “Regulation of dams’ defensive behavior by the presence of pups”, first paragraph: doesn't maternal aggression increase between birth and weaning?

Please comment on how the sample sizes were determined. The numbers in the groups are greatly different. E.g. 17 controls and 7 OTA.

The videos appeared inconsistently sized on my browser. Moreover, they are simply not useful as is. Please label the time and location of the smell. Annotate the videos (in the videos) so that a viewer can easily glean the point of each video.

From the videos that I could see, it appears that the dams of older pups interact with them closely through taction and one would guess calls as well as odors. The possibility that either taction or audition plays a role in communicating threat to the pups should be at least mentioned.

Reviewer #2:

While the results presented in the manuscript by Rickenbacher et al. are novel and interesting, I have some concerns that should be addressed before the paper is published.

1) I have a concern about the interpretation of the results. It is not clear whether increased social contact of the dams with older pups (PP19-21) is a switch from self-defense to offspring protection. The data do not show if the suppression of freezing is limited to the presence of pups or if this suppression occurs in the presence of any conspecific. It is conceivable that the dams engage in social contact with their pups just as they would do with unrelated adult animals (which could result in social buffering effects). Therefore, the assumption should be better justified, either by an additional control group or by a reference to already available results.

2) The sentence "Next, we tested our hypothesis that pup presence leads to release of oxytocin by PVN neurons projecting to the CeL, which suppress freezing and permits expression of maternal defensive behaviors." is an overstatement. There is no data here directly showing that oxytocin is actually released in the CeA when the CS is presented to the dams with pups. Similarly, the specific projections as well as the specific region of the CeA were not targeted in the presented experiments. Furthermore, the abbreviations for the central amygdala are inconsistent throughout the text. In the Introduction, there are references to the CeL (centro-lateral amygdala), in Materiasl and methods, Surgery Protocol the central amygdala is abbreviated to the CeM (which is a common abbreviation for the medial part of the central amygdala). It should be clearly stated that the extent of infusion site is not verified here – so the authors can say that they target the central amygdala, but not one of its parts. Since it is known from other works that the receptors for oxytocin are in the lateral and capsular subdivisions of the central amygdala (Huber et al., 2005), the results suggest that these parts are crucial for oxytocin effects.

3) In the description of the methods:

A) The dose of the oxytocin antagonist is not given. It is particularly important in the context of mixed results on the role of oxytocin in the CeA in maternal aggression. This issue should be addressed.

B) In the Materials and methods section, the ITIs between CSs during odor test are described as 5min, 3 min and 3 min. In figures all ITIs are 3 min. Moreover, the response to the third stimulus is not shown.

C) It should be clearly stated how the freezing scores shown in the results were obtained. It is not clear as it is described now.

D) "The final behavioral values are the mean of multiple blind and independent scorings." – it should be clearly stated how many.

E) It is not clear for which periods of time (3-min bins?) the δ scores showing change of behavior upon odor presentation are calculated.

4) There is a difference in the amount of time "toward pups" before the presentation of the CS (in the baseline) between dams of younger and older pups (Figure 1G); this should be discussed.

5) In the last experiment on transmission of fear from mother to pup, there is some variability in the freezing response. Is there any correlation between freezing and intensity of social contact with the dam during the test? Are there differences between pups tested with different dams?

6) The data shown in Figure 2 are inconsistent with the description in the text, probably graphs should be in different order.

7) Why are different behavioral measures shown in Figures 1 and 2 – δ time and time during odor, respectively?

Reviewer #3:

There is a lot to like in this paper. The finding that dams express conditioned fear responses that depend on both the presence of pups and the pups' age is novel and provocative. The identification of oxytocin as a permissive factor for the expression of the defensive response demonstrates a potential mechanism. I also really like the raster plots showing behavior for each animal as well.

One thing that I'm finding unclear is exactly how the data for all of the% time graphs (e.g. Figure 1C-G) were calculated. I don't know if I'm missing something somewhere but what are these values a percentage of? Is it across the entire session? If there is a "binning" of time blocks somewhere I can't find it. Normally in cued conditioning experiments there is a time block (e.g. a 30s tone) and freezing% is calculated by what% of those 30s the animals spend freezing. However, since we have continuous line graphs here across time, this doesn't seem to be the approach. Along the same lines, I don't see where the authors describe how the change in% is calculated. Is it the change from before the first presentation of the odor to some kind of aggregate of the behavior during the odor presentation? More detail is needed in exactly where all of these% values come from (again, unless I'm missing where this information is in the manuscript).

Reviewer #4:

Rickenbacher et al. conducted a series of elegant experiments to address how self-defense behaviors are suppressed when switching to offspring protection. The authors reported that dams condition to fear an odor froze when tested alone, but when pups were present, they remained in close contact with them or targeted the threat. Oxytocin (OT) signaling in the centro-lateral amygdala (CLA) appear to be crucial for this behavior because blocking OT by injecting oxytocin antagonous into the (CLA) prevented suppression of maternal freezing. Moreover, pups exposed to the odor in the presence of the conditioned dam later froze when re-exposed alone. However, if oxytocin signaling in the dam had been blocked, pups failed to learn. The authors concluded that OT in the CLA plays a role in suppressing self-defense behaviors and allows mothers to protect their pups and transmit information about danger to their offspring. Although the results are striking and fill a gap in knowledge about the circuitry underlying maternal behaviors during innate behavior, a component that needs to be emphasized more in the paper, there are three major, yet addressable concerns. One of which, requires additional experiments.

First, the reported behavioral changes of the dams in Figures 14 all start before the delivery of the odor. The timing of this response is odd because behavioral responses to odor delivery typically occur with a slight delay and not before the odor is delivered. There is clearly a difference in the behaviors of the dams with pups and without pups. The question is what are they mothers really responding to the environment. It doesn't appear to be the odor.

Second, the text for Figure 2 does not match data in the figure. For Figure 2, shouldn't PP4-6 matched replicate your results in Figure 1? Shouldn't PP19-21 matched replicate your results in Figure 1? This is not the case. For Figure 2, it looks like the plots were mislabel and this is concerning. Therefore, the raw data needs to be shown like Figure 1B.

Third, you claim that the mothers are transmitting the learned fear response to the pups, but you haven't rule out that the pups could just be over anxious and more sensitive to any stimulus. A vital control was omitted. You needed to also show that animals are not freezing to a neutral odor. If the pups from the control dams don't show freezing to a neutral odor, then you say that they learned the association between peppermint and threat from the mom and make the claim that this learning was transmitted from the moms. Without doing this experiment, then you need to tone down the conclusions you make in the Discussion.

https://doi.org/10.7554/eLife.24080.009

Author response

Essential revisions:

There are detailed reviews below that are there to help you prepare your revision. The changes that must be addressed are:

Better justify that the modulated behavior is pup protection or soften the conclusions;

Reviewers expressed concern regarding our interpretation that increased contact with older pups is a form of maternal defense. We agree with the reviewer in that our experiments cannot establish whether the goal of the observed maternal behavior is to protect the pups. Still, we believe that whether this was the goal or not, increasing contact with the pups’ results in protection by preventing pups from approaching the threat. Since we cannot prove that this is the case we have changed our conclusions to read:

“Conversely, rat dams with older and mobile pups, display increased contact with them. One possibility is that increased contact with the pups, which keeps them in close proximity, constitutes a form of defense by preventing the pups from approaching the threat”.

Furthermore, we added a section in the Discussion about social buffering between adult conspecifics: “Previous studies have shown social buffering of anxiety and fear in rodents (Burkett, Andari, Johnson, Curry, de Waal, & Young, 2016; Hennessy, Kaiser, & Sachser, 2009; Kikusui, Winslow, & Mori, 2006; Waldherr & Neumann, 2007). […] Indeed, in our study we show that mother rats do not stay indifferent to the threat, but rather actively direct their behavior towards the threat or the pups.”.

Change language to acknowledge that OXT-R involvement is tested for NOT OXT release;

Reviewers point out that our experiment does not assess whether OT is released by PVN neurons upon the presence of pups. We thank the reviewer for requesting clarification. We have changed the text to read: “Next, we tested our hypothesis that activation of OT-receptors in CeL suppresses freezing, permitting expression of maternal defensive behaviors.”

Calculation of the% : what are the bin sizes?

The reviewers asked for clarification regarding the bin size used to calculate the percent time spent in a particular behavior. We score the behavior of dams using annotation software that allows recording the start and end of any behavior with sub-second precision. To create the raster plots we used 1s time bins, such that the if a dam transitioned from one behavior to the next, for example from nursing to exploration, in the middle of a time bin, the time bin would take up the identity of the behavior that lasted longer within that second. Once we had the behavior in 1s time bins we calculated percent time spent in a given behavior using a window of 40 time bins, i.e. of 40 seconds, for the time course plots (see answer below) and for the box plots we calculate percent time spent in a particular behavior using 180 time bins, i.e. 180s. To calculate freezing by pups we used a bin size of 15s for the time course plot and used scores from the three-minute baseline and three minute post first odor exposure (i.e. 12 time bins each) for the box plots. This is now clearly stated in the Methods, statistics section (second and third paragraphs).

Are the responses really starting before the stimulus at t=0? The lines between pre and post are steep and straight and give this impression. if there is a break in data collection to introduce the stimulus, please illustrate this. In any case, please clarify;

The reviewers point out that the responses observed seem to start before the onset of the first odor presentation. This results from the use of a smoothing algorithm for the time course plots: running average using 40s time bins with a sliding window of 1s. We decided to keep the plots with a smoothed average (except for the freezing behavior of pups), since we show the raw data in the raster plots, and added a clarification in the Methods, statistics section (third paragraph).

Figure 2 does not match the text;

The reviewers report that there is a mismatch between the text and Figure 2. We thank the reviewers for point this out as it results from a mistake in the figure, where we inadvertently had the graphs for behaviors towards threats and pups swapped. We have corrected Figure 2.

Neutral stimulus for mom to pup transmission experiment is needed to rule out overall increase in anxiety/fear or tone down discussion;

The reviewers ask to address the specificity of learning by pups with an experiment, or tone down our conclusions. Although we did not make any statement regarding specificity or associativity of learning by the pups, to make sure that readers do not infer from manuscript such a conclusion, we have now added a section in the Discussion addressing this issue: “It remains to be established whether learning by pups relies on associative learning mechanisms, leading to learned responses rather specific to the cue, or on non-associative mechanisms, leading to a more generalized response.”

Improve or omit videos.

The reviewers ask to improve, by annotating, or remove the videos. We decided to make a single video showing the behavior of intact mothers alone or in the presence of young and old pups. This video is clearly annotated to convey the experimental condition of the rat dams, and time point within the experiment. As all four experimental conditions are represented in a single frame, we feel that a direct comparison of the differences in maternal behaviors during odor onset is much easier to observe.

In addition to the essential revisions requested, we have addressed other issues raised by the reviewers, which we thought improved the manuscript, and implement grammar and wording corrections suggested.

1) We added at the end of the Methods, statistics section, a justification for the bigger sample size for control dams in the infusion experiment with PP19-21 dams. We used an additional set of intact dams in this experiment for testing the behavior of pups. Since these dams were tested in tandem with the others we decided to show all the data acquired from all dams tested.

2) We altered Figures 3 and 4 so that the raster plots clearly indicate the behavior of intact and vehicle infused dams. In addition, we added in the Methods, statistics section, a sentence stating the tests comparing intact and vehicle infused dams, which revealed no significant differences: “For the infusion experiments we ran two control groups, an intact group and a vehicle infusion group. Since no statistical differences were found in the behaviors displayed before and after odor exposure between these groups, data from these was pooled (Mann-Whitney-U tests comparing immobility, behaviors towards threat and towards pups by vehicle and intact PP4-6 and PP19-21 dams before and after odor presentation, all showed significance values corresponded to p>0.3).”

3) We added information on the dosage used of OTA to the Methods, in the section regarding the infusion protocol (1.0µg/1µl).

4) We clarified that we targeted the whole CeA, but that OT receptors are expressed only in CeL, so effectively that is the region that our infusions affect: “To this end, we implanted dams bilaterally with injection cannulas into central amygdala (although we did not specifically target CeL, only this region of central amygdala expresses OT-receptors, (Huber, Veinante, & Stoop, 2005)”.

5) We added a sentence in the Results, section on learning from mothers about threats, addressing the variability in the levels of freezing displayed by the pups. The variability was similar within and between litters: “Given the variance in the levels of freezing displayed by pups of CONT-dams, we investigated whether these were more similar within than between litters and found similar variance within and between litters (data not shown).”

6) We added a sentence in the Discussion mentioning that our results suggest that in our experiments pups do not seem to be learning through behavior copying: (Discussion, third paragraph).

https://doi.org/10.7554/eLife.24080.010

Article and author information

Author details

  1. Elizabeth Rickenbacher

    Champalimaud Neuroscience Programme, LIsboa, Portugal
    Contribution
    ER, Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-4055-5663
  2. Rosemarie E Perry

    1. Department of Neuroscience and Physiology, New York University School of Medicine, New York, United States
    2. Sackler Institute of Graduate Biomedical Sciences, New York University School of Medicine, New York, United States
    3. Emotional Brain Institute, Nathan Kline Institute for Psychiatric Research, New York, United States
    4. New York University Child Study Center, New York University School of Medicine, New York, United States
    5. Department of Child and Adolescent Psychiatry, New York University School of Medicine, New York, United States
    Contribution
    REP, Conceptualization, Investigation, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  3. Regina M Sullivan

    1. Emotional Brain Institute, Nathan Kline Institute for Psychiatric Research, New York, United States
    2. New York University Child Study Center, New York University School of Medicine, New York, United States
    3. Department of Child and Adolescent Psychiatry, New York University School of Medicine, New York, United States
    Contribution
    RMS, Conceptualization, Resources, Supervision, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Marta A Moita

    Champalimaud Neuroscience Programme, LIsboa, Portugal
    Contribution
    MAM, Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    marta.moita@neuro.fchampalimaud.org
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-5144-6905

Funding

H2020 European Research Council (337747-C.o.C.O.)

  • Elizabeth Rickenbacher
  • Marta A Moita

Fundação para a Ciência e a Tecnologia (SFRH/51257/2020)

  • Elizabeth Rickenbacher

National Institutes of Health (R37HD083217)

  • Rosemarie E Perry
  • Regina M Sullivan

National Institutes of Health (MH091451)

  • Rosemarie E Perry
  • Regina M Sullivan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Maria Cano Colino for her technical assistance in programming and data analysis, Syrina Al-Ain for her support with some of the PN19-23 pup experiments, and Karina Szyba for her assistance with the experimental apparatus. The European Research Council (ERC starting grant 337747 CoCO) and NIH (R37HD083217 and MH091451 to RMS) funded this work. ER was supported by Fundação para a Ciência e a Tecnologia and REP was supported by NIH training grant (T32MH096331).

Ethics

Animal experimentation: All behavioral experiments were performed in accordance with NIH guidelines and approved by Nathan Kline Institute's Institutional Care and Use Committee (Protocol: AP2015-522).

Reviewing Editor

  1. Peggy Mason, Reviewing Editor, University of Chicago, United States

Publication history

  1. Received: December 9, 2016
  2. Accepted: May 9, 2017
  3. Version of Record published: June 13, 2017 (version 1)

Copyright

© 2017, Rickenbacher et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,440
    Page views
  • 357
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Neuroscience
    Arnaldo Carreira-Rosario et al.
    Research Article Updated
    1. Neuroscience
    Tom Alisch et al.
    Tools and Resources
