Host-selected mutations converging on a global regulator drive an adaptive leap towards symbiosis in bacteria

Research Article
  • Cited 11
  • Views 2,593
  • Annotations
Cite this article as: eLife 2017;6:e24414 doi: 10.7554/eLife.24414

Abstract

Host immune and physical barriers protect against pathogens but also impede the establishment of essential symbiotic partnerships. To reveal mechanisms by which beneficial organisms adapt to circumvent host defenses, we experimentally evolved ecologically distinct bioluminescent Vibrio fischeri by colonization and growth within the light organs of the squid Euprymna scolopes. Serial squid passaging of bacteria produced eight distinct mutations in the binK sensor kinase gene, which conferred an exceptional selective advantage that could be demonstrated through both empirical and theoretical analysis. Squid-adaptive binK alleles promoted colonization and immune evasion that were mediated by cell-associated matrices including symbiotic polysaccharide (Syp) and cellulose. binK variation also altered quorum sensing, raising the threshold for luminescence induction. Preexisting coordinated regulation of symbiosis traits by BinK presented an efficient solution where altered BinK function was the key to unlock multiple colonization barriers. These results identify a genetic basis for microbial adaptability and underscore the importance of hosts as selective agents that shape emergent symbiont populations.

https://doi.org/10.7554/eLife.24414.001

eLife digest

Most bacteria that associate with animals do not cause harm, and many are essential to health or provide other benefits. An animal’s immune system must permit these beneficial associations and at the same time block harmful microbes. This ultimately means that even beneficial bacteria must adapt to the immune barriers that they encounter.

Different species that live in a close relationship with each other are known as symbionts. A species of bacteria called Vibrio fischeri can form a mutually beneficial symbiotic relationship with squid. The squid provide food for the bacteria, but only the bacteria that successfully navigate immune barriers and reach the squid’s “light organ” are fed. In return, the bacteria produce bioluminescence, making the nocturnal squid appear like moonlight in the water.

As the bacteria reproduce, some individuals randomly acquire genetic mutations, some of which might improve the bacteria’s chances of survival. Which mutations and associated traits allow bacteria to beat out the competition and evolve to become animal symbionts? To investigate, Pankey, Foxall et al. grew V. fischeri bacteria from several ancestors that were poor at colonizing squid. Groups of newly hatched squid selected potential symbionts from the resulting mix of bacteria. The selected symbionts were allowed to reproduce within the squid to form a new population of bacteria and were later vented out for a new batch of squid to sort through. This was repeated to ultimately form a final group of bacteria that had passed through 15 squid in turn.

Unexpectedly, the bacteria in the final group all found the same solution to help them adapt to symbiotic life with the squid: mutations to the gene that encodes a signaling protein called BinK. Eight distinct mutations arose that dramatically changed how the bacteria interacted with squid. The evolved bacteria created a coating that hid them from squid immune cells and protected them from chemicals that squid use to kill invaders. The mutations also altered how the bacteria communicated with each other. This adjusted the intensity of light that they produced for their host to a more natural level, and improved their ability to grow on squid-provided food.

Overall, the results presented by Pankey, Foxall et al. demonstrate that small genetic mutations can transform non-symbionts into symbionts, enabling them to evolve rapidly to form a symbiosis with a new host. This demonstrates that these bacteria already had the ability to coordinate the complex behaviors necessary to overcome the multiple barriers provided to them by the squid immune system. Other beneficial animal–bacteria associations are likely to work on similar principles; the study exemplifies the utility of experimental evolution systems and lays a foundation for further work to investigate these principles in more detail.

https://doi.org/10.7554/eLife.24414.002

Introduction

Identifying traits that are under selection by hosts is crucial to understanding the processes governing nascent symbiotic interactions between animals and microbes. The remarkable efficiency with which some bacteria evolve variation that enhances access to novel host niches indicates that adaptability may be an attribute of some bacterial genomes. Adaptive evolution to a new niche, such as a novel host, may involve reconciliation of constraints imposed by genomic content, conflicting regulation, and pleiotropy (Morley et al., 2015; Bedhomme et al., 2012). Given this context, global regulators could serve as effective targets of selection that drive adaptive leaps made by pathogenic or mutualistic microbes, as long as essential metabolic pathways are both sufficiently insulated from detrimental effects of mutation and available for integration with accessory functions (Davenport et al., 2015; Wolfe et al., 2004; Jansen et al., 2015). Studies using experimental evolution have often revealed that adaptive evolution initially proceeds through regulatory changes, but few have identified the underlying mechanisms that promote adaptation or linked these processes to natural symbiotic systems (Morley et al., 2015; Bedhomme et al., 2012; Kawecki et al., 2012; Marchetti et al., 2010; Guan et al., 2013).

Members of the genus Vibrio, halophilic bacteria with a broad distribution in marine and brackish environments, have repeatedly evolved to colonize varied host niches (Nishiguchi, 2002; Takemura et al., 2014; Guerrero-Ferreira and Nishiguchi, 2007), and as such, their study can provide an understanding of adaptability to host association. Bioluminescent Vibrio fischeri can be found among marine plankton (Lee and Ruby, 1992) but the species is best known for its mutualistic light organ symbiosis with squid and fish species. V. fischeri is also well-known for its social quorum-sensing behavior, whereby communities of bacteria use diffusible pheromone signal molecules to synchronize gene expression in response to cell density (Schuster et al., 2013; Verma and Miyashiro, 2013; Waters and Bassler, 2005). In squid-symbiotic V. fischeri, quorum sensing occurs through sequential activation by two different pheromone signals: the first signal (C8-HSL) 'primes' sensitive perception of the second signal (3-oxo-C6-HSL) through enhanced LitR activity, which increases the levels of the LuxR pheromone sensor, thereby lowering the threshold for signal perception (Fidopiastis et al., 2002; Lupp and Ruby, 2004; Miyashiro et al., 2010). In turn, when LuxR binds to 3-oxo-C6-HSL, LuxR homodimerizes and directly activates the expression of the lux bioluminescence operon to produce light, which squid use for counter-illumination camouflage during their nocturnal foraging behavior (Lupp et al., 2003; Jones and Nishiguchi, 2004).

The symbiotic association between V. fischeri and the squid Euprymna scolopes has become a powerful system for interrogating mechanisms underlying bacterial colonization of metazoan host mucosal surfaces where colonists must overcome host defenses that limit infection by non-symbiotic bacteria, including pathogens (Figure 1A). Once newly hatched squid entrap bacteria in mucus near the light organ, symbionts aggregate in this mucus and, in response to host attractants , subsequently swim through pores at the entrance of the nascent light organs (Nyholm et al., 2000). As V. fischeri bacteria swim down the ducts and into the crypts, they face a 'gauntlet' of defenses that includes host-derived oxidative species (Davidson et al., 2004; Weis et al., 1996; Small and McFall-Ngai, 1999), as well as patrolling macrophage-like hemocytes that attach to other species of marine bacteria with higher affinity, subsequently killing these invading cells (Nyholm et al., 2009; Nyholm and McFall-Ngai, 1998; Koropatnick et al., 2007). These barriers ensure that only the correct symbiotic partner gains access to the crypts where host-provided nutrients support bacterial growth (Graf and Ruby, 1998; Heath-Heckman and McFall-Ngai, 2011). Striking parallels between beneficial V. fischeri colonization and pathogenic infection suggest that the selective pressures exerted by animal hosts may act on a common repertoire of bacterial traits used to circumvent host defensive obstacles (Nyholm and McFall-Ngai, 2004).

Host selection mechanisms that shape adaptive evolution by V. fischeri.

(A) Dorsal view of juvenile host E. scolopes (left) with box indicating the relative position of the ventrally situated symbiotic light organ. On the right, a schematic illustrating the stages at which host-imposed selection occurs during squid–V. fischeri symbiosis: host recruitment (mucus entrapment, aggregation at light organ pores), initiation of symbiosis (host defenses, including hemocyte engulfment and oxidative stress), and colonization and maintenance (nutrient provisioning, sanctioning of non-luminous cheaters, continued hemocyte patrolling, and daily purging). (B) Symbiont population growth modeled for a single passage on the basis of growth dynamics of V. fischeri ES114. Light-organ populations are initiated with as few as ~10 cells (Wollenberg and Ruby, 2009; Altura et al., 2013) or as much as 1% of the inoculum, but are reduced by 95% following venting of the light organ at dawn (every 24 hr) (Boettcher et al., 1996). Shaded areas represent night periods whereas light areas represent daylight, which induces the venting behavior. (C) Experimental evolution of V. fischeri under host selection as described in Schuster et al. (2010). Each ancestral V. fischeri population was prepared by recovering cells from five colonies, growing them to mid-log phase, and sub-culturing them into 100 mL filtered seawater at a concentration sufficient to colonize squid (≤20,000 CFU/mL). On day 1, ten un-colonized (non-luminous) juvenile squid were communally inoculated by overnight incubation, during which bacteria were subjected to the first host-selective bottleneck. Following venting of ~95% of the light organ population, the squid were separated into isolated lineages in individual wells of a 24-well polystyrene plate containing filtered sea water with intervening rows of squid from an un-inoculated control cohort, the aposymbiotc control (‘apo control’). Note that only two of the ten passage squid populations are shown. On days 2, 3, and 4, after venting, squid were rinsed and transferred into 2 mL fresh filtered seawater. Luminescence was measured at various intervals for each squid to monitor colonization and the absence of contamination in aposymbiotic control squid. On the fourth day, the squid and half of the ventate were frozen at −80°C to preserve bacteria, and the remaining 1 mL ventate was combined with 1 mL of fresh filtered seawater, and used to inoculate a new uncolonized 24-hr-old juvenile squid. The process continued for 15 squid only for those lineages in which squid were detectably luminous at 48 hr post inoculation.

https://doi.org/10.7554/eLife.24414.003

Not all lineages of V. fischeri excel in symbiosis; this observation is reflective of the varied selective regimes that shape both genetic variation and adaptive potential as symbionts (Lee and Ruby, 1994a; Nishiguchi et al., 1998). In habitats where squid hosts are present, they influence local V. fischeri populations by enriching the planktonic community with those strains that are most adept at symbiosis (Lee and Ruby, 1994b). Squid recruit small founder populations (~10 bacteria) and subject these to daily cycles of expulsion (‘venting’) and regrowth of 95% of light organ populations to >105 bacteria (Wollenberg and Ruby, 2009) (Figure 1B), thereby increasing the relative abundance of their light organ inhabitants in the surrounding seawater (Lee and Ruby, 1994b). The bottlenecks within the venting cycle limit light organ microbial diversity, including variation that impairs symbiosis, such as 'cheaters' that do not contribute to the mutualism but benefit from symbiotic association (Wollenberg and Ruby, 2009; Ruby and McFall-Ngai, 1999; Visick and McFall-Ngai, 2000). However, host-imposed selection that drives the evolution of some lineages towards efficient colonization could hinder future adaptation and entail fitness trade-offs in other environments (Soto et al., 2014; Caley and Munday, 2003). So, by contrast, planktonic V. fischeri strains that reside in habitats without hosts, or that are unable to compete for prime host niches, may maintain greater adaptability while being ineffective as symbionts (Takemura et al., 2014). Deficiency in squid colonization correlates with insufficient or excessive luminescence or inadequate production of a symbiotic polysaccharide (known as Syp), which is controlled by a horizontally acquired activator (RscS) in squid native strain ES114 (Nishiguchi et al., 1998; Yip et al., 2006; Mandel et al., 2009). However, the absence of the rscS gene in some symbiotically proficient V. fischeri strains (and likewise, the presence of rscS in deficient strains) indicates that this regulator alone does not strictly determine squid colonization capacity (Figure 1A, Figure 2—figure supplement 1). Genomic similarity among closely related yet ecologically diverse strains has obscured relevant functional differences that are sometimes undetectable except in the symbiotic context (Yip et al., 2006; Mandel et al., 2009; Travisano and Shaw, 2013).

For this study, we conducted a series of evolution experiments in which hatchling squid select among V. fischeri populations for mutants that are capable of initiating symbiosis, of persisting in the light organ, and of colonizing new squid when purged from the light organ (Schuster et al., 2010). This cycle of host selection was designed to identify traits underlying symbiotic adaptive evolution and to reveal the evolutionary and genomic dynamics of this process. We chose as ancestors of our experimental lineages five V. fischeri strains that had variable aptitudes for squid symbiosis and were isolated from different niches, including the light organs of squid and fish, and various planktonic aquatic environments, including one without known hosts (Table 1). After we experimentally evolved replicate populations derived from each ancestor in parallel, we evaluated the genetic and phenotypic changes that occurred under host selection to examine how starting fitness and past evolutionary history influenced adaptability to squid symbiosis. To delineate the effects of host selection from neutral mutation accumulation, we also subjected V. fischeri to laboratory evolution in minimal seawater media. Previously, we demonstrated that altered luminescence was associated with several isolates following 15 serial host passages (Schuster et al., 2010). Here, we report the genetic basis of this adaptation as well as the population dynamics of the symbionts under host selection. Importantly, we also identify the precise traits under selection that enabled these early-sweeping mutants to bypass key barriers imposed by hosts.

Table 1

Strains and plasmids used in this study.

https://doi.org/10.7554/eLife.24414.004
Strain nameDescription*Reference/source
Vibrio fischeri strains
ES114Isolated from Euprymna scolopes(Boettcher and Ruby, 1990)
MJ11Isolated from Monocentris japonica light-organ(Haygood et al., 1984)
EM17Isolated from Euprymna morseii light-organ(Ruby and Lee, 1998)
H905Isolated from Hawaiian plankton(Lee and Ruby, 1992)
WH1Isolated from Massachusetts plankton(Lee, 1994)
RF1A4MJ11 ∆binK::ermB; EmRThis study
RF1A5MJ11 ∆sypK::aphA1; KmRThis study
RF1A6MJ11 ∆binK::ermB ∆sypK::aphA1; EmR KmRThis study
RF1A7MJ11 binK1 ∆sypK::aphA1; KmRThis study
MJ11EP2-3-2MJ11 binK4This study
MJ11EP2-3-3MJ11 binK4This study
MJ11EP2-3-4MJ11 binK4This study
MJ11EP2-3-5MJ11 binK4This study
MJ11EP2-3-6MJ11 binK4This study
MJ11EP2-3-7MJ11 binK4This study
MJ11EP2-3-8MJ11 binK4This study
MJ11EP15-3-1MJ11 binK4This study
MJ11EP15-3-3MJ11 binK4This study
MJ11EP15-3-4MJ11 binK4This study
MJ11EP15-3-7MJ11 binK4This study
MJ11EP15-3-8MJ11 binK4This study
MJ11EP2-4-1MJ11 binK1This study
MJ11EP2-4-3MJ11 binK1This study
MJ11EP2-4-4MJ11 binK1This study
MJ11EP2-4-5MJ11 binK1This study
MJ11EP2-4-6MJ11 binK1This study
MJ11EP15-4-1MJ11 binK1 tadC1G593T(Schuster et al., 2010)
MJ11EP15-4-6MJ11 binK1This study
MJ11EP15-4-7MJ11 binK1This study
MJ11EP15-4-8MJ11 binK1This study
MJ11EP2-5-2MJ11 binK3This study
MJ11EP2-5-3MJ11 binK3This study
MJ11EP2-5-4MJ11 binK3This study
MJ11EP2-5-5MJ11 binK3This study
MJ11EP2-5-6MJ11 binK3This study
MJ11EP15-5-2MJ11 binK4This study
MJ11EP15-5-3MJ11 binK3This study
MJ11EP15-5-4MJ11 binK3This study
MJ11EP15-5-5MJ11 binK3This study
MJ11EP2-6-1MJ11 binK2This study
MJ11EP15-6-1MJ11 binK2(Schuster et al., 2010)
MJ11EP15-6-2MJ11 binK2This study
MJ11EP15-6-3MJ11 binK2This study
MJ11EP15-6-4MJ11 binK2This study
MJ11EP15-6-5MJ11 binK2This study
MJ11CE4-1MJ11 fliAG80DThis study
MJ11CE5-1MJ11 fliP∆476This study
Strain nameDescription*Reference/source
Escherichia coli strains
DH5αF recA1 endA1 hsdR17 supE44 thi-1 gyrA96
relA1Δ (argF-lacZYA) U169φ 80lacZΔM15λ
Gibco-BRL
DH5αλpirsupE44 ΔlacU169lacZΔM15) recA1 endA1 hsdR17
thi-1 gyrA96 relA1; λpir phage lysogen
(Kolter and Helinski, 1978)
CC118λpirΔ(arg-leu) araD ΔlacX74 galE galK phoA20 thi-1 rpsE
rpoB argE(Am) recA1, lysogenized with λ pir dam dcm
(Martín-Mora et al., 2016)
NEB 10-betaΔ(ara-leu)7697 araD139 fhuA ΔlacX74 galK16 galE15 e14- Φ80dlacZΔM15 recA1
relA1 endA1 nupG rpsL (SmR) rph spoT1 Δ(mrr-hsdRMS-mcrBC)
New England Biolabs, Ipswich, MA
TOP10F- mcrA Δ(mrr-hsdRMS-mcrBC) Φ80lacZΔM15 ΔlacX74 recA1
araD139 Δ(ara-leu)7697 galU galK rpsL (SmR) endA1 nupG
Invitrogen, Carlsbad, CA
Plasmids
pCR2.1-TOPOCommercial cloning vector; ApR KmRInvitrogen, Carlsbad, CA
pVSV105Mobilizable vector; ChR(Dunn et al., 2006)
pRAD2E1pVSV105 carrying wild-type binK; ChRThis study
pRF2A2pVSV105 carrying binK1; ChRThis study
pCLD48pVSV105 carrying ES114 sypE; ChR(Hussa et al., 2008)
pRF2A3pVSV105 carrying MJ11 binA; ChRThis study
pVSV104Mobilizable vector; KmR(Stabb and Ruby, 2002)
pRF2A1pVSV104 carrying sypE; KmRThis study
pRF2A4pVSV104 carrying binA; KmRThis study
pKV111Mobilizable vector containing gfp; ChR(Nyholm et al., 2000)
pRF2B7pCR2.1-TOPO containing MJ11 ∆sypK::aph1 SOE fragment; KmRThis study
pVSV103Mobilizable vector containing lacZ; KmR(Dunn et al., 2006)
pCAW7B1pVSV103 containing lacZ∆147–1080 bp; KmRThis study
  1. *ApR, ampicillin resistance; ChR, chloramphenicol resistance; EmR, erythromycin resistance; KmR, kanamycin resistance;SmR streptomycin resistance.

  2. Experimentally evolved strains are designated ‘MJ11EP#-#-#’, where the first and second numbers after the ‘P’ designates the squid passage and population from which the strain was isolated, and the third number designates isolate number; strains derived from evolution in culture are designated ‘MJ11CE’.

Results

Squid experimental evolution of ecologically diverse V. fischeri repeatedly produced adaptive mutations in the binK sensor kinase gene

To study the dynamic process of adaptation during symbiosis, we capitalized upon the squid’s natural recruitment process to found parallel populations of V. fischeri, and used the daily squid venting behavior to restrict and re-grow bacterial populations, which were passaged through 15 serial squid, encompassing 60 bottlenecking events and an estimated 290–360 generations (Figure 1C) (Schuster et al., 2010). Multiple populations were derived in parallel from each of five ancestral strains using high-density inocula, up to 10 times the concentration required for native strain colonization, in order to overcome the colonization deficiencies of squid-maladapted strains (Figure 2A and Materials and methods).

Figure 2 with 1 supplement see all

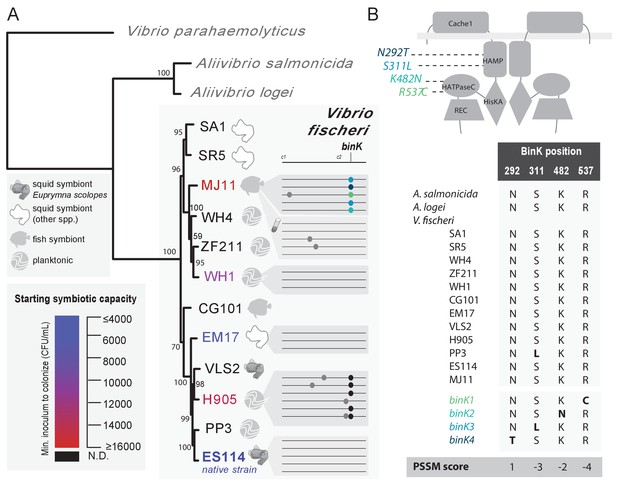

Experimental evolution of Vibrio fischeri produced multiple alleles in the sensor kinase BinK.

(A). Phylogenetic relationship, symbiotic capacity, and mutations accrued during squid experimental evolution of ecologically diverse Vibrio fischeri strains. Strain relationships were inferred under maximum likelihood using whole genomes with RealPhy (Bertels et al., 2014) and with node supports calculated from 1,000 bootstraps. Graphic symbols for ecological niches represent the source of isolation. Intrinsic squid symbiotic capacities of the five experimentally evolved strains, as determined by the minimum inoculum concentration required for successful colonization of 90% of squid with a 3 hr (ES114, EM17, and WH1) or over-night (H905 and MJ11) inoculum, are represented by color spectrum. Consensus genomes for each of the parallel V. fischeri populations evolved through E. scolopes are shown on the right, with variants indicated by circles. Mutation details are shown in Table 2. The mutations that were selected in host-passaged populations improved symbiotic capacity rather than general vigor. (B) BinK mutations arising in squid-evolved populations of MJ11 occurred in the HAMP and HATPaseC domains. A homo-dimer structural model for BinK using TMPRed and hybrid histidine kinase domain modelling (Anantharaman and Aravind, 2000; Stewart and Chen, 2010) predicts that the accessory sensory Cache1 domain localizes to the periplasm whereas the remaining four functional domains (accessory HAMP, and conserved HisKA, HATPaseC, and REC phosphorelay domains) are cytoplasmic (shown as gray band). A position-specific scoring matrix (PSSM) analysis for each of the squid-evolved BinK positions indicates whether a given amino acid is more (positive) or less (negative) likely to be functionally neutral. Scores for the substitutions incurred at these sites are shown in bold. Please refer to Figure 2—figure supplement 1 for a phylogenetic assessment of BinK orthology across Aliivibrio and V. fischeri strains.

https://doi.org/10.7554/eLife.24414.005

Genome sequencing of evolved isolates revealed that, although few detectable mutations arose during squid passaging, the majority of mutations that arose to a detectable frequency converged in a conserved gene (locus VF_A0360 in V. fischeri ES114) (Figure 2A–B, Figure 2—figure supplement 1, Table 2), which was recently identified as a biofilm inhibition kinase (binK) in the native symbiotic strain ES114 (Brooks and Mandel, 2016). Nine independent mutations mapping to the binK locus, most often without other co-occurring mutations, dominated multiple parallel evolved populations of the two strains initially most impaired at squid symbiosis: MJ11 and H905 (Figure 2A, Table 2). Given that MJ11 is a fish symbiont that lacks rscS, and H905 is a planktonic isolate from the squid habitat that is a poor squid colonizer despite harboring rscS, starting fitness better predicted the path of evolution than rscS content or past evolutionary history as inferred by either lineage or lifestyle (Figure 2A, Figure 2—figure supplement 1) (Mandel et al., 2009; Lee and Ruby, 1994a). By contrast, very few mutations, all at unique loci, occurred in representative isolates derived from strains EM17 (an Euprymna morsei squid symbiont) and WH1 (a planktonic strain from an environment without known hosts) (Figure 2A, Table 2). Both of these strains have relatively greater starting fitness than MJ11 and H905, further demonstrating that starting symbiont fitness influences its evolutionary path (Wang et al., 2016). Finally, mutations were not detected in any of the representative isolates from the native squid symbiont ES114 (Figure 2A, Table 2), even though several mutations are known to improve its competitive dominance (Fidopiastis et al., 2002; Brooks and Mandel, 2016). Laboratory-culture evolution of strain MJ11 that mimicked the population dynamics of squid-induced bottlenecks produced few mutations except for those localizing to flagellar genes fliA and fliP (Table 2).

Table 2

Summary of mutations detected following experimental evolution of V. fischeri using Illumina genome resequencing and targeted Sanger sequencing. For culture-evolved populations of V. fischeri MJ11, five isolates from each evolved population were combined to generate five metagenomes. For squid-evolved populations of MJ11, EM17, WH1 and H905, individual isolates were sequenced from lineages that ultimately survived 15 host passages. Isolates saved from early evolutionary time-points (host passage 2) are shown along with isolate genomes from the endpoint (host passage 15). Mean read depth and genome coverage for isolates analyzed with WGS are also provided.

https://doi.org/10.7554/eLife.24414.007
AncestorEvolved Passage (EP)PopulationIsolateDetected mutationsIllumina sequencing statistics
binK (VFMJ11_A0397)tadC1
(MJ11_0520);
mutation
(reads)
All other mutations
detectected by WGS
gene (locus);
mutation (reads)
Reads% Mapped to ancestorCoverage
allele/mutationMethod (reads)§ChIChII
MJ11211binK3/S311LWGS (35)375335299.5135.2118
MJ11213binK3/S311LWGS (32)371708899.6134.2113.5
MJ111514binK3/S311LWGS (17)171614499.546.842.5
MJ11233binK4/N292TPCR/SSn.d.n.d.
MJ11234binK4/N292TPCR/SSn.d.n.d.
MJ11235binK4/N292TPCR/SSn.d.n.d.
MJ11236binK4/N292TPCR/SSn.d.n.d.
MJ11237binK4/N292TPCR/SSn.d.n.d.
MJ11238binK4/N292TPCR/SSn.d.n.d.
MJ111531binK4/N292TWGS (42)303114998.9104.393.5
MJ111533binK4/N292TWGS (63)377771499.4114.6105.2
MJ111534binK4/N292TWGS (42)342021299.5106.497.1
MJ111537binK4/N292TWGS (41)330489199.590.382.5
MJ111538binK4/N292TWGS (63)294874399.685.581.2
MJ11241binK1/R537CWGS (62)2511256998478
MJ11243binK1/R537CPCR/SSn.d.n.d.
MJ11244binK1/R537CPCR/SSn.d.n.d.
MJ11245binK1/R537CPCR/SSn.d.n.d.
MJ11246binK1/R537CPCR/SSn.d.n.d.
MJ11247binK1/R537CPCRn.d.n.d.
MJ11248binK1/R537CPCRn.d.n.d.
MJ11249binK1/R537CPCRn.d.n.d.
MJ112410binK1/R537CPCRn.d.n.d.
MJ112411binK1/R537CPCRn.d.n.d.
MJ112412binK1/R537CPCRn.d.n.d.
MJ112413binK1/R537CPCRn.d.n.d.
MJ112414binK1/R537CPCR/SSn.d.n.d.
MJ112415binK1/R537CPCR/SSn.d.n.d.
MJ112416binK1/R537CPCR/SSn.d.n.d.
MJ111541binK1/R537CWGS (131)G198V (85)412614999.4117.8106.1
MJ111546binK1/R537CWGS (61)G198V (55)226682199.260.852.5
MJ111547binK1/R537CWGS (89)G198V (93)307443799.69283.6
MJ111548binK1/R537CWGS (47)G198V (96)290297799.58477.5
MJ11252binK3/S311LWGS (26)377104899.6132.4123.7
MJ11253binK3/S311LWGS (46)259551899.684.283.7
MJ11254binK3/S311LWGS (20)178571399.560.657.2
MJ11255binK3/S311LWGS (62)364134699.6117.4113.1
MJ11256binK3/S311LWGS (81)412875199.6141.1134.8
MJ111552binK4/N292TWGS (89)443082399.1152.3138.4
MJ111553binK3/S311LWGS (10)324858099.38881.1
MJ111554binK3/S311LWGS (59)360938299.5106.897.1
MJ111555binK3/S311LWGS (28)291557099.587.482.6
MJ11261binK2/K482NWGS (104)474856999.1164.6147
MJ11262binK2/K482NPCR/SSn.d.n.d.
MJ111561binK2/K482NWGS (75)276491099.483.275.5
MJ111562binK2/K482NWGS (63)324096899.28872.6
MJ111563binK2/K482NWGS (93)381436799.5108.1101.7
MJ111564binK2/K482NWGS (108)371463899.5121.485.7
MJ111565binK2/K482NWGS (90)300636299.485.572
MJ1115Culture1mg1031929198272.8237.8
MJ1115Culture3mg749684798.2196.7195
MJ1115Culture4mgfliA (VF_1834); G80D (63)289416098.376.667.4
MJ1115Culture5mgfliP (VF_1842); ∆1 @ 476/870nt (110)557143997.9148.5132.1
MJ1115Culture2mg541103298144.2129.4
WH11541727324498.6257.8251.1
WH11542214438199.661.465.1
WH11543226023299.662.166.6
WH11544234142899.761.665
WH11551NADH oxidase (VF_A0027); A402T (62)173210699.560.864.7
WH11552NADH oxidase (VF_A0027); A402T (61)173709599.461.964.9
WH11553NADH oxidase (VF_A0027); A402T (80)21948479660.863.4
WH11554219198699.861.964.9
WH11561925654799.3212.6220.3
WH11562213114499.66264.7
WH11563190885799.562.460.5
EM171562261160999.693.389.3
EM171571669013798.6225.8227.1
EM171574297742999.583.482.1
EM171575icmF (VF_0992);S171N, (72)241428899.571.671.5
EM171581317798199.597.594.6
EM171582313817599.592.492.3
EM171583281009999.581.280
EM171585523041199.6144.9143.2
EM171591802293599.4184.2173.5
EM171592334621699.6113.7106.9
EM171593gdh2 (VF_1284); E732D (72)348418899.595.793.2
EM171595244575899.572.872.6
H9051511(∆37168 bp/25 genes)WGS (230)IlvY (VF_2529); M25I (233)764550894.2250.4222.1
H9051512(∆37168 bp/25 genes)WGS (167)IlvY (VF_2529); M25I (112)353111496.8117.5104.4
H9051513(∆37168 bp/25 genes)WGS (175)IlvY (VF_2529); M25I (97)359668997122.3109.1
H9051522∆16 bp@ 498/2595WGS (75)purR (VF_1572); N71T (60)281938797.691.479.6
H9051524∆16 bp@ 498/2595WGS (94)purR (VF_1572); N71T (52)299297896.9103.391.4
H9051525∆16 bp@ 498/2595WGS (90)purR (VF_1572); N71T (95)384483096.3123.6109
H905231tadF2 (VF_A0228); G21D (68)339361190.799.592.2
H9051531tadF2 (VF_A0228); G21D (140)797477391.5147.9143.9
H9051532T195IWGS (65)tadF2 (VF_A0228); G21D (28)198987595.565.458.2
H9051533tadF2 (VF_A0228); G21D (77)325389996.7103.894.4
H9051534tadF2 (VF_A0228); G21D (58)324274997.1103.394.7
H9051535tadF2 (VF_A0228); G21D (25)219077195.967.559
H9051541E43*WGS (102)665138592125.1130
H9051543E43*WGS (111)403237396.4135.9120.4
H9051544E43*WGS (187)612216895.8203.4179.4
H9051545E43*WGS (90)317781796.7100.890.6
H9051551∆1 bp @ 2325/2595ntWGS (113)716687090.4134.5130.9
H9051552∆1 bp @ 2325/2595ntWGS (94)370394696.7118.6108.3
H9051553∆1 bp @ 2325/2595ntWGS (66)282810297.498.690.4
H9051554∆1 bp @ 2325/2595ntWGS (109)472157597158.9143.8
H905261T195IWGS (105)tadF2 (VF_A0228); G21D (28)27436939483.373.6
H9051563T195IWGS (142)tadF2 (VF_A0228); G21D (49)559477197.5191.7175.3
H9051564T195IWGS (105)tadF2 (VF_A0228); G21D (37)336120696115.9101.4
  1. Individual characterized strain collection names assigned to isolates were derived from their ancestral lineage (e.g. MJ11), evolved passage (e.g. EP2), the population (e.g. 1), and isolate number (e.g. 1), which in the preceding example would give rise to strain collection name of MJ11EP2-1-1. Isolates in bold served as allelic binK representatives for further assays. mg: metagenome sequencing by pooling five isolates from a population.

  2. The presence of mutations was determined from Illumina short read (100PE) whole genome sequencing (WGS), by allele-specific PCR (PCR), and/or by locus PCR-amplification, followed by Sanger sequencing (SS). ‘–' indicates that no mutations were identified at this locus by breseq (Deatherage and Barrick, 2014) in this isolate using WGS. ‘n.d.’ indicates that the presence of mutations at this locus was not determined.

  3. §The number of reads supporting the mutation call from WGS data is provided. Mutations were called for sites with minimum coverage of 20 mappable reads. Mutations identified by Sanger sequencing (SS) of PCR-generated amplicons were confirmed from alignments of both forward and reverse reads. Coding genes reference V. fischeri ES114 locus tags.

To examine more thoroughly the evolutionary process giving rise to the convergent binK mutations, we focused on lineages derived from the fully sequenced and relatively well-characterized fish symbiont MJ11. Only five of ten squid exposed to the same inoculum population successfully passaged symbionts to the second recipient squid, and each successful lineage harbored binK variants (Table 2). Among these were four unique alleles wherein the acquired substitutions mapped to two of the five conserved functional domains of the deduced BinK protein (Figure 2B, Table 2). Despite standing variation in binK across V. fischeri strains, the four point mutations in experimentally evolved MJ11 lineages occurred at positions that, with the exception of binK3 (S311L), are invariant in natural strains and thus are likely to represent novel allelic variants that are not convergent with the native symbiont (Figure 2B). Further analysis of the acquired mutations using a position-specific scoring matrix (PSSM) also provided evidence that the mutations in binK1 (R537C), binK2 (K482N) and binK3 (S311L) would influence protein function (Figure 2B). In each of the five successful squid-evolved lineages of MJ11, binK variants dominated the light-organ populations by the third experimental squid (Table 2). If beneficial variants in this or any other locus were among the remaining five light-organ populations, their failure to colonize the second experimental squid amounted to early extinction of these lineages.

The large selective advantage conferred by squid-adapted binK improved fitness during both the initiation and maintenance stages of symbiosis, consistent with theoretical predictions

The repeated sweeps of novel binK mutations that occurred during squid evolution, but not during laboratory culture evolution, suggested that binK variants were squid-adaptive (Table 2) (Dillon et al., 2017). To evaluate the contribution of evolved binK alleles specifically to improved symbiotic colonization, we assessed the colonization efficiency of the squid-evolved isolates and the ancestor using inoculum doses typically used for the native symbiont strain ES114 (Figure 2A). Each squid-evolved binK variant vastly improved colonization efficiency (Figure 3A), but they were not significantly more fit in laboratory culture (which would be indicative of mutants enhancing general vigor) when compared to ancestral MJ11 (Figure 3B). Moreover, whereas two of the five culture-evolved populations of MJ11 evolved culture-adaptive flagellar mutations that improved fitness in culture (Figures 2A and 3B, Table 2), none accrued binK mutations (Table 2) or improved as squid symbionts (Figure 3A). Evolved isolates that have mutations mapping to different binK domains were competitively indistinguishable from each other in symbiotic fitness (permutation t-test, p=0.348) (Figure 3—figure supplement 1), despite evidence that the binK1 allele (encoding an R537C substitution, Figure 2B, Table 2) appeared slightly more efficient at squid colonization when singly inoculated (Figure 3A).

Figure 3 with 2 supplements see all

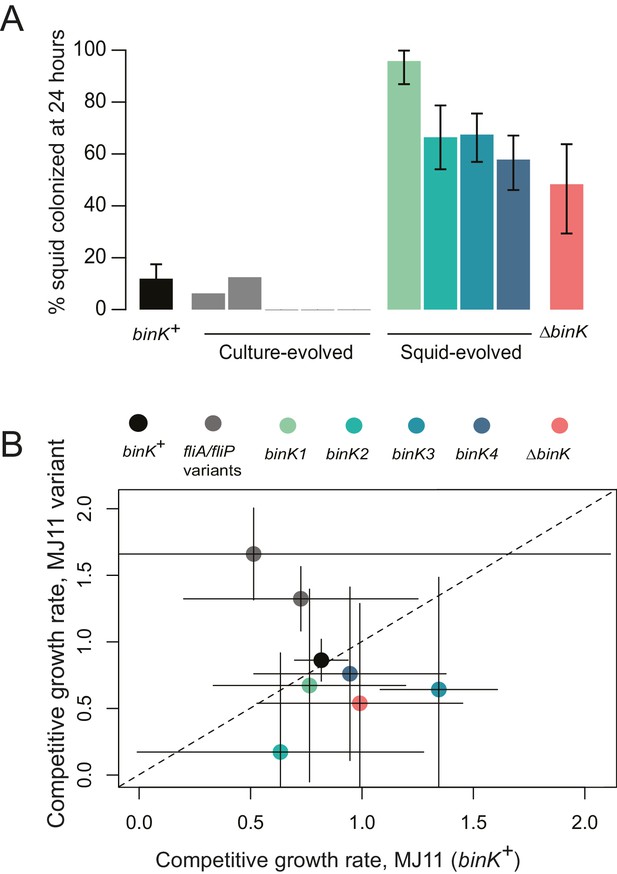

Evolved binK alleles enhanced host colonization and conferred a fitness tradeoff in non-host environments.

(A) Symbiotic colonization efficiency of MJ11 and derivatives in squid. Percentage of squid colonized by culture-evolved (c1–c5) and squid-evolved (binK1- binK4, bolded isolates in Table 2) derivatives of MJ11. Three hours after a cohort of 10–20 squid were inoculated with 3000 CFU/mL of each MJ11 strain, the squid were separated into individual vials, and colonization percentages determined by detectable luminescence at 24 hr. Bars: 95% CI. (B) Growth rates of MJ11 and evolved strains during competition in laboratory culture. Average growth rates (realized Malthusian parameters) of ΔbinK, squid-evolved binK and culture-evolved flagellar mutants (fliA and fliP variants, see Table 2) following in vitro culture competition in minimal media with ancestral binK+ MJ11, estimated using CFU yields of each competitor recovered at regular intervals. Bars: 95% CI. The diagonal line indicates 1:1 growth. Please refer to Figure 3—figure supplement 1 for data on the competitive abilities of binK1 and binK3 during colonization. Please refer to Figure 3—figure supplement 2 for symbiotic yields (CFU) of ES114 and MJ11 strains after 24 and 48 hr.

https://doi.org/10.7554/eLife.24414.008

To quantify empirically the selective advantage (selective coefficient: s) conferred by a representative binK allele that arose to early dominance before co-occurring mutations, we co-inoculated squid with MJ11 and low densities of a binK1 variant (a fully sequenced second passage squid isolate that we named MJ11EP2-4-1, see Tables 1 and 2), simulating the conditions under which we predict the variants evolved given the low mutation rate of V. fischeri (Dillon et al., 2017) (Figure 4A–B). These experiments revealed that even at an extremely low frequency (e.g., one binK1 variant per 10,000 wild-type MJ11 bacteria, which amounted to only 50 binK1 variant cells in an 104 CFU•ml−1 inoculum for 10 squid), the binK1 variant colonized multiple squid (Figure 4—figure supplement 1). The estimated selective advantage, based on the ratios of the growth rates (a measure of relative competitiveness) of wild-type bacteria and the binK1 variant in light-organ populations of co-colonized squid, was independent of initial allele frequencies in the inoculum, consistent with a model of hard selection (Figure 4B, Figure 4—figure supplement 1) (Saccheri and Hanski, 2006). The estimated selective advantage of the squid-adaptive binK1 allele continued to increase by more than 60% between 24 and 48 hr in squid (24 hr: 1.1; 48 hr: 1.8) (Figure 4B). The competitive advantage conferred by binK1 therefore extended beyond the initial colonization events (the ‘initiation phase’ during the first 24 hr) to include the period of competitive re-growth following the daily venting of 95% of the bacterial population (the ‘maintenance phase’), when several different host sanctions are implicated (Figure 1A–B; Figure 4A–B). By contrast, squid-adaptive binK alleles reduced fitness relative to wild-type (binK+) in laboratory planktonic culture (−0.18 > s > −1), demonstrating a modest fitness cost for some alleles in the absence of hosts (Figure 3B).

Figure 4 with 1 supplement see all
Empirical and modeled estimates of selective advantage in evolving V. fischeri symbiont populations.

(A) Conceptual overview of symbiont population dynamics during growth in inoculum and following host colonization (black line), including daily host-imposed bottlenecks. (B) Comparison of the selection coefficients conferred by binK1 in strain MJ11EP2-4-1 (harboring no other mutations) relative to binK+ from co-inoculated squid light organs after 24 or 48 hr. The selective advantage (i.e., relative competitiveness) of the evolved allele increased significantly during this period from 1.1 to 1.8 (Fisher-Pitman permutation test, **p=0.0011). Each circle represents the selective advantage of each strain measured from the strain ratios recovered in an individual hatchling. Please refer to Figure 4—figure supplement 1 for the effect of starting binK1 frequencies and inoculum densities on estimates of selective advantage. (C) Modeled survival probabilities for new beneficial alleles arising in a growing symbiont population facing host-imposed bottlenecks. The gray shaded curves estimate the survival probability of new mutants following the subsequent population bottleneck, which depends on both the generation of growth in the inoculum or host in which they arise (x-axis) and the selective advantage (s) conferred by mutation (gray shading). Notably, beneficial variants that arise early in inoculum culture are likely to survive extinction at the subsequent bottleneck, and this probability of survival rapidly decreases even when conferring a large selective coefficient. On the basis of this model, for example, a mutation conferring a large selective advantage (s ~2) would have less than a 10% chance of surviving the subsequent colonization bottleneck if it arose during the tenth generation of inoculum growth (red line).

https://doi.org/10.7554/eLife.24414.011

Even given the extreme fitness advantage attained by the binK1 variant growing within squid (Figure 4B), the repeated recruitment of binK variants among the few cells that initiated symbiosis is remarkable. Not only must the mutations confer exceptional host-selected advantages, but these rare variants must also survive extinction (i.e., loss from the population as the result of genetic drift) during repeated host-imposed bottlenecks (Nyholm and McFall-Ngai, 2004; Wollenberg and Ruby, 2009). To examine how mutation timing, strength of selective advantage and population size influenced the ability of rare beneficial variants to attain a high frequency in populations passaged between squid, we modeled the evolutionary dynamics and probability of survival of individual variants within a population experiencing recruitment, growth, and repeated cycles of bottlenecking within a single squid over a theoretical range of selection coefficients, applying generalized population and growth parameters derived from native strain ES114 in the squid–Vibrio symbiosis (Wollenberg and Ruby, 2009; Altura et al., 2013; Wahl and Gerrish, 2001) (see Materials and methods) (Figure 4C). The model predicts that in order for beneficial variation to ensure survival during the extreme bottleneck imposed by the host during initial recruitment, mutants would have to arise early during population expansion and confer s ~6. Conversely, any beneficial variants arising in light organs during the maintenance of symbiosis, which is characterized by daily venting bottlenecks and re-growth, have increased survival odds even if they confer a lower selective advantage, but the probability of their occurrence is reduced because of the small effective population size (Materials and methods and Figure 4C). Thus, the model suggests that the mutants were most probably present in the starting inoculum and were recruited into symbiosis by members of the first squid cohort. Using a high-resolution measure of the V. fischeri ES114 genomic mutation rate (Dillon et al., 2017), we predict that as many as 185 individual mutations could have spontaneously arisen in binK (see Materials and methods) during growth of the inoculum (Figure 4A). Despite their low initial frequency, any new alleles that arose by the tenth generation of inoculum growth and ultimately conferred a high selective advantage in squid (i.e., s > 1) would be expected to survive the first host passage ~10% of the time (Figure 4C, red line). Incidentally, the observed survival of each binK allele amounted to 1 or 2 out of 10 experimental squid. Thus, the empirical estimates of the selective advantage conferred by binK1 in the symbiotic environment are supported by theoretical estimates derived from a model of extraordinarily strong selection during repeated bottlenecks (Wahl and Gerrish, 2001).

Host-adapted binK improved early colonization behavior, survival to oxidation and evasion of host immunity through enhanced cell-associated matrix production

The substantial fitness gain conferred by the binK1 allele within the first 24 hr of colonization (Figure 4B) suggested that it enhanced the early colonization behaviors of MJ11 (Figure 1A and B) (Nyholm and McFall-Ngai, 2004). Syp mediates the aggregation of native strain ES114 in squid mucus and its overproduction enhances the aggregation ability of this same strain (Brooks and Mandel, 2016; Nyholm and McFall-Ngai, 2003; Shibata et al., 2012). Therefore, we evaluated whether aggregation of the squid-evolved binK1 variant was altered. binK1 improved aggregation at the entrance to light organs compared to wild-type MJ11 (Figure 5A, Figure 5—figure supplement 1). By contrast, it did not cause colony wrinkling (data not shown), a proxy for Syp-mediated biofilm production by strain ES114 (Brooks and Mandel, 2016; Shibata et al., 2012). Still, binK1 dramatically increased in vitro biofilm production compared to MJ11, as determined by surface adherence (Figure 5B), perhaps reflecting the presence of more complex biofilm matrices such as cellulose whose expression was enhanced by the bink1 and ∆binK mutations (Figure 5—figure supplement 2, Appendix 1) (Shibata et al., 2012; Darnell et al., 2008; Bassis and Visick, 2010). To investigate the basis of increased biofilm formation by the binK1 variant, we overexpressed genes encoding a repressor of Syp, sypE (Morris and Visick, 2013), and of cellulose, binA (Figure 5—figure supplement 3) (Bassis and Visick, 2010). Each regulator abolished the enhanced biofilm phenotype of the binK1 variant, indicating that both matrix substrates contributed to this trait (Figure 5B). To test the role of Syp directly, we also introduced a ∆sypK mutation, which functionally eliminates Syp biofilm production by strain ES114 (Shibata et al., 2012). The mutation reduced biofilm by the binK1 variant, indicating that the variant's improved biofilm production involved Syp production (Figure 5B).

Figure 5 with 3 supplements see all

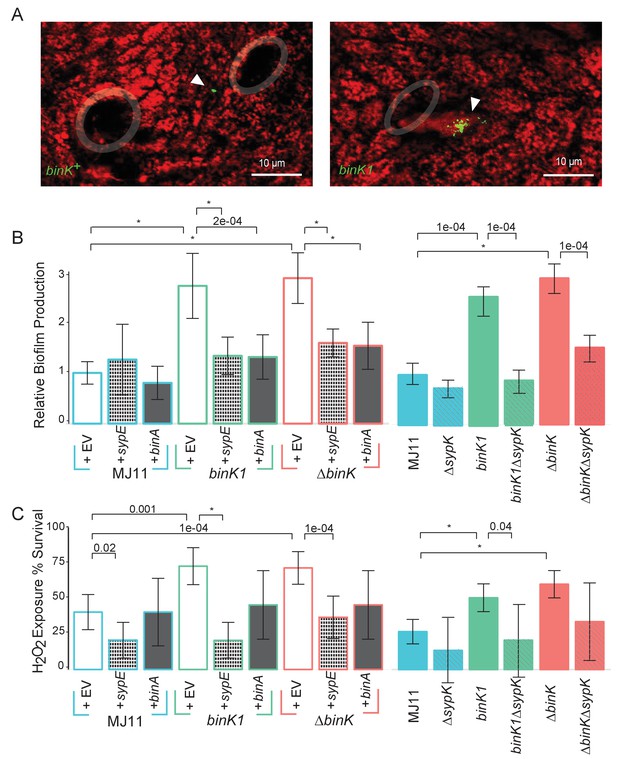

Host-adapted binK1 improved initiation phenotypes through enhanced biofilm.

(A) V. fischeri MJ11 aggregate formation near light-organ ducts. Host tissue stained with CellTracker Orange. Symbionts carry GFP plasmids (pKV111) (Nyholm et al., 2000). Micrographs show representative V. fischeri aggregates following the dissection of 30 newly hatched animals incubated with each strain. Aggregates were visualized between 2 and 3hr after of inoculation using a Zeiss LSM 510 Meta laser-scanning confocal microscope. Please refer to Figure 5—figure supplement 1 for additional views of aggregate formation. (B) Biofilm production (crystal violet staining relative to MJ11) by wild-type MJ11(binK+), squid-adaptive binK1 and ∆binK variants in the presence of either empty vector (EV, pVSV105) (white fill), Syp biofilm repressor sypE (pCLD48) (hatched fill), or cellulose repressor binA (pRF2A3) (gray fill). n = 12–16 biological replicates. See Figure 5—figure supplement 2 for evidence of increased cellulose in binK variants, and Figure 5—figure supplement 3 for biofilm repressor schematic. Followed by influence of a sypK deletion on biofilm production of MJ11 and binK variants. n = 10 biological replicates. (C) Binomial mean of survival following exposure to hydrogen peroxide of wild-type MJ11(binK+), squid-adaptive binK1 and ∆binK variants in the presence of either empty vector (EV, pVSV105) (white fill), sypE (pCLD48) (hatched fill), or binA (pRF2A3) (gray fill). n = 20–50 biological replicates. Followed by influence of a sypK deletion (diagonal line overlay) on population survival of MJ11 and binK variants (color fill). n = 15–106 biological replicates. Error bars 95% CI. Significant p values (p<0.05) are indicated above each comparison. *p<2.2e-16. Although the effects of overexpression of binA and deletion of sypK on oxidative resistance in the ∆binK variant followed the same trends as these genes in binK1, the reductions were only marginally significant (p=0.051 and 0.15, respectively). Please refer to Figure 5—figure supplement 2 for transcriptomic evidence of reduced expression of two cellulose loci in the ∆binK mutant. A schematic of the impact of the BinA and SypE repressors on biofilm substrates is available as Figure 5—figure supplement 3.

https://doi.org/10.7554/eLife.24414.013

Even as the increase in aggregation could confer a fitness gain by binK variants during the initiation phase of symbiosis, aggregation is a trait that is variable enough to call into question whether it could explain the dominance of binK variants. Improved aggregation alone would not cause the 60% increase in fitness observed during maintenance of the symbiosis (Figure 4B, Figure 3—figure supplement 2). Furthermore, to our knowledge, no study has yet evaluated whether biofilm imparts symbiotic fitness beyond aggregation. Because of the potential that biofilm could confer survival in the face of environmental insults, we evaluated whether binK1 impacted survival upon peroxide exposure, as oxidation is among the host’s defensive arsenal (Small and McFall-Ngai, 1999; Visick and Ruby, 1998) (Figure 1A). The binK1 and ∆binK variants survived oxidation better than MJ11, and overexpression of the Syp repressor sypE or the cellulose repressor binA decreased survival (Figure 5C). Deletion of sypK in binK variants also reduced survival further, supporting the conclusion that Syp production confers resistance to oxidation (Figure 5C). Enhanced biofilm production and survival following peroxide exposure are correlated, suggesting that Syp and cellulose biofilm contribute to oxidative resistance conferred by binK variants.

During migration and upon reaching the squid light organ, potential symbionts must contend with host phagocytic, macrophage-like hemocytes which bind, engulf and destroy bacteria (Figure 1A) (Nyholm and McFall-Ngai, 1998). The ability of squid hemocytes to bind preferentially to non-symbiotic bacterial species is well established, but differential recognition among V. fischeri has only been reported for the native strain ES114 and its genetic variants (Nyholm et al., 2009). Therefore, we evaluated whether squid hemocytes preferentially target non-symbiotic MJ11, and whether the altered biofilm capacity conferred by binK1 promoted evasion of the host’s innate immune system (Figure 6, Figure 6—figure supplement 1). Juvenile squid hemocytes bound wild-type MJ11 to a greater extent than they did the native strain ES114, and this binding was comparable to that observed with other species of bacteria, such as V. harveyi (Figure 6). In contrast, the binK1 variant resisted host hemocyte binding at a level that was comparable to squid-native strain ES114 (Figure 6). Overexpression of either sypE or binA reduced immune evasion by ES114, and sypE also significantly reduced immune evasion by the squid-adaptive binK1 variant, demonstrating that production of Syp and cellulose extracellular matrices mediated this trait. These results provide the first experimental evidence that Syp and cellulose production by native and non-native V. fischeri strains contribute to host hemocyte response. In addition, these findings demonstrate that, by altering biofilm substrate production, binK1 could improve the survival of MJ11 during multiple host-imposed selective checkpoints.

Figure 6 with 1 supplement see all

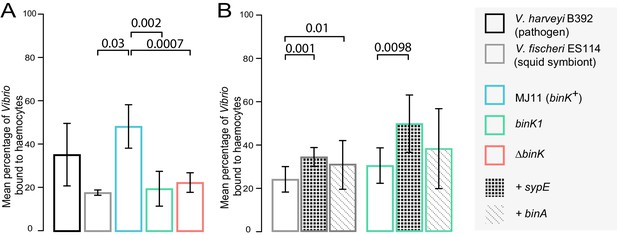

Biofilm production by squid-adaptive binK1 variants mediates hemocyte evasion.

(A) Relative efficiency of squid hemocyte binding of GFP-labelled V. fischeri strains including: squid-native symbiont ES114, binK+ MJ11, ∆binK MJ11 (RF1A4), binK1 MJ11, and shellfish pathogen V. harveyi B392. (B) Relative efficiency of squid hemocyte binding of squid-native symbiont ES114 and squid-adapted bink1 MJ11 carrying the empty vector (pVSV104), sypE (pRF2A1) or binA (pRF2A4). N = 30–52 hemocytes quantified per strain. Error bars: 95% CI. Significant p-values (p<0.05) are indicated above each comparison. Please refer to Figure 6—figure supplement 1 for micrographs of Vibrio–hemocyte interactions.

https://doi.org/10.7554/eLife.24414.017

Both Syp and cellulose contributed to enhanced squid colonization efficiency by binK variants

Given the demonstrated importance of Syp to colonization initiation (Shibata et al., 2012), we predicted that enhanced Syp production by binK derivatives improved colonization (Figure 3A). Although both Syp and cellulose conferred several phenotypes that are important to the symbiosis (Figures 5B,C and 6), a role for cellulose during colonization processes has yet to be demonstrated. Here, repression of either Syp (through expression of sypE) or cellulose (through expression of binA) significantly reduced colonization efficiency by MJ11 and its binK derivatives (Figure 7A). However, sypE impaired colonization by ∆binK to a greater extent than did binA. This suggested to us that Syp may play a greater role than cellulose in colonization, in agreement with the hemocyte evasion results (Figure 6B). Alternatively, sypE could produce other regulatory effects (Shibata et al., 2012; Bassis and Visick, 2010; Ray et al., 2015; Miyashiro et al., 2014). To address the contribution of Syp to improved colonization more directly, we evaluated the impact of a sypK deletion, which eliminates colonization by the native symbiont (Shibata et al., 2012). Loss of sypK had no discernable effect on the colonization of MJ11, presumably because Syp is already under-produced (Mandel et al., 2009), but as expected, it significantly reduced colonization by both binK1 and ∆binK variants (Figure 7B). Notably, deletion of sypK only modestly impaired colonization (25% reduction) by the binK1 variant, suggesting that Syp is not the only contributor to its enhanced colonization. Elimination of sypK had a greater impact on colonization by the ∆binK mutant than by the binK1 variant, reducing its colonization to wild-type levels, which could reflect the greater fitness cost associated with the ∆binK allele (Figure 3A and B) or might allude to unique functions associated with the evolved binK1 allele. Together, these results suggest that both Syp and cellulose contribute to enhanced colonization efficiency in the binK1 and ∆binK variants.

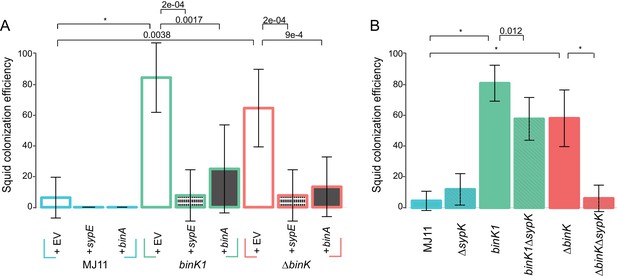

Contribution of Syp and cellulose to improved squid colonization by binK variants.

(A) Colonization efficiency (% colonized squid at 24 hr) by wild-type MJ11 (binK+), squid-adaptive binK1 and ∆binK variants in the presence of empty vector (EV, pVSV105) (white fill), the Syp repressor sypE (pCLD48) (hatched fill), or the cellulose repressor binA (pRF2A3) (gray fill). n = 15–20 biological replicates. (B) Influence of a sypK deletion on colonization efficiency of MJ11 and binK variants. n = 31–52 biological replicates. Error bars: 95% CI. Significant p-values (p<0.05) are indicated above each comparison. *p<2.2e-16.

https://doi.org/10.7554/eLife.24414.019

Squid-adapted binK reduced luminescence by attenuating quorum sensing

Bioluminescence serves as the currency of this symbiosis, and yet the correlation of excessive bioluminescence with poor symbiotic ability suggests that luminescence intensity is a phenotype shaped by host selection (Lee and Ruby, 1994a; Nishiguchi et al., 1998; Visick et al., 2000). Squid-adapted derivatives of MJ11 – where the wild-type ancestor is ≥1,000 fold brighter than native symbiont strain ES114 (Schuster et al., 2010) – evolved a delay in luminescence induction compared to their ancestors. To determine whether quorum-sensing thresholds had been altered by binK mutations, we quantified the production of AinS-synthesized C8-HSL and LuxI-synthesized 3-oxo-C6-HSL signals and the concurrent luminescence production by wild-type MJ11 and by binK1, and ∆binK variants during the period of induction (OD600 1.1) (Figure 8). For all three strains, luminescence correlated with 3-oxo-C6-HSL concentration (Figure 8A) (r2 = 0.857, p=6.4×10−13) and not C8-HSL concentration (r2 = 0.105, p=0.1). When compared to the wild-type, both the binK1 and the ΔbinK variant alleles reduced 3-oxo-C6-HSL production and the corresponding luminescence by an order of magnitude (Figure 8). These significant differences were not caused by MJ11's attaining a higher cell density (2.0 × 108 CFU•ml−1•OD600−1), as both the binK1 and ΔbinK derivatives produced slightly higher CFU (Figure 8B) (3.2 × 108 CFU•ml−1•OD600−1 and 3.7 × 108 CFU•ml−1•OD600−1, respectively) (Figure 8B). Although there was a modest (<2 fold) increase in the molar concentration of C8-HSL in ΔbinK mutant supernatants, which could inhibit light production through competitive inhibition of LuxR-binding to its cognate 3-oxo-C6-HSL signal (Kuo et al., 1996; Schaefer et al., 1996), there was no discernable difference in C8-HSL production when controlling for the higher cell counts produced by the ΔbinK mutant compared to wild-type MJ11 (p=0.82) (Figure 8B). These findings are in agreement with previous biological assays and demonstrate that the binK1 mutation alters quorum sensing and raises the threshold for quorum-sensing activation of luminescence (Schuster et al., 2010).

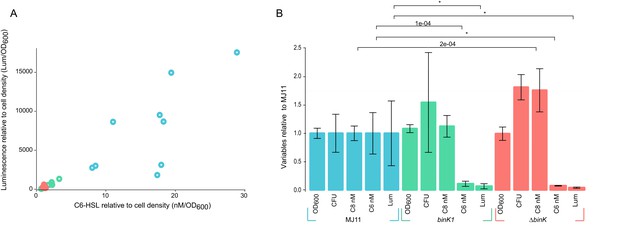

Host-adapted binK1 attenuates quorum-sensing regulation of luminescence.

(A) Supernatant concentrations (nM/OD600) of N-(3-oxohexanoyl) homoserine lactone (C6-HSL), as quantified against synthetic standards (Schaefer et al., 2000; Pearson et al., 1994; Duerkop et al., 2007) and corresponding luminescence (Lum/OD600) of 10 independent cultures each for wild-type MJ11, binK1 and ΔbinK derivatives during quorum-sensing induction of luminescence determined from cultures grown to early log (Average OD600 1.1, range 0.9–1.4,). (B) Average cell density as measured by absorbance (OD600), colony-forming units (CFU)/mL/OD600, N-(3-oxohexanoyl) homoserine lactone (C6) nM concentration, N-octanoyl homoserine lactone (C8) nM concentration, and luminescence (Lum)/1 mL culture for ten biological replicates of each variant relative to wild-type MJ11. Error bars: 95% CI. Significant p-values (p<0.05) are indicated above each comparison. *p<2.2e-16.

https://doi.org/10.7554/eLife.24414.020

Host adaptation produced dominant binK alleles suggestive of altered function

Comparisons of the squid-evolved binK1 variant and ΔbinK mutant, especially exemplified by colonization efficiency (Figure 7B), transcriptional profiles and changes in metabolic activity that were convergent with the native symbiont (Figure 5—figure supplement 2, Appendix 1, Appendix 2), suggested that squid selection did not favor outright loss of BinK function in MJ11. The evolved binK1 and null ∆binK variants did not differ significantly in biofilm production and exhibited similar biofilm-linked traits of oxidation survival and hemocyte evasion (Figure 5C and 6). Yet, the squid-adapted binK1 variant significantly outperformed the null mutant in culture competition with binK+ (Figure 3B). This enhanced fitness could be due to the maintenance of partial function or to regulatory effects that are unique to the evolved allele. To investigate this further, we assessed the impact of multi-copy expression of wild-type and binK1 alleles. Ancestral binK+ complemented adaptive behaviors conferred by the binK1 and ∆binK mutants, including the abilities to form biofilm and to colonize squid, as would be expected if wild-type BinK function impaired these traits (Figure 9). Multi-copy expression of binK1 modestly reduced biofilm production by the ∆binK mutant, suggesting that partial function was maintained by this allele, but it also unexpectedly enhanced biofilm production by MJ11, implying altered function (Figure 5B and 11). Finally, binK1 significantly enhanced colonization by all variants, even in the presence of a single genomic copy of the wild-type allele, proiding evidence that binK1 is dominant and consistent with its altered function. Even if reduced activity of BinK was sufficient to confer some adaptive traits (Figures 58), these results suggest that improved symbiosis could also arise through phenotypes conferred by alteration of its function (Figures 911).

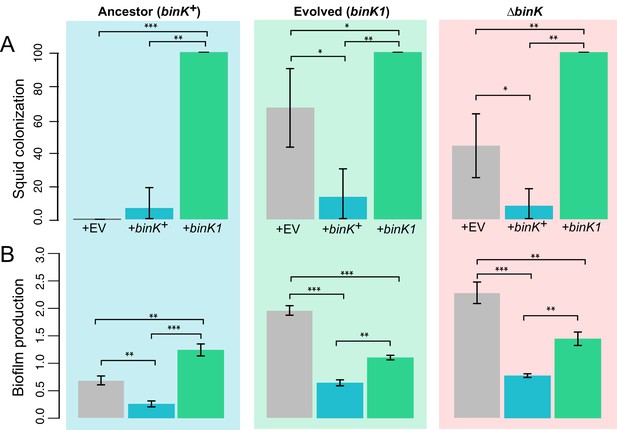

Effect of binK on squid colonization and biofilm production.

(A) Improvement in colonization by multi-copy in trans expression of the evolved binK1 allele and decreased colonization by expression of the ancestral binK+ allele. Colonization assessed by percentage of squid that are luminous after 24 hr. Error bars: 95% CI. N = 15–25. (B) Increased biofilm production resulting from in trans expression of the binK1 allele, and decreased biofilm production resulting from expression of the ancestral binK+. Comparisons of biofilm production in control-plasmids (pVSV105= EV) with that in multi-copy plasmids carrying binK suggest an inhibitory role for BinK in biofilm production, presumably alleviated by the dominance of the binK1 allele. Biofilm production was quantified by absorbance of crystal violet at A550. Background color depicts strain background in which multicopy plasmid effects were measured, mirroring those used throughout where blue is wild-type MJ11, green is the evolved binK1 variant and salmon is the ∆binK derivative. Error bars: 95% CI; non-overlap indicates significance. N = 7–8. Significant p-values (p<0.05) are indicated above each comparison. *p<0.05, **p<0.005, ***p<0.005.

https://doi.org/10.7554/eLife.24414.021

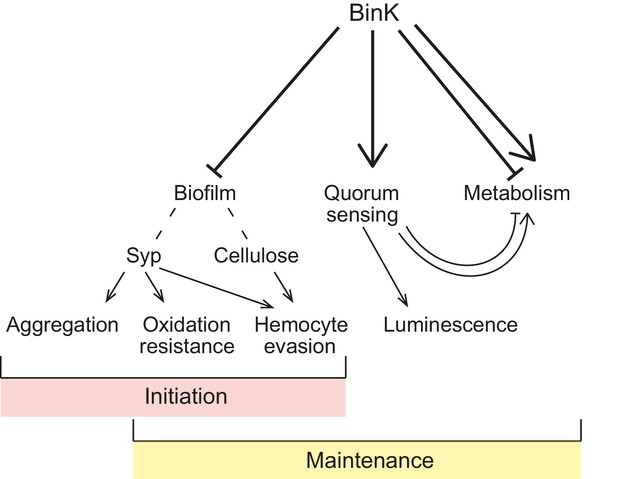

Model of BinK regulation of traits adaptive during squid symbiosis.

Arrows originating from BinK point to characteristics that are activated or enhanced, and blocked lines point to those that are repressed or blocked by BinK. Hashed lines point to polysaccharides that contribute to biofilm.

https://doi.org/10.7554/eLife.24414.022

Discussion

In theory, the large population sizes and genetic diversity within bacterial species may enable symbiotic lifestyles with eukaryotic hosts to evolve rapidly (Fisher, 1930). While the processes leading to pathogen emergence have been intensely studied, much less is known regarding the genetic changes that drive adaptation to novel host niches in nonpathogenic bacteria (Jansen et al., 2015; Ochman and Moran, 2001; Kwong and Moran, 2015; Guan et al., 2013). In pathogens, mobile elements encoded on pathogenicity islands are often cited as the cause of repeated and rapid evolution of host associations, but these elements alone rarely provide bacteria with the ability to colonize hosts (Reuter et al., 2014). Further, the selective pressures exerted by new hosts may require synchronized phenotypic changes, limiting the number of adaptive ‘solutions’ available to a microbial genome that is constrained by regulatory structure. Here, rapid adaptation to squid symbiosis occurred in multiple parallel experimental lineages through convergent mutations in a single gene, the binK sensor kinase. These mutations altered multiple functions that are known to contribute to the native symbiosis between strain ES114 and squid (Figure 10), suggesting that that the regulatory circuits of V. fischeri may have been pre-wired to coordinate diverse symbiotic traits. Many of the BinK-regulated behaviors have established crucial roles in symbiotic association, including quorum-sensing activation of bioluminescence and Syp-mediated aggregation, (Nishiguchi et al., 1998; Brooks and Mandel, 2016; Nyholm and McFall-Ngai, 2003; Shibata et al., 2012; Visick et al., 2000; Yip et al., 2005), but we provide the first experimental evidence that two different binK-regulated cell-associated matrix substances, Syp and cellulose, modulate host innate immune interactions that could contribute to strain discrimination during the selection of symbiotic partners.

The convergent paths to adaptation taken by independent lineages evolving experimentally through squid reveals that squid hosts exert hard selection on colonizing bacteria, driving the evolution of fitter, symbiotic genotypes. A model of the population-genetic dynamics of bacterial colonization suggests that in order to survive extinction during the host-imposed bottlenecks, binK alleles must confer a massive selective advantage in symbiotic association and must arise early during population growth, most probably— prior to host recruitment—rather than later during symbiotic maintenance (Figure 4A and C). This prediction is consistent with the improved initiation capacity of evolved variants (Figures 1, 3A, 7 and 9) and explains their detection in the first few squid passages (Table 2). These mutants would not be expected to rise to detectable frequency considering that alleles that confer enhanced fitness in squid are deleterious in broth culture (Figure 3B). The success of binK mutations, sweeping from undetectable frequency in the ancestral inoculum to fixation in as little as ~50 generations, was only realized when under strong squid host selection. Estimated selective coefficients for the binK1 allele of MJ11 ranged as high as s = 5.3 when determined empirically, similar to estimates obtained by population modeling (s ~6) (see Materials and methods, Figure 4). Selective coefficients above one are rarely reported from nature; however, these are consistent with the stringent selection pressures imposed on pathogens as they colonize new hosts (Morley et al., 2015; Bedhomme et al., 2012; Thurman and Barrett, 2016). This enormous selective advantage is also consistent with the observation that ancestral populations with lower mean fitness (such as strains MJ11 and H905) are more likely than fitter populations (such as WH1, EM17 and ES114) to make a major adaptive leap (Lenski and Travisano, 1994). That is, due to their distance from optimal fitness (e.g., 100% colonization), less fit ancestors are poised to benefit more from mutations of greater selective advantage (Orr, 2000, 2003; Wielgoss et al., 2013). Thus, even though elimination of BinK function also increases competitive fitness by ES114 (Brooks and Mandel, 2016), it is not surprising that binK mutations did not evolve in populations derived from ancestors with greater starting fitness, such as EM17, WH1, and ES114, as it is unlikely that these mutations could confer a selective advantage sufficient to survive extinction (Figure 2A and 4C, Table 2). The high predicted selective advantages of binK mutants evolved from squid-maladapted strains MJ11 and H905 support the theory that adaptation from unfit ancestors may initially proceed by large leaps, as opposed to incremental changes of small effect (Wiser et al., 2013).

Requisite to successful symbiosis with squid is the ability of bacteria to bypass host barriers during initiation: symbionts first aggregate and then migrate though ducts that are policed by hemocytes and eventually reach the oxidative light organ interior (Figure 1) (Nyholm and McFall-Ngai, 2004). The poor colonization capacity of MJ11 has been attributed to its lack of rscS, a horizontally acquired regulator in the same hybrid histidine kinase family as binK (Figure 2—figure supplement 1). RscS that activates Syp polysaccharide and allows the native symbiont ES114 to overcome the squid initiation barrier (Figure 1A) (Yip et al., 2006; Mandel et al., 2009). Despite its conserved function as a repressor of Syp in ES114 (Brooks and Mandel, 2016), BinK does not impede symbiosis in that strain, perhaps owing to the activity of RscS (Yip et al., 2006). But, notably, strain H905—a close relative to ES114 isolated from the squid habitat and containing rscS—is symbiotically impaired and also evolved convergent mutations in binK during our experiments (Perry, 2009) (Figure 2—figure supplement 1, Table 2). This suggests that its colonization deficiency stems from regulatory constraints on Syp production, from ineffective integration of the horizontally acquired RscS regulator with existing regulatory circuitries, or from the evolution of attributes relating to a planktonic lifestyle which impair its ability to access squid light organs (Lee and Ruby, 1994a). Here, MJ11 adapted to experimental squid symbiosis through enhancement not only of Syp (Figures 57), a proposed mechanism for symbiotic evolution in the native symbiont ES114 (Mandel et al., 2009), but also by producing additional matrix components such as cellulose (Figure 5—figure supplement 2, Appendix 1), both of which improved colonization (Figure 7).

The finding that biofilm phenotypes conferred by evolved binK alleles improved survival of host defenses (Figure 5 and 6) expands our understanding of the nature of host selection, and provides important context for how biofilm can confer enhanced fitness upon individuals. Symbiotic microbes commonly secrete exopolysaccharides or glycosylated compounds to produce biofilm capsules that confer protection against macrophages, antibiotics or toxic substances, and that promote adhesion to epithelial surfaces (Nizet and Esko, 2009; Sengupta et al., 2013; Williams et al., 2013; Hsieh et al., 2003). Yet beyond its role in aggregate formation, it was not known whether biofilm contributed to squid colonization (Yip et al., 2006). The binK1 allele enabled immune evasion by reducing the attachment of host macrophage-like hemocytes to a level comparable with that of squid-native strain ES114 and by enhancing survival when exposed to oxidation (Figure 5). Both immune evasion and biofilm production were suppressed by overexpression of either the sypE or binA repressors, which indicates that these traits are mediated by Syp and cellulose production (Figure 5). Squid immune response is mitigated by V. fischeri lipopolysaccharide and other microbe-associated molecular patterns (MAMPs) (Nyholm et al., 2009; Nyholm and McFall-Ngai, 1998; Koropatkin et al., 2012; Koropatnick et al., 2004; Foster et al., 2000), but this study provides the first evidence that Syp contributes to host immunomodulation by V. fischeri. The genes for Syp share little similarity with those encoding the capsular polysaccharide common to immunomodulating Vibrio species and other pathogens (Shibata et al., 2012; Yildiz and Visick, 2009), but the Syp polysaccharide may nonetheless serve a role analogous to that of the polysaccharide ligands of mammalian macrophage receptors produced by gut symbionts, which also exhibit immunosuppressive activity that reduces host inflammatory response (Mazmanian et al., 2008; Chu and Mazmanian, 2013; Jones et al., 2014). Recent evidence in Vibrio parahaemolyticus suggests that the use of Syp is potentially widespread among host-associated Vibrio, mediating virulence and epithelial colonization (Ye et al., 2014) as well as evasion of host innate immunity (Hsieh et al., 2003; Vuong et al., 2004). The pleiotropic effects of Syp on symbiotic competence suggest why single binK mutations provide such benefit to squid-naïve V. fischeri. Further, they reveal a critical role for cell-associated polysaccharides in the squid–Vibrio interaction, not only mediating group behaviors that improve initiation but also contributing to partner selection on an individual cell basis.

Not only do evolved binK alleles increase fitness during the first 24 hr of colonization, they also further enhance fitness between 24 and 48 hr post-colonization during the maintenance phase of symbiosis (Figure 4B, Figure 3—figure supplement 2) when the squid selects on symbiont luminescence intensity and resource utilization (Graf and Ruby, 1998; Soto et al., 2014; Schuster et al., 2010; Visick et al., 2000; Septer et al., 2013; Soto and Nishiguchi, 2014) (Figure 1A). Although luminescence could be directly under host selection (Figure 8A) (Visick et al., 2000; Whistler and Ruby, 2003), selection could alternatively favor the altered quorum threshold underlying reduced luminescence in binK variants (Figure 8B). Mutations in luxO and litR—which, like binK variants, attenuate quorum sensing—enhance competitive fitness either in culture or in squid (Fidopiastis et al., 2002; Kimbrough and Stabb, 2015). Impaired quorum sensing by other species also enhances competitive growth because of the subsequent de-repression of metabolic functions such as carbohydrate uptake and utilization, and the perturbation of fatty acid and carbohydrate biosynthesis (Davenport et al., 2015; An et al., 2014). Transcriptomics analysis indicated that similar changes occurred in the ΔbinK mutant (Figure 5—figure supplement 2; Appendix 1). Quorum-regulated metabolic pathways that serve as 'private goods' could be targets of selection if they facilitated the utilization of host-provisioned resources that support symbiont growth in juvenile squid (Appendices 1 and 2) (Graf and Ruby, 1998; Pan et al., 2015; Wier et al., 2010; Miyashiro et al., 2011; Mandel et al., 2012; Dandekar et al., 2012), thereby contributing to a sustained selective advantage following initial colonization (Figures 1A and 4B).

The synchronized changes attained through amino acid substitutions in an existing sensor kinase highlight how the conserved but malleable components of signal transduction systems make them key mediators of adaptive evolution (Figure 2C). During bacterial evolution, sensory transduction pathways may serve as pliable targets because of the modularity of their components (Vogel et al., 2004; Pasek et al., 2006). Conserved phosphorelay and accessory domains (e.g. Figure 2C) are shared across numerous pathways and facilitate flexible partner interactions, known as 'cross-talk' (Capra and Laub, 2012). Sensor histidine kinases are effective targets of selective regimes in part because of their dual kinase and phosphatase capabilities, as well as their ability to augment partner interactions through these shared modules which can allow rapid rewiring of networks (Capra and Laub, 2012; Taylor et al., 2015; Rowland and Deeds, 2014). The array of phenotypes effected in binK variants (Figures 5, 6 and 8) implies that BinK sensor kinase may participate in more than one signal transduction pathway (Nyholm and McFall-Ngai, 2004; Yip et al., 2006; Miyashiro and Ruby, 2012). Phenotypic changes could be caused by altered interaction with a number of regulators with phosphorelay modules that are already described both for Syp polysaccharide (Brooks and Mandel, 2016) and for the quorum-sensing pathway that controls luminescence (Miyashiro and Ruby, 2012; Whistler et al., 2007), although this does not eliminate the possibility that there are unidentified partner(s) that mediate these effects. Regardless, evolved BinK enacted global effects by intersecting with pre-existing circuitry, which was presumably shaped by varying interactions with environments including hosts during V. fischeri adaptive evolution (Gao and Stock, 2013; Mitrophanov and Groisman, 2008).

This study demonstrates that some strains of V. fischeri can evolve by leaps in host range that result from single mutations of large effect. That simple point mutations in a regulator can evoke such broad consequences reveals that disparate traits that are important for symbiosis initiation and maintenance are already co-regulated. Such preexisting coordination is almost certainly an evolved ability, perhaps reflective of a history of selection and ‘tinkering’ while fluctuating between the non-host and host-associated environments in which these bacteria naturally reside (Lee and Gelembiuk, 2008; Jacob, 1977). The immense populations of Vibrio species should, in theory, empower natural selection to refine even subtle traits, promoting the ability to adapt to uncertain conditions through appropriate regulation with remarkable efficacy (Dillon et al., 2017). Viewed in this light, this study suggests that the exceptional adaptability of certain bacteria such as Vibrio in forming novel intimate associations with various host organisms may be possible in part due to the structure of existing regulatory pathways formed during thousands of past transient interactions. Such parsimonious reconciliation of genomic constraints with host selection pressures is likely paramount in shaping emerging symbioses.

Materials and methods

Bacterial strains, plasmids, and culture conditions

Request a detailed protocol

Strains and plasmids are listed in Table 1. Wild-type Vibrio fischeri including strain MJ11 (isolated from the fish Monocentris japonica [Haygood et al., 1984]) and its derivatives, as well as squid symbiont ES114, were routinely grown at 28°C in either liquid seawater-tryptone broth (SWT) or Luria Bertani broth with added salt (LBS) with shaking at 200 rpm, or on LBS medium with 1.5% agar (LBS agar) (Graf et al., 1994). Escherichia coli strains were routinely grown in Luria-Bertani (LB) broth (Sambrook et al., 1989) or in brain heart infusion medium (BHI) (Difco) at 37°C. When required, media were supplemented with antibiotics at the following concentrations: for V. fischeri, chloramphenicol (Ch) at 2.5 μg/ml, kanamycin (Km) 100 μg/ml and erythromycin (Em) at 5 μg/ml; for E. coli, Ch at 25 μg/ml, Km at 50 μg/ml, and Em at 150 μg/ml (for BHI media). For maintaining selection in seawater, these antibiotics were used at half this concentration. When applicable, agar plates were supplemented with 40 mg of 5-bromo-4-chloro-3-indolyl-β-galactopyranosidase (X-gal)/ml for visualization of β-galactosidase activity. For biofilm quantification, bacteria were grown in liquid seawater-tryptone broth with added salt (SWTO) (Bose et al., 2007). To generate transcriptomic libraries, bacteria were grown in 3 mL SWTO supplemented with 0.5 mM N-acetyl-D-glucosamine. Bacteria were also grown in variations of HEPES minimal medium (HMM) (Ruby and Nealson, 1977), a seawater-based defined minimal medium with 1x artificial sea water (ASW: 50 mM MgSO4, 10 mM CaCl2, 300 mM NaCl, 10 mM KCl), 0.333 mM K2HPO4, 18.5 mM NH4Cl, and 0.0144% casamino acids, buffered with 10 mM Hepes with a suitable carbon source. Other buffers were substituted and additional nutrients supplemented as follows: for in vitro competition, the medium was supplemented with 0.53 mM glucose; for siderophore assessment in reduced iron conditions (Payne, 1994a), the medium was buffered with 100 mM Pipes (pH 6.8), casamino acids were increased to 0.3%, and the medium was supplemented with 32.6 mM glycerol; and for qualitative detection of siderophores, this medium was additionally supplemented with 1.5% Difco bacto-agar and 10% chrome azurol S-hexadecyltrimethylammonium bromide assay solution (CAS –HDTMA) (Lee and Ruby, 1994a; Payne, 1994a; Boettcher and Ruby, 1990; Graf and Ruby, 2000). Plasmids were conjugated between E. coli and V. fischeri as previously described (Stabb and Ruby, 2002).

Recombinant DNA techniques and PCR

Request a detailed protocol

Integrated DNA Technologies (Coralville, IA) synthesized the oligonucleotide primers listed in Table 4. Routine PCR was performed using AccuStart II PCR Supermix (Quanta, Houston, TX). Phusion High Fidelity DNA polymerase (New England Biolabs, Ipswich, MA) was used for cloning and to produce templates for sequencing reactions. PCR cycling was performed according to the manufacturer's protocol in an Eppendorf Mastercycler or Master Cycler Nexus (Eppendorf, Hamburg, Germany). Annealing temperatures used for primers were determined by subtracting 2°C from the melting temperatures (Tm) determined by Premiere Biosoft’s Netprimer. The lowest annealing temperature of the primers in the reaction was used during PCR (Table 4).

Table 3

Genomes used in phylogenetic analyses. This table lists GenBank accessions for nucleotide genomes used in strain phylogeny and source for gene models used in hybrid histidine kinase phylogeny.

https://doi.org/10.7554/eLife.24414.023
StrainNCBI accession/de novoProkka/NCBI gene models
Escherichia coliNC_000913NCBI
Aliivibrio wodanisLN554846-51NCBI
A. salmonicidaNC_011311–6NCBI
A. logeiNZ_AJYJ00000000Prokka
Vibrio furnissiiNC_016602, NC_016628NCBI
Vibrio parahaemolyticusNC_004603–5NCBI
Vibrio fischeri SR5NZ_AHIH00000000Prokka
Vibrio fischeri ES114NC_006840–2NCBI
Vibrio fischeri MJ11NC_011184–6NCBI
Vibrio fischeri EM17De novoProkka
Vibrio fischeri WH1De novoProkka
Vibrio fischeri ZF211AJYI01Prokka
Vibrio fischeri WH4De novoProkka
Vibrio fischeri SA1De novoProkka
Vibrio fischeri CG101De novoProkka
Vibrio fischeri H905De novoProkka
Vibrio fischeri PP3De novoProkka
Vibrio fischeri VLS2De novoProkka
Table 4

DNA oligonucleotide primers used in this study.

https://doi.org/10.7554/eLife.24414.024
Primer namePrimer DNA sequence (5’−3’)Annealing temperatureSource
 A0397 F5AAGAGTCATGGTATACATCGG51°CThis study
 A0397 F5*TGTAGCTGATGAGACTTTGCG56°CThis study
 A0397 F8TCATTGAAAGGTTTAATCGGTGT57°CThis study
 A0397 R11CACTTTATGGATGATCTTCGCT56°CThis study
 A0397 F3GCTGATGAGACTTTCGCTC52°CThis study
 A0397 R4GGCTGATTAGATCATCCTGC54°CThis study
 A0397 F12CAGAAGCACTAAATCATGTGAG52°CThis study
 A0397 R9TCTGACATGCCAATAATGCCAT59°CThis study
 MJ11A0397 R KpnIGGTACCCCGAAATTAACGACCAT50°CThis study
 MJ11A0397 F SalIGTCGACAAATAGAAACACTAACCAC50°CThis study
 HKSoeA F (SalI)GTCGACAATGTAGAAGTGGTAGAACGC50°CThis study
 HKSoeA2 RGTTTCCGCCATTCTTTGTGGTTAGTGTTTCT350°CThis study
 HKSoeB2 FAGAAACACTAACCACAAAGAATGGCGGAAAC50°CThis study
 HKSoeB2 RGCACCGACACTCATCAATTCGATATCAAGCT50°CThis study
 HKSoeC2 FAGCTTGATATCGAATTGATGAGTGTCGGTGC50°CThis study
 HKSoeC R (KpnI)GGTACCAGCGGCAATAGAATCAGTC50°CThis study
 TnErm4AATGCCCTTTACCTGTTCC53°CThis study
 TnErm5CATGCGTCTGACATCTATCTGA55°CThis study
 A0397 R13GTACACCCGAAATTAACGACCA59°CThis study
 A0397 F10CAGAGTTATGGGGTTGCTGAGT58°CThis study
 A0397 WT+ RGTCCCACCAAATTGACG53°CThis study
 A0397 4+ RGTCCCACCAAATTGACA53°CThis study
 sypE RF F2GCAGGTTATGTGCGAGG52°CThis study
 gapA F1GCCGTAGTGTACTTCGAGCG55°C31
 gapA R1CCCATTACTCACCCTTGTTTG55°C31
 PrRF9AAGCTTATTGGGAATACGGATACCTG53°CThis study
 PrRF10CATATGCACATCTTCTAACCATTGCTG53°CThis study
 PrRF19TGTCAGTATCACTCCCCTTCAC55°CThis study
 PrRF20AGCAGACAGTTTTATTGTTCATTGTTTCACCTCATTTAA50°CThis study
 PrRF21TTAAATGAGGTGAAACAATGAACAATAAAACTGTCTGCT50°CThis study
 PrRF22TTTCCTGTTTGTTCTTTTTTAGAAAAACTCATCGAGCA50°CThis study
 PrRF23TGCTCGATGAGTTTTTCTAAAAAAGAACAAACAGGAAA50°CThis study
 PrRF24GTTCCTTCTACAAGTCCTATTCC53°CThis study
 PrRF36ATCCATTGTAATAGTGCTGC53°CThis study
 PrRF52AATAAGTCCATTTCGTTCTGC54°CThis study
 PrRF53AAGCGGAAGTAGCGAAAAC54°CThis study
 VSV105InFGCCTGGGGTGCCTAATG56°CThis study
 KanINFATACAAGGGGTGTTATGAGCC55°CThis study
 KanINRCAAGTCAGCGTAATGCTCTGC56°CThis study

Standard molecular methods and manufacturer protocols were used for transformations, restriction enzyme digests, ligations, gel electrophoresis, and PCR. Restriction enzymes were purchased from New England Biolabs (Beverly, MA), and T4 DNA Ligase was from Invitrogen (Waltham, MA). Gel isolation and extraction of DNA from restriction digests were done using the Qiagen QIAquick Gel Extraction Kit (Qiagen, Valencia, CA). Plasmids for recombinant work and for sequencing were purified using Zymo Research Zyppy Plasmid Mini Prep (Irvine, CA). Genomic DNA used in PCR reactions was isolated by the phenol/chloroform extraction method (Wilson, 2001). Routine PCR amplifications were performed with AccuStart II (Quanta Bio, Beverly, MA).

Genome sequencing and analysis

Request a detailed protocol

Genomic DNA was extracted from mid-log cultures grown in LBS using the Promega Wizard Genomic DNA Purification Kit (Madison, WI). The genomes of V. fischeri strains EM17, WH1 and H905 were sequenced de novo using single-molecule sequencing (Pacific Biosciences) and assembled using HGAP at the Icahn School of Medicine. Gene models for de novo genomes were predicted and annotated using Prokka with strain ES114 serving as the reference (Seemann, 2014). For all strains derived from experimental evolution (both squid and culture experiments), genomic libraries were prepared on isogenic clones following a modified high-throughput Nextera library construction protocol (Baym et al., 2015) and were sequenced using the Illumina Hi-Seq 2500 platform at the University of New Hampshire or the New York Genome Center. Nextera PE adapter sequences were removed from raw reads using Trimmomatic (Bolger et al., 2014) with the clip settings as follows: ILLUMINACLIP = 2:40:15 LEADING:2 TRAILING:2 MINLEN:25 (Macmanes, 2014). Processed reads were aligned and analyzed against their respective strain reference (ancestral) genome to identify mutations, using default settings in breseq (Deatherage and Barrick, 2014) for single isolate genomes and using the ‘—polymorphism’ setting for libraries constructed from pooled isolate gDNA. On average, 99% of the processed reads from each isolate mapped to their reference genome, resulting in an average chromosomal coverage of 95x per isolate (Table 2) for MJ11. Mutations were called only for regions covered by a minimum of 20 reads. To identify which mutation calls reflected true evolutionary change as opposed to errors in the PacBio or NCBI reference genome, we compared each putative call across all genomes derived from the same ancestor. Potential mutation calls for strain ES114 were cross-referenced with known variants (Foxall et al., 2015). Any mutation calls that were shared amongst at least 50% of independently evolved strain genomes were assumed to reflect ancestral genotype and thus discarded. All mutations in the binK locus identified by breseq were subsequently confirmed by targeted PCR amplification and Sanger sequencing by using primers A0397 F3 and A0397 R4 for amplification and to sequence binK1 and binK2, and primers A0397 F8 and A0397 R9 for amplification and A0397 F3 and A0397 R6 to sequence binK3 and binK4 (UNH and GeneWiz).

Phylogenetic relationships among V. fischeri

Request a detailed protocol

Nucleotide sequence from published Vibrionaceae genomes (Vibrio parahaemolyticus, Aliivibrio salmonicida, A. logei, and V. fischeri strains ES114, MJ11, SR5, ZF-211; Table 3) and newly generated genomes (V. fischeri strains H905, EM17, SA1, CG101, VLS2, PP3, WH1, WH4) were analyzed in REALPHY and RAxML to infer whole-genome maximum likelihood phylogeny under the GTRGAMMA model of nucleotide substitution (Bertels et al., 2014). Node support was estimated by running 1,000 bootstrapped analyses.

Squid colonization and experimental evolution of V. fischeri

Request a detailed protocol

Squid colonization was conducted as previously described (Whistler and Ruby, 2003). Squid were bred from adults collected from Maunalua Bay, HI with the original adults collected and bred in December 2006, and subsequent cohorts collected intermittently from the same location between 2007 and 2016. Squid were routinely held in 32 ppt Instant Ocean (IO) (Blacksburg, VA) in diH2O water. For determining colonization efficiency, a cohort of squid was placed in bacterial inoculum derived from mid-log (OD600 0.2) SWT broth cultures diluted in filtered IO. The luminescence of squid individually housed in 4 mL IO was monitored daily, and bacterial colonization was determined by plating dilutions of homogenized squid following freezing at −80°C. For starting capacity measurements, squid were exposed to inoculum for 3 hr (ES114, EM17, and WH1) or overnight (H905 and MJ11) at increasing concentrations of bacteria (from 3,000 to 20,000 CFU/mL), until 90% of squid became colonized as determined by luminescence detection at 24 and 48 hr post colonization, and direct plating of light-organ homogenates at 48 hr post colonization. Colonization experiments were completed with at least 10 replicate squid, included aposymbiotic control squid, and were repeated a minimum of three times.

Strains MJ11, EM17, WH1, H905, and ES114 were evolved using squid hosts as previously described (Schuster et al., 2010). Briefly, 10 aposymbiotic hatchling squid were inoculated in an ancestral population of each strain (20,000 CFU/ml in 50 ml filtered IO for H905 and MJ11, 6,000 CFU/ml for WH1, and 3,000 CFU/ml EM17 and ES114). Following overnight incubation, squid were isolated and rinsed in filtered IO. Squid with detectable luminescence after 48 hr served as the founder passage for each parallel replicate population. At 96 hr following initial inoculation, squid hosts were preserved at −80°C while their seawater containing ventate was used to inoculate a new passage of aposymbiotic squid. Half of the ventate was preserved by freezing in 40% glycerol at −80°C. Serial passaging with 1 ml ventate combined with 1 mL fresh IO was initiated with a hatchling squid held overnight to confirm that they were uncolonized on the basis of luminescence measurements. Passaging continued in this manner for a total of 15 host squid per experimental lineage (see Figure 1C).

Isolates from various passages of the evolutions were recovered and stored from archived ventate. Ten microliters of the ventate were plated onto SWT agar and incubated at 28°C, and representative colonies that were phenotypically similar to V. fischeri were quadrant streaked for isolation on LBS agar. Isolated colonies were grown in LBS liquid media and preserved by freezing in 40% glycerol at −80°C for subsequent analysis. For isolates whose identity as V. fischeri was suspect due to morphological differences, luminescence was measured from SWT cultures, and the strain diagnostic gapA gene was amplified and sequenced using primers gapA F1 and gapA R1 (Table 4) for confirmation (Nishiguchi et al., 1998).

BinK orthology and hybrid histidine kinase phylogeny

Request a detailed protocol

To construct a gene tree for hybrid histidine kinase genes across V. fischeri strains and Vibrio relatives, each of the gene models from the complete genomes listed in Table 4 were queried with the PFAM Hidden Markov Models for HATPase C (PF02518), HisKA (PF00512), and REC (PF00072) domains using hmmer. Sequences containing all of these conserved domains were then aligned in MAFFT (Katoh et al., 2002). A maximum likelihood topology was inferred using RAxML (Stamatakis, 2006) under the PROTGAMMAWAG model of amino acid substitution, following model selection using the Bayesian Information Criterion with IQ-TREE (Nguyen et al., 2015). Gene families were annotated based on consensus among strain ES114, Vibrio parahaemolyticus, and E. coli annotations identified using the BLAST algorithm (Camacho et al., 2009).

Allele identification

Request a detailed protocol

Isolates from the second squid ventate from replicate MJ11 population four were screened for binK and binK1 alleles using forward primer A0397 F5* and allele-specific reverse primers A0397 WT+ R and A0397 4+ R for binK and binK1, respectively (Table 4). The presence or absence of amplicons was evaluated against controls including MJ11 (binK+), binK1 variant MJ11EP2-4-1 and ∆binK variant RF1A4. PCR amplification was conducted following denaturation at 95°C for 30 s followed by annealing at 53°C for 15 s, and elongation at 72°C for 50 s. To confirm the identity of alleles, the binK region in five isolates was amplified by PCR using A0397 F10 and A0397 R13, and unconsumed dNTPs and primers were removed using ExoSAP-IT (Affymetrix Santa Clara, CA) before Sanger-sequencing at Genewiz (Cambridge, MA) using primers A0397 F3 and A0397 R4 (Table 4). Results were aligned with reference MJ11_A0397 using Lasergene Software programs (DNASTAR, Inc. Madison, WI) and the presence of binK1 in the evolved isolates was confirmed.

binK mutant generation

Request a detailed protocol

The MJ11 ∆binK::EmR (RF1A4) strain was generated by marker exchange mutagenesis using a construct produced by Splicing and Overlap Extension PCR (Horton et al., 1990). Briefly, the primer pairs HKSoeA F (SalI) and HKSoeA2 R, HKSoeB2 F and HKSoeB2 R, and HKSoeC2 F and HKSoeC R (KpnI), and the Phusion High Fidelity DNA polymerase were used to amplify the genomic region upstream and downstream of binK from MJ11 genomic DNA, using EmRcolonies and pEVS170 plasmid DNA as the templates (Tables 1 and 4) (Lyell et al., 2008). The purified amplicons were then fused using Expand Long Template polymerase (Roche) where binK was replaced by an EmR cassette. This purified product was cloned into pCR2.1 TOPO and transformed into TOP10 cells (Invitrogen, Waltham, MA), following the manufacturer’s protocol. Putative clones were sequenced by the Sanger method with primers M13 F, M13 R, TnErm4, and TnErm5 (Table 4) at the Hubbard Center for Genome Studies at the University of New Hampshire before the fragment was sub cloned into the suicide vector pEVS79, which was used for allelic exchange (Stabb and Ruby, 2002). Whole genome re-sequencing (illumina HiSeq) confirmed that the gene was replaced in MJ11 mutant RF1A4.

∆sypK mutant generation

Request a detailed protocol

The ∆sypK::aphA1 mutant strains RF1A5, RF1A6, and RF1A7 were generated by marker exchange mutagenesis using a construct produced by Splicing and Overlap Extension PCR (Horton et al., 1990). Briefly, the primer pairs PrRF19 and PrRF20, PrRF21 and PrRF22, and PrRF23 and PrRF24, and the Phusion High Fidelity DNA polymerase were used to amplify the genomic region upstream and downstream of sypK from MJ11 genomic DNA, and using KmR colonies and pVSV103 plasmid DNA as the template (Tables 1 and 4) (Dunn et al., 2006). The purified amplicons were then fused using Expand Long Template polymerase (Roche) where sypK was replaced by a KmR cassette. This purified product was cloned into pCR2.1 TOPO and transformed into TOP10 cells (Invitrogen, Waltham, MA), following the manufacturer’s protocol. Putative clones were sequenced by the Sanger method with primers M13 F, M13 R, KanINF, KanINR (Table 4) at Genewiz in South Plainfield, NJ before the construct, RF2B7, was used for allelic exchange with a modified chitin competence protocol (Brooks et al., 2015). Briefly, V. fischeri cells were grown in minimal media with a chitin derivative (n-acetyl glucosamine) until they reached OD600 0.2. Cultures were incubated with 10 µg/mL of pRF2B7 linearized by up to five cycles of freeze-thawing. After incubation with DNA fragments for allelic exchange, cells were recovered, plated onto LBS+Km plates and screened by PCR for incorporation of ∆sypK::aphA1 fragment using primers PrRF36 and KanINR2 (Table 4).

Transcriptome sequencing and analysis

Request a detailed protocol

Single colonies of V. fischeri MJ11 and two of its derived strains, squid-evolved binK1 strain (MJ11EP2-4-1) and MJ11 mutant ΔbinK (RF1A4), were grown in quadruplicate until they had an OD600 of 0.25 (Biophotometer; Eppendorf AG, Hamburg, Germany) in order to capture populations prior to detectable biofilm activity or flocculation and to minimize effects of spontaneous suppression due to growth defects of binK variants. Cells were pelleted and flash frozen. RNA was extracted following the protocol for the Quick-RNA MiniPrep kit (Zymo, Irvine, CA). Ribosomal RNA was depleted using the RiboZero kit (Illumina). mRNA libraries were constructed using the TruSeq Stranded mRNA library prep kit (Illumina) and sequenced using the HiSeq 2500 at New York Genome Center. Quality-trimmed reads were mapped onto the MJ11 reference genome using bowtie2 (Langmead and Salzberg, 2012) and quantified using RSEM (Li and Dewey, 2011). Differential expression between strains was assessed using edgeR (Robinson et al., 2010) with a significance threshold of FDR < 0.05.

Plasmid construction

Request a detailed protocol

binK and binK1 alleles were cloned into pVSV105 (Dunn et al., 2006) following amplification of MJ11 and binK1 genomic DNA with forward primer MJ11A0397 F SalI and reverse MJ11A0397 R KpnI (Table 4). The 2.977 Kb product was cloned into pCR2.1 TOPO (Invitrogen) following the manufacturers’ instructions. The constructs were sequenced using M13F, M13R, A0397 F3, A0397 F5, A0397 F8, A0397 F12, A0397 R4, A0397 R9, and A0397 R11 (Table 4), and aligned to their respective references to ensure that there were no mutations. The inserts were sub cloned from pCR2.1 TOPO into pVSV105 following digestion using the restriction enzymes SalI and KpnI, and ligation using T4 DNA ligase. Ligation reactions were transformed into chemically competent DH5αλpir cells (Herrero et al., 1990). Cell lysates of ChR colonies were directly screened for correct insert harboring plasmids by PCR using M13F and A0397 R4. Positive clones harbored pRAD2E1(binK+) and pRF2A2(binK1).

binA was cloned into pVSV105 (Dunn et al., 2006) following amplification of MJ11 genomic DNA with forward primer PrRF9 and reverse PrRF10 (Table 4). The 2.053 Kb product was cloned into pCR2.1 TOPO (Invitrogen) following the manufacturers’ instructions. The TOPO constructs were sequenced using M13F, M13R, PrRF9, PrRF10, PrRF52 and PrRF53 (Table 4), and aligned to the genomic sequence in MJ11 using the DNA Star software package (https://www.dnastar.com/) to ensure that no mutations were generated during cloning. The inserts were sub-cloned following digestions with XhoI and NdeI and SalI and NdeI digestions of pVSV105, and ligation using T4 DNA ligase. Ligation reactions were transformed into chemically competent DH5αλpir cells. Cell lysates of ChR were directly PCR screened for insert-harboring plasmids by PrRF9 and VSV105InF (Table 4). Positive clones harbored pRF2A3 (binA+) (Table 1).

To make KmR constructs compatible with pKV111 for hemocyte assays, the sypE SphI and SacI fragment was sub-cloned from pCLD48 into SphI and SacI digested pVSV104 (Stabb and Ruby, 2002). Following transformation into chemically competent DH5αλpir cells, the cell lysates of KmR colonies were directly screened for sypE insert using M13F and sypE RF F2 (Table 4). Positive clones harbored pRF2A1 (Table 1). The binA Sph1 and SacI fragment was sub-cloned from TOPO 2.1 into pVSV104 digested with SphI and SacI (Stabb and Ruby, 2002). Cell lysates of KmR colonies were directly screened for binA insert using VSV105InF and PrRF9 (Table 4). Positive clones harbored pRF2A4 (Table 1).

To mark bacteria for direct competition, the lacZ-expressing plasmid pVSV103 (Dunn et al., 2006), which confers a blue colony on media containing X-gal and confers kanamycin resistance, was used along with a derivative of this plasmid (pCAW7B1) in which lacZ was inactivated by removal of an internal 624-bp fragment by digestion with HpaI followed by self-ligation.

Bacterial competition in vivo

Request a detailed protocol

Estimates of Malthusian growth rates and fitness for MJ11 strains were calculated by measuring relative abundances of marked strains in squid hatchings that were co-inoculated with varying ratios of each strain (Altered Starting Ratio method sensu [Wiser and Lenski, 2015]). Strains were marked with either an intact version of the plasmid pVSV103 (Dunn et al., 2006) or pCAW7B1 that contains lacZ, which harbors a 200-amino-acid deletion that renders LacZ unable to produce blue pigment in colonies (Table 1). Squid were inoculated overnight in 50 ml IO containing 25 μg/ml Km and stored at −80°C after 24 or 48 hr (n = 98 and 59, respectively) following initial inoculum exposure if detectably luminous. Inoculations spanned 17 experiments, which contained inoculums with reciprocally marked strains in order to control for potential plasmid effects, ranging both in total cell density (from 1,600 to 26,600 CFU/mL) and in relative strain frequency (from ~1 binK1 per 10,000 binK+ up to approximately equal proportions). To estimate CFU abundance for each strain in squid light organs, we counted blue and white colonies after 72 hr of plating squid homogenates onto SWT plates containing 50 μg/ml Km and 1.5 mg/ml X-gal.

To calculate the selective coefficient (s) associated with the evolved variant during competition with the ancestral genotype in squid, we use the derivation in Chevin (2011). First, Malthusian growth rates (M) (Fisher, 1930) were estimated by taking the natural-log of the ratio of the CFU estimate from each co-colonized light organ to the starting inoculum concentration (i.e., starting density) (Lenski and Travisano, 1994; Lenski et al., 1991). The standard plating method to quantify symbionts from squid light organs can detect as few as 15 CFU (Ruby and Asato, 1993). Then the relative growth rate difference (sGR) was used to calculate the selection coefficient:

Relative growth rate difference, sGR = (MEvo– MAnc)/ MAnc

Selection coefficient, s = sGR / ln2

Spearman rank correlation tests were then used to test for relationships between Malthusian growth rates and either starting frequency or starting density of inocula. Significant differences in growth rate at either 24 or 48 hr between ancestral and evolved binK1 strains were assessed using exact Fisher-Pitman permutation tests through the ‘oneway_test’ method in the R ‘coin’ package (Hothorn et al., 2008). Significant differences in competitive colonization by evolved variants binK1 and binK3 (mutations in HATPaseC or HAMP domains, respectively) were assessed with a permutation t-test in the R package ‘DAAG’ using the method ‘onet.permutation’ with 9,999 simulations (Maindonald and Braun, 2015).

Bacterial competition in vitro

Request a detailed protocol

Malthusian growth rates were estimated similarly to in vivo competitions in which fitness for MJ11 strains was determined following co-inoculation of 150 μl with a single colony from each strain marked with either pVSV103 (Dunn et al., 2006) or pCAW7B1. Cultures were grown statically at 28°C and, at 2 hr intervals, a new culture was founded by serial 1/10 dilution into fresh media in a 96-well polystyrene microplate (Corning). At each passage, 20 μl of each competition was diluted, and plated onto SWT plates containing 50 μg/ml Km and 1.5 mg/ml X-gal. The total number of blue and white colonies apparent after 72 hr of growth was determined and used for calculations of realized Malthusian parameters. Strain competitions were each conducted with eight replicates and repeated twice. Differences in growth rate (Malthusian parameter, described above and in Fisher (1930) were assessed for significance using exact Fisher-Pitman permutation tests through the ‘oneway_test’ method from the R package ‘coin’ (Hothorn et al., 2008).

Theoretical estimation of selective advantage and mutation probability in BinK

Selection coefficient modelling

Request a detailed protocol

The analytical approximation developed in Wahl and Gerrish (2001) was used to estimate the range of selection coefficients required for a novel beneficial variant to overcome the extinction risk in a population exposed to frequent bottlenecking:

V(t,s)1(ln22t1sτ)

Where, V(t,s) represents the probability of extinction given selective coefficient (s) and generation (t) of growth in which the variant arises. This risk is determined by the number of generations between bottlenecks (τ), selective advantage (s), and the generation of arrival (t). In the context of the squid–Vibrio colonization dynamic, the following values were applied towards these parameters: for the initial host colonization bottleneck following inoculum growth, τ was 25 generations; for the subsequent venting bottlenecks experienced by symbiont populations, τ was four generations.

To estimate the minimum selection rate (r) conferred by a new rare variant capable of successfully colonizing a host (i.e., comprising one of the ~10 initiating cells [Wollenberg and Ruby, 2009; Altura et al., 2013]), first we predicted the number of non-synonymous mutations that would accumulate in the binK locus during growth of the ancestral population under neutral evolution using the estimated mutation rate for V. fischeri (Dillon et al., 2017): this was ~325 assuming ~25 generations of cell division to form a final population size of 2.4 × 108. Then, using the method of Lenski and Travisano (1994) for estimating fitness differences in declining populations, selection rates were estimated for the rare variant using the Malthusian parameters (Fisher, 1930):

M(rare variant)=ln(1/325)M(wild-type)=ln(9/2.4×108)r=M(rare variant)M(wild-type)=5.6 natural logs

Using these approximations, selection coefficients for variants arising during the inoculum’s growth phase must be much larger than one in order to attain a reasonable chance of surviving the colonization bottleneck. Conversely, during the venting-regrowth periods,although the probability of a new mutation arising is low, given how comparatively few generations occur during daily re-growth, beneficial alleles with coefficients as low at 0.5 may regularly survive (Figure 3C).

A caveat to this approach is that the applied model did not incorporate sub-population dynamics that could result from nuances in the topology of an individual squid's light organ, rather it applies generalized population and growth parameters of a single evolving population through one experimental squid, using data derived from native strain ES114 in the squid–Vibrio symbiosis (Wollenberg and Ruby, 2009; Altura et al., 2013; Wahl and Gerrish, 2001). While such population subdivision could potentially facilitate genetic variation among symbionts, it does not affect the estimated selective coefficient of evolved alleles.

BinK mutation probability modelling

Request a detailed protocol

To estimate the probability of a neutral mutation occurring within the binK locus during either the inoculum growth phase or during growth cycles in the host, the following parameters were used. References are provided for any parameters based on previously published estimates.

ParameterEstimateSource
Genome mutation rate2.08 × 10−8 bp-1division−1Dillon et al. (2017)
Genome size of MJ114,323,877 bpNCBI
Available non-synonymous binK positions
(approximately 2/3 of codon positions)
2,595 *2/3
N0 (Inoculum starting population)5 cells
Ninoc (max. population of inoculum prior to dilution)2.4 × 108 cells
Ncol (V. fischeri founder population size)12 (2–3 cells per crypt)Nyholm et al. (2000);
Wollenberg and Ruby, (2009);
Altura et al. (2013)
Nhost (Juvenile light organ V. fischeri population capacity)5 × 105 cellsKoch et al. (2014)

To place the empirical observations in the context of expectations using the model of Wahl and Gerrish (2001), we predict that mutants carrying a selective advantage of s ~ 2.8 would have originated within the first 10 generations of inoculum growth, with the probability of any non-synonymous mutation in the locus occurring within the first 10 generations of inoculum growth being 0.004 (under Poisson). However, the recovery of four distinct binK alleles suggests that selection could be much greater than this empirical estimation. Although quantification of the selective advantage is central to understanding the dynamics of natural selection during evolution, obtaining accurate estimates is made more difficult as fitness differentials diverge and become extreme (Wiser and Lenski, 2015). We suspect that empirical estimates of s using competitive co-inoculations may vastly underestimate the strength of selection in this system, not only because of the extreme and diverging fitness differential between ancestor and evolved strains but also because of the difficulty imposed by the recovery and the challenges of accurate enumeration of rare genotypes.

Bacterial aggregation

Request a detailed protocol

Assessment of the capacities of MJ11 and the binK1 variant to form cell aggregates in the squid mucus prior to entry through the ducts was conducted as previously described (Nyholm and McFall-Ngai, 2003). Briefly, 1.5 hr after newly hatched squid were inoculated with ~105 CFU/ml GFP-labeled strains of interest (harboring pKV111 [Nyholm et al., 2000]), squid were incubated in 1 uM CellTracker Orange (Invitrogen) for 30 min, anesthetized in isotonic magnesium chloride and dissected by removing the mantel to expose the intact light organ. Dissected animals were then promptly imaged at 20X and 40X using a Zeiss laser scanning confocal microscope 510. N = 15–20 squid tested per strain.

Biofilm quantification

Request a detailed protocol

Biofilm production was quantified using a standard assay with minor modifications (O'Toole, 2011). Briefly, a colony of bacteria from an agar plate was inoculated into either 150 μl (in a Costar 96-well plate) or 2 mL (in a 15 mm glass tube) of SWTO and grown shaking at 200 rpm for 17 hr at 28°C. The biofilm that remained after expulsion of liquid, rinsing, and heat fixation at 80°C for 10 min was stained with 0.1% crystal violet and then decolorized in a volume of 200 µl for assays in plates or 2 mL for tube assays. Biofilm production was determined by absorbance at 550 nm using a Tecan Infinite M200 plate reader. Experiments were performed in triplicate and contained 3–5 biological replicates per treatment. Differences in means were evaluated for significance using a two-sample Fisher-Pitman permutation test conducted using the exact distribution with the ‘oneway_test’ method from the package coin in R (Hothorn et al., 2008).

Hydrogen peroxide survival

Request a detailed protocol

Strains were grown in LBS media at 28°C with shaking at 200 rpm until cultures reach an OD600 between 1 and 1.5, the cultures were normalized to an OD600 of 1.0 by dilution and 5 μl was subject, in triplicate, to exposure to hydrogen peroxide at different concentrations (ranging from 0.02% to 0.18%) in 200 μl of LBS media in a 96-well Costar polystyrene plate. The minimum concentrations of hydrogen peroxide that restricted all growth (MIC) of wild-type MJ11 and ES114 after over-night incubation was determined for every batch of hydrogen peroxide. Experimental concentrations ranged from 0.02% to 0.18%. Differences in strain survival (binomial outcomes) of at least three combined experiments that contained 106 replicates of strains without plasmids, 15 replicates of ∆sypK variants that were assayed in conjunction with control strains that lacked the mutation (MJ11, binK1, ∆binK) and 50 replicates of strains with plasmids were evaluated for significance using exact Fisher-Pitman permutation tests with the ‘oneway_test’ method from the R package ‘coin’ (Hothorn et al., 2008). The plasmid harboring pRF2A3 (binA) was assayed 20 times in the in same experiment as control strains that harbored pVSV105 and pCLD48 (sypE), which was evaluated in the same way.

Host hemocyte binding of bacteria

Request a detailed protocol

Squid macrophage-like hemocytes were isolated from aposymbiotic hatchling squid using glass adhesion and then stained with Cell Tracker Orange (Invitrogen) suspended in Squid-Ringers, prior to exposure to GFP-labeled V. fischeri cells following a previously detailed protocol (Nyholm et al., 2009; Collins and Nyholm, 2010), with modifications communicated by Dr Bethany Rader. Hemocytes were exposed for one hour to V. fischeri strains ES114, MJ11 (binK+), MJ11EP2-4-1 (binK1) or non-symbiotic Vibrio harveyi B392, carrying the GFP plasmid pKV111 (Nyholm et al., 2000). To test for the effect of Syp biofilm on hemocyte binding, additional assays were conducted using GFP-labeled strains carrying either control plasmid (pVSV104), sypE expression plasmid (pRF2A1), or binA expression plasmid (pRF2A4) in addition to GFP plasmid (pKV111) (Nyholm et al., 2000) (Table 1). Following exposure, hemocyte response to bacteria was visualized at 63x magnification by confocal microscopy and differential interference contrast using a Zeiss LSM 510. Hemocyte binding was quantified by enumeration of bound Vibrio relative to total Vibrio within a 60 μm radius surrounding each cell. A minimum of 30 hemocyte interactions were quantified per strain. Significant differences in mean proportional binding across strains were detected using a permutation-based test of independence in the R package ‘coin’ (‘independence_test’ method, using the exact distribution) (Hothorn et al., 2008).

Siderophore production

Request a detailed protocol

Siderophore was measured qualitatively as an orange halo appearing around cells cultured on CAS agar (Graf and Ruby, 2000) or from cell free supernatants after 17 hr of growth under iron limited conditions using a chrom-azurol S liquid assay (Lee and Ruby, 1994a; Payne, 1994b). Colorimetric reduction in OD630 was measured in a Tecan Infinite M200 plate reader and % siderohpore units were calculated and normalized by cell density (Lee and Ruby, 1994a). Siderophore units were below the detection limit for MJ11 and its binK1 derivative but not ES114.

Luminescence, homoserine lactone, and cell density determination

Request a detailed protocol

Luminescence, cell density and homoserine lactones were quantified from V. fischeri MJ11 and variants grown in a starting volume of 15 mL SWT broth culture in a 125 ml flask, which incrementally decreased in volume with sampling. Luminescence produced by the equivalent of 1 mL of culture was quantified on cells diluted up to 1:1000, to ensure that measurements were within the range of detection, with a Turner 20/20 luminometer (Turner Designs, Sunnyvale, CA). Concurrently, the optical density (OD600) was determined with a Biophotometer (Eppendorf AG, Hamburg, Germany), with cells diluted into medium. In parallel, colony forming units were determined by standard serial dilution and plating on LBS agar. Published methods were used for the purification and quantification of N-(3-oxohexanoyl) homoserine lactone (3-oxo-C6-HSL) and N-octanoyl homoserine lactone (C8-HSL) (Schaefer et al., 2000; Duerkop et al., 2007). Briefly, acyl-HSLs were extracted twice with an equal volume of acidified ethyl acetate from cell-free supernatants of MJ11 and derivatives sampled at a several OD600 levels—representing mid-log (OD600 ~0.7 and 1.0), late-log (~1.7), early stationary (~3.5), and stationary phase (~5.3–8)—to evaluate the dynamic range of AHL synthesis for each derivative and to determine the optimal OD600 during induction. AHLs were extracted and concentrated from 0.5 to 5 mL of MJ11 and variants were detectable and within the assay linear range, identifying that an OD600 of ~1.0 was optimal. Replicate experiments were performed in which OD600 was monitored at regular intervals, and AHLs were immediately extracted when cultures reached an OD600 of 0.9–1.4. Any binK derivative culture identified as being dominated by suppressor mutants (i.e., exhibiting an abnormally fast growth rate accompanied by greater than wild-type luminescence and a high proportion of large colonies when plated) were discarded. Extracted samples were concentrated by evaporation under anhydrous nitrogen before analysis. 3-oxo-C6-HSL was quantified using the reporter strain E. coli VJS533 harboring plasmid pHV200I, which responds to 3-oxo-C6-HSL by producing luminescence (Pearson et al., 1994). C8-HSL was quantified using the reporter strain E. coli MG4 harboring pQF50 (bmaI1-lacZ promoter fusion derived from Burkhoderia mallei) and pJN105 (an arabinose-inducible R gene), which expresses lacZ specifically in response to exogenous C8-HSL with low sensitivity to 3-oxo-C6-HSL (Duerkop et al., 2007). LacZ activity was measured by a standard assay (Miller, 1972) and using the Dual-Light Luciferase and β-Galactosidase Reporter Gene Assay System (Applied Biosystems). The amounts of 3-oxo-C6-HSL and C8-HSL were determined by comparing the activity measured from a dilution series of the extracted samples to the linear range (R2 ≥0.98) of each standard curve generated from synthetic substrates (N-(ß-ketocaproyl)-L-homoserine lactone and N-octanoyl-L-homoserine lactone) (Cayman Chemical). A total of 10 cultures for each derivative from five combined experiments were assayed and reported with the exception of CFU, which was from three cultures. Differences in CFU/mL/OD600, OD600, nM 3-oxo-C6, nM C8-HSL, and luminescence (Lum) per 1 mL of culture for each variant reported relative to MJ11 were tested for significance using exact Fisher-Pitman permutation tests in the R package ‘coin’ (‘oneway_test’ method) (Hothorn et al., 2008).

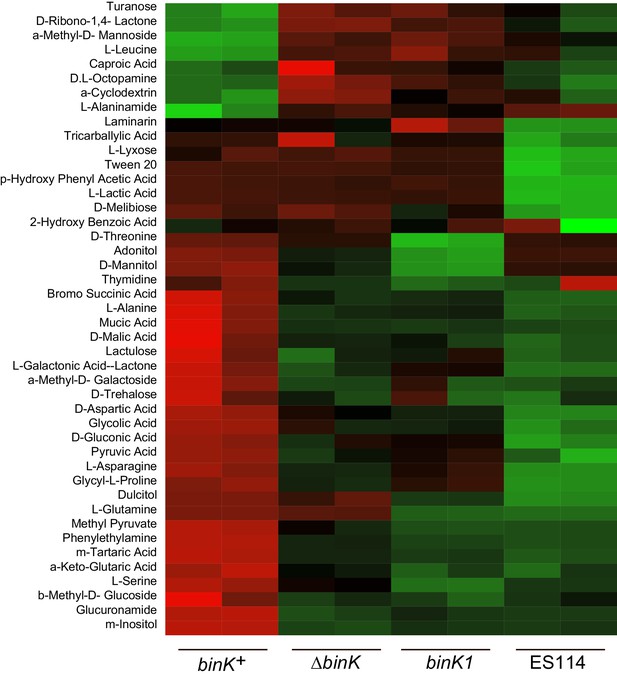

Metabolic profiling

Request a detailed protocol

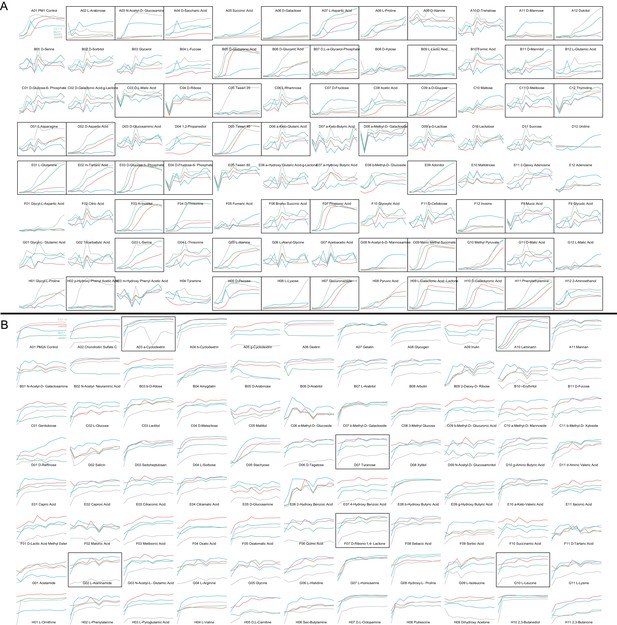

Phenotype MicroArrays (Biolog, Hayward, CA) PM1 and PM2A were performed according to manufacturers' protocols (Bochner et al., 2001) with few modifications for V. fischeri analysis, specifically including supplementation of IF-0 with 1% NaCl. Briefly, for each strain, enough inoculum for two replicate plates was prepared by recovering and mixing bacterial colonies into 16 ml IF-0 to obtain a uniform suspension at OD600 0.175 and mixed with dye D mixture (1:5 dilutions). PM1 and PM2A duplicate (ES114, binK1- and ΔbinK-variants) or triplicate (MJ11 and blank) plates were inoculated with 100 μl of suspension per well, and incubated at 28°C for 48 hr. OD490 was recorded by a Tecan Infinite M200 microplate reader every 4 hr to measure kinetic changes in color (redox state) of dye D. To determine which substrates elicited different kinetic responses among strains, we performed an ANOVA on OD490 values following normalization against the blank control values for each timed measurement. The significance of strain activity differences for any substrate was determined after correcting for multiple tests using a False Discovery Rate of 0.05. To quantify the overall significance of metabolic responses for MJ11 binK1 and MJ11 ∆binK converging with ES114 while diverging from MJ11, we used the Exact Binomial Test under the null hypothesis that only 12.5% substrates should yield such a pattern across the four strains assayed (2*0.54) with the R method ‘binom.test’.

Statistical analyses

Request a detailed protocol

Unless otherwise specified, differential responses to colonization and experimental assays for different strains were tested using exact Fisher-Pitman permutation tests with the ‘oneway_test’ in the R package ‘coin’ (Hothorn et al., 2008). Results from experiments conducted in triplicate were combined by inclusion of a block variable to account for potential technical artefact.

Appendix 1

Transcriptomic profiling

To gain insight into the breadth of pleiotropic effects of binK beyond the biofilm-associated (Figures 57) and luminescence (Figure 8) phenotypes, we used RNAseq to identify patterns in transcriptional differences among binK variants from cultures grown to early log phase (OD600 0.25) (see Materials and methods). Although using a low culture density reduced the potential to capture significant transcriptional changes relevant to biofilm production (e.g. Syp) or quorum sensing (e.g. luminescence), it minimized the potential for confounding effects of biofilm differentiation on transcription. The ΔbinK mutant had a modest impact on transcription under these conditions. Although most transcripts that were altered by the null mutation were not significantly affected by the binK1 mutation, 101 out of the 114 of these significant ΔbinK-regulated transcripts were expressed by the binK1 variant at levels intermediate to expression levels in wild-type MJ11 and the null ΔbinK mutant (Appendix 1—table 1). Expression patterns associated with binK variants include the repression of genes involved in cellulose synthesis, carbohydrate glycosylation, and sugar transport and metabolism. The ΔbinK mutant also increased transcription of serine and N-acetyl-glucosamine transporter genes. Transcriptional differences also indicated a significant effect of binK on iron metabolism and fatty acid biosynthesis pathways associated with quorum-sensing regulation, both of which are important during persistent host colonization (Davenport et al., 2015; Graf and Ruby, 1998; Visick et al., 2000; Septer et al., 2013, Septer et al., 2011; Whitehead et al., 2001). However, siderophore production remained undetectable in binK variants as it is in the MJ11 ancestor (Appendix 1—figure 1).

Appendix 1—figure 1
Siderophore production in MJ11 and binK variants.

(A) Squid-native ES114, (B) squid-naïve MJ11 binK+ and (c) squid-evolved binK1 plated on CAS agar.

https://doi.org/10.7554/eLife.24414.027
Appendix 1—table 1

Transcript expression differences between wild-type binK+ (ancestral MJ11) and binK mutants (∆binK and binK1) as detected by RNAseq under Fisher’s Exact test in edgeR. Positive fold-changes (logFC) indicate elevated expression in the wild-type relative to the indicated mutant; negative values indicate reduced expression in the wild-type relative to mutants. Loci with similar and significant expression changes in both ∆binK and binK1 relative to the wild-type are listed in bold. Only loci showing significant differences in transcript abundance compared with ancestral MJ11 are listed (FDR < 0.05).

https://doi.org/10.7554/eLife.24414.028
Wildtype vs mutant ∆binKWildtype vs evolved binK1

Fold-change in expressionAverage
transcript
abundance
Corr. PFold-change in expressionAverage
transcript
abundance
Corr. P
Locus TaglogFClogCPMFDRlogFClogCPMFDRGene description
VFMJ11_0008−1.46.790.0027−0.35.940.6192Cystine-binding protein
VFMJ11_00132.77.870.00001.38.140.3143Small heat shock protein
VFMJ11_01951.07.430.00150.47.580.6346Co-chaperonin GroES
VFMJ11_02601.24.860.00030.74.980.2770Universal stress protein family protein
VFMJ11_0297−1.45.510.0063−0.64.810.4928Sulfite reductase NADPH flavoprotein alpha-component
VFMJ11_0307−1.45.270.0058−0.54.460.5758Sulfate adenylyltransferase subunit 2
VFMJ11_0421−0.86.960.0011−0.66.680.2201mutY AG-specific adenine glycosylase
VFMJ11_05781.19.320.00050.79.370.2725ATP-dependent chaperone ClpB
VFMJ11_0628−1.09.160.0009−1.09.030.0887Inositol-1-monophosphatase
VFMJ11_0653−1.16.700.0000−0.25.950.8114Aminobenzoyl-glutamate transport protein
VFMJ11_06901.53.250.00010.63.530.5043urease accessory protein UreE
VFMJ11_06911.65.180.00000.45.550.5650Urease subunit alpha UreC
VFMJ11_11331.83.600.00000.63.940.3689Peptidase T pepT_1
VFMJ11_11371.18.560.00000.68.690.2725Glutamate decarboxylase
VFMJ11_11381.57.030.00000.47.340.4196TrkA domain integral membrane protein
VFMJ11_1253−0.89.480.0100−0.69.210.3013Serine transporter
VFMJ11_1268−1.58.450.0000−0.57.570.3861Insulin-cleaving metalloproteinase outer membrane protein
VFMJ11_1269−1.26.240.0007−0.65.650.3122Thiol oxidoreductase
VFMJ11_1270−1.06.400.0062−0.45.870.4916Imelysin superfamily protein
VFMJ11_1305−1.43.640.0082−0.93.140.5490TonB protein
VFMJ11_13171.28.360.00000.18.770.9186Hemin receptor
VFMJ11_1370−1.27.830.0055−1.47.820.05303-hydroxydecanoyl-ACP dehydratase fabA
VFMJ11_1398−0.66.430.0634−1.06.500.0335Na-dependent nucleoside transporter family protein
VFMJ11_1464−0.87.740.0088−0.37.270.6058Peptidase U32
VFMJ11_1477−0.98.480.0065−1.08.430.1214Glycine betaine transporter
VFMJ11_1534−0.86.270.0098−0.86.100.1776ATP-dependent RNA helicase RhlE
VFMJ11_1579−0.85.340.0094−0.75.090.2410Amidase
VFMJ11_16141.26.670.00000.86.740.2128
VFMJ11_1637−1.66.350.0000−1.15.790.1727Long-chain fatty acid transport protein
VFMJ11_1853−0.98.470.0050−0.68.140.2725
VFMJ11_1945−1.110.990.0001−1.010.790.1727Long-chain fatty acid transport protein
VFMJ11_2039−0.610.700.0678−1.010.900.0335Nitrate reductase catalytic subunit NapA
VFMJ11_20451.15.710.00780.55.850.4159
VFMJ11_2103−0.99.120.0017−0.68.780.2201Queuine tRNA-ribosyltransferase tgt
VFMJ11_21111.53.600.00021.03.740.2591Protein YgiW
VFMJ11_2127−1.09.240.0018−0.78.930.1727Peptidase U32
VFMJ11_21651.24.760.00620.54.970.4470DNA-binding transcriptional activator CadC
VFMJ11_22211.59.280.00000.19.800.9638Autonomous glycyl radical cofactor GrcA
VFMJ11_22230.76.550.00790.46.620.4482Homoserine kinase thrB
VFMJ11_22311.06.470.00020.56.580.3889Glutamate synthase subunit beta gltD
VFMJ11_2259−1.09.660.0011−0.79.320.2410IronIII ABC transporter periplasmic binding protein
VFMJ11_23941.15.830.00580.46.030.6194Succinylglutamic semialdehyde dehydrogenase astD
VFMJ11_24161.09.760.0032−0.310.320.6532Argininosuccinate synthase argG
VFMJ11_24561.310.160.00000.110.580.9472Fumarate reductase flavoprotein subunit frdA
VFMJ11_24571.48.350.00000.08.881.0000Fumarate reductase iron-sulfur subunit
VFMJ11_24581.76.080.00000.46.500.7063Fumarate reductase subunit C
VFMJ11_24591.46.680.0069−0.17.220.9725Fumarate reductase subunit D
VFMJ11_2504−0.95.360.0048−0.54.930.39403-dehydroquinate dehydratase aroQ
VFMJ11_2505−1.08.610.0015−0.98.470.1727Acetyl-CoA carboxylase biotin carboxyl carrier protein subunit accB
VFMJ11_2506−1.210.800.0001−1.010.540.1384Acetyl-CoA carboxylase biotin carboxylase subunit accC
VFMJ11_26930.95.740.00830.55.800.3940Branched-chain amino acid aminotransferase ilvE
VFMJ11_2696−1.69.000.0000−1.28.520.1793Cold-shock DNA-binding domain
VFMJ11_A01042.04.850.00001.15.070.1727dmsC
VFMJ11_A01052.05.160.0000−0.15.830.9797dmsB
VFMJ11_A01061.77.960.00000.18.500.9472Anaerobic dimethyl sulfoxide reductase chain a
VFMJ11_A01071.24.470.00230.24.820.8697YnfI
VFMJ11_A01111.07.200.00000.17.490.8523Outer membrane protein RomA
VFMJ11_A01510.97.290.0001−0.27.720.7881Putative tripeptide transporter permease tppB
VFMJ11_A02001.56.460.00000.76.680.3479L-lysine 6-monooxygenase
VFMJ11_A02011.67.970.00000.78.180.3687Ferric aerobactin receptor
VFMJ11_A02221.36.350.00000.66.540.3940Trimethylamine-n-oxide reductase 2
VFMJ11_A0224−1.86.140.0001−1.05.370.1748FhuE receptor
VFMJ11_A02430.95.110.00750.25.350.7820
VFMJ11_A0256−1.91.540.0091−1.61.030.3770Lipoprotein
VFMJ11_A02801.23.750.00640.24.080.8702Methyl-accepting chemotaxis protein
VFMJ11_A03171.47.280.00000.27.650.6304Anaerobic ribonucleoside triphosphate reductase
VFMJ11_A03251.83.040.00031.53.120.1801YgiW
VFMJ11_A03672.54.820.00000.65.320.3479
VFMJ11_A03682.36.020.00000.96.360.1839
VFMJ11_A0388−0.95.940.00490.45.090.4808Cyclic nucleotide binding protein
VFMJ11_A0389−2.09.660.00000.28.000.7303Sodium glucose cotransporter
VFMJ11_A0390−3.17.570.00000.44.860.5426UDP-glucose 4-epimerase
VFMJ11_A0391−2.47.090.00000.25.110.8033Galactose-1-phosphate uridylyltransferase
VFMJ11_A0392−1.86.970.00000.15.521.0000Galactokinase
VFMJ11_A0393−1.56.890.00000.05.761.0000Aldose 1-epimerase
VFMJ11_A0394−6.39.930.00000.34.230.7720Transporter AcrB-D-F
VFMJ11_A0395−7.09.150.00000.12.800.9802Acriflavin resistance periplasmic protein
VFMJ11_A0396−5.26.940.00000.02.500.9472Transcriptional regulator TetR family
VFMJ11_A03975.14.380.00000.65.100.2727
VFMJ11_A0398−1.47.070.00000.06.060.9926HTH-type transcriptional regulator GalR
VFMJ11_A04081.53.360.00100.63.620.5359
VFMJ11_A0487−1.47.990.0000−0.27.090.7403Pts system N-acetylglucosamine-specific iibc component
VFMJ11_A0619−0.78.610.0099−0.28.160.6350ABC-type multidrug transport system ATPase and permease component
VFMJ11_A0620−1.77.950.0000−0.97.220.1497Oxalate-formate antiporter
VFMJ11_A06652.22.920.00001.23.190.3019
VFMJ11_A06711.62.350.00510.92.530.4110
VFMJ11_A07101.14.020.00821.04.010.2201
VFMJ11_A07551.23.780.00200.83.870.2319Restriction endonuclease
VFMJ11_A07681.42.570.00290.82.730.5409
VFMJ11_A0875−1.37.690.0000−0.16.770.9728
VFMJ11_A0879−0.96.030.0017−0.75.740.4159
VFMJ11_A0882−1.74.690.0000−0.73.840.3793Lipoprotein
VFMJ11_A0885−1.47.510.0000−0.66.790.3687Cyclopropane-fatty-acyl-phospholipid synthase
VFMJ11_A0887−1.35.630.0000−0.44.890.6304Amine oxidase
VFMJ11_A0888−1.65.220.0000−0.54.350.4916Short chain dehydrogenase
VFMJ11_A0890−1.26.070.0000−0.25.300.9034Transcriptional activator ChrR
VFMJ11_A0891−1.25.700.0013−0.24.940.8635RNA polymerase sigma factor
VFMJ11_A0909−1.55.520.0000−1.05.040.1727Ferrichrome-iron receptor
VFMJ11_A1000−0.76.900.0075−0.36.490.5856Cellulose synthase operon C protein
VFMJ11_A1007−0.94.950.0040−0.54.550.4061Cellulose synthase operon protein YhjU
VFMJ11_A10381.03.890.00400.73.940.2725Alkanal monooxygenase beta chain
VFMJ11_A10391.44.020.00000.74.220.4313Alkanal monooxygenase alpha chain
VFMJ11_A10401.73.160.00051.13.330.2320Acyl transferase
VFMJ11_A10411.53.800.00030.74.010.3851Acyl-CoA reductase
VFMJ11_A10481.07.250.0069−0.47.870.6194Carboxypeptidase G2
VFMJ11_A1058−2.88.750.0000−1.77.690.0887Pts system fructose-specific eiibc component
VFMJ11_A1059−3.07.690.0000−1.86.500.0073pfkB
VFMJ11_A1060−2.97.770.0000−1.66.520.0335Bifunctional PTS system fructose-specific transporter subunit IIA Hpr protein
VFMJ11_A1061−2.14.340.0000−1.23.440.1793DNA-binding transcriptional regulator FruR
VFMJ11_A12280.94.600.00750.54.700.4704
VFMJ11_A12561.08.210.00000.48.380.4150Iron-regulated protein FrpC

Appendix 2

Metabolic profiling

To further examine pleiotropic changes associated with binK variants, we employed Biolog assays which measure redox as an indication of metabolic activity in the presence of individually arrayed substrates, as these assays have previously aided in identifying characteristics of experimentally evolved strains (Soto et al., 2014). binK1 moderated metabolic activity in the presence of compounds found in glycans characteristic of eukaryote mucosal epithelia (Koropatkin et al., 2012) and in Vibrio biofilms (Appendix 2—table 1, Appendix 2—figure 1, Appendix 2—figure 2) (Visick, 2009). Compared with MJ11, both the binK1 and a ∆binK derivative decreased redox in the presence of mannose and galactose derivatives, becoming more similar to the metabolism of ES114 (Appendix 2—figure 1). Greater substrate utilization in the presence of potentially squid-provisioned chitin and amino acid derivatives by binK variants was also congruent with the metabolism of ES114 (D-glucoronic acid, L-glutamine, glucuronamide, galacturonic acid, L-glutamic acid, β-methyl-D-glucoside) (Graf and Ruby, 1998; Wier et al., 2010; Schwartzman et al., 2015). In rare instances, metabolic responses that were altered by the binK1 allele were not similarly altered by the ∆binK mutation (e.g. L-glutamine). Overall, the metabolic response of binK variants converged significantly with ES114, with variants responding more like ES114 than ancestral MJ11 for 17% (33/190) of metabolic substrates (Binomial test, p=0.048). Several of these metabolic changes also arose in ES114 following experimental evolution in a novel host, Euprymna tasmanica (Soto et al., 2014). This convergence supported the hypothesis that pleiotropic effects of the evolved binK1 allele are adaptive and suggested that responses to these metabolites could contribute to symbiont growth in juvenile squid, and could promote more robust growth in light organs relative to ancestral MJ11.

Appendix 2—table 1

Metabolic convergence between squid native V. fischeri ES114 and squid-evolved binK1. The net changes in metabolic activity (as indicated by change in absorption of the Biolog tetrazolium redox dye) are shown for each V. fischeri strain after 48 hr of exposure to each substrate. Only substrates which induced significant (FDR < 0.05) differences across strains are listed. Metabolic changes in each strain relative to wild-type MJ11 binK+ are colored to indicate relatively increased or decreased activity. Of the 190 substrates tested, 44 substrates yielded significant differences across strain, including 39 which indicate congruent metabolic responses by ES114 and binK1 (Exact binomial test, p=1.405e-7).

https://doi.org/10.7554/eLife.24414.031
Metabolic activity
(∆A550 over 48 hr)
Metabolic activity change
relative to remS+ MJ11
WellSubstrateremS+remS1∆remSES114remS+remS1∆remSES114Convergence
H11Phenylethylamine0.0120.5680.4580.6670.00046.5437.3354.85+
H07Glucuronamide0.0170.5230.5640.5580.00030.2032.6932.30+
G10Methyl pyruvate0.0190.6770.4620.6390.00033.7022.7031.78+
H08Pyruvic acid0.0130.1870.2760.3950.00013.0919.7628.71+
E01L-Glutamine0.0260.6200.1250.6650.00022.823.7824.54+
F03m-Inositol0.0440.7240.7260.6710.00015.5015.5414.28+
E02m-Tartaric acid0.0260.4240.3380.4510.00015.1011.8416.13+
D02D-Aspartic acid0.0400.4590.3630.7350.00010.568.1617.55+
A12Dulcitol0.0300.4020.0910.6080.00012.612.0719.63+
G03L-Serine0.0320.4670.2350.3600.00013.666.3910.29+
H02p-Hydroxy phenyl acetic acid0.0270.0630.0370.6360.0001.270.3622.11+
B06D-Gluconic acid0.0480.3000.3240.6280.0005.245.7512.06+
B09L-Lactic acid0.0290.0680.0400.6470.0001.300.3720.93+
E09Adonitol0.0260.3580.1970.0850.00012.886.632.28+
H01Glycyl-L-proline0.0390.2060.2580.4430.0004.325.6510.44+
C05Tween 200.0250.0650.0010.5170.0001.60−0.9519.54+
E08β-Methyl-D-glucoside0.0040.0240.0220.0210.0005.665.104.85+
G05L-Alanine0.0560.3220.2950.3550.0004.744.255.33+
B11D-Mannitol0.0180.1770.0850.0340.0008.643.640.88+
H09L-Galactonic acid—Lactone0.0890.2750.3790.4500.0002.103.274.06+
F04D-Threonine0.0170.1260.0440.0410.0006.371.551.37+
D01L-Asparagine0.0260.0690.0800.1290.0001.612.023.86+
H06L-Lyxose0.0880.0510.0360.4810.000−0.42−0.594.48-
F8Mucic acid0.0260.0720.0440.0350.0001.780.680.36+
C12Thymidine0.0710.1680.1160.0520.0001.360.63−0.27-
G11D-Malic acid0.0280.0620.0360.0290.0001.210.310.05+
F06Bromo succinic acid0.0330.0610.0370.0350.0000.820.110.04+
A10D-Trehalose0.0310.0450.0380.0340.0000.450.210.08+
D06α-Keto-glutaric acid0.0450.0740.0430.0420.0000.65−0.04−0.08-
F9Glycolic acid0.0390.0620.0320.0400.0000.61−0.170.04+
C11D-melibiose0.0280.043−0.0060.0530.0000.53−1.200.90+
D10Lactulose0.0450.0570.0460.0350.0000.270.02−0.20-
A10Laminarin0.6780.5460.6740.7980.000−0.20−0.010.18-
E062-Hydroxy benzoic acid0.0890.0700.0800.0930.000−0.21−0.100.04+
A03α-Cyclodextrin0.1910.1220.0890.1580.000−0.36−0.54−0.17+
H07D,L-Octopamine0.2000.1110.0670.1860.000−0.45−0.66−0.07+
F07D-Ribono-1,4-lactone0.1980.0850.0700.1620.000−0.57−0.65−0.18+
D07Turanose0.1880.0650.0600.1370.000−0.66−0.68−0.27+
E02Caproic acid0.2410.1010.0070.2150.000−0.58−0.97−0.11+
G10L-Leucine0.2140.0510.0750.1350.000−0.76−0.65−0.37+
G02L-Alaninamide0.1640.0650.0470.0450.000−0.60−0.72−0.72+
G02Tricarballylic acid0.0290.018−0.0080.0060.000−0.37−1.27−0.80+
C10α-Methyl-D-mannoside0.1830.0040.0240.0750.000−0.98−0.87−0.59+
D08α-Methyl-D- Galactoside−0.0110.0180.0080.0000.000−2.56−1.68−0.99+
Appendix 2—figure 1
Metabolic shifts associated with binK variants.

Significantly differing metabolic responses to BIOLOG compounds for wild-type MJ11 (binK+), squid-adapted MJ11 binK1, MJ11 ∆binK and squid-native ES114. Responses to all tested compounds are reported in the Figure Supplement.

https://doi.org/10.7554/eLife.24414.034
Appendix 2—figure 2
Metabolic profiles using BIOLOG phenotyping assays.

Plots enclosed by boxes indicate substrates that are significantly differentially metabolized across strains (listed in Table 2). X-axis represents time (0–48 hr); Y-axis represents metabolic activity as detected by BIOLOG redox (tetrazolium) dye absorbance (OD490).

https://doi.org/10.7554/eLife.24414.035

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Growth trades off with habitat specialization
    1. MJ Caley
    2. PL Munday
    (2003)
    Proceedings of the Royal Society B: Biological Sciences 270 Suppl 2:S175–S177.
    https://doi.org/10.1098/rsbl.2003.0040
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    Obtaining hemocytes from the hawaiian bobtail squid Euprymna scolopes and observing their adherence to symbiotic and non-symbiotic bacteria
    1. AJ Collins
    2. SV Nyholm
    (2010)
    Journal of Visualized Experiments, 10.3791/1714, 20150890.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    The Genetical Theory of Natural Selection — A Complete Variorum Edition
    1. RA Fisher
    (1930)
    Oxford University Press.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
    Detection of the light organ symbiont, Vibrio fischeri, in Hawaiian seawaters by using lux gene probes
    1. KH Lee
    2. EG Ruby
    (1992)
    Applied and Environmental Microbiology 58:942–947.
  62. 62
  63. 63
    Effect of the squid host on the abundance and distribution of symbiotic Vibrio fischeri in nature
    1. KH Lee
    2. EG Ruby
    (1994b)
    Applied and Environmental Microbiology 60:1565-71.
  64. 64
    Ecology of Vibrio Fischeri, the Light Organ Symbiont of the Hawaiian Sepiolid Squid Euprymna Scolopes
    1. KH Lee
    (1994)
    University of Southern California.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
    Experiments in Molecular Genetics
    1. JH Miller
    (1972)
    Cold Spring Harbor. New York: NY: Cold Spring Harbor Laboratory.
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
    Competitive dominance among strains of luminous bacteria provides an unusual form of evidence for parallel evolution in sepiolid squid-Vibrio symbioses
    1. MK Nishiguchi
    2. EG Ruby
    3. MJ McFall-Ngai
    (1998)
    Applied and Environmental Microbiology 64:3209.
  89. 89
  90. 90
    Essentials of Glycobiology
    1. V Nizet
    2. JD Esko
    (2009)
    Bacterial and viral infections, Essentials of Glycobiology, 2nd edn, New York, Cold Spring Harbor Laboratory Press.
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
    The rate of adaptation in asexuals
    1. HA Orr
    (2000)
    Genetics 155:961–968.
  99. 99
    The distribution of fitness effects among beneficial mutations
    1. HA Orr
    (2003)
    Genetics 163:1519–1526.
  100. 100
  101. 101
  102. 102
  103. 103
    Bacterial Pathogenesis Part A: Identification and Regulation of Virulence Factors
    1. SM Payne
    (1994)
    329–344, [25] Detection, isolation, and characterization of siderophores, Bacterial Pathogenesis Part A: Identification and Regulation of Virulence Factors, Elsevier.
  104. 104
  105. 105
    Experimental Evolution of Vibrio Fischeri to Squid Symbiosis
    1. LA Perry
    (2009)
    University of New Hampshire.
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
    Pyruvate production and excretion by the luminous marine bacteria
    1. EG Ruby
    2. KH Nealson
    (1977)
    Applied and Environmental Microbiology 34:164–169.
  111. 111
  112. 112
    The Vibrio fischeri-Euprymna scolopes light organ association: current ecological paradigms
    1. EG Ruby
    2. KH Lee
    (1998)
    Applied and Environmental Microbiology 64:805–812.
  113. 113
  114. 114
  115. 115
    Molecular Cloning: A Laboratory Manual (2nd edn)
    1. J Sambrook
    2. EF Fritsch
    3. T Maniatis
    (1989)
    Cold Spring Harbor: NY: Cold Spring Harbor Laboratory Press.
  116. 116
  117. 117
  118. 118
  119. 119
  120. 120
  121. 121
  122. 122
  123. 123
  124. 124
  125. 125
  126. 126
  127. 127
  128. 128
  129. 129
  130. 130
  131. 131
  132. 132
  133. 133
  134. 134
  135. 135
  136. 136
  137. 137
    The periplasmic, group III catalase of Vibrio fischeri is required for normal symbiotic competence and is induced both by oxidative stress and by approach to stationary phase
    1. KL Visick
    2. EG Ruby
    (1998)
    Journal of Bacteriology 180:2087–2092.
  138. 138
  139. 139
  140. 140
  141. 141
  142. 142
  143. 143
  144. 144
  145. 145
  146. 146
  147. 147
  148. 148
  149. 149
  150. 150
  151. 151
  152. 152
  153. 153
    Preparation of genomic DNA From bacteria
    1. K Wilson
    (2001)
    Hoboken, USA: John Wiley & Sons, Inc.
  154. 154
  155. 155
  156. 156
  157. 157
  158. 158
  159. 159
  160. 160
  161. 161

Decision letter

  1. Edward G Ruby
    Reviewing Editor; University of Hawaii, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Host-selected mutations converging on a global regulator drive an adaptive leap by bacteria to symbiosis" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a guest Reviewing Editor and Detlef Weigel as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and we have drafted this decision to help you prepare a revised submission. The verbatim comments of the reviewers are attached as well.

Summary:

This is an impressive example of bacterial experimental evolution in a host setting, identifying mutational change of a regulator as key for symbiotic association. It is the first description of adaptive significance of particular binK alleles for V. fischeri symbiosis initiation and persistence in E. scolopes, based on work with in vivo squid-host evolution system. The standard is exemplary: multiple lines of evolution, re-sequencing of original and full sequencing of all resulting strains, etc.

Essential revisions:

The major weakness of the work is that it potentially aims to do too much. The transcriptome (and several other) sections appear ancillary and distract from the core findings. These should either be removed or (preferably) moved to supplementary material. Similarly, binK phenotypes that do not connect to the rest of the story should be left out of this paper, and published once there is a clearer understanding of them. Such focusing will also help pare down the 10 pages of Discussion, which contains far too much speculation, mostly about the weakest findings.

Additional points: The reviewers raise many points regarding the presentation and Discussion (see below). Please pay attention to these in your revision, but note that there is no need to enumerate all your responses in the "response to reviewer" letter that will accompany your revision, only those where you disagree with the reviewers and are planning not to follow their advice.

Reviewer #1:

This article is appropriate for publication in eLife. I am in favor of publication because the article is the first description for the adaptive significance of particular binK alleles for V. fischeri symbiosis initiation and persistence in E. scolopes. The authors leverage their experimental, in vivo squid-host evolution system to arrive at this result; this application is a relatively novel and clever use of the system and should be a standard by which these sorts of experiments are performed (multiple lines of evolution, re-sequencing of original and full sequencing of all resulting strains, etc.). Furthermore, the authors have done a thorough job of characterizing multiple effects that a particular binK allele has on symbiosis-associated characteristics in the system – pushing knowledge of the importance of regulation of biofilm-associated phenotypes ahead in this system specifically and host-bacterial symbiosis in general.

The above written, the authors could be much more careful in their writing and editing of this manuscript. This is a long manuscript, and there are many editorial errors (some by omission). Also, although it is nice to have all of the data in one place, the story appears to be a potpourri of findings and overlong. I recommend that the authors streamline and narrow the focus of this story (for example, by leaving out the transcriptomics data, perhaps).

Furthermore, before publication the authors should include a Methods sub-section explicitly describing their statistical tests, the corrections for multiple comparisons, if any, and a more thorough explanation for technical replicates vs. experimental replicates. In the manuscript body, it is sometimes unclear, and always a bit opaque as to, in general, which calls/flags from the coin package were used in R to conduct each test. From the authors' descriptions in the "transparent reporting form" I was unsure if these particular permutation tests, like parametric tests, require corrections when multiple comparisons from the same experiment are completed. I understand why the authors may have chosen to use coin (for example, data non-normality or philosophical opinions about drawing from true, representative subpopulations, perhaps), however, the reader has to infer this and may be a bit confused in general as to these tests (or, for example why the authors choose to use them in all cases except one – see subsection “The large selective advantage conferred by squid-adapted binK improved fitness during both the initiation and maintenance stages of symbiosis, consistent with theoretical predictions”, first paragraph). I urge the authors to clarify their statistical reasoning/philosophy and methodology for the readers before publication. Finally, many experiments appear to contain technical replicates and/or experimental replicates, but few describe what these are and how they were analyzed appropriately via the tests above – for example, many lines (see subsection “Luminescence, homoserine lactone, and cell density determination” for an example) imply that data were all lumped together for technical/experimental replicates.

One final minor note: the authors' use neutral assumptions for their modeling of in-squid dynamics, but the argument is also made that the binK locus is demonstrably not under neutral conditions after initiation – how are these two statements reconciled in the authors' minds?

Reviewer #2:

This is an impressive example of bacterial experimental evolution in a host setting, identifying mutational change of a regulator as key for symbiotic association. A single gene, encoding a sensor kinase, is identified to confer the ability to colonize the host and remain in stable association over several generations, and the downstream effect of the sensor kinase on biofilm (EPS) formation, response of the innate immune system, quorum sensing, and metabolism are elucidated to provide a mechanistic explanation for the genetic result. The authors have conducted a very comprehensive piece of work, including proper controls (strain evolution in culture vs. in symbiosis; knockouts; transcriptomic and metabolism profiling).

I have only a few comments that need to be addressed prior to publication:

Introduction, last paragraph and Figure 2: when describing the experimental setup, the "neutral" /negative control (evolution of MJ11 in pure culture without selection) should be introduced; it is shown in Figure 2 but not mentioned anywhere at this point, so in order to understand the figure and controls, please introduce early in the text.

Figure 2: has the potential to explain the outcome of the experimental evolution in a nutshell but needs serious improvement: symbols are often way too small and the legend does not explain all the information hidden in the figure. Fx the binK "colored dots" in A and C are hard to distinguish (I cannot figure out, which MJ11 mutation occurred twice), even when zooming in, the "host symbols" are hard to recognize, and panel B does not work at all (see also comment below). The structural model (panel C) is poorly explained (I assume the faint grey bar depicts the membrane, so Cache is in the periplasm?), and the scoring matrix is not discussed any further and thus a strange way to suggest that the 4 occurring mutations are not functionally neutral – what is the point to display all other possibilities as well?

One question that arises (and that could have been answered in Figure 2B) is whether the binK evolution results in a convergence of MJ11-evolved BinK to the binK variant of the native strain ES114? Or does it just somewhat lose functionality? Please address.

Figure 4A: is this a conceptual figure or based on actual data? Please make clear.

Figure 9: please define "mean expression per locus": how was that calculated?please use colored labels for compounds that are clearly distinguishable at this size; please indicate whether the 4 replicates are technical or biological; please add gene symbols to the coding loci where possible; I would especially appreciate to add the genes discussed earlier in the study to the heat map, i.e. binA, sypE, sypK, lux, etc.

Subsection “Squid-adapted binK confers metabolic convergence with native symbionts”, last paragraph: Biolog does not measure redox. There's a redox dye that indicates substrate utilization, i.e. it is reduced and results in color precipitation. But saying "greater redox" is not correct.

https://doi.org/10.7554/eLife.24414.040

Author response

Essential revisions:

The major weakness of the work is that it potentially aims to do too much. The transcriptome (and several other) sections appear ancillary and distract from the core findings. These should either be removed or (preferably) moved to supplementary material. Similarly, binK phenotypes that do not connect to the rest of the story should be left out of this paper, and published once there is a clearer understanding of them. Such focusing will also help pare down the 10 pages of Discussion, which contains far too much speculation, mostly about the weakest findings.

The reviewers raised concerns about datasets that distract from our core findings, and those identified as potentially tangential included the transcriptome and metabolism data. We agree, these datasets are not critical for most of the conclusions, especially regarding specific mechanisms of adaptation, and as such are suitable for the supplementary material. We have moved the major sections of text describing those results to the supplement. We have moved the transcriptomics heatmap to Figure 5—figure supplement 2 (and summary table to Supplementary file 1) due to the fact that this data provides important corroboration that cellulose is a regulatory target of BinK. The Biolog metabolic profiles are now in a Supplementary file 2. Due to the substantial fitness gain attained during sustained colonization (Figure 4B), and improved yield in light organs (Figure 3—figure supplement 2), we feel the metabolic data should still be included in the manuscript as this data showing convergent metabolism with the native symbiont aligns with the documented fitness gains, demonstrates the global effects of the regulator, and provides additional context for the altered function of the evolved allele that is necessary for understanding why this regulator confers such an extraordinary fitness gain that cannot be explained by initiation phenotypes alone.

Reviewer #1:

This article is appropriate for publication in eLife. I am in favor of publication because the article is the first description for the adaptive significance of particular binK alleles for V. fischeri symbiosis initiation and persistence in E. scolopes. The authors leverage their experimental, in vivo squid-host evolution system to arrive at this result; this application is a relatively novel and clever use of the system and should be a standard by which these sorts of experiments are performed (multiple lines of evolution, re-sequencing of original and full sequencing of all resulting strains, etc.). Furthermore, the authors have done a thorough job of characterizing multiple effects that a particular binK allele has on symbiosis-associated characteristics in the system – pushing knowledge of the importance of regulation of biofilm-associated phenotypes ahead in this system specifically and host-bacterial symbiosis in general.

The above written, the authors could be much more careful in their writing and editing of this manuscript. This is a long manuscript, and there are many editorial errors (some by omission). Also, although it is nice to have all of the data in one place, the story appears to be a potpourri of findings and overlong. I recommend that the authors streamline and narrow the focus of this story (for example, by leaving out the transcriptomics data, perhaps).

Furthermore, before publication the authors should include a Methods sub-section explicitly describing their statistical tests, the corrections for multiple comparisons, if any, and a more thorough explanation for technical replicates vs. experimental replicates. In the manuscript body, it is sometimes unclear, and always a bit opaque as to, in general, which calls/flags from the coin package were used in R to conduct each test. From the authors' descriptions in the "transparent reporting form" I was unsure if these particular permutation tests, like parametric tests, require corrections when multiple comparisons from the same experiment are completed. I understand why the authors may have chosen to use coin (for example, data non-normality or philosophical opinions about drawing from true, representative subpopulations, perhaps), however, the reader has to infer this and may be a bit confused in general as to these tests (or, for example why the authors choose to use them in all cases except one – see subsection “The large selective advantage conferred by squid-adapted binK improved fitness during both the initiation and maintenance stages of symbiosis, consistent with theoretical predictions”, first paragraph). I urge the authors to clarify their statistical reasoning/philosophy and methodology for the readers before publication. Finally, many experiments appear to contain technical replicates and/or experimental replicates, but few describe what these are and how they were analyzed appropriately via the tests above – for example, many lines (see subsection “Luminescence, homoserine lactone, and cell density determination” for an example) imply that data were all lumped together for technical/experimental replicates.

We have added a Methods subsection to clarify the statistical tests used for assays, including how data from replicated experiments was combined and blocked for possible artefact. Use of a block factor obviates the need for multiple-test correction, as only a single p-value is calculated on the variable of interest. Further, for each Methods section, we have reported the R package and method used. To be consistent, we have also now replaced the only parametric test with the exact Fisher-Pitman permutation test as used elsewhere.

One final minor note: the authors' use neutral assumptions for their modeling of in-squid dynamics, but the argument is also made that the binK locus is demonstrably not under neutral conditions after initiation – how are these two statements reconciled in the authors' minds?

The model does not assume neutrality. We had included an estimate of the number of non-synonymous binK alleles that could theoretically arise under neutral evolution, but we have removed this estimate (as it does not affect the model or our interpretation) to prevent confusion.

Reviewer #2:

[…] I have only a few comments that need to be addressed prior to publication:

Introduction, last paragraph and Figure 2: when describing the experimental setup, the "neutral" /negative control (evolution of MJ11 in pure culture without selection) should be introduced; it is shown in Figure 2 but not mentioned anywhere at this point, so in order to understand the figure and controls, please introduce early in the text.

Corrected.

Figure 2: has the potential to explain the outcome of the experimental evolution in a nutshell but needs serious improvement: symbols are often way too small and the legend does not explain all the information hidden in the figure. Fx the binK "colored dots" in A and C are hard to distinguish (I cannot figure out, which MJ11 mutation occurred twice), even when zooming in, the "host symbols" are hard to recognize, and panel B does not work at all (see also comment below). The structural model (panel C) is poorly explained (I assume the faint grey bar depicts the membrane, so Cache is in the periplasm?), and the scoring matrix is not discussed any further and thus a strange way to suggest that the 4 occurring mutations are not functionally neutral – what is the point to display all other possibilities as well?

We have replaced panels B and C with a single panel that better conveys the message that mutations in these functional domains are rare in wild strains, including ES114, and thus are more likely to confer functional changes. We have also modified the text to better integrate the PSSM results.

One question that arises (and that could have been answered in Figure 2B) is whether the binK evolution results in a convergence of MJ11-evolved BinK to the binK variant of the native strain ES114? Or does it just somewhat lose functionality? Please address.

ES114 and MJ11 wild-type are highly conserved across these sites. We have addressed this with the new panel 2B. We also specifically clarify in the text that these are not convergent with the native strain ES114.

Figure 4A: is this a conceptual figure or based on actual data? Please make clear.

We have clarified that 4A is conceptual in the legend.

Figure 9: please define "mean expression per locus": how was that calculated?please use colored labels for compounds that are clearly distinguishable at this size; please indicate whether the 4 replicates are technical or biological; please add gene symbols to the coding loci where possible; I would especially appreciate to add the genes discussed earlier in the study to the heat map, i.e. binA, sypE, sypK, lux, etc.

We have updated the legend to indicate biological replication and to explain how expression scaling was calculated. The exact steps are also available in an R source file provided during submission. Labels for the genes of interest here are also now provided.

Subsection “Squid-adapted binK confers metabolic convergence with native symbionts”, last paragraph: Biolog does not measure redox. There's a redox dye that indicates substrate utilization, i.e. it is reduced and results in color precipitation. But saying "greater redox" is not correct.

Corrected.

https://doi.org/10.7554/eLife.24414.041

Article and author information

Author details

  1. M Sabrina Pankey

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Northeast Center for Vibrio Disease and Ecology, College of Life Science and Agriculture, University of New Hampshire, Durham, United States
    Contribution
    MSP, Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Randi L Foxall
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7061-9613
  2. Randi L Foxall

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Northeast Center for Vibrio Disease and Ecology, College of Life Science and Agriculture, University of New Hampshire, Durham, United States
    Contribution
    RLF, Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    M Sabrina Pankey
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2396-6695
  3. Ian M Ster

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Northeast Center for Vibrio Disease and Ecology, College of Life Science and Agriculture, University of New Hampshire, Durham, United States
    3. Graduate Program in Biochemistry, University of New Hampshire, Durham, United States
    Contribution
    IMS, Investigation, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Lauren A Perry

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Graduate Program in Microbiology, University of New Hampshire, Durham, United States
    Contribution
    LAP, Validation, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  5. Brian M Schuster

    Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    Present address
    Microbiology and Molecular Genetics, University of Pittsburgh School of Medicine, Pittsburgh, United States
    Contribution
    BMS, Validation, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  6. Rachel A Donner

    Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    Contribution
    RAD, Validation, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  7. Matthew Coyle

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Graduate Program in Microbiology, University of New Hampshire, Durham, United States
    Contribution
    MC, Validation, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  8. Vaughn S Cooper

    Northeast Center for Vibrio Disease and Ecology, College of Life Science and Agriculture, University of New Hampshire, Durham, United States
    Present address
    Microbiology and Molecular Genetics, University of Pittsburgh School of Medicine, Pittsburgh, United States
    Contribution
    VSC, Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  9. Cheryl A Whistler

    1. Department of Molecular, Cellular and Biomedical Sciences, University of New Hampshire, Durham, United States
    2. Northeast Center for Vibrio Disease and Ecology, College of Life Science and Agriculture, University of New Hampshire, Durham, United States
    Contribution
    CAW, Conceptualization, Resources, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    cheryl.whistler@unh.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2301-2069

Funding

National Science Foundation (IOS-1258099)

  • Vaughn S Cooper
  • Cheryl A Whistler

U.S. Department of Agriculture (0216015)

  • Cheryl A Whistler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Richard Klobuchar, Chris Payne and the Monterey Bay Aquarium, and Deborah S Millikan for E. scolopes specimens; Marcus Dillon, W Kelley Thomas, and Robert Sebra for library preparation and genome sequencing expertise; Spencer Nyholm, Sarah McAnulty and Bethany Rader for guidance in performing hemocyte binding; Karen Visick for insightful guidance on symbiotic polysaccharide studies, strains and constructs; Amy Schaefer for insightful guidance on quorum regulation, and constructs; Matthew Neiditch, Brandon McDonald, Ashley Gagnon, Nicole Clark, and Sarah Martini for technical assistance; and Louis Tisa, Alicia Ballock, Megan Striplin, Evan DaSilva, Feng Xu, Ashley Marcinkiewicz, Mark Mandel, Michelle Nishiguchi, William Soto, Stacia Sower, Kevin Culligan, Philip Gerrish, Caroline Turner, Todd Oakley and David Plachetzki for critical feedback and discussions. Finally, we are grateful for the critical feedback provided by anonymous reviewers, whose insight and suggestions improved the final manuscript. Funding was provided by the National Science Foundation (IOS-1258099) and the New Hampshire Agricultural Experiment Station through the USDA National Institute of Food and Agriculture Hatch program (Accession number 0216015). This is Scientific Contribution Number 2666.

Reviewing Editor

  1. Edward G Ruby, University of Hawaii, United States

Publication history

  1. Received: December 19, 2016
  2. Accepted: April 23, 2017
  3. Accepted Manuscript published: April 27, 2017 (version 1)
  4. Version of Record published: June 9, 2017 (version 2)

Copyright

© 2017, Sabrina Pankey et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,593
    Page views
  • 460
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Karina Perlaza et al.
    Research Article
    1. Genetics and Genomics
    2. Neuroscience
    Rebecca Delventhal et al.
    Research Article
