Ribonuclease L mediates the cell-lethal phenotype of double-stranded RNA editing enzyme ADAR1 deficiency in a human cell line

  1. Yize Li
  2. Shuvojit Banerjee
  3. Stephen A Goldstein
  4. Beihua Dong
  5. Christina Gaughan
  6. Sneha Rath
  7. Jesse Donovan
  8. Alexei Korennykh
  9. Robert H Silverman  Is a corresponding author
  10. Susan R Weiss  Is a corresponding author
  1. Perelman School of Medicine, University of Pennsylvania, United States
  2. Cleveland Clinic, United States
  3. Princeton University, United States
Research Article
  • Cited 6
  • Views 2,223
  • Annotations
Cite as: eLife 2017;6:e25687 doi: 10.7554/eLife.25687

Abstract

ADAR1 isoforms are adenosine deaminases that edit and destabilize double-stranded RNA reducing its immunostimulatory activities. Mutation of ADAR1 leads to a severe neurodevelopmental and inflammatory disease of children, Aicardi-Goutiéres syndrome. In mice, Adar1 mutations are embryonic lethal but are rescued by mutation of the Mda5 or Mavs genes, which function in IFN induction. However, the specific IFN regulated proteins responsible for the pathogenic effects of ADAR1 mutation are unknown. We show that the cell-lethal phenotype of ADAR1 deletion in human lung adenocarcinoma A549 cells is rescued by CRISPR/Cas9 mutagenesis of the RNASEL gene or by expression of the RNase L antagonist, murine coronavirus NS2 accessory protein. Our result demonstrate that ablation of RNase L activity promotes survival of ADAR1 deficient cells even in the presence of MDA5 and MAVS, suggesting that the RNase L system is the primary sensor pathway for endogenous dsRNA that leads to cell death.

https://doi.org/10.7554/eLife.25687.001

Introduction

Adenosine deaminase acting on dsRNA (ADAR1) isoforms neutralize the immunostimulatory activity of double-stranded RNA (dsRNA) by converting adenosine to inosine (i.e., A-to-I editing) (George et al., 2014; Tomaselli et al., 2015; Patterson and Samuel, 1995). ADAR1 alters the RNA coding sequence, because I is read as G, and it also destabilizes dsRNA because A:U base pairs are disrupted than I:U mismatches. These modifications by ADAR1 suppress the cellular responses to dsRNA and prevent to type I IFN production. There are three mammalian ADAR genes (ADAR1-3), but only ADAR1 isoforms p110 and p150 and ADAR2 have deaminase activity (Tomaselli et al., 2015). The IFN inducible ADAR1 p150 isoform (subsequently ‘p150’) is present in both the cytoplasm and nucleus, while the constitutive ADAR1 p110 (an N-terminal truncated isoform translated from a shorter mRNA initiated at a downstream promoter in ADAR1) and ADAR2 are mostly nuclear. Mutations of ADAR1 result in the severe, sometimes lethal, childhood neurodevelopmental disease, Aicardi-Goutiéres syndrome (Rice et al., 2012).

Interestingly, ADAR1 can be either pro-viral or anti-viral depending on the virus-host cell context (reviewed in [George et al., 2014]). The antiviral effects are due to hyper-editing and mutagenesis of viral RNAs (Samuel, 2011). Proviral effects are due in part to editing of viral RNAs (Wong and Lazinski, 2002) and/or to destabilizing dsRNA resulting in suppression of dsRNA-signaling through MDA5 and MAVS to type I IFN genes (Figure 1). Accordingly, mutation of either MDA5 or MAVS rescues the embryonic lethal phenotype of Adar1 knockout (KO) mice (Pestal et al., 2015; Liddicoat et al., 2015; Mannion et al., 2014). ADAR1 also antagonizes the IFN-inducible dsRNA-dependent serine/threonine protein kinase, PKR, presumably by altering the structure of dsRNA and thereby preventing both PKR activation and phosphorylation of its substrate protein, eIF2α (Samuel, 2011; Gélinas et al., 2011; Wang et al., 2004). However, whereas effects of ADAR1 on PKR activity have been extensively studied, ADAR1 effects on another IFN-regulated dsRNA-activated antiviral pathway, the oligoadenylate-synthetase (OAS-RNase L) system, have not been described. OAS isoforms (OAS1, OAS2, OAS3) are IFN inducible enzymes that sense dsRNA and produce 2’,5’-oligoadenylates (2-5A) which activate RNase L to degrade viral and host single-stranded RNAs leading to apoptosis and inhibition of virus growth (Silverman and Weiss, 2014). Here we report that whereas ADAR1 single gene KO A549 cells were not viable, it was possible to rescue ADAR1 deficient cells by knockout (KO) of either RNASEL or MAVS or by expression of a viral antagonist of the OAS/RNase L system (Silverman and Weiss, 2014). Our results suggest that the RNase L activation is the primary mode of cell death induced by either endogenous or exogenous dsRNA.

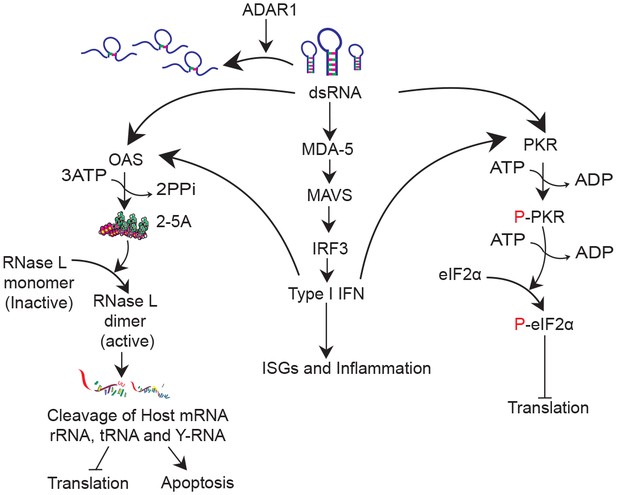

DsRNA induced antiviral pathways.

DsRNA can be destabilized by ADAR1 activity. In the absence of ADAR1 dsRNA can be recognized by (1) MDA5 leading to IFN production; (2) OAS leading to activation of RNase L and eventually translational inhibition and apoptosis and (3) PKR leading to inhibition of translation.

https://doi.org/10.7554/eLife.25687.002

Results

RNase L activity is the major pathway leading to dsRNA-induced cell death

Before assessing the role of ADAR in regulating the RNase L pathway we compared the roles of MAVS, RNase L and PKR in mediating dsRNA induced cell death in A549 cells. Thus we used lentivirus delivered CRISPR/Cas9 and single-guide (sg)RNA (Table 1) to construct A549 cell lines with disruption of genes encoding each of these proteins, RNASEL KO, MAVS KO, PKR KO cells as well as MAVS-RNASEL double knockout (DKO). Disruption of each gene and protein expression in the absence or presence of IFN-α was confirmed by sequence analysis and Western immunoblot (Figure 2a–c; Table 2). The various A549 mutant cell lines were characterized for their sensitivity or resistance to exogenous dsRNA by poly(rI):poly(rC) (pIC) transfection as compared to wild type (WT) A549 (Figure 3). We initially transfected WT A549 and KO with a range of concentrations of pIC and at 48 hr post treatment cells were fixed and stained with crystal violet. Cells lacking RNase L expression were resistant to cell death at treatment with up to 5 µg/ml of pIC while treatment of WT A549 as well as PKR KO or MAVS KO cells with 0.5 µg/ml of pIC promoted cell death (Figure 3a). To obtain a more quantitative measure of cell death as well as to assess the effects of ADAR1 ablation on cell death, we compared the kinetics of pIC-induced cell death with the same set of cells in real time with an IncuCyte Live Cell Imaging System and software (Figure 3b). We also observed markers of apoptosis (caspase 3/7 activity) in real time (Figure 3c). While cells expressing RNase L died by 24–30 hr post treatment, cells ablated for RNase L expression (RNASEL KO and RNASEL-MAVS DKO) were resistant to pIC induced cell death (Figure 3b&c). Similarly, RNASEL KO or RNASEL-MAVS DKO showed accelerated wound healing in monolayer scratch assays compared with MAVS KO and WT cells, all of which retained RNase L (Figure 3d). RNase L was previously reported to impair cell migration in these assays (Banerjee et al., 2015; Rath et al., 2015) as well as to promote apoptosis (Zhou et al., 1997). Finally, the protective effect of RNASEL KO was not restricted to A549 cells as human mammary epithelial (HME) cells were also protected from pIC-induced cell death by ablation of RNase L expression (Figure 3e).

Table 1

Construction of the plasmids for knockout of human ADAR1, MAVS and PKR using CRISPR/Cas9.

https://doi.org/10.7554/eLife.25687.003
GenesPrimersNucleotide sequences (5’−3’)*Targeting
Region
ADAR1sgADAR1-4ForwardCACCGTCTGTCAAATGCCATATGGGExon2
ReverseAAACCCCATATGGCATTTGACAGAC
sgADAR1-6ForwardCACCGACTCAGTTCCTGGAAATGTGExon2
ReverseAAACCACATTTCCAGGAACTGAGTC
MAVSsgMAVS-1ForwardCACCGGAGGGCTGCCAGGTCAGAGGExon4
ReverseAAACCCTCTGACCTGGCAGCCCTC
PKRsgPKR-1ForwardCACCGTAATACATACCGTCAGAAGCExon1
ReverseAAACGCTTCTGACGGTATGTATTAC
  1. *Nucleotides sequences which were used for targeting gene are indicated as bold and italic.

Figure 2 with 1 supplement see all

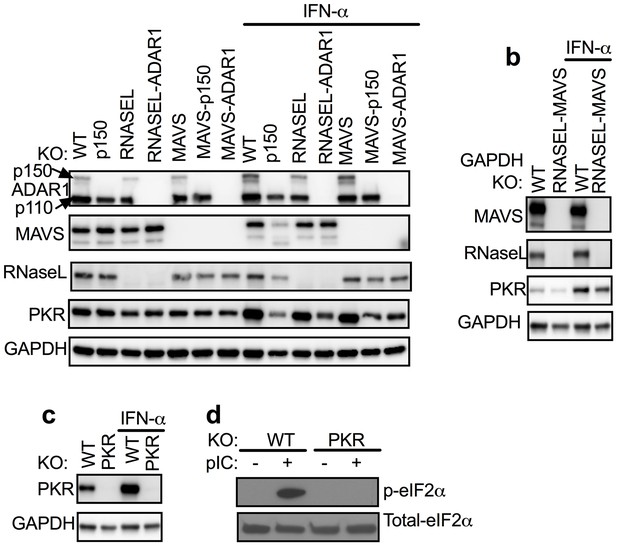

ADAR1 KO cells were rescued from RNASE L KO or MAVS KO but not from WT or PKR KO A549 cells.

(a) WT, WT-p150 KO, RNASEL KO, RNASEL-ADAR DKO, MAVS KO, MAVS-p150 DKO, MAVS-ADAR1 DKO; (PKR expression was induced 1.6–1.9 fold following IFN treatment in cells expressing ADAR1 and reduced 0.3–0.6 fold in cells deleted for ADAR1 or ADAR1 p150; Figure 2—source data 1.) (b) WT or RNASEL-MAVS DKO or (c) WT or PKR KO cells were treated or mock treated with 1000 U/ml IFN-α overnight, lysed and proteins analyzed by Western immunoblotting with antibodies as indicated. (d) WT and PKR KO cells were transfected with pIC (1 µg/ml). After 2 hr, proteins in cell lysates were separated by 12% SDS/PAGE, transferred to PVDF-membranes, and probed with antibodies to detect total eIF2α or phosphorylated eIF2α. Immunoblots (in a–c) were performed at least two times and one representative blot is shown. See Figure 2—figure supplement 1.

https://doi.org/10.7554/eLife.25687.004
Table 2

Primers for genotyping ADAR1, MAVS, and PKR knockout cells.

https://doi.org/10.7554/eLife.25687.007
GenesPrimers*Nucleotide sequences (5’−3’)
ADAR1Forward-1ACCTTCCCTCCCAGGACTCCGGCC
Reverse-1CCTGAGTGGAGACCGCGATTTTCC
Forward-2ATGGCCGAGATCAAGGAGAAAATC
Reverse-2GTTCTGGTCTGGCCTCTTGCCTG
MAVSForwardCTCCCCTGGCTCCTGTGCTCC
ReverseAACTCCCTTTATTCCCACCTTG
PKRForwardAGACTGAGATGAGTCCTATAAAG
ReverseTCACCTATGAGTGAGAACATGC
  1. * Forward and Reverse-1 or -2 were used for sequencing of target region by sgADAR1-6 or sgADAR1-4 respectively.

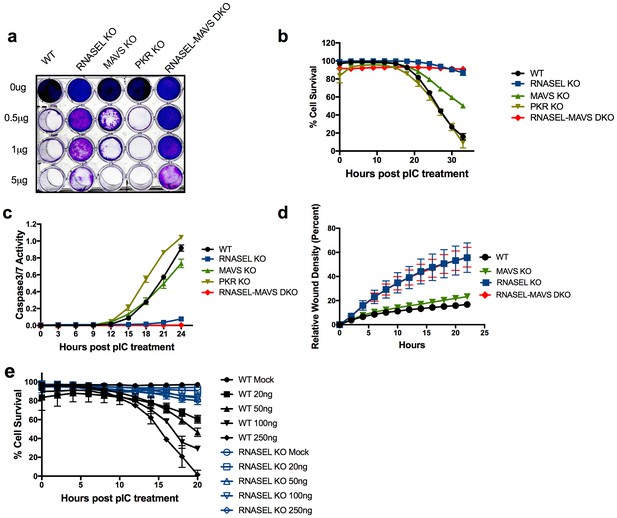

Ablation of RNase L activity attenuates pIC induced cell death and accelerates cell migration.

(a) WT and RNase L, MAVS, PKR KO and RNASEL-MAVS DKO A549 cells were treated with pIC (0 to 5 μg/ml as indicated) and 48 hr later fixed and stained with crystal violet. Data are from one representative experiment of three. (b) WT and KO A549 cells as indicated were transfected with 20 ng/ml pIC and assessed for dead cells and total cells using an IncuCyte system calculated as describe in Methods. Four separate wells were treated with each experimental condition and a minimum of 4 image fields (>10000 cells per well) were analyzed per well. (c) Cells were transfected with 20 ng/ml of pIC and caspase-3/7 activity was determined using an IncuCyte system. Four separate wells were treated with each experimental condition and a minimum of 4 image fields (>10000 cells per well) were analyzed per well. Data represent the means±SD from a minimum of four independent replicates. Similar data were obtained from two additional independent experiments. (d) Cell monolayers were scratched and wound healing was assayed in the IncuCyte system. Wound closure was observed every hour at the indicated times by comparing the mean relative wound density of at least eight technical replicates and a minimum of 2 image fields (>1000 cells per well total) were analyzed per well. Error bars represent standard deviation (SD) from the mean of a minimum of eight. Similar data were obtained from two independent experiments. (e) WT or RNASEL KO HME cells were transfected with 0(mock) or 20, 50, 100 or 250 ng/ml pIC and cell viability was quantified in the IncuCyte system. Four biological replicate wells were treated with each experimental condition and a minimum of 4 image fields (>1000 cells per well total) were analyzed per well. Data is representative of four replicates.

https://doi.org/10.7554/eLife.25687.008

Rescue of ADAR1 KO cells by KO of RNASEL or MAVS

Mouse studies had shown that the embryonic lethal phenotype of Adar1 KO could be rescued by KO of Mavs or Mda5 presumably by reducing the downstream IFN signaling effects of dsRNA produced in the absence of ADAR1 editing (Pestal et al., 2015). We found that ADAR1 KO is also lethal in A549 cells (Table 3 and described below). Since activation of RNase L by exogenously provided pIC accelerated cell death so dramatically in A549 cells, we investigated whether KO of RNASEL, as well as dsRNA sensors MAVS and PKR, could rescue A549 ADAR1 KO cells from lethal the effects of dsRNA. Using lentivirus delivered CRISPR/Cas9 and sgRNA4 directed at Exon 1 of ADAR1 within the coding regions of p110 and p150 (Table 1; Figure 2—figure supplement 1) we screened more than 40 clones derived from WT A549 cells or PKR KO A549 and were unable to recover cells with a KO of ADAR1 (Table 3). The WT or PKR KO clones in which ADAR1 remained intact were apparently derived from cells in which the CRISRP/Cas9 targeting vector failed to mutate ADAR1. However using RNASEL KO or MAVS KO A549 cells and similar lentivirus delivery of sgRNA4 we were able to recover both RNASEL-ADAR1 and MAVS-ADAR1 double KO (DKO) cells (Table 3, Figure 2). We compared the kinetics of cell death in response to pIC transfection of these DKO cells using the IncuCyte system (Figure 4a). While MAVS-ADAR1 DKO cells died more slowly than WT cells, RNase L-ADAR1 DKO cells were almost completely protected from cell death further supporting the finding that RNase L is the major pathway leading to cell death in the absence of ADAR1 editing. As might be expected, the kinetics of cell death following treatment with exogenous pIC (not a substrate of ADAR1) are similar in RNASEL KO and RNASEL-ADAR1 DKO or MAVS KO and MAVS-ADAR1 DKO (compare Figure 3b and Figure 4a).

Table 3

Knockout of ADAR1 or ADAR1p150 from WT, MAVS KO, RNASEL KO, PKR KO, NS2-WT or NS2H126R –WT cells.

https://doi.org/10.7554/eLife.25687.010
Genotype of parent cellssgRNAResulting KO cells
NameNumber of clones screenedNumber of KO clones obtained
WTsgADAR1-6p150 KO2412
sgADAR1-4NA*170
MAVS KOsgADAR1-6MAVS-p150 KO248
sgADAR1-4MAVS-ADAR1 DKO238
RNASEL KOsgADAR1-4RNASEL-ADAR1 DKO242
PKR KOsgADAR1-4NA240
WT NS2sgADAR1-4NS2-ADAR1 KO564
WT NS2H126RsgADAR1-4NA540
  1. *NA, Not available.

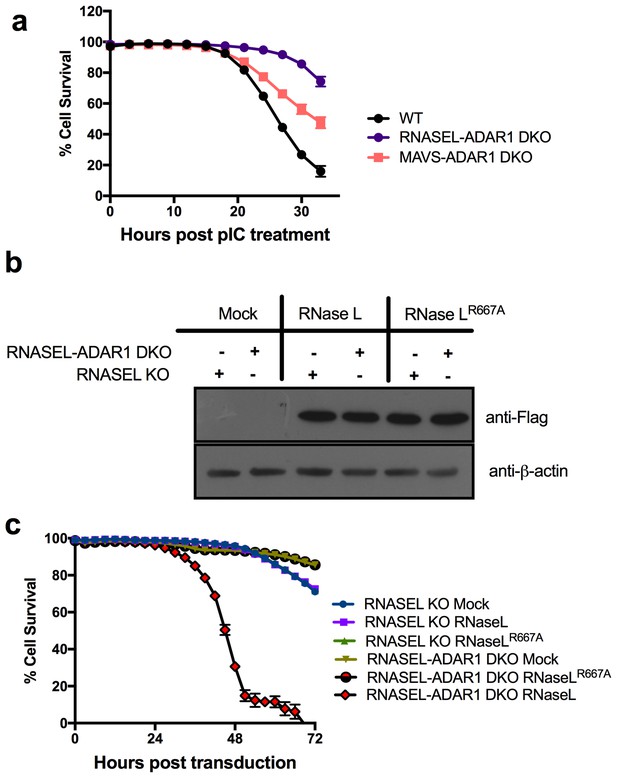

Expression of WT RNase L promotes death of RNASEL-ADAR1 KO cells.

(a) WT and KO A549 cells as indicated were transfected with 20 ng/ml of pIC and assessed for dead cells and total cells. Four separate wells were treated with each experimental condition and a minimum of 4 image fields (>10000 cells per well) were analyzed per well. Data represent the means SD from a minimum of four independent replicates. Similar data were obtained from two additional independent experiments. (The data for WT cells are the same as shown in Figure 3b). (b) RNASEL KO or RNASEL-ADAR1 DKO cells transduced with lentiviruses expressing either WT RNase L or inactive mutant (R667A) RNase L, lysed and proteins analyzed by Western immunoblotting with anti-Flag M2 monoclonal antibody (upper) or with anti-β-actin antibody (lower). (c) RNASEL KO or RNASE L-ADAR1 DKO cells were transduced with lentiviruses expressing either WT RNase L or inactive mutant (R667A) RNase L and dead and total cells assessed in the IncuCyte system. A minimum of four separate wells was treated with each experimental condition and a minimum of 9 image fields were analyzed per well. Data represent the means SD and are from one of two representative experiments. Movies showing cells from 0–72 hr post transduction are shown in Videos 14. See Figure 4—source data 1.

https://doi.org/10.7554/eLife.25687.011

RNase L promotes lethality of ADAR1 KO cells in the absence of exogenous dsRNA

In order to directly demonstrate that activation of RNase L leads to the cell-lethal phenotype of ADAR1 KO cells, we transduced RNASEL KO and RNASEL-ADAR1 DKO cells with lentiviruses expressing either WT RNase L or inactive mutant RNase LR667A (Dong et al., 2001). (Expression of RNase L and RNase LR667A by Western immunoblot is shown in Figure 4b.) Transduced cells were incubated and analyzed for total and dead cells over a period of time using the IncuCyte system (Figure 4c). WT RNase L expression in RNASEL-ADAR1 DKO caused massive cell death while expression of inactive mutant RNase L did not. Also, expression of WT or mutant RNase L had no effect on RNASE L KO cells with intact ADAR1. The kinetics of cell death or lack thereof can be observed in the movies shown in Videos 14.

Video 1
RNASEL KO cells from 0–72 hr post transduction with lenti-RNASE L (as in Figure 4c).
https://doi.org/10.7554/eLife.25687.013
Video 2
RNASEL KO cells from 0–72 hr post transduction with lenti-RNase LR667A (as in Figure 4c).
https://doi.org/10.7554/eLife.25687.014
Video 3
RNASEL-ADAR1 DKO cells from 0–72 hr post transduction with lenti-RNASE L (as in Figure 4c).
https://doi.org/10.7554/eLife.25687.015
Video 4
RNASEL-ADAR1 DKO cells from 0–72 hr post transduction with lenti-RNase LR667A (as in Figure 4c).
https://doi.org/10.7554/eLife.25687.016

To further demonstrate that endogenous dsRNA leads to RNase L activation thus accelerating cell death and that RNase L precludes recovery of ADAR1 KO cells, we constructed an A549 cell line expressing murine coronavirus accessory protein NS2 (NS2-WT), which has a 2’,5’-phosphodiesterase (PDE) activity that cleaves 2-5A thereby antagonizing activation of RNase L. As a control, we also constructed a cell line expressing an inactive mutant NS2H126R, unable to antagonize RNase L due to loss of its ability to cleave 2-5A (Zhao et al., 2012). Using CRISPR/Cas9 engineering (sgRNAs 4) we were able to recover ADAR1 KO cells expressing functional NS2 PDE (NS2-ADAR1 KO) but not the inactive mutant PDE (Table 3, Figure 5a) indicating that antagonism of RNase L by NS2 mediated cleavage of 2-5A as well as RNASEL KO promotes recovery of ADAR1 KO cells. Transfection of NS2-ADAR1 KO cells (clone C12) with siRNA against NS2 but not against control GFP reversed the NS2 phenotype, activated RNase L and promoted cell death by two days post-transfection while NS2-WT cells remained alive following siRNA mediated depletion of NS2 (Figure 5b and c). A second clone (C7) of NS2-ADAR1 KO cells showed similar phenotype (Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all

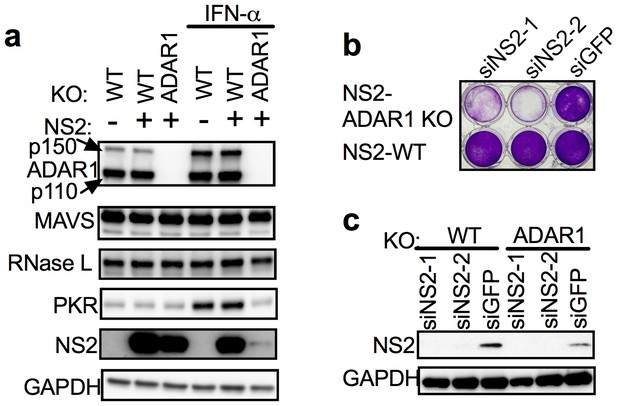

Expression of the MHV NS2 RNase L antagonist activity can rescue ADAR1 KO A549 cells.

(a) WT A549, WT A549 NS2 expressing cells or ADAR1 KO NS2 (clone C12) cells were mock treated or treated with 1000 U/ml of IFN-α overnight, lysed and proteins analyzed by Western immunoblotting with antibodies as indicated (PKR expression was induced 3.5–4.0 fold following IFN treatment in cells expressing ADAR1 and reduced 0.6 fold in cells deleted for ADAR1; Figure 5—source data 1.) (b and c) ADAR1 KO or WT A549 NS2 expressing cells were transfected with siRNAs against NS2 (siNS2-1 and siNS2-2) or siRNA against GFP (siGFP) and (b) 96 hr later cells were fixed and stained with crystal violet or (c) 72 hr later lysed and analyzed by Western immunoblotting. The siRNA knockdown data (b) is from one representative experiment of three. Similar data were obtained with another ADAR1 KO NS2 clone (C7) as shown in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.25687.017

Endogenous dsRNA leads to RNase L activation in ADAR1 KO cells

We have shown that RNase L expression rescues ADAR1 KO cells and ectopic expression of active RNase L in RNASEL-ADAR1 DKO cells or knockdown of the NS2 RNase L antagonist in NS2 expressing ADAR1 KO cells leads to cell death. These findings suggest that in the absence of ADAR1 expression, OAS is activated by endogenous dsRNA leading to RNase L activation, thus impairing cell proliferation and survival. In order to directly demonstrate OAS activation and RNase L activity by endogenous dsRNA, we quantified 2-5A, the product of OAS, and RNA degradation by RNase L in several types of ADAR1 KO cells in the absence of exogenously added dsRNA. For these experiments we used the RNASEL-ADAR1 and MAVS-ADAR1 DKO cells described above. In addition, for some of the assays we used ADAR1 p150 KO and MAVS-ADAR p150 DKO cells, derived using CRISPR/Cas9 editing and sgRNA6 (Table 3; Figure 2—figure supplement 1). Both of the these cell lines are deficient in expression of the ADAR1 p150 isoform (Figure 2a) previously reported in the mouse system to be responsible for the editing of RNA that activates MAVS or MDA5 (Pestal et al., 2015).

Because basal levels of 2-5A are minimal in the absence of exogenously added dsRNA, and the consequent RNase L activity very low (Knight et al., 1980) we pre-treated cells with IFN to increase OAS protein levels prior to quantifying 2-5A accumulation and RNA degradation. Indeed IFN treatment of ADAR1 KO cells upregulated ISG expression and further induced IFN by endogenous dsRNA in cells lacking expression of both isoforms of ADAR1 (p110 and p150) or ADAR1 p150 only (Figure 6). This was most evident in RNASEL-ADAR1 DKO cells, which retained MAVS. Using an indirect FRET based assay (Thakur et al., 2005) we observed IFN-induced accumulation of 2-5A in RNASEL-ADAR1 DKO and MAVS-ADAR1 DKO cells (although the latter not to a statistically significant extent) but not in WT, RNASEL KO or MAVS KO cells (Figure 7a). Furthermore, while rRNA remained intact in WT, RNASEL KO or MAVS KO cells, highly specific and characteristic RNase L-mediated rRNA degradation products (Silverman et al., 1983) identical to the pattern induced by Sindbis infection of WT A549 (Figure 7b) were observed by Bioanaylzer in IFN treated ADAR1 p150 KO, MAVS-ADAR1 p150 DKO, or MAVS-ADAR1 DKO cells. (It is important to note that the RNA degradation products observed in IFN-treated RNASE L-ADAR1 DKO cells are not the characteristic specific RNase L mediated pattern. The nuclease(s) responsible for these non-specific rRNA cleavage products is unknown.) Thus 2-5A was produced and RNase L activated by endogenous RNA even in the absence of MAVS. In addition to cleaving rRNA, RNase L was recently reported to strongly and site-specifically cleave tRNA-His at position 36 located in the anti-codon loop. The site-specific tRNA-His cleavage was readily observed using a quantitative RT-PCR assay in IFN-treated MAVS-ADAR1 DKO, but not in IFN-treated cells, which lack RNase L activity in the above assays: MAVS KO andRNASEL-ADAR1 DKO cells (Figure 7c) (Donovan et al., 2016).

Interferon (IFN) and interferon stimulated gene (ISG) expression following IFN treatment of ADAR1 KO cells.

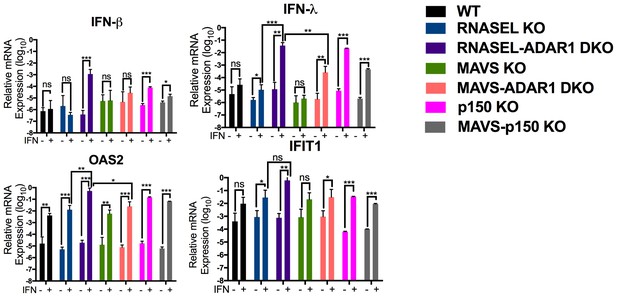

Cells were treated or mock treated with 10 U/ml of IFN-α and 24 hr post treatment, lysed and RNA extracted. Relative mRNA levels for (a) IFN-β, (b) IFN-λ, (c) OAS2 and (d) IFIT1 were quantified by RT-qPCR, using primers listed in Table 4, and expressed as 2−ΔCT where ΔCT = CT(gene of interest)CT-actin). The data are the average of three independent biological replicates (each with three technical replicates) expressed as means ± SD; *p<0.05, **p<0.01, ***p<0.001. See Figure 6—source data 1 (includes exact P values).

https://doi.org/10.7554/eLife.25687.020

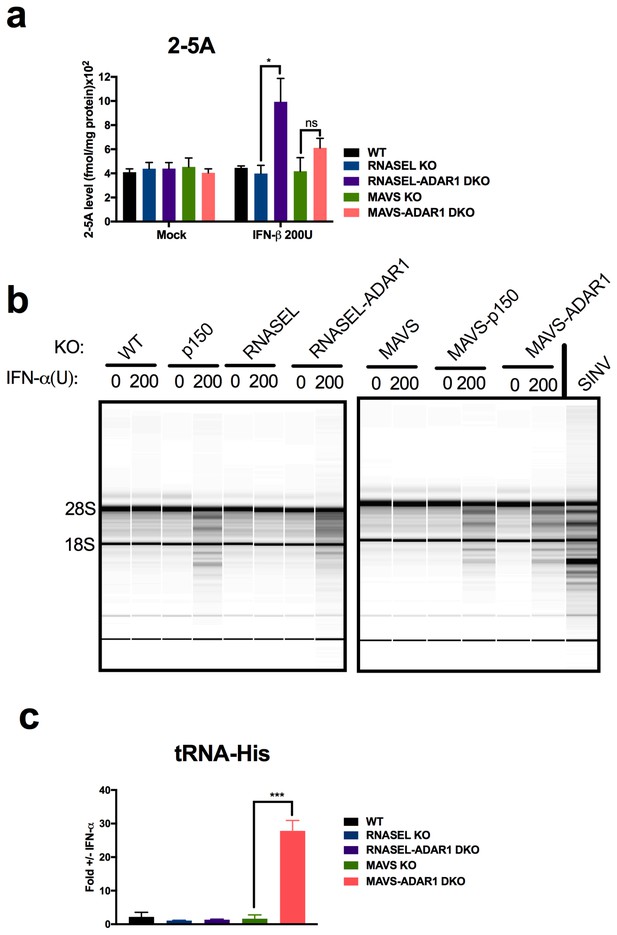

RNase L activation following IFN treatment of ADAR1 KO cells.

(a) Cells were mock treated or treated with 200 U/ml of IFN- and cells were lysed and 2-5A quantified using a FRET based assay. The data are the average of three independent biological replicates, expressed as means SD, **p=0.014; ns, p=0.1. (b) Cells were treated with 200 U/ml of IFN-α or infected with Sindbis virus (SINV) (Frolova et al., 2002) at MOI = 1, and at 48 hr post treatment or 24 hr post infection, cells were harvested, total RNA was extracted and resolved on RNA chips on a Bioanalyzer. The position of 28S and 18S rRNA and indicated. Data shown are from one representative experiment of two. (c) Cells were treated or mock treated with 10 U/ml of IFN-α and 24 hr post treatment and lysed. RNA was extracted and specific cleavages at tRNA-His-36 were quantified. The data are the average of three independent biological replicates, expressed mean SD; ***p=0.00019. See Figure 7—source data 1.

https://doi.org/10.7554/eLife.25687.022

Discussion

Ablation of ADAR1 was previously shown to be lethal during mouse embryogenesis (Pestal et al., 2015; Liddicoat et al., 2015; Mannion et al., 2014). Adar1 KO embryos show increased levels of IFN production and ISG expression relative to WT and die by E12.5, implicating ADAR1 editing of dsRNA in regulating cell and animal survival. However, deletion of MDA5 or MAVS, components of the canonical type I IFN production pathway (Figure 1), was shown to overcome the ADAR1 deficiency and allow the viability of mouse embryos, although most of the surviving mice died within the first few days after birth and there were abnormalities in organ development as well as excess IFN signaling (Pestal et al., 2015). MDA5/MAVS dependent IFN production and signaling involves many pathways and IFN stimulated gene products and it remained unclear which of the these are primary contributors to the death of these embryos, although it has been shown that PKR ablation was unable to rescue either Adar1 KO mouse embryo lethality (Wang et al., 2004).

While our finding that MAVS KO rescued the lethality of ADAR1 in a human cell system is consistent with the literature on Adar1 KO in murine systems in vivo and expected, the finding that RNase L ablation rescues the ADAR1 lethality even in the presence of MAVS and normal IFN response (Figure 2; Table 3) is unexpected. It is possible that, in the mouse embryo system, RNase L, activated downstream of MDA5-MAVS also contributes to embryonic lethality. However, rescue of lethality due to Adar1 KO by Mda5 or Mavs KO in the mouse embryo may be due to one or more other MAVS dependent activities. It should be noted that mouse embryo fibroblasts (mef) (Mannion et al., 2014) and HEK293T cells (Pestal et al., 2015) can survive ADAR1 KO. This is likely due to the low levels of OAS expression in these cell types (Banerjee et al., 2014) (and data not shown) and in the case of mefs, also a low level of RNase L (Banerjee et al., 2014).

The observation that ectopic expression of active RNase L, but not mutant inactive RNase L, promotes death of ADAR1 deficient cells supports the central role of RNase L activation in dsRNA-mediated cell death (Figure 4c, Videos 14). Further supporting this conclusion, expression of the MHV PDE, NS2, a potent RNase L antagonist (Zhao et al., 2012), but not its inactive mutant, enables recovery of viable ADAR1 KO cells while knockdown of NS2 in ADAR1 KO cells leads to cell death (Figure 5). Based on these results, we propose that RNase L has a predominant role in promoting cell death by dsRNA (Figure 1). It has been shown recently that RNase L site-specifically cleaves tRNAs and Y-RNAs, and that depletion of the Y-RNA RNY1 contributes to apoptosis (Donovan et al., 2016).

In contrast to RNase L, and consistent with mouse embryo studies (Wang et al., 2004), deletion of PKR did not allow recovery of ADAR1 KO cells and single PKR KO did not change the kinetics of pIC-induced death in cells that contained ADAR1 (Table 3, Figure 3). Apparently, PKR (a dsRNA-activated protein kinase that inhibits translation) does not substantially contribute to ADAR1 KO cell lethality. [PKR was activated by pIC in WT A549 cells resulting in phosphorylation of eIF2α, whereas pIC treatment of PKR KO cells did not result in phosphorylated eIF2α, (Figure 2d).] However, it is noted that IFN treatment of ADAR1 deficient cells did not induce PKR expression, in contrast to ADAR1 expressing cells (Figure 2a, Figure 5a, Figure 2—source data 2–source data1; Figure 5—source data 5–source data1). We do not currently know why this occurs.

Endogenous cellular dsRNA activates OAS leading to RNase L activity in MAVS-ADAR1 KO cells as evidenced by rRNA degradation, site-specific tRNA-His cleavage following IFN stimulation, and accumulation of 2-5A in RNASEL KO cells, even in the absence of exogenous dsRNA (Figure 7). It should be noted that dsRNA is the only well-established activator of OAS enzymatic activity [ Silverman and Weiss, 2014 and references therein]. While IFN treatment of RNASEL-ADAR1 DKO cells produces enhanced expression of IFN-β and -λ, and ISGs, these effects of IFN were reduced in MAVS-ADAR1 DKO cells. Our findings suggest that MAVS is likely to augment RNase L activation through the upregulation of IFNs and OASs (which are ISGs), effects that do not require exogenous dsRNA when ADAR1 is deficient (Figure 6). Indeed, although not statistically significant, the accumulation of 2-5A was greater in MAVS-ADAR1 DKO cells compared to MAVS (Figure 7). Moreover, deletion of MAVS promotes the viability of A549 cells engineered to lack ADAR1 and upon pIC treatment, the MAVS KO cells exhibit a slower rate of cell death than WT A549 (Figure 3). Nevertheless, MAVS-ADAR1 DKO cells die faster than RNASEL-ADAR1 DKO cells most likely because RNase L can be activated in the former cells (Figure 4a; Figure 7b and c). Thus, while the MDA5/MAVS pathway plays a central role in IFN induction and signaling and can upregulate both OAS and PKR (Figure 1), these data indicate that RNase L can be activated in the absence of MAVS expression in MAVS-ADAR1 DKO cells by pIC. These results are consistent with our previous findings that activation of RNase L during virus infections does not depend on IFN induction (Birdwell et al., 2016; Li et al., 2016).

Since RNase L is activated in the absence of ADAR1 editing contributing to cell death, RNase L-induced cell death could potentially contribute to symptoms of the neurodegenerative and inflammatory disease Aicardi-Goutiéres syndrome (AGS) in cases with mutation of ADAR1 (Rice et al., 2012). In mouse models, mutations of genes responsible for AGS, such as RNase H2 (Pokatayev et al., 2016) and Trex1 (Gray et al., 2015), led to self-DNA-mediated activation of cGAS, a protein functionally and structurally similar to OASs (Hornung et al., 2014). Our findings show that mutation of ADAR1 leads to self-dsRNA activation of one or more OAS isoform resulting in RNase L activity and cell death. We suggest that mutations affecting homologous nucleic acid sensors in the IFN system, cGAS and OAS, both of which produce unusual 2’−5’ internucleotide linkages, lead to AGS although through different signaling pathways. In vivo evidence for the pro-inflammatory role of RNase L was obtained in virus-infected mice where presence of RNase L contributed to secretion of the pro-inflammatory cytokine IL-1β (Chakrabarti et al., 2015). Therefore, an RNase L inhibitor drug could potentially reduce tissue damage and alleviate inflammation in some circumstances.

Materials and methods

Cell lines and viruses

Human A549 cells, obtained from Dr. George Stark (Cleveland Clinic) authenticated by STR analysis by ATCC (compared to ATCC CCL-185) were cultured in RPMI 1640 medium (Gibco) supplemented with 10% fetal bovine serum (FBS), 100 U/ml penicillin and 100 µg/ml streptomycin. Human HEK 293 T cells, authenticated by STR analysis by ATCC (compared to ATCC CRL-1573), were cultured in DMEM supplemented with 10% FBS and 1 mM sodium pyruvate. hTERT-HME1 cells (HME), obtained from Clonetech, authenticated by STR analysis at Genetica DNA Labs (compared to ATCC CRL-4010), were cultured with mammary epithelial cell growth medium (MEGM, Lonza CC-3150). Cell lines tested negative for mycoplasma at University of Pennsylvania (A549 or 293 T cells) or the Cleveland Clinic (HME cells). The RNase L knockout A549 cells were constructed using CRISPR-cas9 gene editing technology as we described previously (Li et al., 2016).

Antibodies

Rabbit anti-ADAR1 D7E2M antibody (1:1000, Cell Signaling), mouse monoclonal anti-MAVS E3 (1:250, Santa Cruz), mouse monoclonal anti-RNase L (1:1000) (Dong and Silverman, 1995), mouse monoclonal anti-PKR B-10 antibody (1:200, Santa Cruz), mouse monoclonal anti-GAPDH GA1R (1:1000, Thermo-Fisher), mouse monoclonal anti-NS2 (1:600) (provided by Stuart Siddell, University of Bristol, United Kingdom (Gusho et al., 2014) were used to detect ADAR1, MAVS, RNase L, PKR, GAPDH and NS2 respectively. Mouse monoclonal anti-Flag M2-antibody (1:5000) and mouse monoclonal anti-ß-actin (1:50000) were from Sigma-Aldrich. Rabbit anti-eIF2α (1:1000) or anti-Ser-51-phosphorylated eIF2α (1:1000) were from Cell Signaling Technology. Secondary antibodies were goat anti-mouse antibody (1:5000, Santa Cruz) and goat anti-rabbit antibody (1:3000, Cell Signaling) conjugated with HRP(Horseradish peroxidase).

Construction of plasmids and pseudolentivirus

The oligonucleotide sequences to be used for generation of single guide RNAs (sgRNA) are listed in Table 1 and their positions of sgRNA4 and sgRNA6 in the ADAR1 gene are shown in Figure 2—figure supplement 1. A pair of forward and reverse oligonucleotides for generation of each sgRNA (Table 1), synthesized by IDT) were annealed by published methods (Ran et al., 2013) and were inserted into plasmid vectors pLenti-CRISPR(Addgene) between BsmBI restriction sites. The resulting plasmids were pLenti-sgADAR1-4 and pLenti-sgADAR1-6 (targeting the ADAR1 gene), pLenti-sgMAVS-1(targeting the MAVS gene) pLenti-sgPKR-1 (targeting the PKR gene). The cDNAs encoding murine coronavirus mouse hepatitis virus (MHV) NS2 and mutant NS2H126R were cloned into a pLenti vectors using SalI/XhoI restriction sites. The packaging of pseudo lentiviruses was described previously (Li et al., 2016).

Construction of MAVS, PKR, ADAR1 gene knockout cells

The methods for construction of single gene knockout (KO) A549 cells using Lenti-CRIPSR were described previously (Li et al., 2016). For the double gene knockout (DKO), RNaseL-KO or MAVS-KO cells were transduced with Lenti-sgADAR1-4 to generate RNaseL-ADAR1 DKO or MAVS/ADAR1 DKO cells. For knocking out ADAR1 p150 expression, A549 or MAVS-KO cells were transduced with Lenti-sgADAR1-6, the cells were selected for puromycin resistance and cloned by previous described methods (Li et al., 2016). Mutations in the cells were verified by PCR using primers listed in Table 2.

Construction of NS2 or NS2H126R expressing cells and NS2 knockdown

A549 cells were transduced with Lenti-NS2 or Lenti-NS2H126R and 48 hr post transduction, medium containing 1 mg/ml of hygromycin was added, after 72 hr selection the cells were plated into a new flask and 24 hr later cloned by limited dilution by previous methods (Li et al., 2016). For NS2 knockdown, 3 × 105 cells were plated in one well of a 24-well plate, and transfected with 100 pmol siRNA in Lipofectatimine 2000; cells were harvested for western blotting (72 hr post transfection) to determine the expression level of NS2 or fixed with 4% PFA (96 hr post transfection) and stained with crystal violet. siNS2-1 (5' rArUrGrArArGrArUrArUrUrGrUrUrGrArArArUrUrCrUrCCG 3') and siNS2-2 (5' rGrGrArArUrGrCrArArUrUrCrUrArUrCrArUrArArArGrAAC 3') targetting NS2 were designed and synthesized by IDT and the siGFP was purchased from SantaCruz.

Western immunoblotting

Confluent cells in 12-well plates were treated or mock treated with 1000 U of human IFN-α (PBL) overnight, harvested, washed in PBS and lysed with NP40 buffer with protease inhibitor cocktail (Roche). Cell lysates, containing equal amounts of protein, were mixed with 4X Laemmli buffer and boiled at 95°C for 5 min and analyzed by electrophoresis on 4–15% gradient SDS gels. Proteins were transferred to polyvinylidene difluoride membranes, which were treated with 5% nonfat milk in TBST (Tris-HCl buffer saline with 0.5% Tween-20) blocking buffer for 1 hr, followed by incubation overnight at 4°C with antibodies diluted into TBST. Membranes were then washed three times with TBST and incubated with secondary antibodies for 1 hr at room temperature, washed three times with TBST and then incubated with SuperSignal West Dura Extended Duration substrate (Thermo Fisher) and the signal was detected using an Amersham Imager 600(GE). The expression level of PKR (Figure 2a and Figure 5a) was quantified by ImageJ software and the fold change between IFN-α treated and mock treated samples was calculated.

Crystal violet cell death assay

Cells were transfected with pIC (0.4 kb, Millipore), amounts as indicated, as previously described (Li et al., 2016). At 48 hr post transfection cells were fix with 4% paraformaldehyde and stained with 1% crystal violet.

IncuCyte system assays

Cell death Assay

Cells (1 × 105) were seeded in 24-well plates and after 12 hr were transfected with 20 ng/ml of pIC (high molecular weight (1.5–8 kb, InvivoGen) with Lipofectamine 2000 (Invitrogen) according to manufacturer’s protocol. The cells were incubated with 250 nM Sytox-Green dye (Thermo Fisher), a nucleic acid stain that is an indicator of dead cells and which is impermeant to live cells, and 250 nM of cell permeable dye Syto 60-Red (ThermoFisher), which allows quantification of the total number of cells present in each field, using an IncuCyte Live-Cell Imaging System and software (Essen Instruments 2015A) for 36 hr. Cell death was measured by counting the green objects per mm2 (dead cells, green) and then normalizing to the total number of cells per mm2 (red objects) at each time point using IncuCyte software. The WT and RNASEL KO HME (2 × 105) cells were grown in 12-well plates and transfected with different concentration of pIC (250 ng/ml, 100 ng/ml, 50 ng/ml and 20 ng/ml). Cell death was measured with the IncuCyte system with Sytox-Green dye (250 nM) for 20 hr.

Apoptosis assay (caspase 3/7)

Cells were seeded and transfected with pIC as above. The cells were incubated with IncuCyte Kinetic Caspase-3/7 Apoptosis Assay Reagent (green) (Essen Bioscience) according to manufacturer’s protocol and with 250 nM of Syto Red dye (ThermoFisher) for 24 hr. The apoptotic index was determined by counting the green object count/mm2 and then normalized by red object count/mm2 using IncuCyte software.

Cell migration assay

The wound healing assays were done by seeding cells in 96-well plates (Essen Image-Lock plates, Essen Instruments), and incubating in serum-free medium for 24 hr as described previously (Banerjee et al., 2015). The wounds were made with a wound scratcher (Essen Instruments). Cells were stimulated with 10% serum immediately after wound scratching, and wound confluence was monitored with IncuCyte Live-Cell Imaging System and software (Essen Instruments 2015 A). Wound closure was observed every hour at the indicated times by comparing the mean relative wound density of at least eight biological replicates in each experiments.

Re-constitution of RNase L KO cells with lentivirus encoding flag RNase L (WT and R667A mutant)

The 3X FLAG-human RNase L DNA or human mutant 3X FLAG-RNase L R667A DNA (Chakrabarti et al., 2015) were PCR amplified and inserted in lentiviral vector pCMV-PL4-Neo (Addgene, Principal Investigator Eric Campeau) as described previously (Chakrabarti et al., 2015; Banerjee et al., 2015). The lentiviruses were produced in HEK293T cells as described (Banerjee et al., 2015). Virus-containing medium was collected 48 hr after transfection and stored at −80°C. ADAR1-RNase L DKO or RNase L KO cells were infected at a density of 105 cells ml−1 in the presence of 8 μg ml−1 polybrene, in 24-well plates. Cell survival was monitored with the IncuCyte System by staining with Sytox-Green and Syto-Red as described above.

Quantification of 2-5A

Intracellular 2-5A was quantified by an indirect assay in which activation of RNase L activity is measured (Elbahesh et al., 2011). In brief, IFN treated (200 U/ml human IFN-β) for 48 hr or mock treated cells were washed with PBS, and lysed in preheated (95°C) Nonidet P-40 lysis buffer (50 mM Tris-HCl, pH 7.2, 0.15 M NaCl, 1% Nonidet P-40, 200 µM sodium orthovanadate, 2 mM EDTA, 5 mM MgCl2, 5 mM DTT) and heated to 95°C for another 7 min. The cell extracts were centrifuged for 10 min at 14,000 × g at room temperature, and the cleared supernatants collected. Levels of 2-5A were determined by RNase L-based FRET assays in comparison to a standard curve of authentic (2′−5′) p3A3 as described earlier (Thakur et al., 2005). Briefly, recombinant human RNase L was incubated with purified authentic (2′−5′)p3A3 or cell extract (normalized for protein concentration prior to centrifugation). The FRET RNA probe was added and the reaction mixtures incubated at 20°C for 2 hr. Fluorescence was measured with a Wallac 1420 fluorimeter (Perkin-Elmer) as described previously (Thakur et al., 2005).

Ribosomal RNA (rRNA) cleavage assay

Cells were treated with 200 U/ml of IFN-α or infected with Sindbis virus (SINV) (Frolova et al., 2002) at MOI = 1, and at 48 hr post treatment or 24 hr post infection, cells were harvested in RLT cell lysis buffer (RNeasy mini kit, Qiagen). Total RNA was extracted and was resolved on RNA chips using an Agilent 2100 BioAnalyzer to determine the integrity of 28S and 18S rRNA.

RtcB-ligase assisted qPCR

RNA fragments generated by RNase L were detected as described (Donovan et al., 2016). Briefly, cells were treated with 10U of IFN-α and 24 hr post treatment, total RNA was purified by Trizol and RNAs with 2’−3’ cyclic phosphate were ligated to the adapter 5’ rGrArUrCrGrUCGGACTGTAGAACTCTGAAC 3’ using RtcB RNA ligase. EDTA-quenched ligation reactions were reverse transcribed using Multiscribe reverse transcriptase (ThermoFisher) and the primer 5’ TCCCTATCAGTGATAGAGAGTTCAGAGTTCTACAGTCCG 3’. The resulting cDNAs were assessed for RNase L cleavage products by qPCR for specific cleavage sites and normalized to U6, which has a naturally occurring 2’−3’ cyclic phosphate. The qPCR primers for tRNA-His-36 cleavage are 5’ GTTAGTACTCTGCGTTGTGGA 3’ (Forward) and 5’ TCCCTATCAGTGATAGAGAG 3’ (reverse). U6 primers for normalization are 5’ GCTTCGGCAGCACATATACTA 3’ (forward) and 5’ CGAATTTGCGTGTCATCCTTG 3’ (reverse).

mRNA quantification by quantitative reverse transcriptase-PCR (qRT-PCR)

Cells were treated with 10 U/ml of IFN-α (PBL) and 24 hr post treatment, cells were lysed in RLT Plus RNA lysis buffer (Qiagen), and RNA was isolated using the RNeasy Plus Mini Kit (Qiagen) as previously described (Zhao et al., 2012). Relative IFN-α, IFN-λ, OAS2, IFIT2 mRNA expression levels were quantified as ΔCT values relative to actin mRNA [ΔCT = CT(gene of interest)CT-actin)] and expressed using the formula 2−ΔCT. Primer sequences are listed in Table 4.

Table 4

qRT-PCR primers for human actin, IFN, OAS2 and IFIT1 genes.

https://doi.org/10.7554/eLife.25687.024
GenesForward (5’−3’)Reverse (5’−3’)
ACTINACTGGAACGGTGAAGGTGACGTGGACTTGGGAGAGGACTG
IFN-βGTCAGAGTGGAAATCCTAAGACAGCATCTGCTGGTTGAAG
IFN-λCGCCTTGGAAGAGTCACTCAGAAGCCTCAGGTCCCAATTC
OAS2TTCTGCCTGCACCACTCTTCAACGAGCCAGTCTTCAGAGCTGTGCCTTTG
IFIT1TGGTGACCTGGGGCAACTTTAGGCCTTGGCCCGTTCATAA

eIF2α phosphorylation

WT and PKR-KO A549 cells were seeded at a density 5 × 105 cells/well of in six-well plates. After 16 hr the cells were transfected with 1 μg/ml pIC using Lipofectamine 2000 and incubated for 2 hr. The cells were harvested in NP-40 lysis buffer as above. The lysates were centrifuged at 1000Xg for 12 min at 4°C. The total protein amounts in the cleared supernatants were determined by the Bradford method (Bio-Rad), and 30 μg of total protein was separated on 12% SDS-PAGE, transferred onto polyvinylidene difluoride(PVDF)membranes (0.45 μm) (BioRad), and probed with either antibody against total anti-eIF2α or Ser-51-phosphorylated eIF2α(Cell signaling Technology).

Statistics

Plotting of data was performed using GraphPad Prism software (GraphPad Software, Inc., CA). Statistical analysis were performed using Excel software (Microsoft Office). Statistical significance was determined by an unpaired two-tailed Student t test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Y-RNA and tRNA cleavage by RNase L MediatesTerminal dsRNA response
    1. J Donovan
    2. S Rath
    3. D LKolet-Mandrikov
    4. A Korennykh
    (2016)
    bioRxiv, 10.1101/087106.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    rRNA cleavage as an index of ppp(A2'p)nA activity in interferon-treated encephalomyocarditis virus-infected cells
    1. RH Silverman
    2. JJ Skehel
    3. TC James
    4. DH Wreschner
    5. IM Kerr
    (1983)
    Journal of Virology 46:1051–1055.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36

Decision letter

  1. Timothy W Nilsen
    Reviewing Editor; Case Western Reserve University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Ribonuclease L Mediates the Cell-Lethal Phenotype of Adenosine Deaminase 1 Deficiency in Human Cells" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and James Manley as the Senior Editor. The following individual involved in review of your submission has agreed to reveal her identity: Brenda Bass (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We have now received comments on your manuscript from three experts in the specific area of ADAR1 biology. All agreed that the work was interesting, well done and in principle suitable for eLife. Nevertheless the following fairly minor points should be thoroughly addressed via revision.

1) Because ADAR1 technically belongs to the cytosine deaminase family of enzymes, a more appropriate title would be to substitute adenosine deaminase with the "double stranded RNA editing enzyme ADAR1 in a human cell line".

2) ADAR1 activity does not separate dsRNA into single stranded RNA but rather creates partially dsRNA. Please correct in the text and figure.

3) Please remove the word partially from "partially rescues" in the Abstract and also in the Introduction.

4) Indicate the source and size of poly IC used.

5) Please quantify the Western blots in Figures 2 and 3 and comment on the levels of PKR seen in interferon treated cells.

6) The reviewers agreed that the conclusions derived from this work should be tempered somewhat because results obtained primarily in a single cell line cannot necessary be extrapolated to the intact organism. Because mouse data indicates that the RIG-I/MDA5 is perhaps the primary pathway you could modify your conclusion to indicate that the OAS/RNase L pathway is an important contributor at least in the cell line tested.

7) Finally, can it be distinguished from the data whether accumulated dsRNA in ADAR1 deficient cells directly activates basal OAS or perhaps a sensed by MDA5 to induce interferon causing a subsequent induction of OAS?

https://doi.org/10.7554/eLife.25687.025

Author response

We have now received comments on your manuscript from three experts in the specific area of ADAR1 biology. All agreed that the work was interesting, well done and in principle suitable for eLife. Nevertheless the following fairly minor points should be thoroughly addressed via revision.

1) Because ADAR1 technically belongs to the cytosine deaminase family of enzymes, a more appropriate title would be to substitute adenosine deaminase with the "double stranded RNA editing enzyme ADAR1 in a human cell line".

Title has been changed as suggested.

2) ADAR1 activity does not separate dsRNA into single stranded RNA but rather creates partially dsRNA. Please correct in the text and figure.

We have modified Figure 1 to shown that ADAR editing produces partially dsRNA rather than ssRNA. We have also changed the wording in the legend to Figure 1. We have stated that ADAR1 “destabilizes dsRNA” in several places in the text.

3) Please remove the word partially from "partially rescues" in the Abstract and also in the Introduction.

This has been done as requested.

4) Indicate the source and size of poly IC used.

The sources of pIC are now indicated in Materials and methods. pIC (1.5-8 kb) was obtained from InvivoGen (see IncuCyte, cell death assay description), and used to obtain the data shown in Figure 3B-E and Figure 4A. PIC (0.4 kb) was obtained from Millipore (see crystal violet death assay description) and used to obtain the data shown in Figure 3A.

5) Please quantify the Western blots in Figures 2 and 3 and comment on the levels of PKR seen in interferon treated cells.

We have quantified PKR bands in Figure 2A and Figure 5A as described in Materials and methods. (There are no Western blots in Figure 3). PKR expression, fold induced by IFN treatment over mock treated of various cell types is summarized in the figure legends and the data are shown in the Figure 2—source data 1 and Figure 5—source data 1 files.

PKR fails to be induced by IFN treatment in cells with ADAR1 or ADAR1 p150 KO. We do not currently understand why this occurs. We have added to the text; “However, it is noted that IFN treatment of ADAR1 deficient cells did not induce PKR expression, in contrast to ADAR1 expressing cells (Figure 2A and Figure 5A). We do not currently know why this occurs.

6) The reviewers agreed that the conclusions derived from this work should be tempered somewhat because results obtained primarily in a single cell line cannot necessary be extrapolated to the intact organism. Because mouse data indicates that the RIG-I/MDA5 is perhaps the primary pathway you could modify your conclusion to indicate that the OAS/RNase L pathway is an important contributor at least in the cell line tested.

While Mda5 or Mavs deletion can rescue mouse embryonic lethality, the downstream pathway(s) that mediate lethality are not known (Figure 1). As described above, we have shown that while the OAS-RNase L pathway can be activated by endogenous dsRNA in the absence of MAVS in A549 cells, activation is more robust in the presence of MAVS (Figure 6 and 7, explained above in item #7). Thus, RNase L may be the downstream pathway mediating lethality in mouse as well so that Mavs or Mda5 KO leads to diminished RNase L activation and cell death and rescues embryonic lethality. Alternatively, there may be another effector downstream of MDA5/RIG-I-MAVS inducing cell death in mouse embryos. We have now stated in the Discussion; “It is possible that in the mouse embryo system RNase L, activated downstream of MDA5-MAVS also contributes to embryonic lethality. However, rescue of lethality due to Adar1 KO by Mda5 or Mavs KO in the mouse embryo may be due to one or more other MAVS dependent activities.”

7) Finally, can it be distinguished from the data whether accumulated dsRNA in ADAR1 deficient cells directly activates basal OAS or perhaps a sensed by MDA5 to induce interferon causing a subsequent induction of OAS?

As depicted in Figure 1, OAS-RNase L can be either activated by dsRNA in a parallel pathway to the canonical MDA5-MAVS IFN induction pathway or as a MAVS dependent pathway. Our data show that RNase L can be activated in MAVS-ADAR1 DKO and MAVS-p150 DKO cells (Figure 7B and C), indicating that MDA5 sensing of endogenous dsRNA is not required for activation of RNase L by endogenous dsRNA. However, MAVS expression (hence MDA5 sensing-MAVS signaling) does enhance RNase L activation presumably by up regulating OAS gene expression. This is supported by the data in Figure 7A (2-5A induction) and also by the data in Figure 6 which show increased up regulation of IFN-λ and OAS2 following IFN treatment of RNase L-ADAR DKO compared to MAVS-ADAR1 DKO cells. In the original manuscript, we had discussed the effect of MAVS in enhancing 2-5A production and RNase L activation (tRNA degradation) through up regulation of OAS gene expression and have now added further text to clarify this point; “Thus 2-5A was produced and RNase L activated by endogenous RNA even in the absence of MAVS”.

https://doi.org/10.7554/eLife.25687.026

Article and author information

Author details

  1. Yize Li

    Department of Microbiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, United States
    Contribution
    YL, Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Shuvojit Banerjee
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-1721-741X
  2. Shuvojit Banerjee

    Department of Cancer Biology, Lerner Research Institute, Cleveland Clinic, Cleveland, United States
    Contribution
    SB, Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Yize Li
    Competing interests
    The authors declare that no competing interests exist.
  3. Stephen A Goldstein

    Department of Microbiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, United States
    Contribution
    SAG, Data curation, Formal analysis, Validation, Investigation, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Beihua Dong

    Department of Cancer Biology, Lerner Research Institute, Cleveland Clinic, Cleveland, United States
    Contribution
    BD, Data curation
    Competing interests
    The authors declare that no competing interests exist.
  5. Christina Gaughan

    Department of Cancer Biology, Lerner Research Institute, Cleveland Clinic, Cleveland, United States
    Contribution
    CG, Data curation
    Competing interests
    The authors declare that no competing interests exist.
  6. Sneha Rath

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    SR, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  7. Jesse Donovan

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    JD, Conceptualization, Resources, Data curation, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  8. Alexei Korennykh

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    AK, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  9. Robert H Silverman

    Department of Cancer Biology, Lerner Research Institute, Cleveland Clinic, Cleveland, United States
    Contribution
    RHS, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    silverr@ccf.org
    Competing interests
    The authors declare that no competing interests exist.
  10. Susan R Weiss

    Department of Microbiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, United States
    Contribution
    SRW, Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    weisssr@upenn.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-8155-4528

Funding

National Institute of Allergy and Infectious Diseases (R01AI104887)

  • Robert H Silverman
  • Susan R Weiss

National Institute of Neurological Disorders and Stroke (R01NS080081)

  • Susan R Weiss

National Cancer Institute (R01CA044059)

  • Robert H Silverman

Burroughs Wellcome Fund (Grant 1013579)

  • Alexei Korennykh

Sidney Kimmel Foundation for Cancer Research (AWD1004002)

  • Alexei Korennykh

National Institute of General Medical Sciences (R01GM110161)

  • Alexei Korennykh

Vallee Foundation (23307-G0002-10009-96)

  • Alexei V Korennykh

National Institute of Allergy and Infectious Diseases (T32AI007324)

  • Stephen A Goldstein

National Institute of General Medical Sciences (T32GM007388)

  • Sneha Rath

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Research reported in this publication was supported by National Institute of Allergy and Infectious Disease, National Institute of Neurological Disease and Stroke and the National Cancer Institute, and National Institutes of General Medicine of the National Institutes of Health (NIH) under award numbers R01AI104887 (to SRW and RHS), R01-NS-080081 (SRW), R01CA044059 (to RHS) R01GM110161 (AK) Princeton University, Sidney Kimmel Foundation Grant AWD1004002 (AK), Burroughs Wellcome Foundation Grant 1013579 (AK) and Valle Foundation 23307 G0002-10009096 (AK). S.A.G. was supported in part by 4T32AI007324 and SR was supported in part by 5T32GM007388.

Reviewing Editor

  1. Timothy W Nilsen, Reviewing Editor, Case Western Reserve University, United States

Publication history

  1. Received: February 3, 2017
  2. Accepted: March 30, 2017
  3. Accepted Manuscript published: March 31, 2017 (version 1)
  4. Version of Record published: April 25, 2017 (version 2)
  5. Version of Record updated: June 5, 2017 (version 3)

Copyright

© 2017, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,223
    Page views
  • 701
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Immunology and Inflammation
    Victoria L Hansen, Robert D Miller
    Insight
    1. Immunology and Inflammation
    Haiguang Wang, Kristin A Hogquist
    Research Article
