Structure of a AAA+ unfoldase in the process of unfolding substrate

  1. Zev A Ripstein
  2. Rui Huang
  3. Rafal Augustyniak
  4. Lewis E Kay  Is a corresponding author
  5. John L Rubinstein  Is a corresponding author
  1. The Hospital for Sick Children Research Institute, Canada
  2. University of Toronto, Canada
Research Article
  • Cited 33
  • Views 3,315
  • Annotations
Cite this article as: eLife 2017;6:e25754 doi: 10.7554/eLife.25754

Abstract

AAA+ unfoldases are thought to unfold substrate through the central pore of their hexameric structures, but how this process occurs is not known. VAT, the Thermoplasma acidophilum homologue of eukaryotic CDC48/p97, works in conjunction with the proteasome to degrade misfolded or damaged proteins. We show that in the presence of ATP, VAT with its regulatory N-terminal domains removed unfolds other VAT complexes as substrate. We captured images of this transient process by electron cryomicroscopy (cryo-EM) to reveal the structure of the substrate-bound intermediate. Substrate binding breaks the six-fold symmetry of the complex, allowing five of the six VAT subunits to constrict into a tight helix that grips an ~80 Å stretch of unfolded protein. The structure suggests a processive hand-over-hand unfolding mechanism, where each VAT subunit releases the substrate in turn before re-engaging further along the target protein, thereby unfolding it.

https://doi.org/10.7554/eLife.25754.001

eLife digest

Proteins perform many important jobs inside cells. Each protein is made of a chain of building blocks called amino acids that fold together to form precise shapes. Old, damaged or poorly constructed proteins tend to be harmful to cells so it is important that they are recycled. Ring-shaped enzymes called AAA+ unfoldases help to recycle these proteins by unfolding their amino acid chains. However, since these enzymes only interact with their target proteins for a short time it has been difficult to find out what happens when the target protein binds to the enzyme.

AAA+ unfoldases use chemical energy provided by a molecule called ATP to drive protein unfolding. Ripstein et al. used a technique called electron cryomicroscopy to study a AAA+ unfoldase from a microbe called Thermoplasma acidophilum. The enzymes were supplied with a molecule called ATPγS, which is similar to ATP but releases its energy more slowly. Ripstein et al. used this slowed down reaction, as well as new computer algorithms to analyse the microscopy images, to examine the structure of the target bound to the enzyme.

The experiments show that proteins move through the centre of the enzyme’s ring as they unfold. At any time the enzyme is attached to the amino acid chain of the target protein in several places, which allows it to pull the protein through the ring in a “hand-over-hand” motion. Energy from each ATP molecule drives the enzyme to release one contact with the amino acid chain and form a new contact slightly further along the chain.

It remains unclear how AAA+ unfoldases identify and bind to the proteins they unfold and how they work alongside other recycling proteins inside cells. AAA+ unfoldases have an essential role in the biology of cells, and contribute to cancer and several other human diseases. Therefore, understanding how these proteins work may aid the development of new drugs to treat these diseases.

https://doi.org/10.7554/eLife.25754.002

Introduction

The 83 kDa VAT protein, which is composed of an N-terminal regulatory domain (NTD) and two tandem nucleotide-binding AAA+ domains (NBD1 and NBD2), assembles into a 500 kDa homohexamer (Figure 1—figure supplement 1). The physiological function of the VAT NTDs remains unclear. Truncation of the first 182 residues of VAT removes the regulatory NTD, producing a construct (ΔN-VAT) that has both higher ATPase and unfoldase activity than the intact protein (Gerega et al., 2005; Rothballer et al., 2007; Barthelme and Sauer, 2012). In solutions of ΔN-VAT, the enzyme itself is degraded in an ATP- and proteasome-dependent manner (Figure 1a–c). The 20S proteasome does not hydrolyze ATP during proteolysis (Barthelme et al., 2014) and therefore this observation demonstrates that ΔN-VAT complexes must unfold other copies of ΔN-VAT via a process that requires ATP hydrolysis prior to degradation by the proteasome. VAT’s ability to unfold pyruvate kinase (Figure 1b) and other VAT particles is consistent with the finding that it can recognize substrates with an unstructured N or C terminus (Gerega et al., 2005) and does not require a specific marker or target sequence for initiating protein unfolding.

Cryo-EM of full-length VAT previously showed that the enzyme adopts a helical split-ring conformation in the presence of ADP (Huang et al., 2016). ΔN-VAT particles with bound ADP assemble into long fibrils (Figure 1d). Power spectra from these fibrils (e.g. Figure 1d, inset), as well as their real space appearance, suggest that they are composed of helical split-ring structures interacting with each other top-to-bottom in a poorly-ordered helical filament. The ~1/55 Å−1 distance from the origin to the first layer line is consistent with the pitch of each NBD helix in the split-ring structure of VAT. These fibrils were not observed in the ADP-bound state of full-length VAT (Huang et al., 2016), possibly because the NTDs block their formation due to steric hindrance. With the slowly-hydrolysable ATP-analogue ATPγS bound, full-length VAT exists in both the split-ring conformation and a six-fold symmetric stacked-ring conformation (Huang et al., 2016). Similarly, ΔN-VAT with bound ATPγS forms a mixture of fibrils (Figure 1e) as well as single particles, the majority of which appeared to be six-fold symmetric (Figure 1e, red circles). Single particle cryo-EM analysis was performed, excluding the fibrils by inspecting micrographs after automatic particle selection and manually deselecting particle images that were part of a filament. This process allowed calculation of a cryo-EM map of the six-fold symmetric stacked-ring conformation of VAT at 3.9 Å resolution. This substantial improvement over the 7.8 Å resolution obtained previously for the six-fold symmetric conformation of full length VAT (Huang et al., 2016) is likely due to a number of factors. First, removal of the NTDs in ΔN-VAT makes the complex more structurally homogeneous and allowed specimens to be prepared with thinner ice than could be used with full length VAT. Specimen preparation with gold grids likely reduced beam-induced movement and improved image quality. Finally, preparation of crowded specimens with ~700 particles per micrograph improved power spectra and allowed more accurate fitting of contrast transfer function parameters at high resolution. The map resolution enabled construction of an atomic model for the complex (Figure 2, Figure 2—figure supplement 1, Supplementary file 1). In the structure, a central pore runs along the six-fold symmetry axis of the complex through the center of the stacked NBD1 and NBD2 rings (Figure 2a, left, hexagon). While it is possible that removal of the NTDs affects the conformations of the NBDs, Fourier shell correlation (FSC) of the map with the earlier map of full-length VAT (Huang et al., 2016) with the NTDs excluded by masking reached 0.5 at 8 Å resolution, consistent with the 7.8 Å resolution of the full-length VAT map (Figure 2—figure supplement 1e). The stacked-ring structure of VAT resembles recent structures of the VAT homologue p97 in the fully ATP-loaded state (Zhang et al., 2000; DeLaBarre and Brunger, 2003; Banerjee et al., 2016), except for the orientations between the NBD1 and NBD2 domains in VAT protomers and the relative rotation of the NBD1 and NBD2 rings. All AAA+ unfoldases have conserved sequences that extend from the NBDs towards the center of the ring, forming ‘pore loops’ that are essential for unfolding substrate (Gerega et al., 2005) (Figure 2—figure supplement 2). In the six-fold symmetric VAT structure, pore loop 1 of NBD1, containing conserved and essential tyrosine residues (Tyr264 and Tyr265) (Gerega et al., 2005), forms an opening that is ~28 Å across while pore loop 2 of NBD1 (residues 299 to 305) forms a slightly tighter aperture that is ~18 Å across (Figure 2—figure supplement 2a, left). Similar apertures are produced by the corresponding pore loop 1 of NBD2 (containing conserved residues Trp 541 and Val 542) and pore loop 2 of NBD2 (residues 575–579) (Figure 2—figure supplement 2b, left). An atomic model could be built for a significant fraction of the map (Figure 2b), including the linker region between NBD1 and NBD2 (Figure 2c, left), and both NBD1 and NBD2 have strong density for ATPγS in their nucleotide-binding pockets (Figure 2c, right) indicating that VAT adopts a rigid and symmetric conformation when fully loaded with nucleotide.

Figure 1 with 1 supplement see all

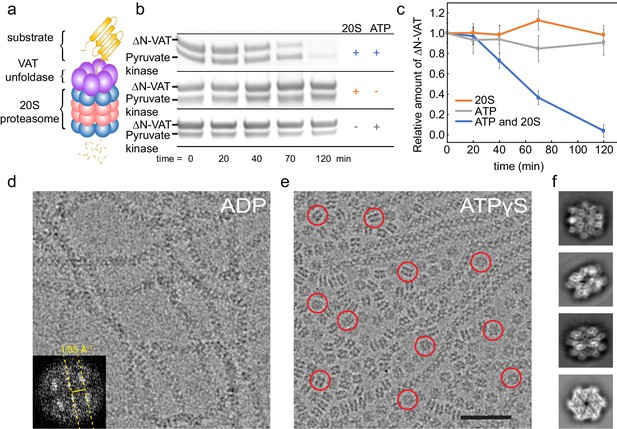

ΔN-VAT unfolds other copies of ΔN-VAT.

(a) Cartoon showing VAT (purple ring) working in concert with the 20S proteasome (blue and pink rings) to degrade protein substrates (yellow). (b) An SDS-PAGE gel showing that both ΔN-VAT and pyruvate kinase (part of the ATP regenerating system) are degraded in an ATP and 20S proteasome dependent manner. (c) Quantification of the self-unfolding reaction. All measurements done in triplicate.(d) Representative section of a micrograph of ΔN-VAT in the presence of 5 mM ADP, corresponding to ~25% of the full field-of-view. Inset shows the power spectrum from a fibril, with a characteristic layer line at ~1/55 Å−1. (e) Representative section of a micrograph of ΔN-VAT in the presence of 5 mM ATPγS. Example single particles are circled in red. Scale bar, 500 Å. (f) 2D class average images showing views of single particles of ΔN-VAT in the presence of ATPγS.

https://doi.org/10.7554/eLife.25754.003
Figure 2 with 2 supplements see all

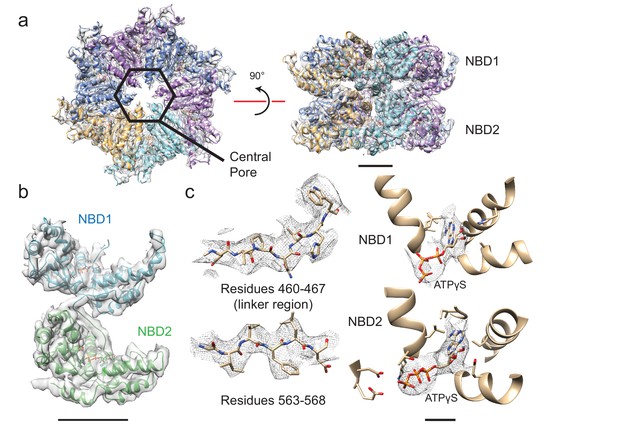

Structure of six-fold symmetric ΔN-VAT with bound ATPγS.

(a) Density map and atomic model for ATPγS-bound ΔN-VAT at 3.9 Å resolution. A central pore runs through the middle of the complex. Scale bar, 25 Å. (b) Density map and model for a single protomer of VAT shows both AAA+ domains and the linker between them. Scale bar, 25 Å. (c) The cryo-EM density allowed identification of large amino acid side chains throughout ΔN-VAT, including in the linker region. Density corresponding to ATPγS is visible in all twelve catalytic sites. Scale bar, 5 Å.

https://doi.org/10.7554/eLife.25754.005

Unsupervised classification of ATPγS-loaded ΔN-VAT particle images using a new ab initio 3D classification algorithm (Punjani et al., 2017) allowed identification of a second conformation of the protein that was significantly different from known structures. The class corresponding to this conformation, containing ~15% of particle images, showed two ΔN-VAT complexes in close apposition to one another (Figure 3, Figure 3—figure supplement 1). Refinement of this structure to ~4.8 Å resolution revealed it to consist of a ΔN-VAT complex in the process of unfolding a neighboring complex as substrate (Figure 3a). Formation of this state may be dependent on the slow hydrolysis thought to occur with ATPγS. The map shows clear density for the substrate protein in an extended conformation as it runs almost directly through the central pore of the active ΔN-VAT (Figure 3a and b, red density). This substrate-bound conformation displayed a strong preference for particles to lie with their long-axes parallel to the plane of the specimen support, possibly because of the elongated shape of the complex (Figure 2—figure supplement 1d).

Figure 3 with 2 supplements see all

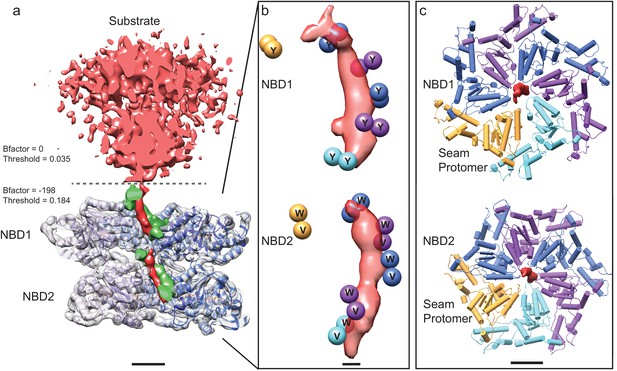

Substrate engagement by ΔN-VAT.

(a) Cut-away side view of the density map and model for ΔN-VAT with substrate bound. The substrate complex is shown unsharpened in red above the dashed line. Density for the substrate-gripping loop residues is shown in green, with the enzyme-bound portion of the substrate shown as density (red) running through the center of the complex. Scale bar, 25 Å. (b) Positions of the Cα atoms of the pore loop residues (spheres) surrounding the experimental density for substrate (red). Five of the six protomers contact the substrate. Scale bar, 5 Å. (c) NBD1 and NBD2 rings with experimental density for substrate. Both NBD rings adopt similar conformations and a helical architecture, with five of the pore loops contacting the substrate. Scale bar, 25 Å.

https://doi.org/10.7554/eLife.25754.008

Density for the substrate above NBD1 of the active ΔN-VAT complex is weak and fragmented, and is most clearly visualized without sharpening of the map (Figure 3a, above dashed line) (Zhao et al., 2015a), suggesting that outside of the active enzyme the substrate has a flexible orientation relative to the pore of ΔN-VAT. The length of unfolded protein gripped by the pore of the active ΔN-VAT is ~80 Å, which corresponds to 12 to 14 extended amino acid residues. In both NBD1 and NBD2 five of the six VAT subunits form close contacts with the substrate through their pore loops (Figure 3b and c, and Figure 2—figure supplement 2a and b, middle). The hydrophobic residues of these pore loops create a tight helical sheath around the substrate (Figure 3a, green). The top and bottom of the helix formed from the five subunits that grip the substrate are joined by a ‘seam’ subunit, which does not interact with the substrate and has protomer-protomer contacts that differ dramatically from the other subunits (Figure 3c, gold, Figure 2—figure supplement 2a and b, middle). This helical arrangement of the pore loop residues maximizes the contact area between the unfolded substrate and the pore loops of the five subunits that form the helix (Figure 3b, Video 1). Unfolded substrate that spans the gap between the pore loops of NBD1 and NBD2 has a low density in the cryo-EM map, likely because of flexibility of the substrate in this region. This flexibility is likely due to a lack of tension on the substrate in the observed state. The transition from the stacked-ring to the substrate-engaged conformation of ΔN-VAT occurs with rearrangement of NBD1 relative to NBD2 in each protomer and a rotation of the NBD1 ring against the NBD2 ring (Figure 3—figure supplement 2, Videos 1 and 2). In the resulting asymmetric structure, the NDB1 and NBD2 of each protomer form similar interactions with their neighboring protomers. The two rings are also displaced horizontally relative to each other in the substrate-bound state and the central pore is tilted so that it passes between the rings at an angle of ~15° (Figure 3—figure supplement 2c). This rotation and displacement brings the NBD1 and NBD2 rings closer together than in the stacked-ring conformation, decreasing the distance between their pore loops.

Video 1
Conformational changes in VAT upon substrate binding.

Interpolation between the stacked-ring and substrate-bound states of VAT, shown as ribbon diagrams (left) and Cα positions for the pore loop residues (right). The complex is viewed ~15° from the symmetry axis so that in the substrate-bound state the complex is viewed along the substrate path. Substrate is shown in red. Scale bars 25 Å. Please view video as loop.

https://doi.org/10.7554/eLife.25754.011
Video 2
Conformational changes in VAT protomers upon substrate binding.

Interpolation between the stacked-ring and substrate-bound states of VAT, shown as a ribbon diagram for two VAT protomers. Substrate is shown in red. Pore loop residues are indicated in green. Scale bar, 25 Å. Please view video as loop.

https://doi.org/10.7554/eLife.25754.012

In this study, only the newly identified conformation described above is found with substrate bound. Consequently, the six-fold symmetric stacked-ring state with ATPγS bound and the split-ring state with ADP bound (Huang et al., 2016) likely correspond to pre- and post-unfolding conformations of the enzyme. In the substrate-bound conformation, the seam protomer is positioned such that it does not interact with the substrate. Notably, recent structures of the 26S proteasome (Chen et al., 2016; Wehmer et al., 2017) also showed that either the Rpt5 or Rpt6 subunit in the hexameric Rpt ring of the 19S regulatory particle base is displaced from the pore, similar to the seam protomer in VAT (Figure 3). Furthermore, the translocation mechanisms of AAA+ DNA helicases such as E1, Rho, and MCM, also involve a helical gripping state in which only five of six protomers interact with a single DNA strand (Lyubimov et al., 2011; Itsathitphaisarn et al., 2012; Enemark and Joshua-Tor, 2006). The structure presented here suggests an analogous substrate translocation mechanism for VAT where the enzyme operates processively with a ‘hand-over-hand’ mechanism, shown schematically in Figure 4a, focusing on protomer 1 outlined in green. In the first step of this cycle (Figure 4a, top) protomer 1 is bound to unfolded substrate at the bottom of the helix of VAT protomers, protomer 2 in the seam position does not contact the substrate (Figure 4a, gold), and protomer 3 binds substrate at the top of the helix near the remaining folded protein. The nucleotide binding sites shared by the seam protomer and protomer 1 are empty (see below). As the seam protomer reengages with substrate at the top of the helix (step 2: Figure 4a, middle), protomer 1 disengages from the substrate and becomes the seam protomer, with protomer 6 now furthest along the unfolded substrate. The process repeats in a cyclical manner for additional protomers (e.g. step 3: Figure 4a, bottom, Video 3). The power stroke for substrate unfolding is provided by ATP hydrolysis, which occurs in sequence around the VAT ring, with ADP released by the protomer adjacent to the seam (counter clockwise from the seam when viewed from NBD1 toward NBD2, Figure 4b). Although the precise position where ATP hydrolysis and ADP release occur in the cycle is not apparent from our data, it is clear that ATP must rebind to the seam protomer as it engages with substrate at the top of the protomer helix. As the cycle continues, each protomer pulls a single section of the substrate, corresponding to ~13 Å or approximately two extended residues, through the central pore until it becomes the lowest protomer in the helix and releases the substrate (Video 3). The cyclic nature of the ATP hydrolysis gives directionality to the substrate translocation, allowing unfolded protein to be passed to the proteasome for degradation.

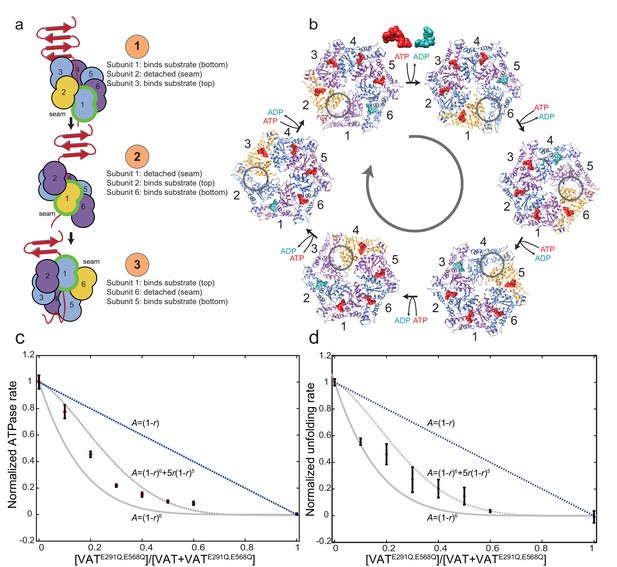

Model for substrate translocation by VAT.

(a) The substrate-bound structure of ΔN-VAT suggests that the enzyme is processive, with a single subunit (green outline) that binds substrate at the lowest position (step 1) releasing as it becomes the seam subunit (yellow) (step 2) before re-engaging further along the substrate (step 3). Subunits are numbered 1–6. (b) The different conformations of VAT cycle around the hexamer, with ATP binding and ADP release with each transition. The seam subunit is indicated in yellow, with the adjacent subunits in the clockwise and counter-clockwise positions (viewed from NBD1 to NBD2) corresponding to protomers that are closest to and furthest from the folded substrate, respectively. (c) The ATPase activity A of VAT with different ratios r of catalytically inactivated VATE291Q,E568Q mutant incorporated randomly into the enzyme hexamers. The activity decreases with increasing r faster than the A=(1-r)6+5r(1-r)5 curve expected if two inactive mutants per complex were required to stop VAT activity, instead approximating the A=(1-r)6 curve that is consistent with the proposed ‘hand-over-hand’ mechanism. Error bars, ±1 standard deviation. (d) The unfolding activity A of VAT with GFPssra substrate, monitored by the decrease in fluorescence in the presence of ATP and a GroEL trap, with different ratios r of catalytically inactivated VATE291Q,E568Q mutant incorporated randomly into the enzyme hexamers. The activity decreases as in part c. Error bars, ±1 standard deviation.

https://doi.org/10.7554/eLife.25754.013
Video 3
The hand-over-hand model for substrate translocation.

Interpolation between states where each subunit sequentially goes through the different possible positions in the helix. Each promoter’s pore loop binds a section of substrate at the top of the helix and escorts that section toward the bottom of the image through five steps. On the sixth step the protomer releases the substrate and becomes the seam protomer, moving up and away from the central pore before reengaging at the top of the substrate. An arbitrary subunit is marked in green to help maintain orientation. The structures are shown as ribbon diagrams (left) and Cα positions for the pore loop residues (right). Scale bars, 25 Å. Please view video as loop.

https://doi.org/10.7554/eLife.25754.014

The cyclic ‘hand-over-hand’ model requires that each protomer hydrolyze ATP in turn (Figure 4b). A single inactivated subunit would consequently have a severe effect on the rate of ATP hydrolysis, potentially stopping unfolding. To test the model, we measured the ATPase activity of VAT complexes that had been doped with different fractions (r) of catalytically-inactive protomers bearing mutations in the Walker B motifs of both NBD1 and NBD2 (E291Q, E568Q) (Werbeck et al., 2008) relative to wild type VAT ATPase activity (A). These experiments were carried out in the presence of GFP with an 11-residue ssRA tag as substrate (Barthelme et al., 2014). For multimeric enzymes where each subunit functions independently, ATPase activity is expected to decrease linearly as increasing amounts of catalytically dead mutant are incorporated randomly into the oligomers (Figure 4c, blue line). In contrast, the decrease in ATPase activity of the mixed complexes as a function of increasing concentration of catalytically dead mutant closely follows the A= (1r)6 curve expected for the proposed hand-over-hand model (Figure 4c, gray line). The activity of VAT with increasing r decreases faster than the A= (1r)6+5r(1r)5 curve (Figure 4c, dashed gray line) that is expected if ATP hydrolysis only stops when two of the six VAT protomers are inactivated. A similar curve is obtained when measuring the unfolding rate of the ssRA tagged GFP substrate rather than the ATPase rate (Figure 4d).

The slight elevation relative to the A= (1r)6 profile in Figure 4c and d may reflect an ‘escape’ mechanism that allows stalled VAT complexes to disengage and then reengage with substrate, as seen with other molecular machines (Werbeck et al., 2008). In the absence of an escape mechanism ATP hydrolysis would proceed from one protomer to the next in a cyclical manner (Figure 4b) until a defective subunit is reached, preventing further hydrolysis and, thus, subsequent substrate unfolding. In contrast, if the machine is able to disengage at this point it would be possible for other functional subunits to hydrolyze ATP, although at reduced rates. The existence of an escape mechanism therefore has important implications for substrate unfolding, even in the context of wild type VAT, by allowing the release of stalled substrate. This release minimizes both the loss of active enzyme and increases catalytic efficiency. Our ATPase and unfolding assay data in Figure 4c and d cannot distinguish between a model where each protomer hydrolyzes ATP simultaneously or a sequential binding/hydrolysis mechanism as described in Figure 4a and b. However, previous ATPase measurements with VAT followed Michaelis-Menten kinetics (Gerega et al., 2005), with little cooperativity for ATP hydrolysis. This low cooperativity is inconsistent with simultaneous hydrolysis at all twelve nucleotide binding sites but is consistent with the proposed hand-over-hand mechanism, where only one NBD needs to bind and hydrolyze nucleotide at a time. The sequential model for ATP hydrolysis is also consistent with the asymmetry of the complex and nucleotide binding sites observed here, and the homology between VAT and other AAA+ enzymes known to hydrolyze ATP in a sequential fashion (Enemark and Joshua-Tor, 2006; Kim et al., 2015). ATP hydrolysis in the two NBDs has been shown to be coupled, with mutations in one domain also affecting ATP hydrolysis by the other (Gerega et al., 2005). The mechanism proposed here suggests that the two NBDs of each protomer move along the substrate in unison with each other (Figure 4a, Video 3). Both NBD1 and NBD2 of each protomer form similar interactions with their neighboring protomers. Preserving these similar interactions would require that they function in concert with each other. These conformations may be perturbed by the presence of the NTDs in full-length VAT. The conformations could also differ when the enzyme is in a physiological mixture of ATP, ADP, and inorganic phosphate, which could also affect the appearance of the bound substrate.

The similar conformations of both NDB rings suggests that the mechanism of substrate unfolding proposed here may well operate in single-ring AAA+ unfoldases as well, including Rpt1-6 of the 19S proteasome, and the hexameric PAN and ClpX unfoldases. Thus, a picture emerges whereby AAA+ unfoldases adopt asymmetric substrate-bound conformations, creating narrow channels that sequester unfolded stretches of target proteins. Notably, even in molecular machines comprised of homo-oligomers, asymmetry can play an important functional role, in the case of VAT by priming the enzyme for processive translocation of its substrate.

Data deposition

Electron microscopy density maps are deposited in the Electron Microscopy Databank under accession codes EMD-8658 and EMD-8659. Atomic models are deposited in the Protein Databank under accession codes 5VC7 and 5VCA.

Materials and methods

Protein expression and purification

An expression vector for the T. acidophilum VAT gene with the N-terminal 181 residues deleted (ΔN-VAT) (Huang et al., 2016) was prepared using a pProEx expression plasmid (Invitrogen, Carlsbad, CA). The construct included an N-terminal His6-tag and a tobacco etch virus (TEV) cleavage site between the His6-tag and the protein sequence. Expression and purification of ΔN-VAT were performed following the protocol described previously for full-length VAT (Huang et al., 2016). Walker B (catalytically inactivating) mutations (Werbeck et al., 2008) in VAT were made in a pET-28b vector that encoded codon-optimized VAT with an N-terminal His6-tag and a tobacco etch virus (TEV) cleavage site between the His6-tag and the ΔN-VAT sequence. The mutant protein was purified in the same way as wild type VAT and ΔN-VAT (Huang et al., 2016). To produce mixed complexes of wild type and catalytically inactivated VAT, different ratios of wild type and mutant protein were mixed and diluted to 15 μM (protomer) in unfolding buffer (50 mM HEPES pH 7.5, 200 mM NaCl, 6 M guanidine hydrochloride), and then refolded into hexamers by fast dilution at a ratio of 1:20 (v:v) into a refolding buffer (50 mM HEPES pH 7.5, 200 mM NaCl, 0.5 M arginine). After concentrating with a centrifuged concentrating device (Amicon, Millipore, Etobicoke, Canada ), refolded VAT mixtures were subject to size exclusion chromatography and the hexamer fractions were collected. Little or no aggregate or monomeric VAT was detected after refolding. The ADP- and ATPγS-bound forms of ΔN-VAT were prepared by incubation overnight at 25°C with apyrase (New England Biolabs, Whitby, Canada; 0.1 U/mg of ΔN-VAT). Apyrase was then removed by size exclusion chromatography and nucleotide was added to 5 mM.

Electron cryomicroscopy

Purified ΔN-VAT at ~20 mg/mL in buffer (50 mM HEPES pH 7.5, 100 mM NaCl) was incubated with 5 mM ATPγS (90% pure, Sigma-Aldrich) for 5 min at room temperature before preparing cryo-EM grids. Immediately before grid freezing 0.05% (w/v) IGEPAL CA-630 (Sigma-Aldrich) was added to the protein solution to increase the number of particles adopting side views on the grid. Sample (2.5 μL) was applied to nanofabricated holey gold grids (Marr et al., 2014; Meyerson et al., 2014; Russo and Passmore, 2014), with a hole size of ~1 μm and blotted using a modified FEI Vitribot for 5 s before plunge freezing in a liquid ethane/propane mixture (ratio of ~3:2) held at liquid nitrogen temperature (Tivol et al., 2008). Micrographs were acquired as movies with an FEI Tecnai F20 electron microscope operating at 200 kV and equipped with a Gatan K2 Summit direct detector device camera. Movies, consisting of 30 frames at two frames/s, were collected with defocuses ranging from 1.7 to 2.9 μm. Movies were obtained in counting mode with an exposure of 5 electrons/pixel/s, and a total exposure of 35 electrons/Å2.

Electron microscopy image processing

Whole frame alignment of movies was performed with alignframes_lmbfgs (Rubinstein and Brubaker, 2015) and the resulting averages of frames were used for contrast transfer function (CTF) determination with CTFFIND4 (Rohou and Grigorieff, 2015) and automated particle image selection with RELION (Scheres, 2015). 851 particle images were selected manually and used to generate two 2D class averages that served as templates for automated particle selection in RELION. Automated particle selection was followed by manual de-selection of non-protein features and protein from fibrils (Figure 1d). Particle coordinates were used to extract particle images in 256 × 256 pixel boxes from the unaligned movies, while performing individual particle movement correction and exposure weighting with alignparts_lmbfgs (Rubinstein and Brubaker, 2015). Magnification and CTF parameters were corrected for a previously measured 2% magnification anisotropy (Zhao et al., 2015b) resulting in a calibrated pixel size of 1.45 Å. A total of 171,381 candidate particle images were subjected to two rounds of 2D classification, ignoring the CTF until the first peak, in RELION (Scheres et al., 2007). Visual inspection and selection of 2D classes showing hexameric ΔN-VAT yielded 93,469 particle images, which were then transferred to the program cryoSPARC (Punjani et al., 2017) for ab initio 3D classification and refinement. Reference-free 3D classification runs using the stochastic gradient descent algorithm were performed multiple times with between two and six classes, before selecting two classes that yielded the highest quality maps. The best map for the stacked-ring conformation came from reference-free classification with two classes, while the best map for the substrate-engaged conformation came from reference-free classification with three classes. Only particle images that were confidently assigned to a class (cryoSPARC class probability ≥0.9) were used in refinement. With this threshold, gold-standard refinement of 75,205 particle images from the six-fold symmetric class, applying C6 symmetry, yielded a map at a resolution of 3.9 Å as measured by Fourier shell correlation (FSC). With the class probability threshold of 0.9, gold-standard refinement of 13,238 particle images from the substrate-engaged class with no symmetry applied yielded a map at a resolution of 4.8 Å by FSC. FSC curves were calculated with masks applied to remove solvent regions from the background of the maps. Masks are prepared automatically in cryoSPARC by binarizing the map, extending the edges of the resulting shape by a set distance, and tapering the mask to 0 over a second fixed distance with a cosine edge. Similar to RELION (Scheres, 2012), cryoSPARC measures and corrects for the effects of masking by randomization of high-resolution phases as described previously (Chen et al., 2013). The mask correction process introduces a dip in the corrected FSC at the resolution where randomization begins in the calculation. The final tight masking conditions were determined automatically by cryoSPARC by adjusting the extension and fading distances of the mask to optimize the reported resolution without introducing correlation from the mask.

Map analysis and model building

Most of the density for loops, β-sheets and α-helices in the 3.9 Å resolution map were of sufficient quality to allow model building. A homology model of VAT that had been previously flexibly fit into a lower-resolution map (Huang et al., 2016) was rigidly fit into the map as individual domains (NBD1 and NBD2) with UCSF Chimera (Goddard et al., 2007). Final models were built with successive rounds of manual model building in Coot (Emsley et al., 2010) and real space refinement in Phenix (Afonine et al., 2013), and gave an EMringer score of 1.17, which is slightly better than the typical score of 1.0 for a map at this resolution. For the substrate-bound complex, the resolution was insufficient to determine side chain orientations, and a refined structure from the symmetric class was fit into the density by molecular dynamics flexible fitting (MDFF [Trabuco et al., 2008]). Density for each protomer was segmented with UCSF Chimera (Goddard et al., 2007; Pintilie et al., 2010). Only backbone atoms were subject to the fitting force during simulation, and optimization of geometry and rotamers was performed with Phenix (Afonine et al., 2013).

Degradation assay

The auto-degradation of ΔN-VAT was measured following the protocol of Sauer and coworkers (Barthelme et al., 2014). Hexameric ΔN-VAT (0.3 μM) was mixed with an ATP-regenerating system (20 U·mL-1 pyruvate kinase; 15 mM phosphoenolpyruvate) in the presence or absence of 10 mM ATP, with or without 0.9 μM T. acidophilum 20S proteasome. The reactions were carried out at 45°C with a total reaction volume of 50 μL (50 mM HEPES pH 7.5, 200 mM NaCl, 120 mM MgCl2). Samples were withdrawn from the reaction at different times, quenched by heating in SDS-loading buffer, and subjected to SDS-PAGE. Intensities of the ΔN-VAT bands were analyzed with Image Lab 4.0.1.

ATPase assays

Steady state ATP hydrolysis was measured with an enzyme-coupled assay described previously (Nørby, 1988). The reaction was carried out at a VAT concentration of 2.5 μM (protomer), and included an ATP regeneration system that contained 2.5 mM phosphoenolpyruvate, 0.2 mM NADH, 50 μg/mL pyruvate kinase, 50 μg/mL lactate dehydrogenase, 3 mM ATP, 200 mM NaCl, 120 mM MgCl2, and 50 mM HEPES (pH 7.5). VAT complexes were prepared as mixtures of wild type and inactivated subunits (Walker B mutations) where Glu291 (NBD1) and Glu568 (NBD2) were substituted with Gln, followed by the unfolding/refolding protocol described above. Hydrolysis of ATP was monitored in a UV-visible light spectrometer at 340 nm, 25°C, in the presence or absence of 30 µM GFP substrate with an 11 residue ssRA tag (Barthelme et al., 2014). All measurements were done in triplicate. Similar results were obtained in the absence of substrate.

The expected activity of VAT complexes prepared by mixing different ratios of wild type and mutant protomers can be calculated as described previously (Werbeck et al., 2008). We define r = [VATE291Q,E568Q]/[VAT]T, which can be calculated from the concentration of mutant VAT protomers that are mixed with wild type, where VATE291Q,E568Q is the VAT protomer bearing the E291Q/E568Q mutations and [VAT]= [VATE291Q,E568Q]+[VATwild type]. We assume that the unfolding/refolding process leads to equal probabilities of insertion of either a mutant or wild type protomer into a VAT hexamer, so that r is the probability of any protomer in the hexamer being a mutant. Under this assumption the fraction of VAT molecules with k mutant protomers is given by

(1) P(k)=(6k)rk(1r)6k

where (nk)=n!k!(nk)! , with the concentration of functional ATP hydrolysis sites in the protomer given by 2 × (6-k) (two nucleotide sites per VAT). Assuming further that ATPase activity in the functional sites is not affected by the incorporation of inactive protomers until m are added, in which case all hydrolysis stops, one can write the fractional activity of a solution of VAT complexes as a function of r, as

(2) A(r)=16j=0m1(6j)(6j)rj(1r)6j

where A(r) is activity normalized relative to the expected hydrolysis rate for fully wild type VAT hexamers at an identical concentration. Our structural model predicts that a single defective protomer is enough to eliminate ATPase activity in the hexamer. In this case m = 1 and A(r)=(1r)6. In contrast, in the case where there is no coupling between active and inactive protomers,

A(r)=16j=06(6j)(6j)rj(1r)6j=j=06(6j)rj(1r)6j16j=06j(6j)rj(1r)6j(3)=1r

Figure 4c plots measured A(r) versus r, as obtained experimentally, showing that ATP hydrolysis rates decrease rapidly with r. Although the dependence of A on r is slightly less steep than expected for a model where a single defective protomer completely eliminates ATP hydrolysis (see text) the experimental data points decrease more steeply than predicted for m = 2 (two defective protomers are required to eliminate hydrolysis).

Unfolding assays

Unfolding activity was assayed by monitoring the loss of fluorescence of a substrate consisting of green fluorescent protein (GFP) with an 11-residue ssRA extension at its carboxy terminus (Weber-Ban et al., 1999). Briefly, VAT at a concentration of 5 μM of hexamer was mixed with 1 μM GFPssRA and 1.6 μM GroEL (D87K), which acts as a trap for unfolded GFPssRA, keeping it in an unfolded state. Reactions were carried out in the presence of 100 mM ATP, 50 mM HEPES (pH 7.5), 200 mM NaCl, and 120 mM MgCl2. Fluorescence of GFPssRA was monitored in a fluorescence plate reader (SpectraMax M5e) with an excitation wavelength of 480 nm and emission wavelength of 520 nm. Initial slopes of the reaction were used to calculate the unfolding rate of GFPssRA. VAT complexes were prepared as mixtures of wild type and inactivated subunits (Walker B mutations) as described for the ATPase assay above.

References

  1. 1
    PHENIX News
    1. P Afonine V
    2. JJ Headd
    3. TC Terwilliger
    4. PD Adams
    (2013)
    Computational Crystallography Newsletter 4:43–44.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Features and development of coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica Section D Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36

Decision letter

  1. Edward H Egelman
    Reviewing Editor; University of Virginia, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Structure of a AAA+ unfoldase in the process of unfolding substrate" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and John Kuriyan as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Alberto Bartesaghi (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript presents the structure of two intermediate conformations adopted by the AAA+ unfoldase VAT protein hexamer with its N-terminal domain removed (DN-VAT) in the presence of ATPgS: the so-called "stacked-ring" C6-symmetric conformation at 3.9A resolution, and the "substrate-engaged" asymmetric conformation at 4.8A resolution. A lower resolution structure of the stacked-ring conformation for full-length VAT was presented before by the same authors. Here, the authors report the unexpected observation that they have captured a cannibalistic state with one ΔN-VAT caught as a substrate by another ΔN-VAT. This substrate-engaged conformation adopted by DN-VAT is reported here for the first time, and is used to suggest a "hand-over-hand" substrate unfolding mechanism through the central pore of an asymmetric DN-VAT hexamer, which resembles those of other AAA ATPases such as E1, Rho and MCM helicases. Overall, the work is well performed and the manuscript is clearly written, and should be of interest to a broad cross-section of the readership of eLife. Nevertheless, the editors and the reviewers have some significant concerns that need to be addressed before the manuscript can be considered further.

Major Concerns:

1) The assertion that DN-VAT in the presence of ADP assembles into long fibrils comprised of helical split-ring structures is inadequately supported. A single micrograph showing the fibrils (Figure 1B) without additional supporting information seems insufficient to substantiate this claim. Why wasn't this phenomenon observed for full-length VAT in (Huang et al., 2016)? If the fibrils are indeed helical arrangements of DN-VAT split-ring hexamers, one could potentially get a structure out of them. At the very least, power spectra from the fibrils would show the periodicities present. Presenting some additional evidence and an extended discussion addressing these points will help substantiate this claim.

2) Regarding the structure determination of DN-VAT intermediates in the presence of ATPgS, the authors state that "the fibrils could be excluded easily when selecting single particle images for analysis" but provide no details on how this was done. Particle picking was presumably done in RELION and although there is no information on what templates were used, this procedure alone was probably not enough to discriminate single-particles from fibrils. Moreover, if Figure 1E shows a representative micrograph as stated in the legend, the authors should have ~700 particles per micrograph (171,381 particles / 246 micrographs) which seems like an excessively high number of particles given the size of the field of view of a single micrograph. This was followed by two rounds of 2D classification where presumably the fibril positions were eliminated but there are no details about what criteria or strategies were used for class selection to achieve this. During 3D classification: "Multiple 3D reference-free classifications were performed with between two and six classes using the stochastic gradient descent algorithm, before selecting two classes that yielded the highest quality maps.", were the two final classes obtained from different classification runs then? There are also inconsistencies between the total reported number of particles and fractions that went into each 3D class: 72,205 is 80% of 93,469 (not 85% as stated in Figure 3—figure supplement 1), and 13,238 is 14% of 93,469 (not 15% as stated in Figure 3—figure supplement 1) which will also leave ~5,000 particles unaccounted for. Regarding Figure 2—figure supplement 1C, the authors should also comment on why the substrate-bound class is composed almost exclusively of side views (which is not the case for the stacked-ring class) and whether this bears any connection to the selection criteria used during 2D/3D classification and the potential inclusion of particles from the fibrils.

3) There is no comparison made between the new higher-resolution stacked-ring C6-symmetric structure and the author's own EMD-3435 published previously (Huang et al., 2016). Are these structures similar up to the lower common resolution of 7.8A? Did the absence of the N-terminal domain have any effect on the structures? Given that the imaging conditions used to obtain both structures were identical and the fact that the new structures were obtained from only half the number of micrographs (246 vs. 514), what were the factors that contributed to obtaining significantly better resolutions (~4 Å vs. ~7 Å) in the present report? It seems unlikely that the use of cryoSPARC alone would be responsible for such an improvement. Related to this, the 4.8 Å substrate-engaged intermediate shown in Figure 2—figure supplement 2 (middle column) and the 7 Å split-ring conformation (EMD-3436) (right column) show very similar structural features that don't seem to adequately reflect the reported large resolution difference. Was resolution assessed in the same way in both cases?

4) Quality of the reconstructions. Figure 2—figure – supplement 1 provides information on the quality of the reconstructions. Panels (A) and (B) show the FSC curves vs. resolution using various masks. However, there is no definition for loose, tight or corrected. Furthermore, the FSC curves for the "corrected" map contain sharp spikes. Can the authors elaborate on these points?

5) Physiological relevance of the structural models.

A) The structures here do not contain the N-terminal domains, which are substrate-interacting domains. Can the authors provide information on the substrate specificity and recognition for VAT and how the current structure reconciles with the substrate recognition requirements?

B) Furthermore, N-terminal domains have been shown to play important roles in regulating ATPase activity of NBD1 or NBD2 in other type II AAA proteins, the nucleotide bound states for NBD1 and NBD2 in the absence of N-domain might thus be different compared to full length proteins. Furthermore, whether N-domain has different effects on NBD1 and NBD2? The authors must discuss the potential effects of the N-domain deletion on the state and conformation of NBD1 and NBD2.

C) The lack of continuous density for the substrate in the central pore is surprising given the tight grips within the two separate hexameric rings (NBD1 and NBD2). The structure would thus suggest that the handing over of the substrate from NBD1 to NBD2 is somewhat un-coordinated. Can the authors comment on this? Could this be due to the presence of a single nucleotide (ATP-gS) instead of a likely mix of ATP, ADP and ADP+Pi under physiological conditions or could it be that the N-terminal domain plays a role in coordinating substrate recognition and translocation? The authors should comment on these points.

6) The relationship between NBD1 and NBD2. In other closely related AAA proteins such as p97 and NSF, NBD1 and NBD2 domains have been proposed to affect each other although the exact relationship is still under debate. Does the NBD1 affect NBD2 and vice versa in terms of nucleotide binding and hydrolysis? The structure of the substrate-engaged form reveals the relationship between the two NBDs within a single protomer. A detailed analysis of their relationship should be of great significance to the understanding of their mechanisms. Surprisingly, in the model presented in Figure 4, the authors only considered a single NBD domain.

7) What evidence is there that ATP-γ-S is not being slowly hydrolyzed in the cryo-EM structures?

https://doi.org/10.7554/eLife.25754.025

Author response

Major Concerns:

1) The assertion that DN-VAT in the presence of ADP assembles into long fibrils comprised of helical split-ring structures is inadequately supported. A single micrograph showing the fibrils (Figure 1B) without additional supporting information seems insufficient to substantiate this claim. Why wasn't this phenomenon observed for full-length VAT in (Huang et al., 2016)?

It is indeed interesting that fibrils were seen with ∆N-VAT with ADP but not full length VAT with ADP. We believe that steric hindrance from the NTDs prevents the fibrils from forming with full length VAT. We have added the following clarification in the main text:

“These fibrils were not observed in the ADP-bound state of full-length VAT (Huang et al., 2016), possibly because the NTDs block their formation due to steric hindrance.”

If the fibrils are indeed helical arrangements of DN-VAT split-ring hexamers, one could potentially get a structure out of them. At the very least, power spectra from the fibrils would show the periodicities present. Presenting some additional evidence and an extended discussion addressing these points will help substantiate this claim.

We thank the reviewer for this suggestion. We did indeed consider helical analysis when we first observed these fibrils. However, power spectra from the fibrils showed that they were ordered only to low resolution. We have added a power spectrum to Figure 1 and text to explain:

“Power spectra from these fibrils (e.g. Figure 1D, inset), as well as their real space appearance, suggest that they are composed of helical split-ring structures interacting with each other top-to-bottom in a poorly-ordered helical filament. The ~1/55 Å-1 distance from the origin to the first layer line is consistent with the pitch of each NBD helix in the split-ring structure of VAT.”

2) Regarding the structure determination of DN-VAT intermediates in the presence of ATPgS, the authors state that "the fibrils could be excluded easily when selecting single particle images for analysis" but provide no details on how this was done. Particle picking was presumably done in RELION and although there is no information on what templates were used, this procedure alone was probably not enough to discriminate single-particles from fibrils.

We apologize for this lack of detail. We add the following text to the Results section to describe more explicitly how fibers were excluded:

“Single particle cryo-EM analysis was performed, excluding the fibrils by inspecting micrographs after automatic particle selection and manually deselecting particle images that were part of a filament.”

As well as the following in the Methods section:

“851 particle images were selected manually and used to generate two 2D class averages that served as templates for automated particle selection in RELION. Automated picking was followed by manual de-selection of non-protein features and protein from fibrils (Figure 1D).”

Moreover, if Figure 1E shows a representative micrograph as stated in the legend, the authors should have ~700 particles per micrograph (171,381 particles / 246 micrographs) which seems like an excessively high number of particles given the size of the field of view of a single micrograph. This was followed by two rounds of 2D classification where presumably the fibril positions were eliminated but there are no details about what criteria or strategies were used for class selection to achieve this.

We did indeed pick ~700 particles per micrograph. The example images shown in Figure 1 are not a full micrograph but ~1/4 fields-of-view. The image of the ATPγS sample contains the expected ~175 particles for ~700 particles per micrograph. Showing a full micrograph in the figure does not illustrate particles clearly because of the limited resolution of computer monitors and printers.

We now clarify that this figure shows only part of a micrograph by modifying the caption of Figure 1:

Representative section of a micrograph of ΔN-VAT in the presence of 5 mM ADP, corresponding to ~25% of the full field-of-view. e,Representative section of a micrograph of ΔN-VAT in the presence of 5 mM ATPγS.”

The reviewers are correct that we performed visual inspection of 2D classes to exclude classes that did not correspond to the overall size/shape of hexameric VAT. We have now included the following clarification in the Methods section:

“Visual inspection and selection of 2D classes showing hexameric ΔN-VAT yielded 93,469 particle images, which were then transferred to the program cryoSPARC (9) for ab initio3D classification and refinement.”

During 3D classification: "Multiple 3D reference-free classifications were performed with between two and six classes using the stochastic gradient descent algorithm, before selecting two classes that yielded the highest quality maps.", were the two final classes obtained from different classification runs then?

The two classes were indeed selected from separate runs. We have added the following to the Materials and methods section to clarify this point:

“Reference-free 3D classification runs using the stochastic gradient descent algorithm were performed multiple times with between two and six classes, before selecting two classes that yielded the highest quality maps. The best map for the stacked-ring conformation came from reference-free classification with two classes, while the best map for the substrate-engaged conformation came from reference-free classification with three classes.”

There are also inconsistencies between the total reported number of particles and fractions that went into each 3D class: 72,205 is 80% of 93,469 (not 85% as stated in Figure 3—figure supplement 1), and 13,238 is 14% of 93,469 (not 15% as stated in Figure 3—figure supplement 1) which will also leave ~5,000 particles unaccounted for.

We apologize for this confusion. Due to use of a threshold that only includes particle images in refinement that were confidently assigned to a 3D class, the number of particle images used in refinement is not the same as the number of particle images in a selected 3D class. We have clarified this point in Materials and methods section:

“Only particle images that were confidently assigned to a class (cryoSPARC class probability ≥0.9) were used in refinement. […] With the class probability threshold of 0.9, gold-standard refinement of 13,238 particle images from the substrate-engaged class with no symmetry applied yielded a map at a resolution of 4.8 Å by FSC.”

Regarding Figure 2—figure supplement 1C, the authors should also comment on why the substrate-bound class is composed almost exclusively of side views (which is not the case for the stacked-ring class) and whether this bears any connection to the selection criteria used during 2D/3D classification and the potential inclusion of particles from the fibrils.

We do not believe that the prevalence of side views in the substrate-bound class is due to the selection criteria from 2D classification as the substrate-bound class emerged during 3D classification from the same dataset that gave the stacked-ring conformation. Instead, we think it is more likely that the elongated shape of two ΔN-VAT complexes side-by-side in the unfoldase-substrate complex leads to a preferred side view orientation for these particles. We have added the following text to the manuscript to suggest this possibility:

“This substrate-bound conformation displayed a strong preference for particles to lie with their long-axes parallel to the plane of the specimen support, possibly because of the elongated shape of the complex (Figure 2—figure supplement 1D).”

3) There is no comparison made between the new higher-resolution stacked-ring C6-symmetric structure and the author's own EMD-3435 published previously (Huang et al., 2016). Are these structures similar up to the lower common resolution of 7.8A?

These maps are indeed the same out to the resolution limit of the earlier map, other than the presence of the NTDs. We include a new FSC curve in Figure 2—figure supplement 1E and added the text:

“Fourier shell correlation (FSC) of the map with the earlier map of full-length VAT (5) with the NTDs excluded by masking reached FSC=0.5 at 8 Å resolution, consistent with the 7.8 Å resolution of the full-length VAT map (Figure 2—figure supplement 1E).”

Did the absence of the N-terminal domain have any effect on the structures? Given that the imaging conditions used to obtain both structures were identical and the fact that the new structures were obtained from only half the number of micrographs (246 vs. 514), what were the factors that contributed to obtaining significantly better resolutions (~4 Å vs. ~7 Å) in the present report? It seems unlikely that the use of cryoSPARC alone would be responsible for such an improvement.

We do indeed believe that the absence of the NTDs was the key determinant in reaching higher-resolution than before with the C6 structure of VAT. We do not think that cryoSPARC was the main contributor to the improved resolution. We enumerate the factors that we believe led to improved resolution in the following added text:

“This substantial improvement over the 7.8 Å resolution obtained previously for the six-fold symmetric conformation of full length VAT (Huang et al., 2016) is likely due to a number of factors. […] Finally, preparation of crowded specimens with ~700 particles per micrograph improved power spectra and allowed more accurate fitting of contrast transfer function parameters at high resolution.”

Related to this, the 4.8 Å substrate-engaged intermediate shown in Figure 2—figure supplement 2 (middle column) and the 7 Å split-ring conformation (EMD-3436) (right column) show very similar structural features that don't seem to adequately reflect the reported large resolution difference. Was resolution assessed in the same way in both cases?

Resolution was indeed assessed in the same way for both maps. Initially, we were also struck by the similarity in appearance of the 4.8 and 7.0 Å resolution maps. We calculated the local resolution of the maps, thinking that the pore loops shown in Figure 2—figure supplement 2 were perhaps at similar resolutions. While we now include these local resolution maps in Figure 2—figure supplement 1 the calculation revealed that the pore loops were not particularly disordered in either map. Subsequently, we low-pass filtered the 3.9 Å resolution 6-fold symmetric △N-VAT map to 4.8 and 7.0 Å (see Author response image 1). This exercise showed that while it is easy to tell the 3.9 Å resolution map apart due to obvious bulky side chains on α-helices, it is quite difficult to distinguish a 4.8 Å resolution map from a 7.0 Å resolution map. Consequently, we conclude that the reason why the split-ring and substrate-engaged states of VAT’s pore loops in Figure 2—figure supplement 2 look similar is that at 7.0 and 4.8 Å resolution there are few differences in structural features to distinguish them.

Author response image 1

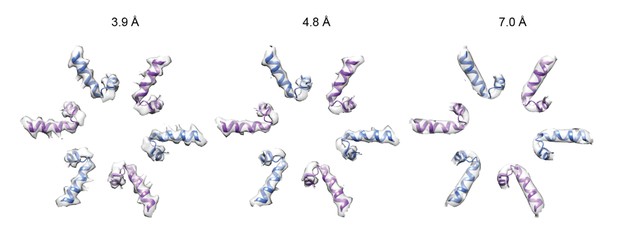

Six-fold symmetric △N-VAT map filtered to 3.9, 4.8, and 7.0 Å resolution:
https://doi.org/10.7554/eLife.25754.016

4) Quality of the reconstructions. Figure 2—figure supplement 1 provides information on the quality of the reconstructions. Panels (A) and (B) show the FSC curves vs. resolution using various masks. However, there is no definition for loose, tight or corrected. Furthermore, the FSC curves for the "corrected" map contain sharp spikes. Can the authors elaborate on these points?

On reflection, we have realized that it is not necessary to include all of the diagnostic FSC curves that are provided by cryoSPARC. Instead, we now include just the tight-masked and corrected FSC curves and explain these curves in the methods section of the manuscript. In manuscripts where Relion is used it is standard to provide the corrected FSC.

NB: the spike in the corrected FSC curve is a well-known phenomenon that can also be seen in the corrected FSC curves from Relion.

We have added the following explanatory text:

“FSC curves were calculated with masks applied to remove solvent regions from the background of the maps. […] The final tight masking conditions were determined automatically by cryoSPARC by adjusting the extension and fading distances of the mask to optimize the reported resolution without introducing correlation from the mask.”

5) Physiological relevance of the structural models.

A) The structures here do not contain the N-terminal domains, which are substrate-interacting domains. Can the authors provide information on the substrate specificity and recognition for VAT and how the current structure reconciles with the substrate recognition requirements?

From numerous unpublished studies in the Kay laboratory, we know that VAT is able to unfold any substrate protein with an accessible N or C terminus, without requiring the equivalent of an ssRA tag like ClpX. The data presented in Figure 1 demonstrates this point by showing VAT unfolding VAT, but also unfolding the enzymes of the ATP regenerating system (e.g. pyruvate kinase) used in the experiment. We have added the following text to explain this lack of specificity:

“VAT’s ability to unfold pyruvate kinase (Figure 1B) and other VAT particles is consistent with the finding that it can recognize substrates with an unstructured N or C terminus (Gerega et al., 2005) and does not require a specific marker or target sequence for initiating protein unfolding.”

While there have been some suggestions that the NTDs of VAT do indeed recognize an unidentified protein sequence, these suggestions remain speculative and we have added:

“The physiological function of the VAT NTDs remains unclear.”

B) Furthermore, N-terminal domains have been shown to play important roles in regulating ATPase activity of NBD1 or NBD2 in other type II AAA proteins, the nucleotide bound states for NBD1 and NBD2 in the absence of N-domain might thus be different compared to full length proteins. Furthermore, whether N-domain has different effects on NBD1 and NBD2? The authors must discuss the potential effects of the N-domain deletion on the state and conformation of NBD1 and NBD2.

We agree that it is possible that removal of the NTDs could affect the conformation or state of the NBDs. However, we can see no evidence that this has occurred. Therefore, we acknowledge this possibility in the text:

“While it is possible that removal of the NTD affects the conformations of the NBDs, Fourier shell correlation (FSC) of the map with the earlier map of full-length VAT (Huang et al., 2016) with the NTDs removed by masking reached FSC=0.5 at 8 Å resolution, consistent with the 7.8 Å resolution of the full-length VAT map (Figure 2—figure supplement 1E).”

In discussing the similarities in the NBD1 and NBD2 rings at the end of manuscript, we also add the caveat:

“These conformations may be perturbed by the presence of the NTDs in full-length VAT.”

C) The lack of continuous density for the substrate in the central pore is surprising given the tight grips within the two separate hexameric rings (NBD1 and NBD2). The structure would thus suggest that the handing over of the substrate from NBD1 to NBD2 is somewhat un-coordinated. Can the authors comment on this? Could this be due to the presence of a single nucleotide (ATP-gS) instead of a likely mix of ATP, ADP and ADP+Pi under physiological conditions or could it be that the N-terminal domain plays a role in coordinating substrate recognition and translocation? The authors should comment on these points.

We believe that the lack of continuous density for the substrate requires that there is a lack of ‘tension’ between the regions gripped by NBD1 and NBD2. We do not think it necessarily indicates that the passing of substrate from NDB1 to NBD2 is uncoordinated.

We add the following comment:

“This flexibility is likely due to a lack of tension on the substrate in the observed state.”

However, we acknowledge that the complex is formed in the presence of a single nucleotide, which may give it a different conformation than if it were formed with a physiological mixture of ATP, ADP, and Pi. We point out this caveat by adding:

“These conformations may be perturbed by the presence of the NTDs in full-length VAT. The conformations could also differ when the enzyme is in a physiological mixture of ATP, ADP, and inorganic phosphate, which could also affect the appearance of the bound substrate.”

6) The relationship between NBD1 and NBD2. In other closely related AAA proteins such as p97 and NSF, NBD1 and NBD2 domains have been proposed to affect each other although the exact relationship is still under debate. Does the NBD1 affect NBD2 and vice versa in terms of nucleotide binding and hydrolysis? The structure of the substrate-engaged form reveals the relationship between the two NBDs within a single protomer. A detailed analysis of their relationship should be of great significance to the understanding of their mechanisms. Surprisingly, in the model presented in Figure 4, the authors only considered a single NBD domain.

We now add the following text to discuss the relationship between NBD1 and NBD2 further in terms of nucleotide binding and hydrolysis:

“ATP hydrolysis in the two NBDs has been shown to be coupled, with mutations in one domain also affecting ATP hydrolysis by the other (Gerega et al., 2005). […] Preserving these similar interactions would require that they function in concert with each other.”

Do explain how NBD1 and NBD2 interact with each other, we have added:

“The transition from the stacked-ring to the substrate-engaged conformation of ΔN-VAT occurs with rearrangement of NBD1 relative to NBD2 in each protomer and a rotation of the NBD1 ring against the NBD2 ring (Figure 3—figure supplement 2, Video 1 and 2). […] This rotation and displacement brings the NBD1 and NBD2 rings closer together than in the stacked-ring conformation, decreasing the distance between their pore loops.”

We apologize for the confusion about what we intended to represent in Figure 4A. The ovals in the figure were meant to represent both NBDs, not a single NBD. We have updated the cartoon, replacing the oval shape with an hourglass shape, to indicate that it represents both NBD1 and NBD2.

7) What evidence is there that ATP-γ-S is not being slowly hydrolyzed in the cryo-EM structures?

We believe the ATP γS is indeed slowly hydrolyzed, and we refer to the compound as ‘slowly hydrolysable’ in the manuscript. We have also added the following text to emphasize that the ATP γS is likely slowly hydrolyzed, and this hydrolysis may be required for formation of the substrate-bound state:

“Formation of this state may be dependent on the slow hydrolysis thought to occur with ATPγS.”

https://doi.org/10.7554/eLife.25754.026

Article and author information

Author details

  1. Zev A Ripstein

    1. The Hospital for Sick Children Research Institute, Toronto, Canada
    2. Department of Biochemistry, University of Toronto, Toronto, Canada
    Contribution
    ZAR, Performed protein purification, electron microscopy, image analysis, atomic model building, and enzyme assays, Wrote the manuscript with input from the other authors
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3601-0596
  2. Rui Huang

    1. Department of Biochemistry, University of Toronto, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Chemistry, University of Toronto, Toronto, Canada
    Contribution
    RH, Created the ΔN-VAT construct , Performed protein degradation assays
    Competing interests
    No competing interests declared.
  3. Rafal Augustyniak

    1. Department of Biochemistry, University of Toronto, Toronto, Canada
    2. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    3. Department of Chemistry, University of Toronto, Toronto, Canada
    Contribution
    RA, Created the E291Q, E568Q VAT mutant and assisted with the purification of this protein
    Competing interests
    No competing interests declared.
  4. Lewis E Kay

    1. The Hospital for Sick Children Research Institute, Toronto, Canada
    2. Department of Biochemistry, University of Toronto, Toronto, Canada
    3. Department of Molecular Genetics, University of Toronto, Toronto, Canada
    4. Department of Chemistry, University of Toronto, Toronto, Canada
    Contribution
    LEK, Supervised research
    For correspondence
    kay@pound.med.utoronto.ca
    Competing interests
    LEK: Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4054-4083
  5. John L Rubinstein

    1. The Hospital for Sick Children Research Institute, Toronto, Canada
    2. Department of Biochemistry, University of Toronto, Toronto, Canada
    3. Department of Medical Biophysics, University of Toronto, Toronto, Canada
    Contribution
    JLR, Supervised research, Wrote the manuscript with input from the other authors
    For correspondence
    john.rubinstein@utoronto.ca
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0566-2209

Funding

Natural Sciences and Engineering Research Council of Canada

  • Zev A Ripstein

Canadian Institutes of Health Research (MOP133408)

  • Lewis E Kay

Canada Research Chairs

  • John L Rubinstein
  • Lewis E Kay

Natural Sciences and Engineering Research Council of Canada (401724-12)

  • John L Rubinstein

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Ali Punjani, Marcus Brubaker, and Suhail Dawood for advice and assistance with cryoSPARC. ZAR was supported by a scholarship from the Natural Sciences and Engineering Research Council of Canada. LEK and JLR were supported by the Canada Research Chairs program. This research was funded by operating grant MOP-133408 from the Canadian Institutes of Health Research (LEK) and by discovery grant 401724-12 from the Natural Sciences and Engineering Research Council (JLR).

Reviewing Editor

  1. Edward H Egelman, University of Virginia, United States

Publication history

  1. Received: February 6, 2017
  2. Accepted: April 6, 2017
  3. Accepted Manuscript published: April 8, 2017 (version 1)
  4. Version of Record published: May 9, 2017 (version 2)

Copyright

© 2017, Ripstein et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,315
    Page views
  • 1,098
    Downloads
  • 33
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Hui Guo et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Olavo B Amaral et al.
    Feature Article Updated
