Continuous contact with self-major histocompatibility complex ligands is essential for the survival of naive CD4 T cells. We have previously shown that the resulting tonic TCR signaling also influences their fate upon activation by increasing their ability to differentiate into induced/peripheral regulatory T cells. To decipher the molecular mechanisms governing this process, we here focus on the TCR signaling cascade and demonstrate that a rise in intracellular calcium levels is sufficient to modulate the phenotype of mouse naive CD4 T cells and to increase their sensitivity to regulatory T-cell polarization signals, both processes relying on calcineurin activation. Accordingly, in vivo calcineurin inhibition leads the most self-reactive naive CD4 T cells to adopt the phenotype of their less self-reactive cell-counterparts. Collectively, our findings demonstrate that calcium-mediated activation of the calcineurin pathway acts as a rheostat to shape both the phenotype and effector potential of naive CD4 T cells in the steady-state.https://doi.org/10.7554/eLife.27215.001
To help protect the body from disease, small immune cells called T lymphocytes move rapidly, searching for signs of infection. These signs are antigens – processed pieces of proteins from invading microbes – that are displayed on the surface of so-called antigen-presenting cells.Before it encounters its specific antigen, a T cell is called naive. After encountering its antigen, the naive T cell activates and then develops into a variety of immune cells, each with a specific activity. These immune cells include so-called peripherally induced regulatory T cells (or “pTreg cells” for short), which, as the name suggests, help to regulate the immune response.
In addition to foreign antigens from microbes, antigen-presenting cells display fragments of the body’s own proteins too. All naive T cells recognize some “Self-antigens”, but not as strongly as they recognize foreign antigens. As a naive T cell travels around the body, it repeatedly interacts with antigen-presenting cells that display Self-antigens, which triggers a low level of signaling in the T cell. While this background signaling was known to help the T cell survive, in 2013, researchers reported that: it also makes the T cell more responsive to foreign antigens; and it shapes how these cells will respond when activated. For example, the naive T cells that respond the most to Self-antigens were seen to be much more likely to become pTreg cells when activated than other T cells.
Guichard et al. – who include several of the researchers involved in the 2013 work – set out to understand why the most Self-reactive T cells show this bias toward becoming pTreg cells. The experiments used a range of approaches with T cells both in the laboratory and in mice. By looking at which genes were active in the most Self-reactive T cells, Guichard et al. narrowed in on a signaling pathway that involves calcium ions and an enzyme called Calcineurin. Blocking this pathway caused the most Self-reactive T cells to lose their bias, and instead develop in the same way as the least Self-reactive T cells.
Guichard et al. propose that the continuous interactions with Self-antigens trigger waves of calcium ions in a naive T cell that shapes its behavior and future development. In a related study, Dong, Othy et al. also conclude that contact with antigen-presenting cells causes calcium signals that shape how the T cells behave.
In addition to providing more detail about the inner workings of immune cells, these findings may also have implications in a clinical setting. Calcineurin inhibitors are often used to suppress the immune system in transplant patients to prevent rejection of the transplanted organ. However, it has proved difficult to safely interrupt these therapies even after many years. These new findings may provide a possible explanation for this, by suggesting that the inhibitors may also interfere with the generation of pTreg cells. Without these cells’ regulatory influence, the immune system is unlikely to ever become tolerant of the transplant.https://doi.org/10.7554/eLife.27215.002
T-cell precursors originate in the bone-marrow and are educated in the thymus through processes called positive and negative selections, which result in MHC-restriction and self-tolerance, respectively (Stritesky et al., 2012). Only those T cells that bear an αβT-cell receptor (TCR) recognizing self-MHC with a relatively low affinity will differentiate and exit into the systemic circulation as self-MHC restricted T cells. T cells carrying an αβ TCR that reacts with self-MHC with very low affinity die by neglect, whereas those recognizing self-MHC with high affinity are mostly deleted by apoptosis or differentiate into regulatory T cells called ‘natural’ or thymically derived (tTreg) in order to prevent autoimmunity (Bautista et al., 2009; Leung et al., 2009). Therefore, self-MHC and the associated self-reactivity of T cells influence both T-cell production and phenotype in the thymus.
In the periphery, the pre-immune repertoire of T cells is composed of almost 70% of naive T cells. The remaining 30% are divided between recent thymic emigrants with a comparable phenotype, regulatory T cells (Foxp3+) and cells with an activated/memory phenotype. Naive T cells are kept alive through continuous TCR interactions with MHC molecules complexed with various self-peptides. Such TCR/MHC interactions plus contacts with IL-7 cause low-level signaling, which promotes long-term survival of naive T cells in interphase through the synthesis of anti-apoptotic molecules such as Bcl-2 (Martin et al., 2006; Takada and Jameson, 2009).
The degree of TCR self-reactivity of a given T-cell clone has been correlated with its expression of CD5 and Nur77 (Azzam et al., 1998; Moran et al., 2011). We have recently identified the cell surface GPI-anchored protein, Ly-6C, as an additional and complementary sensor of T-cell self-reactivity (Martin et al., 2013). Indeed, we have shown that, in contrast to CD5 and Nur77 which expression directly correlates with self-reactivity, the expression of Ly-6C by peripheral naive CD4 T cells (CD4 TN cells) inversely correlates with their ability to interact with self-MHC (Martin et al., 2013). Ly-6C- CD4 TN cells were therefore identified as more self-reactive than their Ly-6C+-cell counterparts.
In the absence of foreign antigen, peripheral naive T cells continuously recirculate between lymphoid organs (Gowans, 1959), in which they migrate along the fibroblastic reticular cells network (Bajénoff et al., 2006) and interact frequently and briefly with dendritic cells (DC) (Bajénoff et al., 2006; Mempel et al., 2004). It is generally accepted that these frequent DC-T-cell interactions increase the probability of contacts between very rare antigen-specific naive T cells and the few DCs presenting their cognate antigen during the initial course of an infection. Experimental evidences indicate that self-MHC recognition in the periphery is also required to maintain T cells in a state of responsiveness toward foreign antigen (Persaud et al., 2014; Stefanová et al., 2002; Wülfing et al., 2002), suggesting a crucial role for self-MHC mediated ‘education’ and TCR self-reactivity in determining the intrinsic functional attributes of CD4 TN cells. Altogether, this steady-state tonic TCR signaling was shown to influence CD4 TN-cell effector fate by increasing the magnitude of their response toward their cognate antigens.
Following activation by antigen-presenting cells (APCs) in the periphery, the bulk of CD4 TN cells can differentiate into a variety of well documented T-helper (TH) cell subsets, such as TH1, TH2, TH17 or peripherally induced regulatory T cells (pTreg cells), characterized by their cytokine production profiles, specific effector functions and lineage-specific transcription factors (T-bet for TH1 cells, GATA-3 for TH2 cells, RORγt/RORα for TH17 cells and Foxp3 for pTreg cells) (Abbas et al., 1996; Bilate and Lafaille, 2012; Fontenot et al., 2003; Hori et al., 2003; Ivanov et al., 2006; Liang et al., 2006; Mosmann et al., 1986; Szabo et al., 2000; Ye et al., 2001; Zheng and Flavell, 1997). Among these effector CD4 T cells, pTreg cells produce TGF-β and share phenotypic and functional characteristics with tTreg cells (Bilate and Lafaille, 2012). The immunological context in which CD4 TN cells are immersed at the time of their activation is known to drive lineage commitment. The strength of the activating TCR signals received by a CD4 TN cell also influences its subsequent polarization toward particular differentiation pathways (Corse et al., 2011). Indeed, in weakly polarizing conditions, low TCR signals favor TH2- and pTreg-cell differentiation, whereas TH1- and TFH-cell differentiation arises from stronger signals (Gottschalk et al., 2010; Rogers and Croft, 1999; Turner et al., 2009). Most of these data were obtained in vitro by modulating signal strength with graded dose of peptide-MHC ligands of varying potency. However, only relatively high-affinity TCR–MHC interactions were shown to facilitate the induction of persistent Foxp3+ T cells in vivo (Gottschalk et al., 2010).
Our recent work has reinforced the link between the tonic TCR signaling received by CD4 TN cells in the steady-state and their fate in the effector phase. Indeed, we have demonstrated that TCR/self-MHC interactions not only increase quantitatively but also shape qualitatively the response of CD4 TN cells to their cognate antigens in the effector phase (Martin et al., 2013). More precisely, by taking advantage of our data showing that Ly-6C expression can be considered as a new sensor of CD4 TN-cell self-reactivity, we have demonstrated that CD4 TN cells with the highest avidity for self-MHC (Ly-6C-) have a biased commitment toward the iTreg/pTreg-cell lineage (Martin et al., 2013).
The binding of antigen/MHC complexes to the TCR triggers the recruitment of a series of signaling molecules and adaptors to the TCR/CD3 complex that ultimately results in the phosphorylation and activation of phospholipase C-γ (PLCγ). PLCγ then cleaves the phospholipid phosphatidylinositol 4,5-bisphosphate (PIP2) in the plasma membrane to generate diacylglycerol, which activates protein kinase C (PKC) and Ras-dependent pathways, as well as 1,4,5-inositol trisphosphate (IP3), which induces the release of calcium (Ca2+) from intracellular stores (the endoplasmic reticulum (ER)). This Ca2+ store release only transiently elevates intracellular Ca2+ concentrations but this transient rise induces in turn a massive and sustained Ca2+ entry from the extracellular space (Hogan et al., 2010).
With the aim of deciphering the molecular mechanisms involved in the tonic TCR-signaling-mediated shaping of the CD4 TN-cell compartment, we have focused on the TCR signaling cascade. By using transcriptomic and phenotypic approaches as well as in vitro and in vivo assays, we have identified the Ca2+ signaling pathway as key for the acquisition of both the phenotype of the most self-reactive CD4 TN cells and their enhanced cell-intrinsic ability to commit into regulatory T cells upon activation in vitro (iTreg) and in vivo (pTreg).
We have recently shown that CD4 TN cells with the highest avidity for self-MHC (Ly-6C- CD4 TN cells) have a biased commitment toward the iTreg/pTreg-cell lineage (Martin et al., 2013). As TH1- and TH2-cell-derived cytokines are known to inhibit iTreg-cell induction in vitro (Henderson et al., 2015), we first wondered whether Ly-6C- and Ly-6C+ CD4 TN cells had the same ability to produce such cytokines after stimulation. Ly-6C- and Ly-6C+ CD4 TN cells were thus stimulated with αCD3- and αCD28-coated antibodies in the presence or absence of TGFβ. Interferon-gamma (IFN-γ) and interleukins (IL) -4, -17 and -10 were assayed in the supernatants collected 24 hr after the beginning of the culture. We found that, whatever the presence or absence of TGFβ in the culture medium, Ly-6C- and Ly-6C+ CD4 TN cells produced similar amounts of these cytokines (Figure 1—figure supplement 1A,B). To further characterize the enhanced ability of Ly-6C- CD4 TN cells to commit into iTregs in vitro, we asked whether this feature was cell-intrinsic. To this end, Ly-6C- and Ly-6C+ CD4 TN cells were isolated from peripheral LNs of C57BL/6 Foxp3-GFP mice by flow cytometry sorting, barcoded with CTv or CTv and CTfr proliferation dyes, and stimulated with αCD3- and αCD28-coated antibodies in the presence of graded doses of TGFβ. These cells were cultured separately or together (Figure 1A,B). The percentages of Foxp3+ cells among the progeny of both naive cell-subsets were assessed on day 4. For suboptimal doses of exogenous TGFβ,Ly-6C- CD4 TN cells gave rise to a twofold higher proportion of iTreg cells than their Ly-6C+-cell counterparts in both culture conditions (Figure 1C,D). The concentration of TGFβ needed to obtain 50% of the maximal percentage of iTreg cells (effective concentration, EC50) was calculated by fitting the dose-response curves of both CD4 TN-cell subsets in the different culture conditions (Figure 1D,E). EC50 values for TGFβ were statistically different between the 2 CD4 TN-cell subsets whether they were cultured separately or together. Of note, and in line with their similar ability to produce TH1- and TH2-cell-derived cytokines, blocking IFN-γ and IL-4 during in vitro iTreg-cell polarization did not abolish the difference in the ability of Ly-6C- and Ly-6C+ CD4 TN cells to differentiate into iTreg cells. (Figure 1—figure supplement 1C–E). These results suggest strongly that the greater sensibility of Ly-6C- CD4 TN cells to iTreg-cell polarization signals is cell-intrinsic.

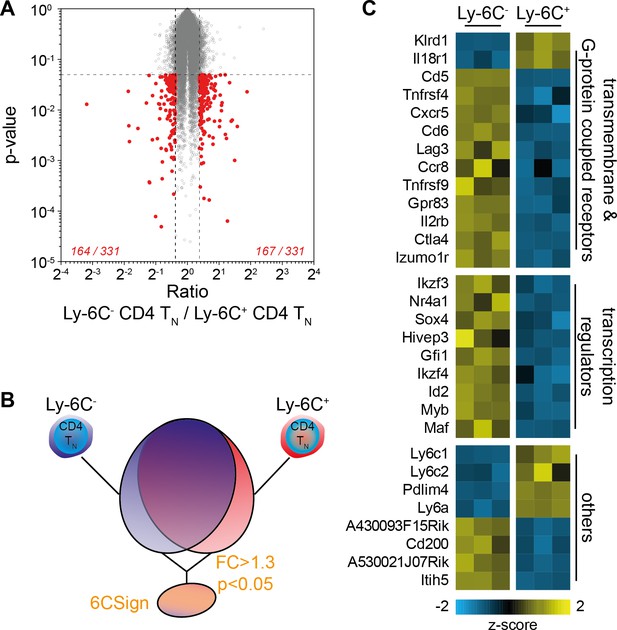

To further compare Ly-6C- and Ly-6C+ CD4 TN cells, we obtained Affymetrix gene expression profiles from both CD4 TN-cell subsets directly isolated from peripheral LNs of C57BL/6 Foxp3-GFP mice by flow cytometry sorting (Figure 2). Only few genes were significantly differentially expressed between the two types of CD4 TN cells (at a 1.3-fold cutoff, 167 genes over-expressed and 164 under-expressed in Ly-6C- CD4 TN cells when compared to Ly-6C+ CD4 TN cells; Figure 2A). This set of differentially expressed genes between Ly-6C- and Ly-6C+ CD4 TN cells was compiled into a comprehensive signature that we named 6CSign (Figure 2B,C). The differential expression of several genes by Ly-6C- and Ly-6C+ CD4 TN cells was then validated at the protein level by flow-cytometry (Figure 2—figure supplement 1). In line with our microarray analysis, Ly-6C- CD4 TN cells were expressing higher amounts of CD5, CD73, CD122, CD200, Ikzf3 and Izumo1r and lower levels of Sca-1 and IL18Rα than their Ly-6C+ CD4 TN-cell counterparts (Figure 2—figure supplement 1A,B).
We have previously shown that Ly-6C- CD4 TN cells were more self-reactive than Ly-6C+ CD4 TN cells (Martin et al., 2013). Accordingly, among the 6CSign, several genes such as Ctla4, Cd5, Tnfrsf4, Tnfrsf9 and Nr4a1 were previously shown to belong to activation-induced or -repressed gene families (Figure 2C; [Wakamatsu et al., 2013]). We thus compared more precisely our signature, the 6CSign, with several public Geo Datasets comparing various ‘activated’ CD4 TN cells to their non-activated cell counterparts (Figure 3A,B). CD5 expression levels on CD4 TN cells are actively maintained by interactions with self-MHC and rapidly decline in their absence (for example in the blood, [Stefanová et al., 2002]). In agreement with a greater self-reactivity of Ly-6C- CD4 TN cells, the 6CSign correlated significantly with the CD5hi versus CD5lo CD4 TN-cell signature (Richards et al., 2015). Interestingly, whereas the 6CSign genes also correlated with the transcriptional signature of αCD3-activated CD4 TN cells (compared to unstimulated cells) (Wakamatsu et al., 2013), there was no significant correlation with the signature of Phorbol 12-Myristate 13-Acetate (PMA)-activated CD4 TN cells (Bevington et al., 2016).

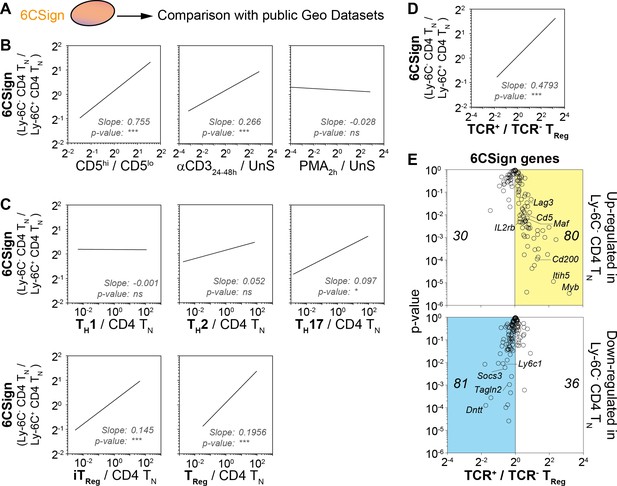

Interestingly, the 6CSign contained several genes characteristically expressed in Treg cells such as Ctla4, Izumo1r, Cd200, Lag3 or Il2rb. All these genes were upregulated in Ly-6C- CD4 TN cells when compared to Ly-6C+ CD4 TN cells (Figure 2C). By comparing CD4 T-cell effectors with naive CD4 T cells, Wei et al. (2009) have recently defined the transcriptional signature of the main CD4 TH-cell subsets such as in-vitro-induced Treg cells, TH1, TH2 and TH17 cells. Comparison of the 6CSign with these cell signatures revealed that the differences in gene expression observed between Ly-6C- and Ly-6C+ CD4 TN cells correlated significantly with the in-vitro-induced Treg-cell signature, and to a lesser extent with the TH17 one but not with the TH1 or TH2 transcriptional signatures (Figure 3C).
Similarities were also observed between the transcriptional profiles of Ly-6C- CD4 TN cells and ex vivo purified peripheral Treg cells (Figure 3C) (Wei et al., 2009). One common characteristic shared by Ly-6C- CD4 TN cells and CD4 Treg cells is their high degree of self-reactivity. Recent studies have highlighted a continuous requirement of self-MHC recognition and of the associated TCR-mediated signaling for maintaining both the function and transcriptional signature of CD4 Treg cells (Delpoux et al., 2012; Levine et al., 2014; Vahl et al., 2014). Whereas self-deprivation or TCR-ablation did not impair the expression of the transcription factor Foxp3, they induced major transcriptional changes (Delpoux et al., 2012; Levine et al., 2014; Vahl et al., 2014). Interestingly, 6CSign genes strongly correlated with the transcriptional signature of TCR+ CD4 Treg cells (compared to TCR- CD4 Treg cells, Figure 3D) (Vahl et al., 2014). More precisely, most genes upregulated in Ly-6C- CD4 TN cells when compared to their Ly-6C+-cell counterparts were positively regulated by steady-state TCR signaling in CD4 Treg cells (such as Cd5, Cd200, Il2rb, Itih5, Maf and Myb; Figure 3E). Conversely, an important proportion of the genes downregulated in Ly-6C- CD4 TN cells were also down-regulated by steady-state interactions with self-MHC in CD4 Treg cells (Figure 3E). Altogether, these data point to a role for the TCR signaling pathway in the installation and maintenance of the 6CSign.
The transcriptional signature of Ly-6C- CD4 TN cells revealed some similarities between these cells and αCD3-stimulated CD4 TN cells. We therefore decided to analyze the effect of TCR signaling on Ly-6C expression. Ly-6C+ CD4 TN cells were isolated from peripheral LNs of C57BL/6 Foxp3-GFP mice by flow cytometry sorting and incubated with various stimulating agents mimicking all or part of TCR-induced signals (Figure 4A). As expected from our transcriptomic analysis and previous work (Martin et al., 2013), Ly-6C expression was clearly downregulated when cells were stimulated with αCD3 and αCD28-coated antibodies for 5 days (Figure 4A,B). To decipher which TCR-induced signals led to Ly-6C down-regulation, we roughly dichotomized the TCR signaling cascade into its two main components, for example the Ca2+ signaling pathway that can be elicited by Thapsigargin (TG) and the PKC and ERK signaling pathways activated by PMA. When combined, PMA and TG, induced complete Ly-6C down-regulation, whereas, when separated, each drug had an opposite effect on Ly-6C expression. Indeed, whereas PMA alone upregulated Ly-6C expression, TG alone induced a near-complete disappearance of Ly-6C protein at the surface of Ly-6C+ CD4 TN cells. Interestingly, while in all other conditions, CD4 TN cells were proliferating, this phenotypic conversion of Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells induced by TG alone occurred without any proliferation (Figure 4A,B). Importantly, to avoid TG-induced cell death, a sub-optimal dose (4 nM) was used in these culture conditions. 4 nM TG induced a reproducible increase in intracellular calcium levels, although to a lesser extent than the classical dose of 200 nM (Figure 4C). Accordingly, by analyzing basal Ca2+ contents at the end of the culture period (5 days), we observed that 4 nM TG treated Ly-6C+ CD4 TN cells exhibited higher cytoplasmic Ca2+ levels than control cells cultured in IL-7 alone (Figure 4D,E). To further characterize the long-term effect of this low-dose TG, subcellular localization of the nuclear factor of activated T-cell protein 1 (NFAT1) was assessed in Ly-6C+ CD4 TN cells in the presence or absence of 4 nM TG at various time points along the culture. Indeed, increases in intracellular Ca2+ levels result in the activation of calcineurin that dephosphorylates members of the NFAT family, leading to their translocation into the nucleus. NFAT1 localization was quantified by high-resolution imaging flow-cytometry using the ImageStreamX technology (Figure 4F). In line with the Ca2+ increase induced by 4 nM TG treatment, NFAT was translocated into the nucleus of Ly-6C+ CD4 TN cells in the presence of TG while it remained cytoplasmic in its absence. NFAT translocation into the nucleus peaked on day 1 and remained significantly higher in TG-treated cells than in control cells throughout the culture.

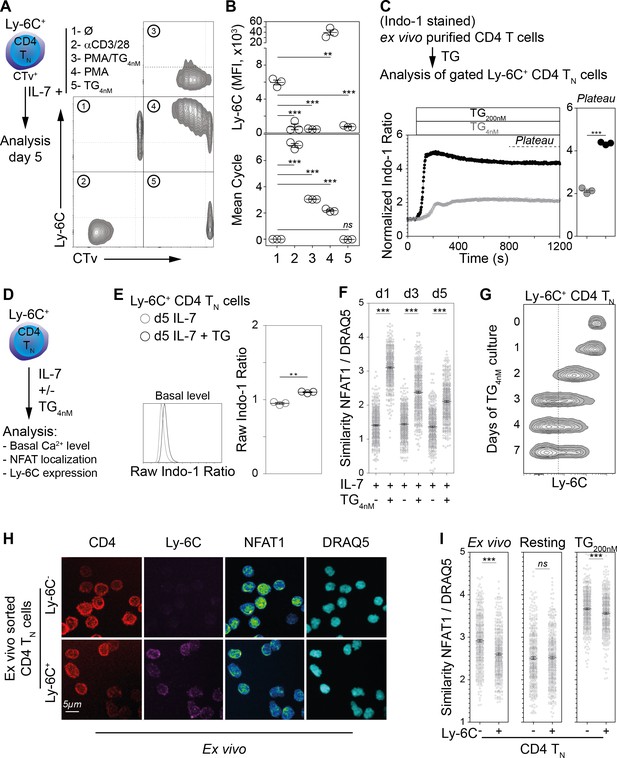

Finally, in agreement with their resting status, Ly-6C+ CD4 TN cells cultured in TG alone for 5 days maintained a naive phenotype according to their low forward scatter profile and expression of CD44 and CD62L (Figure 4—figure supplement 1). We then studied the kinetic aspect of the TG-mediated conversion of Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells and found that it occurred in 3–4 days of culture (Figure 4G).
Altogether, our results suggest that the Ca2+ signaling pathway is sufficient to induce Ly-6C down-regulation on CD4 TN cells in vitro. We therefore hypothesized that the Ca2+ signaling pathway might be involved as part of the self-mediated tonic TCR signaling in the generation/maintenance of Ly-6C- CD4 TN cells in the periphery of a normal mouse in the steady-state. To evaluate the activation status of the Ca2+ signaling pathway within Ly-6C- and Ly-6C+ CD4 TN cells in vivo in the steady-state, we analyzed NFAT1 subcellular localization in both cell types. To this aim, LN cells were directly fixed after recovery and NFAT1 or NFAT2 localization was imaged by confocal microscopy (Figure 4H) and quantified by high-resolution imaging flow-cytometry using the ImageStreamX technology (Figure 4I and Figure 4—figure supplement 2). In line with our hypothesis, NFAT localization is more nuclear in Ly-6C- CD4 TN cells than in their Ly-6C+-cell counterparts. As a control, CD4 TN cells were rested in vitro for 30 min before fixation and staining. As expected, differences in NFAT localization between Ly-6C- and Ly-6C+ CD4 TN cells were abolished in these conditions. 200 nM TG treatment induced the nuclear translocation of NFAT in both CD4 TN-cell subsets. Of note, in this latter condition, differences in the localization of NFAT1 and NFAT2 between Ly-6C- and Ly-6C+ CD4 TN cells were diminished but not completely abolished (Figure 4I and Figure 4—figure supplement 2).
Altogether, our data demonstrate that increasing in vitro intracellular Ca2+ levels is sufficient to down-modulate Ly-6C expression at the cell surface of Ly-6C+ CD4 TN cells without inducing any significant proliferation or activation. Accordingly, the greater nuclear-cytoplasmic ratio of NFAT proteins observed in Ly-6C- CD4 TN cells, when compared to their Ly-6C+ CD4 TN-cell counterparts, might reflect differences in the intensity of the Ca2+/Calcineurin signaling induced in vivo in these cells. Such differences could result from the differential ability of these cells to regularly interact with self-MHC/self-peptide complexes in the steady-state.
We have identified several proteins differentially expressed between Ly-6C- and Ly-6C+ CD4 TN cells (Figure 2—figure supplement 1) and have showed that TG induced Ly-6C downregulation at the cell surface of Ly-6C+ CD4 TN cells. We next studied whether proteins of the 6CSign other than Ly-6C, were also modulated by an increase in intracellular Ca2+. To go further, we examined in parallel the involvement of the calcineurin phosphatase in these processes. To this aim, Ly-6C+ CD4 TN cells were isolated from peripheral LNs of C57BL/6 Foxp3-GFP mice by flow cytometry sorting and cultured with IL-7 in the presence or absence of TG and calcineurin-inhibitors (Cyclosporin A, CsA and Tacrolimus, FK506, FK). Ly-6C- CD4 TN cells cultured in IL-7 were added as control. After 5 days of culture in these conditions, the expression of Ly-6C, CD5, CD73, CD122, CD200 and Izumo1r was analyzed by flow-cytometry (Figure 5A). For all these proteins, TG induced changes in their expression at the cell surface of Ly-6C+ CD4 TN cells. More precisely, their level of expression reached those observed in Ly-6C- CD4 TN cells. Blocking calcineurin activation with either CsA or FK506 led to the complete inhibition of this phenotypic conversion of Ly-6C+ (CD5lo, CD73int, CD122lo, CD200lo, Izumo1rlo) CD4 TN cells into Ly-6C- (CD5hi, CD73hi, CD122int, CD200int, Izumo1rhi) CD4 TN cells. This Ca2+-induced phenotypic conversion thus depends on the activity of the canonical Ca2+-calcineurin signaling pathway.

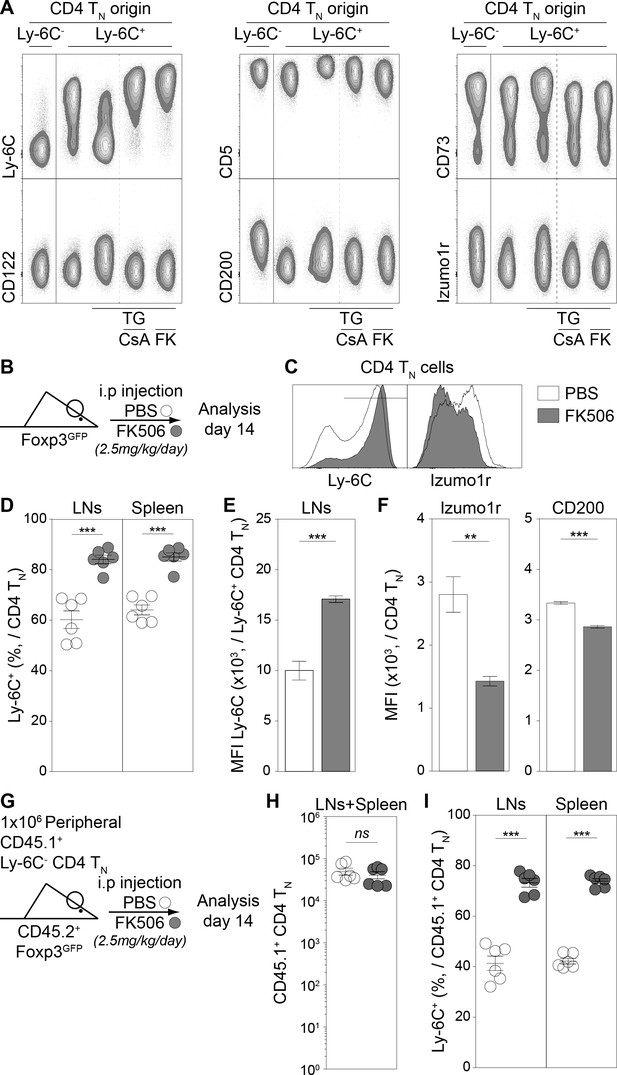

We then investigated whether this in vitro observation could be mimicked in vivo. We first confirmed that the Ca2+-calcineurin signaling cascade was active in vivo in Ly-6C- CD4 TN cells by showing that blocking calcineurin activation for 18 hr with FK506 was sufficient to abrogate the nuclear localization of NFAT in these cells (Figure 5—figure supplement 1). We then wondered whether a longer treatment with this calcineurin inhibitor would affect the phenotype of CD4 TN cells in vivo.To this aim, C57BL/6 Foxp3-GFP mice were injected daily with FK506 or PBS for 2 weeks (Figure 5B). After 14 days, CD4 TN cells from peripheral LNs and the spleen were analyzed for their expression of Ly-6C, Izumo1r and CD200. In line with our in vitro experiments, both the percentage of Ly-6C+ cells among CD4 TN cells and the MFI of Ly-6C at the cell surface of Ly-6C+ CD4 TN cells increased in treated mice when compared to control mice (Figure 5C–E). Moreover, FK506 induced significant decreases of Izumo1r and CD200 surface levels in CD4 TN cells (Figure 5C,F). Such changes in the phenotype of the bulk of CD4 TN cells could result from either the conversion of Ly-6C- CD4 TN cells into Ly-6C+ CD4 TN cells or the disappearance of the Ly-6C--cell subset. We therefore decided to compare the behavior of adoptively transferred Ly-6C- CD4 TN cells in FK506 or PBS-treated mice (Figure 5G). 106 Ly-6C- CD4 TN cells purified from LNs of CD45.1+ Foxp3-GFP donor mice were adoptively transferred into CD45.2+ Foxp3-GFP-recipient mice. Host mice were then daily injected with FK506 or PBS for 2 weeks (Figure 5G). After 14 days, donor-derived CD4 TN cells from peripheral LNs and the spleen were analyzed. Although similar numbers of donor-derived CD4 TN cells were recovered from both FK506 and PBS -treated mice (Figure 5H), these cells were still greatly enriched in Ly-6C-expressing cells in FK506-treated recipients (Figure 5I).
Altogether, our data demonstrate that the activation of the Ca2+-calcineurin signaling pathway drives the phenotypic conversion of Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells both in vitro and in vivo.

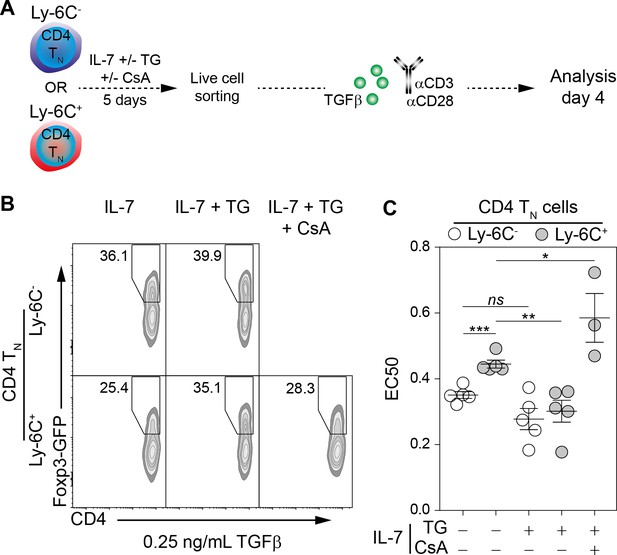

As a rise in intracellular Ca2+ level converts phenotypically Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells, we then tested whether the in vitro iTreg-cell polarization potential of these ex-Ly-6C+ CD4 TN cells (referred thereafter as ‘Ca2+-converted’ Ly-6C+ CD4 TN cells) was also modified. Ly-6C- and Ly-6C+ CD4 TN cells were recovered from C57BL/6 Foxp3-GFP mice and cultured in vitro with or without TG. After 5 days of culture, viable cells were FACS-sorted and stimulated with αCD3- and αCD28-coated antibodies in the presence of graded doses of TGFβ for 4 days (Figure 6A). Of note, even after 5 days of resting in the presence of IL-7, Ly-6C- CD4 TN cells were keeping a greater sensitivity to iTreg-cell polarization signals, than Ly-6C+ CD4 TN cells cultured in the same conditions. Importantly, the iTreg-cell polarization potential of Ly-6C+ CD4 TN cells rose up when these cells were pre-incubated in the presence of TG and became similar to the one observed for Ly-6C- CD4 TN cells (Figure 6B,C). In agreement with the fact that calcineurin inhibitors blocked the TG-mediated phenotypic conversion of Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells (Figure 5A), adding CsA at the time of TG pre-incubation also abrogated the sensitization of Ly-6C+ CD4 TN cells to iTreg-cell polarization signals (Figure 6B). EC50 values for TGFβ were calculated in these conditions and were statistically different between the 2 CD4 TN-cell subsets when cells were pre-incubated in IL-7 alone but dropped to similar levels when TG was added in the pre-culture medium (Figure 6C). Of note, pre-incubating Ly-6C+ CD4 TN cells with TG and CsA further limit their ability to commit into iTreg cells as reflected by a significant increase in EC50 (Figure 6C). Altogether, our data demonstrate that an increase in intracellular Ca2+ levels not only shapes the phenotype of the CD4 TN-cell compartment but also sensitizes in vitro these cells to iTreg-cell polarization signals, both processes occurring through a calcineurin-dependent pathway.

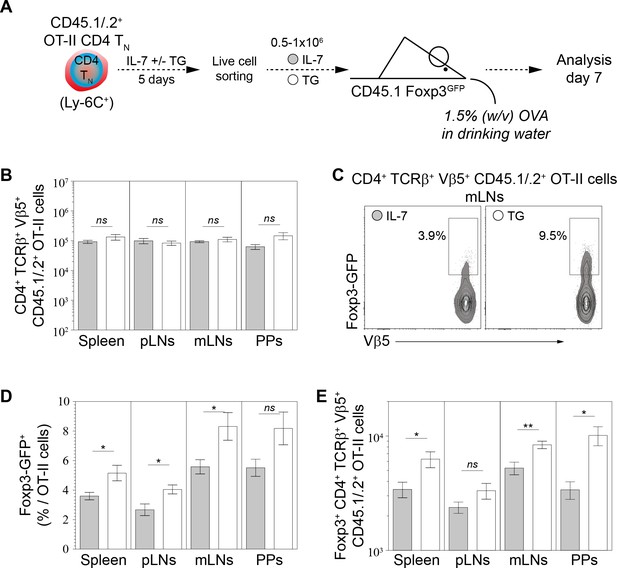

To confirm these data in vivo, we used the well-known model of antigen-specific pTreg-cell development induced by oral tolerance (Coombes et al., 2007; Sun et al., 2007). This protocol studies the behavior of CD4 TN cells from ovalbumin-specific TCR transgenic OT-II mice adoptively transferred into wild-type mice fed with ovalbumin (OVA). Indeed, in these conditions, a significant proportion of OT-II cells rapidly differentiate into pTreg cells in the mesenteric lymph nodes and Peyer Patches of recipient mice. Most OT-II CD4 TN cells expressed Ly-6C ex vivo (Figure 7—figure supplement 1A). FACS-sorted CD45.1/2+ OT-II CD4 TN cells were first cultured in IL-7 in the presence or absence of TG (Figure 7A). After 5 days of culture, TG led to a marked downregulation of Ly-6C (Figure 7—figure supplement 1B). Living cells were then FACS-sorted and 0.5–1.106 cells were adoptively transferred into CD45.1 Foxp3-GFP mice. Finally, recipient mice were fed or not for 7 days with OVA in their drinking water. As expected, OVA administration led to the activation of OT-II cells, as reflected by a significant CD44 upregulation at their cell surface (Figure 7—figure supplement 1C). Similar numbers of OT-II CD4 T cells were recovered from the secondary lymphoid organs of OVA-fed mice whether they were initially injected with ‘Ca2+-converted’ or not OT-II CD4 TN cells (Figure 7B). In all secondary lymphoid organs, Ca2+-converted OT-II CD4 TN cells gave rise to greater proportions and absolute numbers of Foxp3-expressing cells than OT-II CD4 TN cells cultured with IL-7 alone prior to injection (Figure 7C–E). Specifically, a total of 1.16 ± 0.22×104 pTreg (Foxp3-expressing) cells were recovered from the whole periphery of recipient mice injected with Ly-6C+ OT-II CD4 TN cells compared to 2.26 ± 0.32×104 pTreg cells when mice were injected with Ca2+-converted OT-II CD4 TN cells(p<0.05).
These latter results were confirmed by using a second protocol of oral administration of OVA. In this setting, ‘Ca2+-converted’ OT-II CD4 TN cells were co-transferred with OT-II CD4 TN cells cultured in IL-7 alone in order to compare their ability to convert into pTreg in the same recipient mice. FACS-sorted CD45. 2+ and CD45.1/2+ OT-II CD4 TN cells were first cultured in IL-7 in the absence or presence of TG, respectively (Figure 7—figure supplement 1A). After 5 days of culture, living cells were FACS-sorted, mixed at a 1:1 ratio and 1.106 cells were adoptively transferred into CD45.1 Foxp3-GFP mice. Finally, recipient mice were fed with OVA by gavage (4 and 24 hr after the transfer of OT-II cells). Nine days later, secondary lymphoid organs were recovered and the phenotype of donor-derived OT-II T cells was analyzed. In this setting, ‘Ca2+-converted’ OT-II CD4 TN cells were also giving rise to greater absolute numbers of Foxp3-expressing cells than OT-II CD4 TN cells cultured with IL-7 alone prior to injection (Figure 7—figure supplement 1B,C). More precisely, more than three quarters of the Foxp3+ OT-II cells arising in these conditions derived from ‘Ca2+-converted’ cells (Figure 7—figure supplement 1D).
These latter results validate our in vitro data showing that a rise in intracellular Ca2+ leads to an enhanced sensitivity of CD4 TN cells to iTreg-cell polarization signals.
In the steady-state, naive T cells continually recirculate between the blood, lymph and secondary lymphoid organs, scanning dendritic cells (DCs) for the presence of foreign antigens. In the course of their journey, naive T cells also make weak, but functional, interactions with self-peptides presented by self-MHC molecules (self-MHC). Such contacts with self-MHC are required for the long-term survival of peripheral naive T cells (Martin et al., 2006, 2003; Stritesky et al., 2012; Tanchot et al., 1997). The signals derived from the recognition of self-MHC by TCRs also allow maintaining naive T cells in a state of greater sensitivity for responses to foreign antigens (Dorfman et al., 2000; Stefanová et al., 2002). The seminal work of Štefanová et al. showed a rapid decline in the ability of CD4 TN cells to respond to their cognate antigen once contacts with self-MHC were disrupted (Stefanová et al., 2002). These findings were confirmed by several groups using various elegant experimental models (Hochweller et al., 2010; Lo et al., 2009; Mandl et al., 2013; Persaud et al., 2014). Beside these works, we have recently demonstrated that CD4 TN-cell self-reactivity not only increases quantitatively but also shapes qualitatively their response toward their cognate antigens in the effector phase by increasing their ability to commit toward the iTreg/pTreg-cell lineage (Martin et al., 2013). In the present paper, we first wondered whether the enhanced ability of the most self-reactive CD4 TN cells to convert into iTreg/pTreg cells upon appropriate stimulation was a cell-intrinsic property. The unchanged ability of both Ly-6C- and Ly-6C+ CD4 TN cells to polarize into Foxp3-expressing iTreg cells in vitro whether they were cultured together or separately demonstrate that the biased commitment of the most self-reactive CD4 TN cells toward the iTreg-cell lineage is cell-intrinsic.
We have recently described the cell surface GPI-anchored protein, Ly-6C, as an additional and complementary sensor of T-cell self-reactivity (Martin et al., 2013). However, significant differences may be noticed between CD5 and Ly-6C. First, whereas CD5 surface levels directly correlate with self-reactivity, Ly-6C expression by peripheral CD4 TN cells inversely correlates with their ability to interact with self-MHC. Second, in contrast to CD5, Ly-6C expression at the cell surface of CD4 TN cells is stable over time in homeostatic conditions as its up-regulation after self-MHC deprivation takes several days (Martin et al., 2013). Notwithstanding these differences, Ly-6C- CD4 TN cells express higher protein and mRNA levels of CD5 than their Ly-6C+-cell counterparts. Two recent papers by the group of Daniel Hawiger have highlighted a crucial role of CD5 in promoting the conversion of CD4 TN cells into iTreg/pTreg cells (Henderson et al., 2015; Jones et al., 2016). CD5 would block the activation of the mammalian target of rapamycin (mTOR) and would allow activated CD4 TN cells to resist to the inhibition of iTreg-cell induction induced by TH1- and TH2-cell-derived cytokines. Accordingly, in the absence of effector-differentiating cytokines, CD5hi and CD5lo CD4 TN cells were shown to differentiate with a similar efficiency into iTreg/pTreg cells (Henderson et al., 2015). Such a phenomenon is unlikely to account for the greater ability of Ly-6C- CD4 TN cells to commit to the iTreg/pTreg-cell lineage. Indeed, Ly-6C- and Ly-6C+ CD4 TN cells produced similar amounts of these cytokines after stimulation and Ly-6C- CD4 TN cells still differentiated more efficiently than their Ly-6C+-cell counterparts into iTreg cells in vitro in the presence of anti-cytokine (IL-4 and IFN-γ) blocking antibodies (Figure 1—figure supplement 1C–E). Moreover, whereas rapamycin drastically diminished the difference in the ability of CD5hi and CD5lo CD4 TN cells to convert to iTreg/pTreg cells in the presence of cytokines known as restraining this effector fate (Henderson et al., 2015), this mTOR inhibitor similarly enhanced the generation of iTreg cells from both Ly-6C- and Ly-6C+ CD4 TN cells and thus preserved the difference between these two cell subsets (data not shown).
In the present study, we have identified the Ca2+ signaling pathway as sufficient to induce Ly-6C down-regulation at the cell surface of CD4 TN cells in vitro. Indeed, incubation of Ly-6C+ CD4 TN cells with the sarco/endoplasmic reticulum calcium ATPase inhibitor, thapsigargin, led to multiple phenotypic changes including not only Ly-6C down-regulation but also variations in the expression of many other genes of the 6CSign (such as CD5, CD73, CD122, CD200 and Izumo1r). This phenotypic conversion of Ly-6C+ CD4 TN cells into Ly-6C- CD4 TN cells takes four days to occur in vitro and relies on the activity of Calcineurin, as shown by its complete blocking in the presence of Cyclosporin A or FK506. Interestingly, calcium- and PKC/Ras-dependent signaling pathways had divergent effects on the expression of Ly-6C. Indeed, whereas TG induced Ly-6C down-regulation, PMA led to its upregulation (Figure 4A). In line with this observation, the 6CSign does not correlate with the changes in gene expression induced by PMA (Figure 3B). These opposite effects of TG and PMA may reflect the well-documented and complex interplay between the PKC and Ca2+ signaling pathways. For example, PKC translocation to the plasma membrane is strictly Ca2+ dependent (Reither et al., 2006) and calcineurin is phosphorylated and inhibited by PKC (Hashimoto and Soderling, 1989). Altogether, our results suggest that interactions with self-MHC in the steady-state result in a dominant Ca2+ signaling (when compared to PKC and Ras-dependent pathways) leading to down-regulation of Ly-6C expression. This hypothesis is consistent with our results showing that in vivo Calcineurin inhibition leads to an increase in Ly-6C expression at even higher levels than those observed at the cell surface of Ly-6C+ CD4 TN cells from untreated mice. This hypothesis is reinforced by the work of Dong et al. (Dong TX et al., co-published with the present article) showing that Ca2+ fluxes can be measured in mouse total lymph node T cells in the steady-state and that anti-MHC blocking antibodies significantly reduced their frequency. Continuous interactions with self-MHC in the steady-state may thus induce calcium waves that shape both the phenotype of CD4 TN cells and their behavior in the effector phase by favoring their differentiation into pTreg cells.
tTreg and pTreg cells have complementary roles in immune-mediated tolerance (Haribhai et al., 2011). An attractive hypothesis would be that tTreg cells would be responsible for tolerance to self-antigens, whereas pTreg cells would be in charge of restraining deleterious immune responses to non-self-antigens. In particular, pTreg cells are involved in the control of the responses to non-self-antigens leading to allergy and asthma (Josefowicz et al., 2012) as well as to commensal organism- (Lathrop et al., 2011) and food-derived antigens (Mucida et al., 2005) in the gut. Foetus-derived and allograft-derived antigens represent other obvious examples of acute exposure to non-self-antigens arising in the adults and requiring the establishment of a tolerance. In both cases, pTreg cells are generated against non-self antigens (either conceptus-male-derived [Samstein et al., 2012] or allograft-derived [Francis et al., 2011; Wood et al., 2012]). These cells are needed to establish an efficient tolerance toward the foetus (Samstein et al., 2012). However, there is still a lack of evidence to definitely implicate pTreg cells in the induction of an efficient tolerance toward allograft, in part because of the difficulties to achieve such a state. We have previously demonstrated that self-reactivity in the steady-state increases the ability of CD4 TN cells to differentiate into iTreg/pTreg cells (Martin et al., 2013). Accordingly, the most self-reactive CD4 TN cells (i.e. Ly-6C- CD4 TN cells) should contribute predominantly to the pTreg-cell pool generated under physiologic and pathologic conditions. In the present study, our data suggest strongly that this tonic TCR-signaling-mediated shaping of the CD4 TN-cell compartment is calcineurin-dependent. In particular, chronic treatment with a calcineurin inhibitor leads to the disappearance of Ly-6C- CD4 TN cells. Cyclosporin A and Tacrolimus treatments could thus interfere with the neoconversion of CD4 TN cells into pTreg cells and limit the development of tolerance in transplant patients. This may explain the difficulty to safely interrupt these immunosuppressive therapies even after years. Thus, besides their obvious clinical utility, calcineurin inhibitors may have potentially harmful side effects that should be studied to better assess and adapt their use.
C57BL/6 mice (CD45.2) were obtained from Charles River Laboratories. C57BL/6 CD45.1 mice were maintained in our own animal facilities, under specific pathogen-free conditions. C57BL/6 Foxp3-GFP CD45.2 mice (Wang et al., 2008), initially obtained from Dr Bernard Malissen, Centre d’Immunologie de Marseille-Luminy, France, were crossed with C57BL/6 CD45.1 mice to generate C57BL/6 Foxp3-GFP CD45.1 and CD45.1/.2 mice. C57BL/6 OT-II mice were obtained from Charles River Laboratories and crossed with C57BL/6 Foxp3-GFP CD45.1 (or CD45.2) mice to generate C57BL/6 Foxp3-GFP CD45.1/.2 (or CD45.2) OT-II mice. Four- to 12-week-old mice were used for all experiments. Experiments were carried out in accordance with the guidelines of the French Veterinary Department. All procedures performed were approved by the Paris-Descartes Ethical Committee for Animal Experimentation (decision CEEA34.CA.080.12). Sample sizes were chosen to ensure the reproducibility of the experiments and according to the 3Rs of animal ethics regulation.
Peripheral Lymph Nodes (pLNs), mesenteric Lymph Nodes (mLNs), Peyer’s patches, spleen and thymus were homogenized and passed through a nylon cell strainer (BD Falcon) in PBS supplemented with 10% FCS (Biochrom) for adoptive transfer or cell culture (LNs only), or in 5% FCS and 0.1% NaN3 (Merck-Sigma-Aldrich, Lyon, France) in PBS for flow cytometry.
CD4 T cells were purified from LNs (pooled superficial cervical, axillary, brachial, inguinal and mLNs) of C57BL/6 Foxp3-GFP CD45.1 mice by incubating cell suspensions on ice for 15 min with a mixture of anti-CD8 (53–6.7), anti-CD19 (1D3) and anti-Ter-119 antibodies (Abs) obtained from hybridoma supernatants, and then with magnetic beads coupled to anti-rat immunoglobulins (Invitrogen, Cergy-Pontoise, France). Ly-6C- CD4 TN cells were sorted as Foxp3-GFP- Lineage (CD25, TCRγδ, CD8β, CD11b, CD11c)-PE- CD44-/lo Ly-6C- cells using a FACS-ARIA3 flow cytometer (BD Biosciences, Le Pont de Claix, France) and injected intravenously into sex-matched recipient mice whose then were injected intraperitoneally every day for two weeks with 2.5 mg/kg of Prograf (Tacrolimus; Astellas Pharma Inc., Tokyo, Japan).
CD4 T cells were purified from LNs of C57BL/6 Foxp3-GFP OT-II CD45.2 or CD45.1/.2 mice by using Dynabeads Untouched Mouse CD4 Cells Kit (Invitrogen) and cultivated with recombinant mouse IL-7 (10 ng/ml; R and D Systems, Minneapolis, MN) with or without Thapsigargin (4 nM; Merck-Sigma-Aldrich) into 96-well round-bottom treated cell culture microplate (Corning; 1 × 105 cells per well). After 5 days of culture, cells were recovered and labelled with PE-conjugated anti-TCRγδ (GL3), anti-CD8.b2 (53–5.8), anti-NK-1.1 (PK136) and APC-conjugated anti-CD44 (IM7), all from BD Biosciences. OT-II CD4 TN cells were sorted as GFP- Lineage-PE- CD44-/lo cells using a FACS-ARIA3 flow cytometer (BD Biosciences) and 0.5 to 1 × 106 cells were injected intravenously into sex-matched C57BL/6 Foxp3-GFP CD45.1 mice. Recipient mice were then continuously fed with Albumin from chicken egg white (OVA; 1.5% w/v; Merck-Sigma-Aldrich) in the drinking water or not. LNs and spleens were collected at day seven and CD45.2+ CD4 T cells analyzed. In a second protocol, sorted CD4 TN cells from CD45. 2+ and CD45.1/.2+ C57BL/6 Foxp3-GFP OT-II mice were cultured in IL-7 (10 ng/ml) without or with TG (4 nM), respectively. After 5 days live CD4 TN (CD44lo CD25lo CD8β- CD11b- CD11c- NK1.1- TCRγδ- Foxp3-GFP-) cells were flow-cytometry sorted, mixed at a 1:1 ratio and injected intravenously (0.5−1 × 106 cells) into sex-matched CD45.1+ C57BL/6 Foxp3-GFP recipient mice gavaged with Ovalbumin (OVA; 50 mg) 4 and 24 hr later. LNs and spleens were collected at day 10 and donor-derived CD4 T cells were analyzed.
Cell suspensions were collected and dispensed into 96-well round-bottom microtiter plates (Greiner Bioscience; 6 × 106 cells per well). Surface staining was performed by incubating the cells on ice, for 15 min per step, with Abs in 5% FCS and 0.1% NaN3 in PBS. Each cell-staining reaction was preceded by a 15 min incubation with a purified anti-mouse CD16/32 Abs (FcγRII/III block; 2.4G2) obtained from hybridoma supernatants.
Alexa Fluor 700-conjugated anti CD45.2 (104), Allophycocyanin (APC)-conjugated anti-CD25 (PC61) and anti-CD44 (IM7), Brilliant Violet (BV) 421-conjugated anti Ly-6C (AL-21), BV 510-conjugated anti-CD4 (RM4-5), BV 786-conjugated anti-CD25 (PC61), Phycoerythrin (PE)-conjugated anti-CD25 (PC61), anti-CD69 (H1.2F3), anti-Izumo1r (TH6), anti-TCRγδ (GL3) and anti-Vβ5.1/5.2 (MR9-4), PE-Cy7-conjugated anti-CD44 (IM7) and anti-CD45.1 (A20), biotinylated anti-CD5 (53–7.3), anti-CD62L (MEL14), anti-Ly-6C (AL-21) and anti-Sca1 (E13-161.7) were obtained from BD Biosciences. Alexa Fluor 647-conjugated anti-IL18rα (BG/IL18rα), APC-conjugated streptavidin, BV 421-conjugated anti-Ly-6C (HK1.4) and PE-conjugated anti-Ly-6C (HK1.4) were obtained from BioLegend (London, United Kingdom). PE-conjugated anti-CD200 (OX-90), anti-Ikzf3 (8B2) and anti-Nur77 (12.14), PerCP-Cy5.5-conjugated anti-TCRβ (H57-597) and biotinylated anti-CD73 (eBioTY/11.8) were obtained from eBioscience (Montrouge, France). Pacific Blue-conjugated streptavidin was obtained from Invitrogen. APC-Vio770-conjugated anti-CD8α (53–6.7) and PE-conjugated anti-CD122 (TM-β1) were obtained from Miltenyi Biotec.
Multi-colour immunofluorescence was analyzed using BD-LSR2 and BD-FORTESSA (BD Biosciences) flow-cytometers. List-mode data files were analyzed using Diva software (BD Biosciences). Data acquisition and cell sorting were performed on the Cochin Immunobiology facility.
Ex vivo purified CD4 T cells or cells recovered after 5 days of culture were loaded for 30 min at 37°C with the membrane-permeable fluorescent Ca2+ indicator dye Indo-1 AM (Invitrogen) at a concentration of 1 µM. Cells were stained either in HBSS (for ex-vivo-purified CD4 T cells) or directly in the culture medium (cultured cells). Thereafter, ex-vivo-purified CD4 T cells were stained for surface markers and kept on ice. Before acquisition, cell aliquots were allowed to equilibrate to 37°C for 5 min and then were analyzed by flow cytometry. After acquisition of background intracellular Ca2+ concentrations for 2 min, cells were stimulated with Thapsigargin (at a concentration of 4 or 200 nM).
Flow-cytometry sorted Ly-6C- and Ly-6C+ CD4 TN cells from LNs of C57BL/6 Foxp3-GFP mice were stained with CellTrace Violet (CTv; 5 µM; Life Technologies) and cultured with IL-7 (10 ng/ml) alone or in combination with Thapsigargin (TG; 4 nM), Phorbol 12-myristate 13-acetate (PMA; 1.25 ng/ml), PMA +TG (1.25 ng/ml and 4 nM, respectively) and immobilized anti-CD3 (clone 145.2C11; 4 µg/ml; obtained from hybridoma supernatants) and anti-CD28 (clone 37.51; eBioscience; 4 µg/ml) Abs. For in vitro polarization assays Ly-6C+ CD4 TN cells were additionally stained with CellTrace Far Red (CTfr; 1.25 µM; Life Technologies). Cells were then stimulated separately or together for 4 days with coated anti-CD3 and anti-CD28 Abs, in the presence of graded concentrations of exogenous recombinant human TGFβ1 (Invitrogen). In some experiments, anti-IFN-γ (clone R4-6A2; 10 µg/mL) and anti-IL-4 (clone 11B11; 10 µg/mL) blocking antibodies were added in the culture.
The concentration of TGFβ needed to obtain 50% of the maximal percentage of iTreg cells (Effective Concentration, EC50) was calculated by fitting the dose-response curves of CD4 TN-cell subsets in the different culture conditions. To this end, the means of 3 to 5 independent experiments were used to build dose response curves using nonlinear least-squares regression to the Hill equation. The model used for this function was Y=[B+(T–B)] / [1 + 10([LogEC50-X]*HillSlope)], where ‘Y’ represents Foxp3+ cells as a percentage among CD4+ cells, ‘T’ and ‘B’ represent the plateaus at the beginning and end of the curve, respectively, and ‘X’ represents the concentration of TGFβ added at the beginning of the culture. The absolute EC50 was calculated to interpolate X at 50% with 95% confidence intervals.
Flow-cytometry sorted Ly-6C- and Ly-6C+ CD4 TN cells from LNs of C57BL/6 Foxp3-GFP mice were stimulated as described above with immobilized anti-CD3 and anti-CD28 Abs in the presence or absence of exogenous recombinant human TGFβ1 (Invitrogen, 4 µg/mL). Supernatants were recovered 24 hr later and cytokines were quantified by MSD multi-array U-PLEX assays (IFN-γ, IL-4, IL-17A/F and IL-10; Meso Scale Discovery, Rockville, MD) according to the manufacturer’s instructions.
LNs cells of C57BL/6 mice were harvested and fixed in 4% paraformaldehyde, immediately or after 30 min of resting or stimulation with 200 nM of Thapsigargin in RPMI 1640 Glutamax (Gibco). Cells were washed in 1% FCS and 0.1% NaN3 in PBS and incubated in glycine (0.1M) for 10 min. Cell surface was stained with biotinylated anti-Ly-6C (AL-21), BV 510-conjugated anti-CD4 (RM4-5), PE-conjugated anti-CD25 (PC61), anti-TCRγδ (GL3), anti-CD8.β2 (53–5.8), anti-NK-1.1 (PK136), anti-CD11b (M1/70), PE-Cy7-conjugated anti-CD44 (IM7) and PerCp-Cy5.5-conjugated streptavidin, all from BD Biosciences. Intracellular stainings were performed using Foxp3 Staining kit (eBioscience) and Alexa 448-conjugated anti-NFAT1 (D43B1; Cell Signaling, Leiden, The Netherlands) or anti-NFAT2 (7A6; BioLegend) and APC-conjugated anti-Foxp3 (FJK-165; eBioscience) Abs were used. Ly-6C- and Ly-6C+ CD4 TN cells were sorted as CD4-BV510+ Lineage-PE- CD44-/lo Foxp3-APC- Ly-6C+/- cells using a FACS-ARIA3 flow cytometer (BD Biosciences). After sort, DRAQ5 (Cell Signaling) was used to stain nuclei. Cells were acquired with ImageStreamX (Amnis; EMD Millipore) and analyzed with IDEAS software. NFAT1 and NFAT2 nuclear localization was calculated as the similarity score between NFAT and DRAQ5 intensities.
CD4 T cells from LNs of C57BL/6 Foxp3-GFP mice were enriched as described above. Then, Ly-6C- and Ly-6C+ CD4 TN cells were flow-cytometry sorted as CD4+ CD8α- TCRβ+ GFP- CD25- CD44-/lo cells using a FACS-ARIA3 flow cytometer. Total RNA was extracted using the RNeasy Mini kit (QIAGEN, Courtaboeuf, France). RNA quality was validated with Bioanalyzer 2100 (using Agilent RNA6000 nano chip kit). Experimental and analytical part of the microarray analysis was performed according to the MIAME standards. Amplified, fragmented and biotinylated sense-strand DNA targets were synthesized from 50 ng total RNA according to the manufacturer’s protocol (Ovation PicoSL WTA System V2 and Encore Biotin Module kit (Nugen, Leek, The Netherlands)) and hybridized to a mouse gene 2.0 ST array (Affymetrix, Paris, France). The stained chips were read and analysed with a GeneChip Scanner 3000 7G and Expression Console software (Affymetrix). Raw data (.cel files) were then processed and normalized using the quantile normalization method in RMA with R package (Bioconductor). Statistical analysis was then performed with Partek Genomics Suite software (Partek). Gene expression was z-transformed, for visualization, using the following formula: z=(X-μ)/τ, with X = normalized intensity, μ = mean of the normalized intensity across replicates and τ = s.d. of mean of the normalized intensity across replicates. Experimental and analytical part of the microarray was performed on the Cochin Genomic facility. Raw and processed data microarray data are provided in the Gene Expression Omnibus (GEO) under accession number GSE97477.
Normalized microarray datasets (GSE14308, GSE42276, GSE67464, GSE70154 and GSE62532) were recovered from NCBIs Gene Expression Omnibus (GEO, http://www.ncbi.nlm.nih.gov/geo/). For each datasets the values mean of Probset with the same Gene-id was performed to generate a file (.xlsx) with a unique value per Gene-id for each sample. These files were then statistical analyzed as described above. The newly created public GEO Datasets were then aligned with our microarray data by keeping only the commons Gene-id. Finally, these alignment files were filtered on our data for a p-value<0.05 and a fold change >1.3 and the differential expression of genes was compared between our and public GEO microarray.
CD5 expression is developmentally regulated by T cell receptor (TCR) signals and TCR avidityThe Journal of Experimental Medicine 188:2301–2311.https://doi.org/10.1084/jem.188.12.2301
Induced CD4+Foxp3+ regulatory T cells in immune toleranceAnnual review of immunology 30:733–758.https://doi.org/10.1146/annurev-immunol-020711-075043
A functionally specialized population of mucosal CD103+ DCs induces Foxp3+ regulatory T cells via a TGF-beta and retinoic acid-dependent mechanismThe Journal of Experimental Medicine 204:1757–1764.https://doi.org/10.1084/jem.20070590
Strength of TCR-peptide/MHC interactions and in vivo T cell responsesThe Journal of Immunology 186:5039–5045.https://doi.org/10.4049/jimmunol.1003650
Foxp3-independent loss of regulatory CD4+ T-cell suppressive capacities induced by self-deprivationEuropean Journal of Immunology 42:1237–1249.https://doi.org/10.1002/eji.201142148
CD4+ T cell survival is not directly linked to self-MHC-induced TCR signalingNature Immunology 1:329–335.https://doi.org/10.1038/79783
Foxp3 programs the development and function of CD4+CD25+ regulatory T cellsNature Immunology 4:330–336.https://doi.org/10.1038/ni904
Induction of transplantation tolerance converts potential effector T cells into graft-protective regulatory T cellsEuropean Journal of Immunology 41:726–738.https://doi.org/10.1002/eji.201040509
TCR ligand density and affinity determine peripheral induction of Foxp3 in vivoThe Journal of Experimental Medicine 207:1701–1711.https://doi.org/10.1084/jem.20091999
The recirculation of lymphocytes from blood to lymph in the ratThe Journal of Physiology 146:54–69.https://doi.org/10.1113/jphysiol.1959.sp006177
Molecular basis of calcium signaling in lymphocytes: STIM and ORAIAnnual Review of Immunology 28:491–533.https://doi.org/10.1146/annurev.immunol.021908.132550
TCR-dependent differentiation of thymic Foxp3+ cells is limited to small clonal sizesThe Journal of Experimental Medicine 206:2121–2130.https://doi.org/10.1084/jem.20091033
Continuous requirement for the TCR in regulatory T cell functionNature Immunology 15:1070–1078.https://doi.org/10.1038/ni.3004
Interleukin (IL)-22 and IL-17 are coexpressed by Th17 cells and cooperatively enhance expression of antimicrobial peptidesThe Journal of Experimental Medicine 203:2271–2279.https://doi.org/10.1084/jem.20061308
T cell receptor signal strength in Treg and iNKT cell development demonstrated by a novel fluorescent reporter mouseThe Journal of Experimental Medicine 208:1279–1289.https://doi.org/10.1084/jem.20110308
Oral tolerance in the absence of naturally occurring TregsJournal of Clinical Investigation 115:1923–1933.https://doi.org/10.1172/JCI24487
PKCalpha: a versatile key for decoding the cellular calcium toolkitThe Journal of Cell Biology 174:521–533.https://doi.org/10.1083/jcb.200604033
The Contained self-reactive peripheral t cell repertoire: Size, diversity, and cellular compositionThe Journal of Immunology 195:2067–2079.https://doi.org/10.4049/jimmunol.1500880
Peptide dose, affinity, and time of differentiation can contribute to the Th1/Th2 cytokine balanceJournal of Immunology 163:1205–121328.
Selection of self-reactive T cells in the thymusAnnual Review of Immunology 30:95–114.https://doi.org/10.1146/annurev-immunol-020711-075035
Small intestine lamina propria dendritic cells promote de novo generation of Foxp3 T reg cells via retinoic acidThe Journal of Experimental Medicine 204:1775–1785.https://doi.org/10.1084/jem.20070602
Naive T cell homeostasis: from awareness of space to a sense of placeNature Reviews Immunology 9:823–832.https://doi.org/10.1038/nri2657
Dominant role of antigen dose in CD4+Foxp3+ regulatory T cell induction and expansionThe Journal of Immunology 183:4895–4903.https://doi.org/10.4049/jimmunol.0901459
Michael L DustinReviewing Editor; University of Oxford, United Kingdom
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "Calcium-mediated shaping of naive CD4 T cell phenotype and function" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Michael L Dustin (Reviewer #1), is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Tadatsugu Taniguchi as the Senior Editor.
The reviewers and editors feel that your paper (Auffray et al) potentially complements an independently submitted paper. You were contacted about this opportunity and agreed to exchange information with the authors of that paper after receiving the three individual reviews for each. The following is a consensus review among three of the reviewers who agreed to oversee a co-revision. The intention is to help you prioritise the revision and also to clarify the opportunity for coordination from our perspective.
The two papers deal with different consequences of calcium mobilization in vivo. Auffray et al., focuses on transcriptional changes that are brought about in the most self reactive naïve T cells in mice that lead to loss of Ly6C expression and a tendency to differentiate into peripheral Treg upon activation. This state could be mimicked by treatments that may chronically enhance cytoplasmic calcium, but the evidence for any effects on cytoplasmic calcium ion levels by self pMHC in vivo or low concentrations of thapsigargin in vitro are lacking, which is a major gap. There are also mechanistic aspects related to cytokine production in the Ly6C positive population that could be explored.
Cahalan et al. focuses on the role of CRAC channel activation in T cell trafficking and interstitial migration in the T cell zone of lymph nodes. A unique aspect of the paper is that they focus entirely on human T cells in profoundly immunodeficient mice. CRAC is eliminated through expression of a dominant negative Orai, which is well established to eliminate sustained calcium increases. The authors developed a new calcium reporter based on fusing GCaMP6f to tdTomato to make a ratiometric reporter called Salsa6f, which is sufficient sensitive to detect calcium spikes in intact lymph nodes. The main points are that CRAC channel function is needed for efficient lymph node entry and that cell-autonomous calcium fluxes result in slowing of T cell migration. The weakness in this paper is that the actual mechanism of the calcium fluxes is not established and objective statistical tests supporting a relationship are not provided. The trigger for the calcium fluxes observed in not clear.
The editors felt that there is strong possibility that addressing issues in Cahalan et al., may provide key supporting data for Auffray.et al. And reciprocally, data in Auffray et al. provides further physiological significance for data in Cahalan.et al. The authors may therefore benefit from coordinating on the revisions and the authors have agreed to exchange information. The editors have prepared the following joint consensus review following provision of the individual reviews.
1) The main concern with Auffray et al. is that there is no data on the impact of pharmacological manipulations on cytoplasmic calcium levels in the naïve mouse T cells. The authors of Cahalan et al. are experts in this area. It will be important for the authors to use in vitro calcium studies to determine the impact of chronic exposure to 4 nM thapsigargin in different time windows- does this result in sustained cytoplasmic calcium elevation capable to inducing NFAT translocation. This may require a highly sensitive method and advice from authors of Cahalan et al. should be helpful to address this concern in a 2 month time frame. But this concern needs to be addressed.
2) The main concern with Cahalan et al. is that the mechanism triggering the calcium fluxes in vitro and in vivo is not clear. T cell migrating on flat substrates didn't display the calcium fluxes, but movement in PDMS channels and within lymph nodes did. The authors attention was called to recent studies that suggest that surface interactions could trigger calcium signals related to formation of close contacts that exclude CD45. Thus, some cellular confinement in the PDMS channels may trigger signals. The in vivo situation is of greatest interest. The use of the human-mouse system is a complication as its not entirely clear self pMHC is supplied by human monocyte derived DC or mouse xeno-MHC, which can trigger T cell responses. In murine systems, particularly on H2-b haplotype, it is relatively easy to eliminate self pMHC signals in CD4+ T cells acutely by blocking I-Ab with an antibody (e.g. Stefanova I, Dorfman JR, Germain RN. Self-recognition promotes the foreign antigen sensitivity of naive T lymphocytes. Nature. 2002;420(6914):429-34.) or by transferring CD4 T cells in to I-Ab deficient mice. Thus, while the human mouse system has some utility as a preclinical model, it's a relatively weak tool to study basic mechanisms in this case as even if only human pMHC is recognized, there are multiple possible class I and class II genes that would need to be blocked to eliminate all possible recognition. The author should repeat a key experiment in a mouse model system where a role of self-pMHC in the in vivo calcium fluxes could be supported or ruled out. Introduction of the Salsa6f reporter into naïve T cells would be helpful in this context. If the authors happen to have generated a transgenic model with Salsa6f or have the ability to introduce it by RNA electroporation then this could be combined with antibody blocking to test a role for self-pMHC in the calcium activity independent of the DN Orai construct, which is not necessarily needed to ask this question. The result of this experiment would also provide key information for Auffray.et al.
1) Are the Ly6C negative naïve T cell poor producers of cytokines that would prevent Treg induction in vitro? This could be tested with a number of systems to evaluate cytokine production.
2) The oral tolerance studies should be performed at different antigen doses to be convincing.https://doi.org/10.7554/eLife.27215.031
- Nelly Bonilla
- Alexandra Audemard-Verger
- Thomas Guilbert
- Bruno Martin
- Bruno Lucas
- Cédric Auffray
- Cédric Auffray
- Bruno Lucas
- Alexandra Audemard-Verger
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We greatly acknowledge E Maillard, K Labroquère and M Andrieu from the Cochin Cytometry and Immunobiology (CYBIO) facility, S Jacques and F Letourneur from the Cochin Genomic (GENOM’IC) facility and P Bourdoncle and B Durel from the Cochin Imaging (IMAG’IC) facility. This work was supported by grants from the ‘Fondation pour la Recherche Médicale’ (FRM team), the ‘Ligue contre le Cancer’, the ‘Association pour la Recherche sur le Cancer’ and the ‘Agence nationale de la recherche’ (grant number ANR-15-CE15-0009-01). V Guichard was supported by a PhD fellowship from the French Ministry of National Education, Research, and Technology. A Audemard-Verger was supported by a PhD fellowship from the ‘Ligue contre le Cancer’ and from INSERM. We would like to thank B Salomon, A Boissonnas, C Combadière, C Randriamanpita, A Trautmann, G Bismuth, E Donnadieu and G Eberl for providing tools and/or advices.
Animal experimentation: Experiments were carried out in accordance with the guidelines of the French Veterinary Department. All procedures performed were approved by the Paris-Descartes Ethical Committee for Animal Experimentation (decision CEEA34.CA.080.12). Sample sizes were chosen to ensure the reproducibility of the experiments and according to the 3Rs of animal ethics regulation.
