Circular oligomerization is an intrinsic property of synaptotagmin

  1. Jing Wang
  2. Feng Li
  3. Oscar D Bello
  4. Charles Vaughn Sindelar
  5. Frédéric Pincet
  6. Shyam S Krishnakumar  Is a corresponding author
  7. James E Rothman  Is a corresponding author
  1. Yale University School of Medicine, United States
  2. Institute of Neurology, University College London, United Kingdom
  3. Laboratoire de Physique Statistique, UMR CNRS 8550 Associée aux Universités Paris 6 et Paris 7, France
Research Advance
  • Cited 15
  • Views 756
  • Annotations
Cite this article as: eLife 2017;6:e27441 doi: 10.7554/eLife.27441

Abstract

Previously, we showed that synaptotagmin1 (Syt1) forms Ca2+-sensitive ring-like oligomers on membranes containing acidic lipids and proposed a potential role in regulating neurotransmitter release (Zanetti et al., 2016). Here, we report that Syt1 assembles into similar ring-like oligomers in solution when triggered by naturally occurring polyphosphates (PIP2 and ATP) and magnesium ions (Mg2+). These soluble Syt1 rings were observed by electron microscopy and independently demonstrated and quantified using fluorescence correlation spectroscopy. Oligomerization is triggered when polyphosphates bind to the polylysine patch in C2B domain and is stabilized by Mg2+, which neutralizes the Ca2+-binding aspartic acids that likely contribute to the C2B interface in the oligomer. Overall, our data show that ring-like polymerization is an intrinsic property of Syt1 with reasonable affinity that can be triggered by the vesicle docking C2B-PIP2 interaction and raise the possibility that Syt1 rings could pre-form on the synaptic vesicle to facilitate docking.

https://doi.org/10.7554/eLife.27441.001

Introduction

Synaptic vesicle (SV) fusion at the neuronal synapse is mediated by the SNARE (soluble NSF attachment protein receptor) complex, whose assembly is chaperoned by several other proteins to achieve precision and synchronicity of neurotransmitter release (Südhof, 2013; Söllner et al., 1993a, 1993b). These include Munc18, Munc13, complexin, synaptotagmin1 (Syt1), α-SNAP, and NSF (Südhof, 2013; Südhof and Rothman, 2009; Jahn and Fasshauer, 2012; Rizo and Xu, 2015). SV-associated protein Syt1 is of special interest because it is the primary calcium (Ca2+) sensor that triggers the rapid, synchronous neurotransmitter release after Ca2+ are admitted into the pre-synaptic terminal following an action potential (Brose et al., 1992; Fernández-Chacón et al., 2001; Geppert et al., 1994). It is well-established that the Ca2+-induced reorientation of the cytoplasmic C2 domains (C2A and C2B) of Syt1 into the membrane is driving force behind this process (Rhee et al., 2005; Paddock et al., 2011; Hui et al., 2006; Krishnakumar et al., 2013), but the precise molecular details are still unclear. Under resting conditions, Syt1 is also involved in pre-fusion docking and priming of SVs to the plasma membrane (PM). This involves the interaction of the polybasic patch of C2B domain with the negatively charged phospholipids, like phosphatidylinositol 4,5-bisphosphate (PIP2) and phosphatidylserine (PS) in the PM (Wang et al., 2011; Bai et al., 2004; Honigmann et al., 2013; Parisotto et al., 2012; Pérez-Lara et al., 2016; Martin, 2015), and independent but concurrent binding to the t-SNAREs, Syntaxin and SNAP-25 (Zhou et al., 2015; de Wit et al., 2009; Kedar et al., 2015; Mohrmann et al., 2013). Also, multiple lines of evidence (Hua and Charlton, 1999; Walter et al., 2010; Li et al., 2014; Giraudo et al., 2006) imply that prior to the entry of Ca2+, the SNARE complex is approximately half-zippered but unable to complete its zippering to drive fusion and Syt1, along with Complexin, might be involved in maintaining this pre-fusion activated state. Yet, the molecular mechanism by which Syt1 prevents such half-zippered SNAREpins from completing before Ca2+ entry and the mechanisms by which Syt1 can release or activate (or a combination) fusion after Ca2+ entry are unknown.

Recently, we described a novel organization of Syt1 on membranes which could mechanistically explain the multiple roles of Syt1 in orchestrating synchronous neurotransmitter release (Wang et al., 2014; Zanetti et al., 2016). We found that Syt1 self-assembles into ~30 nm sized rings (~17 copies of Syt1) on lipid surfaces, which disassemble upon binding Ca2+ in the physiologically-relevant range (Wang et al., 2014; Zanetti et al., 2016). This suggests a simple physical mechanism for regulation of synaptic exocytosis. While no doubt over-simplified, it is easy to imagine how an interposed protein ring at the docked SV-PM interface would act as a reversible barrier to fusion that is blocking SV fusion until it is disassembled by Ca2+ influx thereby helping to synchronize neurotransmitter release. Such a ring might further serve as platform to organize multiple SNAREpins to act cooperatively to open the fusion pore faster.

While there is as yet no direct evidence that such rings exist in vivo at the SV-PM junction, nonetheless striking genetic and biochemical correlations provided by the ring structure (Wang et al., 2014; Zanetti et al., 2016) and the fact that the ring-like oligomers are a conserved structural feature of many C2 domain proteins (Zanetti et al., 2016) strongly support the overall hypothesis. Building upon our previous work (Zanetti et al., 2016), and our recent finding that Syt1 oligomers can be triggered in solution by polyphosphates and Mg2+. In this research advance, we use fluorescence correlation spectroscopy to independently corroborate the Syt1 oligomeric structure and provide mechanistic insight into the Syt1 ring oligomer assembly.

Results

PIP2 or ATP and Mg2+promote Syt1 ring oligomers in solution

The minimal C2AB domains of Syt1 form circular oligomers on lipid surface and the electrostatic interaction between the conserved lysine residues (K326/K327) within the polybasic patch/motif on the C2B domain and the negatively-charged lipids, like PIP2 and PS, on the lipid surface was required for its assembly (Wang et al., 2014; Zanetti et al., 2016). To understand if this electrostatic interaction in itself is the trigger to polymerize or if it merely serves to position the Syt1 on the membrane to promote the ring formation, we examined if the Syt1 rings could be assembled in solution using acidic lipid substitutes. We incubated stringently purified C2AB domains of Syt1 (Syt1C2AB) with soluble PIP2 (PIP2-diC4) under physiologically-relevant buffer condition (100 mM KCl, 1 mM free Mg2+) and imaged the resultant structures using electron microscopy (EM). Negative stain analysis showed that in the presence of 50 µM PIP2-diC4, Syt1C2AB readily assembles into ring-like oligomers in solution (Figure 1A). The density (~5 rings/ µm2) and the dimension (outer diameter between 18–44 nm with an average size of ~32 nm) of these soluble ring oligomers were very similar to the ring oligomers formed on the lipid surface (Figure 1B and C). Based on the helical indexing of the Syt1C2AB tubes (Wang et al., 2014), we estimate that this corresponds to 12–26 copies of Syt1 molecule, with an average of ~17 copies of Syt1. Notably, the soluble Syt1C2AB rings are abundant and stable under physiological buffer conditions, unlike the sparse density observed on lipid monolayers (Wang et al., 2014). This suggests that circular oligomerization is an intrinsic property of Syt1 C2 domains, but hindered by the low concentration of the protein on the lipid monolayer surface under these conditions.

The C2AB domains of Syt1 oligomerize into ring-like structures in solution when triggered with naturally occurring polyphosphates and Mg2+.

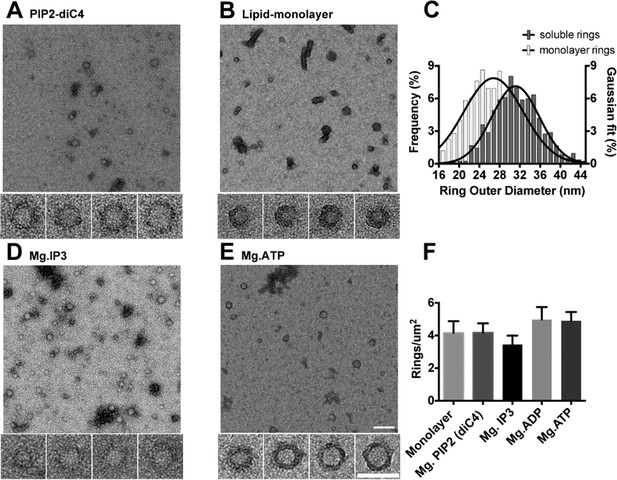

Negative staining electron microscopy analysis shows that Syt1C2AB forms ring-like structures in buffer solution containing soluble PIP2 (PIP2-diC4) and 1 mM free Mg2+ (A), and these rings are very similar to those observed on monolayers containing 40% DOPS (B). (C) The average diameter of the Syt1C2AB soluble ring-oligomers are slightly but not significantly larger (32 ± 3 nm) compared to the rings (28 ± 2 nm) formed on lipid monolayer. These oligomeric rings were not unique to PIP2-diC4 and other polyvalent anions, like IP3 (D) and ATP (E) also induced the oligomerization of Syt1C2AB. The prevalence and stability of the Syt1C2AB were similar for all the polyvalent anions tested (F). The scale bar represents 100 nm in the main figure and 50 nm for the insets (Panels A, B, D, E). Average values and standard deviations from a minimum of 3 independent experiments are shown.

https://doi.org/10.7554/eLife.27441.002

Similar ring oligomers were observed with PIP2 analogues like inositol 1,4,5-trisphosphate (IP3, 50 µM) (Figure 1D) suggesting it was not a unique property of PIP2. Consequently, we tested the effect of adenosine triphosphate (ATP), another polyvalent anion, which has been shown to directly bind the C2B polybasic region and modulate the membrane interaction of Syt1 (Park et al., 2012; Vennekate et al., 2012). As with soluble PIP2 and its analogues, we detected ring-like oligomers of Syt1C2AB (Figure 1E) at physiological concentration of ATP (1 mM Mg-ATP), with density (~5 rings/µm2) comparable to soluble PIP2. Similar ring oligomers were also observed with 1 mM adenosine diphosphate (ADP) suggesting that it is a shared property of polyvalent anions (Figure 1F).

No oligomeric structures were observed in the absence of polyvalent anions and the density of the rings was drastically reduced (~5 rings/µm2 to ~0.4 rings/µm2) when the polybasic region of C2B was mutated (K326A/K327A) (Figure 2A). This suggests that the known direct molecular interaction of polyanions with the C2B polybasic motif (Park et al., 2012; Bai et al., 2004) and not a charge shielding effect, produces the Syt1 ring-like oligomers. Magnesium ions (Mg2+) were also found to be an important co-factor in stabilizing the Syt1C2AB rings in solution (Figure 2B and C). The number of Syt1C2AB ring oligomers observed were substantially reduced (~60% reduction) when Mg2+ was completely excluded (using Na-ATP or Na-PIP2) (Figure 2C). Given that the Mg2+ was not required to assemble the Syt1C2AB ring oligomers on acidic lipid surfaces (in fact Mg2+ lowered the number of rings formed on lipid surfaces), it appears that Mg2+ plays an independent but auxiliary role in the formation of Syt1C2AB ring oligomers in solution. We also attempted to isolate the soluble Syt1C2AB rings (triggered with ATP and Mg2+) using glycerol density gradient. However, the soluble rings were not stable under these experimental conditions and could be isolated only after mild fixation (0.01% glutaraldehyde) (Figure 2—figure supplement 1). Taken together, our data suggest that the specific interaction of the polyvalent anions to the conserved lysine residues within the C2B polybasic motif triggers the Syt1 ring-like oligomer formation and the resultant oligomers are stabilized by Mg2+.

Figure 2 with 1 supplement see all

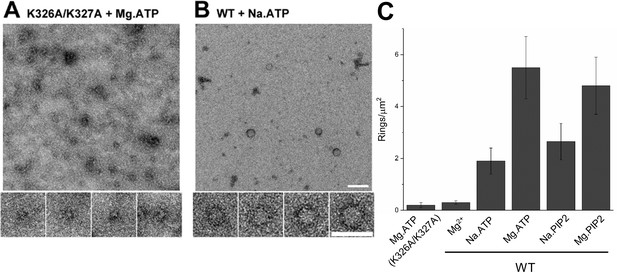

(A) Molecular interaction of polyvalent anion with the C2B polybasic is strictly required for the oligomer formation. Negative stain EM analysis shows that disrupting the polylysine motif on the C2B domain (K326A/K327A) prevents the oligomer formation even in the presence of polyphosphates and Mg2+. (B and C) Mg2+ is a critical co-factor that stabilizes the ring oligomers triggered by polyphosphates (ATP or PIP2) as complete removal of Mg2+ (Na.ATP or Na.PIP2) results in reduction in the density of the ring oligomers.

https://doi.org/10.7554/eLife.27441.003

Characterization of soluble Syt1 oligomers by Fluorescence Correlation Spectroscopy

To independently validate and characterize Syt1C2AB oligomerization in solution, we used fluorescence correlation spectroscopy (FCS). FCS is based on correlation analysis of temporal fluctuations of fluorescence intensity caused by diffusion of fluorescently labeled moiety through a small focal volume (dimension less than 1 pL). Autocorrelation of the fluorescence can directly provide the average number of particles (concentration) and average diffusion times through the volume. And, cross-correlation analysis between two fluorophores can be used to detect molecular association/dissociation and to determine the stoichiometry of molecular complexes (Elson, 2011; Magde et al., 1974; Ries and Schwille, 2012). So, to check the oligomerization of Syt1C2AB in solution, we employed dual-color fluorescence cross-correlation spectroscopy (FCCS) with Syt1C2AB labeled with Alexa488 or Alexa647 at residue 269 using cysteine-maleimide chemistry. The fluorescent labels were introduced at the flexible linker region between C2A and C2B domains and negative stain EM analysis showed the fluorescent labels did not interfere the Syt1 ring formation (Figure 3—figure supplement 1).

FCCS analysis was carried out under experimental conditions similar to the EM analysis, namely 5 µM of Syt1C2AB (~120 nM of Syt1C2AB -Alexa88, ~30–120 nM of Syt1C2AB -Alexa647 and ~4.9 µM of unlabeled Syt1 C2AB) was incubated with or without ATP in buffers containing 20 mM KCl and 1 mM free Mg2+. Both fluorophores were excited, and their intensities in the focal volume were monitored simultaneously. In the presence of ATP and Mg2+, the temporal variations in the fluorescence intensity of Alexa488 and Alexa647 labels followed a similar pattern, indicating that part of Syt1C2AB-Alexa488 and Syt1C2AB-Alexa647 molecules move in or out the focal volume concurrently (Figure 3A). Also, the cross-correlation function was larger than one at short time intervals (Figure 3A), indicating that a portion of the two fluorophores diffused together that is, they were in the same diffusional object. Overall, these data were consistent with the formation of Syt1C2AB oligomers in solution. Further, we observed no cross correlation (Figure 3B) in the absence of ATP and Mg2+, implying that these structures are not random association of Syt1C2AB molecules, but are ATP-derived oligomers of Syt1C2AB.

Figure 3 with 5 supplements see all

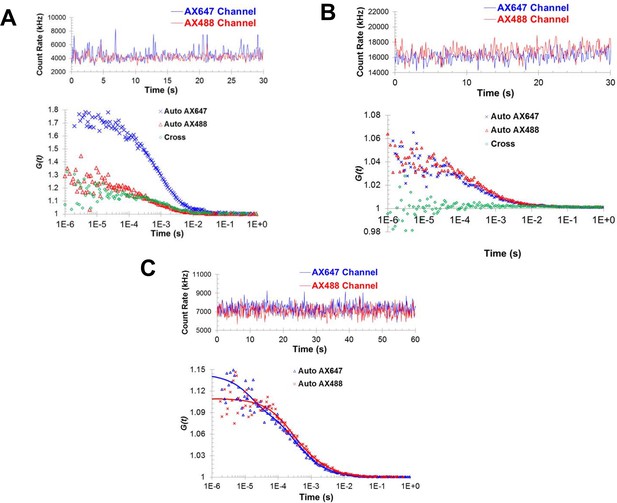

Fluorescence correlation spectroscopy confirms the formation of Syt1C2AB oligomers in solution.

Fluorescence cross-correlation spectroscopy of the Syt1C2AB oligomerization reaction was measured using Alexa488 and Alexa647 labeled Syt1C2AB, mixed with unlabeled Syt1C2AB protein either in the presence (A) or absence (B) of 1 mM ATP and Mg2+. The upper panels represent the count rates and the lower panels represent the auto-correlation (blue and red markers for Alexa647 and Alexa488) and cross correlation (green markers) functions. The data were collected for a range of fluorophores concentration (~30–120 nM) and we observe no cross-correlation even at higher label concentration in the absence of Mg2+/ATP (B) in contrast to distinct cross-correlation in the presence of Mg2+/ATP (A) despite the lower label concentration. This shows that these structures are not random association of Syt1C2AB molecules, but are ATP-derived oligomers of Syt1C2AB. (C) Fluorescence auto correlation spectroscopy of the oligomerization reaction was carried out using dilute concentration of the labeled Syt1C2AB (~25 nM each of Alexa488 and Alexa647) mixed with unlabeled Syt1C2AB in the presence of ATP and Mg2+ The auto correlation function was best fitted with the two-component translational diffusion model with triplet state (blue and red solid lines for each dye), confirming the presence of the oligomeric component. Representative traces are shown and the calculated parameters from a minimum of three independent trials are shown in Table 1.

https://doi.org/10.7554/eLife.27441.005

To corroborate these findings, we estimated the diffusion properties of the fluorescent species. Higher molecular weight of the Syt1C2AB oligomers would increase the diffusion time (transit time) across the sample volume, and this could be determined by autocorrelation analysis. We used both fluorophores to cross-check our results, but lowered the concentrations of each fluorescent species (~25 nM of Syt1C2AB-Alexa488, ~25 nM of Syt1C2AB -Alexa647 and ~5 µM of unlabeled Syt1 C2AB), such that two fluorophores are unlikely to be located in the same oligomer. This was confirmed by the absence of cross correlation between the two fluorophores (Figure 3—figure supplement 2). We then measured the auto correlation function of each fluorophore in presence of ATP and Mg2+. We found that they could be best fitted using the two-component translational diffusion model with a triplet state correction (Equation 1) and determined two diffusion coefficients corresponding to the Syt1C2AB monomers and oligomers.

(1) G(τ)=1+A(1+ϕtrieττtri1ϕtri)(ϕm(1+ττm)(1+1s2ττm)1/2+ϕo(1+τϕo)(1+1s2τϕo)1/2)

where G is the auto correlation function, τ is the time interval, A is amplitude, Φtriandτtri are the fraction and decay time of the triplet state, Φmandτm are the fraction and diffusional time of the component 1, Φoandτo are the fraction and diffusional time of the component 2, and s is the structural parameter.

The major component (~80%) showed fast diffusion time (~600 µs) possibly corresponding to the monomers and a smaller fraction (~20%) had a slow diffusion time of ~4000 µs consistent with Syt1C2AB oligomers (Figure 3C, Table 1). These data indicated that Syt1C2AB indeed formed oligomers in solution when triggered with ATP and Mg2+. In contrast, in the absence of ATP and Mg2+, the auto correlation function could be best fitted with the one component translational diffusion model with triplet state correction (Equation 2)

(2) G(τ)=1+A(1+ϕtrieττtri1ϕtri)1(1+ττd)(1+1s2ττd)1/2
Table 1
Fractions and molecular properties of diffusional particles of Syt1C2AB generated various conditions as measured by fluorescence correlation spectroscopy.

Averages and standard errors from three independent trials are shown.

https://doi.org/10.7554/eLife.27441.011
ProteinsTotal protein conc. (nM)Mg2+ + polyphosphateReadout channelComponent 1Component 2
Fraction (%)Diffusion time (µs)Diffusion coefficient (μm2/s)Fraction (%)Diffusion time (µs)Diffusion coefficient (μm2/s)
Syt1-Alexa488~30NoAlexa488100620 ± 3570 ± 4n/an/an/a
Syt1-Alexa647~30NoAlexa647100616 ± 2270 ± 3n/an/an/a
Syt1-Alexa488 + Syt1-Alexa647 + unlabeled Syt1~5000NoAlexa488100583 ± 2074 ± 8n/an/an/a
Alexa647100577 ± 2075 ± 8n/an/an/a
Syt1-Alexa488 + Syt1-Alexa647 + unlabeled Syt1~5000YesAlexa48877 ± 2527 ± 2082 ± 423 ± 24168 ± 19410 ± 1
Alexa64776 ± 2567 ± 2677 ± 424 ± 23862 ± 19611 ± 1

The diffusion time (τd) obtained (~600 µs for both channels) were similar to the diffusion time of the monomeric component obtained in the two component diffusion model, confirming that no oligomeric structure is formed in the absence of Mg2+ and ATP (Table 1).

To verify that the Syt1C2AB oligomerization observed in FCS analysis is indeed due to specific association of ATP to the C2B polybasic region, we tested the polylysine mutant (wild type Syt1C2AB -Alexa647 and unlabeled Syt1 C2AB K326A/K327A). For this mutant, in the presence of ATP and Mg2+, the autocorrelation function was best described with one-component diffusion model with a diffusion time of 599 ± 50 μs and a diffusion coefficient of 72 ± 7 μm2/s, which are similar to the property of a Syt1 monomer (Figure 3—figure supplement 3). These data are consistent with the EM analysis that the probability of forming Syt1 oligomeric structures is significantly decreased when the polylysine patch on C2B domain was altered. We also tested and confirmed that similar oligomers were formed with PIP2-diC4 and Mg2+ using both autocorrelation (diffusion time) and cross-correlation analysis (Figure 3—figure supplement 4).

Physical parameters of soluble Syt1 ring oligomers

To fully characterize the Syt1C2AB oligomers detected in the FCS analysis, we determined the key molecular parameters of Syt1 oligomers observed in the FCS lt. First, we estimated the average copy number of Syt1 in the oligomer from the FCS autocorrelation analysis. To do this, we considered the probability of a diffusional object in the focal volume to contain dye 1:

(3) p=C1Ctotal

 where C1andCtotal are the input concentrations of Syt1C2AB–dye1 and all the Syt1C2AB (labeled + unlabeled), respectively. Therefore, if an oligomer containing dye 2 has N copies of Syt1C2AB molecules, then the probability of it also containing dye 1 is

(4) p12=1(1p)N1

From the auto correlation functions, we can determine the concentration of oligomers that contain dye 2, which can be defined as C2ϕ2,o, where ϕ2,o is the molar ratio of oligomers containing dye 2 versus all diffusional particles containing dye 2. Therefore, using ϕ2,o and C2, p12 can be rewritten as

(5) p12= C12/(C2ϕ2,o)

where C12 is the concentration of diffusional objects that contain both Syt1-Alexa647 and Syt1-Alexa488 and can be calculated using

(6) C12=(Gx(0)1)ϕ1,oϕ2,o(G1(0)1)(G2(0)1)Veff

Where Gx(0) is the value of the cross-correlation function at zero time interval, G1(0) and G2(0) are the values of the auto correlation functions of dye 1 and 2 at zero time interval, respectively, and Veff is the effective focal volume. Combining Equations 4–6, we estimate the average copy number (N) of Syt1 in the oligomers to be ~16 ± 2. This perfectly matches with the estimated copies of Syt1 (~17 copies) in the ring-like oligomers from the EM analysis.

Next, we determined the hydrodynamic dimensions of the Syt1 monomeric and oligomeric component from its diffusion properties. For the monomers, we considered them as global structures and used Stokes-Einstein equation (Equation 7)

(7) D=kBT6πηr

 where D is the diffusion coefficient determined from the autocorrelation function, kB is Boltzmann constant, T is the temperature, η is the viscosity of the solvent and r is the hydrodynamic radius. For the oligomer, we used torus model (Figure 3—figure supplement 5) considering the ring-like oligomer structure, wherein the hydrodynamic radius can be determined from the following equation:

(8) D=kBT8π2ηa[ln(8ar)+12]

r is the radius of the sphere being rotated, and a is the distance from the center of the circle to the axis of rotation (Thaokar, 2008). We estimate an average hydrodynamic radius of ~r = 3.1±0.2 nm for the monomer and ~ (r + a)=24 ± 3 nm for Syt1 oligomer. Both of these values are in line with the dimension of Syt1C2AB monomer (~4.3 nm from X-ray crystallography [Fuson et al., 2007]) and ring oligomer (~32 nm from the EM analysis). Overall, the data suggest that Syt1 oligomers observed in FCS analysis are the same circular oligomers visualized by EM, given the molecular properties of both are perfectly aligned.

Finally, we used the FCS analysis to estimate the Syt1 oligomeric interaction. Because we observed two types of diffusional particles (Syt1 monomer and oligomer with average copy number N ~ 16) in the fluorescence correlation measurements, to determine the binding affinity, we considered a polymerization reaction that forms the oligomer (Syt1N):

N .Syt1Syt1N

The binding affinity constant (KD) can be written as

KDN-1=[Syt1]NSyt1N

And the mass balance equation is,

[Syt1]+N.[Syt1N]=[Syt1]0

where [Syt1]0 is the initial total input concentration of Syt1.

The molar fractions of the fluorescent dyes in the monomers (Φ1,mandΦ2,m) were determined from the auto correlation functions of the Alexa647 and Alexa488 channels, respectively. As shown in Table 1, the two dyes, Syt1-Alexa647 (dye 1) and Syt1-Alexa488 (dye 2), have similar distribution in monomers and oligomers, that is Φ1,mΦ2,m, where Φ1,m is the molar fraction of dye 1 in the form of monomer. Therefore, we can reasonably assume that the unlabeled Syt1 molecules have same distribution as Syt1-Alexa647 and Syt1-Alexa488. Then,

(9) ϕ1,mϕ2,m[Syt1][Syt1]+[Syt1N]

Combining these equations together, we can write the KD as

(10) KD=ϕ1,m1(N1)(1ϕ1,m)1(N1)(N(1ϕ1,m)+ϕ1,m)[Syt1]0

The values of Φ1,mandΦ2,m were in good agreement and found to be ~0.77 (Table 1). From Equation 10, the affinity constant (KD) for the Syt1C2AB monomers to assemble into the oligomers was estimated to be ~1 ± 0.3 µM. This corresponds to a free energy of ~−13.8 kBT for a monomer and ~−220 kBT for the oligomer with 16 copies of Syt1C2AB. This suggests that Syt1 ring oligomers could reasonably assemble under the physiological conditions when triggered by naturally occurring polyphosphates.

Syt1 soluble rings are insensitive to calcium

Syt1C2AB ring oligomers assembled on the membrane surface are sensitive to Ca2+ and are rapidly disrupted by Ca2+ wash at physiological concentrations (Wang et al., 2014; Zanetti et al., 2016). This sensitivity maps to the Ca2+ binding to the C2B domain and the subsequent insertion of the flanking aliphatic residues into the membrane (Zanetti et al., 2016). In line with this, we find that the soluble Syt1C2AB rings are insensitive to Ca2+ treatment (Figure 4). Negative stain EM analysis showed the Syt1C2AB assembled into soluble ring-like oligomers in the presence of Ca2+/ATP similar to those observed with ATP and Mg2+ (Figure 4A). In fact, Ca2+ was slightly better in stabilizing the ring oligomers across the concentration range (0.25–1 mM) tested (Figure 4—figure supplement 1). Similarly, we detected the presence of oligomeric structures with ATP and Ca2+ in the FCS analysis, and the diffusional properties of the oligomeric component was similar to that observed with ATP and Mg2+ (Figure 4B). Hence, we conclude that the Ca2+-induced membrane interaction of the C2B domain is essential for the dissociation of the Syt1 ring oligomers following the Ca2+ influx. Remarkably, neutralizing the Ca2+ coordinating aspartic acids of the C2B domain (Syt13A, D309A/D363A/D365A) stabilized the soluble ring oligomers. In fact, Syt13A formed stable ring oligomers in the absence of divalent cations (with Na.ATP), with density comparable to those assembled with ATP and Mg2+ (Figure 4C). This supports the idea that C2B Ca2+ loops are involved the ring oligomer formation (Wang et al., 2014) and Mg2+ stabilizes the ring oligomers by charge shielding effect that is by reducing the electrostatic repulsion between the Syt1 monomers by

Figure 4 with 2 supplements see all

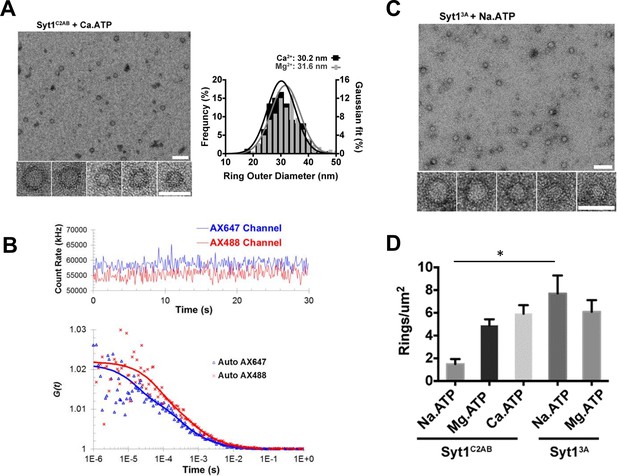

Soluble Syt1C2AB oligomers are insensitive to Ca2+.

(A) Negative stain analysis shows that the Syt1C2AB assembles into ring-like oligomers in the presence of Ca2+ and ATP and these ring oligomers are similar in size and frequency to the rings assembled with Mg2+/ATP. (B) Fluorescence autocorrelation analysis corroborates the insensitivity of the ring oligomers to Ca2+ as the auto correlation function of Syt1C2AB incubated with Ca2+ and ATP is best described with the two-component translational diffusion model with triplet state revealing the presence of the oligomeric component. (C) Neutralizing the Ca2+ coordinating aspartic acids in the C2B domain stabilizes the soluble ring oligomers even in absence of Mg2+ ions clarifying the molecular role of Mg2+ in the soluble Syt1C2AB ring assembly. The stability of the ring oligomers under various conditions was quantified by density of the rings on the EM grid (D). Average values and deviations from a minimum of 3 independent experiments are shown.

https://doi.org/10.7554/eLife.27441.012

Discussion

The data presented here establish that circular oligomerization is an intrinsic property of Syt1, and it can assemble into stable ring-like oligomers independent of a membrane surface. However, this is not a spontaneous association and strictly requires the structurally defined binding of physiologically occurring polyphosphates anions like PIP2 or ATP to the polylysine motif on the C2B domain. In the case of PIP2, it is known that this interaction firmly docks the vesicle to the PM both under in vitro and in vivo conditions (Honigmann et al., 2013; Parisotto et al., 2012; Pérez-Lara et al., 2016). Structural analysis of the Syt1 ring oligomers from helical reconstruction of the Syt1C2AB coated membrane tubes (Wang et al., 2014) shows that the C2B calcium loops either contribute to or are in close proximity to the C2B-C2B interface that assembles the oligomers. Corroborating this, we find that neutralizing the Ca2+-coordinating aspartic acids by alanine mutation or by inclusion of divalent cations (Mg2+/Ca2+) increase the prevalence and stability of the soluble Syt1 ring oligomers. Given that the polybasic patch and the Ca2+-binding sites on C2B are located quite far apart, we suggest that polyphosphate binding rigidifies the C2B fold thereby better structuring the surfaces engaging in oligomerization. This long-range conformational coupling could explain the cooperative binding of PIP2 and Ca2+ that has been reported for several C2 domain proteins, including Syt1 (Montaville et al., 2008; Torrecillas et al., 2004; van den Bogaart et al., 2012).

Our data raise the interesting possibility that under physiological conditions, the binding of cytosolic ATP to the C2B polybasic motif could initiate ring formation on the SV well before the docking forming a ‘halo’-like structure (Figure 5). The average size of the ring oligomers observed by EM and FCS analysis suggests that the nearly all Syt1 molecule in the SVs may be involved, but the precise number of the Syt1 involved is unclear. Pre-formed Syt ring oligomers could then be transferred to PIP2 clusters at the PM to facilitate docking by virtue of the far greater affinity of a multi-valent Syt oligomer. This would require PM-bound PIP2 displacing free ATP as a ligand to the polybasic patch, as previously demonstrated (Park et al., 2012; Vennekate et al., 2012). It is noteworthy that in the same study, it was found that ATP is a better ligand than PS on the SV surface, and suggested that ATP binding to C2B serves to prevent cis-binding of C2B to the SV thereby favoring ultimate trans-binding to PIP2 in the PM (Park et al., 2012; Vennekate et al., 2012). In accordance, we find that the ATP drastically reduces the density of the Syt1 ring oligomers on lipid surface with PS only, but had no effect when PIP2 was included (Zanetti et al., 2016). Here, we extend this concept to suggest that this hierarchy of binding affinities may serve to pre-form a Syt1 ring as an additional mechanism to facilitate SV docking to the PM by Syt1.

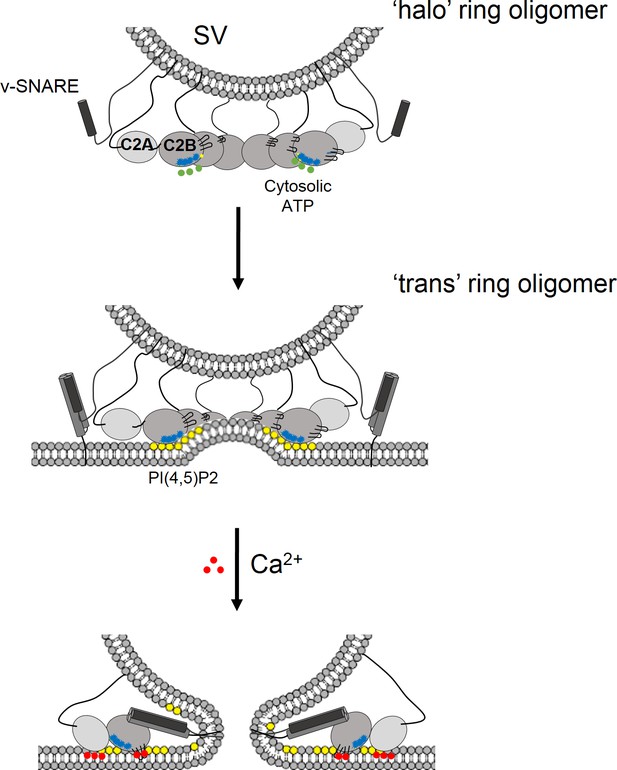

Model for the regulation of neurotransmitter release by the Syt1 ring oligomers.

The Syt1 ring oligomer formation may be triggered prior to vesicle docking that is halo-like structure by cytosolic ATP (green dots) binding to the Syt1 C2B polylysine motif (blue dots). The ring oligomers are then transferred to the site of docking wherein the ATP interaction is replaced with the PIP2 clusters (yellow dots) on the plasma membrane. This serves to enhance the docking ability of the Syt1 and position the ring at the docking site prior to the engagement of the SNARE proteins. The dimensions of the Syt1 ring, would permit the assembly of N-terminal domain of SNARE, but impede the complete zippering either passively as a spacer/washer or actively by restraining the SNARE assembly via specific interaction with t-SNAREs. Upon binding Ca2+ (red dots), the Ca2+ loops that is at the oligomeric interface, re-orients and inserts into the membrane. This disrupts the Syt1 ring oligomer and removing the impediment for fusion. In this fashion, the Syt1 ring oligomers could synchronize the release neurotransmitters to the influx of Ca2+ following the action potential.

https://doi.org/10.7554/eLife.27441.015

The formation of the Syt1 ring oligomer prior to the engagement of SNAREs would allow it to generate and maintain the primed pre-fusion state. The dimensions of a Syt1 ring (diameter ~30 nm and height ~4 nm) considering 15–20 copies of Syt1 in the SVs (Takamori et al., 2006; Wilhelm et al., 2014) would permit the assembly of half zippered SNAREpins but could impede the complete zippering. It is not clear if Syt1 rings function to clamp fusion passively, as a spacer, to separate the two bilayers, or actively by physically restraining SNARE assembly via direct binding to the single SNARE complexes (Choi et al., 2010; Zhou et al., 2015). However, it is worth noting in our Syt1 ring oligomer model, the recently defined SNARE binding interface on the C2B (Zanetti et al., 2016) is accessible and free to interact in an active mechanism. Recent cryo-tomography studies of synaptosomes show that docked vesicles are ~3–4 nm away from plasma membrane with protein density at the interface. However, it does not allow for unambiguous identification of the protein(s) identity or their organization at the docked site. (FernandezFernández-Busnadiego et al., 2011).

Besides stabilizing the pre-fusion state, the Syt1 ring oligomer could also synchronize the release of neurotransmitter to Ca2+ influx. Ca2+ binding would trigger a rapid disintegration of the Syt1 oligomeric structure to permit the stalled SNAREpins to complete zippering and drive SV fusion. However, Ca2+ sensitivity is not an innate property of the Syt1 oligomers, but requires the presence of lipid membranes. This reinforces our earlier finding that the Ca2+-dependent interaction of the C2B domain with the membrane is key determinant in the ring disassembly (Zanetti et al., 2016). Ca2+-induced conformational reorientation of the C2B loops into the membrane, which is the power stroke and physiologically required for triggering synaptic transmission (Fernández-Chacón et al., 2001; Rhee et al., 2005; Paddock et al., 2011), is incompatible with the ring-like structure, as it would disrupt the oligomeric interface. Overall, it is now easy to imagine how Syt1 oligomers could serve as template to organize assembling SNAREpins and related chaperones to enable the cooperative and synchronous triggering of neurotransmitter release. However, further research is needed to test the physiological relevance of these concepts.

Materials and methods

Adenosine phosphates (ATP, ADP) and Inositol hexaphosphate (IP6) were purchased from Sigma-Aldrich (St Louis, MO). Inositol 1,4,5-trisphosphate (IP3), phosphatidylinositol 4,5-bisphosphate diC4 (PIP2-diC4) were purchased from Echelon biosciences (Salt Lake City, UT). 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) and 1,2-dioleoyl-sn-glycero-3-phospho-L-serine (DOPS) were purchased from Avanti Polar lipids (Alabaster, AL). Thiol reactive fluorescent probes Alexa488-maleimide and Alexa647-maleimide were purchased from Thermo Scientific, Waltham, MA. The DNA constructs used in this study - the wild-type C2AB domain (Syt1C2AB, residues 143–421) of rat Synatotagmin-1, C2B polylysine mutant (Syt1C2ABK326A, K327A), C2B Ca2+ binding mutant (Syt13A, D309A, D363A, D365A) were generated and sequenced in our earlier works (Wang et al., 2014; Zanetti et al., 2016). For site-specific labeling with fluorophores, cysteine was introduced in Syt1C2AB at residue 269, while naturally existing cysteine at residue 277 was removed (C277S) using the Quickchange mutagenesis kit (Stratagene, Santa Clara, CA)

Purification of recombinant proteins

The Syt1C2AB wild-type and mutant proteins were expressed and purified as a GST-tagged protein using a pGEX6 vector. The proteins were purified as described previously (Wang et al., 2014; Zanetti et al., 2016). Briefly, Escherichia coli BL21 (DE3) expressing Syt constructs were grown to an OD600 ~0.7–0.8, induced with 0.5 mM isopropyl β-D-1-thiogalactopyranoside (IPTG). The cells were harvested after 3 hr at 37°C and suspended in lysis buffer (25 mM HEPES, pH 7.4, 400 mM KCl, 1 mM MgCl2, 0.5 mM TCEP, 4% Triton X-100, protease inhibitors). The samples were lysed using cell disrupter, and the lysate was supplemented with 0.1% polyethylamine before being clarified by centrifugation (100,000 × g for 30 min). The supernatant was loaded onto glutathione-sepharose (Thermo Scientific, Waltham, MA) beads (3 hr or overnight at 4°C), and the beads were washed with 20 ml of lysis buffer, followed by 20 ml of 25 mM HEPES, 400 mM KCl buffer containing with 2 mM ATP, 10 mM MgSO4, 1 mM DTT. Subsequently, the beads were re-suspended in 5 ml of lysis buffer supplemented with 10 μg/mL DNaseI, 10 μg/mL RNaseA, and 10 μl of benzonase (2000 units) and incubated at room temperature for 1 hr, followed by quick rinse with 10 ml of high salt buffer (25 mM HEPES, 1.1 M KCl, 1 mM DTT) to remove the nucleotide contamination. The beads were then washed with 20 ml of HEPES, 400 mM KCl buffer containing 0.5 mM EGTA to remove any trace calcium ions. The proteins were eluted off the affinity beads in 25 mM HEPES, 100 mM KCl, 1 mM DTT buffer using PreScission protease for GST-tagged constructs and further purified by Mono-S anionic exchange (GE Healthcare, Marlborough, MA) chromatography. Size-exclusion chromatography (Superdex75 10/300 GL) showed a single elution peak (~13 mL) consistent with a pure protein, devoid of any contaminants.

Imaging of soluble Syt1 ring oligomers

Protein stock (50 µM) was diluted for 10 fold in MBS (20 mM MOPS, pH7.5, 100 mM KCl, 1 mM EGTA, 1 mM Mg(AC)2, 1 mM Mg.ATP, 1 mM DTT, 4% trehalose) at room temperature for 10 min. Alternatively, Mg.ATP can be substituted with 1 mM Mg.ADP, 50 uM IP3, 50 uM PIP2-diC4, 1 mM Ca.ATP. Diluted protein solution is further centrifuged at 10,000 x g for 10 min at 4°C to remove large aggregates and the supernatant (~8 µl) was applied to a continuous carbon-coated EM grid, which were glow-discharged for 10 s prior to application. After 1 min incubation, the grid was blotted dry with Whatman #1 filter paper, stained with 1% uranyl acetate and air-dried. The negatively stained specimens were examined on a transmission electron microscope (FEI Tecnai T12) operated at an acceleration voltage of 120 keV. The defocus range used for our data was from 0.6 to 2.0 um. Images were recorded under low-dose conditions (∼20 e-/Å2) on a 4K × 4K CCD camera (UltraScan 4000; Gatan, Inc), at a nominal magnification of 42,000x. Micrographs were binned by a factor of 2 at a final sampling of 5.6 Å per pixel on the object scale. A minimum of three independent analyses were used for each condition and average and standard error of the means (SEM) from this dataset is shown. Typically, randomly selected 20–30 regions of 500 × 500 nm dimensions from each individual trial (a minimum of 100 regions) was used for the density analysis and a minimum of 200 ring structures were used to estimate the size distribution.

Soluble ring purification

An aliquot of 10 µl Syt1C2AB stock was diluted in 90 µl MBS. After 10 min incubation at room temperature with ATP and Mg2+, the protein solution mixed with 10 µl of buffer or buffer containing 0.01% glutaraldehyde on ice for 10 min and then laid on top of a glycerol density gradient (100 µl layers of 10%, 15%, 20%, 25%, 30% glycerol (v/v), which were allowed to settle for 1 hr at 4°C) and centrifuged at 100,000 x g for 16 hr at 4°C. After the centrifugation, the samples were collected as 50 µl aliquots (from top to the bottom) and directly imaged for negative staining EM. To increase the concentration of particles on the EM grid, samples were allowed to adsorb on the carbon surface for 1 hr in a humidity chamber on ice. An alternate sample under the same conditions except without the fixative was tested in parallel.

Fluorescence Correlation Spectroscopy analysis

Fluorescence correlation spectroscopy experiments were performed using a Carl Zeiss LSM 510 confocal microscope with a correlator module. A 40x water immersion objective lens was used in all experiments. All experiments were carried out with total (labeled + unlabeled) Syt1C2AB concentration of 5 µM of Syt1C2AB in 25 mM HEPES, 20 mM KCl, 1 mM Mg2+ buffer with or without 1 mM Mg.ATP included. The concentration of Alexa488/Alexa647 labeled Syt1C2AB were adjusted as per the experimental requirement. For cross correlation measurements, typically ~120 nM of Syt1C2AB-Alexa488,~30–120 nM of Syt1C2AB-Alexa647 were mixed with ~4.9 µM of unlabeled Syt1C2AB at room temperature for 15 min. The sample was then loaded into a glass bottom microwell dish (MatTek Corporation, Ashland, MA) for imaging. Under some cases, the sample was then rapidly diluted (5x) with buffer and immediately subjected to imaging. For auto correlation experiments, concentrations of each fluorescent species lowered to ~10–60 nM of Syt1C2AB-Alexa488,~10–60 nM of Syt1C2AB-Alexa647 and ~5 µM of unlabeled Syt1C2AB. Typically, the sample was pre-mixed in eppendorf tubes, and then transferred into a glass bottom microwell dish (MatTek Corporation, Ashland, MA) for imaging. Both fluorophores were directly excited using 488 nm and 633 nm lasers.

The auto-correlation function is defined as follows:

G(τ)=I(t).I(t+τ)I(t)2=T0T(I(t).I(t+τ))dt0T(I(t))2dt

where I(t) is the fluorescence intensity at time t, and <>denotes the time average, and τ is the time shift.

The definition for the cross correlation function is identical to the auto correlation function, with the exception that the signal in one channel is compared to a signal in a second channel instead of itself.

GX(τ)=IB(t).IY(t+τ)IB(t).IY(t)

where the indices ‘B’ and ‘Y’ refer to the red and blue channel, respectively.

The total correlation is given by the following equation:

Gtot(τ)=1+d+C+A.klGk,l(τ)

where d is the offset, C is the background correction, and A is the amplitude. Gk, l(τ) is the correlation for a single process. The suffixes k and l are correlation terms for dependent and independent processes, respectively, that are multiplied with or added to each other.

For a system with a single species of translationally diffusional particles, the above equation can be simplified as

G(τ)=1+A(1+Φtrieττtri1Φtri)1(1+ττd)(1+1s2ττd)1/2

where Φtri and τtri are the fraction and decay time of the triplet state. τd is the diffusional time of the particle, and s is the structural parameter.

If there are two species of particles diffusing in the focal volume, the correlation function can be written as

G(τ)=1+A(1+Φtrieττtri1Φtri)(Φ1(1+ττ1)(1+1s2ττ1)1/2+Φ2(1+ττ2)(1+1s2ττ2)1/2)

where Φ1 and τ1 are the fraction and diffusional time of the component 1, Φ2 and τ2 are the fraction and diffusional time of the component 2. These equations can be used to determine the diffusional properties of the particles. Fitting residues from fitting autocorrelation function for all FCS data are shown in Figure 4—figure supplement 2.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    PI(4,5)P₂-binding effector proteins for vesicle exocytosis
    1. TF Martin
    (2015)
    Biochimica et Biophysica Acta (BBA) - Molecular and Cell Biology of Lipids 1851:785–793.
    https://doi.org/10.1016/j.bbalip.2014.09.017
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Brownian Motion of a Torus
    1. RM Thaokar
    (2008)
    650–657, Colloids and Surfaces A: Physicochemical and Engineering Aspects, Brownian Motion of a Torus, 317.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Axel T Brunger
    Reviewing Editor; Stanford University Medical Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Circular Oligomerization is an Intrinsic Property of Synaptotagmin" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Randy Schekman as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, the authors describe follow-up experiments that are related to their 2016 eLife paper. They observed that the C2AB fragment of syt1 is able to form circular oligomers in solution. The ring-like structures of syt1 C2AB require PIP2 analogues, ADP, or ATP as well as Ca2+ or Mg2+ ions. The authors suggest a model in which the syt1 ring oligomers serve to synchronize the release neurotransmitters upon Ca2+ influx. The rings are interesting, but it seems their biological function remains unknown, and such rings have not (yet) been observed in neurons.

Essential revisions:

1) The authors show that both Ca2+ and Mg2+ can efficiently promote formation of the ring-like structures. It is well established that syt1 binds to Ca2+ is in the microM range (e.g., A. Radhakrishnan, A. Stein, R. Jahn, D. Fasshauer, J. Biol. Chem. 284, 25749-60, 2009). However, the affinity of Mg2+ to syt1 has not been well characterized. In fact, the concentration of Mg2+ in the cytosol is nearly 1 mM, so Ca2+, so Ca2+ would compete with Mg2+ at lower concentration. Are Mg2+ and Ca2+ acting in the same manner, to drive ring formation? Is there any difference in the abilities of these two ions to drive ring formation? Probing interactions between syt1 and divalent cations by ITC and testing ring-like structure formation as a function of divalent cation concentration would be necessary to address this. Also, is the ring-like structure formed in the presence of other ions as well?

2) Does PIP2 alone help to form the oligomers? Since the authors showed that ATP alone cannot lead to the ring-like structure, it would be interesting to see if PIP2 alone gives the same result.

3) As the oligomers can only be observed after fixation (0.01% glutaraldehyde), are they really formed inside cells? In addition, full-length syt1 is anchored on the membrane of synaptic vesicles (SV, ~ 40 nm) through its N-terminal transmembrane domain. If it also forms 30 nm rings, as does the soluble domain (C2AB), it seems it should be readily observable by EM. However, even with the most advanced electron cryo-tomography studies such rings have not been observed (e.g., R. Fernández-Busnadiego et al., J. Cell Biol. 201, 725-740, 2013). The authors should speculate why such rings have not (yet) been observed in vivo.

4) In Figure 7D in Xue et al. (2010) Nature SMB 17(5): 568 it has been reported that there is a normal vesicle release probability (Pvr) in syt1 -/+ versus syt1 +/+ in mouse neurons. This observation seems to be at odds with the suggestion that all Syt1 molecules in particular synaptic vesicle are used for a possible ring since there probably would be a smaller number of Syt1 molecules in Syt1 -/+ mice. Please comment.

5) The FCCS experiments showed that 20% of C2AB forms oligomers in solution without 0.01% glutaraldehyde. Why is it that this 20% cannot be observed by glycerol density gradient analysis and/or by negative stain EM, at all?

6) In the Figure 3 A and B, it seems that the concentrations of the fluorophores (Alexa488-Syt1 and Alexa 647-Syt1) between the two groups are not similar (the G(0) values displayed the concentration used in Figure 3A is much smaller than that in Figure 3B). Although it will not affect the final FCCS results (still at permissive concentration, actually), the fits will be disturbed in Figure 3B at lower time scale so that one can imagine that there will be large errors of the parameters acquired by fitting to ACF.

7) In the Figure 4D, the numbers of the rings of Syt13A are larger than Syt1C2AB when applied to Na-ATP. Is this statistical significant?

8) In the discussion of Figure 5, the authors suggest that "The dimensions of the Syt1 ring,.…by restraining the SNARE assembly via specific interaction with t-SNAREs. " in the legend. However, why did the authors not depict the interaction between Syt1 and t-SNAREs in the "'trans ring oligomer"?

Optional revisions:

9) With the detailed biophysical measurements, it is possible to map conserved motifs mediating C2AB oligomerization. Apart from the K326A/K327A mutations in the polybasic region, identification of residues that form the other part of the interface would strengthen the manuscript. In other words, which region does the polybasic region interact with?

10) It would be interesting to test Doc2b, which intrinsically lacks a transmembrane anchor, and compare the data with C2AB results.

11) The authors stated that "No oligomeric structures were observed in the absence of polyvalent anions and the density of the rings was greatly reduced from (~4 rings/µm 2 to ~0.8 rings/µm 2) when the polybasic region of C2B was mutated (K326A/K327A) (Figure 2A)". But this it not shown in Figure 2A.

12) The authors are encouraged to provide the fitting residues for all of the FCS/FCCS results.

13) In Figure 1C, the authors show that the diameters of the oligomers are slightly different in the presence (~28 nm) or absence (~32 nm) of lipid monolayers. The authors are encouraged to interpret the results in the main text or in the Discussion section (i.e., what it stands for? Is there any physiological significance?).

https://doi.org/10.7554/eLife.27441.018

Author response

Essential revisions:

1) The authors show that both Ca2+ and Mg2+ can efficiently promote formation of the ring-like structures. It is well established that syt1 binds to Ca2+ is in the microM range (e.g., A. Radhakrishnan, A. Stein, R. Jahn, D. Fasshauer, J. Biol. Chem. 284, 25749-60, 2009). However, the affinity of Mg2+ to syt1 has not been well characterized. In fact, the concentration of Mg2+ in the cytosol is nearly 1 mM, so Ca2+, so Ca2+ would compete with Mg2+ at lower concentration. Are Mg2+ and Ca2+ acting in the same manner, to drive ring formation? Is there any difference in the abilities of these two ions to drive ring formation? Probing interactions between syt1 and divalent cations by ITC and testing ring-like structure formation as a function of divalent cation concentration would be necessary to address this. Also, is the ring-like structure formed in the presence of other ions as well?

Our data suggests that both Mg2+ and Ca2+ act in a similar manner to stabilize the soluble ring structures. It does so by neutralizing the Asp residues in the Ca2+-binding loops, which likely locate at the C2B-C2B interface in the oligomer. Binding of Syt1 to Ca2+ and Mg2+ quantified by MST analysis (van den Bogaart et al., 2012) shows that Syt1 has very low, non-determinable affinity to Mg2+ as compared to Ca2+ (Kd ~250 µM). Nevertheless, Mg2+ has been known to coordinate the Asp residues and in fact, has been observed in the X-ray structure (Zhou et al., 2015). Consistent with this, we find both Mg2+ & Ca2+ can stabilize the oligomeric structures across range of concentration (0.25 – 1 mM), but Ca2+ is better across the whole range. This information is now discussed in Results section and included as Figure 4—figure supplement 1. We speculate all divalent cations might act in the same way, albeit the stabilizing effect might vary depending on their affinity to Syt1.

2) Does PIP2 alone help to form the oligomers? Since the authors showed that ATP alone cannot lead to the ring-like structure, it would be interesting to see if PIP2 alone gives the same result.

Upon careful review of our data, we believe that PIP2 or ATP alone trigger the assembly of the Syt1 ring oligomers under soluble conditions and with comparable efficacy. However, the density of the ring oligomers is low. Mg2+ (and Ca2+) increase the number of these oligomeric structures observed (~1.5x), likely by stabilizing the oligomeric form. This is evident in the direct comparison of the ring oligomers formed with PIP2 & ATP in the presence and absence of Mg2+. In accordance, we have updated Figure 2C and have also re-worded the Results section as follows: “Mg2+ was also found to be an important co-factor in stabilizing the Syt1C2AB rings in solution (Figure 2B & 2C). The number of Syt1C2AB ring oligomers observed were substantially reduced (~60% reduction) when Mg2+ was completely excluded (using Na.ATP or Na.PIP2) (Figure 2C). Given that the Mg2+ was not required to assemble the Syt1C2AB ring oligomers on acidic lipid surfaces (in fact Mg2+ lowered the number of rings formed on lipid surfaces), it appears that Mg2+ plays an independent but auxiliary role in the formation of Syt1C2AB ring oligomers in solution”.

3) As the oligomers can only be observed after fixation (0.01% glutaraldehyde), are they really formed inside cells? In addition, full-length syt1 is anchored on the membrane of synaptic vesicles (SV, ~ 40 nm) through its N-terminal transmembrane domain. If it also forms 30 nm rings, as does the soluble domain (C2AB), it seems it should be readily observable by EM. However, even with the most advanced electron cryo-tomography studies such rings have not been observed (e.g., R. Fernández-Busnadiego et al., J. Cell Biol. 201, 725-740, 2013). The authors should speculate why such rings have not (yet) been observed in vivo.

Syt1 ring oligomers are observed under native conditions and does not require fixative for visualization by negative stain EM. A very small amount of fixative (0.01% glutaraldehyde) is ONLY needed when we attempted to isolate these oligomers by glycerol gradient (see Question 5 for detailed response regarding this). Our data indicates that the Syt1 rings can assemble under physiological ionic strength and membrane composition. Given the length/flexibility of the juxtamembrane linker region, it should not affect the C2 ring formation, even when anchored in the synaptic vesicle. In fact, mathematical modeling, under physiological conditions and considering the vesicle dimension and the physical constraints, faithfully reproduces the Syt1 oligomerization in solution and it’s subsequently localization to the vesicle-plasma membrane interface. A manuscript describing these findings is currently under consideration (Zhu, O’Shaughnessy & Rothman).

Cryo-tomography studies (R. Fernández-Busnadiego et al. J. Cell Biol., 2010 & 2013) of the synaptosomal fractions find that the docked vesicles are typically ~ 3-4 nm away from the plasma membrane (consistent with the height of the ring oligomers) and show protein density at the vesicle-plasma membrane interface. However, the relatively low resolution of these tomograms, combined with the crowded environment of the synaptosomes, does not allow for unambiguous identification of the protein(s) identity or their organization at the docked site. This is further compounded by the fact that tomograms only show the side view of the Syt1 oligomers and dimensions at the rims of ~ 3-5 nm (considering relative orientations of C2A & C2B) might not be resolvable under these conditions.

It is also possible that under the experimental conditions used for the synaptosomal preparation which involves low temperature, multiple rounds of centrifugation and percoll gradient, with low ATP concentration and/or the freezing process might have disrupted or destroyed the Syt1 ring oligomers, as C2B-C2B ring oligomer interaction is not very strong. In fact, we require mild-fixative to visualize the isolated oligomers following high-speed centrifugation process. We currently working on visualization of the Syt1 oligomers under in vivo conditions using both super-resolution microscopy and cryo-electron microscopy. However, this is beyond the scope the current paper.

We have now included the following statement in the Discussion section to address this: “Recent cryo-tomography studies of synaptosomes show that docked vesicles are ~3-4 nm away from plasma membrane with protein density at the interface. However, it does not allow for unambiguous identification of the protein(s) identity or their organization at the docked site. (Fernandez-Busnadiego et al., 2011).”

4) In Figure 7D in Xue et al. (2010) Nature SMB 17(5): 568 it has been reported that there is a normal vesicle release probability (Pvr) in syt1 -/+ versus syt1 +/+ in mouse neurons. This observation seems to be at odds with the suggestion that all Syt1 molecules in particular synaptic vesicle are used for a possible ring since there probably would be a smaller number of Syt1 molecules in Syt1 -/+ mice. Please comment.

This is most likely due to the bottle neck with protein trafficking to axons/boutons. If this is indeed the limiting stage, the amount of Syt1 expressed in the soma is not really important (within a reason). One should expect similar levels of Syt1 in synaptic vesicles in the axonal boutons in Syt1 +/+ and +/- mice whilst the somatic expression may indeed be lower in +/- mice. Further, given the flexibility in the size of the ring oligomers, minor alterations in the Syt1 density can be accommodated in our model. We have included following clarification in the Discussion section “The average size of the ring oligomers observed by EM and FCS analysis suggest that the nearly all Syt1 molecule in the SVs may be involved, but the precise number of the Syt1 involved is unclear”

5) The FCCS experiments showed that 20% of C2AB forms oligomers in solution without 0.01% glutaraldehyde. Why is it that this 20% cannot be observed by glycerol density gradient analysis and/or by negative stain EM, at all?

It is likely that the fractionation of Syt1 in the glycerol gradient results in dilution of the Syt1 concentration below the threshold for oligomer formation. Further, the high speed centrifugation process might disrupt the ring oligomers. Inclusion of very small amount of fixative (0.01% glutaraldehyde) serves to stabilize these pre-formed rings and enable their visualization.

6) In the Figure 3 A and B, it seems that the concentrations of the fluorophores (Alexa488-Syt1 and Alexa 647-Syt1) between the two groups are not similar (the G(0) values displayed the concentration used in Figure 3A is much smaller than that in Figure 3B). Although it will not affect the final FCCS results (still at permissive concentration, actually), the fits will be disturbed in Figure 3B at lower time scale so that one can imagine that there will be large errors of the parameters acquired by fitting to ACF.

It is true that the concentration of the sample shown in Figure 3A (presence of Mg2+/ATP) is lower than that shown in Figure 3B (absence of Mg2+/ATP). We performed the correlation measurements using a range of concentrations, but specifically chose to present the data in this format. Our intention was to highlight the fact that we observe no cross-correlation even at higher label concentration in the absence Mg2+/ATP in contrast to distinct cross-correlation in the presence of Mg2+/ATP at lower label concentration. We have now made this explicit in the Figure 3 legend.

As for the ACF curves, we agree with the reviewer that the parameters obtained from fitting high yet permissive concentration samples are less accurate. Hence, we always fitted for a range of concentration and increased the number of independent measurements for higher concentration to minimize the errors such that the averaged parameters would be more accurate.

7) In the Figure 4D, the numbers of the rings of Syt13A are larger than Syt1C2AB when applied to Na-ATP. Is this statistical significant?

Yes. The number of rings observed with Syt13Awith Na.ATP is statistically significant than the number of Syt1C2ABrings under the same conditions. This is not indicated in the Figure 4D.

8) In the discussion of Figure 5, the authors suggest that "The dimensions of the Syt1 ring,.…by restraining the SNARE assembly via specific interaction with t-SNAREs. " in the legend. However, why did the authors not depict the interaction between Syt1 and t-SNAREs in the "'trans ring oligomer"?

As it is stated in figure legend – It is not clear if the Syt1 ring blocks fusion passively as a washer/spacer to keep the membrane apart (or) actively by restraining the SNARE complex assembly. Further, the positioning of SNAREs with respect with the Syt1 ring is also not known. For these reasons, we chose not to depict the interaction of SNAREs with the Syt1 ring in Figure 5. This is an active area of current research.

Optional revisions:

9) With the detailed biophysical measurements, it is possible to map conserved motifs mediating C2AB oligomerization. Apart from the K326A/K327A mutations in the polybasic region, identification of residues that form the other part of the interface would strengthen the manuscript. In other words, which region does the polybasic region interact with?

Based on the 3D reconstruction of the Syt1 tubes, we have in fact mapped the C2B oligomerization region and have identified several Syt1 ring altering mutations. We are currently testing these mutations using in vitro and in vivofunctional analysis to establish the physiological role of the Syt1 rings. We are preparing a manuscript describing these findings currently.

10) It would be interesting to test Doc2b, which intrinsically lacks a transmembrane anchor, and compare the data with C2AB results.

We are currently carrying out comprehensive analysis of other C2 domain proteins, including other isoforms of Synaptotagmin and Doc2B. We are also extending this analysis to look at hetero-oligomerization between different isoforms.

11) The authors stated that "No oligomeric structures were observed in the absence of polyvalent anions and the density of the rings was greatly reduced from (~4 rings/µm 2 to ~0.8 rings/µm 2) when the polybasic region of C2B was mutated (K326A/K327A) (Figure 2A)". But this it not shown in Figure 2A.

The EM data for the K326A/K327A mutational analysis is shown in Figure 2A and the quantitation is shown in Figure 2C. This has been corrected.

12) The authors are encouraged to provide the fitting residues for all of the FCS/FCCS results.

The fitting residuals for the FCS/FCCS results are now included in Figure 4—figure supplement 2.

13) In Figure 1C, the authors show that the diameters of the oligomers are slightly different in the presence (~28 nm) or absence (~32 nm) of lipid monolayers. The authors are encouraged to interpret the results in the main text or in the Discussion section (i.e., what it stands for? Is there any physiological significance?).

We speculate that the deformation of the lipid monolayer, specifically the positive curvature induced by the Syt1C2AB monomers, might make the rings more compact on membrane surface as compared to a more rigid, soluble structures. However, given the size distribution of the Syt1 ring oligomers and the dimensions of the Syt1 monomer, we do not believe that difference in the diameter difference between these two conditions (28 ± 2 nm vs. 32 ± 3 nm) is significant. The dimensions are in the range observed with the entire cytoplasmic domain of Syt1 and other Syt isoforms (28 – 31 nm). To clarify this, we have included the size distribution detail in Figure 1C.

https://doi.org/10.7554/eLife.27441.019

Article and author information

Author details

  1. Jing Wang

    Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Feng Li
    Competing interests
    No competing interests declared
  2. Feng Li

    Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Jing Wang
    Competing interests
    No competing interests declared
  3. Oscar D Bello

    1. Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Department of Clinical and Experimental Epilepsy, Institute of Neurology, University College London, London, United Kingdom
    Contribution
    Conceptualization, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Charles Vaughn Sindelar

    Departments of Molecular Biophysics and Biochemistry, Yale University School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6646-7776
  5. Frédéric Pincet

    1. Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Laboratoire de Physique Statistique, UMR CNRS 8550 Associée aux Universités Paris 6 et Paris 7, Paris, France
    Contribution
    Conceptualization, Formal analysis, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Shyam S Krishnakumar

    1. Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Department of Clinical and Experimental Epilepsy, Institute of Neurology, University College London, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    shyam.krishnakumar@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6148-3251
  7. James E Rothman

    1. Departments of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Department of Clinical and Experimental Epilepsy, Institute of Neurology, University College London, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    james.rothman@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8653-8650

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (DK027044)

  • James E Rothman

National Institute of General Medical Sciences (GM118084)

  • James E Rothman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Institute of Health grants DK027044 and GM118084 to JER. We acknowledge the use of CCMI Electron Microscopy Core Facility, supported by Yale School of Medicine.

Reviewing Editor

  1. Axel T Brunger, Stanford University Medical Center, United States

Publication history

  1. Received: April 5, 2017
  2. Accepted: August 11, 2017
  3. Version of Record published: August 29, 2017 (version 1)

Copyright

© 2017, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 756
    Page views
  • 186
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Neuroscience
    Ryan S Phillips et al.
    Research Article
    1. Neuroscience
    C Joseph Burnett et al.
    Research Article
