Mcm10 promotes rapid isomerization of CMG-DNA for replisome bypass of lagging strand DNA blocks

  1. Lance D Langston
  2. Ryan Mayle
  3. Grant D Schauer
  4. Olga Yurieva
  5. Daniel Zhang
  6. Nina Y Yao
  7. Roxana E Georgescu
  8. Mike E O'Donnell Is a corresponding author
  1. The Rockefeller University, United States
  2. Howard Hughes Medical Institute, United States
Research Article
Cited
1
Views
451
Comments
0
Cite as: eLife 2017;6:e29118 doi: 10.7554/eLife.29118

Abstract

Replicative helicases in all cell types are hexameric rings that unwind DNA by steric exclusion in which the helicase encircles the tracking strand only and excludes the other strand from the ring. This mode of translocation allows helicases to bypass blocks on the strand that is excluded from the central channel. Unlike other replicative helicases, eukaryotic CMG helicase partially encircles duplex DNA at a forked junction and is stopped by a block on the non-tracking (lagging) strand. This report demonstrates that Mcm10, an essential replication protein unique to eukaryotes, binds CMG and greatly stimulates its helicase activity in vitro. Most significantly, Mcm10 enables CMG and the replisome to bypass blocks on the non-tracking DNA strand. We demonstrate that bypass occurs without displacement of the blocks and therefore Mcm10 must isomerize the CMG-DNA complex to achieve the bypass function.

https://doi.org/10.7554/eLife.29118.001

Introduction

The replication of cellular DNA requires use of a helicase to separate the interwound strands. The replicative helicase in all domains of life is a circular hexamer. There are four superfamilies of hexameric helicases, SF3-6, that assort into two main groups, the bacterial helicases (SF4,5) that have ATP sites derived from the RecA fold and the eukaryotic/archaeal helicases (SF3,6) that have ATP sites derived from the AAA+ fold (Singleton et al., 2007). In all cases, the subunits of hexameric helicases are composed of at least two major domains, giving them the appearance of two stacked rings, an N-tier ring and C-tier ring; the motors are contained in the C-tier ring. The RecA based bacterial helicases track 5’−3’ on DNA with the C-tier motors leading the N-tier, as determined by crystal structures of bacterial Rho (SF5) and DnaB (SF4) complexed with ssDNA, while structures of eukaryotic bovine papilloma virus E1 (SF3) and S. cerevisiae CMG (SF6) with DNA show that these helicases track 3’−5’ with the N-tier ahead of the C-tier (Enemark and Joshua-Tor, 2006; Georgescu et al., 2017; Itsathitphaisarn et al., 2012; Thomsen and Berger, 2009).

Hexameric helicases are thought to act by encircling only one strand of DNA upon which they track and exclude the non-tracking strand to the outside of the ring, thereby acting as a wedge to split DNA in a process often referred to as steric exclusion and illustrated in Figure 1A (Bell and Labib, 2016; Enemark and Joshua-Tor, 2008; Lyubimov et al., 2011). Whether a helicase functions by steric exclusion is determined by biochemical experiments that place a bulky block on one or the other strand of the duplex. For a steric exclusion helicase, a block placed on the non-tracking strand (i.e. the strand that is excluded from the central channel) does not inhibit helicase unwinding, while a block placed on the tracking strand stops the helicase because the bulky block cannot fit through the central channel.

CMG-fork structure and isomerization needed for bypass of lagging strand blocks.

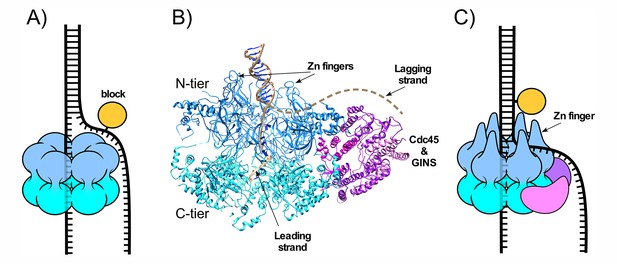

(A) Illustration of a hexameric helicase in the steric exclusion mode, encircling the tracking strand and excluding the non-tracking strand from the central channel. (B) CMG-forked DNA structure (PDB ID# 5U8S). Duplex DNA penetrates the zinc fingers defining the start of the central channel in the N-tier and the unwinding point is internal to the central channel (Georgescu et al., 2017). The Mcm2-7 subunits are shown in two shades of blue to highlight the N- and C-tiers. The lagging strand tail is present but not visible, indicating mobility, and is suggested to exit the central channel though a gap between two zinc fingers (dashed line) (see also panel C). (C) Illustration of CMG encountering a lagging strand block in the modified steric exclusion mode, partially encircling both strands of the duplex DNA as shown in (B). To bypass the block, CMG-DNA must isomerize to the classic steric exclusion mode in (A) or by opening of the Mcm2-7 ring during bypass (illustrated in Figure 8 of Langston and O'Donnell, 2017).

https://doi.org/10.7554/eLife.29118.002

The eukaryotic helicase is the Mcm2-7 heterohexamer which requires five additional accessory proteins - Cdc45 and the four subunit GINS complex – for full activity. This 11-subunit assembly is referred to as CMG (Cdc45, Mcm2-7, GINS) (Ilves et al., 2010; Moyer et al., 2006). The recent cryoEM 3D structure of S. cerevisiae CMG helicase at a DNA replication fork shows a unique DNA binding feature (Figure 1B) (Georgescu et al., 2017). Instead of encircling only ssDNA, the zinc fingers of the N-tier encircle and bind the dsDNA and the DNA unwinding point is buried inside the central channel; the unwound leading strand then proceeds through the central channel into the C-tier motor domain. The lagging strand is not visualized in the structure, indicating mobility, and is proposed to enter the initial part of the central channel defined by the N-terminal zinc fingers and then exit the surface of CMG, through a gap between two zinc fingers. The dsDNA is held at a 28° angle to the central channel, surrounded by the zinc fingers at the ‘top’ of CMG. The dsDNA appears to be tightly held because if the CMG-dsDNA contact was flexible the DNA would have been averaged out during 3D reconstruction.

The structural evidence that S. cerevisiae CMG encircles dsDNA during unwinding is supported by recent biochemical experiments using strand specific dual streptavidin blocks that show CMG is halted by a block placed on either the non-tracking (lagging) or the tracking (leading) strand (Figure 1C) (Langston and O'Donnell, 2017). Interestingly, given a sufficiently long time S. cerevisiae CMG can proceed through the lagging strand block without displacing the streptavidin, suggesting that CMG slowly isomerizes to a classic steric exclusion mode that only encircles the tracking (leading) strand or isomerizes by ring opening to bypass the block (Langston and O'Donnell, 2017). Earlier studies in Xenopus extracts demonstrate that replisome progression is not hindered by a dual streptavidin block on the lagging strand and conclude that CMG functions in a steric exclusion mode by only encircling the leading strand (Fu et al., 2011). Considering that the zinc fingers of isolated S. cerevisiae CMG encircle dsDNA, we proposed that Xenopus extracts contain a factor that facilitates isomerization of CMG on DNA such that it can bypass blocks on the non-tracking strand (Langston and O'Donnell, 2017).

The present study identifies Mcm10 as the factor that enables CMG to rapidly bypass a block on the lagging strand. Mcm10 is unique to eukaryotes and is an essential gene product that, when mutated, causes abortive entry into S-phase (Du et al., 2012; Merchant et al., 1997; Solomon et al., 1992; Thu and Bielinsky, 2013). Mcm10 has two internal DNA binding sites (Du et al., 2012; Robertson et al., 2008; Warren et al., 2008) and is known to bind Mcm2-7 and Cdc45 (Christensen and Tye, 2003; Di Perna et al., 2013; Douglas and Diffley, 2016; Perez-Arnaiz et al., 2016). Mcm10 is generally thought to act as an initiation factor (Thu and Bielinsky, 2013). The licencing of an origin in G1 phase involves several proteins to form a head-to-head double hexamer of Mcm2-7. Additional initiation factors transform the Mcm2-7 double hexamer into two head-to-head CMGs during S phase (Bell and Labib, 2016) but Mcm10 is not required for this action (Kanke et al., 2012; van Deursen et al., 2012; Watase et al., 2012; Yeeles et al., 2015). Mcm10 is only required at the last step of initiation and is proposed to either activate CMG helicase or help separate the two CMGs for bidirectional replication forks (Kanke et al., 2012; Lõoke et al., 2017; Quan et al., 2015; van Deursen et al., 2012; Watase et al., 2012; Yeeles et al., 2015). Additional studies indicate that Mcm10 may also function at replication forks (Chadha et al., 2016; Gambus et al., 2006; Lõoke et al., 2017; Ricke and Bielinsky, 2004).

The current study demonstrates that Mcm10 forms an isolable stoichiometric complex with CMG that greatly stimulates CMG helicase activity (up to 30-fold) and enhances processivity. Strikingly, Mcm10 uniquely promotes CMG bypass of a lagging strand block without displacing it, suggesting that Mcm10 isomerizes the CMG-DNA complex either to a steric exclusion mode or by facilitating ring opening. In contrast, leading strand blocks inhibit CMG unwinding but Mcm10 helps CMG displace the blocks and continue unwinding, consistent with the idea that Mcm10 makes CMG a more powerful, processive helicase. Despite the strong stimulation of helicase activity, Mcm10 has little effect on CMG-dependent DNA synthesis by the replisome in vitro, particularly in the presence of the Mrc1-Tof1-Csm3 complex. However, the replisome becomes stalled by lagging strand blocks in the absence of Mcm10, indicating that CMG uses an internal unwinding mechanism even in the context of rapidly moving replisomes. Stalled replisomes are released by addition of Mcm10, further supporting the idea that Mcm10 functions at the level of the helicase to enhance processivity, provide additional power and to enable blocked replisomes to bypass obstacles on the DNA. These functions may also explain the role of Mcm10 in origin initiation as described in the Discussion.

Results

Mcm10 forms a complex with CMG and greatly stimulates helicase activity

In Figure 2A we titrated Mcm10 into a helicase assay using a fixed amount of CMG and a synthetic forked DNA with a 50 bp duplex and 40-nt dT ssDNA tails. Stimulation by Mcm10 is remarkable, with over 30-fold enhancement of CMG unwinding at 2’ in the presence of only one molecule of Mcm10 per CMG (compare lane 5 to lane 2 in Figure 2A). Reactions containing Mcm10 are complete by the 5 min time point, while the CMG reaction without Mcm10 continues slow unwinding during the 10 min time course (Figure 2B). The results at different Mcm10 concentrations indicate that maximal stimulation of CMG is observed with two subunits of Mcm10 for each CMG complex and further addition of Mcm10 beyond this amount has little effect. (Figure 2C). Control reactions with Mcm10 alone, lacking CMG, show no unwinding activity (Figure 2—figure supplement 1). Reactions with Mcm10 sometimes give a supershift of some of the substrate (e.g. lanes 5, 8, 11, 12 in Figure 2A) which we interpret as a gel shift of Mcm10 that remains bound to DNA, as Mcm10 is a known DNA binding protein (Du et al., 2012; Robertson et al., 2008; Warren et al., 2008). To determine if other DNA binding proteins such as RPA or E. coli SSB stimulate CMG, we performed experiments in which CMG unwinding was initiated and then either Mcm10, RPA or SSB was added. The results show that the stimulation of CMG is specific to Mcm10 and that RPA and SSB do not substitute for Mcm10 (Figure 2—figure supplement 2).

Figure 2 with 5 supplements see all

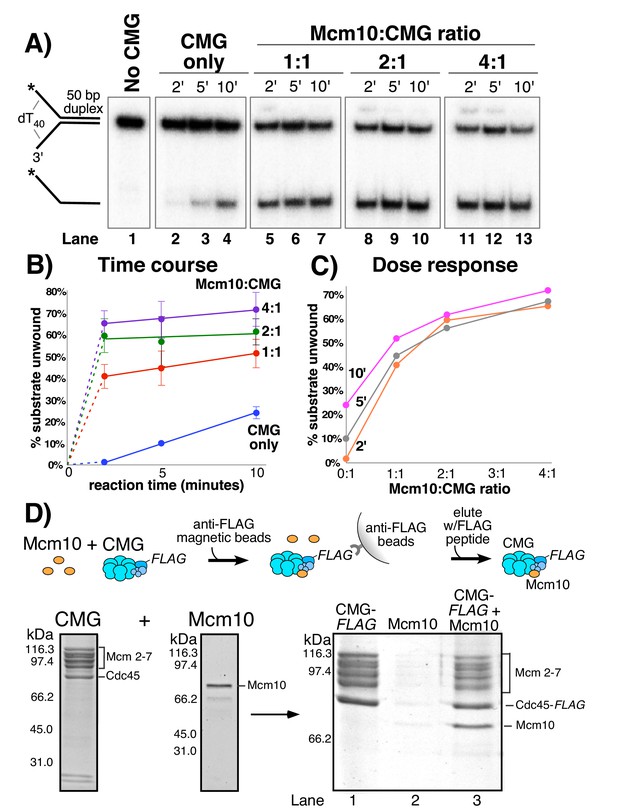

Mcm10 binds CMG and stimulates its helicase activity.

(A) Titration of Mcm10 in a CMG unwinding assay. Reactions contained 25 nM CMG with either: no Mcm10 (lanes 2–4), 25 nM Mcm10 (1:1, lanes 5–7), 50 nM Mcm10 (2:1, lanes 8–10) or 100 nM Mcm10 (4:1, lanes 11–13). See Materials and methods for details. Also see Figure 2—figure supplements 12. (B) Quantification of the data from (A). Values are the average of three independent experiments and the error bars show the standard deviation. (C) The same data displayed as a dose-response curve of unwinding as a function of the Mcm10:CMG ratio in the reaction at the three different time points. (D) Isolation of CMG-Mcm10 complex using CMG-Flag and anti-Flag beads. CMG and a 3-fold molar excess of Mcm10 were mixed, attached to beads, then washed twice and eluted with Flag peptide. The PAGE gel shows elution from the anti-Flag beads that were loaded with either CMG-flag alone (lane 1), Mcm10 alone (lane 2), or the CMG-flag +Mcm10 mixture (lane 3). The protein bands are identified to the right. A densitometric scan of the bands in the gel of the CMG-Mcm10 complex indicates a molar ratio of 1.8 Mcm10 per Mcm2-7 complex; the Cdc45 is typically in excess due to the Flag tag (i.e. any dissociated Cdc45 will bind the beads). The GINS subunits ran off the gel (see Figure 2—figure supplements 34 for GINS stoichiometry). Also see Figure 2—figure supplement 5 for helicase activity of purified CMG-Mcm10 complex.

https://doi.org/10.7554/eLife.29118.003

To determine if Mcm10 binds to CMG in a stable fashion, we mixed a 3-fold molar excess of Mcm10 (as monomer) with FLAG-tagged CMG and then isolated the CMG-Mcm10 complex using FLAG antibody magnetic beads (Figure 2D). The reaction was washed twice with buffer containing 300 mM NaCl and CMG-Mcm10 complex was eluted using FLAG peptide. The eluted material was analyzed by SDS/PAGE, and stoichiometric levels of Mcm10 were clearly visible with the Mcm2-7 subunits of CMG (lane 3). The GINS subunits of the CMG-Mcm10 complex ran off the gel, but a previous study demonstrated that Mcm10 preferentially associates with the entire CMG complex (Lõoke et al., 2017). This is supported by densitometry analysis of gels showing GINS subunits in both FLAG and MonoQ purified CMG-Mcm10 complexes (Figure 2—figure supplements 3 and 4). Mcm10 was not visible in a control reaction in which Mcm10 was present with beads in the absence of CMG (Figure 2D, lane 2). We also found that the CMG-Mcm10 complex could be isolated using a MonoQ column and elutes at ~400 mM NaCl (Figure 2—figure supplement 4); densitometric scans are consistent with 1–2 Mcm10 per 1 of each CMG subunit (see legend to Figure 2—figure supplement 4 for details). The reconstituted complex is functional in unwinding assays and shows much greater activity on the forked substrate than CMG alone (Figure 2—figure supplement 5), comparable to that seen when adding Mcm10 directly to the unwinding assay in Figure 2. The fact that Mcm10 associates with CMG sufficiently tightly to be isolated by MonoQ chromatography that elutes at 400 mM NaCl and by immunoaffinity beads using 300 mM salt washes suggests that CMG-Mcm10 is a stable complex. Densitometric scans from several preparations of CMG-Mcm10 made using both methods give a stoichiometry of ~1–2 Mcm10 subunits for each CMG complex, consistent with the Mcm10 titration results of Figure 2A.

Mcm10 enhances the processivity of CMG helicase

The stimulation of unwinding by Mcm10 observed in Figure 2 could be attributable to more efficient loading of CMG onto the substrate, faster unwinding, and/or greater processivity of unwinding. To distinguish among these possibilities, we compared CMG unwinding of a fork with a longer, 160 bp duplex region to that of the fork with a 50 bp duplex (as in Figure 2) in the presence and absence of Mcm10 (Figure 3). The two substrates have identical 3’ and 5’ ssDNA tails, so loading of CMG onto the forks should be the same and any differences in unwinding should be attributable to differences in CMG unwinding activity over the different lengths of duplex. For these experiments, CMG was pre-incubated with the DNA substrate for 10’ followed by addition of ATP ± Mcm10 to start the reaction (reaction scheme in Figure 3A). In the absence of Mcm10, substantial differences were observed in unwinding of the two substrates that suggest limited processivity of the helicase, consistent with reports of low processivity by Drosophila and human CMG (Kang et al., 2012; Moyer et al., 2006). CMG unwound only 3% of the longer 160 bp duplex fork in 10’ (Figure 3B lanes 1–10 and graph in Figure 3D) compared to 24% for the shorter 50 bp duplex fork at 10’ (Figure 3C). Even after 30’ only 8% of the 160 bp duplex was unwound by CMG indicating that the difference in activity between the two substrates is attributable to low processivity of CMG rather than simply the additional time it takes to unwind the longer substrate.

Figure 3 with 1 supplement see all

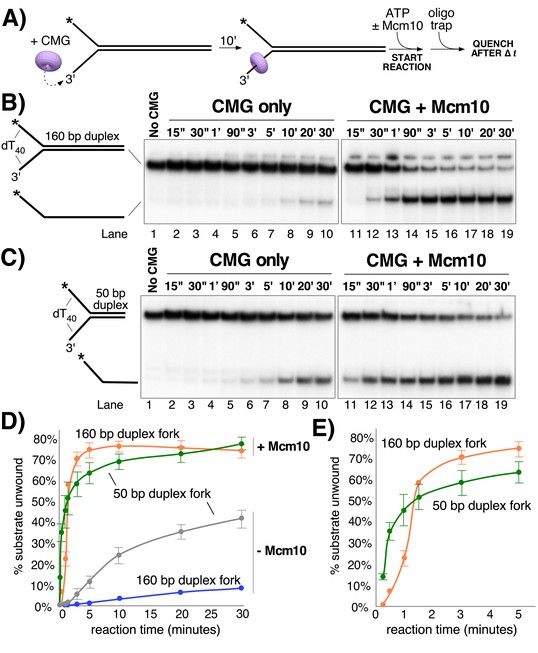

Mcm10 enhances the processivity of CMG unwinding.

(A) Scheme of the reaction. CMG was pre-incubated with the substrates for 10’ before addition of ATP ± a 2-fold excess of Mcm10 over CMG. (B) Native PAGE analysis of CMG unwinding in the absence (lanes 2–10) or presence (lanes 11–19) of Mcm10 using either a 160 bp duplex fork (panel B) or a 50 bp duplex fork (panel C) as indicated by the schematics to the left of the gels. (D) Quantification of the data in the gels. (E) The first 5’ of reactions with Mcm10 are shown to better illustrate the effect of Mcm10 on unwinding by CMG. The values are averages of three independent experiments and the error bars show the standard deviation. Also see Figure 3—figure supplement 1.

https://doi.org/10.7554/eLife.29118.009

The experiments were repeated in the presence of Mcm10 at a 2:1 ratio to CMG (as determined in Figure 2A–C). Surprisingly, in the presence of Mcm10 the unwinding curves of the two substrates were very similar, in contrast to experiments in the absence of Mcm10 (Figure 3B and C, lanes 11–19 and graph in Figure 3D). This result suggests that Mcm10 enhances the processivity of CMG and possibly also stimulates the rate of CMG unwinding. Examination of the first 5 min of unwinding in the presence of Mcm10 shows a short delay in the appearance of products using the 160 bp duplex compared to the 50 bp duplex (Figure 3E). We took advantage of this delayed appearance of the longer products to design an experiment that approximates the average rate of unwinding by CMG-Mcm10 (Figure 3—figure supplement 1). CMG was pre-incubated with an equimolar mixture of the two different length substrates and then the reaction was started by the addition of ATP and Mcm10. The substrates and products migrate at distinguishable positions in a native PAGE gel allowing us to observe the appearance of both products in the same reaction. As shown in Figure 3—figure supplement 1, appearance of unwound 160 bp duplex products was delayed by ~46 s compared to the 50 bp duplex, indicating an average rate of unwinding of 2.4 bp/s over the additional 110 bp. The final extent of unwinding is similar for both substrates, so the delay reflects a difference in time of unwinding the two DNAs due to their difference in length rather than a difference in helicase activity on the two substrates.

Mcm10 stimulates CMG-dependent leading strand replication in the absence of Mrc1-Tof1-Csm3

Having observed stimulation of CMG by Mcm10 in helicase assays, we wished to determine whether Mcm10 also stimulated CMG in the context of the DNA replication fork. To do so, we used a 2.8 kb linear forked DNA primed with a 32P-5’ end-labeled 37mer oligo (Georgescu et al., 2014; Langston et al., 2014) and tested the effect of Mcm10 on extension of the radiolabeled primer by the core leading strand replisome consisting of CMG, Pol ε, RFC, PCNA, and RPA (Figure 4). CMG is pre-incubated with the DNA substrate (in the presence or absence of Mcm10) for 5’ at 30° C to allow CMG loading onto the 3’ tail of the fork (see reaction scheme in Figure 4A). ATP is omitted at this stage to prevent CMG from unwinding the DNA before assembly of the replisome. Pol ε, RFC, PCNA and 2 dNTPs are then added and incubated a further 4’ to assemble the core leading strand replisome and the reaction is started upon addition of the remaining dNTPs and ATP along with RPA. Analysis of the autoradiogram in Figure 4B shows a modest enhancement of CMG-dependent primer extension by Mcm10. In the presence of Mcm10 the 2.8 kb full length product can be observed at the 6‘ time point (Figure 4B, lanes 8 and 13), yielding a maximum fork rate of 7.8 nucleotides (ntds)/s; 467 ntds/min), while 8’ is required to observe the full-length product in the absence of Mcm10 (Figure 4B, lane 4; 5.8 ntds/s; 350 ntds/min). This result is consistent with modest stimulation of the rate of DNA synthesis by Mcm10 in an origin-dependent plasmid replisome assembly assay (Lõoke et al., 2017).

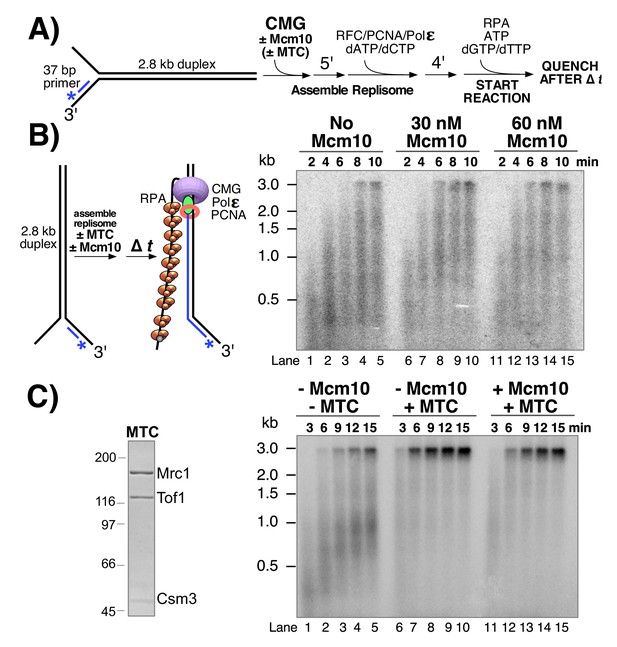

Mcm10 stimulates CMG-dependent leading strand replication in the absence of Mrc1-Tof1-Csm3.

(A) Reaction scheme. See Materials and methods for details. (B) Alkaline agarose gel of leading strand products synthesized by the core leading strand replisome with the indicated amounts of Mcm10. (C) Purified MTC complex is shown to the left. Numbers to the left of the SDS PAGE gel show the migration of molecular weight markers (kDa). Time courses, to the right, are the core leading strand replisome with or without Mcm10 and Mrc1-Tof1-Csm3 complex (MTC) as indicated above the gel.

https://doi.org/10.7554/eLife.29118.011

Cell biological and genetic studies have shown that replication forks move about 2-fold slower in cells that lack Mrc1 (Hodgson et al., 2007; Petermann et al., 2008; Szyjka et al., 2005; Tourrière et al., 2005) and these observations have been recapitulated in vitro in a origin plasmid replication system (Yeeles et al., 2017). The in vitro results demonstrated that Mrc1 stimulation of fork speed was most efficient in the presence of a Tof1-Csm3 heterodimeric complex. The stimulation by Mrc1 ± Tof1-Csm3 in the origin plasmid based assay did not require Ctf4, FACT, TopI or lagging strand Pol δ extension (Yeeles et al., 2017). Mcm10 is essential for initiation in the plasmid assay system and this requirement presents difficulty in determining whether Mcm10 also enhanced the rate of replication fork progression when Mrc1-Tof1-Csm3 was present (Yeeles et al., 2017). In our experiments, CMG is added as a purified complex enabling a direct test of whether Mcm10 stimulates fork speed in the presence of these additional factors. Hence we expressed and purified a Mrc1-Tof1-Csm3 heterotrimer, referred to herein as MTC complex, and tested its effect on the leading strand replisome with and without Mcm10 (Figure 4C). The autoradiogram shows that in the presence of the MTC complex, full length 2.8 kb product can be observed after 3 min (Figure 4C, lane 6), indicating a rate of 20 ntds/s (933 ntds/min), close to the 1.5–1.9 kb/min rate of replisomes in vivo (Conti et al., 2007; Hodgson et al., 2007; Sekedat et al., 2010). Furthermore, the MTC complex clears up the many immature products formed in the absence of MTC, suggesting that replication forks that stop or pause are brought to full length by the MTC complex. Addition of Mcm10 to leading strand replisome reactions containing the MTC complex does not result in a faster replication fork rate under the conditions used and may have even slightly slowed the replisome (Figure 4C, lanes 11–15). Thus, the improved rate effect of Mcm10 on the core leading strand replisome observed in Figure 4B is eclipsed by the rate enhancement provided by the MTC complex.

Mcm10 promotes CMG unwinding past a lagging strand block

Together, the results of Figures 2 and 3 show that Mcm10 strongly stimulates CMG unwinding, yet the experiments of Figure 4 indicate that Mcm10 is not essential for normal replisome progression in vitro, particularly in the presence of the MTC complex. To explain these apparently conflicting results, we hypothesized that Mcm10 is required for replisome progression in particular circumstances, for example when CMG is hindered by DNA-bound proteins or other structural impediments on DNA. Indeed, Mcm10 is required for efficient initiation of DNA unwinding at an origin, a situation in which the two CMG complexes block one another's progression because they must pass each other in order to establish two bidirectional forks (see Discussion) (Georgescu et al., 2017).

To test the hypothesis that Mcm10 may help CMG overcome blocks, we examined the effect of Mcm10 on CMG unwinding of forked DNA with strand-specific blocks on either the lagging or leading strand of the duplex portion of the DNA (Figure 5 and Figure 5—figure supplement 1, respectively). In these experiments, the block is formed by two biotinylated nucleotides on one DNA strand or the other, spaced 6 bp apart, that are tightly bound by the 53 kDa streptavidin protein. We recently showed that CMG unwinding is inhibited by biotin-streptavidin on either strand and is nearly inactive when two biotin-streptavidin blocks are present on either strand of the duplex (Langston and O'Donnell, 2017). This is unique to CMG, as thus far all other hexameric helicases examined are not blocked by an obstruction on the non-tracking strand and are only blocked by an obstruction on the translocating strand (Hacker and Johnson, 1997; Kaplan, 2000; Kaplan et al., 2003; Lee et al., 2014; Nakano et al., 2013). Inhibition of hexameric helicases by a block on one strand but not the other is interpreted as a steric exclusion mode of unwinding in which the non-tracking strand is completely excluded from the central channel of the helicase ring, thereby explaining why bulky substituents on the non-tracking strand do not affect helicase unwinding.

Figure 5 with 1 supplement see all

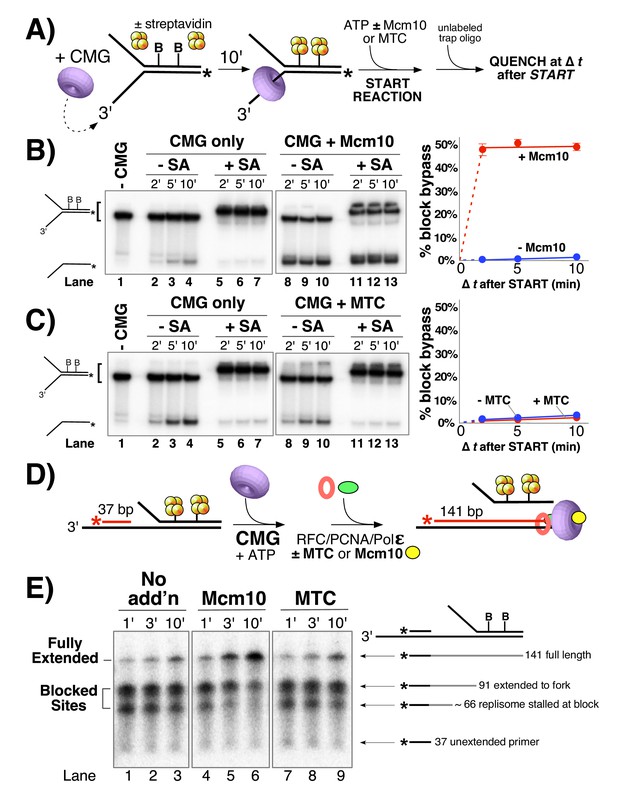

Mcm10, but not MTC complex, enables CMG and the replisome to bypass a lagging strand block.

(A) Illustration of the helicase reaction scheme. See Materials and methods for details. (B) Unwinding assays on dual biotinylated forks with or without streptavidin and with or without Mcm10, as indicated. (C) Same as in panel B except reactions contained or omitted MTC complex instead of Mcm10. (D) Illustration of the replisome reaction scheme. Reactions contained a synthetic minifork with 32P-5’ end-labeled primer and a dual biotin-streptavidin (SA) block on the lagging strand template. CMG and ATP were added for 3 min to allow CMG to bind DNA and translocate to the SA blocks, then Pol ε, RFC and PCNA were added (±MTC) along with all four dNTPs to assemble and extend the primer up to the blocked CMG, followed by addition of Mcm10 (or no protein). See Materials and methods for details. (E) Timed aliquots after ± Mcm10 addition were analyzed in a 10% urea PAGE gel. The primer, two stalled products and the full-length product are indicated to the right of the gel. Also see Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.29118.012

In contrast, S. cerevisiae CMG is inhibited by a block on either the non-tracking strand or the tracking strand (Langston and O'Donnell, 2017), consistent with the CMG-forked DNA structure showing that CMG encircles both strands of the forked junction (see Figure 1B–C) (Georgescu et al., 2017). However, when given sufficient time, the bulk of the CMGs that progress past the lagging strand block leave streptavidin attached to DNA and thus slowly isomerize on DNA to bypass the block without displacing it (Langston and O'Donnell, 2017). Isomerization for bypass could be achieved by CMG encircling only the leading strand or the Mcm2-7 ring within CMG may crack open for bypass, as detailed later in the Discussion.

In contrast to studies with pure CMG, studies of replication in Xenopus egg extracts show that two adjacent streptavidin blocks spaced 5 bp apart on the non-translocating (lagging) strand are quickly bypassed (within 10 min) by the replisome (Fu et al., 2011). The fact that our earlier study showed that isolated CMG is strongly inhibited by a dual streptavidin block, suggests that some other factor in the complete extract helps CMG bypass lagging strand blocks (Langston et al., 2017). To test whether Mcm10 may be the factor that facilitates CMG bypass of a lagging strand block we examined CMG unwinding of the forked DNA substrate with two biotinylated nucleotides on the duplex portion of the lagging strand template (see Figure 5A). Control reactions lacking Mcm10 show that CMG helicase is essentially shut down by the streptavidin blocks (Figure 5B, compare lanes 2–4 without streptavidin to lanes 5–7 with streptavidin) as previously observed (Langston and O'Donnell, 2017). But surprisingly, when Mcm10 is added, the rate and amount of unwinding are the same in the presence and absence of streptavidin (Figure 5B, compare lanes 8–10 and 11–13). Hence, Mcm10 enables CMG to rapidly bypass or displace a dual streptavidin block on the lagging strand. This observation mirrors results observed in the Xenopus system, which was assumed (but not demonstrated) to bypass these blocks without displacement. Ability of CMG to bypass lagging strand blocks with Mcm10 present in the pure protein system resolves the discrepancies between use of purified CMG (without Mcm10), and observations in Xenopus extracts (Fu et al., 2011; Langston and O'Donnell, 2017). We revisit the issue of whether streptavidin blocks are bypassed or displaced later in this report.

Having previously shown that the MTC complex greatly stimulates progression of the leading strand replisome even in the absence of Mcm10 (Figure 4), we tested the MTC complex in CMG helicase assays to see if it enhances the ability of CMG to bypass blocks on DNA (Figure 5C). In contrast to Mcm10, MTC was unable to promote CMG bypass of the block (compare lanes 11–13 in Figure 5C to lanes 11–13 in Figure 5B). We also note that MTC did not stimulate CMG unwinding even in the absence of the block (Figure 5C compare lanes 8–10 with MTC to lanes 2–4 without MTC), suggesting that MTC does not function at the level of CMG unwinding. Together with the results of Figures 24, these data suggest that Mcm10 and MTC affect fork progression in very different ways. In contrast to Mcm10 mediated bypass of lagging strand blocks, CMG unwinding was delayed and strongly repressed by a dual streptavidin block on the leading strand even with Mcm10 present (Figure 5—figure supplement 1).

Mcm10 is needed at the replication fork to bypass lagging strand barriers

To further investigate the functions of Mcm10 and MTC at a replication fork, we adapted the helicase substrate from Figure 5A–C to support DNA replication. The 3’ tail of the fork was extended to accommodate a primer for DNA synthesis and the reaction was staged as illustrated in Figure 5D. First, CMG was added with ATP to allow helicase translocation to the block, followed by Pol ε/RFC/PCNA/dNTPs to see if the ‘push’ on CMG from a Pol ε-PCNA motor can overcome the block. The results in Figure 5E lanes 1–3 show that Pol ε-PCNA extended the 32P-primer to the stalled CMG (~66 bp) but had limited ability to bypass the block to form the 141 bp full-length product. The ~91 bp bands result from forks lacking CMG, so Pol ε-PCNA extends to the fork but cannot proceed further because Pol ε lacks strand displacement capability and relies on CMG to unwind the DNA for leading strand synthesis (Ganai et al., 2016; Georgescu et al., 2014). MTC has little or no effect on block bypass by the replisome (Figure 5E lanes 7–9), and is comparable to Pol ε-PCNA-CMG in lanes 1–3. By contrast, addition of Mcm10 allows the replisome to efficiently and rapidly proceed past these blocks as evidenced by the appearance of full length 141 bp product in lanes 4–6. These results confirm that Mcm10 is needed for replisome bypass of a block and they also indicate that neither MTC nor Pol ε-PCNA is able to drive the forward movement of a stalled CMG in the absence of Mcm10.

Lagging strand blocks are bypassed while leading strand blocks are displaced

We next addressed whether Mcm10 enables CMG to bypass the lagging strand streptavidin or whether the apparent stronger helicase activity of CMG helicase provided by Mcm10 enables CMG to displace the lagging strand blocks (Figure 6). To determine if the streptavidin was displaced or retained on DNA during CMG unwinding we 32P-labeled the biotinylated strand, which is gel shifted by streptavidin, and repeated the assay in the presence of excess biotin which traps displaced streptavidin and prevents it from rebinding biotinylated DNA. The control reactions, adding the biotin trap before streptavidin, show >96% inhibition of the streptavidin gel shift of the biotinylated DNAs (Figure 6—figure supplement 1). Upon performing the experiment using dual biotinylated-streptavidin blocks on the lagging strand template, the results show that nearly all of the unwound product DNA retains the streptavidin (i.e. it is gel shifted) in the presence of the excess biotin trap. Hence, CMG-Mcm10 bypasses lagging strand streptavidin blocks without displacing them from DNA.

Figure 6 with 1 supplement see all
Lagging strand blocks are not displaced from DNA during unwinding by CMG-Mcm10.

(A) The helicase reaction in Figure 5B (CMG + Mcm10) was repeated with the radiolabel on the biotinylated lagging strand and in the presence of free biotin as a trap for displaced streptavidin (See Materials and methods for details). Unwound strands are shifted in the gel when bound to streptavidin (product +SA) compared to unbound (product – SA). Lanes 2–4 are a control in the absence of biotin trap showing that all of the unwound products migrate in the gel shifted position. The biotin trap is present in the experiment in lanes 5–7. A shift in migration of the unwound products indicates displacement of streptavidin by CMG-Mcm10, but the result shows that almost all the unwound DNA retained the streptavidin. (B) The experiment in (A) was repeated with a substrate in which the dual biotin blocks were on the radiolabeled leading strand. Also see Figure 6—figure supplement 1.

https://doi.org/10.7554/eLife.29118.014

We also examined the effect of Mcm10 on CMG encounter with dual biotin-streptavidin blocks on the leading strand. We showed earlier (Figure 5—figure supplement 1) that CMG is unable to unwind the DNA in the presence of streptavidin and that while CMG-Mcm10 is also strongly inhibited, it unwinds a detectable amount of the DNA within 10 min. To test whether the observed unwinding by CMG-Mcm10 through leading strand blocks is due to streptavidin bypass or streptavidin displacement we repeated the experiment with the 32P-label on the biotinylated strand and using the excess biotin trap. The results demonstrate that streptavidin is displaced from the unwound product (Figure 6B). Hence, Mcm10 appears to provide CMG with more translocation force than CMG alone, consistent with the increase in processivity of CMG in the presence of Mcm10 (Figure 3).

Discussion

We have shown that a stoichiometric CMG-Mcm10 complex can be reconstituted and isolated (Figure 2D and Figure 2—figure supplements 35) and that Mcm10 greatly stimulates CMG unwinding and processivity (Figures 2 and 3). Interestingly, the effect of Mcm10 on fork progression per se is relatively insignificant in the absence of blocks (Figure 4). Notably, we find that Mcm10 enables CMG and the replisome to bypass lagging strand blocks that otherwise bring unwinding and leading strand synthesis to a halt (Figures 5 and 6). The function of Mcm10 in facilitating replisome bypass of lagging strand blocks is consistent with genetic studies showing that Mcm10 deficiency leads to genome instability and increased dependence on post-replication and recombinational repair pathways to maintain viability (Araki et al., 2003; Lee et al., 2010).

Previous reports have solved the structure of the internal DNA binding region of Xenopus Mcm10 and documented that the internal region has two DNA binding elements, an OB fold and a zinc finger, that allow it to bind ssDNA and/or dsDNA (Du et al., 2012; Robertson et al., 2008; Warren et al., 2008). Following the internal DNA binding region is a C-terminal region that forms the main interaction site to Mcms (Douglas and Diffley, 2016; Lõoke et al., 2017; Quan et al., 2015). Furthermore, Mcm10 appears to bind to the N-tier region of the CMG complex that faces the forked junction (Figure 1B), as recent studies show that interaction of Mcm10 with Mcm2-7 is mediated primarily through an interaction with a conserved domain in the N-terminal region of the Mcm2 subunit (Lõoke et al., 2017). Consistent with these known properties of Mcm10, we propose in Figure 7 that, upon encountering a lagging strand block, Mcm10 binds at the N-tier of CMG and also binds DNA at the fork. This places Mcm10 between CMG and the forked junction such that duplex DNA no longer enters the zinc fingers that line the top of the central channel of CMG. In this configuration, Mcm10 isomerizes CMG to a steric exclusion mode where it is capable of bypassing blocks on the non-tracking strand as observed with other hexameric helicases and with the complete replisome in the Xenopus extract system (Fu et al., 2011). Two alternative isomerization reactions that would also facilitate lagging strand block bypass without displacement include one in which Mcm10 cracks open the N-tier of the Mcm2-7 ring of CMG, bypasses the block, and recloses the N-tier. Similarly, Mcm10 might enable opening of both the N- and C-tiers, either simultaneously or in succession, to bypass the blocks. These alternative isomerization reactions are described in detail in (Figure 8 of Langston et al., 2017).

Model of Mcm10 function.

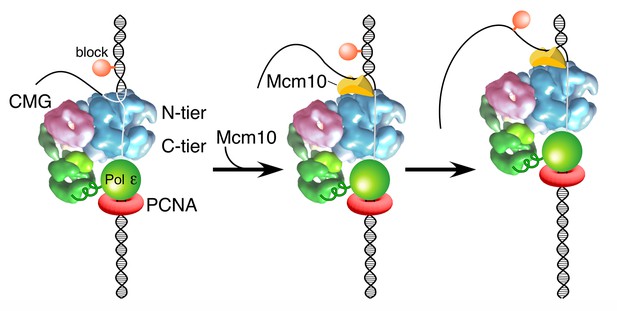

Proposed model of Mcm10 mediated isomerization of CMG-DNA at a replication fork. Left, CMG encounters an impediment on the DNA but cannot pass it because it surrounds dsDNA in the N-terminal tier of Mcm2-7 (as in Figure 1C); middle, Mcm10 binds to the forked junction and to the N-terminal tier of CMG, releasing CMG’s grip on the duplex DNA and placing CMG in a steric exclusion mode encircling ssDNA (as in Figure 1A); right, with the lagging strand freed from the interior of the Mcm2-7 ring, CMG can bypass the impediment on the DNA and proceed. Alternative isomerization reactions that could also accomplish bypass of a bulky block are discussed in the text.

https://doi.org/10.7554/eLife.29118.016

Possible role of Mcm10 at the origin

Ability to rapidly bypass blocks on the non-tracking strand is inherent in all replicative hexameric helicases examined with the exception of eukaryotic CMG. One possible reason that CMG evolved a requirement for another protein to bypass a lagging strand block is for regulation of fork initiation and progression. It is documented from several laboratories that the head-to-head (N-to-N) double hexamer of Mcm2-7 at an origin matures to form two CMGs on dsDNA without unwinding DNA (Heller et al., 2011; Kanke et al., 2012; van Deursen et al., 2012; Watase et al., 2012; Yeeles et al., 2015). Mcm10 is required at the last step of origin initiation to ‘activate’ CMG to unwind DNA as detected by RPA binding to the ssDNA products. These observations can be explained by the findings of this report. Specifically, CMG is known to track with the N-tier ahead of the C-tier, and therefore head-to-head CMGs at an origin are directed inward toward one another. Hence, each CMG blocks the other CMG at an origin. However, if Mcm10 activates the CMGs to locally unwind DNA, as observed by head-to-head SV40 T-antigen hexamers that produce ssDNA ‘rabbit ears’ at the viral origin (Wessel et al., 1992), the two CMGs could isomerize to encircle opposite single-strands and pass one another to form bidirectional forks (see Figure 8B in [Georgescu et al., 2017]). This same action may also promote termination, when two forks meet, enabling the CMG based replisomes to easily pass one another.

Is Mcm10 a stable component of a moving replisome

Considering that Mcm10 does not appear to increase the elongation rate of the replisome (Figure 4C), it may not be required at all times. For example, Mcm10 might only be needed to help the replisome bypass blocks on the lagging strand which conceivably could be performed by a dynamic Mcm10 that interacts only transiently with a stalled replisome. Alternatively, Mcm10 mediated isomerization of CMG-DNA may remain stable, in which case Mcm10 may not be needed for some time after its first use, and in fact an Mcm10 effect on CMG that only requires transient Mcm10 binding has been demonstrated in an earlier study (Lõoke et al., 2017).

Mcm10 binds remarkably tightly to CMG, eluting as a CMG-Mcm10 complex from beads after high salt washes (Figure 2D), and the CMG-Mcm10 complex also remains associated and elutes from a MonoQ ion-exchange resin at high ionic strength (400–450 mM NaCl) (Figure 2—figure supplement 4). Additionally, some studies suggest Mcm10 is a component of moving replisomes (Chadha et al., 2016; Gambus et al., 2006; Lõoke et al., 2017; Ricke and Bielinsky, 2004). However, other cellular studies indicate that Mcm10 is not in constant association with the replisome (Kanke et al., 2012; van Deursen et al., 2012; Watase et al., 2012). Thus, while the salt stability of the CMG-Mcm10 complex reported here suggests it might remain attached to the replisome, its kinetics of attachment are not addressed here and Mcm10 could still be dynamic with CMG, or its on/off rates with the replisome could be affected by other proteins in the cell. Future structural and single-molecule studies of CMG-Mcm10 may be expected to shed light on further details about the dynamics of Mcm10 and the mechanism of its replisome bypass function at stalled replisomes described in this report.

Materials and methods

Reagents

Radioactive nucleotides were from Perkin Elmer and unlabeled nucleotides were from GE Healthcare. DNA modification enzymes were from New England Biolabs. DNA oligonucleotides were from Integrated DNA Technologies. Streptavidin was from Pierce/Thermo Scientific. 5 mg of streptavidin powder was resuspended in 0.5 ml distilled water to make a 10 mg/ml stock. D-Biotin (50 mM aqueous solution) was from Invitrogen/Molecular Probes. Protein concentrations were determined using the Bio-Rad Bradford Protein stain using BSA as a standard. E. coli SSB and S. cerevisiae CMG, Pol ε, RFC, PCNA and RPA were overexpressed and purified as previously described (Georgescu et al., 2014; Langston et al., 2014).

MBP-Mcm10. Mcm10, with a Maltose Binding Protein (MBP) tag at the N-terminus, was purified by applying clarified extract from 12L E. coli overexpression cells at 1 ml/min to a 12 ml amylose column (New England Biolabs) in MBP buffer (20 mM Tris-Cl pH 7.5, 0.5 M NaCl, 1 mM DTT and 1 mM EDTA). The column was washed with 100 ml MBP buffer and eluted with 60 ml MBP buffer supplemented with 10 mM D-(+)-maltose (Sigma Aldrich) collecting 1.5 ml fractions. Peak fractions containing MBP-Mcm10 were pooled (~20 ml/85 mg) and dialyzed 2 hr vs. 2 L Buffer S (25 mM Hepes-KOH pH 7.5, 10% glycerol, 2 mM DTT, 2 mM MgCl2, and 1 mM EDTA). The dialysate was spun at 5,000 rpm in a swinging bucket rotor in an RC3B centrifuge to remove any precipitated material. The supernatant was applied to a 10 ml SP-Sepharose column that had been previously equilibrated in Buffer S supplemented with 100 mM NaCl and washed with 50 ml of the same buffer. The column was eluted with a 100 ml linear gradient from 100 to 600 mM NaCl in Buffer S. Peak fractions containing full-length MBP-Mcm10 were dialyzed overnight vs. 2L buffer S/200 mM NaCl and re-applied to a second 10 ml SP-Sepharose column and eluted with a step gradient from 20% to 50% of the buffer in pump B in 5% increments (pump A contained buffer S/100 mM NaCl and pump B contained buffer S/600 mM NaCl). The peak of full-length MBP-Mcm10 eluted at 50% pump B and was pooled and dialyzed against buffer S/200 mM NaCl in the presence of PreScission Protease to remove the MBP tag. Dialyzed pools were aliquoted, flash frozen in liquid nitrogen and stored at −80°C.

His-FLAG Mcm10. Mcm10 with a hexahistidine tag at the N-terminus and a 3X FLAG tag at the C-terminus, was purified by first applying clarified extract from 72L E. coli overexpression cells to a column containing 10 ml Chelating Sepharose Fast Flow (GE Healthcare) charged with 50 mM NiSO4. The column had been previously washed with binding buffer (20 mM Tris-Cl pH 7.9, 5 mM imidazole, 500 mM NaCl, 0.01% NP-40) and the E. coli extract was adjusted to approximate the ionic strength of the binding buffer and applied to the column at 1 ml/min. The column was washed with binding buffer and then eluted with the same buffer containing 375 mM imidazole. The eluted material was then applied to a column containing 6 ml ANTI-FLAG M2 Affinity Gel (Sigma) at 0.1 ml/min. The FLAG column had been previously equilibrated in FLAG buffer (20 mM Tris-Cl pH 7.5, 10% glycerol, 500 mM NaCl, 1 mM DTT, 1 mM MgCl2, 0.01% NP-40) and after loading, the column was washed with 50 ml of FLAG buffer. The bound material was eluted with 20 ml FLAG buffer containing 0.2 mg/ml 3X FLAG peptide (EZ Biolab, Carmel, Indiana USA) and collecting 1.5 ml fractions. The elution buffer was applied to the column in two 6 ml increments pausing 30’ after each increment followed by 3 ml increments with 30’ pauses until the elution was complete. Eluted material was aliquoted, flash frozen in liquid nitrogen, and stored at −80°C.

Mrc1-Tof1-Csm3 complex. The 3 subunits of the MTC complex (Mrc1-Tof1-Csm3) were co-expressed in yeast. Genes were integrated into the chromosome of strain OY01 (ade2-1 ura3-1 his3-11,15 trp1-1 leu2-3,112 can1-100 bar1Δ MATa pep4::KANMX6) with Mrc1Flag integrated at the Ade2 locus, untagged Tof1 at the His3 locus, and HisCsm1 at the Leu2 locus, each under control of the Gal1/10 promoter. Cells were grown under selection at 30°C in SC glucose, then split into 18L YP-glycerol and grown to OD600 of 0.7 at 30°C before induction for 6 hr upon addition of 20 g of galactose/L. After 6 hr, cells were harvested by centrifugation, resuspended in a minimal volume of 20 mM HEPES, pH 7.6, 1.2% polyvinylpyrrolidone, and protease inhibitors and frozen by dripping into liquid nitrogen. Purification of MTC was performed by lysis of 18 L equivalent of frozen cells with a SPEX cryogenic grinding mill. Ground cell powder was thawed in the cold room and resuspended to 25 ml final volume with 5X FLAG binding buffer (1x is 250 mM K glutamate, 50 mM HEPES pH 7.5, 1 mM EDTA pH 8.0) plus protease inhibitors and stirred slowly for 30’. Cell debris was removed by centrifugation (19,000 r.p.m. in a SS-34 rotor for 1 hr at 4°C) and the supernatant was collected and mixed with 1.5 ml anti-Flag M2 affinity resin (Sigma) equilibrated in 1X FLAG binding buffer with 10% glycerol. The mixture was rotated on an orbital platform in the cold room at 30 rpm for 1 hr. To collect the bound proteins, anti-FLAG resin was pelleted at 1000 X g in 50 ml conical tubes and washed 5 times with 5 ml of FLAG binding buffer followed by centrifugation. After the final wash step, the anti-Flag affinity resin was resuspended in 2 ml of FLAG binding buffer with 10% glycerol, loaded onto a gravity column and washed twice with 7.5 ml of FLAG binding buffer containing 10% glycerol. Bound protein was eluted with the same buffer containing 0.2 mg/ml 3X FLAG peptide (EZ Biolab, Carmel, Indiana USA). Eluted protein was concentrated to 0.75 ml of 1.5 mg/ml protein and injected onto a 24 ml Superose 12 gel filtration column equilibrated in 2X PBS with 10% glycerol in two separate runs of 0.5 ml and 0.25 ml. Fractions were analyzed on a 7.5% SDS-PAGE gel and MTC-containing fractions were pooled, aliquoted, flash frozen in liquid nitrogen, and stored at −80°C.

Helicase substrates

For all radiolabeled oligonucleotides, 10 pmol of oligonucleotide was labeled at the 5’ terminus with 0.05 mCi [γ-32P]-ATP using T4 Polynucleotide Kinase (New England Biolabs) in a 25 μl reaction for 30’ at 37°C according to the manufacturer’s instructions. The kinase was heat inactivated for 20’ at 80°C. For annealing, 4 pmol of the radiolabeled strand was mixed with 6 pmol of the unlabeled complementary strand, NaCl was added to a final concentration of 200 mM, and the mixture was heated to 90°C and then cooled to room temperature over a time frame of >1 hr. DNA oligonucleotides used in this study are listed in Table 1.

Table 1
Oligonucleotides Used in this Study.

All oligonucleotides used in this study were ordered from IDT with the indicated modifications.

https://doi.org/10.7554/eLife.29118.017
Oligo nameSequence (5’ to 3’)Modification(s)
50dupex LAGTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTGACGCTGCCGAATTCTGGCTTGCTAGGACATTACAGGATCGTTCGGTCTCNone
50duplex LAG dual biotinTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTGACGCTGCCGAATTCTGGCTTGCTAGGACATTACAGGATCGTTCGGTCTCTwo biotin-modified thymidine residues in BOLD
50duplex LEADGAGACCGAACGATCCTGTAATGTCCTAGCAAGCCAGAATTCGGCAGCGTCTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT*T*T*T*T*T*TThe six dT residues at the 3’ end are connected by phosphorothioate bonds (*)
50duplex LAG2TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTGACGCTGCCGAATTCTGGATTGCTAGGACATTACAGGATCGTTCGGTCTCNone
50duplex LEAD2 dual biotinGAGACCGAACGATCCTGTAATGTCCTAGCAATCCAGAATTCGGCAGCGTCTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT*T*T*T*T*T*TTwo biotin-modified thymidine residues in BOLD; the six dT residues at the 3’ end are connected by phosphorothioate bonds (*)
160mer duplex LEADAGAGAGTAGAGTTGAGTTGTGATGTGTAGAGTTGTTGTAGAGAAGAGTTGTGAAGTGTTGAGTAGAGAAGAGAAGAGAAGTGTTGTGATGTGTTGAGTAGTGTAGAGTTGAGAAGTAGAGATGTGTTGAGATGAGAAGAGTTGTAGTTGAGTTGAAGTGGTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT*T*T*T*T*TThe five dT residues at the 3’ end are connected by phosphorothioate bonds (*)
160mer duplex LAGTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTCCACTTCAACTCAACTACAACTCTTCTCATCTCAACACATCTCTACTTCTCAACTCTACACTACTCAACACATCACAACACTTCTCTTCTCTTCTCTACTCAACACTTCACAACTCTTCTCTACAACAACTCTACACATCACAACTCAACTCTACTCTCTNone
Blocked Fork LEADACCGGAGACCGAACGATCCTGTAATGTCCTAGCAAGCCAGAATTCGGCAGCGTCTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTGAGGAAAGAATGTTGGTGAGGGTTGGGAAGTGGAAGGATGGGCTCGAGAGGTTTTTTTTTTTTTTTTTTTTTTTTTTTTT*T*T*T*T*TThe five dT residues at the 3’ end are connected by phosphorothioate bonds (*)
Blocked Fork LAGTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTGACGC
TGCCGAATTCTGGCTTGCTAGGACATTACAGGATCGTTCG*G*T*C*T*C
Two biotin-modified thymidine residues in BOLD; the five dT residues at the 3’ end are connected by phosphorothioate bonds (*)
Blocked Fork PrimerCCTCTCGAGCCCATCCTTCCACTTCCCAACCCTCACCNone
 C2CCTCTCGAGCCCATCCTTCCACTTCCCAACCCTCACCNone

Helicase assays with forked DNA substrates

For the assays in Figures 2 and 3C, the forked DNA was formed using the following two oligos (Table 1): 50duplex LEAD and 5’-32P-50duplex LAG. For the assays in Figure 3B, the forked DNA was formed using unlabeled 160mer duplex LEAD and 5’-32P-160mer duplex LAG. Oligos were annealed as described above.

Reactions in Figure 2A contained 25 nM CMG and either 0 nM, 25 nM, 50 nM or 100 nM of Mcm10 (as indicated) with 0.5 nM DNA substrate and 1 mM ATP in 40 μl final volume of buffer A (20 mM Tris Acetate pH 7.6, 5 mM DTT, 0.1 mM EDTA, 10 mM MgSO4, 30 mM KCl, 40 μg/ml BSA). Reactions were mixed on ice and started by placing in a water bath at 30° C. 1’ after starting the reaction, 25 nM unlabeled 50duplex LAG oligo was added as a trap to prevent re-annealing of unwound radiolabeled DNA. At the indicated times, 12 μl aliquots were removed, stopped with buffer containing 20 mM EDTA and 0.1% SDS (final concentrations), and flash frozen in liquid nitrogen. Frozen reaction products were thawed quickly in water at room temperature and separated on 10% native PAGE minigels in TBE buffer. Gels were washed in distilled water, mounted on Whatman 3 MM paper, wrapped in plastic and exposed to a phosphor screen that was scanned on a Typhoon 9400 laser imager (GE Healthcare). Scanned gels were analyzed using ImageQuant TL v2005 software (e.g. for Figure 2B and C). For all quantitations of helicase assays, the small % background of unannealed radiolabeled primer in the ‘No CMG’ lane was subtracted from the % unwound at each time point.

Reaction conditions in Figure 3 were similar to those in Figure 2A but using 20 nM CMG and 40 nM Mcm10 (where indicated). CMG was mixed with the substrate on ice in the absence of ATP and placed at 30° C for 10’ to allow CMG to load onto the substrates without unwinding. To start the reaction, ATP was added with or without Mcm10 (as indicated). 1’ after starting the reaction, 50 nM unlabeled lagging strand oligo was added as a trap to prevent re-annealing of unwound radiolabeled DNA. Total reaction volumes were 126 μl, and 11 μl aliquots were stopped at the indicated times after addition of ATP and processed as described for the assays of Figure 2A.

Helicase assays using a dual biotin fork DNA

For the assays in Figure 5, the forked DNA was formed by annealing 50 duplex LAG dual biotin and 5’-32P-50duplex LEAD (see Table 1). The biotinylated dT nucleotides are 13 and 20 bases from the forked junction. For the assays in Figure 5—figure supplement 1, the forked DNA was formed by annealing 50 duplex LEAD2 dual biotin and 5’-32P-50duplex LAG2 (see Table 1). The biotinylated dT nucleotides are 12 and 19 bases from the forked junction. Oligos were annealed as described above. Reaction conditions were similar to those in Figure 3 except that the final reaction volume was 45 μl and 4 μg/ml streptavidin was added (where indicated) during the 10’ CMG pre-incubation. CMG was at 25 nM and Mcm10 or MTC was at 50 nM (final concentrations) when present. In these assays, the trap oligo was 50 nM unlabeled 50duplex LEAD oligo. 12 μl aliquots were removed at the indicated times after addition of ATP, terminated with EDTA/SDS stop buffer, flash frozen and processed as above. For the assays in Figure 6, the radiolabel was on the biotinylated strand and, where indicated, free biotin was added at the start of the reaction (after streptavidin pre-incubation) to a final concentration of 1.5 μM to prevent re-binding of any streptavidin displaced by CMG/Mcm10 during the unwinding reaction.

Mcm10 binding to CMG

To determine if Mcm10 binds to CMG in a stable fashion (Figure 2D), we mixed 40 pmol of FLAG-CMG with 120 pmol Mcm10. The mixture was incubated for 15 min on ice and then spun in a microcentrifuge at 15,000 rpm for 10’ at 4°C. The volume of the protein solution was adjusted to 150 μl with binding buffer (25 mM Hepes, pH 7.5; 10% glycerol; 0.01% Nonidet P-40; 300 mM NaCl) and mixed with 25 μl anti-FLAG M2 magnetic beads (50% suspension; Sigma-Aldrich, St. Louis, MO). The protein-bead mixture was incubated on ice for 1 hr and then the beads were collected with a magnetic separator and the supernatant (containing unbound proteins) was removed. The beads were washed three times with 250 μl binding buffer and bound proteins were eluted by incubating in 62.5 μl of the same buffer supplemented with 0.2 mg/ml 3X FLAG peptide on ice for 30’. The beads were collected with a magnetic separator and eluted proteins were collected and analyzed in an 8% SDS-polyacrylamide gel stained with Denville Blue.

Replication assays with 2.8 kb duplex substrate

Leading strand replication experiments in Figure 4 used a singly primed 2.8 kb forked linear DNA substrate that was previously described (Georgescu et al., 2014). The duplex portion of the DNA substrate is linearized pUC19 DNA to which a synthetic fork junction has been ligated to one end of the duplex. The fork is primed for leading strand DNA replication with 5’-32 P-C2 oligo (Table 1). Reactions were 25 μL and contained 30 nM CMG, 10 nM Pol ε, 5 nM RFC, 25 nM PCNA, 600 nM RPA and 1.25 nM linear forked template (final concentrations) in a buffer consisting of 25 mM Tris Acetate pH 7.5, 5% glycerol, 40 μg/ml BSA, 3 mM DTT, 2 mM TCEP, 10 mM magnesium acetate, 50 mM K glutamate, 0.1 mM EDTA, 5 mM ATP, and 120 μM of each dNTP. Replication assays were performed by first incubating CMG (and the indicated amount of Mcm10 and/or MTC, where indicated) with linear forked template for 5’ at 30° C, followed by addition of RFC, PCNA, and Pol ε for 4’ in the presence of dATP and dCTP to support clamp loading and polymerase binding while preventing 3’−5’ exonuclease activity on the primer. Reactions were started by addition of ATP, RPA, and the withheld nucleotides (dGTP and dTTP). The reactions proceeded for the indicated amount of time at 30°C and were stopped with an equal volume of 2X stop solution (40 mM EDTA and 1% SDS). Reaction products were analyzed on 1.3% alkaline agarose gels at 35 V for 17 hr, backed with DE81 paper, and dried by compression. Gels were exposed to a phosphorimager screen and imaged with a Typhoon FLA 9500 (GE Healthcare).

Stalled replisome assays

For the experiments in Figure 5 using a stalled replisome, the substrate was made by annealing Blocked Fork LEAD, Blocked Fork LAG and 5’-32P-Blocked Fork Primer (Table 1). The lagging strand oligo has two biotinylated dT nucleotides that are 13 and 20 bases from the forked junction. To form the lagging strand block, streptavidin (75 nM) was added to the substrate (1.25 nM) and incubated at 30°C for 5’ in buffer consisting of 20 mM Tris Acetate, 4% glycerol, 0.1 mM EDTA, 5 mM DTT, 40 μg/mL BSA and 10 mM MgSO4 (all amounts are the final concentration in the complete reaction). Next, 30 nM CMG was added along with 0.5 mM ATP for 3’ to allow CMG to translocate to the block and then replication was initiated by adding 5 nM RFC, 20 nM PCNA, 20 nM Pol ε, 5 mM ATP, and 30 nM MTC (when present) along with adding 115 μM of each dNTP. After a further 2’ incubation, Mcm10 was either added at 60 nM or omitted. Aliquots of each reaction were collected 1, 3, and 10 min later and quenched with an equal volume of Stop Buffer containing 78% formamide, 8 mM EDTA, and 1% SDS. Samples were boiled and then analyzed by PAGE in a 10% Urea gel. Gels were washed in distilled water, mounted on Whatman 3 MM paper, wrapped in plastic and exposed to a storage phosphor screen that was scanned on a Typhoon 9400 laser imager (GE Healthcare).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    The Eukaryotic Replisome: A Guide to Protein Structure and Function
    1. W Du
    2. ME Stauffer
    3. BF Eichman
    (2012)
    197–216, Structural biology of replication initiation factor Mcm10, The Eukaryotic Replisome: A Guide to Protein Structure and Function, Springer.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Simian virus 40 T-antigen DNA helicase is a hexamer which forms a binary complex during bidirectional unwinding from the viral origin of DNA replication
    1. R Wessel
    2. J Schweizer
    3. H Stahl
    (1992)
    Journal of Virology 66:804–815.
  51. 51
  52. 52

Decision letter

  1. Michael R Botchan
    Reviewing Editor; University of California, Berkeley, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Mcm10 functions to isomerize CMG-DNA for replisome bypass of DNA blocks" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Philip Cole as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The manuscript from Langston and O'Donnell investigates the role of MCM10 in eukaryotic helicase function. They show convincingly that a stable complex forms between MCM10 and the CMG, and that the MCM10/CMG complex shows a dramatic improvement in helicase activity over the CMG alone. Although these are significant findings in their own right, they claim that MCM10's primary function is not to improve CMG action per se (as MCM10's effect on the CMG is eclipsed by that of the MTC complex), but to fundamentally alter the mechanism of translocation, isomerizing the CMG between a double-stranded to single-stranded encirclement mechanism for the purpose of bypassing blocks. All known hexameric DNA helicases translocate on one strand and exclude the other strand of a DNA fork. Langston, O'Donnell and colleagues previously observed that the eukaryotic replicative helicase, CMG, cannot bypass a roadblock on either the translocation strand (leading strand template) or the sterically excluded lagging strand. The structure of a fork-engaged CMG was used to explain this observation: duplex DNA is encircled by a B domain crown and the fork nexus is contacted by the C domain "OB hairpins", which guard the single-stranded DNA interacting ATPase ring pore. Given this mode of binding, a roadblock on either strand of the duplex DNA would therefore be impaired from physically reaching C domain hairpins. Langston and colleagues now reconstitute a CMG-Mcm10 complex and find that Mcm10 makes the CMG a more vigorous helicase, capable of bypassing a roadblock on the lagging strand. The authors suggest that Mcm10 induces an isomerization of the CMG that might release the duplex DNA portion of a fork from the B-domain embedding. This event would occur upon initiation of DNA replication and when the replisome needs to bypass a roadblock on the DNA.

Although MCM10 clearly improves the ability of the CMG to bypass a lagging strand block, their conclusion that this is due to CMG/DNA isomerization may be premature. A simpler explanation is that the MCM10-dependent improvement in helicase activity provides the force needed to drive the CMG through the block. Notably, this is consistent with their previous finding that the CMG alone (in the absence of MCM10) can dislodge a block potentially mediated by a single streptavidin from either strand. Why, then, should not a motor with dramatically improved activity (30-fold!) be able to bypass two such potential road-blocks? Additionally, these conclusions are based on the premise that the CMG does, in fact, encircle two strands. However, the background biochemical work on which this manuscript is based (Langston and ODonnell 2017 eLife) came to this conclusion by comparing the CMG's ability to bypass tandem biotin-streptavidin blocks on leading and lagging strand templates, where they find both able to block progression. This result by itself would be consistent with this conclusion but provides no direct evidence for the model. Other models include an outside path for one strand that must interact with the outer surface. Further and perhaps more important beyond model building, for this work and previous studies from the group, they fail to mention in their paper that the two bulky adducts on the lagging strand are placed at half the distance as those on the leading strand. Although their recent EM structure suggests that DNA forks engage further within the protein than initially anticipated, the lagging strand is still, nonetheless, excluded, and double-stranded DNA never enters the central channel -how deep one must go to be in the "central channel" is, of course, perhaps semantics.

Summary:

All three reviewers thought that the issues raised above regarding the isomerization model were not convincing and needed to be either presented with more direct structural data or presented as a speculation amongst other possibilities. A revised manuscript should address the essential and minor issues enumerated below.

Essential revisions:

1) Their use of non-equivalent leading and lagging strand dual biotin-streptavidin roadblocks is misleading and correctly matched oligos should be ordered and the experiments repeated (including the basic finding that lagging strand adducts block translocation equally as well as leading strand adducts)

2) Their title overstates their findings – they have not shown isomerization, only that MCM10 improves the helicase function of the CMG. Either the idea is presented as a speculation along side other ideas or direct data supporting the point be presented as new information

3) Their work suggests an MCM10-dependent switching of the CMG between a double-stranded to single-stranded mechanism upon encountering a roadblock. But given the performance advantage of MCM10 on the CMG and, as the authors state, the persistence of MCM10 at forks, why should the CMG not always occupy this functional state, i.e. steric exclusion without ever occupying the (intermediate?) state they observe by EM. This should be discussed as a speculation. On the other hand direct biophysical or structural data provided.

4) Figure 1C cartoon is a bit misleading. The MCM should be depicted as a 3 tier ring: from the bottom, ATPase, A-C tier and smaller B tier. Duplex DNA is engaged by B-tier only. At the moment it appears that fork nexus is found at the ATPase/A-C tier interface, which is not the case.

5) Figure 2A, it would be good to include a control where Mcm10 is incubated with a fork in the absence of CMG. Also, one caveat of this experiment is that Mcm10 is a single-stranded DNA binding protein and the stimulation of the DNA unwinding activity might simply be due to single-stranded DNA trapping (effectively the same role of a DNA capture strand). It would be good to test whether another single-stranded DNA binding protein (e.g. SSB) has a similar effect on DNA unwinding by the CMG. Also, what is the supershifted band visible e.g. in lanes 5, 8 and 11? It would be good to acknowledge this band, since it is present in many unwinding gels throughout the paper.

6) Figure 2D. GINS subunits are notoriously difficult to stain. It is a pity that in the CMG-Mcm10 gel appears to be cut so that the GINS subunits are not visible. From looking at this gel alone one cannot rule out the possibility that Mcm10 and GINS compete for the same binding site on the MCM. In Figure 2—figure supplement 1 the MonoQ profile is shown where Sld5 is detected, however not Psf1-3. It is remarkable that the CMG-Mcm10 complex is stable at 300mM KCl concentration (indeed convincingly shown in the high salt FLAG pulldown experiment), however the Q column experiment alone does not rule out the possibility that Sld5 and MCM-Cdc45-Mcm10 simply elute at the same salt concentration from an ion exchange column. Could the authors produce a gel where all of the CMG components are seen together with Mcm10, after FLAG elution?

7) Figure 3. The observation that CMG plus Mcm10 is much better at unwinding longer stretches of duplex DNA compared to CMG alone is interesting. Why do the authors think that a fork with 160bp duplex is a better substrate than the 50bp duplex for CMG-Mcm10?

8) Figure 5—figure supplement 1 lanes 11-13. CMG-Mcm10 can clearly bypass a leading strand roadblock, however the authors do not comment on this remarkable observation. Is SA kicked off of the DNA or is there a more complicated leading strand roadblock bypass mechanism to be uncovered? Using DNA-Protein crosslink (methyltransferase?) as a roadblock would address this issue. If SA is kicked off of the leading strand template, this might simply mean that the bypass effect observed here is due to a stimulation of the ATPase activity (CMG-Mcm10 powers through the roadblock). Could the authors address this point? Does Mcm10 stimulate ATP hydrolysis by MCM to a different extent compared to e.g. MTC, which the authors already use as an informative control in this study?

From these experiments it is not clear that streptavidin remains bound to the substrate after CMG passage, as invoked by the bypass mechanism proposed by the authors. This can be addressed by placing the 32P-label on the modified strand of the DNA substrate to observe the generation of single-stranded streptavidin-DNA products, and by performing the reactions in the presence of excess free biotin to trap displaced streptavidin. This seems particularly relevant, as the experiment in Figure 5—figure supplement 1 detects significant Mcm10-dependent bypass of blocks even on the leading strand – how do the authors explain this latter observation?

9) The four GINS subunits are not visible in the gel pictures of the isolated CMG-Mcm10 complexes in Figure 2 and Figure 2—figure supplement 1. Evidence for their stoichiometric presence in the complex needs to be presented.

https://doi.org/10.7554/eLife.29118.019

Author response

Essential revisions:

1) Their use of non-equivalent leading and lagging strand dual biotin-streptavidin roadblocks is misleading and correctly matched oligos should be ordered and the experiments repeated (including the basic finding that lagging strand adducts block translocation equally as well as leading strand adducts)

We appreciate the reviewer’s comment and have repeated the experiments as requested. We now space the two biotinylated T residues by 6 bp on each strand (this is the spacing used on the lagging strand of the first submission). The results are presented in Figure 5B, C, E and Figure 6A (for lagging blocks) and Figure 5—figure supplement 1 and Figure 6B (for leading blocks). Figure 5 has been expanded by taking one figure from the supplement and adding it to the main figure (now parts D and E). The closer spaced blocks on the leading strand are more inhibitory than the 14bp spacing in the earlier manuscript, and therefore the more exact comparison was important to the outcome, and we thank the reviewers for this suggestion.

2) Their title overstates their findings – they have not shown isomerization, only that MCM10 improves the helicase function of the CMG. Either the idea is presented as a speculation along side other ideas or direct data supporting the point be presented as new information

We thank the reviewers and have added data demonstrating that the lagging strand blocks are circumvented without displacement (i.e. using an excess biotin trap), while leading blocks are displaced. The data are presented in Figure 6 and discussed in the text (see detailed response to comment #8). We also discuss the ring opening type of isomerization that may occur, in addition to the possible steric exclusion isomerization:

“Two alternative isomerization reactions that would also facilitate lagging strand block bypass without displacement include one in which Mcm10 cracks open the N-tier of the Mcm2-7 ring of CMG, bypasses the block, and recloses the N-tier. Similarly, Mcm10 might enable opening of both the N- and C-tiers, either simultaneously or in succession, to bypass the blocks. These alternative isomerization reactions are described in detail in Figure 8 of (Langston et al., 2017)”

Also, considering that only lagging blocks are bypassed without displacement, we have changed the title to: “Mcm10 promotes rapid isomerization of CMG-DNA for bypass of lagging strand blocks”.

3) Their work suggests an MCM10-dependent switching of the CMG between a double-stranded to single-stranded mechanism upon encountering a roadblock. But given the performance advantage of MCM10 on the CMG and, as the authors state, the persistence of MCM10 at forks, why should the CMG not always occupy this functional state, i.e. steric exclusion without ever occupying the (intermediate?) state they observe by EM. This should be discussed as a speculation. On the other hand direct biophysical or structural data provided.

We appreciate the reviewer’s comments, and agree that a stable CMG-Mcm10 complex is suggestive that Mcm10 always travels with the replisome. But the available cellular studies that address whether Mcm10 travels with the replisome are not settled in the literature, with reports and data going in both directions. Since we have not shown the persistence of Mcm10 (i.e. koff rate) with CMG at a fork, we discuss the possibility that CMG might travel with the fork all the time in the Discussion, as requested, but we also note that we cannot rigorously make that conclusion from the data of the current report.

4) Figure 1C cartoon is a bit misleading. The MCM should be depicted as a 3 tier ring: from the bottom, ATPase, A-C tier and smaller B tier. Duplex DNA is engaged by B-tier only. At the moment it appears that fork nexus is found at the ATPase/A-C tier interface, which is not the case.

We thank the reviewers for pointing this out. We did not intend to draw the unwinding point as far down as we did, and this was an artistic flaw of the original figure. We have now redrawn the figure to show a much smaller amount of dsDNA entering the CMG. We did not redraw the cartoon to have 3 tiers because describing the A, B, C domains of the N-tier is beyond the scope of the Introduction. We have dealt with these aspects in the structural study and in a few other reviews that are submitted and underway.

5) Figure 2A, it would be good to include a control where Mcm10 is incubated with a fork in the absence of CMG. Also, one caveat of this experiment is that Mcm10 is a single-stranded DNA binding protein and the stimulation of the DNA unwinding activity might simply be due to single-stranded DNA trapping (effectively the same role of a DNA capture strand). It would be good to test whether another single-stranded DNA binding protein (e.g. SSB) has a similar effect on DNA unwinding by the CMG. Also, what is the supershifted band visible e.g. in lanes 5, 8 and 11? It would be good to acknowledge this band, since it is present in many unwinding gels throughout the paper.

We appreciate these several comments and address them below.

– Mcm10 alone displays no helicase activity and we have now added this data as Figure 2—figure supplement 1.

– We long ago performed the experiments that ask whether RPA or SSB might stimulate CMG unwinding prior to submitting the original manuscript, and have now included this data as a Figure 2—figure supplement 2. We should note that SSB/RPA can’t be added to reactions before CMG as it prevents CMG loading (as we published earlier). Thus, we let the CMG helicase reaction proceed for 10 min, and then add either Mcm10, RPA or SSB. The result shows that Mcm10 provides strong stimulation of the CMG helicase while neither RPA nor SSB affect CMG activity.

– The supershifted band in lanes 5,8 and 11 has now been acknowledged and explained in the text. The second half of the first paragraph in the Results section describes these 3 points and reads as follows:

“Control reactions with Mcm10 alone, lacking CMG, show no unwinding activity (Figure 2—figure supplement 1). Reactions with Mcm10 sometimes give a supershift of some of the substrate (e.g. lanes 5, 8, 11, 12 in Figure 2A), which we interpret as a gel shift of Mcm10 that remains bound to DNA, as Mcm10 is a known DNA binding protein (Du et al., 2012; Robertson et al., 2008; Warren et al., 2008). To determine if other DNA binding proteins such as RPA or E. coli SSB stimulate CMG, we performed experiments in which CMG unwinding was initiated and then either Mcm10, RPA or SSB was added. The results show that the stimulation of CMG is specific to Mcm10 and that RPA and SSB do not substitute for Mcm10 (Figure 2—figure supplement 2).”

6) Figure 2D. GINS subunits are notoriously difficult to stain. It is a pity that in the CMG-Mcm10 gel appears to be cut so that the GINS subunits are not visible. From looking at this gel alone one cannot rule out the possibility that Mcm10 and GINS compete for the same binding site on the MCM. In Figure 2—figure supplement 1 the MonoQ profile is shown where Sld5 is detected, however not Psf1-3. It is remarkable that the CMG-Mcm10 complex is stable at 300mM KCl concentration (indeed convincingly shown in the high salt FLAG pulldown experiment), however the Q column experiment alone does not rule out the possibility that Sld5 and MCM-Cdc45-Mcm10 simply elute at the same salt concentration from an ion exchange column. Could the authors produce a gel where all of the CMG components are seen together with Mcm10, after FLAG elution?

We appreciate the reviewer’s concerns and certainly agree that the GINS are notoriously difficult to stain. We have rerun the gels, but we should also point out that while this project was being performed, Mcm10 was demonstrated in the Bell lab to preferentially bind CMG, containing GINS, Cdc45 and Mcms (Lõoke, et al., 2017). However, we have re-run FLAG and MonoQ experiments and re-run gels to the best we could, and have added those gels and the following text to the manuscript. We also note that Steve Bell’s recent paper on Mcm10 (cited herein) demonstrates that Mcm10 stabilizes the CMG complex.

– We have performed a repeat of the FLAG purification of CMG-Mcm10 and run the gel such that the GINS subunits can be seen (Figure 2—figure supplement 3). Densitometric analysis, described in the legend to Figure 2—figure supplement 3, reads:

“To determine the stoichiometry of GINS in the CMG-Mcm10 complex, a Flag purification of CMG-Mcm10 was analyzed in a 10% PAGE gel followed by densitometric analysis. The result indicates the following stoichiometry: 1.0 Mcm2-7, 1.2 Mcm10, 0.87 Sld5, and 2.6 Psf1+Psf2 (they co-migrate for an average of 1.3 each). The Psf3 runs at the dye front and could not be quantitated. FLAG columns capture some free Cdc45 and thus overestimate the Cdc45-FLAG subunit; MonoQ analysis removes free Cdc45 (see Figure 2—figure supplement 4).”

– We have also re-run the MonoQ purification of CMG-Mcm10 complex in the PAGE such that the GINS subunits are visible (Figure 2—figure supplement 4). The densitometric scan information in the legend reads as follows:

“A densitometric scan of the gel showed a molar ratio of 1.0 Mcm2-7: 1.59 Cdc45: 2.0 Mcm10: 1.4 Sld5: Psf1 and Psf2 at 1.05 each (Psf1/2 co-migrate, and together give a stoichiometry of 1.0:2.1 for Mcm2-7: Psf1+Psf2); Psf3 runs at the dye front.”

– In the body of the text we have added the following:

“The GINS subunits of the CMG-Mcm10 complex ran off the gel, but a previous study demonstrated that Mcm10 preferentially associates with the entire CMG complex (Lõoke et al., 2017). This is supported by densitometry analysis of gels showing GINS subunits in both FLAG and MonoQ purified CMG-Mcm10 complexes (Figure 2—figure supplements 3 and 4).”

We note to reviewers (not in the text), that scans of Commassie stained bands are only approximations because different proteins can take up different amounts of stain, but that the results overall indicate that Mcm10 binds CMG without displacing the GINS and Cdc45 accessory factors.

We have also recently performed cross-linking/mass spectrometry on CMG-Mcm10 complex, and find that Mcm10 runs across the surface of two of the GINS subunits and the Cdc45 subunit, and wraps around 3 of the six Mcm2-7 subunits. The CX-MS results are not included here, because they are part of our study on the structure of CMG-Mcm10, but they confirm that GINS and Mcm10 are associated with CMG, and that Mcm10 binds a lot of the CMG subunits, which probably accounts for Steve Bell’s observation in his recent study that Mcm10 preferentially binds the complete CMG, and facilitates formation of the CMG complex (Lõoke, et al., 2017).

7) Figure 3. The observation that CMG plus Mcm10 is much better at unwinding longer stretches of duplex DNA compared to CMG alone is interesting. Why do the authors think that a fork with 160bp duplex is a better substrate than the 50bp duplex for CMG-Mcm10?

We apologize for the misconception in our text. We did not mean to imply that the fork with a 160bp duplex is a better substrate than a fork with a 50bp duplex. We meant to say that these appear to be equal substrates for CMG-Mcm10. We have clarified this point in the text of the revised manuscript. We have added the following statement to the Results:

“The final extent of unwinding is similar for both substrates, so the delay reflects a difference in time of unwinding the two DNAs due to their difference in length rather than a difference in helicase activity on the two substrates.”

8) Figure 5—figure supplement 1 lanes 11-13. CMG-Mcm10 can clearly bypass a leading strand roadblock, however the authors do not comment on this remarkable observation. Is SA kicked off of the DNA or is there a more complicated leading strand roadblock bypass mechanism to be uncovered? Using DNA-Protein crosslink (methyltransferase?) as a roadblock would address this issue. If SA is kicked off of the leading strand template, this might simply mean that the bypass effect observed here is due to a stimulation of the ATPase activity (CMG-Mcm10 powers through the roadblock). Could the authors address this point? Does Mcm10 stimulate ATP hydrolysis by MCM to a different extent compared to e.g. MTC, which the authors already use as an informative control in this study?

From these experiments it is not clear that streptavidin remains bound to the substrate after CMG passage, as invoked by the bypass mechanism proposed by the authors. This can be addressed by placing the 32P-label on the modified strand of the DNA substrate to observe the generation of single-stranded streptavidin-DNA products, and by performing the reactions in the presence of excess free biotin to trap displaced streptavidin. This seems particularly relevant, as the experiment in Figure 5—figure supplement 1 detects significant Mcm10-dependent bypass of blocks even on the leading strand – how do the authors explain this latter observation?

We appreciate this comment, and in fact did the excess biotin trap experiment before submission for the lagging strand streptavidin blocks. On hindsight we should have included that data in the original submission. In the revised manuscript, we perform both leading and lagging experiments using a biotin trap (and 32P-label on the biotinylated strand), and using the forked DNAs with equal 6bp spacing between the two biotin-streptavidins for both leading and lagging strands. The results show that Mcm10 enables bypass of the lagging strand blocks without displacing the streptavidin blocks, and that the leading strand streptavidins are in fact displaced from DNA (there was less efficient leading strand read through with the 6 bp spacing compared to the earlier 14 bp spacing). These data are now presented in a newly added Figure 6 and supplement to Figure 6, which shows the effectiveness of the biotin trap. The modified manuscript reads as follows:

“Lagging strand blocks are bypassed while leading strand blocks are displaced. […]Hence, Mcm10 appears to provide CMG with more translocation force than CMG alone, consistent with the increase in processivity of CMG in the presence of Mcm10 (Figure 3).”

9) The four GINS subunits are not visible in the gel pictures of the isolated CMG-Mcm10 complexes in Figure 2 and Figure 2—figure supplement 1. Evidence for their stoichiometric presence in the complex needs to be presented.

We now show supplemental figures of PAGE gels showing and quantitating GINS for both FLAG and MonoQ purified CMG-Mcm10 (Figure 2—figure supplements 3 and 4). However, the fact that GINS are present in CMG-Mcm10 has been recently published. The text reads:

“The GINS subunits of the CMG-Mcm10 complex ran off the gel, but a previous study demonstrated that Mcm10 preferentially associates with the entire CMG complex (Lõoke, et al., 2017). This is supported by densitometry analysis of gels showing GINS subunits in both the FLAG and MonoQ purified CMG-Mcm10 complexes (Figure 2—figure supplements 3 and 4).”

Please see also the response to comment #6, which overlaps with this comment.
