Bladder-cancer-associated mutations in RXRA activate peroxisome proliferator-activated receptors to drive urothelial proliferation

Research Article
Cited
0
Views
546
Comments
0
Cite as: eLife 2017;6:e30862 doi: 10.7554/eLife.30862

Abstract

RXRA regulates transcription as part of a heterodimer with 14 other nuclear receptors, including the peroxisome proliferator-activated receptors (PPARs). Analysis from TCGA raised the possibility that hyperactive PPAR signaling, either due to PPAR gamma gene amplification or RXRA hot-spot mutation (S427F/Y) drives 20–25% of human bladder cancers. Here, we characterize mutant RXRA, demonstrating it induces enhancer/promoter activity in the context of RXRA/PPAR heterodimers in human bladder cancer cells. Structure-function studies indicate that the RXRA substitution allosterically regulates the PPAR AF2 domain via an aromatic interaction with the terminal tyrosine found in PPARs. In mouse urothelial organoids, PPAR agonism is sufficient to drive growth-factor-independent growth in the context of concurrent tumor suppressor loss. Similarly, mutant RXRA stimulates growth-factor-independent growth of Trp53/Kdm6a null bladder organoids. Mutant RXRA-driven growth of urothelium is reversible by PPAR inhibition, supporting PPARs as targetable drivers of bladder cancer.

https://doi.org/10.7554/eLife.30862.001

eLife digest

Bladder cancer is the sixth most common type of cancer in the United States. At the moment, treatment options for advanced bladder cancer are limited to chemotherapy and immunotherapy, both of which benefit only some patients. Many other types of cancer can be treated with drugs that are specific to genetic mutations found in those cancer cells, often making the treatments more efficient with fewer side effects.

Between 5–8% of people with bladder cancer have a mutation in the gene that produces a protein called RXRA. This protein partners with itself or with other proteins to control gene activity. However, it was not clear what mutant RXRA proteins do in bladder cancer cells.

Halstead et al. studied the RXRA mutation in human bladder cancer cells and “mini-bladders” grown in the laboratory from mouse bladder cells. Biochemical experiments showed that the mutant RXRA protein causes abnormally high activity in one group of its partner proteins, called peroxisome proliferator-activated receptors (PPARs). The PPARs, in turn, switch on genes that help cancer cells to grow and multiply. Computational simulations of the mutant RXRA binding to PPARs revealed, at a molecular level, how this activation occurs. Lastly, Halstead et al. used chemicals that block the activity of PPARs to stop the growth of cells in the mouse mini-bladders that contained the RXRA mutation.

These findings suggest that bladder cancer patients with the RXRA mutation may benefit from therapies that inhibit PPARs. Such therapies could also benefit the approximately 15–20% of people with bladder cancer who do not have the RXRA mutation but who do have over-active PPARs. Although there are chemicals that block the activity of PPARs, more research is needed to refine them before they can be used to treat cancer.

https://doi.org/10.7554/eLife.30862.002

Introduction

Bladder cancer is the sixth most common cancer in the US and is predicted to cause ~17,000 deaths in 2017 [The website of the National Cancer Institute (https://www.cancer.gov)]. In contrast to other common malignancies, bladder cancer management has not yet benefited from molecularly targeted therapies. Early phase clinical data with agents targeting FGFR3 or ERBB family members have shown encouraging activity in the minority of patients with oncogenic versions of these kinases (Nogova et al., 2017; Choudhury et al., 2016), but identification of new targetable genomic drivers is needed to expand the armamentarium. Nuclear receptors are amongst the most successful therapeutic targets in oncology, with small molecule inhibitors of estrogen receptor (ER) and androgen receptor (AR) improving survival in breast and prostate cancers (Fisher et al., 1996; Beer et al., 2014). The established ability to modulate nuclear receptors with drugs makes them an attractive class of targets for other cancer types when there is compelling evidence supporting their role as tumor drivers.

RXRA is a nuclear receptor that regulates transcription as a homodimer or as an obligate heterodimerization partner for 14 other nuclear receptors, including the three peroxisome proliferator-activated receptors PPARA, PPARD, and PPARG (Evans and Mangelsdorf, 2014). Exome analysis of bladder cancer samples across three independent cohorts identified mutations at RXRA S427 in 5–8% of cases, always leading to an amino acid substitution with an aromatic amino acid, phenylalanine (~5%) or tyrosine (~1%) (Cancer Genome Atlas Research Network, 2014; Guo et al., 2013; Van Allen et al., 2014). Reported analysis from TCGA found evidence of up-regulated PPAR pathway activity in RXRA hot-spot mutant cases (Cancer Genome Atlas Research Network, 2014). Copy number analysis identified PPARG as amplified in 17% of bladder cancer cases (Cancer Genome Atlas Research Network, 2014), with PPARG amplified cases being highly enriched for PPARG mRNA expression (q value = 2.6 × 10-9) (Cerami et al., 2012). These data raised the possibility that hyperactive PPAR signaling, either due to gene-amplification-driven hyper-expression or RXRA hot-spot mutation may drive 20–25% of bladder cancers. Here, we characterize structural and biological consequences of the RXRA hot-spot mutations.

Results

Mutant RXRA induces PPAR transcriptional signaling at the canonical DR1 motif

To establish a causal role of RXRA hot-spot mutations in hyper-activation of PPAR singling, we used retroviral transduction to introduce wild-type or mutant RXRA into two bladder cancer cell lines, JMSU-1 and 575A. Equivalent RXRA expression levels were confirmed by qPCR and western blot (Figure 1A). RNA-seq was used to compare transcriptomes in the wild-type and S427F RXRA expressing cells. Gene transcripts robustly up-regulated by the mutation (twofold, FDR <0.05) were analyzed using over-representation analysis (ORA) to identify enriched pathways. In both cell lines, the PPAR signaling pathway (KEGG-hsa03320) was the top scoring hit. When the ORA was limited to genes up-regulated by the mutation in both cell lines, again PPAR signaling was the top hit (Figure 1B, Figure 1—source data 1). We also compared transcriptome changes induced by the RXRA mutation to those induced after treating RXRAwt expressing cells with the PPARG agonist pioglitazone. There was robust correlation in both JMSU-1 and 575A (Pearson r = 0.72, p=1.4 × 10−34 or 3.1 × 10−105), confirming that the mutation drives expression changes similar to agonist-induced PPAR activation (Figure 1C). Mutation-driven hyper-activation of PLIN2 and FABP3, two genes found up-regulated in our RNA-seq analysis, also occured in the context of RXRAS427Y in JMSU-1 cells (Figure 1D), confirming gain-of-function with either aromatic substitution. Previous analysis of human bladder cancer specimens identified a correlation between the presence of RXRAS427F/Y and both the up-regulation of PLIN2 expression and PPAR signaling pathway activity (Cancer Genome Atlas Research Network, 2014). Our data establishes a causal role of the RXRA mutations in driving these expression changes.

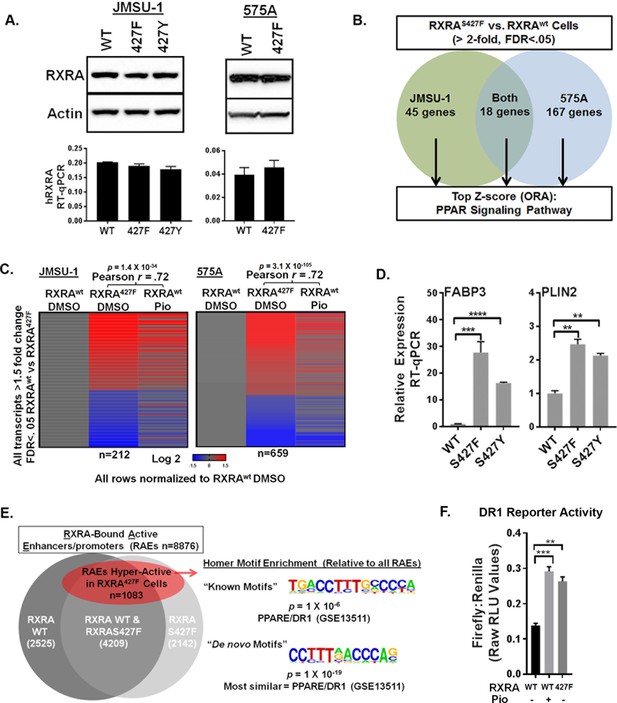

RXRA hot-spot mutations induce the PPAR signaling pathway by activating enhancer/promoters with a canonical PPAR response element.

(A) JMSU-1 and 575A cells were transduced with pBABE retrovirus to express indicated RXRA alleles and expression confirmed by western blot (top) or RT-qPCR in triplicate ± SD (data expressed as a fraction of actin signal). (B) Protein coding transcripts up-regulated greater than or equal to twofold (FDR < 0.05) in cells expressing RXRAS427F compared to cells expressing RXRAwt were identified and then subjected to over representation analysis (ORA, GO-Elite) to discover enriched pathways relative to all other protein coding transcripts identified by RNA-seq. Experiment was done in two bladder cancer cell lines, JMSU-1 or 575A, using three RNA samples, each purified from an independent cell well, for each condition. (See also source data 1). (C) Transcriptome changes induced by RXRAS427F relative to RXRAwt were compared to expression changes of the same transcripts induced by 16 hr of pioglitazone (1 μM) treatment in the RXRAwt expressing cells. D) Relative expression of two PPAR targets with expression of indicated RXRA alleles. RT-qPCR performed in triplicate ±SD. Comparison by Student’s t-test. (E) RAEs were defined by the presence of overlapping ChIP-seq signal for RXRA and H3K27ac. RAEs identified by binding of RXRAwt and/or RXRAS427F are represented in grey. Hyperactive RAEs represented in red had elevated H3K27ac mean peak height in the mutant expressing cells compared to the wild-type cells (FDR < 0.05). All ChIP-seq peak callings were based on data from three independent immuno-precipitations, each utilizing input material from an independent cell plate. HOMER motif analysis was used to identify motifs enriched in hyperactive RAEs relative to the background of non-hyperactive RAEs. Source data 2 specifies number of peaks in each sector of the venn diagram. (F) Activity of a DR1 response element reporter (3X PPRE) transfected into JMSU-1 cells stably expressing either RXRAwt or RXRAS427F. RXRAwt cells were also treated with pioglitazone (1 μM) for 16 hr. For all reporter assays, Firefly luciferase expressing reporter was co-transfected with a constitutive Renilla luciferase expression vector to normalize for transfection efficiency. Data represents mean ± SEM of Firefly to Renilla luciferase signal from three independent experiments done on different days, each performed using triplicate cell wells. Statistical comparisons are by paired t-test.

https://doi.org/10.7554/eLife.30862.003

Canonical RXRA-mediated gene regulation involves direct engagement of promoter/enhancers of target genes in the context of homodimers or heterodimers. Specific partner-pairs preferentially bind to direct repeats (DR) with defined spacer lengths. RXR homodimers and RXR/PPAR heterodimers both show preference for DRs with a single nucleotide spacer (DR1) (Evans and Mangelsdorf, 2014; Nielsen et al., 2008). Using ChIP-seq data for RXRA and acetylated H3K27 (H3K27ac), we identified all active enhancer/promoters bound by RXRAwt and/or RXRAS427F in JMSU-1 (‘RXR-bound Active Enhancer/promoters’ or RAEs). Differential mean peak height of the H3K27ac signal was used as an indicator of relative activation status in the wild-type and mutant condition at each RAE. ~12% of RAEs showed significant up-regulation in the mutant condition (FDR <0.05) (Figure 1E, Figure 1—source data 2). HOMER motif finding was then performed to identify motifs enriched at these hyper-activated RAEs, relative to the background of all RAEs. Consistent with activation of PPAR pathway genes, the canonical RXR/PPAR (DR1) motif was the only known motif found to be enriched with significant q-value. The most statistically robust motif identified by de novo discovery is shown in Figure 1E. Comparing the de novo identified motif to known motifs found it to be most similar to a PPAR response element (DR1). These data demonstrate that hyper-activation of enhancer/promoters driven by the RXRA hot-spot mutation occurs preferentially at canonical RXR/PPAR response elements. Using transient transfection of a DR1-driven luciferase reporter, we confirmed relative hyper-activation of DR1 in the JMSU-1 cells expressing mutant RXRA compared to wild-type (Figure 1F), with a degree of induction similar to that observed after pioglitazone treatment.

Hot-spot mutation-driven transcriptional activity is dependent on expression of PPARD or PPARG

Having established that mutant RXRA up-regulates PPAR target gene expression, we next tested if this was dependent on PPARs. TCGA data were first queried to determine which of the three PPARs are most highly expressed in bladder cancer specimens with mutant RXRA (Cerami et al., 2012). Both PPARG and PPARD were significantly more highly expressed than PPARA, but the relative proportion of PPARG and PPARD varied amongst the samples (Figure 2A,B). Using siRNA, we acutely knocked-down PPARG and PPARD in the JMSU-1 and 575A cells transduced with wild-type or mutant RXRA and used RT-qPCR to query the expression of PLIN2 and FABP3 (Figure 2C). In the non-targeting control, both genes were again found up-regulated by mutant RXRA. PPARD knock-down alone appeared to increase PPARG expression suggesting receptor cross talk and loss of negative feedback regulation. However, expression of neither PPAR target gene was significantly reduced by PPARD knock-down alone. PPARG knock-down partially inhibited PLIN2 expression in both cell lines, but did not have significant impact on FABP3. Combined knock-down of PPARD and PPARG, however, strongly inhibited RXRAS427F-driven hyper-expression of both genes, to an extent greater than knockdown of PPARG alone. Thus, both PPARD and PPARG contribute to mutant RXRA-mediated transcriptional hyperactivity in human bladder cancer cells and appear to have redundant function.

Figure 2 with 1 supplement see all

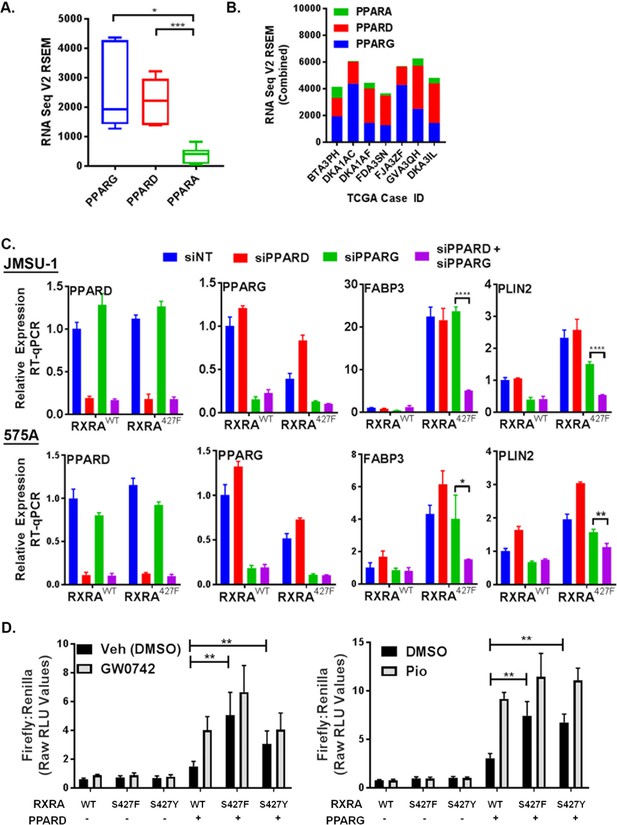

PPARG or PPARD expression is necessary and sufficient for mutant RXRA activity.

A) PPAR RNA expression in RXRA hot-spot mutant clinical samples from the TCGA dataset. Whisker plot shows 25th, median, and 75th percentile. (B) Data from panel A plotted per patient with hot-spot mutation. (C) Effects of siRNA-mediated knock-down of PPARD and PPARG in JMSU-1 and 575A cell lines on two target genes (PLIN2 and FABP3) up-regulated by mutant RXRA. Data by RT-qPCR in triplicate ±SD and indicated comparisons by Student’s t-test. (D) DR1 luciferase reporter activity in UM-UC-3 cells transfected with RXRA ±PPARD or PPARG. Cells were treated with 1 µM of the PPARG agonist pioglitazone or the PPARD agonist GW0742 for 16 hr. Data represents mean ±SEM of Firefly to Renilla luciferase signal from three independent experiments done on different days, each performed using triplicate cell wells. Statistical comparisons are by paired t-test.

https://doi.org/10.7554/eLife.30862.006

Since hyperactivity of mutant RXRA was dependent on PPAR expression, we reasoned that no hyperactivity would be observed in the DR-1 luciferase reporter assay in a bladder cancer cell line with low endogenous expression of PPARs. Treatment of UM-UC-3 with agonists to either PPARG or PPARD did not have meaningful impact on reporter activity when RXRA was transfected without a PPAR (Figure 2D), indicating a lack of relevant endogenous expression in this cell line. Similarly, RXRAS427F/Y did not show increased activity relative to RXRAwt (Figure 2D). Since RXRA can drive transcription as a homodimer with a preference for the DR1 motif, these data indicate that the mutation does not confer gain-of-function in the homodimer context. We then examined reporter activity with co-transfection of PPARG or PPARD. Expression of either PPAR was sufficient to elicit mutant RXRA associated hyperactivity to an extent that approximated agonist induced activation of the PPAR in the wild-type RXRA condition (Figure 2D). Similar to what was observed in the JMSU-1 stable cells, RXRAS427F appeared to have somewhat stronger activity than RXRAS427Y, but both were hyperactive relative to RXRAwt (Figure 2D). Lastly, we tested reporter activity with co-transfection of retinoic acid receptor alpha (RARA), which belongs to another family of RXRA heterodimerization partners. Both the DR1 reporter and a reporter with the preferred RXR/RAR binding motif, DR5, were induced by the RAR agonist all-trans-retinoic acid, but mutant RXRA did not elicit greater activity than wild-type RXRA (Figure 2—figure supplement 1). These data confirmed that RXRA hot-spot mutations confer gain-of-function selectively in the context of PPAR expression.

Mutant RXRA activates the PPAR AF2 via an allosteric mechanism

Nuclear receptors share a conserved domain structure and are prototypically activated by agonist binding to the ligand-binding domain (LBD). The activator function two domain (AF2) is then stabilized in a conformation favoring recruitment of co-activators, initiating transcriptional regulation. In the context of RXRA/PPAR heterodimers, activation can be induced with agonists to either receptor (Evans and Mangelsdorf, 2014). Solved crystal structures of the RXRA/PPARG heterodimer reveal that RXRA S427 resides in helix 10 at a heterodimerization interface (Figure 3A) (Chandra et al., 2008; Gampe et al., 2000). Based on its location, we hypothesized that the RXRA mutation directly activates the PPARG AF2, independent of PPAR ligand binding. To gain evidence, we determined the inducibility of PPARG Q286P, a previously characterized substitution in the ligand-binding pocket (Figure 3A) that prevented ligand activation by a panel of PPARG agonists (Walkey and Spiegelman, 2008). The Q286P mutation completely blocked pioglitazone-driven receptor activation, but RXRA S427F-driven receptor hyperactivity was maintained (Figure 3B). In contrast, the PPARG E471A mutation previously characterized to diminish the transactivation activity of the PPARG AF2 (Chen et al., 2000), strongly reduced both pioglitazone and RXRA S427F-driven activity (Figure 3B). The analogous AF2 mutation in RXRA, E453A, diminished activation by the RXRA agonist SR11237, but had no impact on mutation-driven hyperactivity (Figure 3C). These data support a model in which RXRAS427F hyperactivity relies primarily on the PPAR AF2, independent of PPAR agonist binding.

Figure 3 with 1 supplement see all

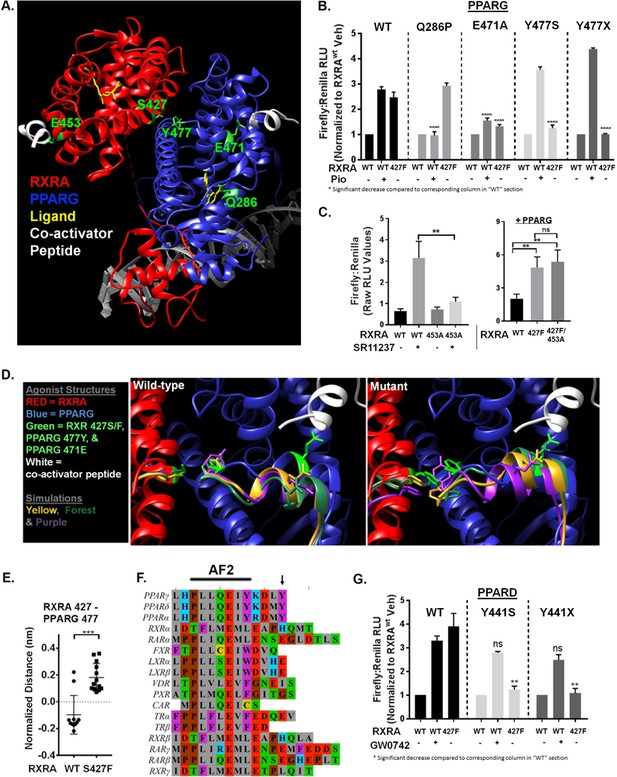

Mutant RXRA induces allosteric activation of PPARs through their terminal tyrosine.

A) RXRA S427 and other amino acids mutated for structure-function studies highlighted in green on a published full-length crystal structure of a RXRA/PPARG heterodimer. (B) DR1 reporter assay in UM-UC-3 co-transfecting indicated RXRA and PPARG alleles. Cells were treated with vehicle (DMSO) or pioglitazone 1 µM for 16 hr. Data represents mean normalized signal ±SEM of three independent experiments done on different days, each performed in triplicate, with data from each experiment normalized to the RXRAwt vehicle condition for each section. Statistical comparisons are by unpaired t-test. (C) Left, reporter assay performed with indicated RXRA alleles only and drug treatment with the RXRA agonist SR11237 (100 nM) for 16 hr. Right, reporter assay with wild-type PPARG co-transfected. Data represent mean ±SEM of Firefly to Renilla luciferase signal from three independent experiments done on different days, each performed using triplicate cell wells. Statistical comparisons are by paired t-test. (D) Published agonist structure of RXRA/PPARG heterodimer (PDB: 1FM6) in red and blue with key residues highlighted in bright green. Top three occupied microstate clusters from simulation experiments are superimposed. (E) Distance from starting agonist structure between alpha carbons of RXR 427 and PPARG 477 in the top 5% most-occupied microstates for wild-type and mutant RXRA. Mean ±SD, comparison is by Student’s t test. (F) Alignment of the AF2 region and C-terminus of all RXRA dimerization partners. Terminal tyrosine unique to PPARs is indicated. (G) Reporter assay similar to B, but using PPARD and the PPARD agonist GW0742.

https://doi.org/10.7554/eLife.30862.008

To gain insight into how RXRAS427F/Y regulates the PPARG AF2, we performed long-time scale molecular simulations of RXRA/PPARG heterodimers with wild-type RXRA or after the S427F substitution. The starting structure was the agonist-bound crystal structure of the RXRA/PPARG LBDs(PDB: 1FM6) (Gampe et al., 2000); however, the agonist compounds were deleted to reduce subsequent computational complexity and to enable drift toward the inactivated state. We next constructed Markov State Models (MSMs) following the procedure from Hart et al. (2016) to quantify the thermodynamics and kinetics of each heterodimer. First, conformations adopted by backbone-heavy atoms near the mutated site in RXRA and the PPARG AF2 (RXRA 425–429 and PPARG 445–477) from both wild-type and mutant simulations were clustered in the same state space. An MSM was then constructed for each variant based on how often the corresponding simulations transitioned between every pair of clusters. The wild-type and mutant largely populate different clusters, consistent with our hypothesis that mutant and wild-type RXRA differentially regulate the PPARG AF2 region (Figure 3—figure supplement 1A)

We next inspected the three most frequently occupied clusters for wild-type and mutant by superimposing the PPARG residues 445–459 on helix 11 as an anchor, enabling us to visualize relative displacement of the AF2 region located in helix 12 (Figure 3D). In the RXRA mutant condition, PPARG E471 more closely approximated the agonist confirmation, in agreement with our mutational studies showing the importance of this residue. The terminal tyrosine of PPARG (Y477) also appeared in distinct spaces in the two conditions. Comparing the 5% most frequently occupied clusters for wild type and mutant, we observed a significant difference in inter-residue distance between RXRA 427 and PPARG 477 (Figure 3E). These data raised the possibility that an aromatic interaction between RXRA S427F/Y and the terminal tyrosine found in all PPARs may underlie activation of PPAR (Figure 3F). To test this, the terminal tyrosine was either deleted or mutated to serine in both PPARG (Y477) and PPARD (Y441) and expression of the mutant PPARs was confirmed by western blot (Figure 3—figure supplement 1B). Inducibility by RXRAS427F or agonist was then determined (Figure 3B and G). In all cases, inducibility by agonist was maintained, but RXRA S427F-mediated hyperactivity was eliminated. We conclude that S427F/Y initiates an allosteric relay via an aromatic interaction with the terminal tyrosine on PPAR, leading to PPAR AF2 activation. No other RXR dimerization partners have an aromatic amino acid at the corresponding position, providing a structural basis for the selective activation of PPARs (Figure 3F).

PPARD activation induces growth-factor-independent growth of urothelial organoids in the context of tumor suppressor loss

We next sought to determine if PPAR activation drives proliferation of urothelial cells. To culture primary urothelial cells, we developed a mouse urothelial organoid culture system. Similar organoid systems have proven successful at identifying pro-tumorigenic phenotypes driven by cancer-associated mutations in multiple tissue types (Sachs and Clevers, 2014; Karthaus et al., 2014; Drost et al., 2015; Hwang et al., 2016; Boj et al., 2015). With our urothelial approach, hollow spherical epithelial structures can reliably be grown and passaged from primary mouse bladder epithelium, utilizing epidermal growth factor (EGF) as the primary growth factor (Figure 4—figure supplement 1A). Because growth-factor-independent growth is a classical hallmark of transformed cells, we asked if stimulation with PPAR agonists could confer growth in the absence of EGF. As expected, there was no growth of three independently derived wild-type organoids in the absence of growth factor. Treatment with the PPARD agonist GW0742 or the PPARG agonist pioglitazone had no significant effect on growth in these conditions, suggesting that PPAR activation is not sufficient to drive growth in normal urothelial organoids (Figure 4A).

Figure 4 with 1 supplement see all

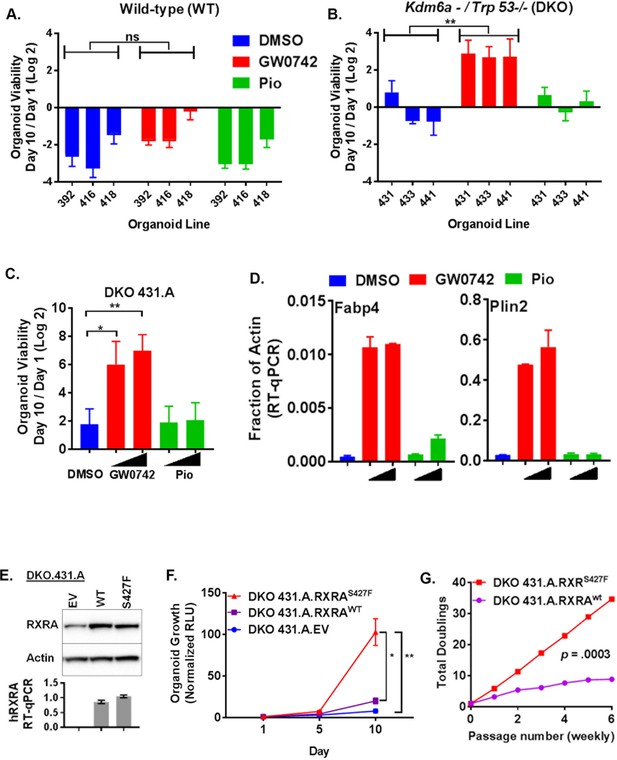

PPARD agonist and mutant RXRA confer growth-factor-independent growth to urothelium in the context of tumor suppressor loss.

(A) Organoids were derived from three independent wild-type mouse bladders and infected with Adeno-Cre. Growth was determined for each line in organoid media without EGF using CellTiter-Glo after treatment with vehicle, GW0742 (100 nM), or pioglitazone (100 nM). Data represent mean ±SEM from three independent experiments, each performed in triplicate cell wells. Statistical comparison is by unpaired t-test. (B) Similar to A but organoids were derived from Trp53flox/flox; Kdm6aflox mice. (C) CellTiter-Glo growth assay in media without EGF of a sub-clone from DKO431 (DKO 431.A) treated with GW0742 (10, 100 nM) or pioglitazone (100, 1000 nM). Mean values ± SEM from three independent experiments, each performed using triplicate organoid wells. Comparison is by paired t-test. (D) DKO 431.A organoids were plated in standard organoid media and then treated with, vehicle, GW0742 (10, 100 nM)) or pioglitazone (100, 1000 nM) for an additional 48 hr. Induction of PPAR target genes was determined by RT-qPCR in triplicate ± SD. (See also Figure 4—figure supplement 1C.) (E) DKO 431.A organoids were infected with a retroviral vector that was empty, expresses RXRAwt, or expresses RXRAS427F and expression of total RXRA (western blot) and human RXRA (RT-qPCR, triplicate +/SD) was determined. (F) Mean CellTiter-Glo signal ±SEM from three identical experiments, each performed using triplicate organoid wells. Comparison of D10 data is by paired t-test. (G) Identical number of indicated organoid cells were plated in media without EGF and then harvested with trypsin weekly and counted in duplicate using a BioRad TC20. Identical numbers of cells were then re-plated and this was repeated for 6 weeks. Total cell number doublings were calculated and plotted. Comparison of doublings is by paired t-test.

https://doi.org/10.7554/eLife.30862.010

Bladder cancer genomes typically harbor mutations in several genes recognized as recurrently altered in bladder cancers (Cancer Genome Atlas Research Network, 2014). We speculated that pro-tumorigenic activities of PPAR signaling may only be apparent in the context of tumor suppressor loss. For our analysis, we focused on TP53 and KDM6A which are amongst the most frequently mutated tumor suppressors in bladder cancer, mutated in ~50% and~25% of bladder cancer cases, respectively (Cancer Genome Atlas Research Network, 2014; Guo et al., 2013; Van Allen et al., 2014). Of 16 patient samples identified with an RXRA hot-spot mutation across three cohorts, four had mutations in both TP53 and KDM6A, five had mutations in TP53 only, three had mutations in KDM6A only, and four had mutations in neither (Cerami et al., 2012). To determine if loss of tumor suppressor function would enable pro-tumorigenic activities of PPAR activation, we generated conditional knock-out bladder organoids from mice with the following three genotypes: (1) Trp53F/F, (2) Kdm6aF, and (3) Trp53F/F;Kdm6aF. Three independent organoid lines (each from a distinct mouse bladder) were generated with each genotype. These organoid lines were then all infected with Adeno-cre and complete deletion of the conditional alleles was confirmed by genotyping PCR (not shown). The wild-type organoids utilized in Figure 4A were generated from the littermates of these mice and also were infected with Adeno-Cre to control for Cre exposure.

We then determined growth of the organoids in EGF deplete media after treatment with PPAR agonists (Figure 4B, Figure 4—figure supplement 1B). No genotype showed consistent positive growth in the vehicle condition. Elimination of Trp53, but not Kdm6a, was sufficient for GW0742 to drive proliferation. With combined knock-out of Trp53 and Kdm6a, growth induction by GW0742 was even more robust than with Trp53 knock-out alone. These data suggest that loss of tumor suppressors creates a context permissive for PPARD-driven proliferation. Even though responsiveness to GW0742 was consistent across all of the dual knock-out organoids, we reasoned that utilizing a clonal sub-line might minimize variation due to random clonal skewing in later experiments involving retroviral infection and drug selection. Therefore, we established DKO 431.A from a single organoid picked from the DKO 431 line and assessed its responsiveness to PPAR agonists. DKO 431.A showed strong, dose-dependent, enhanced growth when treated with GW0742, but not pioglitazone (Figure 4C). To assess transcriptional activation by the same PPAR agonists, DKO 431.A organoids were plated in standard media for 7 days and then treated with two doses of GW0742 or pioglitazone for 48 hr. Expression of two PPAR target genes, Plin2 and Fabp4 was then determined by RT-qPCR. GW0742 strongly induced both genes, while pioglitazone and little to no effect (Figure 4D, Figure 4—figure supplement 1C). These findings confirm that the ability of PPAR agonists to induce target genes in DKO 431.A correlates with their ability to promote growth-factor-independent growth. The apparent lack of response to PPARG agonist in these experiments is likely simply due to its lower expression in these mouse organoids relative to 575A and JMSU-1, the two cells lines in which we had established induction of PPAR target genes with pioglitazone in Figure 1 (Figure 4—figure supplement 1D).

Mutant RXRA drives sustained growth-factor-independent growth in urothelial organoids with concurrent loss of Kdm6a and Trp53

We then asked if RXRAS427F would promote growth-factor-independent growth. DKO 431.A was infected with retrovirus bearing empty vector, RXRAwt, or RXRAS427F and similar expression levels of RXRA between the wild-type and mutant condition was confirmed by western blot and qPCR (Figure 4E). Growth of the organoids in EGF deplete media was then assessed. Mutant RXRA-expressing organoids grew significantly faster than empty vector or wild-type expressing organoids (Figure 4F). However, growth was also observed in the wild-type condition. To ensure that the difference between mutant and wild-type growth was robust, we passaged wild-type and mutant-expressing organoids with tyrpsinization weekly, always plating an identical number of cells and then counting the number of cells present at time of each passage. The total number of doublings over six passages was then determined. Mutant RXRA organoids showed consistent growth throughout the experiment, while the wild-type condition appeared to plateau (Figure 4G). Comparing the number of doublings per passage between the two conditions, we found the difference to be highly significant (paired t test p=0.0003), confirming gain-of-function with the mutant allele.

Mutant RXRA-driven proliferation of urothelial organoids is dependent on PPARD activity

Having established that RXRAS427F phenocopies GW0742 induced growth in the organoid growth assay, we next looked for transcriptional evidence that RXRAS427F was activating PPARD. Organoids were cultured in standard media for seven days and then treated with PPAR antagonists for an additional two days. We then determined mRNA expression levels of two PPAR target genes by RT-qPCR. Comparing vehicle-treated samples, Plin2 and Fabp4 were found significantly up-regulated in the mutant condition compared to the empty vector or wild-type organoids, confirming that mutant RXRA up-regulates expected PPAR targets in the organoid system (Figure 5A). Treatment of the mutant expressing organoids with either of two PPARD inverse agonists, ST247 and GSK0660, blunted up-regulation of the target genes (Figure 5A, Figure 5—figure supplement 1) (Naruhn et al., 2011; Shearer et al., 2008). The PPARG antagonist T0070907 did not show any inhibitory activity. These findings confirm that mutant RXRA drives PPARD hyper-activity in the organoid system.

Figure 5 with 1 supplement see all

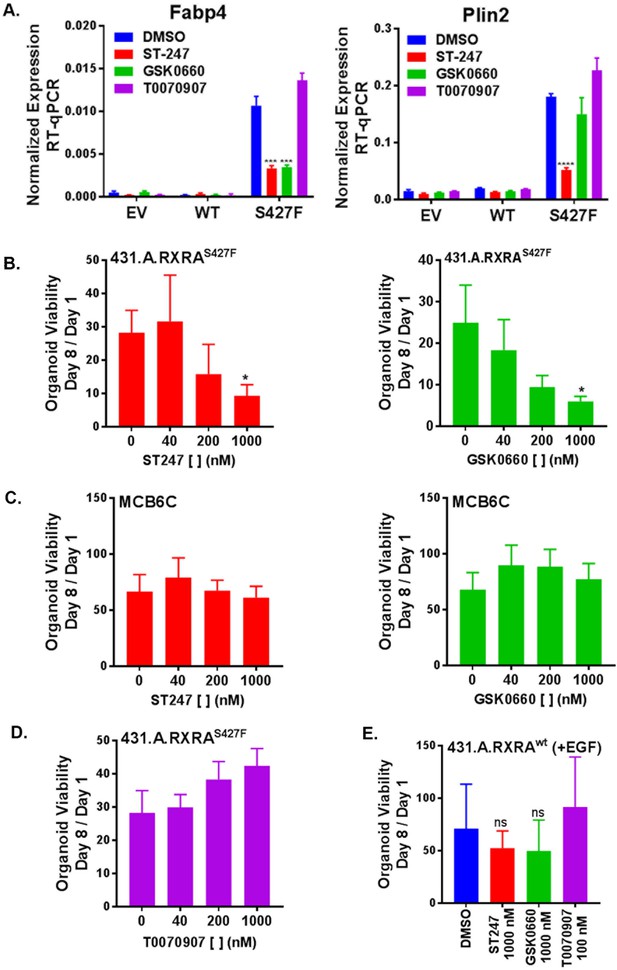

RXRA S427F generates PPARD-dependent urothelial growth.

(A) Retrovirally transduced organoids from Figure 4 were plated for 7 days in standard media and then treated with the indicated PPARD antagonists (1000 nM ST-247, GSK0660) or PPARG antagonist (100 nM T0070907) for 2 days. Expression of PPAR targets was determined by RT-qPCR in triplicate ±SD and comparison is by Student’s t-test to the RXRAS427F DMSO condition. (See also Figure 5—figure supplement 1)) (B-E) CellTiter-Glo growth assay of indicated organoid lines treated with indicated drugs. Plotted is mean signal ±SEM from three independent experiments, each performed using triplicate organoid wells. MCB6C is an organoid line we derived from a carcinogen-induced bladder tumor and lacks RXRA mutation. Organoids were cultured in media without EGF except for panel E where inclusion of EGF is indicated. Comparison is to DMSO condition using paired t-test.

https://doi.org/10.7554/eLife.30862.012

We next sought to determine if mutant RXRA-driven growth could be reversed with PPAR inhibition. When treated with either of the two PPARD antagonists, the mutant expressing organoids showed significant, dose-dependent growth inhibition (Figure 5B.) To determine if the proliferative effects of PPARD inhibitors was specific to the RXRA-mutant-driven proliferation, we utilized an organoid line we established from a carcinogen-induced bladder tumor, called MCB6C, which shows robust growth in EGF deplete media, but does not harbor the RXRA mutation (not shown). Treatment of MCB6C with the PPARD inhibitors in EGF deplete media did not inhibit their growth across the identical doses (Figure 5C). As expected based on the gene expression analysis, the PPARG antagonist T0070907 also had no antiproliferative effects on 431.A.RXRAS427F (Figure 5D). Lastly, 431.A.RXRwt organoids in EGF-containing media were treated with the same PPAR antagonists, none of which significantly inhibited growth of this organoid line (Figure 5E), confirming PPAR dependence is specific to mutant RXRA-driven proliferation.

Discussion

A role for PPAR activity in promoting bladder cancer is supported by the presence of a PPARG gene amplification in 17% of cases (Cancer Genome Atlas Research Network, 2014). Intriguingly, pioglitazone use in patients with diabetes appears to increase bladder cancer risk, further hinting that PPARG activation can promote bladder cancer growth (Lewis et al., 2011). Our studies identified RXRA point mutations as a second genomic mechanism by which PPARs can be hyperactivated. These data, along with our direct functional evidence that PPAR activation by agonist or mutant RXRA drives urothelial proliferation, build on a growing body of data credentialing PPARs as bladder cancer drivers. Importantly, human bladder cancer samples appear to express both PPARD and PPARG and our data suggest both are activated by mutant RXRA and play a role in transcriptional hyperactivity in human bladder cancer cells. In order to guide drug development, future studies will be needed with a broad panel of human-derived tissue to determine if one PPAR isoform is of greater clinical relevance to RXRA mutation-driven disease. We speculate co-targeting of PPARD and PPARG will be necessary, perhaps even in PPARG amplified cases, as functional redundancy of homologous nuclear receptors or kinases is known to be exploited by tumors, in some cases underlying treatment resistance to therapeutics targeting only one homologue (Arora et al., 2013; Juric et al., 2015).

Heyman and colleagues showed two decades ago that RXR agonists can induce activation of RXR/PPAR heterodimers, independent of the RXR AF2, by inducing conformational changes in PPAR (Schulman et al., 1998). The RXRA hot-spot mutations appear to co-opt a similar, although mechanistically distinct, activation principle, relying on the introduction of an aromatic interaction that drives ligand-independent activation of PPARs. While this manuscript was under preparation, Korpal et al. reported biophysical data characterizing the mutant RXRA/PPARG heterodimer (Korpal et al., 2017). Those in vitro findings align with our modeling predictions, which we further functionally validated with cell-based mutational studies, both with PPARG and PPARD. This allosteric activation mechanism of the PPAR AF2 by mutant RXRA raises unique challenges with regard to inhibitor design. In our study, we utilized inverse agonists which bind the LBD and stabilize interactions with co-repressors. While they are effective at reversing mutant RXRA-driven activity, we suspect chemical screens using assays in which PPARs are activated through the mutation-based mechanism may identify optimal inverse agonists capable of more complete target inhibition.

Inverse agonists binding the PPAR LBD remain the most characterized strategy to inhibit PPAR activity, but may not prove to be the most effective approach for blocking ligand independent activity driven by RXRA mutations. A potentially more effective strategy might be through the identification of small molecules that induce PPAR degradation. Supporting the concept, ligands that induce destabilizing conformations in ER have been identified (Wu et al., 2005), and the clinical utility of the ER degrader fluvestrant has been validated in breast cancer clinical trials (Howell et al., 2002; Osborne et al., 2002). Similar to ER, PPARs undergo agonist-induced degradation, suggesting therapeutic ligand-induced degradation of PPARs might also be feasible (Hauser et al., 2000). Perhaps, a more rational approach to inducing PPAR degradation would be to engineer PPAR ligands linked to a chemical tag (e.g. PROTAC) that targets proteins to the proteasome. Such approaches have been used in preclinical systems to degrade other nuclear receptors (Rodriguez-Gonzalez et al., 2008), although the clinical utility of the approach is not yet established. Lastly, the identification of biologically active small molecules that disrupt co-regulator binding to the ER AF2 raises yet another possible paradigm for targeting ligand-independent activation through the identification of small molecules that recognize the activated PPAR AF2 (Raj et al., 2017). Our work here should encourage such approaches with the goal of identifying inhibitors that effectively overcome PPAR tumorigenic activity due to PPARG amplification and RXRA mutation.

The organoid system provided us with a unique capability to assay epithelial autonomous effects of PPAR activity in defined genetic contexts, including normal urothelium. In contrast to classical growth factors such as EGF which stimulate proliferation of wild-type organoids, we found that PPARD activation is only sufficient to drive growth with concurrent tumor suppressor loss. One possible explanation is that tumor suppressor loss alters PPARD-driven transcriptional regulation. Studies with AR in prostate cancer suggest that the AR cistrome is broadly reprogrammed during tumorigenesis (Pomerantz et al., 2015), supporting a model in which nuclear receptors take on de novo target regulation in transformed cells. Alternatively, tumor suppressor loss may alter the cellular response to PPARD activation and/or provide complementary pro-tumorigenic signals. These possibilities will be explored in future studies and should help elucidate the cellular mechanisms by which PPAR signaling can drive urothelial proliferation. Regardless of the underlying mechanisms, however, our findings, along with recent work from others demonstrating PPARG orchestrates an immunosuppressive micro-environment to enhance tumor growth in vivo (Korpal et al., 2017), provide an increasingly compelling rationale for the development of a new class of molecularly targeted drugs with potential relevance to at least a quarter of bladder cancer cases.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
gene (Homo sapiens)RXRANANCBI Gene ID:6256;
NM_002957
gene (H. sapiens)PPARGNANCBI Gene ID:5468;
NM_138711
gene (H. sapiens)PPARDNANCBI Gene ID:5467;
NM_006238
strain, strain background
(Mus musculus)
Kdm6aFotherGenerated by Dr. Lukas Wartman
(Washington University School of
Medicine) with ES cells obtained
from EUCOMM with the Kdm6atm1a
(EUCOMM)Wtsi allele
(manuscript in preparation)
strain, strain background
(M. musculus)
Trp53Flox; B6.129P2-
Trp53tm1brn/J
The Jackson LaboratoryThe Jackson
Laboratory:008462;
RRID:IMSR_JAX:008462
genetic reagentAd5CMVCre-eGFP
adenovirus
University of Iowa
Viral Vector Core
VVC-U of Iowa:1174
cell line (M. musculus)MCB6Cthis paperClonal organoid line generated
from tumor bearing bladder of male
C57BL/6 mouse treated with BBN
cell line (M. musculus)DKO 431.Athis paperclonal organoid line generated
from the urothelium of a male
Trp53Flox/Flox;Kdm6aFlox mouse
cell line (M. musculus)WTthis paperOrganoid lines generated from the
urothelium of wild-type male mice
resulting from cross between
Trp53Flox/+ and Kdm6aFlox/+ mice
cell line (M. musculus)"Trp53-/-;
Kdm6a-"; DKO
this paperOrganoid lines were generated
from the urothelium of Trp53Flox/Flox;
Kdm6aFlox male mice and then
infected with Ad5CMVCre-eGFP
adenovirus in vitro
cell line (M. musculus)"Kdm6a-"; KKOthis paperOrganoid lines were generated
from the urothelium of Kdm6aFlox
male mice and then infected with
Ad5CMVCre-eGFP adenovirus in vitro
cell line (M. musculus)"Trp53-/-"; PKOthis paperOrganoid lines were generated
from the urothelium of Trp53Flox/Flox
male mice and then infected with
Ad5CMVCre-eGFP adenovirus in vitro
cell line (M. musculus)DKO 431.A.EVthis paperDKO 431.A organoid line infected
with retrovirus carrying
pBABE puro empty vector
cell line (M. musculus)DKO 431.
A.RXRAwt
this paperDKO 431.A organoid line infected
with retrovirus
carrying pBABE puro RXRA
cell line (M. musculus)DKO 431.A.RXRAS427Fthis paperDKO 431.A organoid line infected
with retrovirus carrying
pBABE puro RXRA S427F
cell line (H. sapiens)JMSU-1otherRRID:CVCL_2081obtained from Dr. David
Solit (MSKCC)
cell line (H. sapiens)575AotherRRID:CVCL_7941obtained from Dr. David
Solit (MSKCC)
cell line (H. sapiens)UM-UC-3otherRRID:CVCL_1783obtained from Dr. David
Solit (MSKCC)
cell line (H. sapiens)Lenti-X 293TClontechClontech:632180
cell line (H. sapiens)JMSU-1 RXRA WTthis paperJMSU-1 cell line infected with
retrovirus carrying
pBABE puro RXRA
cell line (H. sapiens)JMSU-1 RXRA S427Fthis paperJMSU-1 cell line infected
with retrovirus carrying
pBABE puro RXRA S427F
cell line (H. sapiens)JMSU-1 RXRA S427Ythis paperJMSU-1 cell line infected with
retrovirus carrying
pBABE puro RXRA S427Y
cell line (H. sapiens)575A RXRA WTthis paper575A cell line infected with
retrovirus carrying
pBABE puro RXRA
cell line (H. sapiens)575A RXRA S427Fthis paper575A cell line infected with
retrovirus carrying
pBABE puro RXRA S427F
antibodyanti-PPARG (81B8)
(rabbit monoclonal)
Cell Signaling TechnologyCell Signaling
Technology:2443;
RRID:AB_823598
(1:1000)
antibodyanti-PPARD
(rabbit monoclonal)
AbcamAbcam:ab178866(1:5000)
antibodyanti-RXRA (D6H10)
(rabbit monoclonal)
Cell Signaling TechnologyCell Signaling
Technology:3085
(1:1200)
antibodyanti-beta-Actin
(mouse monoclonal)
Sigma-AldrichSigma-Aldrich:A5441;
RRID:AB_476744
(1:50000)
antibodyanti-GAPDH (D16H11)
(rabbit monoclonal)
Cell Signaling TechnologyCell Signaling
Technology:5174;
RRID:AB_10622025
(1:1000)
antibodyanti-rabbit IgG,
HRP (goat)
Cell Signaling TechnologyCell Signaling
Technology:7074;
RRID:AB_2099233
(1:7500)
antibodyanti-mouse IgG,
HRP (horse)
Cell Signaling TechnologyCell Signaling
Technology:7076;
RRID:AB_330924
(1:7500)
antibodyanti-RXRA (K8508)
(mouse monoclonal)
R&D SystemsR&D Systems:
PP-K8508-00;
RRID:AB_2182738
(5 µg)
antibodyanti-H3K27Ac
(rabbit polyclonal)
AbcamAbcam:ab4729;
RRID:AB_2118291
(0.4 µg)
recombinant DNA reagentPPRE X3-TK-luc;
DR1 reporter
(plasmid)
Addgene; PMID 9539737Addgene:1015plasmid was deposited
by Bruce Spiegelman
recombinant DNA reagentpGL3-RARE-luciferase;
DR5 reporter (plasmid)
Addgene; PMID 16818722Addgene:13458plasmid was deposited
by T. Michael Underhill
recombinant DNA reagentpRL-SV40 (plasmid)PromegaPromega:E2231
recombinant DNA reagentpCL-ampho (plasmid)otherobtained from
Dr. Charles Sawyers (MSKCC)
recombinant DNA reagentVSVG (plasmid)otherobtained from
Dr. Charles Sawyers (MSKCC)
recombinant DNA reagentpCMV6-XL4 RARA
(plasmid)
OriGeneOriGene:SC119566
recombinant DNA reagentpCMV6-XL4 PPARG
(plasmid)
OriGeneOriGene:SC108192
recombinant DNA reagentpCMV6-XL4 PPARG
Q286P (plasmid)
this paperQ286 was mutated via site-directed
mutagenesis of pCMV6-XL4 PPARG
recombinant DNA reagentpCMV6-XL4 PPARG
E471A (plasmid)
this paperE471 was mutated via site-directed
mutagenesis of pCMV6-XL4 PPARG
recombinant DNA reagentpCMV6-XL4 PPARG
Y477S (plasmid)
this paperY477 was mutated via site-directed
mutagenesis of pCMV6-XL4 PPARG
recombinant DNA reagentpCMV6-XL4 PPARG
Y477X (plasmid)
this paperY477 was deleted via site-directed
mutagenesis of pCMV6-XL4 PPARG
recombinant DNA reagentpCMV6-XL4 empty
vector (plasmid)
this papergenerated by digesting pCMV6-XL4
PPARG with NotI to remove PPARG
and by ligating the plasmid ends
with T4 DNA ligase
recombinant DNA reagentpBABE puro
RXRA (plasmid)
AddgeneAddgene:11441deposited by Ronald Kahn
recombinant DNA reagentpBABE puro RXRA
S427F (plasmid)
this paperS427 was mutated via site-directed
mutagenesis of pBABE puro empty vector
recombinant DNA reagentpBABE puro RXRA
S427Y (plasmid)
this paperS427 was mutated via site-directed
mutagenesis of pBABE puro empty vector
recombinant DNA reagentpBABE puro RXRA
E453A (plasmid)
this paperE453 was mutated via site-directed
mutagenesis of pBABE puro empty vector
recombinant DNA reagentpBABE puro RXRA
S427F/E453A (plasmid)
this paperE453 was mutated via site-directed
mutagenesis of pBABE puro RXRA S427F
recombinant DNA reagentpBABE puro empty
vector (plasmid)
this papergenerated by digesting pBABE
puro RXRA with EcoRI to remove
RXRA and by ligating the plasmid
ends with T4 DNA ligase
recombinant DNA reagentpCMV6-XL4 PPARD
(plasmid)
this paperHuman PPARD was cloned
from JMSU-1 epithelial bladder
cancer cells and inserted
into the pCMV6-XL4
recombinant DNA reagentpCMV6-XL4 PPARD
Y441S (plasmid)
this paperY441 was mutated via site-directed
mutagenesis of pCMV6-XL4 PPARD
recombinant DNA reagentpCMV6-XL4 PPARD
Y441X (plasmid)
this paperY441 was deleted via site-directed
mutagenesis of pCMV6-XL4 PPARD
sequence-based reagentON-TARGETplus
Non-targeting
Pool (siRNA)
DharmaconDharmacon:
D-001810-10-20
sequence-based reagentON-TARGETplus Human
PPARG siRNA
DharmaconDharmacon:
L-003436-00-0005
sequence-based reagentON-TARGETplus Human
PPARD siRNA
DharmaconDharmacon:
L-003435-00-0005
commercial assay or kitDual-Glo Luciferase
Assay System
PromegaPromega:E2940
commercial assay or kitCellTiter-GloPromegaPromega:G7571
commercial assay or kitOvation Ultraflow
System V2
NuGenNuGen:0344-32
chemical compound, drugPioglitazoneSigma-AldrichSigma-Aldrich:E6910
chemical compound, drugGW 0742TocrisTocris:2229
chemical compound, drugSR 11237TocrisTocris:3411
chemical compound, drugall-trans-Retinoic
Acid (ATRA)
Sigma-AldrichSigma-Aldrich:R2625
chemical compound, drugGSK 0660TocrisTocris:3433
chemical compound, drugST247Sigma-AldrichSigma-Aldrich:SML0424
chemical compound, drugT0070907Cayman ChemicalCayman Chemical:10026
software, algorithmGROMACS 5.1.3DOI: 10.1016/j.softx.
2015.06.001
RRID:SCR_014565
software, algorithmMSMBuilder 2.8PMID: 22125474
software, algorithmChimeraPMID: 15264254;
http://www.rbvi.ucsf.edu/chimera
RRID:SCR_004097
sequence-based reagentmKDM6A Forward
(primer)
this paper5' CGAGAAAGGAAATGTG
AGAGCAAGG 3'
sequence-based reagentmKDM6A Reverse 4
(primer)
this paper5' CTGGCAGGATATGATA
GCAATGTG 3'
sequence-based reagentoIMR8543 (primer)The Jackson Laboratory;
https://www2.jax.org/protocolsdb/f?p=116:2:0::NO:2:P2_MASTER_PROTOCOL_ID,P2_JRS_CODE:3226,008462
5' GGTTAAACCCAGCT
TGACCA 3'
sequence-based reagentoIMR8544 (primer)The Jackson Laboratory;
https://www2.jax.org/protocolsdb/f?p=116:2:0::NO:2:P2_MASTER_PROTOCOL_ID,P2_JRS_CODE:3226,008462
5' GGAGGCAGAGACA
GTTGGAG 3'
sequence-based reagentPPARD.qPCR.Fwd.1
(primer)
this paper5' ATGCACCAACGA
GGCTGATG 3'
sequence-based reagentPPARD.qPCR.Rev.1
(primer)
this paper5' CTGCTCCATGGCT
GATCTCC 3'
sequence-based reagentPPARG fwd1 (primer)this paper5' ATGCCTTGCAGT
GGGGATGTC 3'
sequence-based reagentPPARG rev1 (primer)this paper5' GAGGTCAGCGGA
CTCTGGATTC 3'
sequence-based reagenthPLIN2 fwd1 (primer)this paper5' AGTGCTCTGCCC
ATCATCCAG 3'
sequence-based reagenthPLIN2 rev1 (primer)this paper5' TCACAGCGCCTT
TGGCAT TG 3'
sequence-based reagentFABP4 fwd1 (primer)this paper5' ACTGCAGCTTCCT
TCTCACCTTG 3'
sequence-based reagentFABP4 rev1 (primer)this paper5' TGCCAGCCACTT
TCCTGGTG 3'
sequence-based reagentmPlin2 Fwd1 (primer)this paper5' GTGCCCTGCCC
ATCATCC 3'
sequence-based reagentmPlin2 Rev1 (primer)this paper5' TTACGGCACCTCT
GGCACTG 3'
sequence-based reagentmFabp4 Fwd1 (primer)this paper5' TGCAGCCTTTCTCA
CCTGGAAG 3'
sequence-based reagentmFabp4 Rev1 (primer)this paper5' GCCTGCCACTTTCC
TTGTGG 3'
sequence-based reagentRXRA fwd1 (primer)this paper5' ACAAGACGGAGC
TGGGCTG 3'
sequence-based reagentRXRA rev2 (primer)this paper5' GGCTGCTCTGGGT
ACTTGTGC 3'
sequence-based reagentRXRA E453A SDM For
(primer)
this paper5' acaccttccttatggccat
gctggaggcgccg 3'
sequence-based reagentRXRA E453A SDM Rev
(primer)
this paper5' cggcgcctccagcatggcc
ataaggaaggtgt 3'
sequence-based reagentRXRa S427F-F (primer)this paper5' CCG GCT CTG CGC TTT
ATC GGG CTC AAA T 3'
sequence-based reagentRXRa S427F-R (primer)this paper5' CAT TTG AGC CCG ATA
AAG CGC AGA GCC G 3'
sequence-based reagentRXRa S427Y-F (primer)this paper5' CCG GCT CTG CGC TAT
ATC GGG CTC AAA T 3'
sequence-based reagentRXRa S427Y-R (primer)this paper5' CAT TTG AGC CCG ATA
TAG CGC AGA GCC G 3'
sequence-based reagentF hPPARGQ286P (primer)this paper5' ccacggagcgaaacgg
gcagccctgaaag 3'
sequence-based reagentR hPPARGQ286P (primer)this paper5' ctttcagggctgcccgttt
cgctccgtgg 3'
sequence-based reagentF hPPARGE471A (primer)this paper5' agtccttgtagatcgcctg
caggagcggg 3'
sequence-based reagentR hPPARGE471A (primer)this paper5' cccgctcctgcaggcgat
ctacaaggact 3'
sequence-based reagentPPARG Y477S For SDM
(primer)
this paper5' GAGATCTACAAGGACTTGAG
CTAGCAGAGAGTCCTGAGC 3'
sequence-based reagentPPARG Y477S Rev SDM
(primer)
this paper5' GCTCAGGACTCTCTGCTAGCT
CAAGTCCTTGTAGATCTC 3'
sequence-based reagentPPARG Y477X For SDM
(primer)
this paper5' GATCTACAAGGACTTGTAG
TAGCAGAGAGTCCTGA 3'
sequence-based reagentPPARG Y477X Rev SDM
(primer)
this paper5' TCAGGACTCTCTGCTACTAC
AAGTCCTTGTAGATC 3'
sequence-based reagentPPARD Y441S For (primer)this paper5' AGATCTACAAGGACATGAG
CTAACGGCGGCACCCAG 3'
sequence-based reagentPPARD Y441S Rev (primer)this paper5' CTGGGTGCCGCCGTTA
GCTCATGTCCTTGTAGATCT 3'
sequence-based reagentPPARD Y441X For (primer)this paper5' GATCTACAAGGACATGTGA
TAACGGCGGCACCCAGG 3'
sequence-based reagentPPARD Y441X Rev (primer)this paper5' CCTGGGTGCCGCCGTTATC
ACATGTCCTTGTAGATC 3'

Mouse Bladder Organoid Generation and Culturing: Urothelium was dissected from bladders collected from 6- to 8-week-old male mice, minced into smaller pieces with scissors, and digested with collagenase type II (17101015 Gibco) re-suspended at 5 mg/mL in Advanced DMEM/F12+++ medium (advanced DMEM/F-12 medium (12634028 Gibco) supplemented with 1% penicillin-streptomycin and 1% HEPES (MT25060CI Corning)), 5 µM ROCK1/2 inhibitor Y-27632 (72302 Stemcell Technologies), and 0.2 mg/mL elastase (E7885 Sigma) for 4 hr at 37°C while shaking at 700 rpm. After digestion with collagenase, cells were pelleted at 500 x g for 5 min and digested with TrypLE (12605010 Gibco) for 30 min at 37°C with shaking at 700 rpm. Cells were washed with Advanced DMEM/F12+++ medium and re-suspended in growth factor reduced Matrigel (356231 Corning) at 10,000 cells per a 50 µL Matrigel tab. Tabs were incubated at 37°C for 15 min to allow Matrigel to harden. Once hardened, tabs were cultured in organoid medium prepared as described in Gao et al. (2014) except for the following changes: final concentration of EGF was 5 ng/µL, final concentration of A83-01 was 20 nM, and FGF10, FGF2, dihydrotestosterone, Y-27632, SB202190, and primocin were omitted. Organoids were split approximately every 7 days. Tabs were homogenized by pipetting. Organoids were digested with TrypLE for approximately 20 min at 37°C with periodic vortexing. Cells were washed with Advanced DMEM/F12+++ medium and re-suspended at 10,000 cells per a 50 µL Matrigel tab. To generate MCB6C, mice were treated with BBN 0.1% via drinking water for 22 weeks. Bladders were harvested and a polyclonal organoid line (MCB6) was generated from a tumor-bearing bladder. A single organoid was isolated to generate MCB6C.

Mice

Animals were handled and housed according to protocols approved by the Washington University School of Medicine Institutional Animal Care and Use Committee. Kdm6aF mice were generated by Dr. Lukas Wartman (Washington University School of Medicine) with ES cells obtained from EUCOMM with the Kdm6atm1a(EUCOMM)Wtsi allele (manuscript in preparation) and maintained on the C57BL6/J background. B6.129P2-Trp53tm1brn/J (Trp53Flox) mice were purchased from Jackson Laboratory (stock # 008462). Mice were genotyped via PCR (Kdm6a 5’ CGAGAAAGGAAATGTGAGAGCAAGG 3’ and 5’ CTGGCAGGATATGATAGCAATGTG 3’; Trp53 5’ GGTTAAACCCAGCTTGACCA 3’ and 5’ GGAGGCAGAGACAGTTGGAG 3’). Experimental animals resulted from crosses between Kdm6aFlox/+ and Trp53Flox/+ mice.

Adenovirus infection of organoids

To generate Trp53-/-, Kdm6a-, and Trp53-/-;Kdm6a- organoids, Trp53Flox/Flox, Kdm6aFlox, and Trp53Flox/Flox;Kdm6aFlox organoids were infected with Ad5CMVCre-eGFP adenovirus (University of Iowa Viral Vector Core) in vitro. Organoids were trypsinized into single cells. 500,000 cells were pelleted in a 1.5-mL tube and re-suspended in 100 µL of organoid medium supplemented with a final concentration of 5 µg/mL polybrene (TR-1003-G Millipore) with or without virus at a MOI of 50. Cells were incubated at 32°C with shaking at 700 rpm on an Eppendorf ThermoMixer for 1 hr. Cells were then incubated at 37°C without shaking for approximately 2.5 hr. Cells were pelleted and re-suspended in 650 µL Matrigel to make twelve 50 µL Matrigel tabs. Tabs were hardened at 37°C for 15 min and organoid medium was added. To verify recombination of floxed alleles, DNA was isolated from organoid cell pellets using the DNeasy Blood and Tissue Kit (69506 Qiagen, Germany) and genotyped via PCR using the primers listed in Key Resources.

Expression vector construction

Wild-type human RXRA was expressed from pBABE puro RXRA (plasmid #11441 Addgene). Point mutations were introduced via the QuikChange Site-Directed Mutagenesis protocol (Agilent Technologies). pBABE puro empty vector was generated by digesting pBABE puro RXRA with EcoRI to remove RXRA and by ligating the plasmid ends together with T4 DNA ligase (M0202S New England BioLabs). Wild-type human PPARG1 was expressed from pCMV6-XL4 PPARG (SC108192 Origene). Point mutations were introduced via the QuikChange Site-Directed Mutagenesis protocol. pCMV6-XL4 empty vector was generated by digesting pCMV6-XL4 PPARG with NotI to remove PPARG and by ligating the plasmid ends together with T4 DNA ligase. Human PPARD was cloned from JMSU-1 epithelial bladder cancer cells. Cells were harvested upon reaching 80–90% confluency and total RNA was isolated using the RNeasy Mini Kit. JMSU-1 cDNA was generated using a First-Strand cDNA Synthesis Kit (27-9261-01 GE Healthcare Life Sciences) with random hexameric primers and 5 µg total RNA. Primers targeting the 5’ and 3’ UTRs were used to amplify PPARD. PPARD was inserted into the pCMV6-XL4 expression vector using the In-Fusion HD Cloning System (639646 Clontech). Point mutations were introduced via the QuikChange Site-Directed Mutagenesis protocol. See Key Resources for primer sequences.

Cell lines

JMSU-1, 575A, and UM-UC-3 were obtained from Dr. David Solit (MSKCC). 293 Lenti-X cells were obtained from Clonetech. Cells were cultured in recommended medium supplemented with 10% fetal bovine serum (FBS; FB-11 Omega Scientific), 1% penicillin-streptomycin (15140122 Gibco), and 1x GlutaMAX Supplement (35050061 Gibco). Cells were grown at 37°C in 5% CO2.

Retroviral infections

Retrovirus was produced by using LipoD293 DNA In Vitro Transfection Reagent (SL100668 SignaGen Laboratories) to transiently transfect 293 Lenti-X cells with 0.45 µg VSVG, 2.27 µg pCL-ampho, and 2.27 µg pBABE puro empty vector, RXRA WT, RXRA S427F, or RXRA S427Y in a 100 mm TC-treated tissue culture dish. Medium was replaced with recommended culturing medium approximately 6 hr post-transfection. Retrovirus was collected 48 hr post-transfection and was filtered through a 0.45-µM filter. Stable cells lines were generated by seeding cells in a 100 mm TC-treated tissue culture dish 18–24 hr before adding virus so that cell confluency was 50–70% when virus was added. The next day, medium was removed and retrovirus diluted 1:4 in the recommended culturing medium and supplemented with a final concentration of 8 µg/mL polybrene (TR-1003-G Millipore) was added to the cells. After approximately 24 hr, the virus-containing medium was replaced with fresh medium. Cells were cultured for an additional 36 hr, at which time puromycin (P8833 Sigma-Aldrich) was added at a predetermined concentration to select for transduced cells. To generate stable organoid lines, organoids were trypsinized into single cells. 500,000 cells were pelleted in a 1.5-mL tube and resuspended in 500 µL of 1:1 organoid medium:retrovirus mixture supplemented with a final concentration of 8 µg/mL polybrene. Cells were incubated at 32°C with shaking at 600 rpm on an Eppendorf ThermoMixer for 1.5 hr. Cells were then incubated at 37°C without shaking for approximately 5 hr. Cells were pelleted and resuspended in enough Matrigel to make three 50 µL Matrigel tabs. Tabs were hardened at 37°C for 15 min and organoid medium was added. 48 hr after infection, puromycin was added at a predetermined concentration to select for transduced cells.

siRNA knockdown

Cells were seeded in a 12-well cell culture plate 18–24 hr before transfection so that cell confluency was 50–70% at time of transfection. PepMute siRNA Transfection Reagent (SL100566 SignaGen Laboratories) was used to transiently transfect cells with ON-TARGETplus Non-targeting Pool (D-001810-10-20 Dharmacon), ON-TARGETplus Human PPARG siRNA (L-003436-00-0005 Dharmacon), and/or ON-TARGETplus Human PPARD siRNA (L-003435-00-0005 Dharmacon). PepMute/siRNA complex-containing medium was replaced with recommended culturing medium approximately 24 hr post transfection. Cells were collected 72 hr post transfection.

Western blotting

Cells and organoids were lysed in M-PER (78501 Thermo Scientific) supplemented with 1x Halt Protease Inhibitor Cocktail (87786 ThermoFisher Scientific) and 0.45 M NaCl for 10 min on ice with periodic vortexing. Lysates were cleared by centrifugation at 18,000 x g for 15 min. Protein concentration was determined with Pierce BCA Protein Assay (23224/23228 ThermoFisher Scientific). Protein lysates were denatured by boiling in 1x Bolt LDS Sample Buffer (B0008 Invitrogen) and 1x NuPAGE Sample Reducing Reagent (NP0004 Invitrogen) for 10 min. Proteins were separated on Bolt 4–12% Bis-Tris Plus Gels (NW04122BOX Invitrogen), transferred onto Immobilon-P Membrane, PVDF, 0.45 µM (IPVH00010 Millipore), and blocked according to antibody specifications. Blots were incubated with primary antibody in blocking solution overnight at 4°C. Blots were washed with 1x TBS plus 0.1% Tween and primary antibodies were detected with HRP-conjugated secondary antibodies. Amersham ECL Prime western blotting detection reagent (RPN2232 GE Healthcare Life Sciences) or Clarity Western ECL Substrate (170–5060 Bio-Rad) was used for chemiluminescence and luminescence was detected with the Bio-Rad ChemiDoc XRS + System. Antibodies and concentration list in Key Resources

RNA isolation, cDNA synthesis, and RT-qPCR

RNeasy Mini Kit (74106 Qiagen) was used to isolate RNA from organoid and cell pellets. iScript cDNA Synthesis Kit (1708891 Bio-Rad) was used to synthesize cDNA from 0.5 to 1 µg of RNA. RT-qPCR was performed according to package instructions for SsoFast EvaGreen Supermix with low ROX (172–5211 Bio-Rad) on the Applied Biosystems QuantStudio 3 Real-Time PCR system. See Key Resources for primer sequences used.

Reporter assays

Cells were seeded in a 48-well cell culture plate 18–24 hr before transfection so that cell density was approximately 70% at time of transfection. LipoD293 DNA In Vitro Transfection Reagent (SL100668 SignaGen Laboratories) was used to transiently transfect cells with a reporter plasmid, expression vectors, and a plasmid expressing Renilla luciferase. LipoD293/DNA complex-containing medium was replaced with recommended culturing medium supplemented with 1% FBS 16–18 hr post-transfection. Drugs were added to cells 48 hr post transfection. Drug-containing medium was removed 16 hr later and cells were washed with 1x PBS. Luciferase activity was assayed using Dual-Glo Luciferase Assay System (E2940 Promega) and in accordance with the Dual-Glo protocol except that a 1:1 mixture of 1xPBS:Dual-Glo Reagent was added to the cells. Luminescence was measured on the SpectraMax i3 Platform (Molecular Devices). See Key Resources for list of plasmids.

Growth assays

Organoids were plated at 1000 or 1500 cells per tab and cultured in normal or EGF deplete organoid medium, respectively, for 8–10 days. Drugs or DMSO were added to medium at time of plating. Medium was changed every 4 days post-plating. Cell viability was measured day 1 (baseline measurement) and at indicated days post-plating using CellTiter-Glo (G7571 Promega). Briefly, tabs were homogenized in 1:1 mixture of 1xPBS:CellTiter-Glo reagent and incubated at room temperature for 10 min with shaking. Homogenate was transferred to a white, 96-well plate and luminescence was measured on the SpectraMax i3 Platform. For organoid counting assay, organoids were digested into a single-cell suspension with trypsin and the counted in duplicate using a Bio-rad TC20.

RNA-seq sample preparation

Cells were seeded in biological triplicate in 6-well tissue culture plates at 300,000 cells (JMSU-1) or 125,000 (575A) cells per well. 48 hr later, 0.1% DMSO or 1 µM pioglitazone (E6910 Sigma-Aldrich) was added to cells. RNA was isolated with the RNeasy Mini Kit (74106 Qiagen) 16–18 hr after addition of drugs. RNA library prep and sequencing were done by the Genome Technology Access Center in the Department of Genetics at Washington University School of Medicine. Briefly, Ribosomal RNA was removed by poly-A selection using Oligo-dT beads. mRNA was then fragmented and reverse transcribed to yield double stranded cDNA using random hexamers. cDNA was blunt ended, had an A base added to the 3’ ends, and then had Illumina sequencing adapters ligated to the ends. Ligated fragments were then amplified for 12 cycles using primers incorporating unique index tags. Fragments were sequenced on an Illumina HiSeq-2500 or HiSeq-3000 using single reads extending 50 bases.

RNA-seq data acquisition, quality control, and processing

RNA-seq reads were aligned to the Ensembl release 76 top-level assembly with STAR version 2.0.4b. Gene counts were derived from the number of uniquely aligned unambiguous reads by Subread:featureCount version 1.4.5. Transcript counts were produced by Sailfish version 0.6.3. Sequencing performance was assessed for total number of aligned reads, total number of uniquely aligned reads, genes and transcripts detected, ribosomal fraction known junction saturation and read distribution over known gene models with RSeQC version 2.3. All gene-level and transcript counts were then imported into the R/Bioconductor package EdgeR and TMM normalization size factors were calculated to adjust for samples for differences in library size. Genes or transcripts not expressed in any sample were excluded from further analysis. The TMM size factors and the matrix of counts were then imported into R/Bioconductor package Limma and weighted likelihoods based on the observed mean-variance relationship of every gene/transcript and sample were then calculated for all samples with the voomWithQualityWeights function. Performance of the samples was assessed with a spearman correlation matrix and multidimensional scaling plots. Gene/transcript performance was assessed with plots of residual standard deviation of every gene to their average log-count with a robustly fitted trend line of the residuals. Generalized linear models were then created to test for gene/transcript level differential expression. Differentially expressed genes and transcripts were then filtered for FDR adjusted p-values less than or equal to 0.05. Go-Elite version 1.2 was used to identify over-represented pathways curated by KEGG.

ChIP-seq sample preparation

JMSU-1 cells stably expressing RXRAwt or RXRAS427F were seeded in biological triplicate in 150 mm TC-treated culture dish and collected when 70–90% confluency was reached. Crosslinking and ChIP were performed as described for adherent cells in the ENCODE experiment summary for ENCSR000BJW (https://www.encodeproject.org/experiments/ENCSR000BJW/). Chromatin was sonicated using the Diagenode Pico Bioruptor. DNA-protein complexes were precipitated with antibodies against RXRA (PP-K8508-00 R and D Systems) and H3K27Ac (ab4729 Abcam). Ovation Ultralow System V2 (0344–32 NuGen) was used to generate the sequencing library. The library was sequenced by the Genome Technology Access Center in the Department of Genetics at Washington University School of Medicine.

ChIP-seq data analysis

Reads were aligned to hg19 using NovoAlign version 3.04.06 with the command novoalign -r None -l 30 -e 100 -i 230 140 –H. For the RXRA and H3K27ac IPs, peaks were called for each phenotype using the IDR (Li et al., 2011) pipeline described here (Kundaje, 2012) with MACS version 2.1.1 (Zhang et al., 2008) as the peak caller. RAE regions were defined for each phenotype by running bedtools intersect on the H3K27ac and RXRA IDR peak lists. Differential binding analysis was performed on the H3K27ac signal using DiffBind (Ross-Innes et al., 2012) comparing mutant to wild-type with the IDR peak lists as input and an FDR cutoff of 0.05. Motif analysis of the RAE regions was performed using HOMER version 4.9 (Heinz et al., 2010) with the command findMotifsGenome.pl –h –bg <Background> <Peaklist> hg19. Peaklist was the RAE regions found by DiffBind to have higher H3K27ac binding in mutant. Background was the list of all RAE regions minus the ones found in peaklist.

Preparation of structures for molecular dynamics simulations

The published structure of complexed RXRA/PPARG LBDs bound to agonist (PDB: 1FM6) (Gampe et al., 2000) was used as the starting conformation for simulations. To reduce subsequent computational complexity and enable drift towards an inactive state during simulations, the respective agonist structures binding RXRA and PPARG were removed. The small peads were aligned to hg19 usptide nuclear receptor coactivator 1 (NCOA1) bound to both RXRA and PPARG AF2 domains was also removed with the same purpose. The Chimera molecular visualization tool (Pettersen et al., 2004) was used to mutate RXRA serine 427 to phenylalanine (RXRA S427F), creating wild-type and mutant structures for subsequent simulations.

Molecular dynamics simulations

The protocol described by Hart et. al. was used for molecular dynamics simulations (Hart et al., 2016). Briefly, simulations were performed using the molecular dynamics package GROMACS 5.1.3 (Abraham et al., 2015). The Amber03 force field (Duan et al., 2003) was used and hydrogen atoms in each structure were replaced with virtual sites. The protein structure was solvated within a dodecahedron whose border was at least 10 Å away from the protein in all directions. Chlorine counterions were added to neutralize the system’s overall positive charge. To ensure the system contains no steric clashes or inappropriate geometry, energy minimization was used to relax the system below a 1000 kJ/mol/nm threshold. To equilibrate solvent and ions around the structure, the system underwent position-restrained molecular dynamics simulation for one nanosecond using a step size of 4 fs. After relaxation and equilibration, each system was subjected to long-timescale molecular simulations. Simulations took place using the NPT ensemble at 1 bar and 300 K. Parrinello-Rahman pressure coupling (Parrinello and Rahman, 1981) and the V-rescale thermostat (Bussi et al., 2007) were used during simulations. The LINCS method (Hess, 2008) constrained hydrogen bonds and allowed the use of virtual sites. The cutoffs for electrostatic and van der Waals interactions was 9 Å. Periodic boundary conditions were applied during simulation and the particle-mesh Ewald summation reconstituted any long-distance electrostatic interactions. Each simulation lasted 100 nanoseconds with conformations stored every 10 picoseconds. Ten simulations were run to produce an aggregate 1 microsecond of simulation for both wild-type and mutant conditions.

Markov state modeling

MSMBuilder 2.8 (Beauchamp et al., 2011) was used to analyze conformations adopted during molecular simulation. Wild-type and mutant structures were clustered in overlapping state space using the hybrid k-centers/k-medoids technique. Clustering was based on the RMSD of between backbone-heavy atoms from PPARG 445–477 and RXRA 425–429. The inter-cluster distance cutoff was 1 Å and 50 iterations were performed to refine cluster assignment. A microstate Markov state model (MSM) was constructed using the Transpose method for symmetric counts matrix estimation and without applying an ergodic trim. The 5% most frequently occupied microstates during wild-type and mutant conformations were selected. Distance between alpha carbons of RXRA 427 and PPARG 477 was calculated for comparison between microstate structures from wild-type and mutant simulations. The inter-residue distances were normalized to the respective distance in the agonist-bound crystal structure. The Chimera molecular visualization tool was used to generate representative figures.

Statistics

All statistical tests are as indicated in figure legends. Analysis was done in GraphPad Prism with the exception of pearson coefficients which were calculated using Microsoft Excel. All statistical comparisons are two-tailed. *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47

Decision letter

  1. Ross L Levine
    Reviewing Editor; Memorial Sloan Kettering Cancer Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Hot-spot Mutations in RXRA Implicate Peroxisome Proliferator-Activated Receptors as Bladder Cancer Drivers" for consideration by eLife. Your article has been favorably evaluated by Kevin Struhl (Senior Editor) and three reviewers, one of whom, Ross L Levine (Reviewer #1), is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Kendall W Nettles (Reviewer #2); Jonathan Kurie (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The work here showing a role for RXRA mutations in bladder cancer pathogenesis is of interest, however some additional studies and revisions to the paper are needed to further underscore these results and to place them in their proper context. In particular, although RXRA has been implicated in bladder cancer pathogenesis based on studies of overexpression, the novelty here is showing how these mutants contribute to oncogenic transformation.

Essential revisions:

1) The authors should revise the title and conclusions to avoid overstatement, because the oncogenic role of PPAR signaling in bladder cancer has been widely studied. It has been reported that PPARG is amplified in 17% bladder cancer, while RXRA mutation only happens in about 5% patients (and maybe there is some overlap). However, the mechanism that RXRA mutation functions by activating the PPAR pathway is interesting and should be highlighted and discussed given this important, novel aspect.

2) The authors found that RXRA mutant can activate PPARG independent of PPAR ligand binding using molecular simulations with the crystal structures. This finding is interesting. It will be valuable if the authors can go further at this point and provide some ideas on how to block the active site of PPAR based on these findings in the Discussion section.

3) It would be critical to show that the key target genes altered by mutant RXRA in their model systems are similarly altered in primary samples with mutant RXRA.

4) Can the authors distinguish between WT and mutant RXRA binding sites in the same cell (e.g. with 2 different tagged constructs), given cancer cells will have WT and mutant protein?

5) For the organoid culture, and luciferase data, biological replicates should be from experiments performed at different times, with technical replicates deriving from cells grown in different wells. It is essential that this has been done and that this information is clearly stated in the manuscript. Figure 4 states that data from organoids is from triplicate wells (assayed in duplicate). This is not clear. The experimental design should be something more like: "data is the mean + SD of three experiments, each of which was assayed in triplicate wells on separate days".

https://doi.org/10.7554/eLife.30862.018

Author response

Essential revisions:

1) The authors should revise the title and conclusions to avoid overstatement, because the oncogenic role of PPAR signaling in bladder cancer has been widely studied. It has been reported that PPARG is amplified in 17% bladder cancer, while RXRA mutation only happens in about 5% patients (and maybe there is some overlap). However, the mechanism that RXRA mutation functions by activating the PPAR pathway is interesting and should be highlighted and discussed given this important, novel aspect.

We have now changed the title to “Bladder Cancer Associated Mutations in RXRA Activate Peroxisome Proliferator-Activated Receptors to Drive Urothelial Proliferation” which better summarizes the main conclusions of the paper. We agree that the characterization of the RXRA mutation is the main contribution of the paper. We acknowledge there are several papers that have studied PPARG in bladder cancer, but its role as a driver pathway in bladder cancer is not something (in our view) yet firmly established or accepted in the bladder cancer field. Thus, our finding that PPAR pathway activation drives urothelial proliferation is, we believe, an important secondary contribution of the paper. We have made changes in the Abstract and Discussion to better articulate the relative importance of these views.

2) The authors found that RXRA mutant can activate PPARG independent of PPAR ligand binding using molecular simulations with the crystal structures. This finding is interesting. It will be valuable if the authors can go further at this point and provide some ideas on how to block the active site of PPAR based on these findings in the Discussion section.

We have extended our previous Discussion sharing more of our thoughts about strategies that might be effective for inhibiting PPAR activity in the context of the RXRA mutations.

3) It would be critical to show that the key target genes altered by mutant RXRA in their model systems are similarly altered in primary samples with mutant RXRA.

· The ‘key target genes’ analyzed by qPCR in the manuscript include PLIN2 and FABP3/4. PLIN2 is up-regulated in the human samples with RXRA hot-spot mutations and was utilized in all of our qPCR analysis for this reason. This rationale has now been indicated in the manuscript. In Supplementary Figure S2.6 (RXRA hotspot mutations) from the TCGA’s Nature 2014 paper (Nature 507, 315–322, 2014) a volcano plot shows altered gene expression in RXRA hot-spot mutant clinical sample with PLIN2 located near the top right of the plot. The FABPs did not score individually as up-regulated in mutant cases, but are canonical PPAR target genes. These genes showed particularly strong expression signal changes associated with the mutation in cell lines and organoids, and therefore provided a broad signal range to assess the impact of siRNA knock-down or drug treatments. Notably, there are very few individual genes clearly altered in the mutant cases versus wild-type, and the statistical significance shown in the plot is modest for discovery analysis. We presume this is in part because gene expression values of individual genes are inherently ‘noisy’ in human tissues and the RXRA hot-spot mutation is still limited to a small number of patient samples. Gene Pathway analysis we believe helps overcome some of the ‘noise’ associated with gene expression analysis and is a particularly useful tool when assessing changes in transcription factor activity. As we indicated in the manuscript, RXRA mutation is associated with PPAR signaling pathway up-regulation in human tissues, and a causal role of RXRA mutation for this pathway up-regulation was confirmed in two cell lines in our study.

4) Can the authors distinguish between WT and mutant RXRA binding sites in the same cell (e.g. with 2 different tagged constructs), given cancer cells will have WT and mutant protein?

We agree with the reviewers that such an approach could provide an elegant demonstration of differences in WT and mutant RXRA DNA binding and enhancer activation. However, such an approach would also introduce two new potentially confounding variables: 1) different tags which might differentially alter protein function, and 2) the need to use two different antibodies for ChIP with each introducing its own bias with regard to DNA binding site identification and background binding. While with appropriate controls these issues could be surmountable, we feel that adequate validation of the approach would take several months and therefore we cannot include it at this time. We feel that the approach we used, introduction of not tagged wild-type or mutant RXRA independently into cell lines and then performing ChIP for RXRA and H3K27ac, is adequate to conclude that hyper-activation of enhancer/promoters driven by the RXRA hot-spot mutation occurs preferentially at canonical RXR/PPAR response elements.

5) For the organoid culture, and luciferase data, biological replicates should be from experiments performed at different times, with technical replicates deriving from cells grown in different wells. It is essential that this has been done and that this information is clearly stated in the manuscript. Figure 4 states that data from organoids is from triplicate wells (assayed in duplicate). This is not clear. The experimental design should be something more like: "data is the mean + SD of three experiments, each of which was assayed in triplicate wells on separate days".

We thank the reviewers for highlighting this lack of clarity and have removed the terms ‘biological’ and ‘technical’ replicate as they are ambiguous. In our previous submission, plotted data for the organoid growth and luciferase data came from one experiment in which cells were plated into three different wells (triplicate) and then two equal volume samples were taken from each well for the endpoint bioluminescence assay (duplicate). Data shown was considered representative of multiple experiments. In response to this comment, we have reformatted many of the data panels such that all the organoid and luciferase experiments include data from three distinct experiments performed on three different days. Since this affects many panels, we are uploading an appendix showing the “old” figure panel next to the “new” figure panel to facilitate review of all affected panels. None of the conclusions of the manuscript are affected and the data look quite similar. The methodology for plotting and analyzing data collected from experiments executed on different days is summarized below. We also point out minor differences resulting from these data analysis.

1) For panels 1F, 2D, 4C, 4F, 5B, 5C, 5D, and 5E, we have now plotted the mean bioluminescence signal from three identical and independent experiments performed on different days (each performed using 3 replicate cell wells, with 2 independent bioluminescence measurements from each cell well.) For these assays, there is inherently some variation in absolute raw bioluminescence signal from day to day, presumably due to a range of factors (e.g. temperature, reagent batches, variations in cell density, etc.). The relative bioluminescence signal between conditions is consistent when comparing experiments performed on different days. Since the signal ratios between biological conditions is of greater relevance then the bioluminescence absolute value, we have used a (ratio) paired t-test (instead of an unpaired t-test) for the statistical comparisons of integrated data from multiple experiments. All data from an experiment performed on the same day are “paired”.

2) For Figures 3B and 3G, as we did in the original submission, the data for each PPAR allele is plotted as a ratio normalized to the RXRA WT DMSO condition for that PPAR allele. This approach provides a more intuitive visualization of the effect of PPAR mutations on inducibility by either agonist or RXRA S427F. Since with this approach the data for each experimental replicate is already expressed as a normalized ratio to another experimental condition assayed on the same day, comparison is with an unpaired t test. The plotted data now represents the mean ratios from three independent experiments performed on different days, each using cell wells plated in triplicate. (Statistical comparisons were not included in the previous submission, but have been added for completeness.)

For Figure 4A, 4B and Figure 4—figure supplement 1B we have also now plotted the mean bioluminescence signal from three independent experiments performed on different days (each performed using 3 replicate cell wells, with 2 independent bioluminescence measurements from each cell well.) As before, these assays were performed using three independently derived organoids lines for each genotype. The statistical comparisons are between the mean values from the three independently derived organoids after each drug treatment. Thus, the variation in bioluminescence signal of experiments performed on different days does not apply here and an unpaired t-test analysis was used.

In the previous submission, a significant and consistent impact of GW0742 on growth was limited to organoids deficient in the tumor suppressors Kdm6a and Trp53. As we had pointed out, the data with Trp53 knock-out alone trended toward an effect but it was not statistically significant. By incorporating data from multiple experiments (presumably due to increased statistical power), GW0742 also drives significant growth in organoids with Trp53 deletion alone, although still not with the same apparent consistency across the independently derived lines compared to the dual Kdm6a/Trp53 knock-out organoids. Nonetheless, we have changed language to indicate that Trp53 alone is sufficient for GW0742 to drive growth factor independent growth. We again show that GW0742 fails to drive growth factor independent growth in wild-type organoids. Our conclusion that “PPARD activation induces growth factor independent growth of urothelial organoids in the context of tumor suppressor loss” is not changed.

Figure 4D and 5A show qPCR data expressed relative to the housekeeping gene actin from one experiment. The entire experiment was performed three times (i.e. on 3 different days.) Because again of inherent noise in the absolute signal value with qPCR data from different experiments, we have kept data from each experiment separate, but have included all data in 2 new supplemental panels (Figure 4—figure supplement 1C and Figure 5—figure supplement 1.) Statistical comparison of the aggregated data is by two-way ANOVA (Repeated Measures, GraphPad Prism).

In Figure 5, both PPARD inhibitors (GSK0660 and ST247) are again shown to significantly impair growth and transcriptional activity driven by RXRA S427F. However, with integrated analysis, one inhibitor does not clearly perform better than the other, therefore a suggestion we had made that ST247 may be more efficacious has been removed.

https://doi.org/10.7554/eLife.30862.019

Article and author information

Author details

  1. Angela M Halstead

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  2. Chiraag D Kapadia

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  3. Jennifer Bolzenius

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Clarence E Chu

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  5. Andrew Schriefer

    Genome Technology Access Center, Washington University School of Medicine, St Louis, United States
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  6. Lukas D Wartman

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Resources, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-5499-8465
  7. Gregory R Bowman

    Department of Biochemistry and Molecular Biophysics, Washington University School of Medicine, St Louis, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  8. Vivek K Arora

    Department of Internal Medicine, Division of Oncology, Washington University School of Medicine, St Louis, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft
    For correspondence
    arorav@wustl.edu
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-1694-9109

Funding

Damon Runyon Cancer Research Foundation (Clinical Investigator)

  • Vivek K Arora

Cancer Research Foundation (Young Investigator)

  • Vivek K Arora

National Cancer Institute (T32 CA113275)

  • Angela M Halstead

National Center for Advancing Translational Sciences (UL1TR000448)

  • Vivek K Arora

National Cancer Institute (P30 CA91842)

  • Andrew Schriefer

National Institute of Diabetes and Digestive and Kidney Diseases (U54DK104279)

  • Chiraag D Kapadia

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Harrison Gabel (WUSM) for helpful discussions and technical advice for ChIP-seq experiments, Sukrit Singh (WUSM), Maxwell Zimmerman (WUSM), and Justin Porter (WUSM) for technical guidance for molecular dynamics studies, and Gopa Iyer (MSKCC) and Ricardo Ramirez (MSKCC) for helpful discussions and guidance on bladder cancer cell line selection.

Ethics

Animal experimentation: All mouse experiments were performed in accordance with institutional guidelines and current NIH policies and were approved by the Washington University School of Medicine Institutional Animal Care and Use Committee protocol #20140186.

Reviewing Editor

  1. Ross L Levine, Reviewing Editor, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Received: July 28, 2017
  2. Accepted: November 10, 2017
  3. Accepted Manuscript published: November 16, 2017 (version 1)
  4. Accepted Manuscript updated: November 17, 2017 (version 2)
  5. Version of Record published: December 7, 2017 (version 3)

Copyright

© 2017, Halstead et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 546
    Page views
  • 164
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Immunology
    Thornton W Thompson et al.
    Research Article
