Specialized impulse conduction pathway in the alligator heart

  1. Bjarke Jensen
  2. Bastiaan J Boukens
  3. Dane A Crossley II
  4. Justin Conner
  5. Rajiv A Mohan
  6. Karel van Duijvenboden
  7. Alex V Postma
  8. Christopher R Gloschat
  9. Ruth M Elsey
  10. David Sedmera
  11. Igor R Efimov
  12. Vincent M Christoffels  Is a corresponding author
  1. University of Amsterdam, The Netherlands
  2. George Washington University, United States
  3. University of North Texas, United States
  4. Louisiana Department of Wildlife and Fisheries, United States
  5. Charles University, and Institute of Physiology, Czech Academy of Sciences, Czech Republic
Research Article
  • Cited 17
  • Views 1,375
  • Annotations
Cite this article as: eLife 2018;7:e32120 doi: 10.7554/eLife.32120

Abstract

Mammals and birds have a specialized cardiac atrioventricular conduction system enabling rapid activation of both ventricles. This system may have evolved together with high heart rates to support their endothermic state (warm-bloodedness) and is seemingly lacking in ectothermic vertebrates from which first mammals then birds independently evolved. Here, we studied the conduction system in crocodiles (Alligator mississippiensis), the only ectothermic vertebrates with a full ventricular septum. We identified homologues of mammalian conduction system markers (Tbx3-Tbx5, Scn5a, Gja5, Nppa-Nppb) and show the presence of a functional atrioventricular bundle. The ventricular Purkinje network, however, was absent and slow ventricular conduction relied on trabecular myocardium, as it does in other ectothermic vertebrates. We propose the evolution of the atrioventricular bundle followed full ventricular septum formation prior to the development of high heart rates and endothermy. In contrast, the evolution of the ventricular Purkinje network is strongly associated with high heart rates and endothermy.

https://doi.org/10.7554/eLife.32120.001

eLife digest

Mammals and birds are referred to as ‘warm-blooded’ animals, because they maintain a constant high body temperature. This requires a lot of energy, so their bodies need to be well supplied with blood at all times. The hearts of mammals and birds contain two important structures that help them do this. The first is a full wall of muscle – called the ventricular septum – that divides the heart into left and right sides. The second is an electrical circuit made of specialized muscle cells that ensures that the heart beats fast enough by sending rapid electrical signals to the rest of the heart muscle. The circuit contains one group of cells in the ventricular septum, called the bundle of His, and another group termed the Purkinje network.

Reptiles, however, do not maintain high body temperatures and are instead often thought of as ‘cold-blooded’ animals. The hearts of reptiles do not need to pump blood around the body as quickly and have different structures from warm-blooded animals. For example, most reptile hearts do not have a fully developed ventricular septum. The only exceptions are crocodiles, alligators and their relatives (the ‘crocodilians’), which do.

Jensen, Boukens et al. therefore wanted to determine if a crocodilian heart also contained a specialized electrical circuit like those of birds and mammals. Previous studies that attempted to answer this question using only anatomical and electrical methods had yielded ambiguous results. As such, Jensen, Boukens et al. combined these methods with genetic techniques for a more detailed study.

First, the ventricular septum of American alligators, a species of crocodilian, was examined, and found to contain a narrow tissue structure that strongly resembled the bundle of His. Indeed, if this presumptive bundle of His was cut, the electrical circuit was broken. Additional genetic analysis of this structure confirmed that genes similar to those active in the mammalian bundle of His were also switched on in alligators. However, recordings of heart activity showed that heart rates and the spread of electrical signals were both slower in alligators than in warm-blooded animals. This suggests that, although alligators have evolved some specialized muscle cells (in the form of a bundle of His), their electrical circuit is still ‘incomplete’. The lack of a Purkinje network, for example, would explain why their heart rates remain slow like other reptiles’.

Together these findings add to the current understanding of how the heart works in different animals with varying requirements for energy and blood flow. Also, since crocodiles and warm-blooded birds both evolved from ancient reptiles, detailed descriptions of their heart structures could shed more light on how warm-bloodedness first developed.

https://doi.org/10.7554/eLife.32120.002

Introduction

The muscle of the vertebrate heart initiates and conducts the electrical impulse that initiates contraction. It has regionally distinctive properties, such as conduction velocity, underlying coordinated alternating contraction of atrium and ventricle (Chi et al., 2008; Gillers et al., 2015; Keith and Flack, 1907). In addition, hearts of mammals and birds have specialized atrioventricular conduction system tissues composed of distinctive cardiomyocytes (e.g. glycogen-rich, less developed contractile apparatus, highly conductive) that can be morphologically distinguished from the working myocardium. These components, the atrioventricular bundle, bundle branches and Purkinje fiber network, rapidly conduct and distribute the impulse to the ventricular muscle, coordinating cardiac contractions (Davies et al., 1952; Chiodi and Bortolami, 1967; van Weerd and Christoffels, 2016; Chuck et al., 2004; Rentschler et al., 2001; Miquerol et al., 2010). They enable the high heart rates that set mammals and birds apart from similarly sized ectothermic vertebrates (Davies and Francis, 1946; Lillywhite et al., 1999). The anatomical and electrophysiological analyses that unequivocally demonstrated the specialized atrioventricular conduction system in mammals and birds, yielded, in contrast, highly divergent interpretations when applied to ectotherms (Davies et al., 1952; Chiodi and Bortolami, 1967; Jensen et al., 2012). Nonetheless, the most prevalent view appears to be that the vertebrate taxa that independently gave rise to mammals and birds, represented by extant amphibians and reptiles, are without a specialized cardiac conduction system (Tessadori et al., 2012; Jensen et al., 2017a; Burggren et al., 2017; Jensen et al., 2014, Supplementary file 1).

The atrioventricular bundle and its branches in both mammals and birds are located in the ventricular septum (Davies et al., 1952). Therefore, it is conceivable that the presence of a ventricular septum, rather than high heart rates, resulted in the development of a specialized atrioventricular conduction pathway. Among ectotherms, only crocodilians (alligators, crocodiles, and gharials) have a full ventricular septum and the electrical activation of the ventricle of the freshwater crocodile has been reported to propagate differently from that of other reptiles (Jensen et al., 2012; Christian and Grigg, 1999). Early anatomical works suggested that atrioventricular canal myocardium of the American alligator projects onto the ventricular septum (Greil, 1903; Swett, 1923), but there was no mention of bundle branches and the later investigators that unequivocally show the specialized conduction system in mammals and birds (Davies and Francis, 1946), could not find specialized tissues in crocodilians (Davies et al., 1952; Davies et al., 1951). Here, we investigated the ventricles of the American alligator for the presence of atrioventricular conduction system components to address the question of their origin. To identify any specialized components in the alligator heart, we analyzed the expression of conserved gene markers for the mammalian and chicken atrioventricular bundle and its branches (Tbx3, Tbx5, Scn5a, Cntn2), and for the Purkinje network and its trabecular precursor (Gja5, Cntn2, Nppa and Nppb) (Park and Fishman, 2017). Furthermore, we assessed impulse conduction patterns to investigate its origin and spread in the ventricles. Because previous anatomical investigations led to contradictory interpretations (Supplementary file 1), we use complementary functional and molecular criteria to define 'specialization'. We conclude that the alligator has a functional atrioventricular bundle but lacks a specialized Purkinje network.

Results

Atrioventricular conduction pathway in alligator hearts

To investigate the possible presence of a specialized atrioventricular conduction pathway in the crocodilian heart, we made an incision in the dorsal ventricular myocardium near the crux. The crux is the intersection of the atrioventricular sulcus and the dorsal descending coronary artery, and it indicates the position of the atrioventricular node and atrioventricular bundle in the mammalian heart (Crick et al., 1998). The dorsal incision disrupted only 10–20% of the atrioventricular junctional myocardium, yet resulted in complete atrioventricular block in three out of three hearts (Figure 1A–B, Figure 1—figure supplement 1). In three other hearts, extensive ventral and lateral incisions did not result in atrioventricular block (Figure 1C–D, Figure 1—figure supplement 1). Optical mapping of isolated hearts showed the impulse appearing at the dorsal epicardial surface at the midpoint of the ventricle along the interventricular sulcus, consistent with an origin of the impulse from the atrioventricular bundle (Figure 1E–G). On the ventral side of the heart, the activation wave propagated from the ventricular apex toward the major arteries (Figure 1—figure supplements 2). These activation patterns resemble those of mammals and birds (Rentschler et al., 2001; Reckova et al., 2003), but differ from those of the Anolis lizard, where epicardial activation starts in the ventricular base region closest to the atria (Figure 1—figure supplement 2, [Jensen et al., 2012]). Measurements in an opened ventricle revealed the occurrence of first activation near the crest of the septum (Figure 1H–I). Together, these data suggest the presence of a functional atrioventricular bundle in the alligator septum crest (Figure 1I).

Figure 1 with 2 supplements see all

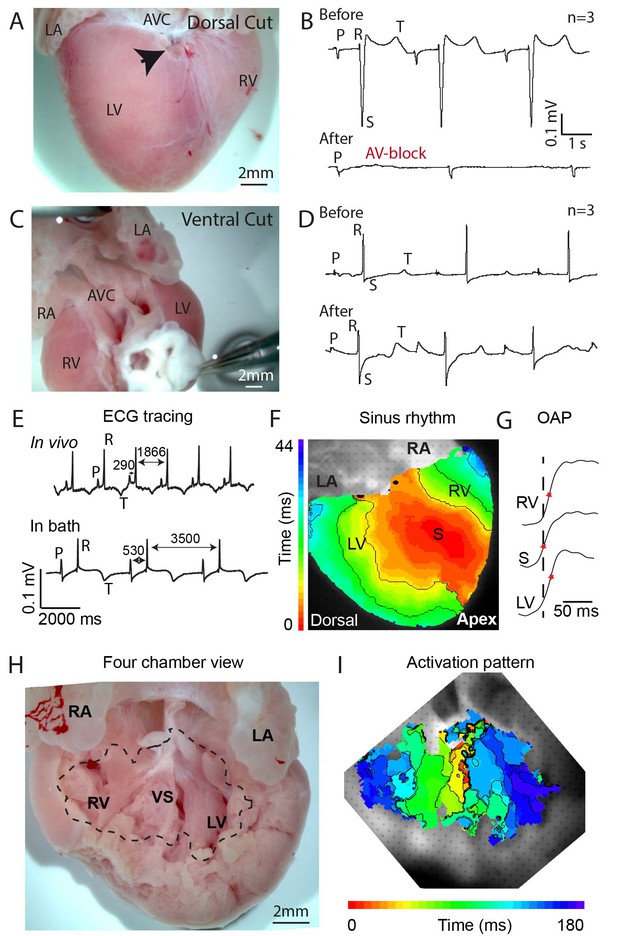

Propagation block by cuts in the dorsal alligator atrioventricular canal reveals a specialized atrioventricular conduction system.

(A-B) Cuts in a small region of the dorsal atrioventricular canal induces atrioventricular block (dorsal cut n = 3 and ventral cut n = 3). (C-D) Extensive cuts to the ventral and lateral atrioventricular canal do not induce atrioventricular block. (E) In vivo and ex vivo (in bath) QRS duration was not different (n = 7). (F) In bath optical mapping of ventricular activation revealed epicardial breakthrough of the impulse deep in the ventricle (n = 6). (G) The maximum rate of depolarization (red star) occurred earlier at position S than at position LV and RV of panel F (n = 6). (H-I) Optical recordings from the inside of the heart (H) show earliest activation in the septum (n = 1) (I). AVC, atrioventricular canal; LA, left atrium; LV, left ventricle; RA, right atrium; RV, right ventricle; s, ventricular sulcus; VS, ventricular septum.

https://doi.org/10.7554/eLife.32120.003

Molecular characterization of the atrioventricular conduction pathway in alligator hearts

We further characterized the atrioventricular conduction system by determining the alligator homologues of marker genes for specific heart components in mammals and birds. We performed RNA-sequencing of micro-dissected atrium, atrioventricular junction, and ventricles of hearts of embryonic American alligators of Ferguson (Ferguson, 1985) stage 27. Transcripts were readily detected for homologues of Tbx3 in the atrioventricular junction (Hoogaars et al., 2004), for Tbx5 in all samples but lowest in the right ventricle (Moskowitz et al., 2004), for cardiac sodium channel Nav1.5 (Scn5a), for pan-cardiomyocyte markers cTnT (Tnnt2) and cTnI (Tnni3), and for gap junction subunit Cx40 (Gja5) (Miquerol et al., 2004) (Figure 2), but not for Nav1.8 (Scn10a) (Remme et al., 2009). We used in situ hybridization to localize expression of these marker genes in the heart. In embryonic American alligator stages 13, 16, and 18, the atrioventricular canal was entirely myocardial (Tnni3-positive), revealing a full, undisrupted muscular continuity between the atria and the ventricle. In mammals and birds the atrioventricular bundle can be identified by the expression of Tbx3 (Hoogaars et al., 2004). We found Tbx3 expression in a small domain from the dorsal atrioventricular canal to the crest of the forming ventricular septum (Figure 3AB, Figure 3—figure supplement 1). The ventral part of the crest showed very little Tbx3 expression (Figure 3A). This pattern resembles that of Tbx3 in the atrioventricular node and bundle of mammals and birds. Ventricular expression of Tbx5 and Scn5a was highest in the septal crest (Figure 3A), similar to the pattern in mice (Remme et al., 2009; Arnolds et al., 2012) (Figure 3A). The embryonic expression patterns of Tbx3 and Tbx5 were similar across crocodilian species indicating evolutionary conservation (Figure 3—figure supplement 1).

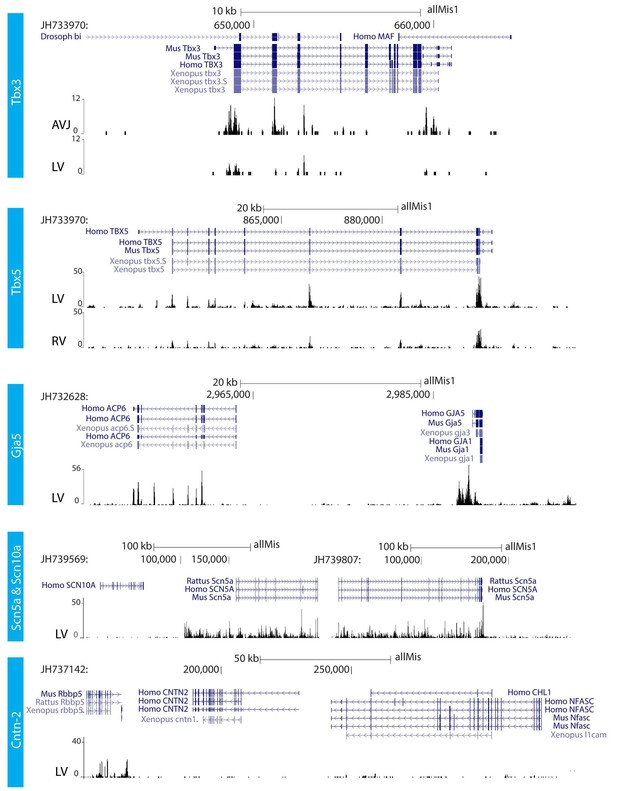

RNA sequencing.

RNA sequencing of atrioventricular junction (AVJ) and ventricular myocardium of the fetal alligator heart (LV, left ventricle; RV, right ventricle). AVJ sample also contained myocardium from the ventricular base. Note that Tbx3 tag count was higher in the AVJ compared to the left ventricle. Tag counts of Tbx5 was higher in the left ventricle than in the right ventricle. Both Gja5 and Scn5a were expressed in the ventricular myocardium of the alligator heart. Cntn2, however, did not show tag counts indicating absence of expression. (The data are deposited as Jensen B. 2018. Alligator mississippiensis Transcriptome or Gene expression. SRA. https://www.ncbi.nlm.nih.gov/bioproject/PRJNA392860).

https://doi.org/10.7554/eLife.32120.006
Figure 3 with 2 supplements see all
Molecular identification of the alligator atrioventricular conduction axis.

(A) mRNA detection by in situ hybridization in the Ferguson stage 16 embryo, showing a mammal and avian like phenotype of the septal crest and trabeculated myocardium. (B) Reconstruction of Tbx3 expression in the Ferguson stage 18 embryo reveals a dorsal bundle connecting the atrioventricular junction to the ventricular septum. (C) Tbx3 is expressed in the crest of the ventricular septum, which showed early activation (same heart as in Figure 1H–I). (D) Tbx3 expressing myocardium of the dorsal atrioventricular canal was damaged when atrioventricular block was induced (dorsal cut n = 3 and ventral cut n = 3).

https://doi.org/10.7554/eLife.32120.007

In hearts of 1-year-old juvenile American alligators the myocardial continuity of the atrioventricular canal and the ventricle, including the ventricular septum, was interrupted by collagen at the ventral and lateral sides (Figure 1—figure supplement 1). Dorsally, the atrioventricular canal myocardium was nestled between collagen of the atrioventricular valves and the atrioventricular sulcus (Figure 4). The Tbx3 identified atrioventricular bundle extended from this sheet of atrioventricular canal myocardium (Figure 4). Laterally, the Tbx3 identified atrioventricular bundle was not insulated by connective tissue in contrast to the setting in mammals and birds. Tbx3 and Tbx5 were expressed in a pattern similar to that in the embryo, except that Tbx3 was also expressed deep in the septal crest myocardium (Figures 3C and 4). Tbx3 was therefore expressed where the earliest electrical activation was found (Figures 1H–I and 3C). Gja5 was expressed in the Tbx3-positive myocardium deep in the ventricular septum, resembling the expression pattern of the atrioventricular bundle in mammals and birds (Figure 3—figure supplement 2). Interestingly, the dorsal cuts in alligator hearts inducing atrioventricular block (Figure 1) disrupted this Tbx3-expressing myocardium (Figure 3D).

Insulation by collagen in the atrioventricular junction and near the atrioventricular bundle.

(A) Sagittal section of the ventricular base of a 1-year alligator, showing complete insulation by connective tissue ventrally (blue arrowhead) and myocardial atrioventricular continuity dorsally (insert, enlarged in A’). (B-B’) The dorsal pathway expresses Tbx3. (C) Dorsally, there is broad atrioventricular continuity, this section is 800 µm to the right of the section of A and there is still atrioventricular continuity (dashed circle). (D) In this region of the heart, Tbx3 is confined to the atrioventricular canal (avc) and is not expressed in the ventricle as in B.

https://doi.org/10.7554/eLife.32120.010

In mammals and birds, the atrioventricular bundle and Purkinje network are connected by the Tbx3-expressing bundle branches on the left and right flanks of the ventricular septum. We never observed similar branches in the crocodilians, neither with histology nor in situ hybridization for Tbx3, Tbx5, Gja5, and Scn5a.

Slowly conducting trabecular wall rather than Purkinje network in alligator hearts

To investigate whether a ventricular Purkinje network was also formed in the crocodilian heart, we set out to collect appropriate markers of the Purkinje network and its embryonic precursor, the trabecular myocardium. In mammals, expression of both Nppa and Nppb marks the trabecular myocardium during heart development, and Nppa expression becomes restricted to the thin subendocardial Purkinje fiber network after birth (Miquerol et al., 2010; Remme et al., 2009; Houweling et al., 2005). Nppa and Nppb are paralogue genes that are part of the evolutionary ancient natriuretic peptide gene cluster (Houweling et al., 2005; Takei et al., 2011). Therefore, these genes may be suitable markers to characterize the ventricular conduction system in alligators. However, the archosaur branch, including birds and alligators, have been indicated to have lost Nppa during evolution (Takei et al., 2011; Trajanovska and Donald, 2008). Unexpectedly, we detected the expression of homologues of both Nppa and Nppb in the RNA-sequencing data of the alligator heart samples (Figure 5). Cardiac Nppb was expressed strongly, Nppa was confined to the atria (Figure 5). Sequence homology analysis showed the alligator locus resembles that of turtle and frog, which retained both Nppa and CNP3, revealing independent divergence of this trabecular myocardium-associated gene cluster in mammals and birds (Figure 5).

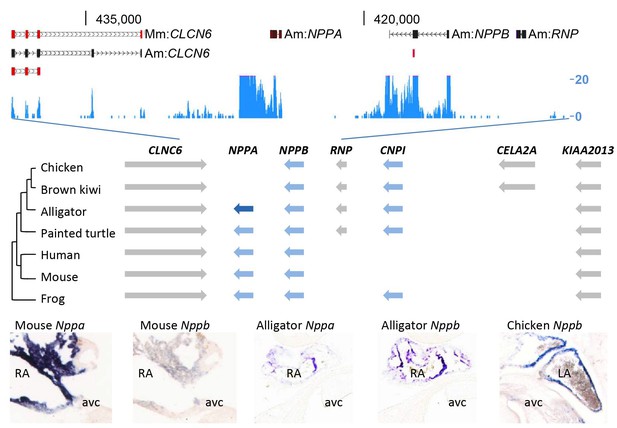

Evolution of the natriuretic peptide gene locus.

RNA-sequencing tag counts aligned to BAC JH731559 revealed the unexpected presence of transcripts of orthologues of both Nppa and Nppb. The alligator cardiac natriuretic peptide gene locus is homologous to that of amphibians (frog) and reptiles (turtle). Birds have lost Nppa, and CELA2A and surrounding sequences have been inserted. Mammals have replaced the region in between Nppb and KIAA2013. The presence of Nppa and Nppb transcripts was validated by in situ hybridization using specific probes. Am, Alligator mississippiensis; avc, atrioventricular canal; Hs, Homo sapiens; LA, left atrium; Mm, Mus musculus; RA, right atrium.

https://doi.org/10.7554/eLife.32120.011

In embryos of alligator, mouse, and chicken, Nppb (and in mouse also Nppa) was expressed abundantly in the trabecular myocardium (Figure 6, Figure 6—figure supplement 1). Nppb was absent from the layer expressing Hey2, a marker for compact ventricular myocardium in prenatal mammals (Koibuchi and Chin, 2007) (Figure 6B). One-year juvenile alligators maintained a trabecular layer that expressed Nppb (Figure 6B). In mammals and birds, Gja5 expression becomes confined to the Purkinje myocardium (Miquerol et al., 2010). In alligator embryos and 1-year juvenile, Gja5 was expressed not only in the trabeculated myocardium, but also the compact myocardium, which expressed Hey2 (Figure 6—figure supplement 2). Expression of the mammalian Purkinje network marker Cntn2 (contactin-2; [Pallante et al., 2010]) was not detectable (Figure 2). These expression and genetic data indicate that aspects of the trabecular phenotype are maintained in the mature alligator ventricle, as they are in other ectothermic species (Jensen et al., 2012), whereas a Gja5-positive mammalian/avian-like Purkinje network does not appear to form.

Figure 6 with 2 supplements see all
Evolutionary conservation of the trabeculated and compact ventricular wall.

(A) The ventricular septum of the alligator is highly trabeculated (also Figure 6—figure supplement 1). Yet the alligator septum does not express the trabecular marker Nppb (n = 5). (B) The developing septum of alligators and mouse is empty for Nppb, in contrast to chicken (HH28 and HH42), whereas the developing septum of alligators and chicken is highly trabeculated, in contrast to the septum in mouse which is compact. The compact wall of both alligator (n = 1), caiman (n = 1), and mouse expresses Hey2. Arrowheads (white, no stain; red, stain); c, coronary artery; LV, left ventricle; RV, right ventricle.

https://doi.org/10.7554/eLife.32120.012

Optical mapping analysis indicated the presence of two functional layers. In two out of six animals, we observed action potentials with fractionated (biphasic) upstrokes, in which an initial steep deflection was followed by a lessening of the inclination only to be followed by a second steep deflection (Figure 7A–C, Figure 7—figure supplement 1). At both the dorsal and ventral side, we observed the first phase of the upstroke in the vicinity of the ventricular septum. Distinct activation maps could be generated from both the first and the second part of the biphasic upstrokes showing first activation in the mid of the ventricle at the dorsal side (Figure 7—figure supplement 1). The dorsal activation patterns based on the first part of the upstroke resembled the dorsal activation patterns of the four animals that did not show fractionated upstrokes. The biphasic upstroke became monophasic at the location near the electrode during ventricular stimulation indicating that each phase of the upstroke corresponded to impulse conduction through a different myocardial layer. To validate this hypothesis, we recorded local electrograms, which showed biphasic deflections at exactly the same regions where we recorded fractionated upstrokes (n = 2) (Figure 7D). Together with the gene expression data, these data suggest the presence of two layers, a trabecular myocardial layer and a compact layer, which are activated in subsequent order.

Figure 7 with 1 supplement see all

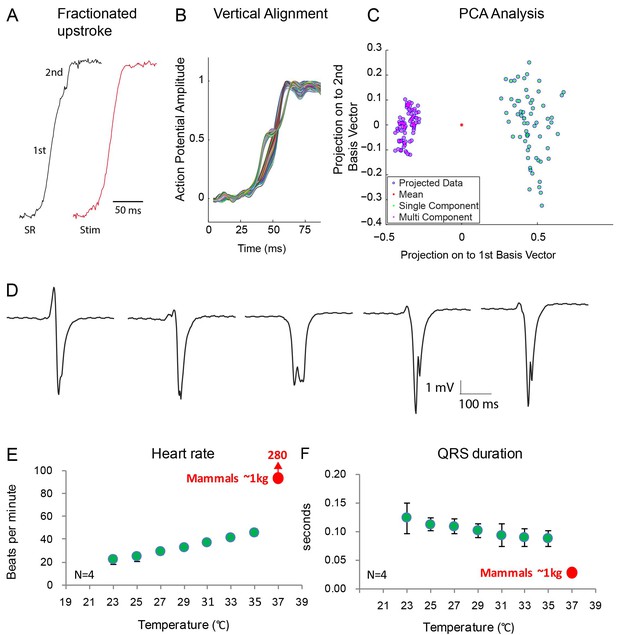

Fractionated upstroke of the optical action potentials indicated two distinct tissue layers.

(A) Upstroke during sinus rhythm (SR) and induced by stimulation (Stim). (B) Vertical alignment of optical action potentials on the dorsal side of the alligator heart. (C) Principle component analysis (PCA) illustrating the different morphology of the upstroke with and without fractionation. (D) shows local electrograms recorded from the dorsal and ventral side of the heart shown in Figure 7—figure supplement 1. (E-F) In vivo heating of anaesthetized 2-year-old alligators leads to an increase in heart rate and a decrease in ventricular activation time as assessed by QRS duration (points are averages, error bars are standard deviation). The QRS duration of warm alligators never approach the much shorter QRS duration of eutherian mammals (Detweiler, 2010).

https://doi.org/10.7554/eLife.32120.015

Consistent with the notion of the absence in alligator of a Purkinje network, which in mammals and birds exhibits rapid propagation of the electrical impulse, QRS duration was long in the alligator indicating slow ventricular impulse propagation (110 ± 13 ms, as in previous studies [Heaton-Jones and King, 1994]). Temperature affects propagation speed (Smeets et al., 1986) and we tested whether alligators at mammalian body temperatures would have a mammal-like QRS duration. Even when heated to mammalian body temperatures, the alligator QRS duration (90 ± 10 ms) was much longer than QRS duration of similarly sized mammals (approximately 30 ms (Detweiler, 2010); Figure 7E–F).

Discussion

Here we investigated the atrioventricular conduction system in the crocodlians, the only ectotherms with a ventricular septum. Our results reveal the presence of a specialized conduction pathway connecting the atria with the ventricular septum, that is, an atrioventricular bundle, that is functionally and genetically comparable to that of mammals and birds. We found no indications of the presence of bundle branches. The ventricular conduction system component and the associated genetic wiring of alligators is similar to that of other ectothermic vertebrates, but unlike the Purkinje system in mammals and birds.

Longstanding as well as recent literature has shown that in hearts of ectotherms a non-insulated muscular atrioventricular junction delays and propagates the impulse from the atria to the ventricular base in the absence of anatomically specialized conduction system parts (Jensen et al., 2012; AlanisAlanís et al., 1973). This resembles the situation in the embryonic heart of both mammals and birds. While some reports have claimed to have observed specialized atrioventricular bundles components in non-crocodilian reptiles on the basis of anatomy, the large majority of studies do not support these claims (Supplementary file 1). The presence of an atrioventricular bundle in an ectotherm, as our data indicates, is incompatible with our current understanding of the evolution of the conduction system.

Based on the comprehensive anatomical studies in the first half of the 20th century, it has been concluded that specialized atrioventricular conduction systems are an adaptation to high heart rates and are therefore only found in the endothermic mammals and birds (Davies et al., 1952; Chiodi and Bortolami, 1967). As mammals and birds evolved independently from ectothermic ancestors, the simplest yet perhaps unsatisfying conclusion is that their highly similar conduction systems evolved independently as well in relation to endothermy. However, crocodilians are ectotherms and have much lower heart rates than mammals and birds of comparable size and, unique among ectotherms, have a full ventricular septum, which in mammals and birds is the structural substrate of the atrioventricular bundle and branches. Our study shows the presence of a specialized atrioventricular conduction pathway within the broad myocardial connection between the atria and ventricles, its position corresponding to the mammalian and avian atrioventricular bundle. In contrast to the settings of mammals and birds, the crocodilian atrioventricular bundle is not fully insulated by connective tissues. Nevertheless, specific cuts through the Tbx3-positive bundle caused atrioventricular block, implicating the Tbx3-negative myocardial continuity between the atria and ventricles was not sufficient to maintain atrioventricular conduction. Thus, although not being fully insulated, the Tbx3-positive myocardial connection acts as an atrioventricular bundle, as it does in mammals and birds.

Century-old anatomical studies on alligators already described dorsal atrioventricular myocardium extending onto the ventricular septum (Greil, 1903) (Supplementary file 1) in a manner that much resembles the domain of Tbx3-expressing myocardium described here. Much later, Christian and Grigg (1999) used plunge electrodes to show in the freshwater crocodile that ventricular activation initiates in the top of the septum and propagates from there in a manner that we have also recorded in the American alligator (Figure 1F). The presence of a specialized atrioventricular conduction axis, the main finding of this manuscript, was not investigated in that study. Building on the previous findings, our results suggest that the evolution of the atrioventricular bundle predates that of endothermy and instead correlates with the formation of a full ventricular septum. It would be interesting to investigate whether other reptiles with partial ventricular septums, such as varanids, show signs of a Tbx3-positive atrioventricular bundle as well.

In mammals and birds, the atrioventricular bundle ramifies into bundle branches which express Tbx3 and drape the left and right surface of the ventricular septum (Hoogaars et al., 2004). In the crocodilians, we never saw similar branches. In the freshwater crocodile, Christian and Grigg (1999) found a dorsal and a ventral ‘rapid channel’ within the ventricular septum, but the channels were not distinctive by histology. It is not clear whether these channels can be considered homologous of the bundle branches of mammals and birds. One anatomical study claimed the presence of bundle branches in crocodilians (Mathur, 1971), but the most prevalent view is that the crocodilian heart is without a histologically distinct atrioventricular bundle and bundle branches (Davies et al., 1952; Christian and Grigg, 1999; Greil, 1903; Swett, 1923).

The question remains to what extent the trabecular myocardium of the alligator can be equated to the mammalian and bird Purkinje network. In mammals, the embryonic trabecular myocardium gives rise to the Purkinje network that can be identified by the expression of key genetic markers Cntn2, Nppa and Gja5 (Cx40) (van Weerd and Christoffels, 2016; Miquerol et al., 2010; Pallante et al., 2010). In the alligator, Cntn2 is absent, Nppa is scattered rather than confined to the myocardium around the central lumen (Jensen et al., 2017b), and Gja5 (Cx40) is expressed in the trabeculated and compact myocardium rather than confined to a miniscule subset of the ventricular myocytes. Therefore, the trabecular myocardium of the alligator is unlike the Purkinje system, but resembles that of other ectotherms. The activation of the ventricles of ectotherms relies on relatively slow conduction in trabecular myocardium instead of fast conduction through the atrioventricular bundle branches and Purkinje system as seen in mammals and birds. Indeed, the QRS duration, a functional measure for Purkinje system, was substantially longer in alligators than in comparatively sized mammals, even when heated to mammalian body temperatures. In other crocodilians, the QRS duration is also approximately 100 ms suggesting that the speed of ventricular activation is similar across crocodilians (Christian and Grigg, 1999; Davies et al., 1951; Heaton-Jones and King, 1994; Syme et al., 2002; Wang et al., 1991). It further suggests that the specialized atrioventricular conduction pathway does not have an appreciable effect on ventricular activation time. Taken together, we conclude that the mammalian and avian ventricular Purkinje network evolved from the ancient trabeculated ventricle still present today in ectotherms, including crocodiles. This is in line with the unexpected finding that the cardiac natriuretic peptide locus, which specifically marks the trabecular layer, has remained unchanged during alligator evolution (Figure 5). Therefore, this locus has changed independently after the branching of birds within the archosaur group (to which also crocodilians belong), which lost Nppa, and of mammals, which lost CNP-I and other genes.

We interpret the biphasic upstroke in the alligator heart as resulting from early trabecular activation and late activation of the compact myocardium (Figure 7A–B, Figure 7—figure supplement 1). The reconstructed activation maps show that the recorded biphasic upstrokes are not the result of two subepicardial activation waves propagating next to each other (Efimov et al., 1999). Instead, each part of the upstroke belongs to a distinct activation wave from which separate activation maps can be reconstructed (Figure 7—figure supplement 1). Indeed, a large fraction of the excited and emitted light can traverse more than 1 mm of tissue (Walton and Bernus, 2015), which exceeds the thickness of the compact myocardium in the alligator hearts (290–860 µm). Of six hearts tested, only the two largest animals showed fractionated upstrokes, possibly because the smaller animals had a less thick compact wall, which did not provide sufficient emission light to overcome the noise. Thus, we conclude that in crocodiles first the atrioventricular bundle and trabecular myocardium activates, and subsequently the compacted myocardium, a sequence resembling that of mammalian and bird hearts where the atrioventricular bundle, its branches, and Purkinje network activate prior to the bulk of the compact wall. We speculate that the slowly conducting trabecular ventricle with a thin compact layer of fish and amphibians and the fast-conducting small Purkinje system with thick compact walls of mammals and birds represent two extreme situations of a spectrum. The alligator would be in-between those extremes. Investigation of the presence of bi-phasic upstrokes in other ectotherms with significant compact walls, such as some species of fish (Icardo, 2017; Farrell and Smith, 2017), may provide indications for such a spectrum. This would imply that precursor components of the Purkinje system were present before the evolution of endothermy and could stem from the earliest trabeculated ventricles as seen in jawless fish.

Conclusion

We show the presence of a molecularly distinctive functional atrioventricular conduction system in the alligator heart. The presence of such a system in the crocodilian heart challenges our understanding of cardiac evolution. It suggests the development of the specialized atrioventricular conduction system predates the development of endothermy and correlates instead with the formation of a full ventricular septum. From this insight, one may be able to predict a relation between the degree of development of the ventricular septum and the presence of the atrioventricular bundle.

Materials and methods

Animals

The investigation conforms with the guide for the Care and Use of Laboratory Animals published by the US National Institutes of Health (NIH Publication No. 8523, revised 1996) and was approved by the Institutional Animal Studies Care and Use Committee of the University of North Texas (IACUC #1403–04). We used six female alligators (1.2 ± 0.4 kg, avg ±sd) to investigate the electrophysiology of the heart. The hearts of the six female alligators together with a series of embryonic alligators (n = 3, Ferguson stages 13, 16, 18), and embryonic Cuvier’s dwarf caiman (Paleosuchus palpebrosus, n = 2, Ferguson stages 13 and 16) were used to molecularly characterize the heart. Ferguson (Ferguson, 1985) stages 13 and 18 correspond approximately to chicken Hamburger-Hamilton (Hamburger and Hamilton, 1992) stages 25 and 32, respectively, and mouse embryonic day 12 and 15.5, respectively. Additional four female alligators (2.7 ± 1.0 kg, avg ±sd) were used to study the in vivo effect of temperature on the QRS duration of the ECG.

ECG recording in vivo

Request a detailed protocol

All four adult alligators were lightly anesthetized with Isoflurane. Electrodes were placed at the right (R) and left (L) side of the chest (ventral). ECG was recorded using PowerLab 26T (AD-Instruments, Colorado Springs, CO, sampling rate 2 kHz) and tracings were analyzed using Labchart Pro software. We calculated Lead I by subtracting L from R.

In vivo effect of temperature on the QRS

Request a detailed protocol

Animals were fasted for 6 to 8 days prior to experimentation. On the day of study four alligators (mass = 2.7 ± 1.0 kg) were lightly anaesthetized by placing them in a sealed container with gauze soaked in isoflurane (Isoflo; Abbott laboratories, North Chicago, IL). The animal's trachea was then intubated and the lungs artificially ventilated using a ventilator (Model 552; Harvard Apparatus; Holliston, MA) downstream of a vaporizer (Ohmed Fluotec 4 Anesthetic Vaporizer; GE Healthcare; Buckinghamshire, UK) providing 2% isoflurane at 5–10 breaths min−1. A modified air pump was used to continuously pull room air through the vaporizer. Once a surgical plane of anesthesia was achieved the animal was placed ventral side up on a heat pad (Homeothermic Blanket Control Unit, Harvard Apparatus; Holliston, MA). In addition, a lamp with a 40-watt bulb was placed above the animal at approximately the midpoint of the thoracic cavity. Three 12 mm surgical steel needle electrodes (29 gauge) were inserted subcutaneously in the animal. Two electrodes were place approximately 2 cm below the posterior end of the sternum one on left and right lateral side of the body wall. A third electrode was placed posteriorly at the intersection of the right rear limb and the body wall. Each electrode was connected to an amplifier (Animal Bio Amp, Adinstruments Colorado Springs, CO) connected to a PowerLab data recording system (4 ST Adinstruments Colorado Springs, CO, USA) connected to a Macintosh computer running Chart software (Chart 8 Adinstruments Colorado Springs, CO). Data was collected as a sampling rate of 1000 Hz with a low pass (1 Hz) and a high-pass (50 Hz) filter setting. Once electrodes were in place a thermocouple was advanced approximately 3 cm into the cloaca and connected to a temperature meter (BAT-12, Physitemp Instruments, Clifton, NJ). Output for the temperature meter was connected to the PowerLab data recording system. Once the instrumentation was completed the thermal blanket and lamp were turned on. Animal core body temperature was then increased gradually from ~21.5°C to 36.0°C. At the completion of the study animals were euthanized with an intravenous injection of pentobarbital (350 mg/kg).

Optical and electrical recordings ex vivo

Request a detailed protocol

For the ex vivo experiments, we used seven juvenile alligators (±1.3 kg). First, we recorded and ECG from anesthetized animals (similar to described above) after which the animals were put in deep anesthesia by an injection of 50 mg kg−1 body mass pentobarbital in the pre-cranial venous sinus. Subsequently the hearts were excised through a ventral incision. The excised hearts were placed in a bath of a custom-made Ringer solution at room temperature (22° Celcius) and perfused through PE90 catheters inserted in the ventral wall of the left and right atria (Ringer, in mmol/l: NaCl 120, Tris 5, NaH2PO4 1, KCl 2.5, MgSO4 1, CaCl2 1.5, Glucose 5, pH adjusted to 7.5 with HCl). From the excised hearts, we recorded a pseudo-ECG (ex vivo) from electrodes placed in the tissue bath, 5 mm from the heart (Powerlab 26T; AD-Instruments, Colorado Springs, CO).

For recording of optical action potentials, we first loaded the hearts by superfusion with 10–20 µM di-4-ANEPPS (Molecular Probes, Eugene, OR) for 10 min which gave a preferentially loading the sub-epicardial compact wall of the ventricular myocardium. After loading, the excitation-contraction uncoupler blebbistatin (10–100 µM, Tocris Bioscience, Ellisville, MO) was added to the perfusate but failed to remove motion artifacts. Excitation light was delivered by a 520 ± 5 nm light emitting diode (Prizmatix, Southfield, MI) and emitted fluorescence was filtered >610 nm and recorded by a CMOS-sensor, (100 × 100 elements, 1 kHz, MICAM Ultima, SciMedia Ltd, Costa Mesa CA). One heart ceased spontaneous beating and was excluded from further experiments. After the first measurement, 5 out of the remaining six hearts were loaded for a second time by perfusion of 10–20 µM di-4-ANEPPS to load the trabeculations of the ventricular lumen. Local electrograms were recorded from the epicardium of the ventral and dorsal side using a Franz electrode. In the bath, a ECG was recorded between two electrodes placed at the 2.5 cm from the left and right side of the heart. In three hearts, we stimulated on the apex (dorsal) at 0.5 Hz. Optical signals were analyzed using custom made Matlab-based software (Laughner et al., 2012) (http://efimovlab.org/content/rhythm). Principle component analysis was performed using Matlab2014. The optical mapping of the alligator was compared to optical mappings of Xenopus and Anolis that were re-analyzed from published findings (Jensen et al., 2012).

Induced atrioventricular block by surgical incisions

Request a detailed protocol

In three hearts, we cut the atrial and ventricular tissue in the vicinity of the crux, that is, the intersection of the atrioventricular sulcus and the dorsal descending coronary artery, which reveals the approximate position of the atrioventricular node in the hearts of mammals (Crick et al., 1998). In the other three hearts, we cut the ventral and lateral parts of the atrioventricular junction. After the experiments, the hearts were fixed for 24 hr in 4% paraformaldehyde in phosphate buffered saline (adjusted to pH 7.5 with NaOH) and then kept in 70% ethanol.

Sectioning, in situ hybridization, and histological stains

Request a detailed protocol

The ventricular base including atrial tissue was dissected free and embedded in paraffin and sectioned in 10 or 12 µm thick sections in either the frontal, transverse, or sagittal plane. We performed in situ hybridization as previously described (Moorman et al., 2001). Probes for American alligator mRNA transcripts were made based on the following coordinates using UCSC Genome Browser on American alligator Aug. 2012 (allMis0.2/allMis1) Assembly: Cntn2 (JH737142:190,064–195,365), cTnI (JH732499:9,192–12,570), Gja5 (JH733970:656,237–659,259), Hey2 (JH734274:510,337–510,783), Nppa (JH731559:424,483–424,843), Nppb (JH731559:415,415–417,373), Scn5a (JH739807:162,160–168,550), Tbx3 (JH733970:656,237–659,259), Tbx5 (JH733970:893,979–894,506). Probes for Anolis mRNA transcripts were based on UCSC Genome Browser on Lizard May 2010 (Broad AnoCar2.0/anoCar2) Assembly; Myh6 (chrUn_GL343680:156,017–156,398). To detect collagen on tissue sections, we incubated sections for more than one hour in picro-sirius red followed by 2 min differentiation in 0.01M HCl.

RNA isolation and sequencing

Request a detailed protocol

Tissue samples were collected and homogenized with a homogenizer (Ultra-Turrax, IKA, DE) in lysis buffer RA1 of the NucleoSpin total RNA isolation kit (RNA II, Macherey-Nagel, DE). RNA isolation was performed following manufacturer’s protocol. RNA purity, concentration and integrity were determined by respectively Nanodrop (ND-1000, Isogen Life Science, NL), Qubit RNA Broad-Range (2.0, Life Technologies), and Bioanalyzer RNA Nano (2100, Agilent Technologies). Amplified double stranded cDNA was generated using the Ovation RNA-Seq system (V2, Nugen) following manufacturer’s protocol with 32 ng RNA input per sample. cDNA purity, concentration and size distribution were determined by Nanodrop, Qubit DNA HS and Bioanalyzer DNA 1000. Libraries were made using the 5500 SOLiD Fragment Library Core kit (Life technologies) and size distribution was determined by Bioanalyzer DNA 1000. RNA sequencing was performed on the SOLiD 5500 Wildfire (Life technologies). Sequence tags were mapped with Lifescope on the AllMis1 Aug. 2012 contig assembly of the American alligator genome.

Statistics

All analyses were performed using IBM SPSS Statistics 24. Statistical significance between in vivo and ex vivo derived ECG parameters was determined using a paired sample t-test. Other group comparisons were performed using one-way ANOVA with Bonferroni test for post hoc matched pairs. Sample size (n) is given in each figure legend. Expression patterns in histological sections were established based on section from at least two different animals. Values are given as mean ±SEM. We considered a p-value lower than 0.05 as statistically significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
    2 - Cardiovascular Development in Embryonic and Larval Fishes
    1. WW Burggren
    2. B Dubansky
    3. NM Bautista
    (2017)
    In: A. K Gamperl, T. E Gillis, A. P Farrell, C. J Brauner, editors. Fish Physiology. Academic Press. pp. 107–184.
    https://doi.org/10.1016/bs.fp.2017.09.002
  5. 5
  6. 6
    The Conducting System of the Vertebrate Heart
    1. V Chiodi
    2. R Bortolami
    (1967)
    Edizioni Calderini Bologna.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    The conducting (connecting) system of the crocodilian heart
    1. F Davies
    2. ET Francis
    3. TS King
    (1952)
    Journal of Anatomy 86:152–161.
  12. 12
  13. 13
    The Mammalian Electrocardiogram: Comparative Features
    1. DK Detweiler
    (2010)
    In: P Macfarlane, A van Oosterom, O Pahlm, P Kligfield, M Janse, J Camm, editors. Comprehensive Electrocardiology. London: Springer. pp. 1909–1947.
    https://doi.org/10.1007/978-1-84882-046-3_42
  14. 14
  15. 15
  16. 16
    Reproductive biology and embryology of the crocodilians
    1. MWJ Ferguson
    (1985)
    In: C Gans, F Billett, P. F. A Maderson, editors. Development A. Biology of the Reptilia. New York, Chichester, Brisbane, Toronto, Singapore: John Wiley & sons. pp. 331–491.
  17. 17
  18. 18
    Beitrage zur vergelichenden anatomie und entwicklungsgeschichte des herzens und des trauncus arteriosus der wirbelthiere
    1. A Greil
    (1903)
    MorphJahrbuch 31:123–310.
  19. 19
  20. 20
    Characterization of the Electrocardiogram of the American Alligator (Alligator mississippiensis)
    1. TG Heaton-Jones
    2. RR King
    (1994)
    Journal of Zoo and Wildlife Medicine 25:40–47.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    The form and nature of the muscular connections between the primary divisions of the vertebrate heart
    1. A Keith
    2. M Flack
    (1907)
    Journal of Anatomy and Physiology 41:172–189.
  29. 29
  30. 30
  31. 31
    Resting and maximal heart rates in ectothermic vertebrates
    1. HB Lillywhite
    2. KC Zippel
    3. AP Farrell
    (1999)
    Comparative Biochemistry and Physiology Part A: Molecular & Integrative Physiology 124:369–382.
    https://doi.org/10.1016/S1095-6433(99)00129-4
  32. 32
    The heart and the conducting (connecting) system of Crocodilus porosus (Schneider)
    1. PN Mathur
    (1971)
    The Journal of Animal Morphology and Physiology 18:84–90.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Development and function of the cardiac conduction system in health and disease
    1. DS Park
    2. GI Fishman
    (2017)
    Journal of Cardiovascular Development and Disease, 4, 10.3390/jcdd4020007, 29098150.
  39. 39
  40. 40
  41. 41
    Visualization and functional characterization of the developing murine cardiac conduction system
    1. S Rentschler
    2. DM Vaidya
    3. H Tamaddon
    4. K Degenhardt
    5. D Sassoon
    6. GE Morley
    7. J Jalife
    8. GI Fishman
    (2001)
    Development 128:1785–1792.
  42. 42
  43. 43
  44. 44
    Delayed depolarization of the cog-wheel valve and pulmonary-to-systemic shunting in alligators
    1. DA Syme
    2. K Gamperl
    3. DR Jones
    (2002)
    The Journal of Experimental Biology 205:1843–1851.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50

Decision letter

  1. Deborah Yelon
    Reviewing Editor; University of California, San Diego, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Specialized impulse conduction pathway in the alligator heart" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and by Didier Stainier as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Tobias Wang (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, Jensen at el. examine atrioventricular conduction in the hearts of crocodiles, a rare example of an ectothermic vertebrate species that contains a complete ventricular septum. Using an appropriate (and impressive) array of experimental techniques, the authors demonstrate that the crocodilian heart has a specialized atrioventricular bundle that provides for electrical signals to be conducted from the atria to ventricle in a timely fashion, insuring the necessary delay required for blood to be transmitted between these chambers. Through histology and gene expression analysis, the authors establish that the AV bundle is found immediately above the ventricular septum, and its location is verified by ablation studies that show complete inhibition of electrical propagation upon mechanical lesion of the relevant area. Thus, the authors conclude that an AV conduction apparatus, similar to the His-bundle of mammals, exists within the crocodile heart. Since crocodiles display a slow heart rate, this argues that the atrioventricular bundle did not evolve in response to the high heart rates that attended the evolution of endothermy amongst the closely related birds (although this has been the dominant view for the past decade). This is an important conclusion with a significant impact on our view of the evolution of the cardiac conduction system in vertebrates. However, several points remain to be addressed in order to support the authors' conclusions more fully.

Essential revisions:

1) In mammals, the AV bundle is a specialized myocardial bridge that is electronically insulated and connects the AV node to the ventricular Purkinje system. The authors have concluded that the TBX3-positive myocardium running through the ventricular septum of the crocodile denotes a specialized atrioventricular conduction pathway. However, a similar TBX3-positive region is noted in the dwarf caiman which seems to lack a defined atrioventricular conduction pathway. The authors also note that no insulation is present around the crocodile AV-conducting pathway, which should allow for direct electrical communication with any adjacent myocardial population. This leads to two major concerns that the authors should address. First, could the authors more clearly articulate the criteria with which they would define a specialized AV bundle? Is it simply the myocardial continuity present between atria and ventricle, or does it need to have specialized conduction characteristics? Second, it is difficult to resolve whether the key evolutionary feature for AV conduction in the crocodile heart is that it has a ventricular septum which serves as the substrate for AV conduction, or that it contains components similar to an annulus fibrosus that can prevent broader AV conduction and restrict the region of AV myocardium capable of transmitting an impulse from atrium to ventricle. Could the authors clarify their thoughts on this issue? Also, could the authors provide data supporting their statement in the discussion that the crocodilian atrioventricular bundle is not insulated? Can the authors shed light on how the crocodilian heart avoids an inadvertent spread of the atrial depolarization outside the bundle?

2) In mammals, the atrioventricular bundle and Purkinje fiber network are connected by right and left bundle branches. It is unclear in this study whether these latter structures would have evolved with the atrioventricular bundle or with the Purkinje fiber network. This topic should be investigated and incorporated into the manuscript. Is there any histological evidence in favor of structures like bundle branches being present in the crocodile? How do the authors envisage that the activation wave is propagated to the ventral ventricular apex? How would the authors compare the scenario in the crocodile to the fast conducting network seen in the zebrafish ventricle, which seems to include base-to-apex propagation? What do the authors see as the functional benefit of the AV bundle in a heart with low frequencies of contraction?

3) On a somewhat related topic, could the authors include data from additional species to reinforce their broad evolutionary conclusions based on analysis of (albeit difficult to obtain) crocodile and caiman material? Discussion of data from the literature would be fine in this regard, if these direct comparisons can strengthen the evolutionary conclusion.

4) The authors use the biphasic nature of the electrogram upstroke as a demonstration of potential multilayer conduction. It is important to include the details of this analysis. What were the parameters used to separate the components of the upstroke? Can the derivative of these upstrokes be separated to demonstrate the actual temporal difference between inner and outer activation? How does this vary between where the surface myocardium overlays the septum vs where it overlays the trabeculae? Are similar biphasic electrograms present in other adult organisms lacking septum (fish, frog, lizards)? In addition, it would be helpful for the authors to indicate from which regions the provided upstroke recordings were taken.

5) The authors conclude that the epicardial breakthrough in the crocodile heart is towards the apex of the heart, which would be indicative of a conduction pathway through the ventricular septum/trabeculae. However, the data provided in Figure 7—figure supplement 1 seems to indicate epicardial breakthrough first occurs closer to the atria. Could the authors clarify this point?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Specialized impulse conduction pathway in the alligator heart" for further consideration at eLife. Your revised article has been favorably evaluated by Didier Stainier as the Senior Editor, Deborah Yelon as the Reviewing editor, and three reviewers.

All three reviewers were pleased with the revisions made to your manuscript, and two out of the three reviewers were completely satisfied with the revised version. One reviewer highlighted a few points in the text that you could clarify a bit further in order to make your interesting work as accessible as possible for the readers of eLife.

The comments of all three reviewers are included below. Could you please take a look at the comments from reviewer #3 (especially comments #1 and #2) to see if there are any textual adjustments that could help to avoid similar confusion from future readers of your work? Once you've provided us with any changes that you'd like to make in that regard, we will be happy to move forward with accepting your manuscript for publication.

Reviewer #1:

The authors have satisfactorily addressed my concerns. This study makes an interesting evolutionary point about the separate origin of distinct components of the ventricular conduction system relevant to its modular development in mammals.

Reviewer #2:

The authors have revised the manuscript in accordance with the comments/suggestions provided in the previous round of review. I have no additional comments or queries.

Reviewer #3:

The resubmitted manuscript by Jensen et al. revises a previous text in which the presence of a specialized atrioventricular conduction pathway is claimed to exist in the alligator heart. It was noted in the previous draft that the authors had generated an interesting panel of data, indicating the presence of conduction pathway along the crest of the ventricular septum, however, several concerns were raised. The authors have provided some additional information and modified the text in response to these concerns. In general, the newly incorporated data and text clarify some of issues raised by the reviewers, resulting in an improvement to the study. A few points still remain confusing.

1) Based on the initial manuscript, the impression given was that Alligator mississippiensis was selected for the study as "the only ectothermic vertebrates with a full ventricular septum." The response provided by the reviewers to point "1" seems to indicate that the dwarf caiman might also process a specialized AV pathway (in the absence of a septum). Is this a misreading of the response, or are the authors saying that a ventricular septum is in fact not required for and AV bundle? The authors have also now noted that the QRS for the American alligator is largely the same as QRS times recorded in ectotherms species that presumably lack a full septum (response to concern 3). This is again confusing; does this indicate that the AV bundle reported in this manuscript has little function consequence on ventricular conduction? If so, this should be emphasized in the text.

2) Regarding whether the myocardial bridge across the AV meets the criteria of a specialized conduction system: in fairness to previous work, the authors should state that they have used different criteria then historical work on this topic. The authors have defined "specialized" to mean the expression of TBX3 and the point of ventricular activation. As these are not the lineage criteria designated by earlier anatomists, this new definition should be clearly stated.

3) Given the lack of insulation, the lack of bundle branches, and how slow internal conduction in Figure 1I is, the mechanisms by which impulses would preferentially propagate down the septum and secondarily activate the compact layer remains difficult to understand.

4) Sample numbers and statistics related to physiological data remain a concern.

https://doi.org/10.7554/eLife.32120.024

Author response

Essential revisions:

1) In mammals, the AV bundle is a specialized myocardial bridge that is electronically insulated and connects the AV node to the ventricular Purkinje system. The authors have concluded that the TBX3-positive myocardium running through the ventricular septum of the crocodile denotes a specialized atrioventricular conduction pathway. However, a similar TBX3-positive region is noted in the dwarf caiman which seems to lack a defined atrioventricular conduction pathway.

We have now reconstructed the Tbx3 positive domain of one more heart (in Figure 3—figure supplement 1), which allows the comparison of the American alligator and Cuvier’s dwarf caiman, and it shows that both species have a dorsal tongue of Tbx3 that contacts the crest of the ventricular septum. We refer to Figure 3—figure supplement 1 in the subsection “Molecular characterization of the atrioventricular conduction pathway in alligator hearts”. For Cuvier’s dwarf caiman, we only have the expression pattern and cannot confirm by electrophysiology whether this Tbx3 positive domain functions as a specialized pathway. Given the pronounced similarity between the American alligator and Cuvier’s dwarf caiman, we assume they have a similar specialized pathway.

The authors also note that no insulation is present around the crocodile AV-conducting pathway, which should allow for direct electrical communication with any adjacent myocardial population. This leads to two major concerns that the authors should address. First, could the authors more clearly articulate the criteria with which they would define a specialized AV bundle? Is it simply the myocardial continuity present between atria and ventricle, or does it need to have specialized conduction characteristics?

The presence of a specialized conduction system has been investigated in many reptile species and no consensus has emerged. The lack of consensus reflects the very heterogeneous quality of the previous studies and different definitions of “specialization” (see also de Haan, Circulation, 1961). To claim specialization, anatomists placed much emphasis on how pale (glycogen rich, fewer sarcomeres) cells are, that is how Purkinje cell-like they are, whether the tissue could be discriminated from the surrounding muscle mass by insulating connective tissue, etc., whereas many electrophysiologists placed emphasis on function, for instance whether there is an atrioventricular delay under the influence of nervous activity. Currently, “specialization” is much informed by molecular data. The criteria for specialization used in this study is twofold:1) Specific location of preferential conduction as indicated by incisions and 2) the presence of Tbx3, a highly conserved transcription factor that is the main marker of the developing and mature AV bundle in mammals and birds (Hoogaars, Cardiovasc Res. 2004; Bakker, Circulation Research 2008). To address this matter we have added the following to the Introduction section:

“[…]specialized atrioventricular conduction system tissues composed of distinctive cardiomyocytes (e.g. glycogen rich, less developed contractile apparatus, highly conductive) that can be morphologically distinguished from the working myocardium.”

Second, it is difficult to resolve whether the key evolutionary feature for AV conduction in the crocodile heart is that it has a ventricular septum which serves as the substrate for AV conduction, or that it contains components similar to an annulus fibrosus that can prevent broader AV conduction and restrict the region of AV myocardium capable of transmitting an impulse from atrium to ventricle. Could the authors clarify their thoughts on this issue? Also, could the authors provide data supporting their statement in the discussion that the crocodilian atrioventricular bundle is not insulated? Can the authors shed light on how the crocodilian heart avoids an inadvertent spread of the atrial depolarization outside the bundle?

We have performed additional histological analyses of insulating tissue (collagen by picro-sirius red) combined with detection of Tbx3 on neighboring sections, and added a new figure (Figure 3). This shows connective tissue ventral and dorsal to the AV-conducting pathway identify by the expression of Tbx3. However, on the left and right of the dorsal Tbx3 defined pathway, there is myocardial continuity between the atria and ventricles that does not express Tbx3. Therefore, the AV-conducting pathway is not fully insulated as it is in mammals and birds.

It is unclear whether inadvertent spread of the atrial depolarization outside the bundle occurs. However, specific cuts through the Tbx3 positive bundle caused AV block, implicating that possible conduction through the Tbx3 negative myocardial continuity was not sufficient to maintain AV conduction. The latter indicates that, although not being fully insulated, the Tbx3 positive myocardial connection acts as an AV bundle. We have added the following text to the manuscript:

Results:

“Dorsally, the atrioventricular canal myocardium was nestled between collagen of the atrioventricular valves and the atrioventricular sulcus (Figure 3). The Tbx3 identified atrioventricular bundle extended from this sheet of atrioventricular canal myocardium (Figure 3). Laterally, the Tbx3 identified atrioventricular bundle was not insulated by connective tissue in contrast to the setting in mammals and birds.”

Discussion:

“Nevertheless, specific cuts through the Tbx3 positive bundle caused atrioventricular block, implicating the Tbx3-negative myocardial continuity between the atria and ventricles was not sufficient to maintain atrioventricular conduction. Thus, although not being fully insulated, the Tbx3 positive myocardial connection acts as an atrioventricular bundle, as it does in mammals and birds.”

2) In mammals, the atrioventricular bundle and Purkinje fiber network are connected by right and left bundle branches. It is unclear in this study whether these latter structures would have evolved with the atrioventricular bundle or with the Purkinje fiber network. This topic should be investigated and incorporated into the manuscript. Is there any histological evidence in favor of structures like bundle branches being present in the crocodile?

The proximal parts of the mammalian and bird bundle branches specifically express Tbx3 and other markers. We never found similar branches in the crocodilians, neither with histology nor in situ hybridization for Tbx3, Tbx5, Gja5, and Scn5a. We now make this point explicitly in Results and Discussion.

Results:

“In mammals and birds, the atrioventricular bundle and Purkinje network are connected by the Tbx3-expressing bundle branches on the left and right flanks of the ventricular septum. We never observed similar branches in the crocodilians, neither with histology nor in situ hybridization for Tbx3, Tbx5, Gja5, and Scn5a.”

Discussion:

“In mammals and birds, the atrioventricular bundle ramifies into bundle branches which express Tbx3 and drape the left and right surface of the ventricular septum (Hoogaars et al., 2004). […] One anatomical study claimed the presence of bundle branches in crocodilians (40), but the most prevalent view is that the crocodilian heart is without a histologically distinct atrioventricular bundle and bundle branches (Davies, Francis and King, 1952; Christian and Grigg, 1999; Greil, 1903; Swett, 1923).”

At least on this point there appears to be agreement in literature. (Concerning histological evidence, as reported in literature, Christian and Grigg (1999) identified two “channels” of preferential conduction by plunge electrodes within the crocodilian ventricular septum, but could not identify these with histology. Greil (1903) and Swett (1923) observed that atrioventricular canal-like myocardium projected onto the ventricular septum in the American alligator. However, they did not find bundle branches. Davies et al. (1952) did not find any evidence for specialized tissues in the American alligator. Importantly, Davies et al. are the same investigators who provided major contributions to the description of the specialized conduction system of mammals and birds. Only, Mathur (1971), who studied two species of crocodile, claimed to have found an atrioventricular node and atrioventricular bundle – and further claimed these to be homologous to those of mammals and birds – but he did not claim to have found any bundle branches).

How do the authors envisage that the activation wave is propagated to the ventral ventricular apex?

We envision early propagation predominantly, if not exclusively, within the septum and the trabeculated myocardium. The earliest activation of the compact myocardium is dorsal and where the septum fuses with the compact wall. On the ventral side, the compact myocardium is activated later, via the apex.

How would the authors compare the scenario in the crocodile to the fast conducting network seen in the zebrafish ventricle, which seems to include base-to-apex propagation?

The ventricular muscle of all vertebrates propagates the electrical impulse much faster than the atrioventricular junctional muscle, but our heating experiment, shown in Figure 6, shows that the alligator ventricle has a larger activation time (QRS duration) than the ventricles of mammals of comparable size. This strongly suggests that impulse propagation in the alligator is slower than in mammals. We do not know of similar heating experiments in zebrafish, but we would expect them to show a longer QRS duration than would be expected for a similarly sized mammal (obviously, adult zebrafish are much smaller than the smallest mammals so this is theoretical only). In fish of approximately 1kg, the QRS interval is as long as in alligators (trout, Comp Biochem Physiol A 145 (2006): 158–165; pike, Comp Biochem Physiol A 159 (2011) 39–45) or longer (African lungfish, Am J Physiol-Heart Circ Physiol 232 (1977): H24-H34). Alligators nonetheless show elements of the apex-to-base activation that characterizes mammals and birds. This unusual pattern of activation, for an ectotherm, is presumably explained to a large extent by the presence of the specialized Tbx3-positive pathway. Zebrafish appear without a comparable manner of activation, although the exact manner of activation of the zebrafish ventricle is a point of contention; please see the discussion in Jensen et al. 2012.

What do the authors see as the functional benefit of the AV bundle in a heart with low frequencies of contraction?

A particular structure does not necessarily have to have a functional benefit in itself, if its presence is related to a trait that has been selected for (Gould and Lewontin, 1979, Proc Roy Soc London B). We currently do not see an advantage to the AV bundle in the crocodilians, nor do we rule out an advantage, but for the time being, we are content with the notion that the AV bundle may simply relate to the presence of a full ventricular septum.

3) On a somewhat related topic, could the authors include data from additional species to reinforce their broad evolutionary conclusions based on analysis of (albeit difficult to obtain) crocodile and caiman material? Discussion of data from the literature would be fine in this regard, if these direct comparisons can strengthen the evolutionary conclusion.

Electrocardiograms have been recorded in a number of crocodilian species and the QRS duration of the electrocardiogram is indicative of whether there is a mammal-like specialized ventricular conduction system (this manuscript, Figure 6). The QRS durations we recorded from American alligators, approximately 100 ms, were of similar magnitude to reported previously for the American alligator (Heaton-Jones and King, 1994; Syme et al. 2002), the Chinese alligator (Wang et al., 1991), the saltwater crocodile (Christian & Grigg, 1999), and the Nile crocodile (Davies et al., 1951). As requested by the reviewer, we have discussed data from literature to strengthen the evolutionary conclusion. We comment on this in the Discussion section:

“In other crocodilians, the QRS duration is also approximately 100 ms suggesting that the speed of ventricular activation is similar across crocodilians (Christian and Grigg, 1952; Davies, Francis and King, 1951; Heaton-Jones and King, 1994; Syme, Gamperl and Jones, 2002; Wang et al., 1991).”

4) The authors use the biphasic nature of the electrogram upstroke as a demonstration of potential multilayer conduction. It is important to include the details of this analysis. What were the parameters used to separate the components of the upstroke? Can the derivative of these upstrokes be separated to demonstrate the actual temporal difference between inner and outer activation? How does this vary between where the surface myocardium overlays the septum vs where it overlays the trabeculae? Are similar biphasic electrograms present in other adult organisms lacking septum (fish, frog, lizards)? In addition, it would be helpful for the authors to indicate from which regions the provided upstroke recordings were taken.

To test whether biphasic upstrokes could be separated from upstrokes with one phase we first performed a principle component analysis. This is shown in the newly added Figure 7 of the revised manuscript. After that we separated the upstrokes with one phase from those with two phases based on the dV/dt. We have generated a figure (Author response image 1) showing multiple dV/dt max calculated from the signals with a biphasic upstroke. Distinct activation maps, based on the maximum positive derivative (Figure 7—figure supplement 1), could be generated from both the first and the second part of the fractionated upstrokes. The activation maps on the left of Figure 7—figure supplement 1 show the reconstructed activation patterns from the first part of the upstroke and the activation maps on the right of Figure 7—figure supplement 1 shows the reconstructed activation patterns from the second part of the upstroke. To explain this topic better we have added the following to the revised manuscript.

Results:

“Optical mapping analysis indicated the presence of two functional layers. In 2 out of 6 animals, we observed action potentials with fractionated (biphasic) upstrokes, in which an initial steep deflection was followed by a lessening of the inclination only to be followed by a second steep deflection (Figure 7A-C, Figure 7—figure supplement 1). […] Together with the gene expression data, these data suggest the presence of two layers, a trabecular myocardial layer and a compact layer, which are activated in subsequent order.”

Author response image 1
Fractionated upstrokes measured from the epicardium.

The traces in A and B shows the optically recorded action potential (upper) and its the derivative (lower). Panel C and D show magnifications of the red box from panel A and B respectively.

https://doi.org/10.7554/eLife.32120.021

5) The authors conclude that the epicardial breakthrough in the crocodile heart is towards the apex of the heart, which would be indicative of a conduction pathway through the ventricular septum/trabeculae. However, the data provided in Figure 7—figure supplement 1 seems to indicate epicardial breakthrough first occurs closer to the atria. Could the authors clarify this point?

The activation map shown in Figure 7—figure supplement 1 shows at the left the pattern based on the first part of the upstroke and at the right the pattern based on the second part of the upstroke. The earliest breakthrough is based on the first part of the upstroke and observed in the mid of the ventricle (Figure 7—figure supplement 1 right top). The first activation based on the second part of the upstroke is, as noted by the reviewer, at the base of the heart close to the atria (Figure 7—figure supplement 1D left top). This breakthrough, however, occurred later than at the mid of the ventricle. We have addressed this issue in the revised manuscript:

“Distinct activation maps could be generated from both the first and the second part of the biphasic upstrokes showing first activation in the mid of the ventricle at the dorsal side.”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #3:

[…] 1) Based on the initial manuscript, the impression given was that Alligator mississippiensis was selected for the study as "the only ectothermic vertebrates with a full ventricular septum." The response provided by the reviewers to point "1" seems to indicate that the dwarf caiman might also process a specialized AV pathway (in the absence of a septum). Is this a misreading of the response, or are the authors saying that a ventricular septum is in fact not required for and AV bundle?

We have not made it sufficiently clear that the full septum is found in all crocodilians, which comprise 23 species of alligators, caimans (technically also alligators), crocodiles, and gharials. In the Introduction, we now write “Among ectotherms, only crocodilians (alligators, crocodiles, and gharials) have a full ventricular septum…”.

The authors have also now noted that the QRS for the American alligator is largely the same as QRS times recorded in ectotherms species that presumably lack a full septum (response to concern 3). This is again confusing; does this indicate that the AV bundle reported in this manuscript has little function consequence on ventricular conduction? If so, this should be emphasized in the text.

The QRS duration is mainly defined by the conduction system components downstream of the AV bundle (in mammals, the Purkinje fibre network) in combination with the conduction velocity in the working myocardium. We have now added the following sentence to the sixth paragraph of the Discussion, where the QRS duration is discussed: “It further suggests that the specialized atrioventricular conduction pathway does not have an appreciable effect on ventricular activation time.”

2) Regarding whether the myocardial bridge across the AV meets the criteria of a specialized conduction system: in fairness to previous work, the authors should state that they have used different criteria then historical work on this topic. The authors have defined "specialized" to mean the expression of TBX3 and the point of ventricular activation. As these are not the lineage criteria designated by earlier anatomists, this new definition should be clearly stated.

We have now added the following sentence to the last paragraph of the Introduction: “Because previous anatomical investigations led to contradictory interpretations (Supplementary file 1), we use complementary functional and molecular criteria to define “specialization.”

3) Given the lack of insulation, the lack of bundle branches, and how slow internal conduction in Figure 1I is, the mechanisms by which impulses would preferentially propagate down the septum and secondarily activate the compact layer remains difficult to understand.

Insulation is not necessarily an effect of fibro-fatty tissues alone, but can also be brought about by so-called source-sink mismatches and poor coupling between cells (Kléber, A.G. and Rudy, Y., 2004. Physiological reviews, 84(2), pp.431-488.). The propagation of the impulse from the specialized atrioventricular pathway to the ventricular surface is the least investigated part of our study. It remains difficult for us to assess the relative contribution of insulating tissues, source-sink mismatches, and cellular coupling, and we are therefore reluctant to speculate on this matter.

4) Sample numbers and statistics related to physiological data remain a concern.

The scale of our efforts reflects that American alligators are not readily available for experimentation. Nonetheless, the pattern of activation we report is fully consistent with the previous study of Christian and Grigg (1999) and the QRS durations we measured are similar to those reported previously (5 references cited in Discussion), strongly suggesting that our physiological data is sound.

https://doi.org/10.7554/eLife.32120.025

Article and author information

Author details

  1. Bjarke Jensen

    Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Bastiaan J Boukens
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7750-8035
  2. Bastiaan J Boukens

    1. Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    2. Department of Biomedical Engineering, George Washington University, Washington, DC, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Bjarke Jensen
    Competing interests
    No competing interests declared
  3. Dane A Crossley II

    Department of Biological Sciences, University of North Texas, Denton, United States
    Contribution
    Resources, Data curation, Methodology, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Justin Conner

    Department of Biological Sciences, University of North Texas, Denton, United States
    Contribution
    Data curation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Rajiv A Mohan

    Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    Contribution
    Data curation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3622-1759
  6. Karel van Duijvenboden

    Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    Contribution
    Data curation, Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Alex V Postma

    1. Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    2. Department of Clinical Genetics, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    Contribution
    Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Christopher R Gloschat

    Department of Biomedical Engineering, George Washington University, Washington, DC, United States
    Contribution
    Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  9. Ruth M Elsey

    Rockefeller Wildlife Refuge, Louisiana Department of Wildlife and Fisheries, Grand Chenier, United States
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
  10. David Sedmera

    Institute of Anatomy, First Medical Faculty, Charles University, and Institute of Physiology, Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
  11. Igor R Efimov

    Department of Biomedical Engineering, George Washington University, Washington, DC, United States
    Contribution
    Resources, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1483-5039
  12. Vincent M Christoffels

    Department of Medical Biology, Heart Failure Research Center, Academic Medical Center, University of Amsterdam, Amsterdam, The Netherlands
    Contribution
    Conceptualization, Resources, Formal analysis, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    v.m.christoffels@amc.uva.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4131-2636

Funding

Carlsbergfondet

  • Bjarke Jensen

Fondation Leducq

  • Vincent M Christoffels

CVON HUSTCARE

  • Vincent M Christoffels

Hartstichting (COBRA3)

  • Vincent M Christoffels

Hartstichting (2016T047)

  • Bastiaan J Boukens

Hartstichting (CONCOR-genes, CVON2014-2018)

  • Alex V Postma
  • Vincent M Christoffels

Czech Science Foundation (16-02972S)

  • David Sedmera

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Loren J Field and Antoon Moorman for helpful discussions, Vincent Wakker for generating RNA probes and John Eme for collection of alligator eggs.

Ethics

Animal experimentation: The investigation conforms with the guide for the Care and Use of Laboratory Animals published by the US National Institutes of Health (NIH Publication No. 8523, revised 1996) and was approved by the Institutional Animal Studies Care and Use Committee of the University of North Texas (IACUC #1403-04).

Reviewing Editor

  1. Deborah Yelon, University of California, San Diego, United States

Publication history

  1. Received: September 19, 2017
  2. Accepted: March 20, 2018
  3. Accepted Manuscript published: March 22, 2018 (version 1)
  4. Version of Record published: May 8, 2018 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,375
    Page views
  • 242
    Downloads
  • 17
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Cell Biology
    2. Developmental Biology
    Eric R Brooks et al.
    Research Article

    Neural tube closure defects are a major cause of infant mortality, with exencephaly accounting for nearly one-third of cases. However, the mechanisms of cranial neural tube closure are not well understood. Here we show that this process involves a tissue-wide pattern of apical constriction controlled by Sonic hedgehog (Shh) signaling. Midline cells in the mouse midbrain neuroepithelium are short with large apical surfaces, whereas lateral cells are taller and undergo synchronous apical constriction, driving neural fold elevation. Embryos lacking the Shh effector Gli2 fail to produce appropriate midline cell architecture, whereas embryos with expanded Shh signaling, including the IFT-A complex mutants Ift122 and Ttc21b and embryos expressing activated Smoothened, display apical constriction defects in lateral cells. Disruption of lateral, but not midline, cell remodeling results in exencephaly. These results reveal a morphogenetic program of patterned apical constriction governed by Shh signaling that generates structural changes in the developing mammalian brain.

    1. Developmental Biology
    2. Evolutionary Biology
    Meng Xie et al.
    Research Article Updated

    Growth plate and articular cartilage constitute a single anatomical entity early in development but later separate into two distinct structures by the secondary ossification center (SOC). The reason for such separation remains unknown. We found that evolutionarily SOC appears in animals conquering the land - amniotes. Analysis of the ossification pattern in mammals with specialized extremities (whales, bats, jerboa) revealed that SOC development correlates with the extent of mechanical loads. Mathematical modeling revealed that SOC reduces mechanical stress within the growth plate. Functional experiments revealed the high vulnerability of hypertrophic chondrocytes to mechanical stress and showed that SOC protects these cells from apoptosis caused by extensive loading. Atomic force microscopy showed that hypertrophic chondrocytes are the least mechanically stiff cells within the growth plate. Altogether, these findings suggest that SOC has evolved to protect the hypertrophic chondrocytes from the high mechanical stress encountered in the terrestrial environment.
