The role of Pitx2 and Pitx3 in muscle stem cells gives new insights into P38α MAP kinase and redox regulation of muscle regeneration

  1. Aurore L'honoré  Is a corresponding author
  2. Pierre-Henri Commère
  3. Elisa Negroni
  4. Giorgia Pallafacchina
  5. Bertrand Friguet
  6. Jacques Drouin
  7. Margaret Buckingham
  8. Didier Montarras  Is a corresponding author
  1. Institut Pasteur, France
  2. Sorbonne Universités, Université Pierre et Marie Curie, France
  3. Universityof Padova, Italy
  4. Institut de Recherches Cliniques de Montréal, Canada
Research Article
  • Cited 0
  • Views 937
  • Annotations
Cite this article as: eLife 2018;7:e32991 doi: 10.7554/eLife.32991

Abstract

Skeletal muscle regeneration depends on satellite cells. After injury these muscle stem cells exit quiescence, proliferate and differentiate to regenerate damaged fibres. We show that this progression is accompanied by metabolic changes leading to increased production of reactive oxygen species (ROS). Using Pitx2/3 single and double mutant mice that provide genetic models of deregulated redox states, we demonstrate that moderate overproduction of ROS results in premature differentiation of satellite cells while high levels lead to their senescence and regenerative failure. Using the ROS scavenger, N-Acetyl-Cysteine (NAC), in primary cultures we show that a physiological increase in ROS is required for satellite cells to exit the cell cycle and initiate differentiation through the redox activation of p38α MAP kinase. Subjecting cultured satellite cells to transient inhibition of P38α MAP kinase in conjunction with NAC treatment leads to their rapid expansion, with striking improvement of their regenerative potential in grafting experiments.

https://doi.org/10.7554/eLife.32991.001

Introduction

In adult mammals, many tissues can undergo repair in response to injury due to the presence of stem cells. In contrast to embryonic stem cells, most adult stem cells are maintained in a quiescent state in specialized niches (Lander et al., 2012; Ema and Suda, 2012). In response to tissue damage or changes in their microenvironment, they exit quiescence, proliferate and then differentiate in order to regenerate the tissue, or self-renew to reconstitute the stem cell pool. Progression from quiescence to proliferation and differentiation requires metabolic flexibility to adapt to changing energy demands, as exemplified by hematopoietic stem cells which when quiescent mainly rely on glycolysis, but upon activation depend on active mitochondrial biogenesis and oxidative phosphorylation (Simsek et al., 2010; Takubo et al., 2013). Such a metabolic switch, which is critical for responding to bio-energetic needs, may also be implicated in the regulation of adult stem cell behaviour, as observed for reactive oxygen species (ROS) that are by-products of oxidative phosphorylation (Murphy, 2009). Although detrimental when in excess, ROS can serve as signalling molecules at physiological levels (D'Autréaux and Toledano, 2007; Sena and Chandel, 2012), and their regulation is now emerging as an important facet of stem cell biology (Bigarella et al., 2014; Khacho and Slack, 2017; Le Moal et al., 2017). Thus increased ROS production when quiescent hematopoietic stem cells switch from glycolysis to oxidative phosphorylation has been shown to be critical for priming their activation (Jung et al., 2013). In addition to enhancing stem cell proliferation, moderate levels of ROS can also affect cell fate decisions (Khacho and Slack, 2017). However, it is still unclear how ROS levels in adult stem cells can modulate the critical balance between proliferation and differentiation in an in vivo context and whether this impacts tissue homeostasis and regeneration.

To address this issue we have used the model of adult muscle stem cells, known as satellite cells, which progress from quiescence to proliferation and differentiation during skeletal muscle regeneration. While quiescent satellite cells have a low redox state, we observed a marked increase in ROS levels in activated cells, with a peak occurring prior to the onset of muscle differentiation. To investigate the effect of redox regulation on satellite cell behaviour, we employed conditional mouse mutants for Pitx2 and Pitx3 genes (Gage et al., 1999a), encoding homeodomain transcription factors that we previously identified as critical regulators of cell redox state during foetal myogenesis (L'honoré et al., 2014). We found that the intracellular ROS level is a critical regulator of satellite cell behaviour, acting through p38α MAP kinase activity. While the moderate overproduction of ROS observed in the single Pitx3 mutant results in the premature differentiation of satellite cells, excessive ROS levels seen in double Pitx2/3 mutants lead to impaired skeletal muscle regeneration due to accumulation of DNA damage and senescence of satellite cells. Reduction of ROS levels by the antioxidant N-Acetyl-Cysteine (Richards et al., 2011), together with inhibition of P38α MAP kinase signalling (Segalés et al., 2016), leads to robust expansion of satellite cells in culture. Satellite cells cultured under these conditions show high in vivo expansion and regenerative potential upon grafting, with implications for muscle cell therapy.

Results

Increased ROS and mitochondrial biogenesis mark the progression of satellite cells towards terminal differentiation

To investigate the regulation of mitochondrial metabolism in quiescent and committed myoblasts, we first performed a transcriptome analysis with Pax3(GFP)-positive satellite cells (Pallafacchina et al., 2010) purified by flow cytometry from adult Pax3GFP/+ (Adult), postnatal day 7 Pax3GFP/+ (P7) and adult dystrophic mdx/mdx:Pax3GFP/+(mdx) mice (Figure 1A). Compared with quiescent satellite cells from adult muscle, activated satellite cells present during post-natal development, or in mdx muscles (Pallafacchina et al., 2010), which in the absence of Dystrophin undergo chronic regeneration, showed up-regulation of genes implicated in fatty acid metabolism and in oxidative phosphorylation, including regulators of mitochondrial biogenesis and function (Figure 1A, Figure 1—figure supplement 1A). Such activated cells, marked by the onset of Myogenin transcription (Figure 1—figure supplement 1B), display increased levels of ROS (Figure 1—figure supplement 1C,D), showing that activation is accompanied by metabolic changes involving increase in both mitochondrial activity and ROS production. We then investigated mitochondrial activity during the transition from proliferation to differentiation. Satellite cells were purified by flow cytometry from pectoralis, diaphragm and abdominal muscles of adult Pax3GFP/+ mice and both respiration and glycolysis were measured by Seahorse analysis after different days of culture (D2-D4) (Figure 1—figure supplement 1E–G). While proliferative satellite cells (D2) predominantly display glycolytic metabolism, the contribution of oxidative phosphorylation increases at day 3 (D3, Figure 1—figure supplement 1E–G), a time that precedes differentiation by one day, as evidenced by Myogenin expression (Figure 1—figure supplement 1J). To investigate the kinetics of mitochondrial function and of ROS production in vivo during muscle regeneration, satellite cells were then purified by flow cytometry from pectoralis muscles of adult Pax3GFP/+ mice at different days (D0 to D7) after notexin-induced injury (Figure 1B). While quiescent satellite cells are characterized by a low mitochondrial mass (Latil et al., 2012; Tang and Rando, 2014), we observed an increase in mitochondrial mass occuring two days after injury and continuing thereafter (Figure 1C,D). This increase precedes the onset of differentiation, marked by Myogenin expression and down-regulation of Pax7 (Figure 1E). Strikingly, quantification of total H2O2 production and mitochondrial ROS production revealed a marked increase at two days after activation (Figure 1F, Figure 1—figure supplement 1H), a time when satellite cells initiate differentiation (Figure 1E). Analysis of cytoplasmic ROS levels showed an increase at day 2 after injury that reaches a peak at day 3 (Figure 1G), when the level of GFP, reflecting Pax3 transcription, is low, as also seen for Pax7 (Figure 1E). Subsequent increase in GFP fluorescence (Figure 1G) corresponds to later self-renewal of the Pax3-positive satellite cell pool.

Figure 1 with 1 supplement see all

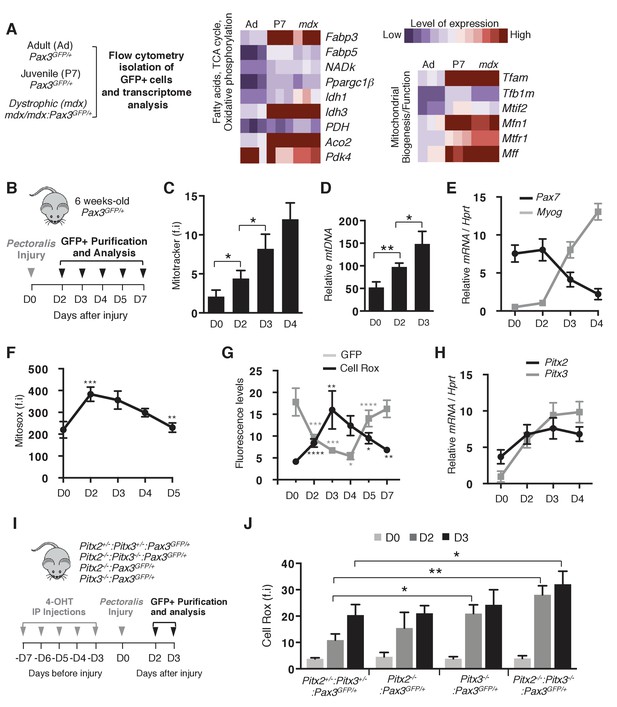

Activation of muscle stem cells during regeneration is accompanied by changes in their redox state.

(A) Quiescent (adult) and activated (P7 and mdx) satellite cells were purified respectively from adult Pax3GFP/+ (Ad, 98% quiescent), postnatal day 7 Pax3GFP/+ (P7, 80% activated) and adult dystrophic mdx:Pax3GFP/+ (mdx, 30% activated) mice. In each case, pectoralis, abdominal and diaphragm muscles were used for isolation by flow cytometry of Pax3(GFP)-positive satellite cells. After purification, RNA was isolated from Pax3(GFP)-positive cells for transcriptome analysis (Pallafacchina et al., 2010). (B) Experimental scheme used for the purification of quiescent and activated satellite cells during regeneration. (C–H) GFP-positive cells were isolated from the pectoralis muscles of adult Pax3GFP/+mice at different days (D) after notexin injection or from control muscles at D0. (C) GFP-positive cells isolated at D0 (quiescent) and D2 to D4 after notexin injury (activated) were immediately incubated with Mitotracker probe and analysed by flow cytometry to measure fluorescence intensity (f.i). (D) DNA samples prepared from Pax3(GFP)-positive cells were analysed by qPCR for the level of the mitochondrial COI gene relative to the level of the nuclear encoded NDUFV1 gene, expressed as a log ratio. (E) RNA samples prepared from Pax3(GFP)-positive cells were analysed by qPCR for transcripts of Pax7 and Myogenin relative to the level of Hprt transcripts, expressed as a log ratio. (F, G) Immediately after purification at D0-D5 (F) or D0-D7 (G), GFP-positive cells were incubated with Mitosox (F) or Cell Rox (G) probes and the relative fluorescence intensity (f.i) measured by flow cytometry. (H) RNA samples as in (E) were analysed by qPCR for Pitx2 and Pitx3 transcripts. (I) Double Pitx2/3 mutant Pitx2flox/flox:Pitx3flox/-:Pax3GFP/+:R26RCre-ERT2/+, single Pitx2 mutant Pitx2flox/flox:Pax3GFP/+:R26RCre-ERT2/+, single Pitx3 mutant Pitx3-/-:Pax3GFP/+, and control Pitx2flox/+:Pitx3+/-:Pax3GFP/+:R26RCre-ERT2/+ adult mice were obtained by 4-hydroxytamoxifen (4-OHT) intra-peritoneal (IP) injection on 5 consecutive days (D) and subjected to muscle injury by notexin injection into the pectoralis muscle (D0). (J) GFP-positive cells isolated as in (B) at D0, 2 and 3 after injury were incubated with Cell Rox probe and the relative fluorescence intensity (f.i.) measured by flow cytometry. Error bars (C–H, J) represent the mean ±s.d with n ≥ 6 independent animals (C, E–H, J) or 4 independent animals (D). Error bars represent the mean ± s.d, with *p<0.05, **p<0.01, ***p<0.001, ****p<0.001. Please see Figure 1—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.002

As these results clearly indicate that intracellular ROS content reaches a peak before the onset of satellite cell differentiation, we then examined whether it is required to drive differentiation. To address this issue, and since we had previously identified Pitx2/3 genes as essential regulators of the redox state in foetal muscle precursor cells (L'honoré et al., 2014), we employed conditional Pitx2/3 mutant mice. Both Pitx2 and Pitx3 transcripts and their corresponding proteins are up-regulated in activated satellite cells, marked by MyoD expression and then by differentiation markers Myogenin and Troponin T, in vivo after injury (Figure 1H, Figure 1—figure supplement 1I), and ex vivo in cultured satellite cells (Knopp et al., 2013) (Figure 1—figure supplement 1J–L).

Conditional ablation of the floxed-Pitx2 gene (Gage et al., 1999b) alone, or in combination with the constitutive Pitx3 mutant (L'honoré et al., 2014) was carried out by five intra-peritoneal injections of 4-hydroxy-tamoxifen (4-OHT). Pax3(GFP)-positive cells were then purified by flow cytometry from the pectoralis muscles of Pitx2flox/+:Pitx3+/-:Pax3GFP/+:R26RCre-ERT2/+ controls, Pitx3-/-:Pax3GFP/+ and Pitx2flox/flox:R26RCre-ERT2/+:Pax3GFP/+ single mutants and Pitx2flox/flox:Pitx3flox/-:R26RCre-ERT2/+:Pax3GFP/+ double mutants, in the absence of injury (D0) or 2 and 3 days (D2, D3) after notexin injection (Figure 1I). As previously shown (Figure 1F,G), ROS levels increase markedly from day 2 after injury in control satellite cells isolated from Pitx2flox/+:Pitx3+/-:Pax3GFP/+:R26RCre-ERT2/+ mice (Figure 1J). While Pitx2 mutant satellite cells display a similar redox state as control cells during regeneration, we observed abnormal moderate or high increases in ROS at days 2 and 3 after injury in satellite cells from single Pitx3 or double Pitx2/3 mutant mice, respectively (Figure 1J). Comparison of ROS levels in Pax3(GFP) satellite cells isolated from double heterozygotes versus wild-type mice after notexin injury gave similar results (Figure 1—figure supplement 1M). We therefore systematically employed the double heterozygote as a control.

Increased ROS production is critical for satellite cell progression from proliferation to differentiation through redox activation of p38α MAP kinase

To test the consequences of a moderate ROS increase on activated satellite cell behaviour, we used Pitx3-/- mice. At birth, Pitx3 mutants were indistinguishable from controls, but then displayed a progressive growth defect (Figure 2—figure supplement 1A), with reduced muscle mass and a decrease in the myofibre cross-sectional area (CSA) (Figure 2—figure supplement 1B,C), a phenotype that persists in adults (Figure 2A,B, Figure 2—figure supplement 1D). To investigate the behaviour of Pitx3 mutant satellite cells during muscle regeneration, we injured the Tibialis Anterior (TA) muscle of Pitx3-/- mutant and Pitx3+/- animals by cardiotoxin injection. Three weeks after injury, regenerated fibres of control mice have a similar size to that of uninjured fibres, whereas mutant muscles exhibit a decreased CSA (Figure 2A,B). This phenotype, which is correlated with a deficit in centrally located myonuclei in regenerating mutant fibres compared to controls (Figure 2C), may reflect abnormal behaviour of Pitx3 mutant satellite cells. We therefore examined the kinetics of their differentiation during regeneration. While in control animals, most satellite cells are still proliferative 3 days after injury, Pitx3 mutant cells show a marked decrease in the number of Pax7/EdU double positive cells (Figure 2D,E), together with a two fold increase in the number of differentiating cells marked by Myogenin and embryonic-Myosin Heavy Chain (Emb-MyHC) (Figure 2D,F). These results indicate that Pitx3-deficient satellite cells undergo premature differentiation, a feature that could account for the muscle regeneration defect observed in Pitx3-/- mice.

Figure 2 with 1 supplement see all

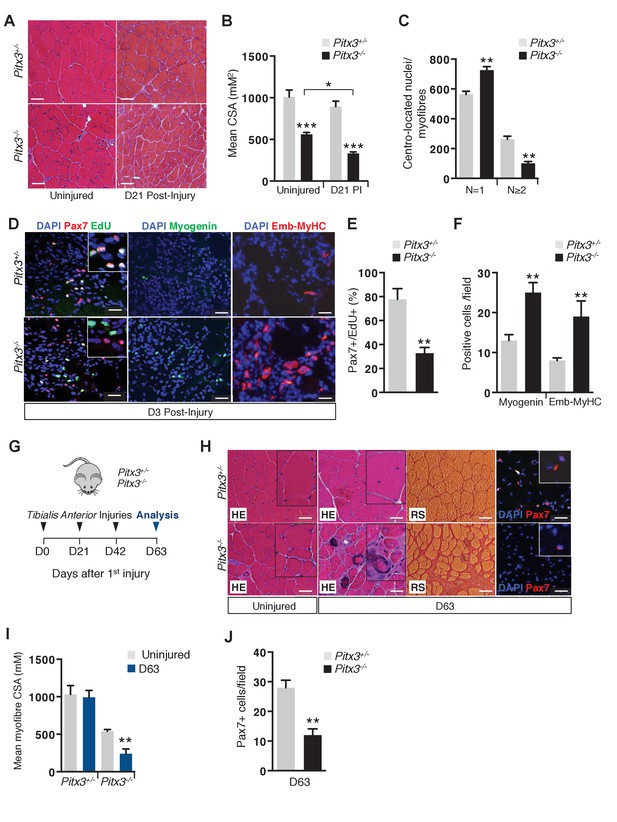

Absence of Pitx3 in adult muscle leads to hypoplasia of regenerated fibres by defective amplification and premature differentiation of mutant satellite cells.

Mutant Pitx3-/- and control Pitx3+/- adult mice were subjected to muscle injury by cardiotoxin injection into the Tibialis Anterior (TA) muscle. (A) Twenty-one days (D21) after injection, injured and contralateral uninjured TA muscles were dissected and cryo-sections were analysed by hematoxylin-eosin (HE) staining. (B) The cross-sectional area (CSA) of control and mutant fibres was measured in the absence of injury and 21 days (D21) post injury (PI) and represented as a mean value. (C) The number of fibres with one or two and more centro-located nuclei was counted on transverse sections of control and mutant muscle, and expressed per section. (D) Three days after injury, control and mutant animals were treated with EdU for 5 hr and muscles were dissected. Muscle cryo-sections were stained with DAPI (blue) and analysed by immunofluorescence with Pax7 (red), Myogenin (green) and Embryonic Myosin Heavy Chain (Emb-MyHC, red) antibodies and by the EdU reaction (green). (E) Pax7/EdU double positive-cells expressed as a percentage of Pax7-positive cells and (F) Myogenin-positive and Emb-MyHC-positive cells were counted per field. (G–J) Mutant Pitx3-/- and control Pitx3+/- mice were subjected to three successive muscle injuries (D0, D21 and D42) by cardiotoxin injection into the TA muscle. Three weeks after the third injection (D63), injured and contralateral uninjured muscles were dissected. (H) Cryo-sections were analysed by hematoxylin-eosin (HE) and red sirius (RS) staining and by immunofluorescence with a Pax7 (red) antibody on DAPI stained sections. (I) CSA of control and mutant fibres was measured in regenerated and contralateral uninjured TA muscles, and is represented as a mean value. (J) Pax7 positive-cells were counted and quantified per field. The experiments were performed with n ≥ 3 animals, and a representative image is shown. (B, C, E, F, I, J), error bars represent the mean ±s.d, with **p<0.01, ***p<0.001. (A, H) Scale bar, 100 μm, (D) Scale bar, 50 μm. Please see Figure 2—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.006

To challenge their regenerative potential, Pitx3 mutant and control mice were subjected to three rounds of TA muscle injury by cardiotoxin injection (Figure 2G). After the last round, muscle sections from control animals displayed a normal pattern of regenerating centro-nucleated fibres (Figure 2H–J). In contrast, Pitx3 mutant muscles exhibited impaired regeneration marked by fibrosis (Figure 2H), a severe reduction in the regenerated fibre CSA (Figure 2I, Figure 2—figure supplement 1D,E), and by depletion of the satellite cell reservoir (Figure 2J) with a twofold reduction in the number of Pax7-positive cells. Similarly, adult Pitx3-/-:mdx/mdx mice display regeneration defects with muscle fibre hypoplasia and fibrosis, (Figure 2—figure supplement 1F and data not shown).

To evaluate the contribution of altered redox state to the premature differentiation of Pitx3 mutant satellite cells, Pax3(GFP)-positive cells were purified by flow cytometry from muscles of control Pitx3+/-:Pax3GFP/+ and mutant Pitx3-/-:Pax3GFP/+ adult mice and their behaviour analysed in culture in the presence or absence of the ROS scavengers N-Acetyl-Cysteine (NAC) (Richards et al., 2011) or Trolox (Le Moal et al., 2017). As expected, while the absence of Pitx3 does not affect satellite cell activation marked by MyoD expression (data not shown), it leads to their premature differentiation. This phenotype is illustrated by a significant increase in the number of Myogenin- and Troponin T-positive cells at days 3 and 4 in the mutant population compared to controls (Figure 3A, Figure 3—figure supplement 1A–E). In keeping with the in vivo results, Pitx3 mutant cells exhibit higher ROS levels than control cells at day 3 (Figure 3—figure supplement 1F), together with reduced proliferation potential and premature cell cycle exit, shown by clonal analysis (Figure 3B) and by EdU and p21 staining (Figure 3C). The decrease in ROS driven by the use of the antioxidants NAC or Trolox (Figure 3—figure supplement 1F) efficiently prevents premature differentiation of Pitx3 mutant cells (Figure 3A), and results in a rescue of their proliferation potential (Figure 3B,C). Culturing the Pitx3 mutant cells in 3% O2 does not rescue their phenotype, while under these normoxic conditions the response to NAC is similar to that seen in 20% O2 (Figure 3—figure supplement 1G).

Figure 3 with 2 supplements see all

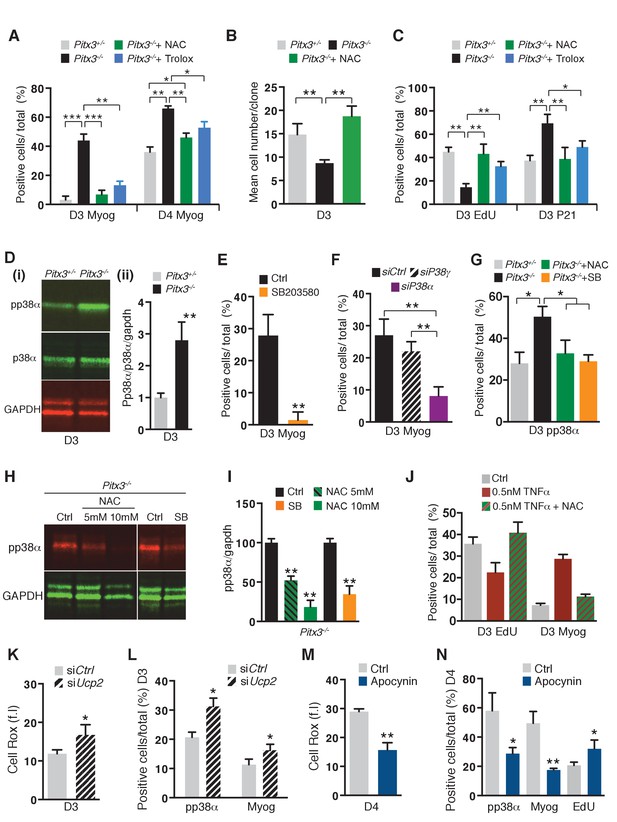

Premature differentiation of Pitx3 mutant satellite cells is mediated by activation of p38α MAP kinase and can be prevented by ROS scavenging or p38α MAP kinase inhibition.

In all experiments, GFP-positive cells were isolated by flow cytometry from the pectoralis, abdominal and diaphragm muscles of mutant Pitx3-/-:Pax3GFP/+ and control Pitx3+/-:Pax3GFP/+ adult mice. (A–C) Cells were cultured in the presence or absence of 10 mM N-Acetyl Cysteine (NAC) or of 10 μM Trolox. (A) After 3 and 4 days of culture, control and mutant cells were stained with DAPI and by immunofluorescence using a Myogenin antibody. Myogenin-positive cells (Myog) were counted and quantified as the percentage (%) of total cells. (B) After purification, control and mutant satellite cells were used for clonal analysis. Their proliferation capacity is expressed as the mean cell number per clone after 3 days of culture in the presence or absence of 10 mM NAC. (C) After 3 days of culture in the presence or absence of 10 mM NAC or of 10 μM Trolox, control and mutant GFP-positive cells were incubated with EdU. Cells were processed for detection of EdU incorporation and p21 expression by immunofluorescence using a p21 antibody. p21 and EdU-positive cells were counted and quantified as the percentage (%) of total cells. (D) GFP-positive cells isolated from mutant Pitx3-/-:Pax3GFP/+ mice and control Pitx3+/-:Pax3GFP/+adult mice were cultured for 3 days and proteins were extracted. Western-blot analysis indicated the level of pp38α, p38α and GADPH proteins (i). Quantification of western blots based on densitometry fluorescence scans for pp38α, p38α and GAPDH (ii). (E, F) GFP-positive cells isolated from Pitx3-/-:Pax3GFP/+ mice were purified and cultured. (E) Mutant Pitx3-/-:Pax3GFP/+ cells cultured for 3 days in the presence or absence of SB203580 were analysed by immunofluorescence using a Myogenin antibody. Myogenin-positive cells (Myog) were counted, and quantified as the percentage (%) of total cells. (F) Mutant Pitx3-/-:Pax3GFP cells transfected with siRNA directed against p38α and p38γ transcripts or siControl were analysed after 3 days of culture by immunofluorescence using a Myogenin antibody. Myogenin-positive cells (Myog) were counted, and quantified as the percentage (%) of total cells. (G) Control Pitx3+/-:Pax3GFP/+ and mutant Pitx3-/-:Pax3GFP/+ cells cultured for 3 days in the presence or absence of SB203580 or NAC were analysed by immunofluorescence using a pp38α antibody. pp38α-positive cells were counted, and quantified as the percentage (%) of total cells. (H) Mutant Pitx3-/-:Pax3GFP/+ cells were cultured in the presence or absence of SB203580 or 5 and 10 mM NAC. After 3 days of culture, proteins were extracted from treated and untreated control cells and processed for western-blot analyses, using antibodies directed against pp38α or GAPDH. (I) Quantification of western-blot analyses as in (D) based on densitometry fluorescence scans indicates the levels of pp38α relative to the GAPDH protein. (J–N) GFP-positive cells isolated by flow cytometry from the pectoralis, abdominal and diaphragm muscles of Pax3GFP/+ mice were cultured. (J) 48 hr after culture, GFP-positive cells were treated with 0.5 nM TNFα with and without 10 mM NAC. After 24 hr of treatment, cells were incubated with EdU and processed for detection of EdU incorporation by fluorescence and of myogenin expression by immunofluorescence. Myogenin and EdU-positive cells were counted and quantified as the percentage (%) of total cells. (K, L) GFP-positive cells were transfected 24 hr after plating with siRNA directed against Ucp2 transcripts, or with siControl (Ctrl). Two days after transfection, cells were processed for quantification of reactive oxygen species (ROS) with the Cell Rox probe (f.i. fluorescence intensity) (K) or for Myogenin (Myog) and phospho-p38α (pp38α) expression by immunofluorescence (L). pp38α- and Myogenin-positive cells were counted, and quantified as the percentage (%) of total cells (L). (M,N) GFP-positive cells were cultured in the presence or absence of Apocynin, the inhibitor of NADPH oxidases. (M) After 4 days in culture, cells were processed for quantification of ROS as in (K), or incubated with EdU and processed for EdU detection by fluorescence, and for Myogenin and pp38α expression by immunofluorescence. (N) pp38α-, Myogenin- and EdU-positive cells were counted and quantified as the percentage (%) of total cells. (A–G, I–N) The experiments were performed with n = 3 animals for each condition. Error bars represent the mean ±s.d, with *p<0.05, **p<0.01, ***p<0.001. Please see Figure 3—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.010

We then investigated the mechanism by which ROS regulate the onset of differentiation and focussed on the redox sensor p38α MAP kinase (Ito et al., 2006; Brien et al., 2013; Segalés et al., 2016). Measurement of p38α MAP kinase phosphorylation demonstrated its premature activationin Pitx3 mutant cells at day 3 of culture (Figure 3D), concomitantly with Myogenin expression (Figure 3A). In addition, treatment of Pitx3 mutant cells with either the p38α MAP kinase chemical inhibitor SB203580 (Bain et al., 2007) (Figure 3E), siRNA directed against p38α MAP kinase (Figure 3F), or NAC (Figure 3A) prevented premature Myogenin expression and p38α MAP kinase activation (Figure 3G–I). Altogether, these results indicate that the increased ROS level observed in activated Pitx3-deficient satellite cells leads to their premature differentiation through activation of the p38α MAP kinase pathway. We also verified ERK, JUNK, NFκB and ATM signalling pathways, but did not observe any significant change in the ratio of phosphorylated to total forms of ERK and JUNK kinases (Figure 3—figure supplement 1H,I), while no phosphorylation of p65 (NFκB) nor ATM could be detected (data not shown) in the Pitx3 mutant cells after 3 days of culture. Since it is possible that Pitx3 also controls ROS levels in response to cytokine stimulation, we treated control and mutant satellite cells with 0.5 nM TNFα. As shown in Figure 3—figure supplement 1J, stimulation by TNFα leads to a similar increase in ROS in both control and Pitx3 mutant cells, indicating that ROS production following cytokine stimulation does not depend on Pitx3.

To further document the role of ROS in satellite cell differentiation, we manipulated ROS levels in cultured satellite cells purified from control Pax3GFP/+ adult mice (Figure 3J–N, Figure 3—figure supplement 1J–O). In view of the increase in ROS levels after TNFα stimulation (Figure 3—figure supplement 1J), we first investigated their consequences on satellite cell proliferation and differentiation. As shown in Figure 3J, addition of 0.5 nM TNFα leads to reduced proliferation together with premature differentiation. These effects are prevented by the presence of NAC, showing they result from ROS increase.

Control Pax3(GFP)-positive satellite cells were transfected with siRNA directed against transcripts encoding the mitochondrial uncoupling factor, Ucp2 (Mailloux and Harper, 2011) and analysed after 3 days of culture for mitochondrial content, ROS levels, and for Myogenin expression. As expected, inhibition of mitochondrial uncoupling (Figure 3—figure supplement 2A) did not affect mitochondrial content (Figure 3—figure supplement 2B) but led to an increase in total ROS levels (Figure 3K) and to premature satellite cell differentiation as shown by an increased number of phospho-p38α- (pp38α) and Myogenin-positive cells (Figure 3L, Figure 3—figure supplement 1M). In contrast, repression of mitochondrial biogenesis by silencing of Tfam (Gleyzer et al., 2005) using siRNA led to a decrease in ROS levels together with delayed differentiation (Figure 3—figure supplement 2D and E). We then investigated whether NADPH oxidases, enzymes present at the cell membrane and in the endoplasmic reticulum, could also contribute to ROS production in activated satellite cells. qRT-PCR analyses indicated that Nox2 and Nox4 expression increases in the days (D2-D4) following injury (Figure 3—figure supplement 2F). Inhibition of both enzymes by Apocynin (Petrônio et al., 2013) leads to a decrease in ROS levels (Figure 3M), together with an inhibition of differentiation and a maintenance of proliferation, as shown at day 4 by the reduced number of pp38α- and Myogenin-positive cells, and the increased fraction of EdU-incorporating cells, compared to controls (Figure 3N, Figure 3—figure supplement 2G).

Excessive ROS levels lead to satellite cell senescence during muscle regeneration

We then investigated the consequences of excessive ROS levels on satellite cell function in regeneration experiments with Pitx2flox/flox:Pitx3flox/-:Pax7Cre-ERT2/+ double mutants and Pitx2flox/+:Pitx3+/-:Pax7Cre-ERT2/+ controls (Figure 4A). Three weeks after injury, Pitx2/3 double mutant mice show severely impaired muscle regeneration with very small fibres, signs of fibrosis, and numerous cells undergoing senescence, in comparison to sections of controls, which display the usual pattern of regenerating centro-nucleated fibres (Figure 4B). This phenotype was also seen in the absence of Pitx2/3 in the muscles of mdx mice, where chronic muscle regeneration takes place in the absence of Dystrophin (Figure 4C, Figure 4—figure supplement 1A). Muscle sections of Pitx2flox/+:Pitx3+/-:mdx/mdx:Pax7Cre-ERT2/+ control mice show the expected pattern of on-going regeneration characteristic of mdx mice with centro-nucleated fibres (Figure 4—figure supplement 1A). In contrast, Pitx2flox/flox:Pitx3flox/-:mdx/mdx:Pax7Cre-ERT2/+ mice, in which both Pitx2/3 genes are specifically invalidated in satellite cells, show markedly impaired regeneration with numerous fibrotic areas and the presence of three times more cells undergoing senescence than in control mice (Figure 4D, Figure 4—figure supplement 1A). This is accompanied by dramatic muscle loss and premature death of double mutant mice (Figure 4—figure supplement 1B). Strikingly, treatment of Pitx2flox/flox:Pitx3flox/-:mdx/mdx:Pax7Cre-ERT2/+ mice with NAC during the whole period (Figure 4C) prevented senescence (Figure 4D) and this marked aggravation of the dystrophic phenotype, leading to a pattern of regeneration and a life expectancy similar to that of controls (Figure 4—figure supplement 1).

Figure 4 with 1 supplement see all

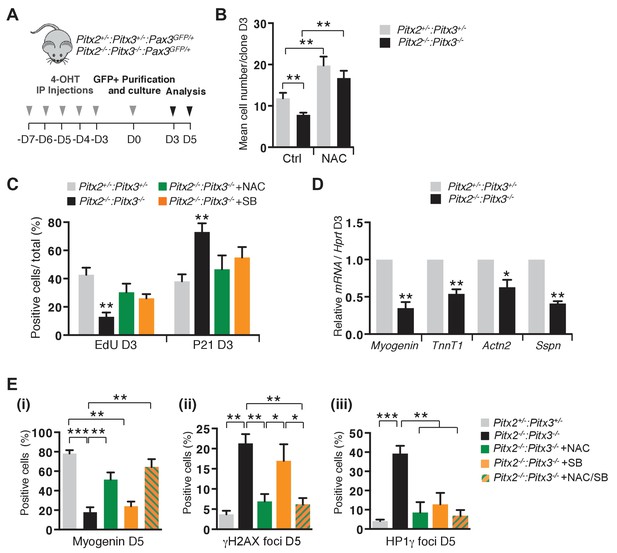

Mutation of Pitx2/3 in adult muscle satellite cells leads to impairment of muscle regeneration by deregulation of their redox state.

(A) Double mutant Pitx2flox/flox:Pitx3flox/-:Pax7Cre-ERT2/+ and control Pitx2flox/+:Pitx3+/-:Pax7Cre- ERT2/+ adult mice were obtained by 4-hydroxytamoxifen (4-OHT) intra-peritoneal (IP) injection on 5 consecutive days (D) and subjected to muscle injury by cardiotoxin injection into the Tibialis Anterior (TA) muscle. (B) Three weeks (D21) post injury (PI), injured and contralateral uninjured TA muscles were dissected. Muscle cryo-sections were analysed by hematoxylin-eosin (HE) and senescence-associated−β-galactosidase (SA-βgal) staining. Experiments were performed with n = 4 animals for each condition and representative images are shown, PI (Post Injury). Scale bars, 100 μm. (C) Double mutant Pitx2flox/flox:Pitx3flox/-:Pax7Cre-ERT2/+:mdx and control Pitx2flox/+:Pitx3+/-: Pax7Cre-ERT2/+:mdx adult mice obtained as in (A) were maintained during 10 weeks under standard life conditions. From 1 week before the start of the experiment, half of the double mutant Pitx2flox/flox:Pitx3flox/-:Pax7Cre-ERT2/+:mdx mice were treated with N-Acetyl-Cysteine (NAC) in the drinking water. (D) After 10 weeks, all mice were sacrificed and diaphragm muscles were dissected and analysed by SA-βgal staining. The number of SA-βgal positive cells per field was counted in diaphragm sections of control and double mutant animals. (D) Experiments were performed with n ≥ 5 animals for each condition and representative images are shown (B). Error bars represent the mean ± s.d, with *p<0.05, ***p<0.001, ****p<0.001. Please see Figure 4—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.016

For tissue culture analysis of Pitx2/3 double mutant satellite cells, Pax3(GFP)-positive cells were purified by flow cytometry from muscles of control Pitx2flox/+:Pitx3+/-:Pax3GFP/+:R26RCre-ERT2/+ and double mutant Pitx2flox/flox:Pitx3flox/-:R26RCre-ERT2/+:Pax3GFP/+ mice after five intra-peritoneal injections of 4-OHT (Figure 5A). Consistent with what we observed during foetal myogenesis (L'honoré et al., 2014), mutation of both Pitx2 and Pitx3 in satellite cells leads to altered expression of genes for antioxidant proteins (Mgst2, SelX, SelM, Gstz, Hspb2) and for the regulator of mitochondrial function NRF1 (Gleyzer et al., 2005) (Figure 5—figure supplement 1A). We then assayed proliferation and differentiation properties of control and double mutant satellite cells. Similarly to what we observed with the Pitx3 mutant, Pitx2/3 deficient satellite cells exhibit an expansion defect (Figure 5B,C). NAC addition to the culture medium alleviates this phenotype (Figure 5B,C), and also exerts a positive effect on control cells by improving both their cloning efficiency, probably reflecting improved survival (Figure 5—figure supplement 1B), and their expansion (Figure 5B,C). In contrast to Pitx3-deficient satellite cells, which undergo differentiation following premature cell cycle exit, mutation of both Pitx2 and Pitx3 genes leads to a marked reduction in differentiation markers (Figure 5D,E(i), Figure 5—figure supplement 1G), accumulation of carbonylated proteins (Figure 5—figure supplement 1C,D) and DNA damage marked by γH2AX (Bonner et al., 2008) (Figure 5E(ii), Figure 5—figure supplement 1G). In contrast to the foetal situation (L'honoré et al., 2014), double mutant cells do not undergo apoptosis (data not shown) but become senescent, as evidenced by up-regulation of senescence associated genes (Sousa-Victor et al., 2014) (Igfbp5, Ifitm1 or Ccl5, Figure 5—figure supplement 1E), and by the increased number of cells positive for the marker of heterochromatin foci Hp1γ (Zhang et al., 2007) (Figure 5E(iii), Figure 5—figure supplement 1G) and by senescence associated β-galactosidase staining (Dimri et al., 1995) (SA-βgal, Figure 5—figure supplement 1F), compared to controls. Culture of double mutant cells under 3% O2 does not rescue the mutant phenotype. Treatment of control satellite cells purified from Pax3GFP/+ adult mice with buthionine sulfoximine (BSO) (L'honoré et al., 2014) leads to an increase in ROS levels and senescence (Figure 5—figure supplement 1H,I), suggesting that, while excessive ROS lead to apoptosis in foetal muscle cells (L'honoré et al., 2014), it triggers senescence in adult satellite cells. Treatment of double mutant cells with NAC efficiently prevents DNA damage (Figure 5E(ii), Figure 5—figure supplement 1G) and protein carbonylation (Figure 5—figure supplement 1C,D), resulting in markedly fewer senescent cells (Figure 5E(iii), Figure 5—figure supplement 1F,G), and in the restoration of their differentiation potential (Figure 5E(i), Figure 5—figure supplement 1G). In view of the role of p38α MAP kinase in senescence (Coulthard et al., 2009) and in single Pitx3 mutant satellite cells (Figure 3D–G), we investigated the consequences of its inhibition in double mutant cells. Treatment with SB203580 efficiently reduces senescence (Figure 5E(iii), Figure 5—figure supplement 1G), but does not rescue DNA damage (Figure 5E(ii), Figure 5—figure supplement 1G) with consequent impairment of differentiation (Figure 5E(i), Figure 5—figure supplement 1G) (Puri et al., 2002). In the presence of both NAC and SB (NAC/SB), the effect is similar to that of NAC alone (Figure 5E, Figure 5—figure supplement 1G). Altogether, these data demonstrate that the excessive ROS levels observed in Pitx2/3 double mutant satellite cells are responsible for their senescence, due to protein oxidation and DNA damage, a behaviour that probably accounts for the regeneration deficit observed in Pitx2/3 mutant mice in vivo after injury (Figure 4B) or in dystrophic conditions (Figure 4—figure supplement 1).

Figure 5 with 1 supplement see all

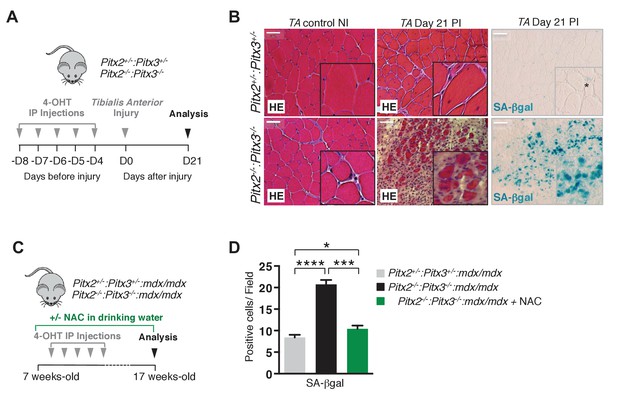

Excessive ROS levels cause premature cell cycle exit, differentiation defects and senescence of Pitx2/3 double mutant satellite cells.

(A) Double mutant Pitx2flox/flox:Pitx3flox/-:Pax3GFP/+:R26RCre-ERT2/+, and control Pitx2flox/+:Pitx3+/-:Pax3GFP/+:R26RCre-ERT2/+ adult mice were obtained by 4-hydroxytamoxifen (4-OHT) intra-peritoneal (IP) injections for 5 consecutive days (D). Three days after the last injection, GFP-positive cells were isolated by flow cytometry from the pectoralis, abdominal and diaphragm muscles and analysed in culture. (B) control and mutant satellite cells were placed in culture and used for clonal analysis. Their proliferation capacity is expressed as the mean cell number per clone after 3 days of culture in the presence or absence of 10 mM N-Acetyl-Cysteine (NAC). (C) After 3 days of culture in the presence or absence of 10 mM NAC or 5 μM SB203580, cells were incubated with EdU and processed for detection of EdU incorporation and p21 expression. p21- and EdU-positive cells were counted, and quantified as the percentage (%) of total cells. (D) After 3 days of culture, total RNA samples were extracted from control and double mutant cells and analysed by qPCR for the expression of myogenic differentiation markers. Transcripts are shown relative to the level of Hprt transcripts, expressed as a log ratio. TnnT1, Troponin T1; Actn2, Actinin α2; Sspn, Sarcospan. (E) After 5 days of culture (D5) in the presence or absence of 10 mM NAC, 5 μM SB203580 or both NAC and SB203580, control and double mutant cells, marked by DAPI staining, were analysed by immunofluorescence with Myogenin, HP1γ and γΗ2ΑX antibodies. Myogenin-positive cells (i), γΗ2ΑX-foci (ii) and HP1γ foci-positive cells (iii), were counted, and quantified as the percentage (%) of total cells. (B–E) Error bars represent the mean ± s.d, with n = 3 animals for each genotype and each condition, *p<0.05, **p<0.01, ***p<0.001. Please see Figure 5—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.019

Manipulation of satellite cell redox state has implications for muscle cell therapy

In view of our results showing the impact of ROS levels on proliferation, differentiation and survival, we reasoned that manipulation of ROS levels and/or signalling by exogenous treatments could be an efficient way to expand wild-type satellite cells in culture, while preventing them from undergoing differentiation, two crucial features for maintaining their regenerative potential. Pax3(GFP)-positive satellite cells were cultured in the presence or absence of NAC, SB203580 (SB), or both compounds (NAC/SB). Immunostaining experiments (Figure 6A) show that while NAC or SB treatment alone leads to a reduction in p38α MAP kinase phosphorylation, the NAC/SB combination has a more pronounced effect on p38α MAP kinase phosphorylation and therefore activation of this signalling pathway. Accordingly, while NAC and SB treatments, under which proliferation is promoted (Figure 6B,C), both reduce differentiation (Figure 6D), treatment with the dual NAC/SB combination leads to even stronger effects (Figure 6D). Indeed, whereas after 3 days of culture in control conditions only 40% of cells show EdU incorporation, treatment with the NAC/SB combination leads to a major increase, with 80% of cells positive for EdU (Figure 6E, Figure 6—figure supplement 1A(i)). Clonal analysis shows that this strong proliferative activity promotes a 10 fold increased expansion compared to controls, with a mean number of 250 cells per clone compared to 25 (Figure 6B). After 3 days of culture, NAC/SB-treated cells do not show p21 and Myogenin expression (Figure 6E, Figure 6—figure supplement 1A), and retain a high level of Pax7 expression (data not shown), consistent with the absence of differentiation. Similar results were obtained when cells were cultured in 3% O2 (Figure 6—figure supplement 1B,C), showing that conditions considered as normoxic do not substitute for NAC.

Figure 6 with 1 supplement see all

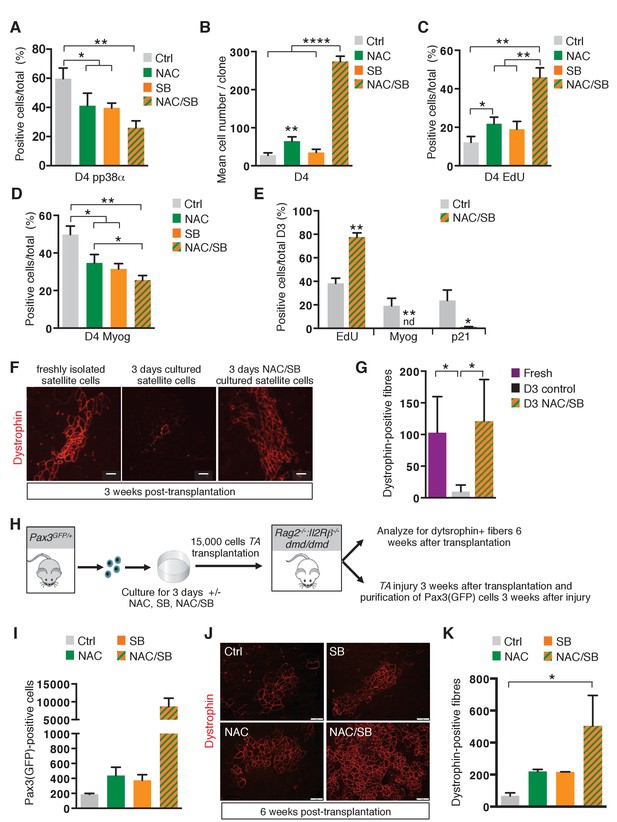

The transition of satellite cells from proliferation to differentiation is regulated by their redox state.

(A–E) GFP-positive cells isolated by flow cytometry from the pectoralis, abdominal and diaphragm muscles of Pax3GFP/+ mice were cultured for 4 days (D4) in the absence (ctrl) or in the presence of 10 mM N-Acetyl Cysteine (NAC), or 5 μM SB203580 (SB), or of both NAC and SB203580 (NAC/SB) in mass (A, C, D) or clonal conditions (B). (A) After 4 days in culture, cells were processed for phospho-p38α (pp38α) expression by immunofluorescence. pp38α-positive cells were counted, and quantified as the percentage (%) of total cells. (B) The cell proliferation capacity is expressed as the mean cell number per clone. (C, D) After 4 days in culture, cells were incubated with EdU and processed for EdU detection by fluorescence (C) or for Myogenin (Myog) detection by immunofluorescence (D). EdU-positive cells (C) and Myogenin-positive cells (D) were counted and quantified as the percentage (%) of total cells. (E) GFP-positive cells isolated as in (A) were cultured for 3 days (D3) in the absence (ctrl) or in the presence of both NAC and SB203580 (NAC/SB). Cells were incubated with EdU and processed for EdU detection by fluorescence, and for Myogenin or P21 detection by immunofluorescence. Myogenin, EdU and p21 positive cells were counted, and quantified as the percentage (%) of total cells. (A–E) The experiments were performed with n ≥ 3 animals for each condition. Error bars represent the mean +/- s.d, with *p<0.05, **p<0.01, ****p<0.001. (F–G) Tibialis Anterior (TA) muscles of Rag2-/-:Il2rβ-/-:dmd/dmd mice were irradiated and grafted with 15.000 cells freshly isolated from Pax3GFP/+mice (Fresh) or cultured for 3 days in the absence (D3) or in the presence of both NAC and SB203580 (D3 NAC/SB). Three weeks after grafting, TA muscles were dissected and cryo-sections analysed by immunofluorescence. (F) Immunofluorescence for Dystrophin and (G) the number of Dystrophin-positive fibres was counted for each condition. (F–G) The experiments were performed with n ≥ 3 grafted TAs for each condition, and a representative image is shown, scale bar, 200 μm (F). (H–K) Tibialis Anterior (TA) muscles of Rag2-/-:IlrRβ-/-:dmd/dmd mice were irradiated and grafted with 15.000 cells isolated from Pax3GFP/+ mice and cultured for 3 days in the absence (ctrl) or in the presence of NAC, SB203580 (SB), or both NAC and SB203580 (NAC/SB). Three weeks after grafting, for each mouse, one TA muscle was subjected to injury by cardiotoxin injection, and the contralateral muscle was used as a control. Six weeks after grafting, all TA muscles were dissected. (I) Injured TA muscles were used for Pax3(GFP)-positive cell purification by flow cytometry and the number of cells counted for each condition. Non-injured TA muscles were analysed by immunofluorescence on cryo-sections (J) and the number of Dystrophin-positive fibres was counted for each condition (K). (H–K) The experiments were performed with n ≥ 2 grafted TAs for each condition, and a representative image is shown, scale bar, 200 μm (J). Error bars in (G, I, K) represent the mean number of Dystrophin-positive fibres per section (G, K) or of Pax3(GFP)-positive cells per muscle (Is.d, with *p<0.05. Please see Figure 6—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.023

Neither mitochondrial mass (Figure 6—figure supplement 1D) nor MyoD expression (Figure 6—figure supplement 1A(ii)) were significantly affected under these conditions. It is notable that SB has little effect on ROS levels compared to NAC (Figure 6—figure supplement 1E), which is also reflected in cloning efficiency where NAC promotes cell viability and prevents senescence by reducing ROS levels (Figure 6—figure supplement 1F). In view of the synergistic effect seen with NAC and SB together (Figure 6E), we checked whether ERK, JUNK, p65 (NFκB) and ATM were affected and found no evidence that these signalling pathways were implicated (Figure 6—figure supplement 1G,H, data not shown).

In view of these results, we anticipated that NAC/SB treatment, in addition to promoting expansion of satellite cells in culture, might improve their regenerative potential in vivo, by maintaining them in a highly proliferative and undifferentiated state. To test this hypothesis, 15.000 freshly isolated Pax3(GFP)-positive satellite cells, or 15.000 Pax3(GFP)-positive satellite cells cultured for three days (D3) in the absence or in the presence of NAC/SB, were grafted into the Tibialis Anterior muscle of Rag2−/−:Il2rβ-/-:dmd/dmd mice (Vallese et al., 2013) (Figure 6—figure supplement 1I). Three weeks after grafting, muscle sections were assayed for Dystrophin expression by immunofluorescence (Figure 6F). While satellite cells cultured under standard conditions display a regenerative potential at least 10 times lower than freshly isolated satellite cells (Montarras et al., 2005) (Figure 6F,G), NAC/SB treatment of cultured satellite cells leads to a very efficient engraftment, with a number of Dystrophin-positive cells similar to that obtained with freshly isolated satellite cells (Figure 6F,G). To test whether engrafted cells also contributed to the satellite cell compartment in recipient muscles, we performed immunostaining with GFP and Pax7 antibodies. Both staining co-localized in a subset of nuclei in the engrafted muscle, indicating that the transplanted cells also successfully populated the satellite cell compartment (Figure 6—figure supplement 1J). To address the issue of the expansion and self-renewal of control and treated cells, 15.000 cells cultured for three days in control, NAC, SB or NAC/SB conditions were grafted into the Tibialis Anterior muscle of Rag2−/−:Il2rβ-/-:dmd/dmd mice. Injury regeneration assays performed 3 weeks after grafting (Figure 6H–K) show that donor satellite cells treated with both NAC and SB203580 are much more abundant, (x20, Figure 6K) than when treated with NAC or SB alone, which also have a positive effect compared to controls (x2, Figure 6I). When put in culture, all the Pax3(GFP)-positive cells recovered from grafted muscles displayed a MyoD-positive phenotype (data not shown), confirming their myogenic identity. In addition, this grafting analysis (Figure 6J,K) further indicates that while NAC or SB treatments both improve the regeneration potential of cultured satellite cells (Figure 6J,K), the use of both compounds leads to a much higher number of Dystrophin-positive fibres (Figure 6J,K). Taken together, these results indicate that cells treated with both compounds display a higher regeneration potential, together with a much higher capacity to expand and self-renew upon grafting.

Discussion

Our analysis of Pitx2 and Pitx3 mutant mice demonstrates the importance of these transcription factors in regulating the behaviour of adult muscle stem cells and consequently the regeneration of skeletal muscle. In the double mutant, these satellite cells undergo DNA damage and become senescent. This is in contrast to the situation in the embryo where muscle progenitor cells respond to DNA damage by undergoing apoptosis in the absence of both factors (L'honoré et al., 2014). As during foetal myogenesis, we show that Pitx2/3 factors are involved in the redox control of the muscle satellite cell. The link between Pitx factors and the control of ROS has also been reported in cardiomyocytes where Pitx2, the only Pitx gene expressed in the heart, plays a critical role in the regulation of antioxidant scavenger genes (Tao et al., 2016).

In the absence of Pitx3 alone, the balance between proliferation and differentiation is perturbed so that satellite cells differentiate prematurely, a phenotype that impacts the efficiency of muscle regeneration. This mutant provides a valuable tool to investigate the regulation of this critical balance. Although historically viewed as harmful, ROS are now established as important regulators of signalling pathways (Bigarella et al., 2014; Holmström and Finkel, 2014; Khacho and Slack, 2017). Our analysis of skeletal muscle regeneration in the Pitx3 mutant reveals a critical role for the redox state of satellite cells in the regulation of their behaviour (Figure 7). While quiescent satellite cells exhibit low ROS levels, we observed a marked increase in activated cells at the onset of differentiation. Using chemical as well as genetic manipulation of the redox state of satellite cells during muscle regeneration, we show that the increase in ROS occurring in proliferating satellite cells leads to activation of p38α MAP kinase and link this redox activation to its function as a critical regulator of satellite cell differentiation (Segalés et al., 2016; Perdiguero et al., 2007; Brien et al., 2013; Palacios et al., 2010) (Figure 7, Figure 7—figure supplement 1). Given the striking synergistic effect that we observe with NAC which lowers ROS levels and SB which inhibits p38α MAP kinase, it is probable that ROS levels also affect satellite cell behaviour independently of p38α MAP kinase. This is demonstrated by our analysis of the double Pitx2/3 mutant, where DNA damage is reversed by NAC treatment but not by SB, indicating that they reflect a p38α−independent effect of high ROS levels. In wild-type satellite cells too, cloning efficiency is improved by NAC but not SB treatment suggesting that lowering ROS levels in normal cells also reduces a background level of DNA damage. The striking effect of NAC and SB together may reflect reduced DNA damage due to ROS, which will repercuss on the cell cycle, as well as delayed differentiation (Shaltiel et al., 2015).

Figure 7 with 1 supplement see all

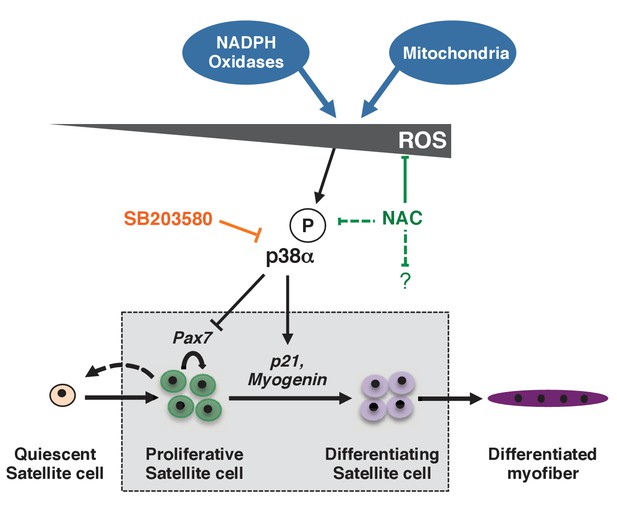

Model for the regulation of proliferation and differentiation of muscle stem cells by their redox state.

This model represents redox regulation acting through p38α MAP kinase of a wild-type satellite cell as it progresses towards a differentiated myofibre. ROS levels, as indicated by effects observed for NAC but not SB, also probably impact the satellite cell, independently of p38α signalling. Please see Figure 7—figure supplement 1 for additional data.

https://doi.org/10.7554/eLife.32991.027

Redox regulation of muscle stem cells during muscle regeneration

ROS are mainly generated by the mitochondrial respiratory chain and by NADPH oxidases (Murphy, 2009; Katsuyama et al., 2012). While quiescent satellite cells, with low energetic requirements, are characterized by reduced mitochondrial mass and low ROS production, their activated progeny is marked by increased mitochondrial mass and activity and enhanced ROS levels. We show that a peak of mitochondrial ROS production occurs at day 2 of regeneration, when mitochondrial mass is only beginning to increase in activated satellite cells. Under conditions in which the cellular energy demand is still moderate, increased ROS production has been reported to occur from complex I (Murphy, 2009). In addition to mitochondrial ROS, by using Apocynin, an inhibitor of NADPH oxidases (Petrônio et al., 2013), we demonstrate a contribution of these enzymes to the redox state of satellite cells and the regulation of satellite cell differentiation. In this study we have focused on the cell-autonomous role of the satellite cell redox state, but extracellular sources of ROS released into the environment by injured muscle fibres and inflammatory cells (Le Moal et al., 2017), will also contribute to the in vivo scenario.

Interplay between redox regulation, metabolic reprogramming and epigenetic modifications

The metabolic switch that accompanies the satellite cell transition from quiescence to ex vivo activation (Ryall et al., 2015) results in a decrease of intracellular NAD(+) levels and of the activity of the histone deacetylase, Sirt1, leading to elevated H4K16 acetylation and activation of muscle genes required for the entry of satellite cells into the myogenic program (Ryall et al., 2015). In the hematopoietic system, Sirt1 has been shown to be critical for the maintenance of hematopoietic stem cells (Matsui et al., 2012). The premature differentiation seen in Sirt1 mutant satellite cells (Ryall et al., 2015), resembles what we observe in the Pitx3 mutant (Figure 7—figure supplement 1). In addition, Sirt1 has been characterized as a direct redox sensor, which is inactivated upon oxidation of its cysteine residues (Zee et al., 2010). It is therefore possible that increased ROS levels during normal regeneration lead to Sirt1 inactivation in parallel with activation of p38α MAP kinase, and consequent onset of differentiation. This parallel action may contribute to the more striking effect that we observe with NAC, which reduces ROS levels with a consequent increase in Sirt1 activity, compared to the effect of inhibiting p38α MAP kinase with SB203580 alone, which does not correct the DNA damage and only partially corrects the differentiation defect seen in Pitx2/3 double mutant mice. It should be noted that the level of SB203580 that we employ (5 μM) is lower than that used by other authors (10 to 25 μM) who have reported beneficial effects of this drug on the regenerative properties of satellite cells (Bernet et al., 2014; Charville et al., 2015). We chose to use a lower dose because of off-targets effects of the drug on other signalling pathways (Bain et al., 2007). The effects that we observe on p38α phosphorylation in wild type cells are similar with SB203580 and with NAC, indicating that the dose of SB203580 is effective. SB203580 acts on threonine 106 to inhibit phosphorylation, whereas ROS, and therefore the ROS scavenger NAC, can affect the redox state of cysteine residues involved in substrate binding and activation of p38α MAP kinase (Bassi et al., 2017). Additional effects of NAC due to the lowering of ROS levels, through a reduction in DNA damage and a potential increase in Sirt1 activity, are independent of p38α MAPK kinase (Figure 7).

Muscle stem cell ageing and perturbation of redox homeostasis

In skeletal muscle, as in many tissues, ageing is accompanied by a decline in regenerative capacity (Sousa-Victor et al., 2014; Cosgrove et al., 2014). While the aged systemic environment significantly impacts the function of satellite cells (Gopinath and Rando, 2008), recent studies have shown that impaired regeneration is also due to a cell-autonomous functional decline in satellite cells (Sousa-Victor et al., 2014; Cosgrove et al., 2014; Bernet et al., 2014). Skeletal muscle is a remarkably stable tissue, and satellite cells are long-lived resident adult stem cells. Despite their low metabolic rate and their high antioxidant capacity (Pallafacchina et al., 2010), these long-lived cells are particularly exposed to ROS generated either by mitochondria during muscle fibre contraction (Jackson, 2011), or by NADPH oxidases shown to be over-expressed in sarcopenic fibres (Kerkweg et al., 2007). This exposure to ROS throughout life combined with a decline in their antioxidant capacity during ageing (Sullivan-Gunn and Lewandowski, 2013; Fulle et al., 2005) makes geriatric satellite cells particularly vulnerable to accumulation of genomic and mitochondrial DNA mutations, and as a consequence, to mitochondrial dysfunction and genomic instability. Geriatric satellite cells have been shown to have elevated p38α MAP kinase activity (Cosgrove et al., 2014; Bernet et al., 2014) and defective autophagy leading to mitochondrial dysfunction, excessive ROS levels (García-Prat et al., 2016), with increased DNA damage (García-Prat et al., 2016; Sinha et al., 2014) and senescence (Sousa-Victor et al., 2014; Latella et al., 2017). In view of the Pitx2/3-mutant phenotype (Figure 7—figure supplement 1), and in correlation with observations on hyper-homo-cysteinemic mice (Veeranki et al., 2015), we propose that Pitx2/3 mutants may represent a useful model of premature muscle ageing. Future experiments will address this issue.

Redox homeostasis and stem cell therapies

A major obstacle to the development of stem cell based therapies is the number of cells required for transplantation (Briggs and Morgan, 2013; Walasek et al., 2012). Ex vivo amplification of tissue specific stem cells is an option, but it generally leads to a reduction of their regenerative potential, due to their commitment to differentiation (Montarras et al., 2005; Walasek et al., 2012; Briggs and Morgan, 2013). In the muscle field, advances have been made by manipulating dystrophic muscle (Price et al., 2014; Tierney et al., 2014), by modifying culture conditions (Gilbert et al., 2010; Liu et al., 2012; Parker et al., 2012; Charville et al., 2015), or by grafting selected satellite cell sub-populations (Jean et al., 2011), however further improvements are mandatory. Treatment with SB203580, that inhibits p38α MAP kinase activation required for the onset of differentiation, promotes proliferation of human myoblasts in culture and their contribution to the reconstitution of the satellite cell pool upon grafting into injured skeletal muscles (Charville et al., 2015). NAC treatment of Pitx2 deficient mice restores the regenerative capacity of the newborn heart (Tao et al., 2016), a situation that is reminiscent of our finding for skeletal muscle in triple Pitx2/3:Dystrophin-deficient mice, where the dystrophic muscle phenotype is improved by NAC treatment. We now show that the use of the NAC/SB203580 combination in culture not only leads to fast and very efficient amplification of satellite cells, but also maintains their regenerative potential at levels similar to that of freshly isolated cells in grafting experiments. In vivo also, treatment with both compounds promotes expansion of the transplanted satellite cell pool after injury. These observations have important implications for stem cell therapy.

Materials and methods

Animal breeding, Cre recombination and genotyping

All animal procedures were approved and conducted in accordance with the Institut Pasteur animal ethics committee (CEEA Institut Pasteur n°2013–0017 and APAFIS #2455 2015 1122133311) following the regulations of the Ministry of Agriculture and the European Community guidelines.

Pitx2-floxed (Pitx2flox/+) mice were provided by S. Camper and P. Gage. Pitx3-floxed(neo) (Pitx3flox), Pitx3-null (Pitx3-) and Pax3-GFP (Pax3GFP/+) alleles have been respectively described (L'honoré et al., 2014; Montarras et al., 2005). Pax7Cre-ERT2/+ mice were provided by C.M.Fan and C.Lepper. R26RCRE-ERT2/+ and mdx/mdx mice were obtained from the Jackson laboratories. Rag2−/−:Il2rβ-/-:dmd/dmd mice were provided by V.Mouly and G.Butler-Browne (Vallese et al., 2013). Genotyping was carried out by PCR using genomic DNA isolated from adult tail sections, with previously described protocols and primers: L'Honoré et al. (2007) for Pitx3flox and Pitx3- alleles; L'honoré et al. (2014) for Pitx2flox, Pitx2- and R26RCre-ERT2 alleles; Coulthard et al. (2009) for Pax7Cre-ERT2 allele; Relaix et al. (2006) for Pax3GFP allele, Bulfield et al. (1984) for the mdx allele and Vallese et al. (2013) for Rag2-, Il2rb-, and dmd alleles.

Recombination of floxed alleles was obtained by five daily intra-peritoneal injections of 4-hydroxy-tamoxifen (4-OHT, Sigma). 4-OHT was prepared by dissolving a freshly opened bottle of 50 mg in EtOH 100% at 80 mg/ml. The mixture was incubated at 55°C with constant agitation until 4-OHT was completely dissolved (~1–2 hr). After complete solubilisation, 4-OHT was diluted 1:2 with Cremophor EL (Sigma) and kept at 4°C. Just before injection, 4-OHT from this stock was diluted 1:4 in PBS and administered to 6 to 8 weeks-old control and mutant mice (1 mg final 4-OHT/mouse of 25 g). Recombination efficiency was verified by PCR using genomic DNA isolated from purified satellite cells three days after the last injection.

Description of mouse lines and their use are given in Supplementary file 1. Briefly, experiments that do not require satellite cell purification were performed on animals in which Pitx2/3 genes were conditionally recombined using the Pax7Cre-ERT2/+ mice line, except for experiments using the single constitutive mutant Pitx3. As Pax3GFP/+:Pax7Cre-ERT2/+ animals are not viable due to non-muscle defects, we used the inducible R26RCRE-ERT2/+ mouse line for all experiments requiring control and mutant satellite cell purification by flow cytometry, except for experiments using the single constitutive mutant Pitx3.

Unless indicated, all experiments were performed on 6 to 8 weeks-old adult animals.

N-Acetyl-Cysteine (NAC, Sigma) was diluted just prior to use at 500 mM in H2O in light-protected bottles (Richards et al., 2011) and given ad libitum to mice, with the solution being changed every three days.

Muscle injury

Mice were anesthetised with 0.5% Ketamine (Imalgene1000, 100 mg/kg, Merial) and 0.5% Xylazine (Rompun 2%, 20 mg/kg, Bayer). Pectoralis and Tibialis Anterior muscles were injected with 10 μl of notexin (12.5 μg/ml, Latoxan) and 20 μl of cardiotoxin (20 μg/ml, Latoxan) respectively. After injection, mice were kept on a warm plate until recovery. Mice were sacrificed by cervical dislocation at different days after injury and the muscles used for analysis by histology, immunofluorescence or for satellite cell purification.

Regeneration experiments followed by histology and immunofluorescence were performed on the Tibialis Anterior (TA) muscle injected with cardiotoxin. As Pax3(GFP) expressing satellite cells are much less abundant in TA muscle (Relaix et al., 2006), purification of activated satellite cells during regeneration was performed at different days after intramuscular injection of the pectoralis muscle with notexin. Notexin was used in this case in order to obtain a more widespread injury than with cardiotoxin (Hardy et al., 2016).

Primary cell purification and culture

Satellite cells were prepared and cultured as previously described (Montarras et al., 2005) with minor modifications. For primary cell culture, dissected diaphragm, abdominal and pectoralis muscles of independent adults (6–8 weeks old mice) were incubated in digestion buffer (0.1% Trypsin, 0.1% Collagenase V [Roche]) at 37°C with frequent agitation. After successive digestions, pooled supernatants were centrifuged at 1800 rpm for 20 min and cells were purified by flow cytometry via MoFlow Astrios (Beckman Coulter) on the basis of size, granularity and GFP fluorescence. A mean of 70.000 to 100.000 Pax3(GFP)-positive cells were obtained per adult mouse. 5.000 Pax3(GFP)-positive cells were seeded on 35 mm plastic dishes pre-coated with gelatin. Cells were cultured in growth medium (40% F12, 40% DMEM, 20% SVF, 2% Ultroser [Biosepra]) and left to differentiate spontaneously. When cultured under 3% O2, cells were seeded immediately after purification in a Hypoxia Chamber Workstation (SCI-tive, Baker Ruskinn) at 37°C, 5% CO2 and 70% humidity. Each experiment corresponded to a minimum of three individual mice that were treated and analysed separately. Clonal analysis was performed as previously described (Pallafacchina et al., 2010). For each genotype, two 96 plates were analysed for each condition (in the absence or presence of N-Acetyl-Cysteine, SB20380 or both) for three individual mice.

For purification of satellite cells during regeneration, a similar protocol was used with minor modifications: dissected pectoralis muscles from different adult mice were incubated in digestion buffer (0.1% Trypsin, 0.1% Collagenase V [Roche]) at 37°C with low agitation. After successive digestions, pooled supernatants were centrifuged at 1800 rpm for 20 min and cells were purified by flow cytometry via MoFlow Astrios (Beckman Coulter) on the basis of size, granularity and GFP fluorescence. A mean of 10.000 to 30.000 Pax3(GFP)-positive cells were obtained per muscle. When the number of purified Pax3(GFP)-positive cells was too low to get significant results, several animals were pooled in order to obtain each biological sample.

N-Acetyl-Cysteine (Sigma), Trolox (Abcam) and SB203580 (InVivoGen) were used for cell seeding at 10 mM, 10 μM, and 5 μM respectively in growth media. Apocynin (Santa Cruz Biotechnology), Buthionine Sulfoximine (Enzo Life Sciences) and TNFα (R and D systems) were added to the cell culture medium at 10 mM, 10 μM and 0.5 nM respectively.

Satellite cell transplantation

Three months-old immune-compromised Rag2−/−:Il2rβ-/-:dmd/dmd mice (Vallese et al., 2013) were subjected to leg-X ray irradiation using a Faxitron equipment 4 days before cell engraftment. For each injection, 15.000 satellite cells from Pax3GFP/+ mice, collected by flow cytometry (freshly isolated cells) or obtained by trypsination after 3 days of culture (cultured cells), were resuspended in 15 μl of PBS and injected into the Tibialis Anterior muscle with a 25 μl Hamilton syringe. Three or six weeks after transplantation, mice were sacrificed by cervical dislocation and the muscle analysed.

Immunofluorescence

Immunofluorescence on frozen muscle sections and on primary cell cultures was carried out as previously described (Pallafacchina et al., 2010). The following primary antibodies were used for immunohistochemistry and immunofluorescence on frozen muscle sections and on primary cell cultures: polyclonal anti-Pitx2 1:200 and polyclonal anti-Pitx3 1:300 (L'Honoré et al., 2007), monoclonal anti-p21 1:100 (Pharmingen), rabbit anti-Pax7 1:1000 (Aviva ARP32742), monoclonal anti-MyoD 1:100 (Pharmingen), monoclonal anti-Myogenin 1:100 (Pharmingen), polyclonal anti-Myogenin 1:100 (SantaCruz), polyclonal anti-MyoD 1:100 (Santacruz) monoclonal anti-embryonic MyHC 1:20 (DSHB), monoclonal anti-Troponin T 1:300 (T6277, Sigma), monoclonal anti-γH2AX 1:300 (JBW301, Millipore), monoclonal anti-HP1γ 1:3000 (Sigma) and monoclonal anti-dystrophin 1:50 (Sigma). Secondary antibody detection was carried out with Alexa-conjugated antibodies 1:150 (Alexa 488 or Alexa 546).

For EdU staining, the Click-iT EdU Cell Assay kit (Invitrogen) was used following the manufacturer’s instructions with minor modifications: EdU was incubated at 10 μM for 15 min in cell culture medium. For detection, immunostaining for primary (Myogenin on cell culture and Pax7 on muscle sections) and secondary antibodies was performed, followed by the click chemical reaction using Alexa488 as a reactive fluorophore for detection, followed by DAPI staining.

Senescence associated β−galactosidase assays were performed as previously described (Dimri et al., 1995) on cultured cells, and on frozen muscle sections.

RNA extraction and RT-qPCR analysis

Cells were collected after culture or after flow cytometry in RLT buffer (Qiagen). Total RNA was extracted and purified after DNase treatment (Promega) using the RNAeasy Micro kit (Qiagen) and was reverse-transcribed into cDNA, following instructions in the Transcriptor cDNA synthesis kit (Roche). Quantitative real time PCR was performed on a StepOnePlus PCR machine (Applied Biosystems), using the FastStart Universal SYBR Green Master (Roche). Relative levels of expression in each assay were obtained through the ΔΔCt method, and are expressed on a log scale. Hprt and RPLO transcripts levels were used for the normalizations of each target. As similar results were obtained with both, normalization has been done with Hprt. At least three biological replicates were used for each condition. Custom primers were designed using the Idt online software. Sequences are provided in Supplementary file 2. For each primer set, dissociation experiments were performed to ensure that no primer dimers or false amplicons would interfere with the results, and amplification efficiency was calculated using serial dilutions of total cDNA.

Quantification of mitochondrial DNA

Cells were collected after flow cytometry in extraction buffer (0.2 mg/ml proteinase K, 0.2% SDS and 5 mM EDTA) and incubated at 50°C for 3 hr. DNA was precipitated with 0.3 M sodium acetate (pH 5.2) and isopropanol for 20 min on ice before centrifugation at 12.000 rpm at 4°C. Quantitative real time PCR was performed on a StepOnePlus PCR machine (Applied Biosystems) using the FastStart Universal SYBR Green Master (Roche) and primers that amplify the mitochondrial COI gene and the nuclear encoded NDUFV1 gene as an endogenous reference (see Supplementary file 2).

Metabolic and bio-energetic analysis

H2O2 production was quantified by the Amplex red assay (Life technology), which detects the accumulation of a fluorescent oxidized product.

Cytoplasmic reactive oxygen species were quantified by flow cytometry using the Deep Red Cell Rox probe (Invitrogen). For analysis of cells in culture, Cell Rox probe (0.5 mM) was directly added to the culture medium at the indicated time for 30 min in the cell culture incubator (at 37°C and in the dark). After three rinses with PBS at 37°C, cells were then rapidly trypsinised, fixed for 5 min in PFA, and rinsed three times in PBS. Cells were finally re-suspended in PBS and immediately analysed on a LSR Fortessa (BD Biosciences) apparatus, using FlowJo (TreeStar) software. For analysis of cells after flow cytometry, freshly sorted cells were re-suspended in 2 ml of F12 medium with 1% FCS at 37°C and incubated for 30 min at 37°C in a cell culture incubator in the presence of the Deep Red Cell Rox probe (0.5 mM). Cells were then rinsed in PBS at 37°C, fixed for 5 min in PFA for the Cell Rox probe, rinsed 3 times in PBS, and re-suspended in PBS for analysis on a LSR Fortessa (BD Biosciences).

Mitochondrial reactive oxygen species were quantified using Mitosox probe (Invitrogen): freshly sorted cells were re-suspended in 2 ml of HBSS medium with 1% FCS at 37°C and incubated for 20 min at 37°C in a cell culture incubator in the presence of the Mitosox probe (0.5 mM). Cells were then rinsed in HBSS at 37°C, and immediately analysed on a LSR Fortessa (BD Biosciences).

Mitochondrial mass was quantified using Mitotracker RedSox probe (Invitrogen): freshly sorted cells were re-suspended in 2 ml of F12 medium with 1% FCS at 37°C and incubated for 30 min at 37°C in a cell culture incubator in the presence of the Mitotracker RedSox probe (250 nM). Cells were then rinsed in PBS at 37°C, and immediately analysed on a LSR Fortessa (BD Biosciences).

Cellular bioenergetics was analysed on a Seahorse extracellular flux analyser (XFe24) according to the manufacturer's instructions. Briefly, Pax3(GFP)-positive cells purified by flow cytometry were seeded at a density of 100.000 cells per well in a Seahorse XF24 plate coated with the cell immobilizer BD Cell Tak coating (BD Biosciences) and cultured for 2 to 4 days. The seeding density was based on initial assays that optimized the oxygen consumption rate (OCR) and the extracellular-acidification rate (ECAR). One hour before the assay, cultured cells were washed three times in minimal assay media (Seahorse Biosciences, 37°C, pH 7.40) supplemented with glucose 2.25 g/L, 1 mM sodium pyruvate and 2 mM L-glutamine, and equilibrated for 1 hr at 37°C in a non-CO2 incubator. The basal and maximal rate of OCR and ECAR were measured successively in the control condition (basal rates) and after simultaneous injection of oligomycin (1 μM) that inhibits ATP synthase and of FCCP (0.5 μM) that uncouples mitochondrial OXPHOS (maximal rates). This dual injection allows measurement of the ability of cells to respond to increased energy demand using both oxidative phosphorylation (OCR) and glycolysis (ECAR). At the end of the experiment, proteins were extracted using 10 μL of lysis buffer and quantified using the Bradford assay. OCR and ECAR values were then normalized to protein concentration in order to compare different conditions.

Western-blots

The following primary antibodies were used for western-blot: rabbit polyclonal anti-p38a 1:500 (Santacruz), mouse monoclonal anti-phospho-p38α 1:1000 (T180/Y182, Cell Signaling, #9216S), mouse monoclonal anti-ERK 1:500 (Cell Signaling, L34F12), rabbit polyclonal anti-phospho-ERK 1:500 (T202/Y204, Cell Signaling, #9101S), rabbit polyclonal anti-JUNK 1:500 (Cell Signaling, #9252), mouse monoclonal anti-phospho-JUNK 1:500 (T183/Y185, Cell Signaling, G9), rabbit monoclonal anti-ATM (Cell Signaling, D2E2), mouse monoclonal anti-phospho-ATM (Cell Signaling, 10H11.E12), rabbit monoclonal anti-NF-κB p65 1:500 (Cell Signaling, D14E12), mouse monoclonal anti-phospho-NF-κB p65 1:500 (S536, Cell Signaling, 7F1) and polyclonal anti-GAPDH 1:2000 (G9545, Sigma).

Oxyblots

Irreversible protein oxidations were quantified by determining levels of protein carbonylation using the Protein OxyBlot kit (Millipore). Briefly, after protein extraction using lysis buffer, 10 μg of total proteins (in 5 μL) were denaturated by adding 5 µL of 12% SDS and boiling at 95°C for 15 min. Derivatization was achieved by the addition of 5 µL DNPH (10 mM) and incubation at room temperature for 20 min. After neutralization by addition of 7.5 µL of neutralization solution, samples were loaded on 4–10% polyacrylamide gels. For controls, the same samples were treated as described except that a control solution without DNPH was used instead of the DNPH-containing derivatization solution. Proteins were blotted to a nitrocellulose membrane. After staining with red ponceau to quantifiy total proteins, carbonylated proteins were detected using the rabbit polyclonal anti-DNP primary antibody (1:100; Protein Oxyblot Kit) and the anti-rabbit peroxidase antibody. Detection was performed with ECL.

siRNA transfection

SiUcp2 (Life technologies, ID:s75722), sip38a (Life technologies,ID:s77114), sip38γ (Life technologies, ID:s78078) and siCtrl (Life technologies, silencer negative control n°1) were transfected at 10 nm final concentration using lipofectamine RNAimax (Life technologies) from day 1 to day 3 or 4 of satellite cell culture.

Statistical analysis

Statistical analysis was performed using GraphPad Prism software using the two-tailed unpaired t-test test and a minimum of 95% confidence interval for significance; P-values indicated on figures are <0.05 (*),<0.01(**) and <0.001 (***). Figures display mean values of all animals tested ±standard deviation (s.d), with all experiments being carried out on a minimum of 3 animals in 3 independent experiments.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    Dosage requirement of Pitx2 for development of multiple organs
    1. PJ Gage
    2. H Suh
    3. SA Camper
    (1999b)
    Development 126:4643–4651.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Mitochondrial and reactive oxygen species signaling coordinate stem cell fate decisions and life long maintenance
    1. M Khacho
    2. RS Slack
    (2017)
    Antioxidants & Redox Signaling, 28, 10.1089/ars.2017.7228, 28657337.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68

Decision letter

  1. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States
  2. Andrew Brack
    Senior and Reviewing Editor; University of California, San Francisco, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for sending your article entitled "Redox regulation of muscle stem cells is critical for skeletal muscle regeneration" for peer review at eLife. Your article has been evaluated by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor.

Given the list of essential revisions, including new experiments, the editors and reviewers invite you to respond within the next two weeks with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then issue a binding recommendation.

Below we have compiled a summary of the essential revisions (please see attached full reviews for further details):

In the present manuscript by L'honore et al., the authors claim that Pitx2 and Pitx3 are involved in the regulation of the redox state in skeletal muscle stem cells, which balances their proliferation and differentiation for skeletal muscle regeneration. This manuscript follows from the authors earlier work, in which they identified Pitx2 and Pitx3 as regulators of redox state in fetal myogenesis. In the present work, the authors use single and double mutant Pitx2/Pitx3 mice as well as conditional mutants to assess the role of Pitx2/Pitx3 in adult satellite cell function related to ROS production. The authors conclude that Pitx2/Pitx3 loss raises ROS levels promoting premature differentiation that can be rescued by reducing p38α signaling together with NAC supplementation. This work extends the group's prior work in fetal myogenesis to adult satellite cells revealing distinct phenotypes within the two contexts.

There are several major issues with this study:

1) The authors provide evidence linking the Pitx2/Pitx3 expression levels and related amount of ROS production (redox state) with substantially different biological outcomes in adult satellite cells – either premature differentiation or senescence. The implication is that this dose relationship dictates whether a cell will differentiate or senesce. This needs to be tested more thoroughly. Does ROS activity change incrementally with Pitx gene dosage?

2) Manipulation of the redox state of muscle stem cells in vitro via combined p38α and ROS inhibition, the authors discover a ten-fold cell expansion and complete preservation of the regenerative capacity comparable to freshly isolated muscle stem cells. How is this possible? If the role of p38α is to regulate the redox state, shouldn't ROS inhibition on its own exert an effect of similar magnitude? Does NAC treatment alone improve grafting potential of cultured muscle stem cells? Resolving this interaction is important to resolve the mechanism.

3) Along the same line, one might wonder whether premature satellite cell differentiation by increased levels of ROS coincides with loss of asymmetric division. This can be evaluated by localization of pp38 and Par staining, as shown in Troy et al. (CSC 2012). In line with this thinking, it is possible that different SC subsets undergo different fates in response to Pitx2/3 deletion. Can clonal analysis be performed to determine if SCs are biased to differentiate or senesce and is that prevented by p38i or NAC. It is possible that the synergistic effect of p38i and NAC occur because they are acting in different cells/states.

4) The authors should focus on clarifying whether these different outcomes depend entirely on p38α (regulating different subsets of genes depending on whether it is activated by moderate vs high ROS) or by the activation of parallel signalling by ROS (this seems to me the most plausible scenario, which would explain why SB/NAC treatment is more effective than each treatment alone).

The most effective way to do so would be to analyze gene expression (genome wide, if possible; or alternatively by measuring expression levels of muscle differentiation, cell cycle and senescence-associated genes by qPCR, and activation of alternative signalling pathways, such as NFkB, JNK, DDR etc., in satellite cells from Pitx3-/- mutant and Pitx3+/- control animals 3 days post cardiotoxin injection, with or without SB and NAC in different combinations).

5) It is important that the authors clarify the issue of whether Pitx2/3 control only production of endogenous (mitochondrial) ROS, or also ROS generation in response to cytokines/growth factors, thereby clarifying the relationship between ROS- vs. cytokine/growth factor-mediated activation of p38 kinases α and β.

6) The effects of oxygen concentrations on satellite cell behavior are also well documented, first published in 2001, these studies demonstrate that un-physiological O2 concentrations (20%) promote myogenic differentiation and repress proliferation. There is a concern that all the culture experiments are done in a hyperoxic environment. Thus, the NAC treatment and other ROS manipulation in culture are potentially the same that would be achieved by simply reducing O2. The authors should test whether the Pitx2/3 mutants have ROS effects that are rescued by NAC in 4-6% O2 culture. Ignoring the effects of O2 culture levels considering the extensive published literature is a serious concern.

7) The transplantation experiment does not address whether the treatment enhances satellite cell expansion but simply shows that more dystrophin+ myofibers are present when treated cells are transplanted vs. non-treated cells. This could reflect either (i) increased survival upon transplantation, (ii) increased differentiation, (iii) a combination of (i) and (ii), or (iv) expansion of the satellite cells. The authors fail to show whether more donor satellite cells are present and thus the author's claims in the discussion are not supported by the data. The authors should perform transplants and double injuries in presence or absence of treatments followed by quantification of muscle fiber and SC contribution.

8) Many of the controls are Pitx2/Pitx3 heterozygotes and there is a concern that further manipulation of cells could uncover haploinsufficiency. The authors need to include wild type controls for some of the experiments as differing experimental conditions such as knock downs or changing culture conditions could uncover a haploinsufficiency phenotype that is not observed under normal culture conditions.

9) The title and narrative of the manuscript imply that the authors directly regulate ROS. The authors should reframe the title and the manuscript in general, to refocus on the role of Pitx2/3 in adult muscle stem cells. Alternatively, the authors need to directly manipulate mitochondrial function in vivo.

Reviewer #1:

In the present manuscript by L'honore et al., the authors claim that Pitx2 and Pitx3 are involved in the regulation of the redox state in skeletal muscle stem cells, which balances their proliferation and differentiation for skeletal muscle regeneration. The authors additionally claim that manipulation of the muscle stem cell redox state can expand muscle stem cells in vitro and preserve their regenerative capacity similar to freshly isolated cells. These claims are well supported by extensive temporally-controlled conditional mouse genetics and in vitro muscle stem cell culture experiments, and the body of work presents an important new addition to the muscle stem cell literature.

The finding of Pitx2/3's role in regulating the muscle stem cell redox state is certainly not surprising given the author's previous publication on the role of Pitx2/3 in fetal myogenic progenitor cells. Yet, the extension of that work to the adult muscle stem cell is appreciated as the adult muscle stem cell becomes activated from a quiescent state in adult muscle regeneration, which differs from the highly proliferative muscle progenitor population, which is continuously cycling.

Manipulating the redox state of muscle stem cells in vitro via combined p38α and ROS inhibition, the authors discover a ten-fold cell expansion and complete preservation of the regenerative capacity comparable to freshly isolated muscle stem cells. While the data is very exciting, the rationale for implementing the dual inactivation strategy is lacking and the results need a much more in-depth discussion within the context of the vast p38α literature on muscle stem cells. In particular, the magnitude of the cell expansion effect by dual p38α and ROS inhibition is not simply cumulative but much more substantive. How is this possible? If the role of p38α is to regulate the redox state, shouldn't ROS inhibition on its own exert an effect of similar magnitude? Along this line, it would be helpful to expand the in vitro inhibition (and transplantation) studies to include a dose response for SB203580, for which partial inhibition of p38α was shown to rejuvenate aged muscle stem cells (Bernet, 2014). Would NAC treatment alone improve grafting potential of cultured muscle stem cells? Minimally the results need a much more in-depth discussion including work from the Olwin lab (Jones, 2005; Bernet, 2014), Blau lab (Cosgrove, 2014), and in particular, work from the Pell lab (Brien, 2013), which used mouse genetics to completely eliminate p38α from the muscle stem cell.

Reviewer #2:

The authors use single and double mutant Pitx2/Pitx3 mice as well as conditional mutants to assess the role of Pitx2/Pitx3 in satellite cell function related to ROS production. The authors conclude that Pitx2/Pitx3 loss raises ROS levels promoting premature differentiation that can be rescued by reducing p38α signaling together with NAC supplementation.

The results, while of interest appear an indirect method to assess the effects of ROS on satellite cell differentiation. Although the data clearly show that ROS levels are changing, it seems likely that loss of Pitx2/Pitx3 affects far more than ROS levels and thus, the authors cannot simply attribute the deficits in muscle regeneration occurring upon loss of Pitx2/Pitx3 to changes in ROS. There are a number of serious concerns regarding the manuscript that are discussed in the following paragraphs but the overall issue that cannot be overcome is the use of Pitx2/Pitx3 knockouts to study ROS in satellite cells. The effects on ROS are indirect and thus, how can the authors attribute the effects of the double knockout to changes in ROS levels? Floxed alleles are available for both Ucp2 and Tfam from Jax. Incorporation of these knockouts in satellite cells and a comparison with Pitx2/Pitx3 knockouts is essential for the authors to draw conclusions about ROS effects on satellite cell behavior and separate the non-ROS dependent effects of Pitx2/Pitx3 knock outs from ROS-dependent effects.

Additional major issues:

The authors discussion and depiction for the roles of p38α MAPK signaling are insufficient and dated. Several laboratories have demonstrated that p38α plays a role in satellite cell activation and asymmetric division. The subcellular localization of p38α is a critical determinant of its function and during satellite cell activation/proliferation the phospho- p38α is present in the cytoplasm. The role for p38α in differentiation is well-documented and is nuclear. The authors are likely partially inhibiting p38α using the SB203580 concentrations stated and this is well documented by several labs to dramatically enhance transplantation efficacy. Thus, the p38α effects observed by the authors do not add to what has already been published.

The effects of oxygen concentrations on satellite cell behavior are also well documented, first published in 2001, these studies demonstrate that un-physiological O2 concentrations (20%) promote myogenic differentiation and repress proliferation. Reducing the O2 concentrations to physiological levels of 2-6% would likely produce the same effect as NAC in the manuscript. Ignoring the effects of O2 culture levels in light of the extensive published literature is a serious concern and needs to be addressed by the authors.

The observations that NAC/SB treatment expands the satellite cell population is predicted from the effects of O2 concentrations and the effects of p38α inhibition on satellite cell self-renewal and transplantation. Thus, this observation is not novel and does not add significantly to existing knowledge. The transplantation experiment does not address whether the treatment enhances satellite cell expansion but simply shows that more dystrophin+ myofibers are present when treated cells are transplanted vs. non-treated cells. This could reflect either (i) increased survival upon transplantation, (ii) increased differentiation, (iii) a combination of (i) and (ii), or (iv) expansion of the satellite cells. The authors fail to show whether more donor satellite cells are present and thus the claim at the end of the Results "To test whether engrafted cells also contributed to the satellite cell compartment in recipient muscles, we performed immunostaining with GFP and Pax7 antibodies. Both staining co-localized in a subset of nuclei in the engrafted muscle, indicating that the transplanted cells also successfully populated the satellite cell compartment (Figure 6I)" and claims in the Discussion are not supported by the data.

The vast majority of the controls are Pitx2/Pitx3 heterozygotes and there is a concern that further manipulation of cells could uncover haploinsufficienies. The authors need to include wild type controls for the majority of the experiments as differing experimental conditions such as knock downs or changing culture conditions could uncover a haploinsufficiency phenotype that is not observed under normal culture conditions.

Finally, the global knockout data reported in Figures 1-3 need repeating with the floxed allele as the authors cannot attribute the effects observed as cell intrinsic. The effects observed in vivo could be due to a combination of effects on multiple cell types, especially those shown in vivo. The authors imply that the global knockout and the satellite cell-specific knockouts are equivalent but they are not. There seems to be no rationale for performing half of the experiments on a global knock out and the other half on a cell-specific knock out.

In summary, the authors utilize an indirect approach to assess the effects of changing ROS levels in satellite cells. The possibility that the observed phenotypes are due to effects independent of ROS are not sufficiently addressed. Moreover, the mixed use of global and cell-specific knock outs complicates the interpretation of the phenotypes. More direct analyses of ROS effects on satellite cells could be performed and coupled with data from the submitted manuscript to much better support the conclusions drawn by the authors.

Reviewer #3:

This is a very interesting manuscript, in which the authors followed-up previous studies that identified Pitx2 and Pitx3 as satellite cell regulators of redox state, which in turn regulates DNA damage and differentiation. By using Pitx2/3 single and double mutants, as genetic models of perturbed redox states in satellite cells, the authors show that while moderate ROS production (at physiological levels) leads to premature satellite cell differentiation, via cell cycle entry and p38 activation, excessive ROS levels induce senescence, DNA damage and consequent activation of the differentiation checkpoint which inhibits satellite cell differentiation. The authors used this information to devise a combinatorial and transient blockade of ROS and p38α kinase to expand satellite cells for successful muscle engraftment in vivo, upon transplantation.

Overall, the experiments are well performed and the data correctly interpreted, revealing an interesting connection between genetic control of redox state by Pitx2/3 and p38 activation in satellite cells, leading to physiological or premature activation of the myogenic program, or DNA damage, cellular senescence and block of differentiation.

Below are listed few important points that I invite the authors to address.

1) In Figure 1, the gene expression analysis does not include satellite cells from injured muscles. That experimental point should be included, as it seems it would provide an important dataset integration.

2) It should be explained why the authors initially used pectoralis, diaphragm and abdominal muscles, and notexin injury (Figure 1), and then switched to hind-limb muscles and cardiotoxin injury for satellite cell analysis.

3) Figure 1J. The ROS levels in satellite cells from control and mutant mice seem to eventually converge at later time points (D3). The authors should comment on this trend and possibly extend their analysis beyond D3 (i.e. D4 and 5).

4) ROS-mediated activation of p38 is an interesting finding, that adds one more p38 activator to stimuli identified so far (cytokines, cell to cell contact). It would be interesting to experimentally address (or just speculate/discuss) the relationship between these stimuli and intracellular production of ROS. For instance, is TNFα-mediated activation of p38 in satellite cells affected by NAC?

5) Along the same line, one might wonder whether premature satellite cell differentiation by increased levels of ROS actually coincides with loss of asymmetric division. This can be evaluated by localization of p-p38 and Par staining, as shown in Troy et al. (CSC 2012).

6) Figure 3I. The reduction of p38α phosphorylation upon incubation with the p38 kinase inhibitor SB is unexpected, as the inhibitor should not affect p38 phosphorylation (which is catalyzed by upstream kinases – MKK3, MKK6 and others). Actually, a paradoxical hyper-phosphorylation should be observed, as a result of the accumulation of phosphorylated p38 upon blockade by SB. The authors might want to re-evaluate this experiments (possibly by showing also the total p38 Western blot).

7) Pax3/GFP sorting of satellite cells is definitely acceptable; however, validation of the major findings (ROS-p38 activation, and expansion by NAC/SB ex vivo) should be done in satellite cells sorted by conventional FACS procedures.

8) Improved engraftment of satellite cells injected after in vitro expansion by NAC/SB treatment should be evaluated also upon transplantation in muscles of wild type animals and repeated injuries, in order to evaluate whether these cells divide asymmetrically – a key issue in regenerative medicine.

9) A similar finding reporting on DNA damage-driving senescence that impairs satellite cell differentiation has been recently reported by Latella et al. and should be discussed.

[Editors' note: the authors’ plan for revisions was approved and they made a formal revised submission. What follows is both their initial plan and final response submitted with their revised article]

https://doi.org/10.7554/eLife.32991.035

Author response

[…] 1) The authors provide evidence linking the Pitx2/Pitx3 expression levels and related amount of ROS production (redox state) with substantially different biological outcomes in adult satellite cells – either premature differentiation or senescence. The implication is that this dose relationship dictates whether a cell will differentiate or senesce. This needs to be tested more thoroughly. Does ROS activity change incrementally with Pitx gene dosage?

Revision plan: We think that our data in Figure 1J indicate that ROS levels change incrementally with Pitx gene dosage. While in the Pitx3 mutant, we observe a moderate increase of ROS compared to control both at days 2 and 3, a higher increase is found in the double mutant. The Pitx2 mutant alone does not show a significant increase in ROS levels compared to the control. To be more clear in the manuscript, we proposed to present these data in a histogram, instead of linear plots.

As noted by reviewer 3, we chose not to do ROS quantification at days 4 and 5 in the mutants in order to focus on the role of ROS in early differentiation, marked by down-regulation of Pax genes, and up-regulation of Myogenin (Figures 1E, G).

Final response: The data are now presented in a histogram (Figure 1J).

2) Manipulation of the redox state of muscle stem cells in vitro via combined p38α and ROS inhibition, the authors discover a ten-fold cell expansion and complete preservation of the regenerative capacity comparable to freshly isolated muscle stem cells. How is this possible? If the role of p38α is to regulate the redox state, shouldn't ROS inhibition on its own exert an effect of similar magnitude? Does NAC treatment alone improve grafting potential of cultured muscle stem cells? Resolving this interaction is important to resolve the mechanism.

Revision plan: As indicated in the manuscript, the use of SB and NAC alone are not sufficient to prevent complete p38α activation, giving a first explanation for the better expansion of satellite cells in the presence of both compounds. While it has been previously shown that p38α can directly regulate the redox state in some cells, such as hematopoietic stem cells, in muscle stem cells, this does not appear to be the case, as shown in Figure 6—figure supplement 1E, where SB treatment alone does not significantly affect ROS levels. We propose that in muscle stem cells, p38α does not act as a redox regulator, but rather as a redox signalling molecule.

To address the issue of the role of NAC on grafting potential of cultured muscle stem cells, we proposed to perform the following grafting experiments: satellite cells purified from Pax3(GFP) cells will be cultured in the absence or presence of NAC, and then grafted in the Tibialis Anterior (TA) muscle of Rag2-/--/-:Il2Rβ-/-:dmd/dmd mice. Three weeks after grafting, the grafting efficiency will be analyzed by detection of dystrophin in regenerating fibers as in our previous experiments.

Final response: These additional grafting experiments are now presented in Figure 6H-K. We have moved Figure 6F (schema) and Figure 6I (Pax7 and Pax3GFP images) into Figure 6—figure supplement 1I and J.

The question of NAC versus SB effects are now addressed more extensively in the Discussion.

3) Along the same line, one might wonder whether premature satellite cell differentiation by increased levels of ROS coincides with loss of asymmetric division. This can be evaluated by localization of pp38 and Par staining, as shown in Troy et al. (CSC 2012). In line with this thinking, it is possible that different SC subsets undergo different fates in response to Pitx2/3 deletion. Can clonal analysis be performed to determine if SCs are biased to differentiate or senesce and is that prevented by p38i or NAC. It is possible that the synergistic effect of p38i and NAC occur because they are acting in different cells/states.

Revision plan: To address the issue of a possible link between premature satellite cell differentiation and loss of asymmetric division, we will study the distribution of pp38α and Par in cultured control and Pitx3-/- satellite cells. It is not clear whether clonal analysis could provide more information than we already have from the mass culture studies. Pp38 staining will not help to distinguish cells undergoing differentiation from cells undergoing senescence since both will be positive. However, we propose to add to Figure 5F-H, data obtained by treating the Pitx2/3 double mutant cells by both NAC and SB.

Final response: We could detect asymmetric distribution of pp38α and Par in cultured control and Pitx3-/- satellite cells. However the results on their precise localisation were not statistically significant with considerable variation over the cell population. We used the same sources of antibodies as those reported by Troy et al. but unfortunately in our hands the subcellular resolution was poor.

We now include data that address the fate of the Pitx mutant cells, with addition of SB and NAC together as well as separately (Figure 5E, Figure 6I-K). These results provide additional insight into the synergistic effect.

As now shown by additional experiments and discussed at greater length in the paper we think that NAC and therefore the level of ROS has additional effects, notably on DNA damage, senescence and cloning efficiency for example, which do not depend on P38α and are not targeted by SB.

4) The authors should focus on clarifying whether these different outcomes depend entirely on p38α (regulating different subsets of genes depending on whether it is activated by moderate vs high ROS) or by the activation of parallel signalling by ROS (this seems to me the most plausible scenario, which would explain why SB/NAC treatment is more effective than each treatment alone).

The most effective way to do so would be to analyze gene expression (genome wide, if possible; or alternatively by measuring expression levels of muscle differentiation, cell cycle and senescence-associated genes by qPCR, and activation of alternative signalling pathways, such as NFkB, JNK, DDR etc., in satellite cells from Pitx3-/- mutant and Pitx3+/- control animals 3 days post cardiotoxin injection, with or without SB and NAC in different combinations).

Revision plan: We agree that it is plausible that ROS can act through parallel signalling to p38α. To test this hypothesis, we propose to perform Western-blot analysis on control and Pitx3-/- satellite cells cultured with and without SB and NAC in different combinations. We think that RNA transcripts are less informative about the activation of signalling pathways than looking at the phosphorylated protein intermediates. We therefore propose to perform the following Western blots: phosphoATM/ATM (DDR), phosphoJun/Jun (JNK), phosphop65/p65 (NFkB).

Final response: We have carried out Western blots for phosphorylated versus unphosphorylated JNK and ERK which are more informative than p65 (NFkB) or ATM (DDR), neither of which changed at the onset of differentiation. Representative Western blots and quantification are shown in Figure 3—figure supplement 1H and 1I. We do not detect significant changes in Pitx3 mutant satellite cells, indicating that these pathways are not affected.

We have modified the summary diagram (Figure 7) to indicate that ROS may act independently of p38α signalling. We think that DNA damage is a clear example of this as we show and is now pointed out in the discussion where other effects of ROS, on Sirt1 for example, are also invoked.

5) It is important that the authors clarify the issue of whether Pitx2/3 control only production of endogenous (mitochondrial) ROS, or also ROS generation in response to cytokines/growth factors, thereby clarifying the relationship between ROS- vs. cytokine/growth factor-mediated activation of p38 kinases α and β.

Revision plan: Our previous (L’honore et al., 2014) and current results implicate Pitx2/3 transcription factors as regulators of mitochondrial ROS production through regulation of mitochondrial activity. To investigate whether they can also control ROS generation in response to cytokines, we propose to culture control and Pitx3 mutant cells in the absence or presence of TNFα (suggested by reviewer 3) and NAC. Differentiation and ROS levels will be monitored. If Pitx3 control ROS production by TNFα stimulus, TNFα should have no effect in mutant cells, while affecting control cells.

Final response: The experiment with TNFα is shown in Figure 3—figure supplement 1J. The result shows that mutant cells are sensitive to a similar extent to control cells, in keeping with a role of Pitx factors in regulating mitochondrial ROS independently of cytokines. Furthermore, in wild type cells, we show that TNFα increases ROS levels and affects the balance between proliferation and differentiation (Figure 3J).

6) The effects of oxygen concentrations on satellite cell behavior are also well documented, first published in 2001, these studies demonstrate that un-physiological O2concentrations (20%) promote myogenic differentiation and repress proliferation. There is a concern that all the culture experiments are done in a hyperoxic environment. Thus, the NAC treatment and other ROS manipulation in culture are potentially the same that would be achieved by simply reducing O2. The authors should test whether the Pitx2/3 mutants have ROS effects that are rescued by NAC in 4-6% O2culture. Ignoring the effects of O2culture levels considering the extensive published literature is a serious concern.

Revision plan: We agree with reviewer 2 that the effects of O2 culture levels on cells is a serious concern. While a hyperoxic environment has been previously shown to negatively affect myogenic proliferation, the role of intracellular ROS levels in this phenotype has not been established. In contrast, we have previously demonstrated that culturing fetal muscle cells under 20% or 3% O2 (L’honore et al., 2014) does not change their ROS levels, and importantly does not affect their response to NAC treatment. In this context, we have already obtained evidence that the phenotype of Pitx2/3 double mutant cells is not rescued by culture in 3% O2. We propose to add these results to the new manuscript and to perform satellite cell culture in the absence or presence of NAC under hyperoxic (20% O2) and normoxic conditions (3% O2).

Final response: Results of culture in 3% oxygen have now been added as Figure 3—figure supplement 1G, Figure 5—figure supplement 1G and Figure 6—figure supplement 1B. We show that the effect of NAC and therefore modulation of ROS levels on the Pitx3 mutant phenotype is not rescued by satellite cell culture under these normoxic conditions (Figure 3—figure supplement 1G). This is also the case for double Pitx2/3 mutant cells (Figure 5—figure supplement 1G) and for wild-type cells (Figure 6—figure supplement 1B).

7) The transplantation experiment does not address whether the treatment enhances satellite cell expansion but simply shows that more dystrophin+ myofibers are present when treated cells are transplanted vs. non-treated cells. This could reflect either (i) increased survival upon transplantation, (ii) increased differentiation, (iii) a combination of (i) and (ii), or (iv) expansion of the satellite cells. The authors fail to show whether more donor satellite cells are present and thus the author's claims in the discussion are not supported by the data. The authors should perform transplants and double injuries in presence or absence of treatments followed by quantification of muscle fiber and SC contribution.

Revision plan: The issue of the re-colonisation of the satellite cell reservoir will be addressed by grafting experiments under the following conditions: satellite cells purified as Pax3(GFP) cells will be cultured in the absence or presence of NAC, SB and NAC/SB and will then be grafted into the TA muscles of either Rag2-/-:Il2Rβ-/-or Rag-/-:Il2Rβ-/-:dmd/dmd mice. Three weeks after grafting, the presence of GFP+/Pax7+ satellite cells will be quantified.

We propose to perform a single injury experiment and not a double one that will be too time consuming and will not add much information.

Final response: This grafting experiment with both NAC and SB as well as each separately is now presented in Figure 6H-K. It shows an additional increase in regeneration (Figure 6J, K) in the presence of both with a striking increase in the expansion of grafted Pax3(GFP)-positive cells after injury (Figure 6I).

8) Many of the controls are Pitx2/Pitx3 heterozygotes and there is a concern that further manipulation of cells could uncover haploinsufficiency. The authors need to include wild type controls for some of the experiments as differing experimental conditions such as knock downs or changing culture conditions could uncover a haploinsufficiency phenotype that is not observed under normal culture conditions.

Revision plan: We have evidence that results obtained with cells isolated from wild type Pax3GFP/+mice are not statistically different to those obtained with cells from Pitx2+/- :Pitx3+/- : Pax3GFP/+ mice, suggesting absence of haploinsufficiency. These results will be included in the new manuscript.

Final response: The issue of haploinsufficiency is addressed by data on wild type and heterozygote satellite cells, which show similar levels of ROS (Figure 1—figure supplement 1M).

9) The title and narrative of the manuscript imply that the authors directly regulate ROS. The authors should reframe the title and the manuscript in general, to refocus on the role of Pitx2/3 in adult muscle stem cells. Alternatively, the authors need to directly manipulate mitochondrial function in vivo.

Revision plan: We will change the title of the manuscript in order to refocus on the role of Pitx2/3 in adult muscle stem cells. We will also include new references on p38 in our Discussion.

Final response: The title has been modified. The manuscript begins with the results on the Pitx mutants and this is now the starting point for the Discussion, which now further addresses the points raised by the reviewers.

Additional references have been added.

We have not removed any of the previous results presented but some of these have now been transferred to the supplementary figures to make room for the most important new data obtained following the reviewers’ recommendations. We thank them for suggestions that have strengthened the manuscript.

https://doi.org/10.7554/eLife.32991.036

Article and author information

Author details

  1. Aurore L'honoré

    1. Department of Developmental and Stem Cell Biology, CNRS, UMR 3738, Institut Pasteur, Paris, France
    2. Biological Adaptation and Aging-IBPS, CNRS UMR 8256, INSERM ERL U1164, Sorbonne Universités, Université Pierre et Marie Curie, Paris, France
    Present address
    Sorbonne Universités, UPMC Université Paris 06, Biological Adaptation and Aging-IBPS, CNRS UMR 8256, INSERM ERL U1164, Paris, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    alhonore@hotmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6371-4455
  2. Pierre-Henri Commère

    Platform of Cytometry, Institut Pasteur, Paris, France
    Contribution
    Data curation, Software, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  3. Elisa Negroni

    Center for Research in Myology, Sorbonne Universités, Université Pierre et Marie Curie, Paris, France
    Contribution
    Conceptualization, Resources, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Giorgia Pallafacchina

    NeuroscienceInstitute, Department of Biomedical Sciences, Italian National Research Council, Universityof Padova, Padova, Italy
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9766-5970
  5. Bertrand Friguet

    Biological Adaptation and Aging-IBPS, CNRS UMR 8256, INSERM ERL U1164, Sorbonne Universités, Université Pierre et Marie Curie, Paris, France
    Contribution
    Resources
    Competing interests
    No competing interests declared
  6. Jacques Drouin

    Laboratory of Molecular Genetics, Institut de Recherches Cliniques de Montréal, Montréal, Canada
    Contribution
    Resources
    Competing interests
    No competing interests declared
  7. Margaret Buckingham

    Department of Developmental and Stem Cell Biology, CNRS, UMR 3738, Institut Pasteur, Paris, France
    Contribution
    Resources, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    Reviewing editor, eLife
  8. Didier Montarras

    Department of Developmental and Stem Cell Biology, CNRS, UMR 3738, Institut Pasteur, Paris, France
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    didier.montarras@pasteur.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7691-359X

Funding

Seventh Framework Programme (Marie Curie IRG 248496)

  • Aurore L'honoré

Fondation pour la Recherche Médicale (Postdoc Fellowship)

  • Aurore L'honoré
  • Giorgia Pallafacchina

Domaine d’Intérêt Majeur STEM-Pole

  • Aurore L'honoré

AFM-Téléthon

  • Bertrand Friguet

Agence Nationale de la Recherche (REGSAT)

  • Margaret Buckingham

Agence Nationale de la Recherche (ANR-10-LABX-73)

  • Margaret Buckingham

Seventh Framework Programme (OptiStem 223098)

  • Margaret Buckingham

AFM-Téléthon

  • Didier Montarras

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the Institut Pasteur, the CNRS (UMR 3738 and UMR 8256) and Sorbonne Universités, with grants to MB, DM and BF from the AFM, grants to MB and DM from the ANR (REGSAT), the Laboratoire d’Excellence REVIVE (Investissement d’Avenir ANR-10-LABX-73) and the EU Optistem project (Health, FP7-2007, 223098) and grant to AL from the DIM Stem Pôle. A L’honoré was supported by a postdoctoral fellowship from the Fondation pour la Recherche Médicale (FRM) and a Marie Curie IRG grant (MC-IRG248496/SATELLITE CELL). G Pallafacchina was supported by a postdoctoral fellowship from the Fondation pour la Recherche Médicale. The authors thank C Bodin, C Cimper, N Benanteur and the laboratory of histology of the Institut Pasteur for technical help, A Lombes and F Devaux for reagents and advice on mitochondrial function, R Blaise for reagents and B Robert for critical reading of the manuscript and discussion.

Ethics

Animal experimentation: All animal procedures were approved and conducted in accordance with the Institut Pasteur animal ethics committee (CEEA Institut Pasteur n°2013-0017 and APAFIS #2455 2015 1122133311) following the regulations of the Ministry of Agriculture and the European Community guidelines. All surgery was performed under Ketamine/Xylazine anesthesia and every effort was made to minimize suffering.

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Senior and Reviewing Editor

  1. Andrew Brack, University of California, San Francisco, United States

Publication history

  1. Received: October 20, 2017
  2. Accepted: August 1, 2018
  3. Accepted Manuscript published: August 14, 2018 (version 1)
  4. Version of Record published: October 16, 2018 (version 2)

Copyright

© 2018, L'honoré et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 937
    Page views
  • 256
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
