Gene network analysis identifies a central post-transcriptional regulator of cellular stress survival

  1. Matthew Tien
  2. Aretha Fiebig
  3. Sean Crosson  Is a corresponding author
  1. University of Chicago, United States
Research Article
  • Cited 0
  • Views 1,145
  • Annotations
Cite as: eLife 2018;7:e33684 doi: 10.7554/eLife.33684


Cells adapt to shifts in their environment by remodeling transcription. Measuring changes in transcription at the genome scale is now routine, but defining the functional significance of individual genes within large gene expression datasets remains a major challenge. We applied a network-based algorithm to interrogate publicly available gene expression data to predict genes that serve major functional roles in Caulobacter crescentus stress survival. This approach identified GsrN, a conserved small RNA that is directly activated by the general stress sigma factor, σT, and functions as a potent post-transcriptional regulator of survival across distinct conditions including osmotic and oxidative stress. Under hydrogen peroxide stress, GsrN protects cells by base pairing with the leader of katG mRNA and activating expression of KatG catalase/peroxidase protein. We conclude that GsrN convenes a post-transcriptional layer of gene expression that serves a central functional role in Caulobacter stress physiology.



Organisms must control gene expression to maintain homeostasis. A common mode of gene regulation in bacteria involves activation of alternative sigma factors (σ), which redirect RNA polymerase to transcribe genes required for adaptation to particular environmental conditions. Alphaproteobacteria utilize an extracytoplasmic function (ECF) σ factor to initiate a gene expression program known as the general stress response (GSR) (Figure 1A). The GSR activates transcription of dozens of genes, which mitigates the detrimental effects of environmental stressors and influences the infection biology of alphaproteobacterial pathogens (reviewed in [Fiebig et al., 2015; Francez-Charlot et al., 2015]). The molecular mechanisms by which genes in the GSR regulon enable growth and survival across a chemically- and physically distinct spectrum of conditions are largely uncharacterized. Defining the functional role(s) of individual genes contained within complex environmental response regulons, such as the GSR, remains a major challenge in microbial genomics.

Figure 1 with 2 supplements see all

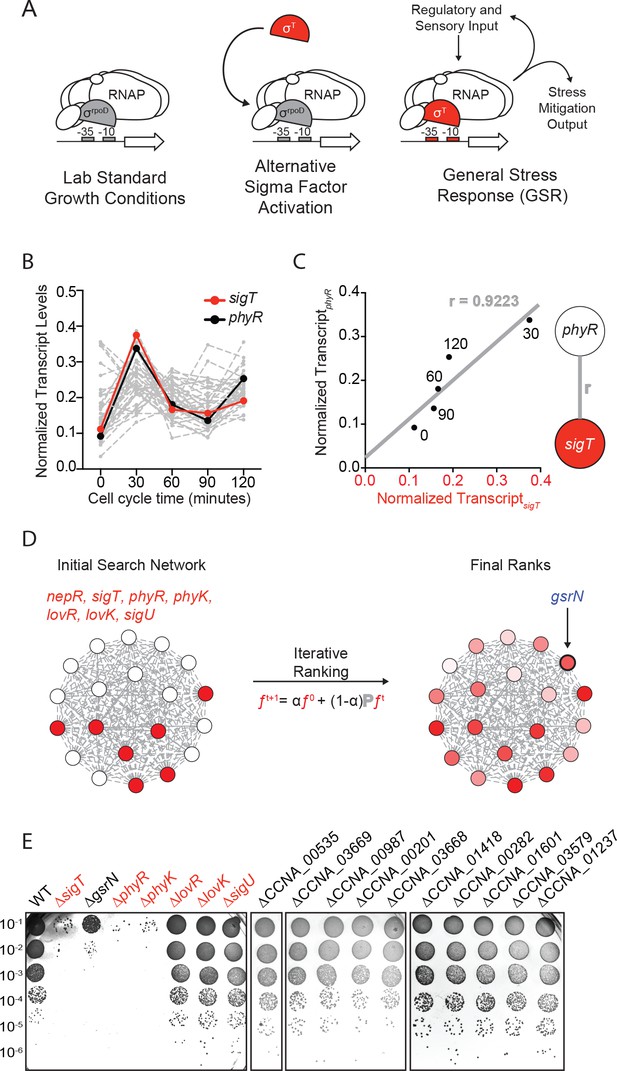

Iterative rank analysis of gene expression data identifies gsrN, a small RNA that confers resistance to hydrogen peroxide.

(A) Activation of general stress response (GSR) sigma factor, σT, promotes transcription of genes that mitigate the effects of environmental stress and genes that regulate σT activity. (B) Normalized transcript levels from (Fang et al., 2013) of known GSR regulated genes are plotted as a function of cell cycle time. The core GSR regulators, sigT and phyR, are highlighted in red and black, respectively. Data plotted from Figure 1—source data 1. (C) sigT and phyR transcript levels are correlated as a function of cell cycle progression, Pearson’s correlation coefficient r = 0.92. (D) An initial correlation-weighted network was seeded with experimentally defined GSR regulatory genes (red, value = 1) (left). Final ranks were calculated using the stable solution of the iterative ranking algorithm (right). Red intensity scales with the final rank weights (Figure 1—source data 2). A gene encoding a small RNA, gsrN, was a top hit on the ranked list. (E) Colony forming units (CFU) in dilution series (10−1 to 10−6 dilution factor) of wild-type and mutant Caulobacter strains after 0.2 mM hydrogen peroxide treatment for 1 hr. Red denotes core GSR regulatory genes. Black denotes known σT–regulated genes. GenBank locus ID is indicated for unnamed genes.


In the alphaproteobacterium Caulobacter crescentus (hereafter referred to as Caulobacter), strains lacking core regulators of the GSR have survival defects under multiple conditions including hyperosmotic and hydrogen peroxide stresses (Alvarez-Martinez et al., 2007; Foreman et al., 2012; Herrou et al., 2010; Lourenço et al., 2011). However, the majority of genes regulated at the transcriptional level by the Caulobacter GSR sigma factor, σT, have no annotated function or no clear role in stress physiology. While studies of transcription can provide understanding of stress responses, this approach may miss functionally important processes that are regulated at the post-transcriptional level, such as those controlled by small RNAs (sRNAs). Roles for sRNAs in bacterial stress response systems are well described (Wagner and Romby, 2015), but remain unexplored in the alphaproteobacterial GSR.

Regulatory roles and mechanisms of action of sRNAs are diverse: sRNAs can control gene expression by protein sequestration or by modulation of mRNA stability, transcription termination, or translation (Wagner and Romby, 2015). The system properties of environmental response networks are often influenced by sRNAs, which can affect the dynamics of gene expression via feedback (Beisel and Storz, 2011; Mank et al., 2013; Nitzan et al., 2015; Shimoni et al., 2007) or buffer response systems against transcriptional noise (Arbel-Goren et al., 2013; Golding et al., 2005; Levine and Hwa, 2008; Mehta et al., 2008). However, the phenotypic consequences of deleting sRNA genes are typically subtle and uncovering phenotypes often requires cultivation under particular conditions. Thus, reverse genetic approaches to define functions of uncharacterized sRNAs have proven challenging.

We applied a rank-based network analysis approach to predict functionally significant genes in the Caulobacter GSR regulon. The hypothesis motivating our analysis was that genes whose expression is most correlated to the core GSR regulators, calculated by iterative rank, would also be among the most important for stress response. This analysis led to the prediction that a sRNA, which we name GsrN, is a major genetic determinant of growth and survival under stress. We validated this prediction, demonstrating that gsrN is under direct control of σT and functions as a potent post-transcriptional regulator of survival across distinct conditions including hydrogen peroxide stress and hyperosmotic shock. We developed a novel forward biochemical approach to identify direct molecular targets of GsrN and discovered that peroxide stress survival is mediated through an interaction between GsrN and the 5’ leader sequence of katG, which activates KatG catalase/peroxidase expression. This post-transcriptional connection between σT and katG, a major determinant of peroxide stress and stationary phase survival (Italiani et al., 2011; Steinman et al., 1997), explains the peroxide sensitivity phenotype of Caulobacter strains lacking a GSR system.

Finally, we demonstrate that RNA processing and sRNA-mRNA target interactions shape the pool of functional GsrN in the cell, and that changes in GsrN expression enhance expression of some proteins while inhibiting others. The broad regulatory capabilities of GsrN are reflected in the fact that a gsrN deletion strain has survival defects across chemically- and physically distinct stress conditions, and support a model in which the GSR initiates layered transcriptional and post-transcriptional regulatory responses to ensure environmental stress survival.


Iterative rank analysis of gene expression data identifies a small RNA regulator of stress survival

We applied a network-based analytical approach to interrogate published transcriptomic datasets (Fang et al., 2013) and predict new functional genetic components of the Caulobacter GSR system. We organized expression data for over 4000 genes (Figure 1B and Figure 1—source data 1) to create a weighted network. In our basic network construction, each gene in the genome was represented as a node and each node was linked to every other node by a correlation coefficient that quantified the strength of co-expression across all datasets (Figure 1C). Within this undirected graph, we aimed to uncover a GSR clique and thus more explicitly define the core functional components of the GSR regulon.

To identify uncharacterized genes that are strongly associated with the GSR, we utilized an iterative ranking approach related to the well-known PageRank algorithm (Brin and Page, 1998). We defined the ‘input’ set as sigT and the experimentally defined regulators of σT, which include the anti-sigma factor, nepR, the positive two-component regulators phyR and phyK, and the negative two-component regulators lovR and lovK, as well as the paralogous sigma factor, sigU (in red Figure 1D) (Alvarez-Martinez et al., 2007; Foreman et al., 2012; Herrou et al., 2010; Lourenço et al., 2011). We then optimized parameters through a systematic self-predictability approach (Figure 1—figure supplement 1A and Materials and methods - Iterative rank parameter tuning) and applied iterative ranking to compute a ranked list of genes with strong associations to the input set (Figure 1—source data 2). We narrowed our ranked list by performing a promoter motif search on all hits to predict direct targets of σT. ccna_R0081, a gene encoding an sRNA (Landt et al., 2008) with a consensus σT binding site (Figure 1—figure supplement 2A) in its promoter was a top hit in our rank list. We hereafter refer to this gene as gsrN (general stress response non-coding RNA) as expression of this sRNA is regulated by the GSR system (see below).

To test whether gsrN transcription requires the GSR sigma factor, σT, we generated a transcriptional reporter by fusing the gsrN promoter to lacZ (PgsrNlacZ). Transcription from PgsrN required sigT (Figure 1—figure supplement 2A,C), validating gsrN as a bona fide member of the GSR regulon. To determine whether gsrN is a feedback regulator of GSR transcription, we utilized a well-characterized PsigUlacZ reporter (Foreman et al., 2012). As expected, transcription from PsigU required sigT and other GSR regulators (phyR, phyK). However, this reporter was unaffected by deletion or overexpression of gsrN. Furthermore, deletion or overexpression of gsrN did not affect activation of PsigU transcription upon addition of 150 mM sucrose, a known GSR inducer (Figure 1—figure supplement 2D). We conclude gsrN is activated by σT, but does not feedback to control GSR transcription.

We next tested whether gsrN plays a role in stress survival. We subjected strains lacking gsrN or the core GSR regulators, sigT, phyR, or phyK, to hydrogen peroxide, a known stress under which GSR regulatory mutants have a survival defect. ΔsigT, ΔphyR, and ΔphyK strains had a ≈4-log decrease in cell survival relative to wild type after exposure to hydrogen peroxide, as previously reported (Alvarez-Martinez et al., 2007; Foreman et al., 2012; Lourenço et al., 2011). Cells lacking gsrNgsrN) had a ≈3-log viability defect relative to wild type (Figure 1E and Figure 1—figure supplement 2B). Insertion of gsrN with its native promoter at the ectopic vanA locus fully complemented the peroxide survival defect of ∆gsrN (Figure 2A and Figure 2—figure supplement 1C). These data provide evidence that gsrN is a major genetic contributor to cell survival upon peroxide exposure. To query if other σT-regulated genes are important for peroxide survival, we selected 10 additional genes that are strongly regulated by σT based on past transcriptome studies (Alvarez-Martinez et al., 2007; Foreman et al., 2012) and generated strains harboring single, in-frame deletions of these genes. The functions of these 10 genes are unknown: six encode conserved hypothetical proteins; two encode predicted outer membrane proteins; one encodes a cold shock protein, and one encodes a ROS/MUCR transcription factor. None of these additional deletion strains were sensitive to hydrogen peroxide (Figure 1E and Figure 1—figure supplement 2B).

Figure 2 with 1 supplement see all

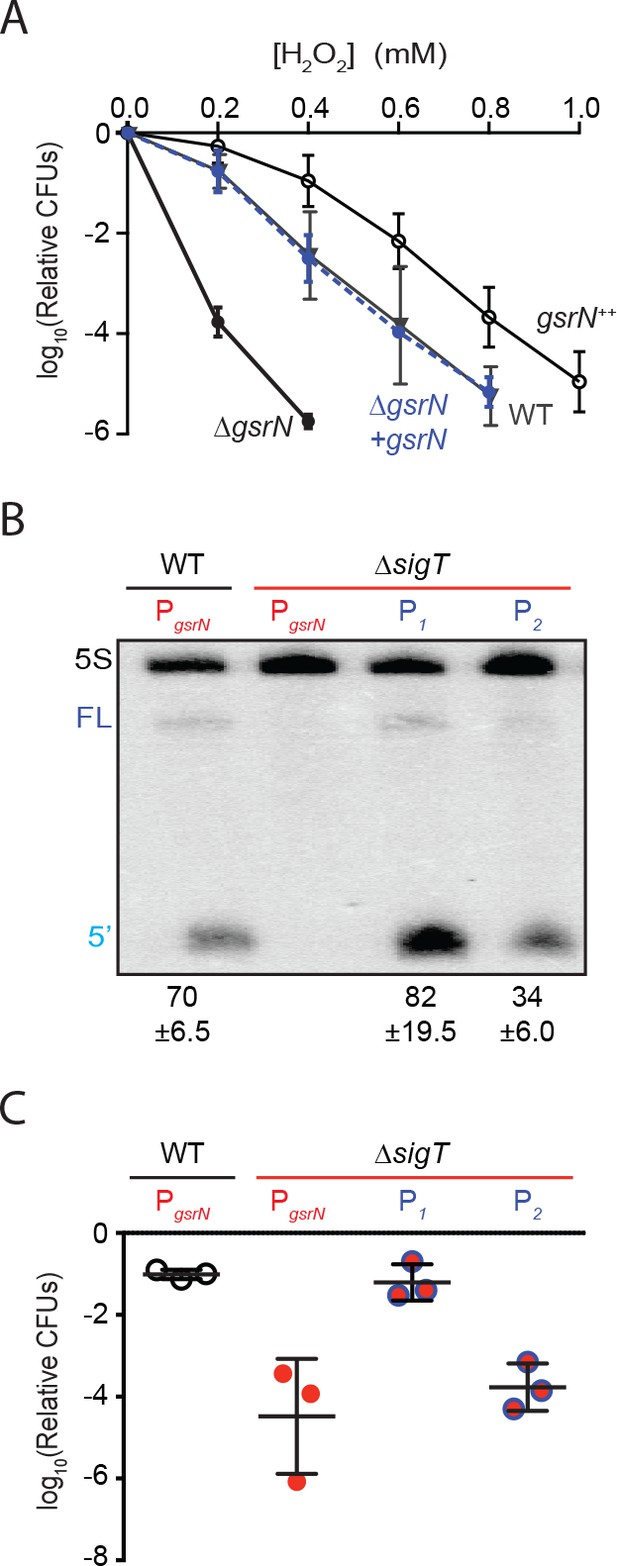

GsrN is necessary for hydrogen peroxide stress survival, and expression of GsrN is sufficient to confer peroxide protection in a sigT null background.

(A) Caulobacter wild type (WT), gsrN deletion (ΔgsrN), complementation (ΔgsrN + gsrN), and gsrN overexpression (gsrN++) strains were subjected to increasing concentrations of hydrogen peroxide for 1 hr and titered on nutrient agar. Complementation and overexpression strains carry plasmids with one or three copies, respectively, of gsrN with its native promoter integrated at the ectopic vanA locus (see Figure 2—figure supplement 1A for details). ΔgsrN and WT strains carried the empty plasmid (pMT552) integrated at the vanA locus. Log10 relative CFU (peroxide treated/untreated) is plotted as a function of peroxide concentration. Mean ±SD, n = 3 independent replicates. (B) Northern blot of total RNA isolated from WT and ΔsigT strains expressing gsrN from its native promoter (PsigT) or from two constitutive σRpoD promoters (P1 or P2); probed with 32P-labeled oligonucleotides specific for GsrN and 5S rRNA as a loading control. Labels on the left refer to 5S rRNA (5S in black), full-length GsrN (FL in dark blue), and the 5’isoform of GsrN. (5’ in cyan) Quantified values are mean ±SD of normalized signal, n = 3 independent replicates. (C) Relative survival of strains in (B) treated with 0.2 mM hydrogen peroxide for 1 hr normalized as in (A). Mean ±SD from three independent experiments (points) is presented as bars.


Expression of GsrN confers protection from peroxide stress

Results outlined above demonstrate that gsrN is necessary for hydrogen peroxide stress survival. To assess the effects of gsrN overexpression, we inserted constructs containing either one or three copies of gsrN under its native promoter into the vanA locus of wild-type and ∆gsrN strains (Figure 2—figure supplement 1A). We measured GsrN expression directly in these strains by Northern blot (Figure 2—figure supplement 1B) and tested their susceptibility to hydrogen peroxide (Figure 2A). Treatment with increasing concentrations of hydrogen peroxide revealed that strains overexpressing gsrN have a survival advantage compared to wild type. Measured levels of GsrN in the cell directly correlated (r = 0.92) with cell survival providing evidence that gsrN confers dose dependent protection from peroxide stress over the measured range (Figure 2—figure supplement 1C).

Given that σT regulates many genes, we sought to test if gsrN expression was sufficient to mediate cell survival under peroxide stress in a strain lacking σT (and thus GSR transcription). To decouple gsrN transcription from σT, we constitutively expressed gsrN from promoters (P1 and P2) controlled by the primary sigma factor, RpoD, in a strain lacking sigT (Figure 2—figure supplement 1A). gsrN expression from P1 was 15% higher, and expression from P2 50% lower than gsrN expressed from its native σT-dependent promoter (Figure 2B). Expression of gsrN from P1, but not P2, rescued the ΔsigT peroxide survival defect (Figure 2C). We conclude that gsrN is a major genetic determinant of hydrogen peroxide survival regulated downstream of σT under these conditions. Consistent with the dose dependent protection by GsrN, these data demonstrate that a threshold level of gsrN expression is required to protect the cell from hydrogen peroxide.

GsrN is endonucleolytically processed into a more stable 5’ isoform

A notable feature of GsrN is the presence of two isoforms by Northern blot. Probes complementary to the 5’ portion of GsrN reveal full-length (≈100 nucleotide) and short (51 to 54 nucleotides) isoforms while probes complementary to the 3’ portion reveal mostly full-length GsrN (Figure 3A and Figure 3—figure supplement 1A). Smaller 3’ isoforms are apparent as minor species when high concentrations of total RNA are probed (Figure 3—figure supplement 1A). Two isoforms of GsrN are also evident in RNA-seq data (Figure 3—figure supplement 1B).

Figure 3 with 2 supplements see all

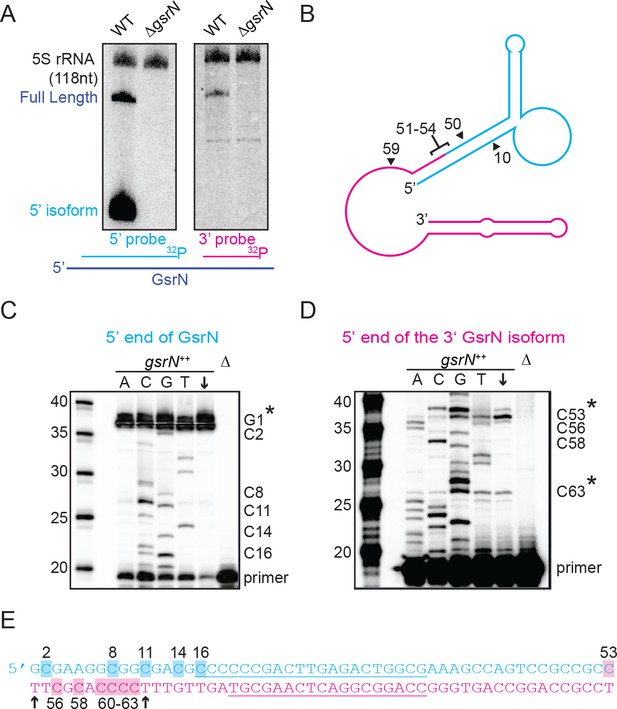

Full-length GsrN is endonucleolytically processed into a stable 5’ isoform.

(A) Northern blots of total RNA from wild-type and ΔgsrN cells hybridized with probes complementary to the 5’end (left) or 3’ end (right) of GsrN, and to 5S rRNA as a loading control. (B) Predicted secondary structure of full-length GsrN using RNA-specific folding parameters (Andronescu et al., 2007). Cyan indicates the 5’ end of GsrN determined by primer extension. Pink represents the 3’ end. Nucleotide positions labeled with arrows provides context for the mutants in Figure 4. (C) Primer extension from total RNA extracted from gsrN++ and ΔgsrN (negative control) cultures (OD660 ≈ 1.0, a condition in which GsrN levels were observed to be the highest). Sequence was generated from a radiolabeled oligo anti-sense to the underlined cyan sequence in (E). Sanger sequencing control lanes A, C, G, and T mark the respective ddNTP added to that reaction to generate nucleotide specific stops. C’ labels on the right of the gel indicate mapped positions from the ‘G’ lane. Arrow indicates lane without ddNTPs. Asterisk indicates positions of 5’ termini. (D) Primer extension from RNA samples as in (C). Sequence was extended from a radiolabeled oligo anti-sense to the underlined pink sequence in (E). (E) GsrN coding sequence. Cyan and pink indicate the predicted 5’ and 3’ isoforms, respectively. Primers binding sites used for primer extension in (C) and (D) are underlined. Highlighted C positions correspond to ddGTP stops in the ‘G’ extensions. Black arrowheads correspond to the termini identified by 5’RACE (Figure 3—figure supplement 1).


The short isoform of gsrN could arise through two biological processes: alternative transcriptional termination or endonucleolytic processing of full-length GsrN. To begin to discriminate between these two possibilities, we inhibited transcription with rifampicin, and monitored levels of both GsrN isoforms over time. Full-length GsrN decayed exponentially with a half-life of ~105 s (Figure 3—figure supplement 1C,D). The 5’ isoform increased in abundance for several minutes after treatment, concomitant with the decay of the full-length product. This observation is consistent with a model in which the 5’ isoform arises from the cleavage of the full-length product.

To identify potential endonucleolytic cleavage sites, we conducted primer extension assays to map the 5’ termini of the isoforms. Primer extension binding sites are shown in (Figure 3E). Extension from an oligo complementary to the 5’ portion of GsrN confirmed the annotated transcriptional start site (Figure 3C). Extension from the 3’ portion identified two internal 5’ ends (Figure 3D). The positions of these internal 5’ ends are consistent with two small bands observed on Northern blots of high concentrations of total RNA hybridized with the 3’ probe (Figure 3—figure supplement 1A). The terminus around C53 corresponds to a potential endonucleolytic cleavage site that would generate the abundant stable 5’ isoform (Figure 3B).

To directly test if the 5’ termini identified by primer extension and supported by Northern blotting reflect termini generated by cleavage or by transcription initiation, we implemented Rapid Amplification of cDNA 5’ends (5’RACE) with differential tobacco acid pyrophosphatase (TAP) treatment (Bensing et al., 1996). In this protocol, cDNAs with 5’ termini formed by transcription initiation are amplified only with TAP treatment, whereas those with ends generated by processing are amplified with or without TAP treatment. We were able to clone cDNAs corresponding to both 3’isoforms in both TAP-treated and untreated total RNA samples of gsrN++ cultures (Figure 3—figure supplement 3E). The ends of these clones (T54 and T64) are consistent with the ends mapped by primer extension. Together, these results support a model in which the full-length GsrN transcript is endonucleolytically processed into a stable 5’ isoform and a less stable 3’ isoform.

Hfq stabilizes full-length GsrN

sRNAs are often associated with the bacterial RNA chaperone, Hfq, and in some cases also associated with another RNA chaperone ProQ (Gottesman and Storz, 2011; Smirnov et al., 2016; Vogel and Luisi, 2011). Caulobacter, however, does not have an obvious ProQ homologue. To test the influence of hfq on GsrN, we created deletion (∆hfq) and overexpression (hfq++) strains. We observed that hfq affects GsrN processing. In ∆hfq strains, full-length GsrN is undetectable by Northern blot, even when gsrN is overexpressed (Figure 3—figure supplement 2). Conversely, overexpression of hfq++ results in increased levels of full-length GsrN that exceed levels of the 5’isoform. We conclude that hfq influences the processing of GsrN in vivo. We note that the growth rate of both these strains is significantly attenuated in defined M2X medium. Moreover, large granules have been observed microscopically in ∆hfq strains (Irnov et al., 2017). Given the pleiotropic consequences of hfq deletion, stress survival phenotypes for these strains are difficult to interpret.

5’ end of GsrN is necessary to mediate peroxide survival

To test the function of the 5’ end of GsrN, we integrated a gsrN allele that contains only the first 58 nucleotides (Δ59–106), and lacks the transcriptional terminator (gsrNΔ3’) into the vanA locus (Figure 4A). This short gsrN allele complemented the ∆gsrN peroxide survival defect (Figure 4B). The gsrN(Δ3’) allele produced a 5’ isoform that was comparable in size and concentration to the wild-type 5’ gsrN isoform. Since the transcriptional terminator of gsrN was removed, we also observed a ~ 200 nt run-on transcript from gsrN(Δ3’) (Figure 4C).

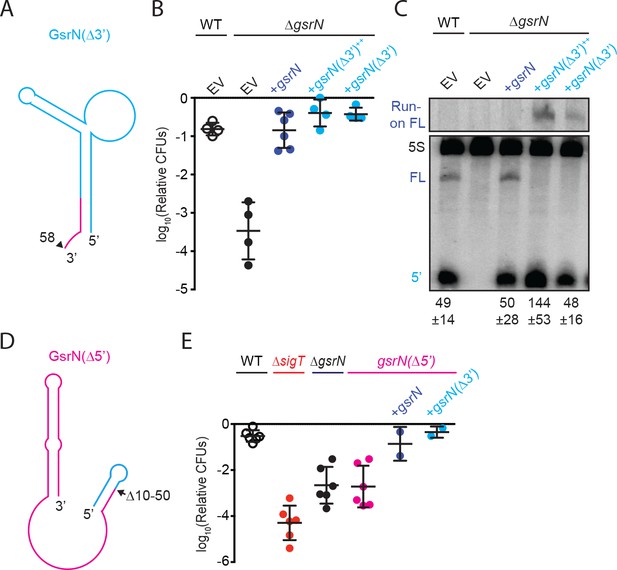

5’ end of GsrN is necessary and sufficient for peroxide survival.

(A) Schematic diagram of GsrN(Δ3’), which lacks nucleotides 59–106, which includes the intrinsic terminator. Nucleotide positions are highlighted in Figure 3B. (B) Relative survival of strains treated with 0.2 mM hydrogen peroxide for 1 hr. WT and ΔgsrN strains carry empty intergrated plasmids (EV) or integrated plasmids harboring full-length gsrN, gsrN(Δ3’), or multiple copies of gsrN(Δ3’) (labeled gsrN(Δ3’)++). Bars represent mean ±SD from four independent experiments (points). (C) Northern blot of total RNA from strains in panel 3B harvested during exponential growth phase. Blots were hybridized with probes complementary to the 5’ end of GsrN and 5S rRNA. Mean ±SD of total GsrN signal from three independent samples. (D) Schematic diagram of GsrN(Δ5’), which lacks nucleotides 10–50, but contains the intrinsic terminator of GsrN (the terminal 3’ hairpin). Nucleotide positions are highlighted in Figure 3B. (E) Relative survival of strains treated with 0.2 mM hydrogen peroxide for 1 hr. Genetic backgrounds are indicated above the line; the GsrN(Δ5’) strain was complemented with either gsrN (dark blue) or GsrN(Δ5’) (cyan). Bars represent mean ±SD from at least two independent experiments (points).


To test whether the 5’ end of GsrN is necessary for peroxide stress survival, we deleted nucleotides 10 to 50 of gsrN at its native locus (Figure 4D). The gsrN(Δ5’) strain had a peroxide viability defect that was equivalent to ΔgsrN. Ectopic expression of either full-length gsrN or gsrN(Δ3’) in the gsrN(Δ5’) strain complemented this peroxide survival defect (Figure 4E).

Several RNAs, including katG mRNA, co-purify with GsrN

We developed a forward biochemical approach to identify molecular partners of GsrN. The Pseudomonas phage7 (PP7) genome contains hairpin (PP7hp) aptamers that bind to PP7 coat protein (PP7cp) with nanomolar affinity (Lim and Peabody, 2002). We inserted the PP7hp aptamer into multiple sites of gsrN with the goal of purifying GsrN with its interacting partners from Caulobacter lysates by affinity chromatography (Figure 5A), similar to an approach used by (Hogg and Collins, 2007; Said et al., 2009). PP7hp insertions at the 5’ end of gsrN and at several internal nucleotide positions (37, 54, 59, 67, and 93nt) were functionally assessed (Figure 5—figure supplement 1A). GsrN-PP7hp alleles tagged at the 5’ end or at nucleotide positions 54 or 59 did not complement the ∆gsrN peroxide survival defect (Figure 5—figure supplement 1B). These alleles yielded lower steady-state levels of 5’ isoform compared to wild type (Figure 5—figure supplement 1C,D). GsrN-PP7hp alleles with insertions at nucleotides 37, 67, and 93 restored peroxide resistance to ΔgsrN and produced more 5’ isoform than non-complementing GsrN-PP7 constructs (Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all

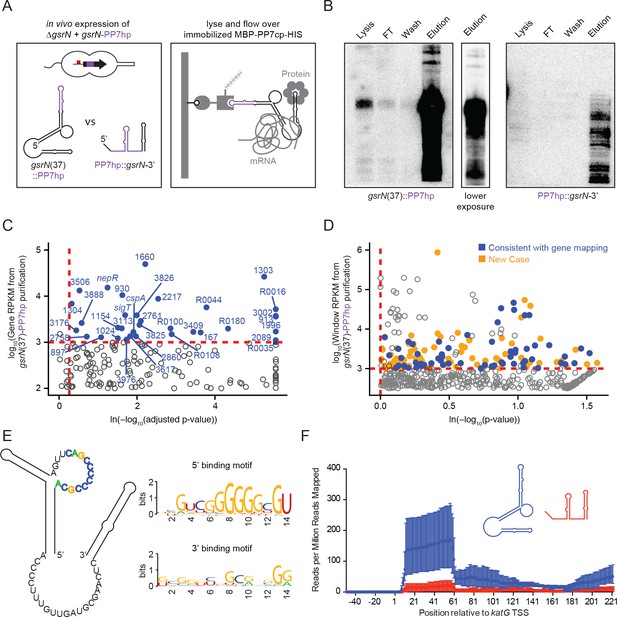

GsrN co-purifies with multiple RNAs, including catalase/peroxidase katG mRNA.

(A) GsrN-target co-purification strategy. GsrN(black)-PP7hp(purple) fusions were expressed in a ΔgsrN background. PP7 RNA hairpin (PP7hp) inserted at nucleotide 37 (gsrN(37)::PP7hp) was used as the bait. PP7hp fused to the 3’ hairpin of gsrN (PP7hp::gsrN-3’)served as a negative control. Stationary phase cultures expressing these constructs were lysed and immediately flowed over an amylose resin column containing immobilized PP7hp binding protein (MBP-PP7cp-His). (B) GsrN-PP7hp purification from strains bearing gsrN(37)::PP7hp (left) and PP7hp::gsrN-3’ (right) was monitored by Northern Blot with probes complementary to 5’ end of GsrN and PP7hp, respectively. Lysate, flow through (FT), buffer wash, and elution fractions are blotted. Approximately 1 µg RNA was loaded per lane, except for buffer wash (insufficient amount of total RNA). (C) Annotation-based analysis of transcripts that co-purify with gsrN(37)::PP7hp (Figure 5—source data 1). Log10 reads per kilobase per million reads (RPKM) is plotted against the ln(-log10(false discovery rate corrected p-value)). Dashed red lines mark the enrichment co-purification thresholds. Genes enriched in the gsrN(37)::PP7hp purification compared to PP7hp::gsrN-3’ are blue; labels correspond to gene names or C. crescentus strain NA1000 CCNA GenBank locus ID. Data represent triplicate purifications of gsrN(37)::PP7hp and duplicate PP7hp::3’GsrN control purifications. Log adjusted p-values of zero are plotted as 10−260. (D) Sliding-window analysis of transcripts that co-purify with gsrN(37)::PP7hp (Figure 5—source data 2). Points represent 25 bp genome windows. RPKM values for each window were estimated by EDGE-pro; p-values were estimated by DESeq. Windows that map to genes identified in (C) are blue. Orange indicates windows with significant and highly abundant differences in mapped reads between gsrN(37)::PP7hp fractions and the PP7hp::gsrN-3’ negative control fractions. Dashed red lines denote cut-off value for windows enriched in the gsrN(37)::PP7hp fractions. Grey points within the dashed red lines are signal that mapped to rRNA. (E) Predicted loops in GsrN accessible for mRNA target base pairing are emphasized in colored texts. A putative mRNA target site complementary to a cytosine-rich tract in the 5’ GsrN loop is represented as a sequence logo. Similar logo was generated for the target site sequences complementary to the 2nd exposed region in the 3’ end of GsrN. Logo was generated from IntaRNA 2.0.2 predicted GsrN-binding sites in transcripts enriched in the gsrN(37)::PP7hp pull-down. 5’ binding motif is present in 32 of the transcripts identified in (C) and (D) and 3’ binding motif is present in 27 of the transcripts identified in (C) and (D). (F) Density of reads mapping to katG that co-purified with gsrN(37)::PP7hp (blue) and PP7hp::gsrN-3’ (red). Read density in each dataset represents read coverage at each nucleotide divided by the number of million reads mapped in that data set. Data represent mean ±SD of three replicate gsrN(37)::PP7hp and two replicate PP7hp::gsrN-3’ purifications.


The PP7hp aptamer inserted at gsrN nucleotide 37 (GsrN(37)::PP7hp) was selected as the bait to identify molecular partners that co-purify with GsrN, as this was the only functional insertion in the 5’ half of gsrN: as presented above, the 5’ end is necessary for function and the 5’ isoform is more abundant than the full-length transcript. The pull-down fraction was compared to a negative control pull-down from cells expressing PP7hp fused to the last 50 nucleotides of GsrN including its intrinsic terminator (PP7hp::GsrN-3’) (Figure 5A). Northern blots demonstrated GsrN-PP7hp fusion transcripts were enriched in our purification (Figure 5B). Electrophoretic separation of the eluate followed by silver staining revealed no significant protein differences between GsrN(37)::PP7hp and the negative control (data not shown). Lack of differential protein signal may be due to the conditions in which we performed the pull-down. We identified and quantified co-eluting RNAs by RNA-seq.

We employed two approaches to identify RNAs enriched in GsrN(37)::PP7hp fractions relative to the negative control fractions. A conventional RNA-seq pipeline (Tjaden, 2015) quantified mapped reads within annotated gene boundaries as a first pass (Figure 5C and Figure 5—source data 1). To capture reads in non-coding and unannotated regions, and to analyze reads unevenly distributed across genes, we also developed a sliding window analysis approach. Software we developed to implement Sliding Window Analysis is available on GitHub (Tien, 2017b). Specifically, we organized the Caulobacter genome into 25 base-pair windows and quantified mapped reads in each window using the EDGE-pro/DESeq pipeline (Anders and Huber, 2010; Magoc et al., 2013). Together, these two quantification strategies identified several mRNA, sRNAs, and untranslated regions enriched in the GsrN(37)::PP7hp pull-down fraction (Figure 5D and Figure 5—source data 2). We applied IntaRNA 2.0.2 (Mann et al., 2017) to identify potential binding sites between GsrN and the enriched co-purifying RNAs. Of the 67 analyzed enriched genes and regions, 32 of the predicted RNA-RNA interactions involved the cytosine-rich 5’ loop in the predicted secondary structure of GsrN (Figure 5E and Figure 5—source data 3); 31 of targets contained G-rich sequences (Table 1). We note that exposed C-rich motifs in sRNAs and G-rich regulatory sequences in mRNA have been reported in several sRNA systems (Geissmann et al., 2009; Papenfort et al., 2008; Romilly et al., 2014; Sharma et al., 2010). A sequence logo (Crooks et al., 2004) of the predicted target mRNA binding sites is enriched with guanosines (Figure 5E), consistent with a model in which six tandem cytosines in the 5’ loop of GsrN determine target mRNA recognition. Twenty-seven of the predicted RNA-RNA interactions involved the 3’ exposed region of GsrN. The remaining eight enriched genes and regions did not have a significant binding site prediction with GsrN.

Table 1
RNAs that co-elute with GsrN-PP7hp.
Gene locus IDGene namelog2 FoldIdentification
Region(s)DescriptionInteracting nucleotides
CCNA_00167-4.56, 6.95Rockhopper, Sliding window179311–180120 (+),179500–179550 (+, I, S)metallophosphatase family protein-
CCNA_00416-7.2Sliding window429625–429725 (-, I, S)conserved hypothetical membrane proteinGGCGGAGGG
CCNA_00587-4.87Sliding window616250–616300 (+, I, S)alpha/beta hydrolase family proteinUCGGCGGGGGGC
CCNA_00882-4.61Sliding window962875–962925 (-, U, S)hypothetical proteinUCGGGGGGU
CCNA_00894-4.29Sliding window974800–974850 (+, I, S)1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthaseUCAAGUCGGGGC
CCNA_00897-3.2Rockhopper976013–976177 (+)hypothetical protein-
CCNA_00913-7.64, 7.80Rockhopper, Sliding window993033–993209 (-),
993175–993225 (-, I, S)
hypothetical proteinUCAAGUU
CCNA_00930-3.72, 6.98, 3.81Rockhopper, Sliding window, Sliding window1006253–1006870 (+),1006275–1006425 (+, I, S),1006475–1006650 (+, I, S)riboflavin synthase alpha chainCGGGUCGGGGGUG
CCNA_01024-3.32Rockhopper1111617–1112111 (-)hypothetical proteinCAGGCGGGGGG
CCNA_01058-5.81Sliding window1159075–1159125 (-, D, S)helix-turn-helix transcriptional regulatorCGGGGGGU
CCNA_01154-3.45, 6.81Rockhopper, Sliding window1257902–1258591 (+), 1257975–1258025 (+, I, S)conserved hypothetical proteinGGGGGCG
CCNA_01303-5.87, 5.30, 8.22Rockhopper, Sliding window, Sliding window1430061–1430900 (+),1430550–1430625 (+, I, S),1430650–1430725 (+, I, S)conserved hypothetical proteinGGGUCGGGGG
CCNA_01304-2.9Rockhopper1431129–1431329 (+)hypothetical proteinGGUUCGCGGACG
CCNA_01335-2.99Sliding window1448600–1448650 (-, I, S)ABC-type multidrug transport system, ATPase componentUCGCGUCGA
CCNA_01344-4.62Sliding window1458550–1458725 (+, I, S)conserved hypothetical proteinGUCGGGGGUG
CCNA_01584-3.14Sliding window1699675–1699725 (+, I, A)multimodular transpeptidase-transglycosylase PBP 1AGGGGGGC
CCNA_01660-4.41, 6.21Rockhopper, Sliding window1781219–1781911 (-), 1781350–1781575 (-, I, S)conserved hypothetical proteinGGGGGCG
CCNA_01966-11.3Sliding window2110225–2110275 (-, I, A)vitamin B12-dependent ribonucleotide reductaseGGUCGGGG
CCNA_01996-9.15, 8.86Rockhopper, Sliding window2142908–2143687 (-), 2143625–2143700 (-, I, S)undecaprenyl pyrophosphate synthetaseCGGGGGGC
CCNA_02034-7.24Sliding window2178500–2178550 (+, I, S)luciferase-like monooxygenaseUCGAUGGGGGGCG
CCNA_02064lpxC3.6Sliding window2215450–2215550 (-, I, S)UDP-3-O-(3-hydroxymyristoyl) N-acetylglucosamine deacetylaseUCGGGGGCG
CCNA_02089-8.52Rockhopper2237967–2238341 (-)hypothetical proteinUCAAGUCGGGG
CCNA_02217-4.02Rockhopper2364081–2364383 (-)hypothetical proteinGCGCGACGAAGG
CCNA_02286-3.26Sliding window2435450–2435500 (-, I, S)hypothetical proteinUCCGGUCGCCCGG
CCNA_02595-6.85Sliding window2743525–2743625 (-, U, S)Zn finger TFIIB-family transcription factorUCGCAUCGA
CCNA_02758-2.93Rockhopper2921763–2922152 (+)hypothetical proteinUCGCGUC
CCNA_02761-3.65Rockhopper2923673–2923918 (+)hypothetical proteinCGGAGGGG
CCNA_02846-5.44, 8.60Sliding window, Sliding window3000100–3000175 (-, I, S),2999225–2999275 (-, I, S)DegP/HtrA-family serine proteaseAAGUCGGGGGGCG
CCNA_02860-3.70, 4.78Rockhopper, Sliding window3012116–3013060 (-),3012500–3012550 (-, I, S)DnaJ-class molecular chaperoneCGGCAAG
CCNA_02975-6.34Sliding window3130300–3130375 (-, I, A)excinuclease ABC subunit CGCGGGGG
CCNA_02987-7.26Sliding window3142700–3142800 (-, I, A)hypothetical proteinGUCGGGGGGCGUC
CCNA_02997cspA3.61Rockhopper3152607–3152816 (-)cold shock protein CspA-
CCNA_03002-6.03, 4.48Rockhopper, Sliding window3155705–3156322 (-),3155750–3155800 (-, I, S)CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase-
CCNA_03105-9.15Sliding window3255775–3255850 (-, I, S)DnaJ domain proteinAAGUCGGGGGGUGU
CCNA_03113-3.50, 5.40Rockhopper, Sliding window3263780–3264499 (-),3264400–3264450 (-, I, S)membrane-associated phospholipid phosphataseUUGUAUCG
CCNA_03138katG3.35Sliding window3286000–3286050 (+, I, S)peroxidase/catalase katGGUCGGGG
CCNA_03176-2.83Rockhopper3335155–3335445 (-)nucleotidyltransferaseGAGUUCGCG
CCNA_03338tolB5.27Sliding window3519425–3519475 (-, I, S)TolB proteinUCGCGAGGG
CCNA_03409-4.46, 5.44Rockhopper, Sliding window3576740–3577696 (-),3577550–3577600 (-, I, S)alpha/beta hydrolase family proteinGGUUUGUGAAGGG
CCNA_03506-3.27, 4.10Rockhopper, Sliding window3664090–3664677 (+),3664100–3664175 (+, I, S)putative transcriptional regulatorGUUGGGGGG
CCNA_03589sigT3.58Rockhopper3743953–3744558 (-)RNA polymerase EcfG family sigma factor sigT-
CCNA_03590nepR3.43, 3.50Rockhopper, Sliding window3744561–3744746 (-), 3744675–3744725 (-, I, S)anti-sigma factor NepRGGGGGGCG
CCNA_03590,CCNA_03589nepR-sigT4.42Sliding window3744500–3744575 (-, O, S)anti-sigma factor NepR, RNA polymerase EcfG family sigma factor sigTGAGCGUCAACGA
CCNA_03617-3.5Rockhopper3772262–3772717 (+)Copper(I)-binding protein-
CCNA_03618,CCNA_03617-,-6.99Sliding window3772700–3772750 (+, O, S)SCO1/SenC family protein, Copper(I)-binding proteinGUCGGGG
CCNA_03681-5.11Sliding window3843700–3843750 (-, U, S)ABC transporter ATP-binding proteinUCAGUUGGGG
CCNA_03825-3.63Rockhopper3991412–3991774 (-)hypothetical proteinGGGGGCGU
CCNA_03825,CCNA_03826-,-8.01Sliding window3991750–3991825 (-, O, S)hypothetical protein, conserved hypothetical proteinGGGGGCGU
CCNA_03826-3.71Rockhopper3991771–3992325 (-)conserved hypothetical protein-
CCNA_03888-2.99Rockhopper761965–762324 (+)conserved hypothetical proteinGCGGUCCGG
CCNA_03976-3.57Rockhopper2923462–2923683 (+)hypothetical proteinGAGCGCGUCGGCA
CCNA_R0016-8.53Rockhopper844332–844401 (+)small non-coding RNAUCGGGGG
CCNA_R0035-6.64Rockhopper1549367–1549443 (+)tRNA-ProAAGGGGU
CCNA_R0044-4.82Rockhopper2059848–2059942 (-)complex medium expressed sRNA-
CCNA_R0061-4.65Sliding window2800475–2800525 (-, I, S)RNase P RNAUAGGUCGGGGC
CCNA_R0089-3.3Sliding window3874375–3874425 (+, U, S)tRNA-AlaUCGGGGGGCG
CCNA_R0100-4.4Rockhopper165492–165575 (+)small non-coding RNACGGAGGG
CCNA_R0108-4.27Rockhopper472905–472973 (+)small non-coding RNAUCGGGGG
CCNA_R0180-5.14Rockhopper3266851–3266937 (-)small non-coding RNA-
  1. Gene Locus ID: GenBank locus ID

    Gene Name: if available log2Fold: calculated fold change of the given region

  2. Identification Method: refers to what strategy identified the enriched gene in the PP7hp affinity purification RNA-Seq

    Region(s): the region and strand used to calculate the log2Fold metric. Additionally for the sliding window analysis additional information is provided. First letter indicates the relative position of the region indicated to the annotated gene coordinates: I-internal, U-upstream, D-downstream. Second letter indicates the direction in which the reads mapped: S-sense, A-anti-sense.

  3. Description: product description of the given gene(s)

    Interacting nucleotides: the nucleotides within the proposed chromosomal region(s) that are predicted to interact with GsrN.

Transcripts enriched in the GsrN(37)::PP7hp fraction encode proteins involved in proteolysis during envelope stress, enzymes required for envelope biogenesis, cofactor and nucleotide anabolic enzymes, and transport proteins (Table 1). sigT and its anti-σ factor, nepR, were also enriched in the GsrN(37)::PP7hp fraction, though we found no evidence for regulation of σT/NepR by GsrN (Figure 1—figure supplement 2D). We observed significant enrichment of rRNA in the GsrN(37)::PP7hp fractions; the functional significance of this signal is not known (grey points above and to the right of the red cut-off Figure 5D). katG, which encodes the sole catalase-peroxidase in the Caulobacter genome (Marks et al., 2010), was among the highly enriched mRNAs in our pull-down. Specifically, reads mapping to the first 60 nucleotides of katG including the 5’ leader sequence and the first several codons of the open-reading frame were enriched in the GsrN(37)::PP7hp pull-down fraction relative to the negative control (Figure 5F). katG was an attractive GsrN target to interrogate the mechanism by which GsrN determines cell survival under hydrogen peroxide stress.

GsrN base pairing to the 5’ leader of katG activates katG translation, and enhances peroxide stress survival

Most bacterial sRNAs regulate gene expression at the transcript and/or protein levels through Watson-Crick base pairing with the 5’end of their mRNA targets (Wagner and Romby, 2015). We sought to test whether GsrN affected the expression of katG. GsrN did not effect katG transcription in exponential or stationary phases, or in the presence of peroxide as measured by a katG-lacZ transcriptional fusion (Figure 6—figure supplement 1A–C). However, katG is transcriptionally regulated by the activator OxyR, which binds upstream of the predicted −35 site in the katG promoter (Italiani et al., 2011). To decouple the effects of OxyR and GsrN on katG expression, we generated a strict katG translational reporter that contains the mRNA leader of katG fused in-frame to lacZ (katG-lacZ) constitutively expressed from a σRpoD-dependent promoter. In both exponential and stationary phases, katG-lacZ activity is reduced in ∆gsrN and enhanced in gsrN++ strains compared to wild type (Figure 6—figure supplement 1D,F). Hydrogen peroxide exposure did not affect katG-lacZ activity (Figure 6—figure supplement 1E). We conclude that GsrN enhances KatG protein expression, but not katG transcription.

We then used this translational reporter to investigate a predicted binding interaction between the unpaired 5’ loop of GsrN and a G-rich region at the 5’ end of the katG transcript. Specifically, the first 7 nucleotides of katG mRNA (Zhou et al., 2015) are complementary to seven nucleotides in the single-stranded 5’ loop of GsrN, including 4 of the six cytosines (Figure 6A). We disrupted this predicted base pairing, mutating 5 of the seven nucleotides in the putative katG target site and GsrN interaction loop. These mutations preserved GC-content, but reversed and swapped (RS) the interacting nucleotides (Figure 6A). We predicted that pairs of wild-type and RS mutant transcripts would not interact, while base pairing interactions would be restored between RS mutant pairs.

Figure 6 with 3 supplements see all

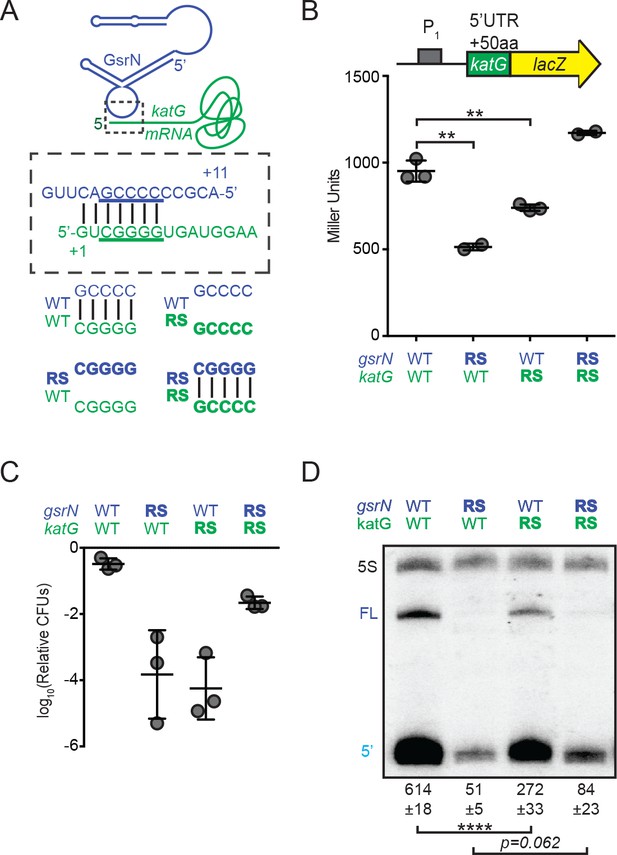

GsrN base pairs with the 5’ leader of katG mRNA and enhances KatG expression.

(A) Predicted interaction between GsrN (blue) and katG mRNA (green), with base-pairing shown in dashed box. Wild-type (WT) and reverse-swapped (RS) mutation combinations of the underlined bases are outlined below. (B) Translation from katG and katG-RS reporters in ΔgsrN strains expressing 3gsrN (WT) or 3gsrN(RS) (RS). Measurements were taken from exponential phase cultures. Bars represent mean ±SD of at least two independent cultures (points). ** p-value<0.01 estimated by Student’s t-test. (C) Relative hydrogen peroxide survival of RS strains. ΔgsrN strains expressing 3gsrN or 3gsrN(RS) and encoding katG or katG(RS) alleles. Bars represent mean ±SD from three independent experiments (points). (D) Northern blot of total RNA from strains in (C) collected in exponential phase hybridized with probes complementary to 5’ end of GsrN and 5S rRNA. Quantification is mean ±SD normalized signal from three independent experiments. **** p-value<0.0001 estimated by Student’s t-test.


Mutating the predicted target site in the katG 5’ leader ablated GsrN-dependent regulation of the katG-lacZ translational reporter (Figure 6—figure supplement 2A); expression was reduced to a level similar to ∆gsrN. We further tested this interaction by assessing the effect of the reverse-swapped gsrN(RS) allele on the expression of katG-lacZ. However, GsrN(RS) was unstable; total GsrN(RS) levels were ≈10-fold lower than wild-type GsrN (Figure 6—figure supplement 3A,C). To overcome GsrN(RS) instability, we inserted a plasmid with three tandem copies of gsrN(RS), 3gsrN(RS), into the vanA locus in a ∆gsrN background, which increased steady-state levels of GsrN(RS) approximately 4-fold (Figure 6—figure supplement 3A,C). katG target site or GsrN recognition loop mutations significantly reduced katG-lacZ expression (Student’s t-test, p=0.0026 and p=0.0046, respectively). Compensatory RS mutations that restored base pairing between the katG target site and the GsrN loop rescued katG-lacZ expression (Figure 6B).

To assess the physiological consequence of mutating the G-tract in the katG mRNA leader and the GsrN C-rich loop, we replaced wild-type katG on the chromosome with the katG(RS) allele in both the ∆gsrN +3 gsrN and ∆gsrN +3gsrN(RS) backgrounds, and measured survival after hydrogen peroxide exposure. Both katG(RS) and gsrN(RS) mutants had survival defects (Figure 6C and Figure 6—figure supplement 3B). Strains harboring the katG(RS) allele phenocopy ∆gsrN under peroxide stress. While katG(RS) survival is compromised, the defect is not as large as a strain missing katG completely (∆katG) (compare Figure 6C and Figure 6—figure supplement 2C). Expressing gsrN(RS) in one, three, or six tandem copies did not complement the peroxide survival defect of ΔgsrN (Figure 6—figure supplement 3B). The peroxide survival defect of the individual RS alleles is restored in the strain carrying both katG(RS) and gsrN(RS) alleles, which has restored base pairing between the GsrN 5’ loop and the katG 5’ leader (Figure 6C). We conclude that base paring between the katG leader and the GsrN loop is critical for katG expression and peroxide stress survival.

We note that the protective effect of gsrN overexpression is lost when katG is deleted. Moreover, the peroxide survival defect of ∆gsrN cells can be rescued by overexpression of katG (Figure 6—figure supplement 2C). We conclude that katG is necessary and sufficient to protect the cell from hydrogen peroxide and that GsrN modulates expression of katG.

Given differences in steady state levels of GsrN and GsrN(RS), we postulated that the capacity of GsrN to interact with its targets influences its stability in vivo. Indeed, mutation of the katG target site reduced GsrN by more than two-fold (Student’s t-test, p<0.0001). The compensatory katG(RS) allele partially restored stability to GsrN(RS) (Figure 6D). katG(RS) mutation or katG deletion did not influence gsrN transcription (Figure 6—figure supplement 2B). Thus, we attribute the differences in steady-state levels of the GsrN alleles to their ability to interact with mRNA targets via the 5’ C-rich loop.

GsrN enhances KatG expression and stabilizes katG mRNA in vivo in the presence of peroxide

To assess the relative effects of GsrN on katG transcript and protein levels in vivo, we directly measured both by dot blot and Western blot, respectively. In untreated and peroxide treated cultures, katG transcript levels trended lower in ∆gsrN and higher in gsrN++ compared to wild type (Figure 7A). In untreated cultures, these transcript differences are not statistically significant (Student’s t-test, p=0.39) yet KatG protein tagged with the M2 epitope was reduced two-fold in ∆gsrN lysate relative to wild-type (Student’s t-test, p<0.0001) (Figure 7). Upon peroxide treatment, steady-state katG transcript levels differ significantly between ∆gsrN and gsrN++ cultures (Student’s t-test, p<0.01) (Figure 7A). KatG-M2 protein was reduced 3-fold in ∆gsrN lysate relative to wild-type, and overexpression of gsrN increased KatG-M2 two-fold compared to wild-type (Figure 7B). Since GsrN does not influence katG transcription (Figure 6—figure supplement 1A,C), these data support a model in which GsrN enhances KatG translation in vivo.

GsrN affects KatG and katG mRNA levels in vivo.

(A) Dot blot of total RNA of gsrN and katG mutants grown to early stationary phase (OD6600.85–0.9; this is the growth phase we used to initiate stress assays). Samples on right were treated with 0.2 mM hydrogen peroxide for 15 min before RNA extraction. These conditions were chosen to evaluate the effects of peroxide without ablating the ∆gsrN cultures. Blots were hybridized with katG mRNA, GsrN or 5S rRNA probes. katG mRNA signal normalized to 5S rRNA signal is quantified (mean ±SD, n = 3, p-value estimated with Student’s t-test). (B) Immunoblot of KatG-M2 fusion in wild type, ΔgsrN, and gsrN++ strains in the presence and absence of peroxide stress probed with α-FLAG antibody. KatG migrates as two bands as previously reported (Italiani et al., 2011). Normalized KatG-M2 signal (mean ±SD, n = 4, ****p<0.0001 Student’s t-test) is presented below each lane. Arrow indicates position of 100 kDa molecular weight marker.


Peroxide treatment results in approximately five-fold induction of katG mRNA in both wild-type and gsrN mutant strains. We attribute this to OxyR-dependent activation of katG, independent of gsrN. The corresponding induction of KatG protein is modest (1.5 to 2-fold) in wild-type and gsrN++ strains after 15 min of peroxide treatment. Given the 15 min treatment period, this discrepancy in fold-change may reflect faster accumulation of transcript than protein and/or inefficient katG translation. In ∆gsrN cells, katG transcript is induced by peroxide yet KatG protein does not change significantly. Thus, despite OxyR-induced transcription, efficient translation of katG mRNA requires GsrN.

GsrN is a general regulator of stress adaptation

In the GsrN::PP7hp pull-down fraction, multiple RNAs in addition to katG were enriched (Figure 5C,D). This suggested that GsrN may have regulatory roles beyond mitigation of peroxide stress. To globally define genes that are directly or indirectly regulated by GsrN, we performed RNA-seq and LC-MS/MS measurements on wild-type, ΔgsrN and gsrN++ strains (Figure 8A and Figure 8—source data 1). We identified 40 transcripts, including gsrN, with significant differences in mapped reads between the ΔgsrN and gsrN++ samples (Figure 8—figure supplement 1A and Figure 8—source data 2). Eleven proteins had significant label free quantitation (LFQ) differences (FDR < 0.05) between gsrN++ and ΔgsrN (Figure 8—figure supplement 1B and Figure 8—source data 3). Most genes identified as significantly regulated by transcriptomic and proteomic approaches did not overlap. This is not surprising, and would be expected for cases like katG where GsrN modulates translation, but not transcription.

Figure 8 with 2 supplements see all

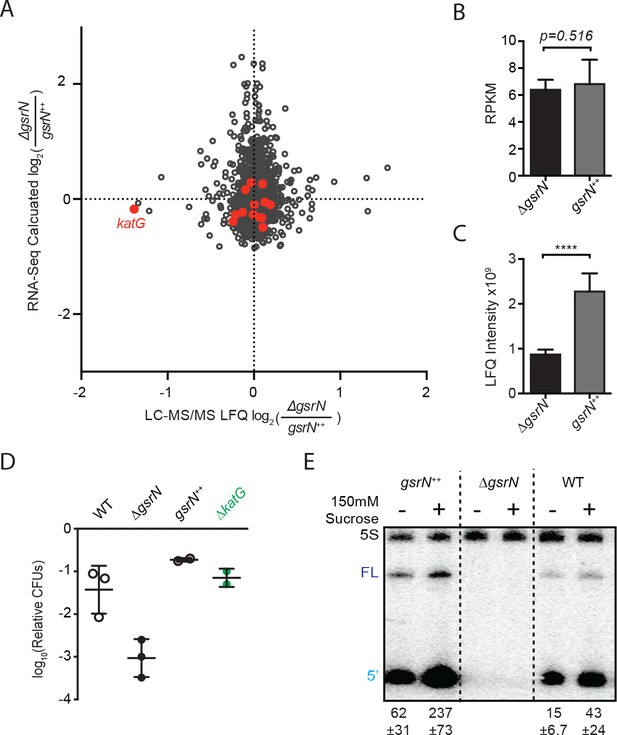

GsrN is a global regulator of stress physiology.

(A) Transcriptomic and proteomic analysis of ΔgsrN and gsrN++ strains in early stationary phase (Figure 8—source data 1). Only genes detected in both analyses are plotted. Red indicates transcripts that co-purify with GsrN-PP7hp (Figure 5C,D). (B) katG transcript from ∆gsrN and gsrN++ cells quantified as reads per kilobase per million mapped (RPKM). Data represent mean ±SD of five independent samples. Significance was evaluated with the Wald test. (C) Label free quantification (LFQ) intensities of KatG peptides from ΔgsrN and gsrN++ cells (mean ±SD, n = 3; ****p<0.0001 Student’s t-test). (D) Hyperosmotic stress survival of wild type, ΔgsrN, gsrN++, and ΔkatG cells relative to untreated cells. Stress was a 5 hr treatment with 300 mM sucrose. These conditions were chosen to highlight the dynamic range between ΔgsrN susceptibility and gsrN++ protection. Data represent mean ± SD from two independent experiments (points). (E) Northern blot of total RNA from wild type, ΔgsrN, and gsrN++ cultures with or without 150 mM sucrose stress. Blots were hybridized with GsrN and 5S rRNA probes. Normalized mean ± SD of total GsrN signal from three independent samples is quantified.


We note there is little overlap between the transcripts enriched in the GsrN(37)-PP7hp pull-down fraction, and proteins identified as significantly regulated in our global proteomic measurements. This may be partially due to limited coverage: our protein mass spectrometry data only captured 30% of the annotated proteome. Nonetheless, these data provide evidence that GsrN can function as both a positive and negative regulator of gene expression, either directly or indirectly.

Importantly, RNA-seq and proteomics experiments validated katG as a regulatory target of GsrN. katG transcript levels measured by RNA-seq were not significantly different between ∆gsrN and gsrN++ strains (Figure 8B), consistent with our dot blot measurements of unstressed cultures (Figure 7A). Conversely, steady-state KatG protein levels estimated from our LC-MS/MS experiments were significantly reduced in ΔgsrN, consistent with our western blot analysis of KatG protein (Figures 8C and 7B). katG was the only gene that was significantly enriched in the pull-down and differentially expressed in the proteomic studies (Figure 8A). These results provide additional evidence that katG transcript is a major target of GsrN, and that GsrN functions to enhance KatG expression at the post-transcriptional level.

Given our transcriptomic and proteomic datasets, we reasoned that GsrN may contribute to other phenotypes associated with deletion of the GSR sigma factor, sigT. Indeed, the ∆gsrN mutant exhibits a survival defect after exposure to hyperosmotic stress, similar to ΔsigT, while gsrN overexpression protects cells under this condition (Figure 8D). Hyperosmotic stress survival does not require katG (Figure 8D), providing evidence that a distinct GsrN regulatory target mediates this response. Unlike hydrogen peroxide (Figure 7A), hyperosmotic stress induces GsrN expression (Figure 8E). This is consistent with previous transcriptomic studies in Caulobacter in which hyperosmotic stress, but not peroxide stress, activated GSR transcription (Alvarez-Martinez et al., 2007). GsrN transcription is also significantly enhanced in stationary phase cultures relative to logarithmic phase cultures (Figure 1—figure supplement 2E). Although its functional role under this condition remains undefined, it has been reported that katG is a genetic determinant of stationary phase survival (Steinman et al., 1997).

σEcfG-regulated sRNAs are prevalent across the alphaproteobacterial clade

The GSR system is broadly conserved in Alphaproteobacteria. Given the importance of GsrN as a post-transcriptional regulator of the Caulobacter GSR, we reasoned that functionally-related sRNAs might be a conserved feature of the GSR in this clade. To identify potential orthologs of gsrN, we surveyed the genomes of Alphaproteobacteria that encoded regulatory components of the GSR system (phyR, ecfG/sigT and nepR homologs) and for which transcriptomic data were publically available.

We initially searched for GsrN-related sequences using BLASTn (Altschul et al., 1990). Hits to GsrN were limited to the Caulobacteraceae family, including the genera Caulobacter, Brevundimonas, and Phenylobacterium. The 5’ C-rich loop of homologs identified in this family had the highest level of conservation compared to other regions of secondary structure (Figure 9B). Predicted gsrN homologs are typically proximal to the genes encoding the core GSR regulators (ecfG/sigT, nepR and phyR) (Figure 9A). C. crescentus is a notable exception where gsrN is positioned distal to the GSR locus. Therefore, we used genome position as a key parameter to identify additional GsrN or GsrN-like RNAs in Alphaproteobacteria outside of Caulobacteraceae.

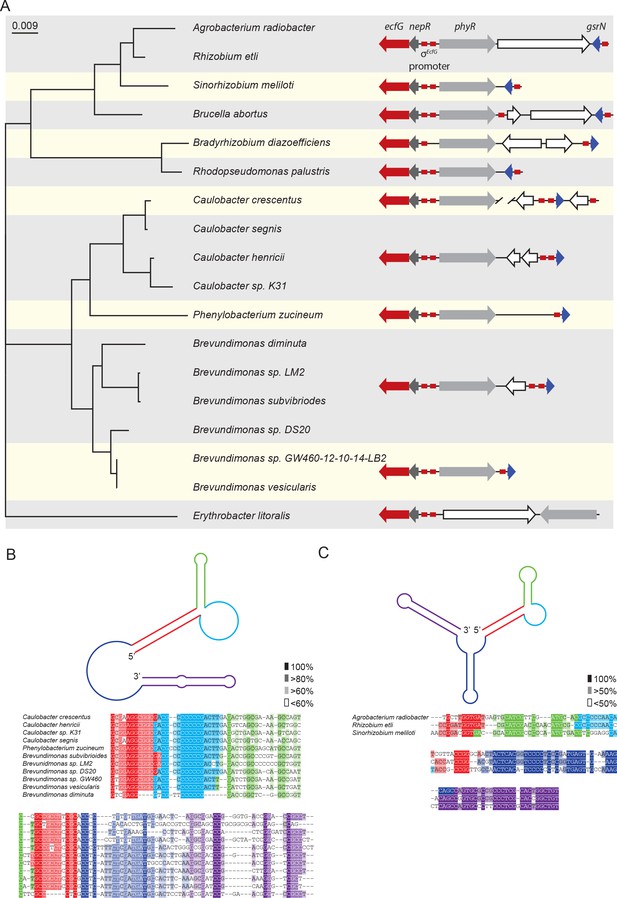

Conserved features of GsrN homologues.

(A) Locus diagrams showing predicted gsrN homologs in several Alphaproteobacteria. Tree was constructed from the 16 s rRNA sequences of each strain where Erythrobacter litoralis (for which there is no apparent gsrN-like gene) was the out-group. Red arrows represent ecfG, dark gray arrows represent nepR, light gray arrows represent phyR, and dark blue arrows represent gsrN (or its putative homologs). Red boxes represent the conserved σecfG-binding site. The prediction of GsrN orthologs in the Caulobacteraceae (Caulobacter, Brevundimonas, and Phenylobacterium) was based on a BLASTn search (Altschul et al., 1990). The prediction of GsrN in Rhizobium etli, Sinorhizobium meliloti, and Brucella abortus was based on evidence of GSR-dependent expression in published transcriptome data, proximity to the GSR locus, and identification of a σecfG-binding site upstream of the gene. The prediction of Agrobacterium radiobacter was based on a BLASTn search of using the predicted GsrN sequence from R. etli as the query (Altschul et al., 1990). The prediction of Rhodopseudomonas palustris and Bradyrhizobium diazoefficiens is solely based on the proximity to the GSR locus and the presence of an upstream σecfG-binding site. (B) Diagram of predicted secondary structure of GsrN in other Caulobacteraceae is colored by secondary structure element. Colors highlighted in the sequence alignment correspond to the predicted secondary structure regions in the cartoon. Density of shading corresponds to conservation at that position. (C) Diagram of predicted secondary structure of predicted GsrN homologs in select Rhizobiaceae where the 5’ portion contains an unpaired 5’ G-rich loop (cyan) flanked by a small hairpin (green) and a stem loop involving the 5’ terminus (red).


Our search for GsrN focused on three parameters: evidence of intergenic transcription, identification of a near-consensus σEcfG-binding site in the promoter region, and proximity to the sigT-phyR chromosomal locus. Based on our criteria, we identified a set of putative GsrN homologs in the Rhizobiaceae family (Jans et al., 2013; Kim et al., 2014; Valverde et al., 2008) (Figure 9A). The predicted secondary structure of these putative GsrN homologues has features similar to GsrN from Caulobacteraceae. Specifically, there is an exposed cytosine-rich loop at the 5’ end (Figure 9C). This analysis predicts that GsrN-related small RNAs have a functional role in regulating the general stress response in related Alphaproteobacteria.


We sought to understand how GSR transcription determines cell survival across a spectrum of chemical and physical conditions. To this end, we developed a directed gene network analysis approach to predict genes with significant functional roles in the Caulobacter GSR. Our approach led to the discovery of gsrN, a small RNA of previously unknown function that is a major post-transcriptional regulator of stress physiology.

Role of GsrN in mitigating hydrogen peroxide stress

Hydrogen peroxide can arise naturally from the environment and is also produced as an aerobic metabolic byproduct (Imlay, 2013). Our data provide evidence that σT-dependent transcription of GsrN basally protects cells from hydrogen peroxide by enhancing KatG expression. Unlike the transcription factor OxyR, which induces katG expression in response to peroxide (Italiani et al., 2011), GsrN is not induced by peroxide treatment. KatG levels change by only a factor of two when gsrN is deleted or overexpressed, but we observe large peroxide susceptibility and protection phenotypes as a function of gsrN deletion and overexpression, respectively. The survival phenotypes associated with subtle fold changes in KatG expression suggest that the capacity of KatG to detoxify endogenous sources of H2O2 is at or near its limit under normal cultivation conditions, similar to what has been postulated for E. coli (Imlay, 2013).

Expression of the ferritin-like protein, Dps, is controlled by σT and is reported to aid in the survival of Caulobacter under peroxide stress (de Castro Ferreira et al., 2016). The protective effect of Dps is apparently minimal under our conditions given that a) the peroxide survival defect of ∆sigT is rescued by simply restoring gsrN transcription (Figure 2B,C), and b) survival after peroxide exposure is determined almost entirely by modifying base-pairing interactions between GsrN and katG mRNA. This stated, the difference in hydrogen peroxide susceptibility between ∆sigT and ∆gsrN (Figure 1E) may be explained in part by the fact that dps is still expressed in ∆gsrN cells.

Post-transcriptional gene regulation by GsrN is a central feature of the general stress response

Our data define Caulobacter GsrN as a central regulator of stress physiology that 1) is transcribed by the general stress response (GSR) sigma factor (σT) and 2) has a major protective effect across distinct conditions. Multiple sRNA regulators of bacterial GSR systems have been described. In the case of E. coli, rpoS translation is controlled by sRNAs, DsrA, RprA, and ArcZ, which are necessary for survival under acid stress (Bak et al., 2014; Pernitzsch et al., 2014). In the case of GsrN, we find no evidence for feedback on σT expression and activity, although nepR-sigT mRNA did co-elute with GsrN in a pull-down (Table 1 and Figure 1—figure supplement 2D). The regulatory effects we observe are, apparently, purely post-transcriptional and downstream of σT. In this way, GsrN functions like a number of other sRNA regulated downstream of σS and σB of Gammaproteobacteria and Firmicutes, respectively (Fröhlich et al., 2016; Fröhlich and Vogel, 2009; Mäder et al., 2016; Mellin and Cossart, 2012; Opdyke et al., 2004; Romilly et al., 2014; Silva et al., 2013). GsrN protects Caulobacter from hyperosmotic and peroxide stress conditions via genetically distinct post-transcriptional mechanisms (Figures 1 and 8). We conclude that transcriptional activation of GsrN by σT initiates a downstream post-transcriptional program that directly affects multiple genes required for stress mitigation (Figure 10).

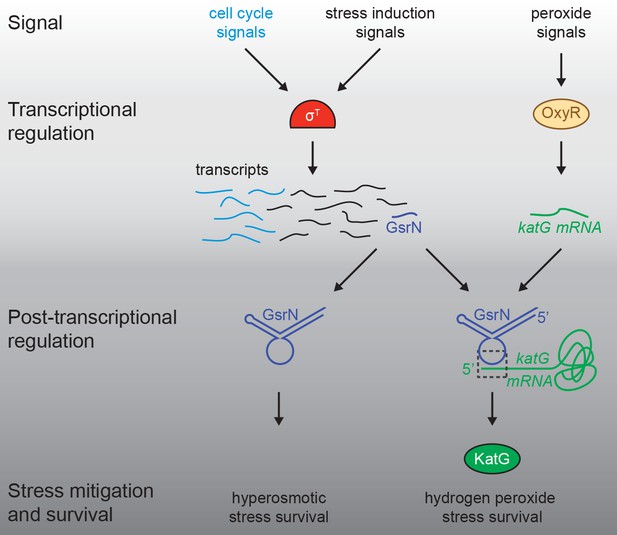

Regulatory architecture of the Caulobacter stress response systems.

Expression of the GSR EcfG-sigma factor, sigTT), and select genes in the GSR regulon is regulated as a function cell cycle phase. σT-dependent transcription can be induced by certain signals (e.g. hyperosmotic stress), but is unaffected by hydrogen peroxide. Transcription of the sRNA, GsrN, is activated by σT, and the cell cycle expression profile of gsrN is highly correlated with sigT and its upstream regulators. Transcription of the catalase/peroxidase katG is independent of σT. GsrN dependent activation of KatG protein expression is sufficient to rescue the peroxide survival defect of a ∆sigT null strain. GsrN convenes a post-transcriptional layer of gene regulation that confers resistance to peroxide and hyperosmotic stresses.


Quantitative proteomic studies (Figure 8A) demonstrate that GsrN activates and represses protein expression, either directly or indirectly. In the case of KatG, we have shown that GsrN is among the rare class of sRNAs that directly enhance protein expression (Papenfort and Vanderpool, 2015) (Figures 7B and 8C). Our global and directed measurements of mRNA show that katG mRNA levels do not change significantly between ∆gsrN and gsrN++ strains (Figures 7 and 8). However, in the presence of peroxide, we observe significant changes in katG mRNA that correlate with changes in KatG protein levels. Our data suggest a role for GsrN as a regulator of katG translation and, perhaps, katG mRNA stability. In this way, GsrN may be similar to the sRNAs, DsrA and RyhB (Lease and Belfort, 2000; Prévost et al., 2007), which function by uncovering ribosome-binding sites (RBS) in the leaders of their respective mRNA targets. Although this mechanism may occur for GsrN-katG, we are not able to predict a clear RBS in the katG mRNA leader, which is among the 75% of open-reading frames (ORFs) in Caulobacter that do not contain a canonical RBS (Schrader et al., 2014). GsrN binding to the 5’ end of katG mRNA could recruit the ribosome to a potential stand-by binding site. Alternatively, it could induce a structural change that enhances ribosome binding, which is a mechanism proposed for the sRNA, RepG (Pernitzsch et al., 2014). Steady state levels of katG mRNA are influenced by GsrN, which may be a result of sRNA-mRNA binding (Fröhlich et al., 2013; Ramirez-Peña et al., 2010) or GsrN-dependent mRNA processing (Obana et al., 2010).

GsrN is a remarkable sRNA that has at least two distinct physiological roles in the cell, mitigating peroxide stress and hyperosmotic stress. The target of GsrN that confers hyperosmotic stress protection remains undefined, but this phenotype is also likely regulated at the post-transcriptional level (Figure 8D). While the reported physiological effects of sRNAs are often subtle, GsrN provides a notable example of a single post-transcriptional regulator that exerts a strong influence on multiple, distinct pathways affecting cellular stress survival.

On GsrN stability and processing

The roles of sRNAs in stress adaptation have been investigated in many species, and a number of molecular mechanisms underlying sRNA-dependent gene regulation have been described. We have uncovered a connection between mRNA target site recognition and GsrN stability that presents challenges in the characterization of GsrN regulatory mechanisms. Specifically, mutations in the katG mRNA leader affect steady-state levels of GsrN (Figure 6D). Given this result, one could envision scenarios in which changes in transcription of katG or some other direct GsrN target could broadly affect stress susceptibility by altering levels of GsrN and, in turn, the stability of other target mRNAs in the cell. In short, the concentrations of mRNA targets could affect each other via GsrN. Such effects should be considered when assessing mRNA target site mutations in this system and others.

GsrN is among a group of sRNAs that are post-transcriptionally processed (Chao et al., 2017; Chao et al., 2012; Mandin and Gottesman, 2010; Papenfort et al., 2015; Papenfort et al., 2009) (Figure 3). Other examples of processed sRNAs include the rpoS regulator, RprA, for which multiple isoforms have been observed. Unlike GsrN, rprA yields a stable 3’ isoform that arises from endonucleolytic-cleavage (Papenfort et al., 2009). The 3’ isoform of RprA does not apparently influence rpoS expression, but regulates a subset of mRNAs via a second identified base-pairing region (Papenfort et al., 2015). Like RprA, the distinct GsrN isoforms may have different target preferences.

Select PP7hp insertions resulted in reduced 5’ isoform formation. PP7hp mutants with low 5’ isoform levels did not complement the peroxide viability defect of ∆gsrN. Processing to a short 5’ isoform may thus be necessary for GsrN to bind katG mRNA and regulate KatG expression. Alternatively, processing may not be required for function, and lack of complementation by certain hairpin insertion mutants could be due to PP7hp interfering with target recognition or simply reducing total levels of GsrN. Regardless, our data clearly show that GsrN is cleaved to yield a 5’ isoform that is stable in the cell (Figure 3—figure supplement 1) and is sufficient to protect Caulobacter from hydrogen peroxide treatment (Figure 4B). The role of RNA metabolism in sRNA-dependent gene regulation is not well understood. GsrN will likely provide a good model to investigate mechanisms by which mRNA target levels and sRNA/mRNA processing control gene expression.

Caulobacter GSR and the cell cycle

The transcription of sigT, gsrN, and several other genes in the GSR regulon are cell cycle regulated (Fang et al., 2013; Laub et al., 2000; McGrath et al., 2007; Zhou et al., 2015), with highest expression during the swarmer-to-stalked cell transition, when cells initiate DNA replication and growth (Figure 1C). GSR activation during this period potentially protects cells from endogenous stressors that arise from upregulation of anabolic systems required for growth and replication. In the future, it is of interest to explore the hypothesis that the GSR system and GsrN provide both basal protection against endogenous stressors generated as a function of normal metabolism and induced protection against particular stressors (e.g. hyperosmotic stress) encountered in the external environment.

Materials and methods

Key resources table
Reagent typeDesignationSource or referenceIdentifier
AntibodyGoat anti-Mouse IgG (H + L) Secondary Antibody, HRPThermoFisher32430
AntibodyDYKDDDDK Tag Monoclonal Antibody (FG4R)ThermoFisherMA1-91878-1MG
Strain, strain backgroundSee Supplementary file 1
Chemical compound, drugAgarLab ScientificA466
Chemical compound, drug30% Hydrogen PeroxideThermoFisherH325-100
Chemical compound, drugsubstrate o-nitrophenyl-β-D-galactopyranoside (ONPG)GoldBioN-275–100
Chemical compound, drugacrylamide:bisacrylamide (29:1)BioRad1610156
Chemical compound, drugAcid-PhenolAmbionAm9722
Commercial assay or kitTRIzolThermoFisher15596026
Recombinant DNA reagentT4 Polynucleotide KinaseNew England BiolabsM0201L
Chemical compound, drugATP, [γ−32P]- 3000 Ci/mmol 10mCi/ml EasyTidePerkinElmerBLU502A500UC
Peptide, recombinant proteinSuperScript IV Reverse TranscriptaseThermoFisher18090010
Peptide, recombinant proteinRNase HNew England BiolabsM0297S
peptide, recombinant proteinTURBO DNaseThermoFisherAM2238
Recombinant DNA reagentKOD Hot Start DNA Polymerasesigmaaldrich71086
Commercial assay or kitMicro Bio-Spin Columns With Bio-Gel P-6 in Tris BufferBioRad7326221
Commercial assay or kitAmylose ResinNew England BiolabsE8021L
Commercial assay or kitRNeasy Mini KitQiagen74106
Commercial assay or kitSuperSignal West Femto Maximum Sensitivity SubstrateThermoFisher34095
Commercial assay or kitZero Blunt TOPO PCR Cloning KitinvitrogenK2800-20SC
Commercial assay or kitFirstChoice RLM-RACE KitThermoFisherAM1700
OtherRaw and analyzed RNA-seq dataThis paperGEO: GSE106168 https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE106168
OtherRaw and analyzed LC-MS/MS dataThis paperPRIDE: PXD008128
OtherRaw and analyzed RNA-seq data for GsrN-PP7hp purificationThis paperGEO: GSE106171 https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE106171
OtherRaw and analyzed RNA-seq data for Network construction(Fang et al., 2013) PMC3829707GEO: GSE46915
Commercial assay or kitZeta-Probe Blotting MembranesBioRad162–0165
Commercial assay or kitLow Molecular Weight Marker, 10–100 ntAlfa AesarJ76410
Commercial assay or kitMini-PROTEAN TGX Precast Gel, 4–20%BioRad456–1094
Commercial assay or kitPrecision Plus Protein Kaleidoscope Prestained Protein StandardsBioRad1610375
Sequence-based reagentSee Supplementary file 1
Sequence-based reagentSee Supplementary file 1
Software, algorithmBowtie2(Langmead and Salzberg, 2012) PMC3322381http://bowtie-bio.sourceforge.net/bowtie2/index.shtml
Software, algorithmSAMTools(Li et al., 2009) PMC2723002http://samtools.sourceforge.net/
Software, algorithmIntaRNA 2.0.2(Mann et al., 2017) 10.1093/nar/gkx279http://rna.informatik.uni-freiburg.de/IntaRNA/Input.jsp
Software, algorithmPrism v6.04GraphPad Software, Inc.https://www.graphpad.com/scientific-software/prism/
Software, algorithmWebLogo(Crooks et al., 2004), PMC419797http://weblogo.berkeley.edu/logo.cgi
Software, algorithmGeneious 11.0.2(Kearse et al., 2012), PMC3371832https://www.geneious.com/
Software, algorithmR v 3.3.3https://www.r-project.org/
Software, algorithmPython v2.7https://www.python.org/download/releases/2.7/
Software, algorithmRockhopper 2.0(Tjaden, 2015), PMC4316799https://cs.wellesley.edu/~btjaden/Rockhopper/
Software, algorithmEdge-pro(Magoc et al., 2013), PMC3603529http://ccb.jhu.edu/software/EDGE-pro/index.shtml
Software, algorithmDESeq(Anders and Huber, 2010), PMC3218662http://bioconductor.org/packages/release/bioc/html/DESeq.html
Software, algorithmCLC Genomics Workbench 10(Qiagen)https://www.qiagenbioinformatics.com/products/clc-genomics-workbench/
Software, algorithmMaxQuant(Cox et al., 2014), PMC4159666http://www.coxdocs.org/doku.php?id=maxquant:start
Software, algorithmIterativeRankThis paperhttps://github.com/mtien/IterativeRank
Software, algorithmSliding_window_analysisThis paperhttps://github.com/mtien/Sliding_window_analysis

Experimental model and subject details

Growth media and conditions

C. crescentus was cultivated on peptone-yeast extract (PYE)-agar (0.2% peptone, 0.1% yeast extract, 1.5% agar, 1 mM MgSO4, 0.5 mM CaCl2) (Ely, 1991) supplemented with 1.5% agar at 30°C. Antibiotics were used at the following concentrations on this solid medium: kanamycin 25 µg/ml, tetracycline 2µg/ml, nalidixic acid 20 µg/ml, and chloramphenicol 2 µg/ml.

For liquid culture, C. crescentus was cultivated in either PYE or in M2X defined medium (Ely, 1991). PYE liquid: 0.2%(w/v) peptone, 0.1%(w/v) yeast extract, 1 mM MgSO4, and 0.5 mM CaCl2, autoclaved before use. M2X defined medium: 0.15% (w/v) xylose, 0.5 mM CaCl2, 0.5 mM MgSO4, 0.01 mM Fe Chelate, and 1x M2 salts, filtered with a 0.22 micron bottle top filter. One liter of 20x M2 stock was prepared by mixing 17.4 g Na2HPO4, 10.6 KH2PO4, and 10 g NH4Cl. To induce gene expression from the vanA promoter, 500 µM vanillate (final concentration) was added. Antibiotics were used at the following concentrations in liquid medium: kanamycin 5 µg/ml, tetracycline 1 µg/ml, and chloramphenicol 2 µg/ml.

For cultivation of E. coli in liquid medium, we used lysogeny broth (LB). Antibiotics were used at the following concentrations: ampicillin 100 µg/ml, kanamycin 50 µg/ml, tetracycline 12 µg/ml, and chloramphenicol 20 µg/ml.

Strain construction

All C. crescentus experiments were conducted using strain CB15 (Poindexter, 1964) and derivatives thereof. Plasmids were conjugated into CB15 (Ely, 1991) using the E. coli helper strain FC3 (Finan et al., 1986). Conjugations were performed by mixing the donor E. coli strain, FC3, and the CB15 recipient strain in a 1:1:5 ratio. Mixed cells were pelleted for 2 min at 15,000xg, resuspended in 100 µL, and spotted on a nonselective PYE-agar plate for 12–24 hr. Exconjugants containing the desired plasmid were selected on PYE agar containing the plasmid-specified antibiotic for selection and antibiotic nalidixic acid (20 µg/ml) to counter-select against both E. coli strains (helper and plasmid donor).

Gene deletion and nucleotide substitution strains were generated using the integrating plasmid pNPTS138 (Ried and Collmer, 1987). pNPTS138 transformation and integration occurs at a chromosomal site homologous to the insertion sequence in pNPTS138. Exconjugants with pNPTS138 plasmids were selected on PYE agar plates with 5 µg/ml kanamycin; 20 µg/ml nalidixic acid selected against the E. coli donor strain. Single colony exconjugants were inoculated into liquid PYE or M2X for 6–16 hr in a rolling 30°C incubator for non-selective growth. Nonselective liquid growth allows for a second recombination event to occur, which either restores the native locus or replaces the native locus with the insertion sequence that was engineered into pNPTS138. Counter-selection for the second recombination of pNPTS138 was carried out on PYE agar with 3% (w/v) sucrose. This selects for loss of the sacB gene during the second crossover event. Colonies were subjected to PCR genotyping and/or sequencing to identify to confirm the allele replacement.

Other strains utilized in this study originate from (Herrou et al., 2010), (Purcell et al., 2007), and (Foreman et al., 2012).

The ΔgsrN strains and ΔsigT strains were complemented by introducing the gene at an ectopic locus (either vanA or xylX) utilizing the integrating plasmids: pMT552, pMT674, and pMT680. pMT674 and pMT680 carry a chloramphenicol resistance marker gene (cat) and pMT552 carries a kanamycin resistance marker gene (npt1) (Thanbichler et al., 2007). pMT552 and pMT674 integrate into the vanA gene and pMT680 integrates into the xylX gene. Transformation of ectopic complementation plasmids conjugated (as described earlier). Introduction of gsrN complementation was done in the reverse direction of the inducible promoters. Introduction of katG was done in-frame in the same direction of the inducible promoters.

Replicating plasmids pPR9TT and pRKlac290 were conjugated as previously described earlier. pPR9TT and pRKlac290 were selected using tetracycline and chloramphenicol, respectively.

pMal-MBP-PP7CPHis was transformed into E. coli Rosetta by electroporation and plated on LB plates with ampicillin 100 µg/ml.

Plasmid construction

Plasmid pNPTS138 was used to perform allele replacements and to generate gene deletions (Ried and Collmer, 1987; West et al., 2002). Primers for in-frame deletions and GeneBlocks (Gblocks) are listed in Supplementary file 1. Gene fragments were created by splice-overlap-extension and ligated into the digested pNPTS138 vector at restriction enzyme sites (HindIII, SpeI) or gene fragments were stitched together using Gibson assembly. pNPTS138 contains a kanR (npt1) antibiotic resistance marker and the counter-selectable marker gene sacB, which encodes levansucrase

Plasmids for gsrN genetic complementation experiments carried wild-type or mutant gsrN alleles cloned into the vanAlocus where gsrN is antisense to the vanillate inducible vanA promoter. An in-frame stop codon was designed at a restriction enzyme site downstream of the vanA promoter to ensure translational read-through of the vanA transcript did not disrupt gsrN transcription. Tandem gsrN alleles (overexpression by multiple copies of gsrN) were constructed using Gblocks with unique ends for Gibson assembly into pMT552. Plasmids for genetic complementation of the katG mutant were constructed by cloning katG in-frame with the vanillate and xylose-inducible promoters of pMT674 and pMT680, respectively, at the NdeI and KpnI restriction sites. katG complementation plasmids did not include the 5’ untranslated region (UTR) of katG.

Beta-galactosidase transcriptional and translational reporters utilized pRKlac290 (Ely, 1991) and pPR9TT (Santos et al., 2001) replicating plasmids, respectively. Transcriptional reporters of gsrN contained upstream and promoter sequences of gsrN cloned into the EcoRI and HindIII sites of pPRKlac290. Translational reporters of katG contained the 191 nucleotides 3’ of the annotated katG transcriptional start site (Zhou et al., 2015) cloned into pPR9TT at HindIII and KpnI.

Protein expression plasmid pMal was used to express a maltose binding protein (MBP) fused to the N-terminus of a Pseudomonas Phage seven coat protein fused to a His-tag at its C-terminus (to generate MBP-PP7CP-His). The PP7CPHis protein sequence was amplified out of pET283xFlagPP7CPHis and inserted into pMal at SalI and EcoRI restriction sites. pET283xFlagPP7CPHis was a gift from Alex Ruthenburg and originates from Kathleen Collins (Addgene plasmid # 28174).

Experimental method details

Hydrogen peroxide/osmotic stress assays

Liquid cultures were passaged several times before stress treatment to insure that population growth rate and density was as consistent as possible prior to addition of hydrogen peroxide (oxidative stress) or sucrose (hyperosmotic stress). Briefly, starter cultures were inoculated in liquid M2X medium from colonies grown on PYE-agar plates. Cultures were grown overnight at 30°C in a rolling incubator. Overnight cultures were then diluted back to an optical density reading of 0.05 at 660 nm (OD660 = 0.05) and grown in a rolling incubator at 30°C for 7–10 hr. After this period, cultures were re-diluted with M2X to OD660 = 0.025 and grown overnight for 16 hr at 30°C in a rolling incubator. After this period, OD660 was consistently 0.85–0.90. These cultures were then diluted to OD660 = 0.05 and grown for 1 hr and split into two tubes. One tube received stress treatment and the other tube was untreated. Treated cultures were subjected to either hydrogen peroxide or sucrose.

For stress treatment, we used a freshly prepared 10 mM H2O2 solution diluted from a 30% (w/w) stock bottle (stock never more than 3 months old) or a stock of 80% (w/v) sucrose. The amount of 10 mM H2O2 added for stress perturbation depended on the volume of the culture and the desired final concentration of H2O2. Final volumes assessed in our studies are described for each experiment throughout this manuscript.

Treated cultures and untreated cultures were subsequently titered (10 μL sample in 90 μL of PYE) by initially diluting into 96-well plates. 5 μL spots from each dilution were plated on PYE-agar. Once spots dried, plates were incubated at 30°C for 2 days. Clearly visible colonies begin to form after 36 hr in the incubator.

The difference in colony forming units (CFU) between treated and untreated cultures was calculated using the following formula:

(1) Relative CFU=Treated CFU×10xUntreated CFU×10y

where x represents the countable (resolvable) dilution in which colonies are found in the treated sample dilution series and y represents the untreated sample dilution.

β-galactosidase gene expression reporter assays

To assess reporter gene expression, liquid cultures were passaged several times as described in the hydrogen peroxide/osmotic stress assays section above. However, cultures were placed in a 30°C shaker instead of a 30°C rolling incubator. Exponential phase cultures were harvested when the last starter culture (i.e. the OD660 = 0.05 culture made from the 16 hr overnight culture) reached an OD660 of 0.2–0.25. Stationary growth cultures were harvested when the exponential phase culture reached an OD660 of 0.85–0.90. Reporter assays in which the effect of stress treatment was quantified were conducted on exponential phase cultures that were split immediately before treatment.

β-galactosidase activity from chloroform-permeabilized cells was measured using the colorimetric substrate o-nitrophenyl-β-D-galactopyranoside (ONPG). 1 mL enzymatic reactions contained 200–250 μL of chloroform-permeabilized cells, 550–600 μL of Z-buffer (60 mM Na2HPO4, 40 mM NaH2PO4, 10 mM KCl, 1 mM MgSO4), and 200 μL of 4 mg/mL ONPG in 0.1 M KPO4, pH 7.0. Chloroform-permeabilized cell samples were prepared from 100 to 150 μL of culture, 100 μL of PYE, and 50 μL of chloroform (chloroform volume is not included in the final calculation of the 1 mL reaction). Chloroform-treated cells were vortexed for 5–10 s to facilitate permeabilization. Z buffer and ONPG were added directly to chloroform-permeabilized cells. Reactions were incubated in the dark at room temperature and quenched with 1 mL of 1 M Na2CO3.

Each reporter construct was optimized with different reaction times and different volumes of cells. Reaction time and volume for each reporter was empirically determined by the development of the yellow pigment from chloroform-permeabilized C. crescentus CB15 cultures. Strains harboring the pRKlac290 transcriptional reporter plasmid containing the established GSR promoter reporter PsigU or PgsrN used 100 μL of cells and were quenched after 10 min and 18 min, respectively. Strains containing pRKlac290 with the katG promoter (PkatG) used 150 μL of cells and were quenched after 12 min. Strains with the translational reporter plasmid pPR9TT containing the 5’UTR of katG (wild-type and RS constructs) used 150 μL of cells and were quenched after 4 min.

Miller units were calculated as:

(2) MU=A420×1000A660×t×v

where A420 is the absorbance of the quenched reaction measured at 420 nm on a Spectronic Genesys 20 spectrophotometer (ThermoFisher Scientific, Waltham, MA). A660 is the optical density of the culture of cells used for the assay. t is time in minutes between the addition of ONPG to the time of quenching with Na2CO3. v is the volume in milliliters of the culture added to the reaction.

TRIzol RNA extractions

Cultures used for the extraction of RNA were passaged in the same manner outlined in the hydrogen peroxide/osmotic stress assays section above. Exponential phase cultures were harvested from the last starter (i.e. the OD660 = 0.05 culture at the 16 hr time point) when it reached an OD660 of 0.20–0.25. Stationary cultures were harvested when the final culture diluted to OD660 = 0.025 reached an OD660 of 0.85–0.90.

Exponential phase cultures (OD660 of 0.20–0.25) harvested for extraction of RNA were pelleted at 15000xg for 3 min at ≈23°C (i.e. room temperature). Early stationary cultures (OD660 of 0.85–0.90) were also pelleted at 15000xg for 30 s at ≈23°C. All media were aspirated using a vacuum flask. Cell pellets were resuspended in 1 mL of TRIzol. The TRIzol resuspension was heated for 10 min at 65°C, treated with 200 μL of chloroform and hand shaken. The chloroform mixture was allowed to stand for 5 min and then spun down at 15000xg for 15 min at 4°C. Approximately 500 μL of clear aqueous phase was extracted and mixed with 500 μL of 100% isopropanol. Samples were then incubated at −20°C overnight. Overnight isopropanol precipitation was then spun down at 15000xg for 15 min at 4°C. Isopropanol was aspirated, the pellet was washed in 1 mL of 75% ethanol, and sample was spun down at 15000xg for 15 min at 4°C. Ethanol was removed from pellet, and the pellet was left to dry for 15 min. The RNA pellet was resuspended in 25 μL of nuclease-free H2O.

Radiolabeled oligonucleotides

Oligonucleotides were radiolabeled with T4 Polynucleotide Kinase (PNK). 10 μL labeling reactions were composed of 1 μL of PNK, 1 μL PNK 10x Buffer, 2 μL of 5 μM oligonucleotides (1 μM final concentration), 4 μL H2O, and 2 μL ATP, [γ−32P]. Reactions were incubated for a minimum of 37°C for 30 min. Total reactions were loaded onto a BioRad P-6 column to clean the reaction. Radiolabeled samples were stored at 4°C.

Northern blots

RNA samples were resolved on a 10% acrylamide:bisacrylamide (29:1), 7 M urea, 89 mM Tris Borate pH 8.3, 2 mM Na2EDTA (TBE) 17 by 15 cm gel, run for 1 hr and 50 min at 12 Watts constant power in TBE running buffer. The amount of sample loaded was between 1–5 μg of RNA, mixed in a 1:1 ratio with 2x RNA loading dye (9 M urea, 100 mM EDTA, 0.02% w/v xylene cyanol, 0.02% w/v bromophenol blue). Samples were heated for 8 min at 75°C and then subjected to an ice bath for 1 min before loading. Acrylamide gels with immobilized samples were then soaked in TBE buffer with ethidium bromide and imaged. Samples immobilized on the gel were transferred onto Zeta-Probe Blotting Membrane with a Trans-Blot SD Semi-Dry Transfer Cell. Transfer was done at 400 mA constant current with voltage not exceeding 25V for 2 hr. Membrane was then subjected to two doses of 120 mJ/cm2 UV radiation, using a Stratalinker UV cross-linker. Membranes were subsequently prehybridized 2 times for 30 min in hybridization buffer at 65°C in a rotating hybridization oven. Hybridization buffer is a variation of the Church and Gilbert hybridization buffer (20 mM sodium phosphate, pH 7, 300 mM NaCl, 1% SDS). Blots were hybridized with hybridization buffer containing the radiolabeled oligonucleotide probes described above. Hybridization buffer was always prepared so that GsrN probe concentration was approximately 1 nM, 5S rRNA probe concentration was approximately 2 pM, and tRNA-Tyr probe was 500 pM. Hybridization took place over 16 hr at 65°C in a rotating hybridization oven. Membranes were then incubated with wash buffer three times for 20 min at 65°C in a rotating hybridization oven. Wash buffer contained 20 mM sodium phosphate (pH 7.2), 300 mM NaCl, 2 mM EDTA, and 0.1% SDS. Membranes were then wrapped in plastic wrap and placed directly against a Molecular Dynamics Phosphor Screen. Screens were imaged with Personal Molecular Imager (PMI) System. Membrane exposure time was determined using a Geiger counter: 100 × 2 min, 10 × 30–60 min, 1.0 × 8–16 hr, 0.1 × 48–72 hr.

Intensity of GsrN bands or katG mRNA dots was calculated by dividing the probe signal specific to GsrN or katG mRNA over the probe signal specific to the 5S rRNA multiplied by 100. Normalization of katG mRNA specific probes in the dot blot was carried out in a manner similar to that described for Northern blot, in which the 5S rRNA probe signal was used for normalization.

(3) Normalized volumex=volumex(CNT*mm2)volume5s rRNA probe(CNT*mm2)

Rifampicin transcription inhibition assays

Liquid C. crescentus CB15 cultures were passaged in the same manner outlined in the hydrogen peroxide/osmotic stress assays section. However, cells for transcription inhibition assays were grown to an OD660 of 0.2–0.25 from the last starter culture (i.e. inoculated from the OD660 = 0.05 culture from 16 hr growth) and split across six tubes and labeled: untreated, 30 s treatment, 2 min treatment, 4 min treatment, 8 min treatment, and 16 min treatment. Untreated cultures were the 0 time point where no rifampicin was added. Rifampicin treated cultures were subjected to a final concentration of 10 μg/mL (from a 10 mg/mL stock in methanol) and were grown in a rolling incubator at 30°C. The 30 s rifampicin treatment refers to the centrifugation time (15000xg for 30 s at room temperature) to pellet the cells. Thus, the 30 s sample was immediately pelleted after exposure to rifampicin. 2 min, 4 min, 8 min, and 16 min samples were placed into a rolling incubator after exposure and were removed 30 s prior to their indicated time point, (i.e. 2 min culture was removed from the incubator at 1 min and 30 s). Pellets were then subjected to TRIzol extraction as described earlier. RNA extracts were subjected to Northern Blot analysis as described earlier.

Intensity of full-length and 5’isoform of GsrN bands were first adjusted to the intensity of the 5S rRNA control, as described in Equation 3. To plot the GsrN decay curve, all adjusted bands were then divided by the intensity of the 0 time point (untreated culture) and plotted in Prism v6.04.

(4) Normalized timepoint volumet =Normalized volumetNormalized volume0

Primer extension

Primer extension was carried out using the SuperScript IV Reverse Transcriptase standalone enzyme. Total RNA from gsrN++ and ΔgsrN strains was extracted from stationary cultures (OD660 = 0.95–1.0) as described in the TRIzol extraction section. Primers for extension were first HPLC purified (Integrated DNA technologies) and radiolabeled as described in the Radiolabeled Oligonucleotides section.

Briefly, 14 μL annealing reactions comprised of the following final concentrations/amounts: 0.1 μM of gene specific radiolabeled primer, 0.3–0.5 mM of dNTPs, 2 μg of total RNA, and when necessary 0.5 mM ddNTPs. ddNTP reactions had a 3 dNTP:5 ddNTP ratio and were conducted using total RNA from gsrN++. Annealing reactions were incubated at 65°C for 5 min and subsequently incubated on ice for at least 1 min.

Extension reactions contained 14 μL annealing reactions with 6 μL of SuperScript IV Reverse Transcriptase master mix (final concentrations/amount 5 mM DTT, 2.0 U/μL, 1x SSIV buffer). Reactions were incubated at 50–55°C for 10 min and then incubated at 80°C for 10 min to inactivate the reaction.

After the extension reaction, 1 μL of RNase H was added to the mixture. This was incubated at 37°C for 20 min and mixed with 20 μL of 2x RNA loading dye. Reactions were subsequently heated for 8 min at 80°C, subjected to an ice bath for 1 min, and loaded onto a 33.8 by 19.7 cm 20% acrylamide:bisacrylamide gel (as outlined in the Northern Blot section). Reactions were loaded on the gel along with a labeled Low Molecular Weight Marker (10–100 nt; Affymetrix/USB). Final amounts loaded were estimated using a Geiger counter, such that 10 mR/hr was loaded for each sample. Primer extension samples were resolved on the gel at 10 Watts constant power until unextended primer reached the bottom of the gel. The acrylamide gel was wrapped in plastic, exposed, and imaged as outlined in the Northern Blot section.

5’ RACE of GsrN

Rapid amplification of cDNA 5’ends of GsrN was carried out using components of the FirstChoice RLM-RACE Kit and the SuperScript IV Reverse Transcriptase standalone enzyme. Cloning of cDNA library was carried out with the Zero Blunt TOPO PCR Cloning Kit. Total RNA from gsrN++ strains was extracted from stationary phase cultures (OD660 = 0.95–1.0) as described in the TRIzol extraction section.

Briefly, 10 μL Tobacco Acid Pyrophosphatase (TAP) reactions used 5 μg of total RNA with 2 μL of TAP and 1 μL of TAP buffer with remaining volume comprised of Nuclease-free water. Reactions were incubated at 37°C for 1 hr. TAP-treated samples were then subjected to ligation in parallel with no-TAP total RNA samples. Tap RNA sample ligation reactions (10 μL) follow: 2 μL of TAP treated RNA, 1 μL of 5’RACE adaptor, 1 μL of T4 RNA Ligase, 1 μL 10X T4 RNA Ligase Buffer, and 4 μL Nuclease-free water. No-TAP RNA sample ligation reactions (10 μL) follow: 3 μg of untreated total RNA, 1 μL of 5’RACE adaptor, 1 μL of T4 RNA Ligase, 1 μL 10X T4 RNA Ligase Buffer, and remaining volume of Nuclease-free water. Reactions were incubated at 37°C for 1 hr.

For the reverse transcription reaction (first strand synthesis), we used the SuperScript IV reverse transcriptase and the target-specific primer (NB12, see Supplementary file 1). The 20 μL reaction follows: 4 μL of ligated RNA, 4 μL of dNTP, 2 μL of 1 μM primer, 4 μL RT-Buffer, 1 μL of SSIV-RT, 3 μL water, and 2 μL of fresh 100 mM DTT. Reactions were incubated at 55°C for 10 min then 80°C for 10 min (to deactivate).

For second strand synthesis and amplification, we used KOD Hot Start DNA Polymerase with the 5’RACE inner primer complementary to the adapter and a nested target-specific primer (1189 in Supplementary file 1). The 25 μL reactions follow: 12.5 μL 2X Buffer, 0.5 μL KOD Polymerase, 5 μL of 2 mM dNTP, 2.5 μL of 50% DMSO, 1.5 μL of 5 mM forward primer, 1.5 μL of 5 mM reverse primer, and 1.5 μL of reverse transcribed 1st strand synthesis cDNA. Reaction protocol follows: 3 min 95°C incubation, followed by a 35 cycled reaction consisting of a 15 s 95°C melting step, a 15 s 60°C annealing step, and a 30 s 68°C extension step, and lastly a 1 min 68°C extension step.

PCR products were blunt-cloned using the Zero Blunt TOPO PCR Cloning Kit. First a 5 μL pre-reaction mix consisting of 2 μL PCR product, 1 μL kit salt solution, and 2 μL water was prepared. 1 μL of the pCR-Blunt II-TOPO was then added to the pre-reaction mix and incubated at room temperature for 5 min and then immediately put on ice. Ligation reaction was then incubated with ice-thawed chemically competent E. coli cells for 5 min. Cells were heat shocked for 30 s at 42°C, then incubated on ice for 5 min. 250 μL of SOC media was then added to the cells and incubated 37°C in a shaking incubator. 50 microliters of outgrown cells were placed on LB-Kanamycin plates with an antibiotic concentration of 50 μg/mL. Single colonies were grown overnight and sequenced with M13F and M13R primers provided in the Zero Blunt TOPO PCR Cloning Kit.

Sequences were submitted to the University of Chicago Comprehensive Cancer Center DNA Sequencing and Genotyping Facility. Chromatograph traces were analyzed with Geneious 11.0.2. Traces were subjected to mapping and trimming of the 5’RACE inner primer/adaptor sequence and the flanking regions used for blunt-cloning. Trimmed sequences are presented in Figure 3—figure supplement 1E.

Affinity purification of GsrN using a PP7hp-PP7cp system

GsrN constructs containing a Pseudomonas phage 7 RNA hairpin (PP7hp) sequence were affinity purified using a hairpin-binding phage coat protein (PP7cp) immobilized on agarose beads. To prepare the coat protein, a 50 mL culture of E. coli Rosetta carrying an expression plasmid for PP7cp fused to maltose binding protein (MBP) at its N-terminus and a His-tag at its C-terminus (pMal-PP7cp-HIS) was grown at 37°C in a shaking incubator overnight in LB-ampicillin broth. Overnight cultures were rediluted and grown to OD600 = 0.6. Cells were then induced with 1 mM IPTG for 5 hr and spun down at 8000 g at 4°C for 10 min. The cell pellet was resuspended in 6 mL of ice-cold lysis buffer (125 mM NaCl, 25 mM Tris-HCl pH 7.5, 10 mM Imidazole) and mechanically lysed in a LV1 Microfluidizer. Lysate was immediately added to 500 μL of amylose resin slurry that was prewashed with ice-cold lysis buffer. After the sample was loaded, beads were washed in 50x bead volume (~10 mL) of ice-cold lysis buffer.

A 50 mL culture of C. crescentus ΔgsrN carrying plasmid pMT552 expressing PP7hp-tagged alleles of gsrN was grown at 30°C in a shaking incubator overnight in M2X medium. The culture was prepared from a starter and passaged as outlined in the hydrogen peroxide/osmotic stress assays section. Cells were grown to an OD660 = 0.85–0.90. Cells were spun down at 8000 g at 4°C for 15 min, resuspended in 6 mL of ice-cold lysis buffer, and mechanically lysed in a LV1 Microfluidizer. Lysate was immediately loaded onto a column of amylose resin on which MBP-PP7cp-HIS had been immobilized. After the sample was loaded, beads were washed in 50x bead volume (~10 mL) of ice-cold lysis buffer. Elution of MBP-PP7cp-HIS bound to GsrN-PP7hp and associated biomolecules was completed over three 0.5 mL elution steps using 500 mM maltose. Each 0.5 mL elution was then mixed with equal volumes of acid-phenol for RNA extraction for RNA analysis, or equal volumes of SDS-Loading Buffer (200 mM Tris-HCl pH 6.8, 400 mM DTT, 8% SDS, 0.4% bromophenol blue, 40% glycerol) for protein analysis. For the RNA analysis, the three elution fractions were combined in an isopropanol precipitation step. RNA samples were subjected to DNase treatment as outlined in the RNA-seq sequencing section.

Acid-phenol RNA extraction

Samples for acid-phenol extractions were mixed with equal volumes of acid-phenol and vortexed intermittently at room temperature for 10 min. Phenol mixture was spun down for 15 min at maximum speed at 4°C. The aqueous phase was extracted, cleaned with an equal volume of chloroform, and spun down for 15 min at maximum speed at 4°C. The aqueous phase was extracted from the organic and equal volumes of 100% isopropanol were added. Linear acrylamide was added to the isopropanol precipitation to improve pelleting (1 μL per 100 μL of isopropanol sample). Samples were then incubated at −20°C overnight and spun down at 15,000xg for 15 min at 4°C. The isopropanol was aspirated, the pellet washed in 1 mL of 75% ethanol, and sample spun again at 15,000xg for 15 min at 4°C. Ethanol was removed from the RNA pellet, and pellet was left to dry for 15 min. Pellet was resuspended in 25 μL of nuclease-free H2O.

RNA dot blot analysis

Samples (≈3 μg) for dot blot analysis were mixed with equal volumes of 2x RNA loading dye as in a Northern blot, and heated for 8 min at 75°C. Samples were then spotted on a Zeta-Probe Blotting Membrane and left to dry for 30 min. Spotted membrane was then subjected to two doses of 120 mJ/cm2 UV radiation (Stratalinker UV crosslinker). The membrane was then prehybridized two times for 30 min in hybridization buffer at 65°C in a rotating hybridization oven. After pre-hybridization, we added radiolabeled oligonucleotide probes. Hybridization buffer with probes was always prepared so that each probe’s concentration was approximately 1 nM. katG mRNA was first hybridized for 16 hr at 65°C in a rotating hybridization oven. Membrane was then washed with wash buffer three times, 20 min each at 65°C in a rotating hybridization oven. The blot was exposed for 48 hr to a Molecular Dynamics Phosphor screen and imaged on a Personal Molecular Imager as described above. Membrane was subsequently stripped with two rounds of boiling in 0.1% SDS solution and incubated for 30 min at 65°C in a rotating hybridization oven. Following stripping, the membrane was subjected to two rounds of prehybridization and then hybridized for 16 hr at 65°C in a rotating hybridization oven with the probe specific to the 5’ end of GsrN. Membrane was then washed again with wash buffer three times for 20 min each at 65°C in a rotating hybridization oven. This GsrN blot was exposed for 36 hr to the phosphor screen and imaged. The membrane was stripped four times after GsrN probe exposure. Following stripping, membrane was again subjected to two rounds of prehybridization and then hybridized for 16 hr at 65°C in a rotating hybridization oven with the probe specific to 5S rRNA. Membrane washed with Wash Buffer three times, 20 min each at 65°C in a rotating hybridization oven. This 5S RNA blot was exposed to the phosphor screen for 1 hr and imaged.

Western blot analysis

Strains from which protein samples were prepared for Western blot analysis were grown and passaged as outlined in the hydrogen peroxide/osmotic stress assays section. However, cultures were taken from the overnight 16 hr growth when OD660 reached 0.85–0.90. 1 mL of these cultures was then pelleted, resuspended in 125 μL of Western blot buffer (10 mM Tris pH 7.4, 1 mM CaCl2, and 5 μg/mL of DNase), and mixed with 125 μL SDS-Loading buffer. Samples were boiled at 85°C for 10 min, and 10–20 μL of each sample was loaded onto a Mini-PROTEAN TGX Precast Gradient Gel (4–20%) with Precision Plus Protein Kaleidoscope Prestained Protein Standards. Samples were resolved at 35 mA constant current in SDS running buffer (0.3% Tris, 18.8% Glycine, 0.1% SDS). Gels were run until the 25 kDa marker reached the bottom of the gel. Gel was transferred to an Immobilon-P PVDF Membrane using a Mini Trans-Blot Cell after preincubation in Western transfer buffer (0.3% Tris, 18.8% Glycine, 20% methanol). Transfer was carried out at 4°C, 100 V for 1 hr and 20 min in Western transfer buffer. The membrane was then blocked in 5% (w/v) powdered milk in Tris-buffered Saline Tween (TBST: 137 mM NaCl, 2.3 mM KCl, 20 mM Tris pH 7.4, 0.1% (v/v) of Tween 20) overnight at room temperature on a rotating platform. Primary incubation with a DYKDDDDK(i.e. M2)-Tag Monoclonal Antibody (clone FG4R) was carried out for 3 hr in 5% powdered milk TBST at room temperature on a rotating platform (4 μL antibody in 12 mL). Membrane was then washed three times in TBST for 15 min each at room temperature on a rotating platform. Secondary incubation with Goat anti-Mouse IgG (H + L) Secondary Antibody, HRP was for 1 hr at room temperature on a rotating platform (3 μL antibody in 15 mL). Finally, membrane was washed three times in TBST for 15 min each at room temperature on a rotating platform. Chemiluminescence was performed using the SuperSignal West Femto Maximum Sensitivity Substrate and was imaged using a ChemiDoc MP Imaging System version 6.0. Chemiluminescence was measured using the ChemSens program with an exposure time of ~2 min.

Western blot lane normalization of KatG-M2 specific bands was conducted by normalizing total signal from the doublet signal in the M2 specific background to that of the non-specific band (found in strains were there was no M2 tagged KatG). Samples extracted on the same day were run on the same gel. Lane normalized samples were then normalized to the levels of KatG-M2 signal in the wild-type untreated samples for that specific gel.

(5) Lane Normalized volumex= Volume of topx+Volume of bottomxVolume of non-specificx
(6) WT Normalized volumex= Lane Normalized volumexLane Normalized volumeuntreated WT

RNA-seq preparation

Total RNA was extracted from cultures passaged similarly to the hydrogen peroxide/osmotic stress assays section. However, cultures were harvested at OD660 = 0.85–0.90 from the 16 hr overnight growth. Total RNA extraction followed the procedure outlined in the TRIzol extraction section. Resuspended RNA pellets after the 75% ethanol wash were loaded onto an RNeasy Mini Kit column (100 μL sample, 350 μL RLT, 250 μL 100% ethanol). Immobilized RNA was then subjected to an on-column DNase digestion with TURBO DNase. DNase treatment was repeated twice on the same column; each incubation was 30 min at 30°C with 70 μL solutions of DNase Turbo (7 μL DNase, 7 μL 10x Buffer, 56 μL diH2O). RNA was eluted from column, rRNA was depleted using Ribo-Zero rRNA Removal (Gram-negative bacteria) Kit (Epicentre). RNA-seq libraries were prepared with an Illumina TruSeq stranded RNA kit according to manufacturer's instructions. The libraries were sequenced on an Illumina HiSeq 4000 at the University of Chicago Functional Genomics Facility.

Soluble protein extraction for LC-MS/MS proteomics

Total soluble protein for proteomic measurements was extracted from cultures passaged similarly to the hydrogen peroxide/osmotic stress assays section. However, harvested cultures were grown to an OD660 = 0.85–0.90 in 50 mL of M2X during the 16 hr overnight growth in a 30°C shaking incubator. Cells were spun down at 8000 g at 4°C for 15 min. Cells were resuspended in 6 mL of ice-cold lysis buffer. Cells were mechanically lysed in LV1 Microfluidizer. Lysate was then spun down at 8000 g at 4°C for 15 min. Protein samples were resolved on a 12% MOPS buffered 1D Gel (Thermo Scientific) for 10 min at 200V constant. Gel was stained with Imperial Protein stain (Thermo Scientific), and a ~ 2 cm plug was digested with trypsin. Detailed trypsin digestion and peptide extraction by the facility is published in Truman et al. (2012).

LC-MS/MS data collection and analysis

Samples for analysis were run on an electrospray tandem mass spectrometer (Thermo Q-Exactive Orbitrap), using a 70,000 RP survey scan in profile mode, m/z 360–2000 Fa, with lockmasses, followed by 20 MSMS HCD fragmentation scans at 17,500 resolution on doubly and triply charged precursors. Single charged ions were excluded, and ions selected for MS/MS were placed on an exclusion list for 60 s (Truman et al., 2012).

Computational methods

Network construction

RNAseq data (15 read files) was obtained from the NCBI GEO database from (Fang et al., 2013). Read files are comprised of 3 biological replicates of total RNA extracted from C. crescentus cultures at five time points across the cell cycle (0, 30, 60, 90, and 120 min post synchrony). Reads were mapped and quantified with Rockhopper 2.0 (Tjaden, 2015). The estimated expression levels of each gene across the five time points were extracted from the ‘Expression’ column in the ‘_transcripts.txt’ file, using the ‘verbose’ output. Expression of each gene across the five time points was normalized using python scripts as follows: for a given gene, the normalized expression of the gene at a time point, t, is divided by the sum of the gene’s expression across all the time points, Equation 7. Thus, the sum of a gene’s normalized expression across the five time points would equal 1.

Let t T, where T=0, 30, 60, 90, 120
(7) NormalizedTranscriptt=ExpressiontTExpressiont

We computed Pearson’s correlation coefficient based on normalized expression between all pairwise combinations of genes. Correlation coefficients were organized into a numpy.matrix data structure where each row and column corresponds to the same gene order. Correlation coefficients less than 0 were not considered for this analysis and were assigned the value 0. We refer to this matrix as the Rho-matrix. The Rho-matrix is symmetric and the product of its diagonal is 1. The Rho-matrix represents the weighted edges of the network, where the value of 0 demonstrates no edge is drawn between nodes.

A one-dimensional weight matrix that corresponds to the rows and columns of the Rho-matrix was constructed as a numpy.matrix data structure with all values initialized at 0. Lastly, a key array was constructed in conjunction with the Rho-matrix and weight-matrix for initializing the assignment of weight and obtaining the final weights of the algorithm. The weight-matrix represents the weight of the nodes of the network and the key matrix represents the gene name of the node.

Iterative ranking: matrices and algorithms

Iterative ranking algorithms are a class of analytical tools used to understand relationships between nodes of a given network. The iterative ranking algorithm used to dissect the general stress response in the transcription-based network follows:

(8) ft=∝f0+(1)Pft1

Given the Rho-matrix (P) and weight-matrix (f), the weight-matrix after t-iterations is Equation 8.

For Equation 8, let represent a dampening factor applied to the initialize (t)=0 weight of the nodes, f0. The final weights of the weight-matrix as t converge to a stable solution, Equation 9.

(9) f=∝[1(1)P]1f0

Algorithm and solution information was adapted from (Wang and Marcotte, 2010).

Initial weight-matrix, (f0), was created by assigning the weight 1.0 to the corresponding positions of the seven genes known to regulate the General Stress Response (GSR) of C. crescentus: sigT, phyR, phyK, sigU, nepR, lovR, and lovK. Normalization of the values of the Rho-matrix, Ρ, was performed by normalizing each column such that each column has a sum equal to one and then repeating the same normalization process by rows.

Iterative rank parameter tuning

Iterative rank parameters were optimized through the self-prediction of known associated components of the General Stress Response (GSR). Variables tuned for exploration were the parameter and the reduction of the number of edges based on correlation cut-offs. We chose to base our parameters on which condition best predicted the gene phyR, when initializing the weight-matrix with sigT, sigU, nepR, phyK, lovR, and lovK values of 1. Varying these two parameters showed that an edge reduction of ρ >0.9 and an alpha factor greater than 0.5 yielded the highest rank for phyR (Figure 1—figure supplement 1A).

A ρ >0.9 edge reduction reduces the number of edges each node has (Figure 1—figure supplement 1B). The total number of edges was reduced from 10225998 edges to 946558 (Figure 1—figure supplement 1C). Only 19 nodes (.46%) were completely disconnected from the network (zero number of edges). Tuning script is available at https://github.com/mtien/IterativeRank (Tien, 2017a).

Identification of σT-promoter motifs

Motif finder utilized a python script that scans 200 nucleotides upstream of annotated transcriptional start sites (Zhou et al., 2015) or predicted translational start sites (TSS) (Marks et al., 2010).

We built a simple python library to take in genomic FASTA files, find specified regions of interest, and extract 200 nucleotides from a given strand. We used the Caulobacter crescentus NA1000 annotation (CP001340) from NCBI as the input genomic file and used the predicted TSS (when available) or annotated gene start sites as the region and strand specifier. After locating the position and strand within the file, we extracted the 200 nucleotides directly upstream of the site of interest and put the regions into a character-match calculator. Our simple calculator reported a list of positions for −35 (GGAAC) and for −10 elements (CGTT) of σT-dependent promoters within the 200-nucleotide input string. Only strict matches to these elements were reported. Spacers were calculated between all pairwise −35 and −10 matches. We identified potential σT-dependent promoters by identifying consensus −35 to −10 sequences with 15–17 base spacing. Sequence logos were generated from (Crooks et al., 2004)

IntaRNA analysis

IntaRNA version 2.0.2 is a program within the Freiberg RNA Tools collection (Mann et al., 2017). To predict likely RNA-RNA associations between predicted unstructured regions within GsrN and its RNA targets, we input the sequence of GsrN as the query ncRNA sequence and a FASTA file of either: 1) windows significantly enriched in the GsrN(37)-PP7hp purification from our sliding window analysis with an additional 100 base pairs (50 bp on each side of the window) or 2) entire gene windows that showed significant enrichment from our Rockhopper analysis (Figure 5—source data 3).

Output from IntaRNA 2.0.2 comprised a csv file of target binding sites and the corresponding GsrN binding sites. We extract the predicted binding sites of the targets with a python script and parsed the targets into those predicted to bind the first exposed loop and the second exposed loop. Sequence logos were generated from (Crooks et al., 2004)

Phylogenetic tree construction

A 16S rRNA phylogenetic tree of Alphaproteobacteria was constructed by extracting 16S rRNA sequences for all species listed in Figure 9 and using the tree building package in Geneious 11.0.2 (Kearse et al., 2012). The tree was constructed using a global alignment with free end gaps and a cost matrix of 65% similarity (5.0/~4.0). The genetic distance model was the Tamura-Nei and the tree building method employed was neighbor-joining. E. litoralis was the out-group for tree construction.

Prediction of gsrN homologs

A homology search based on the sequence of GsrN was conducted using BLASTn (Altschul et al., 1990). This simple search provided a list of clear GsrN homologs in the Caulobacteraceae family (Caulobacter, Brevundimonas, and Phenylobacterium).

Identification of homologs in other genera relied on analysis of published transcriptomic data, searching specifically for gene expression from intergenic regions. Analyzed data included Rhizobium etli (Jans et al., 2013), Sinorhizobium meliloti (Valverde et al., 2008) and Brucella abortus (Kim et al., 2014). The prediction of GsrN homologs in Rhodopseudomonas palustris and Bradyrhizobium diazoefficiens is completely based on the proximity of a GsrN-like sequence to the GSR locus and the presence of a σecfG-binding site in the predicted promoters of these predicted genes.

Mapping reads from RNA-seq data

RNA-seq read files (fastQ) were aligned with sequence files (fastA) using bowtie 2.0 (Langmead and Salzberg, 2012). SAMTools was then used to calculate the depth and coverage of each nucleotide in the hit output file from bowtie 2.0 (Li et al., 2009). Normalization of reads per nucleotide was computed by normalizing each count to the per million total number of reads mapped to all of the CP001340.1 genome. Normalized reads per nucleotide was then plotted in Prism v6.04 where standard error and mean were calculated.

RNA-seq analysis of mRNAs that co-elute with GsrN

RNA-seq read files (fastQ) from the three replicate GsrN(37)::PP7hp purifications and duplicate PP7hp-GsrN-3’ purifications were quantified and analyzed with Rockhopper 2.0 (Tjaden, 2015). Reads were mapped to modified C. crescentus genome files (fastA, PTT, RNT) where the wild-type gsrN locus was replaced with the sequence of gsrN(37)-PP7hp. Using the ‘verbose output’ option and the resulting ‘transcripts.txt’ file, we pruned the dataset to find genes that had low FDR values (‘qValue’<0.05), were significantly enriched in GsrN(37)::PP7 (‘Expression GsrN(37)-PP7hp’ > ‘Expression PP7hp-GsrN-3’”), and had a high total number of reads that mapped to GsrN(37)::PP7 (‘Expression GsrN(37)-PP7hp’>1000). This analysis provided a list of 35 candidate genes (Figure 5—source data 1).

The Rockhopper analysis package organizes reads into IGV (integrative Genomic Viewer) files. Upon visual inspection and spot validation of the 35 candidates in IGV, we found 26 genes with consistently higher signal across the three GsrN(37)::PP7hp purifications relative to PP7hp-GsrN-3’ control fractions. In some cases, reads mapped outside coding sequences. Such reads mapped proximal to the 5’ end of annotated genes and to intergenic regions. We observed uneven read distribution across some annotated genes. Cases in which reads were not evenly distributed across a gene were typically not classified as significantly different from the control samples in ‘Expression’ or ‘qValue’ by Rockhopper even when a clear bias in read density was visually evident (most often at the 5’ end of the gene).

As a second approach, we performed a systematic window annotation analysis to capture the unaccounted read density differences between the two purified fractions (GsrN(37)::PP7hp and the PP7hp-GsrN-3’ negative control). Windows were generated by in silico fragmentation of the C. crescentus NA1000 genome sequence, designating 25 base pair windows across the genome. We prepared new annotated window files (FASTA, PTT, RNT) for wild-type, gsrN(37)-PP7hp, and PP7hp-gsrN-3’. The window identification number corresponds to the same sequence across the three different FASTA sequences.

Mapping and quantification of reads to these windows was conducted using the EDGE-pro analysis pipeline (Magoc et al., 2013). A caveat of EDGE-pro quantification is the potential misattribution of reads to input windows. EDGE-pro quantification does not take strand information into account when mapping reads to input windows.

Read quantification of the gsrN(37)::PP7hp purifications showed consistent differences in one of the three samples. gsrN(37)::PP7hp sample 1 contained 2.69% reads mapped to gsrN(37)-PP7hp while samples 2 and 3 had 15.78% and 14.04% mapped to gsrN(37)-PP7hp respectively. Additionally, we observed that sample one had several genes that were strongly enriched in sample one and not in sample 2 and 3. Thus we employed a metric to balance the discrepancies between the three separate purifications. To minimize potential false positives, we calculated the average of all three samples and the average of samples 2 and 3. If the total average was 1.5 times greater than the samples 2 and 3 average, we assumed that the sample one artificially raised the average RPKM value and did not consider any data from any of the purifications in that specific window. The total window population decreased from 161713 windows to 109648 windows after this correction. This process is reflected in the https://github.com/mtien/Sliding_window_analysis script ‘remove_high_variant_windows.py’ (Tien, 2017b).

From the RPKM values calculated with EDGE-pro, we used the R-package, DESeq (Anders and Huber, 2010), to assess statistically significant differences between windows of expression. Candidate windows enriched in the GsrN(37)::PP7 fractions were identified using metrics similar to what is applied to traditional RNA-seq data. Briefly, we identified windows that had a low p-values (pvalue <0.10), were enriched in the GsrN(37)::PP7 (‘baseMean GsrN(37)-PP7hp’ > ‘baseMean PP7hp’), and had a high level of reads mapped to the gene in the GsrN(37)::PP7 (‘baseMean GsrN(37)-PP7hp’>1000) (Figure 5—source data 2). Since the read density of windows from the total RNA extracted from the PP7-purification did not converge when estimating dispersion with a general linear model, we added total RNA seq read density from wild-type strains grown in stationary phase to help model the dispersion for the negative binomial analysis by DESeq, GSE106168.

Adjacent significant windows were then combined and mapped onto the annotated genome of C. crescentus. In order to correct for strand information lost in EDGE-pro quantitation, bowtie file information was used to define the strand of reads mapped to combined significant windows (Table 1).

RNA-seq processing of total RNA

Analysis of whole genome RNA-seq data was conducted using the CLC Genomics Workbench (Qiagen). Reads were mapped to the C. crescentus NA1000 genome (accession CP001340.1) (Marks et al., 2010). Differential expression was determined using Wald test in the CLC Workbench suite (Figure 8—source data 2).

LC-MS/MS processing of total soluble protein

Raw files of LC-MS/MS data collected on wild-type, ΔgsrN, and gsrN++ were processed using the MaxQuant software suitev1.5.1.2 (Cox et al., 2014). Samples were run against a FASTA file of proteins from the UniProt database (UP000001364) and standard contaminants. The label free quantitation (LFQ) option was turned on. Fixed modification included carbamidomethyl (C) and variable modifications were acetyl or formyl (N-term) and oxidation (M). Protein group files were created for three comparisons: wild-type versus ΔgsrN, ΔgsrN versus gsrN++, and wild-type versus gsrN++ samples.

LFQ values for each protein group were compiled across all three runs and used as estimated protein quantities in our analyses (Figure 8A). Each strain had a total of 6 LFQ values for every protein group, two from each of the comparisons. Average LFQ values were only calculated if three or more LFQ values were found for a given protein group. This allowed for protein groups that had a sufficient amount of signal across all the samples and analyses to be considered for comparison. Once averages for each protein group were calculated, we calculated the fold change between samples from different backgrounds by dividing the averages and taking the log-2 transformation (log2Fold).

Multiple t-tests were conducted using all 6 LFQ value obtained across the three MaxQuant runs. We used the multiple t-test analysis from GraphPad Prism version 6.04 for MacOS, GraphPad Software, La Jolla California USA, www.graphpad.com. The false discovery rate (Q) value was set to 5.000% and each row was analyzed individually, without assuming a consistent SD.

Data and software availability

IterativeRank and RhoNetwork python libraries are available on https://github.com/mtien/IterativeRank. A copy is archived at https://github.com/elifesciences-publications/IterativeRank.

Scripts used to analyze the total RNA reads from the PP7-affinity purification are available on https://github.com/mtien/Sliding_window_analysis. A copy is archived at https://github.com/elifesciences-publications/Sliding_window_analysis.

RNA-seq data of wild-type, ΔgsrN, and gsrN++ early early stationary cultures are deposited in the NCBI GEO database under the accession number GSE106168.

RNA-seq affinity purification data have been deposited in the NCBI GEO database under accession number GSE106171.

LC-MS/MS data is available on the PRIDE Archive EMBL-EBI under the accession number PXD008128


  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
    Biological properties and classification of the caulobacter group
    1. JS Poindexter
    Bacteriological Reviews 28:231–295.
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
    Iterative Rank
    1. MZ Tien
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. Michael T Laub
    Reviewing Editor; Massachusetts Institute of Technology, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Gene network analysis identifies a central post-transcriptional regulator of cellular stress survival" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Michael Laub as the Reviewing Editor and Gisela Storz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Kai Papenfort.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In this manuscript, Tien et al., identified and characterized a new small regulatory (sRNA), called GsrN, in Caulobacter crescentus. Transcription of the gsrN gene is activated by the alternative σ factor, σ T, and GsrN is required for resistance against hydrogen peroxide and under hyperosmotic stress. In the cell, the GsrN sRNA accumulates in two isoforms: an unstable full-length variant and a stable 5' element, which is sufficient for hydrogen peroxide stress survival. Evidence is provided that generation of the stable 5' variant of the sRNA might require an endonucleolytic cleavage event (though see comments below). Using a 'pull-down' approach, the authors discover the katG mRNA as a direct interaction partner of GsrN and identify a base-pairing sequence involving five consecutive G-C base-pairs. GsrN increases KatG expression under regular as well as stress conditions, and this regulation might also be relevant in other stress settings. Overall, the article was well written, and the conclusions well supported by the data. The reviewers were particularly excited about the magnitude of the phenotype as few sRNAs in bacteria have strong null phenotypes. Although generally enthusiastic, the reviewers identified several issues that would need to be addressed in a revised manuscript

Essential revisions:

1) In other bacteria, many trans-acting sRNAs that regulate targets by short base pairing, these sRNA-mRNA interactions are mediated by Hfq or ProQ-like proteins. This is never really discussed or tested in the manuscript even though the GsrN-katG is suspiciously short, hinting at the potential requirement for such an RNA chaperone. The authors should interrogate available RNA-seq data of a Caulobacter Δhfq mutant from the Jacobs-Wagner lab (PMID:28827812) to at least comment on a potential Hfq dependence of the regulations reported here.

2) Table 1 and Figure 6: Given the G-C sequence stretch required for GsrN-katG pairing, I was wondering how many of the other predicted targets would have similar G-rich elements available for base-pairing? In general, the part on other potential targets of GsrN (subsection “GsrN is a general regulator of stress adaptation”) is a bit of a loose end, so the authors should substantially update/improve this section or consider deleting and developing it for presentation in a follow-up paper.

3) Subsection “GsrN is endonucleolytically processed into a more stable 5’ Isoform”, Figure 3 and Figure 3—figure supplement 1: I think these experiments are yet insufficient to determine the mechanism of how the two isoforms are generated. First, it is surprising that using a primer specific to the gsrN 3' end allows for the determination of the sRNA cleavage site in primer extension analysis, whereas no 3'end derived transcript was detected on Northern Blots. Second, the rifampicin experiments are not fully convincing, given that the 5S rRNA also decrease in the experiments. In general, it would be useful to confirm these data through additional experiments (e.g. differential 5' RACE experiments – e.g. see: PMID:8755555).

4) Figure 7A vs. B: The differences in katG mRNA vs. protein levels are difficult to understand: while the difference in katG mRNA levels are rather minor, KatG protein levels are >2-fold decreased in the gsrN mutant under steady state conditions. Conversely, treatment of WT cells increase katG mRNA levels by ~5-6 fold, while protein levels only change by ~1.5-fold. Please provide an explanation for this discrepancy.

5) There is no proposed model for how the interaction of GsrN basepairing to the 5' end of the katG mRNA (180 nt away from the translation start site?) can alter translation. This should be addressed.


Author response

Essential revisions:

1) In other bacteria, many trans-acting sRNAs that regulate targets by short base pairing, these sRNA-mRNA interactions are mediated by Hfq or ProQ-like proteins. This is never really discussed or tested in the manuscript even though the GsrN-katG is suspiciously short, hinting at the potential requirement for such an RNA chaperone. The authors should interrogate available RNA-seq data of a Caulobacter Δhfq mutant from the Jacobs-Wagner lab (PMID:28827812) to at least comment on a potential Hfq dependence of the regulations reported here.

To address the role of Hfq, we added a supplementary figure to Figure 3 (Figure 3—supplementary figure 2). This figure reports results from experiments in which we probed GsrN isoform levels as a function of deletion and overexpression of hfq. Importantly hfq affects processing of GsrN: overexpression of hfq enhances the full-length isoform and deletion results in a depletion of full-length GsrN. We also added a short paragraph in our Results section to address this new piece of data.

We also analyzed the RNA-Seq data of PMID:28827812. However, the read-density at the gsrN locus in this study is low, and thus not useful for GsrN analysis. Low GsrN reads could be due to differences in RNA preparation techniques and/or media differences between our two studies. We used a defined minimal medium to conduct all of our phenotypic assays and extractions for northern blot analysis, while PMID:28827812 used complex peptone-yeast extract medium for their RNA-seq studies.

2) Table 1 and Figure 6: Given the G-C sequence stretch required for GsrN-katG pairing, I was wondering how many of the other predicted targets would have similar G-rich elements available for base-pairing? In general, the part on other potential targets of GsrN (subsection “GsrN is a general regulator of stress adaptation”) is a bit of a loose end, so the authors should substantially update/improve this section or consider deleting and developing it for presentation in a follow-up paper.

To address the number of other predicted targets that would have similar G-rich elements available for base-pairing we added a statement in our summary of the GsrN-PP7 RNA-Seq study. Furthermore, we have added a column to Table 1 that provides the predicted nucleotides that interact with GsrN from IntaRNA analysis. Already provided is the FASTA file (Figure 5—Source data 3) of the predicted binding site of each entry in Table 1 so that readers may enter this file as well as GsrN’s sequence in the IntaRNA online tool.

3) Subsection “GsrN is endonucleolytically processed into a more stable 5’ Isoform”, Figure 3 and Figure 3—figure supplement 1: I think these experiments are yet insufficient to determine the mechanism of how the two isoforms are generated. First, it is surprising that using a primer specific to the gsrN 3' end allows for the determination of the sRNA cleavage site in primer extension analysis, whereas no 3'end derived transcript was detected on Northern Blots. Second, the rifampicin experiments are not fully convincing, given that the 5S rRNA also decrease in the experiments. In general, it would be useful to confirm these data through additional experiments (e.g. differential 5' RACE experiments – e.g. see: PMID:8755555).

To address the first statement “no 3’end derived transcript was detected on Northern Blots”, these smaller 3’ isoform products are seen in our blots with the 3’ probe, but at very low levels. The blot in Figure 3—figure supplement 1A is exposed to reveal these minor species. We have changed Figure 3—figure supplement 1A to more explicitly show the 3’isoform of GsrN. We also added a sentence to the main text to highlight this result. It is noteworthy that the size of these minor species is consistent with isoforms bearing the termini mapped by primer extension from the 3’ end and by 5’RACE (below).

Second, we agree that our rifampicin experiment is an indirect way to evaluate endonucleolytic processing of GsrN. Nevertheless, the results of this experiment, in particular the increase of the 5’ isoform after rifampicin treatment corresponds to a decrease of the full-length isoform, are consistent with a model of processing.

Finally, per the reviewer’s suggestion, we conducted differential 5’RLM-RACE. We were able to obtain 5’RACE products with termini that correspond to the two 3’ isoforms observed in Figure 3—figure supplement 1A in untreated (no TAP) total RNA samples from gsrN++. Their presence in no-TAP samples supports a model of an endonucleolytic cleavage origin for the termini. We summarized our results in Figure 3—figure supplement 1E. Together, multiple lines of evidence support the existence of 3’ isoforms generated by endonucleolytic processing.

4) Figure 7A vs. B: The differences in katG mRNA vs. protein levels are difficult to understand: while the difference in katG mRNA levels are rather minor, KatG protein levels are >2-fold decreased in the gsrN mutant under steady state conditions. Conversely, treatment of WT cells increase katG mRNA levels by ~5-6 fold, while protein levels only change by ~1.5-fold. Please provide an explanation for this discrepancy.

The reviewer raises an important point. We have added an additional paragraph to discuss these trends. katG mRNA is induced ~5-fold by hydrogen peroxide in both wild-type and gsrN mutants; we attribute this to OxyR-dependent activation (independent of gsrN). Although, katG transcript and protein levels do not scale 1:1, both are induced by hydrogen peroxide in wild-type and gsrN++ strains. In cells lacking gsrN, katG transcript is induced by peroxide yet KatG protein does not change significantly. This suggests that translation of katG mRNA is sensitive to GsrN.

Given the 15-minute treatment, we are not sure that one should expect the same fold change in message and protein levels. Our results may reflect that transcript accumulates more quickly than protein, and/or that the katG message is not translated efficiently.

5) There is no proposed model for how the interaction of GsrN basepairing to the 5' end of the katG mRNA (180 nt away from the translation start site?) can alter translation. This should be addressed.

To address this point, we emphasize how other sRNAs in that bind the 5’UTR of their mRNA targets activate expression. Specifically, we cite how RydC and FasX stabilize their mRNA targets, RepG blocks stand-by ribosome sequences upstream of the SD, and VR-RNA stabilizes colA through processing the 5’UTR which stabilizes the transcript.


Article and author information

Author details

  1. Matthew Tien

    Department of Biochemistry and Molecular Biology, University of Chicago, Chicago, United States
    Conceptualization, Software, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-0006-9644
  2. Aretha Fiebig

    Department of Biochemistry and Molecular Biology, University of Chicago, Chicago, United States
    Conceptualization, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Sean Crosson

    1. Department of Biochemistry and Molecular Biology, University of Chicago, Chicago, United States
    2. Department of Microbiology, University of Chicago, Chicago, United States
    Conceptualization, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-1727-322X


National Institutes of Health (1R01GM087353)

  • Sean Crosson

National Institutes of Health (U19AI107792)

  • Sean Crosson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.


This project was supported by awards U19AI107792 (NIAID Functional Genomics Program) and 1R01GM087353 from the National Institutes of Health. We would like to thank members of the Crosson Lab for their contributions and input over the course of this project. The lab of Tao Pan provided important support in development of nucleic acid methods and lending equipment, most notably M.E. Evans and K.I. Zhou. Ruthenberg lab provided PP7 coat protein plasmids.

Reviewing Editor

  1. Michael T Laub, Reviewing Editor, Massachusetts Institute of Technology, United States

Publication history

  1. Received: November 18, 2017
  2. Accepted: March 13, 2018
  3. Accepted Manuscript published: March 14, 2018 (version 1)
  4. Version of Record published: March 26, 2018 (version 2)


© 2018, Tien et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.


  • 1,145
    Page views
  • 194
  • 0

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Robert A Battaglia, Ailong Ke
    1. Biochemistry and Chemical Biology
    Susanne Müller et al.
    Feature Article
