Abstract

CRISPR/Cas9 can be used for precise genetic knock-in of epitope tags into endogenous genes, simplifying experimental analysis of protein function. However, Cas9-assisted epitope tagging in primary mammalian cell cultures is often inefficient and reliant on plasmid-based selection strategies. Here, we demonstrate improved knock-in efficiencies of diverse tags (V5, 3XFLAG, Myc, HA) using co-delivery of Cas9 protein pre-complexed with two-part synthetic modified RNAs (annealed crRNA:tracrRNA) and single-stranded oligodeoxynucleotide (ssODN) repair templates. Knock-in efficiencies of ~5–30%, were achieved without selection in embryonic stem (ES) cells, neural stem (NS) cells, and brain-tumor-derived stem cells. Biallelic-tagged clonal lines were readily derived and used to define Olig2 chromatin-bound interacting partners. Using our novel web-based design tool, we established a 96-well format pipeline that enabled V5-tagging of 60 different transcription factors. This efficient, selection-free and scalable epitope tagging pipeline enables systematic surveys of protein expression levels, subcellular localization, and interactors across diverse mammalian stem cells.

https://doi.org/10.7554/eLife.35069.001

eLife digest

Genes are often referred to as the blueprints of life. Understanding the role of the genes in human cells is one of the major goals of biology. Recent advances in gene editing technologies, such as CRISPR/Cas9, mean scientists can now edit or delete precise sections within human genes, similar to how we edit words in a document on a computer. This has made it possible to insert small sequences that encode specific “tags” into genes. This in turn means that when a protein is built following the instructions in the gene, the protein includes the tag too, making it easy to monitor.

Tags on proteins can help scientists understand what those proteins do by answering various questions, such as: where is the protein found in the cell? How much of the protein is there in each cell? Does this change as the cell matures? What does the protein interact with? Yet, more research could be done if the tagging process was made easier, quicker and more efficient.

Dewari et al. have now come up with an improved gene editing approach that enabled them to rapidly tag hundreds of proteins all at the same time, with efficiencies that were much higher than expected based on previous approaches. The strategy uses common “off the shelf” reagents that can be designed with a new user-friendly, web-based tool called “Tag-IN”. Dewari et al. focused on optimizing their method in freshly grown stem cells, originally collected from mice and humans. They then went on to show the scalability and efficiency of this approach by tagging 60 different proteins in brain stem cells from mice.

Now, rather than being limited to a handful of genes of interest, scientists can explore large families of genes in a variety of mouse and human cells in a much quicker and more comprehensive manner. Also, working with stem cells that can be freshly collected from individuals rather than cells that have been grown in the laboratory for a long time will be more useful for biological and disease studies. In the long-term, more knowledge of how protein-coding genes work in different human cells will benefit patients as new drugs or therapeutic targets are discovered.

https://doi.org/10.7554/eLife.35069.002

Introduction

Defining the protein levels, subcellular localisation and biochemical interactions for the >20,000 protein-coding genes in the mammalian genome remains a formidable challenge. Ideally, these would be explored across diverse primary cells – rather than genetically transformed and corrupted cell lines. Large-scale projects, such as the human protein atlas, have performed systematic characterisation of antibodies against native proteins (Thul et al., 2017). However, there are inherent difficulties in discovering, validating and distributing high-quality antibodies that cover all species and key applications (e.g. immunoblotting, immunoprecipitation, ChIP-Seq and immunocytochemistry).

A complementary strategy is to use epitope tagging: the fusion of small peptide-coding sequences to a protein of interest (e.g. 3XFLAG, HA, V5, and Myc) (Jarvik and Telmer, 1998). In contrast to plasmid-driven cDNA overexpression, which creates artificially high-protein levels, the knock-in of small epitope tags to endogenous genes provides physiologically relevant levels. A small set of pre-validated tag-specific antibodies is then used across diverse downstream experimental applications. This has been a key tool in yeast studies, resulting in global characterization of core protein complexes and their extensive interaction networks (Gavin et al., 2006; Krogan et al., 2006). However, to date this approach has not been widely adopted in mammalian cells, primarily due to the poor efficiency of homologous recombination (HR). Repurposed programmable nucleases now provide a potential solution.

Formation of a site-specific DNA double-strand break (DSBs), will massively enhance HR-mediated repair. This has become straightforward with the discovery and application of clustered regularly interspaced short palindromic repeats (CRISPR) and CRISPR-associated (Cas) proteins as designer site-specific nucleases. CRISPR/Cas9 was uncovered as a form of microbial adaptive immunity (Bhaya et al., 2011) that has been repurposed for genome editing in mammalian cells (Cong et al., 2013; Doudna and Charpentier, 2014).

Cas9 is an RNA-guided endonuclease that binds complementary DNA via formation of a 20 bp RNA:DNA heteroduplex. Stable binding of Cas9/gRNA complex at the target site leads to activation of nuclease domains and formation of a double-stranded DNA break (DSB) (Jinek et al., 2014). DSBs are predominantly repaired through the error-prone non-homologous end joining (NHEJ) pathway, resulting in insertion or deletion mutations (indels) (Sander and Joung, 2014). Alternatively, at lower frequencies HR-mediated repair will occur.

Successful knock-in of tags, therefore, requires co-delivery of three ingredients to the mammalian cells: the Cas9 protein, a guide RNA, and a donor repair template (i.e. single or double-stranded DNA encoding the tag or reporter with homology arms). These CRISPR components are typically delivered via transient plasmid transfection or viral vectors. Bespoke targeting vector plasmids are usually constructed for delivery of large cargoes or conditional alleles. Selection strategies, such as flow cytometry or use of antibiotic resistance cassettes, are then used to enrich for edited cells.

Despite the successes of current approaches (Dalvai et al., 2015; Savic et al., 2015; Mikuni et al., 2016; Xiong et al., 2017), it is clear that many bottlenecks restrict widespread applications; (i) Production of tailored plasmids for each component can be tedious and time-consuming; (ii) Plasmid-based selection strategies introduce additional regulatory elements that can disrupt normal regulatory processes; (iii) Plasmid DNA, either Cas9/gRNA expression vectors or targeting vectors, can randomly integrate in the genome causing insertional mutagenesis or increasing risks of off-target cleavage (Kim et al., 2014; Liang et al., 2015); (iv) current strategies are often not readily scalable to enable routine exploration of large numbers of genes; (v) recovery of biallelic clonal lines is inefficient. Thus, there remains an unmet need for improved knock-in strategies that can work efficiently in primary mammalian cells, such as pluripotent (ES/iPS), multipotent (tissue stem cells) and cancer stem cells.

Improved efficiencies of CRISPR editing in mammalian cells have been demonstrated using recombinant Cas9 protein (Kim et al., 2014; Ramakrishna et al., 2014; Bressan et al., 2017). Cas9 protein is complexed with in vitro-transcribed (IVT) RNA, to produce a ribonucleoprotein (RNP) complex that can be then delivered into cells. The RNPs are short-lived and cleared by cells within 24–48 hr, reducing the risk of both formation of mosaic clones or off-target cleavage (Kim et al., 2014; Lin et al., 2014; Zuris et al., 2015; Cameron et al., 2017). However, RNP-assisted methods have mainly been used for gene knock-out (Kim et al., 2014; Liang et al., 2015), incorporation of point mutations (Ma et al., 2017; Rivera-Torres et al., 2017), or knock-in of restriction enzyme sites (Lin et al., 2014; Schumann et al., 2015). We and others have recently made use of RNP with in vitro-transcribed (IVT) sgRNAs for CRIPSR epitope tagging (Bressan et al., 2017; Liang et al., 2017), yet the efficiencies in the absence of selection are highly variable, and this approach cannot be scaled.

To avoid IVT, chemically modified ~100 nt-long sgRNAs can be synthesised (Hendel et al., 2015); however, these are prohibitively expensive, limiting applications. Alternatively, a two-part, chemically synthesised, short target-specific crRNA plus a longer generic tracrRNA can be used. This is cheaper (only the crRNA needs to be resynthesised for new targets) and has better performance (Aida et al., 2015; Anderson et al., 2015). This ‘dual-RNA’ approach has been advanced further by ‘base, backbone and end’ modifications of cr/tracrRNAs (Rahdar et al., 2015; Kelley et al., 2016) and also by the use of shorter and more effective modified cr/tracrRNAs (Jacobi et al., 2017). Modified synthetic cr/tracrRNAs are resistant to nuclease digestion, limit cellular immune responses, have greater stability, and therefore provide enhanced targeting efficiency (Jacobi et al., 2017).

Here, we explored whether RNPs with synthetic modified two-part guide RNA can enhance efficiency of epitope tagging in mammalian stem cells. We find that co-delivery of a Cas9 RNP (dual-synthetic RNA) with ~200 bp single-stranded oligodeoxynucleotides (ssODNs) supports highly efficient epitope tagging. This is achieved across a variety of stem cell types without any requirement for plasmids, selection steps, flow-cytometry-based enrichment, or IVT reactions. To provide a proof-of-principle, we developed a novel web-based design tool and demonstrate effective tagging in 96-well plate format. We demonstrate one application, by identifying Olig2 protein partners using immunoprecipitation-mass spectrometry (IP-MS).

Results

Cas9 protein complexed with synthetic cr/tracr RNAs enables highly efficient epitope tagging in neural and glioma stem cells

sgRNAs produced by IVT reactions can vary in quality and quantity and are prone to degradation, either during production and/or following delivery into cells. We therefore explored a synthetic modified two-part guide RNA system (annealed 36-mer crRNA: 67-mer tracrRNA) (Anderson et al., 2015; Jacobi et al., 2017).

Guide RNAs were designed to cut proximal to the stop codon in the 3’ UTR of Olig2 or Sox2 (Figure 1A). The efficacy of custom synthetic modified RNAs (csRNAs) was compared to IVT-generated sgRNAs. RNA was complexed with recombinant Cas9 protein and transfected into an adult mouse neural stem (NS) cell line (ANS4), using an optimised nucleofection program. RNP was delivered together with a ~ 200 bp single-stranded DNA donor encoding the V5 tag, flanked with ~70 nucleotide homology arms (Figure 1B). After 5 days, cells were analysed using immunocytochemistry (ICC) for the V5 fusion protein (Figure 1C). The csRNA-based RNP (csRNP) gave a >4-fold and >10-fold increase in V5 knock-in efficiency for Olig2 and Sox2, respectively (Figure 1D). Improved knock-in efficiencies were also obtained using an independent cell line (glioma-initiating neural stem cells; termed GNS) (Figure 1D). PCR genotyping and Sanger sequencing confirmed in-frame and error-free insertion of V5 tag sequence at the C-terminus of Olig2 and Sox2 loci (Figure 1—figure supplement 1A). V5-positive cells all displayed the anticipated nuclear localisation and levels with no indication of non-specific expression.

Figure 1 with 2 supplements see all
Cas9 protein in complex with synthetic cr/tracrRNAs enables highly efficient knock-in of biochemical tags in mouse neural and glioma stem cells.

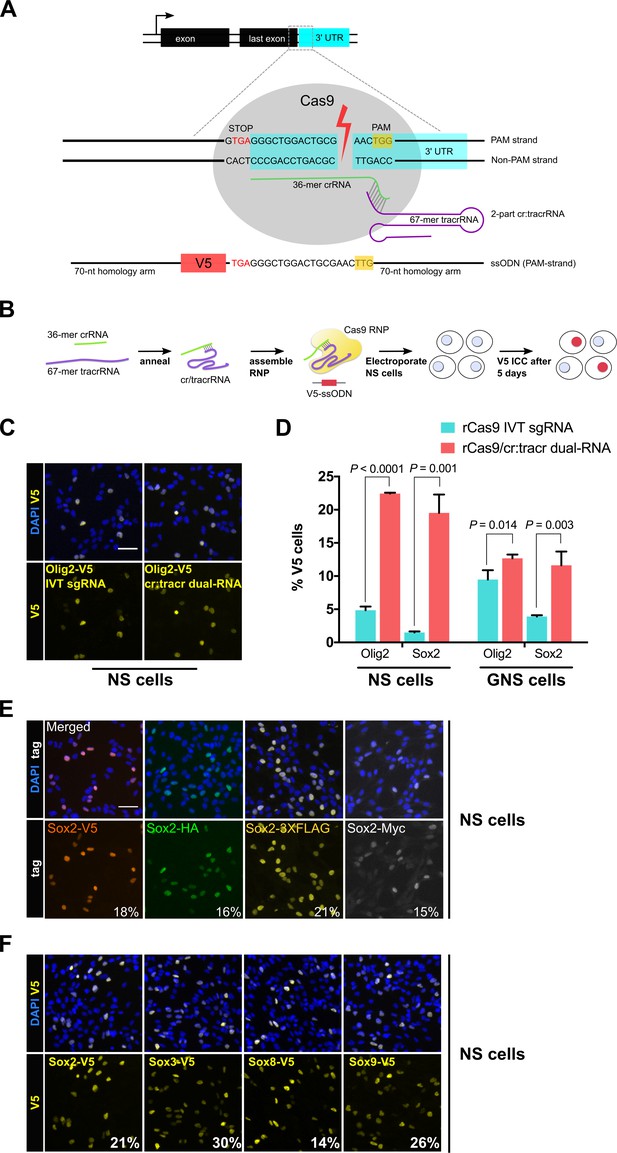

(A) Schematic representation of epitope knock-in strategy. A crRNA was designed against the 3’UTR of each target gene. Target site with double-stranded break is shown with Cas9 RNP (grey), PAM in yellow box, and single-stranded donor DNA that harbours PAM-blocking mutations and V5 tag coding sequence flanked by 70-mer homology arms on both sides. (B) Cas9 RNP complexes were assembled in vitro by incubation of recombinant Cas9 protein with either IVT sgRNA or synthetic two-part cr:tracrRNA and electroporated into NS cells. V5 ICC was used to quantify knock-in. (C) Representative ICC images for the detection of Olig2-V5 fusion protein in the bulk populations of transfected cells. (D) HDR-mediated insertion of V5 tag was determined by scoring V5-positive cells (%) in the bulk populations of transfected cells. Results from three independent experiments are shown for Sox2 and Olig2 V5 tagging using mouse neural stem (NS) and glioma-initiating neural stem (GNS) cells. Error bars indicate standard deviation values based on a minimum of two experiments, p-values were derived using unpaired t test. (E) ICC for Sox2 gene epitope tagging at the C-terminus with V5, HA, 3XFLAG, or Myc epitope. Numbers represent percentage of tagged cells in the bulk population for each tagging experiment. (F) Representative bulk population V5 ICC images for Sox2, Sox3, Sox8, and Sox9 V5 knock-in are shown. Average knock-in efficiency from two independent experiments is shown at the bottom (numbers in white).

https://doi.org/10.7554/eLife.35069.003

Knock-in efficiency might vary when using distinct biochemical tags. We therefore tested a variety of widely used alternative tags (V5, HA, 3XFLAG, or Myc). Each tag varied substantially in size, and consequently homology arm length (Table 1). Nevertheless, we observed similar rates of knock-in (15–21%) across all four tags for Sox2 (Figure 1E; Table 1). An independent adult NS cell culture also gave similar results (9–15% knock-in efficiency, Figure 1—figure supplement 1B).

Table 1
Larger cargos (3XFLAG) could be inserted with high knock-in frequency at mouse Sox2 locus.
https://doi.org/10.7554/eLife.35069.007
Mouse NS cells (ANS4)
TagTag size (bp)Homology arms (bp)Knock-in efficiency (%)
3XFLAG666721.2
V5427917.6
Myc308514.9
HA278615.8
Mouse NS cells (BL6)
TagTag size (bp)Homology Arms (bp)Knock-in efficiency (%)
3XFLAG666713.7
V5427913.9
Myc30859
HA278614.6

High knock-in efficiencies were not limited to Sox2 and Olig2. We found that Sox3, Sox8, and Sox9 – three Sox family members that are expressed in NS cells – had knock-in efficiencies of 30%, 14% and 26%, respectively (Figure 1F; Figure 1—figure supplement 1C and Figure 1—figure supplement 2A). Furthermore, we could simultaneously knock-in two different tags (Sox2: HA tag; and Olig2: V5 tag) in the same cells using a single transfection (4% double-positive cells, Figure 1—figure supplement 2B).

Altogether, these results indicate that use of the modified two-part synthetic cr/tracrRNA system is more effective than IVT for epitope knock-in in mammalian NS and GNS cells. Using csRNP delivery, we achieved 5–30% knock-in efficiency across distinct cell lines for different genes and using different tags. Notably, this was accomplished without the requirement for flow cytometry or plasmid-based selection strategies.

The high frequency of knock-in using csRNP facilitates simple recovery of biallelic-tagged clonal lines

Generation of biallelic-tagged clonal lines could be advantageous for downstream applications, as all target protein will be tagged, enabling improved signal-to-noise ratios in assays. Low efficiency of tagging requires screening of hundreds or thousands of clones that need to be screened and genotyped, limiting downstream applications. Heterozygous lines might also harbour indels on the other non-HR untagged allele (Merkle et al., 2015; Bressan et al., 2017), which may cause inappropriate transcriptional/post-transcriptional regulation.

The improved knock-in efficiency using the csRNP method encouraged us that recovery of biallelic clonal lines might be straightforward. Clonal NS cell lines were established from bulk tagged populations following single-cell deposition to 96-well plates. Tagged clones were then identified following replica plating and ICC for V5 tag (Figure 2A). Biallelic clones were scored using PCR primer-pairs flanking the tag sequence (Figure 2B) and validated using ICC and Sanger sequencing (Figure 2C; Figure 2—figure supplement 1).

Figure 2 with 1 supplement see all
Bi-allelic knock-in clonal lines can be readily generated.

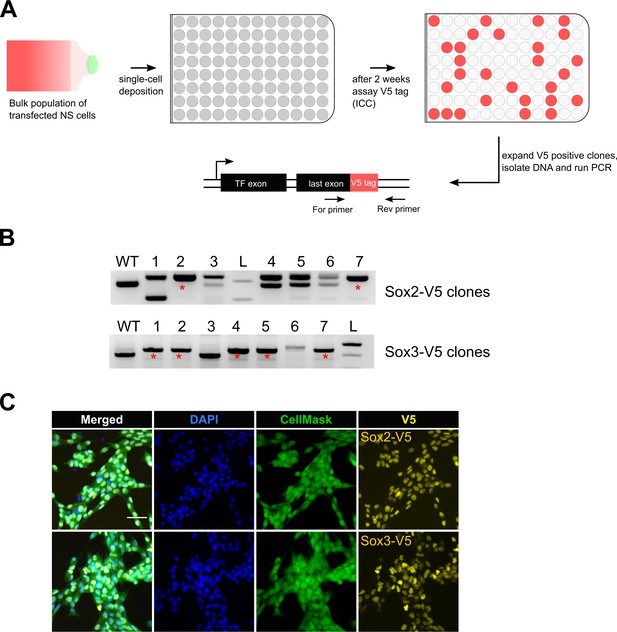

(A) Experimental workflow for generating clonal lines. Cells from the bulk population cultures were single-cell deposited to 96-well plates using flow cytometry. Two weeks later, V5-positive clones were selected by ICC assay and confirmed by PCR genotyping. (B) Representative agarose gel pictures for Sox2-V5 and Sox3-V5 PCR genotyping are shown. Wild-type unedited cells (control) are marked with WT; 1 kb+ DNA ladder is marked with L; bi-allelic clones are marked with red asterisks. (C) ICC images of bi-allelic V5 knock-in clones are shown for Sox2 and Sox3 TFs. Nuclear stain DAPI (blue), entire cell stain CellMask HCS (green), and V5 tag (yellow) are shown.

https://doi.org/10.7554/eLife.35069.009

Eighty-nine clonal lines were generated from the Sox2-V5 knock-in cells. Thirteen of these were V5-positive by ICC and 11 were correctly targeted as confirmed by PCR (Table 2). Of these four had successfully integrated the V5 tag sequence at both alleles (30% of V5-positive clones) (Table 2). High frequencies of bi-allelic knock-in were also obtained for Sox3-V5 (62.5%). We also derived several biallelic knock-in lines from another independent cell line (IENS, mouse GNS cells): Sox2, Sox3, Sox8 and Sox9 (7%, 26%, 57%, and 15% biallelic knock-in of V5-positive clones, respectively) (Table 2). Thus, biallelic-tagged clonal lines can be readily recovered.

Table 2
Summary of knock-in lines generated using csRNP delivery.

Table summarising knock-in lines derived from mouse NS and GBM-model cells. The percentage bi-allelic knock-in among all V5-positive clones, as confirmed by PCR genotyping, is listed in the last column.

https://doi.org/10.7554/eLife.35069.011
Cell typeGeneColonies pickedV5 positive (ICC)Correctly targeted (PCR)Bi-allelic clones by PCR (% of total V5 positive)
Mouse NS cellsSox28913114 (30.8%)
Sox355865 (62.5%)
Mouse GBM-model cellsSox224214141 (7.1%)
Sox39619185 (26.3%)
Sox896764 (57.1%)
Sox946946417 (15.2%)
Foxk296221 (50%)

Multiple stem cell-types can be epitope-tagged using csRNPs, including non-expressed genes

To test the general applicability of the csRNP tagging method across other types of stem cells, we compared head-to-head tagging efficiencies between mouse ES cells and NS cells. We initially focussed on four transcription factors (TFs): Sox2, Sox3, Ctcf and Pou3f1, and the chromatin regulator Ezh2; each of these is expressed in both cell types. In each case, we found that mouse ES cells (E14Tg2a) were tagged at similar level of efficiency to the NS cells (knock-in efficiency range 6–11%, Figure 3A,B).

Figure 3 with 1 supplement see all
| Variety of cell types can be epitope-tagged using RNP method.

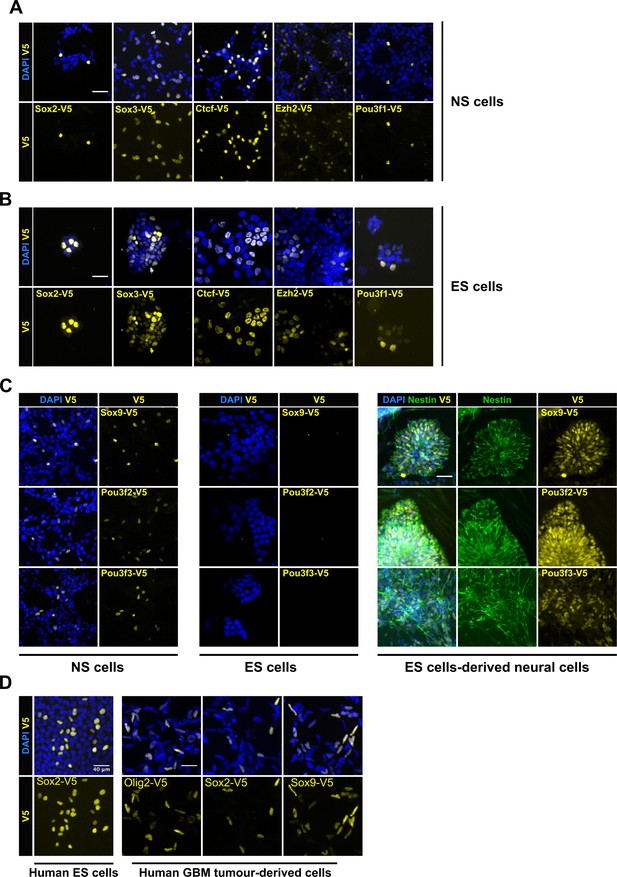

Representative V5 ICC images are shown for V5 tagging of five TFs that are expressed in both mouse NS cells (A) and ES cells (B). V5 ICC images for the three neural-specific TFs Sox9, Pou3f2, and Pou3f3 in mouse NS cells (Figure C, left panel). Mouse ES cells were electroporated with similar three TF-reagents (Figure C, middle panel). Later, ES bulk populations of non-expressed TFs were differentiated into neural lineage and assayed for expression of TF-V5 fusion proteins by ICC (Figure C, right panel). Differentiation into neural stem progenitors was confirmed by Nestin ICC (in green), only V5-positive rossettes for each of the three genes are shown. (D) V5 ICC images for epitope tagging using human ES cells and GBM patient-derived cell lines.

https://doi.org/10.7554/eLife.35069.013

Non-expressed genes are often difficult to engineer. We therefore tested csRNPs for several neural-affiliated TFs (Sox9, Pou3f2, and Pou3f3) that are expressed in NS cells but not ES cells (Figure 3C). V5 insertion was first confirmed by PCR genotyping in the bulk populations and suggested both ES cells and NS cells were effectively tagged (Figure 3—figure supplement 1). V5-tagged protein was detected by ICC only in NS cells and not in ES cells (Figure 3C, left and middle panels). However, for each of these genes, upon neural lineage differentiation of the ES cells, we noted a proportion of the Nestin-expressing neural rosettes that were V5-positive; 10.5%, 20%, and 11.8% for Sox9, Pou3f2, and Pou3f3, respectively (Figure 3C, right panel). Thus, non-expressed genes can be successfully tagged in ES cells, without deploying any selection strategies or plasmids. We also assessed csRNP-based tagging in human ES cells. V5 knock-in was successfully demonstrated in human ES cells for SOX2 (Figure 3D). We also tested human GBM-derived cells for OLIG2, SOX2, and SOX9 genes (15–70% efficiency) (Figure 3D).

These data illustrate the power of the csRNP-mediated efficient tagging of non-expressed genes in stem cells, and subsequent monitoring of the tagged protein in their differentiating progeny. We also conclude that the same csRNP epitope tagging approach and reagents can work effectively across diverse mouse and human pluripotent stem cells, neural stem cells, and cancer-derived stem cells.

DSB distance from the stop codon is a key parameter for successful tagging

To further define the parameters influencing the reliability and efficiency of tagging, we attempted V5 epitope knock-in at the C-terminus for all 50 Sox and Fox genes. This set of genes included both expressed and non-expressed genes. Previous studies have indicated that the distance of the DSB to the insertion site influences the frequency of successful HR (Bialk et al., 2015; Paquet et al., 2016; Liang et al., 2017). We designed two different target crRNAs in the 3’UTR of the gene for each of the 50 target genes; one cutting proximal and the other distal to the stop codon. For each of the TF, cells were transfected with Cas9 RNP containing either of the crRNA and a common matched ssODN to assess if distance of the cut site from the stop codon influenced knock-in efficiencies (Figure 4A).

Figure 4 with 3 supplements see all
csRNP cutting proximal to insertion site is more efficient and allows knock-in at non-expressed genes.

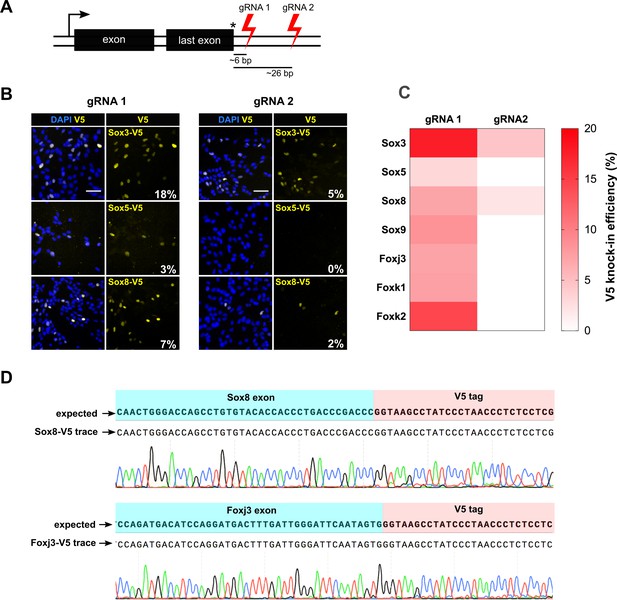

(A) Schematic showing the relative position of guide RNAs in the 3’ UTR. The first set of gRNA (gRNA1) cuts proximal to the stop codon, the second set (gRNA 2) cuts distal. Average distance of cut site from the insertion site is shown for both sets of gRNAs against 50 TFs. (B) Representative V5 ICC images of Sox3, Sox5, and Sox8 V5 knock-in bulk populations obtained with gRNA 1 (left panels) and gRNA 2 (right panels) are shown; % V5 knock-in efficiency for each experiment is shown at the right bottom of V5 panels (numbers in white). (C) Heatmap representation of V5 knock-in efficiency obtained with gRNA1 and gRNA2 for different genes, color code is shown on the right. (D) Example of sequencing traces using the bulk populations of V5-tagged cells for Sox8 and Foxj3. Alignment with the expected TF-V5 chimeric sequence is shown.

https://doi.org/10.7554/eLife.35069.015

By PCR genotyping, we found that both proximal and distal gRNAs could result in successful tagging in the majority of cases; 30/50 genes (60%) for proximal DSB and 27/50 for the distal DSB (54%) (Figure 4—figure supplements 1, 2 and 3). However, this assay is qualitative. To quantitatively score the knock-in efficiency, we performed V5 ICC assay for the seven expressed TFs (Figure 4B,C). Sanger sequencing confirmed targeted insertion of the V5 tag-coding sequence (Figure 4D). Importantly, by comparing the efficiency of tagging for these seven genes, we noted a consistent trend towards increased tagging efficiency for the most proximal cut site. For example, Sox3 showed 18% and 5% knock-in efficiency, for proximal and distal gRNAs, respectively (Figure 4B). For four genes (Sox9, Foxj3, Fok1 and Foxk2), the distal gRNA did not work, whereas the proximal gRNA facilitated high knock-in efficiency (Figure 4C). There were no genes for which the more distal gRNA worked better than the proximal gRNA. These results suggest proximity of DSB to the stop codon influences the efficiency of knock-in.

A scalable pipeline for high-throughput knock-in of epitope tags using 96-well microplates

It is often desirable to explore large numbers of proteins within a shared family, complex or pathway. Methods enabling knock-in of many genes in parallel would be valuable. The gene-specific synthetic short crRNAs and matched ssODN repair templates can be obtained from commercial suppliers in 96-well microplates. Indeed, all steps can be performed easily in 96-well format: preparation of the transfection-ready components via automated liquid handling, benchtop incubation/annealing, 96-well transfection, and automated microscopy to acquire images across 96-well plates. We reasoned that scale-up could therefore be relatively straightforward. A major remaining bottleneck, however, is the need for bioinformatics design tools specifically tailored towards epitope tagging applications.

Manually extracting gene sequence data, identifying appropriate gRNAs, and design of modified repair ssODNs, would be laborious and error-prone for hundreds of genes. To automate the batch design of crRNAs and ssODNs, we developed ‘Tag-IN’, a novel web-based tool (Figure 5, http://tagin.stembio.org). This enables design of appropriate gRNA and ssODNs for both human and mouse species, with flexibility in choice of tag. Our ‘Tag-IN’ incorporates key design rule and parameters – e.g. incorporating ‘Rule Set 2’ for maximised activity (Doench et al., 2016), and ‘MIT’ scoring model (Hsu et al., 2013) to minimise off-target effects. Our tool also considers optimal distance from the insertion site (stop codon), and outputs the matched ssODNs modified with PAM-blocking mutations and appropriate epitope tag sequence. ‘Tag-IN’ also enables batch design; critical for the effective scale up to 96-well format (Figure 5).

A simple pipeline for high-throughput epitope knock-in using 96-well format.

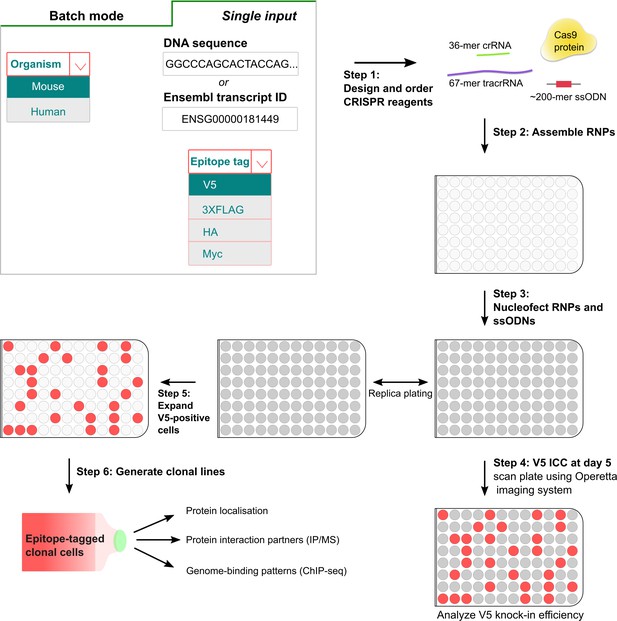

In the first step, crRNAs and matched ssODNs are designed (either single input or batch processing) using the ‘Tag-IN’ bioinformatics tool. The tool picks top two crRNAs in the 3’UTR (within 8–15 bp from stop codon if high-quality crRNAs available) and designs an ssODN for each query based on user’s choice of the epitope tag. After the procurement of CRISPR ingredients from the supplier, the RNPs and matched ssODNs are assembled in vitro in 96-well plates (step 2) and transfected into stem cells using Amaxa shuttle system (step 3). Five days after the transfection, a replica plate is processed for V5 ICC and images are captured using high-content imaging system Operetta (step 4). V5-positive cells from the corresponding wells can be later expanded to derive clonal lines for downstream applications (step 5,6).

https://doi.org/10.7554/eLife.35069.020

Using the Tag-IN tool, we designed crRNAs and matched V5 encoding repair ssODNs against 185 different transcription factors. Each of these crRNAs/ssODNs were also manually verified to ascertain that the tool picked proximal-cutting crRNA and the ssODNs contained appropriate PAM-blocking mutations and homology arms. These mouse genes were selected based on expression in human glioblastoma stem cells. One gRNA was tested for each gene. The RNPs were prepared using a 96-well head liquid handling device (Felix, CyBio) and then transfected in parallel into mouse GNS cells (Figure 5). Five days later, ICC was performed and V5 knock-in efficiencies were quantified across the entire plate using automated plate image capture (Operetta high-content imaging system, Perkin Elmer). Sox2 tagging was used as a positive control in six wells; these gave consistent V5 knock-in efficiency across the plate, confirming no ‘edge-effects’ during the procedure (10.5 ± 2.5%) (Figure 6A).

High-throughput epitope knock-in in a 96-well format.

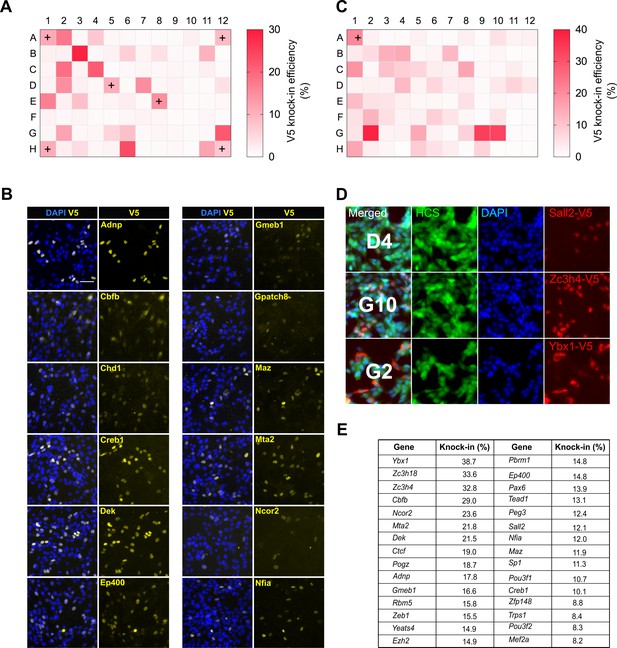

(A) Heat map of V5 knock-in efficiency across the entire 96-well plate. The positive control Sox2 was included in six different wells (marked with ‘+’). (B) Representative ICC images of V5 knock-in from figure (a) are shown, nuclear stain DAPI (blue) and TF-V5 fusion protein (yellow) are shown. (C) A 96-well plate heatmap of V5 knock-in for another set of 96 TFs. (D) Representative V5 knock-in panels, as obtained from the Operetta system, for the 96-well plate from (C) are shown, well number is indicated in the merged panel of each TF. Nuclear stain DAPI (blue), entire cell stain CellMask HCS (green), and V5 tag (red) are shown. (E) Top 30 TFs with highest knock-in efficiency from (A) and (C).

https://doi.org/10.7554/eLife.35069.021

Remarkably, for the first 96-well plate, 30 out of 90 TFs were positive for V5 ICC with typical knock-in efficiencies ranging from 6% to29% (Figure 6A,B). A second 96-well plate with distinct TFs showed similar knock-in efficiency (5%–38%), with 31 out of 95 TFs positive for V5 ICC (Figure 6C,D). These are similar efficiencies to those observed in our earlier single transfections (Figures 1 and 2). V5 ICC confirmed the expected nuclear localisation of these TFs (Figure 6B). Thus, ~30% of genes were successfully tagged at the first attempt with good knock-in efficiency (Figure 6E).

Interestingly, two of the V5-positive TFs- Cbfb and Ybx1, showed nucleocytoplasmic localisation (Figure 6B,D). This illustrates the valuable information regarding protein localisation and levels data that can be quickly obtained. The frequency of successful genes tagged as scored by V5 ICC in these experiments is likely to be an underestimate, as ~20% of the failed TFs are low or non-expressed NS lines (Pollard lab, unpublished data). These results clearly demonstrate the ease with which our method can be scaled to 96-well format epitope tagging.

csRNP-derived knock-in lines can be used for immunoprecipitation-mass spectrometry (IP/MS) to identify protein partners

As a proof-of-principle of the applications, we performed V5-immunoprecipitation followed by mass spectrometry (IP-MS), to identify interaction partners of Olig2 in mouse GNS cells using the RIME (Mohammed et al., 2016) and ChIP-SICAP (Rafiee et al., 2016) methods. These enable identification of chromatin-bound protein partners – the latter being more stringent for chromatin-bound proteins. For each assay, we used V5 monoclonal antibody conjugated to magnetic beads. RIME analysis showed high enrichment of the bait protein Olig2 (Figure 7A) and subunits of SWI/SNF complexes and histone deacetylases (HDACs) in the pull-down complexes (Figure 7—source data 1). Physical interaction of Olig2 and SWI/SNF complex has been previously reported and this interaction is essential for oligodendrocyte differentiation (Yu et al., 2013). HDACs have a known functional role in Olig2 function during development.

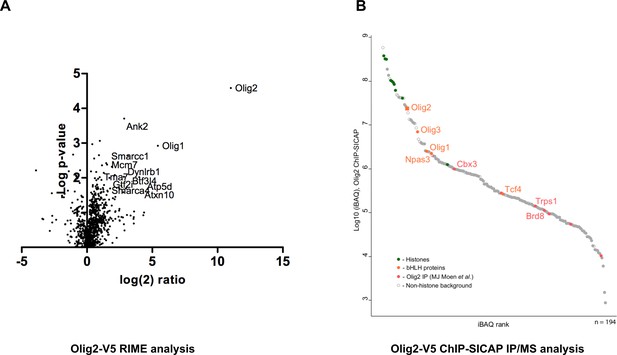

Identification of Olig2 partners using V5 knock-in lines.

Mouse GNS Olig2-V5 cells were used for the identification of Olig2 interaction partners. (A) RIME analysis, volcano plot showing log(2) fold change plotted against −log(10) p value for endogenously V5-tagged Olig2 samples versus samples generated from an untagged parental cell line. (B) ChIP-SICAP analysis, proteins identified in the chromatin-bound complexes are ranked based on iBAQ score in the descending order.

https://doi.org/10.7554/eLife.35069.023

ChIP-SICAP analysis showed strong enrichment of Olig2 and core histone proteins suggesting specific pull-down of chromatin fragments bound by Olig2 TF (Figure 7B). Noteworthy, two other oligodendrocyte lineage transcription factors, Olig1 and Olig3, were detected among the most enriched proteins. Earlier studies reported that sets of genes regulated by various Olig proteins have a partial overlap (Ligon et al., 2007; Meijer et al., 2012), explaining co-occupation of the same DNA-sites as shown by these data. Furthermore, we detected two other members of the basic helix-loop-helix (bHLH) family: Npas3 and Tcf4. The bHLH transcription factors are known to form heterodimers with other bHLH proteins on chromatin (Massari and Murre, 2000) and the presence of Npas3 and Tcf4 may be explained by their direct physical interaction (Figure 7B; Figure 7—source data 1). Both Npas3 and Tcf4 have been reported to be involved in CNS development (Shin and Kim, 2013; Chen et al., 2016). Interestingly, a recent study reporting interactions of Olig2, Tcf4 and Npas3 in mouse neural stem cells by FLAG-affinity purification (Moen et al., 2017) allowed us to correlate interactomes of all the three bHLH proteins with our data. Taken together, our results indicate that Tcf4 and Npas3 co-localise with Olig2 on chromatin, suggesting a functional interaction.

In addition to protein interactions of Olig2 on-chromatin, we also analysed the flow-through of the streptavidin enrichment, representing interactions with soluble Olig2 (Supplementary file 3). As expected, Olig2, Olig1, and Olig3 were found among the most highly abundant proteins, indicating high specificity of the immunoprecipitation. Furthermore, composition of identified proteins correlates with previous findings: we detected three known interactors of Olig2 (Cul3, Smarca4 and Sox8 (BioGRID, Intact)) and 55 other proteins reported to co-precipitate with Olig2 (Moen et al., 2017) (Supplementary file 3). These included many SWI/SNF family members, and chromatin regulators Cbx3 and Chd4, consistent with RIME. Collectively, our data confirm that V5-tagging can be effectively combined with ChIP-SICAP to identify proteins that co-localise on chromatin or that interact off-chromatin.

Knock-in of mCherry fluorescent reporter in NS cells using dsDNA blocks and csRNP

Insertion of fluorescent protein-encoding sequences (such as GFP, mCherry) in frame within gene coding regions enables monitoring of eukaryotic protein localisation in live cells. Additionally, fusion proteins can be used for pull-down assays (immunoprecipitation and ChIP). Encouraged by the facile deployment and efficiencies of the Cas9 RNP method for small epitope tagging, we next asked if the same approach could be used for knock-in of relatively large mCherry-encoding DNA sequence (~700 bp) in NS cells. First, we tested the effect of variable length of homology arms on knock-in efficiency (Figure 8A). For these experiments, double-stranded linear DNA fragments harbouring variable homology arms were used as donor DNA templates (PCR-amplified from a previously reported promoterless Sox2-mCherry plasmid) (Bressan et al.). We found that dsDNA with larger homology arms were more effective in mCherry knock-in (Figure 8B), although homology arms as small as 100 bp showed ~0.29% cells positive for mCherry in the bulk populations. We next tested mCherry knock-in at Olig2 and Foxg1 loci and achieved 0.34% and 0.11% efficiency, respectively (Figure 8C). Live-imaging of mCherry-sorted populations for the three genes (Sox2, Olig2, and Foxg1) showed the expected localisation and levels of fusion proteins in NS cells (Figure 8D). Together, these results show that our csRNP method can be used for knock-in of fluorescent reporters in NS cells.

Knock-in of mCherry reporter using Cas9 RNP delivery.

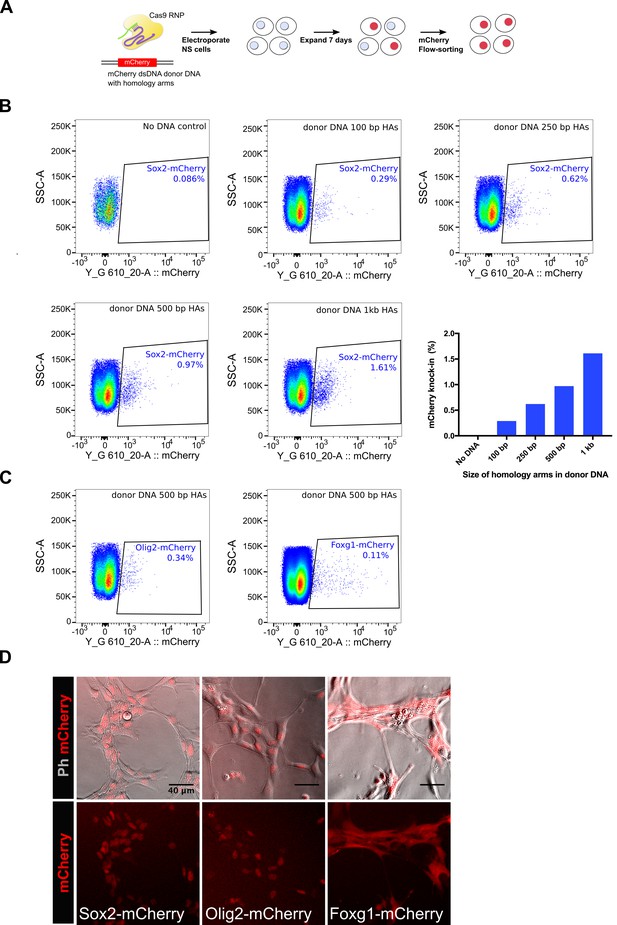

(A) Schematics of the mCherry knock-in experiment is shown. NS cells were electroplated with Cas9 RNP complex along with a dsDNA donor DNA, which was amplified using a vector plasmid that harbours mCherry encoding sequences flanked by promoter-less Sox2 homology arms. Cells were allowed to recover and expand for 7 days and then analysed by flow-cytometry for mCherry knock-in. (B) Flow-cytometry analysis of mCherry knock-in at Sox2 locus. Effect of variable length of homology arms was assessed, composite graph for all the panels is shown at the right bottom. (C) Flow-cytometry analysis of mCherry knock-in at Olig2 and Foxg1 loci, a donor DNA containing 500 bp homology arms was used for each gene. (D) Live-images of the mCherry-sorted populations are shown. Top panels show phase contrast and mCherry merged; bottom panels show mCherry alone.

https://doi.org/10.7554/eLife.35069.025

Discussion

An overarching goal in biology is to determine the key functions of each protein encoded in the genome. Epitope tagging of endogenous genes using CRISPR-assisted knock-in provides new opportunities to interrogate protein function, expression, subcellular localisation and interacting partners. In this study, we demonstrated simple and efficient epitope tag knock-in across a large number of genes in mouse and human stem cells.

Use of Cas9 recombinant protein is critical. We found that when combined with synthetic modified RNAs significant enhancement in the efficiency is possible. This was achieved using faster and more reliable method – compared to plasmid-based strategies. Importantly, we showed primary mammalian stem cell lines are readily amenable to RNP engineering, without the need for plasmid production, or prior genetic manipulation of the host cell lines. Our method is therefore versatile enough to be implemented by any laboratory in their existing cell lines. All reagents can now be obtained ‘off the shelf’.

Assembly of RNPs with csRNAs is simple and requires only ~30 min hands-on-time; this compared favourably to IVT reactions, which require multiple steps, are time-consuming, and result in variable quality of gRNAs. In our hands, these reagents are stable at −20o C for many months, and is particularly convenient when re-used across a range of cell types. Perhaps more importantly, use of the custom synthetic cr/tracrRNAs with their modified backbone and protected ends, shields the RNA from cellular RNases. We found greatly reduced toxicity – one of the key advantages of the csRNP over IVT sgRNA and plasmids-based delivery methods.

We routinely generated clonal knock-in lines in a time-frame of 4–6 weeks. Consistent with a previous report (Liang et al., 2015), we found that RNP complexes target both copies of the genes at high frequency, enabling facile isolation of bi-allelic knock-in clones. Although monoallelic knock-in clones are sufficient for pull-down assays, bi-allelic clones are preferred to have more confidence in the interpretation of downstream assays.

While our focus has been on neural stem cells and their malignant counterparts (glioma stem cells), these same methods and reagents can work well in other stem cells, such as ES cells. Indeed, our knock-in data using ES cells revealed that non-expressed genes can be efficiently tagged using the same protocol. Under appropriate differentiation cues, induction of these proteins can be monitored using ICC analysis in the ES cell differentiating progeny. We believe this could be a key application – rapidly enabling assessment of proteins across a range of lineage contexts.

Despite the excitement, there are also some caveats. Foremost, inevitably there is a risk that C-terminus tagging can potentially compromise protein function, localisation or levels in the edited cells. Not all proteins will be amenable to tagging. If the protein of interest harbours critical C terminal domains, an N-terminus approach could be pursued – or knock-in to other regions such as structurally neutral linkers, if this is known. In this study, we used PAM-strand (non-complementary strand) for donor DNA synthesis, which is less likely to be cut by Cas9 complex (Gasiunas et al., 2012). We have not compared PAM versus non-PAM donor DNA strands for knock-in efficiency although a recent report suggests that for symmetrical PAM ssODNs, both strands are equally effective for knock-in (Liang et al., 2017).

Previous findings have reported a higher HDR rate with the guide RNAs that cut near the insertion site (Bialk et al., 2015; Paquet et al., 2016; Liang et al., 2017). Our results corroborate these findings and reveal that cut-to-insertion-site distance is a critical factor for successful knock-in. Lower knock-in efficiency achieved with the distal-cutting gRNAs could be attributed to ‘partial HDR’ events (Guo et al., 2018), which are not detectable in our ICC end-point assays. Although beyond the scope of our present study, whole-genome sequencing of the CRISPR-edited bulk cells can shed light on the extent of ‘partial HDR’ events in epitope knock-in experiments. The average size of CRISPR/Cas9-induced indels in mammalian cells has been reported to be around 1–5 bp (Paquet et al., 2016). We therefore recommend designing guide RNAs in the 3’UTR, preferably cutting 8–15 bp downstream of stop codon, to avoid interfering with the stop codon.

The ability to scale-up tagging to 96-well format required us to tackle the bottleneck in design. Our newly developed ‘Tag-IN’ tool simplifies gene sequence retrieval and designing crRNA and ssODN for medium-throughput experiments and is available from any web browser (http://tagin.stembio.org). This can be modified for use with alternative design parameters and distinct tags. We demonstrated one of the key applications by single-cell imaging of the levels and localisation for 60 different transcription factors in glioma stem cells. These were successfully tagged without any screening of gRNAs or ssODN; those that failed could be due to the gRNA not working effectively or the ssODN donor being sub-optimal. These could be re-tested with replacements – particularly for the ssODN, other tag can be used that works effectively in some instances (data not shown). Alternatively, the protein maybe expressed at levels too low to detect by ICC, but the tag insertion might still be detected by PCR genotyping. This is likely the case for 10–20% of the genes we explored.

The pipeline that emerges is fully scalable and does not require sophisticated tools, expertise, or know-how. There are no significant bottlenecks in either the design, acquisition/production of reagents or delivery into cells. It was possible to generate such data with relatively little labour investment, and the whole pipeline from obtaining the reagents to imaging data was accomplished within three weeks.

Increasing the throughput further, we can envision systematic surveys of many hundreds or thousands of genes. Because tag-specific antibodies work universally across different cell types and species, this approach should allow cross-species comparisons and will also complement existing efforts to develop and characterise native antibodies. Furthermore, tagging of DNA-binding proteins will allow us to generate comprehensive genome-wide binding sites via ChIP-Seq for key transcription factors, chromatin-modifying enzymes, and other gene regulatory proteins. Although not a focus of the current study, we also find that csRNP is highly effective for gene knockout studies (Pollard laboratory, unpublished and (Jacobi et al., 2017).

We demonstrated proof-of-principle in identification of Olig2 protein partners. This is likely a key application for future studies; simplifying and scaling up the ability to probe protein complexes in a range of cell types and cell states. Using the Olig2-V5 knockin lines we demonstrated on-chromatin partners in mouse glioma cells using optimised RIME and ChIP-SICAP methods, validating previously reported protein interaction partners. These optimised V5 RIME and ChIP-SICAP methods can now be deployed using the same optimised protocol for other mammalian proteins, particular for those with no good quality antibodies – a key advantage of epitope tagging.

With the remarkable developments in single-cell mRNA profiling, and plans for systematic RNA and protein atlases of mammalian cell types (Rozenblatt-Rosen et al., 2017), there is a greater need than ever to relieve the bottleneck of exploring protein products. Descriptive maps of cell types, while valuable, must be complemented by careful and detail molecular and cellular functional studies. Our findings suggest that epitope using CRISPR/Cas-assisted knock-in is now simple and efficient enough that systematic annotation of many hundreds or thousands of endogenous will be possible in mouse and human stem and progenitor cells.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)SOX2NATranscript ID_ENSEMBL:
ENST00000325404
Gene (Homo sapiens)SOX9NATranscript ID_ENSEMBL:
ENST00000245479
Gene (Homo sapiens)OLIG2NATranscript ID_ENSEMBL:
ENST00000333337
Cell line (Mus musculus)ANS4PMID: 28096221mouse neural stem cells
Cell line (Mus musculus)BL6PMID: 28096221mouse neural stem cells
Cell line (Mus musculus)IENSPMID: 17936558mouse glioma-initiating stem cells
Cell line (Mus musculus)ES (Tg2a)This papermouse embryonic stem cells
Cell line (Homo sapiens)MasterShef7 (MS7)This paperhuman embryonic stem cells
Cell line (Homo sapiens)G7 human
tumour-derived
This paperCell derived from GBM tumours
AntibodyV5 tageBioscienceTCM5 #14-6796-82;
RRID:AB_10718239
1:1000 Overnight 4°C
AntibodyHA TagCell Signalling6E2 #2367;
RRID:AB_10691311
1:100 Overnight 4°C
AntibodyFLAG tagSigma-Aldrich#F3165;
RRID:AB_259529
1:2000 Overnight 4°C
AntibodyMyc tagCell Signalling9B11 #2276;
RRID:AB_331783
1:4000 Overnight 4°C
AntibodyAlexa Fluor Plus
Secondary antibody
Thermo Fisher ScientificAlexa Fluor Plus 647;
RRID:AB_141663
1:1000 1 hr RT
Recombinant DNA
reagent
pET28a/Cas9-CysAddgeneAddgene, #53261
Peptide, recombinant
protein
Cas9 proteinAddgeneAddgene, #53261
Chemical compound,
drug
crRNAsIntegrated DNA
Technologies, USA
CRISPR-Cas9 crRNA
Chemical compound,
drug
tracrRNAsIntegrated DNA
Technologies, USA
CRISPR-Cas9 tracrRNA
Software, algorithmTag-IN toolThis paperhttp://tagin.stembio.orgfor crRNA ssODN design
Software, algorithmDESKGEN toolhttps://www.deskgen.com/landing/cloud.htmlhttps://www.deskgen.com/landing/cloud.htmlfor crRNA ssODN design

Cell culture

Mouse and human NS and GNS cell lines were cultured essentially as described previously (Conti et al., 2005; Pollard et al., 2006). Laminin was purchased from Cultrex, R and D Systems. ANS4 and BL6 NS cell lines have been described previously (Bressan et al., 2017). Mouse ES (Tg2a) cells were cultured in GMEM supplemented with 10% fetal calf serum, 1x non-essential amino acids,1x glutamine/sodium pyruvate, 1xLIF, 1x Pen/strep and 100 μM of ß-mercaptoethanol. Media was changed every day and cells passaged approximately every other day onto plates pre-coated with 0.1% gelatin. Differentiation of ES cell was performed as described previously (Pollard et al., 2006) with 1 × 104 cells per cm2 being seeded in N2B27 complete media for 7 days, with media being changed every 1–2 days.

MasterShef7 (MS7) human embryonic stem cells (hESCs) were re-cultured in Essential 8 (E8) medium (Gibco, A1517001) on tissue culture plastic coated with Human Recombinant Laminin-521 (BioLamina, LN521) at 5 μg/ml. Routine passaging was performed by incubating cells for 5 min at 37°C in 0.5 mM EDTA in PBS. Single-cell dissociation prior to nucleofection was performed by incubating cells for 10 min at 37°C in accutase. Y-27632 (Cell Guidance Systems, SM02) was included in the culture medium at 10 μM following initial thawing and after plating following nucleofection. New engineered cell reporters described here are available upon request. No standard cell lines were used. We used primary stem cell lines. Human ES cells were provided by the UK stem cell bank and had appropriate contamination testing and authentication.

Colony picking and clonal lines generation

Clonal cell lines were derived from the bulk populations using either single-cell deposition to 96-well plates or by manual colony picking. Single cells were deposited into 96-well plates using BD FACSAria II cell sorter. Depending on the cell lines, we obtained 30–40 colonies per 96-well plate in 2 weeks. For manual colony picking, mouse cells were seeded at clonal density (400 cells per 10 cm dish for NS cells, 100 cells per dish for GNS cells) to a 10 cm dish and incubated in the complete media for 10–12 days for colony formation. From each dish, we picked 25–30 manually with a P20 pipette. Colonies from both methods were later replica plated into 96-well plates and analysed for successful knock-in using immunocytochemistry against the V5 tag. The V5-positive clones were further expanded for DNA extraction (PCR genotyping) and cryostorage.

Design of guide RNAs and ssODN repair templates

For manual design: the 3’UTR sequence and 500 bp sequence upstream of the 3’UTR were retrieved using Biomart tool. The final coding exon and 3’UTR features were manually annotated using SnapGene and the ~200 bp around the stop codon were used as an input for guide RNA designing. We designed guide RNAs using either the web-based tool form Desktop Genetics (https://www.deskgen.com/landing/) or our own bioinformatics ‘Tag-IN’ tool (below). High scoring guide RNAs were picked for synthesis (i.e those with cut sites in the 3’UTR, preferably within 8–15 bp distance from the stop codon and minimal predicted off-target cleavage). For ssODN design, first the PAM-blocking mutations (NGG >NGC or NGT) were introduced into the SnapGene sequence and then the epitope-tag coding sequence was inserted before the stop codon. The <200 mer ssODN ultramer was chosen to be the same strand as the guide RNA (also referred to as the PAM-strand, non-complementary strand or non-targeting strand) and is comprised of: a 5’ homology arm (~70 mer), the epitope tag coding sequence, stop codon, and a 3’ homology arm with the PAM-blocking mutations (~70 mer). For some of the ultramers the PAM-strand synthesis had failed and, therefore, the complementary strand (non-PAM strand) was synthesised as a donor DNA.

Custom synthetic crRNA, tracrRNA, and ssODN

Custom synthetic crRNAs, tracrRNA, and ssODNs were manufactured by Integrated DNA Technologies, USA. The RNA backbone and ends were chemically modified for protection against cellular RNases. The 36-mer crRNA contains a variable gene-specific 20-nt target sequence followed by 16-nt sequence that base-pairs with the tracrRNA. The 67-mer tracrRNA contains the gRNA-scaffold sequence as well as 16-nt sequence complementary to crRNA. The lyophilised crRNA and tracrRNA pellets were resuspended in Duplex buffer (IDT) at 100 μM concentration and stored in small aliquots at −80°C. ssODN donor DNAs lyophilised pellets were supplied without modifications and resuspended in Duplex buffer (IDT) at 30 μM concentration.

Production of in vitro-transcribed sgRNA

DNA template for T7-driven synthesis was prepared by annealing 119-mer, single-stranded, complementary ultramers (from IDT) encoding T7 promoter, guide RNA, and gRNA scaffold sequences. 200 ng of the template were used to synthesise sgRNA with the MEGAscript T7 Transcription Kit. The sgRNA was further purified using MEGAclear Transcription Clean-Up Kit and stored at −80°C.

Production of recombinant Cas9 protein

BL21(DE3) cells (New England Biolabs, C2527) were transformed with the plasmid pET28a/Cas9-Cys (Addgene, Cambridge, USA, plasmid #53261) using standard protocols. Cas9 protein expression was induced with 0.5 mM IPTG (Isopropyl β-D-1-thiogalactopyranoside) (Fisher, 10715114) and the cells were incubated overnight at 20°C. 24 hr later, bacterial pellets were resuspended in 20 ml of lysis buffer (20 mM Tris-HCl pH 8.0, 500 mM NaCl, 1 mM TCEP, 5 mM imidazole pH 8.0), sonicated and loaded on a HisTrap HP 5 ml column (GE, 17-5248-01). The Cas9 protein was collected in elution buffer (20 mM Tris-HCl pH 8.0, 250 mM NaCl, 10% glycerol, 1 mM TCEP, 250 mM imidazole pH 8.0). The fractions containing Cas9 protein were pooled and loaded into a HiPrep 26/10 Desalting Column (GE, 28-4026-52) to equilibrate in Cas9 buffer (20 mM HEPES-KOH pH 7.5, 150 mM KCl, 1 mM TCEP). The purified Cas9 protein was further concentrated using Vivaspin columns (Vivaspin20, 30 000 MWCO PES, Sartorius stedim, VS2021) as per the users-guide instructions.

Assembly of the active ribonucleoprotein (Cas9 plus csRNAs)

Synthetic Alt-R CRISPR/Cas9 crRNAs and tracrRNA were supplied by IDT. We prepared Cas9 RNP complexes immediately before electroporation experiments (a detailed protocol in a separate Appendix 1 is available). Cas9 RNPs with IVT sgRNA were assembled (1–3 μg of IVT sgRNA with 5–10 μg of Cas9 protein) as described previously (Bressan et al., 2017). For csRNP preparation, 100 picomoles of each crRNA and tracrRNA were annealed using gradual step-down cooling in the PCR block (5 min at 95°C, step cool-down from 95°C to 25°C at ramp rate 0.1°C/s, 4°C (store) at ramp rate 0.5°C/s). Ribonucleoprotein (RNP) complexes were assembled by adding 10 μg of recombinant Cas9 protein to the annealed cr/tracrRNAs, incubated at room temperature for 10 min and stored on ice until electroporation into cells. 30 picomoles of single-stranded donor DNA were added to RNP complexes just before electroporation to prepare the complete RNP mix. For mCherry knock-in, csRNPs were prepared similarly and 200 ng of PCR products were used as donor DNA templates per reaction. For multiplex epitope tagging, 100 picomoles of cr/tracrRNA of each Sox2 and Olig2 were mixed together with 20 μg of rCas9 protein.

Cell transfection

We used 4D Amaxa nucleofection system for the delivery of CRISPR ingredients. For NS cells and GNS cells, approximately 1.5 × 105 cells were resuspended in 20 μL of Lonza SG cell line buffer and were mixed with the complete RNP mix and electroporated using the DN-100 program (two consecutive pulses for mouse NS cells) or using EN-138 program (one pulse for human GBM-derived cells). For embryonic stem cells, approximately 6 × 104 cells in 20 μL of Lonza P3 primary cell buffer were used for each transfection with different programs: one pulse of program CA-120 for mouse ESCs; program CB-150 for human ESCs. After the electroporation, cells were transferred into a 6-well plate and allowed to recover for 3–5 days and later seeded into 96-well plates (1–2 × 104 cells per well) for ICC.

For scale up, RNP assembly and delivery were performed as above, except that RNP complexes were prepared a day before and stored at −20°C. Electroporation was performed using the 96-well Shuttle device (Amaxa, Lonza). Immediately after transfection cells were transferred into a 96-deep-well plate and replica plates for immunocytochemistry assay were prepared by dispensing 1 × 104 cells into 96-well plate using CyBi-FeliX Liquid Handling Platform.

Immunocytochemistry and imaging

We performed ICC on 96-well plates 5 days after transfection. Cells were washed once with PBS and fixed using 4% paraformaldehyde for 10 min at room temperature and then permeabilised in PBST (PBS + 0.1% Triton X-100) for 20 min. Samples were incubated with blocking solution (1% goat serum in PBST) for 30 min at room temperature to block non-specific binding of the antibodies. Samples were treated overnight with primary antibodies in blocking solution followed by incubation with appropriate secondary antibodies and 4′,6-diamidino-2-phenylindole (DAPI). Images were acquired using either a Nikon wide-field fluorescence microscope or a PerkinElmer Operetta high-content imaging system. V5-positive cells were scored using Fiji software.

The following primary antibodies were used: V5 tag (eBioscience, TCM5 #14-6796-82,1:1000); HA Tag (Cell Signalling, 6E2 #2367, 1:100); FLAG tag (Sigma-Aldrich, #F3165, 1:2000); Myc tag (Cell Signalling, 9B11 #2276, 1:4000), Alexa Fluor secondary antibodies mostly Alexa Fluor Plus 647 (Thermo Fisher Scientific, 1:1000). HCS CellMask Green Stain (Thermo Fisher Scientific, #H32714) for nucleocytoplasmic staining was used at 1: 10,000 for 20 min at room temperature.

Genomic DNA extraction and PCR genotyping

Genomic DNA was extracted either using in-house lysis buffer as described previously (Bressan et al., 2017) (bulk populations from 96-well plate or using DNeasy Blood and Tissue Kit (Qiagen, # 69506, for DNA extraction from clonal lines in a 24-well plate). PCR primers flanking the V5 tag were designed online using Primer3Plus to generate 400–600 bp PCR amplicons. PCR genotyping and Sanger sequencing were done as described previously (Bressan et al., 2017). DNA samples were analysed using 2.5% agarose gels.

ChIP-SICAP and RIME

Approximately 40 million mouse NS cells from three T150 flasks (150 cm2) were cultured until 70–80% confluence and then dissociated into single-cells using accutase. To fix DNA-protein and protein-protein interactions, the cell pellet was resuspended in 1.5% methanol-free formaldehyde (Pierce) in 10 mL PBS for 10 min at room temperature. Excess formaldehyde was quenched by adding 125 mM glycine and incubated for 5 min at room temperature. Cells were washed twice with cold PBS and stored at −80°C until further use. ChIP-SICAP experiments were performed as described previously (Rafiee et al., 2016). Briefly, chromatin from 40 million formaldehyde-fixed cells was sheared by sonication (Bioruptor Pico, Diagenode) down to 150–500 bp fragments, which were used as input for immunoprecipitation with anti V5 antibody (Abcam, 15828) overnight at 4°C. Antibody was captured with Protein-G beads (LIFE technologies, 10004D), the associated DNA was biotinylated by terminal deoxynucleotidyl transferase (Thermo Fisher, EP0162) in the presence of biotin-11-dCTP (Jena Bioscience, NU-809-BIOX). The antibody was eluted from the beads in 7.5% SDS with 200 mM DTT and the released DNA-protein complexes were caputred by streptavidin magnetic beads (NEB, S1420). After subsequent washes with SDS washing buffer (Tris-CL 1 mM, 1% SDS, 200 mM NaCl, 1 mM EDTA), 20% isopropanol and 40% acetonitrile, the beads were boiled in 0.1% SDS in 50 mM ammonium bicarbonate and 10 mM DTT at 95°C for 20 min. Proteins were digested overnight with trypsin at 37°C and the resulting peptides were purified with the SP3 protocol as described previously (Hughes et al., 2014) and analysed using an Orbitrap Fusion LC-MS system.

crRNA/ssODN design tool

The implementation of our crRNA/ssODN design tool was completed in four stages: extraction of a target genomic sequence from GRCh38.p5 or GRCm38.p4 genome builds, retrieval of crRNA sequences matching the pattern N20NGG, scoring and ranking of each crRNA using the ‘Rule Set 2’ (Doench et al., 2016) and ‘MIT’ scoring models (Hsu et al., 2013), and design of each corresponding ssODN sequence.

To accommodate genomic sequence extraction, an SQL database of genomic coordinates was built using the Genomic Features package in R. This SQL database was used to retrieve coding DNA sequence (CDS) ranges upon user query with a desired Ensembl transcript Id. Given a CDS range, a genomic sequence was then extracted from a corresponding GRCh38.p5 or GRCm38.p4 Fasta file.

For each target genomic sequence, crRNAs were extracted limited to the pattern N20NGG. crRNAs were then ranked using two scoring models, ‘Rule Set 2’ for assessing crRNA efficiency, and the MIT scoring system for crRNA specificity (Hsu et al., 2013; Doench et al., 2016). The former was utilised as a standalone script retrieved from the ‘sgRNA Designer’ website (https://portals.broadinstitute.org/gpp/public/analysis-tools/sgrna-design) and the latter was implemented as documented on the ‘CRISPR Design’ website (http://crispr.mit.edu/about). Off targets for each crRNA were found using the short read aligner tool Bowtie, searching up to three mismatches (Langmead et al., 2009). Off targets that then match the PAM pattern NAG and NGG were extracted from the Bowtie output. In addition, crRNAs that cut close to the stop codon (8–15 bp in the 3’UTR), and within the UTR region, were prioritised. Given a batch request, the top two ranking crRNAs were selected for output. A maximum distance of 30 bp from the stop codon was chosen as an additional threshold for batch processing.

To implement ssODN design, user-defined tags were inserted immediately 5I proximal to the stop codon. PAM sequences were changed to minimise potential for Cas9 cleavage of donor sequences. Where the PAM sequence resided in the 3I UTR, our tool modified the NGG PAM to NGC. Intronic or exonic PAM changes instead aimed to produce silent mutations, and where this was not possible, aimed to reduce alterations in function by minimising differences in hydrophobicity and charge. Final ssODN sequences were limited to 200-mer including the tag sequence. We therefore present the ‘Tag-IN’ design tool, a novel crRNA and ssODN design tool aimed at streamlining CRISPR knock-in experimentation (http://tagin.stembio.org).

Immunoprecipitation-mass spectrometry

The Olig2 protein interactors were identified using the Rapid immunoprecipitation mass spectrometry of endogenous protein (RIME) protocol. The nuclear fraction was resuspended using 1 ml of LB1 (50 mM HEPES KOH pH 7.5, 140 mM NaCl, 1 mM EDTA, 10% glycerol, and 0.5% NP-40) with protease and phosphatase inhibitors. Lysate was cleared by centrifugation at 2000 g for 5 min at 4°C, and the pellet was resuspended with 1 ml of LB2 (10 mM Tris-HCL [pH 8.0], 200 mM NaCl, 1 mM EDTA, and 0.5 mM EGTA), and mixed at 4°C for 5 min. Lysate was cleared by centrifugation and the pellet was resuspended in 0.5 ml of LB3 (10 mM Tris-HCl [pH 8], 100 mM NaCl, 1 mM EDTA, 0.5 mM EGTA, 0.1% Na-deoxycholate, and 0.5% N-lauroylsarcosine). Samples were sonicated in a waterbath sonicator (Diagenode Bioruptor) and cleared by centrifugation. 10 µL V5 trap magnetic beads (MBL) were used per sample. IPs, washes and on-bead digests were performed using a Thermo Kingfisher Duo, all steps are at 5°C unless otherwise stated. Beads were transferred into 500 μL of cleared lysate and incubated for 2 hr with mixing. Beads were then transferred for two washes in RIPA buffer and three washes in non-detergent lysis buffer. On-bead digest was performed by transferring the washed beads into 100 μL 2M urea, 100 mM Tris-HCl pH 7.5, 1 mM DTT containing 0.3 μg trypsin (Promega) per sample, beads were incubated at 27°C for 30 min with mixing to achieve limited proteolysis. The beads were then removed and tryptic digest of the released peptides was allowed to continue for 9 hr at 37°C. Reduced cysteine residues were alkylated by adding iodoacetamide solution to a final concentration of 50 mM and incubated 30 min at room temperature, in the dark. Trypsin activity was inhibited by acidification of samples to a concentration of 1% TFA. Samples were desalted on a C18 Stage tip and eluates were analysed by HPLC coupled to a Q-Exactive mass spectrometer as described previously (Turriziani et al., 2014). Peptides and proteins were identified and quantified with the MaxQuant software package (1.5.3.8), and label-free quantification was performed by MaxLFQ (Cox et al., 2014). The search included variable modifications for oxidation of methionine, protein N-terminal acetylation, and carbamidomethylation as fixed modification. The FDR, determined by searching a reverse database, was set at 0.01 for both peptides and proteins.

Appendix 1

Detailed protocol for epitope knock-in using Cas9 RNP complex

This protocol describes the step-by-step procedure for epitope tagging in neural stem (NS) cells. The same protocol can be used for other cell lines including ES cells. We used an Amaxa 4D Nucleofection system for the delivery of Cas9 RNP. The typical nucleofection reaction volume is 20 μL (Lonza transfection buffer) plus 5 μL (CRISPR/Cas9 reagents) in a 16-well microcuvette. Calculations described below are for one nucleofection reaction and can be easily scaled up depending on the number of transfections.

40–45 min before transfection: csRNP preparation

(1) In a sterile 0.2 mL PCR tube, mix 1.1 μL of crRNA and 1.1 μL of tracrRNA (each stock solution 100 μM). Vortex and spin down.

(2) Anneal cr:tracrRNAs on PCR block using the following program:

•95°C for 5 min

•95°C – 25°C: step cool-down at ramp-rate 0.1°C/sec

•4°C (store) at ramp rate 0.5°C/sec

Alternatively, heat the cr:tracrRNA mixture at 95°C for five minutes and let it cool at room temperature for 30 min and plunge into ice.

(3) To the annealed cr:tracrRNAs, add 10 μg of recombinant Cas9 protein (with NLS and at 5–10 μg/μL stock concentration). Ideally, the volume of these two components should be no more than 5–7 μL. Incubate at room temperature for 10 min to allow Cas9 RNP formation and then plunge into ice until transfection.

Just before transfection: Prepare cells for transfection

Pre-warm 2 mL complete media supplemented with EGF/FGF/Laminin in a 6- or 12-well plate. Cells will be transferred into this immediately after transfection.

(4) Harvest cells using accutase dissociation. Count cells using trypan blue dye to ignore dead cells. Transfer 1.5 × 105 NS cells per transfection in a 15 mL tube and centrifuge cells at 1400 rpm for 3 min.

(5) Discard the supernatant and re-suspend the cells in 20 μL of supplemented SG cell line buffer (SG cell line buffer should be brought to room temperature before use). Mix gently with pipette, avoid bubbles. Transfer to the 0.2 mL PCR tube that contains the Cas9 RNP.

Note: Other cell types may require optimization of Lonza nucleofection buffer for high viability and transfection efficiency.

(6) Add 1 μL of ssODN (30 μM stock in IDT Duplex Buffer) to the cell suspension and Cas9 RNP mixture. Mix gently by pipetting, avoid bubbles.

Electroporation

(7) Set up the nucleofection program on 4D Amaxa machine to DN-100 for mouse NS cells.

(8) Carefully transfer cell suspension/Cas9 RNP mixture at the centre of a microcuvette well, avoid bubbles. We use two consecutive pulses of DN-100 program for mouse NS cells.

(9) Immediately after the nucleofection pulse(s), remove the microcuvette strip and add 150 μL of pre-warmed supplemented media onto each microcuvette well. Transfer the cells into a pre-warmed 6 or 12-well plate containing 2 mL of supplemented media.

(10) Let the cells grow for 3–5 days, assay tag knock-in using ICC or PCR.

Downstream assays

ICC

Seed 1 × 104 cells in a 96-well plate or 2 × 104 cells in a 48-well plate for immunostaining. For the V5 tag detection, we use eBioscience anti-V5 tag antibody (1:1000) overnight at 4°C. We prefer the far-red channel for secondary antibody (Alexa 647), as it gives less background and is brighter as compared to the green channel.

anti-V5 tag antibody: https://www.thermofisher.com/antibody/product/V5-Tag-Antibody-clone-TCM5-Monoclonal/14-6796-80

PCR

We use a nearly confluent 96- or 48-well plate for crude DNA extraction. Wash cells and add 50 μL of lysis buffer (0.45% NP40, 0.45% Tween 20, 200 μg/mL Proteinase K, 0.5x NEB LongAmp buffer) directly into well; no accutase required. Incubate plate at 37°C for 1 hr, transfer the DNA extract into 0.2 ml PCR tubes and incubate at 50°C for 2 hr. Deactivate PK by heating at 95°C for 10 min. Use 2 μL of the final DNA extract as a template for 20 μL LongAmp PCR reaction. Store DNA at −20°C. To assess tag knock-in in the bulk populations, we use an exon-specific forward primer (400–500 bp upstream of the Stop codon) and a V5 tag-specific reverse primer. For the clonal lines, we use primers flanking the V5 tag such that the product size is ~400 bp in the parental cells and ~450 bp after the V5 knock-in.

LongAmp taq DNA polymerase: https://www.neb.com/products/m0323-longamp-taq-dna-polymerase

PCR set up for 20 μL reaction volume

  • Sterile water - 10.8 μL

  • NEB 5x LongAmp buffer - 4.0 μL

  • 10 mM dNTPs- 0.8 μL

  • 10 μM For primer- 0.8 μL

  • 10 μM Rev primer- 0.8 μL

  • Taq polymerse- 0.8 μL

  • Template- 2.0 μL (100 ng)

PCR conditions

  • Step1: Initial Denaturation 95°C - 1 min

  • Step2: 38 cycles

  • 94°C for 30 s

  • 50-60°C - 30 s

  • 65°C - 45 s (for 600 bp PCR product)

  • Step 3: Final extension

  • 65°C - 10 min

  • Hold at 4°C.

Analyze PCR products on a 2.5% agarose gel, use 1 kb+ gene ruler DNA ladder for size estimation.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53

Decision letter

  1. Maarten van Lohuizen
    Reviewing Editor; The Netherlands Cancer Institute, Netherlands

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "An efficient and scalable pipeline for epitope tagging in mammalian stem cells using Cas9 ribonucleoprotein" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Fiona Watt as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Hein te Riele (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Dewari et al., present a pipeline for high content epitope tagging of proteins in mammalian cells. Salient features of their approach are: (i) the use of purified CRISPR/Cas9 protein loaded with a 67-mer tracrRNA and a gene-specific 36-mer crRNA to introduce a double-strand break in the 3' UTR of the target gene in close vicinity of the stop codon. The RNP is introduced into cells by electroporation. In Figure 1 they show that the synthetic cr:tracr dual RNA system outperforms in vitro transcribed single guide RNAs. (ii) for homology-directed break repair, they use {plus minus}200 nucleotide single-stranded oligo deoxyribonucleotide templates that instruct the integration of the epitope tag. To prevent recutting, they simultaneously introduce a PAM-disrupting mutation. The frequency of successful tagging is around 15-20%, occasionally even 30%.

Overall, this report is very well written. The figures support the conclusions of the paper and present a convenient guideline for tagging of proteins with small epitopes. As such, the manuscript may be of interest for a broad audience. However, some points need further clarifications.

Essential revisions:

1) The frequency of successful epitope tagging was calculated based on the percentage of cells expressing the epitope (Figure 1). Subcloning and subsequent PCR analysis of V5-positive clones revealed many clones with bi-allelic tagging (Figure 2B, Table 1). However, this analysis also showed not all clones were correctly targeted. E.g., lane 1 of the Sox2-V5 clones and lanes 3 and 6 of the Sox3-V5 clones (Figure 2B). It would be helpful if the authors would add to Table 1 the number of non-correctly targeted clones in order to more precisely determine the targeting efficiency.

2) In subsection “The high frequency of knock-in using csRNP facilitates simple recovery of biallelictagged clonal lines”, reference is made to Table 2. This apparently should be Table 1. Or Supplementary table 2, which is the same as Table 1?

3) Figure 3C shows that epitope tagging can also be achieved at genes that are not expressed in ES cells. Only after differentiation into neural cells, the V5 tag became visible. However, it seems as if in the differentiated ES cells all neuronal cells expressed V5. How is this possible? Were neural rosettes obtained from single ES cells? Were also V5-negative neuronal rosettes obtained. If so, could an estimation be given on the frequency of epitope tagging at non-expressed genes versus expressed genes in ES cells by comparing the number of V8-negative and -positive rosettes?

4) Figure 4D shows the fusion between two target genes and the V5 tag. However, it is unclear why this information is useful as the fusion is present in the ssODN template. It would be more interesting to see how the sequence around the DSB was repaired.

Similar data is shown in Figure 1—figure supplement 1, Figure 2—figure supplement 1, Figure 3—figure supplement 1 and Figure 4—figure supplement 3. From a skeptical point of view, these sequences only show that the ssODNs were properly synthesized. To confirm "in-frame and error-free insertion of V5 tag sequence at the C-terminus", mRNA sequencing appears more appropriate to show the tag is really present at the destined site. Reassuringly, Figure 1—figure supplement 2BFigure just shows the modified Sox2 PAM site. Anyway, it is important to indicate that false positives were excluded by properly choosing the position of PCR primers.

5) The higher performance of gRNAs cutting proximal to the insertion site of the epitope tag compared to distal cutting sites shown in Figure 4 is very interesting and may relate to suggested mechanisms of ssODN-templated DSB repair. It would be interesting if the authors could share their opinion on the reasons for the inferior performance of distal gRNAs.

6) The higher performance of tag-proximal gRNAs was only seen by staining for the V5 epitope (Figure 4), not by PCR (Figure 4—figure supplement 1, Figure 4—figure supplement 2), according to the authors because the latter is not quantitative. It is not clear why in Figure 4—figure supplement 1, Figure 4—figure supplement 2 some lanes are indicated +, others not. Was this only based on the expected size of the PCR product? Please indicate this in the legend. How discordant were the PCR and ICC results?

7) Related to the above: In subsection “Design of guide RNAs and ssODN repair templates” it is mentioned that "the 200-mer ssODN ultramer was chosen to be the same strand as the guide RNA". Was there a particular reason to choose this strand and not the opposite strand? However, "for some of the ultramers the PAM-strand synthesis had failed and therefore, the complementary strand (non-PAM strand) was synthesized as a donor DNA." It would be very interesting to know how these non-PAM ssODNs performed. Do the authors consider PAM and non-PAM ssODNs equally effective? Has a comparison been made between the two?

8) The above is important with respect to the Tag-IN tool the authors have created. Does the tool always propose a PAM ssODN or can also the reversed strand be chosen? If so, it should be made clear form comparative experiments that the two strands perform equally well.

9) In subsection “A scalable pipeline for high-throughput knock-in of epitope tags using 96-well Microplates”, the results of simultaneous tagging of 185 genes is presented. Plate 1 (Figure 6A) and 2 (Figure 6C) show 30/90 and 31/95 TF2 positive for V5. What was the cutoff here? According to the scale bar, more positive wells are visible with low ({plus minus}2-5%) but detectable V5 signal. On the other hand, what happened to the negative wells ({plus minus}77 in total)? Are these all non-expressed genes? This should be made clear in order to estimate how effective the Tag-IN tool works.

10) What would the authors recommend for tagging proteins with larger tags, such as GFP or luciferase? Would RNPs work similar well with larger double- or single-stranded templates?

11) A large number of stem and progenitor lines have been generated that would be of great value as a resource for the scientific community. Would it be possible to make them available over a cell repository?

12) The presented Tag-IN website was not available online. Thus, the value of it can't be judged.

Although likely only a small glitch, there should be measures to ensure that the online tool will be active for years to come after publication.

13) With regard to the tools and resource section selection, addition of a detailed supplementary protocol would be helpful

https://doi.org/10.7554/eLife.35069.033

Author response

Summary:

Dewari et al., present a pipeline for high content epitope tagging of proteins in mammalian cells. Salient features of their approach are: (i) the use of purified CRISPR/Cas9 protein loaded with a 67-mer tracrRNA and a gene-specific 36-mer crRNA to introduce a double-strand break in the 3' UTR of the target gene in close vicinity of the stop codon. The RNP is introduced into cells by electroporation. In Figure 1 they show that the synthetic cr:tracr dual RNA system outperformsin vitro transcribed single guide RNAs. (ii) for homology-directed break repair, they use {plus minus}200 nucleotide single-stranded oligo deoxyribonucleotide templates that instruct the integration of the epitope tag. To prevent recutting, they simultaneously introduce a PAM-disrupting mutation. The frequency of successful tagging is around 15-20%, occasionally even 30%.

Overall, this report is very well written. The figures support the conclusions of the paper and present a convenient guideline for tagging of proteins with small epitopes. As such, the manuscript may be of interest for a broad audience. However, some points need further clarifications.

Essential revisions:

1) The frequency of successful epitope tagging was calculated based on the percentage of cells expressing the epitope (Figure 1). Subcloning and subsequent PCR analysis of V5-positive clones revealed many clones with bi-allelic tagging (Figure 2B, Table 1). However, this analysis also showed not all clones were correctly targeted. E.g., lane 1 of the Sox2-V5 clones and lanes 3 and 6 of the Sox3-V5 clones (Figure 2B). It would be helpful if the authors would add to Table 1 the number of non-correctly targeted clones in order to more precisely determine the targeting efficiency.

Table 1 has been now updated to display the number and percentage of correctly targeted clones as determined by PCR genotyping.

2) In subsection “The high frequency of knock-in using csRNP facilitates simple recovery of biallelictagged clonal lines”, reference is made to Table 2. This apparently should be Table 1. Or Supplementary table 2, which is the same as Table 1?

We have fixed this. Reference is made to the correct Table 1 and Supplementary table 2 has been removed.

3) Figure 3C shows that epitope tagging can also be achieved at genes that are not expressed in ES cells. Only after differentiation into neural cells, the V5 tag became visible. However, it seems as if in the differentiated ES cells all neuronal cells expressed V5. How is this possible? Were neural rosettes obtained from single ES cells? Were also V5-negative neuronal rosettes obtained. If so, could an estimation be given on the frequency of epitope tagging at non-expressed genes versus expressed genes in ES cells by comparing the number of V8-negative and -positive rosettes?

This is a good suggestion. We realise this was not clearly explained in the results and has now been updated. Rosettes were obtained from the bulk populations and not the clonal ES cell lines. Both V5-positive and V5-negative rosettes were obtained. In the uniformly tagged rosettes these were likely generated from the expansion of single tagged ES cells during the mixed differentiation.

We have now calculated the approximate knock-in efficiency by counting V5-positive colonies out of the total Nestin-expressing colonies. The knock-in efficiency for both expressed and non-expressed genes in ES cells have been added in the Results section; these were found to be at a similar level to NS cells.

4) Figure 4D shows the fusion between two target genes and the V5 tag. However, it is unclear why this information is useful as the fusion is present in the ssODN template. It would be more interesting to see how the sequence around the DSB was repaired.

Similar data is shown in Figure 1—figure supplement 1, Figure 2—figure supplement 1, Figure 3—figure supplement 1 and Figure 4—figure supplement 3. From a skeptical point of view, these sequences only show that the ssODNs were properly synthesized. To confirm "in-frame and error-free insertion of V5 tag sequence at the C-terminus", mRNA sequencing appears more appropriate to show the tag is really present at the destined site. Reassuringly, Figure 2—figure supplement 1B just shows the modified Sox2 PAM site. Anyway, it is important to indicate that false positives were excluded by properly choosing the position of PCR primers.

The majority of the gRNAs selected cut in the 3’ UTR. For PCR genotyping, of bulk populations, we used a forward primer designed flanking the left homology arm (i.e. it was not present within the ssODN, but the upstream exon sequence) (Figure 1—figure supplement 1, Figure 3—figure supplement 1 and Figure 4—figure supplement 3). This product therefore confirms correct in-frame insertion. We have updated the Figure legend to make this clear. Indels in the 3’UTR in the bulk population could not be assessed by Sanger sequencing using this PCR product; however, for the clonal lines we used PCR primers flanking the V5 tag (Figure 2—figure supplement 1).

The figure has now been updated to clearly show the sequences around the guide RNA cut-site and confirms the error-free knock-in of V5 tag sequence.

5) The higher performance of gRNAs cutting proximal to the insertion site of the epitope tag compared to distal cutting sites shown in Figure 4 is very interesting and may relate to suggested mechanisms of ssODN-templated DSB repair. It would be interesting if the authors could share their opinion on the reasons for the inferior performance of distal gRNAs.

We have now added another reference (Guo et al., 2018) relevant to this observation. In the Discussion section we now speculate that the “partial HDR” could be the probable reason for the low knock-in efficiency achieved with the distal-cutting set of gRNAs.

6) The higher performance of tag-proximal gRNAs was only seen by staining for the V5 epitope (Figure 4), not by PCR (Figure 4—figure supplement 1, Figure 4—figure supplement 2), according to the authors because the latter is not quantitative. It is not clear why in Figure 4—figure supplement 1, Figure 4—figure supplement 2 some lanes are indicated +, others not. Was this only based on the expected size of the PCR product? Please indicate this in the legend. How discordant were the PCR and ICC results?

Lanes marked with ‘+’ denote successful knock-in of the V5-encoding sequence at the target gene. The legends for both the Figure 4—figure supplement 1 and Figure 4—figure supplement 2 have been updated to make this clear.

Genes positive for V5 knock-in as assessed by ICC were positive by PCR genotyping. However, many expressed-genes (e.g. Sox5, Foxj3, Foxk1) were positive by PCR for the second set of gRNAs (distal-cutting), but we only detected a few V5-positive cells in the entire microscopic field. The increased sensitivity of PCR therefore likely explains this difference. V5 immunocytochemistry remains in our view the simplest way to confirm successful knock-in.

7) Related to the above: In subsection “Design of guide RNAs and ssODN repair templates” it is mentioned that "the 200-mer ssODN ultramer was chosen to be the same strand as the guide RNA". Was there a particular reason to choose this strand and not the opposite strand? However, "for some of the ultramers the PAM-strand synthesis had failed and therefore, the complementary strand (non-PAM strand) was synthesized as a donor DNA." It would be very interesting to know how these non-PAM ssODNs performed. Do the authors consider PAM and non-PAM ssODNs equally effective? Has a comparison been made between the two?

Gasiunas et al., 2012 (PNAS) had suggested that the Cas9 complex can cut the complementary ssDNA (non-PAM strand) regardless of PAM presence. We initially had chosen the non-complementary strand of the DNA (PAM ssODN) for donor DNA synthesis as a precautionary step to avoid risks of ssODN being cut during in vitro assembly of CRISPR ingredients. However, a recent report suggests that for symmetrical PAM ssODNs there is no strand bias in terms of HDR knock-in efficiency (Liang et al., 2017). We have updated the Discussion section to make clear that our study focussed on the PAM ssODN, but in light of these recent publications the alternative strand will likely also be effective.

8) The above is important with respect to the Tag-IN tool the authors have created. Does the tool always propose a PAM ssODN or can also the reversed strand be chosen? If so, it should be made clear form comparative experiments that the two strands perform equally well.

Our tool designs only the PAM ssODNs as a donor DNA. The user can easily order the reverse complement sequence if they wish to test both.

9). In subsection “A scalable pipeline for high-throughput knock-in of epitope tags using 96-well Microplates”, the results of simultaneous tagging of 185 genes is presented. Plate 1 (Figure 6A) and 2 (Figure 6C) show 30/90 and 31/95 TF2 positive for V5. What was the cutoff here? According to the scale bar, more positive wells are visible with low ({plus minus}2-5%) but detectable V5 signal. On the other hand, what happened to the negative wells ({plus minus}77 in total)? Are these all non-expressed genes? This should be made clear in order to estimate how effective the Tag-IN tool works.

For the V5 tagging of 185 genes in the 96-well format, we used high-content imaging with Operetta to calculate the knock-in efficiency. The success of V5 tag insertion was assessed by manually inspecting images from each of the 96 wells and those with clear nuclear staining were scored as positive (30/90 and 31/95 both plates). The gRNAs for the 185 genes that were designed using Tag-IN tool were also verified manually to confirm that they were cutting near the insertion site (proximal-cutting) and had high score.

RNA-seq data we have recently obtained from other NS cell lines suggests the majority of the 185 genes are expressed – but we found that 10-20% are either not detectable or expressed at low levels. So, our ~30% of tagging success is likely a significant underestimate. For some, however, the failure is likely due to either a poor gRNA, poor repair ssODN or both. We now make this clear in the Discussion section.

10) What would the authors recommend for tagging proteins with larger tags, such as GFP or luciferase? Would RNPs work similar well with larger double- or single-stranded templates?

This is a good suggestion and of great interest to our lab. Over the recent months we have attempted to deploy the RNPs with synthetic dsDNA blocks encoding fluorescent proteins. We are happy to find that this works very well for Olig2, Sox2 and Foxg1. We see 1% efficiency (as anticipated, less than V5 tags; but still sufficient to recover cell lines by FACs). We include these data as a new supplementary Figure 7, which shows the knock-in of mCherry reporter at the C-terminus of mouse Sox2, Olig2, and Foxg1 loci alongside some testing of different sized arms (we find that ~500bp is optimal for efficiency and costs of synthesis).

11) A large number of stem and progenitor lines have been generated that would be of great value as a resource for the scientific community. Would it be possible to make them available over a cell repository?

Yes. We have already distributed many lines. We have put a note in the methods that all lines and tagged derivatives are available on request.

12) The presented Tag-IN website was not available online. Thus, the value of it can't be judged.

Although likely only a small glitch, there should be measures to ensure that the online tool will be active for years to come after publication.

The website is now available using the following login: http://tagin.stembio.org

We have now made this tool live to the public. The tool will be supported/hosted at the MRC Centre for Regenerative Medicine, Edinburgh. There is funding in place from Cancer Research UK to support this for at least the next six years (it will be linked to a new ‘Glioma cellular genetics resource’).

13) With regard to the tools and resource section selection, addition of a detailed supplementary protocol would be helpful.

We agree this would be useful. We have now included a more step-by-step protocol for users (Supplementary Protocol).

https://doi.org/10.7554/eLife.35069.034

Article and author information

Author details

  1. Pooran Singh Dewari

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Benjamin Southgate

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Software, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Katrina Mccarten

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. German Monogarov

    German Cancer Research Center, University of Heidelberg, Heidelberg, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Eoghan O'Duibhir

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Niall Quinn

    Institute of Genetics and Molecular Medicine, Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Ashley Tyrer

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Marie-Christin Leitner

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Colin Plumb

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  10. Maria Kalantzaki

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  11. Carla Blin

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Resources, Data curation, Methodology
    Competing interests
    No competing interests declared
  12. Rebecca Finch

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  13. Raul Bardini Bressan

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-5673-9563
  14. Gillian Morrison

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Resources, Funding acquisition, Methodology
    Competing interests
    No competing interests declared
  15. Ashley M Jacobi

    Integrated DNA Technologies, Inc., Coralville, United States
    Contribution
    Resources, Methodology
    Competing interests
    employed by Integrated DNA Technologies (IDT), who sells reagents similar to some described herein. IDT is, however, not a publicly traded company and the authors do not own any shares or equity in IDT. No other authors have any financial interests or relationships with IDT; nor do they own any shares or equity
  16. Mark A Behlke

    Integrated DNA Technologies, Inc., Coralville, United States
    Contribution
    Conceptualization, Resources, Project administration
    Competing interests
    Mark A Behlke: employed by Integrated DNA Technologies (IDT), who sells reagents similar to some described herein. IDT is, however, not a publicly traded company and the authors do not own any shares or equity in IDT. No other authors have any financial interests or relationships with IDT; nor do they own any shares or equity
  17. Alex von Kriegsheim

    Institute of Genetics and Molecular Medicine, Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Resources, Supervision, Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
  18. Simon Tomlinson

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Conceptualization, Software, Supervision, Investigation, Methodology
    Competing interests
    No competing interests declared
  19. Jeroen Krijgsveld

    German Cancer Research Center, University of Heidelberg, Heidelberg, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  20. Steven M Pollard

    1. Edinburgh Cancer Research United Kingdom Centre, University of Edinburgh, Edinburgh, United Kingdom
    2. MRC Centre for Regenerative Medicine, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    steven.pollard@ed.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-6428-0492

Funding

Cancer Research UK (A17368)

  • Pooran Singh Dewari
  • Benjamin Southgate
  • Eoghan O'Duibhir
  • Steven M Pollard

Medical Research Council (BB/M018040/1)

  • Pooran Singh Dewari
  • Steven M Pollard

Biotechnology and Biological Sciences Research Council (BB/M018040/1)

  • Pooran Singh Dewari
  • Steven M Pollard

Engineering and Physical Sciences Research Council (BB/M018040/1)

  • Pooran Singh Dewari
  • Steven M Pollard

Brain Tumour Charity (GN-000358)

  • Pooran Singh Dewari
  • Steven M Pollard

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Vectors were provided by Addgene for Cas9 recombinant protein production (Addgene Plasmid 53261). ESCs were provided by Ian Chambers. Vivien for tissue culture, flow-cytometry facility, Bertrand Vernay provided support for microscopy and image analysis. We thank Donal O’Carroll, Ian Chambers, and Abdenour Soufi for helpful comments on the manuscript. The project was also supported by the BBSRC/EPSRC/MRC Synthetic Biological Research Centre (BB/M018040/1), part of the UK Research Councils' investment in ‘Synthetic Biology for Growth’. SMP is a Cancer research UK Senior Research Fellow (A17368).

Reviewing Editor

  1. Maarten van Lohuizen, Reviewing Editor, The Netherlands Cancer Institute, Netherlands

Publication history

  1. Received: January 12, 2018
  2. Accepted: April 10, 2018
  3. Accepted Manuscript published: April 11, 2018 (version 1)
  4. Version of Record published: May 11, 2018 (version 2)

Copyright

© 2018, Dewari et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,939
    Page views
  • 861
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
