PDF-1 neuropeptide signaling regulates sexually dimorphic gene expression in shared sensory neurons of C. elegans

  1. Zoë A Hilbert
  2. Dennis H Kim  Is a corresponding author
  1. Massachusetts Institute of Technology, United States
Research Advance
  • Cited 3
  • Views 988
  • Annotations
Cite this article as: eLife 2018;7:e36547 doi: 10.7554/eLife.36547

Abstract

Sexually dimorphic behaviors are a feature common to species across the animal kingdom, however how such behaviors are generated from mostly sex-shared nervous systems is not well understood. Building on our previous work which described the sexually dimorphic expression of a neuroendocrine ligand, DAF-7, and its role in behavioral decision-making in C. elegans (Hilbert and Kim, 2017), we show here that sex-specific expression of daf-7 is regulated by another neuroendocrine ligand, Pigment Dispersing Factor (PDF-1), which has previously been implicated in regulating male-specific behavior (Barrios et al., 2012). Our analysis revealed that PDF-1 signaling acts sex- and cell-specifically in the ASJ neurons to regulate the expression of daf-7, and we show that differences in PDFR-1 receptor activity account for the sex-specific effects of this pathway. Our data suggest that modulation of the sex-shared nervous system by a cascade of neuroendocrine signals can shape sexually dimorphic behaviors.

https://doi.org/10.7554/eLife.36547.001

Introduction

Behavioral differences between the sexes of animal species can make major contributions to the reproductive fitness of the organism. While sex-specific behaviors can be readily observed, the mechanistic basis of such behavioral differences is less well understood. Morphological differences, including the existence of sex-specific neurons, have been documented in the nervous systems of many species, but differences in sex-shared neurons have also been implicated in generating sex-specific behaviors. In particular, how sex-specific behavioral circuits are generated within the features of the nervous system common to both sexes has been the focus of recent studies in diverse organisms. Studies of the mouse vomeronasal organ (VNO) has suggested that the functional circuits for both male- and female-specific behaviors such as courtship and aggression are intact in the brains of both sexes and are modulated by VNO activity in response to pheromone cues (Kimchi et al., 2007; Stowers et al., 2002). In a similar vein, the Drosophila male pheromone 11-cis Vaccenyl acetate (cVa) has been shown to be sensed by the same neurons in the two sexes but stimulates distinct sex-specific behavioral responses (Datta et al., 2008; Kohl et al., 2013; Kurtovic et al., 2007; Ruta et al., 2010). These examples and others have provided some insight into the sexual dimorphisms present in the nervous system and their contributions to behavior, although many open questions remain (Dulac and Kimchi, 2007; Stowers and Logan, 2010; Yang and Shah, 2014).

In the nematode Caenorhabditis elegans, behavioral differences between the two sexes—hermaphrodites and males—range from behaviors exclusively performed by one sex, such as egg laying by hermaphrodites and the mating program of males (Liu and Sternberg, 1995), to those in which the two sexes differ in their responses to the same stimuli, including differing responses to pheromone (Fagan et al., 2018; Jang et al., 2012; Srinivasan et al., 2008), food-related cues (Ryan et al., 2014), and conditioning to aversive stimuli (Sakai et al., 2013; Sammut et al., 2015). While sex-specific neurons regulate corresponding behaviors in C. elegans, the 294 neurons that are common to the nervous systems of both hermaphrodites and males have emerged as major contributors to a number of different sexually dimorphic behaviors (Barr et al., 2018; Barrios et al., 2012, 2008; Fagan et al., 2018; Lee and Portman, 2007; Mowrey et al., 2014; Sakai et al., 2013). In particular, recent work has uncovered sexually dimorphic differences in axonic and dendritic morphology and synaptic connectivity within the sex shared nervous system, which can modulate neuronal circuits and behavior (Hart and Hobert, 2018; Oren-Suissa et al., 2016; Serrano-Saiz et al., 2017a; Weinberg et al., 2018). In addition, studies of sexually dimorphic gene expression (Hilbert and Kim, 2017; Ryan et al., 2014; Serrano-Saiz et al., 2017a) and neurotransmitter identity (Gendrel et al., 2016; Pereira et al., 2015; Serrano-Saiz et al., 2017a, 2017b) have suggested that sexual differentiation of neurons within the sex-shared nervous system of C. elegans is critical for the establishment of sexually dimorphic behaviors.

We have previously demonstrated that daf-7, which encodes a TGFβ family neuroendocrine ligand that regulates diverse aspects of C. elegans behavior and physiology (Chang et al., 2006; Fletcher and Kim, 2017; Gallagher et al., 2013; Greer et al., 2008; Milward et al., 2011; Ren et al., 1996; Shaw et al., 2007; White and Jorgensen, 2012; You et al., 2008), is expressed in a sex-specific and context-dependent manner in the sex-shared ASJ chemosensory neurons and functions to promote exploratory behaviors (Hilbert and Kim, 2017; Meisel et al., 2014). Regulation of daf-7 expression in the ASJ neurons requires the integration of sensory and internal state information including the sex and age of the animal, its nutritional state, and the type of bacterial species it encounters in its environment (Hilbert and Kim, 2017). These stimuli feed into the regulation of daf-7 expression in the two ASJ neurons in a hierarchical manner, which enables the animal to make behavioral decisions taking into account past experiences as well as its current environment.

Here, we report the identification of a second neuroendocrine signaling pathway, the Pigment Dispersing Factor (PDF-1) pathway, which functions to regulate the expression of daf-7 and its effects on behavior in a sex-specific manner. We show that PDF-1 pathway signaling, which has previously been shown to be essential for male mate-searching behavior (Barrios et al., 2012), functions sex-specifically in the ASJ neurons themselves to regulate daf-7 expression. Further, we demonstrate that the sex-specificity of PDF-1 regulation of daf-7 derives from differences in the activation of PDF-1 signaling downstream of the PDF-1 receptor gene, pdfr-1, in the ASJ neurons. Our data suggest that the gating of neuronal responses to neuropeptide modulators through sex-specific restriction of receptor activity is a mechanism by which sex-specific behaviors can be generated from the largely sex-shared nervous system of C. elegans.

Results and discussion

PDF-1 neuropeptide signaling regulates the sex-specific expression of daf-7 in the ASJ chemosensory neurons

To explore the molecular and genetic mechanisms that underlie the sex-specificity of daf-7 expression, we identified a number of candidate genes that had previously been shown to be involved in the regulation of mate-searching behavior or other aspects of male physiology and tested mutants of these genes for effects on daf-7 expression in the male ASJ neurons. Through this approach, we identified the PDF-1 neuropeptide signaling pathway as a regulator of daf-7 expression in the ASJ neurons (Figure 1). The PDF neuropeptide signaling pathway is conserved among insects, crustaceans and nematodes. In Drosophila melanogaster, PDF signaling has been well studied for its critical role in the regulation of circadian rhythmicity (Helfrich-Förster, 1995; Park and Hall, 1998; Park et al., 2000; Renn et al., 1999), but it has also been shown to modulate geotaxis (Mertens et al., 2005), pheromone production and mating behaviors (Fujii and Amrein, 2010; Kim et al., 2013; Krupp et al., 2013). In C. elegans, PDF-1 signaling has been established as an important regulator of locomotion, roaming behaviors, quiescence, and notably, male mate-searching behavior (Figure 1A; Barrios et al., 2012; Choi et al., 2013; Flavell et al., 2013; Janssen et al., 2008, 2009; Meelkop et al., 2012).

Figure 1 with 2 supplements see all

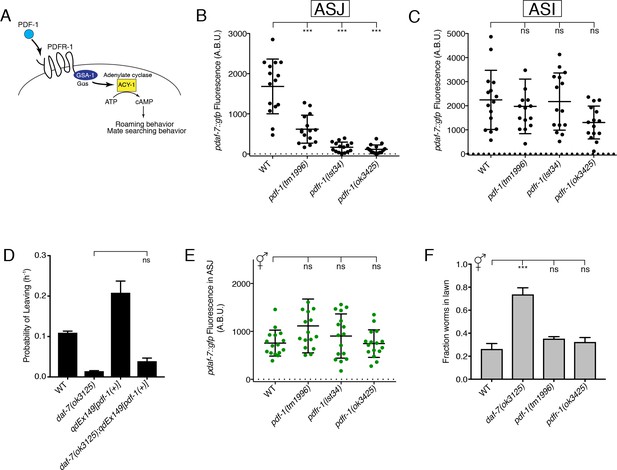

The PDF-1 pathway is required for the male-specific expression of daf-7 in the ASJ neurons and its effects on male mate-searching behavior.

(A) PDF-1 signaling activates cAMP production and regulates both roaming behavior and male mate-searching behavior in C. elegans. (B–C) Maximum fluorescence values of pdaf-7::gfp in the ASJ (B) and ASI (C) neurons of adult male animals. ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Error bars represent standard deviation (SD). ns, not significant. n = 15 animals for all genotypes. (D) Probability of leaving values for epistasis experiment between daf-7(ok3125) and a PDF-1 overexpressing line. Values plotted are the mean +SEM for three independent experiments. Significance determined by unpaired t-test with Welch’s correction. ns, not significant. n = 60 total animals for all genotypes except the daf-7(ok3125); qdEx149 strain where n = 48. (E) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of hermaphrodites after 16 hr on P. aeruginosa. Significance determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Error bars represent SD. ns, not significant. n = 15 animals for all genotypes. (F) Lawn occupancy of animals on P. aeruginosa after 16 hr. ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Values plotted indicate the mean + SD for three replicates. Number of animals assayed are as follows: WT (n = 89), daf-7 (n = 66), pdf-1 (n = 117), pdfr-1 (n = 105).

https://doi.org/10.7554/eLife.36547.002

We observed that males with mutation of either the PDF-1 neuropeptide ligand or its receptor, PDFR-1, have markedly attenuated expression of daf-7 in the ASJ neuron pair (Figure 1B). The ASI chemosensory neurons are established sites of daf-7 expression in both male and hermaphrodite animals (Ren et al., 1996; Schackwitz et al., 1996), so we asked if the PDF-1 signaling pathway also regulates daf-7 expression in these neurons. In the PDF-1 pathway mutant males, we observe no difference in daf-7 levels in the ASI neurons when compared to WT (Figure 1C), suggesting that the PDF-1 pathway specifically affects the regulation of daf-7 in the ASJ neuron pair.

Expression of daf-7 in the ASJ neuron pair of males is required for the male-specific mate-searching behavioral program (Hilbert and Kim, 2017), while the PDF-1 pathway has similarly been implicated as a regulator of this same behavior (Barrios et al., 2012). Given the role that this PDF-1 pathway plays in regulating the expression of daf-7, we set out to determine if the effects of the PDF-1 pathway on mate-searching behavior are the result of PDF-1 and DAF-7 functioning through a single pathway or through separate parallel pathways. Overexpression of the pdf-1 genomic sequence confers increased mate-searching behavior in male animals (Figure 1D; Barrios et al., 2012). We introduced a daf-7 mutation into these transgenic PDF-1 overexpressing lines and observed that the effect of PDF-1 overexpression on mate-searching behavior was suppressed by loss of daf-7 function (Figure 1D and Figure 1—figure supplement 1A). However, we observed that overexpression of daf-7 in the ASJ neurons of pdf-1(tm1996) mutant males could not rescue the mate-searching defects of these animals (Figure 1—figure supplement 1B). Taken together, the results of this epistasis analysis suggest that PDF-1 regulates mate-searching behavior in males through the regulation of daf-7 expression in the ASJ neurons and through additional mechanisms functioning in parallel to DAF-7 signaling.

We have previously reported that daf-7 expression serves a dual role in the ASJ neurons, functioning in males to promote food-leaving behaviors (Hilbert and Kim, 2017), but also being induced by the presence of Pseudomonas aeruginosa in both sexes to promote pathogen avoidance behaviors (Meisel et al., 2014). Given this and our interest in identifying male-specific regulators of daf-7 expression, we asked if the PDF-1 pathway is required for the upregulation of daf-7 expression in response to P. aeruginosa. We did not observe a requirement for PDF-1 signaling in the induction of daf-7 expression in the ASJ neurons after 16 hr on P. aeruginosa; both pdf-1 and pdfr-1 mutant hermaphrodites had equivalent levels of daf-7 expression when compared to control animals (Figure 1E). Similarly, males that are mutant for either the PDF-1 ligand or receptor (and show little to no daf-7 expression in their ASJ neurons on E. coli, see Figure 1B) were capable of upregulating daf-7 expression in ASJ upon exposure to P. aeruginosa (Figure 1—figure supplement 2A). Given the previously established function of daf-7 expression in the ASJ neurons of hermaphrodites in promoting pathogen avoidance behavior (Meisel et al., 2014), these results predict that mutants in the PDF-1 pathway should have no defects in their ability to avoid a lawn of pathogenic P. aeruginosa. Consistent with this expectation, we observed that while daf-7 mutant hermaphrodites fail to avoid a lawn of pathogenic bacteria, the pdf-1 and pdfr-1 mutant hermaphrodites appear wild-type for their ability to perform this behavior (Figure 1F). Similarly, pdf-1 and pdfr-1 mutant males also displayed robust pathogen avoidance despite their defects in the male-specific mate searching behavior (Figure 1—figure supplement 2B; Barrios et al., 2012). These data suggest that the PDF-1 signaling pathway acts sex-specifically to regulate daf-7 expression in the ASJ neurons and its effects on downstream sexually dimorphic behavioral programs.

PDF-1 signaling acts cell-autonomously in the ASJ neurons to promote daf-7 expression

The PDF-1 neuropeptide ligand is secreted from multiple neurons in the head region of the animal where a similarly large number of neurons express the PDFR-1 receptor (Barrios et al., 2012; Janssen et al., 2009; Meelkop et al., 2012). To identify the relevant site of action for this pathway in the regulation of daf-7 expression in males, we used the pdfr-1(ok3425) mutant animals and introduced pdfr-1 cDNA transgenes into specific neurons using heterologous cell-specific promoters. We observed that while the pdfr-1 mutant males lack daf-7 expression in the ASJ neurons, introduction of a genomic DNA fragment carrying the pdfr-1 locus fully rescued this phenotype and restored daf-7 expression in the ASJ neurons (Figure 2A and B). Furthermore, we observed that expression of pdfr-1 under the control of the ASJ-specific trx-1 promoter was sufficient to rescue daf-7 expression in the ASJ neurons of the mutant male animals, suggesting that PDF-1 signals to its receptor, PDFR-1, in the ASJ neurons to influence daf-7 expression specifically in the male (Figure 2A and B).

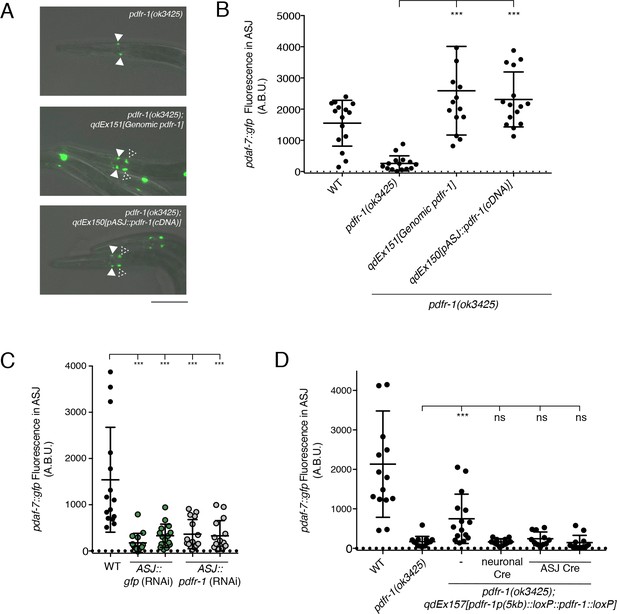

PDF-1 signaling is necessary and sufficient in the ASJ neurons for the regulation of daf-7 expression in male C. elegans.

(A) pdaf-7::gfp expression in pdfr-1(ok3425) mutant (top), genomic rescue (middle), and ASJ-specific rescue (bottom) male animals. Filled arrowheads indicate the ASI neurons; dashed arrowheads indicate the ASJ neurons. Scale bar indicates 50 μm. (B) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of pdfr-1 rescue males. ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Error bars represent SD. n = 15 animals for all genotypes. (C) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of WT males (black) and animals with ASJ-specific RNAi of either GFP (green) or pdfr-1(gray). ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Error bars indicate SD. n = 15 animals for all conditions. (D) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of WT, pdfr-1(ok3425) mutants, and animals with floxed pdfr-1 rescued under the control of a 5 kb distal reporter as reported in Flavell et al. (2013) (left three columns). pdfr-1 function was removed either in all neurons or specifically in ASJ using cell-specific expression of Cre recombinase (right three columns). ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. ns, not significant. Error bars indicate SD. n = 12–15 animals for each condition.

https://doi.org/10.7554/eLife.36547.005

To assess the necessity of pdfr-1 function in ASJ for the regulation of daf-7 expression in males, we knocked down pdfr-1 expression in the ASJ neurons via cell-specific RNAi (Esposito et al., 2007). We observed that animals with RNAi targeting pdfr-1 in the ASJ neurons exhibited reduced daf-7 expression in ASJ comparable to what we observed with ASJ-specific RNAi of GFP, our positive control (Figure 2C). Additionally, we generated transgenic animals carrying a floxed copy of the pdfr-1 cDNA under the control of a 5 kb region of the endogenous pdfr-1 promoter, which has been previously reported to rescue roaming behaviors in the C. elegans hermaphrodite (Flavell et al., 2013). We observed that this construct partially rescued daf-7 expression in the ASJ neurons of pdfr-1(ok3425) mutant males, and ASJ-specific expression of the Cre recombinase suppressed the rescuing effects of this transgene (Figure 2D), strongly suggestive that PDFR-1 activity in the ASJ neurons is required for daf-7 expression. These results indicate that the PDF-1 signaling pathway functions cell-autonomously in the ASJ neuron pair to regulate the sexually dimorphic expression of daf-7.

The PDFR-1 receptor is a secretin-family G-protein coupled receptor (GPCR), which has been shown to stimulate Gαs signaling and upregulation of cAMP production in transfected cells as well as in both Drosophila melanogaster and C. elegans neurons (Figure 1A; Flavell et al., 2013; Hyun et al., 2005; Janssen et al., 2008; Lear et al., 2005; Mertens et al., 2005; Shafer et al., 2008). Using a gain-of-function variant of the adenylate cyclase, ACY-1 (Flavell et al., 2013; Saifee et al., 2011; Schade et al., 2005), we asked if activation of the pathway downstream of PDFR-1 specifically in ASJ was sufficient to rescue the defects in daf-7 expression that we observe in the pdfr-1 mutant males. We observed that in pdfr-1 mutant males with transgenic expression of the acy-1(gf) cDNA only in the ASJ neurons, daf-7 expression was fully rescued (Figure 3A). This ability to bypass PDFR-1 by activation of cAMP production specifically in the ASJ neuron pair further suggest that the PDF-1 signaling pathway acts directly on the ASJ neurons in order to regulate daf-7 expression in male animals. Given the hierarchical nature of the regulation of daf-7 expression in the male ASJ neurons (Hilbert and Kim, 2017), we asked if acy-1 function may serve a broader role coordinating the many inputs of this hierarchy into changes in daf-7 expression. We previously reported that starvation of adult male animals efficiently suppresses daf-7 expression in the ASJ neurons in wild-type animals (Hilbert and Kim, 2017; Figure 3B). Notably, ASJ-specific expression of the acy-1(gf) variant in starved males did not suppress the effects of starvation on daf-7 expression in ASJ (Figure 3B), suggestive that the effects of starvation act downstream of or in parallel to PDFR-1-ACY-1 signaling.

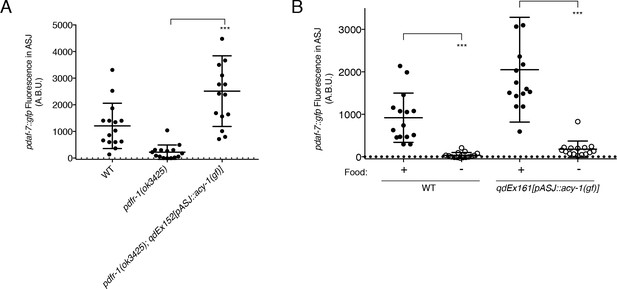

ACY-1 acts downstream of PDFR-1 to regulate daf-7 expression in male ASJ neurons.

(A) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of males expressing the gain-of-function ACY-1(P260S) cDNA specifically in ASJ. ***p<0.001 as determined by unpaired t-test with Welch’s correction. Error bars represent SD. n = 15 animals for all genotypes. (B) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of WT and ASJ-specific acy-1(gf) expressing fed (filled circles) and starved (open circles) males. ***p<0.001 as determined by unpaired t-test with Welch’s correction. Error bars indicate SD. n = 15 animals for all conditions.

https://doi.org/10.7554/eLife.36547.006

Sex differences in PDF-1 receptor activity underlie the sex-specific regulation of daf-7 transcription in ASJ

The sex-specificity of the effects of the PDF-1 pathway on daf-7 regulation and mate searching behavior is intriguing given very little evidence of differences in the expression or function of this neuropeptide pathway between the two C. elegans sexes (Barrios et al., 2012; Janssen et al., 2008, 2009). It was recently shown that pdf-1 is produced by the newly identified male-specific MCM neurons and is required for the regulation of sex-specific learning in males, but interestingly, ablation of these neurons has no effect on mate-searching behavior (Sammut et al., 2015). Nevertheless, we wondered if there might be unidentified sex differences in the signaling or expression of this PDF-1 neuropeptide pathway in neurons such as ASJ, which would confer its sex-specific effects on the regulation of daf-7 gene expression. To this end, we asked if activation of the PDF-1 signaling pathway in the ASJ neurons of hermaphrodites might be sufficient to drive daf-7 expression inappropriately in these animals. We first looked at hermaphrodite animals carrying the same ASJ-expressed acy-1(gf) transgene and observed significant upregulation of daf-7 expression in the ASJ neurons of these hermaphrodites (Figure 4A). We next asked whether we could observe daf-7 expression in the ASJ neurons of hermaphrodite animals with heterologous expression of pdfr-1 in only the ASJ neurons. Strikingly, we found that in hermaphrodites with overexpression of pdfr-1 cDNA in the ASJ neurons, daf-7 expression was also upregulated similar to what we observed in the acy-1(gf) transgenic strains (Figure 4B). We also quantified daf-7 expression in the ASJ neurons of hermaphrodites carrying the genomic pdfr-1 fragment with all of the endogenous regulatory sequence and observed no upregulation of expression in those animals. This control suggests that daf-7 expression in ASJ cannot be triggered simply as the result of overexpression of pdfr-1 (Figure 4B), rather, these results suggest that expression of PDFR-1 specifically in the hermaphrodite ASJ neurons is sufficient to allow daf-7 expression in these neurons.

Figure 4 with 1 supplement see all

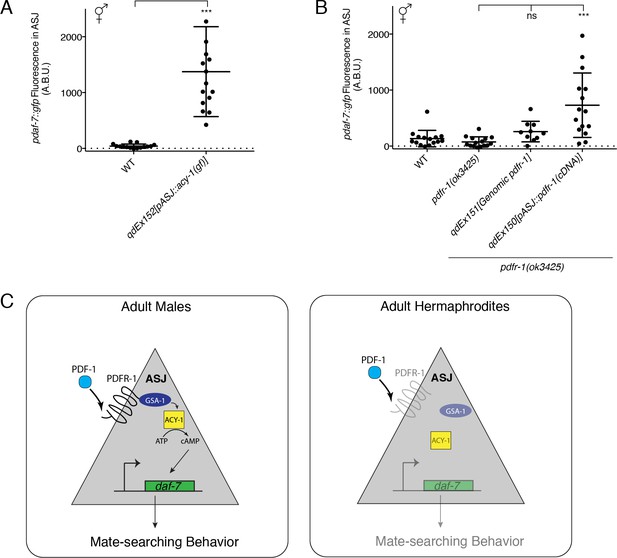

Heterologous activation of the PDF-1 pathway in ASJ is sufficient to activate daf-7 transcription in adult hermaphrodites.

(A) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of WT hermaphrodites and hermaphrodites where ACY-1 has been activated (via the gain of function P260S mutant) specifically in ASJ. ***p<0.001 as determined by unpaired t-test with Welch’s correction. Error bars represent SD. n = 15 animals for both genotypes. (B) Maximum fluorescence values of pdaf-7::gfp in the ASJ neurons of hermaphrodites overexpressing pdfr-1 from either a genomic fragment or under the control of a heterologous ASJ-specific promoter. ***p<0.001 as determined by ordinary one-way ANOVA followed by Dunnett’s multiple comparisons test. Error bars represent SD. ns, not significant. n = 15 animals for all genotypes except pdfr-1(ok3425); qdEx151 where n = 10 animals. (C) Model for the sex-specific regulation of daf-7 expression in the ASJ chemosensory neurons by the PDF-1 signaling pathway.

https://doi.org/10.7554/eLife.36547.007

We note that establishing the neuronal expression pattern of pdfr-1 has been challenging because of the apparent complexity of defining putative regulatory regions of the gene (Barrios et al., 2012; Flavell et al., 2013; Janssen et al., 2008). We sought to examine the transcription of pdfr-1 in male and hermaphrodite animals using fluorescence in situ hybridization (FISH). We generated fluorescent probes for a region of the pdfr-1 coding sequence that is shared among all isoforms and verified the specificity of these probes for the pdfr-1 coding sequence by examining expression in the pdfr-1(ok3425) deletion mutant, where we observed no fluorescent signal (Figure 4—figure supplement 1B), and in our ASJ-specific rescue lines, where we could only observe fluorescence in the ASJ neurons (Figure 4—figure supplement 1D). Imaging of pdfr-1 transcription in WT animals revealed a diffuse expression pattern with fluorescent signal observable in muscle tissue as well as in neurons, but with few cells having strong signal and many cells with only scattered fluorescent spots, including the ASJ neurons (Figure 4—figure supplement 1A). To corroborate and confirm these observations, we also imaged pdfr-1 transcripts in animals carrying our genomic rescuing fragment, which amplified probe fluorescence throughout the nervous system and muscle (Figure 4—figure supplement 1C). We expect that because of the intact endogenous regulatory sequence on this genomic fragment, the mRNA localization we observe in this strain should still be representative of the wild-type expression pattern of pdfr-1. While we observe qualitative differences in the abundance of pdfr-1 mRNA in the ASJ neurons between males and hermaphrodites, we did not detect pdfr-1 mRNA in all male animals examined. We observed puncta of pdfr-1 mRNA in the ASJ neurons of about 20% of adult male animals (Figure 4—figure supplement 1E and F), whereas similarly aged hermaphrodites did not have a corresponding subpopulation of animals with puncta of pdfr-1 mRNA. Further analysis of the expression pattern of pdfr-1 will be required to definitively identify any sexual dimorphism in the expression of this gene. Nevertheless, our functional studies demonstrating that PDFR-1 expression in the ASJ neurons is both necessary and sufficient for daf-7 expression suggest that the expression or activity of the PDFR-1 receptor may be regulated in a sexually dimorphic manner in these neurons.

The PDF-1-DAF-7 neuroendocrine signaling cascade regulates sex-specific behavior through the sex-shared ASJ neurons

Building on our previous work on the sexually dimorphic regulation of the neuroendocrine gene daf-7 and its role in promoting male decision-making behaviors (Hilbert and Kim, 2017), we have presented here a set of experiments which implicate the PDF-1 neuropeptide signaling pathway as a critical male-specific regulator of daf-7 expression in the ASJ neurons. Our data suggest that sexually dimorphic regulation of the PDF-1 receptor, PDFR-1, may serve as a gating mechanism, allowing the ASJ neurons of adult male C. elegans to respond to the PDF-1 ligand. We suggest that this ligand-receptor interaction activates a downstream signaling cascade in ASJ terminating in the transcriptional activation of daf-7, which in turn promotes male-specific decision-making behaviors (Figure 4C, left). We hypothesize that the relative lack of expression or activity of pdfr-1 in the hermaphrodite ASJ neurons prevents the activation of this pathway and consequently daf-7 expression is not induced under normal growth conditions in adult hermaphrodites (Figure 4C, right). Strikingly, heterologous expression of the PDF-1 receptor in the hermaphrodite ASJ neurons was sufficient to drive daf-7 expression in an inappropriate physiological context (the hermaphrodite nervous system). All together, our data suggest that the PDF-1 pathway plays an integral role in facilitating sex-specific differences in gene expression and behavior.

While recent work has revealed sexual dimorphisms at the level of gene expression, neuronal connectivity and neurotransmitter release in the sex-shared nervous system of C. elegans (Hart and Hobert, 2018; Hilbert and Kim, 2017; Oren-Suissa et al., 2016; Pereira et al., 2015; Ryan et al., 2014; Serrano-Saiz et al., 2017a, 2017b; Weinberg et al., 2018), the role of neuromodulators and other neuroendocrine signals in facilitating sex-specific responses of neurons in the shared neuronal circuitry has been relatively unexplored. Here, we propose a model in which two pathways, the PDF-1 and DAF-7/TGFβ pathways, act in concert as a neuroendocrine signaling cascade to regulate sex-specific behavior within the context of the sex-shared ASJ neurons (Figure 4C). Our data suggest that the PDF-1 pathway functions in tuning the response of the ASJ neurons to this endogenous neuromodulator in a sex-specific manner. Interestingly, recent work in mice has uncovered a similar phenomenon wherein the neuromodulator oxytocin facilitates sex-specific social preference in male mice by modulating the ability of subsets of neurons to respond to social cues (Yao et al., 2017). The parallels between this work and ours underscore the role of neuroendocrine signaling through sex-shared nervous system components in shaping sexually dimorphic neuronal activity and behavior in evolutionarily diverse animals.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene
(Caenorhabditis elegans)
pdf-1NAWBGene00020317
Gene (C. elegans)pdfr-1NAWBGene00015735
Gene (C. elegans)daf-7NAWBGene00000903
Gene (C. elegans)acy-1NAWBGene00000068
Genetic reagent
(C. elegans)
ksIs2PMID: 11677050WBTransgene00000788pdaf-7::gfp
Recombinant DNA
reagent
Moerman Fosmid
Library
Source BioscienceWRM0629dH07, WRM0627cG01,
WRM0641dA07, WRM068aD11
Recombinant DNA
reagent
pPD95.75Fire Lab C. elegans
Vector Kit
Addgene plasmid # 1494
Recombinant DNA
reagent
pCFJ90PMID:18953339Addgene plasmid # 19327pmyo-2::mCherry, used as
co-injection marker
Recombinant DNA
reagent
pZH42this paperpdf-1 genomic DNA in pUC19
Recombinant DNA
reagent
pZH48this paperptrx-1::pdfr-1(cDNA, b isoform,
no STOP codon)::F2A::mCherry::
unc-54 3'UTR
Recombinant DNA
reagent
pZH53this paperptrx-1::ACY-1(P260S)::unc-54 3'UTR
Recombinant DNA
reagent
pZH58this paperpdfr-1p(distal, 5 kb)::loxP::pdfr-1
cDNA(B isoform)::loxP::unc-54 3'UTR
Recombinant DNA
reagent
pZH59this paperptrx-1::nCre
Recombinant DNA
reagent
pJDM30PMID: 25303524ptrx-1::daf-7
Recombinant DNA
reagent
pSF11PMID: 23972393ptag-168::nCre, gift of
C. Bargmann and S. Flavell
Commercial assay
or kit
NEBuilder HiFi DNA
Assembly Master Mix
NEBE2621
Software, algorithmGraphPad PrismGraphPadRRID:SCR_002798
OtherAlexa Fluor 647 DHS
ester
Invitrogen/Thermo
Fisher Scientific
A20006dye used for conjugation
of FISH probes

C. elegans strains

Request a detailed protocol

C. elegans strains were cultured as previously described (Brenner, 1974; Hilbert and Kim, 2017). For a complete list of strains used in this study please see Supplementary file 1.

Cloning and transgenic strain generation

Request a detailed protocol

For the pdf-1 overexpression transgene, a 6.5 kb region of sequence containing the pdf-1 promoter, coding sequence and 3’UTR were amplified from the fosmid WRM0641dA07 from the Moerman fosmid library. This fragment was cloned into the pUC19 vector backbone by Gibson assembly (Gibson et al., 2009) to generate plasmid pZH42. ASJ-specific overexpression of daf-7 transgenes in the pdf-1(tm1996) mutant background were established by reinjection of the plasmid pJDM30 which contains daf-7 cDNA under the control of the trx-1 promoter (Meisel et al., 2014).

For the ASJ-specific pdfr-1 rescue construct, the B isoform of the pdfr-1 cDNA with no stop codon was amplified from cDNA generated with an Ambion RetroScript kit using primers based on previously described annotation of the isoform (Barrios et al., 2012). The trx-1 ASJ-specific promoter was amplified as previously described (Hilbert and Kim, 2017). An F2A::mCherry fragment was amplified off a plasmid that was a gift from C. Pender and H.R. Horvitz. All fragments were cloned into the pPD95.75 backbone with an intact unc-54 3’UTR by Gibson assembly to generate plasmid pZH48. Genomic rescue of pdfr-1 was done by injection of the WRM0629dH07 fosmid from the Moerman fosmid library.

Cloning for cell-specific RNAi experiments was carried out similarly to the method previously described (Esposito et al., 2007). A 1.2 kb fragment of the ASJ-specific trx-1 promoter was amplified from the fosmid WRM0627cG01 from the Moerman fosmid library with overlap to either pdfr-1 or GFP in either the sense or antisense direction. A 1.8 kb exon rich region of the pdfr-1 coding sequence was amplified from the fosmid WRM0629dH07. A 1 kb fragment containing part of the GFP coding sequence was amplified from the plasmid, pPD95.75. The GFP and pdfr-1 fragments were cloned in the sense and anti-sense directions with the trx-1 promoter into the pUC19 plasmid backbone using Gibson Assembly. PCR with nested primers was then used to amplify only the promoter and gene sequence off the plasmid backbone and these PCR products were purified and used for injections. Both sense and anti-sense PCR products were injected at a concentration of 20 ng/μL along with pCFJ90 (Frøkjaer-Jensen et al., 2008) at 2.5 ng/μL and 1 kb ladder as carrier DNA.

For the floxed pdfr-1 rescue strain, the pdfr-1 cDNA was amplified with primers carrying loxP sequences on either side. The 5 kb pdfr-1 promoter was amplified from the fosmid WRM068aD11. These fragments were cloned into a pPD95.75 backbone with an intact unc-54 3’UTR by Gibson Assembly to generate plasmid pZH58. ASJ-specific Cre lines were generated by swapping the trx-1 promoter into the plasmid pSF11 (gift of S. Flavell and C. Bargmann) in place of the tag-168 pan-neuronal promoter to generate plasmid pZH59. Pan-neuronal Cre lines were generated by re-injection of pSF11 at a concentration of 20 ng/μL. For all Cre lines, pCFJ90 was used as a co-injection marker at a concentration of 2.5 ng/μL.

For the ACY-1(gf) construct, the 3.8 kb acy-1(P260S) fragment was amplified from genomic DNA extracted from the strain CX15050 (gift from S. Flavell and C. Bargmann) which carries a transgenic array with the acy-1(P260S) cDNA under the control of a different promoter. This fragment was cloned into a plasmid backbone carrying the trx-1 promoter and unc-54 3’UTR to generate pZH53. All fosmids and plasmids were verified by sequencing and injected at a concentration of 50 ng/μL along with a plasmid carrying pofm-1::gfp at 50 ng/μL as a co-injection marker unless otherwise noted. At least three independent transgenic lines were obtained and analyzed for each construct and one or two representative lines are shown. For a list of all primers used in this paper, please see Supplementary file 2.

Measurement of gene expression in ASI and ASJ neurons

Request a detailed protocol

Quantification of daf-7 expression was performed as described in (Hilbert and Kim, 2017) using the ksIs2(pdaf-7::gfp) transgene (Murakami et al., 2001). All adult quantifications were done on animals 72 hr after egg lay. Quantification of animals on P. aeruginosa were performed as before.

Starvation assays

Request a detailed protocol

Starvation assays and measurement of pdaf-7::gfp fluorescence in the ASJ neurons of starved males was performed as previously described (Hilbert and Kim, 2017).

Mate-Searching assays

Request a detailed protocol

Mate-searching assays were performed as previously described (Hilbert and Kim, 2017; Lipton et al., 2004).

P. aeruginosa lawn avoidance assays

Request a detailed protocol

P. aeruginosa plates were prepared as described in (Hilbert and Kim, 2017). Animals were synchronized by treatment with bleach and allowed to hatch and arrest as L1 larvae before being dropped onto E. coli plates. L4 animals were transferred to the center of the P. aeruginosa lawn, incubated at 25˚C and then scored for avoidance after 16 hr.

For male lawn avoidance assays shown in Figure 1—figure supplement 2B, plates and animals were prepared using the same method as for hermaphrodites, but males were placed individually onto plates seeded with P. aeruginosa as L4s. Plates were incubated at 25˚C and then scored for avoidance after 16 hr. These experiments were repeated three times, with 30 individual animals per genotype in each replicate.

Fluorescence In Situ Hybridization

Request a detailed protocol

FISH was performed as previously described (Hilbert and Kim, 2017; Raj et al., 2008). The pdfr-1 probe was constructed by pooling together 36 unique 20 nucleotide oligos that tile across base-pairs 580–1540 in the pdfr-1 B-isoform cDNA. This sequence is contained in all isoforms of pdfr-1 so should anneal to any endogenous pdfr-1 mRNA. After pooling, oligos were coupled to Alexa Fluor 647 NHS ester (Invitrogen/Thermo Fisher Scientific) and then purified by HPLC.

Statistical analysis

Request a detailed protocol

All statistical analysis was performed using the Graphpad Prism software. Statistical tests used for each experiment are listed in the figure legend.

References

  1. 1
  2. 2
  3. 3
  4. 4
    The genetics of Caenorhabditis elegans
    1. S Brenner
    (1974)
    Genetics 77:71–94.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66

Decision letter

  1. Oliver Hobert
    Reviewing Editor; Howard Hughes Medical Institute, Columbia University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A sexually dimorphic neuroendocrine cascade acts through shared sensory neurons to regulate behavior in C. elegans" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Oliver Hobert as the Reviewing Editor and a Senior Editor. The following individual involved in review of your submission has agreed to reveal her identity: Piali Sengupta (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In brief, both reviewers appreciate the value of this follow-up study, but they also agree that a set of additional experiments is required to firm up the conclusions of this study. You can see their comments in detail below. In summary, the following set of experiments are essential:

1) Proper quantification of smFISH experiments. Examination at different stages.

2) To show necessity, remove pdfr-1 specifically from ASJ and assess effects on daf-7 expression.

3) Clarify the placement of acy-1 in the pathways regulating daf-7 expression: are the effects of acy-1(gf) suppressed by starvation? Does acy-1(lf) block the effect of PA14 or pdfr-1 overexpression in hermaphrodites?

4) Test whether daf-7 expression in ASJ suppresses the leaving phenotype of pdfr-1 or pdf-1 mutants.

Less important: show the behavioural phenotype of pdf-1 and pdfr-1 mutant males in the pathogenic bacteria avoidance assay like shown for hermaphrodites (Figure 1E).

Reviewer #1:

This is nice follow up to the authors' previous paper and is appropriate for publication as a Research Advance with a few relatively small revisions.

1) The FISH data shown in Figure 3C need to be quantified in both males and hermaphrodites.

2) The effects of acy-1(gf) on daf-7 expression in both males and hermaphrodites is intriguing. While the interpretation that acy-1 acts downstream of pdfr-1 is consistent with these data, it's also possible that multiple pathways – including those induced by Pseudomonas or blocked by starvation – might act via cAMP production. For example, cAMP (Khanna Sci Reports, 2016) can affect daf-7 expression in ASI. Might the manipulation of cAMP levels via acy(gf) be engaging a common regulatory mechanism for daf-7 expression? Given the hierarchical nature of the starvation signal, one could expect that the effects of acy-1(gf) would be blocked in starved males if this is indeed specific to the PFDR-1 pathway. Alternatively, acy-1 mutations may block the effect of PA14 or pdfr-1 overexpression in hermaphrodites, especially considering acy-1 mutants have been previously reported to have a pathogen susceptibility phenotype (Alper, 2008). It would be useful to perform a few simple experiments here to clarify the placement of acy-1(gf) in the hierarchy and to strengthen the conclusions of this work.

3) Along similar lines, does acy-1(gf) or daf-7 expression in ASJ suppress the leaving phenotype of pdfr-1 or pdf-1 mutants?

4) The authors may wish to modify the model figure to clearly indicate that the inclusion of acy-1 is based on inferring the effects of acy(gf) overexpression, especially based on point #2 above.

Reviewer #2:

In this manuscript, Hilbert and Kim report that male-specific expression of daf-7 in ASJ is regulated by the neuropeptide pathway PDF acting directly on ASJ. These findings expand on their previous work showing that daf-7 expression in ASJ is regulated in a sex-specific and age-specific manner to regulate mate-searching behaviour in males.

The authors present convincing evidence that PDF signalling regulates the expression of daf-7 specifically in ASJ and specifically in males. However, what is not so convincing to me is that daf-7 expression is regulated cell-autonomously, through male-specific expression of pdfr-1 in ASJ.

The model that they propose is not fully consistent with some of their previous findings. In their previous paper they carried out sex-transformation experiments which showed that daf-7 expression in ASJ requires ASJ to be masculine but that masculinization of ASJ alone is not sufficient for daf-7 to come on. These results indicate that there is cell non-autonomous regulation of daf-7 expression. In the current manuscript, daf-7 expression can be induced in hermaphrodites by forcing expression of pdfr-1 in ASJ, indicating that the source of PDF is not sexually dimorphic. These two sets of data are more consistent with the model that PDF regulates daf-7 expression in ASJ cell non-autonomously, by acting on other pdfr-1-expressing neurons that are sexually dimorphic.

The evidence that the authors present for cell-autonomous effect of pdfr-1 on ASJ is that daf-7 expression in ASJ can be induced in both males and hermaphrodites by overexpressing pdfr-1 in ASJ, but this could be an overexpression phenotype that does not reflect the endogenous mechanism. Stronger evidence in support of a direct action of PDF on ASJ would be to show necessity of pdfr-1 specifically in ASJ. This should be done by removing pdfr-1 only in ASJ (by cell specific RNAi for example).

The second piece of evidence they provide is the detection of pdfr-1 mRNA in the ASJ of males by smFISH, but the smFISH experiments are not totally convincing. The smFISH experiments should be quantified: what proportion of males express pdfr-1 in ASJ? And what proportion of hermaphrodites? They only show 3 photos, and in one photo of hermaphrodite ASJ, I can see what looks to me like puncta. The overlap of smFISH with the ASJ labelled with GFP for identification should also be shown.

Additional comments:

In their previous paper, they showed that daf-7 expression in the ASJ of males is regulated by age (only ON in adults). A better understanding of the temporal regulation of the PDF pathway should be provided. Is pdfr-1 expressed in ASJ only in adult males or earlier as well? At what stage does daf-7 come on in the ASJ of hermaphrodites and males that ectopically overexpress pdfr-1 in ASJ from early larval stages?

Another conclusion of the manuscript is that PDF regulates mate searching through the expression of daf-7 in ASJ. This is based on the observation that the daf-7 mutation suppresses the enhanced food leaving induced by PDF overexpression. But, can the food leaving defects of pdfr-1 mutants be rescued by expression of pdfr-1 or daf-7 only in ASJ?

The authors should show the behavioural phenotype of pdf-1 and pdfr-1 mutant males in the pathogenic bacteria avoidance assay like they do for hermaphrodites (Figure 1E).

https://doi.org/10.7554/eLife.36547.013

Author response

In brief, both reviewers appreciate the value of this follow-up study, but they also agree that a set of additional experiments is required to firm up the conclusions of this study. You can see their comments in detail below. In summary, the following set of experiments are essential:

1) Proper quantification of smFISH experiments. Examination at different stages.

2) To show necessity, remove pdfr-1 specifically from ASJ and assess effects on daf-7 expression.

We thank the reviewers for the suggestion to further assess the necessity of pdfr-1 function in ASJ for the regulation of daf-7 expression. We performed several experiments to address these concerns as outlined below:

As was suggested, we generated transgenic strains carrying ASJ-specific RNAi against pdfr-1 and also against GFP as a positive control. Cell-specific RNAi of either GFPor pdfr-1 leads to attenuated pdaf-7::gfp fluorescence in the ASJ neurons of adult males. We show this data for two independent lines for each condition (Figure 2C of revised manuscript) but observed similar decreased expression in a number of additional transgenic lines for both pdfr-1 and gfp knockdown. We feel that this data clearly suggests a role for pdfr-1 function in ASJ to cell-autonomously regulate daf-7 expression, and we have revised the manuscript to include discussion of these results as well as included this data as Figure 2C.

Additionally, we generated transgenic strains with floxed pdfr-1 cDNA under the control of a 5 kb promoter region reported by Flavell et al. (2013) to rescue roaming defects in pdfr-1 mutant hermaphrodites. These strains have partial rescue of daf-7 expression in ASJ, and we observed that this rescue is abolished by Cre recombinase expression either pan-neuronally or in ASJ alone. The ability of ASJ-specific Cre to abolish the rescuing effects of this floxed pdfr-1 transgene further supports the idea that pdfr-1 functions specifically in ASJ to regulate daf-7 expression in males. We have included this data as Figure 2D in our revised manuscript and included discussion of these results in the revised text.

Upon further examination of pdfr-1 mRNA by FISH, we note that fluorescent puncta are clearly visible in 20-30% of adult male animals across multiple experiments, but we have not observed the same in hermaphrodites. Given that there are two distinct populations of male animals, quantifications of probe fluorescence across both populations combined show no significant difference between males and hermaphrodites (see newly added Figure 4—figure supplement 1F). We also do not see evidence for pdfr-1 expression in L4 males. We hypothesize that pdfr-1 expression in ASJ may be low, or temporally or spatially restricted making it difficult for us to capture a moment in which the majority of male animals have clear evidence of expression. Nevertheless, a more definitive analysis of pdfr-1 expression would be required to establish sexually dimorphic expression of this gene. As such, we have significantly revised the manuscript and our conclusions to reflect this and have moved all of the FISH data from main text Figure 3 to Figure 4—figure supplement 1. We have also provided our quantification in the revised manuscript as Figure 4—figure supplement 1F. Although detection of pdfr-1 expression is challenging, our aforementioned strong functional data suggesting that PDFR-1 activity in ASJ is necessary and sufficient to drive daf-7 expression supports our model that pdfr-1 acts sexually dimorphically in ASJ to regulate daf-7 expression in males.

3) Clarify the placement of acy-1 in the pathways regulating daf-7 expression: are the effects of acy-1(gf) suppressed by starvation? Does acy-1(lf) block the effect of PA14 or pdfr-1 overexpression in hermaphrodites?

We analyzed the effect of starvation on daf-7 expression in male animals carrying the ASJ specific acy-1(gf) array and we observed that starvation suppresses daf-7 expression in the ASJ neurons of these animals (Figure 1—figure supplement 1A). We interpret this to mean that acy-1 and cAMP production function independently from starvation in the regulation of daf-7 expression in the ASJ neurons. This data has been included in our revised manuscript as Figure 1—figure supplement 1 and we have added discussion of our interpretation of this in the revised text.

4) Test whether daf-7 expression in ASJ suppresses the leaving phenotype of pdfr-1 or pdf-1 mutants.

As the reviewers suggested, we looked to see if expression of daf-7 could rescue the leaving defects of the pdf-1 mutant males. Additionally, we looked to see if mutation of the antagonistic co-SMAD in the daf-7/TGF-β pathway, DAF-3, could suppress these leaving defects as it does for the daf-7 mutants (see our previous eLife paper, Hilbert and Kim, 2017). In all of these strains, we saw no suppression of the leaving defects of the pdf-1 mutant males.

Given our results with the PDF-1 overexpression lines and the dependence of their leaving behavior on daf-7 function shown in Figure 1 of our manuscript, we hypothesize that the PDF-1 pathway functions through daf-7 but also through parallel mechanisms to regulate leaving behavior in male animals and that daf-7 expression in ASJ is necessary but not sufficient for leaving behaviors. We have included some of this data as Figure 1—figure supplement 1B and also provided a clarification in the text of the interaction between these two pathways with regards to mate-searching behaviors in males.

Less important: show the behavioural phenotype of pdf-1 and pdfr-1 mutant males in the pathogenic bacteria avoidance assay like shown for hermaphrodites (Figure 1E).

We thank the reviewers for this suggestion. Given the propensity of male animals to aggregate, we performed a modified pathogen avoidance assay with a single male per PA14 plate to assess the avoidance phenotypes of the pdf-1 and pdfr-1 mutant males. As with hermaphrodites, we saw no difference in the ability of the mutant males to avoid the pathogenic lawn compared to wild type animals. These data are now included as Figure 1—figure supplement 2B and details of the methods used for this modified assay have been included in our revised manuscript.

https://doi.org/10.7554/eLife.36547.014
