Optogenetic dissection of mitotic spindle positioning in vivo

  1. Lars-Eric Fielmich
  2. Ruben Schmidt
  3. Daniel J Dickinson
  4. Bob Goldstein
  5. Anna Akhmanova
  6. Sander van den Heuvel  Is a corresponding author
  1. Utrecht University, Netherlands
  2. University of North Carolina at Chapel Hill, United States
Research Article
  • Cited 1
  • Views 2,368
  • Annotations
Cite this article as: eLife 2018;7:e38198 doi: 10.7554/eLife.38198

Abstract

The position of the mitotic spindle determines the plane of cell cleavage, and thereby daughter cell location, size, and content. Spindle positioning is driven by dynein-mediated pulling forces exerted on astral microtubules, which requires an evolutionarily conserved complex of Gα∙GDP, GPR-1/2Pins/LGN, and LIN-5Mud/NuMA proteins. To examine individual functions of the complex components, we developed a genetic strategy for light-controlled localization of endogenous proteins in C. elegans embryos. By replacing Gα and GPR-1/2 with a light-inducible membrane anchor, we demonstrate that Gα∙GDP, Gα∙GTP, and GPR-1/2 are not required for pulling-force generation. In the absence of Gα and GPR-1/2, cortical recruitment of LIN-5, but not dynein itself, induced high pulling forces. The light-controlled localization of LIN-5 overruled normal cell-cycle and polarity regulation and provided experimental control over the spindle and cell-cleavage plane. Our results define Gα∙GDP–GPR-1/2Pins/LGN as a regulatable membrane anchor, and LIN-5Mud/NuMA as a potent activator of dynein-dependent spindle-positioning forces.

https://doi.org/10.7554/eLife.38198.001

eLife digest

A cell about to divide must decide where exactly to cut itself in two. Split right down the middle, and the two daughter cells will be identical; offset the cleavage plane to one side, and the resulting siblings will have different sizes, places and fates.

In animals, the splitting of cells is dictated by the location of the spindle, a structure that forms when cable-like microtubules stretch from the cell membrane to attach to the chromosomes. At the membrane, a group of proteins tugs on the microtubules to bring the spindle into the correct position. One of these proteins, dynein, is a motor that uses microtubules as its track to pull the spindle into place. What the other parts of the complex do is still unclear, but a general assumption is that they may be serving as an anchor for dynein.

To test this model, Fielmich, Schmidt et al. removed one or more proteins from the complex in the developing embryos of the nematode worm Caenorhabditis elegans. A light-activated system then linked the remaining proteins to the membrane by tying them to an artificial anchor. Two of the proteins in the complex could be replaced with the artificial anchor, but pulling forces were absent when dynein was artificially tied to the membrane. This indicates that the motor being anchored at the edge of the cell is not enough for it to pull on microtubules. Instead, the experiments showed that dynein needs to be activated by another component of the complex, a protein called LIN-5. This suggests that individual proteins in the complex have specialized roles that go beyond simply tethering dynein. In fact, steering where LIN-5 was attached on the membrane helped to control the location of the spindle, and therefore of the cleavage plane.

As mammals have a protein similar to LIN-5, dissecting the roles of the components involved in positioning the spindle in C. elegans could help to understand normal and abnormal human development. In addition, these results demonstrate that creating artificial interactions between proteins using light is a powerful technique to study biological processes.

https://doi.org/10.7554/eLife.38198.002

Introduction

Animal cells control the position of the spindle to determine the plane of cell cleavage. Regulated spindle positioning is therefore critical for asymmetric cell division and tissue formation (di Pietro et al., 2016). Early work in C. elegans demonstrated that cortical pulling forces position the spindle through a protein complex that consists of a heterotrimeric G protein alpha subunit, GOA-1Gαo or GPA-16Gαi (together referred to as Gα), a TPR-GoLoco domain protein GPR-1/2, and the coiled-coil protein LIN-5 (Colombo et al., 2003; Gotta and Ahringer, 2001; Gotta et al., 2003; Grill et al., 2001; Lorson et al., 2000; Miller and Rand, 2000; Srinivasan et al., 2003). This complex, and the closely related Drosophilai/o–Pins–Mud and mammalian Gαi/o–LGN–NuMA protein complexes, recruit the microtubule motor dynein to the cell cortex (Bellaïche et al., 2001; Bowman et al., 2006; Du and Macara, 2004; Du et al., 2001; Izumi et al., 2004; Nguyen-Ngoc et al., 2007; Schaefer et al., 2001; Zheng et al., 2010; Zhu et al., 2011) (Figure 1a). While regulation at the level of individual components has been described, it remains unclear whether these proteins only form a physical anchor for dynein, or whether individual subunits contribute additional functions in spindle positioning.

Figure 1 with 2 supplements see all

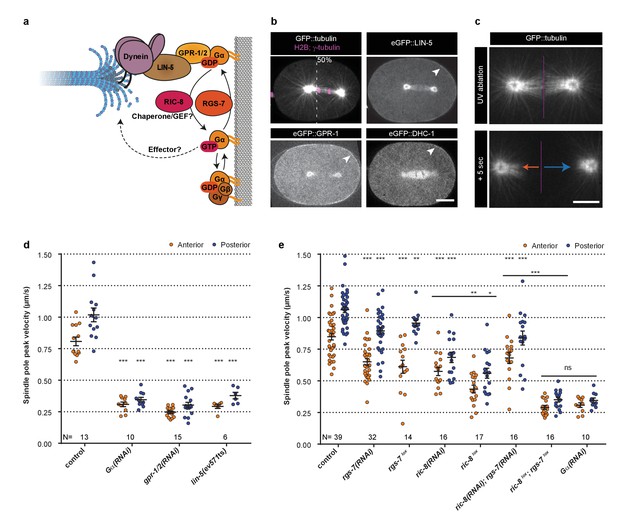

Gα regulation by RIC-8 and RGS-7 is essential for cortical pulling force generation.

(a) Cartoon model representing mechanisms and functions discussed in the text. Gα∙GDP–GPR-1/2–LIN-5–dynein anchors dynamic microtubule plus-ends and generates cortical pulling forces on the mitotic spindle. Gα∙GDP can assemble a Gαβγ or Gα–GPR-1/2–LIN-5 trimer. The Gα∙GDP/GTP nucleotide state is regulated by the GAP RGS-7. For RIC-8, functions as Gα GEF and chaperone are reported. Gα∙GTP could promote spindle positioning through unknown downstream effectors. (b) Spinning disk confocal images of anaphase spindle positioning away from the cell center (dashed line) in the C. elegans zygote. The upper left panel shows the spindle with labeled tubulin and DNA. Other panels: endogenous GPR-1, LIN-5, and dynein (DHC-1) fused to eGFP are present in the cytoplasm, at the cell cortex (arrowheads), and spindle structures. Scale bar: 10 µm. (c) Spinning disk confocal images of the mitotic spindle (marked by GFP::tubulin). Upon UV-laser ablation of the spindle midzone (violet line), spindle poles separate with velocities that represent the respective net force acting on each pole (arrows). Scale bar: 5 µm. (d) Spindle pole peak velocities after midzone ablation. Control is the gfp::tubulin strain. Other conditions: inactivation of Gα, GPR-1/2, and LIN-5. Error bars: s.e.m. Welch’s Student’s t-test; ***p<0.001. (e) Spindle severing experiments in embryos where RIC-8 and RGS-7 were depleted by RNAi or induced tissue specific CRE-lox-mediated knockout of the endogenous gene (lox). Control is the gfp::tubulin strain, see Figure 1—figure supplement 1 for knockout method and additional controls. Error bars: s.e.m. Welch’s Student’s t-test and Mann Whitney U test; *p<0.05, **p<0.01, ***p<0.001. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.003

As a potential additional function, force generation may require a dynein adaptor that activates dynein motility. Such an adaptor is necessary for the processive movement of mammalian cytoplasmic dynein during cargo transport along microtubules (Reck-Peterson et al., 2018). This process differs substantially from microtubule-dependent cortical pulling, in which force is generated by dynein in association with shrinking microtubules (Laan et al., 2012). Without adaptor, surface-anchored yeast dynein in contact with depolymerizing microtubules generates pulling forces in vitro (Laan et al., 2012). However, yeast dynein moves processively on its own (Reck-Peterson et al., 2006). Hence, it remains unknown whether cortical pulling force generation in animal cells depends just on anchoring of dynein, or whether this requires an additional dynein activator.

The role of Gαi/o subunits in pulling force generation has also remained ambiguous (Figure 1a). Membrane-attached Gα∙GDP associates with GoLoco motifs present in the homologous GPR-1/2, Pins, and LGN proteins (Kimple et al., 2002; Schaefer et al., 2001). This preference for the GDP-bound ‘inactive’ Gα state explains why RGS-7, a putative GTPase activating protein (GAP), promotes spindle positioning (Hess et al., 2004). However, the role of another conserved regulator of Gα signaling, RIC-8, remains poorly understood (Afshar et al., 2004; Miller and Rand, 2000; Tall et al., 2003). RIC-8 was shown to act as a guanine nucleotide exchange factor (GEF) in vitro, while it may function in vivo as a Gα chaperone or as both a GEF and chaperone (Afshar et al., 2004; Afshar et al., 2005; David et al., 2005; Gabay et al., 2011; Hampoelz et al., 2005; Tall et al., 2003; Wang et al., 2005). In addition to RIC-8, G-protein coupled receptors and Gαo∙GTP signaling contribute to spindle positioning in Drosophila neuroblasts and sensory organ precursor cells (Katanaev et al., 2005; Schaefer et al., 2001; Yoshiura et al., 2012). Therefore, it has been proposed that the Gα∙GTP-binding and hydrolysis cycle forms a critical step in cortical pulling force generation (Afshar et al., 2004; Srinivasan et al., 2003; Yoshiura et al., 2012). However, it is difficult to distinguish whether Gαo∙GTP contributes to force generation, or more indirectly relays cell-cell signaling to the spindle.

Here, we describe an optogenetic strategy for the systematic examination of individual contributions of cortical pulling force components in vivo. We use the C. elegans one-cell embryo (P0), which undergoes reproducible spindle positioning and asymmetric cell division in the absence of cell-cell signaling (Video 1) (Rose and Gonczy, 2014). As an initial hurdle, modifying endogenous genes with tunable light-controlled interacting protein tags (TULIPs) induced strong germline silencing. We developed a strategy to promote expression of foreign sequences in the C. elegans germline, which is based in part on a new codon usage adaptation method (GLO, GermLine Optimized). This allowed the light-controlled localization of endogenous proteins through ePDZ–LOV domain interactions in the early C. elegans embryo. Our results show that Gα∙GDP and GPR-1/2 can be replaced with a light-inducible membrane anchor, while LIN-5 is required as activator of dynein-dependent cortical pulling force generation. Local light-controlled LIN-5 recruitment enabled us to manipulate the spindle position and orientation, and thereby the outcome of cell division in the early embryo.

Video 1
Movie montage of mitosis in a one-cell C. elegans embryo expressing GFP::tubulin (greyscale, microtubules), mCherry::TBG-1 (magenta, centrosomes) and mCherry::HIS-48 (magenta, DNA).

Images, which are single planes, were made as a time-lapse with one acquisition per 2 s and played back at 10 frames per second, with time point 0 being the final frame before the initiation of pronuclear meeting. Movie corresponds to the upper left panel in Figure 1b.

https://doi.org/10.7554/eLife.38198.006

Results

Germline-specific gene knockout reveals that RIC-8 and RGS-7 cooperate in positive Gα regulation and cortical pulling force generation

We set out to systematically investigate the individual roles of the proteins involved in cortical pulling force generation. Our previous studies and CRISPR/Cas9-assisted endogenous tagging demonstrated that cytoplasmic dynein and the Gα–GPR-1/2–LIN-5 complex overlap and function together in pulling force generation at the cell cortex of C. elegans early blastomeres (Figure 1b) (Portegijs et al., 2016; Schmidt et al., 2017; van der Voet et al., 2009). As a read-out for pulling forces, we measured spindle pole peak velocities after UV-laser ablation of the spindle midzone (Grill et al., 2001) (Figure 1c and Video 2). Interfering with Gα, GPR-1/2, or LIN-5 function abolished significant force generation, as previously reported (Figure 1d). RNA interference (RNAi) of ric-8 or rgs-7 by dsRNA injection resulted in partial loss of pulling forces (Figure 1e). Double ric-8(RNAi); rgs-7(RNAi) did not further decrease pulling forces as might be expected when RIC-8 and RGS-7 both promote a critical GTPase cycle (Hess et al., 2004; Srinivasan et al., 2003). However, RNAi of ric-8 and rgs-7 is known to cause incomplete gene inactivation, which could also explain the limited defects. To circumvent this caveat, we set out to generate germline-inducible knock-out alleles, as ric-8 and rgs-7 null mutants produce no or very few viable progeny (Hess et al., 2004; Reynolds et al., 2005). To this end, we inserted lox sites in the endogenous ric-8 and rgs-7 loci by CRISPR/Cas9-assisted recombineering (Figure 1—figure supplement 1), and expressed the CRE recombinase specifically in the germline (Figure 1—figure supplement 1). Compared to the control without CRE activity, knockout embryos showed reduced spindle pole peak velocities (ric-8lox: anterior −50% and posterior −48%; rgs-7lox: anterior −29% and posterior −11%), similar to or more defective than the corresponding RNAi embryos (Figure 1e and Figure 1—figure supplement 2). Importantly, the double knock-out of ric-8lox; rgs-7lox showed much reduced spindle pole movements (anterior −68% and posterior −67%), thereby resembling Gα(RNAi) (Figure 1e). This indicates that RIC-8 and RGS-7 act independently, or partly redundant, as positive regulators of Gα.

Video 2
Movie montage of a mitotic spindle severing assay in a one-cell C. elegans embryo expressing GFP::tubulin (greyscale, microtubules).

The spindle is severed at the onset of anaphase using a pulsed UV laser (not visible), after which centrosomes are separated with speeds proportional to the net forces acting on them. Images, which are single planes, were made as a streaming acquisition with 0.5 s of exposure and played back at 10 frames per second, with time point 0 between late metaphase and anaphase initiation. Movie corresponds to Figure 1c.

https://doi.org/10.7554/eLife.38198.007

Germline-optimized codon adaptation promotes germline expression of transgenes

To gain further insight into the individual functions of cortical pulling force regulators, we sought to obtain spatiotemporal control of protein localization. To this end, we explored implementing the ePDZ–LOV system, which makes use of exposure to blue light to control protein heterodimerization (Harterink et al., 2016; Strickland et al., 2012). As introduction of epdz, lov, and cre sequences induced strong germline silencing responses, we developed a computational approach to design protein-coding sequences that are resistant to silencing in the germline. Our design algorithm assembles a coding sequence for any desired polypeptide from a list of 12-nucleotide words found in native germline-expressed genes (Figure 2—figure supplement 1). We hypothesized that transgenes designed in this way would mimic native genes and thereby evade the germline silencing machinery. Indeed, using this approach, we could obtain robust expression of several foreign transgenes that were otherwise silenced (Figure 2—figure supplement 2). Although most of these transgenes were stably expressed for many generations, two out of 16 distinct constructs tested showed evidence of gradual silencing when passaging strains in culture (Figure 2—figure supplement 3). Therefore, as a further buffer against silencing, we combined our germline-optimized exons with poly-AT-cluster rich intron sequences, which were recently demonstrated to protect against germline silencing (Frøkjær-Jensen et al., 2016; Zhang et al., 2018). This combined approach resulted in stable germline expression of eight out of eight transgenes and enabled implementation of the ePDZ–LOV system for use in the C. elegans early embryo.

An optimed ePDZ-LOV system enables subcellular control of protein localization in the C. elegans early embryo

To characterize the ePDZ–LOV system, we created a strain with a membrane-bound LOV2 domain, expressed as a pleckstrin-homology domain (PH)–eGFP protein fusion (PH::LOV), together with cytosolic ePDZ::mCherry (Figure 2a). Illumination with a blue (491 nm) laser rapidly induced recruitment of ePDZ::mCherry to PH::LOV, and allowed both global and local cortical enrichment in one-cell embryos (Figure 2b and Videos 35). Because GFP is also excited with blue light, experiments that involve GFP imaging imply global and continuous induction of the ePDZ–LOV interaction. To test the reversibility of the ePDZ–LOV interaction, we followed ePDZ::mCherry membrane localization after a global activation pulse, and found dissociation kinetics similar to those reported by others (Hallett et al., 2016) (t½=42 s; Figure 2c and Video 6). Thus, we conclude that the ePDZ–LOV system is suitable for controlled protein localization in the early C. elegans embryo.

Figure 2 with 3 supplements see all

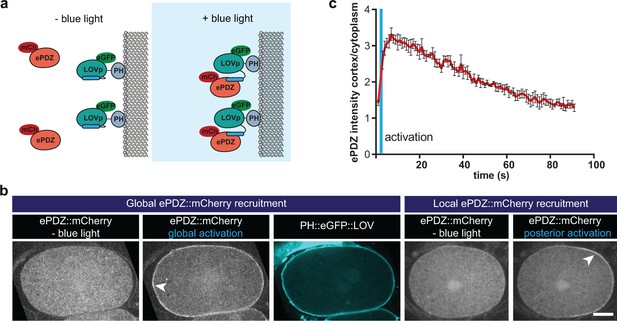

Optimized ePDZ–LOV enables light-inducible control of endogenous protein localization in the C.elegans one-cell embryo.

(a) Cartoon model illustrating the proof of concept wherein cytosolic ePDZ::mCherry is cortically recruited to membrane PH::LOV upon activation with blue light. Blue fields indicate conditions in which both ePDZ- and LOV components are present, and an ePDZ–LOV interaction is induced with blue light. (b) Spinning disk confocal images showing light-controlled localization of proteins in the C. elegans zygote (arrowheads). See Materials and methods for the local activation procedure. Also see Videos 35. Scale bar: 10 µm. Anterior is to the left in all microscopy images. (c) Quantification of cortical ePDZ::mCherry enrichment measured over time after a 1 s pulse activation (blue vertical line). Error bars: s.e.m. t1/2 calculated with single component non-linear regression.

https://doi.org/10.7554/eLife.38198.008
Video 3
Movie montage of a mitotic one-cell C. elegans embryo expressing diffuse cytosolic ePDZ::mCherry (greyscale, left; red, right) without PH::eGFP::LOV (green background, right).

The movie shows diffuse localization of ePDZ::mCherry in the presence of global and continuous blue light exposure, but in absence of a cortical LOV anchor. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 starting at metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to no main figure, and serves as a control for Video 4.

https://doi.org/10.7554/eLife.38198.012
Video 4
Movie montage of a mitotic one-cell C. elegans embryo expressing diffuse cytosolic ePDZ::mCherry (greyscale, left; red, right) and the membrane anchor PH::eGFP::LOV (green, right).

The movie shows relocalization of diffuse ePDZ::mCherry to the cortex by global and continuousactivation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 starting at late prophase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to the lower left panels in Figure 2.

https://doi.org/10.7554/eLife.38198.013
Video 5
Movie montage of a mitotic one-cell C. elegans embryo expressing diffuse cytosolic ePDZ::mCherry (inverted greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows relocalization of diffuse ePDZ::mCherry to the posterior cortex by local activation of cortical LOV using low-intensity blue light. Activation of the ePDZ–LOV2 interaction is induced at the posterior cortex using local illumination with a 491 nm laser. The embryo was otherwise shielded from blue light before and during the experiment. Images, which are single planes, were made as a streaming acquisition with 0.5 s of exposure and played back at 10 frames per second, with time point 0 corresponding to late prophase. Movie corresponds to the lower right panels in Figure 2.

https://doi.org/10.7554/eLife.38198.014
Video 6
Movie montage of a four-cell C. elegans embryo expressing diffuse cytosolic ePDZ::mCherry (greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows relocalization of diffuse ePDZ::mCherry to the cortex by activation of cortical LOV using a single pulse of blue light, and subsequent return to the dark state in the absence of blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s played back at 10 frames per second, where time point 0 is the last acquisition before a single 1 s global pulse of 491 nm light. The acquisition at time point 0 shows localization of ePDZ::mCherry in complete absence of blue light, as the embryo was kept in the dark before and after global induction of the LOV–ePDZ interaction. Movie corresponds to Figure 2c.

https://doi.org/10.7554/eLife.38198.015

Next, we examined whether membrane recruitment of RGS-7 and RIC-8 promotes pulling forces. This could provide insight into the in vivo relevance of the Gα∙GDP/GTP cycle and indicate whether RIC-8 is more likely to contribute as a chaperone or as a GEF. Regulation of the Gα∙GDP/GTP cycle normally takes place at the cell membrane, while chaperoning of Gα folding and trafficking is expected to occur in the cytosol and at endomembranes (Gabay et al., 2011). We created strains expressing endogenous RIC-8 and RGS-7 as ePDZ::mCherry protein fusions. When combined with PH::LOV, this resulted in light-inducible membrane recruitment of RIC-8 and RGS-7 (Figures 3a and 4a, and Video 7). Global cortical enrichment of RGS-7 enhanced spindle pole movements (anterior +25% and posterior +20%) (Figure 3b) and spindle oscillations (Figure 3c). The RGS-7::ePDZ signal was too subtle to reliably control its local recruitment. As an alternative strategy, we fused eGFP::LOV to endogenous PAR-6, which localizes to the anterior cortex of the zygote (Figure 3a). Following global light exposure, recruitment of RGS-7::ePDZ to PAR-6::LOV enhanced the peak velocities of both spindle poles, but most significantly the movement of the anterior pole (anterior +25% and posterior +14%; Figure 3b,c). Thus, cortical recruitment of RGS-7 acutely increases pulling forces, in agreement with its proposed function as a GAP that promotes Gα∙GDP–GPR-1/2 interaction. In contrast, cortical enrichment of RIC-8 did not significantly enhance pulling forces (Figure 4b). Thus, in agreement with the ric-8lox; rgs-7lox synergistic phenotype, our optogenetic localization experiments support a model in which RIC-8 and RGS-7 promote Gα function at different levels. While RGS-7 probably functions as a GAP, our data are in line with RIC-8 acting in vivo as a Gα chaperone, rather than a GEF, thus indirectly promoting force generation.

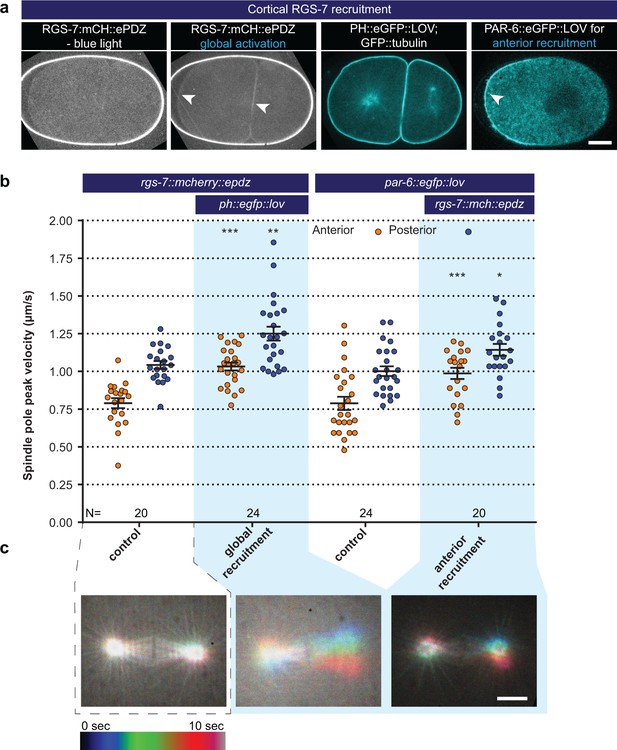

Light-controlled localization of endogenous Gα regulator RGS-7 in the C. elegans embryo.

(a) Light-controlled localization of endogenous RGS-7 to membrane PH::LOV (arrowheads, note that the eggshell shows strong autofluorescence in the red channel). Most right panel: anterior localization of PAR-6::eGFP::LOV. Scale bar: 10 µm (b) Spindle severing experiments after light-induced cortical localization of RGS-7 (blue fields). Controls are the rgs-7::mcherry::epdz and par-6::egfp::lov strains. Experimental conditions: combination with ph::egfp::lov and rgs-7::mcherry::epdz. Blue fields indicate conditions in which both ePDZ and LOV components are present, and an ePDZ–LOV interaction is induced with blue light. Blue light activation was global and continuous. Error bars: s.e.m. Welch’s Student’s t-test; *p<0.05, **p<0.01, ***p<0.001. (c) Maximum projections of spindle movements for 10 s using a temporal color coding scheme to visualize spindle movements. A stationary spindle produces a white maximum projection, whereas a mobile spindle leaves a colored trace. Scale bar: 5 µm.

https://doi.org/10.7554/eLife.38198.016

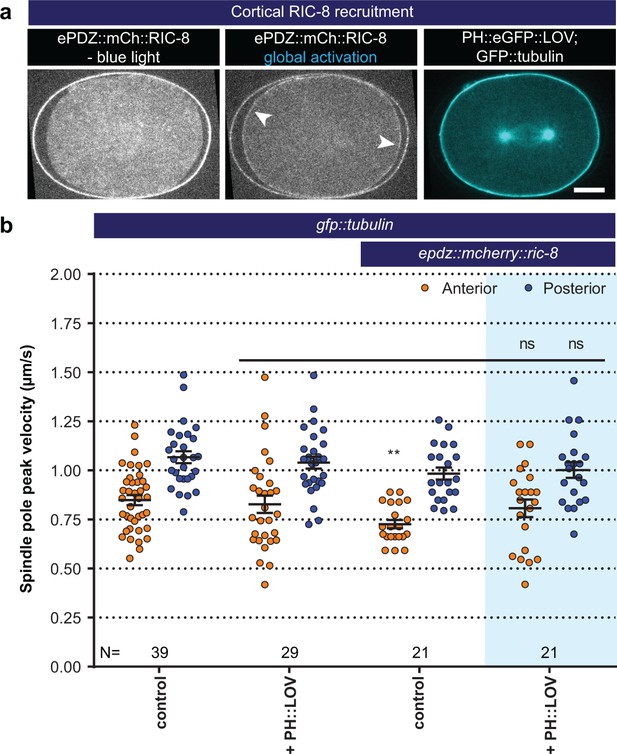

Light-controlled localization of the endogenous Gα regulator RIC-8 in the C. elegans embryo.

(a) Light-controlled localization of endogenous RIC-8 to membrane PH::eGFP::LOV (arrowheads, note that the eggshell shows strong autofluorescence in the red channel). Scale bar: 10 µm. (b) Spindle severing experiments after light-induced cortical localization of RIC-8 (blue fields). Controls are gfp::tubulin and epdz::mcherry::ric-8 strains. Experimental conditions: combination with ph::egfp::lov. Blue fields indicate conditions in which both ePDZ and LOV components are present, and an ePDZ–LOV interaction is induced with blue light. Error bars: s.e.m. Welch’s Student’s t-test; ns p>0.05. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.017
Video 7
Movie montage of a mitotic one-cell C. elegans embryo expressing endogenously labeled ePDZ::mCherry::RIC-8 (greyscale, left; red, right), the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization ePDZ::mCherry::RIC-8 to the cortex by global and continuous activation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 starting at late prophase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry::RIC-8 in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to citation links to different figure Figure 3c.

https://doi.org/10.7554/eLife.38198.018

Membrane anchoring of GPR-1Pins/LGN in the absence of Gα reconstructs a cortical pulling force generator

To directly address whether Gα∙GTP might contribute to spindle positioning and if Gα∙GDP serves merely as a membrane anchor, we aimed to reconstruct a cortical force generator in the absence of Gα (Figure 5a). We obtained optogenetic control over the membrane localization of GPR-1 by combining endogenously labeled epdz::mcherry::gpr-1 (ePDZ::GPR-1) with knockout of gpr-2, expression of PH::LOV and Gα RNAi (Figure 5b,c and Videos 8 and 9). Live imaging and immunohistochemistry confirmed light-induced cortical recruitment of ePDZ::GPR-1 and consequently LIN-5 (Figure 5b and Figure 5—figure supplement 1). Spindle movements appeared reduced following the tagging of gpr-1 and knockout of gpr-2 (anterior −40% and posterior −26%) (Figure 5—figure supplement 2). However, light-induced ePDZ::GPR-1 recruitment increased spindle pole movements (anterior +56% and posterior +10%) (Figure 5d, f). Moreover, membrane-localized ePDZ::GPR-1 sustained force generation in the absence of Gα (anterior +195% and posterior +232%), indicating that Gα is dispensable for cortical pulling force generation. Recruitment of ePDZ::GPR-1 restored spindle pole movements to a similar degree in Gα(RNAi) and Gα(RNAi); ric-8(RNAi) embryos (Figure 5d). Thus, cortical pulling forces can be generated when the Gα membrane anchor function is replaced by PH::LOV, and most likely in the absence of Gαi/o∙GTP. We conclude that Gα functions as a membrane anchor and that Gα∙GTP does not perform an essential function in pulling force generation.

Figure 5 with 3 supplements see all

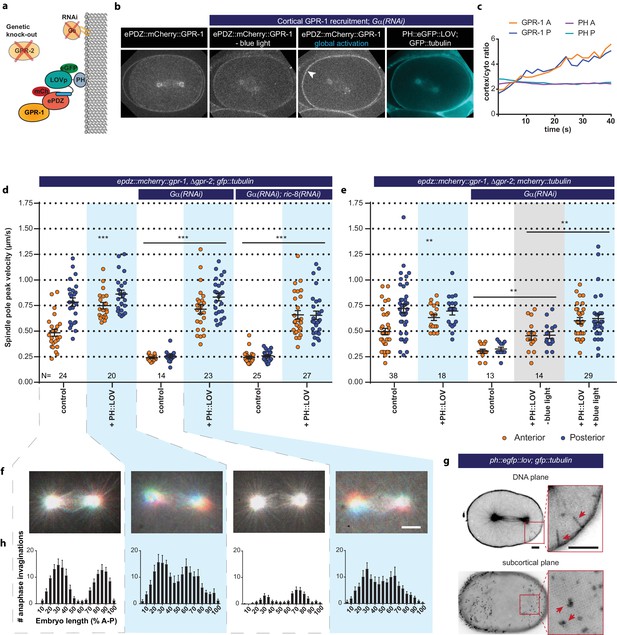

Light-inducible GPR-1 recruitment to the cortex rescues pulling force generation in the absence of Gα.

(a) Cartoon model illustrating the experiment that localizes GPR-1 directly to the membrane, bypassing the wild type membrane anchor Gα which is inactivated by RNAi. (b) Spinning disk confocal images of light-controlled cortical GPR-1 recruitment independent of the wild type anchor Gα (arrowheads; note the autofluorescent eggshell in the mCherry channel). Scale bar: 10 µm. (c) Quantification of cortical GPR-1 recruitment during continuous activation of the ePDZ–LOV interaction, represented as the ratio of cortical/cytoplasmic signal. Also see Videos 8 and 9. (d) Spindle severing experiments in combination with cortical recruitment of endogenous GPR-1. Control is the epdz::mcherry::gpr-1, Δgpr-2; gfp::tubulin strain. Experimental conditions: combinations with ph::egfp::lov, Gα(RNAi), and Gα(RNAi); ric-8(RNAi). Blue fields indicate conditions in which both ePDZ- and LOV components are present, and an ePDZ–LOV interaction is induced with blue light. Blue light activation was global and continuous. Error bars: s.e.m. Welch’s Student’s t-test and Mann Whitney U test; **p<0.01, ***p<0.001. (e) Spindle severing experiments in combination with cortical recruitment of endogenous GPR-1. Control is the epdz::mcherry::gpr-1, Δgpr-2; mcherry::tubulin strain. Experimental conditions: combinations with ph::egfp::lov, Gα(RNAi), and the absence of blue light (grey field). Blue fields indicate conditions in which an ePDZ- and LOV component are present, and an ePDZ–LOV interaction is induced using blue light. Blue light activation was global and continuous. Error bars: s.e.m. Welch’s Student’s t-test and Mann Whitney U test; **p<0.01, ***p<0.001. (f) Maximum projections of spindle movements for 10 s using a temporal color coding scheme to visualize spindle movement as in Figure 3c. (g) Plasma membrane invaginations resulting from cortical pulling forces are visible as lines in the DNA plane and dots in the subcortical plane (red arrows). Larger structures are membrane ruffles, which are distinct from the more dynamic invaginations, as can be seen in Video 11. Scale bar: 5 µm. (h) Distribution of anaphase membrane invaginations plotted along anterior-posterior embryo length. Conditions were the same as for the connected experiments in d and f, except for the control, which was the ph::egfp::lov; gfp::tubulin strain and not epdz::mcherry::gpr-1, Δgpr-2. Scale bar: 5 µm. Blue fields indicate conditions in which ePDZ and LOV components are present, and an ePDZ–LOV interaction is induced using blue light. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.019
Video 8
Movie montage of a mitotic one-cell C. elegans embryo expressing endogenously labeled ePDZ::mCherry::GPR-1 (greyscale, left; red, right) in a ∆gpr-2 genetic background, the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of ePDZ::mCherry::GPR-1 to the cortex by global and continuous activation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with early metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry::GPR-1 in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie serves as a control to Video 9.

https://doi.org/10.7554/eLife.38198.023
Video 9
Movie montage of a mitotic one-cell C. elegans embryo treated with Gα RNAi expressing endogenously labeled ePDZ::mCherry::GPR-1 (greyscale, left; red, right) in a ∆gpr-2 genetic background, the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of ePDZ::mCherry::GPR-1 to the cortex by global and continuousactivation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with early metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry::GPR-1 in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to Figure 5b.

https://doi.org/10.7554/eLife.38198.024

Light-controlled heterodimerization exhibits a certain level of dark state activity (Hallett et al., 2016). We performed spindle severing experiments in the absence of blue light to confirm the light-specificity of recruitment. Replacement of gfp::tubulin with an mcherry::tubulin transgene allowed for tracking of the spindle in the absence of blue light and consequently LOV activation. We observed that the scattering of UV-light (355 nm) during midzone ablation also uncages the LOV domain. Nevertheless, the presence of blue light resulted in substantially elevated spindle pulling forces when compared to dark state experiments (anterior +33% and posterior +35%) (Figure 5e). We conclude that the observed spindle pole movements are light-dependent and the specific result of inducible cortical recruitment of GPR-1.

Considering that spindle poles moved in three dimensions after recruitment of GPR-1, measuring peak velocities after midzone severing by tracking the poles in two dimensions likely underestimates the resulting pulling forces. Therefore, we used an additional read-out of cortical pulling forces. Cortical pulling events cause inward movements of the plasma membrane, which are visible by spinning disk-confocal fluorescence microscopy as extended invaginations of the plasma membrane (Redemann et al., 2010) (Figure 5g and Videos 10 and 11). These membrane invaginations occur in wild type embryos, depend on microtubules and cortical force generator components, and correlate with the distribution of pulling force generators (Redemann et al., 2010). Therefore, these membrane invaginations most likely reveal the presence and distribution of active individual force generators.

Video 10
Movie montage of a mitotic one-cell C. elegans embryo expressing GFP::tubulin (greyscale, microtubules) and PH::eGFP::LOV (greyscale, membrane).

Invaginations (black arrows) are visible at the embryo membrane most pronouncedly in the posterior during late metaphase and anaphase. Images, which are single planes, were made as a streaming acquisition with 0.5 s of exposure and played back at 10 frames per second, with time point 0 between late metaphase and anaphase initiation. Movie corresponds to Figure 5g.

https://doi.org/10.7554/eLife.38198.025
Video 11
Movie montage of the subcortical area of a mitotic one-cell C. elegans embryo expressing GFP::tubulin (inverted greyscale, microtubules), PH::eGFP::LOV (inverted greyscale, membrane).

Invaginations are visible as dots protruding inwards from the embryo membrane during late metaphase and anaphase. Images, which are single planes, were made as a streaming acquisition with 0.25 s of exposure and played back at 10 frames per second, with time point 0 corresponding with anaphase, 50 s before telophase initiation. Movie corresponds to Figure 5g.

https://doi.org/10.7554/eLife.38198.026

Using spinning disk confocal microscopy, we quantified membrane invaginations by counting the number of transient cortical PH::GFP dots in the sub-cortical plane. Control PH::GFP embryos showed on average 138 membrane invaginations during anaphase in an area covering approximately 1/3 of the cell surface (Figure 5g). When plotted along the anterior-posterior axis, the distribution of these invaginations reflected the three described cortical domains: anterior, posterior, and a posterior lateral region at ±60% embryo length (Rose and Gonczy, 2014) (Figure 5h-left). The posterior lateral band region localizes the LET-99 DEP-domain protein, which antagonizes the localization of GPR-1/2 and thereby pulling force generation (Krueger et al., 2010; Tsou et al., 2003). This explains the absence of invaginations around 60% embryo length (Figure 5h-left).

Cortical GPR-1 recruitment resulted in a total number of 174 (+25% compared to ph::lov control) invaginations in the presence, and 122 invaginations (+249% compared to Gα(RNAi) embryos) in the absence of Gα (Figure 5 and Figure 5—figure supplement 3). Thus, in agreement with our observations in spindle severing assays, GPR-1 recruitment to the membrane induces cortical pulling forces, even in the apparent absence of Gα proteins. The lack of invaginations around 60% embryo length was no longer detected when ePDZ::GPR-1 was recruited to PH::LOV. In agreement, the characteristic dip in cortical GPR-1 localization (e.g.: Figure 1b) was no longer detected after ectopic GPR-1 recruitment (Figure 5b). Thus, as expected, LET-99 does not antagonize the cortical recruitment of ePDZ::GPR-1 by PH::LOV, in contrast to the Gα∙GDP-mediated localization of endogenous GPR-1/2. The pattern of invaginations still showed two peaks and a mild dip at 50% embryo length (Figure 5h). The remaining peak numbers of invaginations likely represent the cortical regions closest to the spindle poles, as these sites contact the highest numbers of astral microtubules. Taken together, Gα is not essential for force generation, but the characteristic distribution of force generating events is likely regulated in part at the Gα protein or Gα–GPR-1/2 protein interaction level.

Direct cortical anchoring of dynein is insufficient for cortical pulling force generation

The Gα–GPR-1/2–LIN-5 complex has been suggested to function as a dynein anchor (Kotak et al., 2012; di Pietro et al., 2016). Our optogenetic approach allows replacing the entire complex by PH::LOV, and examining whether the complex strictly acts as an anchor, or whether individual components have additional functions (Figure 6a). To directly recruit dynein to the cortex, we generated an epdz::mcherry knock-in allele of dhc-1 (dynein heavy chain). While homozygous epdz::mcherry::dhc-1 (ePDZ::DHC-1) was viable, its combination with ph::egfp::lov was lethal. This effect was also observed for an ePDZ::GFP fusion of DHC-1 in the presence of PH::LOV, but not in the absence of PH::LOV or for mCherry::DHC-1 without the ePDZ domain. Therefore, we attributed the lethality to ePDZ–LOV dark state interactions that disturb essential dynein functions. We circumvented this effect by using epdz::mcherry::dhc-1 in combination with a wild-type allele (epdz::mcherry::dhc-1/+) to control dynein localization links to different figure (Figure 6b,c and Videos 12 and 13). We found that induced ePDZ::DHC-1 cortical recruitment in the presence of the wild type complex slightly (but not significantly) increased spindle pole movements (anterior +10% and posterior +5%, 162 membrane invaginations:+17%; Figure 6d–f). In addition, cortical recruitment of ePDZ::DHC-1 slightly increased the nearly absent spindle pole movements in lin-5(RNAi) embryos (Figure 6—figure supplement 2). Notably, however, cortical ePDZ::DHC-1 recruitment in the absence of a wild type complex (Gα(RNAi), gpr-1/2(RNAi) or lin-5(RNAi) embryos) did not result in substantial pulling force generation, spindle movements, or membrane invaginations (Figure 6d–f and Figure 6—figure supplement 1). Because direct cortical dynein anchoring does not support force generation, it is likely that the LIN-5 complex performs essential functions beyond providing a structural dynein anchor.

Figure 6 with 2 supplements see all
Direct cortical anchoring of dynein (DHC-1) is insufficient for cortical pulling force generation.

(a) Cartoon model illustrating the experiment where dynein is recruited directly to the cortex. The wild type force generator complex is inactivated by RNAi. (b) Spinning disk confocal images showing light-controlled recruitment of dynein to the cortex (arrowheads, note the autofluorescent eggshell in the mCherry channel). Scale bar: 10 µm. (c) Quantification of cortical dynein recruitment during continuous activation of PH::LOV with blue light. (d) Spindle severing experiments with cortical dynein recruitment. Control is the epdz::mcherry::dhc-1; gfp::tubulin strain. Experimental conditions: combination of ph::egfp::lov and gpr-1/2(RNAi). Blue light activation was global and continuous. Error bars: s.e.m. Welch’s Student’s t-test and Mann Whitney U test; ns p>0.05. (e) Maximum projections of spindle movements for 10 s using a temporal color coding scheme to visualize spindle movement as in Figure 3c. Scale bar: 5 µm. (f) Distribution of anaphase membrane invaginations plotted along anterior-posterior embryo length. Conditions were the same as for the connected experiments in d and e, except for the control, which was the ph::egfp::lov; gfp::tubulin strain and not epdz::mcherry::dhc-1. Blue fields indicate conditions in which both ePDZ and LOV components are present, and an ePDZ–LOV interaction is induced with blue light. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.027
Video 12
Movie montage of a mitotic one-cell C. elegans embryo expressing endogenously labeled ePDZ::mCherry::DHC-1 (greyscale, left; red, right), the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of ePDZ::mCherry::DHC-1 to the cortex by global and continuousactivation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with early metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry::GPR-1 in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie serves as a control to Video 13.

https://doi.org/10.7554/eLife.38198.030
Video 13
Movie montage of a mitotic one-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled ePDZ::mCherry::DHC-1 (greyscale, left; red, right), the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of ePDZ::mCherry::DHC-1 to the cortex by global and continuous activation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with early metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of ePDZ::mCherry::DHC-1 in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to Figure 6b.

https://doi.org/10.7554/eLife.38198.031

Cortical LIN-5Mud/NuMA is essential and sufficient for dynein-dependent pulling force generation

In vitro reconstitution studies established that homodimerizing adapters containing extended coiled-coil domains are critical for dynein activity (McKenney et al., 2014; Schlager et al., 2014). LIN-5 and its homologs NuMA and Mud are predicted to contain a long coiled-coil domain, to homodimerize, and to interact with dynein (Kotak et al., 2012; Lorson et al., 2000; Merdes et al., 1996). To investigate if LIN-5 can activate dynein-dependent force generation, we recruited endogenous LIN-5 to the cortex (Figure 7a–c and Videos 14 and 15). Spindle severing experiments and invagination counting revealed that cortical LIN-5 recruitment greatly increased spindle pulling forces in otherwise wild type embryos (anterior +131% and posterior +68%, 557 invaginations:+303%) (Figure 7d,e and Figure 7—figure supplement 1). gpr-1/2(RNAi) embryos also showed strong dynein-dependent forces after cortical recruitment of LIN-5 (anterior +183% and posterior +244%, 429 invaginations:+1488%). In fact, cortical LIN-5 recruitment generated extreme premature pulling forces (Video 16) that could result in separation of centrosomes and their associated pronuclei even before formation of a bipolar spindle (Video 17). Therefore, embryos were kept in the absence of blue light until mitotic metaphase. Subsequent blue light exposure induced cortical LIN-5 recruitment within seconds, and the spindles showed excessive movements in all three dimensions well before cortical LIN-5 reached peak levels (Figure 7c,e, Videos 14 and 15). Therefore, the number of membrane invaginations in anaphase probably reflects the pulling forces more accurately than the average peak velocities of the poles (Figure 7f and Figure 7—figure supplement 1). These results identify LIN-5 as a strong activator of dynein in the generation of cortical pulling forces.

Figure 7 with 2 supplements see all

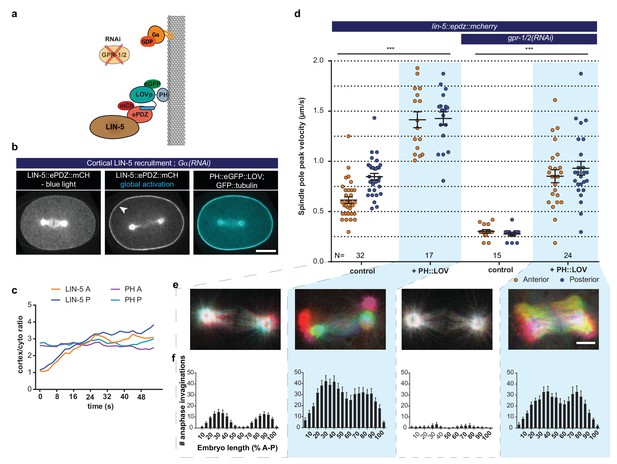

LIN-5 is a strong and essential activator of dynein-dependent cortical pulling forces.

(a) Cartoon model illustrating the experiments in which LIN-5 is recruited to the cortex independently of the wild type Gα–GPR-1/2 anchor. (b) Spinning disk confocal images showing light-controlled recruitment of endogenous LIN-5 in the absence of Gα (arrow head). See also Videos 14 and 15. (c) Cortical LIN-5 recruitment during continuous activation of the ePDZ–LOV interaction, represented as the ratio of cortical/cytoplasmic signal. Scale bar: 10 µm. (d) Spindle severing experiments in combination with cortical recruitment of endogenous LIN-5. Control is the lin-5::epdz::mcherry; gfp::tubulin strain. Experimental conditions: combinations with ph::egfp::lov and gpr-1/2(RNAi). Error bars: s.e.m. Welch’s Student’s t-test and Mann Whitney U test; ***p<0.001. (e) Maximum projections of spindle movements for 10 s using a temporal color coding scheme to visualize spindle movement as in Figure 3c. Scale bar: 5 µm. (f) Anaphase membrane invaginations plotted along anterior-posterior embryo length. Conditions were the same as for the connected experiments in d and e, except for the control, which was the ph::egfp::lov; gfp::tubulin strain and not lin-5::epdz::mcherry. Blue fields indicate conditions in which ePDZ and LOV components are present, and an ePDZ–LOV interaction is induced using blue light. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.032
Video 14
Movie montage of a mitotic one-cell C. elegans embryo expressing endogenously labeled LIN-5::ePDZ::mCherry (greyscale, left; red, right) and the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of LIN-5::ePDZ::mCherry to the cortex by global and continuous activation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of LIN-5::ePDZ::mCherry in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie serves as a control to Video 15.

https://doi.org/10.7554/eLife.38198.035
Video 15
Movie montage of a mitotic one-cell C. elegans embryo treated with Gα RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (greyscale, left; red, right), the membrane anchor PH::eGFP::LOV and GFP::tubulin (both green, right).

The movie shows relocalization of LIN-5::ePDZ::mCherry to the cortex by global and continuous activation of cortical LOV using blue light. Images, which are single planes, were made as a time-lapse with one acquisition per 2 s for both 568 nm and 491 nm illumination and played back at 10 frames per second, with time point 0 corresponding with metaphase. The acquisition in the 568 nm channel at time point 0 shows localization of LIN-5::ePDZ::mCherry in complete absence of blue light, as embryos were kept in the dark before image acquisition. Movie corresponds to Figure 7b.

https://doi.org/10.7554/eLife.38198.036
Video 16
Movie montage of a mitotic one-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (not shown), the membrane anchor PH::eGFP::LOV and GFP::tubulin (both inverted greyscale).

The movie shows excessive rocking of centrosomes with associated pronuclei prior to mitotic spindle assembly. Images, which are single planes, were made as a streaming acquisition with 0.5 s of exposure and played back at 20 frames per second, with time point 0 corresponding with late prophase. Movie does not correspondto a figure, but is discussed in the text.

https://doi.org/10.7554/eLife.38198.037
Video 17
Movie montage of a mitotic one-cell C. elegans embryo expressing endogenously labeled LIN-5::ePDZ::mCherry (not shown) and the membrane anchor PH::eGFP::LOV (inverted greyscale).

The movie shows separation of centrosomes and associated pronuclei in prophase upon global and continuous activation of LOV with blue light. Images, which are single planes, were made as a streaming acquisition with 0.5 s of exposure and played back at 10 frames per second, with time point 0 corresponding with prophase. Movie does not correspond to a figure, but is discussed in the text.

https://doi.org/10.7554/eLife.38198.038

We observed similarly high pulling forces upon cortical LIN-5 recruitment in gpr-1/2(RNAi) and Gα(RNAi) embryos (Figure 7—figure supplement 1). Thus, neither Gα nor GPR-1/2 are required for force generation, and this particular context did not reveal a positive contribution of Gα∙GTP either. In immunofluorescence staining experiments, we observed that cortical recruitment of LIN-5 localized dynein to the cortex (Figure 7—figure supplement 2). Notably, the reverse was also seen: we detected LIN-5 at the cortex following the direct recruitment of ePDZ::DHC-1 to PH::LOV, even after knockdown of gpr-1/2 by RNAi (Figure 6—figure supplement 2, top). The p150(Glued) dynactin subunit DNC-1 was also present at the cell cortex of such embryos, which indicates that at least some PH::LOV-localized dynein complexes contain the dynactin cofactor (Figure 6—figure supplement 2, lower panels). DNC-1p150 colocalized with PH::LOV membrane-recruited dynein even in lin-5(RNAi) embryos. Thus, the cortical localization of dynein through a direct PH::LOV interaction leads to co-recruitment of LIN-5 and dynactin, but not to significant force generation. It is possible that these complexes adapt an inactive conformation or lack specific subunits of the dynein-dynactin motor complex. In contrast, dynein anchored at the cell cortex through the LIN-5 intermediate generated strong pulling forces. Together, these data indicate that association with membrane-attached LIN-5 is essential for dynein to generate cortical pulling forces.

Local LIN-5Mud/NuMA recruitment provides experimental control over spindle and cell cleavage plane positioning

Next, we examined whether we could deploy cortical LIN-5 to manipulate spindle positioning and the outcome of cell division by local illumination with blue light. In the normal P0 cell, the spindle is displaced towards the posterior and cell cleavage creates a larger anterior blastomere (AB) and a smaller posterior blastomere (P1). Local recruitment of LIN-5 to the anterior cortex from metaphase onwards caused the P0 spindle to position anteriorly, which inverted the AB:P1 size asymmetry after cell division (Figure 8a and Video 18). In addition, recruiting LIN-5 laterally induced a completely perpendicular spindle position (Figure 8b and Video 19). While this triggered some furrowing at the anterior and posterior cell poles, the spindle switched back to an anterior-posterior orientation during cytokinesis, possibly resulting from geometric constraints. We therefore switched to two-cell embryos with the relatively round AB and P1 blastomeres. In two-cell gpr-1/2(RNAi) embryos, the spindle fails to rotate in P1, resulting in a transverse spindle orientation in both blastomeres (Srinivasan et al., 2003). Importantly, local recruitment of LIN-5 to the membranes between AB and P1 promoted anterior-posterior spindle orientations in both blastomeres of gpr-1/2(RNAi) embryos (Figure 8c and Videos 20 and 21). These spindles maintained their anterior-posterior orientation throughout mitosis and induced cleavage furrows that reproducibly followed the spindle position. These experiments underline the determining role of LIN-5-dependent cortical pulling in spindle orientation and cell cleavage plane determination.

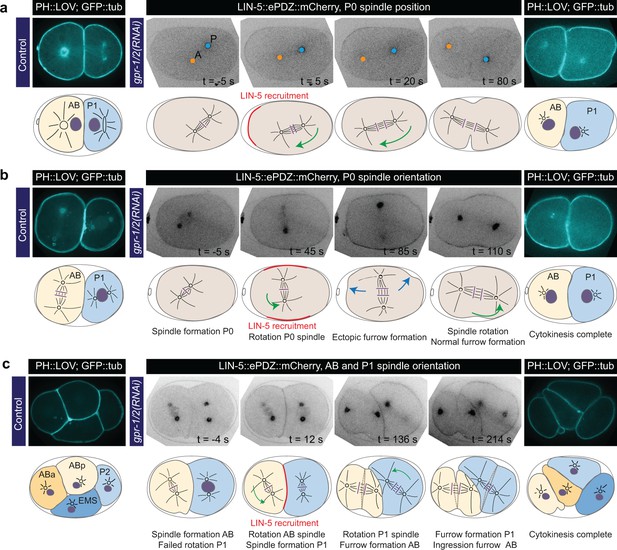

Experimentally induced spindle positioning by controlled localization of endogenous LIN-5.

(a) Selected time points of Video 18 showing induced anterior displacement of the P0 spindle upon local cortical recruitment of LIN-5. Images are annotated with centrosome positions shown as circles (orange, anterior pole; blue, posterior pole). (b) Selected time points of Video 19 showing induced transverse P0 spindle orientation upon local cortical recruitment of LIN-5. Blue arrows, ectopic furrowing. (c) Selected time points of Video 20 showing induced AB and P1 spindle rotation upon local cortical recruitment of LIN-5. In a, b, and c panels 1–4 show LIN-5::ePDZ::mCherry fluorescence, panel five shows PH::LOV and GFP::tubulin. Cartoons accompanying images illustrate key events. Red, local LIN-5 recruitment. Green arrows, spindle movements. leftmost panels show control two- and four-cell embryos labeled with PH::eGFP::LOV and GFP::tubulin. See Materials and methods for the local activation procedure. See Supplementary file 1 for detailed genotypes. Anterior is to the left in all microscopy images.

https://doi.org/10.7554/eLife.38198.039
Video 18
Movie montage of a mitotic one-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (inverted greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows anterior displacement of the spindle and subsequent inverted asymmetric division resulting in a small anterior and large posterior blastomere after local recruitment of LIN-5::ePDZ::mCherry to the anterior cortex. Images, which are single planes, were made as a time-lapse with one acquisition per 5 s and played back at five frames per second, with time point 0 corresponding with metaphase. Movie corresponds to Figure 8a.

https://doi.org/10.7554/eLife.38198.040
Video 19
Movie montage of a mitotic one-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (inverted greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows artificial transverse positioning of the metaphase mitotic spindle and its subsequent correction to an anterior-posterior position in late anaphase after local recruitment of LIN-5::ePDZ::mCherry to the opposing equatorial cortexes. Images, which are averages of groups of 2 subsequent frames, were made as a time-lapse with one acquisition per 2 s and played back at five frames per second, with time point 0 corresponding with metaphase. Movie corresponds to Figure 8b.

https://doi.org/10.7554/eLife.38198.041
Video 20
Movie montage of a mitotic two-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (inverted greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows artificial rotation of transverse aligned AB and P1 spindles to an anterior-posterior position, and concurrent reorientation of the cleavage planes after local recruitment of LIN-5::ePDZ::mCherry to the central region where AB and P1 cortexes touch. Images, which are averages of groups of 2 subsequent frames, were made as a streaming acquisition with 0.5 s of exposure and played back at 10 frames per second, with time point 0 corresponding with metaphase in the AB blastomere. Movie corresponds to Figure 8c.

https://doi.org/10.7554/eLife.38198.042
Video 21
Movie montage of a mitotic two-cell C. elegans embryo treated with gpr-1/2 RNAi expressing endogenously labeled LIN-5::ePDZ::mCherry (inverted greyscale) and the membrane anchor PH::eGFP::LOV (not shown).

The movie shows artificial rotation of transverse aligned AB and P1 spindles to an anterior-posterior position, and concurrent reorientation of the cleavage planes after local recruitment of LIN-5::ePDZ::mCherry to the central region where AB and P1 cortexes touch. Images, which are averages of groups of 2 subsequent frames, were made as a streaming acquisition with 0.5 s of exposure and played back at 20 frames per second, with time point 0 corresponding with metaphase in the AB blastomere. Movie corresponds to Figure 8c.

https://doi.org/10.7554/eLife.38198.043

Discussion

Recent advances in CRISPR/Cas9-mediated genome engineering and optogenetics hold far-reaching potential for cell and developmental biology (Johnson and Toettcher, 2018; Waaijers and Boxem, 2014). We combined these strategies to systematically control the localization of endogenous proteins in the C. elegans early embryo by light-induced ePDZ–LOV heterodimerization, to determine their individual contributions in spindle positioning. This demonstrated that LIN-5, but not Gα, RIC-8 and GPR-1/2, is intrinsically required for dynein-dependent pulling force generation. Based on our quantitative analyses, we propose that Gα–GPR-1/2 provides a regulatable membrane anchor, while membrane-bound LIN-5 acts as an obligate adapter and activator of cytoplasmic dynein at the cell cortex.

Our observations fit with and expand on those from studies in which the LIN-5-related Mud and NuMA proteins where tethered to the cortex. In two earlier studies, this resulted in the conclusion that the NuMA complex acts as a dynein anchor, but substitution of components or Gα protein removal was not tested (Kotak et al., 2012; Ségalen et al., 2010). However, a very recent study using human carcinoma cells followed an optogenetic strategy similar to ours, and also observed that a membrane anchor cannot replace the entire Gα–LGN–NuMA complex (Okumura et al., 2018). As in C. elegans embryos, a CAAX membrane anchor could substitute for Gα–LGN in human carcinoma cells, while dynein needed to be anchored through NuMA in order to generate spindle positioning forces (Okumura et al., 2018). Thus, observations in two different systems indicate that dynein activation at microtubule plus ends requires the LIN-5/NuMA adaptor protein, similar to the requirement for an activating dynein adaptor in cargo transport (McKenney et al., 2014; Schlager et al., 2014; Zhang et al., 2017).

It is tempting to speculate that activation by LIN-5NuMA specifically promotes dynein function in generating membrane associated pulling forces. In the cytoplasm, dynein adopts an inactive conformation and does not show processive movement in the absence of an activating adaptor (Reck-Peterson et al., 2018). Adaptor proteins such as BicD2 and Hook3 interact with specific cargo as well as with the dynein tail regions and the universal activating complex dynactin (McKenney et al., 2014; Schlager et al., 2014; Zhang et al., 2017). Thereby, these adaptors promote the formation of stable and active dynein–dynactin-adaptor complexes. Recent stuctural analyses revealed that the coiled-coil regions of the adaptors extend in between dynein and dynactin, with multiple adaptor-specific interaction sites, and with several adaptors promoting the recruitment of two dynein complexes in parallel (Grotjahn et al., 2018; Sladewski et al., 2018; Urnavicius et al., 2018).

Although structural studies have focused on factors promoting minus-end directed transport, it is likely that dynein-dependent cortical pulling forces also involve an activating adaptor. As such, LIN-5NuMA could promote the assembly of stable dynein–dynactin complexes and release dynein autoinhibition. It is remarkable, however, that direct recruitment of dynein to the cortex did not result in cortical pulling forces, despite the co-recruitment of LIN-5 and the dynactin subunit DNC-1p150. At present, we do not know whether this reflects individual dynein–LIN-5 and dynein–dynactin interactions, or the formation of stable dynein–dynactin–LIN-5 complexes. The lack of pulling forces, despite co-recruitment of LIN-5NuMA and DNC-1p150 together with dynein, may indicate that the complex needs to be anchored through LIN-5 in order to achieve a specific conformation and facilitate microtubule end-on pulling forces. Such a requirement could prevent inappropriate activation of dynein–dynactin–LIN-5NuMA complexes in the cytoplasm. In the optogenetic experiments in human carcinoma cells, dynein also localized p150 at the membrane, however in contrast to our findings, NuMA was not observed to be co-recruited in this study (Okumura et al., 2018). While the reason for this discrepancy is currently unknown, it might be related to the remarkably different kinetics of the two systems. Using the TULIP system, we observed membrane localization of ePDZ-tagged endogenous proteins within seconds, whereas in the iLID experiments in human carcinoma cells accumulation took place over multiple minutes. It is possible that in the longer time frame, cytoplasmic dynein complexes are recruited to the cortex with adaptors other than NuMA.

Since only LIN-5 is strictly required for cortical pulling force generation, the question arises why a tripartite dynein anchor is conserved from worm to man. In yeast, dynein is localized by the single-component cortical anchor Num1, a coiled-coil domain protein with a PH-domain for membrane localization (Ananthanarayanan, 2016). Our ectopic ePDZ–LOV heterodimerization experiments show that membrane-tethered LIN-5 could suffice as a dynein anchor and activator, and that local regulation is needed to rotate and displace the spindle. Conceivably, the trimeric dynein anchor/adaptor evolved in metazoans to augment context-specific regulation and reduce stochastic activation of spindle pulling forces.

Which factors may normally control the Gα–GPR-1/2 membrane anchor? The LET-99 protein was previously reported to restrict the localization of GPR-1/2 in a posterior-lateral band region of the one-cell embryo, thereby contributing to higher net pulling forces in the posterior direction (Tsou et al., 2002; Tsou et al., 2003). Our observation that direct membrane recruitment of GPR-1 overcomes this regulation is in agreement with LET-99 normally antagonizing Gα∙GDP–GPR-1/2 interaction. Another level of Gα–GPR-1/2 regulation that remains incompletely understood is the contribution of RIC-8 in spindle positioning. The ric-8 gene was discovered through ‘resistant to inhibitors of cholinesterase 8’ mutants in C. elegans, which are defective in Gαq-stimulated neurotransmitter release (Miller et al., 2000). The discovery that ric-8 acts also with GOA-1 in spindle positioning indicated a general role for RIC-8 in Gα regulation (Miller and Rand, 2000). Indeed, two different general functions have been reported. Based on in vitro experiments, mammalian RIC-8A acts as a non-receptor GEF, which surprisingly does not activate Gαβγ trimers, but shows higher affinity for free Gα∙GDP and the Gα∙GDP–LGN–NuMA complex (Tall and Gilman, 2005; Tall et al., 2003). In contrast, experiments in Drosophila and mouse embryonic stem cells demonstrated a chaperone function required for the cortical localization of Gα subunits (David et al., 2005; Gabay et al., 2011; Hampoelz et al., 2005; Wang et al., 2005). Only the Drosophilai protein forms a complex with Pins–Mud (Schaefer et al., 2001), and Drosophilai, but not Gαo, depends on RIC-8 for its cortical localization (David et al., 2005). Seemingly unifying these independently described RIC-8 functions, C. elegans RIC-8 was shown to exhibit both GEF and chaperone activity, depending on the Gα subunit (Afshar et al., 2004; Afshar et al., 2005).

The C. elegans GOA-1 and GPA-16 Gα proteins act in a substantially redundant manner in spindle positioning, but diverge in other ways. GPA-16 is closest to the Gαi class, has been implicated only in spindle positioning, and depends on RIC-8 for its cortical localization (Afshar et al., 2005; Bergmann et al., 2003; Gotta and Ahringer, 2001). Thus, both C. elegans and Drosophila RIC-8 appears to act as a chaperone for Gαi to promote spindle positioning. Also similar to Drosophila, the Gαo GOA-1 subunit does not require RIC-8 for its membrane localization (David et al., 2005; Afshar et al., 2005). Instead, RIC-8 was reported to act as a GEF for GOA-1 (Afshar et al., 2004), and is usually considered to act as a GEF for Gαq and Gαo in neurotransmitter release. However, the contribution of a Gαo GEF in spindle positioning would mean that either Gα∙GTP or Gα∙GDP/GTP cycling promotes spindle pulling forces. Both of these possibilities seem unlikely in light of the results described here. The fact that Gα can be replaced with a PH–membrane anchor dismisses a general requirement for Gα∙GTP in pulling force generation. Moreover, RIC-8 functioning in a Gα∙GDP/GTP cycle is not supported by our knockout and membrane localization studies. Therefore, there is reason to question whether RIC-8 really functions as a GEF. The strongest support for such a function has come from in vitro experiments, in which RIC-8 showed rather inefficient GEF activity towards Gα∙GDP (Kant et al., 2016; Thomas et al., 2008). It appears conceivable that incubation of Gα with a chaperone that affects its folding causes nucleotide dissociation. If correct, the membrane localized GOA-1 in ric-8 mutants would reflect an incompletely functional form.

Despite the observed replaceability of Gα with a general membrane anchor, Gα∙GTP has been reported to affect the spindle orientation in specific tissues (Katanaev et al., 2005; Schaefer et al., 2001; Yoshiura et al., 2012). In Drosophila neuroblasts and sensory organ precursor cells, canonical G-protein signaling is used to align cellular polarity with tissue polarity (Katanaev et al., 2005; Yoshiura et al., 2012). As such, Gα∙GTP may indirectly contribute to spindle positioning. In addition, one of the Drosophila Pins GoLoco domains was found to preferentially interact with Gαo∙GTP, thereby linking the spindle positioning machinery with canonical G-protein signaling (Kopein and Katanaev, 2009; Yoshiura et al., 2012). Thus, while not needed for the generation of dynein-dependent cortical pulling forces, further studies will need to reveal to what extent Gα∙GTP contributes to spindle positioning in a tissue or developmental context specific manner.

For our in vivo dissection of spindle positioning, we developed and applied methods for germline-specific gene knockout, tagging of endogenous proteins, reliable expression of foreign sequences in the germline, and light-inducible protein heterodimerization. These methods further expand the molecular biology toolbox for in vivo studies and can be broadly applied to other biological processes. Of particular interest is the acquired possibility to experimentally control the position of the spindle, for instance for future studies aimed at deciphering how the spindle determines the plane of cell cleavage, and whether specific cell-cell contacts affect cell fate.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
 strain, strain
background
(Caenorhabditis elegans)
All strains derived
from N2
CGC
 Antibodymouse polyclonal
anti-LIN-5
Lorson et al., 2000
 Antibodymouse monoclonal
anti-FLAG M2
Sigma-AldrichCat. No. F1804
 Antibodyrabbit polyclonal
anti-DHC-1
Gonczy et al., 1999
 software, algorithmGLO (germline optimized)
sequence optimization
algorithm
this studyaccessible via
http://104.131.81.59/

C. elegans strains and maintenance

The names and associated genotypes of C. elegans strains used in this study are included in Supplementary file 1. Animals were maintained at either 15 or 20˚C as described previously (Brenner, 1974). Strains expressing both ePDZ and LOV protein motifs were regarded as light-sensitive and thus cultured in the dark, and transferred while using red light only. Animals were kept on plates that contained nematode growth medium (NGM) that had been seeded with OP50 Escherichia coli bacteria.

Molecular cloning

DNA vector-based repair templates to be used for CRISPR/Cas9-mediated genome editing were designed in A plasmid Editor (M. Wayne Davis) to include 500–1500 bp homology arms. These and all other sequences used were generated starting from either purified C. elegans genomic DNA or pre-existing vectors via PCR amplification using Q5 Hot Start High-Fidelity DNA Polymerase (New England Biolabs). A list of all cloning, repair template and genotyping primers (Integrated DNA technologies) and DNA templates used has been included in Supplementary file 2. PCR fragments were gel purified (Qiagen), their concentrations measured using a BioPhotometer D30 (Eppendorf) and then ligated into pBSK by Gibson assembly (New England Biolabs). gRNA vectors were generated by annealing of antisense oligonucleotide pairs and subsequent ligation into BbsI-linearized pJJR50 or BsaI-linearized pMB70 using T4 ligase (New England Biolabs). All DNA vectors used for genome editing were transformed into DH5α competent cells and subsequently purified by midiprep (Qiagen).

Design of germline-optimized coding sequences

Custom Perl scripts were written to design germline-optimized coding sequences according to the algorithm described in the legend of Figure 2—figure supplement 1. After designing each coding sequence, we inserted either (1) normal synthetic introns with the sequence gtaagttt(n36)ttttcag, where n36 is a 36 bp random DNA sequence with 30% GC content; or (2) PATC introns (Frøkjær-Jensen et al., 2016). Our design algorithm is accessible via a web interface at http://104.131.81.59/, and the source code can be found at https://github.com/dannyhmg/germline; copy archived athttps://github.com/elifesciences-publications/germline. Germline-optimized sequences were synthesized as gBlocks (Integrated DNA Technologies) and single-copy transgenes were generated using standard methods (Frøkjær-Jensen et al., 2012). Please refer to Supplementary file 2 for detailed sequence features of each transgene.

Design of inducible germline-specific gene knockout

loxP and loxN sequences were integrated in the endogenous loci of essential genes (see CRISPR/Cas9-mediated genome editing section for details). For the FLP recombinase, the hyperactive FLP G5D variant (Schwartz and Jorgensen, 2016) was used (pMLS262; Addgene #73718). For germline-specific expression, we used a long version of the pie-1 promoter including enhancer sequences (pAZ132, a kind gift from A. A. Hyman). To initiate the recombination cascade, the germline-specific FLP expression vector was injected in P0 mothers with the following protocol to favor germline expression (Personal communication Oliver Hobert, Worm Breeders Gazette, February 21, 2013); linearized FLP construct (2 ng/µl), PvuII digested E. coli genomic DNA (150 ng/µl), co-injection marker Pmyo-2::tdtomato (2 ng/µl). Transgenic F1 animals were singled and allowed to lay eggs for at least 24 hr. From F1 with 100% embryonic lethal broods (ric-8 and rgs-7 are essential for embryogenesis), early embryos were isolated and used for spindle severing experiments.

CRISPR/Cas9-mediated genome editing

Either the wild type N2 or SV1818 (pha-1(e2123ts) 4x outcrossed) C. elegans genetic background was used for the generation of CRISPR/Cas9 alleles. Injection mixes with a total volume of 50 µl were prepared in MilliQ HR2RO and contained a combination of 50 ng/µl Peft-3:cas9 (Addgene ID #46168 (Friedland et al., 2013) or 60 ng/µl pJW1285 (Addgene ID #61252 [Dickinson et al., 2013]), 50–100 ng/µl u6::sgRNA (targeting genomic sequences listed in Supplementary file 2), 50 ng/µl of (PAGE-purified oligonucleotide) repair template and 2.5 ng/µl of the co-injection pharyngeal marker myo-2p::tdtomato. Injection mixes were spun down in a microcentrifuge (Eppendorf) for at least 10 min at 13,000 RPM prior to use. Young adult hermaphrodites were injected in the germline using an inverted micro-injection setup (Eppendorf). After injection, animals were singled and grown at 15 or 20˚C. F1 animals were then picked to a total of at least 96, and grown with two or three animals per plate for 7–8 days at 20˚C until freshly starved. Half a plate containing F2 and F3 animals was then washed off with M9 medium supplemented with 0.05% Tween-20, and subsequently lysed to extract genomic DNA. Some knock-ins were obtained using co-CRISPR selection: rescue of pha-1(e2123ts) (Ward, 2015), generation of visible unc-22 (Kim et al., 2014) or dpy-10 (Paix et al., 2015) phenotypes, or integration of an self-excisable cassette carrying a visible marker (Dickinson et al., 2015). Genotyping was carried out by PCR amplification with OneTaq polymerase (New England Biolabs) of genome sequences using primers annealing in the inserted sequence and a genomic region not included in the repair template. Confirmed alleles were subsequently sequenced (Macrogen Europe).

Spinning disk microscopy

Prior to live imaging, embryos were dissected from adult hermaphrodites onto coverslips (Menzel-Gläser) in 0.8x egg salts buffer (94 mM NaCl, 32 mM KCl, 2.7 mM CaCl2, 2.7 mM MgCl2, 4 mM HEPES, pH 7.5; (Tagawa et al., 2001) or M9, and mounted on 4% agarose pads. Spinning disk imaging of embryos was performed using a Nikon Eclipse Ti with Perfect Focus System, Yokogawa CSU-X1-A1 spinning disk confocal head, Plan Apo VC 60x N.A. 1.40 oil and S Fluor 100x N.A. 0.5–1.3 (at 1.3, used for UV-laser photo-ablation) objectives, Photometrics Evolve 512 EMCCD camera, DV2 two-channel beam-splitter for simultaneous dual-color imaging, Vortran Stradus 405 nm (100 mW), Cobolt Calypso 491 nm (100 mW), Cobolt Jive 561 nm (100 mW), Vortran Stradus 642 nm (110 mW) and Teem Photonics 355 nm Q-switched pulsed lasers controlled with the ILas system (Roper Scientific France/PICT IBiSA, Institut Curie, used for photo-ablation), ET-GFP (49002), ET-mCherry (49008), ET-GFPmCherry (49022) and ET-Cy5 (49006) filters, ASI motorized stage MS-2000-XYZ with Piezo Top Plate, and Sutter LB10-3 filter wheel. The microscope was operated using MetaMorph 7.7 software and situated in a temperature-controlled room (20˚C). The temperature of the stage and objective was controlled at 25˚C with a Tokai Hit INUBG2E-ZILCS Stage Top Incubator during experiments. Images were acquired in either streaming mode with 250 or 500 ms exposure, or time-lapse mode with 250, 500 or 1500 ms exposure and 2 or 5 s intervals. Laser power and exposure times were kept constant within experiments. For the quantification of membrane invaginations embryos were imaged by 250 ms exposure stream acquisition starting in the DNA plane at anaphase onset, as judged by GFP::tubulin signal. During anaphase, the spinning disk imaging plane was moved as close to the membrane as possible while keeping the cytosol discernable from the membrane signal. Acquisitions were terminated at early telophase, as judged by the PH::eGFP::LOV signal. For experiments involving balanced epdz::mcherry::dhc-1/+, each animal was confirmed to be positive for epdz::mcherry::dhc-1 by fluorescence before the experiment. Images acquired by spinning disk microscopy were rotated, cropped, annotated, provided with scale bars, and processed further by linear adjustment of brightness and contrast using ImageJ and FIJI. Fluorophores used in this study include (e)GFP, mCherry, Alexa-488, Alexa-568 and Atto 647N.

RNA-mediated interference (RNAi)

For immunohistochemistry experiments L4 hermaphrodites were grown on RNAi plates seeded with HT115 Escherichia coli bacteria strains generating double-stranded RNA (dsRNA) targeting genes of interest (goa-1, gpa-16, gpr-1) for 48 hr at 15˚C prior to fixation (Timmons and Fire, 1998). For all other gene knock-down experiments, young adult hermaphrodites were injected with dsRNA targeting genes of interest (goa-1, gpa-16, gpr-1, ric-8, rgs-7) and grown for 48 hr at 15˚C (Fire et al., 1998) prior to experiments. To generate dsRNA, coding regions of genes of interest were PCR amplified using Q5 Hot Start High-Fidelity DNA Polymerase (New England Biolabs). These PCR products were used as templates for in vitro dsRNA synthesis (MEGAscript T7 transcription kit, ThermoFisher Scientific). dsRNA was diluted 5x in DEPC HR2RO prior to micro-injection. ORF clones from the Vidal and Ahringer RNAi libraries were used (Kamath et al., 2003; Rual et al., 2004).

Spindle severing assays

Mitotic spindle severing was performed in essence as described (Grill et al., 2001; Portegijs et al., 2016). One-cell embryos expressing GFP- or mCherry-labeled tubulin were imaged during mitosis using the spinning disk microscope setup described above, equipped with a Teem Photonics 355 nm Q-switched pulsed laser controlled with the ILas system (Roper Scientific France/PICT IBiSA, Institut Curie). At anaphase onset, as judged by spindle morphology and mobility, spindles were severed as shown in Figure 1c and Video 2. Centrosome displacement was recorded by 500 ms exposure streaming acquisition, and peak velocities were subsequently extrapolated using the FIJI TrackMate plugin.

Dark state experiments and local recruitment of ePDZ-tagged proteins to membrane LOV

Dark state experiments were performed on the spinning disk setup described above. For local photoactivation of LOV2 in C. elegans embryos, light was applied in a region of variable size depending on each individual experiment using a 491 nm laser controlled with the ILas system (Roper Scientific France/PICT IBiSA, Institut Curie). Due to high sensitivity of LOV2 to blue light and variations in laser power, embryos of strain SV2061 (expressing diffuse ePDZ::mCherry and PH::eGFP::LOV) were used to calibrate the amount of laser power required for local activation of LOV2 prior to experiments. During both global and local photoactivation assays and dark state spindle severing experiments embryos were kept away from blue light as much as practically feasible. To this end, aluminum foil was used to cover the microscope setup, and optical filters were inserted in the light path to remove LOV2-activating wavelengths from the transmitted light used to locate embryos on slides. Prior to experimental use of embryos, unintended premature cortical recruitment of ePDZ-mCherry or ePDZ-mCherry-LIN-5 was assessed by observation of mCherry localization patterns.

Antibodies and immunocytochemistry

For immunostaining of C. elegans embryos, embryos were dissected from adults in 10 µl MilliQ HR2RO on slides coated with poly-L-lysine. Samples were then freeze-cracked and fixed in methanol for 5 min. at −20˚C and subsequently in acetone for 5 min. at −20˚C. Embryos were then rehydrated in phosphate buffered saline +0.05% Tween-20 (PBST), blocked for 1 hr at 4˚C in PBST +1% bovine serum albumin and 1% goat serum (Sigma-Aldrich), and then incubated at room temperature with primary antibodies for 1 hr and then with secondary antibodies for 45 min., both in blocking solution, with four 10 min washes in PBST following each antibody mix. Finally, embryos were embedded in ProLong Gold Antifade with DAPI. Primary antibodies used were mouse anti-LIN-5 [1:10, (Lorson et al., 2000), mouse anti-FLAG M2 (Sigma-Aldrich) and rabbit anti-DHC-1 (1:100 (Gonczy et al., 1999); a kind gift from P. Gönczy). Secondary antibodies used were goat anti-rabbit Alexa-488, goat anti-rabbit Alexa-568, goat anti-mouse Alexa-488, goat anti-mouse Alexa-568 (Invitrogen) and goat anti-mouse Atto 647N (Sigma-Aldrich), all at 1:500 dilution in blocking solution. Imaging of immunolabeled embryos was performed on the spinning disk setup described above.

Data analysis: membrane invaginations and fluorescence intensity measurements

All quantitative spinning disk image analyses were performed in either ImageJ or FIJI. For quantification of membrane invaginations, movies were limited to the 200 frames (50 s) preceding the onset of telophase. Images were then cropped to include the outer limits of the PH::eGFP signal. Transient cortical dots were tracked manually using the MTrackJ ImageJ plugin. Larger, more static structures result from membrane ruffles, which are distinct from the more dynamic invaginations, as can be seen in Video 11. To yield the distribution of invaginations on the length axis of the visible embryo cortex, recorded x coordinates were incremented into groups of 5% embryo length each. To quantify the cortical recruitment and dynamics of ePDZ::mCherry, ePDZ::mCherry::GPR-1, LIN-5::ePDZ::mCherry and ePDZ::mCherry::DHC-1 by PH::eGFP::LOV, multiple 20 px wide linescans were drawn perpendicular to the membrane per analyzed embryo. An intensity profile was plotted per linescan at each acquired time point, from each of which an average of the maximum three pixel values was extracted to yield the peak intensity values at the membrane. Each intensity measurement was first corrected for background noise with a value measured outside of the embryo in a 50 × 50 px region of interest, and cortex to cytoplasm intensity ratios were calculated using average cytoplasmic intensity measurements in a 50 × 50 or 29 × 23 px region of interest at all timepoints analyzed. Fluorescence intensity measurements as measure for Cre(FLPon) activation (Figure 1—figure supplement 2) were taken as total embryo average intensity minus background signal using ImageJ measurement tool. The half time of ePDZ-LOV interaction after a pulse activation was inferred from a non-linear, single component regression. All numerical data processing and graph generation was performed using Excel 2011 (Microsoft) and Prism 7 (GraphPad software, inc.).

Statistical analysis

All data were shown as means with SEM. Statistical significance as determined using two-tailed unpaired Student’s t-tests, Mann-Whitney U tests and the Wilcoxon matched-pairs signed rank test. Correlation coefficients between two data sets were calculated using Pearson r correlation tests or Spearman rank correlation tests. Data sets were assessed for their fit to a Gaussian distribution using the D’Agostino-Pearson omnibus K2 normality test prior to application of appropriate statistical test. A p-value of <0.05 was considered significant. *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001. All statistical analyses were performed in Prism 7 (GraphPad software, inc.).

Code availability

Our design algorithm is accessible via a web interface at http://104.131.81.59/, and the source code can be found at https://github.com/dannyhmg/germline; copy archived at https://github.com/elifesciences-publications/germline.

Data availability

The data that support the findings of this study are included in the supplementary information.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    The genetics of Caenorhabditis elegans
    1. S Brenner
    (1974)
    Genetics 77:71–94.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Cryo-electron tomography reveals that dynactin recruits a team of dyneins for processive motility
    1. DA Grotjahn
    2. S Chowdhury
    3. Y Xu
    4. RJ McKenney
    5. TA Schroer
    6. GC Lander
    (2018)
    Nature Structural & Molecular Biology, 25, 10.1038/s41594-018-0027-7, 29416113.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    A role for RIC-8 (Synembryn) and GOA-1 (G(o)alpha) in regulating a subset of centrosome movements during early embryogenesis in Caenorhabditis elegans
    1. KG Miller
    2. JB Rand
    (2000)
    Genetics 156:1649–1660.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
    LET-99 determines spindle position and is asymmetrically enriched in response to PAR polarity cues in C. elegans embryos
    1. MF Tsou
    2. A Hayashi
    3. LR DeBella
    4. G McGrath
    5. LS Rose
    (2002)
    Development 129:4469–4481.
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85

Decision letter

  1. Andrew P Carter
    Reviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom
  2. Andrea Musacchio
    Senior Editor; Max Planck Institute of Molecular Physiology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Optogenetic dissection of mitotic spindle positioning in vivo" for consideration by eLife. Your article has been reviewed by Andrea Musacchio as the Senior Editor, a Reviewing Editor, and three reviewers. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Fielmich et al., present an elegant optogenetic analysis that demonstrates the sufficiency of light-induced cortical localization of LIN-5/NuMa to activate dynein-dependent cortical pulling forces that orient mitotic spindles in the early C. elegans embryo. Importantly, they show that light-induced cortical localization is sufficient to induce increased pulling forces in the absence of GPR-1,2/LGN that normally acts to tether LIN-5 to the membrane via an interaction with Gα∙GDP, and that light-induced cortical localization of dynein alone is not sufficient to generate increased pulling forces. This is an impressive use of optogenetics to establish the sufficiency of cortical LIN-5 to activate dynein in the absence of upstream regulation. The authors provide thorough and appropriate statistical analyses indicating the significance of their findings and present a thorough and compelling genetic analysis of this issue. The authors also introduce a novel approach to avoiding germline silencing of transgenes in C. elegans that will be of substantial interest to other researchers studying processes controlled by germline expressed gene products. Similarly, their use of germline Cre-Lox gene deletion to bypass earlier essential requirements and achieve a more substantial reduction in gene function compared to RNAi is rigorous and impressive.

Essential revisions:

1) Direct targeting of dynein heavy chain to the cortex also recruits LIN-5 to the cortex (Figure 6—figure supplement 2). Given that LIN-5 is proposed to act as a dynein activator, it is surprising that no cortical pulling forces are generated in this condition. One possibility is that dynactin is missing from the cortical dynein/LIN-5 assembly when dynein is directly targeted to the cortex. The authors should perform IF against a dynactin component to address this.

2) An interesting analysis of the manuscript is the dissection of the Gα∙GTP-cycle and its regulation by RGS-7 and RIC-8. The authors generically refer to Gα to indicate both GOA-1 and GPA-16. It is known that in Drosophila neuroblasts two Gα subunits synergies to drive spindle orientation (Yoshiura, 2012). To understand whether also in C. elegans the two Gα subunits play distinct roles, it would be interesting to explore the phenotypic effect of ablating of the Gα subunits individually when targeting RGS-7 or RIC-8 to the cortex. Alternatively, the possibility of the two Gα subunits playing distinct roles should be discussed.

3) The authors report that membrane invaginations appear upon GPR-1 ectopic targeting, which is an intriguing observation. Do the authors think that these invaginations are physiological or that they are generated by increased cortical levels of GPR-1? What are the levels of GPR-1 ectopically accumulated at the membrane by the TUPLIP photo-inducible system compared to the levels recruited by Gα? It would be important to discuss whether these invaginations might be a common feature occurring in cellular systems other than C. elegans embryo as a general mechanism of force generators' activation.

4) The authors find that Gα knockdown results in a shift in the band of decreased pulling forces that in wild-type zygotes depends on LET-99 for its slightly posteriorized location. While this is a minor issue, it is somewhat puzzling. Have the authors, or others in previous studies, examined LET-99 localization in Gα mutants? If this has been done, it would be worth mentioning in the Discussion section; if not perhaps the authors could look at LET-99 localization and see if it is shifted similarly?

5) The authors nicely count spots associated with membrane invaginations as an alternative to pulling forces to quantify the effects of light-induced cortical localization of these regulators. In the images of the spots (Figure 5G), there seem to be spots at the very posterior and anterior poles, and yet the bar graphs show an absence of such foci at the termini. Why are the numbers reduced at the extreme ends, and if they are, why do there seem to be quite a few of them, particularly at the anterior pole, in the lower image of Figure 5G? I can imagine where it is largely a surface area issue, but some clarification on this point might be worthwhile.

6) The authors never present any data in which LIN-5 is knocked down using RNAi. In particular, it would seem like a worthwhile thing to do when documenting the light-induced cortical localization of Dynein (presumably it would be independent of not only GPR-1/2, as shown, but also of LIN-5). Perhaps more importantly, as something of a control, it might be worth showing that the effect of light induced cortical localization of LIN-5 is in fact LIN-5 dependent (loss of pulling forces after blue light exposure in lin-5(RNAi) zygotes). This is a minor concern, given the other controls. But I am curious as to why the authors have not used any lin-5(RNAi) in their analysis at some point, just for the sake of completeness if nothing else.

7) While the authors point out how their analysis goes beyond two previous studies that also addressed the role of LIN-5/NuMa in activating cortical dynein pulling forces (Kota et al., 2012; Ségelin et al., 2010), the authors need to address in similar fashion results just published in eLife from Okumura et al., 2018) concerning vertebrate NuMa. The authors should cite this paper and discuss their results in the context of the ones reported by the Kiyomitsu paper.

8) Unless I missed it, the authors do not describe in the text, figure legend, or methods exactly how they did the localized light-induced increases in cortical LIN-5. Some mention of the control of blue light illumination used for restricted localization should be provided in the Materials and methods section at least.

https://doi.org/10.7554/eLife.38198.053

Author response

Summary:

Fielmich et al., present an elegant optogenetic analysis that demonstrates the sufficiency of light-induced cortical localization of LIN-5/NuMa to activate dynein-dependent cortical pulling forces that orient mitotic spindles in the early C. elegans embryo. Importantly, they show that light-induced cortical localization is sufficient to induce increased pulling forces in the absence of GPR-1,2/LGN that normally acts to tether LIN-5 to the membrane via an interaction with Gα∙GDP, and that light-induced cortical localization of dynein alone is not sufficient to generate increased pulling forces. This is an impressive use of optogenetics to establish the sufficiency of cortical LIN-5 to activate dynein in the absence of upstream regulation. The authors provide thorough and appropriate statistical analyses indicating the significance of their findings and present a thorough and compelling genetic analysis of this issue. The authors also introduce a novel approach to avoiding germline silencing of transgenes in C. elegans that will be of substantial interest to other researchers studying processes controlled by germline expressed gene products. Similarly, their use of germline Cre-Lox gene deletion to bypass earlier essential requirements and achieve a more substantial reduction in gene function compared to RNAi is rigorous and impressive.

Essential revisions:

1) Direct targeting of dynein heavy chain to the cortex also recruits LIN-5 to the cortex (Figure 6—figure supplement 2). Given that LIN-5 is proposed to act as a dynein activator, it is surprising that no cortical pulling forces are generated in this condition. One possibility is that dynactin is missing from the cortical dynein/LIN-5 assembly when dynein is directly targeted to the cortex. The authors should perform IF against a dynactin component to address this.

We agree that this is an important question and have performed the requested experiments. We made use of two independent antibodies to detect the DNC-1p150(Glued) dynactin component: an anti-DNC-1 antibody (Skop and White, 1998) to recognize endogenous DNC-1p150, and an anti-FLAG antibody to detect endogenously tagged DNC-1::mNG::3xFLAG (Strain generated by Goldstein lab, 2018). Immunohistochemistry experiments with the two antibodies produced very similar results and demonstrate that DNC-1p150 is readily co-recruited to the cortex when ePDZ::DHC-1 is targeted to PH::LOV.

These data are included in the text (subsection “Cortical LIN-5MuD/NuMA is essential and sufficient for dynein-dependent pulling force generation”) and Figure 6—figure supplement 2:

“In immunofluorescence staining experiments, we observed that cortical recruitment of LIN-5 localized dynein to the cortex (Figure 7—figure supplement 2). Notably, the reverse was also seen: we detected LIN-5 at the cortex following the direct recruitment of ePDZ::DHC-1 to PH::LOV, even after knockdown of gpr-1/2 by RNAi (Figure 6—figure supplement 2, top). The p150(Glued) dynactin subunit DNC-1 was also present at the cell cortex of such embryos, which indicates that at least some PH::LOV-localized dynein complexes contain the dynactin cofactor (Figure 6—figure supplement 2, lower panels). DNC-1p150 colocalized with PH::LOV membrane-recruited dynein even in lin-5(RNAi) embryos. Thus, the cortical localization of dynein through a direct PH::LOV interaction leads to co-recruitment of LIN-5 and dynactin, but not to significant force generation. It is possible that these complexes adapt an inactive conformation or lack specific subunits of the dynein-dynactin motor complex. In contrast, dynein anchored at the cell cortex through the LIN-5 intermediate generated strong pulling forces. Together, these data indicate that association with membrane-attached LIN-5 is essential for dynein to generate cortical pulling forces.”

In the manuscript, we included only the anti-FLAG staining of DNC-1::mNG::3xFLAG, because the anti-DNC-1 antibody occasionally showed some background staining of the cortex in negative control experiments. Using this reagent in additional experiments, we observed that DNC-1 is also co-recruited with ePDZ::DHC-1 to the cortex in the apparent absence of GPR-1/2 and LIN-5 (New Figure 5—figure supplement 2, lower panels). Although surprising, these results support our conclusion that membrane anchoring of the dynein-dynactin complex through LIN-5 is required for pulling force generation on MT plus ends.

The Kiyomitsu group (Okumura et al., 2018) also observed that dynein needs to be anchored through NuMA for spindle positioning. Moreover, they also observed that, despite the lack of cortical pulling, the p150 subunit is co-recruited when dynein is directly targeted to the cell membrane. A difference from their results is that we observe co-recruitment of LIN-5NuMA as well. The two systems show remarkably different kinetics: using the TULIP system, we observe membrane localization of ePDZ-tagged endogenous proteins within seconds, while in the iLID experiments in HeLa cells accumulation takes place over minutes. It is possible that in this time frame, dynein complexes are recruited to the cortex with adaptors other than NuMA. We have included this point in the Discussion section (see also point 8 below).

2) An interesting analysis of the manuscript is the dissection of the Gα∙GTP-cycle and its regulation by RGS-7 and RIC-8. The authors generically refer to Gα to indicate both GOA-1 and GPA-16. It is known that in Drosophila neuroblasts two Gα subunits synergies to drive spindle orientation (Yoshiura, 2012). To understand whether also in C. elegans the two Gα subunits play distinct roles, it would be interesting to explore the phenotypic effect of ablating of the Gα subunits individually when targeting RGS-7 or RIC-8 to the cortex. Alternatively, the possibility of the two Gα subunits playing distinct roles should be discussed.

Indeed, the GOA-1 and GPA-16 Gα proteins act in a substantially redundant manner, but each protein contributes by itself to cortical pulling forces (Afshar et al., 2004; our unpublished results), which does not necessarily involve identical mechanisms. Several studies have described differences in the contribution of GOA-1 compared to GPA-16 in spindle positioning, including studies by the Gönczy lab (e.g. Afshar et al., 2005) and our group (e.g. Berends et al., 2013). Nevertheless, these distinct roles remain incompletely understood, and cortical RGS-7 and RIC-8 targeting experiments in combination with individual Gα knockdown could indeed reveal specificity of RGS-7 for one of the Gα proteins. It is also possible, but not likely, that an effect from RIC-8 recruitment would be observed in the context of a single Gα, in contrast to the wild-type situation that we have examined.

Although interesting, we feel that including such experiments would take away from the flow of the manuscript and the main focus of this part of the study. We mainly try to address the question whether Gα∙GTP (GOA-1 and/or GPA-16) may contribute to spindle positioning. Therefore, we took the reviewer’s suggestion to expand on possible distinct roles of Gα proteins in the Discussion section.We have now included discussion of C. elegans GOA-1 and GPA-16 in a newly added paragraph, and of Drosophilai and Gαo in the text preceding and following this paragraph.

3) The authors report that membrane invaginations appear upon GPR-1 ectopic targeting, which is an intriguing observation. Do the authors think that these invaginations are physiological or that they are generated by increased cortical levels of GPR-1? What are the levels of GPR-1 ectopically accumulated at the membrane by the TUPLIP photo-inducible system compared to the levels recruited by Gα? It would be important to discuss whether these invaginations might be a common feature occurring in cellular systems other than C. elegans embryo as a general mechanism of force generators' activation.

We regret that the description of membrane invaginations has not been sufficiently clear. These invaginations can be detected in wild-type embryos and were used by us as a read out to quantify the extent and distribution of spindle pulling forces; thereby providing a method that is independent of the spindle severing assays and complements these assays.

These membrane invaginations were first described by the Hyman and Howard labs (Redemann et al., 2010; cited in the manuscript). These authors make a strong case that the invaginations are physiologic and reflect that the cell membrane is pulled inward at the sites of cortical force generation. The invaginations become much more prominent when the actin-myosin cortex is weakened, and they fully depend on the components of the force generating complex. Therefore, they have been proposed by Redemann et al., to “serve as a tool to localize the sites of force generation at the cortex”. In previous studies, we have followed these invaginations extensively by spinning disk confocal immunofluorescence microscopy (e.g. Berends et al., 2013; Schmidt et al., 2017).

To get this point across more clearly, we have included a more extensive reference to the earlier studies (subsection “Membrane anchoring of GPR-1Pins/LGN in the absence of Gα reconstructs a cortical pulling force generator”):

“Therefore, we used an additional read-out of cortical pulling forces. Cortical pulling events cause inward movements of the plasma membrane, which are visible by spinning disk-confocal fluorescence microscopy as extended invaginations of the plasma membrane (Redemann et al., 2010) (Figure 5G and Video 10, Video 11). These membrane invaginations occur in wild type embryos, depend on microtubules and cortical force generator components, and correlate with the distribution of pulling force generators (Redemann et al., 2010). Therefore, these membrane invaginations most likely reveal the presence and distribution of active individual force generators.“

Moreover, we extended the description and explanation of the change in invaginations (subsection “Membrane anchoring of GPR-1Pins/LGN in the absence of Gα reconstructs a cortical pulling force generator”), which addresses question (4) (see below).

Even though invaginations are detected in wild-type embryos, the reviewer’s question about cortical GPR-1 levels is clearly relevant. Based on immunofluorescence microscopy as well as immunofluorescence staining experiments, the induced levels are well above the normal endogenous level of GPR-1, and also LIN-5 and DHC-1 (see images Figure 5B, Figure 6B, Figure 7B) This also follows from previous quantifications: for eGFP::LIN-5, we recorded peak levels of up to ~1.2-fold enrichment at the cortex-over-cytoplasm in anaphase of the P0 blastomere (Schmidt et al., 2017). Using the same quantification method and immunofluorescent staining of wild type embryos, Park and Rose reported a ~1.2-fold cortex-over-cytoplasm ratio for LIN-5, and ~1.5-fold enrichment for GPR-1/2 (Development 2008). Thus, the induced GPR-1 and LIN-5 cortical levels are much higher than normal (see quantifications in Figure 5C, Figure 7C), but dynein at the cortex does not increase to the same extent (Figure 6—figure supplement 2, Figure 5—figure supplement 1). Because of these differences in cortical protein levels, we only comment on the distribution of pulling forces, not on the absolute amount.

Notably, the cortex-over-cytoplasm of endogenously tagged dynein is closer to 1 in the one-cell embryo (Schmidt et al., 2017). This is well below the ~2 to 3-fold cortex-over-cytoplasm ratio observed for ePDZ::mCherry::DHC-1 in the fully-induced state (See quantification in Figure 6C). Despite this high amount of directly membrane-tethered dynein, pulling forces were not detected.

In the manuscript, we show a quantification of the cortex-over-cytoplasm levels over time following exposure to blue light, for the ePDZ fusions of GPR-1 as well as DHC-1 and LIN-5 (Figure 5C, Figure 6C, Figure 7C). While not representing the normal distribution of endogenous proteins, this illustrates how our phenotypic observations correlate with the induced cortical protein levels.

4) The authors find that Gα knockdown results in a shift in the band of decreased pulling forces that in wild-type zygotes depends on LET-99 for its slightly posteriorized location. While this is a minor issue, it is somewhat puzzling. Have the authors, or others in previous studies, examined LET-99 localization in Gα mutants? If this has been done, it would be worth mentioning in the Discussion section; if not perhaps the authors could look at LET-99 localization and see if it is shifted similarly?

The localization of LET-99 has been previously studied in goa-1; gpa-16 RNAi embryos by both Bringmann et al., (2007) and Price and Rose (2017).

However, the point we try to make is not that LET-99 becomes displaced, but that the distribution of spindle pulling forces becomes independent of LET-99. In agreement, both cited studies reported a displacement of LET-99 to the posterior, while the dip in invaginations we observe shifts anteriorly (to the middle of the embryo). More importantly, direct recruitment of GPR-1/2 to the cortex overcomes the normal drop in cortical GPR-1/2, which is now stated in the text.

We tried to clarify this issue by re-wording the text in subsection “Membrane anchoring of GPR-1Pins/LGN in the absence of Gα reconstructs a cortical pulling force generator”:

“When plotted along the anterior-posterior axis, the distribution of these invaginations reflected the three described cortical domains: anterior, posterior, and a posterior lateral region at ± 60% embryo length (Rose and Gönczy, 2014) (Figure 5H-left). The posterior lateral band region localizes the LET-99 DEP-domain protein, which antagonizes the localization of GPR-1/2 and thereby pulling force generation (Krueger et al., 2010; Tsou et al., 2003). This explains the absence of invaginations around 60% embryo length (Figure 5H-left).

Cortical GPR-1 recruitment resulted in a total number of 174 (+25% compared to ph::lov control) invaginations in the presence, and 122 invaginations (+249% compared to Gα(RNAi) embryos) in the absence of Gα (Figure 5—figure supplement 3). Thus, in agreement with our observations in spindle severing assays, GPR-1 recruitment to the membrane induces cortical pulling forces, even in the apparent absence of Gα proteins. The lack of invaginations around 60% embryo length was no longer detected when ePDZ::GPR-1 was recruited to PH::LOV. In agreement, the characteristic dip in cortical GPR-1 localization (e.g.: Figure 1B) was no longer detected after ectopic GPR-1 recruitment (Figure 5B). Thus, as expected, LET-99 does not antagonize the cortical recruitment of ePDZ::GPR-1 by PH::LOV, in contrast to the Gα∙GDP-mediated localization of endogenous GPR-1/2. The pattern of invaginations still showed two peaks and a mild dip at 50% embryo length (Figure 5H). The remaining peak numbers of invaginations likely represent the cortical regions closest to the spindle poles, as these sites contact the highest numbers of astral microtubules. Taken together, Gα is not essential for force generation, but the characteristic distribution of force generating events is likely regulated in part at the Gα protein or Gα–GPR-1/2 protein interaction level.”

5) The authors nicely count spots associated with membrane invaginations as an alternative to pulling forces to quantify the effects of light-induced cortical localization of these regulators. In the images of the spots (Figure 5G), there seem to be spots at the very posterior and anterior poles, and yet the bar graphs show an absence of such foci at the termini. Why are the numbers reduced at the extreme ends, and if they are, why do there seem to be quite a few of them, particularly at the anterior pole, in the lower image of Figure 5G? I can imagine where it is largely a surface area issue, but some clarification on this point might be worthwhile.

We understand this is confusing. Apart from the size, the most important criterion for assigning dots to membrane invaginations is their transient nature. Thereby, we distinguish between membrane invaginations and the extensive “ruffling” of the cortex, which is most noticeable in the anterior during polarity establishment.

To clarify this point, we included in the Materials and methods section and Legend of Figure 5G:

“Plasma membrane invaginations resulting from cortical pulling forces are visible as lines in the DNA plane and dots in the subcortical plane (red arrows). Larger structures are membrane ruffles, which are distinct from the more dynamic invaginations, as can be seen in Video 11. Scale bar: 5 µm.”

6) The authors never present any data in which LIN-5 is knocked down using RNAi. In particular, it would seem like a worthwhile thing to do when documenting the light-induced cortical localization of Dynein (presumably it would be independent of not only GPR-1/2, as shown, but also of LIN-5). Perhaps more importantly, as something of a control, it might be worth showing that the effect of light induced cortical localization of LIN-5 is in fact LIN-5 dependent (loss of pulling forces after blue light exposure in lin-5(RNAi) zygotes). This is a minor concern, given the other controls. But I am curious as to why the authors have not used any lin-5(RNAi) in their analysis at some point, just for the sake of completeness if nothing else.

Indeed, we focused on Gα and gpr-1/2 knockdown embryos, because these embryos do not deviate from wild-type until the time of mitotic spindle positioning. By contrast, lin-5 is also required for meiosis and RNAi of lin-5 causes a failure to expel polar bodies, resulting in the formation of multiple maternal pronuclei (Srinivasan et al., 2003; van der Voet et al., 2009). While the extra chromosomes congress at a single metaphase plate in lin-5(RNAi) embryos, it seems cleaner to avoid these additional defects. Nevertheless, we agree with the reviewer that examination of lin-5(RNAi) embryos should be included in the manuscript, and we have performed such experiments for the dynein recruitment studies (Figure 6—figure supplement 1, Figure 6—figure supplement 2).

7) While the authors point out how their analysis goes beyond two previous studies that also addressed the role of LIN-5/NuMa in activating cortical dynein pulling forces (Kota et al., 2012; Ségelin et al., 2010), the authors need to address in similar fashion results just published in eLife from Okumura et al., 2018) concerning vertebrate NuMa. The authors should cite this paper and discuss their results in the context of the ones reported by the Kiyomitsu paper.

We agree, and now extensively refer to the Kiyomitsu paper in the Discussion section:

“In two earlier studies, this resulted in the conclusion that the NuMA complex acts as a dynein anchor, but substitution of components or Gα protein removal was not tested (Kotak et al., 2012; Ségalen et al., 2010). However, a very recent study of HeLa cells followed an optogenetic strategy similar to ours, and also observed that a membrane anchor cannot replace the entire Gα–LGN–NuMA complex (Okumura et al., 2018). As in C. elegans embryos, a CAAX membrane anchor could substitute for Gα–LGN in Hela cells, while dynein needed to be anchored through NuMA in order to generate spindle positioning forces (Okumura et al., 2018). Thus, observations in two different systems indicate that dynein activation at microtubule plus ends requires the LIN-5/NuMA adaptor protein, similar to the requirement for an activating dynein adaptor in cargo transport (McKenney et al., 2014; Schlager et al., 2014; Zhang et al., 2017).

“……In the optogenetic experiments in Hela cells, dynein also localized p150 at the membrane, however in contrast to our findings, NuMA was not observed to be co-recruited in this study (Okumura et al., 2018). While the reason for this discrepancy is currently unknown, it might be related to the remarkably different kinetics of the two systems. Using the TULIP system, we observed membrane localization of ePDZ-tagged endogenous proteins within seconds, whereas in the iLID experiments in HeLa cells accumulation took place over multiple minutes. It is possible that in the longer time frame, cytoplasmic dynein complexes are recruited to the cortex with adaptors other than NuMA.”

8) Unless I missed it, the authors do not describe in the text, figure legend, or methods exactly how they did the localized light-induced increases in cortical LIN-5. Some mention of the control of blue light illumination used for restricted localization should be provided in the Materials and methods section at least.

This was indeed included, and most likely missed because it was described Materials and methods section titled ‘Dark state spinning disc microscopy’. We renamed this section ‘Dark state experiments and local recruitment of ePDZ-tagged proteins to membrane LOV’ for clarity. The hardware and software used for these experiments are mentioned in subsection ‘Spinning disc microscopy’.

The sensitivity of the ePDZ-LOV interaction and scattering of light varies from system to system, depending on protein concentrations and physical properties of the cell under investigation. The area of activation and laser power appropriate for local control of ePDZ-LOV activation will therefore have to be determined by experience of the experimentalist. For this purpose, we used a control strain expressing diffuse ePDZ::mCherry and PH::eGFP::LOV to calibrate the laser power and area of activation that enable local control of the ePDZ-LOV interaction. The laser powers we used ranged from 1-10%, depending on the strength of the laser (we have an in-house built microscopy set-up for which the lasers have to be re-aligned manually from time to time, after which laser power is stronger).

https://doi.org/10.7554/eLife.38198.054

Article and author information

Author details

  1. Lars-Eric Fielmich

    Developmental Biology, Department of Biology, Faculty of Sciences, Utrecht University, Utrecht, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Ruben Schmidt
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0247-1298
  2. Ruben Schmidt

    1. Developmental Biology, Department of Biology, Faculty of Sciences, Utrecht University, Utrecht, Netherlands
    2. Cell Biology, Department of Biology, Faculty of Sciences, Utrecht University, Utrecht, Netherlands
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Lars-Eric Fielmich
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9187-5424
  3. Daniel J Dickinson

    1. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Department of Biology, University of North Carolina at Chapel Hill, Chapel Hill, United States
    Present address
    Department of Molecular Biosciences, University of Texas at Austin, Austin, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2651-2584
  4. Bob Goldstein

    1. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Department of Biology, University of North Carolina at Chapel Hill, Chapel Hill, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Methodology, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6961-675X
  5. Anna Akhmanova

    Cell Biology, Department of Biology, Faculty of Sciences, Utrecht University, Utrecht, Netherlands
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    Deputy editor of eLife Magazine
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9048-8614
  6. Sander van den Heuvel

    Developmental Biology, Department of Biology, Faculty of Sciences, Utrecht University, Utrecht, Netherlands
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    s.j.l.vandenheuvel@uu.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9015-7463

Funding

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (NWO TOP/ECHO grant 711.015.001)

  • Lars-Eric Fielmich
  • Sander Van den Heuvel

National Institutes of Health (NIH R01 GM083071)

  • Bob Goldstein

Helen Hay Whitney Foundation

  • Daniel J Dickinson

European Research Council (Synergy grant 609822)

  • Ruben Schmidt
  • Anna Akhmanova

National Institutes of Health (NIH K99 GM115964)

  • Daniel J Dickinson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Jonis, Y Onderwater, H Pires, P van Bergeijk, P Gönczy, A Skop, and M Harterink for reagents and L Kapitein for technical advice. We also thank all the members of the van den Heuvel, Akhmanova, Goldstein, Boxem, and Kapitein groups for helpful discussion and general support. We further thank A Thomas for critically reading the manuscript. We acknowledge Wormbase and the Biology Imaging Center at the Faculty of Sciences, Department of Biology, Utrecht University. Some strains were provided by the Caenorhabditis Genetics Center (CGC), which is funded by NIH Office of Research Infrastructure Programs (P40OD010440).

Senior Editor

  1. Andrea Musacchio, Max Planck Institute of Molecular Physiology, Germany

Reviewing Editor

  1. Andrew P Carter, MRC Laboratory of Molecular Biology, United Kingdom

Publication history

  1. Received: May 9, 2018
  2. Accepted: August 14, 2018
  3. Accepted Manuscript published: August 15, 2018 (version 1)
  4. Version of Record published: November 2, 2018 (version 2)

Copyright

© 2018, Fielmich et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,368
    Page views
  • 430
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Human Biology and Medicine
    Terje R Kolstad et al.
    Research Article Updated
    1. Cell Biology
    2. Neuroscience
    Manuela D'Alessandro et al.
    Research Article Updated
