Reciprocal regulation among TRPV1 channels and phosphoinositide 3-kinase in response to nerve growth factor

  1. Anastasiia Stratiievska
  2. Sara Nelson
  3. Eric N Senning
  4. Jonathan D Lautz
  5. Stephen EP Smith
  6. Sharona E Gordon  Is a corresponding author
  1. University of Washington, United States
  2. Seattle Children’s Research Institute, United States
Research Article
  • Cited 0
  • Views 613
  • Annotations
Cite this article as: eLife 2018;7:e38869 doi: 10.7554/eLife.38869

Abstract

Although it has been known for over a decade that the inflammatory mediator NGF sensitizes pain-receptor neurons through increased trafficking of TRPV1 channels to the plasma membrane, the mechanism by which this occurs remains mysterious. NGF activates phosphoinositide 3-kinase (PI3K), the enzyme that generates PI(3,4)P2 and PIP3, and PI3K activity is required for sensitization. One tantalizing hint came from the finding that the N-terminal region of TRPV1 interacts directly with PI3K. Using two-color total internal reflection fluorescence microscopy, we show that TRPV1 potentiates NGF-induced PI3K activity. A soluble TRPV1 fragment corresponding to the N-terminal Ankyrin repeats domain (ARD) was sufficient to produce this potentiation, indicating that allosteric regulation was involved. Further, other TRPV channels with conserved ARDs also potentiated NGF-induced PI3K activity. Our data demonstrate a novel reciprocal regulation of PI3K signaling by the ARD of TRPV channels.

https://doi.org/10.7554/eLife.38869.001

Introduction

Although the current opioid epidemic highlights the need for improved pain therapies, in particular for pain in chronic inflammation (Johannes et al., 2010), too little is known about the mechanisms that mediate increased sensitivity to pain that occurs in the setting of injury and inflammation (Ji et al., 2014). Inflammatory hyperalgesia, the hypersensitivity to thermal, chemical, and mechanical stimuli (Cesare and McNaughton, 1996), can be divided in two phases, acute and chronic (Dickenson and Sullivan, 1987). Locally released inflammatory mediators, including growth factors, bradykinin, prostaglandins, ATP and tissue acidification (Kozik et al., 1998; Lardner, 2001; Tissot et al., 1989; Burnstock, 1972), directly stimulate and sensitize nociceptive fibers of primary sensory neurons (Cesare and McNaughton, 1996; Bevan and Yeats, 1991; Trebino et al., 2003; Hamilton et al., 1999; Mcmahon et al., 1995).

One of the proteins that has been studied for its role in hyperalgesia is Transient Receptor Potential Vanilloid Subtype 1 (TRPV1). TRPV1 is a non-selective cation channel that is activated by a variety of noxious stimuli including heat, extracellular protons, and chemicals including capsaicin, a spicy compound in chili pepper (Caterina et al., 1999). TRPV1 is expressed in sensory nociceptive neurons, which are characterized by cell bodies located in the dorsal root ganglia (DRG) and trigeminal ganglia (Caterina et al., 1999). Sensory afferents from these neurons project to skin and internal organs, and synapse onto interneurons in the dorsal horn of the spinal cord (Willis, 1978). TRPV1 activation leads to sodium and calcium influx, which results in action potential generation in the sensory neuron and, ultimately, pain sensation (Caterina et al., 1997).

The importance of TRPV1 in inflammatory hyperalgesia was demonstrated by findings that the TRPV1 knock-out mouse showed decreased thermal pain responses and impaired inflammation-induced thermal and chemical hyperalgesia (Caterina et al., 2000). TRPV1 currents are enhanced during inflammation which leads to increased pain and lowered pain thresholds (Davis et al., 2000; Zhang et al., 2005; Shu and Mendell, 1999). TRPV1 is modulated by G-protein-coupled receptors (GPCRs) and receptor tyrosine kinases (RTKs), but the mechanisms by which these receptors modulate and sensitize TRPV1 are controversial (Suh and Oh, 2005; Shu and Mendell, 1999; Cesare and McNaughton, 1996).

Nerve growth factor (NGF) is one of the best studied RTK agonists involved in inflammatory hyperalgesia (Vetter et al., 1991). NGF acts directly on peptidergic C-fiber nociceptors (Donnerer et al., 1992), which express RTK receptors for NGF: Tropomyosin-receptor-kinase A (TrkA) (Mcmahon et al., 1995) and neurotrophin receptor p75NTR (Lee et al., 1992). NGF binding to TrkA/p75NTR induces receptor auto-phosphorylation and activation of downstream signaling pathways including phospholipase C (PLC), mitogen-activated protein kinase (MAPK), and Type IA phosphoinositide 3-kinase (PI3K) (Vetter et al., 1991; Raffioni and Bradshaw, 1992; Dikic et al., 1995). We and others have previously shown that the acute phase of NGF-induced sensitization requires activation of PI3K, which increases trafficking of TRPV1 channels to the PM (Stein et al., 2006; Bonnington and McNaughton, 2003). In chronic pain, NGF also produces changes in the protein expression of ion channels such as TRPV1 and NaV1.8 (Ji et al., 2002; Thakor et al., 2009; Keh et al., 2008). The acute and chronic phases of the NGF response result in increased ‘gain’ to painful stimuli.

Type 1A PI3K is a lipid kinase, which phosphorylates the signaling lipids Phosphatidylinositol (4) phosphate (PI4P) and Phosphatidylinositol (4,5) bisphosphate (PIP2) into Phosphatidylinositol (3,4) bis phosphate (PI(3,4)P2)and Phosphatidylinositol (3,4,5) trisphosphate (PIP3), respectively (Auger et al., 1989). PI(3,4)P2 and PIP3 are signaling lipids as well, and their role in membrane trafficking and other downstream signaling is well-established (Insall and Weiner, 2001; Hawkins and Stephens, 2016). PI3K is an obligatory heterodimer that includes the catalytic p110 subunit (with α, β, and γ isoforms) and regulatory p85 subunit (with α and β isoforms) (Hiles et al., 1992; Vanhaesebroeck et al., 2010). The p85 subunit contains two Src homology 2 (SH2) domains (Escobedo et al., 1991), which recognize the phospho-tyrosine motif Y-X-X-M of many activated RTKs and adaptor proteins (Songyang et al., 1993). In the resting state, p85 inhibits the enzymatic activity of p110 via one of its SH2 domains (Miled et al., 2007). This autoinhibition is relieved when p85 binds to a phospho-tyrosine motif (Miled et al., 2007). NGF-induced PI3K activity leads to an increase in the number of TRPV1 channels at the PM (Bonnington and McNaughton, 2003; Stein et al., 2006).

We have previously shown that TRPV1 and p85 interact directly (Stein et al., 2006). We localized the TRPV1/p85 interaction to the N-terminal region of TRPV1 and a region including two SH2 domains of p85 (Stein et al., 2006). However, whether the TRPV1/p85 interaction contributes to NGF-induced trafficking of TRPV1 is unknown. Here, we further localized the functional interaction site for p85 to the region of TRPV1 N-terminus containing several conserved Ankyrin repeats (Ankyrin repeat domain (ARD)). Remarkably, we found that TRPV1 potentiated the activity of PI3K and that a soluble TRPV1 fragment corresponding to the ARD was sufficient for this potentiation. Because the ARD is structurally conserved among TRPV channels, we tested whether other TRPV channels could also potentiate NGF-induced PI3K activity. We found that TRPV2 and TRPV4 both potentiated NGF-induced PI3K activity and trafficked to the PM in response to NGF. Together, our data reveal a previously unknown reciprocal regulation among TRPV channels and PI3K. We speculate that this reciprocal regulation could be important wherever TRPV channels are co-expressed with PI3K-coupled RTKs.

Results and discussion

NGF-induced trafficking of TRPV1 channels to the PM is preceded by activation of PI3K

To study events that underlie NGF-induced trafficking of TRPV1 to the PM, we used TIRF microscopy to visualize fluorescently labeled TRPV1 (rat) (YFP-fusion, referred to as TRPV1) in transiently transfected F-11 cells. Cells were also transfected with the NGF receptor subunits TrkA and p75NTR (referred to as TrkA/ p75NTR). TIRF microscopy isolates ~ 100 nm of the cell proximal to the coverslip (Ambrose, 1961; Axelrod, 1981), capturing the PM-proximal fluorescent signals. A change in TRPV1 fluorescence reflects a change in the number of TRPV1 channels at the PM.

We examined NGF-dependent changes in PM-associated TRPV1 before (Figure 1A, time point 1), during, and following (Figure 1A, time point 2) a 10-min exposure of the cells to NGF (100 ng/ml) via its addition to the bath (bar with gray shading in Figure 1B,C). Figure 1A, bottom panel shows representative TIRF images of TRPV1 fluorescence of an individual F-11 cell footprint. Consistent with previous findings (Stein et al., 2006), upon addition of NGF, TRPV1 levels at the PM increased, with time point two depicting the cell footprint intensity at steady state. For each cell, we normalized the mean fluorescence intensity within the footprint at each time point to the mean between 0 and 60 s prior to the application of NGF. The signal for TRPV1 for the cell in Figure 1A is shown in Figure 1B, and the collected data, showing the mean and standard error of the mean, are illustrated in Figure 1C.

Figure 1 with 4 supplements see all

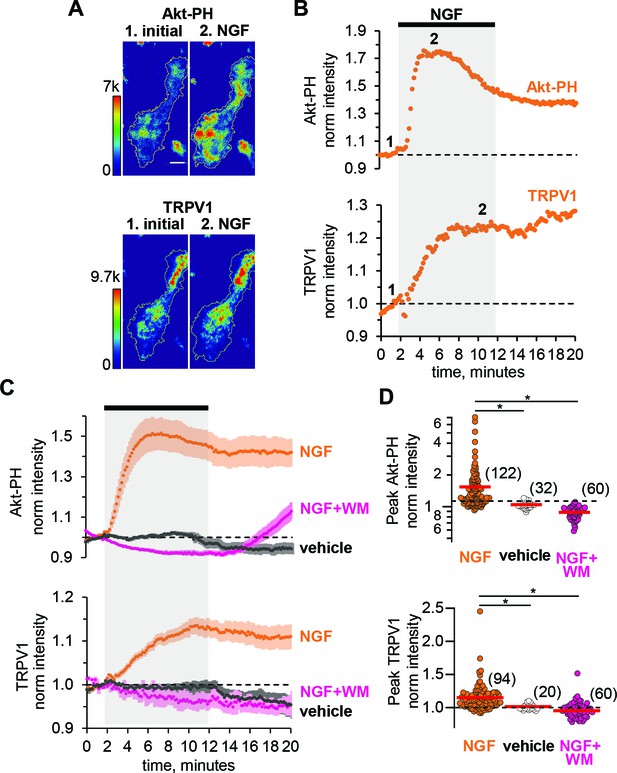

NGF increases PIP3 and recruits TRPV1 to the PM.

(A) TIRF images of a representative F-11 cell transfected with TrkA/p75NTR, TRPV1 and Akt-PH. Images labeled one were collected before NGF application and those labeled two were collected at the plateau during NGF application, as indicated by the time points labeled in B. Scale bar is 10 µm. LUT bars represent background-subtracted pixel intensities. The yellow border represents the outline of the cell footprint. (Top) Fluorescence intensity from Akt-PH. (Bottom) Fluorescence intensity from TRPV1. (B) Time course of NGF-induced changes in fluorescence intensity for the cell shown in A. NGF (100 ng/mL) was applied during the times indicated by the black bar/gray shading. Intensity at each time point was measured as the mean gray value within the footprint (yellow outline in A). Data were normalized to the mean intensity values during the two minutes prior to NGF application. (C) And (D) Collected data for the group of cells tested. (C) Time course of NGF-induced changes in fluorescence intensity. Averaged time courses of TIRF intensity normalized as in B. Cells treated with either NGF (orange), vehicle (black) or NGF +wortmannin (NGF +WM, magenta), as indicated. TRPV1 (bottom) and Akt-PH (top). Error bars are SEM (D) NGF-induced change in fluorescence intensity. Cells were treated with NGF (orange), vehicle (open symbols) or NGF +wortmannin (NGF +WM, magenta), as indicated. Averaged normalized TIRF intensity during NGF application (6–8 min for Akt-PH (top) and 10–12 min for TRPV1 (bottom)). The red bars indicate the mean Akt-PH fluorescence (top) and TRPV1 fluorescence (bottom). Asterisks indicate Wilcoxon rank test significance p value < 0.001.

https://doi.org/10.7554/eLife.38869.002

To evaluate NGF-induced PI3K activity, we used fluorescently tagged Btk-PH and Akt-PH, PH (Pleckstrin Homology) domain probes that recognize primarily PIP3 or both PI(3,4)P2 and PIP3, respectively (James et al., 1996). Btk-PH and Akt-PH are soluble proteins that localize to the cytosol at rest, when PI(3,4)P2/PIP3 levels are very low, and are recruited to the PM upon stimulation with NGF, when PI3K becomes active and generates PI(3,4)P2/PIP3 (Hawkins et al., 2006; Lemmon, 2008). A change in PH domain probe fluorescence reflects a change in PI(3,4)P2/PIP3 concentration at the PM, thus serving as an indirect measure of PI3K activity. Because PH domain probes have been reported to interfere with PI3K signaling (Várnai et al., 2005), we tested whether Btk-PH and Akt-PH are compatible with NGF signaling to TRPV1. We found that Btk-PH completely abrogated NGF-induced trafficking of TRPV1 to the PM (Figure 1—figure supplement 1). In contrast, Akt-PH was fully compatible with NGF-induced trafficking of TRPV1 (Figure 1).

As an additional control, we used an orthogonal approach to evaluate the compatibility of the Akt-PH probe with NGF signaling in our cell system. Phosphorylation of the protein kinase Akt (also known as PKB) is a well-studied signaling event downstream of PI3K (Burgering and Coffer, 1995; Kohn et al., 1995). Akt is phosphorylated in a PI(3,4)P2/PIP3-dependent manner at two sites, T308 and S473, by PDK1 (Alessi et al., 1997; Stokoe et al., 1997; Frech et al., 1997) and mTORC2, respectively (Sarbassov et al., 2005). Phosphorylation of Akt at these two sites leads to full activation of Akt, regulating a variety of cellular processes, including the inflammatory response to NGF (Xu et al., 2007; Sun et al., 2007; Xu et al., 2011). Therefore, we tested whether co-expression of the Akt-PH probe altered NGF-induced Akt phosphorylation. We performed western blot analysis using anti-pAKTt308, anti-pAKTs473, and anti-panAKT antibodies. Figure 1—figure supplement 2 shows that NGF-induced Akt phosphorylation was preserved in cells expressing the Akt-PH probe. We therefore utilized the Akt-PH probe as a readout of PI3K activity in the remaining experiments.

We used two-color TIRF microscopy to measure PI3K activity and TRPV1 trafficking to the PM simultaneously. Treatment of cells with NGF produced an increase in plasma-membrane associated Akt-PH, indicating that PI(3,4)P2/PIP3 levels in the PM increased. The increase was relatively rapid, with kinetics determined by both PI3K activity and the affinity of Akt-PH for PI(3,4)P2/PIP3. The increased Akt-PH signal partially decreased over time even in the continued presence of NGF (Figure 1B and C orange, top), possibly due to TrkA/p75NTR receptor internalization (Grimes et al., 1996; Ehlers et al., 1995) and activation of phosphoinositide 3-phosphatases, e.g. PTEN (Malek et al., 2017). NGF treatment also increased the PM TRPV1 signal without an apparent reversal to baseline over the duration of our experiments (Figure 1B and C orange, bottom). The peak levels of Akt-PH and TRPV1 for all cells, represented as the normalized intensities measured at 4–6 min (for Akt-PH) and 8–10 min (for TRPV1) after the start of NGF application, are shown in the scatterplot of Figure 1D. The distributions were not normal, but skewed toward larger values. This distribution shape is characteristic of NGF-induced TRPV1 sensitization reported previously in DRG neurons (Stein et al., 2006; Bonnington and McNaughton, 2003), indicating that our cell expression model behaves similarly to isolated DRG neurons. NGF induced a significant increase in Akt-PH levels compared to vehicle (Mean ± SEM: 1.54 ± 0.08, n = 122 compared to 1.01 ± 0.01, n = 32, Wilcoxon rank test p = 10−12, Figure 1C, top panel, orange and black symbols respectively, see also Figure 1—figure supplement 3), and a significant increase in TRPV1 levels compared to vehicle (Mean ± SEM: 1.15 ± 0.02, n = 94 compared to 0.99 ± 0.01, n = 20, Wilcoxon rank test p = 10−6; Figure 1C, bottom panel, orange and black symbols respectively, see also Figure 1—figure supplement 3). Consistent with a PI3K-dependent mechanism, the NGF-induced increases in both PM-associated Akt-PH and TRPV1 were prevented by the PI3K inhibitor wortmannin (20 nM) (Figure 1C and D, magenta, n = 60, Mean ±SEM for Akt-PH – 0.88 ± 0.01 and for TRPV1 – 0.95 ± 0.01; Wilcoxon rank test p value for Akt-PH – 10−13 and for TRPV1 – 10−10).

TIRF microscopy is often discussed as a method that isolates a fluorescence signal at the PM (Axelrod, 1981). Indeed, illumination falls off exponentially with distance from the coverslip (Ambrose, 1961). Nevertheless, with a typical TIRF setup such as that used for this study (see Materials and methods) ~90% of the signal comes from the cytosol (Figure 1—figure supplement 4, also see Materials and methods), assuming the incident light was at the critical angle and that the membrane bilayer and associated protein layer extends up to ~10 nm from the coverslip. The contamination of the TIRF signal with fluorescence from the cytosol leads to an underestimation of the change in PM-associated fluorescence from Akt-PH and TRPV1. Under our experimental conditions, we estimate that the ratio of the total fluorescence intensity measured after and before NGF application, FNGF, of 1.54 translates into about a 10-fold increase in PM-associated fluorescence, Rm (Figure 1—figure supplement 4; see Materials and methods), although this should be considered just a rough estimate.

TRPV1 potentiates NGF-induced PI3K activity

Comparing the NGF-induced increase in Akt-PH in control cells that did not express TRPV1 to that in cells expressing TRPV1, we made an unexpected observation: TRPV1 appeared to potentiate NGF-induced PI3K activity. Comparing the time course of the NGF response in cells without TRPV1 (Figure 2A, blue trace) to cells expressing TRPV1 (Figure 2A, orange), we found a pronounced increase in Akt-PH fluorescence intensity in TRPV1-expressing cells. This increase was statistically significant, with the peak normalized Akt-PH intensity value of 1.08 ± 0.03 (n = 75) in cells without TRPV1 and 1.54 ± 0.08 (n = 122) in cells expressing TRPV1 (Figure 2B, Wilcoxon rank test p = 10−12, see also Figure 2—figure supplement 1A). Interestingly, the dynamics of NGF-induced PI(3,4)P2/PIP3-generation in the absence of TRPV1 were also different in that PI(3,4)P2/PIP3 levels were sustained. As in TRPV1-expressing cells, the NGF-induced increases in PI(3,4)P2/PIP3 levels in control cells were prevented by treatment of cells with wortmannin (Figure 2—figure supplement 2, Mean ± SEM: 0.81 ± 0.02, n = 53; Student’s t-test p-value was 10−16).

Figure 2 with 3 supplements see all

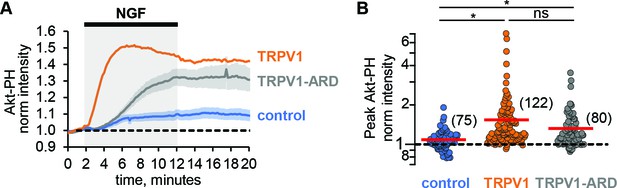

TRPV1-ARD is necessary and sufficient for potentiation of NGF-induced PI3K activity.

(A) Time course of NGF-induced changes in Akt-PH fluorescence intensity. NGF (100 ng/mL) was applied during the times indicated by the black bar/gray shading. Averaged normalized TIRF intensity from cells transfected with TrkA/p75NTR and Akt-PH: control cells without TRPV1 (blue, n = 75), TRPV1 (orange, n = 122), or TRPV1-ARD (gray, n = 80). Traces represent the mean and error bars represent the SEM. TRPV1 data are the same as in Figure 1C, error bars removed for clarity. (B) NGF-induced changes in Akt-PH fluorescence intensity for control cells (blue), cells expressing TRPV1 (orange data are the same as in Figure 1D) and cells transfected with TRPV1-ARD (gray). Averaged normalized TIRF intensity during NGF application (6–8 min). Red bars indicate mean (see Table 2 for values). Asterisks indicate significance of Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p value < 0.001 (see Table 2 for values).

https://doi.org/10.7554/eLife.38869.008

One possible cause for the potentiation of NGF-induced PI3K activity we observed in TRPV1-expressing cells could be a change in PI3K expression levels in TRPV1 vs. control cells. To determine whether this was the case, we performed western blot analysis with an anti-p85α antibody to quantify the PI3K protein levels across transfection conditions. As shown in Figure 2—figure supplement 3A, expression of TRPV1 did not alter the expression level of the p85α subunit of PI3K. We quantified protein expression levels using densitometry, and normalized expression to tubulin, giving the relative expression levels shown in Figure 2—figure supplement 3B. Average relative p85α expression levels were similar between non-TRPV1 expressing cells and cells expressing TRPV1 (n = 5, Student’s t-test p value was 0.95). We conclude that a difference in PI3K expression in TRPV1-expressing vs. control cells did not account for the observed TRPV1-induced potentiation of NGF-stimulated PI3K activity.

The ARD of TRPV1 is sufficient for potentiation of NGF-induced PI3K activity

We have previously shown that the N-terminal region of TRPV1, consisting of 110 amino acids and the ankyrin repeat domain (TRPV1-ARD), interacts directly with the p85 subunit of PI3K in yeast two-hybrid assays, co-immunoprecipitation from cells, and using recombinant fragments in vitro (Stein et al., 2006). We hypothesized that the TRPV1-ARD might also mediate NGF-induced potentiation of PI3K. To determine whether the ARD is sufficient for potentiation of NGF-induced PI3K activity, we expressed the ARD as a fragment and then measured NGF-induced PI3K activity. As shown in Figure 2A (gray trace), NGF induced PI3K activity that was greater in TRPV1-ARD expressing cells than in control cells (blue trace). The increase in peak Akt-PH normalized intensity was statistically significant compared to control cells, with a mean of 1.32 (±0.02, n = 80; Figure 2B; Wilcoxon rank test p = 10−5, see also Figure 2—figure supplement 1B). The kinetics of this potentiation were somewhat slower with TRPV1-ARD compared to TRPV1 (Figure 2A, orange trace), so that Akt-PH reached steady-state levels somewhat later during NGF treatment. Nevertheless, the potentiation of NGF-induced PI3K activity by the ARD fragment was nearly as great as observed with full-length TRPV1 (Wilcoxon rank test p = 0.08). In addition, the ability of a soluble TRPV1 fragment to reconstitute potentiation suggests that the mechanism of potentiation is at least partly allosteric, involving more than just a tethering of PI3K at the membrane by TRPV1.

An orthogonal PI3K assay confirms that TRPV1 potentiates NGF-induced PI3K activity and generation of PI(3,4)P2/PIP3

We used the Akt phosphorylation assay described above as an orthogonal method of examining the potentiation of NGF-induced PI3K activity in TRPV1-expressing cells. We performed western blot analysis using phospho-specific Akt antibodies, reprobing the blots with a pan Akt antibody for normalization purposes (Figure 3A). Because phosphorylation at T308 and S473 are differentially regulated, we used three concentrations of NGF (5, 25, and 100 ng/mL) and two incubation times (1 and 5 min). We observed increased phosphorylation at both T308 and S473 in TRPV1-expressing cells compared to control cells for almost all trials with all three NGF concentrations and both time points (Figure 3B,C). The enhanced NGF-induced Akt phosphorylation was statistically significant for both T308 and S473 sites for all conditions pooled together (Figure 3D,E; paired Student’s t-test for T308 p = 0.02 and S473 p = 0.008). Thus, TRPV1 potentiation of NGF-induced PI3K activity is sufficient to enhance PI(3,4)P2 and/or PIP3 levels to increase Akt phosphorylation.

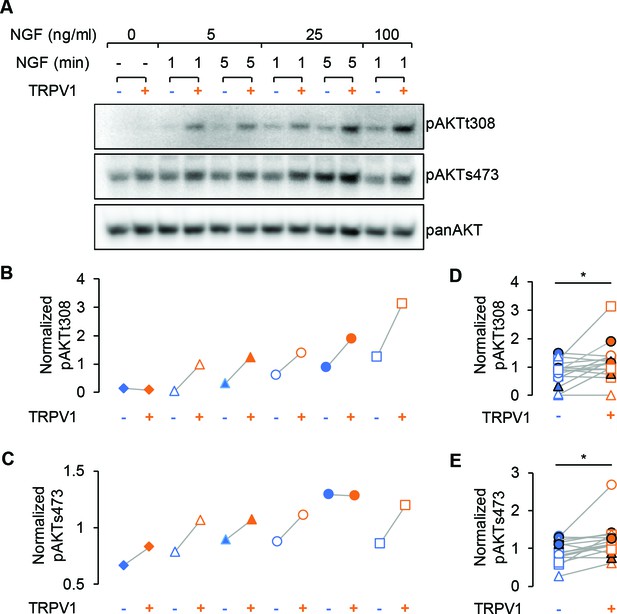

TRPV1 enhances NGF-induced Akt phosphorylation.

(A) Representative immunoblot staining for analysis of Akt phosphorylation in F-11 cells transfected same as in imaging experiments. Cells were treated with indicated dose of NGF for an indicated amounts of time, lysed and loaded on SDS-PAGE. The same membrane was probed with pAKTs473, stripped and re-probed with pAKTt308 and again with panAKT antibodies (see Materials and methods). (B) and (C) Analysis of the representative blots shown in (A). Each band average intensity was normalized to the average of the blot and then divided by that of the corresponding lane of the panAkt blot. Akt phosphorylated at T308 (B) and S473 (C) from control cells (blue symbols) and cells expressing TRPV1 (orange symbols) treated with NGF (5, 25 or 100 ng/ml) for 1 or 5 min as indicated in (A). Triangles represent treatment with NGF 5 ng/ml, circles – 25 ng/m, squares – 100 ng/ml. Open symbols represent treatments for 1 min and filled symbols – 5 min. (D) and (E) Normalized phospho-Akt intensities from all indicated conditions are pooled together for the n = 3 of independent experiments. Paired Student's t-test for pAKTt308 p=0.02 and for pAKTs473 p=0.008.

https://doi.org/10.7554/eLife.38869.013

Finally, Figure 3 shows that the extent of Akt phosphorylation in unstimulated cells was indistinguishable in control vs. TRPV1-expressing cells at both S308 (IntensitypAkt/pan Akt: 0.075 ± 0.004 for control and 0.076 ± 0.004 for TRPV1, Mean ± SEM, n = 3, paired Student’s t-test p = 0.95) and T473 sites (IntensitypAkt/pan Akt: 0.3 ± 0.24 for control and 0.23 ± 0.14 for TRPV1, Mean ± SEM, n = 3, paired Student’s t-test p = 0.44), indicating that TRPV1 did not perturb the levels of PI(3,4)P2/PIP3 at rest. Importantly, we examined whether NGF-induced phosphorylation at both T308 and S473 required expression of TrkA/p75NTR. NGF-induced phosphorylation of Akt was not observed in cells in which TrkA/p75NTR were not expressed (Figure 1—figure supplement 2). Together with the data using Akt-PH in TIRF microscopy experiments, these data indicate that NGF-induced PI3K activity is greater, and PI(3,4)P2/PIP3 production is greater, in TRPV1-expressing cells than in those that do not express TRPV1.

Potentiation of PI3K and NGF-induced trafficking are conserved among TRPV channels

The ARD of TRPV1 is highly conserved among other members of the TRPV family of ion channels (Gaudet, 2008). Given the sufficiency of the TRPV1 ARD in potentiation of NGF-induced PI3K activity, we postulated that reciprocal regulation among other TRPV family members and PI3K would occur as well. We examined whether other ARD-containing TRP channels, TRPV2 (rat) and TRPV4 (human) were trafficked to the plasma membrane in response to NGF. Using TRPV2 and TRPV4 fused to fluorescent proteins, we found that they were both trafficked to the PM in response to NGF compared to vehicle (Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p < 0.05 see Table 1, Figure 4C,D, see also Figure 4—figure supplement 1 for representative images). In addition, we found that the NGF-induced increase in Akt-PH was significantly greater in TRPV2- and TRPV4-expressing cells compared to control cells (Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p < 0.05 see Table 2, Figure 4A,B). The effects of TRPV2 and TRPV4 on PI(3,4)P2/PIP3 levels were significantly smaller than those elicited by TRPV1 (Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p < 0.05 see Table 2). Further experiments would be required to determine whether the differences were due to differences in expression level, differences in the affinity of PI3K for the TRPV ARDs, or differences in the effect of each ARD on the catalytic activity of PI3K. We conclude that potentiation of NGF-induced PI3K activity and traffic to the PM in response to NGF are conserved among TRPV1, TRPV2, and TRPV4.

Figure 4 with 1 supplement see all

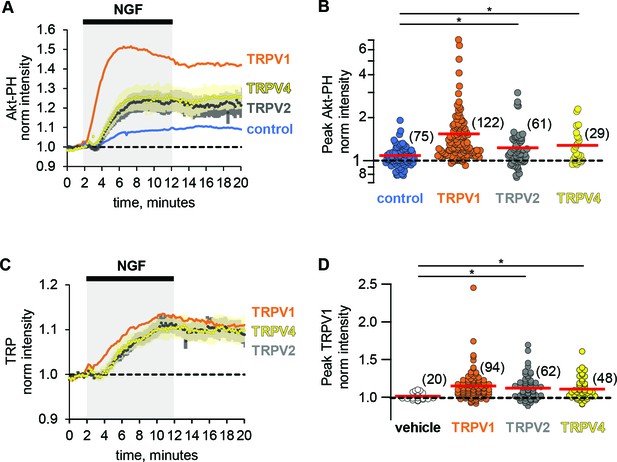

Potentiation of PI3K and NGF-induced trafficking are conserved among TRPV channels.

Time course of NGF-induced changes in fluorescence intensity. NGF (100 ng/mL) was applied during the times indicated by the black bar/gray shading. Traces represent the mean, error bars are SEM. Control and TRPV1 data same as in Figure 2 with error bars removed for clarity. (A) Averaged normalized TIRF intensity of Akt-PH from cells transfected with TrkA/p75NTR and Akt-PH and: (A) no channel (control; blue; n = 75); TRPV1 (orange; n = 122); TRPV2 (black; n = 61); TRPV4 (yellow; n = 29). (B) Averaged normalized Akt-PH intensity during NGF application (6–8 min). The red bars indicate the mean. Asterisks indicate significance (Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p < 0.05, see Table 2 for values). (C) Averaged normalized TIRF intensity of individual TRP channels. Color scheme as in (A) with the cell numbers as follows: TRPV1 (n = 94); TRPV2 (n = 62); TRPV4 (n = 48). (D). Averaged normalized TRP channel intensity during NGF application (8–10 min). The red bars indicate the mean. Asterisks indicate significance (Holm-Bonferroni post-hoc adjusted Wilcoxon rank test p < 0.05, see Table 1 for values).

https://doi.org/10.7554/eLife.38869.014
Table 1
Normalized TRP channel fluorescence intensities measured during NGF application for all discussed conditions.

The number of cells in the data set collected over at least three different experiments is given by n. Non-adjusted Wilcoxon rank test two tail p values was performed for pairwise comparisons as indicated.

https://doi.org/10.7554/eLife.38869.017
NGF
Mean ± SEM
N=TRPV1Vehicle
TRPV11.15 ± 0.0294--
vehicle1.01 ± 0.012010−6-
TRPV21.12 ± 0.02620.240.002
TRPV41.11 ± 0.02480.130.002
Table 2
Normalized Akt-PH fluorescence intensities measured during NGF application for all discussed conditions.

The number of cells in the data set collected over at least three different experiments is given by n. Non-adjusted Wilcoxon rank test two tail p values for pairwise comparisons as indicated.

https://doi.org/10.7554/eLife.38869.018
Akt-PH fromNGF
Mean ± SEM
N=ControlTRPV1
control1.08 ± 0.0375--
TRPV11.54 ± 0.812210−12-
TRPV1-ARD1.32 ± 0.28010−50.08
TRPV21.23 ± 0.18610.040.0002
TRPV41.28 ± 0.14290.020.02

Increased trafficking of TRPV1 to the cell surface is essential for sensitization to noxious stimuli produced by NGF and other inflammatory mediators (Morenilla-Palao et al., 2004; Ferrandiz-Huertas et al., 2014). Although the involvement of PI3K in NGF-induced sensitization has been known for over a decade (Bonnington and McNaughton, 2003; Stein et al., 2006), the role, if any, of direct binding of TRPV1 and PI3K was unclear. Here, we show that ARD region of TRPV1 that binds PI3K is sufficient to potentiate NGF-induced PI3K activity. Although it is possible that TRPV1 inhibition of the PI(3,4)P2/PIP3 phosphatase PTEN (Malek et al., 2017) could contribute to TRPV1 potentiation of NGF-induced increases in PI(3,4)P2/PIP3 levels, this and other more complex models are not needed to explain our data. In addition, whereas the present work does not rule out that the potentiation of PI3K we describe requires an effector that mediates signaling between the TRPV1 ARD and PI3K, we favor a simpler model in which the previously described direct interaction between TRPV1 and PI3K mediates the signaling. We speculate that, without TRPV1 potentiation of PI3K, NGF signaling would not produce sufficient PI(3,4)P2/PIP3 to promote channel trafficking during inflammation. Future studies that decouple potentiation of PI3K activity from the expression of TRPV channels will be needed to determine whether the reciprocal regulation between ARD-containing TRPV channels and PI3K serves an obligate role in channel sensitization.

Is reciprocal regulation among TRPV channels and PI3K relevant beyond pain signaling? TRPV channels have been proposed to be involved in RTK/PI3K signaling in a variety of cell types (Reichhart et al., 2015; Katanosaka et al., 2014; Jie et al., 2015; Sharma et al., 2017). For example, TRPV2 is co-expressed in muscle cells with the insulin like growth factor receptor (IGFR) and is known to be important in muscle loss during muscular dystrophy (Iwata et al., 2003). The mechanism is believed to involve IGFR activation leading to increased trafficking of TRPV2 to the sarcolemma, Ca2+ overload/cytotoxicity, and cell death (Iwata et al., 2003; Perálvarez-Marín et al., 2013; Katanosaka et al., 2014). Whether TRPV2 potentiates IGF-induced PI3K activity remains to be determined. The co-expression of TRPV channels with RTK/PI3K in other tissues, including nerve (TRPV1/NGF) (Tanaka et al., 2016), muscle (TRPV2/IGF) (Katanosaka et al., 2014) and lung (TRPV4/TGFβ1) (Rahaman et al., 2014) raises the question of whether reciprocal regulation among TRPV channels and PI3K plays a role in RTK signaling in cell development, motility, and/or pathology.

Materials and methods

TIRF microscopy and analysis

For imaging, we used an inverted microscope (NIKON Ti-E) equipped for total internal fluorescence (TIRF) imaging with a 60x objective (NA 1.49). Glass coverslips with adherent cells were placed in a custom-made chamber. The chamber volume (~1 ml) was exchanged using a gravity-driven perfusion system. Cells were acclimated to flow for at least 15 min prior to NGF application. Akt-PH fused to Cyan Fluorescent Protein (CFP) was imaged using excitation from a 447 nm laser and a 480/40 emission filter. TRPV1 fused to Yellow Fluorescent Protein (YFP) was imaged using the 514 nm line of an argon laser and a 530 long-pass emission filter. Time-lapse images were obtained by taking consecutive CFP and YFP images every 10 s. Movies were then processed using ImageJ software (NIH) (Rasband, 1997). Regions of interest (ROI) were drawn around the footprint of individual cells and the average ROI pixel intensity was measured. Measurements were analyzed using Excel 2013 (Microsoft Corporation), by subtracting the background ROI intensity from the intensity of each cell ROI. Traces were normalized by the average intensity during the 1-min time period prior to NGF application.

Depth of TIRF field and membrane translocation estimation

Because PI(3,4)P2/PIP3 levels reported by the Akt-PH fluorescence measured with TIRF microscopy include significant contamination from free Akt-PH in the cytosol, we used the characteristic decay of TIRF illumination to estimate the fraction of our signal due to Akt-PH bound to the membrane. We first estimated the fraction of the illumination at the membrane in resting cells, assuming that free Akt-PH is homogeneously distributed throughout the evanescent field. After stimulation with NGF, we then used this fraction of illumination at the membrane to determine the fraction of the emission light originating from this region. The estimation approach used below was not used to quantitatively evaluate our data. Rather, it demonstrates the general issue of cytosolic contamination causing underestimation of changes in membrane-associated fluorescence even when using TIRF microscopy.

The depth of the TIRF field was estimated as described in the literature (Axelrod, 1981; Mattheyses and Axelrod, 2006). Briefly, when laser light goes through the interface between a coverslip with refractive index n2 and saline solution with refractive index n1, it experiences total internal reflection at angles less than the critical incidence angle, θc, given by

θc=sin-1(n1n3)

The characteristic depth of the illuminated field d is described by

d=λ04πn3sin2θ-sin2θc- 12

where λ0 is laser wavelength. The illumination decay τ, depends on depth of field as follows:

τ=1d

TIRF illumination intensity, I, is described in terms of distance from the coverslip, h, by

 I=eτh

For simplicity, we measured the distance h in ‘layers’, with the depth of each layer corresponding to physical size of Akt-PH, which was estimated to be approximately 10 nm based on the sum of longest dimensions of Akt-PH and GFP in their respective crystal structures (PDB ID: 1UNQ and 1GFL). We solved for TIRF illumination intensity using the following values for our system: refractive indexes of solution n1 = 1.33 and coverslip n3 = 1.53, critical incidence angle θC = 60.8 degrees. The laser wavelength used in our experiments was λ0 = 447 nm, and the experimental angle of incidence was θexp = 63 degrees. This produces a characteristic depth of d63 = 127 nm and an illumination decay of τ63 = 0.008 nm−1. We plot TIRF illumination intensity over distance in molecular layers and nanometers in Figure 1—figure supplement 4.

The values determined above allow us to estimate the contributions to our TIRF signal from the membrane vs. the cytosol. According to our calculation, the TIRF illumination intensity approaches 0 at around 500 nm, or layer h49. We consider the membrane and associated proteins to reside in layer h0. Under these conditions, at rest, 5% of total recorded TIRF fluorescence arises from h0, with the remainder originating from h1-h49. At rest, we assume that Akt-PH molecules are distributed evenly throughout layers h0-h49, with no Akt-PH bound to the membrane because the concentration of PI(3,4)P2/PIP3 in the PM is negligible at rest. Total fluorescence intensity measured before NGF application, Finitial, depends on m, the number of molecules per layer at rest, B, the brightness of a single molecule of CFP, and TIRF illumination intensity, I:

Finitial=B049mIi

Normalizing our time traces to Finitial, sets Finitial = 1. We solved for m numerically using Excel (Microsoft, Redmond, WA; see Figure 1—figure supplement 4—source data 1), and determined a value of 0.08. We assumed a fixed number of molecules in the field and that the only NGF-induced change was a redistribution of molecules among layers. The total fluorescence intensity measured after NGF application, FNGF, will reflect the redistribution of ∆m molecules between membrane layer h0 and all layers h0-h49, with free Akt-PH homogeneously distributed among these layers. Therefore, FNGF is a sum of fluorescence intensities of the number of bound molecules in the membrane layer h0 and the free molecules in layers h1-h49:

FNGF=B [(Δm)I0+049(mΔm50)Ii]

We solved for ∆m using Excel, constraining FNGF to the values we measured for control and TRPV1-expressing cells (data listed in the table in Figure 1—figure supplement 4B). Finally, we estimated the NGF-induced change in Akt-PH bound to the membrane as Rm, the ratio of molecules in h0 after NGF to that before NGF:

Rm=(m+Δm)I0mI0

We compared Rm values to the FNGF values listed in the table Figure 1—figure supplement 4B. For example, in cells expressing TRPV1, FNGF of 1.54 led to 10 times more membrane-associated Akt-PH molecules. Note, that if we instead allow the number of molecules in cytosolic layers to remain constant as m0 increases with NGF treatment, we calculate an Rm value of 8, very similar to the value of 10 obtained with redistribution of a fixed number of molecules across all layers. Both of these scenarios are independent of the initial Akt-PH fluorescence intensity in a given cell.

Cell culture/transfection/ DNA constructs/solutions

F-11 cells (a gift from M.C. Fishman, Massachusetts General Hospital, Boston, MA; (Francel et al., 1987)) were cultured at 37°C, 5% CO2 in Ham’s F-12 Nutrient Mixture (#11765–054; Gibco) supplemented with 20% fetal bovine serum (#26140–079; Gibco, Grand Island, NY), HAT supplement (100 µM sodium hypoxanthine, 400 nM aminopterin, 16 µM thymidine; #21060–017; Gibco), and penicillin/streptomycin (#17-602E, Lonza, Switzerland). F-11 cells were tested for mycoplasma contamination using Universal Mycoplasma Detection Kit (# ATCC 30–1012K, ATCC, Manassas, VA) and found to be free of contamination. F-11 cells for imaging experiments were plated on Poly-Lysine (#P1274, Sigma, St. Louis, MO) coated 0.15 mm x 25 mm coverslips (#64–0715 (CS-25R15), Warner Instruments, Hamden, CT) in a six-well plate. Cells were transfected with Lipofectamine 2000 (4 µl/well, Invitrogen, Grand Island, NY) reagent using 1–3 µg of cDNA per well. 24 hr post-transfection, media was replaced with HEPES-buffered saline (HBR, double deionized water and in mM: 140 NaCl, 4 KCl, 1 MgCl2, 1.8 CaCl2, 10 HEPES (free acid) and five glucose) for at least 2 hr prior to the imaging. During experiments, cells were treated with 100 ng/ml NGF 2.5S (#13257–019, Sigma), vehicle (HBR) or 20 nM wortmannin (Sigma W1628).

TRPV1-cYFP (rat) (Ufret-Vincenty et al., 2015), TRPV1-ARD-ctagRFP (rat), TRPV2-cYFP (rat) (Mercado et al., 2010) DNA constructs were made in the pcDNA3 vector (Invitrogen), where ‘-n’ or ‘-c’ indicates that the fluorescent protein is on the N- or C-terminus, respectively. TRPV4-EGFP (human) in pEGFP was obtained from Dr. Tim Plant (Charite-Universitatsmedizine, Berlin) (Strotmann et al., 2003). TrkA (rat) in the pcCMV5 vector and p75NTR (rat) in the pcDNA3 vector were obtained from Dr. Mark Bothwell (University of Washington, Seattle). PH-Akt-cCerulean in the pcDNA3-k vector was made based on the construct in the pHR vector from Dr. Orion Weiner's Lab (Toettcher et al., 2011). The function of the ion channels tested were confirmed using Ca2+ imaging and/or patch clamp electrophysiology (data not shown).

Western blotting

For detection of relative expression of PI3K p85α subunit, cells were transfected as described above for imaging experiments. 24 hr after transfection, cells were scraped off the bottom of 10 cm plates, washed with Phosphate Buffered Saline (PBS) 4 times and homogenized in Lysis buffer (1% Triton 25 mM Tris-HCl, 150 mM NaCl, 1 mM EDTA, pH 7.4) for 2 hr with mixing at 4°C. Lysates were spun down at 14000 rpm for 30 min at 4°C to remove the cell nuclei and debris. Cleared lysates were mixed with Laemmli 2x SDS sample buffer (#161–0737, Bio-Rad, Hercules, CA), boiled for 10 min and subjected to SDS PAGE to separate proteins by size. Gels were then transferred onto the PDVF membrane using Trans-Blot SD semi-dry transfer cell (Bio-Rad) at 15 V for 50 min. Membranes were blocked in 5% BSA Tris-Buffered Saline, 0.1% Tween (TBS-T) for 1 hr and probed with primary antibody for 1 hr at RT. Next, membranes were washed 6x times with TBS-T and probed with secondary antibodies conjugated with Horse Radish Peroxidase (HRP) for 1 hr. After another set of 6 washes membranes were developed by addition of the SuperSignal West Femto HRP substrate (#34096, Thermo, Grand Island, NY) and imaged using CCD camera-enabled imager. For quantification, blot images were analyzed in ImageJ. ROIs of the same size were drawn around the bands for p85 and tubulin, then mean pixel intensity was measured. Mean p85 intensities were normalized by dividing by mean tubulin intensities and plotted in Figure 2—figure supplement 3. Experiments were repeated with n = 5 independent samples. Primary antibodies used were: anti-PI3K (alpha) polyclonal (#06–497 (newer Cat#ABS234), Upstate/Millipore, Burlington, MA) at 1:600 dilution; β Tubulin (G-8) (#sc-55529, Santa Cruz, Dallas, TX) at 1:200 dilution. Secondary antibodies used: Anti-Rabbit IgG (#074–1506, KPL/SeraCare Life Sciences, Milford, MA) at 1:30,000 dilution; Anti-Mouse IgG (#NA931, Amersham/GE Healthcare Life Sciences, United Kingdom) at 1:30,000 dilution.

For detection of phosphorylated Akt, cells plated in six-well plates were treated for the indicated amount of time (Figure 3, Figure 1—figure supplement 2) in the CO2 incubator at 37°C. Immediately after treatment, wells were aspirated and scraped in ice-cold lysis buffer (H2O, TBS, 1% NP-40, 5 mM NaF, 5 mM Na3VO4 with added Protease inhibitors (#P8340, Sigma) and Phosphatase Inhibitor Cocktail 2 (#P5726, Sigma). After incubation on ice for 15 min, lysates were cleared by centrifugation at 15 k g for 15 min at 4°C. Protein contents of cleared lysates were measured using the BCA assay (#23225 Pierce) according to manufacturer’s protocol. Volumes of lysates were adjusted according to these measurements and subjected to SDS-PAGE. Gels were transferred onto PVDF membranes using wet-transfer. Membranes were blocked in TBS-T with 5% milk for 1 hr and incubated overnight at 4°C with one of the following primary antibodies: pAKTs473 clone D9E (#4060, Cell Signaling), pAKTt308 clone 244F9 (#4056, Cell Signaling) . Further procedures were as indicated in the previous paragraph. After development membranes were stripped using Pierce Restore Western Blot stripping buffer (#21059, Thermo Fisher), reprobed with the other anti-phospho-AKT antibody and then stripped and re-probed with panAKT clone 40D4 (#2920, Cell Signaling) antibody at 1:2500 dilution. Data was normalized by diving the average intensity of a band by the average intensity of a blot and then dividing by that of a pan-Akt blot (Figure 3).

References

  1. 1
  2. 2
  3. 3
    Phosphatidylinositol 3-kinase and its novel product, phosphatidylinositol 3-phosphate, are present in Saccharomyces cerevisiae
    1. KR Auger
    2. CL Carpenter
    3. LC Cantley
    4. L Varticovski
    (1989)
    The Journal of Biological Chemistry 264:20181–20184.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Purinergic nerves
    1. G Burnstock
    (1972)
    Pharmacological Reviews 24:509–581.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    PIP3, PIP2 Complex Roles at the Cell Surface
    1. RH Insall
    2. OD Weiner
    (2001)
    Cell, 1, 10.1016/S0092-8674(00)80696-0.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Image J.U.S. National Institute of Health
    1. WS Rasband
    (1997)
    Maryland: Scientific research an academic publisher.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    Prostanoid release by macrophages at a distance from an inflammatory site
    1. M Tissot
    2. S Strzalko
    3. A Thuret
    4. JP Giroud
    (1989)
    British Journal of Experimental Pathology 70:525–531.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
    Sensory Mechanisms of the Spinal Cord
    1. WJ Willis
    (1978)
    New York: Springer.
  72. 72
  73. 73
  74. 74

Decision letter

  1. Baron Chanda
    Reviewing Editor; University of Wisconsin-Madison, United States
  2. Richard Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Tibor Rohacs
    Reviewer; New Jersey Medical School, Rutgers, the State University of New Jersey, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: this article was originally rejected after discussions between the reviewers, but the authors were invited to resubmit after an appeal against the decision.]

Thank you for submitting your work entitled "Reciprocal regulation among TRPV1 channels and phosphoinositide 3-kinase in response to nerve growth factor" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewer #1 (Tibor Rohacs) agreed to be identified.

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

Your study shows for the first time that TRP channels can potentiate the activity of PI3 kinase and thereby upregulate their trafficking to the membrane via PIP2 or PIP3. In contrast to chanzymes where the enzyme is fused to the channel, this study highlights an alternate pathway for modulation of enzyme activity by TRP channels. Nevertheless, as detailed below, the reviewers have noted several concerns that raise questions about the mechanism of modulation. The consensus is that these concerns cannot be addressed in a two-month timeframe.

Briefly:

1) Without demonstrating that the specific mutations on TRPV1 can abrogate PI3K potentiation, it is difficult to make the case that TRPV1 directly modulates PI3K activity.

2) Related to the above point, all the assays showing potentiation are in vivo assays. This does not rule out the possibility that this modulation is indirect or is mediated by other partners. The real test is to demonstrate that AKD directly modulates PI3K activity in vitro. This will also rule out the possibility that TRPV1 is inhibiting lipid phosphatases rather than potentiating PI3Kinase.

3) Given that TRPM4 which does not have ARDs also potentiates PI3K significantly without increasing the trafficking of these channels to the membrane, one wonders whether ARD is essential for potentiation. This means that the ARD is not the only component responsible for potentiation and it is not clear to what extent ARDs contribute to potentiation compared to other structural elements in TRP channels.

Reviewer #1:

The manuscript by Stratiievska et al. is based on an intriguing and unexpected finding: the presence of TRPV1 increases the activity of PI3K. The effect is robust, and several other TRP channels with ankyrin repeat domains (ARD) exert a similar effect, even though the effects size is smaller than with TRPV1. The isolated ARD of TRPV1 also increases the activity of PI3K, even though the effect on kinetics is far less pronounced than that by the full length TRPV1. The authors also show that Akt-phosphorylation is increased by TRPV1, which provides an independent verification of increased PI3K activity. The data can be placed in a signaling paradigm where TRPV1 potentiates the NGF-induced activity of PI3K, leading to higher PI(3,4,5)P3 levels, which stimulates TRPV1 trafficking to the plasma membrane.

In this reviewer's opinion the data are intriguing, novel, and unexpected, and as such they will potentially be influential and may even lead to paradigm shift(s) in our thinking. To strengthen the paper, I recommend some additional control experiments, and also to consider alternative possibilities in data interpretation.

1) The authors present the Akt-PH-GFP as a selective PI(3,4,5)P3 sensor. This construct however binds to both PI(3,4)P2 and PI(3,4,5)P3, see Balla et al. TIPS 2000 (PMID: 10871889) for references. This by itself is not a major problem, as both these lipids are products of PI3K; nevertheless, I recommend that the authors cite it as a PI(3,4,5)P3 / PI(3,4)P sensor. It would also be nice to confirm the key finding, that is increased PI(3,4,5)P3 production in the presence of TRPV1, using a more specific PI(3,4,5)P3 sensor, for example the Btk-PH-GFP.

2) Another simple control experiment that would strengthen the paper, is to inhibit PI3K with either wortmannin or LY29004 and demonstrate that the translocation is inhibited both in TRPV1 expressing and non-expressing cells.

3) The authors mention in their Abstract: "Further, other TRPV channels with conserved ARDs also potentiated NGF‐induced PI3K activity whereas TRP channels lacking ARDs did not." This statement is at odds with Figure 5—figure supplement 2, where TRPM4 which has no ARD-s is shown to also potentiate PI3K activity, and this effect is similar in size to that evoked by TRPV2 and TRPV4, but much smaller than that induced by TRPV1. While the authors provide evidence that the TRPV1 ARD is sufficient to potentiate PI3K, there is no such evidence provided for other TRP-s and I do not think the data makes a case that ARDS-s potentiate PI3K in general.

4) The authors claim throughout the paper and in the Abstract and in the title that PI3K activity is increased in the presence of TRPV1. This is quite likely but there is an alternative explanation: what if TRPV1 inhibits the activity of lipid phosphatases that break down PI(3,4,5)P3 and PI(3,4)P2. The findings would be the same. If the authors can come up with an experiment to test this, it would strengthen the manuscript. If not, this possibility needs to be discussed, and the conclusions should be stated more cautiously.

Reviewer #2:

TRP channels are subject of cellular regulation at different levels. While the polimodal activation mechanism allow them to serve as coincidence detectors for cellular sensing, sensitization and desensitization of different kind contribute to the fine-tuning of their cellular activity. Important for the background of the present manuscript, trafficking in and out of the plasma membrane provides further dynamic control of TRP's current density.

First reported by the Clapham laboratory, several groups have studied TRP channel trafficking during the last 10 years, including the Gordon's laboratory. It is now accepted that part of NGF-dependent sensitization is caused by traffic and that IP3K pathway is part of this mechanism. This present work, which is a follow up of Dr. Gordon's past works on TRPV1 trafficking, is based mainly on observations performed in live cell imaging recordings under TIRF configuration. The authors identify two phenomena, first that TRPV1 traffic to the plasma membrane is associated to an increase in PIP3 and secondly that the activity of PI3K is somewhat associated to the expression levels of TRPV1 channels. In brief, the manuscript sketch two stories, both undone.

There is a substantial amount of literature on this topic making the first story – the one about PIP3 levels and TRPV1 trafficking- definitely trivial and the conclusions not original enough for the scope of this journal. On the other hand, the second story, dealing with the ARD-dependent regulation of IP3K (underscored at the title of the manuscript) is certainly of potential interest, but needs additional data to support the conclusions drawn by the authors.

In general the manuscript tends to be repetitive, in both the text and figures, a sharper text leading to the conclusions would be appreciated.

Several points in the manuscript need to be addressed.

Specific comments:

From Stein et al., 2006 and Zhang, Huang and McNaughton et al., 2005, we know that a) TRPV1 binds to PI3K and b) inhibition of the latter diminish the number of NGF responsive cells. As the authors state in the last paragraph of the Introduction, "whether TRPV1/p85 contributes to NGF-induced trafficking of TRPV1 is unknown", however, no attempt to address this deeply is observed. The authors showed a correlation between TRPV1 trafficking and increased levels of PIP3 (indirectly by means of an Akt-PH fluorescent probe). Together with this, they showed that the expression of TRPV1 ARD is sufficient to cause and increase in Akt-PH signal at the membrane.

1) The question remains, is it the increase in PIP3 levels or the levels of PIP2, generated also by PI3K activity, the signal leading to the increased traffic of TRPV1? Experiments aiming to solve this would certainly improve the trafficking section.

2) Does PI3K binds to TRPV1 ARD? A coIP is needed to show evidence of such interaction.

3) In Figure 2 the authors show differences in the time course of Akt-PH fluorescence and TRPV1 fluorescence at the plasma membrane. Is it that PIP3-Akt-PH gets internalized? Is it that PI3K detaches from TRPV1 ARD (in case there is direct interaction) leading to a lower levels of localized enzyme at the membrane? Probably live cell imaging colocalization between TRPV1 and PI3K might shed light into this.

4) In the last paragraph of the subsection “NGF induces production of PIP3 by P13K followed by trafficking of TROV1 channels to the PM” authors claim that Fngf of 1.5 represent about ten-fold response. Such difference can be easily observed in a simple biotinylation experiment and will serve to confirm and calibrate the imaging values.

5) The authors state that other TRPs seems to respond in a similar fashion TRPV1 does, although the data doesn't seem to support such strong claim. The differences are not significant enough or the response is modest. Probably the authors should lower the tone of their statements throughout the manuscript.

6) The information that can be extracted from ARD/PI3K interaction data set is limited. Why the Akt-PH signal increases at the plasma membrane when the overexpressed ARD is soluble?

7) Any soluble ARD can do the trick of potentiating PI3K after NGF incubations? TRP channels ARD have special features absent in other canonical ARDs, are these helping to the phenotype observed?

8) Can the soluble ARD from TRPV1 induce a higher traffic on the other TRPs having a modest response to NGF?

9) The authors assume that the putative interaction between PI3K and TRPV1 ARD is somewhat associated to allosteric regulation of PI3K activity without any other proof but indirect measurements of PIP3 levels. Again, would be desirable to observe such interaction in a biochemistry assay and make sure that the ARD is not acting just as scaffold for additional proteins modulating PI3K activity.

Methods and statistics

10) While this reviewer recognizes the efforts made on image analysis, the authors are working under assumptions that are out of their control. First, all the numerical analysis based on Mattheyses and Axelrod 2006 assume a critical angle they can't measure. For that reason in the cited article, the authors used beads of known size to calibrate the evanescent field. Moreover, to define layers they are assuming the single emitters are of the same size and intensity. Probably single emitters are having the same intensity, however multiple emitters can be together in a vesicle or membrane cluster or groups of vesicles in a non-predictable fashion. Therefore the definition of the different layers is not as clear as it seems from the Materials and methods section.

11) The authors claim that the population doesn't distribute normal within themselves (subsection “NGF induces production of PIP3 by PI3K followed by trafficking of TRPV1 channels to the PM”), however they used a parametric test for paired data that assumes normal distribution. Moreover, how the authors deal with outliers? Potential outliers are visible in Figure 2D, Figure 3C and Supplementary Figure 5B.

Reviewer #3:

In a previous work from this group (Stein et al., 2006), they showed that PI3K directly interacts with the N-terminal region of TRPV1 (residues 1 to 432) and that NGF increases the number of channels in the plasma membrane. Based on these results, this group proposed a model for NGF-mediated hyperalgesia in which PI3K facilitates trafficking of TRPV1 to the plasma membrane. In the present study, the authors used total internal reflection fluorescence microscopy to show that TRPV1 potentiates NGF-induced PI3K activity and that its ankyrin repeats (residues 111 to 359) were sufficient to produce this potentiation. Basically, the previous proposed mechanism has not changed in that NGF-induced PI3K activity promotes channel trafficking; however, the new data show that in the presence of TRPV1 the PI3K activity is enhanced as the PIP3 levels increase in the plasma membrane. In addition, the authors narrowed down the interaction site to ~ 248 residues at the ankyrin repeats domain (ARD). The authors followed a rational plan and performed well-thought experiments to determine that TRPV1 potentiates the activity of PI3K.

1) The authors should determine the TRPV1-PI3K interaction site (currently located within ~248 residues of the ARD), since they have a good readout with the TRPV1-ARD experiments (as shown in Figure 5B). I suggest performing a sequence alignment and analyze the conserved residues between channels; this analysis can be used to generate new TRPV1-ARD constructs that might lack the potentiation effect and determine the TRPV1-PI3K interaction site. This is important since targeting this site could help modulate the NGF-TRPV1 mediated sensitization.

2) The authors should repeat the experiment shown in Figure 6B using a mammalian TRPA1 instead of the zebrafish one, as these channels would likely display higher expression levels in F11 cells. This would help determining whether TRPA1 significantly potentiates NGF‐induced PI3K activity.

3) In Figure 5—figure supplement 2A, the authors should increase the number of samples for TRPV4 (equivalent to the other channels). In its present form, most of the data points lie within the distribution of the control.

4) The authors should include in Figure 5C the data points corresponding to the control and TRPV1.

5) Although the experiments with TRPM4 and TRPM8 show that they do not have reciprocal regulation, both channels display opposite effects for PI3K activity and channel trafficking (Figures 6B and 6D). The authors should provide a deeper discussion for this opposite effect.

6) Testing channels (TRPM) without ARD is a good idea; however, coming back to suggestion #1, I think that finding a TRPV1 and/or TRPV1-ARD construct that decouples potentiation of PI3K activity from the expression will support the model proposed in Figure 7.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for submitting your article "Reciprocal regulation among TRPV1 channels and phosphoinositide 3-kinase in response to nerve growth factor" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Tibor Rohacs (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this short report, Stratiievska et al. show for the first time that TRP channels can potentiate the activity of PI3 kinase and thereby upregulate their trafficking to the membrane via PIP2 or PIP3. In contrast to chanzymes where the enzyme is fused to the channel, this study highlights an alternate pathway for modulation of enzyme activity by TRP channels. While the reviewers were pleased with the trimmed version of the manuscript, they are not satisfied with the revised version. Specifically, they have asked for the following controls:

Essential revisions:

1) The Akt-PH domain is a combined PI(3,4,5)P3 and PI(3,4)P2 sensor. The authors argued that their Akt phosphorylation assay is an independent readout of PI(3,4,5)P3 production; therefore there is no need to repeat the experiment with a more specific PI(3,4,5)P3 sensor. I disagree with this argument. My understanding of Akt regulation is that this enzyme binds to the plasma membrane via its PH domain that binds both PI(3,4,5)P3 and PI(3,4)P2, and as a result it becomes phosphorylated by PDK1, see Balla Physiological Reviews 2013. See also Franke et al. Science 1997 PMID:9005852, showing that PI(3,4)P2 stimulates Akt. In other words, Akt phosphorylation is also a combined PI(3,4,5)P3 PI(3,4)P2 assay.

As the data stands, everything can be explained by a potentiated increase in PI(3,4)P2, which is also increased upon PI3K stimulation. This is not a very likely scenario of course, but it is very easy to test. I strongly recommend that the authors perform the experiment with a more specific PI(3,4,5)P3 sensor.

2) My original request was to test the effect of wortmannin on the translocation of the Akt-PH domain, not that of TRPV1. Again, this is an extremely simple experiment, and would solidify the key finding.

3) The authors forgot to delete the second half of the following sentence from the Abstract: "Further, other TRPV channels with conserved ARDs also potentiated NGF‐induced PI3K activity whereas TRP channels lacking ARDs did not." Also the effects of TRPV4 and TRPV2 on Akt-PH translocation look smaller than that induced by TRPV1, are the effects significantly different from TRPV1? I recommend that this is tested, and shown in Table 1 and mentioned in the Results.

https://doi.org/10.7554/eLife.38869.023

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Your study shows for the first time that TRP channels can potentiate the activity of PI3 kinase and thereby upregulate their trafficking to the membrane via PIP2 or PIP3. In contrast to chanzymes where the enzyme is fused to the channel, this study highlights an alternate pathway for modulation of enzyme activity by TRP channels. Nevertheless, as detailed below, the reviewers have noted several concerns that raise questions about the mechanism of modulation. The consensus is that these concerns cannot be addressed in a two-month timeframe. Briefly:1) Without demonstrating that the specific mutations on TRPV1 can abrogate PI3K potentiation, it is difficult to make the case that TRPV1 directly modulates PI3K activity.

In response to the reviewers’ and Editor’s comments, we have narrowed the focus of the manuscript, stressing its most important and most robust findings. Thus, we have changed the format to that of a Short Report, which better reflects the high significance of our data and is more appropriate given the scope of the mechanism elucidated.

The present work demonstrates a previously unknown potentiation of NGF-induced PI3K activity by TRPV1. The importance of this form of regulation cannot be understated, as PI3K regulation of TRPV1 during inflammation is a well-established pathway for peripheral sensitization to painful stimuli. We show definitively that the ARD domain of TRPV1 is sufficient for its regulation of PI3K. Does the regulation involve a direct interaction between the ARD domain and PI3K? Our work does not rule out that adapter proteins or additional regulatory proteins may be involved. However, the novelty and significance of the reciprocal regulation we discovered stand on their own, even without a full understanding of the details of the regulation and the many downstream steps that are involved in enhanced channel trafficking. The reciprocal regulation of TRPV1 and PI3K, together with sufficiency of the ARD domain of TRPV1 in supporting the reciprocal regulation with PI3K, make our work timely, compelling, and of broad interest.

There is good reason to believe that the allosteric regulation of PI3K by TRPV1 is direct: we previously showed that the N-terminal domain of TRPV1 interacts directly with PI3K using recombinant protein fragments, cell pull-downs, and yeast 2-hybrid assays. We agree with the Reviewer, though, that the regulation shown here need not be direct. Indeed, even mutations that disrupt the PI3K-TRPV1 interactions and the reciprocal regulation would not rule out a role for additional adapter/regulatory proteins. We are now more circumspect in our framing of the mechanism of the reciprocal regulation, and take care to discuss the possibility that it may not involve a direct interaction.

2) Related to the above point, all the assays showing potentiation are in vivo assays. This does not rule out the possibility that this modulation is indirect or is mediated by other partners. The real test is to demonstrate that AKD directly modulates PI3K activity in vitro. This will also rule out the possibility that TRPV1 is inhibiting lipid phosphatases rather than potentiating PI3Kinase.

We agree that a cell-free in vitro assay is needed to rule out a role for other cellular components in mediating the potentiation of PI3K by TRPV1. Unfortunately, such an essay is not standard in the literature and would need to be developed. The activation mechanism of PI3K involves relief of autoinhibition through binding of PI3K to phosphorylated tyrosines on a cell-surface receptor. Its recruitment to the membrane is also required. These experiments can therefore not be performed using soluble proteins in a test tube. To our knowledge, only one lab in the world has an appropriate biochemical assay using a supported bilayer. We have established a collaboration with this lab, but significant additional development of the assay will be required to allow it to be used along the lines suggested by the Editor and reviewers. As it stands now, there is no assay that can be used to address the question in vitro. As discussed above, we have reorganized and shortened the manuscript to focus on the sufficiency of the ARD domain of TRPV1 to support the NGF-induced potentiation of PI3K. We hope our shift of focus from the direct nature of the interaction to the sufficiency of the interaction in a cell environment will satisfy the Editor and reviewers.

3) Given that TRPM4 which does not have ARDs also potentiates PI3K significantly without increasing the trafficking of these channels to the membrane, one wonders whether ARD is essential for potentiation. This means that the ARD is not the only component responsible for potentiation and it is not clear to what extent ARDs contribute to potentiation compared to other structural elements in TRP channels.

We agree with the Editor and reviewers that our work does not address the possibility that other pathways of potentiation may well be present in cells. We have therefore more tightly focused the manuscript on the TRPV channels, the one potentiation pathway about which we have information. Focusing on TRPV channels only allows us to make mechanistic conclusions about the sufficiency of the TRPV ARD in potentiation, even though we cannot argue that it is the exclusive pathway by which PI3K may be regulated.

Reviewer #1:

[…] To strengthen the paper, I recommend some additional control experiments, and also to consider alternative possibilities in data interpretation.

1) The authors present the Akt-PH-GFP as a selective PI(3,4,5)P3 sensor. This construct however binds to both PI(3,4)P2 and PI(3,4,5)P3, see Balla et al. TIPS 2000 (PMID: 10871889) for references. This by itself is not a major problem, as both these lipids are products of PI3K; nevertheless, I recommend that the authors cite it as a PI(3,4,5)P3 / PI(3,4)P sensor. It would also be nice to confirm the key finding, i.e. increased PI(3,4,5)P3 production in the presence of TRPV1, using a more specific PI(3,4,5)P3 sensor, for example the Btk-PH-GFP.

The suggested citation has been added and we have modified the text to reflect the mixed specificity of Akt-PH. Our analysis of PIP3-dependent phosphorylation of the Akt enzyme provides orthogonal evidence that TRPV1 potentiates NGF-induced PI3K activity. In our opinion, this sort of orthogonal readout is better in confirming the enhanced PIP3 generation in TRPV1-expressing cells than using another PH probe would be.

2) Another simple control experiment that would strengthen the paper, is to inhibit PI3K with either wortmannin or LY29004 and demonstrate that the translocation is inhibited both in TRPV1 expressing and non-expressing cells.

In a previous publication, we showed than wortmannin prevents NGF-induced trafficking of TRPV1 to the plasma membrane. We now cite this work more prominently.

3) The authors mention in their Abstract: "Further, other TRPV channels with conserved ARDs also potentiated NGF‐induced PI3K activity whereas TRP channels lacking ARDs did not." This statement is at odds with Figure 5—figure supplement 2, where TRPM4 which has no ARD-s is shown to also potentiate PI3K activity, and this effect is similar in size to that evoked by TRPV2 and TRPV4, but much smaller than that induced by TRPV1. While the authors provide evidence that the TRPV1 ARD is sufficient to potentiate PI3K, there is no such evidence provided for other TRP-s and I do not think the data makes a case that ARDS-s potentiate PI3K in general.

As discussed in response to Editor’s comment #1, we have narrowed the focus of our paper to TRPV channels. We hope the reviewer views this change, along with the increased emphasis on the sufficiency of the ARD from TRPV1, as sufficient to address this concern.

4) The authors claim throughout the paper and in the Abstract and in the title that PI3K activity is increased in the presence of TRPV1. This is quite likely but there is an alternative explanation: what if TRPV1 inhibits the activity of lipid phosphatases that break down PI(3,4,5)P3 and PI(3,4)P2. The findings would be the same. If the authors can come up with an experiment to test this, it would strengthen the manuscript. If not, this possibility needs to be discussed, and the conclusions should be stated more cautiously.

We agree with the reviewer that a more complicated model, in which TRPV1 binds to PI3K yet also exerts an effect on its cognate phosphatase, is unlikely. We nonetheless added a discussion of this alternative explanation to the text.

Reviewer #2:

TRP channels are subject of cellular regulation at different levels. While the polimodal activation mechanism allow them to serve as coincidence detectors for cellular sensing, sensitization and desensitization of different kind contribute to the fine-tuning of their cellular activity. Important for the background of the present manuscript, trafficking in and out of the plasma membrane provides further dynamic control of TRP's current density.

First reported by the Clapham laboratory, several groups have studied TRP channel trafficking during the last 10 years, including the Gordon's laboratory. It is now accepted that part of NGF-dependent sensitization is caused by traffic and that IP3K pathway is part of this mechanism. This present work, which is a follow up of Dr. Gordon's past works on TRPV1 trafficking, is based mainly on observations performed in live cell imaging recordings under TIRF configuration. The authors identify two phenomena, first that TRPV1 traffic to the plasma membrane is associated to an increase in PIP3 and secondly that the activity of PI3K is somewhat associated to the expression levels of TRPV1 channels. In brief, the manuscript sketch two stories, both undone.

There is a substantial amount of literature on this topic making the first story – the one about PIP3 levels and TRPV1 trafficking- definitely trivial and the conclusions not original enough for the scope of this journal. On the other hand, the second story, dealing with the ARD-dependent regulation of IP3K (underscored at the title of the manuscript) is certainly of potential interest, but needs additional data to support the conclusions drawn by the authors.

In general the manuscript tends to be repetitive, in both the text and figures, a sharper text leading to the conclusions would be appreciated.

Several points in the manuscript need to be addressed.

Specific comments:

From Stein et al., 2006 and Zhang, Huang and McNaughton et al., 2005, we know that a) TRPV1 binds to PI3K and b) inhibition of the latter diminish the number of NGF responsive cells. As the authors state in the last paragraph of the Introduction, "whether TRPV1/p85 contributes to NGF-induced trafficking of TRPV1 is unknown", however, no attempt to address this deeply is observed. The authors showed a correlation between TRPV1 trafficking and increased levels of PIP3 (indirectly by means of an Akt-PH fluorescent probe). Together with this, they showed that the expression of TRPV1 ARD is sufficient to cause and increase in Akt-PH signal at the membrane.

1) The question remains, is it the increase in PIP3 levels or the levels of PIP2, generated also by PI3K activity, the signal leading to the increased traffic of TRPV1? Experiments aiming to solve this would certainly improve the trafficking section.

As the reviewer notes, the present paper is about potentiation of NGF-induced PI3K activity, and enhanced levels of PIP3, that occur in TRPV1-expressing cells and not on the downstream signaling by which increases in PIP3 lead to insertion of TRPV1 channels into the plasma membrane. The framework for our Discussion, however, was clearly insufficient in making the scope of the manuscript clear. The improved, narrower focus more clearly shows that the scope of the present manuscript includes the effect of TRPV1 expression on PI3K activity but not downstream signaling and channel trafficking.

We are puzzled by the reviewer’s comment that PI3K signaling will increase the levels of PIP2. To our knowledge this has not been reported, and indeed would be unexpected. We hope that narrowing the focus of the work to TRPV channels only, together with combining figures to highlight the importance of the ARD in mediating PI3K potentiation, will more clearly signal the manuscript’s topic.

2) Does PI3K binds to TRPV1 ARD? A coIP is needed to show evidence of such interaction.

We have previously shown that the p85 subunit of PI3K binds directly to the N-terminal region of TRPV1, which includes the ARDs. The interaction was shown to be direct in our previous publication using a binding assay with a recombinant fragment. Although narrowing down the region of the ARDs that is involved is a priority, as is localizing the ARD binding site on PI3K, it is beyond the scope of the present work.

3) In Figure 2 the authors show differences in the time course of Akt-PH fluorescence and TRPV1 fluorescence at the plasma membrane. Is it that PIP3-Akt-PH gets internalized? Is it that PI3K detaches from TRPV1 ARD (in case there is direct interaction) leading to a lower levels of localized enzyme at the membrane? Probably live cell imaging colocalization between TRPV1 and PI3K might shed light into this.

The kinetics of the Akt-PH probe translocation are governed in part by the probe’s affinity for PIP3. Therefore, the differences in the time courses of probe translocation and channel trafficking are not meaningful. If we had used a higher affinity probe, we would have seen a faster response. It should be clarified that Akt-PH is a soluble cytoplasmic protein which is not internalized in the same manner as transmembrane proteins. In addition, the Akt-PH probe detects the lipid product, which is generated at an early stage of the signaling pathway leading to the channel trafficking.

Colocalization of PI3K with TRPV1 might indeed be useful. However, we and others find that overexpression of PI3K in cells produces profoundly unhealthy cells, as excessive PIP3 is toxic. Thus, the suggested co-localization studies are not presently possible.

4) In the last paragraph of the subsection “NGF induces production of PIP3 by P13K followed by trafficking of TROV1 channels to the PM” authors claim that Fngf of 1.5 represent about ten-fold response. Such difference can be easily observed in a simple biotinylation experiment and will serve to confirm and calibrate the imaging values.

This would be a useful calibration, but is not feasible due to the details of TRPV1 expression. In F-11 cells and DRG cells, nearly all TRPV1 is present in intracellular membranes, presumably the ER. We estimate that well under 1% of TRPV1 is localized to the surface. Thus, even if only a small fraction of cells are permeable to the biotinylation reagent due to damage/death, the off-surface labeling dwarfs the true surface labeling. Perhaps more importantly, we give the estimate of ten-fold only to illustrate the gross underestimate of change in signal that occurs in TIRF microscopy. We now state more clearly that this is only a rough estimate referring to the order of magnitude expected.

5) The authors state that other TRPs seems to respond in a similar fashion TRPV1 does, although the data doesn't seem to support such strong claim. The differences are not significant enough or the response is modest. Probably the authors should lower the tone of their statements throughout the manuscript.

Please see responses to Editor point #1 and reviewer #1 point #3.

6) The information that can be extracted from ARD/PI3K interaction data set is limited. Why the Akt-PH signal increases at the plasma membrane when the overexpressed ARD is soluble?

We hypothesize that the soluble ARD interacts with cytosolic PI3K in resting cells. Upon stimulation with NGF, the ARD/PI3K complex would be recruited to the membrane, PI3K would be activated, and PIP3 would be generated. The newly generated PIP3 would then bind Akt-PH and result in an increase in Akt-PH associated fluorescence near the membrane. The narrower focus of the revised manuscript now states this model more clearly.

7) Any soluble ARD can do the trick of potentiating PI3K after NGF incubations? TRP channels ARD have special features absent in other canonical ARDs, are these helping to the phenotype observed?

We are eager to learn the answer to this question and will address it in future work.

8) Can the soluble ARD from TRPV1 induce a higher traffic on the other TRPs having a modest response to NGF?

This is a great suggestion. Although beyond the scope of the present manuscript, we will incorporate the experiment into subsequent work.

9) The authors assume that the putative interaction between PI3K and TRPV1 ARD is somewhat associated to allosteric regulation of PI3K activity without any other proof but indirect measurements of PIP3 levels. Again, would be desirable to observe such interaction in a biochemistry assay and make sure that the ARD is not acting just as scaffold for additional proteins modulating PI3K activity.

In addition to the experiments to which the reviewer refers, in which fluorescently labeled PIP3-binding domains were used to indirectly measure PIP3 levels in the plasma membrane, we used an orthogonal assay based on phosphorylation of the kinase Akt at two positions. The data from these experiments, shown in Figure 3, fully support the interpretation of our imaging data that TRPV1 expression leads to enhanced levels of PIP3 in response to nerve growth factor. Please also see response to Editor point #2.

Methods and statistics

10) While this reviewer recognizes the efforts made on image analysis, the authors are working under assumptions that are out of their control. First, all the numerical analysis based on Mattheyses and Axelrod 2006 assume a critical angle they can't measure. For that reason in the cited article, the authors used beads of known size to calibrate the evanescent field. Moreover, to define layers they are assuming the single emitters are of the same size and intensity. Probably single emitters are having the same intensity, however multiple emitters can be together in a vesicle or membrane cluster or groups of vesicles in a non-predictable fashion. Therefore the definition of the different layers is not as clear as it seems from the Materials and methods section.

The model described in the Materials and methods is used strictly to demonstrate that the measured change in PIP3 probe intensity underestimates the actual change in PIP3. No data analysis was based on this model, and we now more clearly label it a “rough” estimate.

11) The authors claim that the population doesn't distribute normal within themselves (subsection “NGF induces production of PIP3 by PI3K followed by trafficking of TRPV1 channels to the PM”), however they used a parametric test for paired data that assumes normal distribution. Moreover, how the authors deal with outliers? Potential outliers are visible in Figure 2D, Figure 3C and Supplementary Figure 5B.

We thank the reviewer for pointing this out. We have redone the analysis using non-parametric statistical tests, described in the Materials and methods. All outliers were included in the analysis.

Reviewer #3:

[…] 1) The authors should determine the TRPV1-PI3K interaction site (currently located within ~248 residues of the ARD), since they have a good readout with the TRPV1-ARD experiments (as shown in Figure 5B). I suggest performing a sequence alignment and analyze the conserved residues between channels; this analysis can be used to generate new TRPV1-ARD constructs that might lack the potentiation effect and determine the TRPV1-PI3K interaction site. This is important since targeting this site could help modulate the NGF-TRPV1 mediated sensitization.

See response to Editor point #1.

2) The authors should repeat the experiment shown in Figure 6B using a mammalian TRPA1 instead of the zebrafish one, as these channels would likely display higher expression levels in F11 cells. This would help determining whether TRPA1 significantly potentiates NGF‐induced PI3K activity.

As part of the refocusing of the manuscript on TRPV channels, the TRPA1 data in question were removed. See response to Editor point #1.

3) In Figure 5—figure supplement 2A, the authors should increase the number of samples for TRPV4 (equivalent to the other channels). In its present form, most of the data points lie within the distribution of the control.

We performed statistical tests to determine whether the dataset for TRPV4 supported the assertion that TRPV4 enhanced NGF-induced PI3K activity compared to control cells and found there to be a statistically significant difference.

4) The authors should include in Figure 5C the data points corresponding to the control and TRPV1.

We have modified the figure as requested.

5) Although the experiments with TRPM4 and TRPM8 show that they do not have reciprocal regulation, both channels display opposite effects for PI3K activity and channel trafficking (Figures 6B and 6D). The authors should provide a deeper discussion for this opposite effect.

As part of the refocusing of the manuscript on TRPV channels, the TRPM data in question were removed. See response to Editor points #1 and #3.

6) Testing channels (TRPM) without ARD is a good idea; however, coming back to suggestion #1, I think that finding a TRPV1 and/or TRPV1-ARD construct that decouples potentiation of PI3K activity from the expression will support the model proposed in Figure 7.

See response to Editor point #1.

[Editors’ note: the author responses to the re-review follow.]

Essential revisions:

1) The Akt-PH domain is a combined PI(3,4,5)P3 and PI(3,4)P2 sensor. The authors argued that their Akt phosphorylation assay is an independent readout of PI(3,4,5)P3 production; therefore there is no need to repeat the experiment with a more specific PI(3,4,5)P3 sensor. I disagree with this argument. My understanding of Akt regulation is that this enzyme binds to the plasma membrane via its PH domain that binds both PI(3,4,5)P3 and PI(3,4)P2, and as a result it becomes phosphorylated by PDK1, see Balla Physiological Reviews 2013. See also Franke et al. Science 1997 PMID:9005852, showing that PI(3,4)P2 stimulates Akt. In other words, Akt phosphorylation is also a combined PI(3,4,5)P3 PI(3,4)P2 assay.

As the data stands, everything can be explained by a potentiated increase in PI(3,4)P2, which is also increased upon PI3K stimulation. This is not a very likely scenario of course, but it is very easy to test. I strongly recommend that the authors perform the experiment with a more specific PI(3,4,5)P3 sensor.

Our work revealing TRPV1 potentiation of NGF-induced PI3K activity used Akt-PH as a phosphoinositide probe. The reviewer correctly points out that Akt-PH has similar apparent affinities for PI(3,4)P2 and PI(3,4,5)P3. Indeed, both phosphoinositides are known products of PI3K and both are known to mediate downstream signaling through phosphorylation of the protein kinase Akt. The Reviewer asked that we use the more specific PI(3,4,5)P3 probe Btk-PH to determine whether TRPV1-potentiation of NGF-induced PI3K activity produces PI(3,4)P2 or PI(3,4,5)P3.

We repeated our NGF signaling experiments using Btk-PH (fused to CFP) as a phosphoinositide probe. We found that expression of Btk-PH in our cells completely prevented the NGF-induced increase of TRPV1 to the plasma membrane (the data are now included in Figure 1—figure supplement 1). This is not surprising, as Btk-PH has been reported to interfere with PI3K signaling due to sequestration of PI(3,4,5)P3 (Varnai et al., 2005). Because Btk-PH blocked NGF signaling to TRPV1 in our system, we could not use it to test whether the increased phosphoinositide production in the presence in TRPV1-expressing cells compared to control cells was due to PI(3,4)P2 or PI(3,4,5)P3. The conclusion of our paper, that TRPV1 potentiates NGFinduced PI3K activity, is not affected by this result, although of course we are disappointed to be unable to fully satisfy the reviewer.

Although Btk-PH blocked NGF signaling to TRPV1, we did test whether it also blocked TRPV1 potentiation of NGF-induced PI3K activity. As shown Figure 1—figure supplement 1, Btk-PH indeed blocked this effect as well. Thus, Btk-PH blocked both parts of the reciprocal regulation among PI3K and TRPV1: it prevented PI3K signaling to increase trafficking of TRPV1 to the plasma membrane and it prevented TRPV1 signaling to enhance the activity of PI3K.

We have made several modifications to the manuscript to reflect the reviewer’s suggestions, including: the new data on Btk-PH are shown in Figure 1—figure supplement 1; Akt-PH is referred to as a PI(3,4)P2/PI(3,4,5)P3 probe; and citations of PI(3,4)P2 as a product of PI3K and a mediator of Akt phosphorylation are now included in the text.

2) My original request was to test the effect of wortmannin on the translocation of the Akt-PH domain, not that of TRPV1. Again, this is an extremely simple experiment, and would solidify the key finding.

We performed the requested experiment examining the effect of wortmannin on NGF signaling. We found that wortmannin (20 nM) prevented the NGF-induced translocation of Akt-PH to the plasma membrane and increased trafficking of TRPV1 in both control cells (Figure 2—figure supplement 2) and TRPV1-expressing cells (Figure 1C and D). These data are now discussed in the main text.

3) The authors forgot to delete the second half of the following sentence from the Abstract: "Further, other TRPV channels with conserved ARDs also potentiated NGF‐induced PI3K activity whereas TRP channels lacking ARDs did not." Also the effects of TRPV4 and TRPV2 on Akt-PH translocation look smaller than that induced by TRPV1, are the effects significantly different from TRPV1? I recommend that this is tested, and shown in Table 1 and mentioned in the Results.

We have made the requested revision in the Abstract. We now include statistical significance of Akt-PH translocation amplitudes with TRPV2 and TRPV4 compared to TRPV1 in Table 1. We now discuss these comparisons in the main text.

https://doi.org/10.7554/eLife.38869.024

Article and author information

Author details

  1. Anastasiia Stratiievska

    Department of Physiology and Biophysics, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5523-0773
  2. Sara Nelson

    Department of Physiology and Biophysics, University of Washington, Seattle, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Eric N Senning

    Department of Physiology and Biophysics, University of Washington, Seattle, United States
    Present address
    Department of Neuroscience, The University of Texas at Austin, Austin, United States
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Jonathan D Lautz

    Center for Integrative Brain Research, Seattle Children’s Research Institute, Seattle, United States
    Contribution
    Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Stephen EP Smith

    1. Center for Integrative Brain Research, Seattle Children’s Research Institute, Seattle, United States
    2. Department of Pediatrics and Graduate Program in Neuroscience, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Sharona E Gordon

    Department of Physiology and Biophysics, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    seg@uw.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0914-3361

Funding

National Eye Institute (R01EY017564)

  • Sharona E Gordon

National Institute of General Medical Sciences (R01GM100718)

  • Sharona E Gordon

National Institute of General Medical Sciences (R01GM125351)

  • Sharona E Gordon

University of Washington (Royalty Research Fund)

  • Sharona E Gordon

National Institute of Mental Health (R01MH113545)

  • Stephen EP Smith

National Institute of Biomedical Imaging and Bioengineering (T32EB001650)

  • Anastasiia Stratiievska

National Institutes of Health (S10RR025429)

  • Sharona E Gordon

National Institutes of Health (P30DK017047)

  • Sharona E Gordon

National Institutes of Health (P30EY001730)

  • Sharona E Gordon

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Mika Munari, Gilbert Martinez, Mark Bothwell, Bertil Hille, William Zagotta, Shao-En Ong, Tamara Rosenbaum and Gaby Bergollo for helpful discussions. We are grateful to the following individuals for providing cDNA constructs: Dr. Tim Plant (Charite-Universitatsmedizine, Berlin) for TRPV4; Dr. Mark Bothwell (University of Washington, Seattle) for TrkA and p75NTR; and Dr. Orion Weiner (UCSF) for PH-Akt.

Research reported in this publication was supported by the National Eye Institute of the National Institutes of Health under award numbers R01EY017564 (to SEG), by the National Institute of General Medical Sciences of the National Institutes of Health under award numbers R01GM100718 and R01GM125351 (to SEG), by the National Institute of Mental Health under award number R01MH113545 (to SEPS), by the National Institute of Biomedical Imaging and Bioengineering of the National Institutes of Health under award number T32EB001650 (to AS), by the following additional awards from the National Institutes of Health: S10RR025429, P30DK017047, and P30EY001730. and by a Royalty Research Fund Award from the University of Washington (to SEG). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. The authors declare no competing financial interests.

Senior Editor

  1. Richard Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Baron Chanda, University of Wisconsin-Madison, United States

Reviewer

  1. Tibor Rohacs, New Jersey Medical School, Rutgers, the State University of New Jersey, United States

Publication history

  1. Received: June 2, 2018
  2. Accepted: December 6, 2018
  3. Accepted Manuscript published: December 18, 2018 (version 1)
  4. Version of Record published: December 31, 2018 (version 2)

Copyright

© 2018, Stratiievska et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 613
    Page views
  • 142
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Rani Zananiri et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Jason Saba et al.
    Research Article Updated
