Structural principles of SNARE complex recognition by the AAA+ protein NSF

  1. K Ian White
  2. Minglei Zhao
  3. Ucheor B Choi
  4. Richard A Pfuetzner
  5. Axel T Brunger  Is a corresponding author
  1. Stanford University, United States
  2. Howard Hughes Medical Institute, Stanford University, United States
  3. University of Chicago, United States
Research Article
  • Cited 32
  • Views 2,678
  • Annotations
Cite this article as: eLife 2018;7:e38888 doi: 10.7554/eLife.38888

Abstract

The recycling of SNARE proteins following complex formation and membrane fusion is an essential process in eukaryotic trafficking. A highly conserved AAA+ protein, NSF (N-ethylmaleimide sensitive factor) and an adaptor protein, SNAP (soluble NSF attachment protein), disassemble the SNARE complex. We report electron-cryomicroscopy structures of the complex of NSF, αSNAP, and the full-length soluble neuronal SNARE complex (composed of syntaxin-1A, synaptobrevin-2, SNAP-25A) in the presence of ATP under non-hydrolyzing conditions at ~3.9 Å resolution. These structures reveal electrostatic interactions by which two αSNAP molecules interface with a specific surface of the SNARE complex. This interaction positions the SNAREs such that the 15 N-terminal residues of SNAP-25A are loaded into the D1 ring pore of NSF via a spiral pattern of interactions between a conserved tyrosine NSF residue and SNAP-25A backbone atoms. This loading process likely precedes ATP hydrolysis. Subsequent ATP hydrolysis then drives complete disassembly.

https://doi.org/10.7554/eLife.38888.001

Introduction

The archetypal Type II AAA+ protein NSF (N-ethylmaleimide-sensitive-factor) plays an essential role in eukaryotic trafficking through its disassembly of different SNARE (Soluble N-ethylmaleimide-sensitive factor attachment protein receptor) complexes (Zhao and Brunger, 2016). This process has been studied extensively in the context of neurotransmission, where synaptic vesicle fusion with the presynaptic membrane is driven by the formation of the ternary neuronal SNARE complex, an exceptionally stable four-helix bundle composed of syntaxin, synaptobrevin, and SNAP-25 (Fasshauer et al., 1998; Sutton et al., 1998; Weber et al., 1998). After fusion, NSF—together with several molecules of an adaptor protein, SNAP (Soluble N-ethylmaleimide-sensitive factor Attachment Protein)—binds to the cis SNARE complex, forming the so-called 20S complex and disassembles it in an ATP-dependent manner (Hanson et al., 1997; Mayer et al., 1996; Söllner et al., 1993; Zhao et al., 2015). The free SNARE proteins are then recycled and used for additional rounds of synaptic vesicle formation and fusion (Mancias and Goldberg, 2007; Miller et al., 2011; Mossessova et al., 2003). Moreover, together with Munc18 and Munc13, NSF and SNAPs are part of a quality control system that ensures proper trans SNARE complex assembly (Lai et al., 2017; Ma et al., 2013).

While the kinetics and specificity of NSF-mediated SNARE complex disassembly have been studied extensively (Cipriano et al., 2013; Matveeva et al., 1997; Söllner et al., 1993; Vivona et al., 2013), structural principles underlying SNARE complex recognition, docking, and disassembly have only recently begun to emerge. NSF is composed of an N-terminal domain (N) and two ATPase domains (D1 and D2). Crystal structures of the neuronal SNARE complex, SNAPs, and the NSF N and D1 domains have been determined (Lenzen et al., 1998; May et al., 1999; Rice and Brunger, 1999; Sutton et al., 1998; Yu et al., 1998), and a cryo-electron microscopy (cryo-EM) study revealed the quaternary structure of both substrate-free full-length NSF in the presence of ATP or ADP at near atomic resolution, as well as the structures of two different 20S complexes at 7 – 8 Å resolution (Zhao et al., 2015). Regardless of the nucleotide state or the presence of substrate, six NSF molecules form a two-layer ring structure. While the D2 ring is nearly perfectly six-fold symmetric in all structures determined thus far, the conformation of the D1 ring changes substantially depending on its nucleotide state. These conformational changes are likely related to those sampled during substrate processing; in the ADP-bound state, the D1 ring is in an open flat-washer conformation, while the ATP-bound D1 ring further separates and forms a split-washer conformation (Zhao et al., 2015). Structures of the 20S complex in the presence of the non-hydrolysable ATP analogue AMPPNP largely recapitulate the split-washer configuration of the D1 ring (Zhao et al., 2015). In the case of the 20S complex formed with the neuronal SNARE complex, the SNAREs are positioned nearly coaxially above the D1 ring, with the N-termini of the SNAREs in the vicinity of the D1 pore. This positioning is accomplished by the NSF N domains and αSNAP—depending on the particular SNARE complex, between two and four αSNAP molecules were present, surrounded by four to six N domains. Together, the N domains, αSNAPs, and SNAREs form a ‘spire’ on top of the D1 ring.

While these structures of substrate-free NSF and the 20S complex provided first insights into structure of the 20S complex and the conformational changes of NSF associated with the nucleotide state, they ultimately lead to questions about substrate recognition and the conformational cycle associated with NSF-mediated disassembly of the SNARE complex. In terms of substrate recognition, for example, the number of αSNAPs varied based on the particular SNARE proteins used—the structure of the V7-20S complex, composed of NSF, αSNAP, Vamp7, the full cytoplasmic region of syntaxin-1A including the Habc domain, and full-length SNAP-25A contained only two αSNAPs, whereas the structure of the 20S complex composed of NSF, αSNAP, the full cytoplasmic region of synaptobrevin-2, a cytoplasmic fragment of syntaxin-1A without the Habc domain, and the two SNARE motifs of SNAP-25A included four αSNAPs (Zhao et al., 2015). Moreover, a 20S complex composed of NSF, αSNAP, the full cytoplasmic region of syntaxin-1A including the Habc domain, and the two SNARE motifs of SNAP-25A also revealed four αSNAPs (Zhou et al., 2015a). However, in all of these 20S structures, the local resolution of the reconstructed maps did not permit assignment of the specific SNARE proteins in the density associated with the four-helix bundle. Furthermore, no interaction between the SNAREs and the D1 ring of NSF could be observed, leaving questions related to substrate recognition and processing unanswered.

Here, we present higher-resolution cryo-EM reconstructions of the 20S complex composed of NSF, αSNAP, the full cytoplasmic regions of synaptobrevin-2 and syntaxin-1A, and full-length SNAP-25A in the presence of ATP under non-hydrolyzing conditions. These new reconstructions reveal the interaction between the SNARE complex, the αSNAPs, and NSF in unprecedented detail and permits their contextualization in the disassembly process.

Results and discussion

3D classification identifies multiple conformational states for the 20S complex

The 20S complex was prepared in a manner similar to that described previously (Zhao et al., 2015) using hexameric NSF, αSNAP, and nearly full-length soluble neuronal SNARE complex. Two key changes were made, however. First, hexameric NSF was prepared in the presence of ATP instead of the slowly hydrolyzable analogue AMPPNP. Moreover, to prevent hydrolysis, Mg2+ was omitted from the buffer, and EDTA was included to remove any trace divalent cations (see Materials and methods). Second, the SNARE complex was prepared using the nearly full-length soluble portions of rat syntaxin-1A (residues 1–256) and synaptobrevin-2 (residues 1–89), with the C-terminal transmembrane segments omitted. Additionally, nearly full-length rat SNAP-25A (residues 1–204) was used in which the long, unstructured linker spanning the distance between the two SNARE motifs is present.

3D classification produced four classes, two of which (Classes II and IV) contain all components of the 20S complex, while Classes I and III are not well resolved. Refinement of the class that appears to have the best-resolved density for the entire 20S complex (Class IV) without symmetry restraints yielded two reconstructions of 20S complexes (FL-20S-1 and FL-20S-2 at 4.4 Å; Figure 1); each reconstruction reveals density for a 20S complex which differs from previous reconstructions in several key ways. As before (Zhao et al., 2015), clear density is present for all components of the 20S complex, albeit with interesting variations. Most importantly, a tube of density runs from the SNARE complex to the center of the D1 ring of NSF, suggesting direct engagement of substrate. To improve the detail of the reconstruction, focused refinement (see Materials and methods) was performed, in which all but the NSF D1 and D2 domains was masked; this approach yielded two classes of complexes with near-atomic resolution (FL-20Sfocus-1 and FL-20Sfocus-2, 3.8 Å and 3.9 Å, respectively) (Figure 1—figure supplement 1). The focused FL-20Sfocus-1 and FL-20Sfocus-2 classes show well-resolved density for a variety of features, including secondary structure and side chains (Figure 2). Models were built into the density starting from structures published previously (Zhao et al., 2015); all refinement statistics are summarized (Table 1).

Figure 1 with 3 supplements see all

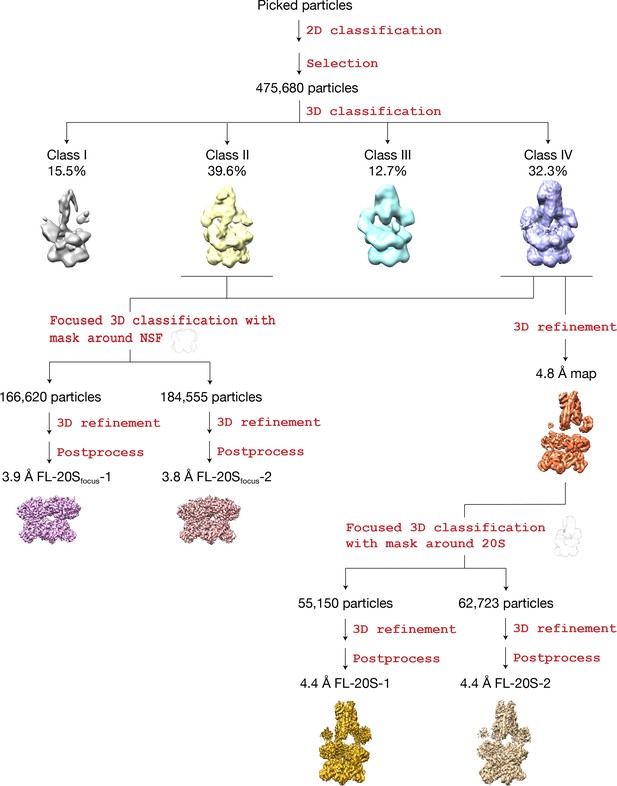

Flowchart of data processing.

After initial 2D classification, 475,680 particles were selected for 3D classification. Two out of the resulting four classes show significantly better features (Classes II and IV). Class IV shows clear density for N domains, SNARE complex, and αSNAP, while these features are weaker—but still present— in the case of Class II. Two refinement paths were thus taken (Materials and methods). The first path combined the two classes and focused on NSF, yielding two maps at 3.9 Å and 3.8 Å with different conformations at the pore loops. The second path focused on Class IV, which yielded two maps at 4.4 Å with different conformations for the SNARE and αSNAP subcomplex.

https://doi.org/10.7554/eLife.38888.002
Representative density for various features from the FL-NSFfocus-1 class, contoured at 4.8 σ.

(A) The α2 helix and pore loop of the protomer B D1 domain, with residues 290 – 320 shown. (B) The parallel β sheet from the protomer B D1 domain, composed of β strands 1 – 5. (C) The presence of the first 17 residues of SNAP-25A is supported by the FL-20Sfocus-1 density. Density is strongest for residues in the pore of NSF, while the first two N-terminal residues and residues beyond the C-terminus of R17 appear more conformationally heterogeneous.

https://doi.org/10.7554/eLife.38888.006
Table 1
Refinement statistics for each reconstruction and model.
https://doi.org/10.7554/eLife.38888.007

FL-20S-1FL-20S-2FL-20Sfocus-1FL-20Sfocus-2
Data acquisition:
MicroscopeFEI Titan KriosFEI Titan KriosFEI Titan KriosFEI Titan Krios
DetectorGatan K2 SummitGatan K2 SummitGatan K2 SummitGatan K2 Summit
Voltage (keV)300300300300
Electron dose (e- Å-2)58585858
Dose rate (e- sec-1 px-1)10101010
Pixel size (Å)1.311.311.311.31
Defocus range (µm)1.5–3.01.5–3.01.5–3.01.5–3.0
Refined particles475680475680475680475680
Reconstruction:
Final particles1666201845555515062723
Resolution (masked):
FSC, 0.5 (Å)6.36.04.44.2
FSC, 0.143 (Å)4.44.43.93.8
Resolution (unmasked):
FSC, 0.5 (Å)7.57.36.15.7
FSC, 0.143 (Å)5.85.34.24.2
Sharpening B-factor (Å2)–178.83–181.52–151.16–150.50
Model composition:
Total atoms73313730524550745348
Peptide chains111177
Protein residues4662464328542843
Refinement:
Unit cellP1P1P1P1
a, b, c (Å)301.30, 301.30, 301.30163.75, 146.72, 227.94145.41, 137.55, 117.9301.30, 301.30, 301.30
α = β = γ (º)90909090
CCmask0.770.770.800.78
Resolution (vs. model, masked):
FSC, 0.5 (Å)5.94.84.04.0
FSC, 0.143 (Å)4.13.93.63.5
Resolution (vs. model, unmasked):
FSC, 0.5 (Å)7.06.84.34.3
FSC, 0.143 (Å)4.34.23.83.8
RMS Deviations:
Bond lengths (Å)0.0100.0160.0150.009
Bond angles (º)1.3371.771.521.53
Ramachandran statistics:
Favored (%)95.8296.9499.6597.51
Allowed (%)3.902.820.312.16
Outliers (%)0.280.240.040.33
Validation:
Rotamer outliers (%)0.100.360.160.33
All-atom clashscore4.756.636.695.27
EMRinger score0.510.521.911.39
MolProbity score1.531.551.371.38

Structures of the ATP-bound 20S supercomplex position substrate for D1 engagement

In both FL-20S classes, the NSF D1 and D2 ATPase domains form a pair of stacked, hexameric rings, with N domains, αSNAP, and soluble neuronal SNARE complex forming a spire-like structure on top (Figure 3). Examination of the reconstructed density reveals features consistent with secondary structure and even side chains (Figure 3A). This enabled modeling of the majority of the 20S complex (Figure 3B). While the D2 ring is largely six-fold symmetric, the D1 ring forms an asymmetric split-washer in which the six D1 domains of protomers A–F undergo a rigid-body transformation in a spiral pattern (average rotation of 57.5° ± 1.0° about the principle axis), with each consecutive counter-clockwise step away from the domain closest to the D2 ring (protomer A). While the D2 domain of protomer F is clearly defined, density corresponding to its D1 domain is poor and not of sufficient quality to permit backbone tracing, implying substantial conformational heterogeneity. A rigid body fit of the equivalent protomer from the ATP-bound NSF structure published previously (Zhao et al., 2015) suggests a similar conformation for protomer F in which the domain sits at the top of the D1 helix, furthest from the D2 ring, with its pore loop relatively far from the substrate. Moreover, the small D1 subdomain of protomer F is rotated in a more pronounced fashion than those from the other protomers (Figure 4).

Figure 3 with 1 supplement see all

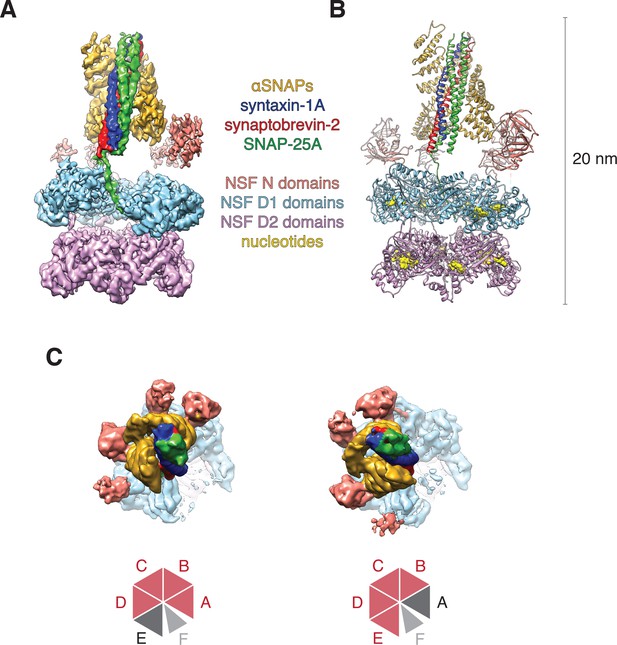

Architecture of the 20S complex, composed of NSF (N domains, salmon; D1 domains, cyan; D2 domains, purple), αSNAPs (gold), and the neuronal SNARE complex (syntaxin-1A, red; synaptobrevin-2, blue; SNAP-25A, green).

(A) Sharpened FL-20S-1 map contoured at 4.8 σ; N domains for NSF subunits A–D are visible at this threshold. (B) FL-20S-1 composite model, with nucleotides represented by yellow spheres. (C) The pattern of N domain engagement with the αSNAP/SNARE complex varies between the FL-20S-1 and FL-20S-2 classes; in the second class, the pattern of engagement shifts one protomer counter-clockwise about the hexamer axis. The bottom panels show schemas of the configurations. Despite changes in spire architecture, the split in the D1 ring is found between protomers A and F in both classes, with protomer A furthest from the viewer.

https://doi.org/10.7554/eLife.38888.008

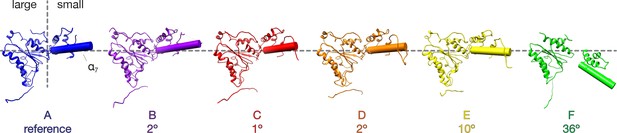

Comparison of NSF D1 small subdomain conformations in the FL-20S-1 model.

The large D1 subdomains of all protomers were superimposed, and angles were calculated between the small subdomain α7 helical axes of protomer A and protomers B-F. Superposition was performed on the large subdomain due to improved alignment. Protomers E and F show substantial angular deviations in comparison to the domains A-D, consistent with remodeling of the hinge region between the large and small subdomains.

https://doi.org/10.7554/eLife.38888.010

Regarding substrate loading, both FL-20S classes reveal a spire in which the N-terminal end of the SNARE complex is positioned over the D1 ring by two αSNAP molecules, each of which is in turn bound by two N domains (Figure 3A). Critically, and in contrast to previous studies, the map is of sufficient quality to permit explicit assignment of the four SNARE α-helices and thus the determination of the absolute orientation of the SNARE complex in the FL-20S complex (Figure 5A). Each helix is individually resolvable, and a rigid body fit of the structure of the crystal structure of the neuronal SNARE complex (Sutton et al., 1998) places it in an orientation which properly accounts for the curvature of the bundle. This assignment is corroborated by the presence of a low-resolution feature that approximately matches the position of syntaxin-1A F216 in the asymmetrical −3 layer of the SNARE complex (Figure 6). The other residues of this layer are synaptobrevin-2 M46, SNAP-25A G43 and A164 (Fasshauer et al., 1998). These reconstructions do not show any sign of intercalation by αSNAP residues into the SNARE complex as had been previously proposed based on a lower resolution reconstruction (Zhou et al., 2015a). The assignment of the SNARE complex components is also supported by sidechain densities of the N-terminal residues of SNAP-25A (Figure 2C) and by the presence of diffuse density consistent with the linker that connects the two SNAP-25A SNARE motifs (Figure 7). This study for the first time provides structural information about the location of the SNAP-25A linker, albeit at low resolution; although the weak density suggests that it samples multiple conformations, these data show that it is at least partially associated with the SNARE complex.

Two αSNAP molecules (blue, magenta) bind the full-length neuronal SNARE complex composed of SNAP-25A (green), syntaxin-1A (red), and synaptobrevin-2 (blue) at a well-defined orientation.

(A) Reconstructed density for the neuronal SNARE complex in the FL-20S-1 map, contoured at 7.1 σ. (B) Electrostatic surfaces for the αSNAPs (left) and SNARE complex (right) reveal a complementary pattern of positive and negative charge, respectively. Calculations were performed using APBS assuming 150 mM NaCl, with units in kT. (C) Comparison of N domain and αSNAP stoichiometry for the full-length (FL-20S-1) and truncated (T-20S-2) reconstructions as well as for the V7-20S reconstruction; T-20S-2 is the only complex to show four αSNAPs bound to the SNARE complex.

https://doi.org/10.7554/eLife.38888.011

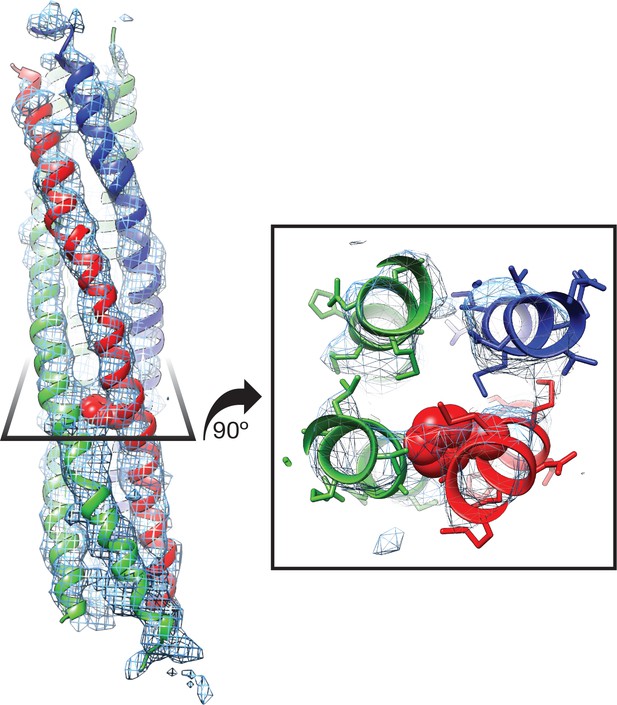

Side chain density at −3 layer corresponding to syntaxin-1A F216 supports SNARE complex orientation.

SNAP-25A (green), syntaxin-1A (red), and synaptobrevin-2 (blue) are shown with representative density from the FL-20S-1 reconstruction, contoured at 5.5 σ. F216 is shown as spheres, while nearby side chains are depicted as sticks.

https://doi.org/10.7554/eLife.38888.012

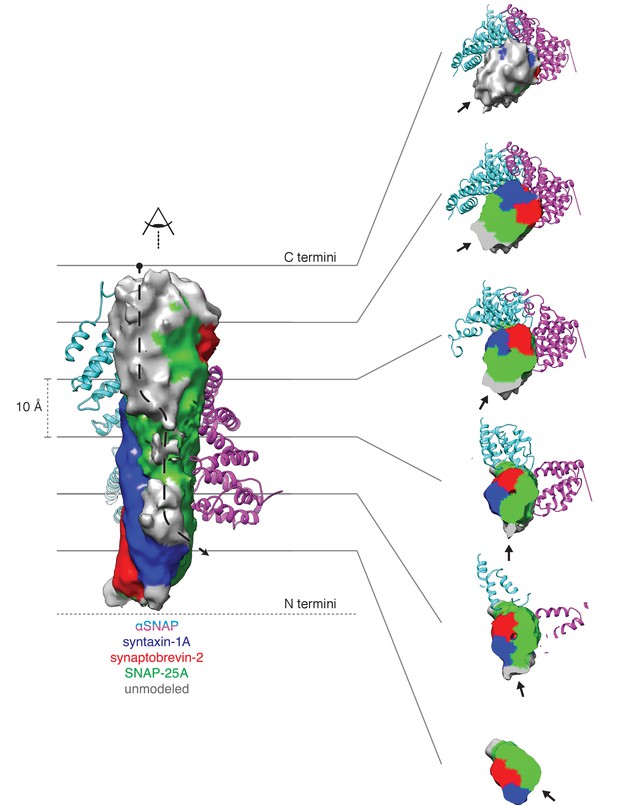

Density running along the solvent-exposed face of the SNARE complex is consistent with the presence of the linker that connects the two SNAP-25A SNARE motifs.

Surfaces are contoured at 2 σ and colored based on the identity of the nearest atom within 5 Å; green corresponds to SNAP-25A, blue to synaptobrevin-2, and red to syntaxin-1A. Grey surfaces indicate a surface further than 5 Å from any modelled atom. The two αSNAP molecules are depicted in cyan and magenta. The portion of the linker corresponding to the unmodeled density at the top C-terminal end (i.e., the membrane proximal region) of the SNARE complex includes four cysteines which are palmitoylated in vivo (Greaves et al., 2009; Hess et al., 1992); this modification promotes association with the plasma membrane during trafficking and enhances its association at the presynaptic membrane. A possible path from N- to C-terminal end of the linker is indicated by a dashed arrow (left). This path is also shown as a series of slices through the complex (right), with an arrow indicating the putative linker density. The relatively weak and diffuse density suggests that the linker is flexible and present in multiple conformations.

https://doi.org/10.7554/eLife.38888.013

Knowledge of the absolute orientation of the SNARE complex permits analysis of the interactions between the individual SNAREs and αSNAPs. The primary αSNAP interfaces are formed through electrostatic interactions between two positively charged αSNAP surfaces and a complementary, negatively charged surface formed by the SNARE motifs of synaptobrevin-2, syntaxin-1A, and the second SNARE motif of SNAP-25A (Figure 5B). This electrostatic surface distribution is highly conserved for all SNARE complex structures determined to date (Diao et al., 2015), suggesting a general principle for SNAP recognition. This SNARE surface is oriented away from the D1 pore; in contrast, the more neutral first SNARE motif of SNAP-25A is largely exposed, facing the D1 ring split.

While both FL-20S classes show clear density for the spire, its orientation varies by a discrete rotation (if viewed from the D1 end, counter-clockwise) about the hexamer axis as well as a slight translation in the hexamer plane away from the split in the D1 ring in each (Figure 3C). In the first class, protomers A and B engage one αSNAP, while protomers C and D engage the other (Figure 3C, left). In the second class, the N domain is shifted by one protomer counter-clockwise about the hexamer axis, with domains B and C engaging the first αSNAP and domains D and E engaging the second (Figure 3C, right). This difference results in a 53.2° rotation of the αSNAPs and SNARE complex about the hexamer axis. Despite the variation in spire configuration between these classes, there is little difference in the interaction between SNAP-25A and the D1 pore or in the overall configuration of the D1 and D2 domains of protomers A–E.

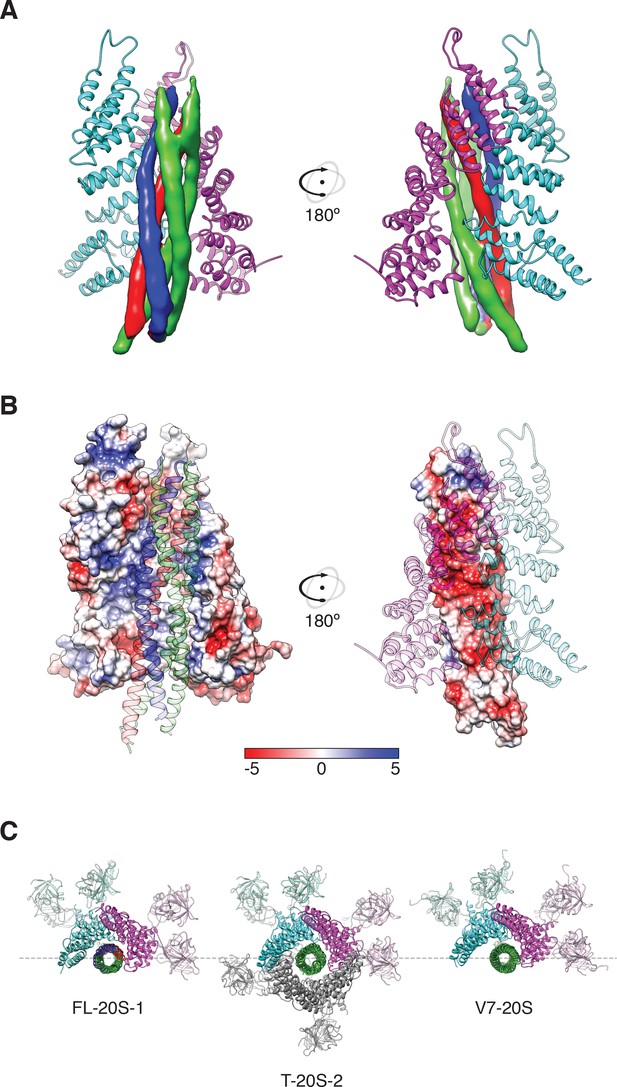

Comparison of FL-20S classes with the previous structures of the 20S complex prepared with truncated neuronal SNARE complex (T-20S) (Zhao et al., 2015) is also informative. The four T-20S structures published previously differed in the configuration of the spire architecture; six N domains were found in bound or free states surrounding four αSNAPs on the SNARE complex. The structures of FL-20S-1 and FL-20S-2 are most similar to that of T-20S-2 (PDB ID 3J97) and T-20S-3a, respectively, with the N domains of protomers A–D and B–E interacting tightly with two adjacent αSNAPs (Figure 3—figure supplement 1). Unlike the T-20S-2 structure, however, the density for the remaining N domains is too weak to model. While this core spire architecture is consistent between the FL-20S and T-20S-2 classes, superposition of the two common αSNAPs shows that the orientation of the SNARE complex axis relative to the D1 ring pore axis varies considerably (Figure 8). This difference likely arises from the differing length of the N termini present in the truncated and full-length SNARE complexes, as both the FL-20S and V7-20S spires are pushed off-axis relative to the D1 pore. This may arise through the flexibility of the linkers between the N and D1 domains. The stoichiometry of the spire structure also differs between classes. Previously, four αSNAPs were found associated with all T-20S complex classes (Zhao et al., 2015); in the case of the FL-20S reconstruction presented here, only two are present, similar to the structure of the V7-20S complex (Figure 3C).

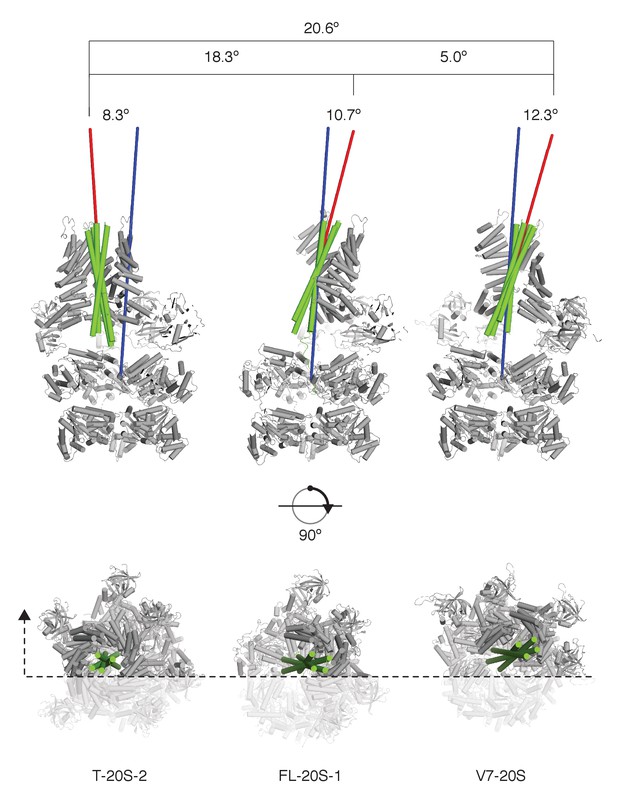

SNARE complex orientation varies across constructs.

The D1 domains of T-20S-2, FL-20S-1, and V7-20S structures were used to superimpose the rest of each model. SNARE complexes (green) are shown in green relative to the rest of each 20S complex (grey), with the viewing plane slicing through the center of the complex as indicated by a dashed line. Principle axes for each independent SNARE complex (red) and for all D1 domains (blue) are drawn, projecting out from the center of mass of each. The distances between the D1 center of mass and the SNARE complex center of mass, distances between the different SNARE complex centers of mass, angles between SNARE complex principle vectors and the D1 principle vector, and the angles between different SNARE complex principle vectors are shown.

https://doi.org/10.7554/eLife.38888.014

What could account for this difference in αSNAP stoichiometry? Both the V7-20S structure and the FL-20S structures were prepared using full-length SNAP-25A with a long, flexible linker spanning the length of the SNARE bundle and connecting the parallel SNAP-25A SNARE motifs. As mentioned above, density consistent with this linker runs along the solvent-exposed surface of the FL-20S SNARE complex from the C-terminus of the first helix to the N-terminus of the second (Figure 7). Density is strongest near the SNAP-25A helical ends and more diffuse towards the center of the SNARE bundle. The presence of this SNAP-25A linker likely interferes with binding by an additional pair of αSNAPs, an observation supported by gel densitometry as well (Choi et al., 2018). Furthermore, in all structures of 20S complexes with full-length SNAP-25A determined to date, two rather than four bound αSNAPs are observed. However, for SNARE complexes that do not contain a SNAP-25A linker such as the SNARE complex involved in vacuolar membrane fusion, the number of αSNAP molecules in the initial 20S complex may be higher (Lobingier et al., 2014). Moreover, additional αSNAP molecules may be engaged during the hydrolysis cycle (Shah et al., 2015).

Finally, and most important, density consistent with the N-terminal residues of SNAP-25A runs from the tip of the SNARE complex to the center of the D1 ring, where it assumes an extended conformation at a 61.0° angle relative to the plane of the D1 ring (Figure 3A). This interaction is preserved in the FL-20S-2 reconstruction as well, with a slight difference in the unstructured region of SNAP-25A running between the structured region of the SNARE complex and the D1 pore entrance. While it has been previously speculated that SNAP-25A is the SNARE complex member upon which NSF directly acts (Cipriano et al., 2013), this is the first direct structural evidence of such an interaction.

Atomic details of substrate loading

For both focused FL-20Sfocus-1 and FL-20Sfocus-2 reconstructions, the spires and N domains are weak but faintly visible in the unsharpened maps; FL-20Sfocus-1 appears similar in configuration to the FL-20S-2 class, with N domains from protomers B–E engaged with two αSNAPs, while FL-20Sfocus-2 is more similar to the FL-20S-1 class, with N domains from protomers A–D engaged instead. An additional difference between the two FL-20Sfocus classes is found in the relative position of the D1 ring relative to the D2 ring. Indeed, superposition of the FL-20Sfocus-1 and FL-20Sfocus-2 D2 rings shows that the D1 rings and substrates undergo a relatively subtle rigid body transformation relative to D2, with much of the difference arising from a shift in the location of D1 domain of protomer E and variation in the weak density for the D1 domain of protomer F (Figure 3C). Based on this observation and the non-hydrolyzing conditions under which the sample is prepared, the two conformations are likely coupled to the N domain configurations. Given the similarities between these classes, further discussion will focus on the FL-20Sfocus-1 structure.

How does NSF engage substrate, and how does its presence affect the structure of NSF? In the presence of ATP and the absence of substrate, the D1 domains of NSF are arranged in a spiral pattern, with the D1 domain of protomer A closest to the surface of its D2 domain and the D1 domain of protomer F at the top, furthest from the corresponding D2 domain (Figure 9A). A pore is formed in the center of the hexamer, with a highly conserved loop (i.e., the pore loop, 294–296, YVG) at the center. The SNAP-25A N-terminal residues are present within this pore in an extended conformation reminiscent of a β-strand with side chain density and close packing with NSF, enabling identification of the register in the density maps (Figure 2C). The presence of the SNAP-25A substrate leads to remodeling of the pore loops, with a majority of the conformational change arising through rearrangement of a highly conserved amino acid residue, tyrosine 294. In the absence of substrate, each tyrosine adopts a different conformation as assessed by comparison with the cryo-EM structure of NSF alone (Zhao et al., 2015), but in the presence of substrate, each tyrosine flips up and away from the pore axis, forming a spiral pattern (Figure 9A). In the case of protomers B–D, each tyrosine Cδ1 atom intercalates nonspecifically into every other space between amino acid side chains of the substrate and is engaged in a stereotyped hydrogen bonding interaction with the nearest substrate carbonyl (Figure 9C). When the D1 large subdomains are superimposed, the pore loop conformations of protomers B–E are nearly identical, while protomer A is relatively closer to the D2 ring (Figure 9B).

Figure 9 with 1 supplement see all

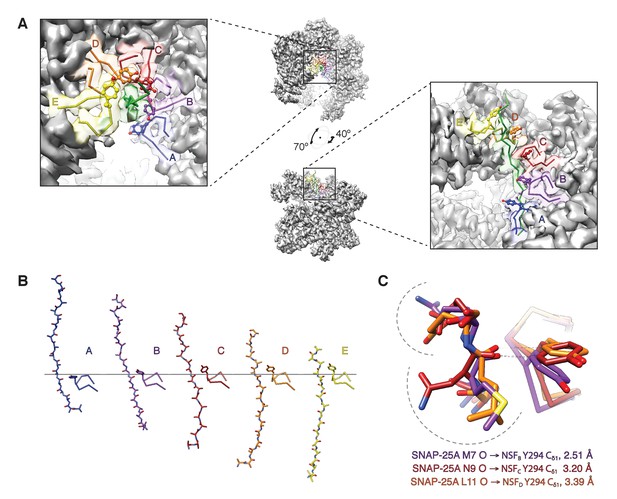

The NSF D1 pore loops guide the SNAP-25A N-terminus through the pore.

(A) The FL-20Sfocus-1 map, contoured at 4.8 σ, with the SNAP-25A N-terminus and NSF D1 pore loops shown in cartoon format, color coded by protomer. The Y294 side chains are shown as well. The NSF D1 pore loops form a spiral pattern of interactions with the substrate, wherein Y294 interacts with every other substrate residue. The final pore loop from protomer F disengaged. (B) Sequential engagement of SNAP-25A by NSF D1 pore loops on protomers A–E. Full side chains are omitted from the SNAP-25A for clarity. The D1 domains of protomers A–E were superimposed, revealing conformational changes in the pore loops themselves. Protomer A and E pore loops are less directly engaged with substrate, with the protomer A relatively closer to the SNAP-25A N-terminus than expected by symmetry. (C) Overlay of the D1 domain pore loops of protomers B–D reveal a set of stereotyped interactions between each Y294 Cδ1 and the carbonyl of SNAP-25A residue 7, 9, or 11, respectively. Side chains are positioned away from the intercalation point (dashed lines).

https://doi.org/10.7554/eLife.38888.015

Mechanistic implications of the FL-20S structure

We tested the functional role of the conserved tyrosine residue in the D1 pore. As is the case in other AAA+ proteins (Chang et al., 2017), disruption of this interaction decreases or eliminates disassembly activity. For NSF, a somewhat conservative pore loop mutation (Y294L) reduces disassembly of SNARE complex by 88% per unit time, while a more pronounced mutation (Y294A) reduces disassembly even further, by 94%—both significant changes relative to wild type (p<0.01) and, in the case of Y294A, nearly statistically indistinguishable from uninitiated reaction with wild type NSF (p=0.06; Figure 10). These mutations do not affect the intrinsic rate of ATP hydrolysis as measured by an ATPase activity assay (see Materials and methods; wild type, 28 ± 4 ATP min−1; Y294L, 26 ± 2 ATP min−1; Y294A, 31 ± 5 ATP min−1; p>0.05 for both), nor do they disrupt the formation of stable hexamer, suggesting that—as in other AAA+ proteins—the pore loops and the Y294 side chains in particular are essential to the mechanical action of NSF.

Figure 10 with 1 supplement see all

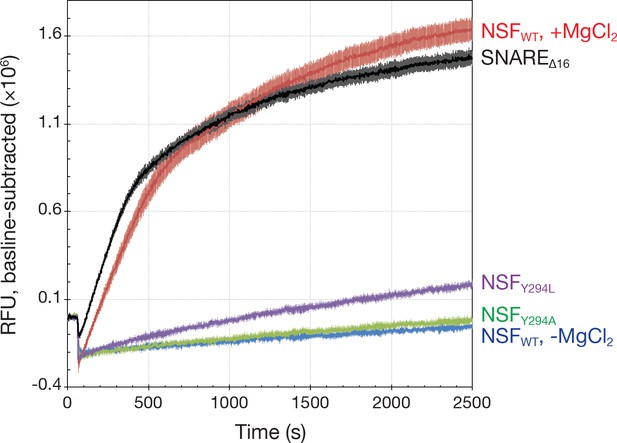

Kinetics traces measured using a fluorescence dequenching assay reveal the effects of pore loop mutations and the truncation of the 16 SNAP-25A N-terminal residues (SNAREΔ16) on disassembly activity.

Wild-type αSNAP was used throughout. For pore loop mutations and wild type controls, full-length soluble SNARE complex labeled with Oregon Green 488 was used as substrate. For testing disassembly of the SNAREΔ16 complex, wild type NSF was used. All reactions were triggered with the addition of MgCl₂. Each curve is the average of five or six replicates; error bars represent standard error about the mean. Mutation of Y294 reduces disassembly rate, while truncation of the SNAP-25A N-terminal residues increases it slightly.

https://doi.org/10.7554/eLife.38888.017

It is important to note that these observations are likely not specific to the substrate studied here, as NSF disassembles complexes composed of a variety of SNAREs with different N-termini, both native and engineered (Cipriano et al., 2013; Vivona et al., 2013). Although densities are visible that match the specific sequence of the SNAP-25A N-terminal residues used for the EM reconstructions of the FL-20S complexes (Figure 2C), the Y294 engagement pattern perhaps only depends on the presence of a simple β-strand. This suggests that, following αSNAP/SNARE binding, substrate engagement proceeds generically with intercalation between the N-terminal residues of SNAP-25A. Furthermore, the substrate is not threaded arbitrarily far, but instead assumes a unique register. Although binding to syntaxin-1A or synaptobrevin-2 seems unlikely given the large number of additional residues at either N-terminus, engagement of another SNARE component cannot be ruled out.

To assess the specificity of the system for the N-terminus of SNAP-25A, the disassembly assay was repeated using a mutant in which the first 16 acids were removed (SNAREΔ16 complex). Surprisingly, this truncation slightly increased the rate of SNARE complex disassembly in vitro by 15% as determined by fluorescence dequenching (p<0.01) (Figure 10) and SDS-PAGE (Figure 10—figure supplement 1). Given the size of the syntaxin-1A and synaptobrevin-2 N-terminal domains, SNAP-25A remains the likely candidate for engagement despite the truncated N-terminus. This result implies primary sequence promiscuity in disassembly and is consistent with previous observations in which NSF disassembles different SNARE complexes at similar rates (Cipriano et al., 2013; Vivona et al., 2013). More generally, this observed promiscuity supports the idea that NSF must disassemble a variety of SNARE complexes in different trafficking contexts in vivo.

The disassembly process likely proceeds without active engagement by a secondary pore loop in the D1 domain. In previous EM structures of NSF, this flexible secondary pore loop (residues 338–345, GSMAGSTG) in the large subdomain was unresolved (Zhao et al., 2015). Here, in the FL-20Sfocus classes, this loop is present in some subunits and packed to varying degrees against the substrate (Figure 9—figure supplement 1). Unlike the primary pore loop, this interaction appears degenerate; different loop residues contact substrate in various locations, suggesting a role in guiding the incoming substrate and/or preventing non-productive interactions with the interior surface of the D1 ring. This is in contrast to other AAA+ proteins, such as the homolog YME1, in which an additional tyrosine on the secondary pore loop also engages with substrate (Puchades et al., 2017).

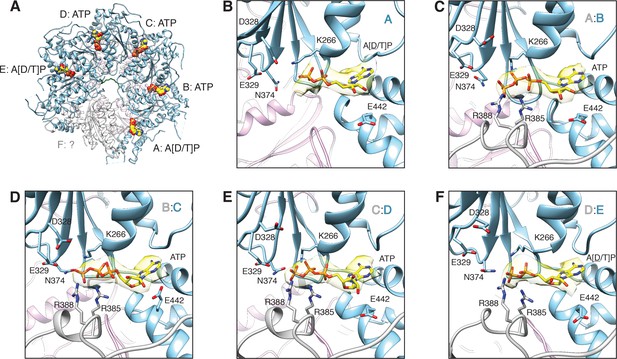

The nucleotide occupancies of the D1 ring in the FL-20Sfocus-1 and FL-20Sfocus-2 maps are consistent with a structure poised to disassemble substrate, in which protomers B–D are ATP-bound (Figure 11A, Figure 11—figure supplement 1), and key amino acids are in place to catalyze hydrolysis (Wendler et al., 2012) (despite the absence of Mg2+ under the non-hydrolyzing conditions of the sample preparation [Figure 11C–E]). Nucleotide densities associated with the D1 domains of protomers A and E are ambiguous (Figure 11B,F). If these densities correspond to ADP, the compound would have been present as a contaminant in the ATP used given the non-hydrolyzing condition of the sample preparation. However, another explanation for the ambiguous nucleotide density may relate to the lower resolution of the FL-20Sfocus-1 and FL-20Sfocus-2 maps for the A D1 domain nucleotide binding pocket and for the entire protomer E D1 domain (Figure 1—figure supplement 2). Furthermore, despite possible differences in nucleotide states for protomers A and E, few structural differences are apparent relative to D1 protomers B–D. Protomer E does show some limited conformational changes to the intersubunit signaling (ISS; 359–361, DGV) motif. Finally, weak density for protomer F is consistent with a nucleotide-free state as observed in the ATP-bound, substrate-free cryo-EM structure of NSF (Zhao et al., 2015), but nucleotide may nevertheless be present. The D1 ring is quite similar to that this structure (D1 all-atom RMSD = 1.2 Å2; PDB 3J94). While the substrate-bound structure is slightly more expanded about the D1 axis, conformations of essential ATPase elements—for example, the arginine fingers, Walker A/B motifs—are similar overall.

Figure 11 with 1 supplement see all
FL-20Sfocus-1 D1 domain nucleotide state varies as a function of protomer identity.

(A) Overview of the D1 ring nucleotide state. D1 domains of protomers B–D (blue) bind ATP while the D1 domains of protomers A and E show ambiguous density. The D1 domain of protomer F from the ATP-bound structure of substrate-free NSF (white) was placed by superposition of D1 rings. Substrate (green), and the D2 ring (purple) are shown for reference. (B–F) Nucleotide (yellow) and the nucleotide binding site are shown for each D1 domain. The preceding D1 protomer is also shown (grey). Nucleotide density is contoured at 4.8 σ. In each case, the Walker A motif (p-loop; residues 260–267, including K266) largely coordinates binding. A pair of arginine side chains (R385, R388) from the preceding protomer serve as the arginine fingers and contribute to nucleotide coordination as well. Several essential residues from sensor 1 (N374) and 2 (E442) motifs are also shown. The acidic residues of the Walker B motif (residues D328 and E329 from residues 324–329) are disengaged from the active site in the absence of a magnesium ion.

https://doi.org/10.7554/eLife.38888.019

Relationship to other AAA+ proteins and models for SNARE substrate loading and subsequent processing

Structures of a number of related AAA+ proteins engaged with protein substrate are available—VAT (Ripstein et al., 2017), HSP104 (Gates et al., 2017), ClpB (Deville et al., 2017), Vps4 (Han et al., 2017), YME1 (Puchades et al., 2017), and TRIP13 (Alfieri et al., 2018). As in the case of NSF, each structure shows substrate engaged by ATPase pore loops at the center of a spiral-shaped hexamer. These pore loops are distinguished by the presence of an apical aromatic amino acid—tyrosine or tryptophan—which intercalates into every other space between side chains of the substrate, gripping it and helping to maintain it in an extended β-strand conformation within the pore. The recurrent observation of this structural pattern has led to the proposal of a processive, ‘hand-over-hand’ model for translocation in AAA+ in which substrate is presumably pulled further into the pore in a coordinated manner with hydrolysis of ATP. This hydrolysis then leads to changes in the angle between large and small subdomains, effectively moving the seam of the hexamer around the ATPase ring.

Based on our structures, we propose that this generalized hand-over-hand model is consistent with initial substrate loading in the absence of hydrolysis. Indeed, in the absence of Mg2+, NSF-mediated disassembly of SNARE complexes was not observed by multiple independent assays (Figure 10). This observation suggests that catalysis is not required for initial engagement of substrate. More generally, our proposal of hydrolysis-free substrate loading is also corroborated by the other structures of AAA+ proteins noted above, where only very limited or no nucleotide hydrolysis could have occurred. In the case of ClpB (Deville et al., 2017), Hsp104 (Gates et al., 2017), and TRIP13 (Alfieri et al., 2018), the slowly hydrolyzable analog ATPγS was used and was observed throughout each AAA+ ring, with TRIP13 as the exception lacking nucleotide density for protomer F. Catalytically inactive mutants were used for the structures of TRIP13 and ClpB. The structure of Vps4 (Han et al., 2017) was determined in the presence of ADP•BeFX; ADP was observed in protomers A and B, ADP•BeFX was found in protomers C–E, and protomer F was apparently nucleotide free. Finally, in the case of YME1, the structure of a catalytically inactive mutant was determined in the presence of ATP, although protomer F was observed in an apo-like state and protomer A appeared bound to ADP. In summary, no related, catalytically active AAA+ protein structure has thus far been determined in the presence of substrate under hydrolyzing conditions. As such, it is important to distinguish between a docked, pre-disassembly configuration of a AAA+-substrate complex and an as-of-yet unobserved series of transition states associated with translocation and disassembly.

So, how could such a loaded state form in the absence of hydrolysis? Consider the case of SNAP-25A engagement by NSF. Given a newly formed 20S complex, some initial threading or even substrate unfolding might occur in the absence of hydrolysis. This notion is supported by the observation that the binding of the SNAP-25A N-terminal residues likely involves a conformational change because the SNAP-25A N-terminal residues are otherwise α-helical starting at residue seven as assessed by a crystal structure lacking crystal packing contacts in this region (PDB ID 5W5D) (Zhou et al., 2015b); these same residues are extended in the FL-20S complexes (Figure 3). If this unfolding occurs at the same time as interaction with NSF, it might be driven by the formation of favorable interactions between the pore loops and the substrate. Alternatively, some degree of ‘side-loading’ could take place. Given the conformational heterogeneity observed for the large subdomain of the final, highest protomer F of the D1 ring—which does not engage the substrate—and the solvent-oriented configuration of the lowest (first) protomer A, it is plausible that breathing motions of the ring might allow the substrate to pass into the pore at the seam.

It is likely that loading of the SNARE substrate by the D1 pore of NSF would be an important factor to stimulate ATPase activity (Cipriano et al., 2013). Upon subsequent ATP hydrolysis, the SNARE substrate could be further threaded into the D1 pore, although complete threading is unlikely as the D2 domain pore is occluded in both ATP- and ADP-bound states (Zhao et al., 2015) and palmitoylation anchors SNAP-25A to the membrane following its first SNARE motif (Greaves et al., 2009; Hess et al., 1992). As such, ATP hydrolysis and large-scale rearrangement of the D1 domains would also impose a force on the N domains of NSF and the attached αSNAP molecules. The combined effect of the N domains and αSNAPs in conjunction with the D1 pore interactions could impose additional shearing force or drive an unwinding process as well (Zhao et al., 2015). More work will be required to test these hypotheses.

Conclusions

Together, the structures of the 20S complex presented here reveal key pre-disassembly states of the 20S complex, in which several degenerate configurations of αSNAPs and NSF N domains position the SNARE complex for engagement by the highly conserved tyrosine residues on the NSF D1 pore loops under non-hydrolyzing conditions. Despite the variable participation of different N domains about the NSF hexamer, the 2:1 αSNAP:SNARE complex interface is preserved, revealing what is likely a conserved, core electrostatic interaction required for the general formation of the 20S complex. More important, these structures provide evidence for loading of the full-length neuronal SNARE complex via the N-terminal residues of SNAP-25A. Complete disassembly could then proceed through further translocation of the N-terminus of SNAP-25A. Such translocation would exert a pulling force on the remaining membrane-anchored SNAP-25A, likely destabilizing interactions with syntaxin-1A and synaptobrevin-2. Finally, the conditions under which the 20S complex was prepared in addition to the observed nucleotide state of these structures is consistent with—but not direct evidence of—a two-step disassembly mechanism in which the SNARE protein is loaded passively prior to hydrolysis and disassembly. Future studies of conformational intermediates will be essential in testing these models and for exploring possible roles for αSNAP in disassembly.

Materials and methods

Protein expression and purification

Request a detailed protocol

Wild type and mutant (Y294A, Y294L) NSF from the Chinese hamster C. griseus was expressed in BL21(DE3)-RIL E. coli and purified as described previously (Zhao et al., 2015), with final reassembly of hexameric NSF in a buffer composed of 50 mM Tris pH 8.0, 150 mM NaCl, 1 mM EDTA, 1 mM ATP, and 1 mM TCEP. Rat αSNAP was expressed in E. coli and purified as described previously (Cipriano et al., 2013). Soluble rat neuronal SNARE complex for the cryo-EM studies (wild-type SNAP-25A 1–204, syntaxin-1A 1–256, and 6×His-synaptobrevin-2 1–89) and for the disassembly assay (wild-type SNAP-25A 1–206 or SNAP-25Δ16 17–206, syntaxin-1A 1–265, and 6×His-synaptobrevin-2 1–96) were co-expressed in C41 E. coli and purified as described previously (Cipriano et al., 2013). The 20S supercomplex was formed by mixing ATP-bound NSF, αSNAP, and SNARE complex to a ratio of 1:10:2 under non-hydrolyzing conditions in 50 mM Tris pH 8.0, 150 mM NaCl, 1 mM EDTA, 1 mM ATP, and 1 mM TCEP, and then purified by size-exclusion chromatography using a Superdex 200 10/300 GL column, where the first peak to elute was collected and concentrated to around 15 mg mL−1 for cryo-EM analysis.

Grid preparation and sample vitrification

Request a detailed protocol

Quantifoil R1.2/1.3 200 mesh copper grids (Quantifoil Micro Tools GmbH, Germany) were treated with chloroform for 1 hr and dried overnight. Grids were not glow discharged. Prior to freezing, Nonidet P-40 was added to fresh 20S supercomplex to a final concentration of 0.05% v/v as described previously (Zhao et al., 2015) to prevent aggregation and enrich for side-views. 2.5 μL volumes were then transferred to grids, blotted for 3–4 s, and plunge frozen in liquid ethane using an FEI Vitrobot (ThermoFisher Scientific, USA).

Cryo-EM data collection

Request a detailed protocol

Cryo-EM data were collected at the Janelia Research Campus cryo-EM facility. Grids were transferred to an FEI Titan Krios (ThermoFisher Scientific, USA) operated at 300 kV. Images were recorded on a Gatan K2 Summit direct electron detector operated in super-resolution counting mode following an established dose fractionation data acquisition protocol (Li et al., 2013). The dose rate on the detector was set to be ~10 electrons per pixel per second. The total exposure time was 10 s, leading to a total accumulated dose of 58 e-2 on the specimen. Dose-fractionated images (40 frames) were recorded using SerialEM (Mastronarde, 2003). Defocus values ranged from −1.5 to −3.0 µm. Detailed information is summarized in Table 1.

Image processing

Request a detailed protocol

Super-resolution counting images were 2 × 2 binned and motion corrected using MotionCorr2 (Li et al., 2013). Defocus values and the contrast transfer function were determined for each micrograph using Gctf (Zhang, 2016). Subsequent processing was performed using RELION (Scheres, 2012). A map of the 20S supercomplex from the previous study (Zhao et al., 2015) was used as the initial model. No symmetry was assumed throughout the entire process. Detailed information is summarized in Table 1. The classification and refinement workflow are summarized in Figure 1. Briefly, after initial 2D classification and cleaning, a total of 475,680 particles were subjected to 3D classification. Different numbers of classes were tried (3–5), but the results were similar—two classes with well-defined density of the entire 20S complex were identified, one with a less well-resolved spire (Figure 1; Class II) and the other with well-resolved spire (Figure 1; Class IV). In order to better resolve the ATPase rings of NSF, Classes II and IV were combined and further classified using a mask around the D1 and D2 domains. Different numbers of classes were tried, but two different conformations always emerged. These were refined, yielding two maps with resolutions of 3.9 Å and 3.8 Å, called FL-20Sfocus-1 and FL-20Sfocus-2 (Figure 1). Class IV alone was refined to a map of 4.8 Å with well-resolved spire density. With further classification using a tighter mask around the 20S complex, Class IV could be divided into two classes with different conformations (FL-20S-1 and FL-20S-2) and refined to two maps of 4.4 Å resolution, respectively. Other combinations were also tried, but the results always supported two conformations with similar or slightly worse resolution. Focused refinement of the spire was attempted but proved unsuccessful.

NSF model building and refinement

Request a detailed protocol

All model building and manual refinement was performed using Coot (Emsley et al., 2010), and automated refinement was carried out using phenix.real_space_refine (Adams et al., 2010; Afonine et al., 2018). No symmetry restraints were imposed at any stage of refinement. Initial models of FL-20Sfocus-1 and FL-20Sfocus-2 were prepared by performing rigid body fits of D1 and D2 domains from the structure of substrate-free, ATP-bound NSF published previously (PDB ID 3J94) (Zhao et al., 2015) into sharpened maps. A round of manual model-building was then performed to correct large-scale differences in structure and to extend the model into newly resolvable regions. Automated real space refinement (global minimization, local grid search, ADP refinement) was then performed without secondary structure or Ramachandran restraints. Next, nucleotides and the SNAP-25A 17 N-terminal residues as well as previously unresolved regions of NSF (Zhao et al., 2015) were built de novo using Coot. Further automated refinement was performed with secondary structure restraints added.

At this stage, Ramachandran statistics converged to a point where the fraction of residues in the favored region was abnormally low (~80%) despite generally good geometry otherwise. To improve these statistics, Ramachandran restraints were introduced, but the default settings did not improve the models. phenix.real_space_refine offers two target functions, emsley and oldfield; the details of these implementations are discussed elsewhere (Headd et al., 2012). Both approaches rely on several empirically-determined weights which are currently not optimized on a per-refinement basis by phenix.real_space_refine.

To improve the Ramachandran statistics and geometry of the models, a two-parameter grid search of real space refinements was performed in which 3–5 macrocycles of global minimization and local grid search were performed in the presence of secondary structure restraints. First, a grid refinement search was performed for both target functions with around 1000 refinements each. For the emsley target function, rama_weight and scale_allowed were varied from 0.01 to 300; for the oldfield target function, a grid of refinements was performed over plot_cutoff values from 0.01 to 1.0 and weight_scale values from 0.1 to 300. Results were judged empirically and based primarily on a balance between CCmask and a minimal fraction of residues flagged by the program CaBLAM (Richardson et al., 2018) because focusing on the fraction of residues with favored CCmask and Ramachandran statistics alone often resulted in unrealistic models with serious problems (Figure 12, Table 2).

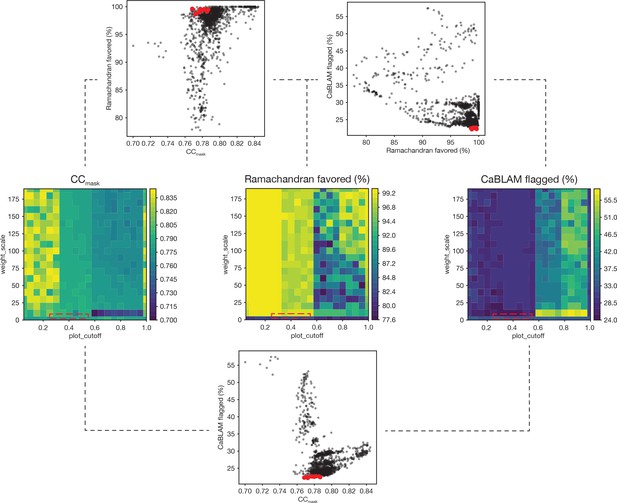

Summary of a 1,306-point refinement grid search.

CaBLAM scores were used to guide the enforcement of Ramachandran restraints. At several points during the iterative refinement of the final FL-20Sfocus models, Ramachandran restraints were imposed using the Oldfield target function (Oldfield, 2001) as implemented in phenix.real_space_refine (Adams et al., 2010; Headd et al., 2012). A grid of refinements with different values of the parameters weight_scale and plot_cutoff were performed; the results are visualized as surfaces for three key diagnostic parameters—CCmask, Ramachandran fraction favored, and the total fraction of residues flagged by CaBLAM analysis (i.e., the total fraction of residues flagged as either outliers, disfavored, or severe) (Richardson et al., 2018). The value of plot_cutoff largely sorts results into three matching regions for each metric, while the value of weight_scale is less predictive. The ten refinements with the lowest CaBLAM scores were further examined, and one model was chosen for subsequent manual and automated refinement. The boxes (dashed lines) on the surface plots illustrate the regions from which these models were found in parameter space. Scatter plots reveal the relationships between CCmask, Ramachandran fraction favored, and CaBLAM fraction flagged; the top ten refinements as identified by CaBLAM are shown (red points).

https://doi.org/10.7554/eLife.38888.021
Table 2
Refinement statistics for the ten models out of 1306 with the lowest fraction of residues flagged by CaBLAM (see Figure 12).

The model corresponding to plot_cutoff = 0.30 and weight_scale = 2.51 (row highlighted in red) was chosen for further rounds of refinement based on good overall geometry and a minimal number of twisted residues.

https://doi.org/10.7554/eLife.38888.022
Oldfield
plot_
cutoff
Oldfield
weight_
scale
CaBLAM
flagged
(%)
CCmaskClashscoreBonds
RMSD
(Å)
Angles
RMSD (º)
Ramachandran
outliers (%)
Ramachandran
allowed (%)
Ramachandran
favored (%)
Rotamer
outliers (%)
cis-
general
(%)
twisted
general
(%)
Chirality RMSDDihedral RMSD (º)
0.304.2117.380.7693.260.0051.06800.3199.690.1202.000.08912.159
0.303.7117.580.7653.090.0041.06400.2799.730.1602.030.08812.322
0.205.2117.640.77330.0061.06600.2499.760.1201.350.0912.253
0.254.3117.710.7783.430.0071.10200.4599.550.1201.640.09112.498
0.303.8117.750.7743.580.0061.08500.4199.590.1601.930.0912.44
0.305.2117.850.7913.850.0121.28300.4599.550.3602.500.10513.306
0.304.3117.880.7883.830.0111.24700.5299.480.1602.140.10213.096
0.254.9117.910.7833.730.0081.1400.3899.620.1601.820.09412.795
0.254.2117.910.7853.660.011.17400.4599.550.0801.640.09612.712
0.207.1117.910.7763.450.0061.09500.199.90.1601.750.09112.258

While optimal weights depended somewhat on the input model, several trends emerged. First, given the parameters supplied, the oldfield method was found to perform better than the emsley method. The oldfield potential consistently produced models with both good overall geometry and a Ramachandran fraction favored >98%; in addition, no reduction in CCmask was observed relative to the input model. Typically, plot_cutoff was on the order of 0.1–0.5, and weight_scale was on the order of 0–10. On the contrary, the emsley method failed to produce any models with a fraction favored >94%, and no models with acceptable geometry were identified with a fraction favored >92%. While bond length RMSDs were often adequate for emsley models with a fraction favored >92%, bond angle RMSDs were unacceptably large. Finally, these models fit the data more poorly than the best oldfield models, with CCmask generally a few percent worse for models with a fraction favored >90%. These results are likely method- (i.e., X-ray vs. electron), model-, and resolution-specific; scripts for performing this refinement protocol are provided.

This approach produced models with improved Ramachandran statistics and geometry (Tables 1 and 2). Model quality was assessed using MolProbity (Davis et al., 2007). In general, this approach introduced additional cis and twisted peptides which were then resolved manually.

Rigid body refinement in phenix.real_space_refine was then used to place FL-20Sfocus-1 and FL-20Sfocus-2 models (Zhao et al., 2015) into unsharpened FL-20S-1 and FL-20S-2 density, respectively. In both FL-20S-1 and FL-20S-2 classes, a single copy of the crystal structure of the neuronal SNARE complex (PDB 1SFC) (Sutton et al., 1998), two copies of an αSNAP homology model derived from a crystal structure of Sec17 (Rice and Brunger, 1999; Zhao et al., 2015), and four copies of the N domain (PDB 1QCS) (Yu et al., 1999) were placed, and rigid body minimization was performed against unsharpened maps. The 16 residue N-terminal end of SNAP-25A was then manually extended to join the neuronal SNARE complex. Finally, the nucleotide states of the protomer A and E D1 domains are ambiguous; corresponding densities were modeled as ADP in the deposited coordinate files due to a lack of strong γ-phosphate signal.

Figures were prepared either with PyMOL (The PyMOL Molecular Graphics System, version 2.0.2 Schrödinger, LLC.) or UCSF Chimera (version 1.12). Chimera is developed by the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco (supported by NIGMS P41-GM103311). Electrostatic surfaces were calculated using APBS (Baker et al., 2001) as implemented in UCSF Chimera. Volume segmentation was performed using Segger 1.9.4 as implemented in UCSF Chimera (Pintilie et al., 2010).

Fluorescence dequenching assay of NSF-mediated disassembly of SNARE complex

Request a detailed protocol

The details of the fluorescence dequenching assay have been previously described (Choi et al., 2018; Cipriano et al., 2013; Vivona et al., 2013; Zhao et al., 2015). Purified soluble rat neuronal SNARE complex was mixed with a 20-fold molar excess of thiol-reactive Oregon Green 488 maleimide dye and nutated overnight at 4°C. The next day, excess dye was removed by buffer exchange and protein was concentrated, flash frozen, and stored at −80°C.

Fluorescence dequenching assays were carried out using a FlexStation II 384-well plate reader (Molecular Devices) with a final reaction volume of 60 μL. All conditions were assayed at the same time with five or six replicates for each. All reactions were carried out in reaction buffer composed of 20 mM Tris pH 8, 100 mM NaCl, 2 mM ATP, and 0.5 mM TCEP. The assay plate was first prepared by adding 50 μL of 60 nM NSF (either wild-type, Y294A mutant, or Y294L mutant), 2.4 μM αSNAP, 480 nM OG-labeled wild type or SNAREΔ16 complex in reaction buffer to each well. Then, 100 μL of reaction buffer (as a control) or ATP hydrolysis initiation buffer (reaction buffer supplemented with 24 μM MgCl2) was added to appropriate wells of the compound plate. A program was run to monitor fluorescence dequenching. Excitation was performed at 485 nm, and emission was monitored at 525 nm with a dichroic mirror set at 515 nm. First, fluorescence intensity was monitored prior to reaction initiation for 60 s. Then, 10 μL of compound plate solution was transferred to each well of the assay plate (diluting all protein 5/6-fold and MgCl2 concentrations six-fold) and triturated once to initiate the disassembly reaction. Final protein concentrations following mixing were 50 nM NSF, 2.0 μM αSNAP, and 400 nM OG-labeled wild type SNARE or SNAREΔ16 complex. The final MgCl2 concentration was 4 mM. Dequenching was then monitored for 30 min at 20°C. Linear regression over the first several minutes was performed to estimate relative rates of disassembly. Statistical significance of changes to disassembly rates was assessed using the two-tailed Student’s t-test.

Intrinsic NSF ATPase activity assay

Request a detailed protocol

The intrinsic rate of ATP hydrolysis by NSF was measured using a photometric assay that monitors the conversion of NADH into NAD+ through pyruvate kinase and lactate dehydrogenase at 340 nm; the details of this assay have been published previously (Nørby, 1988; Vivona et al., 2013). Reactions were performed simultaneously in a Cary 100 UV-Vis spectrophotometer maintained at 37°C. First, a solution containing 24 nM NSF (wild-type, Y294A, or Y294L) was prepared in reaction buffer composed of 50 mM Tris pH 8.0, 4 mM MgSO4, 2 mM ATP, 3 mM phosphoenolpyruvate, and 2.1% v/v pyruvate kinase/lactic dehydrogenase enzymes from rabbit muscle (Sigma P0294). Reference solutions with regeneration components only with and without NADH were also prepared. Solutions were added to cuvettes and brought to 37°C, and absorbance was monitored at 340 nm. The rate of NADH loss was calculated from the slope of the absorbance trace and was directly converted to the equivalent rate of ATP hydrolysis.

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of Coot
    Acta Crystallographica Section D Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Mastronarde DN
    (2003)
    SerialEM: a program for automated tilt series acquisition on tecnai microscopes using prediction of specimen position
    Microscopy and Microanalysis 9:1182–1183.

Decision letter

  1. Andrea Musacchio
    Senior Editor; Max Planck Institute of Molecular Physiology, Germany
  2. Sriram Subramaniam
    Reviewing Editor; National Cancer Institute, United States
  3. Gabriel C Lander
    Reviewer; The Scripps Research Institute, La Jolla, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for your submission of your manuscript entitled "Structural principles of SNARE complex recognition by the AAA+ protein NSF." Your manuscript was reviewed by three independent reviewers, who all agreed that the work represented a significant advance in this field, especially as related to the discovery of the organization of the SNARE helices relative to the NSF D1 ring and potential mechanistic insights into SNARE disassembly. Sriram Subramaniam served as the Reviewing Editor for the manuscript. The following individual involved in review of your submission has agreed to reveal his identity: Gabriel C Lander (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

A number of concerns emerged from the review, as noted below. These concerns would need to be addressed in a revised version in order for this manuscript to be acceptable for publication in eLife.

1) A principal concern is with the assignment of nucleotide states in the structure. The authors state that the generalized "hand-over-hand" mechanism of translocation holds true for NSF, but the assigned nucleotide states at either side of the "seam" subunit (F) are not consistent with this mechanism. The generalized model posits that subunit F, which has released substrate and nucleotide, would be the next protomer to bind ATP and assume the uppermost position in the staircase (represented by E). Thus, the D:E pocket should have a much higher affinity for ATP than ADP, so it is unclear why a contaminating ADP would be bound at this pocket. The authors mention that the nucleotide density at the D:E pocket corresponds to an ADP or mixed state nucleotide, but it's unclear from the orientation presented in Figure 11C that this is the case. Have the authors checked to see if an ATP can be accommodated within the density? It looks as though R385 and 385 of subunit D are in close proximity to the phosphates, which would be more consistent with an ATP, rather than an ADP.

2) Second, according to the hand-over-hand mechanism, subunits E, D, C, B should contain ATP, with their pore loops closely associated with substrate. Hydrolysis would occur in the lower-most subunit, in the F:A pocket, and the substrate interactions are lessened as a result. Even though ATP hydrolysis has been prevented in the purification of this complex, it is surprising to see an ATP in this pocket, when other (hydrolysis deficient and analog-bound) AAA+ ATPases have observed ADP in this corresponding site. How confident are the authors of the nucleotide states in these pockets? An expanded discussion concerning these deviations from previously observed nucleotide states, and hydrolysis mechanism is necessary to clarify this point.

3) The authors suggest that the map has density for the SNAP-25 linker, but the presentation in Figure 7 is unclear. This requires either additional labels or perhaps another representation that captures this result.

4) Is there a clear correspondence between the states of the 20S observed in this study (e.g. in Figure 3C) and the four states observed in the authors' earlier (2015) study of 20S with AMPPNP?

5) The authors also state, qualitatively, that R385 and 385 of subunit E (in the E:F pocket) are "somewhat retracted". What exactly does this mean? Is it supported credibly by the cryo-EM density?

6) The EM density for the ATP binding pockets in Figure 11 should be shown with the inclusion of the surrounding EM density to give a better sense of the quality of the density. The authors have "zoned" the EM density surrounding the nucleotide, a strategy that can be misleading in conveying the actual local quality of the map. Density for all 6 nucleotide pockets should be shown.

7) It is not clear why focused analysis of the spire region was not done. This would enable the authors to expand on the αSNAP-SNARE interactions, which are limited to superficial observations about complementary electrostatics of the surfaces. If such analyses were indeed performed and did not yield any improvements then this should be mentioned in the text. Further, the authors indicate that D1 and D2 rings within the two FL-20Sfocus classes are in the same conformations, but slightly separated from one another to differing extents. If the particles in these classes are combined and reprocessed with masks only around the D1 or D2 rings, are these regions improved in resolution?

8) In the fourth paragraph of the subsection “Mechanistic implications of the FL-20S structure”, the secondary pore loop is discussed as having a "guidance" role in substrate translocation, and the text references to Figure 9A. However, pore loop 2 isn't clearly depicted in Figure 9, or indeed in any of the figures. Since this loop was not observed in prior structures, pore loop 2 should be depicted in a figure. If there is any relevant mutagenesis data for this pore loop, it should be mentioned.

https://doi.org/10.7554/eLife.38888.033

Author response

A number of concerns emerged from the review, as noted below. These concerns would need to be addressed in a revised version in order for this manuscript to be acceptable for publication in eLife.

1) A principal concern is with the assignment of nucleotide states in the structure. The authors state that the generalized "hand-over-hand" mechanism of translocation holds true for NSF, but the assigned nucleotide states at either side of the "seam" subunit (F) are not consistent with this mechanism. The generalized model posits that subunit F, which has released substrate and nucleotide, would be the next protomer to bind ATP and assume the uppermost position in the staircase (represented by E). Thus, the D:E pocket should have a much higher affinity for ATP than ADP, so it is unclear why a contaminating ADP would be bound at this pocket. The authors mention that the nucleotide density at the D:E pocket corresponds to an ADP or mixed state nucleotide, but it's unclear from the orientation presented in Figure 11C that this is the case. Have the authors checked to see if an ATP can be accommodated within the density? It looks as though R385 and 385 of subunit D are in close proximity to the phosphates, which would be more consistent with an ATP, rather than an ADP.

2) Second, according to the hand-over-hand mechanism, subunits E, D, C, B should contain ATP, with their pore loops closely associated with substrate. Hydrolysis would occur in the lower-most subunit, in the F:A pocket, and the substrate interactions are lessened as a result. Even though ATP hydrolysis has been prevented in the purification of this complex, it is surprising to see an ATP in this pocket, when other (hydrolysis deficient and analog-bound) AAA+ ATPases have observed ADP in this corresponding site. How confident are the authors of the nucleotide states in these pockets? An expanded discussion concerning these deviations from previously observed nucleotide states, and hydrolysis mechanism is necessary to clarify this point.

We thank the reviewers for these two suggestions which prompted us to re-examine the FL-20Sfocus-1/2 maps as well as the structures of other AAA+ proteins with bound substrate. Regarding our maps, we previously noted that the density for the D1 domain of the E protomer is ambiguous. Upon closer examination, the density is also somewhat ambiguous for the A protomer, although less so than for the E protomer. In our original model, we fit an ATP into the A protomer, but the γ-phosphate group density is weak. In both cases this could arise for a number of non-mutually exclusive reasons; there could be contaminating amounts of ADP in the sample buffer and/or the lower resolution of the maps for the nucleotide binding regions of protomers A and E (Figure 1—figure supplement 3) lead to weak density that is challenging to interpret as a unique entity. In light of these limitations, we modeled the nucleotides at the A and E positions as ADP in the deposited coordinates, and have noted that they are ambiguous in both the text and in figures (as A[D/T]P).

More generally, we propose a new hydrolysis-free mechanism for initial substrate engagement in the manuscript based our findings as well as the findings of others for related AAA+ proteins. The current knowledge of AAA+-substrate engagement is based on static structures of what is likely the initial state of the each of these systems; although the hand-over-hand model is an attractive model based on these findings, direct validation will require studies of intermediate states in all of these systems, including our own. We have revised and expanded the discussion of this model in our manuscript.

3) The authors suggest that the map has density for the SNAP-25 linker, but the presentation in Figure 7 is unclear. This requires either additional labels or perhaps another representation that captures this result.

We apologize for the lack of labeling in Figure 7. We have introduced labels that will hopefully clarify our point.

4) Is there a clear correspondence between the states of the 20S observed in this study (e.g. in Figure 3C) and the four states observed in the authors' earlier (2015) study of 20S with AMPPNP?

Yes. The FL-20S-1 and FL-20Sfocus-2 structures are most similar to the second class from the previous study, and the FL20S-2 and FL-20Sfocus-1 structures are most similar to both class 3a and the structure of the V7-20S complex from the previous study. Despite these similarities, the new FL classes each have a pair of adjacent N-domains associated with each of two adjacent αSNAP molecules, whereas the previous structures had four total αSNAP molecules engaged by a more heterogeneous N-domain engagement pattern (depending on the specific class). We have revised the text and included an additional supplemental figure (Figure 3—figure supplement 1) to make this clearer.

5) The authors also state, qualitatively, that R385 and 385 of subunit E (in the E:F pocket) are "somewhat retracted". What exactly does this mean? Is it supported credibly by the cryo-EM density?

While there are differences in EM density in this region, the quality for subunit E is quite poor. In light of this, and the fact that there is no obvious density for subunit F nucleotide, we have removed this statement about the subunit E arginine fingers.

6) The EM density for the ATP binding pockets in Figure 11 should be shown with the inclusion of the surrounding EM density to give a better sense of the quality of the density. The authors have "zoned" the EM density surrounding the nucleotide, a strategy that can be misleading in conveying the actual local quality of the map. Density for all 6 nucleotide pockets should be shown.

We agree and now show all 6 nucleotide pockets in Figure 11, and include a new supplementary figure (Figure 11—figure supplement 1) that shows non-segmented density maps for both nucleotide and protein at different contours for one of these pockets. We note that we did not include the sidechain densities in the main Figure 11 for the sake of clarity.

7) It is not clear why focused analysis of the spire region was not done. This would enable the authors to expand on the αSNAP-SNARE interactions, which are limited to superficial observations about complementary electrostatics of the surfaces. If such analyses were indeed performed and did not yield any improvements then this should be mentioned in the text. Further, the authors indicate that D1 and D2 rings within the two FL-20Sfocus classes are in the same conformations, but slightly separated from one another to differing extents. If the particles in these classes are combined and reprocessed with masks only around the D1 or D2 rings, are these regions improved in resolution?

We indeed tried this approach to improve the resolution of the spire region, but unfortunately were unsuccessful. We speculate that the focused approach does not work well for the spire due to its relatively small size compared to the NSF hexamer. With respect to the two focused classes FL-20Sfocus-1 and FL-20Sfocus-2 we note that they were obtained by using a combined mask around the D1 and D2 rings only (i.e., the mask excluded the spire, including the N-terminal NSF domains). Weak unmodeled spire density (for the SNARE complex, αSNAP molecules and the N-terminal domain of NSF) supports the separation of the two focused classes based on N domain and αSNAP configuration. These regions are subtly coupled to nearby D1 domains (particularly the unmodeled protomer F D1 domain).

8) In the fourth paragraph of the subsection “Mechanistic implications of the FL-20S structure”, the secondary pore loop is discussed as having a "guidance" role in substrate translocation, and the text references to Figure 9A. However, pore loop 2 isn't clearly depicted in Figure 9, or indeed in any of the figures. Since this loop was not observed in prior structures, pore loop 2 should be depicted in a figure. If there is any relevant mutagenesis data for this pore loop, it should be mentioned.

We thank the reviewers for the suggestion and have included a new supplement to Figure 9 to more clearly show pore loop 2. Unfortunately, there are no mutagenesis data available for this loop.

https://doi.org/10.7554/eLife.38888.034

Article and author information

Author details

  1. K Ian White

    1. Department of Molecular and Cellular Physiology, Stanford University, Stanford, United States
    2. Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    3. Department of Structural Biology, Stanford University, Stanford, United States
    4. Department of Photon Science, Stanford University, Stanford, United States
    5. Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8182-3655
  2. Minglei Zhao

    Department of Biochemistry and Molecular Biology, University of Chicago, Chicago, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5832-6060
  3. Ucheor B Choi

    1. Department of Molecular and Cellular Physiology, Stanford University, Stanford, United States
    2. Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    3. Department of Structural Biology, Stanford University, Stanford, United States
    4. Department of Photon Science, Stanford University, Stanford, United States
    5. Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1541-2967
  4. Richard A Pfuetzner

    1. Department of Molecular and Cellular Physiology, Stanford University, Stanford, United States
    2. Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    3. Department of Structural Biology, Stanford University, Stanford, United States
    4. Department of Photon Science, Stanford University, Stanford, United States
    5. Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Resources, Performed preparations of protein samples
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1741-2330
  5. Axel T Brunger

    1. Department of Molecular and Cellular Physiology, Stanford University, Stanford, United States
    2. Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    3. Department of Structural Biology, Stanford University, Stanford, United States
    4. Department of Photon Science, Stanford University, Stanford, United States
    5. Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    brunger@stanford.edu
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5121-2036

Funding

Howard Hughes Medical Institute

  • Axel T Brunger

National Institutes of Health (R37MH63105)

  • Axel T Brunger

Helen Hay Whitney Foundation

  • K Ian White

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We wish to thank Doeke Hekstra and Susan Wu for critical reading of this manuscript. This work was supported by a grant of the National Institutes of Health to ATB (R37MH63105) and by a postdoctoral fellowship from the Helen Hay Whitney Foundation supported by the Howard Hughes Medical Institute awarded to KIW.

Senior Editor

  1. Andrea Musacchio, Max Planck Institute of Molecular Physiology, Germany

Reviewing Editor

  1. Sriram Subramaniam, National Cancer Institute, United States

Reviewer

  1. Gabriel C Lander, The Scripps Research Institute, La Jolla, United States

Publication history

  1. Received: June 4, 2018
  2. Accepted: August 26, 2018
  3. Accepted Manuscript published: September 10, 2018 (version 1)
  4. Accepted Manuscript updated: September 12, 2018 (version 2)
  5. Version of Record published: September 27, 2018 (version 3)

Copyright

© 2018, White et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,678
    Page views
  • 513
    Downloads
  • 32
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics
    Carlos AZ Bassetto et al.
    Research Article Updated

    In Shaker K+ channels, the S4-S5 linker couples the voltage sensor (VSD) and pore domain (PD). Another coupling mechanism is revealed using two W434F-containing channels: L361R:W434F and L366H:W434F. In L361R:W434F, W434F affects the L361R VSD seen as a shallower charge-voltage (Q-V) curve that crosses the conductance-voltage (G-V) curve. In L366H:W434F, L366H relieves the W434F effect converting a non-conductive channel in a conductive one. We report a chain of residues connecting the VSD (S4) to the selectivity filter (SF) in the PD of an adjacent subunit as the molecular basis for voltage sensor selectivity filter gate (VS-SF) coupling. Single alanine substitutions in this region (L409A, S411A, S412A, or F433A) are enough to disrupt the VS-SF coupling, shown by the absence of Q-V and G-V crossing in L361R:W434F mutant and by the lack of ionic conduction in the L366H:W434F mutant. This residue chain defines a new coupling between the VSD and the PD in voltage-gated channels.

    1. Chromosomes and Gene Expression
    2. Neuroscience
    Alicia Tapias et al.
    Research Article Updated

    Brain homeostasis is regulated by the viability and functionality of neurons. HAT (histone acetyltransferase) and HDAC (histone deacetylase) inhibitors have been applied to treat neurological deficits in humans; yet, the epigenetic regulation in neurodegeneration remains elusive. Mutations of HAT cofactor TRRAP (ransformation/translation domain-associated protein) cause human neuropathies, including psychosis, intellectual disability, autism, and epilepsy, with unknown mechanism. Here we show that Trrap deletion in Purkinje neurons results in neurodegeneration of old mice. Integrated transcriptomics, epigenomics, and proteomics reveal that TRRAP via SP1 conducts a conserved transcriptomic program. TRRAP is required for SP1 binding at the promoter proximity of target genes, especially microtubule dynamics. The ectopic expression of Stathmin3/4 ameliorates defects of TRRAP-deficient neurons, indicating that the microtubule dynamics is particularly vulnerable to the action of SP1 activity. This study unravels a network linking three well-known, but up-to-date unconnected, signaling pathways, namely TRRAP, HAT, and SP1 with microtubule dynamics, in neuroprotection.
