Dynamic multifactor hubs interact transiently with sites of active transcription in Drosophila embryos

  1. Mustafa Mir
  2. Michael R Stadler
  3. Stephan A Ortiz
  4. Colleen E Hannon
  5. Melissa M Harrison
  6. Xavier Darzacq  Is a corresponding author
  7. Michael B Eisen  Is a corresponding author
  1. University of California, Berkeley, United States
  2. Howard Hughes Medical Institute, University of California, Berkeley, United States
  3. University of Wisconsin–Madison, United States

Abstract

The regulation of transcription requires the coordination of numerous activities on DNA, yet how transcription factors mediate these activities remains poorly understood. Here, we use lattice light-sheet microscopy to integrate single-molecule and high-speed 4D imaging in developing Drosophila embryos to study the nuclear organization and interactions of the key transcription factors Zelda and Bicoid. In contrast to previous studies suggesting stable, cooperative binding, we show that both factors interact with DNA with surprisingly high off-rates. We find that both factors form dynamic subnuclear hubs, and that Bicoid binding is enriched within Zelda hubs. Remarkably, these hubs are both short lived and interact only transiently with sites of active Bicoid-dependent transcription. Based on our observations, we hypothesize that, beyond simply forming bridges between DNA and the transcription machinery, transcription factors can organize other proteins into hubs that transiently drive multiple activities at their gene targets.

Editorial note: This article has been through an editorial process in which the authors decide how to respond to the issues raised during peer review. The Reviewing Editor's assessment is that all the issues have been addressed (see decision letter).

https://doi.org/10.7554/eLife.40497.001

Introduction

The earliest stages of animal development are dominated by DNA replication and cell or nuclear division, and are primarily driven by maternally deposited RNAs and proteins. Later, control is transferred to the embryonic genome in the maternal-to-zygotic transition (MZT), during which transcription of the embryonic genome commences while maternal products are degraded (Harrison and Eisen, 2015).

The MZT in Drosophila melanogaster begins in the early syncytial blastoderm after nine rounds of nuclear division (nuclear cycle 9, nc9) (Foe and Alberts, 1983). The number of transcribed genes increases gradually as interphase periods steadily lengthen between cycles 9 and 13, before giving way to full-scale zygotic genome activation (ZGA) coincident with cellularization during the 1 hr long interphase of the 14th nuclear cycle (Edgar et al., 1986; Edgar and Schubiger, 1986; Pritchard and Schubiger, 1996; Anderson and Lengyel, 1981; Zalokar, 1976).

Thousands of genes become transcriptionally active during the MZT, including several hundred transcribed in defined spatial and temporal patterns along the anterior-posterior (AP) and dorsal-ventral (DV) axes (Combs and Eisen, 2013; Combs and Eisen, 2013; Lécuyer et al., 2007; Wilk et al., 2016; Tomancak et al., 2007), which serve as the first markers of the nascent body plan of the developing embryo. The formation of these patterns is directed through interactions of DNA-binding proteins known as transcription factors with non-coding regulatory genomic regions known as enhancers. Enhancers are typically bound by combinations of activating and repressing transcription factors and drive transcription of target genes in patterns that depend on the differential combination of factors present in nuclei at different positions within the embryo. However, beyond this basic paradigm, it remains poorly understood how the composition and arrangement of transcription factor binding at enhancers dictates the output of the genes they regulate and what role interactions among binding factors play in this process.

In recent years, it has become clear that patterning transcription factors are only part of the complex systems that specify enhancer activity. Among the key additional players is the ubiquitously distributed maternal factor Zelda (Staudt et al., 2006; ten Bosch et al., 2006; Liang et al., 2008; De Renzis et al., 2007) (Zld, also known as Vielfaltig, Vfl) that we and others have shown plays a central role in the spatio-temporal coordination of gene activation, and in facilitating the binding of patterning factors to their target enhancers (Harrison et al., 2011; Li et al., 2014; Nien et al., 2011; Foo et al., 2014; Schulz et al., 2015; Sun et al., 2015).

Zelda is often described as a ‘pioneer’ transcription factor (Zaret and Mango, 2016), in that its primary function appears to be to facilitate the binding of other factors indirectly by influencing chromatin state. However, how it accomplishes this remains unclear. Zelda has a cluster of four C2H2 Zn-fingers (ZFs) near the C-terminus that mediate its DNA binding activity and two additional ZFs near the N-terminus which have been implicated in controlling its activation potential (Hamm et al., 2017), but most of the rest of the protein consists of varying types of low-complexity sequences.

Such low-complexity domains (LCDs) are thought to facilitate protein-protein interactions that mediate the formation of higher order structures, including phase separated domains (Kato and McKnight, 2018; Brangwynne et al., 2009). There is increasing evidence that higher order structures mediated by LCDs play an important role in transcriptional regulation (Chong et al., 2018; Boehning et al., 2018; Strom et al., 2017; Kato and McKnight, 2018), although the precise nature of this role remains less than clear. One hypothesis is that domains formed by homo- and heterotypic interactions between LCDs serve to locally enrich transcription factors, potentially in the vicinity of their targets (Tsai et al., 2017), thereby altering their local concentration and modulating their binding dynamics.

We recently explored this idea by utilizing lattice light-sheet microscopy (LLSM) (Chen et al., 2014a; Chen et al., 2014b) to carry out single-molecule imaging and tracking of eGFP-labeled Bicoid (Bcd)—the primary anterior morphogen in D. melanogaster—in living embryos (Mir et al., 2017). Bicoid proteins are distributed in a concentration gradient along the anterior-posterior axis, and activate approximately 100 genes in a concentration-dependent manner, primarily in anterior portions of the embryo (Xu et al., 2014). The sharpness of the response of Bcd targets to its gradient has led to the proposal of various models of cooperative regulation (Frohnhöfer and Nüsslein-Volhard, 1986; Driever and Nüsslein-Volhard, 1988), but the molecular basis for this apparent cooperation remains incompletely worked out.

We previously showed that Bcd binds DNA transiently (has a high koff) and that its binding is concentrated in discrete sub-nuclear domains of locally high Bcd density that we refer to as ‘hubs’ (Mir et al., 2017). These hubs are more prominent in posterior nuclei where Bcd concentration is low, but in which it still binds specifically to target loci. We proposed that Bcd hubs facilitate binding, especially at low concentrations, by increasing the local concentrations of Bcd in the presence of target loci, thereby increasing kon and factor occupancy (Mir et al., 2017).

Prompted by previous observations (Hannon et al., 2017) that Bcd can bind to inaccessible chromatin on its own at high concentrations in the anterior but requires Zld to do so at low concentrations in the posterior, we examined the distribution of Bcd binding in nuclei lacking Zld and found that Bcd hubs no longer form (Mir et al., 2017). Our preliminary experiments with fluorescently tagged Zld revealed that it also forms hubs (distinct clusters of Zld were also recently reported by Dufourt et al., 2018).

The combined observations that Bcd forms hubs that depend on the presence of Zld, and that Zld also forms hubs, motivated us to quantify the spatial and temporal relationships between Zld and Bcd molecules in Drosophila embryos. However, these experiments required several advancements in our technical capabilities to both tag and image single molecules.

Here we first describe Cas9-mediated tagging of endogenous loci with bright, photoswitchable fluorescent proteins that provide greatly improved signal-to-noise and tracking abilities, modifications to the LLSM necessary to activate these tagged proteins, and the development of biological and analytical tools to study the interactions between proteins, and also between proteins and sites of active transcription. We use this technological platform to characterize the single-molecule and bulk behavior of Zld and Bcd in isolation, in relation to each other, and to the transcriptional activation of the canonical Bcd target gene, hunchback (hb).

We find that both Bcd and Zld bind DNA highly transiently, with residence times on the order of seconds. Furthermore, both proteins form high-concentration hubs in interphase nuclei which are highly dynamic and variable in nature. By simultaneously imaging the bulk spatial distribution of Zld (to track hubs) and single molecules of Bcd, we show that Bcd binding is both enriched and stabilized within Zld hubs, an effect that becomes more pronounced at low Bcd concentrations in the embryo posterior. Finally, we explore the functional role of Zld and Bcd hubs in activating hb and find that hubs of both proteins interact transiently with the active hb locus, with preferential interactions of Bcd hubs with active loci leading to a time-averaged enrichment of the protein at the locus. Collectively our data suggest a model in which dynamic multi-factor hubs regulate transcription through stochastic encounters with target genes.

Results

Single-molecule tracking of proteins endogenously tagged with photoactivatable fluorescent proteins

We used Cas9-mediated homologous replacement (Bassett et al., 2013; Bassett et al., 2014; Gratz et al., 2013; Gratz et al., 2014; Yu et al., 2013; Baena-Lopez et al., 2013; Sebo et al., 2013; Kondo and Ueda, 2013; Ren et al., 2013) (Figure 1—figure supplement 1) to tag endogenous loci of Bcd and Zld at their N-termini with the photoactivatable fluorescent protein mEos3.2 (Zhang et al., 2012), which has high-quantum efficiency, is highly monomeric, and photostable compared to other photoactivatable proteins. Zld was also independently tagged with the bright green fluorescent protein mNeonGreen (Hostettler et al., 2017). All tagged lines presented here are homozygous viable and have been maintained as homozygous lines for many generations. As Bicoid and Zelda are both required for viability (Bicoid maternally, Zelda maternally and zygotically), this provides strong support for the functionality of the fluorescently tagged fusion proteins. To account for the possibility that un-tagged protein (arising from internal initiation, cryptic splicing, or proteolytic cleavage) could be responsible for phenotypic viability of insertions, we performed western blots on embryos from tagged lines and verified that detectable amounts of un-tagged protein are not present in any of the the lines (Figure 1—figure supplement 1). To serve as a control for single-molecule experiments, we also generated lines containing ubiquitously expressed mEos3.2-tagged Histone H2B (His2B).

To utilize the photoactivatable mEos3.2 for single-molecule tracking, we modified a lattice light-sheet microscope (Chen et al., 2014a; Chen et al., 2014b) to allow continuous and tunable photoactivation from a 405 nm laser (Figure 1—figure supplement 2; Figure 1—video 1). We optimized this setup using mEos3.2-Zld, controlling particle density (Figure 1—figure supplement 3) to facilitate tracking (Hansen et al., 2018; Izeddin et al., 2014) and found that we could obtain excellent signal-to-noise ratios sufficient for robust single-molecule detection (Figure 1A, Figure 1—video 2, Figure 1—video 3 , Figure 1—video 4) and tracking of both mobile and immobile molecules at frame intervals ranging from 10 to 500 ms (Figure 1B and Figure 1—video 5, Figure 1—video 6).

Figure 1 with 9 supplements see all

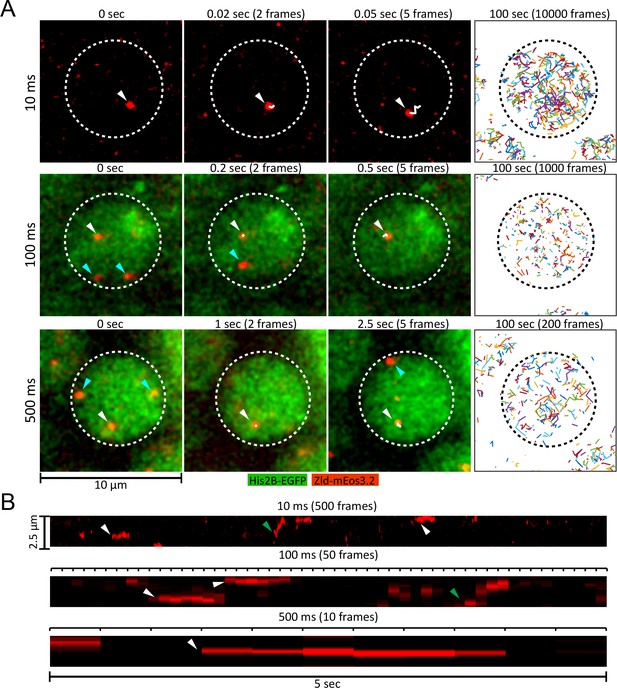

Live embryo single-molecule imaging and tracking of endogenous mEos3.2-Zld.

(A) First three columns are example images showing single molecules of mEos3.2-Zld tracked over at least five frames (white arrows and trajectories) at frame rates of 10, 100 and 500 ms. Cyan arrows indicate molecules that appear for only one frame and are thus detected but not tracked. For the 100 and 500 ms data, enough signal is present in the His2B-eGFP channel from the 405 nm activation laser to enable simultaneous imaging of chromatin. Last column shows all single-molecule trajectories acquired in each nucleus over 100 s, corresponding to 539, 263, and 186 trajectories over 10000, 1000, and 200 frames for the 10, 100 and 500 ms data, respectively. Dotted lines indicate the boundary of a nucleus. Contrast was manually adjusted for visualization. (B) Representative kymographs over 5 s of imaging, corresponding to 500, 50, and 10 frames for the 10, 100 and 500 ms frame rate data, respectively. Green arrows point to molecules that display relatively large motions, and white arrows to immobile molecules.

https://doi.org/10.7554/eLife.40497.002

We deployed this platform to perform single-molecule imaging and tracking of Zld, Bcd, and His2B at 10, 100 ms, and 500 ms frame intervals (Figure 2, Figure 2—video 1, Figure 2—video 2, Figure 2—video 3). These different temporal resolutions each capture distinct aspects of molecular behavior: short exposure times are sufficient to detect single molecules and fast enough to track even rapidly diffusing molecules (Figure 2—video 1). However, because imaging single molecules at high-temporal resolution (10 ms) requires high-excitation illumination, most bound molecules photobleach before they unbind, encumbering the accurate measurement of long binding times. At longer exposure times of 100 ms and 500 ms, fast diffusing proteins are blurred into the background, and lower excitation powers lowers photobleaching rates such that unbinding events can be detected (Hansen et al., 2017; Mir et al., 2017; Normanno et al., 2015; Chen et al., 2014a; Chen et al., 2014b; Mazza et al., 2012). Thus, we use 10 ms data to measure the diffusion characteristics of immobile and mobile molecules, as well as to determine the fraction of total molecules that are immobile (bound) or mobile (Hansen et al., 2018), and 100 and 500 ms data to measure the duration and spatial distribution of binding events.

Figure 2 with 4 supplements see all

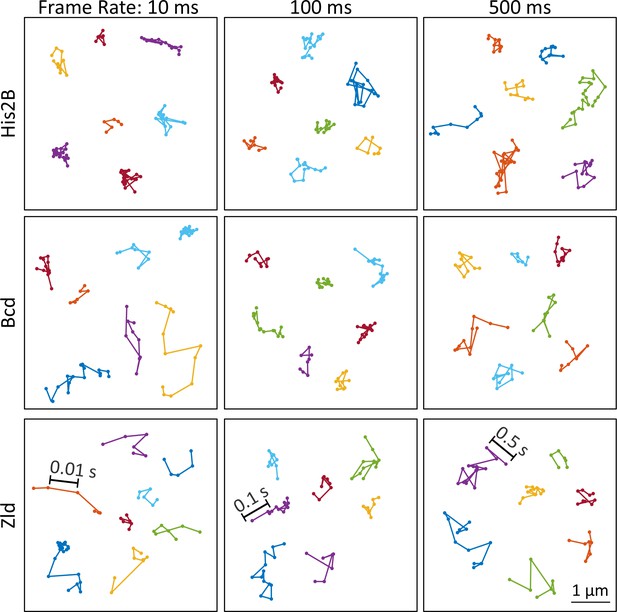

Representative single-molecule trajectories of His2B, Bcd and Zelda.

Representative single-molecule trajectories of His2B, Bcd, and Zld from data acquired at frame rates of 10, 100 and 500 ms.

https://doi.org/10.7554/eLife.40497.012

To gain an understanding of the dynamics of a protein which is stably associated with chromatin, we first examined single-molecule trajectories of the histone His2B at all three temporal scales. Histones are widely used as a benchmark for stably bound molecules (Mazza et al., 2012; Hansen et al., 2017; Teves et al., 2016), and we validate that His2B is a suitable control in the early Drosophila embryo through fluorescence recovery after photobleaching measurements (FRAP) (Figure 2—figure supplement 1). The FRAP data verifies that the majority of His2B molecules are bound for significantly longer times than Bcd or Zld, and indicates that the single-molecule trajectory lengths of His2B are limited by photobleaching and defocalization rather than unbinding. Consistent with this stable association, a visual examination of the single-particle trajectories of His2B at 10 ms frame rates illustrate that the vast majority of His2B molecules are immobile and confined within the localization accuracy of our measurements (Figure 2, top left and Figure 2—video 1). In comparison, the Zld and Bcd trajectories at 10 ms frame rates exhibit motions consistent with a mixed population of both chromatin-bound, slow diffusing, and mobile molecules (Figure 2 left column and Figure 2—video 1).

When tracked over several seconds using exposure times of 100 and 500 ms (Figure 2, middle and right; Figure 2—video 2 and Figure 2—video 3), the His2B trajectories now reflect the underlying motion of chromatin. We note a significantly greater apparent chromatin motion in early Drosophila embryos than is observed in mammalian cells in interphase where histones typically exhibit mobility less than the achievable localization accuracy (Hansen et al., 2018). At these slower frame rates, molecules of Zld and Bcd which are not immobile for a significant portion of the exposure time motion blur into the background (Watanabe and Mitchison, 2002; Hansen et al., 2017; Zhang et al., 2012). As a result, the trajectories of all three proteins now appear visually similar with the exception that His2B trajectories are longer in time due to their stable interaction with chromatin (Figure 2—video 2 and Figure 2—video 3), with the length of trajectories now limited by unbinding, defocalization, and photobleaching. Having established His2B as a suitable control for a largely chromatin-bound protein, we next quantify and compare the single-molecule dynamics of Zld and Bcd in order to gain insight on how they explore the nucleoplasm and bind to DNA to regulate transcription.

Bicoid and Zelda bind transiently and have large free populations

We first quantified the fraction of immobile molecules, and the diffusion coefficients of free and immobile molecules for His2B, Zld and Bcd, by analyzing the distributions of displacements (Hansen et al., 2018) from the high-speed (10 ms frame rate) data (Figure 3A and Figure 3—figure supplement 1). Visually the displacement distributions indicate that a greater fraction of both Zld and Bcd molecules are mobile (Figure 3A, displacements > 150–200 nm) than for His2B.

Figure 3 with 1 supplement see all

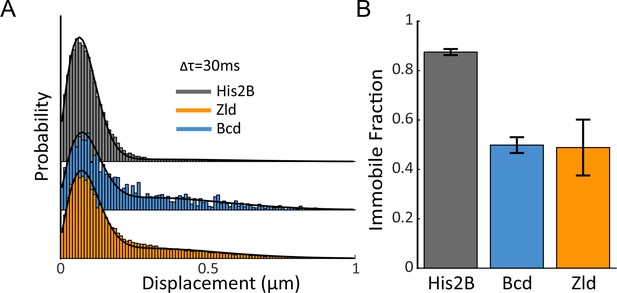

Immobile Fraction of His2B, Zld, and Bcd molecules.

(A) Histograms of displacements for His2B, Zld, and Bcd after three consecutive frames (Δτ = 30 ms) at a frame rate of 10 ms. The Zld and Bcd distributions show a right tail indicative of a large free population that is missing from His2B distribution. Black lines are fits from two-state kinetic modelling, data shown is compiled from 3 embryos totalling 77869, 81660, and 11003 trajectories and 30, 128, 41 nuclei for His2B, Zld, and Bcd, respectively. (B) Fraction of molecules bound or immobile as determined from kinetic modeling of the displacement distributions, a summary of the model parameters is shown in Figure 3—figure supplement 1. Error bars show standard errors over three embryos.

https://doi.org/10.7554/eLife.40497.017

To quantify the single-molecule kinetics of all three proteins, the displacement distributions were fit to a two-state (free diffusing or immobile) kinetic model (Figure 3—figure supplement 1) assuming Brownian motion under steady-state conditions and taking into account effects from localization errors and defocalization bias (Mazza et al., 2012; Hansen et al., 2017; Hansen et al., 2018). While it is likely that the identified immobile and free diffusing populations contain more complex sub-populations, for example molecules exhibiting 1-D diffusion on DNA, a two-state model accurately fit the displacement distributions for all three proteins and using a higher number of states did not significantly improve the model fit to justify them. We find that ~50% of Zld and Bcd, and 88% of His2B molecules are immobile or bound (Figure 3B and Figure 3—figure supplement 1). The mean immobile or bound population diffusion coefficient for His2B is lowest followed by Bcd, and Zld, whereas the free diffusion coefficients for Zld are slightly lower than both Bcd, and His2B (Figure 3—figure supplement 1). The ~50% immobile population of Zld and Bcd indicate that both proteins spend roughly the same amount of time on nuclear exploration (searching for a binding target) and actually binding to chromatin (Hansen et al., 2017).

Next, we calculated the survival probability (the probability of trajectories lasting a certain amount of time) for the three factors at all three frame rates (Figure 4A). At all frame intervals, the length of His2B trajectories are, on average, longer than those of Zld and Bcd (Figure 4A). These longer trajectories reflect the greater fraction of bound His2B molecules as they defocalize with a lower probability. Since we expect, on average, the effects of nuclear and chromatin motion, as well as photobleaching, to be consistent for data acquired on the bound population of all three proteins, the longer His2B trajectories show both that His2B binds for longer than Bcd or Zld, and that unbinding and not photobleaching is likely to be dominant for Bcd and Zld trajectories at 500 ms exposure times, allowing us to estimate residence times.

Figure 4 with 2 supplements see all

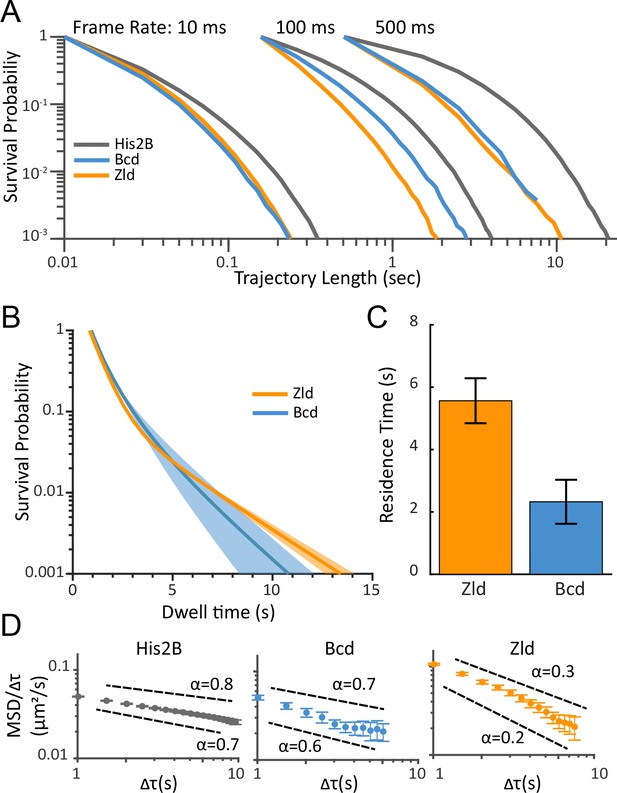

Residence times and dynamics of bound Zld and Bcd molecules.

(A) Raw survival probabilities of trajectories at all frame rates. Calculated over 77869, 81660, 11003, at 10 ms, 107998, 42698, 8990 at 100 ms, and 2420, 14487, 47681 at 500 ms, trajectories for His2B, Zld, and Bcd respectively. (B) Uncorrected two-exponent fits to the survival probability distributions obtained from the 500 ms frame rate data. Dark solid lines are the mean over fits from three embryos and the shaded regions indicate the standard error. (C) Bias corrected quantification of the slow residence times for Zld (5.56 ± 0.72 s) and Bcd (2.33 ± 0.71 s). Error bars indicate standard error over three embryos for a total of 188 and 171 nuclei for Bcd and Zld, respectively. (D) MSD/τ curves for His2B, Bcd, and Zld at 500 ms frame rates plotted on log-log-scale. For anomalous diffusion MSD(τ)=Γτα, where α is the anomalous diffusion coefficient. For MSD/τ, in log-log space, the slope is thus 0 for completely free diffusion that is when α = 1, and sub-diffusive(0<α<1), motions display higher negative slopes, with lower α corresponding to more anomalous motion.

https://doi.org/10.7554/eLife.40497.019

To quantify genome average residence times, we fit the 500 ms survival probability distributions for Bcd, Zld, and His2B, to a two-exponential decay model (Figure 4B) to estimate the time constants associated with short-and long-binding events. As has been shown previously, the slow and fast time constants associated with the two exponents can be interpreted as the off-rates associated with non-specific and specific binding, respectively (Hansen et al., 2017; Mir et al., 2017; Teves et al., 2016; Chen et al., 2014a; Chen et al., 2014b). The resulting fits for Zld and Bcd are then bias corrected for photo-bleaching and defocalization using the fits to the His2B data. This correction is based on the fact that the long-lived population of His2B is associated with chromatin much longer than the dynamic range of our measurement time and that the maximum trajectory lengths that we measure for His2B are thus only limited by photo-bleaching and defocalization (see Materials and methods for more details) (Hansen et al., 2017).

Using this approach, we estimate genome average residence times for the specifically bound populations of ~5 s and ~2 s for Zld and Bcd, respectively (Figure 4C). This estimate for Bcd is slightly higher than we obtained previously (Mir et al., 2017), which we attribute to the more accurate bleaching correction using His2B here. These residence time estimates are consistent with FRAP measurements (Figure 2—figure supplement 1) where we measure recovery half times of ~5 and~1 s for Zld and Bcd, respectively.

Finally, prompted by a visual comparison of the Zld and Bcd trajectories with those of His2B and the relatively high diffusion coefficients for the bound or immobile population of all three proteins (Figure 3—figure supplement 1), we explore in more depth the kinetics of molecules that are relatively immobile to the extent that they don’t motion blur into the background at 500 ms exposure times. We thus calculated and compared the time and ensemble averaged mean square displacement (TAMSD) of all three proteins (Figure 4—figure supplement 1). While TAMSD is not an appropriate metric for quantifying diffusion coefficients and bound fractions when the data contain a mixture of different dynamic populations such as at the 10 ms frame rate data (Izeddin et al., 2014; Kepten et al., 2015; Hansen et al., 2018), we reasoned that it is appropriate for a qualitative evaluation of the trajectories from the 500 ms data where we are measuring relatively stable immobile populations.

As expected for transcription factors and proteins confined within an environment, the TAMSDs for all three protein scale as ~τα, where tau is the lag time and α is the anomalous exponent (Normanno et al., 2015; Miné-Hattab et al., 2017; Izeddin et al., 2014). To assess the level of anomalous motion, we plotted the TAMSD/τ curves from the 500 ms data for all three proteins in log-log scale (Figure 4D). Plotted in this manner a population of molecules exhibiting completely free diffusion would exhibit a log(TAMSD/τ) curve of slope 0, that is when α = 1, whereas sub-diffusive population (0<α<1), display higher negative slopes, with lower α corresponding to more anomalous or confined motion. Our estimation of the α value for His2B is in agreement with previous measurements using Fluorescence Correlation Spectroscopy (Bhattacharya et al., 2009). Strikingly, while Bcd at 500 ms has a high α value similar to His2B, Zld has a low α value, consistent with a high amount of anomalous motion (Figure 4D).

Anomalous or sub-diffusive motion can result from a range of underlying physical interactions including aggregation, weak interactions with other proteins and chromatin, repetitive binding at proximal binding sites, among many other possibilities (Woringer and Darzacq, 2018; Fradin, 2017). The complexity of the TAMSDs from Zelda trajectories acquired at 500 ms suggest that at these frame rates we likely measure a mixture of effects that lead to a relatively immobile population of Zelda. Given that Zld is known to exhibit an extremely heterogeneous sub-nuclear spatial distribution, we next examined the bulk rather than single-molecule spatial-temporal dynamics of Zld.

Zelda and Bicoid form dynamic subnuclear hubs

Recently, a highly clustered spatial distribution of Zld was reported (Dufourt et al., 2018), but the temporal dynamics of these clusters have not been examined due to the technical limitations of confocal microscopy. We thus performed high-resolution 4D imaging using LLSM of Zld in developing embryos. We find that the spatial distribution of Zelda is highly dynamic and linked to the nuclear cycle (Figure 5—video 1). We observe that Zld rapidly loads into nuclei near the end of telophase and associates to the still condensed chromatin. As the chromatin de-condenses and the nuclei enter interphase, Zld breaks into smaller highly dynamic clusters (Figure 5A and Figure 5—video 2). As the nucleus enters prophase and the nuclear membrane begins to break up, Zld appears to leave the nucleus and correspondingly the cytoplasmic signal around the nucleus increases (Figure 5—video 1). As the Zld concentration around the chromatin drops, so does the appearance of clusters, although Zld appears to remain associated with chromatin until the end of prophase. From the end of prophase to telophase, no Zld is observed in proximity of the condensed chromatin until it rapidly loads back in to reforming nuclei at the end of telophase.

Figure 5 with 4 supplements see all

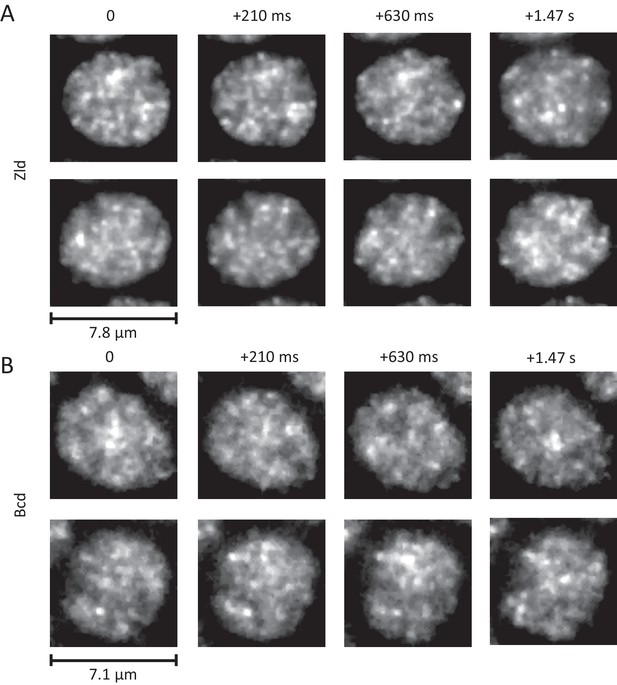

Dynamic interphase hubs of Zld and Bcd.

Example images of the spatial distributions of Zld (A) and Bcd (B) at various time intervals illustrating the dynamic nature and wide range of size distributions and temporal persistences of enriched hubs (see also Figure 5—videos 24). mNeonGreen-Zld and EGFP-Bcd were imaged at 15 ms and 210 ms frame rates, respectively. To allow comparison, the sum projection of 14 frames (210 ms total integration) is shown for Zld. Images were processed with a 1-pixel radius median filter to remove salt-and-pepper noise and contrast-adjusted manually for visual presentation.

https://doi.org/10.7554/eLife.40497.022

The dynamic interphase hubs of Zld are amorphous, appear to have a wide distribution of sizes, and persist for highly variable amounts of time (Figure 5A and Figure 5—video 2). When imaged at higher temporal resolutions (Figure 5—video 3) we observe that both hub location and intensity vary even at sub-second time-scales, suggesting that there is dynamic exchange of Zld molecules in clusters with the rest of the nucleoplasm. Bulk imaging of Bcd also reveals that it forms dynamic hubs in interphase (Figure 5B and Figure 5—video 4) although they appear less prominent both in size and temporal persistence than those of Zld. Our observations of the nuclear cycle dynamics of Bcd are consistent with previous reports of it filling into the nucleus after mitosis (slower than Zld) and a slow decrease in concentration after the nuclear membrane breaks down (Gregor et al., 2007).

These observations of highly heterogeneous and dynamic sub-nuclear distributions are consistent with our earlier work where we observed that Bcd binding is clustered in discrete subnuclear hubs (Mir et al., 2017). We also previously showed that these Bcd hubs do not form in the absence of maternal Zld which naturally led us to next ask whether there is a relationship between Bcd binding and the local concentration of Zld.

Bicoid binding events are enriched in Zelda hubs

To explore the relationship between Zld hubs and Bcd binding, we performed dual-color experiments recording the single-molecule dynamics of Bcd using mEos3.2-Bcd and the bulk spatial distribution of Zld using mNeonGreen-Zld. To strike a balance between the constraints of the imaging system, the dynamic range of the single-molecule trajectories, and the fast dynamics of Zld hubs (Figure 5 and Figure 6A), we acquired a bulk fluorescence image of mNeonGreen-Zld with a 1 s acquisition time followed by 10 frames of single-molecule imaging of mEos3.2-Bcd with a frame rate of 100 ms (Figure 6—video 1).

Figure 6 with 3 supplements see all

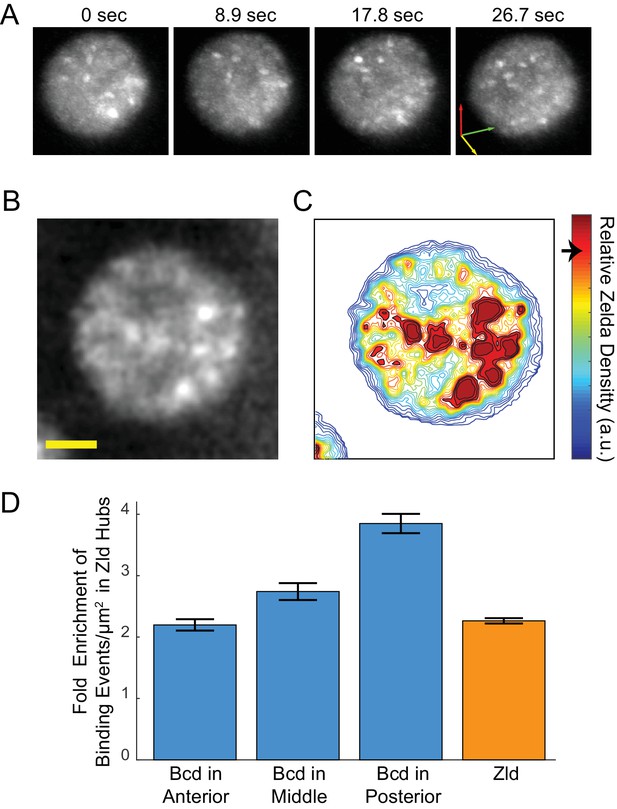

Enrichment of Bcd binding in Zld hubs.

(A) Three-dimensional volume renderings of an interphase nucleus showing the dynamic nature of Zld hubs (see Figure 5—video 2, Figure 5—video 3).The 3D axes indicate the xyz axes and the arrow lengths are 2 μm along each direction. (B) Representative snapshot of the interphase distribution of Zelda, yellow scale bar is 2 μm. (C) Relative Zelda Density map for the nucleus shown in (B), the arrow on the colorbar indicates the threshold for defining a region as high density (corresponding to hubs). (D) Fold enrichment in the density of bound molecules of Bcd in the anterior, middle, and posterior embryo, and of Zld, in Zld hubs vs. the rest of the nucleoplasm. Error bars show standard error over three embryos with a total of 1344, 3921, 481 nuclear images for Bcd Ant, Mid, and Post, respectively, and 4399 for Zld.

https://doi.org/10.7554/eLife.40497.027

Using the bulk Zld data, we partitioned nuclei into regions of high- and low- relative Zld density (Figure 6B–C and Figure 6—figure supplement 1), where high-density regions correspond to Zld hubs. Parsing the Bcd single-molecule data, we find that the enrichment of bound Bcd molecules is consistently higher within the high Zld density regions (Figure 6D). In the embryo anterior, where Bcd concentrations are highest, there is a two-fold increase in the enrichment of Bcd trajectories in high-density Zld regions compared to the rest of the nucleoplasm. Along the anteroposterior axis, the enrichment of Bcd trajectories within the high-density Zld regions increases, to an excess of around four-fold in the posterior (Figure 6D), whereas the Zld spatial distribution remains unchanged. This observation is consistent with our previous report of more pronounced clustering of Bcd in the embryo posterior (Mir et al., 2017). When we examined the stability of Bcd binding as a function of relative Zld density, we also find that at more posterior embryonic positions longer binding events of Bcd are associated with higher Zld density, in contrast to the embryo anterior (Figure 6—figure supplement 2). We note that while there is an increase in long Bcd-binding events in Zld hubs this effect is not large enough to account for the overall enrichment of all Bcd binding events, suggesting that Zld increases the time averaged Bcd occupancy at DNA-binding sites by increasing its local concentration (increasing kon) and not by increasing its residence times at its target sites (decreasing koff).

This association between Zld hubs and Bcd binding suggests that these hubs, although dynamic and transient, might be preferentially forming on genes that are co-regulated by Zld and Bcd. Furthermore, given the strong association of Zld binding measured by chromatin immunoprecipitation with the binding of many early embryonic factors (Harrison et al., 2011) we expected a strong correlation between Zld hubs and sites of active Bcd-dependent transcription. To test this hypothesis, we next performed imaging of the spatial distributions of Bcd and Zld in the context of active transcription.

Zelda hubs are not stably associated with sites of active transcription

We chose to study the relationship between Zld and Bcd hubs and transcriptional activity at the canonical Bcd target gene hunchback (hb). The hb gene was the first identified target of Bcd (Struhl et al., 1989; Tautz, 1988), and its anterior transcription is dramatically disrupted in the absence of Bcd protein (Staller et al., 2015; Ochoa-Espinosa et al., 2009; Hannon et al., 2017). The regulatory sequences for hb contain multiple clustered Bcd-binding sites, as well as recognizable Zelda motifs (Harrison et al., 2011) (Figure 7—figure supplement 1). ChIP studies show that both Zelda and Bcd bind strongly at the hb locus, though loss of Zelda has only a modest quantitative effect on hb expression (Combs and Eisen, 2017; Nien et al., 2011). An enrichment of Bcd in the vicinity of active hb loci was previously observed using FISH (Xu et al., 2015) on fixed embryos, but nothing is known about the dynamics of this enrichment or its relationship to Zld.

To visualize the hb locus, we took advantage of the MS2 system, which allows fluorescent labelling of nascent transcripts of specific genes (Garcia et al., 2013; Bothma et al., 2015). Bothma, et al. generated a fly line carrying a bacterial artificial chromosome (BAC) that contains an MS2-labeled hb locus that closely recapitulates the expression of hb itself (Bothma et al., 2015). We thus performed high spatio-temporal resolution 4D imaging of the bulk distributions of Zld, and separately Bcd, in embryos carrying the hb BAC and MCP-mCherry (Figure 7A, Figure 7—figure supplement 1, Figure 7—video 1, Figure 7—video 2, Figure 7—video 3).

Figure 7 with 6 supplements see all

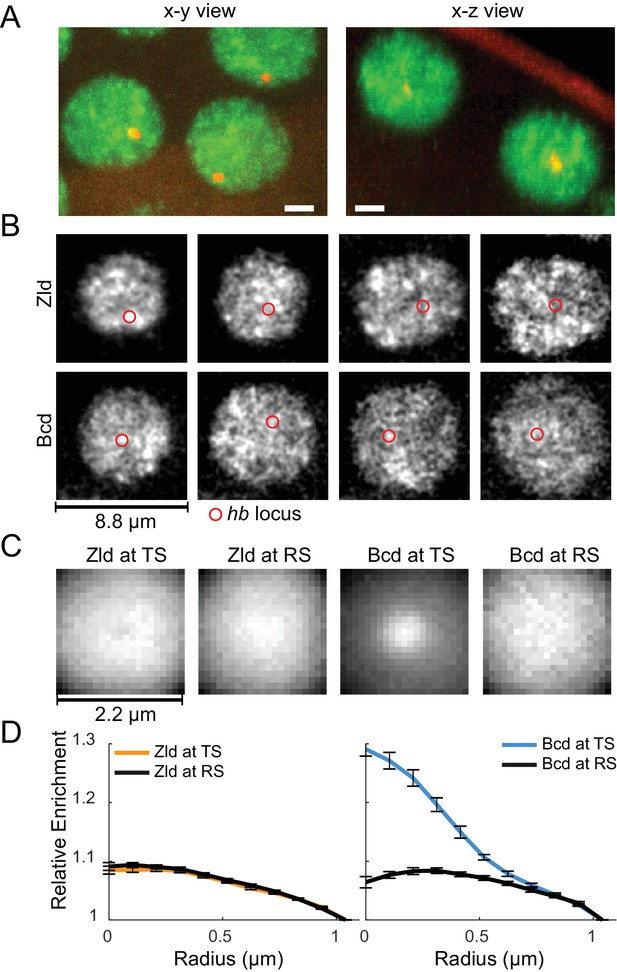

Spatio-temporal distribution of Zld and Bcd hubs in context of active hb loci.

(A) Representative x-y and x-z max projections over a nuclear diameter of mNeonGreen-Zld (green) and an active hb locus tagged with MS2-MCP-mCherry (red) white scale bars are 2 μm. (B) Representative snapshots of the distribution of Zld and Bcd with the hb locus indicated by the red circle. Images suggest that high concentration Bcd hubs frequent the active locus whereas Zld exhibits more transient and peripheral interactions. Contrast of each image was manually adjusted for visualization and comparison. (C) Average Zld and Bcd signals in a 2.2 μm window centered at active hb locus (TS) and at random sites in the nucleus (RS). Averages were calculated over 3943 and 6307 images of active loci from six embryos for Bcd and Zld, respectively (see Figure 7—videos 4 and 5). (D) Radial profiles of the images in C, normalized to one at the largest radius. Error bars show standard error over all images analyzed.

https://doi.org/10.7554/eLife.40497.031

From visual examination of movies of Zld and Bcd in the presence of hb transcription (Figure 7—video 2, Figure 7—video 3 and Figure 7B), we observe that the temporal relationship between Zld and Bcd hubs and the hb locus in nuclei where it is expressed (and therefore visible) is highly dynamic. We do not observe stable associations between high-concentration hubs of either factor and hb. However, we do see that contacts between hb and hubs of both factors occur frequently, so we next asked whether hb showed any preferential association with hubs of either factor over time.

Following Spiluttini et al. (2010), we averaged the Bcd and Zld signal surrounding active hb loci over thousands of images from six embryos (Figure 7C, Figure 7—video 4, Figure 7—video 5). For Bcd, we observe a sharp enrichment of fluorescent signal at the hb locus in comparison to randomly selected control points within nuclei (Figure 7D). We observe no such enrichment for Zld at hb (Figure 7B), however we note that Zld has many fold more targets than Bcd (Harrison et al., 2011; Li et al., 2008), and its target loci may be at too high a density in the nucleoplasm to detect enrichment at any one of them with this assay. These results imply a previously unappreciated aspect of the relationship between transcription factor hubs and their target genes: that individual hubs are multifactorial and likely service many different genes and loci within the nucleus.

Discussion

We previously reported a strong correlation between genomic locations of Zld and Bcd binding (Harrison et al., 2011) and suggested, based on a roughly twenty-fold increase in the occupancy of potential Bcd-binding sites in Zld bound regions, that there is strong cooperativity between these two factors. More recently, we showed that Bcd binds DNA highly transiently, but that its binding is spatially organized in a Zld-dependent manner (Mir et al., 2017).

Based on these data, we hypothesized that Zld could act as a DNA-bound scaffold facilitating Bcd binding by increasing its local concentration in the vicinity of its target. Here, however, we find that Zld also binds DNA transiently and therefore cannot, by itself, act as a stable scaffold at enhancers.

Our observation that Zld and Bcd form hubs of locally high concentration suggests an alternative model in which multiple factors enriched within hubs interact to increase factor occupancy at DNA targets without the need for stabilizing this interaction by conventional ‘lock and key’ interactions. In our model, efficient occupancy of a site is achieved by frequent transient weak binding events within hubs rather than long, stable interactions on DNA (Woringer and Darzacq, 2018).

A strong correlation between transcription and hubs of RNA polymerase II (Cisse et al., 2013; Chong et al., 2018; Boehning et al., 2018) and transcription factors (Chen et al., 2014a; Chen et al., 2014b; Chong et al., 2018; Wollman et al., 2017; Liu et al., 2014) has been reported in mammalian cells. In Drosophila, high local concentrations of the transcription factor Ultrabithorax (Ubx) at sites of Ubx-mediated transcription has recently been reported (Tsai et al., 2017).

However, use of LLSM to image hubs at high frame rates (Figure 5, Figure 5—video 3) shows that they are not stable structures, and furthermore, that they interact only transiently with sites of active transcription. We suggest that what previous reports (Dufourt et al., 2018) have described as stable clusters are actually time-averaged accumulations (such as what we observe for Bcd at hb) resulting from insufficient temporal resolution or use of immunofluorescence data, rather than discrete sub-nuclear bodies.

The most surprising observation we report is that at an active locus, transcription occurs with rare and transient visits of hubs containing the primary activator of the locus. One possible explanation is some version of the decades old ‘hit-and-run’ model proposed by Schaffner (1988) in which transcription factor binding and interactions with enhancers are only required to switch promoters into an active state, after which multiple rounds of transcription could occur in the absence of transcription factor binding (Para et al., 2014; Doidy et al., 2016). Transcription could then be regulated by the frequency of visits, rather than stable association.

Our observation that hubs form rapidly at the exit from mitosis and are most pronounced at times when no transcription happens raises the possibility of an even greater temporal disconnect. We and others have suggested that a primary role of Zld is in the licensing of enhancer and promoter chromatin for the binding of other factors (Li et al., 2014; Foo et al., 2014; Schulz et al., 2015; Sun et al., 2015) and in the creation and stabilization of chromatin three-dimensional structure (Hug et al., 2017). It is possible that the key point of activity occurs early during each nuclear cycle when the chromatin topology is challenged by the replication machinery and transcription has not begun (Blythe and Wieschaus, 2016).

Our single-molecule data point to intrinsic forces that might lead to the formation and maintenance of Zld hubs. The highly anomalous nature of the movement of Zld that differs from that of chromatin associated His2B and Bcd suggests that its motion depends at least in part on interactions off of DNA. Most of the amino acid sequence of Zld consists of intrinsically disordered domains, some of which are required for its function (Hamm et al., 2017). We and others have shown that intrinsically disordered domains mediate weak, multivalent protein-protein interactions between regulatory factors (Chong et al., 2018; Boehning et al., 2018; Kovar, 2011; Burke et al., 2015; Altmeyer et al., 2015; Xiang et al., 2015; Friedman et al., 2007) that lead to the selective enrichment of factors in hubs (Chong et al., 2018; Boehning et al., 2018). We think it is therefore highly likely that Zld, and therefore Bcd, hubs are formed by interactions involving intrinsically disordered domains.

Bcd is only one of many proteins whose early embryonic binding sites have a high degree of overlap with those of Zld (Harrison et al., 2011), including many other factors involved in anterior-posterior and dorsal-ventral patterning, and other processes (Reichardt et al., 2018; Foo et al., 2014; Sun et al., 2015; Schulz et al., 2015; Nien et al., 2011; Xu et al., 2014; Pearson et al., 2012; Boija and Mannervik, 2016; Shin and Hong, 2016; Ozdemir et al., 2014). We hypothesize that Zld provides scaffolds to form distinct hubs with each of these factors, mediated by a combination of weak and transient protein:protein and protein:DNA interactions.

Such hubs could help explain the disconnect between the canonical view of transcription factor function based on their directly mediating interactions between DNA and the core transcriptional machinery and data like those presented here that suggests a more stochastic temporal relationship. There is abundant evidence that transcription factors can affect promoter activity by recruiting additional transcription factors, chromatin remodelers and modifiers, and other proteins. Extrapolating from our observation that Zld appears to form some type of scaffold for Bcd hubs, we propose that hubs contain not only transcription factors, but loose assemblages of multiple proteins with diverse activities. Such multifactor hubs could provide each transcription factor with a bespoke proteome, with far greater regulatory capacity and precision than could plausibly be achieved through stable direct protein-protein interactions involving each factor.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (D. melanogaster)mNeonGreen-Zldthis paperFly line with an N-terminal mNeonGreen fusion tag inserted at the endogenous Zld locus.
Strain, strain background (D. melanogaster)mEos3.2-Zldthis paperFly line with an N-terminal mEos3.2 fusion tag inserted at the endogenous Zld locus.
Strain, strain background (D. melanogaster)H2B-EGFPthis paperFly line with an H2B-EGFP transgene inserted on chromosome 3. Transgene is expressed ubiquitously under the control of a synthetic tubulin promoter.
Strain, strain background (D. melanogaster)H2B-mEos3.2this paperFly line with an H2B-mEos3.2 transgene inserted on chromosome 3. Transgene is expressed ubiquitously under the control of a synthetic tubulin promoter.
Strain, strain
background (D. melanogaster)
MCP-mcherryH Garcia labFly line with MCP-mCherry inserted as a transgene on chromosome 2.
Genetic reagent (D. melanogaster)sgRNA #1 bicoidthis papersgRNA targeting N-terminus of Bcd gene, sequence GCGGAGTGTTTGGGGAAAA
Genetic reagent (D. melanogaster)sgRNA #1 bicoidthis papersgRNA targeting N-terminus of Bcd gene, sequence TAAAAGTTTTGATCTGGCGG
Genetic reagent (D. melanogaster)sgRNA #1 bicoidthis papersgRNA targeting N-terminus of Bcd gene, sequence TGATGGTAAAAGTTTTGATC
Genetic reagent (D. melanogaster)sgRNA ZeldaM Harrison labsgRNA targeting N-terminus of Zld gene, sequence CCTCTGCCGCGTGCAGGGG
Software, algorithmSpot-OnHansen et al., 2018, eLife

Generation of transgenic fly lines

Request a detailed protocol

The following fly lines were constructed using CRISPR/Cas9 mutagenesis with homology directed repair: mNeonGreen-Zelda, mEos3.2-Zelda, mEos3.2-Bicoid. sgRNAs targeting sites near the desired insertion sites were cloned via the primer annealing method into plasmid pMRS-1, which is a version of pCFD3 (Port et al., 2014) (addgene #49410) with alterations to the sgRNA body made according to (Chen et al., 2013). sgRNA sequences were CCTCTGCCGCGTGCAGGGG for Zelda and an equimolar mixture of TGATGGTAAAAGTTTTGATC, GCGGAGTGTTTGGGGAAAA, and TAAAAGTTTTGATCTGGCGG for Bicoid. Homology directed repair templates were constructed in a pUC19 backbone via Gibson assembly with the desired tag, with an N-terminal FLAG tag, flanked by 1 kb homology arms. Fluorescent tags were inserted at the ATG located at 3R:6759268 for Bicoid and at X:19782283 for Zelda (dm6 coordinates). For both Zelda and Bicoid, the natural start ATG was removed, and the fluorescent protein and linker were fused with the first amino acid after the initiation Methionine residue. We tested a number of linker sequences and found variable tag- and protein-specific effects on viability. Linker sequences that yielded homozygous viable animals were GDGAGLIN (mNeonGreen-Zld), GGGGSGSGGS (mEos3.2-Zld and mEos3.2-Bcd) and GGGGSGSGGSMTRDYKDDDDKTRGS (H2B-mEos3.2 and H2B-EGFP).

HDR template and sgRNA plasmids were sent to Rainbow Transgenic Flies, Inc. (Camarillo, CA) to be injected into embryos expressing Cas9 in the germline. Resulting adult flies were crossed to flies possessing balancer chromosomes matching the relevant chromosome. Single F1 progeny carrying the marked balancer were crossed to balancer stock flies, allowed 4–8 days for females to lay sufficient eggs, and the F1 parents were sacrificed for PCR genotyping. Typically, we find that ~ 10–40% of F1 animals contain insertions. For example, for a pooled injection of three Zelda tagging constructs, we screened 79 F1 animals and recovered 36 hits, of which we screened 19 to determine the identify of the inserted tag, recovering 8 GFP-Zld, 6 mEos3.2-Zld, and 5 HaloTag-Zld. We find that efficiency varies for different genes and injections, but these results are fairly typical. For positive hits, balanced lines were generated by selecting appropriately-marked F2 progeny, and F3 animals were examined for the presence of homozygous animals, revealed by the lack of balancer phenotype. As Bicoid has only maternal phenotypes, homozygous mothers were tested for the ability to give viable offspring. Lines that tolerated homozygous insertions were subjected to further screening by the preparation of clean genomic DNA, amplification of the locus using primers outside the donor homology arms, and subsequent Sanger sequencing of the entire amplicon. Lines carrying insertions free of mutations and containing no incorporated plasmid backbone were kept and utilized for imaging experiments.

His2B-mEos3.2 was introduced as a supplemental transgene under the control of a ubiquitous pΔTubHA4C promoter (Zhang et al., 2013) and SV40 3’ UTR via PhiC31-mediated recombinase (Groth et al., 2004) into landing site VK33 (Venken et al., 2009). A transgene was used to avoid potential complications associated with editing the highly multicopy histone locus.

We chose a red fluorescent protein for single-molecule imaging in embryos as better signals are achievable at longer wavelengths. First, as is well known, there is high autofluorescence at greener wavelengths in the Drosophila embryo (and for most biological materials). Second, Rayleigh scattering, scattering from particles of sizes less than the wavelength of the imaging light (the phenomenon responsible for blue skies and red sunsets), scales as ~1/λ4 where λ is the imaging wavelength. Thus, using longer wavelengths results in fewer photons being scattered and thus more photons being absorbed, emitted and collected from single molecules (Mir et al., 2018).

Western blot

Request a detailed protocol

For each genotype indicated, 50–60 embryos aged 2 hr at 25° were dechorionated in bleach, rinsed in salt solution (NaCl with TritonX-100) and flash frozen. Frozen embryos were homogenized in 50 µL of sample buffer and 20 µL of sample per lane was loaded onto two separate 4–15% SDS-PAGE gels (Bio-Rad Cat # 4561083DC). Western blots were performed using rabbit polyclonal α-Bcd or α-Zld primary antibodies and a goat α-rabbit HRP conjugated secondary antibody (Thermo Fisher Cat # 31460).

MS2 crosses

Request a detailed protocol

For MS2 experiments, yw; +; MCP-mCherry (gift from S. Alamos and H.G. Garcia) virgin females were crossed to males homozygous for either EGFP-Bcd or mNeonGreen-Zld. Resulting female progeny maternally deposit both MCP and the labeled TF in embryos. Virgin females were crossed to males homozygous for the hb MS2 BAC and resulting embryos were used for imaging.

Lattice light-sheet microscopy of live embryos

Request a detailed protocol

Embryos were collected from flies in small cages over a 90-min laying period. Prior to embryo collection, the surface of a 5 mm diameter glass coverslip was made adhesive by deposition of of a small drop of glue solution (the glue solution was prepared by dissolving a roll of double-sided scotch tape in heptane overnight). The coverslip was allowed to dry for at least 5 min, which is sufficient time for the heptane to evaporate leaving behind a sticky surface. Embryos were washed off from the cage lids using tap water and gentle agitation with a paintbrush into a nylon cell-strainer basket. Embryos were then dechorionated in 100% bleach for 90 s. The dechorionation was then stopped by continuous washing under tap water until no further bleach smell could be detected, typically 30 s. The embryos were then transferred from the water filled strainer basket onto an agar pad using a fine haired paintbrush and arranged into an array of typically 3 rows and five columns with a consistent anteroposterior (A-P) orientation. The arranged embryos were then gently contact transferred onto the adhesive coverslip which was subsequently loaded into the microscope sample holder.

A home built lattice light-sheet microscope (LLSM) was used (Chen et al., 2014a; Chen et al., 2014b; Mir et al., 2017) for all single molecule, bulk fluorescence, and MS2 imaging experiments. Images were acquired using two Hamamatsu ORCA-Flash 4.0 digital CMOS cameras (C13440-20CU). An image splitting long-pass dichroic (Semrock FF-560) was placed in between the two cameras to separate emission wavelengths of over and under 560 nm, in addition bandpass filters corresponding to the fluorophore of interest were installed in front of each camera to provide further spectral filtering (Semrock FF01-525/50 for mNeon and sfGFP, Semrock FF01-593/46 for mEOS3.2, and Semrock FF01-629/53 for mCherry). Further details of imaging settings and conditions for each type of imaging experiment are provided in the corresponding sections below.

For all experiments, the stage positions corresponding to the anterior and posterior extents of each embryo imaged were recorded. The position along the anteroposterior axis for each image or movie recorded was then calculated as a fraction of the embryonic length (EL) with 0 and 1 to the anterior and posterior extents of the embryo, respectively. The nuclear cycle and progression within the nuclear cycle (e.g. interphase, prophase, mitosis) were also recorded for each movie or image. Times between nuclear cycles were also monitored to ensure that data was being acquired on a healthy and normally developing embryos. Embryos which exhibited aberrant development, for example longer than usual nuclear cycles, or numerous aberrant nuclear divisions were abandoned and the data was discarded.

Single-molecule imaging and tracking in live embryos

Request a detailed protocol

For single-molecule imaging experiments, the illumination module of the LLSM was modified to provide constant photoactivation using a 405 nm laser line that bypasses the Acousto-optical tunable filter (AOTF) (Figure 1—figure supplement 1). We found that even when a lattice pattern for 561 nm was displayed on the spatial light modulator (SLM) sufficient 405 nm illumination was present in the imaging plane to allow for controlled photo-activation of mEos3.2-Bcd and mEos3.2-Zld. For all single-molecule experiments, a 30 beam square lattice with 0.55 and 0.44 inner and outer Numerical Apertures, respectively, was used in dithered mode for excitation. The 405 nm laser line was kept on constantly during the acquisition period for photoswitching and a 561 nm laser line was used for excitation. For both mEos3.2-Bcd and mEos3.2-Zld, data was acquired at 7.5, 100 and 500 ms exposure times with effective frame rates of 100, 9.52, and 1.98 Hz, respectively. The excitation laser power was optimized empirically for each exposure time to achieve sufficient contrast for single-molecule tracking and the powers of the photoswitching laser were also optimized empirically to achieve low enough densities of detections to enable tracking. The excitation laser power was 0.1 mW, 0.6 mW, 2.3 mW and switching laser power was 2.3 µW, 3.9 µW, and 8.5 µW for 500, 100, and 7.5 ms exposures, respectively, as measured at the back focal plane of the excitation objective. The same settings were used to acquire control data at each exposure time on His2B-mEos3.2. For all exposure times, the length of each acquisition was 105 s, corresponding to 200, 1000, and 10,000 frames at 500, 100, and 7.5 ms exposure times, respectively. The acquisition length was set so that sufficient fields of views could be captured in the short interphase times of the early nuclear cycles while also capturing a sufficient number of single-molecule trajectories.

For characterization of single-molecule dynamics at these multiple time scales, both mEos3.2-Bcd and mEos3.2-Zld were measured in a His2B-EGFP background. The His2B-EGFP channel was used to ensure optimal positioning of the sample within the light-sheet, to keep track of progression through a cell cycle, and monitor the development of the embryo. A fortunate bonus was that at 100 ms and 500 ms exposures, there was sufficient excitation of His2B-EGFP from the photoactivation 405 nm laser that we could perform simultaneous imaging of chromatin and single-molecule dynamics (Figure 1—video 3 and Figure 1—video 4).

For quantification of single-molecule mEos3.2-Bcd dynamics in the context of mNeonGreen-Zld, single-molecule data was acquired for 1 s (10 frames at 100 ms exposure times), followed by 10 frames of acquisition in the mNeon channel at 10 ms exposure times, and this sequence was then repeated 100 times. The sum of the 10 mNeonGreen images was then calculated to effectively provide a 100 ms exposure image. This scheme was designed such that the dynamic motion of Zld could be captured in addition to the binding kinetics of Bcd with sufficient temporal resolution without having to modify the LLSM control software. The rest of the imaging parameters were kept identical to those described above. For all single-molecule experiments, nuclei from at least three embryos were measured spanning a range of anteroposterior positions and at nuclear cycles ranging from 12 to 14.

Localization and tracking of single molecules was performed using a MATLAB implementation of the dynamic multiple-target tracing algorithm (Sergé et al., 2008) as previously described (Mir et al., 2017; Hansen et al., 2018; Hansen et al., 2017; Teves et al., 2016).

Mean square displacement analysis

Request a detailed protocol

Mean Square Displacement curves were calculated using the open source msdanalyzer package (Tarantino et al., 2014). For analysis of sub-diffusive motion MSD/τ curves for His2B, Zld, and BCD plotted on log-log-scale. As for anomalous diffusion MSD(τ)=Γτα, where α is the confinement factor the log(MSD/τ)=log(Γ) + (α−1)τ (Izeddin et al., 2014). The log of the MSD/τ was thus used to estimate the range of α values for each protein.

Analysis of short exposure (10 ms) single-molecule trajectories

Request a detailed protocol

Single-molecule trajectories were analyzed using Spot-on (Hansen et al., 2018), a freely available open-source software (https://gitlab.com/tjian-darzacq-lab/spot-on-matlab) based on a model previously introduced in Mazza et al. (2012) and modfied in Hansen et al. (2017) to exclude state transitions. In brief, Spot-On performs fits to the distribution of displacements at multiple frameshifts to a two-state kinetic model and provides estimates of the fraction of molecules bound and free, and the corresponding apparent diffusion coefficients for each state (Figure 3—figure supplement 1) and corrects for the probability of molecules diffusing out of the axial detection range. We performed fitting using the following parameters: Gaps Allowed: 1, Jumps to Consider: 4, TimePoints: 8, Observation Slice: 0.8 μm, Fit Iterations 5. The fit parameters for each data set are summarized in Figure 3—figure supplement 1. Data are represented as the mean over the three embryo replicates ±SEM.

Calculation of residence times from long exposure single-molecule trajectories

Request a detailed protocol

Imaging with sufficiently long exposure times effectively blurs out fast-moving molecules into the background while molecules stably bound for a significant duration of the exposure time are imaged as diffraction limited spots (Hansen et al., 2017; Watanabe and Mitchison, 2002; Mir et al., 2017; Teves et al., 2016; Chen et al., 2014a; Chen et al., 2014b). Thus, the trajectories from the 500 ms datasets are used to infer the genome average long-lived (specific) binding times.

To infer the residence time, the length of trajectories in time is used to calculate a survival probability (SP) curve (1- cumulative distribution function of trajectory lengths). Since the SP curve contains contributions from non-specific interactions, slowly moving molecules, and localization errors a double-exponential function of the form SP(t)=F*(exp(-kns*t))+(1 F)(exp(-ks*t))is fit to the SP curve, where kns is the off-rate for the short-lived (non-specific) interactions and ks correspond to the off-rate of long lived (specific) interactions (Chen et al., 2014a; Chen et al., 2014b; Hansen et al., 2017; Mir et al., 2017) (Figure 4—figure supplement 2). For fitting purposes, probabilities below 10−3 are not used to avoid fitting the data poor tails of the distribution. An objective threshold on the minimum number of frames a trajectory lasts is then used to further filter out tracking errors and slow-diffusing molecules (Mazza et al., 2012; Hansen et al., 2017). The objective threshold is determined by plotting the inferred slow rate constant and determining where values converge to a single value. Although the 500 ms Bcd data set converges at two frames (1 s), the Zld data set converges at four frames (2 s) (Figure 4—figure supplement 2B–C). The survival probability distribution for Zelda is likely dominated by short-lived interactions at shorter timescales and is most likely a reflection of the same complex mixed population (specific and non-specific DNA binding, along with another population whose motion is constrained perhaps by protein-protein interactions) we observed in the MSD curves (Figure 2B). Thus, a four-frame threshold was used for the calculation of the specific residence time.

Next, since the inferred ks as described above is biased by photobleaching, and nuclear and chromatin movement, bias correction is performed using the His2B data as ks,true=ks-kbias, where kbias is the slower rate from the double-exponent fit to the His2B SP curve as described previously (Teves et al., 2016; Hansen et al., 2017; Chen et al., 2014a; Chen et al., 2014b). This correction is based on the assumption that photobleaching, unbinding, and loss of trajectories from motion are all independent Poisson processes. The genome wide specific residence time is then calculated as 1/ks,true. The effectiveness of this bias correction is checked by calculating the residence time from both the 100 ms and 500 ms frame rate data and observing convergence to within 1 s (Figure 4—figure supplement 2C).

Fluorescence recovery after photobleaching

Request a detailed protocol

FRAP was performed on a Zeiss (Germany) LSM 800 scanning confocal microscope equipped with several laser lines, of which the 488 nm laser was used for all experiments described here. Images were collected using a Plan-Apochromat 63 × 1.40 NA oil-immersion objective using a window 50.7 µm by 3.6 µm. Bleaching was controlled by the Zen software, and experiments consisted of 10 frames collected before the bleach and 1000 frames collected after at a frame rate of 24 ms. In each frame, five circular bleach spots of 1 µm diameter were chosen to be a sufficient distance from nuclear edges. The spots were bleached using maximum laser intensity, with dwell time adjusted to 0.57 µs, which was chosen because it gave a sufficiently deep bleach of Bicoid, the fastest-recovering molecule we studied. Total bleach time was 1.5 s.

We collected data from at least three embryos for each molecule studied. Nuclei in the early embryo are highly mobile, and we found that the most reliable method to find stable nuclei was to simply collect many movies and select the ones in which nuclei remain stable for the duration of the experiment. We collected movies with stable nuclei for a total of at least 50 bleach spots (50 nuclei) total for each molecule. To quantify and bleach-correct FRAP data, we used a custom-written MATLAB software pipeline (Mir and Stadler, 2018; copy archived at https://github.com/elifesciences-publications/MirStadler_2018). Briefly, for each frame we manually select several ‘dark’ spots that are not within nuclei and several ‘control’ spots that are within bleached nuclei but well-separated from the bleach spot. We use a 600 nm diameter circle to calculate the signal at the spots in order to make the measurement robust to small chromatin movements. For each frame, the mean of the dark spots was subtracted from the bleach spot values (background subtraction), and individual bleach spot values were divided by the mean of the control spots to correct for the reduction in total nuclear fluorescence. Finally, the values for each spot were normalized to its mean value for the ten pre-bleach frames. We observed that chromatin movement occasionally causes the bleach spot to drift far enough to affect the signal, so we manually curated resulting correct traces to remove anomalous spots. This culling resulted in 27–40 quality recovery curves for each molecule. These curves were averaged for each molecule, and the mean recovery curve was used in figures and fitting.

We fit resulting FRAP curves to the reaction-dominant model (Sprague et al., 2004):

FRAP(t)=1- Ae-kat - Be-kbt

From these fits, we used the slower coefficient to estimate the time to half-recovery for the population of bound molecules.

Analysis of single-molecule binding in the context of Zld density

Request a detailed protocol

To analyze single-molecule trajectories of Bcd and Zld in the context of Zld density first, a relative density map for each nucleus was calculated. For each reconstructed 100 ms exposure Zld image, first each nucleus was identified and segmented out of the image using an in house segmentation algorithm built in MATLAB (Figure 6—figure supplement 1). First, the grayscale image was Gaussian filtered with a sigma of 5 pixels to enhance the contrast of the nuclei, the filtered image was then thresholded using the inbuilt adaptive threshold function in MATLAB with a sensitivity value set to 0.6. A morphological dilation was then performed on the binary mask using a disk structuring element with a radius of 3 pixels and multiplied with hand drawn mask to remove edges of the embryo and non-cortical regions deep where no nuclei were present or imaging contrast was low. Holes within the nuclei binary mask were then filled using the MATLAB imfill function. A label matrix was generated from the resulting binary mask and the size distributions and eccentricities of segmented regions were calculated, an area and eccentricity cutoff was then applied to remove false positives to generate the final label matrix. Label matrices were then further curated to remove false positives. A relative density map was calculated for each nucleus individually by assigning each pixel in the nuclear value the percentile range it fell in over the entire distribution of intensity values in the nuclear area in with a resolution of 1 percentile. Each single-molecule trajectory was then assigned a relative density value based on the mean density of the pixels it fell in during the course of the trajectory. From visual examination, we determined that a 85 relative density value threshold was reliable in differentiating the highest enriched Zld regions, corresponding to hubs, from the rest of the nucleus. Fold change in densities of detections were calculated by counting the total number of trajectories in areas of relative density greater than 85 vs. the rest of the nucleoplasm. As the single-molecule trajectories from this data set are limited in length to 1 s, an accurate estimate of the residence time from fits to the survival probability distribution could not be obtained as was done above.

Analysis of protein distribution in context of transcription dynamics

Request a detailed protocol

Two-color 4D LLSM imaging was performed on embryos with the MS2-tagged hb BAC (Figure 7—figure supplement 1) and expresing MCP-mCherry crossed with either mNeonGreen-Zld or eGFP-Bcd embryos. Z-stacks of 61 slices were acquired with a spacing of 250 nanometers to cover a range of 15 µm with an exposure time of 80–100 ms in each channel at each slice. Images in both channels were acquired at each z-position sequentially before moving to the next slice. The time between each volume acquired was ~5 s, the total length of the acquisition varied but at least one complete nuclear cycle was imaged for each embryo. The field of view for each embryo was centered at between 25% and 35% of the embryonic length from the anterior tip of the embryo to ensure that all nuclei in the image were within the hunchback expression domain. Data from a total of six embryos each for mNeonGreen-Zld or eGFP-Bcd were analyzed.

To analyze the distribution of Zld or Bcd around sites of active hb transcription the signal from the MS2 site was used as a marker for the active locus. Each MS2 site was localized through a custom built detection software (Figure 7—figure supplement 1). First, the data was manually examined and annotated to simplify the segmentation procedure by only considering frames in which transcription was occuring. A 3D difference of gaussian image was then calculated at each frame to enhance the contrast of the MS2 site, a global threshold was then applied to generate a 3D binary mask for each frame. The binary mask was filtered to remove structures too big or too small to be from a MS2 site and a label matrix was generated. The xyz weighted center of each labeled region was then used to calculate line profiles extended one micron from the center of the region in each direction. The ratio of the maximum and minimum values in the line profile were used to determine if the labeled region was in a nucleus. This calculation is effective as in the MCP-mCherry channel the nucleoplasm around the MS2 site appears dark whereas in the remainder of the embryo the background is high, thus labeled regions with low-contrast ratios were discarded. The maximum value of the profile of the remaining labeled regions was then used to localize the center of the active locus. The detected loci in each frame were then connected in time using a nearest neighbor algorithm.

The position list of the detected and tracked active loci were then used to crop a 2.18 µm window around the center of each locus in x-y, if any part of the window did not lie within a nucleus the locus was not considered for further analysis. For the remaining loci, a control window was cropped at a distance of 2.6 µm from the center of the locus in x-y. If a control window could not be found that did not completely lie within the nucleus the corresponding locus was also not considered for further analysis. In this manner a total of 3943 and 6307 windows centered around loci and corresponding control points were accumulated from the Bcd and Zld datasets, respectively. The mean image at the locus was then calculated (Figure 7CFigure 7—video 4, Figure 7—video 5) and a radial profile was calculated for Zld or Bcd centered at the active locus or the random control site. The radial profiles were then normalized to one at the maximum radius.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source videos are also available on http://eisenlab.org/hubs and software through GitHub (https://github.com/meisenlab/MirStadler_2018; copy archived at https://github.com/elifesciences-publications/MirStadler_2018).

References

    1. Foe VE
    2. Alberts BM
    (1983)
    Studies of nuclear and cytoplasmic behaviour during the five mitotic cycles that precede gastrulation in drosophila embryogenesis
    Journal of Cell Science 61:31–70.
    1. Sebo ZL
    2. Lee HB
    3. Peng Y
    4. Guo Y
    (2013)
    A simplified and efficient germline-specific CRISPR/Cas9 system for drosophila genomic engineering
    Fly 8:1–6.

Decision letter

  1. Robert H Singer
    Reviewing Editor; Albert Einstein College of Medicine, United States
  2. Kevin Struhl
    Senior Editor; Harvard Medical School, United States
  3. Justin Crocker
    Reviewer; European Molecular Biology Laboratories, United States

In the interests of transparency, eLife includes the editorial decision letter, peer reviews, and accompanying author responses.

[Editorial note: This article has been through an editorial process in which the authors decide how to respond to the issues raised during peer review. The Reviewing Editor's assessment is that all the issues have been addressed.]

Thank you for submitting your article "Dynamic multifactor hubs interact transiently with sites of active transcription in Drosophila embryos" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Kevin Struhl as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Justin Crocker (Reviewer #1). Reviewer #2 remains anonymous.

The Reviewing Editor has highlighted the concerns that require revision and/or responses, and we have included the separate reviews below for your consideration. If you have any questions, please do not hesitate to contact us.

The significance of the work is that it adds to the evolving knowledge that transcription factors can form concentrations around active genes. Both reviewers recognize this but have some suggestions for improvements in the manuscript clarity, the need for controls and the data analysis, particularly justification of the modeling and quantification of the dynamics, including FRAP.

Separate reviews (please respond to each point):

Reviewer #1:

In the manuscript "Dynamic multifactor hubs interact transiently with sites of active transcription in Drosophila embryos," Mir and colleagues explore the nuclear organization and interactions of the transcription factors Zelda and Bicoid. They find that both factors interact with DNA with high off-rates, forming dynamic sub nuclear hubs. Finally, they demonstrate that the TF hubs are short-lived at sites of active transcription. Together, this is an excellent manuscript that contributes to a growing body of evidence that transcription factor interactions with regulatory regions are highly dynamic and can occur in local hubs of high concentration.

That said, I have recommendations for the others:

First, while the authors outline the tagging of endogenous proteins with mEos3.2 etc., the characterization and presentation were cursory. The authors should outline what they did to test for possible aggregation when these FPs are fused to their target proteins. They could be altering intrinsic clustering or polymerization of the native proteins. They should verify the spatial organization derived from FPs with alternative approaches, such as immunohistochemistry or by using SNAP/ HALO.

For a general audience, an explanation of how the authors controlled for bleaching rates and photophysical properties of the tagged proteins would clarify the manuscript.

In all bar graphs throughout the paper, the authors should overlay the data points, show violin plots (or a similar variant), or both. It would be great to see the distribution of the data particularly if they are not single exponential.

Did the authors test any other kinetic models? The authors need to justify why they chose the two-state model-it would be great to see how a 3-state kinetic model fits the data, including fast or slow free molecules, linear diffusion, etc.

In Figure 6, what did the enrichment look across the embryos? It would aid the reader to show nuclei, as done in 6C, for regions across the embryo. It is also highly unclear what Anterior, middle, posterior, Zld refer to. Additionally, the arrow in Figure 6C is hard to see. Do the authors have videos stills they could include in the main figure of Bcd molecules moving into Zld hubs and changing dynamics?

For Figure 7, and the associated data, do the spatiotemporal distributions change across the embryo (i.e., anterior-to-posterior)?

This manuscript should be published provided the authors address these details, which could be done mostly through their existing data with minimal new experiments.

Reviewer #2:

In this work Mir et al. use light-sheet microscopy combined with photoactivation, single-molecule tracking and high speed 4D imaging to study nuclear organization, dynamics and potential interactions of the Bicoid and Zelda transcription factors in developing fruit fly embryos. For both factors, they detect several populations of molecules with different motilities and show that their distribution within the nucleus is not homogenous with structures of higher concentration (hubs). These hubs have short half-lives and partially colocalize with each other and with sites of active Bicoid transcription. In light of these observations, they propose that the interaction between the DNA bound transcription factors with the transcription machinery is much more dynamic than anticipated to allow for diverse activities at target sites.

Although there is a clear potential in the approaches developed, which combined advanced genome editing with a cutting edge imaging expertise, I found that the analysis of the data remains superficial and only partially support the conclusion. I also think that at many instances, there is a need for clarification to reach the large audience expected for eLife. I have listed below the major points that should be clarified before considering publication.

1) Concerning the Cas9-mediated insertion of highly fluorescent tags of endogenous, several linkers and tags were used looking for their viable insertions at specific positions. It is not clear which ATG was used to initiate translation. This is at least particularly critical in the case of Bicoid whose translation is known to be triggered by egg laying through a complex process which might be disrupted by just adding an upstream initiation codon. I found the test for viability as a guaranty a little bit "dangerous": it is possible that internal initiation could allow expression of a sufficient amount of untagged protein for viability (in this case viability would not be a strong argument for the proper expression of the fusion protein). Concerning the approach as it is also novel, it would be useful to have a table indicating the number of lines checked by PCR with the different features and how many turned out to be eliminated. Finally, it is surprising that the authors did not try several sites of insertion. They assume that inserting the fluorescent tag at the N-terminus of Bicoid or Zelda should not affect their function (which is an assumption that could biased the downstream screen). Same is true for the fluorescent tag at the C-terminus of H2B. The data would be much stronger if reproduced for another site of insertion. Another important control is the behavior of the fluorescent tag alone and/or some experiments with mutated protein (for instance by destructing DNA binding) showing different behaviors.

2) The authors have to be careful with the use of H2B as a control. First, there is likely a population of free H2B in the nucleus and clearly imaging H2B-eGFP does not exclusively enable to image chromatin (this indication in the Figure 1 legend is misleading). Also, H2B is bound at many more sites within the genome than Bicoid or Zelda. It is thus dangerous to use the slow mobility of H2B as a standard to identify the populations of Bicoid and Zelda molecules bound to DNA. It is also possible that the proposed transient interaction of Bicoid and Zelda to DNA correspond to non-specific binding and that specific binding would be much more rare events (given the number of expected binding sites) and would not be detected in the assay. Since these transient interactions are strongly emphasized by the authors as an argument for the dynamic behavior of the transcription factors, this point has to be clarified. Also, could-it be that slow motion (what the author name "bound") is 1D diffusion? In general, in the text "bound/unbound" should be replaced by "slow/fast moving".

3) Concerning the FRAP experiment, the recovery plot should start at 0 and does not. This is in general an indication that some of the molecules are moving too rapidly to be properly analyzed by FRAP (Waharte et al., BioPhys J, 2005). The plot shown in Figure 2—figure supplement 1 is not very satisfying because the lowest point of the Bicoid recovery is unknown (between 0.2 and 0.6). It is also not clear why the FRAP experiment validate the use of H2B a suitable control. The authors should be more explicit. In addition, fluorescent correlation spectroscopy data, which is used also to identify various population of highly mobile/less mobile molecules, are already available for H2B and Bicoid. The data presented here and their conclusion concerning motilities (MSD) have to be discussed in light of these already published information.

4) The fast dynamics of interphase hubs is a strong argument used by the authors in the overall message they want to deliver. This cannot be only based on qualitative arguments and the quantitative description of this dynamics has to be provided. In particular, the data presented Figure 5 and discussed in paragraph two of subsection “Zelda and Bcd form dynamic subnuclear hubs” have to be quantified.

5) Concerning the enrichment of Bcd and Zld at the hb transcription sites, the 1.3 versus 1.1 relative enrichment observed for Bcd seems to be due to lower background (Figure 7C). It would be important to comment on this and provide the data before normalization in the form of line profiles (one radius for X axis and intensity for the Y axis). This would help understand the data, get an idea of the noise in the measurements and determine whether the 1.1 to 1.3 increase could be meaningful. Also, it is not clear why the enrichment of Bcd binding events in Zld hubs could not be due to an increase koff. This needs to be clearly explained and rationalized.

Minor Comments:

1) Introduction paragraph nine: beginning of the sentence is unclear given the cited reference.

2) Figure 1B: yellow arrows are very difficult to distinguish from white arrows.

3) Subsection “Zelda hubs are not stably associated with sites of active transcription” first paragraph: be more explicit on the number of sites given also the fact that Figure 7—figure supplement 1) does not at all provide any information related.

4) Discussion section: transient binding (if this is really what is detected in this study) is not inconsistent with ChIP experiments showing increase occupancy of Bcd in Zld binding regions which are performed on fixed material and provide only a "cumulative" snap-shots (time scale of the fixation process) of the state of the bound regions. It might just be a matter of time-scale.

5) Discussion, paragraph five: not clear to what "previous reports" the authors refers to. Provide references.

6) Discussion, paragraph five: better explain what is meant by "time-average accumulation" (and also the reference to the work on Bcd at hb).

7) Discussion section: there is also a possibility that the hubs reflect some kind of structure formed when the transcription factors are inactive (the authors mention that they are "more pronounced at times when no transcription happens") and that the real interaction events responsible for activity are not detected because they are too rare. For instance: if the activation event requires 6 Bcd proteins bound at a given site, what is the probability that this event would be detected with photoactivable approach unless the interaction is long enough (what is the time-scale that would allow to capture these events).

8) Materials and methods, paragraph four: indicate the promoter allowing expression of H2B.

https://doi.org/10.7554/eLife.40497.043

Author response

Reviewer #1:

In the manuscript "Dynamic multifactor hubs interact transiently with sites of active transcription in Drosophila embryos," Mir and colleagues explore the nuclear organization and interactions of the transcription factors Zelda and Bicoid. They find that both factors interact with DNA with high off-rates, forming dynamic sub nuclear hubs. Finally, they demonstrate that the TF hubs are short-lived at sites of active transcription. Together, this is an excellent manuscript that contributes to a growing body of evidence that transcription factor interactions with regulatory regions are highly dynamic and can occur in local hubs of high concentration.

We thank Dr. Crocker for his positive comments and recognition of the manuscript’s contribution to the understanding of transcriptional regulation.

That said, I have recommendations for the others:

First, while the authors outline the tagging of endogenous proteins with mEos3.2 etc., the characterization and presentation were cursory. The authors should outline what they did to test for possible aggregation when these FPs are fused to their target proteins. They could be altering intrinsic clustering or polymerization of the native proteins. They should verify the spatial organization derived from FPs with alternative approaches, such as immunohistochemistry or by using SNAP/ HALO.

We have observed similar spatial distributions of Zelda protein via live imaging with a variety of tags, including sfGFP, mCherry, mEos3.2, and mNeonGreen. Furthermore, the existence of hubs has been shown independently using IF, GFP, and mCherry by Dufort et al. (BioRxiv, 2018), as well as by IF experiments conducted in our group. The consistency of these observations, together with the well-characterized monomeric nature of mEos3.2, mNeonGreen, and mCherry make it extremely unlikely that the aggregation and clustering we are observing is a result of the tags themselves, and strongly suggests that the phenomena we describe reflect the genuine in vivo behavior of these proteins. With regards to using SNAP/HALO, although we have generated lines with these tags, we have not been able to reliably deliver the dyes to the early embryo in a manner that supports continued development. The early embryo is uniquely sensitive to both permeabilization and microinjection, and we have thus decided to avoid using organic dyes until we can deliver these dyes in a manner that is less perturbative.

For a general audience, an explanation of how the authors controlled for bleaching rates and photophysical properties of the tagged proteins would clarify the manuscript.

Photobleaching correction is only applied to calculate the off-rates of DNA binding in the 500 and 100 ms data using the corresponding H2B measurements. In the original manuscript the details of this correction were explained in the Materials and methods section under “Calculation of residence times from long exposure single molecule trajectories” and Figure 4—figure supplement 1. To further clarify the basis of this correction we have now added the following to the Results section under “Bicoid and Zelda bind transiently and have large free populations”

“This correction is based on the fact that the long-lived population of His2B is associated with chromatin much longer than the dynamic range of our measurement and that the maximum trajectory lengths that we measure for His2B are thus only limited by photo-bleaching and defocalization (see Materials and methods for more details) (Hansen et al., 2017).”

In all bar graphs throughout the paper, the authors should overlay the data points, show violin plots (or a similar variant), or both. It would be great to see the distribution of the data particularly if they are not single exponential.

Wherever we use bar graphs they are used to display results from model fits to multi-population distributions. These bar graphs show the means of 3 biological replicates. The full distributions of the data used for fitting are always shown either next to the bar plots (Figure 3A for kinetics, Figure 4A-B for residence times) as well as in supplementary figures.

Did the authors test any other kinetic models? The authors need to justify why they chose the two-state model-it would be great to see how a 3-state kinetic model fits the data, including fast or slow free molecules, linear diffusion, etc.

We agree with the reviewer that it is possible, and in fact likely, that the populations we call bound and free are composed of more complex sub-states including slowly-diffusing molecules or linear diffusion. We did experiment with 3 state models, and this model did not sufficiently improve the fit to justify the use of additional parameters. For all our data, a 2 state model is sufficient to fit the distributions.

We thank the reviewer for pointing out the need to justify and clarify this point and we have now including the following in the revised manuscript under the Results subsection “Bicoid and Zelda bind transiently and have large free populations”:

While it is likely that the identified immobile and free diffusing populations contain more complex sub-populations, for example molecules exhibiting 1-D diffusion on DNA, a 2-state model accurately fit the displacement distributions for all 3 proteins and using a higher number of states did not significantly improve the model fit to justify them.

We have also modified other instances in the text and Figure 3 to clarify the distinction between bound and immobile when discussing the high frame-rate data. However in the case of the 100 ms and 500 ms data, we still refer to the detected molecules as bound, as already justified extensively in the text.

In Figure 6, what did the enrichment look across the embryos? It would aid the reader to show nuclei, as done in 6C, for regions across the embryo.

What we refer to as “enrichment” in Figure 6C is regions with high Zelda density. What we report on here is not the change in the enrichment of Zelda across the embryo, which we observe is not dependent on position along the A-P axis but rather the enrichment of Bicoid binding events in Zelda high regions.

We recognize that the way we used the word enrichment in this context is confusing as we are presenting data on both the local enrichment of Zld in terms of its spatial distribution and the enrichment of single molecule binding events of Bicoid within regions of high Zld density (with these enrichments split by anteroposterior position). We regrettably used the words “high density” and “enrichment” interchangeably in this section and corresponding figures, and we have amended this.

We now use the word enrichment to consistently and only refer to the enrichment of Bcd binding events within Zld hubs and refer to Zld levels as Zld “density” and have made the following changes:

In the Results subsection “Bicoid binding events are enriched in Zelda hubs” all instances where we are referring to the spatial distribution of Zld as “enrichment” have been replaced with “density” whereas the enrichment of Bcd binding events in areas of high Zld density are now solely referred to as “enriched”. We have also provided an additional clarification that high density Zelda regions correspond to hubs.

“Using the bulk Zld data we partitioned nuclei into regions of high and low relative Zld density (Figure 6B-C and Figure 6—figure supplement 1), where high density regions correspond to Zld hubs.”

Figure 6C: The label for the color bar has been changed to “Relative Zelda density”

Figure 6C caption has been changed: Relative Zelda Density map for the nucleus shown in (B), the arrow on the colorbar indicates the threshold for defining a region as high density (corresponding to hubs).

Figure 6D: Y-axis label has been changed to: “Fold Enrichment of Binding Events/µm2) in Zld Hubs.

Figure 6—figure supplement 1: Title has been changed to “Analysis of Zelda density” and caption and text in the figure has been modified to replace all instances of the word “enrichment” with “density”.

Figure 6—figure supplement 1D: labels on bars have been modified to “High” and “Low” from “Enriched” and “Not Enriched”.

Figure 6—figure supplement 2: all instances of “enrichment” have been replaced with “density” or “zelda density” in both the figure and captions.

The title of Materials and methods subsection “Analysis of single molecule binding in the context of Zld enrichment” has been changed to “Analysis of single molecule binding in the context of Zld density” and all usage of the word “enrichment” within the section has been changed to “density.

To further clarify that the spatial distribution of Zld remains unchanged across the anteroposterior axis we add the following to the corresponding Results subsection: “The enrichment of Bcd trajectories within the high density Zld regions increases along the anteroposterior axis of the embryo as the Bcd concentration decreases to an excess of around four-fold in the posterior (Figure 6D) whereas the Zld spatial distribution remains unchanged”.

It is also highly unclear what Anterior, middle, posterior, Zld refer to.

We have modified the x-axis label on Figure 6D to read Bcd in Anterior, Bcd in Middle, Bcd in Posterior and also the y-axis label as described above for clarity. We have also edited the caption to read: “Fold change in enrichment of single molecule trajectories of Bcd in the anterior, middle, and posterior positions, and of Zld in Zld hubs vs. the rest of the nucleoplasm.”

Additionally, the arrow in Figure 6C is hard to see.

The arrow has been repositioned and enlarged to make it easier to see.

Do the authors have videos stills they could include in the main figure of Bcd molecules moving into Zld hubs and changing dynamics?

It would be fantastic if it was possible to have such data with our current system however as explained in the main text:

“To strike a balance between the constraints of the imaging system, the dynamic range of the single molecule trajectories, and the fast dynamics of Zld hubs (Figure 5 and Figure 6A) we acquired a bulk fluorescence image of mNeonGreen-Zld with a 1 sec acquisition time followed by 10 frames of single molecule images with a frame rate of 100 ms (Videos 14)”.

Given the constraints of imaging, this experiment was designed to be sensitive to the bound population of Bcd (based on our measurements of its kinetics) and in this case we thus only detect molecules of Bcd that are immobile for at least 100 ms and only track them for a total of 1 second.

For Figure 7, and the associated data, do the spatiotemporal distributions change across the embryo (i.e., anterior-to-posterior)?

In this experiment all data was acquired in a narrow region of the hunchback anterior expression domain in nuclear cycle 13 and early nuclear cycle 14 and is thus not designed to look at changes in the spatiotemporal distributions across the embryo. We agree that this is an important question given our findings of a stronger enrichment of Bcd binding within Zld hubs at more posterior positions, however answering this question requires utilizing a Bcd target gene tagged with MS2 that is expressed at more posterior positions. We plan to systematically study this question in our future work.

This manuscript should be published provided the authors address these details, which could be done mostly through their existing data with minimal new experiments.

We thank Dr. Crocker for his comments, which have greatly improved the clarity of this manuscript, and hope that it is now more accessible to readers.

Reviewer #2:

[…] Although there is a clear potential in the approaches developed, which combined advanced genome editing with a cutting edge imaging expertise, I found that the analysis of the data remains superficial and only partially support the conclusion. I also think that at many instances, there is a need for clarification to reach the large audience expected for eLife. I have listed below the major points that should be clarified before considering publication.

We thank the reviewer for their careful reading and constructive comments. We address each of the concerns raised by the reviewer fully in the revised manuscript as outlined below.

1) Concerning the Cas9-mediated insertion of highly fluorescent tags of endogenous, several linkers and tags were used looking for their viable insertions at specific positions. It is not clear which ATG was used to initiate translation. This is at least particularly critical in the case of Bicoid whose translation is known to be triggered by egg laying through a complex process which might be disrupted by just adding an upstream initiation codon. I found the test for viability as a guaranty a little bit "dangerous": it is possible that internal initiation could allow expression of a sufficient amount of untagged protein for viability (in this case viability would not be a strong argument for the proper expression of the fusion protein).

The reviewer raises significant points. First, it is important to clarify the sites of insertion, specifically which ATG was used. We have amended the manuscript as follows:

“Fluorescent tags were inserted at ATG located at 3R:6759268 for Bicoid and at X:19782283 for Zelda (dm6 coordinates). For both Zelda and Bicoid, the natural start ATG was removed, and the fluorescent protein and linker were fused with the first amino acid after the initiation Methionine residue.”

The use of organismal viability as a test for the normal function of the fusion proteins relies on the assumption that, in homozygous animals, the fusion protein is the only version produced from the target gene. As the reviewer points out, production of un-tagged protein, via internal initiation, cryptic splicing, or proteolytic cleavage, would violate this assumption, leaving the possibility that fusion proteins are non-functional and viability is accomplished instead by the pool of un-tagged protein. To address this possibility, we performed Western blots on 2 hour embryos for all of the newly-generated fusion protein lines referenced in the paper (Figure 1—figure supplement 1). For Zelda, we detect no protein at the size expected for un-tagged protein in the mEos3.2, mNeonGreen, or mCherry lines. For mEos3.2-Bicoid, we observe a strong band at the expected size of the fusion protein, and a very faint smear in the area of the un-tagged protein. This smear likely represents background staining, which is obscured by the strong band for native protein in wild-type samples, but in any case represents a level of protein too low to account for the viability of these lines, even if it does represent Bicoid degradation products (Liu et al., 2013 PNAS, Hannon et al., 2017. Both authors were unable to generate viable lines expressing less than ~0.4x Bicoid protein).

Methods: For each genotype indicated, 50-60 embryos aged 2 hours at 25º were dechorionated in bleach, rinsed in salt solution (NaCl with TritonX-100) and flash frozen. Frozen embryos were homogenized in 50 µL of sample buffer and 20 µL of sample per lane was loaded onto two separate 4-15% SDS-PAGE gels (Bio-Rad Cat # 4561083DC). Western blots were performed using rabbit polyclonal α-Bcd or α-Zld primary antibodies and a goat α-rabbit HRP conjugated secondary antibody (Thermo Fisher Cat # 31460).

Concerning the approach as it is also novel, it would be useful to have a table indicating the number of lines checked by PCR with the different features and how many turned out to be eliminated.

This is a good suggestion, and would indeed be useful as a guide to others who might wish to use similar approaches. We have included representative statistics for a pooled Zelda transgenesis experiment in the Materials and methods section:

“Typically, we find that ~10-40% of F1 animals contain insertions. For example, for a pooled injection of three Zelda tagging constructs, we screened 79 F1 animals and recovered 36 hits, of which we screened 19 to determine the identify of the inserted tag, recovering 8 GFP-Zld, 6 mEos3.2-Zld, and 5 HaloTag-Zld. We find that efficiency varies for different genes and injections, but these results are fairly typical.”

We have now performed similar experiments for dozens of target genes, and will publish the complete data for these experiments elsewhere.

Finally, it is surprising that the authors did not try several sites of insertion. They assume that inserting the fluorescent tag at the N-terminus of Bicoid or Zelda should not affect their function (which is an assumption that could biased the downstream screen). Same is true for the fluorescent tag at the C-terminus of H2B. The data would be much stronger if reproduced for another site of insertion. Another important control is the behavior of the fluorescent tag alone and/or some experiments with mutated protein (for instance by destructing DNA binding) showing different behaviors.

The reviewer raises a significant point related to any study of this kind: the addition of a fluorescent tag necessarily alters the behavior of the fused protein. For the proteins we studied, we were fortunate in that previous studies had examined fusion products of each. For Bicoid, N-terminal fusions are well-characterized and have been shown to phenocopy wild-type protein (e.g., Gregor et al., 2007 or Hannon et al., 2016). Likewise, our C-terminal fusions of H2B were based on constructs used successfully in mammalian cell culture experiments (Hansen et al., 2018). Finally, N-terminal Zelda fusions were previously shown to be well-tolerated (Hamm et al., 2017). We thus began our tagging experiments using the insertion sites previously shown to work, and independently validated each tag-linker-protein combination. The combination of previously characterized insertion sites, phenotypic viability of homozygotes, and confirmation that viability is effected exclusively by fusion proteins (see response to reviewer 2, comment 2) gives us high confidence that our fusion proteins are functional and serve as reasonable approximations of the behavior of un-tagged wild-type protein.

Nonetheless we agree with the reviewer that using multiple, distinct approaches to generate fusion proteins and the generation of additional control lines would be desirable, and these are the subject of ongoing work in our labs.

2) The authors have to be careful with the use of H2B as a control. First, there is likely a population of free H2B in the nucleus and clearly imaging H2B-eGFP does not exclusively enable to image chromatin (this indication in the Figure 1 legend is misleading).

Our analysis on the kinetics of H2B single molecule data at high frame rates using Spot-On indicates that ~90% of detected H2B molecules are bound. This fact coupled with our FRAP measurements suggest to us that using H2B as a proxy for directly imaging chromatin is suitable, as is commonly done in the single-molecule field.

Also, H2B is bound at many more sites within the genome than Bicoid or Zelda. It is thus dangerous to use the slow mobility of H2B as a standard to identify the populations of Bicoid and Zelda molecules bound to DNA.

The reviewer is correct in their statement that H2B is bound to many other sites in the genome than Bcd or Zelda, however they misunderstand the use of H2B as a “standard”. The H2B data is not used in any way to identify the bound populations of Bcd and Zld. Rather, independent analysis of the single molecule kinetics at high frame rates and analysis using Spot-On is used to quantify the bound populations of all 3 proteins. We have clarified the use of the H2B data to correct for the effects of photobleaching in the main text (see response to reviewer 1 comment 3 above). This method of estimating specific binding times and bound populations has previously been described and validated extensively in the literature cited in our manuscript.

It is also possible that the proposed transient interaction of Bicoid and Zelda to DNA correspond to non-specific binding and that specific binding would be much more rare events (given the number of expected binding sites) and would not be detected in the assay. Since these transient interactions are strongly emphasized by the authors as an argument for the dynamic behavior of the transcription factors, this point has to be clarified. Also, could-it be that slow motion (what the author name "bound") is 1D diffusion? In general, in the text "bound/unbound" should be replaced by "slow/fast moving".

What we refer to as specific binding events in the manuscript are in fact extremely rare compared to the observed non-specific binding events as is evident in the survival probability distributions shown in Figure 4A and B. The binding times we report as specific are in congruence with measurements on other transcription factors and the observation in the single molecule field that transcription factor binding to DNA is in general transient, a fact with which the field at large is reckoning. We believe that the mystery of how such transient interactions can lead to robust regulation is partly resolved by our observation of hub formation. We discuss this point extensively in the Discussion section of the manuscript.

The reviewer is correct that it is possible and likely that what we refer to as bound and mobile populations when analyzing the fast frame data are composed of more complex sub-populations. We have modified the main text and figures in this regard in all relevant places in the manuscript (see response to reviewer 1 comment 5 above).

3) Concerning the FRAP experiment, the recovery plot should start at 0 and does not. This is in general an indication that some of the molecules are moving too rapidly to be properly analyzed by FRAP (Waharte et al., BioPhys J, 2005). The plot shown in Figure 2—figure supplement 1 is not very satisfying because the lowest point of the Bicoid recovery is unknown (between 0.2 and 0.6). It is also not clear why the FRAP experiment validate the use of H2B a suitable control. The authors should be more explicit.

A review of the FRAP literature will reveal that in general, unless artificially manipulated or normalized to do so, recovery plots do not start at 0. We believe that presenting the data using the normalization we implement is clearer and allows the reader to see (as the reviewer has pointed out) that there is an extremely fast moving population that cannot be bleached effectively.

In our case, the purpose of the FRAP experiment was not to characterize the fast moving population, which is notoriously error prone (see Mazza et al., 2012, and Mueller et al., Curr Opin Cell Biol, 2010) but rather to provide an orthogonal estimate of the residence times of bound Bcd, Zld, and H2B to compare with our measurements from SPT. This is why we use a simple two-exponent reaction dominant model which ignores diffusion (see Hansen et al., 2017 for further discussion on this topic). For these reasons, we use high frame-rate SPT data rather than FRAP to estimate the fast kinetics of each protein, which is a more direct measurement and less model dependent.

Our reaction-dominant modelling of FRAP recoveries is consistent with the residence times we measure with SPT and also reveals that the majority of H2B is bound stably for long timescales, verifying its suitability as a control to correct for the effects of photobleaching and defocalization when estimating residence times from our long exposure time SPT-data. We thank the reviewer for pointing out that this was not clear in the manuscript, and we have now added the following to the text to be more explicit:

“The FRAP data verifies that the majority of His2B molecules are stably bound for significantly longer times than Bcd or Zld and indicates that the single molecule trajectory lengths of His2B are limited by photobleaching and defocalization rather than unbinding.”

In addition, fluorescent correlation spectroscopy data, which is used also to identify various population of highly mobile/less mobile molecules, are already available for H2B and Bicoid. The data presented here and their conclusion concerning motilities (MSD) have to be discussed in light of these already published information.

To our knowledge there is only 1 paper (Porcher et al., Development 2010) that performs FCS on Bicoid within the nuclei of the Drosophila embryo. The data from this paper was then reanalyzed by one of the authors (Fradin et al., 2017). The main conclusion of the authors is that the fast kinetics they observe are inconsistent with how quickly the Bicoid concentration appears to be interpreted in each nuclear cycle and that this may be due to the limitations of FCS. In the Fradin, 2017 paper it is hypothesized that this discrepancy may be resolved by considering that Bicoid molecules undergo “facilitated diffusion” in searching for their targets by sliding in 1D on DNA. However no new data has been generated to support this hypothesis. Thus these previous measurements do not provide any insight beyond speculation on the motilities with regard to the MSD analysis we have presented. In the revised manuscript we now cite these works in the context of discussing the complex nature of the TAMSD curves we measured and the underlying phenomenon that might explain them.

“Anomalous or sub-diffusive motion can result from a range of underlying physical interactions including aggregation, weak interactions with other proteins and chromatin, repetitive binding at proximal binding sites, among many other models (Woringer and Darzacq, 2018; Fradin, 2017)”.

On the other hand FCS measurements of His2B-EGFP (Battacharya et al., 2009) in the early Drosophila embryo have indeed revealed anomalous diffusion with the estimated coefficient of between 0.7 and 0.8, consistent with our estimates. We thank the reviewer for bringing these measurements to our attention and have now cited this paper in the main text as follows:

“Our estimation of the α value for His2B is in agreement with previous measurements using Fluorescence Correlation Spectroscopy (Bhattacharya et al., 2009).”

4) The fast dynamics of interphase hubs is a strong argument used by the authors in the overall message they want to deliver. This cannot be only based on qualitative arguments and the quantitative description of this dynamics has to be provided. In particular, the data presented Figure 5 and discussed in paragraph two of subsection “Zelda and Bcd form dynamic subnuclear hubs” have to be quantified.

We agree with the reviewer that a quantitative assessment of the dynamics of the hubs themselves is of high interest. We experimented with analytical methods to classify and track individual hubs to determine their size, movement, and persistence. However, commonly used metrics that rely on segmentation and tracking are too restrictive and require assumptions about the nature of these structures that we do not believe are valid. Developing novel metrics and analytical approaches to assess hub dynamics, treating them as the amorphous structures that they are, is an ongoing effort in our groups.

As an alternative to tracking and counting individual hubs, we have analyzed our movies of Zld and Bcd dynamics at sub-second frame rates by examining the frame-to-frame correlation of the overall nuclear distribution of these proteins. The results of this analysis match what we describe qualitatively — the spatial correlation between frames decays to background levels within ~3-7 seconds, consistent with typical hub lifetimes of a few seconds (Author response image 1). Interestingly, these correlations do not relax to the level of control experiments in which signals from different nuclei are compared. This is consistent with our observation that hub formation, while highly dynamic, is not random, and that subnuclear concentrations of TFs show unequal distributions when averaged over longer timescales (e.g., the preferential accumulation of Bcd protein at the hb locus).

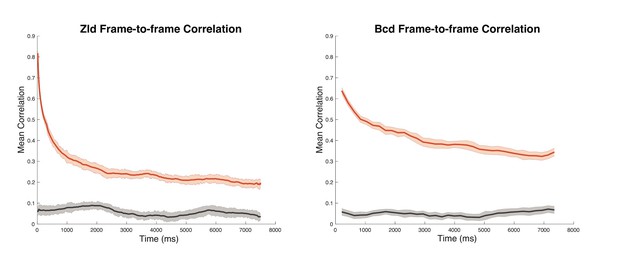

Author response image 1
Frame-to-frame correlation of nuclear protein fluorescence generated from movies with a 15 ms frame rate for Zelda and 210 ms frame rate for Bcd.

Nuclei were manually segmented, fluorescent signal was normalized independently for each nucleus and each frame, and the pixel-wise correlation of nuclear signal between frames was calculated. Vectors of correlation coefficients were generated for series of frames beginning every by 420 ms, and coefficients at each time offset (+1 frame, +2, +3…) were averaged to produce the plots. The decay in correlation for the nuclei for each protein is shown in red; gray lines represent controls in which nuclei were permuted and correlations were measured between fluorescent signal in different nuclei. Shading represents standard error of the mean.

https://doi.org/10.7554/eLife.40497.039

To further emphasize this point we have generated a new movie that shows more clearly the amorphous nature of Zelda hubs (Author response video 1):

Author response—video 1
https://doi.org/10.7554/eLife.40497.040

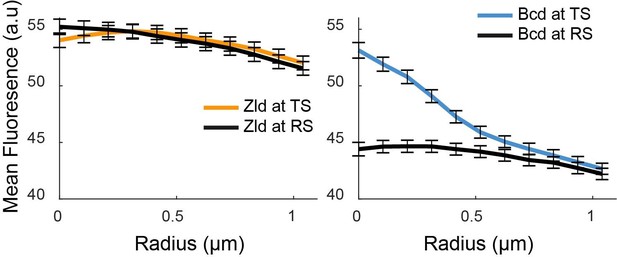

5) Concerning the enrichment of Bcd and Zld at the hb transcription sites, the 1.3 versus 1.1 relative enrichment observed for Bcd seems to be due to lower background (Figure 7C). It would be important to comment on this and provide the data before normalization in the form of line profiles (one radius for X axis and intensity for the Y axis). This would help understand the data, get an idea of the noise in the measurements and determine whether the 1.1 to 1.3 increase could be meaningful.

It is unclear how a lower background would lead to a false measurement of enrichment of Bcd at the Hb locus compared to random sites in the nucleus — if anything this makes the case for enrichment stronger. To address the reviewers concerns we have now plotted the unnormalized line profiles in Author response image 2:

Also, it is not clear why the enrichment of Bcd binding events in Zld hubs could not be due to an increase koff. This needs to be clearly explained and rationalized.

We apologize for a typo where we meant to say that the enrichment is not due to an increase in residence time, meaning a decrease in koff, not an increase. This may account for some of the confusion. We have fixed this error in the revised manuscript.

As we stated in the main text, the increase in binding times is “is less pronounced than the overall enrichment of all Bcd binding events” suggesting that the enrichment we observe is due to an increase in kon. We have modified this sentence to further clarify our rationale as:

“We note that while there is an increase in long Bcd binding events in Zld hubs this effect is not large enough to account for the overall enrichment of all Bcd binding events, suggesting that Zld increases the time averaged Bcd occupancy at DNA binding sites primarily by increasing its local concentration (increasing kon) and not by increasing its residence times at its target sites (decreasing koff).”

Minor Comments:

1) Introduction paragraph nine: beginning of the sentence is unclear given the cited reference.

We have now clarified this point by elaborating on why the cited reference is relevant as follows:

“Prompted by previous observations (Hannon, Blythe, and Wieschaus, 2017) that Bcd can bind to inaccessible chromatin on its own at high concentrations in the anterior but requires Zld to do so at low concentrations in the posterior, we examined the distribution of Bcd binding in nuclei lacking Zld and found that Bcd hubs no longer form (Mir et al., 2017)”

2) Figure 1B: yellow arrows are very difficult to distinguish from white arrows.

We have changed the color of the yellow arrows to green to help distinguish them from the white arrows.

3) Subsection “Zelda hubs are not stably associated with sites of active transcription” first paragraph: be more explicit on the number of sites given also the fact that Figure 7—figure supplement 1) does not at all provide any information related.

Locating transcription factor binding sites within metazoan regulatory sequences is a famously hard problem, and cannot be reliably achieved through sequence-based informatic searches alone. Several groups have used varied approaches to attempt to measure the cooperativity of the hb response to Bicoid concentration and infer the number of binding sites from resulting hill coefficients. For example, Xu et al., 2015, estimated a hill coefficient of ~6, while Lopes et al. (2012 Developmental Biology) reported a hill coefficient that increased from ~4 to more than 10 over developmental time. While it is thus difficult to nail down a specific, discrete number of binding sites, a consensus view is that 1) Bcd directly regulates hb transcription and 2) it does so through multiple DNA binding sites within hb regulatory regions. Therefore, we think that the ambiguous “multiple clustered Bcd binding sites” is an appropriate description.

4) Discussion section: transient binding (if this is really what is detected in this study) is not inconsistent with ChIP experiments showing increase occupancy of Bcd in Zld binding regions which are performed on fixed material and provide only a "cumulative" snap-shots (time scale of the fixation process) of the state of the bound regions. It might just be a matter of time-scale.

We agree with the reviewer that our results are consistent with published ChIP studies. ChIP is a measure of occupancy: the probability of a covalent cross-link forming between a locus and a protein species is proportional to the fraction of time that a site is bound by any protein of that type during the fixation period, not the residence time of individual molecules. Therefore, our model that rapid binding and unbinding of individual molecules results in high levels of time-averaged occupancy at target sites is entirely consistent with the strong and specific ChIP signal observed for these factors.

5) Discussion, paragraph five: not clear to what "previous reports" the authors refers to. Provide references.

We have added the appropriate references.

6) Discussion, paragraph five: better explain what is meant by "time-average accumulation" (and also the reference to the work on Bcd at hb).

We now have elaborated on this point in the revised manuscript:

“We suggest that what previous reports (Dufourt et al., 2018) have described as stable clusters are actually time-averaged accumulations (such as what we observe for Bcd at hb) resulting from insufficient temporal resolution or use of immunofluorescence data, rather than discrete sub-nuclear bodies. “

7) Discussion section: there is also a possibility that the hubs reflect some kind of structure formed when the transcription factors are inactive (the authors mention that they are "more pronounced at times when no transcription happens") and that the real interaction events responsible for activity are not detected because they are too rare. For instance: if the activation event requires 6 Bcd proteins bound at a given site, what is the probability that this event would be detected with photoactivable approach unless the interaction is long enough (what is the time-scale that would allow to capture these events).

It is possible that the functional nature of the hubs varies through the cell cycle as we hypothesize in the discussion. It is certainly possible that the hubs are playing a role in regulating chromatin accessibility or enhancer licensing when they are most pronounced at the beginning of the cell cycle and there is no transcriptional activity. However in this manuscript we are specifically examining the interaction of hubs with sites of active transcription. The reviewer is correct in their observation that if we were using a photoactivatable approach to try to study the enrichment of Bicoid at a target locus it would be unlikely for us to observe a specific binding event in a single experiment, for this reason we relied on bulk imaging to study the interactions between hubs and active loci.

8) Materials and methods, paragraph four: indicate the promoter allowing expression of H2B.

We have included this information in the revised manuscript:

“His2B-mEos3.2 was introduced as a supplemental transgene under the control of a ubiquitous pΔTubHA4C promoter (Zhang et al., 2013) and SV40 3’ UTR via PhiC31-mediated recombinase (Groth et al., 2004) into landing site VK33 (Venken et al., 2009).”

https://doi.org/10.7554/eLife.40497.044

Article and author information

Author details

  1. Mustafa Mir

    Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Michael R Stadler
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8280-2821
  2. Michael R Stadler

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Mustafa Mir
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3333-4184
  3. Stephan A Ortiz

    Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Data curation, Software, Formal analysis
    Competing interests
    No competing interests declared
  4. Colleen E Hannon

    Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4402-8107
  5. Melissa M Harrison

    Department of Biomolecular Chemistry, University of Wisconsin–Madison, Madison, United States
    Contribution
    Resources, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8228-6836
  6. Xavier Darzacq

    Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    darzacq@berkeley.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2537-8395
  7. Michael B Eisen

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    3. Department of Integrative Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    mbeisen@berkeley.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7528-738X

Funding

American Cancer Society

  • Michael R Stadler

National Institutes of Health (GM111694)

  • Melissa M Harrison

National Institutes of Health (UO1-EB021236)

  • Xavier Darzacq

California Institute for Regenerative Medicine (LA1-08013)

  • Xavier Darzacq

National Institutes of Health (U54-DK107980)

  • Xavier Darzacq

Howard Hughes Medical Institute

  • Michael B Eisen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Robert Tjian for useful discussion and extensive advice on the science and the manuscript. We thank Jacques Bothma, Simón Álamos and Hernan Garcia for useful discussions and providing the hb-MS2 and MCP-mCherry fly lines. We also acknowledge the advice and comments provided by all members of the Eisen, Darzacq, Tjian, and Garcia labs over the course of this work. This work was supported by a Howard Hughes Medical Institute investigator award to MBE; XD acknowledges support from California Institute of Regenerative Medicine (CIRM) grant LA1-08013 and the National Institutes of Health (NIH) grants UO1-EB021236 and U54-DK107980; MRS was supported by an American Cancer Society postdoctoral fellowship; MMH was supported by NIH GM111694.

Senior Editor

  1. Kevin Struhl, Harvard Medical School, United States

Reviewing Editor

  1. Robert H Singer, Albert Einstein College of Medicine, United States

Reviewer

  1. Justin Crocker, European Molecular Biology Laboratories, United States

Publication history

  1. Received: July 27, 2018
  2. Accepted: November 30, 2018
  3. Version of Record published: December 27, 2018 (version 1)

Copyright

© 2018, Mir et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,224
    Page views
  • 635
    Downloads
  • 82
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Mustafa Mir
  2. Michael R Stadler
  3. Stephan A Ortiz
  4. Colleen E Hannon
  5. Melissa M Harrison
  6. Xavier Darzacq
  7. Michael B Eisen
(2018)
Dynamic multifactor hubs interact transiently with sites of active transcription in Drosophila embryos
eLife 7:e40497.
https://doi.org/10.7554/eLife.40497

Further reading

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Andria C Schibler, Predrag Jevtic ... Tom Misteli
    Research Article

    The shape and size of the human cell nucleus is highly variable amongst cell types and tissues. Changes in nuclear morphology are associated with disease, including cancer, as well as with premature and normal aging. Despite the very fundamental nature of nuclear morphology, the cellular factors that determine nuclear shape and size are not well understood. To identify regulators of nuclear architecture in a systematic and unbiased fashion, we performed a high-throughput imaging-based siRNA screen targeting 867 nuclear proteins including chromatin-associated proteins, epigenetic regulators, and nuclear envelope components. Using multiple morphometric parameters and eliminating cell cycle effectors, we identified a set of novel determinants of nuclear size and shape. Interestingly, most identified factors altered nuclear morphology without affecting the levels of lamin proteins, which are known prominent regulators of nuclear shape. In contrast, a major group of nuclear shape regulators were modifiers of repressive heterochromatin. Biochemical and molecular analysis uncovered a direct physical interaction of histone H3 with lamin A mediated via combinatorial histone modifications. Furthermore, disease-causing lamin A mutations that result in disruption of nuclear shape inhibited lamin A-histone H3 interactions. Finally, oncogenic histone H3.3 mutants defective for H3K27 methylation resulted in nuclear morphology abnormalities. Altogether, our results represent a systematic exploration of cellular factors involved in determining nuclear morphology and they identify the interaction of lamin A with histone H3 as an important contributor to nuclear morphology in human cells.

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Yunfeng Lin, Jia Li ... Shan Yan
    Research Article

    Cells have evolved the DNA damage response (DDR) pathways in response to DNA replication stress or DNA damage. In the ATR-Chk1 DDR pathway, it has been proposed that ATR is recruited to RPA-coated single-stranded DNA (ssDNA) by direct ATRIP-RPA interaction. However, it remains elusive how ATRIP is recruited to ssDNA in an RPA-independent manner. Here, we provide evidence that APE1 directly associates ssDNA to recruit ATRIP onto ssDNA in an RPA-independent fashion. The N-terminal motif within APE1 is required and sufficient for the APE1-ATRIP interaction in vitro and the distinct APE1-ATRIP interaction is required for ATRIP recruitment to ssDNA and the ATR-Chk1 DDR pathway activation in Xenopus egg extracts. In addition, APE1 directly associates with RPA70 and RPA32 via two distinct motifs. Taken together, our evidence suggests that APE1 recruits ATRIP onto ssDNA in an RPA-dependent and -independent manner in the ATR DDR pathway.
