SUMO peptidase ULP-4 regulates mitochondrial UPR-mediated innate immunity and lifespan extension

  1. Kaiyu Gao
  2. Yi Li
  3. Shumei Hu
  4. Ying Liu  Is a corresponding author
  1. Peking University, China
Research Article
  • Cited 0
  • Views 1,729
  • Annotations
Cite this article as: eLife 2019;8:e41792 doi: 10.7554/eLife.41792

Abstract

Animals respond to mitochondrial stress with the induction of mitochondrial unfolded protein response (UPRmt). A cascade of events occur upon UPRmt activation, ultimately triggering a transcriptional response governed by two transcription factors: DVE-1 and ATFS-1. Here we identify SUMO-specific peptidase ULP-4 as a positive regulator of C. elegans UPRmt to control SUMOylation status of DVE-1 and ATFS-1. SUMOylation affects these two axes in the transcriptional program of UPRmt with distinct mechanisms: change of DVE-1 subcellular localization vs. change of ATFS-1 stability and activity. Our findings reveal a post-translational modification that promotes immune response and lifespan extension during mitochondrial stress.

https://doi.org/10.7554/eLife.41792.001

eLife digest

Most animal cells carry compartments called mitochondria. These tiny powerhouses produce the energy that fuels many life processes, but they also store important compounds and can even cause an infected or defective cell to kill itself. For a cell, keeping its mitochondria healthy is often a matter of life and death: failure to do so is linked with aging, cancer or diseases such as Alzheimer’s.

The cell uses a surveillance program called the mitochondrial unfolded protein response to assess the health of its mitochondria. If something is amiss, the cell activates specific mechanisms to fix the problem, which involves turning on specific genes in its genome.

A protein named ULP-4, which is found in the worm Caenorhabditis elegans but also in humans, participates in this process. This enzyme cuts off chemical ‘tags’ known as SUMO from proteins. Adding and removing these labels changes the place and role of a protein in the cell. However, it was still unclear how ULP-4 played a role in the mitochondrial unfolded protein response.

Here, Gao et al. show that when mitochondria are in distress, ULP-4 removes SUMO from DVE-1 and ATFS-1, two proteins that control separate arms of the mitochondrial unfolded protein response. Without SUMO tags, DVE-1 can relocate to the area in the cell where it can turn on genes that protect and repair mitochondria; meanwhile SUMO-free ATFS-1 becomes more stable and can start acting on the genome. Finally, the experiments show that removing SUMO on DVE-1 and ATFS-1 is essential to keep the worms healthy and with a long lifespan under mitochondrial stress.

The experiments by Gao et al. show that the mitochondrial unfolded protein response relies, at least in part, on SUMO tags. This knowledge opens new avenues of research, and could help fight diseases that emerge when mitochondria fail.

https://doi.org/10.7554/eLife.41792.002

Introduction

The ability of an organism to cope with an ever-changing and challenging environment lies in its ability to activate stress responses. Failure to appropriately respond to different stresses and maintain cellular and organismal homeostasis could result in multiple diseases including metabolic and neurodegenerative disorders (Jovaisaite et al., 2014; Lee and Ozcan, 2014; Wang and Kaufman, 2012). Animals respond to mitochondrial stress with the induction of mitochondrial unfolded protein response (UPRmt), a surveillance program that monitors mitochondrial function and initiates mitochondria-to-nucleus crosstalk to maintain mitochondrial protein-folding homeostasis (Benedetti et al., 2006; Yoneda et al., 2004) and coordinate the expression of electron transport chain (ETC) components in mitochondrial and nuclear genomes (Houtkooper et al., 2013). UPRmt also elicits global changes to reprogram metabolism (Nargund et al., 2015; Nargund et al., 2012), activate immune responses (Liu et al., 2014; Melo and Ruvkun, 2012; Pellegrino et al., 2014) and extend lifespan (Durieux et al., 2011; Merkwirth et al., 2016; Tian et al., 2016).

UPRmt signaling ultimately activates a transcriptional response governed by two transcription factors: ATFS-1 and DVE-1. ATFS-1 contains an N-terminal mitochondrial targeting sequence and a C-terminal nuclear localization sequence. Under normal condition, ATFS-1 is imported into mitochondria, where it is degraded by mitochondrial protease LON. During mitochondrial stress, mitochondrial import efficiency is impaired, resulting in nuclear accumulation of ATFS-1 (Nargund et al., 2012). ATFS-1 controls approximately half of the mitochondrial stress response genes, including those encoding mitochondrial-specific chaperones, proteases and immune response genes (Nargund et al., 2012). ATFS-1 also regulates genes involved in metabolic reprogramming, such as those functioning in glycolysis (Nargund et al., 2015). Another axis of the UPRmt transcriptional program relies on DVE-1, a homeobox transcription factor homologous to human SATB1/SATB2. Upon mitochondrial perturbation, DVE-1 translocates from cytosol to nucleus, binds to the open-up chromatins devoid of H3K9me2, and initiates the transcription of mitochondrial stress response genes (Haynes et al., 2007; Tian et al., 2016). While several core components of UPRmt have been identified, the regulation, especially post-translational regulation of these components has not been reported.

The Small Ubiquitin-like Modifier (SUMO) post-translational modifies a large number of proteins that function in diverse biological processes, including transcription, chromatin remodeling, DNA repair and mitochondrial dynamics (Gill, 2004; Hay, 2005; Hendriks et al., 2014; Prudent et al., 2015; Wasiak et al., 2007; Yeh et al., 2000). Growing evidence suggests that rather than modifying a single protein, SUMO often targets multiple proteins within a complex, or within a pathway (Chymkowitch et al., 2015; Hendriks et al., 2014). Similar to ubiquitination, conjugation of SUMO to its substrates involves an enzymatic cascade including an E1 activating enzyme, an E2 conjugating enzyme and E3 ligases that determine the specificity (Flotho and Melchior, 2013). SUMOylation is also a dynamic process, which can be reversed by a family of conserved Sentrin/SUMO-specific proteases (SENPs) (Mukhopadhyay and Dasso, 2007). In C. elegans, the SENP family consists of four SUMO proteases (ubiquitin-like proteases, ULPs) ULP-1, ULP-2, ULP-4 and ULP-5. Among them, ULP-2 has been reported to deSUMOylate E-cadherin and promotes its recruitment to adherens junctions (Tsur et al., 2015). Moreover, ULP-4 has been reported to deSUMOylate HMGS-1 to control mevalonate pathway activity during aging (Sapir et al., 2014).

Aberrant activity of SUMOylation drastically affects cellular homeostasis and has been linked with many diseases (Flotho and Melchior, 2013; Mo et al., 2005; Sarge and Park-Sarge, 2009; Seeler et al., 2007). It has been reported that SUMO could covalently modify Drp1, a protein essential for mitochondrial dynamics (Prudent et al., 2015). In addition, SUMOylation of a pathogenic fragment of Huntingtin, a PolyQ-repeats protein that specifically binds to the outer membrane of mitochondria and impairs mitochondrial function, has been reported to exacerbate neurodegeneration in a Drosophila Huntington’s disease model (Costa and Scorrano, 2012; Panov et al., 2002; Steffan et al., 2004).

In the present study, we find that under mitochondrial stress, SUMO-specific peptidase ULP-4 is required to deSUMOylate DVE-1 and ATFS-1 to activate UPRmt in C. elegans. ULP-4 is also required to promote UPRmt-mediated innate immunity and lifespan extension. Our results reveal an essential and unexplored function of post-translational regulation in UPRmt signaling.

Results

SUMO-specific peptidase ULP-4 is required for the activation of UPRmt

Previously, we have performed a genome-wide RNAi screen to identify genes that are required for the activation of mitochondrial unfolded protein response (UPRmt) in C. elegans (Liu et al., 2014). ulp-4, a gene encoding ortholog of SUMO-specific peptidase in C. elegans, is one of the hits from our primary screen. RNAi of ulp-4 impaired the activation of UPRmt that is induced by mitochondrial inhibitor antimycin A, or RNAi of nuclear encoded mitochondrial gene spg-7 (mitochondrial metalloprotease) (Figure 1A–B and Figure 1—figure supplement 1A). RNAi of cco-1 (nuclear-encoded cytochrome c oxidase-1 subunit) is also widely used to disrupt mitochondrial function and activate UPRmt (Durieux et al., 2011; Nargund et al., 2012; Pellegrino et al., 2014). Consistently, deficiency of ulp-4 also suppressed the induction of endogenous mitochondrial chaperone genes hsp-6 and hsp-60 under cco-1 RNAi (Figure 1C and Figure 1—figure supplement 1B). Notably, transcript level of ulp-4 was also elevated during mitochondrial stress (Figure 1—figure supplement 1C). In contrast, ulp-4 RNAi did not affect the induction of endoplasmic reticulum (ER) stress reporter hsp-4p::gfp nor heat shock stress reporter hsp-16.2p::gfp (Figure 1D–E). In addition, worms treated with ulp-4 RNAi were still able to induce the expression of endogenous hsp-4 or hsp-16.2 during ER or heat shock stress (Figure 1F). RNAi of ulp-4 from L1 stage only delayed worm development a bit (Figure 1—figure supplement 1D). To further exclude the possibility that the suppression of UPRmt by ulp-4 RNAi is due to developmental delay, we also treated worms with ulp-4 RNAi starting at L4 stage and observed the reduction of UPRmt as well (Figure 1—figure supplement 1E). Overexpression of ULP-4 in ulp-4 RNAi worms rescued UPRmt activation (Figure 1G and Figure 1—figure supplement 1F). Lastly, we crossed an ulp-4(tm1597) mutant allele that lacks 404nt in the promoter region of ulp-4 with hsp-6p::gfp reporter, and showed that the induction of UPRmt was also impaired in ulp-4 mutants (Figure 1H–I and Figure 1—figure supplement 1G).

Figure 1 with 3 supplements see all

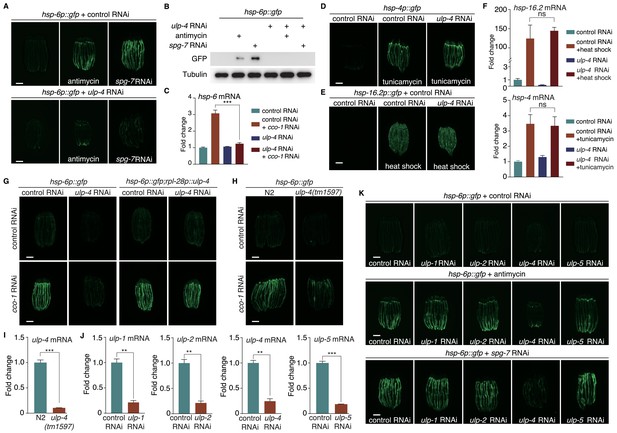

SUMO-specific peptidase ULP-4 is required for the activation of UPRmt.

(A) hsp-6p::gfp animals fed with control RNAi (top) or ulp-4 RNAi (bottom) were untreated, or treated with antimycin or spg-7 RNAi. Scale bar is 200 μm in this study unless otherwise indicated. Secondary RNAi was added 24 hr later after first RNAi unless otherwise indicated. Antimycin was added 48 hr later after first RNAi unless otherwise indicated. (B) Immunoblot of GFP expression in untreated hsp-6p::gfp worms, or hsp-6p::gfp worms treated with antimycin or spg-7 RNAi. (C) Quantitative PCR of endogenous hsp-6 mRNA levels. (D–E) hsp-4p::gfp (D) or hsp-16.2p::gfp (E) animals on control or ulp-4 RNAi were treated with tunicamycin (D) or heat-shocked (E). (F) Quantitative PCR of endogenous hsp-16.2 and hsp-4 mRNA levels. (G) hsp-6p::gfp or hsp-6p::gfp; rpl-28p::ulp-4 (ulp-4 overexpression, OE) animals fed with control or ulp-4 RNAi were untreated or treated with cco-1 RNAi. Overexpressed ulp-4 is codon optimized. (H) hsp-6p::gfp or ulp-4(tm1597); hsp-6p::gfp animals were fed with control or cco-1 RNAi. (I) Quantitative PCR of ulp-4 mRNA level in wild-type or ulp-4(tm1597) animals. (J) Quantitative PCR of endogenous ulp-1,2,4,5 mRNA levels under each respective RNAi. (K) hsp-6p::gfp animals fed with control or ulp-1,2,4,5 RNAi were treated with antimycin or spg-7 RNAi. Error bars show standard deviation. Student’s t-test, ns not significant, **p<0.002 and ***p<0.0002. All experiments in this paper, if not specifically indicated, have been repeated for at least three times.

https://doi.org/10.7554/eLife.41792.003

To see if other SUMO peptidases have similar effects to regulate UPRmt, we treated C. elegans with ulp-1, 2, or 5 RNAi (Figure 1J) and tested for their abilities to induce UPRmt. Deficiency of ulp-1, 2, or 5 failed to suppress antimycin- or spg-7 RNAi-induced UPRmt (Figure 1K), suggesting a specific role of ulp-4 in mediating UPRmt. Sequence alignment (Katoh and Standley, 2013) of ulp-1, 2, 4 and 5 revealed that the only conserved region among them is the catalytic domain (Figure 1—figure supplement 2). Thus, the specificity of ULP-4 in UPRmt signaling might be due to its ability to specifically interact with other protein components in UPRmt pathway.

Conversely, RNAi of the E1 SUMO activating enzyme aos-1 or the E2 SUMO conjugating enzyme ubc-9 in C. elegans induced UPRmt more potently (Figure 1—figure supplement 3A–C). Moreover, RNAi of smo-1, the only SUMO ortholog gene in C. elegans, induced only weak UPRmt under unstressed condition (Figure 1—figure supplement 3D–E). However, upon mitochondrial stress, smo-1 RNAi further activated UPRmt (Figure 1—figure supplement 3F–G). More importantly, smo-1 RNAi rescued ulp-4 deficiency-suppressed UPRmt (Figure 1—figure supplement 3F–G). Taken together, these results suggest that ULP-4 plays a specific role to mediate mitochondrial stress response through its SUMO peptidase activity.

ULP-4 deSUMOylates DVE-1 at K327 residue during mitochondrial stress

To understand the molecular mechanism of ULP-4 in mediating UPRmt, we sought to identify its protein targets. We first performed a cherry-picked yeast two-hybrid screen to test if ULP-4 could interact with known UPRmt pathway components. We found that DVE-1, a homeodomain-containing transcription factor in UPRmt (Haynes et al., 2007), interacted with ULP-4 (Figure 2A). Notably, DVE-1 could specifically interact with ULP-4, but not ULP-2 or ULP-5 (Note: overexpression of ULP-1 in yeast is lethal) (Figure 2—figure supplement 1A). Consistently, smo-1 is one of the top hits from our yeast two-hybrid screen with DVE-1 as bait (Figure 2—figure supplement 1B).

Figure 2 with 1 supplement see all

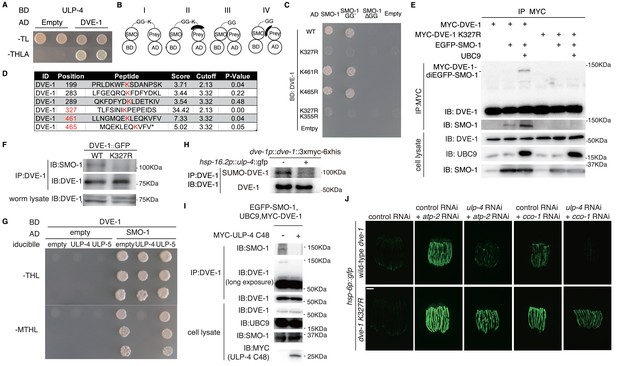

ULP-4 deSUMOylates DVE-1 at K327 residue during mitochondrial stress.

(A) Yeast two-hybrid result of ULP-4 and DVE-1 interaction. AH109 strain was transformed with Gal4-BD-ULP-4 and empty Gal4-AD or Gal4-AD-DVE-1 plasmids. –TL, tryptophan and leucine dropout agar media plates. –THLA, tryptophan, leucine, histidine and adenine dropout agar media plates. (B) Diagrams showing possible mechanisms for SMO-1 and prey protein interaction in yeast two-hybrid assay. (C) Yeast two-hybrid assay of the interaction between wild-type, K327R, K461R, K465R or K355R DVE-1 and SMO-1. SMO-1 GG’, residues after C-terminal di-glycine were deleted. SMO-1ΔGG, di-glycine residues in SMO-1 were deleted. (D) Predicted SUMOylation sites of DVE-1 using GPS-SUMO web service (http://sumosp.biocuckoo.org/online.php). (E) In vivo SUMOylation assay for DVE-1. Myc-tagged wild-type DVE-1 or DVE-1 K327R, SMO-1 and E2 SUMO conjugating enzyme UBC9 were expressed in 293 T cells. (F) DVE-1 SUMOylation in worms. DVE-1::GFP or DVE-1 K327R::GFP driven by dve-1 promotor were expressed in worms. (G) Yeast three-hybrid assay of DVE-1 deSUMOylation. Constitutive Gal4-BD-DVE-1 expression and inducible ULP-4/ULP-5 expression elements were cloned into pBridge. ULP-4/5 was induced when methionine was dropout. –MTHL, methionine, tryptophan, leucine and histidine dropout agar plates. (H) Immunoblot of DVE-1 SUMOylation. L4 stage dve-1p::dve-1::3xmyc-6xhis worms or dve-1p::dve-1:: 3xmyc-6xhis; hsp-16.2p::ulp-4::gfp worms were heat shocked at 37°C for 1 hr, and cultured at 20°C for 8 hr before immunoprecipitation. (I) In vivo deSUMOylation assay for DVE-1. Myc-tagged ULP-4 C48 domain, SMO-1 and E2 SUMO conjugating enzyme UBC9 were expressed in 293 T cells. (J) hsp-6p::gfp or dve-1 K327R; hsp-6p::gfp animals fed with control or ulp-4 RNAi were treated with control, atp-2 or cco-1 RNAi.

https://doi.org/10.7554/eLife.41792.007

Four possible mechanisms may explain the interaction between SMO-1 and a prey protein in the yeast two-hybrid experiment (Figure 2B): (I) SMO-1 covalently modifies the prey; (II) SMO-1 modifies an adaptor protein, which interacts with the prey; (III) SMO-1 non-covalently interacts with the prey; (IV) SMO-1 non-covalently interacts with an adaptor protein, which associates with the prey. To identify which mechanism explains our result (Figure 2A), we deleted C-terminal tail of SMO-1 to expose a conserved di-glycine motif (GG’: active form) or deleted the di-glycine motif to inactivate SMO-1 (ΔGG: inactive form). Only wild type SMO-1 or SMO-1 GG’, but not SMO-1 ΔGG, interacted with DVE-1 (Figure 2C and Figure 2—figure supplement 1C), indicating that SMO-1 either covalently modifies DVE-1, or covalently modifies an adaptor protein that associates with DVE-1.

SUMOylated DVE-1 could be detected in worms, the level of which was elevated under ulp-4 RNAi (Figure 2—figure supplement 1D). We therefore used GPS-SUMO web service, which predicts SUMOyaltion sites of a protein, to identify several lysine residues of DVE-1 that could potentially be SUMOylated (Figure 2D) (Ren et al., 2009; Zhao et al., 2014). To further map the SUMOylation site of DVE-1, we first tested the interaction between SMO-1 and fragments of DVE-1 in the yeast two-hybrid experiment. We found that DVE-1 301–468 associated with SMO-1 (Figure 2—figure supplement 1E), suggesting that SUMOylation site may resides in 301–468 amino acids of DVE-1. We then employed site-direct mutagenesis to mutate K327, K461 or K465 residue of DVE-1 to arginine, and tested for its ability to associate with SMO-1. K327R, but not other mutations, abolished SMO-1-DVE-1 interaction (Figure 2C). Furthermore, SUMOylation of DVE-1 could be detected when we expressed wild type, but not DVE-1 K327R, with SMO-1 and E2 conjugating enzyme UBC9 in 293 T cells (Figure 2E). We also noted that the size shift of SUMOylated DVE-1 was about the molecular weight of two EGFP-SMO-1. To exclude the possibility that DVE-1 has another SUMOylation sites in addition of K327, we expressed a fragment of DVE-1 (295–354), which contains only one lysine residue (K327) in this polypeptide in 293 T cells. We found that the size shift of DVE-1 295–354 is corresponding to di-SMO-1 (Figure 2—figure supplement 1F), suggesting that DVE-1 only contains one SUMOylation site. Consistently, SUMOylation of DVE-1 on K327 residue was also observed in C. elegans (Figure 2F). Taken together, these results suggested that SMO-1 covalently modifies K327 residue of DVE-1.

To test if ULP-4 could directly deSUMOylate DVE-1, we employed a yeast three-hybrid experiment to induce the expression of ULP-4 or ULP-5 in yeasts. The expression of ULP-4 or ULP-5 was driven by a met17 promoter, which could be induced when growth media is deficient for methionine.Induction of ULP-4, but not ULP-5, prevented yeast growth caused by SMO-1-DVE-1 interaction (Figure 2G), suggesting that ULP-4 may removes SUMO moiety from DVE-1. Overexpression of ULP-4 in worms decreased SUMOylation level of DVE-1 (Figure 2H). In addition, expression of ULP-4 C48, the catalytic domain of ULP-4 (Letunic and Bork, 2018) in 293 T cells could deSUMOylate DVE-1 in mammalian cells (Figure 2I). Lastly, if during mitochondrial stress, ULP-4 is indeed required to deSUMOylate DVE-1, mutation of K327 to arginine that prevents DVE-1 SUMOylation would bypass the requirement of ULP-4 for UPRmt induction. Indeed, we found that a CRISPR/Cas9 knock-in strain with DVE-1 K327R mutation bypassed the requirement of ulp-4 and was capable to activate UPRmt under ulp-4 RNAi (Figure 2J and Figure 2—figure supplement 1G).

SUMOylation affects the subcellular localization of DVE-1

We next aimed to understand how SUMOylation affects DVE-1 function. During mitochondrial stress, DVE-1 translocates from cytosol to nucleus (Haynes et al., 2007; Tian et al., 2016) (Figure 3A and B). Inactivation of ulp-4 by RNAi abolished the nuclear accumulation of DVE-1 in cco-1 RNAi-treated worms (Figure 3A–C). Conversely, overexpression of ulp-4 increased the nuclear accumulation of DVE-1 (Figure 3D). More importantly, we found that the induction of UPRmt correlated well with DVE-1 subcellular localization. When we fed worms with ulp-4 RNAi for one generation and treated their progeny with ulp-4 RNAi for twenty-four hours to allow efficient ulp-4 knockdown, and then fed animals with cco-1 RNAi, we observed cytosolic accumulation of DVE-1 and suppression of UPRmt (Figure 3E). However, when we treated progeny with a mixture of ulp-4 and cco-1 RNAi, which induced mitochondrial stress before ulp-4 was efficiently knocked down, DVE-1 was still able to translocate to the nucleus and induce UPRmt (Figure 3E).

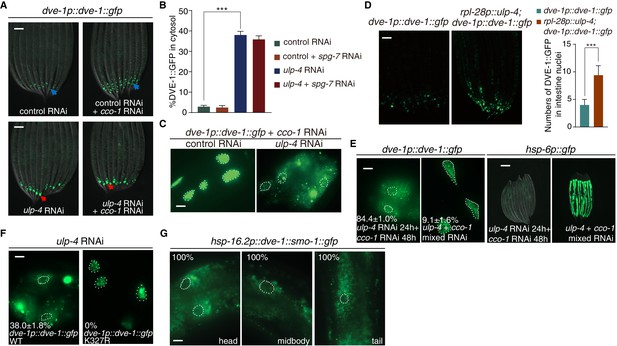

SUMOylation affects the subcellular localization of DVE-1.

(A) Representative fluorescent images of dve-1p::dve-1::gfp animals fed with indicated RNAi. Blue arrows indicate that DVE-1::GFP remains in the nucleus. Red arrows indicate that DVE-1::GFP localizes in the cytosol. Scale bar is 100 μm. (B) Percentage of DVE-1::GFP in cytosol with indicated RNAi. Student’s t-test, ***p<0.0002. Error bars indicate standard deviation. (C) Representative fluorescent images of dve-1p::dve-1::gfp animals fed with control or ulp-4 RNAi. Scale bar is 10 μm. (D) Representative fluorescent images (left) and statistic result (right) for nuclear accumulation of DVE-1 in dve-1p::dve-1::gfp animals with or without ulp-4 overexpression. (E) Induction of UPRmt correlates with nuclear accumulation of DVE-1. dve-1p::dve-1::gfp and hsp-6p::gfp P0 animals were fed with ulp-4 RNAi. dve-1p::dve-1::gfp (left) or hsp-6p::gfp (right) animals were cultured with ulp-4 RNAi for one generation, and F1s were then treated with indicated RNAi starting at L1 stage. Scale bar is 10 μm (left) and 200 μm (right). The number indicates the proportion of animals with DVE-1::GFP in cytosol. Numbers indicate Mean ±standard deviation. N = 3 biological replicates, n > 100 worms each replicate. (F) DVE-1 K327R constitutively localizes in the nucleus, even under ulp-4 RNAi. The number indicates the proportion of animals with DVE-1::GFP in cytosol. Numbers indicate Mean ±standard deviation. N = 3 biological replicates, n > 100 worms per replicate. (G) Fusion of SMO-1 to DVE-1 to mimic its SUMOylated form results in DVE-1 expression in the cytosol. Worms were observed 2 hr after 1 hr heat shock at 37°C. The number indicates the proportion of animals with DVE-1::GFP in cytosol.

https://doi.org/10.7554/eLife.41792.009

We also tested the subcellular localization of DVE-1 K327R under ulp-4 RNAi. Different from wild type proteins, DVE-1 K327R constitutively localized in the nucleus of C. elegans, even if ulp-4 was knocked down by RNAi (Figure 3F). Conversely, SUMO-mimetic DVE-1 constitutively localized in the cytosol (Figure 3G). Taken together, during mitochondrial stress, ULP-4 deSUMOylates DVE-1 at K327 residue to allow its nuclear accumulation to initiate UPRmt.

ULP-4 deSUMOylates ATFS-1 at K326 residue upon mitochondrial stress

Aside from DVE-1, we found that a fragment of ATFS-1 (372–472), another transcription factor in UPRmt, was also able to interact with ULP-4 (Figure 4A, note: expression of full-length ATFS-1 is toxic in yeast). Similar as DVE-1, ATFS-1 could only interact with ULP-4, but not ULP-2 and ULP-5 (Figure 4B). Four lysine residues were predicted by GPS-SUMO tool to be potential SUMOylation sites in ATFS-1 (Figure 4C) (Zhao et al., 2014). In vivo SUMOylation assay in 293 T cells identified K326 residue as the bona fide ATFS-1 SUMOylation site (Figure 4D). SUMOylation of ATFS-1 was also observed in C. elegans, which could be abolished by mutating K326 residue to arginine (Figure 4E). Expression of ULP-4 C48, the catalytic domain of ULP-4, in 293 T cells deSUMOylated ATFS-1 (Figure 4F). Lastly, expression of ATFS-1 K326R in atfs-1(tm4525) hypomorphic allele bypassed the requirement of ulp-4 in UPRmt activation (Figure 4G).

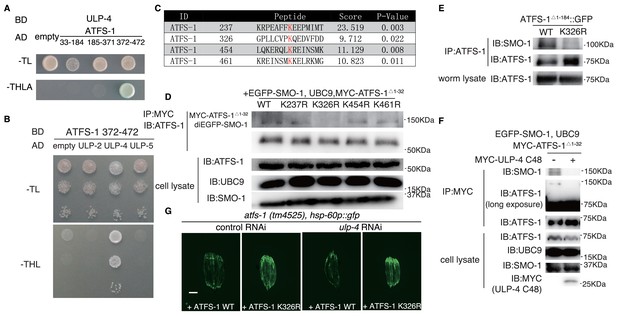

ULP-4 deSUMOylates ATFS-1 at K326 residue upon mitochondrial stress.

(A) Yeast two-hybrid assay for ATFS-1 and ULP-4 interaction. ATFS-1 was truncated into 33–174, 175-371and 372–472 fragments. (B) Yeast two-hybrid assay for ATFS-1 372–472 and ULPs. (C) Predicted SUMOylation sites of ATFS-1 using GPS-SUMO web service. (D) In vivo SUMOylation assay for ATFS-1. Myc-tagged wild-type ATFS-1Δ1-32 or ATFS-1Δ 1-32 lysine mutants, SMO-1 and E2 SUMO conjugating enzyme UBC9 were expressed in 293 T cells. (E) ATFS-1 SUMOylation in worms. Wild-type or ATFS-1Δ 1-184 K326R was expressed in worms. (F) ATFS-1 Δ 1-32 deSUMOylation in 293 T cells. SMO-1, UBC9, ATFS-1 Δ 1-32 and ULP-4 C48 domain were expressed in 293 T cells. (G) Representative fluorescent images of atfs-1(tm4525); hsp-60p::gfp with wild-type ATFS-1 or ATFS-1 K326R animals fed on control or ulp-4 RNAi.

https://doi.org/10.7554/eLife.41792.010

SUMOylation affects the stability and transcriptional activity of ATFS-1

To see if SUMO also affects ATFS-1 localization, we used hsp-16.2 heat shock promoter to drive the expression of GFP-tagged full-length ATFS-1. Upon mitochondrial perturbation, ATFS-1 was still able to translocate to the nucleus when ULP-4 expression is diminished (Figure 5A). It should be noted that it is very difficult to express full-length ATFS-1 in worms, probably due to toxicity (expression of full-length ATFS-1 in yeast is lethal). Therefore, we made truncations of ATFS-1, and found that ATFS-1Δ1-184 expressed well and localized in the nucleus (Figure 5—figure supplement 1A). Abolishing SUMOylation site of ATFS-1 (K326R) did not affect subcellular localization of ATFS-1 Δ 1-184 either (Figure 5—figure supplement 1B).

Figure 5 with 1 supplement see all
SUMOylation affects the stability and transcriptional activity of ATFS-1.

(A) Representative fluorescent images of ATFS-1::GFP localization with indicated treatment. (B) Representative fluorescent images of ATFS-1 Δ 1-184::GFP. Worms were heat-shocked at 37°C for 1 hr and photographed at indicated time points. (C) Immunoblot of ATFS-1::GFP expression in atfs-1p::atfs-1::gfp worms fed with indicated RNAi. (D) Representative fluorescent images of wild-type, SUMOylation mutant or SUMOylation mimetic ATFS-1 Δ 1-184::GFP with indicated RNAi. (E) Statistic result of (D). (F) Diagram of transcriptional activity assay. ATFS-1 Δ 1-32 was cloned into a vector containing Gal4-BD at N-terminus to induce luciferase expression. (G) Transcriptional activity assay of ATFS-1 Δ 1-32, ATFS-1 Δ 1-32 K326R or SMO-1-ATFS-1 Δ 1-32. Student’s t-test. ***p<0.0002. Error bars indicate standard deviation. (H) Quantitative PCR of god-2 and gst-14 mRNA levels in wild-type or atfs-1 K326R worms fed with indicated RNAi. .

https://doi.org/10.7554/eLife.41792.011

Interestingly, we noticed that ulp-4 RNAi greatly reduced the protein level of ATFS-1Δ 1-184 (Figure 5—figure supplement 1C), suggesting that ulp-4 RNAi may affect ATFS-1 expression, or stability. Seven hours after heat induction of ATFS-1 expression, levels of ATFS-1Δ 1-184 were comparable in control or ulp-4 RNAi animals (Figure 5B). However, after 24 hours, ATFS-1Δ 1-184 level in ulp-4 RNAi treated animals significantly decreased (Figure 5B). Treating worms with proteasome inhibitor MG132 partially rescued the reduction of ATFS-1 Δ 1-184 under ulp-4 RNAi (Figure 5—figure supplement 1C), suggesting that ulp-4 RNAi affects ATFS-1 protein stability. Full-length ATFS-1 proteins could be detected when mitochondrial protease LON-1 was inhibited (Nargund et al., 2012). Treating worms with lon-1 RNAi, we showed that full-length ATFS-1 levels were also reduced under ulp-4 RNAi (Figure 5C). Mutation (K326R) that abolished ATFS-1 SUMOylation partially restored its protein level under ulp-4 RNAi (Figure 5D–E). In contrary, fusion of SMO-1 to mimic SUMOylated form of ATFS-1 significantly reduced its protein level (Figure 5D–E). Taken together, these results suggest that SUMOylation reduces the stability of ATFS-1.

It has been shown that ATFS-1Δ1-32, with impaired mitochondrial targeting sequence, could be expressed in the nucleus of HeLa cells (Nargund et al., 2012). Therefore, it might be possible to directly test the transcriptional activity of ATFS-1Δ1-32 in mammalian system. We employed a luciferase reporter assay, in which transcription factor of interest (e.g. wild type ATFS-1Δ1-32, ATFS-1Δ1-32 K326R or SMO-1-ATFS-1Δ1-32) is fused with Gal4 binding domain (BD) to drive the expression of luciferase (Figure 5F and Figure 5—figure supplement 1D). We found that mutation of ATFS-1 SUMOylation site greatly enhanced its transcriptional activity, whereas SUMO-mimetic significantly impaired the activity (Figure 5G). Lastly, transcriptions of genes known to be driven by ATFS-1 (eg. gpd-2 and gst-14) (Nargund et al., 2012; Nargund et al., 2015) were blocked by ulp-4 RNAi, which could be partially rescued with ATFS-1 K326R mutation (Figure 5H). Thus, SUMOylation also impairs the transcriptional activity of ATFS-1.

ulp-4 is essential for UPRmt-regulated innate immunity and lifespan extension

During mitochondrial stress, UPRmt not only initiates mitochondrial protective responses, but also activates immune responses and extends worm lifespan (Liu et al., 2014; Merkwirth et al., 2016; Pellegrino et al., 2014; Tian et al., 2016). The essential function of ulp-4 in signaling UPRmt makes it likely to be crucial for animal fitness during mitochondrial stress. Indeed, worms treated with cco-1 RNAi had a severe synthetic growth defect on ulp-4 RNAi (Figure 6A). Consistently, ulp-4(tm1597) mutants revealed a more severe developmental delay when grown on spg-7 RNAi (Figure 6—figure supplement 1A–B). Mutation of the SUMOylation sites of ATFS-1 and DVE-1 in C. elegans partially rescued the developmental delay of spg-7 mutants (Figure 6—figure supplement 1C–E). The survival rate of worms exposed to high dosage of antimycin was also significantly reduced in ulp-4 RNAi (Figure 6—figure supplement 1F–G).

Figure 6 with 1 supplement see all

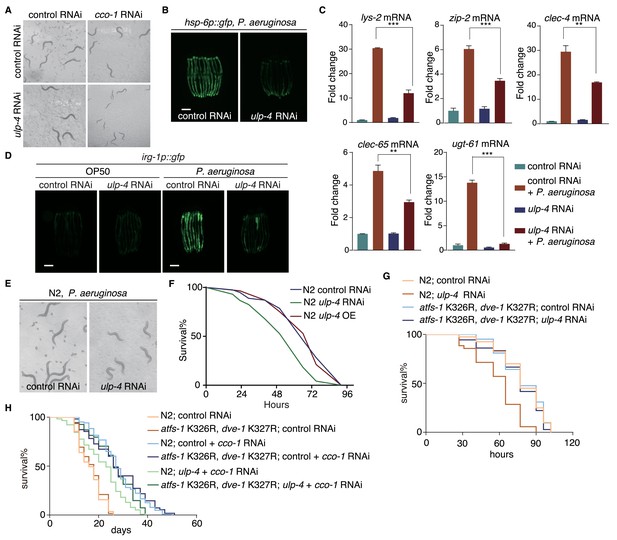

ulp-4 is essential for UPRmt-regulated innate immunity and lifespan extension.

(A) Representative images of wild-type worms raised on indicated RNAi. cco-1 RNAi was treated 16 hr later after control or ulp-4 RNAi. (B) Representative fluorescent images of hsp-6p::gfp worms. Animals were pre-treated with control or ulp-4 RNAi for 24 hr, and then fed with P. aeruginosa for additional 48 hr. Student’s t-test. Error bars indicate standard deviation. **p<0.002 and ***p<0.0002. (C) Fold changes of immune response gene lys-2, zip-2, clec-4, clec-65 and ugt-61 mRNA levels in control or ulp-4 RNAi animals after exposure to P. aeruginosa. (D) Immune response reporter strain irg-1p::gfp fed with control or ulp-4 RNAi was infected with P. aeruginosa strain PA14. (E) Representative images of wild-type worms fed with control or ulp-4 RNAi for 24 hr and then exposed to P. aeruginosa. (F) PA14 survival assay in wild-type, ulp-4 knockdown or overexpression animals. N = 3 biological replicates, n > 40 worms per replicate. Analyzed using Log-Rank method and p<0.05 (N2 control RNAi vs N2 ulp-4 RNAi). (G) PA14 survival assay in N2 or atfs-1 K326R; dve-1 K327R animals with indicated RNAi. N = 2 biological replicates, n > 35 worms per replicate. Analyzed using Log-Rank method, p<0.05 (N2 control RNAi vs N2 ulp-4 RNAi), p>0.05(atfs-1 K326R; dve-1 K327R control RNAi vs atfs-1 K326R; dve-1 K327R ulp-4 RNAi). (H) Representative lifespan result of N2 or atfs-1 K326R; dve-1 K327R animals fed with indicated RNAi. n > 80 worms per condition. Analyzed using Log-Rank method, p<0.0001 (N2 control +cco-1 RNAi vs N2 ulp-4 RNAi + cco-1 RNAi), p<0.01(N2 ulp-4 +cco-1 RNAi vs atfs-1 K326R; dve-1 K327R ulp-4 +cco-1 RNAi).

https://doi.org/10.7554/eLife.41792.013

A broad range of microbes isolated from natural habitats harboring wild C. elegans populations could perturb mitochondrial function and induce the expression of hsp-6p::gfp (Liu et al., 2014). ulp-4 RNAi also impaired UPRmt activation when we challenged worms with a Pseudomonas strain, a mitochondrial insult isolated from the natural habitat of C. elegans (Liu et al., 2014) (Figure 6B). Moreover, ulp-4 RNAi suppressed the activation of immune response and xenobiotic detoxification response (Figure 6C). To further validate the requirement of ulp-4 in UPRmt-mediated immune response, we treated irg-1p::gfp transgenic worms, a reporter strain for pathogen-infected response (Estes et al., 2010), with control or ulp-4 RNAi and then challenged them with Pseudomonas. We showed that deficiency of ulp-4 greatly suppressed the induction of irg-1 (Figure 6D). Deficiency of ulp-4 also impaired worm development and survival rate when they were infected with Pseudomonas (Figure 6E–F) (Kirienko et al., 2014). The reduced survival rate of ulp-4-deficient worms could be rescued with atfs-1 K326R; dve-1 K327R mutations, further demonstrating that deSUMOylation of ATFS-1 and DVE-1 is the major function of ULP-4 during mitochondrial stress (Figure 6G).

Finally, we analyzed the lifespans of control or ulp-4 RNAi worms. Under unstressed condition, ulp-4 RNAi did not affect worm lifespan. However, ulp-4 RNAi greatly suppressed the lifespan extension in cco-1 RNAi-treated worms, which could be rescued by mutations of SUMOylation site within ATFS-1 and DVE-1 (Figure 6H). Overexpression of ulp-4 neither affects the basal level of UPRmt under unstressed condition (Figure 1G), nor affects worm lifespans with or without mitochondrial stress (Figure 6—figure supplement 1H). In contrary, smo-1 RNAi shortened worm lifespan, but greatly extended the lifespan of spg-7 mutants (Figure 6—figure supplement 1I). Mutations of SUMOylation site within ATFS-1 and DVE-1 extended lifespan of spg-7 mutants as well (Figure 6—figure supplement 1J). Taken together, these results suggest that ulp-4 is required for mitochondrial stress-induced lifespan extension.

In summary, our studies indicate that mitochondrial stress signals through ULP-4, which deSUMOylates DVE-1 and ATFS-1 to modulate their localization, stability and transcriptional activity. Consequences of these events are elevated innate immunity and prolonged lifespan (Figure 7).

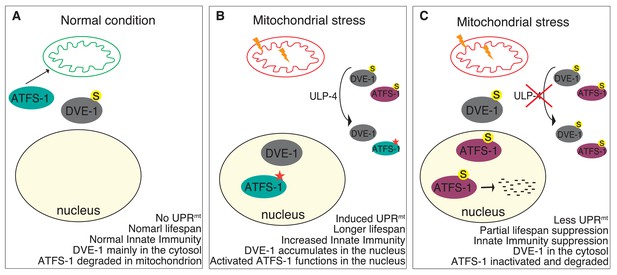

Model for ULP-4-mediated UPRmt signaling.

(A) Under normal condition, ATFS-1 is imported into mitochondria and degraded by mitochondrial protease. DVE-1 is mainly localized in the cytosol. No UPRmt is induced. The animal is normal lived and with normal innate immunity. (B) Upon mitochondrial stress, DVE-1 is deSUMOylated by ULP-4 and translocated to the nucleus. Mitochondrial importer efficiency is compromised, leading to ATFS-1 nuclear accumulation. ULP-4 deSUMOylates ATFS-1, leading to increased stability and transcriptional activity (active form). UPRmt is induced. Animals are long-lived, with increased innate immunity. (C) Reduction of ULP-4 activity during mitochondrial stress results in SUMOylation of DVE-1 and ATFS-1. SUMOylated of DVE-1 localizes in the cytosol; whereas SUMOylated ATFS-1, which has lower transcriptional activity, is prone to degradation. Induction of UPRmt is impaired. UPRmt-regulated innate immunity and lifespan extension is partially suppressed.

https://doi.org/10.7554/eLife.41792.015

Discussion

We have identified a SUMO-specific peptidase ULP-4 that participates in C. elegans UPRmt. ULP-4 regulates the entire transcriptional program of UPRmt, underscoring the importance of ULP-4-mediated deSUMOylation in UPRmt signaling. However, how mitochondrial stress signals to ULP-4 warrants future analysis.

SUMOylation affects protein function through several mechanisms, including changes of protein conformation, protein–protein interaction, protein stability and subcellular localization (Chymkowitch et al., 2015). Interestingly, we find that SUMOylation affects DVE-1 and ATFS-1 through two distinct mechanisms: change of DVE-1 subcellular localization vs. changes of ATFS-1 stability and transcriptional activity. DVE-1 and ATFS-1 constitute the two axes in the transcriptional program of UPRmt, each might regulate a different subset of downstream genes. For instance, ATFS-1 has been shown to be the primary factor that controls the expression of genes involved in mitochondrial protein folding, glycolysis, xenobiotic detoxification and immune response (Nargund et al., 2012; Pellegrino et al., 2014). A detailed analysis of DVE-1 and ATFS-1 substrate selection may facilitate the understanding of why cells employ such intricate regulation of transcriptional response during mitochondrial stress.

DVE-1 is homologous to mammalian SATB class of proteins that function in chromatin remodeling and transcription. Interestingly, it is reported that SATB1 and SATB2 could also be SUMOylated. For example, SUMOylation of SATB2 targets it to the nuclear periphery, where it regulates immunoglobulin μ gene expression (Dobreva et al., 2003). SUMOylation of SATB1 targets it to the promyelocytic leukemia (PML) nuclear bodies where it undergoes caspase-mediated cleavage (Tan et al., 2008). SATB1 has also been shown to form a ‘cage’-like distribution and anchors specialized DNA sequences onto its network (Cai et al., 2003). Histone H3K9 and H3K14 acetylation mark the binding sites of SATB1, whereas in SATB1 deficient cells, these sites are marked by H3K9 methylation (Cai et al., 2003). Similarly, studies in C. elegans reported that during mitochondrial perturbation, H3K9 di-methylation globally marks chromatin, leaving portions of chromatin open-up where binding of DVE-1 occurs (Tian et al., 2016). All these findings point to the conserved function and regulatory mechanisms of DVE-1 and SATB1. Therefore, it will be interesting in the future to directly test if SATB1 functions as mammalian DVE-1 to signal UPRmt. Furthermore, ATF5 has been reported to constitute mammalian homolog of ATFS-1 (Fiorese et al., 2016). It will also be interesting to see if SUMOylation can affect the stability and activity of ATF5.

Several mitochondrial quality control processes have evolved to maintain and restore proper mitochondrial function, including mitochondrial unfolded protein response (UPRmt), mitochondrial dynamics, and mitophagy (Andreux et al., 2013). Cells selectively activate each quality control pathway, depending on the stress level of mitochondria (Andreux et al., 2013; Pellegrino et al., 2013). Mild mitochondrial inhibition is often associated with the activation of UPRmt to maintain and restore proteostasis. As stress exceeds the protective capacity of UPRmt, cells may employ mitochondrial fusion to dilute damaged materials, and activate mitochondrial fission to isolate severely damaged mitochondria for removal through mitophagy. Drp1, the central protein that controls mitochondrial fission, could be SUMOylated (Prudent et al., 2015). A RING-finger containing protein MAPL functions as the E3 ligase to promote Drp1 SUMOylation on the mitochondria. SUMOylated Drp1 facilitates cristae remodeling, calcium flux and release of cytochrome c, and stabilizes ER/mitochondrial contact sites. Whether SUMOylation affects other proteins in the mitochondrial quality control processes, such as those govern mitophagy, are worth to explore. The discovery of SUMOylation in modulating UPRmt opens up a new research direction to study post-translational regulation of UPRmt, and UPRmt-mediated immunity and longevity.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Genetic
reagent
(C. elegans)
hsp-6p::gfpCaenorhabditis
Genetics Center
WB Strain: SJ4100
Genetic
reagent
(C. elegans)
hsp-16.2p::gfpCaenorhabditis
Genetics Center
WB Strain: CL2070
Genetic
reagent
(C. elegans)
hsp-4p::gfpCaenorhabditis
Genetics Center
WB Strain: SJ4005
Genetic
reagent
(C. elegans)
dve-1p::dve-1::gfpCaenorhabditis
Genetics Center
WB Strain: SJ4198
Genetic
reagent
(C. elegans)
hsp-60p::gfpCaenorhabditis
Genetics Center
WB Strain: SJ4058
Genetic
reagent
(C. elegans)
N2Caenorhabditis
Genetics Center
WB Strain: N2
Genetic
reagent
(C. elegans)
DA2249 (spg-7 mutant)Caenorhabditis
Genetics Center
WB Strain: DA2249
Genetic
reagent
(C. elegans)
tm1597 (ulp-4 mutant)National
Bioresource Project
WB Variation: tm1597
Genetic
reagent
(C. elegans)
hsp-60p::gfp; atfs-1
(tm4525)
PMID:22700657Dr. Cole Haynes
(University of
Massachusetts Medical
School)
Genetic
reagent
(C. elegans)
hsp-60p::gfp; tm1597This paperN/A
Genetic
reagent
(C. elegans)
dve-1p::dve-1 K327R::gfpThis paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::dve-1::smo-
1::gfp
This paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::atfs-1::gfpThis paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::atfs-1Δ1–32::gfpThis paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::atfs-1Δ1–
184::gfp
This paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::atfs-1Δ1–
184::smo-1::gfp
This paperN/A
Genetic
reagent
(C. elegans)
hsp-16.2p::atfs-1Δ1–184
K326R::gfp
This paperN/A
Genetic
reagent
(C. elegans)
hsp-60p::gfp;atfs-1(tm4525);atfs-1p::atfs-1This paperN/A
Genetic
reagent
(C. elegans)
hsp-60p::gfp;atfs-1(tm4525);atfs-1p::atfs-1 K326RThis paperN/A
Genetic
reagent
(C. elegans)
dve-1 K327RThis paperN/ACas9 mutation
Genetic
reagent
(C. elegans)
atfs-1 K326RThis paperN/ACas9 mutation
Genetic
reagent
(C. elegans)
atfs-1 K326R dve-1 K327RThis paperN/ACas9 mutation
Genetic
reagent
(C. elegans)
dve-1 K327R;hsp-6p::gfpThis paperN/ACas9 mutation
Genetic
reagent
(C. elegans)
rpl-28p::ulp-4(opti)::gfpThis paperN/A
Genetic
reagent
(C. elegans)
rpl-28p::ulp-4(opti)::gfp;
dve-1p::dve-1::gfp
This paperN/A
Cell line
(Homo sapiens)
293TATCCCRL-3216
AntibodyMouse monoclonal
anti-GFP
sungen biotechCAT#KM8009(1:1000)
AntibodyRabbit
polyclonal
anti-GFP
abcamCAT#ab290(1:1000)
AntibodyRabbit
polyclonal
anti-ATFS-1
abclonalN/Acustom
made (1:5000)
AntibodyRabbit
polyclonal
anti-DVE-1
abclonalN/Acustom
made (1:5000)
AntibodyRabbit
polyclonal
anti-SMO-1
abclonalN/Acustom
made (1:5000)
AntibodyMouse
monoclonal
anti-MYC
CSTCAT#2276(1:1000)
AntibodyRat
monoclonal
anti-TUBULIN
abcamCAT#6161(1:1000)
AntibodyRabbit
monoclonal
anti-UBC9
abcamCAT#ab75854(1:1000)
Strain
(Pseudomonas
aeruginosa)
Pseudomonas
aeruginosa
PMID:24695221N/A
Strain
(Pseudomonas
aeruginosa)
Pseudomonas
aeruginosa
PMID:25274306WB Strain: PA14
Commercial
assay or kit
-Trp DO suplementCoolaberCAT#PM2140
Commercial
assay or kit
-Leu -Trp DO
suplement
ClontechCAT#630417
Commercial
assay or kit
-Leu -Trp -His DO
suplement
ClontechCAT#630419
Commercial
assay or kit
-Leu -Trp -His -Ade
DO suplement
ClontechCAT#630428
Commercial
assay or kit
-Leu -Trp -His -Met
DO suplement
CoolaberCAT#PM2250
Commercial
assay or kit
Minimal SD BaseClontechCAT#630411
Commercial
assay or kit
SYBR Green QPCR mixBioradCAT#172–5122
Commercial
assay or kit
transcript one-step
gDNA removal and
cDNA synthesis supermix
TransgeneAT311-03
Commercial
assay or kit
Triton X-100sigmaT9284
Commercial
assay or kit
TrizolCwbioCW0580A
Commercial
assay or kit
Lipofectamine 3000lifeL3000015
Commercial
assay or kit
Yeast Plasmid
Extraction Kit
solarbioD1160-100
Commercial
assay or kit
dynabeads
protei G
life10004D
Commercial
assay or kit
Protease Inhibitor
Cocktail
bimakeB14002
Commercial
assay or kit
AntimycinsigmaA8674
Commercial
assay or kit
N-EthylmaleimideJ and K128-53-0
Commercial
assay or kit
5-FLUORO-2'-
DEOXYURIDINE
sigmaF0503
Commercial
assay or kit
ECL western
blotting kit
PierceCAT#32106
Commercial
assay or kit
Dual-Luciferase
Reporter Assay
Systerm
PromegaCAT#E1910
Commercial
assay or kit
Matchmaker GAL4
Two-Hybrid System 3
ClontechCAT# PT3247-1
Software,
algorithm
Graph Pad Prism
Software
GraphPad
Software
https://www.graphpad.com/scientific-software/prism/
Software,
algorithm
MAFFTPMID:23329690https://www.ebi.ac.uk/Tools/msa/mafft/
Software,
algorithm
SMARTPMID: 29040681http://smart.embl-heidelberg.de
Software,
algorithm
ImageJPMID: 22930834https://imagej.net/Downloads
Software,
algorithm
SUMO-GPSPMID: 24880689http://sumosp.biocuckoo.org
Recombinant
DNA reagent
CMVp-myc-dve-1This paperN/A
Recombinant
DNA reagent
CMVp-myc-dve-1
K327R
This paperN/A
Recombinant
DNA reagent
CMVp-myc-33–472
atfs-1
This paperN/A
Recombinant
DNA reagent
CMVp-myc-33–472
atfs-1 K326R
This paperN/A
Recombinant
DNA reagent
CMVp-gfp-smo-1This paperN/A
Recombinant
DNA reagent
CMVp-ubc9This paperN/A
Recombinant
DNA reagent
CMVp-ulp-4 C48This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
K327R
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
K461R
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
K465R
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
K327R K355R
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-ulp-4This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-smo-1This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-smo-1
delta GG
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-smo-1This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-smo-1
delta GG
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-smo-1 GG'This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-33–184
atfs-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-185–371
atfs-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-372–472
atfs-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-dve-1This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-1–150
dve-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-151–300
dve-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-301–468
dve-1
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-ulp-1This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-ulp-2This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-ulp-4This paperN/A
Recombinant
DNA reagent
adh1p-gal4 AD-ulp-5This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
met17p-ulp-4
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
met17p-ulp-5
This paperN/A
Recombinant
DNA reagent
adh1p-gal4 BD-dve-1
in pBridge
This paperN/A
Recombinant
DNA reagent
Adh1p-gal4 AD-33–184
atfs-1
This paperN/A
Recombinant
DNA reagent
Adh1p-gal4 AD-185–371
atfs-1
This paperN/A
Recombinant
DNA reagent
Adh1p-gal4 AD-372–472
atfs-1
This paperN/A
Recombinant
DNA reagent
CMVp-gal4 BD-33–472
atfs-1
This paperN/A
Recombinant
DNA reagent
CMVp-gal4 BD-33–472
atfs-1 K327R
This paperN/A
Recombinant
DNA reagent
CMVp-gal4 BD-smo-
1-33-472 atfs-1
This paperN/A
Recombinant
DNA reagent
rpl-28p::ulp-4(opti)::gfpThis paperN/A
Recombinant
DNA reagent
hsp-16.2p::atfs-1::gfpThis paperN/A
Recombinant
DNA reagent
hsp-16.2p::33–472
atfs-1::gfp
This paperN/A
Recombinant
DNA reagent
hsp-16.2p::185–472
atfs-1::gfp
This paperN/A
Recombinant
DNA reagent
hsp-16.2p::185–472
atfs-1 K326R::gfp
This paperN/A
Recombinant
DNA reagent
atfs-1p::atfs-1This paperN/A
Recombinant
DNA reagent
atfs-1p::atfs-1 K326RThis paperN/A
Recombinant
DNA reagent
dve-1p::dve-1 K327R::gfpThis paperN/A
Recombinant
DNA reagent
hsp-16.2p::smo-1::dve-1::gfpThis paperN/A
Recombinant
DNA reagent
hsp-16.2p::dve-1::smo-1::gfpThis paperN/A
Recombinant
DNA reagent
hsp-16.2p::atfs-1::smo-1::gfpThis paperN/A

Worm strains

Request a detailed protocol

SJ4100 (zcIs13[hsp-6p::gfp]), CL2070 (dvIs70[hsp-16.2p::gfp]), SJ4005 (zcIs4[hsp-4p::gfp]), SJ4058 (zcls9[hsp-60p::gfp]), SJ4198 (zcls39[dve-1p::dve-1::gfp]), ulp-4(tm1597), spg-7(ad2249) and N2 wild-type worms were obtained from Caenorhabditis Genetics Center. hsp-60p::gfp;atfs-1(tm4525) is a generous gift from Dr. Cole Haynes. dve-1p::dve-1::gfp plasmid is a gift from Dr. Cole Haynes. We used site-direct mutagenesis to generate dve-1p::dve-1 K327R::gfp plasmid and micro-injected into worms.

For generation of hsp-16.2p::dve-1::smo-1::gfp worms, hsp-16.2 promoter, dve-1::smo-1 and gfp sequences were sub-cloned into pDD49.26 vector. Three glycine residues were placed as linker between smo-1 and dve-1.

Cell line

Request a detailed protocol

HEK293T cell was obtained from ATCC, which was authenticated by ATCC. Cells were validated to be free of mycoplasma contamination. No commonly misidentified cell lines were used.

C. elegans, yeast and cell culture

Request a detailed protocol

C. elegans were cultured at 20°C and fed with E.coli OP50 on Nematode Growth Media unless otherwise indicated. Yeast strain AH109 for yeast two-hybrid and three-hybrid assays was cultured with YPDA media at 30°C unless otherwise indicated. 293 T cells were cultured with DMEM (10% fetal bovine serum) at 37°C.

Induction of UPRmt

Request a detailed protocol

For RNAi-induced UPRmt, RNAi bacteria were grown in LB containing 50 µg/ml carbenicillin at 37°C overnight. 200 µl of RNAi bacteria was seeded onto 6 cm worm plates with 5 mM IPTG. Dried plates were kept at room temperature overnight to allow IPTG induction of dsRNA expression. Synchronized L1 worms were raised on the RNAi plates at 20°C. After 24 hr, 200 µl 10X concentrated RNAi (atp-2, cco-1 or spg-7) bacteria were provided. GFP expressions were imaged after 48 hr.

For antimycin A induced UPRmt, synchronized L1 worms were raised on 6 cm worm plates for 48 hr. 200 µl of 20 µg/ml antimycin were then provided. Fluorescent images were taken 24 hr after the addition of antimycin.

For P. aeruginosa induced UPRmt, synchronized L1 worms were raised on 6 cm worm plates for 24 hr before exposure to P. aeruginosa. Worms were imaged at adulthood day 1.

Microscopy

Request a detailed protocol

Worms with each indicated fluorescent reporter were dropped in 100 mM NaN3 droplet on 2% agarose pads and imaged with a Zeiss Imager M2 microscopy.

Western blotting

Request a detailed protocol

Worms raised under each described condition were washed off plates with M9 buffer and then washed several times with M9 until supernatant was clear. 2X SDS Laemmli buffer (4% SDS, 20% glycerol, 10% 2-mercaptoethanol, 0.004% bromophenol blue, 0.125M tris-HCl, pH 6.8) was used to re-suspend the worm pellet. Samples were boiled at 95°C for 5 min. Lysates containing the same amount of protein were loaded onto SDS-PAGE and transferred onto PVDF membranes (Bio-Rad). After blocked with 5% non-fat milk, the membrane was probed with the designated first and second antibodies (mouse monoclonal anti-GFP, sungen biotech #KM8009; rabbit polyclonal anti-GFP, abcam #ab290; anti-Myc, CST #2276; anti-tubulin, abcam #ab6161; anti-UBC9, abcam #ab75854; anti-ATFS-1, anti-DVE-1 and anti-SMO-1 antibodies were developed by abclonal), developed with the enhanced chemiluminescence method (Pierce, CAT#32106), and visualized by Tanon 5200 chemical luminescence imaging system. The result analysis was performed by ImageCal (Tanon).

Immunoprecipitation

Request a detailed protocol

293 T cells in 10 cm plate were transfected with 3 µg EGFP-SMO-1, 2 µg UBC9, 5 µg MYC-DVE-1 or MYC-ATFS-1△1-32 plasmids via lipofectamine 3000 (Invitrogen, CAT#L3000015) or PEI. For ULP-4 deSUMOylation assay, additional 5 µg MYC-ULP-4 C48 plasmid was co-transfected. 24 hr after transfection, cells were washed with 1X PBS buffer, scraped off the plates and pelleted by centrifugation at 1000 rpm for 1 min. Immunoprecipitation was performed at 4°C or on ice. Cell pellet was resuspended in 1 ml lysis buffer (50 mM tris-HCl pH 7.5, 150 mM NaCl, 1% NP40, 1 mM EDTA, 1 mM EGTA, 20 mM N-Ethylmaleimide, proteinase inhibitor cocktail) and sonicated. Samples were spun down at 21,000 g for 15 min. Supernatants were transferred into new tubes. Protein concentration was quantitated by BCA assay (Thermo, CAT#23225). Same amount of protein wasused for immunoprecipitation with appropriate antibodies. Samples were incubated with agitation at 4°C for 4 hr. 20 µl pre-washed protein G beads (Invitrogen, CAT#10004D) were added to each sample and rotated for additional 2 hr at 4°C. Protein G beads were washed four times with lysis buffer. 50 ul 2X SDS Laemmli (4% SDS, 20% glycerol, 10% 2-mercaptoenthnol, 0.004 bromophenol blue, 0.125M Tri-HCL, pH 6.8) buffer was added to the beads and boiled for 5 min at 95°C.

RNA isolation and Q-PCR

Request a detailed protocol

Worms were fed with each indicated RNAi or exposed to pathogen. Adulthood day one worms were washed off plates and washed several times with M9 buffer until supernatant was clear. Worm pellets were re-suspended with TRIzol reagent (cwbiol, CAT#cw0580A). Samples were frozen and thawed six times to crack worms. Total RNA was isolated by chloroform extraction, followed by ethanol precipitation and DNase treatment. cDNA was then synthesized by reverse transcription (transgene biotech, CAT#AT311-03). Quantitative real-time PCR was carried out using SYBR GREEN PCR Master Mix (Bio-Rad, CAT#1725121). Quantification of transcripts was normalized to act-3.

Q-PCR primerSequence (5' -->3')
cco-1 FTCAGTGAAAATAAAACGCGCT
cco-1 RGTTGTTTCCACCTGTTTTGTTCA
smo-1 FAGAGCAGCTGGGCGGATT
smo-1 RCCGAAAACGAAGAGTTTATTTGTAAGATAAATA
spg-7 FCGCCGAACCCGTGATCTATT
spg-7 RGAGTCCTCCGGTACCTGAG
ubc-9 FGTCCATGGGCTGAGTAGTCT
ubc-9 RGGAATACACGGGATTTGTCAACA
ulp-1 FGCAATGGCGATTCGAAATATCC
ulp-1 RTCCAAGATGAACTGGCACCA
ulp-2 FTGGTCAAAGTTCTTCCCGGA
ulp-2 RCACTGCACTATGACGACGTG
ulp-4 FGCTTTCACCCTCTTGCTACA
ulp-4 RAATCAACCGAGGCGCTAGTA
ulp-5 FCCTCATCCTAAGCTCACTCCA
ulp-5 RACACTTCCAAACGCATCCAA
aos-1 FATGTGCAATTTCCCACCAGT
aos-1 RACACCGATATTCACACCAAGA
hsp-16.2 FTCCAGTCTGCAGAATCTCTCC
hsp-16.2 RTGCACCAACATCTACATCTTCAG
hsp-4 FCTCGGAGGAAAGCTCACTGA
hsp-4 RATGGCTCCTCAGAAGCTTGT
atp-2 FCAAGTCGCTGAGGTGTTCAC
atp-2 RCTTCGGCCTTCTTGAACACA
pink-1 FGTTGCAAAAGGTGGACGACT
pink-1 RAAATGGCCGGAAAACTCGAC
hsp-6 FTCCCAAGTCTTCTCTACCGC
hsp-6 RCACGATCTCTGGCTGAAACG
ugt-61 FGCAATTGGAGGTCATGACGTAACTATG
ugt-61 RGCGAAGAATGATTCGGCATCCATCTTG
cyp-14A3 FCAGTTTCCCGCCGAAAACATCCATTTG
cyp-14A3 RCAATGCCGTTCTTCTTTGAAGCCTCCAG
act-3 FTCCCTCGAGAAGTCCTACGA
act-3 RTCCTGGGTACATGGTGGTTC
clec-4 FGAGCGACACTGGTGACTGTG
clec-4 RCCATCCAGAATAGGTTGGCG
lys-2 FATCGACTCGAACCAAGCTGCG
lys-2 RTCGACAGCATTTCCCATTGAAGCGT
zip-2 FTCGACGAGCAAACGACCTAC
zip-2 RCTTGTGGCGTGCTCATGTT
clec-65 FCCCGGTGGTGACTGTGAATA
clec-65 RAGCTCATATTGTCGCTGGCA
gpd-2 FTGAAATCCAATGGGGAGCCTC
gpd-2 RGGAGCAGAGATGATGACCTTCTTG
gst-14 FGCTACCTTGCTAGAAAATTCGG
gst-14 RGCCGTTAACTTTTCCAGTTCTT

Yeast two-hybrid

Request a detailed protocol

Each indicated gene was cloned into pGADT7 or pGBDT7 plasmid (Clontech). Plasmids were then transformed into AH109 yeast strain. We first seeded yeast on –Trp and -Leu double dropout solid culture medium. After yeast colonies were formed, we picked individual yeast colony into sterile water, adjusted it to the same OD and dropped onto -Trp, -Leu, -His and -Ade four dropout solid culture medium. Images of yeast were taken after culturing at 30°C for 2–4 days.

Yeast two-hybrid screen

Request a detailed protocol

Full-length dve-1 was cloned into pGBDT7, and transformed into AH109 yeast strain to test for auto-activation and protein expression. We then transformed C. elegans AD library plasmids into yeast that already contains dve-1 BD plasmid. Yeasts were seeded onto four dropout solid culture medium and grown at 30°C for a week. Each colony was picked, followed by mini-prep to extract AD plasmid for PCR and sequencing.

Yeast three-hybrid

Request a detailed protocol

Yeast three-hybrid for DVE-1 deSUMOylation were carried out using pBRIDGE and pGADT7 vectors. smo-1 was cloned into pGADT7. dve-1 alone, or together with ulp-4/5, were cloned into pBRIDGE. pGADT7 and pBRIDGE plasmids were transformed into AH109 strain and cultured on -Leu and -Trp double dropout solid culture medium for yeast growth, on -Leu, -Trp and -His dropout medium for SMO-1 and DVE-1 interaction assay, on -Met, -Leu, -Trp and -His dropout medium to induce the expression of ULP-4 or ULP-5 and test for deSUMOylation activity.

MG132 treatment of worms

Request a detailed protocol

Worms were grown on control or ulp-4 RNAi plates for 48 hr before heat shock at 37°C for 1 hr. The worms were then transferred in M9 containing indicated RNAi bacteria and 100uM MG132. Images were taken after 24 hr.

Transcriptional activity assay

Request a detailed protocol

Each indicated gene was cloned into pCMV-BD vector. We then transfected 0.5 µg pCMV-BD, 0.5 µg pFR-luci (Photinus pyralis) and 0.1 µg pActin-luci (Renilla reniformis) into one 24-well of 293 T cells. 24 hr after transfection, we assayed luciferase activity with dual luciferase reporter assay system (Promega, CAT#1910).

Developmental delay and survival assay

Request a detailed protocol

To assay developmental delay induced by P. aeruginosa, worms were pre-treated with control or ulp-4 RNAi at 20°C for 16 hr. P. aeruginosa was then dropped onto worm plates. Images were taken two days later.

To assay survival rate of worms under antimycin treatment, worms were grown at 20°C on 6-well RNAi plates seeded with control or ulp-4 RNAi. After 48 hr, 20 µg antimycin A were provided.

Lifespan analysis

Request a detailed protocol

Lifespan analyses were conducted on RNAi plates at 20°C. More than 100 synchronized L1 were seeded onto 6 cm worm plates with control or ulp-4 RNAi. Animals that did not move when gently touched were scored as dead. Worms were transferred every 2 days to new plates during the first 10 days and were transferred every 3–5 days afterwards. Lifespan experiments were performed twice.

PA14 survival assay

Request a detailed protocol

PA14 survival assay was carried out as described previously (Kirienko et al., 2014). PA14 was freshly streaked from frozen stock and cultured 37°C for 16 hr. 10 µL PA14 were then spread onto 3.5 cm slow killing agar plates (3.5 mg/mL peptone, 3 mg/mL NaCl, 17 mg/mL Agar, 1 mM MgSO4, 25 mM 1MKH2PO4, pH 6, 1 mM CaCla, 5 µg/mL cholesterol). The slow killing plates seeded with PA14 were cultured at 37°C for 24 hr. FUDR was spread on the plates and L4 worms were picked onto plates and cultured at 25°C. Worms were scored at least three times per day after16 hours, until all worms were dead. PA14 survival assay was performed 2 times with three replications each time.

CRISPR/Cas9 knock-in

Request a detailed protocol

The pDD162 CRISPR/Cas9 expression plasmid was obtained from Addgene (#47549). C. elegans Cas9 target prediction tool (https://crispr.cos.uni-heidelberg.de) was used to design target sequences. Templates for recombination were cloned into pDD49.26 vector with ~500 bp overhang upstream and downstream of the target. Cas9 pam sequences were mutated in the templates. The plasmid was injected into worms, with Cas9-rol-6 as co-injection marker. Rolling worms were singled and validated by PCR and sequencing.

Primers: dve-1 K327R F: TTTCCATCAATATTCGACCAGAACCGG

dve-1 K327R R: CGAATATTGATGGAAAACAAAGTATCTTGAATAGTTTC.

atfs-1 K326R F: TTTTAAGCGTCCAGAAGCATTTTTCCGGGAAGAACCCATG

atfs-1 K326R R: CGGAAAAATGCTTCTGGACGCTTAAAAACGTC

Quantification and statistical analysis

Request a detailed protocol

All experiments in this paper, if not specifically indicated, have been repeated for at least three times. Statistical analysis was performed with GraphPad. DVE-1 subcellular localization, transcriptional activity assay, QPCR and worm length were analyzed by Student’s t-test. PA14 survival and lifespan assays were analyzed using Log-Rank method. *p<0.05, **p<0.002 and ***p<0.0002.

Worm lengths, relative gfp expression and immunoblot quantification were analyzed by Image J. DVE-1 subcellular localization was counted in more than 40 worms per plate and three independent replicates were analyzed for each condition. Transcriptional activity assay wasanalyzed with three independent replicates for each condition. PA14 survival assay was performed with more than 35 worms per plate and at least two independent replicates were analyzed for each condition. The experiment was repeated for at least two times. Lifespan assay was performed with two biological replicates.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    SUMO, the three rs and cancer
    1. JS Seeler
    2. O Bischof
    3. K Nacerddine
    4. A Dejean
    (2007)
    Current Topics in Microbiology and Immunology 313:49–71.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. Hong Zhang
    Reviewing Editor; Institute of Biophysics, Chinese Academy of Sciences, China
  2. Ivan Dikic
    Senior Editor; Goethe University Frankfurt, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "SUMO peptidase ULP-4 regulates mitochondrial UPR-mediated innate immunity and lifespan extension" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Ivan Dikic as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Hui Jiang (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In C. elegans, mitochondrial stresses trigger mitochondrial unfolded protein response (UPRmt) through two transcription factors: DVE-1 and ATFS-1. The signaling cascade from mitochondrial stress to transcription response is incompletely understood. In this manuscript, Gao and colleagues report that SUMO peptidase ULP-4 is critical for UPRmt activation and UPRmt-regulated innate immunity and lifespan extension. The authors identify DVE-1 and ATFS-1 as SUMOylated proteins that are deSUMOylated by ULP-4. In the absence of ULP-4, SUMOylated DVE-1 remains in the cytoplasm and SUMOylated ATFS-1 becomes unstable and has reduced transcription activity. Overall, the finding that ULP-4 controls UPRmt in worms is striking and of considerable interest. Particularly, the genetic evidence with ULP-4 mutants exemplifies the major role ULP-4 appears to play in this pathway. This manuscript is suitable for publication in eLife after appropriate revisions.

Essential revisions:

1) DVE-1 is SUMOylated at K327 in 293T cells and in worms. ULP-4 deSUMOylates DVE-1 in 293T cells. To fully establish the role of ULP-4 in deSUMOylation of DVE-1 in worms, it is important to examine whether ULP4-RNAi can increase SUMOylation of DVE-1 under normal and stress conditions.

2) While it is convincing that ULP-4 is required for UPRmt, the final model (Figure 7) suggests changes in ULP-4 activity/levels upon mitochondrial stress. Otherwise, deSUMOylation of DVE-1 would also appear under normal conditions. Figure 1—figure supplement 1C suggests a small increase in ulp-4 mRNA. Do ULP-4 levels increase upon induction of UPRmt as potentially suggested in Figure 7? Is overexpression of ULP-4 sufficient to deSUMOylate DVE-1 and drive its transcriptional activity?

3) Findings on the destabilization of ATFS-1 by ulp-4 RNAi are obtained after overexpression of mislocalized ATFS-1Δ1-184 (which lacks the MTS) and studied upon heat shock, which will perturb many processes in addition to mitochondria. Do endogenous ATFS-1 levels (which is usually mitochondrially localized) also change dependent on ulp-4 RNAi and mitochondrial stress (e.g. spg-7 RNAi)?

4) Despite the genetic evidence for the role of the K327 or K326 residues of DVE-1 or ATFS-1 respectively for UPRmt induction, actual SUMOylation of these sites remains unclear. The size shifts observed in experiments for both DVE-1 and ATFS-1 are not consistent with mono-SUMOylation of these residues. However, specific deSUMOylation of K327/K326 or two mono-SUMOylations seem unlikely as the authors ruled out the other predicted SUMOylation sites. The authors should explain the observed shifts and confirm SUMOylation on endogenous DVE-1 and ATFS-1. Alternatively, SUMOylation could be confirmed by a mass spec approach showing modification of these sites (similar as for SUMO, see e.g. Impens et al., 2014).

References:

Impens F, Radoshevich L, Cossart P, Ribet D. Mapping of SUMO sites and analysis of SUMOylation changes induced by external stimuli. PNAS. 2014 Aug 26;111(34):12432-7. doi: 10.1073/pnas.1413825111.

https://doi.org/10.7554/eLife.41792.018

Author response

Essential revisions:

1) DVE-1 is SUMOylated at K327 in 293T cells and in worms. ULP-4 deSUMOylates DVE-1 in 293T cells. To fully establish the role of ULP-4 in deSUMOylation of DVE-1 in worms, it is important to examine whether ULP4-RNAi can increase SUMOylation of DVE-1 under normal and stress conditions.

We have followed the reviewers’ comments to knockdown ulp-4 by RNAi and found that ulp-4 RNAi can increase DVE-1 SUMOylation levels a bit under normal and stress conditions (Figure 2—figure supplement 1D). However, we have to admit that biochemistry on SUMOylation is not easy to do, especially when dealing with worms. Our genetic data is much stronger to support that DVE-1 is the bona fide target of ULP-4 in UPRmt signaling. To further support the function of ULP-4 in deSUMOylation of DVE-1, we overexpressed ULP-4 in worms and observed a reduced level of DVE-1 SUMOylation (Figure 2H). In addition, we have also showed that catalytic domain (C48) of ULP-4 could deSUMOylate DVE-1 when co-transfected in 293T cells (Figure 2I).

2) While it is convincing that ULP-4 is required for UPRmt, the final model (Figure 7) suggests changes in ULP-4 activity/levels upon mitochondrial stress. Otherwise, deSUMOylation of DVE-1 would also appear under normal conditions. Figure 1—figure supplement 1C suggests a small increase in ulp-4 mRNA. Do ULP-4 levels increase upon induction of UPRmt as potentially suggested in Figure 7? Is overexpression of ULP-4 sufficient to deSUMOylate DVE-1 and drive its transcriptional activity?

The induction fold of ulp-4 transcripts is ~1.5, which is comparable to the induction fold of many other mitochondrial stress response genes such as hsp-6 and hsp-60 (Figure 1C and Figure 1—figure supplement 1B). We don’t have antibody to detect protein levels of ULP-4. We also tried very hard to generate ulp-4p::ulp-4::gfp strain, but haven’t successfully got this strain yet. To further answer the reviewers’ question, we generated rpl-28p::ulp-4; dve-1p::dve-1::gfp strain, and showed that overexpression of ULP-4 is sufficient to drive the nuclear accumulation of DVE-1 (Figure 3D). In addition, overexpression of ULP-4 is sufficient to deSUMOylate DVE-1 (Figure 2H). We also tried to use luciferase assay, similar as those in Figure 5F and 5G, to test transcriptional activity of DVE-1. However, we found that expression of DVE-1 alone in 293T cells could not induce target genes transcription. It suggests that DVE-1 may require other co-factors to exert its transcriptional activity.

3) Findings on the destabilization of ATFS-1 by ulp-4 RNAi are obtained after overexpression of mislocalized ATFS-1Δ1-184 (which lacks the MTS) and studied upon heat shock, which will perturb many processes in addition to mitochondria. Do endogenous ATFS-1 levels (which is usually mitochondrially localized) also change dependent on ulp-4 RNAi and mitochondrial stress (e.g. spg-7 RNAi)?

We haven’t been able to raise a good ATFS-1 antibody that could detect endogenous ATFS-1 proteins. Therefore, we tried to use an atfs-1p::atfs-1::gfp strain and perform western blotting with anti-GFP antibody to detect full-length ATFS-1 proteins. Under normal growth condition, protein level of ATFS-1 is not detectable, because ATFS-1 is imported into mitochondria and degraded by mitochondrial protease LON-1 (Nargund et al., 2012). We fed worms with lon-1 RNAi and showed that ulp-4 RNAi reduced protein levels of full-length ATFS-1 (Figure 5C).

4) Despite the genetic evidence for the role of the K327 or K326 residues of DVE-1 or ATFS-1 respectively for UPRmt induction, actual SUMOylation of these sites remains unclear. The size shifts observed in experiments for both DVE-1 and ATFS-1 are not consistent with mono-SUMOylation of these residues. However, specific deSUMOylation of K327/K326 or two mono-SUMOylations seem unlikely as the authors ruled out the other predicted SUMOylation sites. The authors should explain the observed shifts and confirm SUMOylation on endogenous DVE-1 and ATFS-1. Alternatively, SUMOylation could be confirmed by a mass spec approach showing modification of these sites (similar as for SUMO, see e.g. Ingens et al., 2014).

We have followed the reviewers’ suggestion to carry out mass spectrometry analysis. However, we failed to detect SUMOylation on DVE-1 and ATFS-1 through mass spec. Mass spectrometry to detect SUMOylation is not as easy as detecting phosphorylation. A more commonly used approach is to employ site-direct mutagenesis to analyze SUMOylation site within the protein-of-interest.

The size shift might be due to di-SUMOylation on a single lysine residue of the target protein. Similar as ubiquitin, SUMO could also be covalently conjugated and form di- or multi-SUMO chain (Knipsheer et al., 2007; Klug et al., 2013 Molecular Cell; Tatham et al., 2008). To test this idea, we tried to express DVE-1295-354 or ATFS-1261-360 fragment, which contains only one lysine residue (DVE-1 K327 or ATFS-1 K326) in 293T cells. Only DVE-1295-354 expressed well in 293T cells. The size shift of DVE-1295-354-3xFLAG upon SMO-1 and UBC9 co-transfection is ~60KDa, similar as the molecular weight of di-EGFP-SUMO (Figure 2—figure supplement 1F). Therefore, we think the size shift that we observed for DVE-1 and ATFS-1 is due to di-SUMO moiety. We have discussed this issue in the revised manuscript.

References:

Klug H, Xaver M, Chaugule VK, Koidl S, Mittler G, Klein F, Pichler A. Ubc9 sumoylation controls SUMO chain formation and meiotic synapsis in Saccharomyces cerevisiae. Mol Cell. 2013 Jun 6;50(5):625-36. doi: 10.1016/j.molcel.2013.03.027.

Knipscheer P, van Dijk WJ, Olsen JV, Mann M, Sixma TK. Noncovalent interaction between Ubc9 and SUMO promotes SUMO chain formation. EMBO J. 2007 Jun 6; 26(11): 2797–2807. doi: 10.1038/sj.emboj.7601711

Tatham MH1, Geoffroy MC, Shen L, Plechanovova A, Hattersley N, Jaffray EG, Palvimo JJ, Hay RT. RNF4 is a poly-SUMO-specific E3 ubiquitin ligase required for arsenic-induced PML degradation. Nat Cell Biol. 2008 May;10(5):538-46. doi: 10.1038/ncb1716.

https://doi.org/10.7554/eLife.41792.019

Article and author information

Author details

  1. Kaiyu Gao

    State Key Laboratory of Membrane Biology, Institute of Molecular Medicine, Beijing Key Laboratory of Cardiometabolic Molecular Medicine, and Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  2. Yi Li

    1. State Key Laboratory of Membrane Biology, Institute of Molecular Medicine, Beijing Key Laboratory of Cardiometabolic Molecular Medicine, and Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    2. Academy for Advanced Interdisciplinary Studies, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  3. Shumei Hu

    Academy for Advanced Interdisciplinary Studies, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  4. Ying Liu

    State Key Laboratory of Membrane Biology, Institute of Molecular Medicine, Beijing Key Laboratory of Cardiometabolic Molecular Medicine, and Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    Contribution
    Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    ying.liu@pku.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3328-026X

Funding

National Natural Science Foundation of China (91854205)

  • Ying Liu

National Natural Science Foundation of China (31422033)

  • Ying Liu

Howard Hughes Medical Institute (55008739)

  • Ying Liu

Ministry of Science and Technology of the People's Republic of China (2017YFA0504000973)

  • Ying Liu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Cole Haynes for providing C. elegans strains and plasmid, and Dr. Xin-Hua Feng for his generous gifts of plasmids. Several C. elegans strains used in this work were provided by the National Bio-Resource Project, and the Caenorhabditis Genetics Center, which is supported by the NIH-Officer of Research Infrastructure Programs P40 OD010440. This work is supported by the National Natural Science Foundation of China (grants 91854205 and 31422033), the Ministry of Science and Technology of China (National Key Research and Development Program of China grant 2017YFA0504000973), Peking-Tsinghua Center for Life Sciences, and an HHMI International Research Scholar Award (HHMI#55008739) to YL.

Senior Editor

  1. Ivan Dikic, Goethe University Frankfurt, Germany

Reviewing Editor

  1. Hong Zhang, Institute of Biophysics, Chinese Academy of Sciences, China

Publication history

  1. Received: September 6, 2018
  2. Accepted: January 2, 2019
  3. Accepted Manuscript published: January 15, 2019 (version 1)
  4. Version of Record published: January 31, 2019 (version 2)

Copyright

© 2019, Gao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,729
    Page views
  • 467
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
