HCN channel-mediated neuromodulation can control action potential velocity and fidelity in central axons

  1. Niklas Byczkowicz
  2. Abdelmoneim Eshra
  3. Jacqueline Montanaro
  4. Andrea Trevisiol
  5. Johannes Hirrlinger
  6. Maarten HP Kole
  7. Ryuichi Shigemoto
  8. Stefan Hallermann  Is a corresponding author
  1. University Leipzig, Germany
  2. Institute of Science and Technology Austria (IST Austria), Austria
  3. Max-Planck-Institute for Experimental Medicine, Germany
  4. Royal Netherlands Academy of Arts and Sciences, Netherlands
  5. University of Utrecht, Netherlands
Research Article
  • Cited 0
  • Views 806
  • Annotations
Cite this article as: eLife 2019;8:e42766 doi: 10.7554/eLife.42766

Abstract

Hyperpolarization-activated cyclic-nucleotide-gated (HCN) channels control electrical rhythmicity and excitability in the heart and brain, but the function of HCN channels at the subcellular level in axons remains poorly understood. Here, we show that the action potential conduction velocity in both myelinated and unmyelinated central axons can be bidirectionally modulated by a HCN channel blocker, cyclic adenosine monophosphate (cAMP), and neuromodulators. Recordings from mouse cerebellar mossy fiber boutons show that HCN channels ensure reliable high-frequency firing and are strongly modulated by cAMP (EC50 40 µM; estimated endogenous cAMP concentration 13 µM). In addition, immunogold-electron microscopy revealed HCN2 as the dominating subunit in cerebellar mossy fibers. Computational modeling indicated that HCN2 channels control conduction velocity primarily by altering the resting membrane potential and are associated with significant metabolic costs. These results suggest that the cAMP-HCN pathway provides neuromodulators with an opportunity to finely tune energy consumption and temporal delays across axons in the brain.

https://doi.org/10.7554/eLife.42766.001

Introduction

HCN channels are expressed in the heart and nervous system and comprise four members (HCN1–HCN4), which differ in their kinetics, voltage-dependence and degree of sensitivity to cyclic nucleotides such as cAMP (Biel et al., 2009; Robinson and Siegelbaum, 2003). Membrane hyperpolarization activates HCN channels and causes a depolarizing mixed sodium/potassium (Na+/K+) current. In the heart, the current through HCN channels (If) mediates the acceleratory effect of adrenaline on heart rate by direct binding of cAMP (DiFrancesco, 2006). In neurons, the current through HCN channels (Ih) controls a wide array of functions, such as rhythmic activity (Pape and McCormick, 1989) and excitability (Tang and Trussell, 2015). In addition to the somatic impact, HCN channels are expressed throughout various subcellular compartments of neurons (Nusser, 2012). For example, patch-clamp recordings from dendrites in pyramidal neurons have revealed particularly high densities of HCN channels that act to control the local resting potential and leak conductance, thereby playing important roles in regulating synaptic integration (George et al., 2009; Harnett et al., 2015; Kole et al., 2006; Magee, 1999; Williams and Stuart, 2000).

On the contrary, the expression and role of Ih in the axon is less studied. Ih seems to control the strength of synaptic transmission in the crayfish and the Drosophila neuromuscular junction (Beaumont and Zucker, 2000; Cheung et al., 2006). However, presynaptic recordings from the vertebrate calyx of Held in the auditory brainstem found Ih to only have a marginal effect on neurotransmitter release (Cuttle et al., 2001), but to exert a strong influence on the resting membrane potential (Cuttle et al., 2001; Kim and von Gersdorff, 2012) and on vesicular neurotransmitter uptake (Huang and Trussell, 2014). At the synaptic terminals of pyramidal neurons in the cortex of mice, HCN channels inhibit glutamate release by suppressing the activity of T-type Ca2+ channels (Huang et al., 2011).

Besides a potential impact on neurotransmitter release, axonal Ih could play a role in the propagation of action potentials. Indeed, in axons of the stomatogastric nervous system of lobsters (Marder and Bucher, 2001), the action potential conduction was affected by dopamine acting via axonal HCN channels (Ballo et al., 2010; Ballo et al., 2012). In vertebrates, studies on action potential propagation by Waxman and coworkers indicated that Ih counteracts the hyperpolarization of the membrane potential during periods of high-frequency firing (Baker et al., 1987; Birch et al., 1991; Waxman et al., 1995), and that it participates in ionic homeostasis at the node of Ranvier (Waxman and Ritchie, 1993). More recent investigations found Ih to be crucial for the emergence of persistent action potential firing in axons of parvalbumin-positive interneurons (Elgueta et al., 2015), but Ih seems to have an opposing effect on the excitability at the axon initial segment, where its activation reduces the probability of action potential initiation (Ko et al., 2016). Finally, there is evidence from extracellular recordings that blocking Ih decreases the action potential conduction velocity in unmyelinated central axons (Baginskas et al., 2009; Soleng et al., 2003) and peripheral axons of vertebrates (Grafe et al., 1997). However, the neuromodulation of conduction velocity and the underlying cellular membrane mechanisms are not known in vertebrate axons.

Here, we demonstrate a decrease or increase in conduction velocity in central axons as a result of the application of HCN blockers or neuromodulators. To gain mechanistic insights into the modulation of conduction velocity by HCN channels, we performed recordings from en passant cerebellar mossy fiber boutons (cMFB; Ritzau-Jost et al., 2014; Delvendahl et al., 2015). We found that HCN channels in cMFBs mainly consist of the HCN2 subunit, are ~7% activated at resting membrane potential, ensure high-frequency firing, and control the passive membrane properties. Whole-cell and perforated patch clamp recordings from cMFBs demonstrated a strong dependence of HCN channels on intracellular cAMP concentration with an EC50 of 40 µM and a high endogenous cAMP concentration of 13 µM. Computational modeling indicated that the resting membrane potential controls conduction velocity and that the activity of the HCN channel is metabolically expensive. These data reveal the existence of a mechanism to modulate conduction velocity bidirectionally in the central nervous system, which is shared among different types of axons.

Results

Bidirectional modulation of conduction velocity

To investigate whether HCNs affect conduction velocity, we recorded compound action potentials in three different types of axons (Figure 1). Application of the specific HCN channel blocker ZD7288 (30 µM) decreased the conduction velocity by 8.0 ± 2.8% in myelinated cerebellar mossy fibers (n = 14), by 9.2 ± 0.9% in unmyelinated cerebellar parallel fibers (n = 15), and by 4.0 ± 0.8% in optic nerves (n = 4; see Figure 1 and its legend for statistical testing). As some studies implied that ZD7288 might have unspecific side effects, such as blocking voltage-dependent Na+ channels (Chevaleyre and Castillo, 2002; Wu et al., 2012), we recorded Na+ currents from 53 cMFBs and found no change in the amplitude or kinetics of voltage-dependent Na+ currents after ZD7288 application (Figure 1—figure supplement 1),suggesting that under our conditions and at a concentration of 30 µM, ZD7288 did not affect the Na+ currents. Because of the modulation of HCN channels by intracellular cAMP, we measured conduction velocity during the application of 8-bromoadenosine 3′,5′-cyclic monophosphate (8-Br-cAMP; 500 µM), a membrane-permeable cAMP-analog. The conduction velocity increased by 5.9 ± 2.8% in cerebellar mossy fibers (n = 17), by 3.7 ± 1.4% in parallel fibers (n = 10), and by 4.6 ± 0.6% in optic nerves (n = 5; see Figure 1 and its legend for statistical testing). These results indicate that HCN channels control the conduction velocity in both myelinated and unmyelinated central axons.

Figure 1 with 1 supplement see all
Bidirectional modulation of conduction velocity.

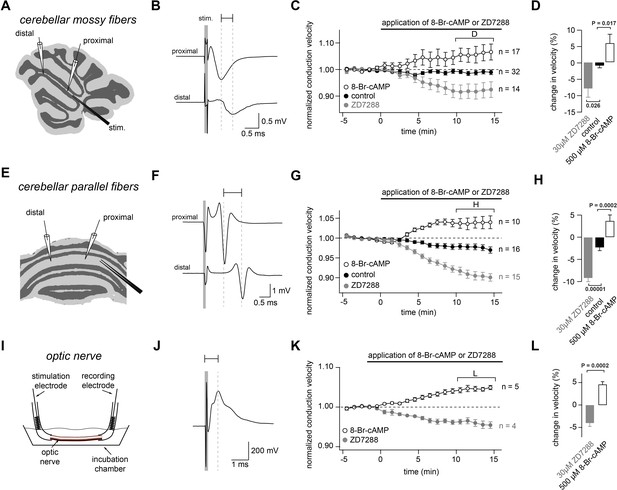

(A) Recording configuration of conduction velocity in mossy fibers using a bipolar tungsten stimulation electrode (stim.) and two glass recording electrodes. (B) Example of compound action potentials recorded with two electrodes positioned at different distances in relation to the stimulation electrode. The stimulation (100 µs duration) is indicated by the gray bar. Each trace is an average of 50 individual compound action potentials recorded at 1 Hz. The delay between the peak of the proximal and the distal compound action potential is indicated by a horizontal line. (C) Average normalized mossy fiber conduction velocity, during bath application (starting at t = 0 min)of ZD7288 (30 µM) or 8-Br-cAMP (500 µM). (D) Average relative changes in conduction velocity of mossy fiber measured 10 to 15 min after beginning the application of ZD7288 or 8-Br-cAMP (bracket in C). PANOVA = 0.00015. PKruskal-Wallis = 0.00044. The individual P values of the Dunnett test for multiple comparisons with the control are indicated. (E) Schematic illustration of the experimental configuration used to record from cerebellar parallel fibers. (F) Examples of compound action potentials recorded from parallel fibers, as in panel (B). (G) Normalized conduction velocity in parallel fibers, as in panel (C). (H) Average relative changes in conduction velocity parallel fibers, as in panel (D). PANOVA = 10−9. PKruskal-Wallis = 10−8. The individual P values of the Dunnett test for multiple comparisons with the control are indicated. (I) Schematic illustration of the experimental configuration used to record from optic nerve. (J) Examples of compound action potentials recorded from optic nerve, as in panel (B). (K) Normalized conduction velocity in optic nerve, as in panel (C). (L) Average relative changes in conduction velocity of optic nerve, as in panel (D). PT-Test = 0.0002. PWilcoxon-Mann-Whitney-Test = 0.004.

https://doi.org/10.7554/eLife.42766.002

Neuromodulators differentially regulate conduction velocity via HCN channels

To investigate a modulation of conduction velocity by physiological neuromodulators, we focused on the cerebellar parallel fibers, in which the velocity could be most accurately measured, and then applied several modulators known to act via cAMP-dependent pathways (Figure 2). Application of 200 µM norepinephrine (NE) resulted in a relatively fast increase in conduction velocity (1.9 ± 0.8%; n = 6; see Figure 2A and C–E; see legend for statistical testing), consistent with the existence of β-adrenergic receptors in the cerebellar cortex (Nicholas et al., 1993) that increase the cAMP concentration via Gs-proteins. On the other hand, the application of either 200 µM serotonin (–3.5 ± 0.5%; n = 11), 200 µM dopamine (–5.0 ± 0.7%; n = 13) or 200 µM adenosine (–7.2 ± 0.6%; n = 5) resulted in a continuous decrease of the conduction velocity (Figure 2B and C–E), consistent with the existence of Gi-coupled receptors for serotonin, dopamine, and adenosine in the molecular layer of the cerebellum (Geurts et al., 2002; Schweighofer et al., 2004), which decrease the cAMP concentration. Although we used high concentrations of the agonists and off-target effects cannot be excluded (e.g., the activation of dopamine receptors by NE [Sánchez-Soto et al., 2016]), these data nevertheless indicate that physiological neuromodulators can both increase and decrease action potential conduction velocity, depending on the type of neuromodulator and receptor.

Neuromodulators differentially regulate conduction velocity via HCN channels.

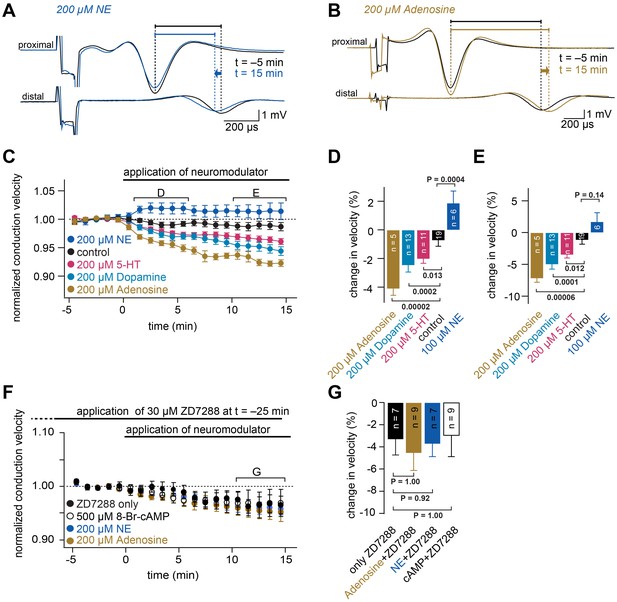

(A) Example of compound action potentials recorded in parallel fibers. Each trace is an average of signals recorded over a period of 1 min, before (at −5 min, black line) and after application of 200 µM NE (at 15 min, blue line). The delays between the peak of the proximal action potential and the distal compound action potential are indicated by horizontal bars. Traces are aligned to the peak of the compound action potentials recorded with the proximal electrode. (B) Example of compound action potentials as shown in panel (A) with the application of 200 µM adenosine. (C) Average normalized conduction velocity in cerebellar parallel fibers during the application of various neuromodulators that are known to act via cAMP-dependent pathways. (D) Average relative change in conduction velocity measured from 1 to 6 min after the start of neuromodulator application (bracket marked D in panel (C)). PANOVA = 9*10−10. PKruskal-Wallis = 3*10−8. The individual P values of the Dunnett test for multiple comparisons with the control are indicated. (E) Average relative change in conduction velocity measured from 10 to 15 min after the start of application of the neuromodulators (bracket marked E in panel (C)). PANOVA = 3*10−7. PKruskal-Wallis = 3*10−7. The individual P values of the Dunnett test for multiple comparisons with the control are indicated. (F) Average normalized conduction velocity in parallel fibers. 30 µM ZD7288 was applied 25 min before the start of the application of the neuromodulators. ZD7288 remained in the solution during recording to ensure continuously blocked HCN channels. At t = 0 min, 8-Br-cAMP, adenosine or NE was added to the solution. (G) Average relative change in conduction velocity measured 10 to 15 min after the start of application of the neuromodulators (bracket marked G in panel (F)). PANOVA = 0.91. PKruskal-Wallis = 0.77. The individual P values of the Dunnett test for multiple comparisons with the control are indicated.

https://doi.org/10.7554/eLife.42766.004

In addition to HCN channels, some voltage-gated Na+, K+, and Ca2+ channels can be modulated by the intracellular cAMP-pathway (Burke et al., 2018; Yang et al., 2013; Yin et al., 2017). To address the contribution of other channels on the neuromodulation of the conduction velocity, we performed a set of experiments in which HCN channels were first blocked by 30 µM ZD7288 before we applied three modulatory substances that had significantly increased or decreased conduction velocity in previous experiments. With ZD7288 continuously present in the recording solution, the conduction velocity of parallel fibers decreased over the course of 20 min (Figure 2F; see Materials and methods). Compared with control conditions (i.e. only ZD7288), adding 8Br-cAMP (500 µM), adenosine (200 µM) or NE (100 µM) at t = 0 min (i.e. 25 min after application of ZD7288) did not change the conduction velocity. The average conduction velocity between t = 10 and 15 min was decreased by –3.3 ± 2.4% for cAMP (n = 9), –4.6 ± 1.6% for adenosine (n = 9) and –3.7 ± 1.2% for NE (n = 7) when compared to the average velocity between t = 0 and 5 min in the baseline recording. This was not significantly different from the decrease measured in the presence of ZD7288 alone (control, –3.3 ± 1.4%; n = 7, see Figure 2G), indicating that the previously shown effects of cAMP and neuromodulators on conduction velocity are mainly mediated by HCN channels.

Cerebellar mossy fiber terminals have a prominent voltage sag

To investigate the membrane and signaling mechanisms underlying the bidirectional control of conduction velocity, we focused on cerebellar mossy fibers, which allow whole-cell recordings with direct access to the cytoplasmic compartment (Figure 3A). Because of a long membrane length constant and the slow gating of HCN channels, recordings from en passant cMFBs are well suited for the investigation of the ionic basis of conduction velocity in adjacent axonal compartments. Injection of depolarizing currents during current-clamp recordings evoked a single action potential, while injection of hyperpolarizing currents generated a substantial ‘sag’ (Figure 3B; Rancz et al., 2007; Ritzau-Jost et al., 2014) (i.e. a delayed depolarization towards the resting potential, which is a hallmark of the presence of Ih) (Biel et al., 2009; Robinson and Siegelbaum, 2003). At a potential of, on average, –150 mV, the sag ratio (calculated from the peak and steady state amplitude as indicated in Figure 3C (George et al., 2009) was 0.497 ± 0.030 (n = 12).

Cerebellar mossy fiber terminals have a prominent voltage sag.

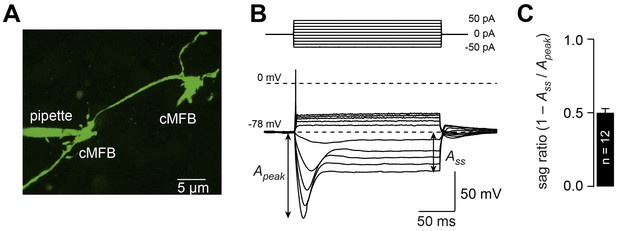

(A) Two-photon microscopic image of a whole-cell patch-clamp recording from a cMFB (green) filled with the fluorescence dye Atto 488 in an acute cerebellar brain slice of an adult 39-day-old mouse (maximal projection of stack of images). (B) Characteristic response of a cMFB to current injection: depolarizing pulses evoked a single action potential and hyperpolarizing pulses evoked a strong hyperpolarization with a sag. (C) Average sag ratio of 12 cMFB recordings.

https://doi.org/10.7554/eLife.42766.005

HCN channels support high-frequency action potential firing

Using direct recordings from cMFBs, we first aimed to investigate the impact of HCN channels on action potential firing. To this end, we analyzed action potentials elicited by current injections into the cMFBs (data not shown) as well as traveling action potentials elicited by axonal stimulation with a second pipette (Figure 4A). In both cases, the amplitude and half-duration of the action potentials elicited at 1 Hz were not significantly affected by the application of 30 µM ZD7288 (data not shown and Figure 4B and C, respectively), indicating that HCN channels do not alter the active membrane properties profoundly.

HCN channels support high-frequency action potential firing.

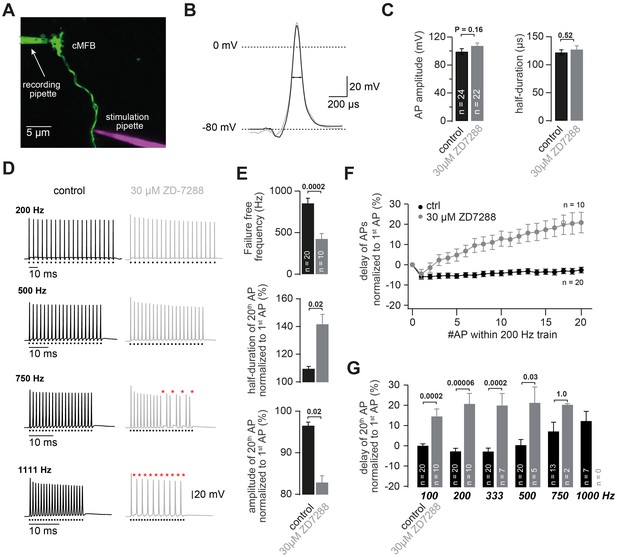

(A) Two-photon microscopic image of a whole-cell patch-clamp recording from a cMFB (green) filled with the fluorescent dye Atto 488 in an acute cerebellar brain slice of an adult (43-day-old) mouse (maximal projection of stack of images). Targeted axonal stimulation was performed by adding a red dye, Atto 594, to the solution of the stimulation pipette. (B) Grand average of action potentials evoked at 1 Hz under control conditions (black) and in the presence of ZD7288 (gray). (C) Average action potential amplitude (measured from resting to peak) and half-duration (PT-Test = 0.16 and 0.51 for amplitude and resting, respectively). (D) Example traces of two different cMFBs stimulated at frequencies between 200 Hz and 1111 Hz under control conditions (left, black) or in the presence of 30 µM ZD7288 (right, gray). Traces for 100, 333, 1000 and 1666 Hz are not shown. The time of stimulation is indicated below each trace. Failures are illustrated by red asterisks. (E) (Top graph) Average maximal failure-free firing frequency for control (black) and ZD7288-treated (gray) cMFBs. (Middle and bottom graph) Average amplitude reduction and action potential broadening of the 20th compared with the 1st action potential (AP) of trains of 20 stimuli at 200 Hz for control (black) and ZD7288-treated(gray) cMFBs. (F) Average delay between the peak of the APs and the stimulation during trains of 20 stimuli at 200 Hz, normalized to the delay of the first AP, for control conditions (black) and ZD7288-treated (gray) cMFBs. (G) Average delay of the 20th AP normalized to the delay of the 1staction potential during failure-free trains of 20 stimuli at frequencies ranging from 100 to 1000 Hz. The P-values were obtained from t-tests and were multiplied by six to apply a Bonferroni-correction, indicating a highly significant slowing of the conduction velocity during failure-free high-frequency trains in ZD7288-treated cMFBs compared with controls. Note that the number of experiments decreased with increasing frequency because the analysis harestricted to failure-free traces.

https://doi.org/10.7554/eLife.42766.006

However, cerebellar mossy fibers can conduct trains of action potentials at frequencies exceeding 1 kHz (Ritzau-Jost et al., 2014), making them an ideal target to investigate the impact of axonal HCNs on the propagation of high-frequency action potentials. Blocking HCN channels significantly impaired the ability of mossy fibers to fire at high frequencies (20 stimuli at 200–1666 Hz). In the examples illustrated in Figure 4D, the failure-free trains of action potentials could be elicited at up to 1.1 kHz under control conditions and at up to 500 Hz when ZD7288 was present in the extracellular solution. The average failure-free frequency was reduced from 854 ± 60 Hz under control conditions to 426 ± 63 Hz in the presence of ZD7288 (n = 20 and 10, respectively; PT-Test = 0.0002; Figure 4E). Action potential broadening and amplitude reduction was more pronounced in the presence of ZD7288. For example, during trains of action potentials at 200 Hz, the half-duration of the 20th action potential was 109.6% ± 1.5% and 141.7% ± 7.0% of the half-duration of the 1st action potential for control and ZD7288-treated MFBs, respectively (n = 20 and 10; PT-Test = 0.02; Figure 4E). The amplitude of the 20th action potential was 96.5% ± 0.8% and 82.9% ± 1.6% of the 1st action potential for control and ZD7288-treated MFBs, respectively (n = 20 and 10; PT-Test = 0.02; Figure 4E). Furthermore, the delay during trains of action potentials at 200 Hz increased by ~20% in the presence of ZD7288 but decreased by ~5% in control recordings (Figure 4F), indicating an acceleration and a slowing of conduction velocity during high-frequency firing for control and ZD7288, respectively. The difference in delay of the 20th action potential was maximal at intermediate frequencies (200 and 333 Hz; Figure 4G). These experiments show, that HCNs, despite their slow kinetics, ensure reliable high-frequency firing.

The passive membrane properties of cMFBs are HCN- and cAMP-dependent

To better understand how Ih impacts action potential firing, we next investigated the passive membrane properties of cMFBs by recording the voltage response elicited by small hyperpolarizing current injections (–10 pA for 300 ms) in the absence and presence of 30 µM ZD7288 (Figure 5A and B). ZD7288 caused (i) a hyperpolarization of the resting membrane potential by, on average, 5.4 mV (–80.0 ± 0.6 mV and –85.4 ± 1.4 mV for control and ZD7288-treated cMFBs n = 94 and 35, respectively), (ii) a doubling of the apparent input resistance calculated from the steady-state voltage at the end of the current step (794 ± 48 MΩ and 1681 ± 185 MΩ, respectively), and (iii) a doubling of the apparent membrane time constant, as determined by a mono-exponential fit to the initial decay of the membrane potential (14.4 ± 0.8 ms and 35.0 ± 2.5 ms, respectively; see legend of Figure 5B for statistical testing). To analyze the cAMP-dependence of the conduction velocity (cf. Figure 1), we determined the cAMP-dependence of the passive membrane properties of cMFBs. Adding cAMP in various concentrations to the intracellular solution depolarized the membrane potential and decreased both the input resistance and the apparent membrane time constant in a concentration-dependent manner. These effects are opposite to those that result from the application of ZD7288 (Figure 5B). These data suggest that HCN channels in cerebellar mossy fibers determine the passive membrane properties as a function of the intracellular cAMP concentration.

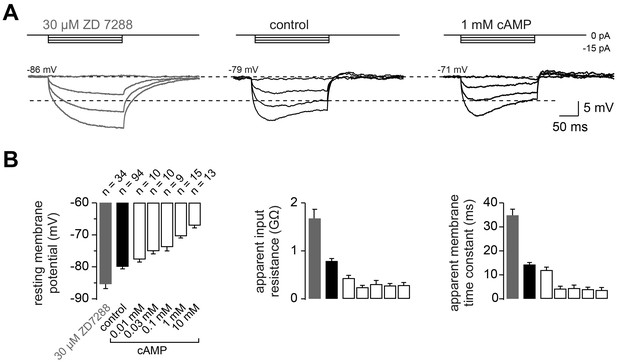

The passive membrane properties of cMFBs are HCN- and cAMP-dependent.

(A) Example voltage response of cMFBs to small hyperpolarizing current steps. The application of 30 µM ZD7288 eliminated the Ih-mediated voltage sag (left). Adding 1 mM cAMP to the intracellular path-clamp solution (right) reduced the input resistance as seen by the reduced steady-state voltage response (dashed lines). (B) Average resting membrane potential (left), apparent input resistance (middle), and apparent membrane time constant (right) upon application of 30 µM ZD7288 or different concentrations of cAMP. For all three parameters, PANOVA and PKruskal-Wallis are <10−10. The Dunnett test for multiple comparisons with the control indicates significance for control vs. ZD7288 (p<0.0001) and for control vs. cAMP concentrations >~0.1 mM (e.g., P<0.001 for control vs. 1 mM cAMP).

https://doi.org/10.7554/eLife.42766.007

HCN2 is uniformly distributed in mossy fiber axons and boutons

Of the four HCN subunits (HCN1–HCN4), the subunits HCN1 and HCN2 are predominantly expressed in the cerebellar cortex (Notomi and Shigemoto, 2004; Santoro et al., 2000). Previous studies in the cortex, hippocampus, and auditory brainstem primarily detected HCN1 in axons (Elgueta et al., 2015; Huang et al., 2011; Ko et al., 2016), but HCN2 was found to be more sensitive to cAMP than HCN1 (Wang et al., 2001; Zagotta et al., 2003). To understand the pronounced cAMP-dependence of conduction velocity (cf. Figure 1) and the passive membrane properties (cf. Figure 5) at the molecular level, we investigated the identity and distribution of HCN channels using pre-embedding immunogold labeling for HCN1 and HCN2 in cMFBs and adjacent axons. At the electron microscopic level, we found only background immunoreactivity for HCN1 (data not shown) but significant labeling for HCN2 (Figure 6A). HCN2 immunogold particles were diffusely distributed along the plasma membrane of cMFBs, with similar labeling density in the adjacent mossy fiber axon (Figure 6B), which could be traced back up to 3.5 µm from cMFBs. In addition, we created a 3D reconstruction of a cMFB (Figure 6C and Figure 6—video 1), including gold particles for HCN2 and identified synaptic connections. Synapses onto granule cell dendrites were observed within invaginated parts of the bouton. HCN2 was uniformly distributed without apparent spatial relations to those synapses. The density of immunogold particles for HCN2 in this reconstructed bouton was 17.1 particles/µm2 (in total 1260 particles per 73.65 µm2). The mean density of immunogold particles for HCN2 was 22.7 ± 2.4 per μm2 (n = 6 cMFBs from two mice). These data indicate that HCN2 is the dominant subunit mediating Ih in cMFBs, consistent with its pronounced cAMP-dependence.

Figure 6 with 1 supplement see all
HCN2 is uniformly distributed in mossy fiber axons and boutons.

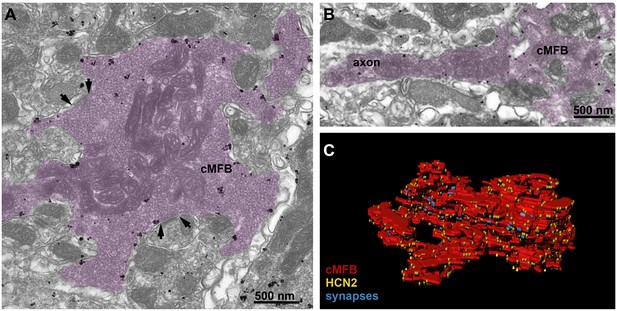

(A) Electron microscopic image showing a cMFB (magenta) labeled for HCN2. Many particles are diffusely distributed along the plasma membrane of the cMFB, some of them being clustered. Arrows mark synapses between the cMFB and dendrites of adjacent granule cells. (B) Another cMFB, showing similar labeling density for HCN2 in a proximal part of the mossy fiber axon. (C) Reconstructed cMFB (red) with identified synapses based on the ultrastructure (blue) and with HCN2 labeled with gold particles (yellow).

https://doi.org/10.7554/eLife.42766.008

HCN channels in cMFB are strongly modulated by cAMP

To better understand the function of axonal HCN2 channels and their modulation by intracellular cAMP, we performed voltage-clamp recordings from cMFBs with different cAMP concentrations in the intracellular patch solution. Hyperpolarizing voltage steps evoked a slowly activating, non-inactivating inward current, which was inhibited by ZD7288 (Figure 7A). Using the tail currents of ZD7288-sensitive currents evoked by voltage steps between –80 mV and –150 mV from a holding potential of –70 mV, we calculated the activation curve of Ih with a mean V½ of –103.3 ± 0.8 mV (Figure 7B; n = 36 V½-values, each from a different cMFB). On the basis of the average resting membrane potential of cMFBs, this means that about 7% of the overall HCN2-mediated current is active at rest.

HCN channels in cMFB are strongly modulated by cAMP.

(A) Example currents elicited by hyperpolarizing voltage steps (from –70 mV to a voltage between –70 mV and –150 mV). Top, control current, middle, remaining transients in the presence of 30 µM ZD7288 and, bottom, subtracted currents. The ZD7288-sensitive current is slowly activating, non-inactivating and shows inward tail currents (arrow). (B) Activation curve of Ih determined as the normalized tail current of ZD7288-sensitive currents obtained after the end of the conditioning voltage pulse (arrow in panel (A)) plotted against the corresponding voltage pulse with 0 mM cAMP (filled circles, n = 36) and 1 mM cAMP (open circles, n = 15) in the intracellular solution. Sigmoidal fits (continuous magenta lines) yield the midpoints of Ih activation (V½, arrows). The steady-state activation curves produced by the Hodgkin-Huxley models (dotted magenta line) are superimposed. Inset on top: illustration of the whole-cell recording configuration with 0 and 1 mM cAMP in the intracellular solution. (C) Activation curves obtained with the perforated-patch recordings and after rupture of the perforated membrane patch (n = 10). Inset on top: illustration of the whole-cell recording configuration with 0 mM cAMP in the intracellular solution and in the perforated patch configuration, when the intracellular cAMP concentration is unperturbed. (D) Shift in Ih V½ versus the corresponding cAMP concentration (mean ± SEM). Fitting the data with a Hill equation (magenta line) revealed an EC50 of 40.4 µM. Superposition of the 68% confidence band of the fit (light magenta area) with the average voltage shift observed in perforated patch recordings (4.8 ± 1.2 mV, n = 10, dotted black line and gray area) results in an estimated endogenous cAMP-concentration of 12.6 µM with a 68% confidence interval of 1.8 to 60.7 µM cAMP (dotted line and light blue area).

https://doi.org/10.7554/eLife.42766.010

To analyze the cAMP concentration-dependence of Ih, we added different concentrations of cAMP (30 µM to 10 mM) to the intracellular patch solution. With 1 mM cAMP, V½ shifted by 17 mV to, on average, –86.6 ± 1.2 mV (n = 16 cMFBs; PT-Test <10−10; Figure 7B). The resulting average shifts of V½ revealed an EC50 of 40.4 µM intracellular cAMP (Figure 7D). In order to estimate the endogenous presynaptic cAMP concentration, we performed presynaptic perforated-patch recordings on cMFBs. Under perforated patch conditions, the V½ of Ih was –96.4 ± 1.2 mV (n = 10), significantly more depolarized than the corresponding whole-cell recordings after rupture of the perforated patch (–101.3 ± 1.0 mV; n = 10; PT-Test = 0.0076; Figure 7C; see Materials and methods for comparisons with additional control groups). This voltage shift (4.9 ± 1.2 mV, n = 10 cMFBs) indicates an endogenous cAMP concentration of 12.6 µM in cMFBs, with a 68% confidence interval of 1.8 to 60.7 µM cAMP (Figure 7D). These data reveal a high endogenous resting cAMP concentration.

Hodgkin-Huxley model describing HCN2 channel gating

For our ultimate aim, to obtain a mechanistic and quantitative understanding of axonal HCN2 function in cerebellar mossy-fiber axons, we developed a computational Hodgkin-Huxley (HH) model. The model was constrained to the experimentally recorded Ih kinetics derived from the activation and deactivation time constants of Ih (Figure 8A) measured at potentials between –70 and –150 mV. The activation curve (cf. Figure 8B), as well as the averaged time constants for both activation (n = 20) and deactivation (n = 15; Figure 8B), were well described by a HH-model with one activation gate. In addition, we generated an alternative HH-model to describe the HCN2 current in the presence of 1 mM intracellular cAMP (for a more detailed implementation of the cAMP-dependence of HCN2 gating, see Hummert et al., 2018). Furthermore, we estimated the reversal potential of Ih with short voltage ramps as described previously (Cuttle et al., 2001) and found a value of –23.4 ± 1.4 mV (n = 7; Figure 8C), similar to previous estimates (Aponte et al., 2006; Cuttle et al., 2001). These data provide a quantitative description of axonal Ih at cMFBs.

Hodgkin-Huxley model describing HCN2 channel gating.

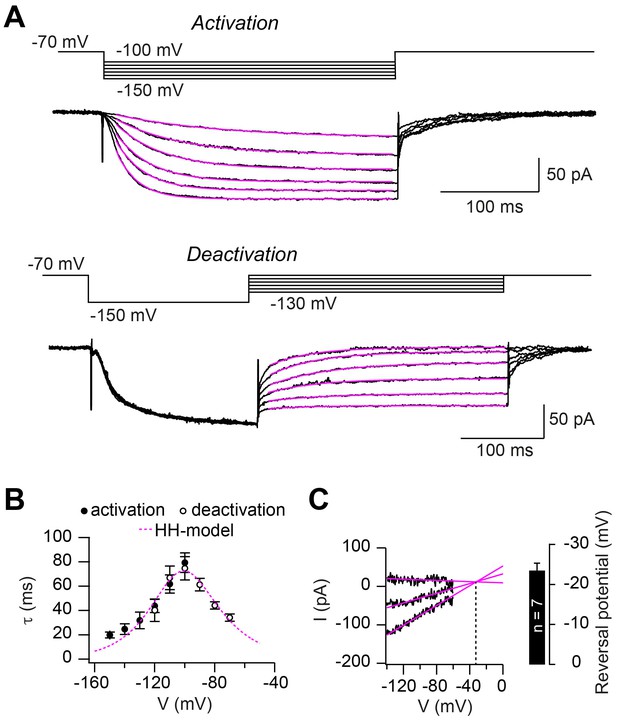

(A) Example of ZD7288-sensitive currents (black) elicited by the illustrated activation (top) and deactivation (bottom) voltage protocols superimposed with mono-exponential fits (magenta). (B) Average time constants of activation (filled circles) and deactivation (open circles; mean ± SEM). The dotted magenta line represents the prediction of Ih activation and deactivation time constant based on the Hodgkin-Huxley model. (C) Example of linear extrapolation (magenta lines) of leak subtracted currents evoked by fast (10 ms) voltage ramps generated from a range of holding potentials that extended across the activation range of Ih. The reversal potential was found to be –36 mV in this example. Inset: average reversal potential from seven independent experiments.

https://doi.org/10.7554/eLife.42766.011

Mechanism of control of conduction velocity and metabolic costs of HCN channels

What are the mechanisms by which axonal HCN2 channels control conduction velocity? In principle, the depolarization caused by HCN2 channels will bring the resting membrane potential closer to the threshold for voltage-gated Na+ channel activation, which could accelerate the initiation of the action potential (see discussion). Alternatively, the increased membrane conductance caused by HCN2 channels will decrease the membrane time constant, which could accelerate the voltage responses, as has been shown, for example, for dendritic signals in auditory pathways (Golding and Oertel, 2012; Mathews et al., 2010). To distinguish between these two possibilities, we generated a conductance-based NEURON model consisting of cylindrical compartments representing cMFBs that are connected by myelinated axons (Figure 9A; Ritzau-Jost et al., 2014). The model contained voltage-dependent axonal Na+ and K+ channels, passive Na+ and K+ leak channels, and the established HH model of Ih (cf. Figure 8). After adjustments of the peak conductance densities, the model captured the current clamp responses to –10 pA current injections (Figure 9B), the resting membrane potential (Figure 9C), and the apparent input resistance (Figure 9D). Removing the HH model of Ih, or replacing it with the 1-mM-cAMP-HH-model of Ih, reproduced the corresponding voltage responses, the shift in the resting membrane potential, and the change in the apparent input resistance obtained in the presence of ZD7288 or 1 mM intracellular cAMP (Figure 9B–D). Interestingly, the models predicted a decrease of the conduction velocity when the control HH model was removed, and conversely an increase with the 1-mM-cAMP-HH model (Figure 9E), that was similar in extent to that measured experimentally with ZD7288 and 8-Br-cAMP treatments (cf. Figure 1). These findings support our conclusion that HCN2 channel modulation suffices to tune conduction velocity bidirectionally.

Figure 9 with 1 supplement see all
Mechanism of control of conduction velocity and metabolic costs of HCN channels.

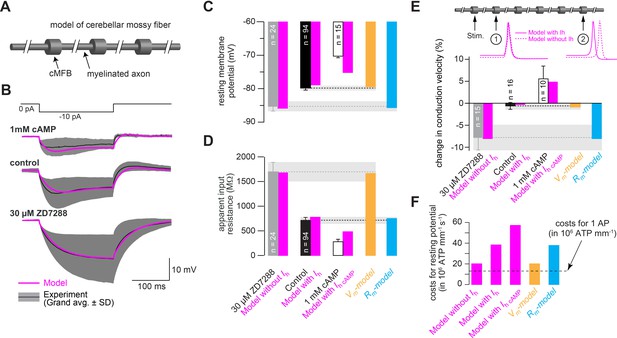

(A) Illustration of the cerebellar mossy fiber model consisting of 15 connected cylindrical compartments representing cMFBs and the myelinated axon. (B) Grand average voltage response (black) and standard deviation (gray area) of cMFBs to a –10 pA hyperpolarizing current pulse with 1 mM cAMP included in the patch pipette (top), under control conditions (middle) or for cMFBs treated with ZD7288 (bottom), superimposed with the predicted voltage response from the model (magenta). (C) Average resting membrane potential of cMFBs measured under control conditions (black), with ZD7288 (gray), or 1 mM intracellular cAMP (open bar; data from Figure 5B) compared to the predictions from the corresponding models (magenta). Furthermore, the chart also shows the resting membrane potential of the two models that simulate only the membrane depolarization (Vm- model; light brown) or only the decreased membrane resistance (Rm-model; blue) caused by HCN channels. (D) Corresponding comparison between the measured values and the predictions from the models as shown in panel (C) for the apparent input resistance of cMFBs. (E) Corresponding comparison between the measured values and the predictions from the models as shown in panels (C) and (D) for the conduction velocity in mossy fibers. Inset top: illustration of the model of a mossy fiber and the action potentials at two different positions with (magenta line) and without (dashed magenta line) the HH model of HCN channels. (F) The calculated metabolic costs for maintaining the resting membrane potential are shown for each model as the number of required ATP molecules per mm of mossy fiber axon and per second. The metabolic cost of the firing of a single action potential (AP) is indicated by the dashed line as the number of required ATP molecules per mm of mossy fiber axon (this number was very similar for all models).

https://doi.org/10.7554/eLife.42766.012

Next, we generated two additional models, in which either only the depolarizing effect of HCN2 channels (Vm-model) or the decreased input resistance (i.e. the decreased membrane resistance, Rm-model) was implemented (by modifying the K+ or the Ih reversal potential, respectively; see Materials and methods). The results showed that the Vm-model but not the Rm-model caused an increase in conduction velocity, indicating that the depolarizing effect of axonal HCN2 channels determines conduction velocity (Figure 9E). Interestingly, increasing the resting membrane potential from –90 mV to –65 mV, decreased the availability of voltage-dependent Na+ (NaV) channels but increased the conduction velocity (Figure 9—figure supplement 1). The conduction velocity decreased only at resting membrane potentials above –65 mV in our model. Together, these data indicate that the depolarization mediated by HCN2 channels accelerates the conduction velocity by bringing the membrane potential closer to the firing threshold.

The non-inactivating nature of HCN channels and the accompanying shunt at the resting membrane potentials suggest that Ih is metabolically expensive. Therefore, we calculated the Na+ influx in each model and converted it into the ATP consumption required to restore the Na+ gradient (Hallermann et al., 2012). Computational modeling showed that it is ~100% more expensive to maintain the resting membrane potential with Ih than without or by depolarization alone (Vm-model; Figure 9F). Furthermore, the metabolic cost of maintaining the resting membrane potential with Ih for one second was ~3-fold higher than the cost of generating one action potential (Figure 9F). Assuming an average frequency of cerebellar mossy fibers of 4 Hz in vivo (Chadderton et al., 2004; Rancz et al., 2007), the HCN2 channels increased the required energy of cerebellar mossy fibers by ~30%. With increasing firing frequency, the metabolic costs of action potential firing will become dominant compared with the HCN2-mediated costs for resting membrane potentials (e.g., ~3% at 40 Hz). These data indicate that HCN2 channels are a major consumer of the energetic demands of axons.

Discussion

Here, we demonstrate that the HCN channels increase action potential velocity and fidelity in central axons. By combining electrophysiological, electron-microscopic, and computational techniques, we reveal the mechanism and the metabolic costs of the dynamic control of the velocity and fidelity of action potential propagation by HCN channels in the vertebrate central nervous system.

Dynamic control of conduction velocity

We describe both an increase and decrease of the baseline axonal conduction velocity in the range of ~5% mediated by HCN channels (Figures 13). Furthermore, HCN channels increase the maximal failure-free firing frequency by a factor of two (Figure 4). Although the changes in baseline conduction velocity are relatively small, considering the long distances that axons traverse in the brain, HCN channels can be expected to change the arrival time of the action potential by, for example, 0.5 ms in the case of unmyelinated cerebellar parallel fibers (assuming 3 mm length and 0.3 m/s velocity; Swadlow and Waxman, 2012). Such temporal delays will influence information processing in the central nervous system, because spike-timing dependent plasticity (Caporale and Dan, 2008), coincidence detection (Softky, 1994), and the neuronal rhythms of cell ensembles (Buzsáki et al., 2013) precisely tune the arrival times of action potentials. There are several examples of the specific tuning of conduction velocity in the sub-millisecond domain: the diameter and the degree of myelination of cerebellar climbing fibers (Sugihara et al., 1993; Lang and Rosenbluth, 2003; but see Baker and Edgley, 2006), the degree of myelination of thalamocortical axons (Salami et al., 2003), and the internode distance of auditory axons (Ford et al., 2015) are all tuned exactly to offset the different arrival times of action potentials with a temporal precision of ~100 µs.

The cerebellum is involved in the accurate control of muscle contraction with a temporal precision of 1–100 ms (Hore et al., 1991). Submillisecond correlations in spike timing occurring between neighboring Purkinje cells have been noted previously (reviewed in Isope et al., 2002; Person and Raman, 2012). Furthermore, submillisecond precision of the mossy or parallel fiber input are critical for information processing in the cerebellar circuits (Braitenberg et al., 1997; Heck et al., 2001; Isope et al., 2002). Together, the here-described changes in action potential conduction velocity in mossy and parallel fibers (Figures 13) may thus play an important role in cerebellar computation. Furthermore, HCN channels facilitate high-frequency firing (Figure 4), which occurs in many parts of the mammalian CNS (Delvendahl and Hallermann, 2016).

Our findings that the cAMP-HCN pathway and neuromodulators can finely tune conduction velocity in the vertebrate central nervous system adds to the emerging idea that axons directly contribute to computation in neuronal circuits. Indeed, the view of the axon as a cable-like compartment in which conduction velocity is static has substantially changed over recent years in favor of a model that allows flexibility and complex forms of axonal computation (Debanne et al., 2011). Recent findings showed that axon diameters change during long-term potentiation (Chéreau et al., 2017), and changes in myelination in the motor cortex were resolved during the learning of complex motor skills (McKenzie et al., 2014; for environmental effects on myelination see also Forbes and Gallo, 2017). One caveat of our study is the rather high concentration of the used neuromodulators and the lack of in vivo evidence for the neuromodulation of conduction velocity. However, our data demonstrate that, under certain conditions, an active control of conduction velocity could occur in the vertebrate CNS via the cAMP-HCN pathway.

Mechanism and metabolic costs of HCN-channel-mediated control of action potential propagation

Our analysis revealed that the control of conduction velocity is solely mediated by changes in resting membrane potential. Isolated changes in membrane conductance and thus in the membrane time and length constant had no effect on conduction velocity (Figure 9E). The increased conduction velocity upon depolarization is consistent with a previously observed correlation between conduction velocity and the depolarization from the resting potential required to reach the firing threshold in motoneurons (Carp et al., 2003). On the other hand, Na+ channels have a steep steady-state inactivation and are partially inactivated at the resting membrane potential in axons (Battefeld et al., 2014; Engel and Jonas, 2005; Rama et al., 2015). Depolarization could thus be expected to further inactivate Na+ channels and to decrease conduction velocity. However, our modeling results showed that increasing the membrane potential from –90 to –60 mV increased the conduction velocity despite significantly decreasing Na+ channel availability (Figure 9—figure supplement 1). Interestingly, these findings are in agreement with the nonlinear cable theory predicting that the difference between the resting membrane potential and the firing threshold is a critical parameter for action potential conduction velocity (see, for example, Figure 12.25 in Jack et al. (1983) which shows increasing velocity with increasing safety factor, that is, decreasing excitation threshold ‘VB’). Intuitively, the HCN-channel-mediated acceleration of conduction velocity can be understood as follows: NaV-mediated current influx in one axonal location will depolarize neighboring locations faster above the threshold in a depolarized axon compared with a resting axon. In our model, this effect outweighs the disadvantage of the increased steady-state inactivation of Na+ channels up to a membrane potential of about –65 mV and a NaV availability of 50%. But the exact values above which NaV availability limits conduction velocity critically depend on the assumptions of the model, such as the voltage-dependence of inactivation and the density of the NaV channel. Interestingly, Ca2+ entering through axonal voltage-gated Ca2+ channels (Brenowitz and Regehr, 2007) could interact with the cAMP pathway by activating or inhibiting different subtypes of adenylyl cyclase and phosphodiesterase (Bruce et al., 2003).

We observed a marked decrease in the maximal failure-free firing frequency from ~800 to ~400 Hz in cerebellar mossy fiber axons upon blockade of HCN channels (Figure 4). Although we cannot differentiate between initiation failure and conduction failure, the alterations in the half duration and amplitude of action potentials during high-frequency firing (Figure 4E) argue for impaired action potential conduction in the absence of HCN channels. This is consistent with findings in cerebellar parallel fibers and hippocampal Schaffer collaterals, where HCN channels ensure reliable conduction, particularly at branch points (Baginskas et al., 2009; Soleng et al., 2003). The extent to which conduction failures occur under physiological conditions is controversial (Debanne et al., 2011; Rama et al., 2018Radivojevic et al., 2017), but our data indicate that HCN channels are required to ensure the reliable initiation and conduction of action potentials at high frequencies. This is consistent with Ih counteracting the hyperpolarization during high-frequency firing (Waxman et al., 1995).

Our modeling results (Figure 9) indicate that the evolutionary design of HCN channels as a continuously open shunt for Na+ influx incurs significant metabolic costs. These high costs might appear surprising, because a metabolically cheaper way to depolarize the membrane would be the expression of fewer Na+-K+-ATPases, resulting in a depolarized K+ reversal potential (cf. Vm-model in Figure 9). However, such a design might complicate high-frequency firing. Furthermore, as discussed in the following paragraph, our finding that conduction velocity can be rapidly regulated via the cAMP-HCN pathway might provide an additional justification for the metabolic costs of axonal HCN channels.

Modulation of conduction velocity via intracellular cAMP concentration

Using direct whole-cell recordings and immunogold EM from en passant boutons in cerebellar axons, we identified near exclusive expression of HCN2 isoforms and a half-maximal shift of the activation of HCN2 channels at a cAMP concentration of 40 µM (Figure 7D). Furthermore, our perforated patch-recordings from axonal compartments provide, to our knowledge, the first direct estimate of endogenous cAMP concentration in vertebrate central axons of 13 µM (Figure 7D). This is higher than previous estimates of 50 nM in Aplysia sensory neurons (Bacskai et al., 1993; but see Greenberg et al., 1987) and 1 µM in cardiomyocytes (Börner et al., 2011). But a recently reported low cAMP-sensitivity of protein kinase A (Koschinski and Zaccolo, 2017), a prototypical cAMP-regulated protein, also argues for high intracellular cAMP concentrations. On the other hand, our data do not rule out that such high cAMP concentrations are limited to spatially restricted domains. The possibility of local cAMP signaling-compartments was recently observed in Drosophila axons (Maiellaro et al., 2016).

A high endogenous cAMP concentration and expression of the HCN2 isoform facilitates the ability of neuromodulators to control conduction velocity bidirectionally and dynamically. Only norepinephrine increased the conduction velocity in cerebellar parallel fibers whereas the other neuromodulators reduced the velocity (Figure 2), consistent with the expression of both Gi- and Gs-coupled receptors, respectively. Indeed, Gs-coupled receptors for serotonin, dopamine, and adenosine are expressed in the molecular layer of the cerebellum (see, for example, Geurts et al., 2002; Schweighofer et al., 2004). Interestingly, adenosine, which decreased the conduction velocity (Figure 2), has been shown to be an endogenous sleep factor (Basheer et al., 2004; Porkka-Heiskanen et al., 1997). Moreover, serotonin, dopamine, and norepinephrine play important regulatory functions during sleep in, for example, the cerebellum (Canto et al., 2017). Therefore, it is tempting to speculate that the cAMP-HCN pathway allows not only an increase in the conduction velocity during arousal but also a decrease in the velocity that saves metabolic costs during periods of rest or sleep. The cAMP-HCN pathway in axons could thus contribute to the reduced energy consumption of the brain during sleep (Boyle et al., 1994; Townsend et al., 1973). It should be noted that the observed modulation of conduction velocity by neurotransmitters (Figure 2) is consistent with a modulation via the cAMP-HCN pathway. Nevertheless, other mechanisms, such as direct influences on voltage-dependent Na+ (Yin et al., 2017), K+ (Yang et al., 2013), and Ca2+ channels (Burke et al., 2018), could contribute to the modulation of conduction velocity. Furthermore, off-target interactions cannot be excluded with the used concentrations of neuromodulators.

Clinical relevance of axonal HCN channels

The function of HCN channels has been studied in human peripheral nerves using non-invasive threshold tracking techniques (Howells et al., 2016; Howells et al., 2012; Lorenz and Jones, 2014). Significant alterations of HCN channel expression and/or function have been described in pathologies such as stroke (Jankelowitz et al., 2007), porphyria (Lin et al., 2008), diabetic neuropathy (Horn et al., 1996), neuropathic pain (Chaplan et al., 2003), and inflammation (Momin and McNaughton, 2009), as well as in a vertebrate model of demyelination (Fledrich et al., 2014). In some of these cases, the alterations are consistent with an activity-dependent modulation of HCN channels (Jankelowitz et al., 2007). Furthermore, HCN channels seem to be causally related to pain symptoms (Chaplan et al., 2003; Momin and McNaughton, 2009) and therapeutic blockade of HCN channels are also considered (Wickenden et al., 2009). On the basis of our findings, HCN could also play a compensatory role in restoring conduction velocity in some diseases.

Materials and methods

Preparation of cerebellar slices

Request a detailed protocol

Cerebellar slices were prepared from P21-P46 C57BL/6 mice of either sex as reported previously (Ritzau-Jost et al., 2014). In short, after anesthetization with isoflurane, mice were killed by rapid decapitation; the cerebellar vermis was quickly removed and placed in a slicing chamber filled with ice-cold extracellular solution (ACSF) containing (in mM): NaCl 125, KCl 2.5, NaHCO3 26, NaH2PO4 1.25, glucose 20, CaCl2 2, MgCl2 1 (pH adjusted to 7.3–7.4 with HCl). Parasagittal or horizontal slices were cut from the vermis of the cerebellum using a microtome with a vibrating blade (VT1200, Leica Biosystems, Nussloch, Germany), incubated at 35°C for approximately 30 min and subsequently stored at room temperature until use. For electrophysiological recordings, a slice was transferred into the recording chamber mounted on the stage of an upright Nikon microscope. The recording chamber was perfused with ACSF and the temperature in the center of the recording chamber was set to 35°C using a TC-324B perfusion heat controller (Warner Instruments, Hamden CT, USA).

Measuring conduction velocity in cerebellar parallel and mossy fibers

Request a detailed protocol

Compound action potentials were evoked by electrical stimulation using a bipolar platinum/iridium electrode (from Microprobes for Life Science, Gaithersburg MD, USA) placed either in the white matter or in the molecular layer (Figure 1) of the cerebellum. For the extracellular recording of compound action potentials, two pipettes were filled with a 1M NaCl solution (tip resistance of 1–3 MΩ) and placed within the respective fiber bundle and the voltage was measured in current clamp mode with an EPC10 amplifier (CC gain 10x). Compound action potentials were evoked at 0.5 and 1 Hz in parallel and mossy fibers, respectively. All recordings were performed in the presence of 10 µM NBQX to block synaptic potentials. The conduction velocity of parallel fibers was measured at 35°C. Owing to the higher conduction velocity in myelinated mossy fibers, the action potentials evoked by white matter stimulation had to be recorded at room temperature to allow the separation of the compound action potential from the stimulation artifact. To calculate the conduction velocity, we determined the delays of the peaks of the compound action potential component recorded with the proximal and distal electrode. Compound action potentials from mossy fibers were analyzed offline using the smoothing spline interpolation operation of Igor Pro to increase the signal to noise ratio. Control recordings were performed interleaved with the application of different drugs. The conduction velocity experienced a small rundown over 20 min under control conditions (Figures 1 and 2C–E). To investigate the contribution of HCN channels on the neuromodulation of the conduction velocity (Figure 2F–G), cerebellar slices were pre-incubated for 20 min at room temperature with 30 µM ZD7288 and then transferred to the recording chamber (35°C) with continued application of 30 µM ZD7288. The neuromodulators were applied 5 min after the beginning of the recordings (t = 0 min). Note that the control data without application of neuromodulators (‘only ZD7288’ in Figure 2F and G) show a larger decrease in conduction velocity during the 20 min recording period compared to the control data in Figure 2C–E. The difference in these control data is most likely due to the slow action of ZD7288 (cf. Figure 1), which further decreases the conduction velocity during the recordings, in addition to the run-down observed in control recordings without ZD7288. Therefore, the change in conduction velocity induced by the neuromodulators with and without pre-incubation of ZD7288 (Figure 2F–G and C–E, respectively) cannot be compared directly but have to be compared with the corresponding controls.

Measuring conduction velocity in the optic nerve

Request a detailed protocol

Male wildtype mice of the C57BL6/N strain (P63±4) were euthanized by decapitation. After the brain was exposed, the optic nerves (ON) were separated from the retina at the ocular cavity, and both ONs were detached by cutting posterior to the optic chiasm. The preparation was gently placed into an interface brain/tissue slice (BTS) perfusion chamber (Harvard Apparatus) and continuously superfused with ACSF, bubbled with carbogen (95% O2, 5% CO2) at 36.5°C during the experiment (Trevisiol et al., 2017). In case both nerves were used for experiments, the non-recorded ON was transferred to a different incubation chamber (Leica HI 1210) that provided incubation conditions similar to those experienced by the recorded nerve while preventing exposure to ZD7288 and 8-Br-cAMP. The temperature was maintained constant using a feedback-driven temperature controller (model TC-10, NPI electronic) connected to a temperature probe (TS-100-S; NPI electronic) inserted into the BTS incubation chamber near the nerve. Each ON was detached from the optic chiasm and individually placed into the suction electrodes for stimulation and recording. The stimulation’s direction of the ON was maintained constant (orthodromic) throughout the experiments by inserting the proximal (retinal) end of the nerve into the stimulation electrode as illustrated in Figure 1I. The stimulating electrode was connected to a battery (Stimulus Isolator A385; WPI) that delivered a supramaximal stimulus to the nerve. The voltage was pre-amplified 500 times and fed to the AD ports of the EPC9 or acquired directly via the EPC9 headstage (HEKA Elektronik, Lambrecht/Pfalz). The reference channel was obtained from an ACSF-filled glass capillary next to the recording suction electrode, which was in contact with the bathing ACSF. Initial equilibration of the ONs was performed at 0.1 Hz stimulation, until the recorded compound action potentials showed a steady shape (typically around 45–60 min from preparation). Five nerves from four animals and four nerves from four animals were used for ZD7288 and 8-Br-cAMP treatment, respectively. Compound action potentials were analyzed as described above using the smoothing spline interpolation operation of Igor Pro to increase the signal to noise ratio.

Patch-clamp recordings from cMFBs

Request a detailed protocol

Recordings from cMFBs were visualized as previously described (Ritzau-Jost et al., 2014) with infrared differential interference contrast (DIC) optics using a FN-1 microscope from Nikon with a 100x objective (NA 1.1) or infrared oblique illumination optics using a Femto-2D two-photon microscope (Femtonics, Budapest) with a 60x Olympus (NA 1.0) objective. The passive properties of the cMFB were determined as previously described (Hallermann et al., 2003) and revealed similar values for a two-compartment model (data not shown) as previously described for cMFBs (Ritzau-Jost et al., 2014), indicating that we did indeed record from cMFBs. Furthermore, the access resistance was on average 16.9 ± 0.9 MΩ (n = 53 cMFBs), indicating optimal voltage clamp conditions.

To elicit traveling action potentials by axonal stimulation with a second pipette (Figure 4A), whole-cell recordings from cMFBs were performed with 50 µM of the green-fluorescent dye Atto488 (from Atto-Tec, Siegen, Germany) in the intracellular solution to visualize single mossy fiber axons. The additional stimulation pipettes filled with ACSF and 50 µM of the red-fluorescent dye Atto594 had the same opening diameter as patch pipettes and were positioned close to the axon and approximately 100 µm away from the patched terminal. Stimulation pulses with durations of 100 µs were delivered by a voltage-stimulator (ISO-Pulser ISOP1, AD-Elektronik, Buchenbach, Germany). The stimulation intensity (1–30 V) was adjusted to ensure failure-free initiation of action potentials at 1 Hz (~1.5 time the firing threshold). High-frequency trains of action potentials were evoked at 100, 200, 333, 500, 750, 1000, 1111 and 1666 Hz. Amplitudes were measured from peak to baseline. The duration was determined at half-maximal amplitude and is referred to as half-width. Action potentials were treated as failures if the peak did not exceed –40 mV.

Recordings were performed with an EPC10/2 patch-clamp amplifier, operated by the corresponding software PatchMaster (HEKA Elektronik) running on a personal computer. Recording electrodes were pulled from borosilicate glass capillaries (inner diameter 1.16 mm, outer diameter 2 mm) by a microelectrode puller (DMZ-Universal Puller, Zeitz Instruments, Augsburg). Pipettes used for patch-clamp recordings had open-tip resistances of 5–12 MΩ. The intracellular presynaptic patch pipette contained (in mM): K-gluconate 150, MgATP 3, NaGTP 0.3, NaCl 10, HEPES 10 and EGTA 0.05. The apparent input resistance of cMFBs was estimated by linear regression of the steady-state voltage in response to 300 ms hyperpolarizing current pulses of increasing amplitude (–five to –20 pA), whereas the apparent membrane time constant was determined by fitting the voltage response to a −10 pA hyperpolarizing pulse with a mono-exponential function.

Ih activation curves determined from the analysis of normalized tail current were fitted with a Boltzmann function:

IImax= 11+eVV1/2k,

where V is the holding potential, V½ is the voltage of half-maximal activation and k the slope factor. The reversal potential of Ih was calculated from leak-subtracted currents evoked by 10 ms long voltage ramps extending across the activation range of Ih (Cuttle et al., 2001). Three I-V relationships recorded at activation potentials of –80,–110 and –140 mV were linearly extrapolated and the reversal potential was calculated from average of the potentials of the three intersection points of the three linear fits.

Perforated patch recordings from cMFBs

Request a detailed protocol

For perforated-patch recordings from cMFBs, a stock solution was prepared by dissolving the pore-forming antimycotic nystatin in DMSO (25 mg/ml). Immediately before the experiments, the nystatin-stock was added to the intracellular solution at a final concentration of 50 µg/ml. In order to monitor the integrity of the perforated membrane patch, the green-fluorescent dye Atto 488 was added at a concentration of 50 µM. As nystatin is known to impair the formation of the GΩ seal, the initial ~500 μm of the pipette tip was filled with a perforating agent-free internal solution (tip-filling) before back-filling the pipette shaft with the perforating agent-containing solution. After establishing a GΩ seal, the holding potential was set to –70 mV and the access resistance (Ra) was continuously monitored by applying 10 ms long depolarizing pulses to –60 mV at 1 Hz. Recording the voltage-dependent activation of Ih was begun after Ra dropped below 150 MΩ. Because the perforated membrane patch ruptured spontaneously at Ra <50 MΩ, the access resistance was not comparable to standard whole-cell recordings. To exclude the possibility that the right-shift of the Ih activation curve in the perforated configuration (Figure 7C) was caused by the comparatively higher Ra, the voltage-dependent activation of Ih was measured under normal whole-cell patch-clamp conditions, using pipettes with small openings that resulted in high access resistances (Ra = 119 ± 12 MΩ). However, in these recordings, the midpoint of Ih activation (–105.5 ± 1.4 mV; n = 8) had a tendency to be left-shifted when compared with regular whole-cell recordings with standard patch pipettes (Ra ≈ 30–60 MΩ; V½ = –103.3 ± 0.8 mV; n = 36; PT-Test = 0.13). The left-shift of the Ih activation curve measured with high access resistances indicates that the right-shift measured with perforated patch recordings might be underestimated because of the higher Ra, which would result in an even higher estimate of the endogenous cAMP concentration (Figure 7D).

Analysis of the ZD sensitivity of Na+ currents

Request a detailed protocol

Sodium currents (Figure 1—figure supplement 1) were isolated using a modified ACSF containing (in mM): NaCl 105, KCl 2.5, NaHCO3 25, NaH2PO4 1.25, glucose 20, CaCl2 2, MgCl2 1, TEA 20, 4-AP 5 and CdCl2 0.2. To avoid underestimation of the true size of the presynaptic Na+ currents because of the voltage-drop through the access resistance, we blocked a portion of the Na+ current with 30 nM TTX. Na+ currents were elicited from a holding potential of –80 mV by a 3-ms-long depolarization to 0 mV. Peak amplitudes and half-durations of Na+ currents were measured from leak-subtracted traces.

Immunoelectron microscopy

Request a detailed protocol

Preembedding immunogold labeling was performed as described (Notomi and Shigemoto, 2004). Briefly, adult C57Bl/6 mice were anesthetized with sodium pentobarbital (50 mg/kg, i.p.) and perfused transcardially with a fixative containing 4% formaldehyde, 0.05% glutaraldehyde and 15% of a saturated picric acid in 0.1 M phosphate buffer (PB; pH 7.4). Parasagittal sections through the cerebellum were cut at 50 µm, cryoprotected with 30% sucrose, flash frozen in liquid nitrogen and rapidly thawed. Sections were blocked in 10% normal goat serum and 2% bovine serum albumin (BSA) in tris-buffered saline (TBS) for 2 hr at room temperature, incubated in TBS containing 2% BSA and either guinea pig anti-HCN1 or anti-HCN2 antibody (1 µg/ml, Notomi and Shigemoto, 2004) for 48 hr at 4°C, and finally reacted with nanogold-conjugated secondary antibody (Nanoprobes, 1:100) for 24 hr at 4°C. Nanogold particles were amplified with the HQ Silver Enhancement kit (Nanoprobes) for 8 min. Sections were treated in 0.5% osmium tetroxide in PB for 40 min and then 1% aqueous uranyl acetate for 30 min at room temperature, dehydrated, and flat embedded in Durcopan resin (Sigma-Aldrich). Ultrathin sections were cut at 70 nm and observed by a transmission electron microscope (Tecnai 12, FEI, Oregon). Sequential images were recorded from the granule cell layer within a few microns of the surface of ultrathin sections at X26,500 using a CCD camera (VELETA, Olympus). For the reconstruction of a half mossy fiber bouton, 36 serial ultrathin sections were used. Sequential images were aligned and stacked using the TrakEM2 program (Cardona et al., 2012). For the measurement of density of immunogold particles for HCN2 on this reconstructed profile, 1260 immunogold particles were counted on the mossy fiber bouton membrane area (73.7 µm2), giving a density of 17.1 particles/µm2. Immunogold particles within 30 nm of the bouton membranes were included in the analysis on the basis of the possible distance of the immunogold particle from the epitope (Matsubara et al., 1996). The density of non-specific labeling was estimated using the nuclear membrane of a granule cell located adjacent to the reconstructed mossy fiber bouton. We found 40 immunogold particles on the nuclear membrane area of 60.5 µm2 giving a density of 0.66 particles/µm2, which was 3.9% of the HCN2 labeling density on the mossy fiber bouton.

Hodgkin-Huxley model of axonal HCN channels

Request a detailed protocol

Because we did not intend to simulate the cAMP dependence of HCN channel gating explicitly (Hummert et al., 2018), we created two separate models for 0 and 1 mM intracellular cAMP, which were based on a previously described Hodgkin-Huxley model (Kole et al., 2006) with one activation gate and no inactivation (Hodgkin and Huxley, 1952). In short, the activation gate was described by

dmdt=αm1-m- βmm

with

αm(V)=A e(Vm V1/2) Vα

and

βm(V)=A e(Vm  V1/2) Vβ

The four free parameters, A, V1/2, Vα, and Vβ were determined by simultaneously fitting αm /(αm + βm) to the steady-state activation curve (see Figure 7B) and 1/(αm + βm) to the voltage dependence of the time constant of Ih activation and deactivation (Figure 8B). The sum of squared errors was minimized using the FindMinimum routine of Mathematica (version 10; Wolfram Research, Champaign, IL), with the time constants of activation and deactivation weighed with the inverse of the square of the maximum value in each of the three datasets (time constant of activation, time constant of deactivation, and steady-state activation curve). The resulting parameters for 0 mM cAMP were A = 6.907 ms−1, V1/2 = –102.1 mV, Vα = 18.71 mV, and Vβ = 21.73 mV. To confirm that the global minimum was reached, the best-fit parameters were shown to be independent of the starting values within a plausible range. The 68% confidence interval was calculated as the square roots of the diagonals of the inverse of the Hessian matrix (Press et al., 2002), resulting in ±2.71 ms−1, ±16.5 mV, ±17.5 mV, and ±24.3 mV, for AV1/2Vα, and Vβ, respectively. We also generated a model for the corresponding data obtained with 1 mM cAMP in the intracellular solution (cf. Figure 7B), resulting in A = 7.570 ms−1, V1/2 = –87.31 mV, Vα = 31.46 mV, and Vβ = 10.84 mV.

NEURON model of cMFB

Request a detailed protocol

The model of the cMFB consisted of connected cylindrical compartments representing 15 boutons (length 8 µm and diameter 8 µm) and 15 myelinated axonal compartments (length 35 µm and diameter 0.8 µm; cf. Palay and Chan-Palay, 1974; Figure 9A). In addition, at one side of this chain, a long cylinder was added presenting the axon in the white matter (length 150 µm and diameter 1.2 µm). The specific membrane resistance was 0.9 µF/cm2 (Gentet et al., 2000) and the cytoplasmatic resistivity was 120 Ω cm (Hallermann et al., 2003). The specific membrane resistance and capacitance of the axonal compartments were both reduced by a factor of 10, representing myelination.

The ionic membrane conductances were similar to those published by Ritzau-Jost et al. (2014) and were adjusted to reproduce the action potential duration and the maximal firing frequency as well as the data shown in Figure 9B–D. Namely, an axonal Na+ channel (Schmidt-Hieber and Bischofberger, 2010) and K+ channel NMODL model (Hallermann et al., 2012) was added with a density of 2000 and 1000 pS/µm2 in the boutons and 0 and 0 pS/µm2 in the axonal compartments, respectively. The Na+ and K+ reversal potentials were 55 and –97 mV, respectively. To enable the analysis of the ATP consumption (Hallermann et al., 2012), the leak conductance was implemented as separate Na+ and K+ leak channel models with a conductance of 0.0138 and 0.18 pS/µm2, respectively, in the bouton compartments. In the axonal compartments, both conductances were reduced by a factor of 10. The above-described Hodgkin-Huxley model of axonal HCN channels (for 0 mM intracellular cAMP) was added with a density of gHCN = 0.3 and 0.03 pS/µm2 for the bouton and axonal compartments, respectively. For the analysis of the ATP consumption, the gHCN conductance was separated in a Na+ and a K+ conductance according to gHCN(Na) = (1 – ratioK/Na) gHCN and gHCN(K) = ratioK/Na gHCN, where ratioK/Na = (eNa + eHCN)/(eNa – eK), where eNa and eK are the Na+ and K+ reversal potential as described above and eHCN is the reversal potential of Ih measured as –23.3 mV (cf. Figure 8C). Assuming a single channel conductance of 1.7 pS for HCN2 channels (Thon et al., 2013), this conductance corresponds to a density of 0.18 HCN channels/µm2, which is much lower than the estimate from preembedding immunogold labeling (22 particles/µm2; Figure 6). However, the optimal density of the model critically depends on the geometry of the structure, which was not obtained from the recorded boutons. To obtain the required structural information, including the fenestration of the cMFB (cf. Figure 6) and the level of myelination, electron microscopic reconstructions of large volumes of the recorded cMFB and the entire axon would be needed. When we used a gHCN, as determined with preembedding immunogold labeling in our model, the model also predicted that Ih critically effects conduction velocity and that the depolarization is the main reason for the velocity to change. In general, these two conclusions of the model were very insensitive to the specific parameters of the model and were, for example, also obtained with additional interleaved cylindrical compartments with high Na+ and K+ channel densities representing nodes of Ranvier, or with a long cylindrical compartment with homogenous channel densities representing an unmyelinated axon. This further supports our finding that HCN channels accelerate conduction velocity independently of the exact parameters of the axon and the degree of myelination (cf. Figure 1).

Starting from the model that reproduced the control data, the following four additional models were generated. (1) To simulate ZD application, the HCN HH model was removed. (2) To simulate 8-br-cAMP application, the parameters of the HCN HH model were exchanged with the parameters obtained from the experiments with 1 mM cAMP. (3) To simulate only the depolarization by HCN channels (Vm-model), the HCN HH channel model was removed and the K+ reversal potential was increased from –97 mV to –90 mV. (4) To simulate only the increase in membrane conductance by HCN channels (Rm-model), the reversal potential of the HCN HH model was decreased from –23.3 mV to –85.5 mV and the density was increased from 0.3 pS/µm2 to 1 pS/µm2 in the bouton and from 0.03 pS/µm2 to 0.1 pS/µm2 in the axon.

All simulations were run with a simulation time interval (dt) of <0.2 ms, preceded by a simulation of 1 s with a dt of 5 ms to allow equilibration of all conductances. Conduction velocity was calculated from the peak of the action potentials in different boutons of the model. The apparent input resistance was calculated identically to the experimental recordings, that is from the voltage after 300 ms of a –10 pA current injection. IPython (Jupyter Notebooks; Kluyver et al., 2016) or Mathematica (Wolfram Research, Champaign, IL) were used to run the NEURON simulations and to visualize and analyze the results (Hines et al., 2009).

Statistics

Statistical analysis was performed using built-in functions of Igor Pro (Wavemetrics, Lake Oswego, OR). The suffix of the P values provided in the legends and the main test indicate the used statistical test. Results were considered significant when P<0.05.

Code

Request a detailed protocol

The NEURON scripts allowing to reproduce the model results will be available at: https://github.com/HallermannLab/2019_HCN (Hallermann Labratory, 2019; copy archived at https://github.com/elifesciences-publications/2019_HCN).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60

    Electric Current Flow in Excitable Cells
    1. JJB Jack
    2. D Noble
    3. RW Tsien
    (1983)
    Oxford: Clarendon Press.
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
    Cerebellar Cortex: Cytology and Organization
    1. SM Palay
    2. V Chan-Palay
    (1974)
    Berlin: Springer.
  81. 81
  82. 82
  83. 83
  84. 84
    Numerical Recipes in C++: The Art of Scientific Computing (2nd edn)
    1. WH Press
    2. SA Teukolsky
    3. WT Vetterling
    4. BP Flannery
    (2002)
    Cambridge, UK: Cambridge UP.
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
    The Axon: Structure, Function and Pathophysiology
    1. SG Waxman
    2. JD Kocsis
    3. PK Stys
    (1995)
    Oxford University Press.
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112

Decision letter

  1. Indira M Raman
    Reviewing Editor; Northwestern University, United States
  2. Ronald L Calabrese
    Senior Editor; Emory University, United States
  3. Nace Golding
    Reviewer; UT Austin, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Neuromodulation of HCN channels controls action potential conduction velocity in central axons" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Ronald Calabrese as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal his identity: Nace Golding (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study examines the contribution of HCN channels to setting conduction velocity in mammalian axons. The work demonstrates that modulation of HCN channels by neuromodulators has the capacity to increase and decrease the rate of action potential propagation.

Essential revisions:

I am glad to say that both reviewers found that the manuscript was interesting and the experiments were largely convincing, although both identified some areas in need of clarification or improvement through additional experimentation. The key issues were as follows:

1) Demonstrating or assessing the biological existence and/or significance of the phenomenon of HCN modulation changing conduction velocity. Reviewer 1 noted that the concentrations of transmitters applied were relatively high and the question was raised about whether endogenous transmitter was likely to generate significant modulation. Reviewer 2 noted the complementary point, namely that it is difficult to assess the functional significance of the tiny (though significant) changes given the filtering properties of granule cells. Because of these combined comments, additional experiments, analysis, and writing are necessary to provide evidence for the biological relevance of the phenomenon. The idea of optogenetic stimulation was brought up but, in the consultation, it was acknowledged that such an experiment might be beyond the scope of practicality. An alternative of measuring conduction velocity with amphetamine-induced release of endogenous monoamines was suggested. So was the idea of measuring activity dependent modulation of Ih with high-frequency trains of stimuli. Those experiments, or equivalent approaches to illustrate that this phenomenon might occur measurably in the brain and influence cerebellar signal processing, would strengthen the manuscript.

2) Clarification of the influence of Ih-dependent depolarization on other ion channels and electrophysiological parameters. Both reviewers pointed out that the HCN-mediated depolarization could influence Na channels, which could in turn influence conduction; the interaction with other channels should be addressed through experiment and/or modeling.

3) Confirmation that the changes reported can be unambiguously ascribed to HCN channels. As you know, in the initial consultation among editors, concerns were raised about lack of occlusion experiments, the imperfect selectivity of ZD, and the absence of antibody controls. This issue should either be addressed experimentally or the conclusions should be appropriately curtailed and discussion of alternatives should be included.

The major points as expressed by the reviewers, with annotations relating to the essential revisions are included below to aid you in your revision.

General assessments:

Reviewer #1:

This work by Byczkowicz and colleagues explores the role of HCN channels in axons, focusing on two axonal populations in cerebellum as well as optic nerve preparations. Using a complement of field recording, whole cell recording from boutons, EM, and modeling, they demonstrate that HCN channels bidirectionally control AP propagation speed across the range of preparations. While HCN expression and function has been studied in axons in the past, relatively little is known about how modulation of HCN in axonal areas beyond the initial segment affects excitability. Work here provides strong evidence that such modulation can have an impact on propagation speed and provides detailed mechanistic insight-through empirical and theoretical approaches-into how such modulation occurs. Experiments are well controlled and illustrated beautifully.

Reviewer #2:

This study demonstrates a role for hyperpolarization and cyclic nucleotide gated (HCN) cation channels in providing a substrate for modulating the conduction velocity of several types of axons, with a more specific mechanistic focus on the mossy fibers of the cerebellum. The authors identify cAMP as a critical mechanism for the action of at least some neuromodulators, acting through HCN2 subunits. While the action of cAMP on HCN channels is well known, the focus on conduction velocity is new, and the quality of the data is high. The data set also includes a number of impressive, technically challenging experiments, such as perforated patch-clamp recordings from mossy fiber terminals and estimations of cAMP concentration in the terminal. The addition of modeling adds mechanistic clarity to the study. Experiments with three different axon types shows that the effects of cAMP and Ih on conduction velocity may be widespread in CNS axons. I do have some suggestions for improvements, detailed below.

Major comments (combined, with indications as to which essential revision is being spelled out in more detail):

1) Related to Essential Revision 1: While the data are unequivocal that such modulation can occur, I'm left wondering if this is indeed a mechanism employed to regulation information transfer in the cerebellum or other structures. The main concern involves Figure 2. Here, application of various neuromodulations demonstrate the capacity for modulation by endogenous systems, but they do little to show which of these systems are involved in such regulation. The concentrations used are so high that off target effects are a strong possibility (e.g., norepinephrine can engage dopamine receptors at high concentrations, Sanchez-Soto et al., 2016). It is critical to demonstrate that these effects are blocked by specific antagonists to establish that all of these systems are indeed in play. Furthermore, replicating these results using endogenous sources is a critical step to determine whether such modulation occurs in vivo. This would ideally be done with optogenetic activation of monoaminergic sources. (Ed's note: Note that optogenetic expts are not required for the revision, but this sentence is included since it was in the original review.) Less ideal, but still towards the point, would be to apply amphetamine to reverse monoamine transport. Either approach should be paired with appropriate antagonist controls.

2) Related to Essential Revision 1: The functional significance for the effects of Ih modulation on conduction velocity is somewhat vague as it is presented. The differences in conduction velocity are small, and on a sub-millisecond time scale. While the authors cite several papers supporting the importance of timing on this scale, the discussion lumps systems with very different circuit structures and computational demands. What is the evidence for the significance of submillisecond timing in the cerebellum? The mossy fiber input is ultimately low-pass filtered by granule cells with very slow membrane time constants so this requires some comment.

3) Related to Essential Revision 2: A second question relates to the modeling: The modeling explores two competing hypotheses that could account for the observed effects of HCN modulation, relating to changes in membrane potential and leak, and show that membrane potential and its relation to spike threshold is sufficient to explain the observed effects. This can be explained well by the cell being closer to threshold. A counter-argument would be that depolarization decreases NaV availability, but the authors mention that this is not a confound. The authors would be well served to explore this aspect in more detail to see how robust this result is across a range of conditions. First, it would be report relative NaV availability in each model. Second, it would be great to see if the relative changes in conduction velocity hold if the model starts at other membrane potentials (particularly more depolarized).

4) Related to Essential Revisions 1 and 2, as stated by the other reviewer: The modulation of Ih is presented as a way to dynamically control conduction velocities according to changes in neuromodulatory state. Given the presence of voltage-gated calcium channels in some axons and nodes of Ranvier, is it possible that the cAMP-mediated modulation of Ih could also serve a homeostatic role, bringing Vrest closer to threshold and offsetting the inactivation of Na channels under conditions of high action potential firing rates? This would be straightforward to test with high frequency trains of axonal stimuli in experiments and perhaps with the model.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "HCN channel-mediated neuromodulation can control action potential velocity and fidelity in central axons" for further consideration at eLife. Your revised article has been favorably evaluated by Ronald Calabrese (Senior Editor), a Reviewing Editor, and two reviewers.

The manuscript has been substantially improved but there are a few remaining issues that we would like you to address before acceptance, as outlined below:

Essential revisions:

Both reviewers agree that the manuscript has been improved by the new experiments. Because of some remaining questions regarding neuromodulation and possible consequences of action potential failure, both reviewers also agree that additional specific discussion of these issues is warranted. We are including the specific language of both reviewers below, because they have expressed the points clearly and can guide you in those textual revisions.

Reviewer #1:

The authors have done a good job addressing reviewer concerns, and I am very supportive of publication with a few additional text/formatting updates. Of note, the new recordings described in Figure 5 are impressive and highlight an interesting aspect of HCN function in axons, contributing to reliability during high frequency trains. I was a bit disappointed that neuromodulatory antagonist experiments were not performed. Instead, experiments were done with ZD and agonist application. This isn't as clean, given the issues related to ZD specificity, but nevertheless support the notion that HCN channels are the ultimate effector of the neuromodulatory systems engaged. In light of this, I'd request that the discussion relating to how neuromodulators could regulate axonal conduction be expanded to include any details known on neuromodulatory mechanisms previously reported in these axons, and a bit more on the possibility of off-target interactions with these concentrations. Also, the data in Figure 5 deserve a bit of discussion. AP failures at high frequency may be more consequential than these small changes in timing.

Reviewer #2:

This study explores the role of HCN channels in regulating action potential conduction velocity in mossy fibers of the cerebellum and other axons as well. In the revision, the authors have provided a significant number of new experiments that add value to the manuscript. The terminal recordings combined with the modeling together convincingly demonstrate a significant impact of HCN channel activity not only on AP propagation velocity, but also on presynaptic spike frequency and reliability. The modeling better explores the impact of HCN channels on Na channel availability. The magnitude of HCN channel modulation on conduction velocity in vivo remains to be determined, but with the addition of the new experiments and modeling, this study provides a sophisticated examination of the interplay between HCN channels and voltage-gated Na channels in presynaptic axons. As before, the quality of the data is excellent. My only remaining concern revolves around the added occlusion experiments in Figure 3, as they relate to the neuromodulation experiments in Figure 2. In the presence of ZD7288 (30 µM), there are changes in conduction velocity of ~3-4%. This range is comparable to the neuromodulator-induced changes in velocity seen in the absence of ZD in Figure 2, with the exception of adenosine. In this regard, it would seem that these experiments are only partially successful in demonstrating specificity of neuromodulatory action on HCN channels. I think this issue needs to be reflected in the writing. What is explanation for the remaining ZD-insensitive neuromodulation?

https://doi.org/10.7554/eLife.42766.016

Author response

Essential revisions:

I am glad to say that both reviewers found that the manuscript was interesting and the experiments were largely convincing, although both identified some areas in need of clarification or improvement through additional experimentation. The key issues were as follows:

1) Demonstrating or assessing the biological existence and/or significance of the phenomenon of HCN modulation changing conduction velocity. Reviewer 1 noted that the concentrations of transmitters applied were relatively high and the question was raised about whether endogenous transmitter was likely to generate significant modulation. Reviewer 2 noted the complementary point, namely that it is difficult to assess the functional significance of the tiny (though significant) changes given the filtering properties of granule cells. Because of these combined comments, additional experiments, analysis, and writing are necessary to provide evidence for the biological relevance of the phenomenon. The idea of optogenetic stimulation was brought up but, in the consultation, it was acknowledged that such an experiment might be beyond the scope of practicality. An alternative of measuring conduction velocity with amphetamine-induced release of endogenous monoamines was suggested. So was the idea of measuring activity dependent modulation of Ih with high-frequency trains of stimuli. Those experiments, or equivalent approaches to illustrate that this phenomenon might occur measurably in the brain and influence cerebellar signal processing, would strengthen the manuscript.

We agree that, to unequivocally demonstrate the biological existence of neuromodulation of action potential propagation velocity, in vivo experiments are best-suited. However, we also feel that this is beyond the scope of this manuscript. To address this concern, we have now revised the manuscript by curtailing the conclusion from HCN channels do modulate conduction velocity to HCN channels can modulate conduction velocity (e.g., by changing the title to “HCN channel-mediated neuromodulation can control action potential velocity and fidelity in central axons”, in the Abstract “is modulated” to “can be modulated”, and in the Discussion: “However, our data demonstrate that under certain conditions an active control of conduction velocity could occur in the vertebrate CNS via the cAMP-HCN pathway”).

In the revised manuscript, we followed the suggestion of the reviewing editor and the reviewers by investigating high-frequency trains of action potentials. To this end, we performed a set of new experiments. We made additional whole-cell recordings from cerebellar mossy fiber boutons, loaded the bouton and the adjacent axon with a fluorescent dye, positioned a second extracellular stimulation pipette (filled with another dye) through two-photon fluorescent-guided microscopy close to the remote part of the axon, elicited high-frequency trains of action potentials with the stimulation pipette, and recorded the arriving action potentials in whole-cell current-clamp at the mossy fiber bouton (see new Figure 5 and Materials and methods, subsection “Recordings from cMFBs”). These experiments allowed unequivocal determination of the maximal failure-free frequency of individual axons as well as changes of conduction velocity during high-frequency trains of action potentials. The results revealed a strong reduction of the failure-free frequency from about ~800 to ~400 Hz upon blocking of HCN channels with ZD7288 (n = 20 and 10, respectively; PT-Test = 0.0002). Furthermore, the conduction velocity during the train of action potentials decreased by 20% in the presence of ZD7288 but increased by 5% in control recordings. Thus, in addition to the ~5% change in baseline conduction velocity reported in the initial version of the manuscript, the lack of HCN channels further decelerates action potential propagation during high-frequency trains of action potentials up to ~25% and decreases the maximal failure-free frequency by a factor of two. Our additional experiments therefore further support the idea that HCN channels have an important role in controlling axonal action potential propagation.

2) Clarification of the influence of Ih-dependent depolarization on other ion channels and electrophysiological parameters. Both reviewers pointed out that the HCN-mediated depolarization could influence Na channels, which could in turn influence conduction; the interaction with other channels should be addressed through experiment and/or modeling.

To address the contribution of the inactivation of voltage-gated sodium (NaV) channels upon depolarization, we have now systematically varied the resting membrane potential of our model by changing the potassium reversal potential (Figure 10—figure supplement 1 of the revised manuscript). Increasing the resting membrane potential from –90 to –45 mV (by increasing the potassium reversal potential from –120 to –50 mV) increased the proportion of inactivated NaV channels from 10 to 80%. Despite increasing inactivation of NaV channels the conduction velocity continued to increase. These results are described in subsection “Mechanism of conduction velocity-control and metabolic costs of HCN channels” and discussed as follows: “However, our modelling results showed that increasing the membrane potential from –90 to –60 mV increased the conduction velocity despite significantly decreasing Na+ channels availability (Figure 10—figure supplement 1). Interestingly, these findings are in agreement with the nonlinear cable theory predicting that the difference between the resting membrane potential and the firing threshold is a critical parameter for action potential conduction velocity (see, e.g., Figure 12.25 in Jack et al., 1983, for increasing velocity with increasing safety factor, i.e. decreasing excitation threshold VB). Intuitively, the HCN channel mediated acceleration of conduction velocity can be understood as follows; in a more depolarized axon, NaV mediated current influx in one axonal location will depolarize neighboring locations faster above the threshold. In our model, this effect outweighs the disadvantage of the increased steady-state inactivation of Na+ channels up to a membrane potential of about –65 mV and a NaV availability of 50%. The exact values, above which NaV availability limits conduction velocity, critically depend on assumptions of the model, such as the voltage-dependence of inactivation and the density of NaV channel.”

3) Confirmation that the changes reported can be unambiguously ascribed to HCN channels. As you know, in the initial consultation among editors, concerns were raised about lack of occlusion experiments, the imperfect selectivity of ZD, and the absence of antibody controls. This issue should either be addressed experimentally or the conclusions should be appropriately curtailed and discussion of alternatives should be included.

We thank the reviewers for bringing this point to our attention. In the revised manuscript, we have performed new experiments, in which we applied neuromodulators in the presence of ZD 7288. The neuromodulators (cAMP, adenosine, and norepinephrine) had no impact on conduction velocity in the presence of ZD 7288. The results from these occlusion experiments further support our conclusion that HCN channels mediate the effect of neuromodulators on conduction velocity. See new Figure 3 and subsection “Neuromodulation of conduction velocity is mediated by HCN channels”.

The major points as expressed by the reviewers, with annotations relating to the essential revisions are included below to aid you in your revision.

Major comments (combined, with indications as to which essential revision is being spelled out in more detail):

1) Related to Essential Revision 1: While the data are unequivocal that such modulation can occur, I'm left wondering if this is indeed a mechanism employed to regulation information transfer in the cerebellum or other structures. The main concern involves Figure 2. Here, application of various neuromodulations demonstrate the capacity for modulation by endogenous systems, but they do little to show which of these systems are involved in such regulation. The concentrations used are so high that off target effects are a strong possibility (e.g., norepinephrine can engage dopamine receptors at high concentrations, Sanchez-Soto et al., 2016). It is critical to demonstrate that these effects are blocked by specific antagonists to establish that all of these systems are indeed in play. Furthermore, replicating these results using endogenous sources is a critical step to determine whether such modulation occurs in vivo. This would ideally be done with optogenetic activation of monoaminergic sources. (Ed's note: Note that optogenetic expts are not required for the revision, but this sentence is included since it was in the original review.) Less ideal, but still towards the point, would be to apply amphetamine to reverse monoamine transport. Either approach should be paired with appropriate antagonist controls.

Please see detailed response to point 1 above. In the revised manuscript, we also mentioned potential off-target effects: “Although we used rather high concentrations of the agonists and off-target effects cannot be excluded (e.g., NE activating dopamine receptors; Sánchez-Soto et al., 2016), these data nevertheless indicate that…” Furthermore, our new experiments (Figure 3) show that the effect of the neuromodulators is mediated by HCN channels.

2) Related to Essential Revision 1: The functional significance for the effects of Ih modulation on conduction velocity is somewhat vague as it is presented. The differences in conduction velocity are small, and on a sub-millisecond time scale. While the authors cite several papers supporting the importance of timing on this scale, the discussion lumps systems with very different circuit structures and computational demands. What is the evidence for the significance of submillisecond timing in the cerebellum? The mossy fiber input is ultimately low-pass filtered by granule cells with very slow membrane time constants so this requires some comment.

We have now more carefully discussed the significance of submillisecond timing in the cerebellum and added the paragraph: “The cerebellum is involved in the accurate control of muscle contraction with a temporal precision of 1-100 ms (Hore et al., 1991). Submillisecond correlations in spike timing occuring between neighboring Purkinje cells have been noted previously (reviewed in Isope et al., 2002; Person and Raman, 2012). Furthermore, submillisecond precision of the mossy/parallel fiber input are critical for processing in the cerebellar circuits (Braitenberg et al., 1997; Heck et al., 2001). Together, the here-described changes in action potential conduction velocity in mossy and parallel fibers (Figures 1-3) may thus play an important role in cerebellar computation. Furthermore, the observed impairment in high-frequency firing without HCN channels (Figure 5) is expected to negatively impact such functions (Delvendahl and Hallermann, 2016).”

Regarding the membrane time constant of granule cells, we agree that filtering at the granule cell soma (and the Purkinje cell dendrites) will occur but we would like to point out that the membrane time constants of granule cells strongly changes during development (Cathala et al., 2003, J Neurosci 23:6074-85) and that the spiking delay and precision critically depend on other parameters such as the distance to firing threshold.

3) Related to Essential Revision 2: A second question relates to the modeling: The modeling explores two competing hypotheses that could account for the observed effects of HCN modulation, relating to changes in membrane potential and leak, and show that membrane potential and its relation to spike threshold is sufficient to explain the observed effects. This can be explained well by the cell being closer to threshold. A counter-argument would be that depolarization decreases NaV availability, but the authors mention that this is not a confound. The authors would be well served to explore this aspect in more detail to see how robust this result is across a range of conditions. First, it would be report relative NaV availability in each model. Second, it would be great to see if the relative changes in conduction velocity hold if the model starts at other membrane potentials (particularly more depolarized).

We thank the reviewer for this suggestion. Our systematic analysis of the interplay between resting membrane potential and NaV channel availability is explained above (general point 2). As suggested, we now provide the NaV availability in each model: “For the control model, the NaV inactivation was 12%. For the model reproducing the experiments with ZD7288 and 1 mM intracellular cAMP, the NaV inactivation was 6 and 17%, respectively. Because the steady-state NaV availability depends mostly on the resting membrane potential, the relation between resting membrane potential and NaV availability was identical for all three models (data not shown).”

4) Related to Essential Revisions 1 and 2, as stated by the other reviewer: The modulation of Ih is presented as a way to dynamically control conduction velocities according to changes in neuromodulatory state. Given the presence of voltage-gated calcium channels in some axons and nodes of Ranvier, is it possible that the cAMP-mediated modulation of Ih could also serve a homeostatic role, bringing Vrest closer to threshold and offsetting the inactivation of Na channels under conditions of high action potential firing rates? This would be straightforward to test with high frequency trains of axonal stimuli in experiments and perhaps with the model.

We would like to thank the reviewer for this insightful comment. As explained in more detail above (general point 1) we have performed new experiments to analyze the conduction velocity during high-frequency trains of action potentials (see new Figure 5D-G). We are thankful for providing the exciting idea of calcium controlling the cAMP/HCN pathway. A mechanistic analysis of the interplay between Ca2+and the cAMP/HCN pathway is beyond the scope of this manuscript, but we have added the following sentences: “Interestingly, Ca2+ entering through axonal voltage-gated Ca2+ channels (Bender et al., 2010) could interact with the cAMP pathway by activating or inhibiting different subtypes of adenylyl cyclase and phosphodiesterase (Bruce et al., 2003). Thereby, HCN could also serve a homeostatic role, by bringing the resting membrane potential closer to threshold and offsetting the inactivation of NaV channels under conditions of high-frequency action potential firing.”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Essential revisions:

Both reviewers agree that the manuscript has been improved by the new experiments. Because of some remaining questions regarding neuromodulation and possible consequences of action potential failure, both reviewers also agree that additional specific discussion of these issues is warranted. We are including the specific language of both reviewers below, because they have expressed the points clearly and can guide you in those textual revisions.

Reviewer #1:

The authors have done a good job addressing reviewer concerns, and I am very supportive of publication with a few additional text/formatting updates. Of note, the new recordings described in Figure 5 are impressive and highlight an interesting aspect of HCN function in axons, contributing to reliability during high frequency trains. I was a bit disappointed that neuromodulatory antagonist experiments were not performed. Instead, experiments were done with ZD and agonist application. This isn't as clean, given the issues related to ZD specificity, but nevertheless support the notion that HCN channels are the ultimate effector of the neuromodulatory systems engaged. In light of this, I'd request that the discussion relating to how neuromodulators could regulate axonal conduction be expanded to include any details known on neuromodulatory mechanisms previously reported in these axons, and a bit more on the possibility of off-target interactions with these concentrations. Also, the data in Figure 5 deserve a bit of discussion. AP failures at high frequency may be more consequential than these small changes in timing.

We thank the reviewer for the positive evaluation of our manuscript. We have extended the discussion and added a paragraph (subsection “Mechanism and metabolic costs of HCN channel mediated control of action propagation” paragraph two) explaining the results of Figure 4 of the revised manuscript.

Reviewer #2:

This study explores the role of HCN channels in regulating action potential conduction velocity in mossy fibers of the cerebellum and other axons as well. In the revision, the authors have provided a significant number of new experiments that add value to the manuscript. The terminal recordings combined with the modeling together convincingly demonstrate a significant impact of HCN channel activity not only on AP propagation velocity, but also on presynaptic spike frequency and reliability. The modeling better explores the impact of HCN channels on Na channel availability. The magnitude of HCN channel modulation on conduction velocity in vivo remains to be determined, but with the addition of the new experiments and modeling, this study provides a sophisticated examination of the interplay between HCN channels and voltage-gated Na channels in presynaptic axons. As before, the quality of the data is excellent. My only remaining concern revolves around the added occlusion experiments in Figure 3, as they relate to the neuromodulation experiments in Figure 2. In the presence of ZD7288 (30 µM), there are changes in conduction velocity of ~3-4%. This range is comparable to the neuromodulator-induced changes in velocity seen in the absence of ZD in Figure 2, with the exception of adenosine. In this regard, it would seem that these experiments are only partially successful in demonstrating specificity of neuromodulatory action on HCN channels. I think this issue needs to be reflected in the writing. What is explanation for the remaining ZD-insensitive neuromodulation?

We would like to thank the reviewer for these positive comments. We believe that the remaining concern is based on a misunderstanding. The reviewer argues that the occlusion experiments are only partially successful in demonstrating specificity of neuromodulatory action on HCN channels because the conduction velocity changed in the presence of 30 µM ZD7288 by ~3-4% (Figure 3; now Figure 2F and G in the revised manuscript), which is similar to the neuromodulator-induced changes in velocity in the absence of ZD (Figure 2; now Figure 2C-D). However, a direct comparison of the change in conduction velocity between Figure 2 and 3 of the previous manuscript is not informative. To better explain these results, we used horizontal lines to illustrate the time of application of the substances in Figure 2C and F and added the following sentences in the Materials and methods section of the revised manuscript:

“To investigate the contribution of HCN channels on the neuromodulation of the conduction velocity (Figure 2F-G), cerebellar slices were pre-incubated for 20 min at room temperature with 30 µM ZD7288 and then transferred to the recording chamber (35 °C) with continued application of 30 µM ZD7288. 5 min after the beginning of the recordings (t = 0 min), the neuromodulators were applied. Note that the control data without application of neuromodulators (“only ZD7288” in Figure 2F and G) show a larger decrease in conduction velocity during the 20-min recording period compared with the control data in Figure 2C-E. The difference in the control data is most likely due to the slow action of ZD7288 (cf. Figure 1), which further decreases the conduction velocity during the recordings in addition to the run-down observed in control recordings without ZD7288. Therefore, the change in conduction velocity induced by the neuromodulators with and without pre-incubation of ZD7288 (Figure 2F-G and 2C-E, respectively) cannot be compared directly but have to be compared with the corresponding controls.”

https://doi.org/10.7554/eLife.42766.017
