The presence and absence of periplasmic rings in bacterial flagellar motors correlates with stator type

  1. Mohammed Kaplan
  2. Debnath Ghosal
  3. Poorna Subramanian
  4. Catherine M Oikonomou
  5. Andreas Kjaer
  6. Sahand Pirbadian
  7. Davi R Ortega
  8. Ariane Briegel
  9. Mohamed Y El-Naggar
  10. Grant J Jensen  Is a corresponding author
  1. California Institute of Technology, United States
  2. University of Southern California, United States
  3. Howard Hughes Medical Institute, California Institute of Technology, United States
Short Report
  • Cited 4
  • Views 1,505
  • Annotations
Cite this article as: eLife 2019;8:e43487 doi: 10.7554/eLife.43487

Abstract

The bacterial flagellar motor, a cell-envelope-embedded macromolecular machine that functions as a cellular propeller, exhibits significant structural variability between species. Different torque-generating stator modules allow motors to operate in different pH, salt or viscosity levels. How such diversity evolved is unknown. Here, we use electron cryo-tomography to determine the in situ macromolecular structures of three Gammaproteobacteria motors: Legionella pneumophila, Pseudomonas aeruginosa, and Shewanella oneidensis, providing the first views of intact motors with dual stator systems. Complementing our imaging with bioinformatics analysis, we find a correlation between the motor’s stator system and its structural elaboration. Motors with a single H+-driven stator have only the core periplasmic P- and L-rings; those with dual H+-driven stators have an elaborated P-ring; and motors with Na+ or Na+/H+-driven stators have both their P- and L-rings embellished. Our results suggest an evolution of structural elaboration that may have enabled pathogenic bacteria to colonize higher-viscosity environments in animal hosts.

https://doi.org/10.7554/eLife.43487.001

eLife digest

Bacteria are so small that for them, making their way through water is like swimming in roofing tar for us. In response, these organisms have evolved a molecular machine that helps them move in their environment. Named the bacterial flagellum, this complex assemblage of molecules is formed of three main parts: a motor that spans the inner and outer membranes of the cell, and then a ‘hook’ that connects to a long filament which extends outside the bacterium. More precisely, the motor is formed of the stator, an ion pump that stays still, and of a rotor that can spin. Different rings can also be present in the space between the inner and outer membranes (the periplasm) and surround these components. The stator uses ions to generate the energy that makes the rotor whirl. In turn, this movement sets the filament in motion, propelling the bacterium. Depending on where the bacteria live, the stator can use different types of ions. In addition, while many species have a single stator system per motor, some may have several stator systems for one motor: this may help the microorganisms move in different conditions.

As microbes colonize environments with a different pH or viscosity, they constantly evolve new versions of the motor which are more suitable to their new surroundings. However, a part of the motor remains the same across species. Overall, it is still unclear how bacterial flagella evolve, but examining the structure of new motors can shed light upon this process. Here, Kaplan et al. combine a bioinformatics approach with an imaging technique known as electron cryo-tomography to dissect the structure of the flagellar motor of three species of bacteria with different stator systems, and compare these to known motors of the same class.

The results reveal a correlation between the nature of the stator system and the presence of certain elements. Stators that use sodium ions, or both sodium and hydrogen ions, are associated with two periplasmic rings surrounding the conserved motor structure. These rings do not exist in motors with single hydrogen-driven stators. Motors with dual hydrogen-driven stators are, to some extent, an ‘intermediate state’, with only one of those rings present. As all the studied species currently exist, it is difficult to know which version of the motor is the most ancient, and which one has evolved more recently.

Capturing the diversity of bacterial motors gives us insight into the evolutionary forces that shape complex molecular structures, which is essential to understand how life evolved on Earth. More practically, this knowledge may also help us design better nanomachines to power microscopic robots.

https://doi.org/10.7554/eLife.43487.002

Introduction

The bacterial flagellum is a macromolecular machine that transforms the movement of ions (H+, Na+ or other cations) across the cell membrane into a mechanical torque to move the bacterial cell through its environment (Ito and Takahashi, 2017; Sowa and Berry, 2008). In general, the flagellum consists of a cell-envelope-embedded motor, a hook which acts as a universal joint and a long propeller-like filament (Berg, 2003; Erhardt et al., 2010). The motor is composed of a rotor and a stator: while the stator is the part of the motor that remains static, the rotor is the part that rotates and can rotate the filament in either a counterclockwise or clockwise direction. For cells with a single flagellum this drives the cell forward or backward; for peritrichous cells this results in ‘run’ or ‘tumble’ movements. Flagella can also exhibit a more complex behavior; it was recently reported that the Shewanella putrefaciens flagellum can wrap around the cell to mediate a screw-like motion that allows the cell to escape narrow traps (Kühn et al., 2017). Besides their role in motility, bacterial flagella participate in other vital activities of the cell such as biofilm formation (Belas, 2014). Moreover, the virulence of many human pathogens depends directly on their flagella, with flagellated strains of Pseudomonas aeruginosa and Legionella pneumophila causing more serious infections with higher mortality rates (Appelt and Heuner, 2017; Feldman et al., 1998). P. aeruginosa lacking fully-assembled flagella cause no mortality and are 75% less likely to cause pneumonia in mice (Feldman et al., 1998).

The best-studied flagellar motor, in Salmonella enterica, consists of several sub-complexes, which we will describe in order from the inside out. On the cytoplasmic side are the inner-membrane-embedded MS ring (formed by the protein FliF) and the C-ring (aka the switch complex, formed by FliN, FliM and FliG). The C-ring encircles a type III secretion system (T3SS) export apparatus (FliH, FliI, FliJ, FlhA, FlhB, FliP, FliQ and FliR). Spanning the space from the inner membrane to the peptidoglycan cell wall is the ion channel (called the stator), a complex of two proteins (MotA and MotB) with 4:2 stoichiometry (Koebnik, 1995; Kojima, 2015; Morimoto and Minamino, 2014). This complex is anchored to the peptidoglycan and converts the flux of ions across the bacterial membrane into a torque through the interaction of the so-called ‘torque-helix’ in MotA with FliG in the C-ring. Previous studies have shown that cycles of protonation/deprotonation of a certain aspartate residue in the cytoplasmic end of MotB induce conformational changes in MotA, which in turn interacts with the C-terminus of FliG. How the torque that is generated through this interaction is transferred to the other parts of the motor remains unclear with different models suggested (see Berg, 2003; Stock et al., 2012 and references therein for details). The MS ring is coupled to the extracellular hook (FlgE) through the rod (FlgB, FlgC, FlgF and FlgG). The rod is further surrounded by two other rings: the P- (peptidoglycan, FlgI) and the L- (lipopolysaccharide, FlgH) rings which act as bushings during rod rotation. Extending from the hook is the filament (FliC) which is many micrometers in length. In addition to these components, the assembly of the whole flagellar motor is a highly synchronized process that requires a plethora of additional chaperones and capping proteins (Altegoer and Bange, 2015; Evans et al., 2014; Jones and Macnab, 1990; Kaplan et al., 2018; Kubori et al., 1992; Macnab, 1999).

Recently, the development of electron cryo-tomography (ECT) (Gan and Jensen, 2012; Oikonomou and Jensen, 2017; Pfeffer and Förster, 2018) has allowed the determination of the complete structures of flagellar motors in their cellular milieu at macromolecular (~5 nm) resolution. ECT studies of many different bacterial species have revealed that while the core structure described above is conserved, the flagellar motor has evolved many species-specific adaptations to different environmental conditions (Beeby et al., 2016; Chaban et al., 2018; Chen et al., 2011; Minamino and Imada, 2015; Terashima et al., 2017; Zhao et al., 2014; Zhu et al., 2017). For example, extra periplasmic rings were found to elaborate the canonical P- and L-rings in the motor of the Gammaproteobacteria Vibrio species. These rings are called the T-ring (MotX and Y) and H-ring (FlgO, P and T) (Terashima et al., 2010; Terashima et al., 2006). Unlike the S. enterica motor described above, which is driven by H+ ions, the motors of Vibrio and other marine bacteria employ different stators (PomA and PomB) which utilize Na+. These Na+-dependent stators generate higher torque (~2200 pN) than H+-dependent stators (~1200 pN), driving the motor at higher speeds (up to 1,700 Hz compared to ~300 Hz in H+-driven motors) (Magariyama et al., 1994).

Many flagellated bacteria use a single stator system – either H+-driven or Na+-driven, depending on their environment. Interestingly, it has also been shown that the single stator system of Bacillus clausii KSM-K16 is able to use both Na+ and H+ at different pH levels (Terahara et al., 2008). Additionally, some species (like alkaliphilic Bacillus alcalophilus AV1934 and Paenibacillus sp. TCA20), can use other cations to generate the energy required for torque generation depending on their environment (Ito and Takahashi, 2017; Terahara et al., 2012). Some species, however, such as Vibrio alginolyticus, use two distinct types of motors to move in different environments: a polar Na+-driven flagellum and lateral H+-driven flagella. Still other species employ dual stator systems with a single flagellar motor, conferring an advantage for bacteria that experience a range of environments (see Thormann and Paulick, 2010 and references therein). For example, P. aeruginosa employs a dual H+-driven stator system (MotAB and MotCD). While the MotAB system is sufficient to move the cell in a liquid environment (Doyle et al., 2004), MotCD is necessary to allow the cell to move in more viscous conditions (Toutain et al., 2007). Shewanella oneidensis MR-1 combines both Na+- and H+-dependent stators in a single motor, enabling the bacterium to move efficiently under conditions of different pH and Na+ concentration (Paulick et al., 2015). How these more elaborate motors may have evolved remains an open question.

Here, we used ECT to determine the first in situ structures of three Gammaproteobacteria flagellar motors with dual stator systems: in L. pneumophila, P. aeruginosa and S. oneidensis MR-1. L. pneumophila and P. aeruginosa have dual H+-dependent stator systems and S. oneidensis has a dual Na+-H+-dependent stator. This imaging, along with bioinformatics analysis, shows a correlation between the structural elaboration of the motor and its stator system, suggesting a possible evolutionary pathway.

Results

To determine the structures of the flagellar motors of L. pneumophila, P. aeruginosa, and S. oneidensis we imaged intact cells of each species in a hydrated frozen state using ECT. We identified clearly visible flagellar motors in the tomographic reconstructions and performed sub-tomogram averaging to enhance the signal-to-noise ratio, generating a 3D average of the motor of each species at macromolecular resolution (Figure 1 and Figure 1—figure supplement 1). Although the three motors shared the conserved core structure of the flagellar motor, they exhibited different periplasmic decorations surrounding this conserved core. While the S. oneidensis and P. aeruginosa averages showed clear densities corresponding to the stators (Figure 1E,F,K and L, dark orange density), none were visible in the L. pneumophila average, suggesting that they were more variable, or dynamic and therefore are not visible in the average (see e.g., (Chen et al., 2011; Zhu et al., 2017)). Interestingly, we observed a novel feature in the S. oneidensis motor: an extra ring outside the outer membrane (Figure 1A–F, purple density). Although in some tomograms two extracellular rings appeared to be present (see Figure 1A and C), only one ring was visible in the sub-tomogram average which could be either because one of the rings is more dynamic or substoichiometric (Figure 1B,D and Figure 1—figure supplement 2 for more examples of single motors). This structure is reminiscent of the O-ring (outer membrane ring) described recently in the sheathed flagellum of Vibrio alginolyticus (Zhu et al., 2017). However, while the V. alginolyticus O-ring was associated with a 90° bend in the outer membrane, no such outer membrane bend was seen in the unsheathed S. oneidensis flagellum, so the function of this structure remains mysterious.

Figure 1 with 2 supplements see all

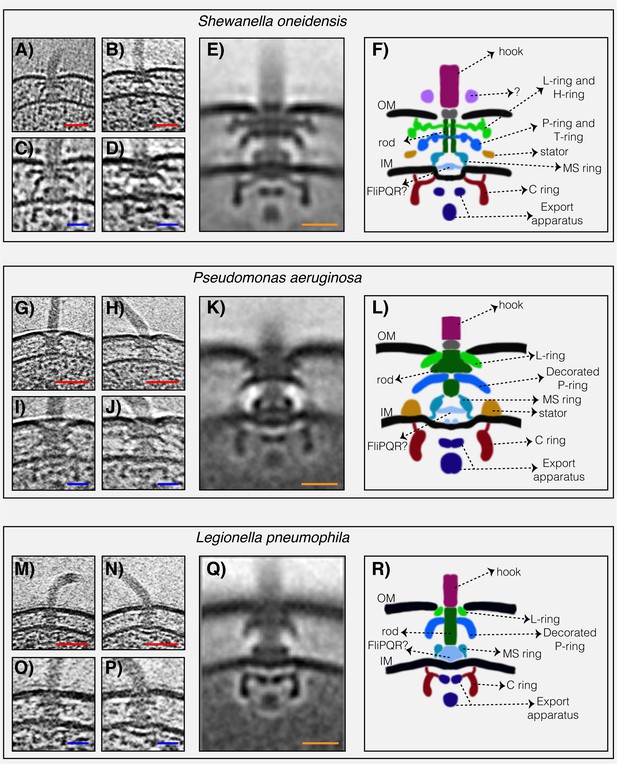

The structures of three dual-stator Gammaproteobacteria flagellar motors revealed by ECT.

(A and B) slices through Shewanella oneidensis MR-1 electron cryo-tomograms showing single polar flagella. (C and D) zoomed-in views of the slices shown in (A) and (B) highlighting the flagellar motors. (E) central slice through a sub-tomogram average of the S. oneidensis MR-1 flagellar motor. (F) schematic representation of the sub-tomogram average shown in (E) with the major parts of the motor labeled. (G–L) flagellar motor of Pseudomonas aeruginosa. Panels follow the same scheme as in (A–F) above. (M–R) flagellar motor of Legionella pneumophila. Panels follow the same scheme as above. Scale bars 50 nm (red) and 20 nm (blue and orange).

https://doi.org/10.7554/eLife.43487.003

The most striking difference between the three motor structures was the L- and P-rings, which were highly elaborated in S. oneidensis. The P. aeruginosa and L. pneumophila motors lacked additional rings associated with the L-ring, but showed smaller elaborations of their P-rings. To determine whether flagellar motor structure correlates with stator type, we compared our three new ECT structures with those of the five previously-published Gammaproteobacteria motors (Figure 2). Two motors (Escherichia coli and S. enterica) have a single H+-driven stator system, two motors have dual H+-dependent stator systems (P. aeruginosa and L. pneumophila), three motors have Na+-driven systems (the three Vibrio species) and one motor has a dual Na+-H+-driven system (S. oneidensis). Interestingly, we found that motors with similar stator type also shared similar structural characteristics. While the two motors with a single H+-dependent stator system did not show any periplasmic elaborations beyond the conserved flagellar core, the dual H+-dependent stator systems had an extra ring surrounding their P-ring, with no embellishment of the L-ring. The Na+-dependent motors of the Vibrio spp., together with the Na+-H+-dependent motor of S. oneidensis, have extra components surrounding both their P- and L- rings. In Vibrio, these extra periplasmic rings are known as the T-ring (surrounding the P- ring and formed by the MotX and MotY proteins) and the H-ring (surrounding the L-ring and consisting of the FlgO, FlgP and FlgT proteins). The presence of the T- and H-rings was suggested to be specific to the Na+-driven Vibrio motors (Minamino and Imada, 2015) with the FlgT protein required for the formation of both rings (Terashima et al., 2013).

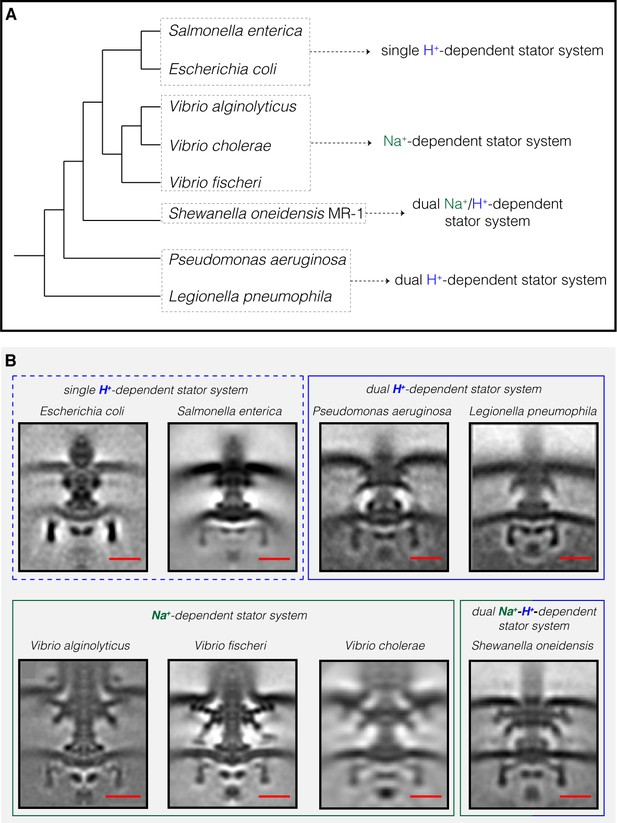

Compilation of all Gammaproteobacteria flagellar motors imaged to date by ECT.

(A) A phylogenetic tree of the eight Gammaproteobacteria species with available ECT structures of their flagellar motors. This tree was made based on (Williams et al., 2010). (B) Central slices of sub-tomogram averages are shown for the eight Gammaproteobacteria flagellar motors revealed by ECT, including the three structures solved in this study (P. aeruginosa, L. pneumophila and S. oneidensis). The motors are classified based on their stator system: single H+-driven (dashed blue box), dual H+-driven (blue box), Na+-driven (green box) or dual Na+-H+-driven (green-blue box). E. coli EMDB 5311, S. enterica EMDB 3154, V. fischeri EMDB 3155, V. cholerae EMDB 5308, V. alginolyticus is adapted from Zhu et al., 2017. Scale bars are 20 nm.

https://doi.org/10.7554/eLife.43487.006

Previous studies showed that MotX and MotY are important for flagellar rotation in S. oneidensis but it was not known whether they form part of the motor or not (Koerdt et al., 2009). Similarly, bioinformatics analysis and biochemical studies showed that MotY is involved in the function of the P. aeruginosa motor, but the structural basis of this role was not known (Doyle et al., 2004). We therefore performed a bioinformatics search for candidate homologs of MotX, MotY, FlgO, FlgP and FlgT in the genomes of P. aeruginosa, L. pneumophila and S. oneidensis to examine whether there is a correlation between the presence of homologous genes and the extra periplasmic rings observed in the ECT structures. While we found candidates for all five proteins constituting the T- and H-rings in S. oneidensis as previously suggested (Wu et al., 2011), only MotY candidates were found in L. pneumophila and P. aeruginosa (Table 1). This is in accordance with our ECT structures, which showed that L. pneumophila and P. aeruginosa motors have a ring surrounding only their P-rings while the S. oneidensis motor has rings surrounding both the P- and L-rings. These rings are likely T- and H-rings, respectively, as in Vibrio. The lack of candidate MotX homologs in the genomes of L. pneumophila and P. aeruginosa (Table 1) is consistent with their lack of PomB, the component of the Na+-dependent stator with which MotX interacts. Interestingly, the absence of candidates for FlgT in the L. pneumophila and P. aeruginosa genomes suggests that it may not be required for the recruitment of MotY as in Vibrio species.

Table 1
Candidate homologs of H- and T-ring components in species imaged in this study.
https://doi.org/10.7554/eLife.43487.007
SpeciesMotX candidateMotY candidateFlgO candidateFlgP candidateFlgT candidate
Pseudomonas aeruginosa
(dual H+-driven stator)
-+
2e-37
(PA3526)
---
Legionella pneumophila
(dual H+-driven stator)
-+
3e-35
(lpg2962)
---
Shewanella oneidensis MR-1
(dual Na+-H+-driven stator)
+
2e-46
(SO_3936)
+
2e-80
(SO_2754)
+
2e-19
(SO_3257)
+
6e-31
(SO_3256)
+
3e-36
(SO_3258)

To see whether these correlations hold more broadly, we expanded our bioinformatics analysis to additional species of Gammaproteobacteria (Williams et al., 2010). We examined the genomes of species with single H+-driven stator systems (Table 2), dual H+-driven stator systems (Table 3) and Na+-driven stator systems (Table 4). These species were identified either by Blasting the sequence of the stator proteins (MotA, B, C and D and Pom A and B, see Materials and methods) against the genome of the species or based on previous studies (Thormann and Paulick, 2010). In all species we examined, we observed the same pattern: (i) genomes of species with single H+-driven stator systems lacked homologs of H- or T-ring components; (ii) genomes of species with Na+ (or Na+-H+) stator systems contained homologs of all H- and T-ring components, and (iii) genomes of species with dual H+-driven stator systems contained candidate homologs only for the T-ring component MotY. The sole exception to this rule was Chromohalobacter salexigens DSM 3043, which contained a homolog of FlgO in addition to MotY. Also, while Serratia proteomaculans and Psychromonas ingrahamii have candidates for single MotAB stator system they also have candidates for MotY (see Supplementary file 1 and 2). None of the thirteen species with dual H+-driven stator systems we examined contained a homolog of FlgT, further suggesting that it is not essential for MotY stabilization in this group.

Table 2
Candidate homologs of H- and T-ring components in single H+-dependent stator systems of Gammaproteobacteria.
https://doi.org/10.7554/eLife.43487.008
SpeciesMotX candidateMotY candidateFlgO candidateFlgP candidateFlgT candidate
Escherichia coli-----
Salmonella enterica-----
Sodalis glossinidius-----
Photorhabdus laumondii subsp. laumondii TTO1-----
Serratia proteomaculans-+
7e-13
(Spro_1787)
---
Psychromonas ingrahamii-+
3e-14
(Ping_3567)
---
Table 3
Candidate homologs of H- and T-ring components in dual H+-dependent stator systems of Gammaproteobacteria.
https://doi.org/10.7554/eLife.43487.009
SpeciesMotX candidateMotY candidateFlgO candidateFlgP
candidate
FlgT
candidate
Azotobacter vinelandii DJ-+
8e-14
(Avin_48650)
---
Cellvibrio japonicas Ueda107-+
9e-28
(CJA_2588)
---
Chromohalobacter salexigens DSM 3043-+
6e-13
(Csal_3309)
+
9e-16
(Csal_2511)
--
Pseudomonas entomophila-+
2e-31
(PSEEN1209)
---
Saccharophagus degradans 2–40-+
1e-37
(Sde_2427)
---
Xanthomonas campestris pv.
campestris
-+
1e-13
(XCC1436)
---
Pseudomonas putida-+
7e-31
(PP_1087)
---
Yersinia pestis
CO92
-+
6e-11
(YPO0448)
---
Pseudomonas fluorescens Pf0-1-+
2e-30
(Pfl01_4518)
---
Xanthomonas axonopodis pv.
citrumelo F1
-+
1e-14
(XACM_1468)
---
Stenotrophomonas
maltophilia R551-3
-+
4e-10
(Smal_1563)
---
Table 4
Candidate homologs of H- and T-ring components in Na+-dependent stator systems of Gammaproteobacteria.
https://doi.org/10.7554/eLife.43487.010
SpeciesMotX candidateMotY candidateFlgO candidateFlgP
candidate
FlgT
candidate
Colwellia psychrerythraea 34H+
2e-63
(CPS_4618)
+
1e-73
(CPS_3471)
+
2e-59
(CPS_1469)
+
6e-28
(CPS_1470)
+
5e-38
(CPS_1468)
Vibrio fischeri+
1e-113
(VF_2317)
+
3e-141
(VF_0926)
+
3e-113
(VF_1884)
+
1e-60
(VF_1883)
+
2e-166
(VF_1885)
Vibrio vulnificus
YJ016
+
4e-136
(VV3065)
+
9e-177
(VV1183)
+
8e-140
(VV0953)
+
1e-77
(VV0954)
+
0.0
(VV0952)
Photobacterium profundum+
1e-110
(PBPRA3344)
+
3e-146
(PBPRA2571)
+
5e-101
(PBPRA0894)
+
5e-60
(PBPRA0895)
+
6e-145
(PBPRA0893)
Pseudoalteromonas haloplanktis+
3e-76
(PSHAa0276)
+
6e-73
(PSHAa2115)
+
3e-37
(PSHAa0755)
+
2e-26
(PSHAa0762)
+
5e-40
(PSHAa0761)
Pseudoalteromonas tunicata+
4e-71
(PTUN_a0699)
+
1e-68
(PTUN_a1296)
+
2e-32
(PTUN_a3193)
+
2e-28
(PTUN_a3178)
+
4e-34
(PTUN_a3179)
Idiomarina loihiensis L2TR+
5e-67
(IL2001)
+
4e-78
(IL1801)
+
4e-18
(IL1169)
+
9e-32
(IL1153)
+
1e-30
(IL1154)
Alteromonas macleodii ATCC 27126+
8e-73
(MASE_16945)
+
3e-74
(MASE_05600)
+
2e-34
(MASE_11745)
+
7e-29
(MASE_04615)
+
3e-35
(MASE_04610)
Pseudoalteromonas atlantica+
2e-71
(Patl_0993)
+
1e-79
(Patl_1400)
+
1e-30
(Patl_1308)
+
1e-26
(Patl_3106)
+
1e-31
(Patl_3107)

Discussion

Together, our results from ECT imaging of flagellar motors in situ and bioinformatics analysis reveal a correlation between the structural elaboration of the flagellar motor of Gammaproteobacteria and the type of its torque-generating unit, the stator (summarized in Figure 3). Low-speed motors with single H+-stator systems have only the P- and L-rings, while high-speed motors using Na+ have two extra periplasmic rings, the T- and H-rings. Unexpectedly, we find that motors with dual H+-driven stator systems represent a hybrid structure between the two, elaborating their P-rings with one of the five components of the T- and H-rings, MotY. It is important to note that the presence of these extra elaborations in the motor is encoded in the genome and is not related to whether or not a stator subunit is recruited on the motor. This extra MotY ring might help to stabilize the motor under conditions of increased load, as in the viscous environment of the pulmonary system encountered by L. pneumophila and P. aeruginosa. These results therefore suggest an evolutionary pathway in which these pathogenic Gammaproteobacteria species could have borrowed a motor stabilization strategy from related Na+-driven motors to allow them to colonize animal hosts. Finally, It would be interesting to investigate whether our observation here holds for other bacterial species that use different cations as their energy source (Ito and Takahashi, 2017) and whether it extends to other bacterial species with more than two stator systems or other classes.

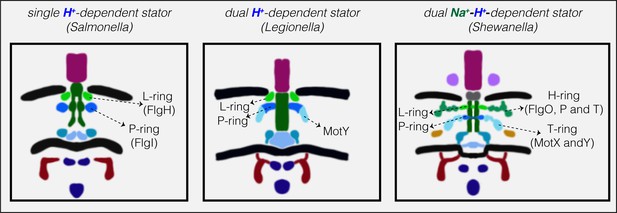

Models showing correlation between structural elaboration of the flagellar motor and its stator type.

Flagellar motors with single H+-driven stator systems (e.g. Salmonella) have P- and L-rings alone. Motors with dual H+-driven stator systems have an extra ring surrounding the P-ring formed by the MotY protein alone. Motors with Na+-driven motors have two periplasmic rings, the T-ring (MotX and MotY) and H-ring (FlgO, FlgP and FlgT), decorating the P- and L-rings, respectively. Note that the boundaries between the P- and L-rings and their decorations are tentative in these schematics.

https://doi.org/10.7554/eLife.43487.011

Materials and methods

Strains and growth conditions

Legionella pneumophila (strain Lp02) cells were grown on plates of ACES [N-(2-acetamido)−2-aminoethanesulfonic acid]-buffered charcoal yeast extract agar (CYE) or in ACES-buffered yeast extract broth (AYE) with 100 μg/ml thymidine. Ferric nitrate and cysteine hydrochloride were added to the media. For ECT experiments, cells were harvested in early stationary phase.

Shewanella oneidensis MR-1 cells belonging to the strains listed in Supplementary file 3 were used in this study. They were grown using one of the following methods: Luria–Bertani (LB) broth culture, chemostat, the batch culture method or in a perfusion flow imaging platform. Detailed descriptions of these methods can be found in Subramanian et al. (2018). Briefly, in the chemostat method, 5 mL of a stationary-phase overnight LB culture was injected into a continuous flow bioreactor containing an operating liquid volume of 1 L of a defined medium (Pirbadian et al., 2014), while dissolved oxygen tension (DOT) was maintained at 20%. After 20 hr, and as the culture reached stationary phase, continuous flow of the defined medium (Pirbadian et al., 2014) was started with a dilution rate of 0.05 hr−1 while DOT was still maintained at 20%. After 48 hr of aerobic growth under continuous flow conditions, the DOT was manually reduced to 0%. O2 served as the sole terminal electron acceptor throughout the experiment. pH was maintained at 7.0, temperature at 30°C, and agitation at 200 rpm. Either 24 or 40 hr after DOT reached 0%, samples were taken from the chemostat for ECT imaging.

In the batch culture method, 200 μL of an overnight LB culture of S. oneidensis cells was added to each of two sealed and autoclaved serum bottles containing 60 mL of a defined medium (Pirbadian et al., 2014). One of the two bottles acted as a control and was not used for imaging. To this control bottle, 5 μM resazurin was added to indicate the O2 levels in the medium. The bottles were then placed in an incubator at 30°C, with shaking at 150 rpm until the color due to resazurin in the control bottle completely faded, indicating anaerobic conditions. At this point, samples were taken for ECT imaging from the bottle that did not contain resazurin.

For the perfusion flow imaging experiments, S. oneidensis cells were grown overnight in LB broth at 30°C to an OD600 of 2.4–2.8 and washed twice in a defined medium (Pirbadian et al., 2014). A glow-discharged, carbon-coated, R2/2, Au NH2 London finder Quantifoil EM grid was glued to a 43 mm × 50 mm no. 1 glass coverslip using waterproof silicone glue (General Electric Company) and let dry for ~ 30 min. Using a vacuum line, the perfusion chamber (model VC-LFR-25; C and L Instruments) was sealed against the grid-attached glass coverslip. A total of ~10 mL of the washed culture was injected into the chamber slowly to allow cells to settle on the grid surface, followed by a flow of sterile defined medium from an inverted serum bottle through a bubble trap (model 006BT-HF; Omnifit) into the perfusion chamber inlet. Subsequently, the flow of medium was stopped and the perfusion chamber was opened under sterile medium. The grid was then detached from the coverslip by scraping off the silicone glue at the grid edges using a 22-gauge needle and rinsed by transferring three times in deionized water, before imaging by ECT.

Samples were also prepared from an aerobic S. oneidensis LB culture grown at 30°C to an OD600 of 2.4–2.8.

Pseudomonas aeruginosa PAO1 cells were first grown on LB plates at 37°C overnight. Subsequently, cells were inoculated into 5 ml MOPS [(3-(N-morpholino) propanesulfonic acid)] Minimal Media Limited Nitrogen and grown for ~24 hr at 30°C.

Many of the flagellar motors analyzed here were taken from tomograms recorded for more than one purpose. The Shewanella oneidensis MR-1 mutants, for instance, were grown under different growth conditions for the purpose of studying the nanowires formed by these cells (see Subramanian et al., 2018), but all their motors were presumably the same, so we included them here to increase the clarity and resolution of our average.

Sample preparation for electron cryo-tomography

Cells (L. pneumophila, P. aeruginosa and S. oneidensis) from batch cultures and chemostats were mixed with BSA (Bovine Serum Albumin)-treated 10 nm colloidal gold solution (Sigma-Aldrich, St. Louis, MO, USA) and 4 μL of this mixture was applied to a glow-discharged, carbon-coated, R2/2, 200 mesh copper Quantifoil grid (Quantifoil Micro Tools) in a Vitrobot Mark IV chamber (FEI). Excess liquid was blotted off and the grid was plunge frozen in a liquid ethane/propane mixture for ECT imaging.

Electron cryo-tomography

Imaging of ECT samples (S. oneidensis and P. aeruginosa) was performed on an FEI Polara 300-keV field emission gun electron microscope (FEI company, Hillsboro, OR, USA) equipped with a Gatan image filter and K2 Summit counting electron-detector camera (Gatan, Pleasanton, CA, USA). Data were collected using the UCSF Tomography software (Zheng et al., 2007), with each tilt series ranging from −60° to 60° in 1° increments, an underfocus of ~ 5–10 μm, and a cumulative electron dose of ~ 130–160 e-/A2 for each individual tilt series. For L. pneumophila samples, imaging was done using an FEI Titan Krios 300 kV field emission gun transmission electron microscope equipped with a Gatan imaging filter and a K2 Summit direct electron detector in counting mode (Gatan). L. pneumophila data was also collected using UCSF Tomography software and a total dose of ~ 100 e-/A2 per tilt series with ~ 6 um underfocus.

Sub-tomogram averaging

The IMOD software package was used to calculate three-dimensional reconstructions of tilt series (Kremer et al., 1996). Alternatively, the images were aligned and contrast transfer function corrected using the IMOD software package before producing SIRT reconstructions using the TOMO3D program (Agulleiro and Fernandez, 2011). Sub-tomogram averages with 2-fold symmetrization along the particle Y-axis were produced using the PEET program (Nicastro et al., 2006). To obtain the sub-tomogram averages of the flagellar motors we reconstructed 156 tomograms of Pseudomonas aeruginosa, 50 of Legionella pneumophila and ~ 300 of Shewanella oneidensis MR-1. The averages were obtained by averaging 144 sub-volumes P. aeruginosa, 100 sub-volumes S. oneidensis MR-1 and 45 sub-volumes L. pneumophila.

Bioinformatics analysis

Candidate H- and T-ring component genes were identified by sequence alignment of the following Vibrio cholerae proteins against the fully sequenced genomes of each bacterial species using BLASTP (https://www.genome.jp/tools/blast/). The Vibrio cholerae proteins used were: MotX (Q9KNX9), MotY (Q9KT95), FlgO (Q9KQ00), FlgP (Q9KQ01) and FlgT (Q9KPZ9). To check for the stator system candidates in different species, the following proteins were blasted against the genome of the bacterial species: PomAB proteins of V. cholerae (Q9KTL0 and Q9KTK9 respectivley), MotAB proteins of E. coli (P09348 and P0AF06 respectively) and MotCD of P. aeruginosa (G3XD73 and G3XD90 respectively) using BLASTP. Candidate MotX and MotY homologs identified were adjacent to the flagellar cluster in the genome, and for each stator system candidate homologs were characteristically located in tandem in the genome. The codes in parentheses represent Uniprot IDs. An E-value cutoff of <1×10−10 was used. The raw BLAST results for all species are shown in Supplementary file 1 and 2. Note that for the stator system, a candidate stator locus was considered only when two neighboring candidates for Mot/B, MotC/D or PomA/B were found.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Role of flagella in pathogenesis of pseudomonas aeruginosa pulmonary infection
    1. M Feldman
    2. R Bryan
    3. S Rajan
    4. L Scheffler
    5. S Brunnert
    6. H Tang
    7. A Prince
    (1998)
    Infection and Immunity 66:43–51.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    The bacterial flagellum: reversible rotary propellor and type III export apparatus
    1. RM Macnab
    (1999)
    Journal of Bacteriology 181:7149–7153.
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
    Structural Biology in Situ Using Cryo-Electron Subtomogram Analysis
    1. S Pfeffer
    2. F Förster
    (2018)
    In: E Hanssen, editors. Cellular Imaging: Electron Tomography and Related Techniques. Cham: Springer International Publishing. pp. 237–259.
    https://doi.org/10.1007/978-3-319-68997-5_9
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50

Decision letter

  1. Edward H Egelman
    Reviewing Editor; University of Virginia, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Edward H Egelman
    Reviewer; University of Virginia, United States
  4. Masahiro Ito
    Reviewer; Toyo University, Japan
  5. Henning Stahlberg
    Reviewer; University of Basel, Switzerland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration, and the paper was reviewed and accepted. The original decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Structural complexity of the Gammaproteobacteria flagellar motor is related to the type of its torque-generating stators" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Masahiro Ito (Reviewer #2); Henning Stahlberg (Reviewer #3).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife. Although the present manuscript is being rejected, the reviewers felt that a substantially improved paper might certainly be considered again for publication in eLife.

Reviewer #1:

While some of the findings appear interesting, my main concern was that the resolution is too low to be able to reach any mechanistic conclusions, and seeing the difference between one ring and two as due to "increased complexity" may not make any sense. The structure with one ring might actually be the more complex one. It would be like saying that a ribosome that appears as two blobs is more complex than one with one blob. Are viruses with two (or five) different capsid proteins more complex than those with only one? In some cases it might be shown that evolution has led to a reduction in the number of different subunits. I thus had an overall limited degree of enthusiasm for this paper.

Reviewer #2:

This paper observed with electron cryo-tomography (ECT) the bacterial flagellar motor of three kinds of Γ-Proteobacteria and compared with the ECT image of each flagella motor which has been published so far, and then grouping was carried out. At the same time, the authors attempted to clarify whether there is a correlation between the bound ion of the flagellar stator and the ECT image by incorporating the bioinformatics approach.

First, this reviewer disagrees with the title. Bacterial flagellar motors have been reported to alter the coupling ions used depending on the growth environment (For example, Terahara, Krulwich and Ito, 2008, and Terahara, Sano and Ito, 2012) Because there is no experimental direct evidence with just the linkage by the flagellar motor of the Γ-Proteobacteria (and there is one exception among the eight surveyed cases), the authors should give a title to the extent that they can assert from the experimental results. Also, although there is a case where bioinformatics was utilized, the main manuscript feels uncomfortable for me because the data are not presented in all supplemental data. Furthermore, in order to satisfy the reader, it is necessary to use a phylogenetic tree to draw a diagram showing the relationship between each strain and its motor type.

(H+ or Na+) – this reviewer disagrees with this expression. Currently, motors driven by K+ and divalent cations are also reported (For example, Ito and Takahashi, 2017) The authors should mention and cite them as well.

Is there any example of enzymes and channels that can be classified by structure and coupling ions?

In this paper, do the authors think that the structure of the flagellar motor is forthcoming or whether the type of stator prescribes the structure? Do the authors discuss it in the text?

Figure 1The flagellar structure of Shewanella and Pseudomonas can confirm the stator. However, in Legionella pneumophila, the stator is invisible. Does one need to think that it affects the structure of the flagellar motor with or without a stator?

Table 1, 2, 3: As for the symbol "+", the authors should state the access number of each protein in the table. If the access number is not stated, the reviewer cannot evaluate whether or not it is correct.

Table 1, 2, 3: At the end of each title …dependent stations systems of gammaproteobacteria – it should be attached accurately.

Supplementary file 3: The authors do not explain where these mutants were used in the text. Please explain properly. Also, this reviewer does not know why the authors only described S. oneidensis and its derivative mutants.

Reviewer #3:

Kaplan et al. describe a structural analysis of the flagellar motor systems of three Gammaproteobacteria that all have so-called dual-stator motors: These three species all have flagellar motors that can be driven by both, either by H+ gradients or by Na+ gradients.

Stators are protein components coupled to the inner membrane of the bacteria, while the rotating parts of the flagellar motors are components formed by other protein parts. Flagellar systems are rotating the rotor with respect to the stator with the help of motor proteins.

While some (more simple) flagellar systems have stators that can only be driven by H+, others have stators that can only be driven by Na+, while more advanced flagellar motors have dual stators so that they can be driven by both types of fuel. These bacteria make use of their "flex-fluel motors", when they need to swim in environments with strongly different viscosities.

The authors have used cryo-ET (ECT) to determine the structures of three motors at low resolution (~6 nm) by sub-volume averaging. They have also performed bioinformatics analysis of gene homologies to find candidate proteins for different motor components in different bacterial genomes. They find that bacteria with similar stator types haver similar structural motifs. They also find that bacteria that have flagellar systems with dual stators (H+ and Na+ on the same time) also have a higher complexity in their motor component constructions.

The manuscript is rather short and compact, but well written and interesting to read.

[Minor comments not shown.]

https://doi.org/10.7554/eLife.43487.023

Author response

In response to the reviewers’ comments, we have revised the text, the figures and performed new bioinformatics analysis to include more than double the number of species analyzed in our first manuscript. We feel that we have adequately addressed all the reviewers’ concerns and request reconsideration.

Reviewer #1:

While some of the findings appear interesting, my main concern was that the resolution is too low to be able to reach any mechanistic conclusions, and seeing the difference between one ring and two as due to "increased complexity" may not make any sense. The structure with one ring might actually be the more complex one. It would be like saying that a ribosome that appears as two blobs is more complex than one with one blob. Are viruses with two (or five) different capsid proteins more complex than those with only one? In some cases it might be shown that evolution has led to a reduction in the number of different subunits. I thus had an overall limited degree of enthusiasm for this paper.

We agree – this is a good point – the presence of additional proteins is not always the same as increased complexity. We have now changed the title and removed all other statements about “complexity.” The new title is “The presence and absence of periplasmic rings in bacterial flagellar motors correlates with stator type.”

Reviewer #2:

[…] First, this reviewer disagrees with the title. Bacterial flagellar motors have been reported to alter the coupling ions used depending on the growth environment (For example, Terahara, Krulwich and Ito, 2008, and Terahara, Sano and Ito, 2012) Because there is no experimental direct evidence with just the linkage by the flagellar motor of the Γ-Proteobacteria (and there is one exception among the eight surveyed cases), the authors should give a title to the extent that they can assert from the experimental results.

We have now changed the title of the paper (see above), and have added to the text:

“The bacterial flagellum is a macromolecular machine that transforms the movement of ions (H+, Na+ or other cations) across the cell membrane into a mechanical torque to move the bacterial cell through its environment (Ito and Takahashi, 2017; Sowa and Berry, 2008).”

We also added the following to the Discussion part:

“Finally, It would be interesting to investigate whether our observation here holds for other bacterial species that uses different cations as their energy source (Ito and Takahashi, 2017) and whether it extends to other bacterial species with more than two stator systems or other classes”

Also, although there is a case where bioinformatics was utilized, the main manuscript feels uncomfortable for me because the data are not presented in all supplemental data.

We think the reviewer’s concern is not in the arguments or data presented, but that the tables were not shown in the main paper (they were only shown in the supplementary materials). We have now extended our bioinformatics analysis to include another 16 bacterial species which also supports our original claims. Also, the data is now included in the main text as Tables (1-4), while the raw Blast results are shown in Supplementary file 1 and 2.

Furthermore, in order to satisfy the reader, it is necessary to use a phylogenetic tree to draw a diagram showing the relationship between each strain and its motor type.

A tree is now presented as Figure 2A, in the main text.

(H+ or Na+) – this reviewer disagrees with this expression. Currently, motors driven by K+ and divalent cations are also reported (For example, Ito and Takahashi, 2017) The authors should mention and cite them as well.

We thank the reviewer for this important point. We have modified the text and added references as follows:

In the Introduction:

1) “The bacterial flagellum is a macromolecular machine that transforms the movement of ions (H+, Na+ or other cations) across the cell membrane into a mechanical torque to move the bacterial cell through its environment (Ito and Takahashi, 2017; Sowa and Berry, 2008).”

2) “Interestingly, it has also been shown that the single stator system of Bacillus clausii KSM-K16 is able to use both Na+ and H+ at different pH levels (Terahara et al., 2008). Additionally, some species (like alkaliphilic Bacillus alcalophilus AV1934 and Paenibacillus sp. TCA20), can use other cations to generate the energy required for torque generation depending on their environment (Ito and Takahashi, 2017; Terahara et al., 2012).”

We also modified the Discussion part (see above, first point of second reviewer).

Is there any example of enzymes and channels that can be classified by structure and coupling ions?

In this paper, do the authors think that the structure of the flagellar motor is forthcoming or whether the type of stator prescribes the structure? Do the authors discuss it in the text?

Although ion channels share common features (they are all integral membrane proteins, for instance), their structures vary considerably, for sure in part because of differences in the ions they transmit. We don’t think that this is directly comparable to our observations here, however, because we are reporting correlations between stator types and simply the presence or absence of separate support rings (completely different proteins) in a very large macromolecular machine. Concerning the latter questions, we think the reviewer is interested in cause and effect: do different stators require different support rings, or do different support rings govern which stator is used? Our data do not answer this question, so we don’t discuss it in the text, but our suspicion is that because different environments have different ions available, and because different biological niches require higher- or lower-torque motors, the environment and niche select for certain stator/motor combinations. We guess that the higher torque stators provide a greater fitness advantage when they are stabilized by more elaborate support rings.

Figure 1: The flagellar structure of Shewanella and Pseudomonas can confirm the stator. However, in Legionella pneumophila, the stator is invisible. Does one need to think that it affects the structure of the flagellar motor with or without a stator?

The stator is a dynamic part of the motor. In other words, individual stators move in and out of the motor (see e.g., (Chen et al., 2011; Zhu et al., 2017)). The data reveal that stators are often found above the C-rings in Shewanella and Pseudomonas (and are therefore visible in the subtomogram averages), but are either often not present or not consistently positioned in Legionella (and are therefore not seen in the averages). But the presence or absence of H- and T-rings is encoded in the genome, as governed by natural selection.

We have now clarified all this in the revised text.

“While the S. oneidensis and P. aeruginosa averagesshowed clear densities corresponding to the stators (Figure 1E, F, K and L, orange density), none were visible in the L. pneumophila average, suggesting that they were more variable, or dynamic and therefore are not visible in the average (see e.g., (Chen et al., 2011; Zhu et al., 2017))”.

Also, we added the following to the Discussion part:

“It is important to note that the presence of these extra elaborations in the motor is encoded in the genome and is not related to whether or not a stator subunit is recruited on the motor.”

Table 1, 2, 3: As for the symbol "+", the authors should state the access number of each protein in the table. If the access number is not stated, the reviewer cannot evaluate whether or not it is correct.

The accession numbers of the proteins are now stated with the main Tables (1-4) as well as the raw data in Supplementary file 1 and 2.

Table 1, 2, 3: At the end of each title …dependent stations systems of gammaproteobacteria – it should be attached accurately.

Done.

Supplementary file 3: The authors do not explain where these mutants were used in the text. Please explain properly. Also, this reviewer does not know why the authors only described S. oneidensis and its derivative mutants.

Thank you for calling our attention to this admittedly confusing point. We have now tried to clarify this in the Materials and methods section as follows:

“Many of the flagellar motors analyzed here were taken from tomograms recorded for more than one purpose. The Shewanella oneidensis MR-1 mutants, for instance, were grown under different growth conditions for the purpose of studying the nanowires formed by these cells (see Subramanian et al., 2018), but all their motors were presumably the same, so we included them here to increase the clarity and resolution of our average.”
