Schnyder corneal dystrophy-associated UBIAD1 inhibits ER-associated degradation of HMG CoA reductase in mice

Research Advance
  • Cited 1
  • Views 819
  • Annotations
Cite this article as: eLife 2019;8:e44396 doi: 10.7554/eLife.44396

Abstract

Autosomal-dominant Schnyder corneal dystrophy (SCD) is characterized by corneal opacification owing to overaccumulation of cholesterol. SCD is caused by mutations in UBIAD1, which utilizes geranylgeranyl pyrophosphate (GGpp) to synthesize vitamin K2. Using cultured cells, we previously showed that sterols trigger binding of UBIAD1 to the cholesterol biosynthetic enzyme HMG CoA reductase (HMGCR), thereby inhibiting its endoplasmic reticulum (ER)-associated degradation (ERAD) (Schumacher et al. 2015). GGpp triggers release of UBIAD1 from HMGCR, allowing maximal ERAD and ER-to-Golgi transport of UBIAD1. SCD-associated UBIAD1 resists GGpp-induced release and is sequestered in ER to inhibit ERAD. We now report knockin mice expressing SCD-associated UBIAD1 accumulate HMGCR in several tissues resulting from ER sequestration of mutant UBIAD1 and inhibition of HMGCR ERAD. Corneas from aged knockin mice exhibit signs of opacification and sterol overaccumulation. These results establish the physiological significance of UBIAD1 in cholesterol homeostasis and indicate inhibition of HMGCR ERAD contributes to SCD pathogenesis.

https://doi.org/10.7554/eLife.44396.001

Introduction

Mutations in the gene encoding UbiA prenyltransferase domain-containing protein-1 (UBIAD1) cause Schnyder corneal dystrophy (SCD), a rare autosomal dominant eye disease characterized by opacification of the cornea (Klintworth, 2009; Weiss, 2009; Orr et al., 2007; Weiss et al., 2007). Although apparent early in life, corneal opacification associated with SCD progresses slowly with age and ultimately leads to reduced visual acuity. The severity of visual impairment is underscored by the frequency in which corneal transplant surgery is utilized for treatment of SCD, which rises from 50% in SCD patients > 50 years of age to more than 70% for those 70 years and older (Weiss, 2007). Biochemical analyses of corneas from SCD patients revealed a marked accumulation of cholesterol (McCarthy et al., 1994; Gaynor et al., 1996; Yamada et al., 1998), suggesting that dysregulation of cholesterol metabolism significantly contributes to the pathogenesis of SCD. Systemic hypercholesterolemia has been reported to be associated with some, but not all cases of the disease (Thiel et al., 1977; Brownstein et al., 1991; Crispin, 2002).

UBIAD1 belongs to the UbiA superfamily of integral membrane prenyltransferases that catalyze transfer of isoprenyl groups to aromatic acceptors, generating a wide variety of molecules ranging from ubiquinones, chlorophylls, and hemes to vitamin E and vitamin K (Li, 2016). UBIAD1 mediates transfer of the 20-carbon geranylgeranyl moiety from geranylgeranyl pyrophosphate (GGpp) to menadione (vitamin K3) released from plant-derived phylloquinone (vitamin K1), generating the vitamin K2 subtype menaquinone-4 (MK-4) (Nakagawa et al., 2010; Hirota et al., 2013). To date, 25 missense mutations that alter 21 amino acids in the UBIAD1 protein have been identified in SCD families. Structural analyses of archaeal UbiA prenyltransferases revealed that residues corresponding to SCD-associated mutations in human UBIAD1 cluster around the active site of the enzyme (Cheng and Li, 2014; Huang et al., 2014). Indeed, all SCD-associated variants of UBIAD1 are defective in mediating synthesis of MK-4 (Hirota et al., 2015; Jun, D.-J. and DeBose-Boyd, R.A., unpublished observations) and for some variants, this defect likely results from reduced affinity for GGpp.

The first link between UBIAD1 and cholesterol metabolism was provided by the discovery of its association with the endoplasmic reticulum (ER)-localized enzyme 3-hydroxy-3-methylglutaryl coenzyme A reductase (HMGCR) (Nickerson et al., 2013). HMGCR catalyzes reduction of HMG CoA to mevalonate, a reaction that constitutes the rate-limiting step in synthesis of cholesterol and the essential nonsterol isoprenoids GGpp and farnesyl pyrophosphate (Fpp) (Goldstein and Brown, 1990; Wang and Casey, 2016). Fpp and GGpp can become transferred to many cellular proteins and are utilized in synthesis of other nonsterol isoprenoids including ubiquinone, heme, dolichol, and MK-4. HMGCR is subjected to tight feedback control through transcriptional and post-transcriptional mechanisms mediated by sterol and nonsterol isoprenoids (Brown and Goldstein, 1980). Sterols mediate the transcriptional effects by inhibiting proteolytic activation of membrane-bound transcription factors called sterol regulatory element-binding proteins (SREBPs). SREBPs enhance transcription of genes encoding HMGCR and other cholesterol biosynthetic enzymes as well as the low density lipoprotein (LDL) receptor that removes cholesterol-rich LDL from circulation (Horton et al., 2003). Post-transcriptional regulation of HMGCR is mediated by sterol and nonsterol isoprenoids, which combine to accelerate the ER-associated degradation (ERAD) of HMGCR through a reaction that involves the 26S proteasome (Nakanishi et al., 1988; Ravid et al., 2000). Together, these feedback regulatory mechanisms coordinate metabolism of mevalonate to assure cells maintain constant production of nonsterol isoprenoids but avoid overaccumulation of cholesterol and other sterols.

Our group discovered that accumulation of sterols in ER membranes triggers binding of HMGCR to ER membrane proteins called Insigs (Sever et al., 2003a; Sever et al., 2003b). Subsequent ubiquitination of HMGCR by Insig-associated ubiquitin ligases (Song et al., 2005; Jo et al., 2011; Jiang et al., 2018) mark the enzyme for extraction across ER membranes and release into the cytosol for proteasome-mediated ERAD (Elsabrouty et al., 2013; Morris et al., 2014). GGpp augments ERAD of ubiquitinated HMGCR by enhancing its membrane extraction (Elsabrouty et al., 2013). Recently, we discovered that sterols also cause a subset of HMGCR molecules to bind to UBIAD1 (32). This binding protects HMGCR from accelerated ERAD, permitting continued synthesis of nonsterol isoprenoids even when cellular sterols are abundant (Schumacher et al., 2018). GGpp triggers release of UBIAD1 from HMGCR, which allows for maximal ERAD of HMGCR and ER-to-Golgi transport of UBIAD1 (34). Eliminating expression of UBIAD1 relieves the GGpp requirement for HMGCR ERAD, indicating the reaction is inhibited by UBIAD1. Further characterization revealed that despite its steady-state Golgi localization in GGpp-replete cells, UBIAD1 continuously cycles between the ER and Golgi. Upon sensing depletion of GGpp in membranes of the ER, UBIAD1 becomes trapped in the organelle and inhibits ERAD of HMGCR to stimulate synthesis of mevalonate for replenishment of GGpp. The physiologic relevance of UBIAD1-mediated sensing of GGpp is highlighted by the observation that the reaction appears to be disrupted in SCD. SCD-associated UBIAD1 resists GGpp-induced release from HMGCR and becomes sequestered in the ER of GGpp-replete cells (Schumacher et al., 2015; Schumacher et al., 2016). The ensuing inhibition of HMGCR ERAD, which occurs in a dominant-negative fashion, leads to a marked increase in synthesis and intracellular accumulation of cholesterol (Schumacher et al., 2018).

The current studies were designed to confirm the role of UBIAD1 in regulation of HMGCR ERAD and cholesterol metabolism in living animals. For this purpose, we generated mice that harbor a knockin mutation that changes asparagine-100 (N100) in UBIAD1 to a serine residue (N100S) (see Figure 1A). The N100S mutation in mouse UBIAD1 corresponds to the SCD-associated UBIAD1 (N102S) mutation in the human enzyme. We show here that knockin mice homozygous for the N100S mutation (designated as Ubiad1Ki/Ki mice) accumulate HMGCR protein in several tissues, despite a reduction in the amount of Hmgcr mRNA owing to sterol accumulation and reduced activation of SREBPs. The accumulation of HMGCR protein resulted from sequestration of UBIAD1 (N100S) in the ER and inhibition of HMGCR ERAD at a post-ubiquitination step of the reaction. Aged Ubiad1Ki/Ki mice exhibited signs of opacification of the cornea, which was accompanied by hallmarks of sterol overaccumulation in the tissue. These findings not only indicate that UBIAD1 modulates ERAD of HMGCR in mice through similar mechanisms previously established in cultured cells, but they also establish Ubiad1Ki/Ki mice as a model for human SCD.

Figure 1 with 1 supplement see all

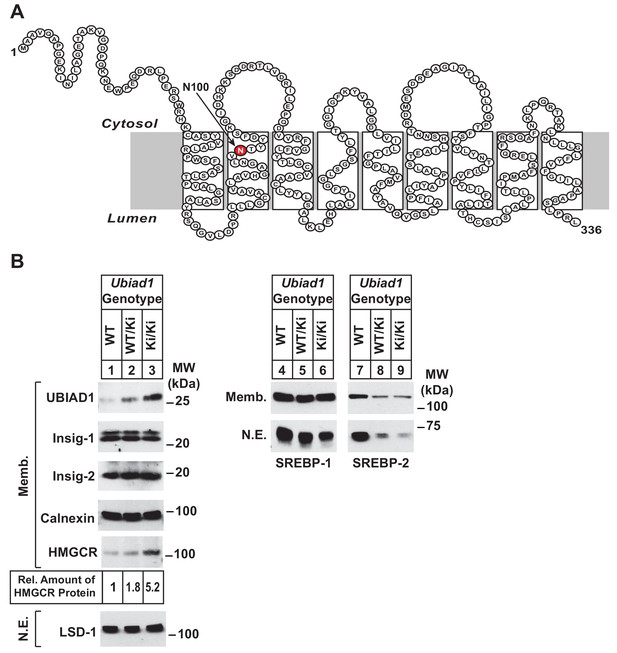

Accumulation of HMGCR protein in livers of Ubiad1Ki/Ki mice with mixed C57BL/6 × 129 genetic background.

(A) Amino acid sequence and predicted topology of mouse UBIAD1 protein. Asparagine-100 (N100), which corresponds to the most frequently mutated amino acid residue in SCD, is enlarged, shaded in red and indicated by an arrow. (B) Male WT, Ubiad1WT/Ki, and Ubiad1Ki/Ki littermates (8–9 weeks of age, eight mice/group) were fed an ad libitum chow diet prior to sacrifice. Livers of the mice were harvested and subjected to subcellular fractionation as described in ‘Materials and methods.’ Aliquots of resulting membrane (Memb.) and nuclear extract (N.E.) fractions (80–160 µg of total protein/lane) for each group were pooled and subjected to SDS-PAGE, followed by immunoblot analysis using antibodies against endogenous HMGCR, SREBP-1, SREBP-2, UBIAD1, Insig-1, Insig-2, calnexin, and LSD-1. Although shown in a separate panel, LSD-1 serves as a loading control for the nuclear SREBP immunoblots. The amount of hepatic HMGCR protein in Ubiad1Ki/Ki mice was determined by quantifying the band corresponding to HMGCR using ImageJ software.

https://doi.org/10.7554/eLife.44396.002

Results

Ubiad1WT/Ki heterozygous male and female mice (C57BL/6 × 129 genetic background) were crossed to obtain wild type (WT) and Ubiad1Ki/Ki littermates. Mice homozygous for the N100S knockin mutation were born at expected Mendelian ratios. WT and Ubiad1Ki/Ki littermates were externally indistinguishable and had similar body and liver weights (data not shown). Immunoblot analysis revealed that livers of male Ubiad1WT/Ki and Ubiad1Ki/Ki mice consuming chow diet ad libitum exhibited a noticeable increase (1.8- and 5.2-fold, respectively) in the amount of HMGCR protein compared to that in WT littermates (Figure 1B, lanes 1–3). However, the amount of Hmgcr mRNA was reduced approximately 40% in knockin mice (Figure 1—figure supplement 1A). UBIAD1 (N100S) protein also accumulated in livers of heterozygous and homozygous Ubiad1 knockin mice (Figure 1B, lanes 1–3); however, this was not accompanied by an increase in hepatic Ubiad1 mRNA (Figure 1—figure supplement 1A). Levels of nuclear SREBP-1 (Figure 1B, lanes 4–6) and SREBP-2 (lanes 7–9) were reduced in livers of Ubiad1WT/Ki and Ubiad1Ki/Ki mice, which coincided with reduced expression of mRNAs encoding SREBP target genes (Figure 1—figure supplement 1A). Cholesterol was slightly, but significantly increased in Ubiad1Ki/Ki livers; however, plasma cholesterol, triglycerides, and non-esterified fatty acids as well as liver triglycerides were not significantly changed between the groups of animals (Figure 1—figure supplement 1B). Similar results were observed in the analysis of female Ubiad1Ki/Ki mice (data not shown).

To ensure phenotypes associated with the N100S knockin mutation were not influenced by mixed genetic background, we backcrossed BL6/129 Ubiad1Ki/Ki mice to C57BL/6J mice for at least six generations. For experiments described hereafter, Ubiad1WT/Ki heterozygous female and male mice on the BL6 background were crossed to obtain WT and Ubiad1Ki/Ki littermates. The results shown in Figure 2A reveal that male Ubiad1WT/Ki and Ubiad1Ki/Ki mice on the BL6 background accumulated hepatic HMGCR and UBIAD1 proteins (lanes 1–3), whereas levels of nuclear SREBP-1 and SREBP-2 were either unchanged (nuclear SREBP-1, lanes 4–6) or reduced (nuclear SREBP-2, lanes 7–9). HMGCR and UBIAD1 proteins accumulated and Hmgcr mRNA was down-regulated to varying degrees in other tissues of the knockin mice (Figure 2B and C). HMGCR and UBIAD1 protein accumulated to a similar extent in livers and eyes of female C57BL/6J Ubiad1Ki/Ki mice (Figure 2—figure supplement 1).

Figure 2 with 1 supplement see all

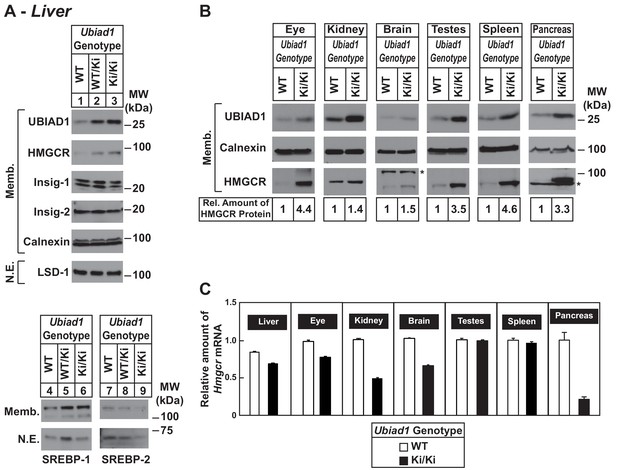

Accumulation of HMGCR protein in tissues of WT and Ubiad1Ki/Ki mice with C57BL/6 genetic background.

(A and B) Eight to nine-week old male WT, Ubiad1WT/Ki, and Ubiad1Ki/Ki littermates (six mice/group) were fed an ad libitum chow diet prior to study. Aliquots of membrane (Memb.) and nuclear extract (N.E.) fractions from homogenized livers, enucleated eyes, kidneys, brains, testes, and spleens (23–50 µg of total protein/lane) were analyzed by immunoblot using antibodies against the indicated proteins. The asterisk indicates a non-specific cross-reactive band observed in the anti-HMGCR immunoblot from brain and pancreas. Although shown in separate panels, LSD-1 serves as a loading control for the nuclear SREBP-1 and SREBP-2 immunoblots. In (B), the amount of HMGCR protein in the indicated tissues from Ubiad1Ki/Ki mice was determined by quantifying the band corresponding to HMGCR using Image J software. (C) For mRNA analysis, equal amounts of RNA from the indicated tissue of individual mice were subjected to quantitative real-time RT-PCR using primers against the Hmgcr mRNA and cyclophilin mRNA as an invariant control. Error bars, S.E.

https://doi.org/10.7554/eLife.44396.004

Table 1 shows that WT and Ubiad1Ki/Ki mice had similar body and liver weights. Plasma levels of triglycerides, cholesterol, and non-esterified fatty acids (NEFAs) were slightly reduced in Ubiad1Ki/Ki mice; however, these reductions were not significant. The knockin mice exhibited a small but significant increase in the amount of cholesterol in the liver (Table 1). We next used liquid chromatography-tandem mass spectrometry (LC-MS/MS) to measure levels of MK-4 and other nonsterol isoprenoids in livers of WT and Ubiad1Ki/Ki mice (Figure 3). The results show that levels of MK-4 were reduced 50% relative to those observed in WT animals, despite a 4.2-fold increase in the amount of hepatic UBIAD1 protein. When normalized to the amount of UBIAD1 protein, we estimate the relative level of MK-4 was reduced by more than 80% in livers of Ubiad1Ki/Ki mice. In contrast to results with MK-4, levels of geranylgeraniol (GGOH; derived from GGpp) and ubiquinone-10, were significantly increased in livers of Ubiad1Ki/Ki mice. This was accompanied by a small, but significant decrease in plant-derived phylloquinone (vitamin K1); bacterial-derived vitamin K2 subtype menaquinone-7 (MK-7) remained unchanged in the knockin livers. MK-4 was reduced, whereas levels of GGOH and/or ubiquinone-10 were increased in kidneys, brains, spleens, and testes of Ubiad1Ki/Ki mice (Figure 3—figure supplement 1).

Table 1
Comparison of wild type (WT) and ubiad1ki/ki mice.

Male WT and Ubiad1Ki/Ki littermates (8–9 weeks of age, eight mice/group) were fed an ad libitum chow diet prior to study. WT mice were littermates of Ubiad1Ki/Ki mice. Each value represents the mean ±S.E. of 8 values. The p value was calculated using Student’s t test: *, p≤0.05.

https://doi.org/10.7554/eLife.44396.006
ParameterWTUbiad1Ki/Ki
Body Weight (g)19.8 ± 0.420.1 ± 0.6
Liver Weight (g)1.0 ± 0.050.9 ± 0.03
Plasma Triglycerides (mg/dL)123.6 ± 31.294.5 ± 5.7
Plasma Cholesterol (mg/dL)100.4 ± 8.490.3 ± 9.0
Plasma Nonesterified Fatty Acids (mEq/L)1.3 ± 0.21.1 ± 0.03
Liver Triglycerides (mg/g)9.61 ± 1.816.3 ± 5.0
Liver Cholesterol (mg/g)1.17 ± 0.061.65 ± 0.24*
Figure 3 with 1 supplement see all

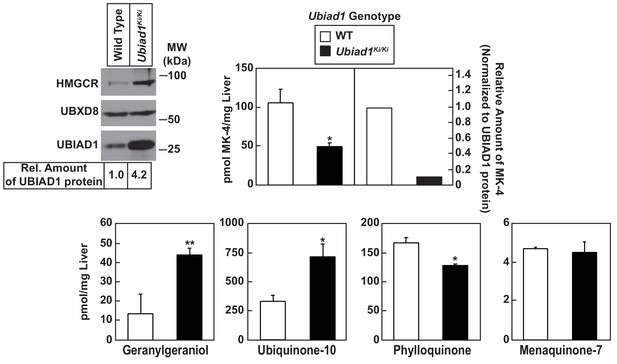

Analysis of nonsterol isoprenoids in WT and Ubiad1Ki/Ki mice.

Male mice (10–12 weeks of age, five mice/group) were fed ad libitum a chow diet prior to study. Livers were collected for subcellular fractionation and immunoblot analysis of resulting membrane fractions (80 µg total protein/lane) using antibodies against the indicated proteins or to determine the amount of menaquinone-4 (MK-4), geranylgeraniol, ubiquinone-10, phylloquinone, and menaquinone-7 (MK-7) by LC-MS/MS as described in ‘Materials and methods.’ The relative amount of hepatic MK-4 in Ubiad1Ki/Ki mice was determined by normalizing the amount of the vitamin K2 subtype to the amount of UBIAD1 protein, which was quantified using ImageJ software. Error bars, S.E. The p value was calculated using Student’s t test: *, p < 0.05; **, p < 0.01.

https://doi.org/10.7554/eLife.44396.007

To directly study the regulation of HMGCR in the presence of UBIAD1 (N100S), we established lines of mouse embryonic fibroblasts (MEFs) from WT and Ubiad1Ki/Ki littermates. A low level of HMGCR and UBIAD1 protein was detected in membrane fractions isolated from WT MEFs cultured in sterol and nonsterol isoprenoid-replete medium containing fetal calf serum (Figure 4A, lane 1). Both proteins markedly accumulated in MEFs derived from Ubiad1Ki/Ki mice (lane 2). In contrast, levels of nuclear SREBP-1 and SREBP-2 were reduced in Ubiad1Ki/Ki MEFs (Figure 4A, compare lanes 3 and 4), which is consistent with reduced levels of Hmgcr mRNA and increased levels of intracellular cholesterol (Figure 4B). We next compared sterol-accelerated ERAD of HMGCR in Ubiad1Ki/Ki MEFs to that in MEFs derived from HmgcrKi/Ki mice, which harbor knockin mutations in HMGCR that prevent its sterol-induced ubiquitination (Hwang et al., 2016). Cells were first depleted of isoprenoids through incubation in medium containing lipoprotein-deficient serum and the HMGCR inhibitor compactin to enhance expression of HMGCR. The cells were subsequently treated in the absence or presence of the oxysterol 25-hydroxycholesterol (25-HC) prior to harvest, subcellular fractionation, and immunoblot analysis. The results show that 25-HC caused the disappearance of HMGCR from membranes of WT MEFs as expected (Figure 4C, lanes 1 and 2; 5 and 6). However, this disappearance was blunted in membranes from either Ubiad1Ki/Ki or HmgcrKi/Ki MEFs (lanes 3 and 4; 7 and 8). Despite resistance of HMGCR to sterol-accelerated ERAD, the experiment of Figure 4D shows that sterols continued to stimulate HMGCR ubiquitination in Ubiad1Ki/Ki MEFs. Isoprenoid-depleted cells were treated with the proteasome inhibitor MG-132 (to block degradation of ubiquitinated HMGCR) in the absence or presence of 25-HC. Cells were then harvested for preparation of detergent lysates that were immunoprecipitated with polyclonal anti-HMGCR. 25-HC caused HMGCR to become ubiquitinated in WT and Ubiad1Ki/Ki MEFs, as indicated by smears of reactivity in anti-ubiquitin immunoblots of the HMGCR immunoprecipitates (Figure 4D, lanes 1–6). As expected, HMGCR resisted 25-HC-induced ubiquitination in MEFs derived from HmgcrKi/Ki mice (compare lanes 7 and 8 with lanes 9–12).

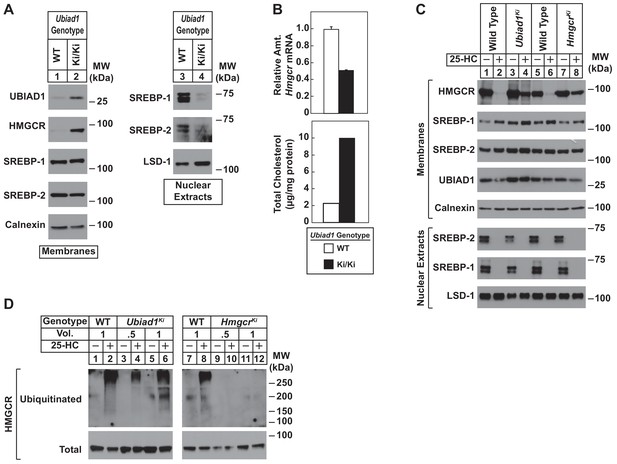

Sterol-mediated regulation of HMGCR in mouse embryonic fibroblasts (MEFs) from WT and Ubiad1Ki/Ki mice.

MEFs from WT and Ubiad1Ki/Ki mice were set up for experiments on day 0 at 2 × 105 cells per 10 cm dish in MEF medium supplemented with 10% fetal calf serum (FCS). (A) On day 3, cells were harvested for subcellular fractionation. Aliquots of resulting membrane and nuclear extract fractions (35–50 µg total protein/lane) were subjected to SDS-PAGE, followed by immunoblot analysis using antibodies against the indicated proteins. (B) On day 3, cells were harvested for measurement of Hmgcr mRNA levels by quantitative RT-PCR and total cholesterol levels using a colorimetric assay as described in ‘Materials and methods.’ (C and D) On day 2, cells were depleted of isoprenoids through incubation for 16 hr at 37°C in MEF medium containing 10% lipoprotein-deficient serum, 10 µM sodium compactin, and 50 µM sodium mevalonate. The cells were subsequently treated with 1 µg/ml 25-HC as indicated; in (D), the cells also received 10 µM MG-132. (C) After 4 hr at 37°C, cells were harvested for preparation of membrane and nuclear extract fractions (35–50 µg total protein/lane) that were analyzed by immunoblot with antibodies against the indicated protein. (D) Following incubation for 1 hr at 37°C, cells were harvested, lysed in detergent-containing buffer, and immunoprecipitated with 30 µg polyclonal anti-HMGCR antibodies. Immunoprecipitated material was subjected to SDS-PAGE and immunoblot analysis with IgG-A9 (against HMGCR) and IgG-P4D1 (against ubiquitin).

https://doi.org/10.7554/eLife.44396.009

Figure 5A compares expression of HMGCR in WT and Ubiad1Ki/Ki mice fed a chow diet supplemented with 1% cholesterol. The results show that cholesterol feeding led to reduced expression of HMGCR protein in membranes isolated from livers of WT mice (Figure 5A, lane 2); however, a significant amount of HMGCR protein remained in hepatic membranes of cholesterol-fed Ubiad1Ki/Ki mice (lane 4). The feeding regimen reduced the amount of Insig-1 protein (lanes 2 and 4) and nuclear SREBP-2 (lanes 6 and 8) in both WT and Ubiad1Ki/Ki livers. Dietary cholesterol also reduced mRNAs encoding HMGCR and other SREBP targets in livers of WT and Ubiad1Ki/Ki mice (Figure 5—figure supplement 1). The membrane-bound precursor and nuclear forms of SREBP-1 were induced by cholesterol feeding in livers of both lines of mice (lanes 6 and 8). This induction can be attributed to sterol-mediated activation of liver x receptors (LXRs) that modulate expression of SREBP-1c, the major SREBP-1 isoform in the mouse liver (Repa et al., 2000; Liang et al., 2002). The mRNAs encoding SREBP-1c and two other LXR targets, ABCG5 and ABCG8, were enhanced in WT and Ubiad1Ki/Ki mice fed cholesterol (Figure 5—figure supplement 1). In contrast to results in the liver, cholesterol-feeding failed to down-regulate levels of HMGCR protein in eyes of Ubiad1Ki/Ki mice (Figure 5B, lanes 3 and 4); mRNAs encoding both SREBPs and their targets were also unchanged in eyes of cholesterol-fed knockin animals (data not shown).

Figure 5 with 1 supplement see all
Regulation of HMGCR in livers of cholesterol-fed WT, Ubiad1Ki/Ki, and HmgcrKi/Ki mice.

Male mice (12–13 weeks of age, five mice/group) were fed an ad libitum chow diet supplemented with the indicated amount of cholesterol for 5 days. Aliquots of membrane (Memb.) and nuclear extract (N.E.) fractions from homogenized livers (A and C) or enucleated eyes (B) (70 µg protein/lane) were analyzed by immunoblot analysis with antibodies against the indicated proteins as described in the legend to Figure 1. The asterisk denotes a nonspecific band observed in the nuclear SREBP-2 immunoblot. (D) For mRNA analysis, equal amounts of RNA from livers of mice were subjected to quantitative real-time RT-PCR using primers against the indicated mRNAs and cyclophilin mRNA as an invariant control. Error bars, S.E. Pcsk9, proprotein convertase subtilisin/kexin type 9.

https://doi.org/10.7554/eLife.44396.010

In Figure 5C, we compared cholesterol-mediated regulation of hepatic HMGCR in Ubiad1Ki/Ki and HmgcrKi/Ki mice. As little as 0.1% cholesterol caused a significant decrease in the amount of HMGCR in hepatic membranes from WT controls (Figure 5C, lanes b and j). HMGCR was partially resistant to 0.1% cholesterol in livers of HmgcrKi/Ki mice (compare lanes e and f); however, higher concentrations of cholesterol (0.3% and 1%) caused complete disappearance of HMGCR from membranes (lanes g and h). The resistance of HMGCR to cholesterol feeding was more pronounced in Ubiad1Ki/Ki mice; levels of the protein persisted when the animals were fed 0.1–1% cholesterol (Figure 5C, compare lane m with lanes n-p). Importantly, cholesterol-feeding continued to suppress levels of nuclear SREBP-2 in livers of HmgcrKi/Ki and Ubiad1Ki/Ki mice as well their WT littermates (compare lanes a-d with e-h and i-l with m-p). The mRNAs encoding SREBP-2 target genes were also reduced in livers of the cholesterol-fed mice (Figure 5D).

We next evaluated the effect of cholesterol depletion on HMGCR levels in WT and Ubiad1Ki/Ki mice. Cholesterol depletion using lovastatin, a competitive inhibitor of HMGCR, led to the dose-dependent accumulation of HMGCR protein in livers of WT animals (Figure 6A, lanes a-d). Lovastatin also caused HMGCR to accumulate in livers of Ubiad1Ki/Ki mice (lanes e-h) (see Figure 6B for quantification). The precursor and nuclear forms of SREBP-2 were induced by lovastatin, whereas those of SREBP-1 were reduced by the treatment in both WT and Ubiad1Ki/Ki mice (lanes i-p). The mRNAs for SREBP-2 and its target genes (including HMGCR) were elevated in livers of lovastatin-treated animals; mRNA for SREBP-1c was reduced by the inhibitor (Figure 6—figure supplement 1). HMGCR protein was also increased in the eyes of lovastatin-treated WT mice; however, this increase required the highest concentration (0.2%) of the drug (Figure 6C, lanes a-d).

Figure 6 with 1 supplement see all

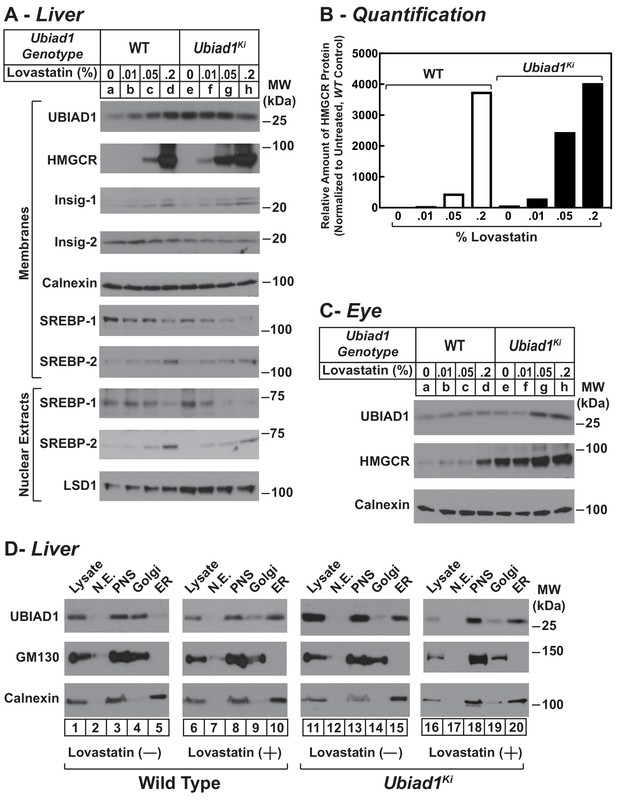

Statin-mediated regulation of HMGCR and UBIAD1 in WT and Ubiad1Ki/Ki mice.

Male mice (6–8 weeks of age, five mice/group) were fed an ad libitum chow diet supplemented with the indicated amount (A and C) or 0.2% (D) lovastatin for 5 days. (A and C) Aliquots of membrane and nuclear extract fractions from homogenized livers (A) or enucleated eyes (C) (70 µg protein/lane) were analyzed by immunoblot analysis with antibodies against the indicated proteins. In (B), the amount of HMGCR protein in livers of Ubiad1Ki/Ki mice shown in (A) was determined by quantifying the band corresponding to HMGCR using Image J software and normalizing to the amount of the protein in untreated WT controls. (D) Post nuclear supernatants (PNS) obtained from liver homogenates were fractionated on a discontinuous sucrose gradient (7.5–45%) that yielded a light membrane fraction enriched in Golgi and a heavy membrane fraction enriched in ER. Aliquots of the homogenates (lysate), nuclear extracts (N.E.), PNS, Golgi-enriched membranes, and ER-enriched membranes were subjected to SDS-PAGE, followed by immunoblot analysis with antibodies against the indicated proteins.

https://doi.org/10.7554/eLife.44396.012

In the experiment of Figure 6D, we analyzed the subcellular localization of UBIAD1 in WT and Ubiad1Ki/Ki mice using a fractionation scheme previously utilized to isolate ER membranes from Chinese hamster ovary-K1 cells (Radhakrishnan et al., 2008). Liver homogenates (lysates) were first subjected to centrifugation at 3,000 X g to eliminate unbroken cells and nuclei. The resulting post-nuclear supernatants (PNS) were then applied to discontinuous sucrose gradients and centrifuged at 100,000 X g, generating two distinct membrane layers: a light membrane fraction enriched in Golgi and a heavy membrane fraction enriched in ER. Immunoblot analysis revealed the presence of UBIAD1 and the Golgi membrane protein GM-130 in the light, Golgi-enriched membrane fraction obtained from livers of WT mice fed a chow diet (Figure 6D, lane 4). ER-localized calnexin was observed in the ER-enriched fraction as expected (lane 5). When the mice were fed the chow diet supplemented with lovastatin (0.2%), we observed a shift in the localization of UBIAD1 from the Golgi-enriched fraction to the ER (Figure 6D, compare lanes 9 and 10). GM-130 remained in the Golgi-enriched fraction (lane 9) and calnexin continued to localize to the ER (lane 10) of livers from lovastatin-treated mice. In contrast to results with WT mice, UBIAD1 was concentrated in ER-enriched hepatic membranes of chow-fed Ubiad1Ki/Ki mice (Figure 6D, compare lanes 4 and 5 with lanes 14 and 15). The ER localization of UBIAD1 did not change when the knockin mice were challenged with lovastatin (lanes 19 and 20). Importantly, calnexin and GM-130 were localized to ER- and Golgi-enriched membranes, respectively, regardless of feeding regimen (compare lanes 14 and 15 with lanes 19 and 20).

Stereomicroscopic examinations revealed that 8–12 week-old Ubiad1Ki/Ki mice similar to those analyzed in Figures 2, 3, 5 and 6 failed to exhibit significant corneal opacification that characterizes human SCD (data not shown). However, 46% (11/24) of the knockin mice exhibited signs of corneal opacification at 50 weeks of age (Figure 7—figure supplement 1). One of these animals manifested signs of bilateral opacification of the cornea (Figure 7A). None of the aged WT mice developed corneal opacification; heterozygous knockin mice were not examined (data not shown). Immunohistochemical staining with anti-HMGCR revealed a marked increase in the amount of HMGCR protein in corneas of Ubiad1Ki/Ki mice compared to their WT littermates (Figure 7B). The accumulation of HMGCR protein in Ubiad1Ki/Ki corneas was accompanied by reduced levels of mRNAs encoding SREBP-2, HMGCR, and other cholesterol biosynthetic enzymes (Figure 7C). In contrast, expression of mRNAs encoding the LXR targets ABCG5, ABCG8, and ABCA1 was enhanced in Ubiad1Ki/Ki corneas. Although the amount of total cholesterol remained unchanged in corneas of WT and Ubiad1Ki/Ki mice, we measured a small, but significant increase in free cholesterol in the knockin mice (Figure 7D). Moreover, significant increases in the amount of several sterol intermediates of cholesterol synthesis including lanosterol, follicular fluid meiosis-activating sterol (FFMAS), 7- and 8-dehydrocholesterol, desmosterol, and 7-dehydrodesmosterol were observed in corneas from Ubiad1Ki/Ki mice (Figure 7E).

Figure 7 with 1 supplement see all

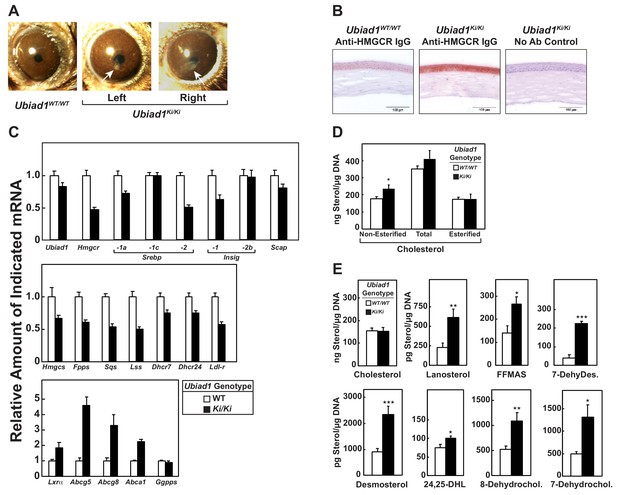

Ubiad1Ki/Ki mice exhibit signs of corneal opacification upon aging.

(A) Male and female mice (15 WT, 24 Ubiad1Ki/Ki, 50 weeks of age) consuming an ad libitum chow diet were analyzed by stereomicroscopic examination. Corneal opacification is indicated by white arrows. (B–E) Mice analyzed in (A) were sacrificed, corneas were then harvested and analyzed by immunohistochemical staining with anti-HMGCR polyclonal antibodies (B), quantitative RT-PCR (C), and LC-MS/MS (D and E) as described in the legend to Figure 1 and ‘Materials and methods.’ Error bars, S.E. The p value was calculated using Student’s t test: *, p < 0.05; **, p < 0.01; ***, p 0.005. Dhcr7, 7-dehydrocholesterol reductase; Dhcr24, 24-dehydrocholesterol reductase; 7-DehyDes., 7-dehydrodesmosterol; 8-Dehydrochol., 8-dehydrocholesterol; 7-Dehydrochol., 7-dehydrocholesterol.

https://doi.org/10.7554/eLife.44396.014

Discussion

The current studies provide evidence that inhibition of HMGCR ERAD directly contributes to corneal sterol accumulation and opacification that characterizes the human eye disease SCD. This conclusion was drawn from the analysis of Ubiad1Ki/Ki mice harboring a knockin mutation (N100S) that corresponds to the SCD-associated N102S mutation in human UBIAD1 (Figure 1A). Consistent with our studies of human UBIAD1 (N102S) in cultured cells (Schumacher et al., 2015; Schumacher et al., 2018), mouse UBIAD1 (N100S) inhibited ERAD of HMGCR in vivo as indicated by accumulation of the protein in livers and other tissues of Ubiad1Ki/Ki mice (Figures 1B, 2 and 3, and Figure 2—figure supplement 1). These increases in HMGCR protein occurred despite reduced levels of its mRNA (Figures 1 and 2), which was attributable to reduced proteolytic activation of SREBP-2 (Figures 1B and 2A) resulting from accumulation of hepatic cholesterol (Figure 1—figure supplement 1B and Table 1). Corneas from 8 to 12 week-old Ubiad1Ki/Ki mice failed to exhibit opacification of the cornea (data not shown), despite the marked accumulation of HMGCR protein in the eye (Figure 2B and C and Figure 2—figure supplement 1). Conversely, corneal opacification was observed in aged Ubiad1Ki/Ki mice (50 weeks) (Figure 7A) that was accompanied by a buildup of HMGCR protein in the tissue (Figure 7B). This opacification occurred in the absence of an increase in total cholesterol (Figure 7D and E). However, Ubiad1Ki/Ki corneas displayed other hallmarks of sterol overaccumulation including an increase in levels of free cholesterol and sterol intermediates of cholesterol biosynthesis (Figure 7D and E), reduced levels of mRNAs for HMGCR and other cholesterol biosynthetic enzymes, and enhanced expression of mRNAs encoding ABCG5, ABCG8, and ABCA1 (Figure 7C). Based on these observations, we conclude that UBIAD1 (N100S)-mediated inhibition of HMGCR ERAD enhances flux through the cholesterol biosynthetic pathway, thereby initiating sterol accumulation and development of corneal opacification. Our current findings suggest the slow progression of corneal opacification in Ubiad1Ki/Ki mice results from reduced activation of SREBP-2, which leads to reduced expression of genes encoding cholesterol biosynthetic enzymes. Studies are now underway to monitor progression of corneal opacification in Ubiad1Ki/Ki mice > 50 weeks of age. We anticipate that as the disorder progresses, free cholesterol will continue to accumulate, initiating formation and accumulation of cholesterol esters, which will further exacerbate opacification of the cornea. Additionally, Ubiad1Ki/Ki mice will be challenged with high cholesterol/Western diets to determine whether dietary cholesterol contributes to progression of corneal opacification in SCD.

A preliminary analysis of UBIAD1 (N100S) knockin mice has been recently described (Dong et al., 2018). However, this study lacks the molecular characterization of HMGCR and documentation of age-dependent corneal opacification in the knockin animals. Instead, the authors report evidence for mitochondrial damage and accumulation of mitochondrial-localized glycerophosphoglycerols in knockin corneas. The authors conclude that mitochondrial dysfunction is linked to the abnormal deposition of cholesterol in corneas of SCD patients, constrasting our conclusion the response results from inhibition of HMGCR ERAD. The possibility exists that this mitochondrial dysfunction is secondary to cholesterol accumulation and/or impairment of MK-4 synthesis (see Figure 3) in Ubiad1Ki/Ki mice. Further investigation is required to resolve this discrepancy.

Examination of Ubiad1Ki/Ki-derived MEFs cultured under isoprenoid-replete conditions yielded results remarkably similar to those obtained with whole mouse tissues – marked accumulation of HMGCR protein, overproduction of cholesterol, reduced levels of Hmgcr mRNA, and reduced activation of SREBPs (Figure 4A and B). HMGCR was also refractory to accelerated ERAD stimulated by the oxysterol 25-HC in Ubiad1Ki/Ki MEFs and HmgcrKi/Ki MEFs, which were derived from mice expressing ubiquitination-resistant HMGCR (Hwang et al., 2016) (Figure 4C). However, 25-HC continued to stimulate ubiquitination of HMGCR in Ubiad1Ki/Ki MEFs, but not in those derived from HmgcrKi/Ki mice (Figure 4D). In addition to providing direct evidence that SCD-associated UBIAD1 inhibits ERAD of HMGCR, these results indicate that the inhibition results from a block in a post-ubiquitination step of the reaction (Schumacher et al., 2015).

Our previous characterization of HmgcrKi/Ki mice indicated that dietary cholesterol reduces levels of HMGCR protein primarily by inhibiting activation of SREBP-2 (35); similar results were obtained in the current study (Figure 5C). In contrast, levels of HMGCR protein persisted in livers of Ubiad1Ki/Ki mice fed cholesterol, even though the feeding regimen continued to block proteolytic activation of SREBP-2 (Figure 5A and C) and reduce levels of mRNAs for HMGCR and other SREBP-2 targets (Figure 5—figure supplement 1). Previous studies found that HMGCR is subjected to sterol-independent ubiquitination and ERAD in cultured cells (Doolman et al., 2004). Thus, we speculate that in livers of HmgcrKi/Ki mice, ubiquitination-resistant HMGCR continues to become degraded through this sterol-independent ERAD pathway. However, both sterol-independent and sterol-dependent pathways for HMGCR ERAD are blocked in Ubiad1Ki/Ki mice, owing to the ability of UBIAD1 (N100S) to inhibit post-ubiquitination steps of the reaction (see Figure 4D). As a result of this inhibition, levels of HMGCR protein persist in livers of cholesterol-fed Ubiad1Ki/Ki mice.

Okano and co-workers previously attempted to generate mice lacking Ubiad1; however, Ubiad1-deficient embryos failed to survive past embryonic day 7.5 (40). Ubiad1-/- embryonic stem cells failed to synthesize MK-4, suggesting the compound plays a pivotal role in development. Taking this and the observation that human UBIAD1 (N102S) is defective in MK-4 synthetic activity (Hirota et al., 2015), we were somewhat surprised that Ubiad1Ki/Ki mice were born at normal Mendelian ratios and appear grossly normal. Throughout our studies, we noticed that UBIAD1 (N100S) protein accumulated in all tissues of Ubiad1Ki/Ki mice (see Figures 13). Similar results have been observed for SCD-associated variants of human UBIAD1 in transfected cells; stabilization of SCD-associated UBIAD1 has been attributed to ER sequestration and protection from autophagic degradation from the Golgi (Jun, D.-J. and DeBose-Boyd, R.A., unpublished observations). The level of MK-4 was significantly reduced, but not absent, in various tissues of Ubiad1Ki/Ki mice (Figure 3 and Figure 3—figure supplement 1). We speculate that despite reduced enzymatic activity, accumulated UBIAD1 (N100S) produces sufficient amounts of MK-4 to support development and survival of Ubiad1Ki/Ki mice. Accumulation of SCD-associated UBIAD1 in the ER has important implications for the pathology of the disease. SCD is an autosomal dominant disorder and our previous studies revealed that SCD-associated variants of UBIAD1 inhibit HMGCR ERAD in a dominant-negative fashion (Schumacher et al., 2015; Schumacher et al., 2016). Enhanced stability of SCD-associated UBIAD1 owing to its ER sequestration helps to explain how cholesterol accumulation occurs in corneas of SCD patients harboring heterozygous UBIAD1 mutations.

The significance of the HMGCR regulatory system is evidenced by the widespread use of statins to lower plasma LDL-cholesterol and reduce the incidence of atherosclerotic cardiovascular disease (Stossel, 2008). However, statins block synthesis of sterol and nonsterol isoprenoids that mediate feedback regulation of HMGCR, causing the enzyme’s accumulation in livers of humans and animals (Kita et al., 1980; Reihnér et al., 1990) (Figure 6). This accumulation partially overcomes inhibitory effects of statins, which allows for continued synthesis of cholesterol that limits cholesterol-lowering (Schonewille et al., 2016; Goldberg et al., 1990; Engelking et al., 2006). We showed previously that the statin-induced increase in HMGCR was blunted 5-fold in HmgcrKi/Ki versus WT mice, suggesting inhibition of ERAD significantly contributes to the response (Hwang et al., 2016). Our current findings argue that statin-induced accumulation of HMGCR results in part, from depletion of GGpp from ER membranes. This was indicated by accumulation and ER sequestration of UBIAD1 in livers of lovastatin-treated mice, which coincided with accumulation of HMGCR (Figure 6A and C). UBIAD1 (N100S), which resists GGpp-induced release from HMGCR, accumulated and remained sequestered in the ER, regardless of whether Ubiad1Ki/Ki mice were treated in the absence or presence of lovastatin (Figure 6A and C). The resultant inhibition of HMGCR ERAD led to accumulation of the protein and overproduction of sterol and nonsterol isoprenoids in various tissues of Ubiad1Ki/Ki mice (see Figures 3 and 7, and Figure 3—figure supplement 1). Thus, GGpp-regulated, ER-to-Golgi transport of UBIAD1 regulates HMGCR ERAD to coordinate synthesis of sterol and nonsterol isoprenoids in mice through similar mechanisms previously described in cultured cells (Schumacher et al., 2018). The current results indicate that modulating ER-to-Golgi transport of UBIAD1 may have therapeutic value. For example, agents that mimic GGpp in stimulating ER-to-Golgi transport of UBIAD1 should relieve inhibition of ERAD and prevent accumulation of HMGCR that limits the effectiveness of statins in lowering plasma levels of LDL-cholesterol. Agents that restore Golgi localization of SCD-associated UBIAD1 or block its interaction with HMGCR may prevent or retard cholesterol accumulation and corneal opacification associated with SCD. The establishment of a mouse model for SCD described here will prove instrumental in the identification and characterization of such molecules.

Materials and methods

Key resources table
Reagent
type (species)
or resource
DesignationSource
or reference
IdentifiersAdditional
information
Genetic reagent (M. musculus)Mouse/Ubiad1Ki/Ki (UBIAD1 (N100S)):C57BL/6JThis paperN/AHeterozygous knockin mice harboring mutations in the endogenous Ubiad1 gene that change Asparagine-100 to a Serine residue
Genetic reagent
(M. musculus)
Mouse/Ubiad1Ki/Ki
(UBIAD1 (N100S)):
C57BL/6
This paperHomozygous knockin
mice harboring
mutations in the
endogenous Ubiad1
gene that change
Asparagine-100 to
a Serine residue
Genetic
reagent
(M. musculus)
Mouse/HmgcrKi/Ki
(HMGCR K89R/
K248R):C57BL/6
PMID:
27129778
N/A
Cell lineMouse Embryonic
Fibroblast-
Ubiad1WT/WT
This paperN/AMouse embryonic
fibroblasts from
wild type C57BL/
6 mice
Cell lineMouse Embryonic
Fibroblast-
Ubiad1Ki/Ki
This paperN/AMouse embryonic
fibroblasts from
Ubiad1Ki/Ki
C57BL/6 mice
Cell lineMouse Embryonic
Fibroblast-
HmgcrWT/WT
This paperN/AMouse embryonic
fibroblasts from
wild type C57BL/
6 mice
Cell lineMouse Embryonic
Fibroblast-
Hmgcr Ki/Ki
This paperN/AMouse embryonic
fibroblasts from
HmgcrKi/Ki
C57BL/6 mice
AntibodyRabbit
monoclonal
anti-SREBP-1
PMID:
28244871
IgG-20B12
AntibodyRabbit
monoclonal
anti-SREBP-2
PMID:
25896350
IgG-22D5
AntibodyRabbit
polyclonal
anti-UBIAD1
This paperIgG-205Rabbit polyclonal
antibody raised
against amino
acids 2–21 of
mouse UBIAD1;
used at 1–5 µg/ml for immunoblots
AntibodyRabbit
polyclonal anti-
HMGCR
PMID:
27129778
IgG-839cused at 1–5 µg/ml for immunoblots
AntibodyMouse
monoclonal anti-
HMGCR
PMID:
22143767
IgG-A9used at 1–5 µg/ml for immunoblots
AntibodyRabbit
polyclonal anti-
Insig-1
PMID:
27129778
anti-Insig-1used at 1:1000 dilution for immunoblots
AntibodyRabbit polyclonal anti-Insig-2This paperIgG-492Rabbit polyclonal antibody raised against a C-terminal peptide (CKVIPEKSHQE) of hamster Insig-2; used at 5 µg/ml for immunoblots
AntibodyRabbit polyclonal anti-UBXD8PMID: 27129778IgG-819used at 1–5 µg/ml for immunoblots
AntibodyRabbit polyclonal anti-CalnexinNovus BiologicalsCat#NB100-1965; RRID:AB_10002123used at 1–5 µg/ml for immunoblots
AntibodyRabbit polyclonal anti-GM130AbcamCat#ab30637; RRID:AB_732675used at 1–5 µg/ml for immunoblots
AntibodyRabbit polyclonal anti-LSD-1Cell Signaling TechnologyCat#2139; RRID:AB_2070135used at 1–5 µg/ml for immunoblots
AntibodyMouse monoclonal anti-ubiquitin (IgG-P4D1)Santa CruzCat#SC8017;RRID:AB_628423used at 1–5 µg/ml for immunoblots
Recombinant DNA reagent
Sequence-based reagentUbiad1Ki/Ki genotyping primers:
Forward, GGAACACTTGGCTCTCATCT;
Reverse, GGGAGCAGTGTTCATAATCC
This paperN/AGenotyping was determined by PCR analysis of genomic DNA prepared from tails of mice.
Sequence-based reagentHmgcrKi/Ki genotyping primers:
K89R- Forward, GTCCATGAACATGTTCACCG; Reverse, CAGCACGTCCTATTGGCAGA
K248R – Forward, TCGGTGATGTTCCAGTCTTC; Reverse, GGTGGCAAACACCTTGTATC
PMID: 27129778N/A
Sequence-based reagent (qRT-PCR)UBIAD1 Forward,
GACAGAACTTTGGTGGACAGAATTC;
Reverse, CAGCCCAAGGTGTAGAGGAAGA
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)SREBP-1a Forward,
GGCCGAGATGTGCGAACT;
Reverse, TTGTTGATGAGCTGGAGCATGT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)SREBP-1c Forward,
GGAGCCATGGATTGCACATT;
Reverse, GGCCCGGGAAGTCACTGT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)SREBP-2 Forward,
GCGTTCTGGAGACCATGGA;
Reverse, ACAAAGTTGCTCTGAAAACAAATCA
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)HMGCR Forward, CTTGTGGAATGCCTTGTGATTG;
Reverse, AGCCGAAGCAGCACATGAT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)Insig-1 Forward, TCACAGTGACTGAGCTTCAGCA;
Reverse, TCATCTTCATCACACCCAGGAC
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)Insig-2a Forward, CCCTCAATGAATGTACTGAAGGATT;
Reverse, TGTGAAGTGAAGCAGACCAATGT
Integrated DNA TechnologiesN/A
Sequence-based reagent
(qRT-PCR)
Insig-2b Forward, CCGGGCAGAGCTCAGGAT;
Reverse, GAAGCAGACCAATGTTTCAATGG
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)SCAP Forward, ATTTGCTCACCGTGGAGATGTT;
Reverse, GAAGTCATCCAGGCCACTACTAATG
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)HMGCS Forward, GCCGTGAACTGGGTCGAA;
Reverse, GCATATATAGCAATGTCTCCTGCAA
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)FPPS Forward, ATGGAGATGGGCGAGTTCTTC;
Reverse, CCGACCTTTCCCGTCACA
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)SqS Forward, CCAACTCAATGGGTCTGTTCCT;
Reverse, TGGCTTAGCAAAGTCTTCCAACT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)LDLR Forward, AGGCTGTGGGCTCCATAGG;
Reverse, TGCGGTCCAGGGTCATCT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)PCSK9 Forward, CAGGCGGCCAGTGTCTATG;
Reverse, GCTCCTTGATTTTGCATTCCA
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)ACS Forward, GCTGCCGACGGGATCAG;
Reverse, TCCAGACACATTGAGCATGTCAT
Integrated DNA TechnologiesN/A
Sequence-based reagent (qRT-PCR)ACC1 Forward, TGGACAGACTGATCGCAGAGAAAG;
Reverse, TGGAGAGCCCCACACACA
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
FAS Forward, GCTGCGGAAACTTCAGGAAAT;
Reverse, AGAGACGTGTCACTCCTGGACTT
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
SCD1 Forward, CCGGAGACCCCTTAGATCGA;
Reverse, TAGCCTGTAAAAGATTTCTGCAAACC
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
GPAT Forward, CAACACCATCCCCGACATC;
Reverse, GTGACCTTCGATTATGCGATCA
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
LXRα Forward, TCTGGAGACGTCACGGAGGTA;
Reverse, CCCGGTTGTAACTGAAGTCCTT
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
ABCG5 Forward, TGGATCCAACACCTCTATGCTAAA;
Reverse, GGCAGGTTTTCTCGATGAACTG
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
ABCG8 Forward, TGCCCACCTTCCACATGTC;
Reverse, ATGAAGCCGGCAGTAAGGTAGA
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
GGPS Forward, CGTCTACTTCCTTGGACTGGAAA;
Reverse, AGCTGGCGTGTGAAAAGCTT
Integrated DNA
Technologies
N/A
Sequence-
based reagent
(qRT-PCR)
Cyclophilin Forward, TGGAGAGCACCAAGACAGACA;
Reverse, TGCCGGAGTCGACAATGAT
Integrated DNA
Technologies
N/A
Commercial
assay or kit
TaqMan
Reverse
Transcription
Applied
Biosystems
Cat#N8080234
Commercial
assay or kit
Power
SYBR Green
PCR Master Mix
Applied
Biosystems
Cat#4367659
Commercial
assay or kit
Cholesterol/
Cholesterol Ester
Assay Kit -
Quantitation
AbcamCat#ab65359
Chemical
compound,
drug
CholesterolBio-Serv;Cat#5180;
Chemical
compound,
drug
Sigma-AldrichCat#C8667
Chemical
compound,
drug
Coenzyme Q-10CerilliantCat#V-060
Chemical
compound,
drug
GeranylgeraniolSigma-AldrichCat#G3278
Chemical
compound,
drug
Geranylgeranyl
pyrophosphate
Cayman
Chemical
Company
Cat#63330
Chemical
compound,
drug
LovastatinAbblis Chemicals
LLC, Houston, TX
Cat#AB1004848
Chemical
compound,
drug
Menaquinone-4Sigma-AldrichCat#809896
Chemical
compound,
drug
CerilliantCat#V-031
Chemical
compound,
drug
Menaquinone-7CerilliantCat#V-044
Chemical
compound,
drug
Phylloquinone
(Vitamin K1)
CerilliantCat#V-030
Chemical
compound,
drug
25-HydroxycholesterolAvanti Polar
Lipids
Cat#700019P
Software,
algorithm
Studio v5.0
LiCor
Biosciences
Software,
algorithm
Image J (Fiji)NIH

Animals

Ubiad1Ki/Ki mice, which harbor a nucleotide substitution in the Ubiad1 gene that changes asparagine-100 to a serine residue (N100S), were generated by the Gene Targeting and Transgenic Facility at the Howard Hughes Medical Institute Janelia Research Campus (Ashburn, VA). Ubiad1WT/WT and Ubiad1Ki/Ki littermates were obtained for experiments from intercrosses of Ubiad1WT/Ki male and female mice that were hybrids of C57BL/6J and 129Sv/Ev strains. Ubiad1Ki/Ki mice on the mixed BL6/129 background were backcrossed to C57BL/6J mice for at least six generations. Intercrosses of Ubiad1WT/Ki male and female mice on the BL6 background were conducted to obtain Ubiad1WT/WT and Ubiad1Ki/Ki littermates for experiments. HmgcrKi/Ki mice harbor homozygous knockin mutations in which lysine residues 89 and 248 are replaced with arginines (Hwang et al., 2016). All mice were housed in colony cages with a 12 hr light/12 hr dark cycle and fed Teklad Mouse/Rat diet 2018 from Harlan Teklad (Madison, WI). Genomic DNA was extracted from tails of Ubiad1Ki/Ki and HmgcrKi/Ki mice using DNeasy Blood and Tissue kit (Qiagen, Venlo, Netherlands) according to the manufacturer’s protocol. To genotype Ubiad1Ki/Ki mice, genomic DNA from tails was used for PCR with the following primers: Forward, GGAACACTTGGCTCTCATCT; Reverse, GGGAGCAGTGTTCATAATCC. HmgcrKi/Ki mice were genotyped as described previously (Hwang et al., 2016). The levels of plasma and liver cholesterol and triglycerides were measured by the Metabolic Phenotyping Core at the University of Texas Southwestern Medical Center (UTSWMC) in blood drawn from the vena cava after mice were anesthetized in a bell-jar atmosphere containing isoflurane. For the cholesterol feeding studies, mice were fed a chow diet (Teklad Mouse/Rat 2018, 0% cholesterol) or chow diet supplemented with 0.1, 0.3, or 1% cholesterol for 5 days prior to study. For lovastatin feeding studies, mice were fed Teklad Mouse/Rat diet (Harlan Teklad Premier Laboratory Diets, Madison, WI) or the identical diet supplemented with 0.01, 0.05, or 0.2% lovastatin (Abblis Chemicals LLC, Houston, TX). All animal experiments were performed with the approval of the Institutional Animal Care and Use Committee at UTSWMC.

Quantitative Real-Time PCR

Request a detailed protocol

Total RNA was prepared from mouse tissues using the RNA STAT-60 kit (TEL-TEST ‘B’, Friendswood, TX). Equal amounts of RNA from individual mice were treated with DNase I (DNA-free, Ambion/Life Technologies, Grand Island, NY). First strand cDNA was synthesized from 10 µg of DNase I-treated total RNA with random hexamer primers using TaqMan Reverse Transcription Reagents (Applied Biosystems/Roche, Branchburg, NJ). Specific primers for each gene were designed using Primer Express software (Life Technologies). The real-time RT-PCR reaction was set up in a final volume of 20 µl containing 20 ng of reverse-transcribed total RNA, 167 nM of the forward and reverse primers, and 10 µl of 2X SYBR Green PCR Master Mix (Life Technologies). The relative amount of all mRNAs was calculated using the comparative threshold cycle (CT) method. Mouse cyclophilin mRNA was used as the invariant control.

Generation of Mouse Embryonic Fibroblasts (MEFs)

Request a detailed protocol

The protocol for establishing MEFs from Ubiad1Ki/Ki and HmgcrKi/Ki mice was adapted from that described previously (Jozefczuk et al., 2012; Cautivo et al., 2016). Briefly, pregnant Ubiad1+/Ki and Hmgcr+/Ki female mice were sacrificed 13.5 days post coitum and uterine horns were harvested in cold PBS. In a tissue culture hood under aseptic conditions, the uterine horns were placed into a Petri dish and each embryo was separated from its placenta and embryonic sac. The head of embryo was removed and saved for genotyping. The remainder of the embryo was washed with PBS and minced. The minced tissues were incubated in the presence of 0.05% Trypsin/EDTA and DNase I for 30 min at 37°C with intermittent agitation. The reaction was stopped by adding MEF media containing DMEM 4.5 g/L glucose, 10% FCS, and 1% Penicillin/streptomycin (10,000 U/ml). Cells were pelleted at 300 X g for 5 min and plated onto 0.2% gelatin coated dishes; these cells were designated passage 0 and frozen. All MEFs tested negative for mycoplasma contamination. Passages 2–5 were used for experiments. The level of intracellular cholesterol in Ubiad1WT/WT and Ubiad1Ki/Ki MEFs was determined using Cholesterol/Cholesterol Ester Assay Kit (Abcam).

Subcellular Fractionation, Immunoblot Analysis, and Immunohistochemistry

Request a detailed protocol

Approximately 50 mg of frozen liver was homogenized in 350 µl buffer (10 mM HEPES-KOH, pH 7.6, 1.5 mM MgCl2, 10 mM KCl, 5 mM EDTA, 5 mM EGTA, and 250 mM sucrose) supplemented with a protease inhibitor cocktail consisting of 0.1 mM leupeptin, 5 mM dithiothreitol, 1 mM PMSF, 0.5 mM Pefabloc, 5 µg/ml pepstatin A, 25 µg/ml N-acetyl-leu-leu-norleucinal, and 10 µg/ml aprotinin. The homogenates were then passed through a 22-gauge needle 10–15 times and subjected to centrifugation at 1000 X g for 5 min at 4°C. The 1000 X g pellet was resuspended in 500 µl of buffer (20 mM HEPES-KOH, pH 7.6, 2.5% (v/v) glycerol, 0.42 M NaCl, 1.5 mM MgCl2, 1 mM EDTA, 1 mM EGTA) supplemented with the protease inhibitor cocktail, rotated for 30 min at 4°C, and centrifuged at 100,000 X g for 30 min at 4°C. The supernatant from this spin was precipitated with 1.5 ml cold acetone at −20°C for at least 30 min; the precipitated material was collected by centrifugation, resuspended in SDS-lysis buffer (10 mM Tris-HCl, pH 6.8, 1% (w/v) SDS, 100 mM NaCl, 1 mM EDTA, and 1 mM EGTA), and designated the nuclear extract fraction. The post-nuclear supernatant from the original spin was used to prepare the membrane fraction by centrifugation at 100,000 X g for 30 min at 4°C. Each membrane fraction was resuspended in 100 µl SDS-lysis buffer.

Protein concentration of nuclear extract and membrane fractions were measured using the BCA Kit (ThermoFisher Scientific). Prior to SDS-PAGE, aliquots of the nuclear extract fractions were mixed with 5X SDS-PAGE loading buffer to achieve a final concentration of 1X. Aliquots of the membrane fractions were mixed with an equal volume of buffer containing 62.5 mM Tris-HCl, pH 6.8, 15% (w/v) SDS, 8 M urea, 10% (v/v) glycerol, and 100 mM DTT, after which 5X SDS loading buffer was added to a final concentration of 1X. Nuclear extract fractions were boiled for 5 min, and membrane fractions were incubated for 20 min at 37°C prior to SDS-PAGE. After SDS-PAGE, proteins were transferred to Hybond C-Extra nitrocellulose filters (GE Healthcare, Piscataway, NJ). The filters were incubated with the antibodies described below and in the figure legends. Bound antibodies were visualized with peroxidase-conjugated, affinity-purified donkey anti-mouse or anti-rabbit IgG (Jackson ImmunoResearch Laboratories, Inc, West Grove, PA) using the SuperSignal CL-HRP substrate system (ThermoFisher Scientific) according to the manufacturer’s instructions. Gels were calibrated with prestained molecular mass markers (Bio-Rad, Hercules, CA). Filters were exposed to film at room temperature. Antibodies used for immunoblotting to detect mouse SREBP-1 (rabbit polyclonal IgG-20B12), SREBP-2 (rabbit monoclonal IgG-22D5), Insig-1 (rabbit polyclonal anti-Insig-1 antiserum), HMGCR (rabbit polyclonal IgG-839c and mouse monoclonal IgG-A9), UBXD8 (rabbit polyclonal IgG-819), and Scap (IgG-R139) were previously described (Jo et al., 2011; Engelking et al., 2005; McFarlane et al., 2014). Rabbit polyclonal IgG-205 was raised against amino acids 2–21 of mouse UBIAD1. Rabbit polyclonal IgG-492 was raised against a C-terminal sequence (CKVIPEKSHQE) of hamster Insig-2. Rabbit polyclonal anti-calnexin IgG was purchased from Novus Biologicals (Littleton, CO). Rabbit polyclonal anti-LSD1 IgG was obtained from Cell Signaling (Beverly, MA). Rabbit polyclonal anti-GM130 was obtained from Abcam (Cambridge, MA). All antibodies were used at a final concentration of 1–5 µg/ml; the anti-Insig-1 antiserum was used at a dilution of 1:1000.

To obtain hepatic Golgi- and ER-enriched membrane fractions, approximately 150 mg of frozen livers were homogenized in buffer containing 50 mM Tris-HCl (pH 7.5), 150 mM NaCl, the protease inhibitor cocktail, and 15% (w/v) sucrose. Following homogenization using a ball-bearing homogenizer with a 10 µm clearance, the samples were centrifuged at 3000 X g for 10 min. The resulting post nuclear supernatants (PNS) were then applied to a discontinuos sucrose gradient that was generated and centrifuged at 110,000 X g as described previously (Radhakrishnan et al., 2008). Golgi- and ER-enriched fractions were collected and subjected to immunoblot analysis as described in figure legends.

Corneas from Ubiad1WT/WT and Ubiad1Ki/Ki mice were collected and fixed in 10% neutral-buffered formalin, followed by paraffin embedding and sectioning. The sections were analyzed by immunohistochemistry with polyclonal IgG-839c (against HMGCR) as described previously (Evers et al., 2010).

Lipid Analysis

Request a detailed protocol

Cholesterol and sterol biosynthetic intermediates were measured using LC-MS/MS according to the method of McDonald et al. (McDonald et al., 2012; Mitsche et al., 2015). Briefly, sterols were isolated on an LC gradient (Shimadzu LC-20) and detected using the MRM pair on a triple quadrapole MS (ABSciex 4000 q-TRAP) and quantified against authentic sterol standards (Avanti Polar Lipids, Alabaster, AL).

Nonsterol isoprenoids were measured as follows. Approximately 100 mg of tissue was homogenized using a BeadRuptor (Omni International, Kennesaw, GA). Samples were placed in a mixture of 1 mL 1:1 MeOH:IPA containing 2 ng each of d5-GGOH and d8-MK-4 using 2 mL beadruptor tubes. The slurry was transferred to glass 16 × 100 mm glass tubes with PTFE-lined screw-caps. The resulting tissue slurry was sonicated for 5 min. A 5 mL aliquot of acetone was added, and samples were vortexed for three minutes followed by incubation at room temperature for 5 min. The vortex and incubation steps were repeated twice for a total of three cycles. Samples were then centrifuged at 3500 rpm for 5 min at 4°C. Supernatant was removed to a new 16 × 100 mm tube. The pellet was washed with 1 mL of acetone, centrifuged at 3500 rpm for 5 min at 4°C, and the resultant supernatant was pooled with the first extract. The sample was dried under nitrogen at a temperature of approximately 35°C. The dried extract was dissolved in 5 mL hexane, after which 2 mL of water was added and the sample was placed in a freezer at −20°C until the lower layer was frozen. The hexane layer was removed from the frozen aqueous phase using a Pasteur pipette. When the aqueous phase thawed, 2 mL hexane was added, and the process was repeated with the two hexane extracts being pooled. The sample was dried under nitrogen at ~35°C. The dried extract was dissolved in 400 µL hexane, transferred to a 2 mL autosampler vial with low-volume insert and dried again. The final sample was dissolved in 400 µL 90% methanol that had been warmed to ~37°C.

Analytes were measured using Shimadzu LC-20XR high-performance liquid-chromatography (HPLC) coupled to a SCIX API 5000 triple quadrupole mass spectrometer (Shimadzu, Columbia Maryland; SCIEX, Framingham, MA). A 10 µL sample was injected onto an Agilent Poroshel EC-C18 (Agilent, Santa Clara, CA; 150 × 2.1 mm, 2.7 µm) and resolved with a ternary gradient using A 90% methanol, B methanol, and C dichloromethane (DCM). A and B also contained 0.1% acetic acid. The gradient began at 100% A, increased to 100% B over 2 min, held at 100% B for 0.25 min, then increased to 3:7 (B:C) over 6.75 min. The column was re-equilibrated first with 100% B for 2 min, then 100% A for 1 min. Flow rate was 0.5 mL/min and the column was maintained at 35°C. Analytes were ionized using atmospheric pressure chemical ionization (APCI) at 400°C and detected using multiple reaction monitoring (MRM).

Masses and other MS parameters are given below :

Q1Q3DPCESource
GGOH273717748Sigma
MK-4445.51875940Cerilliant
PK451.31875940Cerilliant
d8-MK4452.4945950Sigma (catalog #737836)
MK7649.51875940Cerilliant
CoQ-10863.71975944Cerilliant
d5-GGOH278.3817748Avanti Polar Lipids(custom-synthesized)

Reproducibility of data – All results were confirmed in at least two independent experiments conducted on different days using different animals and batches of cells.

References

  1. 1
    Multivalent feedback regulation of HMG CoA reductase, a control mechanism coordinating isoprenoid synthesis and cell growth
    1. MS Brown
    2. JL Goldstein
    (1980)
    Journal of Lipid Research 21:505–517.
  2. 2
    Schnyder's crystalline corneal dystrophy in association with hyperlipoproteinemia: histopathological and ultrastructural findings
    1. S Brownstein
    2. WB Jackson
    3. RM Onerheim
    (1991)
    Canadian Journal of Ophthalmology. Journal Canadien d'ophtalmologie 26:273–279.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Multivalent control of 3-hydroxy-3-methylglutaryl coenzyme A reductase. Mevalonate-derived product inhibits translation of mRNA and accelerates degradation of enzyme
    1. M Nakanishi
    2. JL Goldstein
    3. MS Brown
    (1988)
    The Journal of Biological Chemistry 263:8929–8937.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    [Crystalline corneal dystrophy (Schnyder) in the presence of familial type IIa hyperlipoproteinaemia (author's transl)]
    1. HJ Thiel
    2. GJ Voigt
    3. MR Parwaresch
    (1977)
    Klinische Monatsblatter Fur Augenheilkunde 171:678–684.
  50. 50
  51. 51
  52. 52
    Visual morbidity in thirty-four families with Schnyder crystalline corneal dystrophy (an american ophthalmological society thesis)
    1. JS Weiss
    (2007)
    Transactions of the American Ophthalmological Society 105:616–648.
  53. 53
  54. 54

Decision letter

  1. Ramanujan S Hegde
    Reviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom
  2. Randy Schekman
    Senior Editor; Howard Hughes Medical Institute, University of California, Berkeley, United States
  3. Randy Y Hampton
    Reviewer; UCSD, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Schnyder corneal dystrophy-associated UBIAD1 Inhibits ER-associated degradation of HMG CoA reductase in mice" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Randy Schekman as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Randy Y Hampton (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The referees all agreed that the quality of the data is high and that the generation and initial characterization of a mouse model for SCD warrants publication as a Research Advance linked to your prior paper. They further judged that the study provides important in vivo support for prior mechanistic models on the link between UBIAD1, HMG CoA reductase, and cholesterol homeostasis established from cell culture. One referee raised a number of potential additional mechanistic links that might be important to explore. During our discussion, we decided that these extensions of the project are beyond the scope of the current paper. Although we have appended the full referee comments for your interest, we expect you to address only the minor suggestions for improvement provided below. anticipate that addressing these comments will probably only need clarifications to the text, perhaps some re-organisation of figure panels, and possibly answering queries on unclear points.

Reviewer #1:

This Research Advance contribution from the Debose-Boyd lab follows up an earlier study from this group analysing the function of UBIAD1 as it relates to HMGCR regulation. The earlier study reported that UBIAD1 stimulates HMGCR degradation in a ppGG-dependent manner, and that dominant human SCD disease mutants in UBIAD1 interfere with full HMGCR degradation under cholesterol-replete conditions. The hypothesis from the earlier work was that the disease mutants may work by causing elevated HMGCR, resulting in elevated cholesterol which eventually accumulates in the eye to cause corneal opacities. The current study examines this idea in mice by generating a knock-in of one such SCD disease mutant (N100S). Analysis of the mouse reveals clear evidence of dysregulated HMGCR including its elevated steady state levels, various compensatory sequelae, and elevated levels of sterol-related molecules. Importantly, the mouse appears to also show age-dependent opacities in the eye. Analysis of MEFs from the mutant mice verified altered cholesterol-mediated HMGCR degradation. Considered together with their earlier work, the study makes a strong case that the cholesterol-containing deposits observed in SCD result from altered HMGCR regulation caused by its excessively strong interaction with mutant UBIAD1. It is important because it provides a nice mouse model for SCD, and more speculatively, provides additional in vivo insights into the intricacies of cholesterol homeostasis. The paper is generally well organized and written.

1) As I am sure the authors are aware, another group recently published a preliminary analysis of a N100S UBIAD1 knock-in mouse (PMID 29977031). This earlier study lacks the molecular analysis of HMGCR, age-dependent phenotypes, and mechanistic interpretations of the current work. Nevertheless, it is important that the authors provide a careful discussion of these earlier findings and how they relate to the current study.

2) In Figure 1B, it would be useful to show some indicator of equal loading (perhaps the stained blot showing total protein or a blot for an unrelated protein). In the graph, it would be useful to have error bars on the protein levels if available. I realise the next figure provides a more thorough analysis with suitable controls, but a reader is immediately faced with a rather sparse and somewhat incomplete observation right at the outset. Perhaps one option is to simply omit Figure 1 and start with Figure 2 since this is better characterized anyway.

3) Figure 1B would be easier to follow in the text and legend if the three sub-panels were labelled as panels B, C, and D. This would make it easier to call out the individual experiments. The same applies to other figure panels where more than one type of experiment is shown together (e.g., the top and bottom parts of Figure 2A. In general, it is easier for the reader if each panel displays a single experiment.

4) The increase in UBIAD1 in Ki livers (and other tissues) is based on increased levels in the membrane fraction. Is it possible that the total levels are the same, and the difference is due to efficiency of recovery of certain subcellular membranes? Figure 6 shows that mutant UBIAD1 is preferentially in the ER whereas wild type UBIAD1 is preferentially in the Golgi. So if the ER is more effectively recovered than Golgi in the membrane fraction, then one might get the impression that total UBIAD1 is increased. Can a blot also be done on total lysate to clarify this issue? Total lysate is shown in Figure 6C, but it is unclear if the two blots are directly comparable to infer anything about total UBIAD1 levels.

5) I think it is more useful for a reader to directly state the absolute level of increase in HMGCR rather than the value after normalization to mRNA levels. The absolute level of protein is what is important for its enzymatic activity, which is the key parameter for the disease (i.e., the amount of cholesterol that accumulates) that forms the focus of this paper. The normalized values inform more about the relative rates of synthesis/degradation, which is also interesting but less central to the phenotype. Thus, one could simply report total values in the figures and Results section, then in the discussion state how the levels are increased despite much lower mRNA levels, suggesting that either synthesis rate is higher and/or degradation rate is lower.

6) Results section – It states that the Lovastatin effect on HMGCR is blunted in Ki mice liver relative to wild type, but the result in Figure 6A shows that accumulation of HMGCR is enhanced in Ki mice liver. Perhaps the sentence is worded incorrectly?

7) Results section – It says Lovastatin led to a slight elevation of HMGCR in Ki mice; However, it was not easy for me to judge from the blot if the increase was any more or less than in wild type mice. Perhaps it is useful to quantify the result and be more precise in the wording with something like "led to XX-fold elevation above the already high levels of HMGCR in Ki mice…" to emphasize that the levels at baseline are already very high.

8) It is worth stating how frequently (if at all) corneal inclusions are observed in wild type and heterozygous mice of similar age. This is important to make sure that the inclusions are not simply a consequence of old age.

Reviewer #2:

This manuscript follows up on earlier work from the deBose-Boyd laboratory on the regulation of HMG-CoA-reductase (HMGCR) by UBIAD1, a protein mutated in Schnyder Corneal Dystrophy (SCD) patients. Here a SCD-associated UBIAD1 mutation (N100S) knock-in mouse (Ubiad1ki/ki) is described. It is convincingly shown that Ubiad1ki/ki mouse recapitulates several aspects of SCD pathology, including corneal opacification in aged mice. Analysis of tissues and mouse embryonic fibroblast (MEF) derived from the knock-in mouse largely confirm UBIAD1 effects on HMGCR levels described earlier in cell lines and further characterize its consequences on SREBP transcription program. The Ubiad1ki/ki mouse model appears a useful tool and may prime further research into SCD disease mechanism and treatment. However, I am not convinced that at this stage this work provides a significant advance on the HMGCR regulation by UBIAD1 or on SCD pathophysiology. This study touches on several questions but leaves them mostly unanswered. For example:

1) In Ubiad1ki/ki mice, both HMGCR and UBIAD1 protein levels are increased, however no mechanistic insight is provided to explain these observations, particularly the increase in UBIAD1 protein levels by the N100S mutation.

2) Previous work indicate that UBIAD1 inhibits HMGCR degradation by acting in a post ubiquitination state. This study does not clarify the mechanism by which UBIAD1 prevents HMGCR degradation and how this is impacted by the N100S mutation. Does this mutant bind tighter to HMGCR or the effects are simply a result of its higher protein levels? It is assumed that its lower capacity to bind to GGPP is responsible for tighter binding to HMGCR but this is not tested.

3) In Ubiad1ki/ki mice, HMGCR levels are disturbed in all tissues analyzed. However, it is unclear why the disease manifest specifically in the eye. Is HMGCR more susceptible to UBIAD1 mediated control in the eye while other mechanisms dominate in the remaining organs? Or does the overall impact of UBIAD1 in cholesterol homeostasis insufficient to lead to other complications such as atherosclerosis?

4) Why have the authors chosen to backcross their C57BL/6 x 129 Ubiad1ki/ki mice to C57BL/6 pure genetic backgrounds? This may be not be trivial for non-experts.

5) The quality of the SREBP-2 blots are poor throughout the manuscript.

Figure 2A: Poor quality SREBP-2 blots.

Figure 5A; Lane 5 and 6 seem to be reversed regarding the SREBP-2 protein levels both in membrane fraction and nuclear extract. While the authors provided some explanation for this in the main text, it would be more convincing if the authors could comment on this more clearly or repeat the western blot.

Figure 5C; Poor quality of SREBP-2 blot and the SREBP-2 blotting for membrane fraction is missing.

6) Overexposed HMGCR blots

Figure 4C; While it is expected that HMGCR protein level are lower in WT and specifically increased in Ubiad1ki/ki mouse tissues (and MEF), due to overexpression, it is difficult to assess if this is the case in the HMGCR blot in Figure 4C.

Figure 6A; The authors claim that lovastatin caused HMGCR accumulation in Ubiad1ki/ki mouse liver. However, this is difficult to assess when the HMGCR blot is overexposed and no quantification of protein levels is provided.

7) In Figure 7D, the author showed there is no significant increase of total cholesterol in the range of 300-400ng sterol/ug DNA and similar total cholesterol measurement in Figure 7E (for measurement of intermediates of cholesterol synthesis) presented in the range of 100-200ng sterol/ug DNA.

8) Textual changes

Last paragraph, last line should refer to Figure 7E, not 7D.

The legend of Figure 4C and 4D is confusing. Figure references do not seem to be correct. Also, the use of MG132 is mentioned, but nowhere in the figures it is annotated. Please amend.

Reviewer #3:

The manuscript "Schnyder corneal dystrophy-associated UBIAD1 Inhibits ER-associated degradation of HMG CoA reductase in mice" is a beautiful addition to the regulated ERAD and sterol physiology literature, with the thoroughness and quality that I have come to expect from Dr. Debose-Boyd and his intrepid group. It is very pleasing to see such a thoughtful and well-rendered test of a disease model; this work most certainly should be published in eLife.

The only thing I am not totally clear on is the experiment in Figure 5C. In that experiment, the highly stabilized K→R form of HMGCR (shoot, my whole career I have called it HMGR…) is used as an excellent pre-stabilized control. But if UBIAD only works by allowing enhanced degradation of HMGCR, why are the effects of UBIAD mutant on wild-type HMGCR, which presumably still undergo some degradation, more pronounced than the degradation behavior of the cis highly stabilized mutant?

If this were one of those more evil journals that care not about a PIs resources, or the time of their hard working underlings, I would suggest an experiment with the double mutant, to see if there are regulatory effects that transcend control of degradation. Fortunately, the eLife ethos (which I enthusiastically endorse after spending 50,000 dollars for an extraneous, confirmatory biochemical test of an air-tight genetic study (true story)) encourages reviewers to find merit in the extant work and resist requesting more experiments. So, maybe an explanation or even a mention of this feature of the Figure 5C results would be useful.

Another question that might be interesting to explore in this brief study is the connection (or lack thereto) between this opaquitopathy (I just made that up; not bad!)-meaning opacity-causing disease- and the recent work on cataracts that appear to be relieved by lanosterol, since HMGCR would be expected to promote synthesis of more of this alleviating agent in the disease modeled herein. Different mechanism? Different pathology? No relation? Just an interesting thing to reference in the discussion maybe. Or maybe not.

Otherwise, full speed ahead. Fantastic work!

https://doi.org/10.7554/eLife.44396.019

Author response

Reviewer #1:

[…] The paper is generally well organized and written.

1) As I am sure the authors are aware, another group recently published a preliminary analysis of a N100S UBIAD1 knock-in mouse (PMID 29977031). This earlier study lacks the molecular analysis of HMGCR, age-dependent phenotypes, and mechanistic interpretations of the current work. Nevertheless, it is important that the authors provide a careful discussion of these earlier findings and how they relate to the current study.

We are aware that another group published a preliminary analysis of UBIAD1 (N100S) knockin mice, which lacks molecular characterization of HMGCR and documentation of age-dependent opacification of knockin corneas. The authors report evidence of mitochondrial damage and accumulation of glycerophosphoglycerol in corneas of the knockin mice. Based on this finding, the authors propose that mitochondrial dysfunction is linked to the abnormal cholesterol deposition that occurs in SCD patients. We have now included a discussion of these results in the revised manuscript.

2) In Figure 1B, it would be useful to show some indicator of equal loading (perhaps the stained blot showing total protein or a blot for an unrelated protein). In the graph, it would be useful to have error bars on the protein levels if available. I realise the next figure provides a more thorough analysis with suitable controls, but a reader is immediately faced with a rather sparse and somewhat incomplete observation right at the outset. Perhaps one option is to simply omit Figure 1 and start with Figure 2 since this is better characterized anyway.

3) Figure 1B would be easier to follow in the text and legend if the three sub-panels were labelled as panels B, C, and D. This would make it easier to call out the individual experiments. The same applies to other figure panels where more than one type of experiment is shown together (e.g., the top and bottom parts of Figure 2A. In general, it is easier for the reader if each panel displays a single experiment.

It is important to note that although separated into different panels, membrane and nuclear extract fractions immunoblotted in Figure 1B were obtained from the same group of livers. We noted in the figure legend that “although shown in separate panels, calnexin and LSD-1 serves as loading controls for the HMGCR and nuclear SREBP immunoblots.” The remainder of experiments (e.g., Figure 2A) were conducted similarly and the fact that loading controls are shown in separate panels was indicated in the figure legend. To improve clarity of Figure 1B, we have removed the HMGCR mRNA data (which appears in Figure 1—figure supplement 1A) and estimation of the relative amount of HMGCR protein. We now report the absolute level of HMGCR protein under the immunoblot as suggested by this reviewer (point 5). We have also indicated in the figure legend that “although shown in a separate panel, LSD-1 serves as a loading control for the nuclear SREBP immunoblots.”

4) The increase in UBIAD1 in Ki livers (and other tissues) is based on increased levels in the membrane fraction. Is it possible that the total levels are the same, and the difference is due to efficiency of recovery of certain subcellular membranes? Figure 6 shows that mutant UBIAD1 is preferentially in the ER whereas wild type UBIAD1 is preferentially in the Golgi. So if the ER is more effectively recovered than Golgi in the membrane fraction, then one might get the impression that total UBIAD1 is increased. Can a blot also be done on total lysate to clarify this issue? Total lysate is shown in Figure 6C, but it is unclear if the two blots are directly comparable to infer anything about total UBIAD1 levels.

Throughout the studies presented in this manuscript, we have immunoblotted membrane fractions for ERlocalized calnexin or UBXD8 (Figure 3) to control for loading. Even though levels of UBIAD1 and HMGCR accumulate in livers and other tissues of knockin mice, the levels of calnexin and UBXD8 remain constant. If the ER was more efficiently recovered than Golgi in the membrane fractions of the knockin mice, it would be anticipated that levels of both calnexin and UBXD8 would also be increased.

5) I think it is more useful for a reader to directly state the absolute level of increase in HMGCR rather than the value after normalization to mRNA levels. The absolute level of protein is what is important for its enzymatic activity, which is the key parameter for the disease (i.e., the amount of cholesterol that accumulates) that forms the focus of this paper. The normalized values inform more about the relative rates of synthesis/degradation, which is also interesting but less central to the phenotype. Thus, one could simply report total values in the figures and Results section, then in the discussion state how the levels are increased despite much lower mRNA levels, suggesting that either synthesis rate is higher and/or degradation rate is lower.

We now report the absolute levels of HMGCR rather than values after normalization. These values are included under the HMGCR immunoblots in Figure 1B and Figure 2B.

6) Results section – It states that the Lovastatin effect on HMGCR is blunted in Ki mice liver relative to wild type, but the result in Figure 6A shows that accumulation of HMGCR is enhanced in Ki mice liver. Perhaps the sentence is worded incorrectly?

The sentence to which the reviewer refers is confusing and has been removed.

7) Results section – It says Lovastatin led to a slight elevation of HMGCR in Ki mice; However, it was not easy for me to judge from the blot if the increase was any more or less than in wild type mice. Perhaps it is useful to quantify the result and be more precise in the wording with something like "led to XX-fold elevation above the already high levels of HMGCR in Ki mice…" to emphasize that the levels at baseline are already very high.

We have removed the sentence that states lovastatin caused a slight increase in the amount of HMGCR protein in eyes of the knockin mice.

8) It is worth stating how frequently (if at all) corneal inclusions are observed in wild type and heterozygous mice of similar age. This is important to make sure that the inclusions are not simply a consequence of old age.

We have now indicated in the Results section that none of the wild type UBIAD1 (N100S) knockin mice developed corneal opacification and the heterozygous animals were not examined.

Reviewer #2:

[…] This study touches on several questions but leaves them mostly unanswered. For example:

1) In Ubiad1ki/ki mice, both HMGCR and UBIAD1 protein levels are increased, however no mechanistic insight is provided to explain these observations, particularly the increase in UBIAD1 protein levels by the N100S mutation.

2) Previous work indicates that UBIAD1 inhibits HMGCR degradation by acting in a post ubiquitination state. This study does not clarify the mechanism by which UBIAD1 prevents HMGCR degradation and how this is impacted by the N100S mutation. Does this mutant bind tighter to HMGCR or the effects are simply a result of its higher protein levels? It is assumed that its lower capacity to bind to GGPP is responsible for tighter binding to HMGCR but this is not tested.

3) In Ubiad1ki/ki mice, HMGCR levels are disturbed in all tissues analyzed. However, it is unclear why the disease manifest specifically in the eye. Is HMGCR more susceptible to UBIAD1 mediated control in the eye while other mechanisms dominate in the remaining organs? Or does the overall impact of UBIAD1 in cholesterol homeostasis insufficient to lead to other complications such as atherosclerosis?

4) Why have the authors chosen to backcross their C57BL/6 x 129 Ubiad1ki/ki mice to C57BL/6 pure genetic backgrounds? This may be not be trivial for non-experts.

We backcrossed the knockin mice to pure C57BL/6 genetic background to ensure observed phenotypes are not influenced by the mixed genetic background. This rationale is now included in the revised manuscript.

5) The quality of the SREBP-2 blots are poor throughout the manuscript.

Figure 2A: Poor quality SREBP-2 blots.

Figure 5A; Lane 5 and 6 seem to be reversed regarding the SREBP-2 protein levels both in membrane fraction and nuclear extract. While the authors provided some explanation for this in the main text, it would be more convincing if the authors could comment on this more clearly or repeat the western blot.

Figure 5C; Poor quality of SREBP-2 blot and the SREBP-2 blotting for membrane fraction is missing.

In the revised manuscript, we have provided darker exposures of the nuclear SREBP-2 blots for Figure 2A and Figure 5C. We have observed some variation in the quality of SREBP-2 nuclear immunoblots over the years and do not understand the basis for this. It should be noted; however, that the immunoblots show a decrease in nuclear SREBP-2 in UBIAD1 (N100S) knockin mice fed chow or cholesterol-containing diets, which correlates with reduction in mRNAs encoding its target genes. In Figure 5C, we only immunoblotted for nuclear SREBP-2 as a control for cholesterol feeding. Figure 5 now includes mRNA data showing that cholesterol feeding downregulates mRNAs encoding SREBP target genes in livers of both wild type and knockin mice.

Lanes 5 and 6 of Figure 5A were not reversed. The result shows that cholesterol feeding causes an increase in the precursor of SREBP-2, which likely results from inhibition of its cleavage to the mature nuclear form.

6) Overexposed HMGCR blots

Figure 4C; While it is expected that HMGCR protein level are lower in WT and specifically increased in Ubiad1ki/ki mouse tissues (and MEF), due to overexpression, it is difficult to assess if this is the case in the HMGCR blot in Figure 4C.

Figure 6A; The authors claim that lovastatin caused HMGCR accumulation in Ubiad1ki/ki mouse liver. However, this is difficult to assess when the HMGCR blot is overexposed and no quantification of protein levels is provided.

Figure 4C shows an experiment in which MEFs were first depleted of isoprenoids through incubation in medium containing lipoprotein-deficient serum and the HMGCR inhibitor compactin. As a result of this depletion, HMGCR transcription, translation, and stability are increased. These increases result in the accumulation of HMGCR protein to levels that approach those observed in the knockin MEFs. In the isoprenoid-replete conditions shown in Figure 4A, levels of HMGCR protein are low because of sufficient levels of sterol and nonsterol isoprenoids; HMGCR protein accumulates in Ubiad1Ki cells because of its resistance to degradation.

7) In Figure 7D, the author showed there is no significant increase of total cholesterol in the range of 300-400ng sterol/ug DNA and similar total cholesterol measurement in Figure 7E (for measurement of intermediates of cholesterol synthesis) presented in the range of 100-200ng sterol/ug DNA.

Corneas from different sets of mice were analyzed in Figure 7E and 7D, which may explain differences in total cholesterol levels.

8) Textual changes

Last paragraph, last line should refer to Figure 7E, not 7D.

The legend of Figure 4C and 4D is confusing. Figure references do not seem to be correct. Also, the use of MG132 is mentioned, but nowhere in the figures it is annotated. Please amend.

We now changed Figure 7D to Figure 7E in the last paragraph as indicated by this reviewer.

The reviewer is correct, the legend to Figure 4 is wrong. We should have indicated that all of the cells in D received MG-132. This has now been corrected in the revised manuscript.

Reviewer #3:

[…] Another question that might be interesting to explore in this brief study is the connection (or lack thereto) between this opaquitopathy (I just made that up; not bad!)-meaning opacity-causing disease- and the recent work on cataracts that appear to be relieved by lanosterol, since HMGCR would be expected to promote synthesis of more of this alleviating agent in the disease modeled herein. Different mechanism? Different pathology? No relation? Just an interesting thing to reference in the discussion maybe. Or maybe not.

Otherwise, full speed ahead. Fantastic work!

We thank the reviewer for the supportive comments!

https://doi.org/10.7554/eLife.44396.020

Article and author information

Author details

  1. Youngah Jo

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Jason S Hamilton

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3291-3125
  3. Seonghwan Hwang

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Kristina Garland

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Gennipher A Smith

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Shan Su

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9369-1642
  7. Iris Fuentes

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Sudha Neelam

    Department of Ophthalmology, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Bonne M Thompson

    Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  10. Jeffrey G McDonald

    Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  11. Russell A DeBose-Boyd

    Departments of Molecular Genetics, Center for Human Nutrition, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Russell.Debose-Boyd@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7452-5227

Funding

National Institutes of Health (HL-20948)

  • Russell A DeBose-Boyd

National Institutes of Health (GM-112409)

  • Russell A DeBose-Boyd

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Lisa Beatty and Ijeoma Onweneme for help with tissue culture and Guosheng Liang for helpful advice. We also thank Dr. Jerry Niederkorn for help in the analysis of Ubiad1Ki/Ki for corneal opacification. This work was supported by National Institutes of Health grants HL-20948 and GM-112409 to RD-B.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for Care and Use of Laboratory Animals of the National Institutes of Health. All of the animal work described in this manuscript has been approved and conducted under the oversight of the UT Southwestern Institutional Animal Care and Use Committee (Protocol # - 2016-101636).

Senior Editor

  1. Randy Schekman, Howard Hughes Medical Institute, University of California, Berkeley, United States

Reviewing Editor

  1. Ramanujan S Hegde, MRC Laboratory of Molecular Biology, United Kingdom

Reviewer

  1. Randy Y Hampton, UCSD, United States

Publication history

  1. Received: December 17, 2018
  2. Accepted: February 19, 2019
  3. Accepted Manuscript published: February 20, 2019 (version 1)
  4. Version of Record published: March 6, 2019 (version 2)

Copyright

© 2019, Jo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 819
    Page views
  • 179
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Tomoki Naito et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    Pan Liu et al.
    Short Report
