Task-induced functional brain connectivity mediates the relationship between striatal D2/3 receptors and working memory

  1. Matthew M Nour  Is a corresponding author
  2. Tarik Dahoun
  3. Robert A McCutcheon
  4. Rick A Adams
  5. Matthew B Wall
  6. Oliver D Howes
  1. King’s College London, United Kingdom
  2. Hammersmith Hospital, United Kingdom
  3. Imperial College London, United Kingdom
  4. University College London, United Kingdom
  5. University of Oxford, United Kingdom
Research Article
  • Cited 0
  • Views 488
  • Annotations
Cite this article as: eLife 2019;8:e45045 doi: 10.7554/eLife.45045

Abstract

Working memory performance is thought to depend on both striatal dopamine 2/3 receptors (D2/3Rs) and task-induced functional organisation in key cortical brain networks. Here, we combine functional magnetic resonance imaging and D2/3R positron emission tomography in 51 healthy volunteers, to investigate the relationship between working memory performance, task-induced default mode network (DMN) functional connectivity changes, and striatal D2/3R availability. Increasing working memory load was associated with reduced DMN functional connectivity, which was itself associated with poorer task performance. Crucially, the magnitude of the DMN connectivity reduction correlated with striatal D2/3R availability, particularly in the caudate, and this relationship mediated the relationship between striatal D2/3R availability and task performance. These results inform our understanding of natural variation in working memory performance, and have implications for understanding age-related cognitive decline and cognitive impairments in neuropsychiatric disorders where dopamine signalling is altered.

https://doi.org/10.7554/eLife.45045.001

Introduction

Working memory is the short-term maintenance, evaluation and manipulation of information ‘online’, necessary for higher cognitive processing (D'Esposito and Postle, 2015; Millan et al., 2012). Working memory impairment is an important component of age-related cognitive decline, (Braskie et al., 2008; Dahlin et al., 2008) and is reliably present in multiple neuropsychiatric disorders, where it predicts poor functional outcomes (Millan et al., 2012). The neurobiology underlying working memory variability in health and disease remains unknown, however converging evidence implicates the neuromodulator dopamine (Cools and D'Esposito, 2011). Moreover, age-related decline in striatal dopamine signalling could contribute to the cognitive decline seen in normal ageing, (Braskie et al., 2008; Dahlin et al., 2008; Bäckman et al., 2000; Berry et al., 2018a; Berry et al., 2016; Matuskey et al., 2016) and altered striatal dopamine signalling in schizophrenia and Parkinson’s Disease could contribute to cognitive impairments in these disorders (Millan et al., 2012; Simpson et al., 2010; McCutcheon et al., 2018a; Meder et al., 2019).

One influential theory postulates that striatal dopamine 2/3 receptors (D2/3R) gate the flow of new information into the cortex, setting the balance between working memory stabilisation and updating (Dahlin et al., 2008; Cools and D'Esposito, 2011; Bäckman et al., 2011; Frank et al., 2001; Frank and O'Reilly, 2006). Recent animal studies show that striatal D2Rs induce changes in cortical activity and task-related mesocortical synchrony. Specifically, postsynaptic striatal D2R overexpression in mice causes a deficit in inhibitory signalling in the prefrontal cortex (PFC), (Kellendonk et al., 2006; Li et al., 2011) reduced activity in ventral tegmental area (VTA) dopamine neurons, and reduced VTA-PFC synchrony during working memory (Krabbe et al., 2015; Duvarci et al., 2018). These changes are accompanied by impairments in cognitive tasks that recruit the prefrontal cortex, including those that involve working memory (Kellendonk et al., 2006; Duvarci et al., 2018; Simpson and Kellendonk, 2017). Human and non-human primate studies also implicate the (dorsal) caudate in working memory function (Dahlin et al., 2008; Rieckmann et al., 2011; Levy et al., 1997).

In humans, working memory-induced changes to whole-brain functional organisation can be studied using functional magnetic resonance imaging (fMRI), which allows measurement of the functional connectivity between cortical brain regions (Shine and Poldrack, 2018; Shine et al., 2016). Functional connectivity in this context refers to the pairwise correlation between the time course of neural activity in each region, and is a marker of shared information processing (Rubinov and Sporns, 2010). Cortical brain regions can be clustered into ‘networks’ based on their pattern of functional connectivity during rest (Rubinov and Sporns, 2010). Recent human fMRI studies indicate that working memory performance is supported by changes in the functional connectivity and organisation of cortical networks. Specifically, working memory performance induces a decrease in functional connectivity within the default mode network (DMN) (Cole et al., 2014; Finc et al., 2017; Liang et al., 2016). The DMN is the prototypical ‘task negative network’ that typically shows reductions in activity during working memory tasks, and includes ventromedial prefrontal cortex and posterior cingulate cortex (Finc et al., 2017). Moreover, task-induced connectivity changes within the DMN predict performance on working memory tasks such as the n-back (Finc et al., 2017). Working memory performance is also accompanied by changes in functional connectivity within ‘task positive networks’ (TPN) such as the dorsal attention network (DAN) and the frontoparietal network (FPN), which typically show increases in activity during working memory tasks (Shine and Poldrack, 2018).

Together, these findings suggest that striatal D2/3R levels, particularly within the caudate, might exert an influence on working memory performance by modulating task-induced functional connectivity within task-relevant cortical networks. However, this hypothesis has not been tested in humans. In this study we address this question directly in a sample of 51 healthy volunteer participants. We used fMRI to measure functional connectivity within the DMN and TPN during a letter n-back working memory task that required updating of working memory representations. In the same participants, we measured baseline striatal D2/3R availability using positron emission tomography (PET). Our primary hypothesis was that striatal D2/3R availability would directly correlate with the magnitude of task-induced connectivity changes within our studied cortical networks, and that this relationship would mediate the influence of striatal D2/3Rs on performance.

Results

Task design, behaviour and task-induced neural activation

All participants completed 18 task blocks of a letter n-back working memory task (six blocks each of 0-, 1- and 2-back conditions, in pseudo-randomised order) during fMRI scanning (Figure 1a). During the task, participants indicated whether the ‘target’ letter was present or absent on each trial, as quickly as possible. In the 0-back condition the target letter was specified at the start of the task block and remained unchanged throughout the block. In the 1-back and 2-back conditions the target letter changed on every trial (i.e. target letter for trial t was the letter presented on trial t-1 for the 1-back condition, and trial t-2 for the 2-back condition).

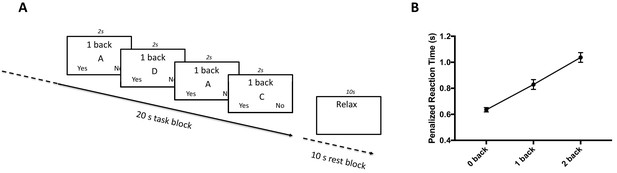

Task design and behavioural results.

(A) Letter n-back task design. The task consisted of 18 task blocks (20s each, interspersed with 10s rest blocks) that were pseudo-randomised to 0-, 1-, or 2-back conditions (6 blocks of each condition per task session). Participants indicated, as quickly as possible, whether the target was present or absent at the appearance of each letter, using two buttons of an MR-compatible button box. Each letter appeared on the screen for 2 s before the next letter was shown. This figure shows the last 4 trials of a 1-back task block, followed by a rest block. (B) Task behaviour. Penalised reaction time (pRT, using penalization ratio of 2.5) increases (indicating poorer performance) with increasing working memory load. Plotted as mean ± S.E.M.

https://doi.org/10.7554/eLife.45045.002

We used a performance metric that is sensitive to processing speed and response omissions, as well as false positive responses. One such metric is the penalized reaction time (pRT, where reaction time set to maximum response time (2s) for incorrect or omitted responses) (Finc et al., 2017). However, using a fixed penalization of 2s fails to take into account individual- and condition-specific differences in mean reaction time. Consequently, we used a modified pRT metric, in which the reaction time of an incorrect response was replaced by a pRT that was a fixed ratio of the subject- and condition-specific RT. For clarity, we report behavioural results using the pRT defined with a penalization ratio of 2.5 (hereafter, pRT(2.5)), however the statistical significance of all results is unchanged when using penalization ratios from 2.5 to 4 (hereafter pRT(2.5-4)).

We used this proportional pRT measure to derive a single measure of working memory ‘robustness’ to increasing working memory load. This was defined as the negative regression coefficient relating pRT to memory load (-ΔpRT). A value of 0 indicates that performance is unaffected by the increase in task difficulty, and increasingly negative values indicate that performance degrades with increased cognitive demands.

Performance (pRT(2.5)) was negatively related to working memory load, indicating that our performance metric is sensitive to increasing cognitive demands (repeated measures ANOVA indicates a mean effect of cognitive load: F2,100 = 68.7, P < 0.001. Post-hoc paired t-tests indicate a significant difference between all pairwise comparison: t-tests: all t50 >5.3 and P < 0.001) (Figure 1b).

As expected, (Owen et al., 2005) in a standard fMRI activation analysis there was activation in a widespread frontoparietal network that was parametrically related to working memory load, and deactivation in a network involving the ventromedial prefrontal cortex and posterior cingulate cortex (at P < 0.05, following whole-brain family wise error correction). Within the striatum, the activation cluster extended primarily into the dorsal striatum, in line with the postulated role of this region in updating working memory (Dahlin et al., 2008) (see Figure 2a and Table 1 for activation/deactivation clusters). There was no significant linear or quadratic relationship between neural activation/deactivation and behavioural performance (-ΔpRT (2.5)) when this variable was used as a regressor in a second-level voxel-wise analysis.

Table 1
Whole brain activation/deactivation results for parametric working memory load regressor.
https://doi.org/10.7554/eLife.45045.003
PeakMNI coordinates (mm)
P(FWE-corr)TXYZ
Activation clusters
Left middle/superior frontal gyrus<0.001−30−30456
Right middle/superior frontal gyrus<0.0012626457
Left middle frontal gyrus<0.001−39−39633
Left precuneus/superior parietal lobule<0.001-8-8−6951
Right precuneus/superior parietal lobule<0.00199−6354
Right superior parietal lobule<0.0013333−4844
Deactivation clusters
Left central operculum/posterior insula<0.00110.35−36−1618
Right central operculum/posterior insula<0.00110.2440−1622
Left central operculum/anterior insula<0.0019.30−36315
Left posterior cingulate<0.0017.79-4−4827
Right posterior cingulate0.0125.636−4821
Right posterior cingulate0.4554.2615−446
  1. Activation/deactivation peaks present in the significant clusters at whole-brain threshold of P < 0.05 (family wise error (FWE) – corrected), using a cluster defining threshold P < 0.001 (uncorrected) for both contrasts. Anatomical labelling corresponds to the peak MNI co-ordinate. MNI = Montreal neurological institute.

Task-induced functional connectivity change

To investigate task-induced functional connectivity changes within task-relevant cortical networks, we first used a data-driven community detection algorithm (Blondel et al., 2008; Lancichinetti and Fortunato, 2012) to partition the cortex into group-level task positive (TPN, 53 nodes) and default mode (DMN, 42 nodes) networks, using the fMRI signal time course during the baseline (0-back) task condition (Figure 2b). The ‘empirical’ TPN and DMN networks derived from this algorithm overlapped respectively with the spatial activation and deactivation maps from the standard fMRI activation analysis, serving to highlight the functional relevance of these networks. Specifically, the set of voxels defined by the DMN nodes overlapped primarily with the voxels of the cortical deactivation cluster map (Dice similarity coefficient (DSC) = 0.22), compared to the voxels comprising the cortical activation clusters (DSC = 0.08). Conversely, the set of voxels defined by the empirical TPN nodes overlapped with the cortical activation cluster map (DSC = 0.33), but not cortical deactivation cluster map (DSC <0.001). Moreover, the empirical DMN node assignments overlapped with the a priori network assignments from the Gordon cortical parcellation for the DMN (DSC = 0.92) but not with the a priori Gordon assignments for the task-positive networks (‘DAN and FPN’) (DSC = 0.08). Conversely, the TPN nodes showed the opposite pattern, overlapping with the Gordon ‘DAN and FPN’ (DSC = 0.94) but not DMN (DSC = 0.04).

Task-related neural activation and task-related cortical networks.

(A) Significant task-induced activations (red) and deactivations (blue) that correlate with increasing working memory load, showing increased activation within dorsolateral prefrontal cortex and parietal cortex, and decreased activation within ventromedial prefrontal cortex, posterior cingulate cortex and medial temporal lobe. Activation and deactivation maps thresholded at whole-brain cluster threshold (cluster-level family-wise error corrected P < 0.05), and displayed in coronal, sagittal and axial sections overlaid on a single-subject normalized T1 image in MNI space (see Table 1 for statistical results). (B) Lateral (top) and top-down (bottom) rendering illustrating nodes of the empirical task-positive (TPN, in red) and default mode (DMN, in blue) networks identified by the community detection algorithm.

https://doi.org/10.7554/eLife.45045.004

For each participant we defined the task-induced functional connectivity change within the DMN, TPN and the edges connecting the DMN and TPN (DMN-TPN) as the mean regression coefficient (w1) of a linear model describing functional connectivity strength (Fisher z-transformed r-value) of each edge (dependent variable) as a function of cognitive load (independent variable). Task-induced functional connectivity significantly decreased with working memory load in the DMN (w1 significantly less than zero: t50 = -2.33, P = 0.02, one-sample t-test), and significantly increased with working memory load in the TPN (w1 significantly more than zero: t50 = 2.70, P = 0.01, one-sample t-test) (Figure 3a and b).

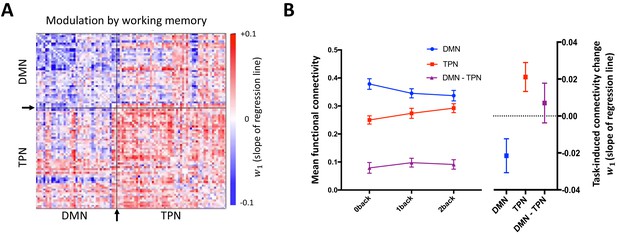

Task-induced changes in DMN and TPN functional connectivity.

Increasing working memory load is accompanied by decreasing functional connectivity within the DMN (negative w1 values) and increasing functional connectivity within the TPN (positive w1 values). (A) Mean task-induced functional connectivity change of each network edge (node-node connection) in the whole sample. Each edge (cell of the matrix) represents the regression coefficient (w1 value) of connectivity change as a function of working memory load, averaged over the whole group. Arrows and black lines indicate the boundary separating nodes allocated to the empirical DMN vs TPN. (B) Mean task-induced functional connectivity change within the DMN, TPN and DMN-TPN across the whole group. Left: Group mean (± S.E.M) functional connectivity strength (Fisher z-transformed r-value) within the DMN, TPN and DMN-TPN as a function of working memory load. Right: Group mean (± S.E.M) task-induced functional connectivity change (w1) within the DMN, TPN and DMN-TPN. w1 was significantly different to zero in both the DMN (t50 = -2.33, P = 0.02, one-sample t-test) and TPN (t50 = 2.70, P = 0.01, one-sample t-test), but not the DMN-TPN (t50 = 0.65, P = 0.52, one-sample t-test). Repeated measures ANOVA indicated that w1 was not equal within the DMN, TPN and DMN-TPN edges (F2,100 = 11.16 P < 0.001), and post-hoc paired t-tests confirmed that the w1 of the DMN was significantly lower than both the TPN and DMN-TPN (t50 = -4.56, P < 0.001 and t50 = -3.01, P = 0.004, respectively), but that there was no significant difference between the w1 of the TPN and DMN-TPN (t50 = 1.62, P = 0.11).

https://doi.org/10.7554/eLife.45045.005

Relationship between functional connectivity change and striatal D2/3Rs availability

[11C]-(+)-PHNO binds selectively to both D2 and D3 receptors, and the D3R fraction of this measure differs between the ventral and dorsal striatum. In the (dorsal) caudate, the D3R fraction of the [11C]-(+)-PHNO BPND signal is negligible, while in the ventral striatum (including accumbens) the D3R fraction has been estimated at 20–25% (Tziortzi et al., 2011). In addition to molecular differences between striatal sub-regions, functional differences also exist. Specifically, working memory has been proposed to be supported by the (dorsal) caudate, with the accumbens being more relevant for limbic and reward processing (Dahlin et al., 2008; Rieckmann et al., 2011; Levy et al., 1997; McCutcheon et al., 2019; Haber, 2003). Consequently, we extracted [11C]-(+)-PHNO BPND separately for the caudate and accumbens striatal sub-regions, in order to investigate the relationship between striatal D2/3R availability and task-induced cortical network connectivity in a more fine-grained manner. For completeness we also report results using D2/3R availability measured from the whole striatum (caudate, accumbens and putamen).

There was a positive correlation between caudate D2/3R availability and task-induced connectivity change in the DMN (rho = 0.45 [.18,. 65], d.f. = 46, P = 0.002), and DMN-TPN (rho = 0.33, [0.04, 0.57], d.f. = 46, P = 0.02), but not within the TPN (rho = 0.21, [-0.08, 0.48], d.f. = 46, P = 0.15). However, the difference between the correlations in the DMN and TPN was not itself significant (z = 1.41 [95% confidence interval for difference between correlations: −0.10,. 65], P = 0.16). D2/3R availability in the accumbens was similarly related to task-induced connectivity change in the DMN (rho = 0.31 [.017,. 55], d.f. = 46, P = 0.03), but not the TPN (rho = 0.003, [−0.29,. 29], d.f. = 46, P = 0.98) or DMN-TPN (rho = 0.15, [−0.15,. 42], d.f. = 46, P = 0.32). Although the magnitude of the D2/3R-DMN connectivity relationship was greater in the caudate compared to the accumbens, the difference between these two correlations was not statistically significant (z = 1.51 [-0.05, 0.37], P = 0.13).

Taking the striatum as a whole, there was a positive correlation between D2/3R availability in the whole striatum and the task-induced connectivity change within the DMN (rho = 0.38 [.10,. 60], d.f. = 46, P = 0.008), but not within the TPN (rho = 0.11 [−0.18,. 39], d.f. = 46, P = 0.44) or DMN-TPN (rho = 0.17 [−0.12,. 43], d.f. = 46, P = 0.29) (Figure 4a). This indicates that participants who exhibited greater task-induced reduction in DMN connectivity had lower striatal D2/3R availability, particularly in the caudate.

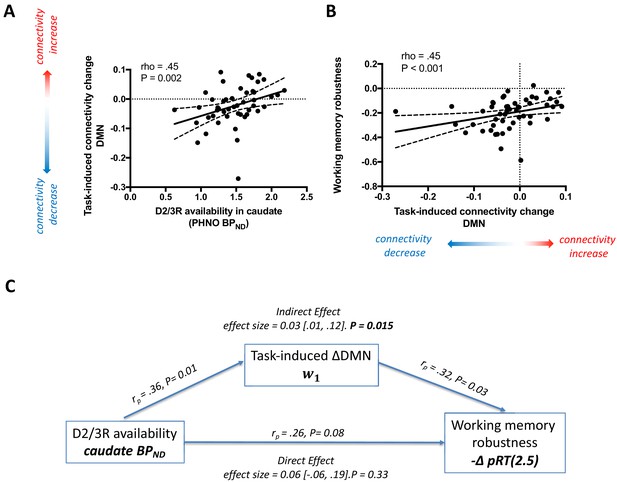

The relationship between striatal D2/3R availability, task-induced change in DMN connectivity, and task performance.

(A) The significant positive correlation between striatal D2/3R availability and task-induced change in connectivity within the default mode network (DMN), where negative values on the y-axis indicate a reduction in connectivity. Lower caudate D2/3R availability is related to a task-induced reduction in DMN connectivity. (B) The relationship between task-induced functional connectivity change within the DMN and working memory robustness, -ΔpRT2.5 (a value of 0 indicates that performance is unaffected by increasing working memory load, while negative values indicate that performance decreases with increasing cognitive demands). Negative values on the x-axis indicate a task-induced reduction in DMN connectivity. Task-induced decreases in DMN connectivity were associated with greater working-memory related behavioural impairment. (C) Mediation analysis. Greater caudate D2/3R availability has a significant but indirect association with improved task performance, mediated via task-induced connectivity change within the DMN. Pearson’s correlation coefficients in (C) are reported in the sample of 48 participants (d.f. = 46) who had both PET and fMRI.

https://doi.org/10.7554/eLife.45045.006

We investigated the specificity of the relationship between task-induced DMN connectivity change and striatal D2/3Rs in two additional analyses. First, there was no correlation between striatal D2/3R availability and functional connectivity averaged over the whole task session (i.e. mean network functional connectivity over all task blocks) in the DMN (Caudate: rho = 0.07 [−0.23,. 36], d.f. = 46, P = 0.63; Accumbens: rho = 0.05 [−0.25,. 34], d.f. = 46, P = 0.75; Whole Striatum: rho = 0.16 [−0.14,. 43], d.f. = 46, P = 0.29). Similarly, there was also no significant relationship between regional D2/3R availability and whole-session connectivity in the TPN or DMN-TPN (all P > 0.15). Second, there was no relationship between D2/3R availability in the substantia nigra/ventral tegmental area (SN/VTA, where the D3R fraction of the PHNO signal approaches 100% [Tziortzi et al., 2011]) and cortical network connectivity change (DMN: rho = 0.01 [−0.28,. 30], d.f. = 46, P = 0.93); TPN: (rho = −0.10 [−0.38,. 20], d.f. = 46, P = 0.50); DMN-TPN: (rho = −0.12 [−0.40,. 18], d.f. = 46, P = 0.42).

Of note, the correlation between DMN connectivity change and D2/3R availability in the SN/VTA was significantly weaker than the correlation with D2/3R availability in the caudate (z = 2.54 [0.11, 0.83], P = 0.01), and whole striatum (z = 2.29 [0.06, 0.72], P = 0.02), but not the ventral striatum (z = 1.7 [-0.05, 0.67], P = 0.09).

The relationship between network connectivity changes and performance

There was a significant positive correlation between the task-induced change in DMN connectivity and working memory performance (defined as the robustness of performance to increasing cognitive load, -ΔpRT(2.5)) (rho = .45 [.20,.64], d.f. = 49, P < 0.001), indicating that participants who showed the greatest task-induced reduction of functional connectivity within the DMN also showed the most marked load-dependent impairment in task performance (Figure 4b). This result was robust to a wide range of penalization ratios from 2.5 to 4 (all P < 0.001). There was no similar relationship for connectivity change within the TPN or DMN-TPN (-ΔpRT2.5-4, all P > 0.50), and also no relationship between performance and mean functional connectivity averaged over the whole task session in the DMN or TPN (-ΔpRT2.5-4, all P > 0.50).

The relationship between striatal D2/3Rs and performance

There was a positive relationship between D2/3R availability in the caudate and -ΔpRT(2.5) (rho = 0.33 [.04,. 57], d.f. = 46, P = 0.02), which remained significant for penalization ratios from 2.5 to 4 (all P < 0.02). This relationship was not present for D2/3R availability in the accumbens (-ΔpRT(2.5): rho = 0.10 [−0.20,. 38], d.f. = 46,, P = 0.50. P > 0.4 for -ΔpRT(2.5-4)), and the difference between these correlation coefficients was itself significant (z = 2.44 [0.05, 0.44], P = 0.01). The correlation between performance and D2/3R availability in the whole striatum was present at trend level (-ΔpRT(2.5): rho = 0.27 [−0.02,. 52], d.f. = 46, p=0.06. P < 0.06 for -ΔpRT(2.5-4)). There was no relationship between D2/3R availability in the SN/VTA and performance (-ΔpRT(2.5) rho = 0.13 [−0.17,. 41], d.f. = 46, P = 0.37. P > 0.3 for -ΔpRT(2.5-4)).

Striatal D2Rs are thought to exert an influence on cognitive function through a more direct effect on the excitability and function of cortical circuits (Cools and D'Esposito, 2011; Frank and O'Reilly, 2006; Salami et al., 2019). Having found a significant relationship between striatal D2/3R availability and both task-induced DMN connectivity, and a relationship between both measures and task performance, we tested whether the influence of striatal D2/3R availability on performance is mediated by the effect of the former on task-induced connectivity change within the DMN. A mediation analysis indicated that the effect of caudate D2/3R availability on working memory performance is mediated through the direct effect of D2/3R availability on task-induced DMN connectivity change (ΔpRT(2.5): average causal mediation effect (ACME) = 0.03 [0.01, 0.12], P = 0.015. The mediation effect remains significant at P < 0.015 for -ΔpRT(2.5-4)) (Figure 4c). This analysis was also significant using D2/3R availability from the whole striatum (-ΔpRT(2.5): ACME = 0.04 [0.01, 0.14], P = 0.026. P < 0.03 for -ΔpRT(2.5-4)), but was not significant using D2/3R availability from the accumbens (-ΔpRT(2.5): ACME = 0.002 [<0.001, 0.12], P = 0.09. P > 0.08 for -ΔpRT(2.5-4)). As expected, there was no significant mediation effect when the mediator variable was task-induced connectivity changes within the TPN (all P > 0.6) or DMN-TPN (all P > 0.3). These results suggest that striatal D2/3Rs, particularly in the caudate, might exert an influence on working memory performance through a more direct effect on task-induced functional connectivity changes within the DMN. Participants with higher striatal D2/3R availability exhibited the least pronounced DMN connectivity decreases with working memory load, which predicted more robust task performance in the face of increasing working memory load.

Relationship between striatal D2/3R availability and task-related activation

Our results support the conclusion that striatal D2/3R availability, particularly within caudate, is related to task-induced changes in DMN connectivity and working memory performance. For completeness, we conducted two analyses to test for a relationship between D2/3R availability within this region and inter-individual differences in task-evoked BOLD activation. First, using a standard mass-univariate analysis we tested whether there was a relationship between the parametric BOLD response to working memory load and caudate D2/3R availability. We found no evidence for a linear or quadratic relationship at P < 0.05, whole-brain level. In a second analysis we used partial least squares (PLS) regression for fMRI, to test for the presence of a multivariate pattern of brain activity that shows a relationship to inter-individual differences in caudate D2/3R availability. This analysis again did not detect significant latent variables (LVs) showing a relationship to caudate D2/3R availability (1st LV P-value = 0.20). However, consistent with the standard mass univariate fMRI analysis (Figure 2a), a standard PLS analysis found strong evidence for BOLD modulation by working memory load in a widespread cortical frontoparietal network (1st latent variable significant at P < 0.001).

Within-subject relationship between DMN strength and performance

The between-subjects analysis so far has considered the relationship between the average task-induced connectivity change within the DMN and working memory performance, finding that as cognitive load increases, the individuals who showed the greatest DMN connectivity decreases also showed the greatest working memory performance degradation. We employed a within-subject linear regression approach to investigate whether block-specific DMN connectivity is a significant predictor of working memory performance (see Materials and methods). A simple regression analysis confirmed that block-wise DMN connectivity strength is a significant within-subject predictor of working-memory performance (using pRT2.5, w1 = -.10 [-.17, -.02], P = 0.01). The results remain significant when using pRT2.5-4). When including block-specific working memory load as an additional predictor variable in the model, this effect was not statistically significant (using pRT2.5, w2 = -.04 [-.10,. 01], P = 0.14. P > 0.2 when using pRT2.5-4). As expected, this analysis confirmed a significant effect of working memory load (w1) on performance (all P < 0.001). As increased pRT is indicative of poorer performance, the negative regression coefficients in these analyses indicate that in a given task block, stronger DMN connectivity is a predictor of improved working memory performance within an individual. This is in line with the between-subject finding that poorer performing participants show the most exaggerated DMN connectivity reductions with increased working memory load.

Analysis using d-Prime behavioural measure

Finally, for completeness we repeated the analysis using the discriminability index (d’) (Haatveit et al., 2010) as the measure of working memory performance. As with the pRT metric, for each individual we regressed mean d’ for each task condition on working memory load, and defined overall performance as the regression coefficient on working memory load. Using this performance metric, there was no relationship between task-induced DMN connectivity change and performance (rho = 0.12 [-.17,. 39], d.f. = 49, P = 0.4), and no relationship between performance and D2/3R availability in any striatal sub-region (all P > 0.2).

Importantly, compared to pRT, d’ is not sensitive to differences in processing speed (i.e. reaction time) between task conditions with similar performance accuracy, and also cannot differentiate between (incorrect) response omissions and (correct) ‘non-target’ responses on non-target trials (the dominant trial type). Consistent with these theoretical considerations, in our sample d’ was not significantly different between the two easiest task conditions (0-back d’ = 3.5, 1-back d’ = 3.6. P = 0.7), but was significantly worse in the 2-back condition (d’ = 2.8) compared to both 0- and 1-back (both P < 0.001). In light of these results we conducted a series of exploratory analyses focussing on DMN functional connectivity and performance (d’) changes from 0- to 1-back, and from 1- to 2-back separately. From the 1-back to 2-back condition there was a significant correlation between DMN connectivity change (DMN1back – DMN2back) and performance change (d’1back – d’2back) (rho = 0.30 [0.01, 0.54], d.f. = 49, P = 0.03). This relationship was not present for the 0-back minus 1-back contrast (rho = 0.19 [-.10,. 45], d.f. =49, P = 0.17). However, there was no relationship between performance change, either from 0- to 1-back, or from 1- to 2-back, and D2/3R availability in any striatal sub-region (all P > 0.29).

Discussion

We measured striatal D2/3R availability and task-related cortical network connectivity in a large sample of young healthy participants. The novel contribution of the study is the demonstration that lower striatal D2/3R availability, particularly in the caudate, is associated with greater reduction in task-induced DMN functional connectivity, and that participants with greater reductions in DMN connectivity show worse performance with increasing working memory loads. Our findings indicate that caudate D2/3R availability might affect working memory performance by modulating task-induced functional connectivity changes within the DMN.

Regional specificity of the relationship between D2/3R signalling and working memory

The primate striatum is anatomically organised in a functionally-specific manner, with ventral regions (e.g. accumbens) contributing to limbic and reward processing, and more dorsal regions (including dorsal caudate) supporting motor and executive (e.g. working memory) function (Dahlin et al., 2008; Rieckmann et al., 2011; Levy et al., 1997; McCutcheon et al., 2019; Haber et al., 2000). Several of our results are in accordance with this hypothesis. First, the correlation between striatal D2/3R availability and task-induced DMN connectivity change is numerically (but not significantly) greater in the caudate compared to the accumbens. Second, the positive correlation between striatal D2/3R availability and working memory performance was significantly greater in the caudate, compared with the accumbens. Third, the mediation analyses indicated a significant effect of caudate, but not accumbens, D2/3R availability on performance, mediated through a direct effect on DMN connectivity change. Furthermore, we report no significant relationships between D2/3R availability in the SN/VTA and DMN connectivity change or behaviour. Although these results are consistent with a regional functional specificity of D2/3R signalling within the mesostriatal circuit, their interpretation is complicated by the use of [11C]-(+)-PHNO to measure D2/3R availability. [11C]-(+)-PHNO is a strongly D3R-preferring agonist tracer, and there are large regional differences in D2R:D3R contribution to [11C]-(+)-PHNO BPND. Specifically, the D3R fraction of this signal is negligible in the dorsal caudate, approximately 20–25% in the ventral striatum, and approaches 100% in the SN/VTA (Tziortzi et al., 2011; Searle et al., 2010). An alternative interpretation of our findings, therefore, is that there are significant differences in the manner in which mesostriatal D2R and D3R signalling supports working memory. Indeed, previous work has shown that D2R and D3R may have different effects on certain cognitive processes (Groman et al., 2016; Groman et al., 2011; Groman et al., 2014).

The relationship between striatal D2/3R signalling, cognitive performance and cortical activity

We find a positive correlation between caudate D2R availability and working memory performance. A recent PET study in older adults (mean age 66.2) reported no relationship between caudate D2R availability (indexed using the D2R-preferring antagonist tracer [11C]raclopride) and working memory performance, (Nyberg et al., 2016) suggesting that the relationship between D2/3R signalling and cognition may differ across the lifespan.

Theoretical and experimental studies implicate striatal dopamine, and particularly D2/3Rs, in the flexible updating of cortical representations, (D'Esposito and Postle, 2015; Cools and D'Esposito, 2011) possibly mediated via a disinhibition of thalamocortical loops (Frank et al., 2001).

We found a positive correlation between caudate D2/3R availability and task-induced cortical functional connectivity change within the DMN and the DMN-TPN, and a non-significant positive correlation with task-induced TPN connectivity. Of note, the difference between dopamine-DMN and dopamine-TPN correlations was not statistically significant, and we believe it is therefore premature to claim that the influence of D2/3R signalling on cortical excitability is specific for the DMN.

Recent animal studies shed light on the potential mechanisms through which striatal D2Rs might influence cortical network activity. Mice that have been genetically engineered to overexpress postsynaptic D2Rs in the striatum show impaired performance on tasks that require working memory updating and memory stabilisation in the face of interference (Simpson and Kellendonk, 2017). These animals also have increased D1R sensitivity and impaired inhibitory neurotransmission within the prefrontal cortex (PFC), (Kellendonk et al., 2006; Li et al., 2011) and manifest several abnormalities in dopaminergic ventral tegmental area (VTA) neuron function, including reduced mean firing, (Krabbe et al., 2015) reduced working memory-dependent phase-locking, and reduced working memory-dependent VTA-PFC synchrony (Duvarci et al., 2018). These changes may be due to an increase in inhibitory signalling from D2R-expressing striatal medium spiny neurons to the VTA (Cazorla et al., 2012). Interestingly, the reduction in task-related oscillatory coupling between VTA (but not substantia nigra) dopamine neurons and PFC is directly related to impaired working memory performance, (Duvarci et al., 2018) suggesting that our observed relationship between striatal D2/3R availability, cortical activity and task performance might reflect the influence of striatal D2/3Rs on mesocortical dopaminergic projections, via an inhibitory connection from the striatum to the midbrain (Krabbe et al., 2015). However, it is unclear to what extent the neurophysiological alterations found in the D2R overexpression mouse model accurately mirror the effects of higher D2R availability in healthy human volunteers. Future animal experiments that employ PET, electrophysiological recordings, and fMRI measures of functional connectivity would help to address this question, and facilitate interpretation of human imaging results.

We find no evidence for a relationship between striatal D2/3R availability and task-induced BOLD activation using either mass-univariate or multivariate regression (PLS) approaches. We note with interest a recent [11C]raclopride PET and fMRI study that used a PLS approach to investigate the relationship between working memory-induced BOLD activation and D2R availability in older adults (mean age 66.2) (Salami et al., 2019). The authors find that task-induced BOLD activation in widespread striatal and (largely frontal) cortical regions is related to D2R availability measures in a differential manner for normal- and low-performing participants. This study differs from the present study in several key respects. Age differences between the study samples suggest that the influence of dopamine on fMRI activation patterns may differ across the lifespan. Second, the study by Salami and colleagues used hierarchical factor modelling to estimate latent factors relating to striatal, neocortical and limbic D2/3R availability, and used these latent factors as the predictor variables in a single PLS model. Finally, differences in D2R:D3R binding properties of [11C]raclopride and [11C]-(+)-PHNO may also contribute to the apparent discrepancy between the results.

Beyond D2/3R signalling – the wider role of dopamine in cognitive performance and cortical activity

Beyond striatal D2/3R availability, previous human PET-fMRI studies have investigated the relationship between other facets of dopamine function and both cortical activity and performance during tasks. For example, PET studies investigating striatal dopamine synthesis capacity have reported positive, (Berry et al., 2018a; Cools et al., 2008; Landau et al., 2009; Vernaleken et al., 2007) negative, (Braskie et al., 2008; Dang et al., 2012a) and quadratic relationships (Berry et al., 2016) with performance on tasks requiring working memory and cognitive flexibility. This heterogeneity likely reflects the fact that optimal performance relies on a task-specific balance between stability and flexibility of neural representations, with the former supported by cortical D1Rs, and the latter supported in part by striatal D2Rs (D'Esposito and Postle, 2015; Cools and D'Esposito, 2011; Frank et al., 2001; O'Reilly, 2006; Bilder et al., 2004). Impaired performance can therefore arise in contexts of both excess (supra-optimal) and impoverished (sub-optimal) D2/3R signalling, (Cools and D'Esposito, 2011; Frank and O'Reilly, 2006; Cools et al., 2007; Samanez-Larkin et al., 2013) which may shed light on the nature of cognitive impairment in conditions of both elevated and reduced striatal dopamine signalling (Millan et al., 2012; Braskie et al., 2008; Dahlin et al., 2008; Bäckman et al., 2000; Matuskey et al., 2016; Simpson et al., 2010; McCutcheon et al., 2018a; Meder et al., 2019). It is therefore conceivable that the impaired working memory performance seen in psychiatric conditions such as schizophrenia reflects supra-optimal D2R signalling, whereas in our healthy volunteer population, non-pathological elevation in D2R availability was predictive of improved performance.

Neurally, striatal dopamine synthesis capacity has also been reported to have a quadratic relationship with task-induced frontoparietal activation, (Berry et al., 2016) with mixed results relating to its relationship with DMN deactivations (Dang et al., 2012a; Braskie et al., 2011). Moreover, two studies report that striatal D1R availability is related to frontoparietal connectivity averaged over an entire working memory task session, but not task-induced connectivity changes (Rieckmann et al., 2011; Roffman et al., 2016). However, we find no relationship between D2/3 receptor availability and whole-session functional connectivity within the DMN or TPN during the task.

Although there is significant covariation between striatal dopamine synthesis capacity and D2R availability, (Berry et al., 2018b) and between striatal D1R and D2R binding, (Groman et al., 2014) further dual-tracer human PET studies will be required to fully characterise the relationship between different facets of dopamine function reported in the discussed studies. It is noteworthy, however, that both theoretical and empirical studies suggest that different dopamine receptor subtypes have differential effects on working memory function and learning (Groman et al., 2016; Groman et al., 2011; Groman et al., 2014; Durstewitz and Seamans, 2008).

The relationship between task-induced cortical connectivity and cognition

We report decreased DMN functional connectivity with increased working memory load, which is related to task performance. These results are consistent with studies that report task-induced decreases in DMN functional connectivity, and with studies that highlight the importance of cortical network reorganisation for task performance (Shine and Poldrack, 2018; Shine et al., 2016; Cole et al., 2014; Finc et al., 2017; Liang et al., 2016; Vatansever et al., 2015; Fornito et al., 2012). The relationship between task-induced decreases in DMN functional connectivity and impaired cognitive performance may reflect recent evidence that the DMN, rather than being ‘task-negative’ as such, is activated by conditions in which large shifts of attention are required during cognitive operations (Smith et al., 2018; Arsenault et al., 2018; Crittenden et al., 2015). Failure to recruit the DMN may therefore hamper the cognitively demanding selection and deselection of representations with increasing working memory loads.

Limitations and strengths

We interpret our results in light of the prior literature showing that striatal dopamine may influence cognitive performance and task-induced neuronal activity. However, a key limitation of the present study is that it is not possible to make strong inferences regarding the direction of causality from purely observational studies. Related to this, there may be (unmeasured) neuronal variables, in addition to task-induced DMN connectivity change, which covary with striatal D2/3R availability, and which may exert a more direct causal influence on working memory performance. These concerns can only be addressed in fully randomised interventional experimental designs. Secondly, although our study does not allow us to test whether the reported relationships are specific to the D2/3R (or whether they additionally extend to the D1R, for example), previous studies have suggested that D2Rs and D1Rs have different relationships with cognitive performance and cortical connectivity (Groman et al., 2014; Roffman et al., 2016). Finally, the interpretation of the [11C]-(+)-PHNO BPND signal is inherently ambiguous, as it reflects both total D2/3R density, and endogenous synaptic dopamine levels. Future studies employing dopamine depletion interventions are therefore required to disambiguate which of these variables is more related to cortical connectivity and cognitive performance (Caravaggio et al., 2014). Our study has a number of strengths that extend the current literature, including the large sample size, measurement of D2/3R and cortical connectivity in the same participants, and examination of both task-induced and whole-session functional connectivity.

Clinical implications

An improved mechanistic understanding of the relationship between striatal D2/3R signalling and cognitive performance is highly relevant for understanding the cognitive deficits seen in normal ageing (associated with reduced striatal D2R availability [Bäckman et al., 2000; Matuskey et al., 2016]), and neuropsychiatric conditions associated with dysregulated striatal dopamine such as Parkinson’s disease and schizophrenia (Millan et al., 2012; Simpson et al., 2010; McCutcheon et al., 2018a; Meder et al., 2019). In schizophrenia, for example, there is elevated striatal dopamine signalling, (McCutcheon et al., 2018a) abnormal DMN resting functional connectivity and task-induced deactivation, (Landin-Romero et al., 2015; Whitfield-Gabrieli et al., 2009) and a well-replicated deficit in tasks involving working memory manipulation and resistance to distraction (Simpson et al., 2010; Simpson and Kellendonk, 2017; Anticevic et al., 2012). Moreover, animal evidence suggests that supra-optimal striatal D2R signalling may underlie some of these neurophysiological and cognitive abnormalities, providing one rationale for the use of D2/3R antagonists in symptomatic treatment. Our results shed new light on the potential neurophysiological and circuit mechanisms relating striatal D2/3R signalling to cognitive performance in healthy young adults, where inter-individual differences in receptor availability lie within the healthy population distribution. An unanswered question is whether the observed relationships between striatal D2/3R availability, task-induced cortical connectivity and task performance, are qualitatively similar to those seen in conditions such as schizophrenia or Parkinson’s disease, or whether an inverted-U relationship is revealed when considering these clinical populations (Cools and D'Esposito, 2011; Meder et al., 2019). Future studies employing similar multimodal imaging designs in these clinical populations, ideally both on and off dopaminergic medication, will be crucial in addressing this question.

Conclusions

We employ a multimodal neuroimaging approach to test the relationship between striatal D2/3R availability and working memory performance. We find that reduced D2/3R availability, particularly in the caudate, is directly related to a greater task induced reduction in DMN functional connectivity, and that greater reductions are associated with worse task performance. In a mediation analysis we show that D2/3R availability may support working memory performance through its relationship with task-induced DMN connectivity change. These findings could help explain natural variation in working memory performance, as well as cognitive decline seen in healthy ageing and cognitive impairments associated with neuropsychiatric disease.

Materials and methods

Participants

The study was approved by the local NHS Research Ethics Committee and the Administration of Radioactive Substances Advisory Committee, and was conducted at Imanova Centre for Imaging Sciences (Invicro Ltd), London. The initial study sample consisted of 53 participants, who all completed the n-back fMRI task session. Two participants were excluded from further analysis: one owing to MR imaging artefact caused by orthodontic braces, and a second owing to non-performance of the task (‘no response’ rates > 3 SD from the group mean). Fifty-one healthy participants were therefore included in the final fMRI analysis (mean age 25.8 years [SD 6.5], 30 male), forty-eight of whom had a [11C]-(+)−4-propyl-9-hydroxy-naphthoxazine ([11C]-(+)-PHNO) PET scan (two participants declined a PET scan, and a third terminated the scan due to nausea). All participants provided written informed consent to take part in the study.

Task design and behavioural analysis

Request a detailed protocol

Details of the n-back task are shown in Figure 1 and details of performance measurement are described in main text. The task was coded in PsychoPy version 2 (https://www.psychopy.org). Details of the proportional penalized reaction time (pRT) performance metric are presented in main text.

In addition to the pRT, we also present analyses using the discriminability index (d’) performance metric. d’ is defined as:

d'=Zhit rate-Zfalse alarm rate

, where ‘hit rate’ is the proportion of targets that the participant correctly identified, ‘false alarm rate’ is the proportion of non-targets incorrectly identified as targets, and Z(x) denotes the inverse of the cumulative distribution function of the Gaussian distribution. We adjusted perfect scores at each working memory load level with the following formulae: 1-1/2n for ‘hit rate’=1, and 1/(2n) for ‘false alarm rate’=0, where n is the total number of targets (potential hits) or non-targets (potential false alarms) over the entire task (for 'hit rate' and 'false alarm rate', respectively) (Haatveit et al., 2010).

MR image acquisition

Request a detailed protocol

Magnetic resonance (MR) images were acquired using a Siemens MAGNETOM Verio 3 T magnetic resonance imaging scanner and a 32-channel phased-array head-coil. We acquired a MPRAGE (Magnetization Prepared Rapid Gradient Echo) structural MRI scan from each participant at the start of the MRI scanning session, using parameters based on the Alzheimer’s Disease Research Network (Jack et al., 2008) (ADNI-GO; 160 slices x 240 × 256, TR = 2300 ms, TE = 2.98 ms, flip angle = 9 degrees, 1 mm isotropic voxels, band-width = 240 Hz/pixel, parallel imaging (PI) factor = 2). We acquired B0 fieldmaps to unwarp EPI images during pre-processing (Hutton et al., 2002). Functional images were acquired with a multiband sequence, using a multiband acceleration factor of 2 (Demetriou et al., 2018). We acquired 275 whole-brain volumes per session, consisting of 72 interleaved slices (2 mm thickness), with a repetition time (TR) of 2000 ms, echo time (TE) of 30 ms, an in-plane resolution of 3 × 3 mm, flip angle of 62°, and bandwidth of 1906 Hz/pixel.

fMRI activation analysis

Mass-univariate analysis

Request a detailed protocol

We used Statistical Parametric Mapping 12 (SPM12) software (http://www.fil.ion.ucl.ac.uk/spm) for the event-related analysis. fMRI time series were realigned to the mean image, unwarped using the B0 fieldmaps generated by the Fieldmap toolbox, (Hutton et al., 2002) co-registered to the structural image and normalisation to MNI space using the DARTEL toolbox, (Ashburner, 2007) with 8 mm full-width at half-maximum (FWHM) Gaussian kernel smoothing. The first level general linear model (GLM) included a boxcar regressor for task blocks, accompanied by a parametric modulator for working memory load (Roffman et al., 2016; Schmidt et al., 2009), in addition to six motion realignment nuisance parameters. We additionally included temporal derivatives (first-order differences), applied an AR(1) model (to account for serial correlations in the fMRI time series) and used a 128 s cut-off high pass filter. At the second level we identified voxel clusters where blood-oxygen-level dependent (BOLD) signal was positively (activation) and negatively (deactivation) correlated with working memory load using one-sample t-tests on the estimated responses for the first level analysis. We used a second-level regression analysis to identify voxels that showed an activation/deactivation pattern that correlated with -ΔpRT(2.5) or [11C]-(+)-PHNO BPND. Random field theory was used to correct for multiple comparisons. We report clusters that survive family-wise error correction at p<0.05 at the whole-brain cluster level (cluster forming threshold set to p<0.001 (uncorrected) to ensure a well behaved family error control) (Eklund et al., 2016).

Spatiotemporal (ST-) Partial Least Squares (PLS) Regression analysis

Request a detailed protocol

In addition to the mass-univariate activation analysis, we also analysed the pre-processed functional images using the (multivariate) PLS approach, using the ST-PLS toolbox for MATLAB (https://www.rotman-baycrest.on.ca/pls/). First, we conducted a standard PLS analysis (with mean-centering) to identify brain regions where BOLD activity covaried with working memory load (where blocked conditions were: ‘rest’, ‘0back’, 1-back’ and ‘2back’). Next, we used ‘Regular behavioural PLS’ to investigate whether there were regions where the variation in BOLD in the task conditions was itself related to caudate D2/3R availability. This method is described in detail in Salami et al. (2019) and McIntosh et al. (2004). In brief, the analysis conducts a singular value decomposition on the cross-block correlation matrix (correlation between BOLD activity across experimental conditions and dopamine measures) to identify orthogonal latent variables (LVs) that best represent the relationships between the BOLD activity and the task condition or dopamine measure (Salami et al., 2019). The statistical significance of each LV was assessed using permutation tests (n = 1000). LVs were considered statistically significant only if the proportion of permuted singular values that exceeded the original singular value was < 0.05.

fMRI functional connectivity analysis

Our primary analysis focussed on the task-induced functional connectivity changes between cortical brain regions within task-positive and task-negative cortical networks. We define the functional connectivity between two brain regions (the strength of the ‘edge’ connecting two regions in a network, in the terminology of Graph Theory [Rubinov and Sporns, 2010]) as the Fisher z-transformed Pearson’s correlation coefficient between the BOLD time-series in each region. Brain regions themselves (the ‘nodes’ of a network) are taken from the Gordon cortical parcellation, a network parcellation based on fMRI functional connectivity patterns observed in a sample of 120 healthy young adults (Gordon et al., 2016). The functional connectivity analysis pipeline consisted of (1) spatial and temporal pre-processing, (2) data-driven detection of empirical task-positive (TPN) and default mode (DMN) cortical networks, and (3) definition of mean load-dependent functional connectivity change within the TPN and DMN, similar to previous studies (McCutcheon et al., 2018b).

Pre-processing

Request a detailed protocol

We employed a standard fMRI pre-processing pipeline implemented in the CONN toolbox (Whitfield-Gabrieli and Nieto-Castanon, 2012) (version 17 .f) (https://www.nitrc.org/projects/conn) within MATLAB. fMRI pre-processing included (1) slice timing correction, (2) realignment of functional scans, (3) normalisation to MNI space and (4) spatial smoothing (Gaussian kernel of 8 mm FWHM). In the denoising step we used linear regression to remove the influence of the following confounding effects on the fMRI time course: (1) BOLD signal from the white matter and CSF voxels (five components each, derived using the anatomical component-based correction (aCompCor) implemented using the ART toolbox), (2) six residual head motion parameters and their first order temporal derivatives, (3) scrubbing of artefact/outlier scans (average intensity deviated more than five standard deviations from the mean intensity in the session, or composite head movement exceeded 0.9 mm from the previous image), and (4) effect of task-condition using separate block regressors (for 0-, 1-, and 2-back conditions) convolved with the haemodynamic response function. Thus, we performed the connectivity analysis on the residuals of the BOLD time series after removing condition-related activation/deactivation effects (Finc et al., 2017; Whitfield-Gabrieli and Nieto-Castanon, 2012; Fair et al., 2007). Finally, the denoising step included temporal bandpass filtering (0.008–0.09 Hz), and linear detrending of the functional time course. We did not included global signal regression of the grey matter voxels in the de-noising process as this is known to introduce spurious anti-correlations between large networks (Murphy and Fox, 2017). Following pre-processing, we performed condition-dependent functional connectivity analysis on the mean BOLD time course (Whitfield-Gabrieli and Nieto-Castanon, 2012) extracted from cortical nodes defined by the Gordon parcellation (Gordon et al., 2016).

Task-positive and task-negative network detection

Request a detailed protocol

We used the functional connectivity measures for each working memory condition to generate an undirected weighted covariance matrix, C, for each cognitive load, where cij represents the Fisher z-transformed Pearson’s correlation coefficient between region i and j (i.e. edge strength between nodes).

We used the Louvain algorithm (implemented in the MATLAB Brain Connectivity Toolbox, Rubinov and Sporns, 2010https://sites.google.com/site/bctnet/) to define group level default mode (DMN) and task-positive (TPN) networks, on the basis of the functional connectivity covariance matrix of each individual participant during the ‘0-back’ condition (the implicit motor- and sustained attention-control condition), setting negative weights to 0 (Cohen and D'Esposito, 2016).

This Louvain algorithm partitions the nodes of the covariance matrix into a community structure that maximises the modularity of the network, where modularity (Q) is a measure of network segregation, and describes the degree to which a network may be subdivided into non-overlapping communities, with maximal number of within-community connections, and a minimum number of between-community connections (Shine et al., 2016; Rubinov and Sporns, 2010; Finc et al., 2017; Rubinov and Sporns, 2011). For positive weighted networks it is defined as:

Q= 1vij(wijsisjv)δMiMj,

where v is the total strength of the network (v= ijwij), wij is the strength of the edge connecting node i to j, si is the strength of node i (si= jwij)), and δ is set to 1 when node i and j are in the same module, and 0 otherwise (Finc et al., 2017; Rubinov and Sporns, 2011; Schultz and Cole, 2016).

We restricted the community detection analysis a priori to the 97 nodes allocated to the default mode network (DMN), dorsal attention network (DAN) and frontoparietal network (FPN), as defined by the Gordon atlas, (Gordon et al., 2016) as these networks have been extensively studied in working memory paradigms and show a relationship to dopamine function (Rieckmann et al., 2011; Liang et al., 2016; Roffman et al., 2016; Dang et al., 2012b; Spreng et al., 2010; Cassidy et al., 2016).

Given the stochastic nature of the Louvain algorithm we used a consensus clustering approach to ensure the robustness of the final community structure (Lancichinetti and Fortunato, 2012; Cohen and D'Esposito, 2016; Hearne et al., 2017). Specifically, for each subject we iteratively applied the algorithm 1000 times with different initial random seeds. This generated 1000 separate partitions, which were then combined to a single agreement matrix, D, where entry dij represents the proportion of partitions in which nodes i and j were assigned to the same community. Following a thresholding step (in which all entries <50% agreement were set to zero), (Cohen and D'Esposito, 2016) the agreement matrix was then subjected to another 1000 iterations of the Louvain algorithm. This procedure was repeated until each of the resulting 1000 partitions was equal, resulting in a binary agreement community matrix (i.e. a consensus partition) for each participant. Finally, a mean group agreement matrix was created by averaging the consensus partition agreement matrices of each participant. This group matrix was then itself subjected to the consensus clustering procedure, until a final group community partition was produced. We used the default resolution parameter (γ=1).

We used the Sørensen-Dice similarity coefficient (DSC) (Dice, 1945) to quantify the overlap between cortical voxels of the empirically-derived DMN and task positive network (TPN) nodes, and the voxels of the deactivation and activation clusters from our event related analysis,

DSC=2| X Y||X|+|Y|,

where X and Y are the two sets of cortical voxels to be compared and |X| and |Y| are the number of voxels in each set. We restricted the number of voxels in the activation/deactivation sets to those lying within a cortical grey matter mask (i.e. the intersection of a cerebral hemisphere mask from SPM12 PickAtlas and the voxels with grey matter tissue probability value of >50% from the SPM12 tissue probability map). We used a similar analysis to evaluate the overlap between cortical nodes assigned to the empirical (Louvain algorithm) and a priori (Gordon atlas) task-relevant networks.

Load-dependent functional connectivity definition

Request a detailed protocol

For each participant and each edge (connection between nodes of the cortical covariance matrix), we fitted a simple linear regression model of functional connectivity (Fisher z-transformed r-value) as a function of working memory load, zFC = w0+ w1*WMload, and used the w1 regression coefficient as a measure of load-dependent connectivity change for that edge. For each individual a summary statistic for task-induced connectivity change within the TPN and DMN was defined as the mean w1 value of all edges within the network. We contrast this task-induced functional connectivity change with a measure of functional connectivity averaged over the whole task session (both analyses include identical pre-processing steps) (Whitfield-Gabrieli and Nieto-Castanon, 2012).

Within-subject analysis of relationship between DMN connectivity and performance

Request a detailed protocol

To investigate the influence of cortical network connectivity on working memory performance within individuals, for each individual we first regressed block-specific performance (pRTi) against block-specific DMN strength:

pRTi(2.5)= w0+ w1DMN_strengthi

(where i∈ {1:18} designate the 18 task blocks). We also repeated this analysis using a model that contained block-specific working memory load as an additional independent variable:

pRTi(2.5)= w0+ w1WM_loadi+w2DMN_strengthi

To evaluate the significance of the effect of block-specific DMN connectivity on pRTi2.5 at the group level we used a one-sample t-test on the regression coefficient weighting the DMN_strength term.

PET image acquisition and analysis

Request a detailed protocol

[11C]-(+)-PHNO positron emission tomography (PET) images were acquired using a Siemens Biograph HiRez XVI PET scanner. Each subject first received a low-dose computed tomography scan for attenuation and model-based scatter correction before the injection of a single intravenous bolus of 0.020–0.029 micrograms/kg [11C]-(+)-PHNO (a high affinity D2/3R agonist ligand) (Narendran et al., 2006). The mean [11C]-(+)-PHNO mass administered was 1.5 micrograms (SD 0.31) and mean injected activity was 177.5 MBq (SD 50.0). Dynamic emission data were acquired continuously for 90 min.

Dynamic PET images were reconstructed using a filtered back-projection algorithm into 31 frames (8 × 15 s, 3 × 60 s, 5 × 120 s, 15 × 300 s) with a 128 matrix, a zoom of 2.6 and a transaxial Gaussian filter of 5 mm. For PET image analysis we employed an automatic pipeline to obtain an individual parcellation of the brain, implemented in MIAKAT (release 4.2.6, http://www.miakat.org), (Gunn et al., 2016) SPM12 and FSL (version 5.0.9, https://fsl.fmrib.ox.ac.uk/fsl/fslwiki).

Structural MR images were segmented using SPM12 functions to obtain grey matter masks used for the definition of the reference region during the kinetic analysis. The ICBM152 structural brain template was non-linearly warped to each subject’s structural MR image, and the derived deformation parameters were applied to our neuroanatomical atlas to obtain a parcellation of each subject’s brain into the studied anatomical regions of interest (bilateral whole striatum (caudate, putamen and accumbens), accumbens, and caudate, as defined by the CIC atlas, [Tziortzi et al., 2011] and substantia nigra/ventral tegmental area [Nour et al., 2018]). The MRI, associated individual parcellation and associated grey matter masks were then down-sampled to the PET resolution (2 mm). Dynamic PET images were corrected for motion using a frame-by-frame registration process with a mutual information cost function. For each subject the averaged PET image from the entire scan duration was registered to the down-sampled structural MRI scan with rigid-body registration. The rigid body matrix was subsequently applied to the motion corrected dynamic PET. Regional time activity curves (TAC) were obtained by applying the down-sampled individual anatomical parcellations to the motion-corrected dynamic PET image.

The non-displaceable binding potential (BPND) of [11C]-(+)-PHNO is defined as follows:

BPND=fNDBavailKD

where fND is the non-displaceable free fraction of PHNO in the brain, Bavail is the number of D2/3Rs available to be bound by the radioligand, and 1/KD is the affinity of radioligand for the target. The simplified reference tissue model (SRTM) was used to derive BPND from the regional time activity curves (Gunn et al., 1997; Lammertsma and Hume, 1996). We used cerebellar grey matter as the reference region, defined as the intersection of the warped cerebellum atlas (Tziortzi et al., 2011) and individual subject grey matter mask.

Statistical Analysis

Request a detailed protocol

Statistical analysis was performed using MATLAB (R2017a) and R (version 3.3.1). P < 0.05 (two tailed) was considered statistically significant for the primary analyses. We hypothesised that the DMN and TPN would show opposite task-induced connectivity changes with increasing working memory load, and tested this hypothesis using repeated measures ANOVA and post hoc t-tests. Subsequently, we used Spearman’s rank correlation coefficient to test for (direct) monotonic relationships between task-induced connectivity changes within cortical networks and both striatal D2/3R availability ([11C]-(+)-PHNO BPND) and task performance (where, for each participant, task-induced connectivity change within a network was defined as the mean w1 value for all edges in the network). Spearman’s rank coefficient was used as we did not assume that the monotonic relationship between variables would be linear. We tested the hypothesis that striatal D2/3R availability influences working memory task performance by modulating cortical network connectivity with a mediation analysis using the ‘mediation’ package in R, implementing a nonparametric bootstrap method with bias-corrected and accelerated confidence intervals and 10,000 simulation draws. We used the cocor package in R (http://comparingcorrelations.org/) to compare overlapping, dependent, correlation (Spearman’s rank) coefficients at P < 0.05 (2-tailed), using Meng et al.’s method for comparing correlation coefficients (including 95% confidence intervals for difference between correlation coefficients) (Diedenhofen and Musch, 2015; Meng et al., 1992).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Molecular imaging and kinetic analysis toolbox (MIAKAT)- A quantitative software package for the analysis of PET neuroimaging data
    1. RN Gunn
    2. C Coello
    3. G Searle
    (2016)
    The Journal of Nuclear Medicine 57:1928.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    Comparing correlated correlation coefficients
    1. X-li Meng
    2. R Rosenthal
    3. DB Rubin
    (1992)
    Psychological Bulletin 111:172–175.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91

Decision letter

  1. David Badre
    Reviewing Editor; Brown University, United States
  2. Michael J Frank
    Senior Editor; Brown University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Task-induced functional brain connectivity mediates the relationship between striatal D2/3 receptors and working memory" for consideration by eLife. Your article has been reviewed by two peer reviewers and the evaluation has been overseen by David Badre as Reviewing Editor and Michael Frank as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision based on those reviews to help you prepare a revised submission.

Summary:

Working memory is thought to depend on interactions among functional networks, and is also known to be modulated by striatal dopamine mechanisms. However, the relationship among these factors and working memory performance is largely unknown. This paper uses a combination of fMRI and PET to probe interactions between working memory load, brain network activity, and D2/D3R availability. The study reports that the relationship between D2/D3R availability and behavior is mediated by default mode network activity, specifically. This is a novel observation in this domain with potentially wide ranging application.

Essential revisions:

The reviewers were positive overall about the paper. They both thought it makes an important and novel contribution to an important problem in the working memory literature. However, the reviewers also felt that there were a number of points in the analyses and interpretation of results that must be revised to strengthen the paper and clarify its contribution. I will summarize these here, largely using the reviewers' own language, as they have been clear and incisive in their comments.

1) Inferential complications introduced by the use of [11C]-(+)-PHNO (hereafer "PHNO")

To the authors' credit, they frequently (though not uniformly) use the phrase "D2/D3R" to reflect the ambiguity about whether principle PHNO's molecular target is actually D2Rs or D3Rs. At the same time, this phrase elides potentially key distinctions between PHNO vs. more traditional antagonist tracers like raclopride, as well as potentially key distinctions between the molecular correlate of striatal vs. SN/VTA PHNO BPND. First, PHNO is a strongly D3-preferring agonist tracer, unlike the more modestly D2-preferring antagonist tracers used in most prior literature on this topic. This difference is material: the D3 receptor has at least 20-fold higher affinity than D2 for dopamine; PHNO has 4-48 fold higher affinity for D3 than for D2 (see Graff-Guerero et al., 2009 for review); and, most of the dorsal striatal PHNO signal may be D2-related, whereas most of the SN/VTA signal may be D3-related (Matuskey et al., 2016). Consequently:

1a) The apparent specificity of the association between striatal "D2/D3R" availability and load-induced DMN change in functional connectivity would be predicted either due to a differential role of striatum in this association, or due to a differential role of D2Rs over D3Rs in this association, or both. In other words, the biological feature which drives this apparent specificity is fundamentally ambiguous.

1b) This specificity may be more apparent than real. That is, the association of load-induced DMN FC change with striatal PHNO BPND is not directly compared with the association of load-induced DMN FC change with SN/VTA PHNO BPND. A significant difference between these associations (i.e., a direct statistical comparison) would be required to claim specificity.

1c) One potential reason for the lack of specificity is the use of a whole-striatum ROI. A whole-striatum ROI may confound the D3R-dominant PHNO signal from ventral striatum with the D2R-dominant PHNO signal from dorsal striatum. In addition, and as the authors note, dorsal (associative) striatum is most theoretically relevant for the hypotheses being addressed here. Thus, use of a whole-striatum mask seems inappropriately coarse given what is known about PHNO; more specific masks (e.g., separating dorsal/associative from ventral/limbic striatum) would seem better justified both theoretically and biologically.

2) Inferential complications introduced by the treatment of inter-individual differences

Besides PHNO, another aspect of the authors' methods complicates the interpretation of the results: the near exclusive use of (between-)individual differences. This motivates two specific concerns:

2a) Simpsons paradox.

One tacit assumption of the manuscript is that Simpson's paradox does NOT occur in this domain. In other words, the same mechanisms that govern variance between-individuals (e.g., relating load-induced functional connectivity change in the DMN to load-induced behavioral performance change) are also operative within individuals, or at least that these variables are related with the same sign. Because of the pseudorandomized block-wise administration of the task, the authors have an fantastic opportunity to test this tacit assumption, at least in part. Does block-by-block variation in each subject's mean pRT score also predict block-by-block variation in DMN FC strength?

2b) Use of standardized beta coefficients.

In the mediation model (see also point 3 below) the authors use the standardized beta coefficient to quantify task-induced change in intrinsic DMN functional connectivity. This is an interesting choice, because it amounts to eliminating between-individual differences in range of intrinsic DMN functional connectivity observed, and normalizing all to have a variance of 1. Why is this the assumption made, i.e., why is the range of intrinsic DMN functional connectivity not relevant to striatal PHNO BPND? The use of standardized betas seems to be a theoretically-laden choice (though whether it makes any difference is an interesting empirical question that the authors might choose to answer, if they did not intend to take a theoretical stance here).

3) The use of mediation analyses

Independent of the above issues, the use of mediation analysis introduces some further interpretational ambiguities to the extent that specific assumptions are not met. Two specific assumptions seem particularly relevant here:

3a) The authors note that a total effect is unnecessary for a mediation effect to be interpreted, if there is good reason to believe a true causal effect exists (here they refer Hayes, 2009). But what are the independent reasons to expect a causal effect of striatal BPND on behavioral performance at the between-individual level, and what evidence is there to justify the assumption? (See here also the point about Simpson's paradox, above).

3b) One assumption related to the use of mediation analysis is that the mediator is independent of all unmeasured variables that affect the outcome – an assumption that rarely holds outside of designs in which the mediator is experimentally randomized (Green, Ha, and Bullock, 2010). Perhaps the authors could speak to whether their use of mediation analysis verifiably meets this and other assumptions, and any consequences to the interpretations they offer here.

4) The current findings should be more actively interpreted within the context of previous dopamine PET studies that have already demonstrated relationships between striatal dopamine and functional connectivity during memory/working memory/executive function tasks (e.g. Rieckmann et al., 2011; Klostermann et al., 2012; Berry et al., 2018; Rieckmann et al., 2019 see also Stelzel et al., 2010; Stelzel et al., 2013 for genetic/pharmacological evidence), as well as previous studies reporting that striatal dopamine's influence on cognition is mediated by functional connectivity (Nyberg et al., 2016; Berry et al., 2018). There simply isn't enough known about how different dopamine PET measures are related within individuals to make strong claims (e.g. "the relationship between these mechanisms has not been tested in humans") that D2/3 findings are telling us something uniquely different from what transporter or synthesis findings have told us (see Berry et al., 2018 for within-subject correlation between D2/3 availability and synthesis capacity). The authors will find that these previous studies have focused on task positive networks and have largely examined connectivity between striatal ROIs and cortex. Thus, the focus on large-scale networks and DMN in particular should be emphasized as the major contribution of the current study. It would be to the advantage of the authors to use the Introduction and Discussion to adequately frame this finding. What is the role of DMN connectivity changes during challenge? Coupling/uncoupling? Are there specific changes in task-related DMN connectivity in aging or schizophrenia?

5) Does the relationship with functional connectivity and the mediation hold true for d' measures? What about% change in RT measures? I'm concerned that the effects reported here rely on replacing omissions and error responses with 2s RT entries.

6) The authors use a whole striatal ROI for PET analyses (relatedly, see comment 1C above), but caudate/dorsal caudate are more strongly implicated in working memory functions. Please demonstrate the mediation (and null results) do not rely on use of whole striatal ROI rather than caudate or dorsal caudate.

7) Salami and colleagues (2019) published a PET-fMRI study with a very similar design "Dopamine D2/3 binding potential modulates neural signatures of working memory in a load-dependent fashion." They do find relationships between D2/3 receptor availability and multivariate patterns of BOLD using a PLS approach. These finding are in agreement with other studies demonstrating BOLD-PET relationships. I don't think this study can be ignored. I recommend the authors apply PLS analysis to their dataset. If the results are still negative, this would potentially reflect interesting age-related effects and strengthen their claims that the effects of D2/3 receptor availability are truly limited to changes in DMN connectivity. If this new analysis approach reveals BOLD-PET relationships, this would serve as a worthwhile replication.

8) The authors evoke dopamine's modulation of fronto-striato-thalamic loops as a mechanism underlying its influence on cognition. How do these loops play into dopamine's modulation of task negative networks?

https://doi.org/10.7554/eLife.45045.009

Author response

Essential revisions:

1) Inferential complications introduced by the use of [11C]-(+)-PHNO (hereafer "PHNO")

To the authors' credit, they frequently (though not uniformly) use the phrase "D2/D3R" to reflect the ambiguity about whether principle PHNO's molecular target is actually D2Rs or D3Rs. At the same time, this phrase elides potentially key distinctions between PHNO vs. more traditional antagonist tracers like raclopride, as well as potentially key distinctions between the molecular correlate of striatal vs. SN/VTA PHNO BPND. First, PHNO is a strongly D3-preferring agonist tracer, unlike the more modestly D2-preferring antagonist tracers used in most prior literature on this topic. This difference is material: the D3 receptor has at least 20-fold higher affinity than D2 for dopamine; PHNO has 4-48 fold higher affinity for D3 than for D2 (see Graff-Guerero et al., 2009 for review); and, most of the dorsal striatal PHNO signal may be D2-related, whereas most of the SN/VTA signal may be D3-related (Matuskey et al., 2016). Consequently:

1a) The apparent specificity of the association between striatal "D2/D3R" availability and load-induced DMN change in functional connectivity would be predicted either due to a differential role of striatum in this association, or due to a differential role of D2Rs over D3Rs in this association, or both. In other words, the biological feature which drives this apparent specificity is fundamentally ambiguous.

1b) This specificity may be more apparent than real. That is, the association of load-induced DMN FC change with striatal PHNO BPND is not directly compared with the association of load-induced DMN FC change with SN/VTA PHNO BPND. A significant difference between these associations (i.e., a direct statistical comparison) would be required to claim specificity.

1c) One potential reason for the lack of specificity is the use of a whole-striatum ROI. A whole-striatum ROI may confound the D3R-dominant PHNO signal from ventral striatum with the D2R-dominant PHNO signal from dorsal striatum. In addition, and as the authors note, dorsal (associative) striatum is most theoretically-relevant for the hypotheses being addressed here. Thus, use of a whole-striatum mask seems inappropriately coarse given what is known about PHNO; more specific masks (e.g., separating dorsal/associative from ventral/limbic striatum) would seem better justified both theoretically and biologically.

We thank the reviewers for raising these important points. Throughout the results we have adopted the suggestion to report results separately for striatal regions where the PHNO BPND has negligible D3R-fraction (caudate) and significant D3R fraction (accumbens). We additionally report results for whole striatum BPND for completeness.

“[11C]-(+)-PHNO binds selectively to both D2 and D3 receptors, and the D3R fraction of this measure differs between the ventral and dorsal striatum. In the (dorsal) caudate, the D3R fraction of the [11C]-(+)-PHNO BPND signal is negligible, while in the ventral striatum (including accumbens) the D3R fraction has been estimated at 20-25%.32 […] For completeness we also report results using D2/3R availability measured from the whole striatum (caudate, accumbens and putamen).”

Furthermore, we have included additional analyses that speak to the specificity of the relationship between striatal D2/3R availability and DMN connectivity. First, the magnitude of the correlation between caudate D2R availability and DMN connectivity change was numerically (although not significantly) greater than the relationship between accumbens D2/3R availability and DMN connectivity.

“There was a positive correlation between caudate D2/3R availability and task-induced connectivity change in the DMN (rho = .45 [.18,.65], d.f. = 46, P = 0.002), and DMN-TPN (rho = 0.33, [0.04, 0.57], d.f. = 46, P = 0.02), but not within the TPN (rho = 0.21, [-0.08, 0.48], d.f. = 46, P = 0.15). […] Although the magnitude of the D2/3R-DMN connectivity relationship was greater in the caudate compared to the accumbens, the difference between these two correlations was not statistically significant (z = 1.51 [-0.05, 0.37], P = 0.13).”

Second, we formally test whether the association between striatal (particularly caudate) D2/3R availability and DMN connectivity is significantly greater than that between SN/VTA D3R availability and DMN connectivity, finding this to be the case.

“Of note, the correlation between DMN connectivity change and D2/3R availability in the SN/VTA was significantly weaker than the correlation with D2/3R availability in the caudate (z = 2.54 [0.11, 0.83], P = 0.01,) and whole striatum (z = 2.29 [0.06, 0.72], P = 0.02), but not the ventral striatum (z = 1.7 [-0.05, 0.67], P = 0.09).”

We agree with the reviewers that the interpretation of these findings is not trivial. The stronger association between DMN connectivity change and caudate, as opposed to accumbens/SNVTA BPND, may reflect a genuine anatomical specificity, or may be an artefact of the larger D3R fraction in the PHNO signal for ventral striatum/SNVTA. We include this caveat in the Discussion.

Regional specificity of the relationship between D2/3R signalling and working memory

The primate striatum is anatomically organised in a functionally-specific manner, with ventral regions (e.g. accumbens) contributing to limbic and reward processing, and more dorsal regions (including dorsal caudate) supporting motor and executive (e.g. working memory) function.[…]Indeed, previous work has shown that D2R and D3R may have different effects on certain cognitive processes.39–41

2) Inferential complications introduced by the treatment of inter-individual differences

Besides PHNO, another aspect of the authors' methods complicates the interpretation of the results: the near exclusive use of (between-)individual differences. This motivates two specific concerns:

2a) Simpsons paradox.

One tacit assumption of the manuscript is that Simpson's paradox does NOT occur in this domain. In other words, the same mechanisms that govern variance between-individuals (e.g., relating load-induced functional connectivity change in the DMN to load-induced behavioral performance change) are also operative within individuals, or at least that these variables are related with the same sign. Because of the pseudorandomized block-wise administration of the task, the authors have a fantastic opportunity to test this tacit assumption, at least in part. Does block-by-block variation in each subject's mean pRT score also predict block-by-block variation in DMN FC strength?

We thank the reviewers for this suggestion. As requested, we have conducted a within-subject regression analysis to investigate whether mean DMN connectivity strength predicts behavioural performance in a given task block. These results are broadly consistent with the main between-individual findings, and argue against the presence of Simpson’s paradox in our data.

Within-subject relationship between DMN strength and performance

The between-subjects analysis so far has considered the relationship between the average task-induced connectivity change within the DMN and working memory performance, finding that as cognitive load increases, the individuals who showed the greatest DMN connectivity decreases also showed the greatest working memory performance degradation. […] This is in line with the between-subject finding that poorer performing participants show the most exaggerated DMN connectivity reductions with increased working memory load.”

2b) Use of standardized beta coefficients.

In the mediation model (see also point 3 below) the authors use the standardized beta coefficient to quantify task-induced change in intrinsic DMN functional connectivity. This is an interesting choice, because it amounts to eliminating between-individual differences in range of intrinsic DMN functional connectivity observed, and normalizing all to have a variance of 1. Why is this the assumption made, i.e., why is the range of intrinsic DMN functional connectivity not relevant to striatal PHNO BPND? The use of standardized betas seems to be a theoretically-laden choice (though whether it makes any difference is an interesting empirical question that the authors might choose to answer, if they did not intend to take a theoretical stance here).

We would like to clarify that we do not use standardized beta coefficients in any regression model in the paper, and we agree with the reviewers that the use of standardized regression coefficients would eliminate interesting between-individual differences in the range of intrinsic DMN connectivity.

We suspect that the misunderstanding on this point stemmed from our use of unclear terminology on two counts. First, in the original manuscript we described regression coefficients as ‘betas’. We have changed this to ‘w’ [weight] in the revised manuscript. Second, we have clarified the terminology ‘z-transformed Pearson’s r-value’ to ‘Fisher z-transformed Pearson’s r-value’. We hope that this clarifies our methodology.

3) The use of mediation analyses

Independent of the above issues, the use of mediation analysis introduces some further interpretational ambiguities to the extent that specific assumptions are not met. Two specific assumptions seem particularly relevant here:

3a) The authors note that a total effect is unnecessary for a mediation effect to be interpreted, if there is good reason to believe a true causal effect exists (here they refer Hayes, 2009). But what are the independent reasons to expect a causal effect of striatal BPND on behavioral performance at the between-individual level, and what evidence is there to justify the assumption? (See here also the point about Simpson's paradox, above).

We thank the reviewer for these points.

There is good evidence that D2/3R signalling is important for cognitive function, including working memory. Specifically, impaired performance can arise in contexts of both excess and impoverished D2/3R signalling, a hypothesis supported by a wealth of pharmacological studies(Cools, Sheridan, Jacobs and D’Esposito, 2007; Cools and D’Esposito, 2011; Frank and O’Reilly, 2006; Samanez-Larkin et al., 2013). Similar to previous studies, our implicit assumption is that the effect of neuromodulatory signalling (e.g. dopamine) on cognition manifests through a more direct effect of the neuromodulator on the neuronal circuits that support the cognitive processes. We have made this explicit in the revised manuscript, in the results paragraph that introduces the mediation analysis:

“Striatal D2Rs are thought to exert an influence on cognitive function through a more direct effect on the excitability and function of cortical circuits.(Cools and D’Esposito, 2011; Frank and O’Reilly, 2006; Salami et al., 2019)”

Additionally, in the revised manuscript we do indeed detect a total effect of caudate D2/3R availability on working memory performance, which may address the concern raised in this comment more directly.

Concerns regarding Simpson’s paradox are addressed in response to comment 2.

3b) One assumption related to the use of mediation analysis is that the mediator is independent of all unmeasured variables that affect the outcome – an assumption that rarely holds outside of designs in which the mediator is experimentally randomized (Green, Ha, and Bullock, 2010). Perhaps the authors could speak to whether their use of mediation analysis verifiably meets this and other assumptions, and any consequences to the interpretations they offer here.

We have included a sentence in the Limitations section regarding the inferences that may be made using mediation analyses outside of experimentally randomized contexts.

“… a key limitation of the present study is that it is not possible to make strong inferences regarding the direction of causality from purely observational studies. Related to this, there may be (unmeasured) neuronal variables, in addition to task-induced DMN connectivity, which covary with striatal D2/3R availability, and which may exert a more direct causal influence on working memory performance. These concerns may only be addressed in fully randomized interventional experimental designs.”

4) The current findings should be more actively interpreted within the context of previous dopamine PET studies that have already demonstrated relationships between striatal dopamine and functional connectivity during memory/working memory/executive function tasks (e.g. Rieckmann et al., 2011; Klostermann et al., 2012; Berry et al., 2018; Rieckmann et al., 2019 see also Stelzel et al., 2010; Stelzel et al., 2013 for genetic/pharmacological evidence), as well as previous studies reporting that striatal dopamine's influence on cognition is mediated by functional connectivity (Nyberg et al., 2016; Berry et al., 2018).

We thank the reviewers for these suggestions. We fully agree that there is a vast literature on the relationship between dopamine, task-induced fMRI activation and cognitive performance. In the revised Discussion we actively interpret our results in light of human PET studies that have investigated the relationship between striatal D2/3Rs and working memory performance or task-induced cortical activity/connectivity.

“We find a positive correlation between caudate D2R availability and working memory performance. A recent PET study in older adults (mean age 66.2) reported no relationship between caudate D2R availability (indexed using the D2R-preferring antagonist tracer [11C]raclopride) and working memory performance,(Nyberg et al., 2016) suggesting that the relationship between D2/3R signalling and cognition may differ across the lifespan[…] Finally, differences in D2R:D3R binding properties of [11C]raclopride and [11C]-(+)-PHNO may also contribute to the apparent discrepancy between the results.”

We also dedicate a large section of the Discussion to human PET studies that investigate the relationship between other facets of dopamine (dopamine synthesis capacity, D1R availability) and task performance/neural activity.

However, we are concerned that a more extensive discussion of the wider literature relating (non-D2/3R) dopamine signalling to cognitive performance and cortical activity will overburden an already very long paper and Discussion section.

Beyond D2/3R signalling – the wider role of dopamine in cognitive performance and cortical activity

Beyond striatal D2/3R availability, previous human PET-fMRI studies have investigated the relationship between other facets of dopamine function and both cortical activity and performance during tasks. […] This highlights that findings from PET studies measuring striatal dopamine synthesis capacity are limited in their ability to inform on the specific cognitive or neurophysiological roles of dopamine receptor subtypes, and that D1Rs and D2Rs within the striatum likely serve different functional roles.”

There simply isn't enough known about how different dopamine PET measures are related within individuals to make strong claims (e.g. "the relationship between these mechanisms has not been tested in humans") that D2/3 findings are telling us something uniquely different from what transporter or synthesis findings have told us (see Berry et al., 2018 for within-subject correlation between D2/3 availability and synthesis capacity).

We acknowledge this point, and agree that the current lack of human multi-tracer PET studies limits our ability to make definitive claims about how the PHNO BPND signal covaries with other dopamine PET measures (e.g. striatal dopamine synthesis capacity as measured by F-DOPA, D1R availability, DAT binding). However, we would also like to highlight that both theoretical and empirical studies suggest different functional roles for dopamine receptor subtypes, and that in certain neuropsychiatric conditions there may be abnormalities in one facet of dopamine signalling, but not another (e.g. in schizophrenia where there is a large elevation in striatal dopamine synthesis capacity, with equivocal changes in D1R and D2R binding). We have included the following paragraph in the Discussion.

“Although there is significant covariation between striatal dopamine synthesis capacity and D2R availability,(Berry, Shah, Furman, et al., 2018) and between striatal D1R and D2R binding,(Groman et al., 2014) further dual-tracer human PET studies will be required to fully characterise the relationship between different facets of dopamine function reported in the discussed studies. It is noteworthy, however, that both theoretical and empirical studies suggest that different dopamine receptor subtypes have differential effects on working memory function and learning.(Durstewitz and Seamans, 2008; Groman et al., 2014; Groman et al., 2011, 2016)”

We have deleted the clause “…however the relationship between these mechanisms has not been tested in humans.” in the Abstract.

The authors will find that these previous studies have focused on task positive networks and have largely examined connectivity between striatal ROIs and cortex. Thus, the focus on large scale networks and DMN in particular should be emphasized as the major contribution of the current study. It would be to the advantage of the authors to use the Introduction and Discussion to adequately frame this finding.

We have highlighted the novel contribution of our study in the Introduction and Discussion:

Introduction:

“Together, these findings suggest that striatal D2/3R levels, particularly within the caudate/dorsal striatum, might exert an influence on working memory performance by modulating task-induced functional connectivity within task-relevant cortical networks. However, this hypothesis has not been tested in humans. In this study we address this question directly…”

Discussion:

“The novel contribution of the study is the demonstration that lower striatal D2/3R availability, particularly in the caudate/dorsal striatum, is associated with greater reduction in task-induced DMN functional connectivity, and that participants with greater reductions in DMN connectivity show worse performance with increasing working memory loads.”

What is the role of DMN connectivity changes during challenge? Coupling/uncoupling?

The following sentence in the Discussion addresses this point:

“[Our] results are consistent with studies that report task-induced decreases in DMN functional connectivity, and with studies that highlight the importance of cortical network reorganisation for task performance.(Cole, Bassett, Power, Braver and Petersen, 2014; Finc et al., 2017; Fornito, Harrison, Zalesky and Simons, 2012; Liang, Zou, He and Yang, 2016; Shine et al., 2016; Shine and Poldrack, 2017; Vatansever, Menon, Manktelow, Sahakian and Stamatakis, 2015)”

Are there specific changes in task-related DMN connectivity in aging or schizophrenia?

To the best of our knowledge there are no studies investigating task-induced changes in DMN connectivity in schizophrenia. Numerous studies report abnormal connectivity during rest, blunted deactivation of DMN regions (e.g. mPFC) during tasks, and effective connectivity abnormalities. We briefly mention these in the Clinical Implications section:

“In schizophrenia, for example, there is elevated striatal dopamine signalling,(Robert McCutcheon et al., 2017) abnormal DMN resting functional connectivity and task-induced deactivation,(Landin-Romero et al., 2015; Whitfield-Gabrieli et al., 2009) and a well-replicated deficit in tasks involving working memory manipulation and resistance to distraction.(Anticevic, Repovs, Krystal and Barch, 2012; Simpson and Kellendonk, 2017; Simpson et al., 2010)”

However, none of these findings speak directly to the core question of the manuscript, and the focus of the manuscript is not on neuropsychiatric disorders. As such, we believe it would overburden the discussion to open a discussion on more general DMN abnormalities in ageing and neuropsychiatric disorders.

5) Does the relationship with functional connectivity and the mediation hold true for d' measures? What about% change in RT measures? I'm concerned that the effects reported here rely on replacing omissions and error responses with 2s RT entries.

Our decision to use the penalized reaction time (please also see response to Minor Point 2) as a performance metric was motivated primarily by 2 reasons. First, signal detection metrics, such as d’, are unable to differentiate between performance on conditions where accuracy (hit rate / false positive rate) is matched, but where processing time is different. Second, as d’ is defined as a contrast between the ‘hit rate’ and ‘false positive rate’, this measure cannot differentiate between (incorrect) response omissions and (correct) ‘non-target’ responses on non-target trials (the dominant trial type).

Nevertheless, we agree with the reviewers that it is of general interest to report the more equivocal results for the widely used d’ performance metric.

“Analysis using d-Prime behavioural measure

Finally, for completeness we repeated the analysis using the discriminability index (d’)(Haatveit, Sundet, Hugdahl, Ueland and Andreassen, 2010) as the measure of working memory performance. […] However, there was no relationship between performance change, either from 0- to 1-back, or from 1- to 2-back, and D2/3R availability in any striatal sub-region (all P > 0.29).”

6) The authors use a whole striatal ROI for PET analyses (relatedly, see comment 1C above), but caudate/dorsal caudate are more strongly implicated in working memory functions. Please demonstrate the mediation (and null results) do not rely on use of whole striatal ROI rather than caudate or dorsal caudate.

As explained in our response to point 1C, above, on receiving the reviewer’s comments we have moved towards presenting all results relating to D2/3R availability separately for the caudate, accumbens and whole striatum. All results presented in the original manuscript using the whole striatum ROI are also present when using the caudate ROI. Specifically, regarding the mediation results:

“A mediation analysis indicated that the effect of caudate D2/3R availability on working memory performance is mediated through the direct effect of D2/3R availability on task-induced DMN connectivity change (ΔpRT(2.5): average causal mediation effect (ACME) = 0.03 [0.01, 0.12], P = 0.015. Mediation remains significant at P < 0.015 for -ΔpRT(2.5-4))(Figure 4C). […]These results suggest that striatal D2/3Rs, particularly in the caudate, might exert an influence on working memory performance through a more direct effect on task-induced functional connectivity changes within the DMN.”

7) Salami and colleagues (2019) published a PET-fMRI study with a very similar design "Dopamine D2/3 binding potential modulates neural signatures of working memory in a load-dependent fashion." They do find relationships between D2/3 receptor availability and multivariate patterns of BOLD using a PLS approach. These finding are in agreement with other studies demonstrating BOLD-PET relationships. I don't think this study can be ignored. I recommend the authors apply PLS analysis to their dataset. If the results are still negative, this would potentially reflect interesting age-related effects and strengthen their claims that the effects of D2/3 receptor availability are truly limited to changes in DMN connectivity. If this new analysis approach reveals BOLD-PET relationships, this would serve as a worthwhile replication.

We thank the reviewers for bringing this study to our attention, which was published after our initial submission. We agree that the results are highly relevant, and we have conducted the suggested (‘behavioural’) PLS analyses on our data, to test whether the relationship between caudate D2R availability and task-induced BOLD signal extends to activation patterns as well as connectivity changes. We have included the PLS analysis results in a Resultssection that addresses this question directly.

Relationship between striatal D2/3R availability and task-related activation.

Our results support the conclusion that striatal D2/3R availability, particularly within caudate, is related to task-induced changes in DMN connectivity and working memory performance. […]However, consistent with the standard mass univariate fMRI analysis (Figure 2A), a standard PLS analysis found strong evidence for BOLD modulation by working memory load in a widespread cortical frontoparietal network (1st latent variable significant at P < 0.001).”

We do not replicate the findings of Salami and colleagues, and in the discussion cite several potential reasons for this, including (1) age differences between cohorts, (2) D2/3R measure differences (i.e. the use of a hierarchical factor model to estimate the striatal D2/3R factor in Salami et al), and (3) tracer differences (use of raclopride in Salami et al).

“We find no evidence for a relationship between striatal D2/3R availability and task-induced BOLD activation using either mass-univariate or multivariate regression (PLS) approaches. […] Finally, differences in D2R:D3R binding properties of [11C]raclopride and [11C]-(+)-PHNO may also contribute to the apparent discrepancy between the results.”

8) The authors evoke dopamine's modulation of fronto-striato-thalamic loops as a mechanism underlying its influence on cognition. How do these loops play into dopamine's modulation of task negative networks?

We agree with the reviewer that it is somewhat surprising that the influence of striatal D2/3R availability was expressed predominantly in the association with DMN connectivity change. We note that in the revised manuscript there are also significant correlations between caudate D2/3R availability and task-induced connectivity change between nodes of the DMN and TPN, but there is no relationship to behaviour. Any interpretation of the specific relationship between striatal D2/3R signalling and DMN vs TPN is highly speculative (and may be premature given our DA-fMRI correlations). We acknowledge this in the discussion:

“We found a positive correlation between caudate D2/3R availability and task-induced cortical functional connectivity within the DMN and the DMN-TPN, and a non-significant positive correlation with task-induced TPN connectivity. Of note, the difference between dopamine-DMN and dopamine-TPN correlations was not statistically significant, and we believe it is therefore premature to claim that the influence of D2/3R signalling on cortical excitability is specific for the DMN.”

https://doi.org/10.7554/eLife.45045.010

Article and author information

Author details

  1. Matthew M Nour

    1. Institute of Psychiatry, Psychology and Neuroscience (IOPPN), King’s College London, London, United Kingdom
    2. MRC London Institute of Medical Sciences (LMS), Hammersmith Hospital, London, United Kingdom
    3. Institute of Clinical Sciences, Imperial College London, London, United Kingdom
    4. Max Planck UCL Centre for Computational Psychiatry and Ageing Research, University College London, London, United Kingdom
    5. Wellcome Centre for Human Neuroimaging (WCHN), University College London, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    matthew.nour.18@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0858-6184
  2. Tarik Dahoun

    1. MRC London Institute of Medical Sciences (LMS), Hammersmith Hospital, London, United Kingdom
    2. Institute of Clinical Sciences, Imperial College London, London, United Kingdom
    3. Department of Psychiatry, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
  3. Robert A McCutcheon

    1. Institute of Psychiatry, Psychology and Neuroscience (IOPPN), King’s College London, London, United Kingdom
    2. MRC London Institute of Medical Sciences (LMS), Hammersmith Hospital, London, United Kingdom
    Contribution
    Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1102-2566
  4. Rick A Adams

    1. Institute of Cognitive Neuroscience (ICN), University College London, London, United Kingdom
    2. Division of Psychiatry, University College London, London, United Kingdom
    Contribution
    Investigation, Methodology, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7661-8881
  5. Matthew B Wall

    Imanova Centre for Imaging Sciences (Invicro Ltd), Hammersmith Hospital, London, United Kingdom
    Contribution
    Conceptualization, Software, Methodology, Writing—review and editing
    Competing interests
    is affiliated with Imanova Centre for Imaging Sciences (Invicro Ltd). The author has no other competing interests to declare.
  6. Oliver D Howes

    1. Institute of Psychiatry, Psychology and Neuroscience (IOPPN), King’s College London, London, United Kingdom
    2. MRC London Institute of Medical Sciences (LMS), Hammersmith Hospital, London, United Kingdom
    3. Institute of Clinical Sciences, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2928-1972

Funding

National Institute for Health Research (Academic Clinical Fellowship)

  • Matthew M Nour

Wellcome (200102/Z/15/Z)

  • Robert A McCutcheon

Academy of Medical Sciences (AMS-SGCL13-Adams)

  • Rick A Adams

Medical Research Council (MC-A656-5QD30)

  • Oliver D Howes

Wellcome (094849/Z/10/Z)

  • Oliver D Howes

Seventh Framework Programme (EU-FP7 MC6 ITN IN-SENS 607616)

  • Tarik Dahoun

Wellcome (UCL Wellcome Trust PhD Programme for Clinicians)

  • Matthew M Nour

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

MN is a pre-doctoral fellow of the International Max Planck Research School on Computational Methods in Psychiatry and Ageing Research (IMPRS COMP2PSYCH). The participating institutions are the Max Planck Institute for Human Development, Berlin, Germany, and University College London, London, UK. For more information, see: https://www.mps-ucl-centre.mpg.de/en/comp2psych. MN is also supported by the National institute for Health Research UK and Wellcome Trust. TD is supported by an EU-FP7 MC6 ITN IN-SENS grant (grant number 607616). RM is supported by the Wellcome Trust (no. 200102/Z/15/Z). RA is supported by the Academy of Medical Sciences (AMS-SGCL13-Adams) and the National Institute of Health Research (CL-2013-18-003). This study was funded by Medical Research Council-UK (no. MC-A656-5QD30), and Wellcome Trust (no. 094849/Z/10/Z) grants to OH and the National Institute for Health Research Biomedical Research Centre at South London and Maudsley NHS Foundation Trust and King’s College London. The views expressed are those of the authors and not necessarily those of the NHS, funding bodies, or the Department of Health. We thank the MR and PET technologists and radiographers at Imanova Centre for Imaging Sciences (Invicro Ltd), London, and Christopher Coello for help with the PET image analysis.

Ethics

Human subjects: The study was approved by the local NHS Research Ethics Committee (REC number: 12/LO/1955) and the UK Administration of Radioactive Substances Advisory Committee. All participants provided written informed consent to take part in the study, and for the results to be published.

Senior Editor

  1. Michael J Frank, Brown University, United States

Reviewing Editor

  1. David Badre, Brown University, United States

Publication history

  1. Received: January 10, 2019
  2. Accepted: June 18, 2019
  3. Version of Record published: July 10, 2019 (version 1)

Copyright

© 2019, Nour et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 488
    Page views
  • 78
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
