TRPC3 is a major contributor to functional heterogeneity of cerebellar Purkinje cells

  1. Bin Wu
  2. François GC Blot
  3. Aaron Benson Wong
  4. Catarina Osório
  5. Youri Adolfs
  6. R Jeroen Pasterkamp
  7. Jana Hartmann
  8. Esther BE Becker
  9. Henk-Jan Boele
  10. Chris I De Zeeuw
  11. Martijn Schonewille  Is a corresponding author
  1. Erasmus Medical Center, Netherlands
  2. University Medical Center Utrecht, Utrecht University, Netherlands
  3. Technical University Munich, Germany
  4. University of Oxford, United Kingdom
  5. Royal Dutch Academy for Arts and Sciences, Netherlands
Research Advance
  • Cited 0
  • Views 589
  • Annotations
Cite this article as: eLife 2019;8:e45590 doi: 10.7554/eLife.45590

Abstract

Despite the canonical homogeneous character of its organization, the cerebellum plays differential computational roles in distinct sensorimotor behaviors. Previously, we showed that Purkinje cell (PC) activity differs between zebrin-negative (Z–) and zebrin-positive (Z+) modules (Zhou et al., 2014). Here, using gain-of-function and loss-of-function mouse models, we show that transient receptor potential cation channel C3 (TRPC3) controls the simple spike activity of Z–, but not Z+ PCs. In addition, TRPC3 regulates complex spike rate and their interaction with simple spikes, exclusively in Z– PCs. At the behavioral level, TRPC3 loss-of-function mice show impaired eyeblink conditioning, which is related to Z– modules, whereas compensatory eye movement adaptation, linked to Z+ modules, is intact. Together, our results indicate that TRPC3 is a major contributor to the cellular heterogeneity that introduces distinct physiological properties in PCs, conjuring functional heterogeneity in cerebellar sensorimotor integration.

https://doi.org/10.7554/eLife.45590.001

Introduction

Maintaining correct sensorimotor integration relies on rapid modifications of activity. The cerebellum is instrumental herein, evidenced by the fact that disruptions of cerebellar functioning, for example through stroke or neurodegenerative disorders, affect coordination and adaptation of many types of behaviors such as gait, eye movements and speech (Ackermann et al., 1992; Bodranghien et al., 2016). The palette of behavioral parameters controlled by the cerebellum is also broad and includes features like timing (Raymond et al., 1996; De Zeeuw and Yeo, 2005; Yang and Lisberger, 2014), strength (Hirata and Highstein, 2000; Witter et al., 2013), as well as coordination of muscle activity (Thach et al., 1992; Vinueza Veloz et al., 2015). However, the pluriformity of behavioral features does not match with the homogeneity of the structure and cyto-architecture of the cerebellar cortex.

Recently, it has been uncovered that the sole output neurons of the cerebellar cortex, the Purkinje cells (PCs), can be divided into two main groups with a distinct firing behavior (Xiao et al., 2014; Zhou et al., 2014). One group, consisting of PCs that are positive for the glycolytic enzyme aldolase C, also referred to as zebrin II (Brochu et al., 1990; Ahn et al., 1994), shows relatively low simple spike firing rates, whereas the PCs in the other group that form zebrin-negative zones, fire at higher rates (Zhou et al., 2014). Zebrin II demarcates olivocerebellar modules, anatomically defined operational units each consisting of a closed loop between the inferior olive, parasagittal bands of the cerebellar cortex and the cerebellar nuclei (Sugihara and Quy, 2007; Ruigrok, 2011). Given that different motor domains are controlled by specific olivocerebellar modules (Horn et al., 2010; Ruigrok, 2011; Graham and Wylie, 2012), the differential intrinsic firing frequencies may be tuned to the specific neuronal demands downstream of the cerebellum (De Zeeuw and Ten Brinke, 2015). Thus, dependent on the specific behavior controlled by the module involved, the PCs engaged may show low or high intrinsic firing as well as related plasticity rules to adjust these behaviors (Apps et al., 2018).

Cellular heterogeneity can drive differentiation in the activity and plasticity of individual cells that operate within a larger ensemble (Altschuler and Wu, 2010). The molecular and cellular determinants of differential electrophysiological processing in the cerebellar PC modules are just starting to be identified (Cerminara et al., 2015; Apps et al., 2018). For example, while the impact of zebrin II itself is still unclear (Zhou et al., 2014), excitatory amino acid transporter 4 (EAAT4) and GLAST/EAAT1 may selectively modulate simple spike activity of zebrin-positive PCs as well as plasticity of their parallel fiber (PF) inputs (Wadiche and Jahr, 2005; Perkins et al., 2018). Likewise, the distributions of particular subcategories of receptors that may be relevant for firing properties are linked to the same modular organization. For example, whereas γ-aminobutyric acid type B (GABAB) receptors occur in both zebrin-positive and zebrin-negative PCs (Tian and Zhu, 2018), the GABAB2 receptor is selectively expressed in a pattern similar to that of zebrin II (Chung et al., 2008). Or, whereas the alpha isoform of mGluR1 (mGluR1a) is uniformly expressed in all PCs (Ohtani et al., 2014) the mGluR1b receptor is expressed in a pattern complementary to that of zebrin II (Mateos et al., 2001). Interestingly, the modular distributions of most of these receptors point towards a critical role of transient receptor potential cation channel subfamily C member 3 (TRPC3) in regulating electrophysiological properties of PCs. For example, while the mGluR1b receptor interacts with TRPC3 to drive mGluR1-dependent currents (Hartmann et al., 2008), the GABAB receptors modulate mGluR1-triggered TRPC3-mediated currents (Tian and Zhu, 2018). However, where and how TRPC3 operates in cerebellar PCs is still largely unknown (Zhou et al., 2014).

Here, we set out to test the hypothesis that TRPC3 is a key player in the molecular machinery responsible for differential control over the activity and function of Z+ and Z– PCs. We demonstrate that TRPC3 in the brain has particularly high expression levels in the cerebellum, in a pattern largely, but not precisely, complementary to zebrin. We examined the impact of TRPC3 gain-of-function and loss-of-function mutations and found effects on the spiking rate of Z– but not Z+ PCs in vitro. In vivo recordings during quiet wakefulness in the same mutants revealed that the level of TRPC3 influences both simple spike and complex spike rates, and the interaction between the two, also selectively in Z– modules. Finally, we show that adaptation of compensatory eye movements, which is controlled by Z+ modules in the vestibulocerebellum (Sanchez et al., 2002; Zhou et al., 2014), is not affected by the loss of TRPC3 function, whereas the learning rate during eyeblink conditioning, which is linked to the Z– modules (Hesslow, 1994; Mostofi et al., 2010), is decreased after PC-specific ablation of TRPC3, highlighting the behavioral relevance of firing rate modulation by TRPC3.

Results

Specific expression pattern and subcellular localization of TRPC3 in the mouse brain

As the expression of TRPC3 in the adult mammalian brain is still unclear, we first set out to examine the immunohistochemistry of TRPC3 using a novel TRPC3-specific antibody (Cell signaling, #77934). We found that in the normal mouse brain TRPC3 is most prominently expressed in the olivocerebellar circuit (Figure 1A), specifically in PCs and unipolar brush cells (UBCs) (Figure 1B). This is in line with previous immunostainings and in situ data (Allen Brain Atlas, http://mouse.brain-map.org/). Upon further scrutiny it is clear that, although expressed in all PCs, endogenous TRPC3 was not distributed homogeneously. The TRPC3 levels in the anterior cerebellum, where the PCs are predominantly Z–, were higher than those in the posterior PCs, which are primarily Z+ (Figure 1A, Figure 1—figure supplement 1). To further visualize the relationship between TRPC3 and Zebrin II, labeled as Aldolase C (Ahn et al., 1994), we quantified their relative levels in several subregions (Figure 1C–D and Figure 1—figure supplement 2). This analysis confirmed that TRPC3 expression is complementary to that of Zebrin in the vermis, while in the hemispheres the TRPC3 expression varies between homogeneous expression and expression complementary to Zebrin II. To visualize this pattern in a more comprehensive manner, we also employed whole-mount brain light sheet imaging following iDISCO-based clearing (Figure 1-video 1). The antibody staining appears to be of better quality in the iDISCO protocol, resulting for instance in a clearer picture of the expression of TRPC3 in the inferior olive (most ventral, Figure 1-video 1). The anterior/posterior differences in the protein amount were confirmed by western blot analysis (Figure 1—figure supplement 3A–B).

Figure 1 with 4 supplements see all

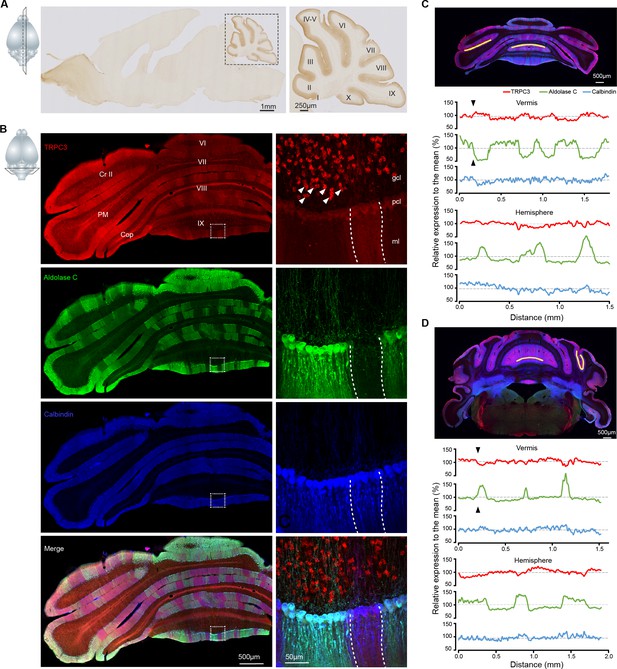

TRPC3 is predominantly expressed in the cerebellum in a zebrin-related pattern.

(A) Representative image and magnification (right) of sagittal cryosection of an adult mouse brain stained with anti-TRPC3. Inset, plane of section. (B) Coronal immunofluorescence images with anti-TRPC3 (red), anti-Zebrin II/Aldolase C (green) and anti-calbindin (blue) staining of the cerebellar cortex (left), with magnifications (right). TRPC3 is expressed in the cerebellar PCs and UBCs (triangles), in a pattern that in the vermis complements that of zebrin and appears more uniform in the hemispheres. Inset, plane of section. (C) Posterior coronal section of the cerebellar cortex (top) used to performed a quantification of the relative intensity of immunofluorescence staining of TRPC3, Zebrin II/Aldolase C and calbindin for PCs in the vermis (ventral lob. VIII, middle) and the hemisphere (ventral PM, bottom) (values normalized to the respective means). (D) Similar analysis of dorsal lob. III (middle) and sulcus of Sim to Crus I (bottom) in anterior section (top). TRPC3 expression is largely complementary to Zebrin II in the vermis and parts of the hemispheres (black arrow heads), but more uniform in other hemispheric areas. In general, TRPC3 expression demonstrates a weaker differentiation between low and high levels than Zebrin II. I-X, cerebellar lobules I-X; Sim, Simplex lobule; Cr II, Crus II; PM, paramedian lobule; Cop, Copula Pyramidis; gcl, granule cell layer; pcl, Purkinje cell layer; ml, molecular layer; D, dorsal; V, ventral; M, medial; L, lateral.

https://doi.org/10.7554/eLife.45590.002

Our immunohistochemical imaging reveals that TRPC3 is present in the soma and dendritic arbor of PCs (Figure 1B and Figure 1—figure supplement 1B–E). To further examine the subcellular localization of TRPC3 in the cerebellum, we performed immunoblots of isolated fractions following a synaptic protein extraction procedure (Figure 1—figure supplement 3C). As expected, TRPC3, a channel protein, is abundantly present in the membrane and almost completely absent in the cytosol (Figure 1—figure supplement 3D). Moreover, TRPC3 is enriched in synapstosomes (Figure 1—figure supplement 3D), in line with the common conception of mGluR1b-dependent activation of TRPC3 (Hartmann et al., 2008; Ohtani et al., 2014). Together, these results indicate that, within the brain, high TRPC3 expression levels are restricted to the olivocerebellar circuit, where it is present in all PCs and UBCs, but at particularly high levels in Z– PCs.

TRPC3 differentially controls the physiological properties of PCs in vitro

Next, we investigated the contribution of TRPC3 to cerebellar function in Z+ and Z– PCs using both gain-of-function and loss-of-function mouse models (Figure 2A). TRPC3-Moonwalker (TRPC3Mwk/-) mice harbor a point mutation resulting in TRPC3 gain-of-function through increased Ca2+ influx upon activation (Becker et al., 2009). These mice are featured by neurodegeneration, first of UBCs and later also of PCs, and as a consequence display early onset ataxia (Sekerková et al., 2013). Inversely, we generated a PC-specific loss-of-function mouse model for TRPC3 (pcp2Cre;TRPC3fl/fl) by crossing mice carrying loxP-flanked TRPC3 alleles (Hartmann et al., 2008) with L7-Cre (Pcp2-Cre) (Barski et al., 2000) mice. These pcp2Cre;TRPC3fl/fl mice exhibited no overt signs of ataxia or other movement deficits upon visual inspection. Western blotting and immunostaining of the anterior (Z–) and the posterior (Z+) cerebellar cortex of pcp2Cre;TRPC3fl/fl mice confirmed that TRPC3 protein levels are reduced, without disrupting the typical zebrin staining pattern (WB, anterior: t19=2.63, p=0.034; posterior: t19 = 2.67, p=0.028) (Figure 1—figure supplement 3A–B,E–F). The loss of TRPC3 was specific for cerebellar PCs, as TRPC3 expression in UBCs was not affected (Figure 1—figure supplement 3F, white arrow heads).

Figure 2 with 1 supplement see all

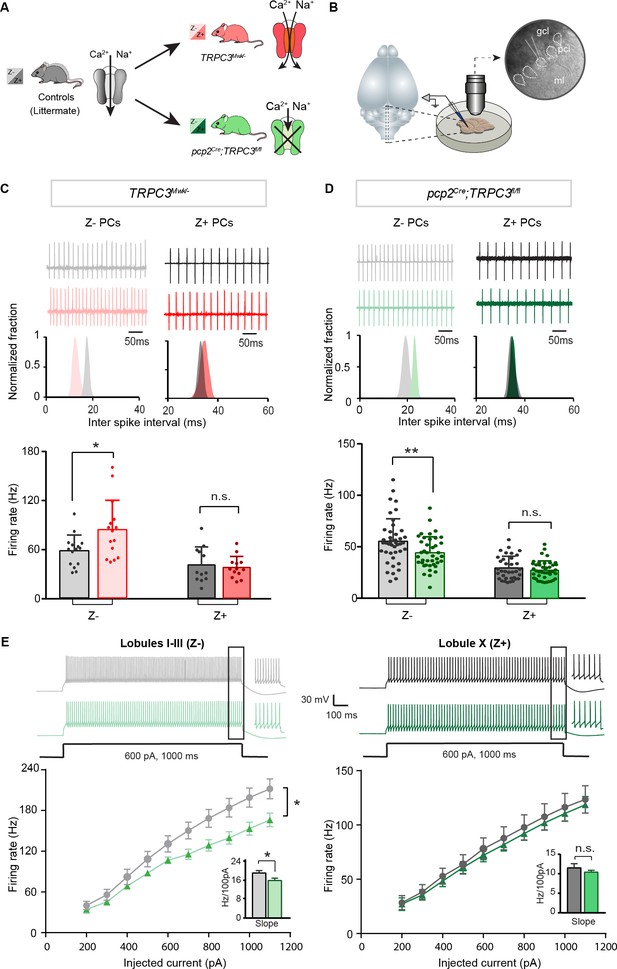

Differential controls of PC firing properties by TRPC3 in vitro.

(A) Schematic drawing of TRPC3 channel function in control (black), gain-of-function (TRPC3Mwk/-, red) and loss-of-function (pcp2Cre;TRPC3fl/fl, green) mice. (B) Schematic approach illustrating of PCs (right circle, dashed lines) recording in vitro, in acute sagittal slices. (C, D) Representative traces of cell-attached PC recordings (top) and corresponding inter spike interval (ISI) distributions (middle) in a Z– PC (left) and a Z+ PC (right) of TRPC3Mwk/- (C) and pcp2Cre;TRPC3fl/fl (D) mice. Z– PCs were affected in TRPC3Mwk/- (C), light-red, n = 15 cells/N = 4 mutant mice vs. n = 15 cells/N = 4 littermate controls, t28 = −2.47, p=0.020 and in pcp2Cre;TRPC3fl/fl mice (D), light-green, n = 40/N = 6 mutants vs. n = 43/N = 5 controls, t81 = 2.69, p=0.009). No differences in the firing rate of Z+ PCs in TRPC3Mwk/- (C), dark-red, n = 13/N = 4 mutants vs. n = 12/N = 4 controls, t18 = 0.419, p=0.680) and pcp2Cre;TRPC3fl/fl mice (D), dark-green, n = 36/N = 10 mutants vs. n = 35/N = 4 controls, t64 = 0.937, p=0.352). (E) Whole-cell patch-clamp recordings in slice from PCs of pcp2Cre;TRPC3fl/fl and control mice were used to test intrinsic excitability, by keeping cells at a holding potential of −65 mV and evoking action potentials by current steps of 100 pA (example, top). Top, exemplary traces evoked by current injection at 600 pA. Bottom, Input-output curves from whole-cell recordings of pcp2Cre;TRPC3fl/fl mice of Z– PCs (left, n = 17/N = 5 mutants vs n = 17/N = 5 controls, t32 = −2.20, p=0.035) and Z+ PCs (right, n = 12/N = 5 mutants vs n = 12/N = 4 controls, t22 = −0.95, p=0.354). gcl, granule cell layer; pcl, Purkinje cell layer; ml, molecular layer. (C–D), data are represented as mean ± s.d.; (E), data are represented as mean ± s.e.m., * means p<0.05 and **p<0.01. For values see Source data.

https://doi.org/10.7554/eLife.45590.007

PCs are intrinsically active pace-making neurons, which fire regular action potentials even when deprived of synaptic inputs (Raman and Bean, 1999; Womack and Khodakhah, 2002). To determine the contribution of TRPC3 to the activity of Z+ and Z– PCs, we performed in vitro electrophysiological recordings on sagittal sections of adult mice of both mutants (Figure 2B), taking lobules X and I-III as proxies for Z+ and Z– PC modules, respectively (see Brochu et al., 1990; Sugihara and Quy, 2007; Zhou et al., 2014). In littermate controls, the intrinsic firing rate of Z– PCs is higher than that of Z+ PCs, confirming previous results (Zhou et al., 2014). Gain-of-function TRPC3Mwk/- mice showed an increase in PC simple spike firing rate selectively in Z– PCs (84.5 ± 36.2 Hz vs. 58.4 ± 19.6 Hz for mutants vs. controls; t19 = −2.47, p=0.020), without affecting Z+ PCs (36.7 ± 13.0 Hz vs. 39.7 ± 21.5 Hz for mutants vs. controls t21=0.419, p=0.680) (Figure 2C). Inversely, ablating TRPC3 from PCs caused a decrease in firing rate in Z– PCs (44.1 ± 15.6 Hz vs. 55.4 ± 21.8 Hz, mut. vs. ctrl, t81=2.69, p=0.009), again without affecting Z+ PCs (28.5 ± 9.3 Hz vs. 30.8 ± 11.7 Hz, mut. vs. ctrl, t64=0.937, p=0.352) (Figure 2D). However, in the absence of TRPC3 the firing rate of Z– PCs does not drop to the levels of Z+ PCs, suggesting that TRPC3 provides a major, but not exclusive, contribution to the difference. We also assessed the regularity of firing activities by measuring the coefficient of variation (CV) and the coefficient of variation of adjacent intervals (CV2) of ISI. Both the CV and CV2 of Z– PCs in lobules I-III declined significantly in pcp2Cre;TRPC3fl/fl mice, while remaining unchanged in TRPC3Mwk/- mice; in contrast, in Z+ lobule X, none of these parameters were altered in either TRPC3Mwk/- or pcp2Cre;TRPC3fl/fl mice (Figure 2—figure supplement 1A–B).

To verify the effect of TRPC3 deletion on other cell physiological properties of PCs, we performed whole-cell patch-clamp recordings in a subset of PCs. Injections of current steps into PCs evoked increasing numbers of action potential, in the presence of blockers for both excitatory and inhibitory synaptic inputs. In line with the cell-attached recordings, in loss-of-function pcp2Cre;TRPC3fl/fl mice, PC intrinsic excitability, quantified by the slope of firing rate versus current injection curve, was significantly reduced in lobules I-III (16.0 ± 1.0 Hz/100 pA vs. 19.2 ± 1.1 Hz/100 pA, mut. vs. ctrl, t32=-2.20, p=0.035), but unchanged in lobule X, compared with those of littermate controls (10.4 ± 0.5 Hz/100 pA vs. 11.5 ± 1.1 Hz/100 pA, mut. vs. ctrl, t22=-0.95, p=0.354) (Figure 2E). Other physiological parameters in terms of holding current, amplitudes, half-widths and after-hyperpolarization amplitudes (AHPs), were not significantly affected in either lobules I-III or lobule X (Figure 2—figure supplement 1C).

Together, our in vitro recordings from gain- and loss-of-function mutants indicate that TRPC3 selectively controls the activity in Z– PCs, without affecting other cell intrinsic properties. Thus, at least in vitro, TRPC3 contributes to the difference in intrinsic firing activity between Z+ and Z– PCs, by directly controlling the intrinsic excitability of Z– PCs.

TRPC3 regulates the activity of simple spikes selectively in Z– PCs in vivo

To examine the role of TRPC3 in the closed loop, intact cerebellar module, we next performed PC recordings in vivo in adult mice during quiet wakefulness (Figure 3A). PCs could be identified during extracellular recordings by the presence of complex spikes, while the consistent presence of a pause in simple spikes following each complex spike confirmed that the recording was obtained from a single unit (De Zeeuw et al., 2011). PC recording locations in either Z– lobules I-III or Z+ lobule X were confirmed with iontophoretic injections of biotinylated dextran amine (BDA), which could be identified by immunostaining (Figure 3B). As we showed before (Zhou et al., 2014; Zhou et al., 2015), PCs in Z– modules fired simple spikes at a higher rate than those in Z+ modules (Figure 3D and F).

Figure 3 with 1 supplement see all

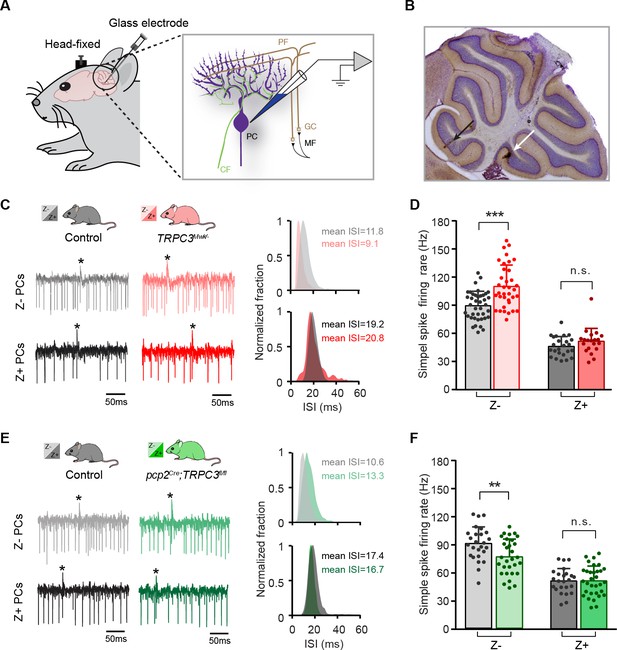

TRPC3 contributes to the in vivo simple spike firing rate of Z–, but not Z+ PCs.

(A) Schematic illustration of extracellular recording configuration in vivo. PF, parallel fiber; CF, climbing fiber; MF, mossy fiber; GC, granule cell. (B) Representative sagittal cerebellar section with recording sites labeled by BDA injection, in lobule II (black arrow) and X (white arrow). (C) Representative example traces (left) and ISI distributions (right) of a Z– PC (top) and a Z+ PC (bottom) in gain-of-function TRPC3Mwk/- mice. (D) PC simple spike firing rate recorded in vivo in TRPC3Mwk/- mice compared to control littermates, for the Z–lobules I-III (light-red, n = 36/N = 7 mutants vs. n = 40/N = 6 controls, t60 = −4.58, p<0.001) and the Z+ lobule X (dark-red, n = 20/N = 6 mutants vs. n = 24/N = 5 controls, t42=-1.47, p=0.148). (E) Representative example traces (left) and ISI distributions (right) in a Z– PC (top) and a Z+ PC (bottom) of loss-of-function pcp2Cre;TRPC3fl/fl mice. (F) PC simple spike firing rate of pcp2Cre;TRPC3fl/fl mice compared to controls, for Z– lobules I-III (light-green, n = 30/N = 7 mutants vs. n = 26/N = 8 controls, t54=2.88, p=0.006) and in Z+ lobule X (dark-green, n = 32/N = 8 mutants vs. n = 24/N = 6 controls, t54 = −0.053, p=0.958). Data are represented as mean ± s.d., for values see Source data, ** means p<0.01 and ***p<0.001.

https://doi.org/10.7554/eLife.45590.010

In vivo, in the presence of physiological inputs the PCs in Z– lobules I-III of TRPC3Mwk/- mutants showed an increased simple spike firing rate (110.0 ± 22.6 Hz vs. 89.1 ± 15.3 Hz, mut. vs. ctrl, t60=-4.58, p<0.001), whereas the Z+ PCs were unaffected (50.6 ± 13.6 Hz vs. 45.3 ± 10.4 Hz, mut. vs. ctrl, t42=-1.47, p=0.148). Conversely, Z– PCs in pcp2Cre;TRPC3fl/fl mutants featured a decreased simple spike firing rate (74.4 ± 18.6 Hz vs. 88.5 ± 17.4 Hz, mut. vs. ctrl, t54=2.88, p=0.006), but again without changes in PCs of the Z+ lobule X (50.2 ± 15.5 Hz vs. 50.0 ± 12.9 Hz, mut. vs. ctrl, t54=-0.053, p=0.958), all compared to those of their littermate controls (Figure 3C–F). Thus, here too, the ablation of TRPC3 did not decrease simple spike firing rate in the Z– PCs completely to levels of Z+ PCs (74.4 Hz vs. 50.0 Hz in Z– vs. Z+ of pcp2Cre;TRPC3fl/fl, respectively). Unlike in vitro, PCs in the pcp2Cre;TRPC3fl/fl mice showed comparable CV and CV2 to controls for both Z– and Z+ modules (Figure 3—figure supplement 1C–D). The CV of simple spike ISI was, however, prominently elevated in both Z– and Z+ modules in TRPC3Mwk/- mutants (Figure 3—figure supplement 1A), while the CV2 did not differ (Figure 3—figure supplement 1B). It should be noted that PC regularity in vivo is largely determined by external inputs (compare Figure 2—figure supplement 1 to Figure 3—figure supplement 1), which thereby can offset those intrinsic variations induced by the mutation of TRPC3. The irregular firing activity of PCs in TRPC3Mwk/- mutants, at least for Z+ PCs, may be attributed to impaired function or degeneration of UBCs, while the physiological synaptic input in vivo in pcp2Cre;TRPC3fl/fl mice could obscure the regularity changes observed in vitro in these mice.

In short, even in vivo, in the presence of all physiological inputs both gain-of-function and loss-of-function mutations of TRPC3 exclusively affects Z– PCs, with the most pronounced, persistent effect being the mutation-selective influence on simple spike firing rate.

TRPC3-related effects correlate with zebrin expression and are independent of development

Our results so far have identified selective TRPC3-related effects by comparing lobules I-III and X, as proxies for Z– and Z+ modules. Immunohistochemical analysis indicated that the TRPC3 expression differs substantially between these lobules (Figure 1—figure supplements 12 and Figure 1—video 1), suggesting that the effects of gain- and loss-of-function mutations could be directly related to protein levels. Alternatively, other differences in molecular machinery could underlie or further enhance this cellular differentiation, for instance through mGluR1b-related effects. As the difference in TRPC3 expression is minimal or absent in the more lateral parts of the cerebellum (Figure 1—figure supplements 12), recording the activity of adjacent Z– and Z+ PCs there would solve this question (Wu and Schonewille, 2018). To this end, we crossed pcp2Cre;TRPC3fl/fl mice with EAAT4GFP mice that express GFP in Z+ PCs to generate pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice. Using two-photon microscopy, we identified Z+ and Z– modules on the dorsal surface (lobules IV-VI and simplex) of the cerebellum and recorded PC activity (Figure 4A–B). Here, the absence of TRPC3 attenuated the firing rate (36.5 ± 23.2 Hz vs. 72.7 ± 26.5 Hz, mut. vs. ctrl, t28=3.99, p<0.001) and enhanced the irregularity (e.g. CV: 0.55 ± 0.16 vs. 0.44 ± 0.10, mut. vs. ctrl, t28=-2.27, p=0.031) of Z– PCs even more robustly, without an effect on Z+ PCs (rate: 36.6 ± 19.5 Hz vs. 33.0 ± 9.8 Hz, mut. vs. ctrl, t21=-0.550, p=0.588; CV: 0.47 ± 0.22 vs. 0.56 ± 0.26, mut. vs. ctrl, t21=0.853, p=0.393) (Figure 4C–D, Figure 4—figure supplement 1A–B, cf Figure 3F). The similar firing rates of Z– and Z+ PCs lacking TRPC3 in these targeted recordings supports the possibility that in some areas TRPC3 is solely responsible for the difference and that further differentiation divides the zebrin-based populations into smaller subpopulations (Armstrong et al., 2001). It also fits with the finding that other proteins, for example mGluR1b, influence TRPC3 activity and thereby differentially determine the spiking activity of PCs in areas where TRPC3 expression is more homogeneous. As stated above, the experiments in loss-of-function pcp2Cre;TRPC3fl/fl mice suggest that TRPC3 cannot account for the entire difference between Z+ and Z– PCs. As the L7 promotor turns on early in development (postnatal week 1–2; Barski et al., 2000), it could be that the ablation of TRPC3 early in development provokes compensatory mechanisms that limit the decrease in simple spike rate in Z– PCs in adult mice. Alternatively, developmental changes in the activity in the olivocerebellar loop could be partially responsible for the lower firing rate. To test the possibility that developmental effects influenced PC activity in the adult mice, we crossed the loxP-flanked TRPC3 mice with tamoxifen-dependent pcp2CreERT2 to generate pcp2CreERT2;TRPC3fl/fl mice (Figure 4E). Four weeks after tamoxifen treatment, pcp2CreERT2;TRPC3fl/fl mice showed a virtually complete ablation of TRPC3 in PCs (Figure 4F). If the absence of TRPC3 early in development drives compensatory mechanisms or contributes to the low simple spike firing rate in adult Z– PCs, we should observe a larger or smaller effect, respectively, in pcp2CreERT2;TRPC3fl/fl adult mice after tamoxifen injections (injected after maturation). In vivo recordings revealed that, again, simple spike firing rates were affected in Z– (from lobules I-III, 72.9 ± 9.1 Hz vs. 86.5 ± 10.9 Hz, mut. vs. ctrl, t53 = 5.05, p<0.001), but not Z+ PCs (lobule X, rate: 47.0 ± 11.6 Hz vs. 51.6 ± 13.4 Hz, mut. vs. ctrl, t44=1.21, p=0.234) of tamoxifen injected adult pcp2CreERT2;TRPC3fl/fl mice (Figure 4G–H and Figure 4—figure supplement 1C–D), in a manner similar to that in pcp2Cre;TRPC3fl/fl mice. To verify the efficiency and selectivity of the inducible PC-specific Cre expression line, these mice were also crossed with Cre-dependent tdTomato expressing (Ai14) mice and injected with tamoxifen in the same manner. Confocal images confirm that labeling is virtually exclusively found in PCs (Figure 4—figure supplement 1E).

Figure 4 with 1 supplement see all

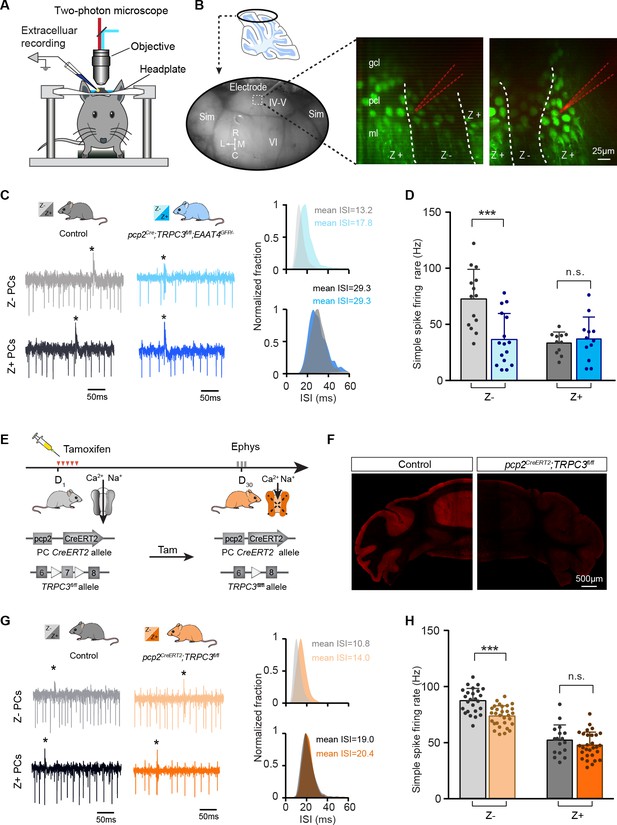

The contribution of TRPC3 to firing rate is dependent on zebrin-identity and independent of developmental changes.

(A) Schematic experimental setup for two-photon imaging-based targeted PC recordings, in vivo. (B) Sagittal view of cerebellum (schematic, top) indicating the recording region in the ellipse (bottom). Representative images (right) show the visualization of Z+ bands (dark green) in an awake pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mouse, with recording electrodes (red) positioned in Z– (left) and Z+ (right) bands. (C) Representative firing traces (left) and ISI distributions (right) in a Z– PC (top) and a Z+ PC (bottom) of loss-of-function pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice (blue) and control littermates (no Cre; gray). (D) Average simple spike firing rate of PCs recorded from adjacent modules of pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice and those in controls. Comparison for Z– PCs (light-blue, n = 16/N = 3 mutants vs. n = 14/N = 2 controls, t28 = 3.99, p<0.001), and Z+ PCs (dark-blue, n = 12/N = 3 mutants vs. n = 12/N = 2 controls, t21 = −0.550, p=0.588). (E–F) Intraperitoneal tamoxifen injections for five days (D1-5) to trigger TRPC3 gene ablation solely in PCs in adult pcp2CreERT2;TRPC3fl/fl mice. Open triangles indicate loxP sites. PC in vivo extracellular activity was recorded four weeks later (D29-31) in pcp2CreERT2;TRPC3fl/fl mice (orange). TRPC3 deletion was confirmed post-mortem by confocal imaging following anti-TRPC3 staining (F). (G) Representative firing traces (left) and ISI distributions (right) in a Z– PC (top) and a Z+ PC (bottom) of pcp2CreERT2;TRPC3fl/fl mice. (H) Simple spike firing rate in vivo in pcp2CreERT2;TRPC3fl/fl and control mice (no Cre) recorded in lobules I-III (Z–) and lobule X (Z+) PCs. Comparison for Z– PCs (light-orange, n = 30/N = 4 mutants vs. n = 25/N = 4 controls, t53 = 5.05, p<0.001), and Z+ PCs (dark-orange, n = 29/N = 4 mutants vs. n = 17/N = 3 controls, t44 = 1.21, p=0.234). Sim, simplex lobule; IV-VI, lobules IV-VI, R, rostral, C, caudal; L, lateral, M, medial. Data are represented as mean ± s.d., for values see Source data, *** means p<0.001.

https://doi.org/10.7554/eLife.45590.013

Taken together and combined with pcp2Cre;TRPC3fl/fl data, these results indicate that the TRPC3-dependent effects in zebrin-identified PCs are independent of cerebellar development or developmental compensation. Moreover, the larger effect of TRPC3 ablation on Z– PCs in areas where its expression is similar to that in Z+ PCs points towards a further subdivision based on other proteins that might contribute to the simple spike rate in Z– PCs.

TRPC3 mutations selectively affect the activity in Z– olivocerebellar modules

PCs in the cerebellar cortex, form a closed loop with the cerebellar nuclei neurons they innervate by their axon output and the olivary neurons from which they receive their climbing fiber input (Ruigrok, 2011). If TRPC3 contributes to the output of this loop, one could hypothesize that other elements in the loop should be affected by the mutations (Chaumont et al., 2013; Witter et al., 2013). To test this hypothesis, we examined complex spikes activity in PCs, as the complex spike directly reflects the activity of the climbing fiber and thereby that of the inferior olivary neuron it originates from Chaumont et al. (2013). We identified complex spikes based on their characteristic shape in our in vivo recordings from Z– lobules I-III or Z+ lobule X (Figure 5A). Complex spike firing rates were, similar to simple spike rates, higher in Z– than in Z+ PCs (Figure 5B), as shown previously (Zhou et al., 2014). Chronic manipulations of TRPC3 activity, gain- and loss-of-function, in PCs predominantly affected complex spike firing rate in Z– (TRPC3Mwk/-: t68=2.68, p=0.009; pcp2Cre;TRPC3fl/fl: t54=2.50, p=0.016; pcp2Cre;TRPC3fl/fl;EAAT4GFP/-: t28=3.49, p=0.002), but not Z+ PCs (TRPC3Mwk/-: t42=1.56, p=0.126; pcp2Cre;TRPC3fl/fl: t54=1.41, p=0.164), except for that in pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice (t20 = 3.03, p=0.007) (Figure 5B). Intriguingly, acute ablation of TRPC3 in pcp2CreERT2;TRPC3fl/fl mice did not affect complex spike activity in terms of firing rate, CV, CV2 or pause in simple spikes following climbing fiber activation (CF-pause) in Z– PCs (rate: t53=-0.940, p=0.352) (Figure 5B bottom panel, Figure 5—figure supplement 1J–L). In line with the lower simple spike firing rates in loss-of-function TRPC3 mutants, the CF-pause of pcp2Cre;TRPC3fl/fl and pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice were longer, selectively in Z– PCs (Figure 5—figure supplement 1F and I). Except for the CV value, other complex spike parameter changes in TRPC3Mwk/- mice were not affected (Figure 5—figure supplement 1A–C, see also discussion). In pcp2Cre;TRPC3fl/fl mice, the CV and CV2 of complex spike in both Z– and Z+ PCs do not differ from littermate controls (Figure 5—figure supplement 1D–E), however, in pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice, they were significantly increased for Z– PCs, not Z+ PCs, compared to those of littermate controls (Figure 5—figure supplement 1G–H). Together, in vivo experiments indicate that TRPC3 also selectively affects the activity in the inferior olive in that the Z– modules are most prominently affected, and this effect is only present when TRPC3 is deleted early in development.

Figure 5 with 1 supplement see all

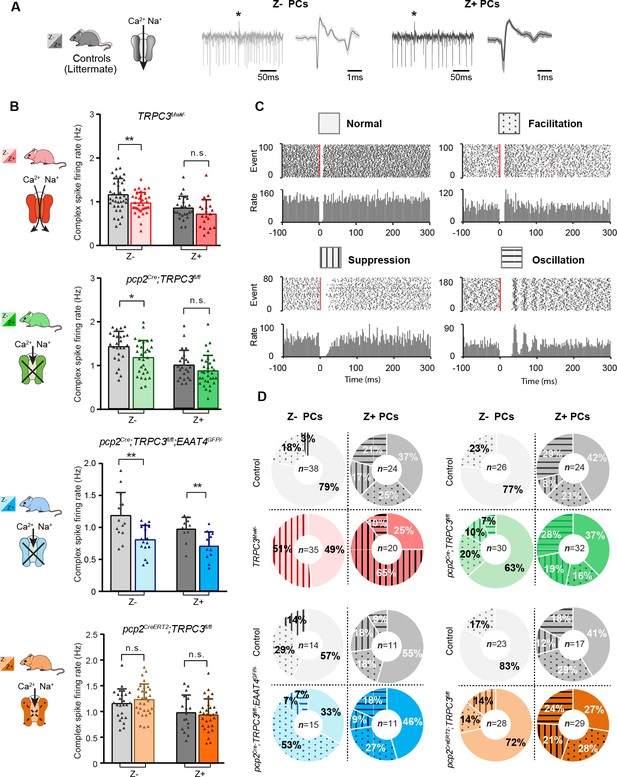

Complex spikes and complex spike - simple spike interaction are affected by TRPC3 mutations.

(A) Representative PC recording traces and complex spikes shape of Z– (light black) and Z+ (dark black) PCs in the control mice. (B) Top half, comparison of complex spike firing rates in TRPC3Mwk/- (red) and pcp2Cre;TRPC3fl/fl (green) mice versus their respective littermate controls for Z– PCs (TRPC3Mwk/-: t68=2.68, p=0.009; pcp2Cre;TRPC3fl/fl: t54=2.50, p=0.016) and Z+ PCs (TRPC3Mwk/-: t42=1.56, p=0.126; pcp2Cre;TRPC3fl/fl: t54=1.41, p=0.164). Bottom half, comparison of complex spike firing rates in pcp2Cre;TRPC3fl/fl;EAAT4GFP/- (blue) and pcp2CreERT2;TRPC3fl/fl (orange) mice versus their respective controls for Z– PCs (pcp2Cre;TRPC3fl/fl;EAAT4GFP/-: t28=3.49, p=0.002; pcp2CreERT2;TRPC3fl/fl: t53=-0.940, p=0.352) and Z+ PCs (pcp2Cre;TRPC3fl/fl;EAAT4GFP/-: t20=3.03, p=0.007; pcp2CreERT2;TRPC3fl/fl: t44=0.448, p=0.656). (C) Raster plots of simple spike activity around the occurrence of each complex spike (−100 to +300 ms). These peri-complex splike time histograms can, based on post-complex spike activity, be divided into one of four types: normal (no change), facilitation, suppression and oscillation. (D) The distribution of post-complex spike response types for Z– and Z+ PCs, in TRPC3Mwk/-, pcp2Cre;TRPC3fl/fl, pcp2Cre;TRPC3fl/fl;EAAT4GFP/- and pcp2CreERT2;TRPC3fl/fl mice. Data are represented as mean ± s.d., for values see Source data, * means p<0.05 and **p<0.01.

https://doi.org/10.7554/eLife.45590.016

Complex spikes are known to have a direct influence on simple spike activity (CS-SS) (Simpson et al., 1996; Zhou et al., 2014). Based on the peri-complex spike time histograms, we could categorize four different types of simple spike responses following the CF-pause (see also Zhou et al., 2014), including no change in rate (normal), increased simple spike activity (facilitation), decreased simple spike activity (suppression), and a superimposed oscillatory pattern (oscillation) (Figure 5C). Our data confirmed our previous finding that the CS-SS interaction pattern among the Z+ and Z– PCs is different in that the facilitation prevails in the Z− PCs, whereas the suppression and oscillation types occur predominantly in the Z+ PCs (Figure 5D), with oscillations seen virtually exclusively in PCs with firing rates < 50 Hz and CV <0.3 (Zhou et al., 2014). In addition, we found that manipulation of TRPC3 activity changed the types of CS-SS responses most frequently in Z– PCs (Figure 5D). Interestingly, Z– PCs exhibited much more suppression in gain-of-function TRPC3Mwk/- mutants and vice versa more facilitation in loss-of-function pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice, compared to those in their littermate controls (Figure 5D), suggesting that Z– PCs partly compensate for the effects of TRPC3 manipulation.

Together, these results indicate that TRPC3 controls not only the activity of PCs, but also that of the inferior olivary neurons, another element in the olivocerebellar loop. Moreover, manipulation of TRPC3 activity alters the interaction between complex spikes and simple spikes.

Functional heterogeneity of TRPC3 is reflected in differential effects on motor behaviors

The ultimate question is: does cellular heterogeneity of PCs also differentially affect their contribution to specific cerebellar functions? As the TRPC3Mwk/- mutation is not cell-specific and affects for instance also UBCs (Sekerková et al., 2013), we focused on the behavioral effects in pcp2Cre;TRPC3fl/fl mice. pcp2Cre;TRPC3fl/fl mice did not show any overt signs of changes in development or weight, changes in module anatomy or connectivity or signs of any type of locomotion deficit. Before testing specific functions, we first evaluated the consequences of the manipulations of TRPC3 on locomotion, a type of behavior that by nature requires the entire body and as such can be linked to many sub-regions of the cerebellar cortex, ranging from the Z+ vestibular zones to the Z– anterior lobules. We investigated whether these mutant mice showed any obvious deficits in locomotion using the Erasmus Ladder (Vinueza Veloz et al., 2015) (Figure 6—figure supplement 1A). pcp2Cre;TRPC3fl/fl mice could not be discriminated from control littermates by the percentage of different types of steps, including lower steps, also known as missteps (Figure 6—figure supplement 1B–C). The apparent discrepancy with earlier evidence in stride width in the global TRPC3 knockout (Hartmann et al., 2008) could be due to the different methods or the fact that UBCs, particularly important in the vestibular zone, are also affected in that mouse model (Sekerková et al., 2013).

Next, we subjected pcp2Cre;TRPC3fl/fl mice to two specific, but intrinsically distinct types of cerebellum-dependent learning tasks, that is, vestibulo-ocular reflex (VOR) adaptation and eyeblink conditioning. VOR adaptation is the adjustment of the amplitude and/or direction of compensatory eye movements controlled by the vestibulocerebellum (Figure 6A–C), which is predominantly Z+ (Figure 6—figure supplement 2A–B). Eyeblink conditioning requires the animal to generate a well-timed movement following a previously unrelated sensory input and is linked to more anterior regions that are largely Z– (Figure 7A and Figure 6—figure supplement 2A–B). Note that the difference in zebrin labeling is pronounced between the two related regions; while the difference in TRPC3 staining is less clear (Figure 6—figure supplement 2A–B). Nonetheless, given the electrophysiological changes described above, we hypothesized that altered TRPC3 function should impair Z– linked eyeblink conditioning, whereas VOR adaptation would be unaffected.

Figure 6 with 2 supplements see all

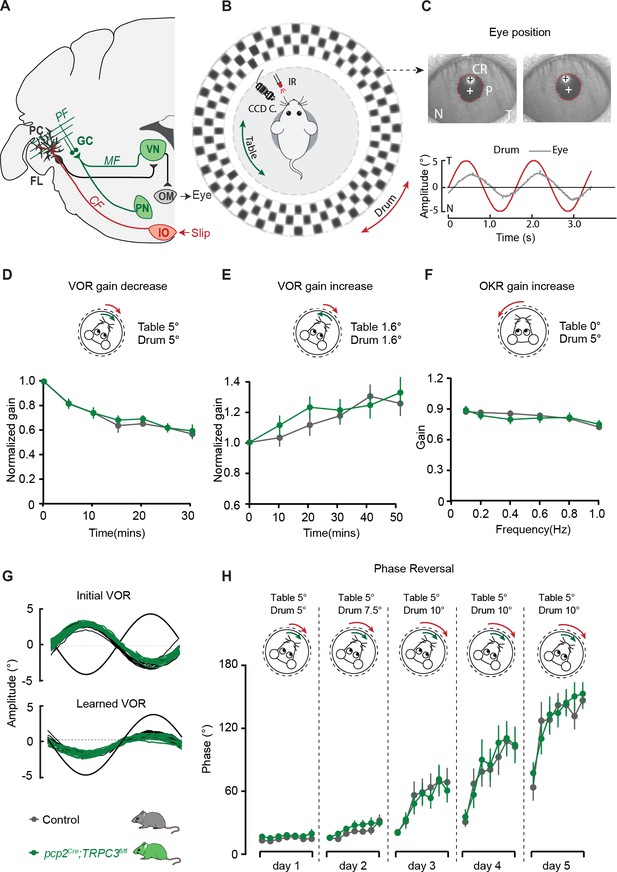

PC-specific deletion of TRPC3 does not affect Z+-dependent VOR adaptation.

(A) Cerebellar circuitry controlling compensatory eye movements and their adaptation. PCs in the flocculus (FL) receive vestibular and visual input via the mossy fiber (MF) - parallel fiber (PF) system (green) and climbing fiber input (CF, red) from the inferior olive (IO), indicating retinal slip. These two inputs converge on PCs, which influence eye movements via the vestibular nuclei (VN) and the oculomotor (OM) neurons. PN, pontine nuclei; GC, granule cell. (B) Schematic illustration of eye movement recording setup. Mice are head-fixed in the center of a turntable for vestibular stimulation and surrounded by a random dotted pattern (‘drum’) for visual stimulation. A CCD camera was used for infrared (IR) video-tracking of the left eye. (C) Top, examples of nasal (N) and temporal (T) eye positions. Red circles, pupil fit; black cross, corneal reflection (CR); white cross, pupil center. Bottom, example trace of eye position (gray) with drum position (red), during stimulation at an amplitude of 5° and frequency of 0.6 Hz. (D) pcp2Cre;TRPC3fl/fl and control mice were subjected to six 5 min training sessions with mismatched in-phase visual and vestibular stimulation (in light, see insets), aimed at decreasing the VOR gain (probed in the dark before, between and after sessions). (E) Similar, but now mice were trained with out-of-phase stimulation, aimed at increasing VOR gain. (F) Re-recording of OKR gain following the VOR phase reversal training (see G–H) to test OKR gain increase (compare to Figure 6—figure supplement 2C, left). (G) Multiple-day training using in-phase mismatch stimulation (see inset in H) aimed at reversing the direction of the VOR (quantified as a reversal of the phase). Representative eye position recordings of VOR before (top) and after (bottom) training. (H) Results of five days of VOR phase reversal training, probed by recording VOR (in the dark before, between and after sessions) with mice kept in the dark in overnight. Data are represented as mean ± s.e.m., N = 11 mutants versus N = 13 controls, all p>0.05, ANOVA for repeated measurements. See Source data for values.

https://doi.org/10.7554/eLife.45590.019
Figure 7 with 1 supplement see all

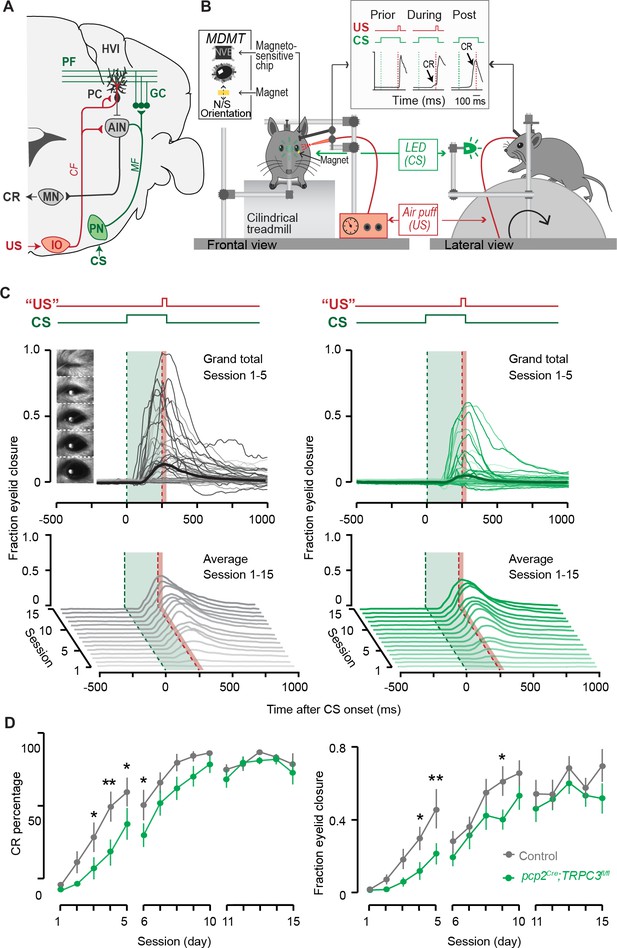

Eyeblink conditioning, linked to Z– modules is delayed in pcp2Cre;TRPC3fl/fl mice.

(A) Cerebellar circuitry controlling eyeblink conditioning. PCs in the paravermal region around the primary fissure receive inputs carrying sensory information from for example the pontine nucleus (PN) through the MF-PF pathway and the error signal from the inferior olive (IO) through the climbing fibers (CF). These PCs in turn influence eyelid muscles via the anterior interposed nucleus (AIN) and motor nuclei (MN). (B) Schematic illustration of eyeblink conditioning setup. Head fixed mice on a freely moving treadmill, are presented a green LED light (conditional stimulus, CS) followed several hundred milliseconds later by a weak air-puff on the eye (unconditional stimulus, US). As a result of repeated CS-US pairings, mice will eventually learn to close their eye in response to the CS, which is called the conditioned response (CR). Eyelid movements were recorded with the magnetic distance measurement technique (MDMT). (C) Comparison of fraction of eyelid closure between controls (left) and pcp2Cre;TRPC3fl/fl mice (right). Top, session averages (thin-lines) per mouse and overall average (thick-lines) for the first 5 days (color intensity increasing from day 1 to 5). Insets: mouse eye video captures show eyelid closure ranging from 0 (fully-open) to 1 (fully-closed). Bottom, waterfall plot of the averaged eyeblink trace during CS-only trials for the 15 daily sessions. (D) The CR percentage and CR amplitude for pcp2Cre;TRPC3fl/fl mice initially have a significantly slower acquisition but eventually reach the same levels as control littermates. Data are represented as mean ± s.e.m., N = 15 mutants versus N = 15 controls, P values were all FDR corrected for multiple comparisons, see Source data for values and statistics, * means p<0.05 and **p<0.01.

https://doi.org/10.7554/eLife.45590.023

Before examining adaptation, we first tested whether the basal eye movement reflexes, the optokinetic reflex driven by visual input (OKR) and the vestibular input-driven VOR (in the dark) and visually-enhanced VOR (VVOR, in the light), were affected. Neither the gain (the ratio of eye movement to stimulus amplitude), nor the phase (timing of the response relative to input), differed significantly between pcp2Cre;TRPC3fl/fl mutants and littermate controls (all p>0.25) (Figure 6—figure supplement 2C). Next, using mismatched visual and vestibular stimulation, we tested the ability of mutant mice to adapt their compensatory eye movements. When pcp2Cre;TRPC3fl/fl mice were subjected to both out-of-phase and in-phase training paradigms, we did not observe any significant deficit in the VOR gain increase and VOR gain decrease, respectively (VOR increase, F = 0.012, p=0.913; VOR decrease, F = 0.252, p=0.621) (Figure 6D–E). To evaluate the ability of the mice to perform a long-term, more demanding adaptation, we subjected the mice for four more days, following the gain decrease training, to a training stimulus aimed at reversing the direction of their VOR, referred to as VOR phase reversal (Figure 6G). Again, no difference was found between pcp2Cre;TRPC3fl/fl and control littermate mice: neither in the VOR phase over the training (Figure 6H), nor in the increased OKR gain following the phase reversal training (VOR phase reversal, F = 0.006, p=0.942; OKR increase, F = 0.922, p=0.922)(Figure 6F, compare to Figure 6—figure supplement 2C).

To determine whether the differential activity of TRPC3 ultimately also affects the behavior of the animal, we subjected mice to a task linked to Z– modules, that is delay eyeblink conditioning. Mice were trained using a light pulse with 250 ms duration as the conditioned stimulus (CS) and a puff to the cornea as a short unconditioned stimulus (US) at the end of the CS, which over the period of several days evoked conditioned responses (CR, preventative eyelid closure) in the absence of the US (Figure 7B). In contrast to VOR adaptation, the L7-TPRC3KO mice showed significant deficits in eyeblink conditioning during the first week of training (Figure 7C). However, when we subjected them to longer periods, they reached similar CR percentages, amplitudes and timing (Figure 7D and Figure 7—figure supplement 1A–B). The delayed appearance of evoked conditioned responses could neither be explained by a deficit in the ability to close the eyelid, as the timing of the unconditioned response (UR) did not differ between mutant and control mice (Figure 7—figure supplement 1C), nor by a lower level of locomotor activity (Figure 6—figure supplement 1), which has previously been shown to impair eyeblink conditioning (Albergaria et al., 2018).

Thus, although TRPC3 is expressed in both regions underlying the cerebellum-dependent behavioral experiments tested here, TRPC3 activity is selectively required to optimize the cerebellum-dependent learning behavior that is processed in a Z– module (De Zeeuw and Ten Brinke, 2015). This indicates that the cellular heterogeneity and consequential differentiation in cellular activity also affects the behavior of the animals.

Discussion

The cerebellum offers a rich repertoire of electrophysiological properties that allows us to coordinate a wide variety of sensorimotor and cognitive behaviors. We recently uncovered that there are at least two main types of cerebellar modules with different intrinsic profiles (Zhou et al., 2014) and plasticity rules (Wadiche and Jahr, 2005; Suvrathan et al., 2016; Voges et al., 2017). This organization is highly preserved throughout phylogeny and characterized by a series of molecular markers such as zebrin that are distributed in a complementary fashion across the cerebellar cortex (Apps and Hawkes, 2009; Marzban and Hawkes, 2011; Graham and Wylie, 2012). Here, we demonstrated that zebrin-negative PCs show a relatively high expression of TRPC3, which has a dominant impact on its electrophysiological features (Figure 8). Indeed, gain-of-function and loss-of-function mutations in the gene encoding for TRPC3 selectively affected activity in the zebrin-negative modules and the motor behavior that is controlled by these modules.

Summary of the electrophysiological changes in the gain- and loss-of-function TRPC3 mutants.
https://doi.org/10.7554/eLife.45590.026

Our results confirm previous work indicating that TRPC3 is expressed in all PCs, yet for the first time reveal that its expression is non-uniform and largely complementary to that of well-known marker of cerebellar modules, Zebrin II. Notably, the ablation of TRPC3 decreased the firing rate of Z– PCs to that of Z+ PCs in the superficial areas that were targeted by imaging approaches, but did not completely delete the difference in lobules I-III. Hence, TRPC3 is at least a major contributor to the increased firing rate of Z– PCs, but other factors putatively contribute as well. Although TRPC3 is present in all PCs, loss- and gain-of-function mutations selectively affected Z– PCs, suggesting that other proteins in the pathway leading to TRPC3 activation may be involved. TRPC channels, which are calcium-permeable upon activation by phospholipase C or diacylglycerol, are widely expressed in the brain and critically involved in the development and maintenance of synaptic transmission (Hartmann et al., 2008; Hartmann et al., 2011; Becker, 2014; Sun et al., 2014). TRPC1 and TRPC3 are both prominently expressed in the cerebellum, but in PCs TRPC3 is most abundant (Hartmann et al., 2008). In addition to its contribution to intrinsic activity, TRPC3 currents also mediate the slow excitatory postsynaptic potential following activation of mGluR1b, which is expressed in a pattern complementary to that of zebrin (Mateos et al., 2001; Hartmann et al., 2011; Ohtani et al., 2014). Our results indicate that TRPC3 can be detected in all PCs in a pattern that is largely, but not completely, complementary to that of Zebrin II, while the effects of TRPC3 ablation are restricted to zebrin-negative PCs. Taken together, this suggests that it is in fact the ‘molecular machinery’ involving mGluR1b activation combined with TRPC3 expression patterns, that drive the differential TRPC3 function.

In contrast to mGluR1b, mGluR1a is expressed by all PCs (estimated ratio 2:1 to mGluR1b) (Mateos et al., 2001). The metabotropic receptor mGluR1a is important for IP3-mediated calcium release, climbing fiber elimination as well as PF-PC LTD (Ohtani et al., 2014). Intriguingly, and in line with the concept of modular differentiation, mGluR1-dependent processes are hampered in zebrin-positive PCs by the expression of EAAT4 (Wadiche and Jahr, 2005), whereas zebrin-negative PCs selectively express PLCβ4 that works in concert with mGluR1a (Ohtani et al., 2014). The differences in expression patterns may enhance the probability of PF-PC LTD in zebrin-negative PCs over that in zebrin-positive PCs, which is supported by experiments performed in P21 mice (Wadiche and Jahr, 2005). The consequences of EAAT4 or PLCβ4 deletion on PC physiology have been evaluated in vitro in several studies (Hashimoto et al., 2001; Miyata et al., 2001; Wadiche and Jahr, 2005; Perkins et al., 2018), but what the consequences in vivo on circuit physiology and on the behaviors tested here are, is unclear. Our results here demonstrate that changes that occur at the cell physiological level, that is reduced simple spike rate and altered CS-SS interaction, lead to a more complex pattern of changes in the intact system. The additional effects are particularly striking in the pcp2Cre;TRPC3fl/fl mice, where the reduced simple spike rate in zebrin-negative PCs leads to a lower complex spike rate. In principle, this could have been a direct olivocerebellar loop effect, as lower simple spike rate results in reduced inhibition of the also inhibitory projection from the cerebellar nuclei to the inferior olive (Chaumont et al., 2013; Witter et al., 2013). In contrast, TRPC3Mwk/- mice exhibit a higher PC simple spike rate, but also a lower complex spike rate. This seems to argue against a direct olivocerebellar loop effect, but the gain-of-function mutation is present in all neurons of this mouse line and thus cell intrinsic processing probably plays a -currently unknown- role herein. The unaltered complex spike rate of pcp2CreERT2;TRPC3fl/fl mice suggests that there is a developmental component to the relationship between complex spikes and simple spikes (Badura et al., 2013; White and Sillitoe, 2017).

It should be noted that in some experiments we found that also the Z+ PCs were affected by TRPC3 mutations. In TRPC3Mwk/- mice the regularity of simple spikes and complex spikes was higher compared to controls. TRPC3 is expressed in UBCs and inferior olivary neurons (see also Figure 1 and Figure 1—figure supplements 12). UBCs are neurons that fire action potential with high regularity (Ruigrok et al., 2011) and provide mossy fiber input in lobule X, which -indirectly- drives PC simple spike activity (Nunzi et al., 2001), whereas inferior olivary neurons directly control the rate and regularity of complex spikes (De Zeeuw et al., 2011). UBCs degenerate early in development in TRPC3Mwk/-, while the effects of the mutation on inferior olivary neurons have not been described yet. Thus, the global nature of this mutation could drive changes in other cell types that explain the effects observed in the regularity of simple and complex spikes. In addition, it should be noted that the complex spike rate of Z+ PCs in pcp2Cre;TRPC3fl/fl mice as observed with the use of 2-photon imaging, was also lower, for which we at current do not have an explanation. In general, in all conditions the complex spikes rate in Z– and Z+ appear to be significantly or trending towards lower values in mutant mice, except for those in inducible mice where the mutation occurred after development. This has two potential implications: 1) TRPC3 mutations, through direct effects on inferior olivary neurons and/or indirect effects through the olivocerebellar loop, have an inhibiting effect on complex spike rates, and 2) these effects are absent when the mutation is induced later in life.

To test the functional consequences of the loss of TRPC3 and the modular specificity of these effects, we tested the impact on behavioral experiments that can be linked to specific modules. Eyeblink conditioning and VOR adaptation are controlled by different modules in the cerebellum and they are distinctly different by nature. Eyeblink conditioning requires a novel, well-timed eyelid movement to a previously unrelated, neutral stimulus, and has been linked to largely or completely zebrin-negative modules in the anterior cerebellum (Hesslow, 1994; Mostofi et al., 2010). The activity of the putative zebrin-negative PCs in this area is relatively high at rest, in line with their zebrin identity, and a decrease in this high firing rate correlates to the eyeblink response (Jirenhed et al., 2007; Johansson et al., 2014; ten Brinke et al., 2015). Conversely, VOR adaptation adjusts the amplitude of an existing reflex to optimize sensory processing using visual feedback and is controlled by the vestibulocerebellum, the flocculus in particular, which is classically considered to be zebrin-positive (Sanchez et al., 2002; Zhou et al., 2014; cf Sugihara and Quy, 2007; Fujita et al., 2014). There are several variations in VOR adaptation aimed at different changes in temporal and/or spatial parameters (see e.g. Voges et al., 2017). In unidirectional VOR gain increase, we recently found that the change correlating with the adapted eye movement consisted of a potentiation, an increase, of the -at rest- lower PC firing rate (Voges et al., 2017). Although our current study has its main focus on the differential contribution of TRPC3 at the cell and systems physiological level, it is tempting to speculate how the loss of TRPC3 in PCs results in an eyeblink conditioning phenotype without affecting VOR adaptation. The reduction in firing rate of zebrin-negative PCs may directly contribute to the impaired conditioning. The suppression of simple spike firing that generally correlates with the conditioned response (ten Brinke et al., 2015) might be occluded by the lower resting rate in pcp2Cre;TRPC3fl/fl mice. Alternatively, PF-PC LTD could play a role as it is in line with the simple spike suppression and blocking TRPC3 function completely abolishes this form of LTD (Kim, 2013). However, genetically ablating PF-PC LTD did not affect the ability to perform eyeblink conditioning successfully (Schonewille et al., 2011), arguing against an exclusive role for this form of plasticity. Schreurs and colleagues demonstrated that intrinsic excitability is increased after eyeblink conditioning (Schreurs et al., 1997). A third option could be that TRPC3 also affects the adaptive increase of excitability, intrinsic plasticity, which is calcium-activated potassium channel function dependent (Ohtsuki et al., 2012), and thereby delays the expression of a conditioned blink response. All three options would not necessarily affect VOR adaptation and could contribute to the deficits in eyeblink conditioning, but given the relatively mild phenotype, one or two could be sufficient. Future experiments will have to unravel the cellular changes underlying eyeblink conditioning and VOR adaptation and the specific role of TRPC3 in the former.

In this study we aimed to gain insight in the mechanisms that convert molecular heterogeneity into differentiation of cell physiology and function. This mechanistic question goes hand in hand with the more conceptual question: why are there, at least, two different types of PCs? An appealing hypothesis is that zebrin-negative and zebrin-positive bands control two muscles with opposing functions, for example a flexor and an extensor. Trans-synaptic retrograde tracing using rabies virus from antagonist muscles demonstrated that there is no robust division in zebrin-negative and zebrin-positive strips, but that a partial segregation could not be excluded (Ruigrok et al., 2008). A second possibility would be that individual muscles are controlled by either only zebrin-negative or zebrin-positive strips, or a combination of both, when needed. In the vestibulocerebellum of the pigeon, each movement direction is controlled by a set of zebrin-negative and zebrin-positive bands (Graham and Wylie, 2012). In this configuration each PC within the set, or separately, would then serve a distinct function, for which it is optimized by gene expression patterns. This dissociation of function could entail for example timing versus coordination (Diedrichsen et al., 2007) or moving versus holding still (Shadmehr, 2017), although none of these distinctions have been linked to specific zebrin-identified modules. Alternatively, it may be the net polarity of the connectivity downstream of the cerebellar nuclei up to the motor neurons or the cerebral cortical neurons that determines the demand(s) of the module(s) involved (De Zeeuw and Ten Brinke, 2015). Module-specific driver lines would greatly aid to answer these questions, but are currently not available.

To summarize, our results support the hypothesis that cerebellar modules control distinct behaviors based on cellular heterogeneity, with differential molecular configurations. We present the first evidence for a non-uniform expression pattern of TRPC3 in PCs, complementary to that of zebrin in the vermis but more homogeneous in the hemispheres. Nonetheless, TRPC3 effects are directly coupled to zebrin, a specificity that putatively requires mGluR1b (Ohtani et al., 2014), the activator of TRPC3 that is expressed in a pattern perfectly complementary to zebrin (Mateos et al., 2001).

Since the discovery of protein expression patterns in the cerebellar cortex (Brochu et al., 1990), numerous other proteins with patterned expression have been identified (Cerminara et al., 2015). These patterns have been linked to circuit organizations of modules (Apps and Hawkes, 2009), to disease and degeneration (Cerminara et al., 2015), and more recently to electrophysiological differences (Wadiche and Jahr, 2005; Zhou et al., 2014). Most expression patterns follow or complement that of zebrin II, but alternative patterns have been observed (Armstrong et al., 2001). These patterns commonly further subdivided one of the two populations studied here and thus potentially underlie the remaining variation and differences between lobules (Apps et al., 2018). Altogether, this work demonstrates that proper cerebellar function is based on the presence of (at least) two modi operandi that have distinct molecular machineries, with TRPC3 as one of the major contributing factors, so as to differentially control sensorimotor integration in downstream circuitries that require control with opposite polarity.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Species
Mus musculus
C57BL/6J miceCharles RiversIMSR_JAX:000664
Species
Mus musculus
TRPC3Mwk/-Becker et al., 2009MGI:3689326F1 of (original) C3H/HeH and C57BL/6J background
Species
Mus musculus
TRPC3fl/flHartmann et al., 2008MGI:5451202C57BL/6Jbackground
Species
Mus musculus
pcp2CreBarski et al., 2000MGI:2137515C57BL/6Jbackground
Species
Mus musculus
pcp2CreERT2The Institut Clinique de la Souris, www.ics-mci.frC57BL/6Jbackground
Species
Mus musculus
EAAT4GFP/-Gincel et al., 2007C57BL/6Jbackground
Species
Mus musculus
Ai14https://www.jax.org/strain/007908MGI:3809524C57BL/6Jbackground
AntibodyRabbit anti-TRPC3Cell SignalingCat.#: 77934IHC (1:500), WB (1:1000)
AntibodyMouse anti-actinMilliporeCat.#: MAB1501WB (1:1000)
AntibodyGoat anti-Zebrin II/Aldolase CSanta Cruz BiotechnologyCat.#: SC-12065IHC (1:500)
AntibodyMouse anti-calbindinSigmaCat.#: C9848IHC (1:7000)
AntibodyRabbit anti-GFPAbcamCat. # 290IHC (1:1000)
Chemical compound, drugDextran, Biotin, 3000 MW, Lysine Fixable (BDA-3000)Thermo Fisher ScientificD7135
Software, algorithmMATLAB v2014aMathworksRRID: SCR_001622
Software, algorithmClampfit 10Molecular DevicesRRID: BDSC_14352
Software, algorithmPatchmaster software (for in vitro recording analysis)HEKA Electronics
Software, algorithmSpiketrain software (for in vivo recording analysis)Used under Neurasmus license, currently: kai.voges@nus.edu.sg
Software, algorithmErasmus Ladder 2.0 analysisNoldus, Wageningen, Netherlands
Software, algorithmCompensatory eye movements analysishttps://github.com/MSchonewille/iMove
Software, algorithmEyeblink conditioning analysisNeurasmus BV, Rotterdam, Netherlands
Software, algorithmGraphPad Prism 6GraphPadRRID: SCR_002798
Software, algorithmSPSS 20.0IBM SPSSRRID: SCR_002865

Animals

For all experiments, we used adult male and female mice with a C57Bl/6 background that were, unless stated otherwise, individually housed, had food ab libitum and were on a 12:12 light/dark cycle. In all experiments the experimenters were blind to mouse genotypes. All experiments were approved by the Dutch Ethical Committee for animal experiments and were in accordance with the Institutional Animal Care and Use Committee.

The generation of TRPC3Mwk/- mice has been described previously (Becker et al., 2009). Briefly, male BALB/cAnN mice carrying the Mwk mutation which was generated in a large-scale ENU mutagenesis program were subjected to cross with normal C3H/HeH females, and the first filial generation (F1) progeny were screened for a variety of defects. The Mwk colony was maintained by repeated backcrossing to C3H/HeH. Experimental mice were generated by crossing C3H/HeH mice heterozygous for the Mwk mutation with C57Bl/6 mice. Offspring with the Mwk mutation on one allele were classified as gain-of-function TRPC3 Moonwalker mutant (referred to as TRPC3Mwk/-) and littermate mice lacking the Mwk mutation were used as controls. Note that, the TRPC3Mwk/- mutants present evident ataxic phenotype from a very early age, concomitant with progressive degeneration of UBCs and PCs (Sekerková et al., 2013).

Mice in which exon 7 of the Trpc3 gene was flanked by loxP sites (TRPC3fl/fl mice) were bred with mice that express Cre under the Pcp2 promoter (L7Cre/-mice) (Barski et al., 2000). The resulting offspring was genotyped using PCR of genomic DNA extracted from tail or toe by standard procedures. The F1 was crossed again with the TRPC3fl/fl mice. Among the second filial generation (F2), mice homozygous for the loxP sites and one Cre allele were classified as PC-specific TRPC3 knockout (L7Cre/-;TRPC3fl/fl, here referred to as pcp2Cre;TRPC3fl/fl) mice and as controls when Cre was absent (pcp2-/-;TRPC3fl/fl, here ‘littermate controls’).

pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice were generated by crossing pcp2Cre/-;TRPC3fl/fl mice with heterozygous EAATGFP/- mice which express enhanced green fluorescent protein (GFP) under control of Eaat4 promotor. The F2 offspring those who expressed TRPC3fl/-, pcp2Cre/- and EAATGFP/- were crossed again with the TRPC3fl/fl mice. Among the F3, mice with a homozygous expression of floxed-TRPC3, one Cre allele and one EAATGFP allele (pcp2Cre/-;TRPC3fl/fl;EAAT4GFP/-), were used and referred to as pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mutant mice and as controls when Cre was absent (pcp2-/-;TRPC3fl/fl;EAAT4GFP/-).

Inducible PC-specific TRPC3 knockouts (pcp2CreERT2;TRPC3fl/fl) were generated by crossbreeding mice carrying the floxed TRPC3 with mice expressing the tamoxifen-sensitive Cre recombinase Cre-ERT2 under the control of the pcp2 promoter (obtained from the Institut Clinique de la Souris, www.ics-mci.fr) (experimental mice: pcp2Cre-ERT2/-;TRPC3fl/fl). Tamoxifen was dissolved in corn oil to obtain a 20 mg/ml solution, and intraperitoneally injected into all subjects for consecutive 5 days, four weeks prior to electrophysiological recordings. Injections were performed in adults between 12–31 weeks of age. Efficiency and selectivity of the pcp2Cre-ERT2/- line was verified by crossing mice with Cre-dependent tdTomato expressing (Ai14) mice, injection offspring carrying both alleles with Tamoxifen in a similar manner and analyzing the resulting tdTomato expression. Experimental cohorts were always injected at the same time. Mice without pcp2Cre-ERT2 expression were used as controls in this study (experimental mice: pcp2CreERT2;TRPC3fl/fl).

Immunohistochemistry

Request a detailed protocol

Anesthetized mice were perfused with 4% paraformaldehyde in 0.12M phosphate buffer (PB). Brains were taken out and post-fixed for 1 hr in 4% PFA at room temperature, then transferred in 10% sucrose overnight at 4°C. The next day, the solution was changed for 30% sucrose and left overnight at 4°C. Non-embedded brains were sectioned either sagittally or transversally at 40 µm thickness with freezing microtome. Free-floating sections were rinsed with 0.1M PB and incubated 2 hr in 10 mM sodium citrate at 80°C for 2 hr, for antigen retrieval. For immuno-fluorescence, sections were rinsed with 0.1M PB, followed by 30 min in Phosphate Buffered saline (PBS). Sections were incubated 90 min at room temperature in a solution of PBS/0.5%Triton-X100/10% normal horse serum to block nonspecific protein-binding sites, and incubated 48 hr at 4°C in a solution of PBS/0.4% Triton-X100/2% normal horse serum, with primary antibodies as follows: Aldolase C (1:500, goat polyclonal, SC-12065), Calbindin (1:7000, mouse monoclonal, Sigma, #C9848), and TRPC3 (1:500, rabbit polyclonal, Cell Signaling, #77934). The TRPC3 antibody was validated by comparing results to previous immunostainings and in situ hybridization data (Allen Brain Atlas) and by the selective absence of staining in PCs of PC-specific knockout mice (Figure 1—figure supplement 3E–F). After rinsing in PBS, sections were incubated 2 hr at room temperature in PBS/0.4% Triton-X100/2% normal horse serum solution with secondary antibodies coupled with Alexa488, Cy3 or Cy5 (Jackson ImmunoResearch), at a concentration of 1:200. Sections were mounted on coverslip in chrome alum (gelatin/chromate) and covered with Mowiol (Polysciences Inc). For Light Microscopy section were pre-treated for endogenous peroxidase activity blocking with 3%H2O2 in PBS, then rinsed for 30 min in PBS, incubated 90 min in a solution of PBS/0.5%Triton-X100/10% normal horse serum to block nonspecific protein-binding sites, followed by the primary antibody incubation as described before. After 48 hr, sections were rinsed in PBS and incubated 2 hr at room temperature in PBS/0.4% Triton-X100/10% normal horse serum solution with HRP coupled secondary antibodies (Jackson ImmunoResearch), at a concentration of 1:200. Sections were rinsed with 0.1M PB and incubated in diaminobenzidine (DAB, 75 mg/100 ml) for 10 min. Sections were mounted on glasses in chrome alum (gelatin/chromate), dried with successive Ethanol steps, incubated in Xylene and covered with Permount mounting medium (Fisher Chemical). Images were acquired with an upright LSM 700 confocal microscope (Zeiss) for fluorescent microscopy, and Nanozoomer (Hamamatsu) for light microscopy. Fluorescence intensity along the regions of interest were assessed using the ‘plot profile’ function of Image J.

iDISCO and light sheet imaging

Request a detailed protocol

This protocol has been adapted from a previous study (Renier et al., 2014). After normal perfusion and post-fixation, brains were washed successively in PBS (1.5 hr), 20% methanol/H2O (1 hr), 50% methanol/H2O (1 hr), 80% methanol/H2O (1 hr), and 100% methanol (1 hr) twice. To increase clearance, samples were treated with a solution of dichloromethane (DCM) and 100% methanol (2:1) for another hour. Brains were then bleached with 5% H2O2 in 90% methanol (ice cold) at 4°C overnight. After bleaching, samples successively washed in 80% methanol/H2O, 50% methanol/H2O, 40% methanol/PBS, and 20% methanol/PBS, for 1 hr each, and finally in PBS/0.2% Triton X-100 for 1 hr twice. After rehydration, samples were pre-treated in a solution of PBS/0.2% Triton X-100/20% DMSO/0.3 M glycine at 37°C for 36 hr, then blocked in a mixture of PBS/0.2% Triton X-100/10% DMSO/6% donkey serum at 37°C for 48 hr. Brains were incubated in primary antibody in PTwH solution (PBS/0.2% Tween-20/5% DMSO/3% donkey serum with 10 mg/ml heparin) for 7 days at 37°C with primary antibody: TRPC3 rabbit polyclonal, 1:500 (Cell Signaling, #77934). Amphotericin was added once every two days at 1 µg/ml to avoid bacterial growth. Samples were then washed in 24 hr in PTwH for six times (1 hr for each, after the fourth wash, leave it at room temperature overnight), followed by the second round of 7 day incubation with primary antibody. Brains were then washed in PTwH, 6 washes in 24 hr, as described before, then incubated in secondary antibody in PTwH/3% donkey serum at 37°C for 7 days with secondary anti-Rabbit Cy3 (Jackson ImmunoResearch) at 1:750. Brains were then washed in PTwH, 6 washes in 24 hr, again, followed by successive washes in 20% methanol/H2O, 40% methanol/H2O, 60% methanol/H2O, 80% methanol/H2O, and 100% methanol twice, for 1 hr each, and finally incubation overnight in a solution of DCM and100% methanol. For tissue clearing, brains were incubated 20 mins in DCM, twice, and conserved in Benzyl ether at room temperature.

Ready samples were imaged in horizontal orientation with an UltraMicroscope II (LaVision BioTec) light sheet microscope equipped with Imspector (version 5.0285.0) software (LaVision BioTec). Images were taken with a Neo sCMOS camera (Andor) (2560 × 2160 pixels. Pixel size: 6.5 × 6.5 μm2). Samples were scanned with double-sided illumination, a sheet NA of 0.148348 (resuls in a 5 μm thick sheet) and a step-size of 2.5 μm using the horizontal focusing light sheet scanning method with the optimal amount of steps and using the contrast blending algorithm. The effective magnification for all images was 1.36x (zoombody*objective + dipping lens = 0.63x*2.152x). Following laser filter combinations were used: Coherent OBIS 488–50 LX Laser with 525/50 nm filter, Coherent OBIS 561–100 LS Laser with 615/40 filter, Coherent OBIS 647–120 LX with 676/29 filter.

Western blot and fractionation

Request a detailed protocol

Cerebellar tissue from pcp2Cre;TRPC3fl/fl and control mice was dissected and immediately frozen in liquid nitrogen. Samples were homogenized with a Dounce homogenizer in lysis buffer containing 50 mM Tris-HCl pH 8, 150 mM NaCl, 1% Triton X-100, 0.5% sodium deoxycholate, 0.1% SDS and protease inhibitor cocktail. Protein concentrations were measured using Pierce BCA protein assay kit (Thermo Fisher). Samples were denatured and proteins were separated by SDS-PAGE in Criterion TGX Stain-Free Gels (Bio-Rad), and transferred onto nitrocellulose membranes with the Trans-Blot Turbo Blotting System (Bio-Rad). Membranes were blocked with 5% BSA (Sigma-Aldrich) in TBST (20 mM Tris-HCl pH7.5, 150 mM NaCl and 0.1%, Tween20) for 1 hr and probed with the following primary antibodies: rabbit anti-TRPC3 (Cell Signaling Technology, #77934; 1:1000) and mouse anti-actin (Millipore, MAB1501; 1:1000). Secondary antibodies used were IRDye 800CW Donkey anti-Rabbit IgG (LI-COR Biosciences, Cat # 925–32213; 1:20000) and IRDye 680RD Donkey anti-Mouse IgG (LI-COR Biosciences, Cat # 925–68072; 1:20000). Membranes were scanned by Odyssey Imager (LI-COR Biosciences) and quantified using Image Studio Lite (LI-COR Biosciences). For quantification, densitometry of protein bands of interest was normalized to that of actin.

For fractionation experiments, cerebellar tissues from C57/BL6 were collected and the synaptosomes were isolated using Syn-PER Synaptic Protein Extraction Reagent (ThermoScientific, #87793) according to the manufacturer’s instructions.

In vivo extracellular recordings and analysis

Request a detailed protocol

We performed in vivo extracellular recordings in adult TRPC3Mwk/- (aged 15–47 weeks, ages roughly matched), pcp2Cre;TRPC3fl/fl (aged 22–43 weeks, ages roughly matched), pcp2CreERT2;TRPC3fl/fl (aged 17–28 weeks) mice, respectively, as previously described (Zhou et al., 2014). Briefly, an immobilizing pedestal consisting of a brass holder with a neodymium magnet (4 × 4×2 mm) was fixed on the skull, overlying the frontal and parietal bones, and then a craniotomy (Ø3 mm) was made in the interparietal or occipital bone under general anesthesia with isoflurane/O2 (4% induction, 1.5–2% maintenance). After over 24 hr of recovery, mice were head-fixed and body restrained for recordings. PCs were recorded from vermal lobules I-III and X, using a glass pipette (OD 1.5 mm, ID 0.86 mm, borosilicate, Sutter Instruments, USA; 1–2 µm tips, 4–8 MΩ) with a downward pitch angle of 40° and 65° respectively. The pipettes were filled with 2 M NaCl-solution and mounted on a digital 3-axis drive (SM-5, Luigs Neumann, Germany). After recording, BDA was iontophoretically injected to confirm that the recordings were from Lobules I-III or X. PCs were identified by the presence of simple and complex spikes, and determined to be from a single unit by confirming that each complex spike was followed by a climbing fiber pause. All in vivo recordings were analyzed offline using Spiketrain (used under Neurasmus license, currently: kai.voges@nus.edu.sg), running under MatLab (Mathworks, MA, USA). For each cell, the firing rate, CV and mean CV2 were determined for simple and complex spikes, as well as the climbing fiber pause. The CV is calculated by dividing the standard deviation, SD, by the mean of ISIs, whereas CV2 is calculated as 2×|ISIn+1-ISIn| / (ISIn+1+ISIn). Both are measures for the regularity of the firing, with CV reflecting that of the entire recording and mean CV2 that of adjacent intervals, making the latter a measure of regularity on small timescales. The climbing fiber pause is determined as the duration between a complex spike and the fist following simple spike. To extend this analysis, we also plotted histograms of simple spike activity time locked on the complex spike, and labeled the shape of this time histogram as normal, facilitation, suppression, or oscillation.

In vivo two-photon-targeted electrophysiology

Request a detailed protocol

Details on targeted electrophysiological recordings in vivo in the mouse cerebellum were described previously (Wu and Schonewille, 2018). PCs in lobules IV-VI were recorded in adult pcp2Cre;TRPC3fl/fl;EAAT4GFP/- mice (aged 14–49 weeks, ages roughly matched) under two-photon microscope guidance. A custom-made head plate was fixed to the cleaned skull of each animal, under isoflurane anesthesia, with dental adhesive (Optibond; Kerr Corporation, West Collins, USA) and secured with dental acrylic. A craniotomy was made above the cerebellum, exposing lobules IV-VI. The craniotomy was sealed with biocompatible silicone (Kwik-Cast; World Precision Instruments) and the animal was allowed to recover from surgery before recording. The silicone seal was removed prior to recording. To keep the brain surface moist, Ringer solution containing (in mM): NaCl 135, KCl 5.4, MgCl2 1, CaCl2 1.8, HEPES 5 (pH 7.2 with NaOH; Merck, Darmstadt, Germany) was applied. Glass micropipettes with tip size of ~1 μm (resistance: 6–9 MΩ) were advanced from the dorsal surface under a 25° angle into the cerebellum, allowing concurrent two-photon imaging with a long working distance objective (LUMPlanFI/IR 40×/0.8; Olympus) on a custom-built two-photon microscope. Pipettes were filled with the same Ringer solution with an additional 40 μM AlexaFluor 594 hydrazide (Sigma-Aldrich, Steinheim, Germany) for visualization. GFP and AlexaFluor 594 were simultaneously excited by a MaiTai laser (Spectra Physics Lasers, Mountain View, CA, USA) operated at 860 nm. Green (GFP) and red (AlexaFluor 594) fluorescence were separated by a dichroic mirror at 560 nm and emission filters centered at 510 nm (Brightline Fluorescence Filter 510/84; Semrock) and 630 nm (D630/60; Chroma), respectively. The brain surface was stabilized with agarose (2% in Ringer; Sigma–Aldrich) and pipette pressure was initially kept at 3 kPa while entering the brain tissue. It was then removed for cell approach and the actual recording. Extracellular potentials were acquired with a MultiClamp 700A amplifier (Molecular Devices, Sunnyvale, CA, USA) in current-clamp mode. Signals were low-pass filtered at 10 kHz (four-pole Bessel filter) and digitized at 25 kHz (Digidata 1322A). Data were recorded with pCLAMP 9.2 (Molecular Devices). Z+ and Z– cells were identified by comparing the relative intensity of GFP fluorescence. Whenever possible, cells of both types were recording alternatingly between adjacent bands Purkinje neurons with high and low GFP fluorescence.

In vitro electrophysiology and analysis

Request a detailed protocol

We performed in vitro electrophysiological recordings on TRPC3Mwk/- (aged 9–21 weeks, ages roughly matched) and pcp2Cre;TRPC3fl/fl (aged 20–60 weeks, ages roughly matched). As described previously (Peter et al., 2016), acute sagittal slices (250 μm thick) were prepared from the cerebellar vermis and put into ice-cold slicing medium which contained (in mM) 240 sucrose, 2.5 KCl, 1.25 Na2HPO4, 2 MgSO4, 1 CaCl2, 26 NaHCO3 and 10 D-Glucose, carbogenated continuously with 95% O2 and 5% CO2. After cutting using a vibrotome (VT1200S, Leica), slices were incubated in artificial cerebrospinal fluid (ACSF) containing (in mM): 124 NaCl, 5 KCl, 1.25 Na2HPO4, 2 MgSO4, 2 CaCl2, 26 NaHCO3 and 15 D-Glucose, equilibrated with 95% O2 and 5% CO2 at 33.0 ± 1.0°C for 30 min, and then at room temperature. NBQX (10 μM), DL-AP5 (50 μM), and picrotoxin (100 μM) were bath-applied to block AMPA-, NMDA-, and GABA subtype A (GABAA)-receptors, respectively. PCs were identified using visual guidance by DIC video microscopy and water-immersion 40X objective (Axioskop 2 FS plus; Carl Zeiss, Jena, Germany). Recording electrodes (3–5 MΩ, 1.65 mm outside diameter and 1.11 mm interior diameter (World Precision Instruments, Sarasota, FL, USA) were prepared using a P-97 micropipette puller (Sutter Instruments, Novato, CA, USA), and filled with ACSF for cell-attached recordings, or with an intracellular solution containing (in mM): 120 K-Gluconate, 9 KCl, 10 KOH, 4 NaCl, 10 HEPES, 28.5 Sucrose, 4 Na2ATP, 0.4 Na3GTP (pH 7.25–7.35 with an osmolality of 295) for whole-cell recordings. We measured spontaneous firing activity of PCs in cell-attached mode (0 pA injection) and intrinsic excitability in whole-cell current-clamp mode by injection of brief (1 s) depolarizing current pulses (ranging from −100 to 1100 pA with 100 pA increments) from a membrane holding potential of –65 mV at 33.0 ± 1.0°C. The spike count of evoked action potential was taken as a measure of excitability. AP properties including peak amplitude, AHP and half-width were evaluated using the first action potential generated by each PC. AHP indicates the amplitude of undershoot relative to the resting membrane potential. Half-width indicates the width of the signal at 50% of the maximum amplitude. PCs that required > −800 pA to maintain the holding potential at −65 mV or fired action potentials at this holding potential were discarded. The average spiking rate measured over the entire current pulse was used to construct current-frequency plots. For whole-cell Recordings, cells were excluded if the series (Rs) or input resistances (Ri) changed by >15% during the experiment, which was determined using a hyperpolarizing voltage step relative to the −65 mV holding potential. All electrophysiological recordings were acquired in lobules I-III and lobule X of the vermal cerebellum using EPC9 and EPC10-USB amplifiers (HEKA Electronics, Lambrecht, Germany) and Patchmaster software (HEKA Electronics). Data were analyzed afterwards using Clampfit (Molecular Devices).

Compensatory eye movement recordings

Request a detailed protocol

We subjected alert pcp2Cre;TRPC3fl/fl mice (aged 12–39 weeks, ages roughly matched) to compensatory eye movement recordings which were described in detail previously (Schonewille et al., 2010). In short, mice were equipped with a pedestal under general anesthesia with isoflurane/O2. After a 2–3 days of recovery, mice were head-fixed with the body loosely restrained in a custom-made restrainer and placed in the center of a turntable (diameter: 63 cm) in the experimental set-up. A round screen (diameter 60 cm) with a random dotted pattern (‘drum’) surrounded the mouse during the experiment. Compensatory eye movements were induced by sinusoidal rotation of the drum in light (OKR), rotation of the table in the dark (VOR) or the rotation of the table in the light (visually enhanced VOR, VVOR) with an amplitude of 5° at 0.1–1 Hz. Motor performance in response to these stimulations was evaluated by calculating the gain (eye velocity/stimulus velocity) and phase (eye to stimulus in degrees) of the response. Motor learning was studied by subjecting mice to mismatched visual and vestibular input. Rotating the drum (visual) and table (vestibular) simultaneously, in phase at 0.6 Hz (both with an amplitude of 5°, 5 × 10 min) in the light will induce an increase of the gain of the VOR (in the dark). Subsequently, VOR Phase reversal was tested by continuing the next days (day 2–5, keeping mice in the dark in between experiments) with in phase stimulation, but now with drum amplitudes of 7.5° (days 2) and 10° (days 3, 4, and 5), while the amplitude of the turntable remained 5°. This resulted, over days of training, in the reversal of the VOR direction, from a normal compensatory rightward eye movement (in the dark), when the head turns left, to a reversed response with a leftward eye movement, when the head moves left. At the end of the VOR phase reversal training the OKR was probed again and compared to the OKR before training, to examine OKR gain increase. VOR gain increase was evoked by subjecting mice to out of phase drum and table stimulation at 1.0 Hz (both with an amplitude of 1.6°). A CCD camera was fixed to the turntable in order to monitor the eyes of the mice. Eye movements were recorded with eye-tracking software (ETL-200, ISCAN systems, Burlington, NA, USA). For eye illumination during the experiments, two infrared emitters (output 600 mW, dispersion angle 7°, peak wavelength 880 nm) were fixed to the table and a third emitter, which produced the tracked corneal reflection, was mounted to the camera and aligned horizontally with the optical axis of the camera. Eye movements were calibrated by moving the camera left-right (peak-to-peak 20°) during periods that the eye did not move (Stahl, 2004). Gain and phase values of eye movements were calculated using custom-made Matlab routines (MathWorks, https://github.com/MSchonewille/iMove) (Schonewille, 2019).

Eyeblink conditioning

Request a detailed protocol

For all procedures on eyeblink conditioning we refer to the study done previously (Boele et al., 2018). pcp2Cre;TRPC3fl/fl mice, aged 16–25 weeks (ages roughly matched), were anesthetized with an isoflurane/oxygen mixture and surgically placed a so-called pedestal on the skull. After a 2–3 days’ recovery, mice were head-fixed and suspended over a foam cylindrical treadmill on which they were allowed to walk freely. Before each session starting, a minuscule magnet (1.5 × 0.7×0.5 mm) was placed on the left lower eyelid with superglue (cyanoacrylate) and an NVE GMR magnetometer was positioned above the left upper eyelid. With this magnetic distance measurement technique (MDMT), we measured the exact positions of each individual mouse eyelid by analyzing the range from optimal closure to complete aperture. The CS was a green LED light (CS duration 280 ms, LED diameter 5 mm) placed 10 cm in front of the mouse’s head. The US consisted of a weak air-puff applied to the eye (30 psi, 30 ms duration), which was controlled by an API MPPI-3 pressure injector, and delivered via a 27.5-gauge needle that was perpendicularly positioned at 0.5–1 cm from the center of the left cornea. The training consisted of 3 daily habituation sessions, one baseline measurement, 3 blocks of 5 daily acquisition sessions (each block was separated by 2 days of rest). During the habituation sessions, mice were placed in the setup for 30–45 min, during which the air puff needle (for US delivery) and green LED (for CS delivery) were positioned properly but no stimuli were presented. On the day of acquisition session 1, each animal first received 20 CS-only trials as a baseline measure, to establish that the CS did not elicit any reflexive eyelid closure. During each daily acquisition session, every animal received in total 200 paired CS-US trials, 20 US only trials, and 20 CS only trials. These trials were presented in 20 blocks, each block consisted of 1 US only trial, 10 paired CS-US trials, and 1 CS only trial. Trials within the block were randomly distributed, but the CS only trial was always preceded by at least two paired CS-US trials. The interval between the onset of CS and that of US was set at 250 ms. All experiments were performed at approximately the same time of day by the same experimenter. Individual eyeblink traces were analyzed with Blink 2.0 software (Neurasmus, www.neurasmus.nl, Rotterdam, Netherlands). Trials with significant activity in the 500 ms pre-CS period (>7*IQR) were regarded as invalid for further analysis. Valid trials were further normalized by aligning the 500 ms pre-CS baselines and calibrating the signal so that the size of a full blink was 1. In valid normalized trials, all eyelid movements larger than 0.1 and with a latency to CR onset between 50–250 ms and a latency to CR peak of 100–250 ms (both relative to CS onset) were considered as conditioned responses (CRs). For CS only trials in the probe session we used the exact same criteria except that the latency to CR peak time was set at 100–500 ms after CS onset.

Erasmus ladder

Request a detailed protocol

Mice aged 11–16 weeks were subjected to the Erasmus Ladder (Noldus, Wageningen, Netherlands). As described previously (Vinueza Veloz et al., 2015), the Erasmus Ladder is a fully automated system consisting of a horizontal ladder between two shelter boxes. The ladder has 2 × 37 rungs for the left and right side. Rungs are placed 15 mm apart, with alternate rungs in a descended position, so as to create an alternating stepping pattern with 30 mm gaps. All rungs are equipped with touch sensors, which are activated when subject to a pressure corresponding to more than four grams. The sensors are continuously monitored to record the position and the walking pattern of the mouse. A single crossing of the Erasmus Ladder is recorded as a trial. In this study, each mouse underwent a daily session consisting of 42 trials, for five consecutive days. Motor performance was measured by counting step durations and percentages during a trial, including short steps (steps from one high rung to the next high rung), long steps (skipping one high rung), jumps (skipping two high rungs), lower steps (a step forward steps, but the paw is placed on a low rung), back steps (a step backward steps from one high rung to the previous high rung). All data were collected and processed by ErasmusLadder 2.0 software (Noldus, Wageningen, Netherlands).

Statistical analysis

Request a detailed protocol

All values are shown as mean ± s.d., unless stated otherwise. To determine means, variance and perform statistical analysis, in the electrophysiological experiments the number of cells and in the behavioral experiment the number of mice were taken as the number of replicates. Apart from the requirements for inclusion in the final datasets as stated in the separate sections for each experimental technique above, data was excluded only when the signal to noise ratio was insufficient to warrant reliable analysis. For behavioral experiments group sizes were estimated a priori using sample size calculations based on minimal relevant differences and expected variation in control cells or mice. To study compensatory eye movements the numbers are based on the VOR phase reversal. A power analysis based on repeated measures ANOVA with α = 0.05, β = 0.20, minimal effect size f of 0.50 (Δ = 30°, SD 30°, seven measurements), indicated a minimum of 11 mice per group, which were obtained (n = 11/13 for controls/mutants). For eyeblink conditioning, these numbers are based on the percentage of conditioned responses and were: α = 0.05, β = 0.20, minimal effect size f of 0.42 (Δ = 25%, SD 30%. 15 repeats), resulting in a minimum of 14 mice per group, which were obtained (n = 15/15 for controls/mutants). For electrophysiological recordings the power analysis was based on previous experiments (Zhou et al., 2014), which gave a minimum group size of 10 PCs per group (α = 0.05, β = 0.20, Δ = 18.1 Hz, SD 14.0 Hz, based on Student’s t-test) for in vitro experiments and 6 PCs per group (α = 0.05, β = 0.20, Δ = 35.3 Hz, SD 17.8 Hz) for in vivo experiments, which were obtained in all experiments (all n ≥ 10 for in vitro, all n ≥ 12 for in vivo). Inter-group comparisons were done by two-tailed Student's t-test. ANOVA for repeated measures was used to analyze eye movement and Erasmus ladder behavioral data; linear mixed-effect model analysis (Boele et al., 2018) (established in R version 1.1.442) was used to analyze eyeblink conditioning data. All statistical analyses were performed using SPSS 20.0 software. Data was considered statistically significant if p<0.05.

References

  1. 1
  2. 2
    The cloning of zebrin II reveals its identity with aldolase C
    1. AH Ahn
    2. S Dziennis
    3. R Hawkes
    4. K Herrup
    (1994)
    Development 120:2081–2090.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Parasagittal compartmentalization of the metabotropic glutamate receptor mGluR1b in the cerebellar cortex
    1. JM Mateos
    2. A Osorio
    3. JJ Azkue
    4. R Benítez
    5. I Elezgarai
    6. A Bilbao
    7. J Díez
    8. N Puente
    9. R Kuhn
    10. T Knöpfel
    11. R Hawkes
    12. F Doñate-Oliver
    13. P Grandes
    (2001)
    European Journal of Anatomy 5:15–21.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
    Genetic silencing of olivocerebellar synapses causes dystonia-like behaviour in mice
    1. JJ White
    2. RV Sillitoe
    (2017)
    Nature Communications 8:e14912.
  68. 68
  69. 69
  70. 70
    Extracellular Recording Approaches, Roy Sillitoe
    1. B Wu
    2. M Schonewille
    (2018)
    19–37, Targeted Electrophysiological Recordings in Vivo in the Mouse Cerebellum, Extracellular Recording Approaches, Roy Sillitoe, New York, Humana Press.
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Jennifer L Raymond
    Reviewing Editor; Stanford School of Medicine, United States
  2. Huda Y Zoghbi
    Senior Editor; Texas Children's Hospital, United States
  3. Roy V Sillitoe
    Reviewer; Baylor College of Medicine, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "TRPC3 is essential for functional heterogeneity of cerebellar Purkinje cells" for consideration by eLife. Your article has been reviewed by Huda Zoghbi as the Senior Editor, Jennifer Raymond as the Reviewing Editor, and three reviewers. The following individual involved in review of your submission has agreed to reveal his identity: Roy V Sillitoe (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The cerebellum is organized into a series of domains that are classically defined by cell lineage, neuronal birthdate, gene expression, and afferent terminal field topography. The authors previously extended on these data by showing that cerebellar domains can also be defined as functional modules with distinct Purkinje cell firing properties. In this current manuscript, the authors go on to test whether TRPC3 molecular function is required for Purkinje cell functional heterogeneity. Using mouse genetics and electrophysiology in slice and in vivo, they demonstrate that TRPC3 indeed has an impact on Purkinje cell modules, but predominantly those defined as being zebrin II negative.

This is a very interesting paper that tackles a concept that is emerging as a central theme in cerebellar function. The results suggest that Z- and Z+ modules contribute to different behavioral functions, rather than contributing together in complementary ways to a similar or single behavior. This finding is likely to have significant impact on the fields understanding of these modules. It will greatly influence the design and direction of future experimental approaches aimed at understanding the behaviorally relevant neural signals these distinct regions of the cerebellum encode.

The data are high quality and the methods are expansive. The authors employ a powerful combination of anatomy, in vitro and in vivo physiology and behavior, and the use multiple approaches for perturbing TRPC3 including gain- and loss-of-function. Overall, this is an excellent manuscript. Addressing several concerns listed below would help to strengthen the overall interpretation of the experiments conducted, and the reviewers thought that these could be addressed in a reasonable time frame.

Essential revisions:

1) Quantification of the correlation between expression of TRPC3 and zebrin.

The anatomy is critical, and the reviewers found this to be the weakest part of the manuscript. Zebrin identity is used throughout much of the manuscript as a proxy for TRPC3 expression: Z+ is considered TRPC3- and Z- is TRPC3+. However, the evidence for these proteins' relationship is weak and based solely on non-quantified histology (Figure 1, Figure 1—figure supplement 1, Figure 2—figure supplement 1). Although the band-like expression pattern of Zebrin is clear, the expression of TRPC3 seems more homogenous, particularly in the hemispheres and anterior vermis, and there seems to be substantial TRPC3 signal in Z+ bands. The authors should consider whether the novel, and sophisticated iDISCO and light sheet microscopy approach really contributes over traditional methods. Most importantly, the relative amounts of TRPC3 and Zebrin in should be quantified.

Figure 1 D is not referenced in the text. Although the authors say that TRPC3 levels are higher in the anterior cerebellum (mainly Z-) and lower is the posterior cerebellum (mainly Z+), the immunoblots show a stronger band of TRPC3 in the posterior region. Can the authors explain? The same applies for panels D and E of Figure 2—figure supplement 1, where these immunoblots are shown again.

Much of the work done is based another indirect proxy: lobule identity. Lobule identity corresponds to average Zebrin content and not on actual Zebrin identity: lobule X → Z+ and lobules I-III → Z-. For example, all recordings of Figure 2, Figure 3, Figure 2—figure supplement 2 and Figure 3—figure supplement 1 are based on lobules X and I-III as proxies for Z+ and Z- PC modules, while trying to characterize the role of TRPC3 – so a lot rests on the claim that TRPC3 expresses in a pattern complementary to Zebrin bands. There is no figure where the amount of TRPC3 and Zebrin are quantified in the lobules used as proxies throughout the paper.

2) Some of the physiology suggests that TRPC3 affects Z+ as well as Z- regions. These results should be better acknowledged and discussed.

Figure 5: The authors say that manipulation of TRPC3 activity affected mainly Z- PCs (subsection “TRPC3 mutations selectively affect the activity in Z– olivocerebellar modules”). However, there were considerable effects in some of the Z+ PCs as well, namely in the gain of function mutants and in the tamoxifen animals. This suggests (again) that complementary expression patterns of Zebrin/TRPC3 might not be as clear as the authors state, or that there's some contamination of PC from Z+ and Z- bands. Conclusions should be adjusted accordingly

3) Some of the results suggest TRPC3 only partially accounts for the differences between Z+ and Z- functional differences; conclusions about the role of TRPC3 should be toned down accordingly.

The title would suggest that without TRPC3 you should not have Purkinje cell functional heterogeneity. This is not really the case. This is especially true since the authors say, "These results argue against a direct link between simple spike firing rate and TRPC3 levels and support…."

TRPC3 expression complements Zebrin bands in (some of) the vermis. However, in the hemispheres, where the expression of TRPC3 does not seem to follow the same pattern, there are still Z+ and Z- bands, with Purkinje cells with distinct physiological properties.

In the L7-TRPC3KO SS firing rate is decreased in Z- bands but still higher than Z+ bands (both in vitro (Figure 2) and in vivo (Figure 3), suggesting that other proteins (besides TRPC3) are playing a role.

Figure 4 A-D: The results are basically the same as in Figure 3 and Figure 3—figure supplement 1 but now recording from PCs of visually identified bands, which strengthens the results. However, this time SS firing in Z- bands without TRPC3 is as low as in Z+ bands (as desired, presumably). Do the authors think this 'discrepancy' comes from the possibility of, when recording 'blind', mixing some Z+ and Z- PCs? Perhaps the authors could try to plot the data from the two mouse lines together and check if all datapoints fall within one cloud or if some clusters emerge, highlighting potential outliers and suggesting that some of non-visually identified PCs (putative Z- and Z+) have been misidentified.

In Figure 4H we see again that SS in the absence of TRPC3 is decreased but still higher than SS in Z+ band – is this incomplete shift in SS due to a partial effect of tamoxifen or is it evidence that TRPC3 does not account for everything?

4) TRPC3 and zebrin expression should be quantified in the behaviorally relevant cerebellar regions.

Zebrin and TRPC3 protein levels must be quantified for the VOR and eyeblink regions. Otherwise, the authors are overstating the role for TRPC3 in behavior, with only indirect evidence for the amount of TRPC3 in the regions/cells relevant for the behavior. The electrophysiology done throughout the paper was not done in these regions.

The authors show no behavioral effect on VOR and a mild eyeblink conditioning deficit. Given these mostly negative results, have the authors tried, for the behavioral tests, to use the acute (tamoxifen) mutants to rule out concerns about compensatory mechanisms?

5) Validation is needed for many of the reagents, including the TRPC3 antibody, L7CreER mouse, and general characterization of the weight, locomotion, and ataxia of the mouse lines.

Using L7-Cre mice to express a transgene or create a knockout of a floxed gene is not perfect. First, retinal bipolar cells are known to express L7. Second, it has been reported that the L7-Cre mouse version used here (Barski, 2000) is more permissive than more recent strains, that is, expression of proteins under the L7 promotor have been observed anecdotally by multiple laboratories in other neurons within the cerebellum including molecular layer interneurons. Although the authors illustrate in Figure 2—figure supplement 1 that some UBCs still express TRPC3, the image suggests that there may be a significant reduction in number. It would be good to quantify this expression to ensure that other neuron types are not also effected. There is no characterization of the L7CreER mouse. What is the recombination efficiency? Is it truly selective for Purkinje cells? Finally, the authors should address the possibility that their genetic manipulation led to perturbed function of retinal bipolar cells, as these cells are also known to express TRPC3 along with L7. This is of particular importance as they use light as a visual cue within both behavioral paradigms. A control for this potential confound should be considered, or logical rationale provided for why it is not necessary.

Figure 4F. A western blot quantifying TRPC3 and really be sure the manipulation worked would be useful.

Introduction. The authors state that prior TRPC3 antibodies were of poor quality, and that the novel antibody they use from Cell Signaling is better. It is unclear why the prior antibodies were poor, and no experimental or even observational justification is provided for why this new antibody is better.

Some general characterization of the multiple mouse lines is important. including weight (the size of the animals might have an impact on the Erasmus ladder performance) and level of locomotor activity (decreased levels of locomotion could account for the mild phenotype the authors saw in the eyeblink conditioning assay (Albergaria et al., 2018). Additionally, the authors say in subsection “Animals”, that TRPC3 mutants are ataxic. Were the L7-TRPC3KO also ataxic?

https://doi.org/10.7554/eLife.45590.031

Author response

Essential revisions:

1a) Quantification of the correlation between expression of TRPC3 and zebrin.

The anatomy is critical, and the reviewers found this to be the weakest part of the manuscript. Zebrin identity is used throughout much of the manuscript as a proxy for TRPC3 expression: Z+ is considered TRPC3- and Z- is TRPC3+. However, the evidence for these proteins' relationship is weak and based solely on non-quantified histology (Figure 1, Figure 1—figure supplement 1, Figure 2—figure supplement 1). Although the band-like expression pattern of Zebrin is clear, the expression of TRPC3 seems more homogenous, particularly in the hemispheres and anterior vermis, and there seems to be substantial TRPC3 signal in Z+ bands. The authors should consider whether the novel, and sophisticated iDISCO and light sheet microscopy approach really contributes over traditional methods. Most importantly, the relative amounts of TRPC3 and Zebrin in should be quantified.

The reviewers are absolutely correct in stating that the expression pattern of TRPC3 is not simply complementary to that of Zebrin and that TRPC3+ is not Z- and vice versa. This is not the message we aim to convey. The immunohistochemistry (IHC) data indicate that TRPC3 is present in all Purkinje cell with a more clear banding pattern in the vermis, complementary to Zebrin, and -as the reviewers correctly note- a more homogenous expression in the hemispheres. Hence, the main message of our manuscript is that TRPC3 is a major contributor to the differences between Z+ and Z- Purkinje cells, but this is not solely based on its expression pattern. We believe that there are two contributors to the Zebrin-related specific effects of TRPC3 functioning: (1) the expression pattern of TRPC3, which is indeed mostly complementary in the vermis, but less so in the hemispheres (now quantified in the new figure 1), and (2) the expression pattern of the receptor that drives TRPC3 activation, i.e. mGluR1b, which is clearly complementary to Zebrin (Mateos, 2001). These contributing factors are now more clearly stated (see e.g., in the Discussion section). Moreover, to visualize the expression patterns more clearly, we have now re-organized Figure 1 and included a quantification of the expression pattern of TRPC3 and Zebrin (Figure 1C-D and Figure 1—figure supplement 2). This analysis helps us to visualize that the banding in the vermis is complementary. Moreover, in the hemispheres there is evidence for complementary expression in some places and for more homogenous expression of TRPC3 in others. A similar quantification was performed for the cerebellar regions controlling the behavioral tasks of eye movement adaptation and eyeblink conditioning (Figure 6—figure supplement 2B). Finally, the iDisco cleared and light-sheet imaged TRPC3 staining in the whole brain has been removed from Figure 1. We do prefer to keep this analysis as part of the manuscript, because the TRPC3 staining works better in this method. We have now annotated it and added a comparison to a cerebellar section with a Zebrin-like staining (EAAT4), side by side, to facilitate a direct comparison (Video 1).

b) Figure 1 D is not referenced in the text. Although the authors say that TRPC3 levels are higher in the anterior cerebellum (mainly Z-) and lower is the posterior cerebellum (mainly Z+), the immunoblots show a stronger band of TRPC3 in the posterior region. Can the authors explain? The same applies for panels D and E of Figure 2—figure supplement 1, where these immunoblots are shown again.

We understand that this was not very clear. It is important to note that the experiment in former Figure 1D was designed to determine the subcellular location of TRPC3 in both anterior and posterior cerebellar tissue and is not suited to quantitively compare TRPC3 levels between cerebellar regions. We have now added additional samples to the quantification of the western blot (Figure 2—figure supplement 1A), which confirm the previous difference. Taken together with the stainings, these results indicate that TRPC3 levels are higher in the anterior than in the posterior cerebellum. We refer to the immunoblots aimed at confirming the subcellular localization of TRPC3 in the main text (subsection “TRPC3 differentially controls the physiological properties of PCs in vitro). As part of the requested additions and re-arrangement of Figure 1, the figure panel with the immunoblot has been removed there and is now only presented in Figure 2—figure supplement 1C-D.

c) Much of the work done is based another indirect proxy: lobule identity. Lobule identity corresponds to average Zebrin content and not on actual Zebrin identity: lobule X → Z+ and lobules I-III → Z-. For example, all recordings of Figure 2, Figure 3, Figure 2—figure supplement 2 and Figure 3—figure supplement 1 are based on lobules X and I-III as proxies for Z+ and Z- PC modules, while trying to characterize the role of TRPC3 – so a lot rests on the claim that TRPC3 expresses in a pattern complementary to Zebrin bands. There is no figure where the amount of TRPC3 and Zebrin are quantified in the lobules used as proxies throughout the paper.

We thank the reviewers for bringing up this point; we frankly agree. The western blot results for TRPC3 depicted in the original Figure 2—figure supplement 1 were performed on tissue from lobules I-III for Z- and lobules X and part of IX for Z+. As also discussed in response to point 1a., our aim was to determine the contribution of TRPC3 to Z+ and Z– PCs and hence we chose these lobules based on the Zebrin II identity of their Purkinje cells, not their TRPC3 levels. The expression of Zebrin II in these lobules has been extensively documented (e.g. Brochu et al., 1990; Sugihara and Quy, 2007). This is now more clearly stated in the main text (subsection “TRPC3 differentially controls the physiological properties of PCs in vitro) and visualized in Figure 1—figure supplement 1 and Video 1.

2a) Some of the physiology suggests that TRPC3 affects Z+ as well as Z- regions. These results should be better acknowledged and discussed

We agree; we now address the possibility that the regularity of the simple spikes and complex spikes in the Z+ Purkinje cells of the TRPC3-Mwk mice was affected by the effects of the TRPC3 mutation in UBCs and inferior olive neurons, respectively. This is now explained in the discussion (see Discussion section). In addition, we now discuss the differential consequences of TPRC3 mutations on complex spike rates in the Z- and Z+ bands in the inducible and non-inducible mice in more detail (Discussion section).

b) Figure 5: The authors say that manipulation of TRPC3 activity affected mainly Z- PCs (subsection “TRPC3 mutations selectively affect the activity in Z– olivocerebellar modules”). However, there were considerable effects in some of the Z+ PCs as well, namely in the gain of function mutants and in the tamoxifen animals. This suggests (again) that complementary expression patterns of Zebrin/TRPC3 might not be as clear as the authors state, or that there's some contamination of PC from Z+ and Z- bands. Conclusions should be adjusted accordingly

As discussed in the response to the previous comment, the effects in the gain of function mutants can be attributed directly to the global nature of this mutation, affecting other cells than Purkinje cells.

There were no changes in the parameters of the Z+ Purkinje cells in mice with tamoxifen induced deletion of TRPC3, so we assume the reviewer is referring to the effect on Z+ complex spike rate in the targeted recording experiment. This change is indeed more puzzling. We agree that the expression pattern of Zebrin and TRPC3 are not perfectly complementary, as discussed above. However, the recordings the reviewer is referring to were made in the vermis, where the complementary expression is most prominent (see new figure 1C-D). It could be that in this particular area the relative contribution of TRPC3 is larger. To make clear that the complementary pattern is not perfect we discussed the ins and outs of this issue more extensively and we modified the text accordingly (subsection “Specific expression pattern and subcellular localization of TRPC3 in the mouse brain” and the Discussion sections).

3a) Some of the results suggest TRPC3 only partially accounts for the differences between Z+ and Z- functional differences; conclusions about the role of TRPC3 should be toned down accordingly.

We agree with the reviewers that TRPC3 by itself does not explain all the differences observed between Z+ and Z- Purkinje cells. This was also not the message we were aiming to convey and was the reason we included the second paragraph of the original discussion. In the new manuscript, we have made several changes to further clarify this point in the discussion (see Discussion section) and made additional changes to convey this message (see also the responses to related comment 3b, 3d and 3e below). Most importantly here, we have changed the title and last line of the abstract to more carefully describe our findings.

b) The title would suggest that without TRPC3 you should not have Purkinje cell functional heterogeneity. This is not really the case. This is especially true since the authors say, "These results argue against a direct link between simple spike firing rate and TRPC3 levels and support…."

The original title stated that TRPC3 is essential for functional heterogeneity in Purkinje cells. We believe this is correct in the sense that our data indicate that TRPC3 specifically has a major influence on spiking activity in Z- Purkinje cells. The reviewer correctly states that TRPC3 by itself does not explain the complete difference between Z+ and Z- Purkinje cells. To address this, we have re-phrased our title to: “TRPC3 is a major contributor to the cellular heterogeneity of cerebellar Purkinje cells”.

c) TRPC3 expression complements Zebrin bands in (some of) the vermis. However, in the hemispheres, where the expression of TRPC3 does not seem to follow the same pattern, there are still Z+ and Z- bands, with Purkinje cells with distinct physiological properties.

We agree. In this manuscript we provide evidence that TRPC3 is a major contributor to the difference in physiological properties. The reviewer is correct in stating that other factors presumably contribute to the difference in firing rate, and probably other potential differences too.

We now more clearly state that we believe that the difference between Z-and Z+ is the result of the expression level of TRPC3, which is not completely complementary, as well as the expression pattern of its driver, mGluR1b (Mateos et al., 2001), which is completely complementary to that of Zebrin.

To address this issue we have quantified the expression of TRPC3 and Zebrin in several cerebellar regions, with new panels in Figure 1 and Figure 1—figure supplement 1 and Figure 2—figure supplement 1, as well as Figure S8B for the regions related to the tested behaviors. In addition, the factors contributing to differential TRPC3 function are now addressed in more detail in the second paragraph of the Discussion section.

d) In the L7-TRPC3KO SS firing rate is decreased in Z- bands but still higher than Z+ bands (both in vitro (Figure 2) and in vivo (Figure 3), suggesting that other proteins (besides TRPC3) are playing a role.

This is indeed correct, and we apologize for not stating this as clearly as needed. To make this point even more clearly, we have now included lines in the Results section, in addition to the changes made to the title, Abstract and Discussion section, mentioned above.

e) Figure 4 A-D: The results are basically the same as in Figure 3 and Figure 3—figure supplement 1 but now recording from PCs of visually identified bands, which strengthens the results. However, this time SS firing in Z- bands without TRPC3 is as low as in Z+ bands (as desired, presumably). Do the authors think this 'discrepancy' comes from the possibility of, when recording 'blind', mixing some Z+ and Z- PCs? Perhaps the authors could try to plot the data from the two mouse lines together and check if all datapoints fall within one cloud or if some clusters emerge, highlighting potential outliers and suggesting that some of non-visually identified PCs (putative Z- and Z+) have been misidentified.

This is an interesting point. We believe that there are two possible explanations for the different results obtained using targeted recordings compared to the blind recordings in vivo: (1) As the reviewer indicated, the recorded populations in this experiments are more ‘pure’, i.e. their Z+ or Z- identity is confirmed. This in contrast to the in vivo recordings performed blindly in lobules I-III and X, which potentially include cells with the opposite identity. However, lobule X contains virtually exclusively Z+ Purkinje cells and in lobules I-III it is estimated that >95% of the Purkinje cells is Z-. We generated the suggested plots, but found no evidence for clusters. It should be noted that (1) all firing rates in the superficial, imaging experiments reach lower levels than those in blind, deeper recordings, which probably due to the recordings conditions. Previous work demonstrated that PCs directly under exposed cerebellar surface fire simple spikes at lower rates, see Zhou et al., 2015. (2) The contribution of TRPC3 to the firing rate of Z- Purkinje cells is larger in the areas targeted using the imaging approach, the superficial parts of lobules V and VI and regions in the adjacent hemispheres. This notion is now added in subsection “TRPC3-related effects correlate with zebrin expression and are independent of development”. Taken together our results indicate that TRPC3 is responsible for a major part of the difference but cannot exclude the possibility that in some regions TRPC3 is essential for the entire difference. The fact that TRPC3 is not responsible for the entire difference is now clearly stated in the results (see 3d) and more extensively addressed in the Discussion section.

f) In Figure 4H we see again that SS in the absence of TRPC3 is decreased but still higher than SS in Z+ band – is this incomplete shift in SS due to a partial effect of tamoxifen or is it evidence that TRPC3 does not account for everything?

The effects of tamoxifen were verified using immunohistochemistry and 4 weeks after injections. TRPC3 was no longer detectable in Purkinje cells. Based on this result, as well as the experiments in the normal L7-TRPC3ko mice, we conclude that TRPC3 indeed does not account for the complete difference in firing rate between Z+ and Z- Purkinje cells, at least not in all areas of the cerebellum (see 3e). To be more clear on this matter, we have adjusted the title, abstract, related Results sections and discussion (see also points 3a-b,d-e).

4a) TRPC3 and zebrin expression should be quantified in the behaviorally relevant cerebellar regions.

Zebrin and TRPC3 protein levels must be quantified for the VOR and eyeblink regions. Otherwise, the authors are overstating the role for TRPC3 in behavior, with only indirect evidence for the amount of TRPC3 in the regions/cells relevant for the behavior. The electrophysiology done throughout the paper was not done in these regions.

This analysis has been performed and is now included in Figure 6—figure supplement 2B, using the same approach as in Figure 1. We can only use immunohistochemistry as both regions, but particularly the eyeblink region, are too small to analyze in western blot. In the behaviorally relevant cerebellar regions, including the flocculus, the paravermal region between lobules IV-V, VI, and the hemispheral parts of IV-V and Sim, the expression of TRPC3 is largely complementary to that of Zebrin. This is in line with what we observed in the vermis. We want to stress that the immunohistochemistry and western blot results indicate that TRPC3 is also present in Z+ PCs, but in lower quantities. This can be taken as evidence supporting the notion that it is not the amount of TRPC3 per se that is responsible for the selective effects in Z- Purkinje cells. Instead, it supports the concept of TRPC3 having a differential function based on the differences in expression levels and the differences in the pathway leading to TRPC3 activation, e.g. through mGluR1b. This is now more clearly stated in the Discussion section, molecular pathway discussed in the following paragraph.

b) The authors show no behavioral effect on VOR and a mild eyeblink conditioning deficit. Given these mostly negative results, have the authors tried, for the behavioral tests, to use the acute (tamoxifen) mutants to rule out concerns about compensatory mechanisms?

We are confident that compensatory mechanisms occur. Frankly, we have never found any mutant in which they did not occur. Compensation is part of biological systems and the more time you allow for it to occur, the more prominent it will be. One of the main points in the current study is that despite these compensatory mechanisms, there still is a difference between the Z+ controlled VOR learning (no deficit) and the Z– controlled eyeblink conditioning (mild but significant deficits despite compensation). These findings are in line with the differential expression patterns and functioning of TRPC3. We have now better explained this in the Discussion section.

5a) Validation is needed for many of the reagents, including the TRPC3 antibody, L7CreER mouse, and general characterization of the weight, locomotion, and ataxia of the mouse lines.

The TRPC3 antibody is validated by the presence of a band at the correct size in western blot and the absence of staining in Purkinje cells of the L7-TRPC3ko and the L7-TRPC3cko mice (versus the presence of the TRPC3 staining in the UBCs and inferior olive as positive control). This is now included in the first paragraph of the Results section and in the Materials and methods section. For the L7CreER mice we have now included a crossing with a reporter line to demonstrate the extent and selectivity of this line to drive Cre expression in Purkinje cells, see Figure 6—figure supplement 1F. The general characterization of both mutant mouse lines has been published before (L7-TRPC3ko: Hartmann et al., 2008; TRPC3-Mwk: Becker et al., 2009; Sekerkova et al., 2013). For the behavioral experiments we opted not to include the gain-of-function Moonwalker mice, as this is a global mutant with effects and even neurodegeneration in other cell types, resulting in a ataxic phenotype (see references above). The locomotion phenotype of the loss-of-function mutation of TRPC3 mice was tested before (in a global deletion) and only a slightly wider gait was found. Here we further expand this analysis by testing their performance on the Erasmus Ladder and found that this difference in hindlimb position did not affect their ability or speed in this locomotion task, indicating that these mice have minimal to no signs of ataxia.

b) Using L7-Cre mice to express a transgene or create a knockout of a floxed gene is not perfect. First, retinal bipolar cells are known to express L7. Second, it has been reported that the L7-Cre mouse version used here (Barski, 2000) is more permissive than more recent strains, that is, expression of proteins under the L7 promotor have been observed anecdotally by multiple laboratories in other neurons within the cerebellum including molecular layer interneurons. Although the authors illustrate in Figure 2—figure supplement 1 that some UBCs still express TRPC3, the image suggests that there may be a significant reduction in number. It would be good to quantify this expression to ensure that other neuron types are not also effected. There is no characterization of the L7CreER mouse. What is the recombination efficiency? Is it truly selective for Purkinje cells? Finally, the authors should address the possibility that their genetic manipulation led to perturbed function of retinal bipolar cells, as these cells are also known to express TRPC3 along with L7. This is of particular importance as they use light as a visual cue within both behavioral paradigms. A control for this potential confound should be considered, or logical rationale provided for why it is not necessary.

We can appreciate the concerns of the reviewers regarding the use of this L7-Cre line. Regarding the first point, the L7 promotor has indeed been reported to be expressed in retinal bipolar cells. However, as part of the analysis of compensatory eye move, we tested the optokinetic response of L7-TRPC3ko mice. Over a range of stimulus frequencies we found no difference in gain or phase, indicating that these mice do not have any visual impairments. This is in line with our experiences in numerous other mouse lines, where no effects on visual abilities were observed. Additional evidence supporting this claim could be taken from the fact that eyeblink conditioning is these mice is delayed but not completely blocked. For the ectopic expression of TRPC3 in other cerebellar cell types the only concerns are indeed the UBCs, as all other types, including molecular layer interneurons, do not express TRPC3. We understand the remark of the reviewer regarding the apparent reduction in number of TRPC3 positive UBCs in the L7-TRPC3ko mice. Visual inspection of several sections of different mice did not give any reason to assume a change. Instead, we found that in the original panel in Figure S2 the optical section was thicker for the control images than for the L7-TRPC3ko mice (this could, in hindsight, also be noticed by the intensity of the zebrin/aldolase C and calbindin images). The original image for the L7-TRPC3ko mouse in Figure 2—figure supplement 1F has been replaced by a more representative example with similar optical thickness (now in Figure 2—figure supplement 2F). It should be note that changes in UBC numbers would putatively affect eye movement adaptation more than eyeblink conditioning, hence even if there was a loss of UBCs, this could not explain the behavioral phenotype was found. The L7CreER line is remarkably efficient and selective. We have now added panel F to Figure 6—figure supplement 1, to show the results of a crossing with a reporter line and administering the same 5 injections of tamoxifen. We reach virtually complete recombination efficiency, exclusively in cerebellar Purkinje cells. This is confirmed by the absence of TRPC3 staining in the immunohistochemical analysis that was and is presented in Figure 4F).

c) Figure 4F. A western blot quantifying TRPC3 and really be sure the manipulation worked would be useful.

We agree that a western blot would make it possible to quantify the absence of TRPC3, but unfortunately the time allotted for the resubmission did not allow to breed mice, inject in adults, sacrifice four weeks later and perform the western blot. However, the results of immunohistochemical analysis of TRPC3 are in line with western blots on TRPC3 in the L7-TRPC3ko mice and the immunoblots for L7-TRPC3cko indicates that the levels of TRPC3 are similar to those in L7-TRPC3ko mice. Also, the successful deletion of TRPC3 is supported by the effect on simple spike firing rate in vivo, which is similar to that in mice with the constitutive L7-Cre.

d) Introduction. The authors state that prior TRPC3 antibodies were of poor quality, and that the novel antibody they use from Cell Signaling is better. It is unclear why the prior antibodies were poor, and no experimental or even observational justification is provided for why this new antibody is better.

The aim of this statement was to clarify why the patterned expression of TRPC3 we found could potentially previously have been missed. We agree that we cannot explain this further or do the proper comparison. As this is not directly relevant to our study, this statement has been removed and replaced by a statement on the antibody validation, as requested above.

e) Some general characterization of the multiple mouse lines is important. including weight (the size of the animals might have an impact on the Erasmus ladder performance) and level of locomotor activity (decreased levels of locomotion could account for the mild phenotype the authors saw in the eyeblink conditioning assay (Albergaria et al., 2018). Additionally, the authors say in subsection “Animals”, that TRPC3 mutants are ataxic. Were the L7-TRPC3KO also ataxic?

We agree that general features including weight and activity levels are relevant to the behavioral tests we performed. With respect to the general features, in should be noted that both lines have been previously published on: The TRPC3-Mwk mutation is featured by e.g. neurodegeneration and ataxia, and severely impacts behavior (Becker et al., 2009). Hence, we did not include these mice in any of the behavioral tests. The complete, global loss of TRPC3 has minimal to no effects on the mentioned parameters (Hartmann et al., 2008). The Purkinje cell specific knockouts (L7-TRPC3ko) mice did not show any overt changes in weight or locomotion capabilities upon visual inspection, thus we did not consistently weigh these mice. In a small sample we tested now we found no evidence for a difference in weight either (L7-TRPC3ko: 28.8 ± 5.7 g vs. controls: 27.6 ± 4.5 g; mean ± s.d., n = 3 vs. 6, adult 3-4 months old mice, equal m/f ratio). The locomotion activity of L7-TRPC3ko mice was tested in the Erasmus Ladder experiment and no significant differences were observed in the key parameters. If anything, the trend was for mutant mice to make more long steps and less short steps, which would be opposite from decreased locomotion that would lead to impaired eyeblink conditioning. This option is now included in the main text (Results section). In short, L7-TRPC3ko mice cannot be individually distinguished from control mice in any way, and as a group are only different from controls when tested in eyeblink conditioning. These remarks regarding the locomotion and weight of the mutant mice are now included in the Results section.

https://doi.org/10.7554/eLife.45590.032

Article and author information

Author details

  1. Bin Wu

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4198-1661
  2. François GC Blot

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Formal analysis, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Aaron Benson Wong

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Data curation, Formal analysis, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1650-2710
  4. Catarina Osório

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Formal analysis, Validation, Visualization, Methodology
    Competing interests
    No competing interests declared
  5. Youri Adolfs

    Department of Translational Neuroscience, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    Contribution
    Data curation, Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
  6. R Jeroen Pasterkamp

    Department of Translational Neuroscience, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    Contribution
    Resources, Data curation, Software, Supervision, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1631-6440
  7. Jana Hartmann

    Institute of Neuroscience, Technical University Munich, Munich, Germany
    Contribution
    Resources, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Esther BE Becker

    Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Resources, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5238-4902
  9. Henk-Jan Boele

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Data curation, Software, Formal analysis, Supervision, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Chris I De Zeeuw

    1. Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    2. Netherlands Institute for Neuroscience, Royal Dutch Academy for Arts and Sciences, Amsterdam, Netherlands
    Contribution
    Conceptualization, Resources, Software, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5628-8187
  11. Martijn Schonewille

    Department of Neuroscience, Erasmus Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Software, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    m.schonewille@erasmusmc.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2675-1393

Funding

European Commission (ERC-Stg #680235)

  • Martijn Schonewille

China Scholarship Council (#201306230130)

  • Bin Wu

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (ALW / Zon-Mw)

  • Chris I De Zeeuw

European Commission (ERC-Adv)

  • Chris I De Zeeuw

European Commission (ERC-POC)

  • Chris I De Zeeuw

Center for Integrated Protein Science Munich

  • Jana Hartmann

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We kindly thank Laura Post for mouse breeding; Nadia Khosravinia for help with behavior experiment; Yarmo Mackenbach for aid with editing the movie; Joshua J White and Dick Jaarsma for discussions and comments on the manuscript. This work was supported by an ERC starter grant (ERC-Stg #680235; MS), China Scholarship Council (#201306230130; BW), the Netherlands Organization for Scientific Research (NWO-ALW; CIDZ), the Dutch Organization for Medical Sciences (ZonMW; CIDZ), ERC-adv and ERC-POC (CIDZ), and the Center for Integrated Protein Science Munich (CIPSM; JH).

Ethics

Animal experimentation: This study was performed under and all of the animals were handled according to a project license approved by the Dutch Central Committee for Animal Experiments (CCD, AVD #101002015273). Each experiment was separately verified and approved by the Animal Welfare Body (IvD/AWB, various numbers). All surgery was performed under isoflurane anesthesia combined with local anesthetics and analgesics in an effort to minimize suffering.

Senior Editor

  1. Huda Y Zoghbi, Texas Children's Hospital, United States

Reviewing Editor

  1. Jennifer L Raymond, Stanford School of Medicine, United States

Reviewer

  1. Roy V Sillitoe, Baylor College of Medicine, United States

Publication history

  1. Received: February 8, 2019
  2. Accepted: August 18, 2019
  3. Accepted Manuscript published: September 5, 2019 (version 1)
  4. Version of Record published: September 9, 2019 (version 2)

Copyright

© 2019, Wu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 589
    Page views
  • 99
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Computational and Systems Biology
    2. Neuroscience
    Gary A Kane et al.
    Research Article Updated
    1. Neuroscience
    Juyue Chen et al.
    Research Article
