Imaging of glucose metabolism by 13C-MRI distinguishes pancreatic cancer subtypes in mice

  1. Shun Kishimoto
  2. Jeffrey R Brender  Is a corresponding author
  3. Daniel R Crooks
  4. Shingo Matsumoto
  5. Tomohiro Seki
  6. Nobu Oshima
  7. Hellmut Merkle
  8. Penghui Lin
  9. Galen Reed
  10. Albert P Chen
  11. Jan Henrik Ardenkjaer-Larsen
  12. Jeeva Munasinghe
  13. Keita Saito
  14. Kazutoshi Yamamoto
  15. Peter L Choyke
  16. James Mitchell
  17. Andrew N Lane
  18. Teresa WM Fan
  19. W Marston Linehan
  20. Murali C Krishna  Is a corresponding author
  1. NCI, NIH, United States
  2. Urologic Oncology Branch, Center for Cancer Research, NCI, NIH, United States
  3. Hokkaido University, Japan
  4. JST, PREST, Japan
  5. NIH, United States
  6. University of Kentucky, United States
  7. GE HealthCare, United States
  8. Technical University of Denmark, Denmark
Tools and Resources
  • Cited 1
  • Views 1,053
  • Annotations
Cite this article as: eLife 2019;8:e46312 doi: 10.7554/eLife.46312

Abstract

Metabolic differences among and within tumors can be an important determinant in cancer treatment outcome. However, methods for determining these differences non-invasively in vivo is lacking. Using pancreatic ductal adenocarcinoma as a model, we demonstrate that tumor xenografts with a similar genetic background can be distinguished by their differing rates of the metabolism of 13C labeled glucose tracers, which can be imaged without hyperpolarization by using newly developed techniques for noise suppression. Using this method, cancer subtypes that appeared to have similar metabolic profiles based on steady state metabolic measurement can be distinguished from each other. The metabolic maps from 13C-glucose imaging localized lactate production and overall glucose metabolism to different regions of some tumors. Such tumor heterogeneity would not be not detectable in FDG-PET.

https://doi.org/10.7554/eLife.46312.001

Introduction

Altered metabolism to sustain rapid growth is one of the hallmarks of cancer (Vander Heiden and DeBerardinis, 2017). While certain common features of tumor metabolism are retained even in different cancers (Ward and Thompson, 2012; Pavlova and Thompson, 2016), other features can vary considerably among patients and even within a single tumor (Hensley et al., 2016; Cros et al., 2018). Since metabolite levels control a host of cellular processes from cell signaling to growth and differentiation (Vander Heiden and DeBerardinis, 2017; Ward and Thompson, 2012), local variations in metabolism can impact the sensitivity of the tumor to different forms of treatment. Local concentrations of glucose (Liu et al., 2017a; Mathews et al., 2014), fatty acids (Svensson et al., 2016), and amino acids (Mathews et al., 2014), for example, have been shown to influence the efficacy of specific types of chemotherapy and radiotherapy, which could lead to a possible change of treatment strategy (Daemen et al., 2015). Personalizing treatment in response to fluctuations of metabolites requires a reliable way of measuring the local concentrations of metabolites, which is less well-established than techniques for measuring the cellular, genomic, and proteomic environment. The only molecular imaging technique in widespread clinical use, FDG-PET, is largely limited to measurements of glucose uptake only and cannot characterize downstream biochemical transformations (Giordano et al., 2016). This limitation is particularly important for organs like the brain which have a high natural glucose uptake. In these situations, measurements of downstream products like lactate become important in preventing false positives (De Feyter et al., 2018). Other techniques with high specificity, such as MALDI-MS, have been successful at characterizing tumor metabolic heterogeneity in biopsies (Giordano et al., 2016; Mirnezami et al., 2014) but cannot be employed in vivo. Tumor metabolism in vivo can be imaged by 1H magnetic resonance spectroscopy, but as a steady state method it contains contributions from multiple processes and cannot distinguish the internal metabolism of the tumor from contributions from the surrounding stroma.

Imaging exogenous metabolic tracers offers a more direct way of isolating biochemical pathways. In principle, this can be accomplished by MRI through the use of 13C labeled tracers. In practice, the signal from a 13C labeled tracer has been considered too weak for in vivo imaging. Hyperpolarized MRI was developed to surmount this obstacle, taking advantage of the fact that the high spin polarization of a paramagnetic radical can be transferred to the 13C nucleus on another molecule under resonant microwave irradiation, increasing the signal by three orders of magnitude or more. However, this transfer happens efficiently only at temperatures near ~1 K and the hyperpolarization is rapidly lost when the sample is brought to room temperature before injecting. Due to this limitation, these studies are normally applied to probes whose 13C T1 relaxation time is long enough that the enhanced polarization is not lost before the metabolic flux can be determined. Of these probes, pyruvate has proven to be one of the most useful probes as it interrogates the central switching point from glycolysis to the TCA cycle (Gray et al., 2014). By comparing the pyruvate-to-lactate conversion between tumors or between pre- and post-treatment, it has been possible to assess the glycolytic profile of tumors in vivo and assess metabolic flux changes during treatment (Gutte et al., 2015). However, hyperpolarized MRI using pyruvate is unable to detect changes occurring upstream of the TCA cycle, which are common in many cancers.

An alternative approach that allows a more comprehensive analysis is to use glucose as a metabolic tracer (De Feyter et al., 2018; Rodrigues et al., 2014; Timm et al., 2015). Although glucose itself is difficult to hyperpolarize, new techniques allow the dynamic imaging of metabolic tracers by MRI without hyperpolarization. This imaging clearly suffers from low signal sensitivity but this can be compensated for by efficient noise suppression (Brender et al., 2019). To see how a targeted approach using hyperpolarized pyruvate compares to the more comprehensive approach offered by non-hyperpolarized glucose, we analyzed the tumor xenografts of two closely related cell lines with a similar genetic background in metabolic properties. MIA Paca-2 and Hs 766T are cell lines established from pancreatic ductal adenocarcinomas (PDACs) with similar mutations in major metabolic genes (Deer et al., 2010). However, other differences in the anatomy of the xenografts and in non-metabolic properties of the cell lines can impact the tumor microenvironment. Hs 766T was derived from a metastatic site and is expected to have a different stromal boundary compared to MIA Paca-2, which is derived from a primary heterogeneous tumor. Hs 766T tumor xenografts are more hypoxic than MIA Paca-2 (Zhang et al., 2016), have a more poorly developed vasculature, and was expected to have a different overall physicochemical environment as a result of this anatomical difference. While MIA Paca-2 and Hs 766T have similar overall metabolism (Daemen et al., 2015), it is possible to detect a difference in glucose metabolism using a newly developed technique to image glycolysis using non-hyperpolarized 13C glucose as a tracer (Brender et al., 2019). Imaging local metabolite concentrations and biochemistry in this manner may provide a new method for understanding the tumor biochemical microenvironment.

Results

MIA Paca-2 and Hs 766T PDAC xenografts have distinct anatomical and histological characteristics

Figure 1A and C show transverse slices from the anatomical T2-weighted RARE MRI of xenografts of Hs 766T and MIA Paca-2. Both tumors are poorly differentiated and show the gross anatomy typical of Grade 3 PDACs (Matsumoto et al., 2018). While the gross anatomy is similar, the anatomical microstructure and histology of the two tumors is distinctly different. The MIA Paca-2 tumors appear entirely homogenous and undifferentiated, an observation that holds down to the cellular level ( Figure 1.D). By contrast, the homogeneity of the Hs 766T tumors is broken by hypointense spots, a feature characteristic of focal necrosis ( Figure 1.B) (Jakobsen et al., 1995). As noted in previous reports (Bailey et al., 2014), we found similar levels of CD31, a common biomarker for angiogenesis (Figure 1—figure supplement 1), (DeLisser et al., 1997) suggesting immature, rather than deficient, vasculature may be responsible for the higher hypoxia levels in Hs 766T (Bailey et al., 2014). At the cellular level, cell rupture and inflammation were evident in Hs 766T but not in MIA Paca-2 cells (Figure 1B and D arrows). Despite their overall genetic similarity, the tumor microenvironment differs and Hs 766T and MIA Paca-2 can be easily distinguished by either anatomical MRI or histology.

Figure 1 with 3 supplements see all
Distinct anatomical microstructure differences exist between Hs 766T and MIA Paca-2 xenografts while CE-MS shows only subtle metabolic differences.

(A and C) T2 weighted anatomical RARE images of (A) Hs 766T and (C) MIA Paca-2 PDAC xenografts implanted on the left leg. Focal necrosis is evident in the Hs 766T tumor, but not in the MIA Paca-2 one. (B and D) H and E staining of biopsies from (B) Hs 766T and (D) MIA Paca-2 tumors. Cell rupture is present in the Hs 766T biopsy. (E) Metabolite differences of MIA Paca-2 and Hs 766T PDAC leg xenografts as analyzed by CE/MS. White boxes indicate metabolites not detected. Gray boxes indicate a statistically insignificant difference between cell lines (two-sided t-test, corrected for multiple comparisons by the two-stage linear step-up procedure of Holm et al with a confidence level of 5%). Blue and red boxes indicate statistically significant increases or decreases with respect to MIA Paca-2.

https://doi.org/10.7554/eLife.46312.002

PDAC xenografts can easily be differentiated from non-cancerous host tissue by metabolic differences

Both the MRI and histology results point to substantial differences in the tumor microenvironment between the two tumor types that may influence metabolism. Accordingly, we looked for alterations in central metabolic pathways for biosynthesis, stress response, and energetics that are commonly modified in tumor cell lines using capillary electrophoresis mass spectrometry (CE-MS) targeted metabolic profiling (Matsumoto et al., 2014).

As expected, pancreatic host tissue from the mouse was metabolically distinct from Hs 766T and MiaPaca2 xenografts (p<0.001 based on two-way ANOVA), with numerous metabolic differences across multiple metabolic pathways (Figure 1—figure supplement 2). The largest changes are concentrated in pathways connected to amino acid biosynthesis and degradation, reflecting an imbalance between amino acid metabolism and protein biosynthesis caused by unsustainable growth. Amino acid levels of all types and amino acid synthetic intermediates were strongly attenuated in both cell lines. Both cell lines also show a strong depletion in the level of intermediates throughout the urea cycle, the primary pathway for protein catabolism, as well as the polyamine biosynthetic pathway downstream of the urea cycle.

Major metabolic changes are also evident in other pathways. Consistent with previous reports on PDAC tumors (Ying et al., 2012), steady state concentrations of glycolytic intermediates were elevated in both cell lines, so were the metabolites of the pentose phosphate pathway for nucleotide and NADPH production (Figure 1—figure supplement 3). To counter the increased oxidative stress, there were increased levels of metabolites in the methionine redox cycle of the tumor xenografts: the reduced equivalents are depressed and the oxidized equivalents elevated compared to normal tissue. Finally, lactate levels are also highly elevated (Wang et al., 2014), consistent with a Warburg phenotype for both Hs 766T and MIA Paca-2 tumors.

Few metabolic biomarkers distinguish MIA Paca-2 and Hs 766T

The metabolic differences between Hs 766T and MiaPaca2 PDAC tumors were more subtle. Although it is possible to distinguish between the two types of PDAC tumors using the entirety of the metabolic profile (p=0.00015 for N = 4, two-way ANOVA with Sidak’s correction for multiple comparisons), no single pathway stood out as being distinct (Figure 1E). Only a few biomarkers are distinct at the 5% confidence level with most of the differences that do exist are in the TCA cycle. The most striking difference was in fumarate levels (p=0.003), which were significantly depressed (decreased fourfold relative to normal) in MIA Paca-2 and normal or slightly elevated in Hs 766T (elevated 1.4-fold). Fumarate has been suggested as an oncometabolite (Yang et al., 2012; Sullivan et al., 2013) created both through the TCA cycle and as a byproduct of the urea cycle that competitively inhibits 2-OG-dependent oxygenases to stabilize the HIF complex and induce pseudohypoxia. Malate and arginosuccinate, two other intermediates linked to fumarate metabolism were also significantly depressed in MIA Paca-2.

Pyruvate metabolism is indistinguishable between PDAC hypoxic subtypes

The CE/MS experiment measures the static distribution of metabolites within the tumor, which is the sum of multiple biochemical pathways. While the data suggests that a difference in glycolysis and oxidative phosphorylation may exist between the MIA Paca-2 and Hs766 cell lines, the statistical significance of these changes is mostly uncertain and the origin of the effect is not clear - it is uncertain whether the difference is the result of upregulation of specific genes or is a more general effect from changes in the underlying physiology of the tumor microenvironment. To more directly probe specific enzyme activities within the glycolytic and TCA cycles, we tracked the in vivo utilization of hyperpolarized 13C labeled pyruvate using magnetic resonance spectroscopy to detect the de novo generation of new metabolites from pyruvate. Pyruvate metabolism is a central control point between glycolysis and oxidative phosphorylation and dysregulation of pyruvate dehydrogenase can be an important component of the Warburg effect (Saunier et al., 2016).

Figure 2A and B shows typical spectra after the injection of 98 mM solution of hyperpolarized [1-13C] pyruvate into the tail vein of nude mice bearing MIA Paca-2 or Hs 766T xenografts in the left leg. The five observed peaks correspond to pyruvate (172.6 ppm), lactate (184.9), alanine (178.2), bicarbonate (162.6 ppm), and inactive pyruvate hydrate (180.9 ppm). Few differences could be seen when using C-1 labeled pyruvate as a metabolic tracer; pyruvate metabolism appears to be statistically indistinguishable in the MIA Paca-2 and Hs 766 T cell lines. The rate of pyruvate to lactate conversion was similar in MIA Paca-2 and Hs 766T as was both the rate of transamination of pyruvate to alanine and the first step of the TCA cycle as measured by bicarbonate production (see Figure 2). While differences in pyruvate metabolism in hypoxic and oxidative tumors have previously been shown by hyperpolarized C-1 labeled pyruvate (Matsumoto et al., 2018), pyruvate metabolism is not a sensitive biomarker for distinguishing subtle differences among hypoxic pancreatic adenocarcinoma subtypes.

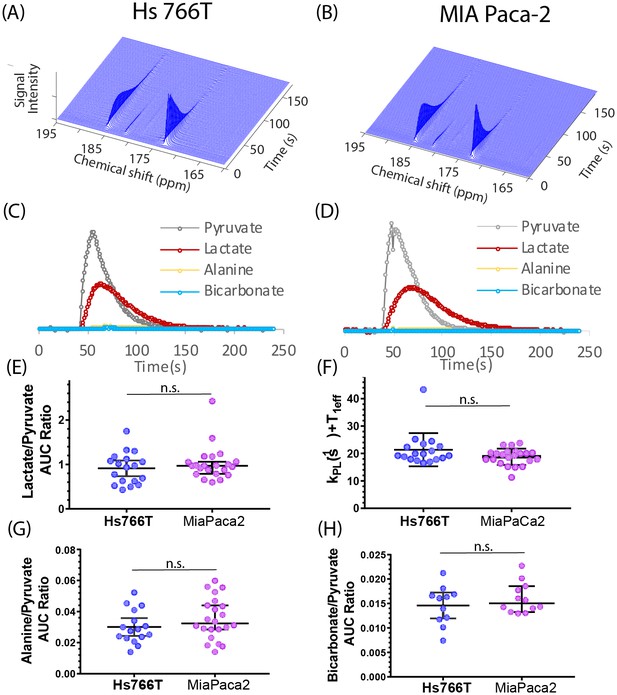

Pyruvate metabolism is similar in Hs 766T and MIA Paca-2 Xenografts.

(A and B) Representative signal after injecting 300 µL of 98 mM hyperpolarized [1-13C] pyruvate into the tail vein of a mouse of a nude mouse with either a (A) Hs 766T or (B) MiaPaCa2 leg xenograft. Signal loss is due to a combination of the loss of hyperpolarization and conversion of pyruvate to other metabolites. Corresponding kinetic traces of the pyruvate, lactate, alanine and bicarbonate signals metabolites for (C) Hs 766T and (D) MiaPaCa2 xenografts. (E) Ratio of the integrated lactate and pyruvate for Hs 766T (n = 18) and MiaPaca2 (n = 22) mice. The ratio is equal to the net lactate to pyruvate conversion rate in the absence of lactate efflux or back conversion. (F) Decay rate of the pyruvate signal, equivalent to the sum of the net lactate to pyruvate conversion rate and the effective relaxation rate (T1eff, assumed to be the same between cell lines). (G and H) Ratio of the integrated alanine (G) or bicarbonate (H) to pyruvate. No statistically significant difference between cell lines was detected for any measure (Mann-Whitney rank test). Error bars represent 95% confidence intervals.

https://doi.org/10.7554/eLife.46312.006

Glucose metabolism can be measured in vivo by 13C MRS

The CE/MS data is suggestive of an upregulation in MIA Paca-2 of the later stages of glycolysis relative to Hs 766T (Figure 1—figure supplement 3), although no single metabolite in the glycolytic pathway stands out as being statistically different (Figure 1). The CE/MS assay, however, requires a biopsy, which may be undesirable in some circumstances. To probe glucose metabolism in vivo, a different technique is needed.

Hyperpolarized glucose imaging has been successfully used to image glycolysis in vivo (Rodrigues et al., 2014). While glucose is an exemplary tracer from a biological standpoint, its short relaxation time can be problematic for hyperpolarization (Harada et al., 2010), and the hyperpolarization process places constraints that may be difficult to realize in some situations in a clinical setting. Hyperpolarization of 13C tracers has been considered necessary for imaging and kinetic studies due to the inherently low signal of 13C MRS. If noise can be reduced to acceptable levels without hyperpolarization, the restrictions hyperpolarization places on an experiment can be removed. We have previously shown that it is possible to use the correlation of the 13C signal in both time and space to reduce the noise level in the signal by an order of magnitude or more without sacrificing accuracy (Brender et al., 2019). Noise reduction by rank reduction makes it possible to do away with the hyperpolarization step and the limitations it puts on the metabolic probes that can be used.

Using this technique, we first checked the glucose metabolism of each tumor type following an injection of 50 mg bolus of [U-13C] glucose using non-localized spectroscopy. The resulting spectra are complex and include contributions from the α and β anomers of glucose, the natural abundance 13C signal from lipids, as well as signals from downstream metabolites such as lactate and alanine (Figure 3A). To help resolve these ambiguities, tumors were flash frozen 1 hr after the injection of a [U-13C] glucose bolus and the polar fraction analyzed by multidimensional NMR. Strong signals at 22.8 and 18.9 ppm in the indirect dimension of the HSQC spectrum (Figure 3—figure supplement 1A) and carbon satellites in the TOCSY spectrum (Lane and Fan, 2007) (Figure 3—figure supplement 1B) confirmed that the peaks at 22.8 ppm and 18.9 ppm arise from 13C labeled lactate and alanine, respectively (Figure 3A). 13C labeled glutamate and aspartate are detectable in the ex vivo HSQC but not in the in vivo MRS, likely because the longer relaxation times (Badar-Goffer et al., 1990; Allouche-Arnon et al., 2013) strongly attenuate the signal with the short recycle delay used in the in vivo experiment. The peaks at 95 and 98 ppm can potentially arise from carbon 1 of the α and β anomers of either glucose or glucose-6-phosphate. The absence of any detectable peaks near 75 ppm confirms they arise exclusively from glucose without contribution from glucose-6-phosphate or any other glycolytic intermediates (Timm et al., 2015; Wishart et al., 2018; Wishart et al., 2007). While the peaks at 95 and 98 ppm can be definitively assigned to carbon 1 of glucose, the HSQC and the pre-injection spectra (Figure 3A) confirms the other intense peak at 63 ppm and the spectrally crowded region between 63 and 78 ppm contains contributions from glycerol containing species. The lack of 13C-13C couplings for the glycerol resonances in the HSQC show that these molecules were not derived directly from the glucose bolus.

Figure 3 with 1 supplement see all

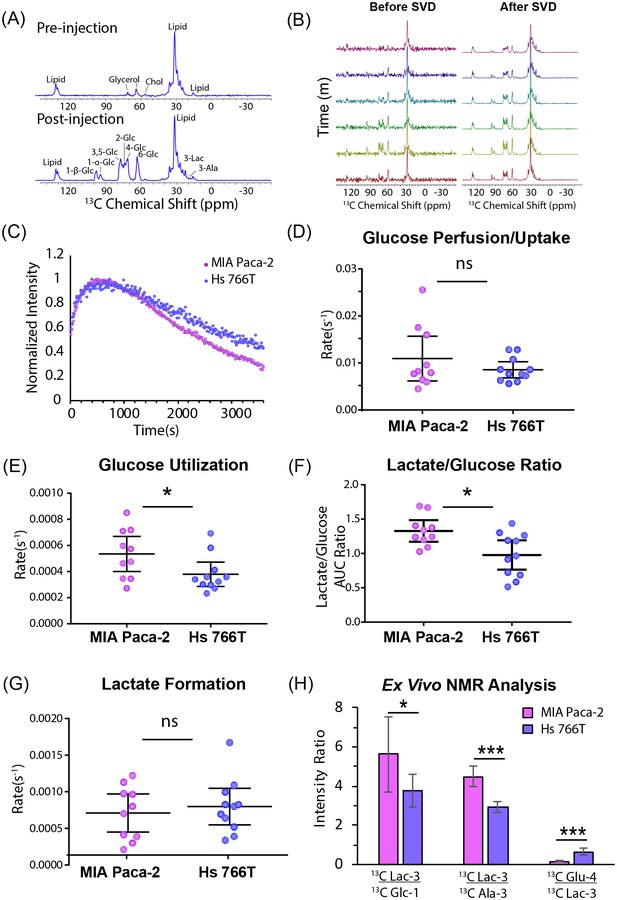

Glucose metabolism differentiates Hs 766T and MiaPaca2 xenografts.

(A) Representative signal before and 1 hr after injecting 50 mg of [U-13C] glucose into the tail vein of a mouse of a nude mouse with a MIA Paca-2 leg xenograft. The largest signal at 32 ppm is due to endogenous lipids, while glucose peaks can be seen in region from 60 to 100 ppm and lactate and alanine peaks can be detected at 22.8 ppm and 18.9 ppm, respectively. (B) Representative signals before and after rank reduction by SVD to reduce noise. No hyperpolarization is used in this experiment; the time dependence of the signal is due to metabolic interconversion. Spectra were acquired every 16 s (16 averages per scan). (C) Representative kinetic traces for the glucose signal at 98 ppm for Hs 766T (n = 10) and MIA Paca-2 (n = 11) xenografts. (D–F) Whether expressed as directly as rate obtained from curve-fitting (E) or as a ratio (F), a statistically significant difference in the rate of glucose metabolism can be seen between the Hs 766T or MIA Paca-2 PANC subtypes (Mann Whitney rank test, p=0.05 and 0.03 respectively). No statistically significant difference could be seen in the rate of glucose uptake (D) or lactate production (G). (H) Ex vivo NMR analysis of glucose and glucose-derived metabolites in the polar extract of the tumor xenografts (n = 5 for each group). Error bars in all cases represent 95% confidence intervals.

https://doi.org/10.7554/eLife.46312.007

The peak at 98 ppm was therefore used as a marker as it can be assigned specifically in this case to glucose and not any other molecule. Specifically, an increase in the intensity of the 98 ppm resonance reflects the arrival of glucose from the bloodstream into the instrument’s field of view (gluconeogenesis within the tumor is assumed to be negligible on this time scale). A decrease in intensity reflects either the removal of glucose by the bloodstream out of the field of view or the conversion of glucose into other species. Similarly, the appearance of peaks at 22.8 and 18.9 ppm reflect the conversion of lactate and alanine, respectively, and/or the arrival of circulating lactate or alanine produced from 13C glucose outside the tumor (Hui et al., 2017; Faubert et al., 2017).

Glucose metabolism, but not glucose uptake, distinguishes PDAC hypoxic subtypes

The improvement in temporal resolution afforded by the greatly increased signal-to-noise ratio allows an assessment of the fast glucose import step by MRI. The kinetics of glucose import have not been resolved effectively by 13C MRI previously and are difficult to measure even with PET imaging (Kuntner, 2014). No statistically significant difference between cell lines could be detected in the rate of glucose uptake (Figure 3D), in agreement with the similar levels of the glucose transporter GLUT1, detected by western blot (see Figure 1—figure supplement 1), or in the rate of lactate formation (Figure 3G). The rate of glucose metabolism after import; on the other hand, distinguishes MIA Paca-2 and Hs 766T xenografts. Hs 766T xenografts displayed a statistically significant slower glucose metabolism than MIA Paca-2 xenografts (Figure 3E, Mann-Whitney rank test, p=0.02, Cohen’s d = 3.43, large effect size). This difference is also reflected in the time-averaged glucose to lactate ratio (Figure 3F, Mann-Whitney rank test, p=0.03, Cohen’s d = 1.20, large effect size), which is an approximate measure of the relative rates of the appearance of lactate and disappearance of glucose within the FOV of the scanner (Hill et al., 2013). To confirm the presence of a metabolic difference, the glucose, lactate, and glutamate peaks of the HSQC spectra from the polar extracts of MIA Paca-2 and Hs 766T tumors were quantified (Figure 3H). As expected, the metabolite ratios from ex vivo NMR do not exactly match those observed in the in vivo MRS technique because of the strong bias toward fast relaxing species such as glucose in the MRS spectrum due to the short repetition time. Nevertheless, the predicted trend (higher lactate to glucose ratios in MIA Paca-2) is similar in both experiments.

Glucose imaging by 13C MRS detects local differences in metabolism within PDAC tumors

Figure 1E shows that a metabolomic profile from a CE/MS can distinguish between xenografts of the MIA Paca-2 and Hs 766 T cell lines. Unfortunately, mass spectrometry can only be done ex situ and it is impossible to apply in a living tumor. The MRI spectroscopy experiment in Figure 3 can efficiently differentiate between MIA Paca-2 and Hs 766T xenografts but does not give information on local variations within the tumor. The low rank reconstruction procedure used in Figure 3 can be extended into higher dimensions for imaging by tensor decomposition to give 30-fold or higher increases in signal to noise in spectroscopic imaging. As a first test, we used chemical shift imaging to provide a low-resolution (3 × 3×16 mm) map of the rates of glycolysis and anaerobic fermentation (Figure 4A–D). Simple chemical shift imaging was used to minimize potential imaging artifacts; considerable acceleration can be achieved by a more efficient pulse sequences and is the focus of ongoing research.

CSI imaging of a Hs 766T mouse leg xenograft after a 50 mg [U-13C] glucose injection in a volume of 300 microliters of PBS.

An 8 × 8 image of the tumor bearing mouse leg was acquired by chemical shift imaging every 48 s for 60 min. The final image was zero-filled to 16 × 16. Each is voxel 0.15 cm x 0.15 cm x 1.6 cm in size. (A) The glucose region of the spectra at 12 min overlaid on the anatomical image. (B) Same image after tensor factorization. (C and D) Rate map of (C) glucose and (D) lactate metabolism calculated from the image series (E and F). Signal from the voxel indicated by the white dashed line (E) before and (F) after tensor factorization. (G) Contour maps created from the peak maximums of the glucose and lactate signals at the time points indicated.

https://doi.org/10.7554/eLife.46312.009

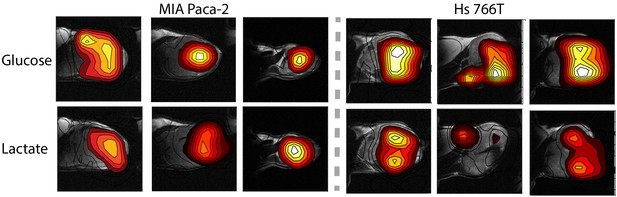

Figure 4 shows representative results from chemical shift imaging of MIA Paca-2 and Hs 766T xenografts before and after noise suppression (see Materials and methods). While the raw images are almost entirely noise, (Figure 4A and E) the processed images by tensor decomposition clearly show localized uptake of glucose within the tumor and conversion to lactate. As in the non-localized experiment, the glucose signal can be seen to decay and the corresponding lactate signal at 23 ppm to simultaneously increase as the tumor metabolized the bolus (Figure 4G). Local differences in metabolism can be detected in many tumors. For example, in one Hs 766T xenograft (Figure 4G) glucose metabolism is distributed relatively uniformly after taking into account the overall tumor anatomy. Lactate production, on the other hand, is localized in this tumor to one side where focal necrosis is more evident. In comparable MIA Paca-2 tumors (Figure 5), glucose uptake and lactate production appear to be more tightly correlated, congruent with the greater homogeneity apparent in the anatomical MRIs.

Contour maps created from time averages of the peak maxia of the glucose and lactate signals for three representative MIA Paca-2 (left) and Hs 766T (right) tumors.
https://doi.org/10.7554/eLife.46312.010

Discussion

Pancreatic ductal adenocarcinoma (PDAC) represent 90% of pancreatic cancers and are characterized by a poor prognosis and limited treatment strategies (Hidalgo, 2010; Garrido-Laguna and Hidalgo, 2015). Given PDACs resistance to traditional chemo- and radiotherapy regimes (Adamska et al., 2017), alternative points of attack are being considered. One potential point of attack is the dysregulated metabolism of PDACs (Blum and Kloog, 2014), which is highly dependent on protein autophagy and catabolism (Yang et al., 2011; Kamphorst et al., 2015) and exogenous glutamine and glucose (Ying et al., 2012; Biancur et al., 2017). Further, PDAC tumors usually have alterations in the activity in the urea cycle to support pyrimidine and amino acid synthesis (Rabinovich et al., 2015; Liu et al., 2017b) and often display a Warburg phenotype of increased glycolysis followed by diversion to lactate (Anderson et al., 2017). Each alteration and dependency represents a potential point of intervention. Although targeting the master genetic switches for these transformations, p53 and kRAS, (Ying et al., 2012; Bryant et al., 2014) is difficult, the downstream enzymes are practical targets. Inhibitors for lactate dehydrogenase (Rai et al., 2017) and the lactate transporter MCT1 (Sonveaux et al., 2008) have shown promise in preclinical trials and may enter clinical trials in the near future. Beyond the Warburg effect, researchers have begun to target other vulnerable aspects of PDAC metabolism such as amino acid synthesis (Ananieva, 2015) or the unique chemical environment of tumors by hypoxia activated prodrugs (Bailey et al., 2014; Liu et al., 2012).

Targeting aberrant metabolism requires a method of monitoring treatment progress and selecting suitable patient populations. Response to cancer treatment can be highly variable and there is a concerted push to tailor treatment regimens to individual patients (Jain, 2005). For protein targets such as receptors, genome sequencing or protein expression profiling is often sufficient to demonstrate a patient has a vulnerable mutation. Targeting aberrant metabolism is more difficult as the metabolism of tumors is not limited to the tumor itself, but also contains substantial contributions from the surrounding cells both directly through diffusion of metabolites across the tumor boundary (Sousa et al., 2016) and indirectly through the influence of regulatory and epigenetic signals (Sherman et al., 2017). The physical microenvironment of the tumor can also affect metabolism. Deficient or improperly formed (Bailey et al., 2014) vasculature often induces hypoxia in PDAC tumors (Koong et al., 2000) which can induce metabolic changes (Matsumoto et al., 2014; Guillaumond et al., 2013) that would not be evident by genetic analysis alone.

Methods for determining the internal metabolism of tumors non-invasively in vivo are lacking and represent a critical obstacle for the development of targeted metabolic therapy. The steady state metabolism of PDAC tumors can be probed indirectly through analysis of urine, blood, or pancreatic cyst fluid (McGranaghan et al., 2016) or more directly through magnetic resonance spectroscopy. However, metabolic networks are more flexible than protein networks and flux through the network can be rerouted to limit the impact of targeted enzymes (Biancur et al., 2017). Evaluating the target engagement of potential inhibitors can be difficult under these conditions. We demonstrate the potential of multimodal metabolic profiling of PDAC tumors for distinguishing xenograft tumors that are genetically similar but display very different metabolic phenotypes. Hs 766T is a cell line derived from lymphatic metastasis of pancreatic cancer that generates highly necrotic, hypoxic, slow growing heterogenous tumors. MIA Paca-2 is derived from primary cancer whose tumors are less necrotic, grow faster, and are highly homogenous. Despite their dissimilar origin and physiological differences, the steady state metabolism probed by CE/MS of Hs 766T and MIA Paca-2 is markedly similar, with only a few potential differentiating biomarkers (Figure 1E). Hyperpolarized pyruvate-lactate fluxes of Hs 766T and MIA Paca-2 xenografts estimated by 13C hyperpolarized pyruvate MRI were statistically indistinguishable (Figure 3). The flux through the TCA cycle and anaerobic fermentation is similar, as expected from the presence of KRAS and TP53 mutations in both cell lines and similar LDHA levels (Figure 1—figure supplement 1). Hyperpolarized MRI of pyruvate, while it has proven clinically useful in other circumstances (Gutte et al., 2015), did not provide sufficient information for metabolic discrimination in this instance.

The use of [U-13C] glucose instead of [1-13C] pyruvate in this study allowed for a more comprehensive overview of metabolism. Measurements of in vivo glucose metabolism by 13C MRI have proved difficult because of difficulty of hyperpolarizing glucose and the low SNR in non-hyperpolarized experiments. The approximately 30 fold improvement in SNR from low rank tensor decomposition (Figure 4E) allows the difficult hyperpolarization step to be avoided (Brender et al., 2019), eliminating some of the practical barriers to clinical implementation of 13C metabolic imaging. The most important information acquired by this method is the direct measurement of rates of glycolysis and lactate fermentation, allowing imaging of the Warburg effect. High glucose uptake is one of the most well studied features of cancer and has been utilized in FDG-PET imaging in clinical settings. FDG-PET is limited in that the radiotracer cannot differentiate the metabolic conversions that occur beyond glucose uptake and phosphorylation. In contrast to FDG-PET, investigation of [U-13C] glucose metabolism by 13C MRI can potentially probe more diverse and subtle metabolic differences in tumors. We observed one such metabolic difference in Figure 3; among Hs 766T and MIA Paca-2 PDAC xenograft animal models, glucose uptake was similar while glucose metabolism was distinct.

Our findings suggest some advantages for 13C glucose imaging. Compared to FDG-PET, there is no need for a radioactive tracer, which makes this imaging potentially safer and less invasive. By observing the lactate production at later time points, 13C glucose imaging can potentially detect cancer even in highly glucose-consuming tissue such as brain or liver. It can also potentially detect cancer in the bladder because glucose is not excreted immediately in urine, while FDG excreted in the urinary tract and excess signal in the bladder can interfere with lesion detection within or near the bladder wall. In contrast to hyperpolarized MRI, non-hyperpolarized 13C glucose imaging does not require onsite preparation of the probe, removing one of the main barriers to clinical translation of metabolic imaging by MRI.

Balancing these potential advantages, there are some limitations that should be acknowledged. The technique is inherently insensitive and requires the delivery of a large bolus that likely changes the initial metabolic state. The results therefore reflect the metabolism under a specific perturbation and should not be interpreted as reflective of the basal metabolic state. While this difference is likely less important in using metabolism as a biomarker, caution should be exercised in interpreting the results as reflective of the normal metabolism of the tissue. Other techniques, such as hyperpolarized 13C MRI, may be more useful in this context. The power of the low rank denoising technique scales as the square root of the number of acquisitions. As such, short repetition times are advantageous. The short repetition time skews the intensity towards metabolites with short T1 relaxation times. While the rates of conversion are not affected by this skew, the apparent concentrations are, and the relative intensities should not be used as a measure of relative concentration. While some challenges remain and the technique is inferior to PET in some respects, particularly with respect to resolution and imaging time, 13C glucose imaging by MRI may emerge as a viable adjunct or alternative to FDG-PET in evaluation of patients with known or suspected cancer.

Materials and methods

Mouse models

Request a detailed protocol

The animal experiments were conducted according to a protocol approved by the Animal Research Advisory Committee of the NIH (RBB-159-2SA) in accordance with the National Institutes of Health Guidelines for Animal Research. Female athymic nude mice weighing approximately 26 g were supplied by the Frederick Cancer Research Center, Animal Production (Frederick, MD) and housed with ad libitum access to NIH Rodent Diet #31 Open Formula (Envigo) and water on a 12 hr light/dark cycle. Xenografts were generated by the subcutaneous injection of 3 × 106 MIA PaCa-2 (America Type Cell Collection (ATCC), Manassas, VA) or Hs 766T (Threshold Pharmaceuticals, Redwood City, CA) pancreatic ductal adenocarcinoma cells. (Kim et al., 2009) Both cell lines were tested in May 2013 and authenticated by IDEXX RADIL (Columbia, MO) using a panel of microsatellite markers. Molecular testing of cell lines for multiple pathogens, including mycoplasma, was performed at the time of receipt and prior to in vivo studies. All cell lines were maintained in RPMI 1640 supplemented with 10% fetal calf serum and antibiotics.

CE/MS analysis

Request a detailed protocol

Tumors were excised when the volume reached 600 mm3 and immediately frozen in liquid nitrogen and stored at −80°C until analysis. A total of 116 metabolites involved in glycolysis, the pentose phosphate pathway, the tricarboxylic acid cycle, the urea cycle, and polyamine, creatine, purine, glutathione, nicotinamide, choline, and amino acid metabolism were analyzed using CE-TOF and QqQ mass spectrometry (Carcinoscope Package, Human Metabolome Technologies, Inc). Statistical significance was established by multiple two-sided t-tests, corrected for multiple comparisons by the two-stage linear step-up procedure of Holm et al with a confidence level of 5% (Holm, 1979; Seaman et al., 1991).

Western blotting analysis

Request a detailed protocol

The mice bearing MIA Paca-2 and Hs 766T tumors (n = 4 for each group) were euthanized by breathing carbon dioxide gas, and tumor biopsy samples were excised. The tumor tissues were immediately homogenized with T-PER tissue protein extraction reagent (Thermo scientific). The homogenate was centrifuged, and the supernatant was used for western blot analysis. Hexokinase-2, Glut-1, LDHA proteins in tumor extract were separated on 4% to 20% Tris-Glycine gel and CD31 was separated on NuPAGE 3% to 8% Tris-Acetate gel (Life Technologies) by SDS-PAGE and were transferred to nitrocellulose membrane. The membranes were blocked for 1 hr in blocking buffer (3% nonfat dry milk in 0.1% Tween 20/TBS), which was then replaced by the primary antibody (1:500-1:1000), diluted in blocking buffer, and then incubated for 1 hr at room temperature. The membranes were then washed three times in washing buffer (0.1% Tween 20/TBS). The primary antibody was detected using horseradish peroxidase–linked goat anti-mouse or goat anti-rabbit IgG antibody at a 1:2000 dilution (Santa Cruz Biotechnology), visualized with Western Lightning Plus-ECL enhanced chemiluminescence substrate (Perkin Elmer Inc) and measured by the Fluor Chem HD2 chemiluminescent imaging system (Alpha Innotech Corp.). Density values for each protein were normalized to actin or HSC70.

Hyperpolarized 13C MRS experiments

Request a detailed protocol

Samples for NMR were prepared and analyzed as previously described in Brender et al. (2019) [1-13C] pyruvic acid (30 μL), containing 15 mM TAM and 2.5 mM gadolinium chelate ProHance (Bracco Diagnostics, Milano, Italy), was hyperpolarized at 3.35 T and 1.4 K using the Hypersense DNP polarizer (Oxford Instruments, Abingdon, UK) according to the manufacturer’s instructions. Typical polarization efficiencies were around 20%. After 40–60 min, the hyperpolarized sample was rapidly dissolved in 4.5 mL of a superheated HEPES based alkaline buffer. The dissolution buffer was neutralized with NaOH to pH 7.4. The hyperpolarized [1-13C] pyruvate solution (96 mM) was intravenously injected through a catheter placed in the tail vein of the mouse (1.1 mmol/kg body weight). Hyperpolarized 13C MRI studies were performed on a 3 T scanner (MR Solutions, Guildford, UK) using a home-built 13C solenoid leg coil. After rapidly injecting the hyperpolarized [1-13C] pyruvate, spectra were acquired every second for 240 s using a single pulse acquire sequence with a sweep width of 3.3 kHz and 256 FID points.

Dynamic 13C glucose MRS without hyperpolarization

Request a detailed protocol

The magnetic resonance spectroscopy experiments were performed on a 9.4 T Biospec 94/30 horizontal scanner using a 16 mm double resonance 1H/13C coil constructed as described in Brender et al. (2019). Each mouse was anesthetized during imaging with isoflurane 1.5–2.0% administered as a gaseous mixture of 70% N2 and 30% O2 and kept warm using a circulating hot water bath. Both respiration and temperature were monitored continuously through the experiment and the degree of anesthesia adjusted to keep respiration and body temperature within a normal physiological range of 35–37° C and 60–90 breaths per min. Before the start of the experiment, anatomical images were acquired with a RARE fast spin echo sequence (Hennig et al., 1986) with 15 256 × 256 slices of 24 mm ×24 mm × 1 mm size with eight echoes per acquisition, a 3 s repetition time, and an effective sweep width of 50,000 Hz. Samples were shimmed to 20 Hz T with first and second order shims using the FASTMAP procedure (Gruetter, 1993).

[U-13C] Glucose was administered as a 50 mg bolus injected into the tail vein immediately prior to the start of the experiment. Immediately after the injection, non-localized spectra were acquired with the NSPECT pulse-acquire sequence using maximum receiver gain, a repetition time of 50 ms, Ernst Angle excitation of 12°, 256 FID points, a sweep width of 198.6 ppm, 16 averages per scan, and 4500 scans for a total acquisition time of 1 hr. MLEV16 decoupling (Levitt et al., 1983; Levitt et al., 1982) was applied during acquisition using −20 dB of decoupling power and a 0.2 ms decoupling element. The decoupling pulse was centered on the main proton lipid resonance at 1.3 ppm. Chemical shift imaging experiments were performed similarly except an 8 × 8 image using 0.3 cm x 0.3 cm x 1.5 cm voxels was acquired every 48 s (16 averages per scan) for 90 min using rectilinear phase encoding.

Signal processing

Request a detailed protocol

Signal processing was performed as described in Brender et al. (2019). For non-localized (two dimensional) experiments, the first 67 points of the FID in the time dimension were removed to eliminate the distortion from the 13 ms dead time of the Bruker 9.4 T. (Cobas, 2008). The FID was Fourier transformed and the phase estimated by the entropy minimization method of Chen et al. (2002) as implemented in MatNMR (van Beek, 2007). After low rank reconstruction by SVD (see below), the baseline was estimated by a modification of the Dietrich first derivative method to generate a binary mask of baseline points (Dietrich et al., 1991), followed by spline interpolation using the Whittaker smoother (Eilers, 2003) to generate a smooth baseline curve (Cobas et al., 2006). The final correction adjusts for the limited number of points in the frequency dimension by continuation of the FID by linear prediction. The remaining 189 points of the FID after truncation in the first step were extrapolated to 1024 points using the ‘forward-backward’ linear prediction method of Zhu and Bax (1992). Fourier transforming the FID of the transients from each voxel individually generated the final spectrum. Phase estimation proved difficult for to the chemical shift imaging experiments and therefore the spectra for chemical shift imaging experiments are shown in magnitude mode.

Low rank reconstruction

Request a detailed protocol

For the two-dimensional signal matrices generated by non-localized pulse acquire experiments, the rank reduced signal was generated by truncating the SVD by setting the N-r diagonal values of the singular value matrix S to 0, where N is the number of rows in S and r is the predicted rank. The predicted rank was set to five unless otherwise specified. Tensor decomposition was achieved through higher order orthogonal iteration (De Lathauwer et al., 2000) in the Matlab NWay package (Andersson and Bro, 2000) using a rank of 8 in the temporal and spectral dimensions and six in each spatial dimension.

Kinetic modeling

Request a detailed protocol

Glucose kinetics were analyzed by piecewise analysis of the signal from glucose carbon-1 at 98 ppm (Zierhut et al., 2010). The signal at initial time points (t0 <5 m) can be described by a single, empirically based exponential transport function (Chiang et al., 2017) describing the combined effects of perfusion and import:

(1) S98 ppm(t)=S98,total(1Bektranst), t<t0

Assuming negligible gluconeogenesis during the experiment, the kinetics after the complete passage of the bolus (t > 5t0=25 m) can be approximated as a decay from multiple first order pathways:

(2) dS98 ppmdt=iki, t>5t0

which has the simple solution:

(3) S98 ppm(t)=S98,total(e(iki)t), t>5t0

where ki includes terms from both metabolic conversion and clearance of glucose from the tumor.

Since the system is not closed, the terms do not balance - the loss in glucose is not necessarily equal to the total change in the concentration of downstream metabolites because of clearance of glucose and other metabolites from the tumor. As such, it is difficult to evaluate the individual terms in Equation 3 . We therefore report the sum iki as the rate of glucose 'utilization', which we define as the time dependent change in glucose concentration in the field of view. Lactate kinetics are handled similarly except there is no transport term and the signal is evaluated at 23 ppm. Lactate 'formation' similarly refers to the time-dependent change in lactate concentration in the field of view and may reflect contributions from circulating 13C-labeled lactate created outside the tumor (Hui et al., 2017; Faubert et al., 2017).

The kinetics of pyruvate metabolism in the hyperpolarized MRS experiment were evaluated by integrating the rate equations as described in Daniels et al. (2016). For simplicity, a two-pool unidirectional flux model was assumed with equal relaxation times for lactate and pyruvate. The concentration of 13C labeled lactate at the initial time point was also assumed to be zero. Making these assumptions, the final equations are:

(4) Pyr(t)=Pyr(0)k(e(k+1T1)t), t>t0
(5) Lac(t)=Pyr(0)k(e(1T1)te(k+1T1)t), t>t0

Ex vivo NMR analysis

Request a detailed protocol

50 mg of 13C-labeled glucose was injected intravenously through the tail vein to start the labeling experiment. Mice were sacrificed by cervical dislocation one hour after injection, following an intravenous saline flush to reduce paramagnetic relaxation from heme contamination from the blood. The tumor was then removed and snap frozen in liquid nitrogen and then stored at −80°C until the extraction procedure.

The polar fractions were isolated from the frozen tumor sections using a modification of a previously published procedure for cell extracts (Crooks et al., 2019). Briefly, a section of the frozen tumor was cut and then pulverized in liquid nitrogen using a cryogenic grinder (Freezer/Mill 6875, Spex SamplePrep). Approximately 50 mg of the ground tissue powder was weighed and then immediately quenched with 2 ml of acetonitrile at −20°C. The solution was allowed to thaw on ice and 1.5 ml of ice cold dd H2O was added to the thawed extract. Lipids and non-polar metabolites were extracted by the addition of 1 ml of −20°C chloroform with vigorous mixing. Addition of chloroform creates a three-phase system consisting of the polar and nonpolar fractions and an interphase layer consisting primarily of proteins. Following centrifugation at 6400 g for 30 min, 90% of the aqueous phase was transferred to a pre-tared microcentrifuge tube. After removal of the non-polar chloroform phase, the interphase layer was washed with ice cold 2:1 choloroform/methanol containing 1 mM BHT and recentrifuged. The aqueous phases were then combined and lyophilized. To remove residual proteins, the lyophilized powder was reconstituted in 100 μL of ice cold dd H2O followed by 400 μL of ice cold acetone. Samples were then incubated at −80°C for 30 min to facilitate protein precipitation. The protein precipitate was isolated by centrifugation for 30 min at 14,000 rpm. The pellet was then washed with 100 μL of 60% acetonitrile and the remaining supernatant after centrifugation re-lyophilized.

NMR samples were prepared by dissolving the lyophilized powder in D2O containing DSS-d6 as reference and concentration standard. For each sample, a 1D 1H Presat and 1D 1H-13C HSQC spectra were recorded at 15°C on a 16.45 T Bruker Avance III spectrometer using a 1.7 mm inverse triple resonance cryoprobe with an acquisition time of 2 s and a relaxation delay of 4 s for the Presat experiment, and an acquisition time of 0.2 s and relaxation delay of 1.8 s for the HSQC experiments with adiabatic 13C decoupling. The strongest sample from each group was also analyzed by high-resolution 2D multiplicity-edited HSQC and TOCSY (50 ms mixing time). TOCSY and high-resolution multiplicity-edited 1H-{13C}-HSQC spectra were recorded at 14.1 T on an Agilent DD2 spectrometer using a 3 mm inverse triple resonance cold probe, with an acquisition time in t2 of 1 s and a relaxation delay of 1 s and an isotropic mixing time of 50 ms (TOCSY) and an acquisition time of 0.2 s in t2, recycle time of 2 s with 600 complex increments in t1 for HSQC to resolve 13C-13C couplings in F1 (Fan and Lane, 2016).

Spectra were transformed, apodized using a cosine- squared function and 1 Hz line broadening exponential, phased and baseline corrected using the MNOVA software. Spectra were assigned using in-house data bases (Fan and Lane, 2013) and those of the HMDB (Wishart et al., 2018; Wishart et al., 2007) as previously described. 2D spectra were zero filled to 16384 × 2048 complex points (TOCSY), and 8192 × 4096 complex points (HSQC), transformed and apodized with a 1 Hz line broadening exponential and a cosine-squared function.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    The N-way toolbox for MATLAB
    1. CA Andersson
    2. R Bro
    (2000)
    Chemometrics and Intelligent Laboratory Systems 52:1–4.
    https://doi.org/10.1016/S0169-7439(00)00071-X
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Why aren’t Bruker FIDs time corrected?
    1. C Cobas
    (2008)
    NMR Analysis.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Involvement of endothelial PECAM-1/CD31 in angiogenesis
    1. HM DeLisser
    2. M Christofidou-Solomidou
    3. RM Strieter
    4. MD Burdick
    5. CS Robinson
    6. RS Wexler
    7. JS Kerr
    8. C Garlanda
    9. JR Merwin
    10. JA Madri
    11. SM Albelda
    (1997)
    The American Journal of Pathology 151:671–677.
  24. 24
  25. 25
  26. 26
    Assignment Strategies for Nuclear Magnetic Resonances in Metabolomic Research
    1. TWM Fan
    2. AN Lane
    (2013)
    In: J Sweedler, N. W Lutz, R. A Wevers, editors. Methodologies for Metabolomics: Experimental Strategies and Techniques. Cambridge: Cambridge University Press. pp. 525–584.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    The use of dynamic nuclear polarization C-13-pyruvate MRS in Cancer
    1. H Gutte
    2. AE Hansen
    3. HH Johannesen
    4. AE Clemmensen
    5. JH Ardenkjær-Larsen
    6. CH Nielsen
    7. A Kjær
    (2015)
    American Journal of Nuclear Medicine and Molecular Imaging 5:548–560.
  35. 35
  36. 36
  37. 37
  38. 38
    Pancreatic cancer
    1. M Hidalgo
    (2010)
    New England Journal of Medicine 362:1605–1617.
    https://doi.org/10.1056/NEJMra0901557
  39. 39
  40. 40
    A simple sequentially rejective multiple test procedure
    1. S Holm
    (1979)
    Scandinavian Journal of Statistics 6:65–70.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82

Decision letter

  1. Ralph DeBerardinis
    Reviewing Editor; UT Southwestern Medical Center, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Ralph DeBerardinis
    Reviewer; UT Southwestern Medical Center, United States
  4. Kevin Brindle
    Reviewer; University of Cambridge, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Imaging of glucose metabolism by 13C-MRI distinguishes pancreatic cancer subtypes" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Ralph DeBerardinis as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has also agreed to reveal his identity: Kevin Brindle (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Kishimoto et al., describe a technique to assess metabolism of non-hyperpolarized 13C-glucose metabolism in real time in pancreatic cancer xenografts. They inject [U-13C]glucose and detect glucose-derived metabolites kinetically using 13C MRS; applying rank reduction of noise improves detection of 13C-labeled metabolites and, when tensor decomposition is also used, allows some 13C features to be localized within the tumors. The authors use these techniques to a) characterize some of the metabolic fates of glucose within two PDAC xenograft models; and b) to identify differences between the models that could not be detected using hyperpolarized [1-13C]pyruvate imaging. A strength of the paper is the potential for this technique to estimate glucose-dependent metabolic fluxes non-invasively. Relative weaknesses in the current form include lack of benchmarking and inadequate description of some aspects of the technique.

Essential revisions:

1) More information about the experiments with [U-13C]glucose need to be included so that the reader can put the results into a physiological context. How was the glucose administered to the mice? A kinetic of glucose concentration and fractional enrichment should be provided to assess how the technique perturbs the basal metabolic state.

2) The metabolic differences between the two models depends on quantification of 3 resonances in vivo, a "predominantly glucose peak" at 95ppm, a "major glucose peak with contribution from all glycolytic intermediates" at 60ppm and the lactate resonance at 23ppm. Then ratios and rates for glucose and lactate are calculated. Details about how these calculations were made should be included. Wouldn't a rate for the 60ppm resonance be the most informative for glycolysis? Moreover, which metabolites contribute to the 60ppm resonance, and to what degree? Presumably with such a short acquisition time (50ms), differential relaxation would weight that resonance's magnitude to certain intermediates. Extracting metabolites after the experiment and examining their 13C enrichments may help clarify these resonances.

3) Along these lines, it would greatly increase confidence in the conclusions about metabolic differences between these tumors if the authors could use mass spectrometry or ex vivo spectroscopy to measure the total abundance and 13C enrichment in lactate from these tumors. This would allow them to benchmark their in vivo MRS data.

4) The authors state that the peak at 95 ppm can be assigned specifically to glucose and glucose-6-phosphate without contributions from other glycolytic intermediates. This needs a supporting reference or experimental evidence that this is the case. They go on to say that the intensity of the peak at 95 ppm therefore gives an indication of glucose import and phosphorylation. But the peak at 95 ppm surely includes contributions from intravascular and interstitial (i.e. extracellular) glucose, so it is unclear how this signal can be used to measure glucose uptake and phosphorylation.

5) From subsection “Glucose metabolism can be measured in vivo by 13C MRS: "The CE/MS data is suggestive of an upregulation in MiaPaCa-2 of the later stages of glycolysis relative to Hs766t, but the sample-sample variability inherent to MS techniques obscures the magnitude of any difference (see Figure 1—figure supplement 3). Hyperpolarized 13C MRS is more precise in this respect, but the transient nature of hyperpolarization restricts analysis to only the first few metabolic steps away from the probe". There are problems with these statements. First, it is not true that glycolysis cannot be measured using MS. Second, hyperpolarized 13C MRS is not more precise, and in fact it cannot measure concentrations because signal intensity is a function of concentration, T1 and time after injection of the hyperpolarized substrate. Third, it is also not true that hyperpolarization restricts analysis to only the first few metabolic steps away from the probe since conversion of glucose to lactate has been measured using in vivo hyperpolarization techniques.

6) The authors say that there is no difference in glucose uptake between the two xenografts or in the rate of lactate production. They then go onto say that Hs766t xenografts displayed slower glucose metabolism than MiaPaCa-2 xenografts. Given these data were obtained from a bolus injection of [1-13C]glucose, how do they reconcile this observation with no change in lactate production?

https://doi.org/10.7554/eLife.46312.015

Author response

Essential revisions:

1) More information about the experiments with [U-13C]glucose need to be included so that the reader can put the results into a physiological context. How was the glucose administered to the mice? A kinetic of glucose concentration and fractional enrichment should be provided to assess how the technique perturbs the basal metabolic state.

Glucose was administered as a 50 mg bolus injected into the tail vein immediately prior to the start of the experiment. We agree with reviewer that this large bolus raises blood glucose levels and perturbs the basal metabolic state. This is an inherent limitation of the technique. The last paragraph of the Discussion section has been modified to address these concerns and others.

“Balancing these potential advantages, there are some limitations that should be acknowledged. The technique is inherently insensitive and requires the delivery of a large bolus that likely changes the initial metabolic state. The results therefore reflect the metabolism under a specific perturbation and should not be interpreted as reflective of the basal metabolic state. While this difference is likely less important in using metabolism as a biomarker, caution should be exercised in interpreting the results as reflective of the normal metabolism of the tissue. Other techniques, such as hyperpolarized 13C MRI, may be more useful in this context. The power of the low rank denoising technique scales as the square root of the number of acquisitions. As such, short repetition times are advantageous. The short repetition time skews the intensity towards metabolites with short T1 relaxation rates. While the rates of conversion are not affected by this skew, the apparent concentrations are, and the relative intensities should not be used as a measure of relative concentration.”

2) The metabolic differences between the two models depends on quantification of 3 resonances in vivo, a "predominantly glucose peak" at 95ppm, a "major glucose peak with contribution from all glycolytic intermediates" at 60ppm and the lactate resonance at 23ppm. Then ratios and rates for glucose and lactate are calculated.

a) Details about how these calculations were made should be included.

b) Wouldn't a rate for the 60ppm resonance be the most informative for glycolysis?

c) Moreover, which metabolites contribute to the 60ppm resonance, and to what degree?

d) Presumably with such a short acquisition time (50ms), differential relaxation would weight that resonance's magnitude to certain intermediates. Extracting metabolites after the experiment and examining their 13C enrichments may help clarify these resonances.

We agree with the reviewers that the details on why particular resonances were assigned and chosen for analysis are lacking in the original manuscript and appreciate the chance to clear up any possible confusion. In response to the specific queries:

a) A new section has been included in the Materials and methods section to include the details of the analysis.

Glucose kinetics were analyzed by piecewise analysis of the signal from glucose carbon-1 at 98 ppm.70 The signal at initial time points (t0 <5 m) can be described by a single, empirically based exponential transport function71 describing the combined effects of perfusion and import:

S98ppmt=S98,total1-Be-ktranst,t<t0 Eq. 1

Assuming negligible gluconeogenesis during the experiment, the kinetics after the complete passage of the bolus (t > 5t0 = 25 m) can be approximated as a decay from multiple first order pathways:

dS98ppmdt=-∑iki,t>5t0 Eq. 2

which then has the simple solution:

S98ppmt=S98,totale-∑ikit,t>5t0 Eq. 3

where ki includes terms from both metabolic conversion and clearance of glucose from the tumor.

Since the system is not closed, the terms do not balance -the loss in glucose is not necessarily equal to the total change in the concentration of downstream metabolites because of clearance of glucose from the tumor. As such, it is difficult to evaluate the individual terms in Eq. 3. We therefore report the sum ∑iki as the rate of glucose “utilization”, which we define as the time dependent change in glucose concentration in the field of view. Lactate kinetics are handled similarly except there is no transport term and the signal is evaluated at 23 ppm. Lactate “formation” similarly refers to the time dependent change in lactate concentration in the field of view and may reflect contributions from circulating 13C-labeled lactate created outside the tumor.

The kinetics of pyruvate metabolism in the hyperpolarized MRS experiment is evaluated by integrating the rate equations as described in Ref. 72. For simplicity, a two-pool unidirectional flux model was assumed with equal relaxation times for lactate and pyruvate. The concentration of 13C labelled lactate at the initial time point was also assumed to be zero. Making these assumptions, the final equations are:

Pyrt=Pyr0ke-k+1T1t,t>t0 Eq. 4

Lact=Pyr0ke-1T1t-e-k+1T1t,t>t0 Eq. 5”

b and c) The peak at 60 ppm resonance potentially contains resonances from several glycolytic intermediates. However, not all glycolytic intermediates have peaks in this range, which considerably complicates analysis. The peaks at 95 and 98 ppm only arise from glucose and glucose-6-phosphate and, as described below, glucose-6-phosphate was not found in detectable concentrations. This considerably facilitates analysis and the peak at 98 ppm was used consistently for all analysis.

To confirm assignment, we carried out a series of ex vivo NMR experiments as described in the revised paragraph below:

Using this technique, we first checked the glucose metabolism of each tumor type following an injection of 50 mg bolus of [U-13C] glucose using non-localized spectroscopy. The resulting spectra are complex and include contributions from the α and β anomers of glucose, the natural abundance 13C signal from lipids, as well as signals from downstream metabolites such as lactate and alanine (Figure 3A). To help resolve these ambiguities, tumors were flash frozen 1 hour after the injection of a [U-13C] glucose bolus and the polar fraction analyzed by multidimensional NMR. Strong signals at 22.8 and 18.9 ppm in the indirectdimension of the HSQC spectrum (Figure 3—figure supplement 1A) and carbon satellites in the TOCSY spectrum30 (Figure 3—figure supplement 1B) confirmed that the peaks at 22.8 ppm and 18.9 ppm arise from 13C labeled lactate and alanine, respectively (Figure 1—figure supplement 3). 13C labeled glutamate and aspartate are detectable in the ex vivo HSQC but not in the in vivo MRS, likely because the longer relaxation times31, 32 strongly attenuates the signal with the short recycle delay used in the in vivo experiment. The peaks at 95 and 98 ppm can potentially arise from carbon 1 of the α and β anomers of either glucose or glucose-6-phosphate. The absence of any detectable peaks near 75 ppm confirms they arise exclusively from glucose without contribution from glucose-6-phosphate any other glycolytic intermediates. While the peaks at 95 and 98 ppm can be definitively assigned to carbon 1 of glucose, the HSQC and the pre-injection spectra (Figure 3A) confirms the other intense peak at 63 ppm and the spectrally crowded region between 63 and 78 ppm contains contributions from glycerol containing species. The lack of 13C-13C couplings for the glycerol resonances in the HSQC suggest these molecules are not derived directly from the glucose bolus.

The peak at 98 ppm was therefore used as a marker as it can be assigned specifically in this case to glucose and not any other molecule. Specifically, an increase in the intensity of the 98 ppm reflects the arrival of glucose from the bloodstream into the instrument’s field of view (gluconeogenesis within the tumor is assumed to be negligible at this time scale). A decrease in intensity reflects either the removal of glucose by the bloodstream out of the field of view or the conversion of glucose into another species. Similarly, the appearance of peaks at 22.8 and 18.9 ppm reflect the conversion of lactate and alanine, respectively, or the arrival of circulating lactate or alanine produced from 13C glucose outside the tumor.33, 34

d) The reviewers are correct that shorter relaxation times can bias the peak intensity towards certain intermediates. The relaxation time, however, does not affect the corresponding rate. The experiment is done at thermal equilibrium with respective to the polarization and the signal does not evolve in the absence of perfusion or metabolism. Since the overall relaxation is constant throughout the experiment, it has no effect on the calculated rate, which is the quantity being measured.

3) Along these lines, it would greatly increase confidence in the conclusions about metabolic differences between these tumors if the authors could use mass spectrometry or ex vivo spectroscopy to measure the total abundance and 13C enrichment in lactate from these tumors. This would allow them to benchmark their in vivo MRS data.

We agree with the reviewers that benchmarking to an established method is an important part of the validation of any new technique. Toward this end, we spent considerable effort in attempting to quantify the 13C enrichment of glucose and lactate in the polar fraction of the tumor extracts. Progress was complicated by the low concentration of glucose in the intracellular and interstitial fluid, which hindered observation of 13C satellites of glucose in the TOCSY and 1H spectra and complicated measurement of absolute concentrations or fractional enrichments. While establishing absolute concentrations was difficult, we could successfully measure the ratio of key metabolites from the HSQC spectra. As expected, the metabolite ratios from ex vivo NMR do not match those observed in the in vivo MRS technique because of the strong bias towards fast relaxing species such as glucose. Nevertheless, the predicted trend (higher lactate to glucose ratios in MiaPaca) is similar in both experiments. Glucose concentrations were also much more variable in MiaPaca, in agreement with the higher variance observed in Figure 3E.

This difference is also reflected in the time-averaged glucose to lactate ratio (Figure 3F, Mann-Whitney rank test, p=0.03, Cohen’s d = 1.20, large effect size), which is an approximate measure of the relative rates of the appearance of lactate and disappearance of glucose within the FOV of the scanner.36 To confirm the presence of a metabolic difference, the glucose, lactate, and glutamate peaks of the HSQC spectra from the polar extracts of MIA Paca-2 and Hs 766T tumors were quantified (Figure 3H). As expected, the metabolite ratios from ex vivo NMR do not match those observed in the in vivo MRS technique because of the strong bias towards fast relaxing species such as glucose in the MRS spectrum due to the short repetition time. Nevertheless, the predicted trend (higher lactate to glucose ratios in MIA Paca-2) is similar in both experiments.”

MIA Paca-2Hs766t
SpeciesRatio meansemRatio meansem
13C Lac-3/13C Ala-34.480.262.92014
13C Glu 4/13CLac-30.160.010.640.085
13C Lac-3/13Glc-15.640.983.760.43

Metabolite ratios obtained by peak integration of resonances in the HSQC spectra from obtained from polar extracts of the tumor xenografts. A 50 mg bolus of [U-13C] glucose was injected intravenously and the peaks corresponding to each resonance in the HSQC spectrum were integrated to obtain the ratio. Five mice were used for each sample. Unpaired t test on means: Lac/Ala p=0000706 (t=5.33), Glu4/Lac p=0.000485 (t=-5.643), and Lac/Glc p=0.086 (t=2.05).”

4) The authors state that the peak at 95 ppm can be assigned specifically to glucose and glucose-6-phosphate without contributions from other glycolytic intermediates. This needs a supporting reference or experimental evidence that this is the case. They go on to say that the intensity of the peak at 95 ppm therefore gives an indication of glucose import and phosphorylation. But the peak at 95 ppm surely includes contributions from intravascular and interstitial (i.e. extracellular) glucose, so it is unclear how this signal can be used to measure glucose uptake and phosphorylation.

We have confirmed the assignment using ex vivo NMR as described in the response to comment 3.The reference to 95 ppm containing potential contributions from the β-anomers glucose and glucose comes from analysis of the Human Metabolome Database. However, the actual concentration of glucose-6-phosphate was found to be negligible, in line with the steady state results from CE/MS.

The reviewers are correct in pointing out that the observed signal has contributions from everything within the FOV. The intensity of the peaks at 95 and 98 ppm are a measure of the relative concentration of glucose and glucose-6-phosphate within the FOV at a given time point. Since within this sample, the concentration of glucose-6-phosphate was found to negligible, the intensity of the 95/98 ppm peaks is a measure of the relative glucose concentration specifically. As described in our response to Comment 3, anything that changes the glucose concentration within the FOV, including a change in intravascular and interstitial glucose concentrations due to perfusion, will affect the signal.

5) From subsection “Glucose metabolism can be measured in vivo by 13C MRS: "The CE/MS data is suggestive of an upregulation in MiaPaCa-2 of the later stages of glycolysis relative to Hs766t, but the sample-sample variability inherent to MS techniques obscures the magnitude of any difference (see Figure 1—figure supplement 3). Hyperpolarized 13C MRS is more precise in this respect, but the transient nature of hyperpolarization restricts analysis to only the first few metabolic steps away from the probe". There are problems with these statements.

a) First, it is not true that glycolysis cannot be measured using MS.

b) Second, hyperpolarized 13C MRS is not more precise, and in fact it cannot measure concentrations because signal intensity is a function of concentration, T1 and time after injection of the hyperpolarized substrate.

c) Third, it is also not true that hyperpolarization restricts analysis to only the first few metabolic steps away from the probe since conversion of glucose to lactate has been measured using in vivo hyperpolarization techniques.

We agree with reviewers that this statement is not precise and contains several erroneous and problematic statements. Accordingly, we have rewrote this section to more clearly convey our intent:

“The CE/MS data is suggestive of an upregulation in MIA Paca-2 of the later stages of glycolysis relative to Hs 766T (Figure 1—figure supplement 3), although no single metabolite in the glycolytic pathway stands out as being statistically different (Figure 1). The CE/MS assay, however, requires a biopsy, which may be undesirable in some circumstances. To probe the glycolytic pathway in vivo, a different technique is needed.

Hyperpolarized glucose imaging has been successfully used to image glycolysis in vivo. While glucose is an exemplary tracer from a biological standpoint and has been shown to be very useful in pre-clinical hyperpolarized MRI research,1 the extent of hyperpolarization achieved places constraints that may be difficult to realize in some situations in a clinical setting. Hyperpolarization of 13C tracers has been considered necessary for imaging and kinetic studies due to the inherently low signal of 13C MRS. If noise can be reduced to acceptable levels without hyperpolarization, the restrictions hyperpolarization places on an experiment can be removed. "

6) The authors say that there is no difference in glucose uptake between the two xenografts or in the rate of lactate production. They then go onto say that Hs766t xenografts displayed slower glucose metabolism than MiaPaCa-2 xenografts. Given these data were obtained from a bolus injection of [1-13C]glucose, how do they reconcile this observation with no change in lactate production?

We thank the reviewers for bringing out this important point. There are multiple possible pathways for glucose to be metabolized. The end product for glucose metabolized through the OXPHOS pathway is CO2, which would not be detectable by our technique which is skewed towards detection of species with short relaxation times. Also, circulating 13C lactate may enter the tumor through external sources, which would remove the apparent requirement for balance.

https://doi.org/10.7554/eLife.46312.016

Article and author information

Author details

  1. Shun Kishimoto

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Jeffrey R Brender
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2496-5283
  2. Jeffrey R Brender

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Shun Kishimoto
    For correspondence
    jeffery.brender@mail.nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7487-6169
  3. Daniel R Crooks

    Urologic Oncology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Formal analysis, Investigation, Methodology, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Shingo Matsumoto

    1. Graduate School of Information Science and Technology, Division of Bioengineering and Bioinformatics, Hokkaido University, Sapporo, Japan
    2. JST, PREST, Saitama, Japan
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Tomohiro Seki

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Nobu Oshima

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  7. Hellmut Merkle

    NINDS, NIH, Bethesda, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  8. Penghui Lin

    Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Galen Reed

    GE HealthCare, Chicago, United States
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    is affiliated with GE HealthCare. The author has no other competing interests to declare.
  10. Albert P Chen

    GE HealthCare, Chicago, United States
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    is affiliated with GE HealthCare. The author has no other competing interests to declare.
  11. Jan Henrik Ardenkjaer-Larsen

    1. GE HealthCare, Chicago, United States
    2. Department of Electrical Engineering, Technical University of Denmark, Kongens Lyngby, Denmark
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    is affiliated with GE HealthCare. The author has no other competing interests to declare.
  12. Jeeva Munasinghe

    NINDS, NIH, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  13. Keita Saito

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  14. Kazutoshi Yamamoto

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  15. Peter L Choyke

    Molecular Imaging Program, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  16. James Mitchell

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Resources, Funding acquisition
    Competing interests
    No competing interests declared
  17. Andrew N Lane

    1. Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    2. Markey Cancer Center, University of Kentucky, Lexington, United States
    Contribution
    Formal analysis, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  18. Teresa WM Fan

    1. Center for Environmental and Systems Biochemistry, University of Kentucky, Lexington, United States
    2. Markey Cancer Center, University of Kentucky, Lexington, United States
    Contribution
    Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  19. W Marston Linehan

    Urologic Oncology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Funding acquisition
    Competing interests
    No competing interests declared
  20. Murali C Krishna

    Radiation Biology Branch, Center for Cancer Research, NCI, NIH, Bethesda, United States
    Contribution
    Conceptualization, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    murali@helix.nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7216-7788

Funding

National Cancer Institute (1ZIASC006321-39)

  • James Mitchell

National Cancer Institute (Intramural Research Program)

  • Murali C Krishna

Shared Resource(s) of the University of Kentucky Markey Cancer Center (P30CA177558)

  • Andrew N Lane
  • Teresa WM Fan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: The animal experiments were conducted according to a protocol approved by the Animal Research Advisory Committee of the NIH (RBB-159-2SA) in accordance with the National Institutes of Health Guidelines for Animal Research.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Ralph DeBerardinis, UT Southwestern Medical Center, United States

Reviewers

  1. Ralph DeBerardinis, UT Southwestern Medical Center, United States
  2. Kevin Brindle, University of Cambridge, United Kingdom

Publication history

  1. Received: February 23, 2019
  2. Accepted: August 8, 2019
  3. Accepted Manuscript published: August 13, 2019 (version 1)
  4. Version of Record published: August 22, 2019 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,053
    Page views
  • 154
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
