Chromatin-bound CRM1 recruits SET-Nup214 and NPM1c onto HOX clusters causing aberrant HOX expression in leukemia cells

  1. Masahiro Oka  Is a corresponding author
  2. Sonoko Mura
  3. Mayumi Otani
  4. Yoichi Miyamoto
  5. Jumpei Nogami
  6. Kazumitsu Maehara
  7. Akihito Harada
  8. Taro Tachibana
  9. Yoshihiro Yoneda
  10. Yasuyuki Ohkawa
  1. National Institutes of Biomedical Innovation, Health and Nutrition (NIBIOHN), Japan
  2. Osaka University, Japan
  3. Kyushu University, Japan
  4. Osaka City University, Japan
Research Advance
  • Cited 0
  • Views 506
  • Annotations
Cite this article as: eLife 2019;8:e46667 doi: 10.7554/eLife.46667

Abstract

We previously demonstrated that CRM1, a major nuclear export factor, accumulates at Hox cluster regions to recruit nucleoporin-fusion protein Nup98HoxA9, resulting in robust activation of Hox genes (Oka et al., 2016). However, whether this phenomenon is general to other leukemogenic proteins remains unknown. Here, we show that two other leukemogenic proteins, nucleoporin-fusion SET-Nup214 and the NPM1 mutant, NPM1c, which contains a nuclear export signal (NES) at its C-terminus and is one of the most frequent mutations in acute myeloid leukemia, are recruited to the HOX cluster region via chromatin-bound CRM1, leading to HOX gene activation in human leukemia cells. Furthermore, we demonstrate that this mechanism is highly sensitive to a CRM1 inhibitor in leukemia cell line. Together, these findings indicate that CRM1 acts as a key molecule that connects leukemogenic proteins to aberrant HOX gene regulation either via nucleoporin-CRM1 interaction (for SET-Nup214) or NES-CRM1 interaction (for NPM1c).

Introduction

Nucleoporin genes, Nup98 and Nup214, are often rearranged in leukemia and generate fusion genes that cause the development of the disease (Xu and Powers, 2009). As for Nup98 partner genes, more than 30 different genes with various functions, such as transcription factor, RNA helicase, DNA topoisomerase, and histone methyltransferase, are known (Gough et al., 2011). Nup98-fusions are found most frequently in acute myeloid leukemia (AML), while Nup214-fusions are detected in T-cell acute lymphoblastic leukemia (T-ALL) as well as in AML (Zhou and Yang, 2014Mendes and Fahrenkrog, 2019).

So far, the precise pathogenic mechanism of Nup98- or Nup214-fusion–mediated leukemia still remains to be elucidated. However, one of the common features of both Nup98 and Nup214-fusion–expressing leukemia is aberrant activation of HOX genes (Gough et al., 2011Van Vlierberghe et al., 2008Wang et al., 2007Hollink et al., 2011). HOX genes encode DNA-binding proteins that specify cell fate along the head-tail axis (Krumlauf, 1994Mallo et al., 2010). It is also well known that aberrant regulation of HOX genes plays a crucial role in leukemogenesis (Argiropoulos and Humphries, 2007Alharbi et al., 2013). Previously, we demonstrated that Nup98HoxA9 significantly accumulates on the Hox cluster regions when expressed in mouse embryonic stem (ES) cells to aberrantly activate broad Hox cluster genes (Oka et al., 2016). Subsequently, it was shown that Nup98HoxA9 actually binds to the Hox cluster region in immortalized hematopoietic cells (Shima et al., 2017Xu et al., 2016). These results suggest that selective targeting of Nup98HoxA9 to the Hox cluster region is a fundamental mechanism to induce aberrant HOX gene expression and to perturb hematopoiesis.

Furthermore, we previously reported (Oka et al., 2016) that CRM1 (chromosomal region maintenance 1, also called exportin-1 or XPO1), a major nuclear export factor (Fornerod et al., 1997Fukuda et al., 1997; Ossareh-Nazari et al., 1997Stade et al., 1997) which was originally identified in a fission yeast (Adachi and Yanagida, 1989), exists in specific chromatin regions including Hox gene clusters in the nucleus that are highly correlated with genome wide–binding sites of Nup98HoxA9, suggesting that CRM1 is the molecule that recruits Nup98-fusion protein onto the HOX cluster region.

In addition, it was also demonstrated that the Nup214-fusion protein binds to CRM1 (Saito et al., 2004Saito et al., 2016Port et al., 2016). Furthermore, it was shown that leukemia cells expressing Nup214-fusion are known to be associated with a high HOX gene expression profile (Van Vlierberghe et al., 2008). These results collectively suggest that there may exist a common pathogenic mechanism of the major nucleoporin fusions ‒ Nup98- and Nup214-fusions, in leukemia; that is, these fusions may be recruited to the HOX cluster regions via chromatin-bound CRM1 to activate HOX genes.

Another leukemogenic protein which might be related to chromatin-bound CRM1 is nucleophosmin 1 (NPM1), a multifunctional nucleolar protein that is frequently overexpressed or mutated in human cancers (Grisendi et al., 2006). It has been shown that a mutant form of NPM1 is one of the most frequently acquired molecular abnormality, found in approximately one-third of patients with AML (Falini et al., 2005Verhaak et al., 2005). This NPM1 mutant (called NPM1c) contains a novel nuclear export signal (NES) at its C-terminus, which is generated by insertion or deletion of nucleotides at C-terminus that causes a frameshift of the downstream open reading frame. Indeed, NPM1c is exported from the nucleus to the cytoplasm in a CRM1-dependent manner (Falini et al., 2006Bolli et al., 2007). Interestingly, HOX gene activation has been shown in a patient with AML and in a cell line expressing NPM1c (Alcalay et al., 2005Mullighan et al., 2007), and that HOX gene expression is critical for the growth of NPM1c-expressing cells (Dovey et al., 2017Brunetti et al., 2018). Furthermore, the HOX gene expression is directly dependent on NPM1c (Brunetti et al., 2018).

NPM1 is a multifunctional protein involved in many cellular processes, including the regulation of ARF tumor suppressor (Itahana et al., 2003Korgaonkar et al., 2005), histone chaperoning (Okuwaki et al., 2001), ribosome biogenesis (Savkur and Olson, 1998Maggi et al., 2008Murano et al., 2008), centrosome duplication (Okuda et al., 2000), transcriptional regulation, and DNA repair (reviewed in Grisendi et al., 2006Lindström, 2011). Certainly, various defects that could potentially cause the disease, which are mainly attributed to the cytoplasmic translocation of NPM1-binding proteins, have been observed in NPM1c-expressing cells (Colombo et al., 2006den Besten et al., 2005Bonetti et al., 2008Noguera et al., 2013Ando et al., 2017Zou et al., 2017Gu et al., 2018). However, the relevance of these defects to the pathogenesis still remains to be established.

In this study, we demonstrated that both the SET-Nup214 fusion and NPM1c bind to HOX cluster regions to activate HOX genes in a CRM1-dependent manner. These results demonstrate that chromatin-bound CRM1 functions as a platform to recruit a broad range of leukemic proteins, either via nucleoporin-CRM1 or NES-CRM1 interaction, resulting in abnormal HOX gene expression that causes leukemia.

Results and discussion

SET-Nup214 fusion binds to HOXA and HOXB clusters together with CRM1 in a leukemia cell line

Although we previously reported that Nup98HoxA9 accumulates onto four Hox cluster regions (HoxA, HoxB, HoxC, and HoxD) via chromatin-bound CRM1 in mouse ES cells (Oka et al., 2016), it still remains elusive whether other leukemogenic proteins also accumulate onto HOX cluster regions in a CRM1-dependent manner in human leukemia cells. Therefore, in this study, we first focused on SET-Nup214, a fusion between histone chaperone SET and Nup214 (von Lindern et al., 1992a), since it was previously shown to bind the promoter region of HOXA9 and HOXA10 (Van Vlierberghe et al., 2008) and to form nuclear dots that colocalize with CRM1 (Saito et al., 2004Saito et al., 2016Port et al., 2016), as observed in Nup98HoxA9 (Oka et al., 2010Oka et al., 2016Takeda et al., 2010). However, so far, the binding was only examined by ChIP-qPCR and restricted to the promoter regions of several HOX genes. In addition, the genome-wide binding pattern of SET-Nup214 is still unknown.

Therefore, we performed ChIP-sequencing (ChIP-seq) analysis to examine the genome-wide binding profile of CRM1 and SET-Nup214 in the T-ALL cell line, LOUCY. As controls, we used other leukemia cell lines, HL60 and K562. As shown in Figure 1A–C, we found that CRM1 selectively binds to HOXA and HOXB cluster regions, especially to HOXB region, in LOUCY cells, while no accumulation of CRM1 was observed in K562 cells or in HL60 cells (Figure 3—figure supplement 5). The specific binding of CRM1 onto HOXB in LOUCY cells was obvious even at a genome-wide scale (Figure 1A) or in a whole chromosome (Figure 1B–C; Chr.17 for HOXB and Chr.7 for HOXA). The binding profile of CRM1 was confirmed by two different anti-CRM1 antibodies from different companies [rabbit monoclonal antibody #46249 from Cell Signaling Technology (CST) and rabbit polyclonal antibody # A300-469A from Bethyl Laboratories] (Figure 1—figure supplement 1). Furthermore, ChIP-seq with anti-Nup214 antibody, which reacts with SET-Nup214 fusion (Figure 3A, Figure 3—figure supplement 5A), showed robust signals on the HOXA and HOXB cluster regions with a highly similar pattern to that of CRM1, in LOUCY cells (Figure 2A–C). In addition, we found that CRM1 signal was enriched at the Nup214 peaks (Figure 2D, right panel), while Nup214 signal was not significantly so at the CRM1 peaks (Figure 2D, left panel). Notably, we also found that CRM1/SET-Nup214 accumulated in other regions, including CDKN2C (Chr.1) and BMI1 (Chr.10) in LOUCY cells (Figure 1—figure supplement 2, Figure 2—figure supplement 1). BMI1 is known to be overexpressed in a variety of cancers, including hematopoietic malignancies, and is associated with poor prognosis (Valk-Lingbeek et al., 2004). These results indicate that SET-Nup214 is preferentially targeted to a subset of CRM1 binding sites, including HOX cluster regions, in LOUCY cells and suggest that SET-Nup214 functions in a similar manner to Nup98HoxA9 in the activation of HOX genes.

Figure 1 with 2 supplements see all

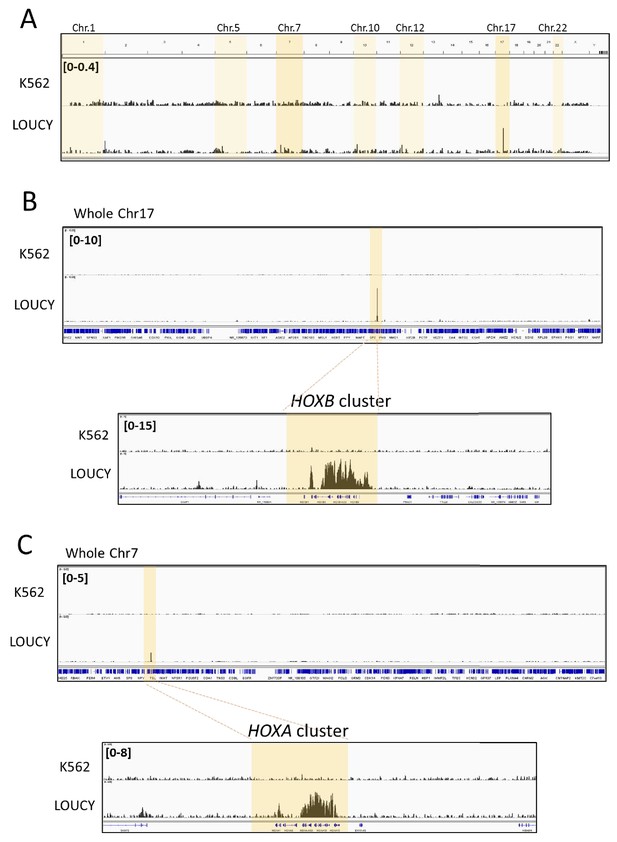

CRM1 accumulates on specific genome regions, including HOXA and HOXB cluster, in human Leukemia cells.

Binding profiles of CRM1 in K562 and LOUCY cell lines (A: whole genome; B: whole chromosome 17 and HOXB cluster, C: whole chromosome seven and HOXA cluster). ChIP-seq was performed using anti-CRM1 (CST, D6V7N, #46249) antibody. In (A), the chromosomes that contain strong CRM1 binding sites are shadowed (dark shadow; Chr.7 (HOXA) and Chr.17 (HOXB), light shadow; Chr.1 (CDKN2C), Chr.5 (LOC648987), Chr.10 (NR_038921, COMMD3-BMI1), Chr.12 (CLEC2B-KLRF2), Chr.22 (PRR34), see Figure 1—figure supplement 2 for details).

Figure 2 with 1 supplement see all
Accumulation of CRM1 and SET-Nup214 on HOX clusters is sensitive to CRM1 inhibitor KPT-330.

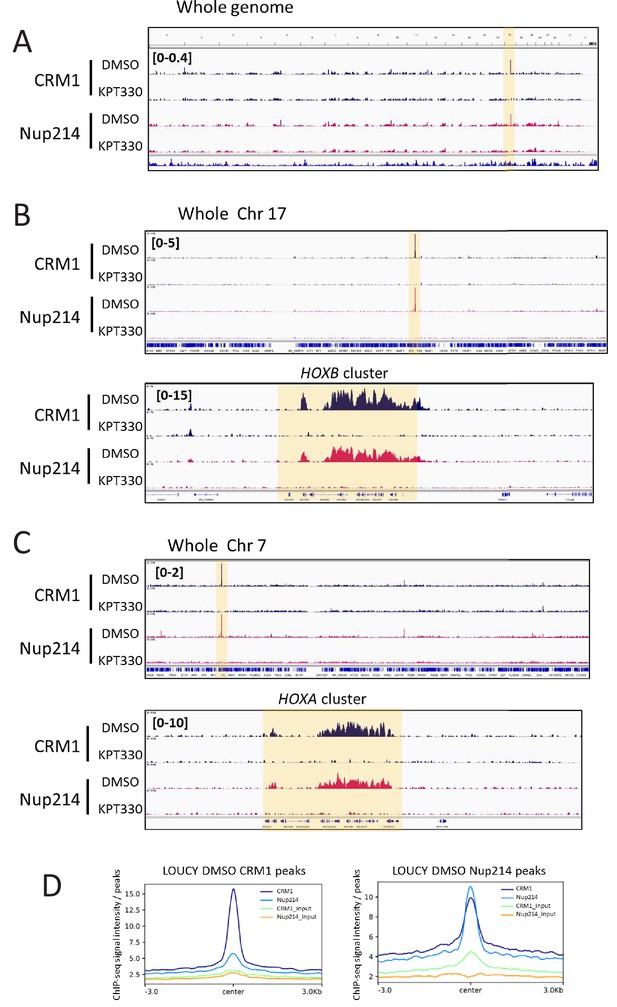

(A–C) The binding profiles of CRM1 and Nup214 in LOUCY cell line treated either in the presence of DMSO (vehicle control) or KPT-330 (1000 nM) for 24 hr. (A: whole genome, B: whole chromosome 17 and HOXB cluster, C: whole chromosome seven and HOXA cluster). (D) Aggregation plots of CRM1 and SET-Nup214 binding sites in LOUCY. Nup214 binding signals in control (DMSO-treated) cells are mapped against CRM1 binding sites (left panel), and CRM1 binding signals are mapped against Nup214 binding sites (right panel).

Figure 3 with 5 supplements see all
The expression of HOX genes in LOUCY cells are sensitive to CRM1 inhibitor KPT-330.

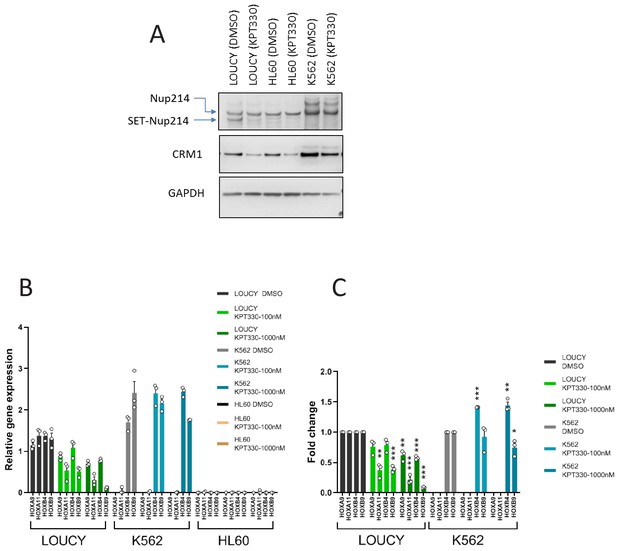

(A) Protein expression of Nup214, SET-Nup214, CRM1, and GAPDH. LOUCY, HL60, and K562 cell lines were cultured either with DMSO (vehicle control) or KPT330 (1000 nM) for 24 hr; cell lysates were prepared by boiling the cells in a sample buffer and analyzed by immunoblotting using anti-Nup214, anti-CRM1, or anti-GAPDH antibodies. (B) qPCR analysis of HOX cluster genes (HOXA9, HOXA11, HOXB4, and HOXB9) in LOUCY, K562, and HL60 cell lines treated with DMSO (vehicle control) or KPT-330 (100 nM or 1000 nM) for 24 hr. GAPDH was used as a reference gene. Data are presented as mean values ± SEM of three independent experiments (n = 3). (C) The data in (B) were reanalyzed for the ratio as compared with the value for DMSO treated samples. Data are presented as mean values ± SEM. Low expressed genes (HOXA9 and HOXA11) in K562 cells were omitted in (C). Asterisks indicate statistical significance determined by Student’s t-test; *p<0.05; **p<0.01; ***p<0.001.

CRM1 is required for the recruitment of SET-Nup214 on HOX clusters and HOX gene activation

We next examined the effect of CRM1 inhibitor, KPT-330, a selective inhibitor of nuclear export (SINE), on the accumulation of SET-Nup214 on the HOX clusters. SINEs not only inhibit the binding between CRM1 and NES substrate (Lapalombella et al., 2012Etchin et al., 2013) but also cause degradation of CRM1 (Turner et al., 2013Zhang et al., 2013Mendonca et al., 2014Tai et al., 2014) (Figure 3A). Unexpectedly, we found that SET-Nup214, but not endogenous Nup214, in LOUCY cells was also degraded by treatment with KPT-330 (Figure 3A). We detected comparable amounts of CRM1 and Nup214 proteins in HL60 cell lysates as compared with those in LOUCY cells (Figure 3A), all of which were prepared by boiling in a sample buffer. However, we noticed that both Nup214 and CRM1 were hardly detected in HL60 cell lysates when they were extracted using RIPA buffer (Figure 3—figure supplement 5A). Thus, this unexpected behavior of CRM1 in HL60 cells may explain the low CRM1 ChIP signals (Figure 3—figure supplement 5B–D). Next, we performed immunostaining with anti-Nup214 and anti-CRM1. Consistent with a previous report (Port et al., 2016), we observed distinct nuclear dots of SET-Nup214 in LOUCY cells that colocalize with CRM1 (Figure 3—figure supplement 1B). These dots were not observed in K562 and HL60 cells (Figure 3—figure supplement 1A). Furthermore, we found that the SET-Nup214 nuclear dots in LOUCY cells disappeared in the presence of KPT-330 (Figure 3—figure supplement 1C), consistent with a previous study using leptomycin B (LMB) (Port et al., 2016), another well-known CRM1 inhibitor (Kudo et al., 1998).

We next performed ChIP-seq analysis to examine the effect of KPT-330 on the accumulation of CRM1 and SET-Nup214 on the HOX clusters. We found that the robust peaks of CRM1 and Nup214 almost completely disappeared in LOUCY cells by treatment with 1000 nM of KPT-330 for 24 hr (Figure 2A–C, Figure 2—figure supplement 1). Subsequently, we monitored gene expression in these leukemia cell lines to study whether the expression of HOX genes is affected by treatment with KPT-330. Robust HOX gene activation was observed in both the K562 and LOUCY cells but not in HL60 cells (Figure 3B). Furthermore, the expression of HOX genes in the LOUCY cells was more sensitive to the KPT-330 treatment than that in K562 cells (Figure 3C).

We also examined other AML cell lines either expressing SET-Nup214 (MEGAL), or not (HEL) (Figure 3—figure supplement 2). CRM1 was similarly sensitive to KPT-330 treatment in both cell lines (Figure 3—figure supplement 2A–B). SET-Nup214 expressed in MEGAL also showed sensitivity toward KPT-330 treatment, but the effect was relatively smaller as compared with that in LOUCY cells. Gene expression analysis shows that HOXA9 genes were highly expressed in MEGAL cells, while HOXB genes were highly expressed in HEL cells (Figure 3—figure supplement 2C). As expected, HOXA genes in MEGAL cells showed sensitivity against KPT-330 treatment, even though the effect was mild as compared with that in LOUCY cells (Figure 3—figure supplement 2D). Furthermore, ChIP-qPCR revealed that both CRM1 and SET-Nup214 preferentially bound to HOXA9 region in MEGAL cells (Figure 3—figure supplement 2E–F). Therefore, the binding of CRM1/SET-Nup214 showed a correlation with gene activation in MEGAL cells, as also observed in LOUCY cells. The difference between LOUCY and MEGAL cells in the degree and region of CRM1/SET-Nup214 binding and gene activation is likely related to the fact that MEGAL cells show lower expression of SET-Nup214 than LOUCY cells (comparing the ratio of SET-Nup214/Nup214 in Figure 3—figure supplement 5A [LOUCY] and Figure 3—figure supplement 2A [MEGAL]). However, the reason for the lower sensitivity of SET-Nup214 in MEGAL cells to KPT330 remains unknown. We also detected some KPT-330-sensitive CRM1 binding signals at HOX regions in HEL cells. However, its biological significance remains to be determined.

Collectively, these results demonstrated that both in the LOUCY and MEGAL cells the recruitment of SET-Nup214 fusion to the HOX cluster regions is required for the efficient activation of, at least, some HOX genes.

Next, to know the order of recruitment of SET-Nup214 and CRM1 onto HOX clusters, we performed knockdown of SET-Nup214 in LOUCY cells. Reduction of SET-Nup214 caused down-regulation of HOX genes in agreement with a previous report (Van Vlierberghe et al., 2008), but did not significantly affect the amount of CRM1 that bound to HOX regions, suggesting that CRM1 functions as a recruiter of SET-Nup214 (Figure 3—figure supplement 3).

In addition, we performed this experiment using LMB. Unlike KPT-330, LMB irreversibly binds to CRM1 (Sun et al., 2013) and does not induce the degradation of CRM1 protein (Turner et al., 2013Mendonca et al., 2014). Interestingly, we found that SET-Nup214 was also degraded by LMB treatment (Figure 3—figure supplement 4A), as by KPT-330 treatment (Figure 3A, Figure 3—figure supplement 5A). ChIP-qPCR revealed that LMB caused significant depletion of HOX cluster-bound CRM1 and SET-Nup214, and down-regulation of HOX genes (Figure 3—figure supplement 4B–E). These results demonstrate that CRM1/Ran-GTP/NES protein complex, which shows a higher affinity toward Nup214 or SET-Nup214 than CRM1 alone (Askjaer et al., 1999Kehlenbach et al., 1999Port et al., 2016), is important for the recruitment of SET-Nup214 to HOX clusters, and its stabilization. However, it is currently unknown which NES-containing protein(s) would be co-recruited with CRM1 and SET-Nup214 on the HOX genes.

SET-Nup214 and CRM1 recruit active Pol II onto the HOX clusters

SET, which was originally identified as a fusion gene with Nup214 (also known as CAN) (von Lindern et al., 1992b), possesses a homology with the yeast nucleosome assembly protein NAP-I and stimulates the replication of adenovirus core particles (Matsumoto et al., 1993). It has been further shown that SET is a multi-functional protein involved in histone chaperoning (Kawase et al., 1996Muto et al., 2007), DNA repair (Kalousi et al., 2015), inhibition of protein phosphatase 2A (Li et al., 1996), and inhibition of histone acetyltransferase (Miyamoto et al., 2003Kutney et al., 2004).

Therefore, we next tried to investigate the mechanism by which the accumulation of SET-Nup214 triggers robust HOX gene activation. Since it has been shown that SET is essential for transcription by RNA polymerase Pol II (Pol II) in vitro (Gamble et al., 2005Gamble and Fisher, 2007), we speculated that the SET-Nup214 accumulation onto the HOX clusters may cause vigorous activation of Pol II. As expected, both phosphorylated Ser2 (S2P) and Ser5 (S5P) RNA Pol II significantly accumulated in the HOXA and HOXB clusters in both LOUCY and K562 cells, while almost no signals were observed in HL60 cells, which expressed quite low levels of HOX genes (Figure 4A). Moreover, we found that the levels of active RNA Pol II, S2P and S5P, on the HOXA and HOXB clusters were more sensitive to treatment with KPT-330 in the LOUCY cells than in K562 cells (Figure 4B). We further examined the profile of phosphorylated RNA Pol II (S2P or S5P) in LOUCY cells by ChIP-seq, and it was revealed that both S2P and S5P of the majority of HOXA and HOXB clusters were sensitive to KPT-330, while those in the surrounding regions were not affected (Figure 4C–D). Indeed, the genome-wide analysis of CRM1-bound genes revealed that both S2P and S5P of HOXA and HOXB were highly sensitive to KPT-330 (Figure 4E). Thus, these results indicate that the activation of the HOX cluster genes in LOUCY cells is highly dependent on the presence of CRM1 on the HOX clusters, suggesting that CRM1 together with SET-Nup214 creates a specific environment for robust HOX gene activation in LOUCY cells.

Figure 4 with 1 supplement see all
HOX cluster region shows CRM1-dependent activation of RNA Pol II in LOUCY cells.

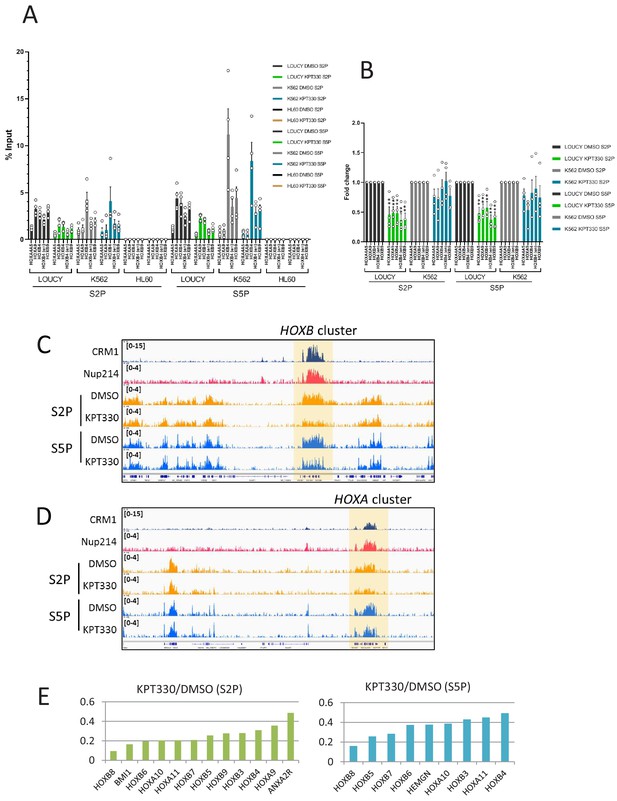

(A) ChIP-qPCR analysis of active RNA Polymerase II (Pol II) (Ser2- or Ser5-phosphorylated) at HOX gene loci in LOUCY, K562, and HL60 cell lines cultured either in the presence of DMSO (vehicle control) or KPT-330 (1000 nM) for 24 hr. The primer set used was as follows: HOXA4A5 (intergenic region between HOXA4 and HOXA5); HOXA9 (promoter); HOXB4 (promoter); HOXB4 (enhancer); HOXB9 (promoter). Data are presented as mean values ± SEM of four independent experiments (n = 4). (B) The data in (A) were reanalyzed to obtain a ratio by comparing with the value for DMSO treated samples. Data are presented as mean values ± SEM. Asterisks indicate statistical significance determined by Student’s t-test; **p<0.01. (C–D) Binding profiles of Ser2- or Ser5-phosphorylated Pol II at HOXB (C) or HOXA (D) clusters cultured either in the presence of DMSO (vehicle control) or KPT-330 (1000 nM) for 24 hr. (E) The most affected genes (among CRM1-bound genes) by the treatment with KPT-330. S2P (left panel) and S5P (right panel).

Notably, while our data show the binding of CRM1/SET-Nup214, in most of the cases, covering the whole region of HOX gene (Figure 4—figure supplement 1), the gene expression/active RNA Pol II shows differential sensitivity against KPT-330 among the HOX cluster regions. We speculate that, since various chromatin-bound proteins that are not evenly positioned are known to exist at HOX regions, these proteins could either positively or negatively affect SET-Nup214/CRM1-mediated HOX gene activation. As a result, some HOX genes, such as HOXA11 and HOXB9, may be highly dependent on SET-Nup214/CRM1 for their activation [as observed in LOUCY cells (Figure 3B–C), but not in MEGAL cells (Figure 3—figure supplement 2C–D)], while others, such as HOXA9 and HOXB4, may not.

The interaction between nucleoporin and nuclear transport receptor is important for active nuclear transport processes. The interactions between Nup98-CRM1 and Nup214-CRM1 have also been implicated during nuclear transport process (Bogerd et al., 1998Radu et al., 1995Powers et al., 1997Oka et al., 2010Takeda et al., 2010Hutten and Kehlenbach, 2006Bernad et al., 2006Port et al., 2015Roloff et al., 2013Saito et al., 2016). However, our results suggest that ectopic interaction between these nucleoporins and CRM1 on the genomic DNA could trigger abnormal gene regulation.

NPM1 mutant is also targeted to HOX cluster region in a CRM1-dependent manner

Our results so far indicate that CRM1 is important for the regulation of HOX genes. CRM1 is a nuclear export factor that binds to both nucleoporin and NES-containing substrates, suggesting that NES-containing proteins could be recruited to HOX clusters to regulate HOX genes. Certainly, a previous study suggested that CALM-AF10, an NES-containing fusion protein found in immature acute myeloid and T-lymphoid malignancies, could be recruited to CRM1 (bound to transcription start site of HOXA9 and HOXA10) in an NES-dependent manner (Conway et al., 2015). The same scenario could be observed in leukemia cells expressing the NPM1 mutant NPM1c, which contains a novel NES at its C-terminus and is the most frequent mutation in normal karyotype AML (Falini et al., 2005Verhaak et al., 2005). It is important to note that NPM1c-expressing leukemia is known to be associated with robust HOX gene activation (Alcalay et al., 2005Mullighan et al., 2007Spencer et al., 2015). Furthermore, it has been shown that the abrogation of NES of NPM1c in OCI-AML3, an AML cell line that expresses NPM1c, causes a robust downregulation of HOX gene expression (Brunetti et al., 2018). Thus, it is most likely that NPM1c can bind to chromatin-bound CRM1 via its NES (NES-CRM1 interaction) like Nup98- or Nup214-fusions, although Nup98 and Nup214 bind to CRM1 via their FG repeats (nucleoporin-CRM1 interaction).

We next examined whether NPM1c binds to the HOX cluster regions using OCI-AML3 cells. We performed ChIP-seq analysis using an antibody specific for NPM1c. Specificity of anti-NPM1c antibody was confirmed using stable cell lines expressing FLAG-tagged NPM1 or NPM1c (Figure 5A). We found that NPM1c robustly accumulated in HOXA and HOXB cluster regions (Figure 5B). We also found that, in OCI-AML3, CRM1 bound to both the HOXA and HOXB clusters, in a similar fashion as that to NPM1c (Figure 5B). Aggregation plots revealed moderate enrichment of NPM1c around CRM1 binding sites (Figure 5C). This relatively low enrichment as compared with that of SET-Nup214 suggested that NPM1c could also bind to various genomic regions, independent of CRM1.

Figure 5 with 3 supplements see all

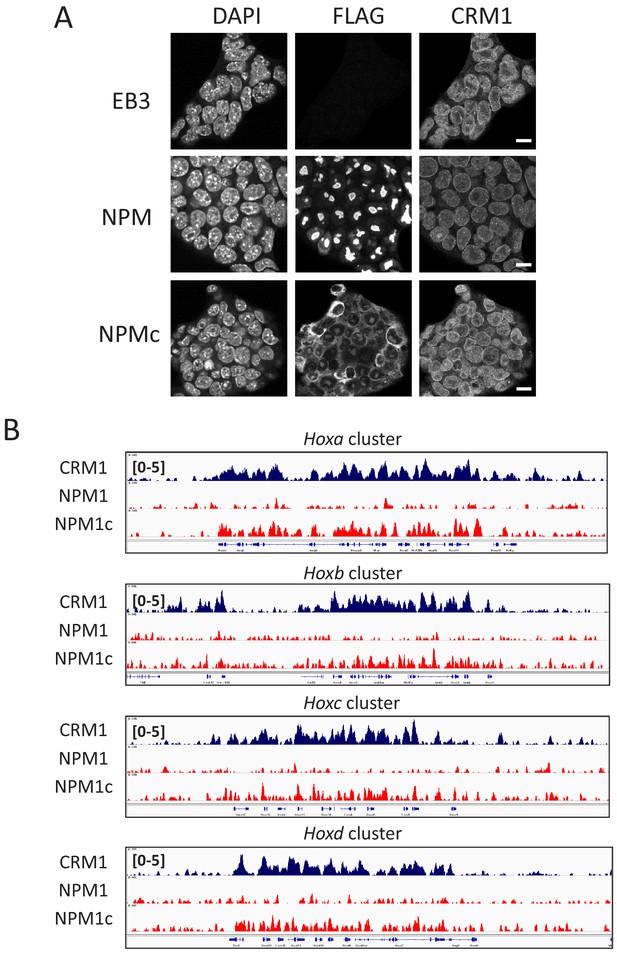

NPM1 mutant NPM1c accumulated onto HOX clusters together with CRM1.

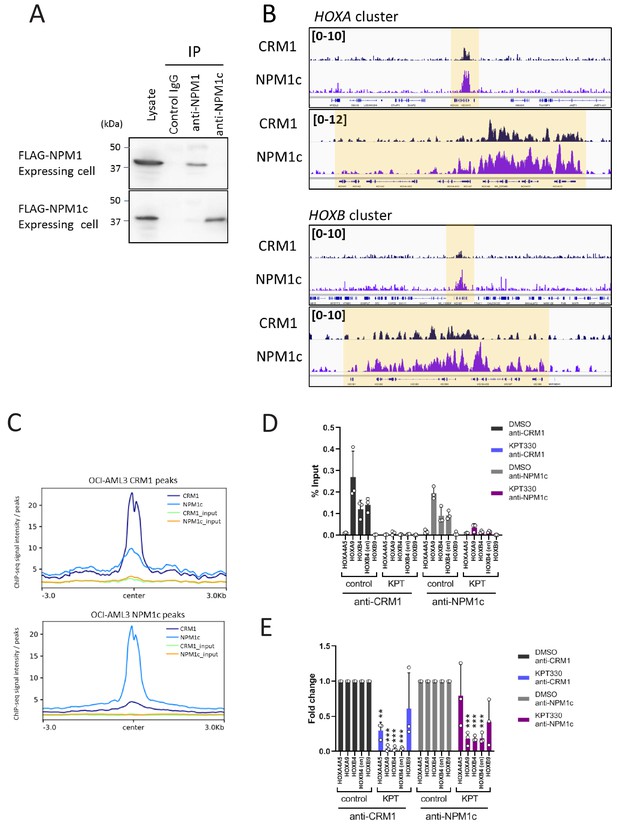

(A) The specificity of anti-NPM1c or anti-NPM1 antibodies was demonstrated by immunoprecipitation. Cell lysates from mouse ES cells stably expressing either FLAG-NPM1 or FLAG-NPM1c were used for immunoprecipitation using indicated antibodies and analyzed by immunoblotting using anti-FLAG antibody. (B) Binding profiles of CRM1 and NPM1c in OCI-AML3 cell line (HOXA and HOXB clusters). ChIP-seq was performed using anti-CRM1 or anti-NPM1c antibodies. (C) Aggregation plots of CRM1 and NPM1c binding sites in OCI-AML3 cells. NPM1c binding signals in control (DMSO-treated) cells are mapped against CRM1 binding sites (top), and CRM1 binding signals of DMSO-treated cells are mapped against NPM1c binding signals (bottom). (D) ChIP-qPCR analysis of CRM1 and NPM1c at HOX gene loci in OCI-AML3 cells cultured either in the presence of DMSO (vehicle control) or KPT-330 (100 nM) for 24 hr. The primer set used was as follows: HOXA4A5 (intergenic region between HOXA4 and HOXA5); HOXA9 (promoter); HOXB4 (promoter); HOXB4 (enhancer); HOXB9 (promoter). Data are presented as mean values ± SEM of three independent experiments (n = 3). (E) The data in (D) were reanalyzed to obtain a ratio by comparing with the value for DMSO-treated samples. Data are presented as mean values ± SEM of three independent experiments (n = 3). Asterisks indicate statistical significance determined by Student’s t-test; **p<0.01; ***p<0.001.

In agreement with a previous study (Brunetti et al., 2018), the expression of HOX genes was sensitive to KPT-330 in OCI-AML3 cells (Figure 5—figure supplement 1B–C). Furthermore, treatment with KPT-330, which reduced the protein level of CRM1 but not that of NPM1c (Figure 5—figure supplement 1A), caused significant reduction of both CRM1 and NPM1c bound to chromatin on HOX cluster genes (Figure 5D and E). In addition, both S2P and S5P forms of active Pol II showed significant sensitivity toward KPT330 treatment, as observed in SET-Nup214 expressing LOUCY cells (Figure 5—figure supplement 2). The robust signal of active Pol II was observed at HOXA9 region, which correlated well with CRM1 and NPM1c binding (Figure 5D). Furthermore, previous RNA-seq data and ChIP-seq data of active histone marks in OCI-AML3 cells (Brunetti et al., 2018) correlated well with the binding pattern of CRM1/NPM1c (Figure 5—figure supplement 3). Especially, the binding signals of NPM1c/CRM1 and active histone marks were enriched in posterior (AbdB-related) HOX genes in the HOXA cluster (HOXA9 to HOXA13). Collectively, NPM1c is most likely involved in the activation of Pol II together with CRM1 in OCI-AML3.

These results demonstrate that NPM1c and CRM1 co-accumulate onto the HOX cluster regions to activate genes in OCI-AML3 cells.

To further examine whether NPM1c could be recruited to chromatin-bound CRM1, we next utilized mouse embryonic-stem (ES) cell lines. Our previous study demonstrated that CRM1 robustly accumulates in all four Hox cluster regions (HoxA, HoxB, HoxC, and HoxD) in mouse ES cells (Oka et al., 2016). In contrast, in this study, our data showed that CRM1 binds to only two HOX cluster regions (HOXA and HOXB) in OCI-AML3 cells (Figure 5B). Therefore, NPM1c could be recruited to the four Hox cluster regions in ES cells if it could be recruited by chromatin-bound CRM1.

In a previous study, we used polyclonal anti-CRM1 antibody for ChIP-seq to determine genome-wide binding sites of CRM1 (Oka et al., 2016). Therefore, to further confirm the binding of CRM1 to the Hox cluster regions, we established an ES cell line expressing FLAG-tagged endogenous CRM1. By using Crisper/Cas9–mediated gene editing, we successfully introduced a monoallelic insertion to express C-terminal FLAG-tagged CRM1 (Clone#2–34; Figure 6A–C). ChIP-sequencing analysis with anti-FLAG antibody revealed high peaks of signals on the four Hox cluster regions, similar to those of the CRM1 binding profile using polyclonal anti-CRM1 antibody (Figure 6D, Figure 6—figure supplement 1), confirming that CRM1 actually is associated with these regions of chromatin in mouse ES cells.

Figure 6 with 1 supplement see all

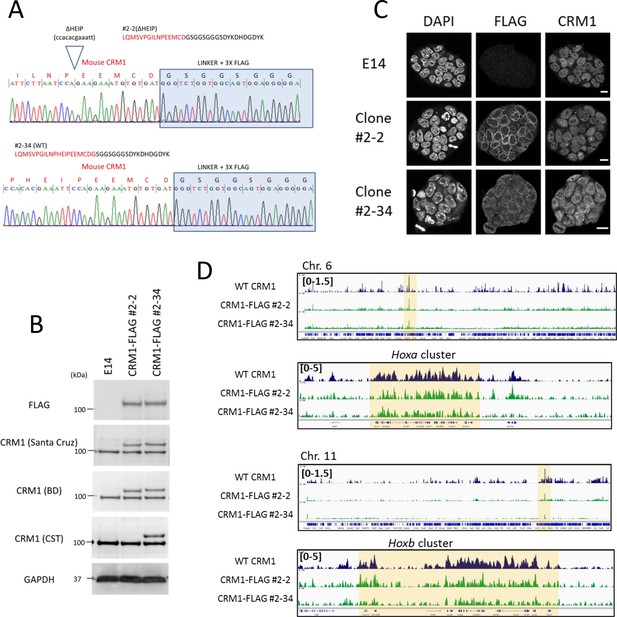

Characterization of the cell lines that express C-terminal FLAG-tagged endogenous CRM1 generated by genome editing.

(A) Genome sequence analysis of FLAG-tag knocked-in cells (ΔHEIP [clone#2–2] or WT [clone#2–34; no deletion]). (B) Immunoblotting analysis of cell lines using anti-FLAG, anti-CRM1, or anti-GAPDH antibodies. (C) Immunofluorescent analysis of cell lines using anti-FLAG and anti-CRM1 antibodies. Scale bars: 10μm. (D) ChIP-seq analysis of cell lines using anti-CRM1 (EB3; E14 derived ES; dark blue) or anti-FLAG antibody (FLAG-knocked-in ES cells; #2-2[ΔHEIP] or #2–34 [no deletion]). Whole chromosome six and HoxA cluster regions, or whole chromosome 11 and HoxB cluster regions are shown.

During characterization of the gene-edited cell lines, we noticed that there was a clone (#2–2) containing a four amino acids deletion (ΔHEIP) at the C-terminus of CRM1, a region which has been shown to be important for autoinhibition (Dong et al., 2009Saito and Matsuura, 2013Fox et al., 2011) (Figure 6A–C). Immunoblotting with anti-CRM1 (CST; #46249), which was raised against the C-terminus of human CRM1, only detected CRM1-FLAG protein in #2–34 cells, while anti-CRM1 (Santa Cruz; H-300; raised against a. a. 772–1071 region of human CRM1) or anti-CRM1 (BD; #611832; raised against a. a. 2–122 region of human CRM1) detected the CRM1-FLAG protein in both #2–2 and #2–34, confirming the deletion of the C-terminus of CRM1 in clone #2–2 (Figure 6B).

We found that this ΔHEIP mutant (clone #2–2) showed a somewhat enhanced binding to nuclear envelope compared to that of a clone without deletion (clone #2–34) (Figure 6C). ChIP-seq analysis using FLAG antibody demonstrated that ΔHEIP mutant also preferentially bound to four Hox cluster regions (Figure 6D, Figure 6—figure supplement 1). Together, these results confirm that CRM1 indeed bound to the Hox cluster regions in ES cells.

Next, ES cell lines that ectopically express FLAG-tagged NPM1c or, as a control, wild-type NPM1, were established (Figure 7A). As expected, we observed a robust accumulation of NPM1c, but not wild-type NPM1, in all four Hox cluster regions (Figure 7B). These results clearly indicate that NPM1c is targeted to the HOX clusters in a NES-CRM1 interaction–dependent manner in the nucleus. However, gene expression analysis revealed that NPM1c could not activate Hox gene in ES cells (data not shown). We speculate that Hox cluster region in ES cells may possess a different chromatin structure or epigenetic status as compared with that of OCI-AML3 cells and may be difficult to be activated solely by the ectopic expression of NPM1c. Further study will be needed to determine the exact mechanism of gene activation by NPM1c.

NPM1c binds to four Hox cluster regions in mouse ES cells.

(A) Immunofluorescent analysis of stable cell lines (EB3 parental ES cells, FLAG-NPM1 expressing ES cells, or FLAG-NPM1c expressing ES cells) using anti-FLAG or anti-CRM1 antibody. Scale bars: 10μm. (B) ChIP-seq analysis of cell lines indicated using anti-FLAG antibody. All four Hox cluster regions (HoxA, HoxB, HoxC, and HoxD) are shown. (Top) dark blue, anti-CRM1 ChIP signal; (middle) red, anti-FLAG ChIP signal for FLAG-NPM1 expressing ES cells; (bottom) red, anti-FLAG ChIP signal for FLAG-NPM1c expressing ES cells.

Collectively these results demonstrate that CRM1 creates a platform on the HOX cluster regions to recruit the leukemogenic proteins, either via nucleoporin-CRM1 (Nup98- or Nup214-fusions to CRM1) interaction or NES-CRM1 (NPM1c to CRM1) interaction, to induce aberrant expression of HOX genes (Figure 8).

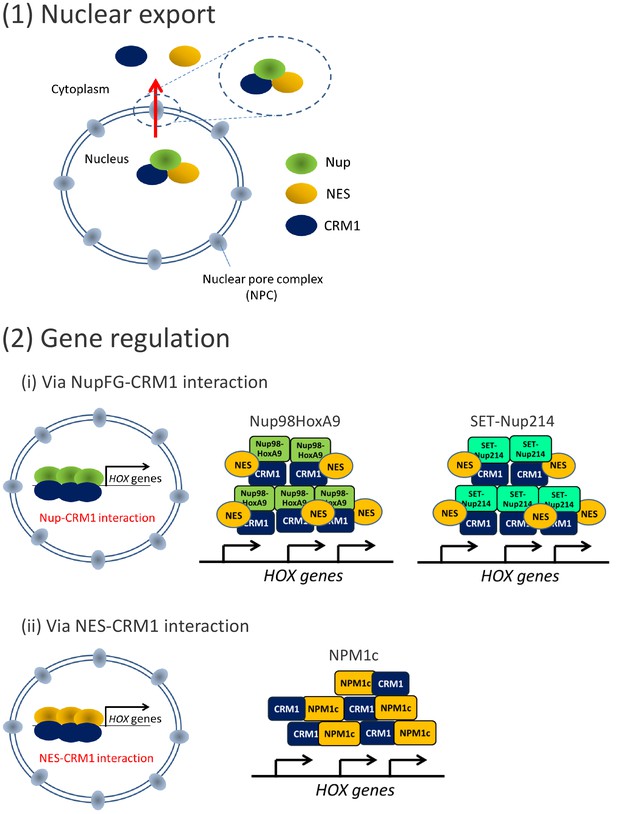

CRM1 functions as a platform to recruit leukemogenic proteins to HOX cluster regions.

CRM1 possesses two distinct functions: (1) Nuclear export of NES-cargo proteins, and (2) gene regulation. Leukemogenic proteins co-localize with CRM1 at HOX cluster regions either via (i) CRM1-nucleoporin (FG) interaction (Nup98HoxA9 and SET-Nup214) or (ii) CRM1-NES interaction (NPM1c). Note that both the binding of these leukemogenic proteins to HOX cluster(s) and HOX gene expression are dependent on CRM1. In the case of Nup98HoxA9 and SET-Nup214, the NES-containing protein(s) is/are most likely involved in the complex.

Recently, it has been elegantly shown that HOX genes are not indirectly activated by NPM1c but that NPM1c more directly causes the upregulation of HOX genes for the maintenance of a stem cell–like state (Brunetti et al., 2018). That is, the inactivation of NES or degradation of NPM1c causes a rapid downregulation of specific subsets of genes important for leukemogenesis, including HOXA9, HOXA11, HOXB3, HOXB8, MEIS1, and CDKN2C (Brunetti et al., 2018), although the mechanism by which NPM1c activates HOX genes remains unknown. Consistently, in this study, we found that NPM1c is targeted to the HOX cluster regions, showing the direct contribution of NPM1c on HOX gene activation.

Our observation that NPM1c binds to the HOX cluster regions seems to be clinically significant. Ongoing therapeutic strategies that target the function of CRM1 are focused on the inhibition of the nuclear export process of disease-related NES-containing cargoes, including tumor suppressor proteins. However, it should be taken into consideration that the export of various NES-containing cargoes, essential for normal cells to survive, may be also affected by such strategy, since it has been demonstrated that CRM1 binds to and exports a diverse set of proteins involved in various essential cellular processes (Kirli et al., 2015Thakar et al., 2013). Thus, our results imply the possibility that chromatin-bound CRM1 could be another therapeutic target in leukemia with high expression of HOX genes in a CRM1-dependent manner, although it still remains to be known as to how and why CRM1 accumulates in the HOX cluster regions, and the chromatin-bound CRM1 may play other physiological roles in normal cells.

In conclusion, we have now demonstrated that three representative leukemogenic proteins, Nup98-fusion, Nup214-fusion, and NPM1 mutant, are recruited to HOX cluster regions through their interaction with CRM1, pre-bound to the HOX cluster regions, to specifically activate HOX genes.

Materials and methods

Cell lines and cell culture

Request a detailed protocol

Leukemia cell lines, LOUCY, MEGAL, and OCI-AML3 were purchased from DSMZ (Braunschweig, Germany). K562, HL60, and HEL cells were obtained from JCRB cell bank (Ibaraki, Osaka). These cell lines were authenticated using STR typing by DSMZ or JCRB cell bank, and also the mycoplasma status was checked by them. LOUCY, MEGAL, and HL60 cells were cultured in RPMI1640 medium (Sigma) supplemented with 20% FBS (Sigma). K562 and HEL cells were cultured in RPMI1640 medium supplemented with 10% FBS. OCI-AML3 was cultured in alpha-MEM medium (WAKO) supplemented with 20% FBS. EB3 ES cells (Niwa et al., 2002Ogawa et al., 2004), E14tg2a ES cells (Hooper et al., 1987) and their derivatives, and HeLa cells were cultured as described previously (Oka et al., 2016).

IP-immunoblotting

Request a detailed protocol

To ensure the specificity of anti-NPM1c antibody, we performed IP-immunoblotting. Briefly, mouse ES cells stably expressing FLAG-tagged NPM1 or NPM1c were resuspended in RIPA buffer [50 mM Tris-Cl pH 8.0, 150 mM NaCl, 1% NP40, 0.5% Na-deoxycholate, 0.1% SDS, 1 mM EDTA, protease inhibitor cocktail (cOmplete ULTRA; Roche)], and sonicated. After centrifuging at 20,400 × g for 10 min at 4°C, 1 µg of antibody was added to the cell lysate and incubated overnight. Later, 20 µl of Protein G Sepharose beads (GE Healthcare) were added and the samples incubated for 1 hr at 4°C. After washing with RIPA buffer five times, the bound proteins were eluted in sample buffer for 5 min at 95°C. Finally, immunoblotting with anti-NPM1 or anti-NPM1c antibody was performed.

Plasmids, transfection, and generation of stable clones

Request a detailed protocol

Generation of stable ES cell lines expressing a transgene using Tol2 transposon vector (Kawakami and Noda, 2004Urasaki et al., 2006) was performed as described previously (Oka et al., 2013). Picked colonies were expanded to confirm the expression of the transgene by immunoblotting and immunofluorescence staining. cDNA encoding for human NPM1 was PCR amplified using a cDNA library prepared from HeLa cells. An NPM1 mutant, NPM1c, was created via PCR using long primer coding mutant sequences. Either the wild-type NPM1 or NPM1c was cloned into BamHI-NotI site of pT2A-CMH-FLAGx3 (Oka et al., 2013).

ES3 cells were co-transfected with the plasmids pCAGGS-m2TP (an expression vector for Tol2 transposase) and pT2A-CMH-FLAGx3-NPM1 or pT2A-CMH-FLAGx3-NPM1c using lipofectamine 2000 (Life Technologies). After 2 days, cells were re-plated onto the ES-LIF medium containing hygromycin B (200 µg/ml). Colonies were picked and examined for the expression of FLAG-NPM1 or FLAG-NPM1c by immunoblotting and immunofluorescence staining.

Immunofluorescence staining and confocal microscopy

Request a detailed protocol

For leukemia cell lines, cells were transferred to Eppendorf tubes and fixed in a medium containing 3.7% formaldehyde for 15 min at room temperature. Cells were collected by centrifuge at 800 × g for 5 min at room temperature. After a wash with PBS, cells were permeabilized with 0.5% Triton X-100 in PBS for 5 min at room temperature. Cell were washed in PBS and incubated with blocking buffer (3% skim milk in PBS) for 30 min with rotation. Afterwards, cells were incubated with primary antibodies overnight at 4°C with rotation. After washing three times with PBS, cells were incubated with secondary antibodies for 30 min. Cells were washed with PBS twice and stained with DAPI in PBS for 10 min at room temperature. Cells were collected as a pellet, resuspended in ProLong Gold (Thermo Fischer Scientific), and mounted. Images were acquired using an SP8 confocal microscope (Leica).

ES cells were grown on coverslips and fixed in a medium containing 3.7% formaldehyde for 15 min at room temperature. After treatment with 0.5% Triton X-100 in PBS for 5 min, the cells were incubated in a blocking buffer (3% skim milk in PBS) for 30 min. Next, cells were incubated with primary antibodies overnight at 4°C. After washing with PBS four times, cells were incubated with secondary antibodies for 30 min. Next, the cells were washed with PBS four times, stained with DAPI for 10 min at room temperature, and the coverslips were mounted with ProLong Gold (Thermo Fischer Scientific). Images were acquired using the SP8 confocal microscope (Leica).

Immunoblotting

Request a detailed protocol

Cells were collected by centrifugation and RIPA buffer containing a protease inhibitor cocktail (cOmplete ULTRA, Roche) was added. Cells were then vortexed, and incubated on ice for 30 min. After centrifugation at 20,400 × g for 10 min, supernatant was collected. Protein concentration of each sample was measured by BCA protein assay kit (Pierce). In Figure 3A, sample buffer was directly added to the cell pellet and boiled for 10 min. After separation of proteins (15 µg in Figure 3A—figure supplement 5, 10 µg in other Figures) on SDS-PAGE gels, proteins were transferred to a polyvinylidene fluoride membrane (Immobilon-P; Millipore) and probed using mouse anti-FLAG M2 (Sigma), anti-CRM1 (CST, SnataCruz, or BD), anti-Nup214 (Bethyl), or anti-GAPDH (MBL) antibody. Later, the membrane was incubated with secondary antibody. Signals were detected by Chemi-Lumi One Super (Nacalai).

qPCR

Request a detailed protocol

Total RNA was extracted from cells using ReliaPrep RNA Miniprep Systems (Promega) and used for cDNA synthesis with the PrimeScript RT reagent Kit (Takara Bio). All procedures were conducted according to the manufacturer's recommendations. qPCR analysis was performed on a 384-well plate with QuantStudio 6 Flex Real-Time PCR System (Life Technologies) using GeneAce SYBR qPCR Mix (Nippon gene). Relative gene expression levels were normalized using GAPDH mRNA levels as control. The primer sequences are listed in Supplementary file 1.

ChIP analysis

Request a detailed protocol

Leukemia cells were fixed in a medium containing 0.5% formaldehyde at room temperature for 5 min. Cells were collected by centrifuge at 800 × g for 5 min at room temperature. After washing with ice-cold PBS twice, cells were resuspended in the ChIP buffer (10 mM Tris-HCl pH 8.0, 200 mM KC), 1 mM CaCl2, 0.5% NP40) containing protease inhibitors (2 μg/ml aprotinin, 2 μg/ml leupeptin, and 1 μg/ml pepstatin A) and briefly sonicated (Branson 250D Sonifier, Branson Ultrasonics). After centrifugation, the supernatants containing chromatin were digested with 1 U/ml micrococcal nuclease (Worthington Biochemical) for 40 min at 37°C, and the reaction was stopped with ethylene diamine tetraacetic acid (EDTA; final concentration of 10 mM). Enzyme-treated supernatants were incubated with anti-mouse or anti-rabbit IgG magnetic beads (Dynabeads, Life Technologies) preincubated with anti-FLAG M2 (Sigma), anti-CRM1 (CST or Bethyl lab), anti-Nup214 (Bethyl lab), anti-NPM1c (Thermo Scientific), or anti-Pol II (S2P), anti-Pol II (S5P) (Odawara et al., 2011) antibodies (2 µL) for 6 hr. [For Pol II ChIP, we first incubated the beads with rabbit anti-Rat IgG antibody (Jackson Immuno Research, West Grove, PA) before its incubation with phospho-specific Pol II antibodies.] The beads were washed twice thoroughly with each of the following buffers: ChIP buffer, ChIP wash buffer (10 mM Tris-HCl pH 8.0, 500 mM KCl, 1 mM CaCl2, 0.5% NP40), and TE buffer (10 mM Tris-HCl pH 8.0, 1 mM EDTA), and eluted in an elution buffer containing 50 mM Tris-HCl pH 8.0, 10 mM EDTA, and 1% sodium dodecyl sulfate overnight at 65°C. DNA was recovered using a DNA gel extraction kit (Promega) and was used for ChIP-qPCR analysis or preparation of library for ChIP-seq analysis.

ChIP-seq and data analysis

Request a detailed protocol

The ChIP library was prepared using ThruPLEX DNA-seq kit (Takara Bio) according to the manufacturers’ instructions and sequenced on the Illumina HiSeq1500 system. The sequence reads were uniquely aligned accordingly to the reference mouse genome (GRCm38) and human genome (GRCh38) using the HISAT software (version 2.1.0; Kim et al., 2015) with duplicates removed. For the ChIP-seq signal visualization for each sample, read counts in 100 bp bins smoothed over 100 bp windows were normalized by reads per kilobase per million (RPKM) using the bamCoverage program from the deepTools suite (version 3.1.3; Ramírez et al., 2014); bamCompare was used to subtract the corresponding input signal from the ChIP signal. Peaks were called with the software MACS wherein default parameters were employed for those samples involving S2P/S5P and cutoff was set at p<0.001 for the rest of the samples.

CRISPR/Cas9 mediated C-terminus FLAG tagging of endogenous CRM1

Request a detailed protocol

The generation of cells containing C-terminus FLAG tagged endogenous CRM1 was performed as described (Schmid-Burgk et al., 2016). Briefly, E14 ES cells were transfected with pX330 containing an sgRNA targeting the C-terminus region of mouse CRM1 (target: 5′-ATTTCTTCTGGAATTTCGTGTGG-3′), together with pCAS9-mCherry (frame +0) and pCRISPAINT-3xFLAG-PuroR-mXPO1 (a scarless donor plasmid), using lipofectamine 2000. Two days after transfection, the cells were passaged into media containing puromycin (300 ng/ml). Among the growing colonies, a total of 36 colonies were picked, expanded, and examined for the expression of the transgene by immunoblotting and immunofluorescence analysis. Finally, correct in-frame insertion of FLAG (x3) was confirmed by sequence analysis.

Knockdown of SET-Nup214 gene

Request a detailed protocol

LOUCY cells (1 × 107 cells) were transfected with 4 µM of SET siRNA (5′-ATGGAAATCTGGAAAGGAT-3′) (Anazawa et al., 2005) or negative control siRNA [Universal Negative Control siRNA (Nippon gene)] by nucleofection (Lonza) using reagent V and the X-001 program. Cells were plated on 100 mm dish using RPMI 1640 medium supplemented with 20% FBS for the indicated period and used for immunoblotting and ChIP-qPCR.

Accession numbers

Request a detailed protocol

The ChIP-Seq data are accessible through GEO Series accession number GSE127983.

Statistical analysis

Request a detailed protocol

Statistical analyses were performed using an unpaired Student’s two-sided t-test. Correction for multiple-comparisons was performed using the Holm-Sidak method. GraphPad Prism version eight was used for data analysis and representation.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Inhibition of human immunodeficiency virus rev and human T-cell leukemia virus rex function, but not Mason-Pfizer monkey virus constitutive transport element activity, by a mutant human nucleoporin targeted to Crm1
    1. HP Bogerd
    2. A Echarri
    3. TM Ross
    4. BR Cullen
    (1998)
    Journal of Virology 72:8627–8635.
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Template activating factor I, a novel host factor required to stimulate the adenovirus core DNA replication
    1. K Matsumoto
    2. K Nagata
    3. M Ui
    4. F Hanaoka
    (1993)
    The Journal of Biological Chemistry 268:10582–10587.
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95

Decision letter

  1. Karsten Weis
    Reviewing Editor; ETH Zurich, Switzerland
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Valerie Doye
    Reviewer; Institut Jacques Monod, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Chromatin-bound CRM1 promotes recruitment of SET-Nup214 and NPM1c onto HOX clusters causing aberrant HOX expression" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and James Manley as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Valerie Doye (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This paper addresses the role of Crm1 in HoxA and HoxB activation in leukemic cells. The authors propose that chromatin-bound Crm1 functions as a platform to recruit a broad range of leukemic proteins. While the paper is potentially interesting to a broad audience, an important unanswered question is how CRM1 is recruited to HOXA and B loci. Does this depend on SET-Nup214 or NPM1c or not, and are these factors recruited in a cooperative fashion? This issue needs to be addressed (e.g., biochemically or with mutational studies) before the paper is suitable for publication in eLife.

Major comments:

1) What is the order of recruitment of Crm1 and SET-Nup214 or NPM1c?

Average CRM1 binding is very low in NPM1c peaks (Figure 5B and C), suggesting that NPM1c may often bind chromatin independently of CRM. CRM1 is extremely high in LOUCY HOX loci (Figure 1,2) were also SET-Nup214 is very high. Because SET is known to bind chromatin, SET-Nup214 may be the recruiter of CRM1 in this case. Importantly, the KPT-330 sensitivity does not discriminate between dependencies. The CRM1/NUP214 interaction in vitro is less sensitive to leptomycin B than the CRM1/NES interaction (e.g. Askjaer et al., 1999). However, the interactions within a chromatin complex may be more sensitive to overall CRM1 structure. Furthermore, the authors need to evaluate the effect of KPT330 on the total protein levels of CRM1 and NPM1 in the OC1-AML cells, before concluding on the impact of this drug on chromatin recruitment as changes in protein levels may explain the altered recruitment.

Additional experiments need to be added to address this important question. For example, the authors could specifically deplete SET-Nup214 from the LOUCY cells and assess its impact on CRM1 recruitment (by Chip-PCR) at a few specific loci.

2) Currently, the direct contribution of NPM1c on HOX gene activation has not been demonstrated and remains a correlation only.

The authors should determine the functional consequences of NPM1c (or NPM1 as control) overexpression on Hox gene expression and mESC differentiation similar to the experiments for Nup98-HoxA9 overexpression in the previous paper.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Chromatin-bound CRM1 recruits SET-Nup214 and NPM1c onto HOX clusters causing aberrant HOX expression in leukemia cells" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and James Manley as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Valerie Doye (Reviewer #1); Maarten Fornerod (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The reviewers agree that in the revised version of the manuscript, the authors have performed several critical experiments that now answer to most of the points that were raised in the previous review. Thus, the paper is in principle suitable for publication; however, there are a number of points that the authors should address prior to acceptance.

Essential revisions:

1) Paragraph three in subsection “CRM1 is required for the recruitment of SET-Nup214 on HOX clusters and HOX gene activation”

To explain the milder sensitivity towards KPT-330 of MEGAL cells as compared to LOUCY cells for CRM1/SET-Nup214 binding and Hox gene activation, the authors indicate that "this is likely related to the fact that MEGAL cells show lower expression of SET-Nup214 than LOUCY" and refer for that to the paper from Port et al., 2016 in which unfortunately, the data were not shown (only the lower% of cells with foci was shown in that paper). Yet, the number of foci in the LOUCY and MEGAL cell lines may not be related to the expression level of the protein).

In contrast, comparing the two distinct blots provided in this study (Figure 3B for LOUCY and Figure 3—figure supplement 2A for MEGAL), it seems that the relative proteins levels of SET-Nup214 and NUP214 is 1:1 in LOUCY cells, but rather 2:1 or more in MEGAL cells, suggesting (assuming that the levels of endogenous Nup214 are comparable in both cell lines) that SET-Nup214 might be MORE abundant in the MEGAL cells.

Could the lower sensitivity of the MEGAL cells to KPT330 be due to an increased level of the fusion protein that would be less efficiently destabilized by the KPT330 treatment?

2) Paragraph five of subsection “CRM1 is required for the recruitment of SET-Nup214 on HOX clusters and HOX gene activation”: (and Figure 3—figure supplement 3) what about the impact of SET depletion on of HOX gene expression?

Why did the authors not complete the study of CRM1/Nup214 recruitment by the analysis of HOX gene expression? (Possibly because this was previously published? Or not required clearly enough in the previous review?). Was the result not expected?

3) In the same paragraph regarding the interpretation of the LMB experiment

"These results demonstrate that CRM1/Ran-GTP-/NES protein complex, which shows a higher affinity towards Nup214 and SET-Nup214 than CRM1 alone (ref to previous publications), is important for the recruitment of SET-Nup214 to HOX clusters, and its stabilization".

Here, this new experiment with LMB raises the question of which NES-containing protein(s) would be co-recruited along with CRM1 and SET-Nup214 on the HOX genes. Could the author clarify this paragraph? Also, the model in Figure 8 might take these aspects into account.

4) Regarding Figure 2A:

Was the western blot in Figure 2A (extracts in RIPA buffer) repeated in enough distinct experiments to ensure that the lower levels of Nup214 upon KPT-330 treatment in K562 cells are not an artifact of a specific experiment?

If not, best would be to remove this blot (that is not critical) and only show the total cell extract from Figure 2B. On the other hand, if Nup214 properties (extraction or stability) are specifically altered in K562 cells upon KPT330, this should be clearly stated in the text.

https://doi.org/10.7554/eLife.46667.sa1

Author response

Major comments:

1) What is the order of recruitment of Crm1 and SET-Nup214 or NPM1c?

Average CRM1 binding is very low in NPM1c peaks (Figure 5B and C), suggesting that NPM1c may often bind chromatin independently of CRM. CRM1 is extremely high in LOUCY HOX loci (Figure 1,2) were also SET-Nup214 is very high. Because SET is known to bind chromatin, SET-Nup214 may be the recruiter of CRM1 in this case. Importantly, the KPT-330 sensitivity does not discriminate between dependencies. The CRM1/NUP214 interaction in vitro is less sensitive to leptomycin B than the CRM1/NES interaction (e.g. Askjaer et al., 1999). However, the interactions within a chromatin complex may be more sensitive to overall CRM1 structure. Furthermore, the authors need to evaluate the effect of KPT330 on the total protein levels of CRM1 and NPM1 in the OC1-AML cells, before concluding on the impact of this drug on chromatin recruitment as changes in protein levels may explain the altered recruitment.

Additional experiments need to be added to address this important question. For example, the authors could specifically deplete SET-Nup214 from the LOUCY cells and assess its impact on CRM1 recruitment (by Chip-PCR) at a few specific loci.

We thank the reviewer for the suggestion. First, we performed western blotting using cell lysates from OCI-AML3 cells to evaluate the effect of KPT330 on the protein levels of CRM1 and NPM1c. As shown in Figure 5—figure supplement 1, our results showing that KPT330 caused a significant reduction of CRM1 protein, while the effect on NPM1c was subtler. Therefore, CRM1 most likely is a key molecule to recruit NPM1c to HOX cluster regions in OCI-AML3 cells. Our experiment using ES cells (Figure 7) also supports this hypothesis by showing that ectopically expressed NPM1c is targeted to HOX cluster regions, where the endogenous CRM1 already accumulates.

Next, we performed knockdown of SET-Nup214 to see whether it affects the binding of CRM1 to HOX clusters. Our ChIP-qPCR analysis demonstrated that the knockdown of SET-Nup214 did not significantly affect the CRM1 level bound at HOX cluster regions (Figure 3—figure supplement 3). This result suggests that CRM1 functions as a recruiter of SET-Nup214, as in the case of NPM1c.

In addition, we performed an experiment using leptomycin B (LMB), another well-known CRM1 inhibitor (Kudo et al., 1998). Unlike KPT330, LMB irreversibly binds to CRM1 (Sun et al., 2013) and does not induce the degradation of CRM1 protein (Turner et al., 2013)(Mendonca et al., 2014). Interestingly, we found that SET-Nup214 is also degraded by LMB treatment, as observed by KPT330 treatment (Figure 3—figure supplement 4). ChIP-qPCR revealed that LMB caused significant depletion of HOX cluster-bound CRM1 and SET-Nup214, and also exhibited down-regulation of HOX genes (Figure 3—figure supplement 4). These results demonstrate that the CRM1/Ran-GTP/NES protein complex, which shows a higher affinity toward Nup214 or SET-Nup214 than CRM1 alone (Askjaer et al., 1999) (Kehlenbach, Dickmanns, Kehlenbach, Guan, and Gerace, 1999) (Port et al., 2016), is important for the recruitment of SET-Nup214 to HOX clusters and its stabilization.

These results are mentioned in the text of the revised version as follows: “Next, to know the order of recruitment of SET-Nup214 and CRM1 onto HOX clusters, we performed knockdown of SET-Nup214. Reduction of SET-Nup214 did not significantly affect the amount of CRM1 that bound to HOX regions (Figure 3—figure supplement 3), suggesting that CRM1 functions as a recruiter of SET-Nup214.

In addition, we performed this experiment using LMB. Unlike KPT330, LMB irreversibly binds to CRM1 (Sun et al., 2013) and does not induce the degradation of CRM1 protein (Mendonca et al., 2014; Turner et al., 2013). Interestingly, we found that SET-Nup214 was also degraded by LMB treatment, as by KPT330 treatment (Figure 3—figure supplement 4). ChIP-qPCR revealed that LMB caused significant depletion of HOX cluster-bound CRM1 and SET-Nup214, and down-regulation of HOX genes (Figure 3—figure supplement 4). These results demonstrate that CRM1/Ran-GTP/NES protein complex, which shows a higher affinity toward Nup214 or SET-Nup214 than CRM1 alone (Askjaer et al., 1999; Kehlenbach et al., 1999; Port et al., 2016), is important for the recruitment of SET-Nup214 to HOX clusters, and its stabilization.”

2) Currently, the direct contribution of NPM1c on HOX gene activation has not been demonstrated and remains a correlation only.

The authors should determine the functional consequences of NPM1c (or NPM1 as control) overexpression on Hox gene expression and mESC differentiation similar to the experiments for Nup98-HoxA9 overexpression in the previous paper.

Our qPCR analysis revealed that Hox gene is not upregulated in NPM1c expressing ES cells (see Author response image 1), even though NPM1c accumulates at four Hox cluster loci (Figure 7B). We speculate that the Hox cluster region in ES cells may possess a different chromatin structure or epigenetic status as compared with that of OCI-AML3 cells and may be difficult to be activated solely by the ectopic expression of NPM1c.

Author response image 1

As mentioned in the manuscript, a previous paper (Brunetti et al., 2018) has clearly demonstrated that NPM1c is involved in HOX gene activation in OCI-AML3 leukemia cells. Especially, their results showed that the targeted degradation of NPM1c by using FKBP-based degron system resulted in an immediate down-regulation of HOX genes, strongly suggesting the direct contribution of NPM1c on HOX gene activation. Further, they showed that both the disruption of NES in NPM1c and treatment with KPT330, which cause dissociation of NPM1c from HOX cluster chromatin region as revealed by our study, significantly suppressed HOX genes. Together, our paper strongly suggests that NPM1c directly binds to HOX cluster to activate HOX genes in OCI-AML3 cells.

To further provide evidence for the relation between NPM1c/CRM1 and HOX gene activation, we monitored the effect of KPT330 on active Pol II on HOX cluster region in OCI-AML3. Our results revealed that both the S2P and S5P forms of active Pol II showed a significant sensitivity toward KPT330 treatment, as observed in SET-Nup214 expressing LOUCY cells (added in this revised manuscript as Figure 5—figure supplement 2). The robust signal of active Pol II, among the regions we examined, was observed at HOXA9 region, which correlated well with CRM1 and NPM1c binding (Figure 5D and 5E). Furthermore, we found that previous RNA-seq data and ChIP-seq data of active histone marks, such as H3K27Ac or H3K4me3 in OCI-AML3 cells (Brunetti et al., 2018), are well-correlated with the binding pattern of CRM1/NPM1c (Figure 5—figure supplement 3). Especially, the binding signals of NPM1c/CRM1 and active histone marks were high in posterior (AbdB-related) HOX genes, at HOXA cluster (HOXA9 to HOXA13). Collectively, NPM1c is most likely involved in the activation of Pol II together with CRM1 in OCI-AML3.

Considering the above-mentioned issues, we would like to change the title of the paper to “Chromatin-bound CRM1 recruits SET-Nup214 and NPM1c onto HOX clusters causing aberrant HOX expression in leukemia cells”.

These results are mentioned in the text of the revised version as follows: “However, gene expression analysis revealed that NPM1c could not activate Hox gene in ES cells (data not shown). We speculate that Hox cluster region in ES cells may possess a different chromatin structure or epigenetic status as compared with that of OCI-AML3 cells and may be difficult to be activated solely by the ectopic expression of NPM1c. Further study will be needed to determine the exact mechanism of gene activation by NPM1c.”; and “In addition, both S2P and S5P forms of active Pol II showed significant sensitivity toward KPT330 treatment, as observed in SET-Nup214 expressing LOUCY cells (Figure 5—figure supplement 2). The robust signal of active Pol II was observed at HOXA9 region, which correlated well with CRM1 and NPM1c binding (Figure 5D). Furthermore, previous RNA-seq data and ChIP-seq data of active histone marks in OCI-AML3 cells (Brunetti et al., 2018) correlated well with the binding pattern of CRM1/NPM1c (Figure 5—figure supplement 3). Especially, the binding signals of NPM1c/CRM1 and active histone marks were enriched in posterior (AbdB-related) HOX genes in the HOXA cluster (HOXA9 to HOXA13).”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Essential revisions:

1) Paragraph three in subsection “CRM1 is required for the recruitment of SET-Nup214 on HOX clusters and HOX gene activation”

To explain the milder sensitivity towards KPT-330 of MEGAL cells as compared to LOUCY cells for CRM1/SET-Nup214 binding and Hox gene activation, the authors indicate that "this is likely related to the fact that MEGAL cells show lower expression of SET-Nup214 than LOUCY" and refer for that to the paper from Port et al., 2016 in which unfortunately, the data were not shown (only the lower% of cells with foci was shown in that paper). Yet, the number of foci in the LOUCY and MEGAL cell lines may not be related to the expression level of the protein).

In contrast, comparing the two distinct blots provided in this study (Figure 3B for LOUCY and Figure 3—figure supplement 2A for MEGAL), it seems that the relative proteins levels of SET-Nup214 and NUP214 is 1:1 in LOUCY cells, but rather 2:1 or more in MEGAL cells, suggesting (assuming that the levels of endogenous Nup214 are comparable in both cell lines) that SET-Nup214 might be MORE abundant in the MEGAL cells.

Could the lower sensitivity of the MEGAL cells to KPT330 be due to an increased level of the fusion protein that would be less efficiently destabilized by the KPT330 treatment?

We thank the reviewer’s for their comments. First of all, in Figure 3B (new Figure 3A) and Figure 3—figure supplement 2A, we used different methods to prepare cell lysates, thus, these figures are not suitable for a comparison. As stated in the figure legends, western blotting in Figure 3B (new Figure 3A) was performed using cell lysates prepared by boiling the cells in a sample buffer. However, in Figure 3—figure supplement 2A (MEGAL), we used RIPA buffer to prepare cell lysates. We are still unsure why, but cell lysates prepared in RIPA buffer have a tendency to show a higher ratio of SET-Nup214/Nup214 as compared with the ratio obtained when the samples were prepared by boiling cells in the sample buffer.

Western blotting of LOUCY cell lysate prepared with RIPA buffer is shown in Figure 3A (new Figure 3—figure supplement 5A). This clearly showed that the ratio of SET-Nup214/Nup214 in LOUCY cells was higher than that observed in MEGAL cells in Figure 3—figure supplement 2A. These results demonstrate that MEGAL cells express lower amounts of SET-Nup214 than LOUCY cells. However, we still have not figured out why the SET-Nup214 in MEGAL cells shows lower sensitivity to KPT330 as compared with the sensitivity in LOUCY cells.

To further clarify the differences in SET-Nup214 expression levels, we compared the cell lysates obtained from LOUCY and MEGAL cells, which were prepared either by RIPA buffer or boiling in a sample buffer, in the same blot (Author response image 2).

Author response image 2

We changed the text as follows:

“The difference between LOUCY and MEGAL cells in the degree and region of CRM1/SET-Nup214 binding and gene activation is likely related to the fact that MEGAL cells show lower expression of SET-Nup214 than LOUCY cells [comparing the ratio of SET-Nup214/Nup214 in Figure 3A—figure supplement 5A (LOUCY) and Figure 3—figure supplement 2A (MEGAL)]. However, the reason for the lower sensitivity of SET-Nup214 in MEGAL cells to KPT330 remains unknown.”

2) Paragraph five of subsection “CRM1 is required for the recruitment of SET-Nup214 on HOX clusters and HOX gene activation”: (and Figure 3—figure supplement 3) what about the impact of SET depletion on of HOX gene expression?

Why did the authors not complete the study of CRM1/Nup214 recruitment by the analysis of HOX gene expression? (Possibly because this was previously published? Or not required clearly enough in the previous review?). Was the result not expected?

We have not included the data since it was previously published. As shown in Figure 3—figure supplement 3, we observed that the knockdown of SET-Nup214 caused down-regulation of HOX genes in LOUCY cells, in agreement with a previous paper (Van Vlierberghe et al., 2008).

We changed the text as follows:

“Reduction of SET-Nup214 caused down-regulation of HOX genes (Figure 3—figure supplement 3) in agreement with a previous report (Van Vlierberghe et al., 2008), but did not significantly affect the amount of CRM1 that bound to HOX regions, suggesting that CRM1 functions as a recruiter of SET-Nup214 (Figure 3—figure supplement 3).”

3) In the same paragraph regarding the interpretation of the LMB experiment

"These results demonstrate that CRM1/Ran-GTP-/NES protein complex, which shows a higher affinity towards Nup214 and SET-Nup214 than CRM1 alone (ref to previous publications), is important for the recruitment of SET-Nup214 to HOX clusters, and its stabilization".

Here, this new experiment with LMB raises the question of which NES-containing protein(s) would be co-recruited along with CRM1 and SET-Nup214 on the HOX genes. Could the author clarify this paragraph? Also, the model in Figure 8 might take these aspects into account.

Thank you for the comments. We added the sentence as follows: “However, it is currently unknown which NES-containing protein(s) would be co-recruited with CRM1 and SET-Nup214 on the HOX genes.”

We also modified the original Figure 8, and added a sentence to the figure legend as follows: “In the case of Nup98HoxA9 and SET-Nup214, the NES-containing protein(s) is/are most likely involved in the complex.”

4) Regarding Figure 2A:

Was the western blot in Figure 2A (extracts in RIPA buffer) repeated in enough distinct experiments to ensure that the lower levels of Nup214 upon KPT-330 treatment in K562 cells are not an artifact of a specific experiment?

If not, best would be to remove this blot (that is not critical) and only show the total cell extract from Figure 2B. On the other hand, if Nup214 properties (extraction or stability) are specifically altered in K562 cells upon KPT330, this should be clearly stated in the text.

Thank you for the suggestion. We carefully repeated the western blotting, but we could not confirm the effect of KPT330 on Nup214 in K562 cells. We deeply apologize for the confusion. As suggested, we have removed that particular blot from the manuscript (original Figure 2A).
