A requirement of Polo-like kinase 1 in murine embryonic myogenesis and adult muscle regeneration

  1. Zhihao Jia
  2. Yaohui Nie
  3. Feng Yue
  4. Yifan Kong
  5. Lijie Gu
  6. Timothy P Gavin
  7. Xiaoqi Liu
  8. Shihuan Kuang  Is a corresponding author
  1. Purdue University, United States
https://doi.org/10.7554/eLife.47097
Share this article
Cite this article
  1. Zhihao Jia
  2. Yaohui Nie
  3. Feng Yue
  4. Yifan Kong
  5. Lijie Gu
  6. Timothy P Gavin
  7. Xiaoqi Liu
  8. Shihuan Kuang
(2019)
A requirement of Polo-like kinase 1 in murine embryonic myogenesis and adult muscle regeneration
eLife 8:e47097.
https://doi.org/10.7554/eLife.47097
  2. Download BibTeX
  3. Download .RIS

Abstract

Muscle development and regeneration require delicate cell cycle regulation of embryonic myoblasts and adult muscle satellite cells (MuSCs). Through analysis of the Polo-like kinase (Plk) family cell-cycle regulators in mice, we show that Plk1’s expression closely mirrors myoblast dynamics during embryonic and postnatal myogenesis. Cell-specific deletion of Plk1 in embryonic myoblasts leads to depletion of myoblasts, developmental failure and prenatal lethality. Postnatal deletion of Plk1 in MuSCs does not perturb their quiescence but depletes activated MuSCs as they enter the cell cycle, leading to regenerative failure. The Plk1-null MuSCs are arrested at the M-phase, accumulate DNA damage, and apoptose. Mechanistically, Plk1 deletion upregulates p53, and inhibition of p53 promotes survival of the Plk1-null myoblasts. Pharmacological inhibition of Plk1 similarly inhibits proliferation but promotes differentiation of myoblasts in vitro, and blocks muscle regeneration in vivo. These results reveal for the first time an indispensable role of Plk1 in developmental and regenerative myogenesis.

https://doi.org/10.7554/eLife.47097.001

eLife digest

Muscles have their own population of stem cells, called muscle satellite cells. These cells are essential for muscle growth and repair. In healthy adult muscles, they spend most of their time inactive, but when there is an injury, they reawaken and start dividing. Some of the new cells return to an inactive stem cell state to await the next injury. The rest mature into new muscle cells or join with damaged muscle fibres to help them repair.

The cell cycle is the series of events that a cell goes through from its birth until it divides. In muscle satellite cells, progression through the cell cycle is tightly controlled to ensure they divide and grow the correct amount. One of the proteins responsible for controlling the cell cycle is Polo-Like Kinase 1 (PLK1), but studying this protein is difficult. A common way to investigate a protein's effect is to delete the gene that makes it and observe the consequences. However, PLK1 is so essential to life that yeast, flies, zebrafish and mice all die when the gene is missing. Jia et al. deleted the gene that makes PLK1 only in mouse muscle satellite cells to find out the role this protein plays in controlling the cell cycle in stem cells.

Deleting the gene that codes for PLK1 before the mice were born was lethal. The embryos failed to develop mature muscle fibres, and they died. But deleting the gene after the mice were born had a different effect. The muscles developed normally, but they were unable to heal when injured. The same healing problem also happened when healthy mice received a drug that blocked the function of PLK1 protein. A closer look at the muscle satellite cells revealed the source of the problem. Without PLK1, the cells got stuck part way through their cell cycle, just before they were due to divide. They tried to become muscle cells, but they did not make it. Instead, the muscle satellite cells started to act as though their DNA had been damaged, and then they self-destructed.

Muscle satellite cells become less able to divide as we get older. They can also malfunction in some types of degenerative muscle diseases. Understanding how muscle satellite cells control their cell cycle could help us to find out what causes them to go wrong. Further work to understand PLK1 also has potential implications for cancer treatment. PLK1 blockers have been used to stop cancer cells from dividing, but Jia et al.’s findings show that this kind of drug may also hamper the ability of muscle to repair damage.

https://doi.org/10.7554/eLife.47097.002

Introduction

Adult skeletal muscle has an efficient regenerative capacity in response to muscle injury or physiological stimuli (i.e. intense exercise training). Muscle regeneration relies on a population of muscle resident stem cells, known as muscle satellite cells (MuSCs). These cells are located in a unique niche between the basal lamina and the plasma membrane of myofibers (Mauro, 1961) and remain in a quiescent state until activated by regenerative signals. Upon activation, MuSCs proliferate to generate a pool of myoblasts that eventually return to the quiescent state to replenish the MuSCs pool or differentiate to repair muscle injuries. Thus, cell cycle regulation of MuSCs is critical for precise control of the number of myoblasts that is needed for muscle regeneration. Reduced regenerative capacity was observed when a muscle was exposed to an inhibitor of mitotic division, colchicine (Pietsch, 1961) or irradiation (Quinlan et al., 1995). Knockout of Cdkn1b, Cdkn1c or Rb (negative cell cycle regulators) results in aberrant satellite cell activation and proliferation (Chakkalakal et al., 2014; Hosoyama et al., 2011; Mademtzoglou et al., 2018). Positive cell cycle regulators, including cyclin A, B, D, E, F and G, are upregulated in activated MuSCs to regulate cell cycle progression (Cenciarelli et al., 1999; De Luca et al., 2013; Fukada et al., 2007). Deregulation of cell cycle regulators p16 and p21, and Notch signaling in quiescent MuSCs in old mice leads to proliferative senescence, accumulation of DNA damage, mitotic catastrophe and high frequency of cell death (Li et al., 2015; Liu et al., 2018).

The polo-like kinases (PLKs) are a conserved subfamily of Ser/Thr protein kinases that play pivotal roles in cell cycle regulation. The PLK family contains five members (PLK1-5) in mammals, all except for PLK5 contain an amino-terminal Ser/Thr kinase domain (Archambault and Glover, 2009; de Cárcer et al., 2011; Liu, 2015). Among the PLK kinases, PLK1 is the most conserved and best known for its role in mitosis via phosphorylation of different substrates (Barr et al., 2004). PLK1 also participates in modulating DNA replication and DNA damage checkpoints (Takaki et al., 2008). Overexpression of PLK1 is observed in several human tumors, including prostate and ovarian cancers, and muscle cell-derived rhabdomyosarcoma (Hugle et al., 2015; van Vugt and Medema, 2005). Inhibition of PLK1 by small interfering RNA or pharmacological inhibitors exerts antitumor effect in vitro and in vivo, providing strong preclinical and clinical support for the use of PLK1 inhibitors in cancer therapy (Degenhardt and Lampkin, 2010; Lens et al., 2010). Outside the cancer field, the role of PLK1 in normal mitotic cells especially stem cells are poorly understood. As Plk1 gene deletion leads to embryonic lethality in mice, zebrafish, Drosophila and yeast (Jeong et al., 2010; Lu et al., 2008; Ohkura et al., 1995; Sunkel and Glover, 1988), conditional deletion of Plk1 is necessary to understand its tissue or cell-type-specific functions. In this study, we used myogenic cell-specific targeted mutation to show that Plk1 is absolutely required for mitosis and survival of myogenic cells during muscle development and regeneration in mice.

Results

Plk1 is dynamically expressed during muscle regeneration and myogenesis

To establish the relevance of Polo-like kinases in myogenesis, we surveyed the expression of Plk1–Plk4 (Plk5 was not surveyed as it does not have a kinase domain) at various time points during CTX-induced muscle regeneration. Activation and proliferation of MuSCs peaks at 3 days post injury (DPI), and the overall architecture of the muscle is restored by 10 DPI (CHARGÉ and Rudnicki, 2004). The mRNA levels of Plk1, Plk3, and Plk4 were all transiently up-regulated after muscle injury, reaching peak expression levels at 3 DPI and returning to the preinjury levels at 10 DPI, but Plk1 exhibited the most prominent fold change (increased by >13 fold) at 3 DPI (Figure 1A). The expression pattern of Plk1 corresponded to those of myogenic transcriptional factors Pax7 and MyoG at both mRNA (Figure 1B) and protein (Figure 1C) levels. We also surveyed the mRNA levels of Plk1-4 during differentiation of primary myoblasts isolated from limb muscles. Compared with day 0 (proliferating myoblast), Plk1, Plk3, and Plk4 levels were all down-regulated during myogenic differentiation (Figure 1D). Among these, Plk1 and Plk4 exhibited the most robust down-regulation (Figure 1D). The expression pattern of Plk1 was inversely correlated to the expression of myogenic differentiation makers Myog and eMyhc, which were robustly upregulated during differentiation (Figure 1E). Consistently, Plk1 levels progressively declined from embryonic day 17.5 (E17.5) to postnatal day 90 (P90) during limb muscle differentiation and maturation in vivo (Figure 1F). Since Plk1 is the most dynamically regulated Plks during myogenesis, we focused on Plk1 for the rest of the current study.

Figure 1
Download asset Open asset

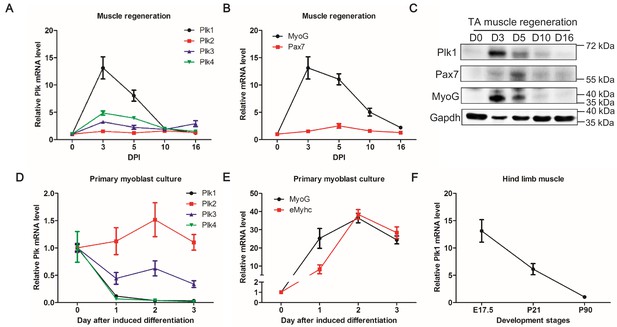

Expression patterns of Plks during muscle regeneration and differentiation.

(A–B) Relative mRNA levels of Plks and myogenic factors Pax7 and MyoG in TA muscles from mice (n = 4) at various timepoints after CTX induced injury, determined by qPCR, DPI: Days post injury; (C) Representative protein level of Plk1, Pax7 and Myog at various timepoints during muscle regeneration; (D–E) qPCR showing relative mRNA levels of Plks and myogenic differentiation markers (Myogenin and eMhyhc: embryonic myosin heavy chain) at various timepoints of primary myoblast differentiation (n = 3, biological samples); (F) qPCR analysis of Plk1 expression in TA muscles from 17.5 day, 3 week and 3-month-old mice (n = 3, biological samples).

https://doi.org/10.7554/eLife.47097.003

Non-myogenic cells such as fibroadipogenic progenitors, endothelial cells, and infiltrating inflammatory cells are also present in the muscle during regeneration. To assure that the above-observed Plk1 dynamics are specific to MuSCs, we used an established antibody to detect Plk1 protein expression in MuSCs that were co-labeled with Pax7, an established marker of MuSCs (Seale et al., 2000). In the freshly isolated EDL myofibers (Day 0) carrying quiescent MuSCs, Plk1 immunofluorescence signal was undetectable in any Pax7+ MuSCs (Figure 2A). After culture, Plk1 signal appeared in activated MuSCs that co-express MyoD (Day 1), and then was abundantly expressed in clusters of MuSCs progenies or myoblasts (Days 2–3), with positive signal only detected in MyoD+ cells (Figure 2A, n > 200 cells), which marks activated MuSCs (Olguin and Olwin, 2004; Zammit et al., 2004). We also analyzed mRNA levels of Plk1 in FACS-purified MuSCs isolated from non-injured and injured muscle tissues, representing quiescent and activated MuSCs, respectively. Plk1 mRNA level was 15-fold higher in activated than in quiescent MuSCs (Figure 2B). Additionally, bFGF, a growth factor known to promote the proliferation of MuSCs, increased the level of Plk1 in cultured myoblasts (Figure 2C). Collectively, these lines of evidence demonstrate that Plk1 expression is dynamically regulated in MuSCs during their quiescence, activation, proliferation and differentiation.

Figure 2
Download asset Open asset

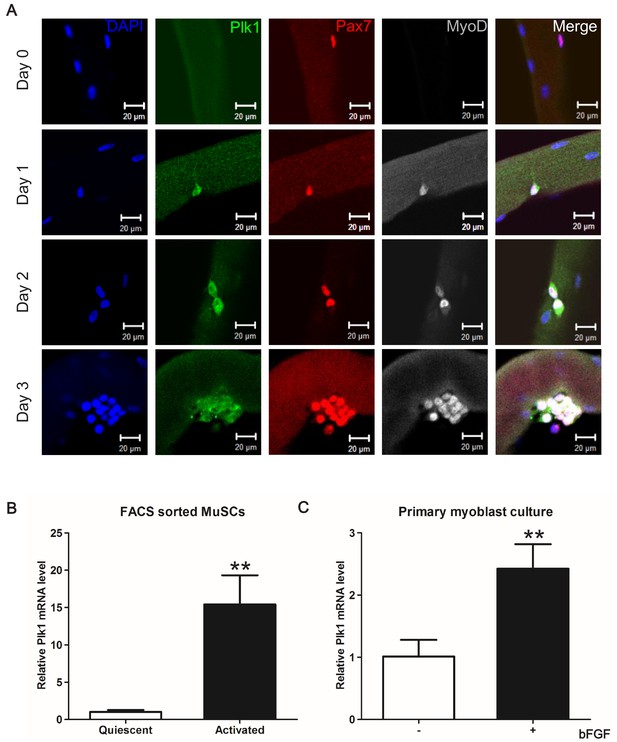

Plk1 is specifically expressed in activated MuSCs.

(A) Plk1 immunofluorescence in Pax7+ MuSCs attached on freshly isolated EDL myofibers (Day 0) or after cultured for 1–3 days from three male wildtype mice (at least 10 fibers were collected at each time point, quantification of MyoD+Plk1+ MuSCs were based on 200 cells on myofibers cultured for 72 hr), scale bar: 10 μm; (B) Relative levels of Plk1 mRNA in quiescent and activated satellite cells, data represent mean ± s.e.m. (t-test: **p<0.01; n = 3, biological replicates); (C) Relative levels of Plk1 mRNA in primary myoblast treated with (+) or without (-) 4 ng/ml bFGF for 24 hr, data represent mean ± s.e.m. (t-test: *p<0.05; n = 4, biological replicates).

https://doi.org/10.7554/eLife.47097.004

Loss of Plk1 in myogenic progenitors leads to embryonic lethality

To assess the role of Plk1 in muscle development in vivo, we crossed the MyodCre with Plk1f/f mice to generate the myoblast-specific Plk1 knockout (MyodCre::Plk1f/f, or Plk1MKO) mice (Figure 3A). In this model, Plk1 should be deleted in all muscle progenitors during development as MyodCre marks all embryonic myogenic cells (Kanisicak et al., 2009). After several intercrosses of heterozygous mice, no live Plk1MKO pups were obtained, indicating that myoblast-specific knockout of Plk1 resulted in prenatal lethality. Therefore, embryos were harvested in utero at E16.5, several days before birth. From 69 embryos analyzed, we obtained 13 motionless embryos that were subsequently confirmed by PCR to be Plk1MKO (Supplementary file 1). Plk1MKO embryos were shorter in body length and transparent in appearance (Figure 3B). Histological sections through limbs revealed an absence of central-nucleated myofibers that were otherwise stained by eosin and embryonic myosin heavy chain (eMyHC) in the Plk1MKO embryos (Figure 3C–D). In contrast, eosin and eMyHC staining reveals the development of various groups of muscles in the WT control embryos (Figure 3C–D).

Figure 3
Download asset Open asset

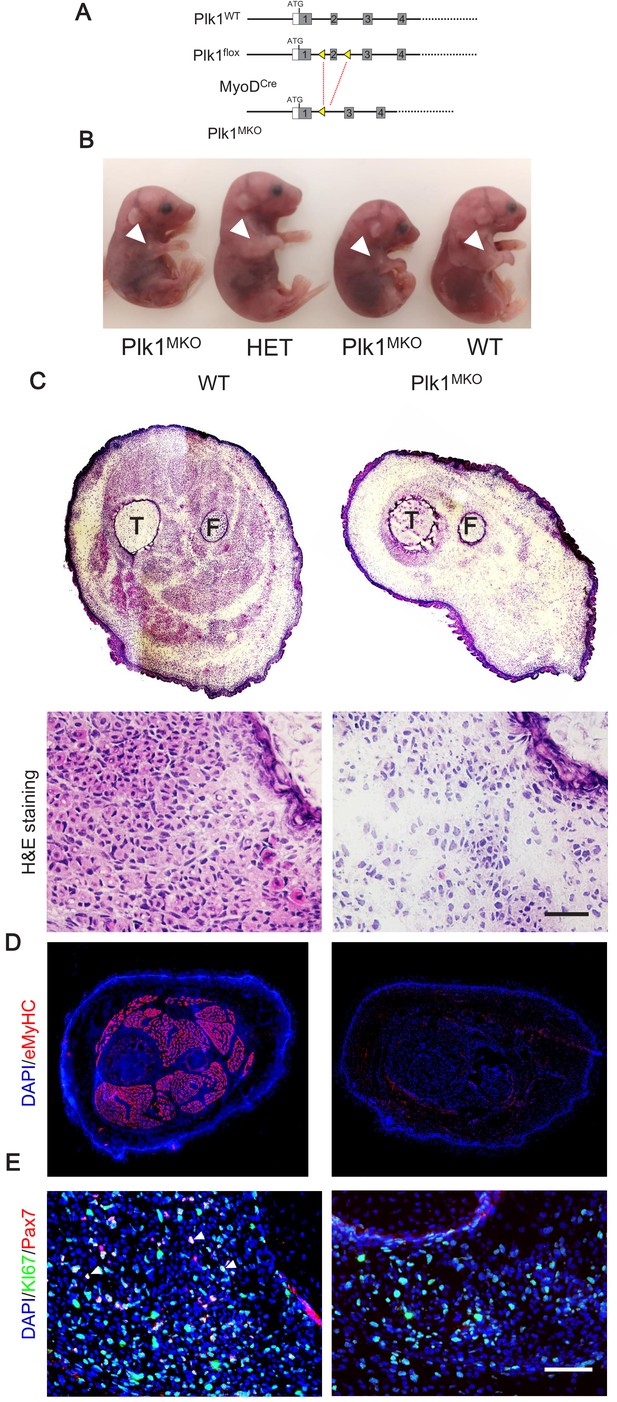

Loss of Plk1 in myogenic progenitors leads to embryonic lethality.

(A) Targeting strategy for myogenic progenitor specific deletion of Plk1, boxes represent exons and triangles represent LoxP; (B) Representative images of WT, heterozygous KO (Het) and Plk1MKO embryos at stage E16.5, arrowheads points to the forelimbs, showing the; (C) H and E staining of E16.5 hindlimb cross-sections (upper panel) and magnified representative area (bottom panel, scale bar: 50 μm) showing lack of muscle fibers (labeled by eosin in pink) in Plk1MKO embryos, T: Tibia, F: Fibula; (D) Immunofluorescence of eMyHC (marking myofibers) in E16.5 whole limb cross-sections; (E) Immunofluorescence of Pax7 and KI67 in limb cross-sections of embryos at E16.5, scale bar: 50 μm.

https://doi.org/10.7554/eLife.47097.005

To determine the effect of Plk1MKO on myogenic progenitors, we labeled limb muscle sections with Pax7 antibody. Whereas numerous Pax7+ myoblasts were detected in the WT control limb muscles, the Plk1MKO limb muscles were completely depleted of Pax7+ myoblasts (Figure 3E), suggesting that Plk1 is necessary for the generation or maintenance of embryonic myoblasts in the limb muscles. In addition, no Ki67+ cells were Pax7+ in the Plk1MKO limb muscles (Figure 3E), suggesting that proliferative failure may be another driver of the depletion of myoblasts. These results indicate that loss of Plk1 in myogenic progenitors blocks their proliferation and survival, leading to failure in skeletal muscle development and embryonic lethality.

Deletion of Plk1 impairs muscle regeneration in adult mice

The prenatal lethality of the Plk1MKO mice precludes the exploration Plk1 function in postnatal MuSCs and muscle regeneration. To circumvent embryonic lethality, we established tamoxifen (TMX)-inducible Pax7CreER::Plk1f/f (Plk1PKO) mice to specifically delete Plk1 in Pax7-expressing MuSCs upon TMX injection in adult mice (Figure 4—figure supplement 1A). WT control and Plk1PKO mice were intraperitoneally (IP) injected with TMX for five days followed by 14 days of chasing (Figure 4—figure supplement 1A). Knockout efficiency was shown by the lack Plk1 signal in MuSCs isolated from Plk1PKO myofibers but not in WT MuSCs after 72 hr of culture (Figure 4—figure supplement 1B). In the absence of injury, no morphological differences were observed between Plk1PKO and WT muscles based on H and E staining of tibialis anterior (TA) muscle cross-sections at Day 14 after TMX-induced deletion of Plk1 (Figure 4—figure supplement 1C–D). Immunofluorescence staining of Pax7 showed that the number of MuSCs (Pax7+/DAPI+) in Plk1PKO mice was ~70% of that in WT mice, and no MyoG+ differentiated cells were observed in either WT or KO muscles (Figure 4—figure supplement 1E–G). These results confirm the efficiency of the Plk1PKO conditional KO mouse model and demonstrate that the loss of Plk1 do not lead to obvious morphological changes in uninjured muscles.

We then examined muscle regeneration of the Plk1PKO mice to determine the effect of Plk1 KO on MuSCs. TA muscles from both Plk1PKO and WT mice were degenerated by CTX after TMX-induced Plk1 deletion (Figure 4A). At 7 DPI, the masses of WT TA muscles were recovered to 70% of preinjury levels, whereas the TA muscle masses of Plk1PKO mice were only recovered by ~40% (Figure 4B–C). Histologically, the WT TA muscles were uniformly replaced by newly regenerated myofibers characterized by central-nucleated myofibers (Figure 4D). In contrast, TA muscles of Plk1PKO mice were devoid of newly regenerated myofibers (Figure 4D). Pax7+ cells were diminished in Plk1PKO mice, together with an absence of any Dystrophin-expressing myofibers (Figure 4E–F). Furthermore, very few MyoG+ cells and no eMyHC+ myofibers were observed in Plk1PKO mice (Figure 4—figure supplement 2A–C). Compared with uniformly regenerated muscles in WT mice, Plk1PKO mice had no Pax7+KI67+ cells, but a compensatory increase in the number of Pax7–KI67+ cells (Figure 4—figure supplement 2D–E), indicating depletion of MuSCs and increased proliferation of non-myogenic cells. To further distinguish if Plk1 KO leads to regenerative delay or deficiency, we examined TA muscles at 21 DPI (Figure 4—figure supplement 2F), at which time the CTX-injured muscles were completely repaired, and the muscle weights were restored to the non-injured levels in the WT mice (Figure 4—figure supplement 2G). However, the TA muscle mass of the CTX-injured muscles was only 25% of the mass of the non-injured muscles in the Plk1PKO mice (Figure 4—figure supplement 2G). Newly regenerated myofibers (indicated by central-nucleation) were uniformly packed in the WT TA muscles (Figure 4—figure supplement 2H). In contrast, TA muscles of Plk1PKO mice were devoid of newly regenerated myofibers, and were infiltrated by Plin1 +adipocytes (Figure 4—figure supplement 2H–I) and F4/80+ macrophages (Figure 4—figure supplement 2I). These results revealed that Plk1 KO leads to ablation of MuSCs and severe regenerative failure.

Figure 4 with 3 supplements see all
Download asset Open asset

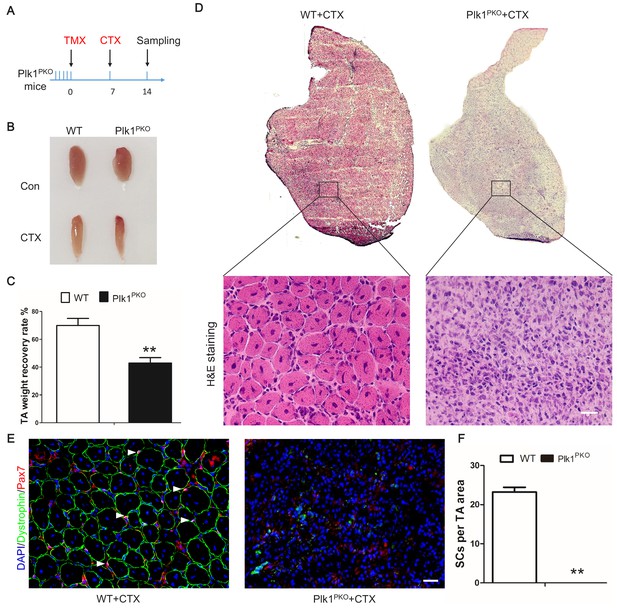

Plk1 deletion in MuSCs impairs muscle regeneration in vivo.

(A) Experimental design for tamoxifen (TMX, four 8-week-old male mice from each group received a daily intraperitoneal injection for 5 consecutive days) induced deletion of Plk1 in Pax7CreER::Plk1f/f (Plk1PKO) mice, following by cardiotoxin (CTX) injection to induce muscle degeneration and regeneration. Numbers indicate timing of TMX induction (5 consecutive days of injection following by 7 days of chasing), CTX injection and sample collection (7 days after injury); (B) Representative images of TA muscles in WT and Plk1PKO mice; (C) TA muscle weight recovery at 7 days after CTX injury, data represent mean ± s.e.m. (t-test: **p<0.01; n = 4, biological replicates, mice were males at around 11 weeks old when sampled); (D) H and E staining of TA muscle cross-sections (upper panel) and magnified representative areas at 7 days after CTX injury (bottom panels, scale bar: 20 μm); (E) Immunofluorescence of Pax7 and Dystrophin (to outline myofibers) in TA muscle cross-sections at 7 days after CTX injury, scale bar: 20 μm; (F) The average number of MuSCs per microscopic area, data represent mean ± s.e.m. (t-test: **p<0.01; n = 4, biological replicates, all MuSCs from five radom areas were counted for each mouse).

https://doi.org/10.7554/eLife.47097.006

To further dissect if Plk1 function in MuSCs and muscle regeneration depends on its kinase activity, we treated regenerating muscles with BI2536, a selective inhibitor of Plk1 activity (Figure 4—figure supplement 3A). BI2536 treatment (injection of 50 μl into the TA muscle at a final dosage of 0.4 μg/g body weight) significantly inhibited regeneration of CTX-injured muscles (Figure 4—figure supplement 3B). H and E staining of vehicle control and BI2536-treated muscle cross-sections revealed that BI2536-treated muscles had increased interstitial space filled with inflammatory infiltration and very few newly regenerated myofibers (Figure 4—figure supplement 3C). Consistent to Plk1 KO results, BI2536 treatment did not have any effects on morphology of uninjured muscles (Figure 4—figure supplement 3D), suggesting Plk1 mainly functions to regulate proliferating MuSCs during regeneration. BI2536 treatment reduced the number of Pax7+ cells by~60% in regenerating muscles, but not in uninjured muscle sections (Figure 4—figure supplement 3E–F). Similarly, BI2536 treatment did not affect the abundance of MuSCs in uninjured EDL myofibers, but significantly reduced the number of MuSCs on CTX-injured myofibers (Figure 4—figure supplement 3G–H). These data together suggest that genetic deletion or pharmacological inhibition of Plk1 similarly inhibits the proliferation of MuSCs and prevents muscle regeneration.

Plk1-null MuSCs undergo cell cycle arrest at M Phase

To investigate how Plk1 regulate cell cycle progression of MuSCs, we synchronized WT myoblasts by double thymidine block and released them to allow synchronous cell cycle progression. Plk1 expression was significantly increased as cells enter G2 and peaked at metaphase, indicated by phosphohistone H3 (pHH3) labeling (Figure 5A). The cell-cycle-dependent expression pattern suggests a key role of Plk1 in regulating metaphase progression of MuSCs. To further determine cell cycle defects of Plk1 KO MuSCs, we analyzed proliferation of MuSCs attached on cultured EDL myofibers. After 3 days of culture, the WT MuSCs formed clusters of 6–8 myoblasts on the myofibers. However, MuSCs from Plk1PKO mice failed to complete the cytokinesis and were arrested at mitosis stage, evident from the dispersed distribution of nuclear Pax7 and MyoD signals surrounding metaphase and telophase chromosomes (Figure 5B). The numbers of myoblasts were also significantly decreased on the Plk1PKO relative to WT myofibers (Figure 5—figure supplement 1A). We also isolated primary myoblast from Plk1PKO and used 4-hydroxy-tamoxifen (4-OHT) to induce acute Plk1 deletion in proliferating myoblasts. The high efficiency of 4-OHT-induced Plk1 deletion was verified by WB and DNA recombination analysis (Figure 5D). Compared to the control (Methanol) treatment in which the number of myoblasts increased exponentially, the numbers of 4-OHT-treated myoblast only slightly increased in the first 12 hr, followed by a gradual decrease (Figure 5E), suggestive of cell death. The numbers of myoblasts continually decreased when the myoblasts were cultured for more than 2 days (Figure 5—figure supplement 1B). Flow cytometry analyses revealed a significant increase of tetraploid cells 24 after 4-OHT induced KO of Plk1 (Figure 5F). DAPI staining also demonstrated that over 60% of Plk1-null myoblast underwent a cell cycle arrest at M-phase with condensation of the chromatin and the disappearance of the nucleolus (Figure 5G).

Figure 5 with 2 supplements see all
Download asset Open asset

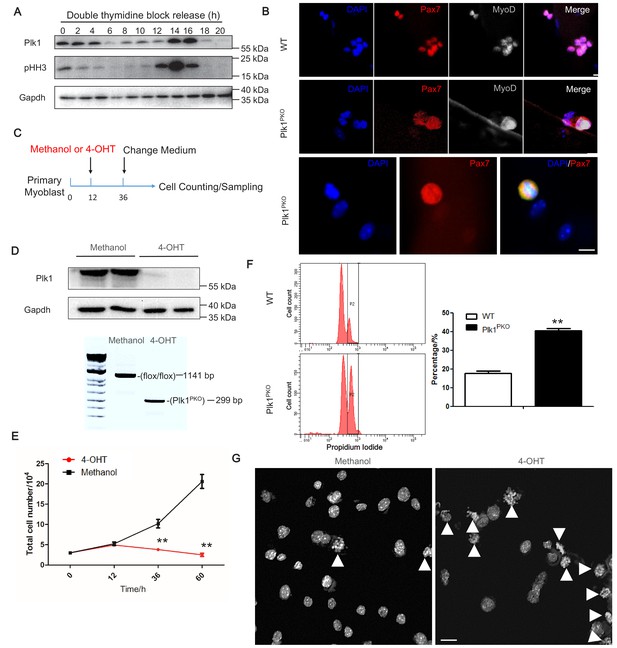

Plk1 deletion in MuSCs leads to cell cycle arrest.

(A) Western blot showing relative protein levels of Plk1 and cell cycle marker pHH3 at different time points after WT myoblast were synchronized by double thymidine block (DTB) protocol and released; (B) Immunofluorescence of Pax7 and MyoD in MuSCs on cultured EDL myofibers (72 hr) isolated from WT and Plk1PKO mice 7 days after TMX induced deletion of Plk1, scale bar: 10 μm, (at least 10 fibers were collected from four individual 11-week-old male mice); (C) Schematics showing 4-hydroxy-tamoxifen (4-OHT) induced deletion of Plk1 in primary myoblasts isolated from Plk1PKO mice (Primary myoblasts were isolated from four 6-week-old male mice, and frozen at −80°C and stored for the following experiments), Methanol treatment is the vehicle control; (D) Western blot showing effective knockout of Plk1 after 4-OHT induction (upper panel) and PCR analysis of genomic DNA showing the DNA recombination 4-OHT induction; (E) Quantification of the average numbers of myoblast per well, data represent mean ± s.e.m. (t-test: **p<0.01; n = 4, biological replicates); (F) Flow cytometry analysis of methanol or 4-OHT treated myoblast with propidium iodide staining to mark DNA content (left panel), and quantification of percentage of myoblasts containing double-DNA content (right panel), data represent mean ± s.e.m. (t-test: **p<0.01; n = 3, biological replicates); (G) DAPI staining of myoblasts at 30 hr after methanol or 4-OHT induction to reveal DNA morphology, scale bar: 10 μm, white arrowheads indicated cells containing unsegregated chromosomes.

https://doi.org/10.7554/eLife.47097.010

The Plk1 inhibitor BI2536 was also used to treat cultured myofibers carrying MuSCs and primary myoblasts in vitro. When EDL myofibers were cultured for 3 days in the absence or presence of 100 nM BI2536, BI2536 treatment not only reduced the total number of myoblast clusters per myofiber by ~70%, but also reduced the number of cells per clusters, with no cluster containing more than four cells (Figure 5—figure supplement 1C–D). In contrast, 40% of the vehicle-treated myofibers contained clusters of more than four cells per cluster (Figure 5—figure supplement 1D). Consistently, BI2536 also suppressed the proliferation of primary myoblasts dose-dependently over various timepoints (Figure 5—figure supplement 2A–B). Nuclear staining with DAPI indicated that more than 40% of the BI2536-treated myoblasts were arrested at an undivided stage, resulting in tetraploid-like cells (Figure 5—figure supplement 2C–D), indicating an unsuccessful division of myoblasts by Plk1 inhibition. Together, these data reveal a key role of Plk1 in cytokinesis and indicate that loss or inhibition of Plk1 leads to proliferative defect and cell cycle arrest at M-phase.

Plk1-null MuSCs apoptose

We next questioned what’s the fate of the Plk1-null myoblasts that were arrested at M-phase. To test this, we first checked the cell viability by antibody staining with cleaved Caspase-3 (C-Cas3), a marker for apoptosis (Igney and Krammer, 2002). As a positive control, 100 mM H2O2 was used to treat MuSCs on EDL myofibers cultured for 72 hr, which resulted in robust C-Cas3 signal (Figure 6—figure supplement 1A). Next, Plk1PKO EDL myofibers were cultured in vehicle control (Methanol) or 4-OHT to induce Plk1 deletion. None of the methanol-treated myoblasts on myofibers were C-Cas3 positive, but all the 4-OHT treated MyoD+ myoblasts were C-Cas3 positive at 48 and 72 hr after the treatment (Figure 6A). Morphologically, the 4-OHT-treated myoblasts were arrested in the cell cycle before the first division (Figure 6A). All activated myoblasts were C-Cas3 negative at 20 hr in both treatment group, indicative of a cell-cycle-dependent Cas3 activation. In situ terminal deoxynucleotidyl transferase dUTP nick-end labeling (TUNEL) also showed that MuSCs on EDL myofibers were all TUNEL+ without finishing the first division after 42 hr culture (Figure 6B). Myoblasts cultured from Plk1PKO mice were also 100% C-Cas3+ or TUNEL+ when induced with 4-OHT following 2 days of culture, but control groups only had ~5% C-Cas3+ or TUNEL+ cells (Figure 6C–F). In addition, there were no presence of MyoG+ differentiated myoblasts on EDL myofibers from Plk1PKO mice after 72 hr of culture (Figure 6—figure supplement 1B). Apoptosis of Plk1 null myoblast was also confirmed by Annexin V-FITC Apoptosis Staining, which showed a dramatically increment of FITC/PI double positive cells 36 hr after 4-OHT induction when compared to the control group (Figure 6—figure supplement 1C–D). These results suggest that Plk1 deletion induced loss of MuSCs due to apoptosis but not differentiation.

Figure 6 with 2 supplements see all
Download asset Open asset

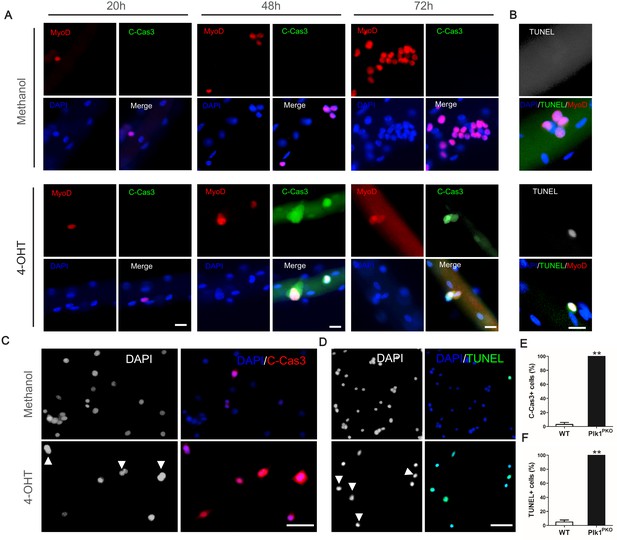

Plk1 deletion leads to apoptosis of MuSCs.

(A) Representative images of MyoD (red) and cleaved Caspase-3 (green) staining in MuSCs located on EDL myofibers cultured for 20, 48 and 72 hr, myofibers were isolated from Plk1PKO mice and treated with 4-OHT to induce deletion of Plk1 at time 0, Methanol is the vehicle control, scale bar: 10 μm, at least 10 cells from 10 single myofibers per mouse (n = 3 mice) were counted; (B) Immunofluorescence of Myod (red) and TUNEL (green) in MuSCs on EDL myofibers cultured for 42 hr, scale bar, 10 μm, at least 10 cells from 10 single myofibers per mouse (n = 3 mice) were counted; (C–D) Representative images of cleaved Caspase-3 (C) and TUNEL (D) staining in primary myoblasts at 48 hr after methanol or 4-OHT treatment, nuclei were counterstained with DAPI, arrowheads indicate cells arrested at M-phase, scale bar: 50 μm; (E–F) Quantification of percentages of Caspase-3+ (E) and TUNEL+ (F) cells, data represent mean ± s.e.m. (t-test: **p<0.01; n = 3, biological replicates (mice), three replicates/mouse, 25–50 myoblasts/replicate were analyzed).

https://doi.org/10.7554/eLife.47097.013

As Plk1 KO activates Cas3, which is necessary for myogenic differentiation (Larsen et al., 2010), we also examined the effect of Plk1 inhibition on differentiation of myoblasts. As deletion of Plk1 in proliferating myoblasts leads to cell death and precludes analysis of cell differentiation, we used BI2536 to inhibit Plk1 activity in myoblasts. Interestingly, myosin heavy chain (marked by MF20), markers of myogenic differentiation, was observed in 15% of myoblasts treated with BI2536, but rarely observed in control myoblasts cultured in growth media without BI2536 (Figure 6—figure supplement 2A–B). This suggests that Plk1 inhibition promotes premature differentiation of myoblasts. When BI2536 was added to myoblasts at the onset of serum withdrawal-induced myogenic differentiation, the fusion index at 48 hr was increased by 30% compared to vehicle treatment controls (Figure 6—figure supplement 2C–D). The protein and mRNA levels of MF20 were increased by Plk1 inhibition under both growth and differentiation conditions (Figure 6—figure supplement 2E–F). These results demonstrate that pharmacological inhibition of Plk1 in primary myoblasts promote their differentiation.

DNA damage response and p53 are induced in Plk1-null MuSCs

To understand how Plk1 deletion and inhibition leads to the apoptosis of myoblasts, we first examined DNA damage response (DDR), revealed by the presence of phosphorylated histone 2A family member X (γH2AX) (Paull et al., 2000). We found that Plk1 null MuSCs (labeled by Cav1) that were arrested at undivided stage had very strong γH2AX signal (Figure 7A). This is in sharp contrast to control cells that contained very few small puncta of γH2AX signal (Figure 7A). Similarly,~80% of cultured Plk1 KO primary myoblasts were strongly γH2AX+ at 2 days after 4-OHT induction, whereas only ~23% control WT myoblast exhibited weak γH2AX signal (Figure 7B–C). We also analyzed DNA fragmentation of BI2536 treated myoblasts using single-cell gel electrophoresis assay, revealing that 70% of myoblasts accumulated DNA damage after BI2536 treatment (Figure 7D). Among these, 55% of myoblasts were scored as moderate damage (Classes 1–3) and 15% were scored as maximal damage (Class 4) (Figure 7E). In contrast, 95% control myoblasts were fragmentation-free and only 5% control myoblasts displayed moderate DNA damage (Figure 7E). We also synchronized cell cycle with double thymidine block and release (Figure 7—figure supplement 1A). The Plk1 KO (4-OHT treated) myoblasts exhibited more abundant γH2AX signal than control myoblasts at 8 hr after the release, but no differences in TUNEL signal were observed between the two groups (Figure 7—figure supplement 1B), suggesting DNA damage precedes apoptosis. At 12 hr after release, TUNEL+ myoblasts were significantly increased in 4-OHT treated groups (~80%) and all the 4-OHT-treated myoblast were TUNEL positive at 16 hr and 24 hr after release. Consistently, we also found that γH2AX signal was increased by approximately fourfold in BI2536-treated myoblasts compared to control myoblasts (Figure 7—figure supplement 1C–D). These results are in agreement with the pivotal role of Plk1 in DNA damage checkpoint regulation (Takaki et al., 2008), and demonstrate that deletion of Plk1 in MuSCs accumulates DNA damage response and leads to apoptosis.

Figure 7 with 1 supplement see all
Download asset Open asset

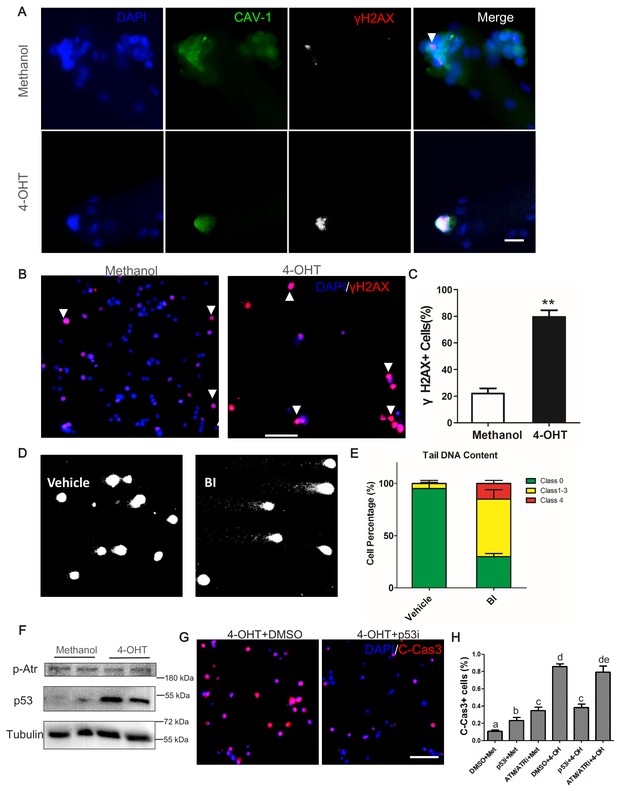

Plk1-null MuSCs excessively accumulate markers of DNA damage response and undergo p53-mediated apoptosis.

(A) Immunofluorescence of γH2AX (red) and Caveolin-1 (green) in MuSCs on EDL myofibers cultured for 72 hr. Myofibers were isolated from Plk1PKO mice and treated with 4-OHT to induced Plk1 deletion (methanol: vehicle control), scale bar: 10 μm; (B) Representative images of γH2AX staining in primary myoblast isolated from Plk1PKO mice, treated with 4-OHT or methanol, and cultured for 48 hr, nuclei were counterstained with DAPI, scale bar: 50 μm; (C) Quantification of percentages γH2AX+ myoblasts after treatment shown in B, data represent mean ± s.e.m. (t-test: **p<0.01; n = 3, biological replicates(mice), three replicates/mouse, 25–50 myoblasts/replicate were analyzed); (D) Representative images of single-cell gel electrophoresis under alkaline conditions in primary myoblasts 24 hr after BI2536 treatment; (E) Percentage of myoblasts with different levels of DNA damage, presented as no damage, moderate damage (classes 1–3) and maximal damage (class 4), data represent mean ± s.e.m. (t-test: *p<0.05; n = 3, biological replicates (mice), three replicates/mouse, 25–50 myoblasts/replicate were analyzed); (F) Western blot showing relative levels of p53 and Phospho-ATR in Plk1PKO primary myoblast at 24 hr after methanol or 4-OHT treatment; (G) Representative images of cleaved Caspase-3 (red) staining in primary myoblast 24 hr after 4-OHT together with DMSO (left panel) or p53 inhibitor (p53i) treatment (right panel), nuclei were counterstained with DAPI, scale bar: 50 μm, (H) Quantification of C-Cas3+ apoptotic cells at 24 hr after methanol or 4-OHT together with p53 inhibitor or ATM/ATR inhibitor treatment, data represent mean ± s.e.m. (t-test: p<0.05; n = 3, biological replicates, 25–50 myoblasts from three replicates from three individual mice were counted for quantification).

https://doi.org/10.7554/eLife.47097.016

Finally, we explored the molecular mechanism mediating the defective DDR and apoptosis of Plk1-null MuSCs. The tumor suppressor p53, known to play a pivotal role in DDR and cell survival, was reported to be upregulated by Plk1 inhibition in cancer cells (Liu and Erikson, 2003). WB analysis showed that p53 protein level was massively elevated in Plk1 KO myoblasts compared to control myoblasts (Figure 7F). In contrast, Plk1 KO did not affect the level of Phospho-ATR (Figure 7F), which has been reported to play a role in G2 checkpoint (Cimprich and Cortez, 2008). To examine if p53 upregulation is responsible for cell apoptosis, we used Pifithrin-α (2 nM, Sigma) to inhibit p53 in control and Plk1 KO myoblasts. We found that 4-OHT-induced deletion of Plk1 led to more than 80% of apoptotic cells (C-Caspase three positive) within 36 hr, and inhibition of p53 significantly reduced apoptosis of Plk1-null myoblasts (Figure 7G,H). However, inhibition of ATR failed to rescue the apoptosis of Plk1-null myoblasts (Figure 7H), suggesting that apoptosis occurred prior to the G2-checkpoint. Interestingly, inhibition of p53 or ATR/ATM alone in WT myoblasts increased their apoptosis (Figure 7H), consistent with the notion that p53 and ATR promotes cell survival in the absence of DNA damage (Reinhardt et al., 2007; Sakaguchi et al., 1998). Altogether, these results point to the upregulation of p53 as a key driver of cell cycle arrest and apoptosis in the Plk1-null MuSCs.

Discussion

The expansion of MuSCs plays a crucial role for muscle development and repair following injury and a variety of signal pathways are involved in the regulation of myoblast proliferation and expansion (Conboy and Rando, 2002; Jones et al., 2001; Jones et al., 2005; Perdiguero et al., 2007). Although Plk1 has been shown to play an indispensable role in cell cycle and mitotic progression of non-myogenic cell types especially cancer cells (Barr et al., 2004), its function in MuSCs and myogenesis has not been investigated. Here, we identify an irreplaceable role of Plk1 in controlling MuSC proliferation. Specifically, we found that Plk1-deficient MuSCs lose their proliferative capacity, accumulate marks of DNA damage response and undergo apoptosis without completing mitosis, leading to failure of muscle development and defective muscle regeneration in response to injury.

PLK1 is highly expressed in various human tumors and proliferating cells during embryonic development (Lu et al., 2008; van Vugt and Medema, 2005). Our findings extend this feature to the adult stem cells and demonstrate that Plk1 activity synchronizes with the proliferative ability of MuSCs. Previous studies have reported that constitutive deletion of Plk1 leads to embryonic lethality at morula stage (E3.5) due to mitotic aberrancies (Wachowicz et al., 2016). Similar mitotic defects were also observed in our myogenic progenitor-specific Plk1 KO mice, which died prenatally due to failure in muscle development. Compared to our model, Pax7−/− mice exhibit progressive loss of the MuSC lineage with reduced muscle size, myonuclei number and myofiber diameters, leading to poor viability and early death within the first 3 weeks of life (Seale et al., 2000). Myf5 and MyoD double knockout mice, but not the Myf5 or MyoD single knockout mice, show complete lack of skeletal muscle formation (Rudnicki et al., 1992; Rudnicki et al., 1993). Myogenin-null mice die after birth from severe and global muscle deficiency (Hasty et al., 1993). Our myogenic progenitor specific Plk1 KO mice die earlier than these KO mice lacking one of the key myogenic transcription factors, demonstrating an indispensable role of Plk1 in embryonic muscle development.

Activation of MuSCs is a crucial step for muscle regeneration. Evidence shows that a lack of MuSCs contributes to defective regeneration and muscle weakness (Relaix and Zammit, 2012). Indeed, previous studies have demonstrated that blockage of cell proliferation by colchicine treatment (Pietsch, 1961) or irradiation (Quinlan et al., 1995) drastically reduces muscle regenerative capacity. In addition, MuSCs function is also controlled by various signals in the local microenvironment, called stem cell niche (Kuang et al., 2008). This niche consists of various cells and extracellular factors that function to regulate MuSCs during muscle regeneration (Kuang et al., 2008). Our study identifies Plk1 as an intrinsic regulator of MuSCs, but what extrinsic factors regulate the dynamic expression of Plk1 remains to be elucidated. It is reported that ~ 50% reduction of MuSCs induced by Pten deletion could sufficiently maintain muscle regeneration, and muscle regeneration fails only when the SC population drops to 10% or less (Yue et al., 2017). In our model, MuSCs-specific Plk1 deletion only leads to ~30% reduction in MuSCs, yet the remainder 70% MuSCs fail to regenerate the injured muscle after CTX injury due to cell cycle arrest. This leads to infiltration of fibro-adipogenic progenitors (FAPs), macrophages and adipocytes that occupy the muscle after CTX-induced regeneration. These results highlight the absolute requirement of Plk1 in cell cycle progression of Pax7-expressing MuSCs during regenerative myogenesis.

PLKs are key regulators of many cell-cycle-related events, including chromosome segregation, centrosome maturation, bipolar spindle formation, regulation of anaphase-promoting complex, and execution of cytokinesis (Barr et al., 2004). Conditional knockout of Plk1 leads to defective polyploidization and cell death in megakaryocytes (Trakala et al., 2015). Plk1 inhibition also prevented pancreatic β cell proliferation and G2/M cell-cycle phase progression in a dose-dependent manner (Shirakawa et al., 2017). In addition to proliferative defects, Plk1-null MuSCs also undergo apoptosis. This observation is consistent with previous reports that Plk1 depletion induces apoptosis in cancer cells (Liu and Erikson, 2003). During normal mitosis processes, if DNA damages are detected a signaling cascade will be initiated to enforce cell cycle arrest (checkpoint activation), followed by DNA repair process. If DNA repair fails or if excessive DNA lesions are accumulated, an apoptosis process will be triggered. Phosphorylated H2AX could form nuclear foci within 1 min at the sites of DNA double-strand breaks and thus represents a sensitive marker of DNA damages (Paull et al., 2000). Here, we reported that after Plk1 deletion, most MuSCs exhibit robust γH2AX signal, suggesting that a failure of DNA repair may underpin the observed cell death.

Previous work has also shown that PLK1 plays a crucial role during recovery from G2 DNA damage checkpoint through targeting multiple factors such as ATR/Chk1, ATM/Chk2 and p53 pathways (Bassermann et al., 2008; Li et al., 2017). We show that pharmacological inhibition of p53 or ATM/ATR significantly increases the apoptosis of wildtype myoblasts, potentially due to inhibition of p53 and ATM-dependent DNA damage response. The Plk1-null cells also underwent apoptosis, manifested by markers of activated Caspase-3, DNA damage response (γH2AX), DNA fragmentation and TUNNEL labeling. Previous studies have shown that the DNA damage response and activation of Caspase-3 are key steps in myogenic differentiation (Burgon and Megeney, 2018; Fernando et al., 2002; Fortini et al., 2012; Larsen et al., 2010). In agreement with this concept, we also found that pharmacological inhibitions of Plk1 activates Caspase-3 and promotes myogenic differentiation. However, the Plk1-null myoblasts fail to express the myogenic differentiation marker myogenin despite activation of Caspase-3 (Figure 4—figure supplement 1F and Figure 6—figure supplement 1B), due to the cell cycle blockage and apoptosis prior to terminal differentiation. These results demonstrate that cell cycle-dependent dynamic regulation Plk1 is key for MuSC proliferation and differentiation. PLK1 knockout in tumor cells induces DNA damage and causes p53 activation (Li et al., 2017; Liu and Erikson, 2003), but activated p53 could also transactivate proapoptotic genes, leading to cell death (Liu and Erikson, 2003). This explains why p53 inhibition partially rescues apoptosis of Plk1-null myoblasts that express high levels of p53. Our results demonstrate that a proper level of p53 is critical for MuSC homeostasis. Indeed, it has been reported that regeneration-induced loss of quiescence in p53-deficient MuSCs results in tumor formation (Preussner et al., 2018). Similarly, lower levels of p53 is observed in aged MuSCs that exhibit a high frequency of cell death in the transient expansion phase of muscle regeneration (Liu et al., 2018).

PLK1 is highly expressed in several cancer types, and thus represents a druggable target in cancer therapeutics. BI2536, one of the most effective Plk1 inhibitors, induces apoptosis of rhabdomyosarcoma cells when synergistically used with microtubule-destabilizing drugs, but a low dose of BI2536 (7 nM) has no effect on C2C12 myoblasts (Hugle et al., 2015). Consistently, we report that low dose of BI2536 (1–10 nM) have no effect on the proliferation of MuSCs-derived primary myoblasts. However, BI2526 treatment profoundly inhibits MuSCs function during muscle regeneration, cautioning the potential side effect of PLK1 inhibition in skeletal muscle homeostasis and cancer cachexia. Impaired regenerative ability has been well-established in aged muscle owing in part to decreased number and functionality of MuSCs (Jang et al., 2011), including defective dividing capability (Liu et al., 2018) and quiescent maintenance failure (Chakkalakal et al., 2012). Similar aging features were observed in our Plk1 null or BI2536 treated MuSCs, suggesting that increasing Plk1 activity may preserve functions of MuSCs in aged muscle.

Materials and methods

Key resources table
Reagent type
(species) or
resource		DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (M. musculus)Plk1floxPubmedPMID: 27417127Dr. Guillermo de Cárcer (Spanish National Cancer Research Centre)
Genetic reagent (M. musculus)MyodcreJackson LaboratoryStock #: 014140
RRID:IMSR_JAX:014140
Genetic reagent (M. musculus)Pax7creERJackson LaboratoryStock #: 012476
RRID:IMSR_JAX:012476
AntibodyPax7(PAX7) mouse monoclonalDevelopmental Studies Hybridoma BankCat# pax7 RRID:AB_528428IHC (1:10)
AntibodyMyoG mouse monoclonalDevelopmental Studies Hybridoma BankCat# PCRP-MYOG-1C5 RRID:AB_2722260IHC (1:500)
WB (1:1000)
AntibodyMF20 mouse monoclonalDevelopmental Studies Hybridoma BankCat# MF 20
RRID:AB_2147781		IHC (1:50)
WB (1:200)
AntibodyeMyHC mouse monoclonalDevelopmental Studies Hybridoma BankCat# F1.652
RRID:AB_528358		IHC (1:100)
AntibodyPlk1 rabbit polyclonalCell SignalingCat# 4535
RRID:AB_2252687		IHC (1:500)
WB (1:2000)
AntibodyMyoD mouse monoclonalSanta Cruz BiotechnologyCat# sc-377460IHC (1:300)
AntibodyDystrophin rabbit polyclonalAbcamCat# ab15277
RRID:AB_301813		IHC (1:1000)
AntibodyKi67 rabbit polyclonalAbcamCat# ab15580
RRID:AB_443209		IHC (1:1000)
AntibodyPhospho-Histone H3 rabbit polyclonalCell Signaling TechnologyCat# 9701 RRID:AB_331535WB (1:1000)
AntibodyPhospho-ATR rabbit monoclonalCell Signaling TechnologyCat# 30632 RRID:AB_2798992WB (1:1000)
Antibodyp53 rabbit polyclonalCell Signaling TechnologyCat# 9282 RRID:AB_331476WB (1:1000)
AntibodyCleaved Caspase-3 rabbit polyclonalCell Signaling TechnologyCat# 9661 RRID:AB_2341188IHC (1:500)
AntibodyAnti-H2A.X, phospho mouse monoclonalAbcamCat# ab26350 RRID:AB_470861IHC (1:1000)
Antibody488 goat polyclonal antimouse IgG1Thermo Fisher ScientificCat# A-21121 RRID:AB_141514IHC (1:1000)
Antibody488 goat polyclonal antirabbit IgGThermo Fisher ScientificCat# A-11034 RRID:AB_2576217IHC (1:1000)
Antibody568 goat polyclonal antimouse IgG1Thermo Fisher ScientificCat# A-21124 RRID:AB_2535766IHC (1:1000)
Antibody488 goat polyclonal antirabbit IgGThermo Fisher ScientificCat# A-21244 RRID:AB_2535812IHC (1:1000)
AntibodyHRP-conjugated goat polyclonal anti-rabbit IgGJackson ImmunoResearch LabsCat# 111-035-003 RRID:AB_2313567WB (1:10000)
AntibodyHRP-conjugated goat polyclonal anti-mouse IgGJackson ImmunoResearch LabsCat# 115-035-003 RRID:AB_10015289WB (1:10000)
Chemical compound, drugBI2536SelleckchemCat# S1109
Chemical compound, drugPifithrin-αSigmaCat# P4359
Chemical compound, drugCGK733SigmaCat# C9867
Chemical compound, drugpropidium iodideSigmaCat# P4170
Chemical compound, drugAnnexin VInvitrogenCat# V13241

Mice and animal care

Request a detailed protocol

MyodCre (#014140), Pax7CreER (#012476) mice were obtained from Jackson Laboratory and housed in the animal facility with free access to water and standard rodent chow. Plk1f/f mice was a gift from Dr. Cárcer from Spanish National Cancer Research Centre (CNIO), Madrid, Spain (Wachowicz et al., 2016). Mice were genotyped by PCR of ear DNA using primers listed in Supplementary file 2. The genotypes of experimental KO and associated control animals are as follows: Plk1PKO (Pax7CreER::Plk1f/f) and wild type (Plk1f/f), Plk1MKO (MyodCre::Plk1f/f) and wild type (Plk1f/f). Mouse maintenance and experimental use were performed according to protocols approved by the Purdue Animal Care and Use Committee.

Muscle injury and regeneration

Request a detailed protocol

Muscle regeneration was induced by injections of cardiotoxin (CTX, sigma) into the tibialis anterior (TA) muscles of 8–12 week-old male mice. Mice were anesthetized using a ketamine-xylazine cocktail, and 50 μl saline or 50 μl of 10 μM CTX was injected into TA muscles in the absence or presence of 10 μg BI2536. Muscles were then harvested at different days post-injection to assess the completion of regeneration, repair and gene expression. Tamoxifen (Calbiochem) was prepared in corn oil at a concentration of 10 mg ml−1, and experimental and control mice were injected intraperitoneally at 2 mg per day per 20 g body weight for 5 days to induce Cre-mediated deletion.

Isolation, culture and differentiation of primary myoblast

View detailed protocol

Primary myoblasts were isolated from hind limb skeletal muscle of 6-week-old male mice as previously described (Yue et al., 2017). Muscle tissues were minced and digested in type II collagenase and Dispase B mixture (Roche). Digested cells were harvested and cultured in growth media, F-10 Ham’s medium (Thermo Fisher Scientific) supplemented with 20% fetal bovine serum (FBS, Atlanta), 4 ng/ml basic fibroblast growth factor (Thermo Fisher Scientific) and 1% penicillin-streptomycin (Thermo Fisher Scientific) on collagen-coated dishes. Primary myoblasts were isolated and purified after 2–3 times of pre-plate. For in vitro genetic deletion, 4-OHT (0.4 μM, Calbiochem) was added in culture medium for 1 day to induce Cre-mediated deletion. P53 (Pifithrin-α, Sigma) and ATM/ATR (CGK733, Sigma) inhibitor were used according to the manufactory’s protocol and treated the myoblast together with 4-OHT or Methanol. Muscle differentiation was induced using 80% confluence of isolated primary myoblasts in Dulbecco's Modified Eagle Medium (DMEM, Sigma,) supplemented with 2% horse serum (Sigma). Differentiated cells were kept in differentiation media for further analysis.

Flow cytometry analysis

View detailed protocol

The amount of DNA present in the cell was detected by Flow cytometry using propidium iodide (PI) staining. For each single test, Pax7CreER::Plk1f/f myoblasts from three individual were harvest from a 10 cm dish after treated with 4-OHT or Methanol for 1 day. Then the myoblasts were washed in PBS for twice and fixed in pre-cooled 70% ethanol for overnight. After another two times of wash with PBS, myoblasts were centrifuged, and the pellet was resuspended with PBS containing 10 μg/ml ribonuclease. Suspended myoblasts were incubated at 37°C for 1 hr and the 10 μl (2 mg/ml) PI was added and incubated at 4°C for more than 1 hr before analysis using a BD flow cytometer.

Apoptosis of myoblasts was detected by Flow cytometry using Alexa Fluor 488 annexin V and PI (Invitrogen, V13241) double staining. For each single test, Pax7CreER::Plk1f/f myoblasts from two individual were digested using trypsin from two 10 cm dishes after treated with 4-OHT or Methanol for 36 hr. Then the myoblasts were washed with pre-cooled PBS and centrifuged. The pellet was resuspended with 100 μl of 1X annexin-binding buffer, then 5 µL Alexa Fluor 488 annexin V and 1 µL 100 µg/mL PI working solution was added to each cell suspension. The mixtures were incubated at room temperature for 15 min then 400 μl 1X annexin-binding buffer was added before analysis using a BD flow cytometer.

Isolation and culture of single fiber

Request a detailed protocol

Single fibers were isolated from extensor digitorum longus (EDL) muscles of adult mice as previously described (Pasut et al., 2013). Briefly, intact EDL muscles were digested in 0.2% type I collagenase (Sigma) in DMEM and incubated for approximately 1 hr at 37°C. Fibers were then liberated from the muscle bulk using graded glass pipettes. Suspended fibers were cultured in 60 mm horse-serum-coated plates in DMEM supplemented with 10% FBS, 4 ng/ml basic fibroblast growth factor (Promega), and 1% penicillin-streptomycin for 3 days. Freshly isolated fibers and cultured fibers were then fixed in 4% paraformaldehyde (PFA) for subsequent immunofluorescent analysis. MuSCs from at least 20 fibers were stained and count for statistical analysis.

Hematoxylin–eosin and immunofluorescence staining

View detailed protocol

Fresh TA muscles and hind limb were embedded in optimal cutting temperature compound (OCT, Tissue-Tek) and frozen in isopentane that was chilled on dry ice. Frozen muscles were then cut into 10 μm-thick cross-sections by using a Leica CM1850 cryostat (Leica). For hematoxylin and eosin staining, the slides were first stained in hematoxylin for 15 min, rinsed in running tap water and then stained in eosin for 1 min. Slides were dehydrated in graded ethanol and Xylene, and then covered using Permount. Stained images were captured with a Nikon D90 digital camera installed on a Leica DM6000 (Leica) inverted microscope.

Immunofluorescence was performed on cross-sections, myofiber explants, primary myoblasts and differentiated myotubes. Briefly, samples were fixed in 4% PFA (paraformaldehyde) for 5 min and then permeabilized and blocked in PBS containing 5% goat serum, 2% bovine serum albumin (BSA), 0.2% Triton X-100, and 0.1% sodium azide for 1 hr. Samples were subsequently incubated with primary antibodies (Key resources table) overnight at 4°C. After washing with PBS, the samples were incubated with secondary antibodies and DAPI for 1 hr at room temperature. Fluorescent images were captured with a CoolSnap HQ charge coupled-device camera (Photometrics) by using a Leica DM6000 microscope (Leica). 10 separated images were taken and count in each experimental groups.

In situ TUNEL assay to detect cell apoptosis

Request a detailed protocol

For TUNEL and Pax7 staining, slides were fixed in 4% PFA for 10 min and then subjected to the TUNEL reaction using the CF488A TUNEL Assay Apoptosis Detection Kit (Biotium) according to the manufacturer’s instructions. For negative control, samples were added TUNEL reaction buffer without TdT Enzyme. Samples treated with H2O2 (100 mM) for 30 min before TUNEL staining was set up as positive control. Counterstaining of Pax7 was then performed as regular immunofluorescence staining procedure.

Quantitative real-time PCR

Request a detailed protocol

Total RNA from muscle tissue and myoblast was extracted by using Trizol reagent (Thermo Fisher Scientific). The first-strand cDNA was generated with random primer with MMLV Reverse Transcriptase (Thermo Fisher Scientific). Real-time PCR reactions were performed with a SYBR green PCR kit (Roche) in the Roche LightCycler 480 System (Roche). Primers for the genes of interest were all derived from the primer bank (Harvard Medical School) and were listed in Supplementary file 2. Gene expression was determined with the 2-ΔΔCt relative quantification method and normalized to 18 s expression.

Immunoblot analysis

Request a detailed protocol

Protein was extracted from homogenized muscle tissue or muscle cells (For Plk1-null myoblasts, each sample represent proteins extract from one 10 cm culture dish) with RIPA buffer that contained a protease inhibitor cocktail (Sigma) and phosphatase inhibitors NaF and Na3VO4. Protein concentration was measured using the BCA protein quantification kit (Pierce). Equal amounts of each protein sample were loaded for electrophoresis (Bio-Rad). Proteins were then transferred to a PVDF membrane (Biorad) and incubated with primary antibodies, followed by anti-rabbit or anti-mouse immunoglobulin G-horseradish peroxidase secondary antibody (Cell Signaling Technology). Signals were detected using fluorescence or chemiluminescence Western blot detection reagent (Santa Cruz Biotechnology) on a FluorChem E system (Protein Simple). Antibodies used for western blot analysis were listed in Key resources table.

Single-cell gel electrophoresis

Request a detailed protocol

Single cell gel electrophoresis assay was performed in primary myoblast as previously described (Collins, 2004). Briefly, 10,000 cells were collected in 10 μl PBS and mixed with 75 μl of 0.5% low-melting point agarose. The cell-agarose mixture was then placed on a chilled and fully frosted slide with a 1% normal-melting point agarose coating layer. Subsequently, the slide was submerged in lysis solution (2.5 M NaCl, 100 mM Na2EDTA, 10 mMTris, pH 10, 1% Sodium Sarcosinate with 1% triton X-100% and 10% DMSO being 1 hr before use) overnight at 4°C. Electrophoreses were carried out in alkaline electrophoresis buffer (1 mM Na2EDTA and 300 mM NaOH, pH >13) at 24 v, 300 milliamperes for 30 min. The slide was then neutralized and stained with 1 μg/ml DAPI for 15 min. Images were captured with CoolSnap HQ charge coupled-device camera (Photometrics) by using a Leica DM6000 microscope (Leica). 100 nuclei were measured by their tail DNA content for each treatment, and scored five classes (0–4) according to previous protocol (Collins, 2004). Class 0 represent 0% DNA is in tail and class 4 means 100% DNA is in the tail, respectively. Classes 1–3 are in between 0 and 100% and with an increment from 1 to 3.

Statistical analysis

Request a detailed protocol

All analyses were conducted with Student's t-test (two-tail). All experimental data were presented as mean ± SEM. Comparisons with p values < 0.05 or <0.01 were considered statistically significant.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Sunkel CE
    2. Glover DM
    (1988)
    Polo, a mitotic mutant of Drosophila displaying abnormal spindle poles
    Journal of Cell Science 89 (Pt 1):25–38.

Decision letter

  1. Lynn Megeney
    Reviewing Editor
  2. Didier Y Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Lynn Megeney
    Reviewer
  4. Bradley B Olwin
    Reviewer; University of Colorado Boulder, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for sending your article entitled "A requirement of Polo-like kinase 1 in murine embryonic myogenesis and adult muscle regeneration" for peer review at eLife. Your article is being evaluated by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation is being overseen by a Reviewing Editor and Didier Stainier as the Senior Editor.

Given the list of essential revisions, including new experiments, the editors and reviewers invite you to respond within the next two weeks with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then issue a binding recommendation.

We are in the process of discussing the reviews. Before advising further and reaching a final decision, we would like to hear your response to the following concerns as provided by each reviewer, along with an estimated time frame for completing any additional work. Each reviewer has raised concerns regarding improved image quality and quantification for the same set of figures, along with additional experimentation to substantiate the conclusions as written. Of note, determining the fate of the Plk null cells and the cell cycle work described in Figures 5 and 6 was raised by all reviewers as being insufficient and will require additional analysis (as outlined) to buttress the conclusions.

Reviewer #1:

The manuscript of Jia et al. examines the role of polo-like kinase 1 (Plk1) in skeletal muscle stem cells (MuSCs). Notable strides have been made over the preceding decade in uncovering mechanisms that regulate MuSC commitment and differentiation, yet the regulatory controls that manage MuSC proliferation and survival remain largely unknown. Here, Jia et al. report that MuSC display a robust and transient spike in Plk1 expression, coincident to MuSC activation and proliferation (Figures 1 and 2). Subsequently, the authors conduct a series of intervention experiments to ascribe biologic function to Plk1 (Figures 3-7). Most of these experiments provide compelling outcomes, demonstrating that Plk1 is essential for the survival of both embryonic skeletal myoblasts and adult MuSCs (Figure 5-6), and that this survival mechanism operates (in part) through p53 upregulation (Figure 7). The data linking Plk1 to cell cycle progression is suggestive and fits with prior observations in the cancer field, yet this data is not as compelling as the pro-survival role characterized by the authors (see below for further discussion on this point). Taken together, this is an important set of observations that would be of considerable interest to skeletal muscle biologists and those that study cell survival/cell death in stem cell populations. However, at this stage there are a number of concerns the authors need to address to strengthen the conclusions as stated.

1) A reasonable conclusion that could be drawn from this data is that the primary function of Plk1 is to restrain caspase activation that occurs during MuSC differentiation (others have shown that caspase 3 activation is required for MuSc differentiation). This is entirely reasonable based on the data (and that fact that DNA damage has also been reported to be a downstream requirement of caspase induced differentiation, Larsen et al., 2010). As such, loss of Plk1 may 'release the brakes' on caspase 3, resulting in cell death rather than cell differentiation. Other kinases such as CK2 have been shown to act in this manner. The authors should include expanded discussion of this point in the manuscript.

2) As noted above the role of Plk1 in MuSC cell cycle progression is not compelling. In fact, the alteration in cell numbers may simply be the result of a change in cell survival (there are more cells because of the survival effect rather than true cell cycle progression). One way to address this issue would be to conduct a double thymidine block/release experiment on wildtype and Plk1 null cells and then measure thymidine incorporation, H2AX staining and comet assays over time. This would at least clarify the degree to which Plk1 influences survival vs. proliferation.

3) Given the concerns that caspase activity and DNA damage can mark differentiating cells as well as apoptotic cells, the authors need to include a more definitive cell death marker that is not open to interpretation. Annexin V/PI dual staining is a conclusive cell death measure and should be performed in a number of the experimental settings (primarily Figure 6). On this point, including FACS mediated PI staining as a measure of DNA content is misleading as it may be documenting dead cells rather than increased numbers of surviving cells (Figure 5F).

Reviewer #2:

A study examining the role of Plk1 in skeletal muscle stem cells (MuSCs) uses a combination of conditional ko mice, cultured cells and Plk1 inhibitors to attempt to establish that Plk1 is essential for myoblast proliferation and thus, required for skeletal muscle development and skeletal muscle regeneration. From further mechanistic studies the authors conclude that loss of Plk1 induced DNA damage and p53 up-regulation.

The data provided partially support the authors' conclusions. To fully support the conclusions made, additional experiments are needed. A further concern is that figures are incompletely labeled, figure legends are missing descriptions and required data are not provided including mouse sex, ages of mice or injury details. Throughout the manuscript there are mistakes, references to SCs that I assume means satellite cells and MuSCs that I assume are skeletal muscle stem cells. The authors should be consistent throughout to avoid confusion for the non-expert readers and carefully read and assess the text and legends for agreement, wording and typographical errors that are too numerous to address individually in the review.

For Figure 2 the authors claim that higher signal intensity of Plk1 colocalized to MyoD (subsection “Plk1 is dynamically expressed during muscle regeneration and myogenesis”, last paragraph). The image quality provided is insufficient to make this conclusion and no quantitative analyses were performed to substantiate this claim. Even though mRNA levels are higher in activated MuSCs the relationship of mRNA levels to protein abundance is complex and indirect.

I fail to understand how the authors conclude that Plk1 is necessary for Pax7 cell survival as Pax7 precedes MyoD (subsection “Loss of Plk1 in myogenic progenitors leads to embryonic lethality”, last paragraph). In PlkMKO mice Plk1 is deleted upon MyoD expression and thus, determining a relationship between Plk1 and Pax7 is simply not possible. Similarly, in the aforementioned paragraph the claim that loss of Plk1 blocks proliferation and survival lacks the accompanying data to support the claim. The absence of MuSCs does not prove that Plk1 is necessary for survival. Furthermore, there appears to be muscle tissue in Figures 3C, 4B and 4D but the selected images are not accompanied by quantitative analyses that could include PCR or Western blots to confirm that no skeletal muscle is present and better support the authors' conclusions.

The data in Figure 4E are concerning as Pax7 immunoreactivity (red) is present in the interstitial areas, inside of myofibers, contained within nuclei and excluded from nuclei. Pax7 immunoreactivity is exclusively nuclear and while Pax7+ nuclei can be found in the interstitium and within myofibers during regeneration, there appears to be more Pax7 immunoreactivity outside of nuclei than contained within nuclei. In addition to Dystrophin immunoreactivity, the authors need to visualize Laminin to appropriately identify the MuSCs. The concerns noted for the immunofluorescence images question the validity of the quantitative data provided.

In the second paragraph of the subsection “Deletion of Plk1 impairs muscle regeneration in adult mice”, the authors make the claim that the absence of Pax7+ cells in the Plk1PKO mice is due to proliferative failure. The cells are absent and without additional data I find it difficult to determine how the authors made this conclusion from the mere absence of cells. The inhibitor experiments that follow using BI2536 add little to the conclusions as the inhibitor will affect all cells that contain Plk1, which may comprise many different cell types in muscle tissue. In the last paragraph of the aforementioned subsection, the authors again state that Plk1 regulates proliferation with no supporting data but refer to Supplementary figure 3, whose legend does not describe the panels provided. The lack of adequate figure descriptions is particularly frustrating as the colors in the figure used for distinct immunoreactivity are not provided either in the figure itself or in the legend. I am not able to adequately interpret the figure.

Cells are stated to be synchronized for Figure 5 by a thymidine block, however, data to prove or support that the cells are indeed synchronized are not provided. How long do the cultures remain synchronized? What is the extent of synchronization? In Figure 5B is difficult to determine that the cells are on intact myofibers, the image quality is poor and in the lowest panel white is not defined and cannot be readily interpreted. For Figure 5F a complete cell cycle analysis is needed and not simply cells that are in G2/M. Has the timing of the cell cycle changed in the conditional ko cells? Again, I fail to understand how the data provided in Figure 5G confirm that the PKO cells undergo cell cycle arrest at mitosis. How have the authors determined whether or not cells are cycling from the data in this panel? I assume errors in the figure legend means arrows in the figure. Does methanol "induction" cause cell cycle arrest as well?

For Figure 6A the authors claim that 4OHT treatment causes all cells to apoptose based on Cas3 immunoreactivity. As there are only one or two cells that are Cas3+ in the figure how can the authors make the conclusions stated in the subsection “Plk1-null MuSCs apoptose”, for Figure 6B? Although the TUNEL labeling aids to support the conclusions regarding apoptosis, the authors should not publish Caspase 3 immunoreactivity as they clearly acknowledge that Caspase 3 is required for differentiation. Thus, despite the arguments made and the apparent lack of Myogenin immunoreactivity (Figure 6—figure supplement 1, lacking quantification) the rationale for using Caspase 3 is insufficient. in the aforementioned subsection, the authors state that all cells are Caspase 3 positive or TUNEL positive (Figure 6C-F) yet if one examines the panels provided there is a great deal of variability raising concerns that 100% of all cells are positive.

Without exhaustive details, overall, the quality of data in Figure 7 are insufficient to support the authors' conclusions, particularly those in panels A, B, and G. The inhibitor experiments are an initial method to support the conclusions, but the role of p53 would be best supported by a genetic experiment as a p53 heterozygous mouse should partially rescue the Plk1PKO phenotype during muscle regeneration.

In summary, the rather low quality of many images, the lack of rigor in the text (the Supplementary figure 3 legend is wrong) missing labels in figures, and the lack of quantification in the data fail to support the authors' conclusions and provide a high level of frustration for me attempting to interpret data without adequate descriptions and labeling. Additional experimental details are lacking including the sex of mice, the precise ages as in 8 week old mice MuSCs are still fusing into myofibers, while in 12 wk old mice the fusion is at levels that have plateaued. In the injury experiments it is often unclear how long after CTX injection the muscle was harvested.

Reviewer #3:

The manuscript reports the function of Plk1 in muscle satellite cells both in developing and regenerating muscle. The study has novelty and a good sense of the possible mechanism of action of Plk1 in muscle stem cells. Some points could be better clarified to strengthen the data as suggested below.

In Figure 1, it would be more informative to study how the expression of PLK1 changes between proliferation and differentiation of myogenic cells. If indeed PLK1 is important for cell division, its expression levels should be increased in proliferative cultures compared to differentiated ones.

Additionally, the expression levels of different PLKs are assayed from regenerating tissue, which contains many cell types in addition to activated stem cells, such as immune cells, vascular progenitors and FAPs. It is unclear what the contribution of each cell type is to the overall levels of PLK1 observed.

In Figure 4—figure supplements 1 and 3 were the myofibers the same size in control versus PLK1PKO mice?

In Figures 3 and 4, it appears that very few muscle fibers are formed in the PLK1-deficient muscle, yet many mononuclear cells are present. It seems important to define the identity of these cells, whether they are progenitors of satellite cells or if they are non-myogenic cells replacing the space of myogenic cells.

In Figure 4 the data shown following cardiotoxin injury is 7d post injection. Do muscles look the same at 21 days following injury as they do at 7 days? In other words, are muscle differentiation/repair delayed due to loss of PLK1 or inhibited/arrested as they are at 7 days?

In Figure 5F the P2 gate includes cells in S phase and there is an additional peak/shoulder indicating the cells in G2/M that is more prominent in the PLK1PKO. The exact conditions used should be described as 'doublets' (which are normally excluded by FACS operators) should be included and will provide meaningful data.

One concern with the analyses presented in Figures 6-7 is the number of cells that were obtained or used to perform these analyses. From the data provided in previous figures, the conclusion is that cells are arrested in G2/M and do not divide. If this is the case and cell division is the main cellular defect observed, how were sufficient cell numbers obtained to perform analyses such as western blot? In addition, if many of the cells undergo apoptosis, how robust were these analyses in terms of total cell numbers?

https://doi.org/10.7554/eLife.47097.022

Author response

[Editors' note: the authors’ plan for revisions was approved and the authors made a formal revised submission.]

Reviewer #1:

[…] 1) A reasonable conclusion that could be drawn from this data is that the primary function of Plk1 is to restrain caspase activation that occurs during MuSC differentiation (others have shown that caspase 3 activation is required for MuSc differentiation). This is entirely reasonable based on the data (and that fact that DNA damage has also been reported to be a downstream requirement of caspase induced differentiation, Larsen et al., 2010). As such, loss of Plk1 may 'release the brakes' on caspase 3, resulting in cell death rather than cell differentiation. Other kinases such as CK2 have been shown to act in this manner. The authors should include expanded discussion of this point in the manuscript.

That’s a great point. We have now provided new data to support the potential role of Plk1 inhibition induced Caspase-3 activation in promoting myogenic differentiation. While deletion of Plk1 during proliferation stage leads to cell death and precludes the opportunity to examine its effect in differentiation, we found that inhibition of Plk1 kinase activity using BI2536 promotes myogenic differentiation. We included these data in Figure 6—figure supplement 2 and also added discussion in the fifth paragraph of the Discussion section.

2) As noted above the role of Plk1 in MuSC cell cycle progression is not compelling. In fact, the alteration in cell numbers may simply be the result of a change in cell survival (there are more cells because of the survival effect rather than true cell cycle progression). One way to address this issue would be to conduct a double thymidine block/release experiment on wildtype and Plk1 null cells and then measure thymidine incorporation, H2AX staining and comet assays over time. This would at least clarify the degree to which Plk1 influences survival vs. proliferation.

From the single fiber culture in Figure 5B and Figure 6A, B, all the Plk1-null MuSCs lost the ability to proliferate, stopped before completing the first division and die within 72h (also quantified in Figure 5—figure supplement 1). As suggested, we have now performed the double thymidine block/release experiment on wildtype and Plk1 null cells (Figure 7—figure supplement 2A-B). Our new results support that Plk1-null myoblasts were arrested at M-phase and undergo DNA damage response induced apoptosis.

3) Given the concerns that caspase activity and DNA damage can mark differentiating cells as well as apoptotic cells, the authors need to include a more definitive cell death marker that is not open to interpretation. Annexin V/PI dual staining is a conclusive cell death measure and should be performed in a number of the experimental settings (primarily Figure 6). On this point, including FACS mediated PI staining as a measure of DNA content is misleading as it may be documenting dead cells rather than increased numbers of surviving cells (Figure 5F).

As suggested, we have now substantiated the conclusion by Annexin V-FITC Apoptosis Staining, and the results were shown in Figure 6—figure supplement 1C-D. Our new results shown that Plk1-null myoblasts indeed are mostly labeled by the Annexin V, while the control cells were mostly negative. We agree that PI staining is a common method to distinguish live and dead cells as live cells exclude PI and thus make them unlabeled, while dead cells are positively labeled. However, our study used PI on fixed dead cells, where all cells are labeled and the labeling intensity correlates to DNA content. This is a commonly used method for FACS based determination DNA content in fixed cells. We also performed TUNEL Assay as a readout of apoptosis.

Reviewer #2:

A study examining the role of Plk1 in skeletal muscle stem cells (MuSCs) uses a combination of conditional ko mice, cultured cells and Plk1 inhibitors to attempt to establish that Plk1 is essential for myoblast proliferation and thus, required for skeletal muscle development and skeletal muscle regeneration. From further mechanistic studies the authors conclude that loss of Plk1 induced DNA damage and p53 up-regulation.

The data provided partially support the authors' conclusions. To fully support the conclusions made, additional experiments are needed. A further concern is that figures are incompletely labeled, figure legends are missing descriptions and required data are not provided including mouse sex, ages of mice or injury details. Throughout the manuscript there are mistakes, references to SCs that I assume means satellite cells and MuSCs that I assume are skeletal muscle stem cells. The authors should be consistent throughout to avoid confusion for the non-expert readers and carefully read and assess the text and legends for agreement, wording and typographical errors that are too numerous to address individually in the review.

Thank you for the advice. As suggested, we have gone through the main text, figure labels, legends, and descriptions, and fixed typographical errors. We have also provided detailed information on animals used (subsection “Mice and animal care”). In addition, the detailed information of animals used in every experiment was also added in the revised figure legend. MuSCs (for Muscle Satellite Cells) were used throughout the revised manuscript.

For Figure 2 the authors claim that higher signal intensity of Plk1 colocalized to MyoD (subsection “Plk1 is dynamically expressed during muscle regeneration and myogenesis”, last paragraph). The image quality provided is insufficient to make this conclusion and no quantitative analyses were performed to substantiate this claim. Even though mRNA levels are higher in activated MuSCs the relationship of mRNA levels to protein abundance is complex and indirect.

Thank you for pointing this out. Our original statement was not accurate, and we meant to say that Plk1 signal was co-localized to MyoD signal. We replaced the images with a higher magnification one and rephrased the statement. We also counted over 200 cells on myofibers cultured for 72h, all Plk1+ cells were also MyoD+. The results were updated in the last paragraph of the subsection “Plk1 is dynamically expressed during muscle regeneration and myogenesis”.

I fail to understand how the authors conclude that Plk1 is necessary for Pax7 cell survival as Pax7 precedes MyoD (subsection “Loss of Plk1 in myogenic progenitors leads to embryonic lethality”, last paragraph). In PlkMKO mice Plk1 is deleted upon MyoD expression and thus, determining a relationship between Plk1 and Pax7 is simply not possible. Similarly, in the aforementioned paragraph the claim that loss of Plk1 blocks proliferation and survival lacks the accompanying data to support the claim. The absence of MuSCs does not prove that Plk1 is necessary for survival. Furthermore, there appears to be muscle tissue in Figures 3C, 4B and 4D but the selected images are not accompanied by quantitative analyses that could include PCR or Western blots to confirm that no skeletal muscle is present and better support the authors' conclusions.

The statement “Plk1 is necessary for Pax7 cell survival” was based on the understanding that Pax7+ progenitors should have been generated before turning on Myod expression, which then drives deletion of Plk1. Reading this statement again, without the results that were shown later in the manuscript, we agree that the sentence is misleading. We also agree that there were no data to directly support “proliferation and survival” here. We have therefore reworded this phrase as “Plk1 is necessary for the generation or maintenance of embryonic myoblasts”.

To answer the second part regarding whether there is muscle tissue in Figures 3C, 4B and 4D, we must first clarify that these figures are from two different mice models. In the Plk1MKO mice, Plk1 is deleted in MyoD-expressing embryonic myoblasts. Figure 3C is based on this model and we do not see any eMyHC marked myotubes (shown in Figure 3D, from the same limbs shown in Figure 3C). The second model is Plk1PKO mice, in which Plk1 is deleted in Pax7-expressing cells when tamoxifen or 4-OH-Tamoxifen is administered. Figure 4B and Figure 4D are from the latter mouse model in which muscles were allowed to develop normally and then tamoxifen was administered to delete Plk1 only in the Pax7+ satellite cells. Again, we don’t see any central nucleated dystrophin+ myofibers (Figure 4E) that were regenerated after degeneration of the original muscles prior to deletion of Plk1.

The data in Figure 4E are concerning as Pax7 immunoreactivity (red) is present in the interstitial areas, inside of myofibers, contained within nuclei and excluded from nuclei. Pax7 immunoreactivity is exclusively nuclear and while Pax7+ nuclei can be found in the interstitium and within myofibers during regeneration, there appears to be more Pax7 immunoreactivity outside of nuclei than contained within nuclei. In addition to Dystrophin immunoreactivity, the authors need to visualize Laminin to appropriately identify the MuSCs. The concerns noted for the immunofluorescence images question the validity of the quantitative data provided.

It is not uncommon to see non-specific (non-nuclear) signals in Pax7 staining as the antibody was murine origin and the secondary antibody used would recognize endogenous mouse IgG1. To ensure scientific rigor, our quantification only include the nuclear signals (i.e. DAPI and Pax7 double positive signals), and all non-nuclear signals were excluded in the quantification. We have now included the description in the revised manuscript (subsection “Deletion of Plk1 impairs muscle regeneration in adult mice”, first paragraph).

In the second paragraph of the subsection “Deletion of Plk1 impairs muscle regeneration in adult mice”, the authors make the claim that the absence of Pax7+ cells in the Plk1PKO mice is due to proliferative failure. The cells are absent and without additional data I find it difficult to determine how the authors made this conclusion from the mere absence of cells. The inhibitor experiments that follow using BI2536 add little to the conclusions as the inhibitor will affect all cells that contain Plk1, which may comprise many different cell types in muscle tissue. In the last paragraph of the aforementioned subsection, the authors again state that Plk1 regulates proliferation with no supporting data but refer to Supplementary figure 3, whose legend does not describe the panels provided. The lack of adequate figure descriptions is particularly frustrating as the colors in the figure used for distinct immunoreactivity are not provided either in the figure itself or in the legend. I am not able to adequately interpret the figure.

We agree and rephrased the sentence and deleted “proliferative failure”, though the inhibitor and KO experiments performed in cultured myoblasts later (Figure 5—figure supplement 1 and Figure 5—figure supplement 2) showed cell autonomous effects. We apologize for the confusing mis-matched figure legends (for several supplementary figures) due to rearrangement of the order of figures before the submission (the Supplementary figure 1 legend should be corresponding to Figure 4—figure supplement 3, Supplementary figure 2 legends correspond to Figure 4—figure supplement 1; and Supplementary figure 3 legends correspond to Figure 4—figure supplement 2). These are corrected in the revised manuscript. Colors used for immunoreactivity were also labeled in the revised Figure 4—figure supplement 3 legend.

Cells are stated to be synchronized for Figure 5 by a thymidine block, however, data to prove or support that the cells are indeed synchronized are not provided. How long do the cultures remain synchronized? What is the extent of synchronization? In Figure 5B is difficult to determine that the cells are on intact myofibers, the image quality is poor and in the lowest panel white is not defined and cannot be readily interpreted. For Figure 5F a complete cell cycle analysis is needed and not simply cells that are in G2/M. Has the timing of the cell cycle changed in the conditional ko cells? Again, I fail to understand how the data provided in Figure 5G confirm that the PKO cells undergo cell cycle arrest at mitosis. How have the authors determined whether or not cells are cycling from the data in this panel? I assume errors in the figure legend means arrows in the figure. Does methanol "induction" cause cell cycle arrest as well?

We used the mitosis marker phosphohistone H3 (pHH3) to show the synchronization efficiency, where the cell peaked at M-Phase 14 hours after the release (Figure 5A). Cells are typically synchronous in the first cycle after release and we did not follow cells after 20 hours as it is beyond the first cycle in the WT cells, when they become asynchronous. The host myofbers were not seen as they are out of focus. The white channel in Figure 5B represents the DAPI staining and we added the label in revised manuscript. We also performed analyses at more time points after double thymidine block to pinpoint defects prior to G2/M, but stages after G2/M is impossible as the KO cells don’t seem to pass that time point. In Figure 5F, we used PI staining to show cells containing doubled DNA content suggestive of completion of S-phase. In Figure 5G, the white arrows indicate cells containing unsegregated chromosomes, which were more abundant in KO cells than control (methanol treated) cells. We have updated the figure legend and we don’t think 0.1% of methanol caused cell cycle arrest.

For Figure 6A the authors claim that 4OHT treatment causes all cells to apoptose based on Cas3 immunoreactivity. As there are only one or two cells that are Cas3+ in the figure how can the authors make the conclusions stated in the subsection “Plk1-null MuSCs apoptose”, for Figure 6B? Although the TUNEL labeling aids to support the conclusions regarding apoptosis, the authors should not publish Caspase 3 immunoreactivity as they clearly acknowledge that Caspase 3 is required for differentiation. Thus, despite the arguments made and the apparent lack of Myogenin immunoreactivity (Figure 6—figure supplement 1, lacking quantification) the rationale for using Caspase 3 is insufficient. in the aforementioned subsection, the authors state that all cells are Caspase 3 positive or TUNEL positive (Figure 6C-F) yet if one examines the panels provided there is a great deal of variability raising concerns that 100% of all cells are positive.

There were few myoblasts on cultured myofibers because the MuSCs could not complete the first division and then undergo apoptosis. Nevertheless, the statement that all myoblasts were Casp3+ or TUNEL+ was based on observation of at least 30 cells from 30 myofibers from 3 mice. Please note that the MyoD– cells on myofibers are differentiated myonuclei that were not cycling and excluded from the analysis.

For Figure 6C-F, after 48h of 4-OHT treatment, most Plk1-null myoblasts were dead and floated, and the remainder cells were either Cleaved-caspase3+ or TUNEL+ based our staining. Myoblast treated with 100 mm H2O2 for 30mins were stained as a positive control signal. All images were captured and handled using the same parameters as used in the positive control. Statistical analysis for quantification was based on 25-50 myoblasts from 3 replicates from 3 individual mice. In addition, the new double thymidine treatment data (Figure 7—figure supplement 2A-B) also indicated that after 16-24 h double thymidine block/release, all 4-OHT treated myoblasts were TUNEL+.

Without exhaustive details, overall, the quality of data in Figure 7 are insufficient to support the authors' conclusions, particularly those in panels A, B, and G. The inhibitor experiments are an initial method to support the conclusions, but the role of p53 would be best supported by a genetic experiment as a p53 heterozygous mouse should partially rescue the Plk1PKO phenotype during muscle regeneration.

We appreciate the comment but establishing a conditional KO on the p53 null or heterozygous background requires breeding of three transgenic alleles into one mouse that will require extended time (at least 6 months) and is beyond the scope of this manuscript. Nevertheless, we have added discussion on the reported role of p53 on MuSCs survival and cell cycle progression to address this comment (Discussion, fifth paragraph).

In summary, the rather low quality of many images, the lack of rigor in the text (the Supplementary figure 3 legend is wrong) missing labels in figures, and the lack of quantification in the data fail to support the authors' conclusions and provide a high level of frustration for me attempting to interpret data without adequate descriptions and labeling. Additional experimental details are lacking including the sex of mice, the precise ages as in 8 week old mice MuSCs are still fusing into myofibers, while in 12 wk old mice the fusion is at levels that have plateaued. In the injury experiments it is often unclear how long after CTX injection the muscle was harvested.

We are sorry for these confusions and hope our revised manuscript addressed these concerns.

Reviewer #3:

The manuscript reports the function of Plk1 in muscle satellite cells both in developing and regenerating muscle. The study has novelty and a good sense of the possible mechanism of action of Plk1 in muscle stem cells. Some points could be better clarified to strengthen the data as suggested below.

In Figure 1, it would be more informative to study how the expression of PLK1 changes between proliferation and differentiation of myogenic cells. If indeed PLK1 is important for cell division, its expression levels should be increased in proliferative cultures compared to differentiated ones.

Thank you for the suggestion. The comparison of Plk1 level in proliferation and differentiation myoblasts were shown in Figure 1D, where cells were in proliferation stage at Day 0. We clarified this in the revised manuscript (subsection “Plk1 is dynamically expressed during muscle regeneration and myogenesis”, first paragraph).

Additionally, the expression levels of different PLKs are assayed from regenerating tissue, which contains many cell types in addition to activated stem cells, such as immune cells, vascular progenitors and FAPs. It is unclear what the contribution of each cell type is to the overall levels of PLK1 observed.

We added a sentence to acknowledge the potential contribution of non-MuSCs to the overall changes in Plk1 levels in the whole muscle (subsection “Plk1 is dynamically expressed during muscle regeneration and myogenesis”, last paragraph). However, the data in Figure 2B comparing freshly FACS-sorted MuSCs that are not yet cycling to cells that were activated by culturing for 24 hours shows that the Plk1 level is increased by 15-fold upon activation. This observation strongly suggests that Plk1 level in MuSC contributed at least in part to the overall change in the muscle.

In Figure 4—figure supplements 1 and 3 were the myofibers the same size in control versus PLK1PKO mice?

We have now quantified fiber size in the revised version (Figure 4—figure supplement 1D). For Figure 4—figure supplement 2, as there were no intact muscle fibers in CTX treated Plk1PKO mice, it would be impossible to quantify the myofiber size.

In Figures 3 and 4, it appears that very few muscle fibers are formed in the PLK1-deficient muscle, yet many mononuclear cells are present. It seems important to define the identity of these cells, whether they are progenitors of satellite cells or if they are non-myogenic cells replacing the space of myogenic cells.

Based on the Pax7 staining in Figure 3 and 4, no MuSCs were found in Plk1-deficient muscle. We have now used markers of adipocytes (PLIN1) and macrophages (F4/80) to demonstrate that some of these cells are infiltrating macrophages and adipocytes (Figure 4—figure supplement 2I).

In Figure 4 the data shown following cardiotoxin injury is 7d post injection. Do muscles look the same at 21 days following injury as they do at 7 days? In other words, are muscle differentiation/repair delayed due to loss of PLK1 or inhibited/arrested as they are at 7 days?

Our data showing the complete lack of regenerated myofibers and Pax7+ cells indicated a complete regenerative failure (but not delay). As suggested, we have now performed analysis of muscle regeneration at 21 DPI and the results exclude the possibility of regenerative delay (Figure 4—figure supplement 2F-I).

In Figure 5F the P2 gate includes cells in S phase and there is an additional peak/shoulder indicating the cells in G2/M that is more prominent in the PLK1PKO. The exact conditions used should be described as 'doublets' (which are normally excluded by FACS operators) should be included and will provide meaningful data.

Thank you for pointing these out and we now refer these cells to tetraploid cells (they are single cells with DNA doubled) in the revised manuscript. (subsection “Plk1-null MuSCs undergo cell cycle arrest at M Phase”, first paragraph).

One concern with the analyses presented in Figures 6-7 is the number of cells that were obtained or used to perform these analyses. From the data provided in previous figures, the conclusion is that cells are arrested in G2/M and do not divide. If this is the case and cell division is the main cellular defect observed, how were sufficient cell numbers obtained to perform analyses such as western blot? In addition, if many of the cells undergo apoptosis, how robust were these analyses in terms of total cell numbers?

Figures 6-7 each contains two sets of experiments: one performed on single myofibers in culture and another set on primary myoblasts from Plk1PKO mice without prior tamoxifen administration to delete Plk1. These cells were allowed to grow normally and then acutely deleted of Plk1 by 4-OH-Tamoxifen administration. Cell numbers used for analysis were listed as below:

1. For fibers, 30 single fibers from 3 mice (10 each) were used for quantification.

2. Immunofluorescence of Cleaved Caspase3, TUNEL and γH2AX were quantified based on 25-50 myoblasts (each) from 3 replicates from 3 mice.

3. In order to collect enough protein for WB analysis, myoblasts from a 10-cm culture dish were used in each sample (more than one million myoblasts). In addition, they were treated with 4-OHT for shorter time to make sure that most of them were not dead and floated. The information was updated in the revised manuscript (subsection “Immunoblot analysis”).

https://doi.org/10.7554/eLife.47097.023

Article and author information

Author details

  1. Zhihao Jia

    Department of Animal Sciences, Purdue University, West Lafayette, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Yaohui Nie
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5525-2721

  2. Yaohui Nie

    1. Department of Animal Sciences, Purdue University, West Lafayette, United States
    2. Department of Health and Kinesiology, Purdue University, West Lafayette, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Zhihao Jia
    Competing interests
    No competing interests declared

  3. Feng Yue

    Department of Animal Sciences, Purdue University, West Lafayette, United States
    Contribution
    Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared

  4. Yifan Kong

    Department of Animal Sciences, Purdue University, West Lafayette, United States
    Contribution
    Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared

  5. Lijie Gu

    Department of Animal Sciences, Purdue University, West Lafayette, United States
    Contribution
    Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared

  6. Timothy P Gavin

    Department of Health and Kinesiology, Purdue University, West Lafayette, United States
    Contribution
    Resources, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared

  7. Xiaoqi Liu

    1. Department of Biochemistry, Purdue University, West Lafayette, United States
    2. Center for Cancer Research, Purdue University, West Lafayette, United States
    Contribution
    Conceptualization, Resources, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared

  8. Shihuan Kuang

    1. Department of Animal Sciences, Purdue University, West Lafayette, United States
    2. Center for Cancer Research, Purdue University, West Lafayette, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    skuang@purdue.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9180-3180

Funding

National Institutes of Health (R01AR071649)

  • Feng Yue
  • Shihuan Kuang

U.S. Department of Agriculture (NC1184)

  • Shihuan Kuang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by grants from the US National Institutes of Health (R01AR071649) and the National Institute of Food and Agriculture (NC-1184). We thank Jun Wu and Mary Larimore for mouse colony maintenance, Xinyuan Xu, X Shawn Liu and Zhiguo Li for technical assistance.

Ethics

Animal experimentation: Mouse maintenance and experimental use were performed according to Protocol #1112000440 approved by the Purdue University Animal Care and Use Committee.

Senior Editor

  1. Didier Y Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Lynn Megeney

Reviewers

  1. Lynn Megeney
  2. Bradley B Olwin, University of Colorado Boulder, United States

Version history

  1. Received: March 24, 2019
  2. Accepted: July 17, 2019
  3. Version of Record published: August 8, 2019 (version 1)

Copyright

© 2019, Jia et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,713
    Page views
  • 257
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Zhihao Jia
  2. Yaohui Nie
  3. Feng Yue
  4. Yifan Kong
  5. Lijie Gu
  6. Timothy P Gavin
  7. Xiaoqi Liu
  8. Shihuan Kuang
(2019)
A requirement of Polo-like kinase 1 in murine embryonic myogenesis and adult muscle regeneration
eLife 8:e47097.
https://doi.org/10.7554/eLife.47097

Categories and tags

Research organism

Further reading

    1. Developmental Biology

    Dynamic compartmentalization of the pro-invasive transcription factor NHR-67 reveals a role for Groucho in regulating a proliferative-invasive cellular switch in C. elegans

    Taylor N Medwig-Kinney, Brian A Kinney ... David Q Matus
    Research Article

    A growing body of evidence suggests that cell division and basement membrane invasion are mutually exclusive cellular behaviors. How cells switch between proliferative and invasive states is not well understood. Here, we investigated this dichotomy in vivo by examining two cell types in the developing Caenorhabditis elegans somatic gonad that derive from equipotent progenitors, but exhibit distinct cell behaviors: the post-mitotic, invasive anchor cell and the neighboring proliferative, non-invasive ventral uterine (VU) cells. We show that the fates of these cells post-specification are more plastic than previously appreciated and that levels of NHR-67 are important for discriminating between invasive and proliferative behavior. Transcription of NHR-67 is downregulated following post-translational degradation of its direct upstream regulator, HLH-2 (E/Daughterless) in VU cells. In the nuclei of VU cells, residual NHR-67 protein is compartmentalized into discrete punctae that are dynamic over the cell cycle and exhibit liquid-like properties. By screening for proteins that colocalize with NHR-67 punctae, we identified new regulators of uterine cell fate maintenance: homologs of the transcriptional co-repressor Groucho (UNC-37 and LSY-22), as well as the TCF/LEF homolog POP-1. We propose a model in which the association of NHR-67 with the Groucho/TCF complex suppresses the default invasive state in non-invasive cells, which complements transcriptional regulation to add robustness to the proliferative-invasive cellular switch in vivo.

    1. Chromosomes and Gene Expression
    2. Developmental Biology

    Transcription: A hub of activity

    Virginia L Pimmett, Mounia Lagha
    Insight

    Imaging experiments reveal the complex and dynamic nature of the transcriptional hubs associated with Notch signaling.

    1. Cell Biology
    2. Developmental Biology

    Cylicins are a structural component of the sperm calyx being indispensable for male fertility in mice and human

    Simon Schneider, Andjela Kovacevic ... Hubert Schorle
    Research Article

    Cylicins are testis-specific proteins, which are exclusively expressed during spermiogenesis. In mice and humans, two Cylicins, the gonosomal X-linked Cylicin 1 (Cylc1/CYLC1) and the autosomal Cylicin 2 (Cylc2/CYLC2) genes, have been identified. Cylicins are cytoskeletal proteins with an overall positive charge due to lysine-rich repeats. While Cylicins have been localized in the acrosomal region of round spermatids, they resemble a major component of the calyx within the perinuclear theca at the posterior part of mature sperm nuclei. However, the role of Cylicins during spermiogenesis has not yet been investigated. Here, we applied CRISPR/Cas9-mediated gene editing in zygotes to establish Cylc1- and Cylc2-deficient mouse lines as a model to study the function of these proteins. Cylc1 deficiency resulted in male subfertility, whereas Cylc2-/-, Cylc1-/yCylc2+/-, and Cylc1-/yCylc2-/- males were infertile. Phenotypical characterization revealed that loss of Cylicins prevents proper calyx assembly during spermiogenesis. This results in decreased epididymal sperm counts, impaired shedding of excess cytoplasm, and severe structural malformations, ultimately resulting in impaired sperm motility. Furthermore, exome sequencing identified an infertile man with a hemizygous variant in CYLC1 and a heterozygous variant in CYLC2, displaying morphological abnormalities of the sperm including the absence of the acrosome. Thus, our study highlights the relevance and importance of Cylicins for spermiogenic remodeling and male fertility in human and mouse, and provides the basis for further studies on unraveling the complex molecular interactions between perinuclear theca proteins required during spermiogenesis.
