Screening identifies small molecules that enhance the maturation of human pluripotent stem cell-derived myotubes

  1. Sridhar Selvaraj
  2. Ricardo Mondragon-Gonzalez
  3. Bin Xu
  4. Alessandro Magli
  5. Hyunkee Kim
  6. Jeanne Lainé
  7. James Kiley
  8. Holly Mckee
  9. Fabrizio Rinaldi
  10. Joy Aho
  11. Nacira Tabti
  12. Wei Shen
  13. Rita CR Perlingeiro  Is a corresponding author
  1. University of Minnesota, United States
  2. Centro de Investigación y de Estudios Avanzados del IPN (CINVESTAV-IPN), Mexico
  3. Sorbonne Universités, Faculté de Médecine site Pitié-Salpêtrière, France
  4. Bio-Techne, United States
Research Article
  • Cited 0
  • Views 776
  • Annotations
Cite this article as: eLife 2019;8:e47970 doi: 10.7554/eLife.47970

Abstract

Targeted differentiation of pluripotent stem (PS) cells into myotubes enables in vitro disease modeling of skeletal muscle diseases. Although various protocols achieve myogenic differentiation in vitro, resulting myotubes typically display an embryonic identity. This is a major hurdle for accurately recapitulating disease phenotypes in vitro, as disease commonly manifests at later stages of development. To address this problem, we identified four factors from a small molecule screen whose combinatorial treatment resulted in myotubes with enhanced maturation, as shown by the expression profile of myosin heavy chain isoforms, as well as the upregulation of genes related with muscle contractile function. These molecular changes were confirmed by global chromatin accessibility and transcriptome studies. Importantly, we also observed this maturation in three-dimensional muscle constructs, which displayed improved in vitro contractile force generation in response to electrical stimulus. Thus, we established a model for in vitro muscle maturation from PS cells.

https://doi.org/10.7554/eLife.47970.001

Introduction

Pluripotent stem (PS) cells represent an attractive model system for disease modeling, drug screening and cell therapy applications for genetic diseases. PS cells possess the unique feature of unlimited proliferative potential and the ability to differentiate into all cell types of the body. The advent of induced pluripotent stem (iPS) cell technology enables the easy derivation of PS cells from any individual, including patients with genetic diseases (Takahashi et al., 2007). This allows for the generation of unlimited numbers of patient-specific cell derivatives, which can potentially recapitulate a given disease phenotype (Avior et al., 2016). For this to be successfully accomplished, two critical aspects need to be fulfilled. One is the use of an efficient methodology for generating the cell type of interest. The second critical aspect is maturation. This latter point in particular has been a conundrum in the field since extensive literature suggests that PS cell-derivatives are predominantly embryonic in nature (Abdelalim and Emara, 2015; Aigha and Raynaud, 2016; Chen et al., 2018; Jiwlawat et al., 2018).

To date, attempts to induce maturation of PS cell-derivatives involve maintaining the cells in culture for long periods of time, generally longer than one month (Lainé et al., 2018; Paavilainen et al., 2018; Zhang et al., 2009). A recent study comparing the transcriptional profile of transgene-free PS cell-derived myotubes with fetal myotubes revealed inhibition of TGFβ signaling as an approach to enhance in vitro PS cell-derived skeletal muscle maturation (Hicks et al., 2018). Notably, inhibition of the TGFβ signaling pathway through the use of small molecules has been extensively reported to result in enhanced myotube differentiation and hypertrophy (Furutani et al., 2011; Liu et al., 2001; Schabort et al., 2009; Watt et al., 2010). These studies suggest that small molecules have the potential to modify the profile of differentiation and maturation of skeletal muscle cells in vitro.

In this study, we performed a small molecule screening and identified four candidates whose combinatorial treatment enhances the maturation of PS cell-derived myotubes in a time frame of 5 days of myotube differentiation. This was evident by the striking increase in the expression profile of neonatal myosin heavy chain (MyHC) isoform as well as in other genes associated with neonatal and adult muscle, as revealed by chromatin accessibility and RNA sequencing analyses. Moreover, we demonstrate the usefulness of the combinatory small molecule treatment for inducing maturation and improving contractile force generation of three-dimensional (3D) PS cell-derived muscle constructs, thus contributing to the use of organoid-like platforms for in vitro modeling.

Results

Optimal differentiation of PS cells into somite-like stage enhances PAX7-induced myogenesis

To induce mesoderm differentiation of PS cells, we utilized CHIR99021 (GSK3β inhibitor) treatment for two days (Figure 1—figure supplement 1A), which we and others have previously reported to improve skeletal myogenic differentiation from PS cells (Borchin et al., 2013; Kim et al., 2016). This treatment resulted in the expression of the early mesoderm marker T as well as the paraxial mesoderm markers MSGN1 and TBX6 (Figure 1—figure supplement 1B). Considering the recent literature demonstrating the ability of the BMP inhibitor LDN193189 and the TGFβ inhibitor SB431542 to induce somitic mesoderm-like cells (Xi et al., 2017), we investigated whether these inhibitors would enhance myotube generation in the context of PAX7-induced myogenic differentiation. Treatment of differentiating PS cells from day 4 to day 6 with LDN193189 and SB431542 (+LS) (Figure 1—figure supplement 1A) resulted in increased expression of MEOX1, TCF15, PAX3 and FOXC2 on day 6 (Figure 1—figure supplement 1B). Induction of PAX7 expression with doxycycline began on day 5, two days earlier than our standard protocol (Darabi et al., 2012), as we reasoned that optimal myogenic specification by PAX7 would be achieved if it was induced when cells are at the peak of somite-like state. On day 12, PAX7+ myogenic progenitors were purified based on GFP expression, expanded in the presence of doxycycline and bFGF for three cell passages, and then subjected to terminal differentiation culture conditions, as described previously (Darabi et al., 2012). Of note, MyHC-expressing myotubes were detected only when cultures were subjected to terminal differentiation following withdrawal of doxycycline. Our results showed significant improvement in the differentiation efficiency of several of the seven PS cell lines investigated (unaffected and diseased), when compared to the unmodified protocol (-LS) (Figure 1—figure supplement 2). This result was particularly evident in PS cell lines displaying limited in vitro differentiation potential using the unmodified protocol.

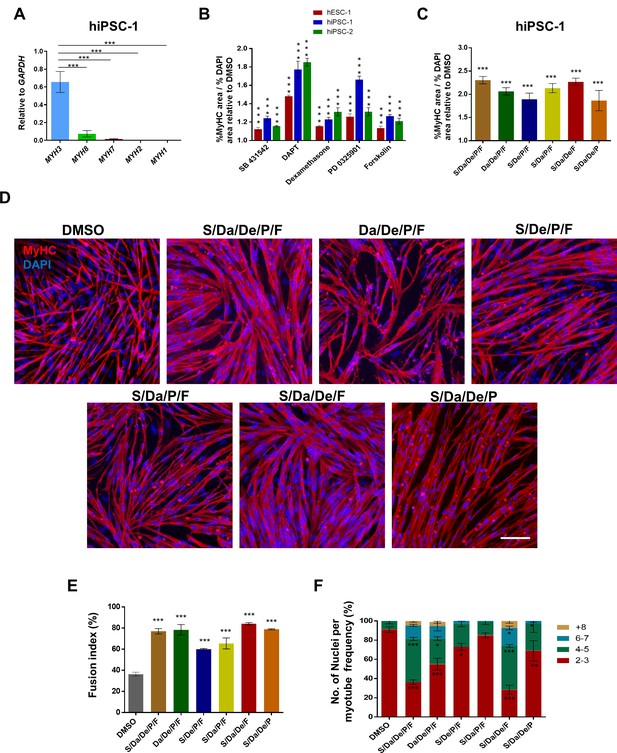

Small molecule library screening for enhancing myogenic differentiation/maturation

Despite the promising results described above, PS cell-derived myotubes remained immature, as indicated by their thin morphology (Figure 1—figure supplement 2) and predominant expression of the embryonic isoform of myosin heavy chain (MYH3) (Figure 1A). To determine whether small molecule compounds may enhance the maturation of PS cell-derived myotubes, we performed a small molecule library screening using the Tocriscreen stem cell toolbox kit (Tocris). This library consists of 80 stem cell modulator compounds. Myogenic progenitors were seeded onto 96-well plates and incubated for three days in the presence of expansion medium (bFGF and Dox). Then, culture medium was switched to differentiation medium supplemented or not with small molecules from the library, with each well containing an individual compound in a final concentration of 10 μM. Five days later, cells were stained for MyHC expression (Figure 1—figure supplement 3A). We reasoned that an increase in the ratio of MyHC (+) to DAPI (+) area would indicate thicker myotubes as a consequence of increased multinucleation, hypertrophy and/or enhanced differentiation, which could be potentially accompanied by increased maturation (Biressi et al., 2007b). We identified several compounds exhibiting a positive or negative effect on terminal differentiation (Figure 1—source data 1). For the purposes of this study, we selected five compounds that consistently showed statistically significant increase (p<0.001) in MyHC/DAPI area ratio in myotubes derived from multiple PS cell lines (Figure 1B). This set includes the TGFβ signaling inhibitor SB431542 (S), the γ-Secretase inhibitor DAPT (Da), the anti-inflammatory glucocorticoid Dexamethasone (De), the MEK inhibitor PD0325901 (P), and the adenylyl cyclase activator Forskolin (F) (Figure 1B and Figure 1—figure supplement 3B). Since concentrations ranging from 5 to 20 μM of the selected compounds did not significantly change the MyHC/DAPI area ratio (Figure 1—figure supplement 3C), in subsequent studies we used 10 μM for each compound.

Figure 1 with 3 supplements see all
Combinatorial treatment with four small molecules augments myotube generation from human PS cells and their fusion ability.

(A) Bar graph shows expression profile of MYH isoforms in hiPSC-1-derived myotubes. Data are shown as mean ± S.E.M.; n = 3, ***p<0.001. (B) Bar graph shows the ratio of % MyHC-stained area to % DAPI area in myotubes resulting from treatment with five candidates identified by the small molecule screening. Data show significant increase (***p<0.001) compared to DMSO in all three PS cell lines analyzed (hESC-1, hiPSC-1 and hiPSC-2). Data from three independent replicates are shown, normalized to DMSO, as mean ± S.E.M. (C) Bar graph shows the ratio of % MyHC-stained area to % DAPI area in iPS cell-derived myotubes that had been differentiated in the presence of all candidates combined, or with individual candidates excluded from the overall combination. Data from three independent replicates are shown normalized to DMSO. Values are shown as mean ± S.E.M. ***p<0.001. (D) Representative images show immunostaining for MyHC (in red) in hiPSC-1 myotubes differentiated with combinatory treatments of small molecules or DMSO. DAPI stains nuclei (in blue). Scale bar is 100 μm. (E) Bar graph shows fusion index analysis of myotubes that were differentiated with small molecule combinations or DMSO. Data are shown as mean of three independent replicates ± S.E.M. ***p<0.001. (F) Stacked bar graph shows the frequency of number of nuclei per myotube upon differentiation with combinatory treatments or DMSO. Data are shown as mean of three independent replicates ± S.E.M. Statistical analysis compares each combination to DMSO. *p<0.05 **p<0.01 ***p<0.001.

https://doi.org/10.7554/eLife.47970.002

Expression of MYH isoforms can be used as a readout for the maturation state of generated myotubes, as each MYH isoform is found predominantly expressed at specific developmental stages: MYH3 for embryonic, MYH8 for neonatal, and MYH1, MYH2 and MYH7 for adult muscle (Schiaffino et al., 2015). Therefore, we analyzed the MYH expression profile for each of the individual compound treatments. Although there was an overall increase in the expression of embryonic, neonatal and adult MYH isoforms among compounds, we did not detect a trend of maturation shift for a particular candidate (Figure 1—figure supplement 3D). Therefore, we assessed the combination of all five compounds (S/Da/De/P/F) along with combinations obtained by excluding each compound from the overall mixture. Significant increase in MyHC/DAPI area ratio (>2 fold relative to DMSO) was observed in all combinations (Figure 1C). Morphologically, myotubes exposed to S/Da/De/P/F treatment appeared thicker and denser relative to DMSO. Exclusion of S, Da, De or F led to the generation of thinner myotubes compared with the full combinatorial condition, while exclusion of P did not affect myotube morphology (Figure 1D). Consistently, this correlated with remarkable increases in fusion index and number of nuclei per myotube in the S/Da/De/P/F condition, which again were unaffected when excluding P but not the other compounds (Figure 1E–F).

Combinatorial treatment induces maturation switch

To determine whether enhanced myogenic differentiation, multinucleation and changes in myotube morphology are accompanied by molecular changes, we performed gene expression analysis for Myogenin (MYOG) and several MYH isoforms. Although S/Da/De/P/F or S/Da/De/P combinatorial conditions showed significant increase for some MYH isoforms, our data demonstrated that only S/Da/De/F (excluding P) consistently resulted in significantly increased expression of all MYH isoforms analyzed, with a more dramatic upregulation observed for neonatal MYH8 (neo-MyHC) (Figure 2A). Based on these results, we selected the S/Da/De/F condition for subsequent studies. We tested S/Da/De/F combinatorial treatment on additional differentiating PS cell lines, and consistently observed increased expression of MYH8 (Figure 2B). Of note, significant increase in the gene expression of adult isoforms MYH2 and MYH7 was observed in myotubes derived from iPSC-2, while ES cell-derived myotubes remained unchanged for these isoforms (Figure 2B). Western blot and immunostaining analysis confirmed expression of neo-MyHC at the protein level only upon S/Da/De/F treatment (Figure 2C–D), whereas MYH1 and MYH2 were not detected upon treatment (Figure 2C). Furthermore, immunostaining revealed cross-striation staining pattern of neo-MyHC co-localizing with that of F-actin (stained with Phalloidin), suggesting protein functionality (Figure 2—figure supplement 1A). Importantly, neo-MyHC protein expression was confirmed in additional three PS cell lines subjected to the combinatorial treatment (Figure 2—figure supplement 1B). Of relevance, a previous study reported that neo-MyHC protein expression only occurs at later stages of human muscle development, thus further confirming the enhanced maturation status of myotubes treated with S/Da/De/F (Cho, 1993). As shown by Titin immunofluorescence staining (Figure 2E), both DMSO- and S/Da/De/F-treated myotubes are striated. However, S/Da/De/F treatment resulted in thicker and larger myotubes (Figure 2E).

Figure 2 with 3 supplements see all
Combinatorial treatment with S/Da/De/F enhances the maturation of PS cell-derived myotubes.

(A) Bar graphs show the expression profile of MYOG, MYOD and MYH isoforms normalized to ACTB in hiPSC-1 myotubes differentiated with small molecule combinatorial treatment or DMSO. Data are shown as mean of three independent replicates ± S.E.M. *p<0.05 **p<0.01. (B) Bar graphs show expression levels of MYOG, and MYH isoforms normalized to ACTB in hESC-1, hESC-2 and hiPSC-1 myotubes differentiated with combinatory treatment or DMSO. Data are shown as mean of three independent replicates ± S.E.M. *p<0.05 **p<0.01. (C) Western blot shows protein expression for MYH3 (e-MyHC), MYH8 (neo-MyHC) and MYH1/2 (ad-MyHC) in hiPSC1 myotubes that had been subjected to treatment with S/Da/De/F or DMSO. Human adult skeletal muscle is shown as a reference. ACTB is used as loading control. (D, E) Representative images show immunostaining for neo-MyHC (in green) (D) and Titin (in green) (E) in hiPSC-1 myotubes differentiated in the presence of DMSO or S/Da/De/F. DAPI stains nuclei (blue). Scale bars are 100 μm (D) and 20 μm (E).

https://doi.org/10.7554/eLife.47970.007

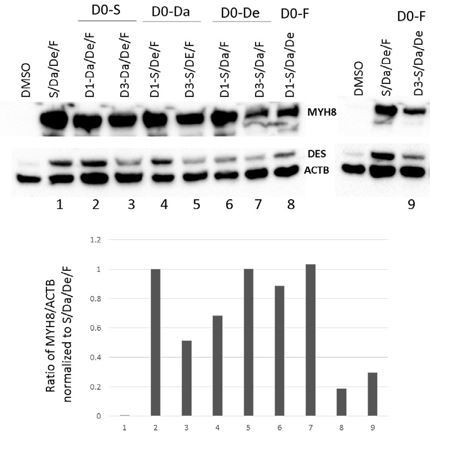

To determine the temporal window by which small molecule treatment enhances in vitro terminal differentiation, we analyzed proliferation and differentiation parameters at days 1, 3, and 5 of terminal differentiation by EdU staining and MyHC/DAPI ratio, respectively. Interestingly, whereas no differences were observed between DMSO and S/Da/De/F at days 1 and 3 for both parameters, at day 5, we observed dramatic reduction in cell proliferation and increase in differentiation in the S/Da/De/F group (Figure 2—figure supplement 1C–D). These data suggest that the small molecule treatment may be particularly relevant at the late stage of differentiation. Next, we analyzed the expression of genes related to the pathways targeted by each of the small molecules (S, Da, De and F) at day 5 of myotube differentiation. As shown in Figure 2—figure supplement 2A–D, we found significant differential expression of CEBPD and FKBP5 (De targets; Luedi et al., 2017; MacDougald et al., 1994; Pan et al., 2010; Pereira et al., 2014; Reddy et al., 2012; Scharf et al., 2011), HES1 and NOTCH2 (Da targets; Huang et al., 2011; Jarriault et al., 1995; Mao et al., 2018), COL1A1 and ID3 (S targets; Lehmann et al., 2018; Ramachandran et al., 2018; Sato et al., 2015) and PPARGC1A (F target; Charos et al., 2012; Martin et al., 2009; Sayasith et al., 2014). Of note, S/Da/De/F treatment also induced the maturation of PS cell-derived myotubes generated under transgene-free conditions (Xi et al., 2017) (Figure 2—figure supplement 3A–B).

Based on the relevance of these findings for the disease modeling of muscular dystrophies (MD), we then investigated the effect of this small molecule combination on the differentiation and maturation of myotubes derived from a panel of MD patient-specific iPS cells, including two Duchenne Muscular Dystrophy (DMD1 and DMD2), two Myotonic Dystrophy type 1 (DM1-1 and DM1-2) and one LGMD2A (Key resources table) (Magli et al., 2017; Mondragon-Gonzalez and Perlingeiro, 2018; Selvaraj et al., 2019). Consistently, our data showed enhanced differentiation (Figure 3A) and maturation (Figure 3B) of MD patient-specific iPS cell-derived myotubes upon S/Da/De/F treatment. These findings confirm the positive effects of this combinatorial treatment in the differentiation and maturation of human iPS cell-derived myotubes.

Figure 3 with 1 supplement see all
Combinatorial treatment with S/Da/De/F enhances the maturation of MD patient-specific hiPS cell-derived myotubes.

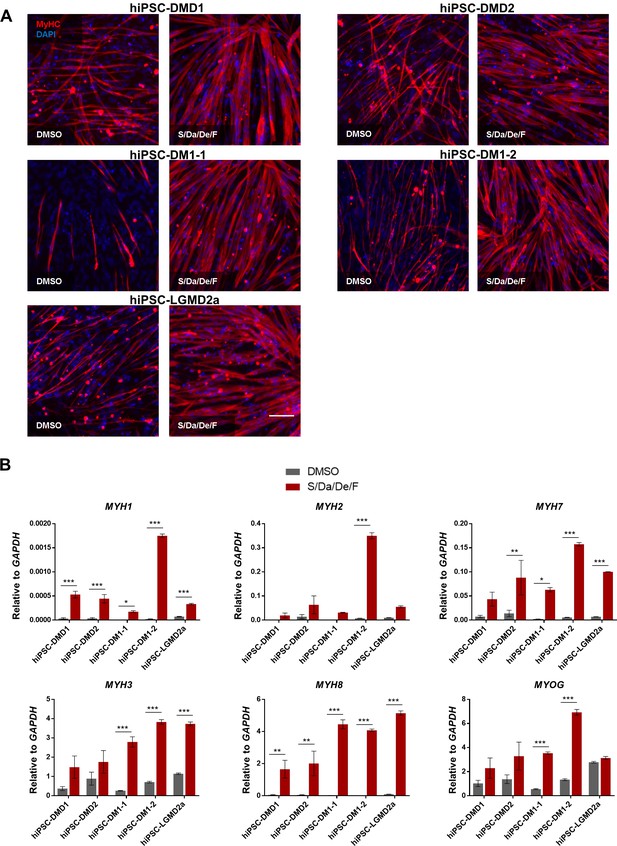

(A) Representative images show immunostaining for MyHC (in red) in hiPS cell-derived myotubes from two DMD (DMD1 and DMD2), two DM1 (DM1-1 and DM1-2) and one LGMD2A patients differentiated with small molecule combinatorial treatment or DMSO. DAPI stains nuclei (blue). Scale bar is 100 μm. (B) Bar graphs show the expression profile of MYH isoforms and MYOG isoforms normalized to GAPDH in hiPS cell-derived myotubes from two DMD (DMD one and DMD 2), two DM1 (DM1-1 and DM1-2) and one LGMD2A patients differentiated with small molecule combinatorial or DMSO treatments. Data are shown as mean of three independent replicates ± S.E.M. *p<0.05 **p<0.01 ***p<0.001.

https://doi.org/10.7554/eLife.47970.011

Ultrastructural differences between DMSO and S/Da/De/F-treated PS-derived skeletal myotubes

Transmission electron microscopy was performed on ultrathin sections of PS cell-derived myotubes differentiated for 19 days in the absence or presence of small molecules. Analysis of a large number of samples at high magnification showed that myofibrils reached various degrees of sarcomeric organization even within the same cell in both conditions (Figure 4). This may be explained by ongoing fusion between cells with different maturation levels or stages (see below). Examples of well-differentiated sarcomeres with clearly delineated Z-band, alternating A-I bands, and M-line crossing the H-zone are shown in Figure 4B and F. Intermediate stages of sarcomeric formation with discernable A-I banding pattern, but discontinuous Z-band are depicted in Figure 4C and G, and nascent sarcomeres with undefined banding pattern and Z-bodies are shown in Figure 4D and H. S/Da/De/F-treated myotubes were clearly richer in mitochondria than their DMSO counterparts. As illustrated in Figure 4E and I, mitochondria were often densely packed between the myofibrils, or spread along the plasma membrane. Figure 4I–L focuses on the high occurrence of SR-TT junctions following the treatment with small molecules. Indeed, these structures were readily detectable in all S/Da/De/F- treated myotubes (Figure 4 and Figure 4—figure supplement 1D), while they remained scarce in the DMSO-treated myotubes (Figure 4D). Internal junctions were usually multiple and varied in shape, size and location. They were not associated with the myofibrils and had rarely a triadic configuration. Similar junctions were shown to produce voltage-dependent intracellular Ca2+ transients upon membrane depolarization, and hence, support excitation-contraction coupling (Skoglund et al., 2014). Therefore, the high occurrence of SR-TT junctions in treated cells may contribute to the increase in their contraction capacity.

Figure 4 with 1 supplement see all
Ultrastructural differences between S/Da/De/F- and DMSO-treated myotubes.

(A–D) DMSO-treated myotubes (control) are shown at different magnifications. (A) Low magnification shows a thin and elongated myotube. (B, C) Myofibrils from control myotubes display different degrees of sarcomeric organization. (B) Discernable A-I bands, M line, and winding Z-bands, (C) Incomplete banding pattern and Z-bodies. (D) High magnification shows one SR-TT junction at the periphery of the cell. The SR has been highlighted by artificial post-coloring. (E–H) S/Da/De/F treated myotubes are shown at different magnifications. (E) Large myotube with relatively well-organized myofibrils located at the periphery or in close proximity to large bundles of mitochondria; red arrows indicate SR-TT junctions. (F–H) Myotubes subjected to S/Da/De/F treatment also display myofibrils with various degrees of sarcomeric organization. (F) Well defined A-I pattern, well delineated Z bands and visible M lines. (G) Alternating A and I bands, but discontinuous Z-band. (H) Nascent sarcomere with undefined banding patterned and Z–bodies. (I) Large myotube with a great number of SR-TT junctions (red arrows). Notice the presence of numerous mitochondria. The junctions identified by J, K and L letters are enlarged below (J–L) Different examples of representative SR-TT junctions; the SR is highlighted by artificial post-coloring. Scale bars: 5 µm in A, E and I; 1 µm in B, C and F-H; 500 nm in D and J-L.

https://doi.org/10.7554/eLife.47970.013

Ultrastructural examination of adjacent cells at high magnification revealed ongoing plasma membrane fusion in both conditions. Such a process was, however, undoubtedly more prolific in S/Da/De/F-treated cells (Figure 4—figure supplement 1). Indeed, a larger number of S/Da/De/F-treated cells were engaged in fusion (>5 cells) as compared with mainly 2 (or rarely 3) in the control. Fusion paths between 2 DMSO treated and 5 S/Da/De/F-treated cells are highlighted in Figure 4—figure supplement 1B and D, respectively. This goes in line with the increase in fusion index and number of myonuclei observed in the S/Da/De/F group (Figure 1E–F).

Increased chromatin accessibility at myogenic loci upon small molecule treatment

To dissect the mechanism behind S/Da/De/F-mediated myogenic maturation, we investigated the chromatin accessibility landscape using ATAC-seq (Buenrostro et al., 2013). Following a 2 day treatment, we detected 62,748 and 80,334 chromatin accessible peaks in DMSO- and S/Da/De/F-treated cells, respectively (Figure 5A). Comparison of these two datasets showed an overlap of 20,682 peaks, while 42,066 and 59,652 peaks were specific for DMSO and S/Da/De/F treatments, respectively. To determine whether S/Da/De/F treatment led to significant changes in chromatin accessibility, we next compared the normalized sequencing depth at chromatin accessible peaks identified in all replicates. Principal component analysis (PCA) showed that DMSO- and S/Da/De/F-treated groups clustered separately (Figure 5—figure supplement 1A). Differential analysis of chromatin accessibility followed by exclusion of loci overlapping to centromeric and other repetitive elements (referred as blacklist; ENCODE Project Consortium, 2012) identified 2782 peaks displaying increased chromatin accessibility in the S/Da/De/F-treated group (Figure 5B). As expected, this group included genomic elements associated with myogenic genes such as MYOG, MYH3 and the muscle microRNAs MIR206 and MIR133B (Chen et al., 2006; Kim et al., 2006; Koutsoulidou et al., 2011; Swiderski et al., 2016) (Figure 5C and Figure 5—figure supplement 1B). Similarly, increased chromatin accessibility was detected at the CEBPD locus (Figure 5C), a Dexamethasone target gene in human cells (MacDougald et al., 1994; Pan et al., 2010; Reddy et al., 2012). In agreement with the biological function of SB431542 and DAPT, we also observed significant reduction in chromatin accessibility at loci encoding or regulating downstream target genes of the TGFβ (ID3) (Ramachandran et al., 2018) and NOTCH (HES1) (Jarriault et al., 1995) signaling pathways. (Figure 5—figure supplement 1B).

Figure 5 with 1 supplement see all
Combinatorial treatment increases chromatin accessibility at myogenic loci.

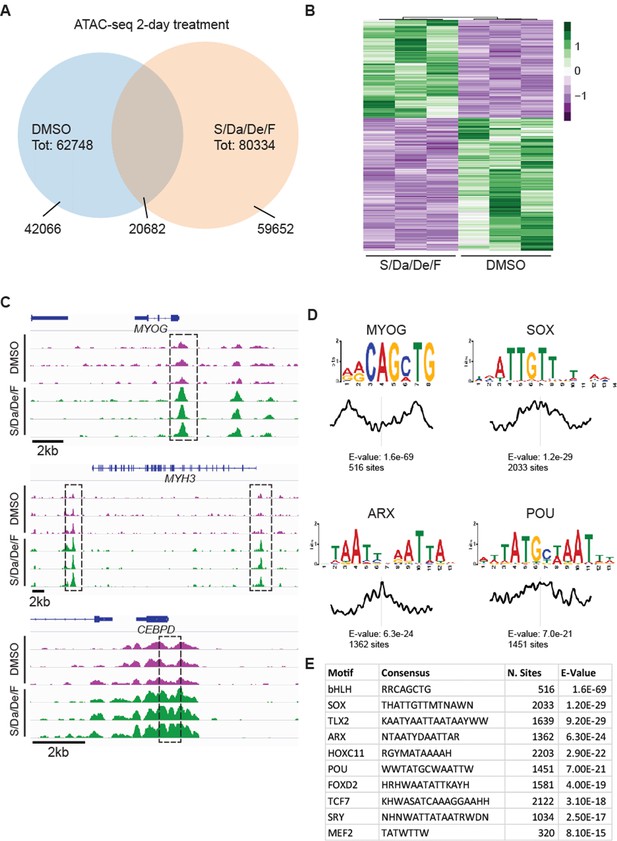

(A) Venn diagram displaying overlap between loci detected in 2-day S/Da/De/F- and DMSO-treated cells. (B) Heatmap shows changes in chromatin accessibility between DMSO- and S/Da/De/F-treated cells (three independent biological replicates). Loci were selected based on adjusted p-value<0.05 and log2FoldChange > 1. Loci overlapping to blacklist regions are included in this heatmap. (C) Chromatin accessibility at the genomic loci proximal to MYOG, MYH3 and CEBPD genes. Dashed black boxes indicate loci characterized by significant change in chromatin accessibility. Tracks represent snapshots from the IGV browser. (D) Selected enriched motifs identified at S/Da/De/F-specific peaks using MEME-ChIP. Plot below the sequence logo indicates distribution of the motifs across the regions used as input. (E) Table schematizing the results obtained by MEME-ChIP. Only selected motifs are displayed.

https://doi.org/10.7554/eLife.47970.015

To further characterize these elements, we analyzed the S/Da/De/F specific regions for the presence of conserved DNA binding motifs. This analysis showed enrichment for several motifs associated with known myogenic transcription factors, including MYOG, MEF2, and POU (Figure 5D–E). Among these, the POU transcription factor Pou2f1 (also known as Oct1), through cooperation with SRF and MEF2, regulates transcription of the fast MyHC (MyHC-2b) (Allen et al., 2005). Analogously, Pou6f1 (also called Emb) was identified in a complex with MEF2D and p300, whose function is to control Actc1, an actin isoform expressed in developing skeletal muscle and cardiac muscle (Molinari et al., 2004).

Transcriptomic analysis reveals genes associated with muscle differentiation, maturation and contractile function upon small molecules treatment

To further define the molecular changes induced by S/Da/De/F, we performed RNA sequencing analysis on differentiated myotubes obtained upon treatment with small molecules and DMSO control. We identified about 1859 significantly differentially expressed genes, from which about half were downregulated and the other half were upregulated in the treated group compared to controls (Figure 6A). To dissect the transcriptome profile associated with S/Da/De/F treatment, we first performed ingenuity pathway analysis (IPA) and corroborated the four small molecules (and their targets) as upstream regulators of the differentially expressed genes, which was evidenced by the ‘activation Z-scores’ (<-2 or >2) and validated by the overlap p-values (<0.01) (Figure 6—source data 1). Interestingly, the analysis also revealed transcription factors and miRNAs involved in muscle differentiation as upstream regulators of changes in gene expression upon S/Da/De/F treatment, including TEAD4 (Joshi et al., 2017), MYF6 (Kassar-Duchossoy et al., 2004; Montarras et al., 1991), KLF4 (Sunadome et al., 2011), MEF2A, MEF2C (Liu et al., 2014), MIR-133B, MIR-206 and MIR-503 (Chen et al., 2006; Kim et al., 2006; Koutsoulidou et al., 2011; Sarkar et al., 2010) (Figure 6B). The differentially expressed targets of these transcription factors and miRNAs, are listed in Figure 6—source data 2. According to our IPA data, skeletal and muscular system development was found the most upregulated physiological system (Figure 6C). In addition, among upregulated canonical pathways, the analysis identified oxidative phosphorylation and calcium signaling, indicating an increase in mitochondrial biogenesis and muscle contraction, respectively (Figure 6D), corroborating the increased number of mitochondria observed by TEM (Figure 4). This makes sense as skeletal myogenesis has been documented to be accompanied by mitochondrial biogenesis (Remels et al., 2010; Sin et al., 2016). Moreover, Sarcolipin (SLN), a gene reported to play a critical role in mitochondrial biogenesis and oxidative metabolism in skeletal muscle (Maurya et al., 2018), was found among the highest expressed genes (around 30-fold) in the treated group (a result we have validated by qPCR; Figure 6—figure supplement 1A). Gene ontology analysis of upregulated genes for biological processes and cellular components identified various muscle function groups, indicating increased muscle differentiation and function (Figure 6E–F). Consistently, we found upregulation of genes, such as ENO3, MYF6, CKM, TNNT3, MYH8, ATP2A1, ITGA7 and PRKCQ, all reported to be upregulated in fetal, postnatal and adult myotubes in comparison to embryonic myotubes (Biressi et al., 2007a; Burkin and Kaufman, 1999; Hinterberger et al., 1991; Ju et al., 2013; Schiaffino et al., 2015), supporting our observations on the enhancing effect of the combinatorial treatment on myotubes maturation. We validated the upregulation of some of these genes by RT-qPCR (Figure 6—figure supplement 1A). Correspondingly, we found that S/Da/De/F-treated myotubes showed downregulation of MEOX1, PAX3, CDH11, EYA2 and FST, genes known to be expressed at higher levels in embryonic myotubes than in fetal myotubes (Biressi et al., 2007b) (Figure 6—figure supplement 1B).

Figure 6 with 2 supplements see all
Combinatorial treatment induces expression of genes associated with structural maturation.

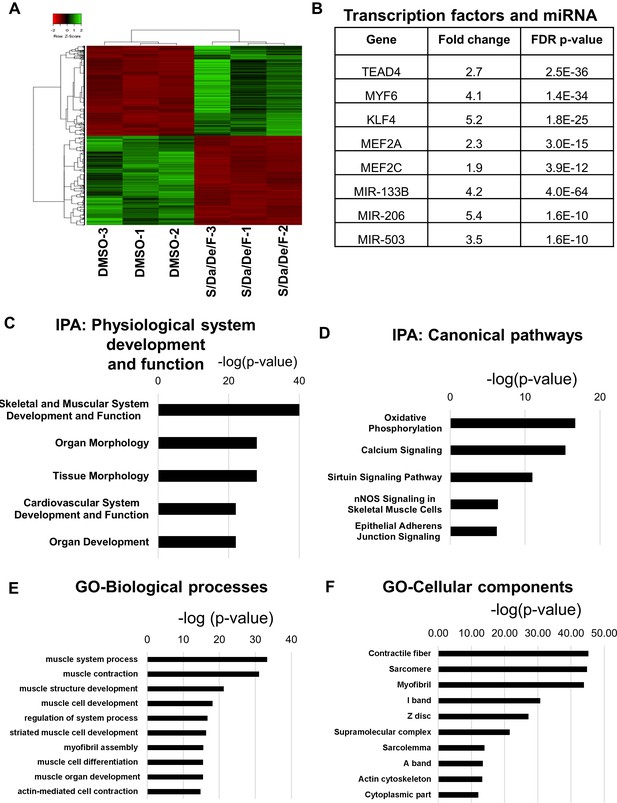

(A) Heatmap shows differentially expressed genes in hiPSC-1 myotubes upon combinatorial treatment compared to DMSO from three independent replicates. (B) Table shows muscle differentiation associated transcription factors and miRNAs that were upregulated in combinatorial treatment group when compared to DMSO group as revealed by IPA. (C–D) Bar graphs show the top physiological systems (C) and canonical pathways (D) associated with genes upregulated in combinatorial treatment group when compared to that of DMSO as revealed by IPA. (E–F) Bar graphs show the top biological processes (E) and cellular components (F) associated with genes upregulated upon combinatorial treatment based on gene ontology (GO) analysis. Data are plotted as –log (p-value) in C-F.

https://doi.org/10.7554/eLife.47970.017

Taking advantage of our epigenetic analysis, we next assessed whether changes in chromatin accessibility were associated with differential gene expression. For this analysis, we focused on the loci characterized by increased chromatin accessibility upon S/Da/De/F treatment. Upon annotation of the ATAC-seq peaks to the two nearest genes followed by comparison with the transcriptomic data, we observed that 42% of the loci were associated to differentially expressed genes (1727/4145 annotated genes). Of these, 878 and 849 transcripts were upregulated and downregulated, respectively (Figure 6—figure supplement 2A). Gene ontology classification of these two lists of genes confirmed that loci characterized by increased chromatin accessibility and increased expression are associated with muscle contraction, regulation of calcium storage and muscle development (Figure 6—figure supplement 2B). In contrast, loci with increased chromatin accessibility and decreased expression demonstrated enrichment for non-myogenic developmental pathways (Figure 6—figure supplement 2C). Based on these data, we conclude that S/Da/De/F treatment alters the epigenetic landscape of differentiating PS cell-derived myogenic progenitors by increasing chromatin accessibility at elements associated with key myogenic genes and pathways, potentially underlying the mechanism of small molecule-induced maturation of myotubes.

Functional maturation using 3D muscle constructs

To determine the effect of the combinatorial treatment on the contractile function of resulting myotubes, we tested them on 3D muscle constructs that allow force measurement of PS cell-derived myotubes. Myogenic progenitors were seeded in 3D hydrogels containing fibrin and Matrigel to allow for expansion. After 3 days, the medium was switched to differentiation medium supplemented with DMSO or combinatorial treatment and cultured for 5 days (Figure 7—figure supplement 1A). At this point, the contractile force generation (twitch and tetanus) in response to electrical stimulus was measured. We found a remarkable increase in both twitch and tetanus force generation in the treated group (about 15-fold; Figure 7A–B). Gene expression analysis showed that treated-3D constructs expressed higher levels of various MYH isoforms (Figure 7C). Whereas we could not reliably detect upregulation of MYH1 and MYH2 gene expression levels in 2D cultures, we observed significant increase in expression of both genes upon treatment in 3D cultures (Figure 7—figure supplement 1B). Neo-MyHC was also upregulated at the protein level as revealed by western blot and immunostaining of the 3D muscle constructs (Figure 7D and Figure 7—figure supplement 1C), confirming superior differentiation and maturation. Increased pan-MyHC and α-actinin were observed as well by immunostaining of 3D constructs upon treatment (Figure 7—figure supplement 1C). In summary, the combinatorial treatment on 3D muscle constructs composed of PS cell-derived myotubes leads to higher levels of maturation and contractile force generation in response to electrical stimulus.

Figure 7 with 1 supplement see all
Increased contractile force generation in PS cell-derived 3D muscle constructs upon combinatorial treatment.

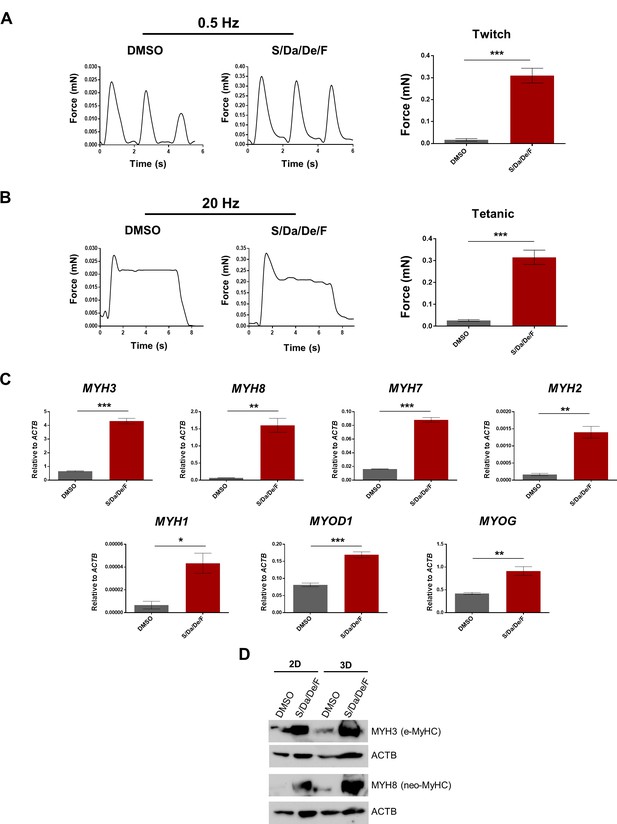

(A–B) Representative twitch (A) and tetanic (B) force patterns at 0.5 Hz and 20 Hz, respectively, generated by hiPSC-1 3D muscle constructs differentiated with combinatorial treatment or DMSO. Bar graphs show the twitch force (A) and tetanic force (B) as mean of three independent replicates ± S.E.M. ***p<0.001. Nine twitch peaks and three tetanic measurements from three independent muscle constructs were used for analysis. (C) Bar graphs show myogenic genes expression analysis relative to ACTB in 3D muscle constructs differentiated with combinatorial treatment or DMSO (from A and B). Data are shown as mean of three independent replicates ± S.E.M. *p<0.05 **p<0.01 ***p<0.001. (D) Protein expression analysis of MYH3 (e-MyHC) and MYH8 (neo-MyHC) by western blot of hiPSC-1 3D muscle constructs and 2D differentiated myotubes with combinatorial treatment or DMSO. Actin is shown as loading control.

https://doi.org/10.7554/eLife.47970.022

Discussion

The success of using PS cell derivatives for disease modeling and drug screening studies relies on producing a population of cells able to recapitulate the relevant structural and physiological features of the tissue under study. Skeletal muscle reaches full functionality through tissue maturation from embryonic, to fetal, neonatal and adult stages. These stages of maturation are characterized by the expression of specific proteins and protein isoforms, such as MyHC variants (Schiaffino et al., 2015). This is particularly relevant when studying muscular dystrophies with adult onset or where progression of the disease occurs at the post-neonatal stage. For instance, in Duchenne Muscular Dystrophy (DMD), absence of dystrophin at the sarcolemma is compensated to some extent by utrophin during early gestational stages (Helliwell et al., 1992; Pons et al., 1993). However, upon birth utrophin is located preferentially at the neuromuscular junction (Ohlendieck et al., 1991). Although in regenerating fibers utrophin can be detected at the sarcolemma (Gramolini et al., 1999), it is insufficient to sustain its stability, leading to the severe DMD phenotype in the adult muscle.

While several approaches have been reported to differentiate PS cells towards the myogenic lineage, there is still a limitation in promoting the full maturation of resulting myotubes. This issue compromises the biological relevance of in vitro studies data using PS cell- derivatives. Our small molecule screening in search for potential candidates able to promote maturation of PS cell-derived myotubes identified the compounds SB431542, DAPT, Dexamethasone, Forskolin and PD0325901 as potent enhancers of maturation, in particular when used in combination. Interestingly, SB431542 (TGFβ signaling inhibitor) and DAPT (Notch signaling inhibitor) have been described to promote hypertrophy and fusion of myoblasts lines, respectively (Kitzmann et al., 2006; Watt et al., 2010). Dexamethasone was an unexpected finding based on its well-known function in promoting atrophy in myotubes (Hong and Forsberg, 1995; Thompson et al., 1999; Wang et al., 1998). This suggests that dexamethasone may have an opposite role during differentiation of embryonic myotubes compared to adult counterparts, although a detailed mechanism remains to be further dissected. Forskolin has been reported to increase myoblast proliferation through activation of adenylate cyclase and subsequent phosphorylation and activation of cAMP response element binding protein (CREB) (Stewart et al., 2011). In contrast, our studies show that Forskolin treatment enhances the differentiation efficiency of PS cell-derived progenitors into myotubes. Finally, mitogen-activated protein kinase 1 (MEK1) has been shown to have contrary effects on myoblast differentiation depending on the time point of activation. For instance, MEK1 activation during the first 24 hr after switching to terminal differentiation conditions decreases differentiation while at a mid-stage stabilizes MyoD and promotes differentiation (Jo et al., 2011; Jo et al., 2009). We observed that MEK1 inhibition, through PD0325901, enhanced differentiation of PS cell-derived progenitors. Our findings corroborate the idea that although there are common factors involved in embryonic and adult myogenesis, the molecular signature of these processes is not identical (Czerwinska et al., 2016; Lepper et al., 2009; Wang and Conboy, 2010), and therefore, compounds should not be expected to cause the same effects.

Interestingly, we found that S/Da/De/F combination dramatically increased fusion, differentiation and maturation of resulting myotubes compared to individual treatments, and this coincided with increased chromatin accessibility in elements associated with myogenic specification at day 2, which suggests that treatment is beneficial from the beginning upon switching to terminal differentiation conditions. Moreover, RNA-seq analysis at day 5 revealed an increase in the expression of genes associated with muscle functionality and maturation processes. This is relevant as it shows that the combinatorial treatment is also beneficial to sustain myotube maturation. Importantly, the differentiation and maturation switch occur within 5 days upon switching to differentiation medium and is applicable to MD patient-specific iPS cell-derived myotubes, in addition to unaffected cell lines. We also found that the maturation induced by this treatment is relevant to iPS cell-derived myotubes generated using a transgene-free differentiation protocol, confirming its broad applicability. Our data show that S/Da/De/F treatment is not only significant for the expression of genes associated with maturation in 2D cultures, but it also enhances the contractile capacity of PS cell-derived 3D muscle constructs. This is relevant as the development of organoid-like structures have been shown to provide improved structural organization and, therefore, enhanced tissue functionality, which are critical in the development of reliable platforms for disease modeling and therapy development (Clevers, 2016). Taken together, we show that the combinatorial treatment of S/Da/De/F contributes to enhanced myotube differentiation and maturation of PS cell myogenic derivatives, and therefore represents an advance for studying skeletal muscle function and disease in vitro.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (Homo sapiens, Male)hiPSC-1PMID: 22560081PLZControl line, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Male)hiPSC-2PMID: 26411904TC-1133Control line, available with RUCDR Infinite Biologics
Cell line (Homo sapiens, Male)hiPSC-3This studyMNP-120Control line, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Female)hiPSC-4This studyMNP-119Control line, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Male)hESC-1WiCellH9ESC control line (WA09)
Cell line (Homo sapiens, Female)hESC-2WiCellH1ESC control line (WA01)
Cell line (Homo sapiens, Male)hiPSC-DMD1This studyDMD1108DMDΔex31, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Male)hiPSC-DMD2PMID: 28658631DMD1705DMDΔex52-54, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Male)hiPSC-DM1-1PMID: 29898953DM1-12,000 CTG repeats in 3'UTR of DMPK gene, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Male)hiPSC-DM1-2PMID: 29898953DM1-21,500 CTG repeats in 3'UTR of DMPK gene, available with the Rita Perlingeiro lab
Cell line (Homo sapiens, Female)hiPSC-LGMD2APMID: 315010339015CAPN3Δex17-24, available with the Rita Perlingeiro lab
Chemical compound, drugTocriscreen Stem Cell ToolboxTocrisCat# 506010 µM of each compound
Chemical compound, drugCHIR99021TocrisCat# 442310 µM
Chemical compound, drugLDN193189Cayman chemicalCat# 19396200 nM
Chemical compound, drugSB431542Cayman chemicalCat# 1303110 µM
Chemical compound, drugDAPTCayman chemicalCat# 1319710 µM
Chemical compound, drugDexamethasoneCayman chemicalCat# 1101510 µM
Chemical compound, drugForskolinCayman chemicalCat# 1101810 µM
Chemical compound, drugPD0325901Cayman chemicalCat# 1303410 µM
Chemical compound, drugDoxycyclineSigma AldrichCat# D98911 µg/ml
Recombinant proteinRecombinant Human FGF-basicPeprotechCat# 100-18B5 ng/ml
Recombinant proteinRecombinant Human HGFStem Cell TechnologiesCat# 7801910 ng/ml
Recombinant proteinRecombinant Human IGF-1Stem Cell TechnologiesCat# 780222 ng/ml
Commercial assay or kitiClick EdU Andy Fluor 555 Imaging KitGeneCopoeiaCat# A004Cell proliferation assay
AntibodyMHC (all isoforms), mouse monoclonalDSHBCat# MF20, RRID: AB_2147781Dilution-1:100 (IF)
AntibodyDesmin, mouse monoclonalSCBTCat# sc-23879, RRID: AB_627416Dilution-1:500 (WB)
AntibodyACTB, mouse monoclonalSCBTCat# sc-4778, RRID: AB_626632Dilution- 1:1000 (WB)
AntibodyTitin, mouse monoclonalDSHBCat# 9D10, RRID: AB_528491Dilution- 1:50 (IF)
AntibodyMyHC-neo, mouse monoclonalDSHBCat# N3.36, RRID: AB_528380Dilution- 1:50 (IF), 1:200 (WB)
AntibodyMyHC-neo, mouse monoclonalLeicaCat# MHCN, RRID: AB_563900Dilution- 1:20 (IF), 1:200 (WB)
AntibodyMyHC-emb, mouse monoclonalDSHBCat# F1.652, RRID: AB_528358Dilution- 1:200 (WB)
AntibodyMYH1/2, mouse monoclonalDSHBCat# SC-71, RRID: AB_2147165Dilution- 1:200 (WB)
Antibodyα-actinin, mouse monoclonalThermofisherCat# MA122863, RRID: AB_557426Dilution- 1:25 (IF)
AntibodyOCT3/4, mouse monoclonalSCBTCat# C-10, RRID: AB_628051Dilution- 1:50 (IF)
AntibodySOX2, goat polyclonalSCBTCat# Y-17, RRID: AB_2286684Dilution- 1:50 (IF)
AntibodyNANOG, mouse monoclonalSCBTCat# H-2, RRID: AB_10918255Dilution- 1:50 (IF)
AntibodySSEA4, mouse monoclonalSCBTCat# sc-21704, RRID: AB_628289Dilution- 1:50 (IF)
AntibodyAnti-mouse IgG HRP-linked (sheep polyclonal)GE HealthcareCat# NA931, RRID: AB_772210Dilution- 1:20000 (WB)
AntibodyAlexa fluor 555 goat anti-mouse IgG (goat polyclonal)ThermofisherCat# A-21424, RRID: AB_141780Dilution- 1:500 (IF)
OtherAlexa Fluor 488 Phalloidin, F-actin probeThermofisherCat# A12379Dilution- 1:40 (IF)
Sequence-based reagentMYH1ThermofisherAssay ID: Hs00428600_m1Taqman probe for RT-qPCR
Sequence-based reagentMYH2ThermofisherAssay ID: Hs00430042_m1Taqman probe for RT-qPCR
Sequence-based reagentMYH3ThermofisherAssay ID: Hs01074230_m1Taqman probe for RT-qPCR
Sequence-based reagentMYH7ThermofisherAssay ID: Hs01110632_m1Taqman probe for RT-qPCR
Sequence-based reagentMYH8ThermofisherAssay ID: Hs00267293_m1Taqman probe for RT-qPCR
Sequence-based reagentMYOD1ThermofisherAssay ID: Hs02330075_g1Taqman probe for RT-qPCR
Sequence-based reagentMYOGThermofisherAssay ID: Hs01072232_m1Taqman probe for RT-qPCR
Sequence-based reagentACTBThermofisherAssay ID: Hs99999903_m1Taqman probe for RT-qPCR
Sequence-based reagentGAPDHThermofisherAssay ID: Hs99999905_m1Taqman probe for RT-qPCR
Sequence-based reagentSLNThermofisherAssay ID: Hs00161903_m1Taqman probe for RT-qPCR
Sequence-based reagentCAPN3ThermofisherAssay ID: Hs01115989_m1Taqman probe for RT-qPCR
Sequence-based reagentATP2A1ThermofisherAssay ID: Hs01115989_m1Taqman probe for RT-qPCR
Sequence-based reagentENO3ThermofisherAssay ID: Hs01093275_m1Taqman probe for RT-qPCR
Sequence-based reagentMYF6ThermofisherAssay ID: Hs00231165_m1Taqman probe for RT-qPCR
Sequence-based reagentCKMThermofisherAssay ID: Hs00176490_m1Taqman probe for RT-qPCR
Sequence-based reagentKLF4ThermofisherAssay ID: Hs01034973_g1Taqman probe for RT-qPCR
Sequence-based reagentTNNT3ThermofisherAssay ID: Hs00952980_m1Taqman probe for RT-qPCR
Sequence-based reagentCDH11ThermofisherAssay ID: Hs00901479_m1Taqman probe for RT-qPCR
Sequence-based reagentEYA2ThermofisherAssay ID: Hs00193347_m1Taqman probe for RT-qPCR
Sequence-based reagentFSTThermofisherAssay ID: Hs01121165_g1Taqman probe for RT-qPCR
Sequence-based reagentCEBPBThermofisherAssay ID: Hs00270923_s1Taqman probe for RT-qPCR
Sequence-based reagentCEBPDThermofisherAssay ID: Hs00270931_s1Taqman probe for RT-qPCR
Sequence-based reagentFKBP5ThermofisherAssay ID: Hs01561006_m1Taqman probe for RT-qPCR
Sequence-based reagentNOTCH2ThermofisherAssay ID: Hs01050702_m1Taqman probe for RT-qPCR
Sequence-based reagentHES1ThermofisherAssay ID: Hs00172878_m1Taqman probe for RT-qPCR
Sequence-based reagentJAG1ThermofisherAssay ID: Hs01070032_m1Taqman probe for RT-qPCR
Sequence-based reagentCOL1A1ThermofisherAssay ID: Hs00164004_m1Taqman probe for RT-qPCR
Sequence-based reagentID3ThermofisherAssay ID: Hs00954037_g1Taqman probe for RT-qPCR
Sequence-based reagentSERPINE1ThermofisherAssay ID: Hs00167155_m1Taqman probe for RT-qPCR
Sequence-based reagentPPARGC1AThermofisherAssay ID: Hs00173304_m1Taqman probe for RT-qPCR
Sequence-based reagentRGS2ThermofisherAssay ID: Hs01009070_g1Taqman probe for RT-qPCR
Sequence-based reagentNR4A1ThermofisherAssay ID: Hs00374226_m1Taqman probe for RT-qPCR

Cell lines

Request a detailed protocol

Studies involved de-identified fibroblast samples according to procedures approved by the Institutional Review Board of the University of Minnesota (Ref: 0904M63241). PS cell lines used in this study are described in key resources table. hiPSC-3, hiPSC-4 and hiPSC-DMD1 were generated by the Pluripotent Stem Cell Facility at Cincinnati Children’s Hospital Medical Center. Pluripotency characterization is shown in Figure 3—figure supplement 1. All muscular dystrophy patient iPS cell lines were authenticated by verification of genetic mutation by southern blot or sanger sequencing. All tested iPS cell lines were negative for mycoplasma contamination.

Mice

Animal experiments were carried out according to protocols (protocol ID: 1702-34580A) approved by the University of Minnesota Institutional Animal Care and Use Committee. Teratoma studies were performed by injecting 1.5 × 10^6 PS cells in the quadriceps of NSG mice (from Jackson labs). Before injection, cells were resuspended in 1:1 solution DMEM-F12 and Matrigel (final volume including cells: 65 µl).

Cell culture and myogenic differentiation of PS cells

Request a detailed protocol

ES and iPS cells were maintained in mTeSR1 medium (Stem Cell Technologies) on Matrigel-coated plates. ES/iPS cells were dissociated with Accumax and passaged once they reached 90% confluency and plated with 10 μM ROCK inhibitor, Y-27632 (APExBIO). To induce conditional expression of PAX7, ES/iPS cells were co-transduced with lentiviral vectors, pSAM2-iPAX7-IRES-GFP and FUGW-rtTA to generate iPAX7 cells (Darabi et al., 2012). For myogenic differentiation, 1 × 106 iPAX7-ES/iPS cells were plated with 10 μM Y-27632 in a 60 mm petri dish and incubated for 2 days on a shaker at 60 rpm at 37°C to derive embryoid bodies (EBs). Cells were then switched to myogenic medium (MM) supplemented with 10 μM GSK3β inhibitor (CHIR99021; Tocris). Myogenic medium consisted of IMDM basal medium (Gibco) supplemented with 15% fetal bovine serum, 10% horse serum, 1% penicillin/streptomycin (Invitrogen), 1% glutamax (Gibco), 1% KnockOut Serum Replacement (KOSR; Gibco), 50 μg/ml ascorbic acid (Sigma-Aldrich), 4.5 mM monothioglycerol (MP biomedicals). After 2 days, cells were switched to MM supplemented with 200 nM BMP inhibitor (LDN193189; Cayman Chemical) and 10 μM TGFβ inhibitor (SB431542, Cayman Chemical). 24 hr later, on day 5, 1 μg/ml Doxycycline (Dox; Sigma-Aldrich) was added to the medium. After 24 hr, cells were switched to fresh MM with 1 μg/ml Dox and incubated at 37°C for 2 days. EBs were collected and 1/10th of the EBs volume was plated on gelatin coated T75 flasks in expansion medium (EM), consisting of MM with 1 μg/ml Dox and 5 ng/ml human basic fibroblast growth factor (bFGF; PeproTech). After 4 days, cells were dissociated with 0.25% trypsin-EDTA and FACS sorted for GFP to derive myogenic progenitors which were plated at a density of 2 × 106/T75 flask in EM. Myogenic progenitors were passaged upon reaching 90% confluence with 0.25% trypsin-EDTA at a ratio of 1:6 to 1:8. To induce terminal differentiation, myogenic progenitors at P3-4 were plated at a density of 75,000 cells/well of a 24-well plate and allowed to grow confluent for 3 days. The medium was then switched to low nutrient differentiation medium (DM) consisting of DMEM-KO supplemented with 20% KOSR, 1% Non-Essential amino acids (NEAA; Gibco), 1% glutamax and 1% penicillin-streptomycin and incubated for 5 days to derive myotubes.

Transgene-free myogenic differentiation was performed following a previously described protocol (Xi et al., 2017). Briefly, hiPS cells were plated as single cells onto a well of a Matrigel-coated 6-well dish in mTeSR1 with 10 μM Y-27632 (day 0). The next day (day 1), medium was switched to basal medium (1% ITS-G and 1% penicillin/streptomycin in DMEM/F12) supplemented with 3 μM CHIR99021. At day 3, medium was switched to basal medium supplemented with 200 nM LDN193189 and 10 μM SB431542. At day 5, medium was switched to basal medium supplemented with 3 μM CHIR99021 and 20 ng/ml bFGF. At day 7, medium was switched to 15% KOSR and 1% penicillin/streptomycin in DMEM supplemented with 10 ng/ml HGF and 2 ng/ml IGF1 for 14 days. Medium was replaced every other day. At day 21, cells were dissociated with Collagenase IV for 5 min followed by TryPLE Express for 5 min. Cell suspension was filtered through 100 μm and 40 μm cell strainers, sequentially. Cells were cultured and expanded on Matrigel coated dishes in MM. For terminal myotube differentiation, cells were grown to confluency and then MM was replaced by DM.

Small molecule library screening

Request a detailed protocol

Small molecule library screening was performed using the Tocriscreen Stem Cell Toolbox Kit (Tocris), which consists of 80 compounds. Myogenic progenitors were seeded at 12,000 cells/well in 96-well plates (triplicates) and incubated at 37°C for 3 days to reach 100% confluency. After 3 days, the cells were switched to DM supplemented with 10 μM of the compounds from the library or with DMSO. Each well contained an individual compound. Cells were incubated in this differentiation medium for 5 days to derive myotubes. Cells were then fixed and processed for immunostaining of MyHC and counterstained with DAPI. Stained plates were imaged such that most of the well area was covered. The ratio of area of MyHC/DAPI staining was quantified using Image J and normalized to that of DMSO treated cells. Compounds showing a significant increase of 1.2-fold or more in ratio of MyHC/DAPI relative to DMSO among replicates and among the three cell lines tested were used for further studies: S (Cayman Chemical), Da (Selleckchem), De (Cayman Chemical), P (Cayman Chemical) and F (Cayman Chemical. Different combinations were made with selected compounds and their effect on differentiation was tested and quantified as above.

Immunofluorescence staining

Request a detailed protocol

For immunofluorescence staining, samples were fixed with 4% PFA for 20–30 min at RT, followed by permeabilization with 0.3% Triton X-100 in PBS for 20 min at RT. Samples were then blocked with 3% BSA in PBS for 1 hr. Primary antibody diluted in 3% BSA was added after blocking and was incubated overnight at 4°C. Following this incubation, samples were washed with PBS and incubated with secondary antibody and DAPI for 45–60 min at RT in dark. After this incubation, samples were washed with PBS and stored in dark at 4°C until imaging. For immunofluorescence staining of 3D muscle constructs, these were fixed in 4% PFA for 1 hr at RT, followed by incubation in a solution of 30% Sucrose and 5% DMSO for 4 hr at RT and then incubated in a solution of 15% Sucrose, 2.5% DMSO and 50% OCT embedding medium at 4°C overnight. Next, constructs were embedded in OCT and frozen with liquid nitrogen cooled isopentane. Frozen 3D constructs were cryosectioned longitudinally at 45 µm thickness. Frozen sections were allowed to dry at RT for 15 min and the sections were rehydrated in PBS for 5 min prior to 10 min fixation with 4% PFA. Following staining procedure, slides were mounted with coverslips using ProLong Gold Antifade Mountant with DAPI (Invitrogen). The stained sections were imaged using Zeiss upright microscope.

Myotubes fusion index

Request a detailed protocol

Differentiated myotubes were processed for pan-MyHC immunostaining. Cells were imaged using Zeiss upright microscope and analysis was performed from aleatory fields of the well. Myotubes were identified as elongated MyHC (+) cells containing at least two nuclei. Fusion index was calculated as the percentage of nuclei within myotubes relative to the total number of nuclei. Approximately 500 nuclei and 100 myotubes were counted for fusion index and number of nuclei per myotube, respectively, for each replicate.

EdU cell proliferation assay

Request a detailed protocol

This was performed using iClick EdU Andy Fluor 555 Imaging Kit (GeneCopoeia). Cells were incubated with 10 µM of EdU for 24 hr. After this incubation, cells were fixed with 4% PFA for 15 min at RT and then permeabilized with 0.3% Triton X-100 for 20 min at RT. Following this, EdU staining was performed as per the manufacturer’s instructions. Stained cells were imaged using Cytation 3 (BioTek) and EdU positive nuclei were quantified using Image J.

Western blotting

Request a detailed protocol

Protein extraction was performed using lysis buffer (20 mM Tris HCl, 0.1 mM EDTA, 1 mM DTT, 20 μg/ml soybean trypsin inhibitor, 28 μM E64 and 2 mM PMSF) combined with 1X Laemmli sample buffer. Samples were boiled at 95°C for 10 min. The total protein concentration of the lysate was quantified using Bradford assay. 100 μg of total protein was electrophoresed in 7.5% SDS-PAGE gel. The proteins were transferred onto immobilon PVDF membrane (Millipore). The blot was blocked with 5% dry milk in TBST for 1 hr at RT. After blocking, the blot was incubated with primary antibody diluted in 5% BSA in TBST overnight at 4°C. Following this incubation, the blot was washed three times with TBST and then incubated with HRP conjugated secondary antibody. After three washes with TBST, protein detection was performed using Pierce ECL or Supersignal west chemiluminescent substrate (Thermo Fisher Scientific). The chemiluminescence signal was captured in X-ray film or using chemidoc imager (Bio-Rad Laboratories).

Antibodies

The following antibodies were used for immunofluorescence or western blot: pan-MyHC (MF20; DSHB), Titin (9D10; DSHB), MyHC-neo (N3.36; DSHB) (MHCN; Leica), MYH3 (F1.652; DSHB), MYH1/2 (SC-71; DSHB), α-actinin (MA122863; Thermofisher), Desmin (sc-23879; SCBT), ACTB (sc-4778; SCBT), OCT3/4 (C-10; SCBT), SOX2 (Y-17; SCBT), NANOG (H-2; SCBT), Alexa Fluor 488 Phalloidin (A12379; Thermofisher), Alexa fluor 555 goat anti-mouse IgG (A-21424; Thermo Fisher), Alexa fluor 488 goat anti-rabbit IgG (A-11008; Thermo Fisher), and mouse IgG HRP-linked (NA931; GE Healthcare).

RNA isolation and quantitative RT-PCR

Request a detailed protocol

Cells were lysed using Trizol reagent (Thermo Fisher) and RNA was extracted using purelink RNA mini kit (Thermo Fisher) with on-column DNAse treatment following manufacturer’s instructions. RNA concentration was quantified using Nanodrop. For quantitative RT-PCR analysis, reverse transcription was performed using Superscript Vilo cDNA synthesis kit (Thermo Fisher) as per manufacturer’s instruction. qPCR was performed using taqman probes (Applied Biosystems) and Premix Ex Taq probe qPCR kit (Takara). For each qPCR reaction in 384-well plate, cDNA amount corresponding to 10 ng of total RNA, 0.5 μl of taqman probe and 5 μl of 2X master mix was utilized. QPCR was performed using QuantStudio 6 Flex Real-Time PCR System and the Ct values were determined. Ct value for gene of interest was normalized to that of the house keeping control using the 2^-delta Ct calculation and compared between the treated and untreated groups. Following are the taqman probes used in this study, MYH1 (Hs00428600_m1), MYH2 (Hs00430042_m1), MYH3 (Hs01074230_m1), MYH7 (Hs01110632_m1), MYH8 (Hs00267293_m1), MYOG (Hs01072232_m1), MYOD1 (Hs02330075_g1), ACTB (Hs99999903_m1), GAPDH (Hs99999905_m1), SLN (Hs00161903_m1), CAPN3 (Hs01115989_m1), ATP2A1 (Hs01115989_m1), ENO3 (Hs01093275_m1), MYF6 (Hs00231165_m1), CKM (Hs00176490_m1), KLF4 (Hs01034973_g1), TNNT3 (Hs00952980_m1), CDH11 (Hs00901479_m1), EYA2 (Hs00193347_m1), FST (Hs01121165_g1), CEBPB (Hs00270923_s1), CEBPD (Hs00270931_s1), FKBP5 (Hs01561006_m1), NOTCH2 (Hs01050702_m1), HES1 (Hs00172878_m1), JAG1 (Hs01070032_m1), COL1A1 (Hs00164004_m1), ID3 (Hs00954037_g1), SERPINE1 (Hs00167155_m1), PPARGC1A (Hs00173304_m1), RGS2 (Hs01009070_g1), NR4A1 (Hs00374226_m1).

Transmission electron microscopy (TEM)

Request a detailed protocol

Transmission electron microscopy (TEM) was performed on myotubes cultured in 6-well plates and differentiated for 19 days under standard conditions or in the presence of small molecules. Cells were pre-fixed at room temperature for one hour in 2% (w/v) paraformaldehyde 2% (w/v) glutaraldehyde in PBS, then rinsed and stored in PBS for a few days. Samples were prepared by post-fixation in 1% (w/v) OsO4 in PBS, followed by gradual dehydration in ethanol that includes a staining with step with 1% (w/v) uranyl acetate in 70° ethanol and embedding in Epon resin (EMS, Fort Washington, PA, USA). Blocks were cut in 70 nm ultrathin sections which were further stained with uranyl acetate and lead citrate. Sections were examined using a Philips CM120 electron microscope (Philips, Eindhoven, Netherlands) operated at 80kV, and photographed with SIS Morada digital camera (Olympus, Münster, Germany). Experiments were carried out in triplicates and in a blind manner.

ATAC-seq

Request a detailed protocol

Analysis of chromatin accessibility was performed following the protocol described by Buenrostro and colleagues (Buenrostro et al., 2015). Briefly, 50,000 cells from 2 day DMSO- and S/Da/De/F-treated cultures were collected using trypsin/EDTA and washed with cold PBS prior to permeabilization and Tn5-mediated transposition for 30 min at 37°C. Following DNA extraction using MinElute Qiagen columns, transposed DNA was used for primer extension and 5 cycles of PCR amplification to insert Illumina-compatible adapter-barcodes. Final number of cycles required for library amplification was determined by qPCR. Libraries were purified using AMPure beads and then resuspended in H2O. Libraries were sequenced at the University of Minnesota Genomic Center on a lane of the NextSeq 550 in paired-end mode at an average depth of 40M reads/sample.

Reads were then mapped to the human genome (hg38) using bowtie2 (Langmead and Salzberg, 2012) (parameters -I 25 -X 2000 --local --dovetail --no-mixed --no-discordant) and filtered to remove PCR duplicates. Peaks were identified using MACS2.1 (Zhang et al., 2008) (parameters --nomodel --nolambda --keep-dup all --call-subpeaks) and then analyzed using BEDtools (Quinlan and Hall, 2010) to identify treatment-specific peaks. For this analysis, we considered peaks detected in 2 of 3 biological replicates. Analysis of differential accessibility was performed by generating a list of peaks representative of all samples using the peak summits identified by MACS2. Each summit was extended 50 bp in both directions and the resulting lists of peaks were combined, sorted and merged to obtain a dataset of unique and non-overlapping loci. This list was then used to extrapolate the sequencing depth coverage from each sample bedgraph file. Coverage files were then analyzed using DEseq2 (Love et al., 2014) to identify loci with differential chromatin accessibility. For the subsequent analyses, loci were converted to the hg19 human genome release. Annotation of the S/Da/De/F specific peaks was performed using GREAT (McLean et al., 2010) using a two gene association and 500 kb regulatory domain. Analyses included proximal promoters and distal enhancers. GO analysis was performed using DAVID (Huang et al., 2009). Enriched motifs were identified in a region of ±200 bp from the peak center using MEME-ChIP (Machanick and Bailey, 2011). Files for visualization using IGV (Thorvaldsdóttir et al., 2013) were generated by converting. wig files to the bigwig format.

RNA sequencing

Request a detailed protocol

Myotubes treated with DMSO or S/Da/De/F differentiated for 5 days were used for RNA sequencing in triplicates. RNA was isolated as described above. 500 ng of total RNA was used for generating dual-indexed libraries using the TruSeq stranded mRNA library kit. The libraries were sequenced in NextSeq 550 sequencer using 75 bp paired end run at around 20 million reads per sample. 75 bp FastQ paired-end reads (n = 20.9 Million per sample) were trimmed using Trimmomatic (v 0.33). Quality control on raw sequence data was performed with FastQC. Reads were mapped to the human genome (hg38) reference using Hisat2 (v2.1.0). Gene quantification was done via Cuffquant for FPKM values and Feature Counts for raw read counts. Differentially expressed genes were identified using the edgeR (negative binomial) feature in CLC genomics work bench (Qiagen) using raw read counts. We filtered the generated list based on a minimum 2X Absolute Fold Change and FDR corrected p<0.05. These filtered genes were then imported into Ingenuity Pathway Analysis Software (Qiagen) for identification of canonical pathways, upstream regulators and their targets. Gene ontology enrichment analysis was performed by uploading the list of differentially expressed genes in the GO database to identify the top enriched cellular components and biological processes. Heatmap of differentially expressed genes was generated using the heatmapper web tool as per the manufacturer’s instructions.

Three-dimensional muscle construct generation and contractile force measurement

Request a detailed protocol

Three-dimensional muscle constructs were generated in home-made culture wells having dimensions of 15 mm ×5 mm × 5 mm (length ×width × depth), with each well containing two posts near the ends of the well. A suspension of hiPS cell-derived myogenic progenitors (10 million cells/mL, passage 4) was prepared in a solution containing 6 mg mL−1 bovine fibrinogen (Sigma-Aldrich), 1-unit bovine thrombin (Sigma-Aldrich), and 10% (v/v) growth factor reduced Matrigel (R and D), and the suspension was quickly pipetted into the culture wells, followed by gelation at 37°C for 1 hr. All the constructs were cultured in the myogenic expansion medium for 3 days, followed by differentiation for 5 days in the KOSR medium supplemented with S/Da/De/F (each dissolved in DMSO at 10 μM). Controls in which the KOSR differentiation medium containing the same amount of DMSO (0.4% v/v) were conducted. On day 3 of differentiation, 25% of the medium was replaced with the fresh medium. All the media were supplemented with 2 mg/mL ε-aminocaproic acid (Sigma-Aldrich) to prevent fibrin degradation.

Contractile forces generated by the constructs in response to electrical stimulation at 0.5 Hz (twitch) or 20 Hz (tetanus) were measured on a custom-built apparatus after five days of differentiation (Black et al., 2009). In brief, a construct was maintained at 37°C, and the two ends were mounted on two pins, one of which was adjustable and connected to a force transducer (Harvard Apparatus, 60–2994 model). Prior to measurements, the construct was stretched by 20% of its initial length with the adjustable pin. Electrical pulses were generated with a cardiac stimulator (Astro-Med Inc, S88 × Model, 10 ms pulse width) at a frequency of 0.5 or 20 Hz for 6 s. Contractile forces were recorded using LabView and the data were analyzed using MATLAB (the code is available at GITHUB, https://github.com/weishenumn/contractile-force-analysis.gitShen, 2019; copy archived at https://github.com/elifesciences-publications/contractile-force-analysis) (Black et al., 2009). For each twitch peak or tetanic plateau, the maximum force was used for analysis. The construct was then treated with TRI Reagent (Sigma-Aldrich) for qPCR analysis or immediately frozen in liquid nitrogen for Western blotting. For each differentiation condition, three constructs were quantitatively examined.

Statistics

Differences between samples were assessed by using the Student’s two-tailed t test for independent samples or two-way ANOVA for multiple comparisons. Statistical analyses were performed using Prism Software (GraphPad).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    Working with Stem Cells
    1. J Kim
    2. A Magli
    3. RCR Perlingeiro
    (2016)
    277–285, Efficient Generation of Skeletal Myogenic Progenitors from Human Pluripotent Stem Cells, Working with Stem Cells, Springer, 10.1007/978-3-319-30582-0_16.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Glucocorticoids reciprocally regulate expression of the CCAAT/enhancer-binding protein alpha and Delta genes in 3T3-L1 adipocytes and white adipose tissue
    1. OA MacDougald
    2. P Cornelius
    3. FT Lin
    4. SS Chen
    5. MD Lane
    (1994)
    The Journal of Biological Chemistry 269:19041–19047.
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Developmental patterns in the expression of Myf5, MyoD, Myogenin, and MRF4 during myogenesis
    1. D Montarras
    2. J Chelly
    3. E Bober
    4. H Arnold
    5. MO Ott
    6. F Gros
    7. C Pinset
    (1991)
    The New Biologist 3:592–600.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. Alessandra Sacco
    Reviewing Editor
  2. Didier Y Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Bradley B Olwin
    Reviewer; University of Colorado Boulder, United States
  4. Pier Lorenzo Puri
    Reviewer; Sanford Burnham Prebys Medical Discovery Institute, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Acceptance summary:

This is an important study that addresses a major bottleneck in the field, the development of approaches to improve maturation of ES- and iPS-derived myogenic cells in vitro, to provide a novel platform for disease modeling and drug screening.

Decision letter after peer review:

Thank you for submitting your article "Screening identifies small molecules that enhance the maturation of human pluripotent stem cell-derived myotubes" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Bradley B Olwin (Reviewer #2); Pier Lorenzo Puri (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

While the reviewers find the work of significant interest, there are some issues that should be addressed before acceptance, mainly related to myotube maturation and to the cellular mechanism affected by the compound combination, listed below.

Essential revisions:

1) While the upregulation of fetal and adult myogenic genes is clearly presented, it would be useful to show and discuss the downregulation of embryonic muscle genes by RNA-seq and ATAC-seq, in order to further strengthen the interpretation of a switch in developmental stage. As relevant controls, inclusion of human embryonic and adult skeletal muscle should be included. Alternatively, a comparison of the presented RNA-seq and ATAC-seq data with available human embryonic and adult gene expression should be performed, in order to evaluate the extent of myotube maturation generated this novel protocol compared to embryonic and adult tissues.

2) While expression of mature forms of MyHCs is some evidence for enhancing maturity, the authors never provided data that the mature MyHCs are translated and present in sarcomeric-like structures within the differentiated myotubes. The only protein data provided were for neonatal MyHC, which is expressed perinatally but is not a mature myosin. Complicating the interpretation is the fact that the antibody used recognizes adult fast and perinatal myosin. It is absolutely critical that the authors identify and quantify the "mature" myosins that are translated and present in contractile structures as this is the predominant discovery of the manuscript. Translation of mature MyHC isoforms and insertion into the relevant cellular structures is bona fide evidence of maturity. Indeed, the degree of maturity might be quantitatively measured from a ratio of the protein present for immature vs. mature myosin isoforms.

3) The inhibitors and one activator act on signaling pathways but the authors did not provide evidence for whether the pathways targeted were affected. Moreover, it would be useful to know whether the combinatorial effect was substantially different than individual factors or lesser combinations. These data might provide better knowledge regarding the mechanisms involved as opposed to much further downstream analysis of transcriptomics and epigenetics.

4) In the protocol for HTS, the increased ratio of MyHC (+)/DAPI was used as readout to screen for compounds that could improve maturation of PS-derived myotubes. The author's rationale is that statistically significant increase in MyHC/DAPI area ratio in myotubes reflects increased maturation. This approach revealed to be correct, as retrospectively the strategy led to the selection of compounds that actually improve maturation; however, the lack of some details on the experimental protocol does not help on the mechanistic interpretation of the data. For instance, the authors state that the small molecules were added after cells were cultured for three days in the presence of expansion medium (bFGF and Dox), and in concomitance with the switch to differentiation medium, and MyHC expression was evaluated 5 days later. There is no information on whether cells were already differentiated or were proliferating at the time of the beginning of exposure to small molecules. Thus, it remains unclear whether the increased MyHC/DAPI area ratio is due to an effect on cell proliferation, myoblast fusion and/or transcriptional activation of specific genes in post-mitotic myotubes. This also precludes a functional interpretation of the mechanism by which the combined effect of TGFβ, MEK and γ-Secretase inhibition, adenylyl cyclase activation and glucocorticoids exerts the observed effect. As this information seems crucial to further optimize this approach, I encourage the authors to test the effects of these small molecules at sequential stages of PS-derived formation of skeletal muscles, while monitoring cell proliferation, cell fusion and multinucleation with a time course from the beginning of exposure through the whole time of treatment with small molecules.

5) Within the same line of point #1, the authors have tested the small molecules in combination (or by subtraction of each of them) always within the same protocol (e.g. exposure at the time of medium switch). It is unknown what is the differentiation status of the cells at that timing, but presumably they are not synchronous, but are rather quite heterogeneous in term of proliferation/differentiation stages. As each of these molecules seems to affect different processes along the sequential stages of skeletal myogenesis, it is highly possible that their optimal synergistic effect can be appreciated by protocols of sequential exposure to each of them, likely with some overlaps of exposures, rather than by an empirical treatment with simultaneous exposure to all compounds, as reported here. The authors should therefore consider evaluating the effect of protocols of sequential exposure in various combinations as compared to simultaneous exposure. As this approach will require multiple experimental points, I would recommend reducing the burden of work by taking one representative endpoint easy to detect – e.g. one representative MYH isoform, as MYH8.

6) More details on the methods used for generating myogenic progenitors in transgene-free conditions should be provided.

7) The 3D culture data are not sufficiently developed. Are these myotubes more or less mature than the 2D cultures? The Western blot in Figure 6D is relevant for the last two issues raised above as it is clear that neonatal MyHC is a minority of the total MyHC present. This aspect of the work should be further developed or not included as aside from the force measurements, it adds little to demonstrating maturity of the myotubes or aiding in elucidation of the mechanisms involved.

https://doi.org/10.7554/eLife.47970.029

Author response

Essential revisions:

1) While the upregulation of fetal and adult myogenic genes is clearly presented, it would be useful to show and discuss the downregulation of embryonic muscle genes by RNA-seq and ATAC-seq, in order to further strengthen the interpretation of a switch in developmental stage. As relevant controls, inclusion of human embryonic and adult skeletal muscle should be included. Alternatively, a comparison of the presented RNA-seq and ATAC-seq data with available human embryonic and adult gene expression should be performed, in order to evaluate the extent of myotube maturation generated this novel protocol compared to embryonic and adult tissues.

We thank the reviewers for this suggestion. Since we do not have access to human embryonic and adult skeletal muscle tissue samples, we investigated a selected set of embryonic genes based on a previous study that compared the gene expression profile of human embryonic vs. fetal myoblast-derived myotubes (Biressi, Tagliafico, et al., 2007). We have now included qPCR data showing that genes associated with embryonic myotubes, including MEOX1, PAX3, CDH11, EYA2 and FST, are significantly downregulated upon treatment with small molecules (Figure 6—figure supplement 1B of revised manuscript). Since these genes were reported to be expressed at higher levels in embryonic when compared to fetal myotubes (Biressi, Tagliafico, et al., 2007), downregulation of these genes upon small molecule treatment corroborates our findings suggesting developmental stage switch.

2) While expression of mature forms of MyHCs is some evidence for enhancing maturity, the authors never provided data that the mature MyHCs are translated and present in sarcomeric-like structures within the differentiated myotubes. The only protein data provided were for neonatal MyHC, which is expressed perinatally but is not a mature myosin. Complicating the interpretation is the fact that the antibody used recognizes adult fast and perinatal myosin. It is absolutely critical that the authors identify and quantify the "mature" myosins that are translated and present in contractile structures as this is the predominant discovery of the manuscript. Translation of mature MyHC isoforms and insertion into the relevant cellular structures is bona fide evidence of maturity. Indeed, the degree of maturity might be quantitatively measured from a ratio of the protein present for immature vs. mature myosin isoforms.

To address this comment, we have performed immunostaining for neonatal MyHC and F-actin and analyzed their subcellular distribution by confocal microscopy. We observed that neonatal MyHC and F-actin showed cross-striation staining pattern, suggesting the presence of neo-MyHC in contractile structures (Figure 2—figure supplement 1A of revised manuscript). We also followed the valuable suggestion of analyzing the protein expression levels of adult MYHs by western blot. Whereas MYH1 and MYH2 gene expression levels are increased upon combinatorial treatment, we were not able to find detectable levels of adult MYHs at the protein level (Figure 2C of the revised manuscript). We have revised the manuscript accordingly to focus on the reliable increased expression of MYH8, which is not expressed in early embryonic development but at later stages of development and in the neonatal stage (Cho et al., 1993). Furthermore, we have now validated the protein expression data with antibodies specific for embryonic (MYH3), neonatal (MYH8) and adult (MYH1/2) MHC isoforms, as shown in Figure 2C of the revised manuscript.

In addition, we now include transmission electron microscopy analysis, which show important differences between treated myotubes and respective controls, including the high occurrence of SR-TT junctions and more abundance in mitochondria content.

3) The inhibitors and one activator act on signaling pathways but the authors did not provide evidence for whether the pathways targeted were affected. Moreover, it would be useful to know whether the combinatorial effect was substantially different than individual factors or lesser combinations. These data might provide better knowledge regarding the mechanisms involved as opposed to much further downstream analysis of transcriptomics and epigenetics.

In the initial submission, we have shown thatIngenuity Pathway Analysis (IPA) performed on the RNA-seq data identified the targeted pathways as potential upstream regulators of the differentially expressed genes upon combinatorial treatment (Figure 6—figure supplement 1A). To complement this observation, as suggested by the reviewers, we confirmed by gene expression analysis that the pathways related to each of the small molecules were affected upon combinatorial treatment (Figure 2—figure supplement 2A-D of the revised manuscript).

We have shown that the combinatorial treatment is substantially better than the individual treatment, as evidenced by the quantification of the ratio of area of MyHC/DAPI (Figure 1B and 1C). We agree that a comparison of the effect of each small molecule on the targeted pathways against the combinatorial treatment would reveal whether these pathways are affected differently by the inclusion of additional small molecules. However, we believe that our analysis would then be limited to those four pathways. Instead, we provide whole RNA-seq and ATAC-seq data, allowing us to analyze the data in an unbiased manner. As mentioned above, these analyses revealed that the pathways targeted by the four small molecules were indeed affected in the treated myotubes, as shown in Figure 5—figure supplement 1B (ATAC-seq) and Figure 6—figure supplement 1A (RNA-seq).

4) In the protocol for HTS, the increased ratio of MyHC (+)/DAPI was used as readout to screen for compounds that could improve maturation of PS-derived myotubes. The author's rationale is that statistically significant increase in MyHC/DAPI area ratio in myotubes reflects increased maturation. This approach revealed to be correct, as retrospectively the strategy led to the selection of compounds that actually improve maturation; however, the lack of some details on the experimental protocol does not help on the mechanistic interpretation of the data. For instance, the authors state that the small molecules were added after cells were cultured for three days in the presence of expansion medium (bFGF and Dox), and in concomitance with the switch to differentiation medium, and MyHC expression was evaluated 5 days later. There is no information on whether cells were already differentiated or were proliferating at the time of the beginning of exposure to small molecules. Thus, it remains unclear whether the increased MyHC/DAPI area ratio is due to an effect on cell proliferation, myoblast fusion and/or transcriptional activation of specific genes in post-mitotic myotubes. This also precludes a functional interpretation of the mechanism by which the combined effect of TGFβ, MEK and γ-Secretase inhibition, adenylyl cyclase activation and glucocorticoids exerts the observed effect. As this information seems crucial to further optimize this approach, I encourage the authors to test the effects of these small molecules at sequential stages of PS-derived formation of skeletal muscles, while monitoring cell proliferation, cell fusion and multinucleation with a time course from the beginning of exposure through the whole time of treatment with small molecules.

In line with this valuable suggestion, we analyzed cell proliferation and myotube differentiation through EdU and MyHC staining, respectively, at days 1, 3 and 5, upon switching to terminal differentiation conditions. We observed that proliferation and differentiation in myotubes exposed to DMSO or combinatorial treatment followed a similar pattern at days 1 and day 3. However, we identified dramatic differences at day 5, suggesting that the small molecule treatment predominantly affects the cell proliferation and differentiation between D3 and D5 (Figure 2—figure supplement 1C and 1D of the revised manuscript).

5) Within the same line of point #1, the authors have tested the small molecules in combination (or by subtraction of each of them) always within the same protocol (e.g. exposure at the time of medium switch). It is unknown what is the differentiation status of the cells at that timing, but presumably they are not synchronous, but are rather quite heterogeneous in term of proliferation/differentiation stages. As each of these molecules seems to affect different processes along the sequential stages of skeletal myogenesis, it is highly possible that their optimal synergistic effect can be appreciated by protocols of sequential exposure to each of them, likely with some overlaps of exposures, rather than by an empirical treatment with simultaneous exposure to all compounds, as reported here. The authors should therefore consider evaluating the effect of protocols of sequential exposure in various combinations as compared to simultaneous exposure. As this approach will require multiple experimental points, I would recommend reducing the burden of work by taking one representative endpoint easy to detect – e.g. one representative MYH isoform, as MYH8.

We thank the reviewers for bringing this up. We would like to clarify the steps of the protocol and that cultures of myogenic progenitors are not heterogeneous in terms of differentiation before induction of terminal differentiation. At day 12 of the iPAX7 myogenic differentiation protocol that we describe here, PAX7+ myogenic progenitors are sorted from the bulk population (Figure 1—figure supplement 1A). Under PAX7 expression, induced by Dox, the cells maintain a proliferative and non-differentiating state (PAX7+). These PAX7+ myogenic progenitors are expanded with Dox in the culture media. When myogenic progenitors reach confluency, we switch culture conditions to terminal differentiation, by removing Dox and switching to low nutrient medium, and thus allowing myogenic progenitors to undergo myotube differentiation. In this regard, although we may have ignored the degree of heterogeneity of the myogenic progenitor population at the molecular level, we do know that at day 0 of myotube differentiation (when we also start the combinatorial treatment), the cells are still in a proliferating state and there are no differentiating or differentiated myotubes in the cultures. In fact, Figure 2—figure supplement 1C and 1D of the revised manuscript shows that even at day 1 of myotube differentiation, there are no MyHC (+) myotubes in our cultures, as these begin to arise only at day 3. Therefore, there is no such heterogeneity of proliferating and differentiated cells when we start the small molecule treatment.

As accurately pointed out by the reviewers, we do acknowledge that a potential limitation in the optimization of our combinatorial treatment is that we add all the small molecules at the same time. Following this comment, we have attempted to perform sequential incubations with small molecules (Author response image 1). We started by using a single compound (S, Da, De or F) on D0 and then adding the remaining compounds on D1 or D3. Then, MYH8 protein expression was assessed by western blot. In this first attempt, we did not see a significant difference in any condition when compared to using all the small molecules from D0. Although this attempt was an initial optimization effort that we tried following the suggestion raised by the reviewers, we believe that the number of possible small molecule combinations that can be tried at different sequential and overlapping exposures, and at different days of terminal differentiation, is quite exponentially large, and since we would not be following a particular rational, we would need to try all of these. Thus, we consider this assessment out of the scope of the present study. We do want to emphasize that in spite of the potential for additional optimization, we are confident on the dramatic improvement in differentiation and maturation of differentiated myotubes when performing the combinatorial treatment at day 0, which was validated in many PS cell lines, as shown along the manuscript.

6) More details on the methods used for generating myogenic progenitors in transgene-free conditions should be provided.

We thank the reviewers for this observation. The Materials and methods section has been revised to include the detailed protocol that we have followed for transgene-free myogenic differentiation.

7) The 3D culture data are not sufficiently developed. Are these myotubes more or less mature than the 2D cultures? The Western blot in Figure 6D is relevant for the last two issues raised above as it is clear that neonatal MyHC is a minority of the total MyHC present. This aspect of the work should be further developed or not included as aside from the force measurements, it adds little to demonstrating maturity of the myotubes or aiding in elucidation of the mechanisms involved.

We have further developed the characterization of 3D muscle constructs by immunostaining (Figure 7—figure supplement 1C of the revised manuscript) and by comparing the gene and protein expression of MYH isoforms against 2D cultures (Figure 7D and Figure 7—figure supplement 1C of revised manuscript). As observed in Figure 7—figure supplement 1B, 3D cultures showed increased gene expression of all the MYHs compared to 2D cultures, except for MYH7, which showed a significant decrease. Since MYH7 is expressed even at early stages of muscle development (Cho et al., 1993), the downregulation observed in the presence of S/Da/De/F may not be relevant to maturation. At the protein level, we observed a similar increase in the levels of emb-MyHC and neo-MyHC with combinatorial treatment in both 2D and 3D-cultures when compared to DMSO (Figure 7D). As stated in Materials and methods section, 3D constructs were switched to terminal differentiation conditions for five days. It is possible that a longer timeframe of terminal differentiation would result in a more pronounced increased in maturation, as it has been previously reported (Rao et al., 2018).

https://doi.org/10.7554/eLife.47970.030

Article and author information

Author details

  1. Sridhar Selvaraj

    Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Methodology, Writing—review
    Contributed equally with
    Ricardo Mondragon-Gonzalez
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9736-8391
  2. Ricardo Mondragon-Gonzalez

    1. Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    2. Departamento de Genética y Biología Molecular, Centro de Investigación y de Estudios Avanzados del IPN (CINVESTAV-IPN), Ciudad de México, Mexico
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Sridhar Selvaraj
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5645-3090
  3. Bin Xu

    Department of Biomedical Engineering, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  4. Alessandro Magli

    1. Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    2. Stem Cell Institute, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Software, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3874-2838
  5. Hyunkee Kim

    Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    Contribution
    Formal analysis, Validation, Investigation, Visualization
    Competing interests
    No competing interests declared
  6. Jeanne Lainé

    Département de Physiologie, Sorbonne Universités, Faculté de Médecine site Pitié-Salpêtrière, Paris, France
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Methodology, Writing—review
    Competing interests
    No competing interests declared
  7. James Kiley

    Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    Contribution
    Formal analysis, Validation, Investigation, Visualization
    Competing interests
    No competing interests declared
  8. Holly Mckee

    Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  9. Fabrizio Rinaldi

    Stem Cell Department, Bio-Techne, Minneapolis, United States
    Contribution
    Resources
    Competing interests
    is affiliated with Bio-Techne. The author has no financial interests to declare.
  10. Joy Aho

    Stem Cell Department, Bio-Techne, Minneapolis, United States
    Contribution
    Resources
    Competing interests
    is affiliated with Bio-Techne. The author has no financial interests to declare.
  11. Nacira Tabti

    Département de Physiologie, Sorbonne Universités, Faculté de Médecine site Pitié-Salpêtrière, Paris, France
    Contribution
    Conceptualization, Writing—original draft, Project administration
    Competing interests
    No competing interests declared
  12. Wei Shen

    1. Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    2. Department of Biomedical Engineering, University of Minnesota, Minneapolis, United States
    3. Stem Cell Institute, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Supervision, Methodology, Writing—original draft, Project administration
    Competing interests
    No competing interests declared
  13. Rita CR Perlingeiro

    1. Lillehei Heart Institute, Department of Medicine, University of Minnesota, Minneapolis, United States
    2. Stem Cell Institute, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    perli032@umn.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9412-1118

Funding

National Institutes of Health (R01 AR055299)

  • Rita CR Perlingeiro

National Institutes of Health (R01 AR071439)

  • Rita CR Perlingeiro

National Science Foundation (CAREER DMR-1151529)

  • Wei Shen

Consejo Nacional de Ciencia y Tecnología (394378)

  • Ricardo Mondragon-Gonzalez

ADVault, Inc

  • Rita CR Perlingeiro

MyDirectives.com

  • Rita CR Perlingeiro

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This project was supported by funds from the NIH, grants R01 AR055299 and AR071439 (RCRP) and the NSF CAREER DMR-1151529 (WS). RM-G was funded by CONACyT-Mexico (#394378). We also thank the generous support from ADVault, Inc and MyDirectives.com (RCRP). The cytogenetic analyses were performed in the Cytogenomics Shared Resource at the University of Minnesota with support from the comprehensive Masonic Cancer Center NIH Grant #P30 CA077598-09. The monoclonal antibodies to MyHC, Titin, MyHC-neo and MYH1/2 were obtained from the Developmental Studies Hybridoma Bank developed under the auspices of the NICHD and maintained by the University of Iowa. We thank Prof. Robert T Tranquillo, Dr. Jeremy Schaefer, and Dr. Lauren Black for the use of the contractile force measurement apparatus and for facilitating data analysis.

Ethics

Human subjects: Studies involved de-identified fibroblast samples according to procedures approved by the Institutional Review Board of the University of Minnesota (Ref: 0904M63241). Informed consent, and consent to publish was obtained.

Animal experimentation: Animal studies were carried out according to protocols (protocol ID: 1702-34580A) approved by the University of Minnesota Institutional Animal Care and Use Community.

Senior Editor

  1. Didier Y Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Alessandra Sacco

Reviewers

  1. Bradley B Olwin, University of Colorado Boulder, United States
  2. Pier Lorenzo Puri, Sanford Burnham Prebys Medical Discovery Institute, United States

Publication history

  1. Received: April 26, 2019
  2. Accepted: October 29, 2019
  3. Version of Record published: November 11, 2019 (version 1)

Copyright

© 2019, Selvaraj et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 776
    Page views
  • 144
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    Rodrigo M Young et al.
    Research Article
    1. Developmental Biology
    2. Human Biology and Medicine
    Ethan J Greenblatt et al.
    Research Article Updated
