Activation mechanism of the insulin receptor revealed by cryo-EM structure of the fully liganded receptor–ligand complex

  1. Emiko Uchikawa
  2. Eunhee Choi  Is a corresponding author
  3. Guijun Shang
  4. Hongtao Yu  Is a corresponding author
  5. Xiao-chen Bai  Is a corresponding author
  1. University of Texas Southwestern Medical Center, United States
  2. Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, United States
Research Article
  • Cited 0
  • Views 2,629
  • Annotations
Cite this article as: eLife 2019;8:e48630 doi: 10.7554/eLife.48630

Abstract

Insulin signaling controls metabolic homeostasis. Here, we report the cryo-EM structure of full-length insulin receptor (IR) and insulin complex in the active state. This structure unexpectedly reveals that maximally four insulins can bind the ‘T’-shaped IR dimer at four distinct sites related by 2-fold symmetry. Insulins 1 and 1’ bind to sites 1 and 1’, formed by L1 of one IR protomer and α-CT and FnIII-1 of the other. Insulins 2 and 2’ bind to sites 2 and 2’ on FnIII-1 of each protomer. Mutagenesis and cellular assays show that both sites 1 and 2 are required for optimal insulin binding and IR activation. We further identify a homotypic FnIII-2–FnIII-2 interaction in mediating the dimerization of membrane proximal domains in the active IR dimer. Our results indicate that binding of multiple insulins at two distinct types of sites disrupts the autoinhibited apo-IR dimer and stabilizes the active dimer.

https://doi.org/10.7554/eLife.48630.001

Introduction

Insulin receptor (IR) is a receptor tyrosine kinase (RTK) that plays essential roles in glucose metabolism and cell growth (Ullrich et al., 1985). Dysregulation of IR signaling is linked to many human diseases, such as diabetes and cancers (Olefsky, 1976). Unlike most RTKs, IR forms a stable homodimer covalently linked by multiple disulfide bonds (Schäffer and Ljungqvist, 1992; Sparrow et al., 1997). Previous mutagenesis and binding studies have suggested that IR has two distinct insulin-binding sites with different affinities for insulin, termed sites 1 and 2 (De Meyts, 1994). It has been further proposed that a single insulin molecule simultaneously engages site 1 of one IR promtomer and site 2 of the other, thus bridging the two IR protomers (De Meyts, 1994; Schäffer, 1994). A second insulin molecule binds to the equivalent, symmetry-related site in the IR dimer. These two insulins effectively crosslink the two IR protomers to activate IR.

The crystal structure of the extracellular domain of IR (comprising L1, CR, L2, FnIII-1,–2,−3 domains) in the absence of insulin was solved first (McKern et al., 2006), revealing an inverted ‘V’ shaped architecture. The crystal structure of the IR extracellular domain bound to insulin was subsequently determined (Menting et al., 2013), showing that one insulin molecule binds to the primary site, which consists of the L1 domain and the C-terminal helix of the α chain (α-CT). This primary site has been proposed to represent site 1. Recently, three groups, using single-particle electron microscopy (EM), showed that insulin binding induces a large conformational change in IR (Gutmann et al., 2018; Scapin et al., 2018; Weis et al., 2018) and converts the overall architecture of IR dimer from an autoinhibited inverted ‘V’ shape to a ‘T’ shape. This conversion has been proposed to bring the two kinase domains of the IR dimer into close proximity to enable efficient trans-autophosphorylation and activation. Two of the three studies (Gutmann et al., 2018; Weis et al., 2018) also identified a new IR–insulin interface involving a loop of FnIII-1. This interface has been proposed to represent site 2 of IR. Thus, those structures revealed that the IR dimer binds to one or two insulins, with each insulin contacting the L1 domain of one protomer and α-CT and the FnIII-1 loop of the other. These findings seemingly support the ‘crosslinking’ model for IR activation, which posits that each insulin molecule simultaneously engages sites 1 and 2 of IR.

Here, we report the cryo-EM structure of the full-length human IR–insulin complex at an overall resolution of 3.2 Å. Unexpectedly, our structure reveals that each ‘T’-shaped fully liganded IR dimer can bind maximally four insulins at four sites that are related by a two-fold symmetrical axis. Sites 1 and 1’ are formed by the L1 domain of one IR protomer and α-CT and the FnIII-1 loop of the other. Sites 2 and 2’ are located on the back of a main β sheet of the FnIII-1 domain of each protomer. Our mutagenesis, binding and cellular assays, along with insulin mutations in the previous literature (De Meyts, 2015; Kristensen et al., 1997), confirm this new IR–insulin interface as the authentic site 2. Therefore, our results revise and extend the widely accepted ‘crosslinking’ model of IR activation, and indicate that binding of multiple insulin molecules to two distinct types of sites on each IR dimer breaks the auto-inhibited state and fully activates IR.

Results

Overall structure of full-length human IR bound to insulin

We expressed and purified the full-length human insulin receptor (IR) using human HEK293F cells as the expression system (Figure 1—figure supplement 1A,B).), and reconstituted the IR–insulin complex in vitro. To improve the expression yield, we introduced several mutations in the intracellular domain of IR, including the D1120N mutation that inactivates its kinase activity and the Y960F mutation that has been shown to reduce clathrin-mediated endocytosis of IR (White et al., 1988; Choi et al., 2019). To exclude the possibility that the detergent micelles could affect insulin binding, we performed in vitro insulin binding assays. Recombinant IR isolated with detergent binds insulin with high affinity and displays strong negative cooperativity (Hill coefficients of ~0.62), comparable to our and other’s cell-based insulin-binding results (Figure 1—figure supplement 1C,D) (De Meyts et al., 1973).

During cryo-EM image processing, initial 3D classification was produced without any symmetry imposed. All the resolved 3D reconstructions, however, exhibited almost perfect 2-fold symmetry (Figure 1—figure supplement 2), suggesting that insulins bind to the majority of IR in a symmetrical manner. The final refinement and reconstruction of the entire complex was thus performed with 2-fold symmetry applied, and was determined at an overall resolution of 3.2 Å (Figure 1A, and Figure 1—figure supplement 3, and Table 1).

Figure 1 with 5 supplements see all

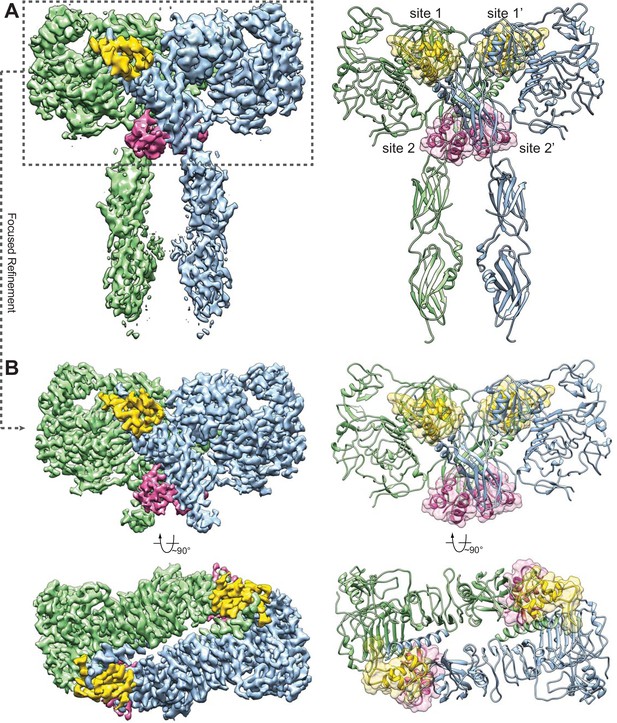

Overall structure of the IR–insulin complex.

(A) 3D reconstruction of the IR dimer with four insulins bound (left) and the corresponding ribbon representation of this complex (right). (B) 3D reconstruction of IR dimer with four insulins bound after forced 3D refinement (left) and the corresponding ribbon representation (right).

https://doi.org/10.7554/eLife.48630.002
Table 1
Cryo-EM data collection and model statistics.
https://doi.org/10.7554/eLife.48630.008
IR-insulin complex
Data collection and processing
Magnification46,730
Voltage (kV)300
Electron exposure (e-2)50
Defocus range (µm)1.5 – 3
Pixel size (Å)1.07
Final particle number235,707
Map resolution (Å)3.1
Map Sharpening B factor−100
Model Refinement
Rms deviations
Bonds (Å)0.007
Angels (°)0.885
Validation
MolProbity score1.66
Clashscore3.36
Rotamer outliers (%)0
Ramachandran plot
Favored (%)90.52
Allowed (%)9.33
Outliers (%)0.15

To further improve the resolution, we performed a focused refinement (as described in our previous work, Wong et al., 2014) for the top part of the IR–insulin complex, including the L1, CR, L2, and FnIII-1 domains of IR as well as all the bound insulins. As a result, the resolution for the top part of the complex was improved to 3.1 Å (Figure 1B), allowing us to build a nearly complete atomic model for this region (Figure 1B, Figure 1—figure supplements 2 and 4). The cryo-EM densities for the FnIII-2 and FnIII-3 domains were less well resolved, presumably due to structural flexibility. Nevertheless, the crystal structures of FnIII-2 and FnIII-3 domains can be unambiguously docked into the cryo-EM density (Figure 1A), based on clear secondary structural features (Figure 1—figure supplement 4A). The cryo-EM density for the transmembrane domain (TM) can only be visualized after further 3D classification with local angular search (Figure 1—figure supplements 2 and 4B), but cannot be modeled due to the lack of side-chain densities. The densities of kinase domains were completely unresolved in the cryo-EM map.

In the full-length IR–insulin complex, the IR dimer exists in an extended ‘T’-shaped arrangement with 2-fold symmetry (Figure 1), in agreement with the 2D class averages of full-length IR in the presence of insulin obtained previously by negative-stain EM (Gutmann et al., 2018) as well as the recently solved cryo-EM structure of the IR extracellular domain bound to insulin (Scapin et al., 2018). The horizontal part of the ‘T’ is composed of the L1, CR and L2 domains of both IR promoters. The vertical piece of the ‘T’ consists exclusively of the FnIII-1, FnIII-2 and FnIII-3 domains of the IR dimer.

The apo-form of the IR dimer exhibits an inverted ‘V’ shape, with the two FnIII-3 domains separated by ~120 Å (McKern et al., 2006). Because the FnIII-3 domain is connected to the transmembrane (TM) domain and intracellular kinase domains through a short linker (Figure 1—figure supplement 1B), the two kinase domains are likely separated by a long distance and cannot undergo efficient trans-autophosphorylation in this autoinhibited conformation. The distance between the two FnIII-3 domains in the ‘T’-shaped insulin-bound IR dimer, however, is reduced to ~40 Å. In addition, the partially resolved density for the single-pass TM domain suggests that the two TM domains may dimerize in the IR–insulin complex (Figure 1—figure supplement 4B). The two intracellular kinase domains are thus expected to be in close proximity in this ‘T’-shaped conformation, enabling their trans-autophosphorylation. Therefore, this conformation of the IR dimer represents an active form.

Strikingly, we can identify four insulins bound to four sites in the fully liganded IR dimer (Figure 1). Because of the 2-fold symmetry, there are two distinct types of insulin and insulin-binding sites in the complex, denoted as insulins 1, 1’, 2, and 2’; and sites 1, 1’, 2, and 2’. For simplicity, we will only describe insulins 1 and 2, which bind to sites 1 and 2 on one side of the ‘T’-shaped dimer. Insulin 1 at site 1 and insulin 2 at site 2 bury 706 and 394 Å2 of solvent-exposed surface areas of IR, respectively. Thus, site 1 likely has higher affinity in insulin binding than site 2.

Insulin has a molecular weight of ~6 kDa, which is much smaller than that of IR. The initial global 3D classification with coarse angular sampling may not be able to identify subsets of particles that exhibit partially liganded IR conformations. To separate the particles with different numbers of bound ligands, we applied our previously developed approaches—symmetry expansion in combination with focused classification on insulin with signal subtraction of the receptor (Bai et al., 2015; Zhou et al., 2015). As the insulin molecules are too small to be aligned on their own, during the focused classification, the orientations of the insulins were kept fixed as those determined by the C2 refinement of the entire complex. As a result, we can identify two major classes having different stoichiometries for insulin binding (Figure 1—figure supplement 5). In particular, 63% of the particles have four insulins bound (two each at sites 1 and 2), while 33% of the particles have three insulins bound (two at site 1; one at site 2) (Figure 1—figure supplement 5B). There is only a subtle difference between the structures of IR with three or four insulins bound, which indicates that binding of insulins to both sites 2 and 2’ is not required for the maintenance of the T-shaped IR dimer (Figure 1—figure supplement 5A). Importantly, the vast majority (96%) of the T-shaped particles have at least one insulin bound to site 2 or 2’, suggesting that insulin binding to site 2 is important for IR to adopt the active T shape.

During the revision of this manuscript, another study deposited in the preprint server bioRxiv also showed a low-resolution cryo-EM map of the IR extracellular domain with four insulins bound at sites 1 and 2 (Gutmann et al., 2019). The 3:1 or 4:1 stoichiometry of insulin binding to the IR dimer and the two types of binding sites are consistent with previous IR–insulin binding assays that indicated the coexistence of high- and low-affinity insulin-binding sites (Schäffer, 1994). Those results were, however, interpreted with a binding equilibrium of 2:1 stoichiometry, and in light of our findings here may need to be reexamined.

A tripartite interface between insulin 1 and site 1 stabilizes the active IR dimer

Insulin 1 binds mainly through the primary site formed by the L1 domain and α-CT (Figure 2A, left panel). Based on our cryo-EM map, we cannot distinguish whether the α-CT is from the same protomer or the neighboring one, as the density of the linker between L1 domain and α-CT is completely missing in our structure. Nevertheless, based on previous biochemical and structural results (Chan et al., 2007), IR is an intertwined domain-swapped homodimer. Thus, the two elements that constitute this primary site, the L1 domain and α-CT, are from two different IR protomers. This primary insulin–IR interface is nearly identical to that observed in the crystal structure of the IR extracellular domain bound to insulin (Menting et al., 2013), and will not be described in detail. To confirm that insulin binding to this site is essential for IR activation, we introduced R14E (Whittaker and Whittaker, 2005) and F714A mutations into IR to disrupt this interface, and showed that both IR R14E and F714A mutants, when expressed in human 293 cells, exhibited deficient insulin-dependent IR activation (Figure 2B, and 2C).

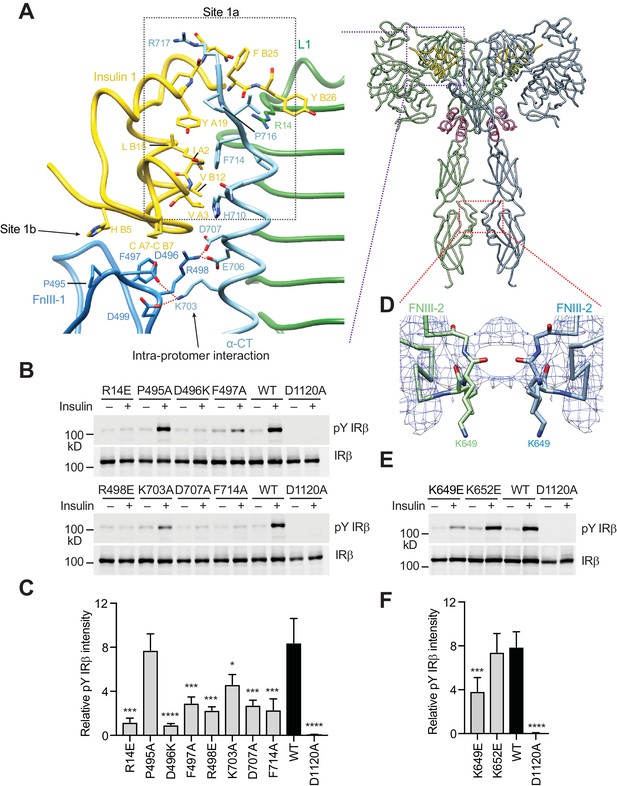

A tripartite interface between insulin one and IR site one stabilizes the active IR dimer.

(A) Close-up view of the tripartite interaction between insulin 1 and IR L1, α-CT, and FnIII-1 domains (left panel) and ribbon diagram of the IR–insulin complex (right panel). The location of this interaction in the IR active dimer is indicated by a purple box in the right panel. (B) Insulin-induced IR autophosphorylation in 293FT cells expressing IR wild-type (WT) or indicated point mutants that were expected to lose the tripartite interaction. The IR kinase-dead mutant (D1120A) was used as the negative control. (C) Quantification of the western blot data shown in B) (Mean ± SD). Each experiment was repeated three times. Significance calculated using two-tailed students t-test; between WT and mutants; *p<0.05, ***p<0.001, and ****p<0.0001. (D) Close-up view of the homotypic interaction between two adjacent FnIII-2 domains. The location of this interaction in the IR active dimer is indicated by a red box in A) (right panel). (E) Insulin-induced IR autophosphorylation in 293FT cells expressing IR WT and the indicated mutants. The kinase dead mutant (D1120A) was used as the negative control. (F) Quantification of the western blot data shown in E) (Mean ± SD). Each experiment was repeated four times. Significance calculated using two-tailed students t-test; between WT and mutants; ***p<0.001 and ****p<0.0001.

https://doi.org/10.7554/eLife.48630.009

In addition to this primary interface, insulin 1 makes contact with a loop of the FnIII-1 domain from the IR protomer that has donated α-CT (Figure 2A, left panel). This secondary interface was first observed in the previously reported cryo-EM study of the IR extracellular domain bound to insulin (Scapin et al., 2018), but could not be accurately modeled due to the low-resolution density map and had been erroneously assigned as site 2. Our significantly improved cryo-EM map allowed the delineation of this new interface in near-atomic detail. To distinguish this interface from the authentic site 2 described in the next section, we propose to name the primary interface as site 1a and this new secondary interface as site 1b (Figure 2A, left panel).

At site 1b, two disulfide-bonded cysteines (Cys A7 and Cys B7) and His B5 of insulin pack against Pro495, Phe497, and Arg498 in the IR FnIII-1 domain through hydrophobic interactions (Figure 2A, left panel). In addition, insulin binding induces the formation of a new interface between the FnIII-1 domain and α-CT of the same protomer (Figure 2A, left panel), which only exists in the ‘T’-shaped active dimer. This interface involves a cluster of charged residues, including Asp496, Arg498 and Asp499 in the FnIII-1 domain and Lys703, Glu706 and Asp707 in α-CT, which form multiple salt bridges (Figure 2A, left panel). Notably, an IR D707A mutation has been found in patients with leprechaunism, a rare genetic disease with severe insulin signaling defects (Hart et al., 1996). This mutation may affect IR activation by disrupting this interface.

To test the functional relevance of site 1b, we mutated the residue Phe497 of IR (which contacts insulin) to alanine, and tested its effect on IR activation. The F497A mutant showed markedly reduced insulin-dependent IR activation (Figure 2B, and 2C). We next introduced several point mutations (D496A, R498E, K703A, and D707A) into IR, which were designed to break the interaction between α-CT and the FnIII-1 domain. The D496A, R498E, D707A (the disease-causing mutation), and K703A mutants all showed greatly reduced activation (Figure 2B, and 2C). These results validate the functional importance of the interactions at site 1b in IR activation.

Taken together, binding of insulin 1 to IR site 1 involves a tripartite interface: insulin–L1/α-CT (site 1a), insulin–FnIII-1 loop (site 1b), and α-CT–FnIII-1 loop (site 1b). Thus, insulin 1 simultaneously engages site 1a and 1b to bridge the two IR protomers. We propose that this strong tripartite interaction is critical for the formation of the ‘T’-shaped active IR dimer by driving the rearrangement of the two IR protomers. Conceptually, the binding mode of insulin 1 is reminiscent of the ‘crosslinking’ model proposed previously, except that this insulin crosslinks two sub-sites of site 1, as opposed to sites 1 and 2.

Insulin 2 binds to a novel binding site on the FnIII-1 domain of IR

We have identified a novel insulin-binding site for insulin 2 binding, which is located on the back side of a major β sheet of the FnIII-1 domain (Figure 3A, and 3C). Residues from both A and B chains of insulin 2 contribute to this interaction (Figure 3B). These residues are located on the side of insulin opposite to that involved in the binding to site 1, and largely overlap with those in the insulin hexamer interface (Table 2) (Weiss, 2009). Several basic residues from IR FnIII-1, including Arg479, Lys484, Arg488, and Arg554, participate in this interaction (Figure 3B). In addition, hydrophobic residues from IR FnIII-1, such as Leu486, Leu552, and Pro537, pack tightly against residues Leu A13, Tyr A14, Leu A16, Leu B6, Ala B14, Leu B17, and Val B18 in insulin (Figure 3B, and Table 2). Many site 2 residues are conserved in vertebrate IR proteins, but some are not conserved in the IGF1R (Figure 3—figure supplement 1). We superimposed the model of receptor-bound insulin 2 onto that of free insulin, which was previously determined by X-ray crystallography (PDB: 1MSO) (Smith et al., 2003). This comparison revealed no major structural differences between the free and bound insulin.

Figure 3 with 3 supplements see all
Insulin 2 binds to a novel binding site on the FnIII-1 domain of IR.

(A) Overall view of the two distinct insulin-binding sites. (B) Close-up view of insulin-binding site 2. (C) Cartoon representation of the IR–insulin complex depicting the two distinct types of insulin-binding sites (total of 4 sites per IR dimer related by 2-fold symmetry). (D) Insulin-induced IR autophosphorylation in 293FT cells expressing IR wild-type (WT) or the indicated site 2 mutants, assessed by quantitative western blotting with a phospho-tyrosine (pY) IRβ antibody. Kinase dead mutant (D1120A) was used as a negative control. Expression levels of IRβ are monitored by anti-Myc blotting against the C-terminal Myc-tag. (E) Quantification of the western blot data shown in D (Mean ± SD). Each experiment was repeated three times. Significance calculated using two-tailed students t-test; between WT and mutants, *p<0.05, **p<0.01, and ****p<0.0001. (F) Dose-responsive curves of the insulin-stimulated autophosphorylation of wild-type (WT) IR or IR mutants (Mean ± SD). Site 1 mutant, R14E; site 2 mutant K484E/L552A; site 1/2 mutant, R14E/K484E/L552A. Significance calculated using One-way ANOVA with Brown-Forsythe test; between WT and mutants, p<0.0001. See Figure 3—figure supplement 2A. (G) Binding of insulin labeled with Alexa Fluor 488 to 293FT cells expressing IR WT or IR mutants (Mean ± SD). Significance calculated using One-way ANOVA with Brown-Forsythe test; between WT and site 2 mutant, p<0.0001. Symbols are the same as in F. (H) Binding of insulin labeled with Alexa Fluor 488 to 293FT cells expressing IR WT or IR mutants at 800 pM concentration of insulin. Significance calculated using two-tailed students t-test; between WT and mutants, **p<0.01, and ***p<0.001.

https://doi.org/10.7554/eLife.48630.010
Table 2
Summary of the insulin and IR residues involved in site 2 binding.
https://doi.org/10.7554/eLife.48630.014
Insulin residuesIR residues
Ile A10, Ser A12, Leu A13, Tyr A14, Leu A16, Glu A17, Gln B4, Leu B6, His B10, Glu B13, Ala B14, Leu B17, Val B18, Glu B21Tyr477, Arg479, Ser481, Asp483, Lys484, Leu486, Arg488, Asp535, Pro537, Asn547, Pro549, Gly550, Trp551, Leu552

Most of the insulin residues involved in the binding to site 2, which include Ile A10, Ser A12, Leu A13, Glu A17, His B10, Glu B13, and Leu B17, have been correctly mapped by alanine scanning mutagenesis in the previous work (De Meyts, 2015; Kristensen et al., 1997), and these insulin site 2 mutations markedly reduced receptor-binding affinity (De Meyts, 2015; Kristensen et al., 1997). Importantly, most of these previously defined site 2 residues of insulin do not contact IR at site 1b. Thus, the previous study (Scapin et al., 2018) has incorrectly assigned site 1b as site 2. Our structure of the IR–insulin complex has revealed the authentic site 2 of IR–insulin binding and represents the first structure of the fully liganded, active IR.

Next, we introduced multiple mutations in IR (Y477A, R479E, K484E, R488E, P536A, P537A, L552A, and R554E) designed to weaken this insulin 2-binding interface. Consistent with our structure-based predictions, all these IR mutants showed decreased insulin-dependent activation (Figure 3D, and 3E). Among them, the K484E and L552A mutants were the most defective. In a dose-response assay, the IR K484E/L552A double mutant (site 2 mutant) was defective in insulin-dependent activation in a wide range of insulin concentrations (Figure 3F and Figure 3—figure supplement 2A), although the effect of this site 2 mutation was not as severe as that of the site 1 R14E mutation. Furthermore, both cell-based and in vitro insulin-binding assays showed that the IR site 2 K484E/L552A mutant indeed exhibited much weaker insulin-binding affinity, as compared to wild-type IR, particularly at the physiological concentrations of insulin (Figure 3G and H, Figure 1—figure supplement 1C, Figure 3—figure supplement 2B and C). Moreover, all site 2 IR mutants can localize to the plasma membrane, similar to wild-type IR (Figure 3—figure supplement 3), suggesting that the introduced mutations are unlikely to induce protein mis-localization or misfolding. These results validate the importance of insulin 2 binding to site 2 of IR in insulin-dependent activation of IR.

Hinge motions of IR protomers upon insulin binding

The structures of the L1/CR segment and the FnIII-1/-2/-3 segment of insulin-bound IR can be superimposed perfectly onto those of apo-IR, suggesting that no domain rotations occur in these two structural segments during insulin binding. However, the overall structure of the IR protomer with insulin bound is more compacted, as a result of two large hinge motions around the L2 domain (Figure 4A, B and C). Such rigid-body rotations have been previously described (Scapin et al., 2018), but the structural details of these rearrangement cannot be elucidated due to the moderate resolution and incompleteness of the active IR dimer in that study.

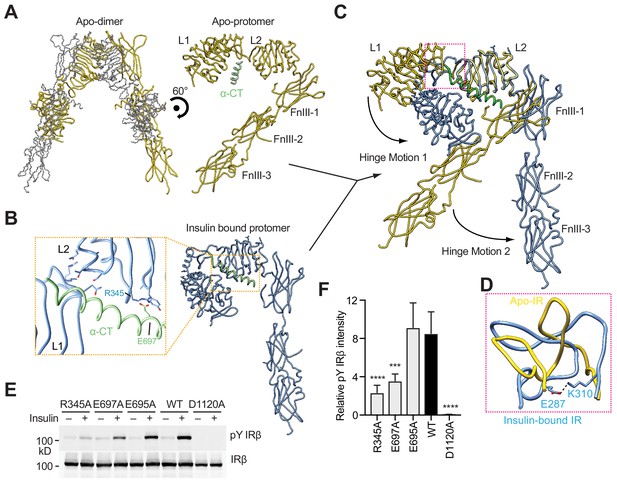

Hinge motions of IR protomers upon insulin binding.

(A) Overall view of apo-IR dimer and protomer. (B) Overall view of IR protomer with insulinbound in a more compacted active conformation. Inset (yellow box), close-up view of the inter-domain interactions that stabilize the active conformation. (C) Superposition between insulin-free IR protomer (yellow) and insulin-bound IR protomer (blue) by aligning the L2 domain, revealing two different hinge motions. (D) Superposition of the loop connecting CR and L2 (residues 302–310) of the insulin-free IR protomer (yellow) onto that of insulin-bound IR protomer (blue). The location of this loop in the IR protomer is indicated by a pink box in C. (E) Insulin-induced IR autophosphorylation in 293FT cells expressing wild-type (WT) IR or indicated mutants. The kinase dead mutant (D1120A) was used as a negative control. (F) Quantification of the western blot data shown in E (Mean ± SD). Each experiment was repeated five times. Significance calculated using two-tailed students t-test; between WT and mutants, ***p<0.001 and ****p<0.0001.

https://doi.org/10.7554/eLife.48630.015

A large conformational change takes place between the CR and L2 domains, with the loop connecting CR and L2 (residues 302–310) as the hinge (Figure 4C). This hinge loop has different conformations in apo- and insulin-bound IR (Figure 4D). In particular, Glu287 and Lys310 form a salt bridge to stabilize the insulin-bound loop conformation. Along with the conformational change of the hinge loop, the L1/CR domains of IR rotate ~90° toward the L2 domain upon insulin binding, creating two new inter-domain contacts (Figure 4B, and 4C). The first contact is formed by Glu697 and Phe701 in the N-terminal portion of α-CT and Arg345 and Gly346 on the lateral surface of the β sheet in the L2 domain (Figure 4B). As a result, α-CT can simultaneously engage both L1 and L2 domains of the other IR protomer, tethering these two domains together. Another new contact is formed mainly through the interaction between a loop (residues 85–90) of the L1 domain and the first α-helix (residues 323–331) of the L2 domain.

Another hinge motion upon insulin binding occurs around the linker between the L2 and FnIII-1 domains, resulting in a new inter-domain interaction between residues 454–460 of L2 and residues 572–578 in a loop of FnIII-1. Consequently, FnIII-1,-2, and -3 domains as a rigid body rotate away from the L2 domain by ~50° (Figure 4C). Through the combination of these two hinge motions, the overall architecture of the IR protomer is converted an inverted ‘J’ shape (Figure 4B). Two such promoters make the ‘T’ shaped active dimer.

The α-CT domain plays a critical role in stabilizing the active conformation of the IR protomer. In particular, Glu697 of α-CT forms a salt bridge with Arg345 in the L2 domain (Figure 4B). Both residues are far away from the bound insulins. Mutations of Glu697 and Arg345 to alanine diminished IR activation by insulin (Figure 4E, and 4F). In contrast, mutation of a neighboring residue Glu695 in α-CT that was not involved in inter-domain interactions had no effect (Figure 4E, and 4F). These results confirm the biological relevance of the observed active conformation of the IR protomer.

Finally, we have identified a homotypic interaction between the FnIII-2 domains of the two active IR protomers. The FnIII-2–FnIII-2 interaction is mediated by residues 647–653 in an extended loop (Figure 2D). Due to the lack of the side chain densities, the details of this interaction are unclear. This interaction is likely to be functionally important, however, as mutation of Lys649, which is located in the center of this dimer interface, diminished IR activation, whereas mutation of Lys652, which is at the periphery of this interface, had no effect (Figure 2E, and 2F). Similar homotypic interactions between membrane-proximal domains have been found in other RTKs (Yuzawa et al., 2007). These interactions are thought to precisely position the two stalk domains at the cell membrane and help to bring the two intracellular kinase domains into proximity for trans-autophosphorylation.

Mechanism of IR activation by multi-site insulin binding

Our mutagenesis results have shown that optimal IR activation requires the binding of multiple insulins to both sites 1 and 2 (Figure 3F and G, Figure 1—figure supplement 1C and Figure 3—figure supplement 2). In addition, our 3D classification results further suggest that binding of at least one insulin to the two site 2 s is required for the formation of the ‘T’-shaped dimer. According to the cryo-EM structure, formation of the active IR dimer is mainly driven by the tripartite interface formed by insulin 1, L1, α-CT, and FnIII-1 at site 1. This raises the interesting question why insulin 2 promotes IR activation.

Previous studies have suggested that insulin binding to site 1 of apo-IR or IGF-1R can release the autoinhibited conformation, which is an important step during IR or IGF-1R activation (Kavran et al., 2014; Xu et al., 2018). We superimposed the L1 domain of insulin-bound IR, along with insulin 1, onto that of apo-IR. Insulin 1 bound at site 1a sterically clashes with the linker between the FnIII-1 and FnIII-2 domains in apo-IR (Figure 5). Thus, insulin 1 binding at site 1a will disrupt the inter-apo-protomer interaction 1 between L1 and FnIII-2 domains, which is important in maintaining the autoinhibited IR dimer.

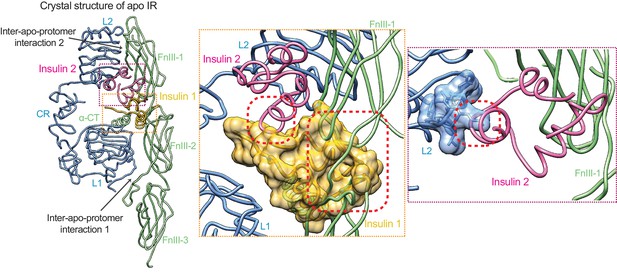

Activation mechanism of IR.

The crystal structure of apo-IR dimer (PDB: 4ZXB) superimposed with insulins 1 and 2, by aligning the insulin-free and insulin 1-bound L1 domains, and the insulin-free and insulin 2-bound FnIII-1 domain, respectively. Half of the apo-dimer is omitted for clarity. Upper inset (purple box), insulin 2 binding at apo-IR sterically clashes with the opposite protomer. Lower inset (yellow box), insulin 1 binding at apo-IR sterically clashes with the opposite protomer, as well as insulin 1. The clash sites are indicated by dashed red boxes.

https://doi.org/10.7554/eLife.48630.016

Interestingly, the crystal structure of IGF-1R with IGF1 bound (Xu et al., 2018) shows that IGF1 binding to site 1a separates the L1 domain of one protomer from the FnIII-2 domain of the other protomer. However, due to the long flexible linker between the CR and L2 domains, the inter-apo-protomer interaction 2 between the L2 and FnIII-1 domains on the top part of the inverted ‘V’-shaped dimer still exists, even with IGF bound at site1a. This result indicates that one IGF molecule cannot completely break the autoinhibited conformation of IGF-1R. By analogy, one insulin molecule is likely to be insufficient to break the autoinhibited IR dimer.

We next superimposed insulin 2 and the FnIII-1 domain of insulin-bound IR dimer onto that of apo-IR dimer. Thr A8 and Ser A9 of insulin 2 bound at site 2 clashes with a β-turn motif in the L2 domain of the apo-IR dimer. Thus, insulin binding to site 2 will destabilize the inter-apo-protomer interaction 2 between the L2 domain of one protomer and the FnIII-1 domain of the other (Figure 5). Furthermore, the two insulins bound to sites 1a and 2 in the apo-IR clash with each other (Figure 5). These additional steric clashes, generated by the simultaneous binding of two insulins to sites 1a and 2, may further drive the two apo-IR protomers apart and completely destabilize the autoinhibited IR dimer (Figure 6A). This could explain why the full activation of IR requires the binding of both insulins 1 and 2.

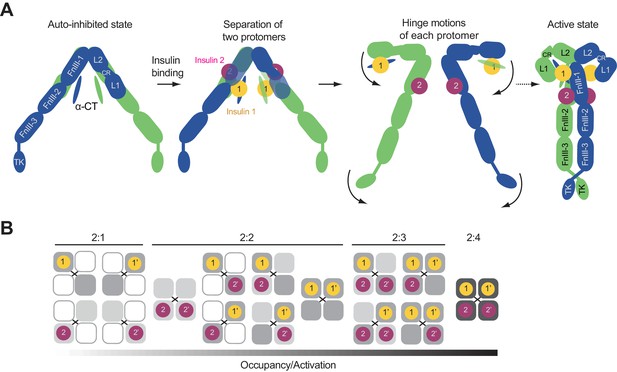

Proposed working model of insulin induced activation of IR.

(A) Cartoon representation of a working model for insulin-induced IR activation. (B) Binding of IR and insulin in a concentration-dependent manner. Insulin binding at IR site 1 and site 2 is required for IR activation.

https://doi.org/10.7554/eLife.48630.017

Once the autoinhibited IR dimer is disrupted by insulin binding, each insulin protomer is free to undergo two hinge motions, forming an inverted ‘J’-shaped protomer (Figure 6A). Based on the current models, it is still unclear how the two ‘J’-shaped protomers form the ‘T’-shaped dimer. This process has to involve coordinated structural rearrangements and inter-protomer rotations. The ‘T’-shaped active dimer is predominantly stabilized by a tripartite interface between insulin 1, L1, α-CT, and FnIII-1 domains, without the involvement of insulin 2. Moreover, the membrane proximal regions from both protomers is brought together by a homotypic interaction between the two FnIII-2 domains. Finally, these structural rearrangements promote the lateral TM-TM interaction, and enable trans-autophosphorylation between the two intracellular kinase domains (Figure 6A). An endocytosis pathway, which involves the binding of MAD2-BUBR1 as well as the clathrin adaptor protein AP2 to the IR intracellular domain, then triggers the internalization of the active IR dimer and stops insulin signaling at the plasma membrane (Choi et al., 2016).

Discussion

Our structural and functional analyses indicate that binding of maximally four insulins to two distinct types of sites disrupt the autoinhibited IR dimer. The relaxed IR dimer with insulin bound then undergo structural rearrangements to form a ‘T’-shaped active dimer, which is stabilized by a tripartite interaction between insulin 1, L1, α-CT, and FnIII-1 domains. This binding mode strongly supports the previous insulin ‘cross-linking’ model. Additionally, we observed that the ‘T’-shaped IR active dimer is further stabilized the homotypic interaction between the two FnIII-2 domains from the two protomers. This specific conformation of IR dimer facilitates the dimerization of the TM domain, thereby bringing the two kinase domains into close proximity for trans-autophosphorylation. Our study provides key mechanistic insight into the initiation of insulin signaling and paves the road for the eventual therapeutic intervention of diseases caused by insulin dysregulation.

De Meyts et al. (1973) have proposed that the binding of multiple insulins to IR occurs with negative cooperativity. The 2:3 or 2:4 stoichiometry of insulin binding to the IR and the two types of binding sites are consistent with previous IR–insulin binding assays that indicated the coexistence of high- and low-affinity insulin-binding sites (Schäffer, 1994). To understand the cooperativity between the binding of multiple insulins to different sites, we obtained a dose-response curve of insulin-dependent activation of IR WT and the site 2 mutant (Figure 3F). Both dose-response curves of IR WT and site 2 mutant could be fitted with the Hill equation, with Hill coefficients of ~0.64 and~0.42, respectively, which are indicative of negative cooperativity in insulin binding to IR. Similar results were obtained by in vitro insulin binding assays (Figure 1—figure supplement 1C). Because the IR site 2 mutant exhibits even stronger negative cooperativity and because insulin binding to site 2 is required for maximum insulin binding and full activation of IR, our results suggest that insulin binding to site 2 might dampen the anti-cooperativity between insulin binding to site 1 and site 1’. The combination of cooperative binding between sites 1 and 2 and anti-cooperativity binding between sites 1 and 1’ likely underlies the complicated shapes of the binding curves between IR and insulin. This unique system allows IR to respond differently to a wide range of insulin concentrations that various tissues experience at different metabolic states (Figure 6B).

Our functional analyses indicate that site 1 and site 2 are both required for optimal IR activation. It remains unknown which site is occupied first. Based on the different binding affinities between these two sites and all the existing structural models, we speculate that one insulin binding to site 1 happens first, but may only lead to a partially active IR with an asymmetrical conformation. The subsequent binding of one insulin to site 2 facilitates the binding of the second insulin 1 to site 1’, and thereby driving the formation of the symmetrical dimer and full IR activation. This hypothesis is partially supported by our new structural model that binding of two site-1 insulins and at least one site-2 insulin is necessary to promote the formation of the ‘T’-shaped IR dimer. Solving the structures of IR site 1 and 2 mutants is needed to further test this hypothesis.

We also do not know for certain how many insulins are required for IR activation. It is possible that, at low insulin concentrations, IR with partial insulin occupancy (e.g. one insulin at site 1) can achieve asymmetric conformations and exhibit different levels of activation (Weis et al., 2018) (Figure 6B). In addition, insulin can trigger both the metabolic and mitogenic responses through IR (De Meyts, 2000). It is tempting to speculate that the conformational differences of IR caused by different stoichiometries of bound insulins may provide a mechanism in defining insulin signaling specificity, which could potentially allow the same ligand (i.e. insulin) to generate distinct signaling outputs from the same receptor (i.e. IR). Future biophysical and in vivo experiments, preferably those involving single-molecule techniques, are required to define the intermediate steps of IR activation. Our structure of the fully liganded IR-insulin complex serves as an important guide for designing these experiments.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Escherichia coli)One Shot Stbl3 Chemically Competent E .coliLife TechnologiesC7373-03
Strain, strain background (Escherichia coli)DH10Bac bacteriaThermo Fisher10361012
Cell line (Homo-sapiens)293FT, Human embryonic kidneyInvitrogenR70007
Cell line (Homo-sapiens)HEK293 GnTI--, Human embryonic kidneyATCCCRL-3022
Cell line (Homo-sapiens)HEK293, Human embryonic kidneyATCCCRL-1573
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor WT-MYCChoi et al., 2016transfected construct (human)
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R14E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay, In vivo insulin-binding assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor P495A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor D496K-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor F497A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor D1120A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R498E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor K703A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor F714A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor K649E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor K652E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor Y477A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R479E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor K484E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R488E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor P536A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor P537A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor L552A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R554E-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor K484E,L552A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay, In vivo insulin-binding assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R345A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor E697A-MYCThis paperMaterials and methods,
subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor E695A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay
Transfected construct (Homo-sapiens)pCS2-human Insulin receptor R14E,K484E,L552A-MYCThis paperMaterials and methods, subsection: Insulin receptor activation assay, In vivo insulin-binding assay
Transfected construct (Homo-sapiens)pCS2-human Insulin recetor Y960F, S962A, R1333A, I1334A, L1335A, L1337A-MycChoi et al., 2016transfected construct (human)
Transfected construct (Homo-sapiens)pEZT-BM-human Insulin receptor (Y960F, S962A, D1120N, R1333A, I1334A, L1335A, L1337A)−3C-Tsi3-HisThis paperMaterials and methods, subsection: Insulin receptor activation assay, In vivo insulin-binding assay
Transfected construct (Homo-sapiens)pEZT-BM-human Insulin receptor (K484E, L552A, Y960F, S962A, D1120N, R1333A, I1334A, L1335A, L1337A)−3C-Tsi3-HisThis paperMaterials and methods, subsection: Insulin receptor activation assay, In vivo insulin-binding assay
AntibodyRabbit monoclonal anti-IR-pY1150/1151Cell signaling19H7WB (1:1000)
AntibodyMouse monoclonal anti-MYCRocheClone 9E10WB (1:1000), IF (1:500)
AntibodyAnti-rabbit IgG (H+L) (Dylight 800 conjugates)Cell signaling5151WB (1:5000)
AntibodyAnti-mouse IgG (H+L) (Dylight 680 conjugates)Cell signaling5470WB (1:5000)
Commercial assay or kitMicro BCA Protein Assay KitThermo Scientific23235
Commercial assay or kitAlexa Fluor 488Thermo ScientificA10235
Commercial assay or kitQ5 site directed mutagenesis kitNEBE0554S
Commercial assay or kitGibson Assembly Master MixNEBE2611
Chemical compound, drugcOmplete Protease Inhibitor CocktailRoche5056489001
Chemical compound, drugPhosSTOPRoche4906837001
Chemical compound, drugBMS536924Tocris4774
Software, algorithmCytExpert 2.1Beckman Coulterhttps://www.beckman.com/flow-cytometry/instruments/cytoflex/software
Software, algorithmProtparamExPASyhttps://web.expasy.org/protparam/
Software, algorithmPrism 7GraphPadN/A
OtherSepharose 4B resinGE Healthcare17012001
OtherSuperose 6 Increase 10/300 GLGE Healthcare29091596
OtherSuperdex 75 increase 10/300 GLGE Healthcare29148721
OtherDynabeads Protein GInvitrogen10003D
OtherDMEM, high glucoseThermo Fisher11965–118
OtherPierce NHS-Activated Agarose, DryThermo Fisher Scientific26197
OtherAmicon Ultra-15 Centrifugal Filter UnitsMilliporesigmaUFC9100
OtherAmicon Ultra-0.5 Centrifugal Filter UnitsMilliporesigmaUFC5100
OtherQuantifoil R 1.2/1.3 grid Au300quantifoilQ37572
OtherProLong Gold Antifade reagent with DAPIInvitrogenP36935
OtherCellfectinInvitrogen10362100
OtherLipofectamine 2000Invitrogen11668019
OtherHuman InsulinSigmaI2643

Protein expression and purification

Request a detailed protocol

The amino acid numbering for IR starts after the signal peptide. For the activation assay, the short isoform of human insulin receptor (IR) was cloned into pCS2-MYC as described previously (Choi et al., 2016). For structural studies, a cDNA fragment encoding human IR with seven mutations (Y960F, S962A, D1120N, R1333A, I1334A, L1335A, L1337A), followed by the Human Rhinovirus 3C recognition site, affinity purification tag Tsi3 (T6SS secreted immunity protein three from Pseudomonas aeruginosa) and His8 tag, was cloned into the pEZT-BM vector (Morales-Perez et al., 2016). The mutations were designed to prevent IR endocytosis.

This plasmid was transformed into the DH10Bac bacteria (Thermo Fisher, 10361012) for production of bacmid DNA. Recombinant baculovirus was produced by transfecting Sf9 cells with the bacmid DNA using Cellfectin (Cellfectin Reagent, Invitrogen). Protein was expressed with suspension-adapted HEK293 GnTI- cells by infecting the virus at a ratio 1:10 (virus: cell, v/v). The infected cells were supplemented with 6 mM sodium butyrate to increase protein expression. The cells were cultured for 60 hr at 37°C and 8% CO2.

IR was firstly purified by affinity purification using the strong binding between the T6SS effector Tse3 and its immunity protein Tsi3 (Lu et al., 2014) and further polished by gel filtration chromatography. Briefly, Cells were harvested, resuspended in buffer A [20 mM Hepes pH 7.5, 400 mM NaCl, 5% glycerol and one tablet of cOmplete Protease Inhibitor Cocktail (Roche)] and lysed by sonication. Lysate was centrifuged for 60 min at 45,000 g to pellet the membranes. The pellet containing the membrane fraction was resuspended in the buffer A containing 1% n-Dodecyl-β-D-Maltopyranoside (DDM) and 0.1% Cholesteryl Hemisuccinate (CHS) (D310-CH210 Anatrace). After incubation at 4°C for 3 hr on the bottle roller, the insoluble parts were removed by centrifugation for 60 min at 45,000 g. The supernatant was supplemented with 2 mM CaCl2 and loaded on to the Tse3-conjugated sepharose 4B resin (GE heathcare). The resin was washed with buffer A containing 2 mM CaCl2, 0.03% DDM, and 0.003% CHS. The HRV3C protease was added to the resin in the washing buffer and incubated for 12 hr at 4°C. Untagged IR was eluted from the resin and applied to the size exclusion chromatography (Superose 6 Increase 10/300 GL GE Health care) in the final buffer [20 mM Hepes pH 7.5, 200 mM NaCl, 0.03% DDM, and 0.003% CHS]. The peak fractions were mixed with human insulin (I2643, Sigma) in a 1:2 molar ratio and concentrated with Amicon Ultra concentrator 100 kD cut off (Millipore) to approximately 7 mg/ml. two additional molar equivalents of insulin were added to the final sample to saturate the binding.

EM data acquisition

Request a detailed protocol

The cryo-EM grid was prepared by applying 3 μl of protein samples to glow-discharged Quantifoil R1.2/1.3 300-mesh gold holey carbon grids (Quantifoil, Micro Tools GmbH, Germany). Grids were blotted for 5.0 s under 100% humidity at 4°C before being plunged into liquid ethane using a Mark IV Vitrobot (FEI). Micrographs were acquired on a Titan Krios microscope (FEI) operated at 300 kV with a K2 Summit direct electron detector (Gatan), using a slit width of 20 eV on a GIF-Quantum energy filter. EPU software (FEI) was used for automated data collection following standard FEI procedures. A calibrated magnification of 46,730X was used for imaging, yielding a pixel size of 1.07 Å on images. The defocus range was set from −1.5 μm to −3 μm. Each micrograph was dose-fractionated to 30 frames under a dose rate of 4 e-/pixel/s, with a total exposure time of 15 s, resulting in a total dose of about 50 e-2.

Image processing

Request a detailed protocol

The detailed image processing statistics are summarized in Figure 1—figure supplements 2 and 3, and Table 1. Motion correction was performed using the MotionCorr2 program (Zheng et al., 2017), and the CTF parameters of the micrographs were estimated using the GCTF program (Zhang, 2016). Initially,~2000 particles were picked with EMAN2 from a few micrographs (Tang et al., 2007). All other steps of image processing were performed using RELION (Scheres, 2012a; Scheres, 2012b). Class averages representing projections in different orientations selected from the initial 2D classification were used as templates for automatic particle picking from the full datasets. Extracted particles were binned three times and subjected to 2D classification. Particles from the classes with fine structural features were selected for 3D classification. Approximately 20,000 particles were selected to generate the initial model in RELION. Particles from the 3D classes showing good secondary structural features were selected and re-extracted into the original pixel size of 1.07 Å. 3D refinements with C2 symmetry imposed resulted in 3D reconstructions to 3.2 Å resolution. To improve the resolution, we performed another round of 3D refinement with a soft mask around the top part of complex, leading to improved resolution for this region. Moreover, we classified the refined particles set by using local search in combination with small angular sampling, resulting a new class showing improved density for TM domain.

To separate the particles with different insulin occupancies, we performed focused classification with symmetry expansion and signal subtraction, as described in our previous papers (Bai et al., 2015; Zhou et al., 2015). We duplicated each particle and rotated the second copy of each particle around the two fold symmetrical axis for 180° to put the site 1/2 and site 1’/2’ in the same position for focused classicization. The symmetry expanded particles set was classified with a local mask around site 1 or two without any angular alignment. As IR is much larger than insulin, the density corresponding to IR was subtracted from each experimental particle for consistent comparison. The resulting classes show similar level of intensity for insulin 1, but different levels of intensities for insulin 2. The C1 refinement was performed for particles from the classes having weak insulin two density.

All resolutions were estimated by applying a soft mask around the protein density using the gold-standard Fourier shell correlation (FSC) = 0.143 criterion (Scheres and Chen, 2012c).

Model building and refinement

Request a detailed protocol

Model building of the IR–insulin complex was initiated by docking each individual domain derived from the crystal structures of IR (PDB ID: 4ZXB; Croll et al., 2016) and insulin (PDB ID: 1MSO; Smith et al., 2003) into the high-resolution map from the focused refinement in the program Chimera (Pettersen et al., 2004). The model was manually adjusted in Coot (Emsley et al., 2010) and refined against the map by using the real space refinement module with secondary structure and non-crystallographic symmetry restraints in the Phenix package (Adams et al., 2010). To check for potential model overfitting, the coordinates in the model were refined against one of the half maps calculated from half of the dataset in RELION. The FSC curve from this model and map was only slightly worse than that calculated from the refined model and the summed map, suggesting no overfitting. The crystal structures of FnIII-2/3 domains were rigid-body fitted into the cryo-EM density in Chimera (Pettersen et al., 2004), showing good agreement. Model geometries were assessed by using Molprobity as a part of the Phenix validation tools and summarized in Table 1.

Insulin receptor activation assay

Request a detailed protocol

293FT cells (R70007, Invitrogen) were cultured in high-glucose DMEM supplemented with 10% (v/v) FBS, 2 mM L-glutamine, and 1% penicillin/streptomycin. Cells were free from mycoplasma contamination. Plasmid transfection was performed with LipofectamineTM 2000 (Invitrogen). After 1 day, the cells were serum starved for 14 hr and treated with 10 nM of human insulin (I2643, Sigma) or the indicated concentrations for 5 min. The cells were washed with cold PBS and incubated with the cell lysis buffer [50 mM Hepes pH 7.4, 150 mM NaCl, 10% (v/v) Glycerol, 1% (v/v) Triton X-100, 1 mM EDTA, 100 mM sodium fluoride, 2 mM sodium orthovanadate, 20 mM sodium pyrophosphate, 0.5 mM dithiothreitol (DTT), 2 mM phenylmethylsulfonyl fluoride (PMSF)] supplemented with cOmplete Protease Inhibitor Cocktail (Roche) and PhosSTOP (Roche) on ice for 1 hr. After centrifugation at 20,817 g at 4°C for 20 min, the concentrations of cell lysate were measured using Micro BCA Protein Assay Kit (Thermo Scientific). Cell lysates (50 µg total proteins) were analyzed by SDS-PAGE and Western blotting. Anti-IR-pY1150/1151 (19H7, Cell signaling; labeled as pY IRβ) and anti-MYC (9E10, Roche; labeled as IRβ) were used as primary antibodies. For quantitative Western blots, anti-rabbit immunoglobulin G (IgG) (H+L) (Dylight 800 conjugates) and anti-mouse IgG (H+L) (Dylight 680 conjugates) (Cell signaling) were used as secondary antibodies. The membranes were scanned with the Odyssey Infrared Imaging System (LI-COR, Lincoln, NE). Levels of pY IRβ were normalized to total IRβ levels and shown as intensities relative to that of IR WT in untreated cells.

In vivo insulin-binding assay

Request a detailed protocol

To conjugate insulin with Alexa Fluor 488 (A10235, Thermo Scientific), human insulin (I2643, Sigma) was dissolved in 20 mM Hepes pH 7.5, 100 mM NaCl, and 2 mM EDTA, and Alexa Fluor 488 NHS Ester was dissolved in dimethylsulfoxide (DMSO). Insulin and the dye were mixed in a molar ratio of 1:2 and incubated for 12 hr at 4°C. Labeled Insulin was separated from the free dye by size exclusion chromatography (Superdex 75 increase 10/300 GL, GE Healthcare) in the buffer containing 20 mM Hepes pH 7.5, 100 mM NaCl, and 2 mM EDTA. The insulin-binding assay was performed as described previously with slight modifications (Murphy et al., 1982). Briefly, plasmid transfection was performed with LipofectamineTM 2000 into 293FT cells. After 1 day, the cells were serum starved for 14 hr. To inhibit insulin receptor endocytosis, the plates were then changed to serum free DMEM containing the IR/IGF1R inhibitor BMS536924 (1 μM; Tocris) for an additional 1 hr before insulin treatment. The medium was replaced with serum-free DMEM containing Alexa Fluor 488-labeled insulin at the indicated concentrations. After 5 min of incubation in CO2 incubators at 37°C, the medium was removed and the plates were washed with cold PBS. Cells were dissociated in 0.5 mM EDTA in PBS at 37°C for 5 min, transferred into conical tubes, centrifuged for 5 min at 200 g at 4°C. After two more washes with cold PBS, the cells were resuspended in 300 μl of cold PBS and transferred into tubes for FACS analysis. Samples were kept on ice and analyzed within 30 min. The samples were analyzed on a Cytoflex Flow Cytometer (Beckman Coulter). At least 10,000 cells were analyzed for each sample. Mean fluorescence intensities were calculated with the software CytExpert 2.1 (Beckman Coulter). Nonspecific binding was measured in untransfected control cells and subtracted from the data.

In vitro insulin-binding assay

Request a detailed protocol

For in vitro insulin-binding assay, cDNA fragments encoding human IR with seven mutations (Y960F, S962A, D1120N, R1333A, I1334A, L1335A, L1337A; insulin binding site wild-type) and nine mutations (K484E, L552A, Y960F, S962A, D1120N, R1333A, I1334A, L1335A, L1337A; insulin binding site two mutant), followed by the human Rhinovirus 3C recognition site, affinity purification tag Tsi3 and His8 tag, were cloned into the pEZT-BM vector. Protein was expressed with suspension-adapted HEK293 cells as described in Protein expression and purification.

40 μg of anti-IRβ antibody (sc-57342; Santa Cruz Biotechnology) was added to 12 mg of Dynabeads Protein G (Invitrogen) in 400 μl PBS, and incubated for 1 hr at room temperature. After a single wash, the beads were resuspended in 400 μl of binding buffer [20 mM Hepes pH 7.5, 200 mM NaCl, 0.03% DDM, and 0.003% CHS]. The indicated amount of IR Alexa Fluor 488 labeled insulin, and 100 nM of BSA were incubated in 200 μl of binding buffer containing cOmplete protease inhibitor Cocktail (Roche) for 2 hr on ice. 10 μl beads were added and incubated on a rotator for 30 min at room temperature. The beads were washed two times with the binding buffer. The bound proteins were eluted with 50 μl of binding buffer containing 2% SDS for 10 min at 50°C. The samples were diluted with 150 μl of binding buffer. The fluorescence intensities were measured in a microplate reader (CLARI0star; BMG LABTECH). Nonspecific binding was measured in samples of Alexa Fluor 488 labeled insulin and 100 nM of BSA without IR, and subtracted from the data. The samples were analyzed by SDS-PAGE and Western blotting. IR concentration was estimated using molecular weight 305,276.92 Da in the dimeric receptor as calculated by Protparam (ExPASy).

Immunofluorescence

Request a detailed protocol

Indirect immunofluorescence microscopy was performed on cells grown on chamber slides and fixed in cold methanol at −20°C for 10 min. The fixed cells were washed with cold acetone twice and incubated with PBS for 30 min and blocking buffer [3% BSA and 0.1% (v/v) TritonX-100 in PBS] for 1 hr, and then treated with diluted antibodies in blocking buffer at 4°C overnight. After being washed, cells were incubated with fluorescent secondary antibodies and mounted in ProLong Gold Antifade reagent with DAPI (Invitrogen). Images were acquired and analyzed as previously described (Choi et al., 2016).

Quantification and statistical analysis

Request a detailed protocol

The number of independent experiment, the method used in statistical test, and the statistical significance are indicated in each figure legend and source manuscript files.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    The Insulin Receptor and Its Signal Transduction Network
    1. P De Meyts
    (2000)
    K. R Feingold, B Anawalt, A Boyce, G Chrousos, K Dungan, A Grossman, editors. South Dartmouth: Endotext.
  10. 10
  11. 11
    Features and development of coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Axel T Brunger
    Reviewing Editor; Stanford University, United States
  2. Philip A Cole
    Senior Editor; Harvard Medical School, United States
  3. Nikolaus Grigorieff
    Reviewer; Janelia Research Campus, Howard Hughes Medical Institute, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Activation mechanism of the insulin receptor revealed by cryo-EM structure of the fully liganded receptor-ligand complex" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Nikolaus Grigorieff, is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Reviewing Editor and Philip Cole as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Uchikawa et al. describe cryo-EM studies of the full-length insulin receptor (in DDM micelles). By focusing on the extracellular region alone, their structure does provide some new insights that are important for the field. It has long been proposed that each IR has two binding sites for insulin, and here – with excess/saturating insulin – the authors observe that there two sites on each receptor occupied. This is the first structural view of the 'second' binding site – which was previously identified only through alanine scanning and other biochemical techniques. However, revisions are required to ensure that the 2-fold symmetry is not an image processing artifact, and certain statements should be toned down and qualified, as outlined in the points below.

Essential revisions:

1) The cryo-EM work looks solid. However, since one of the main points of the manuscript is the number of insulin molecules bound to the receptor, it is important to make sure that there are no image processing artifacts. Insulin has a molecular mass of about 5 kDa, small for cryo-EM purposes. This means detecting the presence of insulin at any of the binding sites might not be completely reliable. The authors rely in their analysis on the 3D classification without symmetry, concluding that their complex has 2-fold symmetry because the one good class they obtained does not display significant asymmetry. However, it is uncertain if asymmetric binding of the 5 kDa insulin would have been detected by this classification. It is a bit surprising that the authors apparently did not find even a minor class with sub-stoichiometrically bound insulin. This would have validated that classification can distinguish different binding site occupancies. The authors should double-check the classes and particle selections. If their classification procedure cannot make this distinction, the reconstruction shown by the authors could represent a mixture of occupied and unoccupied sites, averaging to the same overall ligand density in all sites and giving the false impression of 2-fold symmetry and four bound insulins. Ideally, to test if image processing can detect asymmetric binding, the authors could perhaps collect a dataset of receptor titrated with insulin to a level that is known to yield sub-stoichiometric binding, showing that they can detect this with their 3D classification.

2) The authors should also comment on the identity of the 926,144 particles that were initially picked but later discarded. The current analysis assumes that the activated state of the receptor is represented by a single, well-ordered conformation. Is it possible that there are other conformations hidden among the discarded particles that are more disordered and therefore did not yield "good" class averages? How can the authors exclude this possibility?

3) The horizontal part of the "T" (and site 1 occupancy) seems to be precisely the same as that published in previous studies – there is nothing new there. The arguments presented in the fourth paragraph of the subsection “Overall structure of full-length human IR bound to insulin” supporting the idea that the structure described here is the 'active' form (based largely on TM domain proximity in Figure 1—figure supplement 4B) are not convincing, though – and this presumption seems to limit the way in which the authors interpret their findings. The description of the structure and conformational changes – and associated mutation data – all seem fine and interesting. For site 1 binding, this echoes previous work. The description of the importance of site 2 binding seems more speculative. The clashes suggested in Figure 5 seem to make sense, but the model in Figure 7 (and Supplementary Video 1) are highly speculative, and how the 'two J-shaped protomers can spontaneously to form the T-shaped dimer through inter-protomer rotations' is not described at all. These aspects are just supposition. The authors should also try to put the potential activation mechanism in a better literature context – in light of the specific proposals made by De Meyts, Schafer, and others. At present, the authors present data that site 1 and site 2 are both important, but they do not present any data to suggest that 4:2 (Ins:IR) binding is important for activation (rather than 3:2 or even 2:2). Please soften the text where required and discuss these points.

4) Did the authors analyze insulin binding to the protein used for their EM studies? A crucial question – related to their discussion in the subsection “A tripartite interface between insulin 1 and site 1 stabilizes the active IR dimer” – is whether IR in these micelles behaves like IR in membranes or like the isolated extracellular region. Does this protein prep display negative cooperativity? Or is this complex one step beyond the 3:2 (Ins:IR) complex that De Meyt's proposed for the intact receptor in cells? Assessment of ligand binding characteristics – in the DDM micelles as used for EM (not in cells) – is essential for putting this structure in context.

5) The results presented in Figure 6 seem superfluous and superficial, and lack key controls. They would best be omitted. It is frequently the case that mutations in RTKs cause misfolding and aggregation in the ER – leading to constitutive activation that is not informative. The C647A mutation seems a likely candidate for such a mutation, since it involves a residue that is involved in maturation of the IR. No controls for this possibility (probability) are provided. Do the C647A variants make it to the cell surface? Do they even bind insulin? These are crucial controls that are currently absent – making the result uninterpretable at present.

6) Physiological Insulin concentrations sufficient to activate IR are in the 300 pM-1 nM range, and the authors' samples were prepared at >20 μM IR/Insulin concentrations-or concentrations >10,000 fold higher than physiological concentrations. The decreased but not abolished IR activity in IR variants with amino-acid substitutions at the second interface may also be explained by effects on the large and complex interdomain rearrangements that the author's and earlier IR/Ins structures show occur when ligand binds. Please comment and discuss.

7) A related structural study to this work was also recently deposited by Coskun's group to bioRxiv, adding confidence to the structural findings. Please comment and discuss.

https://doi.org/10.7554/eLife.48630.029

Author response

Essential revisions:

1) The cryo-EM work looks solid. However, since one of the main points of the manuscript is the number of insulin molecules bound to the receptor, it is important to make sure that there are no image processing artifacts. Insulin has a molecular mass of about 5 kDa, small for cryo-EM purposes. This means detecting the presence of insulin at any of the binding sites might not be completely reliable. The authors rely in their analysis on the 3D classification without symmetry, concluding that their complex has 2-fold symmetry because the one good class they obtained does not display significant asymmetry. However, it is uncertain if asymmetric binding of the 5 kDa insulin would have been detected by this classification. It is a bit surprising that the authors apparently did not find even a minor class with sub-stoichiometrically bound insulin. This would have validated that classification can distinguish different binding site occupancies. The authors should double-check the classes and particle selections. If their classification procedure cannot make this distinction, the reconstruction shown by the authors could represent a mixture of occupied and unoccupied sites, averaging to the same overall ligand density in all sites and giving the false impression of 2-fold symmetry and four bound insulins. Ideally, to test if image processing can detect asymmetric binding, the authors could perhaps collect a dataset of receptor titrated with insulin to a level that is known to yield sub-stoichiometric binding, showing that they can detect this with their 3D classification.

We greatly appreciate this constructive comment. We completely agree with the reviewers that the initial 3D classification with coarse angular sampling may not be good enough to separate the particles with different numbers of bound ligands, due to the fact that insulin is much smaller than IR. To address this issue, we performed symmetry expansion in combination with focused classification on insulin with signal subtraction of the receptor (a similar approach has been described in our previous works, Bai et al., 2015; Zhou et al., 2015). As the insulin molecules are too small to be aligned on their own, during focused classification, the orientations of the insulins were kept the same as those determined by the consensus C2 refinement of the entire complex. As a result, we can identify two major classes having different stoichiometries for insulin binding. In particular, 63% of the particles have 4 insulins bound (two each at sites 1 and 2), while 33% of the particles have 3 insulins bound (two at site 1; one at site 2). We performed another 3D refinement with C1 symmetry applied for the particles with only 3 insulin bound, and found that there is only a subtle difference between the structures of IR with 3 or 4 insulins bound, which indicates that binding of insulins to both sites 2 and 2’ is not required for the maintenance of the T-shaped IR dimer. This notion is consistent with our structural analysis that the T-shaped dimer is mainly stabilized by the tripartite interface formed between insulin 1 and several domains of IR. Importantly, the vast majority (96%) of the T-shaped particles have at least one insulin bound to site 2 or 2’, suggesting that insulin binding to site 2 plays an important role in promoting the conformational change of IR to form the active T shape. We have added a new supplementary figure (Figure 1—figure supplement 5) and a new paragraph in the main text to describe this new 3D classification result in the revised manuscript.

We thank the reviewers for the great suggestion of collecting cryo-EM data on a series of IR samples with different insulin concentrations. In this way, we may be able to solve the structures for intermediate conformational states of IR that have one or two insulins bound. This will be our next major goal. In parallel, we also plan to use the site 2 mutations to trap IR in these intermediate states. This is clearly beyond the scope of this particular paper, however. We hope the reviewers would agree.

2) The authors should also comment on the identity of the 926,144 particles that were initially picked but later discarded. The current analysis assumes that the activated state of the receptor is represented by a single, well-ordered conformation. Is it possible that there are other conformations hidden among the discarded particles that are more disordered and therefore did not yield "good" class averages? How can the authors exclude this possibility?

We thank the reviewers for this critical comment. Among the 926,144 particles, 868,657 particles were discarded after the 2D classification. To explain the criteria used to discard particles, we show all the class averages in Author response image 1, with some representative classes not chosen for further processing highlighted in red. The majority of 868,657 discarded particles were empty detergent micelles and mis-picked junk particles. To prevent bias in selecting class averages, we chose nearly all remaining classes for subsequent 3D classification. On the other hand, the extreme hydrophobic air-water interface on the cryo-EM grids can potentially damage our protein complex. This type of protein damage can be more severe to cell receptors with an elongated shape, such as IR. This could explain why some of the 3D classes show similar shapes to the “good” classes, but were only resolved at low resolution. Discarding particles from such “bad” classes may remove damaged particles from the dataset, thereby improving the quality for the final 3D reconstruction. As excess insulin was added to the final sample to saturate IR binding, we believe that our cryo-EM sample used in this work is relatively homogenous, which facilitates the generation of high-resolution cryo-EM maps.

Author response image 1
EM analysis of IR.

Some representative classes that are not selected for further processing are highlighted in red box.

3) The horizontal part of the "T" (and site 1 occupancy) seems to be precisely the same as that published in previous studies – there is nothing new there. The arguments presented in the fourth paragraph of the subsection “Overall structure of full-length human IR bound to insulin” supporting the idea that the structure described here is the 'active' form (based largely on TM domain proximity in Figure 1—figure supplement 4B) are not convincing, though – and this presumption seems to limit the way in which the authors interpret their findings. The description of the structure and conformational changes – and associated mutation data – all seem fine and interesting. For site 1 binding, this echoes previous work. The description of the importance of site 2 binding seems more speculative. The clashes suggested in Figure 5 seem to make sense, but the model in Figure 7 (and Supplementary Video 1) are highly speculative, and how the 'two J-shaped protomers can spontaneously to form the T-shaped dimer through inter-protomer rotations' is not described at all. These aspects are just supposition. The authors should also try to put the potential activation mechanism in a better literature context – in light of the specific proposals made by De Meyts, Schafer, and others. At present, the authors present data that site 1 and site 2 are both important, but they do not present any data to suggest that 4:2 (Ins:IR) binding is important for activation (rather than 3:2 or even 2:2). Please soften the text where required and discuss these points.

We greatly appreciate this reviewers’ critical comment. We completely agree with the reviewers that we do not know for certain that the T-shaped dimer is the only active form of IR. It is likely that IR with different numbers of insulin bound may adopt different active conformations. Indeed, our cell-based assays show that the IR site 2 mutant exhibits approximately 50% activity as compared to IR WT, not completely inactive. We have changed the text from “the active form” to “one of its active forms”.

We agree with the reviewers that, due to the lack of structures of intermediate states of IR, we do not know how the two J-shaped protomers undergo structural rearrangements to form the T-shaped dimer. We have removed the speculative text, and stated that “Based on the current models, it is still unclear how the two “J”-shaped protomers form the “T”-shaped dimer.” in the revised manuscript. We have removed Supplementary Video 1 from supplementary materials and modified the working model in Figure 6 in the revised manuscript.

Based on the current results, the dual roles of insulin 1 binding for IR activation have been well defined. Insulin binding to site 1 is required to disrupt the auto-inhibited apo-state, and it subsequently stabilizes the active dimer by simultaneously contacting multiple domains of both IR protomers. This activation mechanism involving insulin 1 binding strongly supports the long-known “cross-linking” model first proposed by Schafer in 1994. On the other hand, the functional role of insulin 2 is not completely understood. Based on our new structural model, we propose that insulin binding to site 2 of the apo-state of IR may help to disrupt the auto-inhibited conformation, which promotes the formation of the active state of IR. Moreover, a characteristic feature of insulin binding to IR is negative cooperativity, which was firstly observed by De Meyts in 1973. Interestingly, our dose-response activity assays show that the IR site 2 mutant exhibits stronger negative cooperativity than IR WT, suggesting that insulin binding to site 2 reduces the negative cooperativity between site 1 and site 1’. Thus, we propose that following the binding of the first insulin to site 1, insulin binding to site 2 may facilitate the binding of the second insulin 1 to site 1’, thereby driving the formation of the symmetrical T-shaped IR dimer and full IR activation. Consistent with this hypothesis, our new focused 3D classification results suggest that binding of two site-1 insulins and the forming the T-shaped IR dimer require the binding of at least one site-2 insulin. Solving the structures of IR site 1 and 2 mutants in the presence of insulin is needed to further test this hypothesis.

We have softened our text and added discussion about these points in the revised manuscript.

4) Did the authors analyze insulin binding to the protein used for their EM studies? A crucial question – related to their discussion in the subsection “A tripartite interface between insulin 1 and site 1 stabilizes the active IR dimer” – is whether IR in these micelles behaves like IR in membranes or like the isolated extracellular region. Does this protein prep display negative cooperativity? Or is this complex one step beyond the 3:2 (Ins:IR) complex that De Meyt's proposed for the intact receptor in cells? Assessment of ligand binding characteristics – in the DDM micelles as used for EM (not in cells) – is essential for putting this structure in context.

We greatly appreciate the reviewers’ comment. As suggested, we have tested insulin binding to the same full-length IR sample used for cryo-EM analysis. Our binding results showed that recombinant IR isolated with the detergent DDM binds insulin with high affinity and displays negative cooperativity, comparable to our cell-based insulin-binding results. This finding suggests that DDM does not change insulin-binding behaviors. We have incorporated the new results into Figure 1—figure supplement 1.

In addition, the cryo-EM structure of IR extracellular domain (ECD) bound with 4 insulins recently solved by another group displays a nearly identical architecture to our DDM-isolated full-length IR/insulin complexes.

5) The results presented in Figure 6 seem superfluous and superficial, and lack key controls. They would best be omitted. It is frequently the case that mutations in RTKs cause misfolding and aggregation in the ER – leading to constitutive activation that is not informative. The C647A mutation seems a likely candidate for such a mutation, since it involves a residue that is involved in maturation of the IR. No controls for this possibility (probability) are provided. Do the C647A variants make it to the cell surface? Do they even bind insulin? These are crucial controls that are currently absent – making the result uninterpretable at present.

We agree with the reviewers that this result is peripheral to our main conclusions. We have removed the data and discussion on the C647A mutation in the revised manuscript.

6) Physiological Insulin concentrations sufficient to activate IR are in the 300 pM-1 nM range, and the authors' samples were prepared at >20 μM IR/Insulin concentrations-or concentrations >10,000 fold higher than physiological concentrations. The decreased but not abolished IR activity in IR variants with amino-acid substitutions at the second interface may also be explained by effects on the large and complex interdomain rearrangements that the author's and earlier IR/Ins structures show occur when ligand binds. Please comment and discuss.

We thank the reviewers for this critical comment, and completely understand their concern. To ease this concern, we would like to point out that all our cell-based IR activation and insulin binding assays for wild-type IR, IR site 1 mutants and IR site 2 mutants were done at insulin concentrations ranging from 0.8 nM to 80 nM, which is close to the blood insulin concentrations, as mentioned by the reviewer. The results show that insulin binding at site 2 is important for full IR activation at physiological insulin concentration. In fact, IR site 2 mutants exhibited even greater insulin binding deficiency at low insulin concentrations (0.8 nM), as compared to that at higher insulin concentrations, confirming that insulin binding at site 2 occurs at physiologically relevant insulin concentrations.

The structure of FnIII-1 of insulin-bound IR can be superimposed perfectly onto that of apo-IR, suggesting that these surface residues at the second interface in FnIII-1 domain are unlikely to play any roles in driving the interdomain rearrangements during IR activation. Furthermore, previous mutagenesis analyses of insulin have identified the insulin residues responsible for binding to site 2. These insulin residues are located at the new IR-insulin interface at site 2 in our structure. Thus, mutations of interface residues of both IR (by us in this study) and insulin (reported previously by others) confirm the functional importance of the new site 2 in insulin-dependent activation of IR, and completely exclude the possibility that the site 2 identified in this work is a structural artifact.

We agree with the reviewers that the IR site 2 mutations only decreased, but did not abolish, IR activity. One possible explanation is that, at low insulin concentrations, IR with partial insulin occupancy (e.g. one insulin at site 1) can achieve asymmetric conformations and partial activation. Increased insulin occupancy at site 2 promotes the formation of the T-shaped symmetric conformation and full activation. It is tempting to speculate that the conformational differences of IR caused by different stoichiometries of bound insulins may provide a mechanism in defining insulin signaling specificity, which could potentially allow the same ligand to generate distinct signaling outputs from the same receptor. Future biophysical and in vivo experiments, preferably those involving single-molecule techniques, are required to define the intermediate steps of IR activation.

We have toned down our conclusions and added discussion about these points in the revised manuscript.

7) A related structural study to this work was also recently deposited by Coskun's group to bioRxiv, adding confidence to the structural findings. Please comment and discuss.

We thank the reviewers for this good point. Indeed, this cryo-EM structure of IR ECD bound with 4 insulins shows nearly identical architecture to our full-length IR/insulin complexes, supporting our new finding. Nevertheless, our cryo-EM map was resolved at much higher resolution, which provides more structural details. Our functional studies are also more thorough. We have cited and discussed this preprint in the revised manuscript.

https://doi.org/10.7554/eLife.48630.030

Article and author information

Author details

  1. Emiko Uchikawa

    Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis, Writing—original draft, Writing—review and editing
    Contributed equally with
    Eunhee Choi
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0442-767X
  2. Eunhee Choi

    Department of Pharmacology, Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis, Writing—original draft, Writing—review and editing
    Contributed equally with
    Emiko Uchikawa
    For correspondence
    Eunhee.Choi@UTSouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3286-6477
  3. Guijun Shang

    Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0187-7934
  4. Hongtao Yu

    Department of Pharmacology, Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Writing—original draft, Writing—review and editing
    For correspondence
    hongtao.yu@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8861-049X
  5. Xiao-chen Bai

    1. Department of Biophysics, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Cell Biology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Writing—original draft, Writing—review and editing
    For correspondence
    Xiaochen.Bai@UTSouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4234-5686

Funding

Cancer Prevention and Research Institute of Texas (RR160082)

  • Xiao-chen Bai

Welch Foundation (I-1944)

  • Xiao-chen Bai

Cancer Prevention and Research Institute of Texas (RP120717-P2)

  • Hongtao Yu

Cancer Prevention and Research Institute of Texas (RP160667-P2)

  • Hongtao Yu

Howard Hughes Medical Institute

  • Hongtao Yu

Welch Foundation (I-1441)

  • Hongtao Yu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Single particle cryo-EM data were collected at the University of Texas Southwestern Medical Center (UTSW) Cryo-Electron Microscopy Facility that is funded by a Cancer Prevention and Research Institute of Texas (CPRIT) Core Facility Support Award (RP170644). We thank D Nicastro and D Stoddard for facility access and data acquisition. XB is the Virginia Murchison Linthicum Scholar in Medical Research at UTSW. Research in his lab is supported in part by CPRIT (RR160082) and the Welch foundation (I-1944–20180324). HY is an Investigator with the Howard Hughes Medical Institute, and supported by grants from CPRIT (RP120717-P2 and RP160667-P2) and the Welch Foundation (I-1441).

Senior Editor

  1. Philip A Cole, Harvard Medical School, United States

Reviewing Editor

  1. Axel T Brunger, Stanford University, United States

Reviewer

  1. Nikolaus Grigorieff, Janelia Research Campus, Howard Hughes Medical Institute, United States

Publication history

  1. Received: May 21, 2019
  2. Accepted: August 21, 2019
  3. Accepted Manuscript published: August 22, 2019 (version 1)
  4. Version of Record published: September 3, 2019 (version 2)
  5. Version of Record updated: September 9, 2019 (version 3)

Copyright

© 2019, Uchikawa et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,629
    Page views
  • 652
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Zhijie Chen et al.
    Research Article Updated
    1. Structural Biology and Molecular Biophysics
    Babette E de Jong, John van Noort
    Insight
