Layer 6 ensembles can selectively regulate the behavioral impact and layer-specific representation of sensory deviants
- Department of Neuroscience and Carney Institute for Brain Science, Brown University, United States
- Department of Brain and Cognitive Sciences, MIT, United States
Abstract
Predictive models can enhance the salience of unanticipated input. Here, we tested a key potential node in neocortical model formation in this process, layer (L) 6, using behavioral, electrophysiological and imaging methods in mouse primary somatosensory neocortex. We found that deviant stimuli enhanced tactile detection and were encoded in L2/3 neural tuning. To test the contribution of L6, we applied weak optogenetic drive that changed which L6 neurons were sensory responsive, without affecting overall firing rates in L6 or L2/3. This stimulation selectively suppressed behavioral sensitivity to deviant stimuli, without impacting baseline performance. This stimulation also eliminated deviance encoding in L2/3 but did not impair basic stimulus responses across layers. In contrast, stronger L6 drive inhibited firing and suppressed overall sensory function. These findings indicate that, despite their sparse activity, specific ensembles of stimulus-driven L6 neurons are required to form neocortical predictions, and to realize their behavioral benefit.
Introduction
The six-layered architecture of mammalian neocortex emerged relatively late in evolution. A commonly proposed function of neocortex is to form dynamic predictive models that include expectations of incoming stimuli and contextually appropriate actions. The ability to generate and update these models of the world enables rapid and adaptive shifts in behavior that underlie cognitive capabilities such as flexible language.
An elemental example of model formation is evident in the response to deviations from ongoing patterns. When identical sensory stimuli are repeated and then a ‘deviant’ occurs, neocortical neurons often fire differently than they would to the deviant in isolation, or after its repetition (Chater et al., 2006; Rao and Ballard, 1999). Signatures of this computation are found in visual (Courchesne et al., 1975), auditory (Tiitinen et al., 1994; Ulanovsky et al., 2003), and language- processing (Kutas and Hillyard, 1980) areas. Such change detection is typically studied as the increase in firing rates elicited by deviant stimuli following stimulus-specific adaptation (Movshon and Lennie, 1979). Stimulus-tuned neurons along the afferent pathway, including at thalamocortical synapses, adapt to repeated stimulation (Chung et al., 2002; Katz et al., 2006; Khatri and Simons, 2007) and subsequent deviant stimuli activate new pools of less adapted neurons, leading to increased neocortical drive.
However, in addition to such bottom-up adaptation mechanisms, neocortically-represented factors such as stimulus context, history, and expectation (Knierim and van Essen, 1992; Chelazzi et al., 1993; Reynolds et al., 2000; Maunsell and Treue, 2006) also influence sensory responses, supporting the hypothesis that neocortical representations could be key to deviant processing. While likely all neocortical layers contribute to model implementation, layers 2/3 (L2/3) are a leading candidate for the representation of more complex information. These supragranular layers are typically the first to express receptive-field plasticity in response to sensory change, prior to L4 (Diamond et al., 1994), and are more susceptible to modulation by shifts in attentional state than deeper layers (Hyvärinen et al., 1980). Further, in primary somatosensory and visual neocortices, L2/3 receptive fields can encode specific temporal stimulus patterns (Estebanez et al., 2016; Hubel and Wiesel, 1968), and can integrate multiple types of information (e.g. motor and sensory signals) and the mismatch in their alignment (Zmarz and Keller, 2016).
Layer 6 (L6) is also well positioned to contribute to the neocortical implementation of predictive models, as it integrates lemniscal thalamic, long-range cortico-cortical, and modulatory inputs (Martin and Whitteridge, 1984; Zhang and Deschênes, 1998; Thomson, 2010; Zhang et al., 2014; Vélez-Fort et al., 2014). Corticothalamic L6 neurons (CT) in primary visual and somatosensory neocortex are sparsely sensory driven (Lee et al., 2008) with selective receptive fields (Vélez-Fort et al., 2014) and can robustly modulate sensory gain through an intracortical pathway (Olsen et al., 2012). These findings suggest that specific populations of L6 neurons could regulate sensory responses depending on stimulus context. This prediction is supported by L6-mediated modulation of visual receptive fields by stimulus context (Bolz and Gilbert, 1986), by the relay of information from head-motion into V1 via L6 (Vélez-Fort et al., 2018), and by preferential involvement of deep cortical layers in top-down sensory processing (Kok et al., 2016). However, whether L6 contributes to the representation of stimulus changes across layers, and to perception, is not known. Here, we tested this hypothesis using selective optogenetic modulation of L6 activity in awake behaving mice, single-neuron recordings across neocortical layers, and 2-photon Ca2+ imaging of genetically identified L6 cells.
Results
Weak drive of L6 CT negates the behavioral impact of deviants, but does not affect baseline sensory performance
We tested the impact of manipulating L6 CT cells in a naturalistic and untrained, but well studied and characterized sensory decision-making task, Gap Crossing (Hutson and Masterton, 1986; Figure 1a). In this task, mice use their vibrissae to locate and cross between elevated platforms whose distance is changed after each trial (~4–6 cm, six mice, Figure 1—figure supplement 1b). Experiments were performed under near infrared illumination and auditory white noise to reduce visual or auditory confounds (Hutson and Masterton, 1986; Voigts et al., 2008). Only trials with crossings within 5 s of exploring the gap were analyzed. We applied selective optogenetic depolarization to L6 in mice expressing Channelrhodopsin (ChR2) in L6 corticothalamic (CT) pyramidal cells (GN 220-NTSR1 Cre line [Gong et al., 2007]).
Figure 1 with 1 supplement see all
In a natural behavior, strong optogenetic drive of L6 causes a sensory deficit.

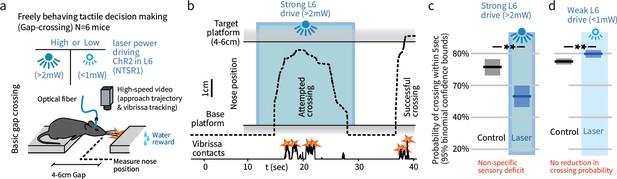

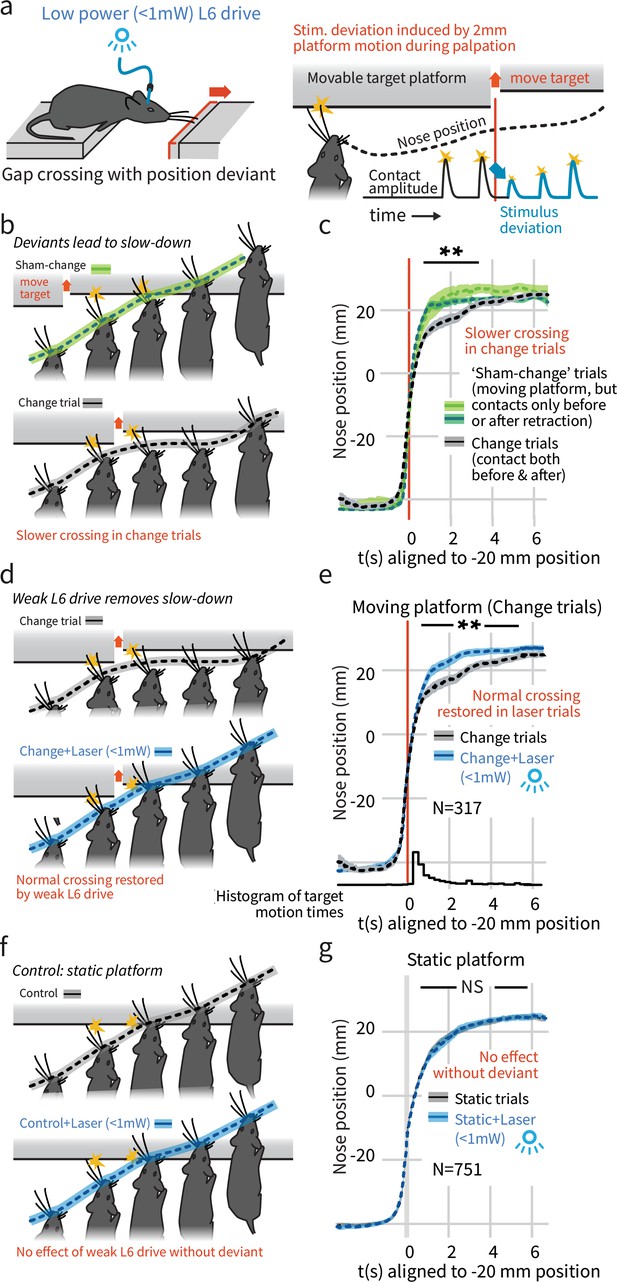

(a) To test the impact of L6 modulation in a naturalistic context, we used an unrestrained Gap Crossing task and applied high or low power optogenetic drive to L6 CT cells (ChR2 in NTSR-1 cre line). (b) Example trace (nose position over the gap) where strong optogenetic L6 drive disrupted Gap Crossing behavior, causing the mouse to retreat before crossing. (c) Strong L6 drive made mice less likely to cross the gap (N = 514 trials, bootstrapped 95% confidence intervals (CIs)). (d) In contrast, weaker L6 drive did not reduce crossing probability (N = 751 trials) but led to a small increase in crossing probability.
We tested mice on the Gap Crossing task under two conditions, strong L6 CT optogenetic activation (>2 mW power) that recruits trans-laminar inhibition and reduces neocortical sensory gain in V1 (Olsen et al., 2012), or weak L6 drive (<1 mW) (Figure 1a). Strong L6 drive led to a non-specific sensory deficit, reducing the likelihood of successful Gap Crossing from ~75% to ~50% (p<0.01, Figure 1b,c), but had no detectable effect on the whisking pattern of the mice (Figure 2—figure supplement 1).
To test the effect of L6 drive on spontaneous stimulus change, we induced small deviations during active palpation (Voigts et al., 2015) (the ‘Gap Crossing with Deviation’ task). Mice were not rewarded for detecting this deviation. In ~35% of trials, the target platform was rapidly pulled back by ~2 mm during a bout of exploration (Voigts et al., 2015; Figure 2a). To control for non-specific cues that could have been associated with this retraction (e.g. sound or air currents), true 'change' trials in which the vibrissae contacted the retracting platform both before and after the retraction (as illustrated in Figure 2b, black, N = 317) were compared to 'sham-change' trials in which they contacted the platform either only before (light green, N = 49) or only after (dark green, N = 134) a platform motion. On sham trials, mice could not perceive a change in position through vibrissal palpation but would experience any other effects of platform motion. In the true change condition, but in neither of the sham conditions, mice slowed their approach (Figure 2c, p<0.005 change vs. only before, and p<0.01 change vs. only after, rank sum), presumably to precisely re-locate the target before crossing, showing that mice perceive and react to the sensory deviant.
Figure 2 with 2 supplements see all
In a natural behavior, weak L6 drive selectively negates processing of deviant stimuli.
(a) To create a sudden, small sensory deviation, in the Gap Crossing with Deviation task the target platform was retracted by ~2 mm during bouts of tactile sampling. Prior high-speed videography studies have shown this small, unexpected deviation in the position of the platform leads to changes in vibrissal motion, including reduced deflection amplitudes (Figure 9 of Voigts et al., 2015). (b) When the platform was retracted in the middle of a bout of vibrissal contacts (black trace), mice slowed their approach relative to control trials where they contacted the target either exclusively before (light green) or after (dark green) platform retraction. (c) Summary statistics (95% CIs) of mouse position over time in the three trial types. (d) Weak L6 drive removed the deceleration associated with platform position deviants. (e) During weak L6 drive, the time course of the Gap Crossing with Deviation task does not show the signature deceleration created by a change in platform position during palpation. (f, g) Weak L6 drive had no effect on the Gap Crossing when the platform was static, showing that it selectively abolished the reaction to platform position deviants with little effect on other sensory and sensorimotor function. See Figure 2—figure supplement 2 for per-mouse data.
-
Figure 2—source data 1
Gap crossing speed across sham-change, control, and L6 drive conditions.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig2-data1-v2.zip
We next tested whether the weaker L6 optogenetic drive (<1 mW) would impair this change detection behavior, and found that it removed the extra sampling time that platform motion would otherwise generate (p<0.001 laser vs. control, N = 317 trials, Figure 2d,e, Video 1). Weak L6 drive did not affect behavior when the target platform was static (p=0.9, N = 751 trials, Figure 2f,g, Figure 2—figure supplement 1). The weaker drive also slightly increased the overall likelihood of crossing (Figure 1d, same analysis as Figure 1c). Gap Crossing is sensitive to changes in sensory function (Celikel and Sakmann, 2007; Chaudhary and Rema, 2018), the maintenance of regular Gap Crossing behavior in the static platform condition indicates that weak L6 CT drive did not impact basic sensory function, but did impact change detection.
Video 1
Mouse crossing in the Gap Crossing with deviation task.
Example raw videos from two trials. Left: Weak L6 drive leads to mice not reacting to sudden small platform position deviations. Right: Control trial, mice slow down their approach in reaction to sudden platform position deviations. Inserts show target distance over time.
Detecting a sudden change in platform position in the Gap Crossing with Deviation experiment likely results from a combination of multiple sensory parameters that change because of the changed position of the vibrissa contacts. Previous high-speed videography studies under the same experimental conditions showed that these parameters include a change in amplitude of vibrissal contact deflections (Voigts et al., 2015), as well as other parameters such as relative timing (Voigts et al., 2015), and likely deflection angles (Knutsen et al., 2008; Ritt et al., 2008), assymetry (Dominiak et al., 2019), time course of the torque (Pammer et al., 2013), and vibrations (Ritt et al., 2008; Lottem and Azouz, 2009).
To test whether the impact of weak L6 drive on the effects of sensory deviation replicates in a head-fixed behavior in which one specific parameter of vibrissal motion is changed, mice were trained to detect vibrissal motion (Figure 3—figure supplement 1), applied as a series of deflections (Stüttgen and Schwarz, 2008; Sachidhanandam et al., 2013; Miyashita and Feldman, 2013; Siegle et al., 2014). A subset of these trains contained direction deviants (Figure 3a), though mice were not trained to report the presence of a deviant. Deviants increased the detection rate for threshold level stimuli (Figure 3a,b). Weak L6 drive removed this effect but had no impact on detection of stimuli containing no deviant. As in Gap Crossing with Deviation, altering L6 activity through weak optogenetic drive selectively disrupted the behavioral benefit of these stimulus changes. We also observed that weak L6 drive disrupted encoding of deflection direction in L6 and of deviant stimuli in L2/3 (Figure 3—figure supplement 2).
Figure 3 with 2 supplements see all

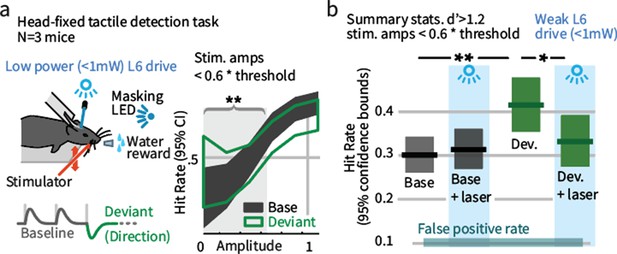

Weak L6 drive negates the improved sensitivity driven by inclusion of deviant stimuli in a head-fixed detection task.
(a) Left: Mice were trained on a go/no-go stimulus detection task. Mice were not explicitly trained to report the presence of a deviant. In 50% of trials, direction deviants were present at positions 2–4 in the stimulus train. Right: Example psychometric curve from one mouse. Deviants increased detection rates for weak stimuli that were less than 60% of the threshold amplitude (gray region). (b) Box plots show 95% CIs (via bootstrap) for the detection probabilities for this range of stimuli from three mice for baseline and deviant-containing stimuli, for the control (blue masking light) and laser (weak L6 drive, <1 mW) condition.
Weak drive of L6 CT changed the identity of stimulus-driven ensembles in L6 without changing mean firing rates across layers
We next quantified the impact of strong (disrupts Gap Crossing) and weak (selectively disrupts the impact of deviants) optogenetic L6 drive regimes on basic sensory encoding in head-fixed mice. To approximate the stimulus statistics that occur during Gap Crossing in head-fixed mice, we delivered trains of vibrissa deflections (seven deflections, 10 Hz) to the B and C row vibrissae, arcs 1–3, and recorded in matched somatotopic positions in vibrissal primary somatosensory neocortex (SI). Vibrissae were clamped in the piezo-stimulator (see Materials and methods) and mice did not whisk. Prior studies have shown that strong L6 drive reduces sensory gain (Olsen et al., 2012; Denman and Contreras, 2015) in V1, and we observed analogous suppression in SI when we drove L6 with the strong optogenetic stimulus (Figure 4a, acute laminar probe recording).

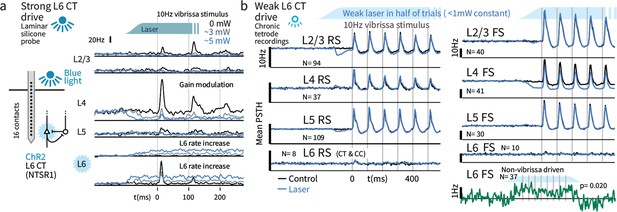

Figure 4 with 2 supplements see all
Weak optogenetic stimulation of L6 CT has almost no detectable impact on firing rates across layers and cell types.
(a) Strong optogenetic L6 CT drive increased L6 firing rates and reduced sensory gain in other layers, as in visual neocortex (Olsen et al., 2012; Bortone et al., 2014), measured with laminar probes. Circuit diagram adapted from Olsen et al., 2012; Helmstaedter et al., 2008. (b) Chronic tetrode recordings across cortical layers. Low power (<1 mW) optogenetic drive did not change mean sensory evoked firing rate of RS in any layer, though a prestimulus change was observed in L2/3. Similarly, FS rates remained largely intact, with the exceptions that small firing rate changes were observed in L4 FS (decreased activity) and L6 FS that were not sensory responsive (increased activity).
-
Figure 4—source data 1
Extracellular electrophysiology responses.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig4-data1-v2.zip
-
Figure 4—source data 2
Extracellular electrophysiology spike data.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig4-data2-v2.zip
We next investigated sensory responses under weak L6 drive using chronic tetrode recordings in awake mice. To characterize layer-specific activity, we implanted high-density arrays of movable multi-contact electrodes (Voigts et al., 2013), stereotrodes and tetrodes, in SI, yielding ~25 identified neurons per session (five mice, Figure 4—figure supplement 1). We recorded 1242 neurons over 75 sessions, 395 were phasically stimulus-driven (see Materials and methods). To classify neurons by layer, we tracked electrode depth and stimulus-evoked LFP (Castro-Alamancos and Connors, 1996), and categorized their spike waveform (Bortone et al., 2014) as regular spiking ('RS'; typically excitatory pyramidal neurons) or fast-spiking ('FS'; typically inhibitory interneurons: ~30% were FS). Consistent with prior studies (Thomson, 2010; Lee et al., 2008; Swadlow and Hicks, 1996), L6 neurons were sparsely sensory responsive, as only 18 (RS and FS) of 139 (~13%) were phasically sensory driven. Further, driven L6 neurons were also sparse in their response rates, showing only small vibrissa-driven increases in their activity (Figure 4b).
We applied weak L6 drive as during Gap Crossing (~0.1–0.5 mW total) and ramped the light intensity over >100 msec prior to sensory stimulation, to prevent overlap of sensory responses and transient changes in firing rates during initial light exposure. In contrast to stronger drive, this stimulus did not impact sensory-evoked firing rates in RS from any layer (Figure 4b, Figure 4—figure supplement 2). The only significant impact on sensory responses was a modest decrease in sensory responses in L4 FS (31.7 vs. 24.6 Hz median peak rates, p=0.001, Figure 4b). A small increase in firing rates in non-sensory-responsive L6 FS was also observed (Figure 4b, p=0.02 sign-rank, laser - control firing rates, N = 37). Increased activity in these L6 FS presumably offset the direct effects of optogenetic drive in L6 RS, keeping L6 RS firing rates at a baseline level (p=0.18, N = 89, signed rank). In L2/3 and L5 RS, transient suppression was evident after optogenetic stimulus onset, but rates returned to baseline prior to sensory stimulation. We did not observe slower changes in the effect of this L6 drive over the time course of the stimulus train.
Extracellular tetrode recordings in L6 do not yield the sample sizes required to characterize their sensory responses (Figure 4b), and cannot distinguish between corticothalamic (CT) pyramidal cells hypothesized to contribute to change detection, and corticocortical (CC) cells that are less specifically tuned and lack long-range input from higher cortical areas (Vélez-Fort et al., 2014). We therefore employed 2-photon calcium imaging of genetically identified L6 CT cells in GN 220-NTSR1 Cre mice (Gong et al., 2007) expressing GCaMP6s (Chen et al., 2013a; Figure 5, N = 3408 cell bodies imaged; N = 2685 tested with amplitude deviants, in six mice). To study the effect of weak optogenetic drive on L6 population activity, we combined wide-field optogenetic stimulation with 2-photon imaging (N = 1183 cells in four mice). Initial attempts to image L6 somata in mice with transgenic GCaMP6s expression, obtained by crossing the NTSR1 Cre and GCaMP6s reporter lines, had low signal-to-noise due to the dense fluorophore expression in more superficial processes (Theer et al., 2003). To obtain suitable image quality (Figure 5a–c), sparse labeling of L6 CT neurons was achieved by viral transduction (see Materials and methods). Using this approach, we were able to image throughout the upper ~100 μm of L6 (Figure 5b,c, Figure 5—figure supplement 1), and signal-to-noise ratios exceeded 150% ΔF/F (Figure 5d).

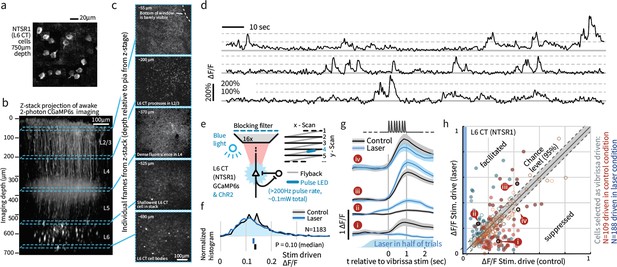

Figure 5 with 2 supplements see all
Weak depolarization of L6 CT maintains overall rates but changes the identity of stimulus-driven ensembles in L6.
To test the impact of weak optogenetic drive on L6 CT, we combined optogenetic stimulation with awake 2-photon imaging using GCaMP6s expression in the L6-specific NTSR1-Cre line (see Materials and methods). (a) Example image of L6 CT somata, image summed over 12 individual frames, in each frame a subset of the cells were active. (b) An example Z-stack projection of GCaMP6s expression in L6 CT. (c) Sample frames from different depths of the Z-stack. (d) Example time series showing typical signal-to-noise ratios. (e) Optogenetic activation was interleaved with imaging at >200 Hz during laser scanning ‘flyback’. (f) Optogenetic drive did not significantly change the mean population response of L6 to sensory input, ranksum test, CI via bootstrap of median. (g) However, individual L6 cells showed significant facilitation or suppression of vibrissa-evoked responses during optogenetic drive. (h) Optogenetic L6 activation did not change the overall output from L6, but shifted the identity of the activated ensemble (p<0.001 IQR vs. shuffled control), regardless of whether cells were classified as vibrissa-driven in the control (red) or in the laser (blue) condition. Filled circles indicate cells where the laser effect was individually significant per-cell (p<0.0025, at 1 s time point, via bootstrap). Of cells that were sensory responsive in the laser condition, 25.0% were significantly facilitated, 23.9% suppressed, and of cells sensory responsive in the control condition, 10.9% were facilitated, 32.9% suppressed.
-
Figure 5—source data 1
L6 effect of weak optogenetic drive.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig5-data1-v2.zip
As in the electrophysiological data, stimulus-evoked L6 activity was sparse (Figure 5—figure supplement 2), and overall L6 calcium signals (relative firing rates) remained unchanged during weak optogenetic drive (Figure 5f, p=0.10, signed rank). However, weak optogenetic manipulation changed L6 receptive fields: Individual L6 cells showed suppression or facilitation of vibrissa-evoked responses, including both emergence of newly stimulus-driven cells and the complete removal of sensory responses (Figure 5g,h). As such, while the net spiking output of L6 did not change, the specific ensemble of sensory-responsive cells changed substantially with this manipulation. As such, this level of optogenetic drive provides a direct approach for perturbing L6 sensory ensembles without detectably altering L6 firing rates. Due to the slow timescale of the GCaMP6s indicator, we did not analyze responses to individual deflections.
Small variations in baseline stimulus amplitude did not change firing rates in layers 4 and 2/3 of SI
To understand how shuffling the active ensemble of L6 CT cells selectively affects the processing of small stimulus deviations (Figures 2 and 3), we asked how vibrissa stimuli are encoded throughout the cortical column. We delivered trains of vibrissa deflections (seven deflections, 10 Hz) to the B and C row vibrissae of awake head-fixed mice. To approximate the stimulus deviations in the Gap Crossing with Deviant experiments, where mice determine distances to objects via small differences in the amplitude and velocity, and likely other parameters, of vibrissa contacts (Voigts et al., 2008; Voigts et al., 2015), we selected a narrow range of randomized baseline stimulus amplitudes, and inserted deviants in stimulus amplitude, ±5–15% of baseline (baseline ~ = 25 mm/s, N = 72 sessions). We chose amplitude deviants because they are a significant factor in the Gap Crossing with Deviants experiment (Voigts et al., 2015), provide a single parameter that can be kept close to neutral, and keeps the timing of the stimuli identical. This stimulus design thus has two parameters, baseline amplitude and deviant amplitude, with deviants varying as an increase or decrease.
We analyzed the firing probability per vibrissa deflection in our chronic extracellular recordings, as a function of baseline amplitude and deviant amplitude. Variations in stimulus amplitude (without deviants) were not encoded in the mean firing rates of layer 4 (L4) or L2/3 RS cells (L4 N = 37 RS; spike count difference between larger and smaller stimuli, signed rank p=0.221, 95% confidence interval (CI): [−0.22, 0, 0.002], L2/3 N = 94, p=0.201, CI:[−0.009,–0.003,0], Figure 6a–c). Small variations in overall stimulus strength were therefore not reliably encoded in SI.
Figure 6
Small variations in baseline stimulus amplitude were not robustly encoded in layers 4 and 2/3 SI.

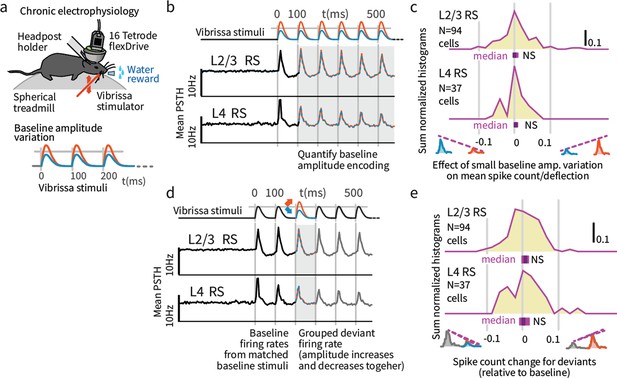

(a) Experimental preparation. Baseline stimulus amplitudes were varied by up to 15% on a trial-by-trial basis, in a range of ± ~ 25 mm/second, and presented in trains of 7 stimuli at 10 Hz. (b) The average sensory-evoked PSTHs from sensory-responsive RS neurons showed that neither L2/3 nor L4 cells significantly changed their mean firing rates to reflect stimulus amplitude in the range employed. (c) The population distribution of differences in spike rates per deflection between small and large baseline stimulus amplitudes showed no significant encoding of amplitude. Purple bars beneath each histogram indicate 95% CI (via bootstrap of median), ranksum test. (d) To probe the encoding of deviant presence, we presented amplitude deviations in the middle of stimulus trains. (e) To test for encoding of deviant presence, regardless of whether the deviants were increases or decreases in deflection amplitude, we calculated the average effect of deviants on firing (both types grouped, increases and decreases). While a few individual cells showed a generalized sensitivity to deviation, amplitude deviants did not systematically affect overall firing rates in L2/3 or L4, as shown in the centered population distribution.
-
Figure 6—source data 1
Spike data on effect of weak L6 drive on stimulus change representation.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig6-data1-v2.zip
Presence of amplitude deviants was not typically reflected by mean rate increases
We next asked if deviations in stimulus amplitude following repeated baseline deflections at a fixed amplitude (analogous to the sensory deviants induced by the small change in object distance in the Gap Crossing with Deviation task) were reflected in firing rates. The most commonly reported effect of stimulus deviants is an increased neocortical response (Movshon and Lennie, 1979; Khatri and Simons, 2007) regardless of deviant identity. In this case we would observe neurons that increase their rates when stimuli decrease or increase in amplitude. To test for such encoding, we grouped all deviants (increases and decreases) and examined their grouped mean effect on firing rates. While individual neurons displayed such sensitivity to deviation (Figure 6d), neither L2/3 nor L4 neurons systematically increased their overall firing rates for deviants when amplitude increases and decreases were grouped together (Figure 6e), showing that our stimulus design avoided pre-cortical stimulus-specific adaptation (Movshon and Lennie, 1979).
Layer 4 neurons encoded stimulus deviations with positive ‘change coefficients’
While overall firing rate did not change when summed across deviants (both increases and decreases), we further explored how deviation type impacted firing (increase vs. decrease). A neuron might for instance increase its rate for deviants where stimulus amplitude increases and decrease its rate for amplitude decreases. Figure 7a shows examples of the types of responses found, including significantly greater firing in response to deviants of increasing amplitude (examples i and iv), and the opposite, increased responses to deviants that decreased in amplitude (ii and iii). To quantify these effects, we calculated the spike count difference between responses to deviants with increased or decreased amplitude, per cell, per deflection. We term this difference a 'change coefficient,' with greater firing to amplitude increases referred to as a ‘positive’ change coefficient, and vice versa. Only the first deviant stimulus in each train was analyzed, and baseline control deflections were chosen from corresponding positions in non-deviant-containing stimulus trains.
Figure 7 with 1 supplement see all
Small stimulus deviations were represented by distinct patterns of rate changes in layers 4 and 2/3.

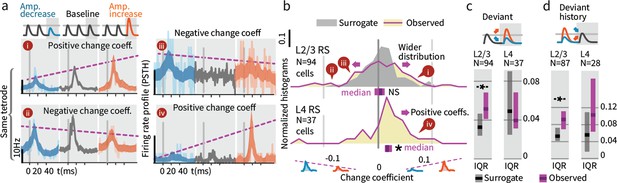

(a) Stimulus amplitude deviants were presented after 2–6 repeated baseline amplitude stimulations. Examples show sensory-driven PSTHs, shaded regions indicate the 95% CI. Red traces are responses to amplitude increases, and blue to amplitude decreases, gray are baseline stimuli. We calculated a ‘change coefficient’, defined as spike count differences between responses to increased versus decreased amplitudes (purple dashed line). Neurons had diverse responses, including positive change coefficients (higher firing probability for stimulus increases - i, iv) and negative change coefficients (higher probability for stimulus decreases - ii, iii). (b) Histograms of the distribution of change coefficients for all stimulus-driven RS in L4 and L2/3. The L4 population responded to stimulus changes with positive change coefficients. In contrast, L2/3 showed several types of responses to deviants, with both positive and negative change coefficients, reflected in a broadening of the change coefficient distribution (purple) relative to a surrogate distribution of shuffled baseline stimuli (gray). Bars show the 95% CIs (purple) and the median value. (c) The L2/3 population, but not L4, was broader than a surrogate distribution, quantified via the interquartile range (IQR), ranksum test, bar graphs show median and 95% CI via bootstrap of median. (d) Heterogeneous encoding (reflected in broadening of the distribution) was also observed in L2/3 when initial baseline amplitudes were larger or smaller than a deviant that always had the same intermediate amplitude, demonstrating encoding of deviation from stimulus history and not absolute amplitude encoding in L2/3.
-
Figure 7—source data 1
Statistics on effect of weak L6 drive on stimulus change representation.
- https://cdn.elifesciences.org/articles/48957/elife-48957-fig7-data1-v2.zip
L4 neurons consistently showed positive change coefficients, firing more spikes for deviant increases and fewer for decreases. This encoding is evident at the population level as a rightward shift in the distribution of change coefficients (Figure 7b, p=0.005, CI:[0.012, 0.016, 0.035]; See Figure 9—figure supplement 1 for generalized linear model 'GLM' analysis). These spike count differences for deviations were larger than for equivalent variations in baseline amplitude with no deviant (p=0.016, signed rank). We observed no significant deviant encoding in L5 (N = 92: p>0.05). These findings in L4 can be interpreted as enhanced specificity of encoding following an adapting stimulus, as observed across several stimulus types (Ollerenshaw et al., 2014; Moore et al., 1999; Andermann et al., 2004), in this case amplitude encoding.
While these effects were small when considered for single neurons and single, small amplitude vibrissal deflections (<0.1 spikes/deflection), they are substantial when considered across populations of neurons, and in the context of vibrissal deflections during natural exploration and Gap Crossing. This increased sensitivity of amplitude encoding in L4 after adaptation to a baseline is consistent with the enhanced discriminability of stimulus features generally observed with adaptation (Ollerenshaw et al., 2014; Békésy, 1967; Tannan et al., 2006; Abbott et al., 1997).
Layers 2/3 neurons explicitly encoded stimulus amplitude deviations
We next examined change encoding in L2/3 neurons (N = 94 vibrissa-driven neurons out of 363 recorded). As in L4, a subset of L2/3 neurons showed positive change encoding, but negative change coefficients were also observed, i.e. neurons with greater firing in response to stimulus decreases (Figure 7a, examples ii and iii). At the population level, significant heterogeneity would be reflected in a broadening of the change coefficient distribution relative to non-deviant stimuli. To test whether this heterogeneity was significant at the population level, we computed a surrogate distribution from shuffled baseline stimuli (Figure 7b, gray). The observed distribution was significantly broader than the surrogate (interquartile range/IQR; Figure 7c; p=0.006, Shannon entropy: p=0.029, via bootstrapping, see Materials and methods). Ideal observer decoding showed the same difference between positive deviant encoding in L4, and heterogeneous encoding in L2/3 (Figure 9—figure supplement 2). The rate differences for deviants in L2/3 for small stimulus amplitude deviations (±15%) corresponds to a median difference of spike counts of >~0.03 spikes per deflection per neuron between the deviant categories. For a 700 ms stimulus at 10 Hz, assuming 300 responsive neurons in the aligned somatotopic representation, this change in rates corresponds to a difference of ~70 spikes per vibrissa, or 250–1000 spikes extrapolated across a typical bout of whisking in sensory decision making such as Gap Crossing.
These heterogeneous responses observed in L2/3 could represent tuning for specific patterns of deviations relative to baseline stimuli. However, the higher firing rates we observed for smaller amplitude stimuli are also consistent with individual cells tuned to specific stimulus amplitudes (Garion et al., 2014). To disambiguate these possibilities and test whether L2/3 encoded a true history dependent deviant signal, we analyzed trials where deviant stimulus amplitudes were matched, but deviants were preceded by higher or lower amplitude baseline stimuli (55 sessions, Figure 7—figure supplement 1). Neurons with specific amplitude tuning should show a narrowing of the population distribution around zero change coefficient (as the deviant amplitude itself was constant), whereas encoding of stimulus changes should be reflected in a broadening of the distribution. With fixed deviant amplitude, L2/3 RS continued to represent change from stimulus history with a broadened distribution (Figure 7d; IQR p=0.004, entropy p=0.014, N = 87), showing that L2/3 RS cells encode history dependent heterogeneous change signals.
In sum, L4 neurons encode deviant amplitude, reflected in a positive correlation between their rates and the direction of amplitude change. In contrast, L2/3 neurons showed a variety of responses to deviants, with different receptive fields for specific patterns of baseline and deviant (Figure 7). In contrast to prior reports of increased neocortical excitability with stimulus tuning deviations (Movshon and Lennie, 1979), neither population showed significantly increased overall rates for deviants (ignoring deviant direction) (Figure 6).
Layer 6 neurons encoded stimulus amplitude
The low sampling rates of sensory-responsive L6 neurons with extracellular recordings did not allow temporally specific analysis of their tuning for deviance, as performed on single unit firing in L4 and L2/3. However, the 2-photon imaging data did allow us to ask whether L6 neurons encoded stimulus amplitude in general, and how this encoding might be impacted by the weak optogenetic drive that removed the behavioral impact of a small stimulus deviant (Figures 2 and 3).
To this end, we analyzed integrated activity of L6 CT cells by quantifying responses in a 0–2 s window post vibrissa-stimulus offset. Due to the slow timescale of the GCaMP6s indicator, we did not analyze responses to individual deflections. Consistent with electrophysiological data, L6 activity was sparse, as only ~13% of L6 neurons were stimulus-driven (469/3408 cells, Figure 5—figure supplement 2). When stimuli without deviants were presented, L6 CT cells encoded baseline amplitude, with significantly higher integrated calcium signals for larger stimuli (p<0.001 signed rank, N = 346, Figure 8). To test whether this encoding of amplitude persisted after stimulus adaptation, and therefore could contribute to change representation, we presented stimuli with amplitude deviations after 400 ms. As with baseline amplitude variations, L6 CT also encoded these amplitude differences (p<0.001, Figure 8). The timescale of these data, collected at 5 Hz, did not allow disambiguation between explicit encoding of the current deviant, or a delayed encoding that reacts to stimulus changes over timescales >100 ms. Nevertheless, these data show that L6 CT encoded stimulus amplitude as a variation in relative firing rate, which could serve as a baseline for a change-detection computation.
Figure 8 with 2 supplements see all

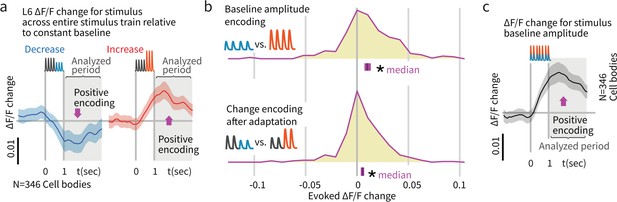

Layer 6 pyramidal cells encoded stimulus amplitude.
(a) Activity in L6 neurons positively encoded stimulus amplitude, as reflected by larger signals among responsive neurons when the response to larger amplitude baseline stimuli was subtracted from the response to smaller baseline stimuli (N = 346 stimulus responsive neurons out of 2685 imaged). This finding contrasts with the encoding in L2/3 and 4, where we did not observe significant encoding of the baseline amplitude of the stimulus train (Figure 6). (b) L6 amplitude encoding was also observed when stimulus amplitude variation was provided by deviants later in the stimulus train. Blue/red indicate response to increases versus decreases in deviant amplitude relative to baseline. Because calcium imaging data were acquired at ~5 Hz, no attempt was made to quantify change onsets and only the post-stimulus window was analyzed. Bars show the 95% CIs (purple) and the median value. (c) Population data and summary statistics for L6 CT amplitude and change encoding.
Weak drive of L6 CT reduced their stimulus amplitude encoding
Given that weak drive of L6 CT cells did not affect baseline or sensory-driven RS firing rates across layers (Figure 4), but changed the ensemble of stimulus active L6 CT cells (Figure 5) and selectively suppressed the behavioral impact of deviants (Figures 2 and 3), we next asked how this manipulation affected change encoding of amplitude in L6 CT. We found that weak optogenetic drive removed the encoding of stimulus amplitude (Figure 9d,e, p<0.05, ranksum, evoked ΔF/F change between stimuli, control vs. laser). This effect could be explained by a 'shuffling' of stimulus-driven cells, making otherwise non-driven (and poorly tuned) cells vibrissa-responsive and vice versa. Consistent with this hypothesis, cells that were selected to be sensory responsive in the control condition showed decreased average responses in the laser condition (p<0.05, controlled for regression to mean). However, encoding was affected even in L6 CT that were stimulus-driven in the control condition and remained so in the laser condition (p=0.044 rank sum across cells, p<0.0001 across trials, Figure 8—figure supplement 1), and the same effect was observed in a cross-validated analysis that classified cells as stimulus-driven and analyzed them in separate trials (Figure 8—figure supplement 2). In sum, both the identity of the sensory-driven ensemble and amplitude encoding by L6 CT was disrupted by weak optogenetic drive, despite no change in the net activity in these neurons.
Figure 9 with 3 supplements see all

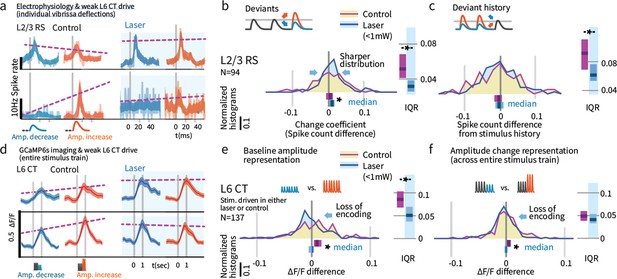

Weak L6 drive disrupts stimulus encoding in L6 and the emergence of deviant encoding in L2/3.
(a) Examples of L2/3 deviant encoding that were reduced with L6 optogenetic drive, of positive and negative sign. (b) Across the L2/3 population, weak L6 CT drive caused a loss in the heterogeneity of L2/3 encoding of deviants, reflected as a sharpening of the distribution and a bias to positive change coefficients, paralleling L4 encoding. Bar graphs show the 95% CI and the median value for the distribution, and for its interquartile range (IQR), via bootstrap. (c) Encoding of stimulus history in L2/3 was similarly disrupted. (d) Examples of L6 CT sensory responses (via Ca2+ imaging, see Figures 5 and 8) with and without optogenetic stimulation. In these examples, weak L6 CT optogenetic drive disrupted the representation of stimulus amplitude. (e) Population distributions show the loss of baseline amplitude encoding in L6 CT, and (f) loss of amplitude encoding for changes within the stimulus train.
Weak L6 drive removed deviance encoding in L2/3
We next examined whether weak optogenetic drive of L6 impacted stimulus representation in other layers. We found that change representation in L2/3 was disrupted (Figure 9b, p=0.010 entropy reduction, p=0.020 IQR reduction, p=0.008 paired left tailed IQR, N = 94). During optogenetic drive, L2/3 neurons came to represent current stimulus amplitudes with positive change coefficients (CI: [0.002, 0.009, 0.016], p=0.003 signed rank) and reduced their history-dependence (Figure 9, p=0.014 entropy reduction, p=0.004 IQR reduction, p=0.043 paired left tailed IQR). Figure 9—figure supplement 1 shows this same effect quantified via GLM. Shuffling the active L6 ensemble therefore removed the change-specific receptive fields in L2/3, causing them to instead encode current stimuli, making them more similar to L4 cells. These results suggest that stimulus encoding in L6 is necessary for the observed deviance-specific coding to arise in L2/3 through a currently unknown cortical circuit.
Recent studies have concluded that optogenetic drive of L6 impacts sensory responses in visual neocortex through an intracortical pathway, and not by modulation of thalamic relay neurons (Olsen et al., 2012; Bortone et al., 2014). We tested whether weak optogenetic stimulation affected lemniscal neurons using chronic recordings from ventral posterior medial nucleus in awake animals (Materials and methods as in Figures 4, 6, 7 and 9). Of 240 well-isolated thalamic single units (N = 3 mice), 25 cells were phasically responsive at short latencies to vibrissal stimulation. These neurons showed weak rate increases with L6 optogenetic drive, in contrast to the suppression observed in prior studies using stronger L6 CT drive (Denman and Contreras, 2015; Bortone et al., 2014). However, no significant encoding of deviants was observed, nor was modulation of encoding of deviants by L6 drive observed (Figure 9—figure supplement 3). While mechanisms that are not captured by these recordings (e.g. changes in thalamic synchrony) could contribute to the loss of heterogeneous encoding in L2/3 with weak L6 drive, rate changes in thalamic responses were not evident. Further, as described above, layers that receive direct lemniscal thalamic input (L4, L5, and L6) did not show explicit deviance encoding other than encoding of current stimulus amplitude. These two forms of evidence, and prior studies finding a direct intracortical pathway as the primary route of influence by L6 CT (Bortone et al., 2014), supports a local neocortical mechanism for the emergence of L2/3 deviant responses and in their modulation under L6 optogenetic drive.
In sum, the weak optogenetic drive of L6 CT employed here did not drive changes in overall RS firing rates (measured extracellularly, Figure 4, and via Ca2+ imaging, Figure 5, Figure 8—figure supplement 1), in contrast to the suppression observed when using strong optical stimuli in our own data (Figures 1 and 4) and in prior studies (Olsen et al., 2012). However, this weak optogenetic stimulus regime did substantially alter sensory encoding by L6 CT. These neurons lost their amplitude encoding, and many individual neurons showed changes in their sensory responsiveness, shifting the specific ensemble of L6 CT activated (Figure 5). Further, L2/3 neurons lost their emergent heterogeneous encoding of deviants, showing instead the positive change encoding observed in L4 under normal conditions (Figure 9). Weak L6 drive also selectively suppressed indicators of deviant processing in head-fixed (Figure 3) and free (Figures 1 and 2) behaviors.
Discussion
We observed layer-specific encoding of deviants and robust behavioral sensitivity to small stimulus deviations. Small stimulus amplitude deviants were correlated positively with firing rates in L4 and L6, with deviant amplitude increases driving higher firing rates. In contrast, heterogeneous encoding, where cells could, for example, encode amplitude increases by decreases in rate, and encoding of stimulus history, emerged in L2/3 neurons. Weak optogenetic drive changed the sensory-responsive L6 ensemble, by facilitating and suppressing different subsets of cells without changing the overall firing rates and reduced their information content about the stimulus. This manipulation also removed the encoding of stimulus deviants in L2/3. Detection of small stimulus deviations in the Gap Crossing with Deviants task, and the benefit of deviants for basic detection, were also lost with weak L6 optogenetic drive without altering basic task performance (Figure 10). These results indicate that stimulus encoding by sparse ensembles in L6 contributes to the neocortical circuit that processes sensory deviation but is not required for basic sensory function.
Figure 10

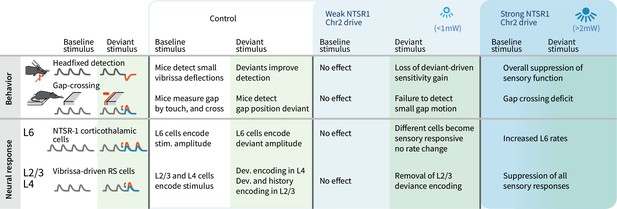

Summary of main findings.
The effects of strong vs. weak drive of L6 CT neurons on behavior and on the electrophysiological signatures of baseline and deviant stimuli.
While both receptive fields and behavior were altered by the weak optogenetic drive employed here, we found that this manipulation had no significant effect on RS firing rates in L6 or other layers. The manipulation also had no effect on free Gap Crossing (Figures 1 and 2). In contrast, stronger optogenetic drive of these same neurons led to suppressive gain modulation in neocortical response amplitudes (Olsen et al., 2012) and disrupted baseline sensory sensitivity (Figure 1,bc). The specific impact of the weak L6 manipulation on deviant encoding but not sensory gain (Figures 4 and 9), and on deviant-driven sensory behaviors but not basic performance (Figures 2 and 3), indicates that this intervention isolated a network mechanism or computation that is selectively involved in stimulus change processing, but not in processing of repeating, or predictable stimuli. The failure of weak L6 drive to impact baseline behavior is in contrast with several findings showing that relatively subtle optogenetic manipulation in SI, for example induced via similarly weak drive of PV+ interneurons (Sachidhanandam et al., 2013; Siegle et al., 2014; Lee et al., 2012) or L4 stellate neurons (O'Connor et al., 2013; Sofroniew et al., 2015), or direct stimulation of single neurons in other layers (Houweling and Brecht, 2008), can affect baseline sensory detection behavior.
Studies of sensory deviation typically manipulate stimulus features such as tone pitch (Ulanovsky et al., 2003; Taaseh et al., 2011; Ulanovsky et al., 2004), for which there are tuned populations, and observe higher neocortical firing rates for deviants, likely reflecting recruitment of new pools of differently-tuned neurons. Here, we specifically sought to minimize such stimulus-specific adaptation. In natural perception, relevant stimulus changes could lack feature changes for which there are such populations, for example decreases in the amplitude of a stimulus (Voigts et al., 2015), or higher-order features relayed from other cortical regions. Further, this stimulus design avoids biasing encoding by increases in neocortical drive across all deviants. This lack of stimulus-specific adaptation is evident in the lack of overall increase in firing rates for deviants (Figure 6e).
The L6 CT cells imaged and controlled in the present experiments may affect cortical activity via the recruitment of local (Zhang and Deschênes, 1997) and trans-laminar (Bortone et al., 2014) FS mediated inhibition, and through corticothalamic effects (Thomson, 2010; Denman and Contreras, 2015). The mechanisms by which specific ensembles of L6 cells influence state or stimulus encoding in superficial layers are still largely unknown, and could also be mediated through a variety of intermediate cell types, layers, and brain areas that were not recorded in the present set of experiments. While the present results directly support a specific role for L6 in the behavioral benefit of deviants, and in the representation of deviation across neocortical layers, further studies are required to determine the circuit, synaptic and cellular mechanisms by which L6 affects neural encoding and behavior.
The encoding of small stimulus changes in L2/3 RS, specifically the history dependence of these responses, is analogous to the emergence of complex temporospatial receptive fields (Martin and Whitteridge, 1984; Gilbert, 1977) and mismatch encoding (Zmarz and Keller, 2016) in upper layers of visual neocortex. The diversity in L2/3 responses, where both positive and negative change coefficients were observed, could reflect neuron types defined by biophysical characteristics (Jouhanneau et al., 2014) or projection targets, such as targeting higher somatosensory or motor cortices (Sato and Svoboda, 2010; Chen et al., 2013b), or may emerge from differential afferent connectivity.
The sparse stimulus encoding observed in L6 CT could represent either an explicit per-deflection deviant encoding, as in L4, or a delayed stimulus or expectation encoding that emerges over timescales greater than 100 ms. The sparsity of L6 CT activity, and their targeting by long-range corticocortical afferents (Vélez-Fort et al., 2014), suggests that they might be gated by inputs from other higher-order neocortical areas, as previously proposed (Lee et al., 2008). Measurements of rapid responses to individual stimuli with either faster imaging or more comprehensive electrophysiological methods, and more specific network level manipulations than employed here, will be required to disambiguate these hypotheses.
Even though weak L6 CT drive did not alter stimulus-driven firing rates, this manipulation changed the ensemble of sensory-driven neurons. This finding suggests that a sparse pattern of activity, comprised of both active and inactive neurons in L6, with specific connectivity, is required for deviance encoding. There are two types of mechanisms by which this manipulation could lead to the observed disruption of change encoding in L2/3. The specific population of L6 cells active during optogenetic drive was different from the one active in control conditions. This 'shuffling' alone could lead to a disruption of stimulus representation in L2/3 because the new set of active neurons would be decoded differently by recipient layers. Additionally, we found that the population of L6 CT cells that is active during optogenetic drive carries less stimulus information than the population that is active in the control condition (Figure 8—figure supplements 1 and 2), suggesting that any decoding of stimulus information from L6 would be impaired under the optogenetic drive condition. In addition to the set of active neurons, the set of cells that remain inactive, or are suppressed by the vibrissa stimulus across these conditions, could also play a role in the downstream decoding. Regardless of mechanism, our findings do not provide evidence for or against a specific circuit or circuits for change detection, but rather that specific activity patterns in L6 are required for the cortical architecture to perform change detection. Future studies that selectively change the ensemble, for example by specific optogenetic control, will be able to causally test the relationship between the encoding properties of L6 cells and their causal roles.
In this study, we employed two kinds of deviants. Variations from repeating baseline stimuli applied to the vibrissae, and ethologically relevant deviations in the position of a platform in the middle of sampling by freely behaving animals. In the latter case, the stimulus statistics (mainly vibrissa identity, angles, and curvature upon touch) change continuously as the mice approach or retreat from the target platform (Voigts et al., 2008; Figure 2—figure supplement 2). In both cases, predictive models were at some level formed within the system, driving the change in response patterns and behavior. The similar findings across these paradigms suggests that the mechanism underlying the observed effects could be involved in more general predictive models. That said, during active sensing likely all transitions in perceptual input occur against the backdrop of a working internal model, and distinctions between anticipated and perceived input may be amplified, including the onset of a stimulus following a pause in stimulation. How the present findings relate to dynamics in more naturalistic environmental statistics is an important question for further study.
In sum, we found that stimulus encoding by specific ensembles of L6 cells is required for change encoding in L2/3 and for change-detection behavior, but not basic detection performance. These L6 CT could therefore be one node of the larger laminar cortical circuit for processing of higher-order stimulus features, stimulus context, or expectations reliant on top-down signaling, in agreement with L6 CT targeting by long-range cortico-cortical inputs (Zhang et al., 2014; Vélez-Fort et al., 2014; Vélez-Fort et al., 2018).
Materials and methods
Animal subjects
Request a detailed protocolNTSR1-Cre mice (strain B6.FVB(Cg)-Tg(Ntsr1-cre)GN220Gsat/Mmcd, stock number 030648-UCD) (Gong et al., 2007) of either sex were used. For some experiments, NTSR1-Cre mice were crossed with a floxed ChR2 reporter line (strain B6;129S-Gt(ROSA)26Sortm32(CAG-COP4*H134R/EYFP)Hze/J, stock number 012569). For head-fixed behavior, one NTSR1-Cre mouse using viral injection, and three reporter line crosses (NTSR1/ChR2 +/+) were used. For Gap Crossing, 6 NTSR1 mice (2 ChR2 viral injection, four reporter line crosses) were used. For electrophysiology, 5 mice of either sex, 4 NTSR1-Cre mice using viral injections and one reporter line cross was used. For 2-photon imaging, 6 NTSR-1 Cre mice with viral injections were used.
Viral injection
Request a detailed protocolFor virus mediated ChR2 expression, we targeted the caudal region of the barrel field (1.5 mm posterior to bregma and 3.5 mm lateral to the midline). Injections were performed through a burr-hole with a glass micropipette (pulled and beveled, tip diameter of 20–35 μm) attached to a stereotaxic-mountable syringe pump (QSI Stoelting). 300 nl of virus (AAV DIO ChR2-mCherry;~2 × 10^12 viral molecules per ml) was injected at 0.05 μl/min at ~800 μm below the dura. All experiments requiring viral transfection were performed >4 weeks after injection. For two- photon imaging,~300 nl of AAV2/1-hSyn-Flex-GCaMP6s (HHMI/Janelia Farm, GENIE Project; ~1 × 10^13 viral molecules per ml) (Chen et al., 2013a), or in a subset of mice a 1:1 mixture of floxed GCaMP6 and floxed ChR2, all produced by the U. Penn Vector Core, was injected at ~750 μm targeting the posterior c-row barrels, identified by vascular landmarks and confirmed using intrinsic imaging to restrict expression to NTSR1+ neurons. Mice were tested for aberrant expression outside of L6 CT cells either by histology (for behavior and electrophysiology), or by collecting z-stacks (for 2-photon imaging). Mice with fluorescent non-L6 cells were excluded from the study.
Surgical procedures
Request a detailed protocolMice were 8–14 weeks old at the time of surgery. Animals were individually housed and maintained on a 12 hr reversed cycle. All procedures and animal care protocols conformed to guidelines established by the National Institutes of Health, and approved by Brown University’s Institutional Animal Care and Use Committee. Mice were anesthetized with isofluorane (2% induction, 0.75–1.25% maintenance in 1 l/min oxygen) and secured in a stereotaxic apparatus. The scalp was shaved, wiped with hair-removal cream and cleaned with iodine solution and alcohol. After intraperitoneal (IP) injection of Buprenorphine (0.1 mg/kg) and dexamethasone (4 mg/kg) and local application of lidocaine, the skull was exposed. For some mice, AAV was injected as described. The skull was cleaned with ethanol, and a base of adhesive luting cement (C and B Metabond) was applied. A 0.5 mm diameter area of the skull over left primary somatosensory neocortex was thinned. A stub of fiber-optic cable (0.22 NA, inner diameter of 200 μm, 1.25 mm OD metal ferrule) was glued into place at the side of the craniotomy using transparent luting cement. Custom head posts (Voigts et al., 2020; http://www.github.com/open-ephys/headposts_etc) were affixed with luting cement, the incision was closed with VetBond (3M), and mice were removed from isoflurane. Mice were given 3–10 d to recover before the start of water restriction. For electrophysiology, we implanted flexDrives (Voigts et al., 2013) with 16 stereotrodes (N = 2, 17 sessions), or tetrodes (N = 3, 58 sessions) made from 12.5 μm polyimide-coated nichrome wire (Kanthal), twisted, heated and gold-plated to 200–400 kΩ impedance. Lateral electrode spacing was 250 μm. Two stainless-steel screws were implanted anterior to bregma to serve as ground. For some mice we injected AAV as described. A craniotomy was drilled over left SI (~1.5 mm posterior, 3.5 mm lateral,~2.5 mm diameter). A fiberoptic stub was added as for behavioral testing, and a large durotomy was opened. A layer of bacteriostatic surgical lubricant was added, and the drive was lowered at an angle of ~15° and fixed in place using dental cement. After recovery (>3 d), mice were habituated to the setup and electrodes were lowered into the brain (~2 hr between individual electrodes) while noting when each electrode penetrated the brain. Mice were water restricted as described. During the experimental life time of mice, electrodes were advanced to target neocortical layers and maintain recording quality (Voigts et al., 2013). For 2-photon imaging, titanium headposts were used, the skull around SI was thinned and flattened. A 3 mm craniotomy was made, virus was injected, and a cranial window (Andermann et al., 2011; Goldey et al., 2014) 'plug' was made by stacking two 3 mm coverslips (Deckgläser, #0 thickness (~0.1 mm); Warner; CS-3R) under a 5 mm coverslip (Warner; CS-5R), using optical adhesive (Norland Optical #71). The plug was inserted into the craniotomy and the edges of the larger glass and animals that did not consume 1 ml of water/session or lost weight were supplemented with water in their home cage several hours after the experiment finished.
Head-fixed behavioral training and stimulus design
Request a detailed protocolTraining began >10 d after postoperative recovery and at least >7 d after onset of water restriction (1 ml/d). Mice were secured to the head-post apparatus and rested on a platform. Initial training procedure was as described before (Siegle et al., 2014). White noise (~65 dB) was used to mask auditory cues. If mice licked up to 800 ms after the onset of the vibrissae stimulus, water was delivered. There was an additional time-out period of 2 s for false alarms, and a pre-stimulus delay period (1–4 s) was gradually introduced, during which licking resulted in a reset of the delay timer. Vibrissae were stimulated with a custom stimulator based on piezoelectric wafers (Noliac CMBP09). Stimulations consisted of deflections with a fast onset velocity and a slower ~80 ms return to baseline with a small (~10% of peak amplitude) negative deceleration period to reduce a 2nd deceleration peak and to reduce the impact of piezo hysteresis. Several vibrissae, centered around the C2 vibrissa, were gripped ~5 mm from the mystacial pad. Amplitudes were calibrated using videography. Piezo elements were replaced if ringing exceeded 10% of the peak amplitude, or if the stimulus amplitude deviated by >5%, or if any hysteresis was measured. Water delivery was controlled by a solenoid valve (Lee Co.), calibrated to give an ~8 μl per opening (30–60 ms). Licking was detected via infrared detectors. After reaching criterion, optogenetic stimulation was added on half of trials. Stimulation started at a variable offset of 0.2–1.5 s preceding tactile stimulation and persisted for the duration of the stimulus. Laser power was ramped up with a gaussian onset profile lasting ~200 ms (Figure 4). Vibrissa-stimulus amplitudes were drawn uniformly from a range (~=0–30 mm/sec), adjusted manually to maintain performance while probing small stimulus amplitudes. In 10% of trials, maximum amplitude stimuli were delivered. Behavior depended on vibrissa stimulation and was independent of auditory or visual cues (Figure 3—figure supplement 1) Behavioral experiments were controlled using a custom state machine (Buschman and Nowak, 2010; http://www.github.com/open-ephys/behavioral_state_machine) written in Matlab via PCI DIO boards (National Instruments). Mice were weighted daily, and animals that did not consume 1 ml of water/session or lost weight were supplemented with water in their home cage several hours after the experiment finished.
Head-fixed behavioral analysis
Request a detailed protocolData analysis was performed in Matlab (Mathworks) as described before Siegle et al., 2014. Trials were selected based on a d′ threshold of 1.2. We also excluded mice in which the false-positive rate was increased in the laser condition (>95% binomial confidence bound). One mouse was excluded based on this criterion, which was established before the start of experimentation. To account for differences in the clamping distances from the follicle, angles and number of vibrissae across sessions, we estimated the threshold amplitude per session: (i) The d' was computed as described and trials with d'>0.8 were analyzed. (ii) A cumulative gaussian was fit to the stimulus amplitude and hit rate, and the median point of the curve was defined as the threshold amplitude for that session. Subsequent analyses were performed on amplitudes normalized to this threshold. This normalization resulted in a hit rate of ~80–100% for stimuli of normalized amplitude 1 in the d'>1.2 filtered data. Trials with responses within 50 ms of stimulus onset as were trials with stimulus deviations later than 400 ms, to exclude licking that was not elicited by the stimulus, or trials in which the stimulus deviation was too late to contribute to the detection performance (reaction times for smallest stimulus amplitudes were ~200–500 ms 95% CI). Binomial confidence bounds (Figure 3) were computed with the Clopper-Pearson method at the 95% level. Statistical significance of comparisons between hit rates across conditions was calculated using a bootstrap (10000 samples) on binomial distributions. Mice were performed at chance level when the stimulator was detached from the vibrissa (Figure 3—figure supplement 1).
Experimental design for electrophysiology and 2-photon imaging
Request a detailed protocolMice rested on a styrofoam ball supported by an air cushion. Mice were water restricted and monitored as described, and licked a spout to indicate stimulus detection for reward, but no time-outs, or catch trials were used. Sessions were stopped at signs of animal distress and session durations were increased over the first 2–3 weeks of acclimatization, resulting in sessions of ~2000 trials over ~2 hr. Stimuli were delivered as described, with deviants of relative amplitude of the deflections between ±10% and±15%. Amplitudes were calibrated to the range that correspond to ~80–100% hit rate in the behavioral detection task. The interval between stimuli was 3–5 s. For 2-photon imaging, mice were not water restricted and stimulus amplitudes were sampled from two baseline stimuli and two deviant conditions (increase to 120% or decrease to 80%) in order to increase statistical power for the sparse L6 responses.
Gap Crossing behavior
Request a detailed protocolMice (N = 6) were implanted with plastic head-posts and fiber stubs, and water restricted as described, vibrissae on the side ipsilateral to the fiber were trimmed. Two mice also had implants for electrophysiology. The gap crossing apparatus consisted of two facing platforms (Hutson and Masterton, 1986) (58 mm wide) over a custom LED backlight (650 nm). Mice were habituated for 2 days prior to the experiments. On day 3, the optical fiber was attached and masking noise (~80 dB) was introduced. After mice crossed the gap in either direction, a water reward (~0.01–0.05 ml) was delivered manually, and a new platform position was chosen between 45 and 65 mm. In half the trials the laser was on for >1 s prior till ~2–3 s after the crossing. In a subset of trials, one platform was retracted by 2 mm within 8 ms via a voice coil actuator (Voigts et al., 2015 and Figure 2, Figure 1—figure supplement 1, and Video 1) while the mouse was palpating it. Mice were run every other or third day, sessions ended when mice either lost interest in crossing, fell from the platform, or tangled the optical tether. The gap was filmed from above at 315 Hz (Pike 032B, Allied Vision Technologies). In control sessions, the optical cable was attached to a mock ferrule that directed the light to a position rostral of the actual fiber stub implant.
Gap Crossing analysis
Request a detailed protocolThe mouse nose distance to the target platform was tracked using custom scripts in Matlab. Trials were identified as attempted (mouse reached over the gap) or completed crossings. For analysis of sensory disruption using high laser powers, the probability of crossing was computed from all trials with gap distance <6 cm. For other analyses, only trials in which the mice crossed within 5 s were further analyzed. The nose position over time was aligned to the position at which the mouse had committed to a crossing attempt without touching the target yet, extending over the home platform by ~7 mm, corresponding to a position of −20 mm in the imaging reference frame. For analysis of the whisking pattern, subsets of vibrissae were tracked using an automated tracker (Figure 2—figure supplement 2, Voigts, 2020b; http://www.github.com/jvoigts/whisker_tracking) and the median angle of all tracked vibrissae was analyzed.
Optogenetic stimulation
Request a detailed protocolIn all experiments, light was delivered through a jacketed fiber-optic cable 200 μm in core diameter and 2.5 m long with a numerical aperture of 0.22 (Doric Lenses) connected to a 450 nm diode laser (powertechnology.com) using a collimator (Thorlabs PAF-X-15-PC-A). The fiber was connected to the animal's head via mating metal ferrules in a zirconia sleeve. For head-fixed behavior, ferrules were shielded with black plastic tape and the head of the mouse was illuminated with a blue masking LED that did not illuminate the stimulator or vibrissae. Light loss in the implanted fiber stub was measured for each implant. The amplitude of the light stimulus was calibrated regularly with an optical power meter (Thorlabs PM100D with SI20C sensor) to up to 1 mW at the surface of the skull, resulting in ~0.1–0.5 mW in neocortex (measured through the skull and metabond after perfusion). In a subset of sessions, higher laser power (~2–5 mW, see Figure 4, or up to ~10 mW for Gap Crossing, Figure 1) was used. The chronic implantation of a optical fiber results in a somewhat decreased power delivery to the brain due to inevitable regrowth of dura under the implantation site. Direct 1:1 comparisons of the light powers of the chronic experiments to the acute experiments where the fiber was placed directly on the brain (Figure 4a) are therefore not possible, and it should be assumed that a somewhat higher light power is required in the chronic case to achieve the same extent of optogentic activation as in the acute case.
Analysis of electrophysiology data – acquisition and pre-processing
Request a detailed protocolUnless indicated, we used non-parametric Wilcoxon rank sum/Mann Whitney U-test tests for comparing groups (non-paired), or Wilcoxon signed rank tests for testing medians versus zero or comparing paired measurements. We used animal cohort sizes consistent with practices in the field (Figure 1—figure supplement 1) and recorded the highest possible sample sizes per animals as allowed by methods (N of cells), and animal health, comfort, and behavior (N of sessions, length of recordings). No initial sample size estimation was used, nor were sample sizes increased after analysis if the data. Extracellular voltage traces were band-pass filtered to 1–10000 Hz at acquisition (3rd order butterworth filter), and band-pass filtered to 300–9000 Hz (zero-phase acausal FIR) for analysis of spiking. Sessions in which vibrissae had slipped out of the stimulator were excluded. Spikes were sorted into single units using Simple Clust (Voigts, 2020a; http://www.github.com/open-ephys/simpleclust). The 90% quantiles of neuron count/session were 17 and 39 over all 75 sessions. We recorded the depth at which electrodes penetrated the brain, marked by emergence of off-diagonal peak-to-peak amplitudes in the MUA activity (presumably from L1 axons) as the 0 mm position to estimate the depth of electrodes. We combined this information with the drive screw position and angle of the drive to estimate depth. In deeper layers, we additionally used the depth at which electrodes entered the white matter (loss of cortical activity) as a further reference point. The mapping from depth to layers was approximately (in μm): L2/3, 100–350; L4, 350–450; L5, 450–650; L6,>650 but was adjusted to take electrode angle and curvature of neocortex and white matter borders into account. Drive depth estimates were verified at the L3/L4 boundary of primary somatosensory neocortex (SI), via the stimulus-evoked LFP signature (Castro-Alamancos and Connors, 1996).
Analysis of electrophysiology data – classification of sorted units
Request a detailed protocolWe classified neurons as regular spiking (RS) and fast-spiking (FS) by spike waveform (Bortone et al., 2014). Stimulus-driven neurons were classified by fitting a generalized linear model (Truccolo et al., 2005) (GLM) to the PSTH. We classified cells as phasically driven if either of two conditions were met: (i) An offset term and six bins (basis functions) spanning the first 100 ms of the first vibrissa deflection were fit, coefficients for at least two bins were significantly nonzero at a P level of 0.03 and any coefficients other than the offset term had a lower standard error bound >0.002. (ii) A constant term and six repeated bins for over first 100 ms of the first three deflections were fit, these coefficients were shared between deflections capturing cases of weaker but sustained stimulus drive. Additionally, one parameter for each 100 ms vibrissa deflection period after the first one was used to avoid false positives due to slower firing rate drifts. Cells were classified as driven if the coefficients for the first three deflections satisfied the same conditions as in (i). Classifications was verified manually to choose thresholds but no manual corrections were made.
Analysis of electrophysiology data – population coding analysis
Request a detailed protocolTo plot example PSTHs (Figures 7 and 9), we computed confidence bounds using a state-space method (Smith et al., 2010). These analyses were used for visualization purposes only. The random position of deviant stimuli resulted in more baseline than deviant deflections, and more baseline stimuli early in the train (stimuli after the deviants were not analyzed). For analyses that are susceptible to biases of unequal N and adaptation effects, such as change coefficients, a histogram matching procedure was used to match the number and position in the stimulus train across baseline and deviant stimuli (Figure 7—figure supplement 1). The effect of stimulus history on firing rates was analyzed using subsets of trials in which the stimulus amplitudes were matched but were preceded by higher or lower amplitude stimuli by matching the stimulus amplitude distributions (Figure 7—figure supplement 1). All statistics of change coefficients were computed as 95% confidence intervals (CI) of the median using a 1000 or 10,000-fold bootstrap. Spread of distributions of change coefficients was quantified as the difference between the observed and a surrogate distribution (computed from position matched, randomly re-sampled baseline stimuli) via the interquartile range (75th−25th percentile) and Shannon entropy (in bits): H(observed) - H(surrogate); H(h)=-sum_i(P(h_i) * log2 P(h_i)). The null distribution is computed by re-sampling trials within-cell and is therefore affected by cell-dependent differences in variability in the same way as the true distribution. 95% confidence bounds and significance levels for these statistics were determined via bootstrap analysis. Entropy was quantified via the difference between pairs of binned distributions, so choice of bin size had no significant effect. Where paired samples per cell were available, as in the effect of the optogenetic manipulation, a bootstrap on the median of the absolute value minus the population median was used: median(absolute(coeff_cell-coeff_population)).
Analysis of electrophysiology data – per-neuron GLM analysis
Request a detailed protocolWe quantified encoding in individual neurons with a GLM. We analyzed parameters for spike count as a function of stimulus deviation (Figure 9—figure supplement 1), mirroring the direct computation of change coefficients (Figure 7). The features used in the model were stimulus deviation (−1:decreases, +1: increases), baseline amplitude, and spiking history (for seven precedent deflections). The adaptation profile was modeled with a separate feature per deflection, linked with a quadratic penalty term on the pairwise difference (weight 10). A separate quadratic regularization term with (weight 1) penalized large parameters (other than constant) to avoid over-fitting. The regularizing matrix (q) was: q = 1*I+10*D (I: Identity matrix, D: difference operator). Model parameters (w) were estimated from spike counts (Y) via min_w(-log(p(Y|w)) + 0.5*w'*q'w). 95% confidence bounds were obtained using a 100-fold bootstrap. False-positive rates were calculated by fitting to surrogate data (as described). Control, laser, and deviant conditions (increases/decreases) were fitted independently.
2-photon imaging
Request a detailed protocolA two-photon microscope (Bruker/Prairie Technologies) using an 8 kHz resonant galvanometer (CRS) for fast x-axis scanning, and a non-resonant galvanometer (Cambridge 6215) for y-axis increments was used. In some sessions, non-resonant scanning in a smaller imaging window (variable region ~100×80 px) was used. Frames were 512 × 512 pixels (resonant) or smaller (non resonant) and scanned at >5 Hz. Objectives (Nikon 25 × 1.1 NA or Nikon 16 × 0.8 NA) were rotated to the window plane. GCaMP6s was excited by a pre-chirped Ti-Sapphire laser (Spectra Physics; MaiTai) at 980 nm. Power at the sample was 20–60 mW for superficial imaging (<450 μm), 60–80 mW for deep imaging (>450 μm), when scanning at ~5–10 Hz with an approximate pixel dwell time of 1-2μs. Emitted photons were collected through the imaging path to a multi-alkali PMT (Hamamatsu; R3896, digitized with 14-bit resolution). A typical session lasted 2 hr. We found no activity ‘run-down’, substantial bleaching or cellular damage over the session, consistent with the what other studies using similar laser intensities have reported (O'Connor et al., 2010; Huber et al., 2012). In about half of implanted animals, we were able to image cell bodies of NTSR1+ layer 6 CT cells (3408 ROIs total) at depths between ~650–800 μm. Good image quality at commonly used excitation laser powers (see above) at these depths was possible likely due to the sparse and relatively localized expression in L6 (approximate diameter of region with cell bodies ~300–400 μm), which results in relatively little fluorophore above the imaging plane, resulting in better signal-to-noise ratios at such depths than would be possible with denser labeling (Theer et al., 2003). If the optical quality of the implanted window was non-optimal, due to dura re-growth, animal age or any surgical imperfections, L6 imaging became impossible. All analysis routines were written in MATLAB. Motion artifacts, small movements in the x-y plane were corrected with rigid-body image alignment (Bonin et al., 2011) using a DFT based method (Guizar-Sicairos et al., 2008) or a similar affine deformation to register to templates averaged from 1000 low-motion frames. To manually identify ROIs, we calculated mean and standard deviation projections, and correlation coefficients for the entire image relative to a seed pixel, and areas of continuous or nearby highly correlated pixels were grouped into the ROI.
Simultaneous 2-photon imaging and optogenetic stimulation
Request a detailed protocolLight was directed at the entire imaging area from a 200 μm fiber at a ~40 degree angle. To minimize light artifacts and PMT damage, we used a blocking filter (Semrock OD 6, custom NIR block, notches to block 460–470 nm and 560–570 nm). Light from blue (470 nm) or yellow (560 nm) LEDs, driven with a high-speed LED driver (cyclops [Newman et al., 2015], designed by Jon Newman, http://www.open-ephys.org/cyclops) was pulsed for 75μs after each 4th or 8th x-scan line. Overall pulse rates were >200 Hz, functionally equivalent to constant light (Lin et al., 2009). Light levels were adjusted manually to integrated powers of ~0.1 mW (for ChR2). X-scan lines following laser pulses were brighter due to the light stimulation and were replaced by interpolated data from preceding and following x-scan lines, whether the LED was on or off. Remaining slight image brightening was corrected off-line (see below).
2-photon data analysis
Request a detailed protocolUnless indicated, Wilcoxon rank sum or signed rank tests, and bootstrapping for testing IQRs were used, as described for electrophysiological data. Fluorescent values F were extracted from ROIs, the baseline fluorescence F0 was computed as the 30th percentile in a 200 s sliding window and ΔF/F was computed as (F-F0)/F0. Annulus-shaped ROIs were computed to estimate neuropil contamination (Chen et al., 2013a; Bonin et al., 2011; Kerlin et al., 2010) by eroding out 20 pixels in the x-direction from each somatic ROI (this ensures that if there is any specific artifact from the pulsed optogenetic drive, it affects the cell body and neuropil ROIs equally) and excluding other cell bodies from this neuropil ROI (Bonin et al., 2011; Kerlin et al., 2010). For all analyses of firing rates, residual image brightening due to light artifacts was corrected by subtracting an average image brightening profile averaged from all neuropil ROIs over the entire session. All other analyses are computed as differences in evoked fluorescence between stimulus conditions within the same cell and laser condition, and were therefore not affected by the light artifact correction. Stimulus-driven ROIs were identified by comparing the 90% quantiles of the ΔF/F for each ROI in the pre-stimulus period for all stimulus conditions (−1500–0 ms) with the 10% quantile in the stimulus period (500–1500 ms), and ROIs with non-overlapping quantiles were analyzed further. Cells were classified either in control trials or optogenetic drive trials, or both. Change coefficients were defined as in the spiking data, but owing to the slow timescale of GCAMP6s, we analyzed the difference of the stimulus-evoked fluorescence between baseline and deviant stimuli over the entire post-deviant stimulus time (0-2ec after stimulus offset) instead of analyzing individual deflections. Control levels were computed as described before.
Code availability
Request a detailed protocolAll custom software used in this study is freely available: Behavioral experiments were controlled using a custom state machine (Buschman and Nowak, 2010; http://www.github.com/open-ephys/behavioral_state_machine) written in Matlab via PCI DIO boards (National Instruments). Vibrissae were tracked using an automated tracker (Figure 2—figure supplement 2, Voigts, 2020b; http://www.github.com/jvoigts/whisker_tracking). Spike sorting was performed using a custom manual sorting tool (Voigts, 2020a; http://www.github.com/open-ephys/simpleclust).
Data availability
Underlying data for all main result figures are included in the supporting files.
References
-
Local diversity and fine-scale organization of receptive fields in mouse visual cortexJournal of Neuroscience 31:18506–18521.https://doi.org/10.1523/JNEUROSCI.2974-11.2011
-
Spatiotemporal properties of short-term plasticity sensorimotor thalamocortical pathways of the ratThe Journal of Neuroscience 16:2767–2779.https://doi.org/10.1523/JNEUROSCI.16-08-02767.1996
-
Probabilistic models of cognition: conceptual foundationsTrends in Cognitive Sciences 10:287–291.https://doi.org/10.1016/j.tics.2006.05.007
-
Deficits in behavioral functions of intact barrel cortex following lesions of homotopic contralateral cortexFrontiers in Systems Neuroscience 12:57.https://doi.org/10.3389/fnsys.2018.00057
-
Stimulus novelty, task relevance and the visual evoked potential in manElectroencephalography and Clinical Neurophysiology 39:131–143.https://doi.org/10.1016/0013-4694(75)90003-6
-
Whisking asymmetry signals motor preparation and the behavioral state of miceThe Journal of Neuroscience 39:9818–9830.https://doi.org/10.1523/JNEUROSCI.1809-19.2019
-
A radial map of multi-whisker correlation selectivity in the rat barrel cortexNature Communications 7:13528.https://doi.org/10.1038/ncomms13528
-
Laminar differences in receptive field properties of cells in cat primary visual cortexThe Journal of Physiology 268:391–421.https://doi.org/10.1113/jphysiol.1977.sp011863
-
Removable cranial windows for long-term imaging in awake miceNature Protocols 9:2515–2538.https://doi.org/10.1038/nprot.2014.165
-
Efficient subpixel image registration algorithmsOptics Letters 33:156–158.https://doi.org/10.1364/OL.33.000156
-
Receptive fields and functional architecture of monkey striate cortexThe Journal of Physiology 195:215–243.https://doi.org/10.1113/jphysiol.1968.sp008455
-
The sensory contribution of a single vibrissa's cortical barrelJournal of Neurophysiology 56:1196–1223.https://doi.org/10.1152/jn.1986.56.4.1196
-
Cross-whisker adaptation of neurons in the rat barrel cortexJournal of Neuroscience 26:13363–13372.https://doi.org/10.1523/JNEUROSCI.4056-06.2006
-
Angularly nonspecific response suppression in rat barrel cortexCerebral Cortex 17:599–609.https://doi.org/10.1093/cercor/bhk006
-
Neuronal responses to static texture patterns in area V1 of the alert macaque monkeyJournal of Neurophysiology 67:961–980.https://doi.org/10.1152/jn.1992.67.4.961
-
Motor modulation of afferent somatosensory circuitsNature Neuroscience 11:1430–1438.https://doi.org/10.1038/nn.2227
-
Mechanisms of tactile information transmission through whisker vibrationsJournal of Neuroscience 29:11686–11697.https://doi.org/10.1523/JNEUROSCI.0705-09.2009
-
Form, function and intracortical projections of spiny neurones in the striate visual cortex of the catThe Journal of Physiology 353:463–504.https://doi.org/10.1113/jphysiol.1984.sp015347
-
Feature-based attention in visual cortexTrends in Neurosciences 29:317–322.https://doi.org/10.1016/j.tins.2006.04.001
-
Dynamics of neuronal processing in rat somatosensory cortexTrends in Neurosciences 22:513–520.https://doi.org/10.1016/S0166-2236(99)01452-6
-
Neural coding during active somatosensation revealed using illusory touchNature Neuroscience 16:958–965.https://doi.org/10.1038/nn.3419
-
The mechanical variables underlying object localization along the Axis of the whiskerJournal of Neuroscience 33:6726–6741.https://doi.org/10.1523/JNEUROSCI.4316-12.2013
-
Membrane potential correlates of sensory perception in mouse barrel cortexNature Neuroscience 16:1671–1677.https://doi.org/10.1038/nn.3532
-
The functional properties of barrel cortex neurons projecting to the primary motor cortexJournal of Neuroscience 30:4256–4260.https://doi.org/10.1523/JNEUROSCI.3774-09.2010
-
Gamma-range synchronization of fast-spiking interneurons can enhance detection of tactile stimuliNature Neuroscience 17:1371–1379.https://doi.org/10.1038/nn.3797
-
State-Space algorithms for estimating spike rate functionsComputational Intelligence and Neuroscience 2010:1–14.https://doi.org/10.1155/2010/426539
-
Psychophysical and neurometric detection performance under stimulus uncertaintyNature Neuroscience 11:1091–1099.https://doi.org/10.1038/nn.2162
-
Vibrotactile adaptation enhances spatial localizationBrain Research 1102:109–116.https://doi.org/10.1016/j.brainres.2006.05.037
-
Neocortical layer 6, a reviewFrontiers in Neuroanatomy 4:13.https://doi.org/10.3389/fnana.2010.00013
-
Processing of low-probability sounds by cortical neuronsNature Neuroscience 6:391–398.https://doi.org/10.1038/nn1032
-
Multiple time scales of adaptation in auditory cortex neuronsJournal of Neuroscience 24:10440–10453.https://doi.org/10.1523/JNEUROSCI.1905-04.2004
-
Unsupervised whisker tracking in unrestrained behaving animalsJournal of Neurophysiology 100:504–515.https://doi.org/10.1152/jn.00012.2008
-
Tactile object localization by anticipatory whisker motionJournal of Neurophysiology 113:620–632.https://doi.org/10.1152/jn.00241.2014
Decision letter
-
Laura L ColginSenior Editor; University of Texas at Austin, United States
-
John R HuguenardReviewing Editor; Stanford University School of Medicine, United States
-
Garrett B StanleyReviewer; Georgia Institute of Technology, United States
-
Jeanne T PazReviewer; Gladstone Institutes, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
In this paper, the authors present an interesting new role for layer 6 in making predictions, specifically in processing deviants from expected sensory inputs. The authors combine advanced recording methods and rigorous statistical analyses to quantify neural and behavioral responses to small stimulus deviations. They show that slight modulation of the sparsely active ensemble of L6 neurons by optogenetics has no impact on basic sensory function, but blocks deviance encoding in L2/3 and changes behavioral responses to deviating stimuli.
Decision letter after peer review:
Thank you for submitting your article "Layer 6 ensembles can selectively regulate the behavioral impact and layer-specific representation of sensory deviants" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Laura Colgin as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Garrett B Stanley (Reviewer #2); Jeanne Paz (Reviewer #3).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
Summary:
In this paper, the authors present an interesting new role for layer 6 pyramidal neurons as encoders of stimulus amplitude that is used to encode subtle deviation from expected sensory input within the cortical column. The authors combine effective sensory stimuli, advanced recording methods, and rigorous statistical analyses to find the sparse 13% of L6 neurons that respond to sensory stimuli and show that L2/3 responds to deviations from expected stimuli. In addition, they show that slight modulation of L6 neuron activity by optogenetics blocks deviance encoding in L2/3, and changes behavioral responses to deviating stimuli.
Essential revisions:
While all three reviewers appreciated the general question asked, the novel approach, and the rigor of the methods, all expressed considerable concern that the conceptual presentation was far from clear. Detailed comments are listed below, but overall reviewers agreed that while further experimentation is unnecessary, better rationalization of approach, clearer connections of subtopics and methods, and explicit discussion of limitations and future directions were necessary.
Before we list the specific critiques, we have included the general comments of each reviewer so that the authors fully appreciate the common concerns:
For each experiment, the authors have chosen the appropriate recording method. Imaging deep to find sensory-responsive L6 neurons, characterize their encoding of amplitude, and then show remapping of the sensory-responsive neurons with weak optogenetic drive was particularly effective. In cases where they make arguments about encoding across the population, e.g. for deviance encoding in L2/3, they thoroughly describe response distributions with appropriate statistics and interpret them honestly in the text.
The weak optogenetic stimulation used to reveal deviance encoding in L6 and L2/3 is a potential concern. It is the key manipulation in the work, and so readers must be thoroughly convinced of its meaning. The authors distinguish this manipulation from stronger drive by comparing sensory-evoked firing rates and sensory detection behavior with weak and strong optogenetic stimulation. Strong optogenetic drive blocks sensory responses across the cortical column and impairs sensory detection behavior as shown before, but weak drive does not appear to impact these measures of baseline sensory encoding (except L4 FS cells). However, authors should mention the decrease in firing rate at laser onset in L2/3 RS, L5 RS, and L4 FS cells, as it reflects an increased change in firing rate in response to the first sensory stimulus.
While it is clever to use this manipulation to show L6's importance to deviance encoding, it is overinterpreted in the discussion. The claim that weak optogenetic drive activates a separate circuit is not supported by the data. The second claim that an ensemble of L6 neurons is used to encode deviance in L2/3 is suggested by the surprising remapping of sensory-responsive L6 neurons, but it is not directly proven. These statements should be toned down to better match the findings in the paper.
The questions being asked are important, the experiments and study novel and really well done, and the findings exciting and likely to spawn a range of follow up questions and studies. I think that the organization of the manuscript is sub-optimal, often making it confusing, and alternately dense vs. vague. Further, there is a somewhat confusing central result – that optogenetic activation (and not inactivation) of L6 seems to disrupt deviance encoding, which in itself is not a problem (most results related to complex circuitry are confusing). But the text asserts that L6 neurons are important for deviance encoding, suggesting that activation of L6 should enhance deviance encoding in some way, which is not the finding. Most importantly, as discussed in more detail below, the central behavioral task does not seem well-suited for the questions being probed (and is essentially abandoned after the first figure – see my recommendations below). The Abstract and Introduction establish an expectation for the reader that a behavioral task targeting this direction should have a very clearly measurable role for a sensory deviant, upon which the rest of the manuscript revolves. Although the behavior used may be somehow indirectly related to this issue, it is quite vague in precisely how, and seems forced into the study. In addition, the rest of the manuscript suffers at times from switching back and forth between different measurement modalities (ephys and 2P imaging) and stimulus design (single deviant, multiple deviants in a row), making it quite challenging as a reader to digest. In the spirit of trying to help the authors sharpen their argument and make the most impact in this really important and prescient issue, the following set of comments are offered:
1) Behavior – The authors make a really nice argument for the potential role of L6 cortical neurons in deviance detection, which motivates the study very well. They then propose an optogenetic manipulation of L6 neurons, in the context of a deviance detection task in mice. However, the behavior task that was implemented in Figure 1 is certainly not the most obvious choice for a deviance detection task, and it is really puzzling why this particular task was chosen (although one may still like the task). If the task is understood correctly, the mouse is trained to whisk across a gap, to contact a platform to which they can cross the gap for a reward. The deviance is created by retracting the platform by 2mm at random times during bouts of tactile sampling. Although they authors demonstrate that this has a demonstrable effect on behavior, in that they slow their approach to cross the gap, it is really unclear how the task might be affected by the deviance, per se, as in the classical implementations of deviance detection. One would have expected a more focused behavioral paradigm, where the effects of the deviance is explicitly measured through standard psychophysical means. It is true that the authors apparently tested this in such a task, as discussed in Supplemental Figure 4, but the main behavioral task of the paper presented in Figure 1 seems not well-aligned with the goals of the manuscript in a way that readers may find confusing. To be more specific, the inputs to the whisker system as the animal is actively palpating the platform (and move their body and head) are not clear, and it is not clear that the movement of the platform would create a deviant input consistent with how this is being described throughout the manuscript.
As a side note, Figure 1 was found to be quite confusing and difficult to understand what was being presented – so in any case, simplifying and clarifying was suggested. But another possibility is to remove this behavior from the manuscript, as it is quite different from the rest of the data/figures. Would there be any way to pull the behavior of Supplemental Figure 4 back into the main manuscript as the central behavior? Again, there was enthusiasm about the overall arc of the story, but concerns were raised about whether the behavior really fits.
2) Overall, the manuscript is somewhat confusing – and part of this is likely due to the organization. One thing that plagues the manuscript is the use of different stimuli for almost every figure and analysis. It starts in Figure 1 with the active palpation in the gap jumping task, switches to 10 Hz train in Figure 2, and then to a 10Hz train with a single deviant in Figure 4 and Figure 5, switches to a 10Hz train with multiple deviants in sequence for the 2 photon imaging (Figure 3 and Figure 6), and finally with a mixture in Figure 7. It is likely the case that the 2P imaging required integrating across multiple stimulus presentations for practical reasons, necessitating this design, but overall, this makes for a pretty confusing manuscript to navigate for the reader, with all of this jumping around between stimulus design and recording modality. A potential concern was raised about the fact that the deviant is comprised of a sequence (and presumably the appearance of the second and third stimulus in the train might be different from the first, which is the true deviant). When is the deviant no longer a deviant, and instead the new background? It was thought that the authors can fix this through writing and organization, but as written, it is quite difficult to navigate. Perhaps a better explanation of the "why" for the differences in the stimulus design? Again, this is all exacerbated by the jarring transition from the behavior in Figure 1 to the rest of the paper as described above in point #1.
3) The central over-arching assertion is that L6 neurons are vital for deviance encoding (and perhaps setting the stage for a predictive coding framework). However, the manipulations that are done are to either selectively engage a sub-population of L6 neurons through weak optogenetic stimulation without changing overall firing rate, or to strongly activate L6 neurons with strong optogenetic drive, both of which seem to “disrupt” deviance encoding. Unless there was a misunderstanding of something here, it would seem that the presence of active L6 neurons disrupts deviance encoding, rather than facilitating it. This itself is interesting, but confusion exists about statements like the last sentence of the Abstract, "These findings indicate that, despite their sparse activity, specific ensembles of stimulus-driven L6 neurons are required to form neocortical predictions, and for their behavioral benefit." The title of the manuscript captures the findings – that L6 regulates this, but the other text seems to suggest that L6 facilitates this, which seems to be the opposite of the findings. If this description somehow misconstrued the results, then the authors should find a way to clarify this text.
4) Confusion exists about the results at the core of the study. Figure 4 says there is no net relationship between the amplitude of the stimulus deviance and the change in firing rate for L4 or L2/3 neurons (Figure 4G), but then Figure 5 dissects this, only to conclude that L4 has deviance encoding (positive correlation of deviance sign and change in firing rate), but not L2/3 (Figure 5B).
5) The confusion experienced in Figure 4 and Figure 5 continued with the optogenetic manipulation of L6 in Figure 7. Why were results not presented for L4, as opposed to just recordings in L6 and L2/3, since Figure 5 shows that the deviance encoding was emergent in L4 and not L2/3? Is it the case that there is just no effect? Furthermore, the title of Figure 7 is "Weak L6 drive disrupts both stimulus encoding in L6 and the emergence of deviant encoding in L2/3", yet the results in Figure 7B seem to suggest that when the laser is turned on to weakly drive L6 neurons, the deviance encoding emerges (as shown by the shift of the median away from zero), rather than being disrupted. It could be the case that this was not interpreted correctly during review, but in any case, readers would also likely struggle with this. Are 7A and 7B consistent?
6) In Figure 2 there are dramatic differences in the quality of recordings in panel a versus b. Was this due to the use of tetrodes in b and silicon probe in a, and if so, is this something we should be worried about for the rest of the study that relies on the laminar recordings from the silicon probe?
7) In Figure 4, the authors show the results of small variations in stimulus amplitude in L2/3 and L4 but not L6. They later show in Figure 6 the results of L6 encoding stimulus amplitude – why did they choose to present these results in separate figures?
8) It is also not clear if the pattern of stimulus trains used in Figure 4 vs Figure 6 are the same or different. For example, in Figure 4 they use constant stim trains of one amplitude vs. another, and constant stim trains with a single deviation. In Figure 6 it looks like they test a constant stim train of one amplitude followed by a constant stim train of another amplitude. Why are these results analyzed differently?
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for submitting your article "Layer 6 ensembles can selectively regulate the behavioral impact and layer-specific representation of sensory deviants" for consideration by eLife. Your article has been reviewed by two peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Laura Colgin as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Garrett B Stanley (Reviewer #2).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.
Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.
Summary:
The paper is much improved in terms of clarity of presentation, and description of the multiple approaches and experimental findings. However, both reviewers have remaining concerns about both presentation and interpretation, and detailed comments from the reviewers are provided below.
Reviewer #1:
The authors have responded to the previous critiques, and the paper is now much more readable. The new figures highlight the exact experimental design and interpretation. Overall, it is much improved.
However, there are still some points that are not clear, and further revision could improve comprehension.
1) Subsection “Weak depolarization of L6 neurons changed the identity of stimulus-driven ensembles in L6 without changing mean firing rates across layers”. I think you need to say something like we tested the effects of "weak and strong stimuli, analogous to those disrupting gap crossing, etc.", on basic sensory encoding, unless you did both sets of experiments in each mouse, in which case you might want to say that explicitly.
2) Figure 2, while improved, is a bit confusing, as it indicates time and space in a complex way. Might it be possible to change the depiction of the moving platform to make it appear discontinuous, perhaps with multiple overlapped shadowed positions of the platform? As depicted, one has the visual impression that a platform with a recessed portion is moving left to right.
Reviewer #2:
In this work, the authors set out to address the functional role of cortical Layer 6 in predictive coding in the context of a deviant detection task in the awake, freely behaving mouse. They specifically put forth the idea that this particular circuit may be involved in predictive coding, where predictions are made based on past experience, and compared with incoming signals, perhaps driving the detection of anything that deviates from the expectation. As with the original manuscript, the general theme of linking L6 CT and predictive coding is very intriguing, and while there are increasing numbers of studies investigating the function of L6 CT neurons due to the new tools enabling the specific targeting of this cell type, the actual role of these neurons in behavior and perception is largely an area of speculation at this point. So, we really need studies like this. Moreover, the authors present very interesting results, such as a change in behavioral performance due to low L6 drive and a complete shutdown of sensory-based performance due to strong L6 drive, and the engagement of a different ensemble of neurons in L6 with weak optogenetic drive of L6 (that was also linked to weaking of behavioral sensitivity to deviant stimuli, but not affecting behavioral performance).
Following the first round of critiques, the authors made substantial changes to address the concerns of the reviewers, making an earnest attempt to clarify and streamline the argument. The revisions conducted by the authors were very helpful in making the objectives and findings much more clear. However, this also highlighted some issues that are still troublesome:
1) With the revision, the description of the task is now much more clear – the breaking of the original Figure 1 into the new Figure 1 and Figure 2 and the corresponding text around this improve the clarity a lot. Furthermore, the behavioral consequences of the L6 CT activation are clear – the movement of the target platform leads to a slow-down in the crossing, and weak ChR2 activation of L6CT neurons restores the behavior to the normal speed (the same as in the absence of the platform move).
What I still find to be a stretch is the connection of this behavioral paradigm to the concept of deviance detection. While the behavioral results are unambiguous – as shown in Figure 2C,E,G, the nature of the sensory (whisker) stimulus during this behavior is still hazy. The figure shows cartoonish representations of the whisker inputs as the mouse actively contacts the platform before and after the movement of the platform, showing a sequence of identical amplitude whisker deflections, followed by a dramatic reduction in the amplitude of the whisker input after the platform moves, which could be thought of as a deviant input, but whether the whisker input actually looks like this or not, is entirely unclear. This may indeed be the case, but I think just suggesting it without showing it, leads to some discomfort about the connection.
I made this comment in the first round, and while I do think the authors took my comment seriously, they seem to fundamentally disagree. So, I would just like to restate this, in the spirit of helping them understand why readers may not easily lock on to this connection. For me, the transition between the first part of the paper and the rest is still quite jarring. Overall, I love the gap-crossing paradigm, and I think there is something important happening here when the hesitation induced by the platform move is removed with L6CT activation, but I can't help but see this as disconnected from the rest of the paper.
2) Overall, this paper is a tough read. I believe this stems from the use of multiple behavioral tasks (Gap Crossing, whisker direction deviance, whisker amplitude deviance), and the jumping around between different cortical layers and measurement techniques. For example, with the behavior, related to point 1 above, Figure 3 discusses a direction deviant task, and the authors attempt to lead the reader to think this is a natural next step following the gap crossing task (saying that the platform move likely changes a lot of things, including amplitude and direction of motion, but none of this is shown). Even if the gap crossing results occur because the first (and maybe subsequent) whisker contacts following the platform move are different (smaller?) than those before the move, it is really hard to see why the direction deviance task would be the logical follow-up to this. As a side note, I'm not really sure what to make of the fact that for the direction deviant task, the hit rate for the deviant is higher than baseline for weak stimuli and lower than baseline for strong stimuli (reported in Figure 3B is the mean across all stimuli?).
To make things more confusing, the subsequent figures that look at the neural correlates of this behavior employ an amplitude deviant in the sensory stimuli, and not a direction deviant. While the results in Figure 3 are interesting, it is difficult to see how it naturally ties into the narrative. It may be best to instead use this task show the breadth of ways L6 CT can modulate behavior that involves deviants, as opposed to a logical next step from the gap-crossing, or even consider putting it back into the supplement and to remove the distraction altogether.
3) Beyond the first few figures, the central claim of this work is that because weak L6 CT drive changes the ensemble of active neurons in L6 and also disrupts behavior, then the original ensemble of active neurons in L6 is necessary for deviance encoding. For this kind of assertion of necessity (going beyond just sufficiency), however, requires control experiments that directly test this, often in the form of lesioning or inactivation. The authors did not perform this kind of control, which seems important for this claim. Thus, what the authors have actually proven is that the activity of the ensemble engaged after weak L6 CT drive is correlated with disrupting deviance encoding. It remains unknown whether the original ensemble is required for deviance encoding or whether the new ensemble engaged after weak L6 CT drive is rather employing mechanisms to alter deviance encoding. This difference is subtle but important in establishing the extent of claims that the data can support.
4) As described above, in addition to the trained behaviors, the employed measurement modalities also switch around from figure to figure, and even within figures in one case, making it difficult to understand what is going on. For example, Figure 4 displays a laminar silicone probe which the text describes to have been used only for the strong L6 CT drive; the text says a chronic tetrode recording was used for the weak L6CT drive results in panel B, but that is not clear. This may have come about through some practical (and non-scientific) reasons, but the authors should at least acknowledge that navigating all of these techniques is a challenge for the reader, and do what they can to help make this possible (or risk having it not read).
https://doi.org/10.7554/eLife.48957.sa1Author response
Essential revisions:
While all three reviewers appreciated the general question asked, the novel approach, and the rigor of the methods, all expressed considerable concern that the conceptual presentation was far from clear. Detailed comments are listed below, but overall reviewers agreed that while further experimentation is unnecessary, better rationalization of approach, clearer connections of subtopics and methods, and explicit discussion of limitations and future directions were necessary.
We appreciate the reviewer’s thoughtful feedback and enthusiasm for the study. We followed your suggestions and made many changes in the presentation to enhance clarity. In overview:
i) We created a new Table summarizing all findings and placed this at the start of the Discussion.
ii) We apologize for any confusion about stimulation paradigms: They are far less disparate than they seemed. We now make this clear throughout the text, including:
a) All non-behavioral figures employed an amplitude deviation, applied to an ongoing 10 Hz deflection pattern, introduced between the second – seventh pulses. We are now explicit about this fact, including in the text and in images appended to almost all Figures diagramming the exact stimulation used.
b) To clarify the gap crossing with Deviation Task, we separated our description of this task into two distinct Figures, so the reader can better appreciate the effect of deviants on behavior (Figure 1), and the effect of weak optogenetic drive on deviance detection (Figure 2). Each new Figure has a parallel version of a new descriptive cartoon explicitly diagramming these.
To directly meet the reviewer’s specific suggestion, we now also present in the main text a well-controlled Motion Detection with Deviation task, in which the vibrissae of head posted mice were given a well-controlled stimulus that is modulated by inclusion of a deviance (Figure 3,). We use this task extensively in the lab (e.g. Siegle et al., 2014; presence vs. absence of vibrissal motion). In this paradigm, a directional deviant was included in the 10 Hz stimulus train. This ‘wrinkle’ of changing direction in the stimulation pattern enhances detection even though the animals are not searching for a deviant, or for a specific direction.
Figure 3: Effect of weak L6 drive on head-fixed stimulus detection with deviants. This Motion Detection with Deviation task provides a well-structured complement to the sensitivity to sensory deviations evident during the Gap Crossing with Deviation Task, which is more naturalistic but of course less controlled.
How do our stimulus conditions relate to each other?
We chose the head-fixed stimulus design in our study as simplification of the Gap Crossing with Deviation Task. Sensing that a platform is at a different position likely includes a variety of sensory parameters, predominantly changes in contact force/amplitude, and changes in contact timing, and direction. We therefore employed trains of deflections at 10Hz, with amplitude deviants in order to probe deviant encoding in a controlled yet naturalistic regime. Amplitude deviants also provide the additional benefit of avoiding stimulus-specific adaptation that would have made it harder to interpret the laminar encoding, as we now describe in the main text.
We had relegated our head-posted detection task results to the Supplementary data because we did not want to create confusion about our stimulation paradigms—this sub-study is the only place in the paper we presented directional deviants, otherwise all findings are variations on amplitude. We hope that re-inclusion of this Figure does not add confusion about paradigms—again, we tried hard to ensure this is not the case—but rather adds to the important generality in our findings. New text added to the Discussion of the detection task figure should, we believe, address this concern.
Before we list the specific critiques, we have included the general comments of each reviewer so that the authors fully appreciate the common concerns:
For each experiment, the authors have chosen the appropriate recording method. Imaging deep to find sensory-responsive L6 neurons, characterize their encoding of amplitude, and then show remapping of the sensory-responsive neurons with weak optogenetic drive was particularly effective. In cases where they make arguments about encoding across the population, e.g. for deviance encoding in L2/3, they thoroughly describe response distributions with appropriate statistics and interpret them honestly in the text.
The weak optogenetic stimulation used to reveal deviance encoding in L6 and L2/3 is a potential concern. It is the key manipulation in the work, and so readers must be thoroughly convinced of its meaning. The authors distinguish this manipulation from stronger drive by comparing sensory-evoked firing rates and sensory detection behavior with weak and strong optogenetic stimulation. Strong optogenetic drive blocks sensory responses across the cortical column and impairs sensory detection behavior as shown before,
As a point of clarification, we are not aware of any prior studies demonstrating suppression of sensory detection, or in our case, uninstructed sensory behavior (Gap Crossing) with high levels of L6 drive. We agree that our finding in SI sensory responses could be expected, due to the previous report of suppression of firing rates in V1 using a similar L6 activation, but the behavioral data under ‘strong’ conditions in Figure 1 are an entirely new contribution. We did not overly emphasize this particular insight because we think it mostly serves as a contrast to the more important finding here, that subtle layer 6 stimulation has selective impact for deviant stimuli, not just a full “loss of function” result such as that of the strong drive.
but weak drive does not appear to impact these measures of baseline sensory encoding (except L4 FS cells). However, authors should mention the decrease in firing rate at laser onset in L2/3 RS, L5 RS, and L4 FS cells, as it reflects an increased change in firing rate in response to the first sensory stimulus.
To directly meet this concern, we added an explicit discussion of these onset effects in the main text: We are careful to point out that while the mean sensory-evoked firing rate is not impacted by weak L6 drive, there are pre-stimulus effects and layer 4 FS response window firing rates are modulated.
We believe that the dynamics of how the cortical circuit arrives at its steady-state response to the weak L6 drive are a potentially interesting avenue for studying the associated cortical circuitry in the future: In the already quite full paper here, we did not want to dilute the main message by extensively unpacking this “baseline” effect beyond noting it to meet the reviewer’s appropriate concern, as we have now done.
While it is clever to use this manipulation to show L6's importance to deviance encoding, it is overinterpreted in the discussion. The claim that weak optogenetic drive activates a separate circuit is not supported by the data. The second claim that an ensemble of L6 neurons is used to encode deviance in L2/3 is suggested by the surprising remapping of sensory responsive L6 neurons, but it is not directly proven. These statements should be toned down to better match the findings in the paper.
To directly meet this concern, we state that while we observe L6 receptive field remapping with weak drive, and the loss of deviance-specific receptive fields in L2/3, we have not determined the specific circuit mechanisms linking these events beyond circumstantially. To quote the Discussion:
“Regardless of mechanism, our findings do not provide evidence for or against a specific circuit or circuits for change detection, but rather that specific activity patterns in L6 are required for the cortical architecture to perform change detection.”
The questions being asked are important, the experiments and study novel and really well done, and the findings exciting and likely to spawn a range of follow up questions and studies. I think that the organization of the manuscript is sub-optimal, often making it confusing, and alternately dense vs. vague. Further, there is a somewhat confusing central result – that optogenetic activation (and not inactivation) of L6 seems to disrupt deviance encoding, which in itself is not a problem (most results related to complex circuitry are confusing). But the text asserts that L6 neurons are important for deviance encoding, suggesting that activation of L6 should enhance deviance encoding in some way, which is not the finding.
We apologize for the unclear presentation of our Results in the initial submission. The reviewers are correct that low-power drive of L6 disrupts deviance coding. However, the key point of our findings is that this weak drive leads to no change in mean firing rates across L6, but instead changes which L6 cells can fire. Our findings therefore indicate that activity of a specific ensemble of L6 neurons is required for change detection, but not for sensory processing of predictable stimuli. The lesson from the strong optogenetic condition—as shown in Figure 1 and Figure 4A—is that an overall increase in L6 spiking in fact shuts down the SI column entirely and therefore generally impairs sensory-driven behavior (e.g. Gap Crossing), studying sensory deviants in conditions of such increased L6 activity is therefore made impossible by a fairly massive main effect of sensory suppression.
To directly meet this concern, we titled Figure 5:
“Figure 5 Weak depolarization of L6 CT maintains overall rates but changes the identity of stimulus-driven ensembles in L6”
In the adjoining text, we emphasize that weak activation of L6 does not change overall spiking in those cells, but rather changes which specific ensemble is recruited by sensory stimuli.
We also believe that the new table added to the Discussion helps to place all findings in context and summarize them, and hopefully will add to clarity on this point.
Most importantly, as discussed in more detail below, the central behavioral task does not seem well-suited for the questions being probed (and is essentially abandoned after the first figure – see my recommendations below). The Abstract and Introduction establish an expectation for the reader that a behavioral task targeting this direction should have a very clearly measurable role for a sensory deviant, upon which the rest of the manuscript revolves. Although the behavior used may be somehow indirectly related to this issue, it is quite vague in precisely how, and seems forced into the study.
We hope that by separating different aspects of our Gap Crossing findings into distinct Figures and providing a better description of the results—including the detailed cartoon now included in Figure 1 and Figure 2—we make clear that the discrete change in position of a platform in the middle of a bout of vibrissal sampling is a sensory deviation, implemented during natural behavior. We agree with the reviewer that this task suffers from the ambiguity of all naturalistic tasks—as with the robust and ongoing debates around natural sensing with vibrissae, the exact components of vibrissal contact that create sensation are still poorly understood: In this task, which component of vibrissal information is important--amplitude change? directional slip? timing change?
However, we strongly feel that anchoring the relevance of our data in the embodied, natural condition is an important and ethologically relevant starting point. We then aimed to re-create the most likely, and tractable aspect of this behavior, amplitude changes in the middle of a train of 10Hz deflections in our head-fixed experiments, to examine the neural coding aspects of the effect in a well-controlled setting.
At the reviewer’s suggestion, we better clarified our motivations for conducting the Gap Crossing with Deviation Task, and we also now include the head-posted task. This better-controlled condition replicates the observation that weak L6 drive impacts the behavioral benefit of deviance encoding— in this case, basic detection.
In addition, the rest of the manuscript suffers at times from switching back and forth between different measurement modalities (ephys and 2P imaging) and stimulus design (single deviant, multiple deviants in a row), making it quite challenging as a reader to digest. In the spirit of trying to help the authors sharpen their argument and make the most impact in this really important and prescient issue, the following set of comments are offered:
Our choice of 2P imaging was driven by the need to study the sparse and genetically-identifiable population of L6 CT cells that we manipulated optogenetically. We recorded over 1000 neurons using tetrode recordings, and still only found a handful of L6 receptive fields.
We now explain more explicitly and show in the Table that in all receptive field mapping studies, irrespective of measurement modality, we used an amplitude deviant that breaks the consistency of a 10 Hz train of vibrissa deflections. We now make clear that throughout all electrophysiological analyses in the manuscript, we always analyzed only the first deviant stimulus, subsequent data were discarded.
While 2P enabled a crucial kind of experiment that would otherwise have been impossible, it also required a modification to this paradigm and analysis approach: We could not distinguish responses to individual vibrissa deflections because of our low sampling rate, and as the Reviewer can appreciate, deep imaging of highly sparse ensembles with GCaMP required a more robust mapping approach.
Therefore, we chose a nearly identical stimulus design, in which we either maintained a stimulus amplitude throughout a 10Hz train of deflections, or switched from one stimulus amplitude to a second, higher or lower one. We then analyzed how these trains are encoded, without making statements about individual vibrissa deflections. We hope that the text is now clear in this point.
Again, we thank the reviewers for the time and effort to make the manuscript more straightforward to digest. We have made numerous edits to the text and believe it is now more accessible.
1) Behavior – The authors make a really nice argument for the potential role of L6 cortical neurons in deviance detection, which motivates the study very well. They then propose an optogenetic manipulation of L6 neurons, in the context of a deviance detection task in mice. However, the behavior task that was implemented in Figure 1 is certainly not the most obvious choice for a deviance detection task, and it is really puzzling why this particular task was chosen (although one may still like the task). If the task is understood correctly, the mouse is trained to whisk across a gap, to contact a platform to which they can cross the gap for a reward. The deviance is created by retracting the platform by 2mm at random times during bouts of tactile sampling. Although they authors demonstrate that this has a demonstrable effect on behavior, in that they slow their approach to cross the gap, it is really unclear how the task might be affected by the deviance, per se, as in the classical implementations of deviance detection.
We recognize that we did not sufficiently explain the reasoning for this task. To directly meet this concern, we have now broken these data into Figure 1 and Figure 2, and we now provide a detailed cartoon illustrating the findings, in addition to inclusion of the basic data and summary of these findings in a new Table.
We chose Gap Crossing because it provides a straightforward way to study deviant sensing in untrained mice: First, the behavior is uninstructed, it requires cortex (Hutson and Masterton, 1986), it is sensitive to small changes in sensory processing (Celikel and Sakmann, 2007), and findings made in this context are more likely to apply to animals in other natural contexts.
The deviant in this task is small change in platform position during the middle of a bout of whisking sampling. As in any naturally occurring tactile exploration of an object, mice are approaching the platform while they locate it, adapt their whisking pattern, and each vibrissa contact is different (Voigts et al., 2015). Mice spend more time localizing a platform to compensate if information about its position is lower fidelity (Celikel and Sakmann, 2007). Mice react to the platform position deviation used here by slowing their approach and spending more time locating it. They only react to changes in ongoing bouts of whisking, not if the platform is moved by 2mm before (or after) they palpate it (Panels B,C of the Figure and (Celikel and Sakmann, 2007; Voigts et al., 2015)).
By testing the specificity of our manipulation in this naturalistic context we therefore exclude that the relationship between weak L6 drive and behavior or electrophysiology is only specific to adaptation to unnatural static stimuli, or can only occur in absence of motor activity in headfixation, or only applies in cases where fast reaction times are required, or for the exact stimulus amplitudes we selected…etc. In sum, the task provides strong evidence that our findings generalize to natural behavior.
To perform electrophysiology and imaging experiments, we then switched to a head-fixed setting to be able to average over large number of trials with identical sensory inputs. We chose the stimulus parameters in these cases to approximate Gap Crossing. We therefore now structure our study to explain that we establish the ethological relevance of our result in naturalistic behavioral responses to deviant stimuli, and then replicate this behavioral effect in a head-fixed setting (the new Figure 3) and then in head-fixed electrophysiology and imaging experiments to best identify neural correlates.
One would have expected a more focused behavioral paradigm, where the effects of the deviance is explicitly measured through standard psychophysical means. It is true that the authors apparently tested this in such a task, as discussed in Supplemental Figure 4, but the main behavioral task of the paper presented in Figure 1 seems not well-aligned with the goals of the manuscript in a way that readers may find confusing.
At the reviewer’s suggestion, to address any concerns about how our behavioral findings relate to the head-fixed electrophysiology or imaging results, and how they extend to behavior in nonnaturalistic settings, we have now included in the main text a figure showing the same effect, specific disruption of change detection, in a simple head-fixed detection task (new Figure 3).
To be more specific, the inputs to the whisker system as the animal is actively palpating the platform (and move their body and head) are not clear, and it is not clear that the movement of the platform would create a deviant input consistent with how this is being described throughout the manuscript.
We agree that as the reviewers point out, we did not measure the exact sensory inputs in our Gap Crossing with Deviation Task, as might eventually become possible with high-speed 3D whisker tracking and associated modeling of vibrissa kinematics. We do know when vibrissae touch the platform, and we use this data to identify ‘sham-change’ trials in which the platform moves too early or too late to create a proper deviant trial. We observe a clear slowing of the approach in change trials vs. these sham-change trials (Figure 2B,C). There is therefore a clear behavioral readout of deviant detection.
We also would like to point out that this task is not a change detection task—mice are not being asked to slow down when a deviant is present to get a reward—but a spontaneous uninstructed behavior in which mice react to deviations from expected sensory input by adjusting their behavior and speed, giving us the opportunity to observe whether they perceived the deviant.
As a side note, Figure 1 was found to be quite confusing and difficult to understand what was being presented – so in any case, simplifying and clarifying was suggested. But another possibility is to remove this behavior from the manuscript, as it is quite different from the rest of the data/figures. Would there be any way to pull the behavior of Supplemental Figure 4 back into the main manuscript as the central behavior?
We agree completely, and to directly meet this suggestion we separated the Gap Crossing with Deviation Task figure into two Figure 1 and Figure 2, and we added the Supplementary Figure 4 back into the main text (Figure 3) to highlight the behavioral result that employs the head-fixed/vibrissa-held conditions in which we collected electrophysiology and imaging data.
Again, there was enthusiasm about the overall arc of the story, but concerns were raised about whether the behavior really fits.
2) Overall, the manuscript is somewhat confusing – and part of this is likely due to the organization. One thing that plagues the manuscript is the use of different stimuli for almost every figure and analysis. It starts in Figure 1 with the active palpation in the gap jumping task, switches to 10 Hz train in Figure 2, and then to a 10Hz train with a single deviant in Figure 4 and Figure 5, switches to a 10Hz train with multiple deviants in sequence for the 2 photon imaging (Figure 3 and Figure 6), and finally with a mixture in Figure 7.
Again, we apologize for any confusion. We used the same stimulus design for all head-fixed experiments: A 10Hz train at a stable baseline amplitude, which can then switch to a second, higher or lower amplitude. The perceived differences across figures likely arose because we analyze the effect of the baseline amplitude (we find none) in Figure 6B. We now more clearly state this stimulus design.
It is likely the case that the 2P imaging required integrating across multiple stimulus presentations for practical reasons, necessitating this design,
That is correct, GCaMP imaging is too slow to reliably analyze individual deflections in a 10Hz train, and we now more clearly explain the reasoning behind this stimulus design. We did not interpret the L6 imaging results on a per-deflection basis.
but overall, this makes for a pretty confusing manuscript to navigate for the reader, with all of this jumping around between stimulus design and recording modality.
We believe that the new Table and many adjustments throughout will meet these concerns.
A potential concern was raised about the fact that the deviant is comprised of a sequence (and presumably the appearance of the second and third stimulus in the train might be different from the first, which is the true deviant). When is the deviant no longer a deviant, and instead the new background?
The Reviewer makes a very interesting point. Just as all detection tasks are, at a deeper level, change discrimination (comparing nothing to something), all stimuli at onset violate the prediction of sustained absence of input.
There is a wealth of literature describing differences in how stimuli are processed by the non-adapted vs. adapted sensory cortex (e.g. Webber and Stanley, 2006). Here, we were interested in small stimulus deviations that occur after an expectation has been set, such as the deviants we induced in our Gap Crossing with Deviation Task. We therefore studied deviations at positions 2 and later in the stimulus trains. Only the response to the first deviant stimulus in each train was analyzed. To directly meet this concern, we include the following Discussion:
“In this study, we employed two kinds of deviants. Variations from repeating baseline stimuli applied to the vibrissae, and ethologically relevant deviations in the position of a platform in the middle of sampling by freely behaving animals. In the latter case, the stimulus statistics (mainly vibrissa identity, angles, and curvature upon touch) change continuously as the mice approach or retreat from the target platform31 (Figure 2—figure supplement 1). In both cases, predictive models were at some level formed within the system, driving the change in response patterns and behavior. The similar findings across these paradigms suggests that the mechanism underlying the observed effects could be involved in more general predictive models. That said, during active sensing likely all transitions in perceptual input occur against the backdrop of a working internal model, and distinctions between anticipated and perceived input may be amplified, including the onset of a stimulus following a pause in stimulation. How the present findings relate to dynamics in more naturalistic environmental statistics is an important question for further study.”
It was thought that the authors can fix this through writing and organization, but as written, it is quite difficult to navigate. Perhaps a better explanation of the "why" for the differences in the stimulus design? Again, this is all exacerbated by the jarring transition from the behavior in Figure 1 to the rest of the paper as described above in point #1.
We appreciate that the transition from freely behaving to head-fixed experiments is a significant step, and we hope that the inclusion of the head-fixed behavior into the main text (new Figure 3), together with the multiple additional changes and explanations we added, now makes the manuscript much easier to follow.
3) The central over-arching assertion is that L6 neurons are vital for deviance encoding (and perhaps setting the stage for a predictive coding framework). However, the manipulations that are done are to either selectively engage a sub-population of L6 neurons through weak optogenetic stimulation without changing overall firing rate, or to strongly activate L6 neurons with strong optogenetic drive, both of which seem to “disrupt” deviance encoding.
This is correct, both manipulations disrupt the change encoding. However, the strong L6 drive (increasing mean L6 rates) also disrupted all other stimulus encoding, while the weaker L6 drive (changes L6 ensemble, maintains mean rates) appears to only disrupt change encoding, while having no effect on gap-crossing on static gaps, stimulus detection without deviants, or sensory-evoked firing rates. We therefore conclude that specific activity patterns in L6 are required for change detection, but not other sensory function.
To make this distinction clear, we now include a schematic Table in the Discussion. We hope that this addition makes the main conclusion of our study clearer.
Unless there was a misunderstanding of something here, it would seem that the presence of active L6 neurons disrupts deviance encoding, rather than facilitating it.
It seems like there was indeed a minor misunderstanding and we apologize for the unclear presentation of our results. Our weak L6 drive changes which L6 cells are driven by the vibrissa stimulus while maintaining mean firing rates (Figure 5). As discussed above, we now made the statements of this result clearer, and were also careful not to over-state our understanding of the intervening circuitry.
We would also like to explicitly re-state that we found no encoding of deviance itself in L6 cells. In other words, bulk firing rates in L6 do not signal the presence or absence of deviants. Instead, coding in L6 is very sparse, and optogenetically shifting specific small ensembles of L6 neurons directly leads to a loss of the behavioral effect of deviants, and a loss of deviance encoding in L2/3.
This itself is interesting, but confusion exists about statements like the last sentence of the Abstract, "These findings indicate that, despite their sparse activity, specific ensembles of stimulus-driven L6 neurons are required to form neocortical predictions, and for their behavioral benefit." The title of the manuscript captures the findings – that L6 regulates this, but the other text seems to suggest that L6 facilitates this, which seems to be the opposite of the findings. If this description somehow misconstrued the results, then the authors should find a way to clarify this text.
We show that changing which L6 ensemble is active directly leads to a disruption in change detection, but not to other sensory function. We therefore conclude that specific ensembles of active L6 cells are required for change detection. We have now attempted to explain this reasoning better in the revised Discussion and throughout the text. Our findings we believe do “indicate” this conclusion— without being needlessly semantic, in the short space of the Abstract, we wish to make sure that readers take away the main implication of the study (particularly given concerns that this implication was unclear).
4) Confusion exists about the results at the core of the study. Figure 4 says there is no net relationship between the amplitude of the stimulus deviance and the change in firing rate for L4 or L2/3 neurons (Figure 4G), but then Figure 5 dissects this, only to conclude that L4 has deviance encoding (positive correlation of deviance sign and change in firing rate), but not L2/3 (Figure 5B).
This is correct, but our description and interpretation of the results was too condensed to clearly convey the findings: There is no direct encoding of deviant presence by mean firing rates in either layer. In other words, slightly changed stimulus amplitudes did not on average lead to higher rates. This finding is we think important—it deviates (sorry for the pun…) from the canonical view, that deviants always cause “bigger” responses in neocortex due to mechanisms like stimulus specific adaptation.
As we then expand in Figure 7, deviants affect firing rates in L4 as one would expect from the prior literature showing increased sensitivity to the details of a representation following adaptation: Increased amplitude of a stimulus that is a deviant drives a detectable increase in L4 firing rates, and vice versa decreased amplitudes in deviants lead to decreased rates (Figure 7B).
We believe that the revised text, with more explicit interpretations of these findings, makes these Results clearer.
5) The confusion experienced in Figure 4 and Figure 5 continued with the optogenetic manipulation of L6 in Figure 7. Why were results not presented for L4, as opposed to just recordings in L6 and L2/3, since Figure 5 shows that the deviance encoding was emergent in L4 and not L2/3?
We concentrated on L2/3 because that is where we observed change encoding. Both L2/3 and L4 encoded current deviants, but in different ways: L4 cells increased their rates for deviants that were amplitude increases, and decreased their rates for amplitude decreases. L2/3 also showed sensitivity to the deviant’s presence, but about half the cells in L2/3 followed the opposite pattern, they reduced their rates for amplitude increases and increased them for decreases. While L4 showed the effects predicted by prior adaptation studies (stimulus precision is better encoded following adaptation), L2/3 showed encoding of the specific details of the deviance.
The same findings could have emerged if L2/3 cells were not sensitive to deviation, but rather showed specific amplitude tuning (so, when a smaller stimulus is given, it is simply the “better” stimulus for some specific cells tuned to that smaller amplitude). To test for this possibility, we maintained the deviance amplitude as constant but changed the starting baseline amplitude, and again found that L2/3 encoded deviation, not absolute amplitude. Similar emergence of change-encoding in L2/3 has been reported in visual cortex (Zmarz and Keller, 2016). L2/3 thus coded stimulus history, rather than simple deviant amplitude coding in L4.
We therefore analyzed the effect of the L6 manipulation on L2/3, and found a removal of the change encoding, both of current stimuli and stimulus history.
Is it the case that there is just no effect? Furthermore, the title of Figure 7 is "Weak L6 drive disrupts both stimulus encoding in L6 and the emergence of deviant encoding in L2/3", yet the results in Figure 7B seem to suggest that when the laser is turned on to weakly drive L6 neurons, the deviance encoding emerges (as shown by the shift of the median away from zero), rather than being disrupted. It could be the case that this was not interpreted correctly during review, but in any case, readers would also likely struggle with this. Are 7A and 7B consistent?
L6 manipulation causes the following changes in L2/3 encoding:
I) L6 stimulation removes the heterogeneous encoding of deviant stimulus amplitude in L2/3. This effect is evident in the significantly reduced width of the distribution of change coefficients and significant reduction in its spread (measured as IQR).
II) L6 stimulation causes L2/3 to act like L4, and show encoding of stimulus amplitude by a direct change in firing rates with larger deviants (more spikes) versus smaller (fewer spikes). This effect is evident in the significant rightward shift of the histogram to “positive” encoding. This is a disruption of the naturally occurring deviance coding, even though the spike counts are still driven by the stimulus.
These findings are now explicitly discussed in the Figure legend and in the text.
6) In Figure 2 there are dramatic differences in the quality of recordings in panel A versus B. Was this due to the use of tetrodes in b and silicon probe in A, and if so, is this something we should be worried about for the rest of the study that relies on the laminar recordings from the silicon probe?
Yes, the new Figure 4 (formerly Figure 2) shows laminar probe recordings for our strong laser study across layers in “A”, and “B” shows tetrode recordings. We use tetrode recordings throughout the rest of the study. We now state this clearly in the text.
7) In Figure 4, the authors show the results of small variations in stimulus amplitude in L2/3 and L4 but not L6. They later show in Figure 6 the results of L6 encoding stimulus amplitude – why did they choose to present these results in separate figures?
We separated the analyses because the L2/3 and L4 data are per-deflection analysis from tetrode arrays, and the L6 result is 2-photon GCaMP imaging and uses a slightly modified stimulus paradigm, as discussed above. We now explicitly reference the tetrode findings in the discussion of the calcium indicator data.
8) It is also not clear if the pattern of stimulus trains used in Figure 4 vs Figure 6 are the same or different. For example, in Figure 4 they use constant stim trains of one amplitude vs. another, and constant stim trains with a single deviation. In Figure 6 it looks like they test a constant stim train of one amplitude followed by a constant stim train of another amplitude. Why are these results analyzed differently?
That is correct, as stated above, the time scale of the GCaMP6s indicator we used for 2-photon imaging did not allow us to analyze individual deflections at 10Hz, but instead gave us a read out of the activity over the entire stimulus train. We therefore modified our amplitude deviant slightly to a more simplified stimulus design and analyzed the overall stimulus information encoded by L6 CT cells rather than the per-deflection code analyzed throughout the rest of the paper.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Reviewer #1:
The authors have responded to the previous critiques, and the paper is now much more readable. The new figures highlight the exact experimental design and interpretation. Overall, it is much improved.
We appreciate the constructive suggestions, they were really helpful in guiding the clarification, and glad to see the editing helped.
However, there are still some points that are not clear, and further revision could improve comprehension.
1) Subsection “Weak depolarization of L6 neurons changed the identity of stimulus-driven ensembles in L6 without changing mean firing rates across layers”. I think you need to say something like we tested the effects of "weak and strong stimuli, analogous to those disrupting Gap Crossing, etc. ", on basic sensory encoding, unless you did both sets of experiments in each mouse, in which case you might want to say that explicitly.
We added a clarification to the text that now states clearly that we carried out separate sets of experiments in different mice. “We next quantified the impact of strong (disrupts Gap Crossing) and weak (selectively disrupts the impact of deviants) optogenetic L6 drive regimes on basic sensory encoding in head-fixed mice.”
2) Figure 2, while improved, is a bit confusing, as it indicates time and space in a complex way. Might it be possible to change the depiction of the moving platform to make it appear discontinuous, perhaps with multiple overlapped shadowed positions of the platform? As depicted, one has the visual impression that a platform with a recessed portion is moving left to right.
Thank you for the suggestion, we changed the depiction of the platform by making it discontinuous and adding the same arrow as we use to indicate platform motion throughout the rest of the figure.
Reviewer #2:
In this work, the authors set out to address the functional role of cortical Layer 6 in predictive coding in the context of a deviant detection task in the awake, freely behaving mouse. They specifically put forth the idea that this particular circuit may be involved in predictive coding, where predictions are made based on past experience, and compared with incoming signals, perhaps driving the detection of anything that deviates from the expectation. As with the original manuscript, the general theme of linking L6 CT and predictive coding is very intriguing, and while there are increasing numbers of studies investigating the function of L6 CT neurons due to the new tools enabling the specific targeting of this cell type, the actual role of these neurons in behavior and perception is largely an area of speculation at this point. So, we really need studies like this. Moreover, the authors present very interesting results, such as a change in behavioral performance due to low L6 drive and a complete shutdown of sensory-based performance due to strong L6 drive, and the engagement of a different ensemble of neurons in L6 with weak optogenetic drive of L6 (that was also linked to weaking of behavioral sensitivity to deviant stimuli, but not affecting behavioral performance).
Following the first round of critiques, the authors made substantial changes to address the concerns of the reviewers, making an earnest attempt to clarify and streamline the argument. The revisions conducted by the authors were very helpful in making the objectives and findings much more clear.
We are gratified that our objectives and findings are clearer. Finding our path to make it accessible with this body of work has been tricky, so we appreciate very much the time and specific perspective of this reviewer.
Perhaps the most important response for this reviewer: We failed to make a connection in the prior paper version that was obvious to us, but we now realize was never made explicit. Our Gap Crossing with Deviants task has been characterized extensively using high-speed video by our group (Voigts and Celikel, 2015), and we know that amplitude change is a major altered variable in the contact response when the platform is moved. This detailed finding from observing the vibrissae was a/the driver of our choice to look at amplitude deviation in the more controlled head posted conditions. We failed to make this quite direct connection clear before, but now do so, integrating the Gap Crossing task with the rest of the paper in a much more explicit and logical way.
However, this also highlighted some issues that are still troublesome:
1) With the revision, the description of the task is now much more clear – the breaking of the original Figure 1 into the new Figure 1 and Figure 2 and the corresponding text around this improve the clarity a lot. Furthermore, the behavioral consequences of the L6 CT activation are clear – the movement of the target platform leads to a slow-down in the crossing, and weak ChR2 activation of L6CT neurons restores the behavior to the normal speed (the same as in the absence of the platform move).
What I still find to be a stretch is the connection of this behavioral paradigm to the concept of deviance detection. While the behavioral results are unambiguous – as shown in Figure 2C,E,G, the nature of the sensory (whisker) stimulus during this behavior is still hazy.
We’d like to thank the reviewer for the thoughtful feedback. Applying the term ‘deviance detection’ to the Gap Crossing experiment is indeed not straightforward because in this task mice are not explicitly trained to detect deviant stimuli for a reward, but rather the detection of the deviant leads to an observable nontrained intrinsic behavior, in this case additional sampling of the platform with vibrissae before gapcrossing.
We now make sure to specify that this is not a trained deviant detection task, “Mice were not rewarded for detecting this deviation”, but a task in which we observe the detection or non-detection of a stimulus,
The figure shows cartoonish representations of the whisker inputs as the mouse actively contacts the platform before and after the movement of the platform, showing a sequence of identical amplitude whisker deflections, followed by a dramatic reduction in the amplitude of the whisker input after the platform moves, which could be thought of as a deviant input, but whether the whisker input actually looks like this or not, is entirely unclear. This may indeed be the case, but I think just suggesting it without showing it, leads to some discomfort about the connection.
This is a good point and we now make sure to state explicitly that none of our conclusions require a direct connection between the stimuli that lead to the deviance detection in the Gap Crossing task, and the rest of the paper.
We do, in fact, know a fair amount about what vibrissal contact dynamics in this task look like at high speed and spatio-temporal resolution, but did not emphasize this explicitly enough in the prior draft. Voigts and Celikel, 2015 (Voigts is the first author on the present study) quantified whisker dynamics in this exact task using high-speed videography. We chose this task because it is an example of mice reacting to deviant stimuli in a real-world setting.
We now make this motivation for the choice of this task explicit, and make clear the specific components of the task that change, and highlight this now.
– We state that we chose this task because it was characterized in detail previously: “.a naturalistic and untrained, but well studied and characterized sensory decision-making task”.
– Point out that contact amplitude was one of the key variables of vibrissal contact that change as a result of the sudden repositioning of the target platform: “We chose amplitude deviants because they are a significant factor in the Gap Crossing Deviants experiment33, provide a single parameter that can be kept close to neutral, and keeps the timing of the stimuli identical.”
– In the Figure Legend, we now specifically refer to the prior paper and the Figure within it that specifically characterizes the variable analyzed here “To create a sudden, small sensory deviation, in the Gap Crossing with Deviation task the target platform was retracted by ~2 mm during bouts of tactile sampling. Prior high-speed videography studies have shown this small, unexpected deviation in the position of the platform leads to changes in vibrissal motion, including reduced deflection amplitudes (Figure 9 of reference 33).”
– We also continue to make sure we emphasize that in this realistic task, we do not know the exact variables driving the behavior. “Detecting a sudden change in platform position in the Gap Crossing with Deviation experiment likely results from a combination of multiple sensory parameters that change because of the changed position of the vibrissa contacts. Previous high-speed videography studies showed that these parameters include a change in amplitude of vibrissal contact deflections (33 same experimental conditions), as well as other parameters such as relative timing33, and likely deflection angles36,37, assymetry38, timecourse of the torque39, and vibrations37,40.”
I made this comment in the first round, and while I do think the authors took my comment seriously, they seem to fundamentally disagree. So, I would just like to restate this, in the spirit of helping them understand why readers may not easily lock on to this connection. For me, the transition between the first part of the paper and the rest is still quite jarring. Overall, I love the gap-crossing paradigm, and I think there is something important happening here when the hesitation induced by the platform move is removed with L6CT activation, but I can't help but see this as disconnected from the rest of the paper.
As the reviewer points out, the deviant stimulus in the gap-crossing experiments, some change in vibrissal contact amplitude / timing / phase / direction, is not the same as in the head-posted setting. However, as we outlined above, the vibrissa-based sensory input in this setting has been characterized, and amplitude deviants are a major component. We failed to make this direct connection clear (at any level!) in the original paper, and we now do so.
Regarding our choice of head posted experiment, we chose a stimulus design that is tractable, has one degree of freedom, and aims to capture some of the properties of the gap-crossing, and arrived at relative amplitudes as the best compromise. Of course, any direct comparison between the head fixed and free experiments is going to be insufficient—for example, tension in the follicle is inarguably different in the two cases, even if we matched the external vibrissal mechanics.
We therefore avoid any conclusions that rely on direct comparisons between the two. Instead, we show that the same high-order effect, the removal of change detection, persists between these conditions. The replication of effects across very different kinds of tasks, is we think a major strength of the paper, now that the explicit link to reduced amplitudes is clearer.
We now emphasize even further that the more controlled if less natural task is not meant to somehow capture all the variables, just one prominent one.
2) Overall, this paper is a tough read. I believe this stems from the use of multiple behavioral tasks (Gap Crossing, whisker direction deviance, whisker amplitude deviance), and the jumping around between different cortical layers and measurement techniques. For example, with the behavior, related to point 1 above, Figure 3 discusses a direction deviant task, and the authors attempt to lead the reader to think this is a natural next step following the Gap Crossing task (saying that the platform move likely changes a lot of things, including amplitude and direction of motion, but none of this is shown). Even if the Gap Crossing results occur because the first (and maybe subsequent) whisker contacts following the platform move are different (smaller?) than those before the move, it is really hard to see why the direction deviance task would be the logical follow-up to this.
As outlined above, and in the paper, we agree that there are multiple aspects of vibrissal contacts that change in the platform position deviant. We also agree that the direction deviant is not as closely aligned with this task as the amplitude deviants.
We included the direction deviant task in the main text at the specific request of the reviewers in the last round of revision and did not intend to draw a direct connection between the task other than as a replication of the effect of weak L6 drive on deviant processing in another task. As mentioned above, communication is tricky in science—many different paths through a body of data could be ‘correct’ for one reader and entirely distracting for another. Given that we already put these data in at the request of this same set of reviewers, we decided to keep it in the main. More importantly, given our extensive experience presenting these data in seminars, we have found that showing these data can be a key to helping the scientific audience ‘get the point’ of this body of work (again, in agreement with the intuition of this reviewer in the last round).
To clarify this point, we have now added another specific description of this fact: “‘To test whether the impact of weak L6 drive on the effects of sensory deviation replicates in a head-fixed behavior in which one specific parameter of whisker motion is changed,…”
As a side note, I'm not really sure what to make of the fact that for the direction deviant task, the hit rate for the deviant is higher than baseline for weak stimuli and lower than baseline for strong stimuli (reported in Figure 3B is the mean across all stimuli?).
That difference is not statistically significant. In general, we do not expect the manipulation to have an effect on suprathreshold stimuli, for instance indicated by maintenance of gap-crossing performance in absence of deviants. We also specifically tested if the blue light had an effect on animal behavior by itself and found that it does not.
To make things more confusing, the subsequent figures that look at the neural correlates of this behavior employ an amplitude deviant in the sensory stimuli, and not a direction deviant. While the results in Figure 3 are interesting, it is difficult to see how it naturally ties into the narrative. It may be best to instead use this task show the breadth of ways L6 CT can modulate behavior that involves deviants, as opposed to a logical next step from the gap-crossing, or even consider putting it back into the supplement and to remove the distraction altogether.
At the request of this reviewer, we now added greater clarification that the amplitude deviants are not meant to be a direct analogue to the gap-crossing, but a quantification of the neural response to one of the major tractable parameters that change in the gap-crossing setting: “We chose amplitude deviants because they are a significant factor in the Gap Crossing Deviants experiment33, provide a single parameter that can be kept close to neutral, and keep the timing of the stimuli identical.”
We also explicitly state that the direction deviant task is using a different stimulus paradigm with the aim of replicating the behavioral finding (selective disruption of deviant processing) in a different, head-fixed task: “To test whether the impact of weak L6 drive on the effects of sensory deviation replicates in a head-fixed behavior in which one specific parameter of whisker motion is changed,”.
3) Beyond the first few figures, the central claim of this work is that because weak L6 CT drive changes the ensemble of active neurons in L6 and also disrupts behavior, then the original ensemble of active neurons in L6 is necessary for deviance encoding. For this kind of assertion of necessity (going beyond just sufficiency), however, requires control experiments that directly test this, often in the form of lesioning or inactivation. The authors did not perform this kind of control, which seems important for this claim. Thus, what the authors have actually proven is that the activity of the ensemble engaged after weak L6 CT drive is correlated with disrupting deviance encoding. It remains unknown whether the original ensemble is required for deviance encoding or whether the new ensemble engaged after weak L6 CT drive is rather employing mechanisms to alter deviance encoding. This difference is subtle but important in establishing the extent of claims that the data can support.
This is an interesting point, and we had not made some key terms clear enough in our manuscript. We think there are several aspects to this that we would like to clarify:
First, highly selective ensemble manipulation at the depth of layer VI is not possible, even state-of-theart 2-photon stimulation cannot reach this depth. We now state “Future studies that may achieve ensemble specific optogenetic control will be able to causally test the relationship between the encoding properties of L6 cells and their causal roles.”
Second, we would also like to point out that prior work by Scanziani and colleagues has shown that changes in overall rate of L6 activity lead to widespread inhibition or disinhibition throughout the column. We replicate the finding of inhibition via increased L6 rates in SI. These results show that increased or decreased L6 activation disrupts any basic stimulus responses.
Third, to address the question about the ensemble: We specifically do not claim that one initial ensemble, defined as a set of active cells, was required for deviance processing, in contrast to a second optogenetically driven set. What we claim is that the original state of L6, composed of an ensemble comprised of active and inactive neurons is required, and that the optogenetically driven second set (with different active and in active neurons) cannot support this function.
We make this claim based on the necessity experiments in this paper, where we modify the ensemble without affecting overall L6 rates.
We now explicitly state that: “This finding suggests that a sparse pattern of activity, comprised of both active and inactive neurons in L6, with specific connectivity, is required for deviance encoding’. and ‘In addition to the set of active neurons, the set of cells that remain inactive, or are suppressed by the vibrissa stimulus across these conditions could also play a role in the downstream decoding.”.
The suggested experiment of removing the ensemble is of course interesting, but there are technical and conceptual issues.
First, as described above, simply silencing the active cells in L6 leads to overall gain modulation and we learn nothing about the deviance-specific function of these cells.
One could then envision counteracting this effect and simultaneously inactivating the stimulus driven set of L6 cells while activating a different set if L6 cells to restore overall inhibitory drive and firing rates throughout the cortical column. This experiment is exactly the one we have carried out here, with the obvious caveat that we did not get to choose the sets of activated or inactivated L6 cells. We nevertheless found a deviance-specific disruption.
Finally, repeating the experiment with future technology that gives us a choice of suppressed and activated ensemble could give additional insight, for instance by testing if L6 cells that had certain coding properties are required but others are not etc. We now discuss this explicitly: “Future studies that may achieve ensemble specific optogenetic control will be able to causally test the relationship between the encoding properties of L6 cells and their causal roles.”
4) As described above, in addition to the trained behaviors, the employed measurement modalities also switch around from figure to figure, and even within figures in one case, making it difficult to understand what is going on. For example, Figure 4 displays a laminar silicone probe which the text describes to have been used only for the strong L6 CT drive; the text says a chronic tetrode recording was used for the weak L6CT drive results in panel B, but that is not clear. This may have come about through some practical (and non-scientific) reasons, but the authors should at least acknowledge that navigating all of these techniques is a challenge for the reader, and do what they can to help make this possible (or risk having it not read).
The choice of chronic tetrode implants (at a time before neuropixels probes were available) was motivated by the desire to sample a maximal number of neurons across different depths, and to cleanly separate regular spiking and fast spiking neurons. We added text labels to the figures that describe the recording modalities.
https://doi.org/10.7554/eLife.48957.sa2Article and author information
Author details
Christopher A Deister
Christopher I Moore
Funding
National Institutes of Health (R01NS045130)
- Christopher I Moore
National Institutes of Health (F32MH100749)
- Christopher A Deister
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
Supported by the NIH: R01NS045130 to CIM and F32MH100749 to CAD. We thank HHMI/Janelia Farm Research Campus and their GENIE Program (V Jayaraman, R Kerr, D Kim, L Looger and K Svoboda) for making GCaMP6s available, Tim Buschman for providing behavioral state machine code, and Jon Newman for providing the cyclops LED driver. We thank Scott Cruikshank and Shane Crandall for discussions and comments on the study and manuscript, and Tyler C Brown, Joshua H Siegle and Laura D Lewis for their feedback on the manuscript.
Ethics
Animal experimentation: All procedures and animal care protocols conformed to guidelines established by the National Institutes of Health, and approved by the Institutional Animal Care and Use Committee (IACUC) protocol (#1710000308) at Brown University (PHS Animal Welfare Assurance number D16-00183).
Senior Editor
- Laura L Colgin, University of Texas at Austin, United States
Reviewing Editor
- John R Huguenard, Stanford University School of Medicine, United States
Reviewers
- Garrett B Stanley, Georgia Institute of Technology, United States
- Jeanne T Paz, Gladstone Institutes, United States
Publication history
- Received: June 1, 2019
- Accepted: December 1, 2020
- Accepted Manuscript published: December 2, 2020 (version 1)
- Version of Record published: January 20, 2021 (version 2)
Copyright
© 2020, Voigts et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,184
- Page views
-
- 310
- Downloads
-
- 8
- Citations
Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.
Download links
A two-part list of links to download the article, or parts of the article, in various formats.
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Layer 6 ensembles can selectively regulate the behavioral impact and layer-specific representation of sensory deviants
eLife 9:e48957.
https://doi.org/10.7554/eLife.48957
Further reading
-
- Neuroscience
The treatment of neurodegenerative diseases is hindered by lack of interventions capable of steering multimodal whole-brain dynamics towards patterns indicative of preserved brain health. To address this problem, we combined deep learning with a model capable of reproducing whole-brain functional connectivity in patients diagnosed with Alzheimer’s disease (AD) and behavioral variant frontotemporal dementia (bvFTD). These models included disease-specific atrophy maps as priors to modulate local parameters, revealing increased stability of hippocampal and insular dynamics as signatures of brain atrophy in AD and bvFTD, respectively. Using variational autoencoders, we visualized different pathologies and their severity as the evolution of trajectories in a low-dimensional latent space. Finally, we perturbed the model to reveal key AD- and bvFTD-specific regions to induce transitions from pathological to healthy brain states. Overall, we obtained novel insights on disease progression and control by means of external stimulation, while identifying dynamical mechanisms that underlie functional alterations in neurodegeneration.
-
- Neuroscience
Previous research has associated alpha-band [8–12 Hz] oscillations with inhibitory functions: for instance, several studies showed that visual attention increases alpha-band power in the hemisphere ipsilateral to the attended location. However, other studies demonstrated that alpha oscillations positively correlate with visual perception, hinting at different processes underlying their dynamics. Here, using an approach based on traveling waves, we demonstrate that there are two functionally distinct alpha-band oscillations propagating in different directions. We analyzed EEG recordings from three datasets of human participants performing a covert visual attention task (one new dataset with N = 16, two previously published datasets with N = 16 and N = 31). Participants were instructed to detect a brief target by covertly attending to the screen’s left or right side. Our analysis reveals two distinct processes: allocating attention to one hemifield increases top-down alpha-band waves propagating from frontal to occipital regions ipsilateral to the attended location, both with and without visual stimulation. These top-down oscillatory waves correlate positively with alpha-band power in frontal and occipital regions. Yet, different alpha-band waves propagate from occipital to frontal regions and contralateral to the attended location. Crucially, these forward waves were present only during visual stimulation, suggesting a separate mechanism related to visual processing. Together, these results reveal two distinct processes reflected by different propagation directions, demonstrating the importance of considering oscillations as traveling waves when characterizing their functional role.
