Formin-2 drives polymerisation of actin filaments enabling segregation of apicoplasts and cytokinesis in Plasmodium falciparum

  1. Johannes Felix Stortz
  2. Mario Del Rosario
  3. Mirko Singer
  4. Jonathan M Wilkes
  5. Markus Meissner  Is a corresponding author
  6. Sujaan Das  Is a corresponding author
  1. University of Glasgow, United Kingdom
  2. Ludwig Maximilian University, Germany

Abstract

In addition to its role in erythrocyte invasion, Plasmodium falciparum actin is implicated in endocytosis, cytokinesis and inheritance of the chloroplast-like organelle called the apicoplast. Previously, the inability to visualise filamentous actin (F-actin) dynamics had restricted the characterisation of both F-actin and actin regulatory proteins, a limitation we recently overcame for Toxoplasma (Periz et al, 2017). Here, we have expressed and validated actin-binding chromobodies as F-actin-sensors in Plasmodium falciparum and characterised in-vivo actin dynamics. F-actin could be chemically modulated, and genetically disrupted upon conditionally deleting actin-1. In a comparative approach, we demonstrate that Formin-2, a predicted nucleator of F-actin, is responsible for apicoplast inheritance in both Plasmodium and Toxoplasma, and additionally mediates efficient cytokinesis in Plasmodium. Finally, time-averaged local intensity measurements of F-actin in Toxoplasma conditional mutants revealed molecular determinants of spatiotemporally regulated F-actin flow. Together, our data indicate that Formin-2 is the primary F-actin nucleator during apicomplexan intracellular growth, mediating multiple essential functions.

https://doi.org/10.7554/eLife.49030.001

Introduction

The phylum Apicomplexa includes a variety of obligate intracellular parasites, which invade into and replicate inside mammalian cells, causing immense disease burden in humans and in commercially important livestock. One of its notorious members, the malaria parasite Plasmodium falciparum, is a major health concern in developing nations, causing ~500,000 deaths annually (White et al., 2014). Another member, Toxoplasma gondii is a highly successful parasite infecting almost a third of the global human population and can be fatal in immunocompromised patients (Torgerson and Mastroiacovo, 2013).

Actin is one of the most abundant proteins in eukaryotic cells. Due to its ability to form polymers, this cytoskeletal protein is involved in numerous processes such as cell motility, cytokinesis, organellar and vesicular transport, secretion and endocytosis (Svitkina, 2018). Actins encoded by apicomplexan parasites are highly divergent compared to canonical actins from other eukaryotes (Douglas et al., 2018). In-vitro, apicomplexan actins form only short, unstable polymers due to different polymerisation kinetics, caused by variation of certain key amino acids otherwise conserved in metazoans (Kumpula and Kursula, 2015). However, until recently, an analysis of filamentous actin (F-actin) localisation and dynamics in apicomplexan parasites was hindered by the unavailability of F-actin sensors (Tardieux, 2017), a limitation recently overcome by the expression of F-actin binding chromobodies in T. gondii (Periz et al., 2017). Intriguingly, in this parasite, F-actin can form an extensive intra-vacuolar network that appears to be involved in material exchange and synchronisation of parasite division (Periz et al., 2017).

Until recently, studies on apicomplexan F-actin focused on its critical role during host cell invasion and gliding motility (Soldati et al., 2004; Baum et al., 2008a), where it is believed to provide the force for both processes (Frénal et al., 2017). However, recent studies using conditional mutants for actin-1 in two apicomplexans, P. falciparum and T. gondii highlight additional critical roles of F-actin during intracellular parasite development (Das et al., 2017; Periz et al., 2017; Whitelaw et al., 2017). Intriguingly, some functions, such as inheritance of the chloroplast-like organelle, the apicoplast, appear to be conserved (Andenmatten et al., 2013; Egarter et al., 2014; Das et al., 2017; Whitelaw et al., 2017), while differences for the dependency of F-actin can be observed for other critical steps of the asexual life cycle. For example, host cell invasion is possible without actin-1 (albeit at highly reduced levels) in case of T. gondii (Andenmatten et al., 2013; Egarter et al., 2014; Whitelaw et al., 2017), while it is completely blocked in case of P. falciparum (Das et al., 2017). In contrast, P. falciparum does not require actin dynamics for egress from the host cell (Das et al., 2017; Perrin et al., 2018), while it is essential for T. gondii. Additionally, completion of cytokinesis in P. falciparum is dependent on actin dynamics (Das et al., 2017), while no such dependency has been noted for T. gondii. The functions of P. falciparum actin-1 have been summarised in a table in Figure 1A.

Figure 1 with 2 supplements see all

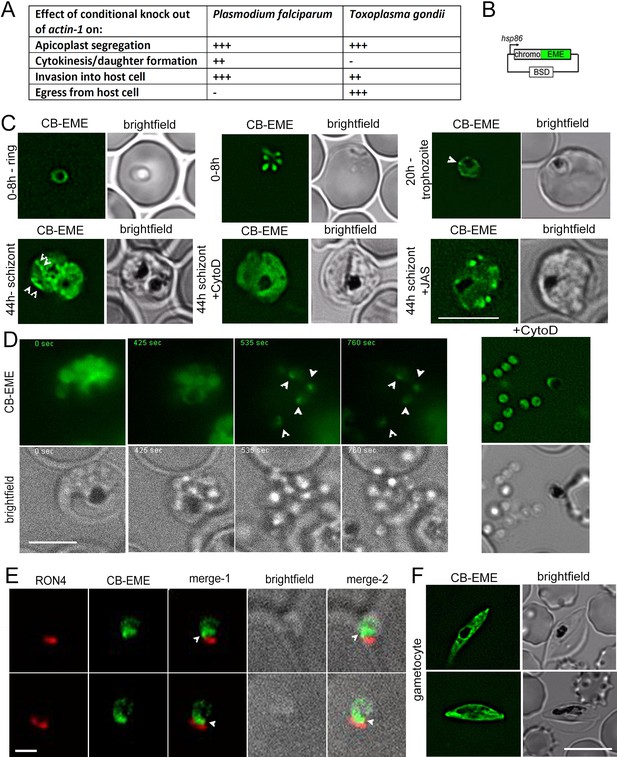

Chromobody-Emerald constructs label F-actin structures throughout the P. falciparum lifecycle.

(A) Table summarising the functions of actin in P. falciparum and T. gondii (Andenmatten et al., 2013; Das et al., 2017; Whitelaw et al., 2017). Upon conditional disruption of actin-1 in either organism, highly penetrant phenotypes observed are labelled as +++, moderate phenotypes as ++, and no effect on phenotype with -. (B) Chromobody construct used in this study under the hsp86 promoter with a C-terminal emerald tag (CB-EME). See also Figure 1—figure supplement 1 for a chromobody construct with a C-terminal halo tag (CB-HALO) and its characterisation. Blasticidin-S-deaminase (BSD) confers resistance to blasticidin. (C) CB-EME labels actin filaments throughout the 48 hr asexual life cycle with, in ring stages (0–8 hr), trophozoite stages (20 hr) and in 44 hr schizont stages. White arrows mark structures, in all likelihood F-actin, which disappear upon cytochalasin-D treatment (+CytoD), and islands of F-actin are stabilised upon jasplakinolide treatment (+JAS). Scale bar 5 µm. See also Videos 1, 2 and 3 and Figure 1—figure supplement 2. (D) Time lapse imaging of schizonts undergoing egress from the host cell, reveals a bright fluorescent signal (CB-EME) of F-actin (white arrows) at a polar end of the merozoite, appearing immediately after host cell rupture (occurs in 56 ± 9% egressed merozoites, N = 260 from three independent experiments). See also Video 4. Cytochalasin-D treatment completely prevents the polar polymerisation of F-actin in all cells (+CytoD). Scale bar 5 µm. (E) IFA of invading merozoites with the junction marker RON4 shows CB-EME staining close to the RON4 stain, implying that F-actin polymerises at the apical end prior to invasion. Scale bar 1 µm. (F) The F-actin network and dynamics can be visualised in gametocytes (see also Video 5). Brightfield images provided in greyscale alongside. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.002

Of the two actin genes present in P. falciparum (Gardner et al., 2002), only actin-1 (pfact1, GeneID: PF3D7_1246200) is expressed in all life-cycle stages and is the only actin expressed during asexual replicative stages, whereas actin-2 (GeneID: PF3D7_1412500) expression is confined to the sexual gametocyte and insect stages (Deligianni et al., 2011; Vahokoski et al., 2014). P. falciparum undergoes a 48 hr asexual replicative cycle in the intermediate human host where it invades into, grows and replicates within erythrocytes, causing all clinical manifestations of the disease. After invasion, the merozoite form of the parasite (similar to T. gondii tachyzoites) establishes itself within a parasitophorous vacuole (PV), loses its ovoid shape to become amoeboid and feeds on host haemoglobin creating a food vacuole (FV) where haem is detoxified (Grüring et al., 2011). Interestingly, actin has been implicated in transport/fusion of haemoglobin-filled vesicles (Elliott et al., 2008; Smythe et al., 2008). The parasite then replicates by a process best described as internal budding, where daughter parasites develop within the mother (Francia and Striepen, 2014). In the case of T. gondii, only two daughters are formed at a time in a process called endodyogeny. In contrast, malaria parasite replication within the erythrocyte, termed schizogony, results in the formation of 16–32 merozoites at once. Towards the end of a replicative cycle the parasite forms its invasion-related organelles de novo: the inner membrane complex (IMC), micronemes and rhoptries. In contrast, parasite mitochondria and the apicoplast undergo growth and division and are trafficked into each daughter cell (Bannister et al., 2000). Although endodyogeny and schizogony appear different, it is believed that both processes use a conserved molecular machinery. Indeed, independent studies identified the same factors to be critical for both replicative modes (Francia and Striepen, 2014).

Despite this, it could be assumed that differences, especially with respect to vesicular transport processes such as endocytosis and intra-vacuolar parasite communication, exist to adapt to different replication modes. This puts F-actin in the spotlight as it plays a central role in these processes in other eukaryotes (Svitkina, 2018). We recently characterised a conditional mutant of PfACT1 and observed that in good agreement with the function of actin in T. gondii (Andenmatten et al., 2013; Jacot et al., 2013), inheritance of the apicoplast is compromised during schizogony (Das et al., 2017). While the phenotypic analysis of conditional mutants is useful to identify conserved and unique functions of F-actin in apicomplexans, the inability to visualise F-actin in these parasites led to models, sometimes conflicting with each other and with the canonical behaviour of F-actin in other eukaryotes.

Common actin-labelling probes such as Phalloidin do not label apicomplexan actin and LifeAct could not be successfully expressed in these parasites (Periz et al., 2017). Recently, actin-binding single-domain nanobodies tagged to fluorescent probes, called actin-chromobodies, were successfully expressed in T. gondii and shown to have minimal effect on actin dynamics (Periz et al., 2017), as also demonstrated in other eukaryotic cells (Rocchetti et al., 2014; Panza et al., 2015; Melak et al., 2017). Furthermore, these chromobodies could faithfully label purified Plasmodium actin in in-vitro experiments (Bookwalter et al., 2017).

Here we adapted the actin-chromobody technology to P. falciparum and demonstrate for the first time the localisation, dynamics and role of F-actin for parasite development in asexual stages. Interestingly, we find F-actin in proximity to the apicoplast throughout intracellular growth, leading to the question of which actin regulatory proteins are involved in this process. Most actin nucleation proteins such as the Arp2/3 complex and the WAVE/WASP complex, and actin cross-linkers such as α-actinin and fimbrin are missing in apicomplexans (Baum et al., 2006; Schüler and Matuschewski, 2006). Two conserved nucleators found in P. falciparum are the formins, Formin-1 (PfFRM1) and Formin-2 (PfFRM2) which localise to distinct compartments in the cell (Baum et al., 2008b). Orthologs of both formins have been implicated in host cell invasion in T. gondii (Daher et al., 2010), with T. gondii Formin-2 (TgFRM2) also being implicated in apicoplast maintenance (Jacot et al., 2013) – leading to inconsistencies in reports and questions whether the two formins have conserved or divergent functions in both parasites. Indeed, a recent study, using the F-actin chromobody as described previously (Periz et al., 2017), suggested distinct, non-overlapping functions for the three formins in T. gondii (Tosetti et al., 2019).

Here we performed a careful comparison of the role of Formin-2 in P. falciparum and T. gondii and demonstrate that it localises in close proximity to apicoplasts in both parasites. Conditional disruption of Formin-2 not only results in a complete abrogation of actin dynamics in P. falciparum and a loss of an intracellular F-actin polymerisation centre in T. gondii, it also leads to defects in apicoplast inheritance in both genera. In contrast to Toxoplasma, Formin-2 is additionally involved in completion of cytokinesis in P. falciparum. Together our study highlights conserved and distinct roles of Formin-2 in the intracellular development of apicomplexan parasites.

Results

Cellular expression of actin-chromobodies in P. falciparum enables the visualisation of an actin network throughout the asexual development of P. falciparum and in gametocytes

Actin-chromobodies label F-actin structures in P. falciparum asexual stages

Actin-chromobodies (Chromotek) were expressed under control of the heat shock protein 86 (hsp86) promoter (Crabb and Cowman, 1996) to obtain expression throughout the 48 hr asexual life cycle. We succeeded in generating parasites stably expressing actin-chromobodies tagged either with the emerald tag (CB-EME) (Figure 1B), or the halo tag (CB-HALO) (Figure 1—figure supplement 1), indicating that the expression of these constructs does not have a major deleterious impact on the fitness of P. falciparum as previously reported for Toxoplasma (Periz et al., 2017) and other eukaryotes. The halo tag allowed visualisation of F-actin in live parasites by use of the red ligand Halo-TMR. Dynamic filamentous structures were evident in both CB-EME (Figure 1) and CB-HALO expressing parasites (Figure 1—figure supplement 1) throughout the 48 hr asexual life cycle (see also Videos 1, 2, 3 and 4) and in gametocytes (Video 5). These structures could be completely disrupted by treatment with F-actin destabilising drug cytochalasin-D (30 min, final concentration 1 µM) or stabilised by addition of the depolymerisation inhibitor Jasplakinolide (JAS) (30 min, final concentration 1 µM) (Figure 1C bottom panels and Video 3), demonstrating that chromobodies bind F-actin structures in P. falciparum. However, while both chromobody versions labelled similar structures, we found that expression of CB-EME resulted in a better signal-to-noise ratio. This is probably because no permeable, fluorescent ligand needs to be added for visualisation. Therefore, for the rest of this study, results for parasites expressing CB-EME have been presented. Some F-actin structures were highly dynamic, changing within a time-scales of seconds, while other structures appeared stable over tens of seconds (Video 3, see also quantifications below).

Video 1
Rapid shape changes of ring stages of P. falciparum expressing CB-EME (green).

Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.006
Video 2
Dynamic Filopodia-like F-actin extensions from the parasite edges into the RBC cytosol.

Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.007
Video 3
Dynamic actin filaments in CB-EME expressing parasites (DMSO) are disrupted upon addition of cytochalasin-D and stabilised upon addition of jasplakinolide.

The green channel shows CB-EME expression. Brightfield images also shown. Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.008
Video 4
Polar polymerisation of F-actin at the merozoite tip following egress.

Time lapse images of a representative schizont which undergoes egress, followed by polymerisation of F-actin at the merozoite edge (white arrows appearing). Images (green channel, CBEME) and brightfield (greyscale) were acquired every 5 s. Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.009
Video 5
F-actin dynamics in gametocytes.

Two representative examples of gametocytes expressing CB-EME show dynamic filaments running along the parasite length and enriched at the tips. Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.012

After erythrocyte invasion, the parasite immediately loses its ovoid zoite structure and becomes an amoeboid ring-stage parasite. These young parasites are highly dynamic and can switch between various shapes forming multi-lobed structures, possibly mediated by their cytoskeletal networks (Grüring et al., 2011). On observing chromobody-expressing parasites during ring and early trophozoite stages we noted F-actin rich islands at the periphery of ~60% parasites (n = 50) (Figure 1—figure supplement 2A and Video 2). These F-actin accumulations were highly dynamic, changing in order of seconds (Figure 1—figure supplement 2A and Video 2). Upon treatment with the F-actin depolymerising drug cytochalasin-D (30 min, final concentration of 1 µM) the peripheral, highly dynamic accumulations completely disappeared (Figure 1—figure supplement 2B lower panel), while the multi-lobed structures of the parasite were not disrupted (Video 6). The F-actin stabilising drug jasplakinolide also disrupted peripheral F-actin and resulted in formation of stable thick filaments (Figure 1—figure supplement 2B lower panel), implying the requirement of dynamic regulation of F-actin for peripheral F-actin accumulations. The physiological relevance of the observed structures is currently unclear.

Video 6
Multilobular structures of trophozoites are not lost upon addition of cytochalasin-D.
https://doi.org/10.7554/eLife.49030.010

Apical polymerisation of F-actin in merozoites following egress

Next, we wished to analyse the fate of the observed F-actin network upon parasite egress. We synchronised parasites with a 2-step Percoll and sorbitol treatment and harvested schizonts at 44 hr post-invasion. Reversible inhibitors of protein kinase G, Compound-1 and −2, stall schizont development at very mature stages without allowing them to undergo egress (Collins et al., 2013b). We treated highly mature schizonts with Compound-2 for 4 hr to allow them to fully mature without undergoing egress. Upon washing away Compound-2, the parasites egressed normally with the concomitant appearance of F-actin accumulation at the apical tip of the parasite (Figure 1D, Video 4). Cytochalasin-D treatment (30 min, final concentration 1 µM) allowed normal egress of parasites, as previously observed (Weiss et al., 2015), but completely abrogated F-actin polymerisation at the apical tip following egress (Figure 1D,+CytoD). Furthermore, we performed IFA on invading merozoites using rhoptry neck protein 4 (RON4) as a junctional marker. We verified that F-actin accumulates just behind the RON4 ring (Figure 1E) confirming previous observations made with an antibody preferentially recognising F-actin in P. falciparum (Riglar et al., 2011; Angrisano et al., 2012).

F-actin in gametocytes

In contrast to asexual parasites, gametocytes express both PfACT1 and actin-2, and exhibit F-actin staining along the length of the parasite and at the tips (Hliscs et al., 2015). Upon expression of CB-EME, gametocytes showed intense dynamic F-actin structures at their tips and running along the whole body of the cell (Figure 1F and Video 5). Importantly, this dynamic network appears very similar to the one reported by Hliscs et al. (2015), which has been shown to lie beneath the IMC of the gametocyte. It is important to note that actin-chromobodies do not distinguish between PfACT1 and actin-2 and therefore the observed filaments could potentially be composed of both proteins. We therefore confirm previous data obtained with antibodies directed against F-actin (Hliscs et al., 2015) and show that during the gametocyte stage, F-actin forms a dynamic and extensive network that passes through the whole cell and is enriched at the tips of the parasite.

Super-resolution microscopy reveals the spatial arrangement of F-actin

For better visualisation of F-actin structures, we used super-resolution microscopy (SR-SIM) which revealed a complex F-actin network in these parasites (Figure 2A and Figure 2—figure supplement 1). Interestingly, F-actin was prominent around the FV of the parasite (Figure 2A and Figure 2—figure supplement 1, see also Figure 2—figure supplement 2 lower left panel), which is also the basal end of the newly-formed daughter parasites during the final stages of cytokinesis. When we co-stained the actin-chromobody-labelled network with an antibody raised against parasite actin (Angrisano et al., 2012), similar structures as seen with chromobody were apparent (Figure 2A). The staining was however not identical perhaps due to the masking of antibody binding sites by other binding proteins, which was also observed previously for T. gondii actin (Periz et al., 2017). Upon quantification of co-localisation of the CB-EME signal with that of the actin-antibody, we obtained a Pearson’s R value of 0.6, in comparison to R values of 0.2 when the CBEME signal was tested for co-localisation with the DAPI signal. IMC markers GAP45 and MTIP showed normal staining in CB-EME expressing parasites (Figure 2—figure supplement 1B). Together, our data show that expression of chromobodies does not cause significant phenotypic effects and allow reliable labelling of the F-actin cytoskeleton.

Figure 2 with 2 supplements see all

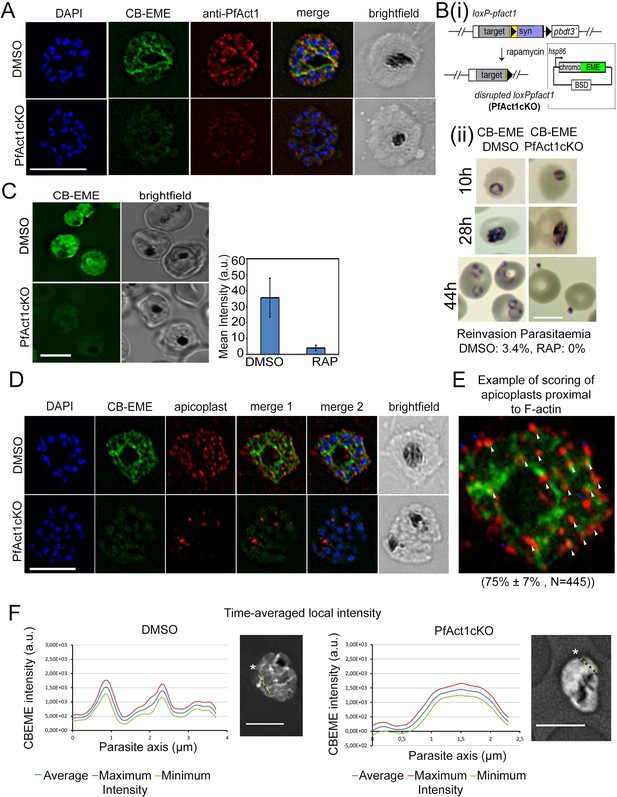

The CB-EME-labelled F-actin network is disrupted upon genetic excision of pfact1.

(A) IFA showing the F-actin network in P. falciparum (CB-EME), which stains the same network as an actin antibody (anti-PfAct1), though at slightly different regions, Pearson’s R value = 0.6, compared to R values of 0.2 when the CB-EME signal was tested for colocalisation with the DAPI signal. DAPI labels nuclei. (B) (i). Schematic of transfection of pB-CB-EME into the loxPpfact1 strain and PfACT1 loss upon rapamycin (RAP)-mediated DiCre-activation. (ii) Giemsa-stained parasites showing time points after induction with RAP. Invasion is abrogated in PfACT1 cKOs as compared to the DMSO controls (lower panels). (C) Stills from live imaging of CB-EME-expressing parasites and the loss of fluorescence intensity upon RAP-treatment. Right panel shows quantification of fluorescence intensities. See also Video 7. (D) IFA showing apicoplasts (red) in context of the F-actin network (CB-EME, DMSO) and the disruption of the network together with apicoplasts when PfACT1 is deleted (PfAct1cKO). (E) Example of scoring of apicoplast signals proximal to CB-EME signal (white arrows) and not proximal to the CB-EME signal (blue arrows). 445 data points were collected from three repeat experiments. The mean and SD have been depicted below the image. (F) Quantification of intracellular F-actin dynamics: Time-averaged local intensity along a defined transect (yellow line) shows defined areas of F-actin accumulation as discrete peaks (left panel) as compared to no peaks along a transect in the PfACT1 cKO. Asterisks indicate the start of the measurement axis (0 µm). Scale bar 5 µm. Additional transects confirm these differences in Figure 2—figure supplement 2.

https://doi.org/10.7554/eLife.49030.013

Chromobodies label authentic F-actin structures: CB-EME-labelled filaments disappear upon disruption of PfACT1

Although P. falciparum parasites possess two actin genes pfact1 and actin-2, PfACT1 is the only protein expressed during the asexual life cycle (Vahokoski et al., 2014). In order to confirm that chromobodies label authentic F-actin structures built from polymerisation of PfACT1, we transfected the chromobody constructs pCB-EME and pCB-HALO (Figure 1B and Figure 1—figure supplement 1A) into a conditional mutant of PfACT1 (loxPPfACT1) (Das et al., 2017) (Figure 2B). Upon activation of DiCre with rapamycin (RAP), the pfact1 locus is excised together with loss of PfACT1 protein within 35 hr (Das et al., 2017). Upon induction with RAP in 1h-old ring stages, CB-EME (Figure 2, Video 7) and CB-HALO (Figure 1—figure supplement 1B,C) labelled F-actin structures completely disappeared in late trophozoites and schizonts and closely resembled parasites treated with cytochalasin-D (Figure 1C). As previously reported (Das et al., 2017), PfACT1-disrupted parasites could not invade new erythrocytes (Figure 2B(ii)). We observed a ≈ 10x reduction in emerald signal upon disruption of PfACT1 (Figure 2C), which could be due to the proteasomal degradation of actin-chromobodies, when they are not bound to actin, as was seen by others for a different chromobody (Tang et al., 2016).

Video 7
CB-EME staining disappears upon conditional genetic deletion of pfact1.

Ring stage LoxPpfACT1/CBEME parasites were pulse treated with DMSO or RAP for 4 hr and imaged after 40 hr. CB-EME was imaged in the green channel and shows a disappearance of F-actin upon RAP-treatment. Mitochondria were stained with Mitotracker (red channel). Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.016

We previously reported that apicoplast inheritance depends on PfACT1 (Das et al., 2017). In order to determine the localisation of F-actin during apicoplast segregation we used deconvolution microscopy on fixed parasites stained with the apicoplast marker CPN60, which revealed apicoplasts to be in close proximity with F-actin structures (Figure 2D,E; Figure 2—figure supplement 1B lower panel). A Pearson’s R value of 0.4 was obtained for colocalisation of the apicoplast(s) signal with the CB-EME channel in Figure 2—figure supplement 1B lower panel, as compared to 0.1 with the DAPI channel. We also scored for individual apicoplast signals which are proximal to the F-actin network (example shown in Figure 2E) and found 75% ± 7% apicoplasts to lie apposed to the F-actin network (N = 445). Upon disruption of PfACT1, a defect in apicoplast segregation was apparent (Figure 2D PfAct1cKO), which recapitulated the phenotype previously observed (Das et al., 2017).

In contrast, no obvious defects in mitochondria segregation could be detected in PfACT1-disrupted parasites (Figure 2—figure supplement 1C and Video 7) as previously reported (Das et al., 2017), implying that unlike apicoplasts, mitochondria do not require F-actin for migration into daughter cells.

Next, we quantified spatiotemporal accumulation of F-actin in P. falciparum parasites (Figure 2F). In order to do so, we performed time-averaged local intensity profiling on acquired time-lapse videos. This enabled us to measure localised fluctuations in F-actin along defined transects in various positions in the cell over time (yellow line, Figure 2F). Stable time-averaged F-actin peaks were observed, which could be easily distinguished from background and from the signal in PfACT1KO parasites (Figure 2F, Figure 2—figure supplement 2). We observed the highest time-averaged intensity peaks around the food vacuole, as also noted by super-resolution microscopy (Figure 2—figure supplement 2, lower left panel).

We reasoned that, since most canonical actin filament stabilising and nucleating proteins are absent in Apicomplexa, the parasite must depend on formins for F-actin assembly. Previously, PfFRM1 has been localised to the invasion junction and PfFRM2 to the cytosol (Baum et al., 2008b). Since we observed the intracellular F-actin network in the cytosol, we speculated that Formin-2 is the main nucleator of F-actin during intracellular parasite development.

Apicomplexan Formin-2 sequences contain a PTEN-C2-like domain found usually in plant formins

Formins possess a formin homology (FH) one and an FH2 domain, which nucleate actin monomers as well as elongate unbranched F-actin by continuous processive binding to the barbed end of the filament (Courtemanche, 2018). In a previous report (Baum et al., 2008b), only FH1/FH2 domains were described for apicomplexan formins. Here, we queried for presence of known PFAM domains using NCBI conserved domain search and in addition to FH1/FH2, found tetratricopeptide repeat (TPR) domains in both PfFRM1 and TgFRM1, while a PTEN C2-like domain was recognised in PfFRM2 and TgFRM2 (Figure 3A). This led us to hypothesise that Formin-1 and Formin-2 with different N-terminal domains diverged early in evolution and different domain organisations have been retained for different functions. We queried for FH2-domain containing proteins from various apicomplexans and found that Formin-2-like sequences are found in a different clade from Formin-1-like sequences (Figure 3B), as also previously noted (Baum et al., 2008b). Strikingly, the PTEN-C2-domain (or a diverged PTEN-C2 domain) was found only in Formin-2-like sequences (Figure 3B). Interestingly, PTEN-C2 domains are important for membrane recruitment (Das et al., 2003) and a class II rice Formin uses this domain to be recruited to chloroplast membranes (Zhang et al., 2011), leading us to hypothesise that a similar mechanism operates for apicoplast recruitment of Formin-2 sequences in apicomplexans.

Figure 3 with 1 supplement see all

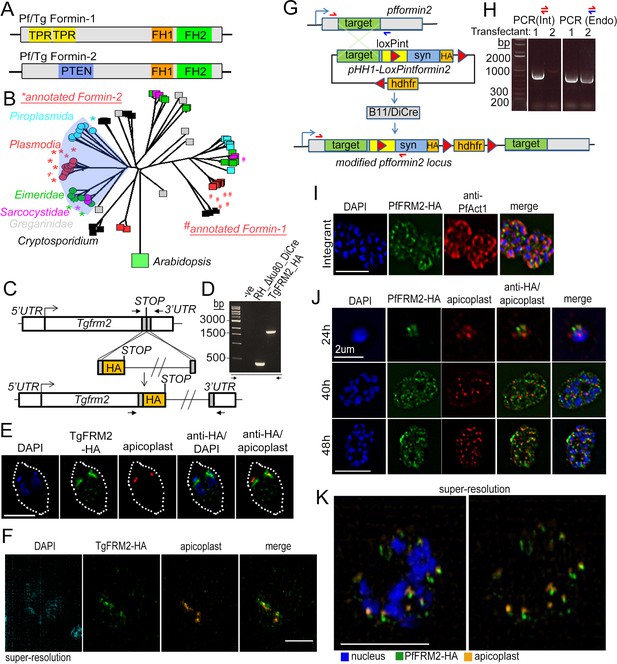

Apicomplexan formins have distinct protein domains, with Formin-2 localising to apicoplasts in Toxoplasma and P. falciparum.

(A) Other than the conserved FH1/FH2 domains common to all formins, Pf and Tg Formin-1 contain tetratricopeptide repeat domains (TPR), while Pf and Tg Formin-2 contain a PTEN C2-like domain. (B) Rooted neighbour-joining tree of FH2 domains detected in apicomplexan sequences flagged by hmmsearch and extracted from alignments produced by hmmalign, both using the PFAM profile PF02181.23: Proteins with sub-sequences similar to PTEN-C2 domains (detected by psi-Blast) are indicated with circular leaf symbols (within the shaded blue area). Those sequences already annotated as Formin-1 (#) and Formin-2 (*) are indicated. Colour coding of the leaf nodes: Red: Plasmodium, Green: Eimeria, Magenta: Sarcocystidae, Cyan: Piroplasmida, Black: Cryptosporidium, Grey: Gregarinidae (C) Strategy depicting endogenous C-terminal HA tagging of tgfrm2 in Toxoplasma. CRISPR/Cas9 was exploited to introduce a double-stranded DNA break and repair DNA amplified by PCR with homologous DNA regions coding for 3xHA. (D) Diagnostic PCR confirming integration of DNA described in C into the RH_Δku80_DiCre line. (E) IFA showing localisation of TgFRM2-HA (green) at the vicinity of the apicoplast staining (anti-G2Trx, red). Nuclei are stained with DAPI (blue). White dotted line depicts the parasite vacuole outline. Parasites were grown for 24 hr. Scale bar 5 µm F. Super-resolution microscopy confirming the close apposition of TgFRM2-HA (green) to the apicoplast (anti-G2Trx, orange). Toxoplasma parasites were fixed 24 hr after inoculation. Scale bar 2.5 µm. (G) Strategy showing simultaneous floxing and C-terminal HA tagging of the endogenous pffrm2 locus using single cross over recombination into a DiCre expressing strain to give rise to the LoxPpfformin2 strain (modified). A 906 bp targeting sequence (target) followed by a heterologous intron with an internal LoxP site (LoxPint) followed by synthetic recodonised DNA sequence with additional LoxP sites at the 3´ end ensures recombination upstream of LoxP sites. Human dihydrofolate reductase (hdhfr) confers resistance to the drug WR99210. Primers for diagnostic PCR have been annotated as half arrows. (H) Diagnostic PCR on genomic DNA from two transfectants confirmed integration in one of the two transfected lines (Transfectant 1). Primers depicted with red half arrows (int) are specific to the integrated locus, while red and blue half arrows (Endo) are specific to the endogenous locus (I) IFA showing localisation of PfFRM2-HA (green) in the context of a PfACT1-antibody staining (red). Nuclei are stained with DAPI (blue). (J) IFA showing localisation of PfFRM2-HA in context of apicoplasts using a CPN60 antibody (red) throughout P. falciparum intracellular development (24, 40, 48 hr). (K) Super-resolution image confirming the apparent proximity of PfFRM2-staining (green) with apicoplasts (orange). Scale bars are 5 µm, except where otherwise noted.

https://doi.org/10.7554/eLife.49030.017

Plasmodium and Toxoplasma Formin-2 localise adjacent to apicoplasts

In order to characterise the role of Formin-2 within the evolutionary niche of apicomplexans, we decided to perform a comparative analysis in both T. gondii and P. falciparum. Therefore, we epitope tagged Formin-2 in both parasites. For tagging in T. gondii we used a CRISPR/Cas9-based strategy to introduce a 3x hemagglutinin (3 HA) tag at the TgFRM2 C-terminus (Figure 3C) and confirmed correct integration by diagnostic PCR (Figure 3D). Upon co-staining with the anti-apicoplast antibody G2-Trx (Biddau and Sheiner, unpublished), we found TgFRM2 to be localised adjacent to apicoplast(s) (Figure 3E), which was confirmed by super-resolution microscopy (Figure 3F). Upon quantification of co-localisation (Figure 3—figure supplement 1), we found 30% apicoplasts partially colocalised and 58% apicoplasts adjacent to and in contact with the TgFRM2 signal (n = 142). For localisation of PfFRM2, we simultaneously epitope tagged and floxed PfFRM2 by single cross-over homologous recombination in a DiCre-expressing parasite strain (Figure 3G) and confirmed integrants by diagnostic PCR (Figure 3H). Integrants were cloned by limiting dilution and two distinct clones of ‘LoxPpfformin2’ were used for phenotypic characterisation. PfFRM2 showed a punctate pattern within cells (Figure 3I). Next, we checked for PfFRM2 localisation in relation to apicoplasts and observed a close proximity of the apicoplasts with most of the PfFRM2 punctae throughout the 48 hr Plasmodium blood stage life-cycle (Figure 3J), which was confirmed by super-resolution microscopy (Figure 3K). Upon quantification of co-localisation of the apicoplast signal with that of the formin punctae, we obtained a Pearson’s R value of 0.55 ± 0.2 (N = 4), the high variance implying that the close proximity of the apicoplasts to Formin-2 may be dynamic. In conclusion, both Toxoplasma and P. falciparum Formin-2 (dynamically) localise in close proximity to apicoplasts.

DiCre-mediated conditional disruption of Formin-2 causes a defect in apicoplast segregation in P. falciparum

Next, we wished to evaluate the fate of P. falciparum upon conditional DiCre-mediated disruption of the pffrm2 gene (Figure 4A). 1 hr old, tightly synchronised ring stage parasites were divided into two flasks and either pulse-treated with RAP or DMSO (control) for 4 hr and their phenotype determined 44 hr post RAP-treatment. Excision was determined by diagnostic PCR of the genomic locus (Figure 4B) and fitness of the PfFRM2 conditional knock out (cKO) was measured by a growth curve which showed significant loss of viability (Figure 4C). Loss of protein was ~90% (averaged from three independent experiments) as determined by Western blot (Figure 4D) and was confirmed by IFA (Figure 4E), which indicated a loss of protein in ~95% parasites (N = 350). Giemsa stained PfFRM2 cKO parasites were dysmorphic with apparent inclusions of haemoglobin (Figure 4F, red arrows). In order to determine the morphological defects in PfFRM2 KO parasites, we co-stained PfFRM2 cKO parasites with several organellar markers and were unable to see significant differences (not shown), except for apicoplast segregation (Figure 4G). The number of parasites with normally segregated apicoplasts was significantly reduced, with a high percentage of cells showing collapsed or morphologically aberrant apicoplasts (Figure 4G,H). A range of apicoplast phenotypes was evident, from totally collapsed, intermediate to apparently normal (Figure 4G,H). To determine if the loss of viability of the PfFRM2 cKO parasites was solely due to loss of the apicoplast, we attempted to rescue the phenotype with 200 µM isopentenyl pyrophosphate (IPP) which has been previously shown to complement growth in parasites lacking apicoplasts (Yeh and DeRisi, 2011). However, we did not see any improvement in viability (Figure 4I), indicating that the loss of fitness is due to additional defects caused by abrogation of F-actin dynamics in the parasite, which we shall address shortly in Section 5.

Conditional excision of pffrm2 disrupts apicoplast segregation and causes a severe fitness defect in P. falciparum.

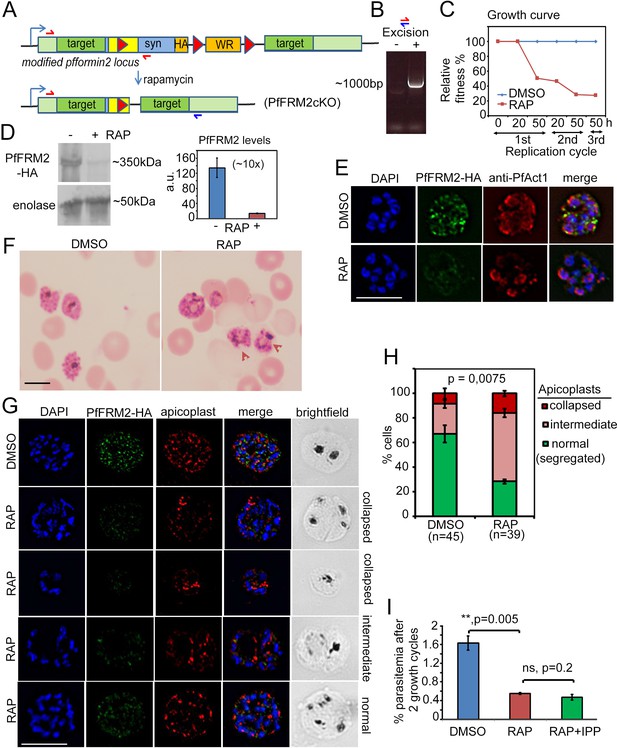

(A) Strategy showing the DiCre-mediated genomic excision of the LoxPpfFRM2 locus (modified). Primers for diagnostic PCR have been annotated as red/blue half arrows. (B) Diagnostic PCR confirming genomic excision of the pffrm2 locus upon rapamycin treatment (+). (C) A growth curve showing the relative fitness of RAP-treated PfFRM2 cKO parasites in comparison to DMSO controls. Various time points (h) from the pulse treatment of 1h-old rings at time 0 in the 1st, 2nd and 3rd replication cycles have been measured. (D) left panel, Western blot showing the loss of PfFRM2-HA upon RAP-treatment, enolase has been used as a control. Right panel, Quantification of PfFRM2-HA protein levels using intensity values normalised to enolase from three different immunoblots shows at least a 10-fold drop in protein levels, Error bars depict SD. Values are in arbitrary units (a.u.) (E) IFA showing loss of PfFRM2-HA staining (green) upon RAP-treatment. Levels of PfACT1-staining (red) do not change. (F) Giemsa-stained images of RAP-treated parasites reveal dysmorphic parasites 44 hr after RAP-treatment. (G) Apicoplast staining (red) is affected to various degrees – collapsed, intermediate and apparently normal in RAP-treated parasites as compared to DMSO controls, where a normal punctate staining for apicoplasts is visible in a multi-nucleated schizont. (H) Quantification of phenotypes seen in G) shows a 3-fold reduction in normal apicoplast staining in PfFRM2 cKOs (RAP). Error bars depict SD. (I) Isopentenyl pyrophosphate (IPP) cannot rescue the fitness defect (RAP +IPP) in PfFRM2 KO parasites (RAP) compared to DMSO controls, as measured by final parasitemia after two growth cycles. Error bars depict SD. Scale bars 5 µm.

https://doi.org/10.7554/eLife.49030.019

DiCre-mediated disruption of Formin-2 abrogates the actin network in P. falciparum schizonts

Apicoplast inheritance is critically dependent on PfACT1 (Das et al., 2017). Hence, we subsequently determined whether F-actin assembly and dynamics are interfered upon deletion of PfFRM2. We expressed CB-EME in the LoxPpfformin2 strain to generate the line LoxPpfformin2/CBEME (Figure 5A) and visualised actin filaments by IFA and by live time lapse microscopy. IFA analysis showed PfFRM2 punctae localised primarily with CB-EME-labelled filamentous structures (Pearson’s R value = 0.36, as compared to 0.02 with the DAPI channel) (Figure 5B, DMSO and Figure 5—figure supplement 1). When we manually counted the individual PfFRM2-HA punctae, we found 80% ± 6% closely apposed to the F-actin signal (N = 200). Upon DiCre-mediated excision in ring stages, we saw a complete abrogation of the dynamic F-actin network in mature schizont stage parasites (Figure 5B RAP), which dropped from exhibiting an F-actin network in 92 ± 5% cells in WT to 5 ± 4% cells in PfFRM2 cKO (Figure 5C,D). Surface intensity plots showed a dramatic reduction in F-actin peaks in the PfFRM2 cKO parasites (Figure 5E,F). Furthermore, we confirmed the apicoplast inheritance phenotype in PfFRM2 cKO parasites expressing CB-EME (Figure 5G). Since IPP could not rescue the growth defect in PfFRM2 cKO parasites (Figure 4I) and a dramatic disruption of F-actin signal was observed, additional defects due to loss of F-actin nucleation were subsequently investigated. We noticed a faint emerald signal inside nuclei of fixed PfFRM2 cKO parasites (Figure 5B). Since this signal is absent in live microscopy, we speculate that this is due to a potential bleed-through from the blue to the green channel in fixed parasites.

Figure 5 with 1 supplement see all

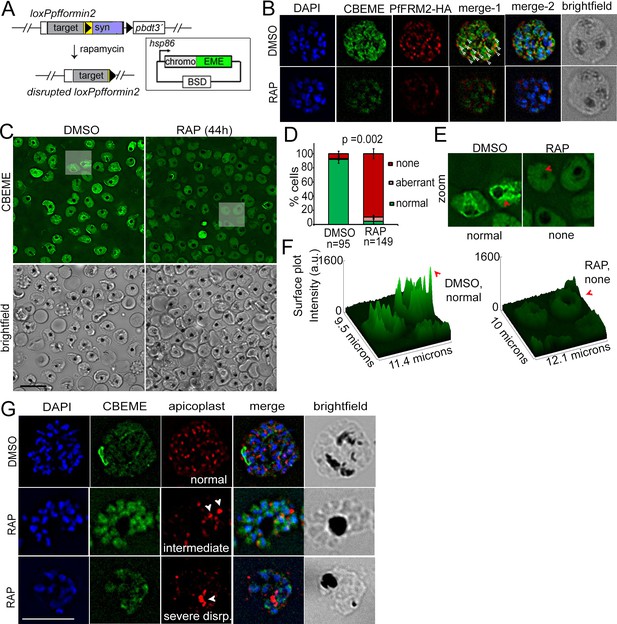

Conditional deletion of PfFRM2 abrogates the intracellular F-actin network in P. falciparum.

(A) Strategy showing expression of p-CB-EME in the RAP-inducible LoxPpffrm2 background. (B) IFA showing PfFRM2-HA staining in the context of the F-actin network labelled by CB-EME expression (DMSO) and the subsequent loss of CB-EME and PfFRM2-HA staining in PfFRM2 cKO parasites (RAP). (C) Stills from a time-lapse movie showing loss of normal intracellular F-actin fluorescence (green). Brightfield images have been provided below. See also Video 8. (D) Graph showing loss of normal F-actin fluorescence in ~95% RAP-treated parasites. > 90% of DMSO controls show presence of the network. (E) Zoomed images of indicated boxed parasites in (C) showing loss of the actin network in RAP (none, red arrows) as compared to DMSO controls (normal). (F) Intensity surface plots clearly show a difference in localised intensity (red arrows) within cells on comparing the DMSO-control parasites with RAP-treated PfFRM2 cKOs. (G) IFA staining of the apicoplast with a CPN60 antibody (red) together with the fluorescent F-actin network (green) confirms a defect in apicoplast segregation in RAP treated parasites (white arrows). Nuclei are stained in blue and brightfield images are provided alongside. Examples of normally segregated apicoplasts, intermediate and severely disrupted apicoplasts have been provided. Scale bars 5 µm. See also Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.49030.020
Video 8
Actin filaments disappear upon genetic deletion of pffrm2.

Ring stage LoxPpfFRM2/CBEME parasites were DMSO- or RAP-treated for 4 hr and imaged 40 hr later. CB-EME was imaged in the green channel and shows a disappearance of intracellular F-actin upon RAP-treatment. Acquisition time is shown in seconds. Scale bar 5 µm.

https://doi.org/10.7554/eLife.49030.011

DiCre-mediated conditional disruption of Formin-2 affects daughter cell formation/cytokinesis in P. falciparum

As a first step towards characterisation of additional defects, we determined the number of nuclei in PfFRM2 cKO parasites 40 hr post RAP-treatment, and found a significant decrease in the number of nuclei in these parasites, as compared to the DMSO control (Figure 6A), indicating a defect in development or schizogony. Since PfACT1 is required for normal cytokinesis (Das et al., 2017), we examined if the IMC is normally formed in PfFRM2 cKO parasites. In an attempt to exclude younger, trophozoite-stage parasites, we purified mature schizonts on a 70% Percoll cushion and determined by IFA using GAP45 as a marker if IMC formation was compromised in these parasites. Fully segmented IMC staining dropped from 58 ± 8% in WT to 19 ± 8% in PfFRM2 cKOs (Figure 6B,C). When we allowed these Percoll-purified mature PfFRM2 cKO parasites to egress and compared them to control parasites, we found conjoined merozoites in PfFRM2 cKOs (Figure 6D,E), a defect previously seen in PfACT1 cKO parasites (Das et al., 2017), indicating that PfFRM2 and PfACT1 coordinate cytokinesis in P. falciparum. We have, however, not followed the fate of the excluded ‘younger’ parasites with fewer nuclei in the PfFRM2 cKO population. We cannot therefore rule out a function for Formin-2 earlier in schizogony, e. g. in endocytosis, in addition to a role in cytokinesis.

Figure 6 with 1 supplement see all

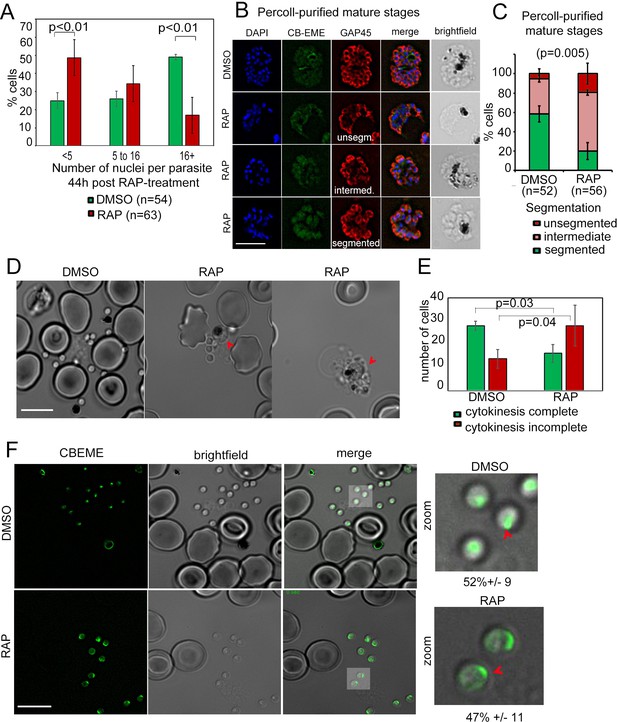

Defects in merozoite formation/cytokinesis in PfFRM2 cKO parasites.

(A) Quantification by IFA of number of nuclei in DMSO or RAP-treated LoxPpffrm2/CBEME parasites, 40 hr post treatment: Number of nuclei were binned to <5, 5 to 16 and 16 + in DMSO controls and RAP-treated parasites. The graph shows a significant reduction in the number of DAPI-stained nuclei in RAP-treated parasites. (B) IFA on Percoll-purified mature LoxPpffrm2/CBEME schizonts 44 hr post DMSO/RAP treatment, further allowed to mature for 4 hr in Compound 2: An anti-GAP45 antibody (red) revealed defects to varying degrees in IMC formation in these parasites. Examples for unsegmented, intermediate and segmented IMCs have been provided. (C) Quantification of defects in IMC formation from the IFA in B shows a significant reduction in segmented daughter merozoite formation in the RAP-treated population. (D) When DMSO/RAP-treated schizonts were allowed to egress, conjoined merozoites around the FV were apparent in the RAP-treated populations (red arrows) much more frequently than the DMSO controls. (E) Quantification of phenotypes observed in D revealed >2 times as many PfFRM2 cKOs parasites not completing cytokinesis as compared to DMSO controls. (F) Post-schizont egress, merozoites from DMSO controls and RAP-treated group show similar propensity to polymerise apical F-actin (CB-EME fluorescence shown in green). Red arrows show apical F-actin in zoomed images (right panels). Scale bars 5 µm.

https://doi.org/10.7554/eLife.49030.022

Since PfFRM1 was localised to the parasite apex/invasion junction during host cell entry (Baum et al., 2008b), we reasoned that apical polymerisation of F-actin should not be affected in PfFRM2 cKO parasites, if indeed the two formins perform distinct functions in their distinct localisations. To this end, we allowed mature schizonts to egress and release free merozoites and immediately imaged them by live fluorescence microscopy. Consistent with this hypothesis, we found that the ability of F-actin polymerisation at the parasite apex was not compromised in PfFRM2 cKO parasites (Figure 6F), strongly indicating distinct functions of PfFRM1 and PfFRM2.

Despite showing a significant growth defect, PfFRM2 cKO parasites did reinvade RBCs and established ring stage parasites. In good agreement with the observations above and a general role of PfFRM2 in F-actin nucleation during intracellular parasite development, we could not observe any F-actin dynamics in early trophozoite stage parasites or peripheral accumulations of F-actin in these parasites (Figure 6—figure supplement 1).

Conditional deletion of Formin-2 in Toxoplasma disrupts apicoplast segregation and F-actin dynamics

Finally, in order to assess if the function of Formin-2 is conserved in apicomplexan parasites, we analysed its role in T. gondii. We first checked the localisation of TgFRM2 with respect to the F-actin network. Similar to P. falciparum, TgFRM2-HA formed punctae on the CB-EME labelled F-actin network within the parasite. There it appeared to co-localise with a polymerisation centre (Figure 5—figure supplement 1Tg), recently also described in an independent report (Tosetti et al., 2019). Next, we simultaneously floxed tgfrm2 together with addition of a C-terminal YFP tag to create the LoxPTgFRM2 line (Figure 7A). This enabled us to confirm localisation of Formin-2 and determine the comparative effect of a conditional knock out of Formin-2 in Toxoplasma. Integration of the C-terminal YFP-tag and LoxP sites was confirmed by diagnostic PCR, as was excision of the tgfrm2 locus upon RAP-treatment (Figure 7—figure supplement 1A). For the localisation of TgFRM2 it was necessary to stain fixed parasites with a YFP-antibody, suggesting low expression levels of TgFRM2 (Figure 7—figure supplement 1B). We confirmed localisation of TgFRM2 adjacent to the apicoplast (Figure 7B upper panel). Upon RAP-treatment, excision of TgFRM2 was apparent in 36 ± 4% (n = 300) of vacuoles, as assessed by quantification of parasites where no TgFRM2 could be detected by IFA. Importantly, loss of TgFRM2 staining correlated with an apicoplast segregation phenotype in 65 ± 7% (n = 300) of parasites (Figure 7D). A baseline apicoplast segregation phenotype was observed in 1% (±0; n = 300) of vacuoles in the control population. Loss of TgFRM2 had no impact on mitochondrial replication or morphology (Figure 7E). Transient expression of CB-EME in LoxPTgFRM2 parasites enabled us to image F-actin and demonstrated that, in good agreement with data from P. falciparum, intracellular F-actin formed a polymerisation centre adjacent to the apicoplast (Figure 7C control). Intriguingly, excision of TgFRM2 (Figure 7C RAP) led to the disappearance of intracellular F-actin at the polymerisation centre, while (in contrast to P. falciparum), the intra-vacuolar F-actin network was still present (Figure 7C). In Toxoplasma, actin polymerisation within the residual body (and consequently the formation of the intra-vacuolar F-actin network) has been attributed to Formin-3 (Tosetti et al., 2019), which is absent in P. falciparum.

Figure 7 with 1 supplement see all

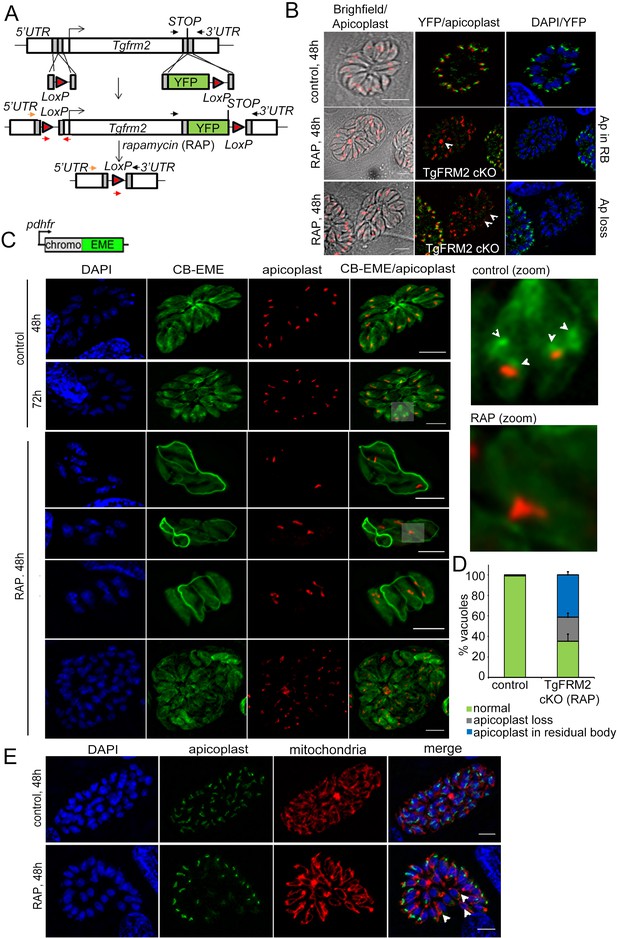

Conditional deletion of TgFRM2 disrupts normal segregation of apicoplasts together with abrogation of the intracellular F-actin polymerisation centre.

(A) Strategy to generate LoxPTgFRM2-YFP, a floxed and C-terminal YFP-tagged Tgfrm2 locus in the RH_Δku80_DiCre line. For this purpose, CRISPR/Cas9 was exploited to introduce DNA double-strand breaks in the 5’ UTR and C-terminus of the tgfrm2 gene. Integration was confirmed by PCR (see Figure 7—figure supplement 1). Arrows represent PCR primers used in Figure 7—figure supplement 1A. (B) IFA staining with anti-YFP (TgFRM2-YFP) and anti-Atrx1 (apicoplast) shows an apicoplast segregation defect in TgFRM2-YFP cKO parasites. In control parasites, TgFRM2-YFP localises to the vicinity of the apicoplast (upper panel). The loss of TgFRM2-YFP causes an apicoplast segregation defect (middle and bottom panels, white arrows). The middle and lower panels depict a TgFRM2-YFP cKO vacuole together with a TgFRM2-YFP positive vacuole for comparison. Apicoplast (Ap) phenotypes in TgFRM2-YFP cKO parasites were classified as Ap loss and Ap in residual body (RB). Scale bars 5 µm. (C) Upper panel depicts the CB-EME construct used under the dhfr promoter for expression in the LoxPTgFRM2-YFP strain. Lower panel: IFA showing CB-EME and apicoplast (anti-CPN60) in control and RAP-treated LoxPTgFRM2-YFP parasites. In untreated parasites, the apicoplast localises to intracellular actin polymerisation centres (control, white arrows in zoom). Parasites exhibiting TgFRM2 cKO-specific apicoplast phenotype lack intracellular actin polymerisation centres. Zoomed images depict indicated areas. See also Figure 7—figure supplement 1B. (D) Quantification of apicoplast inheritance defect shows a significant reduction in apicoplast numbers in TgFRM2 cKOs. Classification of the apicoplast phenotype (apicoplast loss or apicoplast in residual body) refer to IFA depicted in B. Vacuoles from three independent experiments were examined. For each biological repeat and condition (control or RAP), 100 vacuoles were counted (total n=300 for each condition). Error bars depict SD. (E) IFA showing normal mitochondrial staining (red) in TgFRM2 cKO parasites (RAP, 48 hr) which have lost their apicoplasts (white arrows). Control parasites shows normal apicoplast and mitochondria staining (upper panel). DNA was stained with DAPI, apicoplast staining was performed with anti-Atrx1 antibody and mitochondrial staining with anti-TOM40 antibody. Scale bars 5 µm.

https://doi.org/10.7554/eLife.49030.024

TgFRM2 represents a key factor in maintaining spatiotemporal actin dynamics and F-actin flow within intracellular parasites

We further investigated the contribution of Formin-2 to the overall maintenance and dynamics of the F-actin network. For this purpose, we generated a conditional dimerisable-CRISPR/Cas9 system in T. gondii that allowed us to rapidly and robustly disrupt genes of interest in CB-EME-expressing parasites simply by addition of RAP (Stortz, Grech et al. in preparation). Videos captured from time-lapse microscopy were used to perform time-averaged intensity profiling in order to measure CB-EME distribution within parasites over time. In wild-type parasites, the highest CB-EME intensities were observed at the apical and posterior poles and anterior to the nucleus (Figure 8A, Video 9). Additionally, skeletonisation analysis on videos of wild-type parasites showed actin accumulation in the periphery of intracellular parasites (Figure 8B, Video 9). Live imaging further revealed that the actin polymerisation centre anterior to the nucleus is highly dynamic and frequently interacts with peripheral actin (Figure 8C, Video 9).

Figure 8 with 2 supplements see all

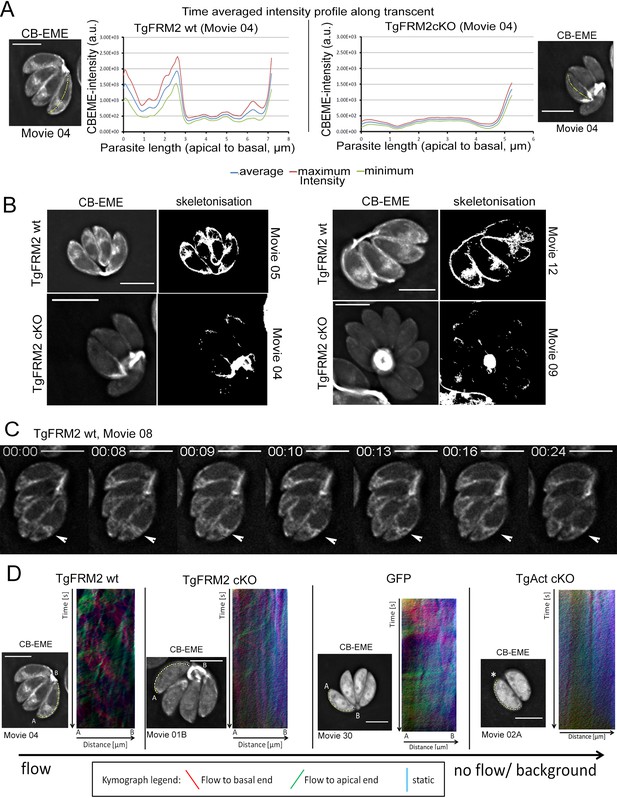

Intensity profiling and skeletonization of TgFRM2wt (control) and TgFRM2-Cas9cKO (TgFRM2cKO) parasites reveal major impact of TgFRM2 on intracellular F-actin distribution.

(A) Time-averaged local intensity profiling along the parasite middle axis (yellow line). Control TgFRM2 wt parasites show actin accumulation at the two poles and the region anterior to the nucleus (intracellular polymerization centre). Upon loss of TgFRM2, the intracellular actin polymerization centre is lost. Presence of actin at the apical pole appears reduced. (B) Skeletonisation analysis reveals actin accumulation at the periphery of intracellular parasites. Control parasites show actin at the two poles, the cytoplasmic intracellular polymerization centre and the periphery. TgFRM2 cKO mutants lack actin polymerisation within the region anterior to the nucleus and show less actin in the lateral space of the parasites. Actin still accumulates at the two poles. (C) Live imaging of TgFRM2 wt parasites illustrates the dynamic interaction between the cytoplasmic actin pool and the periphery of the parasite. Videos and skeletonisations are shown as images of collapsed t-stacks. At least 10 independent movies were produced and analysed for each condition. The figure shows representative images. Scale bars 5 µm. See also Video 9. (D) Kymograph analysis: Particle movement alongside the periphery was depicted via three colour-coded kymographs. Red tracks represent particles moving to the basal end, green tracks show particle flow to the apical end and blue depicts static particles. For TgFRM2 wt, kymographs show tracks (trajectories) of particle movement events to the apical and basal pole of the parasite. This suggests bi-directional flow of actin at the lateral parasite axis. Upon loss of TgAct, the kymographs appear more diffuse and depict only background particle flow (refer to Figure 8—figure supplement 1). While TgFRM2 cKO kymographs do not appear as diffuse as TgAct cKO kymographs, their overall flow events are less defined and more diffuse making them resemble RH-GFP kymographs. The yellow line represents the area of kymograph measurement. Particle movement was measured from the apical (A) to the basal pole (B). As polarity is difficult to define for TgAct cKO parasites, the start point of the flow measurement is indicated with an asterisk. Videos are depicted as collapsed t-stacks. At least 5 (actin) or 10 (others) independent movies were produced and analysed for each depicted condition. The figure shows representative kymographs. Conditional KO mutants represent Cas9cKO strains. WT parasites represent the non-induced TgFRM2-wt Cas9 strain. Scale bars are 5 µm. See also Figure 8—figure supplement 1, Videos 9, 10, 11 and 12.

https://doi.org/10.7554/eLife.49030.026
Video 9
F-actin dynamics in TgFRM2-wt and TgFRM2-cKO parasites.

Time-lapse movie showing CB-EME signal. The movies were captured at a speed of 0.25 s/frame. Scale bars are 5 µm. Movies are depicted at 60fps. Time is shown as mm:ss.

https://doi.org/10.7554/eLife.49030.029

In agreement with observations made using the DiCre-system (Figure 7C), disrupting tgfrm2 using the conditional CRISPR/CAS9 system also resulted in loss of F-actin at the nucleation centre anterior to the nucleus (Figure 8A right panel, Video 9). Interestingly, the abundance of peripheral actin was also strongly reduced in TgFRM2-cKO parasites (Figure 8B, Video 9). Consequently, it is conceivable that the TgFRM2-mediated actin polymerisation centre anterior to the nucleus contributes to the parasite peripheral actin pool, making Formin-2 a key player in regulating actin distribution within intracellular parasites. Intriguingly, but perhaps not surprisingly, F-actin was still measurable and visible at the apical and the basal poles, as well as in the residual body of TgFRM2-cKO parasites. At these locations, actin polymerisation is probably mediated by the nucleation factors TgFRM1 and TgFRM3 which a recent study (Tosetti et al., 2019) localised to the apical tip and the residual body, respectively.

Tosetti and colleagues proposed peripheral actin flux towards the basal end of extracellular parasites (Tosetti et al., 2019). In a complementary approach, we applied kymograph analysis (Mangeol et al., 2016) for investigating actin flow at the periphery of intracellular parasites (Figure 8D, yellow tracks, Figure 8—figure supplements 1 and 2). Kymographs of wild-type parasites showed trajectories representing CB-EME particle movement towards the apical and basal poles (red signal represents forward displacement, while green signal represents backward displacement on kymographs, Figure 8D, Figure 8—figure supplements 1 and 2; Videos 9, 10, 11 and 12), indicating bi-directional actin flow all along the lateral parasite axis.

Time-averaged intensity profiling was also performed on T. gondii actin (TgAct) cKO and TgADF cKO parasites (Figure 8—figure supplement 2A,C, Videos 10 and 11) which displayed similar phenotypes described in previous reports (Periz et al., 2017): TgAct cKO parasites lacked any directed actin distribution, while disruption of TgADF let to actin accumulation, predominantly at the basal pole. As a control, GFP distribution was highly distinguishable from CB-EME distribution in parasites (Figure 8—figure supplement 2E, Video 12). In TgAct cKO parasites, no distinguishable tracks could be identified by kymograph analysis, when compared to background noise (Figure 8—figure supplements 1 and 2B, Video 10). TgADF cKO kymographs represent the previously described phenotype of strong static actin accumulation at the basal end of the parasite with no obvious F-actin dynamics at the periphery (Figure 8—figure supplement 2D, blue signal on kymographs, Video 11). Kymographs of TgFRM2 cKO parasites appear more diffuse, although some tracks could still be observed (Figure 8D and Figure 8—figure supplement 1, Video 9). This is most likely due to the abundance of actin in the periphery and perhaps due to the contribution of TgFRM1.

Video 10
F-actin dynamics in TgAct-wt and TgAct-cKO parasites.

Time-lapse movie showing CB-EME signal. The movies were captured at a speed of 0.29 s/frame. Scale bars are 5 µm. Movies are depicted at 60fps. Time is shown as mm:ss.

https://doi.org/10.7554/eLife.49030.030
Video 11
F-actin dynamics in TgADF-wt and TgADF-cKO parasites.

Time-lapse movie showing CB-EME signal. The movies were captured at a speed of 0.32 s/frame. Scale bars are 5 µm. Movies are depicted at 60fps. Time is shown as mm:ss.

https://doi.org/10.7554/eLife.49030.031
Video 12
Live microscopy of RH-GFP parasites.

The movies were captured at a speed of 0.33 s/frame. Scale bars are 5 µm. Movies are depicted at 60fps. Time is shown as mm:ss.

https://doi.org/10.7554/eLife.49030.032

In summary, kymograph analysis demonstrates a striking difference in F-actin dynamics caused by disruption of TgAct, TgFRM2 or TgADF (Del Rosario et al., 2019). We conclude that loss of TgFRM2 causes a significant decrease of peripheral actin flow in intracellular parasites.

Discussion

Due to the unconventional behaviour of apicomplexan actin, visualisation of actin filaments in P. falciparum was hindered by lack of reagents and F-actin sensors, which do not significantly interfere with F-actin polymerisation and depolymerisation. Therefore, previous attempts to use established indicators from other eukaryotic systems, such as Life-Act, failed (Tardieux, 2017). In a recent study, it was shown that actin-binding nanobodies fused to epitope tags could be expressed in Toxoplasma gondii, allowing for the first time to analyse F-actin localisation and dynamics in living parasites (Periz et al., 2017). Another recent study showed that these nanobodies also bind to P. falciparum actin in-vitro (Bookwalter et al., 2017). Here we successfully adapted this technology to live P. falciparum parasites using two different epitope tags, the halo and the emerald tag. This allowed us to visualise F-actin throughout the asexual life-cycle of P. falciparum and in gametocytes (Figure 1) without causing any aberrant phenotypes, suggesting that this reagent, as in the case of T. gondii (Periz et al., 2017; Del Rosario et al., 2019) and all other eukaryotes tested so far (Melak et al., 2017), does not significantly interfere with F-actin dynamics. A recent study also used actin-binding chromobodies to analyse actin polymerisation centres in T. gondii and concluded that three Formins are responsible for actin dynamics (Tosetti et al., 2019). Importantly, validation of this reagent using either F-actin modulating drugs or a conditional mutant for PfACT1 led to expected results and phenotypes (Figures 1 and 2), demonstrating that F-actin dynamics are finely balanced in the parasite.

Super-resolution imaging revealed a complex F-actin network in P. falciparum (Figure 2), similar to that observed in T. gondii (Periz et al., 2017) with extensive filaments around the FV – a location where the basal ends of the newly formed merozoites bud off during the end of schizogonic cytokinesis. We show that the primary nucleator of F-actin in intracellular P. falciparum is PfFRM2 and this protein also controls apicoplast inheritance and efficient cytokinesis (Figures 3, 4, 5 and 6). Importantly, our previous characterisation of a conditional mutant for PfACT1 highlighted three primary functions of actin during the asexual life cycle of the parasite (Das et al., 2017), which perfectly correlate to the localisation and dynamics found here using chromobody-expressing parasites. PfACT1 is essential for P. falciparum invasion into erythrocytes and we show for the first time the temporal and spatial dynamics of actin polymerisation by live microscopy prior to invasion. Despite a growing body of evidence suggesting the importance of calcium signalling and phosphorylation of IMC proteins by kinases such as calcium-dependent protein kinase-1 (CDPK1) and protein kinase A (PKA) (Baker et al., 2017; Kumar et al., 2017) during invasion, what triggers the polymerisation of actin is largely unknown. Our data suggest that early signalling events just after egress are a trigger for actin-polymerisation at the apical end. This is likely to be mediated by an apically resident nucleator of F-actin, a likely candidate being Formin-1 (Baum et al., 2008b), since PfFRM2 KO parasites could still polymerise actin at the apical end, as demonstrated in this study.

Therefore, the expression of chromobodies in P. falciparum allows us to phenotypically probe the state of the F-actin network in-vivo in a rapid and robust manner. F-actin can be clearly visualised during growth, in invading merozoites and in gametocytes – opening up many avenues for further research. It is conceivable that this novel tool could also be used to investigate other motile and developmental stages of the Plasmodium parasite.

Using actin-binding chromobodies combined with powerful reverse genetics made possible by the DiCre system (Andenmatten et al., 2013; Collins et al., 2013a) we show here that Formin-2 in both Toxoplasma and Plasmodium is required for the intracellular polymerisation of F-actin, a mechanism employed by the parasite for correct segregation of apicoplasts and cytokinesis. Using bioinformatic searches within alveolates, we found the presence of a PTEN-C2-like domain only in apicomplexan Formin-2 sequences (Figure 3). This domain has been demonstrated in rice to be responsible for Formin-2 targeting to chloroplast membranes (Zhang et al., 2011). It is therefore likely that the apicomplexan PTEN-C2-like domain is used for apicoplast recruitment of apicomplexan Formin-2.

We found that the function of Formin-2 is partially conserved in T. gondii and P. falciparum. In the case of T. gondii, however, the intra-vacuolar F-actin network is still formed (Figure 7), suggesting that T. gondii and potentially other coccidia have additional, compensatory mechanisms at their disposal to form this network, such as the presence of a Formin-3 (Tosetti et al., 2019). This network appears to be critical for material exchange, synchronised replication of parasites and host cell egress (Periz et al., 2017).

Furthermore, using kymograph analysis, we gained new detailed insights into actin distribution and dynamics in Toxoplasma tachyzoites. In addition to the previously reported actin polymerisation centres anterior to the nucleus and the residual body (Periz et al., 2017), we identified the apical and basal poles as sites of actin accumulation, and describe a bi-directional flow of actin along the cell periphery (Figure 8). Interestingly, our data suggest that these sites of actin accumulation interact with each other. We therefore propose that a steady flow of actin connects different sites of actin polymerisation, allowing for particle transport and exchange (Figure 9). Correspondingly, in a recent report it was elegantly demonstrated that forces set up by waves of actin polymerisation, along with actin comet formation, aided in segregation of yolk granules towards the vegetal pole of zebrafish oocytes (Shamipour et al., 2019).

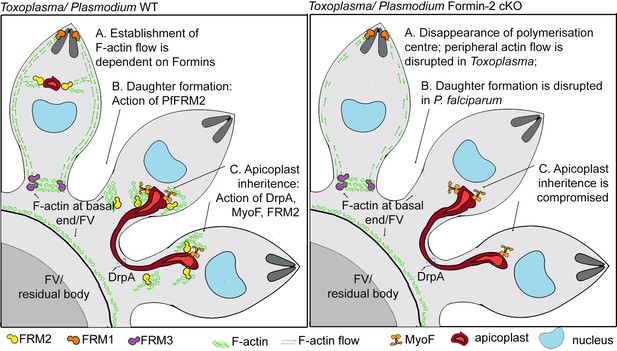

A model summarising Formin-dependent F-actin organisation, achieving apicoplast inheritance and daughter formation during intracellular replication of in P. falciparum and T. gondii

Toxoplasma/P. falciparum WT parasites: (A) Establishment of actin flow in intracellular parasites is dependent on Formin-2 (yellow) at the F-actin organising centre anterior to the nucleus, and may be further regulated by Formin-1 (orange) at the apical end and Formin3 (purple, Toxoplasma-specific) at the basal end. (B) Daughter cell formation in P. falciparum is controlled by Formin-2-dependent F-actin polymeriation at FV/basal end of the budding daughter cells. (C) Apicoplast inheritance in both P. falciparum and T. gondii occurs via the concerted action of DrpA-mediated scission, and MyoF-mediated pulling of apicoplasts along F-actin tracks created by Formin-2. Toxoplasma/P. falciparum Formin2 cKO parasites: (A) Polymerisation centres disappear with a complete lack of intracellular F-actin. In Toxoplasma, Formin-3 can still make extracellular F-actin connections between daughter cells. Establishment of bidirectional peripheral F-actin flow is disrupted. (B) Daughter cell formation in P. falciparum is compromised in Formin2 cKOs, possibly due to the lack of F-actin at the cytokinetic furrow. (C) Apicoplast inheritance in both P. falciparum and T. gondii is compromised due to the unavailability of tracks for movement of apicoplasts.

https://doi.org/10.7554/eLife.49030.033

Although TgFRM2 is expendable for invasion and gliding (Tosetti et al., 2019), TgFRM2-mediated actin nucleation appears to be a major contributor to actin distribution in intracellular Toxoplasma parasites and in P. falciparum. Since TgFRM2 cKO parasites still show actin polymerisation at the apical pole and in the residual body, and PfFRM2 cKOs can polymerise actin at the apical end, our findings support previous studies which reported non-overlapping functions for Formin-1,–2 (Baum et al., 2008b) and the coccidian specific Formin-3 (Tosetti et al., 2019). Our study supports the view that Formin-1 is active during gliding and invasion, while Formin-2 drives actin translocation and flow in intracellular apicomplexan parasites, achieving apicoplast inheritance in both Toxoplasma and Plasmodium, and efficient daughter formation, observed only in P. falciparum (Figure 9).

In conclusion, we show here that chromobodies can be used to determine F-actin dynamics in apicomplexan parasites and will form the basis for functional in-vivo studies of other actin regulatory proteins found in apicomplexans.

Materials and methods

Key resources table
Reagent
type (species)
or resource
DesignationSource or referenceIdentifiersAdditional

information
Gene (Plasmodium falciparum)PfActin-1, PfACT1
PfFormin2, PfFRM2
Das et al. (2017)
Baum et al., 2008b
PF3D7_1246200
PF3D7_1219000
Gene (Toxoplasma gondii)Tgformin2; Tgfrm2PMID: 22397711Tosetti et al., 2019TGME49_206580; TGGT1_206580
Gene (Toxoplasma gondii)Tgactin1; Tgact1, TgActAndenmatten et al., 2013; PMID: 9227855; PMID: 8601316; Whitelaw et al., 2017; PMID: 26081631; Egarter et al., 2014; PMID: 21998582; PMID: 23921463;
PMID: 22397711
TGME49_209030; TGGT1_209030
Gene (Toxoplasma gondii)TgadfPMID: 20042603; PMID: 21820516; PMID: 21346192TGME49_220400; TGGT1_220400
Transfected construct (Plasmodium falciparum)pCB-EME and pCB-HALOthis paperactin-chromobody construct with emerald and HALO tags under the P. falciparum hsp86 promoter
Cell line (Plasmodium falciparum)1G5 DiCre strainCollins et al., 2013aDiCre-expressing cell line
Cell line (Plasmodium falciparum)B11 DiCre strainPerrin et al., 2018DiCre-expressing cell line
Cell line (Plasmodium falciparum)LoxPAct1Das et al., 2017The Actin-1 gene was floxed for DiCre-mediatedconditional excision
Cell line (Plasmodium falciparum)LoxPPfAct1/CBEMEthis paperThe actin chromobody emerald construct pCB-EME was transfected on top of LoxPACT1
Cell line (Plasmodium falciparum)LoxPPfAct1/CBHALOthis paperThe actin chromobody HALO tagged construct pCB-HALO was transfected on top of LoxPACT1
Cell line (Plasmodium falciparum)LoxPPfFRM2-HAthis paperThe Formin-2 gene was simultaneously floxed and tagged in the B11 DiCre strain
Cell line (Plasmodium falciparum)LoxPPfFRM2-HA/CBEMEthis paperThe actin chromobody construct pCB-EME was transfected on top of LoxPPfFRM2-HA
Cell line (Homo sapiens)Human foreskin fibroblasts (HFF)ATCCATCC SCRC-1041; RRID: CVCL_3285The cell line is commercially available at ATCC
Cell line (Toxoplasma gondii)RHΔhxgprtPMID: 8662859
Cell line (Toxoplasma gondii)RHΔku80 DiCreHunt et al., 2019Dr Moritz Treek (The Francis Crick Institute, London)
Cell line (Toxoplasma gondii)TgFRM2-HAthis paperThe Tgfrm2 gene was endogenously tagged with 3xHA at the c-terminus
Cell line (Toxoplasma gondii)LoxPTgFRM2 (also referred to as LoxPTgFRM2-YFP-LoxP; referred to as TgFRM2 cKO or TgFRM2-YFP cKO upon excision of TgFRM2)this paperThe Tgfrm2 gene was floxed in RH Δ ku80 DiCre parasites and endogenously tagged at the c-terminus with YFP
Cell line (Toxoplasma gondii)TgFRM2-Cas9wt (referred to as TgFRM2-wt when non-induced; referred to TgFRM2-Cas9cKO or TgFRM2-cKO when induced with Rapamycin)this paperRH parasites expressing a conditional Cas9 system together with a gRNA targeting Tgfrm2
Cell line (Toxoplasma gondii)TgACT1-Cas9wt (referred to as TgACT1-wt when non-induced; referred to TgACT1-Cas9cKO or TgACT1-cKO when induced with Rapamycin)this paperRH parasites expressing a conditional Cas9 system together with a gRNA targeting Tgact1
Cell line (Toxoplasma gondii)TgADF-Cas9wt (referred to as TgADF-wt when non-induced; referred to TgADF-Cas9cKO or TgADF-cKO when induced with Rapamycin)this paperRH parasites expressing a conditional Cas9 system together with a gRNA targeting Tgadf
Cell line (Toxoplasma gondii)RHΔhxgprt-GFPotherDr Musa Hassan (Unibersity of Edinburgh, The Roslin Institute, Edinburgh); the gfp gene was randomly integrated into the parasite genome.
Antibodymouse anti-actinAngrisano et al., 2012RRID: AB_2665920Polyclonal antibody raised against a parasite-specific polypeptide epitope.
IFA dilution 1:500
AntibodyRat anti-haemagglutinin (HA)Rochecat# 1187431001Monoclonal antibody raised in rat
Antibodyrabbit anti-GFPAbcamcat #ab6556; RRI D:AB_305564Polyclonal antibody, IFA dilution 1: 500
Antibodymouse anti-Atrx1(DeRocher et al., 2008) PMID:18586952Polyclonal antibody, IFA dilution 1:500
Antibodyrabbit anti-G2TrxBiddau and Sheiner, unpublished.Polyclonal antibody, IFA dilution 1:500; Dr Lilach Sheiner (University of Glasgow, Institute of Infection, Immunity and Inflammation, Glasgow)
Antibodyrabbit anti-TOM40(van Dooren et al., 2016) PMID: 27458014Polyclonal antibody, IFA 1:1000
Antibodyrabbit anti-CPN60 (apicoplast)(Agrawal et al., 2009) PMID: 19808683Polyclonal antibody, reactive to Toxoplasma and P. falciparum. IFA dilution 1:2000
Chemical compound, drugCompound 2Collins et al., 2013bP. falciparum Protein Kinase G inhibitor
Software, algorithmIma ge JSchneider et al., 2012Schindelin et al., 2012
Software, algorithmImageJ plug-in‘KymographClear’Mangeol et al., 2016
Software, algorithmKymographDirectMangeol et al., 2016
Software, algorithmGraphpad PRISM 7 ver 7.03GraphPad SoftwareCommercial software for statistical analysis

Culture and transfection of P. falciparum

Request a detailed protocol

P. falciparum was cultured in O + human red blood cells from the Scottish National Blood Transfusion Service, at 37°C in RPMI 1640 with Albumax (Invitrogen) and schizonts were purified on a bed of 70% Percoll as described previously (Blackman, 1994). About 10 μg of plasmid was ethanol precipitated and resuspended in 10 μL sterile buffer TE (Qiagen). The Amaxa P3 primary cell 4D Nucleofector X Kit L (Lonza) was used for transfections. The input DNA was added to 100 μL P3 primary cell solution, mixed with 10–20 μL of packed synchronous mature schizonts and added to the cuvette, which was electroporated in a 4D-Nucleofector machine (Lonza) using the program FP158. The transfected schizonts were rapidly added to 2 mL of complete medium (RPMI with Albumax supplemented with glutamine) containing erythrocytes at a haematocrit of 15%, and left shaking in a shaking incubator at 37°C for 30 min. Finally the cultures were supplemented with 7 mL of complete RPMI medium to obtain a final haematocrit of 3% and incubated overnight at 37°C in a small angle-necked flask (Nunc). Parasites were selected by use of appropriate drug medium. The culture medium was subsequently exchanged every day for the next 4 days to remove cell debris which accumulates during electroporation and then twice a week until parasites were detected by Giemsa smear. Drug-resistant parasites were generally detectable in thin blood films 2–3 weeks post-transfection. After this, parasite stocks (at ~5% ring parasitaemia) were cryopreserved in liquid nitrogen. Lines were then cloned by limiting dilution using a simple plaque assay (Thomas et al., 2016).

Cloning and expression of actin-chromobodies in P. falciparum

Request a detailed protocol

The CB-HALO and CB-EME plasmid consists of a sequence encoding actin chromobody from Chromotek followed downstream by an in frame sequence encoding Halo (Promega) or the emerald tag. CB-EME and CB-HALO sequences were amplified by PCR and cloned into the vector pB-map2gfpdd (Nicholas Brancucci, unpublished) via restriction sites NheI and HindIII to remove the map2gfpdd sequence and put the CB-sequences under the hsp86 promoter. The resulting plasmids pB-CBEME and pB-CBHALO were sequenced on both strands to confirm correct nucleotide sequences. These constructs were transfected as described into the loxPACT1 parasite clone B2 (Das et al., 2017) to obtain parasite lines LoxPPfACT1/CBEME, LoxPPfACT1/CBHALO and into the parental 1G5DiCre clone (Collins et al., 2013a) to obtain the line CBEME/1G5DiCre and CBHALO/1G5DiCre. Lines were selected with 2.5 µg/mL blasticidin. CB-EME expression was visible by fluorophore excitation/emission in the green range and the HALO ligand was made visible by use of the ligand HALO-TMR at 1:40,000 with excitation/emission in the red range. Alternatively antibodies were used against the HALO tag to stain for CB-HALO.

P. falciparum IFA

Request a detailed protocol

Thin blood films were made on glass slides and fixed in 4% paraformaldehyde in PBS for 20 min. The slides were then permeabilised with 0.1% Triton-X/PBS for 10 min, washed and blocked overnight in 4% BSA/PBS. Antigens were labelled with suitable primary and secondary antibodies in 4% BSA/PBS with 5 min PBS washes in between. Slides were finally air dried and mounted with DAPI-Fluormount-G (SouthernBiotech).

Staining of the RON4 junction in CB-EME expressing was performed by fixation and immunostaining in solution as described previously (Riglar et al., 2011).

For image acquisition, z–stacks were collected using a UPLSAPO 100 × oil (1.40NA) objective on a Deltavision Core microscope (Image Solutions – Applied Precision, GE) attached to a CoolSNAP HQ2 CCD camera. Deconvolution was performed using SoftWoRx Suite 2.0 (Applied Precision, GE).

An Elyra S1 microscope with Superresolution Structured Illumination (SR-SIM) (Zeiss) was used for super-resolution imaging.

Colocalisation analysis was performed by using the Coloc two plugin in ImageJ and obtaining the Pearson´s R value for two defined channels.

Time lapse microscopy of live P. falciparum

Request a detailed protocol

Video microscopy of P. falciparum schizont egress was performed as described previously (Collins et al., 2013b). Synchronised schizonts were Percoll purified and treated with 1 μM C2 in RPMI medium with Albumax (Gibco) for 4 hr. Microscopy chambers (internal volume ~80 µl) for observing live schizonts were built by adhering 22 × 64 mm borosilicate glass coverslips to microscope slides with strips of double-sided tape, leaving ~4 mm gaps at each end. C1 was washed off before video microscopy and the schizonts were immediately resuspended into warm (37°C) RPMI (with Albumax) and introduced by capillary action into the pre-warmed chamber. The chamber was transferred to a temperature-controlled microscope stage at 37°C on a Deltavision Core microscope (Image Solutions – Applied Precision, GE). Images were routinely collected at 5 s intervals, beginning 6 min 30 s after washing off C1, over a total of 30 min.

Other than during egress, CB-EME and CB-HALO expressing parasites were imaged at intervals of 1 s.

Bioinformatics

Request a detailed protocol

Proteomes of interest (Supplementary file 2) were downloaded from the UniProt-KB website (www.uniprot.org). These were concatenated into a single proteome sequence dataset. All sequence identifiers and annotations referred to are from UniProt Hidden Markov Models (PFAM profiles) PF02181.23 (FH2.hmm, Formin Homology 2 Domain) and PF10409.9 (PTEN_C2.hmm, C2 domain of PTEN tumour-suppressor protein) were downloaded from Pfam (El-Gebali et al., 2018). These profiles were used with the HMMER package (HMMER 3.1b1 (May 2013); http://hmmer.org/) to search the proteome sequences (hmmsearch), and to align sequences of interest (hmmalign). The proteome sequence dataset was searched for FH2 domains (FH2.hmm) with hmmsearch, and sequences with regions scoring >28 bits recorded. These sequences were retrieved from the dataset, and subjected to alignment against the FH2.hmm. The profile conformant subsequences were extracted from the alignment and this sequence set subjected to alignment using: (1)hmmalign to FH2.hmm, (2) clustalw (Thompson et al., 1994) (3) muscle (Edgar, 2004) and (4) T_Coffee. These multiple sequence alignments were combined and evaluated in T_coffee (Keller et al., 2011) using the -aln and -special_mode evaluate options of T_coffee and the alignment edited to remove columns of average quality <4 and occupancy <30% (T_coffee -other_pg seq_reformat option). A rooted neighbour-joining tree of Formin Homology type two domains (FH2) was constructed from this alignment using the SplitsTree program [version 1.14.8,*]. The proteome dataset was searched for the presence of PTEN_C2 conformant sequences. As only an inconsistent subset of sequences were found in both PTEN_C2 and FH2 selected sequences; one such subsequence (A0A1A7VGT3_PLAKH, residues 1096–1238) was used as the query of an iterative psi-blast [@], (E-value cutoff = 10) using the proteome data set as the database. The program converged after three iterations. The sequences flagged by psi-blast as having PTEN_C2-like sequence were compared with the sequences flagged by hmmsearch as having FH2 domains, and such sequences annotated on the phylogenetic tree.

Creation of LoxPPfFRM2-HA and LoxPPfFRM2/CBEME strains

Request a detailed protocol

To obtain conditional truncation of the pffrm2 gene we used silent loxP sites within a heterologous P. falciparum intron loxPint (Jones et al., 2016). We ordered from Geneart a ~ 800 bp targeting sequence followed by the LoxPint module in the context AATTGTAG-LoxPint-ATAGCTTT followed by a recodonised version of rest of the 3’ region of the gene together with a C-terminal 3 HA tag. This ordered synthetic fragment was cloned into the pHH1-loxPMSP1 plasmid (Das et al., 2015) via restriction sites AflII and ClaI, replacing the msp1 sequence with pffrm2, giving rise to the plasmid pHH1-LoxPintFormin2 (Figure 3G). This was transfected into the DiCre expressing strain B11 (Perrin et al., 2018) and integrants selected by cycling on and off the drug WR99210 (Jacobus Pharmaceuticals, New Jersey, USA). The integrant line LoxPPfFRM2 was cloned by limiting dilution and two clones used for phenotypic characterisation. The strain LoxPPfFRM2/CBEME was created by transfecting the pB-CBEME plasmid into a LoxPPfFRM2-HA clone line and transfectants selected using the drug blasticidin (Sigma).

Conditional truncation of pfact1 and pffrm2

Request a detailed protocol

Various floxed parasite strains were synchronised by Percoll and sorbitol as previously described (Collins et al., 2013b). Briefly, schizonts were purified on a bed of 66% Percoll and allowed to reinvade into fresh erythrocytes for 1–2 hr. The remainder of the schizonts was removed by Percoll and the freshly invaded rings were subjected to 5% sorbitol for 7 min at 37°C to lyse any remaining schizonts. The tightly synchronised rings were divided into two flasks and pulse-treated for 4 hr at 37°C with 100 nM rapamycin or with 1% DMSO as control. The rings were then washed and returned to culture. Phenotypic analysis was performed primarily 44 hr post RAP-treatment unless stated otherwise.

Culturing of Toxoplasma parasites and host cells

Request a detailed protocol

Human foreskin fibroblasts (HFFs) (RRID: CVCL_3285, ATCC) were grown on tissue culture-treated plastics and maintained in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% foetal bovine serum, 2 mM L-glutamine and 25 mg/mL gentamycin. Parasites were cultured on HFFs and maintained at 37°C and 5% CO2. Cultured cells and parasites were regularly screened against mycoplasma contamination using the LookOut Mycoplasma detection kit (Sigma) and cured with Mycoplasma Removal Agent (Bio-Rad) if necessary.

Microscopy for Toxoplasma

Request a detailed protocol

Widefield images were acquired in z-stacks of 2 μm increments and were collected using an Olympus UPLSAPO 100 × oil (1.40NA) objective on a Delta Vision Core microscope (AppliedPrecision, GE) attached to a CoolSNAP HQ2 CCD camera. Deconvolution was performed using SoftWoRx Suite 2.0 (AppliedPrecision, GE). Further image processing was performed using ImageJ software (Schindelin et al., 2012; Schneider et al., 2012).

Super-resolution microscopy (SR-SIM) was carried out using an ELYRA PS.1 microscope (Zeiss) as described previously (Periz et al., 2017). Images were acquired using a Plan Apochromat 63×, 1.4 NA oil immersion lens, recorded with a CoolSNAP HQ camera (Photometrics)using ZEN Black software (Zeiss) and subsequently analysed with ImageJ software (Schindelin et al., 2012; Schneider et al., 2012).

Toxoplasma IFA

Request a detailed protocol

For immunofluorescence analysis, HFF monolayers infected with Toxoplasma parasites were grown on coverslips and fixed at the indicated time points in 4% paraformaldehyde for 20 min at RT. Afterwards coverslips were permeabilised in 0.2% Triton X–100 in 1 × PBS for 20 min, followed by blocking (3% BSA and 0.2% Triton X–100 in 1x PBS) for at least 30 min. The staining was performed using indicated combinations of primary antibodies (Supplementary file 1) for 1 hr and followed by secondary Alexa Fluor 488 or Alexa Fluor 594 conjugated antibodies (1 ∶ 3000, Invitrogen – Molecular Probes) for another 45 min. Nuclei were stained with DAPI-Fluormount-G (SouthernBiotech).

Generation of the TgFRM2-HA and loxPTgFRM2-YFP strains in RHδku80DiCre parasites

Request a detailed protocol

Guide RNAs targeting the upstream region of TgFRM2 and the C-terminal region were designed using EuPaGDT (Peng and Tarleton, 2015). These were cloned into a vector expressing a Cas9-YFP fusion as well as the specific gRNAs as previously described (Curt-Varesano et al., 2016). The designed gRNAs ACTTTTCATAGTATAGGAGG CGG and AATAGGGGTCTGTAGGTTAA GGG bind 989 bp upstream of the start codon and 12 bp upstream of the stop codon of TgFRM2 respectively. To introduce the upstream LoxP site, the LoxP sequence ATAACTTCGTATAGCATACATTATACGAAGTTAT flanked with respective 33 bp homology on each side was ordered as a 100 bp primer (ThermoFischer Scientific). The repair template for the C-terminal tag (HA or YFP) was generated by PCR using Q5 polymerase (New England Biolabs) from template plasmids with 50 bp of target-specific homology introduced via the primer. All tags are flanked by the same sequence, the upstream linker sequence GCTAAAATTGGAAGTGGAGGA encoding for the amino acid sequence AKIGSGG, the tag itself, a stop codon and the LoxP sequence. The YFP tag is superfolder YFP 2, and was sub-cloned from pSYFP2-C1 (gift from Dorus Gadella (Addgene plasmid # 22878; http://n2t.net/addgene:22878; RRID:Addgene_22878) (Kremers et al., 2006). All C-terminal repair templates were pooled, purified using a PCR purification Kit (Blirt). Together with 10 µg Cas9 vector encoding the respective gRNA, 1 × 107 of freshly released RHΔku80DiCre tachyzoites (an improved version created by Dr Moritz Treeck Hunt et al., 2019 from the original; Andenmatten et al., 2013) were transfected using 4D AMAXA electroporation. 24 hr after transfection, parasites were mechanically released, filtered and sorted for transient YFP expression into 96 well plates using a FACS sorter (FACSARIA III, BD Biosciences). Individual plaques were screened by PCR and the C-terminus of TgFRM2 was sequenced (Eurofins Genomics). Into a clone with TgFRM2-YFP-LoxP, the upstream LoxP was introduced as described. Screening for upstream LoxP integration was performed by PCR with a primer binding at the junction of gRNA binding sequence and LoxP site. Using a different set of primers, the complete upstream LoxP site was amplified via PCR and verified by sequencing. Two distinct clones were obtained for LoxPTgFRM2-YFP-LoxP (clone A and B) and used for phenotypic characterisation.

Induction of the conditional DiCre TgFRM2 KO parasites

Request a detailed protocol

To obtain TgFRM2-YFP KO parasites, the loxPTgFRM2-YFP-LoxP parental line was grown in 50 nM rapamycin containing media as described above until fixing. In IFA, TgFRM2-YFP KO parasites were always compared to a control population of untreated loxPTgFRM2-YFP-LoxP.

Induction of the conditional CRISPR/Cas9 cKO mutants

Request a detailed protocol

A conditional CRSIPR/Cas9 system was used to disrupt the genes actin1, adf and formin2 (Stortz, Grech et al. in preparation). Conditional CRISPR/Cas9 knock-out (cKO) mutants for actin1, adf and formin2 were obtained by adding 50 nM rapamycin to the parental lines expressing the conditional CRISPR/Cas9 system and a gene-specifc gRNA. Parasites were incubated with rapamycin for 1 hr at 37°C and 5% CO2 and, subsequently, cultured as described previously. For the CRSIPR/Cas9 actin1-cKO mutants, the culture medium was replaced by DMEM complete supplemented with 2.5% dextran sulphate after 24 hr to inhibit re-invasion of wild-type parasites. Disruption of the target genes was confirmed by sequencing (Eurofins Genomics).

Transient transfection of CB-EME into Toxoplasma parasites

Request a detailed protocol

To have parasites transiently expressing CB-EME, 1 × 107 of freshly released TgFRM2-HA or loxPTgFRM2-YFP parasites were transfected with 20 µg DNA by AMAXA electroporation. Subsequently, parasites were grown on HFFs as described above and fixed with 4% paraformaldehyde after 48 hr or 72 hr.

Time-lapse video microscopy for Toxoplasma

Request a detailed protocol

Conditional CRSISPR/Cas9 strains were grown on fresh HFF cells for 72 hr as described above. Subsequently, parasites were mechanically lysed and inoculated on glass bottom dishes (MaTek) for another 24 hr. RH-GFP parasites were inoculated on glass bottom dishes (MaTek) for 24 hr. Prior to live microscopy, the DMEM complete culturing media was replaced with FluoroBrite DMEM media supplemented with 10% foetal bovine serum, 2 mM L-glutamine and 25 mg/mL gentamycin. The dish was then transferred to the DV Core microscope (AppliedPrecision, GE) and maintained under standard culturing conditions (37°C, 5% CO2). Images were taken using a 100x oil objective lens. Deconvolution was performed using SoftWoRx Suite 2.0 (Applied Precision, GE). Videos were processed using ImageJ (Schneider et al., 2012; Schindelin et al., 2012).

Generation of colour-coded kymographs for particle dynamics analysis and time-averaged local intensity profiles

Request a detailed protocol

Colour-coded kymographs were generated by applying the ImageJ plugin ‘KymographClear’ as described previously (Mangeol et al., 2016). In short, we used this application to define a track on a maximum intensity image that was calculated from an image sequence. A kymograph was then generated depicting particle movement alongside the chosen track. Fourier filtering done by the plugin enables the distinction between forward-moving (red), backward-moving (green) and static (blue) particles in the kymograph.

Kymograph data were exported to the stand-alone software ‘KymographDirect’ to generate time-averaged local intensity profiles (Mangeol et al., 2016). Intensity profiles depict Cb-Emerald intensity along the measured axis over the entire duration of the movie. Background corrections were performed for all imported kymographs.

Skeletonisation of videos obtained from live microscopy

Request a detailed protocol

Image sequences were skeletonised with the ImageJ plugin ‘Skeleton’ (Schindelin et al., 2012). Prior to skeletonization, thresholding was performed on the movie stacks to create binary images defining signal and no signal. These binary images were then processed by the skeletonization plugin, converting the signal into pixels that can be followed through the time-lapse. Skeletonized images in this study represent collapsed t-stacks.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Proteomes of interest (Supplementary File 2) were downloaded from the UniProt-KB website (www.uniprot.org).

References

    1. Blackman MJ
    (1994)
    Purification of Plasmodium falciparum merozoites for analysis of the processing of merozoite surface protein-1
    Methods in Cell Biology 45:213–220.

Decision letter

  1. Anna Akhmanova
    Senior and Reviewing Editor; Utrecht University, Netherlands
  2. Tobias Spielmann
    Reviewer; Bernhard Nocht Institute for Tropical Medicine, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Formin-2 drives polymerisation of actin filaments enabling segregation of apicoplasts in P. falciparum and T. gondii" for consideration by eLife. Your article has been reviewed a Senior Editor, a Reviewing Editor, and two reviewers. The following individual involved in the review of your submission has agreed to reveal their identity: Isabelle Tardieux (Reviewer #1).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

This work builds on a previous study aimed at visualizing the actin cytoskeleton in Apicomplexa using chromobodies. As you will see from the reviewer reports appended below, both reviewers recognized the importance of the topic. The reviewers discussed your work in detail, and the consensus was that although the studied problem is challenging and the described work has some potential, in the current form the conclusions are not sufficiently supported by data, such as complementary approaches to provide sound evidence for the rather strong statements on the identity of the studied structures. Another strong point of criticism, on which both reviewers agreed, was the lack of quantitation throughout the paper. Since these concerns cannot be easily addressed within a short time frame, we advise you to seek publication elsewhere.

Reviewer #1:

The manuscript entitled "Formin-2 drives polymerisation of actin filaments enabling segregation of apicoplasts in P. falciparum and T. gondii" by JF Stortz et al., reports on the use of actin chromobodies to detect F-actin structures in the two Apicomplexa Plasmodium falciparum and Toxoplasma gondii parasites, and on the involvement of these structures during parasite intracellular development. While the authors have already obtained T. gondii lines expressing the actin chromobodies (Periz et al., 2017), this is newly achieved for Plasmodium falciparum. Using this tool to characterize putative F actin structures, they then investigated how intracellular dividing parasites (P. falciparum merozoite to schizont in the red blood cells) or T. gondii tachyzoites in nucleated mammalian cells) are affected when the actin1 gene is conditionally silenced using the DiCre recombinase/ lox system. They confirmed for P. falciparum asexual erythrocytic stages that loss of actin impacts proper segregation of the apicoplast organelle, a finding already reported by the authors for T. gondii tachyzoites (Whitelaw et al., 2017). The manuscript is then centered on the key role of actin dynamics to promote apicoplast segregation. Given this observation the authors established an association between pools of actin chromobody-bound actin and apicoplasts using confocal and super resolution imaging. To start addressing how actin dynamics could control apicoplast, they raised the hypothesis that the actin nucleator Formin (here Formin-2) would be a relevant candidate. They showed using both epitope tagging at the endogenous locus and conditional silencing, that (i) main pools of Formin-2 are indeed juxtaposed to apicoplasts and (ii) loss of formin induces the breakdown of the F-actin structure and eventually apicoplast segregation defect.

It is noteworthy that this study relies on a combination of recently introduced but still challenging molecular genetics in the Apicomplexa field. The authors have engineered several lines of interest in both T. gondii and P. falciparum and this represents a valuable achievement. In addition, the view that Formin-2 could play a key role in controlling actin at specific locations during cell cycle is also quite interesting and rather convincingly documented. However, in my opinion the work should be strengthened by few additional datasets and by careful reevaluation of several statements prior to publication.

First and main point is the need to document in better detail how F-actin pools form/disorganize in space and time during the apicoplast segregation process in wild type parasites. Real time and static SR imaging should allow capturing the kinetics of the segregation process as well as spatial details (Z stacks thus 3D reconstitution will reveal them). Then, the use of conditional gene silencing will take all its power to support/contradict the scheme.

In Figure 2: it is very important that the authors do not refer to filopodia when observing fluctuations at the second time scale in the actin chromobody signals during the early stages (ring/trophozoite which should be indicated in the figures). If they want to characterize filopodia occurrence, they need to provide a marker for membrane and to analyze whether the parasite actin protrusions coincide with membrane projections.

Reviewer #2:

This work continues some previous studies that showed in Toxoplasma that one could get some visualisation of the actin biology by expressing fluorescent probes called chromobodies. Here the authors use this same technology to reanalyse the distribution of actin in both Plasmodium and Toxoplasma. The authors show some potentially interesting results – mainly built around interpretation of images relating to the apicoplast and implicating Formin-2 in the polymerisation of actin filaments that are known from previous work to be involved in apicoplast division.

At the heart of the work are some statements that define the fluorescent dots or areas of brightness as actin filamentous structures or apicoplasts etc. I absolutely recognise the difficulty of these visualisation experiments in terms of getting an expressed probe to be at a meaningful level of expression and then imaging its distribution and interpreting the results. I recognise that one is maybe not likely to expect to see huge filamentous actin cables such as one can see in even small cells such as yeast.

However, the essence of the matter is that I simply do not see that the authors have provided either direct evidence or complementary approaches (biochemistry or electron microscopy) to provide sound evidence for their rather strong statements of identity of the structure. I am sorry to say that I think this is an example of pushing one technology too far and not being realistic about how much one can rely on the interpretation of an image above background to be significant.

Starting early in the paper on Figure 1 there is a disconnect between the statements made and the images shown. Figure 1B contains images of CB-EME (and CB-HALO) on which the whole paper rests. The problem is that it is extremely difficult if not impossible to discern a filamentous structure in these images over background. There are a few patches of greater fluorescence than background but what allows one to say that these are filamentous? Second Cytochalasin B is supposed to depolymerise these F-actin filaments but there is still a lot of fluorescence in this cell. Is this merely CB-EME fluorescence not bound to actin (G-actin) or is it actin / CB-EME complex fluorescence? The authors want to use this to define that the reagent is specifically recognising actin filaments but I am unconvinced by these images. All of this can be bolstered (and surely must be?) by expressing the Plasmodium actin in vitro and doing some biochemistry. Does CB-EME etc. bind in vitro only to polymerised F-actin or does it also form a complex with G-actin? These patches could easily be localised unpolymerized G-actin.

Given the large background seen after Cytochalasin B as well as in the normal cells one needs some quantitative statements about comparative camera settings for image capture comparisons.

Figure 1C. The anti-actin antibody seems to give different staining and is deemed (subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”) to recognise both G and F actin. There is no biochemistry on the antibody – (blot of whole cell extracts, IP, etc.) so specificity not known. I don't feel confident about this conclusion when I compare the images.

Subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”. If chromobodies can bind to PfACT1 and actin2 (where is biochemical evidence?) then why conclude that the filaments could be built from both proteins? Why not of individual ones or a mix?

Subsection “Highly dynamic F-actin-rich filopodia-like structures extend outward from the periphery of growing parasites”. Structures are deemed to be highly dynamic and changing. This is very unscientific language given the data. What does it mean? Do the structures disappear and reappear? Do they move? Increase in size and decrease? Also, whatever they do can numbers not be given – time, number of events observed, number of types of events, etc.

Subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”. "passes through the whole cell" – unfortunate use of English.

Subsection “Chromobody labelled F-actin structures disappear upon disruption of PfACT1”. Figure 3F the authors speak about the close association of apicoplast with F actin. Actually, all one can see on this image is a large collection of dots. Why are there so many of different types if there should be only one apicoplast per cell?

Moreover, there is actually little coincidence by my eye of these dots. Surely the authors can quantify their statements by morphometric analysis. My conclusion is bolstered by the fact that there is very little yellow (overlapping green and red) on the merged image. Hence, their data don't justify their interpretation.

Subsection “Chromobody labelled F-actin structures disappear upon disruption of PfACT1”. When disrupted they say that there is a consequential apicoplast segregation defect. I don't see this. In Figure 3F the apicoplast dots are smaller – why would this be if a segregation phenotype?

Again, there are no numbers in the manuscript, no sizes, counts or morphometric analyses of juxtapositions.

Subsection “DiCre-mediated conditional disruption of Formin-2 causes a defect in apicoplast segregation in P. falciparum”. The authors speak about collapsed or morphologically aberrant apicoplasts? What is a collapsed apicoplast? No correlative EM is used. They speak about collapsed/intermediate/normal apicoplasts without any definition. All one can see are a series of dots. There is nothing to provide a definition that a particular dot represents a particular "type" of apicoplast. Again, no numbers, counts etc. No statistics. What is a collapsed apicoplast and what does it look like at a sensible resolution – i.e. use electron microscopy.

One can continue with this type of analysis in further experiments.

Actin filaments are known from previous work to be involved in apicoplast division and this paper seeks to implicate Formin in that process. This is a not unexpected factor to be involved. If the paper was to merit publication in such a journal it would need a stronger functional message based on more quantitative microscopy, some statistical analysis and some biochemistry. I am afraid this is a microscopy technique that seems to have overtaken the problem in a non-critical manner.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for submitting your article "Formin-2 drives polymerisation of actin filaments enabling segregation of apicoplasts and cytokinesis in P. falciparum" for consideration by eLife. Your article has been reviewed by Anna Akhmanova as the Senior and Reviewing Editor, and three reviewers. The following individual involved in the review of your submission has agreed to reveal their identity: Tobias Spielmann (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This paper employs chromobodies to document the localization and dynamics of the actin cytoskeleton in Plasmodium and Toxoplasma and provides insight into the function of formin in regulating the formation of different actin structures in these parasites. Overall, the reviewers were positive about the quality of the data and the strength of the conclusions. Therefore, the reviewers agreed that it was not necessary to perform additional experiments, but that the paper would benefit from improving the writing and the presentation of the data. We include below the individual reviews and hope that you will finding them helpful when revising your paper.

Reviewer #1:

Filamentous actin has been notoriously difficult to detect in malaria parasites. In this paper the authors use chromobodies to visualise F-actin in live malaria parasites. They validate the observed structures to be F-actin using CytD and Jaspla and in a conditional actin KO. Next they generated a conditional Formin-2 KO and used the actin chromobody to assess the impact on actin. This permitted them to nicely link phenotypes of the Formin-2 KO with changes in F-actin pools in the cell. This is most convincing with the apicoplast which shows a segregation phenotype (fitting with the phenotype of the conditional actin KO that the authors previously showed in Das et al., 2017). The manuscript also shows that knocking out Formin-2 leads to loss of the F-actin network around the food vacuole. This network is present in late stage malaria parasites and likely is equivalent of the intravacuolar actin network in Toxoplasma parasites. The dependence of this network on Formin-2 is in contrast to the situation in T. gondii, where this network is dependent on a third formin that is not present in malaria parasites. These findings are shown in the last part of the manuscript where the authors analyse F-actin in a conditional Formin-2 KO in Toxoplasma. In part this overlaps with data from a recent report in eLife (Tosetti et al., 2019) that also used the actin chromobody of the authors of the present manuscript. Interestingly, the work here indicates bi-directional F-actin flows along the parasite periphery whereas the previous report by Tosetti et al., indicated unidirectional flow toward the basal end.

Together with other work, this paper leaves us with a good picture which formin drives different actin-mediated processes in plasmodium and toxoplasma parasites. It convincingly shows that Formin-2 plays a central role for most actin-dependent processes in malaria blood stages (including the functions of Formin3 in T. gondii) but not the invasion functions which are controlled by Formin-1. A highlight of the paper is the visualisation of F-actin in living malaria parasites, which is also demonstrated in a number of nice time-lapse movies. The actin chromobody will be an excellent tool for further functional studies in this parasite. Overall this is technically very challenging work that includes multiple conditional knock outs and is experimentally sound.

The only larger concern I have is the cytokinesis phenotype in the Formin-2 KO (but this may be solved by simply changing the text to allow other options). Can the authors exclude that other phenotypes in later trophozoites or early schizonts contribute to the phenotype? Many different cellular defects could lead to the reduced number of nuclei in Figure 6A. In fact, this figure most likely indicates a general developmental delay rather than a specific phenotype. Do the 'slower' cells with less than 5 nuclei in Figure 6A still make it to egress? Or do they have other defects that make them arrest earlier? If they do not reach the late schizont, it may not only be a cell division phenotype. Was Figure 6E done with purified late stages or with all parasites on/off RAP?

The subsequent experiments (Figure 6B etc.) are then done with purified late stage parasites which consists of the subfraction that makes it to that stage (maybe those parasites where Formin-2 levels dropped more slowly after excision of the gene?). These experiments are important, as they show that the merozoites produced from this subfraction are still invasive and show that the Formin-1 dependent functions are not affected. The experiments are also consistent with the author's conclusion that this signifies a role of Formin-2 in 'coordinate cytokinesis'. However, it does not exclude that Formin-2 may have earlier function in schizogony. Unless all cells on RAP eventually make it to that stage, this may be just one of the phenotypes. This should be discussed.

Reviewer #2:

This is in principle a well performed study investigating actin dynamics in P. falciparum blood stages and T. gondii using a fluorescent antibody against actin filaments and a focus on the actin polymerizing protein Formin-2. The authors confirm and expand on recent work published in eLife and elsewhere introducing the chromobody, showing the importance of three different formins on actin polymerization in T. gondii as well as the finding that actin is important for apicoplast division. There is quite some overlap on the Formin-2 part with the recent paper from the Soldati group, but this should be covered by the scoop protection mechanism offered by eLife. The authors do a good job dissecting the differences in the roles of actin in Plasmodium and Toxoplasma.

This paper improves on the previously published eLife article of the same lab by examining for the first time actin dynamics with a chromobody in P. falciparum and by providing enhanced image analysis, which led to the discovery of a bidirectional cytoplasmic flow of actin filaments.

I don't have suggestions for additional experiments but maybe the authors can reflect on/discuss the following points:

It would improve reading experience if the movies would be somehow fused into fewer total movies, if possible – e.g. Video 1, Video 2, Video 3 and Video 4 could be put back to back of each other into a single file.

Can the structures visualized by the chromobody be bleached to investigate their turnover?

Does the bi-directional flow observed here compare with the recently reported actin flow in oocysts by the Heisenberg lab (2019)? How does this fit to the data recently published in eLife, where actin flows only from front of T. gondii to their back?

Reviewer #3:

This manuscript describes a technological breakthrough in the study of P. falciparum, an organism of great clinical significance, as well as reveals novel details on this organism's actin cytoskeleton, and draws parallels and distinctions for the roles Formin-2 in this organism and the distantly related T. gondii. This appears to be the second round of reviews for this manuscript, although this is my first viewing of the manuscript. Overall, I am satisfied with the rigor shown, and with the major conclusions that the authors draw. In particular, I am comfortable with the authors' demonstration that the chromobodies (CB's) are indeed faithfully decorating actin-based structures, and based on their sensitivity to CytoD, agree that these structures are likely F-actin-based. As outlined below, my main concerns regarding this work are the specific wordings used at some places in the manuscript regarding "dynamics", some omissions or gaps in the figure descriptions that cause confusion, and some missing information regarding the phylogenetic analysis.

1) The authors frequently use the term "dynamics" when describing actin-based structures. Based on their data, I would agree that many of the structures they view are dynamic in the sense that are mobile (e.g. subsection “F-actin in gametocytes”). However, "dynamic" with regards to actin also often refers to the degree to which the actin filaments undergo turnover (rounds of polymerization and depolymerization). The authors should review their text and edit where it needs to be made clear which type of dynamics they are discussing. Related to this, the authors claim to show that "islands of F-actin are stabilized upon jasplakinolide treatment (+JAS) (Figure 1C)", but this is documented only by a still image with large fluorescent bodies. The authors cite Video 3, but there is no +JAS movie on that video, only control and +CytoD. I agree that the authors could interpret their result as being consistent with stabilization of F-actin, but without showing that there is reduced turnover of actin in these structures, they should hedge on their wording some.

2) I also strongly recommend the authors supplement some of their figures/figure legends to help the reader better interpret the data. In particular:

For Figure 2Bii, the legend explains the significance of the bottom panels, but not the top four panels. Are they different time points?

For Figure 3G, the figure legend should provide some more information to help the reader understand the model. That is, "syn", "loxPint", and "WR" should be defined. It is a very elegant construct but requires a lot of flipping back and forth between the legend, text, and methods to deconstruct what is going on.

For Figure 3H, it currently gives the impression that Integrant 1 and Integrant 2 are being analyzed, when in fact it is transformant 1 and transformant 2 that are being analyzed, using a PCR reaction that probes for integration or the endogenous locus. I would suggest clarifying the labels, such as replacing "Integrant" and "Endogen." with "PCR(Int)" and "PCR(End)" (with clarifications in the legend), and add the label "Transformant:" to the left of "1 2 1 2" above the gels.

For Figure 4C, the x-axis is confusing to me. Perhaps this is because I do not study P. falciparum, but that will be true of a large number of readers.

For Figure 4D, what are the units for the y-axis? Is it an arbitrary value? A ratio of HA signal to enolase?

For Figure 7—figure supplement 1, reproduce the map shown in Figure 7A to help the reader to interpret the PCR results without needing to flip between two figures.

For Videos 9 – 11, multiple strains are shown simultaneously, but I could not observe any labels that identified which panel in a video corresponded to which strain. This was true when I viewed the movies directly from the website, and when I downloaded the mp4's.

3) Related to the phylogenetic analysis, Table T2, which lists the genomes that were searched for formins for the phylogenetic analysis, appears to be absent. Also, Figure 3B presents a single tree, but the Materials and methods section refers to "trees" (plural) that were constructed from "this alignment (or subsets of it)". The authors should clarify this. It would also be appropriate to provide the aligned sequences as a supplementary text file, if possible.

https://doi.org/10.7554/eLife.49030.039

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Reviewer #1:

[…] In addition, the view that Formin-2 could play a key role in controlling actin at specific locations during cell cycle is also quite interesting and rather convincingly documented. However, in my opinion the work should be strengthened by few additional datasets and by careful reevaluation of several statements prior to publication.

We thank the reviewer for their positive statements and for the subsequent feedback they have provided.

First and main point is the need to document in better detail how F-actin pools form/disorganize in space and time during the apicoplast segregation process in wild type parasites. Real time and static SR imaging should allow capturing the kinetics of the segregation process as well as spatial details (Z stacks thus 3D reconstitution will reveal them). Then, the use of conditional gene silencing will take all its power to support/contradict the scheme.

We thank the reviewer for this suggestion and agree that measurement of F-actin dynamics is very useful to document the influence of Formin on F-actin dynamics and function. In our previous submission we were not yet able to do so, since novel imaging tools were required. Therefore, we adapted kymograph analysis to measure F-actin flow in apicomplexans. We have now provided in Figure 1 and Video 1, Video 2, Video 3, Video 4 representations of how F-actin organizes and disorganizes in real time. Furthermore, to quantifiably describe the spatiotemporal dynamics of F-actin we have performed time averaged intensity measurements along defined transects and kymograph analysis (Figure 2, Figure 8 and Figure 2—figure supplement 2, Figure 8—figure supplement 1, Figure 8—figure supplement 2) and reliably shown the presence of defined pools of actin and actin flow in specific subcellular locations.

In Figure 2: it is very important that the authors do not refer to filopodia when observing fluctuations at the second time scale in the actin chromobody signals during the early stages (ring/trophozoite which should be indicated in the figures). If they want to characterize filopodia occurrence, they need to provide a marker for membrane and to analyze whether the parasite actin protrusions coincide with membrane projections.

We no longer use the term ‘filopodia’ and describe them simply as actin accumulations.

Reviewer #2:

[…] Starting early in the paper on Figure 1 there is a disconnect between the statements made and the images shown. Figure 1B contains images of CB-EME (and CB-HALO) on which the whole paper rests. The problem is that it is extremely difficult if not impossible to discern a filamentous structure in these images over background. There are a few patches of greater fluorescence than background but what allows one to say that these are filamentous? Second Cytochalasin B is supposed to depolymerise these F-actin filaments but there is still a lot of fluorescence in this cell. Is this merely CB-EME fluorescence not bound to actin (G-actin) or is it actin / CB-EME complex fluorescence? The authors want to use this to define that the reagent is specifically recognising actin filaments but I am unconvinced by these images. All of this can be bolstered (and surely must be?) by expressing the Plasmodium actin in vitro and doing some biochemistry. Does CB-EME etc. bind in vitro only to polymerised F-actin or does it also form a complex with G-actin? These patches could easily be localised unpolymerized G-actin.

We provide several lines of evidence that CB recognises specifically F-actin. First, we use CD and JAS and demonstrate polymerisation and depolymerisation respectively. It can clearly be seen in Figure 1 and Video 3 that all filamentous structures disappear under CD. Second, we also use a genetic disruption of actin-1 and show that filaments disappear. We have now developed and provided a quantitative method (kymograph analysis and local time averaged intensity measurements) to study these actin filaments and the intensity profiles on the graphs in the WT are completely distinct from the intensity profiles of the mutant (see Figure 2F, Figure 8, Figure 2—figure supplement 2, Figure 8—figure supplement 2).

Although the reviewer points out some patches of greater fluorescence under CD treatment, this can easily be explained due to compression effects, since the parasite replicates within a tight parasitophorous vacuole that also contains a dense food vacuole. It is therefore not surprising that the cytosolic signal is not evenly distributed.

In the case of CB-Halo the background is furthermore increased, since a soluble ligand has to be added for staining that diffuses into the cell.

While we agree that CD (and Jas treatment) alone is no definite proof for specificity, we also use conditional Act1 and Formin-2 knockout lines and demonstrate that the entire F-actin signal disappears upon removal of the gene proving specificity of CB for F-actin.

Finally, we would like to point out that CB is a reagent that has been validated and tested in several eukaryotes including its binding to F-actin in the apicomplexan parasite T. gondii (see also Periz et al., 2017). This commercial reagent is a well-accepted F-actin sensor and applied in many diverse eukaryotes. It appears to be especially well suited to visualise highly dynamic F-actin structures, such as nuclear F-actin (see Melak et al., 2017) or apicomplexan F-actin (Periz et al., 2017; Tosetti et al., 2019).

As a final biochemical proof, in the study ‘Reconstitution of the core of the malaria parasite glideosome with recombinant Plasmodium class XIV myosin A and Plasmodium actin’ by Bookwalter et al., (2017), the authors provide evidence for binding of Plasmodium actin filaments to actin-binding chromobodies.

In this respect, we would like to mention a recent, competing study, published in eLife that used our reagents (see acknowledgement of Tosetti et al., 2019), the CB in Toxoplasma and reaches similar conclusions regarding Formin-2 and F-actin dynamics in Toxoplasma (Tosetti et al., 2019).

Given the large background seen after Cytochalasin B as well as in the normal cells one needs some quantitative statements about comparative camera settings for image capture comparisons.

We performed cutting edge imaging and we did correct for background, used the same camera settings and exposure times. We are happy to provide the raw data for the reviewer’s information.

Figure 1C. The anti-actin antibody seems to give different staining and is deemed (subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”) to recognise both G and F actin. There is no biochemistry on the antibody – (blot of whole cell extracts, IP, etc.) so specificity not known. I don't feel confident about this conclusion when I compare the images.

The widely used anti-actin antibody has been previously published and characterised by the Baum group as suggested by this reviewer (Angrisano et al., 2012). We show that it does recognise the same structures and it is not surprising that slightly different staining patterns for F-actin can be obtained with different reagents. In this case, one also needs to consider that CB-Emerald binds actin prior to fixation and permeabilization in living cells, whereas the anti-actin antibody recognises the same structures after fixation.

We take the liberty of showing some images presented in Angrisano et al., which are fully consistent with the stain obtained with CB in our study:

Figure 4 Angrisano et al., 2012: Rings treated with or without Jas: Please compare to our Figure 1A,C;

Invasion of merozoite, Figure 6C of Angrisano et al., 2012: Please compare to our Figure 2.

Subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”. If chromobodies can bind to PfACT1 and actin2 (where is biochemical evidence?) then why conclude that the filaments could be built from both proteins? Why not of individual ones or a mix?

Since the actin-chromobodies used in our study can bind to actins from all eukaryotes tested so far and also to PfActin-1 (Bookwalter et al., 2017) there is no reason CB-EME will not bind actin-2. We would like to point out that based on expression (and what is known from other studies, see Hlisc et al., 2014), we would assume that PfAct-2 is detected in gametocyte. Again, please note that the stain we show in Figure 1 for gametocyte is almost identical to the F-actin stain presented in Hlisc et al., 2014 for gametocytes.

Subsection “Highly dynamic F-actin-rich filopodia-like structures extend outward from the periphery of growing parasites”. Structures are deemed to be highly dynamic and changing. This is very unscientific language given the data. What does it mean? Do the structures disappear and reappear? Do they move? Increase in size and decrease? Also, whatever they do can numbers not be given – time, number of events observed, number of types of events, etc.

The statements have been corrected. We will be happy to edit the text further, based on helpful comments from the reviewers.

Subsection “Chromobodies label F-actin structures in P. falciparum asexual stages and in gametocytes”. "passes through the whole cell" – unfortunate use of English.

We have corrected these statements.

Subsection “Chromobody labelled F-actin structures disappear upon disruption of PfACT1”. Figure 3F the authors speak about the close association of apicoplast with F actin. Actually, all one can see on this image is a large collection of dots. Why are there so many of different types if there should be only one apicoplast per cell?

The image depicts a schizont, meaning nucleus and apicoplast have already been divided. The apicoplast is then organised in a “tubular-like” network, before fission occurs, so that each merozoite obtains a single apicoplast (see vanDooren et al., 2005). Therefore, a staining pattern like the one shown in this study is fully expected.

Moreover, there is actually little coincidence by my eye of these dots. Surely the authors can quantify their statements by morphometric analysis. My conclusion is bolstered by the fact that there is very little yellow (overlapping green and red) on the merged image. Hence, their data don't justify their interpretation.

We have now provided quantifications for these.

Subsection “Chromobody labelled F-actin structures disappear upon disruption of PfACT1”. When disrupted they say that there is a consequential apicoplast segregation defect. I don't see this. In Figure 3F the apicoplast dots are smaller – why would this be if a segregation phenotype?

Again, there are no numbers in the manuscript, no sizes, counts or morphometric analyses of juxtapositions.

The apicoplast segregates into individual apicoplasts, so that each merozoite will contain a single apicoplast at the end of schizogony. In the lower panel it can be seen that the apicoplasts clump together, resulting in a large “dot” that is not evenly distributed.

We have now provided detailed quantification for the phenotype in both organisms Plasmodium and Toxoplasma.

Subsection “DiCre-mediated conditional disruption of Formin-2 causes a defect in apicoplast segregation in P. falciparum”. The authors speak about collapsed or morphologically aberrant apicoplasts? What is a collapsed apicoplast? No correlative EM is used. They speak about collapsed/intermediate/normal apicoplasts without any definition. All one can see are a series of dots. There is nothing to provide a definition that a particular dot represents a particular "type" of apicoplast. Again, no numbers, counts etc. No statistics. What is a collapsed apicoplast and what does it look like at a sensible resolution – i.e. use electron microscopy.

We have now provided images to refer to what we define as normal / collapsed / intermediate apicoplasts. We had used a similar scoring strategy in our previous paper (Das et al., 2017)

One can continue with this type of analysis in further experiments.

Actin filaments are known from previous work to be involved in apicoplast division and this paper seeks to implicate Formin in that process. This is a not unexpected factor to be involved. If the paper was to merit publication in such a journal it would need a stronger functional message based on more quantitative microscopy, some statistical analysis and some biochemistry. I am afraid this is a microscopy technique that seems to have overtaken the problem in a non-critical manner.

Again, we think this study needs to be seen in the context of the developments in the field, as appreciated by reviewer 1. It is for the first time possible to image F-actin in Plasmodium parasites and define its spatial localisation and dynamics over the asexual cycle of the parasite. A recent, competing study by Tosetti et al., 2019 (which used our reagents) comes to a very similar conclusions as our study. We also have defined this as research advance to Periz et al., 2017. Given that (A) eLife offers scoop protection and (B) this study is submitted as research advance (https://elifesciences.org/articles/03980). Therefore, we do think that eLife is the right platform for our manuscript.

To further strengthen this study, we have now provided functional data and shown that Formin-2 is responsible for maintaining a normal flow of F-actin in both Plasmodium and Toxoplasma using novel imaging tools.

[Editors' note: the author responses to the re-review follow.]

Reviewer #1:

[…] The only larger concern I have is the cytokinesis phenotype in the Formin-2 KO (but this may be solved by simply changing the text to allow other options). Can the authors exclude that other phenotypes in later trophozoites or early schizonts contribute to the phenotype? Many different cellular defects could lead to the reduced number of nuclei in Figure 6A. In fact, this figure most likely indicates a general developmental delay rather than a specific phenotype. Do the 'slower' cells with less than 5 nuclei in Figure 6A still make it to egress? Or do they have other defects that make them arrest earlier? If they do not reach the late schizont, it may not only be a cell division phenotype. Was Figure 6E done with purified late stages or with all parasites on/off RAP?

We thank the reviewer for their positive comments and the critical reading of the manuscript. Data in Figures 6D and E are from experiments done with purified late stage parasites. The sentence in subsection “DiCre-mediated disruption of Formin-2 abrogates the actin network in P. falciparum schizonts” has been modified to clarify this. At this point we cannot rule out that additional defects in the late trophozoites cause a developmental delay. For example, it could be possible that actin plays a role in uptake of host cell material, as previously suggested. We are currently performing experiments to analyse this possibility in more detail and this will be subject to a later study.

We have changed the text to reflect this (see subsection “DiCre-mediated conditional disruption of Formin-2 affects daughter cell formation / cytokinesis in P. falciparum”).

The subsequent experiments (Figure 6B etc.) are then done with purified late stage parasites which consists of the subfraction that makes it to that stage (maybe those parasites where Formin-2 levels dropped more slowly after excision of the gene?). These experiments are important, as they show that the merozoites produced from this subfraction are still invasive and show that the Formin-1 dependent functions are not affected. The experiments are also consistent with the author's conclusion that this signifies a role of Formin-2 in 'coordinate cytokinesis'. However, it does not exclude that Formin-2 may have earlier function in schizogony. Unless all cells on RAP eventually make it to that stage, this may be just one of the phenotypes. This should be discussed.

We have now added explanatory sentences that a role for PfFRM2 earlier in schizogony cannot be ruled out (subsection “DiCre-mediated conditional disruption of Formin-2 affects daughter cell formation / cytokinesis in P. falciparum”). See also comment above.

Reviewer #2:

[…] It would improve reading experience if the movies would be somehow fused into fewer total movies, if possible – e.g. Video 1, Video 2, Video 3 and Video 4 could be put back to back of each other into a single file.

We have considered this extensively, but we are of the opinion that stitching together movies will not necessarily improve the reading experience. Readers would have to scroll along a long movie to find the correct starting point for each parasite life-cycle stage – which would be highly inconvenient. In the online format of eLife, movies can be embedded at the correct position within the text, and that will anyway significantly improve the reading/viewing experience.

Can the structures visualized by the chromobody be bleached to investigate their turnover?

This experiment was already performed in the Periz et al., (2007), to which our current manuscript is a Research Advance. It was observed by FRAP that F-actin structures inside the parasite quickly recovered after photobleaching implying high turnover, but signal at extracellular F-actin tubules did not, indicating higher stability.

Does the bi-directional flow observed here compare with the recently reported actin flow in oocysts by the Heisenberg lab (2019)?

Shamipour et al., (2019) recently showed in zebrafish oocytes that a wave of actin polymerization is responsible for segregation of yolk granules (down towards the vegetal pole) and ooplasm (up towards the animal pole). Additionally, actin comets formed on the yolk granules provide further force to push these granules down and actin flows pull ooplasm upwards. Parallels can be drawn from this study to our own. It is conceivable that actin polymerization and hence flow derived forces set up by Formins aid in particle segregation, specifically as we observe for segregation of the apicoplast, and as has already been highlighted in our model in Figure 9. We have now added the Shamipour et al., reference to our Discussion section.

How does this fit to the data recently published in eLife, where actin flows only from front of T. gondii to their back?

Most recently, Tosetti and co-workers published their investigation of the three actin nucleation factors in Toxoplasma (Tosetti et al., 2019). This study shows that TgFormin1 does not majorly contribute to intracellular actin dynamics. Instead, TgFormin1 appears critical for motility, invasion and egress of extracellular parasites. Results presented by Tosetti and colleagues regarding TgFormin-2 are in good agreement with data presented here.

TgFormin1-mediated actin nucleation was described to be critical for maintaining actin flow in extracellular parasites (Tosetti et al., 2019). According to live microscopy studies of moving and non-moving extracellular parasites, actin appears to accumulate at the basal end of the parasite, indicating actin flow from the apical to the basal pole. Tosetti and co-workers suggest that actin translocation to the basal pole happens along the parasite periphery (Tosetti et al., 2019). Our study provides experimental evidence that the parasite periphery represents one site of increased actin abundance during intracellular growth. Actin flow appears bi-directional along the periphery in intracellular parasites and is fuelled by TgFormin-2-mediated actin polymerisation.

In conclusion, it appears that the peripheral actin flow depends on TgFormin1 in extracellular parasites while depending strongly on TgFormin-2 in intracellular parasites. The one-directional actin flow to the basal end in extracellular parasites was proposed to mediate parasite motility (Tosetti et al., 2019). In intracellular parasites, when actin does not promote parasite movement, bi-directional actin flow could be involved in a vast variety of cellular processes. Research elucidating these processes is on-going in our laboratory. At this point of time, we are hypothesising that bi-directional actin flow might, amongst other things, allow for particle trafficking within replicating parasites.

We have already discussed this in various parts of the manuscript. See Results section and Discussion section.

Author response image 1 summarizing the same has been presented for the reviewer’s reference:

Author response image 1
Actin flow in Toxoplasma.

Reviewer #3:

[…] 1) The authors frequently use the term "dynamics" when describing actin-based structures. Based on their data, I would agree that many of the structures they view are dynamic in the sense that are mobile (e.g. subsection “F-actin in gametocytes”). However, "dynamic" with regards to actin also often refers to the degree to which the actin filaments undergo turnover (rounds of polymerization and depolymerization). The authors should review their text and edit where it needs to be made clear which type of dynamics they are discussing. Related to this, the authors claim to show that "islands of F-actin are stabilized upon jasplakinolide treatment (+JAS) (Figure 1C)", but this is documented only by a still image with large fluorescent bodies. The authors cite Video 3, but there is no +JAS movie on that video, only control and +CytoD. I agree that the authors could interpret their result as being consistent with stabilization of F-actin, but without showing that there is reduced turnover of actin in these structures, they should hedge on their wording some.

We thank the reviewer for their comments. We have now included a +JAS panel in Video 3 to show that actin dynamics are indeed slowed down and the “islands” of F-actin are indeed stabilized.

2) I also strongly recommend the authors supplement some of their figures/figure legends to help the reader better interpret the data. In particular:

For Figure 2Bii, the legend explains the significance of the bottom panels, but not the top four panels. Are they different time points?

This has been clarified and the fact that the panels are different time points has been elaborated in the figure and in the legend.

For Figure 3G, the figure legend should provide some more information to help the reader understand the model. That is, "syn", "loxPint", and "WR" should be defined. It is a very elegant construct but requires a lot of flipping back and forth between the legend, text, and methods to deconstruct what is going on.

Explanatory sentences in the legend and definitions of all labels have been now provided.

For Figure 3H, it currently gives the impression that Integrant 1 and Integrant 2 are being analyzed, when in fact it is transformant 1 and transformant 2 that are being analyzed, using a PCR reaction that probes for integration or the endogenous locus. I would suggest clarifying the labels, such as replacing "Integrant" and "Endogen." with "PCR(Int)" and "PCR(End)" (with clarifications in the legend), and add the label "Transformant:" to the left of "1 2 1 2" above the gels.

These changes have been made.

For Figure 4C, the x-axis is confusing to me. Perhaps this is because I do not study P. falciparum, but that will be true of a large number of readers.

Growth over three 48 hour replication cycles have been measured. Various time points in each cycle has been depicted on the x axis. The unit hours (h) was partially hidden behind a panel and is now clearly visible. Also, the fact that first, second and third represent replication cycles has been clearly stated in the figure and the legend.

For Figure 4D, what are the units for the y-axis? Is it an arbitrary value? A ratio of HA signal to enolase?

Protein levels have been measured by quantification of intensity and normalized to enolase (now stated in the legend). The y axis is in arbitrary units and has now been clarified in the legend and figure.

For Figure 7—figure supplement 1, reproduce the map shown in Figure 7A to help the reader to interpret the PCR results without needing to flip between two figures.

Done.

For Videos 9 – 11, multiple strains are shown simultaneously, but I could not observe any labels that identified which panel in a video corresponded to which strain. This was true when I viewed the movies directly from the website, and when I downloaded the mp4's.

We now make sure that each panel is labelled with the name of the strain and the Movie number, which corresponds to strains in the figures. WT and mutant have also been separated with solid lines.

3) Related to the phylogenetic analysis, Table T2, which lists the genomes that were searched for formins for the phylogenetic analysis, appears to be absent. Also, Figure 3B presents a single tree, but the Materials and methods section refers to "trees" (plural) that were constructed from "this alignment (or subsets of it)". The authors should clarify this. It would also be appropriate to provide the aligned sequences as a supplementary text file, if possible.

Necessary changes have been to clarify that a single tree was generated. We apologise for the oversight of not providing Table T2. We have added this to the submission.

https://doi.org/10.7554/eLife.49030.040

Article and author information

Author details

  1. Johannes Felix Stortz

    Wellcome Centre for Integrative Parasitology, Institute of Infection, Immunity & Inflammation, University of Glasgow, Glasgow, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5928-1850
  2. Mario Del Rosario

    Wellcome Centre for Integrative Parasitology, Institute of Infection, Immunity & Inflammation, University of Glasgow, Glasgow, United Kingdom
    Contribution
    Formal analysis, Validation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0430-1463
  3. Mirko Singer

    Faculty of Veterinary Medicine, Experimental Parasitology, Ludwig Maximilian University, Munich, Germany
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5757-2750
  4. Jonathan M Wilkes

    Wellcome Centre for Integrative Parasitology, Institute of Infection, Immunity & Inflammation, University of Glasgow, Glasgow, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Markus Meissner

    1. Wellcome Centre for Integrative Parasitology, Institute of Infection, Immunity & Inflammation, University of Glasgow, Glasgow, United Kingdom
    2. Faculty of Veterinary Medicine, Experimental Parasitology, Ludwig Maximilian University, Munich, Germany
    Contribution
    Conceptualization, Resources, Supervision, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Markus.Meissner@para.vetmed.uni-muenchen.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4816-5221
  6. Sujaan Das

    1. Wellcome Centre for Integrative Parasitology, Institute of Infection, Immunity & Inflammation, University of Glasgow, Glasgow, United Kingdom
    2. Faculty of Veterinary Medicine, Experimental Parasitology, Ludwig Maximilian University, Munich, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Sujaan.Das@para.vetmed.uni-muenchen.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6466-4258

Funding

H2020 Excellent Science (ERC-2012-StG 309255-EndoTox)

  • Markus Meissner

Wellcome (Wellcome Senior Fellowship 103875/Z/14/Z)

  • Markus Meissner

Horizon 2020 Framework Programme (LMU Fellowship H2020-MSCA-COFUND-2016-754388)

  • Sujaan Das

Wellcome (085349 - Core funding for the WCMP)

  • Johannes Felix Stortz
  • Mario Del Rosario
  • Jonathan M Wilkes
  • Markus Meissner
  • Sujaan Das

National Secretariat for Higher Education, Sciences, Technology and Innovation of Ecuador (SENESCYT) PhD scholarship (IFTH-GBE-2015-0475-M)

  • Mario Del Rosario

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Prof. Mike Blackman for the kind gift of the PKG inhibitor Compound two and the B11 DiCre strain. We thank Dr. Jake Baum for the PfACT1 and RON4 antibodies, Dr. Julian Rayner for the MTIP and GAP45 antibodies, Dr Lilach Sheiner for the CPN60 and G2Trx antibodies, Prof Peter Bradley for the Atrx1 antibody and Prof. GK Jarori for the enolase antibodies.

Senior and Reviewing Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewer

  1. Tobias Spielmann, Bernhard Nocht Institute for Tropical Medicine, Germany

Version history

  1. Received: June 5, 2019
  2. Accepted: July 17, 2019
  3. Accepted Manuscript published: July 19, 2019 (version 1)
  4. Version of Record published: August 9, 2019 (version 2)

Copyright

© 2019, Stortz et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,867
    Page views
  • 376
    Downloads
  • 19
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Johannes Felix Stortz
  2. Mario Del Rosario
  3. Mirko Singer
  4. Jonathan M Wilkes
  5. Markus Meissner
  6. Sujaan Das
(2019)
Formin-2 drives polymerisation of actin filaments enabling segregation of apicoplasts and cytokinesis in Plasmodium falciparum
eLife 8:e49030.
https://doi.org/10.7554/eLife.49030

Further reading

    1. Microbiology and Infectious Disease
    Edited by Olivier Silvie et al.
    Collection

    eLife has recently published a wide range of papers on malaria, covering a diversity of themes including parasite biology, epidemiology, immunology, drugs and vaccines.

    1. Cell Biology
    Shuxian Li, Lingbing Li ... Xietong Wang
    Research Article

    Epidemiological studies have demonstrated that fine particulate matter (PM2.5) is associated with adverse obstetric and postnatal metabolic health outcomes, but the mechanism remains unclear. This study aimed to investigate the toxicological pathways by which PM2.5 damaged placental trophoblasts in vivo and in vitro. We confirmed that PM2.5 induced adverse gestational outcomes such as increased fetal mortality rates, decreased fetal number and weight, damaged placental structure, and increased apoptosis of trophoblasts. Additionally, PM2.5 induced dysfunction of the trophoblast cell line HTR8/SVneo, including in its proliferation, apoptosis, invasion, migration and angiogenesis. Moreover, we comprehensively analyzed the transcriptional landscape of HTR8/SVneo cells exposed to PM2.5 through RNA-Seq and observed that PM2.5 triggered overexpression of pathways involved in oxidative stress and mitochondrial apoptosis to damage HTR8/SVneo cell biological functions through CYP1A1. Mechanistically, PM2.5 stimulated KLF9, a transcription factor identified as binding to CYP1A1 promoter region, which further modulated the CYP1A1-driven downstream phenotypes. Together, this study demonstrated that the KLF9/CYP1A1 axis played a crucial role in the toxic progression of PM2.5 induced adverse pregnancy outcomes, suggesting adverse effects of environmental pollution on pregnant females and putative targeted therapeutic strategies.
