The regulation of oocyte maturation and ovulation in the closest sister group of vertebrates

  1. Shin Matsubara
  2. Akira Shiraishi
  3. Tomohiro Osugi
  4. Tsuyoshi Kawada
  5. Honoo Satake  Is a corresponding author
  1. Suntory Foundation for Life Sciences, Japan
  2. Research Fellow of Japan Society for the Promotion of Science, Japan
https://doi.org/10.7554/eLife.49062
Share this article
Cite this article
  1. Shin Matsubara
  2. Akira Shiraishi
  3. Tomohiro Osugi
  4. Tsuyoshi Kawada
  5. Honoo Satake
(2019)
The regulation of oocyte maturation and ovulation in the closest sister group of vertebrates
eLife 8:e49062.
https://doi.org/10.7554/eLife.49062
  2. Download BibTeX
  3. Download .RIS

Abstract

Ascidians are the closest living relatives of vertebrates, and their study is important for understanding the evolutionary processes of oocyte maturation and ovulation. In this study, we first examined the ovulation of Ciona intestinalis Type A by monitoring follicle rupture in vitro, identifying a novel mechanism of neuropeptidergic regulation of oocyte maturation and ovulation. Ciona vasopressin family peptide (CiVP) directly upregulated the phosphorylation of extracellular signal–regulated kinase (CiErk1/2) via its receptor. CiVP ultimately activated a maturation-promoting factor, leading to oocyte maturation via germinal vesicle breakdown. CiErk1/2 also induced expression of matrix metalloproteinase (CiMMP2/9/13) in the oocyte, resulting in collagen degradation in the outer follicular cell layer and liberation of fertile oocytes from the ovary. This is the first demonstration of essential pathways regulating oocyte maturation and ovulation in ascidians and will facilitate investigations of the evolutionary process of peptidergic regulation of oocyte maturation and ovulation throughout the phylum Chordata.

https://doi.org/10.7554/eLife.49062.001

Introduction

Oocyte maturation and ovulation are critical steps in the completion of female gametogenesis in the ovary and thus for subsequent fertilization and embryogenesis (Lane et al., 2014). Meiosis in animal oocytes is arrested at prophase of the first division (ProI). Hormonal stimulation triggers the resumption of meiosis in most vertebrates and invertebrates, and oocytes undergo nuclear maturation upon the onset of nuclear disassembly (i.e., germinal vesicle breakdown [GVBD]). Concomitant with the progression of nuclear maturation, dynamic rearrangement of intracellular organelles promotes cytoplasmic maturation. Mature oocytes become fertilizable, and their meiosis is arrested again at a species-specific stage: metaphase of the first division (MetI, many invertebrates), metaphase of the second division (MetII, most vertebrates), or G1-phase (some echinoderms and coelenterates) until fertilization. (Richani and Gilchrist, 2018; Das and Arur, 2017; Nagahama and Yamashita, 2008; Fan and Sun, 2004; Kishimoto, 2018; Von Stetina and Orr-Weaver, 2011). Mature oocytes are then ovulated via proteolytic degradation of the follicle walls (Richards and Ascoli, 2018; Takahashi et al., 2018; Richards and Pangas, 2010). Some mutations in oocytes lead to infertility in the mature organism, whereas others, over a long period of time, may eventually lead to the emergence of novel species or subspecies. Therefore, the regulatory mechanisms underlying oocyte maturation and ovulation control not only the reproduction of the respective organisms but also evolutionary processes across the animal kingdom.

In vertebrates, oocyte maturation and ovulation are regulated by the hypothalamus-pituitary-gonadal axis (HPG axis); gonadotropins from the pituitary stimulate the maturation of follicles in response to hypothalamic peptide hormones, including gonadotropin-releasing hormone (Richani and Gilchrist, 2018; Das and Arur, 2017; Nagahama and Yamashita, 2008; Fan and Sun, 2004; Kishimoto, 2018; Von Stetina and Orr-Weaver, 2011; Richards and Ascoli, 2018; Takahashi et al., 2018; Richards and Pangas, 2010). In contrast, neither a pituitary organ nor gonadotropins arose in most species of invertebrates, indicating the presence of HPG axis–independent regulation in these organisms. Some neuropeptides have been shown to induce oocyte maturation and ovulation (or spawning) in several species of invertebrates. The neuropeptide W/RPRPamide in jellyfish directly induces oocyte maturation and spawning (Takeda et al., 2018). A relaxin-like peptide stimulates the production of 1-methyladenosine, which directly induces oocyte maturation, followed by ovulation and spawning (Mita et al., 2009). Cubifurin (NGIWYamide) induces oocyte maturation, ovulation, and spawning in the sea cucumber (Kato et al., 2009). These findings demonstrate that various neuropeptides are responsible for triggering oocyte maturation and ovulation in invertebrates, and suggest that oocyte maturation and ovulation and their underlying molecular mechanisms are regulated in both a species-specific and evolutionarily conserved fashion.

Ascidians are invertebrates that belong to the Chordata superphylum as Urochordata, and thus, phylogenetically, they are the closest living relatives of vertebrates (Delsuc et al., 2006; Denoeud et al., 2010; Satoh et al., 2014; Horie et al., 2018). As such, ascidians are considered crucial model organisms in research into the evolutionary processes underlying chordate reproductive systems. Our previous studies identified a variety of vertebrate prototypic neuropeptides from the neural complex of the cosmopolitan ascidian, Ciona intestinalis Type A (Ciona robusta) (Kawada et al., 2011; Brunetti et al., 2015), and we revealed the full trajectory of visceral nerves to the ovary (Osugi et al., 2017). Moreover, several cognate receptors were shown to be expressed in the ovary (Kawada et al., 2008; Satake et al., 2004; Sekiguchi et al., 2012; Tello et al., 2005; Shiraishi et al., 2019), and some neuropeptides, such as Ciona tachykinin and neurotensin-like peptide 6, were found to participate in regulating pre-GVBD follicle growth (Aoyama et al., 2008; Aoyama et al., 2012; Kawada et al., 2011). These findings, considered in the context of the lack of a pituitary organ and gonadotropins, strongly suggest that neuropeptides also play vital roles in oocyte maturation and ovulation in Ciona.

Ciona meiosis is arrested at ProI, resumes under stimulation by an as yet unidentified factor, and is arrested again at MetI after oocyte maturation and ovulation (Tosti et al., 2011; Von Stetina and Orr-Weaver, 2011). The importance of pH and levels of cAMP and/or Ca2+ in Ciona GVBD in artificial seawater (ASW) was previously demonstrated (Silvestre et al., 2009; Silvestre et al., 2011; Tosti et al., 2011; Lambert, 2008; Lambert, 2011). In addition, the activities of MAP kinase (MAPK) and maturation promoting factor (MPF), which are prerequisite for oocyte maturation in vertebrates, have been investigated in Ciona post-fertilization (Russo et al., 1996; Russo et al., 1998; Russo et al., 2009). However, neither the endogenous factors nor the signaling pathways regulating GVBD and ovulation in Ciona have been identified. Furthermore, investigations of oocyte maturation and ovulation in Ciona are expected to provide crucial clues for understanding the evolution and diversification of chordate reproductive systems.

In this study, we documented for the first time the process of ovulation in Ciona and demonstrated that the essential molecular mechanisms underlying the onset of GVBD and ovulation are regulated by Ciona vasopressin family peptide, CiVP.

Results

In vitro evaluation of Ciona ovulation

In contrast to oocyte maturation, ovulation in Ciona has yet to be documented. We therefore observed ovulation in Ciona in vitro. Notably, incubating Ciona ovaries in ASW for 16 hr resulted in the liberation of numerous follicles (Figure 1A). Intriguingly, time-lapse imaging revealed that follicle liberation followed the rupture of the outer follicular cell layer (Figure 1B and Video 1), and we therefore defined this phenomenon as Ciona ovulation. Moreover, such rupture of outer follicular cells was also observed in an isolated follicle following GVBD (Figure 1C and Video 2). These results demonstrated that both oocyte maturation and ovulation can be studied in vitro using isolated immature/pre-ovulatory follicles. These data also underscored the advantages of using Ciona in research examining the molecular mechanism of oocyte maturation and ovulation. Such experiments, however, will require more-effective methods for isolating immature/pre-ovulatory follicles.

Figure 1
Download asset Open asset

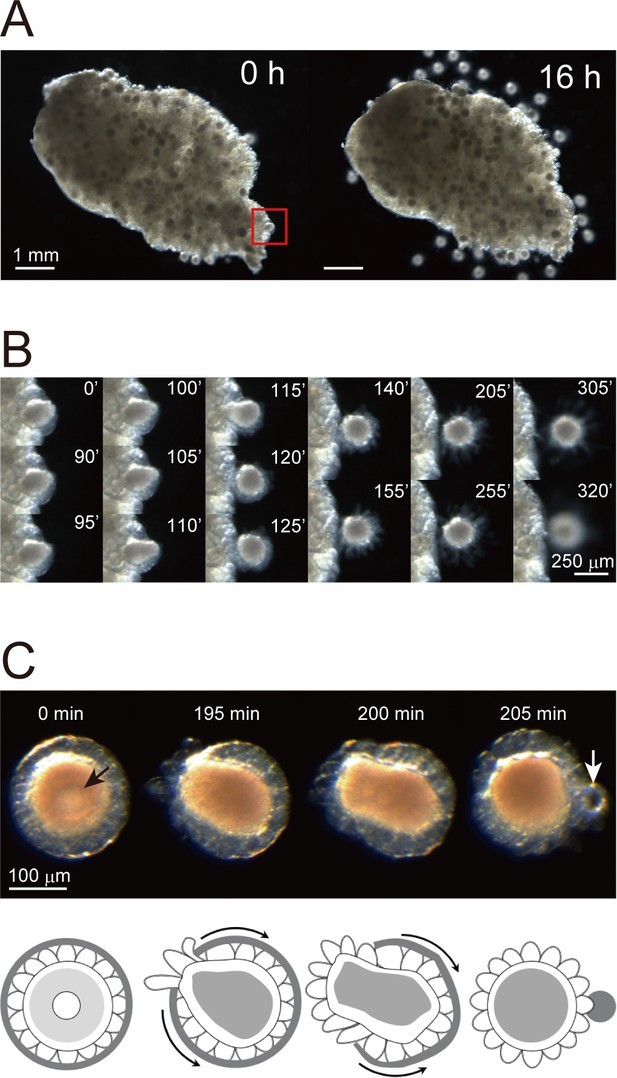

In vitro system for evaluating Ciona oocyte maturation and ovulation.

(A) A Ciona ovary was cut into half and incubated in ASW. Numerous follicles were released from the ovary after 16 hr of incubation. (B) Time-lapse images of the red-boxed area in (A) at the indicated time. The rupturing of the outer follicular cell layer led to follicle release. (C) Time-lapse images of an isolated immature/pre-ovulatory (stage III) follicle at the indicated times (upper) and corresponding schematic drawings (lower). Oocyte maturation was observed with germinal vesicle (black arrow) breakdown, and the outer follicular cell layer was ruptured and shrank after ovulation (white arrow). Scale bars are shown for the indicated length.

https://doi.org/10.7554/eLife.49062.002
Video 1
Download asset
In vitro ovulation of a Ciona ovary.

An isolated Ciona ovary was cut in half and incubated in ASW for 16 hr. Time-lapse images were captured every 5 min. Numerous follicles were in turns ovulated from the ovary. The higher-magnification movie of the boxed area indicates that the rupturing of the outer follicular cell layer leads to follicle release.

https://doi.org/10.7554/eLife.49062.003
Video 2
Download asset
In vitro oocyte maturation and ovulation of a Ciona follicle.

An immature/pre-ovulatory (stage III) follicle was incubated in ASW for 3 hr. Time-lapse images were captured every 20 s. The follicle structure is illustrated at the right. After germinal vesicle breakdown (GVBD) occurred, the outer follicular cell layer was ruptured, and the follicle was released into ASW, reproducing the ovulation observed in the ovary (Video 1).

https://doi.org/10.7554/eLife.49062.004

Fractionation of Ciona follicles and whole-transcriptome analysis

In the Ciona ovary, follicles undergo the following major developmental stages: stage I (pre-vitellogenic), stage II (vitellogenic), stage III (post-vitellogenic and pre-GVBD), and stage IV (post-GVBD, that is, mature) oocytes (Prodon et al., 2006; Tosti et al., 2011; Silvestre et al., 2009). We fractionated Ciona follicles using stainless steel sieves of varying particle sizes. Each fraction collected (20, 38, 63, 90, or 150 μm) contained a major developmental stage of Ciona follicles (Prodon et al., 2006), namely (i) early stage I, (ii) late stage I to early stage II, (iii) early stage II to late stage II, (iv) late stage II to late stage III, or (v) stage IV oocytes, confirming that the all developmental stages were successfully fractionated (Figure 2A). RNA-seq analysis of two sets of the fractionated follicles indicated no stage to stage changes in the expression of most genes; however, some differential expression of genes was detected between two consecutive stages (Figure 2—figure supplement 1 and Supplementary file 1), suggesting the usefulness of this approach for identifying genes responsible for oocyte maturation and ovulation. The resultant reads, mapping rate to the Ciona cDNA library, and fastq accession numbers in the NCBI SRA database are listed in Table 1.

Figure 2 with 2 supplements see all
Download asset Open asset

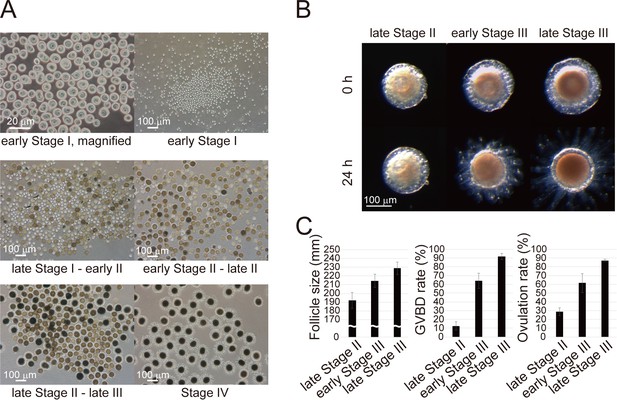

Fractionation of Ciona follicles.

(A) Isolated follicles were fractionated using stainless steel sieves of varying particle sizes (20, 38, 63, 90, or 150 μm). Each fraction contained respective stage of Ciona follicles corresponding to (i) early stage I, (ii) late stage I to early stage II, (iii) early stage II to late stage II, (iv) late stage II to late stage III, or (v) stage IV oocytes. (B) Immature/pre-ovulatory follicles were further divided into three groups as indicated, and representative follicles are shown before and after a 24 hr incubation. Scale bars in (A) and (B) represent 20 and 100 μm. (C) Size, GVBD rate, and ovulation rate of late stage II (n = 145), early stage III (n = 100), and late stage III (n = 99) follicles are shown as mean ± SEM.

https://doi.org/10.7554/eLife.49062.005
Table 1
RNA-seq analysis of fractionated Ciona follicles.
https://doi.org/10.7554/eLife.49062.009
SampleTotal reads% MappedAccession no.
Set 1
early stage I22,071,59265.72SRR8374812
late stage I – early stage II21,118,71690.90SRR8374811
early stage II – late stage II23,935,63284.31SRR8374810
late stage II – late stage III23,839,57550.50SRR8374809
stage IV22,398,64532.02SRR8374816
Set 2
early stage I22,317,38245.99SRR8374815
late stage I – early stage II24,094,64388.73SRR8374814
early stage II – late stage II21,434,67260.23SRR8374813
late stage II – late stage III20,686,04043.45SRR8374808
stage IV23,730,54731.13SRR8374807

The immature/pre-ovulatory follicles were then divided into three groups, and the correlation between follicle stage (size) and GBVD or ovulation rate was investigated in detail after a 24 hr incubation. Small follicles (192.1 ± 9.3 μm) exhibited 12.5 ± 4.6% GVBD and 28.6 ± 4.3% ovulation. Such low rates suggested that the follicles were not yet affected by endogenous regulators (e.g., gonadotropins in vertebrates), and thus, they were categorized as ‘late stage II’ (Figure 2B and C) based on the results of a previous investigation (Prodon et al., 2006). In contrast, mid-size (214.3 ± 7.6 μm) and large (228.8 ± 7.0 μm) follicles exhibited 63.9 ± 8.6% and 91.8 ± 3.4% GVBD, respectively, and 61.4 ± 10.8% and 87.2 ± 1.5% ovulation, respectively, leading to their further respective categorization as ‘early stage III’ and ‘late stage III’ (Figure 2B and C). These late stage II, early stage III, and late stage III follicles were utilized in subsequent experiments.

CiVP and CiErk1/2 promote both GVBD and ovulation

Expression of the appropriate receptor genes in immature/pre-ovulatory follicles is a prerequisite for the peptidergic regulation of oocyte maturation and ovulation. Among the several receptors for known Ciona neuropeptides in the ovary (Kawada et al., 2008; Satake et al., 2004; Sekiguchi et al., 2012; Tello et al., 2005; Shiraishi et al., 2019), RNA-seq analysis of fractionated follicles indicated that the expression of only the CiVpr gene (KH.C9.885), a receptor for CiVP, was specifically elevated, with peak expression at late stage II to late stage III, a period that is thought to be crucial in the regulation of oocyte maturation and ovulation. This expression profile for the CiVpr gene was confirmed by qRT-PCR analysis (Figure 2—figure supplement 2A,B, and Figure 2—figure supplement 2—source data 1). These results suggested that CiVP plays important roles in oocyte maturation and ovulation.

Ciona follicles are comprised of three types of cells: oocytes, test cells, and follicular cells, and in situ hybridization showed that CiVpr mRNA was localized to the oocytes of late stage II follicles (Figure 3A), in agreement with the results of RNA-seq and qRT-PCR analyses (Figure 2—figure supplement 2B and Figure 2—figure supplement 2—source data 1). These results indicated that CiVP acts on oocytes of late stage II follicles. Consequently, we evaluated the effect of CiVP on GVBD and ovulation. Of particular significance was the finding that treating late stage II follicles with CiVP for 24 hr markedly enhanced both GVBD (39.5 ± 4.2% to 66.2 ± 4.2%) and ovulation (24.8 ± 3.7% to 72.1 ± 5.7%) compared with the control follicles (Figure 3B,C, Video 3, and Figure 3—source data 1). Such enhancement was not observed in the presence of inactive linear CiVP in which the cysteine residues are protected with N-ethylmaleimide, demonstrating the specificity of CiVP (Figure 3B and C). Moreover, CiVP-treated oocytes were competent for fertilization and embryonic development (Figure 3—figure supplement 1 and Figure 3—source data 1), confirming that the oocytes were actually mature. Collectively, these results indicate that CiVP plays important roles in Ciona oocyte maturation and ovulation, which led us to further investigate the underlying molecular mechanisms.

Figure 3 with 1 supplement see all
Download asset Open asset
CiVP and CiErk1/2 promote both GVBD and ovulation.

(A) In situ hybridization using sense strand (SS) or antisense strand (AS) DIG-labeled probes and an NBT/BCIP system for visualizing CiVpr indicated its localization in late stage II oocytes (O). Enlarged images of red-boxed areas in the upper panels are shown below. (B) Representative images of follicles before and after treatment with CiVP for 24 hr. GVBD and ovulation of late stage II follicles were enhanced in the presence of 5 μM CiVP (t-value: −4.19; **, p=1.84E-03 in GVBD and t-value: −6.97; **, p=3.85E-05 in ovulation), whereas not in the presence of 5 μM inactive linear CiVP (t-value: −1.94; p=0.081 in GVBD and t-value: −0.27; p=0.79 in ovulation). (C) GVBD and ovulation rates were calculated from six independent experiments (n = 6; approximately 20 follicles per experiment) and found to be significantly upregulated in CiVP-treated follicles, indicating that CiVP promotes both oocyte maturation and ovulation. Data were analyzed by Student’s t test and are shown as mean ± SEM with data points. (D) In situ hybridization for CiErk1/2 indicated its localization in oocytes (O) and test cells (Tc). (E) Spontaneous GVBD and ovulation of early stage III follicles were inhibited in the presence of 10 μM U0126, an MEK inhibitor. (F) GVBD and ovulation rates from four independent experiments (n = 4) indicated that CiErk1/2 regulates both oocyte maturation (t-value: 8.72; **, p=1.26E-04) and ovulation (t-value: 6.52; **, p=6.22E-04). Data were analyzed and are shown as in (C). White arrows (B, E) indicate outer follicular cells remaining alongside the follicle. Scale bars in (A, D) and (B, E) represent 50 and 100 μm, respectively.

https://doi.org/10.7554/eLife.49062.010
Figure 3—source data 1

Source data for Figure 3C,F, and Figure 3—figure supplement 1.

Percentages of GVBD and ovulated follicles after incubating with CiVP (Figure 3C) or a MEK inhibitor, U0126 (Figure 3F). Percentage of immature follicle or developed embryo incubated after in vitro fertilization using CiVP-induced follicles (Figure 3—figure supplement 1).

https://doi.org/10.7554/eLife.49062.012
Video 3
Download asset
CiVP induces Ciona GVBD and ovulation.

Isolated late stage II follicles were incubated with (right) or without (left) 5 μM CiVP for 24 hr. Time-lapse images were captured every 5 min. GVBD and ovulation were observed in the CiVP-treated follicle, whereas not in the control follicle.

https://doi.org/10.7554/eLife.49062.013

In mammals, the extracellular signal-related kinase (ERK) and MAPK/ERK kinase (MEK) signaling pathways are activated by VP (Kumari et al., 2017; Chiu et al., 2002), and ERK plays a role in oocyte maturation in vertebrates (Richani and Gilchrist, 2018; Das and Arur, 2017; Fan and Sun, 2004; Sha et al., 2017). We found that the expression of CiErk1/2 (KH.L153.20) was elevated throughout follicle development (Figure 2—figure supplement 2C and Figure 2—figure supplement 2—source data 1) and localized to oocytes and test cells during most stages, including the identical stage in CiVpr-expressing oocytes (Figure 3D). We then examined the functional relationship between CiErk1/2 and spontaneous oocyte maturation/ovulation. Inhibition of MEK/ERK activity in early stage III follicles using the MEK inhibitor U0126 resulted in significant decreases in the rates of both GVBD (86.2 ± 3.1% to 20.5 ± 9.0%) and ovulation (54.3 ± 5.8% to 6.4 ± 4.5%, Figure 3E,F, Video 4, and Figure 3—source data 1). Collectively, these results indicated that CiErk1/2 plays crucial roles in both oocyte maturation and ovulation and further suggest that CiVP signaling is mediated by CiErk1/2.

Video 4
Download asset
The MEK inhibitor U0126 inhibits Ciona GVBD and ovulation.

Isolated early stage III follicles were incubated with (right) or without (left) 10 μM U0126 for 24 hr. Time-lapse images were captured every 5 min. GVBD and ovulation were observed in the control follicle, whereas those were inhibited in the U0126-treated follicle.

https://doi.org/10.7554/eLife.49062.014

CiVP promotes GVBD via the ERK-MPF pathway

Subsequently, we examined whether CiErk1/2 is phosphorylated upon CiVP stimulation. Western blotting and immunofluorescence analyses confirmed both the specificity of the anti–phosphorylated ERK1/2 (pERK1/2) antibody (Figure 4—figure supplement 1) and the previously reported inhibitory effect of U0126 on native CiErk1/2 phosphorylation in Ciona embryos (Davidson et al., 2006; Chambon et al., 2002; Ikuta et al., 2010; Pasini et al., 2012). Immunofluorescence analysis of de-folliculated oocytes revealed extensive phosphorylation of CiErk1/2 at 5–10 min after CiVP stimulation, whereas no induction was observed in MEK-inhibited follicles (Figure 4A). RNA-seq analysis was employed to examine the expression of downstream factors of MEK/ERK signaling in oocyte maturation and ovulation using three sets of MEK-inhibited early stage III follicles (Figure 4—figure supplement 2, Supplementary file 2, and Table 2). We focused on the two major MPF components, cyclin B (CcnB) and Cdc2 (Cdk1), given that oocyte maturation is triggered by activation of MPF in a wide variety of both vertebrates and invertebrates (Richani and Gilchrist, 2018; Nagahama and Yamashita, 2008; Kishimoto, 2018; Das and Arur, 2017; Fan and Sun, 2004). BLAST analyses using the Ciona protein database identified the Ciona cyclin B (CiCcnb, KH.C4.213) and Ciona Cdc2 (also known as Cdk1, CiCdk1, KH.C12.372) genes. The RNA-seq data revealed no significant changes in the expression of CiCdk1 or CiCcnb in MEK-inhibited follicles (Figure 4—figure supplement 3A and Figure 4—source data 1), suggesting that MPF is regulated post-translationally in Ciona, as in other animals (Richani and Gilchrist, 2018; Nagahama and Yamashita, 2008; Kishimoto, 2018; Das and Arur, 2017; Fan and Sun, 2004). The selective Cdc2 inhibitor Ro-3306 inhibited GVBD in late stage III follicles (Figure 4B and Figure 4—source data 1), confirming that MPF activity is also necessary for GVBD in Ciona. The inhibitory effect of Ro-3306 on native MPF (CiCdk1) was confirmed using an in vitro assay (Figure 4—figure supplement 3B,C, and Figure 4—source data 1). Notably, CiVP-directed GVBD using late stage II follicles was completely blocked by MPF inhibition (Figure 4C and Figure 4—source data 1), indicating that MPF is required for the induction of GVBD by CiVP. Consequently, these results led to the conclusion that CiVP is a key molecule in the initiation of oocyte maturation via the MEK/ERK-MPF pathway in Ciona oocytes.

Figure 4 with 3 supplements see all
Download asset Open asset

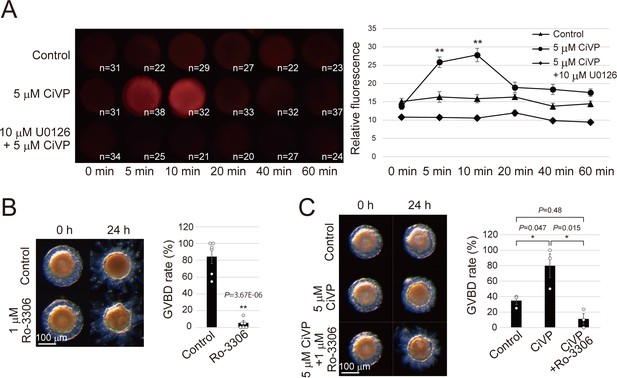

CiVP promotes GVBD via CiErk1/2-CiMPF pathway.

(A) Indicated numbers of numbers of de-folliculated oocytes pretreated with or without 10 μM U0126 were stimulated with 5 μM CiVP for 0, 5, 10, 20, 40, and 60 min. Immunofluorescence using anti-phosphorylated ERK1/2 antibody indicated specific activation of CiErk1/2 at 5 to 10 min after CiVP stimulation (F = 14.91; p=2.12E-12), which was not observed in control (F = 1.05; p=0.39) or U0126-pretreated oocytes (F = 2.13; p=0.065). Representative images are shown (left). Signal intensities were quantified using Fiji software (right), and significant activation was verified by one-way factorial ANOVA followed by Tukey’s post hoc test (**, P<0.01). (B) Treatment with 1 μM Ro-3306, a selective Cdc2 inhibitor, significantly inhibited GVBD in late stage III follicles (t-value: 9.12; **, p=3.67E-06). (C) CiVP-induced GVBD of late stage II follicles (t-value: −2.83; *, p=0.047) was disrupted by Ro-3306 (t-value: 4.12; *, p=0.015). Representative images of follicles and GVBD rates are shown. Data from six (B, n = 6) and three (C, n = 3) independent experiments were analyzed by Student’s t test and are shown as mean ± SEM with data points.

https://doi.org/10.7554/eLife.49062.015
Figure 4—source data 1

Source data for Figure 4B,C, Figure 4—figure supplement 3A and C.

Percentages of GVBD follicles after incubating with CiVP and/or a Cdc2 inhibitor, Ro-3306 (Figure 4B and C). Relative expression values of the CiCcnb and CiCdk1 genes to CiUbac1 (RNA-seq data, Figure 4—figure supplement 3A) and relative values of in vitro CiCdk1 activity are also shown (Figure 4—figure supplement 3C).

https://doi.org/10.7554/eLife.49062.019
Table 2
RNA-seq analysis of MEK-inhibited follicles
https://doi.org/10.7554/eLife.49062.020
SampleTotal reads% MappedAccession no.
Set 1
Control32,160,88074.49SRR8375763
U012624,928,35074.46SRR8375762
Set 2
Control32,642,35572.66SRR8375761
U012632,197,26864.87SRR8375760
Set 3
Control32,136,04758.70SRR8375759
U012625,912,48860.77SRR8375758

CiVP activates CiMMP2/9/13 via MEK/ERK signaling prior to ovulation

In medaka, a teleost fish species, three MMPs (MMP-2, MMP-14, MMP-15) have been identified as essential enzymes for ovulation (Ogiwara et al., 2005), but no proteases have been identified as essential for mammalian ovulation. In Ciona, six MMP-like genes were annotated with KH accession information in the Ciona gene database (Kawai et al., 2015), and thus, the expression profiles of these genes were examined using the present RNA-seq data (Figure 5—figure supplement 1) for early stage III follicles in which ovulation was inhibited with an MEK inhibitor. Of these six genes, the expression of only CiMmp2/9/13 (KH.L76.4) declined by approximately 80% in MEK-inhibited follicles compared with the control (Figure 5—figure supplement 1 and Figure 5—source data 1). The results of qRT-PCR analysis using MEK-inhibited follicles also revealed a significant 70% decrease in CiMmp2/9/13 mRNA levels (Figure 5A and Figure 5—source data 1). Notably, CiVP stimulation of late stage II follicles resulted in a 4.0-fold upregulation of CiMmp2/9/13 expression (Figure 5B and Figure 5—source data 1), confirming that CiVP induces CiMmp2/9/13 expression via MEK/ERK signaling during ovulation. This led us to further investigate the functional roles of CiMMP2/9/13 protein in Ciona ovulation.

Figure 5 with 3 supplements see all
Download asset Open asset

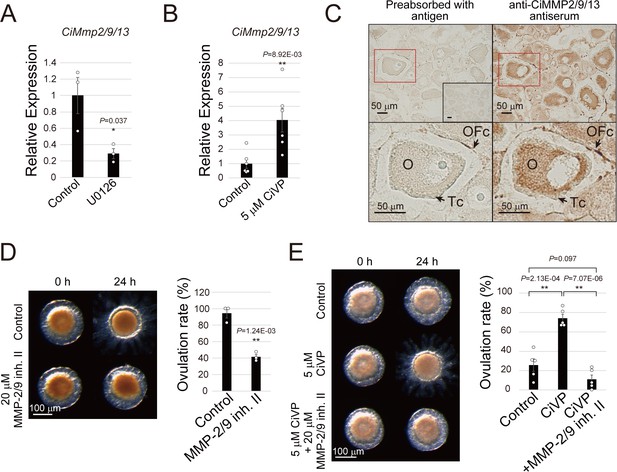

CiVP activates CiMMP2/9/13 via MEK/ERK signaling during ovulation.

(A, B) qRT-PCR indicated that MEK inhibition with 10 μM U0126 in early stage III follicles (A) and 5 μM CiVP stimulation in late stage II follicles (B) for 24 hr results in decrease and increase of CiMmp2/9/13 expression relative to CiUbac1, respectively. Data from three (A, n = 3) and six (B, n = 6) independent experiments were analyzed by Student’s t test and are shown as mean ± SEM with data points (t-value: 3.08; *, p=0.037 in (A) and t-value: −3.24; **, p=8.92E-03 in (B)). (C) Immunohistochemistry using anti-CiMMP2/9/13 antiserum and the ABC detection system confirmed that CiMMP2/9/13 is localized in oocytes (O) and outer follicular cells (OFc), but not in test cells (Tc). Antiserum pre-absorbed with antigen or pre-immune serum (inset) were used as negative controls. Enlarged images of red-boxed areas in the upper panels are shown below. (D) Treatment with 20 μM MMP-2/9 inhibitor II significantly inhibited ovulation of late stage III follicles (t-value: 8.14; **, p=1.24E-03). (E) Significant CiVP-induced ovulation of late stage II follicles (t-value: −6.38; **, p=2.13E-04) was disrupted by MMP-2/9 inhibitor II (t-value: 10.25; **, p=7.07E-06). Data from three (D, n = 3) and five (E, n = 5) independent experiments were analyzed by Student’s t test and are shown as mean ± SEM with data points.

https://doi.org/10.7554/eLife.49062.021
Figure 5—source data 1

Source data for Figure 5A,B,D,E, Figure 5—figure supplements 1 and 3.

Relative expression values of the CiMmp2/9/13 gene to CiUbac1 (RNA-seq and qRT-PCR data, Figure 5A and B). Percentages of ovulated follicles after incubating with CiVP and/or MMP-2/9 inhibitor II (Figure 5D and E). Relative expression values of the CiMmp genes to CiUbac1 (RNA-seq data, Figure 5—figure supplement 1). Raw values of in vitro collagenase activity of recombinant MMP-2/9/13 are also shown (Figure 5—figure supplement 3).

https://doi.org/10.7554/eLife.49062.025

We generated an anti-CiMMP2/9/13 antibody using the active form of recombinant CiMMP2/9/13 (rCiMMP2/9/13), and the antibody’s specificity was confirmed by Western blotting analysis (Figure 5—figure supplement 2). Immunohistochemistry analysis revealed that CiMMP2/9/13 protein localized in oocytes and the outer follicular cell layer of late stage III follicles (Figure 5C), and this result was in good agreement with the localization of CiVPR (Figure 3A) and CiErk1/2 (Figure 3D). Subsequently, we treated late stage III follicles with MMP-2/9 inhibitor II. As expected, inhibition of CiMMP2/9/13 resulted in a significant decrease in the ovulation rate (91.5 ± 3.2% to 41.4 ± 3.1%), compared with uninhibited follicles (Figure 5D and Figure 5—source data 1). It is noteworthy that CiVP-induced ovulation via upregulation of CiMMP2/9/13 in late stage II follicles was completely blocked by MMP-2/9 inhibitor II (Figure 5E and Figure 5—source data 1). Collectively, these results indicated that CiMMP2/9/13 expression is induced by CiVP via CiErk1/2 in oocytes and plays a pivotal role in Ciona ovulation.

CiMMP2/9/13 digests both collagen type I and type IV around the outer follicular cell layer

MMPs digest extracellular matrix components, including collagens (Löffek et al., 2011), and our current data support the hypothesis that CiMMP2/9/13 digests collagen type I and type IV in Ciona follicles during ovulation. Incubation of rCiMMP2/9/13 with putative substrates DQ collagen (fluorescent dye and its quencher are conjugated) type I or type IV in vitro resulted in significant digestion of these collagens, but collagen digestion was inhibited by MMP-2/9 inhibitor II. These results confirmed the enzymatic activity of CiMMP2/9/13 and the usefulness of its inhibitor (Figure 5—figure supplement 3 and Figure 5—source data 1).

Next, we performed in situ zymography analysis to determine the localization of CiMMP2/9/13 activity within Ciona follicles during and after ovulation. While no activity was observed in oocytes, test cells, and follicular cells in ovulating follicles, potent collagenase activity was observed in the outer follicular cell layer in the presence of DQ collagen type I or type IV (Figure 6). Intriguingly, the outer follicular layer of post-ovulatory follicles also exhibited high activity toward collagen type I and type IV. Collectively, these results led to the conclusion that CiVP induces CiMMP2/9/13 expression via CiVPR-MEK/ERK signaling in oocytes and that secreted CiMMP2/9/13 digests collagens type I and type IV in the outer follicular cell layer, which causes the follicle to rupture, with subsequent liberation of oocytes from the ovary (i.e., ovulation).

Figure 6
Download asset Open asset

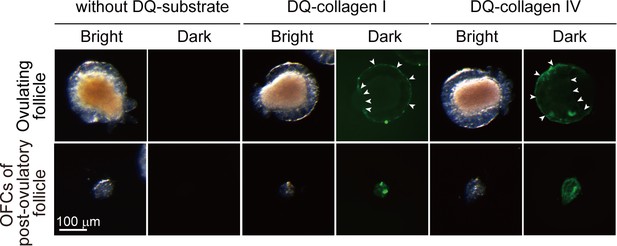

Collagenase activity is localized to the outer follicular cells.

Ovulating follicles and outer follicular cells of post-ovulatory follicles were incubated for 3 hr in the presence of 50 μg/ml of DQ-collagen type I or type IV. In situ zymography indicated that the collagenase activity was localized to the outer follicular cells of ovulating follicles (upper, arrowheads) and post-ovulatory follicles (lower). No signals were observed in the follicles incubated without DQ-substrates.

https://doi.org/10.7554/eLife.49062.026

Discussion

Oocyte maturation and ovulation are regulated by the HPG axis in vertebrates, whereas most invertebrates do not have an HPG axis. Hence, invertebrate reproductive processes are regulated by HPG axis–independent systems, but many details of the underlying molecular mechanisms of these systems remain to be elucidated. Over the past decade, some neuropeptides were found to play key roles in oocyte maturation and ovulation (or spawning) in a limited number of invertebrates, such as jellyfish (W/RPRPamide, Takeda et al., 2018), starfish (relaxin-like peptide, Mita et al., 2009), and sea cucumber (cubifrin: NGIWYamide, Kato et al., 2009). In contrast, no endogenous factors involved in the regulation of oocyte maturation or ovulation have been identified in ascidians. This has hampered investigations into the molecular mechanisms underlying the reproductive system in the closest sister group to vertebrates and the evolution and diversification of the oocyte maturation and ovulation systems in chordates. Using original assays for examining ovulation in Ciona follicles (Figures 1 and 2) in the present study, we demonstrated that essential systems in oocyte maturation and ovulation in the ascidian Ciona intestinalis Type A are regulated by the vasopressin/oxytocin (VP/OT) family peptide, CiVP (Figure 7).

Figure 7 with 1 supplement see all
Download asset Open asset

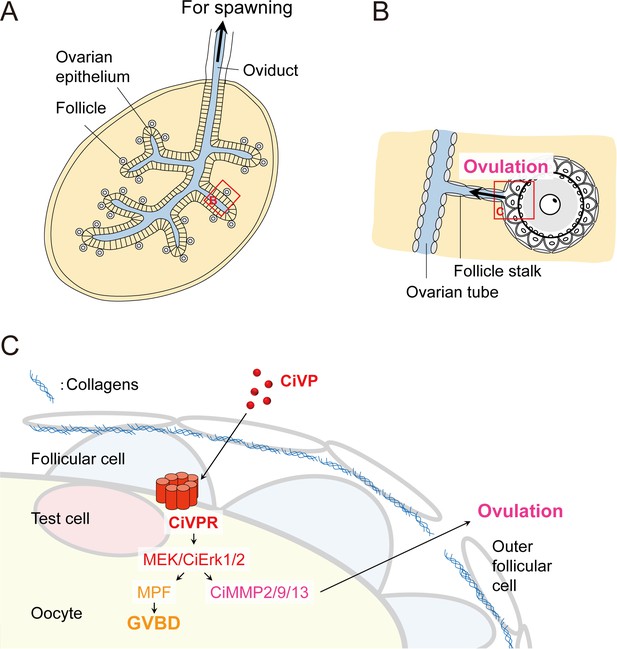

Model describing the regulation of CiVP-directed oocyte maturation and ovulation.

(A) Schematic diagram of the Ciona ovary, modified from Sugino et al. (1990). Mature/ovulated follicles are stored in the oviduct and wait for spawning stimulation. Yellow and blue represent inside and outside of the ovary, respectively. (B) Enlarged structure of ovulating follicle indicated by the red box in (A), modified from Kawamura et al. (2011). (C) Enlarged illustration of the red box in (B) and regulatory mechanisms of the CiVP-directed Ciona oocyte maturation and ovulation. CiVP interacts with its receptor expressed in the oocyte and directly activates MEK/CiErk1/2 signaling. Subsequent activation of CiMPF leads to GVBD and oocyte maturation. Activated CiErk1/2 also induces the CiMMP2/9/13 expression in the oocyte; secreted CiMMP2/9/13 then digests collagens in the outer follicular cell layer, leading to the rupture of the follicular layer and ovulation.

https://doi.org/10.7554/eLife.49062.027

One of the greatest difficulties in studies of oocyte maturation and ovulation involves the isolation and fractionation of vital follicles and oocytes at each developmental stage. In this study, we established a method for culturing and fractionating vital Ciona follicles across all developmental stages using stainless steel sieves of varying particle sizes (Figure 2A). This method enabled both the first observation of Ciona ovulation (Figure 1C and Video 2) and exploration of the molecular mechanisms underlying oocyte maturation and ovulation (Figures 3–7). Such fractionation and culture systems are likely to be applicable to other organisms and thus should encourage studies of oocyte maturation and ovulation in various species. Moreover, transcriptomic data covering all developmental stages of Ciona follicles (Figure 2A, Figure 2A—figure supplement 1, and Supplementary file 1) will contribute to the comprehensive understanding of not only oocyte maturation and ovulation but also the entire mechanism of Ciona follicle development.

The vertebrate OT and VP families are thought to have emerged from a common ancestral gene via gene duplication during the evolution of gnathostomates, and invertebrates and jawless vertebrates have been shown to possess a single VP/OT family peptide (Banerjee et al., 2017; Stoop, 2012; Donaldson and Young, 2008). Furthermore, the involvement of VP/OT family peptides in various reproduction-related functions has been documented. The earthworm VP/OT family peptide annetocin and nematode VP/OT family peptide nematocin induce egg-laying behavior (Fujino et al., 1999; Oumi et al., 1996; Satake et al., 1999; Garrison et al., 2012). Vasotocin (VT), a non-mammalian vertebrate VP family peptide exhibited similar functions in amphibians (Moore et al., 1992), and its involvement in spawning migration in fish and ovipositioning in birds was also suggested, although the underlying molecular mechanisms remain to be investigated. VT was also reported to be involved in oocyte maturation and ovulation in catfish (Singh and Joy, 2011; Joy and Chaube, 2015). However, VT-induced oocyte maturation and ovulation are mediated primarily via the VT receptor in follicular cells and following sexual steroidogenesis (Singh and Joy, 2011; Joy and Chaube, 2015; Rawat et al., 2019). This is distinct from the present data indicating that CiVP directly acts on CiVPR expressed in oocytes to induce oocyte maturation and ovulation without steroidogenesis. This is also consistent with the complete absence of major steroidogenesis genes in the Ciona genome (Dehal et al., 2002). Collectively, these findings suggest that VT and CiVP participate in oocyte maturation and ovulation via distinct molecular mechanisms in catfish and Ciona, respectively. In other words, the biological role of VP family peptides in oocyte maturation and ovulation might have been acquired at least by common ancestors of Olfactores (vertebrates and urochordates) and conserved in both Ciona and fish, with diversification of the molecular mechanisms in species-specific evolutionary lineages. In mammals, the murine VP-receptor genes Avpr1a and 1b and OT-receptor gene Oxtr are reportedly expressed in the ovary (MGI Direct Data Submission MGI:3625434, MGI:3625077, MGI:5895306, and SRS307248). However, no effects of deficiencies of these genes on oocyte maturation and ovulation in mice have been reported (Koshimizu et al., 2012; Takayanagi et al., 2005). Taken together, these results suggest that the biological roles of VPergic oocyte maturation and ovulation might have been lost or replaced by other factors in mammals. Consequently, elucidating the biological roles of VP/OT family peptides in the ovary and in the process of VPergic oocyte maturation and ovulation evolution awaits further investigations.

Oocyte maturation (GVBD) in vertebrates (meiotic resumption from ProI to MetII via GVBD) is regulated in follicles by sex steroids and subsequently by several signaling cascades, including the Mos-MAPK and MPF pathways (Richani and Gilchrist, 2018; Das and Arur, 2017; Nagahama and Yamashita, 2008; Fan and Sun, 2004). In ascidians, MAPK and MPF activity function after fertilization, given that Ciona oocytes are re-arrested at MetI after GVBD and resume meiosis in response to fertilization (Russo et al., 1996; Russo et al., 1998; Russo et al., 2009; Dumollard et al., 2011). However, the functional roles of MAPK and MPF at the onset of Ciona GVBD and the identity of their upstream regulator remain unclear. We demonstrated that CiErk1/2 is directly phosphorylated by CiVP in the oocytes (Figure 4A) and that MEK inhibition prevents spontaneous GVBD of early stage III follicles (Figure 3E and F), in contrast to a previous study (Lambert, 2008). This discrepancy is likely the result of the involvement of CiErk1/2 in GVBD of Ciona oocytes over a limited period; CiErk1/2 is triggered around early stage III; subsequent MEK inhibition during late stage III is no longer able to prevent spontaneous GVBD. Although CiErk1/2 is expressed both in oocytes and test cells (Figure 3D), de-folliculated Ciona oocytes are competent for GVBD (Silvestre et al., 2009), supporting the hypothesis that CiErk1/2 in oocytes (rather than in test cells) is important for Ciona GVBD, as reported in Xenopus (Kosako et al., 1994; Cross and Smythe, 1998; Fan and Sun, 2004). Moreover, we verified that spontaneous GVBD of late stage III follicle is disrupted by inhibition of a major component of MPF, Cdc2, indicating that MPF activity is responsible for Ciona GVBD, as reported in vertebrates (Das and Arur, 2017; Nagahama and Yamashita, 2008), starfish (Kishimoto, 2018), fruit flies (Von Stetina et al., 2008; Hong et al., 2003), and nematodes (Burrows et al., 2006). In addition, we demonstrated that CiVP-induced GVBD is completely blocked by MPF (Cdc2) inhibition (Figure 4C), which is consistent with the observation that the triggering factors of oocyte maturation (e.g., maturation-inducing hormone) are highly variable among species (Takeda et al., 2018; Kishimoto, 2018; Nagahama and Yamashita, 2008). Collectively, the current results provide evidence that CiVP triggers Ciona nuclear maturation of oocytes via the MEK/ERK-MPF pathway, which appears to be highly conserved among some vertebrates. Additionally, in vitro fertilization experiments using follicles in which maturation was induced by CiVP showed incomplete development of some follicles (Figure 3—figure supplement 1), suggesting the involvement of other factors in nuclear or cytoplasmic maturation of oocytes. However, the present study provides new evidence identifying CiVP as the only VP/OT family peptide that plays a crucial role in initiating GVBD via the MEK/ERK-MPF pathway in a chordate. Thus, how VP was replaced by other factors in MEK/ERK-MPF–directed GVBD in vertebrates is of particular interest.

Neither ovulation itself nor its mechanism have been documented in Ciona. We verified that the VPergic ovulation process involves CiVP-mediated upregulation of CiMMP2/9/13 via CiErk1/2 activation, in turn leading to the degradation of collagens followed by the release of oocytes from the ovary (Figures 3, 4A, 5 and 6). This is in good agreement with the results of previous studies of medaka demonstrating that MMP-2 and MMP-15 are responsible for the respective degradation of type IV and type I collagens and ovulation (Ogiwara et al., 2005; Takahashi et al., 2018), although medaka MMP-15 is induced by sex steroids (Ogiwara and Takahashi, 2017) and no role for medaka ERK in ovulation has been demonstrated. In contrast, conditional ERK1/2-deficient mice lack ovulated oocytes (Fan et al., 2009), and critical proteases have yet to be identified. Consequently, the present study provides the first demonstration of the biological roles of VP family peptides in regulating ovulation and inducing MMP via ERK in chordates (Figure 7—figure supplement 1).

Considered along with the aforementioned involvement of MMPs in ovulation in vertebrates, the present data regarding the MEK/ERK-MMP regulatory pathway in Ciona ovulation suggest the following three-step evolutionary process: i) common chordate ancestors might have adopted the MEK/ERK-MMP pathway, which is also conserved in Ciona ovulation; ii) MEK/ERK regulation in fish might have been lost or compensated by other regulators, given that an MEK/ERK-directed ovulatory mechanism has been demonstrated in mammals; and iii) the roles of various proteases, including MMPs, in vertebrate ovulatory regulation have diversified during the evolutionary process (Figure 7—figure supplement 1i-iii). Although the evolutionary conservation and detailed mechanism of ovulatory regulation via the MEK/ERK-MMP pathway in chordates await further investigation, the results of the present study suggest that VP/OT family peptide–directed regulation of oocyte maturation and ovulation might have originated in ancestral chordates and that other regulators, including sex steroids, prostaglandins, and gonadotropins, diverged along with the evolution of vertebrates.

In conclusion, the present study provides evidence that CiVP triggers oocyte maturation and ovulation via MEK/ERK signaling followed by MPF- and CiMMP2/9/13-directed collagen degradation, respectively, in the closest sister group of vertebrates. These data suggest that VP/OT family peptides have played key roles in the evolution of regulatory mechanisms underlying oocyte maturation and ovulation in chordates.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional
information
Gene (Ciona intestinalis type A)CiVpCiona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.C6.11.
Gene (Ciona intestinalis type A)CiVprCiona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.C9.885.
Gene (Ciona intestinalis type A)CiErk1/2Ciona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.L153.20.
Gene (Ciona intestinalis type A)CiCcnbCiona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.C4.213.
Gene (Ciona intestinalis type A)CiCdk1Ciona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.C12.372.
Gene (Ciona intestinalis type A)CiMmp2/9/13Ciona Ghost Database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/)KH.L76.4.
Recombinant DNA reagentpET21a-CiMMP2/9/13 (plasmid)This paperExpression vector of Ci-MMP2/9/13
Strain, strain background (Escherichia coli)Rossetta 2 (DE3)NovagenCat.#:71400–3Competent cells for rCi-MMP2/9/13 expression
Antibodyanti-ERK
(rabbit polyclonal)		Cell Signaling TechnologyCat.#:9102S;
RRID:AB_330744		WB (1:500)
Antibodyanti-pERK
(rabbit polyclonal)		Cell Signaling TechnologyCat.#:9101S;
RRID:AB_331646		IF (1:200); WB (1:1000)
Antibodyanti-PSTAIR
(mouse monoclonal)		AbcamCat.#:Ab10345;
RRID:AB_297080		WB (1:1000)
Antibodyanti-CiMMP2/9/13This paperIHC (1:400); WB (1:3000)
Commercial assay or kitMESACUP Cdc2/Cdk1 Kinase Assay kitMBLCat.#:5235
Commercial assay or kitUniversal Elite ABC kitVector LaboratoriesCat.#:PK-7200
Peptide, recombinant proteinCiVPKawada et al., 2008 (PMID: 18586058)5 μM
Chemical compound, drugU0126PromegaCat.#:V112110 μM
Chemical compound, drugRo-3306AbcamCat.#:ab1414911 μM
Chemical compound, drugMMP-2/MMP-9 inhibitor IICalbiochemCat.#:44424920 μM
Chemical compound, drugDQ Collagen, type IThermo Fisher ScientificCat.#:D1206050 μg/ml
Chemical compound, drugDQ Collagen, type IVThermo Fisher ScientificCat.#:D1205250 μg/ml
Software, algorithmFree-JSTAT statistical softwareFreeJSTAT (http://toukeijstat.web.fc2.com/)Version 22.0E
Software, algorithmFiji softwareFiji (http://fiji.sc/);
Schindelin et al., 2012 (PMID: 22743772)		RRID:SCR_002285
Sequence-based reagentPrimersThis paperSequences are listed in Table 3

In vitro oocyte maturation and ovulation of Ciona follicles

View detailed protocol

Adult Ciona were cultivated at the Maizuru Fisheries Research Station of Kyoto University or Misaki Marine Biological Station of the University of Tokyo and maintained in sterile ASW at 18°C. Half pieces of the ovaries or follicles from adult Ciona were incubated at 20°C; time-lapse images were captured every 20 s or 5 min over a 3-, 16-, or 24 hr period using a Leica M205 AF stereomicroscope. The Ciona ovary includes numerous immature/pre-ovulatory follicles beside the ovarian tube, which leads to the oviduct. Mature oocytes in the ovary are extruded into the ovarian tube (ovulated) and stored in the oviduct until spawning (Figure 7A and B; Sugino et al., 1990; Kawamura et al., 2011). Oocyte maturation was evaluated as an index of GVBD. Oocyte maturity was examined using an in vitro fertilization assay (Figure 3—figure supplement 1), the detailed method of which is described below. Ovulation was defined as rupturing of the outer follicular cell layer followed by release of the ovulated follicles. Rates of GVBD and ovulation were calculated 24 hr after incubation in the presence or absence of various chemicals and/or neuropeptides. Follicular size was measured using Fiji software (Schindelin et al., 2012).

Isolated Ciona follicles were fractionated using a series of stainless steel sieves of varying particle sizes (150, 90, 63, 38, and 20 μm). Thousands of follicles were collected from each sieve after washing with an excess amount of ASW. Two independent sets of follicles were used for RNA-seq, and three additional sets were used for qRT-PCR. Immature/pre-ovulatory follicles were further isolated under a stereomicroscope (Discovery V8, Carl Zeiss Microscopy, Tokyo, Japan) and divided into three gropes (late stage II, early stage III, and late stage III) based on size, and GVBD and ovulation rates were determined after a 24 hr incubation. Approximately 20–30 follicles of late stage II, early stage III, or late stage III were randomly allocated and incubated with various chemicals and/or CiVP, and GVBD and ovulation rates were determined after a 24 hr incubation. Synthetic CiVP peptide was prepared as previously described (Kawada et al., 2008) and used at a final concentration of 5 μM, given that lower concentrations of other peptides are reportedly ineffective in Ciona (Kamiya et al., 2014). Linear CiVP with the cysteine residues protected by N-ethylmaleimide was synthesized under reducing conditions and confirmed using MALDI-TOF mass spectrometry. The MEK inhibitors U0126 (Promega, Tokyo, Japan), Ro-3306 (Abcam, Tokyo, Japan), and MMP-2/MMP-9 inhibitor II (Calbiochem, San Diego, CA) were used at a final concentration of 10 μM, 1 μM, and 20 μM, respectively. The inhibitory effects of these chemicals on Ciona enzymes were evaluated using Western blotting (Figure 4—figure supplement 1A), immunofluorescence (Figure 4A), and activity assays (Figure 4—figure supplement 3C and Figure 5—figure supplement 3). Three independent sets of MEK-inhibited follicles were collected for subsequent RNA-seq analyses, and another three independent sets were used for qRT-PCR assays.

RNA extraction, purification, and RNA-seq analyses

Request a detailed protocol

Total RNA was extracted from isolated follicles, purified, and treated with TURBO DNase as previously described (Matsubara et al., 2017). A total of 500 ng or 150 ng of quality-verified RNA from sieved follicles or further purified follicles, respectively, was subjected to RNA-seq analysis using a HiSeq1500 instrument (Illumina, San Diego, CA) in the rapid mode, as previously described (Kawada et al., 2017; Kurihara et al., 2017). The resultant reads were aligned to the Ciona cDNA library, which was downloaded from the ghost database (http://ghost.zool.kyoto-u.ac.jp/cgi-bin/gb2/gbrowse/kh/). The expression level of each gene was calculated as gene-specific reads per kilobase per million total reads (RPKM). Total reads, mapping rates, and accession numbers are summarized in Tables 1 and 2. Scatter plots are shown in Figure 2—figure supplement 1 and Figure 4—figure supplement 2, and DEG profiles are shown in Supplementary files 1 and 2.

qRT-PCR

Request a detailed protocol

A 100 ng aliquot of DNase-treated total RNA isolated from Ciona follicles was used for first-strand cDNA synthesis. qRT-PCR was performed using a CFX96 Real-time System and SsoAdvanced Universal SYBR Green Supermix (Bio-Rad laboratories, Hercules, CA), as previously described (Kawada et al., 2017). The primers used for qRT-PCR analyses are listed in Table 3. Gene expression levels were normalized to the expression of the ubiquitin-associated domain containing one gene (CiUbac1, KH.L133.5), which was found to be constitutively expressed throughout follicular development according to the RNA-seq analysis.

Table 3
Primer sets used in this study
https://doi.org/10.7554/eLife.49062.029
NameAccession no.ForwardReverse
qRT-PCR
CiVprKH.C9.885ATGCACCGTGTCCGAAATGCAAAGCGACCAGGACACAAG
CiErk1/2KH.L153.20TTATGTCTCTGCCGAACAAGCAAGGTCAGCATACGGTCCAA
CiMmp2/9/13KH.L76.4GCTTAATTGGCTGCGATCCATCGTCTCCATAGTGACATCGG
CiUbac1KH.L133.5ACACGCCGATGATTCAAGTGGGTGAGTCGGGTTTGGTTTG
Probes for ISH
CiVprKH.C9.885CCTGCAGCGACAAATACGAAGGAACAACTGTGGTGTGGAC
CiErk1/2KH.L153.20TAAGAGCTCCCACACTTGCAGCATGATTTCGGGAGCTCTG

In situ hybridization cDNA fragments of CiVpr (KH.C9.885) and CiErk1/2 (KH.L153.20) were amplified using cDNA from Ciona ovaries and the primers listed in Table 3, and the fragments were then inserted into the pCR4-TOPO vector (Thermo Fisher Scientific, Waltham, MA). After the sequences were verified, the vector was linearized using NotI or PmeI for the synthesis of digoxigenin (DIG)-labeled cRNA probes, as previously described (Kawada et al., 2011; Matsubara et al., 2011). Isolated Ciona ovaries were fixed in 4% paraformaldehyde (PFA), embedded in Super Cryo Embedding Medium (SCEM), and sectioned at 10 μm. Sections were treated with 1 μg/ml proteinase K (Nacalai Tesque, Kyoto, Japan) for 1–2 min at room temperature and re-fixed in the same fixative for 10 min. The samples were acetylated with 0.25% acetic anhydride in 0.1 M triethanolamine/HCl (Nacalai Tesque) (pH 8.0) for 10 min. After pre-hybridization for 1 hr at room temperature in buffer A (50% formamide, 6 × SSPE, 5 × Denhardt’s solution, and 0.5 mg/ml yeast transfer RNA) or buffer B (50% formamide, 10 mM Tris-HCl, 1 mM EDTA, 0.6 M NaCl, 0.25% SDS, 1 × Denhardt’s solution, 0.2 mg/ml yeast transfer RNA [pH 8.0]), hybridization was performed at 55–60°C for 16 hr in identical buffer containing 100–200 ng/ml DIG-labeled cRNA probes. The slides were washed three times with 0.2 × SSC at 55–60°C for 20 min each, blocked with 1% blocking reagent (Roche, Basel, Switzerland) in DIG buffer 1 (100 mM maleic acid, 150 mM NaCl [pH 7.5]) for 1 hr, and then treated with anti-DIG antibody (Roche, 1:5000) for 30 min. Signals were developed using NBT/BCIP in DIG buffer 3 (100 mM Tris-HCl, 100 mM NaCl, 50 mM MgCl2 [pH 9.5]).

In vitro fertilization

Request a detailed protocol

After CiVP-directed induction of GVBD in late stage II follicles, ovulated oocytes and un-ovulated follicles were incubated at 20°C for an additional 24 hr in fresh ASW. The outer follicular cell layer of un-ovulated follicles was removed by pipetting. Collected oocytes were mixed with Ciona sperm (1.38 to 5.01 × 106 cells/ml) for 10 min and washed with ASW three times. After incubation at 20°C for 16 hr, embryonic development was evaluated.

Immunofluorescence

Request a detailed protocol

Isolated Ciona follicles were de-folliculated in ASW containing 0.1% collagenase and 0.1% actinase E for 1 hr with gentle agitation. After washing, the oocytes were treated with 5 μM CiVP for 0, 5, 10, 20, 40, and 60 min and fixed with 3.7% PFA in ASW at 4°C overnight. For MEK inhibition, oocytes were pretreated with 10 μM U0126 for 1 hr before CiVP stimulation. Oocytes were treated with 0.2% Triton X-100% and 0.5% blocking reagent (PerkinElmer Japan Co., Kanagawa, Japan, FP1020) and then incubated with antibody against pERK1/2 (Cell Signaling Technology [CST], Danvers, MA, 9101S) in Can Get Signal Immunostain Solution A (Toyobo, Osaka, Japan) for 1.5 hr and Alexa 546–conjugated anti-rabbit IgG (Thermo, A11035) for 1.5 hr. Signal was observed using a Leica M205 AF fluorescence stereomicroscope and quantified using Fiji software (Schindelin et al., 2012). The specificity of the anti-pERK1/2 antibody against pCiErk1/2 was confirmed by Western blotting and immunofluorescence analyses (see below and Figure 4—figure supplement 1).

Western blotting

Request a detailed protocol

Isolated stage IV follicles were homogenized in TBS containing 1 × Complete protease inhibitor cocktail (Roche) and 1 × PhosSTOP phosphatase inhibitor cocktail (Roche). Soluble proteins were collected by two rounds of centrifugation (13,000 rpm, 10 min, 4°C), and protein concentration was determined using a Pierce BCA Protein Assay kit (Thermo). A 30 μg aliquot of soluble protein was electrophoresed, blotted onto a PVDF membrane (GE Healthcare, Buckinghamshire, UK), and blocked with Block Ace (DS Pharma Biomedical Co., Ltd., Osaka, Japan). Antibodies against ERK1/2 (1:500, CST, 9102S) and pERK1/2 (1:1000, CST, 9101S) in Can Get Signal solution were used as primary antibodies. Blocking peptide (1:200, CST, 1150S) was pre-incubated with the anti-pERK1/2 antibody to confirm the antibody’s specificity. For CiCdk1, 40 μg of soluble protein extracted in 1.5 × extraction buffer (EB, 30 mM HEPES, 30 mM EGTA, 22.5 mM MgCl2, 1.5 mM ATP, 1.5 mM DTT, 1.5 × Complete protease inhibitor cocktail, and 1.5 × PhosSTOP phosphatase inhibitor cocktail) and p13suc1-precipitate were incubated with anti-PSTAIR primary antibody (1:1000, Abcam, ab10345) in TBS containing 0.05% Tween 20 (TBST). In the case of CiMMP2/9/13, anti–MMP-2/9/13 specific antiserum was generated (see below). Soluble Ciona ovary protein was homogenized in PBS. Protein secreted by the ovaries was collected from ASW after 24 hr of incubation and concentrated using Amicon Ultracel-30K centrifugal filters (Merck Millipore, Burlington, MA). A blot of 30 μg of soluble and secreted protein was blocked with Blocking One (Nacalai Tesque) and 4% normal donkey serum (Abcam, ab7475) and then incubated with anti–MMP-2/9/13 antiserum (1:3000 in Can Get Signal solution) as the primary antibody. Pre-immune serum (1:3000) or pre-absorbed antiserum (1:3000) with 70 μg of antigen was used as a negative control. After washing with TBST, the blot was incubated with the corresponding HRP-conjugated anti-mouse IgG (1:2000, GE healthcare, NA9310V) or anti-rabbit IgG (1:2000, GE Healthcare, NA9340V) secondary antibody. Signals were developed using ECL substrate (GE Healthcare).

Enrichment of CiCdk1 and in vitro activity assay

Request a detailed protocol

Isolated stage IV follicles were homogenized in 1.5 × EB. Soluble proteins were collected by two rounds of centrifugation (13,000 rpm, 10 min, 4°C), and the protein concentration was determined using a Bradford Protein Assay (Bio-Rad). A total of 5 μg of soluble protein was incubated overnight with 20 μl of p13suc1-sepharose at 4°C with rotation. The p13suc1-sepharose beads were kindly provided by Prof. Masakane Yamashita of Hokkaido University. After washing 3 times with 1 ml of wash buffer (20 mM HEPES, 5 mM EGTA, 15 mM MgCl2, 1 mM DTT, 1 × Complete protease inhibitor cocktail, 1 × PhosSTOP phosphatase inhibitor cocktail, and 0.2% Tween 20 [pH 7.5]), the enzymatic activity of CiCdk1 was measured using a MESACUP Cdc2/Cdk1 Kinase Assay kit (MBL, Nagoya, Japan) according to the manufacturer’s instructions, with the exception that the kinase reaction was performed using sepharose with and without 1 μM Ro-3306 at 30°C for 45 min.

Preparation of recombinant CiMMP2/9/13 and antibody generation

Request a detailed protocol

The cDNA fragment corresponding to the active form of CiMMP2/9/13 (KH.L76.4, amino acid sequence of residues 212–792) was amplified using cDNA from the ovary, Prime Star HS DNA polymerase (Takara, Shiga, Japan), and the primer pair 5’-ACAAGAGGTCCATCGTTCGG-3’ and 5’-GTCGTAGTTGTCAGTGGTAG-3’. The DNA fragment was cloned into the pCR-Blunt II-TOPO vector (Thermo). DNA sequencing revealed that the insert contained a non-synonymous SNP resulting in the substitution of W with G at residue 252, which was confirmed by two independent RT-PCR analyses. In addition, 42 amino acids were inserted at residue 569: 38 amino acids were aligned with residues 569–606 of the sequence in the NCBI database (XP_009861837.1), with repetitive extension of 4 amino acids (GTGT), indicating successful cloning of the recombinant protein without any frameshifts. The EcoRI/HindIII fragment was inserted into the identical sites of the pET21a expression vector (Novagen, Madison, WI). Expression of rCiMMP2/9/13 was induced using the Rossetta 2 (DE3) expression system (Novagen). Escherichia coli cells were sonicated in 100 mM Tris-HCl (pH 7.5), and soluble proteins were removed by centrifugation. The precipitate was suspended in buffer composed of 50 mM NaH2PO4, 300 mM NaCl, and 6 M urea and solubilized by sonication. rCiMMP2/9/13 was purified with a vector-derived His-tag at the C-terminus using Ni-NTA agarose (QIAGEN, Hilden, Germany). Purified rCiMMP2/9/13 was concentrated in PBS by ultrafiltration using an Amicon Ultra-centrifugal filter (Merck, Tokyo, Japan). Purified rCiMMP2/9/13 was then injected into rabbits for immunization (Hokudo Co., Ltd., Hokkaido, Japan). The specificity of the resultant antiserum against CiMMP2/9/13 was confirmed by Western blotting (Figure 5—figure supplement 2).

Immunohistochemistry

Request a detailed protocol

Ciona ovaries were fixed in Bouin’s solution, embedded in SCEM, and sectioned at 10 μm. The resulting slides were dried at 37°C for 1 hr and washed with PBS. The samples were then boiled in 10 mM citrate buffer (pH 6.0) for 5 min using a microwave oven and cooled for 30 min at room temperature. Endogenous peroxidase activity was quenched by incubating the samples with 0.3% hydrogen peroxide for 10 min. The samples were then sequentially blocked for 30 min each with Blocking One (Nacalai Tesque) and normal horse serum of the R.T.U. VECTASTAIN Universal Elite ABC kit (Vector Laboratories, Burlingame, CA). Anti–MMP-2/9/13 antiserum was used as the primary antibody. Immunoreactivity was assessed using an ABC kit according to the manufacturer’s instructions.

In vitro collagenase activity assay

View detailed protocol

A total of 0.5 μg of rMMP-2/913 was incubated with 5 μg of DQ collagen type I or type IV in 200 μl of reaction buffer (50 mM Tris-HCl, 150 mM NaCl, 5 mM CaCl2) in the presence or absence of 1 μM MMP-2/MMP-9 inhibitor II at 20°C. After 48 hr of incubation, the fluorescence was measured using a FlexStation II (Molecular Devices, Sunnyvale, CA) with the following settings: Ex, 485 nm; Em, 538 nm; cut-off, 495 nm.

In situ zymography

Request a detailed protocol

Isolated late stage III follicles were incubated with 50 μg/ml of DQ collagen type I (Thermo, D12060) or DQ collagen type IV (Thermo, D12052) in ASW at 20°C for 3 hr. The follicles were then washed with ASW three times, and fluorescence was observed using a Leica M205 FA fluorescence stereomicroscope.

Statistical analysis

Request a detailed protocol

Results are shown as the mean ± standard error of the mean (SEM) of at least three independent experiments. Data were analyzed using the Student’s t test for one or two pairs of samples and one-way ANOVA followed by Tukey’s post hoc test for multiple samples using Free-JSTAT statistical software (version 22.0E, Masato Sato, Japan). Differences were considered statistically significant at p<0.05.

Data availability

All data generated or analyzed in this study are included in the manuscript and supporting files. Accession numbers of RNA-seq data in this study are described in Table 1 and Table 2. All RNA seq-data are provided in Supplementary files 1 and 4.

References

    1. Chambon JP
    2. Soule J
    3. Pomies P
    4. Fort P
    5. Sahuquet A
    6. Alexandre D
    7. Mangeat PH
    8. Baghdiguian S
    (2002)
    Tail regression in Ciona intestinalis (Prochordate) involves a Caspase-dependent apoptosis event associated with ERK activation
    Development 129:3105–3114.
    1. Russo GL
    2. Kyozuka K
    3. Antonazzo L
    4. Tosti E
    5. Dale B
    (1996)
    Maturation promoting factor in ascidian oocytes is regulated by different intracellular signals at meiosis I and II
    Development 122:1995–2003.

Article and author information

Author details

  1. Shin Matsubara

    1. Bioorganic Research Institute, Suntory Foundation for Life Sciences, Kyoto, Japan
    2. Research Fellow of Japan Society for the Promotion of Science, Tokyo, Japan
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Investigation, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7794-534X

  2. Akira Shiraishi

    Bioorganic Research Institute, Suntory Foundation for Life Sciences, Kyoto, Japan
    Contribution
    Data curation, Validation, Investigation, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3456-3074

  3. Tomohiro Osugi

    Bioorganic Research Institute, Suntory Foundation for Life Sciences, Kyoto, Japan
    Contribution
    Data curation, Investigation, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6987-9576

  4. Tsuyoshi Kawada

    Bioorganic Research Institute, Suntory Foundation for Life Sciences, Kyoto, Japan
    Contribution
    Data curation, Validation, Investigation, Writing—original draft
    Competing interests
    No competing interests declared

  5. Honoo Satake

    Bioorganic Research Institute, Suntory Foundation for Life Sciences, Kyoto, Japan
    Present address
    Suntory Foundation for Life Sciences, Kyoto, Japan
    Contribution
    Conceptualization, Supervision, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    satake@sunbor.or.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1165-3624

Funding

Japan Society for the Promotion of Science (JP16K07430)

  • Honoo Satake

Japan Society for the Promotion of Science (JP16K18581)

  • Shin Matsubara

Japan Society for the Promotion of Science (JP17J10624)

  • Shin Matsubara

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We gratefully acknowledge Prof. Shigetada Nakanishi and Prof. Takayuki Takahashi for providing fruitful comments regarding the manuscript. We are also grateful to Prof. Masakane Yamashita for sharing p13suc1-sepharose and to the National Bio-Resource Project for providing ascidians. This work was supported in part by grants from the Japan Society for the Promotion of Science to SM (JP16K18581 and JP17J10624) and HS (JP16K07430).

Copyright

© 2019, Matsubara et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,065
    views
  • 362
    downloads
  • 33
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Shin Matsubara
  2. Akira Shiraishi
  3. Tomohiro Osugi
  4. Tsuyoshi Kawada
  5. Honoo Satake
(2019)
The regulation of oocyte maturation and ovulation in the closest sister group of vertebrates
eLife 8:e49062.
https://doi.org/10.7554/eLife.49062

Share this article

https://doi.org/10.7554/eLife.49062

Categories and tags

Research organism

Further reading

    1. Cell Biology

    Pathogenic Huntingtin aggregates alter actin organization and cellular stiffness resulting in stalled clathrin-mediated endocytosis

    Surya Bansi Singh, Shatruhan Singh Rajput ... Deepa Subramanyam
    Research Article Updated

    Aggregation of mutant forms of Huntingtin is the underlying feature of neurodegeneration observed in Huntington’s disorder. In addition to neurons, cellular processes in non-neuronal cell types are also shown to be affected. Cells expressing neurodegeneration–associated mutant proteins show altered uptake of ligands, suggestive of impaired endocytosis, in a manner as yet unknown. Using live cell imaging, we show that clathrin-mediated endocytosis (CME) is affected in Drosophila hemocytes and mammalian cells containing Huntingtin aggregates. This is also accompanied by alterations in the organization of the actin cytoskeleton resulting in increased cellular stiffness. Further, we find that Huntingtin aggregates sequester actin and actin-modifying proteins. Overexpression of Hip1 or Arp3 (actin-interacting proteins) could restore CME and cellular stiffness in cells containing Huntingtin aggregates. Neurodegeneration driven by pathogenic Huntingtin was also rescued upon overexpression of either Hip1 or Arp3 in Drosophila. Examination of other pathogenic aggregates revealed that TDP-43 also displayed defective CME, altered actin organization and increased stiffness, similar to pathogenic Huntingtin. Together, our results point to an intimate connection between dysfunctional CME, actin misorganization and increased cellular stiffness caused by alteration in the local intracellular environment by pathogenic aggregates.

    1. Cell Biology

    Amoeboid cells undergo durotaxis with soft end polarized NMIIA

    Chenlu Kang, Pengcheng Chen ... Congying Wu
    Research Article

    Cell migration towards stiff substrates has been coined as durotaxis and implicated in development, wound healing, and cancer, where complex interplays between immune and non-immune cells are present. Compared to the emerging mechanisms underlying the strongly adhesive mesenchymal durotaxis, little is known about whether immune cells - migrating in amoeboid mode - could follow mechanical cues. Here, we develop an imaging-based confined migration device with a stiffness gradient. By tracking live cell trajectory and analyzing the directionality of T cells and neutrophils, we observe that amoeboid cells can durotax. We further delineate the underlying mechanism to involve non-muscle myosin IIA (NMIIA) polarization towards the soft-matrix-side but may not require differential actin flow up- or down-stiffness gradient. Using the protista Dictyostelium, we demonstrate the evolutionary conservation of amoeboid durotaxis. Finally, these experimental phenomena are theoretically captured by an active gel model capable of mechanosensing. Collectively, these results may shed new lights on immune surveillance and recently identified confined migration of cancer cells, within the mechanically inhomogeneous tumor microenvironment or the inflamed fibrotic tissues.

    1. Cell Biology
    2. Developmental Biology

    Ciliary length regulation by intraflagellar transport in zebrafish

    Yi Sun, Zhe Chen ... Chengtian Zhao
    Short Report

    How cells regulate the size of their organelles remains a fundamental question in cell biology. Cilia, with their simple structure and surface localization, provide an ideal model for investigating organelle size control. However, most studies on cilia length regulation are primarily performed on several single-celled organisms. In contrast, the mechanism of length regulation in cilia across diverse cell types within multicellular organisms remains a mystery. Similar to humans, zebrafish contain diverse types of cilia with variable lengths. Taking advantage of the transparency of zebrafish embryos, we conducted a comprehensive investigation into intraflagellar transport (IFT), an essential process for ciliogenesis. By generating a transgenic line carrying Ift88-GFP transgene, we observed IFT in multiple types of cilia with varying lengths. Remarkably, cilia exhibited variable IFT speeds in different cell types, with longer cilia exhibiting faster IFT speeds. This increased IFT speed in longer cilia is likely not due to changes in common factors that regulate IFT, such as motor selection, BBSome proteins, or tubulin modification. Interestingly, longer cilia in the ear cristae tend to form larger IFT compared to shorter spinal cord cilia. Reducing the size of IFT particles by knocking down Ift88 slowed IFT speed and resulted in the formation of shorter cilia. Our study proposes an intriguing model of cilia length regulation via controlling IFT speed through the modulation of the size of the IFT complex. This discovery may provide further insights into our understanding of how organelle size is regulated in higher vertebrates.
