Single-cell transcriptomes and whole-brain projections of serotonin neurons in the mouse dorsal and median raphe nuclei

  1. Jing Ren  Is a corresponding author
  2. Alina Isakova
  3. Drew Friedmann
  4. Jiawei Zeng
  5. Sophie M Grutzner
  6. Albert Pun
  7. Grace Q Zhao
  8. Sai Saroja Kolluru
  9. Ruiyu Wang
  10. Rui Lin
  11. Pengcheng Li
  12. Anan Li
  13. Jennifer L Raymond
  14. Qingming Luo
  15. Minmin Luo
  16. Stephen R Quake  Is a corresponding author
  17. Liqun Luo  Is a corresponding author
  1. Stanford University, United States
  2. National Institute of Biological Science, China
  3. Stanford University School of Medicine, United States
  4. Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology (HUST), China
  5. HUST-Suzhou Institute for Brainsmatics, JITRI Institute for Brainsmatics, China
  6. Tsinghua University, China
  7. Chan Zuckerberg Biohub, United States
Research Article
  • Cited 0
  • Views 2,003
  • Annotations
Cite this article as: eLife 2019;8:e49424 doi: 10.7554/eLife.49424

Abstract

Serotonin neurons of the dorsal and median raphe nuclei (DR, MR) collectively innervate the entire forebrain and midbrain, modulating diverse physiology and behavior. To gain a fundamental understanding of their molecular heterogeneity, we used plate-based single-cell RNA-sequencing to generate a comprehensive dataset comprising eleven transcriptomically distinct serotonin neuron clusters. Systematic in situ hybridization mapped specific clusters to the principal DR, caudal DR, or MR. These transcriptomic clusters differentially express a rich repertoire of neuropeptides, receptors, ion channels, and transcription factors. We generated novel intersectional viral-genetic tools to access specific subpopulations. Whole-brain axonal projection mapping revealed that DR serotonin neurons co-expressing vesicular glutamate transporter-3 preferentially innervate the cortex, whereas those co-expressing thyrotropin-releasing hormone innervate subcortical regions in particular the hypothalamus. Reconstruction of 50 individual DR serotonin neurons revealed diverse and segregated axonal projection patterns at the single-cell level. Together, these results provide a molecular foundation of the heterogenous serotonin neuronal phenotypes.

https://doi.org/10.7554/eLife.49424.001

Introduction

Serotonin is a phylogenetically ancient signaling molecule (Hay-Schmidt, 2000) and the most widely distributed neuromodulator in the brain (Dahlström and Fuxe, 1964; Steinbusch, 1981). The serotonin system innervates nearly every region of the brain (Jacobs and Azmitia, 1992), even though it only constitutes ~1/200,000 of all CNS neurons in humans. It is critically involved in a broad range of brain functions and is the most frequently targeted neural system pharmacologically for treating psychiatric disorders (Belmaker and Agam, 2008; Ravindran and Stein, 2010).

Serotonin neurons in the central nervous system are spatially clustered in the brainstem, originally designated as groups B1–B9 (Dahlström and Fuxe, 1964). Groups B1–B3 are located in the medulla and provide descending serotonergic innervation to the spinal cord and other parts of the medulla. Groups B4–B9 are located in the pons and midbrain, including the dorsal raphe (DR; groups B6 and B7) and median raphe (MR; groups B5 and B8) nucleus, and provide ascending innervation to the forebrain and midbrain. The DR and MR serotonin systems have been linked with the regulation of many mental states and processes, including anxiety, mood, impulsivity, aggression, learning, reward, social interaction, and hence remain the focus of intense research (Deneris and Wyler, 2012; Olivier, 2015).

Evidence has suggested that the DR and MR serotonin systems differ in developmental origin, connectivity, physiology, and behavioral function (Alonso et al., 2013; Calizo et al., 2011; Okaty et al., 2019). DR serotonin neurons derive entirely from rhombomere 1 of the developing mouse brain, whereas MR serotonin neurons derive predominantly from rhombomeres 1, 2, and 3 (Alonso et al., 2013; Bang et al., 2012; Jensen et al., 2008). Although the DR and MR receive similar inputs globally from specific brain regions (Ogawa et al., 2014; Pollak Dorocic et al., 2014; Weissbourd et al., 2014), they project to largely complementary forebrain targets. The MR serotonin neurons project to structures near the midline, whereas the DR serotonin neurons target more lateral regions (Jacobs and Azmitia, 1992; Muzerelle et al., 2016; Vertes, 1991; Vertes et al., 1999). Slice physiology recording showed that the serotonin neurons in the MR and DR have different electrophysiological characteristics, such as resting potential, membrane resistance, and reaction to serotonin receptor-1A agonist (Calizo et al., 2011; Fernandez et al., 2016). Finally, activation of these two raphe nuclei has been suggested to mediate opposing roles in emotional regulation (Teissier et al., 2015).

Even within the MR or DR, there is considerable heterogeneity of serotonin neurons in multiple aspects. Although MR serotonin neurons arising from different cell lineages are anatomically mixed in the adult, they have distinct electrophysiological properties (Okaty et al., 2015) and potentially distinct behavioral functions (Kim et al., 2009; Okaty et al., 2015). Diversity of serotonin neurons in the DR has received particular attention in recent years. Accumulating evidence indicates that there are subgroup-specific projection patterns within the DR serotonin system (Niederkofler et al., 2016; Ren et al., 2018). The electrophysiological properties of DR serotonin neurons vary according to the projection patterns (Fernandez et al., 2016). Physiological recordings as well as optogenetic and chemogenetic manipulations suggest heterogeneity of DR serotonin neurons in their behavioral functions (Cohen et al., 2015; Marcinkiewcz et al., 2016; Niederkofler et al., 2016). As a specific example, we recently found that DR serotonin neurons that project to frontal cortex and amygdala constitute two sub-systems with distinct cell body locations, axonal collateralization patterns, biased inputs, physiological response properties, and behavioral functions (Ren et al., 2018). Our collateralization analyses also imply that there must be additional parallel sub-systems of DR serotonin neurons that project to brain regions not visited by the frontal cortex- and amygdala-projecting sub-systems.

Ultimately, the heterogeneity of DR and MR serotonin neurons must be reflected at the molecular level. Pioneering work has introduced the molecular diversity of serotonin neurons across the midbrain and hindbrain (Okaty et al., 2015; Spaethling et al., 2014; Wylie et al., 2010), yet systematic analysis and integration of multiple cellular characteristics at single-cell resolution within each raphe nucleus is still lacking. The rapid development of single-cell RNA sequencing (scRNA-seq) technology in recent years has provided a powerful tool for unbiased identification of transcriptomic cell types in the brain (Darmanis et al., 2015; Li et al., 2017; Mickelsen et al., 2019; Rosenberg et al., 2018; Saunders et al., 2018; Tasic et al., 2016; Tasic et al., 2018; Welch et al., 2019; Zeisel et al., 2018; Zeisel et al., 2015). In neural circuits where cell types have been well studied by anatomical and physiological methods, there is an excellent correspondence between cell types defined by transcriptomes and the classical methods (Li et al., 2017; Shekhar et al., 2016). Here, we combine scRNA-seq, fluorescence in situ hybridization, intersectional labeling of genetically defined cell types, whole-brain axonal projection mapping, and single neuron reconstruction to investigate the relationship between the molecular architecture of serotonin neurons, the spatial location of their cell bodies in the DR and MR, and their axonal arborization patterns in the brain.

Results

Single-cell RNA-sequencing defines 11 transcriptomic clusters of serotonin neurons in the dorsal and median raphe

We performed a comprehensive survey of DR and MR serotonin neurons in the adult mouse brain by scRNA-seq (Figure 1A). To specifically label serotonin neurons, we crossed Sert-Cre mice (Gong et al., 2007) with the tdTomato Cre reporter mouse, Ai14 (Madisen et al., 2010). (Serotonin transporter, or Sert, encoded by the gene Slc6a4, is a marker for serotonin neurons; see more details below.) We collected serotonin neurons acutely dissociated from brain slices of adult mice (postnatal day 40–45, including six females and eight males) by fluorescence-activated cell sorting (FACS) and used Smart-seq2 (Picelli et al., 2013) to generate scRNA-seq libraries. To assist in localizing the resulting subtypes, we applied two dissection strategies to separate the serotonin neurons originating from anatomically-distinct brain regions: 1) in the first set of experiments, we dissected the brainstem region that contain the entire MR and DR; 2) in the second set of experiments, we focused on the principal DR (pDR, corresponding to the traditional B7 group) region by dissecting specifically the DR but excluding its caudal extension (cDR, corresponding to the traditional group B6) (Figure 1—figure supplement 1A). After quality control (Materials and methods), we determined the transcriptomes of 709 cells from eight samples that include MR, pDR, and cDR, and 290 cells from six pDR-only samples (999 cells in total, comprising 581 cells from female and 418 cells from male mice). We sequenced to a depth of ∼1 million reads per cell and detected ~10,000 genes per cell (Figure 1—figure supplement 1B; Supplementary file 1). The data quality and serotonin identity were validated by the fact that nearly all 999 neurons expressed the genes encoding: (1) tryptophan hydroxylase 2 (Tph2), a key enzyme for serotonin biosynthesis; (2) transcription factor Pet1 (Fev) known to express in raphe serotonin neurons (Hendricks et al., 1999); (3) the plasma membrane serotonin transporter (Sert), which recycles released serotonin back to presynaptic terminals of serotonin neurons, and (4) vesicular monoamine transporter 2 (Vmat2), which transports serotonin (and other monoamines) from presynaptic cytoplasm to synaptic vesicles (Figure 1—figure supplement 1C).

Figure 1 with 6 supplements see all

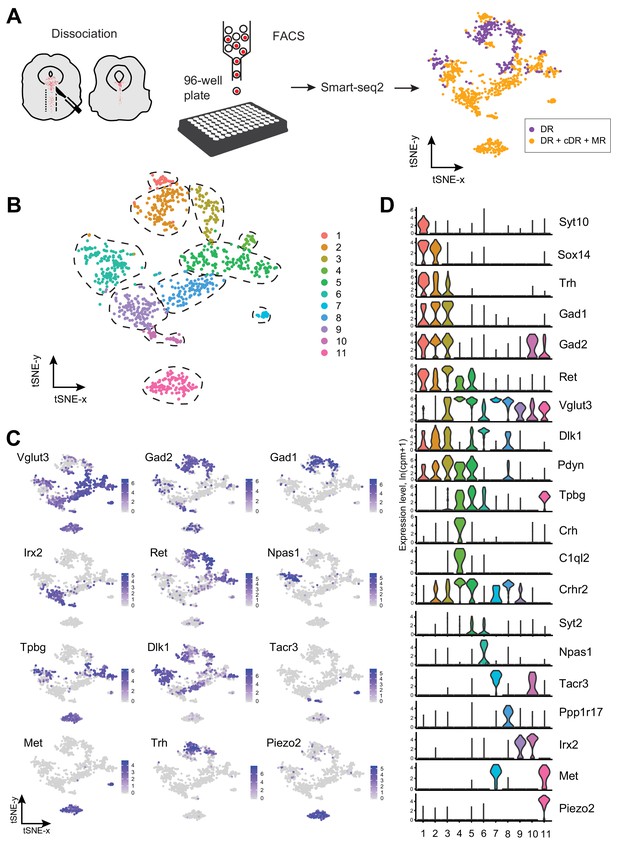

Single-cell transcriptomic profiling of serotonergic neurons.

(A) Schematic representation of scRNA-seq pipeline used to analyze individual serotonin neurons. Tissue slices containing either principal dorsal raphe (pDR, n = 6 brains) or entire DR and MR (n = 8 brains) of Sert-Cre;Ai14 adult were dissociated to a single-cell suspension. tdTomato+ neurons were FACS-sorted in 96-well plates and processed for scRNA-seq using Smart-seq2 protocol. tSNE plot of all processed Tph2+ neurons colored by anatomical localization. cDR, caudal DR; MR, median raphe. (B) tSNE plot of 999 Tph2+ cells obtained from 14 brains and clustered by gene expression. Cells are colored-coded according to identified transcriptomic clusters. (C) Expression of genes defining distinct serotonin neuron populations. Cells are colored by log-normalized expression of each transcript, and the color legend reflects the expression values of ln(CPM+1). CPM, counts per million. (D) Violin plots of expression of marker genes across 11 clusters.

https://doi.org/10.7554/eLife.49424.002

To define distinct serotonin neuron populations based on single-cell transcriptome, we performed principal component analysis (PCA) on all the genes expressed in the assayed neurons, followed by nearest-neighbor graph-based clustering (see Materials and methods). These 999 MR and DR serotonin neurons comprised 11 clusters (Figure 1B; Figure 1—figure supplement 2). Each cluster contained cells from both sexes after removing genes located on the Y chromosome, indicating that there were few sex-specific differences at the level of transcriptomic clusters (Figure 1—figure supplement 1D). No substantial batch effect was observed (Figure 1—figure supplement 1E). Each of the 11 clusters expressed a set of cluster-discriminatory genes, including markers for specific neurotransmitter systems, such as Vglut3, Gad1, and Gad2 (Figure 1C,D; Figure 1—figure supplement 16).

Anatomical organization of transcriptomically defined serotonin clusters

Of the 11 transcriptomic clusters, six (Cluster 1–6) consisted of only serotonin neurons dissected from the pDR. We hypothesized that these six clusters represent serotonin neurons from the pDR, and the remaining five clusters represent cells from MR and cDR. To test this hypothesis and to obtain information about the anatomical organization of transcriptomically defined serotonin cell clusters within the DR and MR, we chose 16 cluster marker genes and performed hybridization-chain reaction (HCR)-based single-molecule fluorescence in situ hybridization (smFISH) (Choi et al., 2018). To restrict our analysis within the serotonin neuron population, we simultaneously double-labeled Tph2, a marker for serotonin neurons, for all the HCR-smFISH experiments.

Figure 2A summarizes the distribution of the Tph2+ serotonin neurons that express each of the 16 cluster markers in four coronal sections that cover the pDR, cDR, and MR. This summary was derived from counting Tph2/cluster marker double-labeled cells from confocal sections of the HCR-smFISH experiments (Figure 2B; Figure 2—figure supplements 12). Specifically, we found that the distribution of markers for Clusters 1–6, Ret, Trh, Gad1, Npas1, Syt2, and C1ql2 (Figure 1D), were mostly restricted to the pDR. The two common Cluster 7 markers Tacr3 and Met were both highly concentrated in serotonin neurons under the aqueduct in the cDR. Dlk1 should be expressed in the DR clusters as well as Cluster 8 (Figure 1D), and its expression was found in both the DR and MR, suggesting that Cluster 8 serotonin neurons are located in the MR. Clusters 9–11 markers Irx2 and Piezo2 were mostly found in the MR. Thus, these observations support the anatomical breakdown suggested by the dissection of primary tissue, and additionally provide a more granular and detailed description about finer boundaries.

Figure 2 with 2 supplements see all

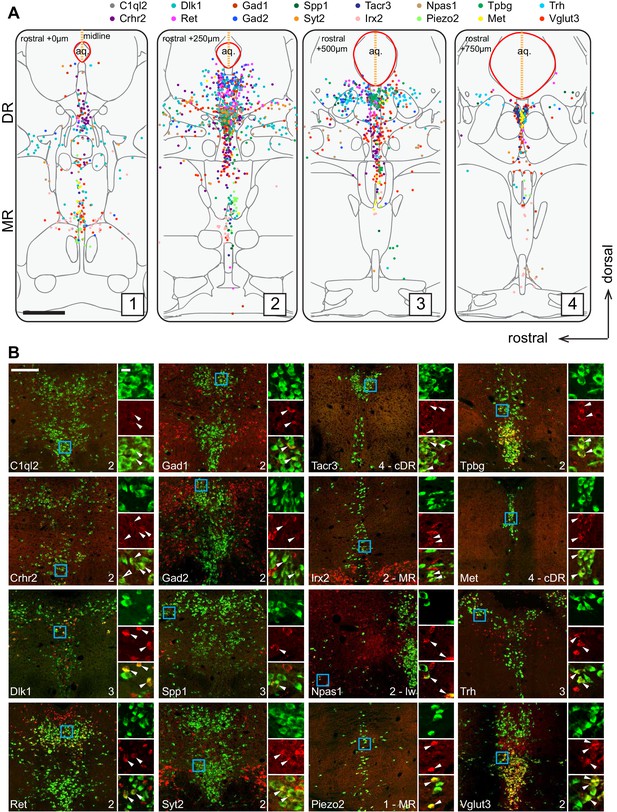

Anatomical location of serotonin neuron clusters determined by hybridization-chain reaction-based single-molecule fluorescence in situ hybridization (HCR-smFISH) of 16 cluster markers.

(A) Positions of double-positive neurons (Tph2 and each of 16 marker genes color-coded on the top) are shown on four schematics representing coronal slices 250 µm apart. Red line around the aqueduct represents the average boundary drawn from raw data for each slice. Scale bar, 500 µm. Schematics summarizing HCR-smFISH data for individual genes can be found in Figure 2—figure supplements 1 and 2. (B) Representative images for each of the genes schematized in (A). All green cells are Tph2-positive, red cells express the indicated marker gene. Each image corresponds to one of the four numbered schematics in (A) and is located immediately ventral to the aqueduct unless otherwise noted as MR, lateral wing (lw), or cDR. Cyan box highlights the individual color zoom region at right. White arrowheads mark examples of double-positive neurons. Scale bars, 200 µm main panels, 20 µm zoom panels.

https://doi.org/10.7554/eLife.49424.009

Within the DR, Trh+, Gad1+, and Gad2+ serotonin neurons were mainly located in the dorsal DR, whereas Slc17a8+ (also known as Vglut3, used hereafter) and Syt2+ serotonin neurons were mainly located in the ventral DR and cDR. These data suggest that Clusters 1–3 correspond to the dorsal DR and Cluster 4–6 to the ventral DR. Cluster 6 marker Npas1+ was largely excluded from the densest portion of Tph2 expression at the midline and instead was found scattered in the more rostral and ventral portion of the lateral wings. On the other hand, Crhr2, which should be expressed in all DR serotonin neuron clusters except Cluster 1 and 6 (Figure 1D), was localized preferentially near the midline and was absent from the lateral wing. Thus, Cluster 6 likely corresponds to serotonin neurons located preferentially in the lateral wings. In contrast to DR, the anatomical organization of the molecular features that define MR clusters is less obvious and different clusters appear more intermingled.

In summary, our HCR-smFISH experiments support the notion that Clusters 1–6 correspond to pDR serotonin neurons, Cluster 7 corresponds to cDR serotonin neurons, and Clusters 8–11 correspond to MR serotonin neurons. We thus rename hereafter Clusters 1–6 as DR-1–6, Cluster 7 as cDR, and Clusters 8–11 as MR-1–4 (Figure 3). Detailed expression levels of marker genes across all 11 clusters can be found in Figure 3—figure supplement 13.

Figure 3 with 4 supplements see all

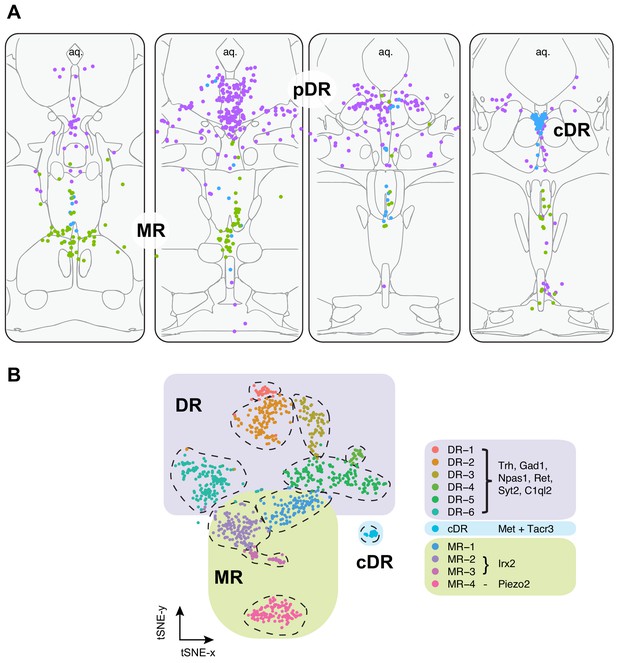

Summary of spatial distribution of transcriptomic clusters of serotonin neurons.

(A) Purple dots represent distribution of Clusters 1–6 markers listed in panel (B); green dots represent the distribution Irx2 and Piezo2 cells that are Cluster 9–11 markers; and cyan dots present distribution of Met+ and Tacr3+ cells, which are co-expressed in Cluster 7, but is additionally expressed in Cluster 10 (Met) or Cluster 11 (Tacr3). (B) Collectively, scRNA-seq and HCR-smFISH experiments support the model that Clusters 1–6 from Figure 1B correspond to pDR serotonin neurons (renamed DR-1–6), Cluster 7 corresponds to cDR serotonin neurons, and Clusters 8–11 correspond to MR serotonin neurons (renamed MR-1–4).

https://doi.org/10.7554/eLife.49424.012

Molecular properties of MR and DR serotonin neurons

Having determined the spatial locations of transcriptomically defined serotonin cell types, we next analyzed key groups of differentially expressed genes crucial for neuronal function, including markers for neurotransmitter systems, neuropeptides, ionotropic and metabotropic (G-protein-coupled) neurotransmitter receptors, wiring specificity molecules, and transcription factors (Figure 4; Figure 4—figure supplement 1, Supplementary file 2).

Figure 4 with 2 supplements see all

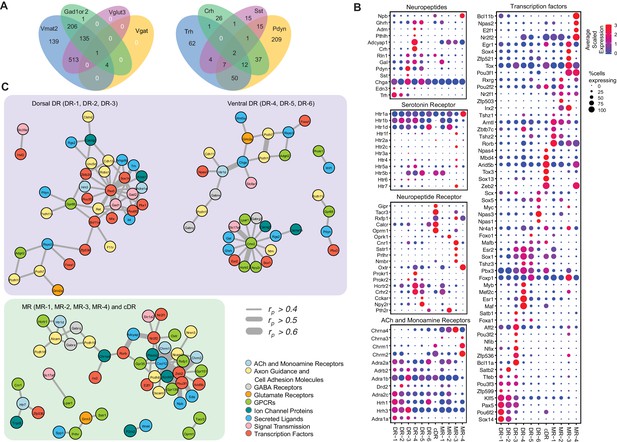

Molecular and functional characteristics of distinct serotonin neuron clusters.

(A) Venn diagram showing the number of cells co-expressing genes associated with markers for different neurotransmitter systems: Gad1/2, Vmat2, Vgat, and Vglut3 (left) and neuropeptides: Trh, Crh, Sst, Pdyn (right). We consider a gene to be expressed if it has at least one read mapping to it and is detected in at least 3 cells (Materials and methods). (B) Expression of the most variable neuropeptides, receptors, and transcription factors across molecularly distinct serotonin neuron clusters. (C) Network representation of co-expressed genes that belong to one of the functional gene categories that organize transcriptional regulation, synaptic connectivity, and neuronal communications. Networks were constructed based on Pearson correlation coefficient (rp) of gene expression across all 999 cells, and identified networks that are centered on pDR- and MR+cDR-specific genes. Genes appear connected if rp >0.4. Line width represents rp values as indicated. Nodes are colored according to functional gene categories.

https://doi.org/10.7554/eLife.49424.017

Genes related to neurotransmitters other than serotonin

The majority of the clusters express Slc17a8, which encodes vesicular glutamate transporter-3 (Vglut3). These include almost all serotonin neurons from the cDR, the majority from MR clusters (Domonkos et al., 2016), and DR-3–6 clusters (Figure 1D). These observations suggest that glutamate is the most prevalent co-transmitter for serotonin neurons. Glutamate co-release from Vglut3+ serotonin terminals has indeed been reported at the hippocampus (Varga et al., 2009), orbital prefrontal cortex (Ren et al., 2018), nucleus accumbens (Liu et al., 2014), ventral tegmental area (Wang et al., 2019), and basolateral amygdala (Sengupta et al., 2017).

Three DR clusters express Gad1 and Gad2, which encode biosynthetic enzymes for the neurotransmitter GABA. Two MR clusters express Gad2 but not Gad1, and cDR expresses neither. Interestingly, few of the Gad1+ or Gad2+ neurons express vesicular GABA transporter (Vgat, Figure 4A left), which is responsible for transporting GABA into synaptic vesicles for synaptic transmission. It has been reported that vesicular monoamine transporters (Slc8a1 for Vmat1; Slc8a2 for Vmat2) can transport GABA into synaptic vesicles (Stensrud et al., 2014), and virtually all serotonin neurons expressed Vmat2 (Figure 1—figure supplement 1D; Figure 4A left). Nevertheless, it remains to be determined if these serotonin neurons can actually release GABA. At the single cell level, 14% of serotonin neurons do not express any of the gene markers for glutamate or GABA transmission. 65% of serotonin neurons express Vglut3, 35% express either Gad1, Gad2, or both, and 13% express markers for Vglut3 and Gad1 or Gad2 (Figure 4A left).

In addition to small-molecule transmitters, the majority of serotonin neurons also co-express neuropeptides (Figure 4A right). Expression of genes encoding several neuropeptides served as excellent cluster markers. For example, thyrotropin-releasing hormone (Trh) is highly expressed in DR-1–3 (14% serotonin neurons, Figure 1C). Corticotropin-releasing hormone (Crh) is highly expressed in the DR-3 cluster but much less everywhere else (7% serotonin neurons). Neuropeptide B (Npb) is highly expressed in cDR and MR-4 but much less in pDR serotonin neurons. Galanin (Gal) is highly expressed in pDR and MR-1 (Fernandez et al., 2016). Many serotonin neurons express multiple neuropeptides (Figure 4A,B).

Small-molecule neurotransmitter receptors

Each cluster has a distinct expression pattern of neurotransmitter (including neuropeptide) receptors (Figure 4B, Figure 4—figure supplement 1). Multiple subunits of glutamate and GABA receptors are differentially expressed across the clusters. For example, Grin3a, encoding subunit 3A of ionotropic NMDA glutamate receptor, is mainly expressed in pDR but not MR or cDR clusters. By contrast, Grik1, encoding subunit 1 of the kainate glutamate receptor, is more highly expressed in MR clusters. Chrna3 and Chrna4, encoding subunit α3 and α4 of the nicotinic acetylcholine receptor, are also more enriched in MR clusters. Clusters MR-4 and cDR have the highest expression level of expression for Chrm1 and Chrm2, encoding muscarinic acetylcholine receptors. Dopamine receptor D2 (Drd2) is highly expressed in DR-3 (Niederkofler et al., 2016). Finally, all serotonin neurons express at least one type of serotonin receptors, with the Gi-coupled Htr1 subfamily in particular Htr1a being the most widely expressed. Htr1a is highly expressed in the MR-4 cluster, which does not express other serotonin receptors. Of all the genes encoding serotonin receptors, Htr5b has the strongest cluster specificity (Figure 4B).

Neuropeptide receptors

Multiple neuropeptide receptor-encoding genes have rich expression in distinct clusters. Notably, cDR preferentially expresses at least five neuropeptide receptors: gastric inhibitory polypeptide receptor (Gipr), tachykinin receptor 3 (Tacr3), relaxin family peptide receptor 1 (Rxfp1), calcitonin receptor (Calcr), and opioid receptor mu-1 (Oprm1). Meanwhile, opioid receptor kappa 1 (Oprk1) is expressed specifically in MR-2. Another neuropeptide receptor enriched cluster is MR-3, expressing Tacr3, cannabinoid receptor 1(Cnr1), somatostatin receptor-1 (Sstr1), prolactin-releasing hormone receptor (Prlhr), and neuromedin B receptor (Nmbr). Neuropeptide receptors like oxytocin receptor (Oxtr), prokineticin receptor-1 and −2 (Prokr1, Prokr2), hypocretin receptor-2 (Hcrtr2), corticotropin-releasing hormone receptor-2 (Crhr2), cholecystokinin-A (Cckar), neuropeptide Y receptor Y2 (Npy2r), and parathyroid hormone-2 receptor (Pth2r) all have distinct expression pattern across different clusters. In summary, the DR and MR serotonin neurons have diverse expression pattern of neuropeptide receptors, indicating that they are subject to complex modulation by a host of neuropeptides.

Other notable genes

The DR and MR serotonin clusters are also distinguished by differential expression of ion channels as well as axon guidance and cell adhesion molecules (Figure 4—figure supplement 1), which can contribute to their differences in physiological properties and wiring specificity. Notably, genes encoding a voltage-gated K+ channel (Kchn8) and mechanosensitive channel (Piezo2) are highly expressed in the MR-4 cluster but exhibit little expression in all other clusters. The chemokine ligand-12 (Cxcl12) and cadherin-6 (Cdh6) are preferentially expressed in MR-1 and DR-4 clusters, respectively.

Transcription factors

Transcription factors (TFs) have been shown to be the best molecular feature for cell type definition (Schaum et al., 2018). Within our data, we observed robust cluster-specific expression of multiple TF genes (Figure 4B; Figure 4—figure supplement 1; Figure 3—figure supplement 13). For example, Bcl11a and Bcl11b (also named Ctip1 and Ctip2) (Chen et al., 2008; Wiegreffe et al., 2015) are highly enriched in DR-3 and MR-4, respectively. Nfix and Nfib (Bedford et al., 1998) are preferentially expressed in DR-3. Irx2 (Wylie et al., 2010) is specific to MR-2 and MR-3. Sox13 is highly enriched in cDR. Interestingly, Sox14, previously reported to be associated with GABAergic neurons in developing brain (Lahti et al., 2016), is expressed in Clusters 1 and 2 in adult serotonin neurons that co-express Gad1 and Gad2. Zeb2 (Okaty et al., 2015) is uniquely expressed in cDR and MR-4. TFs associated with neurodevelopmental disorders, such as Npas1 and Npas3 (Erbel-Sieler et al., 2004), are preferentially expressed in DR-6, and Aff2 (Mondal et al., 2012) is enriched within DR-3.

Transcriptional networks

To understand the relationship between cluster-specific genes and infer putative transcriptional regulatory programs orchestrating the maintenance of serotonin neuron subtype identity, we next performed a pairwise correlation analysis of gene expression across all 999 neurons (Supplementary file 3). We used Pearson correlation coefficient (rp) as a measure of gene co-expression and focused on the genes with average expression >10 counts per million. We found multiple genes to co-expressed (defined as rp >0.5) in serotonin neurons, forming co-expression modules among each other as well as around various TFs (Supplementary file 4). Focusing further on cluster markers, we identified three transcriptional ‘hubs’ that putatively govern molecular programs within respective neurons. Interestingly, two of these hubs were centered around pDR-specific TFs, and, independently, comprised of dorsal (DR-1, DR-2, DR-3) and ventral (DR-4, DR-5, DR-6) pDR markers (Figure 4C). Among dorsal pDR markers we identified Pax5 and Sox14 to strongly correlate (rp >0.5) with Gad1, Gad2, and Trh, among other genes. Among ventral pDR markers, we found Crhr2 to be highly correlated with several TFs, receptors, and neurotransmitter-related genes, most notably Vglut3 (Slc17a8) and Hcrtr2. These Crhr2+ serotonin neurons could use TFs Esr2 and Sox1 to maintain their subtype identity. Npas3 is specifically expressed in the DR-6 cluster and is highly correlated with Htr1d, suggesting a critical role of maintaining the characteristics of DR-6 serotonin neurons. Similarly, we found several MR- and cDR-specific TFs to be the hubs of co-expression modules. Particularly, the expression of a large number of cell adhesion molecules, receptors, ion channel proteins and neuropeptides strongly correlate with the expression of TFs Zeb2, Pou3f1, Irx2, and Zfp536. Based on the identified correlation among gene expression of multiple marker genes across all the cells, we speculate that the identified genes could be linked by one or multiple transcriptional regulatory programs, potentially driving cell type-specific functions of distinct serotonin neuron populations.

Sexually dimorphic gene expression

Finally, even though there were no apparent sex-specific difference at the cluster level Figure 1—figure supplement 1D), we did detect several genes, such as Sod1, Snx10, Inpp4a, Zscan26, Ncam1, that showed sexual dimorphism across the majority of cell subtypes (Figure 4—figure supplement 2).

Viral-genetic tools to access different serotonin neuron subtypes

Gene expression patterns of specific serotonin neuron clusters can in principle allow genetic access to these specific subpopulations for anatomical tracing, physiological recording, and functional perturbation (Luo et al., 2018). However, DR and MR contain not only serotonin neurons but also GABAergic and glutamatergic neurons that do not express Tph2 (and hence do not release serotonin), some of which may project to the same target regions (McDevitt et al., 2014). To precisely investigate the function of transcriptome-based serotonin neuronal types, we need to use an intersectional strategy to target serotonin neurons that express specific additional markers (Jensen et al., 2008). To this end, we generated Sert-Flp mice through homologous recombination-based knock-in in embryonic stem cells (Materials and methods), and used Sert-Flp mice to intersect with transgenic Cre mice that allow expression of a fluorescent reporter only in Flp+/Cre+ (AND gate), so as to genetically label only specific Cre-positive clusters (Figure 5A).

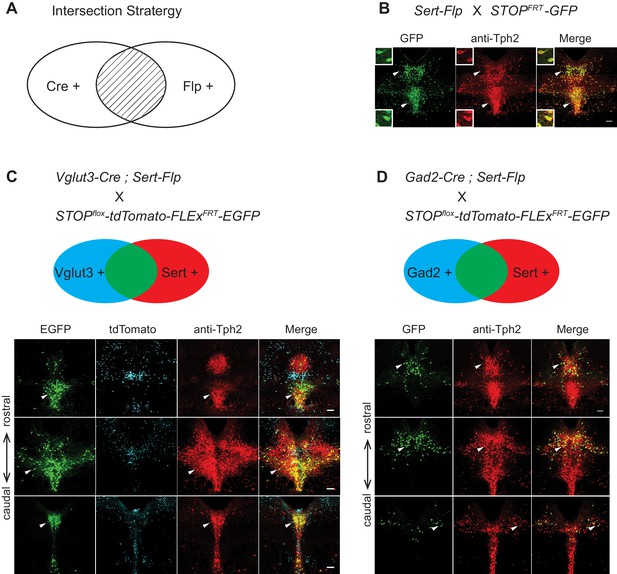

Intersectional strategy to genetically access specific serotonin neuron populations.

(A) Schematic representing cells dually gated by Cre- and Flp-expression. (B) Sert-Flp mice were crossed with H11-CAG-FRT-STOP-FRT-EGFP (STOPFRT-GFP) mice. Anti-Tph2 staining (red) was performed on consecutive coronal sections containing DR. 98.5% GFP+ neurons are Tph2+ and 100% Tph2+ neurons are GFP+ (n = 3 mice). Insets: magnified images showing the neurons indicated with arrowheads in individual channels. Scale, 25 µm. (C) In mice triple transgenic for Vglut3-Cre, Sert-Flp, and the IS reporter (Rosa-CAG-loxP-stop-loxP-FRT-tdTomato-FRT-EGFP), EGFP+ (Flp+Cre+) cells are referentially found in ventral pDR and in cDR (arrowheads). Coronal sections containing DR are shown, counterstained with Anti-Tph2 (red). (D) In mice triple transgenic for Gad2-Cre, Sert-Flp, and the IS reporter, EGFP+ (Flp+Cre+) cells are referentially found in dorsal pDR (arrows). Coronal sections containing DR are shown, counterstained with Anti-Tph2 (red). Scale, 100 µm.

https://doi.org/10.7554/eLife.49424.020

To characterize the Sert-Flp mouse line, we crossed it with H11-CAG-FRT-stop-FRT-EGFP mice we newly generated (Materials and methods). Anti-Tph2 staining on the brain slices containing pDR showed that 98.5% GFP+ neurons are Tph2+ and 100% Tph2+ neurons are GFP+ (Figure 5B). To further verify the intersectional strategy and to label the serotonin neurons co-expressing markers for glutamate or GABA transmission, we crossed Sert-Flp with the IS reporter mice (Rosa-CAG-loxP-stop-loxP-FRT-tdTomato-FRT-EGFP) (He et al., 2016) and either Vglut3-Cre (Grimes et al., 2011) or Gad2-Cre. Anti-Tph2 staining showed that all GFP-labeled neurons are Tph2+ (Figure 5C,D). In the pDR, Vglut3+ serotonin neurons were mainly located ventrally, whereas Gad2+ serotonin neurons were mainly located dorsally, consistent with our previous study (Ren et al., 2018) and the HCR-smFISH results (Figure 2).

To map the axonal projection pattern of serotonin subtypes defined by intersection of Flp and Cre expression, we developed a new AAV vector (AAV-CreON/FlpON-mGFP) that expressed membrane-targeted GFP under the dual gates of Flp and Cre (Figure 6A). Based on our scRNA-seq and HCR-smFISH results, the Vglut3+ and Trh+ pDR serotonin neurons consist of largely complementary cell types at the transcriptomic level and have a distinct distribution along the dorsal–ventral axis in the pDR. To visualize these two subpopulations of serotonin neurons, we injected AAV-CreON/FlpON-mGFP into pDR of either Vglut3-Cre;Sert-Flp (n = 3, Figure 6B) or Trh-Cre;Sert-Flp mice (n = 3, Figure 6C); Krashes et al., 2014. Anti-Tph2 staining showed that 98.2% GFP+ neurons were Tph2+. As predicted, Vglut3+Sert+ GFP cells were mostly located in the ventral pDR (Figure 6B), whereas Trh+Sert+ cells were located in the dorsal pDR (Figure 6C). As negative controls, we injected the same virus into mice carrying only the Sert-Flp transgene or only the Vglut3-Cre transgene and did not find any mGFP+ cell bodies or fibers (n = 3 for each; data not shown).

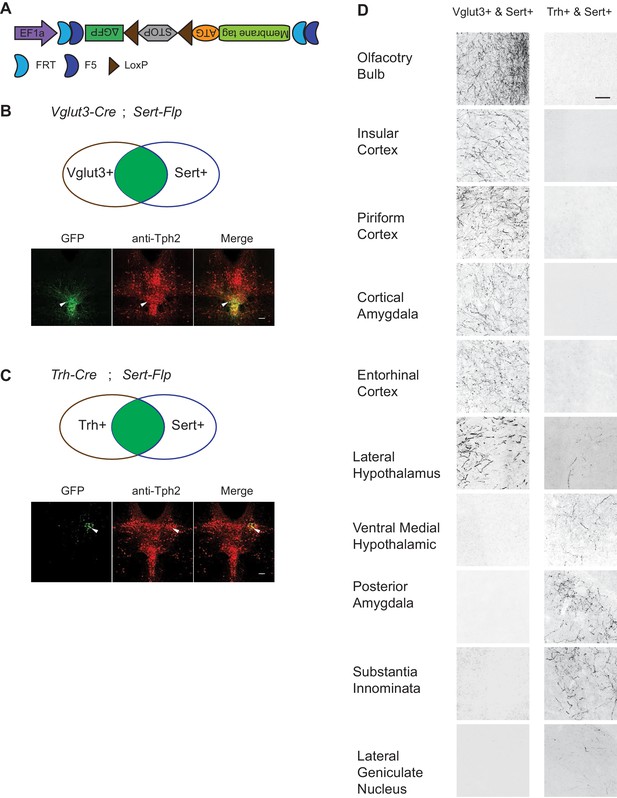

Dually gated serotonin neuron and axonal terminal labeling by viral-genetic intersection.

(A) Schematics representing of the AAV-CreON/FlpON-mGFP dual labeling design. (B) mGFP expression (green) and Tph2 immunoreactivity (red) after injection of AAV-CreON/FlpON-mGFP into the DR of Sert-Flp;Vglut3-Cre mice. mGFP is mostly restricted to ventral pDR. (C) mGFP expression (green) and Tph2 immunoreactivity (red) after injection of AAV-CreON/FlpON-mGFP into the DR of Sert-Flp;Trh-Cre mice. mGFP is mostly restricted to dorsal pDR; the left-right asymmetry was likely due to AAV injection being biased towards the right hemisphere. (D) Axonal terminal expression of mGFP in different brain regions of Sert-Flp;Vglut3-Cre mice and Sert-Flp;Trh-Cre mice. The left and right images represent comparable brain regions cropped from serial coronal sections. Scale, 100 µm.

https://doi.org/10.7554/eLife.49424.021

The intersectional strategy allowed us to trace the projection of GFP+ axons from these two groups of serotonin neurons across the brain. We next examined their projections by staining 50 µm coronal sections every 200 µm across the brain with anti-GFP antibody. We found that serotonin axons from Vglut3+ population preferentially targeted cortical regions (Figure 6D), consistent with our previous results (Ren et al., 2018). By contrast, no GFP-labeled axons were observed in the cortical regions from Trh-Cre;Sert-Flp mice. Instead, Trh+ serotonin axons project to the anterior and medial hypothalamus, posterior amygdala, and the lateral geniculate nucleus in the thalamus, none of which were targeted by Vglut3+ axons (Figure 6D).

Whole-brain axonal projections of selected serotonin neuron subpopulations

While suggestive of an anatomical division in targets, assessing the full extent to which projections of Vglut3+ or Trh+ pDR serotonin neuron populations segregate requires quantifying axonal innervation at the whole-brain level. We used the iDISCO-based brain clearing technique AdipoClear (Chi et al., 2018) to visualize, align, and summarize whole-brain projectomes (Figure 7A). Individual hemispheres of either Vglut3-Cre;Sert-Flp (n = 3) or Trh-Cre;Sert-Flp mice (n = 3) injected with AAV-CreON/FlpON-mGFP at pDR were imaged by light-sheet microscopy. We developed deep learning models to automatically trace whole-brain axonal projections by segmenting volumes with a 3D U-Net-based convolutional neural network we developed (Materials and methods). The resulting volumetric probability maps were thinned and thresholded before aligning to the Allen Institute’s 2017 common coordinate framework as previously described (Ren et al., 2018; Figure 7A).

Figure 7 with 4 supplements see all

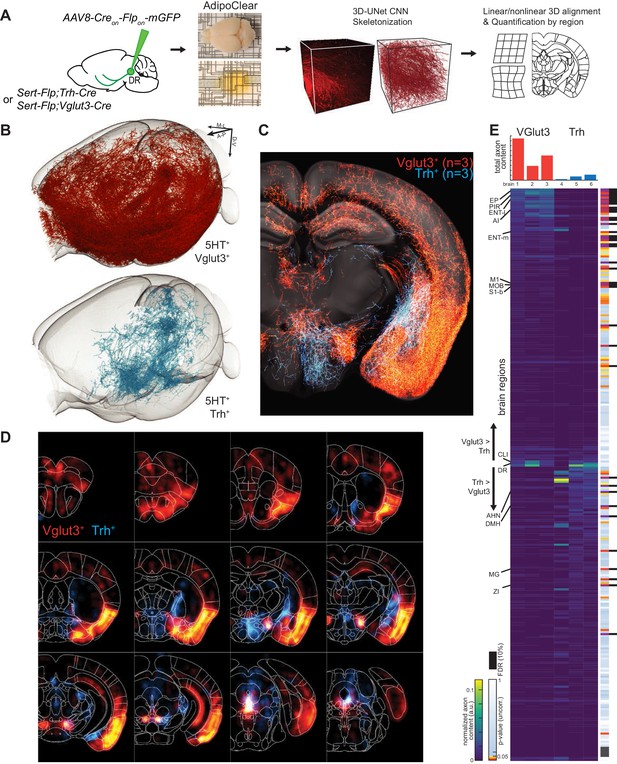

Whole-brain projectome of Trh+ and Vglut3+ serotonin neuron populations.

(A) Experimental schematic outlining the intersectional viral strategy, brain clearing, automated 3D axon segmentation, and alignment to the Allen Brain Institute Common Coordinate Framework. (B) Axonal innervation in a 3D view of the left hemisphere of one representative brain each from the intersection of Sert-Flp and either Vglut3-Cre or Trh-Cre. (C) Coronal Z-projection (500 µm of depth) showing axonal innervation patterns of 6 aligned brains. The schematic reference image is one 5 µm thick plane in the middle of the 500 µm stack. (D) Coronal heatmaps of axonal innervation patterns at 12 positions along the rostral–caudal axis for the same six brains as seen in (C). Weightings for individual voxels represent axonal content within a radius of 225 µm. (E) Top, bar plot shows the quantification of total axonal content in each of 6 brains prior to normalization. Bottom, heatmap breaks out the total content into each of 282 individual brain regions using boundaries from the Allen Institute CCF. Values are normalized to both target region volume and total axon content per brain. Display order is grouped by mean normalized prevalence of axons in each genotype and ordered by the second principal component. P-values for individual t-tests are uncorrected; those that survive FDR-testing at 10% are indicated with a black bar. See Supplementary file 5 for full list of regions. EP, Endopiriform nucleus; M1, Primary motor area; S1-B, Primary somatosensory area, barrel field; CLI, Central linear nucleus raphe; AHN, Anterior hypothalamic nucleus; DMH, Dorsomedial nucleus of the hypothalamus; MG, Medial geniculate nucleus; ZI, Zona incerta.

https://doi.org/10.7554/eLife.49424.022

We visualized the axon terminals in brain regions targeted by either the Trh+ or the Vglut3+ population of serotonin neurons. Initial assessment of selected target regions suggested a strong segregation of axonal projection patterns between these two populations (Figure 7B,C), consistent with data from tissue sections (Figure 6D). Axons from both populations followed similar initial trajectories and were observed in shared structures along the length of the median forebrain bundle (Figure 7C,D; Figure 7—figure supplements 13Figure 7—Video 1). However, as was seen in tissue sections, there were extensive differences in innervation patterns of terminal axon fields between the Vglut3+ and Trh+ populations. Whole-brain quantitative and statistical analyses showed Vglut3+ axons preferentially in anterolateral cortical regions and adjacent structures such as olfactory bulb, agranular insular cortex, endopiriform, piriform, and claustrum as well as other cortical regions such as entorhinal, primary motor, and barrel cortices. [Note that axons seen in hippocampus likely originated from Vglut3+ cells in MR (Muzerelle et al., 2016), though the majority of labeled somata were located in the ventral portion of pDR; see Figure 7—figure supplement 3C]. By contrast, Trh+ axons, which originated preferentially from the lateral wing of pDR, were largely absent from these structures. Conversely, subcortical regions primarily in thalamus (zona incerta and medial geniculate) and hypothalamus (anterior and dorsomedial nuclei) were preferentially targeted by Trh+ axons and largely avoided by the Vglut3+ population (Figure 7E; Figure 7—Video 1).

Given the variability of locations and amount of viral transduction, individual brains from the same genotype exhibit considerable variation in total axons labeled (Figure 7E top) and in detailed projection patterns (Figure 7—figure supplements 12). These variabilities further highlighted regions that were targeted densely but exclusively in one or two individual brains. Notable examples include anterior bed nucleus of stria terminalis (BNST), posterior amygdala, and globus pallidus external segment (GPe) in Trh+ projections, as well as the lateral central amygdala (CeA) and dentate nucleus of the cerebellum for Vglut3+ projections. While we did identify large-scale patterns of collateralization for these two subtypes of serotonin neurons, one possible contribution to this inter-individual variability in projection patterns is heterogeneity within molecularly defined subpopulations of serotonin neurons. Larger-scale experiments or experiments using Cre lines that are expressed in single clusters will be required to further dissect heterogeneity within the Vglut3+ or Trh+ serotonin neurons.

Whole-brain axonal arborization patterns of individual serotonin neurons

Our whole-brain projection analyses indicate that axonal arborization patterns of molecularly defined serotonin neuron subpopulations are still very complex (Figure 7). To examine the extent to which this reflects projection patterns of individual serotonin neurons, we combined the cell-type-specific sparse labeling strategy we recently developed (Lin et al., 2018) (Figure 8—figure supplement 1A) and the fluorescence micro-optical sectioning tomography (fMOST) platform (Gong et al., 2016). We fully reconstructed whole-brain arborization patterns of 50 DR serotonin neurons from 14 Sert-Cre mice. All reconstructed neurons and their processes were registered to the Allen Reference Atlas (Figure 8A) (Gilbert, 2018). The cell bodies of these 50 serotonin neurons covered large regions of the DR (Figure 8—figure supplement 1B), and their projections collectively innervated the majority of the brain regions (Figure 8—figure supplement 1C), suggesting their broad coverage of DR serotonin neuron types. Complete morphological reconstruction revealed that the projection pattern of individual DR serotonin neurons was highly diverse yet follow some general patterns (Figure 8—figure supplement 1C). For the purpose of discussion below, we categorized them into six groups based on their projection patterns. The groups were named after the brain region innervated by the highest proportion of their terminals, even though many neurons project to more than one brain region categorized below (Figure 8B–G; Figure 8—figure supplements 23; Figure 8—Video 1; Materials and methods).

Figure 8 with 5 supplements see all

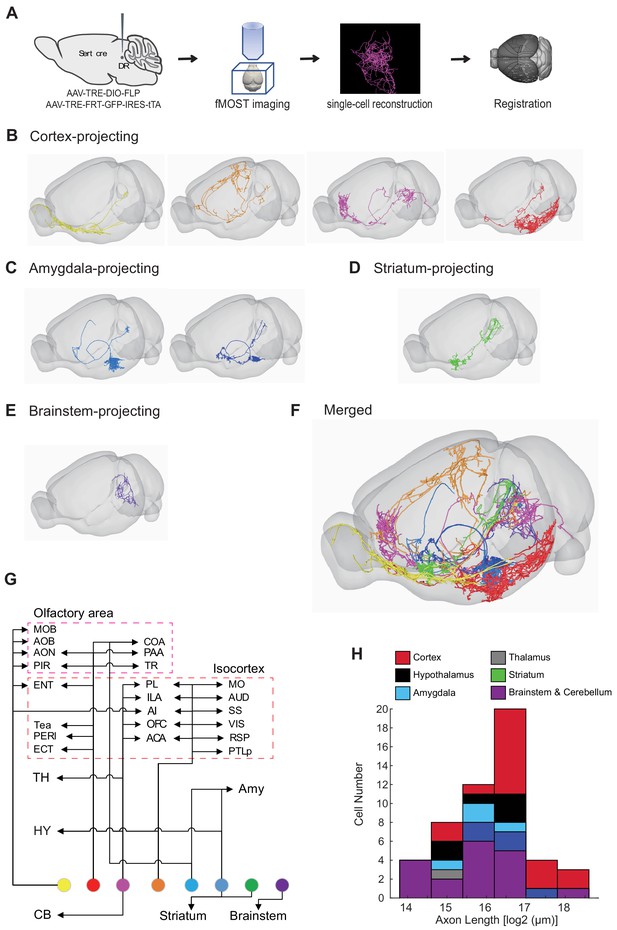

Whole-brain axonal arborization patterns of individual serotonin neurons.

(A) Schematic of single-neuron reconstruction pipeline. (B) Four examples of cortex-projecting DR serotonin neurons, projecting primarily to olfactory cortex and olfactory bulb (1st), dorsal cortex (2nd), prefrontal cortex (3rd), and entorhinal cortex (4th). (C) Two examples of amygdala-projecting DR serotonin neurons. (D) A striatum-projecting DR serotonin neuron. (E) A brainstem-projecting DR serotonin neuron. (F) Merged example neurons from panels B–E. (G) Schematic diagram illustrating the major projection targets of 8 sample neurons in panel F. (H) Histogram showing the distribution of cell numbers according to the total axon length.

https://doi.org/10.7554/eLife.49424.027

Cortex-projecting

Cortical regions contain the highest proportion of the terminals of this group of DR serotonin neurons (n = 17), which is more than 40% of their total axonal length. In general, this group had the most complex branching pattern, with various combinations of target regions (Figure 8B,G; Figure 8—figure supplement 2A). This group could be further divided into four subgroups based on the dominant targets (containing >40% total axon length in cortical regions): olfactory area-projecting (including olfactory bulb, piriform cortex, and cortical amygdala; n = 9), prefrontal cortex-projecting (n = 2), dorsal cortex-projecting (including motor, somatosensory, retrosplenial, auditory, and visual cortex; n = 4), and ventrolateral cortex-projecting (including entorhinal, perirhinal, and ectorhinal cortex; n = 2). In the olfactory area-projecting subgroup, three brains had branches in the olfactory bulb (OB). Axons of the three dorsal cortex-projecting neurons traveled the largest distance, entering the cortex anteriorly and extending to the posterior end. Interestingly, two cortex-projecting serotonin neurons also sent substantial branches to the pons (>10% of axon length), and also innervated the cerebellum.

Striatum-projecting

Each cell of this group (n = 5) dedicated more axon terminals to the striatum, pallidum, and lateral septal nucleus (>20% of the axon length) than other brain regions except midbrain regions (Figure 8B; Figure 8—figure supplement 2B). One cell had substantial branches to the cortical regions and two to the hypothalamus. One cell had extensive collateralization in the central amygdala (CeA) (>10% axon length) (Figure 8—figure supplement 4). For two DR serotonin neurons that innervated ventral striatum (also called nucleus accumbens, or NAc), arborization appeared to be restricted to either the core or the shell (Figure 8—figure supplement 4C).

Hypothalamus-projecting

Each cell of this group (n = 6) dedicated more than 20% axon length to innervate the hypothalamus (Figure 8B; Figure 8—figure supplement 2C). None of them had collateralization in the cortical regions. Two cells had substantial branches to the striatum, and one to the pons (>10% axon length).

Amygdala-projecting

This group of DR serotonin neurons (n = 4) all dedicated more than 40% their total axonal length to innervate the amygdala (Figure 8C; Figure 8—figure supplement 3A). None of them had collateralization in the cortical regions. Three cells had collateralized axonal terminals in the striatum, pallidum, and lateral septal nucleus. One cell had axons that were almost equally distributed in the bed nucleus of stria terminalis (BNST), basal lateral amygdala, basal medial amygdala, and medial amygdala (MeA), and had substantial branches to the hypothalamus (>10% axon length).

Other groups

The rest of the DR serotonin neurons were divided into thalamus-projecting and brainstem/cerebellum-projecting groups based on the highest density of axons (Figure 8—figure supplement 3B,C), one of which likely projecting to the spinal cord (brain 36) as previously reported (Bowker et al., 1981; Bowker et al., 1982). While most projections of the DR serotonin neurons were unilateral (37/50), one of the thalamus-projecting neurons had symmetrical bilateral projections in the thalamic target (Figure 8—figure supplement 4B).

In summary, these results revealed remarkable complexity and heterogeneity of serotonin neuron projections at the single-cell level. They nevertheless followed certain patterns. For example, the cell body locations of these traced neurons (Figure 8—figure supplement 1B) were consistent with our previous results (Ren et al., 2018) as well as single-cell transcriptome, HCR-smFISH, and whole-brain bulk tracing data. Specifically, cortex-projecting serotonin neurons were biased towards ventral pDR (14 out of 17 cells), whereas amygdala-projecting ones were preferentially distributed in the dorsal pDR (3 out of 4 cells).

Forebrain-projecting serotonin neurons have been estimated to have very long axons based on the total serotonin fiber density and number of serotonin neurons (Wu et al., 2014). With single-cell tracing, we could now directly quantify the total length of axons of the 50 DR serotonin neurons. We found that the total axon length of these DR serotonin neurons exhibited considerable heterogeneity, from 1.9 cm to 26.3 cm. When examined across the six groups, cortex-projecting serotonin neurons indeed had the longest axons (Figure 8H). The longest axon from a single serotonin neuron (26.3 cm) is >10 times the length of a mouse brain in the longest dimension from rostral olfactory bulb to caudal brainstem.

Discussion

Collectively,~12,000 serotonin neurons from the DR and MR in mice (~0.015% of all CNS neurons) innervate the entire forebrain (Ishimura et al., 1988) and modulate diverse physiological and behavioral functions. A fundamental question is how these serotonin neurons are organized to manage such a broad range of modulation. Single-cell transcriptomics have emerged in recent years as a powerful means to classify neuronal types, supplementing traditional criteria based on developmental history, morphology, projection patterns, and physiological properties (Luo et al., 2018). Using high-depth single-cell RNAseq in combination with systematic fluorescence in situ hybridization, whole brain projection mapping via intersectional methods and single-axon tracing, our study begins to shed light on the relationship between transcriptomic clusters, the spatial location of their cell bodies, and brain-wide projection patterns of serotonin neurons.

Relationship between molecular identity and cell body distribution

Our single-cell transcriptome analysis identified 11 molecularly distinct types of serotonin neurons in the DR and MR (Figure 1). Based on tissue source from which scRNA-seq data was collected and fluorescent in situ hybridization using transcriptomic cluster markers, we were able to assign six types to principal DR (pDR), one type to caudal DR (cDR), and four types to MR (Figure 3). The fact that we can assign specific transcriptomic clusters to specific groups of raphe nuclei indicate that molecularly defined serotonin populations are spatially segregated at least at this coarse level.

The six types of serotonin neurons within the pDR exhibit further specificity in spatial distributions. Specifically, serotonin neurons from DR-1–3 clusters are preferentially localized in dorsal pDR, whereas those from DR-4–6 in ventral pDR, with DR-6 neurons preferentially localized to the ventral lateral wings. These data support and extend our previous finding (Ren et al., 2018) for the preferential ventral pDR location of Vglut3+ serotonin neurons, which is highly expressed in DR-4 and DR-5 clusters. Together, these findings revealed the molecular basis for the differentiation of dorsal/ventral DR sub-systems (Figures 2 and 3).

The cDR has been suggested to be more similar to the MR than to the pDR in afferent innervation (Commons, 2015). By searching Allen Brain Institute development brain database and using multiplex fluorescent in situ hybridization (ML-FISH), Kast et al. (2017) found that the cDR expressed distinct gene markers comparing to pDR, and tracing from these neurons showed cDR was different from the MR and DR in efferent innervation. Our single-cell transcriptomic analysis indicated that serotonin neurons in the cDR are strikingly homogenous and profoundly different from both the pDR and MR at the molecular level (Figure 1, Figure 4, Figure 4—figure supplement 1). All cDR serotonin neurons co-express Vglut3, and express several unique markers (Figure 3—figure supplement 2). By contrast, we could not discern obvious difference in spatial distributions among the four MR types, despite the fact that MR serotonin neurons have heterogenous developmental origin (Jensen et al., 2008). It will be interesting to examine in the future whether molecularly defined MR serotonin neurons have specific axonal projection patterns.

Our results are broadly consistent with previous findings that utilized developmental origin to differentiate raphe serotonin neurons (Okaty et al., 2015). Okaty et al. used intersectional genetic fate mapping to produce population RNA-seq data (and single-cell RNA-seq data from a small number of cells) from DR, MR, and caudal raphe nuclei derived from different rhombomeres during development. Because DR serotonin neurons derive exclusively from rhombomere 1 (R1), and the single-cell RNA-seq data was obtained from just 8 cells, the Okaty et al. dataset is limited in providing information about heterogeneity within DR serotonin neurons. (Nevertheless, we confirmed the in situ hybridization data of Okaty et al. that Met is expressed in the cDR and MR.) The MR serotonin neurons derive from three separate rhombomeres (R1–R3), and Okaty et al. sampled these three populations separately, allowing us to ask the question of whether developmental origins correspond to transcriptomic clusters in adult. Comparing marker genes enriched in R1–R3-derived serotonin neurons from Okaty et al. and MR-1–MR-4 transcriptomic clusters from our current study (Figure 3—figure supplement 4) indeed suggests an approximate correspondence: R1-derived serotonin neurons correspond to our MR-1 cluster, R2 to MR-4 cluster, and R3 to both MR-2 and MR-3 clusters.

We note that in a recent comprehensive whole-brain scRNA-seq study, Zeisel et al. (2018) grouped 437 brainstem serotonin neurons in the dataset (presumably containing the entire B1–B9 groups) into just five clusters. While our manuscript in review, a related study was published (Huang et al., 2019), identifying fewer transcriptomic clusters of DR serotonin neurons than we did. Compared to droplet-based platform of the two studies, our FACS-based scRNA-seq platform allowed more sequencing depth per cell (Figure 1—figure supplement 1B) and sequencing larger number of cells, accounting for our finer classification of transcriptomic types of serotonin neurons. This comparison illustrates the value of using genetically targeted strategies to characterize important but rare types of cells in the brain.

Relationship between molecular identity and projection-defined serotonin sub-systems

In our previous study, we characterized two projection-defined parallel DR serotonin sub-systems. We found that serotonin neurons that project to the orbitofrontal cortex (OFC) and central amygdala (CeA) differ in input and output patterns, physiological response properties, and behavioral functions (Ren et al., 2018). Whole-brain collateralization patterns of these two sub-systems indicate that there must be additional sub-systems projecting to regions not visited by either of these two sub-systems projects to, including much of the thalamus and hypothalamus. What is the relationship between molecularly defined serotonin neurons and projection-defined sub-systems?

Using viral-genetic intersectional approaches to access specifically Vglut3+ pDR serotonin neurons in combination with staining in histological sections (Figure 6) and iDISCO-based whole brain imaging (Figure 7), we found that these neurons project profusely to cover much of the neocortex, as well as the olfactory bulb, cortical amygdala, and lateral hypothalamus. Comparisons of the projection patterns of Vglut3+ (this study) with OFC-projecting DR serotonin neurons (Ren et al., 2018) suggest that the latter is a large subset of the former. Brain regions that are innervated by Vglut3+ but not by OFC-projecting serotonin neurons include the somatosensory barrel cortex, ventral striatum, and a specific sub-region of CeA. The last finding is consistent with our previous study indicating that ~23% of CeA-projecting DR serotonin neurons are Vglut3+ (Ren et al., 2018).

We also assessed the whole-brain projection patterns of a largely complementary population of DR serotonin neurons, namely those that express Trh and thus belong to DR-1–3 clusters. We found that Trh+ serotonin neurons predominantly project to subcortical regions, most notably anterior and medial nuclei of the hypothalamus and several thalamic nuclei, a pattern mostly complementary to the Vglut3+ population (Figures 67, Figure 7—Video 1). Given that CeA-projecting DR serotonin neurons do not innervate most of the hypothalamus (Ren et al., 2018), and Trh+ serotonin neurons only partially innervate CeA, these two populations are at most partially overlapping.

These comparisons support a broad correspondence between molecular identity and axonal projection patterns at the level of DR serotonin neuronal populations that include multiple transcriptomic clusters. The data and tools we generated will enable future testing of whether a more precise correspondence exists at the level of single transcriptomic clusters that we have defined here. Our transcriptome data suggest that each DR/MR serotonin neuron type can be distinguished from others by the expression of two marker genes (Figure 1D; Figure 3—figure supplement 13), supporting the view that neuronal subtypes are generally specified by unique combination of genes rather than single genes (Li et al., 2017). With the generation of drivers based on these marker genes, intersectional methods in combination with location-specific viral targeting can be used in the future to dissect the projection patterns of the individual transcriptomic clusters.

Insights from single-cell reconstruction

The complexity of whole-brain projection patterns of Vglut3+ and Trh+ populations discussed above can be driven by: (1) heterogeneity of projection patterns of different transcriptomic clusters within the Vglut3+ or Trh+ population; (2) heterogeneity of projection patterns of serotonin neurons within the same transcriptomic cluster; (3) complex collateralization patterns of individual serotonin neurons; and 4) a combination of some or all of the above. If scenario one were the only contributing factor, then there would be only six different projection patterns for the pDR serotonin neurons. However, our single-cell reconstruction of DR serotonin neurons revealed many more than six branching patterns (e.g., Figure 8G), indicating that there must be diverse collateralization patterns even within the same transcriptomic cluster, and highlighting the complexity of individual serotonin neuron projections. Despite the complexity, these single-cell tracing data nevertheless suggest certain rules obeyed by serotonin neurons.

First, there is a general segregation of cortical- and subcortical-projecting serotonin neurons. Of the 46 forebrain-projecting DR serotonin neurons, 34 have a strong preference (>80% forebrain-projecting axon length) for innervating either cortical or subcortical regions. This is likely an underestimate of the preference, especially for cortical-projecting ones, as their axons necessarily need to travel through the subcortical regions to reach the cortex. (As a specific example, most forebrain-projecting DR serotonin neurons pass through the lateral hypothalamus to reach their targets; it is thus difficult to determine whether axons in the lateral hypothalamus play a local function.) Second, most of the serotonin neurons tend to focus a majority of their arborization within one brain region (e.g., prefrontal vs. entorhinal cortex, Figure 8B; CeA vs. cortical amygdala (CoA), Figure 8—figure supplement 4A3). The subcortical-projecting serotonin neurons appear to have more specificity, with most neurons exhibiting dense arborization in one or two nuclei. The cortical-projecting serotonin neurons can have elaborate arborization patterns across multiple cortical areas (e.g., Figure 8—figure supplement 1C) and the longest total axon lengths per cell (Figure 8H).

Together with our study on the projection-defined serotonin sub-systems (Ren et al., 2018), we believe it is unlikely that the major function of the forebrain-projecting serotonin system is to broadcast information non-discriminately. We note that a previous study has reconstructed axonal projections of sparsely-labeled DR neurons in the rat using microiontophetic injection of biotin dextran amine, followed by serial histological section and reconstruction (Gagnon and Parent, 2014). While the reported projection and arborization complexity of individual DR neurons appear qualitatively similar to our findings, these studies cannot be directly compared because the Gagnon and Parent study did not validate the serotonin identity of individually traced DR neurons, which could include Tph2-negative long-distance projecting GABAergic and glutamatergic neurons (Bang and Commons, 2012). By combining fMOST (Gong et al., 2016) and the dual-AAV sparse labeling system (Lin et al., 2018), our strategy ensures that we are precisely tracing genetically defined individual serotonin neurons and their projections across the whole brain. But our study is still limited by the scope (50 reconstructed cells out of 9000 DR serotonin neurons). To fully reveal the organizational logic of the serotonin system, efforts should be put into larger scale single-cell reconstruction integrated with molecular identity and functional studies of individual transcriptomic clusters of serotonin neurons.

Integrating multiple features within individual serotonin sub-systems

The molecular features of specific serotonin cell types suggest their functional properties. For example, several studies have reported that subgroups of serotonin neurons in the MR and DR express Vglut3 and indeed, subsequent slice recording confirmed that serotonin terminals can co-release glutamate and serotonin (Domonkos et al., 2016; Liu et al., 2014; Ren et al., 2018; Sengupta et al., 2017; Varga et al., 2009; Wang et al., 2019). In addition to neurochemical properties, each serotonin neuron population expresses a specific combination of distinct genes responsible for electrophysiological (ion channels), connectivity (wiring molecules), and functional (neurotransmitter/peptide receptors) properties (Figure 4; Figure 4—figure supplement 1A). For example, most Crhr2+ neurons co-express Vglut3 and Npy2r, which suggests that these serotonin neurons use glutamate as co-transmitter in their cortical targets, and are in turn modulated by corticotropin-releasing hormone and neuropeptide Y. Meanwhile, most Trh+ serotonin neurons co-express Gad1, Kcns1, and α1A adrenergic receptors (Adra1a) specifically. We can speculate that these serotonin neurons use Trh (and perhaps GABA) as co-transmitters to regulate the physiology of their subcortical targets, and are in turn modulated by locus coeruleus norepinephrine neurons.

Our previous study suggests that DR serotonin sub-systems have biased input but segregated output (Ren et al., 2018). Here we found that each of the transcriptomic clusters of serotonin neurons have distinct combination of axon guidance and cell adhesion molecules (Figure 4—figure supplement 1A). These differentially expressed wiring molecules might be used during development to set up distinct projection patterns of different serotonin neuron types (Deneris and Gaspar, 2018; Kiyasova and Gaspar, 2011; Maddaloni et al., 2017), and/or used in adults to maintain wiring connectivity or contribute to the remarkable ability of serotonergic axons to regenerate after injury (Jin et al., 2016).

In conclusion, our comprehensive transcriptomic dataset and identification of 11 distinct groups of the DR and MR serotonin neurons have revealed the molecular heterogeneity of the forebrain-projecting serotonin system. We have shown that the molecular features of these distinct serotonin groups reflect their anatomical organization and provide tools for future exploration of the full projection map of molecularly defined serotonin groups. The molecular architecture of serotonin system lays the foundation for integrating anatomical, neurochemical, physiological, and behavioral functions. This integrated understanding of serotonin can in turn provide novel therapeutic strategies to treat brain disorders involving this important neuromodulator.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Antibodyanti-TPH2 (rabbit polyclonal)NovusCat#
NB100-74555
IF (1:1000)
Antibodyanti-GFP (chicken polyclonal)Aves Labs IncCat# GFP-1020IF (1:2000); iDISCO (1:1000)
Antibodyanti-rabbit donkey antibody conjugated with Cy3Jackson ImmunoResearchCat#
711-165-152
1:500
Antibodyanti-rabbit donkey antibody conjugated with Cy5Jackson ImmunoResearchCat#
711-496-152
1:500
Antibodyanti-chicken donkey antibody conjugated with Cy2Jackson ImmunoResearchCat#
703-605-155
1:500
Recombinant DNA reagentpAAV-Ef1a-fDIO-EYFP
(plasmid)
AddgeneCat# 27437
Recombinant DNA reagentSTOPx3 (plasmid)AddgeneCat# 22799
Recombinant DNA reagentMembrane tag
(plasmid)
AddgeneCat # 71760
Commercial assay or kitGibson Assembly
Master Mix
New England BiolabsCat# E2611S
Commercial assay, kitPapain Dissociation SystemWorthingtonCat# LK003150
Commercial assay, kitC1ql2Molecular InstrumentsNM_207233.1B1 amplifierv3.0 probe
Commercial assay, kitCrhr2Molecular InstrumentsNM_001288620.1B1 amplifierv3.0 probe
Commercial assay, kitDlk1Molecular InstrumentsNM_001190703.1B2 amplifierv3.0 probe
Commercial assay, kitRetMolecular InstrumentsNM_009050.2B4 amplifierv3.0 probe
Commercial assay, kitGad1Molecular InstrumentsNM_008077.5B1 amplifierv3.0 probe
Commercial assay, kitGad2Molecular InstrumentsNM_008078.2B1 amplifierv3.0 probe
Commercial assay, kitSpp1Molecular InstrumentsNM_001204202.1B4 amplifierv3.0 probe
Commercial assay, kitSyt2Molecular InstrumentsNM_001355726.1B1 amplifierv3.0 probe
Commercial assay, kitTacr3Molecular InstrumentsNM_021382.6B1 amplifierv3.0 probe
Commercial assay, kitIrx2Molecular InstrumentsNM_010574.4B1 amplifierv3.0 probe
Commercial assay, kitNpas1Molecular InstrumentsNM_008718.2B4 amplifierv3.0 probe
Commercial assay, kitPiezo2Molecular InstrumentsNM_001039485.4B1 amplifierv3.0 probe
Commercial assay, kitTpbgMolecular InstrumentsNM_001164792.1B4 amplifierv3.0 probe
Commercial assay, kitMetMolecular InstrumentsNM_008591.2B4 amplifierv3.0 probe
Commercial assay, kitTrhMolecular InstrumentsNM_009426.3B2 amplifierv3.0 probe
Commercial assay, kitVglut3Molecular InstrumentsNM_001310710.1B4 amplifierv3.0 probe
Commercial
assay, kit
TPH2Molecular InstrumentsNM_173391B3 amplifierv3.0 probe
Chemical compound, drugTetrodotoxinTocris BioscienceCat# 10691 μM
Chemical compound, drugKynurenic acidMillipore SigmaCat# K3375500 μM
Chemical
 compound, drug
D-AP5Tocris BioscienceCat# 010650 μM
Chemical compound, drugActinomycin DSigmaCat# A141050 μM
Software, algorithmIMARISBitplaneRRID:SCR_007370Bitplane.com
Software, algorithmIlastikGNU General Public LicenseRRID:SCR_015246https://ilastik.org/
Software, algorithmElastixImage Sciences InstituteRRID:SCR_009619https://elastix.isi.uu.nl/
Software, algorithmMATLABMathworksRRID:SCR_001622Mathworks.com
Software, algorithmFijiPMID: 22743772RRID:SCR_002285https://imagej.net/Fiji
Software, algorithmAllen Institute’sCommon Coordinate Framework (CCF)Allen Institute for Brain Science (https://www.alleninstitute.org/)https://download.alleninstitute.org/informatics-archive/current-release/mouse_ccf/
SoftwareR v3.5.3R-projectRRID:SCR_001905
SoftwareSeurat v3.0https://github.com/satijalab/seuratRRID: SCR_016341Butler et al., 2018Stuart et al., 2019
SoftwareSTAR 2.6.1ahttps://github.com/alexdobin/STARRRID:SCR_015899Dobin et al., 2013
SoftwareHTseq 0.11.2European Molecular Biology LaboratoryRRID:SCR_005514Anders et al., 2015
OtherNormal donkey serumJackson ImmunoResearchCat# 017-000-121
OtherDAPI stainInvitrogenCat# D1306(1 µg/mL)
OtherSH800S FACS sorterSONY
OtherNextSeq500Illuminahttps://www.illumina.com

Animals

All procedures followed animal care and biosafety guidelines approved by Stanford University’s Administrative Panel on Laboratory Animal Care and Administrative Panel of Biosafety in accordance with NIH guidelines. For scRNA-seq (Figures 1 and 4), eight male and six female mice aged 40–45 days on a C57BL/6J background were used. The Ai14 tdTomato Cre reporter mice (JAX Strain 7914) and Sert-Cre (MMRRC, Stock #017260-UCD) were crossed and the offspring was used where indicated. For HCR experiments (Figure 2) wild-type male and female mice aged 8 weeks on a C57BL/6J background were used. For whole brain axon tracing experiments (Figures 57), male and female mice aged 8–16 weeks on a CD1 and C57BL/6J mixed background were used. The Vglut3-Cre (also known as Slc18a8-Cre; JAX Strain 18147), Thr-ires-Cre (JAX Strain 032468; gift from Dr. Bradford B. Lowell), Sert-Flp (generated in this study; JAX Strain 034050), H11-CAG-FRT-stop-FRT-EGFP (generated in this study; JAX Strain 034051), IS (JAX Strain 028582; gift from Dr. Z. Josh Huang) were used where indicated. For single-cell reconstruction experiments, male and female mice aged 6–16 weeks on a CD1 and C57BL/6J mixed background were used. Mice were group-housed in plastic cages with disposable bedding on a 12 hr light/dark cycle with food and water available ad libitum.

Generation of Sert-Flp mice

Request a detailed protocol

Sert-Flp was generated by the Gene Targeting and Transgenics core at Janelia Research Campus.It was generated by homologous recombination in embryonic stem cells using standard procedures. A cassette of IRES-FlpO-loxP2272-ACE-Cre POII NeoR-loxp2272 was inserted after the TAA stop codon of Sert. Targeting was verified in embryonic stem cells by long-arm PCR. After microinjection, chimaeras were bred with CD-1 females and F1 offspring were screened by long-arm PCR to identify mice with germline transmission of the correctly targeted construct. As previously described for the Sert-Cre line, the Sert-Flp line appears to drive transgenic reporter expression outside the raphe serotonin neurons (including neurons in the retina, cortex, and thalamus) because of the transient expression of Sert during development (Lebrand et al., 1998).

Generation of H11-CAG-FRT-stop-FRT-EGFP mice

Request a detailed protocol

H11-CAG-FRT-stop-FRT-EGFP was generated using site-specific integrase-mediated transgenesis via pronuclear injection by Stanford transgenic facility. The CAG-FRT-Stop-FRT-EGFP transgene plasmid along with φC31 integrase RNA into the cytoplasm of mouse (FVB) embryos carrying three attP sites at H11 locus was injected (Tasic et al., 2011). The transgene plasmid was constructed with pBT378.3 as the backbone. The pCA-GFP (PACI-ASCI) fragment was replaced with a caseate containing pCA-frt neo-stop frt::GFP4m-sv40 polyA. Cloning junctions were confirmed by sanger sequence. The integration in the H11 P3 locus was confirmed by PCR with primer pairs containing 425 ggtgataggtggcaagtggtattc, 436 atcaactaccgccacctcgac, 522 cgatgtaggtcacggtctcg, 387 gtgggactgctttttccaga.

Transcriptome analysis

Single-cell isolation and sequencing

Request a detailed protocol

Lysis plates were prepared by dispensing 4 μl lysis buffer as described in Schaum et al. (2018). After dissociation, single tdTomato+ cells were sorted in 96-well plates using SH800S (Sony). Immediately after sorting, plates were sealed with a pre-labelled aluminum seal, centrifuged, and flash frozen on dry ice. cDNA synthesis and library preparation were performed using the Smart-seq2 protocol (Picelli et al., 2014). Wells of each library plate were pooled using a Mosquito liquid handler (TTP Labtech). Pooling was followed by two purifications using 0.7x AMPure beads (Fisher, A63881). Library quality was assessed using capillary electrophoresis on a Fragment Analyzer (AATI), and libraries were quantified by qPCR (Kapa Biosystems, KK4923) on a CFX96 Touch Real-Time PCR Detection System (Bio-Rad). Libraries were sequenced on the NextSeq 500 Sequencing System (Illumina) using 2 × 75 bp paired-end reads and 2 × 8 bp index reads.

Data processing

Request a detailed protocol

Sequences from the NextSeq were de-multiplexed using bcl2fastq version 2.19.0.316. Reads were aligned to the mm10 genome using STAR version 2.6.1a (Dobin et al., 2013). Gene counts were produced using HTseq version 0.11.2 (Anders et al., 2015) with default parameters, except ‘stranded’ was set to ‘false’, and ‘mode’ was set to ‘intersection-nonempty’. Genes located on Y chromosome were removed from the count table to exclude sex bias.

Clustering

Request a detailed protocol

Standard procedures for filtering, variable gene selection, dimensionality reduction and clustering were performed using the Seurat package version 3.0 (Butler et al., 2018; Stuart et al., 2019). Specifically, cells with fewer than 300 detected genes were excluded. A gene was counted as expressed if it has at least one read mapping to it and is detected in at least 3 cells. Cells with fewer than 50,000 reads were excluded. Counts were log-normalized for each cell using the natural logarithm of 1 + counts per million [ln(CPM+1)]. All genes were projected onto a low-dimensional subspace using principal component analysis. Cells were clustered using a variant of the Louvain method that includes a resolution parameter in the modularity function (Schaum et al., 2018). Specifically, cells were clustered based on their PCA scores. To define the number of PCs to use we performed a resampling test (JackStraw test, similarly to Macosko et al., 2015) and used a –value cut-off of 0.005 to choose the ‘significant’ PCs for the downstream analysis. To cluster the cells, we next used Louvain algorithm to iteratively group cells together, with the goal of optimizing the standard modularity function. (FindClusters functions in Seurat with the following parameters: dims = 1:20, resolution = 1).

Cells were visualized using a 2-dimensional t-distributed Stochastic Neighbour Embedding (tSNE) of the PC-projected data. Molecularly distinct cell populations were assigned to each cluster based on differentially expressed genes. Plots showing the expression of the markers for each cell subtype appear in the Figure 3—figure supplement 13.

Gene co-expression networks

Request a detailed protocol

The relationship between gene expression was measured using rank correlation statistics (Supplementary file 4). Pearson correlations were computed across all cells. We first removed low expressed genes by selecting genes with mean expression CPM > 2, leaving ~8000 genes in the dataset. Pearson correlation coefficients (rp) were computed for each gene and significance was tested by bootstrapping (1000 iterations). A correlation table containing rp above 0.3 and below –0.3 can be found in Supplementary file 3. Reported values are mean from the bootstrapped values. Gene functional categories were retrieved from HGNC resource (https://www.genenames.org). Genes assigned to more than one functional category were re-assigned a single category in the following priority order: SNAREs, Secreted Ligands, ACh and Monoamine Receptors, Glutamate Receptors, Axon Guidance and Cell Adhesion Molecules (CAMs), GABA Receptors, GPCRs, Ion Channel Proteins, Transcription Factors, a full list of genes assigned to each category can be found in Supplementary file 2. Gene pairs for which rp <0.4 were removed and remaining pairs were visualized as a network using igraph and visNetwork R packages. To further refine the final list of co-expressed genes and generate Figure 4D we focused on gene pairs for which:1) rp >0.5; 2) at least one gene of the pair is found among cluster markers; 3) both genes of the correlating pair belong to one of the above listed functional categories.

Data availability

Request a detailed protocol

The datasets generated and analyzed in the study are available in the NCBI Gene Expression Omnibus (GSE135132, https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE135132).

Abbreviations for anatomical regions

Request a detailed protocol
ACAanterior cingulate area
AHNanterior hypothalamic nucleus
aHyanterior hypothalamic regions
AIanterior insular cortex
AOBaccessory olfactory bulb
AONanterior olfactory nucleus
AUDauditory cortex anterior
aVISvisual cortex
BLAbasolateral amygdala
BNSTbed nucleus of the stria terminalis
BSTnucleus of stria terminalis
CAcornu amonis
CBcerebellum
cBScaudal brainstem
CeAcentral amygdala
CLIcentral linear nucleus raphe
CoAcortical amygdala
Colcolliculus
cMidcaudal midbrain
DBnucleus of the diagonal band
DCNdeep cerebellum nuclei
DGdentate gyrus
dLGNdorsal lateral geniculate nucleus
dMiddorsal midbrain
DMHdorsomedial nucleus of the hypothalamus
DPdorsal peduncular cortex
dPEDdorsal peduncular area
DRdorsal raphe nucleus
dStrdorsal striatum
ECTectorhinal cortex
ENTentorhinal cortex
EPendopiriform nucleus
GUgustatory area
HYhypothalamus
ILAinfralimbic area
LHblateral habenula
LHylateral hypothalamus
LSlateral septal nucleus
LSlateral septal nucleus
M1primary motor area
MeAmedial amygdala
MGmedial geniculate nucleus
MOBmain olfactory bulb
MRmedian raphe nucleus
MDmedial dorsal nucleus of the thalamus
NLOTnucleus of lateral olfactory tract
NSTnucleus of solitary tract
OAolfactory area
OBolfactory bulb
OFCorbitofrontal cortex
ORBorbital area
oHPCother hippocampal regions
PAApiriform – amygdala area
pAAsposterior parietal association areas
PERIperirhinal cortex
pHyposterior hypothalamic regions
PIRpiriform cortex
PLprelimbic area
pPIRposterior piriform cortex
PSThparasubthalamic nucleus
PTLPposterior parietal association area
PVHparaventricular hypothalamus
PVHdparaventricular hypothalamus, descending division.
RSPretrosplenial area
S1-Bprimary somatosensory area, barrel field
SIsubstantia innominata
SMTsubmedial nucleus of the thalamus
SNcsubstantia nigra compacta
SNrsubstantia nigra pars reticulata
SSsomatosensory
Sthsubthalamic nucleus
STRstraitum
TEAtemporal association
THthalamus
TRpiriform transition area
TTtenia tecta
VISvisual cortex
VLPOventrolateral preoptic nucleus
vmHyventromedial hypothalamic regions
vMidventral midbrain
vStrventral striatum
ZIzona incerta

Stereotaxic surgeries

Request a detailed protocol

Mice were anesthetized either with 1.5–2.0% isoflurane and placed in a stereotaxic apparatus (Kopf Instruments). For virus injection in to the DR, the following coordinates (in mm) were used: –4.3AP, 1.10 ML, –2.85 DV; –4.3AP, 1.10 ML, –2.70 DV, with 20° ML angle. (AP is relative to bregma; DV is relative to the brain surface when AP is –1.0). After surgery, mice recovered on a heated pad until ambulatory and then returned to their homecage.

Viral constructs

Request a detailed protocol

The full design of Ef1a-CreON/FlpON-mGFP is Ef1a-fDIO-[membrane tag]-Kozak-loxP-STOPx3-loxP-∆GFP. The AAV vector backbones that contained the Ef1a-fDIO were derived from pAAV-Ef1a-fDIO-EYFP (Addgene, #27437) (Fenno et al., 2014). The [membrane tag]-Kozak-loxP sequence was synthesized by GenScript. The membrane tag was the N-terminal 20 amino acids of Gap43 (Addgene, #71760). The sequence of loxP-∆GFP were cloned by PCR and -∆GFP is GFP sequence omitting ATG. And then these two pieces together with STOPx3 (Addgene, #22799) were ligated into the AAV-Ef1a-fDIO backbone in the antisense orientation by Gibson assembly. DNA oligonucleotides were synthesized by Elim Biopharmaceuticals Inc and GenScript.

Viruses packaging

Request a detailed protocol

For whole brain tracing, the AAV vector carrying Ef1a-CreON/FlpON-mGFP were packaged into AAV2/8 serotype with 1 × 1012 gc/ml by Gene Vector and Virus Core, Stanford University. 500 nl of AAV-CreON/FlpON-mGFP was injected into the DR for each mouse. For single cell reconstruction, AAV vectors carrying the TRE-DIO-FlpO, TRE-fDIO-GFP-IRES-tTA construct were packaged into AAV2/9 serotype with titres 109–1010 gc/ml in Dr. Minmin Luo’s lab as described before (Lin et al., 2018). AAV-TRE-DIO-FLPo (107 gc/ml) virus and AAV-TRE-fDIO-GFP-IRES-tTA (109 gc/ml) virus were mixed with the ratio of 1:9. 200 nL mixed virus was injected into the DR for each mouse.

Histology and imaging

Request a detailed protocol

Animals were perfused transcardially with phosphate buffered saline (PBS) followed by 4% paraformaldehyde (PFA). Brains were dissected, post-fixed in 4% PFA for 12–24 hr in 4°C, then placed in 30% sucrose for 24–48 hr. They were then embedded in Optimum Cutting Temperature (OCT, Tissue Tek) and stored at–80°C until sectioning. For the antibody staining in Figures 1, 50-µm sections containing DR were collected onto Superfrost Plus slides to maintain the anterior to posterior sequence. All working solutions listed below included 0.2% NaN3 to prevent microbial growth. Slides were then washed 3 × 10 min in PBS and pretreated overnight with 0.5 mM SDS at 37°C. Slides were then blocked for 4 hr at room temperature in 10% normal donkey serum (NDS) in PBS with 0.3% Triton-X100 (PBST), followed by incubation in primary antibody (Novus, rabbit anti-Tph2) diluted 1:1000 in 5% NDS in PBST for 24 hr at RT. After 3 × 10 min washes in PBS, secondary antibody was applied for 6 hr at room temperature (donkey anti-rabbit, Alexa-647 or Alexa-488, Jackson ImmunoResearch), followed by 3 × 10 min washes in PBST. Slides were then stained for NeuroTrace Blue (NTB, Invitrogen). For NTB staining, slides were washed 1 × 5 min in PBS, 2 × 10 min in PBST, incubated for 2–3 hr at room temperature in (1:500) NTB in PBST, washed 1 × 20 min with PBST, and 1 × 5 min with PBS. Sections were additionally stained with DAPI (1:10,000 of 5 mg/mL, Sigma-Aldrich) in PBS for 10–15 min and washed once more with PBS. Slides were mounted and coversliped with Fluorogel (Electron Microscopy Sciences). After that, the slides were then imaged either using a Zeiss 780 confocal microscope or a 3i spinning disk confocal microscope (CSU-W1 SoRa), and images were processed using NIH ImageJ software. After that, whole slides were then imaged with a 5x objective using a Leica Ariol slide scanner with the SL200 slide loader.

For DR-containing slices in Figures 5 and 6, staining was applied to floating sections. Primary antibodies (Novus, rabbit anti-Tph2, 1:1000; Aves Labs Inc, chicken anti-GFP, 1:2000) were applied for 48 hr and secondary antibodies for 12 hr at 4°C. For serotonin terminal staining in Figure 6, floating sections were stained with Primary antibodies (Aves Labs Inc, chicken anti-GFP, 1:2000) for 60 hr and secondary antibodies for 18 hr at 4°C.

Whole brain imaging of Vglut3+ and Trh+ serotonin projections

Request a detailed protocol

After 8–10 weeks of virus expression, mice were transcardially perfused with 20 ml 1x PBS containing 10 µg/ml heparin followed by 20 ml of 4% PFA before removing each brain and allowing them to postfix overnight at 4° C. The clearing protocol largely follows the steps outlined in Chi et al. (2018). Brains were washed at room temperature with motion at least 30 min each step: 3x in 1x PBS before switching to 0.1% Triton X-100 with 0.3 M glycine (B1N buffer) and being stepwise (20/40/60/80%) dehydrated into 100% methanol. Delipidation was carried out by an overnight incubation in 2:1 mixture of DCM:methanol and a 1 hr incubation in 100% DCM the following day. After 3x washes in 100% methanol, brains were bleached for 4 hr in a 5:1 mix of methanol: 30% H2O2 and then stepwise (80/60/40/20%) restored into B1N buffer. Samples were permeabilized with 2 washes of PTxwH buffer containing 5% DMSO and 0.3M glycine for 3 hr before being washed in PTxwH overnight. Antibody labeling was carried out in PTxwH buffer at 37° C with motion. Primary antibody (Aves 1020; chicken anti-GFP, 1:1000) was added and samples were incubated for 11 days. After 3 days of washes, secondary antibody (Thermo A-31573, AlexaFluor 647 donkey anti-chicken, 1:1000) was added for 8 days, followed by another 3 days of washes. One final day of washing in 1x PBS preceded clearing. Samples were again dehydrated stepwise into methanol, using water as the alternative fraction. Delipidation proceeded as before with a DCM/methanol mixture overnight and 2 × 1 hr DCM-only incubations the next day. Brains were finally cleared for 4 hr in dibenzyl ether and then stored in a fresh tube of dibenzyl ether at least 24 hr before imaging.

Samples were imaged with a LaVision Ultramicroscope II lightsheet using a 2x objective and 3 µm z-step size. Antibody fluorescense was collected from a 640 nm laser and autofluorescense captured from 488 nm illumination. Image volumes were processed and analyzed with custom Python and MATLAB scripts. In short, we trained a 3D U-Net convolutional neural network (Çiçek et al., 2016) to identify axons in volumes and post-processed the resulting probability-based volumes as previously described (Ren et al., 2018). Python code for training is available at GitHub (https://github.com/AlbertPun/TRAILMAP; copy archived at https://github.com/elifesciences-publications/TRAILMAP(Friedmann et al., 2019). Using the autofluorescent channel, we aligned samples to the Allen Institute’s Common Coordinate Framework (Renier et al., 2016), applied the same transformation vectors to the volumetric projection of axons, and quantified total axon content in each brain region listed in Supplementary file 5.

Hybridization chain reaction in situs

Request a detailed protocol

Probes were generated for use with HCR v3.0 (Molecular Technologies) (Choi et al., 2018). Wildtype 8 week old mice were perfused and brains were removed and fixed as described above. Following an overnight postfix, brains were cryoprotected in 30% sucrose until they sank and subsequently frozen at −80° C. The midbrain raphe nuclei were sectioned coronally at either 16 or 20 µm directly onto a glass slide, and dried at room temperature for 4–6 hr before storing at −20° C overnight. Sections were re-fixed again in 4% PFA, washed in 1x PBS, treated with a solution containing 50 ml H2O, 0.5 ml 1M Tris ph7.4, 100 µl 0.5M EDTA, 35 µl ProK for 6 min at 37° C before another round of PFA fixation and PBS washing. Hybridization and amplification steps were carried out as recommended by Molecular Technologies. Imaging was performed with a Zeiss 780 LSM confocal using a 20x objective. Double labeled cells were counted manually using the CellCounter plugin for FIJI software.

Single Cell Reconstruction

fMOST imaging and image preprocessing

Request a detailed protocol

4–6 weeks after virus injection, brains were dissected and post-fixed in 4% paraformaldehyde for 24 hr at 4°C. The brains were rinsed in 0.01 M PBS (Sigma-Aldrich) three times (for 2 hr each) and embedded in Lowicryl HM20 resin (Electron Microscopy Sciences, 14340). We use a fluorescence micro-optical sectioning tomography (fMOST) system to acquire the brain-wide image dataset at high resolutions (0.23 × 0.23 × 1 μm for 10 brains and 0.35 × 0.35 × 1 μm for the other nine brains). Embedded brain samples were mounted on a 3D translation stage in a water bath with propidium iodide (PI). The fMOST system automatically performs the coronal sectioning with 1 um steps and imaging with two color channels in 16-bit depth. The green channel of GFP is for visualization of neurons and the red channel of PI counterstaining is for visualization the whole brain cytoarchitecture.

Image annotation and skeletonization

Request a detailed protocol

Amira software (v 5.4.1, Visage imaging, Inc) were used for semi-automatically reconstruction of single neurons. First, we use Amira to load a relatively large volume but low-resolution data and find the position of soma or major axon as a start position. Then, one by one, we load each small volume (800 × 800 × 400 voxels) of highest resolution data along the axons and dendrites to label the full structure of each neuron. We have totally reconstructed 50 high quality neurons with complete and clear axon terminals. The reconstructed neurons were checked by one another person.

Image registration and visualization

Request a detailed protocol

Reconstructed neurons were aligned to the Allen Common Coordinate Framework (CCF). Elastix (Klein 2010) were used to register the manually segmented outline of a downsampled version of the PI-staining vloume (25 × 25 × 25 μm voxel size) to the average template of CCF (25 × 25 × 25 μm voxel size). An initial affine registration was applied for align the sample to CCF, followed by an iterative non-rigid b-spline transformation for more precise registration. The generated parameters were used for coordinate transformation of reconstructed neurons to align them to the CCF. Cinema 4d (MAXON Computer GmbH, Germany) and customized python scripts were used to generate 3D rendered images and movies.

Data analysis and quantification

Request a detailed protocol

We use customized program in MATLAB (MathWorks) for the fiber lengths calculation and heatmap generation. The projection diagram was drawn with Microsoft Office Visio.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Adipo-Clear: a tissue clearing method for Three-Dimensional imaging of adipose tissue
    1. J Chi
    2. A Crane
    3. Z Wu
    4. P Cohen
    (2018)
    Journal of Visualized Experiments, 10.3791/58271, 30102289.
  13. 13
  14. 14
    Medical Image Computing and Computer-Assisted Intervention – MICCAI 2016. MICCAI 2016. Lecture Notes in Computer Science
    1. Ö Çiçek
    2. A Abdulkadir
    3. SS Lienkamp
    4. T Brox
    5. O Ronneberger
    (2016)
    3D U-Net: Learning Dense Volumetric Segmentation from Sparse Annotation, Medical Image Computing and Computer-Assisted Intervention – MICCAI 2016. MICCAI 2016. Lecture Notes in Computer Science, 9901, Springer.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    The Allen brain atlas as a resource for teaching undergraduate neuroscience
    1. TL Gilbert
    (2018)
    Journal of Undergraduate Neuroscience Education : JUNE : A Publication of FUN, Faculty for Undergraduate Neuroscience 16:A261–A267.
  29. 29
  30. 30
  31. 31
  32. 32
    The evolution of the serotonergic nervous system
    1. A Hay-Schmidt
    (2000)
    Proceedings of the Royal Society of London. Series B: Biological Sciences 267:1071–1079.
    https://doi.org/10.1098/rspb.2000.1111
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92

Decision letter

  1. Eve Marder
    Senior Editor; Brandeis University, United States
  2. Sacha B Nelson
    Reviewing Editor; Brandeis University, United States
  3. Patricia Gaspar
    Reviewer; INSERM U839, Institut du Fer à Moulin, France

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Single-cell transcriptomes and whole-brain projections of serotonin neurons in the dorsal and medial raphe nuclei" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Eve Marder as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Patricia Gaspar (Reviewer #1), Sacha Nelson (Reviewing Editor).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors use an impressive array of genomic, genetic and anatomical techniques to further illuminate the heterogeneity of serotonin neuron subtypes in the mouse. The paper includes a large number of single axon reconstructions which, together with the transcriptional data, are likely to form a valuable resource for others working in this field. The paper reports multiple new findings including new subtype-specific markers within the B7-B8 group and interesting differences between male and female animals. Some of these new findings need some additional support, but they add to enthusiasm for this detailed and systematic study.

Essential revisions:

1) The authors need to better integrate their data with those already available for the parsing of serotonin raphe neurons. Reviewers agreed that it would be helpful to relate the expression data to previously published RNAseq data including the rhombomere derived analysis from Okaty et al. A supplementary figure showing key similarities and differences will be important for the field. Alternatively or additionally, a discussion paragraph would also help.

2) Further details of the anatomical projections should be clarified. The authors do not mention the projections from the Vglut3+ neurons to the hippocampus, although these are clearly visible on the figures. It would be nice to show more precisely the starting point of the 3 cases analyzed for each genotype. Subsection “Whole-brain axonal arborization patterns of individual serotonin neurons”: projections from the DR to the spinal cord are mentioned (subsection “Other groups”) but no projections are shown beyond the pons. Since up to now no projections to the spinal cord from B7-B8 have been demonstrated, specific illustrations are needed if the authors want to support this claim. The inclusion of an analysis of gender differences is novel and interesting. Authors should indicate more precisely the number of males and females used (Results first paragraph) and retained after quality control. One reviewer noted that: " subsection “Whole-brain axonal projections of selected serotonin neuron subpopulations” paragraph three speaks to the high variability in projection patterns from individual brains of each genotype following viral injection. Given that each genotype had only n=3 mice, and the highly variable regions in question were targeted densely "in one or two individual brains," more "n" may be warranted to ensure accurate analysis of axonal projections for each intersectionally defined subpopulation." Although reviewers agreed that it would increase the impact of the paper to include further cases to clarify the intersectional labeling, the consensus was that this was not required for the revision.

3) The new Sert-Flp line should be characterized in more detail in Figure 5. For example, in Figure 5B, it would be useful to see higher-magnification images of single cells co-expressing GFP and Tph2. Are there cells in cortex (e.g., L6 corticothalamic neurons) that express the transgene, as is the case for the Sert-Cre mouse?

4) How were the 11 clusters defined? The authors should provide more detail about the quantitative criteria to decide on these 11 clusters, and how well separated they are from each other.

5) In Figure 2, the expression of Sox14 should be validated in serotonin neurons using immunostaining or double in situ. Sox14 expression in R1 has previously been associated with neighboring GABAergic neuron cohorts (Lahti et al., 2016).

6) In keeping with eLife policy, the title should include reference to the biological preparation ("mouse", or perhaps "rodent")

https://doi.org/10.7554/eLife.49424.042

Author response

Essential revisions:

1) The authors need to better integrate their data with those already available for the parsing of serotonin raphe neurons. Reviewers agreed that it would be helpful to relate the expression data to previously published RNAseq data including the rhombomere derived analysis from Okaty et al. A supplementary figure showing key similarities and differences will be important for the field. Alternatively or additionally, a discussion paragraph would also help.

We thank the reviewers for this suggestion. Because of the different nature of the dataset (most of Okaty’s data are from bulk-RNA-seq), we could only make qualitative comparisons based on differentially expressed marker genes identified in both studies. Notably, we found an approximal correspondence between rhombomere-derived division and our adult single-cell RNA-seq-based transcriptomic clusters. We summarized the comparisons in a new supplementary figure (Figure 3—figure supplement 4), and added the following new paragraph in Discussion:

“Our results are broadly consistent with previous findings that utilized developmental origin to differentiate raphe serotonin neurons (Okaty et al., 2015). […] Comparing marker genes enriched in R1–R3-derived serotonin neurons from Okaty et al. and MR-1–MR-4 transcriptomic clusters from our current study (Figure 3—figure supplement 4) indeed suggests an approximate correspondence: R1-derived serotonin neurons correspond to our MR-1 cluster, R2 to MR-4 cluster, and R3 to both MR-2 and MR-3 clusters.”

2) Further details of the anatomical projections should be clarified. The authors do not mention the projections from the Vglut3+ neurons to the hippocampus, although these are clearly visible on the figures.

We suspect that the Vglut3+ projections to the hippocampus originate from Tph2+/Vglut3+ neurons located in MR. As Muzerelle et al., 2016 showed that, MR is the major resource of serotonin projections to the hippocampus and cDR also contribute significantly. While our injections were targeted to the core of the principal dorsal raphe, we did see some virally labeled cells in MR, and we didn’t see cells labeled in the cDR (Figure 7—figure supplement 3). We have added text to highlight the presence of these MR cells in our labeled populations.

It would be nice to show more precisely the starting point of the 3 cases analyzed for each genotype.

We have added a panel to Figure 7—figure supplement 3 with a schematic indicating the center of the cell bodies labeled in each of the 6 separate brains. We further clarified in the figure legend that the z-stacks shown in panel (A) are representative of all samples and display all labeled cell bodies and as such, well-represent both the location and extent of labeling.

Subsection “Whole-brain axonal arborization patterns of individual serotonin neurons”: projections from the DR to the spinal cord are mentioned (subsection “Other groups”) but no projections are shown beyond the pons. Since up to now no projections to the spinal cord from B7-B8 have been demonstrated, specific illustrations are needed if the authors want to support this claim.

Indeed the brain registration of single-cell-reconstruction experiments ended posteriorly at the medulla. But we found one neuron’s axon appeared to extend to the caudal-most end of our sample, thus think that this neuron (Figure 8—figure supplement 3 D, #36) projected to the spinal cord. We added a word “likely” since we did not trace the axon into the spinal cord. We cited two previous reports showing that DR serotonin neurons project to the spinal cord.

The inclusion of an analysis of gender differences is novel and interesting. Authors should indicate more precisely the number of males and females used (Results first paragraph) and retained after quality control.

We thank the review for appreciating the gender differences. We have the manuscripts as follows:

“After quality control (Materials and methods), we determined the transcriptomes of 709 cells from eight samples that include MR, pDR, and cDR, and 290 cells from six pDR-only samples (999 cells in total, comprising 581 cells from female and 418 cells from male mice).”

One reviewer noted that: " subsection “Whole-brain axonal projections of selected serotonin neuron subpopulations” paragraph three speaks to the high variability in projection patterns from individual brains of each genotype following viral injection. Given that each genotype had only n=3 mice, and the highly variable regions in question were targeted densely "in one or two individual brains," more "n" may be warranted to ensure accurate analysis of axonal projections for each intersectionally defined subpopulation." Although reviewers agreed that it would increase the impact of the paper to include further cases to clarify the intersectional labeling, the consensus was that this was not required for the revision.

We agree that more “n” would strengthen these findings, however given the duration of these experiments (~3.5 months if everything works smoothly), we appreciate reviewers’ understanding that this is not required for the revision. We believe that our main conclusion (that Vglut3+ and TrH+ populations are largely complementary to each other) is well supported despite the low n. Our secondary findings regarding variability focus on areas that show positive signal rather than absence of signal. We agree that findings regarding the heterogeneity within the intersectionally defined subpopulation require larger n, or ideally using transcriptomic cluster-specific intersections. We therefore added the following sentence at the end of this paragraph:

“Larger scale experiments or experiments using Cre lines that are expressed in single clusters will be required to further dissect heterogeneity within the Vglut3+ or TrH+ serotonin neurons."

3) The new Sert-Flp line should be characterized in more detail in Figure 5. For example, in Figure 5B, it would be useful to see higher-magnification images of single cells co-expressing GFP and Tph2. Are there cells in cortex (e.g., L6 corticothalamic neurons) that express the transgene, as is the case for the Sert-Cre mouse?

We thank the reviewer’s suggestion and we added the higher-magnification images of single cells co-expressing GFP and Tph2 as insets in Figure 5B. We also updated the figure legend accordingly. As the Sert-Cre mouse, the Sert-Flp line appears to drive reporter expression outside the raphe serotonin neurons, since we did observe labeled neurons in the retina, cortex and thalamus. We didn’t fully characterize the expression in these brain regions because it is outside the scope our study. We have initiated the process of depositing the mouse line to the Jackson Lab (and have added JAX Stock number to this as well as our new FLP reporter) so others interested in these expression patterns can characterize this further.

We added a sentence in Materials and methods section regarding this point as following:

“As previously described for the Sert-Cre line, the Sert-Flp line appears to drive transgenic reporter expression outside the raphe serotonin neurons (including neurons in the retina, cortex, and thalamus) because of the transient expression of Sert during development (Lebrand et al., 1998).”

4) How were the 11 clusters defined? The authors should provide more detail about the quantitative criteria to decide on these 11 clusters, and how well separated they are from each other.

To address the reviewer’s question, we have updated Data Processing section of the Materials and methods section with following:

“Cells were clustered using a variant of the Louvain method that includes a resolution parameter in the modularity function (Schaum et al., 2018). Specifically, cells were clustered based on their PCA scores. To define the number of PCs to use we performed a resampling test (JackStraw test, similarly to Macosko et al. DOI:https://doi.org/10.1016/j.cell.2015.05.002) and used a value cut-off of 0.005 to choose the “significant” PCs for the downstream analysis. To cluster the cells, we next used the Louvain algorithm to iteratively group cells together, with the goal of optimizing the standard modularity function. (FindClusters() functions in Seurat with the following parameters: dims = 1:20, resolution = 1).”

5) In Figure 2, the expression of Sox14 should be validated in serotonin neurons using immunostaining or double in situ. Sox14 expression in R1 has previously been associated with neighboring GABAergic neuron cohorts (Lahti et al., 2016).

We thank the reviewer to bring to our attention about the Lahti et al. paper, which describes Sox14 expression in GABAergic neuron cohorts during development. While the Lahti et al. paper did not show Sox14 expression in GABAergic neurons in adult, it would have been consistent with our study even if it did. In our transcriptomic data, Sox14 is expressed in Clusters 1 and 2, which are fully included in clusters that express Gad1 and Gad2 (Clusters 1–3), the most widely used markers for GABAergic neurons. So our transcriptomic data already validated a population of Tph2+Sox14+Gad1+Gad2+ neurons that were sorted based on their expression of Sert-Cre, and we do not see added value of immunostaining and double in situ data. It is possible that Sox14 is additionally expressed Tph2Gad1+Gad2+ neurons, but our paper is focused exclusively on serotonin neurons so characterizing marker expression outside serotonin neurons is beyond the scope of our paper.

We also want to emphasize that despite expression of Gad1 and Gad2, these neurons do not express Vgat (vesicular GABA transporter), and therefore are not typical GABAergic neurons. Hence our Sox14+ neurons cannot be due to contamination of typical GABAergic neurons nearby.

We added the following sentence into our manuscript in the transcription factor section:

“Interestingly, Sox14, previously reported to be associated with GABAergic neurons in developing brain (Lahti et al., 2016), is expressed in Clusters 1 and 2 in adult serotonin neurons that co-express Gad1 and Gad2.”

6) In keeping with eLife policy, the title should include reference to the biological preparation ("mouse", or perhaps "rodent")

We have changed the title as “Single-Cell Transcriptomes and Whole-Brain Projections of Serotonin Neurons in the Mouse Dorsal and Median Raphe Nuclei” accordingly.

https://doi.org/10.7554/eLife.49424.043

Article and author information

Author details

  1. Jing Ren

    Department of Biology and Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Methodology, Writing—original draft, Writing—review and editing, Collected single-cell samples, Developed and characterized Sert-Flp mice and intersectional viral-genetic strategies, Performed whole-brain intersectional axon tracing experiments with assistance from SG, Analyzed the single-cell reconstruction data
    Contributed equally with
    Alina Isakova, Drew Friedmann and Jiawei Zeng
    For correspondence
    jren@mrc-lmb.cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6665-7457
  2. Alina Isakova

    1. Department of Bioengineering, Stanford University, Stanford, United States
    2. Department of Applied Physics, Stanford University, Stanford, United States
    Contribution
    Data curation, Formal analysis, Visualization, Methodology, Writing—review and editing, Collected single cell samples, Processed the cells for single-cell RNA-seq, Performed scRNA-seq data analysis with support from SRQ
    Contributed equally with
    Jing Ren, Drew Friedmann and Jiawei Zeng
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1113-6889
  3. Drew Friedmann

    Department of Biology and Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Data curation, Software, Formal analysis, Validation, Visualization, Methodology, Writing—review and editing, Performed FISH experiments and analyzed data with assistance from SG, Performed whole-brain intersectional axon tracing experiments with assistance from SG, Analyzed whole-brain axon maps using algorithms originally developed by AP, Analyzed the single-cell reconstruction data
    Contributed equally with
    Jing Ren, Alina Isakova and Jiawei Zeng
    Competing interests
    No competing interests declared
  4. Jiawei Zeng

    National Institute of Biological Science, Beijing, China
    Contribution
    Data curation, Visualization, Writing—review and editing, Performed the bulk of single axon tracing with assistance from RW and RL and support from ML, Analyzed the single-cell reconstruction data
    Contributed equally with
    Jing Ren, Alina Isakova and Drew Friedmann
    Competing interests
    No competing interests declared
  5. Sophie M Grutzner

    Department of Biology and Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Data curation, Validation, Assisted with performing FISH experiments and analyzing data, Assisted with performing whole-brain intersectional axon tracing experiments
    Competing interests
    No competing interests declared
  6. Albert Pun

    Department of Biology and Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Software
    Competing interests
    No competing interests declared
  7. Grace Q Zhao

    Department of Neurobiology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  8. Sai Saroja Kolluru

    1. Department of Bioengineering, Stanford University, Stanford, United States
    2. Department of Applied Physics, Stanford University, Stanford, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  9. Ruiyu Wang

    National Institute of Biological Science, Beijing, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  10. Rui Lin

    National Institute of Biological Science, Beijing, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  11. Pengcheng Li

    1. Britton Chance Center for Biomedical Photonics, Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology (HUST), Wuhan, China
    2. HUST-Suzhou Institute for Brainsmatics, JITRI Institute for Brainsmatics, Suzhou, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  12. Anan Li

    1. Britton Chance Center for Biomedical Photonics, Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology (HUST), Wuhan, China
    2. HUST-Suzhou Institute for Brainsmatics, JITRI Institute for Brainsmatics, Suzhou, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  13. Jennifer L Raymond

    Department of Neurobiology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Resources, Writing—review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8145-747X
  14. Qingming Luo

    Britton Chance Center for Biomedical Photonics, Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology (HUST), Wuhan, China
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6725-9311
  15. Minmin Luo

    1. National Institute of Biological Science, Beijing, China
    2. School of Life Science, Tsinghua University, Beijing, China
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3535-6624
  16. Stephen R Quake

    1. Department of Bioengineering, Stanford University, Stanford, United States
    2. Department of Applied Physics, Stanford University, Stanford, United States
    3. Chan Zuckerberg Biohub, San Francisco, United States
    Contribution
    Resources, Writing—review and editing
    For correspondence
    steve@quake-lab.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1613-0809
  17. Liqun Luo

    Department of Biology and Howard Hughes Medical Institute, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    lluo@stanford.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5467-9264

Funding

National Institutes of Health (R01 NS104698)

  • Liqun Luo

National Science Foundation (NeuroNex)

  • Liqun Luo

National Institutes of Health (NS057488)

  • Jennifer L Raymond

Ministry of Science and Technology of the People's Republic of China (2015BAI08B02)

  • Minmin Luo

National Natural Science Foundation of China (91432114)

  • Minmin Luo

National Natural Science Foundation of China (91632302)

  • Minmin Luo

Beijing Municipal Government

  • Minmin Luo

NSFC (61721092)

  • Qingming Luo

NSFC (81827901)

  • Qingming Luo

Swiss National Science Foundation (PostDoc Mobility Fellowship)

  • Alina Isakova

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Caiying Guo and the Howard Hughes Medical Institute/Janelia Research Campus for assisting the generation of the Sert-Flp mice, Yanru Chen and the Stanford transgenic core for assisting the generation of the H11-CAG-FRT-stop-FRT-EGFP mice, Bradford B Lowell for Thr-ires-Cre mice, Z Josh Huang for the IS mice, Stanford Gene Vector and Virus Core for producing virus, Kang Shen and Nathan McDonald for sharing and advising the 3i spinning disc confocal microscope. Norma Neff and Jennifer Okamoto for sequencing expertise. Zhiyong Guo for assisting several cases of single cell reconstruction, Yanwen Sun for assisting the generation of a customized program related to 3D images processing, Tie-Mei Li for assisting the cloning of Ef1a-CreON/FlpON-mGFP.

Ethics

Animal experimentation: All procedures followed animal care and biosafety guidelines approved by Stanford University's Administrative Panel on Laboratory Animal Care and Administrative Panel of Biosafety in accordance with NIH guidelines. The animal protocol is #14007 and the biosafety protocol is APB 2500.

Senior Editor

  1. Eve Marder, Brandeis University, United States

Reviewing Editor

  1. Sacha B Nelson, Brandeis University, United States

Reviewer

  1. Patricia Gaspar, INSERM U839, Institut du Fer à Moulin, France

Publication history

  1. Received: June 18, 2019
  2. Accepted: October 12, 2019
  3. Version of Record published: October 24, 2019 (version 1)

Copyright

© 2019, Ren et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,003
    Page views
  • 384
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Max Koppers et al.
    Research Article Updated
    1. Neuroscience
    May Dobosiewicz et al.
    Research Article Updated
