Combinatorial chromatin dynamics foster accurate cardiopharyngeal fate choices

  1. Claudia Racioppi  Is a corresponding author
  2. Keira A Wiechecki
  3. Lionel Christiaen  Is a corresponding author
  1. New York University, United States
Research Article
  • Cited 0
  • Views 954
  • Annotations
Cite this article as: eLife 2019;8:e49921 doi: 10.7554/eLife.49921

Abstract

During embryogenesis, chromatin accessibility profiles control lineage-specific gene expression by modulating transcription, thus impacting multipotent progenitor states and subsequent fate choices. Subsets of cardiac and pharyngeal/head muscles share a common origin in the cardiopharyngeal mesoderm, but the chromatin landscapes that govern multipotent progenitors competence and early fate choices remain largely elusive. Here, we leveraged the simplicity of the chordate model Ciona to profile chromatin accessibility through stereotyped transitions from naive Mesp+ mesoderm to distinct fate-restricted heart and pharyngeal muscle precursors. An FGF-Foxf pathway acts in multipotent progenitors to establish cardiopharyngeal-specific patterns of accessibility, which govern later heart vs. pharyngeal muscle-specific expression profiles, demonstrating extensive spatiotemporal decoupling between early cardiopharyngeal enhancer accessibility and late cell-type-specific activity. We found that multiple cis-regulatory elements, with distinct chromatin accessibility profiles and motif compositions, are required to activate Ebf and Tbx1/10, two key determinants of cardiopharyngeal fate choices. We propose that these ‘combined enhancers’ foster spatially and temporally accurate fate choices, by increasing the repertoire of regulatory inputs that control gene expression, through either accessibility and/or activity.

Introduction

How a species’ genome encodes its diverse and specific biological features has fascinated generations of biologists, and answers regarding the genetic control of body plan, organ, tissue and cell type formation have emerged from steady progress in developmental biology. Cell types arise as cells divide and the progeny of pluripotent embryonic stem cells progress through multipotent and fate-restricted states. The ontogeny of diverse terminal cell identities involves differential expression of hundreds to thousands of genes. Their dynamic activities are orchestrated by complex gene regulatory networks, whereby DNA-binding proteins and co-factors act upon specific cis-regulatory elements to control gene expression (Davidson, 2010). Technical and conceptual revolutions in genome biology have extensively characterized the chromatin dynamics that govern the function of cis-regulatory elements (Klemm et al., 2019). Specifically, as the nuclear genome is packaged in nucleosomes, DNA-binding transcription factors compete with histones to interact with cis-regulatory elements and control gene expression. Thus, identifying changing landscapes of accessible chromatin governing the transition from multipotent to fate restricted progenitors offers privileged insights into the genomic code for progressive cell type specification.

Dynamic chromatin states underlying cardiomyocyte differentiation have been extensively profiled (Paige et al., 2012; Wamstad et al., 2012), and chromatin state regulation is essential for heart development (He et al., 2014; Rosa-Garrido et al., 2013; Zaidi et al., 2013). However, different parts of the heart originate from separate first and second fields of progenitor cells, including those referred to as cardiopharyngeal, which can also produce branchiomeric head muscles (Diogo et al., 2015; Lescroart et al., 2010). Bulk and single cell transcription profiling have begun to illuminate gene expression changes underlying cardiopharyngeal fate choices (Lescroart et al., 2018; Lescroart et al., 2014), but the corresponding chromatin dynamics remains largely elusive.

The tunicate Ciona emerged as a powerful chordate model to study early cardiopharyngeal development with high spatio-temporal resolution (Diogo et al., 2015; Kaplan et al., 2015). In Ciona, the cardiopharyngeal lineages arise from naive Mesp+ mesodermal progenitors that emerge at the onset of gastrulation, and divide into two multipotent cardiopharyngeal progenitors (aka trunk ventral cells, TVCs) and two anterior tail muscles (ATMs), on either side of the embryo (Figure 1A). Following induction by FGF-MAPK signaling, cardiopharyngeal progenitors migrate collectively, before dividing asymmetrically and medio-laterally to produce small median first heart precursors (FHPs), and large lateral second trunk ventral cells (STVCs) (Davidson et al., 2005; Stolfi et al., 2010; Wang et al., 2013). The latter are also multipotent cardiopharyngeal progenitors, which upregulate Tbx1/10 and then divide again to produce small median second heart precursors (SHPs), and large lateral atrial siphon muscle founder cells (ASMFs). ASMFs activate Ebf, which is necessary and sufficient to induce pharyngeal muscle specification (Razy-Krajka et al., 2014; Stolfi et al., 2014; Stolfi et al., 2010; Tolkin and Christiaen, 2016). Importantly, spatially and temporally accurate activation of Tbx1/10 and Ebf in the STVC and ASMF, respectively, is essential to permit the emergence of all cardiopharyngeal cell lineages, as their ectopic expression would inhibit proper heart fate specification (Figure 1A).

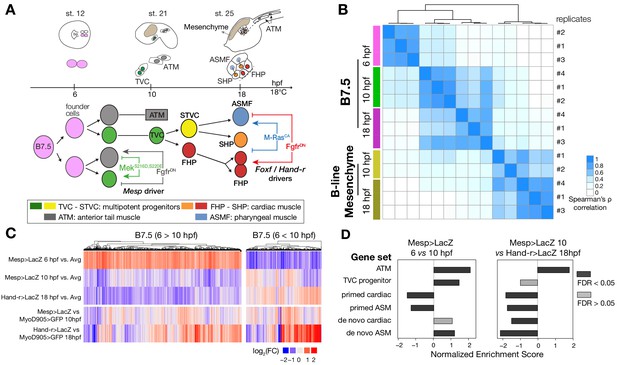

Figure 1 with 3 supplements see all
Profiling chromatin accessibility dynamics during early cardiopharyngeal cell development.

(A) Embryos, larvae and lineage diagram showing B7.5 blastomeres, their cardiopharyngeal progeny, and the main stages sampled for ATAC-seq. Anterior tail muscle (ATM, gray), trunk ventral cell (TVC, green), secondary TVC (STVC, yellow), first heart precursor (FHP, red), second heart precursor (SHP, orange), atrial siphon precursor cells (ASMF, blue). Stages (St.) according to Hotta et al. (2007) with hours post fertilization (hpf). (B) Spearman correlation of RPKM (reads per kb per million mapped reads) values in 14,178 regions changing accessibility over time or between B7.5 and B-line mesenchyme lineages. (C) Temporal changes in chromatin accessibility for 5,450 regions. ‘B7.5 6 > 10’: 3,691 regions more accessible at Mesp>LacZ 6 hpf than Mesp>LacZ 10 hpf. ‘B7.5 6 < 10’: 1,759 regions more accessible at Mesp>LacZ 10 than Mesp>LacZ 6 hpf. The accessibility of these regions is shown for Mesp>LacZ 6 hpf, Mesp>LacZ 10 hpf, and Hand-r>LacZ 18 hpf vs. the average (avg) accessibility in the control cells. Cell-type-specific chromatin accessibility is shown in the comparison of Mesp>LacZ and MyoD905>GFP at 10 and Hand-r>LacZ and MyoD905>GFP 18 hpf. (D) Gene Set Enrichment Analysis (GSEA) normalized enrichment score of defined gene sets in regions ranked by difference in accessibility between time points as indicated (see Materials and methods).

Building on previous extensive transcription profiles (Christiaen et al., 2008; Razy-Krajka et al., 2014), including single cell RNA-seq (scRNA-seq) from multipotent cardiopharyngeal progenitors to first and second heart lineages and pharyngeal muscle precursors (Wang et al., 2019), here we characterized the genome-wide chromatin accessibility dynamics underlying cardiopharyngeal fate specification. We identified regulatory inputs that govern cis-regulatory element accessibility and activity, as well as cell-type-specific enhancers for key cardiopharyngeal determinants. We found that, in multipotent progenitors, an FGF-Foxf pathway controls cardiopharyngeal-specific patterns of accessibility, which govern later heart vs. pharyngeal muscle-specific expression profiles. We further characterized temporal patterns of chromatin accessibility during cardiopharyngeal development. In particular, activation of fate determinants Tbx1/10 and Ebf specifically in the STVCs and ASMF, respectively, require multiple cis-regulatory elements with distinct spatio-temporal patterns of accessibility, which precede gene expression. We propose that these elements function as ‘combined enhancers’, which mediate distinct inputs, including from determinants of chromatin accessibility, to regulate gene activation. The observation that cis-regulatory inputs from multiple elements control expression of a single gene is consistent with the ‘shadow-’ and ‘super-enhancer’ paradigms (Barolo, 2012; Hnisz et al., 2013; Hong et al., 2008; Kvon et al., 2014; Perry et al., 2011; Perry et al., 2010; Pott and Lieb, 2015; Whyte et al., 2013). However, while shadow enhancer promotes robust transcription through the actions of multiple elements mediating similar regulatory inputs (Frankel, 2012; Frankel et al., 2010; Lam et al., 2015; Zeitlinger et al., 2007), we propose that combined enhancers promote spatially and temporally accurate fate choices, by augmenting the repertoire of trans-acting inputs controlling gene activation through enhancer activity and/or chromatin accessibility.

Results

A reference accessome for cardiopharyngeal development

To characterize the chromatin landscape underlying early cardiopharyngeal development, we used the assay for transposon-accessible chromatin (ATAC-seq; Buenrostro et al., 2013) on lineage-specific samples isolated at successive time points, and following defined perturbations (Figure 1A; Supplementary file 1; Razy-Krajka et al., 2018; Wang et al., 2019). Using the B7.5 lineage-specific Mesp>tagRFP reporter (Wang et al., 2018), we used FACS to collect ~4,000 cells per biological replicate from embryos dissociated at five time points encompassing key transitions in cardiopharyngeal development (Figure 1A): naive Mesp+ mesoderm (aka founder cells; Cooley et al., 2011), ATMs, TVCs, STVCs as well as fate-restricted first and second heart precursors (FHPs and SHPs), and pharyngeal muscle precursors (aka atrial siphon muscle founder cells -ASMF- and their progeny, the ASM precursors -ASMP; Razy-Krajka et al., 2014). The latter fate-restricted progenitors were obtained from larvae dissociated at three time points (15, 18 and 20 hours post-fertilization, hpf; Figure 1A). From the same embryonic cell populations, we used a co-transfected MyoD905>GFP reporter to isolate B-line mesenchymal cells (Christiaen et al., 2008). In the present study, we predominantly focused our analysis on the cardiopharyngeal progenitors at 6, 10 and 18 hpf (Figure 1A).

We obtained ~500 million unique ATAC-seq reads, with fragment-size distributions showing the characteristic ~150 bp periodicity and patterns of mono-, di- and tri-nucleosomal fragments (Buenrostro et al., 2013), which were absent in the genomic DNA control (Figure 1—figure supplement 1A). We identified ATAC-seq peaks using MACS2 (Zhang et al., 2008), and generated a combined atlas of 56,090 unique and non-overlapping accessible regions covering 9.25% of the C. robusta genome, which we used as our reference ‘accessome’ (Figure 1—figure supplement 1B,E). General metrics including peak numbers, size, GC content and genomic distribution were comparable to consensus peaksets reported in other studies of chromatin accessibility in developmental contexts (Materials and methods; Figure 1—figure supplement 1; Daugherty et al., 2017; Hockman et al., 2019; Jänes et al., 2018; Li et al., 2007; Madgwick et al., 2019).

Next, we annotated the reference accessome by associating accessible regions with other genomic features, especially gene models. In Ciona, the transcripts of approximately half of the protein-coding genes undergo spliced-leader (SL) trans-splicing, which replaces the original 5’ end sequence of pre-mRNAs by a short non-coding RNA, causing the 5’ end of mRNAs to differ from the transcription start site (TSS) (Ganot et al., 2004; Hastings, 2005; Satou et al., 2006; Vandenberghe et al., 2001). Using annotated TSSs (Satou et al., 2006; Vandenberghe et al., 2001; Yokomori et al., 2016), RNA-seq datasets (Wang et al., 2019), and our ATAC-seq data (Figure 1—figure supplement 2C), we determined that promoter regions and 5’ untranslated regions (5’UTR) were over-represented in the accessome (p < 0.001, two-tailed binomial test; Figure 1—figure supplement 1C), indicating that promoter proximal regions tend to be accessible as observed in other systems (Mayran et al., 2018). We also detected nucleosome footprints immediately upstream of TSSs, consistent with a tendency for constitutive accessibility (Figure 1—figure supplement 2A,B; Mavrich et al., 2008a; Mavrich et al., 2008b). By contrast, intronic and intergenic regions were significantly under-represented in our reference accessome, compared to the whole genome, although they were the most abundant elements (32.8% and 20.8%, respectively; Figure 1—figure supplement 1B). This suggests that most of these elements are accessible in specific contexts, as expected for tissue-specific cis-regulatory elements (Long et al., 2016).

We associated annotated genes with ATAC-seq peaks located within 10 kb of the TSS or transcription termination site (TTS) (Figure 1—figure supplement 3A) (Brozovic et al., 2018), thus assigning median values of 11 peaks per gene, and three genes per peak, owing to the compact Ciona genome (Figure 1—figure supplement 3B,C). Notably, active regulatory genes encoding transcription factors and signaling molecules were associated with significantly more peaks than other expressed genes (p < 0.001, two-tailed binomial test; Figure 1—figure supplement 3F). This high peak density surrounding regulatory genes is reminiscent of previously described super-enhancers (Whyte et al., 2013) and Clusters of Open Cis-Regulatory Elements (COREs) surrounding developmental regulators (Gaulton et al., 2010; Khan et al., 2018; Pott and Lieb, 2015).

Cardiopharyngeal accessibility profiles are established in multipotent progenitors

Using this reference accessome, we investigated lineage-specific and dynamic patterns of chromatin accessibility during fate decisions. We observed the greatest contrast in accessibility between the B7.5 and B-line mesenchyme lineages, with biological replicates correlating most highly (Spearman’s ρ > 0.93), indicating reproducible detection of extensive lineage-specific accessibility (Figure 1B). Within the B7.5 lineage, correlation analysis suggested that most changes occur between 6 and 10 hpf, during the transition from naive Mesp+ mesoderm to multipotent cardiopharyngeal progenitors (TVCs). Higher correlation between multipotent progenitors and mixed heart and pharyngeal muscle precursors, obtained from 18 hpf larvae, suggested more stable accessibility profiles during and immediately following early cardiopharyngeal fate choices (Figure 1B). Consistent with correlation analyses, most significant temporal changes in accessibility occurred during the transition from naive Mesp+ mesoderm to multipotent progenitors (5,450 regions, FDR < 0.05; Figure 1C). Specifically, about two thirds (64.7%, 3,525/5,450) of these regions showed reduced accessibility at 10 hpf, in multipotent progenitors, compared to 6 hpf naive Mesp+ mesoderm (Figure 1C). Conversely, 1,252 regions become accessible between 6 and 10 hpf or later, and 38.8% (486/1,252) of these regions were more accessible in the B7.5-lineage compared to the mesenchyme (Figure 1C). Moreover, the subset of regions opening between 6 and 10 hpf or later was enriched in genomic elements associated with cardiopharyngeal markers, including primed pan-cardiac and pharyngeal muscle markers, while elements flanking tail muscle markers (ATMs) or multipotent progenitor-specific genes were predominantly closing between 6 and 10 to 18 hpf (Figure 1D; see Materials and methods for definition of gene sets). Taken together, these observations suggest that cardiopharyngeal accessibility profiles are established specifically in the B7.5 lineage, upon induction of multipotent progenitors, and persist in fate-restricted cells.

To further analyze changes in accessibility associated with multipotent progenitor induction, we performed ATAC-seq on B7.5 lineage cells isolated at 10 hpf following defined perturbations of FGF-MAPK signaling: a constitutively active form of Mek (MekS216D,S220E), which converts all B7.5 lineage cells into multipotent cardiopharyngeal progenitors or a dominant negative form of the Fgf receptor (FgfrDN), which blocks induction and transforms all B7.5-derived cells into ATMs (Figure 1A; Davidson et al., 2006; Razy-Krajka et al., 2018). We used DESeq2 (Love et al., 2014) to compute differential accessibility of the elements in the reference accessome, and identified 2,728 and 2,491 differentially accessible regions following either inhibition or activation of FGF-MAPK signaling, respectively (Figure 2A,B; Figure 2—figure supplement 1A). Using peak-to-gene annotations (Figure 1—figure supplement 3A), we cross-referenced ATAC-seq with expression microarray data obtained from B7.5 lineage cells expressing the same FgfrDN(Christiaen et al., 2008), and observed a positive correlation between changes in differential accessibility and differential gene expression at 10 hpf (Spearman’s ρ = 0.47; Figure 2A; Figure 2—figure supplement 2A). Specifically, 48% of FGF-MAPK-regulated genes were associated with at least one element showing consistent differential accessibility, including 260 candidate FGF-MAPK-activated TVC markers associated with 557 regions predicted to open specifically in multipotent cardiopharyngeal progenitors at 10 hpf (Supplementary file 2, Figure 2—figure supplement 2B). Conversely, the majority (603 regions) of differentially accessible ATAC-seq peaks associated with 263 FGF-MAPK-inhibited tail muscles markers, and were also more accessible upon inhibition of FGF signaling (Supplementary file 2; Figure 2—figure supplement 1A). Taken together, these observations indicate that cardiopharyngeal accessibility profiles are established in the multipotent progenitors by opening regions associated with genes upregulated upon induction by FGF-MAPK signaling.

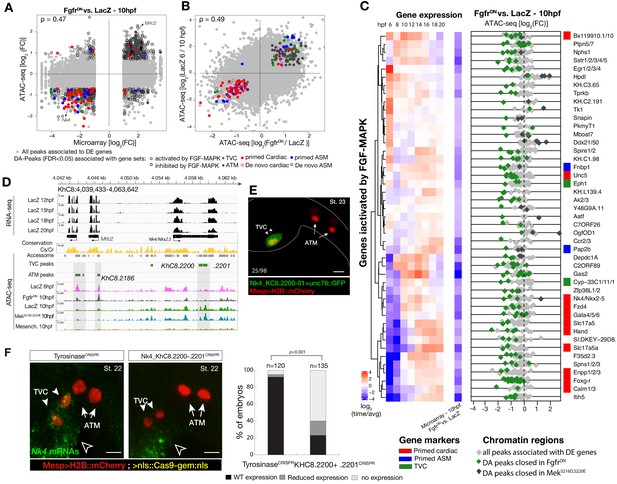

Figure 2 with 6 supplements see all
Cardiopharyngeal accessibility profiles are established in multipotent progenitors.

(A–B) Correlations between differential gene expression (DE) and differential chromatin accessibility (DA) in response to FGF-MAPK perturbation in the multipotent progenitors (A) and between chromatin accessibility in response to FGF-MAPK perturbation and in multipotent progenitors (10 hpf) versus founder cells (6 hpf). (B). Colored dots are DA peaks associated with cell type-specific DE genes. ρ is the Spearman correlation of expression and accessibility for DA regions associated with DE genes (A) or of region response to MAPK perturbation with accessibility in founder cells versus multipotent progenitors (B). (C) Relationship between expression and accessibility of DE genes associated with DA regions for genes in the bottom 0.75% quantile of fold change between expression in FgfrDN and control (log2(FC) < −1.32). Microarray log2(fold change (FC)) values are shown on the left. The fold change for all time points is versus the average. (D) A 24 kb region on chromosome eight displaying expression (RNA-seq) and chromatin accessibility (ATAC-seq; normalized by total sequencing depth). Gray shaded boxes show validated ATM-specific promoters and a newly identified TVC-specific enhancer in Nk4/Nkx2-5 intron. (E) Enhancer-driven in vivo reporter expression (green) of tested ATAC-seq regions (KhC8.2200 and .2201). TVCs marked with Mesp>H2B::mCherry (red). Numbers indicate observed/total of half-embryos scored. (F) Endogenous expression of Nk4/Nkx2-5 visualized by in situ (green) in TyrosinaseCRISPR and upon CRISPR/Cas9-induced deletions of TVC-specific region. Nuclei of B7.5 lineage cells are labelled by Mesp>nls::LacZ and revealed with an anti beta-galactosidase antibody (red). Nk4/Nkx2-5 expression was not affected in the epidermis (open arrowhead). Experiment performed in biological replicates. Scale bar, 20 μm. Fisher exact test, total numbers of individual halves scored per condition are shown in 'n='. Gene expression data for 6 hpf and ‘FGF-MAPK perturbation 10 hpf’ (Christiaen et al., 2008) and 8 to 20 hpf (Razy-Krajka et al., 2014) were previously published.

Consistent with the hypothesis that FGF-MAPK-dependent, cardiopharyngeal-specific elements act as tissue-specific enhancers, they were predominantly found in intronic or intergenic regions (48% and 37%, respectively, FDR < 0.05, one-tailed hypergeometric test). Conversely, tissue-specific peaks associated with tail muscle markers were enriched in promoters, TSS and 5’UTR (one-tailed hypergeometric test, FDR < 0.05, 57%, 23% and 15%, respectively; Figure 2—figure supplement 2C). Previously characterized enhancers for TVC-specific genes Lgr4/5/6, Rhodf, Foxf, Unc5, Rgs21, Ddr, Asb2 and Gata4/5/6 showed ATAC-seq patterns consistent with cardiopharyngeal-specific accessibility (Supplementary file 3; Beh et al., 2007; Bernadskaya et al., 2019; Christiaen et al., 2008; Woznica et al., 2012). We thus leveraged differential accessibility profiles to identify novel enhancers of cardiopharyngeal gene expression. We focused on a locus containing the conserved cardiac determinant and TVC marker, Nk4/Nkx2-5 (Wang et al., 2013), and two tail-muscle specific Myosin regulatory light chain (Mrlc) genes (Kusakabe et al., 2004; Satou et al., 2001b; Sierro et al., 2006), with associated elements showing the predicted TVC- and ATM-specific accessibility patterns, respectively (Figure 2A,D). Reporter gene expression assays showed that a DNA fragment containing differentially accessible elements located in the Nk4/Nkx2-5 intron (KhC8.2200 and .2201) was sufficient to drive GFP expression specifically in cardiopharyngeal multipotent progenitors (Figure 2E). B7.5 lineage-specific CRISPR/Cas9-induced deletions of these elements reduced or eliminated Nk4/Nkx2-5 expression specifically in TVCs, thus demonstrating its role as a bona fide cardiopharyngeal enhancer (Figure 2F; Figure 2—figure supplement 3D). Extending these analyses to other loci, including Fgf4, Fzd4, Foxg-r, Fbln, Eph1, Ncaph, Hand and Smurf1/2, we identified 8 out of 15 candidate cardiopharyngeal enhancers that drove reporter expression in the multipotent progenitors (Figure 2—figure supplement 4; Supplementary file 4), and B7.5-lineage-specific CRISPR/Cas9-mediated mutagenesis targeting differentially accessible elements reduced TVC-specific expression of the neighbouring genes Fgf4, Smurf1/2 and Fbln (Figure 2—figure supplement 5; Figure 2—figure supplement 6; Supplementary file 5). Conversely, candidate ATM-specific elements activated reporter gene expression in the tail muscles, including ATM cells, but not in the cardiopharyngeal progenitors, and were located near tail muscle markers (Figure 2—figure supplement 1B,C; Supplementary file 6). Collectively, these findings indicate that genomic elements that open specifically in multipotent progenitors act as transcriptional enhancers of cardiopharyngeal gene expression and their accessibility is controlled by FGF-MAPK induction.

A Foxf-dependent code for cardiopharyngeal accessibility

Next, we harnessed chromatin accessibility patterns predictive of cardiopharyngeal enhancer activity to identify enriched sequence motifs, and thus candidate regulators of chromatin accessibility and gene expression. For this, we performed a one-tailed hypergeometric test for enrichment of known motifs. We complemented this analysis by calculating differential accessibility of motifs using chromVAR (Schep et al., 2017), which was developed to analyze sequence motifs associated with cell-type-specific accessibility (Figure 3A). Naive Mesp+ mesoderm-specific elements, which closed between 6 and 10 hpf, were enriched in motifs for Homeodomain, T-box and Ets families of transcription factors (TF), consistent with documented roles for Lhx3/4, Tbx6 and Ets homologs in B7.5 blastomeres (Figure 3A; Davidson et al., 2006; Davidson et al., 2005; Satou et al., 2001a). Candidate tail muscle-specific elements, which opened upon FgfrDN misexpression, were similar to naive Mesp+ mesoderm, and enriched in motifs for the basic helix-loop-helix (bHLH) family of TFs, which includes Mesp and Mrf/MyoD, a conserved muscle-specific transcription regulator that promotes tail muscle differentiation (Christiaen et al., 2008; Meedel et al., 2007; Razy-Krajka et al., 2014; Tolkin and Christiaen, 2016). By contrast, motifs for Zinc Finger, Fox/Forkhead and nuclear receptor families of TFs were enriched among candidate cardiopharyngeal-specific elements, revealing a typical mesendodermal signature for early cardiopharyngeal progenitors (Cusanovich et al., 2018).

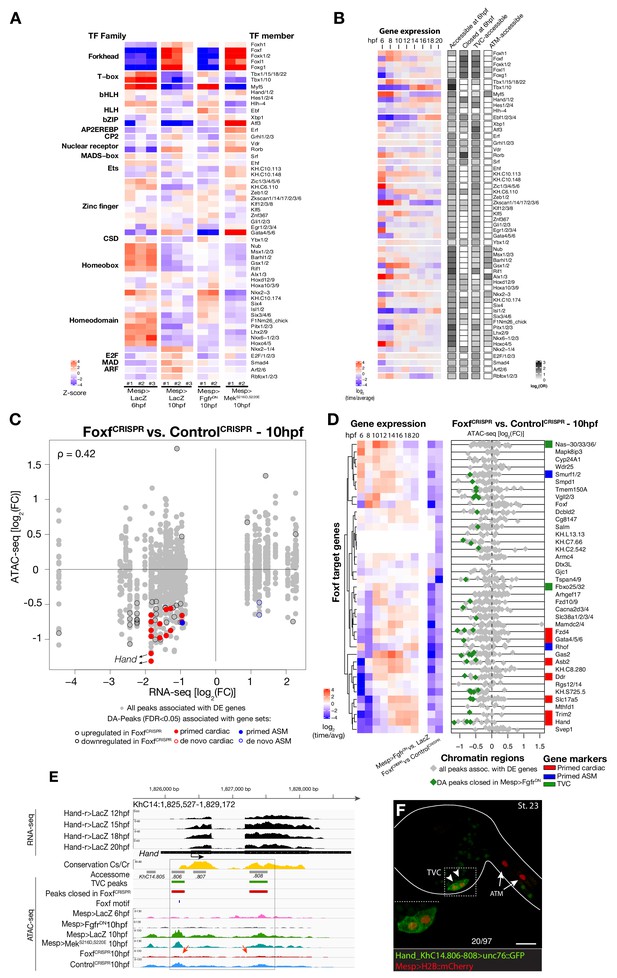

Figure 3 with 7 supplements see all
Foxf is required for cardiopharyngeal-specific chromatin accessibility.

(A) Motif accessibility between libraries from chromVAR (Schep et al., 2017). Motifs were obtained and associated with Ciona transcription factors (TFs) as described in the Materials and methods. Deviations were computed for FGF signaling-dependent regions at 10 hpf and B7.5 replicates at 6 and 10 hpf. We calculated the differential accessibility of all motifs between conditions and time points. Only the most significant motif is shown for each TF. (B) Expression of transcription factors over time compared to enrichment of corresponding TF motifs in condition specific peak sets. log2(odds ratio) values (log2(OR), see Materials and methods) are shown for motifs that are significantly enriched in a peak set (one-tailed hypergeometric test, FDR < 0.05). Only TFs expressed in the B7.5 lineage are shown. (C) Differential expression of Foxf target genes (DE) vs. differential chromatin accessibility (DA) in FoxfCRISPR. ρ is the Spearman correlation of expression and accessibility for DA regions associated with DE genes. (D) Association between expression of Foxf target genes and accessibility of proximal regions which were both TVC-specific and closed in FoxfCRISPR as in Figure 2C. (E) A 3.6 kb region on chromosome 14 displaying expression profiles of RNA-seq and chromatin accessibility profiles of ATAC-seq normalized tag count. Foxf core binding site (GTAAACA) is displayed as blue line. The boxed region indicates a newly identified TVC-specific enhancer in Hand locus. Red arrow indicates a TVC-specific enhancer showing closed chromatin in FoxfCRISPR ATAC-seq. (F) Enhancer-driven in vivo reporter expression (green) of tested ATAC-seq peaks. TVCs marked with Mesp>H2B::mCherry (red). Numbers indicate observed/total of half-embryos scored. Experiment performed in biological replicates. Scale bar, 30 μm. Gene expression data for 6 hpf and ‘FGF-MAPK perturbation 10 hpf’ (Christiaen et al., 2008), and from 8 to 20 hpf (Razy-Krajka et al., 2014) were previously published.

Combined with motif enrichment analyses, temporal gene expression profiles (Razy-Krajka et al., 2014) identified candidate trans-acting regulators of cardiopharyngeal-specific accessibility and/or activity (Figure 3B). For example, regions specifically accessible in tail muscle- or naive Mesp+ mesoderm were enriched in homeobox, Ets and T-box motifs, consistent with early expression of Mrf/MyoD, Lhx3/4, Ets1/2, and Tbx6, respectively. Similarly, the increased accessibility of motifs for K50 Paired homeodomain proteins in naive Mesp+ mesoderm indicated a possible role for Otx, which is expressed early in B7.5 blastomeres (Figure 3A,B; Hudson et al., 2003). Cardiopharyngeal-specific enrichment for Fox/Forkhead and Zinc Finger motifs pointed to several known factors, including Foxf, one of the first genes activated in multipotent progenitors upon induction by FGF-MAPK, prior to Gata4/5/6 (Beh et al., 2007; Christiaen et al., 2008; Ragkousi et al., 2011). Moreover, GATA and Forkhead proteins are founding members of a group of TFs known as pioneers, which can bind their target sites in closed chromatin and promote accessibility (Cirillo et al., 2002; Zaret and Carroll, 2011). Protein sequence alignments indicated the presence of key residues, conserved between the DNA binding domains of Foxf and the classic pioneer FOXA, which mimic linker histone H1 in its ability to displace DNA-bound nucleosomes (Figure 3—figure supplement 1B,C; Clark et al., 1993). Finally, the Foxf enhancer was accessible in naive Mesp+ founder cells, suggesting that it is poised for activation, unlike the intronic Gata4/5/6 enhancer (Figure 3—figure supplement 2A). Consistent with a role for Fox and GATA proteins in opening and activating the Nk4/Nkx2-5 enhancer, we found putative cognate binding sites in the newly identified element to be conserved with the closely related species, C. savignyi (Figure 3—figure supplement 3B,C). Taken together, these analyses identified a putative code for cardiopharyngeal-specific accessibility and enhancer activity, which comprise motifs for candidate DNA binding factors of the Forkhead and GATA and identified Foxf as candidate determinant of cardiopharyngeal accessibility.

To test if Foxf contributes to establishing cardiopharyngeal accessibility and gene expression profiles, we used reagents for B7.5 lineage-specific loss-of-function by CRISPR/Cas9-mediated mutagenesis (FoxfCRISPR; Gandhi et al., 2017), and performed ATAC- and RNA-seq on FACS-purified cells isolated from tailbud embryos at 10 hpf. RNA-seq confirmed that CRISPR/Cas9 mutagenesis inhibited Foxf itself and other TVC-expressed genes, including effectors of collective cell migration such as Ddr, consistent with previous microarray data (Bernadskaya et al., 2019; Christiaen et al., 2008) (Figure 3D; Figure 3—figure supplement 2B). Out of 52 differentially expressed genes (Figure 3—figure supplement 2B; Supplementary file 7), seven down-regulated genes were previously annotated as primed pan-cardiac markers, including Hand, Gata4/5/6 and Fzd4 (Wang et al., 2019). Down-regulated genes also included primed pharyngeal muscle markers, such as Rhod/f (Figure 3D; Figure 3—figure supplement 2B; Christiaen et al., 2008; Razy-Krajka et al., 2014), suggesting that Foxf promotes the onset of both the cardiac and pharyngeal muscle programs in multipotent progenitors, a feature known as multilineage transcriptional priming (Razy-Krajka et al., 2014; Wang et al., 2019).

Consistent with the effects of Foxf mutagenesis on gene expression, regions closed in FoxfCRISPR samples included known cardiopharyngeal enhancers for Gata4/5/6 and Ddr (Figure 3D; Figure 3—figure supplement 4; Bernadskaya et al., 2019; Christiaen et al., 2008; Woznica et al., 2012), newly identified enhancers for Eph1, Smurf1/2 and Fzd4, and a novel enhancer of Hand expression (Hand_KhC14.805 -. 807; Figure 3C–F, Supplementary file 8). These differentially accessible elements contain several, evolutionary conserved, putative Fox binding sites (Figure 3—figure supplement 5; Figure 3—figure supplement 6). We identified two conserved putative Forkhead binding sites in the minimal STVC-specific enhancer from the Tbx1/10 locus (termed T12; Razy-Krajka et al., 2018), which were necessary for reporter gene expression (Figure 5—figure supplement 1D,E). Moreover, loss-of-function of Foxf (FoxfCRISPR) drastically reduced T12 enhancer activity (Figure 5—figure supplement 1). These results are consistent with the hypothesis that Foxf acts directly on the minimal Tbx1/10 enhancer to promote its activity in the second multipotent cardiopharyngeal progenitors.

Notably, 98% (40/41) of the regions with diminished accessibility following Foxf inhibition, and located near a candidate Foxf target gene, were also accessible in multipotent progenitor cells (Figure 3D; Figure 3—figure supplement 7A). Moreover, 22% (600/2,728) of the predicted multipotent progenitor-specific elements were closed upon Foxf inhibition, and gene set enrichment analysis indicated that Foxf loss-of-function generally decreased the accessibility of cardiopharyngeal-specific elements (Figure 3—figure supplement 2C; Figure 3—figure supplement 7B). Finally, 18 of 41 (44%) of the Foxf-dependent elements associated with candidate Foxf targets were closed in 6 hpf founder cells and appear to open specifically in the cardiopharyngeal progenitors by 10 hpf (Figure 3—figure supplement 2D; Figure 3—figure supplement 7B,C; Supplementary file 9). This dynamic is consistent with a requirement for Foxf activity following its activation in the TVCs, immediately after division of the naive Mesp+ progenitors. Taken together, these results indicate that, in newborn multipotent progenitors, FGF-MAPK signaling upregulates Foxf (Beh et al., 2007; Christiaen et al., 2008), which is in turn required to open a substantial fraction of cardiopharyngeal-specific elements for gene expression in multipotent progenitors, including for such essential determinants as Gata4/5/6 and Hand (Figure 4H).

Figure 4 with 4 supplements see all
Cardiopharyngeal lineage-specific accessibility profiles and decoupling between enhancer accessibility and activity for de novo expressed genes.

(A) Differentially expressed (DE) genes vs. differentially accessible (DA) peaks in response to FGF-MAPK perturbation in the fate-restricted cells. ρ is the Spearman correlation of expression and accessibility for DA peaks associated with DE genes. (B) Relationship between accessibility and expression of de novo pan-cardiac genes as in Figure 2C. DE genes in either condition are shown on the left. (C) Time-dependent ATAC-seq peaks associated with de novo expressed pan-cardiac genes. The accessibility of these peaks is shown for 6, 10 and 18 hpf vs. the average accessibility in the controls (LacZ) and upon FGF-MAPK perturbations at either 10 or 18 hpf. Peaks were classified as ‘Open in ASM’ (less accessible in FgfrDN vs. M-RasCA or LacZ at 18 hpf), ‘Open in Heart’ (less accessible in M-RasCAvs. FgfrDNor LacZ at 18 hpf), ‘Closed in FoxfCRISPR’ (less accessible in FoxfCRISPR vs. ControlCRISPR), or ‘Open in TVC’ (less accessible in FgfrDN vs. MekS216D,S220E or LacZ at 10 hpf). Only regions changing accessibility between 6 and 10 hpf, or 10 and 18 hpf are shown. (D) A 6 kb region on chromosome four displaying expression profiles of RNA-seq and chromatin accessibility profiles of ATAC-seq normalized tag count. Peak ID refers to elements tested for reporter assay in vivo. The newly identified enhancer in Lrp4/8 locus is in the boxed region. (E) Enhancer-driven in vivo reporter expression (green) of tested ‘KhC4.137’ peak. TVCs marked with Mesp>H2B::mCherry (red). Numbers indicate observed/total of half-embryo scored. Zoom on cardiopharyngeal cell lineage (panel on the right). (F) Endogenous expression of Lrp4/8 visualized by in situ (green) in TyrosinaseCRISPR and upon CRISPR/Cas9-induced deletion of ATAC-seq peaks. Nuclei of B7.5 lineage cells are labelled by Mesp>nls::LacZ and revealed with an anti beta-galactosidase antibody (red). Mesp-driven hCD4::mCherry accumulates at the cell membrane as revealed by anti mCherry antibody (Blue). Experiment performed in biological replicates. Scale bar = 10 μm. (G) Fisher exact test; n is the total number of individual embryo halves scored per condition. (H) Summary model: patterns of chromatin accessibility dynamics and gene expression during early cardiopharyngeal fate specification.

Chromatin accessibility in late heart vs. pharyngeal muscle precursors

Besides controlling coherent chromatin opening, enhancer activity and gene expression in multipotent cardiopharyngeal progenitors, FGF-Foxf inputs also appeared to open regions associated with later de novo-expressed heart and pharyngeal muscle markers (Figure 2A,B; Supplementary file 10; Razy-Krajka et al., 2018; Razy-Krajka et al., 2014; Wang et al., 2019; Wang et al., 2013). Accessibility patterns were also better correlated between 10 and 18 hpf (Figure 1B), suggesting a decoupling between early accessibility and late heart- vs. pharyngeal muscle-specific expression in late fate-restricted precursors. To identify accessibility patterns underlying the heart vs. pharyngeal muscle fate choices, we compared bulk RNA-seq (Wang et al., 2019) and ATAC-seq datasets obtained from cardiopharyngeal lineage cells isolated from 18 hpf larvae, following the same defined perturbations of FGF-MAPK signaling (Figure 1A; Figure 4A; Figure 4—figure supplement 1A–D; Figure 4—figure supplement 2A,B; Davidson et al., 2006; Razy-Krajka et al., 2018). Among cardiac and pharyngeal muscle markers, we identified 35 FGF-MAPK-regulated genes associated with one or more elements showing consistent differential accessibility (Figure 4A,B; Figure 4—figure supplement 2A,B; Supplementary file 11). This indicated that, at least for a subset of cardiopharyngeal marker genes, FGF-MAPK-dependent changes in gene expression follow corresponding changes in chromatin accessibility in early heart and pharyngeal muscle precursors.

Gene-level inspection of differential accessibility associated with either inhibition or activation of gene expression revealed that only a fraction of associated elements was either closing or opening upon perturbation of FGF-MAPK signaling (Figure 4B; Figure 4—figure supplement 2B). For example, the first heart lineage marker Matrix metalloproteinase 21/Mmp21 (Wang et al., 2019) was associated with multiple upstream and intronic elements, but only some of these elements were differentially accessible following either gain or loss of FGF-MAPK function (Figure 4—figure supplement 2A–C), and a 3 kb fragment containing the upstream differentially accessible element sufficed to drive reporter gene expression throughout the cardiopharyngeal lineage, but not specifically in the first heart precursors (Figure 4—figure supplement 2C–E). Similarly, reporter gene expression assays showed that DNA fragments containing differentially accessible elements located ~0.5 kb upstream of the coding region of the de novo-expressed gene Tmtc2 (KhC2.3468), and upstream of KH.C1.1093_ZAN (KhC3.47, KhC3.46), were sufficient to drive GFP expression in both cardiac and pharyngeal muscle progenitors, consistent with the notion that electroporated plasmids are not ‘chromatinized’ and thus constitutively accessible (Figure 4—figure supplement 2F–G; Figure 4—figure supplement 3C–D). This suggested that, for genes like Mmp21, Tmtc2 and Zan, cell-type-specific accessibility determines cardiac vs. pharyngeal muscle-specific gene expression.

Remarkably, the vast majority (91%, 356 genes out of 391, Supplementary file 12) of differentially expressed genes were not associated with differentially accessible elements (Figure 4A,B; Figure 4—figure supplement 2A,B). Specifically, out of 30 de novo-expressed pan-cardiac genes that were also differentially expressed upon FGF-MAPK perturbation at 18 hpf, only 8 (27% ± 8%, SE) were associated with one differentially accessible element following perturbation of FGF-MAPK signaling (Figure 4B). Similarly, out of 23 de novo-expressed pharyngeal muscle genes, which were also differentially expressed upon FGF-MAPK perturbation at 18 hpf, 11 were associated with one differentially accessible element following perturbation of FGF-MAPK signaling (Figure 4—figure supplement 3A). This suggested that most differential gene expression in early heart and pharyngeal muscle precursors arise from differential cis-regulatory activity of elements that are otherwise accessible throughout the cardiopharyngeal mesoderm. In keeping with this hypothesis, accessible regions associated with de novo-expressed pan-cardiac and pharyngeal muscle markers tended to open between 6 and 10 hpf, in a pattern consistent with FGF- and Foxf-dependent cardiopharyngeal-specific accessibility (Figure 4C; Figure 4—figure supplement 3B). These observations suggest that cis-regulatory elements controlling cell-type-specific de novo gene expression open in multipotent progenitors, prior to becoming active in fate-restricted precursors. Such decoupling between enhancer accessibility and activity has been observed in other developmental contexts, including early cardiogenesis in mammals (Paige et al., 2012; Wamstad et al., 2012).

As a proof of principle, we analyzed the Lrp4/8 locus, which harbors two intronic elements (KhC4.137 and KhC4.144) that opened upon TVC induction in an FGF- and Foxf-dependent manner, prior to Lrp4/8 upregulation in cardiac progenitors (Wang et al., 2019), and were not differentially accessible at 18 hpf (Figure 4C,D). Of the two regions, only KhC4.137 was sufficient to drive GFP expression in heart precursors indicating enhancer activity, and illustrating the decoupling between early and broad accessibility and late, cell-type-specific, activity (Figure 4E). Reporter gene expression and CRISPR/Cas9-mediated mutagenesis assays followed by FISH indicated that KhC4.137 is both necessary and sufficient to activate gene expression in heart precursors (Figure 4E,F), showing that it acts as a bona fide enhancer, and demonstrating a specific case of decoupling between early and broad accessibility and late, cell-type-specific, activity.

To identify candidate regulators of late accessibility and/or activity, we parsed accessible elements associated with de novo-expressed heart and pharyngeal muscle markers into pre-accessible/primed or de novo-accessible elements and discovered sequence motifs enriched in each category (Figure 4—figure supplement 4A; Supplementary file 13). Putative binding sites for SMAD and homeodomain proteins such as Smad4 and Pitx respectively were enriched among pre-accessible elements associated with cardiac markers, and found in the primed elements regulating Lrp4/8 upregulation (Figure 4—figure supplement 4A,B), suggesting a specific role in transcriptional activation, consistent with conserved roles for Pitx2 and BMP-SMAD signaling during heart development (Figure 4—figure supplement 4C,D; Nowotschin et al., 2006; Schultheiss et al., 1997). Motifs for known regulators of cardiac development, including Meis (Desjardins and Naya, 2016; Paige et al., 2012), were over-represented among de novo-accessible elements associated with cardiac markers, suggesting roles in establishing accessibility and/or regulating enhancer activity (Figure 4—figure supplement 4A). Notably, GATA motifs were enriched in primed accessible elements associated with cardiac markers, consistent with conserved roles for GATA factors as pioneer factors, and during cardiac development (Pikkarainen et al., 2004). Among motifs enriched in accessible elements associated with de novo-expressed pharyngeal muscle markers, the presence of ETS-, bHLH, and EBF-family motifs is consistent with established roles for FGF-MAPK, Hand-r, Mrf and Ebf in pharyngeal muscle specification (Razy-Krajka et al., 2018; Razy-Krajka et al., 2014; Stolfi et al., 2014; Stolfi et al., 2010; Wang et al., 2013). Notably, the enrichment of Ebf motifs among de novo-accessible elements associated with de novo-expressed pharyngeal muscle markers is reminiscent of the ability of EBF-family factors to interact with nucleosome-bound cognate sites, suggestive of a pioneering activity in committed pharyngeal muscle precursors (Boller et al., 2016; Buenrostro et al., 2013). In summary, this analysis identified distinct combinations of established and putative trans-acting factors differentially controlling the accessibility and/or activity of cis-regulatory elements that govern heart- vs. pharyngeal-muscle-specific gene expression (Figure 4H).

Combinatorial cis-regulatory control of cardiopharyngeal determinants

The above analyses focused on one-to-one associations between accessible elements and neighboring genes to uncover candidate trans-acting inputs controlling gene expression through defined elements. However, most genes are associated with multiple accessible regions, especially developmental regulators (Figure 1—figure supplement 3D–F), presumably exposing diverse motifs for transcription factor binding. Moreover, distinct elements associated with the same neighboring gene often exhibited different accessibility dynamics. For instance, the loci of several de novo-expressed heart and pharyngeal muscle markers contained both primed-accessible and de novo-accessible elements (Figure 4C; Figure 4—figure supplement 3B; Figure 4—figure supplement 4A,B). This suggested that individual genes respond to a variety of regulatory inputs mediated through separate cis-regulatory elements.

To explore this possibility, we focused on Tbx1/10 and Ebf, two established determinants of cardiopharyngeal fates (Razy-Krajka et al., 2018; Razy-Krajka et al., 2014; Stolfi et al., 2014; Stolfi et al., 2010; Tolkin and Christiaen, 2016; Wang et al., 2013). Both loci contained multiple accessible regions, including elements open already in the naive Mesp+ mesoderm (e.g. Ebf_KhL24.35/36), cardiopharyngeal-lineage-specific elements that open prior to gene activation but after induction of multipotent progenitors (e.g. Ebf_KhL24.34), and elements that open de novo in fate-restricted pharyngeal muscle precursors, where the gene is activated (e.g. Ebf_KhL24.37) (Figure 5A,B). Previous reporter gene expression assays identified the latter element, Ebf_KhL24.37, as a weak minimal enhancer with pharyngeal muscle-specific activity (Wang et al., 2013). CRISPR/Cas9-mediated mutagenesis assays followed by FISH indicated that each one of these elements is necessary for proper activation of Ebf in pharyngeal muscle progenitors (Figure 5C–E; Figure 5—figure supplement 2B,C). Consistently, we found that targeted deletions of individual accessible elements upstream of Ebf induced pharyngeal muscle precursor migration defects. When targeting Ebf_KhL24.37, 37 ± 5% (SE) of 28 hpf larvae showed such defects (n = 101, Figure 5—figure supplement 3). These observations indicate that each accessible cis-regulatory element upstream of Ebf is necessary for proper expression and subsequent pharyngeal muscle morphogenesis.

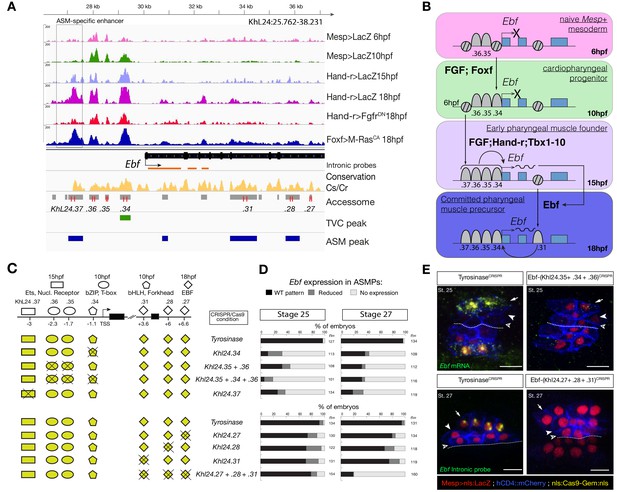

Figure 5 with 4 supplements see all
Combinations of cis-regulatory elements with distinct chromatin accessibility profiles are required for Ebf transcription in pharyngeal-muscle precursors.

(A) A 12 kb region of the scaffold L24 displaying expression profiles of RNA-seq and chromatin accessibility profiles of ATAC-seq (normalized tag count) in the Ebf locus. sgRNAs used to target ATAC-seq peaks are shown in red; intronic antisense riboprobes are shown in orange (B) Schematic representation showing sequential opening of cis-regulatory elements required for Ebf activation in pharyngeal muscle founder cells, and maintenance by auto-regulation in committed precursor. (C) Schematic representation of Ebf cis-regulatory elements targeted for CRISPR/Cas9-mediated deletions. Shapes represent binding sites located in the regulatory elements and differentially accessible over time. (D) Proportions of larva halves showing the indicated Ebf transcription patterns, in indicated experimental conditions; all the treatments were significant versus Tyrosinase (Fisher exact test, p < 0.001). (E) Endogenous expression of Ebf visualized by in situ (green) in TyrosinaseCRISPR and upon CRISPR/Cas9-induced deletion of ATAC-seq peaks as indicated, at stage 25 (E) and 27 (F) based on Hotta et al. (2007). For stage 25, an anti-sense riboprobe for the full length cDNA was used, whereas for stage 27 an intronic anti-sense riboprobe targeting the first three introns of Ebf transcript (orange lines) as previously used in Wang et al. (2013). Nuclei of B7.5 lineage cells are labelled by Mesp>nls::LacZ and revealed with an anti beta-galactosidase antibody (red). Mesp-driven hCD4::mCherry accumulates at the cell membrane as revealed by anti mCherry antibody (Blue). Scale bar = 10 µm.

Consistent with the established roles of Hand-r, Tbx1/10 and Ets-mediated FGF-MAPK signaling in activating Ebf, the primed cardiopharyngeal-specific element (KhL24.34) contained Fox and bHLH motifs, and the more distal de novo-accessible minimal enhancer (KhL24.37) also contained putative Ets and RORγ binding sites, whereas the constitutively accessible elements (KhC24.35 and .36) contained primarily CREB and T-box binding sites (Figure 5C; Figure 5—figure supplement 2A). Tbx1/10 showed a similar logic, whereby a constitutively accessible upstream element (KhC7.909) acts as an enhancer of cardiopharyngeal expression (Razy-Krajka et al., 2018), and whose activity also requires a primed cardiopharyngeal-specific intronic element (KhC7.914) (Figure 5—figure supplement 1A–F). As a complement, and to more directly test the importance of enhancer accessibility, we targeted the intronic and distal elements in the Tbx1/10 locus using dCas9::KRAB (Klann et al., 2017), which recruits deacetylases and presumably closes chromatin (Sripathy et al., 2006; Groner et al., 2010; Schultz et al., 2002; Reynolds et al., 2012; Thakore et al., 2015). We oserved loss of Tbx1/10 expression and function, as evaluated by expression of its target, Ebf (Wang et al., 2013) (Figure 5—figure supplement 4).

Of note, Ebf expression is maintained by auto-regulation (Razy-Krajka et al., 2018), which requires separate intronic elements that harbor putative Ebf binding sites and open later (Figure 5B, Figure 5—figure supplement 2A). Together with Ebf's potent myogenic and anti-cardiogenic effects (Razy-Krajka et al., 2014; Stolfi et al., 2014; Stolfi et al., 2010; Tolkin and Christiaen, 2016), this auto-regulatory logic catalyzes the pharyngeal muscle fate, stressing the importance of spatially and temporally accurate onset of expression to avoid ectopic ASM specification at the expense of cardiac identities, especially in the second heart lineage. These observations suggest that pharyngeal muscle fate specification relies on ‘combined enhancers’, characterized by a combination of trans-acting inputs mediated by distinct elements with variable dynamics of accessibility, to control the onset of Ebf expression in the cardiopharyngeal mesoderm (Figure 5F).

To test whether ‘combined enhancers’ drive spatially and temporally accurate expression in pharyngeal muscle progenitors, we built a reporter containing multiple copies of the minimal, but weak, Ebf enhancer (KhL24.37) (Wang et al., 2013). Two and three copies of the KhL24.37 element (2x and 3x KhL24.37) significantly increased reporter gene expression in pharyngeal muscle precursors (43 ± 3% SE for 2x KhL24.37; 58 ± 2% SE for 3x KhL24.37), compared to a single copy construct) (14 ± 3% SE for 1x KhL24.37) (Figure 6A–C), restoring reporter gene expression to levels similar to ‘full length’ upstream element encompassing all combined enhancers, with endogenous genomic spacing (Ebf-full length −3348 /- 178) (Wang et al., 2013) (80 ± 1%, SE). Remarkably, unlike the ‘full length’ combined enhancers, the 3x KhL24.37 construct induced precocious reporter gene expression in the STVCs (89 ± 3%, SE) (n = 95, Figure 6D–F) causing an ectopic GFP expression in the second heart lineage (13 ± 2%, SE) (n = 218, Figure 6B,C). To test whether spacing between accessible elements could affect transcriptional output, we built a concatemer of KhL24.37, .36, .35, and .34 elements without endogenous spacer sequences. This construct increased the proportion of embryos with ASM cells expressing the reporter to 92 ± 2% (SE, n = 130; Figure 6C), but it did not induce ectopic expression in the second heart lineage, supporting the notion that combined enhancers drive high but spatially and temporally accurate expression.

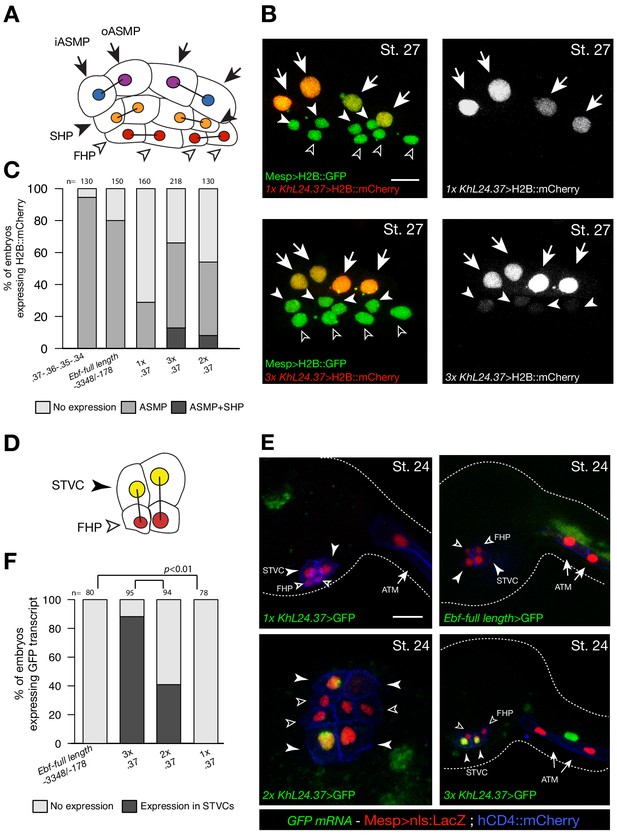

Multiple copies of a weak Ebf enhancer drive ectopic reporter gene expression.

(A) Schematic representation of cardiopharyngeal lineage cells at Stage 27 (Hotta et al., 2007); First heart precursors (FHPs, red and open arrowheads), second heart precursors (SHPs, orange and arrows), inner ASM precursors and derivatives (iASMPs, violet and solid arrowhead), outer ASM precursors and derivatives (oASMPs, dark blue and solid arrowhead) (see (Razy-Krajka et al., 2014); black bars link sister cells. (B) Lineage tracing in individual larvae expressing single (1x) and multiple copy (3x) of Ebf cis-regulatory element, KhL24.37, driving H2B::mCherry (red) in cardiopharynegal progenitors at stage 27; B7.5 lineage is marked with Mesp>H2B::GFP (green). The single copy of KhL24.37 element drives H2B::mCherry reporter expression specifically in the ASMPs (upper left panel, in white); three copies of KhL24.37 (3x L24.37) drives expression in ASMPs and induces ectopic expression SHPs (lower left panel, in white). Experiment performed in biological replicate. Scale bar = 30 µm. (C) Proportions of embryos expressing H2B::mCherry in indicated cell-type progenitors by the indicated cis-regulaory elements. The ‘full length’ upstream region encompassing all combined enhancers with endogenous spacing (Ebf-full length −3348 /- 178) (Wang et al., 2013) as well as the concatemer of KhL24.37, .36, .35, and .34 elements, lacking endogenous spacer sequences were used as controls. Statistical analysis using a Fisher exact test showed all comparisons with either control to be significant (p < 0.01); ‘n’ is the total number of individual halves scored per condition. (D) Schematic representation of cardiopharyngeal lineage cells at Stage 24 (Hotta et al., 2007); First heart precursors (FHPs, red and open arrowheads), secondary TVC (arrows). (E) Expression of GFP visualized by in situ hybridization on embryos at Stage 24 electroporated with single, multi copies and full-length of Ebf cis-regulatory element. Nuclei of B7.5 lineage cells are labelled by Mesp>nls::LacZ and revealed with an anti beta-galactosidase antibody (red). Mesp-driven hCD4::mCherry accumulates at the cell membrane as revealed by anti mCherry antibody (Blue). Scale bar = 10 µm. (F) Proportions of embryos showing GFP-driven by the indicated Ebf cis-regulatory element (Fisher exact test, < 0.01).

We reasoned that high but precocious activation of Ebf should suffice to trigger the autoregulatory loop, and cause ectopic pharyngeal muscle specification in the cells that normally form the second heart lineage, as observed previously (Razy-Krajka et al., 2014; Stolfi et al., 2010). To directly test this possibility, we used different combinations of the cis-regulatory elements upstream of Ebf to drive expression of a functional Ebf cDNA, and assayed the effects endogenous Ebf expression and cardiopharyngeal fates (Figure 7). As expected, one copy of the KhL24.37 element (1x KhL24.37) failed to cause ectopic activation of the endogenous locus, as evaluated using intronic probes, whereas using the KhL24.37 trimer (3x KhL24.37) to drive expression of the Ebf cDNA sufficed to activate the endogenous locus ectopically in ~40% of the embryos, as shown by the presence of nascent transcripts in 4 out of 6 nuclei per side, instead of 2 (Figure 7A,B). This observation is consistent with our model that the upstream elements mediate high activating inputs for the onset of Ebf expression, whereas maintenance upon commitment to a pharyngeal muscle identity relies on autoregulation (Figure 5F; Razy-Krajka et al., 2018).

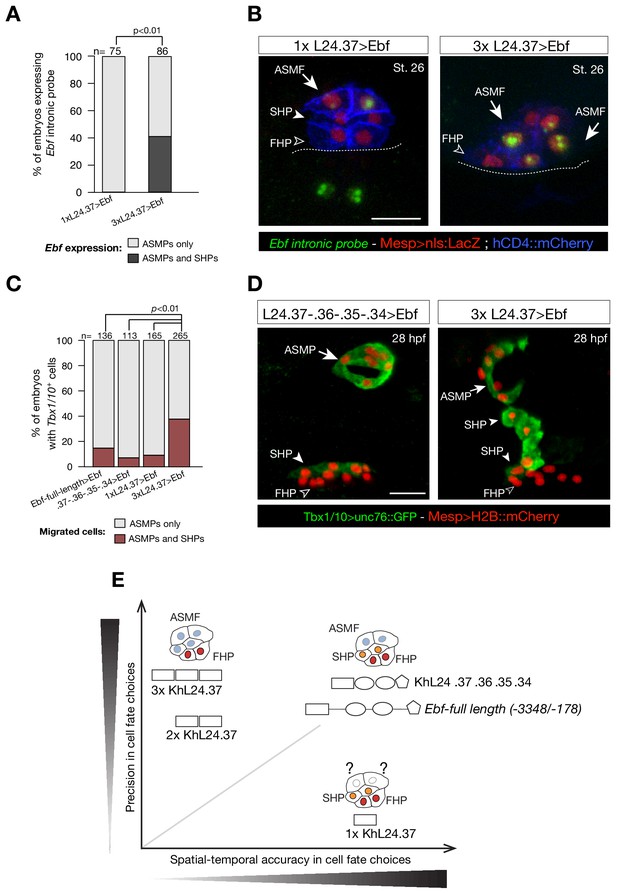

Multimer of one weak Ebf enhancer drives ectopic pharyngeal muscle fate specification.

(A) Targeted expression of an Ebf cDNA by three copies of KhL24.37 element induces expression of endogenous Ebf in four cells compared to the control where Ebf is detected only in the two ASMPs. Proportions of embryos expressing Ebf in ASMPs only or in ASMPs and SHPs in the indicated conditions. The single KhL24.37 cis-regulatory was used as control. (B) Expression of Ebf visualized by in situ hybridization on embryos at Stage 26 electroporated with single or three copies KhL24.37 element driving Ebf cDNA. Intron-specific probes show nascent Ebf transcripts in ASMPs. Nuclei of B7.5 lineage cells are labelled by Mesp>nls::LacZ and revealed with an anti beta-galactosidase antibody (Red). Mesp-driven hCD4::mCherry accumulates at the cell membrane as revealed by anti mCherry antibody (Blue). Scale bar = 10 µm. (C) Proportions of embryos showing GFP-driven STVC-specific enhancer of Tbx1/10 (Fisher exact test, < 0.01). The ‘full length’ upstream element encompassing all combined enhancers with endogenous spacing (Ebf-full length −3348 / -178) as well as the ‘full length’ without endogenous spacing (KhL24.37, .36, .35, .34) and the single copy KhL24.37 element driving Ebf were used as a positive controls. (D) Example of an embryo at 28 hpf showing GFP expression only in the ASMP (solid arrowhead) and SHP (arrow) but not in the FHP (open arrowheads), where Tbx1/10 enhancer is not active. Targeted expression of Ebf cDNA by three copies of KhL24.37 element induces cells that normally form the second heart lineage to migrate alongside the pharyngeal muscle. Nuclei of B7.5 lineage cells are labelled by Mesp>H2B::mCherry. Scale bar = 15 µm. (E) Proposed role of combinatorial logics in fostering both precision and spatial and temporal accuracy of cell fate choices. The Ebf-full length, with or without endogenous spacers, fosters spatial/temporal accurate and precise cell fate choice, whereas the single copy of KhL24.37 (1x L24.37) gives spatiotemporally accurate reporter expression but is likely insufficient to induce a precise ASM fate. Multiple copies of KhL24.37 cis-regulatory element rescue a high reporter activity that reflects precise pharyngeal fate at the expense of spatial and temporal accuracy. The shapes of the distinct cis-regulatory elements are as in Figure 5C. Statistical analysis using a Fisher exact test (< 0.01); ‘n’ is the total number of individual halves scored per condition.

These results suggested that inaccurate activation and maintenance of Ebf expression would cause ectopic pharyngeal muscle specification at the expense of the second heart lineage. We tested this possibility by analyzing pharyngeal muscle morphogenesis in stage 30 larvae, which is characterized by collective migration away from heart progenitors and formation of a ring of atrial siphon muscle precursors (Figure 7). We used the STVC-specific Tbx1/10 enhancer to visualize both the pharyngeal muscle precursors, which migrate and form a ring, and the second heart precursors, which remain associated with the Tbx1/10-negative first heart lineage (Figure 7D; Razy-Krajka et al., 2018). Remarkably, Ebf misexpression using three copies of the KhL24.37 element induced cells that normally form the second heart lineage to migrate alongside the pharyngeal muscles in 38% of larvae at 28 hpf (38 ± 3%, SE) (n = 265, Figure 7C–D). Importantly, neither one copy of KhL24.37 (1x KhL24.37), nor the full combined enhancers, with or without endogenous spacers, sufficed to cause substantial fate transformation of Tbx1/10+ second heart lineage into migratory pharyngeal muscle precursors (Figure 7C–D). These results indicate that driving expression of an Ebf cDNA by multimerizing a weak Ebf enhancer sufficed to cause ectopic activation of the endogenous locus and transformation of second heart lineage cells into migratory pharyngeal muscle precursors.

Taken together, these results provide evidence for a decoupling between two essential aspects of transcriptional activation, whereby multiple copies of a single regulatory element enable robust gene expression, compatible with precise fate specification, albeit at the expense of spatial and temporal accuracy; whereas individual regulatory elements appear to integrate distinct trans-acting inputs controlling enhancer accessibility and/or activity, thus increasing the repertoire of regulatory inputs controlling developmental gene expression (Figure 7E). In other words, while multiple elements are required for proper activation of cell fate determinants, such as Tbx1/10 and Ebf, in a manner reminiscent of super- and shadow enhancers (Lagha et al., 2012), we propose that combined enhancers foster spatially and temporally accurate cell fate decisions.

Discussion

We characterized the accessible genome of the tunicate Ciona, with a special focus on the cardiopharyngeal lineage that produces heart and pharyngeal muscles. As seen in other systems, less than 10% of the Ciona genome is accessible, and distributed across thousands of short regions, most of which are stably accessible across time and lineages, especially promoter regions. By contrast, developmentally regulated regions either closed upon induction of multipotent progenitors or opened specifically in the cardiopharyngeal lineage in response to FGF-MAPK signaling and Foxf activity. The latter elements were predominantly found in intergenic and intronic regions, and near cardiopharyngeal markers, consistent with their function as transcriptional enhancers. Similarly to other Forkhead factors (Zaret and Carroll, 2011), Ciona Foxf is required to open cardiopharyngeal elements for either immediate or later activation in multipotent or fate-restricted progenitors, respectively. Notably, Foxf homologs play deeply conserved roles in visceral muscles specification (Jakobsen et al., 2007; Scimone et al., 2018; Zaffran et al., 2001), including during heart development in mammals (Hoffmann et al., 2014). GATA motifs are also over-represented among cardiopharyngeal-specific elements, consistent with a conserved role for GATA homologs in heart development (Holtzinger and Evans, 2007; Molkentin et al., 1997; Qian and Bodmer, 2009; Reiter et al., 1999; Sorrentino et al., 2005; Zhao et al., 2008). As combinations of FOX and GATA inputs play well-established roles in early endoderm specification (Cirillo et al., 2002), we speculate that cardiopharyngeal regulatory programs were built upon an ancestral endomesodermal chromatin landscape during Olfactores evolution.

The majority of cell-type-specific markers expressed de novo are associated with ‘primed accessible’ elements, as observed in numerous systems including cardiac differentiation of embryonic stem cells (Paige et al., 2012; Wamstad et al., 2012), and consistent with the role of pioneer factors in establishing competence for subsequent activation (Zaret and Carroll, 2011). In the case of Tbx1/10 and Ebf, spatially and temporally accurate activation is essential to permit the emergence of first and second cardiac, and pharyngeal muscle lineages (Razy-Krajka et al., 2018; Razy-Krajka et al., 2014; Wang et al., 2019; Wang et al., 2013). We found that several elements, exhibiting distinct accessibility dynamics, are required for proper activation of both Tbx1/10 and Ebf. Specifically, a minimal distal enhancer proved necessary, but not sufficient for Ebf activation in newborn pharyngeal muscle precursors. By contrast, multiple copies of the same element sufficed to restore high transcriptional activity, but caused precocious activation in the Tbx1/10+ multipotent progenitors (aka STVCs, Figure 1A and Figure 6E), ectopic GFP expression in the second heart lineage (Figure 6), and eventually heart-to-pharyngeal muscle fate transformation when used to express Ebf itself (Figure 7). We propose that, whereas the activity of multiple elements with similar spatio-temporal transcriptional outputs permits precise and robust gene activation (Bentovim et al., 2017; Lagha et al., 2012), the modular organization of combined enhancers increases the repertoire of regulatory inputs, acting through both accessibility and activity, to control gene activation. Together with canalizing mechanisms, including positive auto-regulatory feedbacks, such multi-level combinatorial inputs achieve exquisite spatio-temporal control while permitting strong activation, thus ensuring both precise and accurate developmental fate choices (Figure 7E).

Materials and methods

Animals and electroporations

Request a detailed protocol

Gravid wild Ciona intestinalis type A, now called Ciona robusta (Pennati et al., 2015), were obtained from M-REP (Carlsbad, CA, USA), and kept under constant light to avoid spawning. Gametes from several animals were collected separately for in vitro cross-fertilization followed by dechorionation and electroporation as previously described (Christiaen et al., 2009a)​​, and cultured in filtered artificial seawater (FASW) in agarose-coated plastic Petri dishes at 18°C. Different quantities of plasmids were electroporated depending on the constructs: the amount of fluorescent reporter DNA (​Mesp>nls::lacZ​, Mesp>hCD4::mCherry​, ​Mesp>tagRFP​, ​MyoD905>eGFP and ​Hand-r>tagBFP​) and NLS::lacZ was typically 50 ​μg, but only 15 µg for Mesp>H2B::mCherry. For perturbation constructs (Mesp>FgfrDN, Mesp>MekS216D,S220E, Foxf>M RasCA, Hand-r>FgfrDN), 70 µg were usually electroporated, except for Mesp>nls::Cas9-Gem::nls (30 µg) and pairs of U6>sgRNA plasmids (25 µg each).

Molecular cloning

Request a detailed protocol

Putative enhancers were amplified from Ciona robusta genome using primers containing specific sequence tails (Supplementary file 4) for subcloning into a vector upstream of a basal promoter from Zfpm (aka Friend of GATA/Fog [Rothbächer et al., 2007]) driving expression of green fluorescent protein (GFP) fused to cytoplasmic unc76 (Stolfi et al., 2010).

The ‘full length’ Ebf enhancer with non-endogenous spacing in the genome (KhL24.37, .36, .35, .34) was generated by synthesizing DNA fragment (Twist Bioscience) and subcloning into the full-length reporter plasmids. nls::dCas9-KRAB::nls was derived from ‘pLV-dCas9-KRAB-PGK-HygR’ (Klann et al., 2017) (Addgene plasmid: #83890) and inserted downstream of the promoter Mesp (Davidson et al., 2005).

CRISPR/Cas9-mediated mutagenesis of ATAC-seq peaks

Request a detailed protocol

Two to four single guide RNAs (sgRNA) with Doench scores (http://crispor.tefor.net; Haeussler et al., 2016) higher than 60 were designed to induce deletions in selected accessible elements using CRISPR/Cas9 in the B7.5 lineage as described (Gandhi et al., 2017). sgRNAs targeting non-overlapping sequences per gene are listed in Supplementary file 5. The efficiency of sgRNAs was evaluated using the peakshift method as described (Gandhi et al., 2017)​​ (Figure 2—figure supplement 3B–C; Figure 2—figure supplement 6C). CRISPR/Cas9-mediated deletions were also evaluated by PCR-amplification directly from embryo lysates following electroporated with Eef1a>nls::Cas9-Gem::nls (Figure 2—figure supplement 6C). sgRNAs were expressed using the ​Ciona robustaU6 promoter (Stolfi et al., 2014) (Figure 2—figure supplement 3D; Figure 2—figure supplement 6C–D). For each peak, three or four guide RNAs were used in combination with 25 ​μg of each expression plasmid. 25 ​μg of ​Mesp>nls::Cas9-Gem::nls and Mesp>nls::dCas9-KRAB::nls plasmids were co-electroporated with guide RNA expression plasmids for B7.5 lineage-specific CRISPR/Cas9-mediated mutagenesis. Two guide RNAs were used to mutagenize Tyrosinase, which is not expressed in the cardiopharyngeal lineage and thus used to control the specificity of the CRISPR/Cas9 system (Wang et al., 2019).

Fluorescent ​in situ Hybridization-Immunohistochemistry (FISH-IHC) in ​Ciona embryos

Request a detailed protocol

FISH-IHC were performed as previously described (Christiaen et al., 2009b; Razy-Krajka et al., 2018)​. Embryos were harvested and fixed at desired developmental stages for 2 hr in 4% MEM-PFA and stored in 75% ethanol at −20°C. Antisense RNA probes were synthesized as described (Racioppi et al., 2014). For Ebf FISH-IHC, an anti-sense riboprobe targeting the full length cDNA was used at Stage 24 (Figure 5—figure supplement 2B) and 25 (Figure 5E, upper panel) where an anti-sense riboprobe targeting the first three intronic elements in the Ebf transcript as previously used in Wang et al. (2013) was used for stage 27 (Figure 5E, lower panel; Figure 6E). The template for Fbln anti-sense riboprobe was PCR-amplified with the following oligos: Fbln_pb_fw (5’ TTGCGCTAAGTCATGACAGC 3’), Fbln_pb_rev (5’CATTTGCCGATTCAGCTATGT3’). In vitro antisense RNA synthesis was performed using T7 RNA Polymerase (Roche, Cat. No. 10881767001) and DIG RNA Labeling Mix (Roche, Cat. No. 11277073910). Anti-Digoxigenin-POD Fab fragment (Roche, IN) was first used to detect the hybridized probes, then the signal was revealed using Tyramide Signal Amplification (TSA) with Fluorescein TSA Plus Evaluation Kits (Perkin Elmer, MA). Anti–β-galactosidase monoclonal mouse antibody (Promega) was co-incubated with anti-mCherry polyclonal rabbit antibody (Bio Vision, Cat. No. 5993–100) for immunodetection of ​Mesp>nls::lacZ and ​Mesp>hCD4::mCherry products respectively. Goat anti-mouse secondary antibodies coupled with AlexaFluor-555 and AlexaFluor-633 were used to detect β-galactosidase-bound mouse antibodies and mCherry-bound rabbit antibodies after the TSA reaction. FISH samples were mounted in ProLong Gold Antifade Mountant (ThermoFisher Scientific, Waltham, MA. Catalog number P36930).

Imaging

Request a detailed protocol

Images were acquired with an inverted Leica TCS SP8 X confocal microscope, using HC PL APO 63×/1.30 objective. Z-stacks were acquired with 1 μm z-steps. Maximum projections were processed with maximum projection tools from the LEICA software LAS-AF.

Cell dissociation and FACS

Request a detailed protocol

Sample dissociation and FACS were performed as previously described (Christiaen et al., 2016; Wang et al., 2018)​. Embryos and larvae were harvested at 6, 10, 15, 18 and 20 hpf in 5 ml borosilicate glass tubes (Fisher Scientific, Waltham, MA. Cat.No. 14-961-26) and washed with 2 ml calcium- and magnesium-free artificial seawater (CMF-ASW: 449 mM NaCl, 33 mM Na​2S​O4, 9 mM KCl, 2.15 mM NaHCO​3, ​ 10 mM Tris-Cl pH 8.2, 2.5 mM EGTA). Embryos and larvae were dissociated in 2 ml 0.2% trypsin (w/v, Sigma, T- 4799) in CMF-ASW by pipetting with glass Pasteur pipettes. The dissociation was stopped by adding 2 ml filtered ice cold 0.05% BSA CMF-ASW. Dissociated cells were passed through 40 μm cell-strainer and collected in 5 ml polystyrene round-bottom tube (Corning Life Sciences, Oneonta, New York. REF 352235). Cells were collected by centrifugation at 800 g for 3 min at 4°C, followed by two washes with ice cold 0.05% BSA CMF-ASW. Cell suspensions were filtered again through a 40 μm cell-strainer and stored on ice. Cell suspensions were used for sorting within 1 hr. B7.5 lineage cells were labeled by ​Mesp>tagRFP reporter. The B-line mesenchyme cells were counter-selected using ​MyoD905>GFP as described​ (Christiaen et al., 2016; Wang et al., 2018)​. The TVC-specific Hand-r>tagBFP reporter was used in a 3-color FACS scheme for positive co-selection of TVC-derived cells (Wang et al., 2018), in order to minimize the effects of mosaicism. Dissociated cells were loaded in a BD FACS AriaT​M cell sorter. 488 nm laser, FITC filter was used for GFP; 407 nm laser, 561 nm laser, DsRed filter was used for tagRFP and Pacific BlueTM filter was used for tagBFP. The nozzle size was 100 μm. eGFP+ mesenchyme cells were collected for downstream ATAC-seq analysis, whereas tagRFP+, tagBFP+ and eGFP- cardiopharyngeal lineage cells were collected for both ATAC- and RNA-seq analyses.

Preparation and sequencing of ATAC-seq library

Request a detailed protocol

ATAC-seq was performed with minor modifications to the published protocol (Buenrostro et al., 2015). 4,000 cells obtained by FACS were centrifuged at 800 x g for 4 min at 4°C for each sample. Cells were resuspended in 5 µL of cold lysis buffer (10 mM Tris-HCl [pH 7.4], 10 nM NaCl, 3 nM MgCl2, 0,1% v/v Igepal CA-360 [Sigma-Aldrich] and incubated on ice for 5 min. After centrifugation of the cells at 500 x g for 10 min at 4°C, the supernatant was discarded. The tagmentation reaction was performed at 37°C for 30 min using Nextera Sample Preparation kit (Illumina) with the addition of a tagmentation-stop step by the addition of EDTA to a final concentration of 50 nM and incubation at 50°C for 30 min (Hockman et al., 2019). After tagmentation, transposed DNA fragments were amplified using the following PCR condition: 1 cycle of 72°C for 5 min and 98°C for 30 s, followed by 12 to 14 cycles of 98°C for 10 s, 63°C for 30 s and 72°C for 1 min. Amplified libraries were purified using PCR purification MinElute kit (Qiagen), and the quality of of the purified library was assessed by using 2100 Bioanalyzer (Agilent Technologies) and a High Sensitivity DNA analysis Kit (Agilent Technologies) to confirm a period pattern in the size of the amplified DNA. After size selection by using Agencourt Ampure XP beads (Beckman Coulter, Cat#A633880) with a bead-to-sample ratio of 1.8:1, the libraries were sequenced as paired-end 50 bp by using the HiSeq 2500 platform (Illumina) according to the manufacturer’s instructions. An input control was also generated by using 10 ng of C. robusta genomic DNA.

ATAC-seq data analysis

Alignment of ATAC-seq reads

Request a detailed protocol

Raw reads were preprocessed by FastQC (version 0.11.2, http://www.bioinformatics.babraham.ac.uk/projects/fastqc) and adaptors were trimmed using Trim Galore (version 0.4.4, http://www.bioinformatics.babraham.ac.uk/projects/trim_galore) before being aligned to Ciona robusta genome (joined scaffold (KH), http://ghost.zool.kyoto-u.ac.jp/datas/JoinedScaffold.zip) using Bowtie2 (version 2.3.2, Langmead and Salzberg, 2012) with the parameters --no-discordant -p 20 -X 1000. Reads with mapping quality score > 30 were kept for downstream analysis using SAMtools (version 1.2, Li et al., 2009). Mitochondrial reads were removed using NGSutils 0.5.9 (Breese and Liu, 2013). At least three replicates for each sample were merged for peak calling by MACS2 (version 2.7.9) (Zhang et al., 2008) (--nomodel --nolambda --gsize 1.2e8). To correct for nonspecific sequencing biases, we subtracted sequenced gDNA from these libraries (Toenhake et al., 2018).We defined the accessome by concatenating all narrow peaks from MACS2 using bedtools merge (2.26.0) (Quinlan and Hall, 2010). Peaks were filtered for length > 50 bp, to obtain a final number of 56,090 peaks.

Accessome annotation

Request a detailed protocol

We annotated each peak to all transcripts from the C. robusta genome (http://ghost.zool.kyoto-u.ac.jp/datas/KH.KHGene.2013.gff3.zip) within 10 kb using GenomicRanges (version 1.28.6, Lawrence et al., 2013). We also identified whether each peak overlapped with the genomic feature categories ‘TSS, 5’ UTR, intron, exon, 3’ UTR, TTS, or intergenic region’ (Figure 1—figure supplement 1C). The KH2013 gene IDs are identical to the KH2012 gene IDs after merging all transcripts of each gene. Only the genomic feaatures differ between the two annotations. We used a TSS-seq dataset of high-density TSS regions, or TSS clusters (TSCs) (Yokomori et al., 2016) from Ciona larvae as guidelines for core promoter length. We used the mean TSC length plus two standard deviations to define a window of 107 bp upstream and downstream of the start of the 5’ UTR of any transcript as the TSS. We defined a window of 1 kb upstream from the TSS to be the promoter, which we further divided into two 500 bp windows. We defined the TTS to be a window 200 bp upstream and downstream from the end of the 3’ UTR of any transcript. We defined regions not covered by any feature to be intergenic. We performed a two-tailed binomial test for enrichment of accessible elements in each of these features, as well as the previously published TSCs. The fraction of the genome covered by each feature was used as the null probability. We tested for differential expression of promoters by extending the TSS 1 kb upstream, then aligning bulk RNA-seq reads to this putative promoter region.

Differential accessibility analysis

Request a detailed protocol

We evaluated the significant change in chromatin accessibility between different samples using DESeq2 (Love et al., 2014) with the parameters (method = ‘LRT’, alpha = 0.05, cooksCutoff = FALSE) for differential accessibility analysis. Libraries with fewer than 500,000 reads were removed. We performed a likelihood ratio test for four models:

  1. the 10 hpf model, tested for difference in accessibility between any of the conditions at 10 hpf (Mesp>FgfrDN, Mesp>MekS216D,S220E, U6>Foxf.1, U6>Foxf.4, listed in Supplementary file 5) and controls (Mesp>nls::LacZ and U6>Ngn.p1, U6>Ngn.p2 used for FoxfCRISPR, listed in Supplementary file 5).

  2. the 15–20 hpf model, tested for difference in accessibility between Hand-r>FgfrDN and control Hand-r>LacZ at any of the later time points (15, 18 or 20 hpf), Foxf>M RasCA and Foxf>nls::LacZ for the 18 hpf samples, versus a null model where accessibility is only dependent on time.

  3. the time model, tested for any change in accessibility between control B7.5 samples (Mesp>nls::LacZ and Hand-r>nls::LacZ) at 6, 10, 15, 18 and 20 hpf versus a null model dependent where accessibility is not changing.

  4. the control vs. mesenchyme model, tested for any difference in accessibility between B7.5 control (Mesp>nls::LacZ and Hand-r>nls::LacZ) and mesenchymal (MyoD905>GFP) samples versus a null model dependent at 10, 15, 18 and 20 hpf.

Cell-type-specific accessibility

Request a detailed protocol

We defined cell-type-specific accessibility based on the peak sets:

  • Elements opened by FGF-MAPK at 10 hpf: the union of peaks closed in Mesp>Fgfr vs. Mesp>nls::LacZ (log2(FC) < −0.5 and FDR < 0.05) and peaks open in Mesp>MekS216D,S220E vs. Mesp>FgfrDN (log2(FC)> 0.5 and FDR < 0.05) in model 1.

  • Elements closed in FGF-MAPK at 10 hpf: the union of peaks closed in Mesp>MekS216D,S220E vs. Mesp>nls::LacZ and peaks closed in Mesp>MekS216D,S220E vs. Mesp>FgfrDN (log2(FC) < −0.5 and FDR < 0.05) in model 1.

  • Elements opened in FGF-MAPK at 18 hpf: the union of peaks closed in Hand-r>FgfrDN vs. Hand-r>nls::LacZ (log2(FC) < −0.5 and FDR < 0.05 in the 15-20 hpf model), open in Foxf>M RasCA vs. Foxf>nls::LacZ, and open in Foxf>M RasCA vs. Hand-r>FgfrDN (log2(FC) > 0.5 and FDR < 0.05) in model 2.

  • Elements closed in FGF-MAPK at 18 hpf: the union of peaks open in Hand-r>FgfrDN vs. Hand-r>nls::LacZ (log2(FC) > 0.5 and FDR < 0.05 in the 15–20 hpf model), closed in Foxf>M RasCA vs. Foxf>nls::LacZ, and closed in Foxf>M RasCA vs. Hand-r>FgfrDN (log2(FC) < −0.5 and FDR < 0.05) in model 2.

  • De novo elements: peaks closed in control 10 vs. 18 hpf (log2(FC) < −0.5 and FDR < 0.05 in model three that are not opened by FGF-MAPK at 10 hpf.

  • Primed elements: peaks opened in FGF-MAPK at 10 hpf that are not closed in Mesp>LacZ 10 vs. 18 hpf.

We tested for enrichment of peaks overlapping with each category of genomic feature in each of these peak sets (Figure 2—figure supplement 2C).

Definition of gene sets

Request a detailed protocol

We used cardiopharyngeal lineage cell-type-specific gene sets (cardiopharyngeal markers), including primed and de novo-expressed Cardiac and ASM/pharyngeal muscle as well as secondary TVC (STVC), first heart precursor (FHP), second heart precursor (SHP) markers defined by scRNA-seq (Wang et al., 2019). Anterior tail muscles (ATM) marker genes were derived from publicly available expression data (Brozovic et al., 2018) (Supplementary file 6). To these we added the gene sets either activated or inhibited by MAPK at 10 or 18 hpf as defined by microarray (Christiaen et al., 2008) and Bulk RNA-seq analysis (Wang et al., 2019).

Gene set enrichment analysis (GSEA)

Request a detailed protocol

We performed GSEA on elements associated with these gene sets using fgsea 1.2.1 (Sergushichev, 2016) with parameters: minSize = 5, maxSize = Inf, nperm = 10000. Because the gene sets used for GSEA need not be exclusive, we can use ATAC-seq peaks as ‘genes’ and define a gene set as all peaks annotated to genes in the set. We measured enrichment for peaks associated with the gene sets in open peaks (indicated by a positive enrichment score, ES) or closed peaks (indicated by a negative ES) in each comparison.

For GSEA of the ATAC-seq data, peaks were ranked by log2(FC) for a specific pairwise comparison, and all peaks annotated to a gene in a given gene set (as described above) were considered members of that gene set. The normalized enrichment score (NES) is a measure of whether members of the gene set are enriched at the top or bottom of a ranked list (Figure 1D). NES is calculated by keeping a running tally of whether or not the peak at each position of the list is a member of the gene set and comparing the maximum value to that of a null distribution calculated from a random permutation of peaks. For example, In Figure 1D,a positive NES indicates that peaks associated with a gene set are more open at 6 hpf than at 10 hpf, while a negative NES indicates that peaks associated with a gene set are more accessible at 10 hpf than at 6 hpf.

Ciona robusta motif inference

Request a detailed protocol

We obtained inferred C. intestinalis (former name of C. robusta) transcription factor (TF) binding motifs from CIS-BP (Weirauch et al., 2014). The TF binding motifs were inferred based on similarity of DNA-binding domain sequences between C. robusta TFs and those of TFs with known binding motifs. A strong correlation has been observed between conserved DNA-binding domains and bound motifs (Weirauch et al., 2014).

Motif selection

Request a detailed protocol

To the inferred motifs we added SELEX-seq motifs for C. robusta from Nitta et al. (2019). We then searched the C. robusta genome for orthologs to known motifs from the HOMER database (Heinz et al., 2010). All motifs with orthologous C. robusta TFs were added to the set of candidate TF motifs. This set of candidate TF motifs consisted of 1,745 motifs associated with 294 C. robusta TFs. Of these, 1,228 motifs could be unambiguously associated with one of 237 TFs. To obtain motifs for the remaining 57 TFs, to minimize redundancy, we remove from consideration all associations to TFs with an assigned motif, then assign all unambiguous motifs to a TF. This iteration continues until no more unambiguous motifs can be assigned. Motifs for the remaining TFs are assigned by repeating the process for motifs associated with only two TFs, then three TFs, until each TF has an assigned motif. Our final set of motifs had 1,487 members, with the median TF associated with two motifs.

For Figure 1—figure supplement 2E, we used previously published eukaryotic core promoter motifs (Haberle and Stark, 2018). For Figure 1—figure supplement 2F, correlations were performed on the inferred C. robusta DNA-binding motifs.

Motif analyses of ATAC-seq

Request a detailed protocol

We compiled the C. robusta genome (http://ghost.zool.kyoto-u.ac.jp/datas/JoinedScaffold.zip) as a BSGenome (version 1.44.2) package using ‘forgeBSgenomeDataPkg’. We searched for all motifs present in accessible elements using motifmatchr (version 0.99.8) and TFBSTools (version 1.14.2, Tan and Lenhard, 2016). Background nucleotide frequencies were computed for the whole accessome. Matches were returned if they passed a cutoff of < 5*10−5. This cutoff was used to set a score threshold using the standard method of comparing the probability of observing the sequence given the PWM versus the probability of observing the sequence given the background nucleotide sequence of the accessible elements (Staden, 1989). We tested for motif enrichment in a peak set versus the accessome using a one-tailed hypergeometric test. The odds ratio represents the probability that an outcome (a peak containing the indicated motif) will occur if the peak is contained in the indicated peak set, compared to the probability of the outcome occurring in an element randomly selected from the accessome. For Figure 4—figure supplement 4A, the test indicates the probability that an element will contain a motif given when the element is accessible.

Primed or de novo accessible elements associated with de novo cardiac expressed genes were considered cardiac accessible if they had log2(FC) < 0 in Foxf>M RasCA vs. Foxf>nls::LacZ or log2(FC) > 0 in Hand-r>FgfrDN vs. Hand-r>nls::LacZ. Primed or de novo elements associated with de novo pharyngeal muscle (ASM) genes were considered ASM accessible if they had log2(FC) > 0 in Foxf>M RasCA vs. Foxf>nls::LacZ or log2(FC) < 0 in Hand-r>FgfrDN vs. Hand-r>nls::LacZ. The peak sets tested were primed cardiac accessible peaks associated with de novo cardiac expressed genes, de novo cardiac accessible peaks associated with de novo cardiac expressed genes, primed ASM accessible peaks associated with de novo ASM expressed genes, and de novo ASM accessible peaks associated with de novo ASM expressed genes. To ensure that the elements’ accessibility is not reflecting expression of primed genes, elements were removed if they were also associated with a gene expressed earlier in the cardiopharyngeal lineage. Elements associated with de novo ASM genes were removed if they were also associated with a cardiac or FGF-MAPK inhibited at 18 hpf gene. Elements associated with de novo cardiac genes were removed if they were also associated to an ASM or FGF-MAPK activated at 18 hpf gene.

Accessibility of motif sites in differentially accessible (FDR < 0.05) peaks in the 10 hpf model was calculated using chromVAR (version 0.99.3, Schep et al., 2017). Peaks were resized to 200 bp. Deviations were computed between all 10 hpf conditions as well as the 6 hpf controls. Replicates were grouped by both conditions and time. We tested for significantly differentially accessible motifs (FDR < 0.01) using the ‘differentialDeviations’ function from chromVAR.

chromVAR algorithm

Request a detailed protocol

The accessibility of a motif is calculated by summing the fragment counts for all accessible elements containing the motif. An expected accessibility of the motif is calculated from the total counts for a motif from all replicates normalized to the library size of each replicate. For each biological replicate, the raw accessibility deviation of each motif is defined as the difference of the observed counts and the expected counts divided by the expected counts. A normally distributed background accessibility deviation for each motif is calculated by iteratively sampling accessible elements from the same replicate. The deviation Z-score for each motif is given by the difference of the raw accessibility deviation and the mean of the background accessibility deviation divided by the standard deviation of the background accessibility deviation. For a more thorough description of the algorithm underlying chromVAR, see Schep et al. (2017).

Bulk RNA-seq library preparation, Sequencing and Analyses

Request a detailed protocol

We used bulk RNA-seq performed following defined perturbations of FGF-MAPK signaling and FACS (Wang et al., 2019). To profile transcriptomes of FACS-purified cells from FoxfCRISPR and control samples, 1,000 cells were directly sorted in 100 ​μl​ lysis buffer from the RNAqueous-Micro Total RNA Isolation Kit (Ambion). For each condition, samples were obtained in two biological replicates. The total RNA extraction was performed following the manufacturer’s instruction. The quality and quantity of total RNA was checked using Agilent RNA Screen Tape (Agilent) using 4200 TapeStation system. RNA samples with RNA Integrity Number (RIN) > 9 were kept for downstream cDNA synthesis. 250–2000 pg of total RNA was loaded as a template for cDNA synthesis using the SMART-Seq v4 Ultra Low Input RNA Kit (Clontech) with template switching technology. RNA-Seq Libraries were prepared and barcoded using Ovation Ultralow System V2 1–16 (NuGen). Up to six barcoded samples were pooled in one lane of the flow cell and sequenced by Illumina NextSeq 500 (MidOutput run). Paired-end 75 bp length reads were obtained from all the bulk RNA-seq libraries. Bulk RNA-seq libraries were aligned using STAR 2.5.3a (Zhang et al., 2018) with the parameters ‘--runThreadN 20 --bamRemoveDuplicatesType UniqueIdentical’. Counts were obtained using htseq-count (0.6.1p1) (Anders et al., 2015). Differential expression was calculated using edgeR for the 10 hpf conditions and DESeq2 for the conditions at 18 hpf.

Cell-type-specific expression gene sets

Request a detailed protocol

We tested for differential expression in the bulk RNA-seq data for the pairwise comparisons FoxfCRISPR vs. controlCRISPR, Foxf>M RasCA vs. control (Foxf>nls::LacZ), Hand-r>FgfrDN vs. control (Hand-r>nls::LacZ), and Foxf>M RasCA vs. Hand-r>FgfrDN using DESeq2 1.16.1 (Love et al., 2014). We defined genes downregulated in FoxfCRISPR vs. controlCRISPR (log2(FC) < −0.75 and FDR < 0.05) as Foxf targets. We defined ‘MAPK-inhibited genes at 18 hpf’ as the intersection of genes downregulated in Foxf>M RasCA vs. control and genes downregulated in Foxf>M RasCA vs. Hand-r>FgfrDN (log2(FC) < −1 and FDR < 0.05) as. We defined the intersect of genes downregulated in Hand-r>FgfrDN vs. control (log2(FC) < −1 and FDR < 0.05) and genes upregulated in Foxf>M RasCA vs. Hand-r>FgfrDN (log2(FC) > 1 and FDR < 0.05) as ‘MAPK activated genes’ (Figure 4—figure supplement 1A–D). For Figure 4B and Figure 4—figure supplement 3A, we defined the union of differentially expressed genes in either Foxf>M RasCA vs. control or Hand-r>FgfrDN vs. control as ‘differentially expressed upon FGF-MAPK perturbation at 18 hpf.’

We integrated microarray data to obtain gene sets for MAPK perturbation at 10 hpf (Christiaen et al., 2008). We defined genes downregulated in Mesp>FgfrDN vs. control (log2(FC) < −1 and p < 0.05) as ‘MAPK activated genes at 10 hpf.’ We defined genes upregulated in Mesp>FgfrDN vs. control (Mesp>nls::LacZ) (log2(FC) > 1 and p < 0.05) as ‘MAPK inhibited genes at 10 hpf.’

From this same data set we obtained genes downregulated in control 6 hpf vs. 10 hpf (log2(FC) < −1 and p < 0.05) and upregulated in LacZ 6 hpf vs. 10 hpf (log2(FC) > 1 and p < 0.05).

Statistics

We used R (version 3.6.1) (Rizzo, 2016) to perform all statistical analysis. An alpha level of 0.05 was adapted for statistical significance throughout the analyses. We corrected for multiple hypothesis testing using false discovery rate (FDR) where indicated. All other p-values are unadjusted. For statistics presented in FISH panels, a Fisher’s exact test was run for each condition vs. the control. Embryos were classified as wild type, reduced expression, or no expression. A p-value less than 0.01 was considered significant (Figure 2F; Figure 2—figure supplement 5; Figure 3F; Figure 4G; Figure 5—figure supplement 1B,E). The two-tailed binomial tests in Figure 1—figure supplements 1C, 2D and 3G assume accessibility to not be feature-specific and dependent only on the fraction of the genome in base pairs covered by a feature. If promoter sites comprise 10% of the genome, we expect 10% of accessible elements will overlap with promoter sites by chance. For Figure 3—figure supplement 7A and B, we performed a two-tailed binomial test on the joint probability of each intersection against the null hypothesis that the probability of each set is independent. The null probability was calculated as the product of the probabilities of all constituent sets of an intersection. This is similar to the method used to calculate the deviation score in the original UpSet plot (Lex et al., 2014).

Software

All computations were performed on an x86_64-centos-linux-gnu platform. In addition to software specified elsewhere in the Materials and methods section, we created a SQLite database using RSQLite 2.1.1 (Müller et al., 2018), ComplexHeatmap (2.0.0) (Gu et al., 2016), circlize (0.4.6) (Gu et al., 2014), latticeExtra (0.6–28) (Sarkar and Andrews, 2016) and Integrative Genomics Viewer (Robinson et al., 2011).

Code availability

Request a detailed protocol

All analyses were done with publicly available software. All scripts for data analysis are available at https://github.com/ChristiaenLab/ATAC-seq. (Wiechecki and Racioppi, 2019https://github.com/elifesciences-publications/ATAC-seq).

Data availability

Request a detailed protocol

All sequencing data were deposited on GEO with accession GSE126691.
