Kv2.1 mediates spatial and functional coupling of L-type calcium channels and ryanodine receptors in mammalian neurons

  1. Nicholas C Vierra
  2. Michael Kirmiz
  3. Deborah van der List
  4. L Fernando Santana
  5. James S Trimmer  Is a corresponding author
  1. School of Medicine, University of California, Davis, United States
  2. University of California, Davis, United States
Research Article
  • Cited 0
  • Views 760
  • Annotations
Cite this article as: eLife 2019;8:e49953 doi: 10.7554/eLife.49953

Abstract

The voltage-gated K+ channel Kv2.1 serves a major structural role in the soma and proximal dendrites of mammalian brain neurons, tethering the plasma membrane (PM) to endoplasmic reticulum (ER). Although Kv2.1 clustering at neuronal ER-PM junctions (EPJs) is tightly regulated and highly conserved, its function remains unclear. By identifying and evaluating proteins in close spatial proximity to Kv2.1-containing EPJs, we discovered that a significant role of Kv2.1 at EPJs is to promote the clustering and functional coupling of PM L-type Ca2+ channels (LTCCs) to ryanodine receptor (RyR) ER Ca2+ release channels. Kv2.1 clustering also unexpectedly enhanced LTCC opening at polarized membrane potentials. This enabled Kv2.1-LTCC-RyR triads to generate localized Ca2+ release events (i.e., Ca2+ sparks) independently of action potentials. Together, these findings uncover a novel mode of LTCC regulation and establish a unique mechanism whereby Kv2.1-associated EPJs provide a molecular platform for localized somatodendritic Ca2+ signals in mammalian brain neurons.

https://doi.org/10.7554/eLife.49953.001

Introduction

The members of the Kv2 family of voltage-gated K+ (Kv) channels, Kv2.1 and Kv2.2, are among the most abundant and widely expressed K+ channels in mammalian brain neurons (Trimmer, 2015). Kv2 channels are present in high-density clusters localized to neuronal somata, proximal dendrites, and axon initial segments (Trimmer, 1991; Du et al., 1998; Bishop et al., 2015; Kirmiz et al., 2018a). In hippocampal and cortical neurons, Kv2 channels conduct most of the delayed rectifier K+ current (Murakoshi and Trimmer, 1999; Du et al., 2000; Guan et al., 2007). Detailed studies have revealed the significant influence of neuronal Kv2.1-mediated currents on action potential duration and repetitive firing (e.g., Du et al., 2000; Liu and Bean, 2014; Kimm et al., 2015, etc.). In addition to its important role in modulating intrinsic electrical activity, Kv2.1 serves a non-canonical structural (i.e., nonconducting) function in tethering the plasma membrane (PM) to the endoplasmic reticulum (ER) to form ER-PM junctions (EPJs) (Fox et al., 2015; Bishop et al., 2018; Johnson et al., 2018; Kirmiz et al., 2018a; Kirmiz et al., 2018b). Although Kv2.1 clustering at EPJs is tightly regulated and independent of K+ conductance (Kirmiz et al., 2018b), the physiological impact of concentrating this Kv channel at an EPJ is not known.

In brain neurons, EPJs occupy approximately 10% of the PM surface area, predominantly within the soma and proximal dendrites (Wu et al., 2017). By electron microscopy, the ER at many neuronal EPJs appears as a micron-diameter, flattened vesicle less than 10 nm from the PM, a structure also called a ‘subsurface cistern’ (Rosenbluth, 1962; Tao-Cheng, 2018). While the specific functions of neuronal subsurface cisterns remain unclear, in most eukaryotic cells, EPJs represent domains specialized for maintenance of Ca2+, lipid, and metabolic homeostasis (Gallo et al., 2016; Chang et al., 2017).

L-type voltage-gated Ca2+ channels (LTCCs) are prominently expressed in neurons throughout the brain (Catterall, 2011; Zamponi et al., 2015). Their important role in brain is underscored by studies showing genetic variation in the CACNA1C gene encoding Cav1.2, the major voltage-sensing and pore forming α1 subunit expressed in brain, is associated with neurodevelopmental, psychiatric and neurological disorders (Splawski et al., 2004; Ferreira et al., 2008; Bozarth et al., 2018). Given their diverse and crucial roles in neuronal function, LTCCs are subjected to multimodal regulation to ensure their activity is coupled to overall cellular state, especially as related to intracellular [Ca2+] (Lipscombe et al., 2013; Hofmann et al., 2014; Neely and Hidalgo, 2014). In both neurons and non-neuronal cells, Cav1.2-containing LTCCs are clustered at specific sites on the PM where they participate in supramolecular protein complexes that couple LTCC-mediated Ca2+ entry to specific Ca2+ signaling pathways (Dai et al., 2009; Rougier and Abriel, 2016). In neurons, LTCCs in dendritic spines participate in a complex whose output contributes to short- and long-term synaptic plasticity (Da Silva et al., 2013; Simms and Zamponi, 2014; Stanika et al., 2015; Wiera et al., 2017). Neocortical and hippocampal pyramidal neurons and dentate granule cells also have substantial LTCC populations in the soma and proximal dendrites (Westenbroek et al., 1990; Hell et al., 1993; Tippens et al., 2008; Berrout and Isokawa, 2009; Marshall et al., 2011; Kramer et al., 2012) representing the ‘aspiny’ regions (Spruston and McBain, 2007) of these neurons. Many current models of Ca2+-dependent activation of transcription factors posit that somatic LTCCs uniquely contribute to transcription factor activation by mediating Ca2+ influx within specialized and compartmentalized signaling complexes (Wheeler et al., 2008; Ma et al., 2012; Matamales, 2012; Wheeler et al., 2012; Ma et al., 2014; Cohen et al., 2015; Yap and Greenberg, 2018; Wild et al., 2019). However, relatively little research has focused on the molecular mechanisms underlying the spatial and functional compartmentalization of the prominent somatic population of LTCCs compared to those on dendrites and at synapses.

Neuronal somata lack PM compartments analogous to dendritic spines, and fundamental questions remain as to how discrete Ca2+ signaling events can occur in the absence of such compartmentalization. In many non-neuronal cells, LTCCs are clustered at EPJs that represent specialized microdomains for LTCC-dependent and -independent Ca2+ signaling (Helle et al., 2013; Lam and Galione, 2013; Henne et al., 2015; Burgoyne et al., 2015; Gallo et al., 2016; Chung et al., 2017; Dickson, 2017). For example, Cav1.2-mediated Ca2+ entry is spatially and functionally coupled to ER ryanodine receptor (RyR) Ca2+ release channels at EPJs constituting the cardiomyocyte junctional dyad (Shuja and Colecraft, 2018). Localized Ca2+ release events (spreading <2 µm from the point of origin) called Ca2+ sparks arise from clusters of RyRs located in the ER of EPJs and are triggered via local Ca2+-induced Ca2+ release (CICR), a feed-forward phenomenon in which cytosolic Ca2+ binding to RyRs triggers their opening (Cheng et al., 1993; Cheng and Lederer, 2008). As indicated above, EPJs are abundant on neuronal somata (Wu et al., 2017), and neuronal somata have prominent LTCC- and RyR-mediated CICR (Friel and Tsien, 1992; Isokawa and Alger, 2006; Berrout and Isokawa, 2009). Localized RyR-mediated Ca2+ release events occur in the somata and proximal dendrites of cultured and acute slice preparations of hippocampal pyramidal neurons (Koizumi et al., 1999; Berrout and Isokawa, 2009; Manita and Ross, 2009; Miyazaki et al., 2012), but a specific molecular structure underlying these events has not been described.

Given the well-characterized spatial and functional coupling of LTCCs and RyRs at EPJs in myocytes and previous observations of somatodendritic clustering of the LTCC Cav1.2 in hippocampal neurons (Westenbroek et al., 1990; Hell et al., 1993), our finding that Kv2.1 clusters are often juxtaposed to RyRs previously led us to hypothesize that Kv2.1 channels cluster with LTCCs to form Ca2+‘micro-signaling domains’ (Antonucci et al., 2001; Misonou et al., 2005a). More recently, heterologously expressed Kv2.1 and Cav1.2 were found to colocalize in dissociated cultured hippocampal neurons (CHNs) (Fox et al., 2015). However, the spatial association of Kv2.1 with endogenous LTCCs and RyRs in brain neurons has not been determined. Here, we examined the subcellular distribution of Kv2.1, LTCCs, and RyRs in hippocampal neurons and used an unbiased proteomic analysis of brain tissue to identify LTCCs and RyRs as proteins in close spatial proximity to clustered Kv2.1. Using heterologous cells and CHNs, we investigated the impact of Kv2.1 clustering on the spatial coupling and functional properties of LTCCs and RyRs. We also defined how the localization and function of LTCCs and RyRs are affected by the loss of Kv2.1 in mouse CHNs lacking Kv2.1. Together, our findings establish a functional interaction between Kv2.1, LTCCs, and RyRs, reveal a significant influence of Kv2.1 in shaping neuronal LTCC activity, and support a critical role for Kv2.1 in the generation of somatodendritic Ca2+ signals.

Results

Kv2.1 channels spatially associate with LTCCs and RyRs in brain neurons

In mature CHNs, endogenous Cav1.2 channels are distributed to PM-localized clusters on the soma and proximal dendrites, distinct from their punctate localization in the more distal postsynaptic compartments that also contain the scaffolding protein PSD-95 (Di Biase et al., 2008) (Figure 1A). To investigate the spatial relationship between somatic Kv2.1 and Cav1.2 channels, we examined rat CHNs immunolabeled for Kv2.1 and Cav1.2, and also for Kv4.2 channels, which exhibit more uniform PM localization in CHNs than either Kv2.1 or Cav1.2 (Shibata et al., 2003). In CHNs expressing detectable levels of all three immunolabeling signals, presumed to be pyramidal neurons based on their morphological characteristics (Benson et al., 1994; Antonucci et al., 2001; Obermair et al., 2003), we observed clusters of Kv2.1 that were spatially associated with smaller Cav1.2 clusters but not Kv4.2 clusters (Figure 1B). Triple immunolabeling for Kv2.1, Cav1.2, and RyRs demonstrated that many of the clusters of spatially associated Kv2.1 and Cav1.2 channels were colocalized with RyRs (Figure 1C). We also observed more prominent spatial overlap of Kv2.1, Cav1.2, and RyR immunolabeling in a subset of CHNs (Figure 1D). Analysis of Pearson’s Correlation Coefficient (PCC) of Cav1.2 and either Kv2.1 or Kv4.2 pixel intensity demonstrated a greater spatial correlation between Cav1.2 and Kv2.1 immunolabeling than that of Cav1.2 and Kv4.2 (Figure 1E). While the absolute PCC values indicate that the majority of somatic Kv2.1 and Cav1.2 immunolabeling did not co-occur within the same pixels, our data suggested that a subset Cav1.2 channels could be found in close proximity (if not overlapping) with Kv2.1. In support of a spatial association between Kv2.1, Cav1.2, and RyRs, we determined that there was a positive correlation between the PCC of Kv2.1 and Cav1.2, and the PCC of Cav1.2 and RyRs within the same cell (Figure 1F), suggesting that increased association between Cav1.2 and Kv2.1 was also associated with greater spatial coupling of Cav1.2 to RyRs.

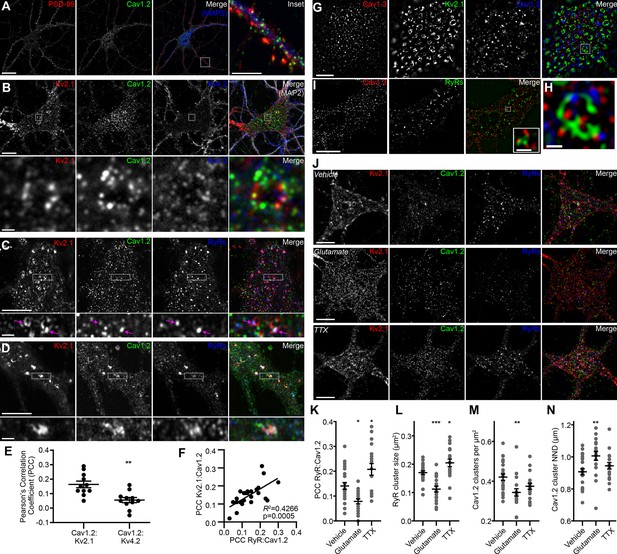

Kv2.1 reversibly associates with Cav1.2 and RyRs in cultured hippocampal neurons.

(A) Single optical section image of a rat CHN immunolabeled for PSD-95, Cav1.2, and MAP2 (scale bar: 20 μm). Note large population of somatic Cav1.2 channels distinct from excitatory synapses located primarily on more distal dendrites. Inset of merged panel shows expanded view of dendritic PSD-95 and Cav1.2 immunolabeling marked by box (inset scale bar: 5 μm). (B) Single optical section of the soma of rat CHN immunolabeled for Kv2.1, Cav1.2, and Kv4.2 (scale bar: 10 μm). The row of panels below the main panels shows an expanded view of somatic immunolabeling in the region marked by the box in the main panels (scale bar: 1 μm). (C) Single confocal optical section of the soma of rat CHN immunolabeled for Kv2.1, Cav1.2, and RyRs (scale bar: 5 μm). The row of panels below the main panels shows an expanded view of somatic immunolabeling in the region marked by the box in the main panels; arrows indicate selected regions of colocalized Kv2.1, Cav1.2, and RyR immunolabeling (inset scale bar: 1 μm). (D) As in E, but in a CHN displaying more prominent colocalization of clustered Kv2.1, Cav1.2, and RyRs. (E) Pearson’s correlation coefficient (PCC) values of somatic Cav1.2 and Kv2.1 or Kv4.2 immunolabeling (each point represents a single neuron; **p=0.0013; two-tailed t-test). (F) Scatter plot demonstrating the positive correlation of paired measurements of the PCC values of Kv2.1 vs. Cav1.2 and RyRs vs. Cav1.2 immunolabeling in rat CHNs. (G) Super resolution (N-SIM) image of the basal membrane of the soma of a rat CHN immunolabeled for Kv2.1, Cav1.2, and Cav1.3 (scale bar: 5 μm). (H) Expanded view of the boxed region in the merged image of G (scale bar: 1.25 μm). (I) Super resolution (N-SIM) image of the basal membrane of the soma of a rat CHN immunolabeled for Cav1.3 and RyRs (scale bar: 5 μm). Inset in merged panel shows a higher magnification view of the boxed area (inset scale bar: 0.625 μm). (J) Single optical sections of representative rat CHNs treated with vehicle (control), 10 µM glutamate, or 500 nM tetrodotoxin (TTX), and immunolabeled for Kv2.1, Cav1.2, and RyRs (scale bar: 10 µm). (K–N) Morphology and spatial distribution of the indicated parameters determined from rat CHNs treated with vehicle, glutamate, or TTX (each point represents one cell; one-way ANOVA followed by Tukey’s post-hoc test). (K) *p=0.0239 (vhl. vs. glut.); *p=0.0134 (vhl. vs. TTX). (L) ***p=0.003 (vhl. vs. glut.); *p=0.0407 (vhl. vs. TTX). (M) **p=0.0045 (vhl. vs. glut.). (N) **p=0.0062 (vhl. vs. glut.).

https://doi.org/10.7554/eLife.49953.002

To better evaluate the subcellular distribution of LTCCs relative to Kv2.1 clusters, we next performed super-resolution structured illumination (SIM) imaging of immunolabeled CHNs. These images revealed that Kv2.1 clusters often encompassed smaller clusters of Cav1.2 as well Cav1.3 (Figure 1G–H). For these super-resolution images, we performed an object-based analysis (rather than a pixel intensity correlation-based measurement such as PCC) to determine whether the localization of somatic Kv2.1 and LTCCs were co-dependent. The approach we used relied on evaluation of the nearest-neighbor distances (NND) of Kv2.1 and Cav1.2 or Cav1.3 cluster centroids and a comparison of these values to the predicted NNDs if Kv2.1 and LTCCs were randomly distributed (Shivanandan et al., 2013; Helmuth et al., 2010). We found that the spatial distributions of somatic Kv2.1 and Cav1.2 puncta significantly correlated (p<0.001 versus the null hypothesis that the spatial distributions of Kv2.1 and Cav1.2 puncta were independent) and could not be recapitulated in images in which their relative positions had been iteratively randomized in silico. We also observed similar expression patterns of endogenous Cav1.3 and RyRs in CHNs, with Cav1.3 clusters spatially associated with RyR clusters (Figure 1I), in agreement with a recent report (Sahu et al., 2019). Together, these data suggested a spatial correlation between Kv2.1 and LTCCs.

We next evaluated how phosphorylation-dependent bidirectional changes in Kv2.1 clustering influenced the localization of somatic Cav1.2 and RyRs in rat CHNs. One stimulus that results in dephosphorylation of Kv2.1 and dispersal of Kv2.1 clusters in CHNs is acute elevation in intracellular Ca2+ in response to treatment with the excitatory neurotransmitter glutamate (Misonou et al., 2004; Misonou et al., 2006). In contrast, suppression of neuronal activity with tetrodotoxin (TTX) causes an increase in Kv2.1 phosphorylation and clustering (Cerda and Trimmer, 2011; Romer et al., 2019). We found that glutamate stimulation of CHNs not only reduced Kv2.1 clustering, but also significantly decreased the colocalization between Cav1.2 and RyRs, decreased the size of somatic RyR clusters, and increased the distance between somatic Cav1.2 clusters (Figure 1J–N). Conversely, suppression of neuronal excitability with TTX produced an effect opposite of glutamate treatment, producing increased spatial coupling between RyRs and Cav1.2, and increasing the size of individual RyR clusters (Figure 1J–N). We also found that glutamate stimulation reduced the number of Cav1.2 clusters present on the PM, consistent with previous observations that acute Ca2+ influx results in endocytosis of Cav1.2 channels (Hall et al., 2013). Together, these data show that bidirectional changes in Kv2.1 clustering are coupled to corresponding changes in the spatial distributions of Cav1.2 and RyRs on CHN somata.

We next assessed the localization of Kv2.1, Cav1.2, and RyRs in brain sections. Previous immunohistochemical analyses showed that in hippocampal neurons, Cav1.2 localizes to distinct clusters on somata and proximal dendrites (Westenbroek et al., 1990; Hell et al., 1993), a spatial pattern similar to that of Kv2.1 (Trimmer, 1991; Scannevin et al., 1996; Kirizs et al., 2014). Similar to previous observations, in low magnification images of mouse and rat hippocampus, we observed Cav1.2 immunolabeling concentrated in CA1 neuron somata, with increasing labeling in area CA2/CA3 neurons, and greatest labeling in dentate gyrus (DG) granule cell somata and dendrites (Figure 2A–E). In higher magnification confocal images of DG granule cell bodies in rat hippocampus, we found that Kv2.1 clusters tended to colocalize with Cav1.2 clusters (Figure 2F). The somata of rat CA1 pyramidal neurons exhibited a spatial association of Cav1.2, Kv2.1, and RyR immunolabeling that was qualitatively comparable to that seen in CHNs (Figure 2G). Similar labeling was observed in high-magnification images of mouse brain sections (Figure 2H–I). Kv2.2, which also clusters at EPJs through the same mechanism as Kv2.1 (Kirmiz et al., 2018b), similarly colocalized with Cav1.2 immunolabeling in rat CA1 pyramidal cells and DG granule cells (Figure 2—figure supplement 1A and B).

Figure 2 with 1 supplement see all

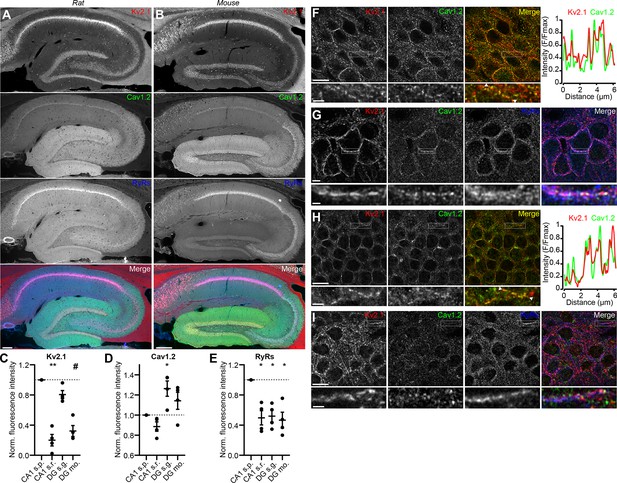

Kv2.1 spatially associates with Cav1.2 and RyRs in brain neurons.

(A) Panels show exemplar images of the hippocampus acquired from a brain section from an adult rat immunolabeled for Kv2.1 (red), Cav1.2, (green) and RyRs (blue), and the merged image (scale bar: 200 μm). (B) As in A but acquired from an adult mouse brain section. (C–E) Summary graphs of normalized mean fluorescence intensity of Kv2.1, Cav1.2, and RyR immunolabeling from ROIs from various laminae within CA1 (s.p.: stratum pyramidale; s.r.: stratum radiatum) and DG (s.g.: stratum granulosum; mo: molecular layer) in WT mouse brain sections. Fluorescence intensity values were normalized to CA1 s.p. for each mouse. Each point corresponds to an individual mouse (one-way ANOVA followed by Dunnett’s post-hoc test vs. CA1 s.p.). (C) **p=0.0025, #p=0.0573 (D) *p=0.0408 (E) *p=0.0198 (CA1 s.r.), *p=0.0324 (DG s.g.), *p=0.0107 (DG s.m.) (F) Confocal optical section obtained from the dentate gyrus of a rat brain section immunolabeled for Kv2.1 (red) and Cav1.2 (green) (scale bar: 10 μm). The row below the main panels shows expanded views of immunolabeling in the region marked by the box in the main panels; arrowheads indicate region selected for intensity profile line scan (scale bar: 2 μm). Line scan obtained from inset is shown to the right. (G) Confocal optical section obtained from the pyramidal cell layer of hippocampal area CA1 in a rat brain section immunolabeled for Kv2.1 (red), Cav1.2 (green), and RyRs (blue) (scale bar: 10 μm). The row below the main panels shows expanded view of immunolabeling in the region marked by the box in the main panels (scale bar: 2 μm). (H) As in F but acquired from a mouse brain section. (I) As in G but acquired from a mouse brain section.

https://doi.org/10.7554/eLife.49953.003

Crosslinking-based proteomic analyses support that Kv2.1 channels are in close spatial proximity to LTCCs and RyRs in brain neurons

We interrogated proteins within the Kv2.1 nano-environment using a crosslinking- and mass spectrometry-based proteomics approach to further determine whether LTCCs and RyRs were in close spatial proximity (having lysine residues within ≈ 12 Å of one another) to Kv2.1. We affinity immunopurified (IPed) Kv2.1 from mouse brain homogenates that were subjected to chemical cross-linking during homogenization. This strategy previously allowed us to identify the ER-resident VAP proteins as Kv2 channel binding partners (Kirmiz et al., 2018a). Importantly, we also performed parallel IPs from brain homogenates prepared from Kv2.1 knockout (KO) mice (Jacobson et al., 2007; Speca et al., 2014) using the same Kv2.1 antibody, to identify proteins IPing in a Kv2.1-independent manner. To further improve the recovery of peptides IPed with Kv2.1, we performed on-bead trypsin digestion, as opposed to the in-gel digestion we had done previously (Kirmiz et al., 2018a). Similar to our earlier findings, enriched in the control Kv2.1 IPs (and absent from the Kv2.1 KO brain IPs) were the VAP isoforms VAPA and VAPB (Table 1). In addition, among the 50 most abundant proteins specifically present in Kv2.1 IPs (i.e., from WT and not Kv2.1 KO brain samples) were numerous proteins involved in Ca2+ signaling and/or previously reported to localize to neuronal EPJs. These included RyR isoforms RyR2 and RyR3, the LTCC α subunits Cav1.2 and Cav1.3, various Cavβ auxiliary subunits of LTCCs, as well as other proteins involved in Ca2+ signaling and homeostasis (Table 1). Taken together with our imaging analyses, these findings indicate that Kv2.1 is in close spatial proximity to LTCCs and RyRs at EPJs in mouse brain neurons. We note that while Cav1.2 is the predominant LTCC α1 subunit in hippocampus (Hell et al., 1993; Davare et al., 2001; Moosmang et al., 2005; Lacinova et al., 2008; Sinnegger-Brauns et al., 2009), where its localization on neuronal somata overlaps with Kv2.1, it was not as highly represented in these proteomic analyses as was Cav1.3, perhaps as these analyses were performed on whole brain samples.

Table 1
LTCC subunits and other Ca2+ signaling proteins specifically copurifying with Kv2.1
https://doi.org/10.7554/eLife.49953.005
ProteinRankMeanSEM (n = 3)
Kv2.11100.000NA
Kv2.2331.6380.518
VAPA525.3441.733
RyR31012.4770.881
Cavβ41211.1331.411
VAPB157.6001.393
Cavβ2185.6230.79
Cav1.3195.7301.652
Cavβ3235.0701.033
Hippocalcin244.5830.831
Neurocalcin-delta254.5900.856
SR/ER calcium ATPase 2284.2262.4
Hippocalcin-like protein 1294.3600.288
Cavβ1333.8000.697
Calcineurin catalytic subunit γ353.5830.718
RyR2363.1400.903
Calcineurin subunit B373.1970.469
Calcium-transporting ATPase392.8730.447
SR/ER calcium ATPase 1402.5301.21
Cav1.2432.4270.766
  1. Values in table are spectral counts normalized to Kv2.1 over three independent experiments.

Kv2.1 organizes the localization of LTCCs

Because our immunolabeling and proteomics results indicated that endogenous Cav1.2 channels spatially associated with clustered Kv2.1 in hippocampal neurons, we investigated how the subcellular localization of Cav1.2 (expressed with the LTCC auxiliary subunits α2δ1 and β3) was influenced by the presence of Kv2.1 in heterologous HEK293T cells. HEK293T cells lack endogenous Kv2.1 or Kv2.2 channels (Yu and Kerchner, 1998), and have little to no expression of LTCCs (Berjukow et al., 1996; Geiger et al., 2012). Expression of conducting or nonconducting Kv2 channels in these cells induces EPJ formation (Fox et al., 2015; Bishop et al., 2018; Kirmiz et al., 2018a; Kirmiz et al., 2018b). Using total internal reflection fluorescence (TIRF) microscopy to visualize Cav1.2-GFP expressed in HEK293T cells, we observed small Cav1.2 clusters (average area 0.27 ± 0.24 μm2) adjacent to or overlapping with cortical ER, marked by the general ER marker BFP-SEC61β (Figure 3A,C). However, in the presence of Kv2.1, the organization of Cav1.2 was dramatically altered, such that Cav1.2 now co-assembled with Kv2.1 into significantly larger clusters (1.05 ± 0.67 μm2) that showed greater colocalization with the ER (as indicated by the PCC of Cav1.2-GFP and BFP-Sec61β) than in the absence of Kv2.1 (Figure 3B,D–F). To confirm that these large Kv2.1 clusters were present in the PM, we labeled cell surface Kv2.1 with guangxitoxin-633 (GxTX-633), a membrane impermeant, Kv2 channel-specific toxin conjugated to a fluorescent dye (Tilley et al., 2014) (Figure 3B). The Kv2.1-induced rearrangement of Cav1.2 was accompanied by an increased occurrence of larger Cav1.2 clusters and a reduced occurrence of smaller Cav1.2 clusters, and a nearly linear relationship between the sizes of Cav1.2 and Kv2.1 clusters (Figure 3F).

Figure 3 with 2 supplements see all

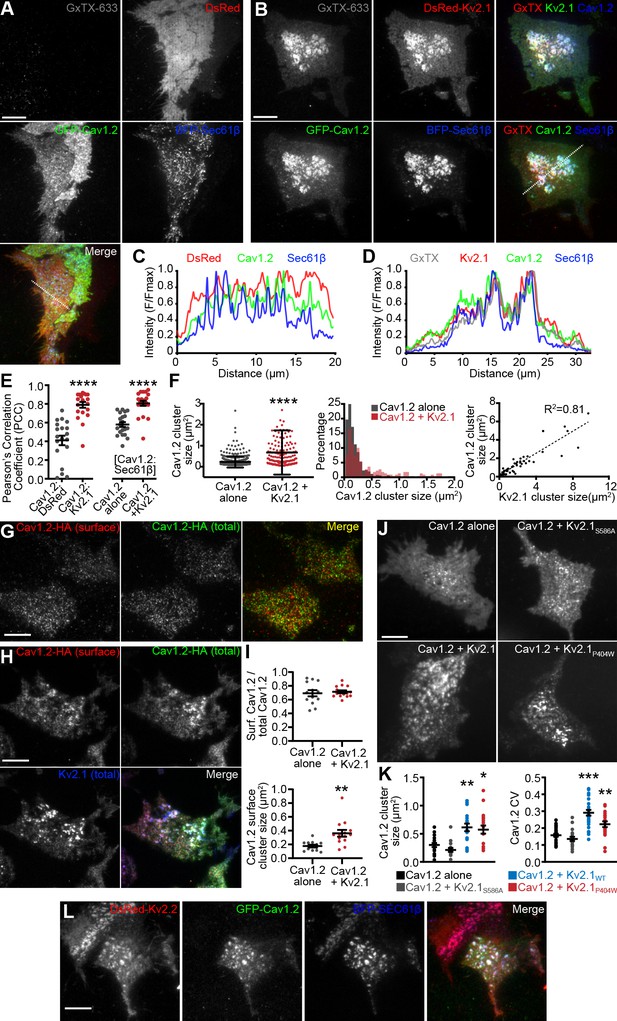

LTCCs are recruited to Kv2-induced EPJs.

(A) TIRF images of a HEK293T cell cotransfected with DsRed (red), GFP-Cav1.2 (green), BFP-SEC61β (blue) and LTCC auxiliary subunits Cavβ3 and Cavα2δ1 (not shown) and labeled with GxTX-633 (scale bar: 10 μm). (B) TIRF images of a HEK293T cell cotransfected with DsRed-Kv2.1 (red), GFP-Cav1.2 (green), BFP-SEC61β (blue) and LTCC auxiliary subunits Cavβ3 and Cavα2δ1 (not shown) and labeled with GxTX-633 (scale bar: 10 μm). (C) Line scan of pixel intensities from the ROI depicted in the merged image of panel A. (D) Line scan of pixel intensities from the ROI depicted in the merged image of panel B. (E) Pearson’s correlation coefficient (PCC) values of Cav1.2-GFP and DsRed or DsRed-Kv2.1 fluorescence (left) or Cav1.2-GFP and BFP-Sec61β with or without DsRed-Kv2.1 (right) (each point represents a single cell; ****p<0.0001; Mann-Whitney test). (F) Summary graphs of Cav1.2 cluster size (left panel), the cluster size frequency distribution (center panel), and a scatter plot of paired measurements of Kv2.1 and Cav1.2 cluster sizes (left panel) measured from HEK293T cells transfected with GFP-Cav1.2, Cavβ3, and Cavα2δ1 alone (black) or additionally cotransfected with DsRed-Kv2.1 (red). Bars are mean ± SD (****p<10−15, two-tailed t-test, n = 3 cells). (G) TIRF images of a HEK293T cell transfected with Cav1.2-HA, Cavβ3, and Cavα2δ1, and immunolabeled for cell surface Cav1.2-HA (red) and total Cav1.2-HA (green) (scale bar: 10 μm). (H) TIRF images of a HEK293T cell transfected with Cav1.2-HA, Kv2.1-GFP, Cavβ3, and Cavα2δ1, and immunolabeled for cell surface Cav1.2-HA (red) and total Cav1.2-HA (green) (scale bar: 10 μm). (I) Upper panel: ratio of cell surface Cav1.2-HA cluster area versus total Cav1.2-HA cluster area present in the TIRF field obtained from cells expressing Cav1.2-HA and auxiliary subunits with or without Kv2.1 (each point represents one cell; p=0.6755, two-tailed t-test). Lower panel: mean area of Cav1.2-HA clusters present in the TIRF field measured from cells expressing Cav1.2-HA and auxiliary subunits with or without Kv2.1 (each point represents one cell; **p=0.0020, two-tailed t-test). (J) TIRF images GFP-Cav1.2 in HEK293T cells cotransfected with GFP-Cav1.2, Cavβ3 and Cavα2δ1, either alone or with the non-clustered Kv2.1S586A point mutant, Kv2.1WT, or the nonconducting Kv2.1P404W point mutant (scale bar: 10 μm and holds for all panels). (K) Summary graph of Cav1.2 cluster size (left) and coefficient of variation (CV) values of GFP-Cav1.2 fluorescent signal intensity (right) measured from HEK293T cells cotransfected with GFP-Cav1.2 and the indicated Kv2.1 isoforms. Each point corresponds to a single cell. (cluster size: **p=0.0004, *p=0.0017 vs. Cav1.2 alone; CV: ***p<0.0001, **p=0.0040 vs. Cav1.2 alone; one-way ANOVA followed by Dunnett’s post-hoc test). (L) TIRF images of a HEK293T cell cotransfected with DsRed-Kv2.2 (red), GFP-Cav1.2 (green), BFP-SEC61β (blue) and Cavβ3 and Cavα2δ1 (not shown) (scale bar: 10 μm).

https://doi.org/10.7554/eLife.49953.006

Because TIRF microscopy illuminates subcellular structures that can be up to 100 nm away from the PM, we tested whether the observed co-clustering of Cav1.2 with Kv2.1 was occurring within the PM itself. We performed cell surface immunolabeling of intact cells coexpressing Kv2.1 and a Cav1.2 construct possessing an extracellular hemagglutinin epitope tag [Cav1.2-HA, (Obermair et al., 2004). Following cell surface immunolabeling of Cav1.2-HA channels, cells were permeabilized and immunolabeled for total Cav1.2-HA, then imaged by TIRF microscopy (Figure 3G). Similar to cells expressing fluorescently tagged channels, we found that cell surface Cav1.2-HA also co-clustered with Kv2.1 (Figure 3H). We also determined that cell surface Cav1.2-HA immunolabeling corresponded to approximately 70% of the total Cav1.2 visible in the TIRF field regardless of Kv2.1 coexpression (Figure 3I), suggesting that Kv2.1 did not alter the steady-state partitioning of Cav1.2 between PM and intracellular pools. Importantly, similar to results obtained evaluating total Cav1.2, cell surface Cav1.2-HA cluster size was also larger in the presence of Kv2.1, indicating recruitment of cell surface Cav1.2 into larger clusters induced by Kv2.1 (Figure 3I). We also found that coexpression with the related but distinct Kv1.5 channel did not impact the clustering of cell surface Cav1.2 channels as did coexpression with Kv2.1 (Figure 3—figure supplement 1A). As another measure of the impact of Kv2.1 expression on the organization of PM Cav1.2, we assessed the coefficient of variation (CV: SD/mean) of Cav1.2-HA immunolabeling intensity. The CV is used as a measure of non-uniformity of subcellular distribution, with clustered distributions having high CV values and uniform or diffuse signals having low CV values (Bishop et al., 2015; Jensen et al., 2017; Bishop et al., 2018; Kirmiz et al., 2018a; Kirmiz et al., 2018b). We found that cells coexpressing Kv2.1 had higher CV values for cell surface Cav1.2 than did cells coexpressing Kv1.5 (Figure 3—figure supplement 1D). Cell surface Kv2.1 labeling also exhibited greater colocalization with cell surface Cav1.2 than did cell surface labeling for Kv1.5 (as indicated by PCC values, Figure 3—figure supplement 1E).

We next established that the impact of Kv2.1 expression on Cav1.2 clustering did not require Kv2.1 K+ conductance, as coexpression of a K+-impermeable point mutant (Kv2.1P404W) (Lee et al., 2003; Kirmiz et al., 2018b) induced clustering of Cav1.2 comparable to WT Kv2.1 (Figure 3J–K). Conversely, coexpression with a Kv2.1 point mutant (Kv2.1S586A), deficient in clustering (Lim et al., 2000) and in inducing EPJ formation (Kirmiz et al., 2018a; Kirmiz et al., 2018b), had no effect on Cav1.2 clustering (Figure 3J–K). We also found that Kv2.2 channels similarly recruited Cav1.2 into large clusters (Figure 3L). We also determined that the localization of GFP-tagged Cav1.3 was similarly altered upon coexpression with Kv2.1 or Kv2.2, implying a common mechanism for co-clustering of these two neuronal LTCCs with Kv2 channels (Figure 3—figure supplement 2A–C). In contrast, Kv2.1 coexpression did not alter the PM localization of the T-type Ca2+ channel Cav3.1 (Figure 3—figure supplement 2D–F). This observation suggests that the Kv2.1-mediated spatial reorganization of LTCCs is specific and related to their association with Kv2.1 suggested by our Kv2.1 IP experiments, a notion also supported by the absence of T-type Ca2+ channels in these IP experiments. Together, these data demonstrate that clustered but not non-clustered Kv2 channels enhance LTCC clustering and increase their localization to EPJs as a nonconducting function.

Neuronal Kv2.1 channels functionally associate with endogenous LTCCs and RyRs

Kv2.1 fused to fluorescent proteins such as GFP clusters at neuronal EPJs similar to untagged or endogenous Kv2.1 (Antonucci et al., 2001; Kirmiz et al., 2018a; Kirmiz et al., 2018b). To begin to evaluate Ca2+ signals at neuronal Kv2.1-associated EPJs, we fused the genetically-encoded Ca2+ indicator GCaMP3 (derived from GFP) to K+-conducting and -nonconducting Kv2.1 channel isoforms and expressed these constructs in rat CHNs. GCaMP3 has previously been used to study near-membrane Ca2+ signaling microdomains in astrocytes (Shigetomi et al., 2010), and its higher basal fluorescence relative to newer GCaMP variants facilitated identification of transfected neurons. When expressed in HEK293T cells, GCaMP3-Kv2.1WT and GCaMP3-Kv2.1P404W were comparably expressed in surface-localized clusters as reported by both GxTX-633 labeling and GCaMP3 fluorescence (Figure 4—figure supplement 1). In rat CHNs, GCaMP3-Kv2.1 exhibited clustered localization similar to other fluorescently tagged Kv2.1 isoforms (Figure 4A) and reported global Ca2+ spikes, as indicated by the synchronized increase in fluorescence across the PM at sites where the construct was clustered and also in regions with diffuse GCaMP3-Kv2.1 expression (Figure 4B, Video 1). In addition to synchronized Ca2+ spikes, we also observed rapid and stochastic Ca2+ signals occurring at a subset of individual GCaMP3-Kv2.1 clusters within the soma (Figure 4B–C, Video 1). These Ca2+ signals were confined to individual clusters such that the fluorescence of adjacent GCaMP3-Kv2.1 clusters < 1 µm from the active clusters remained stable (Figure 4B, compare regions of interest 2 and 4). We found that Ca2+ signal amplitude, frequency, and width were insensitive to the K+ conductance of the GCaMP3-Kv2.1 reporter, as Ca2+ signals detected by a K+-impermeable variant of this construct (GCaMP3-Kv2.1P404W) showed no difference in any of these parameters relative to GCaMP3-Kv2.1 (Figure 4D).

Figure 4 with 2 supplements see all

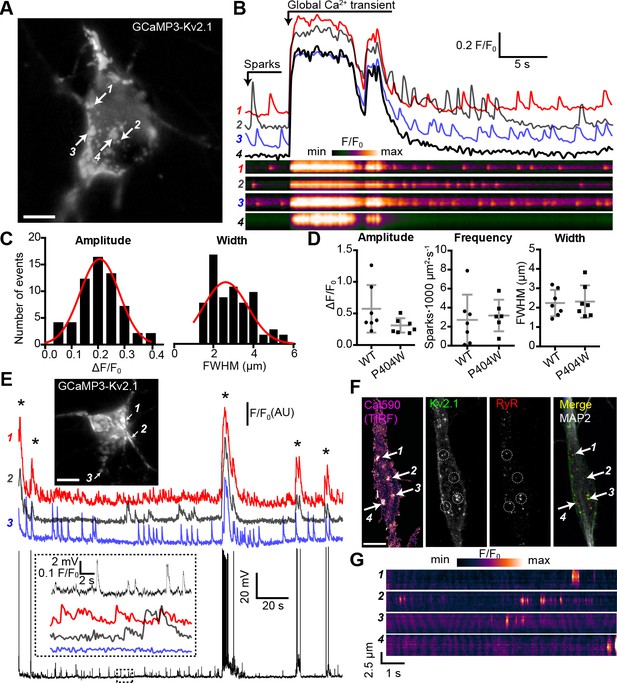

Spontaneous Ca2+ signals are generated at Kv2.1-associated EPJs.

(A) Widefield image of a rat CHN transfected with GCaMP3-Kv2.1 (also see Video 1). Arrows indicate selected Kv2.1 clusters whose fluorescent intensity profiles are plotted in panel B (scale bar: 10 µm). (B) Fluorescence intensity traces (upper panels) and kymographs (lower panels) corresponding to the four ROIs indicated in panel A. Note spontaneous Ca2+ signals occurring at ROI 2 that are not detected at the adjacent ROI 4. (C) Amplitude (ΔF/F0) and spatial spread (full width at half maximum, FWHM; µm) of all spatially distinct localized Ca2+ signals recorded from the neuron in panel A over a period of 90 s. (D) Summary data of the amplitude, frequency and spatial spread (width) of all spatially distinct localized Ca2+ signals recorded from CHNs expressing GCaMP3-Kv2.1 or GCaMP3-Kv2.1P404W. Each point corresponds to a single cell. No significant differences were detected. Bars are mean ± SD (Student’s t -test). (E) Image of a rat CHN transfected with GCaMP3-Kv2.1 from which simultaneous GCaMP3-Kv2.1 fluorescence and membrane potential values were acquired (scale bar: 10 μm). Numbered arrows correspond to ROIs whose fluorescence intensity traces are depicted below image. Membrane potential measurements are provided in the bottom trace. The inset shows and expanded view of ROI Ca2+ traces and membrane potential values from region of the time course indicated by the dashed box in the membrane potential trace. Asterisks correspond to global Ca2+ spikes. (F) Representative rat CHN loaded with Cal590 and imaged with TIRF microscopy, followed by post-hoc immunolabeling for Kv2.1, RyRs, and MAP2. Arrows indicate ROIs where spontaneous Ca2+ signals were detected; dashed circles indicate approximate regions where immunolabeling for Kv2.1 and RyRs was detectable (scale bar: 10 μm). (G) Kymograph showing the localized Ca2+ release events detected at ROIs depicted in F.

https://doi.org/10.7554/eLife.49953.009
Video 1
Spontaneous somatic Ca2+ signals detected at GCaMP3-Kv2.1 clusters in rat CHNs.

Stack of widefield images of a rat CHN transfected with GCaMP3-Kv2.1 and imaged at 10 Hz.

https://doi.org/10.7554/eLife.49953.012

Next, we assessed the relationship between GCaMP3-Kv2.1 reported Ca2+ signals and membrane potential (Vm). We performed current clamp experiments to monitor the Vm and Ca2+ signals simultaneously, using the whole-cell perforated patch clamp configuration. Spontaneous action potentials were associated with Ca2+ spikes, suggesting that these synchronized, large-amplitude Ca2+ transients reflected Ca2+ entry through voltage-gated Ca2+ channels as well as Ca2+ release through RyRs (Figure 4E). However, unlike global Ca2+ spikes, the localized Ca2+ signals displayed no clear relationship with action potentials or other spontaneous Vm fluctuations, similar to previous observations of localized Ca2+ release events in CA1 pyramidal neurons (Berrout and Isokawa, 2009; Manita and Ross, 2009). We also found that the localized Ca2+ signals could persist in the presence of TTX (Figure 4—figure supplement 2A), and that in some neurons, spark frequency appeared to be elevated immediately following a global Ca2+ spike (Figure 4—figure supplement 2B–C). Together, these observations suggest that the localized Ca2+ signals arose independently of large, uniform fluctuations in the Vm such as those that occur with action potentials.

As heterologous expression of Kv2.1 in CHNs is known to result in large Kv2.1 ‘macroclusters’ that recruit RyRs (Antonucci et al., 2001), we next determined whether somatic Ca2+ signals occurred at native Kv2.1-associated EPJs. For these experiments, we used non-transfected CHNs loaded with the Ca2+ dye Cal-590 AM and recorded Ca2+ signals using TIRF microscopy. Using this approach, it was possible to detect spontaneous, localized Ca2+ release events in the soma that were qualitatively similar to those recorded with GCaMP3-Kv2.1 (Figure 4F–G, Video 2), although with faster kinetics in fluorescence intensity changes relative to GCaMP3-Kv2.1, likely reflecting differences in the Ca2+ binding properties of these probes. Post-hoc immunolabeling of these CHNs for Kv2.1, RyRs, and the neuron-specific cytoskeletal protein MAP2 indicated that the observed localized Ca2+ signals occurred primarily within the soma at sites of colocalized Kv2.1 and RyR clusters (Figure 4F).

Video 2
Spontaneous somatic Ca2+ signals detected by TIRF microscopy in rat CHNs loaded with Cal-590 AM.

Stack of TIRF images of rat CHNs loaded with Cal-590 AM and imaged at 30 Hz. Regular wave-like signals are a TIRF imaging artifact. Images have been normalized to the first image without detectable Ca2+ signals (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.013

These observations suggested that the Ca2+ signals observed at neuronal Kv2.1-associated EPJs reflected RyR-generated Ca2+ sparks. To further assess this possibility, we imaged GCaMP3-Kv2.1-expressing CHNs treated with compounds that modulate LTCC- and RyR-mediated CICR. We found that caffeine, which sensitizes RyRs to cytosolic Ca2+, enhanced the frequency of localized Ca2+ signals (Figure 5A,B, Video 3). In contrast, depletion of ER Ca2+ stores with the sarco-/endo-plasmic reticulum Ca2+ ATPase (SERCA) inhibitor thapsigargin led to an elimination of local Ca2+ signals (Figure 5A–B). The functional coupling of dendritic LTCCs and RyRs in hippocampal neurons has previously been demonstrated by the impact of dihydropyridine (DHP) compounds on dendritic Ca2+ sparks: the LTCC agonist Bay K8644 increased Ca2+ spark frequency, whereas the LTCC inhibitor nimodipine blocked Ca2+ sparks (Manita and Ross, 2009). Here, we obtained similar evidence of the involvement of LTCCs in the generation of somatic GCaMP3-Kv2.1 reported Ca2+ signals. The frequency of these Ca2+ sparks was enhanced by activation of LTCCs with Bay K8644 (Figure 5A,B,D, Videos 4 and 5), while they were rapidly inhibited by blockade of LTCCs with nimodipine (Figure 5A–B). We also performed post-hoc immunolabeling of these imaged CHNs to determine whether the specific GCaMP3-Kv2.1 clusters which exhibited localized Ca2+ signals were associated with RyRs. Using this approach, we determined that the subset of GCaMP3-Kv2.1 clusters that colocalized with RyRs corresponded to the clusters that produced localized Ca2+ signals, either spontaneously or in response to the pharmacological modulators caffeine (Figure 5C) and Bay K8644 (Figure 5D). We also quantified the relationship between the size of post-hoc immunolabeled RyR clusters and spark frequency and amplitude. Similar to previous observations in vascular smooth muscle (Pritchard et al., 2018) and cardiac muscle cells (Galice et al., 2018), we found that neuronal Ca2+ spark frequency but not amplitude correlated with RyR cluster size, and that application of the LTCC agonist Bay K8644 steepened this relationship (Figure 5E). Taken together, these observations demonstrate that Kv2.1-associated EPJs are sites of spontaneous CICR events mediated by LTCCs and RyRs.

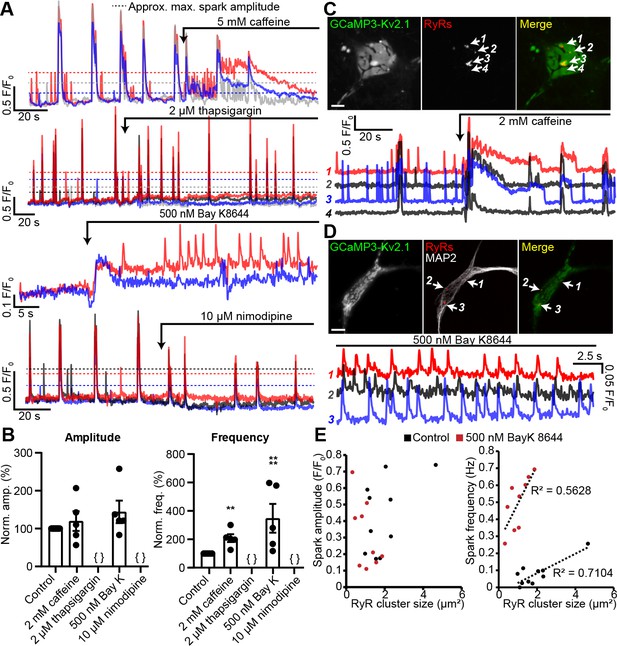

Spontaneous Ca2+ signals at Kv2.1-associated EPJs are produced by RyR- and LTCC-mediated CICR.

(A) Representative GCaMP3-Kv2.1 fluorescence traces from CHNs treated with pharmacological probes of CICR. Different colors indicate spatially distinct ROIs within the same neuron. Dashed lines indicate approximate maximum amplitude for localized Ca2+ signals as opposed to the larger amplitude, synchronized global Ca2+ transients that exceed the dashed lines. (B) Summary data of the amplitude and frequency of all sparks recorded from CHNs treated with pharmacological probes of CICR. Each point corresponds to a single cell (**p=0.0013 vs. control; ****p<0.0001 vs. control; {}: no Ca2+ sparks detected; one-way ANOVA followed by Dunnett’s test). (C) Image of rat CHN transfected with GCaMP3-Kv2.1 and treated with caffeine, followed by post-hoc immunolabeling for RyRs (scale bar: 10 μm). Numbered arrows indicate ROIs where localized Ca2+ signals were detected (ROIs 1–3) or not detected (ROI 4). ROI fluorescence traces are shown in lower panel; note lack of spontaneous Ca2+ signals at ROI 4 despite its proximity to ROI 3, which displays prominent spontaneous Ca2+ release. (D) As in panel A, except CHN was treated with 500 nM Bay K8644 to induce spontaneous Ca2+ signals (scale bar: 10 μm). (E) Plot of individual RyR cluster size (determined from post-hoc immunolabeling) versus its spark amplitude (left panel) or frequency (right panel) reported by GCaMP3-Kv2.1 fluorescence in control (black symbols) or Bay K8644-treated (red symbols) cells. Each point corresponds to an individual RyR cluster (n = data from 4 cells [control] or 5 cells [Bay K8644]).

https://doi.org/10.7554/eLife.49953.014
Video 3
Caffeine increases the frequency of somatic Ca2+ sparks in CHNs.

Images of a rat CHN transfected with GCaMP3-Kv2.1 acquired at 5 Hz. Neuron is treated with 5 mM caffeine at t = 84 s; the increased Ca2+ spark frequency is apparent from t = 87 s-101s. Images have been normalized to the first image without detectable Ca2+ signals (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.015
Video 4
Bay K8644 increases the frequency of somatic Ca2+ sparks in CHNs.

Rat CHN transfected with GCaMP3-Kv2.1 and imaged in the presence of 500 nM Bay K8644. Images were acquired at 11.3 Hz and have been normalized to the first image without detectable Ca2+ signals (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.016
Video 5
Video depicting increase in Ca2+ spark frequency upon addition of Bay K8644.

Rat CHN transfected with GCaMP3-Kv2.1 and imaged at 20 Hz. 500 nM Bay K 8644 is added starting at approximately t = 25 s. Non-normalized GCaMP3-Kv2.1 images are shown on the left, images normalized to the first image without detectable Ca2+ signals (i.e., F/Fmin) are shown in the center, and the same cell following fixation and immunolabeling for RyRs (red) and MAP2 (gray) is shown on the right.

https://doi.org/10.7554/eLife.49953.017

Kv2.1 augments LTCC and RyR2-mediated CICR reconstituted in HEK293T cells

We next asked how Kv2.1-induced clustering of LTCCs would impact RyR-mediated Ca2+ release in HEK293T cells. For these experiments, we expressed Kv2.1 along with Cav1.2, the LTCC auxiliary subunits α2δ1 and β3, RyR2, and the STAC1 adaptor protein, an approach similar to that previously used to recapitulate Cav1.1- and RyR1-mediated Ca2+ release in HEK293T cells (Perni et al., 2017). We found that in the presence of these auxiliary subunits, Kv2.1, Cav1.2, and RyR2 could spatially associate in HEK293T cells (Figure 6A). Thus, the spatial association of Kv2.1, Cav1.2, and RyRs seen in neurons could be recapitulated in HEK293T cells. To detect Ca2+ release events, we performed TIRF microscopy of cells loaded with the Ca2+-sensitive dye Cal-590 AM. Although it was not possible to establish whether a cell expressed all transfected constructs, we observed spontaneous Ca2+ release events in a subset of cells (Figure 6B,E) that were not seen in untransfected HEK293T cells and focused our analysis on cells that exhibited this phenotype. These spontaneous Ca2+ release events were rapidly blocked by the RyR inhibitor tetracaine (Figure 6G, Video 6), suggesting that they reflected CICR mediated by RyRs. Expressing Kv2.1 in these cells resulted in enhanced spark frequency and amplitude (Figure 6C–D,F,J). Similar results were obtained using Cav1.3 in place of Cav1.2 (Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all

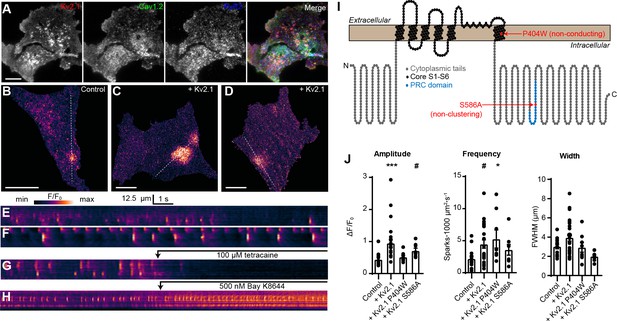

Kv2.1 expression increases the frequency of LTCC- and RyR-mediated sparks reconstituted in HEK293T cells.

(A) TIRF images of a HEK293T cell cotransfected with DsRed-Kv2.1 (red), Cav1.2 (green), YFP-RyR2 (blue), and auxiliary subunits Cavβ3, Cavα2δ1, and STAC1 (not shown) (scale bar: 10 μm). (B) TIRF image of a HEK293T cell expressing Cav1.2, RyR2, STAC1, and the LTCC auxiliary subunits β3 and α2δ1, and loaded with Cal-590 AM. (C–D) TIRF images of HEK293T cells additionally coexpressing Kv2.1. Dashed line indicates ROI depicted in corresponding kymographs (scale bar in panels B-D: 10 µm). (E–G) Kymograph showing the localized Ca2+ release events detected in the ROI on the cell in panels B-D, respectively. In (G), 100 µM tetracaine was added at the indicated time point. (H) Kymograph showing the localized Ca2+ release events detected in a cell treated with 500 nM Bay K8644 at the indicated time point. (I) Illustration of the membrane topology of a single Kv2.1 α subunit depicting the locations of the P404W and S586A point mutations. (J) Summary data of the amplitude, frequency and spatial spread (width) of all sparks recorded from HEK293T cells expressing Cav1.2, RyR2, and auxiliary subunits, without (control) or with addition of the indicated Kv2.1 isoforms. Each point corresponds to a single cell (amplitude: ***p=0.0001, #p=0.051; frequency: #p=0.055, *p=0.047; one-way ANOVA followed by Dunnett’s post-hoc test vs. control).

https://doi.org/10.7554/eLife.49953.018
Video 6
Tetracaine blocks Ca2+ sparks reconstituted in HEK293T cells.

Stack of TIRF images acquired at 20 Hz of a single HEK293T cell transfected with RyR2, Cav1.2, and auxiliary subunits and loaded with Cal-590 AM. 100 µM tetracaine was added at t = 7000 ms. Regular wave-like signals are a TIRF imaging artifact. Images have been normalized to the first image without detectable Ca2+ signals (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.020

To better understand the mechanism underlying the influence of Kv2.1 on these reconstituted Ca2+ sparks, we next compared how they were affected by the nonconducting Kv2.1P404W and the non-clustering Kv2.1S586A point mutants (Figure 6I). By using these Kv2.1 isoforms, we determined that there was an interplay between both Kv2.1 K+ conductance and clustering on Ca2+ sparks reconstituted in HEK293T cells. Expression of Kv2.1 channels capable of clustered EPJ formation (i.e., Kv2.1WT and Kv2.1P404W) increased spark frequency, whereas non-clustering Kv2.1S586A did not (Figure 6J). Interestingly, we found that spark amplitude was enhanced by K+-conducting Kv2.1WT but not Kv2.1P404W (Figure 6J), suggesting that while Kv2.1-mediated clustering alone was sufficient to impact spark frequency, K+ conductance was required to impact the amplitude of reconstituted Ca2+ sparks in HEK293T cells. We hypothesize that the high input resistance of HEK293T cells relative to CHNs, the latter of which possess numerous endogenous ionic conductances (including native Kv2.1 channels), enabled K+ conductance through Kv2.1WT and Kv2.1S586A to promote Vm hyperpolarization in HEK293T cells, maintaining a greater electrochemical driving force for extracellular Ca2+ and also promoting recovery of Cav1.2 channels from voltage-dependent inactivation. In conclusion, these observations indicate that Kv2.1-mediated clustering promotes the functional coupling of Cav1.2 and RyRs.

Kv2.1 reduces the voltage threshold for Cav1.2 opening and enhances LTCC activity

Having demonstrated a spatial and functional association of Kv2.1, LTCCs, and RyRs in hippocampal neurons that could be reconstituted in HEK293T cells, we next investigated whether clustering by Kv2.1 influenced the Cav1.2-mediated LTCC activity. As physical interactions between adjacent LTCCs promote enhanced LTCC activity (reducing the membrane voltage threshold for channel opening and elevating channel open probability) (Navedo et al., 2005; Dixon et al., 2012; Moreno et al., 2016), we reasoned that this functional property of Cav1.2 might be enhanced by Kv2.1-induced clustering. To test this possibility, we obtained whole-cell patch-clamp recordings from HEK293T cells transfected with Cav1.2 and the clustered but non-K+ conducting Kv2.1P404W point mutant, which allowed us to measure Ca2+ currents (ICa) in the absence of the very large outward K+ currents produced by Kv2.1WT. Consistent with an influence of Cav1.2 spatial organization on its activity, we found that expression of Cav1.2 with Kv2.1P404W enhanced peak ICa as compared to cells expressing Cav1.2 alone (Figure 7A–B). Analysis of the conductance-voltage (G-V) relationship also showed an influence of Kv2.1 on the Vm threshold for Cav1.2 opening, with currents produced by Cav1.2 activating at more negative voltages in the presence of Kv2.1P404W than those produced by Cav1.2 alone, with no effect on steady-state inactivation (Figure 7C). However, we did observe a greater reduction in the fraction of peak current remaining after 250 ms of depolarization (r250), (Figure 7D), suggesting elevated Ca2+-dependent inactivation (CDI) of Cav1.2 in the presence of Kv2.1. Cells coexpressing STAC1 with Cav1.2 and Kv2.1P404W also exhibited an increase in whole-cell ICa and a hyperpolarized shift in Cav1.2 opening, similar to results obtained without STAC1 (Figure 7—figure supplement 1A–C). However, in the presence of STAC1, which substantially reduces CDI in Cav1.2 (Campiglio et al., 2018), Cav1.2 r250 values were comparable between control cells and cells expressing Kv2.1 (Figure 7—figure supplement 1D). Measurement of Ca2+-induced fluorescence increases in cells loaded with the Ca2+-sensitive dye Rhod-2 via the patch pipette also revealed an enhancing effect of Kv2.1P404W on Cav1.2-mediated Ca2+ influx (Figure 7E). Similarly, HEK293T cells loaded with the Ca2+ dye Fluo-4 and expressing Cav1.2 and either Kv2.1WT or Kv2.1P404W displayed greater K+-depolarization induced Ca2+ influx than control cells (Figure 7F–G), further supporting that K+-conducting as well as -nonconducting isoforms of Kv2.1 augment Cav1.2 activity.

Figure 7 with 1 supplement see all

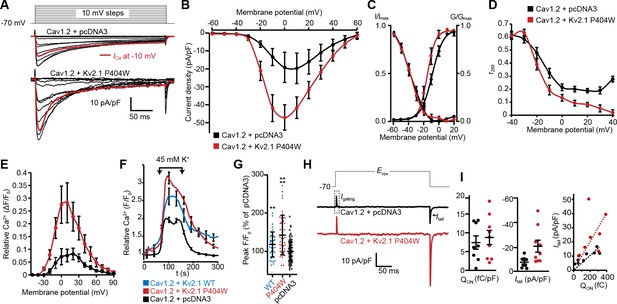

Cav1.2 channel activity is increased by coexpression with Kv2.1P404W.

(A) Representative Ca2+ current trace families recorded from HEK293T cells transfected with Cav1.2-GFP and auxiliary subunits Cavβ3 and Cavα2δ1, without (+ pcDNA3 empty vector) with cotransfection of DsRed-Kv2.1P404W. For panels B-D, H, and I, data are from cells without (+ pcDNA3 empty vector, in black) or with coexpression of Kv2.1P404W (in red). (B) Normalized current-voltage (I–V) relationship of whole-cell ICa recorded from n = 17 (Cav1.2 + pcDNA3) and n = 10 (Cav1.2 + Kv2.1P404W) cells. (C) Voltage-dependence of whole-cell Cav1.2 conductance G/Gmax and steady-state inactivation I/Imax. For the conductance-voltage relationships, the half-maximal activation voltage V1/2=-8.9±0.8 [pcDNA3] vs. −13.9 ± 1.6 [+Kv2.1P404W] mV, p=0.0045; slope factor k = 6.9 ± 0.3 [pcDNA3] vs. 4.5 ± 0.7 [+Kv2.1P404W], p=0.0025; Student’s t-test. (D) Comparison of r250 values (fraction of peak current remaining after 250 ms of depolarization) at the indicated potentials. (E) Average Rhod-2 fluorescence intensity measurements obtained from cells held at different membrane potentials during voltage clamp experiments (n = 4 cells per condition). (F) Average fluorescence intensity measurements from Fluo4-loaded HEK293T cells transfected with Cav1.2-RFP, auxiliary subunits Cavβ3 and Cavα2δ, without (+ pcDNA3 empty vector, in black) or with cotransfection of Kv2.1WT (in blue) or Kv2.1P404W (in red). Ca2+ influx was stimulated by depolarization with high extracellular K+ (45 mM) as indicated on the graph. (G) Average peak fluorescence values obtained during high-K+ depolarization of HEK293T cells expressing Cav1.2 and Kv2.1WT or Kv2.1P404W as in F. Each point represents a single cell. Bars are mean ± SD (**p<0.0001, *p=0.0047 versus control; Student’s t-test). (H) Representative nitrendipine-sensitive Cav1.2 gating and tail currents recorded from control (pcDNA3) cells and cells coexpressing Kv2.1P404W. (I) Quantification of nitrendipine-sensitive Cav1.2 Qon (left, p=0.3931, Student’s t-test), Itail (center, *p=0.0195, Student’s t-test), and Qon vs.Itail (right). Each point corresponds to a single cell.

https://doi.org/10.7554/eLife.49953.021

Ion channel activity can be described by the product of the number of channels present in the PM (n), the channel’s unitary conductance (i), and the open probability of these channels (Po), such that the whole-cell current I can be described by the relationship I = nPoi. Thus, the enhancement of Cav1.2 activity observed in the presence of Kv2.1 could be caused by an effect on any one or more of these parameters. To better understand the underlying mechanism, we acquired gating and ionic tail currents from the same cell. Depolarization-induced voltage sensor movement in activating voltage-gated channels produces a gating current (Qon) that is proportional to the number of channels present in the PM (n). Repolarization-induced ionic tail currents (Itail) reveal overall channel activity (I). Changes in one or both can be used to infer whether it is ‘n’ versus some combination of ‘Po’ and/or ‘i’ that yield changes in total channel activity. We used nitrendipine, a DHP LTCC gating inhibitor, to pharmacologically isolate Cav1.2 Qon when the Vm was stepped to the ICa reversal potential, and to measure Itail elicited by returning to the −70 mV holding potential (Figure 7H). Nitrendipine-sensitive Qon values produced by Cav1.2 alone were comparable to those measured in the presence of Kv2.1, indicating that the increased ICa in cells coexpressing Kv2.1 was not associated with an increase in the number of PM Cav1.2 channels (Figure 7I). However, the nitrendipine-sensitive Itail was significantly greater in the presence of Kv2.1, demonstrating that the open probability and/or conductance of Cav1.2 was increased when coexpressed with Kv2.1. As comparable Qon values (i.e., Cav1.2 voltage sensor movement) produced a larger Itail in the presence of Kv2.1, these data taken together with the altered G-V curve shown in Figure 7C suggest that the Kv2.1-dependent increase in ICa apparently came from enhanced Cav1.2 voltage sensor coupling to channel opening.

We next tested how Kv2.1 impacted the spontaneous opening of Cav1.2 at hyperpolarized Vm values. We used an optical approach to measure single Cav1.2 channel activity by recording Cav1.2-mediated Ca2+ sparklets, local elevations in intracellular Ca2+ produced by the opening of a single or small cluster of Cav1.2 channels (Cheng and Lederer, 2008). In addition to providing the single-channel activity of all active Cav1.2 channels present in the TIRF footprint, this approach had the additional benefit of revealing where in the PM the active channels were localized. We recorded Ca2+ sparklets at a holding potential of −70 mV in the presence of 20 mM external Ca2+ to increase the driving force for Ca2+ influx. In control cells expressing Cav1.2 alone, we observed occasional sparklets whose activity was enhanced by the application of the LTCC agonist Bay K8644 (Figure 8A–B,H–I, Video 7). In contrast, control cells coexpressing Cav1.2 and DsRed-Kv2.1P404W displayed significantly more sparklets than control cells expressing Cav1.2 alone and a higher level of basal activity as measured by nPs, where n is the number of quantal levels of Cav1.2 opening and Ps is the probability of sparklet occurrence (Figure 8C–E,I,J,L, Video 8). This observation is consistent with our ionic tail current data indicating that Cav1.2 open probability was enhanced in the presence of Kv2.1. Interestingly, Bay K8644 treatment did not result in any further enhancement in nPs in cells expressing DsRed-Kv2.1P404W (Figure 8J), suggesting that DsRed-Kv2.1P404W coexpression may result in near-maximal activation of Cav1.2-mediated sparklets at this hyperpolarized membrane potential. Many sparklets occurred near clusters of Kv2.1 channels, and we found that the nearest-neighbor distance (NND) of individual sparklet sites was significantly reduced in the presence of Kv2.1 (Figure 8K). Taken together, these findings demonstrate that Kv2.1 enhanced the open probability of Cav1.2 channels and increased the proximity of spontaneously active Cav1.2 channels to each other.

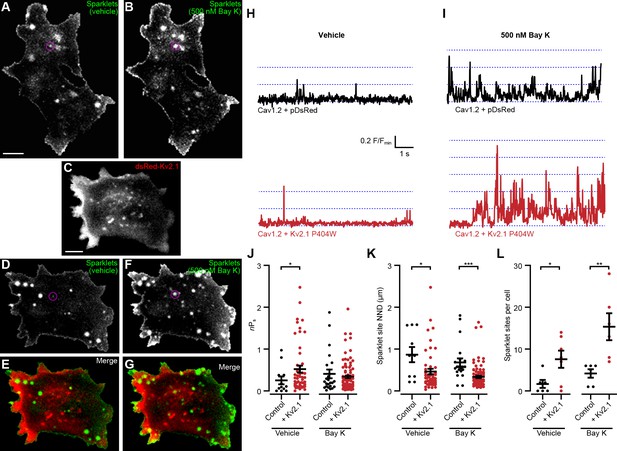

Kv2.1P404W increases Cav1.2 single channel activity.

(A, B) Maximum z-projections of TIRF images of Cav1.2-mediated Ca2+ sparklets in a representative HEK293T cell transfected with Cav1.2 and auxiliary subunits and loaded with Fluo-5F via the patch pipette, before (A) and after (B) treatment with 500 nM Bay K8644 (scale bar: 5 µm). (C) Maximum z-projection of TIRF images of DsRed-Kv2.1 in a representative HEK293T cell cotransfected with Cav1.2 and auxiliary subunits (scale bar: 5 µm). (D, F) Maximum z-projections of TIRF images of sparklets in a representative HEK293T cell transfected with DsRed-Kv2.1, Cav1.2, and auxiliary subunits and loaded with Fluo-5F via the patch pipette, before (D) and after (F) treatment with 500 nM Bay K8644. (E, G) Merged images of panels C and D (E), or panels C and F (G). (H) Fluorescence intensity profiles of representative sparklets recorded in 20 mM external Ca2+ in a control cell (upper panel, ROI depicted in A) or in a cell additionally expressing Kv2.1 (lower panel, ROI depicted in D). (I) Fluorescence intensity profiles of representative sparklets recorded in 20 mM external Ca2+ and treated with Bay K8644 in a control cell (upper panel, ROI depicted in B) or in a cell additionally expressing Kv2.1 (lower panel, ROI depicted in F). (J) Summary data of sparklet site nPs measured from n = 6 cells expressing Cav1.2 alone and n = 7 cells coexpressing Cav1.2 and Kv2.1. Each point represents a single sparklet site (vehicle: *p=0.0367; Bay K: p=0.9224; two-tailed Mann-Whitney test). (K) Summary data of sparklet site nearest neighbor distance (NND) measured from n = 6 cells expressing Cav1.2 alone and n = 7 cells coexpressing Cav1.2 and Kv2.1. Each point represents a single sparklet site (vehicle: *p=0.0214; Bay K: p<0.0001; two-tailed Mann-Whitney test). (L) Summary data of the number of sparklet sites in n = 6 cells expressing Cav1.2 alone and n = 7 cells coexpressing Cav1.2 and Kv2.1. Each point represents a single cell (vehicle: *p=0.0318; Bay K: **p=0.0079; two-tailed t-test).

https://doi.org/10.7554/eLife.49953.023
Video 7
Ca2+ sparklets in a control HEK293T cell expressing Cav1.2.

Stack of TIRF images acquired at approximately 100 Hz of a single HEK293T cell transfected with Cav1.2, PKCα, and auxiliary subunits and loaded with Fluo-5F via the patch pipette, before (left) and after (right) application of 500 nM Bay K8644. Each pixel has been normalized to its minimum pixel intensity (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.024
Video 8
Ca2+ sparklets in a HEK293T cell coexpressing Cav1.2 and Kv2.1.

Stack of TIRF images acquired at approximately 33 Hz of a single HEK293T cell transfected with Cav1.2, DsRed-Kv2.1P404W, PKCα, and auxiliary subunits and loaded with Fluo-5F via the patch pipette, before (left) and after (right) application of 500 nM Bay K8644. Each pixel has been normalized to its minimum pixel intensity (i.e., F/Fmin).

https://doi.org/10.7554/eLife.49953.025

Given the impact of Kv2.1 coexpression on LTCC activity in heterologous HEK293T cells, we next asked whether LTCC currents were altered in CHNs lacking Kv2.1. For these experiments, we chose to record from CHNs as opposed to acutely dissociated neurons. Although the absence of extensive processes in acutely dissociated neurons enables much better control of the Vm than in arborized neurons, we reasoned based on the loss of Kv2.1 clustering upon dissociation in other cell types expressing clustered Kv2.1 (PC12, MDCK, and HEK293 cells; J.S. Trimmer, unpublished observations), and that endogenous Kv2.1 clusters in CHNs are sensitive to changes in intracellular Ca2+ and metabolism (Misonou et al., 2005b), that acute dissociation would disrupt the clustered localization of Kv2.1, potentially concealing LTCC regulation by Kv2.1 clustering. To improve somatic voltage clamp, we used recording solutions lacking Na+ and containing Cs+ and Ba2+ (which block K+ channels; Ba2+ also permeates voltage-gated Ca2+ channels) to increase membrane impedance. We focused our analyses of electrophysiological recordings on repolarization-induced tail currents after activation of channels by a depolarizing prepulse, rather than measurement of currents induced by depolarizing voltage steps that can be distorted due to space clamp limitations (e.g., see Milescu et al., 2010). Similar to the impact of Kv2.1 on LTCCs in HEK293T cells, whole-cell Ba2+ currents (IBa) at +10 mV (Figure 9A), as well as LTCC tail currents (Figure 9B,C) were larger in CHNs from WT mice than those measured in Kv2.1 KO CHNs (Figure 9A–C). To isolate the LTCC component of IBa, we applied the LTCC gating inhibitor nimodipine (10 µM), and found that the reduced IBa observed in Kv2.1 KO CHNs (Figure 9A–C) was primarily due to a reduction in the nimodipine-sensitive component of the current (Figure 9A,B,E), with no apparent difference in the nimodipine-resistant current (Figure 9A,B,D). We also examined nimodipine-sensitive gating and ionic tail currents when the Vm was stepped to the IBa reversal potential and found that while Qon was not significantly different between control and Kv2.1 KO CHNs, peak Itail was reduced in Kv2.1 KO CHNs (Figure 9F–G). The data in Figures 7 and 8 (from exogenously expressed channels in HEK293T cells) and Figure 9 (from endogenously expressed channels in CHNs) show that Kv2.1 enhances neuronal LTCC activity and suggest that the underlying mechanism in both experimental systems involves enhanced coupling efficiency between LTCC voltage-sensor movement and channel opening due to Kv2.1-mediated clustering.

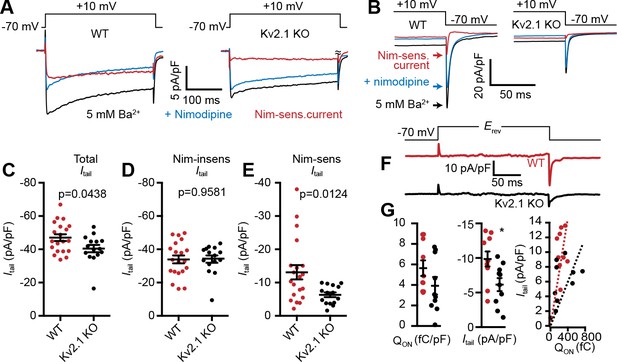

LTCC activity is reduced in Kv2.1 KO hippocampal neurons.

(A) Representative Ba2+ current traces recorded from WT (left) and Kv2.1 KO CHNs (right) recorded at +10 mV in vehicle or in the presence of the LTCC inhibitor nimodipine (10 µM). (B) Representative raw tail current records from a WT (left) and Kv2.1 KO (right) CHN induced by a step to −70 mV from a 10 mV prepulse, recorded in vehicle or in the presence of 10 µM nimodipine. C-F. Comparison of WT (red) and Kv2.1 KO (black) CHNs. (C) Maximum tail current amplitudes measured at −70 mV from a 10 mV prepulse. Each point represents one cell. (D) As in C but recorded in the presence of 10 µM nimodipine. (E) Maximum nimodipine-sensitive tail current amplitudes obtained from each cell by subtracting maximum tail current amplitudes measured in vehicle from those measured in the presence of nimodipine. (F) Representative nimodipine-sensitive LTCC gating and tail currents recorded from WT and Kv2.1 KO CHNs. (G) Quantification of nimodipine-sensitive LTCC Qon (left), Itail (center), and Qon vs.Itail (right) recorded from WT and Kv2.1 KO CHNs. Each point corresponds to a single cell (*p=0.019, Student’s t-test).

https://doi.org/10.7554/eLife.49953.026

Kv2.1 promotes spatial coupling of LTCCs and RyRs

Given that Kv2.1-mediated clustering impacts the spatial distribution of Cav1.2 in coexpressing HEK293T cells, we next examined whether loss of Kv2.1 was associated with changes in the expression and localization of Cav1.2. We first performed immunolabeling of hippocampal neurons in brain sections from adult control and Kv2.1 KO mouse littermates. We have previously determined that the anatomic structure of mouse brains lacking Kv2.1 is comparable to controls, and there do not appear to be compensatory changes in the expression of other Kv channels tested (Speca et al., 2014). Here, we confirmed that immunolabeling for somatodendritic Kv2.2 and dendritic Kv4.2 channels was similar in WT and Kv2.1 KO hippocampus (Figure 10A–C). However, Cav1.2 labeling was increased in pyramidal neurons in area CA1 in Kv2.1 KO brain sections, both within the cell bodies and in the apical dendrites (Figure 10C). These results suggest that in adult mice lacking functional Kv2.1 channels, Cav1.2 expression may be elevated, potentially as a compensatory mechanism to overcome reduced Cav1.2 channel function.

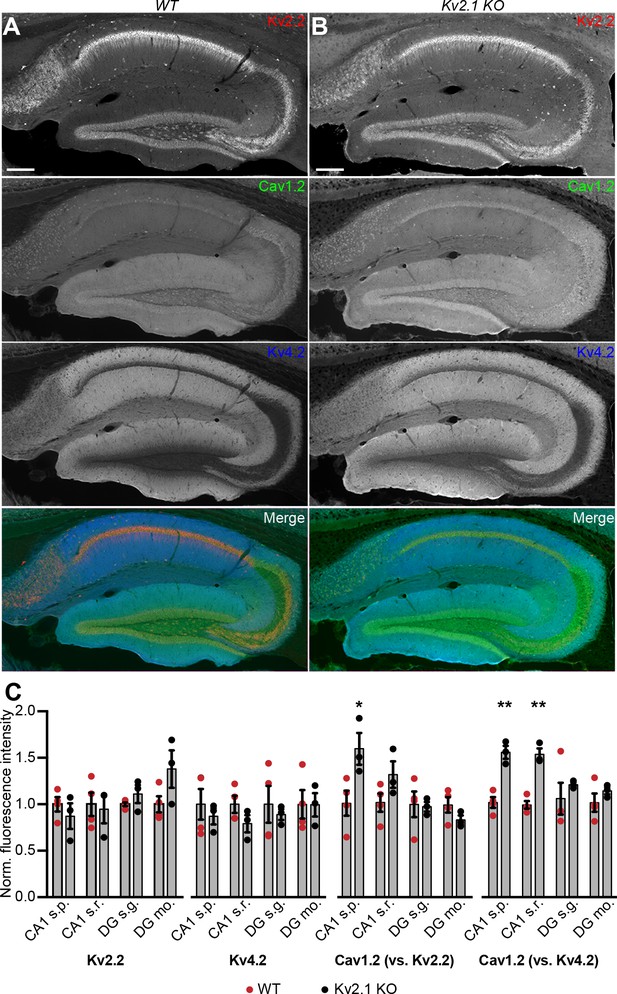

Increased immunolabeling for Cav1.2 in Kv2.1 KO brain sections.

(A) Column shows exemplar images of the hippocampus acquired from brain sections of adult WT mice immunolabeled for Kv2.2 (red), Cav1.2 (green) and Kv4.2 (blue) (scale bar: 200 μm). (B) As in A but acquired from Kv2.1 KO mice. (C) Summary graphs of normalized mean fluorescence intensity of Kv2.2, Kv4.2, and Cav1.2 immunolabeling from ROIs from various laminae within CA1 (s.p.: stratum pyramidale; s.r.: stratum radiatum) and DG (s.g.: stratum granulosum; mo: molecular layer) in brain sections from adult WT (red) and Kv2.1 KO (black) mice. Each point corresponds to an individual mouse (Cav1.2 vs. Kv2.2: *p=0.0408; Cav1.2 vs. Kv4.2: **p=0.0018, ***p=0.0007).

https://doi.org/10.7554/eLife.49953.027

To obtain more detailed individual cell information, we next investigated how the loss of endogenous Kv2.1 influenced the localization and function of LTCCs and RyRs in WT and Kv2.1 KO CHNs. To determine whether Kv2.1 channels regulate the localization of somatodendritic Cav1.2 and/or RyRs, we first analyzed the size and morphology of immunolabeled Cav1.2 and RyR clusters in WT and Kv2.1 KO mouse CHNs (Figure 11A–B). We found that compared to WT CHNs, Kv2.1 KO CHNs had reduced colocalization between Cav1.2 clusters and RyR, decreased size of RyR clusters, and increased distance between Cav1.2 clusters (Figure 11C–F). However, unlike the increased Cav1.2 immunolabeling found in adult Kv2.1 KO mouse brain sections, we found that the number of Cav1.2 clusters per µm2 of somatic membrane did not differ between WT and Kv2.1 KO CHNs. These observations suggests that while compensatory changes in Cav1.2 expression did not occur in cultured Kv2.1 KO CHNs after approximately two weeks in vitro as it did in adult brain neurons in vivo, the presence of Kv2.1 promoted the spatial coupling of Cav1.2 to RyRs, consistent with our results in HEK293T cells.

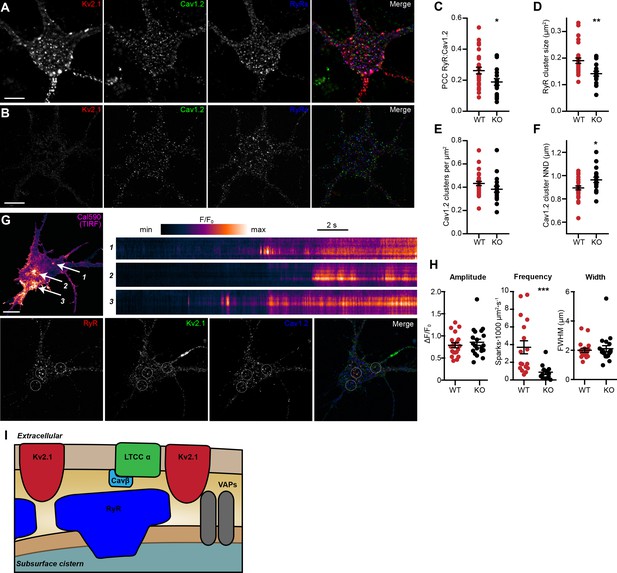

Reduced association of Cav1.2 and RyRs and decreased spark frequency in Kv2.1 KO CHNs.

(A) A single optical section image of a WT mouse CHN immunolabeled for Kv2.1, Cav1.2, and RyRs (scale bar: 10 μm). (B) As in D but acquired from a Kv2.1 KO mouse CHN. (C–F) Morphology and spatial distribution of the indicated parameters determined from WT and Kv2.1 KO CHNs (each point represents one cell; Student’s t-test). (C) *p=0.02255. (D) **p=0.0014. (E) p=0.1126. (F) *p=0.0173. (G) Representative WT mouse CHN loaded with Cal590 and imaged with TIRF microscopy, followed by post-hoc immunolabeling for RyRs, Kv2.1, and Cav1.2. Arrows indicate ROIs where spontaneous Ca2+ signals were detected; dashed circles indicate approximate regions where immunolabeling for Kv2.1, Cav1.2, and RyRs was detectable. Kymograph showing the localized Ca2+ release events detected at ROIs are depicted to the right. (H) Summary data of the amplitude, frequency and spatial spread (width) of all sparks recorded from WT and Kv2.1 KO mouse CHNs. Each point corresponds to a single cell (***p=0.0042; Student’s t-test). (I) Diagram illustrates a model for the molecular architecture of Kv2.1-associated EPJs.

https://doi.org/10.7554/eLife.49953.028

Finally, to evaluate how impaired Cav1.2 and RyR spatial coupling in Kv2.1 KO CHNs affected spontaneous CICR events or sparks, we imaged Cal-590-loaded cells using TIRF microscopy. Similar to rat CHNs, we observed spontaneous sparks in WT mouse CHNs that were associated with Kv2.1, Cav1.2, and RyR clusters identified by post-hoc immunolabeling (Figure 11G). Consistent with the reduced colocalization of Cav1.2 and RyRs in Kv2.1 KO CHNs, we found that loss of Kv2.1 was associated with a significant reduction in spark frequency relative to WT control CHNs (Figure 11H). Taken together, these findings demonstrate that Kv2.1 channels promote the spatial and functional association of endogenous Cav1.2 and RyRs in neurons, as well as the corresponding exogenous channels in HEK293T cells.

Discussion

The findings in this study support a new model for the formation of Ca2+ signaling microdomains at EPJs and the local control of Ca2+ release from these structures. In this model, neuronal EPJs are Ca2+ signaling microdomains in which Cav1.2 and RyRs are brought into close proximity by Kv2.1-mediated clustering, forming a specialized somatic complex for the generation of localized Ca2+ signals by these Ca2+ channels (Figure 11I). We propose that a nonconducting function of PM Kv2.1 channels is to not only anchor the ER to the PM via a direct interaction with ER VAP proteins (Johnson et al., 2018; Kirmiz et al., 2018a), but also to promote the organization of Cav1.2 channels into clusters in direct apposition to nearby ER-localized RyRs. Our data indicate that Kv2.1-mediated clustering also increases the activity of Cav1.2. The enhanced spontaneous openings of Cav1.2 channels at negative potentials is evidenced by the increased frequency of sparklets, which allow a small amount of Ca2+ to enter the cell at EPJs, activating nearby RyRs by the mechanism of CICR. The resulting Ca2+ sparks occur independently of action potentials. Thus, our model proposes the molecular architecture of a protein complex (Figure 11I) underlying the localized somatodendritic Ca2+ signals previously observed in brain neurons (Berrout and Isokawa, 2009; Manita and Ross, 2009), and suggests a mechanism whereby Kv2.1 modulates these Ca2+ signals by simultaneously promoting the spatial association of Cav1.2 channels with RyRs and increasing their activity to trigger CICR.

Kv2 channels dynamically cluster LTCCs

A key finding in this study is that endogenous LTCCs colocalize with clustered Kv2.1 in brain neurons, a finding supported by our crosslinking-based proteomic analyses showing that they exist in close spatial proximity. Moreover, colocalization of LTCCs with Kv2.1 could be reconstituted in heterologous cells, a property that required Kv2.1’s ability to cluster at EPJs but was separable from its voltage-gated K+ channel function. The Kv2.1-mediated association of Cav1.2 with EPJs appears to be dynamically regulated and sensitive to neuronal activity, as acute dispersal of Kv2.1 clusters in CHNs by glutamate stimulation reduced Cav1.2 association with RyRs, whereas suppression of neuronal activity with TTX (which increases Kv2.1 phosphorylation and clustering) enhanced spatial coupling of Cav1.2 and RyRs. In addition, Kv2.1 expression in heterologous cells simultaneously enhanced the size of LTCC clusters and recruited LTCCs to Kv2.1-mediated EPJs where they more functionally coupled to RyRs to generate sparks. Consistent with this, we found that the spatial and functional coupling of somatic Cav1.2 channels to RyRs was reduced in Kv2.1 KO CHNs. Together, these findings indicate that LTCCs are recruited to Kv2.1-associated EPJs, a property we found was not shared by the T-type Ca2+ channel Cav3.1. Moreover, the co-purification of several Cavβ auxiliary subunits, which associate with LTCCs but not T-Type Ca2+ channels such as Cav3.1 (Fang and Colecraft, 2011), by IP of Kv2.1 from crosslinked brain samples further suggests a specific spatial interaction of LTCCs with Kv2.1. While like other plasma membrane proteins LTCCs can also exhibit stochastic clustering (Sato et al., 2019), numerous proteins have been identified that promote clustering of LTCCs in dendritic spines, including AKAP15 (Marshall et al., 2011) and PDZ domain-containing proteins (Zhang et al., 2005). The absence of these known LTCC clustering proteins from our proteomic analyses of proteins in close spatial proximity to Kv2.1, and our observation that expression of Kv2.1 increases Cav1.2 clustering in heterologous HEK293T cells, suggests that the proteins mediating Cav1.2 clustering in dendritic spines and at somatic EPJs may be distinct. We note that while our studies support that Kv2.1 coexpression leads to enhanced clustering of PM Cav1.2, our data do not allow us to distinguish whether this occurs through clustering of Cav1.2 channels already in the PM, or through other mechanisms, such as enhanced fusion of Cav1.2-containing endocytic vesicles that support enhanced clustering of Cav1.2 upon its reappearance in the PM, and that also leads to enhanced Cav1.2 clustering and cooperative gating (Ghosh et al., 2018).

Although the molecular mechanism of Kv2.1 recruitment to EPJs is now established, and occurs via its phosphorylation-dependent interaction with VAPs (Johnson et al., 2018; Kirmiz et al., 2018a), the precise molecular mechanism that underlies how LTCCs and RyRs are recruited to these sites is not yet clear. However, our data show that PM Cav1.2 organization was not impacted by coexpression of the clustering- and EPJ formation-deficient Kv2.1S586A mutant as it was by Kv2.1WT and the nonconducting Kv2.1P404W point mutant. Additionally, Kv2.1S586A was unable to enhance Cav1.2- and RyR-mediated sparks reconstituted in HEK293T cells, unlike these clustering-competent Kv2.1 isoforms. These findings support that Kv2.1 clustering and induction of EPJs is necessary for its spatial association with LTCCs.

It has been reported that LTCCs can also be recruited to the EPJs formed in HEK293T cells upon heterologous expression of junctophilin-2 (Perni et al., 2017), an ER-localized protein critical for bridging the PM to the ER in myocytes (Jiang et al., 2016). This is consistent with a model whereby tethering of LTCCs at or near Kv2-associated EPJs could be mediated by an intermediary recruited to Kv2.1-mediated EPJs, perhaps even one of the proteins identified in our proteomics analyses (although note a different study did not observe this effect of junctophilin-2 coexpression [Dixon et al., 2015]). We note that these proteomics analyses have the potential to identify any proteins with lysine residues in close spatial proximity (≈12 Å) to those in Kv2.1, making them amenable to being crosslinked to Kv2.1 by DSP, and do not require their direct association. Moreover, the crosslinking reaction could potentially yield ‘daisy-chained’ protein linkages of spatially adjacent proteins. While any such crosslinked protein chain would need to ultimately connect back to Kv2.1 to be immunopurified, every protein present in the purified sample need not be in close spatial proximity to Kv2.1 itself. Our observation that immunolabeling of endogenous Cav1.2 and Cav1.3 channels often appeared adjacent to rather than co-occurring with Kv2.1 (e.g., see Figure 1H) may also indicate that there is an indirect interaction between Kv2.1 and LTCCs. However, it remains possible that PM Kv2s and LTCCs associate through a direct intermolecular interaction. Any domains on Kv2.1 contributing to the spatial association with LTCCs, whether it occurs via direct or indirect interaction, would likely be conserved in Kv2.2, as we found that both Kv2 channel paralogs similarly impacted LTCC cluster size and localization. It is unlikely that RyRs are directly recruited to EPJs by Kv2 channels, as RyR clusters persist in CHNs exposed to treatments that disperse Kv2.1 clusters (Misonou et al., 2005a) and while reduced in size in CA1 pyramidal neurons in the double Kv2.1/Kv2.2 knockout (Kirmiz et al., 2018a), in general RyR clusters persist in neurons in the brains of mice lacking Kv2 channels (Mandikian et al., 2014; Kirmiz et al., 2018a). Further experiments are needed to determine the molecular mechanisms and direct protein-protein interactions that result in the spatial association of these proteins at neuronal EPJs.

Kv2.1-dependent potentiation of Cav1.2 currents

Given their prominent physiological role, the regulation of LTCCs is extensive and multimodal (Lipscombe et al., 2013; Hofmann et al., 2014; Neely and Hidalgo, 2014). The mechanisms involved in the modulation of LTCC function include post-translational modification (e.g., phosphorylation), as well as changes in the expression of the subunits (principal α1, and auxiliary Cavβ and α2δ) that together comprise the quaternary structure of an LTCC (Catterall, 2011; Zamponi et al., 2015). We have recently demonstrated a novel mechanism for regulating Cav1.2- (and Cav1.3-) containing LTCCs, whereby LTCCs function differently when clustered due to their clustering-dependent cooperative gating (Dixon et al., 2012; Dixon et al., 2015; Moreno et al., 2016). Thus, LTCC activity is sensitive to its spatial organization in the PM, influenced by its proximity to adjacent LTCCs (Navedo et al., 2005; Navedo et al., 2010; Dixon et al., 2012; Moreno et al., 2016) and also to its localization to specific neuronal compartments (Hall et al., 2013; Tseng et al., 2017). In neurons, such regulation likely acts to ensure that Cav1.2 is most active when properly targeted to specific subcellular domains and less active when outside these regions. Here, we show that the subcellular localization and activity of somatic Cav1.2 channels are influenced by Kv2.1, which increases both Cav1.2 clustering and its opening at polarized Vm values. At least two other proteins, α-actinin (Hall et al., 2013) and densin-180 (Wang et al., 2017), exert a similar dual regulation on neuronal Cav1.2, by promoting its localization to dendritic spines and enhancing its activity at these sites. Neither of these proteins was identified in our proteomic analyses of proteins in close spatial proximity to Kv2.1, further suggesting that Cav1.2 complexes in dendritic spines and at somatic EPJs may be distinct. The reduced whole-cell LTCC currents and impaired association of somatic Cav1.2 with RyRs in Kv2.1 KO CHNs suggests that Kv2.1 serves this dual targeting/modulation function for LTCCs within the soma and proximal dendrites.

In both CHNs and HEK293T cells, currents resulting from the opening of endogenous and exogenous Cav1.2 channels, respectively, are increased in the presence of Kv2.1. In HEK293T cells, Cav1.2 channels coexpressed with clustered Kv2.1 are activated at more polarized Vm values relative to those produced by Cav1.2 alone. Moreover, coexpression of Cav1.2 with nonconducting Kv2.1 increases the frequency of spontaneous Cav1.2 channel openings in HEK293T cells as reflected in an increased frequency of Ca2+ sparklets. The Kv2.1-dependent increase in whole-cell Cav1.2 current amplitude in both HEK293T cells and CHNs occurs without an apparent change in the number of Cav1.2 channels present on the PM, as total Cav1.2 on-gating charges were unaltered by coexpression with Kv2.1. Instead, it appears that coupling of Cav1.2 voltage sensor movement to channel opening is enhanced in the presence of Kv2.1. What is the molecular mechanism underlying this effect on Cav1.2 channel opening? We suggest three possibilities. First, the increase in ICa and leftward shift in the voltage-dependence of activation that we observed upon coexpression of Kv2.1 in HEK293T cells are similar to those observed during optogenetic induction of Cav1.2 channel oligomerization (Navedo et al., 2010; Dixon et al., 2012). Thus, one possible mechanism is that Kv2.1-induced clustering at EPJs increases the probability of physical interactions between Cav1.2 channels, which promotes their cooperative gating. A second possibility is that Kv2.1 functions as an auxiliary voltage sensor for Cav1.2 channels, perhaps through a direct intermolecular interaction of the two channels. However, the apparent localization of many Cav1.2 clusters adjacent to rather than directly overlapping with Kv2.1 clusters in CHNs (e.g., see Figure 1B,H) suggests that although these proteins associate in close spatial proximity, there may not be a direct interaction between individual Kv2.1 and Cav1.2 channels.

A third potential explanation for the Kv2.1-mediated increase in Cav1.2 channel activity is that Cav1.2 is modulated by signaling molecules that it encounters when recruited to EPJs by Kv2.1. It is well established that phosphorylation of Cav1.2 is a major mechanism to regulate its activity. Phosphorylation by protein kinase A (PKA) increases Ca2+ influx through Cav1.2, enhancing CICR (Dittmer et al., 2019). Another candidate which might impact Cav1.2 at EPJs is Ca2+/calmodulin-dependent protein kinase II (CaMKII), which has also been shown to interact with Kv2.1 (McCord and Aizenman, 2013). Enhanced Cav1.2 opening at polarized Vm values and increased open probability are produced by both PKA- (Tsien et al., 1986; Bers and Perez-Reyes, 1999) and CaMKII- (Erxleben et al., 2006; Blaich et al., 2010) dependent phosphorylation of Cav1.2. Moreover, given the well-established association of RyRs with PKA and CaMKII (Zalk et al., 2007), it is conceivable that RyRs, Cav1.2, and Kv2.1 are substrates of these protein kinases at somatic EPJs. A recent study showed that in dendritic EPJs adjacent to spines, Cav1.2 is inhibited through a direct interaction with the ER-localized protein stromal interaction molecule 1 (STIM1) in a negative feedback response to Cav1.2- and RyR-mediated CICR (Dittmer et al., 2019). As such the Kv2.1-mediated localization of Cav1.2 at EPJs may bring it in close proximity to numerous regulatory molecules, at least a subset of which should also be expressed in HEK293T cells as these also exhibit prominent effects of Kv2.1 clustering on Cav1.2 activity.

Properties of Ca2+ sparks at Kv2.1-associated EPJs

The results presented here indicate that Ca2+ sparks occurring at Kv2.1-associated EPJs were triggered primarily by Ca2+ influx through LTCCs initiating the opening of juxtaposed RyRs. Accordingly, Ca2+ spark frequency increased when neurons were exposed to Cav1.2 channel agonists and decreased by blockade of LTCCs. Loss of Kv2.1 expression was also associated with a decrease in Ca2+ spark frequency, likely because of decreased spatial association of Cav1.2 and RyRs, decreased RyR cluster size, and decreased LTCC currents.

As Kv2.1 clusters intrinsically represent EPJs by nature of their formation via an interaction with ER-resident VAPs (Johnson et al., 2018; Kirmiz et al., 2018a; Kirmiz et al., 2018b), our observation that localized Ca2+ signals occurred only at a subset of GCaMP3-Kv2.1 clusters suggests that only a subset of Kv2.1-associated EPJs possess the molecular machinery required to generate these Ca2+ signals. As identified in electron micrographs, EPJs represent a major class of membrane contact sites in brain neurons, where > 10% of the somatic PM may be engaged in EPJs (Wu et al., 2017). In addition to those formed by the Kv2.1:VAP association (Johnson et al., 2018; Kirmiz et al., 2018a; Kirmiz et al., 2018b), EPJs can be organized by a set of ER membrane proteins that bind PM phospholipids (Henne et al., 2015; Gallo et al., 2016). Experiments in heterologous cells exogenously expressing these ER-PM junction components show these ER tethers can also participate in ER-PM junctions formed by Kv2.1-VAP association (Kirmiz et al., 2018b). However, the relationship of the Kv2.1, LTCC and RyR-containing EPJs described here to those formed by these ER tethers in brain neurons and other cells that endogenously express these proteins is not known.

Our findings indicate that Kv2.1-mediated somatodendritic EPJs provide a molecular platform to elevate local Ca2+ at individual EPJs without an increase in global Ca2+, but that can also contribute to global, action potential-induced increases in cytoplasmic Ca2+. These results reinforce previous observations (Berrout and Isokawa, 2009; Manita and Ross, 2009; Miyazaki et al., 2012; Miyazaki and Ross, 2013) that hippocampal neurons possess the molecular machinery to produce spontaneous local elevations in somatodendritic Ca2+ that could potentially impact a wide variety of signaling pathways. That sparks can occur independently in neighboring Kv2.1-containing EPJs suggests a mechanism for compartmentalized Ca2+ signaling in the aspiny regions of neurons (somata, proximal dendrites, axon initial segment) in which Kv2.1 clusters are located. One specific role identified for Ca2+ signals produced by somatic RyR receptors at EPJs is in cartwheel cells (inhibitory interneurons found in the dorsal cochlear nucleus), where they trigger rapid gating of BK Ca2+-activated K+ channels to control electrical excitability (Irie and Trussell, 2017). While this mode of BK channel activation has not been observed in CA1 pyramidal neurons (Ross, 2012), somatic LTCC- and RyR-mediated Ca2+ release has recently been demonstrated to activate KCa3.1 channels in hippocampal neurons, reducing spike frequency (Sahu et al., 2019). Sparks at Kv2.1-associated EPJs might also influence electrical activity in pyramidal cells through Ca2+-sensitive enzymes that modify ion channel function, such as protein kinases and phosphatases that influence their phosphorylation state (Misonou et al., 2004). In addition, a role for somatic Ca2+ sparks has been identified in DRG neurons, where they promote non-synaptic exocytosis of ATP-loaded secretory vesicles (Ouyang et al., 2005). Whether Ca2+ entry mediated by LTCCs and RyRs at Kv2.1-associated EPJs impacts secretory vesicle exocytosis in brain neurons or other cell types will need to be investigated in future studies.

Potential impact on downstream signaling pathways

Somatodendritic LTCCs are preferentially coupled to activation of signaling pathways resulting in changes in gene expression (Wheeler et al., 2012; Wild et al., 2019). In sympathetic neurons, local Ca2+ influx through LTCCs rather than bulk elevation of intracellular Ca2+ efficiently activates the transcription factor cAMP response element–binding protein (CREB) (Wheeler et al., 2008) through a mechanism that involves a signaling complex containing components of a PM-to-nucleus Ca2+ shuttle (Ma et al., 2012; Ma et al., 2014; Cohen et al., 2015). Moreover, somatic LTCCs play a unique role in the Ca2+ influx that leads to activation of the NFAT transcription factor (Wild et al., 2019). The results presented here suggest that Kv2.1-mediated organization and regulation of somatic LTCCs provides a molecular mechanism to control local Ca2+ influx and serve as an organizer of Ca2+ signaling microdomains. Previous work from us (Misonou et al., 2004; Misonou et al., 2005b) and others (Mulholland et al., 2008; Aras et al., 2009) has shown that acute ischemic or depolarizing events lead to Ca2+-dependent dispersal of Kv2.1 clusters and hyperpolarize its Vm activation threshold, potentially as a homeostatic mechanism to reduce neuronal activity and Ca2+ overload that can lead to excitotoxicity. In our experiments here, we determined that Kv2.1-mediated clustering was associated with enhanced functional coupling of Cav1.2 and RyRs, as well as increased activation of Cav1.2 at polarized Vm values. Therefore, the Ca2+-dependent dispersal of Kv2.1 clusters and the resulting dissociation of Cav1.2 and RyRs may represent a negative feedback loop to limit excessive increases in cytoplasmic Ca2+. By decreasing LTCC- and RyR-mediated CICR, dispersal of Kv2.1 clusters may help to curb excessive accumulation of intracellular Ca2+, which inappropriately activates signaling pathways contributing to neuronal damage or death (Dirnagl et al., 1999). Activity-dependent declustering of Kv2.1 may also help to reduce currents conducted by LTCCs, both through increased activation of hyperpolarizing Kv2.1 currents at polarized Vm (opposing activation of voltage-gated Ca2+ channels) and also through limiting Cav1.2 activity by altering its spatial organization in the PM. Our findings may also contribute to an understanding of the pathogenic mechanisms underlying mutations in Kv2.1 predicted to selectively disrupt the PRC domain required for Kv2.1 clustering (de Kovel et al., 2017).

Overall, the findings presented here identify a molecular structure underlying the spontaneous somatodendritic Ca2+ signals previously observed in hippocampal pyramidal neurons. While our live cell experiments were primarily confined to CHNs cultured for 9–15 days in vitro, our data indicate that the spatial association of Kv2.1, Cav1.2, and RyRs is preserved in intact adult mouse and rat brains and can be recapitulated in heterologous cells. Moreover, somatodendritic Ca2+ sparks have been observed in acute hippocampal slices obtained from rats aged P3-P80 (Miyazaki et al., 2012), suggesting that these Ca2+ release events serve functional roles that emerge early in pyramidal neuron development and continue beyond this period. Although it is unclear whether spontaneous Ca2+ sparks serve a specific function at their site of generation, or if they instead reflect stochastic events whose primary impact lies in their group behavior (i.e., through modulation of bulk cytosolic Ca2+), the results described here have relevance to obtaining a better understanding of their generation as well as their downstream effects.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Cell line (Human)HEK293TATCC Cat # CRL-3216RRID:CVCL_0063
Strain (R. norvegicus)Sprague DawleyCharles River
Strain (M. musculus)C57/BL6J miceThe Jackson LaboratoryRRID:IMSR_JAX:000664
Strain (M. musculus)Kcnb1-/- micePMID: 17767909; PMID: 24494598RRID:MGI:3806050maintained on the
C57BL/6J background
AntibodynumerousSee Table 2
Recombinant
DNA reagent
GCaMP3-Kv2.1This paper
Recombinant
DNA reagent
GCaMP3-Kv2.1P404WThis paper
Recombinant
DNA reagent
DsRed-Kv2.1PMID: 30012696
Recombinant
DNA reagent
DsRed-Kv2.1P404WPMID: 30012696
Recombinant
DNA reagent
DsRed-Kv2.2PMID: 30012696
Recombinant
DNA reagent
Kv2.1S586APMID: 10719893
Recombinant
DNA reagent
Kv1.5PMID: 8636142
Recombinant DNA reagentBFP-Sec61βAddgenePlasmid #49154
Recombinant
DNA reagent
Cav1.2-eGFPPMID: 25714924
Recombinant
DNA reagent
Cav1.2-tagRFPPMID: 25714924
Recombinant
DNA reagent
Cav1.3S-GFPPMID: 27187148
Recombinant
DNA reagent
Cav1.2AddgenePlasmid #26572
Recombinant
DNA reagent
Cav1.2-HAPMID: 15090038Gift from Dr. Valentina Di Biase
Recombinant
DNA reagent
Cavα2δ1AddgenePlasmid #26575
Recombinant
DNA reagent
Cavβ3AddgenePlasmid #26574
Recombinant
DNA reagent
YFP-RyR2PMID: 17452324
PMID: 20427316
Gift from Dr. S.R. Wayne Chen
Recombinant
DNA reagent
STAC1DNASUPlasmid # HsCD00445396
Chemical compoundCal-590 AMAAT BioquestCat# 20510
Chemical compoundRhod-2AAT BioquestCat# 21068
Chemical compoundFluo-4 AMInvitrogenCat# F14201
Chemical compoundFluo-5FInvitrogenCat# F14221
Chemical compoundCaffeineSigmaCat# C0750
Chemical compoundThapsigarginMilliporeCat# 586005
Chemical compoundNimodipineAlomoneCat# N-150
Chemical compoundNitrendipineAlomoneCat# N-155
Chemical compoundBay K8644AlomoneCat# B-350
Chemical compoundTetracaineSigmaCat# T7508
Chemical compoundTetrodotoxinAlomoneCat #T-550
Chemical compoundAmphotericin BMilliporeCat# 171375
SoftwarePhotoshopAdobe SystemsRRID:SCR_014199
SoftwareAxiovisionCarl Zeiss MicroImagingRRID:SCR_002677
SoftwarepClampMolecular DevicesRRID:SCR_011323
SoftwareTILLvisIONTILL Photonics
SoftwareFijiPMID: 22743772RRID:SCR_002285
SoftwarePrismGraphPad SoftwareRRID:SCR_002798

Animals

All procedures involving rats and mice were approved by the University of California, Davis Institutional Animal Care and Use Committee and performed in accordance with the NIH Guide for the Care and Use of Laboratory Animals. Animals were maintained under standard light-dark cycles and allowed to feed and drink ad libitum. Sprague-Dawley rats were used for immunolabeling experiments and as a source of hippocampal neurons for primary culture. Kv2.1 KO mice (RRID:IMSR_MGI:3806050) (Jacobson et al., 2007; Speca et al., 2014) were generated from breeding of Kcnb1+/- mice that had been backcrossed on the C57/BL6J background (RRID:IMSR_JAX:000664). Littermates were used when available. Adult male (mice and rats) and female (rats) were used in immunohistochemistry experiments; adult male and female mice were used in proteomics; P0-P1 mouse littermates were used as a source of hippocampal neurons for primary culture. Experiments using CHNs were performed using neuronal cultures obtained from pooling neurons from animals of both sexes (rats and mice) and also cultures in which individual pups were grouped by sex after visual inspection (mice).

Hippocampal neuron cultures

Request a detailed protocol

Neuronal cultures were prepared and maintained as previously described (Kirmiz et al., 2018a; Kirmiz et al., 2018b). Hippocampi were dissected from either postnatal day 0–1 pups (mice) following genotyping or embryonic day 18 embryos (rat) and dissociated enzymatically for 20 min at 37°C in HBSS supplemented with 0.25% (w/v) trypsin (Worthington Cat# LS003707), followed by mechanical dissociation via trituration with fire-polished glass Pasteur pipettes. Dissociated cells were suspended in plating medium containing Neurobasal (ThermoFisher Cat# 21103049) supplemented with 10% fetal bovine serum (FBS, Invitrogen Cat# 16140071), 2% B27 supplement (Invitrogen Cat# 17504044), 2% GlutaMAX (ThermoFisher Cat# 35050061), and 0.001% gentamycin (Gibco Cat# 15710064) and plated at 60,000 cells per dish in glass bottom dishes (MatTek Cat# P35G-1.5–14 C) or on microscope cover glasses (Karl Hecht Assistent Ref# 92099005050) coated with poly-L-lysine (Sigma Cat# P2636). After 5 days in vitro (DIV), cytosine-D-arabinofuranoside (Millipore Cat# 251010) was added to inhibit non-neuronal cell growth. Neurons were transiently transfected at DIV 7–10 using Lipofectamine 2000 (Invitrogen Cat# 11668019) for 1.5 hr as previously described (Lim et al., 2000). Neurons were used for experiments 40–48 hr post transfection.

For acute treatment of rat CHNs with glutamate or TTX, 20–24 DIV neurons cultured on microscope cover glasses were incubated in 1 mL of a modified Krebs-Ringer buffer (KRB) containing (in mM): 146 NaCl, 4.7 KCl, 2.5 CaCl2, 0.6 MgSO4, 1.6 NaHCO3, 0.15 NaH2PO4, 8 glucose, 20 HEPES, pH 7.4, approximately 330 mOsm for 30 min at 37°C. We then added an additional 1 mL of KRB prewarmed to 37°C, with or without 20 µM glutamate (Calbiochem Cat #3510) or 1 µM TTX (Alomone Cat #T-550) for a final concentration of 10 µM (glutamate) or 500 nM (TTX), and incubated CHNs for 10 min (glutamate) or 1 hr (TTX) at 37°C. We then proceeded immediately to fixation.

HEK293T cell culture

Request a detailed protocol

HEK293T cells were obtained from ATCC (Cat# CRL-3216). The accompanying Certificate of Analysis shows species determination was performed and yielded the expected results. HEK293T cells were further validated by short terminal repeat (STR) analysis. Cells were tested for mycoplasma contamination using the MycoAlert Mycoplasma Detection Kit (Lonza Catalog#: LT07-318). HEK293T cells were maintained in Dulbecco’s modified Eagle’s medium (Gibco Cat# 11995065) supplemented with 10% Fetal Clone III (HyClone Cat# SH30109.03), 1% penicillin/streptomycin, and 1x GlutaMAX (ThermoFisher Cat# 35050061) in a humidified incubator at 37°C and 5% CO2. Cells were transiently transfected using Lipofectamine 2000 following the manufacturer’s protocol, in DMEM without supplements, then returned to regular growth medium 4 hr after transfection. 20–24 hr later, cells were passaged to obtain single cells on glass bottom dishes (MatTek Cat# P35G-1.5–14 C) or microscope cover glasses (VWR Cat# 48366–227) coated with poly-L-lysine. Cells were then used for experiments approximately 15 hr after being passaged.

Immunolabeling of cells

Request a detailed protocol

 Immunolabeling of CHNs and HEK293T cells was performed as described previously (Kirmiz et al., 2018a; Kirmiz et al., 2018b). CHNs were fixed in ice cold 4% (wt/vol) formaldehyde (freshly prepared from paraformaldehyde, Fisher Cat# O4042) in phosphate buffered saline (PBS, Sigma Cat #P3813) supplemented with 4% (wt/vol) sucrose (Sigma Cat# S9378), pH 7.4, for 15 min at 4°C. HEK293T cells were fixed in 3.2% formaldehyde (freshly prepared from paraformaldehyde) and 0.1% glutaraldehyde (Ted Pella, Inc, Cat# 18426) prepared in PBS pH 7.4, for 20 min at room temperature (RT), washed 3 × 5 min in PBS and quenched with 0.1% sodium borohydride (Sigma Cat# 452882) in PBS for 15 min at RT. All subsequent steps were performed at RT. Cells were then washed 3 × 5 min in PBS, followed by blocking in blotto-T (Tris-buffered saline [10 mM Tris, 150 mM NaCl, pH 7.4] supplemented with 4% (w/v) non-fat milk powder and 0.1% (v/v) Triton-X100 [Roche Cat# 10789704001]) for 1 hr. Cells were immunolabeled for 1 hr with primary antibodies diluted in blotto-T (primary antribodies and concentrations used are listed in Table 2). Following 3 × 5 min washes in blotto-T, cells were incubated with mouse IgG subclass- and/or species-specific Alexa‐conjugated fluorescent secondary antibodies (Invitrogen) diluted in blotto-T for 45 min, then washed 3 × 5 min in PBS. Cover glasses were mounted on microscope slides with Prolong Gold mounting medium (ThermoFisher Cat # P36930) according to the manufacturer’s instructions. For cell surface immunolabeling of HEK293T cells, cells were fixed and quenched in sodium borohydride as described above, followed by 3 × 10 min washes in PBS without Triton X-100, blocked for 1 hr in blotto-T without Triton X-100, then incubated for 2 hr in primary antibodies diluted in blotto-T without Triton X-100. Cells were then washed 3 × 10 min in PBS without Triton X-100, followed by fixation of surface antibody with 1% formaldehyde prepared in PBS for 15 min. Cells were then washed 3 × 5 min in PBS and processed for immunolabeling of cellular proteins as described above. For TIRF imaging of fixed cells, cover glasses were mounted in PBS onto glass depression slides.

Table 2
Antibody information.
https://doi.org/10.7554/eLife.49953.029
Antigen and antibody nameImmunogenManufacturer informationConcentration usedFigures
PSD-95
(K28/43)
Fusion protein aa77–299 of human PSD-95Mouse IgG2a mAb, NeuroMab,
RRID:AB_10807979
Tissue culture
supernatant (1:5)
Figure 1
Cav1.2
(N263/31)
Fusion protein aa 808–874 of rat Cav1.2Mouse IgG2b mAb, NeuroMab,
RRID:AB_11001554
Tissue culture supernatant (1:5)Figure 1Figure 2Figure 2—figure supplement 1Figure 6Figure 10Figure 11
Cav1.2
(L57/23)
Fusion protein aa1507–1733 of rabbit Cav1.2Mouse IgG2a mAb,
In-house (Trimmer Laboratory) RRID:AB_2802123
Tissue culture supernatant, neatFigure 1Figure 3
Cav1.3
(ACC-005)
Synthetic peptide
aa 859–875 of rat Cav1.3
Rabbit pAb, Alomone
catalog # ACC-005,
RRID:AB_2039775
Affinity purified,
10 μg/mL
Figure 1
Kv2.1
(KC)
Synthetic peptide aa 837–853 of rat Kv2.1Rabbit pAb, In-house (Trimmer Laboratory), RRID:AB_2315767Affinity purified, 1:100Table 1 (immunopurifications)
Kv2.1 (K89/34R)Synthetic peptide
aa 837–853 of rat Kv2.1
Recombinant mouse IgG2a mAb, In-house (Trimmer Laboratory), RRID:AB_2750677Tissue culture
supernatant (1:5)
Figure 1Figure 2Figure 3Figure 3—figure supplement 2Figure 4Figure 11
Kv2.1
(K39/25R)
Synthetic peptide aa 211–229 of human Kv2.1Recombinant mouse IgG2a mAb, In-house (Trimmer Laboratory), RRID:AB_2750663Tissue culture supernatant (1:5)Figure 3—figure supplement 1
MAP2
(AB5622-I)
KLH-conjugated three peptides from N-and C-terminal regions
of rat MAP2
Rabbit pAb, Millipore catalog # AB5622-I,
RRID: AB_2800501
Affinity purified, 1:1000Figure 1Figure 4Figure 5
RyRs
(34C)
Partially purified chicken pectoral muscle ryanodine receptorMouse IgG1 mAb, Developmental Studies Hybridoma
RRID:AB_528457
Concentrated tissue culture supernatant, 3 μg/mlFigure 1Figure 2Figure 4Figure 5Figure 6Figure 11
Cav3.1
(N178A/9)
Fusion protein aa 2052–2172 of mouse Cav3.1Mouse IgG1 mAb, NeuroMab,
RRID:AB_10673097
Tissue culture supernatant (1:5)Figure 3—figure supplement 2
Kv1.5
(Kv1.5e)
Synthetic peptide aa 271–284 of rat
Kv1.5
Rabbit pAb, in-house (Trimmer Laboratory), RRID:AB_2722698Affinity purified, 5 μg /mlFigure 3—figure supplement 1
Kv2.2
(Kv2.2C)
Fusion protein
aa 717–907 of rat Kv2.2
Rabbit pAb, in-house (Trimmer Laboratory), RRID:AB_2801484Affinity purified, 1:100Figure 2—figure supplement 1Figure 10
Kv4.2
(K57/41)
Synthetic peptide aa 209–225 of human Kv4.2Mouse IgG1 mAb, In-house (Trimmer Laboratory),
RRID:AB_2802124
Affinity purified, 10 μg /mlFigure 1Figure 10
Anti-HA
(12CA5)
Amino acids 98–106
of the human influenza virus hemagglutinin protein
Mouse IgG2b mAb, In-house (Trimmer Laboratory)
RRID: AB_2532070
Pure, 5 μg/mLFigure 3
Anti-HA
(2–2.2.14-647)
HA peptide YPYDVPDYAMouse IgG1 mAb, Thermo Fisher Scientific
catalog # 26183-A647,
RRID: AB_2610626
Affinity purified, 1 μg /mlFigure 3—figure supplement 1

Unless otherwise stated, optical sections were acquired with an AxioCam MRm digital camera installed on a Zeiss AxioImager M2 microscope or with an AxioCam HRm digital camera installed on a Zeiss AxioObserver Z1 microscope with a 63×/1.40 NA Plan-Apochromat oil immersion objective and an ApoTome coupled to Axiovision software (Zeiss, Oberkochen, Germany). Confocal images were acquired using a Zeiss LSM880 confocal laser scanning microscope equipped with an Airyscan detection unit and a Plan-Apochromat 63×/1.40 NA Oil DIC M27 objective. Structured illumination microscopy (N-SIM) images were acquired with a Hamamatsu ORCA-ERCCD camera on a SIM/wide-field capable Nikon Eclipse Ti microscope with an EXFO X-Cite metal halide light source and a 100 × PlanApo TIRF/1.49 objective. Colocalization and morphological analyses of Cav1.2 and RyRs in CHNs was performed using Fiji (NIH). For the colocalization analyses, an ROI was drawn around the soma of a neuron and PCC values were collected using the Coloc2 plugin. All intensity measurements were collected using Fiji. All intensity measurements reported in line scans are normalized to the maximum intensity measurement. Measurements of cluster sizes were performed essentially as previously described (Kirmiz et al., 2018a; Kirmiz et al., 2018b). Images were subjected to rolling ball background subtraction and subsequently converted into a binary mask by thresholding. Cluster sizes were measured using the ‘analyze particles’ feature of Fiji; nearest neighbor distances were calculated from cluster centroid values using the nearest neighbor distance plugin in Fiji. The spatial distributions of Kv2.1 and Cav1.2 puncta were analyzed using the Interaction Analysis function that is part of the MosaicSuite plugin for Fiji. For presentation, images were exported as TIFFs and linearly scaled for min/max intensity and flattened as RGB TIFFs in Photoshop (Adobe).

Immunolabeling of brain sections

Request a detailed protocol

Following administration of pentobarbital to induce deep anesthesia, animals were transcardially perfused with 4% formaldehyde (freshly prepared from paraformaldehyde) in 0.1 M sodium phosphate buffer pH 7.4 (0.1 M PB). Sagittal brain sections (30 µm thick) were prepared and immunolabeled using free‐floating methods as detailed previously (Rhodes et al., 2004; Speca et al., 2014; Bishop et al., 2015; Palacio et al., 2017). Sections were permeabilized and blocked in 0.1 M PB containing 10% goat serum and 0.3% Triton X‐100 (vehicle) for 1 hr at RT, then incubated overnight at 4°C in primary antibodies (Table 2) diluted in vehicle. After 4 × 5 min washes in 0.1 M PB, sections were incubated with mouse IgG subclass- and/or species-specific Alexa‐conjugated fluorescent secondary antibodies (Invitrogen) and Hoechst 33258 DNA stain diluted in vehicle at RT for 1 hr. After 2 × 5 min washes in 0.1 M PB followed by a single 5 min wash in 0.05 M PB, sections were mounted and air dried onto gelatin-coated microscope slides, treated with 0.05% Sudan Black (EM Sciences) in 70% ethanol for 2 min (Schnell et al., 1999). Samples were then washed extensively in water and mounted with Prolong Gold (ThermoFisher Cat # P36930). Images of brain sections were taken using the same exposure time to compare the signal intensity directly using an AxioCam HRm high‐resolution CCD camera installed on an AxioObserver Z1 microscope with a 10×/0.5 NA lens, and an ApoTome coupled to Axiovision software, version 4.8.2.0 (Zeiss, Oberkochen, Germany). Labeling intensity within stratum pyramidale and stratum radiatum of hippocampal area CA1 was measured using a rectangular region of interest (ROI) of approximately 35 μm x 185 μm. Labeling intensity within stratum granulosum and the inner third of stratum moleculare of the dentate gyrus (DG) was measured using a rectangular ROI of approximately 48 μm x 200 μm. To maintain consistency between samples, the average pixel intensity values of ROIs from CA1 were acquired near the border of CA1 and CA2, and those from DG were obtained near the center of the dorsal/suprapyramidal blade of the DG. Signal intensity values from all immunolabels and of Hoechst dye were measured from the same ROI. Background levels for individual labels were measured from no primary controls for each animal and subtracted from ROI values. High magnification confocal images of rat and mouse hippocampus were acquired using a Zeiss LSM880 confocal laser scanning microscope equipped with an Airyscan detection unit and a Plan-Apochromat 63×/1.40 NA Oil DIC M27 objective.

Immunopurification of Kv2.1 and proteomics

Request a detailed protocol

Crosslinked mouse brain samples for immunopurification were prepared as previously described (Kirmiz et al., 2018a). Excised brains were homogenized over ice in a Dounce homogenizer containing 5 mL of ice-cold homogenization and crosslinking buffer (in mM): 320 sucrose, 5 NaPO4, pH 7.4, supplemented with 100 NaF, 1 PMSF, protease inhibitors, and 1 DSP (Lomant’s reagent, ThermoFisher Cat# 22585). Following a 1 hr incubation on ice, DSP was quenched with 20 mM Tris, pH 7.4 (JT Baker Cat# 4109–01 [Tris base]; and 4103–01 [Tris-HCl]). 2 mL of this homogenate was then added to an equal volume of ice-cold 2x radioimmunoprecipitation assay (RIPA) buffer (final concentrations): 1% (vol/vol) TX-100, 0.5% (wt/vol) deoxycholate, 0.1% (wt/vol) SDS, 150 NaCl, 50 Tris, pH 8.0 and incubated on a tube rotator at 4°C for 30 min. Insoluble material was then pelleted by centrifugation at 12,000 × g for 10 min at 4°C. The supernatant was incubated overnight at 4°C with the anti-Kv2.1 rabbit polyclonal antibody KC (Trimmer, 1991). Following this incubation, we added 100 μL of magnetic protein G beads (ThermoFisher Cat# 10004D) and incubated the samples on a tube rotator at 4°C for 1 hr. Beads were then washed 6x following capture on a magnet in ice-cold 1x RIPA buffer, followed by four washes in 50 mM ammonium bicarbonate (pH 7.4). Proteins captured on magnetic beads were digested with 1.5 mg/mL trypsin (Promega Cat# V5111) in 50 mM ammonium bicarbonate overnight at 37°C. The eluate was then lyophilized and resuspended in 0.1% trifluoroacetic acid in 60% acetonitrile.

Proteomic profiling was performed at the University of California, Davis Proteomics Facility. Tryptic peptide fragments were analyzed by LC-MS/MS on a Thermo Scientific Q Exactive Plus Orbitrap Mass spectrometer in conjunction with a Proxeon Easy-nLC II HPLC (Thermo Scientific) and Proxeon nanospray source. Digested peptides were loaded onto a 100 μm x 25 mm Magic C18 100 Å 5U reverse phase trap where they were desalted online, then separated using a 75 μm x 150 mm Magic C18 200 Å 3U reverse phase column. Peptides were eluted using a 60 min gradient at a flow rate of 300 nL per min. An MS survey scan was obtained for the m/z range 350–1600; tandem MS spectra were acquired using a top 15 method, where the top 15 ions in the MS spectrum were subjected to HCD (High Energy Collisional Dissociation). Precursor ion selection was performed using a mass window of 1.6 m/z, and normalized collision energy of 27% was used for fragmentation. A 15 s duration was used for the dynamic exclusion. MS/MS spectra were extracted and charge state deconvoluted by Proteome Discoverer (Thermo Scientific). MS/MS samples were then analyzed using X! Tandem (The GPM, thegpm.org; version Alanine (2017. 2. 1.4)). X! Tandem compared acquired spectra against the UniProt Mouse database (May 2017, 103089 entries), the cRAP database of common proteomic contaminants (www.thegpm.org/crap; 114 entries), the ADAR2 catalytic domain sequence, plus an equal number of reverse protein sequences assuming the digestion enzyme trypsin. X! Tandem was searched with a fragment ion mass tolerance of 20 ppm and a parent ion tolerance of 20 ppm. Variable modifications specified in X! Tandem included deamidation of asparagine and glutamine, oxidation of methionine and tryptophan, sulfone of methionine, tryptophan oxidation to formylkynurenin of tryptophan and acetylation of the N-terminus. Scaffold (version Scaffold_4.8.4, Proteome Software Inc, Portland, OR) was used to validate tandem MS-based peptide and protein identifications. X! Tandem identifications were accepted if they possessed -Log (Expect Scores) scores of greater than 2.0 with a mass accuracy of 5 ppm. Protein identifications were accepted if they contained at least two identified peptides. The threshold for peptide acceptance was greater than 95% probability. Data in Table 1 are presented as spectral counts over three independent experiments, normalized to spectral counts for Kv2.1 peptides returned in each experiment.

Plasmid constructs

Request a detailed protocol

To maintain consistency with previous studies, we use the original (Frech et al., 1989) amino acid numbering of rat Kv2.1 (accession number NP_037318.1). The generation of DsRed-Kv2.1 and -Kv2.2 plasmids has been described previously (Kirmiz et al., 2018b). GCaMP3-Kv2.1 was generated using Gibson assembly to insert GCaMP3 (Tian et al., 2009) into the Kv2.1 RBG4 vector (Shi et al., 1994), resulting in fusion of GCaMP3 to the N-terminus of full-length rat Kv2.1. The plasmid encoding Kv2.1S586A has been previously described (Lim et al., 2000); the plasmid encoding Kv2.1P404W in the pcDNA4/TO vector was a gift from Dr. Jon Sack (University of California, Davis). The plasmid encoding Kv1.5 has been previously described (Nakahira et al., 1996). The plasmids encoding GFP- and RFP-tagged full-length rabbit Cav1.2 α1 subunit (accession number NP_001129994.1), the GFP-tagged short isoform of rat Cav1.3 α subunit (accession AAK72959.1), and PKCα have been previously described (Moreno et al., 2016; Dixon et al., 2015; Navedo et al., 2006). Plasmids encoding untagged full-length mouse Cav1.2, rat Cavβ3, and rat α2δ1 were gifts of Dr. Diane Lipscombe (Brown University). The plasmid encoding BFP-Sec61β was a gift from Dr. Gia Voeltz (Addgene plasmid #49154). Plasmid encoding HA-tagged rat Cav1.2 was a gift from Dr. Valentina Di Biase (Medical University of Graz), plasmid encoding human Cav3.1 was a gift from Dr. Edward Perez-Reyes (University of Virginia), and plasmid encoding full-length mouse RyR2 fused with YFP (Wang et al., 2007; Liu et al., 2010) was a gift of Dr. S.R. Wayne Chen (University of Calgary). The vector encoding human STAC1 was obtained from DNASU (DNASU plasmid # HsCD00445396).

Live cell imaging

Request a detailed protocol

HEK293T cells transfected with RyR2-YFP, LTCC α1 subunit (Cav1.2 or Cav1.3s), Cavβ3, Cavα2δ1, STAC1, and empty vector control (pcDNA3) or DsRed-Kv2.1P404W plasmids in a 1.5:1:0.5:0.5:0.25:1 ratio were seeded to glass bottom dishes (MatTek Cat# P35G-1.5–14 C) approximately 15 hr prior o recording. Total internal reflection fluorescence (TIRF) and widefield microscopy imaging of HEK293T cells and DIV9-10 (transfected with GCaMP3-Kv2.1) or DIV14-21 (loaded with Cal-590 AM) CHNs cultured on glass-bottom dishes was performed in KRB at 37°C as previously described (Kirmiz et al., 2018a; Kirmiz et al., 2018b). For imaging of cells loaded with Ca2+-sensitive dye, cells were first incubated in regular culture medium to which had been added 1.5 µM Cal-590 AM (AAT Bioquest Cat# 20510) for 45 min or Fluo-4 AM (Invitrogen Cat# F14201) for 25 min at 37°C. Dye-containing medium was then aspirated, followed by two washes in KRB which had been warmed to 37°C. Cells were then incubated in KRB for an additional 30 min at 37°C prior to imaging. Caffeine (Sigma Cat# C0750), thapsigargin (Millipore Cat# 586005), nimodipine (Alomone Cat# N-150), Bay K8644 (Alomone Cat# B-350), and tetracaine (Sigma Cat# T7508) were dissolved in warm KRB at 2x the final concentration and added to cells during imaging by pipette. For GxTX-633 labeling of cells, cells were incubated in 300 nM GxTX-633 dissolved in KRB supplemented with 0.1% BSA for 20 min at 37°C, followed by a single wash with KRB. Images were acquired on a Nikon Eclipse Ti TIRF/widefield microscope equipped with an Andor iXon EMCCD camera and a Nikon LUA4 laser launch with 405, 488, 561, and 647 nm lasers, using a 100×/1.49 NA PlanApo TIRF objective and NIS Elements software. For post-hoc immunolabeling of CHNs, the dish orientation and location of the imaged cell was recorded, after which the CHNs were fixed in ice-cold 4% formaldehyde/4% sucrose in PBS, pH 7.4, and processed for immunolabeling as described above. Recorded CHNs were identified on the basis of expression of GCaMP3-Kv2.1 and/or neurite morphology revealed by immunolabeling for MAP2. Acquired image stacks were processed and analyzed using Fiji; we used the Fiji plugin xySpark (Steele and Steele, 2014) for automated spark detection and analysis.

Electrophysiology

Request a detailed protocol

HEK293T cells transfected with Cav1.2-GFP, Cavβ3, Cavα2δ1, and empty vector control (pcDNA3) or DsRed-Kv2.1P404W plasmids in a 1:0.5:0.5:1 ratio were seeded to microscope cover glasses (Fisher Cat# 12-545-102) approximately 15 hr prior to recording to obtain single cells. Coexpression of Cav1.2 and Kv2.1P404W in HEK293T cells was apparently cytotoxic and thus necessitated seeding of cells at a higher density to obtain viable single cells as compared to control cells expressing Cav1.2 alone. HEK293T cells were patched in an external solution of modified Krebs-Ringer buffer (KRB) containing (in mM): 146 NaCl, 4.7 KCl, 2.5 CaCl2, 0.6 MgSO4, 1.6 NaHCO3, 0.15 NaH2PO4, 8 glucose, 20 HEPES, pH 7.4, approximately 330 mOsm. Transfected cells were identified by the presence of GFP and DsRed expression. ICa was recorded in transfected cells using the whole-cell voltage clamp patch configuration using fire-polished borosilicate pipettes that had resistances of 2–3 MΩ when filled with an internal solution containing (in mM): 125 Cs-methanesulfonate, 10 TEA-Cl, 1 MgCl2, 0.3 Na2-GTP, 13 phosphocreatine-(di)Tris, 5 Mg∙ATP, 5 EGTA, 10 HEPES, adjusted to pH 7.22 with CsOH, approximately 320 mOsm. Currents were sampled at 20 kHz and low-pass–filtered at 2 kHz using an Axopatch 200B amplifier, and acquired using pClamp 10.2 software (Molecular Devices, Sunnyvale, CA). All experiments were performed at room temperature (22–25°C). Pipette capacitance was compensated using the amplifier, and capacitance and ohmic leak were subtracted online using a P/5 protocol. Current–voltage (I–V) relationships were obtained approximately three minutes after obtaining the whole-cell configuration by subjecting cells to a series of 300 ms depolarizing pulses from the holding potential of −70 mV to test potentials ranging from −60 to +100 mV in 10 mV increments. The voltage dependence of G/Gmax was obtained from the recorded currents by converting them to conductances (G) using the equation G = ICa/(test pulse potential – Erev(Ca)), plotting the normalized values (G/Gmax) versus the test potential, and fitting them to a Boltzmann function. Steady-state inactivation was measured by subjecting cells to a series of 2500 ms conditioning prepulses from the holding potential to potentials ranging from −60 to +100 mV, returning to the −70 mV holding potential for 5 ms, then measuring the peak current elicited by a 300 ms step to the −20 mV test potential. Data were analyzed and plotted using Prism software (Graphpad Software Inc, San Diego, CA). For experiments in which depolarization-induced increases in Ca2+-sensitive dye were measured, we included 0.2 mM Rhod-2 (AAT Bioquest Cat# 21068) in the patch pipette solution. Images were acquired at 10 Hz using a through-the-lens TIRF microscope built around an Olympus IX-70 inverted microscope equipped with an oil-immersion ApoN 60×/1.49 NA TIRF objective and an Andor iXON CCD camera using TILLvisION imaging software (TILL Photonics, FEI, Hillsboro, OR).

To measure gating and ionic tail currents, we first determined the reversal potential for ICa from the I–V relationship obtained using the I–V protocol described above. Gating currents were then measured by applying a series of depolarizing steps from the holding potential (−70 mV) to potentials ± 5 mV of the reversal potential in 1 mV increments. Currents were sampled at a frequency of 25 kHz and low-pass filtered at 2 kHz. We first obtained recordings in cells perfused with KRB alone, then obtained recordings from the same cell after it had been perfused for two minutes with KRB containing 1 μM nitrendipine (Alomone Cat# N-155). To isolate gating currents and Itail produced by Cav1.2, we subtracted currents measured in the presence of nitrendipine from those measured in KRB alone. The on-gating charge (Qon) was then obtained from these records by integrating the gating current within approximately 2 ms of a depolarizing step to the reversal potential, and maximal Itail amplitudes were measured upon repolarization to the holding potential.

Somatic whole-cell patch clamp recordings were acquired from WT and Kv2.1 KO mouse CHNs cultured on microscope cover glasses after 15–16 DIV. Pyramidal neurons were selected based upon their morphological characteristics (Benson et al., 1994). Patch pipettes were fashioned and filled with intracellular recording solution as described above. After establishing the whole-cell configuration in KRB, the bath solution was exchanged with an extracellular recording buffer containing (in mM): 135 NMDG, 30 TEA-Cl, 5 BaCl2, 8 glucose, 20 HEPES, adjusted to pH 7.4 with HCl. Series resistance was 9.9 ± 0.9 (WT) and 10.4 ± 0.9 (Kv2.1 KO) MΩ (p=0.694, Student’s t-test) (before compensation); cell capacitance was 52.9 ± 4.8 (WT) and 58.4 ± 4.0 (Kv2.1 KO) pF (p=0.789, Student’s t-test). Prior to recording, cell capacitance was canceled, and series resistance was partially (60–70%) compensated. Recordings of LTCC ionic and gating currents were then performed as described for HEK293T cells. We used 10 µM nimodipine to isolate the contribution of LTCCs to the measured currents.

For simultaneous measurement of the Vm and Ca2+ sparks, rat CHNs transfected with GCaMP3-Kv2.1 were recorded using the whole-cell perforated patch clamp configuration. CHNs were patched in KRB using pipettes filled with a solution containing (in mM): 135 K-gluconate, 15 KCl, 5 NaCl, 1 MgCl2, 0.1 EGTA, 10 HEPES, pH adjusted to 7.22 using KOH, and amphotericin B (Millipore Cat# 171375) dissolved in DMSO and added at a final concentration of approximately 50 µg/mL. Upon obtaining a GΩ seal, the amplifier was switched to the current clamp mode to record spontaneous fluctuations in the Vm. Measurement of the Vm (sampled at 25 kHz) and widefield image acquisition (acquired at 5 Hz) were triggered simultaneously using the same microscope described above.

Sparklets

Request a detailed protocol

We recorded Cav1.2-mediated Ca2+ sparklets using the dual TIRF imaging/patch clamp system described above. HEK293T cells transfected with untagged mouse Cav1.2, pDsRed-monomer-C1 or DsRed-Kv2.1P404W, Cavβ3, Cavα2δ1, and rat PKCα (Navedo et al., 2006), which increases spontaneous sparklet activity, were loaded via the patch pipette with a solution containing (in mM): 0.2 Fluo-5F (Invitrogen Cat# F14221), 87 Cs-aspartate, 20 CsCl, 1 MgCl2, 5 Mg∙ATP, 10 HEPES, 10 EGTA, adjusted to pH 7.2 with CsOH. After obtaining a GΩ seal in KRB, the external solution was exchanged with a solution containing (in mM): 110 NaCl, 5 CsCl, 1 MgCl2, 10 glucose, 10 HEPES, 20 CaCl2, pH 7.4 with NaOH. Cells were maintained at a holding potential of −70 mV, and TIRF images were acquired using TILLvisION software. Sparklets were manually detected and analyzed using Fiji software. Sparklet activity was quantified by calculating the nPs of each site (Navedo et al., 2006).

Experimental design and statistical analysis

Request a detailed protocol

For all data sets presented in this study for which statistical analyses were performed, measurements were imported into GraphPad Prism and Microsoft Excel for presentation and statistical analysis. Reported values are mean ± SEM, unless stated otherwise. Exact p-values are reported in each figure or figure legend. Paired data sets were compared using a Student's t-test if the data passed a normality test; a non-parametric test was used otherwise.Proteomics on brain samples were collected from three independent sets of age-matched male wild-type and Kv2.1 KO adult mice. For experiments involving HEK293T cells and CHNs, at least two independent cultures were used for experimentation; the number of samples (n) indicates the number of cells analyzed and is noted in each figure or figure legend.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Calcium signaling at ER membrane contact sites
    1. T Burgoyne
    2. S Patel
    3. ER Eden
    (2015)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1853:2012–2017.
    https://doi.org/10.1016/j.bbamcr.2015.01.022
  12. 12
  13. 13
  14. 14
  15. 15
    ER-plasma membrane junctions: why and how do we study them?
    1. C-L Chang
    2. Y-J Chen
    3. J Liou
    (2017)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1864:1494–1506.
    https://doi.org/10.1016/j.bbamcr.2017.05.018
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
    Cardiac voltage-gated calcium channel macromolecular complexes
    1. J-S Rougier
    2. H Abriel
    (2016)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1863:1806–1812.
    https://doi.org/10.1016/j.bbamcr.2015.12.014
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
    Properties of Kv2.1 K+ channels expressed in transfected mammalian cells
    1. G Shi
    2. AK Kleinklaus
    3. NV Marrion
    4. JS Trimmer
    (1994)
    The Journal of Biological Chemistry 269:23204–23211.
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
    Structural and functional properties of hippocampal neurons
    1. N Spruston
    2. C McBain
    (2007)
    In: P Andersen, R Morris, D Amaral, T Bliss, J O'Keefe, editors. The Hippocampus Book. New York, USA: Oxford University Press. pp. 133–201.
    https://doi.org/10.1093/acprof:oso/9780195100273.003.0005
  116. 116
  117. 117
  118. 118
  119. 119
  120. 120
  121. 121
  122. 122
  123. 123
  124. 124
  125. 125
  126. 126
  127. 127
  128. 128
  129. 129
  130. 130
  131. 131
  132. 132
  133. 133
  134. 134
  135. 135
  136. 136
  137. 137
  138. 138

Decision letter

  1. Kenton J Swartz
    Reviewing Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  2. Eve Marder
    Senior Editor; Brandeis University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Acceptance summary:

This study by Vierra and colleagues describes the novel observation that the Kv2.1 voltage-activated potassium channel forms clusters that interact functionally with L-type voltage-activated calcium channels on the plasma membrane and with ryanodine receptors, an intracellular calcium channel that mediates release of calcium from intracellular stores. The authors show that CaV1.2 clusters increase in size with expression of Kv2.1, and that this effect also occurs with a mutant channel in which potassium permeation has been abolished, but not with a mutant channel exhibiting diminished clustering of the Kv2.1 channel. They also find that co-expression of Kv2.1 and CaV1.2 modulates the activity of this calcium channel by increasing the amplitude of calcium currents and shifting opening of the channel to more negative membrane voltages, making it easier for the channel to open in response to membrane depolarization. The editors and reviewers agreed that this is rigorous, well-executed study that presents important and original findings concerning the interaction of different ion channels involved in electrical signaling within neurons. The authors use an impressive number of tools and experimental approaches, the data are all very high quality and the manuscript is well-written. The experimental results all support the main claims of the paper and the authors were responsive to issues raised in review and have done an excellent job of revising the manuscript.

Decision letter after peer review:

Thank you for submitting your article "Kv2.1 mediates spatial and functional coupling of L-type calcium channels and ryanodine receptors in neurons" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Kenton Swartz as the Reviewing Editor and Eve Marder as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

All reviewers found your study on the role of Kv2.1 in functional coupling of Cav1.2 and ryanodine receptors (RyR) to be very interesting. The key findings of the manuscript are that clusters of Kv2.1 dynamically associate Cav1.2 and RyR, these associations result in discrete calcium signaling events (calcium sparks), and that Kv2.1 enhances Cav1.2 open probability. Although the functional significance of these clusters and their regulation remains speculative, the manuscript represents an important advance in our understanding of subcellular neuronal signaling and will be great of interest to the broader scientific community. We ask that you revise your manuscript to address the issues raised by the reviewers, as outlined below. Although we normally compile requests as essential or minor, in this case it may be helpful to see the reviewers remarks in the context of their reviews, and all reviewers have been clear about what is required and what is optional.

Reviewer #1:

The authors investigated the role of Kv2.1 in functional coupling of Cav1.2 and ryanodine receptors (RyR) to endow neurons with somatodendritic subcompartments capable of localized calcium signaling using a combination of antibody labeling with super-resolution microscopy, proteomics, in vitro calcium imaging, and patch clamp electrophysiology. While a nonconducting role for Kv2.1 in maintaining endoplasmic reticulum-plasma membrane junctions (EPJs) has been documented, the phenomenon's relevance to cellular function has generally been unclear. The key findings of the manuscript are that clusters of Kv2.1 dynamically associate Cav1.2 and RyR, these associations result in discrete calcium signaling events (calcium sparks), and that Kv2.1 enhances Cav1.2 open probability. The results look pretty solid, particularly as they were replicated in primary neuronal cultures, heterologous expression systems, and demonstrated in both rats and mice. Furthermore, the findings shed light on previous reports of localized RyR-mediated calcium events in acute hippocampal slice preparations. Although in the end, the functional significance of these clusters and their regulation remains speculative, the manuscript represents an important advancement in the understanding of subcellular neuronal signaling and will be great of interest to the broader scientific community.

1) There are inconsistencies in the quantitative rigor throughout the paper. In particular the lack of quantitative rigor for the results presented in Figure 1 is concerning. The majority of the results presented are strictly qualitative which is peculiar given the authors are equipped to measure colocalization. They do report that spatial distributions of Kv2.1 and Cav1.2 are correlated but is unclear exactly how this was ascertained other than using the analyze particles function of FIJI. Throughout the associated text, the authors make comparative statements "increased labeling in", less intense immunoreactivity", "comparable to". These statements should be bolstered by simple, unbiased image quantification and statistics. Furthermore, it is unclear why these experiments did not include an assessment Cav1.2 and ryanodine receptor spatial association in the Kv2.1-KO animal that the authors have access to and use throughout the paper. Quantification of spatial association in WT cultures and cultures from Kv2.1-KO animals is an important and simple experiment. Figure 2 also suffers similarly. Plots of colocalization like Figure 2K seem anecdotal. The use of CV as a relevant metric is not rationalized.

2) I am disappointed that the authors chose to convey the results of a key experiment, glutamate induced dispersal of Kv2.1 clusters, as a table as opposed to a figure. This seemingly crucial experiment demonstrates the ability of Kv2.1 to dynamically regulate, rather than an epiphenomenon of Cav1.2 and RyR clustering, and so it is unclear why it is relegated to a table. A possible answer is that the results are of marginal significance. If so, perhaps those data should be removed.

3) In a related concern, it would be beneficial to the interpretation of the experiment if the authors induced dispersal of Kv2.1 clusters with an alternative, preferably more direct, mechanism such as application of a PKA inhibitor. Given the expression of multiple metabotropic glutamate receptors in cultured hippocampal neurons, and the potential of metabotropic effects of NMDA receptor activation, the glutamate stimulation may not solely be acting through phosphorylation of Kv2.1. Although not essential to publication, this result would enhance the paper a lot.

4) In the results presented in Figure 3, the authors note large, synchronized calcium spikes associated with spontaneous action potentials. While the authors are likely correct that these represent a large increase in cytoplasmic calcium through action potential-associated voltage-gated calcium channels, this could be easily tested with the application of TTX. Furthermore, a key conclusion of the paper, that Cav1.2 and RyR associations "generate Ca2+ release events independently of action potentials" would be best demonstrated if the calcium sparks indeed persist in the presence of TTX. This experiment would also shed light on whether a neuron's spiking activity can affect frequency or amplitude of calcium sparks.

5) As with some other figures, the data in Figure 3E-G are presented anecdotally. E.g., the inset of 3E shows that Ca signals did not correspond to spontaneous depolarizations, but these are merely single traces. Do you infer that the apparent absence of a voltage signal associated with the spark implies that the spark is not being driven by a spatiotemporally localized Ca influx through LTCCs?

6) Figure 4 the black red and blue trace overlap so much one cannot tell anything from the data. For example, the red traces seem to show that thapsigargin did nothing.

Reviewer #2:

This study by Vierra et al. describes the novel observation that Kv2.1 channel form clusters that interact functionally with L-type Ca channels and ryanodine receptors. The authors show that CaV1.2 clusters increase in size with expression of Kv2.1, and that this effect occurs using a non-conducting mutant but is abolished in a non-clustering Kv2.1 mutant. Interestingly, they also find that co-expression of Kv2.1 and CaV1.2 (in HEK cells) increases the amplitude of whole-cell L-type Ca currents and leads to a leftward shift in the voltage-dependence of activation. In agreement with this finding, recordings in cultured hippocampal neurons from Kv2.1 KO mice show lower amplitude L-type Ca currents.

This is rigorous, well-executed study that presents important and original findings. The authors use an impressive number of tools and experimental approaches including immunohistochemistry, super resolution and TIRF imaging, electrophysiology, and mass-spec based proteomics. The data are all very high quality and the manuscript is well-written. The experimental results all support the main claims of the paper and the conclusions are all convincing.

1) The results shown in Figure 2E (effect of Kv2.1 non-clustering and non-conducting on CaV1.2 clusters) are quantified in terms of coefficient of variation (CV), but the rationale for this is not clearly described. Please address this. In addition to CV, the authors should also consider providing analysis/quantification of the absolute cluster size for each mutant tested as shown in Figure 2B.

2) The functional measurements of calcium sparks in Figure 3 and 5 show somewhat conflicting results. Results in Figure 5 show a reduction in spark amplitude with the non-conducting mutant, suggesting that conductance is necessary for increased amplitude. In Figure 3, however, the non-conducting Kv2.1 (P404W) mutant has no effect on amplitude of sparks (in comparison to the conducting Kv2.1). Why is this the case? Please discuss.

3) GCaMP3 and Cal-590 differ in their affinity for Ca2+, which may influence the apparent amplitude and size of the Ca sparks. This point may be helpful in addressing Comment 2. Along those lines, the spatial spread of the Ca signal (FWHM) is provided for the GCaMP3 images while the Cal-590 results are only provided as normalized values.

4) Along those lines, does expression of the Kv2.1 and the Kv2.1P404W mutants differ? This is relevant to GCamP3 fusion protein experiments. Please quantify.

5) The example CaV1.2 traces shown in Figure 6A show significant inactivation in the presence of Kv2.1. Was this generally true? Please address.

Reviewer #3:

In this paper by Vierra et al. the role for the potassium channel KV2.1 in the clustering and function of both voltage-gated calcium channels (VGCC) and ryanodine receptors (RyR) is explored in cultured neurons, cell lines, and tissues. The authors find that KV channels promote clustering of VGCC and RyRs. Furthermore, through imaging and ephys the authors show that this functional interaction lowers the activation threshold for calcium channels, promotes local calcium transients, and has a role in modulating the overall calcium signals in these cells. This tripartite interaction is proposed to occur specifically at PM-ER junction sites. In general, I find this paper well done and thorough. The experiments support the author's conclusions and I think it is a generally useful set of data for the field of cellular neuro-biology. I have some specific recommendations and comments that would improve the manuscript.

1) The zoom in Figure 1 (and most of the imaging based figures with small structures) makes it very difficult to evaluate the local clustering of these channels. As this concept is a key idea in the work (e.g. that these three proteins colocalize and functionally interact), can the authors please show more zoomed-in images, more direct measurements (plots) of the fluorescent signals, and less "wide-field" general views?

Also, some standard consistent quantitative way to evaluate co-localization would be helpful throughout the work. Something similar to a Pearson correlation co-efficient or similar type of analysis in most of the co-localization work should be presented across all relevant datasets in the figures.

2) In Figure 1D the KV signal from SIM looks very odd. Is this PM resident ER? Does a general ER marker have this same localization pattern?

3) In Figure 2 are the surface images here just single molecule-level KV? Specifically, is the "spottiness" of the KV images due to low labeling efficiency, low expression, or in fact due to clustering? Again, the size of the images makes it very difficult for me to evaluate the co-localization and cluster size of these signals.

4) The data in Figure 3—figure supplement 2 showing ER morphology at the PM is key. My primary question is how much of the KV and VGCC proteins are inside the ER and how much are exposed at the plasma membrane. Because the effects shown in this paper are due to channels on the plasma membrane surface, a clear separation of these two populations is really important to understand this work. In general, I would like to know how much are functional channels (PM localized channel) and how much are non-functional ER localized channels before they have reached the PM. The data in Figure 2F in many ways addresses this question, but I would like to see these data analyzed and presented in a much more robust way. For example, given the difference between Figure 2A and 2F in the calcium channel signal it appears that most of the clustered VGCC signal is in the ER and not at the surface.

5) A general cartoon model of this complex should be in the main text of the paper as a figure.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Kv2.1 mediates spatial and functional coupling of L-type calcium channels and ryanodine receptors in mammalian neurons" for further consideration by eLife. Your revised article has been reviewed by three peer reviewers and the evaluation has been overseen by Eve Marder as the Senior Editor, and Kenton Swartz as the Reviewing Editor.

The editors and reviewers think you have done an excellent job of revising the manuscript to address the comments of the reviewers. Two of the reviewers have additional suggestions concerning the Pearson CC analysis, and we ask that you address these remaining issues in revision.

Reviewer #1:

In this revision of Vierra et al. the authors have made an excellent effort to address reviewer concerns. A small specific concern is listed below.

Regarding the added Pearson CC: what is being tested here? Codistribution across the image, or colocalization of pixels? SIM images do not indicate a degree of colocalization expected based on the assertion in the crosslinking analysis of 12 A distances. In fact the SIM images do not clearly show superposition of RYR and Cav1.2, only RYR and nearby 1.3 clusters. Some comment here would help. The Materials and methods do not really discuss the statistical tests, unless I missed it.

Reviewer #3:

I am generally satisfied with the revisions to the paper that have been made. The paper is now improved. I still do have one outstanding issue that the authors might consider addressing.

1) The use of Pearson's correlation coefficient (PCC) analysis was added to only the first and last figure as far as I can tell. Why was this not used throughout the paper? That being said the PCC values, while different from controls, are very low (0.2). A positive control should be up around 0.7-1. Can the authors discuss these low values as they relate to the findings of the paper? This indicates that the vast majority of these channels in neurons are not co-clustered.

The most useful place for this analysis would be in Figure 3 and in Figure 3—figure supplements 1 and 2. Here, the PCC value would appear to be larger than in neurons but I can't tell because only raw line scans are shown and not PCC plots across multiple cells as a comparison.

In summary, I am trying to understand how common this complex is in both neurons and cultured cells. Do only a subset of ER/PM junctions have these complexes? If so how many? Are these functionally unique or different in some way? This would be useful to understand for this and future work.

https://doi.org/10.7554/eLife.49953.032

Author response

Reviewer #1:

[…] 1) There are inconsistencies in the quantitative rigor throughout the paper. In particular the lack of quantitative rigor for the results presented in Figure 1 is concerning. The majority of the results presented are strictly qualitative which is peculiar given the authors are equipped to measure colocalization. They do report that spatial distributions of Kv2.1 and Cav1.2 are correlated but is unclear exactly how this was ascertained other than using the analyze particles function of FIJI. Throughout the associated text, the authors make comparative statements "increased labeling in", less intense immunoreactivity", "comparable to". These statements should be bolstered by simple, unbiased image quantification and statistics. Furthermore, it is unclear why these experiments did not include an assessment Cav1.2 and ryanodine receptor spatial association in the Kv2.1-KO animal that the authors have access to and use throughout the paper. Quantification of spatial association in WT cultures and cultures from Kv2.1-KO animals is an important and simple experiment. Figure 2 also suffers similarly. Plots of colocalization like Figure 2K seem anecdotal. The use of CV as a relevant metric is not rationalized.

We thank the reviewer for pointing out these helpful ways to improve the reporting of our findings, and we have taken several steps to improve the quantitative rigor and presentation of the data. First, we have split Figure 1 of the original manuscript into two separate figures, now Figures 1 and 2 of the revised manuscript, and have added additional quantification of Kv2.1 and Cav1.2 protein localization and/or morphology to Figures 1, 2, and 3. We have also used more precise language in the text to clarify which parameters were quantified and which observations were qualitative (e.g., the general labeling pattern of Kv2.1, Cav1.2, and RyRs in cultured neurons as compared to pyramidal neurons in brain sections). We have added a discussion of the use of the CV of immunolabeling fluorescence intensity as a measure of channel clustering in the main body of manuscript. With regard to the analysis performed to assess the spatial distributions of Kv2.1 and Cav1.2, we have now updated the manuscript Results and Materials and methods sections to clarify that we used the Interaction Analysis function that is part of the MosaicSuite plugin for Fiji. We also appreciate the reviewer highlighting the important experiments with the Kv2.1 KO mice, which although present in the original manuscript, were presented as a table instead of paneled figure. Therefore, we have moved these data from the table in the original manuscript to scatter plots showing all values for each analysis, now part of Figure 11, to better highlight the analysis of Cav1.2 and RyR spatial association in WT and Kv2.1 KO neurons.

2) I am disappointed that the authors chose to convey the results of a key experiment, glutamate induced dispersal of Kv2.1 clusters, as a table as opposed to a figure. This seemingly crucial experiment demonstrates the ability of Kv2.1 to dynamically regulate, rather than an epiphenomenon of Cav1.2 and RyR clustering, and so it is unclear why it is relegated to a table. A possible answer is that the results are of marginal significance. If so, perhaps those data should be removed.

We agree with the reviewer that these results are of greater significance than we initially appreciated, especially after discussions with members of the ion channel research community while this manuscript was under review. Additionally, after determining that tetrodotoxin (TTX) treatment produces the opposite effect of glutamate by enhancing the clustering and spatial association of Kv2.1, Cav1.2, and RyRs, we have chosen to present the glutamate dispersal data and the new TTX data in Figure 1. We feel that the new graphs and representative images in Figure 1 will help the reader better assess the results of these experiments.

3) In a related concern, it would be beneficial to the interpretation of the experiment if the authors induced dispersal of Kv2.1 clusters with an alternative, preferably more direct, mechanism such as application of a PKA inhibitor. Given the expression of multiple metabotropic glutamate receptors in cultured hippocampal neurons, and the potential of metabotropic effects of NMDA receptor activation, the glutamate stimulation may not solely be acting through phosphorylation of Kv2.1. Although not essential to publication, this result would enhance the paper a lot.

We thank the reviewer for this excellent suggestion. While we (e.g., Misonou et al., 2004, 2005) and others (e.g., Aras et al., 2009) have previously demonstrated the involvement of calcineurin in glutamate-induced dephosphorylation and dispersal of Kv2.1 clusters, we agree that the pleiotropic effects of glutamate treatment could contribute to the observed dispersal of Cav1.2 clusters from RyR clusters. While we have not previously observed any effects of direct PKA inhibition on Kv2.1 clustering or phosphorylation (J. Trimmer, unpublished results), we reasoned that enhancing Kv2.1

phosphorylation and clustering might be another approach to evaluate the relationship between Kv2.1 phosphorylation/clustering and the of association somatic Cav1.2 with RyRs. Suppression of neuronal excitability with TTX produces enhanced Kv2.1 phosphorylation (Cerda and Trimmer, 2011) and clustering (Romer et al., 2019) and we determined here that it also increases the spatial association of Kv2.1, Cav1.2, and RyRs relative to controls. Thus, acute stimulation of neurons with glutamate causes dispersal of Kv2.1 and Cav1.2 from RyR clusters, while suppression of neuronal activity with TTX promotes the congregation of these proteins. These findings are now presented as graphs and exemplar images of neurons in Figure 1. While the precise mechanism remains unclear, we contend that these observations support our hypothesis that there is a close relationship between the degree of Kv2.1 clustering/phosphorylation and the coupling of Cav1.2 to RyRs at Kv2.1 clusters.

4) In the results presented in Figure 3, the authors note large, synchronized calcium spikes associated with spontaneous action potentials. While the authors are likely correct that these represent a large increase in cytoplasmic calcium through action potential-associated voltage-gated calcium channels, this could be easily tested with the application of TTX. Furthermore, a key conclusion of the paper, that Cav1.2 and RyR associations "generate Ca2+ release events independently of action potentials" would be best demonstrated if the calcium sparks indeed persist in the presence of TTX. This experiment would also shed light on whether a neuron's spiking activity can affect frequency or amplitude of calcium sparks.

We agree that the reviewer’s suggested experiment would provide greater insights into the relationship between action potentials and the localized Ca2+ release events. We have now included the results of an experiment in which we applied TTX to a neuron which displayed local Ca2+ release events at a GCaMP3Kv2.1 cluster and found that it had no impact on the generation of these Ca2+ signals. To better present the relationship between the global Ca2+ spiking activity of a neuron and the local Ca2+ release events, we have also included a temporal raster plot that depicts local Ca2+release events as well as the global Ca2+ influx events in selected neurons. While we do not have descriptive statistics of the relationship between local Ca2+ release events and global Ca2+ spikes the raster plots suggest that local Ca2+ release events occurred more frequently immediately following a global Ca2+ release event. The relationship between neuronal activity and other factors (e.g., activation of metabotropic glutamate receptors) that potentially influence these Ca2+ signals will be explored in more detail in future studies.

5) As with some other figures, the data in Figure 3E-G are presented anecdotally. E.g., the inset of 3E shows that Ca signals did not correspond to spontaneous depolarizations, but these are merely single traces. Do you infer that the apparent absence of a voltage signal associated with the spark implies that the spark is not being driven by a spatiotemporally localized Ca influx through LTCCs?

In presenting these data (now Figure 4E) in the revised manuscript we intended to convey that the local Ca2+ release events were not temporally aligned with obvious fluctuations in the whole-cell membrane potential. We did not mean to imply that there was not a spatiotemporally localized influx of Ca2+ through LTCCs. In contrast, all of our data suggest the opposite: that the Ca2+ release events occurring at Kv2.1 clusters required the spontaneous opening of a spatially coupled LTCC. Presumably these spontaneous openings of LTCCs do not have an influence on the Vm that is detectable in the whole-cell current clamp configuration. Similar results were presented by Manita and Ross in their initial description of similar Ca2+ signals in acute hippocampal slices (Manita and Ross, 2009). With regard to the small, non-AP fluctuations in the Vm apparent in Figure 4E, we suggest that they appear similar to the depolarizing membrane fluctuations corresponding to GABAergic IPSCs, for example as reported by Pitler and Alger (Pitler and Alger, 1992). However, in the absence of further data we can only speculate as to the nature and relationship between these small fluctuations in the Vm and the local Ca2+ signals at Kv2.1 clusters.

6) Figure 4 the black red and blue trace overlap so much one cannot tell anything from the data. For example, the red traces seem to show that thapsigargin did nothing.

We agree that the traces in what is now Figure 5 of the revised manuscript were difficult to see. We have revised these panels (now part of Figure 6 in the revised manuscript) to make the local Ca2+ release events more apparent by extending these traces vertically, slightly altering the shading and coloring of the overlaid traces, and adding colored dashed lines to each panel to denote the approximate maximum amplitude of the local Ca2+ release events, which unlike the global Ca2+ spikes do not exceed these dashed lines.

Reviewer #2:

[…] 1) The results shown in Figure 2E (effect of Kv2.1 non-clustering and non-conducting on CaV1.2 clusters) are quantified in terms of coefficient of variation (CV), but the rationale for this is not clearly described. Please address this. In addition to CV, the authors should also consider providing analysis/quantification of the absolute cluster size for each mutant tested as shown in Figure 2B.

We thank the reviewer for noting the inadequate description we originally provided for the use of the CV metric to evaluate ion channel clustering. We have now included a better explanation in the second paragraph of the subsection “Kv2.1 organizes the localization of LTCCs”. We have also included a quantitation of Cav1.2 cluster size when coexpressed with each of the Kv2.1 isoforms, now shown in Figure 3J of the revised manuscript.

2) The functional measurements of calcium sparks in Figure 3 and 5 show somewhat conflicting results. Results in Figure 5 show a reduction in spark amplitude with the non-conducting mutant, suggesting that conductance is necessary for increased amplitude. In Figure 3, however, the non-conducting Kv2.1 (P404W) mutant has no effect on amplitude of sparks (in comparison to the conducting Kv2.1). Why is this the case? Please discuss.

We agree that these results are somewhat conflicting. While we do not have a detailed explanation for this observation, we hypothesize that the high input resistance of HEK293T cells relative to cultured neurons, which possess numerous endogenous ionic conductances (including native Kv2.1 and Kv2.2 channels), enabled K+ conductance through GCaMP3-Kv2.1WT and –Kv2.1S586A to promote membrane potential hyperpolarization in HEK293T cells, maintaining a greater electrochemical driving force for extracellular Ca2+ and also promoting recovery of Cav1.2 channels from voltage-dependent inactivation. We have now included this discussion in the last paragraph of the subsection “Kv2.1 augments LTCC and RyR2-mediated CICR reconstituted in HEK293T cells”. Considering the large (and growing) number of point mutations in and near the pore region of Kv2.1 associated with epilepsy and neurodevelopmental delay, it will be important for future studies to determine how altered K+ conductance at Kv2.1 clusters impacts Ca2+ signals at these sites.

3) GCaMP3 and Cal-590 differ in their affinity for Ca2+, which may influence the apparent amplitude and size of the Ca sparks. This point may be helpful in addressing Comment 2. Along those lines, the spatial spread of the Ca signal (FWHM) is provided for the GCaMP3 images while the Cal-590 results are only provided as normalized values.

We thank the reviewer for pointing out the different Ca2+ binding properties of GCaMP3 and Cal-590, and have now included a brief discussion of this fact in the third paragraph of the subsection “Neuronal Kv2.1 channels functionally associate with endogenous LTCCs and RyRs”. With respect to the presentation of normalized values, we chose to present normalized values as we felt it would assist the reader evaluate the magnitude of the effects in terms of the percent change in each parameter. However, in doing so we overlooked the stylistic inconsistency with the other figures in the manuscript. Therefore, we have replaced the normalized values with the raw values (Figure 6J of the revised manuscript).

4) Along those lines, does expression of the Kv2.1 and the Kv2.1P404W mutants differ? This is relevant to GCamP3 fusion protein experiments. Please quantify.

While we did not observe obvious differences in the expression of GCaMP3-Kv2.1WT and GCaMP3Kv2.1P404W in cultured hippocampal neurons, this was not rigorously tested in situ. However, we have now evaluated whether these two constructs are expressed at different levels in HEK293T cells, which while not primary neurons present a much more facile model to examine expression differences for heterologously expressed constructs. As now shown in Figure 4—figure supplement 1, we did not observe differences in the expression of these two constructs, as assessed by surface labeling of GCaMP3-Kv2.1 and also raw GCaMP3 fluorescence.

We also note that in mouse neurons loaded with Cal-590 that we observed no difference in the amplitude or width of localized Ca2+ signals in neurons lacking Kv2.1 – only signal frequency was depressed. We hypothesize that this result is a consequence of the decreased spatial association of Cav1.2 and RyRs, decreased RyR cluster size, and decreased open probability of LTCCs in Kv2.1 KO neurons. Although the Kv2.1 KO mouse neurons could express endogenous Kv2.2 channels, our data support a model which suggests that the impact of Kv2.1 on these spontaneous Ca2+ signals in neurons is mediated primarily through its structural role at ER-PM junctions, independent of Kv2.1’s K+ conducting function. While Kv2.1-mediated K+ conductance is clearly vital for normal neuronal development and function, the functional relationship between Kv2.1 clustering and its K+ conductance remains unclear.

5) The example CaV1.2 traces shown in Figure 6A show significant inactivation in the presence of Kv2.1. Was this generally true? Please address.

We thank the reviewer for suggesting that we examine inactivation of Cav1.2 when coexpressed with Kv2.1P404w. While we had reported that steady-state inactivation of the peak current was comparable between control cells and cells coexpressing Kv2.1, we did not assess changes in the sustained current. As now shown in Figure 7D of the revised manuscript, we observe greater inactivation of the sustained Cav1.2 current in the presence of Kv2.1. As this difference in inactivation is abolished by coexpression with STAC1 (Figure 7—figure supplement 1D), which interferes with CDI (Campiglio et al., 2018), the greater inactivation of Cav1.2 in the presence of Kv2.1 presumably reflects greater Ca2+-dependent inactivation, a result of the Kv2.1-induced potentiation of Cav1.2 activity.

Reviewer #3:

[…] I have some specific recommendations and comments that would improve the manuscript.

1) The zoom in Figure 1 (and most of the imaging based figures with small structures) makes it very difficult to evaluate the local clustering of these channels. As this concept is a key idea in the work (e.g. that these three proteins colocalize and functionally interact), can the authors please show more zoomed-in images, more direct measurements (plots) of the fluorescent signals, and less "wide-field" general views?

Also, some standard consistent quantitative way to evaluate co-localization would be helpful throughout the work. Something similar to a Pearson correlation co-efficient or similar type of analysis in most of the co-localization work should be presented across all relevant datasets in the figures.

We agree that the reviewer’s recommendations would improve the manuscript and assist the reader in the evaluation of the results. Therefore, we have revised the figures as suggested by the reviewer. First, we have taken Figure 1 of the original manuscript and split it into two separate figures (now Figures 1 and 2 of the revised manuscript), have added more high-magnification images, and have increased the size of the original images throughout when feasible. In addition, we have included more quantitation of the imaging data: we now show colocalization analyses in Figure 1E and F, additional quantitation of protein immunolabeling in mouse brain sections in Figure 2C-E, and quantification of Kv2.1 and Cav1.2 protein localization and morphology in Figure 3C, D, H and J).

2) In Figure 1D the KV signal from SIM looks very odd. Is this PM resident ER? Does a general ER marker have this same localization pattern?

We thank the reviewer for highlighting the unusual (relative to most other PM proteins) but typical PM localization pattern of neuronal Kv2.1 channels. In neurons, the colocalization of surface Kv2.1 channels with its ER-resident binding partner VAPB has previously been demonstrated by the Tamkun group (Johnson et al., 2018). In addition, surface labeling of endogenous Kv2 channels in hippocampal slices with a Kv2-specific toxin (GxTX) conjugated to a fluorescent dye (Thapa et al., 2019) supports that these clusters are present on the PM. To better highlight this quality of Kv2 channels for the readers of this manuscript, we have now demonstrated that surface Kv2 channel clusters align very closely with ER resident proteins in HEK293T cells (Figures 3B and D of the revised manuscript), as we have done previously (Kirmiz et al., 2018). We suspect that the super-resolution SIM images (Figure 1G-I) and also the AiryScan confocal images (e.g., Figure 1C) better reveal the details of the unique PM localization of Kv2 channels.

3) In Figure 2 are the surface images here just single molecule-level KV? Specifically, is the "spottiness" of the KV images due to low labeling efficiency, low expression, or in fact due to clustering? Again, the size of the images makes it very difficult for me to evaluate the co-localization and cluster size of these signals.

We agree that the images we presented in the original manuscript were not optimal for evaluation of the ion channels in the PM. To address this point, we have included new and larger TIRF images of cells expressing these proteins throughout the figures of the revised manuscript. In addition, we have included additional experiments and related quantitation to address the “spottiness” highlighted above.

With regard to Kv2.1 channels, we now demonstrate that the Kv2.1 channels are expressed well at the PM, as indicated by the surface GxTX labeling of Kv2.1 now shown in Figure 3 and also Figure 4—figure supplement 1. We suspect the Kv spots to which the reviewer is referring are the high-density surface clusters of Kv2.1 that are much brighter than the surrounding diffuse Kv2 channels.

4) The data in Figure 3—figure supplement 2 showing ER morphology at the PM is key. My primary question is how much of the KV and VGCC proteins are inside the ER and how much are exposed at the plasma membrane. Because the effects shown in this paper are due to channels on the plasma membrane surface, a clear separation of these two populations is really important to understand this work. In general, I would like to know how much are functional channels (PM localized channel) and how much are non-functional ER localized channels before they have reached the PM. The data in Figure 2F in many ways addresses this question, but I would like to see these data analyzed and presented in a much more robust way. For example, given the difference between Figure 2A and 2F in the calcium channel signal it appears that most of the clustered VGCC signal is in the ER and not at the surface.

We thank the reviewer for raising an important point, and we agree that we are observing both surface and also sub-PM LTCCs, for example those localized to trafficking vesicles (Ghosh et al., 2018) and those retained within the ER as suggested by the reviewer. To address this point, we performed three additional experiments to obtain a better understanding of the relative distributions of surface and subPM channels. First, we performed surface immunolabeling of Kv2.1 channels using GxTX (Figure 3B and Figure 4—figure supplement 1), which demonstrates that the large Kv2.1 clusters are present in the PM. Next, we performed additional surface immunolabeling and quantitation of the Cav1.2 construct with an extracellular-facing HA tag (Obermair et al., 2004), and determined that approximately 70% of the immunolabeled Cav1.2-HA signal present in the TIRF field was surface localized. Thus, while we observed a Kv2.1-induced increase in surface Cav1.2-HA channel cluster size (Figure 3H), it is possible that we were also observing an increase in the recruitment of non-PM localized Cav1.2-HA channels (e.g., ER-retained channel). Therefore, to determine whether the change in Cav1.2 channel localization in the TIRF field was associated with a change in its function, we also performed recording of Ca2+ sparklets (Figure 8, Videos 7 and 8) to evaluate the single-channel activity of all active LTCCs present in the TIRF footprint. Using this approach, we found that Kv2.1 elevated the open probability of Cav1.2 (in agreement with our electrophysiological data), increased the number of active Cav1.2 channels present in the TIRF footprint, and reduced the nearest-neighbor distance of active Cav1.2 channels in relationship to each other (Figure 8J-L). Together, we believe these data are strong evidence in support of the model that Kv2.1 simultaneously reorganizes PM Cav1.2 and also influences its activity.

5) A general cartoon model of this complex should be in the main text of the paper as a figure.

We thank the reviewer for this suggestion and have included a model in Figure 11I of the revised manuscript.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #1:

[…] Regarding the added Pearson CC: what is being tested here? Codistribution across the image, or colocalization of pixels? SIM images do not indicate a degree of colocalization expected based on the assertion in the crosslinking analysis of 12 A distances. In fact the SIM images do not clearly show superposition of RYR and Cav1.2, only RYR and nearby 1.3 clusters. Some comment here would help. The Materials and methods do not really discuss the statistical tests, unless I missed it.

We thank the reviewer for highlighting additional points of clarification regarding our image analyses.

For the added PCC values, we compared pixel intensities within the ROI (i.e., somatic immunolabeling). We chose this analysis for most of our images as we felt it was applied more consistently than an object based analysis relying on image segmentation. We also thank the reviewer for pointing out an important observation regarding the SIM images their relationship to the results of the proteomic analysis of crosslinked proteins IPd with Kv2.1. Indeed, the super-resolution images indicate that Kv2.1 and Cav1.2 or Cav1.3 immunolabeling did not co-occur within the same pixels (and suggesting that they are beyond 12 Å reach of the DSP crosslinker). Provided that the immunolabeling is revealing most or all of the somatic LTCCs and Kv2.1 channels (i.e., there is not a population of LTCCs and Kv2.1 channels that overlap yet are not immunolabeled perhaps due to a lack of antibody binding), we hypothesize that the IP of LTCCs with Kv2.1 may be a result of cross-linked intermediary protein serving to “daisy-chain” these proteins together. We have now better highlighted this possibility in the Discussion.

We have also now included additional clarification in the manuscript regarding the spatial analysis we performed to assess the localization of Kv2.1 and LTCCs:

“For these super-resolution images, we performed an object-based analysis (rather than a pixel intensity correlation-based measurement such as PCC) to determine whether the localization of somatic Kv2.1 and LTCCs were co-dependent. The approach we used relied on evaluation of the nearest-neighbor distances (NND) of Kv2.1 and Cav1.2 or Cav1.3 cluster centroids and a comparison of these values to the predicted NNDs if Kv2.1 and LTCCs were randomly distributed (Shivanandan et al., 2013, Helmuth et al., 2010).”

The test statistic from the Interaction Analysis test (part of the Mosaic plugin) was computed from K (we used K=1000) Monte Carlo samples corresponding to the point distributions of randomly distributed Kv2.1 and LTCC clusters (i.e., randomized images corresponding to the null hypothesis of “no interaction”), and then ranking the actually observed distance distribution against the randomly distributed samples. We rejected the null hypothesis of “no interaction” based on the rank of the observed distribution compared to the ⌈(1 - α)K⌉-th test statistic, using an α=0.05. A detailed explanation of the statistical method used in this Fiji plugin is provided in (Helmuth et al., 2010).

Reviewer #3:

I am generally satisfied with the revisions to the paper that have been made. The paper is now improved. I still do have one outstanding issue that the authors might consider addressing.

1) The use of Pearson's correlation coefficient (PCC) analysis was added to only the first and last figure as far as I can tell. Why was this not used throughout the paper? That being said the PCC values, while different from controls, are very low (0.2). A positive control should be up around 0.7-1. Can the authors discuss these low values as they relate to the findings of the paper? This indicates that the vast majority of these channels in neurons are not co-clustered.

The most useful place for this analysis would be in Figure 3 and Figure 3—figure supplements 1 and 2. Here, the PCC value would appear to be larger than in neurons but I can't tell because only raw line scans are shown and not PCC plots across multiple cells as a comparison.

We thank the reviewer for raising important points regarding the images analyses in the paper. The rationale for evaluating the PCC values of images of single cells (we did not attempt these analyses on images of neurons in brain sections) is described above in our response to reviewer 1. We have now included additional analyses of the PCC values of Kv2.1 and LTCCs in Figure 3E, Figure 3—figure supplement 1E, and Figure 3—figure supplement 2E. We agree that the PCC values from neurons indicate that the majority of endogenous Kv2.1 and LTCC immunolabeling does not co-cluster, and have now highlighted this in the text of the Results. However, our data indicate that while the absolute PCC values are low, that they reflect a biologically relevant subset of functionally associated Kv2.1, LTCCs, and RyRs whose function is apparent from our live cell imaging results. The spatial association of these channels can be pharmacologically enhanced or dispersed (by TTX or glutamate, respectively), and genetically disrupted by the loss of Kv2.1.

The PCC values of heterologously expressed Kv2.1 and LTCCs in HEK293T cells were higher than was observed for native channels in neurons. While the molecular basis of the greater colocalization of heterologously expressed channels is not clear, we hypothesize that it may be related to the much larger abundance of LTCC channels relative to Kv2.1 when heterologously expressed. Thus, it may be that the affinity of LTCCs for a Kv2.1-mediated ER-PM junction is not extremely high (as suggested by the relatively low PCC values from neurons indicating that only a subset of endogenous channels associated), but by heterologously expressing the channels we are much better able to see the interaction between Kv2.1 and LTCCs. Future studies are aimed at understanding the molecular mechanisms underlying the spatial association of Kv2.1 and LTCCs.

In summary, I am trying to understand how common this complex is in both neurons and cultured cells. Do only a subset of ER/PM junctions have these complexes? If so how many? Are these functionally unique or different in some way? This would be useful to understand for this and future work.

The reviewer raises an important point regarding the relative abundance of ER-PM junctions containing the Kv2.1-LTCC-RyR complexes in neurons. ER-PM junctions are abundant on neuronal somata (occupying approximately 10% of the somatic PM (Wu et al., 2017)) and can possess a variety of protein constituents, including the proteins studied here, and also proteins such as STIM/Orai, E-Syts, junctophilins, etc. As Kv2.1 clusters intrinsically represent ER-PM junctions by nature of their formation (i.e., via interaction with the ER-resident VAPs), our observation that localized Ca2+ signals occurred only at a subset of GCaMP3-Kv2.1 clusters (e.g., see Figure 4A and Video 1) suggests that only a subset of Kv2.1 clusters possess the molecular machinery required to generate these Ca2+ signals. The reason for this is unclear but we suspect it might underlie the physiological functions of these particular Kv2.1 clusters/EPJs (for example, Ca2+-dependent release of signaling molecules such as neuropeptides is known to be associated with Kv2.1 clusters in neuroendocrine cells). Future work is focused on identifying the physiological functions of these Ca2+ signals, which we hope will identify why only a subset of the Kv2.1 clusters appear to exhibit these Ca2+ signals. Moreover, LTCCs and RyRs can exist at sites distinct from Kv2-containing ER-PM junctions, including other classes of ER-PM junctions. We have now included a brief discussion of how the Kv2.1 clusters relate to other EPJs present in neurons (subsection “Properties of Ca2+ 642 sparks at Kv2.1-associated EPJs”, second paragraph

https://doi.org/10.7554/eLife.49953.033

Article and author information

Author details

  1. Nicholas C Vierra

    1. Department of Physiology and Membrane Biology, School of Medicine, University of California, Davis, Davis, United States
    2. Department of Neurobiology, Physiology, and Behavior, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7269-5399
  2. Michael Kirmiz

    Department of Neurobiology, Physiology, and Behavior, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Deborah van der List

    1. Department of Physiology and Membrane Biology, School of Medicine, University of California, Davis, Davis, United States
    2. Department of Neurobiology, Physiology, and Behavior, University of California, Davis, Davis, United States
    Contribution
    Resources, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  4. L Fernando Santana

    Department of Physiology and Membrane Biology, School of Medicine, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4297-8029
  5. James S Trimmer

    1. Department of Physiology and Membrane Biology, School of Medicine, University of California, Davis, Davis, United States
    2. Department of Neurobiology, Physiology, and Behavior, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Project administration, Writing—review and editing
    For correspondence
    jtrimmer@ucdavis.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6117-3912

Funding

National Institute of Neurological Disorders and Stroke (R21 NS101648)

  • James S Trimmer

National Heart, Lung, and Blood Institute (R01 HL144071)

  • L Fernando Santana
  • James S Trimmer

National Institute of General Medical Sciences (T32 GM007377)

  • Michael Kirmiz

National Institute of Neurological Disorders and Stroke (F32 NS108519)

  • Nicholas C Vierra

National Institute of Neurological Disorders and Stroke (U01 NS099714)

  • James S Trimmer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Kimberly Nguyen and Grace Or Mizuno for assistance in preparation of rat CHNs, and Dr. Manuel Navedo for helpful discussion and comments on the manuscript. We also thank Drs. Parashar Thapa and Jon Sack for providing GxTX-633. Aspects of the microscopy in this study were performed using the resources of the UC Davis MCB Imaging Facility, and we thank Dr. Michael Paddy for expert advice on imaging. The proteomics experiments in this study were performed using the resources of the UC Davis Proteomics Core Facility, and we thank Michelle Salemi for expert advice on proteomics. This project was funded by National Institutes of Health Grants U01NS099714 (JST), R21NS101648 (JST), R01HL144071 (LFS and JST), T32GM007377 (MK), and F32NS108519 (NCV).

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#20485 and #21265) of the University of California, Davis. All perfusions were performed under sodium pentobarbital anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. Eve Marder, Brandeis University, United States

Reviewing Editor

  1. Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Publication history

  1. Received: July 5, 2019
  2. Accepted: October 29, 2019
  3. Accepted Manuscript published: October 30, 2019 (version 1)
  4. Version of Record published: November 8, 2019 (version 2)

Copyright

© 2019, Vierra et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 760
    Page views
  • 183
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading
