Etv transcription factors functionally diverge from their upstream FGF signaling in lens development

  1. Ankur Garg
  2. Abdul Hannan
  3. Qian Wang
  4. Neoklis Makrides
  5. Jian Zhong
  6. Hongge Li
  7. Sungtae Yoon
  8. Yingyu Mao
  9. Xin Zhang  Is a corresponding author
  1. Department of Ophthalmology, Columbia University, United States
  2. Department of Pathology and Cell Biology, Columbia University, United States
  3. Burke Neurological Institute and Feil Family Brain and Mind Research Institute, Weill Cornell Medicine, United States
Research Article
  • Cited 0
  • Views 794
  • Annotations
Cite this article as: eLife 2020;9:e51915 doi: 10.7554/eLife.51915

Abstract

The signal regulated transcription factors (SRTFs) control the ultimate transcriptional output of signaling pathways. Here, we examined a family of FGF-induced SRTFs – Etv1, Etv 4, and Etv 5 – in murine lens development. Contrary to FGF receptor mutants that displayed loss of ERK signaling and defective cell differentiation, Etv deficiency augmented ERK phosphorylation without disrupting the normal lens fiber gene expression. Instead, the transitional zone for lens differentiation was shifted anteriorly as a result of reduced Jag1-Notch signaling. We also showed that Etv proteins suppresses mTOR activity by promoting Tsc2 expression, which is necessary for the nuclei clearance in mature lens. These results revealed the functional divergence between Etv and FGF in lens development, demonstrating that these SRTFs can operate outside the confine of their upstream signaling.

eLife digest

Many cells contain proteins known as signal-induced transcription factors, which are poised to receive messages from the environment and then react by activating genes required for the cell to respond appropriately. It is commonly thought that these transcription factors faithfully follow the instructions they receive from the external signal: for instance, if the message was to encourage the cell to grow, the transcription factors would switch on growth-related genes.

As the eyes of mice and other mammals develop, a signal known as FGF is required for certain cells to specialize into lens fiber cells: these long, thin, transparent cells form the bulk of the lens, the structure that allows focused vision. Previous studies suggest that FGF activates three transcription factors known as Etv1, Etv4 and Etv5, but their precise roles in the development of the lens has remained unclear.

Here, Garg, Hannan, Wang et al. confirm that FGF signaling does indeed activate all three proteins. However, mutant mice that lacked Etv1, Etv4 and Etv5 still created lens fiber cells, suggesting that the transcription factors are largely unnecessary for lens fiber cells formation.

Instead, the Etv proteins participated in a cascade of molecular events involving a protein called Notch; as a result, if the transcription factors were absent, the lens fiber cells formed prematurely. In addition, deactivating Etv1, Etv4 and Etv5 also promoted the activity of a protein which interfered with the removal of internal cell compartments, a process required for lens fiber cells to mature properly. These findings reveal that the roles of Etv1, Etv4 and Etv5 deviate from and even oppose FGF signaling in the lenses of mice.

Transcription factors control the ultimate fate of a cell, and there is therefore increased interest in targeting them for therapy. The work by Garg, Hannan, Wang et al. reveals an unexpected complexity in how these proteins respond to upstream signals, highlighting the importance of further dissecting these relationships.

Introduction

The cell signaling networks are commonly depicted in a hierarchical manner, starting with the binding of extracellular ligands to cell surface receptors, followed by the relay of cytoplasmic mediators, and culminating in the activation of nuclear transcription factors. In this unidirectional view, each signal-regulated transcription factor (SRTF) is expected to control a subset of the transcriptional output of upstream signaling (Cvekl and Zhang, 2017). This model has been confirmed in many systems. For example, the transcriptomic changes induced by BMP, Hedgehog and Wnt signaling can be readily accounted for by their transcription effectors Smad, Gli and β-catenin, respectively. However, whether this principle applies to the SRTFs for FGF signaling remains to be determined.

The 28 mammalian E26 transformation-specific (ETS) proteins share a highly conserved winged helix-turn-helix DNA binding domain, which recognizes a core GGA sequence motif (Charlot et al., 2010). Post-translational modifications of these factors, especially serine/threonine phosphorylation by ERK, directly affect their subcellular localization, DNA binding and transactivation. In particular, FGF-ERK signaling induces expression of the Etv (Pea3) subfamily of ETS transcription factors, Etv1 (Er81), Etv4 (Pea3) and Etv5 (Erm), in addition to enhancing their transcriptional activities during embryonic development (Münchberg and Steinbeisser, 1999; Raible and Brand, 2001; Roehl and Nüsslein-Volhard, 2001). Conditional knockouts of these Etv genes disrupted the anterior-posterior patterning of the limb bud and branching morphogenesis of the lacrimal gland controlled by FGF signaling (Garg et al., 2018; Zhang et al., 2009). The significance of Etv factors have also been demonstrated in studies of human cancer, where aberrant activation of ETV genes has been proposed to emulate oncogenic RAS in cellular transformation (Hollenhorst et al., 2011). Thus, the Etv transcription factors Etv1, Etv4 and Etv5 are considered to be SRTFs that are directly downstream of FGF-Ras-ERK signaling.

FGF signaling is required during several steps of vertebrate lens development, including induction of the lens vesicle, proliferation of lens epithelial cells, and differentiation of lens fiber cells (Cvekl and Zhang, 2017; Faber et al., 2001; Robinson, 2006). The mature lens consists of a single layer of epithelial cells in the anterior and differentiated lens fiber cells in the posterior; the latter accounts for the bulk of the lens tissue. FGF signaling has been proposed to act in a gradient fashion, promoting proliferation in the lens epithelium at low signaling strength and stimulating differentiation in the lens fiber cells at high strength (Lovicu and McAvoy, 2001; McAvoy and Chamberlain, 1989; McAvoy et al., 1991). In support of this model, genetic knockouts of FGF receptors disrupted the expression of lens-specific genes Maf, Prox1, Pax6, Cdh1 and Crystallins, affecting survival and proliferation of lens epithelial cells and elongation of fiber cells (Chow et al., 1995; Collins et al., 2018; Garcia et al., 2005; Robinson et al., 1995a; Zhao et al., 2008). Apart from FGF receptors, their co-receptors heparan sulphates and downstream mediators Frs2, Shp2, and Crk have also been demonstrated to regulate lens cell differentiation and elongation (Collins et al., 2018; Li et al., 2019; Li et al., 2014; Madakashira et al., 2012; Pan et al., 2006; Qu et al., 2011). The knockout phenotypes of these genes were reproduced by overexpression of negative regulators of FGF-ERK pathway, Sef and Sprouty (Newitt et al., 2010; Shin et al., 2015). On the other hand, transgenic overexpression of Fgf1 or Fgf3 resulted in premature differentiation of lens epithelial cells (Collins et al., 2018; Robinson et al., 1998; Robinson et al., 1995b), whereas over-activation of FGF signaling as a result of Nf1 and Spry1/2 deletion disrupted lens induction and lens fiber cell differentiation, respectively (Carbe and Zhang, 2011; Kuracha et al., 2011). These results demonstrated that the FGF signaling cascade is critical for lens development, but the direct downstream transcriptional effectors of FGF signaling were not well understood.

In this study, we investigated the role of Etv family transcription factors in the lens by genetically ablating Etv1, Etv4, and Etv5. Instead of the delayed cell differentiation phenotype expected from FGF signaling deficiency, we observed that the lens epithelial cells differentiated prematurely as a result of reduced Notch signaling. On the other hand, the expression of FGF targets Maf and Crystallins were largely preserved in Etv1/4/5 mutant lenses. We also showed that mTOR signaling was aberrantly upregulated, resulting in the failure of nuclei removal in the mature lenses. These results revealed the critical differences between the function of Etv family transcription factors and FGF signaling during lens development, demonstrating that these SRTFs can operate outside the confine of upstream signaling.

Results

MAPK-regulated Etv transcription factors are required for lens development

Previous studies have shown that Etv transcription factors are controlled by FGF signaling during embryonic development. To confirm this finding in the lens, we generated conditional knockouts of Fgfr1 and Fgfr2 using a lens-specific Cre driver Pax6Le-Cre, also known as Le-Cre, which is active in the lens ectoderm as early as E9.5 (Ashery-Padan et al., 2000). As we and others have previously reported, genetic ablation of FGF receptors prevented the lens ectoderm from forming the lens vesicle in the Pax6Le-Cre; Fgfr1fl/fl; Fgfr2fl/fl (Fgfr CKO) embryo (Figure 1A–H, arrows) (Collins et al., 2018; Garcia et al., 2005). Importantly, both ERK phosphorylation and expression of Etv1, Etv4 and Etv5 were also lost in the Fgfr CKO lens ectoderm (Figure 1A–H, outlined), demonstrating that FGF signaling indeed controls ERK and Etv activities during lens induction. We next ablated Mek and Erk to investigate whether Etv genes were also regulated by MAPK signaling in the lens. Although the lenses were formed in Pax6Le-Cre; Mek1(Map2k1)fl/fl; Mek2(Map2k2)-/- (Mek CKO) and Pax6Le-Cre; Erk1(Mapk3)-/-; Erk2(Mapk1)fl/fl (Erk CKO) embryos, they failed to express any of the Etv genes (Figure 1I–Q, circled). These results demonstrated that the Etv family transcription factors are controlled by FGF-ERK signaling during lens development.

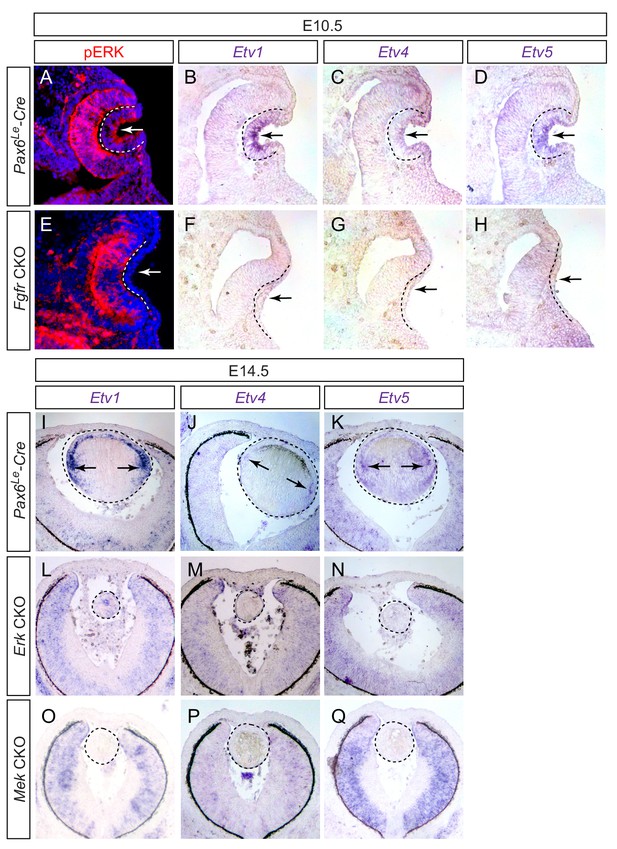

Etv transcription factors are controlled by FGF-ERK signaling in the lens.

(A–D) At E10.5, the invaginating lens ectoderm displays ERK phosphorylation and expression of Etv1, 4 and 5 (arrows). (E–H) Genetic ablation of Fgfr1/2 in Fgfr CKO mutants prevented lens vesicle formation and abrogated phospho-ERK and Etv expression (arrows). The lens ectoderms are marked by dotted lines. (I–K) At E14.5, Etv1, 4 and 5 are predominantly expressed in the transitional zone of the lens (arrows). (L–Q) Deletion of either Erk1/2 (Erk CKO) or Mek1/2 (Mek CKO) abolished expression of Etv genes. The lenses are circled in dotted lines.

To investigate the function of Etv family transcription factors in the lens, we used the Pax6Le-Cre transgenic mouse line to conditionally ablate Etv1 and Etv5 in an Etv4-null background. In Pax6Le-Cre; Etv1fl/fl; Etv4-/-; Etv5fl/fl embryos (Etv TKO), the lens induction and lens vesicle formation were unaffected, but the lens size was reduced at E14.5 as shown by Hematoxylin and Eosin staining (Figure 2A and E). Consistent with this, apoptosis increased in the epithelium and the transitional zone as indicated by TUNEL staining (Figure 2B,F and I, arrows). On the other hand, proliferation of the lens epithelial cells was reduced as measured by EdU incorporation assay (Figure 2C,D and I, arrowheads). In the control lens, the nascent fiber cells exited the cell cycle after the transitional zone, as shown by the diminution of Cyclin D1 expression and Edu labeling (Figure 2C, arrows). In contrast, the Etv TKO lens displayed ectopic expression of Cyclin D1 in the posterior lens (Figure 2G, arrow) and persistent EdU- and pHH3-positive cells in the fiber cell compartment (Figure 2C,D,G and H, inserts). These phenotypes showed that lens development was disrupted by loss of Etv transcription factors.

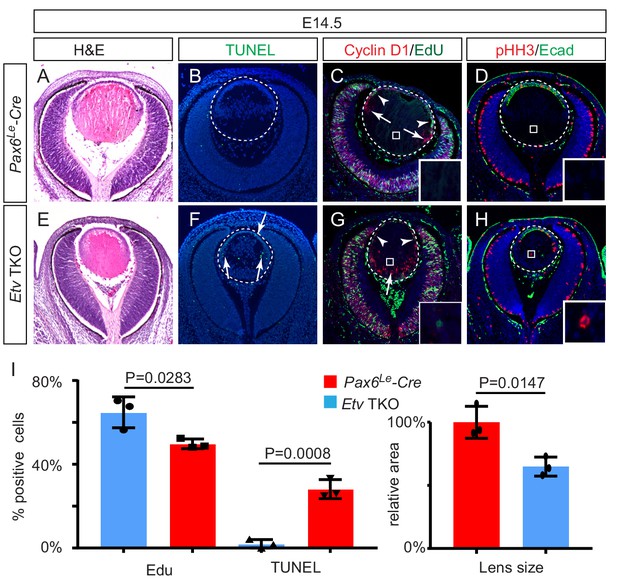

Lens development requires Etv transcription factors.

(A–H) Hematoxylin and eosin (H and E) staining reveal reduced lens size in Etv1/4/5 deletion (Etv TKO) mutants (A and E). Etv null lens exhibited increased cell apoptosis shown by TUNEL staining (B and F, arrows) and reduced cell proliferation as indicated by EdU staining (C and G, arrowheads). In contrast, ectopic expression of Cyclin D1 (G, arrows) and proliferation markers EdU and pHH3 (C, D, G and H, inserts) were detected in the posterior lens. (I) Quantification of EdU and TUNEL staining.

Genetic ablation of Etv causes ectopic activation of ERK signaling

To identify the downstream targets of Etv genes, we performed RNA sequencing analysis to compare the transcriptional landscape of E14.5 control to that of Etv TKO mutant. Since Etv genes are predominantly expressed in the transitional zone at the lens equator, we isolated these cells by laser capture microdissection and extracted RNA for cDNA synthesis (Figure 3A). After amplification, the cDNA library was subjected to high-throughput sequencing to examine the global gene expression changes. Cluster and PCA analysis of the top 200 differentially expressed genes showed that the controls and mutants were well segregated across three biological replicates, demonstrating the consistency of the RNA sequencing data (Figure 3B and Figure 3—figure supplement 1A). Among the 834 genes showing statistically significant changes in expression (p<0.05), 288 and 283 genes were up- and down-regulated by at least two folds, respectively. Interestingly, we noticed that the remaining transcripts of three Etv genes were reduced in mutant samples, suggesting that Etv genes regulated their own expressions (Figure 3C). These results indicate that loss of Etv genes causes complex changes in the lens transcriptome.

Figure 3 with 1 supplement see all

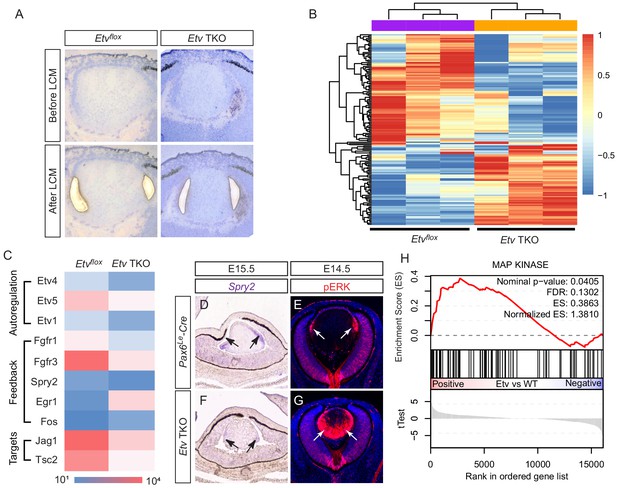

Transcriptomic analysis shows ERK signaling dysregulation in Etv mutant lens.

(A) The transitional zone of the lens was isolated by laser capture microscope (LCM) for RNA sequencing analysis. (B) Cluster analysis of the top differentially expressed genes in the RNA sequencing data. (C) Heat map of the Etv regulated genes. (D and F) Spry2 is significantly down-regulated in Etv TKO mutants. (H) Gene set enrichment analysis (GSEA) indicates the MAPK pathway is elevated.

We next focused on the impact of Etv deletion on FGF signaling. The RNA sequencing data indicated that the receptors for FGF signaling, Fgfr1 and Fgfr3, were down-regulated in the Etv TKO mutant (Figure 3C), which were confirmed by RNA in situ hybridization (Figure 3—figure supplement 1B). Although this suggests a positive feedback regulation of FGF receptors by Etv genes, it is unlikely to affect lens development, because previous studies have shown that Fgfr1 and Fgfr3 double mutant lenses did not exhibit any overt phenotype (Zhao et al., 2008). On the other hand, the transcript level of Spry2, an inhibitor of receptor tyrosine kinases, was also reduced, which we confirmed by RNA in situ hybridization in Etv TKO mutant lenses (Figure 3D and F, arrows). This is consistent with previous ChIP-seq analysis which revealed that SPRY2 is a direct target of PEA3/ETV family genes (Yan et al., 2013). Since we have shown above that expression of Etv1, Etv4 and Etv5 in the lens is dependent on ERK signaling (Figure 1I–Q), it is not surprising that Spry2 expression is also lost in Erk CKO mutants (Figure 3—figure supplement 1C, arrows). Considering that Sprouty proteins are known to inhibit Ras-MAPK signaling (Hanafusa et al., 2002), this suggests that Etv regulation of Spry constitutes a negative feedback loop to regulate FGF-ERK activity. Indeed, we notice that ERK phosphorylation was ectopically activated in Etv TKO mutant lenses (Figure 3E and G, arrows). In support of the upregulation of ERK activity, we also observed increasing expression of Egr1 and Fos (Figure 3C), two early response genes for Ras-MAPK signaling. Moreover, gene set enrichment analysis (GSEA) showed that Etv deletion enhanced the activity of the MAP kinase pathway (Figure 3H), which is known to be decreased in FGF receptor mutants. Therefore, inactivation of FGF receptors or Etv transcription factors in the lens resulted in diametrically different outcomes in MAPK signaling.

Etv deficiency blocks aberrant but not normal lens differentiation

We took three approaches to investigate the role of Etv transcription factors in lens cell differentiation: (1) examining the Etv loss-of-function phenotype, (2) corroborating our results with ERK signaling knockouts and (3) performing genetic epistasis using a FGF gain-of-function model. It was previously reported that FGF signaling controls the expression of αA-crystallin (Cryaa) in the lens cells via Etv5 and Maf; the latter also contains Etv-binding sites in its regulatory region (Xie et al., 2016). Unexpectedly, immunostaining showed that both Maf and α-crystallins proteins were still present in Etv TKO mutant lenses (Figure 4A,B,F and G). Similarly, we did not detect a significant reduction in γA-crystallin expression (Figure 4C and H), which is normally induced after αA-crystallin in more mature lens fiber cells. To avoid the possibility that protein perdurance may obscure the dynamic changes in gene expression, we also performed RNA in situ hybridization, which showed abundant expression of Cryaa and Cryga mRNAs in Etv TKO lenses (Figure 4D,E,I and J). Consistent with this, there were no statistically significant changes in the transcript levels of Cryaa, Cryga and Maf in our RNA sequencing data. Based on these results, lens differentiation can apparently proceed in the absence of Etv transcription factors.

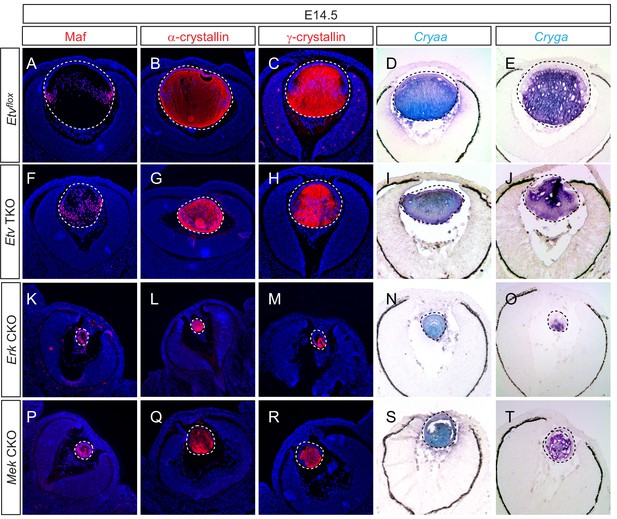

Lens fiber differentiation proceeds in the absence of Etv and ERK.

(A–J) Expression of fiber cell markers Maf, α- and γ-crystallin is unaffected in Etv TKO lenses. (K–T) Maf, α- and γ-crystallin are still expressed in Erk and Mek CKO lens despite the severely reduced lens size.

To corroborate the lack of lens differentiation phenotype in Etv loss-of-function mutants, we next examined ERK signaling knockouts. We reasoned that, since the entire Ets superfamily transcription factors including Etv are under the control of ERK, inactivation of MAPK may produce a stronger phenotype than Etv knockouts. Indeed, combined deletion of Erk1(Mapk3) and Erk2(Mapk1) resulted in a drastic reduction in lens size as previously reported (Xie et al., 2016). However, Maf, α- and γ-crystallins mRNA and protein were still expressed in Erk CKO mutant lenses (Figure 4K–O). To further confirm this finding, we also examined the lens-specific knockout of Mek1 (Map2k1) and Mek2 (Map2k2), two kinases upstream of Erk. In the severely diminished Mek CKO mutant lenses, we again failed to detect significant reduction in the intensity of Maf, α- and γ-crystallins staining (Figure 4P–T). Therefore, genetic ablation of Erk and Etv transcription factors did not abolish lens differentiation as in FGF receptor mutants.

The phenotypic dichotomy between Fgfr and Etv mutants raised the question whether Etv transcription factors play any role in the FGF-induced lens fiber differentiation. To address this issue, we took a gain-of-function approach to test the genetic epistasis between Etv and FGF signaling. As we and others have previously reported (Collins et al., 2018; Li et al., 2019; Robinson et al., 1998), the lens-specific overexpression of Fgf3 in Fgf3OVE391 transgenic animals greatly elevated ERK phosphorylation in the lens (Figure 5A and B). Consistent with regulation of Etv and Spry2 by ERK signaling we showed above, this led to increased expression of Etv1, Etv4, Etv5 and Spry2 in the Fgf3OVE391 lens (Figure 5—figure supplement 1), which was accompanied by ectopic induction of Maf and γ-crystallin but loss of E-cadherin in Pax6-positive anterior lens epithelium (Figure 5F,J and N, arrows). We hypothesized that if Etv is required for FGF signaling to promote lens differentiation, then blocking Etv activity should prevent the Fgf3-overexpression phenotype. Since it was cumbersome to use the triple knockout of Etv1/4/5 to generate compound mutants for the genetic epistasis experiments, we employed the R26EtvEnR allele, which can be induced to express an Etv4 fusion protein linked to the Engrailed repressor domain (EtvEnR) after Cre-mediated excision of a transcriptional STOP cassette. This was previously shown to act as a dominant negative protein to suppress the activities of endogenous Etv transcription factors (Mao et al., 2009). Consistent with this, Pax6Le-Cre;R R26EtvEnR lenses were reduced in size like those of Etv TKO mutants, while the expression of E-cadherin, Maf and γ-crystallin was maintained (Figure 5G,K,O and Q). After crossing with Fgf3OVE391, the lens remained smaller in the Pax6Le-Cre; Fgf3OVE391; R26EtvEnR mutant than that of the control (Figure 5Q). Of note, the expression of Etv1, Etv4, Etv5 and Spry2 in the Pax6Le-Cre; Fgf3OVE391; R26EtvEnR mutant was diminished but not abrogated compared to that in Fgf3OVE391 (Figure 5—figure supplement 1), suggesting that Etv activities was partially inhibited by EtvEnR. Nevertheless, in sharp contrast to Fgf3OVE391, Maf and γ-crystallins were restricted to the lens fiber compartment in Pax6Le-Cre; Fgf3OVE391; R26EtvEnR lenses, while E-cadherin was preserved in the anterior lens epithelium (Figure 5H,L and P). Therefore, inhibition of Etv transcriptional activities prevented FGF signaling from inducing ectopic expression of the fiber-specific genes in the lens epithelium. Taken together, these results showed that Etv transcription factors were not essential for normal lens differentiation at the transitional zone, but they were required for FGF signaling to directly convert lens epithelial cells into lens fibers.

Figure 5 with 1 supplement see all

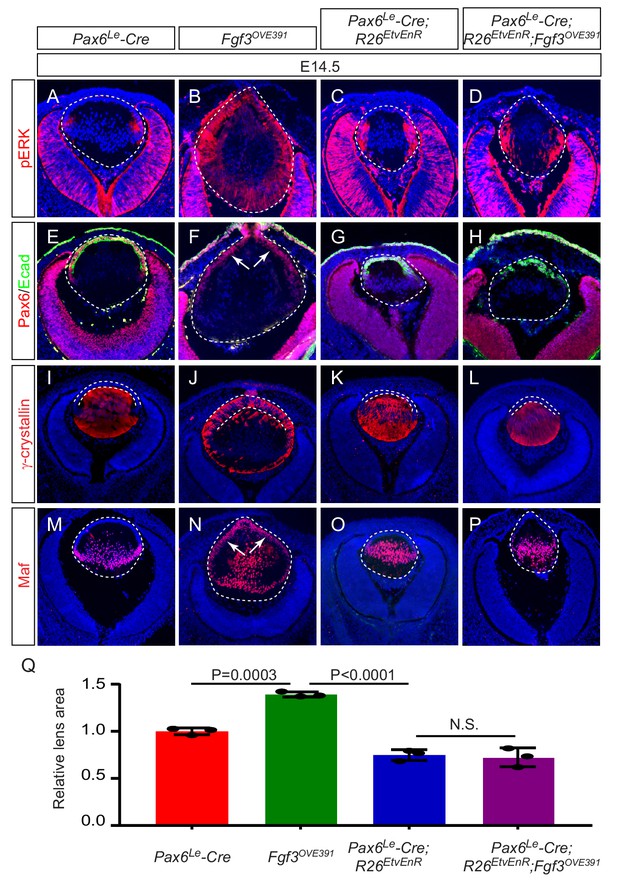

Etv deletion prevents FGF from inducing aberrant differentiation of the lens epithelium.

(A–P) Overexpression of Fgf3 in Fgf3OVE391 lens induced expansion of ERK phosphorylation into the anterior lens epithelium (B), which lost the epithelial marker E-cadherin (F, arrows) but expressed the fiber cell markers Maf and γ-crystallin (J and N). The expression of dominant negative EtvEnR restored normal lens differentiation pattern in Pax6Le-Cre; Fgf3OVE391;R26EtvEnR lenses (H, L and P). (Q) The lens size was enlarged in Fgf3OVE391 embryos, but reduced in both Pax6Le-Cre;R26EtvEnR and Pax6Le-Cre; Fgf3OVE391;R26EtvEnR embryos.

Etv regulates the induction of cell differentiation by promoting Jag1-Notch signaling

Although the fiber cell differentiation genes were still expressed in Etv TKO mutant lenses, we noticed that the transitional zone marked by the boundary between the lens epithelial marker Foxe3 and the fiber cell marker Prox1 was moved anteriorly (Figure 6A and E, arrows). As a result, the length of the lens epithelium marked by Pax6 and E-cadherin staining was shortened compared to the circumference of the posterior lens (Figure 6B,F and I, arrows). This differentiation pattern is reminiscent of defective Notch signaling, which is known to cause the lens progenitor cells to undergo premature differentiation before reaching the lens equator, resulting in an anteriorly shift of the transitional zone (Jia et al., 2007; Le et al., 2009; Li et al., 2019; Rowan et al., 2008; Saravanamuthu et al., 2012). Intriguingly, one of the down-regulated genes in Etv TKO mutants revealed by our transcriptomic analysis was Jag1 (Figure 3C), which encodes the ligand for Notch signaling. By immunostaining, we confirmed that the expression of Jag1 protein was drastically reduced in Etv TKO mutant lenses (Figure 6C and G, arrowheads). Jag1 expressed in the lens fiber cells signals to the Notch receptors in the lens epithelium to maintain the progenitor pool (Jia et al., 2007; Le et al., 2009). In line with the reduced Notch signaling due to Jag1 deficiency, the anterior lens epithelium in Etv TKO mutants exhibited severely diminished staining of the Notch1 intracellular domains (Notch1-ICD), a proteolytic product of Notch1 receptor triggered by Jag1 activation (Figure 6D and H, arrows). These results support that Etv regulates Jag1-Notch signaling to control the timing of lens cell differentiation.

Figure 6 with 1 supplement see all

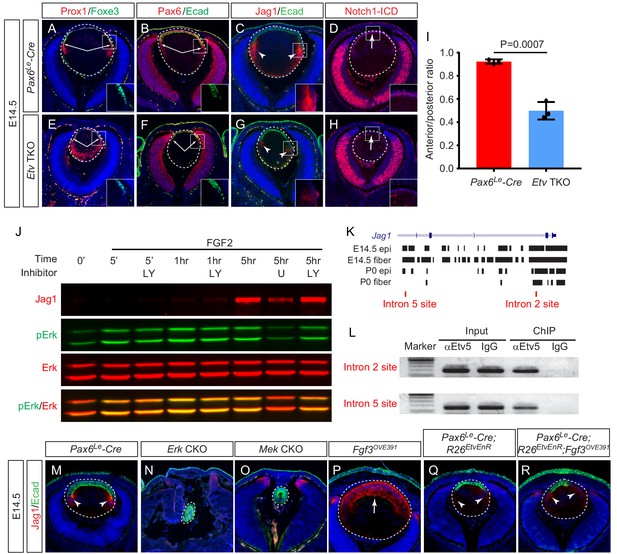

Etv induces Jag1 expression to control Notch signaling.

(A–H) The transitional zone marked by the boundaries of Prox1, Foxe3, Pax6 and E-cadherin expressions are shifted anteriorly in Etv TKO mutant lenses (A, B, E and F, arrows). This was caused by reduced expression of Jag1 in the nascent lens fibers (C and G, arrowheads) and down regulation of Notch signaling as indicated by Notch1-ICD staining in the lens epithelium (D and H, arrows). (I) Quantification of the anterior and posterior perimeters of the lens shows the relative shortening of the lens epithelium. (J) FGF2 induced Jag1 expression in the lens culture after 5 hr, which was blocked by Mek inhibitor U1206, but not by PI3K inhibitor LY294002. (K) Bioinformatic analysis identifies two Etv binding sites within the intron 2 and 5 of the Jag1 locus. The bars indicate the open chromatin regions obtained from the ATAC-seq analysis of lens epithelium and fibers. (L) Chromatin immunoprecipitation experiment in lens cultures showed that both the introns 2 and 5 sites were pulled down by Etv5 antibody but not IgG control. (M–R) The endogenous Jag1 expression in lens fiber cells (M, arrowheads) is abolished by deletion of either Erk or Mek (N and O). Overexpression of Fgf3 induces ectopic Jag1 expression in the lens epithelium (P, arrow), which is suppressed by dominant negative EtvEnR (Q and R, arrowheads).

To investigate the molecular mechanism of Jag1 regulation by Etv, we turned to cultured lens cells in vitro. By western blot, we showed that Jag1 expression in the lens epithelial cell culture was induced by FGF2 after 5 hr treatment and suppressed by Mek inhibitors U0126 and PD0325901 but not PI3K inhibitor LY294002 (Figure 6J and Figure 6—figure supplement 1). This is consistent with previous reports that Jag1 expression in the lens is controlled by ERK-mediated FGF signaling (Li et al., 2019; Saravanamuthu et al., 2009). To determine whether Jag1 is a direct transcriptional target of Etv, we used the recently published ATAC-seq analysis (Zhao et al., 2019) to search the open chromatin regions in the developing lens and identified two Etv-binding sites located within introns 2 and 5 of Jag1 gene (Figure 6K). By chromatin immunoprecipitation (ChIP), we showed that both introns 2 and 5 sites could be pulled down by Etv5 antibodies but not by IgG control (Figure 6L), demonstrating that these two sites in Jag1 were occupied by Etv in the lens cells. We next investigated whether Etv was required for FGF signaling to induce Jag1 expression in vivo. Jag1 was normally restricted to the nascent lens fibers in wild type control lenses (Figure 5M, arrowheads), but it was abolished in Mek and Erk CKO mutants (Figure 6N and O). In Fgf3OVE391 lenses, however, Jag1 expression was expanded to the entire lens epithelium at the expense of E-cadherin expression (Figure 6P, arrow), demonstrating that FGF signaling can induce de novo Jag1 expression in the lens epithelium. In Pax6Le-Cre; R26EtvEnR lenses, Jag1 expression was significantly reduced compared to those of wild-type control (Figure 6Q, arrowheads), consistent with the role of Etv in Jag1 regulation. Suppression of Etv activity in Pax6Le-Cre; Fgf3OVE391; R26EtvEnR lenses reversed the Fgf3 overexpression phenotype, limiting the Jag1 expression domain to the posterior lenses (Figure 6R, arrowheads). Based on these results, we conclude that Etv mediates the FGF-ERK-Notch crosstalk to control the induction of lens differentiation.

Deletion of Etv genes led to aberrant activation of mTOR signaling and disruption of nuclei clearance in the lens

The final step of lens cell differentiation is the degradation of their cellular organelles, which is crucial for the transparency of the lens (Bassnett et al., 2011). To determine whether Etv transcription factors are required for this process, we examined the clearance of lens cell nuclei by histology. In wild-type control, the maturing fiber cells lost their nuclei as they migrated toward the interior of the lens, eventually forming an organelle free zone (OFZ) (Figure 7A and Figure 7—figure supplement 1, arrowheads). In contrast, Etv TKO mutants retained nuclei within the lens core, indicating defective organelle clearance (Figure 7E and Figure 7—figure supplement 1, arrowheads). Previous studies have shown that inhibition of mTOR signaling accelerated organelle elimination in chick lens explants (Basu et al., 2014). Interestingly, our RNA sequencing analysis of Etv TKO mutant lenses showed significant down-regulation of Tsc2, which forms a heterodimer with Tsc1 to inhibit mTOR activity (Figure 3C). This suggests that the defective nuclei clearance in the Etv TKO mutant may be caused by elevated mTOR signaling. In support of this hypothesis, we observed that phospho-mTOR (pmTOR) was localized in the transitional zone of the wild-type control lens, but it expanded into the fiber cell compartment in Etv TKO mutants (Figure 7B and F, arrowheads). Similarly, Etv TKO mutant lenses displayed significant increase in pS6 and p4EBP1, two known substrates of mTOR kinase (Figure 7C,D,G and H). Therefore, inactivation of Etv genes led to increased mTOR signaling in the lens.

Figure 7 with 1 supplement see all

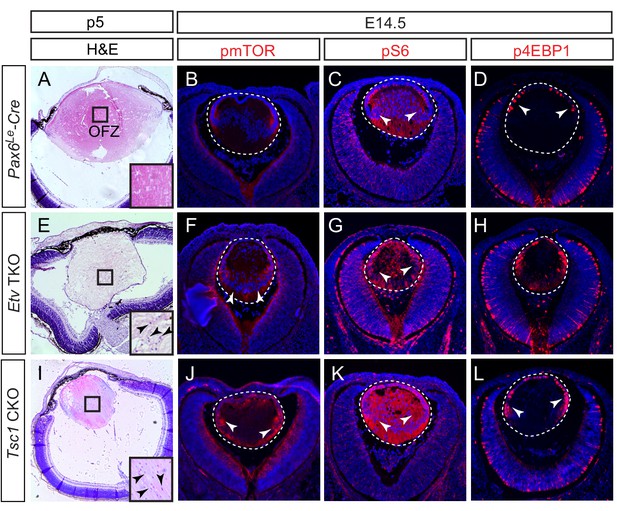

Activation of mTOR signaling disrupts nuclei degradation in the Etv mutant.

(A–J) The center of the wild type lens was an organelle free zone (OFZ) at P5 (F), but it still contains nuclei in Etv mutants (F, arrowheads). This is associated with increased mTOR signaling as indicated by the elevated phosphorylation of mTOR, S6 and 4EBP1 (B-D, F-H, arrowheads). (I–L) The aberrant retention of nuclei and activation of mTOR signaling are reproduced in Tsc1 knockout lens.

To determine whether mTOR activation indeed interfered with nuclei clearance in the lens, we generated Pax6Le-Cre; Tsc1flox/flox (Tsc1 CKO) to ablate the Tsc2 binding partner Tsc1. As expected from the role of Tsc1/2 complex in suppressing mTOR activity, pmTOR was significantly increased in Tsc1 CKO lenses, which also displayed elevated level of pS6 and p4EBP1 (Figure 7J–L). Importantly, whereas the wild-type control lens contains a well-defined OFZ in the center, the nuclei were scattered throughout the Tsc1 CKO lenses (Figure 7I and Figure 7—figure supplement 1). The lack of an OFZ in Tsc1 deficient lenses supports our model that Etv control of mTOR signaling is required for the terminal differentiation of the lens fiber cells.

Discussion

FGF signaling plays important roles during vertebrate lens development. As demonstrated by the profound lens defects in FGF receptor mutants, the primary function of FGF signaling is to promote differentiation of the lens epithelial cells into the fiber cells. In this study, we have studied the functions of Etv family genes, which are the well-established downstream transcription factors induced by FGF during embryonic development. Contrary to the defective lens differentiation found in FGF signaling mutants, deletion of Etv genes did not prevent the expression of lens fiber genes in normal development. Instead, it caused premature differentiation of the lens progenitors as a result of reduced Notch signaling. Moreover, Etv mutations led to an increase in the activity of ERK and mTOR signaling, with the latter responsible for the abnormal retention of the nuclei in the adult lens. Therefore, unlike BMP, Hedgehog and Wnt signaling that command their downstream signal-regulated transcription factors (SRTFs) as faithful effectors, ETV transcription factors activated by FGF signaling can oppose the intended function of the pathway.

Our study of Etv mutants in lens development has revealed several important features of Etv function that deviate from the expected role of a faithful executor for FGF signaling. First, deletion of Etv caused significant derangement of ERK signaling, which is the main intracellular pathway activated by FGF. Contrary to the loss of ERK activity in mutants lacking either FGF receptors or downstream mediators Frs2 and Shp2 (Collins et al., 2018; Li et al., 2014; Pan et al., 2010; Zhao et al., 2008), Etv-deficient lenses displayed elevated ERK signaling, which was evident in the increased level of ERK phosphorylation and expression of ERK early response genes Egr1 and Fos. This was likely due to reduced expression of ERK inhibitor Spry2, which has been shown to be a direct transcriptional target of Etv (Yan et al., 2013). In support of this, deletions of Spry genes have been found to result in upregulation of ERK signaling in a wide variety of tissues, including the lens (Kuracha et al., 2011). The aberrant ERK activation in Etv mutants may stimulate downstream targets normally silenced by loss of FGF signaling, inducing further compensatory changes that rewire the signaling network. It underscores the intricate role of Etv in stabilizing the intracellular signaling activated by FGF.

The second distinction of Etv mutants compared to FGF receptor knockouts is the relatively normal lens differentiation. This was unexpected because a previous study shown that both lens differentiation genes Maf and Cryaa were under direct control of Etv transcription factors in vitro (Xie et al., 2016). We presented three lines of evidence in support of our conclusion. First, we performed RNA sequencing, RNA in situ hybridization, and immunohistochemistry in Etv mutant lenses, none of which showed significant reduction in the expression of Maf and Cryaa. Second, we generated lens-specific knockouts of Erk1/2, which we showed to be required for Etv expression. Even in these ERK signaling mutants, we still observed expression of Maf and Cryaa. Of note, the previous study observed that immunostaining for α-crystallin and Maf were severely reduced or even absent in the Erk1/2 knockout lens (Xie et al., 2016). It is not clear what caused the phenotypic discrepancy between ours and the previous study, which could be due to a difference in the genetic background of the animal models or the source of antibodies. It should be noted that γ-crystallin expression appeared to move posteriorly in both Etv and Erk knockouts (Figure 4H,M and R), which may reflect a slight delay of lens fiber terminal differentiation. Nevertheless, even knockout of ERK kinase Mek still failed to abolish Maf and Cryaa expression. In the third approach, we explored the role of Etv in a gain-of-function setting, showing that inhibition of Etv indeed blocked ectopic FGF from stimulating Maf and γ-crystallin expression in the lens epithelium. This result suggests an intrinsic difference between normal differentiation at the lens equator and ectopic differentiation in the lens epithelium, which may be shaped by their unique microenvironment and different dosage of FGF signaling. Taken together, our results demonstrate that Etv genes are dispensable for FGF-induced cell differentiation under the physiological condition during lens development.

Genetic ablation of Etv also differed from inactivation of FGF signaling in its impact on the transitional zone of cell differentiation, which was shifted anteriorly after Etv deletion and posteriorly in FGF signaling mutants. We recently showed that FGF plays a dual role in specifying the location of the transitional zone by regulating the timing of lens differentiation; FGF directly promotes differentiation of lens fiber cells, but it also cooperates with PDGF to restrain differentiation of the lens progenitor cells (Li et al., 2019). The latter is mediated by Jag1, which induces Notch signaling in the anterior lens epithelium to suppress progenitor cell differentiation. In the current study, we determined that Jag1 expression is under the direct control of Etv transcription factors and ERK, delineating a complete molecular cascade that connects FGF to Notch signaling. In the absence of Etv, loss of Notch signaling leads to premature differentiation of lens progenitor cells indicated by Foxe3 and Prox1 expression, but the pattern of Crystallin expressions are unchanged. This suggests the terminal differentiation of lens fibers may be slightly delayed relative to onset of progenitor cells differentiation. Nevertheless, Etv mutants proceed to express Crystallin genes at the comparable level as wild-type controls, which is in sharp contrast to the loss of γ-crystallin expression in FGF receptor mutants (Zhao et al., 2008). Therefore, Etv mediates the anti-differentiation function of FGF to activate Notch signaling but it is largely dispensable for the pro-differentiation aspect of FGF signaling.

Lastly, our study showed that Etv deficiency augmented mTOR phosphorylation. This is likely caused by reduced expression of Tsc2, a negative regulator of mTOR. Indeed, we also observed significant increase in phosphorylation of S6 and 4EBP1, two downstream targets of mTOR. Importantly, we observed aberrant retention of the lens fiber cell nuclei in postnatal Etv mutants, which was mimicked by deletion of Tsc2 partner Tsc1 in the lens. Previous studies have shown that inhibition of mTOR by rapamycin promotes degradation of the organelle in chick lens explants although the exact mechanism remained controversial (Basu et al., 2014; Morishita and Mizushima, 2016). Our study provides the in vivo evidence that mTOR is indeed an important regulator of organelle removal in lens maturation.

Taken together, our genetic study firmly establishes Etv family transcription factors as SRTFs for FGF signaling in lens development. SRTFs constitute a special class of transcription factors that relay intracellular signals to shape the cellular transcriptome, which ultimately determines the identity and status of the cell. Although many SRTFs have proven to be faithful to their upstream signaling, we showed that Etv transcription factors deviate or even oppose the function of FGF-ERK signaling in the lens. This is likely because, unlike other signaling pathways such as BMP, Hedgehog and Wnt that rely on a single downstream effector, FGF signaling can induce multiple transcription factors. This generates diversity among the FGF SRTFs that may evolve to acquire their unique or even opposing functions, which fine tunes the overall transcriptional response. The three PEA3/ETV genes and ERG are the only ETS genes implicated in tumorigenesis, which has been attributed to their ability to mimic the oncogenic effect of Ras signaling (Hollenhorst et al., 2011). Our previous work in lacrimal gland development has indeed found that deletion of Etv transcription factors largely reproduced the phenotype of FGF-ERK mutants (Garg et al., 2018). In the lens, however, our current study paints a more complex picture of Etv activity, suggesting that their functions deviate considerably from their upstream FGF signaling. As transcription factors attract increasing interests as viable therapeutic targets, it will be important to elucidate the context-dependent function of these SRTFs in development and diseases.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
AntibodyRabbit monoclonal anti-cyclin D1Cell SignalingCat.# 55506, RRID:AB_2827374IHC-1/200
AntibodyRabbit polyclonal anti-MafSanta Cruz
Biotechnology
Cat.#sc-7866, RRID:AB_638562IHC-1/200
AntibodyMouse monoclonal anti-EcadherinBDCat.#610181, RRID:AB_397580IHC-1/500
AntibodyRabbit monoclonal anti-ErkCell SignalingCat.# 4695, RRID:AB_390779WB-1/2000
AntibodyMouse monoclonal anti-Foxe3Santa Cruz BiotechnologyCat.#sc-377465IHC-1/200
AntibodyRabbit polyclonal anti-Jag1Santa Cruz BiotechnologyCat.#sc-8303,RRID:AB_649685IHC-1/200, WB-1/500
AntibodyMouse monoclonal anti-Ki67BDCat.#550609, RRID:AB_393778IHC-1/200
AntibodyRabbit monoclonal Lamin A/CAbcamCat.# ab133256, RRID:AB_2813767IHC-1/1000
AntibodyRabbit monoclonal Notch1Cell SignallingCat.#4380, RRID:AB_10691684WB-1/1000
AntibodyRabbit monoclonal Notch1-ICDCell SignalingCat.#4147, RRID:AB_2153348IHC-1/200
AntibodyRabbit polyclonal anti-Prox1CovanceCat.#PRB-238C, RRID:AB_291595IHC-1/200
AntibodyRabbit polyclonal anti-pHH3MilliporeCat.#06-570, RRID:AB_310177IHC-1/200
AntibodyRabbit anti-pS6Cell SignalingCat.#5364, RRID:AB_10694233IHC-1/200
AntibodyRabbit monoclonal anti-pmTORCell SignalingCat.#5536, RRID:AB_10691552IHC-1/200
AntibodyRabbit polyclonal anti-Pax6CovanceCat.#PRB-278P, RRID:AB_291612IHC-1/200
AntibodyRabbit anti-p4EBP1Cell SignalingCat.#2855,
RRID:AB_560835
IHC-1/200
AntibodyRabbit monoclonal anti-pERKCell SignalingCat.#9101, RRID:AB_331646IHC-1/200
AntibodyMouse monoclonal anti-pERKSanta Cruz
Biotechnology
Cat# sc-7383, RRID:AB_627545WB-1/1000
AntibodyRabbit polyclonal anti-α-CrystallinSam Zigler (National Eye Institute)IHC-1/5000
AntibodyRabbit polyclonal anti-γ-CrystallinSam Zigler (National Eye Institute)IHC-1/5000
EdUDNA synthesis monitoring probeAbcamcat. # ab14618
Commercial assay KitClick IT EdU Cell proliferation kitInvitrogencat. # C10337
Commercial assay KitIn situ cell death detection kitRochecat.# 1168479510
Peptide, recombinant proteinrecombinant murine FGF2ScienCellcat.# 124-02
Genetic reagent (M. musculus)Etv1floxPMID:12741988MGI:2663693Dr. Silvia Arber (University of Basel,
Basel, Switzerland)
Genetic reagent (M. musculus)Etv4-/-PMID:11094084MGI:2445834Dr. Xin Sun (University of California at San Diego, San Diego, CA)
Genetic reagent (M. musculus)Etv5floxPMID:19386269MGI:3849047Dr. Xin Sun (University of California at San Diego, San Diego, CA)
Genetic reagent (M. musculus)Tsc1floxPMID:12205640MGI:2656240Dr. Stephen Tsang (Columbia University, New York, NY)
Genetic reagent (M. musculus)R26EtvEnRPMID:19386268MGI:3848910Drs. Andrew McMahon (University of Southern California, Los Angeles, CA) and James Li (University of Connecticut Health Center, Farmington, CT)
Genetic reagent (M. musculus)Map2k1floxPMID:16887817MGI:3714918
Genetic reagent (M. musculus)Map2k2KOPMID:12832465MGI:2668345
Genetic reagent (M. musculus)Mapk3-/-PMID:11160759MGI:3042006
Genetic reagent
(M. musculus)
Mapk1floxPMID:18596172MGI:3803954
Genetic reagent (M. musculus)Fgf3OVE391PMID:7539358MGI:6393977Dr. Michael Robinson, Miami University.
Genetic reagent (M. musculus)Pax6Le-CrePMID:11069887MGI:3045795
Genetic reagent (M. musculus)Fgfr1floxPMID:16421190Stock #: 007671
MGI:3713779
Genetic reagent (M. musculus)Fgfr2floxPMID:12756187MGI:3044679Dr. David Ornitz, Washington University Medical School, St Louis, MO

Mice

Mice carrying Erk1(Mapk3)-/-, Mapk1flox, Mek1(Map2k1)flox and Mek2(Map2k2)-/- alleles were bred and genotyped as described (Newbern et al., 2008; Newbern et al., 2011). Pax6Le-Cre mice were from Dr. Ruth Ashery-Padan (Tel Aviv University, Tel Aviv, Israel), Etv1flox mice from Dr. Silvia Arber (University of Basel, Basel, Switzerland), Etv4+/- and Etv5flox mice from Dr. Xin Sun (University of California at San Diego, San Diego, CA), R26EtvEnR from Drs. Andrew McMahon (University of Southern California, Los Angeles, CA) and James Li (University of Connecticut Health Center, Farmington, CT), Fgf3OVE391 mice were obtained from Dr. Michael Robinson (Miami University, Oxford, OH) and Fgfr2flox from Dr. David Ornitz (Washington University Medical School, St Louis, MO) (Ashery-Padan et al., 2000; Mao et al., 2009; Patel et al., 2003; Robinson et al., 1998; Yu et al., 2003; Zhang et al., 2009). Fgfr1flox mice were from Jackson Laboratory (Stock No: 007671). Tsc1flox mice were originally obtained from Jackson Laboratory (Stock No:005680) and provided by Dr. Stephen Tsang (Columbia University, New York, NY). To generate embryos, females in breeding were checked for vaginal plugs (considered as 0.5 days pc). All the animals were maintained in the mixed genetic background. Mouse maintenance and experimentation was performed according to protocols approved by Columbia University Institutional Animal Care and Use Committee. Pax6Le-Cre or Etvflox mice did not display any lens phenotypes and were used as controls. All the experiments were repeated at least three times.

Histology

Request a detailed protocol

Hematoxylin and Eosin staining (H and E) was performed as previously described (Carbe et al., 2012). Briefly, paraffin blocks were sections at 10 μm and deparaffinized by heating and histosol washes, followed by rehydration through decreasing percentage of ethanol solutions. The slides were dipped into hematoxylin for 3 min followed by 10-15 min wash with tap water. The samples were decolorized with 1% acid alcohol for 15 s, before treatment with Eosin for 1 min. Samples were then dehydrated by passing through increasing concentration of ethanol, and transferred to histosol. The samples were mounted using permount mounting medium.

Immunohistochemistry

Request a detailed protocol

For immunohistochemistry, paraffin samples were deparaffinized as described above and cryosections were briefly washed with PBS to remove OCT. Antigen retrieval was performed with microwave boiling for 1-2 min followed by heating for 10 min at low-power settings in citrate buffer (10 mM sodium citrate, pH 6.0). Sections were then washed with PBS and blocked with 5% NGS/0.1% Triton in PBS. Primary antibody incubation was performed overnight at 4°C in humid chamber followed by incubation with florescent-conjugated secondary antibodies for 1 hr at room temperature in dark. The following primary antibodies were used: Pax6 (PRB-278P), Prox1 (PRB-238C) (both from Covance, Berkeley, CA), E-cadherin (U3254, Sigma, St Louis, Missouri), Maf (sc-7866), Foxe3 (sc-377465), Jag1 (sc-8303) (all from Santa Cruz Biotechnology), Lamin A/C (ab133256, Abcam), pHH3 (06-570, Millpore), phospho-4EBP1 (#2855). phospho-S6 (#5364), phospho-Akt (D9E), phospho-Erk (#4370), phospho-mTOR (#5536), Cyclin D1 (#55506), Notch1-ICD (# 4147) (all from Cell signaling Technology). Antibodies against α- and γ-crystallins were kindly provided by Dr. Sam Zigler (National Eye Institute). For Notch1-ICD antibody staining, samples were paraffin embedded, sectioned and followed by antigen retrieval for 20 min in a pressure cooker. To detect phospho-Erk, phospho-mTOR, phospho-S6, phospho-4EBP1 and NICD, HRP-conjugated secondary antibody and Tyramide signal amplification kit (Perkin Elemer) were used.

Quantification of lens phenotype

Request a detailed protocol

The perimeters of the anterior epithelial layer and posterior fiber cells were measured using ImageJ and the ratio was calculated for control and mutant lenses. To quantify the nuclei degradation, the lenses were stained with nuclear markers DAPI and Lamin A/C. The number of nuclei within a concentric circle of the lens at the half of the lens radius were counted. For statistical analysis, at least three embryos of each genotype were taken and two lens sections at the equatorial plane per embryo were analyzed. The statistical significance was calculated by one-way ANOVA.

TUNEL assay

Request a detailed protocol

TUNEL assays were performed on 10-μm paraffin sections following the manufacturer's instructions in the Fluoroscein In Situ Cell Death Detection kit (Roche Applied Science, Indianapolis, IN). Apoptosis rates were calculated as the ratio of TUNEL-positive cells to DAPI-positive cells in control and mutant samples, and results were analyzed by t-test.

EdU incorporation assay

Request a detailed protocol

Pregnant females were injected with EdU (ab146186, Abcam) dissolved in DMSO at the dosage of 50 mg/kg body weight. After 2 hr, the mice were sacrificed and embryos collected for cryosection. For EdU detection, the Click-IT EdU Imaging Kit (C10337, Invitrogen) was used according to the manufacturer's instructions. The proliferation rates in the lens epithelium were calculated as the ratios of EdU-positive cells to DAPI-positive cells within the epithelium and the statistical significances between controls and mutants were evaluated by t-test.

RNA in situ hybridization

Request a detailed protocol

Section in situ hybridization was performed as described (Carbe et al., 2013). Briefly, the cryoblocks were sectioned at 10 μm and hybridized with diluted probes (1:500) at 65°C overnight. The sections were washed 3X with wash buffer at 65°C for 30 min, followed by 2X wash with MABT for 30 min. The sections were then blocked with blocking buffer for 1 hr at room temperature, followed by incubation with anti-DIG antibody (1:1500) overnight at 4°C. Next, the slides were washed 4X with MABT for 20 min and 2X alkaline phosphatase buffer for 10 min, before incubating with BM purple for colorimetric reaction for 24 hrs at room temperature. The following probes were used: Pea3, Erm5 (from Dr. Bridget Hogan, Duke University Medical Center, Durham, NC, USA), Er81 (from Dr. Gord Fishell, New York University Medical Center, New York, NY, USA), Fgfr1 and Fgfr3 (from Suzanne Mansour, University of Utah, Salt Lake city, UT) and Sprouty2 (from Gail Martin, University of California at San Francisco, San Francisco, CA).

Laser capture micro-dissection and gene expression profiling

Request a detailed protocol

Freshly harvested embryos were frozen in OCT medium (Sakura Finetek), sectioned at 10 μm thickness and transferred to PEN slides (Ziess). To fix and stain the slides, they were dipped in 95% ethanol for 2 min to fix the samples, stained with crystal violet stain (3% in ethanol) on ice. The slides were then rigorously washed in 2 X 70% ethanol for 30-40 s to remove the OCT and dehydrated in 100% ethanol for 2 min. For control and Etv mutant embryos, the lens tissue was micro-dissected from the transitional zone using Laser capture microscope (Zeiss AxioObserver.Z1 inverted microscope). The RNA was extracted using Qiagen Micro Plus kit. Conversion to cDNA and amplification were performed using Clontech SMART-seq v4 Ultra low input RNA kit and the cDNA library construction was performed using Nextera XT DNA library preparation kit by the core facility at Columbia university prior to RNA sequencing. The RNAseq data are available from the GEO repository (GSE137215). Normalization and differential gene expression analysis for RNA-seq data were performed using De-Seq package in R studio. The GSEA analysis was performed using JavaGSEA desktop software from Broad Institute.

Cell culture and western blot

Request a detailed protocol

Immortalized lens cells were authenticated by immunostaining with lens markers and confirmed to be free of mycoplasma contamination as previously described (Li et al., 2019). They were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and L-glutamine, 1% penicillin-streptomycin. After serum starved for 24 hr, cells were subject to FGF2 (50 ng/ml) stimulation, with or without Mek inhibitor U0126 (50 μM), PD0325901 (50 μM) or PI3K inhibitor LY (50 μM) for the indicated time periods, and harvested in CelLytic-M lysis buffer (Sigma) with proteinase inhibitor cocktail (Thermo fisher). Protein lysates were collected following centrifugation at 12,000 g for 10 min and resuspended in SDS buffer. Equal amounts of total protein were loaded for western blot analysis and visualized using an Odyssey SA scanner (LICOR Biosciences, Lincoln, NE). Antibodies used were Jagged1 (H-114, Santa Cruz Biotechnology), Notch1 (#4380, Cell signaling Technology), phospho-ERK1/2 (sc-7383, Santa Cruz Biotechnology), ERK (#4695, Cell signaling Technology).

Chromatin immunoprecipitation

Request a detailed protocol

The Chromatin Immunoprecipitation (ChIP) assays were performed in immortalized lens cells as previously described (Garg et al., 2017; Li et al., 2019). The antibodies used were IgG as isotype control (#2729, Cell Signaling Technology) and anti-Etv5 (#66657, Proteintech). The primers used for the intron 2 site are GGTTTCTGCTCCACCTCTGA and GGGAGTGCAAACTTGATGCT, and for the intron 5 site are AAGAGCCAGCTCAGCTTCAC and AGATCTGTGCCCCAGAGGAT.

References

  1. 1
  2. 2
    Biological glass: structural determinants of eye Lens transparency
    1. S Bassnett
    2. Y Shi
    3. GFJM Vrensen
    (2011)
    Philosophical Transactions of the Royal Society B: Biological Sciences 366:1250–1264.
    https://doi.org/10.1098/rstb.2010.0302
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    FGF suppresses apoptosis and induces differentiation of fibre cells in the mouse Lens
    1. RL Chow
    2. GD Roux
    3. M Roghani
    4. MA Palmer
    5. DB Rifkin
    6. DA Moscatelli
    7. RA Lang
    (1995)
    Development 121:4383–4393.
  9. 9
  10. 10
  11. 11
    Fgf receptor signaling plays a role in Lens induction
    1. SC Faber
    2. P Dimanlig
    3. HP Makarenkova
    4. S Shirke
    5. K Ko
    6. RA Lang
    (2001)
    Development 128:4425–4438.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    FGF-induced Lens cell proliferation and differentiation is dependent on MAPK (ERK1/2) signalling
    1. FJ Lovicu
    2. JW McAvoy
    (2001)
    Development 128:5075–5084.
  23. 23
  24. 24
  25. 25
  26. 26
    Fibroblast growth factor (FGF) induces different responses in Lens epithelial cells depending on its concentration
    1. JW McAvoy
    2. CG Chamberlain
    (1989)
    Development 107:221–228.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    Expression of a truncated FGF receptor results in defective lens development in transgenic mice
    1. ML Robinson
    2. LA MacMillan-Crow
    3. JA Thompson
    4. PA Overbeek
    (1995a)
    Development 121:3959–3967.
  38. 38
    Extracellular FGF-1 acts as a lens differentiation factor in transgenic mice
    1. ML Robinson
    2. PA Overbeek
    3. DJ Verran
    4. WE Grizzle
    5. CR Stockard
    6. R Friesel
    7. T Maciag
    8. JA Thompson
    (1995b)
    Development 121:505–514.
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51

Decision letter

  1. Ivan Topisirovic
    Reviewing Editor; Jewish General Hospital, Canada
  2. Kathryn Song Eng Cheah
    Senior Editor; The University of Hong Kong, Hong Kong
  3. Ivan Topisirovic
    Reviewer; Jewish General Hospital, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript unraveled previously unappreciated aspects of lens development. More specifically, presented findings support the tenet that Etv 1, 4 and 5 play a role in lens development whereby underpinning mechanism may be at least in part distinct that those engaged by FGF.

Decision letter after peer review:

Thank you for submitting your article "Etv transcription factors functionally diverge from their upstream FGF signaling in lens development" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Ivan Topisirovic as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kathryn Cheah as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This manuscript seeks to determine the role of Etv factors in lens development and establish the underpinning signaling mechanisms. Presented data support potential role of Etv 1, 4 and 5 in lens development, whereby the functional divergence between the latter factors and FGF is proposed. Notwithstanding that mouse genetics and the number of characterized phenotypes were found to be impressive, several important concerns were raised regarding interpretation of corresponding signaling perturbations.

Summary:

The focus of this article is to examine the roles of Etv1, Etv4, and Etv5 in lens development using Etv triple knockdown (Etv TKO) mice. Data are provided showing that Mek/Erk signaling dictates expression of Etv1, 4 and 5 in the transitional zone of the lens whereby Etv TKO mice exhibit alterations in lens development. Based on genome-wide steady-state mRNA analysis and subsequent genetic approaches, the authors suggest the model whereby downregulation of Spry2 leads to inhibition of Fgfr and Erk signaling. Moreover, in the Etv TKO background, Jagged1/Notch1 signaling is attenuated, while Tsc2 is downregulated leading to sustained mTORC1 activity. Overall, this manuscript is well written and of potential interest. Several issues were however observed. The major concern was that proposed signaling mechanisms were open to alternative interpretations and/or founded on data that were deemed to be too preliminary. It was concluded that these issues should be addressed to sufficiently support authors' conclusions.

Essential revisions:

1) Based on apparent complexity of the interplay between FGF and ERK signaling in Etv TKO lenses, several issues were raised considering data interpretation. To this end, although Etv loss resulted in Spry2 downregulation, it also decreased the expression of FGFR1 and 3. Considering that these events are expected to have an opposing effect on FGF signaling, it is important to examine how Fgfr1/Fgfr3 mRNA expression is spatially decreased in Etv TKO lens. Does decreased expression of Fgfr1 and 3 occur across the lens area or is it limited to the transitional zone? The authors should also discuss why fgfr1 and 3 reduction does not affect increase in phospho-ERK levels in Etv TKO. Finally, to corroborate claims regarding potential Etv-Fgf feedback, the authors should determine Spry2 levels in Erk-CKO and Mek-CKO lenses.

2) Better characterization of Etv TKO phenotypes is warranted. For example, the assumption that Fgfr loss result in same phenotypes as ablation of Mek and Erk was found to be inadequate, as pathways other than Mek/Erk also mediate the effects of Fgfr, while factors other than FGF can trigger Mek/Erk signaling. Accordingly, Fgfr mutants present with the smaller lens that appears as a vesicle with impaired primary fiber elongation, while the Mek/Erk mutants do not present this lumen. In addition, although Fgfr mutants cause effects similar to Sef overexpression in lens, they do not exactly mirror Spry2 mutants. It was also found that the statement that Etv mutants continue to express fiber-specific crystallin genes, while the Fgfr mutants do not, is not sufficiently substantiated by the data. The authors should therefore reconsider their conclusions as their data convincingly points on to the Erk1/2- Etv link, and not to direct connection to Fgfr signaling. Finally, considering the multitude of MAPKs, the authors should specify that they are monitoring Erk throughout the manuscript.

3) To further strengthen the role of Spry2 downregulation in Etv TKO lens phenotypes, the authors should also determine expression of Etv 1, 4 and 5 and Spry2 in Fgf3(OVE391) lenses. More specifically, the levels of Etv 1, 4 and 5 and Spry2 in anterior lens epithelium in Fgf3(OVE391) mice should be determined. Also, is Spry2 downregulated in anterior lens epithelium of Fgf3(OVE391)/R26EtvEnR mice? The authors should also acknowledge that Spry2 is not a 'specific' FGF signaling inhibitor, because it has been shown to suppress other receptor tyrosine kinases.

4) In experiments using R26EtvEnR, the authors presume that Etv functions only as a transcription activator. Monitoring the lens development in R26EtvVP16 is an important control that is missing.

5) The authors implicate defects in Notch signaling in Etv TKO phenotypes based on an anterior shift of Foxe3/ Prox1. However, this shift is not that spatially obvious relative to the reduced size of the mutant lens, in particular as this is not accompanied by the corresponding shift in fiber crystallin patterns (Figure 4). Furthermore, it is difficult to determine whether the observed defects in Notch signaling are direct consequence of Etv loss, or caused indirectly via factors acting upstream. The authors should experimentally address this. Finally, the experiments in Figure 6 should be complemented by those monitoring levels of Notch1-ICD.

6) The mTOR part of the study was found to be underdeveloped. Considering complexity of feedbacks between Erk and mTOR signaling, the authors should use pharmacological (mTOR inhibitors) approaches to corroborate conclusions that Etv TKO phenotypes are driven by sustained mTOR activation.

7) Several inconsistencies and issue with data quality were observed. These include variable histology of Etv TKO lenses in different images (Figure 2) and peripheral sections through the eye, which may give misleading labeling [e.g. c-Maf in mutants (Figures 5O, P)]. In addition, size differences should not only be quantified for some of the mutants but also for Etv TKO mutants vs. controls. It was also found that it was difficult to appreciate the denucleation effects in Figure 7A, E and I. It is advised that these experiments are repeated using anti-lamin antibody, and calculating the number of nuclei followed by appropriate statistical analysis. Finally, there is apparent high variability of steady state mRNA levels between the replicates (Figure 2B). Herein, additional quality controls (e.g. showing how individual replicates and conditions segregate using PCA) should be included.

8) Description of certain procedures in Materials and methods section was found to be incomplete. Herein, the authors are encouraged to provide detailed description of how their EdU experiments including statistical analysis were carried out. Especially, in the histogram in Figure 1I where it was found that it is unclear what EdU-positive fraction represents. Is it the percentage of EdU positive cells in lens epithelium or percentage of total lens cells?

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Etv transcription factors functionally diverge from their upstream FGF signaling in lens development" for further consideration by eLife. Your revised article has been evaluated by Kathryn Cheah as the Senior Editor and Ivan Topisirovic as the Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) Please refer to Figure 3—figure supplement 1 and Figure 5—figure supplement 1 in the Results section. These supplementary figures should be mentioned in an appropriate location of Results section.

2) Figure 3—figure supplement 1: It is shown that Spry2 mRNA expression is diminished in Erk CKO lens. Based on this, it was thought that the authors should refer to the Etv-FGF feedback scheme in the text.

3) Figure 5—figure supplement 1: It is advised that the authors discuss the Figure 5—figure supplement 1A-H after Figure 5A-N (subsection “Etv deficiency blocks aberrant but not normal lens differentiation”). In addition, the Figure 5—figure supplement 1C, F, I results should be elaborated after the first paragraph of the subsection “Deletion of Etv genes led to aberrant activation of mTOR signaling and disruption of disrupted nuclei clearance in the lens due to aberrant activation of mTOR signaling”.

4) Etv4 mRNA expression is abrogated in Fgf (OVE391); R26EtvENR lens, however, Etv1 and Etv5 mRNAs are still expressed. It is possible that Etv4 predominantly regulates its own transcription while having a lesser impact on Etv1 and Etv5 transcription. In this case, R26EtvENR-mediated Etv inhibition may be partially compared with Etv TKO. This possibility may explain why Spry2 expression is still retained in Fgf (OVE391); R26EtvENR lens (Figure 5—figure supplement 1L). The authors should consider discussing this.

5) Figure 1E, Figure 1J and Figure 3—figure supplement 1B are still of insufficient quality:

In Figure 1E, there is a pERK positive cell mass between the neural retina and dotted line. Can the authors comment as per what are these pERK-positive cells? Are they lens epithelial cells or ocular blood vessel?

In Figure 1J (Etv4 mRNA in situ) and Figure 3—figure supplement 1B (Fgfr1, Fgfr3 in situ) brown color noise signals still mask most of the lens fiber area, making it difficult to see blue signals. To corroborate author's conclusions, better quality images should be provided. In addition, the authors should use arrows to show in which subareas Fgfr1, 3 are expressed in the lens.

6) The description of mouse monoclonal anti-cyclin D1 in key resource table appears to be incomplete. This should be corrected.

https://doi.org/10.7554/eLife.51915.sa1

Author response

Essential revisions:

1) Based on apparent complexity of the interplay between FGF and ERK signaling in Etv TKO lenses, several issues were raised considering data interpretation. To this end, although Etv loss resulted in Spry2 downregulation, it also decreased the expression of FGFR1 and 3. Considering that these events are expected to have an opposing effect on FGF signaling, it is important to examine how Fgfr1/Fgfr3 mRNA expression is spatially decreased in Etv TKO lens. Does decreased expression of Fgfr1 and 3 occur across the lens area or is it limited to the transitional zone? The authors should also discuss why fgfr1 and 3 reduction does not affect increase in phospho-ERK levels in Etv TKO. Finally, to corroborate claims regarding potential Etv-Fgf feedback, the authors should determine Spry2 levels in Erk-CKO and Mek-CKO lenses.

We have performed RNA in situ hybridization to examine the expression pattern of Fgfr1/Fgfr3. As shown in Figure 3—figure supplement 1B, Fgfr1 and 3 expressions were reduced across the lens area in Etv TKO mutants, but the most prominent decrease occurred in the transitional zone. As we point out in the revised manuscript, it was previously reported that genetic deletion of both Fgfr1 and Fgfr3 did not affect lens growth and differentiation, as the intact Fgfr2 is apparently sufficient to support lens development (Zhao et al., 2008). This explains why the reduction in Fgfr1 and 3 expressions does not affect the increase in phospho-ERK levels in Etv TKO caused by the loss of Spry2. Lastly, we have added Figure 3—figure supplement 1C to show that Spry2 expression is indeed abolished in Erk-CKO lenses.

2) Better characterization of Etv TKO phenotypes is warranted. For example, the assumption that Fgfr loss result in same phenotypes as ablation of Mek and Erk was found to be inadequate, as pathways other than Mek/Erk also mediate the effects of Fgfr, while factors other than FGF can trigger Mek/Erk signaling. Accordingly, Fgfr mutants present with the smaller lens that appears as a vesicle with impaired primary fiber elongation, while the Mek/Erk mutants do not present this lumen. In addition, although Fgfr mutants cause effects similar to Sef overexpression in lens, they do not exactly mirror Spry2 mutants. It was also found that the statement that Etv mutants continue to express fiber-specific crystallin genes, while the Fgfr mutants do not, is not sufficiently substantiated by the data. The authors should therefore reconsider their conclusions as their data convincingly points on to the Erk1/2- Etv link, and not to direct connection to Fgfr signaling. Finally, considering the multitude of MAPKs, the authors should specify that they are monitoring Erk throughout the manuscript.

We agree with the reviewers that our current manuscript has provided strong evidence for the Erk1/2-Etv link, but the direct connection to Fgfr signaling is less well established. To demonstrate that both Erk and Etv are under control of FGF signaling, we have now examined the lens specific knockouts of Fgfr1/2. As shown in the new Figure 1A-H, genetic ablation of FGF receptors disrupted lens vesicle formation, confirming the critical role of FGF signaling in lens development. Importantly, both phospho-ERK and Etv1/4/5 expression are lost in Fgfr1/2 mutants. In addition, we have highlighted in the Discussion a previous study which showed that deletion of Fgf receptors after the lens vesicle stage disrupted phospho-ERK (Zhao et al., 2008). We have also cited our own work that deletion of FGF signaling mediators Frs2 and Shp2 abolished ERK phosphorylation and Etv expression in the lens (Pan et al., 2010 and Li et al., 2014). Altogether, we believe these evidence strongly support that FGF signaling regulates Erk and Etv activities in the lens. Lastly, we have replaced MAPK with ERK throughout the manuscript as the reviewer suggested.

3) To further strengthen the role of Spry2 downregulation in Etv TKO lens phenotypes, the authors should also determine expression of Etv 1, 4 and 5 and Spry2 in Fgf3 (OVE391) lenses. More specifically, the levels of Etv 1, 4 and 5 and Spry2 in anterior lens epithelium in Fgf3 (OVE391) mice should be determined. Also, is Spry2 downregulated in anterior lens epithelium of Fgf3 (OVE391)/R26EtvEnR mice? The authors should also acknowledge that Spry2 is not a 'specific' FGF signaling inhibitor, because it has been shown to suppress other receptor tyrosine kinases.

We have performed RNA situ hybridization the reviewer requested. As expected, Etv1, 4, 5 and Spry2 are upregulated in the anterior lens epithelium in Fgf3(OVE391) mice, but their expressions are attenuated in Fgf3(OVE391)/R26EtvEnR mice (Figure 5—figure supplement 1). Following the reviewer’s suggestion, we have also revised the manuscript to refer Spry2 as “inhibitor of receptor tyrosine kinases”.

4) In experiments using R26EtvEnR, the authors presume that Etv functions only as a transcription activator. Monitoring the lens development in R26EtvVP16 is an important control that is missing.

Although R26EtvVP16 would be a nice control, to our knowledge, this mouse line does not exist. Since it would take considerable time and effort to generate a new mouse line, this control experiment is unfortunately out of scope of the current study. We would like to note that Etv/1/4/5 proteins share a transcriptional activator domain (TAD), suggesting that they most likely behave as transcription activators. Indeed, both in vitro and in vivo studies have confirmed that R26EtvEnR blocks functions of Etv/1/4/5 (Curr. Biol. 11, 1739-1748, and Mao et al., 2009). Therefore, we are reasonably confident that R26EtvEnR is an effective tool to probe Etv functions in lens development.

5) The authors implicate defects in Notch signaling in Etv TKO phenotypes based on an anterior shift of Foxe3/ Prox1. However, this shift is not that spatially obvious relative to the reduced size of the mutant lens, in particular as this is not accompanied by the corresponding shift in fiber crystallin patterns (Figure 4). Furthermore, it is difficult to determine whether the observed defects in Notch signaling are direct consequence of Etv loss, or caused indirectly via factors acting upstream. The authors should experimentally address this. Finally, the experiments in Figure 6 should be complemented by those monitoring levels of Notch1-ICD.

We thank the reviewer for pointing out the subtle difference between the anterior shift of Foxe3/Prox1 expressions and the relatively normal fiber crystallin patterns. As is now elaborated in the Discussion, we believe that these phenotypes represent the accelerated differentiation of lens progenitor cells controlled by transcription factors Foxe3/Prox1 versus the slightly delayed terminal differentiation of lens fiber cells characterized by crystallin expression. As demonstrated by NICD staining (Figure 6D), Notch signaling is only active in lens progenitor cells, not in fiber cells. As such, it is not surprising that dysregulated Notch signaling in Etv TKO mutants cause the anterior shift of the transitional zone shown by Foxe3/Prox1 staining, but it is not expected to directly affect the fiber cell compartment. On the other hand, the terminal differentiation of the fiber cells may be slightly delayed in Etv TKO mutants, which compensates for the early onset of the lens progenitor cell differentiation. Ultimately, the lens fiber cells proceed to express the crystallin genes at the comparable levels as the wild type controls.

At the reviewer’s request, we have repeated the western blot experiment in Figure 6 with the additional control of monitoring Notch1-ICD levels. It confirmed that inhibition of Erk activity disrupted Jag1-Notch signaling in lens cells (Figure 6—figure supplement 1). In addition, we have showed that expression of Notch ligand Jag1 is compromised in Etv TKO mutants and our ChIP experiment demonstrated that Etv binds the Jag1 genomic locus. Although we cannot rule out an indirect role of Erk-Etv in regulating Notch signaling, we believe our results strongly support that the observed defects in Notch signaling are the direct consequence of Etv loss.

6) The mTOR part of the study was found to be underdeveloped. Considering complexity of feedbacks between Erk and mTOR signaling, the authors should use pharmacological (mTOR inhibitors) approaches to corroborate conclusions that Etv TKO phenotypes are driven by sustained mTOR activation.

We have attempted to rescue Etv TKO phenotype using the mTOR inhibitor Torin. However, intraperitoneal injection of Torin into the pregnant females failed to disrupt phospho-mTOR and phospho-4EBP staining in the lens of the wild type embryos, suggesting that mTOR signaling was not significantly altered by this approach. This could be due to the inefficient delivery of mTOR inhibitor into the lens via systemic injection. Since we are unable to perform this pharmacological experiment, we have toned down the link between Etv TKO nuclei clearance phenotype and mTOR, changing the subtitle of mTOR section to “Deletion of Etv genes led to aberrant activation of mTOR signaling and disruption of nuclei clearance in the lens”.

7) Several inconsistencies and issue with data quality were observed. These include variable histology of Etv TKO lenses in different images (Figure 2) and peripheral sections through the eye, which may give misleading labeling [e.g. c-Maf in mutants (Figures 5O, P)]. In addition, size differences should not only be quantified for some of the mutants but also for Etv TKO mutants vs. controls. It was also found that it was difficult to appreciate the denucleation effects in Figures 7A, E and I. It is advised that these experiments are repeated using anti-lamin antibody, and calculating the number of nuclei followed by appropriate statistical analysis. Finally, there is apparent high variability of steady state mRNA levels between the replicates (Figure 2B). Herein, additional quality controls (e.g. showing how individual replicates and conditions segregate using PCA) should be included.

We have replaced Figure 2A and E with better histological images and Figure 5O and P with central sections. The lens size difference between control and Etv TKO is now quantified in Figure 1I. As presented in Figure 7—figure supplement 1, we performed additional staining of the lens nuclei using both DAPI and anti-Lamin A/C antibody, and quantified the number of nuclei followed by One-way ANOVA test. Finally, we also presented PCA plot in Figure 3—figure supplement 1 to show the segregation of control and Etv TKO mutant RNA sequencing data.

8) Description of certain procedures in Materials and methods section was found to be incomplete. Herein, the authors are encouraged to provide detailed description of how their EdU experiments including statistical analysis were carried out. Especially, in the histogram in Figure 1I where it was found that it is unclear what EdU-positive fraction represents. Is it the percentage of EdU positive cells in lens epithelium or percentage of total lens cells?

The details for EdU experiments and the associated statistical analysis are now given in the Materials and methods section. Specifically, we clarify that the EdU-positive fractions represent the ratios of EdU-positive cells versus the total numbers of DAPI-positive cells within the lens epithelium.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) Please refer to Figure 3—figure supplement 1 and Figure 5—figure supplement 1 in the Results section. These supplementary figures should be mentioned in an appropriate location of Results section.

Both supplementary figures are now mentioned in the Results section.

2) Figure 3—figure supplement 1: It is shown that Spry2 mRNA expression is diminished in Erk CKO lens. Based on this, it was thought that the authors should refer to the Etv-FGF feedback scheme in the text.

This is a good point. The Etv-FGF/Erk feedback scheme is now discussed in the last paragraph of the subsection “Genetic ablation of Etv causes ectopic activation of ERK signaling”.

3) Figure 5—figure supplement 1: It is advised that the authors discuss the Figure 5—figure supplement 1A-H after Figure 5A-N (subsection “Etv deficiency blocks aberrant but not normal lens differentiation”). In addition, the Figure 5—figure supplement 1C, F, I results should be elaborated after the first paragraph of the subsection “Deletion of Etv genes led to aberrant activation of mTOR signaling and disruption of disrupted nuclei clearance in the lens due to aberrant activation of mTOR signaling”.

These supplements are now described in the last paragraph of the subsection “Etv deficiency blocks aberrant but not normal lens differentiation”.

4) Etv4 mRNA expression is abrogated in Fgf(OVE391); R26EtvENR lens, however, Etv1 and Etv5 mRNAs are still expressed. It is possible that Etv4 predominantly regulates its own transcription while having a lesser impact on Etv1 and Etv5 transcription. In this case, R26EtvENR-mediated Etv inhibition may be partially compared with Etv TKO. This possibility may explain why Spry2 expression is still retained in Fgf(OVE391); R26EtvENR lens (Figure 5—figure supplement 1L). The authors should consider discussing this.

We have now discussed the partial inhibition of Etv by R26EtvEnR in the last paragraph of the subsection “Etv deficiency blocks aberrant but not normal lens differentiation”.

5) Figure 1E, Figure 1J and Figure 3—figure supplement 1B are still of insufficient quality:

In Figure 1E, there is a pERK positive cell mass between the neural retina and dotted line. Can the authors comment as per what are these pERK-positive cells? Are they lens epithelial cells or ocular blood vessel?

In Figure 1J (Etv4 mRNA in situ) and Figure 3—figure supplement 1B (Fgfr1, Fgfr3 in situ) brown color noise signals still mask most of the lens fiber area, making it difficult to see blue signals. To corroborate author's conclusions, better quality images should be provided. In addition, the authors should use arrows to show in which subareas Fgfr1, 3 are expressed in the lens.

The pERK positive cell mass under the lens ectoderm in the original Figure 1E were indeed ocular blood cells, which usually produce non-specific staining. To avoid confusion, we have replaced the image with a new one that does not have these blood cells. We also replaced Figure 1J and Figure 3—figure supplement 1B with better images that do not have the brown color noise and added arrows to indicate that Fgfr1 and 3 are expressed in the transitional zone of the lens.

6) The description of mouse monoclonal anti-cyclin D1 in Key Resource Table appears to be incomplete. This should be corrected.

The information for Cyclin D1 antibody is now corrected in the Key Resource Table.

https://doi.org/10.7554/eLife.51915.sa2

Article and author information

Author details

  1. Ankur Garg

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Present address
    Department of Physiology, Cardiovascular research Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Contributed equally with
    Abdul Hannan and Qian Wang
    Competing interests
    No competing interests declared
  2. Abdul Hannan

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Investigation
    Contributed equally with
    Ankur Garg and Qian Wang
    Competing interests
    No competing interests declared
  3. Qian Wang

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Investigation
    Contributed equally with
    Ankur Garg and Abdul Hannan
    Competing interests
    No competing interests declared
  4. Neoklis Makrides

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Jian Zhong

    Burke Neurological Institute and Feil Family Brain and Mind Research Institute, Weill Cornell Medicine, White Plains, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  6. Hongge Li

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Present address
    Department of Microbiology & Immunology, Indiana University School of Medicine, Indianapolis, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  7. Sungtae Yoon

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  8. Yingyu Mao

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Xin Zhang

    1. Department of Ophthalmology, Columbia University, New York, United States
    2. Department of Pathology and Cell Biology, Columbia University, New York, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition
    For correspondence
    xz2369@columbia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5555-0825

Funding

National Eye Institute (EY017061)

  • Xin Zhang

National Eye Institute (EY025933)

  • Xin Zhang

Research to Prevent Blindness (Jules and Doris Stein Research to Prevent Blindness Professorship)

  • Xin Zhang

Starr Foundation (Graduate fellowship)

  • Ankur Garg

Natural Sciences and Engineering Research Council of Canada (Postdoctoral fellowship)

  • Qian Wang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Drs. Silvia Arber, Ruth Ashery-Padan, James Li, Andrew McMahon, Michael Robinson, David Ornitz, Xin Sun and Stephen Tsang for mice, Drs. Bridget Hogan, Gord Fishell, Suzanne Mansour and Gail Martin for in situ probes. We also thank Drs. Carlo Maurer and Kenneth Olive for help with Laser Capture Microscopy, Drs. Howard Worman and Ji-Yeon Shin for advice on Lamin A/C antibody, Dr. Mukesh Bansal for bioinformatics analysis, Joseph Ryo for critical reading of the manuscript. The work was supported by NIH (EY017061 and EY025933 to XZ). The Columbia Ophthalmology Core Facility is supported by NIH Core grant 5P30EY019007 and unrestricted funds from Research to Prevent Blindness (RPB). XZ is supported by Jules and Doris Stein Research to Prevent Blindness Professorship. AG was a recipient of STARR fellowship. QW is supported by a Postdoctoral Fellowship from Natural Sciences and Engineering Research Council of Canada.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocol (AABD8562) of Columbia University Medical Center.

Senior Editor

  1. Kathryn Song Eng Cheah, The University of Hong Kong, Hong Kong

Reviewing Editor

  1. Ivan Topisirovic, Jewish General Hospital, Canada

Reviewer

  1. Ivan Topisirovic, Jewish General Hospital, Canada

Publication history

  1. Received: September 16, 2019
  2. Accepted: February 10, 2020
  3. Accepted Manuscript published: February 11, 2020 (version 1)
  4. Version of Record published: March 13, 2020 (version 2)

Copyright

© 2020, Garg et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 794
    Page views
  • 136
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    Saishu Yoshida et al.
    Research Article

    Mammalian Hedgehog (Hh) signaling plays key roles in embryogenesis and uniquely requires primary cilia. Functional analyses of several ciliogenesis-related genes led to the discovery of the developmental diseases known as ciliopathies. Hence, identification of mammalian factors that regulate ciliogenesis can provide insight into the molecular mechanisms of embryogenesis and ciliopathy. Here, we demonstrate that DYRK2 acts as a novel mammalian ciliogenesis-related protein kinase. Loss of Dyrk2 in mice causes suppression of Hh signaling and results in skeletal abnormalities during in vivo embryogenesis. Deletion of Dyrk2 induces abnormal ciliary morphology and trafficking of Hh pathway components. Mechanistically, transcriptome analyses demonstrate down-regulation of Aurka and other disassembly genes following Dyrk2 deletion. Taken together, the present study demonstrates for the first time that DYRK2 controls ciliogenesis and is necessary for Hh signaling during mammalian development.

    1. Developmental Biology
    Ajun Geng et al.
    Research Article

    R-spondin1 (Rspo1) has been featured as a Wnt agonist, serving as a potent niche factor for stem cells in many tissues. Here we unveil a novel role of Rspo1 in promoting estrogen receptor alpha (Esr1) expression, hence regulating the output of steroid hormone signaling in the mouse mammary gland. This action of Rspo1 relies on the receptor Lgr4 and intracellular cAMP-PKA signaling, yet is independent of Wnt/β-catenin signaling. These mechanisms were reinforced by genetic evidence. Luminal cells-specific knockout of Rspo1 results in decreased Esr1 expression and reduced mammary side branches. In contrast, luminal cells-specific knockout of Wnt4, while attenuating basal cell Wnt/β-catenin signaling activities, enhances Esr1 expression. Our data reveal a novel Wnt-independent role of Rspo1, in which Rspo1 acts as a bona fide GPCR activator eliciting intracellular cAMP signaling. The identification of Rspo1-ERα signaling axis may have a broad implication in estrogen-associated diseases.
