The speed of GTP hydrolysis determines GTP cap size and controls microtubule stability
Abstract
Microtubules are cytoskeletal polymers whose function depends on their property to switch between states of growth and shrinkage. Growing microtubules are thought to be stabilized by a GTP cap at their ends. The nature of this cap, however, is still poorly understood. End Binding proteins (EBs) recruit a diverse range of regulators of microtubule function to growing microtubule ends. Whether the EB binding region is identical to the GTP cap is unclear. Using mutated human tubulin with blocked GTP hydrolysis, we demonstrate that EBs bind with high affinity to the GTP conformation of microtubules. Slowing-down GTP hydrolysis leads to extended GTP caps. We find that cap length determines microtubule stability and that the microtubule conformation changes gradually in the cap as GTP is hydrolyzed. These results demonstrate the critical importance of the kinetics of GTP hydrolysis for microtubule stability and establish that the GTP cap coincides with the EB-binding region.
Introduction
The dynamic nature of microtubules is critical for their function in cells. Microtubules are hollow tubes that polymerize by the addition of GTP-bound α/β-tubulin heterodimers to their ends. Tubulin incorporation induces GTP hydrolysis which destabilizes the microtubule wall. A delay in hydrolysis of unknown duration is thought to produce a 'GTP cap', a protective end structure formed of GTP-tubulins that is critical for microtubule stability (Brouhard and Rice, 2018; Carlier, 1982; Erickson and O'Brien, 1992; Howard and Hyman, 2009; Mitchison and Kirschner, 1984). The loss of this cap is thought to expose an unstable GDP lattice and trigger depolymerization, resulting in dynamic instability of microtubule growth (Mitchison and Kirschner, 1984). How the biochemistry of GTP hydrolysis translates into conformational changes in the growing microtubule end, and thereby determines the properties of the GTP cap and microtubule stability, is still not understood (Brouhard and Rice, 2018; Kueh and Mitchison, 2009).
End binding proteins of the EB family (EBs) bind autonomously to an extended region at growing microtubule ends where the GTP cap is expected to be (Bieling et al., 2008; Bieling et al., 2007; Dixit et al., 2009; Komarova et al., 2009; Maurer et al., 2012; Roth et al., 2018). The affinity of EBs for binding to the growing microtubule end region is about 10 fold higher than to the GDP part of the microtubule lattice at a distance from the end (Maurer et al., 2011; Seetapun et al., 2012). In cells, EBs control microtubule dynamics and function by locally recruiting numerous regulators of cytoskeleton function specifically to growing microtubule ends (Akhmanova and Steinmetz, 2015).
Whether EBs bind indeed to the GTP cap is still debated, mostly because they bind differently to microtubules grown in the presence of different non-hydrolysable GTP analogues. EBs bind to GTPγS microtubules with similar affinity than to growing microtubule ends, but considerably less to GMPCPP microtubules (Maurer et al., 2011; Roth et al., 2018). This is probably a consequence of structural differences between microtubules grown with these two GTP analogues (Alushin et al., 2014; Manka and Moores, 2018; Zhang et al., 2015; Zhang et al., 2018). However, in contrast to GTPγS, GMPCPP strongly promotes microtubule nucleation and stabilizes microtubules, and is therefore usually considered to be the better GTP analogue for microtubules (Alushin et al., 2014; Hyman et al., 1992; Manka and Moores, 2018). These observations with GTP analogues and the detection of a very short EB-free zone at the very end of growing microtubules, just in front of the EB binding region, have raised the question whether EBs really bind the GTP cap or possibly instead a post-hydrolysis state in the growing microtubule end region (Maurer et al., 2014; Zhang et al., 2015). It is therefore unclear whether the EB binding region and the GTP cap are identical and which GTP analogue induces more faithfully the GTP state in microtubules. This limits our understanding of the nature of the GTP cap.
Here we studied recombinant human microtubules with altered GTP hydrolysis kinetics to address these unanswered questions. We found that microtubules with blocked GTP hydrolysis were hyperstable, nucleated extremely efficiently and that EBs bound with high affinity along their entire length. Microtubules with impaired, but not blocked GTPase rate were also considerably more stable than wildtype microtubules and displayed higher nucleation efficiency. They had an elongated EB binding region at the growing microtubule ends, indicative of slowed-down GTP hydrolysis. Together, these results demonstrate that EBs do indeed bind with high affinity to the GTP conformation of the microtubule and consequently are GTP cap markers. Moreover, we observed an EB affinity gradient along the length of the GTP cap, indicative of a conformational and stability gradient within the cap as a result of GTP hydrolysis.
Results
To examine the relationship between GTP hydrolysis and conformational changes in the GTP cap and to answer the question of the nucleotide preference of EBs, we produced recombinant human tubulin, which allowed us to alter the GTPase activity of microtubules. Human α/β-tubulin was expressed in insect cells and purified (and separated from endogenous insect cell tubulin) by affinity chromatography using an internal hexa-histidine-tag in α-tubulin (Sirajuddin et al., 2014; Vemu et al., 2016) and a protease-cleavable Strep-tag at the C-terminus of β-tubulin (Figure 1—figure supplement 1) We generated wildtype α/β-tubulin and a tubulin variant with blocked GTP hydrolysis by mutating the evolutionarily conserved catalytic glutamate 254 of α-tubulin (Nogales et al., 1998) to alanine (E254A) (Figure 1a–b, Figure 1—figure supplement 1). This mutation is lethal in budding yeast, as cell division fails due to loss of microtubule dynamics (Anders and Botstein, 2001).

Recombinant human tubulin lacking GTPase activity strongly nucleates microtubules.

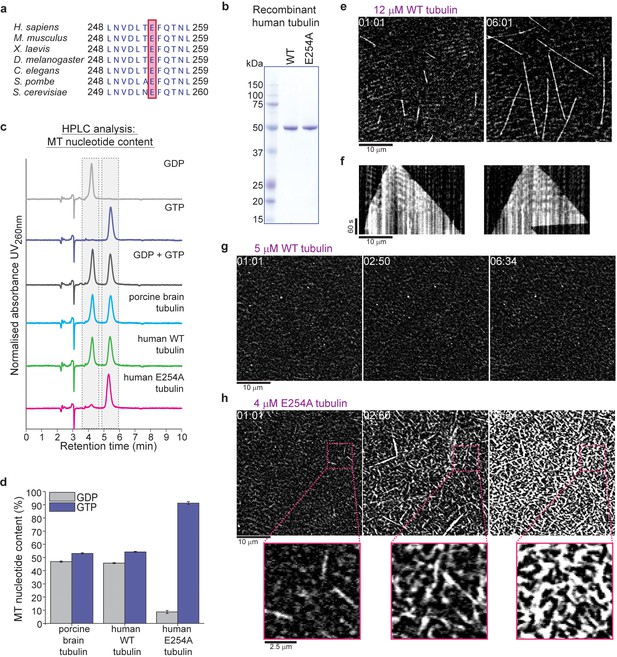

(a) The evolutionarily conserved catalytic glutamic acid of α-tubulin (E, pink). (b) Coomassie Blue-stained SDS gel of purified wildtype (WT) and E254A mutant recombinant human tubulin. (c) HPLC chromatograms of pure GDP and GTP compared to nucleotides extracted from microtubules polymerized from porcine brain tubulin or wildtype and E254A mutant human tubulin. (d) Quantification of the nucleotide content of different microtubules. Bar graphs depict the means of 3 independent experiments, error bars represent standard deviation (SD). (e) iSCAT microscopy images of unlabeled wildtype human tubulin (12 µM) growing from immobilized GMPCPP-stabilized biotinylated seeds (GMPCPP-seeds). (f) Kymographs showing wildtype microtubule growth, conditions as in (e). (g, h) iSCAT microscopy images showing (g) lack of microtubule nucleation at 5 µM wildtype tubulin and (h) strong nucleation at 4 µM E254A tubulin at a surface with an immobilized rigor kinesin (Kin1rigor). Bottom: magnified E254A microtubule views. Scale bars as indicated, time is always min:sec.
We measured the GTP content of microtubules polymerized from purified recombinant human wildtype tubulin and tubulin purified from porcine brain as a control. We observed the expected 1:1 ratio of GTP:GDP (Figure 1c–d), since GTP is hydrolyzed only at its inter-tubulin dimer, but not at the intra-dimer binding site (Kobayashi, 1975). In contrast, E254A microtubules bound almost exclusively GTP (Figure 1c–d), demonstrating that GTP hydrolysis is indeed blocked in this mutant.
To visualize the growth dynamics of label-free recombinant microtubules elongating from surface-attached stable microtubule 'seeds' (Figure 1—figure supplement 2a), we used interferometric scattering (iSCAT) microscopy (Ortega Arroyo et al., 2016). In the presence of GTP, human wildtype microtubules grew dynamically (Figure 1e–f, Video 1) similarly to porcine brain microtubules (Figure 1—figure supplement 2b–c), displaying occasional transitions to depolymerization, called catastrophes, as expected (Vemu et al., 2017; Vemu et al., 2016).
Pure recombinant human wildtype tubulin polymerizes into dynamic microtubules.
iSCAT microscopy time-lapse movie of unlabeled microtubules growing in the presence of 12 µM human wildtype tubulin from immobilized stable microtubule seeds at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Wildtype tubulin hardly nucleated any microtubules spontaneously (Figure 1g, Videos 1 and 2), whereas E254A tubulin nucleated microtubules very efficiently even at low concentrations, quickly reaching high microtubule densities (Figure 1h, Video 3). Moreover, these mutant microtubules were hyper-stable for hours, never exhibiting catastrophes. These properties agree with the anticipated behavior of hydrolysis-deficient microtubules, and are similar to the behavior of microtubules polymerized in the presence of the non-hydrolysable GTP analogue GMPCPP (Hyman et al., 1992).
Human wildtype tubulin does not nucleate microtubules at low tubulin concentration.
iSCAT microscopy time-lapse movie showing lack of microtubule nucleation at 5 µM human wildtype tubulin on a surface with an immobilized rigor kinesin (Kin1rigor) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Human E254A tubulin mutant lacking GTPase activity strongly nucleates microtubules.
iSCAT microscopy time-lapse movie showing strong microtubule nucleation at 4 µM human E254A tubulin on a surface with an immobilized rigor kinesin (Kin1rigor) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Next, we tested how EBs bind to human wildtype and to hydrolysis-deficient E254A microtubules. Simultaneous total internal reflection fluorescence (TIRF) microscopy of mGFP-EB3 (Figure 2—figure supplement 1a) and iSCAT imaging of unlabeled microtubules revealed that EB3 bound to the growing plus and minus ends of wildtype microtubules in the expected comet-like manner (Figure 2a–c, Video 4; Bieling et al., 2008; Bieling et al., 2007; Komarova et al., 2009). The apparent dissociation constant for binding to growing microtubule ends was ~40 nM (Figure 2d). EB3 had no effect on the wildtype microtubule growth speed (Figure 2e).
In clear contrast, EB3 decorated the entire lattice of GTPase-deficient E254A mutant microtubules (Figure 2f–h; Figure 2—figure supplement 1b), reminiscent of its binding to microtubules grown in the presence of the non-hydrolysable GTP analogue GTPγS (Maurer et al., 2011). However, EB3 failed to bind human wildtype microtubules polymerized in the presence of GMPCPP (Figure 2—figure supplement 1c), as observed previously with mammalian brain microtubules (Maurer et al., 2011; Roth et al., 2018). This negative effect of GMPCPP on the EB3 binding affinity was also observed when E254A microtubules were grown in the presence of this GTP analogue (Figure 2—figure supplement 1d), demonstrating that it is indeed the bound nucleotide and not the single point mutation itself that controls the microtubule conformation and hence the affinity of EB3 binding. With an apparent dissociation constant of ~8 nM (Figure 2i), EB3 binding to E254A microtubules was stronger than to growing wildtype ends (Figure 2d). Unbinding of mGFP-EB3 from E254A microtubules was very slow (Figure 2j–k, Figure 2—figure supplement 1f–g). Together these results show that EB3 displays strong affinity to microtubules locked in the GTP state, clearly establishing it as a bona fide GTP cap marker.

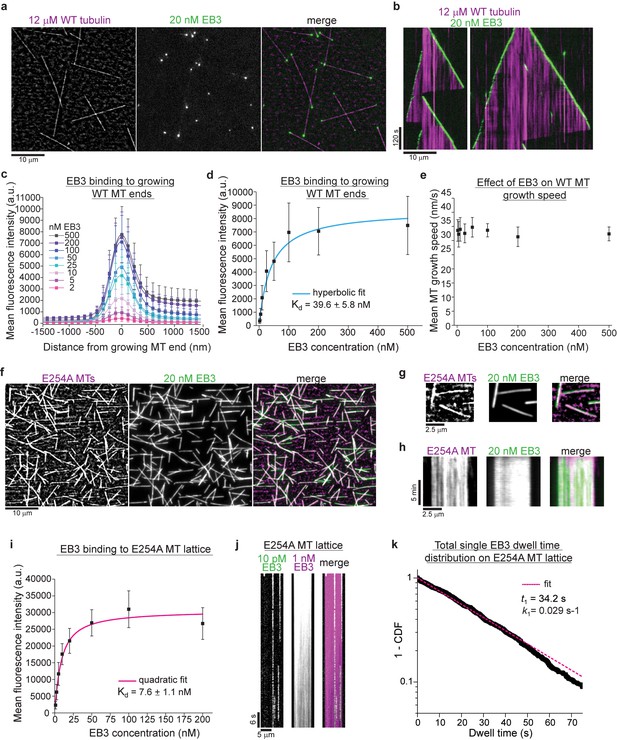

GTPase deficient microtubules are stable and bind EB3 with high affinity.
(a) iSCAT/TIRF microscopy image of unlabeled wildtype microtubules (WT, magenta) growing from GMPCPP-seeds at 12 µM wildtype human tubulin in the presence of 20 nM human mGFP-EB3 (green). (b) Kymographs showing mGFP-EB3 (green) tracking the ends of growing wildtype microtubules, conditions as in (a). (c) Mean mGFP-EB3 intensity profiles at the ends of human wildtype microtubules (WT MT) growing at 12 µM wildtype tubulin in the presence of varying mGFP-EB3 concentrations (as indicated). Number of microtubules (and frames) averaged for each mGFP-EB3 concentration: 2 nM – 64 (7360), 5 nM – 87 (9222), 10 nM – 93 (8742), 25 nM – 89 (8900), 50 nM – 56 (5600), 100 nM – 58 (4756), 200 nM – 56 (4088), 500 nM – 46 (4140). Error bars are SD. (d) Quantification of mGFP-EB3 binding affinity to microtubule ends growing at 12 µM wildtype tubulin (WT MT). Black symbols depict the averaged maximal mGFP-EB3 intensities at growing plus ends at each condition, error bars represent SD. Experimental data as in (c). A hyperbolic fit (cyan) was used to calculate the Kd. (e) mGFP-EB3 does not affect significantly the growth speed of human wildtype microtubules (WT MT). Experimental data as in (c). (f) iSCAT/TIRF microscopy images of 20 nM mGFP-EB3 (green) binding to unlabeled E254A mutant microtubules (magenta) attached to a Kin1rigor surface. (g) Magnified images and (h) kymographs of stable unlabeled E254A microtubules (magenta) decorated with 20 nM mGFP-EB3 (green), conditions as in (d). (i) Quantification of mGFP-EB3 binding affinity to E254A mutant microtubules (E254A MTs). Black symbols depict the averaged mGFP intensities measured all along the microtubules at each condition, error bars represent SD. A quadratic fit (magenta) was used to calculate the Kd. Number of microtubules measured for each mGFP-EB3 concentration: 1 nM – 96, 2.5 nM – 126, 5 nM – 86, 10 nM – 69, 20 nM – 78, 50 nM – 61, 100 nM – 64, 200 nM - 75. (j) Kymograph of mGFP-EB3 (green) single molecule imaging at 10 pM on an individual E254A microtubule (MT) in the presence of 1 nM Alexa647-EB3 (magenta). (k) Dwell time analysis of mGFP-EB3 molecules on E254A microtubule (MT) lattice plotted as a survival function (1 - CDF, cumulative density function). Dashed line (magenta) is a mono-exponential fit to the data (black dots). Number of microtubules analyzed - 126, number of mGFP-EB3 binding events - 807. Scale bars as indicated.
EB3 binds to the growing ends of human wildtype microtubules.
iSCAT/TIRF microscopy time-lapse movie of unlabeled wildtype microtubules (magenta) growing from immobilized stable microtubule seeds in the presence of 12 µM human wildtype tubulin and 20 nM human mGFP-EB3 (green) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Interestingly, E254A microtubules simultaneously capture properties that different GTP analogues induce separately in wildtype microtubules: strong microtubule nucleation as in the presence of GMPCPP, and high EB binding affinity as in the presence of GTPγS (Hyman et al., 1992; Maurer et al., 2011). Another protein that discriminates between a GMPCPP microtubule and a growing microtubule end is a short fragment of the multifunctional anti-catastrophe factor TPX2 (Wittmann et al., 2000), previously called TPX2micro (Zhang et al., 2017). Opposite to EBs, it displays higher affinity towards GMPCPP microtubules than towards growing microtubule ends (Zhang et al., 2017). We observed that this fragment also binds poorly to E254A microtubules compared to GMPCPP microtubules (Figure 2—figure supplement 1e), again suggesting that GTP-bound mutant microtubules are similar to growing microtubule ends. These results suggest that microtubules grown in GTP analogues display only partial aspects of the GTP conformation of microtubules, which explains previous contradictory interpretations based on results obtained with such analogues. In conclusion, a GTP-containing E254A mutant microtubule currently appears to be the best static mimic for the microtubule conformation in the only transiently existing GTP cap.
To investigate how GTP hydrolysis determines conformational transformations within the GTP cap, we generated a human tubulin mutant, in which glutamate 254 is substituted by aspartate (E254D) (Figure 3a). This chemically similar but shorter catalytic residue is expected to slow down GTP hydrolysis compared to wildtype microtubules. E254D microtubules grew steadily from surface-immobilized seeds (Figure 3b) and EB3 tracked their growing ends, displaying strikingly longer and brighter fluorescent 'comets' (Figure 3c–d, Videos 5–7), clearly indicative of slower GTP hydrolysis. E254D microtubules hardly ever displayed any catastrophes even under conditions where wildtype microtubules exhibited frequent depolymerization events (Figure 3e–f, Videos 5–7). E254D tubulin also nucleated microtubules more efficiently in solution than wildtype tubulin, but less than E254A tubulin (Figure 3b, Figure 1h) indicating an intermediate stability of E254D microtubules compared to wildtype and completely GTPase-deficient E254A microtubules. This suggests that GTP hydrolysis is indeed slowed down in the E254D mutant.

Slowing down GTP hydrolysis extends the GTP cap and stabilizes growing microtubules.
(a) Coomassie Blue-stained SDS gel with purified E254D mutant recombinant human tubulin. (b, c) iSCAT/TIRF microscopy images of unlabeled E254D mutant microtubules growing from GMPCPP-seeds and also spontaneously nucleating at 12 µM E254D mutant human tubulin (b) in the absence and (c) presence of 20 nM human mGFP-EB3 (green). (d) Kymograph showing mGFP-EB3 (green) tracking the ends of persistently growing E254D microtubules, conditions as in (c). (e, f) iSCAT/TIRF microscopy kymographs depicting (e) wildtype (WT) and (f) E254D microtubules (magenta) growing at 5 µM tubulin in the presence of 20 nM mGFP-EB3 (green). E254D microtubules display very few catastrophes under conditions where wildtype human microtubules undergo frequent catastrophes. (g) TIRF microscopy images of protofilament bending, and re-association (arrowheads, magenta) or splitting (arrowheads, cyan) at unlabeled E254D microtubule ends growing at 8 µM tubulin visualized by mGFP-EB3. (h) Quantification of wildtype (WT) and E254D microtubule growth speeds at 12 µM respective tubulin concentrations in the presence and absence of mGFP-EB3. The boxes extend from 25th to 75th percentiles, the whiskers extend from 5th to 95th percentiles, and the mean value is plotted as a line in the middle of the box. Number of microtubules measured for each condition: 12 µM wildtype tubulin – 95, 12 µM wildtype tubulin and 20 nM mGFP-EB3 – 86, 12 µM E254D tubulin – 35, 12 µM E254D tubulin and 20 nM mGFP-EB3 - 83. (i) Mean mGFP-EB3 intensity profiles at growing wildtype (black) and E254D (blue) microtubule plus ends. Number of microtubules (and frames averaged) for each condition: wildtype – 68 (36960), E254D – 74 (41720). Error bars are SE. (j) Normalized comet profiles from (h) with dashed lines (magenta) representing exponentially modified Gaussian fits (see Materials and methods) yielding the comet length xc and, knowing the measured growth speed vg, the life time tc = xc/vg of the EB binding sites. Scale bars as indicated, time is min:sec.
Slowing down GTP hydrolysis extends the GTP cap and stabilizes growing microtubules.
iSCAT/TIRF microscopy time-lapse movie of unlabeled E254D mutant microtubules (magenta) growing from immobilized microtubule seeds and also spontaneously nucleating in the presence of 12 µM human E254D mutant tubulin and 20 nM human mGFP-EB3 (green) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Wildtype microtubules are very dynamic at low tubulin concentrations.
iSCAT/TIRF microscopy time-lapse movie of human wildtype microtubules (magenta) undergoing frequent catastrophes when growing from immobilized microtubule seeds in the presence of 5 µM human wildtype tubulin and 20 nM human mGFP-EB3 (green) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
Microtubules with reduced GTPase activity are more stable than wildtype microtubules.
iSCAT/TIRF microscopy time-lapse movie of human E254D microtubules (magenta) show persistent growth when growing from immobilized microtubule seeds in the presence of 5 µM E254D tubulin and 20 nM human mGFP-EB3 (green) at 30°C. Scale bar is 5 µm. Time stamp is in min:s.
E254D microtubules grew about twofold faster than wildtype microtubules, either with or without EB3 (Figure 3h). A comparison of the average EB3 intensity profiles along the ends of wildtype and E254D microtubules growing at tubulin concentrations adjusted such that they grow with comparable speeds, shows that around ~5 times more EB3 binds to the ends of E254D microtubules (Figure 3i). This increase can to a large extent be explained by the longer EB3 binding region on the mutant microtubules (Figure 3j). Quantitative analysis of the intensity profiles allows to extract the characteristic comet lengths and, knowing the measured growth speeds, also the lifetime of the EB3 binding region (Bieling et al., 2008; Bieling et al., 2007; Maurer et al., 2014; Maurer et al., 2012), which was four-fold longer at the ends of E254D microtubules compared to wildtype microtubules (Figure 3j). These results demonstrate that slowed-down GTP hydrolysis extends the lifetime and hence the size of the GTP cap.
We occasionally observed 'split comets' at the growing ends of E254D microtubules that could later re-join (Figure 3g, magenta arrowheads) or detach and grow individually (Figure 3g, cyan arrowheads). This indicates that even partial microtubule end structures can be more stable when GTP hydrolysis is slow. This is reminiscent of recently observed split microtubule ends in the presence of the protofilament capping drug eribulin and the microtubule-stabilizing protein CLASP (Aher et al., 2018; Doodhi et al., 2016). The ‘curved’ appearance of these partial comets likely reflects global conformational differences between unfinished end structures such as observed for microtubule nucleation and fully formed tubes, pointing to a high degree of structural plasticity of the GTP cap region (Roostalu and Surrey, 2017; Voter and Erickson, 1984; Brouhard and Rice, 2018; Igaev and Grubmüller, 2018).
How the GTP cap stabilizes growing microtubule ends is an open question. As GTP is hydrolyzed over time, a nucleotide state gradient may form at the growing microtubule end that in turn might translate into a conformational stability gradient. Such a gradient would be detectable as a gradient of EB affinities within the GTP cap. We therefore probed the microtubule conformation along the length of the GTP cap by measuring the binding strength of EB3 at different positions within the GTP cap using single molecule imaging and dwell time analysis (Figure 4—figure supplement 1). We first took advantage of the elongated GTP caps of growing E254D microtubules.
We imaged single mGFP-EB3 molecules binding in the elongated cap region of growing E254D microtubules, with their end regions labeled by excess Alexa647-EB3 (Figure 4a). We observed an overall complex (non-mono-exponential) distribution of mGFP-EB3 dwell times in the GTP cap, indicative of the presence of different conformational states with different EB3 binding affinities in the cap (Figure 4b). Next, we performed a spatially resolved dwell time analysis by generating several 'local dwell time distributions' for distinct distances from the growing microtubule end. These local distributions were rather mono-exponential, indicative of a more homogenous local conformational lattice state (Figure 4c). The local characteristic EB3 dwell times decreased along the length of the GTP cap (Figure 4c–d, Figure 4—figure supplement 2a). This indicates a decreasing EB binding affinity along the length of the GTP cap, suggesting a gradual conformational change within the cap. The long EB3 dwell times at the very tip of the GTP cap are indicative of a GTP-like state, given that EB3 binds strongly to GTPase deficient E254A microtubules (Figure 2f–k), which then transforms into the lower affinity GDP state concomitant with GTP hydrolysis. The conformational change along the length of the GTP cap most likely reflects a stability gradient whose characteristic length corresponds to the cap length (Figure 4d).

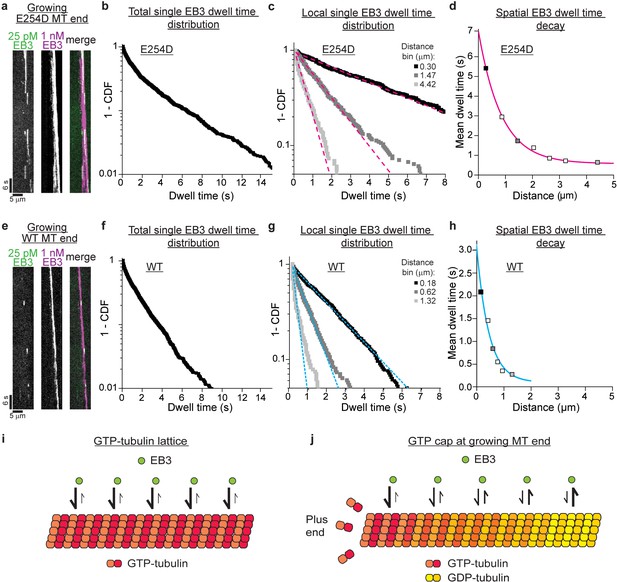

Conformational gradient in the GTP cap revealed by spatially resolved single EB3 dwell time distributions.
(a) TIRF microscopy kymograph of single mGFP-EB3 molecules (green) at 25 pM in the plus end region of an E254D microtubule (E254D MT) growing at 10 µM E254D tubulin (vg = 58.5 nm/s) in the additional presence of 1 nM Alexa647-EB3 (magenta) (for end region visualization). (b) Dwell time distribution of single mGFP-EB3 molecules plotted as a survival function (1- CDF, cumulative density function). Number of microtubules analyzed - 150, number of mGFP-EB3 binding events - 1834. (c) Local dwell time distributions at distinct distances from the growing microtubule plus end. Dashed magenta lines are mono-exponential fits. The distance bins are 0–0.59, 1.18–1.77 and 3.84–5.02 µm; bin centers shown in the legend. Experimental data as in (b). (d) Local mean EB3 dwell times as a function of distance from the growing E254D microtubule end. Filled symbols correspond to the local mean dwell times calculated based on data in (c). The solid magenta line is a mono-exponential fit with a decay length of 850 nm. (e) TIRF microscopy kymograph of single mGFP-EB3 molecules (green) at 25 pM in the plus end region of a wildtype (WT) microtubule growing at 19 µM wildtype tubulin (vg = 59.8 nm/s) in the presence of additional 1 nM Alexa647-EB3 (magenta). (f) mGFP-EB3 dwell time distribution. Number of microtubules analyzed - 548, number of mGFP-EB3 binding events - 2425. (g) Local mGFP-EB3 dwell time distributions. Dashed cyan lines are mono-exponential fits. Experimental data as in (f). (h) Local mean EB3 dwell times in the wildtype microtubule plus end region. Filled symbols correspond to the local mean dwell times calculated based on data in (g). The solid cyan line is a mono-exponential fit to the data with a decay length of 450 nm. (i) Schematic of high affinity EB3 binding to the GTP lattice of a GTPase-deficient microtubule. (j) Schematic of a growing end of a GTPase-competent microtubule displaying a gradually decreasing EB3 binding affinity (illustrated by a color gradient) as the lattice conformation changes as a consequence of GTP hydrolysis.
We observed a similar gradual conformational change in the shorter GTP caps of wildtype microtubules growing at a similar speed (Figure 4—figure supplement 3), when we recorded a considerably larger number of single molecule binding events compared to previous studies (Bieling et al., 2008; Bieling et al., 2007; Dixit et al., 2009; Maurer et al., 2011; Maurer et al., 2014) to enable spatially resolved dwell time analysis (Figure 4e–h). We detected also here a combination of conformational states within the whole GTP cap, as indicated by a complex EB3 dwell time distribution for all events observed in the entire cap region (Figure 4f), whereas rather homogenous conformational states were detected at distinct positions within the GTP cap, as indicated by more mono-exponential local dwell time distributions (Figure 4g). The mean dwell times, indicative of the EB3 binding affinity, decreased over a shorter distance in wildtype GTP caps (Figure 4h, Figure 4—figure supplement 2c) than in E254D caps (Figure 4d, Figure 4—figure supplement 2a), reflecting the shorter EB3 comet length at wildtype microtubule ends compared to longer EB3 comets at E254D microtubule ends with reduced GTPase activity (Figure 3j, Figure 4—figure supplement 2b,d). Taken together, these results suggest that a conformational gradient in the GTP cap at the growing microtubule end is a response to the GTP hydrolysis in the lattice.
Discussion
Using recombinant mutated human tubulin we produced for the first time pure GTP-microtubules, eliminating the need for using non-hydrolysable GTP analogues. GTP-microtubules were hyper-stable, as predicted by the GTP cap hypothesis, and EBs bound strongly to these GTP microtubules. Microtubules with impaired GTP hydrolysis (E254D) were also more stable than wildtype microtubules and displayed longer EB comets, indicative of longer GTP caps. Our results are to date the most direct demonstration that the kinetics of GTP hydrolysis determine GTP cap length and that EBs bind to the GTP cap, explaining why their binding region represents the part of the microtubule that stabilizes it (Duellberg et al., 2016; Maurer et al., 2012).
The length of the GTP cap of recombinant human wildtype microtubules was in a similar range as previously measured EB 'comet' lengths with mammalian brain microtubules in vitro (Bieling et al., 2008; Bieling et al., 2007; Dixit et al., 2009; Maurer et al., 2011; Rickman et al., 2017; Roth et al., 2018; Vemu et al., 2017) and in cells (Seetapun et al., 2012). This confirms that recombinant human wildtype tubulin and mammalian brain tubulin hydrolyze GTP with similar speeds (Vemu et al., 2017). The hydrolysis rate appears to be set such that sufficiently long GTP caps are created to stabilize growing microtubules during fluctuating growth (Duellberg et al., 2016; Gardner et al., 2011; Rickman et al., 2017; Schek et al., 2007).
Our results suggest that previous observations with GTP analogues require careful interpretation, because neither GMPCPP nor GTPγS generate microtubules with properties identical to microtubules that contain GTP. When considering microtubule stability and the affinity for EB binding, each analogue appears to produce some, but not all features of the microtubule lattice conformation in the GTP cap.
The recent observation of a short EB-free region at the very end of growing microtubules (Maurer et al., 2014) together with the observation of EBs not binding GMPCPP very well, had stimulated a discussion about the possibility of EBs binding a post-hydrolysis and not a GTP induced conformation of the microtubule lattice (Maurer et al., 2014; Zhang et al., 2015). Given the results presented here, this can now be considered unlikely. The observed short EB-free zone at the extreme microtubule end is probably rather a consequence of finite EB association kinetics (Maurer et al., 2014) and of some particular structural feature at the very end of growing microtubules. EB binding sites that are located between protofilaments (Maurer et al., 2012; Zhang et al., 2015), may not form there due to a flared growing microtubule end structure lacking lateral protofilaments interactions, as observed recently (McIntosh et al., 2018), or another GTP lattice conformation may exist at the very microtubule end.
For wildtype microtubules and microtubules with slowed-down GTP hydrolysis, we performed here for the first time spatially resolved dwell time measurements of single EB3 molecules at different positions of the GTP cap. Our aim was to gain insight into the conformational changes of the microtubule lattice within the cap that affect the conformation of the EB binding site, allowing it to monitor the lattice conformation. The binding strength of EB3 decreased gradually from the microtubule end towards the GDP lattice (Figure 4d,h), both for wildtype and E254D caps. Binding strength decayed mono-exponentially on a length scale similar to the comet lengths measured by 'comet' analysis (Figure 3j), suggesting that the density of EBs decreases along the length of the cap due to an affinity decrease. The associated time scale of this affinity decrease as the microtubule grows provides an estimate for the GTP hydrolysis rate which is ~0.2 s−1 for wildtype microtubules and four times slower for E254D microtubules.
Using a mean squared displacement (MSD) analysis of single EB3 molecules bound to E254D caps we find that EB3 diffuses on the microtubule lattice with a diffusion coefficient of ~10−3 µm2/s. Although this is several magnitudes slower than EB1 lattice diffusion reported previously under different conditions on microtubules grown in nucleotide analogues (Lopez and Valentine, 2016), it means that during a typical binding event EB3 samples the conformational state of several tubulins in a range of up to ~50 nm in our experiments. This defines the spatial resolution of this conformational reporter. We can not discriminate if all tubulins in the sampled area have exactly the same conformation or if EBs report on the average conformation of a lattice with individual tubulins being in different conformational states. Nevertheless, EBs clearly detect a conformational gradient within the GTP cap, as evidenced by the dependence of its mean dwell time on the distance from the growing microtubule end.
Interestingly, the ratio between the dwell times of EB3 bound to E254A microtubules (Figure 2h–i, Figure 2—figure supplement 1f,g) versus wildtype microtubule ends (Figure 4f) was considerably larger than the ratio between the corresponding equilibrium association constants (inverse equilibrium dissociation constants) (Figure 2d and i). This indicates that not only the unbinding rate, but also the binding rate of EB3 is reduced on E254A microtubules compared to wildtype microtubules, even if so to a lesser extent. This suggests that EB3 may induce and stabilize a conformational lattice transformation in E254A microtubules when it binds, akin to an 'induced fit' scenario. Such an effect on the microtubule lattice would agree with previous observations showing that EB binding to microtubules can change their protofilament twist (von Loeffelholz et al., 2017; Zhang et al., 2015; Zhang et al., 2018) and mildly accelerate cap maturation (Maurer et al., 2011). We can now conclude that the latter means 'accelerate GTP hydrolysis', in agreement with our results here as well as recent structural observations (Zhang et al., 2015).
In conclusion, our results demonstrate that the kinetics of GTP hydrolysis critically determine the properties of the GTP cap the size of which can be monitored by EBs. Because EBs serve as a binding platform for numerous microtubule binding proteins it ensures that microtubule dynamics in cells is regulated at multiple levels by targeting the most critical modulator of microtubule stability, the GTP cap, itself. Future challenges will be to elucidate the high-resolution structures of microtubules in their true GTP state and of the conformational transitions within the GTP cap to decipher the determinants of microtubule stability and function at atomic resolution.
Materials and methods
Bacteria and insect cells
Request a detailed protocolBacterial strains (Escherichia coli DH5α, BL21 pRil, DH10MultiBac) were grown in Luria Bertani (LB) medium in the presence of appropriate antibiotics.
Spodoptera frugiperda strain Sf21 insect cells were grown in suspension at 27°C in Sf-900 III SFM (1x) Serum Free Medium (Gibco). High Five cells were grown in suspension at 27°C in ExpressFive SFM media (Gibco) supplemented with 16 mM L-glutamine (Gibco). Absence of mycoplasma in insect cell cultures was confirmed regularly.
Molecular cloning
Request a detailed protocolTo generate an expression construct for wild type human tubulin a pFastBacDual based vector containing insect cell codon-optimized versions of human α-tubulin TUBA1B (NP_006073.2) and β-tubulin TUBB3 (NP_006077.2) (Ti et al., 2018) (gift from T. Kapoor) was modified by Quickchange mutagenesis as follows. The fragment encoding for the deca-histidine tag and the alanine-proline linker was removed from the N-terminus of the TUBA1B. Instead, a hexa-histidine tag encoding fragment was inserted into the internal acetylation loop of the TUBA1B between isoleucine 42 and glycine 43, a strategy used previously by Sirajuddin et al. (2014); Vemu et al. (2016). This resulted in the following expression construct: TUBA1B-intHis6 TUBB3-Gly2-Ser-Gly2-TEVsite-StrepTagII (pJR374), where the StrepTagII at the C-terminus of the TUBB3 could be removed by cleavage with Tobacco Etch Virus (TEV) protease. Removal of the N-terminal tag was necessary to improve the polymerization competency of the recombinant tubulin. The new construct was subjected to further Quickchange mutagenesis of TUBA1B to produce expression constructs for GTP hydrolysis deficient (TUBA1BE254A-intHis6 TUBB3-Gly2-Ser-Gly2-TEVsite-StrepTagII, pJR375) and GTP hydrolysis compromised (TUBA1BE254D-intHis6 TUBB3-Gly2-Ser-Gly2-TEVsite-StrepTagII, pJR376) versions of human tubulin dimers. These proteins are referred to as wildtype, E254A and E254D tubulin throughout the manuscript.
To generate a bacterial expression construct for mGFP-tagged human EB3, the coding sequence of full‐length human EB3 and a long N-terminal linker were amplified by PCR from pET28a‐His‐mCherry‐EB3 (Montenegro Gouveia et al., 2010) (gift from M. Steinmetz). This fragment was fused with a monomeric GFP (mGFP) (Snapp et al., 2003; Zacharias et al., 2002) sequence in a pETMZ vector to generate a bacterial expression construct encoding for the following fusion protein: His6-Ztag-TEVsite-mGFP-linker-EB3 (from here on mGFP-EB3). The N-terminal His6-Ztag could be removed by TEV protease treatment. The expression construct for SNAP-tagged human EB3 (SNAP-EB3) has been described elsewhere (Jha et al., 2017). All constructs were verified by DNA sequencing.
Protein expression
Request a detailed protocolBaculovirus preparation for recombinant human tubulin expression was carried out according to manufacturer’s protocols (Bac-to-Bac system, Life Technologies) using E. coli DH10MultiBac and Sf21 insect cells. Baculovirus-infected insect cells (BIICs) were then frozen prior to cell lysis to generate stable viral stocks as described previously (Wasilko et al., 2009).
Recombinant human tubulin expression was induced by adding 6 ml of frozen BIICs per litre to a High Five insect cell culture grown to densities of ~1.25×106 cells/ml. Cells were harvested 72 hr post-induction by centrifugation (15 min, 1000 g, 4°C). Cell pellets were then washed with ice-cold 1x PBS, centrifuged again (15 min, 1000 g, 4°C), frozen in liquid nitrogen, and stored in −80°C.
mGFP-EB3 and SNAP-EB3 were expressed in Escherichia coli BL21 pRIL as described previously (Jha et al., 2017). Biotinylated monomeric Drosophila melanogaster kinesin-1 rigor mutant (Kin1rigor) was expressed in Escherichia coli BL21 pRIL as described previously (Roostalu et al., 2015).
Protein purification
Request a detailed protocolHigh Five insect cell pellets from 2 liters of culture expressing human recombinant tubulin were resuspended in ice-cold lysis buffer (80 mM PIPES, 1 mM EGTA, 6 mM MgCl2, 50 mM imidazole, 100 mM KCl, 2 mM GTP, 1 mM 2-mercaptoethanol (2-ME), pH 7.2) supplemented with protease inhibitors (Roche), DNase I (10 µg ml/ml, Sigma), using the same volume of buffer as the cell pellet. Resuspended cells were lysed by dounce homogenization (60 strokes). The lysate was then diluted 4-fold with dilution buffer (80 mM PIPES, 1 mM EGTA, 6 mM MgCl2, 50 mM imidazole, 2 mM GTP, 1 mM 2-ME, pH 7.2) and clarified by ultracentrifugation (158,420x g, 1 hr, 4°C). The supernatant was passed through a 5 ml HisTrap HP column (GE Healthcare). The column was first washed with five column volumes (CVs) of lysis buffer, then with 5 CVs of Ni wash buffer 1 (80 mM PIPES, 1 mM EGTA, 11 mM MgCl2, 2 mM GTP, 5 mM ATP, 1 mM 2-ME, pH 7.2), then with 5 CVs of Ni wash buffer 2 (80 mM PIPES, 1 mM EGTA, 5 mM MgCl2, 0.1% (vol/vol) Tween-20, 10% (w/vol) glycerol), 2 mM GTP, 1 mM 2-ME, pH 7.2), and then again with 5 CVs of lysis buffer. The protein was eluted with Ni elution buffer (80 mM PIPES, 1 mM EGTA, 5 mM MgCl2, 500 mM imidazole 2 mM GTP, 1 mM 2-ME, pH 7.2). The eluate was immediately diluted 6-fold with Strep binding buffer (80 mM PIPES, 1 mM EGTA, 5 mM MgCl2, 2 mM GTP, 1 mM 2-ME, pH 7.2) and passed through serially connected 1 ml HiPrep SP FF and 5 ml StrepTag HP columns (both GE Healthcare) equilibrated in Strep binding buffer. The columns were then washed with 2 CVs of Strep binding buffer. The protein was eluted in Strep elution buffer (80 mM PIPES, 1 mM EGTA, 4 mM MgCl2, 2.5 mM D-desthiobiotin, 50 mM imidazole, 2 mM GTP, 1 mM 2-ME, pH 7.2). The eluate was diluted 2-fold in Strep elution buffer, transferred on ice and incubated with TEV protease for 2 hr to remove the C-terminal StrepTagII from TUBB3. Following TEV cleavage the eluate was centrifuged at 204,428 g, 10 min, 4°C. The supernatant was then passed through a further 1 ml HiPrep SP FF column equilibrated in SP wash buffer (80 mM PIPES, 1 mM EGTA, 5 mM MgCl2, 2 mM GTP, pH 6.8) to remove TEV protease. Finally, the flow through now containing the purified recombinant human tubulin was passed through two serially connected pre-equilibrated HiPrep Desalting columns (GE Healthcare) to exchange the buffer to tubulin storage buffer (80 mM PIPES, 1 mM EGTA 1 mM MgCl2, 0.2 mM GTP, pH 6.8). The tubulin containing fractions were pooled, concentrated (Vivaspin 30,000 MWCO, Sartorius) to above 3.5 mg/ml, ultracentrifuged (278,088 g, 10 min, 4°C), aliquoted, snap frozen, and stored in liquid nitrogen until use. Mass spectroscopy demonstrated that the purified human tubulin was free of insect cell tubulin (Figure 1—figure supplement 1d).
mGFP-EB3 and SNAP-EB3 were purified and SNAP-EB3 was labeled with SNAP-Surface-AlexaFluor647 (NEB) as described (referred to as Alexa647-EB3 throughout the manuscript) (Jha et al., 2017). Biotinylated monomeric Drosophila melanogaster kinesin-1 rigor mutant (Kin1rigor) was purified as described previously (Roostalu et al., 2015).
Porcine brain tubulin was purified following a published protocol (Castoldi and Popov, 2003). Purified porcine brain tubulin was recycled and labeled with Alexa647-N-hydroxysuccinimide ester (NHS; Sigma-Aldrich), CF640R-NHS (Sigma-Aldrich), Atto565-NHS (Sigma-Alrich) or biotin-NHS (Thermo Scientific), as described previously (Hyman et al., 1991).
EB3 concentration was determined by Bradford assay, values refer to monomer concentration. Tubulin concentration was determined by UV/VIS spectroscopy measurements (absorption at 280 nm). Values refer to tubulin dimer concentration.
Determination of microtubule nucleotide content
Request a detailed protocolTo determine their nucleotide content, microtubules were polymerized from different types of tubulin in the presence of a low concentration of short microtubule 'seeds' to initiate microtubule growth.
First microtubule ‘seeds’ were polymerized from 15 µM recycled porcine brain tubulin in the presence of 0.5 mM GMPCPP (Jena Bioscience) in BRB80 (80 mM PIPES, 1 mM EGTA, 1 mM MgCl2, pH 6.8) at 37°C for 50 min. The seeds were centrifuged at 17,000 g at room temperature for 10 min, washed in warm BRB80, centrifuged at 17,000 g at room temperature, and resuspended in BRB80 to an estimated concentration of 15 µM tubulin assuming 100% nucleation and polymerization efficiency.
160 µg of purified porcine brain tubulin, human wildtype tubulin, human E254A tubulin was then used for each polymerization reaction. The polymerization reaction consisted of 20 µM tubulin diluted in BRB80 and mixed with 26% glycerol (vol/vol) and 1 mM GTP (final concentrations). These reactions were first incubated on ice for 5 min, then transferred to 37°C, and after 1 min supplemented with 0.15 µM GMPCPP-stabilized ‘seeds’, and polymerized for 50 min. The samples were then centrifuged at 278,088 x g for 10 min at 37°C. The supernatants were aspirated, the pellets containing microtubules washed twice with 2x sample volume of warm BRB80, and resuspended in 10 mM Tris-HCl (pH 7.5). Nucleotides were then extracted by addition of 0.7% (w/vol) HClO4 followed by immediate neutralization of the reaction by addition of Na-acetate to 200 mM (final concentrations). The supernatants containing the extracted nucleotides were separated from precipitated protein by centrifugation at 15,000 g for 5 min at 4°C and subsequently filtered through a 0.22 µm centrifugal filter (Durapore-PVDF, Millipore).
The samples (55 µl) were applied to a Zorbax SB-C18 column (4.6 × 250 mm, 5 µm pore size, Agilent Technologies) mounted on a Jasco HPLC system controlled by Chromnav software (v1.19, Jasco). The column temperature was maintained at 30°C. Nucleotides were separated under isocratic conditions in 100 mM K2HPO4/KH2PO4 (pH 6.5), 10 mM tetrabutylammonium bromide, 7% (vol/vol) acetonitrile. The absorbance was monitored using a Jasco MD-2010 Plus multi-wavelength detector. The GDP and GTP peaks were identified from comparison to the retention times of pure nucleotide standards (Figure 1c). The relative amounts of GDP and GTP were determined by integrating the peaks in the 260 nm absorbance channel using Chromnav software (Figure 1d).
Mass spectrometry
Request a detailed protocolProtein molecular mass was determined using a microTOFQ electrospray mass spectrometer (Bruker Daltonics) (Figure 1—figure supplement 1d). Proteins were first desalted using a 2 mm x 10 mm guard column (Upchurch Scientific) packed with Poros R2 resin (Perseptive Biosystems). Protein was injected via a syringe onto the column in 10% acetonitrile, 0.10% acetic acid, washed with the same solvent and eluted in 60% acetonitrile, 0.1% acetic acid. Desalted protein was then infused into the mass spectrometer at 3 µl/min using an electrospray voltage of 4.5kV. Mass spectra were deconvolved using maximum entropy software (Bruker Daltonics).
In vitro assays
Flow chambers were assembled similarly for all microscopy assays from poly-(L-lysine)-polyethylene glycol (PEG) (SuSoS) treated counter glass and passivated biotin-PEG-functionalized coverslips as described previously (Bieling et al., 2010).
Microtubule dynamics assay
Request a detailed protocolGMPCPP-stabilized biotinylated non-fluorescent microtubule 'seeds' (for iSCAT microscopy) or fluorescent seeds (containing 12% of CF640R-, or Atto565-labeled porcine brain tubulin; for TIRF microscopy) were prepared as described previously (Bieling et al., 2010; Roostalu et al., 2015). Microtubule dynamic assays were performed as detailed earlier (Bieling et al., 2010; Roostalu et al., 2015). The passivated flow chambers were incubated for 5 min with 5% Pluronic F-127 (Sigma-Aldrich) in MQ water at room temperature, washed with assay buffer (80 mM PIPES, 1 mM EGTA, 1 mM MgCl2, 30 mM KCl, 1 mM GTP, 5 mM 2-ME, 0.15% (w/vol) methylcellulose (4000 cP, Sigma-Aldrich), 1% (w/vol) glucose, pH 6.8), then with assay buffer containing κ-casein (50 μg/ml, Sigma-Aldrich). Flow chambers were then incubated on a metal block on ice in κ-casein-containing assay buffer supplemented with NeutrAvidin (50 μg/ml, Life Technologies) to coat the functionalized glass surface and washed again with assay buffer. Microtubule seeds were diluted in assay buffer, flowed into the chamber and incubated for 3 min at room temperature to allow them to attach to the NeutrAvidin-coated functionalized glass surface. The chamber was then washed again with assay buffer followed by flowing in the final assay mix. The final assay mix for the microtubule dynamics assays consisted of 98% of assay buffer containing unlabeled porcine brain, wildtype or mutant recombinant human tubulin (concentrations as indicated: 5–19 µM for different tubulins) and oxygen scavengers (180 µg/ml catalase (Sigma-Aldrich), 752 µg/ml glucose oxidase (Serva)). The final assay mix also contained 2% EB3 storage buffer (50 mM Na-phosphate, 400 mM KCl, 5 mM MgCl2, 0.5 mM 2-ME, pH 7.2) optionally supplemented with mGFP-EB3 (concentrations as indicated: 0–500 nM). The flow chamber was then sealed with silicone grease. Imaging was started 1 min after transferring the sample to the microscope chamber at 30°C.
Microtubule nucleation assay
Request a detailed protocolMicrotubule nucleation assays (Figure 1g-h) were performed as described previously (Roostalu et al., 2015). The initial experimental steps to treat the flow cell were the same as in the microtubule dynamics assay. However, instead of NeutrAvidin the surface of the flow chamber was coated with biotinylated Drosophila melanogaster Kin1rigor mutant (500 nM) by incubation in the assay buffer on a metal block on ice for 10 min. No microtubule ‘seeds’ were used. Following washes with the assay buffer, the final assay mix comprising 98% of assay buffer containing unlabeled wildtype or E254A mutant recombinant tubulin (concentrations indicated) and oxygen scavengers (180 µg/ml catalase, 752 µg/ml glucose oxidase) and 2% of EB3 storage buffer was flowed into the chamber.
Experiments with GTP-bound E254A microtubules and GMPCPP-bound wildtype or E254A microtubules
Request a detailed protocolFor preparation of GMPCPP-stabilized wildtype microtubules, the buffer of wildtype tubulin was first exchanged from tubulin storage buffer to BRB80. Microtubules were then polymerized from 12.5 µM wildtype tubulin in the presence of 0.5 mM GMPCPP in BRB80 at 37°C for 1 hr. The microtubules were then centrifuged at 17,000 g at room temperature for 10 min, washed in warm BRB80, centrifuged at 17,000 g at room temperature, and resuspended in BRB80. E254A microtubules were polymerized under the same conditions except in the presence of GTP (1 mM) instead of GMPCPP. These GTP-bound E254A microtubules remained stable throughout the day. To test the effect of GMPCPP on mGFP-EB3 binding to E254A microtubules, the E254A tubulin was buffer exchanged from GTP-containing storage buffer to BRB80 containing 0.5 mM GMPCPP using ZebaSpin Desalting Columns (ThermoScientific) and allowed to equilibrate for 30 min in ice. This step was repeated twice to ensure complete nucleotide exchange. After the second buffer exchange, this E254A tubulin polymerized in the presence of 0.5 mM GMPCPP at 37°C for 1 hr as described above.
The initial sample preparation for imaging and flow cell treatment were identical to the nucleation assay, except that now either stable GMPCPP-stabilized wildtype, GTP-bound E254A or GMPCPP-bound E254A microtubules were attached to the Kin1rigor-surface by 3 min incubation at room temperature. The chamber was then washed with assay buffer to remove unbound microtubules followed by flowing in the final assay mix consisting of 98% of assay buffer with oxygen scavengers (180 µg/ml catalase, 752 µg/ml glucose oxidase) and 2% EB3 storage buffer optionally supplemented with 20 nM or 25 nM mGFP-EB3. The experiment was performed in a similar manner when comparing the binding of 500 nM mGFP-TPX2micro (Zhang et al., 2017) to a mixture of fluorescently labeled GMPCPP-stabilized porcine brain tubulin microtubules and GTP-bound unlabeled E254A microtubules.
To determine the binding affinity of mGFP-EB3 for E254A microtubules (Figure 2i), E254A microtubules were first polymerized at 1 µM E254 tubulin from 0.5 µM GMPCPP-stabilized biotinylated fluorescently labeled porcine brain microtubule ‘seeds’ in BRB80 for 1 at 37°C for 1 hr. These microtubules were then transferred to room temperature and stored until use. The initial sample preparation steps were identical to the dynamic microtubule assay, except that now the GMPCPP-stabilized ‘seeds’ with stable unlabeled E254A-lattice extensions diluted in BRB80 were attached to the NeutrAvidin-coated functionalized glass surface. The final assay mix in these experiments consisted of 98% of assay buffer containing oxygen scavengers (180 µg/ml catalase, 752 µg/ml glucose oxidase) and 2% EB3 storage buffer supplemented with mGFP-EB3 (concentrations as indicated: 1–200 nM).
Samples for EB3 washout experiments with E254A microtubules (Figure 2—figure supplement 1f) were prepared identically to the samples for mGFP-EB3 binding affinity determination. The mGFP-EB3 concentration was 2.5 nM. After initial imaging the sample was removed from the microscope objective and washed with ~20 flow chamber volumes of assay buffer. Then assay buffer containing oxygen scavengers but no mGFP-EB3 was flowed in the chamber, and the sample was imaged again to visualize the remaining mGFP-EB3 binding.
Single molecule assays
Request a detailed protocolSingle molecule experiments on dynamic microtubules were performed similarly to the dynamic assays (Figure 4). We chose wildtype and E254D tubulin concentration, at which wildtype and E254D microtubules grew at nearly identical growth speeds (Figure 4—figure supplement 3). The final assay mix consisted of 98% of assay buffer containing wildtype tubulin (19 µM) or E254D tubulin (10 µM) and oxygen scavengers (180 µg/ml catalase, 752 µg/ml glucose oxidase) and 2% of EB3 storage buffer supplemented with 25 pM mGFP-EB3 and 1 nM Alexa647-EB3.
Single molecule experiments with E254A microtubules were carried out under identical experimental and imaging conditions as the single molecule experiments with wildtype and E254D microtubules, except using E254A microtubules grown from GMPCPP-stabilized ‘seeds’ (described above) instead of dynamic microtubules. The final assay mix did not include soluble tubulin but only mGFP-EB3 (10 pM) and Alexa647-EB3 (1 nM).
Steady state bleaching assay
Request a detailed protocolSamples for steady state bleaching assays were prepared identically to the single molecule experiments for each respective tubulin species (wildtype, E254D, E254A) except that only 2.5 nM mGFP-EB3 was included in the final assay mix (and no Alexa647-EB3).
Microscopy
Simultaneous iSCAT and TIRF microscopy
Request a detailed protocolA total internal reflection fluorescence (TIRF) microscope system (Cairn Research, UK), was modified to allow simultaneous TIRF and interferometric scattering (iSCAT) microscopy (Ortega Arroyo et al., 2016) for the detection of GFP-EB3 and unlabeled microtubules, respectively. The collimated beams from a 488 nm and 561 nm diode laser were focused on the back focal plane of a 60 × 1.49 N.A. TIRF objective (Nikon, Japan): the 488 nm beam was positioned to give TIRF illumination and the 561 beam was positioned at ~18° to give epi illumination. Both beams were rapidly scanned azimuthally using a galvo scanning system (iLas2, Gataca Systems, France) to provide uniform illumination and reduce interference effects. A quadband dichroic mirror (Chroma: ZT405/488/561/640) and band-pass filters (Chroma: ET525/50, ZET561/10) were used to separate detected fluorescence and scattered 561 nm laser light. Both channels were recorded simultaneously using two EMCCD cameras (Ixon Ultra 888, Andor, UK). Both camera relays had a total magnification of 2x. Time-lapse movies were acquired with 63 ms exposure time at 1 Hz for 10 min.
For each sample, an average static background image was created by translating the sample rapidly while acquiring a movie stream, and averaging the resulting image series. The raw iSCAT movie was then divided by the corresponding average background image to produce a pseudo-flat-field corrected, normalized movie. This was then filtered using a mask in Fourier-space, to remove large-scale dynamic interference effects, and a Kalman stack filter to reduce noise.
TIRF microscopy
Request a detailed protocolFor 'TIRF microscopy only' experiments (Figures 2c-e, i–k, 3g, i-j and 4, Figure 2—figure supplement 1d–g, Figure 4—figure supplement 2, 3) movies were acquired using a custom TIRF microscope (iMIC, FEI Munich) at 30°C, described in detail previously (Maurer et al., 2014; Roostalu et al., 2015). Exposure times were between 55 ms (single molecule imaging) and 150 ms (nucleation assays). Images were acquired at intervals of every 60 ms (single-molecule imaging), 1 s (nucleation assays), or 200 ms (comet analysis) keeping imaging conditions consistent for each set of experiments. For steady-state bleaching, movies were acquired with identical laser illumination powers and exposure times (55 ms), and increasing frame intervals (60, 100, 200 ms).
Data analysis
Image analysis
Request a detailed protocolImages were processed and analyzed using the Fiji package of ImageJ (https://fiji.sc), using custom macros. Further analysis and data processing was carried out in MATLAB (MathWorks USA) and Origin (OriginLab, USA).
Kymographs were generated as described previously (Jha et al., 2017; Zhang et al., 2017). After acquisition, movies were corrected for drift when necessary, then individual microtubule growth trajectories were drawn on a maximum intensity projection of the entire movie stack (Figure 4—figure supplement 1a). Kymographs were generated from the movie stack along each trajectory line; subsequently, the microtubule end position was traced manually on each kymograph (Figure 4—figure supplement 1b) (3). Periods including overlapping microtubules were excluded from the analysis. Microtubule growth speeds were calculated from the marked end position on the kymographs.
Our iSCAT microscopy setup allowed us to image microtubules consisting entirely of unlabeled recombinant tubulin, but did not produce images of the quality required for automated microtubule end tracking with sub-pixel precision (Bohner et al., 2016; Ruhnow et al., 2011). Therefore, we based our comet and single molecule analysis (see below) entirely on TIRF microscopy movies of fluorescently labeled EB3. For comet analysis, average spatial mGFP-EB3 intensity profiles (comets) (Figure 3i–j) were generated from kymographs as described previously (Jha et al., 2017; Zhang et al., 2017). Each kymograph was straightened and re-centered using the marked microtubule end positions, then aligned and averaged with other straightened kymographs. The intensities were averaged for all time points at each position along the resulting average kymograph, giving a time-averaged spatial intensity profile. The spatial resolution of this method was 1–2 pixels, that is ~200 nm. Kinetic rate constants were extracted from an exponentially modified Gaussian fit to the comet profile, as described previously (Maurer et al., 2014).
To determine the affinity of EB3 for binding to wildtype microtubules, average maximal comet intensities were measured as a function of the mGFP-EB3 concentration (Figure 2c). The equilibrium dissociation constant (Kd) was determined from a hyperbolic fit to the data (Figure 2d), because EB3 was in large excess over binding sites at microtubule ends in these experiments. To determine the EB3 binding affinity for E254A microtubules, the Kd was here determined from a quadratic fit (Figure 2i), , where I is the measured average mGFP-EB3 fluorescence intensity on the microtubule at a given total mGFP-EB3 concentration E and the total concentration T of binding sites along the E254E microtubules in these experiments (T was measured to be ~2.1 nM), and A is an amplitude factor (free parameter).
Single molecule dwell time analysis
Request a detailed protocolTo obtain dwell time distributions for the single molecule mGFP-EB3 experiments (Figures 2j, k and 4a–h), kymographs were generated and the microtubule end positions traced, as described above (Figure 4—figure supplement 1a–b). Using the traced end position, the corresponding x-y coordinates of the microtubule end in the original movie were calculated for each frame (Figure 4—figure supplement 1c). These coordinates were used to create a binary mask movie that only included points on each microtubule up to the growing end in each frame. The raw image data in each frame of a movie were analyzed with a Single Molecule Localization procedure (GDSC SMLM plugin for ImageJ: https://github.com/aherbert/GDSC-SMLM (code forked at: https://github.com/elifesciences-publications/gdsc-smlm) this determined the coordinates of each potential single molecule with sub-resolution precision (typically ~<30 nm). The resulting localization positions were filtered in space and time using the binary mask movie, to remove all events not localized on a microtubule (Figure 4—figure supplement 1d). The remaining localization events were linked together in space and time throughout the whole movie using specific thresholds: only two events that occurred within a maximum separation of one pixel (120 nm) and 30 frames (1.8 s) were linked together. This allowed for slight movement of the molecules between frames (due to e.g. lattice diffusion, microtubule wiggling, drift) and dark frames (due to e.g. blinking). The linking parameter values were chosen after a careful inspection of the effects of the parameter space on the resulting individual dwell events, for a specific kymograph. The automatically identified binding events agreed well with visually identified events in test subsets of the data (Figure 4—figure supplement 1e). For each molecule, the dwell time was determined by the total time over which events were linked. The position of the molecule in the first frame of the binding event relative to the nearest microtubule end was calculated, creating a list of dwell times with their corresponding distances from the growing microtubule end (Figure 4—figure supplement 1f). For spatially resolved dwell time distributions, binding events were binned at specific distances from the end (Figure 4—figure supplement 1g) and the dwell time '1 - cumulative distribution function' (survival function) calculated for each bin. Characteristic dwell times were extracted from these distributions using a mono-exponential fit.
The average dwell time measured for single mGFP-EB3 molecules bound to the growing ends of recombinant human wildtype microtubules was 880 ms (Figure 4f), which is comparable to previous reports of EB dwell times being in the range of 50–300 ms (Bieling et al., 2008; Bieling et al., 2007; Maurer et al., 2011; Montenegro Gouveia et al., 2010). The longer mean dwell time observed here is probably a consequence of the lower ionic strength buffer used.
Steady state bleaching analysis
Request a detailed protocolEB3 single molecule dwell times on wildtype and E254D microtubule ends (Figure 4) were essentially unaffected by bleaching, because they were much shorter than the bleaching time of ~45 s (Figure 2—figure supplement 1g). However, single molecule dwell times on E254A microtubules were in the range of our bleaching time and were therefore determined from a steady state bleaching analysis performed at different time intervals (Figure 2—figure supplement 1g; Gebhardt et al., 2013).
We assume that molecules bound to the microtubule bleach at a rate kb and unbind at a rate koff. We assume an excess of unbleached EB3 molecules in solution such that at steady-state the binding rate of unbleached molecules is limited by the total unbinding rate. Solving the resulting differential equations gives a relative unbleached fraction at time t after illumination of
Where .
Movies taken at different frame intervals were background corrected using a 50 pixel rolling ball subtraction. The mean intensity over the field of view was calculated for each frame, and normalized to the value in the first frame. Decay curves were fit with the function above, with koff shared globally (Figure 2—figure supplement 1g).
Data and materials availability
Request a detailed protocolAll data are available in the manuscript or the supplementary materials. Correspondence regarding data and materials should be addressed to TS.
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files.
References
-
Control of microtubule organization and dynamics: two ends in the limelightNature Reviews Molecular Cell Biology 16:711–726.https://doi.org/10.1038/nrm4084
-
Dominant-lethal alpha-tubulin mutants defective in Microtubule depolymerization in yeastMolecular Biology of the Cell 12:3973–3986.https://doi.org/10.1091/mbc.12.12.3973
-
CLIP-170 tracks growing microtubule ends by dynamically recognizing composite EB1/tubulin-binding sitesThe Journal of Cell Biology 183:1223–1233.https://doi.org/10.1083/jcb.200809190
-
Important factors determining the nanoscale tracking precision of dynamic microtubule endsJournal of Microscopy 261:67–78.https://doi.org/10.1111/jmi.12316
-
Microtubule dynamics: an interplay of biochemistry and mechanicsNature Reviews Molecular Cell Biology 19:451–463.https://doi.org/10.1038/s41580-018-0009-y
-
Guanosine-5'-triphosphate hydrolysis and tubulin polymerization. Review articleMolecular and Cellular Biochemistry 47:97–113.https://doi.org/10.1007/BF00234410
-
Purification of brain tubulin through two cycles of polymerization-depolymerization in a high-molarity bufferProtein Expression and Purification 32:83–88.https://doi.org/10.1016/S1046-5928(03)00218-3
-
Microtubule dynamic instability and GTP hydrolysisAnnual Review of Biophysics and Biomolecular Structure 21:145–166.https://doi.org/10.1146/annurev.bb.21.060192.001045
-
Growth, fluctuation and switching at Microtubule plus endsNature Reviews Molecular Cell Biology 10:569–574.https://doi.org/10.1038/nrm2713
-
Preparation of modified tubulinsMethods in Enzymology 196:478–485.https://doi.org/10.1016/0076-6879(91)96041-o
-
Role of GTP hydrolysis in Microtubule dynamics: information from a slowly hydrolyzable analogue, GMPCPPMolecular Biology of the Cell 3:1155–1167.https://doi.org/10.1091/mbc.3.10.1155
-
Dephosphorylation of tubulin-bound guanosine triphosphate during microtubule assemblyJournal of Biochemistry 77:1193–1197.
-
Mammalian end binding proteins control persistent microtubule growthThe Journal of Cell Biology 184:691–706.https://doi.org/10.1083/jcb.200807179
-
The role of tubulin-tubulin lattice contacts in the mechanism of microtubule dynamic instabilityNature Structural & Molecular Biology 25:607–615.https://doi.org/10.1038/s41594-018-0087-8
-
Microtubules grow by the addition of bent guanosine triphosphate tubulin to the tips of curved protofilamentsThe Journal of Cell Biology 217:2691–2708.https://doi.org/10.1083/jcb.201802138
-
Tubulin and FtsZ form a distinct family of GTPasesNature Structural Biology 5:451–458.https://doi.org/10.1038/nsb0698-451
-
Microtubule nucleation: beyond the templateNature Reviews Molecular Cell Biology 18:702–710.https://doi.org/10.1038/nrm.2017.75
-
Tracking single particles and elongated filaments with nanometer precisionBiophysical Journal 100:2820–2828.https://doi.org/10.1016/j.bpj.2011.04.023
-
Microtubule assembly dynamics at the nanoscaleCurrent Biology 17:1445–1455.https://doi.org/10.1016/j.cub.2007.07.011
-
Estimating the microtubule GTP cap size in vivoCurrent Biology 22:1681–1687.https://doi.org/10.1016/j.cub.2012.06.068
-
Regulation of microtubule motors by tubulin isotypes and post-translational modificationsNature Cell Biology 16:335–344.https://doi.org/10.1038/ncb2920
-
Formation of stacked ER cisternae by low affinity protein interactionsThe Journal of Cell Biology 163:257–269.https://doi.org/10.1083/jcb.200306020
-
Structure and dynamics of Single-isoform recombinant neuronal human tubulinJournal of Biological Chemistry 291:12907–12915.https://doi.org/10.1074/jbc.C116.731133
-
Tubulin isoform composition tunes microtubule dynamicsMolecular Biology of the Cell 28:3564–3572.https://doi.org/10.1091/mbc.e17-02-0124
-
The kinetics of microtubule assembly. Evidence for a two-stage nucleation mechanismThe Journal of Biological Chemistry 259:10430–10438.
-
TPX2, A novel xenopus MAP involved in spindle pole organizationThe Journal of Cell Biology 149:1405–1418.https://doi.org/10.1083/jcb.149.7.1405

Decision letter
-
Anna AkhmanovaSenior and Reviewing Editor; Utrecht University, Netherlands
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
This carefully executed in vitro reconstitution study resolves some important questions concerning the nature of the cap that stabilizes growing microtubules. The study will be of interest to a broad biological audience interested in cytoskeletal regulation.
Decision letter after peer review:
Thank you for submitting your article "The speed of GTP hydrolysis determines GTP cap size and controls microtubule stability" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Anna Akhmanova as the Senior and Reviewing Editor. The reviewers have opted to remain anonymous.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
The reviewers agreed that this is a rigorously performed study, which addresses important questions about the relationship between the stabilizing cap at growing microtubule ends, the nucleotide state of tubulin and the tubulin state recognized by End Binding proteins. The finding that EB3 specifically recognizes the GTP form of tubulin is an important, though perhaps not entirely surprising contribution to the field. Further, all three reviewers agreed that the description of a gradient of EB binding affinity along the microtubule end is the most novel and interesting part of the paper, but also the part that needs to be worked out better. Specifically, the conformational transition model raised a number of critiques, and these should be addressed by additional experiments and analyses,and possibly also by adjusting the writing of the paper. Since there might be different ways of extending this part of the paper, I include below a summary of the reviewers' discussions and also the full reviews.
The reviewers felt that you should be more clear about what you mean by 'conformation' – do you mean 'expanded/compacted' microtubule lattices, as described by structural work from Nogales lab? Could GTP tubulin exist in either the expanded or the compacted state according to a conformational equilibrium? To begin to address this question, it would be great to get data on whether E254A/D lattices are expanded or compacted. It should be possible to obtain these data without generating a high resolution structure, perhaps by using TPX2 binding experiments or by a 2D cryo-EM analysis.
Further, the conclusions about a conformational gradient are based on a limited set of data, and as, pointed out by the reviewers, alternative explanations of the obtained results are possible. One could consider performing experiments with a monomeric EB3 protein, because they might help to rule out or provide support for the model proposed by reviewer 1. Another idea raised during the consultation between the reviewers was to use as a binding substrate microtubules grown from mixtures of E254A and wild type tubulin at different ratios. Two reviewers questioned the assignment of 'mono exponential' distributions in Figure 4, and this critique should be addressed. Finally, two reviewers found that the split comets deserve some analysis, and the faster growth rate displayed by E254D microtubules requires some attention.
Reviewer #1:
Roostalu et al. have successfully created GTPase-dead and GTP-slow recombinant human tubulin, which is a significant technical breakthrough. They use this new tubulin, along with fluorescent-EB3, to probe the behavior the GTP cap. They make the surprising observation that the dwell time of EB3 molecules changes as you go deeper in the cap. As expected from the Surrey lab, this is a high quality paper addressing a central issue in the microtubule field, namely the role of GTP hydrolysis.
Major comments:
1) The dwell time of EB3 on the microtubule decreases as you move deeper into the cap. The decrease in dwell times is hypothesized to be caused by a gradual "conformational gradient" that reduces EB3 affinity. The visual representation of this idea is the color gradient from red to yellow in the schematic in Figure 4J.
I have an alternative hypothesis for why the dwell times decrease. Consider that EB3 is an "obligatory dimer" (Sen et al., 2013), so its dissociation requires both CH domains to unbind from their respective binding sites. At the very end of the microtubule, EB3 is likely to find two adjacent sites where all of the relevant tubulin dimers are in the GTP state. (The site has 4 dimers, but we can leave aside for the moment the question of their relative relevance.) As you go deeper into the cap, the binding sites will become a mixture of GTP, GDP-Pi, and GDP states. These states have different affinities for EB3. In some cases, a single, high-affinity, GTP site may be adjacent only to GDP sites. In the context of the EB3 dimer, the site mismatch means that one CH domain will bind a GTP site and one can only bind a low-affinity GDP site. EB3 becomes functionally monomeric, hanging on to the microtubule with only one hand. In contrast, EB3 at the very end of the microtubule is holding on with both hands. Note: the EB3 construct they are using appears to be full-length when I trace back through their Materials and methods references.
Can this alternative framework explain the decrease in dwell times with depth inside the cap (Figure 4C)? More specifically: a gradual transition from dimeric to monomeric affinity conditions, driven by the probabilistic availability to two binding sites with different affinities? Are the measurements precise enough to rule out this hypothesis? The visual representation of this idea would NOT be a color gradient but rather an increased "speckling" of red and yellow blocks.
2) I have some technical questions about the "spatially-resolved EB3 dwell time distributions". They divide the microtubules into bins based on distance from the plus-end. The bin size is approximately 0.6 μm for the E254D microtubules (see legend to Figure 4C, see Figure 4—figure supplement 2) and 0.2 μm for the wildtype microtubules (Figure 4—figure supplement 2). These bins are relatively small when you consider that: (1) the microtubule end-position is not determined with sub-pixel accuracy, but is determined rather using the "traced end position" from a manual-tracing of a kymograph, which they state has 0.2 μm accuracy, (2) there is error in the single-molecule localization of the EB3 of 30 nm, and (3) the microtubule is growing at 70 nm/s, which means that an EB3 molecule could start its residence time in one bin and yet end it in another. The first two points make me uncertain whether the molecules are being correctly placed into their bins. The 3rd point is more conceptual: what is the best way to treat a molecule whose bin changes beneath it?
3) How mono-exponential are the spatially-resolved dwell time distributions (Figure 4C)? They appear to start off linear but then deviate from linearity at, e.g., t = 4 s for the 1.47 μm bin.
The central argument of the paper hinges on the fact that Figure 4B is not mono-exponential but Figure 4C is mono-exponential. Are the fits really strong enough to support this? The distributions are described as "strikingly mono-exponential". What does strikingly mean in terms of goodness of fit?
4) The split-comet phenomenon is mentioned briefly, along with their "curved appearance" – but there is very little quantification of the behavior. How often are they observed? How bright are the split comets compared to a full comet, etc.
5) The tubulin that they use retains an internal His tag on the α subunit. That's fine; the Roll-Mecak lab uses similar constructs. The Materials and methods are clear about the retention of the internal His tag but the main text is not. I think it's important to be clear throughout.
A suggestion:
The E254A and E254D microtubules are characterized in terms of their EB3 affinities. Perhaps the authors could explore the binding preference of TPX2, as it would report on the expansion/compaction state of these lattices? Alternatively, in the concluding paragraph, the authors say that high-resolution structures are on the way. But one doesn't necessarily need a 3.4 A structure to answer the most important question: are these lattices expanded or compacted?
Notes on the writing:
– The hypothesis that a nucleotide gradient "might translate into a conformational stability gradient" comes out of nowhere. What motivates this hypothesis? Are there data, structures, kinetic measurements, conceptual arguments, etc, that would motivate this idea?
– The concluding paragraph suggests that the "normal" GTP hydrolysis rate might be under evolutionary pressure. Are there measurements of the GTPase activity with non-human proteins that would provide support for this idea?
Reviewer #2:
This is an interesting and well-executed paper that addresses interesting questions about the microtubule's stabilizing cap, how it relates to nucleotide state, and what is the preferred state that EB proteins recognize. The approach was to purify site-directed recombinant human α/β-tubulins with mutations at a putative GTPase residue. The experiments are performed rigorously and for the most part described clearly, and the work has been done to a high technical standard.
The main findings of the paper are: (i) that abolishing (or at least substantially slowing; E254A) GTPase results in very stable microtubules akin to GMPCPP microtubules, (ii) that moderately slowing (E254D) GTPase results in microtubules with longer EB comets that are also more stable, and (iii) that in these longer comets (and also wild-type comets), there appears to be a gradient of EB binding affinity, with the highest affinity being closest to the growing end. Although it has not been shown directly before using a mutant, I did not find it all surprising that reducing GTPase rate increased microtubule stability, but it is nice to see this in the way that it is shown here. The findings involving EB binding are more interesting: they provide some of the most direct support for the idea of an adaptable microtubule lattice, and they raise questions about what states commonly used GTP analogs are giving.
Major comments:
– I wonder if the balance of the manuscript should change somewhat if to be published in eLife. I think the site-specific EB analysis is probably the most interesting and mechanistic part of the manuscript, and the authors might want to place a little more emphasis there (and place less emphasis on some of the obvious-sounding claims). I don't think new experiments are required, but they may want to go deeper into some of the analysis of the EB binding.
– The authors observe that EB3 does not bind to recombinant GMPCPP microtubules, even though in other ways GMPCPP has been taken to be a good GTP analog. The authors did not mention that GMPCPP generally gives 14 protofilament microtubules. Could the authors commend on whether they think the switch in protofilament number or the different conformation of tubulin (or both) account for the lack of EB3 binding?
– Some of the language suggests there is a 1:1 correspondance between nucleotide state and lattice state, but their results indicate the opposite. I think this should be made more clear.
– It seems E254D microtubules grow ~twice as fast as wild-type. This is unexpected, and the authors really don't say much about it.
– In Figure 4D, the authors fit the EB dwell time decay as a function of distance from the tip. This is what they measured, of course. Since they know the growth rates, is there anything interesting to learn from plotting the decay against time (or just transforming to get the time dependence)? It seems that even speculatively they might be able to get a little more specific about the likely mix of GTP/GDP at different distances from the tip, and/or say something more quantitative about what the GTPase rate must be.
– The spatially resolved EB binding analysis was a strength of the paper for me. I think it also has the potential to be confusing to people, because the language/fits imply a series of discrete 'states' but it seems these states would have to be heterogenous in terms of nucleotide state. A few more sentences about this might be useful.
– The supplemental discussion felt looser than the rest of the paper. In particular, while the authors ascribe various deficiencies to nucleotide analogs, they do not seem to consider the possibility that the mutation(s) they made might also perturb the structure. This criticism applies to the main text also. Some version of the discussion of induced fit should probably be incorporated into the main text.
Reviewer #3:
The study by Roostalu et al. addresses the fundamental question of how GTP-tubulin at the growing tip of a microtubule can be detected by other proteins. The present study examines the binding of the major plus end tip tracking protein, EB3, and its ability to specifically recognize the GTP form of tubulin. In recent years, it has been controversial as to whether tip trackers are recognizing GTP or possibly another nucleotide/conformational state, such as GDP-Pi-tubulin. Here, it is shown, using tubulin mutants that either fail to hydrolyze or hydrolyze slowly, that EB3 specifically recognizes the GTP form of tubulin. This is an important finding for the field, one that is achieved through elegant experimental studies of mutant tubulin and careful quantitative analysis, for which the authors are to be commended. However, in the final analysis, the authors invoke a GDP-Pi intermediate state, without strong evidence to justify it. Rather, it seems possible that a simpler alternative explanation that only assumes GTP and GDP states, as suggested by their data, is not ruled out. Thus, I am concerned that the study, while making an important contribution to the field, may be misleading in its final interpretation.
Major comments:
1) Conclusion of a GDP-Pi state based on non-exponentially distributed dwell times is problematic.
a) Figure 4C. The spatially resolved dwell time is interesting, but the two positions that are farther away from the tip appear that they may be bi-exponential. It seems the non-exponential distribution might be expected as the koff jumps when the hydrolysis occurs, which would give spatially varying dwell times and nonexponential distributions as the hydrolysis can occur at random (Poisson process) during the observation time. So it still seems that the data could be consistent with a simple GTP-GDP model, with no need for an additional third state of GDP-Pi.
b) Figure 4J is unconvincing as the simpler model of only two nucleotide states (GTP and GDP) has not been ruled out. To rule this out it will be necessary to do model-convolution to make it convincing that the analysis method is not yielding spurious results. Even then, the EB binding could be dependent on the local neighborhood of nucleotide state (see Seetapun et al., Figure 2—figure supplement 1 for conformational spread modeling), which seems reasonable since the binding site is at the interface between tubulins. Overall, model-convolution on the microtubule addition-loss-hydrolysis and EB binding-unbinding to assess the model is needed to rule out the simpler GTP-GDP model. Even then the argument for a GDP-Pi state is not compelling.
2) The values for KDs of 8 nM and 40 nM for EB3 binding to GTP- and GDP-tubulin, respectively, seem very strong compared to Seetapun et al. values of 3.8 µM and 55 µM, respectively, in vivo. Why is this, and are the in vitro results informative of the tip tracking in living cells?
3) How big is the cap with wildtype tubulin in vitro? Note: "cap size" is in the title, but it is not estimated, despite a lot of nice quantitation. Previous estimates put it at ~40 in vitro (at 5 µM wildtype tubulin) and ~750 in vivo (Schek et al., 2006; Seetapun et al., 2012), a disparity that is largely explained by the relative disparity in the net growth rates under these two conditions. These papers should be cited, as previous estimates of cap size. (Note: need to account for tubulin concentration, e.g. 19 µM wildtype tubulin in Figure 3J vs. 5 µM in Schek et al. and 7 µM in. Seetapun et al.).
https://doi.org/10.7554/eLife.51992.sa1Author response
The reviewers agreed that this is a rigorously performed study, which addresses important questions about the relationship between the stabilizing cap at growing microtubule ends, the nucleotide state of tubulin and the tubulin state recognized by End Binding proteins. The finding that EB3 specifically recognizes the GTP form of tubulin is an important, though perhaps not entirely surprising contribution to the field.
We thank the reviewers for their overall very positive evaluation of the quality, novelty and importance of our work. We however respectfully disagree with the view that the demonstration of EBs binding GTP microtubules is less significant, because it is perceived as not surprising. The question whether EBs bind to the GTP conformation of microtubules could not be answered with certainty in the past. Previous studies have used various nucleotide analogs to address questions of the nucleotide state. However, EBs bind with quite different affinities to microtubules grown in either GMPCPP or GTPγS, which has left room for different interpretations and resulted in lack of clarity. In our Introduction, we now provide more background and explain these different interpretations that arose from partly contradictory observations. We believe that this helps to provide a better context and highlights the value of our experiments with GTP microtubules. In our view, we present here for the first time evidence that EBs indeed bind the GTP state of microtubules with high affinity, providing clarity concerning a central question about microtubule biochemistry that has remained unsolved and has been a matter of speculation.
Further, all three reviewers agreed that the description of a gradient of EB binding affinity along the microtubule end is the most novel and interesting part of the paper, but also the part that needs to be worked out better. Specifically, the conformational transition model raised a number of critiques, and these should be addressed by additional experiments and analyses,and possibly also by adjusting the writing of the paper. Since there might be different ways of extending this part of the paper, I include below a summary of the reviewers' discussions and also the full reviews.
We have performed additional analysis (going beyond what the reviewers asked) which helped us to improve the clarity of the description of the measured affinity gradient. We describe this in detail in our response to the individual points raised by the reviewers and provide an improved description and discussion in the manuscript.
The reviewers felt that you should be more clear about what you mean by 'conformation' – do you mean 'expanded/compacted' microtubule lattices, as described by structural work from Nogales lab? Could GTP tubulin exist in either the expanded or the compacted state according to a conformational equilibrium? To begin to address this question, it would be great to get data on whether E254A/D lattices are expanded or compacted. It should be possible to obtain these data without generating a high resolution structure, perhaps by using TPX2 binding experiments or by a 2D cryo-EM analysis.
EBs sense the conformation of their binding site. And the conformation of this binding site is affected by the nucleotide state. We make this clear in the revised Discussion. Fluorescence microscopy experiments cannot visualise the degree of lattice 'compaction' or 'expansion' that can be observed by cryo-electron microscopy. Therefore, we do not make statements about such lattice characteristics. Following a suggestion of a reviewer, we added experiments with a fragment of TPX2 to the manuscript but consider electron microscopy experiments beyond the scope of this already extensive study.
Further, the conclusions about a conformational gradient are based on a limited set of data, and as, pointed out by the reviewers, alternative explanations of the obtained results are possible. One could consider performing experiments with a monomeric EB3 protein, because they might help to rule out or provide support for the model proposed by reviewer 1. Another idea raised during the consultation between the reviewers was to use as a binding substrate microtubules grown from mixtures of E254A and wild type tubulin at different ratios. Two reviewers questioned the assignment of 'mono exponential' distributions in Figure 4, and this critique should be addressed. Finally, two reviewers found that the split comets deserve some analysis, and the faster growth rate displayed by E254D microtubules requires some attention.
We respectfully disagree with the view that our data set is too limited. Not many labs are currently able to make high quality recombinant tubulin. Although it cannot be produced in amounts as large as for animal brain tubulin, our single molecule imaging data sets here are larger than previous data sets, even when compared to experiments made with brain tubulin. Otherwise our new spatially resolved dwell time analysis at growing microtubule ends would not have been possible. We consider experiments with monomeric EB and mixed microtubule lattices beyond scope, because they have their own challenges and become easily studies in their own right. We have addressed the issue of the 'mono-exponential distributions' by additional analysis. We agree that the increased growth speed of the E254D mutant is interesting as well as the observation of ‘split comets’, which supports our conclusions about enhanced microtubule stability. However, we cannot characterize and address all the aspects that are interesting about these new mutants in such great detail (structure, kinetics, ‘split comets’, binding of different MAPs) in a single paper.
Reviewer #1:
[…]
1) The dwell time of EB3 on the microtubule decreases as you move deeper into the cap. The decrease in dwell times is hypothesized to be caused by a gradual "conformational gradient" that reduces EB3 affinity. The visual representation of this idea is the color gradient from red to yellow in the schematic in Figure 4J.
I have an alternative hypothesis for why the dwell times decrease. Consider that EB3 is an "obligatory dimer" (Sen et al., 2013), so its dissociation requires both CH domains to unbind from their respective binding sites. At the very end of the microtubule, EB3 is likely to find two adjacent sites where all of the relevant tubulin dimers are in the GTP state. (The site has 4 dimers, but we can leave aside for the moment the question of their relative relevance.) As you go deeper into the cap, the binding sites will become a mixture of GTP, GDP-Pi, and GDP states. These states have different affinities for EB3. In some cases, a single, high-affinity, GTP site may be adjacent only to GDP sites. In the context of the EB3 dimer, the site mismatch means that one CH domain will bind a GTP site and one can only bind a low-affinity GDP site. EB3 becomes functionally monomeric, hanging on to the microtubule with only one hand. In contrast, EB3 at the very end of the microtubule is holding on with both hands. Note: the EB3 construct they are using appears to be full-length when I trace back through their Materials and methods references.
Can this alternative framework explain the decrease in dwell times with depth inside the cap (Figure 4C)? More specifically: a gradual transition from dimeric to monomeric affinity conditions, driven by the probabilistic availability to two binding sites with different affinities? Are the measurements precise enough to rule out this hypothesis? The visual representation of this idea would NOT be a color gradient but rather an increased "speckling" of red and yellow blocks.
This is an interesting point and it turns out that it is important to consider whether EBs diffuse on the microtubule lattice while they are bound:
If they do not diffuse, the reviewer's model is not supported by the data. As pointed out by the reviewer, in the case of a "speckled" lattice (some GTP, some GDP, some GDP+Pi tubulins), one expects many binding affinities for a dimeric EB (which we use here). This would then result in complicated, clearly non-mono-exponential local dwell time distributions, which we do not observe.
However, if EBs can diffuse on the lattice, as reported earlier (Lopez and Valentine, 2016), they are expected to have a "mixed" affinity resulting from the various affinities of the binding sites they visit during lattice diffusion, leading again to mono-exponential local dwell time distributions. In our experiments, we observe much less diffusion than reported in Lopez and Valentine (possibly due to our lower ionic strength buffer). Performing a mean-squared-displacement (MSD) analysis of the positional variation of single EBs on E254D microtubules, we find a diffusion coefficient of D=8.4 x10-4 um2/s. This means that during a typical dwell time of a few seconds, EBs appear to diffuse a distance of ~50 nm, corresponding to several tubulins.
Therefore, our data do not allow to distinguish between the reviewer's model of a speckled nucleotide state lattice in the cap of growing microtubule ends and a model in which tubulins hypothetically change their conformation in a concerted manner.
Nevertheless, we clearly observe an affinity gradient for EB binding at growing microtubule ends, as we state in our manuscript. We explain now in our Discussion that the measured affinities are 'average' affinities integrating information of the conformation of several EB binding sites visited by EBs during lattice diffusion. We also clarify that our colour gradient in the Legend of the schematic figure is intended to illustrate affinity gradient for EB binding.
2) I have some technical questions about the "spatially-resolved EB3 dwell time distributions". They divide the microtubules into bins based on distance from the plus-end. The bin size is approximately 0.6 μm for the E254D microtubules (see legend to Figure 4C, see Figure 4—figure supplement 2A) and 0.2 μm for the wildtype microtubules (Figure 4—figure supplement 2C). These bins are relatively small when you consider that: (1) the microtubule end-position is not determined with sub-pixel accuracy, but is determined rather using the "traced end position" from a manual-tracing of a kymograph, which they state has 0.2 μm accuracy, (2) there is error in the single-molecule localization of the EB3 of 30 nm, and (3) the microtubule is growing at 70 nm/s, which means that an EB3 molecule could start its residence time in one bin and yet end it in another. The first two points make me uncertain whether the molecules are being correctly placed into their bins. The 3rd point is more conceptual: what is the best way to treat a molecule whose bin changes beneath it?
A bin size of 200 nm and 600 nm was chosen for wildtype and E254D microtubules that grew at ~60 nm/s in experiments used for spatially resolved dwell time analysis. Figures 4F and 4B show that >90% of binding events have dwell times <4s (wildtype) or <6s (E254D); hence, only a very small fraction of EBs will be at a distance from the microtubule end that corresponds then to a different bin at the end compared to the beginning of the binding event. Mis-assignment to incorrect bins due the errors in determining the microtubule end position and the EB position, could lead to incorrectly mixing up different affinities in a bin which would make dwell time distributions less mono-exponential. However, this is not observed, therefore this is not an issue here. We do observe that total dwell time distributions which include all binding events are clearly less mono-exponential (Figure 4B) than the local dwell time distributions (Figure 4C). Importantly, the measured dwell times of the local dwell time distributions quite obviously change with distance from the microtubule end (Figure 4C), demonstrating the existence of an affinity gradient and providing a very simple explanation for the non-mono-exponential nature of the dwell time distribution of all events.
3) How mono-exponential are the spatially-resolved dwell time distributions (Figure 4C)? They appear to start off linear but then deviate from linearity at, e.g., t = 4 s for the 1.47 μm bin.
The central argument of the paper hinges on the fact that Figure 4B is not mono-exponential but Figure 4C is mono-exponential. Are the fits really strong enough to support this? The distributions are described as "strikingly mono-exponential". What does strikingly mean in terms of goodness of fit?
Our main conclusion of the spatially resolved dwell time analysis is that one can measure an affinity gradient for EB binding in the cap at growing microtubule ends. This is demonstrated by a change of the characteristic local dwell times with distance from the microtubule end. This result is independent of the question how well distributions are fitted by a mono-exponential distribution. However, we have demonstrated this now quantitatively: we state in the legend of Figure 4 that a mono-exponential fit to the total dwell time distribution (Figure 4B) has a reduced chi-squared value two-times larger than that of a global mono-exponential fit to all the distance-binned data (Figure 4—figure supplement 2A). Furthermore, it should be noted that the logarithmic display of the dwell time distributions overemphasizes the small deviations from mono-exponential behaviour in the tail of some distributions – there is remarkably little deviation over the largest decade of data.
4) The split-comet phenomenon is mentioned briefly, along with their "curved appearance" – but there is very little quantification of the behavior. How often are they observed? How bright are the split comets compared to a full comet, etc.
We clarify in the revised manuscript that comets with curved appearance occur for the E254D mutant at higher tubulin concentrations (8 µM or above), i.e. when microtubule growth speeds are fast and when considerable microtubule nucleation is observed. We found it interesting to report the 'split comets' (as previously reported in Portran et al., NCB, 2017) as they suggest that even partial tubes can grow under some conditions if caps are hyperstabilised and long. This is however not the main point of the manuscript. This could be characterized further in the future combined with structural studies.
5) The tubulin that they use retains an internal His tag on the α subunit. That's fine; the Roll-Mecak lab uses similar constructs. The Materials and methods are clear about the retention of the internal His tag but the main text is not. I think it's important to be clear throughout.
We agree. We state now in the main text that we use an internal His-tag. We already stated in the Materials and methods of the original version of the manuscript that an N-terminal tag on α-tubulin, even if it is very small, did not allow normal microtubule growth in our hands. We observed that highly purified recombinant wildtype tubulin that had 3 additional amino acids left at the N-terminus of α-tubulin after protease cleavage of an N-terminal His tag did not elongate from stabilised microtubule ‘seeds’. Therefore, we moved the His-tag to the position in α-tubulin that has been previously used by the Roll-Mecak, Vale and Rice labs for human and yeast tubulins. This allows normal microtubule growth.
A suggestion:
The E254A and E254D microtubules are characterized in terms of their EB3 affinities. Perhaps the authors could explore the binding preference of TPX2, as it would report on the expansion/compaction state of these lattices? Alternatively, in the concluding paragraph, the authors say that high-resolution structures are on the way. But one doesn't necessarily need a 3.4 A structure to answer the most important question: are these lattices expanded or compacted?
We agree that electron microscopy of these mutant microtubules is very interesting, but we consider this beyond the scope of this manuscript. Instead, we have made the suggested TPX2 experiment and include it in the revised version of the manuscript (Figure 2—figure supplement 1E). We used a fragment of TPX2 that we previously called 'TPX2micro' and that binds preferentially to GMPCPP microtubules, but not very efficiently to growing microtubule ends (Zhang et al., 2017). We find that this construct does not bind well to GTP-containing E254A microtubules, demonstrating that the TPX2micro binding site conformation is similar in the cap of normal growing microtubule ends and all along GTPase-deficient microtubules, but different on GMPCPP microtubules. Together with our findings for the EB binding preferences, this means that GTP-containing E254A microtubules mimic better the properties of normal GTP caps than GMPCPP microtubules, at least as far as EB3 and TPX2micro binding is concerned.
Notes on the writing:
– The hypothesis that a nucleotide gradient "might translate into a conformational stability gradient" comes out of nowhere. What motivates this hypothesis? Are there data, structures, kinetic measurements, conceptual arguments, etc, that would motivate this idea?
The idea of a stability gradient is supported by our data of GTPase-dead microtubules (E254A) being extremely stable and nucleating extremely efficiently, and the microtubules with slow GTPase hydrolysis having an intermediate stability and nucleation capacity, in between E254A and wildtype microtubules. This allows the hypothesis that a conformational gradient in the GTP cap corresponds to a stability gradient of the lattice as it transforms from the GTP to the GDP state.
– The concluding paragraph suggests that the "normal" GTP hydrolysis rate might be under evolutionary pressure. Are there measurements of the GTPase activity with non-human proteins that would provide support for this idea?
We removed the mentioning of 'evolutionary pressure'.
Reviewer #2:
[…]
– I wonder if the balance of the manuscript should change somewhat if to be published in eLife. I think the site-specific EB analysis is probably the most interesting and mechanistic part of the manuscript, and the authors might want to place a little more emphasis there (and place less emphasis on some of the obvious-sounding claims). I don't think new experiments are required, but they may want to go deeper into some of the analysis of the EB binding.
We have expanded our Introduction to better explain the conflicting interpretations in the literature with regards to nucleotide state and microtubule stability. We believe that these contradictions necessitate the experiments that we report here with pure GTP microtubules in order to be able to clearly answer a fundamental questions about the nature of the GTP cap. We think that all our findings and not only the final part of the study provide important new information and clarify unresolved issues about the GTP cap and microtubule dynamics.
– The authors observe that EB3 does not bind to recombinant GMPCPP microtubules, even though in other ways GMPCPP has been taken to be a good GTP analog. The authors did not mention that GMPCPP generally gives 14 protofilament microtubules. Could the authors commend on whether they think the switch in protofilament number or the different conformation of tubulin (or both) account for the lack of EB3 binding?
Although EBs have been shown to promote the formation of 13-protofilament microtubules (Vitre et al., NCB, 2008; Maurer et al., 2011; Howes et al., Cell Cycle, 2018), they do also bind to microtubules with other protofilament numbers. There is typically a mixture of microtubules with different protofilament numbers in in vitro experiments. Nevertheless, there are no strong differences in EB binding between different microtubules neither at growing microtubule ends, nor on GTPγS microtubules to which EBs bind with high affinity (e.g. Maurer et al., 2011; Roth et al., 2018)) indicating that EBs can bind well also to 14 protofilament microtubule ends and 14 protofilament GTPγS microtubules. This demonstrates that the nucleotide state plays the dominant role when considering the behaviour of EBs on GMPCPP microtubules.
– Some of the language suggests there is a 1:1 correspondance between nucleotide state and lattice state, but their results indicate the opposite. I think this should be made more clear.
Our data do not allow us to decide whether there is a 1:1 correspondence between nucleotide and lattice state of an individual tubulin. However, we observe a correlation between EB binding affinity and nucleotide state. EB binding probably samples the average lattice state of the area it can diffuse over, as we explain in our new Discussion.
– It seems E254D microtubules grow ~twice as fast as wild-type. This is unexpected, and the authors really don't say much about it.
We agree that this is unexpected. We cannot explain this observation at the moment and expect that a combination of careful kinetic and structural experiments will be required to obtain a satisfactory mechanistic explanation. We consider this a study in itself and a task for the future.
– In Figure 4D, the authors fit the EB dwell time decay as a function of distance from the tip. This is what they measured, of course. Since they know the growth rates, is there anything interesting to learn from plotting the decay against time (or just transforming to get the time dependence)? It seems that even speculatively they might be able to get a little more specific about the likely mix of GTP/GDP at different distances from the tip, and/or say something more quantitative about what the GTPase rate must be.
The rate of the decay of the dwell times over distance together with the growth speed provides the time scale of the conformational lattice change that causes the EB binding affinity to change. This most likely reflects more or less directly the time scale of GTP hydrolysis, with the caveat that we do not know how fast phosphate is released.
– The spatially resolved EB binding analysis was a strength of the paper for me. I think it also has the potential to be confusing to people, because the language/fits imply a series of discrete 'states' but it seems these states would have to be heterogenous in terms of nucleotide state. A few more sentences about this might be useful.
We have added a discussion of this issue to our expanded Discussion.
– The supplemental discussion felt looser than the rest of the paper. In particular, while the authors ascribe various deficiencies to nucleotide analogs, they do not seem to consider the possibility that the mutation(s) they made might also perturb the structure. This criticism applies to the main text also. Some version of the discussion of induced fit should probably be incorporated into the main text.
We have re-written the manuscript in a longer format, with a separate Introduction and Discussion. To address the valid concern of the mutation potentially perturbing the microtubule structure, we performed an additional experiment. We removed GTP from purified E254A tubulin by buffer exchange and grew E254A microtubules in the presence of GMPCPP. These microtubules display strongly reduced EB binding, clearly demonstrating that the EB binding affinity, and hence the conformation of the microtubule, is indeed determined by the presence of the nucleotide and not by the E254A mutation itself (Figure 2—figure supplement 1D).
Reviewer #3:
The study by Roostalu et al. addresses the fundamental question of how GTP-tubulin at the growing tip of a microtubule can be detected by other proteins. The present study examines the binding of the major plus end tip tracking protein, EB3, and its ability to specifically recognize the GTP form of tubulin. In recent years, it has been controversial as to whether tip trackers are recognizing GTP or possibly another nucleotide/conformational state, such as GDP-Pi-tubulin. Here, it is shown, using tubulin mutants that either fail to hydrolyze or hydrolyze slowly, that EB3 specifically recognizes the GTP form of tubulin. This is an important finding for the field, one that is achieved through elegant experimental studies of mutant tubulin and careful quantitative analysis, for which the authors are to be commended. However, in the final analysis, the authors invoke a GDP-Pi intermediate state, without strong evidence to justify it. Rather, it seems possible that a simpler alternative explanation that only assumes GTP and GDP states, as suggested by their data, is not ruled out. Thus, I am concerned that the study, while making an important contribution to the field, may be misleading in its final interpretation.
We thank this reviewer for the overall positive assessment of the manuscript and the acknowledgement of the importance of our findings. We believe that some of our statements or the final scheme might have caused a misunderstanding. We did not intend to directly draw conclusions about the GDP-Pi intermediate state from our data as presented here but simply aimed to put our new findings about the GTP hydrolysis into the general context of the current knowledge of different nucleotide states at the microtubule end. We have changed or presentation, expanding our Discussion to clarify this point.
Major comments:
1) Conclusion of a GDP-Pi state based on non-exponentially distributed dwell times is problematic.
a) Figure 4C. The spatially resolved dwell time is interesting, but the two positions that are farther away from the tip appear that they may be bi-exponential. It seems the non-exponential distribution might be expected as the koff jumps when the hydrolysis occurs, which would give spatially varying dwell times and nonexponential distributions as the hydrolysis can occur at random (Poisson process) during the observation time. So it still seems that the data could be consistent with a simple GTP-GDP model, with no need for an additional third state of GDP-Pi.
We agree. We do not intend to conclude that our data are evidence for having detected a GDP-Pi state. We can however also not exclude that a GDP-Pi state contributes to the observed affinity gradient. We believe that the longer version of our revised manuscript helps to prevent this misunderstanding.
b) Figure 4J is unconvincing as the simpler model of only two nucleotide states (GTP and GDP) has not been ruled out. To rule this out it will be necessary to do model-convolution to make it convincing that the analysis method is not yielding spurious results. Even then, the EB binding could be dependent on the local neighborhood of nucleotide state (see Seetapun et al., 2012, Figure 2—figure supplement 1 for conformational spread modeling), which seems reasonable since the binding site is at the interface between tubulins. Overall, model-convolution on the microtubule addition-loss-hydrolysis and EB binding-unbinding to assess the model is needed to rule out the simpler GTP-GDP model. Even then the argument for a GDP-Pi state is not compelling.
We agree also here. Our schematic figure might have been misleading. We have relabeled the scheme, indicating that the colour gradient is indicative of an EB affinity gradient and not intended to make a statement about a GDP-Pi state.
2) The values for KDs of 8 nM and 40 nM for EB3 binding to GTP- and GDP-tubulin, respectively, seem very strong compared to Seetapun et al. values of 3.8 µM and 55 µM, respectively, in vivo. Why is this, and are the in vitro results informative of the tip tracking in living cells?
The Kd values we have measured for EB3 binding are in the usual range of Kd values measured in in vitro experiments, here at the lower end of the spectrum, because we used a lower ionic strength buffer compared to previous experiments. Why the Kd values for binding the growing microtubule end and the GDP lattice as inferred from fluorescence intensity measurements in cells at a single cellular EB1 concentration are different is currently unclear. Since the in vitro situation is simpler, the EB occupancy on the microtubule can be measured at different EB concentrations, resulting in a binding curve that gives confidence in the obtained Kd value. Independent of the discrepancy between the absolute values of the Kd measurements in vitro and in cells, all measurements agree in that the affinity for the growing microtubule end and – as for the first time measured here – for the GTP lattice is higher than for the GDP lattice. In other words, relative comparisons within one system lead to the similar conclusions.
3) How big is the cap with wildtype tubulin in vitro? Note: "cap size" is in the title, but it is not estimated, despite a lot of nice quantitation. Previous estimates put it at ~40 in vitro (at 5 µM wildtype tubulin) and ~750 in vivo (Schek et al., 2006; Seetapun et al., 2012), a disparity that is largely explained by the relative disparity in the net growth rates under these two conditions. These papers should be cited, as previous estimates of cap size. (Note: need to account for tubulin concentration, e.g. 19 µM wildtype tubulin in Figure 3J vs. 5 µM in Schek et al. and 7 µM in. Seetapun et al.).
The cap size was stated in our Figure 3J in units of length for wildtype and E254D microtubules. The spatial decay rate constants are 1/220 nm and 1/690 nm, respectively. The main point made here was that the cap is elongated when GTP hydrolysis is impaired by the E254D mutation. As suggested by the reviewer, the cap lengths for wildtype and E254D microtubules can also be expressed in numbers of tubulin forming the cap (assuming 13pf microtubules, 8 nm tubulin length and a mono-exponential distribution of cap tubulins): 358 and 1120 tubulins, respectively.
Comparing the cap size measured in vitro for wildtype microtubules with the size of 750 tubulins forming the cap of microtubules in growing in cells, one finds that the cap in cells was 2x larger than it is here in vitro for microtubules growing about 3x faster in cells (156 nm/s vs. 57nm/s). Given that cap length can vary easily by a factor of 2 depending on buffer conditions and given that not the same methods for the determination of the decay rate constants were used in our and the Seetapun study, we can conclude that there is good agreement between cap lengths measured in vitro and in cells, as we have already concluded previously citing the Seetapun et al. paper (Maurer et al., 2014).
In Schek et al., comet lengths were not determined. Therefore, a similar comparison is not possible. Schek et al. however reported transient shrinkage episodes during growth corresponding to up to 40 tubulins per shrinkage events which suggested the necessity for long GTP caps as they are observed using EBs as cap markers. We acknowledged this previously by citing the Schek et al. paper (Duellberg et al., 2016). We have included these citations also in the current manuscript.
