Homeostatic regulation of perisynaptic matrix metalloproteinase 9 (MMP9) activity in the amblyopic visual cortex

  1. Sachiko Murase  Is a corresponding author
  2. Dan Winkowski
  3. Ji Liu
  4. Patrick O Kanold
  5. Elizabeth M Quinlan  Is a corresponding author
  1. University of Maryland, United States
Research Advance
  • Cited 0
  • Views 329
  • Annotations
Cite this article as: eLife 2019;8:e52503 doi: 10.7554/eLife.52503

Abstract

Dark exposure (DE) followed by light reintroduction (LRx) reactivates robust synaptic plasticity in adult mouse primary visual cortex (V1), which allows subsequent recovery from amblyopia. Previously we showed that perisynaptic proteolysis by MMP9 mediates the enhancement of plasticity by LRx in binocular adult mice (Murase et al., 2017). However, it was unknown if a visual system compromised by amblyopia could engage this pathway. Here we show that LRx to adult amblyopic mice induces perisynaptic MMP2/9 activity and extracellular matrix (ECM) degradation in deprived and non-deprived V1. Indeed, LRx restricted to the amblyopic eye is sufficient to induce robust MMP2/9 activity at thalamo-cortical synapses and ECM degradation in deprived V1. Two-photon live imaging demonstrates that the history of visual experience regulates MMP2/9 activity in V1, and that DE lowers the threshold for the proteinase activation. The homeostatic reduction of the MMP2/9 activation threshold by DE enables visual input from the amblyopic pathway to trigger robust perisynaptic proteolysis.

Introduction

An imbalance in the quality of visual inputs between the two eyes during development induces amblyopia, a developmental disorder affecting up to 4% of the world’s population (Levi et al., 2015). In animal models, prolonged monocular deprivation induces severe amblyopia, characterized by a significant decrease in the strength and selectivity of neuronal responses in the deprived visual cortex (Fong et al., 2016; Harwerth et al., 1983; Montey et al., 2013) and a significant loss of spatial acuity through the deprived eye (Harwerth et al., 1983; Liao et al., 2011; Montey et al., 2013). In rats, spatial acuity in the deprived eye is undetectable following chronic monocular deprivation (cMD) initiated at eye opening (Eaton et al., 2016). Additionally, following prolonged monocular deprivation, neurons in the dorsal lateral geniculate nucleus (dLGN) that project to deprived binocular visual cortex have lower metabolism (Kennedy et al., 1981) and smaller somata (Duffy et al., 2018). cMD also significantly decreases the density of dendritic spines on pyramidal neurons in deprived binocular primary visual cortex (V1b) (Montey and Quinlan, 2011) and induces a 60% decrease in the thalamic component of the visually evoked potential (VEP, [Montey and Quinlan, 2011]).

The loss of synaptic plasticity in the primary visual cortex with age is thought to significantly impede the reversal of amblyopic deficits (Tailor et al., 2017). Strong evidence demonstrates that developmental changes in the induction of synaptic plasticity in V1 are regulated by the maturation of fast-spiking basket interneurons (INs) that express the Ca2+ binding protein parvalbumin (PV) (Gu et al., 2016; Gu et al., 2013; Morishita et al., 2015; Stephany et al., 2016; Sun et al., 2016). PV+ INs mediate the perisomatic inhibition of pyramidal neurons, thereby exerting powerful control of neuronal excitability and spike-timing dependent synaptic plasticity. Developmental changes in synaptic plasticity are also associated with the composition and density of the ECM, comprised of chondroitin sulfate proteoglycans (CSPGs) and hyaluronic acid, linked via cartilage link protein and tenascins (Carulli et al., 2010; Celio and Chiquet-Ehrismann, 1993; Morawski et al., 2014). Importantly, ECM molecules condense into perineuronal nets (PNNs) around a subset of PV+ INs, limiting their structural and functional plasticity by imposing a physical constraint and providing binding sites for molecules that inhibit neurite outgrowth (Dickendesher et al., 2012; Frantz et al., 2016; Stephany et al., 2016; Vo et al., 2013). PNNs also accumulate molecules that regulate PV+ IN excitability and maturation (Beurdeley et al., 2012; Chang et al., 2010; Hou et al., 2017).

Manipulations that reduce the integrity of the ECM/PNNs have been repeatedly shown to enhance plasticity in V1 and elsewhere. Treatment of adult V1 with the bacterial enzyme chondroitinase ABC (ChABC), which cleaves the CS side chains from the CSPGs, reactivates robust plasticity in rats (Pizzorusso et al., 2006; Pizzorusso et al., 2002). However, recovery from MD is incomplete in cats that receive ChABC following eye opening (Vorobyov et al., 2013). Enhancement of synaptic plasticity following ChABC treatment has also been demonstrated in many other brain regions (Carstens et al., 2016; Carstens and Dudek, 2019; Gogolla et al., 2009; Kochlamazashvili et al., 2010; Romberg et al., 2013; Zhao et al., 2007). Genetic ablation of cartilage link protein (Crtl1/Halpn1), which prevents the condensation of ECM molecules into PNNs, prevents the closure of the critical period for ocular dominance plasticity (Carulli et al., 2010). Dark rearing from birth produces a parallel delay in the maturation of ECM/PNNs and the closure of the critical period (Lander et al., 1997; Mower, 1991; Pizzorusso et al., 2002).

However, robust juvenile-like synaptic plasticity can be restored in adults by complete visual deprivation through DE followed by LRx (He et al., 2006). Our previous work demonstrated DE/LRx induces an increase in perisynaptic activity of MMP9 and subsequent proteolysis of extracellular targets in binocular adult mice (Murase et al., 2017). The proteinase activity induced by LRx is perisynaptic and enriched at thalamo-cortical synapses.Importantly, the reactivation of structural and functional plasticity by DE/LRx is inhibited by pharmacological blockade and genetic ablation of MMP9. Although Mmp9-/- mice are resistant to enhancement of plasticity by DE/LRx, treatment with hyaluronidase activates structural and functional plasticity in adults.

In adult rats rendered severely amblyopic by cMD from eye opening to adulthood, DE followed by reverse occlusion enables recovery of the VEP amplitude and dendritic spine density in deprived V1b (He et al., 2007; Montey and Quinlan, 2011). Subsequent visual training promotes a full recovery of visual acuity in the deprived eye (Eaton et al., 2016). A similar reactivation of plasticity by DE has been reported in several species (Duffy and Mitchell, 2013; Stodieck et al., 2014). However, it is not known if the reactivation of plasticity in the amblyopic cortex is dependent on MMP9 activity or if this pathway can be engaged by the severely compromised visual system of an amblyope. Here we use a biomarker that reports the activity of MMP2/9 in vivo to examine the effects of DE/LRx on extracellular proteolysis in amblyopic mice. We show that DE lowers the threshold for activation of MMP2/9 by light, such that LRx to the deprived eye is sufficient to induce perisynaptic proteolysis at thalamo-cortical synapses and ECM degradation in deprived visual cortex.

Results

LRx activates perisynaptic MMP2/9 activity at thalamo-cortical synapses in deprived and non-deprived V1b

To test the hypothesis that LRx to amblyopic mice induces an increase in perisynaptic proteinase activity in V1b, we employed an exogenous MMP2/9 substrate in which fluorescence emission is quenched by intramolecular FRET when the substrate is intact (DQ gelatin; D12054; excitation/emission = 495/519 nm). Proteolysis of the substrate interrupts FRET and allows fluorescence emission, thereby reporting enzymatic activity. MMP9 has highly overlapping substrate specificity with MMP2 (Szklarczyk et al., 2002), and therefore the exogenous substrate(hereafter called biomarker) reports the activity of both metalloproteinases. However, our previous work demonstrated that LRx does not induce an increase in biomarker expression in Mmp9-/- mice (Murase et al., 2017). The MMP2/9 biomarker was delivered to V1b in vivo 24 hr prior to the onset of LRx (2 mg/ml, i.c. via cannula implanted 3 weeks prior to injection; 4 μl at 100 nl/min) and fluorescence emissionwas quantified in layer 4 of V1b 4 hr after LRx. Ex vivo imaging revealed punctate MMP2/9 activity in the deprived and non-deprived V1b (Figure 1A) that was similar in size, density and fluorescence intensity as previously described in binocular adult mice (Murase et al., 2017). No differences were observed following cMD between deprived and non-deprived V1b biomarker puncta size (deprived: 0.77 ± 0.06 μm2, non-deprived: 0.83 ± 0.06 μm2), density (deprived: 22.9 ± 2.5 puncta/0.01 mm2, non-deprived: 28.9 ± 6.6 puncta/0.01 mm2) or intensity (deprived: 42.2 ± 2.8 pixel, non-deprived: 40.6 ± 2.8 pixel, n = 6 for deprived, n = 5 for non-deprived, Figure 1A). However, LRx induced a significant and parallel increase in MMP2/9 biomarker puncta density (deprived: 67.0 ± 8.0 puncta/0.01 mm2, non-deprived: 70.2 ± 14.7 puncta/0.01 mm2) and puncta intensity (deprived: 55.6 ± 2.6 pixel, non-deprived: 54.6 ± 2.8 pixel) in deprived and non-deprived V1b, with no difference in puncta size (deprived: 0.88 ± 0.06 μm2, non-deprived: 0.86 ± 0.06 μm2, n = 6 subjects, One-way ANOVAs, density F(3, 19)=6.7, p=0.003; intensity F(3, 19)=8.4, p=0.0009; size F(3, 19)=0.52, p=0.67; *p<0.05, Tukey-Kramer post hoc test; Figure 1A).

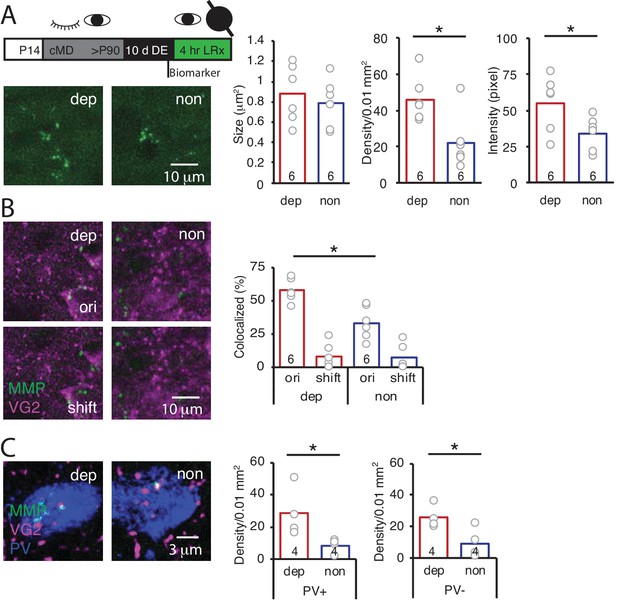

Parallel increase in MMP2/9 activity following LRx at thalamo-cortical synapses in deprived and non-deprived V1b.

(A) Top: Experimental timeline. Subjects received cMD from eye opening (postnatal day 14, (P14) until adulthood (>P90). 10 days of DE was followed by 4 hr of LRx. MMP2/9 biomarker (4 μl of 2 mg/ml Dye-quenched gelatin) was delivered i.c. 24 hr prior to 4 hr of LRx. Middle left: Coronal section with DAPI nuclear staining. Layer 4 of binocular region of V1 indicated by red box. Middle right: representative images of MMP2/9 biomarker fluorescence in deprived (dep) and non-deprived (non) V1b in cMD (left) and cMD+LRx subjects (LRx, right). Bottom: Quantification of biomarker puncta reveals no change in puncta size (left), but a parallel and significant increase in puncta density (middle) and fluorescent intensity (right) in dep and non V1b following LRx. One-way ANOVAs, size F(3, 19)=0.52, p=0.67; density F(3, 19)=6.7, p=0.003; intensity F(3, 19)=8.4, p=0.0009; n = 6, 5, 6, 6 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test. (B) Representative images of MMP2/9 biomarker fluorescence (MMP; green) and marker for thalamic axons (VG2; magenta) in deprived visual cortex in cMD and cMD+LRx subjects. A parallel and significant increase in colocalization of biomarker puncta with VGluT2 following LRx in dep and non V1b. One-way ANOVA, F(3, 19)=9.5, p=0.0005; n = 6, 5, 6, 6 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test. Co-localization with VGluT2 is lost following 2 μm shift of biomarker image (shift). (C) Representative images of MMP2/9 biomarker (green), VGluT2 (magenta) and parvalbumin fluorescence (PV; blue) in deprived and non-deprived cMD and cMD+LRx subjects. Significant increase in co-localization of biomarker puncta with VGluT2 at PV+ and PV-locations of dep and non V1b following LRx. One-way ANOVAs, PV+ F(3, 12)=17.33, p=0.00012; PV- F(3, 12)=56.17, p<0.0001; n = 4, 4, 4, 4 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test. (D) Left: Representative immunoblots for active MMP9 (95 kDa), and β-actin from dep and non V1b. MMP9 level is normalized to β-actin and reported as % of cMD non. Right: Quantification of immunoblots reveals a parallel and significant increase in active MMP9 in dep and non V1b following 2 hr of LRx. One-way ANOVA, F(3, 26)=5.6, p=0.004; n = 7, 7, 8, 8 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively: *p<0.05, Tukey-Kramer post hoc test.

Biomarker puncta co-localization with thalamic axons, labelled with anti-vesicular glutamate transporter 2 (VGluT2) antibody, was low in deprived and non-deprived V1b of amblyopes (~30%), as previously described in binocular adults. LRx induced a significant and parallel increase in biomarker co-localization with VGluT2 in deprived and non-deprived V1b, indicating an increase in MMP2/9 activity at thalamo-cortical synapses (deprived: 161 ± 6%, non-deprived: 199 ± 17%, n = 6, 5, 6, 6 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; One-way ANOVA, F(3, 19)=9.5, p=0.0005; *p<0.05, Tukey-Kramer post hoc test; Figure 1B). To control for false positives, we re-analyzed the co-localization following a 2 μm shift of the biomarker image relative to VGlut2. Following this manipulation we observe low co-localization of the two fluorescent signals that was unchanged by LRx (cMD dep: 7.8 ± 3.0%, cMD non-dep: 5.3 ± 2.7%, LRx dep: 6.9 ± 3.0%, LRx non-dep: 8.4 ± 3.0%) which differs significantly from co-localization of the 2 images (cMD dep: p=0.0029, cMD non-dep: p=0.036, LRx dep: p=1.5×10−5, LRx non-dep: p=9.5×10−6, paired Student’s T-Test, Figure 1B). The LRx-induced increase in co-localization of biomarker and VGluT2 was observed at PV+ neuronal somata and in PV- locations, suggesting widespread activation of perisynaptic MMP2/9 (dep: 625.3 ± 50.1%, non: 484.1 ± 35.2% for PV+, dep: 361.7 ± 34.5%, non: 537.1 ± 85.4% for PV-, n = 4 subjects; One-way ANOVA, PV+ F(3, 12)=17.33, p=0.00012; PV- F(3, 12)=56.17, p<0.0001; *p<0.05, Tukey-Kramer post hoc test; Figure 1C).

To ask if the increase in MMP biomarker fluorescence reflects an increase in the activation of MMP9, we performed quantitative western blots for the active MMP9 isoform (95 kDa), which can be distinguished from inactive pro-MMP9 (105 kDa, [Szklarczyk et al., 2002]). Quantitative immunoblot analysis showed that DE followed by 2 hr of LRx significantly increased the concentration of active MMP9 in parallel in deprived and non-deprived V1b of adult cMD mice (% of cMD dep: 133.04 ± 9.1%; non: 131.37 ± 8.9%; n = 7, eight subjects for cMD and LRx, respectively; One-way ANOVA, F(3, 26)=5.6, p=0.004; *p<0.05, Tukey-Kramer post hoc test; Figure 1D).

LRx induces a parallel degradation of ECM in deprived and non-deprived V1b

MMP9 has several extracellular targets, including aggrecan (Agg) the predominant CSPG in the ECM of the adult mammalian cortex (Mercuri et al., 2000). To test the hypothesis that LRx to the amblyopic cortex induces ECM degradation, we examined the distribution of Wisteria floribunda agglutinin (WFA), a plant lectin that binds to the CS side chains of CSPGs, combined with immunoreactivity for Agg and PV. Diffuse WFA and Agg fluorescence was observed throughout the depth of the V1b, with a peak between 250–400 μm from the cortical surface. In addition, WFA and Agg fluorescence was concentrated around the perisomatic area of a subset of PV+ INs (Figure 2A and B, WFA and IHC of PV in Figure 2—figure supplement 1). Importantly, the intensity and distribution of WFA and Agg fluorescence were similar between deprived and non-deprived V1b. LRx induced a significant decrease in the intensity of WFA and Agg, but not PV labeling, 250 μm-400 μm from the cortical surface (mean ± SEM; % of cMD, WFA dep 54.3 ± 3.5, non 46.3 ± 3.4, One way ANOVAs, F(3, 26)=32, p<0.0001; Agg dep 62.3 ± 3.1, non 54.3 ± 4.5, F(3, 26)=10, p=0.0001; PV dep 105.0 ± 6.9, non 96.4 ± 4.5; F(3, 26)=0.4, p=0.75; n = 7, 7, 8, 8 subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test; Figure 2C). Line scans of triple-labeled images revealed that the decrease in WFA and Agg staining was observed at PV+ and PV- locations suggesting widespread degradation of ECM upon LRx (% of cMD, WFA PV+ dep 56.3 ± 2.1, non 55.4 ± 2.1; One-way ANOVAs, F(3, 309)=40.3, p<0.0001; WFA PV- dep 69.5 ± 1.9, non 66.8 ± 1.3; F(3, 309)=30.1, p<0.0001; Agg PV+ dep 61.9 ± 1.4, non 60.2 ± 1.4; F(3, 309)=29.4, p<0.0001; Agg PV- dep 77.1 ± 1.2, non 71.0 ± 1.3; F(3, 309)=18.7, p<0.0001; n (subjects, ROIs)=(5, 77 , 5, 73 , 5, 81 , 5, 82), for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test; Figure 2D).

Figure 2 with 1 supplement see all

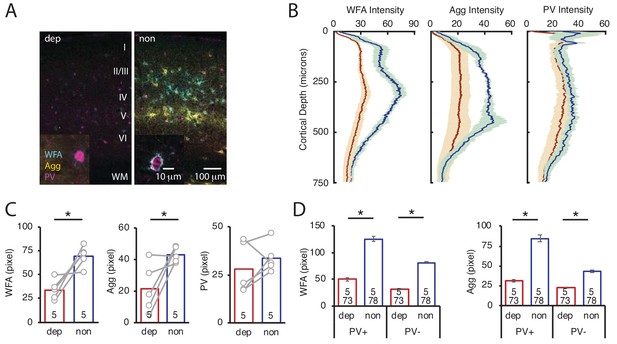

Parallel decrease in ECM integrity following LRx in deprived and non-deprived V1b.

(A) Representative triple labeled fluorescent micrographs of Wisteria floribunda agglutinin (WFA)-FITC staining (cyan), immunostaining for aggrecan (Agg; yellow) and parvalbumin (PV; magenta) in deprived (dep) and non-deprived (non) V1b in cMD (left) and cMD+LRx subjects (LRx, right). Roman numerals indicate cortical layer. WM = white matter. Inset: High magnification images of triple labeled PV+ interneurons (100X). (B) Fluorescence intensity profiles (mean ± SEM) along vertical depth of V1b. cMD dep (dark blue), cMD non (light blue), LRx dep (dark red), LRx non (red). (C) A parallel and significant decrease in WFA and Agg mean fluorescence intensity 250–400 μm from surface in dep and non V1b following LRx. One-way ANOVAs, WFA F(3, 26)=32, p=0.0001; Agg F(3, 26)=10, p=0.0001; PV F(3, 26)=0.4, p=0.75; n = 7, 7, 8, eight subjects for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test. (D) LRx induces a significant decrease in WFA and Agg fluorescence intensity at PV+ and PV-locations in dep and non V1b. One-way ANOVAs, WFA PV+, F(3, 309)=40.3, p<0.0001; WFA PV-, F(3, 309)=30.1, p<0.0001; Agg PV+, F(3, 309)=29.4, p<0.0001; Agg PV-, F(3, 309)=18.7, p<0.0001; n (subjects, ROIs)=(5, 77 , 5, 73 , 5, 81 , 5, 82), for cMD dep, cMD non, LRx dep, LRx non, respectively; *p<0.05, Tukey-Kramer post hoc test.

LRx to cMD eye is sufficient to activate MMP2/9 at thalamic input to deprived V1

The LRx-induced increase in MMP2/9 activity and degradation of ECM in the deprived V1b could reflect activity of either deprived or non-deprived eye inputs to V1b. To ask if LRx to the amblyopic eye was sufficient to drive an increase in MMP2/9 activity in deprived V1b, LRx was delivered to adult amblyopes with a light-occluding eye patch covering the non-deprived eye. LRx restricted to the amblyopic eye induced an increase in MMP2/9 biomarker density and intensity in layer four in deprived V1b (contralateral to the cMD eye, ipsilateral to eye patch) relative to non-deprived V1b (ipsilateral to the cMD eye, contralateral to eye patch; density: 208.8 ± 23.1% of non, n = 6 subjects, p=0.014; intensity: 161.1 ± 22.9% of non, n = 6 subjects, p=0.046, Student’s T-test), with no change in biomarker puncta size (111.7 ± 14.8% of non, n = 6 subjects, p=0.56, Student’s T-test; Figure 3A). Similarly, LRx restricted to the amblyopic eye induced a significant increase in the co-localization of MMP2/9 biomarker puncta with VGluT2 in deprived relative to non-deprived V1b (dep: 57.8 ± 3.5%; non: 33.4 ± 5.0%, n = 6 subjects, p=0.0026, Student’s T-test; Figure 3B). Co-localization with VGluT2 following a 2 μm shift of the biomarker image was low: dep: 8.0 ± 3.9%; non: 7.0 ± 3.9%, and significantly different from co-localization with the two images correctly registered (dep: p=3.2×10−5; non: p=0.0017, paired Student’s T-test; Figure 3B). Again, the LRx-induced increase in co-localization of MMP2/9 biomarker and VGluT2 was observed at PV+ and PV- locations (PV+: 334 ± 91% of non, n = 4 subjects, p=0.04, PV-: 271 ± 38% of non, n = 4 subjects, p=0.03, Student’s T-test; Figure 3C).

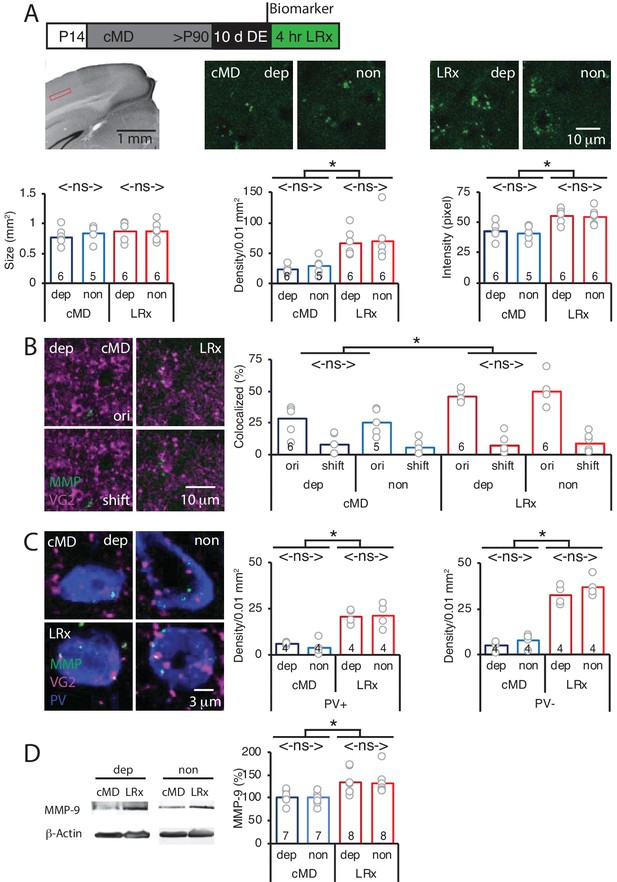

LRx limited to deprived eye is sufficient to induce perisynaptic MMP2/9 activity at thalamo-cortical synapses in deprived V1b.

(A) Top: Experimental timeline. A light-occluding eye patch was attached to the non-deprived eye before DE. Bottom left: Representative images of MMP2/9 biomarker fluorescence in layer 4 of chronically deprived (dep, contralateral to cMD, ipsilateral to eye patch) and non-deprived (non, ipsilateral to cMD, contralateral to eye patch) V1b of LRx subject. Quantification of biomarker puncta reveals a significant increase in density and intensity in dep vs non V1b following LRx to amblyopic eye; n = 6, six subjects for LRx dep, LRx non, respectively; *p<0.05, Student’s T-test. (B) Representative images of MMP2/9 biomarker fluorescence (MMP, green) and VGluT2 immunoreactivity (VG2, magenta) in dep and non V1b of LRx subject. A significant increase in biomarker colocalization with VGluT2 in dep vs non V1b following LRx to amblyopic eye; n = 6, six subjects for LRx dep, LRx non, respectively; *p<0.05, Student’s T-test. Co-localization with VGluT2 is reduced following 2 μm shift of biomarker image (shift). (C) Representative images of MMP2/9 biomarker (green), VGluT2 (magenta) and parvalbumin fluorescence (PV, blue) in dep and non V1b following LRx. A significant increase in co-localization of MMP2/9 biomarker puncta with VGluT2 at PV+ and PV- immunoreactive locations of dep vs non V1b; n = 4; *p<0.05, Student’s T-test.

LRx to deprived eye is sufficient to induce ECM degradation in deprived V1b

To ask if LRx restricted to the amblyopic eye is sufficient to induce ECM degradation in deprived V1b, we again employed a light-occluding patch on the non-deprived eye. LRx to the deprived eye alone induced a decrease in the mean fluorescence intensity of WFA and Agg in layer 4 of deprived V1b (contralateral to cMD eye, ipsilateral to eye patch) relative to non-deprived V1b (ipsilateral to cMD eye, contralateral to eye patch; quantified 250 μm - 400 μm from the cortical surface: WFA: 48.7 ± 7.0% of non, n = 5 subjects, p=0.0009; Agg: 50.2 ± 16.1% of non, n = 5 subjects, p=0.02, Student’s T-test), with PV fluorescence unchanged (83.3 ± 17.7% of non-deprived, n = 5 subjects, p=0.4, Student’s T-test; Figure 4A–C, WFA and IHC of PV in Figure 4—figure supplement 1). Line scans of triple-labeled images revealed that the decrease in WFA and Agg staining was observed at PV+ and PV- locations (% of non: WFA PV+: 40.1 ± 2.4%, WFA PV-38.7 ± 1.0%, Agg PV+: 37.0 ± 1.9%, Agg PV-: 52.4 ± 2.0% of non; all p<0.001, Student’s T-test; n (subjects, ROIs) = (5, 73 , 5, 78), for LRx dep, LRx non, respectively; Figure 4D).

Figure 4 with 1 supplement see all

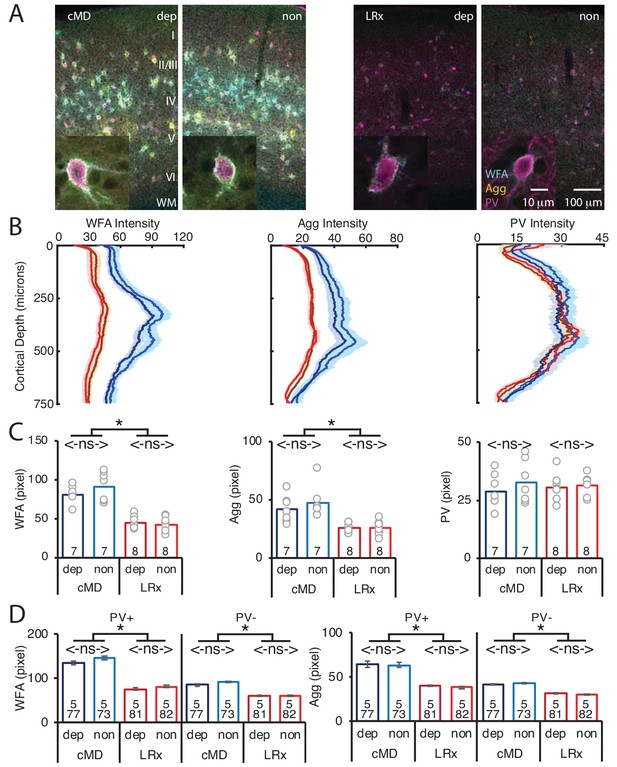

LRx limited to deprived eye is sufficient to decrease ECM integrity in deprived V1b.

(A) Representative triple labeled fluorescent micrographs of WFA-FITC staining (cyan), immunostaining for aggrecan (Agg; yellow) and parvalbumin (PV; magenta) of deprived (dep, contralateral to cMD, ipsilateral to eye patch) and non-deprived (non, ipsilateral to cMD, contralateral to eye patch) V1b after LRx to amblyopic eye. Roman numerals indicate cortical layer. WM = white matter. Inset: High magnification images of triple labeled PV+ interneurons (100X). (B) Fluorescence intensity profiles (mean ± SEM) along vertical depth of V1b. Dep LRx (dark red), non LRx (blue). (C) A significant decrease in WFA and Agg mean fluorescence intensity 250–400 μm from surface in dep V1b; n = 5; *p<0.05, Student’s T-test. (D) LRx-induced a significant decrease in WFA and Agg fluorescence intensity at PV+ and PV-locations in dep V1b; n (subjects, ROIs)=(5, 73 , 5 78), for LRx dep, LRx non, respectively; *p<0.05, Student’s T-test.

DE regulates threshold for perisynaptic MMP2/9 activation

Our previous work demonstrated that MMP2/9 biomarker expression is low in the adult visual cortex, indicating that ambient light does not typically stimulate activatioin of this proteinase (Murase et al., 2017). The robust induction of MMP2/9 activity by reintroduction to ambient light, therefore, suggests that DE may lower the threshold for MMP2/9 activation. To test this prediction, we used two-photon live imaging of the MMP2/9 biomarker in awake binocular mice. In these experiments, visual deprivation must be maintained during i.c. delivery of the MMP2/9 biomarker and during two-photon imaging following DE. To achieve this, we designed a novel imaging chamber containing an aperture for the placement of the objective on the cranial imaging window without light exposure (Figure 5A). In addition, we employed a small peptide MMP2/9 biomarker (A580, Mw: 1769, Anaspec) that diffuses ~1 cm from the injection site, which allowed delivery at the cranial window margin. The biomarker is a synthetic substrate for MMP2/9, containing a C-terminal fluorescent donor carboxy-tetramethyl-rhodamine (TAMRA) and an N-terminal non-fluorescent acceptor QXL (quencher) for intramolecular FRET. In the absence of MMP2/9 activity intramolecular FRET (from TAMRA to QXL) quenches fluorescence emission following excitation at 547 nm. If the peptide is cleaved by MMP2/9, intramolecular FRET is interrupted. We cfirst onfirmed the fluorescence emission peak (Em max = 585 nm) following excitation at 545 nm (Figure 5B) in vitro, demonstrating that the biomarker reports the activation of recombinant MMP. In vivo 2P live imaging of biomarker was acquired simultaneously with GFP in pyramidal neurons following AAV-CAMKII-GFP delivery. Adult mice received DE for 10 d prior to 40 s of light stimulation (470 nm LED, 1 Hz flash). Dual imaging of biomarker and GFP revealed that both signals remained stable in the absence of visual stimulation (light intensity = 0 cd/m2). In contrast, stimulation with moderate intensity light (300 cd/m2; equivalent to luminance in the laboratory) induced an increase in raw fluorescence and biomarker ΔF/F of the biomarker, but not co-localized GFP (Figure 5C). Population data reveals a significant increase in biomarker fluorescence in DE subjects following moderate intensity light stimulation (repeated measure ANOVA, F(1, 22), p<0.001; n = 12 puncta from three subjects; *p<0.001, Tukey-Kramer post hoc test; Figure 5D). The change in biomarker fluorescence was similar to that observed following higher intensity light stimulation (150,000 cd/m2, equivalent to direct sunlight at noon; One-way ANOVA, F(2, 40)=6.3, p=0.0042, n = 12, 12, 19 puncta from three subjects each, for 0, 300, 150,000 cd/m2, respectively; Figure 5E). Importantly, moderate intensity light stimulation (300 cd/m2) was insufficient to induce an increase in biomarker fluorescence in control (0 hr DE) or dark-adapted (18 hr DE) subjects (Figure 5E). To confirm the specificity of the biomarker in reporting activity of MMP2/9, DE subjects were stimulated with high intensity light in the presence of a potent and specific inhibitor of MMP9 (Inhibitor I, CAS 1177749-58-4; IC50 = 5 nM). Co-delivery of MMP9 inhibitor (MMP9i, 5 nM 4 μl at 100 nl/min) with biomarker 24 hr prior to LRx inhibited the increase in biomarker fluorescence by high intensity light (n = 13 puncta from 3 subjects for 0 and 150,000 cd/m2; Student’s T-test; p=0.13). Together this demonstrates that DE lowers the threshold for light-induced MMP2/9 activation in the adult visual cortex.

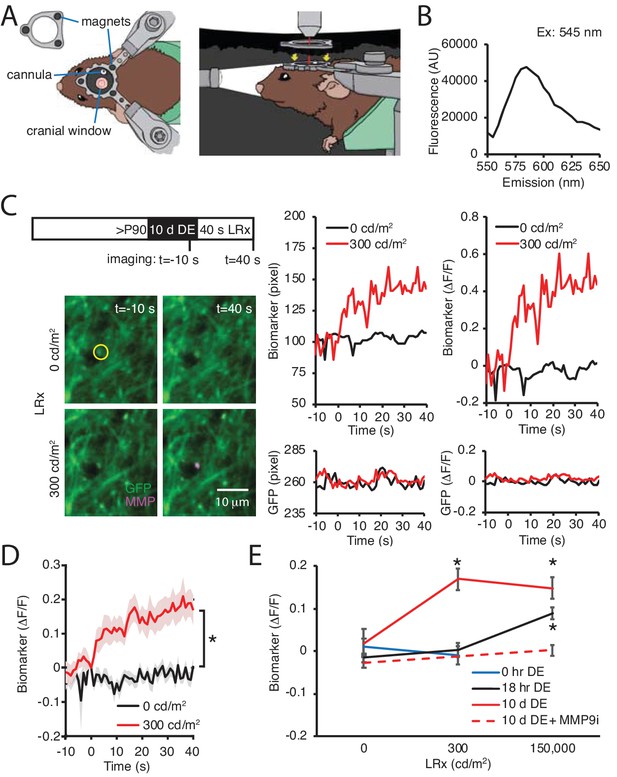

DE lowers the threshold for light-induced activation of MMP2/9.

(A) Dark chamber with an imaging window allows maintenance of visual deprivation during two photon live imaging of MMP2/9 biomarker. Left drawing: Top view of a subject wearing a custom aluminum headpost (1 cm diameter) magnetically held to an o-ring in the blackout ceiling of the dark camber (inset; 3 mm diameter magnets APEX magnets; magnetic field generation around V1,<20 gauss). The headpost is secured to a stereotax. The cannula for biomarker delivery is adjacent to theimaging window margin. Right drawing: Side view of a subject in the dark chamber. The headpost is magnetically attached to the o-ring opening of the blackout ceiling (magnet locations, yellow arrows). (B) In vitro emission spectrum of MMP2/9 biomarker A580 (2 ng/ml) incubated with activated rat recombinant MMP9 (rrMMP9, 100 ng). (C) Inset: Experimental timeline. Adult (>P90) WT mice received AAV-CaMKII-GFP~2 weeks before 10 d of DE. Biomarker was delivered 24 hr before imaging. Subjects received 40 s of light stimulation (1 Hz flash of 470 nm LED at 0 or 300 cd/m2). Left: Representative images of GFP (green) and biomarker (MMP, magenta) signals in V1b 10 s prior or 40 s after light stimulation at 0 or 300 cd/m2 in a DE subject. Right: Time course of raw fluorescent intensities (pixel) and ΔF/F of MMP biomarker (top) and co-localized GFP (bottom) within the single ROI denoted by yellow circle, from 10 s before (−10) to 40 s after (+40) light stimulation of 0 or 300 cd/m2 in a DE subject. (D) Summary data: Time course of ΔF/F of MMP biomarker from −10 s to +40 s of light stimulation of 0 or 300 cd/m2 in DE subjects. ΔF/F of MMP biomarker was stable in absence of visual stimulation (0 cd/m2) and increased over time in response to 300 cd/m2 light stimulation (mean ± SEM; Repeated measure ANOVA, F(1, 22), *p<0.001; n = 12 puncta from three subjects each). (E) Biomarker ΔF/F +40 s relative to 0 s as a function of DE (0, hr, 18 hr or 10 d) and light intensity (0, 300, or 150,000 cd/m2). Moderate intensity light did not induce a change in biomarker fluorescence in the absence of DE (blue line, p=0.49, Student’s T-test; n = 11, 10 puncta for 0 and 300 cd/m2, respectively). Following 18 hr of dark adaptation, a significant increase in biomarker fluorescence was observed in response to high, but not moderate intensity light (black line, One-way ANOVA, F(2, 45)=11.5, p<0.0001; n = 12, 12, 24 puncta for 0, 300, 150,000 cd/m2, respectively, *p<0.05, Tukey-Kramer post hoc test). Following 10 d DE, moderate and high intensity light significantly increased biomarker fluorescence (solid red line, One-way ANOVA, F(2, 40)=6.3, p=0.0042; n = 12, 12, 19 puncta for 0, 300, 150,000 cd/m2, respectively, *p<0.05, Tukey-Kramer post hoc test). The increase in biomarker fluorescence by 150,000 cd/m2 stimulation to 10 d DE subjects was inhibited by an MMP9 inhibitor delivered 24 hr before visual stimulation (MMP9i; 5 nM delivered i.c. 24 hr prior to LRx, dashed red line, p=0.13 Student’s T-test; n = 13 puncta for 0 and 150,000 cd/m2).

Discussion

Activity-dependent induction of perisynaptic proteolysis is a powerful mechanism to couple experience with the activation of synapse-specific plasticity. Indeed, in the adult visual cortex, the threshold for activation of MMP2/9 is high and basal activity is low, favoring stability over plasticity. Brief dark-adaptation does not modify the basal activity of MMP2/9, consistent with the stability of the ECM over the light/dark cycle. In contrast, prolonged DE lowers the threshold for the induction of perisynaptic MMP2/9 activity, allowing for moderate light stimulation to trigger proteolysis in V1b. Following prolonged DE, LRx restricted to the amblyopic eye is sufficient to induce a robust and widespread increase in MMP2/9 activity, including at thalamic inputs to cortical neurons, which is blocked by a potent and specific inhibitor of MMP9. These observations, in conjunction with our previous demonstration that MMP2 activity was unchanged following LRx (Murase et al., 2017) indicate that the induction of MMP9-dependent perisynaptic proteolysis at thalamic inputs to cortical neurons by ambient light is enabled in the amblyopic visual by DE/LRx.

Prolonged DE induces several changes in the composition of function of synapses in the primary visual cortex that may influence the activation threshold for MMP2/9. For example, during DE, the NMDA subtype of glutamate receptor reverts to the juvenile form, characterized by the presence of high levels of GluN2B subunit and an increase in the temporal summation of NMDAR-mediated EPSCs (He et al., 2006; He et al., 2007Yashiro et al., 2005). The change in NMDAR composition and function predicts that the threshold for Hebbian synaptic plasticity is lowered by DE (Cooper and Bear, 2012). Indeed, following 3 days of DE, spontaneous activity is sufficient to induce an GluN2B-dependent potentiation of excitatory synapse strength in V1 (Bridi et al., 2018). However, prolonged DE alone does not induce a change in MMP2/9 biomarker expression or ECM integrity (Murase et al., 2017).

It is well-appreciated that Hebbian plasticity is reduced at thalamo-cortical synapses early in postnatal development, and this loss is associated with the closure of critical periods in barrel, visual and auditory cortices (Crair and Malenka, 1995; Glazewski and Fox, 1996; Kirkwood et al., 1995; Sun et al., 2018). The sparse co-localization of MMP2/9 biomarker with VGluT2 in binocular and amblyopic adults demonstrates that baseline activity of the protease is also low at thalamo-cortical synapses. Indeed, MMP2/9 activity is 3X higher in VGluT1+ cortico-cortical synapses than VGluT2+ thalamo-cortical synapses in binocular adult mice reared in a normal light:dark cycle. DE alone does not increase MMP9 activity at thalamo-cortical synapses or change the amplitude of optogenetically-evoked thalamo-cortical EPSCs (Petrus et al., 2014). In contrast, LRx induces an increase in perisynaptic MMP2/9 activity that is highly enriched at thalamo-cortical synapses in V1b in binocular and amblyopic adult mice. LRx stimulates a 2X increase in MMP2/9 activity at VGluT2+ relative to VGluT1+ synapses, consistent with different trheshold for activation at different classes of synapses. We have previously shown that the LRx induced perisynaptic proteolysis at thalamic inputs to PV+ INs is coincident with a decrease in the visually-evoked activity in FS INs in binocular adults (Murase et al., 2017). However, the LRx-induced increase in MMP2/9 activity in PV+ and PV- locations predicts enhanced plasticity at thalamic inputs to multiple classes of neurons in the adult cortex.

Several mechanisms could contribute to the activity-dependent homeostatic regulation of MMP9. MMP9 is activated following cleavage from the inactive pro-MMP9 by other proteases, including plasmin (Davis et al., 2001) and inhibited endogenously by tissue inhibitor of metalloproteinase 1 (TIMP1, [Candelario-Jalil et al., 2009]). Although TIMP1 is co-released from vesicles with MMP9 (Sbai et al., 2008), activity-dependent stimulation of synaptic mRNA translation (Dziembowska et al., 2012) could perturb the ratio of MMP9 to TIMP1 at thalamo-cortical synapses. Alternatively, the activation of MMP9 at thalamo-cortical synapses by LRx may be due to synapse-specific release of tissue activator of plasminogen (tPA, [Lochner et al., 2006]) or synapse-specific Ca2+ signaling, as inhibition of CaMKII blocks depolarization-induced proteolysis by MMP9 (Peixoto et al., 2012). Indeed, tPA levels increase following MD in the visual cortex during critical period (Mataga et al., 2004). However, the tPA-induced increase in dendritic spine motility is occluded by MD only in extragranular and infragranular layers (Oray et al., 2004), indicating that endogenous tPA activity may be weak in thalamo-recipient granular layer.

The role of MMP9 in the promotion of synaptic plasticity has been best described in the hippocampus. LTP-inducing tetanic stimulation of CA1 neurons in slices from adult rats increases perisynaptic MMP9 activity at CA3 neuron dendritic spines (Bozdagi et al., 2007). Similarly, an increase in perisynaptic MMP9 activity has been shown to be coincident with the enlargement of dendritic spines induced by a chemical LTP protocol (Szepesi et al., 2014). MMP9 activity has also been correlated with synaptic weakening and synaptic loss in the hippocampus (Bemben et al., 2019; Peixoto et al., 2016). Interestingly, in kindling-induced epilepsy, MMP9 activity is associated with the pruning of dendritic spines and aberrant synaptogenesis after mossy fiber sprouting in hippocampus (Wilczynski et al., 2008).

MMP9 has been implicated in the response to MD during the critical period, in which a rapid, NMDAR-dependent depression of synapses serving the deprived eye is followed by a slow potentiation of synapses serving the non-deprived eye. Accordingly, non-deprived eye strengthening may compensate for deprived eye weakening to maintain activity levels in the deprived visual cortex. The similarity in ECM integrity in the visual cortex contralateral versus ipsilateral to the chronically deprived eye supports this idea Accordingly, non-deprived eye strengthening may compensate for deprived eye weakening to maintain activity levels in the deprived visual cortex. The similarity in ECM integrity in the visual cortex contralateral versus ipsilateral to the chronically deprived eye supports this idea. Deprived eye depression persists following short-term pharmacological inhibition of MMP9 in rats, but non-deprived eye strengthening is inhibited (Spolidoro et al., 2012). However, both deprived eye weakening and non-deprived eye strengthening were compromised following brief MD during the critical period in the Mmp9-/- mouse (Kelly et al., 2015).

Our previous work demonstrates that the full recovery from cMD in adulthood requires reverse deprivation and subsequent visual training after DE (Eaton et al., 2016; He et al., 2007). However, asynchronous activity through the reverse deprived eye could depress deprived eye synapses and transfer amblyopia to the originally non-deprived eye (Mitchell, 1991). Here we employed a light-occluding eye patch to block the low spatial frequency vision that persists during monocular lid suture. Interestingly, we observed no change in perisynaptic MMP2/9 activity or ECM integrity in V1b contralateral to the occluding patch.

An array of homeostatic mechanisms have been described in the central nervous system that serve to maintain the range of circuit function following changes in activity patterns (Abraham, 2008; Keck et al., 2017; Li et al., 2019). In response to a severe reduction in activity, the strength of inhibitory synapses onto excitatory neurons decreases, while the strength of excitatory synapses on excitatory neurons and intrinsic excitability increase (Blackman et al., 2012; Chang et al., 2010; Desai et al., 1999; Turrigiano et al., 1998). In contrast, a reduction in excitatory drive lowers the threshold for Hebbian plasticity, promoting the potentiation of active synapses (Cooper and Bear, 2012). Here we expand the list of synaptic parameters that are regulated homeostatically by demonstrating the lowereing of the threshold for light-induced activation of MMP2/9 following DE. In vivo live imaging of the MMP2/9 biomarker revealed that ambient light was sufficient to induce perisynaptic MMP2/9 activity only after prolonged DE. However, 18 hr of dark adaptation induced response to high intensity light. The LRx induced increase in biomarker fluorescence was blocked by a potent and specific inhibitor of MMP9.

Importantly, LRx through the amblyopic eye is sufficient to trigger perisynaptic MMP2/9 activity and reduce ECM integrity, suggesting that deprived eye stimulation contributes to the reactivation of plasticity in amblyopic V1. The homeostatic regulation of the threshold for activity-dependent activation of MMP2/9 at thalamo-cortical synapses allows recruitment of this pathway by vision compromised by amblyopia.

Materials and methods

Subjects

C57BL/6J mice were purchased from Jackson Laboratory (Bar Harbor, ME). Equal numbers of adult (>postnatal day 90,>P90) males and females were used. Mice were raised in 12 hr light/dark cycle unless specified. Experiments were performed (or subjects were sacrificed) 6 hr into the light phase of a 12:12 hr light:dark cycle. All procedures conformed to the guidelines of the University of Maryland Institutional Animal Care and Use Committee.

Chronic monocular deprivation

Request a detailed protocol

Chronic monocular deprivation was performed at eye opening (P14). Subjects were anesthetized with 2.5% isoflurane in 100% O2 delivered via a modified nosecone. The margins of the upper and lower lids of one eye were trimmed and sutured together using a 5–0 suture kit with polyglycolic acid (CP Medical). Subjects were returned to their home cage after recovery at 37°C for 1–2 hr, and disqualified in the event of suture opening.

MMP2/9 biomarkers and MMP9 inhibitor

Request a detailed protocol

MMP2/9 biomarkers (DQ gelatin; D12054, ThermoFisher Scientific, 2 mg/ml, or A580, AS-60554, Anaspec, 10 μg/ml) and MMP9 inhibitor (MMP9 inhibitor I, MMP9i, EMD, 5 nM) were delivered 24 hr prior to LRx through cannulae (2 mm projection, PlasticsOne) implanted ~3 weeks prior to injection. A total volume of 4 μl at 100 nl/min was delivered via a Hamilton syringe attached to a Microsyringe Pump Controller (World Precision Instruments). DQ-gelatin and A580 are exogenous FRET substrates for MMP2/9 in which fluorescence emission is blocked by intramolecular quenching (DQ gelatin; D12054; excitation/emission = 495/519 nm). Proteolysis of the substrate relieves the quenching, such that fluorescence emission reports enzymatic activity. A580 MMP Substrate 1 (AnaSpec) is a 1768 D synthetic peptide ((QXL 570 - KPLA - Nva - Dap(5 - TAMRA) - AR - NH2), containing a C-terminal fluorescent donor carboxy-tetramethyl-rhodamine (TAMRA; 5-TAMRA (547/574 nm Abs/Em) and an N-terminal non-fluorescent acceptor QXL (quencher; Abs 570 nm) for intramolecular FRET. When the molecule is intact, intramolecular FRET (from TAMRA to QXL) quenches fluorescence emission following excitation at 547 nm. However, when the peptide is cleaved by MMP2/9, intramolecular FRET is interrupted, resulting in fluorescence with Em max = 585 nm at Ex = 545 nm. As FRET from donor to acceptor quenches fluorescence, there is no FRET signal resulting from direct activation of the acceptor molecule.

Antibodies

The following antibodies/dilutions were used: mouse anti-parvalbumin (PV, Millipore) RRID:AB_2174013, 1:2000; rabbit anti-aggrecan (Agg, Millipore) RRID:AB_90460, 1:500; rabbit anti-MMP9 (Cell Signaling) RRID:AB_2144612, 1:2000; mouse anti-β-actin (Sigma-Aldrich) RRID:AB_476744, 1:2000; guinea pig anti-VGluT2 (Millipore) RRID:AB_1587626, 1:2000; followed by appropriate secondary IgG conjugated to Alexa-488, 546 or 647 (Life Technologies) RRID:AB_2534089, RRID:AB_2534093, RRID:AB_2535805, RRID:AB_2534118, 1:1000.

Immunohistochemistry

Request a detailed protocol

Subjects were anesthetized with 4% isoflurane in O2 and perfused with phosphate buffered saline (PBS) followed by 4% paraformaldehyde (PFA) in PBS. The brain was post-fixed in 4% PFA for 24 hr followed by 30% sucrose for 24 hr, and cryo-protectant solution for 24 hr (0.58 M sucrose, 30% (v/v) ethylene glycol, 3 mM sodium azide, 0.64 M sodium phosphate, pH 7.4). Coronal sections (40 μm) were made on a Leica freezing microtome (Model SM 2000R). Sections were blocked with 4% normal goat serum (NGS) in 1X PBS for 1 hr. Antibodies were presented in blocking solution for 18 hr, followed by appropriate secondary antibodies. ECM was visualized with 5 μg/ml fluorescein wisteria floribunda lectin (WFA, Vector Labs) presented during incubation with secondary antibodies.

Confocal imaging and analysis

Request a detailed protocol

Images were acquired on a Zeiss LSM 710 confocal microscope. The cortical distribution of WFA-FITC, Agg and PV immunoreactivity was examined in a z-stack (3 × 10 μm images) acquired with a 10X lens (Zeiss Plan-neofluar 10x/0.30, NA = 0.30) and a z-stack (9–11 × 4.5 μm images) acquired with a 100X (Zeiss Plan-neofluar 100x/1.4 Oil DIC, NA = 1.3). Maximal intensity projections (MIPs; 450 μm width, 0–750 μm from cortical surface) were used to obtain mean intensity profiles in Fiji (NIH). Co-localization of MMP2/9 biomarker puncta with VGluT2 was analyzed in a single Z-section image taken at 40X, using Fiji. After the threshold function (auto threshold + 25) was applied to MMP2/9 biomarker and VGluT2 puncta, co-localized puncta were identified by size exclusion (0.2 μm2 < 2.0 μm2) using the ‘analyze particles’ function in Fiji. PV+ somata were identified by size exclusion (20–200 μm2) and fluorescence intensity (auto threshold + 25). Co-localization with VGluT2 was re-quantified following 2 μm shift of MMP2/9 biomarker images.

Fluorescence spectrum measurement of MMP2/9 biomarker

Request a detailed protocol

The small peptide MMP2/9 biomarker (A580) was dissolved in PBS (200 ng/ml) and incubated with 100 ng of activated rat recombinant MMP9 (rrMMP9, R and D Systems, according to activation protocol provided by the supplier) at 37° overnight with light protection. Fluorescence spectrum was measured with Cary Eclipse Spectrophotometer (Agilent Technologies).

Virus injection and cranial window implantation

Request a detailed protocol

For two-photon imaging in awake mice, GFP was expressed in excitatory neurons in V1b (AP: 1.0 mm, MD: −3.0 mm, DV: 0.3 mm) following AAV-CaMKII-GFP (titer, 4.3 × 1012 U/ml, UNC Vector Core) injected via a Hamilton syringe attached to a Microsyringe Pump Controller (World Precision Instruments) at a rate of 100 nl/min, total volume of 30 nl.

A cranial window consisting of 2, 3 mm diameter coverslips glued with optical adhesive (Norland71, Edmund Optics) to a 5 mm diameter coverslip was implanted as described (Goldey et al., 2014). Cannulae (2 mm projection, PlasticsOne) were implanted lateral to the imaging window. The gap between the skull and glass was sealed with silicone elastomer (Kwik-Sil). Instant adhesive Loktite 454 (Henkel) was used to adhere an aluminum head post to the skull and to cover the exposed skull. Black dental cement (iron oxide power, AlphaChemical mixed with white powder, Dentsply) was used to coat the surface to minimize light reflections. Subjects were imaged after 2–3 weeks of recovery.

Two-photon imaging

Request a detailed protocol

Awake subjects were clamped into a holding tube via a head post and placed in the dark imaging chamber. Prior to imaging session, the subjects were placed in the holding tube at least twice for 30 min each time for habituation. A two-photon microscope (ThorLabs) controlled by ThorImageLS software with a 16x NA 0.8 water immersion objective lens (Nikon) was used to acquire time lapse fluorescence images. A Chameleon Vision Ti:Sapphire laser (Coherent) was tuned to 940 nm, the excitation wavelength conventionally used for dual imaging (Supplementary materials for deprivation in the visual cortex in Rose et al., 2016), in order to simultaneously excite GFP and A580 (Ex max for GFP = 490 nm, for A580 = 547 nm). Fluorescence emission was separated into two channels using a dichroic mirror (cut off at 562 nm) and directed to separate GaAsP photomultiplier tubes (Hamamatsu) to capture GFP and MMP2/9 biomarker signals. Emission filters were placed in front of the PMTs (525 ± 25 nm for green,>568 nm for red). The field of view was 186.5 μm x 186.5 μm (512 × 512 pixels), 150 to 250 μm from the brain surface. Minimum laser power (59 mW) and PMT gain (60 for green, 100 for red) necessary to image at this depth was used. We confirmed no photobleaching by imaging. With this setting, the bleedthrough from GFP to the red channel was negligible. The same laser power and gain was used for all experiments. Images were acquired at 30 Hz by bidirectional scanning. After control images were acquired in the absence of light stimulation, visual stimulation was delivered at 300 cd/m2 or 150,000 cd/m2 at 1 Hz by a 470 nm LED placed 8 cm from subject’s eyes inside the dark imaging chamber. Luminance measurement was performed with Luminance meter nt-1° (Minolta). Movement artifacts were corrected with TurboReg plugin in Fiji using the same settings for all experiments with the average intensity of full image stack of GFP fluorescence was used as a template. Mean intensities of MMP2/9 biomarker puncta (30 frames) were analyzed with Fiji in circular regions with no background subtraction. Baseline F for ΔF/F was fluorescence at t = 0.

Western blot analysis

Request a detailed protocol

Mice were anesthetized with isoflurane (4% in 100% O2) and sacrificed following decapitation. The primary visual cortex was rapidly dissected in ice-cold dissection buffer (212.7 mM sucrose, 2.6 mM KCl, 1.23 mM NaH2PO4, 26 mM NaHCO3, 10 mM dextrose, 1.0 mM MgCl2, 0.5 mM CaCl2, 100 μM kynurenic acid; saturated with 95% O2/5% CO2). V1b was isolated using the lateral ventricle and dorsal hippocampal commissure as landmarks. Tissue was homogenized using a Sonic Dismembrator (Model 100, Fisher Scientific) in ice-cold lysis buffer (150 mM NaCl, 1% Nonidet P-40, 50 mM Tris-HCl, pH8.0) containing a protease inhibitor cocktail (Cat#11697498001, Roche). Protein concentration of the homogenate was determined using the BCA Protein Assay kit (Pierce). Equal amounts of total protein (20 μg per lane) were applied to a 12% SDS-polyacrylamide gel for electrophoresis and transferred to a nitrocellulose membrane. The membranes were incubated with a blocking solution (4% skim milk in 1X PBS) for 30 min. Primary antibodies were presented in the blocking solution for 2 hr, followed by appropriate secondary antibodies. Immunoreactive bands were visualized with a Typhoon TRIO Variable Imager (GE Healthcare). The intensity of immunoreactive bands of active MMP9 (95 kDa), which can be distinguished from inactive pro-MMP9 (~105 kDa, [Szklarczyk et al., 2002]), were analyzed using ImageQuant TL (rubber band background subtraction; GE Healthcare), and normalized to β-actin (38 kDa).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Matrix metalloproteinase-1 and -9 activation by plasmin regulates a novel endothelial cell-mediated mechanism of collagen gel contraction and capillary tube regression in three-dimensional collagen matrices
    1. GE Davis
    2. KA Pintar Allen
    3. R Salazar
    4. SA Maxwell
    (2001)
    Journal of Cell Science 114:917–930.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Versatile cranial window strategies for long-term two-photon imaging in awake mice
    1. GJ Goldey
    2. DK Roumis
    3. LL Glickfeld
    4. AM Kerlin
    5. RC Reid
    6. V Bonin
    7. ML Andermann
    (2014)
    Nature Protocols 9:2515–2538.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Andrew J King
    Senior Editor; University of Oxford, United Kingdom
  2. Sacha B Nelson
    Reviewing Editor; Brandeis University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Prolonged loss of visual input through one eye decreases the strength and selectivity of neuronal responses to that eye in the visual cortex, a process called amblyopia. However, subsequent reduction of vision in both eyes (dark rearing) can restore plasticity, permitting recovery of function. Previously, the authors showed that recovery of function requires activation of a metalloproteinase. The authors add to their earlier study by showing that the visual experience required to restore cortical plasticity by activating this metalloproteinase can occur through the amblyopic eye. This has important implications for clinical treatment of this disorder. In addition, the authors demonstrate a novel FRET assay for perisynaptic proteolysis in vivo.

Decision letter after peer review:

Thank you for submitting your work entitled "Homeostatic regulation of perisynaptic MMP9 activity in the amblyopic visual cortex" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

It is potentially suitable as a Research Advance following your previous study, but only if the claims of the manuscript can be further substantiated. In this case, the core observations need additional clarification and documentation, and probably additional experiments. In the discussion between the reviewers and editors, there was overall enthusiasm for the paper and so we encourage a resubmission, provided the core issues can be addressed. In addition to providing edited versions of the full reviews below, we have tried to indicate the strengths of the study and the key issues that need to be addressed in the revision.

Overall strengths of the study:

The authors add to their earlier study by showing that the visual experience required to restore cortical plasticity by activating matrix metaloprotease activity can occur through the amblyopic eye. This has important implications for clinical treatment of this disorder. In addition, the authors attempt to demonstrate a novel FRET assay for perisynaptic proteolysis in vivo. This latter portion of the study potentially increases its impact, but is not compelling in its present form.

Overall revision plan:

The key clarifications or additional experiments needed involve:

1) measurements that calibrate the 2-photon FRET imaging and that convincingly demonstrate a significant increase (e.g. the time course of that increase) after light exposure. Calibration (cited or done themselves) is needed to give us confidence that the sensor actually detects what it claims (other than the words on the manufacturer's website). It seems (from checking the manufacture's website) that they are activating the FRET by stimulating the GFP but it is not stated. The following questions need an answer: How was the DF/F calculated relative to the GFP signal, or biomarker signal? What evidence do we have that the imaging conditions were similar across the conditions?

2) More rigorous analysis of the co-localization including estimates that colocalization would be obtained by chance.

Reviewer #1:

The article by Murase et al. describes that one of the molecular mechanisms that is induced by light recovery following dark exposure (activation of MMP9), occurs in amblyopic animals just as it does in typically-raised animals (shown by Murase et al., 2017). In addition, the article provides evidence that expression of MMP9 occurs after dark exposure followed by light exposure at medium intensities (300 cd/m^2; matching a typical LCD computer monitor) or bright intensities (150k cd/m^2, about daylight) after either dark exposure or a shorter-duration (18 hours) dark exposure.

There are several methodological problems that will need correction.

First, the colocalization analysis is not rigorous. In order for the colocalization rates to be accurately reported, one would need to establish the expected rate of empirically counting a colocalization when there is not a synapse. In cortico-cortical synapses and in retina, confocal techniques are hopeless for this, as the density of synapses is higher than the resolution of the technique. It is possible that this is acceptable given the density of thalamocortical synapses, but no analysis is given that says this is the case. A relative increase can be argued based on the data here, but it is not eLife-quality in my opinion.

Second, the 2-photon imaging is poorly documented and poorly described. What is the FRET calibration? Apparently we are to take some δ F / F as evidence of some signal. Showing the signal over time (maybe measured every 1-2 minutes) would be one way to show convincingly that the signal increases in a meaningful way. Showing that the green signal is constant would also be helpful, but it would be better to quantify the FRET. Is there a citation where this is all given that is missing?

Third, it is important to give some comparisons for the light source. The luminance is described in units appropriate for a point source, but a surface is shown in Figure 5A. I imagined that 300 cd/m^2 is similar to a computer monitor in a dark room, and that 150k cd/m^2 is like daylight. This begs the question as to why 18 hours of darkness followed by typical daylight exposure might not be useful therapeutically? Perhaps this is an interesting discovery to be explored further?

Fourth, like 5% of scientists, I am red-green color-blind and can hardly make heads or tails of the red/green figures. It would be better to replace red with magenta (magenta = red + blue).

Reviewer #2:

In this manuscript by Murase et al., the authors expand on their previous finding outlining a case for a role of matrix metalloproteinases in restoring visual cortical plasticity with light reintroduction after dark exposure published in eLife in 2017. In the current study, the authors present compelling evidence that some of the same mechanisms (activation of MMP9) can be induced in a mouse model of amblyopia. The effect appears to be a robust one, with impressive differences in staining for their biomarker of MMP activity and for various extracellular matrix components throughout the cortical depth upon light reexposure. This Research Advance has important translational relevance in that it provides pre-clinical evidence that such a strategy could be promising as a way of restoring normal visions to patients with amblyopia. The data support the conclusions drawn. As the experiments were performed in a rigorous way, with methods similar to what the authors have published previously in eLife, I have only a few suggestions and requests for clarification [minor comments not shown].

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Homeostatic regulation of perisynaptic MMP9 activity in the amblyopic visual cortex" for further consideration by eLife. Your revised article has been evaluated by Andrew King as the Senior Editor, Sacha Nelson as the Reviewing Editor, and two peer reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The reviewers and editors agreed that the additional control for the analysis of co-localization (outlined below) is straightforward to implement, could be done quickly and would strengthen the paper.

Reviewer #1:

The manuscript is much improved and addresses most of the concerns very well.

I am a bit concerned that the 90 degree rotation as a control for the co-localization analysis doesn't really address the issue of chance co-localization. There are some regions of the image that correspond to cell bodies, which are practically without any label, so rotating the synaptic label onto these regions will naturally result in lower co-localization. It would be better to shift one of the images by 2 μm (or whatever the maximum exclusion zone size is) and re-calculate the co-localization to get a better sense of the chance co-localization in the regions where label is abundant.

https://doi.org/10.7554/eLife.52503.sa1

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Overall revision plan:

The key clarifications or additional experiments needed involve:

1) measurements that calibrate the 2-photon FRET imaging and that convincingly demonstrate a significant increase (e.g. the time course of that increase) after light exposure. Calibration (cited or done themselves) is needed to give us confidence that the sensor actually detects what it claims (other than the words on the manufacturer's website). It seems (from checking the manufacture's website) that they are activating the FRET by stimulating the GFP but it is not stated.

Thank you for the opportunity to clarify: the biomarker employed for 2P live imaging A580 MMP Substrate 1 (AnaSpec) is a 1768 D synthetic peptide substrate for MMP 2/9 ((QXL 570 – KPLA – Nva – Dap(5 – TAMRA) – AR – NH2), containing a C-terminal fluorescent donor carboxy-tetramethyl-rhodamine (TAMRA; 5-TAMRA (547/574 nm Abs/Em) and an N-terminal non-fluorescent acceptor QXL (quencher; Abs 570 nm) for intramolecular FRET. When the molecule is intact, i.e. in the absence of MMP 2/9 activity, intramolecular FRET (from TAMRA to QXL) quenches fluorescence emission following excitation at 547 nm. However, when the peptide is cleaved by MMP2/9, intramolecular FRET is interrupted, resulting in fluorescence with Em max = 585 nm at Ex = 545 nm (Figure 5B). In FRET applications that involve transfer from a fluorescent donor to a fluorescent acceptor, calibration is necessary to measure the fluorescence emission of the acceptor in the absence of FRET (i.e. direct activation of the acceptor during excitation of the donor), as a baseline to which all FRET signals are calibrated. However, the MMP biomarker peptide employed here, the FRET acceptor is non-fluorescent, such that FRET from donor to acceptor quenches fluorescence. In this case there is no FRET signal resulting from direct activation of the acceptor molecule, deeming calibration unnecessary. This is now included in the Materials and methods (subsection “MMP2/9 biomarkers and MMP9 inhibitor”).

In new Figure 5B, we present the fluorescent emission spectrum of the MMP 2/9 biomarker cleaved in vitro by recombinant active MMP9 with Em max = 585 nm at Ex = 545 nm. As described in the Materials and methods, in our 2P live imaging, the laser was tuned to 940 nm, the excitation wavelength conventionally used for dual acquisition of GCaMP and mRuby (Ex max for GCaMP=490 nm, for mRuby=558 nm, (Rose et al., 2016)), in order to simultaneously excite GFP and A580 (Ex max for GFP=490 nm, for A580=547 nm). The emission was separated into two channels using a dichroic mirror (cut off at 562 nm). In our experiments, we imaged 150 – 250 µm from the brain surface, using minimum laser power (59 mW) and PMT gain (60 for green, 100 for red). With this setting, the bleed-through from green to the red channel was negligible. This is now included in the Materials and methods (subsection “Two-photon imaging”).

In response to the second comment, we have performed new experiments that quantify the time-course of the light-induced increase in MMP biomarker fluorescence. Specifically, we show in the absence of light stimulation (0 cd/m2) in a single DE subject raw fluorescent intensity (pixels) and DF/F are unchanged for 50 seconds. Similarly, there is no change in the simultaneously acquired GFP signal over this time course. In contrast, light stimulation (300 cd/m2) induces a ~ 40% increase in raw fluorescent intensity (pixels) and DF/F of the biomarker from -10 seconds to +40 seconds of visual stimulation, but no change in simultaneously acquired GFP (new Figure 5C). Population data (12 puncta from 3 subjects; new Figure 5D) shows that the increase in biomarker DF/F induced by 300 cd/m2 light stimulation is significantly differently from no light control (0 cd/m2), repeated measures ANOVA, F(1, 22), *p<0.001). In addition, we demonstrate the specificity of the biomarker for reporting MMP9 activity in new Figure 5E, in which the increase in biomarker DF/F induced by visual stimulation at 150,000 cd/m2 is blocked by pre-treatment with a potent and specific inhibitor of MMP9 (MMP9 inhibitor I, CAS 1177749-58-4; IC50=5 nM); 5 nM 4 µl at 100 nl/min) p=0.13 Student’s T-test. This is included in the Results (subsection “DE regulates threshold for perisynaptic MMP2/9 activation”).

The following questions need an answer: How was the DF/F calculated relative to the GFP signal, or biomarker signal? What evidence do we have that the imaging conditions were similar across the conditions?

DF/F of biomarker is reported as raw intensity (pixels) and DF/F, and is not calculated relative to GFP. As described in the Materials and methods, in our 2P live imaging, the laser was tuned to 940 nm, the excitation wavelength conventionally used for dual acquisition of GCaMP and mRuby (Exmax for GCaMP=490 nm, for mRuby=558 nm, (Rose et al., 2016)), to simultaneously excite GFP and A580 (Exmax for GFP=490 nm, for A580=547 nm). The emission was separated into two channels using a dichroic mirror (cut off at 562 nm). New Figure 5C shows that visual stimulation after DE induces an increase in biomarker DF/F, while the simultaneously acquired GFP DF/F is stable. This is included in the Results (subsection “DE regulates threshold for perisynaptic MMP2/9 activation”).

In our experiments, we imaged 150 – 250 µm from the brain surface, using minimum laser power (59 mW) and PMT gain (60 for green, 100 for red). With this setting, the bleed-through from green to the red channel was negligible. This is now included in the Materials and methods (subsection “Two-photon imaging”).

2) More rigorous analysis of the co-localization including estimates that colocalization would be obtained by chance.

To control for false positive co-localization of VGluT2 and MMP biomarker, we re-quantified colocalization after 90-degree rotation of the biomarker image. Following rotation, co-localization was very low, and in each case the co-localization was not regulated by visual history: cMD dep: 4.8%, cMD nondep:3.4%, LRx dep: 7.2%, LRx non-dep: 7.5%, added to Figure 1B and dep:9.2 ± 3.5%; non: 4.2 ± 0.8% in new Figure 3B (paired Student’s T-test vs. images in correct register, all p<0.01).

Reviewer #1:

The article by Murase et al. describes that one of the molecular mechanisms that is induced by light recovery following dark exposure (activation of MMP9), occurs in amblyopic animals just as it does in typically-raised animals (shown by Murase et al., 2017). In addition, the article provides evidence that expression of MMP9 occurs after dark exposure followed by light exposure at medium intensities (300 cd/m^2; matching a typical LCD computer monitor) or bright intensities (150k cd/m^2, about daylight) after either dark exposure or a shorter-duration (18 hours) dark exposure.

There are several methodological problems that will need correction.

First, the colocalization analysis is not rigorous. In order for the colocalization rates to be accurately reported, one would need to establish the expected rate of empirically counting a colocalization when there is not a synapse. In cortico-cortical synapses and in retina, confocal techniques are hopeless for this, as the density of synapses is higher than the resolution of the technique. It is possible that this is acceptable given the density of thalamocortical synapses, but no analysis is given that says this is the case. A relative increase can be argued based on the data here, but it is not eLife-quality in my opinion.

To control for false positive co-localization of VGluT2 and MMP biomarker, we re-quantified colocalization after 90-degree rotation of the biomarker image. Following rotation, co-localization was very low, and in each case the co-localization was not regulated by visual history: cMD dep: 4.8%, cMD nondep:3.4%, LRx dep: 7.2%, LRx non-dep: 7.5%, added to Figure 1B and dep:9.2 ± 3.5%; non: 4.2 ± 0.8% in new Figure 3B (paired Student’s T-test vs. images in correct register, all p<0.01).

Second, the 2-photon imaging is poorly documented and poorly described. What is the FRET calibration? Apparently we are to take some δ F / F as evidence of some signal. Showing the signal over time (maybe measured every 1-2 minutes) would be one way to show convincingly that the signal increases in a meaningful way. Showing that the green signal is constant would also be helpful, but it would be better to quantify the FRET. Is there a citation where this is all given that is missing?

The biomarker employed for 2P live imaging A580 MMP Substrate 1 (AnaSpec) is a 1768 D synthetic peptide substrate for MMP 2/9 ((QXL 570 – KPLA – Nva – Dap(5 – TAMRA) – AR – NH2), containing a Cterminal fluorescent donor carboxy-tetramethyl-rhodamine (TAMRA; 5-TAMRA (547/574 nm Abs/Em) and an N-terminal non-fluorescent acceptor QXL (quencher; Abs 570 nm) for intramolecular FRET. When the molecule is intact, i.e. in the absence of MMP 2/9 activity, intramolecular FRET (from TAMRA to QXL) quenches fluorescence emission following excitation at 547 nm. However, when the peptide is cleaved by MMP2/9, intramolecular FRET is interrupted, resulting in fluorescence with Em max = 585 nm at Ex = 545 nm (Figure 5B). In FRET applications that involve transfer from a fluorescent donor to a fluorescent acceptor, calibration is necessary to measure the fluorescence emission of the acceptor in the absence of FRET (i.e. direct activation of the acceptor during excitation of the donor), as a baseline to which all FRET signals are calibrated. However, the MMP biomarker peptide employed here, the FRET acceptor is nonfluorescent, such that FRET from donor to acceptor quenches fluorescence. In this case there is no FRET signal resulting from direct activation of the acceptor molecule, deeming calibration unnecessary. This is now included in the Materials and methods (subsection “MMP2/9 biomarkers and MMP9 inhibitor”).

In new Figure 5B, we present the fluorescent emission spectrum of the MMP 2/9 biomarker cleaved in vitro by recombinant active MMP9 with Em max = 585 nm at Ex = 545 nm. As described in the Materials and methods, in our 2P live imaging, the laser was tuned to 940 nm, the excitation wavelength conventionally used for dual acquisition of GCaMP and mRuby (Ex max for GCaMP=490 nm, for mRuby=558 nm, (Rose et al., 2016)), in order to simultaneously excite GFP and A580 (Ex max for GFP=490 nm, for A580=547 nm). The emission was separated into two channels using a dichroic mirror (cut off at 562 nm). In our experiments, we imaged 150 – 250 µm from the brain surface, using minimum laser power (59 mW) and PMT gain (60 for green, 100 for red). With this setting, the bleed-through from green to the red channel was negligible. This is now included in the Materials and methods (subsection “Two-photon imaging”).

In response to the second comment, we have performed new experiments that quantify the time-course of the light-induced increase in MMP biomarker fluorescence. Specifically, we show in the absence of light stimulation (0 cd/m2) in a single DE subject raw fluorescent intensity (pixels) and DF/F are unchanged for 50 seconds. Similarly, there is no change in the simultaneously acquired GFP signal over this time course. In contrast, light stimulation (300 cd/m2) induces a ~ 40% increase in raw fluorescent intensity (pixels) and DF/F of the biomarker from -10 seconds to +40 seconds of visual stimulation, but no change in simultaneously acquired GFP (new Figure 5C). Population data (12 puncta from 3 subjects; new Figure 5D) shows that the increase in biomarker DF/F induced by 300 cd/m2 light stimulation is significantly differently from no light control (0 cd/m2), repeated measures ANOVA, F(1, 22), *p<0.001). In addition, we demonstrate the specificity of the biomarker for reporting MMP9 activity in new Figure 5E, in which the increase in biomarker DF/F induced by visual stimulation at 150,000 cd/m2 is blocked by pre-treatment with a potent and specific inhibitor of MMP9 (MMP9 inhibitor I, CAS 1177749-58-4; IC50=5 nM); 5 nM 4 µl at 100 nl/min) p=0.13 Student’s T-test. This is included in the Results (subsection “DE regulates threshold for perisynaptic MMP2/9 activation”).

Third, it is important to give some comparisons for the light source. The luminance is described in units appropriate for a point source, but a surface is shown in Figure 5A. I imagined that 300 cd/m^2 is similar to a computer monitor in a dark room, and that 150k cd/m^2 is like daylight. This begs the question as to why 18 hours of darkness followed by typical daylight exposure might not be useful therapeutically? Perhaps this is an interesting discovery to be explored further?

Thank you, we have corrected this error and changed the illustration to a point light source.

The description of luminance measurement was expanded in the Materials and methods:

“Luminance measurement was performed with Luminance meter nt-1° (Minolta).”

Reference to environmental luminance was described in the Results (subsection “DE regulates threshold for perisynaptic MMP2/9 activation”):

– “moderate intensity light (300 cd/m2, luminance ~ luminance in the laboratory room)”;

– “high intensity light (150,000 cd/m2, brightness equivalent to direct sunlight at noon)”.

As for the response of dark-adopted (18 hr) subjects to high intensity stimulation, we incorporated reviewer’s suggestion in the Discussion:

“Indeed, following 10 days of DE, ambient light was sufficient to drive a significant increase in perisynaptic MMP 2/9. LRx induced increase in biomarker fluorescence was blocked by a potent and specific inhibitor of MMP9. Notably, 18 hours of dark adaptation induced response to high intensity light.”

Fourth, like 5% of scientists, I am red-green color-blind and can hardly make heads or tails of the red/green figures. It would be better to replace red with magenta (magenta = red + blue).

Apologies, we have changed the color scheme throughout.

[Editors' note: the author responses to the re-review follow.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The reviewers and editors agreed that the additional control for the analysis of co-localization (outlined below) is straightforward to implement, could be done quickly and would strengthen the paper.

Reviewer #1:

The manuscript is much improved and addresses most of the concerns very well.

I am a bit concerned that the 90 degree rotation as a control for the co-localization analysis doesn't really address the issue of chance co-localization. There are some regions of the image that correspond to cell bodies, which are practically without any label, so rotating the synaptic label onto these regions will naturally result in lower co-localization. It would be better to shift one of the images by 2 μm (or whatever the maximum exclusion zone size is) and re-calculate the co-localization to get a better sense of the chance co-localization in the regions where label is abundant.

We have performed this additional control for the analyses of co-localization of the MMP biomarker puncta and puncta for thalamic axons revealed by VGlut2. Figures 1 and 3 contain new analyses confirming that a 2 μm shift of the biomarker image reduces co-localization with VGlut2 and abolishes changes in co-localization induced our experimental manipulation (light reintroduction):

– Figure 1: “To control for false positive co-localization, we analyzed the co-localization following a 2 μm shift of the biomarker image relative to VGlut2. Following this manipulation we observe low co-localization of the two fluorescent signals (cMD dep: 7.8 ± 3.0%, cMD non-dep: 5.3 ± 2.7%, LRx dep: 6.9 ± 3.0%, LRx non-dep: 8.4 ± 3.0%) which differ significantly from co-localization observed with the correct registration of VGluT2 and MMP biomarker images (cMD dep: p=0.0029, cMD non-dep: p=0.036, LRx dep: p=1.5 x 10-5, LRx non-dep: p=9.5 x 10-6, paired Student’s T-Test, Figure 1B).”

– Figure 3: “Co-localization with VGluT2 following a 2 μm shift of the biomarker image was low: dep:8.0 ± 3.9%; non: 7.0 ± 3.9%, and significantly different from co-localization when the two images were correctly registered (dep: p=3.2 x 10-5; non: p=0.0017, paired Student’s T-test; Figure 3B).”

https://doi.org/10.7554/eLife.52503.sa2

Article and author information

Author details

  1. Sachiko Murase

    1. Department of Biology, University of Maryland, College Park, United States
    2. Neuroscience Cognitive Sciences Program, University of Maryland, College Park, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    For correspondence
    smurase@umd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9078-0471
  2. Dan Winkowski

    1. Department of Biology, University of Maryland, College Park, United States
    2. Neuroscience Cognitive Sciences Program, University of Maryland, College Park, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Ji Liu

    1. Department of Biology, University of Maryland, College Park, United States
    2. Neuroscience Cognitive Sciences Program, University of Maryland, College Park, United States
    Contribution
    Data curation, Formal analysis, Funding acquisition, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Patrick O Kanold

    1. Department of Biology, University of Maryland, College Park, United States
    2. Neuroscience Cognitive Sciences Program, University of Maryland, College Park, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7529-5435
  5. Elizabeth M Quinlan

    1. Department of Biology, University of Maryland, College Park, United States
    2. Neuroscience Cognitive Sciences Program, University of Maryland, College Park, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration
    For correspondence
    equinlan@umd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3496-6607

Funding

National Eye Institute (R01EY016431)

  • Elizabeth M Quinlan

National Institute on Deafness and Other Communication Disorders (R01DC009607)

  • Patrick O Kanold

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Andrew Borrell for illustration in Figure 5A.

Ethics

Animal experimentation: All procedures, under Quinlan lab protocol R-MAY-18-25, conformed to the guidelines of the University of Maryland Institutional Animal Care and Use Committee and the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health.

Senior Editor

  1. Andrew J King, University of Oxford, United Kingdom

Reviewing Editor

  1. Sacha B Nelson, Brandeis University, United States

Publication history

  1. Received: October 17, 2019
  2. Accepted: December 19, 2019
  3. Accepted Manuscript published: December 23, 2019 (version 1)
  4. Version of Record published: January 15, 2020 (version 2)

Copyright

© 2019, Murase et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 329
    Page views
  • 57
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Human Biology and Medicine
    2. Neuroscience
    Samuel A Neymotin et al.
    Tools and Resources
    1. Neuroscience
    Pascal Branchereau et al.
    Research Article Updated
